036-21528-003-A-0703
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
®
CHAMPION® ULTRA
SINGLE PACKAGE
HEAT PUMPS
BHP024 THRU 048
2 THRU 4 NOMINAL TONS
13 SEER
FACTORY MOUNTED TXV
DESCRIPTION

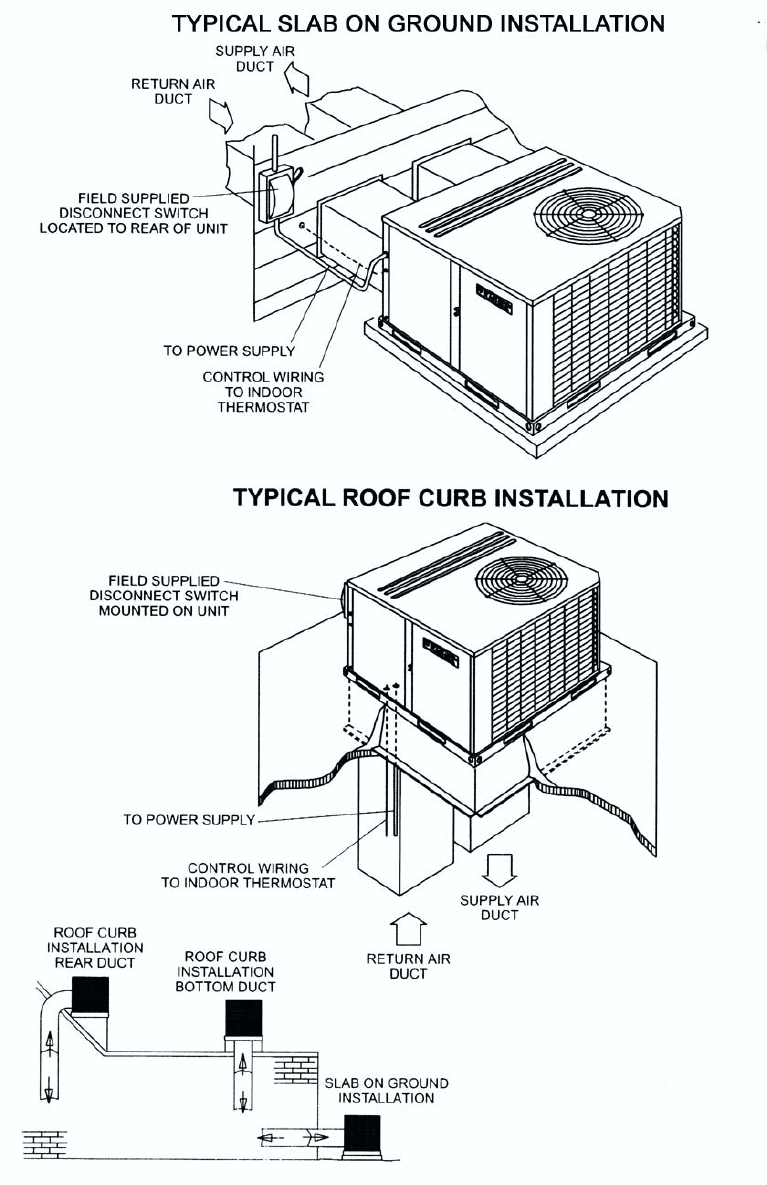

These packaged heat pumps are designed for outdoor
installation. Only utility and duct connections are required
at the point of installation.
Field-installed electric heater accessories are available to
provide electric heat, if required.
STANDARD FEATURES / BENEFITS
OPERATING EFFICIENCY
All units provide high operating efficiencies of 13 SEER, 3.3
COP or greater, and 7.6 HSPF. All efficiencies exceed leg-
islated minimum levels.
ON SITE FLEXIBILITY
All model sizes share a common, compact design cabinet
with a single footprint. The installer has the flexibility of set-
ting one curb or pad and placing the proper tonnage unit
after the internal load has been determined. Field convert-
ible duct connections, from side shot to down shot, allows
the installer greater flexibility and the need to carry less
inventory.
LOWER INSTALLATION COST
Installation time and costs are reduced by easy power and
control wiring connections. The small base dimension
means less space is required on the ground or roof. Plus,
the installer can fit this unit between the wheel wells of full
size pick-up truck. All models are under 500 pounds.
All units are completely wired, charged with R-22 and
tested prior to shipment. Unique test stations, are used to
insure product quality. Refrigerant charge, and component
part numbers are verified via computers at manufacturing
point. Vital run test statistics, such as, system pressure,
motor currents, air velocity and temperature unit vibration
are monitored and recorded by the system to insure unit
performance.

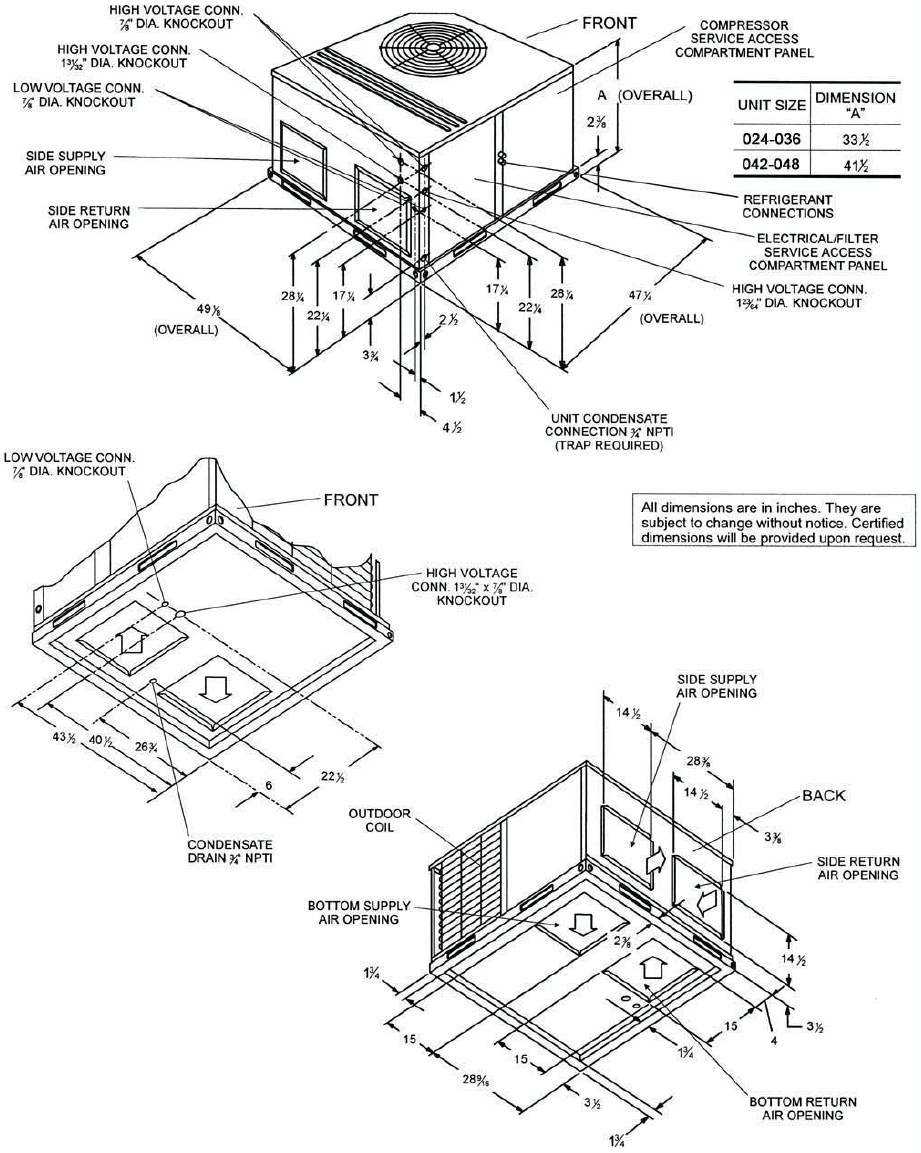

Equal size, side supply and return duct connections allow
easy hook-up of ducts to match low crawl spaces without
transition pieces.
UTILITY CONNECTIONS MADE EASY
Electrical utility knockouts are provided through the bottom,
as well as the side of the unit. Utility connections can be
made quickly and with a minimum amount of field labor. A
field supplied and field installed electrical disconnect
switch must be installed.
CONVERTIBLE AIRFLOW DESIGN
The bottom duct openings are covered when they leave the
factory. They are ready for a side supply / side return appli-
cation. If a bottom supply / bottom return application is
desired, you simply remove the two panels from the bottom
of the unit and place them in the side supply / side return
duct openings. No panel cutting is required and no acces-
sory panel is necessary. Convertible airflow design allows
maximum field flexibility and minimum inventory.
036-21528-003-A-0703
2Unitary Products Group
CONDENSATE PAN
A non-corrosive, long-lasting, water-tight pan is posi-
tioned below the evaporator coil to collect and drain all
condensate; less collection of stagnate condensate will
build-up. The condensate pan conforms to ASHRAE
62-89 standards (Ventilation for Acceptable Indoor Air
Quality).
CONDENSATE DRAIN
The heavy duty, inch NPTI copper connection is more
tolerable during installation and is more durable over
time. The connection is rigidly mounted to assure
proper fit and leak tight seal.
DURABLE FINISH
With a heavy duty cabinet made of powder-painted,
galvanized steel, the neutral color blends into sur-
rounding areas. The powered paint provides a better
paint to steel bond, which resists corrosion and rust
creep. The special primer formulas and glossy earth
tone finish insure less fading when exposed to sunlight
and offers a more attractive on site appearance. This
paint finish exceeds ASTM-B117 standards for 750
hours salt spray rating, the highest in the industry.
FULL PERIMETER BASE RAILS
The easily removable base rails provide a solid founda-
tion for the entire unit and protects the unit during ship-
ment. The rails provide fork lift access from all sides.
Rigging holes are, provided also so that an overhead
crane can be used to place the unit on a roof. On appli-
cations when the unit is placed on a pad, the base will
keep the unit off the pad to deter corrosion. On applica-
tions where height is limited, the 2-3/8 inch high base
rails may be removed on location.
MORE ATTRACTIVE APPEARANCE
A single piece “Water Shed” top cover containing a top
discharge condenser fan arrangement requires less
square footage on installation and provides a wider
variety of installations. The one piece design adds
greater water integrity. Rounded corners with water
drip edges add to the attractive appearance. The cabi-
net panels have a non-fibrous insulation that reduces
insulation fibers into conditioned area.
TOP DISCHARGE
The top discharge condenser fan does not disrupt
neighboring areas and does not dry-out vegetation sur-
rounding the unit. The warm air from the top mounted
fan is blown up away from the structure and any land-
scaping. This allows compact location on multi-unit
applications.
OUTDOOR COIL GRILLE
A multi-piece totally enclosed, rigidly mounted outdoor
coil grille provides protection from objects and person-
nel after installation. It also provides protection during
transit and installation.
LOW OPERATING SOUND LEVEL
The upward air flow carries the normal operating noise
up and away from the living area. The rigid top panel
effectively isolates any motor sound. Isolator mounted
compressor and the rippled fins of the condenser coil,
muffle the normal fan motor and compressor operating
sounds. The unique formed base pan also aids in
sound alterations with it's “Super-Structure” design.
This design strategically places embossments in the
pan for optimum strength and rigidity.
FAN SYSTEM
All models operate over a wide range of design condi-
tions with an (E.C.M.) electronically commutated motor
that automatically adjusts the blower speed to meet a
wide range of static requirements. These units easily
match all types of applications and provides greater on
site flexibility to match comfort requirements.
SIMPLE CONTROL CIRCUIT
A low voltage printed circuit board contains a low volt-
age terminal strip. The electrical control box is not
located in the compressor compartment. All wiring
internal to the unit is color/number coded.
CONTROLS
Reliable demand defrost control provides defrost.
Defrost control also provides an “X” terminal to provide
a 24 volt signal for room thermostat “LED” indication of
unit lockout, plus, built in 5 minute anti-short cycle pro-
tection.
036-21528-003-A-0703
Unitary Products Group 3
PROTECTED COMPRESSOR
The compressor is internally protected against high
pressure and temperature. This is accomplished by the
simultaneous operation of high pressure relief valve
and a temperature sensor which protects the compres-
sor, if undesirable operating conditions occur.
EXCLUSIVE COIL DESIGN
Grooved copper tubes and enhanced aluminum fin
construction improves heat transfer for maximum effi-
ciency and durability.
LOW MAINTENANCE
Long life, permanently lubricated condenser and evap-
orator fan motor bearings, need no annual mainte-
nance. Blower assembly can be easily cleaned by the
unique “Slip Track” slide-out blower assembly.
SECURED SERVICE ACCESS PORTS
Protected, externally mounted, re-usable service
access ports are provided on both the high and low
lines for ease of evacuating and charging the system.
EASY SERVICE ACCESS
A large, single hinged panel covers the electrical con-
trols and makes servicing easy. The blower compart-
ment has an additional large panel with a built-in
handle tab. Removing this panel will allow the blower
assembly to slide-out for easy removal for mainte-
nance and ease of trouble shooting.
REPLACEMENT PARTS
The installer has no need to carry an inventory of
unique parts or needs special training to replace any of
the components parts for these units. All are easily
obtained from Source 1 or other major part houses.
FIELD-INSTALLED ACCESSORIES
ECONOMIZER DOWN DISCHARGE / SUPPLY KIT
Modulating integrated economizer provides simulta-
neous operation between the mechanical cooling and
economizer operation. Independent blade design
insures proper control and less than 1% leak rate.
Includes hood and mesh bird screen filter integrated
into the hood, dry bulb sensor and relief damper. Sepa-
rate field accessories of single enthalpy and dual
enthalpy are also available.
SINGLE ENTHALPY SENSOR
Sensor replaces dry bulb sensor standard in econo-
mizer kit. Provides improved economizer operation by
sensing the dry bulb temperature from outdoors, plus
the enthalpy content of the outdoor air.
DUAL ENTHALPY SENSOR
Additional sensor to single enthalpy sensor. Sensor
selects both the return air temperature dry bulb and
humidity, in conjunction with the single enthalpy, to
determine the most economical mix. Single Enthalpy
sensor also required.
UPGRADE PRESSURE PACKAGE
Contains screw in type High pressure, Low Pressure/
Loss of Charge switch, freeze protection switch and
lockout relay. Switches are placed onto existing
Schrader ports located in the unit by furnished adapt-
ers. When abnormal conditions are sensed through the
pressure switches, the unit will lock out, preventing any
further operation until reset or problem is corrected.
Package agency approved.
HAIL GUARD KIT
Kit contains protected grilles made of expanded alumi-
num grilles with full perimeter 1-1/2 inch frame. Sloped
hoods are also included to assure maximum protec-
tion.
FILTER / FRAME KIT (SINGLE PHASE ONLY)
Kit contains the necessary hardware to field install
return air filters into the base unit. Pre-cut filter racks
and appropriate cleanable standard size filters are
shipped in one kit (1" filter is supplied). This kit is avail-
able for single phase horizontal or vertical duct applica-
tion only. Standard in all 3 Phase models.
MOTORIZED FRESH AIR DAMPER
Designed for duct mounted side return and unit
mounted down shot return applications. Damper capa-
ble of providing 0% thru 50% of outdoor air (field sup-
plied). Closes on power loss, includes hood and screen
assembly.
036-21528-003-A-0703
4Unitary Products Group
RECTANGLE TO ROUND ADAPTERS
Kit includes one supply and one return air rectangle to
round duct adapter. Adapters are preformed and
designed to fit over current duct openings on the base
unit. Transition is from 15" square to 14" round.
ROOF CURBS
NRCA approved curbs provide proper fit to base unit
for rooftop installations. Curbs are designed to be
assembled through hinge pins in each corner. Kit also
provides seal strip to assure a water tight seal. Eight
and 14 inch high roof curbs are available.
MANUAL OUTDOOR DAMPER
Provides 0% thru 50% outdoor air capability (field
adjustable). Designed for duct mounted side return and
unit mounted down shot applications. Includes hood
and screen assembly.
WALL THERMOSTAT
The units are designed to operate with 24-volt elec-
tronic and electro-mechanical thermostats. All units
can operate with single stage heat / single stage cool
thermostats - with or without the economizer.
ELECTRIC HEATERS
Each heater package provides easy installation of elec-
tric heat strips. Slide in design with plug in harness and
agency approved. Heaters are available from 5.0 KW
sizes and are designed for single point and dual con-
nection.
TABLE OF CONTENTS
Description ............................................................................1
Standard Features / Benefits ................................................1
Field-installed Accessories ...................................................3
Unit Cut Away .......................................................................5
Ratings .................................................................................5
Physical Data ........................................................................5
Cooling Capacities - 2 Ton (BHP024) ..................................6
Cooling Capacities - 2-1/2 Ton (BHP030) ............................7
Cooling Capacities - 3 Ton (BHP036) ..................................8
Cooling Capacities - 3-1/2 Ton (BHP042) ............................9
Cooling Capacities - 4 Ton (BHP048) ................................10
Heating Capacities - 2 Ton (BHP024) ................................11
Heating Capacities - 2-1/2 Ton (BHP030) .........................11
Heating Capacities - 3 Ton (BHP036) ................................12
Heating Capacities - 3-1/2 Ton (BHP042) ..........................12
Heating Capacities - 4 Ton (BHP048) ................................13
Side & Bot. Sup. Air Blower Perf. (208/230/460 Volts) ...... 14
Additional Static Resistance .............................................. 14
Field Wiring Diagram ......................................................... 15
Electrical Data (Basic Unit) ................................................ 16
Electrical Data (13 Seer Heat Pump / Electric Heat) ......... 17
Application Data ................................................................. 18
Center of Gravity and Weights ........................................... 18
Unit Clearances ................................................................. 18
Unit Dimensions ................................................................. 19
Typical Applications ........................................................... 20
Roof Curb Dimensions ....................................................... 21
Typical Wiring Diagram (208/230-1-60 Power Supply) ...... 22
Typical Wiring Diagram (230-3-60 Power Supply) ............. 23
Typical Wiring Diagram (460-3-60 Power Supply) ............. 24
Mechanical Specifications .................................................. 25
036-21528-003-A-0703
Unitary Products Group 5
SEER =Seasonal Energy Efficiency Ratio - the total cooling output in BTU's during a normal annual usage period for cooling divided by the total electric
power input in watt-hours during the same period.
COP = Coefficient of Performance - the total heating capacity provided by the refrigeration system, including circulating fan heat but excluding supple-
mentary resistance (BGU’s per hour) divided by the total electric input (watts) x 3.412.

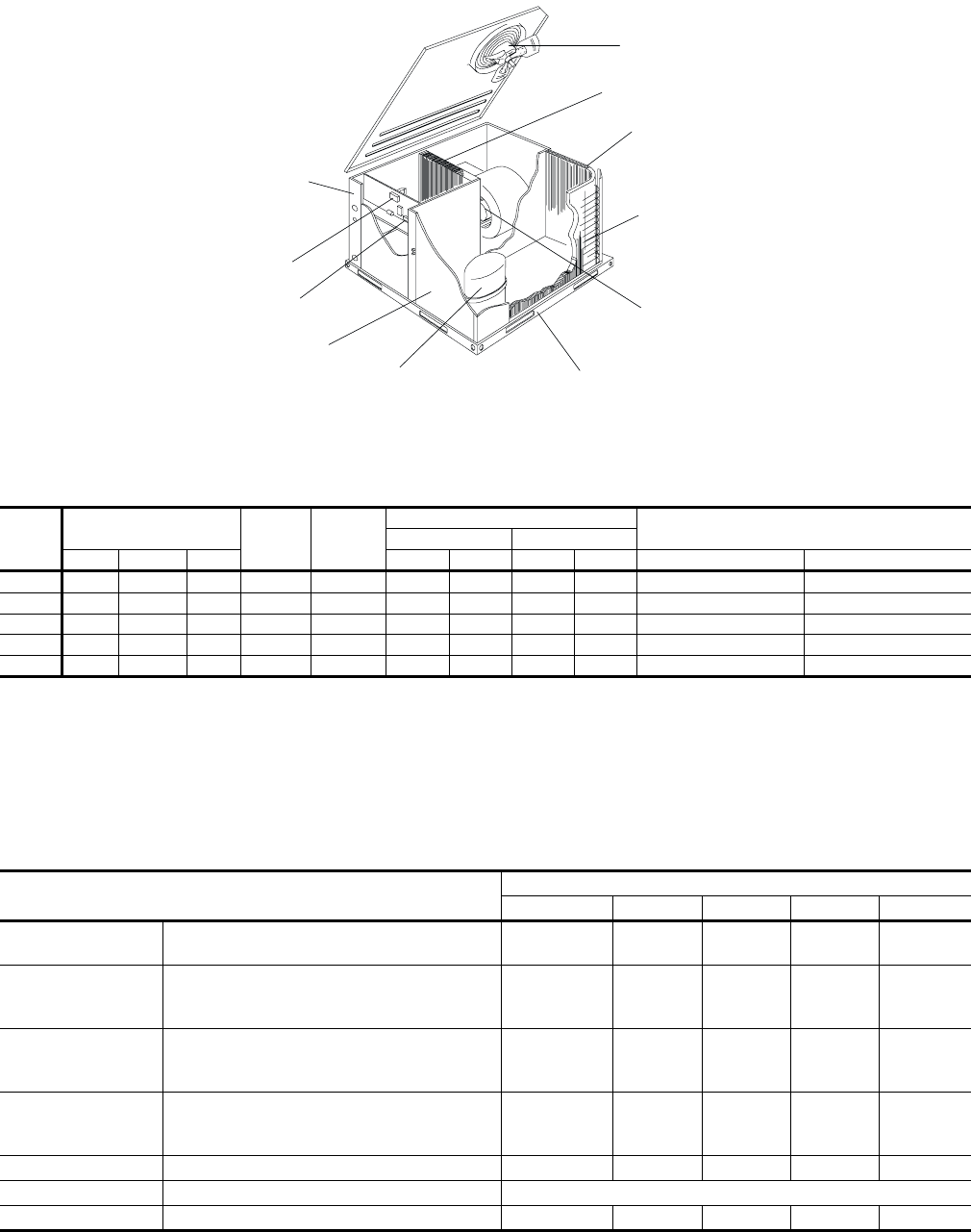

FIGURE 1 - UNIT CUT AWAY
DIRECT DRIVE
CONDENSER
FAN MOTOR
HIGHLY EFFICIENT ENHANCED
COPPER TUBE/ALUMINUM FIN
INDOOR COIL
HIGHLY EFFICIENT
ENHANCED COPPER
TUBE/ALUMINUM FIN
OUTDOOR COIL
DECORATIVE
PROTECTIVE
COIL GUARD
ECM DIRECT DRIVE
BLOWER MOTOR WITH
SLIDE-OUT BLOWER ASSEMBLY
HEAVY GAUGE
REMOVABLE
BASE RAILS
HIGH-EFFICIENCY
COMPRESSOR
RIGIDLY
MOUNTED
LONG-LASTING
POWDER PAINT
FINISH
LOW VOLTAGE
TERMINAL BLOCK
HIGH VOLTAGE
TERMINAL BLOCK
BACK AND BOTTOM
RETURN AIR
AND SUPPLY AIR
DUCT OPENING
TABLE 1: RATINGS
MODEL
BHP
COOLING CAPACITY1
80 / 67-95°F HSPF1SOUND
RATING2
(dbels)
NET HEATING CAPACITY AVAILABLE ELECTRIC HEAT
NOMINAL CAPACITY KW
@47°F @17°F
MBH SEER EER MBH COP MBH COP SINGLE PHASE THREE PHASE
024 24.4 13.0 11.3 7.6 79 21.8 3.40 11.0 2.00 5.0, 7.5, 10.0 N / A
030 30.0 13.0 11.3 7.6 77 28.2 3.40 16.5 2.20 5.0, 7.5, 10.0, 15.0 10.0, 15.0
036 35.5 13.0 11.3 7.6 77 32.0 3.30 18.9 2.20 5.0, 7.5, 10.0, 15.0 10.0, 15.0
042 42.0 13.0 11.3 7.6 83 42.0 3.40 23.0 2.20 10.0, 15.0 10.0, 15.0
048 47.0 13.0 11.3 7.6 82 45.0 3.30 25.8 2.20 10.0, 15.0, 20.0, 25.0 10.0, 15.0, 20.0, 25.0
1. Certified in accordance with the Uniary Small Equipment certification program, which is based on ARI Standard 210/240.
2. Rated in accordance with ARI Standard 270.
TABLE 2: PHYSICAL DATA
MODELS BHP
024 030 036 042 048
INDOOR
BLOWER
CENTRIFUGAL BLOWER (Dia. x Wd. in.)
FAN MOTOR HP (ECM)
10 X 8
1/2
10 X 8
1/2
11 x 10
3/4
11 x 10
3/4
11 X 10
3/4
INDOOR
COIL
ROWS DEEP
FINS PER INCH
FACE AREA (Sq. Ft.)
2
15
4.38
3
13
4.38
3
15
4.38
3
16
5.63
3
16
5.63
OUTDOOR
FAN
PROPELLER DIA. (in.)
FAN MOTOR HP
NOM. CFM TOTAL
22
1/4
1,800
22
1/4
1,800
22
1/4
2,400
22
1/4
2,400
22
1/4
3,000
OUTDOOR
COIL
ROWS DEEP
FINS PER INCH
FACE AREA (Sq. Ft.)
1
20
11.7
1
20
11.7
2
20
11.7
2
20
16.4
2
20
16.4
CHARGE REFRIGERANT 22 (lbs./oz.) 5 / 5 5 / 15 8 / 4 9 / 14 12 / 0
FILTER FACE AREA (Sq. Ft. / Qty. / Size) 4.28 / 2 / 14 x 22
COMPRESSOR Hermetic Type, Qty. = 1 Reciprocating Scroll Scroll Scroll Scroll
036-21528-003-A-0703
6Unitary Products Group
TABLE 3: COOLING CAPACITIES - 2 TON (BHP024)
TEMPERATURE AIR ON
OUTDOOR COIL
TEMPERATURE OF AIR ON INDOOR COIL
800 CFM 900 CFM
WB °F WB °F
72 67 62 57 72 67 62 57
85 °F
NET CAP. MBH 29.1 26.0 23.8 23.4 29.7 26.6 24.3 23.9
POWER INPUT kW 1.93 1.91 1.88 1.87 1.95 1.93 1.91 1.90
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 19.2 23.1 23.8 23.4 20.9 25.1 24.3 23.9
83 16.9 20.8 23.8 23.4 18.3 22.5 24.3 23.9
80 14.5 18.5 21.9 22.7 15.6 19.8 23.4 23.6
77 12.2 16.1 19.5 20.3 12.9 17.2 20.7 20.9
74 9.9 13.8 17.2 18.0 10.3 14.5 18.0 18.2
71 #N/A 11.5 14.9 15.7 #N/A 11.9 15.4 15.6
68 #N/A 9.1 12.5 13.3 #N/A 9.2 12.7 12.9
95 °F
NET CAP. MBH 27.2 24.2 22.1 22.0 27.7 24.6 22.5 22.4
POWER INPUT kW 2.07 2.06 2.02 2.02 2.09 2.08 2.05 2.04
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 18.6 22.3 22.1 22.0 20.1 23.7 22.5 22.4
83 16.2 20.0 22.1 22.0 17.5 21.5 22.5 22.4
80 13.9 17.7 20.8 21.4 14.8 18.9 21.8 22.1
77 11.6 15.3 18.4 19.0 12.2 16.2 19.2 19.4
74 9.2 13.0 16.1 16.7 9.5 13.5 16.5 16.8
71 #N/A 10.7 13.8 14.4 #N/A 10.9 13.8 14.1
68 #N/A 8.3 11.4 12.0 #N/A 8.2 11.2 11.5
105 °F
NET CAP. MBH 23.8 22.4 20.5 20.6 24.2 22.8 20.8 20.9
POWER INPUT kW 2.20 2.21 2.17 2.16 2.24 2.24 2.20 2.19
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 19.5 21.5 20.5 20.6 20.4 22.3 20.8 20.9
83 17.2 19.2 20.5 20.6 18.5 20.7 20.8 20.9
80 14.9 16.9 19.7 20.0 15.9 18.1 20.4 20.6
77 12.6 14.6 17.4 17.7 13.3 15.4 17.8 18.0
74 10.2 12.2 15.1 15.3 10.6 12.7 15.1 15.3
71 #N/A 9.9 12.7 13.0 #N/A 10.1 12.4 12.6
68 #N/A 7.6 10.4 10.7 #N/A 7.4 9.8 10.0
115 °F
NET CAP. MBH 20.4 20.7 18.9 19.2 20.6 20.9 19.1 19.4
POWER INPUT kW 2.34 2.36 2.32 2.31 2.38 2.40 2.36 2.35
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 20.4 20.7 18.9 19.2 20.6 20.9 19.1 19.4
83 18.2 18.5 18.9 19.2 19.5 19.8 19.1 19.4
80 15.9 16.1 18.7 18.6 17.0 17.3 19.0 19.1
77 13.6 13.8 16.4 16.3 14.4 14.6 16.4 16.5
74 11.2 11.5 14.1 14.0 11.7 11.9 13.7 13.8
71 #N/A 9.1 11.7 11.6 #N/A 9.3 11.1 11.2
68 #N/A 6.8 9.4 9.3 #N/A 6.6 8.4 8.5
125 °F
NET CAP. MBH 17.0 18.9 17.3 17.8 17.0 19.0 17.5 17.9
POWER INPUT kW 2.47 2.51 2.46 2.45 2.52 2.56 2.51 2.50
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 21.3 19.9 17.3 17.8 20.8 19.5 17.5 17.9
83 19.2 17.7 17.3 17.8 20.6 18.9 17.5 17.9
80 16.9 15.4 17.7 17.3 18.1 16.5 17.6 17.7
77 14.6 13.0 15.4 15.0 15.4 13.8 15.0 15.0
74 12.2 10.7 13.1 12.6 12.8 11.1 12.3 12.3
71 #N/A 8.4 10.7 10.3 #N/A 8.5 9.7 9.7
68 #N/A 6.0 8.4 8.0 #N/A 5.8 7.0 7.0
1. These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
036-21528-003-A-0703
Unitary Products Group 7
TABLE 4: COOLING CAPACITIES - 2-1/2 TON (BHP030)
TEMPERATURE AIR ON
OUTDOOR COIL
TEMPERATURE OF AIR ON INDOOR COIL
1000 CFM 1125 CFM
WB °F WB °F
72 67 62 57 72 67 62 57
85 °F
NET CAP. MBH 34.1 31.5 28.4 29.9 35.4 32.7 29.5 31.0
POWER INPUT kW 2.52 2.48 2.44 2.43 2.64 2.58 2.54 2.53
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 23.9 29.8 28.4 29.9 25.7 31.8 29.5 31.0
83 21.0 26.9 28.4 29.9 22.4 28.5 29.5 31.0
80 18.1 23.9 27.9 29.6 19.0 25.2 29.2 30.8
77 15.2 21.0 24.9 26.6 15.7 21.9 25.9 27.5
74 12.3 18.1 22.0 23.7 12.4 18.5 22.6 24.2
71 #N/A 15.2 19.1 20.8 #N/A 15.2 19.2 20.9
68 #N/A 12.3 16.2 17.9 #N/A 11.9 15.9 17.5
95 °F
NET CAP. MBH 32.6 29.4 26.8 28.9 33.7 30.4 27.7 29.8
POWER INPUT kW 2.83 2.81 2.71 2.70 2.93 2.91 2.81 2.79
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 22.8 28.2 26.8 28.9 25.0 29.7 27.7 29.8
83 19.9 25.3 26.8 28.9 21.7 27.5 27.7 29.8
80 17.0 22.4 26.6 28.3 18.3 24.2 27.5 29.5
77 14.1 19.5 23.6 25.4 15.0 20.8 24.2 26.2
74 11.1 16.5 20.7 22.5 11.7 17.5 20.9 22.9
71 #N/A 13.6 17.8 19.6 #N/A 14.2 17.6 19.6
68 #N/A 10.7 14.9 16.7 #N/A 10.9 14.3 16.2
105 °F
NET CAP. MBH 30.3 27.2 25.0 26.7 31.5 28.2 26.0 27.7
POWER INPUT kW 3.14 3.12 3.04 3.06 3.24 3.22 3.14 3.16
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 21.7 26.6 25.0 26.7 23.9 27.9 26.0 27.7
83 18.8 24.1 25.0 26.7 20.6 26.3 26.0 27.7
80 15.9 21.1 25.4 26.3 17.2 22.9 26.2 27.5
77 13.0 18.2 22.4 23.3 13.9 19.6 22.9 24.2
74 10.1 15.3 19.5 20.4 10.6 16.3 19.6 20.9
71 #N/A 12.4 16.6 17.5 #N/A 13.0 16.2 17.6
68 #N/A 9.5 13.7 14.6 #N/A 9.7 12.9 14.2
115 °F
NET CAP. MBH 28.0 24.9 23.2 24.4 29.3 26.1 24.4 25.6
POWER INPUT kW 3.45 3.43 3.37 3.42 3.56 3.54 3.48 3.53
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 20.7 24.9 23.2 24.4 22.8 26.1 24.4 25.6
83 17.7 22.8 23.2 24.4 19.5 25.0 24.4 25.6
80 14.8 19.9 24.2 24.2 16.2 21.7 24.8 25.5
77 11.9 17.0 21.3 21.3 12.8 18.4 21.5 22.2
74 9.0 14.1 18.3 18.4 9.5 15.1 18.2 18.9
71 #N/A 11.2 15.4 15.4 #N/A 11.8 14.9 15.5
68 #N/A 8.3 12.5 12.5 #N/A 8.4 11.6 12.2
125 °F
NET CAP. MBH 25.6 22.7 21.4 22.2 27.2 24.0 22.7 23.5
POWER INPUT kW 3.76 3.74 3.70 3.78 3.87 3.85 3.82 3.89
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 19.6 23.3 21.4 22.2 21.7 24.3 22.7 23.5
83 16.7 21.6 21.4 22.2 18.4 23.8 22.7 23.5
80 13.7 18.7 23.0 22.1 15.1 20.5 23.5 23.5
77 10.8 15.8 20.1 19.2 11.7 17.2 20.2 20.2
74 7.9 12.9 17.1 16.3 8.4 13.9 16.8 16.8
71 #N/A 10.0 14.2 13.4 #N/A 10.5 13.5 13.5
68 #N/A 7.1 11.3 10.4 #N/A 7.2 10.2 10.2
1. These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
036-21528-003-A-0703
8Unitary Products Group
TABLE 5: COOLING CAPACITIES - 3 TON (BHP036)
TEMPERATURE AIR ON
OUTDOOR COIL
TEMPERATURE OF AIR ON INDOOR COIL
1050 CFM 1200 CFM
WB °F WB °F
72 67 62 57 72 67 62 57
85 °F
NET CAP. MBH 41.1 37.5 34.5 34.3 42.4 38.6 35.5 35.3
POWER INPUT kW 2.89 2.81 2.73 2.73 3.00 2.91 2.83 2.82
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 25.6 32.3 34.5 34.3 28.2 35.5 35.5 35.3
83 22.5 29.3 33.5 33.6 24.7 32.0 35.5 35.3
80 19.5 26.3 31.7 32.2 21.2 28.5 34.5 35.0
77 16.5 23.2 28.7 29.1 17.7 25.0 31.0 31.5
74 13.4 20.2 25.7 26.1 14.2 21.6 27.5 28.0
71 #N/A 17.2 22.6 23.1 #N/A 18.1 24.0 24.5
68 #N/A 14.1 19.6 20.0 #N/A 14.6 20.5 21.0
95 °F
NET CAP. MBH 38.5 34.9 32.5 32.6 39.4 35.8 33.3 33.4
POWER INPUT kW 3.21 3.15 3.05 3.06 3.31 3.25 3.15 3.16
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 25.0 30.9 32.5 32.6 27.5 33.9 33.3 33.4
83 22.0 27.9 31.9 32.0 24.0 30.4 33.3 33.4
80 19.0 24.8 30.5 30.6 20.5 26.9 33.0 33.1
77 15.9 21.8 27.5 27.5 17.0 23.4 29.5 29.6
74 12.9 18.8 24.4 24.5 13.5 19.9 26.0 26.1
71 #N/A 15.7 21.4 21.5 #N/A 16.4 22.5 22.6
68 #N/A 12.7 18.4 18.5 #N/A 12.9 19.0 19.1
105 °F
NET CAP. MBH 35.6 32.1 29.5 30.4 36.4 32.8 30.2 31.1
POWER INPUT kW 3.61 3.52 3.44 3.45 3.70 3.61 3.53 3.54
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 23.9 29.4 29.5 30.4 26.2 31.9 30.2 31.1
83 20.9 26.6 29.2 30.0 22.7 28.9 30.2 31.1
80 17.9 23.6 27.8 28.6 19.2 25.4 30.0 30.8
77 14.8 20.5 24.8 25.5 15.7 21.9 26.5 27.3
74 11.8 17.5 21.8 22.5 12.2 18.4 23.0 23.8
71 #N/A 14.5 18.7 19.5 #N/A 14.9 19.5 20.3
68 #N/A 11.4 15.7 16.4 #N/A 11.4 16.0 16.8
115 °F
NET CAP. MBH 32.6 29.3 26.5 28.2 33.3 29.9 27.0 28.8
POWER INPUT kW 4.01 3.88 3.83 3.84 4.10 3.97 3.91 3.92
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 22.8 27.8 26.5 28.2 25.0 29.9 27.0 28.8
83 19.8 25.3 26.5 28.0 21.5 27.4 27.0 28.8
80 16.8 22.3 25.2 26.5 18.0 23.9 27.0 28.5
77 13.7 19.2 22.2 23.5 14.5 20.4 23.5 25.0
74 10.7 16.2 19.1 20.5 11.0 16.9 20.0 21.5
71 #N/A 13.2 16.1 17.4 #N/A 13.4 16.5 18.0
68 #N/A 10.1 13.1 14.4 #N/A 9.9 13.0 14.5
125 °F
NET CAP. MBH 29.7 26.4 23.5 26.0 30.2 26.9 23.9 26.4
POWER INPUT kW 4.41 4.25 4.21 4.22 4.49 4.33 4.29 4.30
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 21.7 26.3 23.5 26.0 23.7 27.9 23.9 26.4
83 18.7 24.0 23.8 25.9 20.2 25.9 23.9 26.4
80 15.7 21.0 22.6 24.5 16.7 22.4 24.1 26.2
77 12.6 17.9 19.5 21.5 13.2 18.9 20.6 22.7
74 9.6 14.9 16.5 18.4 9.7 15.4 17.1 19.2
71 #N/A 11.9 13.5 15.4 #N/A 11.9 13.6 15.7
#78 #N/A 8.8 10.4 12.4 #N/A 8.4 10.1 12.2
1. These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
036-21528-003-A-0703
Unitary Products Group 9
TABLE 6: COOLING CAPACITIES - 3-1/2 TON (BHP042)
TEMPERATURE AIR ON
OUTDOOR COIL
TEMPERATURE OF AIR ON INDOOR COIL
1300 CFM 1400 CFM
WB °F WB °F
72 67 62 57 72 67 62 57
85 °F
NET CAP. MBH 48.8 44.5 40.5 40.6 49.2 44.9 40.8 41.0
POWER INPUT kW 3.37 3.32 3.21 3.20 3.43 3.38 3.27 3.26
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 31.6 39.4 40.5 40.6 33.0 41.0 40.8 41.0
83 27.8 35.6 40.1 40.5 28.9 36.9 40.8 41.0
80 24.0 31.8 38.8 40.2 24.8 32.8 40.1 41.5
77 20.2 27.9 35.0 36.4 20.7 28.8 36.0 37.4
74 16.4 24.1 31.2 32.6 16.7 24.7 31.9 33.4
71 #N/A 20.3 27.4 28.7 #N/A 20.6 27.9 29.3
68 #N/A 16.5 23.5 24.9 #N/A 16.5 23.8 25.2
95 °F
NET CAP. MBH 45.4 41.5 38.3 38.5 45.7 41.9 38.6 38.8
POWER INPUT kW 3.67 3.66 3.54 3.54 3.72 3.71 3.60 3.60
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 30.7 38.2 38.3 38.5 32.0 39.8 38.6 38.8
83 26.9 34.4 38.1 38.3 27.9 35.7 38.6 38.8
80 23.0 30.6 37.5 37.9 23.9 31.6 38.8 39.2
77 19.2 26.8 33.6 34.0 19.8 27.6 34.7 35.1
74 15.4 23.0 29.8 30.2 15.7 23.5 30.6 31.0
71 #N/A 19.1 26.0 26.4 #N/A 19.4 26.5 26.9
68 #N/A 15.3 22.2 22.6 #N/A 15.3 22.4 22.8
105 °F
NET CAP. MBH 41.9 37.7 35.2 35.6 42.1 37.9 35.4 35.7
POWER INPUT kW 4.01 3.98 3.89 3.88 4.06 4.03 3.94 3.93
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 28.1 34.5 35.2 35.6 29.4 35.8 35.4 35.7
83 24.5 31.6 34.8 35.1 25.6 33.0 35.2 35.5
80 21.0 28.1 33.7 33.8 21.8 29.1 34.9 35.1
77 17.4 24.6 30.1 30.3 18.0 25.3 31.1 31.2
74 13.9 21.0 26.6 26.7 14.1 21.5 27.3 27.4
71 #N/A 17.5 23.0 23.2 #N/A 17.7 23.5 23.6
68 #N/A 13.9 19.5 19.6 #N/A 13.9 19.7 19.8
115 °F
NET CAP. MBH 38.7 34.2 32.4 32.9 38.8 34.3 32.5 33.0
POWER INPUT kW 4.41 4.35 4.28 4.28 4.46 4.40 4.33 4.32
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 26.8 32.5 32.4 32.9 28.1 33.4 32.5 33.0
83 23.3 30.2 32.1 32.3 24.3 31.5 32.3 32.7
80 19.7 26.7 31.2 31.0 20.5 27.7 32.4 32.2
77 16.2 23.1 27.6 27.5 16.7 23.9 28.6 28.4
74 12.6 19.6 24.1 24.0 12.9 20.1 24.8 24.6
71 #N/A 16.1 20.6 20.4 #N/A 16.3 20.9 20.8
68 #N/A 12.5 17.0 16.9 #N/A 12.5 17.1 17.0
125 °F
NET CAP. MBH 35.6 30.7 29.6 30.3 35.5 30.6 29.6 30.2
POWER INPUT kW 4.81 4.73 4.68 4.67 4.85 4.77 4.72 4.71
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 25.5 30.4 29.6 30.3 26.8 31.0 29.6 30.2
83 22.0 28.8 29.4 29.6 23.0 30.1 29.5 29.9
80 18.5 25.3 28.7 28.3 19.2 26.3 29.8 29.4
77 14.9 21.7 25.1 24.8 15.4 22.5 26.0 25.6
74 11.4 18.2 21.6 21.2 11.6 18.6 22.2 21.8
71 #N/A 14.6 18.1 17.7 #N/A 14.8 18.4 18.0
68 #N/A 11.1 14.5 14.1 #N/A 11.0 14.6 14.2
1. These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
036-21528-003-A-0703
10 Unitary Products Group
TABLE 7: COOLING CAPACITIES - 4 TON (BHP048)
TEMPERATURE AIR ON
OUTDOOR COIL
TEMPERATURE OF AIR ON INDOOR COIL
1500 CFM 1600 CFM
WB °F WB °F
72 67 62 57 72 67 62 57
85 °F
NET CAP. MBH 54.3 50.4 45.7 48.2 54.9 51.0 46.3 48.8
POWER INPUT kW 3.97 3.85 3.75 3.74 4.06 3.94 3.83 3.83
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 35.5 45.1 45.7 48.2 37.2 47.1 46.3 48.8
83 31.2 40.8 45.3 47.5 32.5 42.4 46.3 48.8
80 26.8 36.4 43.7 45.2 27.8 37.8 45.3 46.9
77 22.5 32.0 39.3 40.9 23.2 33.1 40.6 42.3
74 18.1 27.7 35.0 36.5 18.5 28.4 36.0 37.6
71 #N/A 23.3 30.6 32.2 #N/A 23.8 31.3 32.9
68 #N/A 19.0 26.3 27.8 #N/A 19.1 26.6 28.3
95 °F
NET CAP. MBH 52.0 47.4 43.5 46.1 52.3 47.7 43.8 46.4
POWER INPUT kW 4.33 4.25 4.17 4.11 4.43 4.35 4.26 4.20
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 34.6 43.5 43.5 46.1 36.1 45.3 43.8 46.4
83 30.3 39.1 43.1 45.4 31.5 40.6 43.8 46.4
80 25.9 34.8 42.1 43.2 26.8 36.0 43.6 44.7
77 21.5 30.4 37.8 38.8 22.1 31.3 38.9 40.0
74 17.2 26.1 33.4 34.5 17.5 26.6 34.3 35.3
71 #N/A 21.7 29.1 30.1 #N/A 22.0 29.6 30.7
68 #N/A 17.3 24.7 25.8 #N/A 17.3 24.9 26.0
105 °F
NET CAP. MBH 48.8 44.2 40.1 43.2 49.0 44.5 40.3 43.5
POWER INPUT kW 4.71 4.62 4.52 4.47 4.81 4.71 4.61 4.56
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 32.0 40.2 40.1 43.2 33.5 41.8 40.3 43.5
83 28.0 36.5 39.7 41.8 29.2 38.0 40.1 42.7
80 23.9 32.4 39.6 39.3 24.8 33.6 41.0 40.8
77 19.9 28.4 35.5 35.3 20.5 29.3 36.7 36.4
74 15.9 24.3 31.5 31.2 16.1 24.9 32.3 32.0
71 #N/A 20.3 27.4 27.2 #N/A 20.6 28.0 27.7
68 #N/A 16.2 23.4 23.1 #N/A 16.2 23.6 23.3
115 °F
NET CAP. MBH 45.9 41.4 37.0 40.7 46.1 41.5 37.1 40.8
POWER INPUT kW 5.19 5.08 4.96 4.93 5.28 5.17 5.05 5.02
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 31.0 38.7 37.0 40.7 32.5 40.2 37.1 40.8
83 26.9 35.3 37.0 39.3 28.1 36.8 37.1 40.1
80 22.9 31.3 38.4 36.9 23.8 32.5 39.9 38.3
77 18.8 27.2 34.4 32.9 19.4 28.1 35.6 34.0
74 14.8 23.2 30.4 28.8 15.0 23.8 31.2 29.6
71 #N/A 19.1 26.3 24.8 #N/A 19.4 26.8 25.3
68 #N/A 15.1 22.3 20.7 #N/A 15.0 22.5 20.9
125 °F
NET CAP. MBH 43.1 38.5 33.9 38.1 43.2 38.6 34.0 38.2
POWER INPUT kW 5.66 5.53 5.40 5.39 5.76 5.63 5.50 5.48
Sensible Capacity
MBH1
Entering Dry
Bulb °F
86 29.9 37.3 33.9 38.1 31.4 38.6 34.0 38.2
83 25.9 34.2 34.2 36.8 27.0 35.7 34.1 37.5
80 21.8 30.1 37.3 34.5 22.7 31.3 38.8 35.9
77 17.8 26.1 33.3 30.5 18.3 27.0 34.5 31.5
74 13.7 22.0 29.3 26.4 14.0 22.6 30.1 27.2
71 #N/A 18.0 25.2 22.4 #N/A 18.3 25.7 22.8
68 #N/A 14.0 21.2 18.4 #N/A 13.9 21.4 18.5
1. These capacities are net capacities - indoor fan heat deducted.
ALL SENSIBLE CAPACITY
036-21528-003-A-0703
Unitary Products Group 11
TABLE 8: HEATING CAPACITIES - 2 TON (BHP024)
CFM RETURN
AIR °F CAP1
& KW
OUTDOOR AIR TEMPERATURE, °F (72% RH)
-10 0 10 20 30 40 50 60
600
55 MBH 10.216 11.748 13.601 15.843 18.554 21.834 25.801 30.601
KW 1.214 1.307 1.401 1.494 1.588 1.681 1.775 1.868
70 MBH 7.317 8.849 10.702 12.944 15.655 18.935 22.902 27.702
KW 1.363 1.456 1.550 1.643 1.737 1.830 1.924 2.017
80 MBH 7.205 8.737 10.590 12.832 15.543 18.823 22.790 27.590
KW 1.423 1.516 1.610 1.703 1.797 1.890 1.984 2.077
800
55 MBH 10.206 11.738 13.591 15.833 18.544 21.824 25.791 30.591
KW 1.227 1.320 1.414 1.507 1.601 1.694 1.788 1.881
70 MBH 7.307 8.839 10.692 12.934 15.645 18.925 22.892 27.692
KW 1.376 1.469 1.563 1.656 1.750 1.843 1.937 2.030
80 MBH 7.195 8.727 10.580 12.822 15.533 18.813 22.780 27.580
KW 1.436 1.529 1.623 1.716 1.810 1.903 1.997 2.090
1000
55 MBH 11.377 12.909 14.762 17.004 19.715 22.995 26.962 31.762
KW 1.339 1.432 1.526 1.619 1.713 1.806 1.900 1.993
70 MBH 8.478 10.010 11.863 14.105 16.816 20.096 24.063 28.863
KW 1.488 1.581 1.675 1.768 1.862 1.955 2.049 2.142
80 MBH 8.366 9.898 11.751 13.993 16.704 19.984 23.951 28.751
KW 1.548 1.641 1.735 1.828 1.922 2.015 2.109 2.202
1. These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have
been added.
TABLE 9: HEATING CAPACITIES - 2-1/2 TON (BHP030)
CFM RETURN
AIR °F CAP1
& KW
OUTDOOR AIR TEMPERATURE, °F (72% RH)
-10 0 10 20 30 40 50 60
750
55 MBH 10.876 12.808 15.078 17.744 20.877 24.556 28.879 33.958
KW 1.847 1.917 1.987 2.057 2.127 2.198 2.268 2.338
70 MBH 10.046 11.978 14.248 16.914 20.047 23.726 28.049 33.128
KW 2.135 2.205 2.275 2.345 2.415 2.486 2.556 2.626
80 MBH 9.054 10.986 13.256 15.922 19.055 22.734 27.057 32.136
KW 2.377 2.447 2.517 2.587 2.657 2.728 2.798 2.868
1000
55 MBH 11.886 13.818 16.088 18.754 21.887 25.566 29.889 34.968
KW 1.731 1.801 1.871 1.941 2.011 2.082 2.152 2.222
70 MBH 11.056 12.988 15.258 17.924 21.057 24.736 29.059 34.138
KW 2.019 2.089 2.159 2.229 2.299 2.370 2.440 2.510
80 MBH 10.064 11.996 14.266 16.932 20.065 23.744 28.067 33.146
KW 2.261 2.331 2.401 2.471 2.541 2.612 2.682 2.752
1250
55 MBH 13.978 15.910 18.180 20.846 23.979 27.658 31.981 37.060
KW 1.881 1.951 2.021 2.091 2.161 2.232 2.302 2.372
70 MBH 13.148 15.080 17.350 20.016 23.149 26.828 31.151 36.230
KW 2.169 2.239 2.309 2.379 2.449 2.520 2.590 2.660
80 MBH 12.156 14.088 16.358 19.024 22.157 25.836 30.159 35.238
KW 2.411 2.481 2.551 2.621 2.691 2.762 2.832 2.902
1. These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have
been added.
036-21528-003-A-0703
12 Unitary Products Group
TABLE 10: HEATING CAPACITIES - 3 TON (BHP036)
CFM RETURN
AIR °F CAP1
& KW
OUTDOOR AIR TEMPERATURE, °F (72% RH)
-10 0 10 20 30 40 50 60
900
55 MBH 10.597 12.792 15.448 18.660 22.545 27.244 32.929 39.804
KW 1.791 1.898 2.005 2.112 2.219 2.326 2.433 2.540
70 MBH 9.420 11.615 14.271 17.483 21.368 26.067 31.752 38.627
KW 2.198 2.305 2.412 2.519 2.626 2.733 2.840 2.947
80 MBH 7.543 9.738 12.394 15.606 19.491 24.190 29.875 36.750
KW 2.476 2.583 2.690 2.797 2.904 3.011 3.118 3.225
1200
55 MBH 11.652 13.847 16.503 19.715 23.600 28.299 33.984 40.859
KW 1.825 1.932 2.039 2.146 2.253 2.360 2.467 2.574
70 MBH 10.475 12.670 15.326 18.538 22.423 27.122 32.807 39.682
KW 2.232 2.339 2.446 2.553 2.660 2.767 2.874 2.981
80 MBH 8.598 10.793 13.449 16.661 20.546 25.245 30.930 37.805
KW 2.510 2.617 2.724 2.831 2.938 3.045 3.152 3.259
1500
55 MBH 12.282 14.477 17.133 20.345 24.230 28.929 34.614 41.489
KW 1.779 1.886 1.993 2.100 2.207 2.314 2.421 2.528
70 MBH 11.105 13.300 15.956 19.168 23.053 27.752 33.437 40.312
KW 2.186 2.293 2.400 2.507 2.614 2.721 2.828 2.935
80 MBH 9.228 11.423 14.079 17.291 21.176 25.875 31.560 38.435
KW 2.464 2.571 2.678 2.785 2.892 2.999 3.106 3.213
1. These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have
been added.
TABLE 11: HEATING CAPACITIES - 3-1/2 TON (BHP042)
CFM RETURN
AIR °F CAP1
& KW
OUTDOOR AIR TEMPERATURE, °F (72% RH)
-10 0 10 20 30 40 50 60
1050
55 MBH 15.404 17.988 20.968 24.404 28.369 32.941 38.215 44.298
KW 2.410 2.505 2.599 2.694 2.789 2.883 2.978 3.073
70 MBH 14.342 16.926 19.906 23.342 27.307 31.879 37.153 43.236
KW 2.835 2.930 3.024 3.119 3.214 3.308 3.403 3.498
80 MBH 13.669 16.253 19.233 22.669 26.634 31.206 36.480 42.563
KW 3.143 3.238 3.332 3.427 3.522 3.616 3.711 3.806
1400
55 MBH 17.901 20.485 23.465 26.901 30.866 35.438 40.712 46.795
KW 2.419 2.514 2.608 2.703 2.798 2.892 2.987 3.082
70 MBH 16.839 19.423 22.403 25.839 29.804 34.376 39.650 45.733
KW 2.844 2.939 3.033 3.128 3.223 3.317 3.412 3.507
80 MBH 16.166 18.750 21.730 25.166 29.131 33.703 38.977 45.060
KW 3.152 3.247 3.341 3.436 3.531 3.625 3.720 3.815
1750
55 MBH 18.901 21.485 24.465 27.901 31.866 36.438 41.712 47.795
KW 2.463 2.558 2.652 2.747 2.842 2.936 3.031 3.126
70 MBH 17.839 20.423 23.403 26.839 30.804 35.376 40.650 46.733
KW 2.888 2.983 3.077 3.172 3.267 3.361 3.456 3.551
80 MBH 17.166 19.750 22.730 26.166 30.131 34.703 39.977 46.060
KW 3.196 3.291 3.385 3.480 3.575 3.669 3.764 3.859
1. These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have
been added.
036-21528-003-A-0703
Unitary Products Group 13
TABLE 12: HEATING CAPACITIES - 4 TON (BHP048)
CFM RETURN
AIR °F CAP1
& KW
OUTDOOR AIR TEMPERATURE, °F (72% RH)
-10 0 10 20 30 40 50 60
1200
55 MBH 13.911 17.096 21.021 25.859 31.821 39.170 48.226 59.388
KW 2.342 2.568 2.795 3.022 3.249 3.476 3.703 3.930
70 MBH 11.264 14.449 18.374 23.212 29.174 36.523 45.579 56.741
KW 2.726 2.952 3.179 3.406 3.633 3.860 4.087 4.314
80 MBH 9.676 12.861 16.786 21.624 27.586 34.935 43.991 55.153
KW 3.067 3.293 3.520 3.747 3.974 4.201 4.428 4.655
1600
55 MBH 16.349 19.534 23.459 28.297 34.259 41.608 50.664 61.826
KW 2.408 2.634 2.861 3.088 3.315 3.542 3.769 3.996
70 MBH 13.702 16.887 20.812 25.650 31.612 38.961 48.017 59.179
KW 2.792 3.018 3.245 3.472 3.699 3.926 4.153 4.380
80 MBH 12.114 15.299 19.224 24.062 30.024 37.373 46.429 57.591
KW 3.133 3.359 3.586 3.813 4.040 4.267 4.494 4.721
2000
55 MBH 17.629 20.814 24.739 29.577 35.539 42.888 51.944 63.106
KW 2.502 2.728 2.955 3.182 3.409 3.636 3.863 4.090
70 MBH 14.982 18.167 22.092 26.930 32.892 40.241 49.297 60.459
KW 2.886 3.112 3.339 3.566 3.793 4.020 4.247 4.474
80 MBH 13.394 16.579 20.504 25.342 31.304 38.653 47.709 58.871
KW 3.227 3.453 3.680 3.907 4.134 4.361 4.588 4.815
1. These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have
been added.
036-21528-003-A-0703
14 Unitary Products Group
NOTE: Above data includes allowances for a dry indoor coil and no filters. For additional pressure drops, refer to the “Additional Static Pressure
Resistance” table.
TABLE 13: SIDE & BOTTOM SUPPLY AIR BLOWER PERFORMANCE (208/230/460 VOLT1)
MODEL NO.
BHP MOTOR SPEED
SETTING UNIT
AIRFLOW
EXTERNAL STATIC PRESSURE - IWG
0.15 0.30 0.50 0.70 0.90
WATTS
B1HP024 Cooling TB2-A, Heating TB2-A, Electric Heat 800 CFM 91 125 161 206 240
B1HP024 Cooling TB2-B, Heating TB2-B 900 CFM 118 148 199 243 285
B1HP030 Cooling TB2-A, Heating TB2-A, Electric Heat 1000 CFM 280 321 389 449 500
B1HP030 Cooling TB2-B, Heating TB2-B 1125 CFM 356 413 490 557 620
B1HP036 Cooling TB2-A, Heating TB2-A 1050 CFM 209 261 319 372 438
B1HP036 Cooling TB2-B, Heating TB2-B, Electric Heat 1200 CFM 273 324 392 480 541
B1HP042 Electric Heat 1225 CFM 306 341 412 494 577
B1HP042 Cooling TB2-A 1300 CFM 338 395 470 551 640
B1HP042 Cooling TB2-B 1400 CFM 393 466 544 642 734
B1HP042 Heating TB2-A, TB2-B 1500 CFM 500 554 665 752 835
B1HP048 Heating TB2-A 1400 CFM 377 427 504 597 683
B1HP048 Cooling TB2-A 1500 CFM 455 516 601 703 788
B1HP048 Cooling TB2-B, Heating TB2-B, Electric Heat 1600 CFM 530 608 707 800 873
1. All units are factory set to TB2-A.
TABLE 14: ADDITIONAL STATIC RESISTANCE
DESCRIPTION
RESISTANCE, IWG
CFM
500 600 700 800 900 1,000 1,100 1,200 1,300 1,400 1,500 1,600 1,700 1,800 1,900 2,000
Wet Indoor Coil 0.01 0.01 0.01 0.02 0.01 0.02 0.03 0.04 0.04 0.03 0.04 0.04 0.05 0.05 0.06 0.07
Economizer 0.00 0.00 0.00 0.01 0.01 0.01 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.07 0.08 0.08
Filter/Frame Kit 0.01 0.02 0.02 0.02 0.02 0.02 0.03 0.03 0.03 0.03 0.04 0.05 0.05 0.06 0.06 0.07
Electric Heat 0.02 0.03 0.03 0.03 0.04 0.04 0.05 0.06 0.07 0.08 0.09 0.10 0.01 0.11 0.11 0.12
036-21528-003-A-0703
Unitary Products Group 15
FIGURE 2 - FIELD WIRING DIAGRAM
R
G
W
R
C
YY
W2
C
W1
O O
G
THERMOSTAT UNIT TERMINAL STRIP
*
**
** = Minimum wire size of 18 AWG
wire should be used for all field
installed 24 volt wire.
* = Only required on units with
supplemental electric heat.
PROGRAMMABLE
THERMOSTAT ONLY
24 VOLT TRANSFORMER
Label all wires prior to disconnection when servicing controls. Wiring errors can
cause improper and dangerous operation. Verify proper operation after servicing.
CAUTION:
NOTE:
HEAT ANTICIPATOR
SHOULD BE SET AT 0.25
AMPS FOR ALL MODELS
036-21528-003-A-0703
16 Unitary Products Group
TABLE 15: ELECTRICAL DATA (BASIC UNIT)
MODEL
BHP POWER
SUPPLY
VOLTAGE
LIMITATIONS1COMPRESSOR OUTDOOR
FAN
MOTOR,
FLA
SUPPLY AIR
BLOWER
MOTOR,
FLA
MINIMUM
CIRCUIT
AMPACITY
MAX
FUSE
SIZE,
AMPS2
MAX.
HACR
BREAKER
SIZE,
AMPS
UNIT
POWER
FACTOR
TRANSFORMER
SIZE (VA)
MIN. MAX. RLA LRA
024 208/230-1-60 187 253 9.3 57.0 1.1 5.0 17.7 25 25 0.96 40
030
208/230-1-60 187 253 15.0 72.5 1.1 5.0 24.9 35 35 0.96 40
208/230-3-60 187 253 10.0 63.0 1.1 5.0 18.6 25 25 0.96 75
460-3-60 414 504 5.0 31.0 0.6 5.0 11.9 15 15 0.96 75
036
208/230-1-60 187 253 17.2 94.0 1.1 7.3 29.9 45 45 0.96 40
208/230-3-60 187 253 11.4 78.0 1.1 7.3 22.7 30 30 0.96 75
460-3-60 414 504 5.7 40.0 0.6 7.3 15.4 20 20 0.96 75
042
208/230-1-60 187 253 20.0 104.0 1.1 7.3 33.4 50 50 0.96 40
208/230-3-60 187 253 13.9 88.0 1.1 7.3 25.8 35 35 0.96 75
460-3-60 414 504 6.4 44.0 0.6 7.3 16.1 20 20 0.96 75
048
208/230-1-60 187 253 23.4 126.0 1.5 7.3 38.1 60 60 0.96 40
208/230-3-60 187 253 13.0 93.0 1.5 7.3 25.1 35 35 0.96 75
460-3-60 414 504 6.4 46.5 0.8 7.3 16.3 20 20 0.96 75
1. Rated in accordance with ARI Standard 100, utilization range “A”.
2. Dual element, time delay type.
ELECTRIC HEAT
CORRECTION
FACTORS
NOMINAL VOLTAGE VOLTAGE KW CAP. MULTIPLIER
240 208
230 0.75
0.92
480 460 0.92
036-21528-003-A-0703
Unitary Products Group 17
* KW listed is for 240 volts, use Table 15 for 208 or 230 volts.
** KW listed is for 480 volts, use Table 15 for 460 volts.
TABLE 16: ELECTRICAL DATA (13 SEER HEAT PUMP / ELECTRIC HEAT)
MODEL
BHP
POWER
SUPPLY
COMPRESSOR COND
FAN
MOTOR
FLA
SUPPLY
AIR
BLOWER
MOTOR
FLA
ELECTRIC HEAT ACCESSORY MINIMUM
CIRCUIT
AMPACITY
MAX.
FUSE/
SIZE,1
AMPS
MAX
HACR2
BREAKER
SIZE
RLA LRA MODEL NO. KW TOTAL
AMPS
024 208/230-1-60 9.3 57.0 1.1 5.0
2NH04500506 3.8 / 5.0 * 18.1 / 20.8 40.3 / 43.8 45 / 45 45 / 45
2NH04500706 5.6 / 7.5 * 27.1 / 31.3 51.6 / 56.8 60 / 60 60 / 60
2NH04501006 7.5 / 10.0 * 36.1 / 41.7 62.9 / 69.8 70 / 70 70 / 70
030 208/230-1-60 15.0 72.5 1.1 5.0
2NH04500506 3.8 / 5.0 * 18.1 / 20.8 47.4 / 50.9 50 / 60 50 / 60
2NH04500706 5.6 / 7.5 * 27.3 / 31.3 58.7 / 63.9 60 / 70 60 / 70
2NH04501006 7.5 / 10.0 * 36.1 / 41.7 70.0 / 76.9 70 / 80 70 / 80
2NH04501506 11.3 / 15.0 * 54.2 / 62.5 92.6 / 103.0 100 / 110 100 / 110
036 208/230-1-60 17.2 94.0 1.1 7.3
2NH04500506 3.8 / 5.0 * 18.1 / 20.8 52.5 / 55.9 60 / 60 60 / 60
2NH04500706 5.6 / 7.5 * 27.1 / 31.3 63.8 / 69.0 70 / 70 70 / 70
2NH04501006 7.5 / 10.0 * 36.1 / 41.7 75.0 / 82.0 80 / 90 80 / 90
2NH04501506 11.3 / 15.0 * 54.2 / 62.5 97.6 / 108.0 100 / 110 100 / 110
042 208/230-1-60 20.0 104.0 1.1 7.3 2NP04501006 7.5 / 10.0 * 36.1 / 41.7 78.5 / 85.5 80 / 90 80 / 90
2NP04501506 11.3 / 15.0 * 54.2 / 62.5 101.1 / 111.5 110 / 125 110 / 125
048 208/230-1-60 23.4 126.0 1.5 7.3
2NP04501006 7.5 / 10.0 * 36.1 / 41.7 83.2 / 90.1 90 / 100 90 / 100
2NP04501506 11.3 / 15.0 * 54.2 / 62.5 105.8 / 116.2 110 / 125 110 / 125
2NP04502006 15.0 / 20.0 * 72.2 / 83.3 128.3 / 142.2 150 / 150 150 / 150
2NP04502506 18.8 / 25.0 * 90.3 / 104.2 150.9 / 168.3 175 / 175 175 / 175
030 208/230-3-60 10.0 63.0 1.1 5.0 2NH04501025 7.5 / 10.0 * 20.8 / 24.1 44.7 / 48.7 45 / 50 45 / 50
2NH04501525 11.3 / 15.0 * 31.3 / 36.1 57.7 / 63.7 60 / 70 60 / 70
036 208/230-3-60 11.4 78.0 1.1 7.3 2NH04501025 7.5 / 10.0 * 20.8 / 24.1 48.7 / 52.7 50 / 60 50 / 60
2NH04501525 11.3 / 15.0 * 31.3 / 36.1 61.7 / 67.8 70 / 70 70 / 70
042 208/230-3-60 13.9 88.0 1.1 7.3 2NP04501025 7.5 / 10.0 * 20.8 / 24.1 51.8 / 55.8 60 / 60 60 / 60
2NP04501525 11.3 / 15.0 * 31.3 / 36.1 64.9 / 70.9 70 / 80 70 / 80
048 208/230-3-60 13.0 93.0 1.5 7.3
2NP04501025 7.5 / 10.0 * 20.8 / 24.1 51.1 / 55.1 60 / 60 60 / 60
2NP04501525 11.3 / 15.0 * 31.3 / 36.1 64.1 / 70.2 70 / 80 70 / 80
2NP04502025 15.0 / 20.0 * 41.7 / 48.1 77.2 / 85.2 80 / 90 80 / 90
2NP04502525 18.8 / 25.0 * 52.1 / 60.1 90.2 / 100.2 100 / 110 100 / 110
030 460-3-60 5.0 31.0 0.6 5.0 2NH04501046 10.0 ** 12.0 27.5 30 30
2NH04501546 15.0 ** 18.0 35.4 40 40
036 460-3-60 5.7 40.0 0.6 7.3 2NH04501046 10.0 ** 12.0 30.7 35 35
2NH04501546 15.0 ** 18.0 38.6 40 40
042 460-3-60 6.4 44.0 0.6 7.3 2NP04501046 10.0 ** 12.0 31.6 35 35
2NP04501546 15.0 ** 18.0 39.4 40 40
048 460-3-60 6.4 46.5 0.8 7.3
2NP04501046 10.0 ** 12.0 31.8 35 35
2NP04501546 15.0 ** 18.0 39.6 40 40
2NH04502046 20.0 ** 24.1 47.5 50 50
2NH04502546 25.0 ** 30.1 55.3 60 60
1. Dual element, time delay type.
2. Standard circuit breakers may be used in Canada and on applications over 60 amps where the heaters are separately fused.
036-21528-003-A-0703
18 Unitary Products Group
TABLE 17: APPLICATION DATA
MODEL BHP
024 030 036 042 048
MINIMUM AIR FLOW
(CFM)
COOLING 800 1000 1050 1300 1500
HEATING 800 1000 1050 1400 1400
MAXIMUM AIR FLOW
(CFM)
COOLING 900 1125 1200 1400 1600
HEATING 900 1125 1200 1500 1600
MINIMUM OPERATING TEMPERATURE IN COOLING MODE
(AMBIENT, °F) 45 45 45 45 45
MIMINIM MIXED AIR IN COOLING MODE
(RETURN AIR, DB °F/WB °F) 68 / 57 68 / 57 68 / 57 68 / 57 68 / 57
MINIMUM MIXED AIR IN HEATING MODE
(RETURN AIR, °F) 55 55 55 55 55
FIGURE 3 - CENTER OF GRAVITY AND WEIGHTS
B1HP
UNIT
SIZE
SHIPPING
WEIGHT OPERATING
WEIGHT
CORNER WEIGHTS
ABCD
024 356 351 97 93 81 84
030 353 348 96 93 81 84
036 388 383 106 102 89 92
042 440 435 120 115 101 104
048 485 480 132 127 111 115
FIGURE 4 - UNIT CLEARANCES
CLEARANCES
NOTE: FOR UNITS APPLIED WITH A ROOF CURB, THE
MINIMUM CLE ARANCE MAY BE REDUCED FROM 1
INCH TO 1/2 INCH BETWEEN COMBUSTIBLE ROOF
CURB MATERIAL AND THE SUPPLY DUCT.
UNIT CLEARANCES
(MINIMUM)
Front 12”
Back 0”
Left Side (Filter Access) 24”
Right Side 24”
Below Unit1
1. Units may be installed on combustible floors made from
wood or class A, B or C roof covering.
0”
Above Unit2
2. Units must be installed outdoors. Overhanging structures
or shrubs should not obstruct outdoor air discharge outlet.
36” (For Condenser
Air Discharge)
036-21528-003-A-0703
Unitary Products Group 19
FIGURE 5 - UNIT DIMENSIONS
036-21528-003-A-0703
20 Unitary Products Group
FIGURE 6 - TYPICAL APPLICATIONS
036-21528-003-A-0703
Unitary Products Group 21
FIGURE 7 - ROOF CURB DIMENSIONS
036-21528-003-A-0703
22 Unitary Products Group
FIGURE 8 - TYPICAL WIRING DIAGRAM (208/230-1-60 POWER SUPPLY)
036-21528-003-A-0703
Unitary Products Group 23
FIGURE 9 - TYPICAL WIRING DIAGRAM (230-3-60 POWER SUPPLY)
036-21528-003-A-0703
24 Unitary Products Group
FIGURE 10 - TYPICAL WIRING DIAGRAM (460-3-60 POWER SUPPLY)
036-21528-003-A-0703
Unitary Products Group 25
MECHANICAL SPECIFICATIONS
GENERAL DESCRIPTION
Units shall be factory-assembled, single packaged,
Heat Pumps, designed for outdoor mounted installa-
tion. Units shall have minimum SEER ratings of 13.0.
They shall have built in, equal size, field convertible
duct connections for down discharge supply/return or
horizontal discharge supply/return.
The units shall be factory wired, piped, charged with R-
22 refrigerant and factory tested prior to shipment. All
unit wiring shall be both numbered and color coded.
All units shall be manufactured in a facility certified to
ISO 9001 standards, and the cooling performance shall
be rated in accordance with DOE and ARI test proce-
dures. Units shall be classified to UL 1995/CAN/CSA
No. 236-M90 conditions.
UNIT CABINET
1. Unit cabinet shall be constructed of G90 galva-
nized steel, with exterior surfaces coated with a
non-chalking, powered paint finish, certified at 750
hours salt spray test per ASTM-B117 standards.
2. The unit top shall be a single piece “Water Shed”
design, with drip edges and no-seam corners to
provide optimum water integrity.
3. Unit shall have a rigidly mounted condenser coil
guard to provide protection from objects and per-
sonnel after installation.
4. Indoor blower section shall be insulated with up to
3/4” thick, aluminum, foil faced insulation, fastened
to prevent insulation from entering the air stream.
5. Cabinet panels shall be “large” size, easily remov-
able for servicing and maintenance, with built-in lift
handles.
6. Unit shall be built on a formed, “Super-Structure”
design base pan, with embossments at critical
points to add strength, rigidity and aid in minimizing
sound.
7. Full perimeter base rails shall be provided to
assure reliable transit of equipment, overhead rig-
ging, fork truck access and proper sealing on roof
curb applications. Base rails shall be removable,
when required, to lower unit height.
8. Filters shall be furnished and be accessible
through a removable access door, sealed air tight.
(Single phase models - accessory kit available.
Three phase models - standard from factory.)
9. Units vertical discharge and return duct configura-
tion shall be designed to fit between standard 24”
O.C. beams without modification to building struc-
ture, duct work and base unit.
10. Condensate pan shall be internally sloped and
conform to ASHRAE 62-89 self-draining standards,
with 3/4" NPTI copper, ridged mount connection.
INDOOR (SUPPLY) FAN ASSEMBLY
1. Fan shall be direct drive, constant CFM, ECM
design. Job site selected (BHP) brake horse power
shall not exceed the motors nameplate horse
power rating.
2. Fan wheel shall be double-inlet type with forward-
curved blades, dynamically balanced to operate
smoothly throughout the entire range of operation.
Airflow design shall be constant air volume.
3. Bearings shall be sealed and permanently lubri-
cated for longer life and no maintenance.
4. Fan assembly shall be “Slip Track” (slide-out)
design for easy removal and cleaning.
OUTDOOR FAN ASSEMBLY
1. The outdoor fan shall be of the direct-driven propel-
ler type, discharge air vertically, have aluminum
blades riveted to corrosion resistant steel spider
bracket and shall be statically balanced for smooth
operation.
2. The outdoor fan motor shall be totally enclosed
with permanently lubricated bearings and internally
protected against overload conditions.
REFRIGERANT COMPONENTS
1. Compressors:
A. Shall be fully hermetic type, direct drive, internally
protected with internal high-pressure relief and over
temperature protection. The hermetic motor shall be
suction gas cooled and have a voltage range of + or
- 10% of the unit nameplate voltage.
036-21528-003-A-0703
26 Unitary Products Group
B. Shall have internal isolation and sound muffling to
minimize vibration and noise, and be externally iso-
lated on a dedicated, independent mounting.
2. Coils:
A. Evaporator and condenser coils shall have alumi-
num plate fins mechanically bonded to seamless
internally-enhanced copper tubes with all joints
brazed.
B. Evaporator and Condenser coils shall be of the
direct expansion, draw-thru design.
3. Refrigerant Circuit and Refrigerant Safety Compo-
nents shall include:
A. Independent thermal expansion devices (TXV).
B. Solid-core filter dryer to eliminate any foreign matter.
C. Accessible service gage connections on both suc-
tion and discharge lines to charge, evacuate, and
measure refrigerant pressure during any necessary
servicing or troubleshooting, without losing charge
and without disrupting condenser or evaporator air
flow.
D. The refrigeration system shall provide at least 10° F
of liquid sub-cooling at design conditions.
E. Unit shall have a suction line accumulator and auto-
matic reversing valve.
4. Unit Controls:
A. Unit shall contain a large, low voltage Terminal
Board for easy connection of field low voltage wir-
ing.
B. Controls shall be mounted in a large control box with
tilt-out, hinged access door, allowing easy access
for trouble shooting and maintenance without affect-
ing the normal system operation pressures.
C. Unit shall contain a reliable demand defrost control
to provide defrost. The defrost control shall also
have an “X” terminal to provide a 24 volt signal for
room thermostat “LED” indication of unit lockout.
Plus a built in 5 minute anti-short cycle protection.
D. Unit shall have large, easily removable panels, cov-
ering electrical controls and compressor, allowing
easy access for any maintenance or servicing.
ELECTRIC HEATING SECTION
1. An electric heating section, with nickel chromium
elements, shall be provided in a range of 5 thru 25
KW.
2. The heating section shall have an automatic reset
primary limit control to prevent the heating element
system from operating at an excessive tempera-
ture.
3. The heating section assembly shall slide out of the
unit for easy maintenance and service.
4. Units with electric heating sections shall be wired
for a single point power supply, with branch circuit
fusing (where required).
UNIT OPERATING CHARACTERISTICS
1. Unit shall be capable of starting and running at
125° F outdoor temperature, exceeding maximum
load criteria of ARI Standard 210/240.
2. The compressor, with standard controls, shall be
capable of operation down to 45° F outdoor tem-
perature.
ELECTRICAL REQUIREMENTS
All unit power wiring shall enter unit cabinet at a single
factory provided location and be capable of side or bot-
tom entry. This will minimize roof penetrations and
avoid unit field modifications. Separate side and bot-
tom openings shall be provided for the control wiring.
036-21528-003-A-0703
Unitary Products Group 27
Subject to change without notice. Printed in U.S.A. CD: 6-21528 036-21528-003-A-0703
Copyright © by Unitary Products Group 2003. All rights reserved. Supersedes: 036-21528-002-B-0403
Unitary 5005 Norman
Products York OK
Group Drive 73069

Navigation menu
