TECHNICAL GUIDE
STEALTH
SPLIT-SYSTEM AIR CONDITIONERS
15 + SEER
MODELS:
H4TS024 THRU 060
(2 THRU 5 NOMINAL TONS)
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at www.york.com for the most
up-to-date technical information.
Additional rating information can be found at
www.ariprimenet.org.
R
N
E
M
P
I
U
Q
E
T
Y
R
A
T
I
N
U
0
1
2
ARI
R
A
D
N
A
T
S
D
I
S
N
O
T
C
E
S
F
O
C
C
I
F
I
T
R
E
N
O
I
T
A
H
T
I
W
C
G
N
I
Y
L
P
M
O
S
A
I
R
A
O
T
D
E
I
F
I
T
R
E
C
R
E
R
U
T
C
A
F
U
N
A
M
C
-
G
N
I
N
O
I
T
I
D
N
O
R
I
A
CERTIFICATION APPLIES ONLY
WHEN THE COMPLETE
SYSTEM IS LISTED
WITH ARI.
LISTED
036-21023-005 Rev. A (0802)
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
The HTS Stealth series condensing units use Twin Single
compressor technology to provide cooling efficiencies up to
15.5 SEER. They are to be installed with the matching vari-
able speed enhanced Air Handler or Diamond Furnace, or
with a two-stage or single-stage indoor unit, a corresponding
coil and sweat connect lines. A factory specified balanced
port hard shut-off TXV kit must be used for proper installation
and optimum performance.
WARRANTY
5-year limited parts warranty.
10-year limited compressor warranty.
FEATURES
•QUALITY CONDENSER COILS - The coil is constructed of
copper tube and hardened aluminum fins for durability and
long lasting efficient operation. The fins on the unit are pro-
tected with a decorative grille.
•DURABLE FINISH - Cabinet is made of powder painted steel
over pre-primered steel. The pre-treated galvanized steel pro-
vides a better paint to steel bond, which resists corrosion and
rust creep. Special primer formulas and automotive quality fin-
ish insure less fading when exposed to sunlight.
•PROTECTED COMPRESSORS - The Twin Single com-
pressor is protected against high and low pressure. Hard start
components are included to ensure start-up under adverse
conditions. All models have standard crankcase heat for
added protection.
•OPTIMUM PERFORMANCE - The solid-state electronic con-
trolboard optimizes the compressor staging based on load
requirements, provides a 5-minute anti-short cycle timer for
the compressor, and simplifies troubleshooting with built in
self diagnostics.
•LOWER INSTALLED COST - Installation time and costs are
reduced by easy power and control wiring connections. All
units contain enough refrigerant for the smallest matching
indoor coil and 15 feet of interconnecting piping. The small
base dimension means less space is required on the ground
or roof.
•EFFECTIVE HUMIDITY CONTROL - The inherent design of
the Stealth system and the staging operation of the Twin Sin-
gle compressor provide effective humidity control at the low-
est possible operating cost. An optional dehumidification
control accessory is available to maintain the humidity at a set
desired level.
•TOP DISCHARGE - The warm air from the top mounted fan is
blown up away from the structure and any landscaping. This
allows compact location on multi-unit applications.
•LOW OPERATING SOUND LEVEL - The upward air flow car-
ries the normal operating noise up away from the living area.
The rigid top panel effectively isolates any motor sound. Isola-
tor mounted compressor and the rippled fins of the condenser
coil muffle the normal fan motor and compressor operating
sounds.
•LOW MAINTENANCE - Long life permanently lubricated
motor- bearings need no annual servicing.
•EASY SERVICE ACCESS - Fully exposed refrigerant con-
nections and a single panel covering the electrical controls
make servicing easy. Easy access for coil cleaning is also pro-
vided.
•RE-USABLE SERVICE VALVES - Provided on both the liquid
and vapor sweat connections for ease of evacuating and
charging.
Certified in accordance with the Unitary Small Equipment cer-
tification program, which is based on ARI Standard 210/240.
036-21023-005 Rev. A (0802)
2Unitary Products Group

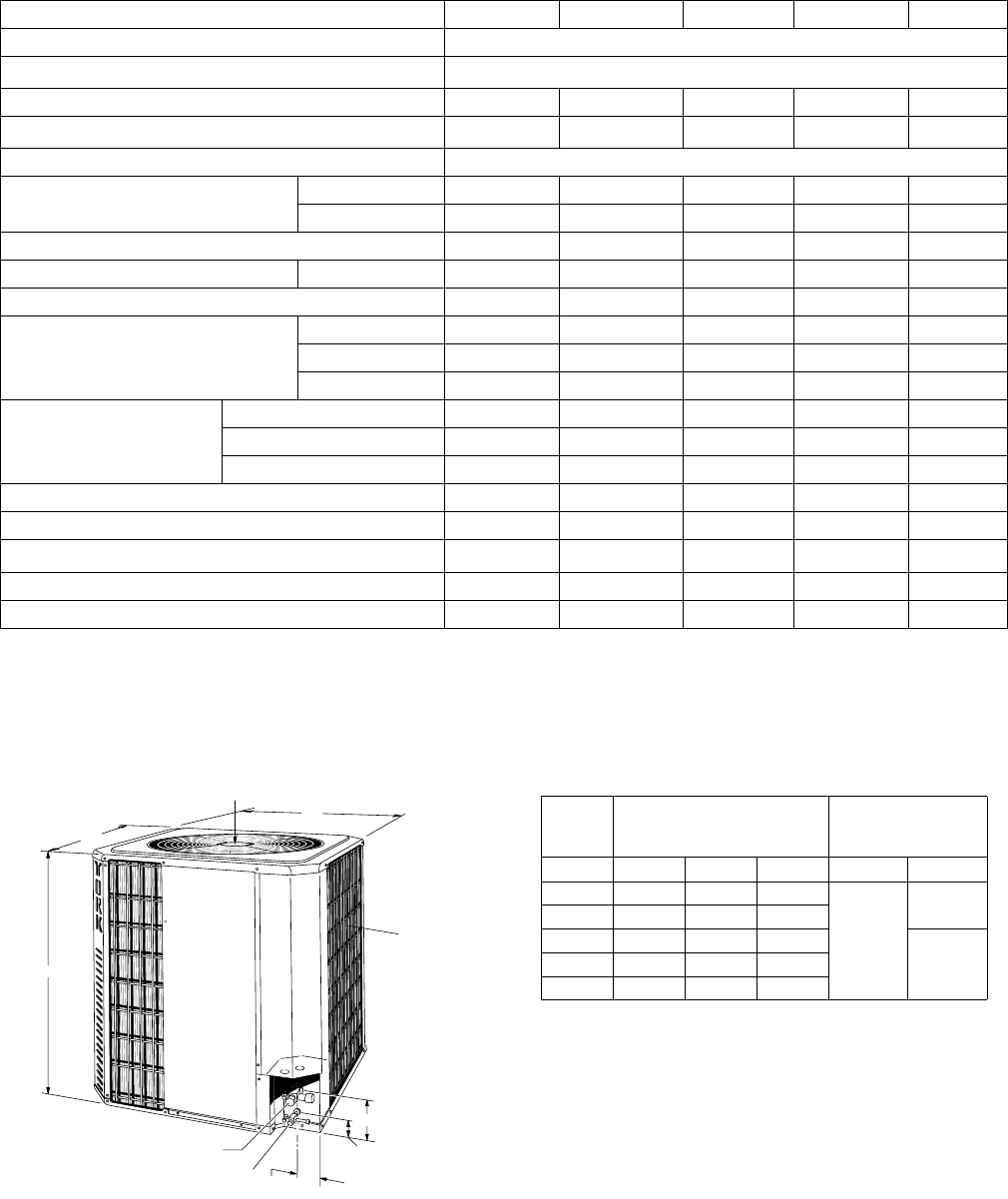

PHYSICAL AND ELECTRICAL DATA
MODEL H4TS024 H4TS030 H4TS036 H4TS048 H4TS060
UNIT SUPPLY VOLTAGE 208/230-1-60
NORMAL VOLTAGE RANGE 1187 to 252
MIN. CIRCUIT AMPACITY 13.4 15.3 18.6 32.8 35.3
MAX. OVERCURRENT DEVICE AMPS 220 25 30 50 60
COMPRESSOR TYPE BRISTOL TS
COMPRESSOR AMPS RATED LOAD 10.3 11.7 13.5 25.7 27.0
LOCKED ROTOR 64 65 84 135 147
CRANKCASE HEATER YES YES YES YES YES
FAN MOTOR AMPS RATED LOAD .5 .5 .7 .7 1.5
FAN DIAMETER INCHES 18 18 24 24 24
FAN MOTOR
RATED HP 1/12 1/12 1/10 1/10 1/4
NOMINAL RPM 1100 1100 825 825 850
NOMINAL CFM 1850 1850 2800 2800 3200
COIL
FACE AREA SQ. FT 14.2 14.2 20.0 24.0 24.0
COIL ROWS DEEP 11111
FIN / INCH 20 20 20 20 20
LIQUID LINE OD 3/8 3/8 3/8 3/8 3/8
VAPOR LINE OD 3/4 3/4 7/8 7/8 7/8
UNIT CHARGE, (LBS - OZ)36 - 0 6 - 4 7 - 0 9 - 12 9 - 2
CHARGE PER FOOT, OZ .68 .68 .70 .70 .70
OPERATING WEIGHT LBS. 145 145 200 250 252
1Rated in accordance with ARI Standard 110, utilizaton range “A”.
2Dual element fuses or HACR circuit breaker.
3 The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add or sub-
tract the amount of refrigerant calculated, using the difference in length multiplied by the per foot value.
48" OVERHEAD
CLEARANCE
C
B
A
5-1/2
2-3/8
3-1/8
VAPOR
CONNECTION
LIQUID CONNECTION
AIR IN
4 SIDES
DIMENSIONS
UNIT
MODEL
DIMENSIONS
(INCHES)
REFRIGERANT
CONNECTION
LINE SIZE
A 1B C Liquid Vapor
024 30-1/8 24 24
3/8
3/4
030 30-1/8 24 24
036 31-7/8 35 35
7/8
048 37-7/8 35 35
060 37-7/8 35 35
036-21023-005 Rev. A (0802)
Unitary Products Group 3
* Requires a 2FD Blower Time Delay unless a standard furnace is equipped with one.
** Refer to Quick Selection Chart for specific furnace match-up.
ACCESSORIES*
Enhanced Coil Guard - An enhanced coil guard which offers
superior protection from hail and other types of damage is
available.
* For the most current accessory information, refer to the
price book or consult factory.
SOUND RATINGS*
*Rated in accordance with ARI Standard 270.
COOLING CAPACITY -With Air Handler Coils
UNIT
MODEL
VAR SPEED AIR HANDLER
COIL MODEL
COOLING
MODEL ELEC. HEAT
KW WSTAGE
(# CYL)
RATED
CFM
NET MBH SEER EER
TOTAL SENS.
H4TS024 N+VSB12 5,7.5,10,15,18 17
G2FD024S17 1 600 12.4 10.0 14.8 13.5
2 820 24.0 16.8 12.0
G2FD030S17 1 600 12.8 10.2 15.4 14.0
2 820 24.6 17.2 12.5
G2FD036S17 1 600 13.0 10.4 15.5 14.3
2 820 25.0 17.5 12.5
H4TS030
N-VSB12 5,7.5,10,15,18 17
G2FD030S17 1 670 15.0 12.0 14.0 12.7
2 1035 30.0 21.6 11.0
G2FD036S17 1 670 15.4 12.2 14.5 13.1
2 1035 31.0 22.0 11.0
N-VSC16 5,7.5,10,15,20 21 G2FD042S21 1 690 16.4 13.4 15.3 14.1
2 1065 31.6 23.4 11.2
H4TS036 N-VSC16 5,7.5,10,15,20 21
G2FD036S21 1 770 20.0 16.0 15.0 13.7
2 1185 35.0 26.0 11.3
G2FD042S21 1 770 20.0 16.0 15.0 13.7
2 1185 35.0 26.0 11.3
G2FD048S21 1 770 20.6 16.6 16.0 14.4
2 1185 36.0 26.6 12.5
H4TS048
N-VSC16 5, 7.5,10,15,20 21 G2FD048S21 1 1050 25.0 20.0 15.2 14.1
2 1605 47.5 35.0 10.4
N-VSD20 5, 7.5,10,15,20 24
G2FD048S24 1 1050 25.0 20.0 15.3 14.2
2 1570 47.5 35.0 10.5
G2FD060S24 1 1050 25.0 21.0 15.5 14.0
2 1570 49.5 37.0 10.7
H4TS060 N-VSD20 5, 7.5,10,15,20 24
G2FD060S24 1 1250 33.0 26.4 14.5 13.5
2 1900 59.0 43.0 10.4
G2FD061H24 1 1250 33.0 26.4 15.0 14.0
2 1900 59.5 44.0 10.7
Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ARI Standards 210.
Cooling MBH based on 80°F entering air temperature, 50% RH, and rated air flow.
KW includes compressor, outdoor fan and indoor blower motor watts. Add-on coils include 365 watts/1000 CFM for blower motor.
EER (Energy Efficiency Ratio) is the total cooling output in BTU’s at a 95°F outdoor ambient divided by the total electric power in watt-hours at those conditions.
SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTU’s during a normal annual usage period for cooling divided by the total electric power
input in watt-hours during the same period.
UNIT MODEL
SOUND RATINGS
DECIBELS
1 CYLINDER 2 CYLINDER
024 70 db 72 db
030 72 db 74 db
036 73 db 74 db
048 76 db 78 db
060 78 db 79 db
036-21023-005 Rev. A (0802)
4Unitary Products Group
COOLING CAPACITY - Variable Speed Furnace
UNIT
MODEL
VARIABLE SPEED
FURNACE MODEL WCOIL MODEL
COOLING
STAGE
(# CYL)
RATED
CFM
NET MBH SEER EER
TOTAL SENS.
H4TS024
P1XUB12V055 17
G1UA036S17 1 600 12.6 10.2 15.0 13.7
2 820 24.4 17.2 11.7
G1FA036S17 1 600 12.6 10.2 15.0 13.7
2 820 24.4 17.2 11.7
G2FD024S17 1 600 12.4 10.2 15.0 13.0
2 820 23.8 16.8 11.5
G2FD030S17 1 600 12.6 10.2 15.3 13.5
2 820 24.4 17.2 11.6
G2FD036S17 1 600 12.8 10.2 15.5 13.7
2 820 25.0 17.4 11.7
G2FD046S17 1 600 12.8 10.4 15.5 13.7
2 820 25.0 17.4 11.7
P1DUA12V064 14
G1UA030S14 1 600 12.4 10.0 14.0 13.0
2 820 23.8 16.8 11.3
G1FA030S14 1 600 12.4 10.0 14.0 13.0
2 820 23.8 16.8 11.3
G1UA036S14 1 600 12.6 10.2 14.5 13.7
2 820 24.4 17.2 11.7
G1FA036S14 1 600 12.6 10.2 14.5 13.7
2 820 24.4 17.2 11.7
H4TS030
P1XUB12V055 17
G1UA036S17 1 670 15.4 13.4 13.7 12.5
2 1035 29.8 21.6 11.1
G1FA036S17 1 670 15.4 13.4 13.7 12.5
2 1035 29.8 21.6 11.1
G1UA048S17 1 670 15.0 12.2 14.0 12.7
2 1035 29.6 21.6 11.3
G1FA048S17 1 670 15.0 12.2 14.0 12.7
2 1035 29.6 21.6 11.3
G2FD030S17 1 670 15.4 12.2 13.7 13.0
2 1035 29.8 21.6 11.0
G2FD036S17 1 670 15.0 12.0 14.1 13.2
2 1035 29.6 21.6 11.0
G2FD046S17 1 670 15.0 12.0 14.5 13.5
2 1035 29.6 21.6 11.2
P1XUC16V075 21
G1UA036S21 1 690 15.0 12.0 14.5 13.0
2 1065 29.6 21.6 11.0
G1FA036S21 1 690 15.0 12.0 14.5 13.0
2 1065 29.6 21.6 11.0
G1UA048S21 1 690 15.4 12.2 14.5 13.0
2 1065 29.4 21.4 11.0
G1FA048S21 1 690 15.4 12.2 14.5 13.0
2 1065 29.4 21.4 11.0
G2FD036S21 1 670 15.4 12.2 14.5 13.0
2 1065 29.4 21.4 11.0
G2FD042S21 1 690 16.0 13.0 15.5 13.9
2 1065 31.4 23.0 11.4
G2FD048S21 1 690 16.0 13.0 15.5 13.9
2 1065 31.4 23.0 11.4
P1DUA12V064 14
G1UA036S14 1 670 15.4 12.2 13.7 12.5
2 1035 30.2 22.0 11.0
G1FA036S14 1 670 15.4 12.2 13.7 12.5
2 1035 30.2 22.0 11.0
P1DUB16V080 17
G1UA036S17 1 670 15.4 12.2 14.0 13.0
2 1035 29.8 21.6 11.0
G1FA036S17 1 670 15.4 12.2 14.0 13.0
2 1035 29.8 21.6 11.0
G1UA048S17 1 670 15.0 12.0 14.4 13.0
2 1035 29.6 21.6 11.2
G1FA048S17 1 670 15.0 12.0 14.4 13.0
2 1035 29.6 21.6 11.2
G2FD030S17 1 670 15.0 12.0 14.0 13.0
2 1035 29.8 21.6 11.0
G2FD036S17 1 670 15.0 12.0 14.4 13.2
2 1035 29.6 21.6 11.0
G2FD046S17 1 670 15.0 12.0 14.6 13.6
2 1035 29.6 21.6 11.2
036-21023-005 Rev. A (0802)
Unitary Products Group 5
H4TS036
P1XUB12V055
P1DUB16V080
17
17
G1UA048S17 1 750 20.0 16.0 14.5 13.4
2 1150 34.8 26.0 11.0
G1FA048S17 1 750 20.0 16.0 14.5 13.4
2 1150 34.8 26.0 11.0
G2FD036S17 1 750 20.0 16.0 14.5 13.4
2 1150 34.8 26.0 11.0
G2FD046S17 1 750 20.0 16.0 14.5 13.4
2 1150 34.8 26.0 11.0
P1XUC16V075 21
G1UA048S21 1 770 21.0 16.6 15.0 14.1
2 1185 36.8 27.0 11.6
G1FA048S21 1 770 21.0 16.6 15.0 14.1
2 1185 36.8 27.0 11.6
G2FD036S21 1 770 20.4 16.0 15.0 13.6
2 1185 35.4 26.0 11.4
G2FD042S21 1 770 20.4 16.0 15.0 13.6
2 1185 35.4 26.0 11.4
G2FD048S21 1 770 21.0 16.6 15.5 14.1
2 1185 36.8 27.0 11.6
P1XUC20V095
P1DUC20V096 21
G1UA048S21 1 770 21.0 16.0 15.5 14.3
2 1200 37.0 27.0 11.6
G1FA048S21 1 770 21.0 16.0 15.5 14.3
2 1200 37.0 27.0 11.6
G2FD036S21 1 770 20.4 16.4 15.0 13.7
2 1200 35.4 26.0 11.4
G2FD042S21 1 770 20.4 16.4 15.0 13.7
2 1200 35.4 26.0 11.4
G2FD048S21 1 770 21.0 16.6 15.5 14.2
2 1200 37.0 27.0 11.6
P1XUD20V112 24 G2FD048S24 1 770 21.0 16.6 15.5 14.2
2 1200 37.0 27.0 11.6
H4TS048
P1XUC16V075
P1XUC20V095
P1DUC20V096
21
G1UA048S21 1 1050 24.0 19.0 14.5 13.5
2 1500 47.5 35.0 10.2
G1FA048S21 1 1050 24.0 19.0 14.5 13.5
2 1500 47.5 35.0 10.2
G1UA060S21 1 1050 25.0 20.0 14.7 13.3
2 1500 49.0 36.0 10.4
G1FA060S21 1 1050 25.0 20.0 14.7 13.3
2 1500 49.0 36.0 10.4
G2FD048S21 1 1050 24.0 19.0 14.7 13.9
2 1500 47.5 35.0 10.2
P1XUD20V112 24
G1UA060S24 1 1050 25.2 20.2 15.0 13.8
2 1500 49.5 36.5 10.5
G1FA060S24 1 1050 25.2 20.2 15.0 13.8
2 1500 49.5 36.5 10.5
G2FD048S24 1 1050 24.0 19.0 14.8 14.0
2 1500 47.5 35.0 10.3
G2FD060S24 1 1050 25.2 20.2 15.0 13.8
2 1500 49.5 37.5 10.5
H4TS060
P1XUC20V095
P1DUC20V096 21
G1UA060S21 1 1250 33.0 26.4 13.7 12.6
2 1900 59.0 43.0 10.0
G1FA060S21 1 1250 33.0 26.4 13.7 12.6
2 1900 59.0 43.0 10.0
P1XUD20V112 24
G1UA060S24 1 1250 33.0 26.4 14.0 13.1
2 1900 59.0 43.0 10.4
G1FA060S24 1 1250 33.0 26.4 14.0 13.1
2 1900 59.0 43.0 10.4
G2FD060S24 1 1250 33.0 26.4 14.0 13.1
2 1900 59.0 43.0 10.4
G2FD061H24 1 1250 34.0 27.0 14.3 13.1
2 1900 60.0 44.0 10.6
COOLING CAPACITY - Variable Speed Furnace (Continued)
UNIT
MODEL
VARIABLE SPEED
FURNACE MODEL WCOIL MODEL
COOLING
STAGE
(# CYL)
RATED
CFM
NET MBH SEER EER
TOTAL SENS.
036-21023-005 Rev. A (0802)
6Unitary Products Group
Multipliers for determining the performance with other indoor sections.
COOLING PERFORMANCE DATA - LOW CFM 1-CYLINDER OPERATION
AIR CONDITIONER MODEL NO. H4TS024S06
INDOOR COIL MODEL NO. G2FD036S17+N1VSB12
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 550 600 650
ID DB (°F) 85 80 75 70 85 80 75 70 85 80 75 70
ID WB (°F) 72 67 62 57 72 67 62 57 72 67 62 57
75
T.C. 15.7 14.4 13.1 12.1 15.9 14.5 13.3 12.3 16.0 14.6 13.5 12.4
S.C. 10.4 10.5 10.5 10.1 11.0 10.9 11.1 10.3 11.5 11.4 11.3 10.4
K.W 0.77 0.77 0.77 0.77 0.79 0.77 0.77 0.77 0.80 0.80 0.80 0.80
85
T.C. 14.8 13.7 12.4 11.5 15.1 13.8 12.7 11.7 15.2 13.9 12.8 11.8
S.C. 10.2 10.2 10.2 9.6 10.8 10.7 10.6 9.8 11.2 11.1 10.7 9.9
K.W 0.84 0.84 0.84 0.83 0.86 0.84 0.84 0.83 0.88 1.10 1.09 1.08
95
T.C. 14.1 12.9 11.8 10.9 14.2 13.0 12.0 11.1 14.3 13.2 12.2 11.2
S.C. 10.0 9.9 9.9 9.1 10.5 10.4 10.1 9.3 11.0 11.0 10.2 9.4
K.W 0.92 0.91 0.90 0.89 0.93 0.91 0.90 0.89 0.95 0.94 0.93 0.92
105
T.C. 13.3 12.1 11.2 10.3 13.4 12.2 11.4 10.4 13.4 12.4 11.5 10.6
S.C. 9.8 9.7 9.4 8.6 10.2 10.1 9.5 8.7 10.7 10.4 9.6 8.8
K.W 0.99 0.97 0.96 0.94 1.00 0.97 0.96 0.95 1.02 1.00 0.99 0.98
115
T.C. 12.4 11.3 10.5 9.7 12.5 11.6 10.7 9.8 12.6 11.7 10.8 9.9
S.C. 9.5 9.4 8.8 8.1 9.9 9.7 8.9 8.2 10.4 9.8 9.0 8.3
K.W 1.05 1.03 1.01 1.00 1.06 1.03 1.02 1.00 1.08 1.07 1.05 1.03
125
T.C. 11.5 10.5 9.8 9.1 11.6 11.0 10.0 9.2 11.8 11.0 10.1 9.2
S.C. 9.2 9.1 8.2 7.6 9.6 9.3 8.3 7.7 10.1 9.2 8.4 7.8
K.W 1.10 1.09 1.06 1.06 1.12 1.09 1.08 1.05 1.14 1.14 1.11 1.08
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1VSB12 G2FD024S17 0.95 0.96 1.01
N1VSB12 G2FD030S17 0.98 0.98 1.00
G1UA048S17 0.95 1.00 1.04
G1HD036 0.94 0.98 1.07
G2FD030S17 0.94 0.98 1.07
G1FD036S17 0.95 1.00 1.08
G1FA036S17,21 0.92 0.96 1.04
G2FD035S14 0.92 0.96 1.04
G2FD048S21,24 0.95 1.01 0.89
G1FA048S17 0.95 1.00 1.04
G1UA036S17,21 0.92 0.96 1.04
Variable Speed
Furnace Coil T.C. S.C. KW
P1XUB12V055 G1UA036S17 0.97 0.98 1.01
P1XUB12V055 G1FA036S17 0.97 0.98 1.01
P1XUB12V055 G2FD024S17 0.95 0.98 1.04
P1XUB12V055 G2FD030S17 0.97 0.98 1.02
P1XUB12V055 G2FD036S17 0.98 0.98 1.02
P1XUB12V055 G2FD046S17 0.98 1.00 1.02
P1DUA12V064 G1UA036S14 0.97 0.98 1.04
P1DUA12V064 G1FA036S14 0.97 0.98 1.04
P1DUA12V064 G1UA030S14 0.95 0.96 1.04
P1DUA12V064 G1FA030S14 0.95 0.96 1.04
036-21023-005 Rev. A (0802)
Unitary Products Group 7
Multipliers for determining the performance with other indoor sections.
COOLING PERFORMANCE DATA - HIGH CFM 2-CYLINDER OPERATION
AIR CONDITIONER MODEL NO. H4TS024S06
INDOOR COIL MODEL NO. G2FD036S17+N1VSB12
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 750 800 850
ID DB (°F) 85 80 75 70 85 80 75 70 85 80 75 70
ID WB (°F) 72 67 62 57 72 67 62 57 72 67 62 57
75
T.C. 29.1 26.6 24.1 21.8 29.3 26.9 24.3 22.0 29.5 27.1 24.5 22.2
S.C. 16.9 16.9 17.0 17.0 17.4 17.4 17.5 17.5 17.8 17.9 18.0 18.0
K.W 1.74 1.73 1.70 1.67 1.77 1.74 1.71 1.70 1.79 1.76 1.74 1.71
85
T.C. 28.3 25.9 23.4 21.2 28.5 26.1 23.6 21.6 28.7 26.3 23.8 21.9
S.C. 17.1 17.1 17.2 17.1 17.6 17.6 17.7 17.9 18.1 18.1 18.3 18.4
K.W 1.88 1.86 1.82 1.78 1.91 1.87 1.84 1.81 1.93 1.90 1.86 1.83
95
T.C. 27.1 24.8 22.5 20.4 27.3 25.0 22.7 20.6 27.4 25.1 22.9 20.8
S.C. 16.9 16.9 17.1 17.1 17.5 17.5 17.6 17.6 18.0 18.0 18.3 18.2
K.W 2.02 1.98 1.94 1.90 2.05 2.00 1.96 1.92 2.06 2.03 1.98 1.94
105
T.C. 25.6 23.3 21.2 19.2 25.8 23.5 21.4 19.4 25.9 23.7 21.6 19.8
S.C. 16.5 16.5 16.7 16.7 17.2 17.1 16.4 14.3 17.7 17.8 17.9 18.0
K.W 2.17 2.11 2.06 2.00 2.19 2.13 2.08 2.03 2.21 2.16 2.10 2.06
115
T.C. 23.9 21.9 19.9 18.0 24.1 22.0 20.0 18.4 24.2 22.3 20.2 18.7
S.C. 16.0 16.0 16.2 16.1 16.6 16.6 16.8 16.7 17.2 17.3 17.3 17.0
K.W 2.30 2.23 2.16 2.11 2.32 2.25 2.19 2.13 2.34 2.28 2.21 2.17
125
T.C. 22.3 20.4 18.7 16.7 22.5 20.4 18.7 17.3 22.6 20.8 18.8 17.5
S.C. 15.5 15.5 15.7 15.5 16.0 16.1 17.2 19.1 16.7 16.8 16.7 16.0
K.W 2.43 2.34 2.26 2.21 2.45 2.37 2.30 2.23 2.47 2.40 2.32 2.28
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1VSB12 G2FD024S17 0.96 0.96 1.00
N1VSB12 G2FD030S17 0.98 0.98 0.98
G1UA048S17 0.98 1.01 1.11
G1HD036 0.98 1.01 1.15
G2FD030S17 0.96 0.98 1.13
G1FD036S17 0.98 1.01 1.11
G1FA036S17,21 0.96 0.98 1.13
G2FD035S14 0.96 0.98 1.13
G2FD048S21,24 0.98 1.02 0.94
G1FA048S17 0.98 1.01 1.11
G1UA036S17,21 0.96 0.98 1.13
Variable Speed
Furnace Coil T.C. S.C. KW
P1XUB12V055 G1FA036S17 0.98 0.98 1.04
P1XUB12V055 G1UA036S17 0.98 0.98 1.04
P1XUB12V055 G2FD024S17 0.95 0.96 1.03
P1XUB12V055 G2FD030S17 0.98 0.98 1.05
P1XUB12V055 G2FD036S17 1.00 0.99 1.07
P1XUB12V055 G2FD046S17 1.00 0.99 1.07
P1DUA12V064 G1FA036S14 0.98 0.98 1.05
P1DUA12V064 G1UA036S14 0.98 0.98 1.05
P1DUA12V064 G1FA030S14 0.95 0.96 1.01
P1DUA12V064 G1UA030S14 0.95 0.96 1.01
036-21023-005 Rev. A (0802)
8Unitary Products Group
Multipliers for determining the performance with other indoor sections.
COOLING PERFORMANCE DATA - LOW CFM 1-CYLINDER OPERATION
AIR CONDITIONER MODEL NO. H4TS030S06
INDOOR COIL MODEL NO. G2FD042S21+N1VSC16
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 600 650 700
ID DB (°F) 85 80 75 70 85 80 75 70 85 80 75 70
ID WB (°F) 72 67 62 57 72 67 62 57 72 67 62 57
75
T.C. 19.8 18.1 16.6 15.4 19.9 18.5 16.8 15.6 20.1 18.5 17.2 15.9
S.C. 13.6 13.6 13.5 12.7 14.2 14.1 13.9 12.9 15.4 15.1 14.2 13.1
K.W 0.98 0.98 0.98 0.99 1.00 1.00 1.00 1.00 1.03 1.03 1.03 1.03
85
T.C. 18.7 17.2 15.8 14.6 18.8 17.3 16.0 14.8 19.1 17.7 16.4 15.1
S.C. 13.3 13.3 13.1 12.1 13.9 13.7 13.3 12.2 15.0 14.6 13.5 12.5
K.W 1.07 1.06 1.06 1.06 1.09 1.08 1.08 1.08 1.13 1.12 1.12 1.11
95
T.C. 17.7 16.3 15.0 13.9 17.9 16.4 15.2 14.0 18.0 16.8 15.5 14.3
S.C. 13.0 12.9 12.4 11.5 13.7 13.4 12.6 11.6 14.6 13.9 12.8 11.8
K.W 1.16 1.15 1.14 1.13 1.17 1.17 1.16 1.15 1.21 1.21 1.20 1.19
105
T.C. 16.7 15.3 14.2 13.1 16.8 15.6 14.4 13.2 17.1 15.8 14.6 13.4
S.C. 12.7 12.5 11.7 10.8 13.2 12.9 11.9 10.9 14.1 13.1 12.1 11.1
K.W 1.25 1.23 1.21 1.20 1.26 1.24 1.23 1.22 1.30 1.28 1.27 1.26
115
T.C. 15.7 14.5 13.4 12.3 15.8 14.6 13.5 12.4 16.1 14.9 13.7 12.6
S.C. 12.4 12.0 11.0 10.2 12.8 12.1 11.2 10.2 13.3 12.3 11.3 10.4
K.W 1.32 1.30 1.28 1.26 1.34 1.32 1.30 1.29 1.39 1.37 1.34 1.33
125
T.C. 14.7 13.7 12.6 11.5 14.8 13.6 12.6 11.6 15.1 14.0 12.8 11.8
S.C. 12.1 11.5 10.3 9.6 12.4 11.3 10.5 9.5 12.5 11.5 10.5 9.7
K.W 1.40 1.37 1.35 1.32 1.42 1.40 1.37 1.36 1.47 1.46 1.41 1.40
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1VSB12 G2FD030S17 0.91 0.90 1.02
N1VSB12 G2FD036S17 0.94 0.91 1.01
N1VSC16 G2FD036S21 0.94 0.99 0.99
F2FP040 1.00 1.00 0.98
GUA048S17,21 0.94 1.00 1.05
G1HD036 0.91 0.91 1.09
GHD048 0.94 1.00 1.05
GFD036S17 0.91 0.91 1.09
GFD046S17 0.91 0.91 1.09
G1FA048S21,24 0.97 1.07 0.96
G2FD035S14 0.91 0.96 0.96
G2FD048S21,24 0.97 1.07 0.96
GFA048S17,21 0.94 1.00 1.05
G1UA048S21,24 0.97 1.07 0.96
Variable Speed
Furnace Coil T.C. S.C. KW
P1XUB12V055 G1FA036S17 0.94 1.00 1.05
P1XUB12V055 G1FA048S17 0.91 0.91 1.02
P1XUB12V055 G1UA036S17 0.94 1.00 1.05
P1XUB12V055 G1UA048S17 0.91 0.91 1.02
P1XUB12V055 G2FD030S17 0.94 0.91 1.01
P1XUB12V055 G2FD036S17 0.91 0.90 0.99
P1XUB12V055 G2FD046S17 0.91 0.90 0.95
P1XUC16V075 G1FA036S21 0.91 0.90 0.99
P1XUC16V075 G1FA048S21 0.94 0.91 1.01
P1XUC16V075 G1UA036S21 0.91 0.90 0.99
P1XUC16V075 G1UA048S21 0.94 0.91 1.01
P1XUC16V075 G2FD036S21 0.94 0.91 1.01
P1XUC16V075 G2FD042S21 0.98 0.97 0.99
P1XUC16V075 G2FD048S21 0.98 0.97 0.99
P1DUA12V064 G1FA036S14 0.94 0.91 1.05
P1DUB16V080 G1FA036S17 0.94 0.91 1.01
P1DUB16V080 G1FA048S17 0.91 0.90 0.99
P1DUA12V064 G1UA036S14 0.94 0.91 1.05
P1DUB16V080 G1UA036S17 0.94 0.91 1.01
P1DUB16V080 G1UA048S17 0.91 0.90 0.99
P1DUB16V080 G2FD030S17 0.91 0.90 0.99
P1DUB16V080 G2FD036S17 0.91 0.90 0.98
P1DUB16V080 G2FD046S17 0.91 0.90 0.94
036-21023-005 Rev. A (0802)
Unitary Products Group 9
Multipliers for determining the performance with other indoor sections.
COOLING PERFORMANCE DATA - HIGH CFM 2-CYLINDER OPERATION
AIR CONDITIONER MODEL NO. H4TS030S06
INDOOR COIL MODEL NO. G2FD042S21+N1VSC16
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 950 1000 1100
ID DB (°F) 85 80 75 70 85 80 75 70 85 80 75 70
ID WB (°F) 72 67 62 57 72 67 62 57 72 67 62 57
75
T.C. 35.9 33.1 30.3 27.6 36.1 33.3 30.5 27.8 36.5 33.6 30.8 28.3
S.C. 22.6 22.7 23.0 23.1 23.0 23.2 23.5 23.6 23.9 24.0 24.4 24.6
K.W 2.34 2.29 2.25 2.21 2.37 2.32 2.27 2.23 2.40 2.35 2.30 2.27
85
T.C. 35.4 32.6 29.8 27.3 35.6 32.8 30.0 27.5 35.9 33.1 30.3 27.9
S.C. 22.9 23.0 23.3 23.5 23.4 23.5 23.8 24.1 23.4 24.5 24.9 25.1
K.W 2.59 2.53 2.47 2.43 2.61 2.55 2.50 2.45 2.65 2.58 2.53 2.49
95
T.C. 34.1 31.4 28.7 26.4 34.3 31.6 28.9 26.5 34.7 31.9 29.3 26.9
S.C. 22.6 22.8 23.1 23.3 23.2 23.4 23.8 23.9 23.2 24.6 25.0 25.0
K.W 2.86 2.79 2.73 2.68 2.88 2.82 2.75 2.70 2.92 2.85 2.79 2.73
105
T.C. 32.7 30.0 27.4 25.1 32.9 30.2 27.6 25.3 33.1 30.4 27.9 25.6
S.C. 22.5 22.5 22.7 22.9 23.1 23.1 23.4 23.5 24.2 24.3 24.5 24.6
K.W 3.18 3.10 3.03 2.87 3.20 3.11 3.04 2.99 3.24 3.16 3.09 3.03
115
T.C. 31.1 28.4 26.1 23.8 31.1 28.7 26.2 23.9 31.4 29.0 26.5 24.3
S.C. 21.9 21.8 22.2 22.3 22.4 22.5 22.7 22.8 23.6 23.7 23.9 23.9
K.W 3.55 3.46 3.33 3.33 3.57 3.48 3.41 3.34 3.62 3.53 3.45 3.39
125
T.C. 29.5 26.8 24.8 22.5 29.3 27.2 24.8 22.5 29.7 27.6 25.1 23.0
S.C. 21.3 21.1 21.7 21.7 21.7 21.9 22.0 22.1 23.0 23.1 23.3 23.2
K.W 3.93 3.83 3.62 3.78 3.94 3.85 3.78 3.69 4.00 3.90 3.81 3.75
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1VSB12 G2FD030S17 0.95 0.92 0.97
N1VSB12 G2FD036S17 0.98 0.94 1.00
N1VSC16 G2FD036S21 0.98 0.99 1.00
F2FP040 0.97 1.00 0.91
GUA048S17,21 1.01 1.01 1.03
G1HD036 0.95 0.94 1.04
GHD048 1.01 1.01 1.03
GFD036S17 0.95 0.94 1.04
GFD046S17 0.95 0.94 1.04
G1FA048S21,24 1.01 1.07 0.90
G2FD035S14 0.95 0.96 0.90
G2FD048S21,24 1.01 1.07 0.90
GFA048S17,21 1.01 1.01 1.03
G1UA048S21,24 1.01 1.07 0.90
Variable Speed
Furnace Coil T.C. S.C. KW
P1XUB12V055 G1FA036S17 0.94 0.92 0.95
P1XUB12V055 G1UA036S17 0.94 0.92 0.95
P1XUB12V055 G1FA048S17 0.94 0.92 0.93
P1XUB12V055 G1UA048S17 0.94 0.92 0.93
P1XUB12V055 G2FD030S17 0.94 0.92 0.96
P1XUB12V055 G2FD036S17 0.94 0.92 0.96
P1XUB12V055 G2FD046S17 0.94 0.92 0.94
P1XUC16V075 G1FA036S21 0.94 0.92 0.96
P1XUC16V075 G1UA036S21 0.94 0.92 0.96
P1XUC16V075 G1FA048S21 0.93 0.91 0.95
P1XUC16V075 G1UA048S21 0.93 0.91 0.95
P1XUC16V075 G2FD036S21 0.93 0.91 0.95
P1XUC16V075 G2FD042S21 0.94 0.98 0.92
P1XUC16V075 G2FD048S21 0.99 0.98 0.98
P1DUA12V064 G1FA036S14 0.96 0.94 0.98
P1DUA12V064 G1UA036S14 0.96 0.94 0.98
P1DUB16V080 G1FA036S17 0.94 0.92 0.96
P1DUB16V080 G1UA036S17 0.94 0.92 0.96
P1DUB16V080 G1FA048S17 0.94 0.92 0.94
P1DUB16V080 G1UA048S17 0.94 0.92 0.94
P1DUB16V080 G2FD030S17 0.94 0.92 0.96
P1DUB16V080 G2FD036S17 0.94 0.92 0.96
P1DUB16V080 G2FD046S17 0.94 0.92 0.94
036-21023-005 Rev. A (0802)
10 Unitary Products Group
Multipliers for determining the performance with other indoor sections.
COOLING PERFORMANCE DATA - LOW CFM 1-CYLINDER OPERATION
AIR CONDITIONER MODEL NO. H4TS036S06
INDOOR COIL MODEL NO. G2FD048S21+N1VSC16
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 700 750 850
ID DB (°F) 85 80 75 70 85 80 75 70 85 80 75 70
ID WB (°F) 72 67 62 57 72 67 62 57 72 67 62 57
75
T.C. 24.5 22.2 20.2 18.3 24.7 22.4 20.4 18.4 25.0 22.9 20.7 18.9
S.C. 16.0 16.0 16.1 16.1 16.5 16.5 16.7 16.6 17.5 17.7 17.7 17.7
K.W 1.21 1.24 1.25 1.25 1.23 1.25 1.26 1.28 1.25 1.28 1.29 1.30
85
T.C. 23.6 21.5 19.5 17.6 23.8 21.7 19.7 17.9 24.1 22.1 20.0 18.4
S.C. 16.2 16.1 16.3 16.1 16.8 16.8 16.9 16.8 18.0 18.0 18.1 17.7
K.W 1.31 1.32 1.33 1.33 1.31 1.34 1.35 1.35 1.34 1.36 1.38 1.38
95
T.C. 22.4 20.4 18.5 16.8 22.6 20.6 18.6 17.1 22.8 20.9 19.0 17.6
S.C. 16.0 16.0 16.0 16.0 16.7 16.6 16.7 16.4 17.9 17.9 17.9 16.9
K.W 1.40 1.42 1.42 1.42 1.42 1.43 1.43 1.43 1.45 1.46 1.47 1.47
105
T.C. 21.0 19.2 17.3 15.9 21.2 19.3 17.5 16.2 21.4 19.5 17.9 16.6
S.C. 15.6 15.6 15.7 15.3 16.3 16.2 16.3 15.5 17.6 17.5 17.2 15.9
K.W 1.51 1.51 1.51 1.50 1.53 1.53 1.53 1.53 1.55 1.56 1.57 1.56
115
T.C. 19.7 17.9 16.2 15.0 19.8 18.1 16.5 15.2 20.0 18.3 16.9 15.6
S.C. 15.2 15.1 15.2 14.4 15.9 15.8 15.8 14.6 17.2 17.1 16.2 15.0
K.W 1.62 1.62 1.61 1.59 1.63 1.63 1.62 1.61 1.66 1.66 1.66 1.65
125
T.C. 18.4 16.6 15.1 14.1 18.4 16.9 15.5 14.2 18.6 17.1 15.9 14.6
S.C. 14.8 14.6 14.7 13.5 15.5 15.4 15.3 13.7 16.8 16.7 15.2 14.1
K.W 1.72 1.72 1.70 1.68 1.73 1.73 1.72 1.70 1.77 1.77 1.76 1.75
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1VSB12 G2FD036S17 0.91 0.96 1.03
N1VSC16 G2FD042S21 0.97 0.96 1.02
N1VSC16 G2FD036S21 0.97 0.96 1.02
N1VSD20 G2FD048S24 1.00 1.03 1.00
G1HD048 0.97 1.00 1.17
GUA048S17,21 0.93 1.00 1.12
G2FD036S17,21 0.93 0.96 1.16
G2FD042S21 0.93 0.96 1.16
G2FD046S17 0.93 0.96 1.16
G1FA048S21,24 0.93 1.00 1.03
GFA048S17,21 0.93 1.00 1.12
G1UA048S21,24 0.93 1.00 1.03
Variable Speed
Furnace Coil T.C. S.C. KW
P1XUB12V055 G1FA048S17 0.97 0.96 1.04
P1XUB12V055 G1UA048S17 0.97 0.96 1.04
P1XUB12V055 G2FD036S17 0.97 0.96 1.04
P1XUB12V055 G2FD046S17 0.97 0.96 1.04
P1DUB16V080 G1FA048S17 0.97 0.96 1.04
P1DUB16V080 G1UA048S17 0.97 0.96 1.04
P1DUB16V080 G2FD036S17 0.97 0.96 1.05
P1DUB16V080 G2FD046S17 0.97 0.96 1.05
P1XUC16V075 G1FA048S21 1.02 1.00 1.04
P1XUC16V075 G1UA048S21 1.02 1.00 1.04
P1XUC16V075 G2FD036S21 0.99 0.96 1.05
P1XUC16V075 G2FD042S21 0.99 0.96 1.05
P1XUC16V075 G2FD048S21 1.02 1.00 1.04
P1DUC20V096 G1FA048S21 1.02 0.96 1.03
P1XUC20V095 G1FA048S21 1.02 0.96 1.03
P1DUC20V096 G1UA048S21 1.02 0.96 1.03
P1XUC20V095 G1UA048S21 1.02 0.96 1.03
P1DUC20V096 G2FD036S21 0.99 0.99 1.04
P1XUC20V095 G2FD036S21 0.99 0.99 1.04
P1XUC20V095 G2FD042S21 0.99 0.99 1.04
P1DUC20V096 G2FD042S21 0.99 0.99 1.04
P1DUC20V096 G2FD048S21 1.02 1.00 1.03
P1XUC20V095 G2FD048S21 1.02 1.00 1.03
P1XUD20V112 G2FD048S24 1.02 1.00 1.03
036-21023-005 Rev. A (0802)
Unitary Products Group 11
Multipliers for determining the performance with other indoor sections.
COOLING PERFORMANCE DATA - HIGH CFM 2-CYLINDER OPERATION
AIR CONDITIONER MODEL NO. H4TS036S06
INDOOR COIL MODEL NO. G2FD048S21+N1VSC16
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1100 1200 1300
ID DB (°F) 85 80 75 70 85 80 75 70 85 80 75 70
ID WB (°F) 72 67 62 57 72 67 62 57 72 67 62 57
75
T.C. 42.2 38.7 35.2 32.0 42.6 39.1 35.7 32.6 43.0 39.5 36.0 33.0
S.C. 25.8 25.9 26.1 26.1 26.8 26.9 27.1 27.4 27.7 27.8 28.1 28.3
K.W 2.49 2.46 2.43 2.41 2.52 2.50 2.48 2.45 2.57 2.54 2.51 2.48
85
T.C. 40.9 37.5 34.1 31.1 41.3 37.9 34.6 31.5 41.7 38.2 35.0 31.9
S.C. 25.9 25.9 26.1 26.3 26.9 27.0 27.4 27.3 28.0 28.0 28.4 28.4
K.W 2.68 2.65 2.61 2.56 2.72 2.69 2.65 2.61 2.76 2.73 2.69 2.65
95
T.C. 39.0 35.7 32.4 29.4 39.3 36.0 32.8 29.8 39.7 36.4 33.2 30.3
S.C. 25.5 25.5 25.7 25.7 26.6 26.6 26.9 26.8 27.9 27.9 28.1 28.1
K.W 2.88 2.84 2.79 2.74 2.92 2.88 2.83 2.78 2.96 2.92 2.87 2.82
105
T.C. 36.8 33.6 30.5 27.7 37.0 33.9 30.8 28.1 37.3 34.2 31.2 28.8
S.C. 24.9 24.9 25.1 25.1 26.0 26.0 26.2 26.2 27.2 27.2 27.5 27.4
K.W 3.08 3.02 2.95 2.89 3.12 3.07 3.01 2.94 3.17 3.11 3.05 2.99
115
T.C. 34.5 31.5 28.6 25.9 34.7 31.9 28.9 26.6 35.1 32.0 29.2 27.1
S.C. 24.1 24.1 24.2 24.2 25.3 25.4 25.5 25.4 26.6 26.4 26.6 25.8
K.W 3.27 3.21 3.13 3.05 3.32 3.25 3.17 3.11 3.36 3.29 3.22 3.16
125
T.C. 32.2 29.4 26.7 24.1 32.4 29.9 27.0 25.1 32.9 29.8 27.2 25.4
S.C. 23.3 23.3 23.3 23.3 24.6 24.8 24.8 24.6 26.0 25.6 25.7 24.2
K.W 3.46 3.40 3.30 3.20 3.51 3.43 3.33 3.27 3.55 3.48 3.39 3.32
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1VSB12 G2FD036S17 0.94 0.96 1.06
N1VSC16 G2FD036S21 0.97 0.98 1.07
N1VSC16 G2FD042S21 0.97 0.98 1.08
N1VSD20 G2FD048S24 1.00 1.03 1.00
G1HD048 0.97 1.00 1.10
GUA048S17,21 0.97 1.00 1.10
G2FD036S17,21 0.94 0.98 1.14
G2FD042S21 0.94 0.98 1.14
G2FD046S17 0.94 0.98 1.14
G1FA048S21,24 0.97 1.00 1.01
GFA048S17,21 0.97 1.00 1.10
G1UA048S21,24 0.97 1.00 1.01
Variable Speed
Furnace Coil T.C. S.C. KW
P1XUB12V055 G1FA048S17 0.97 0.98 1.10
P1XUB12V055 G1UA048S17 0.97 0.98 1.10
P1XUB12V055 G2FD036S17 0.97 0.98 1.10
P1XUB12V055 G2FD046S17 0.97 0.98 1.07
P1DUB16V080 G1FA048S17 0.97 0.98 1.10
P1DUB16V080 G1UA048S17 0.97 0.98 1.10
P1DUB16V080 G2FD036S17 0.97 0.98 1.10
P1DUB16V080 G2FD046S17 0.97 0.98 1.07
P1XUC16V075 G1FA048S21 1.02 1.02 1.10
P1XUC16V075 G1UA048S21 1.02 1.02 1.10
P1XUC16V075 G2FD036S21 0.98 0.98 1.08
P1XUC16V075 G2FD042S21 0.98 0.98 1.11
P1XUC16V075 G2FD048S21 1.02 1.02 1.10
P1DUC20V096 G1FA048S21 1.03 1.02 1.11
P1DUC20V096 G1UA048S21 1.03 1.02 1.11
P1XUC20V095 G1FA048S21 1.03 1.02 1.11
P1XUC20V095 G1UA048S21 1.03 1.02 1.11
P1DUC20V096 G2FD036S21 0.98 0.98 1.08
P1XUC20V095 G2FD036S21 0.98 0.98 1.08
P1XUC20V095 G2FD042S21 0.98 0.98 1.11
P1DUC20V096 G2FD042S21 0.98 0.98 1.08
P1DUC20V096 G2FD048S21 1.03 1.02 1.11
P1XUC20V095 G2FD048S21 1.03 1.02 1.11
P1XUD20V112 G2FD048S24 1.03 1.02 1.11
036-21023-005 Rev. A (0802)
12 Unitary Products Group
Multipliers for determining the performance with other indoor sections.
COOLING PERFORMANCE DATA - LOW CFM 1-CYLINDER OPERATION
AIR CONDITIONER MODEL NO. H4TS048S06
INDOOR COIL MODEL NO. G2FD048S24+N1VSD20
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1450 1600 1750
ID DB (°F) 85 80 75 70 85 80 75 70 85 80 75 70
ID WB (°F) 72 67 62 57 72 67 62 57 72 67 62 57
75
T.C. 29.2 26.7 24.3 21.9 29.5 27.1 24.6 22.4 29.7 27.4 24.9 22.8
S.C. 19.4 19.4 19.6 19.5 20.5 20.6 20.7 20.7 21.5 21.6 21.7 21.7
K.W 1.43 1.43 1.42 1.41 1.46 1.46 1.45 1.44 1.49 1.49 1.48 1.48
85
T.C. 27.7 25.3 23.0 20.8 28.0 25.7 23.3 21.2 28.4 25.9 23.5 21.8
S.C. 18.9 18.8 19.0 19.1 20.0 20.0 20.1 20.0 21.1 21.0 21.0 20.7
K.W 1.57 1.56 1.54 1.53 1.60 1.59 1.57 1.56 1.64 1.62 1.61 1.59
95
T.C. 26.1 23.9 21.7 19.7 26.3 24.2 22.0 20.2 26.7 24.4 22.3 20.6
S.C. 18.3 18.3 18.5 18.4 19.4 19.4 19.5 19.2 20.6 20.4 20.6 19.6
K.W 1.69 1.68 1.66 1.63 1.72 1.71 1.69 1.67 1.76 1.74 1.73 1.71
105
T.C. 24.5 22.5 20.3 18.6 24.9 22.7 20.7 19.1 25.1 22.8 21.0 19.4
S.C. 17.8 17.8 17.8 17.7 18.9 18.8 19.0 18.0 19.9 19.8 20.0 18.4
K.W 1.81 1.78 1.76 1.73 1.84 1.82 1.80 1.77 1.88 1.85 1.83 1.81
115
T.C. 22.9 20.9 18.9 17.4 23.1 21.2 19.3 17.8 23.3 21.3 19.7 18.1
S.C. 17.3 17.2 17.2 16.6 18.3 18.1 18.2 17.0 19.3 19.1 18.7 17.3
K.W 1.92 1.88 1.85 1.83 1.95 1.92 1.89 1.86 1.99 1.95 1.93 1.90
125
T.C. 21.4 19.4 17.4 16.3 21.4 19.7 17.8 16.6 21.6 19.7 18.5 16.8
S.C. 16.8 16.6 16.5 15.5 17.8 17.5 17.5 15.9 18.7 18.4 17.5 16.1
K.W 2.03 1.98 1.94 1.92 2.06 2.02 1.98 1.96 2.09 2.05 2.03 1.99
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1VSC16 G2FD048S21 1.00 1.03 1.01
N1VSD20 G2FD060S24 1.02 1.12 1.08
F2FV060 1.02 1.12 1.08
F2RP/F2FP048 0.99 1.03 0.96
F2RP/F2FP060 1.03 1.10 1.03
G1HD060 1.01 1.03 1.17
G1FA048S21 1.01 1.03 1.17
G1FA060S21,24 0.99 1.03 1.15
GFD048S21,24 0.99 1.03 1.15
G2FD060S24 1.01 1.08 1.17
G1UA048S21 1.01 1.03 1.17
G1UA060S21,24 0.99 1.03 1.15
Variable Speed
Furnace Coil T.C. S.C. KW
P1DUC20V096 G1FA048S21 0.99 0.98 1.04
P1DUC20V096 G1UA048S21 0.99 0.98 1.04
P1XUC16V075 G1FA048S21 0.99 0.98 1.04
P1XUC16V075 G1UA048S21 0.99 0.98 1.04
P1XUC20V095 G1FA048S21 0.99 0.98 1.03
P1XUC20V095 G1UA048S21 0.99 0.98 1.03
P1DUC20V096 G1FA060S21 1.03 1.03 1.10
P1DUC20V096 G1UA060S21 1.03 1.03 1.10
P1XUC16V075 G1FA060S21 1.03 1.03 1.11
P1XUC16V075 G1UA060S21 1.03 1.03 1.11
P1XUC20V095 G1FA060S21 1.03 1.03 1.10
P1XUC20V095 G1UA060S21 1.03 1.03 1.10
P1DUC20V096 G2FD048S21 0.99 0.98 1.01
P1XUC16V075 G2FD048S21 0.99 0.98 1.03
P1XUC20V095 G2FD048S21 0.99 0.98 1.01
P1XUD20V112 G1FA060S24 1.04 1.04 1.07
P1XUD20V112 G1UA060S24 1.04 1.04 1.07
P1XUD20V112 G2FD048S24 0.99 0.98 1.01
P1XUD20V112 G2FD060S24 1.04 1.04 1.07
036-21023-005 Rev. A (0802)
Unitary Products Group 13
Multipliers for determining the performance with other indoor sections.
COOLING PERFORMANCE DATA - HIGH CFM 2-CYLINDER OPERATION
AIR CONDITIONER MODEL NO. H4TS048S06
INDOOR COIL MODEL NO. G2FD048S24+N1VSD20
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1450 1600 1750
ID DB (°F) 85 80 75 70 85 80 75 70 85 80 75 70
ID WB (°F) 72 67 62 57 72 67 62 57 72 67 62 57
75
T.C. 56.5 51.9 47.1 42.8 57.2 52.4 47.8 43.7 57.8 53.0 48.3 44.3
S.C. 35.4 35.5 35.8 35.9 36.8 36.9 37.3 37.7 38.3 38.4 38.8 39.1
K.W 4.04 3.95 3.86 3.77 4.11 4.02 3.94 3.85 4.18 4.10 4.00 3.92
85
T.C. 54.0 49.4 45.0 41.0 54.6 50.0 45.5 41.6 55.1 50.5 45.9 42.2
S.C. 34.4 34.5 34.8 35.1 35.9 36.0 36.3 36.5 37.3 37.3 37.7 37.9
K.W 4.29 3.41 4.08 3.97 4.37 4.27 4.16 4.05 4.44 4.34 4.23 4.12
95
T.C. 51.4 47.0 42.7 38.9 51.9 47.5 43.1 39.5 52.3 47.9 43.9 39.9
S.C. 33.4 33.4 33.7 33.9 34.9 34.9 35.2 35.4 36.3 36.3 36.9 36.7
K.W 4.58 4.44 4.31 4.19 4.65 4.52 4.39 4.27 4.72 4.59 4.47 4.35
105
T.C. 48.6 44.4 40.2 36.6 49.1 44.9 41.0 37.2 49.4 45.2 41.4 37.9
S.C. 32.4 32.4 32.6 32.7 33.8 33.8 34.4 34.1 35.2 35.2 35.8 36.0
K.W 4.85 4.71 4.74 4.41 4.93 4.79 4.64 4.49 5.01 4.86 4.72 4.58
115
T.C. 45.8 41.8 38.0 34.4 46.1 42.2 38.5 35.1 46.5 42.5 38.9 35.6
S.C. 31.3 31.2 31.8 31.5 32.8 32.7 33.2 33.3 34.1 34.0 34.5 34.4
K.W 5.13 4.95 4.78 4.61 5.21 5.03 4.87 4.71 5.28 5.11 4.95 4.79
125
T.C. 42.9 39.2 35.8 32.2 43.2 39.5 36.0 33.0 43.6 39.7 36.4 33.3
S.C. 30.2 30.1 31.0 30.3 31.7 31.5 31.9 32.6 33.1 32.9 33.3 32.9
K.W 5.41 5.20 4.83 4.82 5.49 5.28 5.11 4.94 5.55 5.37 5.19 5.01
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1VSC16 G2FD048S21 1.00 1.03 1.01
N1VSD20 G2FD060S24 1.04 1.12 1.02
F2FV060 1.04 1.12 1.02
F2RP/F2FP048 1.01 1.03 0.87
F2RP/F2FP060 1.05 1.10 0.91
G1HD060 1.03 1.07 1.03
G1FA048S21 1.01 1.03 1.04
G1FA060S21,24 1.01 1.03 1.04
GFD048S21,24 1.01 1.03 1.04
G2FD060S24 1.03 1.07 1.03
G1UA048S21 1.01 1.03 1.04
G1UA060S21,24 1.01 1.03 1.04
Variable Speed
Furnace Coil T.C. S.C. KW
P1DUC20V096 G1FA048S21 1.00 1.03 1.03
P1DUC20V096 G1UA048S21 1.00 1.03 1.03
P1XUC16V075 G1FA048S21 0.99 1.03 1.02
P1XUC16V075 G1UA048S21 0.99 1.03 1.02
P1XUC20V095 G1FA048S21 1.00 1.03 1.02
P1XUC20V095 G1UA048S21 1.00 1.03 1.02
P1DUC20V096 G1FA060S21 1.03 1.07 1.04
P1DUC20V096 G1UA060S21 1.03 1.07 1.04
P1XUC16V075 G1FA060S21 1.03 1.07 1.05
P1XUC16V075 G1UA060S21 1.03 1.07 1.05
P1XUC20V095 G1FA060S21 1.03 1.07 1.04
P1XUC20V095 G1UA060S21 1.03 1.07 1.04
P1DUC20V096 G2FD048S21 1.00 1.03 1.03
P1XUC16V075 G2FD048S21 0.99 1.03 1.02
P1XUC20V095 G2FD048S21 1.00 1.03 1.03
P1XUD20V112 G1FA060S24 1.04 1.07 1.04
P1XUD20V112 G1UA060S24 1.04 1.07 1.04
P1XUD20V112 G2FD048S24 1.00 1.03 1.02
P1XUD20V112 G2FD060S24 1.07 1.07 1.04
036-21023-005 Rev. A (0802)
14 Unitary Products Group
Multipliers for determining the performance with other indoor sections.
COOLING PERFORMANCE DATA - LOW CFM 1-CYLINDER OPERATION
AIR CONDITIONER MODEL NO. H4TS060S06
INDOOR COIL MODEL NO. G2FD061H24+N1VSD20
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1100 1200 1300
ID DB (°F) 85 80 75 70 85 80 75 70 85 80 75 70
ID WB (°F) 72 67 62 57 72 67 62 57 72 67 62 57
75
T.C. 39.8 36.4 33.1 30.0 40.1 36.8 33.5 30.4 40.5 37.2 33.8 30.9
S.C. 26.6 26.6 26.9 26.8 27.8 27.9 28.1 28.1 29.1 29.1 29.3 29.3
K.W 1.94 1.94 1.95 1.94 1.97 1.97 1.98 1.97 2.00 2.01 2.01 2.01
85
T.C. 37.8 34.5 31.4 28.4 38.1 34.9 31.8 28.9 38.3 35.2 32.1 29.4
S.C. 25.9 25.8 26.2 26.1 27.1 27.2 27.4 27.3 28.3 28.3 28.5 28.5
K.W 2.15 2.22 2.12 2.10 2.19 2.18 2.16 2.15 2.21 2.21 2.19 2.17
95
T.C. 35.7 32.6 29.7 26.9 35.9 33.0 30.0 27.5 36.3 33.3 30.2 28.0
S.C. 25.2 25.2 25.4 25.3 26.4 26.4 26.6 26.6 27.7 27.6 27.8 27.1
K.W 2.35 2.32 2.29 2.26 2.39 2.36 2.33 2.30 2.42 2.39 2.36 2.33
105
T.C. 33.5 30.7 27.9 25.4 33.9 31.0 28.1 25.9 34.1 31.2 28.5 26.4
S.C. 24.4 24.4 24.6 24.6 25.7 25.6 25.8 25.1 26.9 26.8 27.0 25.5
K.W 2.53 2.50 2.45 2.40 2.57 2.53 2.49 2.45 2.61 2.57 2.52 2.49
115
T.C. 31.4 28.7 26.0 23.9 31.7 28.9 26.4 24.4 31.9 29.1 26.8 24.8
S.C. 23.8 23.7 23.8 23.1 25.0 24.8 25.0 23.6 26.1 26.0 26.0 24.0
K.W 2.71 2.66 2.59 2.54 2.75 2.70 2.64 2.59 2.79 2.74 2.68 2.63
125
T.C. 29.3 26.7 24.1 22.4 29.5 26.8 24.7 22.9 29.7 27.0 25.1 23.2
S.C. 23.2 23.0 23.0 21.6 24.3 24.0 24.2 22.1 25.3 25.2 25.0 22.5
K.W 2.89 2.82 2.74 2.68 2.93 2.87 2.80 2.74 2.97 2.91 2.83 2.78
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1VSD20 G2FD060S24 1.00 1.00 1.07
F2FV060 1.00 1.00 1.07
F2RP/F2FP060 0.97 1.00 0.96
G1HD060 0.97 1.00 1.13
G1FA060S21,24 0.97 1.00 1.13
G2FD060S24 0.97 1.00 1.13
G1UA060S21,24 0.97 1.00 1.13
Variable Speed
Furnace Coil T.C. S.C. KW
P1DUC20V096 G1FA060S21 1.00 1.00 1.11
P1DUC20V096 G1UA060S21 1.00 1.00 1.11
P1XUC20V095 G1FA060S21 1.00 1.00 1.12
P1XUC20V095 G1UA060S21 1.00 1.00 1.12
P1XUD20V112 G1FA060S24 1.00 1.00 1.07
P1XUD20V112 G1UA060S24 1.00 1.00 1.07
P1XUD20V112 G2FD060S24 1.00 1.00 1.07
P1XUD20V112 G2FD061H24 1.03 1.02 1.11
036-21023-005 Rev. A (0802)
Unitary Products Group 15
Multipliers for determining the performance with other indoor sections.
COOLING PERFORMANCE DATA - HIGH CFM 2-CYLINDER OPERATION
AIR CONDITIONER MODEL NO. H4TS060S06
INDOOR COIL MODEL NO. G2FD061H24+N1VSD20
CONDENSER
ENTERING AIR
TEMPERATURE
ID CFM 1700 1900 2000
ID DB (°F) 85 80 75 70 85 80 75 70 85 80 75 70
ID WB (°F) 72 67 62 57 72 67 62 57 72 67 62 57
75
T.C. 70.7 64.9 59.1 53.9 71.5 65.7 59.9 54.9 71.9 66.1 60.3 55.3
S.C. 44.1 44.3 44.8 44.9 46.3 46.4 46.9 47.3 47.4 47.5 48.1 48.5
K.W 4.95 4.79 4.62 4.47 5.07 4.90 4.72 4.58 5.11 4.94 4.78 4.63
85
T.C. 67.5 62.0 56.4 51.4 68.3 62.7 57.1 52.3 68.6 63.0 57.7 52.7
S.C. 43.0 43.1 43.5 43.6 45.1 45.2 45.7 46.0 46.2 46.3 47.2 47.1
K.W 5.31 5.11 4.91 4.75 5.43 5.22 5.03 4.86 5.48 5.27 5.08 4.91
95
T.C. 64.3 58.9 53.5 48.8 64.9 59.5 54.5 49.6 65.2 59.8 54.8 49.9
S.C. 41.8 41.9 42.3 42.3 43.9 44.0 44.8 44.7 45.0 45.1 45.9 45.8
K.W 5.67 5.45 5.22 5.04 5.79 5.56 5.34 5.14 5.85 5.62 5.40 5.20
105
T.C. 60.9 55.7 50.7 46.0 61.4 56.2 51.5 47.0 61.8 56.7 51.8 47.4
S.C. 40.6 40.7 41.0 40.9 42.7 42.7 43.4 43.5 44.0 44.1 44.5 44.5
K.W 6.03 5.77 5.54 5.31 6.15 5.90 5.65 5.45 6.21 5.97 5.71 5.49
115
T.C. 57.2 52.3 47.6 43.2 57.9 53.1 48.4 44.2 58.0 53.4 48.6 45.2
S.C. 39.3 39.2 39.6 39.5 41.7 41.9 42.0 41.9 42.6 42.9 43.1 43.6
K.W 6.39 6.10 5.84 5.58 6.50 6.23 5.94 5.72 6.57 6.28 6.01 5.83
125
T.C. 53.5 48.9 44.5 40.4 54.4 50.0 45.3 41.4 54.2 50.1 45.4 43.0
S.C. 38.0 37.7 38.2 38.1 40.7 41.1 40.6 40.3 41.2 41.7 41.7 42.7
K.W 6.75 6.44 6.13 5.85 6.84 6.57 6.24 5.98 6.93 6.60 6.30 6.16
NOTE: ALL CAPACITIES ARE NET WITH INDOOR FAN HEAT ALREADY DEDUCTED AT 1250 BTUH/1000 CFM.
Air Handler Coil T.C. S.C. KW
N1VSD20 G2FD060S24 0.99 0.98 1.02
N1VSD20 G2FD061H24 1.00 1.00 1.00
F2FV060 0.99 0.98 1.02
F2RP/F2FP060 0.97 0.98 0.87
G1HD060 0.97 0.98 1.02
G1FA060S21,24 0.97 0.98 1.02
G2FD060S24 0.97 0.98 1.02
G1UA060S21,24 0.97 0.98 1.02
Variable Speed
Furnace Coil T.C. S.C. KW
P1DUC20V096 G1FA060S21 0.99 0.98 1.06
P1DUC20V096 G1UA060S21 0.99 0.98 1.06
P1XUC20V095 G1FA060S21 0.99 0.98 1.06
P1XUC20V095 G1UA060S21 0.99 0.98 1.06
P1XUD20V112 G1FA060S24 0.99 0.98 1.02
P1XUD20V112 G1UA060S24 0.99 0.98 1.02
P1XUD20V112 G2FD060S24 0.99 0.98 1.02
P1XUD20V112 G2FD061H24 1.01 1.00 1.02
Subject to change without notice. Printed in U.S.A. 036-21023-005 Rev. A (0802)
Copyright © by York International Corp. 2002. All rights reserved. Supersedes: 036-21023-004 Rev. A (1000)
Unitary 5005 Norman
Products York O
K
Group Drive 73069

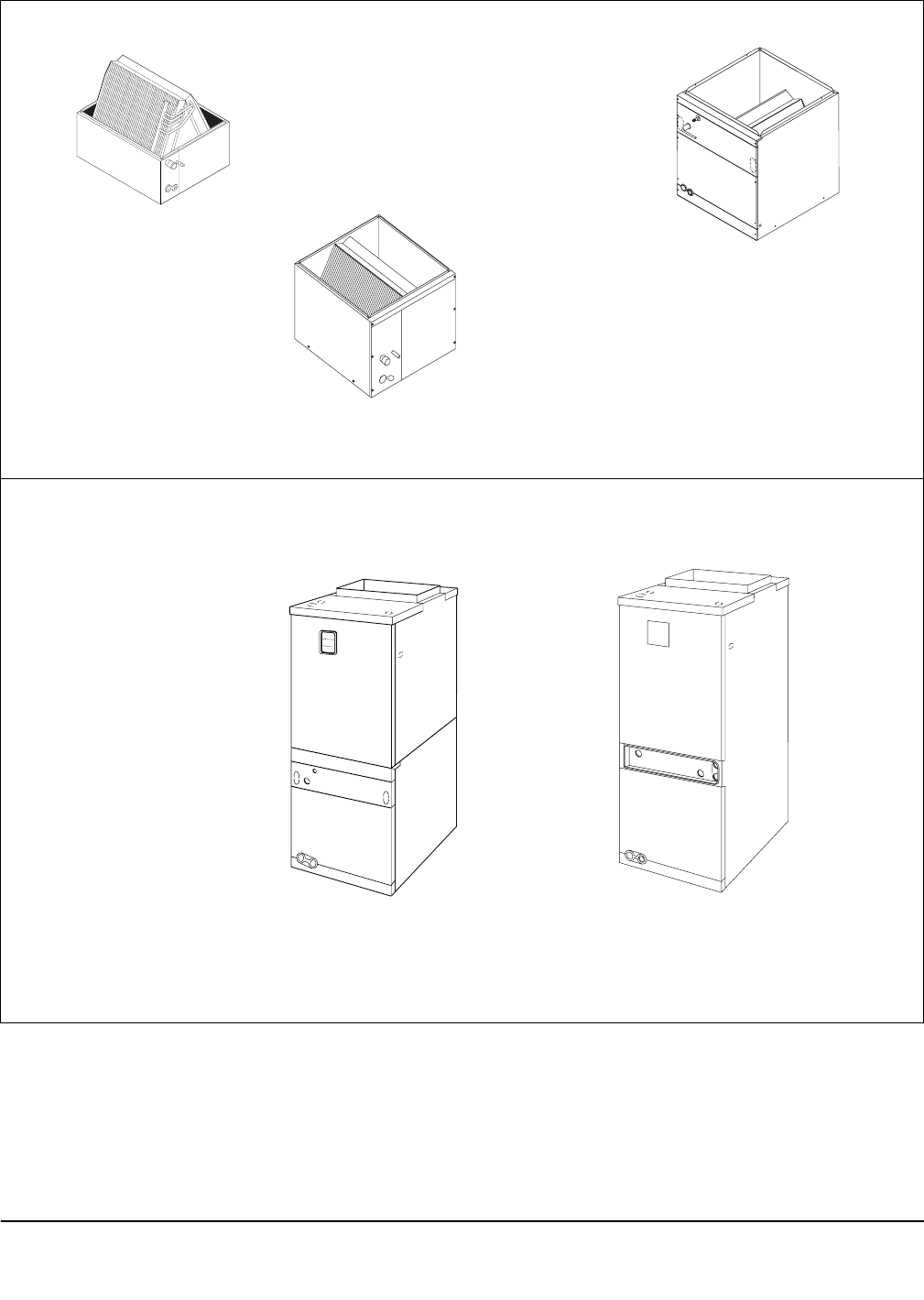

MATCHING INDOOR COMPONENTS
G1UA
1/2 CASED
UPFLOW
G2FD*
MULTI-POSITION
(UPFLOW, HORIZONTAL
AND DOWNFLOW)
* Available with factory installed horizontal drain pan.
ADD-ON COILS - FOR FURNACE APPLICATIONS
G1FA
FULL CASED
UPFLOW
AIR HANDLERS - FOR NON-FURNACE APPLICATIONS
N-AH OR N-VS
MODULAR BLOWER
(UPFLOW, HORIZONTAL
AND DOWNFLOW)
F+RC / F+FC OR
F+RC / F+FP
FAN COIL UNITS
(UPFLOW, HORIZONTAL)
G+FD
COIL

Navigation menu
