RENEWAL PARTS
SOLUTION
AIR HANDLING UNITS
Supersedes: 102.20-RP1 (504) Form 102.20-RP1 (1104)
LDO9624
LDO9688
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
2
This equipment is a relatively complicated ap pa ra tus.
Dur ing installation, operation, maintenance or service,
in di vid u als may be exposed to certain com po nents or
conditions in clud ing, but not limited to: re frig er ants,
oils, materials un der pressure, rotating com po nents, and
both high and low voltage. Each of these items has the
po ten tial, if misused or handled im prop er ly, to cause
bodi ly injury or death. It is the obligation and re spon -
si bil i ty of operating/service per son nel to iden ti fy and
rec og nize these inherent hazards, protect them selves,
and pro ceed safely in completing their tasks. Failure
to com ply with any of these requirements could re sult
in se ri ous dam age to the equipment and the prop er ty in
IMPORTANT!
READ BEFORE PROCEEDING!
GENERAL SAFETY GUIDELINES
which it is sit u at ed, as well as severe personal injury or
death to them selves and people at the site.
This document is intended for use by owner-authorized
operating/service personnel. It is expected that this in-
di vid u al possesses independent training that will en able
them to perform their assigned tasks properly and safe ly.
It is essential that, prior to performing any task on this
equipment, this individual shall have read and un der -
stood this document and any referenced materials. This
in di vid u al shall also be familiar with and comply with
all ap pli ca ble governmental standards and regulations
per tain ing to the task in question.
SAFETY SYMBOLS
The following symbols are used in this document to alert the reader to areas of potential hazard:
CAUTION identifi es a hazard which
could lead to damage to the ma chine,
damage to other equip ment and/or
en vi ron men tal pollution. Usually an
in struc tion will be given, together with
a brief ex pla na tion.
NOTE is used to highlight ad di tion al
information which may be helpful to
you.
DANGER indicates an im mi nent ly
hazardous situation which, if not
avoid ed, will re sult in death or se ri ous
injury.
WARNING indicates a potentially
haz ard ous sit u a tion which, if not
avoid ed, could result in death or se-
ri ous in ju ry.
External wiring, unless specifi ed as an optional connection in the man u fac tur er’s prod uct
line, is NOT to be connected inside the micro pan el cab i net. De vic es such as re lays, switch es,
transducers and controls may NOT be installed inside the mi cro pan el. NO external wiring
is al lowed to be run through the micro panel. All wir ing must be in ac cor dance with YORK’s
pub lished spec i fi ca tions and must be per formed ONLY by qual i fi ed YORK personnel. YORK
will not be re spon si ble for dam ag es/problems re sult ing from im prop er con nec tions to the
con trols or ap pli ca tion of im prop er con trol sig nals. Failure to fol low this will void the
man u fac tur er’s warranty and cause serious dam age to property or injury to per sons.
3
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
TABLE OF CONTENTS
FASTENERS FOR SOLUTION UNITS.........................................................................................................9 - 10
GASKET/CAULK/ADHESIVE FOR SOLUTION UNITS.............................................................................11 - 12
DOOR LATCHING PARTS .........................................................................................................................13 - 14
DOOR GASKETS ..............................................................................................................................................14
THRUST RESTRAINT KIT SELECTION...........................................................................................................16
THRUST RESTRAINT KITS .......................................................................................................................17 - 18
FAN MOTORS.............................................................................................................................................22 - 26
MOTOR WIRING PARTS...................................................................................................................................27
ADJUSTABLE MOTOR BASES.................................................................................................................28 - 30
FANS AND MOTORS, SECURING....................................................................................................................32
ISOLATORS................................................................................................................................................33 - 34
SHELL COMPONENTS.....................................................................................................................................35
SPLICE & SPLIT BASERAIL KITS ............................................................................................................36 - 37
WIREWAY ACCESS PLATES............................................................................................................................41
FILTERS......................................................................................................................................................42 - 46
OA HOOD MOISTURE ELIMINATOR FILTERS (BY DAMPER SIZE).......................................................47 - 55
VISUAL CONTROL FILTER CLAMPS FOR HEPA FILTERS ...........................................................................58
LIGHTING PARTS .............................................................................................................................................59
ELECTRICAL REPLACEMENT PARTS ...........................................................................................................60
WIRING-HARNESSES LIGHT ASSEMBLY - PANEL TO WIRE TRACK .........................................................61
WIRING-HARNESSES LIGHT ASSEMBLY - WIRE TRACK............................................................................62
WIRING-HARNESSES LIGHT ASSEMBLY - TIER TO TIER............................................................................63
SWITCH/RECEPTACLE ....................................................................................................................................63
TRANSFORMER PANEL...................................................................................................................................64
FILTER GAGE KITS ..........................................................................................................................................65
PART NUMBER INDEX ..............................................................................................................................67 - 89
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
4
ALPHABETIZED TABLE OF CONTENTS
ADJUSTABLE MOTOR BASES.................................................................................................................28 - 30
DOOR GASKETS ..............................................................................................................................................14
DOOR LATCHING PARTS .........................................................................................................................13 - 14
ELECTRICAL REPLACEMENT PARTS ...........................................................................................................60
FANS AND MOTORS, SECURING....................................................................................................................32
FAN MOTORS.............................................................................................................................................22 - 26
FASTENERS FOR SOLUTION UNITS.........................................................................................................9 - 10
FILTERS......................................................................................................................................................42 - 46
FILTER GAGE KITS ..........................................................................................................................................65
GASKET/CAULK/ADHESIVE FOR SOLUTION UNITS.............................................................................11 - 12
ISOLATORS................................................................................................................................................33 - 34
LIGHTING PARTS .............................................................................................................................................59
MOTOR WIRING PARTS...................................................................................................................................27
OA HOOD MOISTURE ELIMINATOR FILTERS (BY DAMPER SIZE).......................................................47 - 55
PART NUMBER INDEX ..............................................................................................................................67 - 89
SHELL COMPONENTS.....................................................................................................................................35
SPLICE & SPLIT BASERAIL KITS ...........................................................................................................36 - 37
SWITCH/RECEPTACLE ....................................................................................................................................63
THRUST RESTRAINT KITS .......................................................................................................................17 - 18
THRUST RESTRAINT KIT SELECTION...........................................................................................................16
TRANSFORMER PANEL...................................................................................................................................64
VISUAL CONTROL FILTER CLAMPS FOR HEPA FILTERS ...........................................................................58
WIREWAY ACCESS PLATES............................................................................................................................41
WIRING-HARNESSES LIGHT ASSEMBLY - PANEL TO WIRE TRACK .........................................................61
WIRING-HARNESSES LIGHT ASSEMBLY - TIER TO TIER............................................................................63
WIRING-HARNESSES LIGHT ASSEMBLY - WIRE TRACK............................................................................62
5
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
LIST OF FIGURES
FIG. 1 - (SEE TABLE 1) SEGMENT AVAILABILITY .........................................................................................7

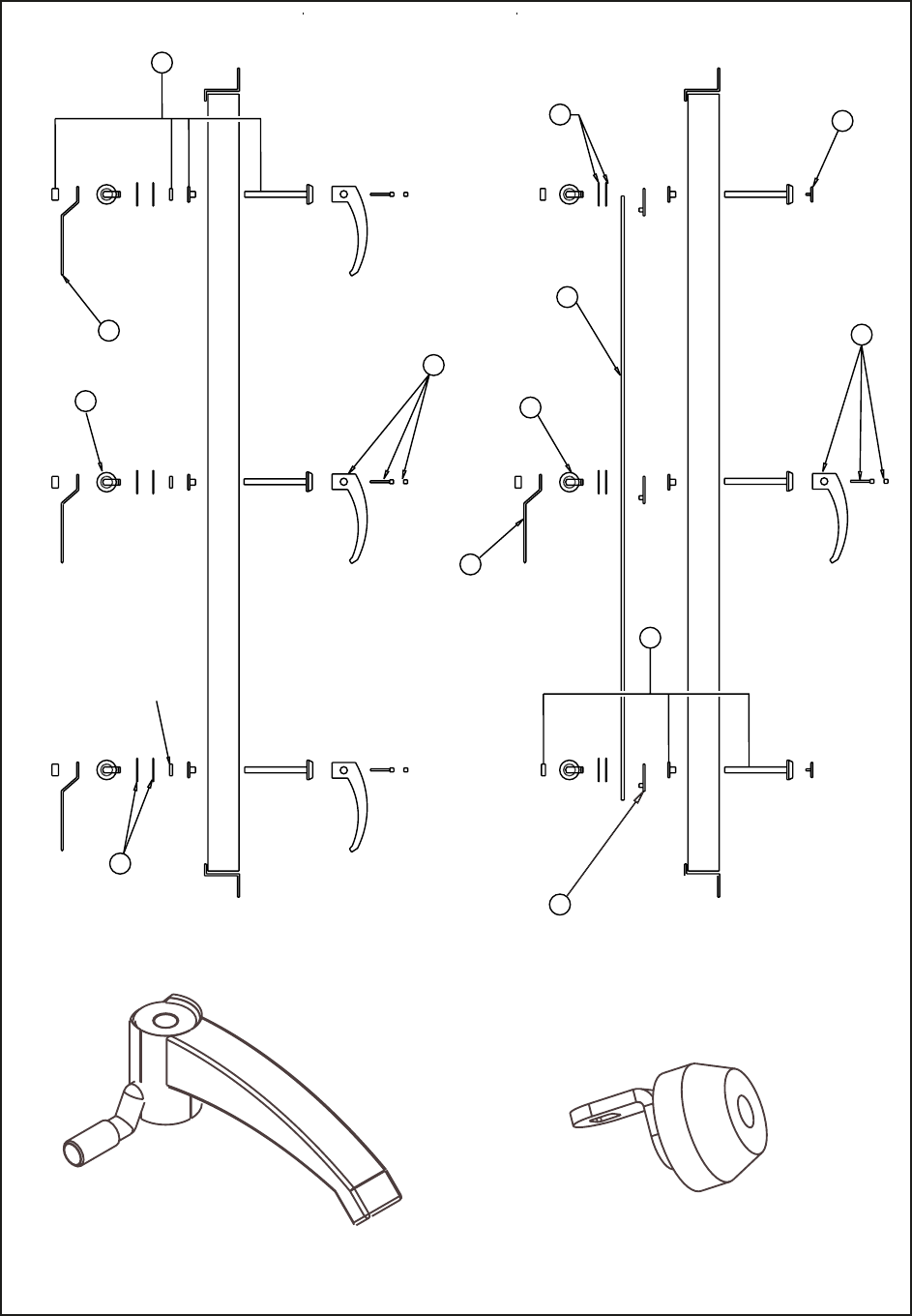

FIG. 2 - DOOR LATCHING PARTS .................................................................................................................15

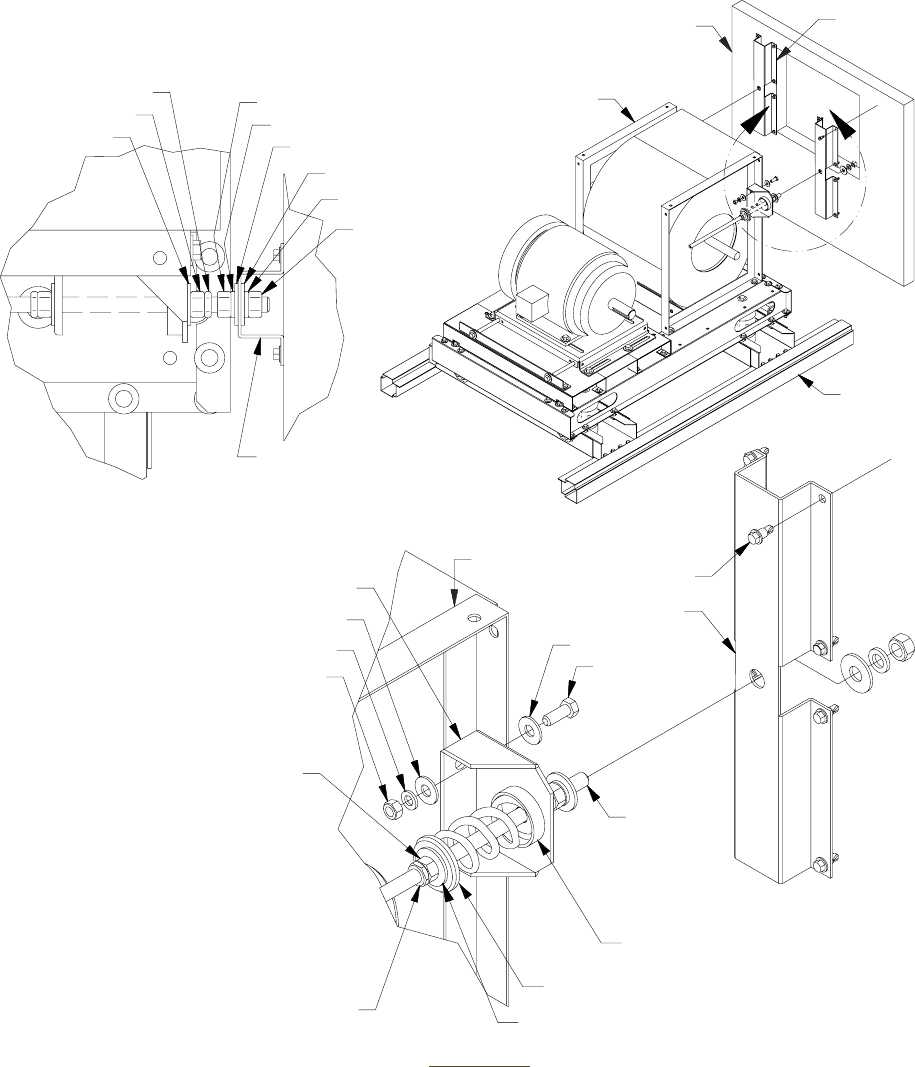

FIG. 3 - THRUST RESTRAINT INSTALLATION FOR COMETRI AND INDUSTRIAL FANS
DISCHARGING INTO WALLS ...........................................................................................................19
FIG. 4 - THRUST RESTRAINT INSTALLATION FOR COMEFRI AND INDUSTRIAL FANS
DISCHARGING INTO PANELS .........................................................................................................20
FIG. 5 - THRUST RESTRAINT INSTALLATION FOR PLENUM FANS WITH WALL MOUNTED INLET......21
FIG. 6 - ASSEMBLY OF CONNECTORS ........................................................................................................27
FIG. 7 - MOTOR WIRE CONNECTIONS.........................................................................................................27
FIG. 8 - ADJUSTABLE MOTOR BASE ...........................................................................................................30
FIG. 9 - SECURING FANS AND MOTORS .....................................................................................................31
FIG. 10 - TYPICAL, ISOLATOR.........................................................................................................................34
FIG. 11 - SPLICE & STACKING ASSEMBLIES................................................................................................38
FIG. 12 - SPLIT ASSEMBLY..............................................................................................................................39
FIG. 13 - BASERAIL & CORNER ASSEMBLIES..............................................................................................40
FIG. 14 - TYPICAL FILTERS .............................................................................................................................56
FIG. 15 - UNIVERSAL FRAME LATCH SELECTION .......................................................................................57
FIG. 16 - VISUAL CONTROL FILTER CLAMPS...............................................................................................58
FIG. 17 - EXPLODED VIEW OF LIGHT ASSEMBLIES ....................................................................................59
FIG. 18 - LIGHTING SCHEMATIC.....................................................................................................................60
FIG. 19 - PANEL TO WIRETRACK....................................................................................................................61
FIG. 20 - HARNESS-WIRETRACK....................................................................................................................62
FIG. 21 - TRANSFORMER PANEL DIMENSIONS............................................................................................64
FIG. 22 - FILTER GAUGE DIAGRAMS .............................................................................................................65
FIG. 23 - TYPICAL FILTER GAUGE .................................................................................................................65
FIG. 24 - C-CHANNEL TRIM FOR:
FIELD CUT OPENINGS ...........................................................................66
FIELD MODIFICATION TO ADD DOORS................................................66
FIG. 25 - DOOR SAFETY CHAIN......................................................................................................................66
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
6
GENERAL
This renewal parts list provides replacement part numbers that can be ordered from the York Parts Warehouse (Tel.
800-932-1701). Refer to the data tag on your equipment for the unit size, fan size and accessories that comprise your
unit. Compare this data tag information with the nomenclature below and on the next page to completely identify all
components in your system. Furnish this model number and the York order number on which the unit was originally
furnished when ordering replacement parts.
TABLE 1 – SEGMENT IDENTIFICATION (SEE FIG.1-2)
Fan Segments Filter Segments
• FS – Supply • FF – Flat Filter (2” or 4”)
o Forward Curved • AF – Angle Filter (2”)
o Airfoil • RF – High Effi ciency Filter
o Industrial Airfoil o Rigid Filter (12”)
o SWSI Plenum (Belt and Direct Drive) o Bag Filter (21”)
o Mini Pleat Filter (4”)
• ΗF – HEPA Filter
• FR – Return Fan • CF – Carbon Filter
o Forward Curved Inlet Segments
o Airfoil • MB – Mixing Box
o Industrial Airfoil • FM – Filter / Mixing Box
o SWSI Plenum (Belt & Direct Drive) • EF – Filter / Economizer
• EE – Economizer
• FE – Exhaust Fan • IP – Inlet Plenum
o Forward Curved
o Airfoil Accessory Segments
o Industrial Airfoil • VP – Vertical Plenum
• DP – Discharge Plenum
Coil Segments • TN – Turning Plenum
o CC – Cooling Coil • DI – Diffuser
o HC – Heating Only Coil • XA – Access Segment
o VC – Vertical Coil • IG – Indirect-Fired Gas Furnace
o IC – Heat Only, Integral Face & Bypass Coil • ER – Energy Recovery Wheel
o IB – Internal Face & Bypass Coil • ΑB – Air Blender
• FD – Face Damper
• EB – External Face & Bypass
• HM – Humidifi er
• ΑT – Sound Attenuator
7
YORK INTERNATIONAL
FORM 102.20-RP1(1104)

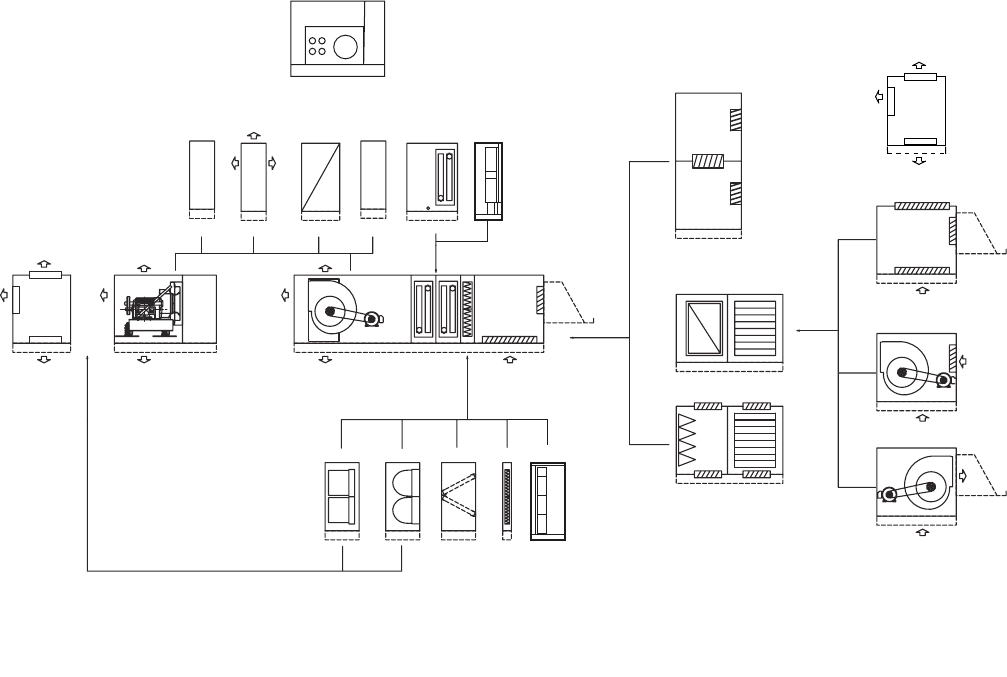

FIG. 1 - (SEE TABLE 1) SEGMENT AVAILABILITY
LD08003B
ı
ı
ı
•• •
AF FFRF (RIGID) RF (BAG)
FS
FS (SWSI
plenum)
DP
XA
VP
MB
CC, HC
EE
EF
DI
EE (vertical)
12P91
TN
HOODS ARE FOR OUTDOOR UNITS ONLY
MB
FE
FR
IG
IP
HF
IC
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
8
9
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
TABLE 2 – UNIT NOMENCLATURE
ENVIORNMENT
9
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
FASTENERS FOR SOLUTION UNITS
PART
NUMBER DESCRIPTION WHERE USED
021-00331-000 BOLT, LAG HEX 3/8 X2-1/2 ZINC PLATED Tie down plate to shipping skid/wood
021-01154-000 WASH, LK TH INT 5/16 HVY,ZINC PLTD., STD. C-76 RF Filter Tracks
021-01155-000 WASH, LK TH INT 3/8 STD C-76 Fan Skid, Lifting Lugs
021-01163-000 WASH, LK TH INT 1/2 HVY STL ZINC PLTD., STD. C-76 Fan Skid, Lifi tng Lugs
021-01168-000 WASH LK TH INT 5/8 STL ZINC PLTD., STD. C-76 Blower Mounting
021-01248-000 WASHER PLAIN 5/16 ID X 3/4 OD X 0.065 NOM THK : STEEL Blower Mounting
021-01267-000 WASH FLT 7/16 ID X 1 OD X 0.083 THK STL ZINC PLTD. Snubber
021-01288-000 WASH FLT 11/16 ID X 1-3/4 OD 0.134 THK STL ZINC PLTD., STD. C-48 Blower Mounting
021-01481-000 SCR, CAP HEX 3/8 - 16 UNC - 2A X 1.0, ZINC PLATED Fan Skid
021-01499-000 SCREW, CAP HEX 3/8 - 16 UNC - 2A X 1.5, ZINC PLATED Blower Mounting
021-02523-000 NUT, HEX 5/16 - 18 UNC - 2B STL ZINC PLTD RF Filter Tracks
021- 02782- 000 Scr Hex Cap 5/16-18 X 1-1/4, 1-1/4 Lg Stl Zinc Pltd Blower Mounting
021-02794-000 SCR HEX 5/8-11UNC-2A X 2.00” SAE J429 Blower Mounting
021-02860-000 NUT, HEX 1/2-13 HVY 7/8 STL ZINC PLTD., STD. C-85 Fan Skid
021-02862-000 NUT HEX 5/8-11 HVY STL ZINC PLTD., STD. C-85 Blower Mounting
021-03749-000 SCR MACH RD PH 1/4-20UNC-2A X 1-1/4 LG STL ZINC PLTD. Blower Mounting
021-05146-000 WASH, FLT 9/16 ID X 1-3/8 OD .109 THK STL ZINC PLATED Fan Skid
021-08388-000 SCR, HEX 1/2-13UNC-2A X 1” STL ZINC PLTD, SAE J429 Fan Skid
021-08394-000 SCR, HEX CAP 5/16-18 X 3/4 LG STL ZINC PLTD RF Filter Tracks
021-08395-000 SCR, CAP HEX 3/8 - 16 UNC - 2A X 0.75, STL ZINC PLTD Secures Block To Motor Base
021-09983-000 WASH, FLT 3/8 ID X 7/8 OD 0.083 THK STL ZINC PLATED,ANSI B27.2,
STD C-48
RF Filter Tracks
021-10186-000 LOCK WASHER SPG HELICAL 1/4, STEEL Blower Mounting
021-11645-000 NUT, RET 3/8-16.162/.210 .162 - .210 PANEL RANGE, STD. C-77 Fan Skid
021-12656-000 NUT HEX 3/4-10 HVY STL ZINC CTD ASA B18 Blower Mounting
021-12917-000 SCR, TAP TY B HEX 5/16 X 3/4 5/16 DIA X 3/4 LG STL CD PL Fan Skid, Coil supports, Coil blockoff to
coil casing
021-13291-000 NUT RET 1/4-20 0125-0.156 PANEL RANGE, STD. C-77 Economizer hatch
021-13734-000 SCR, TAP TY F PAN 1/4 X 1/2 LG STL ZINC PLTD Hood & Hood Gutter
021-13830-000 SCR HEX CAP 3/4-10 X 2-1/2, STL ZINC PLTD Blower Mounting
021-13863-000 SCR, TAP SELF DRILL 10-24 X 1/2 HD #10-24 X 1/2 LG STYLE 3 SHAKE-
PROOF # 621-100880-00-0251T,STL,ZINC PLTD
Control Brackets
021-13911-000 SCR, TAP TYPE B HEX 3/8 X 3/4 STL ZINC PLTD. Fan Skid, Coil stacking splice
021-15802-000 WASH FLT 13/16 ID X 1-3/4 OD X 0.134 THK STL ZINC Blower Mounting
021-16151-000 LOCK WASHER SPG HELICAL 1/4, STEEL Blower Mounting
021-17212-000 SCREW,HEX HD CAP,1/4-20X1-1/2”, FULL THREAD, ZINC PLATED Blower Mounting
021-17711-000 RIVET, POP, 1/8”x1/4” GRIP Panel outer to liner
021-17717-000 NUT, HEX LK 3/8-16, ZINC PLATED Fan Skid
021-17718-000 NUT HEX 1/4 - 20 UNC - 2B Blower Mounting
021-17722-000 SCR, TAP TY A PH 14-10 1/4 X3/4 PAN HEAD, PHILLIPS (#1), TYPE A,
ZINC PLATED
Primary screw for inside sheet metal,
panels outside unit , damper mounting,
Shipping tie down to raceway
021-17728-000 SCR HEX 1/2-13UNC-2A X 1.75”, STL ZINC PLTD, SAE J429 Blower Mounting
021-19307-010 NUT, HEX 3/8-16, ZINC PLATED Lifting Lugs
Continued on next page
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
10
FASTENERS FOR SOLUTION UNITS (CONTINUED)
PART
NUMBER DESCRIPTION WHERE USED
021-19515-000 SCREW, SELF-DRILLING: 1/4 - 14 UN X 3/4 LG, STL ZINC PLATED Fan Discharge Flex Connection
021-19556-000 SCR, HEX 1/2-13UNC-2A X 9” STL ZINC PLTD, SAE J429, ALL THREAD,
OR EQUAL
Motor Base
021-19558-000 BLOCK, MOTOR BASE, 1/2-13 & 3/8-16 THRU HOLES Motor Base
021-19559-000 SCR, CAP HEX 3/8 - 16 UNC - 2A X 5.0, STL ZINC PLATED Snubber
021-19560-000 SCR,1/4-14x1,PHIL PAN SELF DRILL Self drill Screw for various locations when
required
021-19567-000 PLUG, STEEL FINISHING TO FIT 3/4” ID HOLE Top Corner Connector foam hole plug
021-19568-000 PLUG, STEEL FINISHING TO FIT 1-1/2” HOLE Corner Connector lifi ting hole plug
021-19570-000 SCREW, HEX SOCKET BUTTON HEAD, 3/8 -16 X 3/4, STL ZINC PLATED Lifting Lugs, Corners, Top split, stacking
plate
021-19571-000 WASH LK TH INT 3/4 STL ZINC PLTD., STD. C-76 Blower Mounting
021-19579-000 NUT, RIVET KNURLED, #10-31, STL ZINC PLTD Mounting Kit, Small MCC Panel
021-19580-000 NUT, RIVET KNURLED, 3/8-16, STL ZINC PLTD Mounting Kit, Large MCC Panel
021-19581-000 SCR, CAP HEX 3/8 - 16 UNC - 2A X 2.5, STL ZINC PLTD Mounting Kit, 2KVA Transformer
021-19582-000 SCR, PAN HD PHLPS, MACH, #10-32 X 1/2 LG, STL ZINC PLTD, WITH
CAPTIVE INTERNAL TOOTH WASHER
Mounting Kit, 500VA / 150VA Control
Transformer & Mounting Kit, Small MCC
Panel
021-19585-000 SCREW, 1/4”-14 X 1”, PHILLIPS PAN HD., SELF DRILLER W/WASHER,
ZINC W/EPDM .25
Outdoor Unit Roof
021-19586-000 NUT, HEX 3/8-16, ZINC PLATED Lifting Lugs
021-19587-000 RIVET, POP, 3/16”x3/8” GRIP, STL ZINC PLTD RF Front or Rear Load Filter Tracks
11
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
GASKET/CAULK/ADHESIVE FOR SOLUTION UNITS
PART
NUMBER DESCRIPTION WHERE USED
010-01017-010 Caulk, Sikafl ex, 221 SF, Sika Corp or Equal Corner connectors & raceway; inside corners where
corner connector, raceway and panels meet; wireway and
bulkhead seal
010-02917-000 Ins Therm 1/8 x 1-1/2 x 50 Lg, Ind. Rolls C3-
241-DC 221 White Ethafoam, W/psa, Std
R749 DTD 10/8/90 Marriage Tape
Coil seal, bulk head seal
013-02966-011 Caulk, Manus-bond,75-am, Manus Products,
or Equal Corner connectors & raceway; inside corners where
corner connector, raceway and panels meet; wireway and
bulkhead seal
013-02976-010 Tape, Butyl, 0.75W x .19THK, TC-49 Xl 121,
Manus Products, or Equal Outdoor units, between raceway 0.688 Flanges and
panels/ roof/drain pan/pipe chase/control enclosure,
panel to panel (vertical)
013-02977-010 Tape, Butyl, 1.5W x .13THK, TC-49 Xl 121,
Manus Products, or Equal Outdoor units, between top raceways & along roof sides
& between bottom raceways & curb rest
013-02978-010 Tape, Butyl, 0.5W x .13THK, TC-49 Xl 121,
Manus Products, or Equal Outdoor unit doors along sides when door is between two
panels
013-02979-010 Tape, Butyl, 0.5W x .25THK, TC-49 Xl 121,
Manus Products, or Equal Outdoor units, between raceway 0.688 Flanges and roof
013-03317-010 Caulk, Solvent Free, Pace Gray or Equal,
Sikafl ex 221 SF or Manus-bond 75-AM Corner connectors & raceway; inside corners where
corner connector, raceway and panels meet; wireway and
bulkhead seal
013-22013-010 Adhesive, Super Fast,#74, 3M or Equal Fan fl ex connection
028-11778-010 Gasket, Neoprene, Closed Cell, B/G, 1.25W x
0.25THK, Scott Mfg or Equal Split, bottom, sides, top panel to panel ends butt to butt
028-11791-010 Gasket, Polyurethane, Open Cell, B/G, 1.0W x
1.0THK, Scott Mfg or Equal Filters
028-11861-000 GROMMET, SUPPLY/RETURN
COIL HEADER, 1/8” PVC, For 3.00”
CONNECTIONS
Coil Header Panel, For 3.00” Connections
028-11861-000 GROMMET, SUPPLY/RETURN COIL
HEADER, 1/8” PVC Coil Header Panel
028-11864-010 Gasket, Neoprene, Closed Cell, B/G, 0.75W x
0.5THK, Scott Mfg or Equal Between vertical bulkheads and panel
028-11865-010 Foam, #2 Polyester, Open Cell, 2W x 2THK,
4LG, Scott Mfg or Equal Wireway at pressure transitions.
028-11865-010 Gasket, Neoprene, Closed Cell, B/G, 1.0W x
2.0THK, Scott Mfg or Equal Wireway at pressure transitions.
028-11866-001 Tape, Polyethylene, Double, 0.375W x
0.032THK, 5,184 In / Roll, or Equal Between raceway double fl ange, between the liner
fl anges and out fl anges of panels
028-11866-002 Tape, Polyethylene, Double, 0.375W x
0.032THK, Spool, 60,000 In / Spool, or Equal Between raceway double fl ange, between the liner
fl anges and out fl anges of panels
028-11866-010 Tape, Polyethylene, Double Sided, .38W x
0.13THK, Acrylic, Adhesive Between raceway double fl ange, between the liner
fl anges and out fl anges of panels
028-11867-010 Gasket, Neoprene, Closed Cell, B/G, 1.25W x
.50THK, Scott Mfg or Equal Between roof panels, type 8 fi lter tracks under the
bulkhead
028-11871-000 Grommet, Supply/Return Coil Header, 1/8”
PVC, for 2.50” And 2.00” Connections Coil header panel, for 2.50” And 2.00” Connections
028-11872-000 Grommet, Supply/return Coil HEADER, 1/8”
PVC, for 1.50”, 1.25” And 1.00” Connections Coil header panel, for 1.50”, 1.25” And 1.00” Connections
Continued on next page
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
12
GASKET/CAULK/ADHESIVE FOR SOLUTION UNITS (CONT.)
PART
NUMBER DESCRIPTION WHERE USED
028-11873-010 Gasket, Neoprene, Closed Cell, Grey, .75W X
.25THK, Scott Mfg or Equal Panel to panel (vertical)
028-11875-010 Gasket, Ethafoam 221,Closed Cell, White,
1.5W X .13THK, Scott Mfg or Equal Coil seal, bulk head seal
044-02912-000 Ultra Flex Elastomeric, #2260-0100(White)
Coating: *an Expiration Date Required on This
Product (Drain Pan)
Mastic coating for drain pan
044-02912-010 Coating, Ultra Flex Elastomeric, Mastic
Coating for Drain Pan Mastic coating for drain pan
1620 Gasket, Door, ____" High x ____" Wide Door (see example below)
TAC01494 Standard Touchup Spray Paint, Dessert Sand Outdoor unit exterior
Example For Ordering Door Gasket:
Door Is 35-1/2" High by 21-1/2" Wide
Order P/N 1620 35-1/2" High X 21-1/2" Wide.
13
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
DOOR LATCHING PARTS
REF # DOOR
HT* HANDLE** LOCK SWING PART NUMBER DESCRIPTION
1SHORT
OR TALL
STD OR
SINGLE
STD OUT 034-12001-001 Handle,Type_L,Lock_Non,Out-Swg,Roller_
Straight,W/Screw & Cover Plug.
1SHORT
OR TALL
STD OR
SINGLE
STD IN 034-12001-006 Handle,Type_L,Lock_Non,In-Swg ,Roller_Off-
Set,W/Screw & Cover Plug.
1SHORT
OR TALL
STD OR
SINGLE
KEY OUT 034-12001-007 Handle,Type_L,Lock_Key,Out-Swg,Roller_
Straight,W/Screw & Cover Plug, Key The
Same,York Std.
1SHORT
OR TALL
STD OR
SINGLE
KEY IN 034-12001-010 Handle,Type_L,Lock_Key,In-Swg , Roller_Off-
Set,W/Screw & Cover Plug, Key The Same,York
Std.
1SHORT
OR TALL
STD OR
SINGLE
PAD OUT 034-12001-011 Handle,Type_L,Lock_Pad,Out-Swg, Roller_
Straight,W/Screw & Cover Plug.
1SHORT
OR TALL
STD OR
SINGLE
PAD IN 034-12001-012 Handle,Type_L,Lock_Pad,In-Swg ,Roller_Off-
Set,W/Screw & Cover Plug.
1SHORT
OR TALL
SINGLE KEY
OR
STD
IN OR
OUT
034-12002-007 Plug, Cover For Latch Mechanism
2 SHORT
OR
TALL
N/A N/A N/A 034-12002-001 Mechanism, Latching,Includes Bushing, Lock
nut, & Jam Nut.
3 SHORT
OR
TALL
N/A N/A N/A 034-12002-009 3/8 Sae Flat Washer
4 SHORT OUT N/A N/A 034-12002-011 Single Point Roller Cam, Snub Nose Outswing
Doors Only
5 SHORT
OR
TALL
SINGLE N/A N/A 034-12002-010 Linkage Adapter For 8 Mm (0.315”) Dia Rods
6 SHORT
OR
TALL
STD OR
SINGLE
N/A N/A 034-12001-005 Inside Handle W/ Red Plastic Grip
7 SHORT
OR
TALL
SINGLE N/A OUT 034-12002-007 Cover Plug For Latching Mechanism For Single
Point To Cover Outside Latching Mech.
8 20.88 SINGLE N/A N/A 086-02023-001 Rod 0.315” Dia 10” Long Zinc Plated
8 23.88 SINGLE N/A N/A 086-02023-002 Rod 0.315” Dia 13” Long Zinc Plated
8 26.88 SINGLE N/A N/A 086-02023-003 Rod 0.315” Dia 16” Long Zinc Plated
8 29.88 SINGLE N/A N/A 086-02023-004 Rod 0.315” Dia 19” Long Zinc Plated
8 32.88 SINGLE N/A N/A 086-02023-005 Rod 0.315” Dia 22” Long Zinc Plated
8 35.88 SINGLE N/A N/A 086-02023-006 Rod 0.315” Dia 25” Long Zinc Plated
8 38.88 SINGLE N/A N/A 086-02023-007 Rod 0.315” Dia 28” Long Zinc Plated
8 41.88 SINGLE N/A N/A 086-02023-008 Rod 0.315” Dia 31” Long Zinc Plated
8 44.88 SINGLE N/A N/A 086-02023-009 Rod 0.315” Dia 34” Long Zinc Plated
8 47.88 SINGLE N/A N/A 086-02023-010 Rod 0.315” Dia 37” Long Zinc Plated
8 50.88 SINGLE N/A N/A 086-02023-011 Rod 0.315” Dia 40” Long Zinc Plated
8 53.88 SINGLE N/A N/A 086-02023-012 Rod 0.315” Dia 43” Long Zinc Plated
Continued on next page
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
14
8 56.88 SINGLE N/A N/A 086-02023-013 Rod 0.315” Dia 46” Long Zinc Plated
8 59.88 SINGLE N/A N/A 086-02023-014 Rod 0.315” Dia 49” Long Zinc Plated
8 62.88 SINGLE N/A N/A 086-02023-015 Rod 0.315” Dia 52” Long Zinc Plated
8 65.88 SINGLE N/A N/A 086-02023-016 Rod 0.315” Dia 55” Long Zinc Plated
8 68.88 SINGLE N/A N/A 086-02023-017 Rod 0.315” Dia 58” Long Zinc Plated
8 71.88 SINGLE N/A N/A 086-02023-018 Rod 0.315” Dia 61” Long Zinc Plated
8 74.88 SINGLE N/A N/A 086-02023-019 Rod 0.315” Dia 64” Long Zinc Plated
8 77.88 SINGLE N/A N/A 086-02023-020 Rod 0.315” Dia 67” Long Zinc Plated
8 80.88 SINGLE N/A N/A 086-02023-021 Rod 0.315” Dia 70” Long Zinc Plated
8 83.88 SINGLE N/A N/A 086-02023-022 Rod 0.315” Dia 73” Long Zinc Plated
8 86.88 SINGLE N/A N/A 086-02023-023 Rod 0.315” Dia 76” Long Zinc Plated
8 89.88 SINGLE N/A N/A 086-02023-024 Rod 0.315” Dia 79” Long Zinc Plated
8 92.88 SINGLE N/A N/A 086-02023-025 Rod 0.315” Dia 82” Long Zinc Plated
8 95.88 SINGLE N/A N/A 086-02023-026 Rod 0.315” Dia 85” Long Zinc Plated
8 98.88 SINGLE N/A N/A 086-02023-027 Rod 0.315” Dia 88” Long Zinc Plated
8 101.88 SINGLE N/A N/A 086-02023-028 Rod 0.315” Dia 91” Long Zinc Plated
8 104.88 SINGLE N/A N/A 086-02023-029 Rod 0.315” Dia 94” Long Zinc Plated
8 107.88 SINGLE N/A N/A 086-02023-030 Rod 0.315” Dia 97” Long Zinc Plated
8 110.88 SINGLE N/A N/A 086-02023-031 Rod 0.315” Dia 100” Long Zinc Plated
8 113.88 SINGLE N/A N/A 086-02023-032 Rod 0.315” Dia 103” Long Zinc Plated
8 116.88 SINGLE N/A N/A 086-02023-033 Rod 0.315” Dia 106” Long Zinc Plated
8 119.88 SINGLE N/A N/A 086-02023-034 Rod 0.315” Dia 109” Long Zinc Plated
8 122.88 SINGLE N/A N/A 086-02023-035 Rod 0.315” Dia 112” Long Zinc Plated
8 125.88 SINGLE N/A N/A 086-02023-036 Rod 0.315” Dia 115” Long Zinc Plated
8 128.88 SINGLE N/A N/A 086-02023-037 Rod 0.315” Dia 118” Long Zinc Plated
9 SHORT
OR
TALL
STD OR
SINGLE
N/A N/A 386-02177-000 Kit, Latching Mechanism, Door , (Includes Ref. 2)
(Order 2 Kits For Short Doors And 3 Kits For Tall
Doors)
* Short door heights - 20.88” through 68.88” Tall door
heights - 71.88” through 128.88”
** - Single is for “Single point multi-latch system”. Standard is a
complete latch and handle for each latching point.
DOOR LATCHING PARTS (CONTINUED)
REF # DOOR
HT* HANDLE** LOCK SWING PART NUMBER DESCRIPTION
DOOR GASKETS
Measure door dimensions to special order door gasket made with welded corners. See example in Table "GASKET/CAULK/
ADHESIVE FOR SOLUTION UNITS" in this manual.
15
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
(See Detail A)
(In Swing Offset
Shown)
(See Detail A)
(Out Swing Only)
1(Out Swing Only)
(Out Swing Only)
STANDARD DOOR
MULTI - PT LATCH
STANDARD DOOR
OUTSIDE UNIT
INSIDE UNIT
OUTSIDE UNIT
INSIDE UNIT
(Out Swing Only)
DETAIL A
HANDLE W/OFFSET ROLLER
DETAIL B
CAM ROLLER SNUB NOSE
(In Swing Only) (Out Swing Only)
(See Detail B) (See Detail B)
5
8
4
4
1
3
6
6
7
(3 Washers On
In Swing)
(In Swing Offset Shown)
3
2
2
FIG. 2 - DOOR LATCHING PARTS
LDO9694
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
16
THRUST RESTRAINT KIT SELECTION
FAN
TYPE FAN
SIZE DISCHARGE KIT PART
NUMBER
AF 12-12 WALL 386-17791-002
AF 12-12 INSULATED PANEL 386-17791-010
AF 15-15 WALL 386-17791-002
AF 15-15 INSULATED PANEL 386-17791-011
AF 18-18 WALL 386-17791-002
AF 18-18 INSULATED PANEL 386-17791-012
AF 20-20 WALL 386-17791-002
AF 20-20 INSULATED PANEL 386-17791-013
AF 22-22 WALL 386-17791-007
AF 22-22 INSULATED PANEL 386-17791-014
AF 25-25 WALL 386-17791-007
AF 25-25 INSULATED PANEL 386-17791-015
AF 28-28 WALL 386-17791-008
AF 28-28 INSULATED PANEL 386-17791-016
AF 32-32 WALL 386-17791-008
AF 32-32 INSULATED PANEL 386-17791-017
AF 36-36 WALL 386-17791-009
AF 36-36 INSULATED PANEL 386-17791-018
AF 40-40 WALL 386-17791-006
AF 40-40 INSULATED PANEL 386-17791-019
IND 122 WALL 386-17791-002
IND 122 INSULATED PANEL 386-17791-020
IND 135 WALL 386-17791-002
IND 135 INSULATED PANEL 386-17791-021
IND 150 WALL 386-17791-002
IND 150 INSULATED PANEL 386-17791-022
IND 165 WALL 386-17791-002
IND 165 INSULATED PANEL 386-17791-023
IND 182 WALL 386-17791-002
IND 182 INSULATED PANEL 386-17791-024
IND 200 WALL 386-17791-002
IND 200 INSULATED PANEL 386-17791-025
IND 222 WALL 386-17791-007
IND 222 INSULATED PANEL 386-17791-026
IND 245 WALL 386-17791-007
IND 245 INSULATED PANEL 386-17791-027
IND 270 WALL 386-17791-008
IND 270 INSULATED PANEL 386-17791-028
IND 300 WALL 386-17791-008
IND 300 INSULATED PANEL 386-17791-029
IND 330 WALL 386-17791-008
IND 330 INSULATED PANEL 386-17791-030
IND 365 WALL 386-17791-009
IND 365 INSULATED PANEL 386-17791-031
IND 402 WALL 386-17791-006
IND 402 INSULATED PANEL 386-17791-032
IND 445 WALL 386-17791-006
IND 445 INSULATED PANEL 386-17791-033
PLENUM 121 WALL 386-17791-001
PLENUM 141 WALL 386-17791-001
PLENUM 161 WALL 386-17791-001
PLENUM 181 WALL 386-17791-001
PLENUM 201 WALL 386-17791-001
PLENUM 221 WALL 386-17791-001
PLENUM 251 WALL 386-17791-001
PLENUM 281 WALL 386-17791-001
PLENUM 321 WALL 386-17791-001
PLENUM 351 WALL 386-17791-001
PLENUM 391 WALL 386-17791-003
PLENUM 441 WALL 386-17791-003
PLENUM 491 WALL 386-17791-004
PLENUM 551 WALL 386-17791-005
PLENUMDD 181 WALL 386-17791-001
PLENUMDD 201 WALL 386-17791-001
PLENUMDD 221 WALL 386-17791-001
PLENUMDD 251 WALL 386-17791-001
PLENUMDD 281 WALL 386-17791-001
PLENUMDD 321 WALL 386-17791-001
PLENUMDD 351 WALL 386-17791-001
PLENUMDD 391 WALL 386-17791-003
PLENUMDD 441 WALL 386-17791-003
PLENUMDD 491 WALL 386-17791-004
PLENUMDD 551 WALL 386-17791-005
FAN
TYPE FAN
SIZE DISCHARGE KIT PART
NUMBER
17
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
P/N - 386-17791-001
P/N DESCRIPTION QTY
029-21364-001 RESTRAINT THRUST 350LBS/PR 2
086-01320-001 SMALL THRUST REST BRKT 2
P/N - 386-17791-002
P/N DESCRIPTION QTY
029-21364-001 RESTRAINT THRUST 350LBS/PR 2
086-01322-002 THRUST RESTRAINT SST PLATE 2
086-01320-001 SMALL THRUST REST BRKT 2
P/N - 386-17791-003
P/N DESCRIPTION QTY
029-21364-002 RESTRAINT THRUST 550LBS/PR 2
086-01320-001 SMALL THRUST REST BRKT 2
P/N - 386-17791-004
P/N DESCRIPTION QTY
029-21364-003 RESTRAINT THRUST 750LBS/PR 2
086-01320-001 SMALL THRUST REST BRKT 2
P/N - 386-17791-005
P/N DESCRIPTION QTY
029-21364-004 RESTRAINT THRUST 1500LBS/
PR 2
086-01320-001 SMALL THRUST REST BRKT 2
P/N - 386-17791-006
P/N DESCRIPTION QTY
029-21364-004 RESTRAINT THRUST 1500LBS/
PR 2
086-01322-002 THRUST RESTRAINT SST PLATE 2
086-01320-002 LARGE THRUST REST BRKT 2
P/N - 386-17791-007
P/N DESCRIPTION QTY
029-21364-001 RESTRAINT THRUST 350LBS/PR 2
086-01322-002 THRUST RESTRAINT SST PLATE 2
086-01320-002 LARGE THRUST REST BRKT 2
P/N - 386-17791-008
P/N DESCRIPTION QTY
029-21364-002 RESTRAINT THRUST 550LBS/PR 2
086-01322-002 THRUST RESTRAINT SST PLATE 2
086-01320-002 LARGE THRUST REST BRKT 2
P/N - 386-17791-009
P/N DESCRIPTION QTY
029-21364-003 RESTRAINT THRUST 750LBS/PR 2
086-01322-002 THRUST RESTRAINT SST PLATE 2
086-01320-002 LARGE THRUST REST BRKT 2
P/N - 386-17791-010
P/N DESCRIPTION QTY
029-21364-001 RESTRAINT THRUST 350LBS/PR 2
086-01321-001 THRUST REST SUPPORT 2
086-01320-001 SMALL THRUST REST BRKT 2
P/N - 386-17791-011
P/N DESCRIPTION QTY
029-21364-001 RESTRAINT THRUST 350LBS/PR 2
086-01321-002 THRUST REST SUPPORT 2
086-01320-001 SMALL THRUST REST BRKT 2
P/N - 386-17791-012
P/N DESCRIPTION QTY
029-21364-001 RESTRAINT THRUST 350LBS/PR 2
086-01321-003 THRUST REST SUPPORT 2
086-01320-001 SMALL THRUST REST BRKT 2
P/N - 386-17791-013
P/N DESCRIPTION QTY
029-21364-001 RESTRAINT THRUST 350LBS/PR 2
086-01321-004 THRUST REST SUPPORT 2
086-01320-001 SMALL THRUST REST BRKT 2
P/N - 386-17791-014
P/N DESCRIPTION QTY
029-21364-001 RESTRAINT THRUST 350LBS/PR 2
086-01321-005 THRUST REST SUPPORT 2
086-01320-002 LARGE THRUST REST BRKT 2
P/N - 386-17791-015
P/N DESCRIPTION QTY
029-21364-001 RESTRAINT THRUST 350LBS/PR 2
086-01321-006 THRUST REST SUPPORT 2
086-01320-002 LARGE THRUST REST BRKT 2
P/N - 386-17791-016
P/N DESCRIPTION QTY
029-21364-002 RESTRAINT THRUST 550LBS/PR 2
086-01321-007 THRUST REST SUPPORT 2
086-01320-002 LARGE THRUST REST BRKT 2
P/N - 386-17791-017
P/N DESCRIPTION QTY
029-21364-002 RESTRAINT THRUST 550LBS/PR 2
086-01321-008 THRUST REST SUPPORT 2
086-01320-002 LARGE THRUST REST BRKT 2
P/N - 386-17791-018
P/N DESCRIPTION QTY
029-21364-003 RESTRAINT THRUST 750LBS/PR 2
086-01321-009 THRUST REST SUPPORT 2
086-01320-002 LARGE THRUST REST BRKT 2
P/N - 386-17791-019
P/N DESCRIPTION QTY
029-21364-004 RESTRAINT THRUST 1500LBS/
PR 2
THRUST RESTRAINT KITS
Continued on next page
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
18
086-01321-010 THRUST REST SUPPORT 2
086-01320-002 LARGE THRUST REST BRKT 2
P/N - 386-17791-020
P/N DESCRIPTION QTY
029-21364-001 RESTRAINT THRUST 350LBS/PR 2
086-01321-011 THRUST REST SUPPORT 2
086-01320-001 SMALL THRUST REST BRKT 2
P/N - 386-17791-021
P/N DESCRIPTION QTY
029-21364-001 RESTRAINT THRUST 350LBS/PR 2
086-01321-012 THRUST REST SUPPORT 2
086-01320-001 SMALL THRUST REST BRKT 2
P/N - 386-17791-022
P/N DESCRIPTION QTY
029-21364-001 RESTRAINT THRUST 350LBS/PR 2
086-01321-013 THRUST REST SUPPORT 2
086-01320-001 SMALL THRUST REST BRKT 2
P/N - 386-17791-023
P/N DESCRIPTION QTY
029-21364-001 RESTRAINT THRUST 350LBS/PR 2
086-01321-014 THRUST REST SUPPORT 2
086-01320-001 SMALL THRUST REST BRKT 2
P/N - 386-17791-024
P/N DESCRIPTION QTY
029-21364-001 RESTRAINT THRUST 350LBS/PR 2
086-01321-015 THRUST REST SUPPORT 2
086-01320-001 SMALL THRUST REST BRKT 2
P/N - 386-17791-025
P/N DESCRIPTION QTY
029-21364-001 RESTRAINT THRUST 350LBS/PR 2
086-01321-016 THRUST REST SUPPORT 2
086-01320-001 SMALL THRUST REST BRKT 2
P/N - 386-17791-026
P/N DESCRIPTION QTY
029-21364-001 RESTRAINT THRUST 350LBS/PR 2
086-01321-017 THRUST REST SUPPORT 2
086-01320-002 LARGE THRUST REST BRKT 2
P/N - 386-17791-027
P/N DESCRIPTION QTY
029-21364-001 RESTRAINT THRUST 350LBS/PR 2
086-01321-018 THRUST REST SUPPORT 2
086-01320-002 LARGE THRUST REST BRKT 2
P/N - 386-17791-028
P/N DESCRIPTION QTY
029-21364-002 RESTRAINT THRUST 550LBS/PR 2
086-01321-019 THRUST REST SUPPORT 2
086-01320-002 LARGE THRUST REST BRKT 2
P/N - 386-17791-029
P/N DESCRIPTION QTY
029-21364-002 RESTRAINT THRUST 550LBS/PR 2
086-01321-020 THRUST REST SUPPORT 2
086-01320-002 LARGE THRUST REST BRKT 2
P/N - 386-17791-030
P/N DESCRIPTION QTY
029-21364-002 RESTRAINT THRUST 550LBS/PR 2
086-01321-021 THRUST REST SUPPORT 2
086-01320-002 LARGE THRUST REST BRKT 2
P/N - 386-17791-031
P/N DESCRIPTION QTY
029-21364-003 RESTRAINT THRUST 750LBS/PR 2
086-01321-022 THRUST REST SUPPORT 2
086-01320-002 LARGE THRUST REST BRKT 2
P/N - 386-17791-033
P/N DESCRIPTION QTY
029-21364-004 RESTRAINT THRUST 1500LBS/PR 2
086-01321-024 THRUST REST SUPPORT 2
086-01320-002 LARGE THRUST REST BRKT 2
HARDWARE INCLUDED IN ALL KITS
P/N DESCRIPTION QTY.
021-01481-000 SCR, CAP HEX 3/8 - 16 UNC - 2A X
1.0, ZINC PLATED 4
021-01267-000 WASH FLT 7/16 ID X 1 OD X 0.083
THK STL ZINC PLTD. 8
021-01155-000 WASH, LK TH INT 3/8 STD C-76 4
021-19307-000 NUT, HEX LK 3/8-16 ZINC PLATED 4
021-19515-000 SCREW, SELF-DRILLING: 1/4 - 14 UN
X 3/4 LG, ZINC PLATED 16
P/N - 386-17791-032
P/N DESCRIPTION QTY
029-21364-004 RESTRAINT THRUST 1500LBS/PR 2
086-01321-023 THRUST REST SUPPORT 2
086-01320-002 LARGE THRUST REST BRKT 2
THRUST RESTRAINT KITS (CONTINUED)
19
YORK INTERNATIONAL
FORM 102.20-RP1(1104)

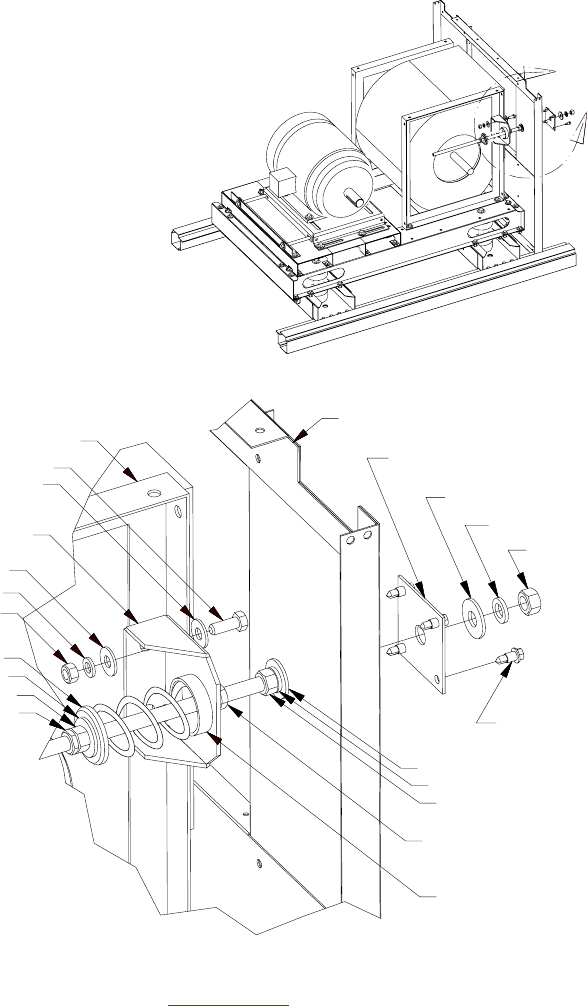

FIG. 3 - THRUST RESTRAINT INSTALLATION FOR
COMEFRI AND INDUSTRIAL FANS DISCHARG-
ING INTO WALLS
LDO9700-2
086-00105-152
TH REST PLATE
FLAT WASH
LOCK WASH
HEX NUT
021- 19515-000
FLAT WASH
LOCK WASHER
HEX NUT
LOCK NUT
HEX NUT
FLAT WASH
NEOPRENE CUP
LOCK NUT
HEX NUT
FLAT WASH
STEEL CUP
021-19307-000
021-01155-000
021-01267-000
021-01267-000
021-01481-000
THRUST REST BRKT
FAN
WALL ASSY
A
DETAIL A
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
20
FIG. 4 - THRUST RESTRAINT INSTALLATION FOR
COMEFRI AND INDUSTRIAL FANS DISCHARG-
ING INTO PANELS
LDO9701-1
1. TH REST SUPPORT FLANGE IS TO BE FLUSH WITH PANEL OPENING.
NOTE 1
TH REST SUPPORT
FAN
021-01481-000
021-01267-000
THRUST REST BRKT
021-01267-000
021-01155-000
021-19307-000
HEX NUT
LOCK NUT
HEX NUT
LOCK WASH
FLAT WASH
TH REST SUPPORT
FLAT WASH
LOCK WASH
HEX NUT
021- 19515-000
STEEL ROD
FLAT WASHER
DISCH PANEL
FAN
RACEWAY
FLAT WASH
HEX NUT
LOCK NUT
A
TOP VIEW OF DETAIL A
DETAIL A
STEEL CUP
NEOPRENE CUP
21
YORK INTERNATIONAL
FORM 102.20-RP1(1104)

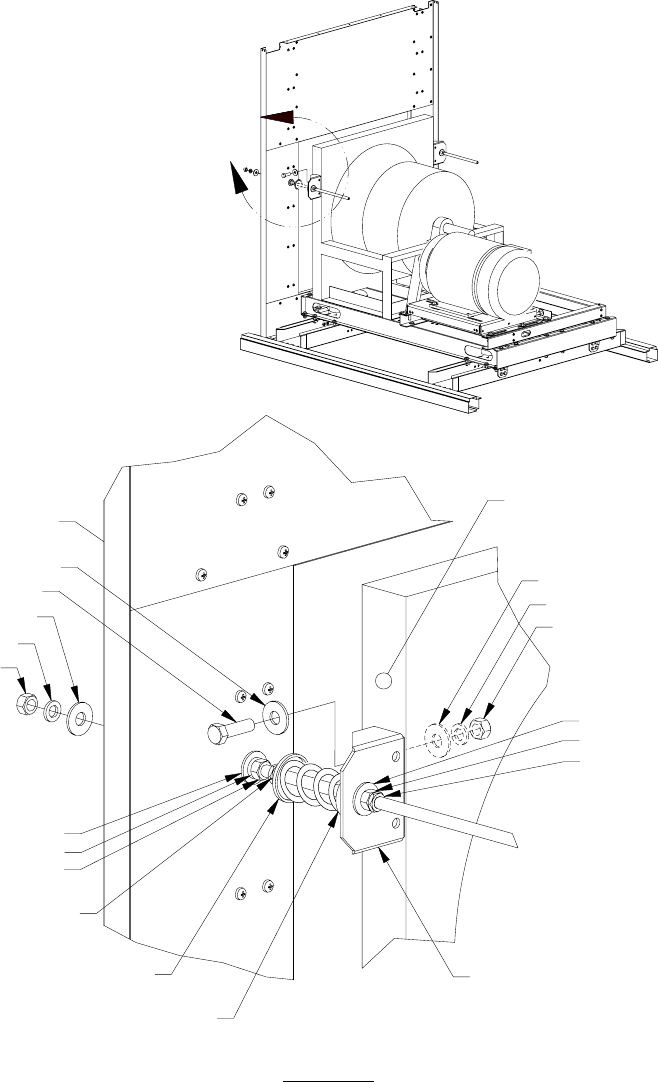

FIG. 5 - THRUST RESTRAINT INSTALLA-
TION FOR PLENUM FANS WITH
WALL MOUNTED INLET
LDO9702A
HEX NUT
LOCK WASH
FLAT WASH
FLAT WASH
LOCK WASH
HEX NUT
LOCK NUT
HEX NUT
FLAT WASH
NEOPRENE CUP
FLAT WASH
HEX NUT
LOCK NUT
STEEL CUP THRUST REST BRKT
021-01481-000
021-01267-000
021-19307-000
021-01155-000
021-01267-000
FAN INLET COVER
WALL ASSY
A
DETAIL A
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
22
FAN MOTORS
HERTZ EFF TYPE VOLT. HP NOM-
RPM PART
NUMBER DESCRIPTION
60 HIGH ODP 200 50 1800 024-14920-000 MTR 50HP 200/208-3-60 ODP HIGH 1800RPM BALDOR M2543T-8
60 HIGH ODP 200 1.5 1800 024-23174-000 MTR 1.5HP 200/208-3-60 ODP HIGH 1800RPM BALDOR M3154T-8
60 HIGH ODP 230/460 2 1800 024-23189-000 MTR 2HP 230/460-3-60 ODP HIGH 1800RPM BALDOR M3157T
60 HIGH ODP 230/460 30 1800 024-23191-000 MTR 30HP 230/460-3-60 ODP HIGH 1800RPM BALDOR M2535T
60 HIGH ODP 230/460 40 1800 024-23195-000 MTR 40HP 230/460-3-60 ODP HIGH 1800RPM BALDOR M2539T
60 HIGH ODP 230/460 50 1800 024-23196-000 MTR 50HP 230/460-3-60 ODP HIGH 1800RPM BALDOR M2543T
60 HIGH ODP 230/460 60 1800 024-23197-000 MTR 60HP 230/460-3-60 ODP HIGH 1800RPM BALDOR M2547T
60 HIGH TEFC 230/460 3 1800 024-23914-000 MTR 3HP 230/460-3-60 TEFC HIGH 1800RPM BALDOR M3611T
60 HIGH TEFC 230/460 5 1800 024-23915-000 MTR 5HP 230/460-3-60 TEFC HIGH 1800RPM BALDOR M3615T
60 HIGH TEFC 230/460 7.5 1800 024-23916-000 MTR 7.5HP 230/460-3-60 TEFC HIGH 1800RPM BALDOR M3710T
60 HIGH TEFC 230/460 10 1800 024-23917-000 MTR 10HP 230/460-3-60 TEFC HIGH 1800RPM BALDOR M3714T
60 HIGH TEFC 230/460 15 1800 024-23918-000 MTR 15HP 230/460-3-60 TEFC HIGH 1800RPM BALDOR M2333T
60 HIGH TEFC 230/460 20 1800 024-23919-000 MTR 20HP 230/460-3-60 TEFC HIGH 1800RPM BALDOR M2334T
60 HIGH TEFC 230/460 25 1800 024-23920-000 MTR 25HP 230/460-3-60 TEFC HIGH 1800RPM BALDOR M4103T
60 HIGH TEFC 200 3 1800 024-23921-000 MTR 3HP 200/208-3-60 TEFC HIGH 1800RPM BALDOR M3611T-8
60 HIGH TEFC 200 5 1800 024-23922-000 MTR 5HP 200/208-3-60 TEFC HIGH 1800RPM BALDOR M3615T-8
60 HIGH TEFC 200 7.5 1800 024-23923-000 MTR 7.5HP 200/208-3-60 TEFC HIGH 1800RPM BALDOR M3710T-8
60 HIGH TEFC 200 10 1800 024-23924-000 MTR 10HP 200/208-3-60 TEFC HIGH 1800RPM BALDOR M3714T-8
60 HIGH TEFC 200 15 1800 024-23925-000 MTR 15HP 200/208-3-60 TEFC HIGH 1800RPM BALDOR M2333T-8
60 HIGH ODP 230/460 3 1800 024-23928-000 MTR 3HP 230/460-3-60 ODP HIGH 1800RPM BALDOR M3211T
60 HIGH ODP 230/460 5 1800 024-23929-000 MTR 5HP 230/460-3-60 ODP HIGH 1800RPM BALDOR M3218T
60 HIGH ODP 230/460 7.5 1800 024-23930-000 MTR 7.5HP 230/460-3-60 ODP HIGH 1800RPM BALDOR M3311T
60 HIGH ODP 230/460 10 1800 024-23931-000 MTR 10HP 230/460-3-60 ODP HIGH 1800RPM BALDOR M3313T
60 HIGH ODP 230/460 15 1800 024-23932-000 MTR 15HP 230/460-3-60 ODP HIGH 1800RPM BALDOR M2513T
60 HIGH ODP 230/460 20 1800 024-23933-000 MTR 20HP 230/460-3-60 ODP HIGH 1800RPM BALDOR M2515T
60 HIGH ODP 230/460 25 1800 024-23934-000 MTR 25HP 230/460-3-60 ODP HIGH 1800RPM BALDOR M2531T
60 HIGH ODP 200 3 1800 024-23935-000 MTR 3HP 200/208-3-60 ODP HIGH 1800RPM BALDOR M3211T-8
60 HIGH ODP 200 5 1800 024-23936-000 MTR 5HP 200/208-3-60 ODP HIGH 1800RPM BALDOR M3218T-8
60 HIGH ODP 200 7.5 1800 024-23937-000 MTR 7.5HP 200/208-3-60 ODP HIGH 1800RPM BALDOR M3311T-8
60 HIGH ODP 200 10 1800 024-23938-000 MTR 10HP 200/208-3-60 ODP HIGH 1800RPM BALDOR M3313T-8
60 HIGH ODP 200 15 1800 024-23939-000 MTR 15HP 200/208-3-60 ODP HIGH 1800RPM BALDOR M2513T-8
60 HIGH ODP 200 20 1800 024-23940-000 MTR 20HP 200/208-3-60 ODP HIGH 1800RPM BALDOR M2515T-8
60 HIGH ODP 200 25 1800 024-23941-000 MTR 25HP 200/208-3-60 ODP HIGH 1800RPM BALDOR M2531T-8
50 HIGH ODP 380 3 1500 024-26203-000 MTR 3HP 380-3-50 ODP HIGH 1500RPM BALDOR M3211T-50
50 HIGH ODP 380 5 1500 024-26204-000 MTR 5HP 380-3-50 ODP HIGH 1500RPM BALDOR M3218T-50
50 HIGH ODP 380 7.5 1500 024-26205-000 MTR 7.5HP 380-3-50 ODP HIGH 1500RPM BALDOR M3311T-50
50 HIGH TEFC 380 10 1500 024-26221-000 MTR 10HP 380-3-50 TEFC HIGH 1500RPM BALDOR M3714T-50
50 HIGH TEFC 380 15 1500 024-26252-000 MTR 15HP 380-3-50 TEFC HIGH 1500RPM BALDOR M2333T-50
60 HIGH ODP 200 1 1800 024-26261-000 MTR 1HP 200/208-3-60 ODP HIGH 1800RPM BALDOR M3116T-8
60 HIGH ODP 230/460 1 1800 024-26262-000 MTR 1HP 230/460-3-60 ODP HIGH 1800RPM BALDOR M3116T
60 HIGH ODP 230/460 1.5 1800 024-26263-000 MTR 1.5HP 230/460-3-60 ODP HIGH 1800RPM BALDOR M3154T
60 HIGH ODP 200 2 1800 024-26264-000 MTR 2HP 200/208-3-60 ODP HIGH 1800RPM BALDOR M3157T-8
60 HIGH ODP 200 30 1800 024-26265-000 MTR 30HP 200/208-3-60 ODP HIGH 1800RPM BALDOR M2535T-8
60 HIGH ODP 200 40 1800 024-26266-000 MTR 40HP 200/208-3-60 ODP HIGH 1800RPM BALDOR M2539T-8
60 HIGH ODP 230/460 75 1800 024-26267-000 MTR 75HP 230/460-3-60 ODP HIGH 1800RPM BALDOR M2551T
60 HIGH ODP 230/460 100 1800 024-26268-000 MTR 100HP 230/460-3-60 ODP HIGH 1800RPM BALDOR M2555T
60 HIGH TEFC 200 30 1800 024-26271-000 MTR 30HP 200/208-3-60 TEFC HIGH 1800RPM BALDOR M4104T-8
Continued on next page
23
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
60 HIGH TEFC 200 1 1800 024-26276-000 MTR 1HP 200/208-3-60 TEFC HIGH 1800RPM BALDOR M3546T-8
60 HIGH TEFC 230/460 1 1800 024-26277-000 MTR 1HP 230/460-3-60 TEFC HIGH 1800RPM BALDOR M3546T
60 HIGH TEFC 200 1.5 1800 024-26278-000 MTR 1.5HP 200/208-3-60 TEFC HIGH 1800RPM BALDOR M3554T-8
60 HIGH TEFC 230/460 1.5 1800 024-26279-000 MTR 1.5HP 230/460-3-60 TEFC HIGH 1800RPM BALDOR M3554T
60 HIGH TEFC 200 2 1800 024-26280-000 MTR 2HP 200/208-3-60 TEFC HIGH 1800RPM BALDOR M3558T-8
60 HIGH TEFC 230/460 2 1800 024-26281-000 MTR 2HP 230/460-3-60 TEFC HIGH 1800RPM BALDOR M3558T
60 HIGH TEFC 230/460 30 1800 024-26282-000 MTR 30HP 230/460-3-60 TEFC HIGH 1800RPM BALDOR M4104T
60 HIGH TEFC 230/460 40 1800 024-26283-000 MTR 40HP 230/460-3-60 TEFC HIGH 1800RPM BALDOR M4110T
60 HIGH TEFC 230/460 50 1800 024-26284-000 MTR 50HP 230/460-3-60 TEFC HIGH 1800RPM BALDOR M4115T
60 HIGH TEFC 230/460 60 1800 024-26285-000 MTR 60HP 230/460-3-60 TEFC HIGH 1800RPM BALDOR M4314T
60 HIGH TEFC 230/460 75 1800 024-26286-000 MTR 75HP 230/460-3-60 TEFC HIGH 1800RPM BALDOR M4316T
60 HIGH TEFC 230/460 100 1800 024-26287-000 MTR 100HP 230/460-3-60 TEFC HIGH 1800RPM BALDOR M4400T
60 HIGH ODP 575 1 1800 024-27005-000 MTR 1HP 575-3-60 ODP HIGH 1800RPM BALDOR M3116T-5
60 HIGH ODP 575 1.5 1800 024-27006-000 MTR 1.5HP 575-3-60 ODP HIGH 1800RPM BALDOR M3154T-5
60 HIGH ODP 575 2 1800 024-27007-000 MTR 2HP 575-3-60 ODP HIGH 1800RPM BALDOR M3157T-5
60 HIGH ODP 575 3 1800 024-27008-000 MTR 3HP 575-3-60 ODP HIGH 1800RPM BALDOR M3211T-5
60 HIGH ODP 575 5 1800 024-27009-000 MTR 5HP 575-3-60 ODP HIGH 1800RPM BALDOR M3218T-5
60 HIGH ODP 575 7.5 1800 024-27010-000 MTR 7.5HP 575-3-60 ODP HIGH 1800RPM BALDOR M3311T-5
60 HIGH ODP 575 10 1800 024-27011-000 MTR 10HP 575-3-60 ODP HIGH 1800RPM BALDOR M3313T-5
60 HIGH ODP 575 15 1800 024-27012-000 MTR 15HP 575-3-60 ODP HIGH 1800RPM BALDOR M2513T-5
60 HIGH ODP 575 20 1800 024-27013-000 MTR 20HP 575-3-60 ODP HIGH 1800RPM BALDOR M2515T-5
60 HIGH ODP 575 25 1800 024-27014-000 MTR 25HP 575-3-60 ODP HIGH 1800RPM BALDOR M2531T-5
60 HIGH ODP 575 30 1800 024-27015-000 MTR 30HP 575-3-60 ODP HIGH 1800RPM BALDOR M2535T-5
60 HIGH ODP 575 40 1800 024-27016-000 MTR 40HP 575-3-60 ODP HIGH 1800RPM BALDOR M2539T-5
60 HIGH ODP 575 50 1800 024-27017-000 MTR 50HP 575-3-60 ODP HIGH 1800RPM BALDOR M2543T-5
60 HIGH ODP 575 60 1800 024-27018-000 MTR 60HP 575-3-60 ODP HIGH 1800RPM BALDOR M2547T-5
60 HIGH ODP 575 75 1800 024-27019-000 MTR 75HP 575-3-60 ODP HIGH 1800RPM BALDOR M2551T-5
60 HIGH ODP 575 100 1800 024-27020-000 MTR 100HP 575-3-60 ODP HIGH 1800RPM BALDOR M2555T-5
60 HIGH TEFC 575 1 1800 024-27037-000 MTR 1HP 575-3-60 TEFC HIGH 1800RPM BALDOR M3546T-5
60 HIGH TEFC 575 1.5 1800 024-27038-000 MTR 1.5HP 575-3-60 TEFC HIGH 1800RPM BALDOR M3554T-5
60 HIGH TEFC 575 2 1800 024-27039-000 MTR 2HP 575-3-60 TEFC HIGH 1800RPM BALDOR M3558T-5
60 HIGH TEFC 575 3 1800 024-27040-000 MTR 3HP 575-3-60 TEFC HIGH 1800RPM BALDOR M3611T-5
60 HIGH TEFC 575 5 1800 024-27041-000 MTR 5HP 575-3-60 TEFC HIGH 1800RPM BALDOR M3615T-5
60 HIGH TEFC 575 7.5 1800 024-27042-000 MTR 7.5HP 575-3-60 TEFC HIGH 1800RPM BALDOR M3710T-5
60 HIGH TEFC 575 10 1800 024-27043-000 MTR 10HP 575-3-60 TEFC HIGH 1800RPM BALDOR M3714T-5
60 HIGH TEFC 575 15 1800 024-27044-000 MTR 15HP 575-3-60 TEFC HIGH 1800RPM BALDOR M2333T-5
60 HIGH TEFC 575 20 1800 024-27045-000 MTR 20HP 575-3-60 TEFC HIGH 1800RPM BALDOR M2334T-5
60 HIGH TEFC 575 25 1800 024-27046-000 MTR 25HP 575-3-60 TEFC HIGH 1800RPM BALDOR M4103T-5
60 HIGH TEFC 575 30 1800 024-27047-000 MTR 30HP 575-3-60 TEFC HIGH 1800RPM BALDOR M4104T-5
60 HIGH TEFC 575 40 1800 024-27048-000 MTR 40HP 575-3-60 TEFC HIGH 1800RPM BALDOR M4110T-5
60 HIGH TEFC 575 50 1800 024-27049-000 MTR 50HP 575-3-60 TEFC HIGH 1800RPM BALDOR M4115T-5
60 HIGH TEFC 575 60 1800 024-27050-000 MTR 60HP 575-3-60 TEFC HIGH 1800RPM BALDOR M4314T-5
60 HIGH TEFC 575 75 1800 024-27051-000 MTR 75HP 575-3-60 TEFC HIGH 1800RPM BALDOR M4316T-5
60 HIGH TEFC 575 100 1800 024-27052-000 MTR 100HP 575-3-60 TEFC HIGH 1800RPM BALDOR M4400T-5
60 PREM ODP 200 3 1800 024-27054-000 MTR 3HP 200/208-3-60 ODP PREM 1800RPM BALDOR EM3211T-8
60 PREM ODP 460 3 1800 024-27055-000 MTR 3HP 460-3-60 ODP PREM 1800RPM BALDOR EM3211T
60 PREM ODP 230/460 3 1800 024-27055-000 MTR 3HP 230/460-3-60 ODP PREM 1800RPM BALDOR EM3211T
FAN MOTORS (CONTINUED)
HERTZ EFF TYPE VOLT. HP NOM
RPM PART
NUMBER DESCRIPTION
Continued on next page
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
24
60 PREM ODP 200 5 1800 024-27056-000 MTR 5HP 200/208-3-60 ODP PREM 1800RPM BALDOR EM3218T-8
60 PREM ODP 230/460 5 1800 024-27057-000 MTR 5HP 230/460-3-60 ODP PREM 1800RPM BALDOR EM3218T
60 PREM ODP 200 7.5 1800 024-27058-000 MTR 7.5HP 200/208-3-60 ODP PREM 1800RPM BALDOR EM3311T-8
60 PREM ODP 230/460 7.5 1800 024-27059-000 MTR 7.5HP 230/460-3-60 ODP PREM 1800RPM BALDOR EM3311T
60 PREM ODP 200 10 1800 024-27060-000 MTR 10HP 200/208-3-60 ODP PREM 1800RPM BALDOR EM3313T-8
60 PREM ODP 230/460 10 1800 024-27062-000 MTR 10HP 230/460-3-60 ODP PREM 1800RPM BALDOR EM3313T
60 PREM ODP 200 15 1800 024-27063-000 MTR 15HP 200/208-3-60 ODP PREM 1800RPM BALDOR EM2513T-8
60 PREM ODP 230/460 15 1800 024-27064-000 MTR 15HP 230/460-3-60 ODP PREM 1800RPM BALDOR EM2513T
60 PREM ODP 200 20 1800 024-27065-000 MTR 20HP 200/208-3-60 ODP PREM 1800RPM BALDOR EM2515T-8
60 PREM ODP 230/460 20 1800 024-27066-000 MTR 20HP 230/460-3-60 ODP PREM 1800RPM BALDOR EM2515T
60 PREM ODP 200 25 1800 024-27067-000 MTR 25HP 200/208-3-60 ODP PREM 1800RPM BALDOR EM2531T-8
60 PREM ODP 230/460 25 1800 024-27068-000 MTR 25HP 230/460-3-60 ODP PREM 1800RPM BALDOR EM2531T
60 PREM ODP 200 30 1800 024-27069-000 MTR 30HP 200/208-3-60 ODP PREM 1800RPM BALDOR EM2535T-8
60 PREM ODP 230/460 30 1800 024-27070-000 MTR 30HP 230/460-3-60 ODP PREM 1800RPM BALDOR EM2535T
60 PREM ODP 200 40 1800 024-27071-000 MTR 40HP 200/208-3-60 ODP PREM 1800RPM BALDOR EM2539T-8
60 PREM ODP 230/460 40 1800 024-27072-000 MTR 40HP 230/460-3-60 ODP PREM 1800RPM BALDOR EM2539T
60 PREM ODP 200 50 1800 024-27073-000 MTR 50HP 200/208-3-60 ODP PREM 1800RPM BALDOR EM2543T-8
60 PREM ODP 230/460 50 1800 024-27074-000 MTR 50HP 230/460-3-60 ODP PREM 1800RPM BALDOR EM2543T
60 PREM ODP 200 60 1800 024-27075-000 MTR 60HP 200/208-3-60 ODP PREM 1800RPM BALDOR EM2547T-8
60 PREM ODP 230/460 60 1800 024-27076-000 MTR 60HP 230/460-3-60 ODP PREM 1800RPM BALDOR EM2547T
60 PREM ODP 200 75 1800 024-27077-000 MTR 75HP 200/208-3-60 ODP PREM 1800RPM BALDOR EM2551T-8
60 PREM ODP 230/460 75 1800 024-27078-000 MTR 75HP 230/460-3-60 ODP PREM 1800RPM BALDOR EM2551T
60 PREM ODP 200 100 1800 024-27079-000 MTR 100HP 200/208-3-60 ODP PREM 1800RPM BALDOR EM2555T-8
60 PREM ODP 460 100 1800 024-27080-000 MTR 100HP 460-3-60 ODP PREM 1800RPM BALDOR EM2555T-4
60 PREM TEFC 200 3 1800 024-27081-000 MTR 3HP 200/208-3-60 TEFC PREM 1800RPM BALDOR EM3661T-8
60 PREM TEFC 230/460 3 1800 024-27082-000 MTR 3HP 230/460-3-60 TEFC PREM 1800RPM BALDOR EM3611T
60 PREM TEFC 200 5 1800 024-27083-000 MTR 5HP 200/208-3-60 TEFC PREM 1800RPM BALDOR EM3665T-8
60 PREM TEFC 230/460 5 1800 024-27084-000 MTR 5HP 230/460-3-60 TEFC PREM 1800RPM BALDOR EM3615T
60 PREM TEFC 200 7.5 1800 024-27085-000 MTR 7.5HP 200/208-3-60 TEFC PREM 1800RPM BALDOR EM3770T-8
60 PREM TEFC 230/460 7.5 1800 024-27086-000 MTR 7.5HP 230/460-3-60 TEFC PREM 1800RPM BALDOR EM3710T
60 PREM TEFC 200 10 1800 024-27087-000 MTR 10HP 200/208-3-60 TEFC PREM 1800RPM BALDOR EM3774T-8
60 PREM TEFC 230/460 10 1800 024-27088-000 MTR 10HP 230/460-3-60 TEFC PREM 1800RPM BALDOR EM3714T
60 PREM TEFC 200 15 1800 024-27089-000 MTR 15HP 200/208-3-60 TEFC PREM 1800RPM BALDOR EM2333T-8
60 PREM TEFC 230/460 15 1800 024-27090-000 MTR 15HP 230/460-3-60 TEFC PREM 1800RPM BALDOR EM2333T
60 PREM TEFC 200 20 1800 024-27097-000 MTR 20HP 200/208-3-60 TEFC PREM 1800RPM BALDOR EM2334T-8
60 PREM TEFC 230/460 20 1800 024-27098-000 MTR 20HP 230/460-3-60 TEFC PREM 1800RPM BALDOR EM2334T
60 PREM TEFC 200 25 1800 024-27099-000 MTR 25HP 200/208-3-60 TEFC PREM 1800RPM BALDOR EM4103T-8
60 PREM TEFC 230/460 25 1800 024-27300-000 MTR 25HP 230/460-3-60 TEFC PREM 1800RPM BALDOR EM4103T
60 PREM TEFC 230/460 30 1800 024-27301-000 MTR 30HP 230/460-3-60 TEFC PREM 1800RPM BALDOR EM4104T
60 PREM TEFC 230/460 40 1800 024-27302-000 MTR 40HP 230/460-3-60 TEFC PREM 1800RPM BALDOR EM4110T
60 PREM TEFC 230/460 50 1800 024-27303-000 MTR 50HP 230/460-3-60 TEFC PREM 1800RPM BALDOR EM4115T
60 PREM TEFC 230/460 60 1800 024-27304-000 MTR 60HP 230/460-3-60 TEFC PREM 1800RPM BALDOR EM4314T
60 PREM TEFC 230/460 75 1800 024-27305-000 MTR 75HP 230/460-3-60 TEFC PREM 1800RPM BALDOR EM4316T
60 PREM TEFC 460 100 1800 024-27306-000 MTR 100HP 460-3-60 TEFC PREM 1800RPM BALDOR ECP4400T-4
60 PREM TEFC 575 1 1800 024-27307-000 MTR 1HP 575-3-60 TEFC PREM 1800RPM BALDOR EM3546T-5
60 PREM TEFC 575 1.5 1800 024-27308-000 MTR 1.5HP 575-3-60 TEFC PREM 1800RPM BALDOR EM3554T-5
60 PREM TEFC 575 2 1800 024-27309-000 MTR 2HP 575-3-60 TEFC PREM 1800RPM BALDOR EM3558T-5
FAN MOTORS (CONTINUED)
HERTZ EFF TYPE VOLT. HP NOM
RPM PART
NUMBER DESCRIPTION
Continued on next page
25
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
60 PREM TEFC 575 3 1800 024-27310-000 MTR 3HP 575-3-60 TEFC PREM 1800RPM BALDOR EM3611T-5
60 PREM TEFC 575 5 1800 024-27311-000 MTR 5HP 575-3-60 TEFC PREM 1800RPM BALDOR EM3615T-5
60 PREM TEFC 575 7.5 1800 024-27312-000 MTR 7.5HP 575-3-60 TEFC PREM 1800RPM BALDOR EM3710T-5
60 PREM TEFC 575 10 1800 024-27313-000 MTR 10HP 575-3-60 TEFC PREM 1800RPM BALDOR. EM3714T-5
60 PREM TEFC 575 15 1800 024-27314-000 MTR 15HP 575-3-60 TEFC PREM 1800RPM BALDOR EM2333T-5
60 PREM TEFC 575 25 1800 024-27316-000 MTR 25HP 575-3-60 TEFC PREM 1800RPM BALDOR ECP4103T-5
60 PREM ODP 230/460 1 1800 024-34400-000 MTR 1HP 230/460-3-60 ODP PREM 1800RPM BALDOR EM3116T
60 PREM ODP 575 1 1800 024-34402-000 MTR 1HP 575-3-60 ODP PREM 1800RPM BALDOR EM3116T-5
60 PREM ODP 200 1 1800 024-34403-000 MTR 1HP 200/208-3-60 ODP PREM 1800RPM BALDOR EM3116T-8
60 PREM TEFC 230/460 1 1800 024-34404-000 MTR 1HP 230/460-3-60 TEFC PREM 1800RPM BALDOR EM3546T
60 PREM TEFC 200 1 1800 024-34406-000 MTR 1HP 200/208-3-60 TEFC PREM 1800RPM BALDOR EM3546T-8
60 PREM ODP 230/460 2 1800 024-34407-000 MTR 2HP 230/460-3-60 ODP PREM 1800RPM BALDOR EM3157T
60 PREM ODP 575 2 1800 024-34409-000 MTR 2HP 575-3-60 ODP PREM 1800RPM BALDOR EM3157T-5
60 PREM ODP 200 2 1800 024-34410-000 MTR 2HP 200/208-3-60 ODP PREM 1800RPM BALDOR EM3157T-8
60 PREM TEFC 230/460 2 1800 024-34411-000 MTR 2HP 230/460-3-60 TEFC PREM 1800RPM BALDOR EM3558T
60 PREM TEFC 200 2 1800 024-34413-000 MTR 2HP 200/208-3-60 TEFC PREM 1800RPM BALDOR EM3558T-8
60 PREM ODP 575 3 1800 024-34414-000 MTR 3HP 575-3-60 ODP PREM 1800RPM BALDOR EM3211T-5
60 PREM ODP 575 5 1800 024-34415-000 MTR 5HP 575-3-60 ODP PREM 1800RPM BALDOR EM3218T-5
60 PREM ODP 575 7.5 1800 024-34416-000 MTR 7.5HP 575-3-60 ODP PREM 1800RPM BALDOR EM3311T-5
60 PREM ODP 575 10 1800 024-34417-000 MTR 10HP 575-3-60 ODP PREM 1800RPM BALDOR EM3313T-5
60 PREM ODP 230/460 1.5 1800 024-34419-000 MTR 1.5HP 230/460-3-60 ODP PREM 1800RPM BALDOR EM3154T
60 PREM ODP 575 1.5 1800 024-34420-000 MTR 1.5HP 575-3-60 ODP PREM 1800RPM BALDOR EM3154T-5
60 PREM ODP 200 1.5 1800 024-34421-000 MTR 1.5HP 200/208-3-60 ODP PREM 1800RPM BALDOR EM3154T-8
60 PREM TEFC 230/460 1.5 1800 024-34423-000 MTR 1.5HP 230/460-3-60 TEFC PREM 1800RPM BALDOR EM3554T
60 PREM TEFC 200 1.5 1800 024-34424-000 MTR 1.5HP 200/208-3-60 TEFC PREM 1800RPM BALDOR EM3554T-8
60 PREM ODP 575 15 1800 024-34425-000 MTR 15HP 575-3-60 ODP PREM 1800RPM BALDOR EM2513T-5
60 HIGH TEFC 200 20 1800 024-34426-000 MTR 20HP 200/208-3-60 TEFC HIGH 1800RPM BALDOR M2334T-8
60 PREM ODP 575 20 1800 024-34427-000 MTR 20HP 575-3-60 ODP PREM 1800RPM BALDOR EM2515T-5
60 PREM TEFC 575 20 1800 024-34428-000 MTR 20HP 575-3-60 TEFC PREM 1800RPM BALDOR ECP2334T-5
60 HIGH TEFC 200 25 1800 024-34429-000 MTR 25HP 200/208-3-60 TEFC HIGH 1800RPM BALDOR M4103T-8
60 PREM ODP 575 25 1800 024-34430-000 MTR 25HP 575-3-60 ODP PREM 1800RPM BALDOR EM2531T-5
60 PREM ODP 575 30 1800 024-34431-000 MTR 30HP 575-3-60 ODP PREM 1800RPM BALDOR EM2535T-5
60 PREM TEFC 575 30 1800 024-34432-000 MTR 30HP 575-3-60 TEFC PREM 1800RPM BALDOR ECP4104T-5
60 PREM TEFC 200 30 1800 024-34433-000 MTR 30HP 200/208-3-60 TEFC PREM 1800RPM BALDOR EM4104T-8
60 HIGH TEFC 200 40 1800 024-34434-000 MTR 40HP 200/208-3-60 TEFC HIGH 1800RPM BALDOR M4110T-8
60 PREM ODP 575 40 1800 024-34435-000 MTR 40HP 575-3-60 ODP PREM 1800RPM BALDOR EM2539T-5
60 PREM TEFC 575 40 1800 024-34436-000 MTR 40HP 575-3-60 TEFC PREM 1800RPM BALDOR ECP4110T-5
60 PREM TEFC 200 40 1800 024-34437-000 MTR 40HP 200/208-3-60 TEFC PREM 1800RPM BALDOR EM4110T-8
60 HIGH TEFC 200 50 1800 024-34438-000 MTR 50HP 200/208-3-60 TEFC HIGH 1800RPM BALDOR M4115T-8
60 PREM ODP 575 50 1800 024-34439-000 MTR 50HP 575-3-60 ODP PREM 1800RPM BALDOR EM2543T-5
60 PREM TEFC 575 50 1800 024-34440-000 MTR 50HP 575-3-60 TEFC PREM 1800RPM BALDOR ECP4115T-5
60 PREM TEFC 200 50 1800 024-34441-000 MTR 50HP 200/208-3-60 TEFC PREM 1800RPM BALDOR EM4115T-8
60 HIGH ODP 200 60 1800 024-34442-000 MTR 60HP 200/208-3-60 ODP HIGH 1800RPM BALDOR M2547T-8
60 HIGH TEFC 200 60 1800 024-34443-000 MTR 60HP 200/208-3-60 TEFC HIGH 1800RPM BALDOR CUSTOM
60 PREM ODP 575 60 1800 024-34444-000 MTR 60HP 575-3-60 ODP PREM 1800RPM BALDOR EM2547T-5
60 PREM TEFC 200 60 1800 024-34445-000 MTR 60HP 200/208-3-60 TEFC PREM 1800RPM BALDOR CUSTOM
60 PREM TEFC 575 60 1800 024-34446-000 MTR 60HP 575-3-60 TEFC PREM 1800RPM BALDOR ECP4314T-5
FAN MOTORS (CONTINUED)
HERTZ EFF TYPE VOLT. HP NOM
RPM PART
NUMBER DESCRIPTION
Continued on next page
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
26
60 HIGH ODP 200 75 1800 024-34447-000 MTR 75HP 200/208-3-60 ODP HIGH 1800RPM BALDOR M2551T-8
60 HIGH TEFC 200 75 1800 024-34448-000 MTR 75HP 200/208-3-60 TEFC HIGH 1800RPM BALDOR CUSTOM
60 PREM ODP 575 75 1800 024-34449-000 MTR 75HP 575-3-60 ODP PREM 1800RPM BALDOR 44WGW126
60 PREM TEFC 200 75 1800 024-34450-000 MTR 75HP 200/208-3-60 TEFC PREM 1800RPM BALDOR CUSTOM
60 PREM TEFC 575 75 1800 024-34451-000 MTR 75HP 575-3-60 TEFC PREM 1800RPM BALDOR ECP4316T-5
60 HIGH ODP 200 100 1800 024-34452-000 MTR 100HP 200/208-3-60 ODP HIGH 1800RPM BALDOR M2555T-8
60 HIGH TEFC 200 100 1800 024-34453-000 MTR 100HP 200/208-3-60 TEFC HIGH 1800RPM BALDOR CUSTOM
60 PREM ODP 230/460 100 1800 024-34454-000 MTR 100HP 230/460-3-60 ODP PREM 1800RPM BALDOR 16WGW559
60 PREM ODP 575 100 1800 024-34455-000 MTR 100HP 575-3-60 ODP PREM 1800RPM BALDOR 16WGW614
60 PREM TEFC 200 100 1800 024-34456-000 MTR 100HP 200/208-3-60 TEFC PREM 1800RPM BALDOR CUSTOM
60 PREM TEFC 230/460 100 1800 024-34457-000 MTR 100HP 230/460-3-60 TEFC PREM 1800RPM BALDOR CUSTOM
60 PREM TEFC 575 100 1800 024-34458-000 MTR 100HP 575-3-60 TEFC PREM 1800RPM BALDOR ECP4400T-5
50 HIGH TEFC 380 1 1500 024-34459-000 MTR 1HP 380-3-50 TEFC HIGH 1500RPM BALDOR M3546T-50
50 HIGH ODP 380 1 1500 024-34460-000 MTR 1HP 380-3-50 ODP HIGH 1500RPM BALDOR M3116T-50
50 HIGH ODP 380 1.5 1500 024-34461-000 MTR 1.5HP 380-3-50 ODP HIGH 1500RPM BALDOR M3154T-50
50 HIGH ODP 380 2 1500 024-34462-000 MTR 2HP 380-3-50 ODP HIGH 1500RPM BALDOR M3157T-50
50 HIGH TEFC 380 5 1500 024-34463-000 MTR 5HP 380-3-50 TEFC HIGH 1500RPM BALDOR M3615T-50
50 HIGH TEFC 380 7.5 1500 024-34464-000 MTR 7.5HP 380-3-50 TEFC HIGH 1500RPM BALDOR M3710T-50
50 HIGH ODP 380 10 1500 024-34466-000 MTR 10HP 380-3-50 ODP HIGH 1500RPM BALDOR M3313T-50
50 HIGH ODP 380 15 1500 024-34467-000 MTR 15HP 380-3-50 ODP HIGH 1500RPM BALDOR M2513T-50
50 HIGH ODP 380 20 1500 024-34468-000 MTR 20HP 380-3-50 ODP HIGH 1500RPM BALDOR M2515T-50
50 HIGH ODP 380 25 1500 024-34469-000 MTR 25HP 380-3-50 ODP HIGH 1500RPM BALDOR 39X214
50 HIGH ODP 380 30 1500 024-34470-000 MTR 30HP 380-3-50 ODP HIGH 1500RPM BALDOR 40W989
50 HIGH ODP 380 40 1500 024-34471-000 MTR 40HP 380-3-50 ODP HIGH 1500RPM BALDOR 40W473
50 HIGH ODP 380 50 1500 024-34472-000 MTR 50HP 380-3-50 ODP HIGH 1500RPM BALDOR 40W565
50 HIGH ODP 380 60 1500 024-34473-000 MTR 60HP 380-3-50 ODP HIGH 1500RPM BALDOR 42W598
50 HIGH ODP 380 75 1500 024-34474-000 MTR 75HP 380-3-50 ODP HIGH 1500RPM BALDOR 42W502
50 HIGH ODP 380 100 1500 024-34475-000 MTR 100HP 380-3-50 ODP HIGH 1500RPM BALDOR 44W096
50 HIGH TEFC 380 1.5 1500 024-34819-000 MTR 1.5HP 380-3-50 TEFC HIGH 1500RPM BALDOR M3554T-50
50 HIGH TEFC 380 2 1500 024-34820-000 MTR 2HP 380-3-50 TEFC HIGH 1500RPM BALDOR M3558T-50
50 HIGH TEFC 380 3 1500 024-34821-000 MTR 3HP 380-3-50 TEFC HIGH 1500RPM BALDOR M3611T-50
50 HIGH TEFC 380 20 1500 024-34822-000 MTR 20HP 380-3-50 TEFC HIGH 1500RPM BALDOR M2334T-50
50 HIGH TEFC 380 25 1500 024-34823-000 MTR 25HP 380-3-50 TEFC HIGH 1500RPM BALDOR M4103T-50
50 HIGH TEFC 380 30 1500 024-34824-000 MTR 30HP 380-3-50 TEFC HIGH 1500RPM BALDOR M4104T-50
50 HIGH TEFC 380 40 1500 024-34825-000 MTR 40HP 380-3-50 TEFC HIGH 1500RPM BALDOR M4110T-50
50 HIGH TEFC 380 50 1500 024-34826-000 MTR 50HP 380-3-50 TEFC HIGH 1500RPM BALDOR M4115T-50
50 HIGH TEFC 380 60 1500 024-34827-000 MTR 60HP 380-3-50 TEFC HIGH 1500RPM BALDOR M4314T-50
50 HIGH TEFC 380 75 1500 024-34828-000 MTR 75HP 380-3-50 TEFC HIGH 1500RPM BALDOR 14X116
50 HIGH TEFC 380 100 1500 024-34829-000 MTR 100HP 380-3-50 TEFC HIGH 1500RPM BALDOR 16W740
FAN MOTORS (CONTINUED)
HERTZ EFF TYPE VOLT. HP NOM
RPM PART
NUMBER DESCRIPTION
27
YORK INTERNATIONAL
FORM 102.20-RP1(1104)

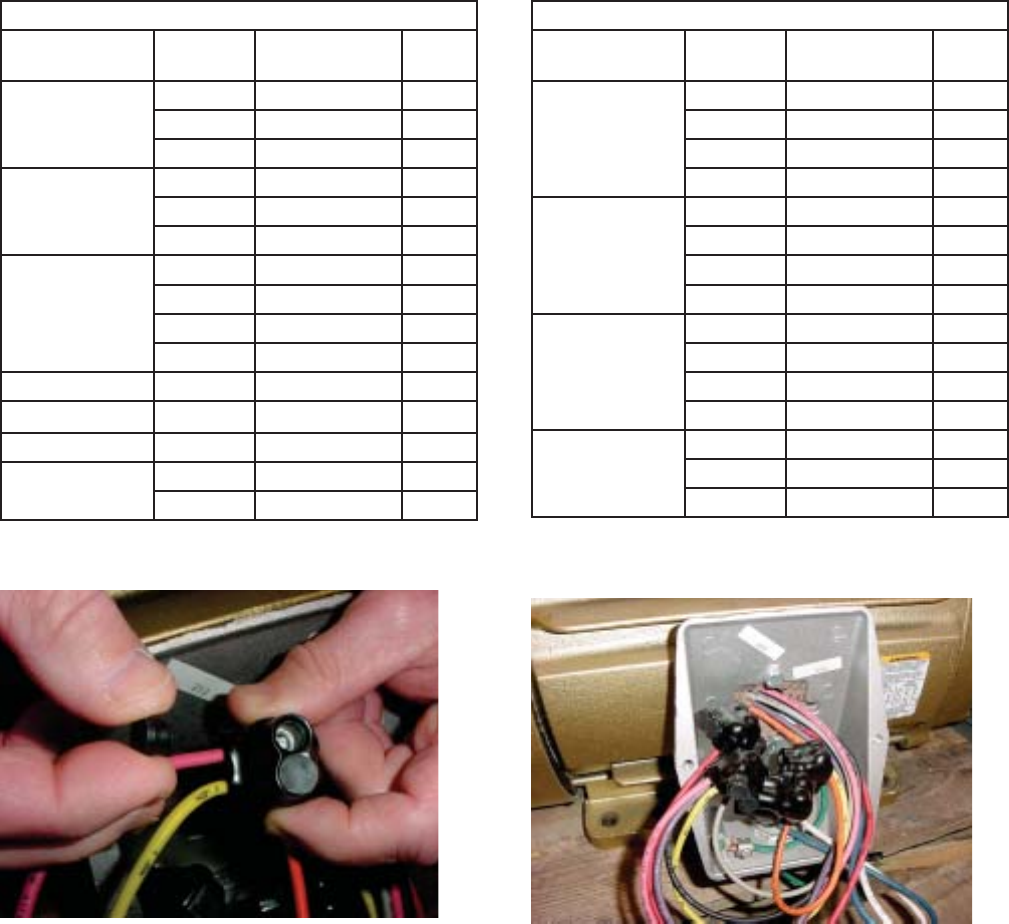

WIRE CONNECTORS
PART NUMBER MOTOR
VOLTAGE HP QTY
025-39042-001 200/208V 1,2,3 3
230/240V 1,2,3 4
460V 1,2,3,5,7.5 6
025-39042-003 200/208V 5 3
230/240V 5,7.5,10 4
460V 10,15 6
025-39043-001 200/208V 7.5,10 4
200/208V 15,20 3
230/240V 15,20,25 3
460V 20,25,30,40,50 6
025-39043-002 460V 60,75 6
025-39043-003 460V 100 6
025-39044-001 230/240V 10 3
025-39044-002 200/208V 25,30,40 3
230/240V 30,40,50 3

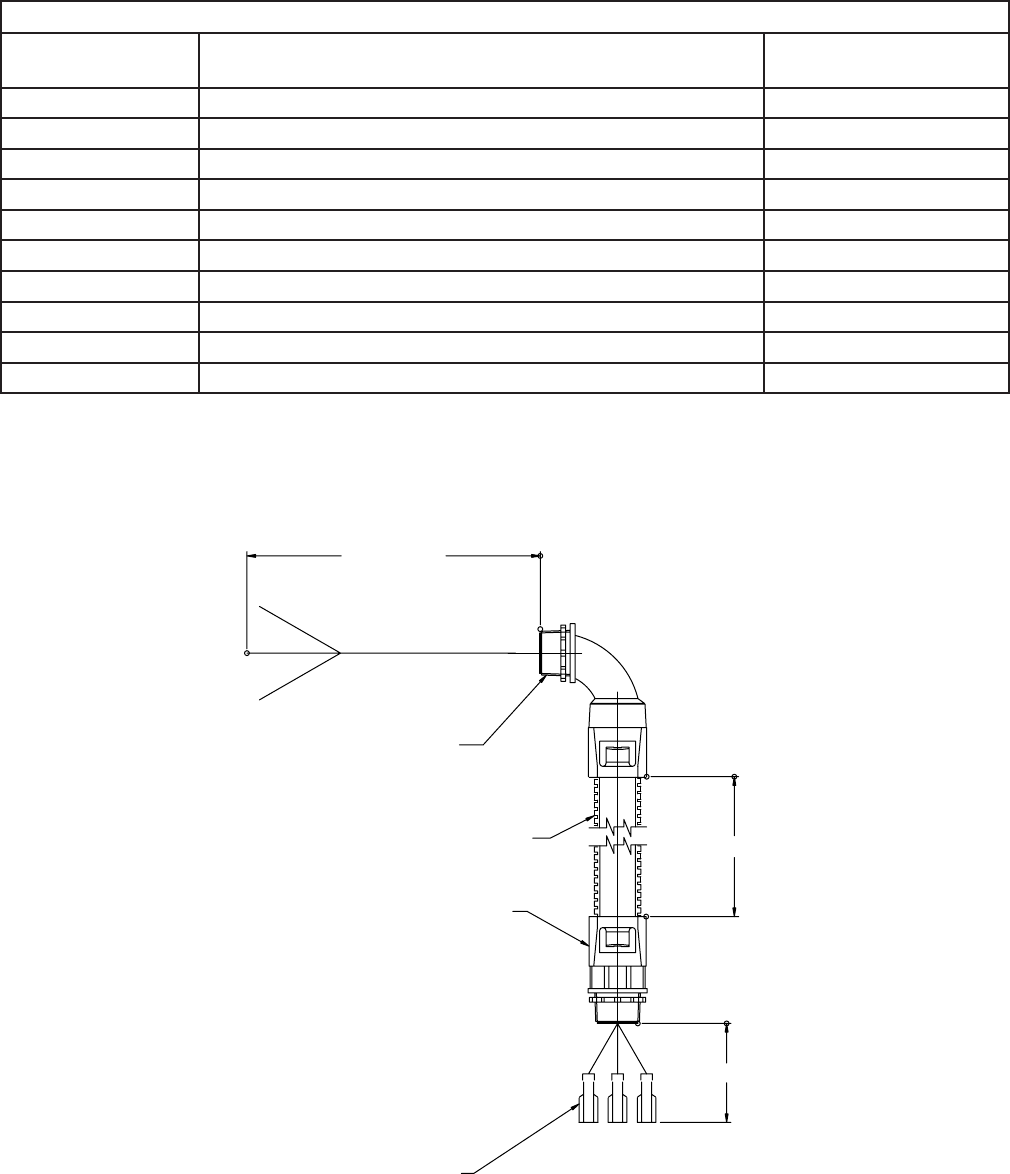

FIG. 6 - ASSEMBLY OF CONNECTORS FIG. 7 - MOTOR WIRE CONNECTIONS
FLEXIBLE CABLE SLEEVES
PART NUMBER MOTOR
VOLTAGE HP QTY
025-39049-001 200/208V 7.5,10,15 3
230/240V 10 3
230/240V 15 6
460V 20,25,30,40 3
025-39049-002 200/208V 20 6
200/208V 25 9
230/240V 20,25 6
460V 50 12
025-39049-003 200/208V 30 3
230/240V 30 9
230/240V 40 12
460V 60,75 12
025-39049-004 200/208V 40 9
230/240V 50 12
460V 100 12
MOTOR WIRING PARTS
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
28
ADJUSTABLE MOTOR BASES
Frame
Size Motor
HP Assembly Base
P/N Fan
Size/Type Fan
Size/Type Fan
Size/Type Fan
Size/Type Fan
Size/Type Fan
Size/Type
143T 1 386-23937-001 FC7-7 FC9-6 FC10-7 PL121
145T 2 386-23937-001 FC7-7 FC9-6 FC10-7 PL121
182T 3 386-23937-001 FC7-7 FC9-6 FC10-7 PL121
184T 5 386-23937-001 FC7-7 FC9-6 FC10-7 PL121
182T 3 386-23940-001 FC9-9 FC10-10 FC12-9 PL141 PL161
184T 5 386-23940-001 FC9-9 FC10-10 FC12-9 PL141 PL161
143T 1 386-23943-001 FC9-9 FC10-10 FC12-9 PL141 PL161
145T 2 386-23943-001 FC9-9 FC10-10 FC12-9 PL141 PL161
213T 7.5 386-23943-001 FC9-9 FC10-10 FC12-9 PL141 PL161
215T 10 386-23943-001 PL161
213T 7.5 386-23946-001 AF-FC12-12 FC15-11 AF-FC15-15 FC18-13 AF-FC18-18 BAF122
215T 10 386-23946-001 AF-FC12-12 FC15-11 AF-FC15-15 FC18-13 AF-FC18-18 BAF122
143T 1 386-23949-001 AF-FC12-12 FC15-11 AF-FC15-15 BAF122
145T 2 386-23949-001 AF-FC12-12 FC15-11 AF-FC15-15 FC18-13 AF-FC18-18 BAF122
182T 3 386-23949-001 AF-FC12-12 FC15-11 AF-FC15-15 FC18-13 AF-FC18-18 BAF122
184T 5 386-23949-001 AF-FC12-12 FC15-11 AF-FC15-15 FC18-13 AF-FC18-18 BAF122
254T 15 386-23949-001 AF-FC12-12 FC15-11 AF-FC15-15 FC18-13 AF-FC18-18 BAF122
256T 20 386-23949-001 AF-FC18-18
213T 7.5 386-23952-001 FC20-15 AF-FC20-20 BAF182 BAF200 BAF222 BAF245
215T 10 386-23952-001 FC20-15 AF-FC20-20 BAF182 BAF200 BAF222 BAF245
284T 25 386-23952-001 FC20-15 AF-FC20-20 BAF182 BAF200 BAF222 BAF245
286T 30 386-23952-001 AF-FC20-20 BAF200 BAF222 BAF245
143T 1 386-23956-001
145T 2 386-23956-001 FC20-15 AF-FC20-20 BAF182 BAF200 BAF222 BAF245
182T 3 386-23956-001 FC20-15 AF-FC20-20 BAF182 BAF200 BAF222 BAF245
184T 5 386-23956-001 FC20-15 AF-FC20-20 BAF182 BAF200 BAF222 BAF245
254T 15 386-23956-001 FC20-15 AF-FC20-20 BAF182 BAF200 BAF222 BAF245
256T 20 386-23956-001 FC20-15 AF-FC20-20 BAF182 BAF200 BAF222 BAF245
324T 40 386-23956-001 BAF222 BAF245
213T 7.5 386-23960-001 AF-FC22-22 AF-FC25-25 AF-FC28-28 AF-FC32-32 AF-FC36-36 AF-FC40-40
215T 10 386-23960-001 AF-FC22-22 AF-FC25-25 AF-FC28-28 AF-FC32-32 AF-FC36-36 AF-FC40-40
284T 25 386-23960-001 AF-FC22-22 AF-FC25-25 AF-FC28-28 AF-FC32-32 AF-FC36-36 AF-FC40-40
286T 30 386-23960-001 AF-FC22-22 AF-FC25-25 AF-FC28-28 AF-FC32-32 AF-FC36-36 AF-FC40-40
364T 60 386-23960-001 AF-FC28-28 AF-FC32-32 AF-FC36-36 AF-FC40-40
365T 75 386-23960-001 AF-FC32-32 AF-FC36-36 AF-FC40-40
Continued on next page
29
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
ADJUSTABLE MOTOR BASES (CONTINUED)
Frame
Size Motor
HP Assembly Base
P/N Fan
Size/Type Fan
Size/Type Fan
Size/Type Fan
Size/Type Fan
Size/Type Fan
Size/Type
143T 1 386-23965-001 AF-FC28-28 AF-FC32-32
145T 2 386-23965-001 AF-FC28-28 AF-FC32-32
182T 3 386-23965-001 AF-FC22-22 AF-FC25-25 AF-FC28-28 AF-FC32-32
184T 5 386-23965-001 AF-FC22-22 AF-FC25-25 AF-FC28-28 AF-FC32-32 AF-FC36-36 AF-FC40-40
254T 15 386-23965-001 AF-FC22-22 AF-FC25-25 AF-FC28-28 AF-FC32-32 AF-FC36-36 AF-FC40-40
256T 20 386-23965-001 AF-FC22-22 AF-FC25-25 AF-FC28-28 AF-FC32-32 AF-FC36-36 AF-FC40-40
324T 40 386-23965-001 AF-FC22-22 AF-FC25-25 AF-FC28-28 AF-FC32-32 AF-FC36-36 AF-FC40-40
326T 50 386-23965-001 AF-FC22-22 AF-FC25-25 AF-FC28-28 AF-FC32-32 AF-FC36-36 AF-FC40-40
404T 100 386-23965-001 AF-FC40-40
405T 125 386-23965-001
213T 7.5 386-23946-001 BAF135 BAF150 BAF165 PL181 PL201
215T 10 386-23946-001 BAF135 BAF150 BAF165 PL181 PL201
143T 1 386-23949-001 BAF135 BAF150 BAF165 PL181
145T 2 386-23949-001 BAF135 BAF150 BAF165 PL181 PL201
182T 3 386-23949-001 BAF135 BAF150 BAF165 PL181 PL201
184T 5 386-23949-001 BAF135 BAF150 BAF165 PL181 PL201
254T 15 386-23949-001 BAF135 BAF150 BAF165 PL181 PL201
256T 20 386-23949-001 BAF150 BAF165 PL181 PL201
213T 7.5 386-23952-001 BAF270 PL221 PL251 PL281
215T 10 386-23952-001 BAF270 PL221 PL251 PL281
284T 25 386-23952-001 BAF270 PL221 PL251 PL281
286T 30 386-23952-001 BAF270 PL251 PL281
143T 1 386-23956-001 PL251 PL281
145T 2 386-23956-001 PL221 PL251 PL281
182T 3 386-23956-001 BAF270 PL221 PL251 PL281
184T 5 386-23956-001 BAF270 PL221 PL251 PL281
254T 15 386-23956-001 BAF270 PL221 PL251 PL281
256T 20 386-23956-001 BAF270 PL221 PL251 PL281
324T 40 386-23956-001 BAF270 PL251 PL281
326T 50 386-23956-001 BAF270 PL281
213T 7.5 386-23960-001 BAF300 BAF330 BAF365 BAF402 BAF445 PL321
215T 10 386-23960-001 BAF300 BAF330 BAF365 BAF402 BAF445 PL321
284T 25 386-23960-001 BAF300 BAF330 BAF365 BAF402 BAF445 PL321
286T 30 386-23960-001 BAF300 BAF330 BAF365 BAF402 BAF445 PL321
364T 60 386-23960-001 BAF300 BAF330 BAF365 BAF402 BAF445 PL321
365T 75 386-23960-001 BAF330 BAF365 BAF402 BAF445
Continued on next page
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
30
ADJUSTABLE MOTOR BASES (CONTINUED)
Frame
Size Motor
HP Assembly Base
P/N Fan
Size/Type Fan
Size/Type Fan
Size/Type Fan
Size/Type Fan
Size/Type Fan
Size/Type
143T 1 386-23965-001
145T 2 386-23965-001 PL321
182T 3 386-23965-001 BAF300 BAF330 BAF365 BAF402 PL321
184T 5 386-23965-001 BAF300 BAF330 BAF365 BAF402 BAF445 PL321
254T 15 386-23965-001 BAF300 BAF330 BAF365 BAF402 BAF445 PL321
256T 20 386-23965-001 BAF300 BAF330 BAF365 BAF402 BAF445 PL321
324T 40 386-23965-001 BAF300 BAF330 BAF365 BAF402 BAF445 PL321
326T 50 386-23965-001 BAF300 BAF330 BAF365 BAF402 BAF445 PL321
404T 100 386-23965-001 BAF365 BAF402 BAF445
405T 125 386-23965-001
213T 7.5 386-23960-001 PL351
215T 10 386-23960-001 PL351 PL391 PL441 PL491 PL551
284T 25 386-23960-001 PL351 PL391 PL441 PL491 PL551
286T 30 386-23960-001 PL351 PL391 PL441 PL491 PL551
364T 60 386-23960-001 PL351 PL391 PL441 PL491 PL551
365T 75 386-23960-001 PL351 PL391 PL441 PL491 PL551
143T 1 386-23965-001 PL351 PL391
145T 2 386-23965-001 PL351 PL391 PL441
182T 3 386-23965-001 PL351 PL391 PL441
184T 5 386-23965-001 PL351 PL391 PL441 PL491 PL551
254T 15 386-23965-001 PL351 PL391 PL441 PL491 PL551
256T 20 386-23965-001 PL351 PL391 PL441 PL491 PL551
324T 40 386-23965-001 PL351 PL391 PL441 PL491 PL551
326T 50 386-23965-001 PL351 PL391 PL441 PL491 PL551
404T 100 386-23965-001 PL391 PL441 PL491 PL551
405T 125 386-23965-001

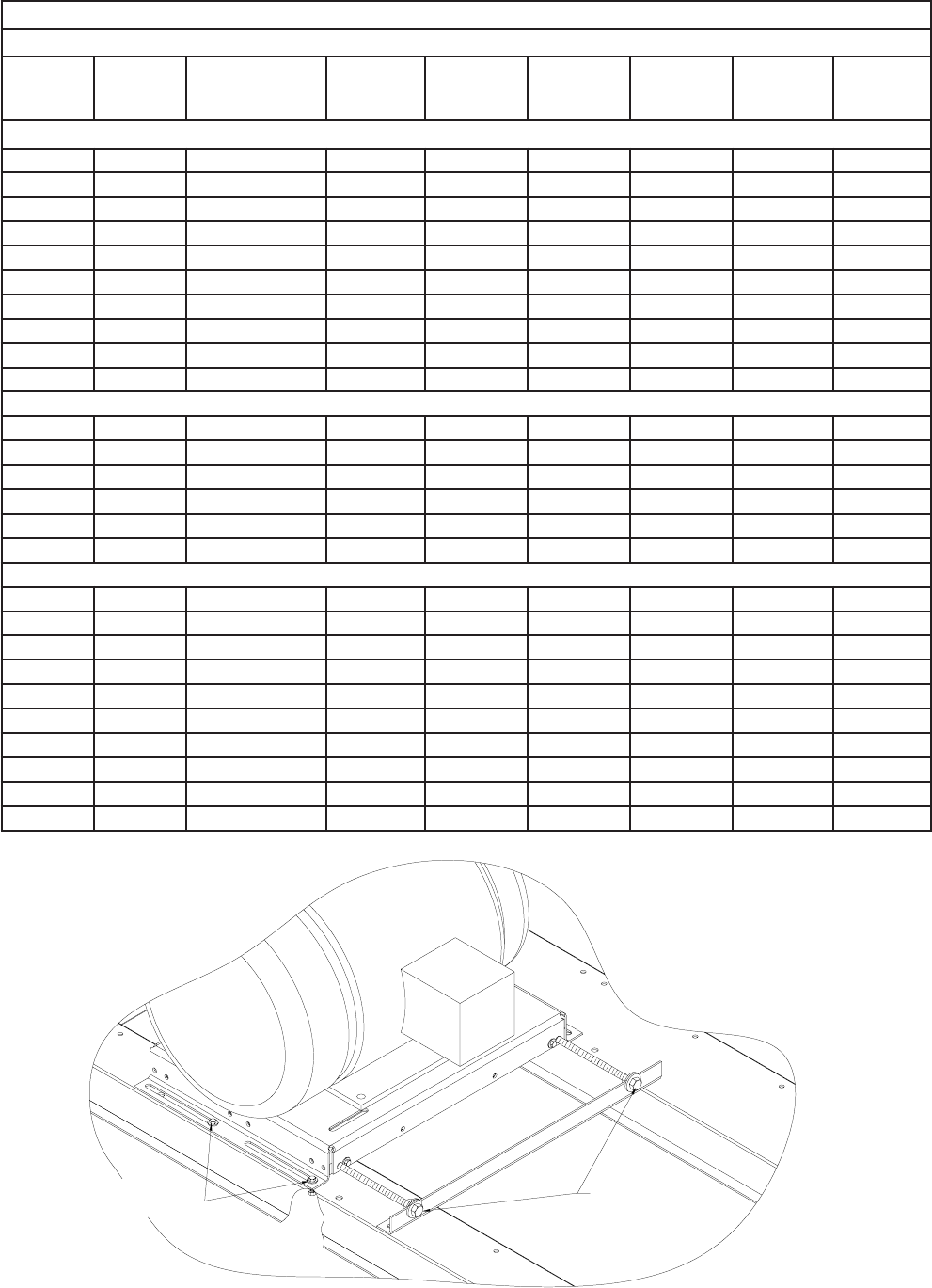

DRIVE BOLT ASSEMBLY
HOLD DOWN
BOLT ASSEMBLY
See Fig. 9 "Securing Fans and Motors"
for proper hardware.
FIG. 8 - ADJUSTABLE MOTOR BASE LDO9693
31
YORK INTERNATIONAL
FORM 102.20-RP1(1104)

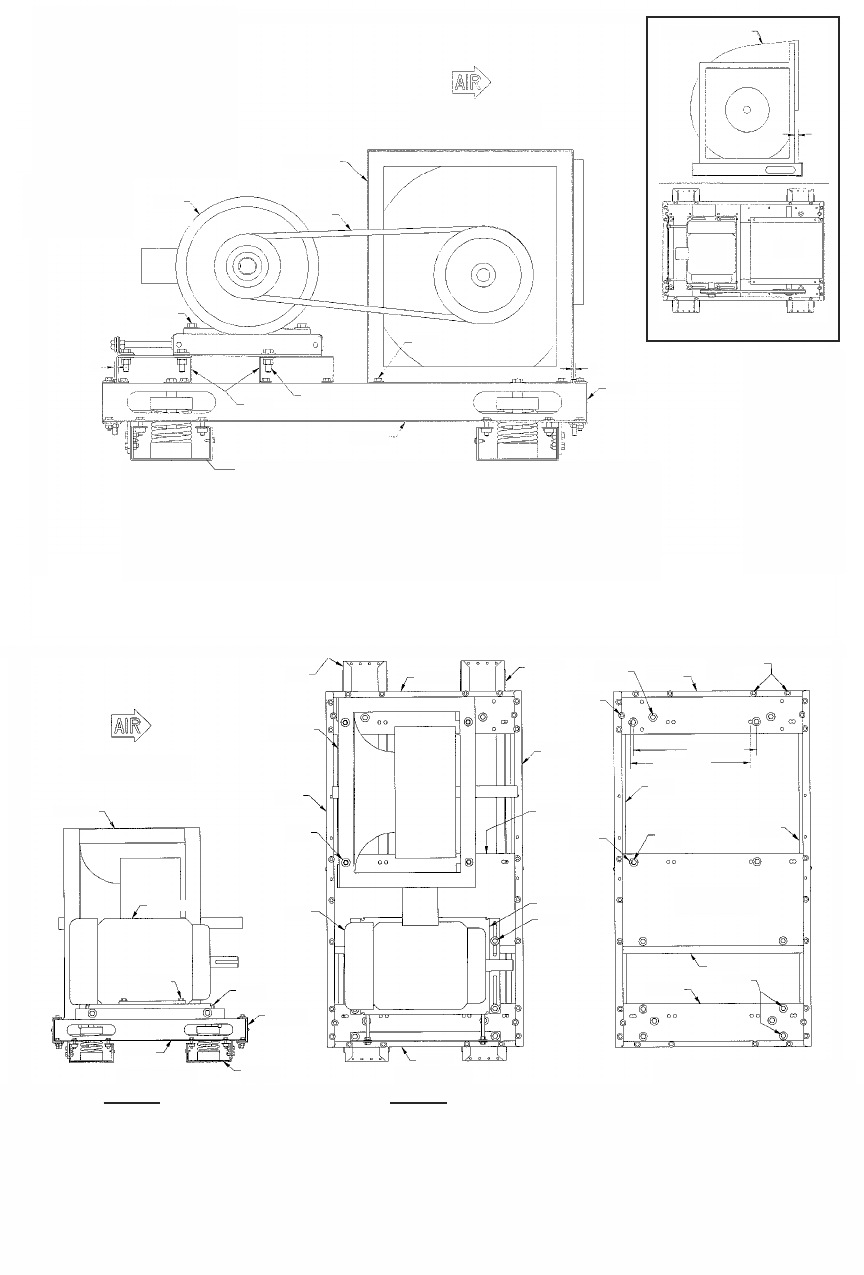

FIG. 9 - SECURING FANS AND MOTORS LDO9703
NOTE 3
B
END RL
PLAN VIEW
COMEFRI
FAN
MOTOR
INDUSTRIAL FAN
DRIVE
COMEFRI FAN
MOTOR
Spring RL
ISO RL WITH STIFF
NOTE 2
MBS RL
NOTE 1
DIRECTION OF AIR FLOW FOR: R, RI
(OPP. DIRECTION FOR F, FI)
NOTES:
1. SECURING FANS:
COMEFRI FAN 7-7 - SEE TABLE 1.
COMEFRI FANS 9-6 TO 32-32 - SEE TABLE 2.
INDUSTRIAL FANS 122 TO 182 - SEE TABLE 2.
INDUSTRIAL FANS 200 TO 330 - SEE TABLE 3.
2. SECURING MOTOR BASES:
BASES USED WITH COMEFRI FANS 7-7 TO 12-9 - SEE TABLE 2.
ALL OTHER BASES - SEE TABLE 3.
3. SECURING MOTORS:
1H.P.TO2H.P.MOTORS-SEETABLE1.
3 H.P. THROUGH 10 H.P. MOTORS - SEE TABLE 2.
15 H.P. MOTORS AND UP - SEE TABLE 3.
4. DIMENSION "A" IS THE DISTANCE FROM THE INSIDE EDGE OF
THE RAIL TO THE SIDE OF THE MOTOR BASE RAIL.
DIMENSION "B" IS THE DISTANCE FROM THE FAN'S FRAME TO
THE INSIDE EDGE OF THE END RAIL.
ISO RL
WITH STIFF
END RL
WITH STIFF
MOTOR
BASE
SPRING
RL
NOTE 3
MOTOR
PLENUM FAN
DIRECTION OF AIRFLOW FOR
FRONT INLET
SPRING
RL
ISO RL
PLENUM FAN
END RL
NOTE 1
MOTOR
SPRING
RL
NOTE 2
MOTOR BASE
END RL
COMM RL
ISO STIFF
TOP VIEW
TIE-DOWN
HOLES
NOTE 6
SPRING
RL
END RL
ISOLATOR
NOTE 6
HOLE 1
NOTE 4
HOLE 2
NOTE 4
END RL
END/SPRING/COMM RL
SPRING RL NOTE 5
NOTE 7
COMM RL
A (NOTE 4)
B(NOTE4)
NOTES:
1. SECURING FANS:
FANS 121 TO 161 - SEE TABLE 2.
FANS 201 TO 321 - SEE TABLE 3.
FANS 351 TO 551 - SEE TABLE 4.
INDUSTRIAL FANS 200 TO 330 - SEE TABLE 3.
2. SECURING MOTOR BASES:
BASES USED WITH FANS 121 TO 161 - SEE TABLE 2.
ALL OTHER BASES - SEE TABLE 3.
3. SECURING MOTORS:
1 H.P. TO 2 H.P. MOTORS - SEE TABLE 1.
3 H.P. THROUGH 10 H.P. MOTORS - SEE TABLE 2.
15 H.P. MOTORS AND UP - SEE TABLE 3.
4. THIS SKID WILL WORK WITH CLASS 1, 2 & 3 PLENUM FANS
TO DETERMINE WHETHER HOLE 1 OR 2 IS USED: MEASURE THE
CNTR TO CNTR DISTANCE ON THE FAN. THEN MEASURE FROM
HOLE 1 & 2 TO FIND A MATCHING CNTR TO CNTR DISTANCE (DIMENSION A OR B).
NOTE: IN SOME CASES HOLE 1 & 2 ARE IN THE SAME LOCATION.
5. HOLES LOCATED ACROSS FROM ONE ANOTHER (AS SHOWN) ARE USED
FOR MOUNTING THE MOTOR BASE.
6. THE ISOLATOR HOLES CAN BE EASILY IDENTIFIED SINCE THEY ARE LOCATED
EXACTLY IN-BETWEEN THE TIE DOWN HOLES.
7. REMOVE THE FLAT WASHERS, USED WITH THE SNUBBER BOLT, IF THEY
CAUSE ANY ASSY ISSUES WITH THE FAN.
PLENUM MTR BS FAN SKID ASSY
F/R COMEFRI/INDUSTRIAL MTR BH FAN SKID ASSY
B (SEETABLES5&6)
SIDE VIEW TOP VIEW
(SEE TABLES5&6) A
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
32
TABLE 1
P/N DESCRIPTION QTY.
021-03749-000 SCR MACH RD PH 1/4-20UNC-2A X 1-1/4 LG STL ZINC PLTD. 1
021-01248-000 WASHER PLAIN 5/16 ID X 3/4 OD X 0.065 NOM THK : STEEL 2
021-16151-000 LOCK WASHER SPG HELICAL 1/4, STEEL 1
021-17718-000 NUT HEX 1/4 - 20 UNC - 2B 1
TABLE 2
P/N DESCRIPTION QTY.
021-01499-000 SCREW, CAP HEX 3/8 - 16 UNC - 2A X 1.5, ZINC PLATED 1
021-01267-000 WASH FLT 7/16 ID X 1 OD X 0.083 THK STL ZINC PLTD. 2
021-01155-000 WASH, LK TH INT 3/8 STD C-76 1
021-19307-000 NUT HEX LK 3/8-16 ZINC PLATED 1
TABLE 3
P/N DESCRIPTION QTY.
021-17728-000 SCR HEX 1/2-13UNC-2A X 1.75” SAE J429 1
021-05146-000 WASH, FLT 9/16 ID X 1-3/8 OD .109 THK STL ZINC PLATED 2
021-01163-000 WASH, LK TH INT 1/2 HVY STL ZINC PLTD., STD. C-76 1
021-02860-000 NUT, HEX 1/2-13 HVY 7/8 STL ZINC PLTD., STD. C-85 1
TABLE 4
P/N DESCRIPTION QTY.
021-13830-000 SCR HEX CAP 3/4-10 X 2-1/2, STL ZINC PLTD 1
021-15802-000 WASH FLT 13/16 ID X 1-3/4 OD X 0.134 THK STL ZINC 2
021-19571-000 WASH LK TH INT 3/4 STL ZINC PLTD., STD. C-76 1
021-12656-000 NUT HEX 3/4-10 HVY STL ZINC CTD ASA B18 1
TABLE 5
COMEFRI
FAN AB
7-7 0.15 0.3
9-6 0.08 0.19
9-9 0.3 0.19
10-7 0.16 0.19
10-10 0.13 0.19
12-9 0.32 0.19
12-12 0.23 0.19
15-11 0.13 0.19
15-15 0.15 0.19
18-13 0.26 0.19
18-18 0.28 0.19
20-15 1.05 1.09
20-20 1.05 1.09
22-22 1.93 1.01
25-25 1.97 1.32
28-28 0.59 1.69
32-32 2.74 2.07
TABLE 6
INDUSTRIAL
FAN AB
122 0.23 0.19
135 0.14 0.19
150 0.17 0.2
165 0.2 0.19
182 1.04 0.19
200 1.08 0.19
222 2.17 0.45
245 1.97 1.13
270 1.89 1.82
300 0.77 1.69
330 0.73 2.63
FANS AND MOTORS, SECURING
33
YORK INTERNATIONAL
FORM 102.20-RP1(1104)

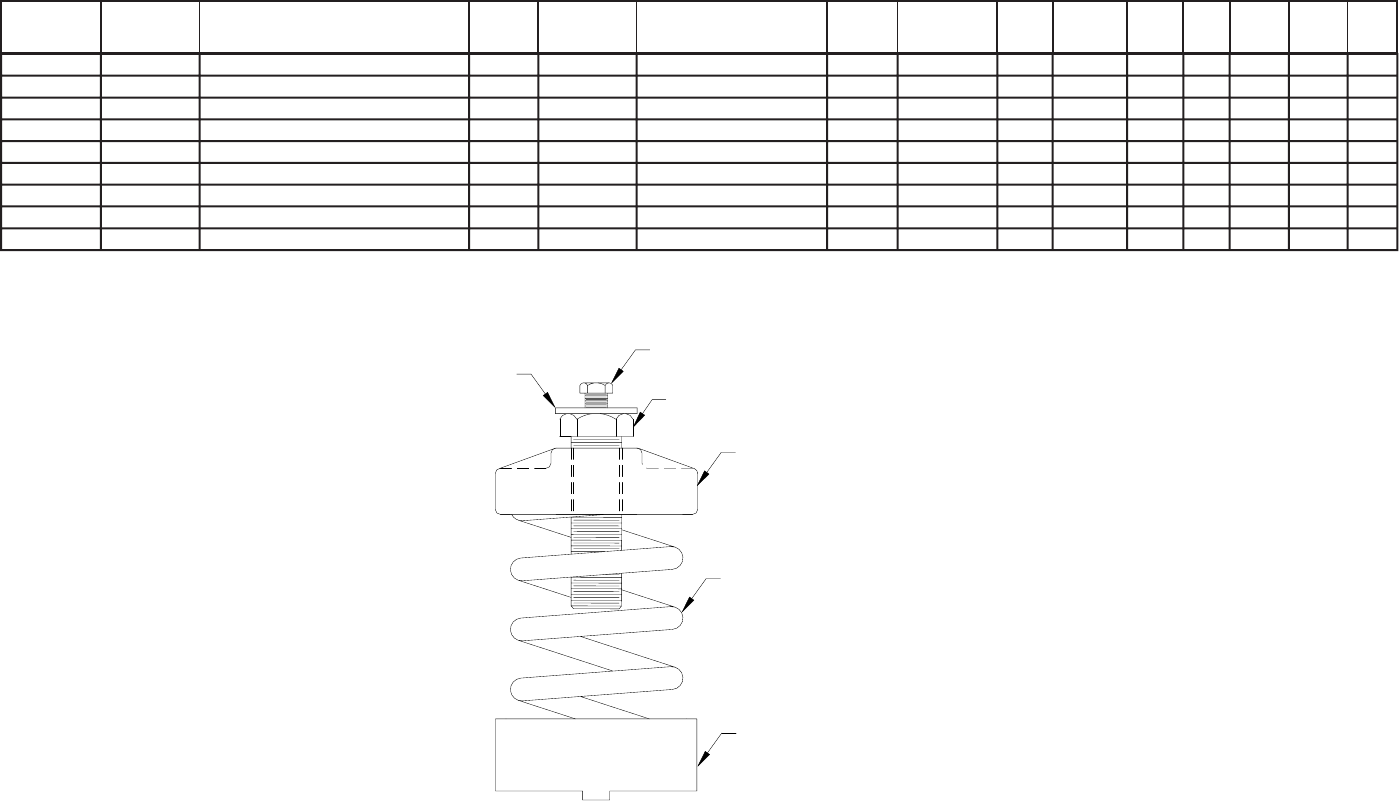

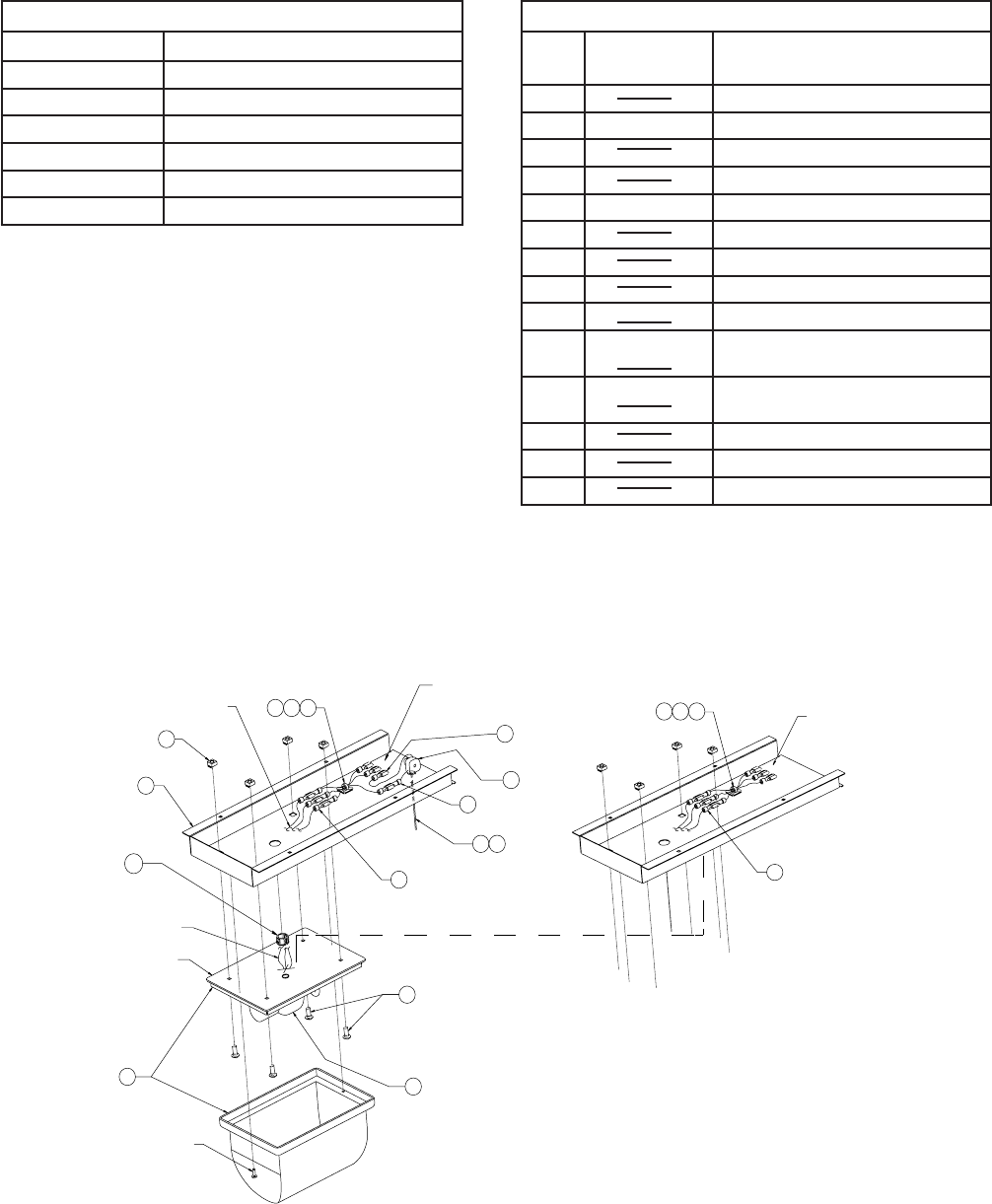

ISOLATORS
Continued on next page
* To obtain Rated Load, Inner Spring must be ordered in addition to Assembly.
TOP CAP
ASSY P/N BOTTOM CUP
P/N OUTER SPRING DESCRIPTION OUTER
SPRING
COLOR
OUTER
SPRING P/N INNER SPRING DESC. INNER
SPRING
COLOR
INNER
SPRING P/N RATED
LOAD
*
SPRING K
(LBS/IN) RATED
DEFL NOM
DEFL MIN
LOAD
RANGE
MAX
LOAD
RANGE
ASSY
WHT
(LBS.)
029-22024-002 029-24219-002 ISOLATOR, 1” OUTER SPRING, ALCY-90 PINK 029-22025-002 NA NA NA 78 60 1.3 1 1 74 3.00
029-22024-002 029-24219-002 ISOLATOR, 1” OUTER SPRING, ALCY-92 BROWN 029-22025-007 NA NA NA 154 96 1.6 1 75 146 3.00
029-22024-002 029-24219-002 ISOLATOR, 1” OUTER SPRING, ALCY-93 ORANGE 029-22025-052 NA NA NA 225 173 1.3 1 147 213 3.00
029-22024-002 029-24219-002 ISOLATOR, 1” OUTER SPRING, ALCY-94 GREEN 029-22025-011 NA NA NA 325 270 1.2 1 215 308 3.00
029-22024-002 029-24219-002 ISOLATOR, 1” OUTER SPRING, ALCY-95 RED 029-22025-013 NA NA NA 450 368 1.2 1 310 427 3.00
029-22024-002 029-24219-002 ISOLATOR, 1” OUTER SPRING, ALCY-96 BLACK 029-22025-051 NA NA NA 615 513 1.2 1 429 570 3.00
029-22024-002 029-24219-002 ISOLATOR, 1” OUTER SPRING, ALCY-97 WHITE 029-22025-038 NA NA NA 750 707 1.1 1 571 712 3.00
029-22024-002 029-24219-002 ISOLATOR, 1” OUTER SPRING, ALCY-99 BLUE 029-22025-039 NA NA NA 1100 1200 0.9 1 714 1080 3.00
029-22024-002 029-24219-002 ISOLATOR, 2” OUTER SPRING, ALCY-81 BLUE 029-22025-047 NA NA NA 20 10 2 2 1 19 3.00
029-22024-002 029-24219-002 ISOLATOR, 2” OUTER SPRING, ALCY-82 ORANGE 029-22025-048 NA NA NA 26 13 2 2 20 24 3.00
029-22024-002 029-24219-002 ISOLATOR, 2” OUTER SPRING, ALCY-83 PURPLE 029-22025-049 NA NA NA 36 18 2 2 26 34 3.00
029-22024-002 029-24219-002 ISOLATOR, 2” OUTER SPRING, ALCY-84 YELLOW 029-22025-022 NA NA NA 52 26 2 2 35 49 3.00
029-22024-002 029-24219-002 ISOLATOR, 2” OUTER SPRING, ALCY-85 GRAY 029-22025-023 NA NA NA 65 32.5 2 2 50 61 3.00
029-22024-002 029-24219-002 ISOLATOR, 2” OUTER SPRING, ALCY-86 RED 029-22025-024 NA NA NA 84 42 2 2 63 79 3.00
029-22024-002 029-24219-002 ISOLATOR, 2” OUTER SPRING, ALCY-87 GREEN 029-22025-026 NA NA NA 114 57 2 2 81 108 3.00
029-22024-004 029-24219-004 ISOLATOR, 2” OUTER SPRING, ALCY-203 RED 029-22025-028 NA NA NA 175 88 2 2 109 166 3.00
029-22024-004 029-24219-004 ISOLATOR, 2” OUTER SPRING, ALCY-204 GREEN 029-22025-053 NA NA NA 250 125 2 2 167 237 3.00
029-22024-004 029-24219-004 ISOLATOR, 2” OUTER SPRING, ALCY-205 GRAY 029-22025-033 NA NA NA 330 165 2 2 239 313 3.00
029-22024-004 029-24219-004 ISOLATOR, 2” OUTER SPRING, ALCY-206 YELLOW 029-22025-050 NA NA NA 450 225 2 2 315 427 3.00
029-22024-004 029-24219-004 ISOLATOR, 2” OUTER SPRING, ALCY-207 ORANGE 029-22025-054 NA NA NA 600 300 2 2 429 570 6.00
029-22024-004 029-24219-004 ISOLATOR, 2” OUTER SPRING, ALCY-208 WHITE 029-22025-055 NA NA NA 750 417 1.8 2 571 713 6.00
029-22024-003 029-24219-003 ISOLATOR, 1” OUTER SPRING, AWCY-200 BLUE 029-22025-004 NA NA NA 100 100 1 1 1 95 6.00
029-22024-003 029-24219-003 ISOLATOR, 1” OUTER SPRING, AWCY-219 BLUE 029-22025-004 ISOLATOR, 1” INNER SPRING PINK 029-22025-056 210 162 1.3 1 96 133 6.00
029-22024-003 029-24219-003 ISOLATOR, 1” OUTER SPRING, AWCY-221 BLUE 029-22025-004 ISOLATOR, 1” INNER SPRING BLACK 029-22025-008 180 187 0.9 1 134 171 6.00
029-22024-003 029-24219-003 ISOLATOR, 1” OUTER SPRING, AWCY-222 BLUE 029-22025-004 ISOLATOR, 1” INNER SPRING BLUE 029-22025-010 295 233 1.3 1 172 228 6.00
029-22024-003 029-24219-003 ISOLATOR, 1” OUTER SPRING, AWCY-400 BLACK 029-22025-012 NA NA NA 330 303 1.1 1 229 313 6.00
029-22024-003 029-24219-003 ISOLATOR, 1” OUTER SPRING, AWCY-419 BLACK 029-22025-012 ISOLATOR, 1” INNER SPRING PINK 029-22025-056 485 366 1.3 1 315 414 6.00
029-22024-003 029-24219-003 ISOLATOR, 1” OUTER SPRING, AWCY-423 BLACK 029-22025-012 ISOLATOR, 1” INNER SPRING YELLOW 029-22025-014 625 482 1.3 1 415 537 6.00
029-22024-003 029-24219-003 ISOLATOR, 1” OUTER SPRING, AWCY-600 RED 029-22025-016 NA NA NA 620 620 1 1 538 640 6.00
029-22024-003 029-24219-003 ISOLATOR, 1” OUTER SPRING, AWCY-624 RED 029-22025-015 ISOLATOR, 1” INNER SPRING BROWN 029-22025-017 880 884 1 1 641 890 6.00
029-22024-003 029-24219-003 ISOLATOR, 1” OUTER SPRING, AWCY-1023 GREEN 029-22025-019 ISOLATOR, 1” INNER SPRING YELLOW 029-22025-014 1285 1130 1.1 1 891 1220 6.00
029-22024-003 029-24219-003 ISOLATOR, 1” OUTER SPRING, AWCY-1024 GREEN 029-22025-019 ISOLATOR, 1” INNER SPRING BROWN 029-22025-017 1385 1216 1.1 1 1222 1315 6.00
029-22024-003 029-24219-003 ISOLATOR, 1” OUTER SPRING, AWCY-1621 GRAY 029-22025-040 ISOLATOR, 1” INNER SPRING BLACK 029-22025-008 1687 1688 1 1 1317 1602 6.00
029-22024-003 029-24219-003 ISOLATOR, 1” OUTER SPRING, AWCY-1622 GRAY 029-22025-040 ISOLATOR, 1” INNER SPRING BLUE 029-22025-010 1770 1733 1 1 1604 1681 6.00
029-22024-003 029-24219-003 ISOLATOR, 1” OUTER SPRING, AWCY-1626 GRAY 029-22025-040 ISOLATOR, 1” INNER SPRING PURPLE 029-22025-043 2200 2113 1 1 1683 2090 6.00
029-22024-003 029-24219-003 ISOLATOR, 1” OUTER SPRING, AWCY-1627 GRAY 029-22025-040 ISOLATOR, 1” INNER SPRING ORANGE 029-22025-044 2350 2307 1 1 2091 2232 6.00
029-22024-003 029-24219-003 ISOLATOR, 1” OUTER SPRING, AWCY-1631 GRAY 029-22025-040 ISOLATOR, 1” INNER SPRING GRAY 029-22025-045 2700 2647 1 1 2234 2565 6.00
029-22024-003 029-24219-003 ISOLATOR, 1” OUTER SPRING, AWCY-1632 GRAY 029-22025-040 ISOLATOR, 1” INNER SPRING WHITE 029-22025-046 2900 3411 0.85 1 2566 2880 6.00
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
34
029-22024-003 029-24219-003 ISOLATOR, 2” OUTER SPRING, AWCY-401 BLUE 029-22025-025 NA NA NA 100 50 2 2 1 95 6.00
029-22024-003 029-24219-003 ISOLATOR, 2” OUTER SPRING, AWCY-402 YELLOW 029-22025-027 NA NA NA 140 70 2 2 96 133 6.00
029-22024-003 029-24219-003 ISOLATOR, 2” OUTER SPRING, AWCY-403 BLACK 029-22025-029 NA NA NA 180 90 2 2 134 171 6.00
029-22024-003 029-24219-003 ISOLATOR, 2” OUTER SPRING, AWCY-404 PURPLE 029-22025-031 NA NA NA 240 120 2 2 172 228 6.00
029-22024-003 029-24219-003 ISOLATOR, 2” OUTER SPRING, AWCY-405 BROWN 029-22025-032 NA NA NA 330 165 2 2 229 313 6.00
029-22024-003 029-24219-003 ISOLATOR, 2” OUTER SPRING, AWCY-406 RED 029-22025-034 NA NA NA 460 230 2 2 315 437 6.00
029-22024-003 029-24219-003 ISOLATOR, 2” OUTER SPRING, AWCY-407 RED 029-22025-034 ISOLATOR, 2” INNER SPRING NA 029-22025-035 610 305 2 2 438 579 6.00
029-22024-003 029-24219-003 ISOLATOR, 2” OUTER SPRING, AWCY-408 RED 029-22025-034 ISOLATOR, 2” INNER SPRING NA 029-22025-036 880 440 2 2 581 836 6.00
029-22024-003 029-24219-003 ISOLATOR, 2” OUTER SPRING, AWCY-409 RED 029-22025-034 ISOLATOR, 2” INNER SPRING NA 029-22025-037 1210 605 2 2 837 1190 6.00
TOP CAP
ASSY P/N BOTTOM CUP
P/N OUTER SPRING DESCRIPTION OUTER
SPRING
COLOR
OUTER
SPRING P/N INNER SPRING DESC. INNER
SPRING
COLOR
INNER
SPRING P/N RATED
LOAD
*
SPRING K
(LBS/IN) RATED
DEFL NOM
DEFL MIN
LOAD
RANGE
MAX
LOAD
RANGE
ASSY
WHT
(LBS.)
ISOLATORS (CONT.)
FIG. 10 - TYPICAL, ISOLATOR
LDO9637-2
* Washer
Cap Screw *
Threaded Cap *
Spring(s)
Rubber Cup
Adjusting Bolt *
* Top Cap Assembly
* To obtain Rated Load, Inner Spring must be ordered in addition to Assembly.
35
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
SHELL COMPONENTS
REF. PART NUMBER DESCRIPTION
1
2 386-11022-001 Corner Connector, Top & Bottom, with shroud
3 021-19750-000 Screw, BH, Hex Socket
4 086-02026-000 Splice Plate, Raceway, No Lifting
5 029-21340-000 Lifting Lug, 6" Baserail
5 029-21365-000 Lifting Lug, 8" & 10" Baserail
6 029-22044-000 Insert, Raceway Bottom, Shipping Split
7 029-22043-000 Insert, Raceway Top, Shipping Split
8 029-22048-000 Insert, Raceway Bottom, Splice
9 029-22039-000 Lifting Lug, Raceway
10 086-02027-001 3" Baserail Splice Angle, Non Lifting
10 086-02027-002 6" Baserail Splice Angle, Non Lifting
10 086-02027-003 8" & 10" Baserail Splice Angle, Non Lifting
11 021-17728-000 Bolt, 1/2"-13
12 021-01163-000 Lockwasher, 1/2"
13 021-02860-000 Nut, 1/2"-13
14 021-08388-000 Bolt, 1/2"-13
15 029-22070-000 Lug, Lifting, Corner, XT, .164 Thk, galv.
16 086-01923-001 Raceway Positioning Angle, No Lifi ting (3" Base Rail or No Base Rail)
17 021-01155-000 Washer, Lock, Int, 3/8
18 021-19305-016 Screw, 3/8"-16
19 021-19307-000 Hex Nut, Lock, 3/8"-16
20 021-01481-000 Bolt, 3/8"-16
21 021-19586-000 Nut, Hex 3/8-16, Zinc Plated
22 029-22047-000 Bracket, Tie Down
23 021-17722-000 Screw, Pan Head, 1/4" x 3/4"
24 028-11778-000 Foam Tape
25 021-19570-000 Bolt, 3/8" x 3/4"
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
36
SPLICE & SPLIT BASERAIL KITS
KIT PART
NUMBER DESCRIPTION *
ITEM PART
NUMBER DESCRIPTION QTY.
386-17216-008 Split/splice Kit
Baserail 6” Only
With Lifting
12 021-01163-000 Wash, Lk Th Int 1/2 Hvy Stl Zinc Pltd., Std. C-76 12
13 021-02860-000 Nut, Hex 1/2-13 Hvy 7/8 Stl Zinc Pltd., Std. C-85 12
11 021-17728-000 Scr Hex 1/2-13unc-2a X 1.75” Sae J429 12
5 029-21340-000 Lug,lifting,baserail, For 6” Baserail Only 4
386-17216-009 Split/splice Kit
Baserail 8” & 10”
Only With Lifting
12 021-01163-000 Wash, Lk Th Int 1/2 Hvy Stl Zinc Pltd., Std. C-76 16
13 021-02860-000 Nut, Hex 1/2-13 Hvy 7/8 Stl Zinc Pltd., Std. C-85 16
11 021-17728-000 Scr Hex 1/2-13unc-2a X 1.75” Sae J429 16
5 029-21365-000 Lug,lifting,baserail, For 8” & 10” Baserail 4
386-17216-010 Split/splice Kit
Baserail 3” Only
Without Lifting
12 021-01163-000 Wash, Lk Th Int 1/2 Hvy Stl Zinc Pltd., Std. C-76 12
13 021-02860-000 Nut, Hex 1/2-13 Hvy 7/8 Stl Zinc Pltd., Std. C-85 12
11 021-17728-000 Scr Hex 1/2-13unc-2a X 1.75” Sae J429 12
10 086-02027-001 Splice Angle 3” - Baserails Splice Piece 4
386-17216-011 Splice Kit
Baserail 6” Only
Without Lifting
12 021-01163-000 Wash, Lk Th Int 1/2 Hvy Stl Zinc Pltd., Std. C-76 16
13 021-02860-000 Nut, Hex 1/2-13 Hvy 7/8 Stl Zinc Pltd., Std. C-85 16
11 021-17728-000 Scr Hex 1/2-13unc-2a X 1.75” Sae J429 16
10 086-02027-002 Splice Angle 6” - Baserails Splice Piece 4
386-17216-012 Splice Kit
Baserail 8 & 10”
Only Without
Lifting
12 021-01163-000 Wash, Lk Th Int 1/2 Hvy Stl Zinc Pltd., Std. C-76 16
13 021-02860-000 Nut, Hex 1/2-13 Hvy 7/8 Stl Zinc Pltd., Std. C-85 16
11 021-17728-000 Scr Hex 1/2-13unc-2a X 1.75” Sae J429 16
10 086-02027-003 Splice Angle 8” - Baserails Splice Piece 4
* See Shell Components Table
37
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
SPLICE & SPLIT RACEWAY KITS
KIT PART
NUMBER DESCRIPTION *
ITEM PART
NUMBER DESCRIPTION QTY.
386-17216-001 End Corners Kit
XTI No Baserail
XTI W/ Baserail
XTO W/ Baserail
3 021-19570-000 Screw, Hex Socket Button Head, 3/8 -16 X 3/4,stl Zinc
Pltd,grade 5 32
N/A 021-19568-000 Steel Finishing Plug To Fit 1-1/2” Hole, (Not Shown) 8
2 386-11022-001 Corner Connector, Top & Bottom, with shroud 4
386-17216-002 Split Kit
W/ Lifting XTO
& XTI
9 029-22039-000 Lifting Lug 4
6 029-22044-000 Insert, Raceway Bottom, Shipping Split 4
17 021-01155-000 Wash Lk Th Int 3/8 Std C-76 20
3 021-19570-000 Screw, Hex Socket Button Head, 3/8 -16 X 3/4,stl Zinc
Pltd,grade 5 20
7 029-22043-000 Insert, Raceway 2
386-17216-003 Splice Kit
Top XTO & XTI N/A 021-01155-000 Wash Lk Th Int 3/8 Std C-76, (Not Shown) 8
3 021-19570-000 Screw, Hex Socket Button Head, 3/8 -16 X 3/4,stl Zinc
Pltd,grade 5 8
7 029-22043-000 Insert, Raceway 2
386-17216-004 Splice Kit
Bottom W/ Lifting
XTO & XTI
9 029-22039-000 Lifting Lug 4
8 029-22048-000 Insert, Raceway Splice 2
17 021-01155-000 Wash Lk Th Int 3/8 Std C-76 12
3 021-19570-000 Screw, Hex Socket Button Head, 3/8 -16 X 3/4,stl Zinc
Pltd,grade 5 12
386-17216-005 End Corners Kit
XTO No Baserail 3 021-19570-000 Screw, Hex Socket Button Head, 3/8 -16 X 3/4,stl Zinc
Pltd,grade 5 32
17 021-19568-000 Steel Finishing Plug To Fit 1-1/2” Hole 8
2 386-11022-001 Corner Connector, Top & Bottom, with shroud 4
15 029-22070-000 Lug,lifting,corner,xt, .164_thk,g90_glv 2
386-17216-006 Split Kit
w/o Lifting XTO
& XTI
6 029-22044-000 Insert, Raceway Bottom, Shipping Split 4
16 086-01923-001 Raceway Positioning Angle 4
17 021-01155-000 Wash Lk Th Int 3/8 Std C-76 20
18 021-19305-016 Screw, Cap Hex 3/8 - 16 Unc - 2a X 1.0, Zinc Plated
Grade 5 20
7 029-22043-000 Insert, Raceway 2
386-17216-007 Splice Kit
Bottom w/o Lifting
XTO & XTI
8 029-22048-000 Insert, Raceway Splice 2
17 021-01155-000 Wash Lk Th Int 3/8 Std C-76 12
3 021-19570-000 Screw, Hex Socket Button Head, 3/8 -16 X 3/4,stl Zinc
Pltd,grade 5 12
4 086-02026-000 Splice Plate - Rcway - No Lifting. 2
* See Shell Components Table
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
38
9
Splice Assembly
Top Splice
Bottom Splice
3
20
4
7
8
3
Raceway
Raceway
Raceway
A
22
23
24
25
19
17
DETAIL A
RACEWAY
Stacking Assembly LDO9695
LDO9704

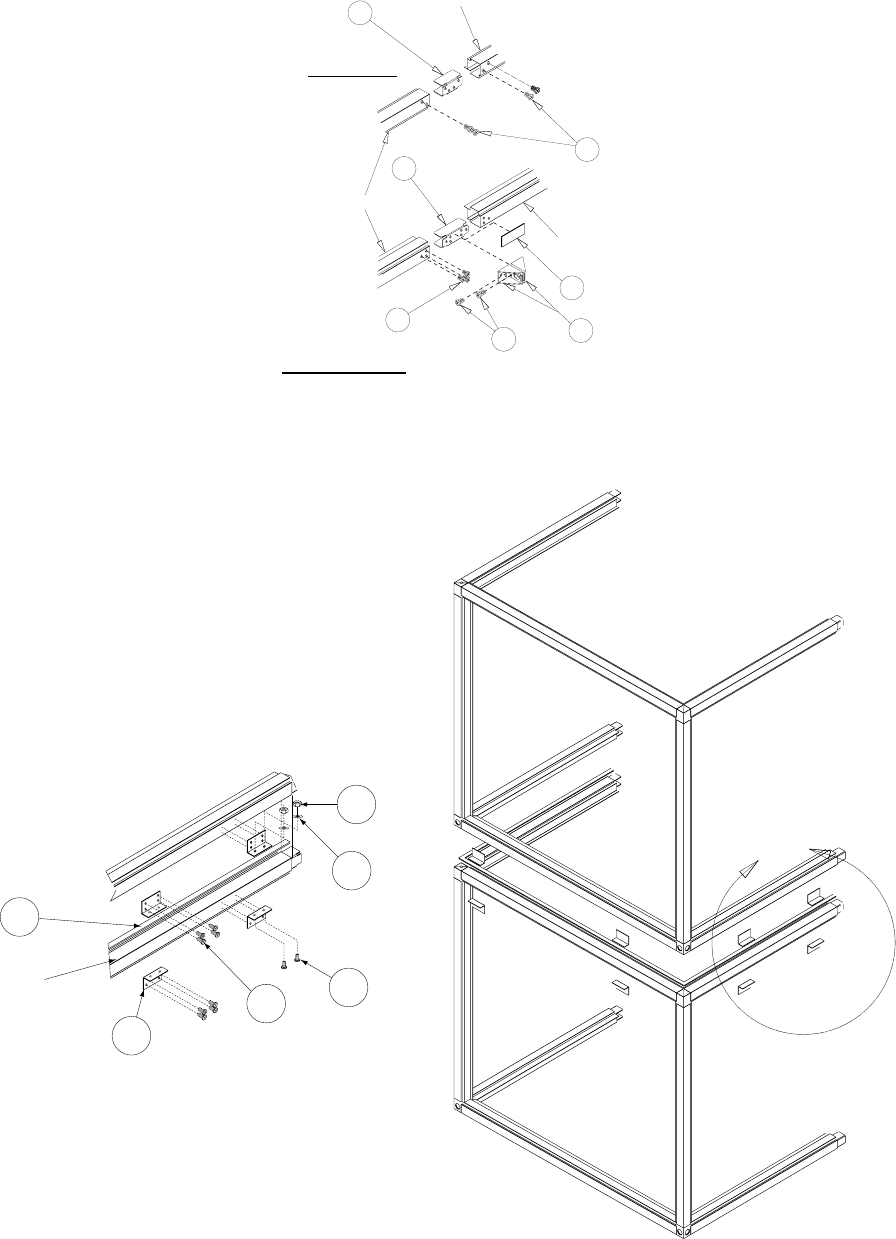

FIG. 11 - SPLICE & STACKING ASSEMBLIES
39
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
7
Raceway
Top Split
3
Raceway 3
6
6
Raceway
Raceway
3
3
9
9
3
17 21
Bottom Split (3" Baserail or No Baserail)
Bottom Split (6" & 10" Baserails)
Split Assembly
16 18 19
Assembled
6
6
Raceway
Raceway
3
3
16
16
LDO9705
FIG. 12 - SPLIT ASSEMBLY
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
40
3
3
Raceway
Raceway
Raceway
Raceway
Corner Assembly
2
315
Place Butyl Tape 1.5" Wide x .125" Thk
(P/N 013-02977-000) Around Raceway
Opening To Provide Seal For Foam Typ.
12
13
Baserail
10
*
Baserail Assembly
* Use Ref. 10 when no lifting required. Use Ref. 5 when lifting required.
Lifting lugs (5) shown in a splice configuration. When used on shipping splits
they are rotated 180 deg.
11
12
12
13
10
Baserail
Baserail
14
13
11
*
*5
LDO9706
LDO9707

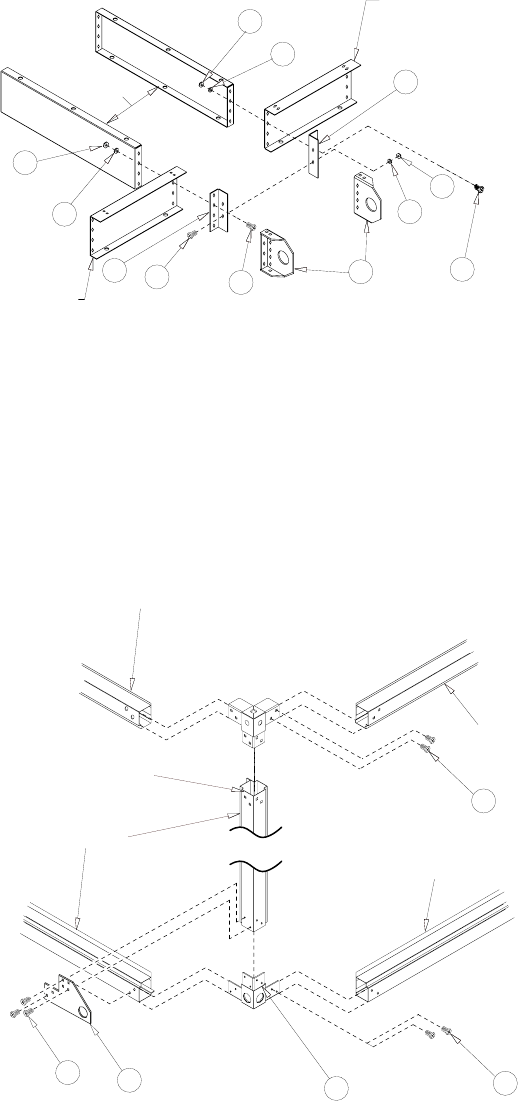

FIG. 13 - BASERAIL & CORNER ASSEMBLIES
41
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
WIREWAY ACCESS PLATES
SINGLE POINT POWER MOTOR CUTOUTS, 4” WIREWAYS ONLY.
PART
NUMBER DESCRIPTION MOTOR
VOLTAGE HP
086-01837-009 WIREWAY ACCESS PLATE 1/2” CONDUIT, SST 200/208V 1,2,3,5
230/240V 1,2,3,7.5
460V 1,2,3,5,7.5,10,15
086-01837-010 WIREWAY ACCESS PLATE 3/4” CONDUIT, SST 200/208V 7.5,10,15
230/240V 10,15
460V 20,25,30,40
200/208V 20,25
230/240V 25,30
460V 50,60
086-01837-011 WIREWAY ACCESS PLATE 1” CONDUIT, SST 200/208V 20,25
230/240V 20,25,30
460V 50,60
SINGLE POINT POWER MOTOR CUTOUTS, 2” WIRE WAYS.
PART
NUMBER DESCRIPTION MOTOR
VOLTAGE HP
086-01837-013 WIREWAY ACCESS PLATE 1/2” CONDUIT, SST 200/208V 1,2,3,5
230/240V 1,2,3,5,7.5
460V 1,2,3,5,7.5,10,15
086-01837-014 WIREWAY ACCESS PLATE 3/4” CONDUIT, SST 200/208V 7.5,10,15
230/240V 10,15
460V 20,25,30,40,
CUTOUT IN 4” WIREWAYS ONLY.
PART NUMBER DESCRIPTION
086-01837-008 WIREWAY ACCESS PLATE, BLANK.
LIGHTING CUTOUT, 4” WIREWAYS ONLY.
PART NUMBER DESCRIPTION
086-01837-009 WIREWAY ACCESS PLATE 1/2” CONDUIT.
SHIPPING SPLIT CUTOUT BETWEEN 2” WIREWAYS ONLY.
PART NUMBER DESCRIPTION
086-01837-012 WIREWAY ACCESS PLATE, BLANK.
LIGHTING CUTOUT, 2” WIREWAYS ONLY.
PART NUMBER DESCRIPTION
086-01837-013 WIREWAY ACCESS PLATE 1/2” CONDUIT.
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
42
Continued on next page
FILTERS
SIZE EFF TYPE LOAD PART
NUMBER DESCRIPTION QTY/
CARTON WEIGHT
12W x 24H x 11.5D 99.97 HEPA FRONT 026-33587-005 Filter, HEPA, 12w x 24h x 11.5d 25.00
12W x 24H x 11.5D 99.99 HEPA FRONT 026-33587-105 Filter, HEPA, 12w x 24h x 11.5d 25.00
12W x 30H x 11.5D 99.97 HEPA FRONT 026-33587-006 Filter, HEPA, 12w x 30h x 11.5d 30.00
12W x 30H x 11.5D 99.99 HEPA FRONT 026-33587-106 Filter, HEPA, 12w x 30h x 11.5d 30.00
15W x 24H x 11.5D 99.97 HEPA FRONT 026-40824-001 Filter, HEPA, 15w x 24h x 11.5d 30.00
15W x 24H x 11.5D 99.99 HEPA FRONT 026-40824-101 Filter, HEPA, 15w x 24h x 11.5d 30.00
15W x 30H x 11.5D 99.97 HEPA FRONT 026-40824-002 Filter, HEPA, 15w x 30h x 11.5d 38.00
15W x 30H x 11.5D 99.99 HEPA FRONT 026-40824-102 Filter, HEPA, 15w x 30h x 11.5d 38.00
24W x 24H x 11.5D 99.97 HEPA FRONT 026-33587-003 Filter, HEPA, 24w x 24h x 11.5d 40.00
24W x 24H x 11.5D 99.99 HEPA FRONT 026-33587-103 Filter, HEPA, 24w x 24h x 11.5d 40.00
24W x 12H x 11.5D 99.97 HEPA FRONT 026-33587-001 Filter, HEPA, 24w x 12h x 11.5d 25.00
24W x 12H x 11.5D 99.99 HEPA FRONT 026-33587-101 Filter, HEPA, 24w x 12h x 11.5d 25.00
24W x 15H x 11.5D 99.97 HEPA FRONT 026-33587-002 Filter, HEPA, 24w x 15h x 11.5d 30.00
24W x 15H x 11.5D 99.99 HEPA FRONT 026-33587-102 Filter, HEPA, 24w x 15h x 11.5d 30.00
24W x 30H x 11.5D 99.97 HEPA FRONT 026-33587-004 Filter, HEPA, 24w x 30h x 11.5d 45.00
24W x 30H x 11.5D 99.99 HEPA FRONT 026-33587-104 Filter, HEPA, 24w x 30h x 11.5d 45.00
30W x 24H x 11.5D 99.97 HEPA FRONT 026-33587-009 Filter, HEPA, 30w x 24h x 11.5d 45.00
30W x 24H x 11.5D 99.99 HEPA FRONT 026-33587-109 Filter, HEPA, 30w x 24h x 11.5d 45.00
30W x 12H x 11.5D 99.97 HEPA FRONT 026-33587-007 Filter, HEPA, 30w x 12h x 11.5d 30.00
30W x 12H x 11.5D 99.99 HEPA FRONT 026-33587-107 Filter, HEPA, 30w x 12h x 11.5d 30.00
30W x 15H x 11.5D 99.97 HEPA FRONT 026-33587-008 Filter, HEPA, 30w x 15h x 11.5d 38.00
30W x 15H x 11.5D 99.99 HEPA FRONT 026-33587-108 Filter, HEPA, 30w x 15h x 11.5d 38.00
30W x 30H x 11.5D 99.97 HEPA FRONT 026-33587-010 Filter, HEPA, 30w x 30h x 11.5d 50.00
30W x 30H x 11.5D 99.99 HEPA FRONT 026-33587-110 Filter, HEPA, 30w x 30h x 11.5d 50.00
12W x 24H x 22D 60 BAG REAR 026-32405-019 Filter, Bag, 12w x 24h x 22d, 60-65% 4 4.50
12W x 24H x 22D 80 BAG REAR 026-32405-021 Filter, Bag, 12w x 24h x 22d, 80-85% 4 4.50
12W x 24H x 22D 90 BAG REAR 026-32405-023 Filter, Bag, 12w x 24h x 22d, 90-95% 4 4.50
16W x 20H x 22D 60 BAG REAR 026-32405-037 Filter, Bag, 16w x 20h x 22d, 60-65% 4 3.50
16W x 20H x 22D 80 BAG REAR 026-32405-038 Filter, Bag, 16w x 20h x 22d, 80-85% 4 3.50
16W x 20H x 22D 90 BAG REAR 026-32405-039 Filter, Bag, 16w x 20h x 22d, 90-95% 4 3.50
20W x 20H x 22D 60 BAG REAR 026-32405-001 Filter, Bag, 20w x 20h x 22d, 60-65% 4 4.80
20W x 20H x 22D 80 BAG REAR 026-32405-004 Filter, Bag, 20w x 20h x 22d, 80-85% 4 4.80
20W x 20H x 22D 90 BAG REAR 026-32405-007 Filter, Bag, 20w x 20h x 22d, 90-95% 4 4.80
20W x 24H x 22D 60 BAG REAR 026-32405-002 Filter, Bag, 20w x 24h x 22d, 60-65% 4 5.50
20W x 24H x 22D 80 BAG REAR 026-32405-005 Filter, Bag, 20w x 24h x 22d, 80-85% 4 5.50
20W x 24H x 22D 90 BAG REAR 026-32405-008 Filter, Bag, 20w x 24h x 22d, 90-95% 4 5.50
20W x 16H x 22D 60 BAG REAR 026-32405-040 Filter, Bag, 20w x 16h x 22d, 60-65% 4 3.50
20W x 16H x 22D 80 BAG REAR 026-32405-041 Filter, Bag, 20w x 16h x 22d, 80-85% 4 3.50
20W x 16H x 22D 90 BAG REAR 026-32405-042 Filter, Bag, 20w x 16h x 22d, 90-95% 4 3.50
24W x 20H x 22D 60 BAG REAR 026-32405-031 Filter, Bag, 24w x 20h x 22d, 60-65% 4 5.50
24W x 20H x 22D 80 BAG REAR 026-32405-032 Filter, Bag, 24w x 20h x 22d, 80-85% 4 5.50
24W x 20H x 22D 90 BAG REAR 026-32405-033 Filter, Bag, 24w x 20h x 22d, 90-95% 4 5.50
24W x 24H x 22D 60 BAG REAR 026-32405-020 Filter, Bag, 24w x 24h x 22d, 60-65% 4 8.00
24W x 24H x 22D 80 BAG REAR 026-32405-022 Filter, Bag, 24w x 24h x 22d, 80-85% 4 8.00
43
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
Continued on next page
24W x 24H x 22D 90 BAG REAR 026-32405-024 Filter, Bag, 24w x 24h x 22d, 90-95% 4 8.00
24W x 12H x 22D 60 BAG REAR 026-32405-003 Filter, Bag, 24w x 12h x 22d, 60-65% 4 4.50
24W x 12H x 22D 80 BAG REAR 026-32405-006 Filter, Bag, 24w x 12h x 22d, 80-85% 4 4.50
24W x 12H x 22D 90 BAG REAR 026-32405-009 Filter, Bag, 24w x 12h x 22d, 90-95% 4 4.50
12W x 24H x 4D 60 MINI-PLEAT REAR 026-33782-001 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 60-65% 4 3.30
12W x 24H x 4D 80 MINI-PLEAT REAR 026-32410-008 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 80-85% 4 3.30
12W x 24H x 4D 90 MINI-PLEAT REAR 026-33783-001 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 90-95% 4 3.30
16W x 20H x 4D 60 MINI-PLEAT REAR 026-33782-002 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 60-65% 4 3.50
16W x 20H x 4D 80 MINI-PLEAT REAR 026-32410-009 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 80-85% 4 3.50
16W x 20H x 4D 90 MINI-PLEAT REAR 026-33783-002 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 90-95% 4 3.50
20W x 20H x 4D 60 MINI-PLEAT REAR 026-33782-005 Filter, Varicel, (Mini Pleated), 20w x 20h x 4d, 60-65% 4 4.50
20W x 20H x 4D 80 MINI-PLEAT REAR 026-32410-011 Filter, Varicel, (Mini Pleated), 20w x 20h x 4d, 80-85% 4 4.50
20W x 20H x 4D 90 MINI-PLEAT REAR 026-33783-005 Filter, Varicel, (Mini Pleated), 20w x 20h x 4d, 90-95% 4 4.50
20W x 24H x 4D 60 MINI-PLEAT REAR 026-33782-006 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 60-65% 4 5.30
20W x 24H x 4D 80 MINI-PLEAT REAR 026-32410-012 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 80-85% 4 5.30
20W x 24H x 4D 90 MINI-PLEAT REAR 026-33783-006 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 90-95% 4 5.30
20W x 16H x 4D 60 MINI-PLEAT REAR 026-33782-002 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 60-65% 4 3.50
20W x 16H x 4D 80 MINI-PLEAT REAR 026-32410-009 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 80-85% 4 3.50
20W x 16H x 4D 90 MINI-PLEAT REAR 026-33783-002 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 90-95% 4 3.50
24W x 20H x 4D 60 MINI-PLEAT REAR 026-33782-006 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 60-65% 4 5.30
24W x 20H x 4D 80 MINI-PLEAT REAR 026-32410-012 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 80-85% 4 5.30
24W x 20H x 4D 90 MINI-PLEAT REAR 026-33783-006 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 90-95% 4 5.30
24W x 24H x 4D 60 MINI-PLEAT REAR 026-33782-008 Filter, Varicel, (Mini Pleated), 24w x 24h x 4d, 60-65% 4 6.50
24W x 24H x 4D 80 MINI-PLEAT REAR 026-32410-014 Filter, Varicel, (Mini Pleated), 24w x 24h x 4d, 80-85% 4 6.50
24W x 24H x 4D 90 MINI-PLEAT REAR 026-33783-008 Filter, Varicel, (Mini Pleated), 24w x 24h x 4d, 90-95% 4 6.50
24W x 12H x 4D 60 MINI-PLEAT REAR 026-33782-001 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 60-65% 4 3.30
24W x 12H x 4D 80 MINI-PLEAT REAR 026-32410-008 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 80-85% 4 3.30
24W x 12H x 4D 90 MINI-PLEAT REAR 026-33783-001 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 90-95% 4 3.30
12W x 24H x 12D 90 RIGID REAR 026-40200-011 Filetr, Cart, Varicel x Dh, 12w x 24h x 12d, 90-95% 1 11.50
12W x 24H x 12D 80 RIGID REAR 026-40200-009 Filetr, Cart, Varicel x Dh, 12w x 24h x 12d, 80-85% 1 10.50
12W x 24H x 12D 60 RIGID REAR 026-40200-007 Filetr, Cart, Varicel x Dh, 12w x 24h x 12d, 60-65% 1 10.50
16W x 20H x 12D 90 RIGID REAR 026-40200-015 Filetr, Cart, Varicel x Dh, 16w x 20h x 12d, 90-95% 1 12.00
16W x 20H x 12D 80 RIGID REAR 026-40200-013 Filetr, Cart, Varicel x Dh, 16w x 20h x 12d, 80-85% 1 11.00
16W x 20H x 12D 60 RIGID REAR 026-40200-014 Filetr, Cart, Varicel x Dh, 16w x 20h x 12d, 60-65% 1 11.00
20W x 20H x 12D 90 RIGID REAR 026-40200-005 Filetr, Cart, Varicel x Dh, 20w x 20h x 12d, 90-95% 1 14.00
20W x 20H x 12D 80 RIGID REAR 026-40200-003 Filetr, Cart, Varicel x Dh, 20w x 20h x 12d, 80-85% 1 13.00
20W x 20H x 12D 60 RIGID REAR 026-40200-001 Filetr, Cart, Varicel x Dh, 20w x 20h x 12d, 60-65% 1 13.00
20W x 24H x 12D 90 RIGID REAR 026-40200-006 Filetr, Cart, Varicel x Dh, 20w x 24h x 12d, 90-95% 1 16.50
20W x 24H x 12D 80 RIGID REAR 026-40200-004 Filetr, Cart, Varicel x Dh, 20w x 24h x 12d, 80-85% 1 15.50
20W x 24H x 12D 60 RIGID REAR 026-40200-002 Filetr, Cart, Varicel x Dh, 20w x 24h x 12d, 60-65% 1 15.50
20W x 16H x 12D 90 RIGID REAR 026-40200-015 Filetr, Cart, Varicel x Dh, 16w x 20h x 12d, 90-95% 1 12.00
20W x 16H x 12D 80 RIGID REAR 026-40200-013 Filetr, Cart, Varicel x Dh, 16w x 20h x 12d, 80-85% 1 11.00
20W x 16H x 12D 60 RIGID REAR 026-40200-014 Filetr, Cart, Varicel x Dh, 16w x 20h x 12d, 60-65% 1 11.00
24W x 20H x 12D 90 RIGID REAR 026-40200-006 Filetr, Cart, Varicel x Dh, 20w x 24h x 12d, 90-95% 1 16.50
24W x 20H x 12D 80 RIGID REAR 026-40200-004 Filetr, Cart, Varicel x Dh, 20w x 24h x 12d, 80-85% 1 15.50
24W x 20H x 12D 60 RIGID REAR 026-40200-002 Filetr, Cart, Varicel x Dh, 20w x 24h x 12d, 60-65% 1 15.50
24W x 24H x 12D 90 RIGID REAR 026-40200-012 Filetr, Cart, Varicel x Dh, 24w x 24h x 12d, 90-95% 1 19.00
FILTERS (CONTINUED)
SIZE EFF TYPE LOAD PART
NUMBER DESCRIPTION QTY/
CARTON WEIGHT
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
44
Continued on next page
24W x 24H x 12D 80 RIGID REAR 026-40200-010 Filetr, Cart, Varicel x Dh, 24w x 24h x 12d, 80-85% 1 18.00
24W x 24H x 12D 60 RIGID REAR 026-40200-008 Filetr, Cart, Varicel x Dh, 24w x 24h x 12d, 60-65% 1 18.00
24W x 12H x 12D 90 RIGID REAR 026-40200-011 Filetr, Cart, Varicel x Dh, 12w x 24h x 12d, 90-95% 1 11.50
24W x 12H x 12D 80 RIGID REAR 026-40200-009 Filetr, Cart, Varicel x Dh, 12w x 24h x 12d, 80-85% 1 10.50
24W x 12H x 12D 60 RIGID REAR 026-40200-007 Filetr, Cart, Varicel x Dh, 12w x 24h x 12d, 60-65% 1 10.50
12W x 24H x 22D 60 BAG SIDEFRT 026-32405-019 Filter, Bag, 12w x 24h x 22d, 60-65% 4 4.50
12W x 24H x 22D 80 BAG SIDEFRT 026-32405-021 Filter, Bag, 12w x 24h x 22d, 80-85% 4 4.50
12W x 24H x 22D 90 BAG SIDEFRT 026-32405-023 Filter, Bag, 12w x 24h x 22d, 90-95% 4 4.50
16W x 20H x 22D 60 BAG SIDEFRT 026-32405-037 Filter, Bag, 16w x 20h x 22d, 60-65% 4 3.50
16W x 20H x 22D 80 BAG SIDEFRT 026-32405-038 Filter, Bag, 16w x 20h x 22d, 80-85% 4 3.50
16W x 20H x 22D 90 BAG SIDEFRT 026-32405-039 Filter, Bag, 16w x 20h x 22d, 90-95% 4 3.50
20W x 20H x 22D 60 BAG SIDEFRT 026-32405-001 Filter, Bag, 20w x 20h x 22d, 60-65% 4 4.80
20W x 20H x 22D 80 BAG SIDEFRT 026-32405-004 Filter, Bag, 20w x 20h x 22d, 80-85% 4 4.80
20W x 20H x 22D 90 BAG SIDEFRT 026-32405-007 Filter, Bag, 20w x 20h x 22d, 90-95% 4 4.80
20W x 24H x 22D 60 BAG SIDEFRT 026-32405-002 Filter, Bag, 20w x 24h x 22d, 60-65% 4 5.50
20W x 24H x 22D 80 BAG SIDEFRT 026-32405-005 Filter, Bag, 20w x 24h x 22d, 80-85% 4 5.50
20W x 24H x 22D 90 BAG SIDEFRT 026-32405-008 Filter, Bag, 20w x 24h x 22d, 90-95% 4 5.50
20W x 16H x 22D 60 BAG SIDEFRT 026-32405-040 Filter, Bag, 20w x 16h x 22d, 60-65% 4 3.50
20W x 16H x 22D 80 BAG SIDEFRT 026-32405-041 Filter, Bag, 20w x 16h x 22d, 80-85% 4 3.50
20W x 16H x 22D 90 BAG SIDEFRT 026-32405-042 Filter, Bag, 20w x 16h x 22d, 90-95% 4 3.50
24W x 20H x 22D 60 BAG SIDEFRT 026-32405-031 Filter, Bag, 24w x 20h x 22d, 60-65% 4 5.50
24W x 20H x 22D 80 BAG SIDEFRT 026-32405-032 Filter, Bag, 24w x 20h x 22d, 80-85% 4 5.50
24W x 20H x 22D 90 BAG SIDEFRT 026-32405-033 Filter, Bag, 24w x 20h x 22d, 90-95% 4 5.50
24W x 24H x 22D 60 BAG SIDEFRT 026-32405-020 Filter, Bag, 24w x 24h x 22d, 60-65% 4 8.00
24W x 24H x 22D 80 BAG SIDEFRT 026-32405-022 Filter, Bag, 24w x 24h x 22d, 80-85% 4 8.00
24W x 24H x 22D 90 BAG SIDEFRT 026-32405-024 Filter, Bag, 24w x 24h x 22d, 90-95% 4 8.00
24W x 12H x 22D 60 BAG SIDEFRT 026-32405-003 Filter, Bag, 24w x 12h x 22d, 60-65% 4 4.50
24W x 12H x 22D 80 BAG SIDEFRT 026-32405-006 Filter, Bag, 24w x 12h x 22d, 80-85% 4 4.50
24W x 12H x 22D 90 BAG SIDEFRT 026-32405-009 Filter, Bag, 24w x 12h x 22d, 90-95% 4 4.50
12W x 24H x 2D NA CLEANABLE SIDEFRT 026-32408-001 Filter, Cleanable, 12w x 24h x 2d, Alum 12 1.50
16W x 20H x 2D NA CLEANABLE SIDEFRT 026-10448-000 Filter, Cleanable, 16w x 20h x 2d, Alum 6 1.60
20W x 20H x 2D NA CLEANABLE SIDEFRT 026-10450-000 Filter, Cleanable, 20w x 20h x 2d, Alum 6 2.00
20W x 24H x 2D NA CLEANABLE SIDEFRT 026-32408-009 Filter, Cleanable, 20w x 24h x 2d, Alum 6 2.10
20W x 16H x 2D NA CLEANABLE SIDEFRT 026-10448-000 Filter, Cleanable, 16w x 20h x 2d, Alum 6 1.60
24W x 20H x 2D NA CLEANABLE SIDEFRT 026-32408-009 Filter, Cleanable, 20w x 24h x 2d, Alum 6 2.10
24W x 24H x 2D NA CLEANABLE SIDEFRT 026-32408-002 Filter, Cleanable, 24w x 24h x 2d, Alum 6 2.60
24W x 12H x 2D NA CLEANABLE SIDEFRT 026-32408-001 Filter, Cleanable, 12w x 24h x 2d, Alum 12 1.50
12W x 24H x 4D 60 MINI-PLEAT SIDEFRT 026-33782-001 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 60-65% 4 3.30
12W x 24H x 4D 80 MINI-PLEAT SIDEFRT 026-32410-008 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 80-85% 4 3.30
12W x 24H x 4D 90 MINI-PLEAT SIDEFRT 026-33783-001 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 90-95% 4 3.30
16W x 20H x 4D 60 MINI-PLEAT SIDEFRT 026-33782-002 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 60-65% 4 3.50
16W x 20H x 4D 80 MINI-PLEAT SIDEFRT 026-32410-009 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 80-85% 4 3.50
16W x 20H x 4D 90 MINI-PLEAT SIDEFRT 026-33783-002 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 90-95% 4 3.50
20W x 20H x 4D 60 MINI-PLEAT SIDEFRT 026-33782-005 Filter, Varicel, (Mini Pleated), 20w x 20h x 4d, 60-65% 4 4.50
20W x 20H x 4D 80 MINI-PLEAT SIDEFRT 026-32410-011 Filter, Varicel, (Mini Pleated), 20w x 20h x 4d, 80-85% 4 4.50
20W x 20H x 4D 90 MINI-PLEAT SIDEFRT 026-33783-005 Filter, Varicel, (Mini Pleated), 20w x 20h x 4d, 90-95% 4 4.50
20W x 24H x 4D 60 MINI-PLEAT SIDEFRT 026-33782-006 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 60-65% 4 5.30
FILTERS (CONTINUED)
SIZE EFF TYPE LOAD PART
NUMBER DESCRIPTION QTY/
CARTON WEIGHT
45
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
Continued on next page
20W x 24H x 4D 80 MINI-PLEAT SIDEFRT 026-32410-012 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 80-85% 4 5.30
20W x 24H x 4D 90 MINI-PLEAT SIDEFRT 026-33783-006 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 90-95% 4 5.30
20W x 16H x 4D 60 MINI-PLEAT SIDEFRT 026-33782-002 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 60-65% 4 3.50
20W x 16H x 4D 80 MINI-PLEAT SIDEFRT 026-32410-009 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 80-85% 4 3.50
20W x 16H x 4D 90 MINI-PLEAT SIDEFRT 026-33783-002 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 90-95% 4 3.50
24W x 20H x 4D 60 MINI-PLEAT SIDEFRT 026-33782-006 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 60-65% 4 5.30
24W x 20H x 4D 80 MINI-PLEAT SIDEFRT 026-32410-012 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 80-85% 4 5.30
24W x 20H x 4D 90 MINI-PLEAT SIDEFRT 026-33783-006 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 90-95% 4 5.30
24W x 24H x 4D 60 MINI-PLEAT SIDEFRT 026-33782-008 Filter, Varicel, (Mini Pleated), 24w x 24h x 4d, 60-65% 4 6.50
24W x 24H x 4D 80 MINI-PLEAT SIDEFRT 026-32410-014 Filter, Varicel, (Mini Pleated), 24w x 24h x 4d, 80-85% 4 6.50
24W x 24H x 4D 90 MINI-PLEAT SIDEFRT 026-33783-008 Filter, Varicel, (Mini Pleated), 24w x 24h x 4d, 90-95% 4 6.50
24W x 12H x 4D 60 MINI-PLEAT SIDEFRT 026-33782-001 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 60-65% 4 3.30
24W x 12H x 4D 80 MINI-PLEAT SIDEFRT 026-32410-008 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 80-85% 4 3.30
24W x 12H x 4D 90 MINI-PLEAT SIDEFRT 026-33783-001 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 90-95% 4 3.30
12W x 24H x 2D 30 PLEATED SIDEFRT 026-32406-001 Filter, Perfectpleat, 12w x 24h x 2d, 30% Eff 12 0.70
12W x 24H x 4D 30 PLEATED SIDEFRT 026-32406-004 Filter, Pleated, 12w x 24h x 4d, 30% Eff 12 1.80
16W x 20H x 2D 30 PLEATED SIDEFRT 026-21062-000 Filter, Perfectpleat, 16w x 20h x 2d, 30% Eff 12 0.70
16W x 20H x 4D 30 PLEATED SIDEFRT 026-28200-000 Filter, Pleated, 16w x 20h x 4d, 30% Eff 12 1.80
20W x 20H x 2D 30 PLEATED SIDEFRT 026-21063-000 Filter, Perfectpleat, 20w x 20h x 2d, 30% Eff 12 0.80
20W x 20H x 4D 30 PLEATED SIDEFRT 026-28202-000 Filter, Pleated, 20w x 20h x 4d, 30% Eff 12 2.10
20W x 24H x 2D 30 PLEATED SIDEFRT 026-32406-002 Filter, Perfectpleat, 20w x 24h x 2d, 30% Eff 12 1.00
20W x 24H x 4D 30 PLEATED SIDEFRT 026-32406-007 Filter, Pleated, 20w x 24h x 4d, 30% Eff 12 2.50
20W x 16H x 2D 30 PLEATED SIDEFRT 026-32406-010 Filter, Perfectpleat, 20w x 16h x 2d, 30% Eff 12 0.70
20W x 16H x 4D 30 PLEATED SIDEFRT 026-28200-000 Filter, Pleated, 16w x 20h x 4d, 30% Eff 12 1.80
24W x 20H x 2D 30 PLEATED SIDEFRT 026-32406-009 Filter, Perfectpleat, 24w x 20h x 2d, 30% Eff 12 1.00
24W x 20H x 4D 30 PLEATED SIDEFRT 026-32406-007 Filter, Pleated, 20w x 24h x 4d, 30% Eff 12 2.50
24W x 24H x 2D 30 PLEATED SIDEFRT 026-32406-003 Filter, Perfectpleat, 24w x 24h x 2d, 30% Eff 12 1.10
24W x 24H x 4D 30 PLEATED SIDEFRT 026-32406-006 Filter, Pleated, 24w x 24h x 4d, 30% Eff 12 2.50
24W x 12H x 2D 30 PLEATED SIDEFRT 026-32406-008 Filter, Perfectpleat, 24w x 12h x 2d, 30% Eff 12 0.70
24W x 12H x 4D 30 PLEATED SIDEFRT 026-32406-004 Filter, Pleated, 12w x 24h x 4d, 30% Eff 12 1.80
12W x 24H x 12D 80 RIGID SIDEFRT 026-32404-009 Filter, Cart, Varicel x Sh, 12w x 24h x 12d, 80-85% 1 10.50
12W x 24H x 12D 90 RIGID SIDEFRT 026-32404-011 Filter, Cart, Varicel x Sh, 12w x 24h x 12d, 90-95% 1 11.50
12W x 24H x 12D 60 RIGID SIDEFRT 026-32404-007 Filter, Cart, Varicel x Sh, 12w x 24h x 12d, 60-65% 1 10.50
16W x 20H x 12D 80 RIGID SIDEFRT 026-32404-013 Filter, Cart, Varicel x Sh, 16w x 20h x 12d, 80-85% 1 11.00
16W x 20H x 12D 90 RIGID SIDEFRT 026-36342-009 Filter, Cart, Varicel x Sh, 16w x 20h x 12d, 90-95% 1 12.00
16W x 20H x 12D 60 RIGID SIDEFRT 026-36340-009 Filter, Cart, Varicel x Sh, 16w x 20h x 12d, 60-65% 1 11.00
20W x 20H x 12D 80 RIGID SIDEFRT 026-32404-003 Filter, Cart, Varicel x Sh, 20w x 20h x 12d, 80-85% 1 13.00
20W x 20H x 12D 90 RIGID SIDEFRT 026-32404-005 Filter, Cart, Varicel x Sh, 20w x 20h x 12d, 90-95% 1 14.00
20W x 20H x 12D 60 RIGID SIDEFRT 026-32404-001 Filter, Cart, Varicel x Sh, 20w x 20h x 12d, 60-65% 1 13.00
20W x 24H x 12D 80 RIGID SIDEFRT 026-32404-004 Filter, Cart, Varicel x Sh, 20w x 24h x 12d, 80-85% 1 15.50
20W x 24H x 12D 90 RIGID SIDEFRT 026-32404-006 Filter, Cart, Varicel x Sh, 20w x 24h x 12d, 90-95% 1 16.50
20W x 24H x 12D 60 RIGID SIDEFRT 026-32404-002 Filter, Cart, Varicel x Sh, 20w x 24h x 12d, 60-65% 1 15.50
20W x 16H x 12D 80 RIGID SIDEFRT 026-32404-013 Filter, Cart, Varicel x Sh, 16w x 20h x 12d, 80-85% 1 11.00
20W x 16H x 12D 90 RIGID SIDEFRT 026-36342-009 Filter, Cart, Varicel x Sh, 16w x 20h x 12d, 90-95% 1 12.00
20W x 16H x 12D 60 RIGID SIDEFRT 026-36340-009 Filter, Cart, Varicel x Sh, 16w x 20h x 12d, 60-65% 1 11.00
24W x 20H x 12D 80 RIGID SIDEFRT 026-32404-004 Filter, Cart, Varicel x Sh, 20w x 24h x 12d, 80-85% 1 15.50
FILTERS (CONTINUED)
SIZE EFF TYPE LOAD PART
NUMBER DESCRIPTION QTY/
CARTON WEIGHT
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
46
24W x 20H x 12D 90 RIGID SIDEFRT 026-32404-006 Filter, Cart, Varicel x Sh, 20w x 24h x 12d, 90-95% 1 16.50
24W x 20H x 12D 60 RIGID SIDEFRT 026-32404-002 Filter, Cart, Varicel x Sh, 20w x 24h x 12d, 60-65% 1 15.50
24W x 24H x 12D 80 RIGID SIDEFRT 026-32404-010 Filter, Cart, Varicel x Sh, 24w x 24h x 12d, 80-85% 1 18.00
24W x 24H x 12D 90 RIGID SIDEFRT 026-32404-012 Filter, Cart, Varicel x Sh, 24w x 24h x 12d, 90-95% 1 19.00
24W x 24H x 12D 60 RIGID SIDEFRT 026-32404-008 Filter, Cart, Varicel x Sh, 24w x 24h x 12d, 60-65% 1 18.00
24W x 12H x 12D 80 RIGID SIDEFRT 026-32404-009 Filter, Cart, Varicel x Sh, 12w x 24h x 12d, 80-85% 1 10.50
24W x 12H x 12D 90 RIGID SIDEFRT 026-32404-011 Filter, Cart, Varicel x Sh, 12w x 24h x 12d, 90-95% 1 11.50
24W x 12H x 12D 60 RIGID SIDEFRT 026-32404-007 Filter, Cart, Varicel x Sh, 12w x 24h x 12d, 60-65% 1 10.50
12W x 24H x 2D NA THROWAWAY SIDEFRT 026-32407-001 Filter, Throwaway, 12w x 24h x 2d, Fbrgls 12 0.60
16W x 20H x 2D NA THROWAWAY SIDEFRT 026-03617-000 Filter, Throwaway, 16w x 20h x 2d, Fbrgls 12 0.60
20W x 20H x 2D NA THROWAWAY SIDEFRT 026-02043-000 Filter, Throwaway, 20w x 20h x 2d, Fbrgls 12 0.60
20W x 24H x 2D NA THROWAWAY SIDEFRT 026-32407-009 Filter, Throwaway, 20w x 24h x 2d, Fbrgls 12 0.80
20W x 16H x 2D NA THROWAWAY SIDEFRT 026-03617-000 Filter, Throwaway, 16w x 20h x 2d, Fbrgls 12 0.60
24W x 20H x 2D NA THROWAWAY SIDEFRT 026-32407-009 Filter, Throwaway, 20w x 24h x 2d, Fbrgls 12 0.80
24W x 24H x 2D NA THROWAWAY SIDEFRT 026-32407-002 Filter, Throwaway, 24w x 24h x 2d, Fbrgls 12 0.80
24W x 12H x 2D NA THROWAWAY SIDEFRT 026-32407-001 Filter, Throwaway, 12w x 24h x 2d, Fbrgls 12 0.60
FILTERS (CONTINUED)
SIZE EFF TYPE LOAD PART
NUMBER DESCRIPTION QTY/
CARTON WEIGHT
47
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
OA HOOD MOISTURE ELIMINATOR FILTERS (BY DAMPER SIZE)
DAMPER
HEIGHTH DAMPER
WIDTH PART_
NUMBER DESCRIPTION QTY
PER
HOOD
QTY
PER
CARTON
26.75 15.00 026-41366-107 FLTR,CLEANABLE,15W_15H_1D,ALUM 2 12
26.75 22.00 026-41366-001 FLTR,CLEANABLE,15W_16H_1D,ALUM 4 12
26.75 16.00 026-41366-001 FLTR,CLEANABLE,15W_16H_1D,ALUM 2 12
26.75 17.00 026-41366-002 FLTR,CLEANABLE,15W_17H_1D,ALUM 2 12
9.50 21.00 026-41366-108 FLTR,CLEANABLE,15W_18H_1D,ALUM 4 12
32.50 21.00 026-41366-108 FLTR,CLEANABLE,15W_18H_1D,ALUM 4 12
15.25 21.00 026-41366-004 FLTR,CLEANABLE,15W_20H_1D,ALUM 1 12
15.25 22.00 026-41366-004 FLTR,CLEANABLE,15W_20H_1D,ALUM 2 12
38.25 21.00 026-41366-109 FLTR,CLEANABLE,15W_21H_1D,ALUM 4 12
38.25 22.00 026-41366-109 FLTR,CLEANABLE,15W_21H_1D,ALUM 4 12
44.00 22.00 026-41366-007 FLTR,CLEANABLE,15W_24H_1D,ALUM 4 12
44.00 21.00 026-41366-007 FLTR,CLEANABLE,15W_24H_1D,ALUM 4 12
21.00 21.00 026-41366-008 FLTR,CLEANABLE,15W_25H_1D,ALUM 2 2
21.00 22.00 026-41366-008 FLTR,CLEANABLE,15W_25H_1D,ALUM 2 2
49.75 22.00 026-41366-010 FLTR,CLEANABLE,15W_27H_1D,ALUM 4 12
49.75 21.00 026-41366-010 FLTR,CLEANABLE,15W_27H_1D,ALUM 4 12
26.75 19.00 026-41366-110 FLTR,CLEANABLE,15W_28H_1D,ALUM 2 12
26.75 20.00 026-41366-111 FLTR,CLEANABLE,15W_29H_1D,ALUM 2 12
26.75 23.00 026-41366-011 FLTR,CLEANABLE,16W_16H_1D,ALUM 4 12
26.75 24.00 026-41366-011 FLTR,CLEANABLE,16W_16H_1D,ALUM 4 12
26.75 25.00 026-41366-012 FLTR,CLEANABLE,16W_17H_1D,ALUM 4 12
26.75 26.00 026-41366-012 FLTR,CLEANABLE,16W_17H_1D,ALUM 4 12
9.50 24.00 026-41366-013 FLTR,CLEANABLE,16W_18H_1D,ALUM 2 12
26.75 27.00 026-41366-013 FLTR,CLEANABLE,16W_18H_1D,ALUM 4 12
26.75 28.00 026-41366-013 FLTR,CLEANABLE,16W_18H_1D,ALUM 4 12
26.75 29.00 026-41366-014 FLTR,CLEANABLE,16W_19H_1D,ALUM 4 12
26.75 30.00 026-41366-014 FLTR,CLEANABLE,16W_19H_1D,ALUM 4 12
32.50 23.00 026-41366-014 FLTR,CLEANABLE,16W_19H_1D,ALUM 4 12
32.50 24.00 026-41366-014 FLTR,CLEANABLE,16W_19H_1D,ALUM 4 12
15.25 23.00 026-41366-015 FLTR,CLEANABLE,16W_20H_1D,ALUM 2 12
15.25 24.00 026-41366-015 FLTR,CLEANABLE,16W_20H_1D,ALUM 2 12
26.75 31.00 026-41366-015 FLTR,CLEANABLE,16W_20H_1D,ALUM 4 12
26.75 32.00 026-41366-015 FLTR,CLEANABLE,16W_20H_1D,ALUM 4 12
26.75 33.00 026-41366-112 FLTR,CLEANABLE,16W_21H_1D,ALUM 4 12
26.75 34.00 026-41366-112 FLTR,CLEANABLE,16W_21H_1D,ALUM 4 12
26.75 35.00 026-41366-016 FLTR,CLEANABLE,16W_22H_1D,ALUM 4 12
26.75 36.00 026-41366-016 FLTR,CLEANABLE,16W_22H_1D,ALUM 4 12
38.25 24.00 026-41366-016 FLTR,CLEANABLE,16W_22H_1D,ALUM 4 12
26.75 37.00 026-41366-113 FLTR,CLEANABLE,16W_23H_1D,ALUM 4 12
44.00 23.00 026-41366-117 FLTR,CLEANABLE,16W_24H_1D,ALUM 4 12
21.00 23.00 026-41366-018 FLTR,CLEANABLE,16W_25H_1D,ALUM 2 12
21.00 24.00 026-41366-018 FLTR,CLEANABLE,16W_25H_1D,ALUM 2 12
44.00 24.00 026-41366-018 FLTR,CLEANABLE,16W_25H_1D,ALUM 4 12
Continued on next page
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
48
49.75 23.00 026-41366-116 FLTR,CLEANABLE,16W_27H_1D,ALUM 4 12
49.75 24.00 026-41366-020 FLTR,CLEANABLE,16W_28H_1D,ALUM 4 12
38.25 8.00 026-41366-022 FLTR,CLEANABLE,17W_17H_1D,ALUM 2 12
9.50 26.00 026-41366-114 FLTR,CLEANABLE,17W_18H_1D,ALUM 2 12
26.75 48.00 026-41366-023 FLTR,CLEANABLE,17W_19H_1D,ALUM 6 12
26.75 49.00 026-41366-023 FLTR,CLEANABLE,17W_19H_1D,ALUM 6 12
32.50 26.00 026-41366-023 FLTR,CLEANABLE,17W_19H_1D,ALUM 4 12
15.25 26.00 026-41366-024 FLTR,CLEANABLE,17W_20H_1D,ALUM 2 12
26.75 50.00 026-41366-024 FLTR,CLEANABLE,17W_20H_1D,ALUM 6 12
26.75 51.00 026-41366-024 FLTR,CLEANABLE,17W_20H_1D,ALUM 6 12
26.75 52.00 026-41366-024 FLTR,CLEANABLE,17W_20H_1D,ALUM 6 12
26.75 53.00 026-41366-025 FLTR,CLEANABLE,17W_21H_1D,ALUM 6 12
26.75 54.00 026-41366-025 FLTR,CLEANABLE,17W_21H_1D,ALUM 6 12
26.75 55.00 026-41366-025 FLTR,CLEANABLE,17W_21H_1D,ALUM 6 12
26.75 75.00 026-41366-025 FLTR,CLEANABLE,17W_21H_1D,ALUM 8 12
26.75 56.00 026-41366-026 FLTR,CLEANABLE,17W_22H_1D,ALUM 6 12
26.75 57.00 026-41366-026 FLTR,CLEANABLE,17W_22H_1D,ALUM 6 12
26.75 58.00 026-41366-026 FLTR,CLEANABLE,17W_22H_1D,ALUM 6 12
26.75 78.00 026-41366-026 FLTR,CLEANABLE,17W_22H_1D,ALUM 8 12
38.25 25.00 026-41366-026 FLTR,CLEANABLE,17W_22H_1D,ALUM 4 12
26.75 38.00 026-41366-027 FLTR,CLEANABLE,17W_23H_1D,ALUM 4 12
26.75 59.00 026-41366-027 FLTR,CLEANABLE,17W_23H_1D,ALUM 6 12
26.75 60.00 026-41366-027 FLTR,CLEANABLE,17W_23H_1D,ALUM 6 12
26.75 61.00 026-41366-027 FLTR,CLEANABLE,17W_23H_1D,ALUM 6 12
26.75 81.00 026-41366-027 FLTR,CLEANABLE,17W_23H_1D,ALUM 8 12
26.75 84.00 026-41366-027 FLTR,CLEANABLE,17W_23H_1D,ALUM 8 12
26.75 105.00 026-41366-027 FLTR,CLEANABLE,17W_23H_1D,ALUM 10 12
32.50 14.00 026-41366-027 FLTR,CLEANABLE,17W_23H_1D,ALUM 2 12
26.75 39.00 026-41366-028 FLTR,CLEANABLE,17W_24H_1D,ALUM 4 12
26.75 40.00 026-41366-028 FLTR,CLEANABLE,17W_24H_1D,ALUM 4 12
26.75 62.00 026-41366-028 FLTR,CLEANABLE,17W_24H_1D,ALUM 6 12
26.75 63.00 026-41366-028 FLTR,CLEANABLE,17W_24H_1D,ALUM 6 12
26.75 64.00 026-41366-028 FLTR,CLEANABLE,17W_24H_1D,ALUM 6 12
26.75 87.00 026-41366-028 FLTR,CLEANABLE,17W_24H_1D,ALUM 8 12
26.75 108.00 026-41366-028 FLTR,CLEANABLE,17W_24H_1D,ALUM 10 12
26.75 111.00 026-41366-028 FLTR,CLEANABLE,17W_24H_1D,ALUM 10 12
32.50 15.00 026-41366-028 FLTR,CLEANABLE,17W_24H_1D,ALUM 2 12
21.00 25.00 026-41366-029 FLTR,CLEANABLE,17W_25H_1D,ALUM 2 12
21.00 26.00 026-41366-029 FLTR,CLEANABLE,17W_25H_1D,ALUM 2 12
26.75 41.00 026-41366-029 FLTR,CLEANABLE,17W_25H_1D,ALUM 4 12
26.75 42.00 026-41366-029 FLTR,CLEANABLE,17W_25H_1D,ALUM 4 12
26.75 65.00 026-41366-029 FLTR,CLEANABLE,17W_25H_1D,ALUM 6 12
26.75 66.00 026-41366-029 FLTR,CLEANABLE,17W_25H_1D,ALUM 6 12
OA HOOD MOISTURE ELIMINATOR FILTERS (BY DAMPER SIZE) (CONTINUED)
DAMPER
HEIGHTH DAMPER
WIDTH PART
NUMBER DESCRIPTION QTY
PER
HOOD
QTY
PER
CARTON
Continued on next page
49
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
26.75 90.00 026-41366-029 FLTR,CLEANABLE,17W_25H_1D,ALUM 8 12
44.00 25.00 026-41366-029 FLTR,CLEANABLE,17W_25H_1D,ALUM 4 12
44.00 26.00 026-41366-029 FLTR,CLEANABLE,17W_25H_1D,ALUM 4 12
26.75 43.00 026-41366-030 FLTR,CLEANABLE,17W_26H_1D,ALUM 4 12
26.75 44.00 026-41366-030 FLTR,CLEANABLE,17W_26H_1D,ALUM 4 12
26.75 68.00 026-41366-030 FLTR,CLEANABLE,17W_26H_1D,ALUM 6 12
26.75 69.00 026-41366-030 FLTR,CLEANABLE,17W_26H_1D,ALUM 6 12
26.75 93.00 026-41366-030 FLTR,CLEANABLE,17W_26H_1D,ALUM 8 12
26.75 96.00 026-41366-030 FLTR,CLEANABLE,17W_26H_1D,ALUM 8 12
26.75 45.00 026-41366-031 FLTR,CLEANABLE,17W_27H_1D,ALUM 4 12
26.75 46.00 026-41366-031 FLTR,CLEANABLE,17W_27H_1D,ALUM 4 12
26.75 71.00 026-41366-031 FLTR,CLEANABLE,17W_27H_1D,ALUM 6 12
26.75 72.00 026-41366-031 FLTR,CLEANABLE,17W_27H_1D,ALUM 6 12
26.75 99.00 026-41366-031 FLTR,CLEANABLE,17W_27H_1D,ALUM 8 12
49.75 26.00 026-41366-031 FLTR,CLEANABLE,17W_27H_1D,ALUM 4 12
26.75 47.00 026-41366-032 FLTR,CLEANABLE,17W_28H_1D,ALUM 4 12
26.75 74.00 026-41366-032 FLTR,CLEANABLE,17W_28H_1D,ALUM 6 12
26.75 102.00 026-41366-032 FLTR,CLEANABLE,17W_28H_1D,ALUM 8 12
9.50 27.00 026-41366-033 FLTR,CLEANABLE,18W_18H_1D,ALUM 2 12
15.25 9.00 026-41366-033 FLTR,CLEANABLE,18W_18H_1D,ALUM 1 12
9.50 29.00 026-41366-034 FLTR,CLEANABLE,18W_19H_1D,ALUM 2 12
9.50 30.00 026-41366-034 FLTR,CLEANABLE,18W_19H_1D,ALUM 2 12
9.50 48.00 026-41366-034 FLTR,CLEANABLE,18W_19H_1D,ALUM 3 12
15.25 10.00 026-41366-034 FLTR,CLEANABLE,18W_19H_1D,ALUM 1 12
32.50 27.00 026-41366-034 FLTR,CLEANABLE,18W_19H_1D,ALUM 4 12
32.50 28.00 026-41366-034 FLTR,CLEANABLE,18W_19H_1D,ALUM 4 12
9.50 31.00 026-41366-035 FLTR,CLEANABLE,18W_20H_1D,ALUM 2 12
9.50 51.00 026-41366-035 FLTR,CLEANABLE,18W_20H_1D,ALUM 3 12
15.25 27.00 026-41366-035 FLTR,CLEANABLE,18W_20H_1D,ALUM 2 12
9.50 12.00 026-41366-036 FLTR,CLEANABLE,18W_21H_1D,ALUM 1 12
9.50 33.00 026-41366-036 FLTR,CLEANABLE,18W_21H_1D,ALUM 2 12
9.50 54.00 026-41366-036 FLTR,CLEANABLE,18W_21H_1D,ALUM 3 12
15.25 12.00 026-41366-036 FLTR,CLEANABLE,18W_21H_1D,ALUM 1 12
15.25 28.00 026-41366-036 FLTR,CLEANABLE,18W_21H_1D,ALUM 2 12
9.50 36.00 026-41366-037 FLTR,CLEANABLE,18W_22H_1D,ALUM 2 12
9.50 57.00 026-41366-037 FLTR,CLEANABLE,18W_22H_1D,ALUM 3 12
38.25 27.00 026-41366-037 FLTR,CLEANABLE,18W_22H_1D,ALUM 4 12
38.25 28.00 026-41366-037 FLTR,CLEANABLE,18W_22H_1D,ALUM 4 12
9.50 14.00 026-41366-038 FLTR,CLEANABLE,18W_23H_1D,ALUM 1 12
9.50 15.00 026-41366-039 FLTR,CLEANABLE,18W_24H_1D,ALUM 1 12
9.50 39.00 026-41366-039 FLTR,CLEANABLE,18W_24H_1D,ALUM 2 12
9.50 42.00 026-41366-040 FLTR,CLEANABLE,18W_25H_1D,ALUM 2 12
OA HOOD MOISTURE ELIMINATOR FILTERS (BY DAMPER SIZE) (CONTINUED)
DAMPER
HEIGHTH DAMPER
WIDTH PART
NUMBER DESCRIPTION QTY
PER
HOOD
QTY
PER
CARTON
Continued on next page
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
50
21.00 27.00 026-41366-040 FLTR,CLEANABLE,18W_25H_1D,ALUM 2 12
26.75 114.00 026-41366-040 FLTR,CLEANABLE,18W_25H_1D,ALUM 10 12
26.75 117.00 026-41366-040 FLTR,CLEANABLE,18W_25H_1D,ALUM 10 12
32.50 16.00 026-41366-040 FLTR,CLEANABLE,18W_25H_1D,ALUM 2 12
44.00 28.00 026-41366-040 FLTR,CLEANABLE,18W_25H_1D,ALUM 4 12
9.50 17.00 026-41366-041 FLTR,CLEANABLE,18W_26H_1D,ALUM 1 12
21.00 28.00 026-41366-041 FLTR,CLEANABLE,18W_26H_1D,ALUM 2 12
26.75 120.00 026-41366-041 FLTR,CLEANABLE,18W_26H_1D,ALUM 10 12
32.50 17.00 026-41366-041 FLTR,CLEANABLE,18W_26H_1D,ALUM 2 12
9.50 18.00 026-41366-042 FLTR,CLEANABLE,18W_27H_1D,ALUM 1 12
9.50 45.00 026-41366-042 FLTR,CLEANABLE,18W_27H_1D,ALUM 2 12
32.50 18.00 026-41366-042 FLTR,CLEANABLE,18W_27H_1D,ALUM 2 12
9.50 19.00 026-41366-043 FLTR,CLEANABLE,18W_28H_1D,ALUM 1 12
32.50 19.00 026-41366-043 FLTR,CLEANABLE,18W_28H_1D,ALUM 2 12
49.75 27.00 026-41366-043 FLTR,CLEANABLE,18W_28H_1D,ALUM 4 12
32.50 20.00 026-41366-115 FLTR,CLEANABLE,18W_29H_1D,ALUM 2 12
32.50 29.00 026-41366-044 FLTR,CLEANABLE,19W_19H_1D,ALUM 4 12
32.50 30.00 026-41366-044 FLTR,CLEANABLE,19W_19H_1D,ALUM 4 12
49.75 30.00 026-41366-044 FLTR,CLEANABLE,19W_19H_1D,ALUM 6 12
32.50 31.00 026-41366-045 FLTR,CLEANABLE,19W_20H_1D,ALUM 4 12
32.50 32.00 026-41366-045 FLTR,CLEANABLE,19W_20H_1D,ALUM 4 12
49.75 48.00 026-41366-045 FLTR,CLEANABLE,19W_20H_1D,ALUM 9 12
49.75 49.00 026-41366-045 FLTR,CLEANABLE,19W_20H_1D,ALUM 9 12
32.50 48.00 026-41366-045 FLTR,CLEANABLE,19W_20H_1D,ALUM 6 12
32.50 49.00 026-41366-045 FLTR,CLEANABLE,19W_20H_1D,ALUM 6 12
15.25 30.00 026-41366-046 FLTR,CLEANABLE,19W_21H_1D,ALUM 2 12
15.25 48.00 026-41366-046 FLTR,CLEANABLE,19W_21H_1D,ALUM 3 12
21.00 10.00 026-41366-046 FLTR,CLEANABLE,19W_21H_1D,ALUM 1 12
32.50 33.00 026-41366-046 FLTR,CLEANABLE,19W_21H_1D,ALUM 4 12
32.50 34.00 026-41366-046 FLTR,CLEANABLE,19W_21H_1D,ALUM 4 12
49.75 33.00 026-41366-046 FLTR,CLEANABLE,19W_21H_1D,ALUM 6 12
32.50 35.00 026-41366-047 FLTR,CLEANABLE,19W_22H_1D,ALUM 4 12
38.25 30.00 026-41366-047 FLTR,CLEANABLE,19W_22H_1D,ALUM 4 12
49.75 36.00 026-41366-047 FLTR,CLEANABLE,19W_22H_1D,ALUM 6 12
15.25 14.00 026-41366-048 FLTR,CLEANABLE,19W_23H_1D,ALUM 1 12
49.75 10.00 026-41366-048 FLTR,CLEANABLE,19W_23H_1D,ALUM 2 12
15.25 16.00 026-41366-050 FLTR,CLEANABLE,19W_25H_1D,ALUM 1 12
44.00 30.00 026-41366-050 FLTR,CLEANABLE,19W_25H_1D,ALUM 4 12
44.00 42.00 026-41366-050 FLTR,CLEANABLE,19W_25H_1D,ALUM 4 12
15.25 17.00 026-41366-051 FLTR,CLEANABLE,19W_26H_1D,ALUM 1 12
21.00 29.00 026-41366-051 FLTR,CLEANABLE,19W_26H_1D,ALUM 2 12
21.00 30.00 026-41366-051 FLTR,CLEANABLE,19W_26H_1D,ALUM 2 12
44.00 48.00 026-41366-051 FLTR,CLEANABLE,19W_26H_1D,ALUM 6 12
OA HOOD MOISTURE ELIMINATOR FILTERS (BY DAMPER SIZE) (CONTINUED)
DAMPER
HEIGHTH DAMPER
WIDTH PART
NUMBER DESCRIPTION QTY
PER
HOOD
QTY
PER
CARTON
Continued on next page
51
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
15.25 18.00 026-41366-052 FLTR,CLEANABLE,19W_27H_1D,ALUM 1 12
21.00 48.00 026-41366-052 FLTR,CLEANABLE,19W_27H_1D,ALUM 3 12
32.50 51.00 026-41366-055 FLTR,CLEANABLE,20W_20H_1D,ALUM 6 12
32.50 52.00 026-41366-055 FLTR,CLEANABLE,20W_20H_1D,ALUM 6 12
49.75 51.00 026-41366-055 FLTR,CLEANABLE,20W_20H_1D,ALUM 12 12
32.50 54.00 026-41366-056 FLTR,CLEANABLE,20W_21H_1D,ALUM 6 12
49.75 53.00 026-41366-056 FLTR,CLEANABLE,20W_21H_1D,ALUM 12 12
15.25 32.00 026-41366-056 FLTR,CLEANABLE,20W_21H_1D,ALUM 2 12
15.25 51.00 026-41366-056 FLTR,CLEANABLE,20W_21H_1D,ALUM 3 12
21.00 11.00 026-41366-057 FLTR,CLEANABLE,20W_22H_1D,ALUM 1 12
32.50 36.00 026-41366-057 FLTR,CLEANABLE,20W_22H_1D,ALUM 4 12
32.50 57.00 026-41366-057 FLTR,CLEANABLE,20W_22H_1D,ALUM 6 12
38.25 31.00 026-41366-057 FLTR,CLEANABLE,20W_22H_1D,ALUM 4 12
38.25 32.00 026-41366-057 FLTR,CLEANABLE,20W_22H_1D,ALUM 4 12
49.75 78.00 026-41366-057 FLTR,CLEANABLE,20W_22H_1D,ALUM 12 12
32.50 37.00 026-41366-058 FLTR,CLEANABLE,20W_23H_1D,ALUM 4 12
32.50 38.00 026-41366-058 FLTR,CLEANABLE,20W_23H_1D,ALUM 4 12
32.50 60.00 026-41366-058 FLTR,CLEANABLE,20W_23H_1D,ALUM 6 12
38.25 50.00 026-41366-058 FLTR,CLEANABLE,20W_23H_1D,ALUM 6 12
49.75 38.00 026-41366-058 FLTR,CLEANABLE,20W_23H_1D,ALUM 6 12
49.75 84.00 026-41366-058 FLTR,CLEANABLE,20W_23H_1D,ALUM 12 12
32.50 40.00 026-41366-058 FLTR,CLEANABLE,20W_23H_1D,ALUM 4 12
32.50 39.00 026-41366-059 FLTR,CLEANABLE,20W_24H_1D,ALUM 4 12
32.50 63.00 026-41366-059 FLTR,CLEANABLE,20W_24H_1D,ALUM 6 12
49.75 39.00 026-41366-059 FLTR,CLEANABLE,20W_24H_1D,ALUM 6 12
49.75 40.00 026-41366-059 FLTR,CLEANABLE,20W_24H_1D,ALUM 6 12
49.75 11.00 026-41366-059 FLTR,CLEANABLE,20W_24H_1D,ALUM 2 12
32.50 41.00 026-41366-060 FLTR,CLEANABLE,20W_25H_1D,ALUM 4 12
32.50 42.00 026-41366-060 FLTR,CLEANABLE,20W_25H_1D,ALUM 4 12
32.50 66.00 026-41366-060 FLTR,CLEANABLE,20W_25H_1D,ALUM 6 12
38.25 16.00 026-41366-060 FLTR,CLEANABLE,20W_25H_1D,ALUM 2 12
44.00 31.00 026-41366-060 FLTR,CLEANABLE,20W_25H_1D,ALUM 4 12
44.00 32.00 026-41366-060 FLTR,CLEANABLE,20W_25H_1D,ALUM 4 12
49.75 41.00 026-41366-060 FLTR,CLEANABLE,20W_25H_1D,ALUM 6 12
49.75 42.00 026-41366-060 FLTR,CLEANABLE,20W_25H_1D,ALUM 6 12
21.00 31.00 026-41366-061 FLTR,CLEANABLE,20W_26H_1D,ALUM 2 12
21.00 32.00 026-41366-061 FLTR,CLEANABLE,20W_26H_1D,ALUM 2 12
32.50 43.00 026-41366-061 FLTR,CLEANABLE,20W_26H_1D,ALUM 4 12
32.50 44.00 026-41366-061 FLTR,CLEANABLE,20W_26H_1D,ALUM 4 12
44.00 51.00 026-41366-061 FLTR,CLEANABLE,20W_26H_1D,ALUM 6 12
49.75 44.00 026-41366-061 FLTR,CLEANABLE,20W_26H_1D,ALUM 6 12
21.00 50.00 026-41366-062 FLTR,CLEANABLE,20W_27H_1D,ALUM 3 12
21.00 51.00 026-41366-062 FLTR,CLEANABLE,20W_27H_1D,ALUM 3 12
OA HOOD MOISTURE ELIMINATOR FILTERS (BY DAMPER SIZE) (CONTINUED)
DAMPER
HEIGHTH DAMPER
WIDTH PART
NUMBER DESCRIPTION QTY
PER
HOOD
QTY
PER
CARTON
Continued on next page
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
52
32.50 45.00 026-41366-062 FLTR,CLEANABLE,20W_27H_1D,ALUM 4 12
32.50 46.00 026-41366-062 FLTR,CLEANABLE,20W_27H_1D,ALUM 4 12
32.50 72.00 026-41366-062 FLTR,CLEANABLE,20W_27H_1D,ALUM 6 12
49.75 45.00 026-41366-062 FLTR,CLEANABLE,20W_27H_1D,ALUM 6 12
49.75 46.00 026-41366-062 FLTR,CLEANABLE,20W_27H_1D,ALUM 6 12
15.25 19.00 026-41366-063 FLTR,CLEANABLE,20W_28H_1D,ALUM 1 12
32.50 47.00 026-41366-063 FLTR,CLEANABLE,20W_28H_1D,ALUM 4 12
49.75 47.00 026-41366-063 FLTR,CLEANABLE,20W_28H_1D,ALUM 6 12
15.25 20.00 026-41366-064 FLTR,CLEANABLE,20W_29H_1D,ALUM 1 12
15.25 33.00 026-41366-065 FLTR,CLEANABLE,21W_21H_1D,ALUM 2 12
15.25 34.00 026-41366-065 FLTR,CLEANABLE,21W_21H_1D,ALUM 2 12
15.25 36.00 026-41366-066 FLTR,CLEANABLE,21W_22H_1D,ALUM 2 12
15.25 54.00 026-41366-066 FLTR,CLEANABLE,21W_22H_1D,ALUM 3 12
15.25 75.00 026-41366-066 FLTR,CLEANABLE,21W_22H_1D,ALUM 4 12
32.50 78.00 026-41366-066 FLTR,CLEANABLE,21W_22H_1D,ALUM 8 12
38.25 33.00 026-41366-066 FLTR,CLEANABLE,21W_22H_1D,ALUM 4 12
15.25 38.00 026-41366-067 FLTR,CLEANABLE,21W_23H_1D,ALUM 2 12
32.50 84.00 026-41366-067 FLTR,CLEANABLE,21W_23H_1D,ALUM 8 12
38.25 34.00 026-41366-067 FLTR,CLEANABLE,21W_23H_1D,ALUM 4 12
15.25 39.00 026-41366-068 FLTR,CLEANABLE,21W_24H_1D,ALUM 2 12
32.50 108.00 026-41366-068 FLTR,CLEANABLE,21W_24H_1D,ALUM 10 12
32.50 132.00 026-41366-068 FLTR,CLEANABLE,21W_24H_1D,ALUM 12 12
49.75 108.00 026-41366-068 FLTR,CLEANABLE,21W_24H_1D,ALUM 15 12
49.75 132.00 026-41366-068 FLTR,CLEANABLE,21W_24H_1D,ALUM 18 12
15.25 42.00 026-41366-069 FLTR,CLEANABLE,21W_25H_1D,ALUM 2 12
32.50 90.00 026-41366-069 FLTR,CLEANABLE,21W_25H_1D,ALUM 8 12
32.50 114.00 026-41366-069 FLTR,CLEANABLE,21W_25H_1D,ALUM 10 12
49.75 90.00 026-41366-069 FLTR,CLEANABLE,21W_25H_1D,ALUM 12 12
49.75 114.00 026-41366-069 FLTR,CLEANABLE,21W_25H_1D,ALUM 15 12
21.00 33.00 026-41366-070 FLTR,CLEANABLE,21W_26H_1D,ALUM 2 12
21.00 34.00 026-41366-070 FLTR,CLEANABLE,21W_26H_1D,ALUM 2 12
32.50 96.00 026-41366-070 FLTR,CLEANABLE,21W_26H_1D,ALUM 8 12
32.50 120.00 026-41366-070 FLTR,CLEANABLE,21W_26H_1D,ALUM 10 12
44.00 33.00 026-41366-070 FLTR,CLEANABLE,21W_26H_1D,ALUM 4 12
44.00 34.00 026-41366-070 FLTR,CLEANABLE,21W_26H_1D,ALUM 4 12
49.75 96.00 026-41366-070 FLTR,CLEANABLE,21W_26H_1D,ALUM 12 12
49.75 120.00 026-41366-070 FLTR,CLEANABLE,21W_26H_1D,ALUM 15 12
15.25 45.00 026-41366-071 FLTR,CLEANABLE,21W_27H_1D,ALUM 2 12
21.00 54.00 026-41366-071 FLTR,CLEANABLE,21W_27H_1D,ALUM 3 12
21.00 75.00 026-41366-071 FLTR,CLEANABLE,21W_27H_1D,ALUM 4 12
32.50 126.00 026-41366-071 FLTR,CLEANABLE,21W_27H_1D,ALUM 10 12
38.25 18.00 026-41366-071 FLTR,CLEANABLE,21W_27H_1D,ALUM 2 12
49.75 126.00 026-41366-071 FLTR,CLEANABLE,21W_27H_1D,ALUM 15 12
OA HOOD MOISTURE ELIMINATOR FILTERS (BY DAMPER SIZE) (CONTINUED)
DAMPER
HEIGHTH DAMPER
WIDTH PART
NUMBER DESCRIPTION QTY
PER
HOOD
QTY
PER
CARTON
Continued on next page
53
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
26.75 12.00 026-41366-072 FLTR,CLEANABLE,21W_28H_1D,ALUM 1 12
32.50 102.00 026-41366-072 FLTR,CLEANABLE,21W_28H_1D,ALUM 8 12
38.25 19.00 026-41366-072 FLTR,CLEANABLE,21W_28H_1D,ALUM 2 12
49.75 102.00 026-41366-072 FLTR,CLEANABLE,21W_28H_1D,ALUM 12 12
15.25 57.00 026-41366-074 FLTR,CLEANABLE,22W_22H_1D,ALUM 3 12
15.25 60.00 026-41366-075 FLTR,CLEANABLE,22W_23H_1D,ALUM 3 12
21.00 13.00 026-41366-075 FLTR,CLEANABLE,22W_23H_1D,ALUM 1 12
38.25 35.00 026-41366-075 FLTR,CLEANABLE,22W_23H_1D,ALUM 4 12
15.25 63.00 026-41366-076 FLTR,CLEANABLE,22W_24H_1D,ALUM 3 12
38.25 78.00 026-41366-076 FLTR,CLEANABLE,22W_24H_1D,ALUM 8 12
15.25 66.00 026-41366-077 FLTR,CLEANABLE,22W_25H_1D,ALUM 3 12
49.75 13.00 026-41366-077 FLTR,CLEANABLE,22W_25H_1D,ALUM 2 12
15.25 69.00 026-41366-078 FLTR,CLEANABLE,22W_26H_1D,ALUM 3 12
21.00 36.00 026-41366-078 FLTR,CLEANABLE,22W_26H_1D,ALUM 2 12
44.00 36.00 026-41366-078 FLTR,CLEANABLE,22W_26H_1D,ALUM 4 12
15.25 72.00 026-41366-079 FLTR,CLEANABLE,22W_27H_1D,ALUM 3 12
21.00 57.00 026-41366-079 FLTR,CLEANABLE,22W_27H_1D,ALUM 3 12
21.00 58.00 026-41366-079 FLTR,CLEANABLE,22W_27H_1D,ALUM 3 12
21.00 78.00 026-41366-079 FLTR,CLEANABLE,22W_27H_1D,ALUM 4 12
21.00 79.00 026-41366-079 FLTR,CLEANABLE,22W_27H_1D,ALUM 4 12
44.00 78.00 026-41366-079 FLTR,CLEANABLE,22W_27H_1D,ALUM 8 12
26.75 13.00 026-41366-080 FLTR,CLEANABLE,22W_28H_1D,ALUM 1 12
21.00 14.00 026-41366-081 FLTR,CLEANABLE,23W_23H_1D,ALUM 1 12
38.25 37.00 026-41366-081 FLTR,CLEANABLE,23W_23H_1D,ALUM 4 12
38.25 38.00 026-41366-081 FLTR,CLEANABLE,23W_23H_1D,ALUM 4 12
21.00 15.00 026-41366-082 FLTR,CLEANABLE,23W_24H_1D,ALUM 1 12
38.25 40.00 026-41366-082 FLTR,CLEANABLE,23W_24H_1D,ALUM 4 12
38.25 60.00 026-41366-082 FLTR,CLEANABLE,23W_24H_1D,ALUM 6 12
38.25 84.00 026-41366-082 FLTR,CLEANABLE,23W_24H_1D,ALUM 8 12
38.25 41.00 026-41366-083 FLTR,CLEANABLE,23W_25H_1D,ALUM 4 12
49.75 14.00 026-41366-083 FLTR,CLEANABLE,23W_25H_1D,ALUM 2 12
21.00 37.00 026-41366-084 FLTR,CLEANABLE,23W_26H_1D,ALUM 2 12
21.00 38.00 026-41366-084 FLTR,CLEANABLE,23W_26H_1D,ALUM 2 12
38.25 43.00 026-41366-084 FLTR,CLEANABLE,23W_26H_1D,ALUM 4 12
38.25 44.00 026-41366-084 FLTR,CLEANABLE,23W_26H_1D,ALUM 4 12
44.00 17.00 026-41366-084 FLTR,CLEANABLE,23W_26H_1D,ALUM 2 12
44.00 37.00 026-41366-084 FLTR,CLEANABLE,23W_26H_1D,ALUM 4 12
44.00 38.00 026-41366-084 FLTR,CLEANABLE,23W_26H_1D,ALUM 4 12
21.00 60.00 026-41366-085 FLTR,CLEANABLE,23W_27H_1D,ALUM 3 12
21.00 61.00 026-41366-085 FLTR,CLEANABLE,23W_27H_1D,ALUM 3 12
44.00 84.00 026-41366-085 FLTR,CLEANABLE,23W_27H_1D,ALUM 8 12
21.00 81.00 026-41366-086 FLTR,CLEANABLE,23W_28H_1D,ALUM 4 12
21.00 84.00 026-41366-086 FLTR,CLEANABLE,23W_28H_1D,ALUM 4 12
OA HOOD MOISTURE ELIMINATOR FILTERS (BY DAMPER SIZE) (CONTINUED)
DAMPER
HEIGHTH DAMPER
WIDTH PART
NUMBER DESCRIPTION QTY
PER
HOOD
QTY
PER
CARTON
Continued on next page
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
54
21.00 105.00 026-41366-086 FLTR,CLEANABLE,23W_28H_1D,ALUM 5 12
26.75 14.00 026-41366-086 FLTR,CLEANABLE,23W_28H_1D,ALUM 1 12
38.25 47.00 026-41366-086 FLTR,CLEANABLE,23W_28H_1D,ALUM 4 12
38.25 108.00 026-41366-088 FLTR,CLEANABLE,24W_24H_1D,ALUM 10 12
38.25 132.00 026-41366-088 FLTR,CLEANABLE,24W_24H_1D,ALUM 10 12
21.00 16.00 026-41366-089 FLTR,CLEANABLE,24W_25H_1D,ALUM 1 12
38.25 66.00 026-41366-089 FLTR,CLEANABLE,24W_25H_1D,ALUM 6 12
38.25 90.00 026-41366-089 FLTR,CLEANABLE,24W_25H_1D,ALUM 8 12
38.25 114.00 026-41366-089 FLTR,CLEANABLE,24W_25H_1D,ALUM 10 12
21.00 39.00 026-41366-090 FLTR,CLEANABLE,24W_26H_1D,ALUM 2 12
38.25 96.00 026-41366-090 FLTR,CLEANABLE,24W_26H_1D,ALUM 8 12
38.25 120.00 026-41366-090 FLTR,CLEANABLE,24W_26H_1D,ALUM 10 12
44.00 39.00 026-41366-090 FLTR,CLEANABLE,24W_26H_1D,ALUM 4 12
44.00 40.00 026-41366-090 FLTR,CLEANABLE,24W_26H_1D,ALUM 4 12
49.75 15.00 026-41366-090 FLTR,CLEANABLE,24W_26H_1D,ALUM 2 12
21.00 40.00 026-41366-091 FLTR,CLEANABLE,24W_27H_1D,ALUM 2 12
21.00 18.00 026-41366-091 FLTR,CLEANABLE,24W_27H_1D,ALUM 1 12
21.00 63.00 026-41366-091 FLTR,CLEANABLE,24W_27H_1D,ALUM 3 12
21.00 64.00 026-41366-091 FLTR,CLEANABLE,24W_27H_1D,ALUM 3 12
38.25 72.00 026-41366-091 FLTR,CLEANABLE,24W_27H_1D,ALUM 6 12
44.00 108.00 026-41366-091 FLTR,CLEANABLE,24W_27H_1D,ALUM 10 12
38.25 126.00 026-41366-092 FLTR,CLEANABLE,24W_28H_1D,ALUM 10 12
21.00 19.00 026-41366-092 FLTR,CLEANABLE,24W_28H_1D,ALUM 1 12
21.00 87.00 026-41366-092 FLTR,CLEANABLE,24W_28H_1D,ALUM 4 12
38.25 102.00 026-41366-092 FLTR,CLEANABLE,24W_28H_1D,ALUM 8 12
44.00 19.00 026-41366-092 FLTR,CLEANABLE,24W_28H_1D,ALUM 2 12
44.00 132.00 026-41366-092 FLTR,CLEANABLE,24W_28H_1D,ALUM 12 12
21.00 20.00 026-41366-093 FLTR,CLEANABLE,24W_29H_1D,ALUM 1 12
44.00 20.00 026-41366-093 FLTR,CLEANABLE,24W_29H_1D,ALUM 2 12
44.00 41.00 026-41366-095 FLTR,CLEANABLE,25W_26H_1D,ALUM 4 12
21.00 42.00 026-41366-096 FLTR,CLEANABLE,25W_27H_1D,ALUM 2 12
21.00 65.00 026-41366-096 FLTR,CLEANABLE,25W_27H_1D,ALUM 3 12
21.00 66.00 026-41366-096 FLTR,CLEANABLE,25W_27H_1D,ALUM 3 12
21.00 67.00 026-41366-096 FLTR,CLEANABLE,25W_27H_1D,ALUM 3 12
44.00 90.00 026-41366-096 FLTR,CLEANABLE,25W_27H_1D,ALUM 8 12
21.00 90.00 026-41366-097 FLTR,CLEANABLE,25W_28H_1D,ALUM 4 12
44.00 114.00 026-41366-097 FLTR,CLEANABLE,25W_28H_1D,ALUM 10 12
44.00 44.00 026-41366-099 FLTR,CLEANABLE,26W_26H_1D,ALUM 4 12
49.75 17.00 026-41366-099 FLTR,CLEANABLE,26W_26H_1D,ALUM 2 12
21.00 43.00 026-41366-100 FLTR,CLEANABLE,26W_27H_1D,ALUM 2 12
21.00 44.00 026-41366-100 FLTR,CLEANABLE,26W_27H_1D,ALUM 2 12
21.00 68.00 026-41366-100 FLTR,CLEANABLE,26W_27H_1D,ALUM 3 12
21.00 69.00 026-41366-100 FLTR,CLEANABLE,26W_27H_1D,ALUM 3 12
OA HOOD MOISTURE ELIMINATOR FILTERS (BY DAMPER SIZE) (CONTINUED)
DAMPER
HEIGHTH DAMPER
WIDTH PART
NUMBER DESCRIPTION QTY
PER
HOOD
QTY
PER
CARTON
Continued on next page
55
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
21.00 70.00 026-41366-100 FLTR,CLEANABLE,26W_27H_1D,ALUM 3 12
44.00 45.00 026-41366-100 FLTR,CLEANABLE,26W_27H_1D,ALUM 4 12
44.00 96.00 026-41366-100 FLTR,CLEANABLE,26W_27H_1D,ALUM 8 12
49.75 18.00 026-41366-100 FLTR,CLEANABLE,26W_27H_1D,ALUM 2 12
21.00 93.00 026-41366-101 FLTR,CLEANABLE,26W_28H_1D,ALUM 4 12
21.00 96.00 026-41366-101 FLTR,CLEANABLE,26W_28H_1D,ALUM 4 12
44.00 120.00 026-41366-101 FLTR,CLEANABLE,26W_28H_1D,ALUM 10 12
21.00 45.00 026-41366-103 FLTR,CLEANABLE,27W_27H_1D,ALUM 2 12
21.00 72.00 026-41366-103 FLTR,CLEANABLE,27W_27H_1D,ALUM 3 12
44.00 72.00 026-41366-103 FLTR,CLEANABLE,27W_27H_1D,ALUM 6 12
21.00 47.00 026-41366-104 FLTR,CLEANABLE,27W_28H_1D,ALUM 2 12
21.00 74.00 026-41366-104 FLTR,CLEANABLE,27W_28H_1D,ALUM 3 12
21.00 99.00 026-41366-104 FLTR,CLEANABLE,27W_28H_1D,ALUM 4 12
44.00 102.00 026-41366-104 FLTR,CLEANABLE,27W_28H_1D,ALUM 8 12
44.00 126.00 026-41366-104 FLTR,CLEANABLE,27W_28H_1D,ALUM 10 12
49.75 19.00 026-41366-104 FLTR,CLEANABLE,27W_28H_1D,ALUM 2 12
49.75 25.00 026-41366-104 FLTR,CLEANABLE,27W_28H_1D,ALUM 4 12
49.75 20.00 026-41366-105 FLTR,CLEANABLE,27W_29H_1D,ALUM 2 12
OA HOOD MOISTURE ELIMINATOR FILTERS (BY DAMPER SIZE) (CONTINUED)
DAMPER
HEIGHTH DAMPER
WIDTH PART
NUMBER DESCRIPTION QTY
PER
HOOD
QTY
PER
CARTON
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
56
Bag Filter
Cleanable Filter
Pleated Filter
Cartridge
Cartridge SH
(Single Header)
Cartridge DH
(Double Header)
High Efficiency
Varicel II
Fiberglass
Throwaway
If your unit has HEPA filters the
fi lter frames, fi lter bulkheads and
filter segment panels are factory
sealed and must remain sealed for
NO air bypass.
FIG. 14 - TYPICAL FILTERS
LD9650-1
57
YORK INTERNATIONAL
FORM 102.20-RP1(1104)

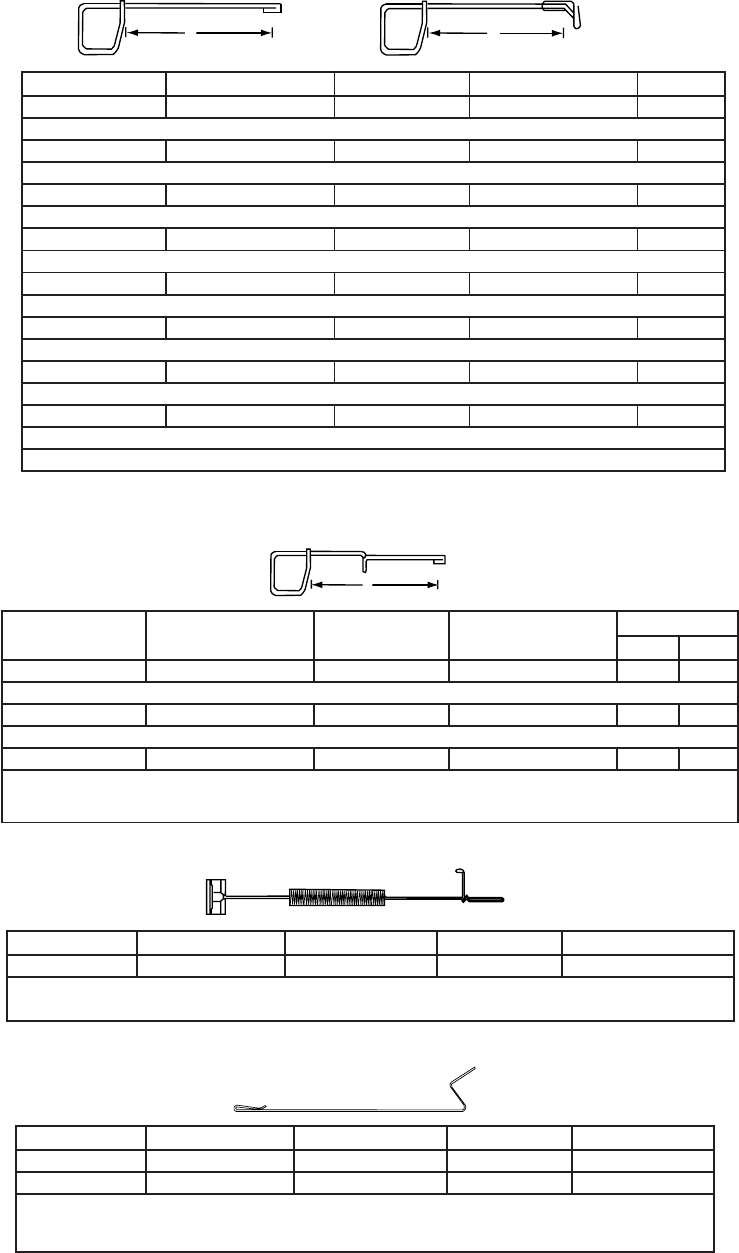

FIG. 15 - UNIVERSAL FRAME LATCH SELECTION
York Part Number Vendor Part Number Drawing Number Latch Model Number Length (L)
029-01048-005 391-007-004 80-1503507-4 L-10 5/32”
Application: Holds DriPak, VariCel or 1” fi lter in AAF Universal Holding Frame (UHF).
029-01048-006 391-007-005 80-1503507-5 L-20 11/16”
Application: Holds 2” thick fi lter. Also holds DriPak or VariCel with a 1" prefi lter in AAF UHF.
029-01048-000 391-007-006 80-1503507-6 L-30 2”
Application: Holds DriPak or VariCel with a 2” prefi lter in AAF UHF.
029-01048-007 391-007-003 80-1503507-3 L-40 3-1/16”
Application: Holds two 2” or one 4” deep fi lter in AAF UHF.
029-01048-008 391-007-007 80-1503507-7 L-50 3-15/16”
Application: Holds DriPak or VariCel with a 4” prefi lter in AAF UHF.
029-01048-012 391-006-004 80-1529262-4 L10 - Knockon 11/16”
Application: Holds DriPak, VariCel or 1” fi lter.
029-01048-014 391-006-005 80-1529262-5 L20 - Knockon 1-5/8"
Application: Holds 2” thick fi lter. Also holds DriPak or VariCel with a 1" prefi lter.
029-01048-013 391-006-008 80-1529262-8 L40 - Knockon 3-5/8"
Application: Holds two 2” fi lters or one 4" deep fi lter.
See HEPA fi lter section for HEPA fi lter latch part numbers and application.
York Part Number Vendor Part Number Drawing Number Latch Model Number Length
L-1 L-2
029-01048-010 391-007-009 80-1503507-9 L-41 11/16” 3-1/16””
Application: Holds VariCel II or 4” AmAir with a 1” prefi lter in AAF UHF
029-01048-009 391-007-002 80-1503507-2 L-42 1-11/16” 3-1/16””
Application: Holds VariCel II or 4” AmAir with a 2” prefi lter in AAF UHF
029-01048-011 391-007-001 80-1503507-1 L-44 3-9/16”” 3-1/16””
Application: Holds VariCel II or 4” AmAir with a 4” prefi lter in AAF UHF
Note: Four (4) latches are reccomended per frame.
General Information: Latches are made of .102" diameter zinc plated dipped spring steel.

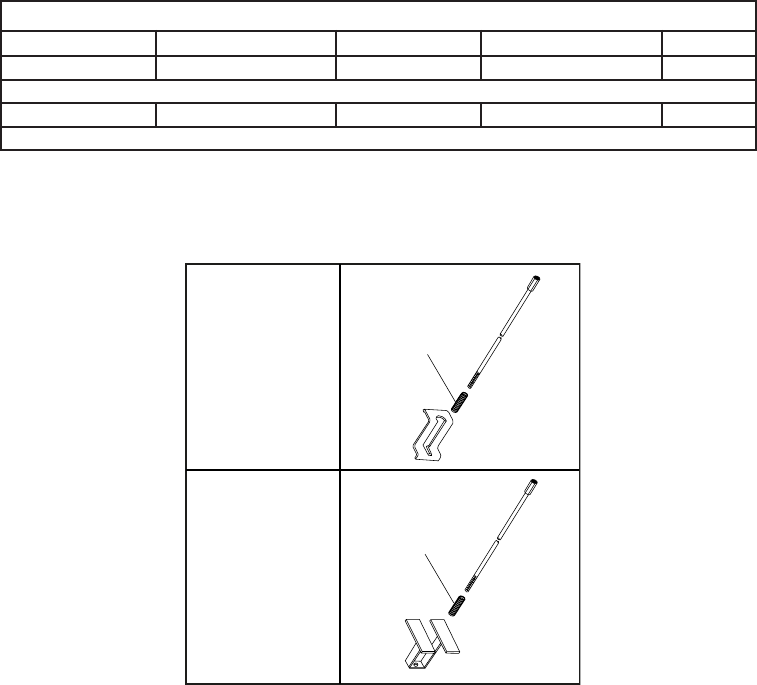

York Part Number Vendor Part Number Latch Model Number Description Service
026-36343-000 315-001-001 SL-12 SL-12” Spring Latch Upstream or Downstream
Application: Holds a 12” deep double header VariCel in a FARR Universal Type 8 Holding Frame. (Can be used with AAF Universal
Holding Frames or other manufacturers frames).
York Part Number Vendor Part Number Latch Model Number Description Service
026-36339-001 315-003-002 VP-2 2” Clip Upstream
026-36339-000 315-003-004 VP-4 4” Clip Upstream
Application: Holds a 2” or 4”prefi lter respectively, against the face of a DH VariCel. Can also be used on a SH VariCel installed in
a DriPak Holding Frame.
Prefi lter Retaining Clips are made of zinc plated yellow chromated dipped steel
SINGLE LATCHES KNOCK ON CONVERSION LATCH
DOUBLE LATCHES
Prefi lter can be changed without disturbing the fi nal fi lter
KNOCK ON SPRING LATCH, VARICEL DH
PREFILTER RETAINER CLIP, VARICEL DH
L
L
L
Note: Four (4) latches are
reccomended per frame
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
58
LD0664-1
11-1/2"
ASTROCEL
HCX
SINGLE
FILTER
CLAMPS
(PERIMETER)
RED
DOUBLE
FILTER
CLAMPS
(T. SECTION)
SILVER
FIG. 16 - VISUAL CONTROL FILTER CLAMPS
VISUAL CONTROL FILTER CLAMPS FOR HEPA FILTERS
York Part Number Vendor Part Number Drawing Number Latch Model Number Length (L)
029-22081-000 ? ? Latch, HEPA Single 11-1/2"
Application: Holds one Astrocel I 11.5" D fi lter along frame sides. (See Fig. 4-25, 4-26 and 4-27 for application)
029-22082-000 ? ? Latch, HEPA Double 11-1/2"
Application: Holds one Astrocel I 11.5" D fi lter along frame middle. (See Fig. 4-25, 4-26 and 4-27 for application)
59
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
LIGHTING PARTS
LIGHT ASSEMBLIES
PART NUMBER DESCRIPTION
025-39019-002 Light assembly, w/switch, 11”lg.
025-39019-001 Light assembly, w/o switch, 11”lg.
025-39019-004 Light assembly, w/switch, 17”lg.
025-39019-003 Light assembly, w/o switch, 17”lg.
025-39019-006 Light assembly, w/switch, 28”lg.
025-39019-005 Light assembly, w/o switch, 28”lg.
LIGHT ASSEMBLY BREAKDOWN
ITEM
N0. PART
NUMBER DESCRIPTION
1 LIGHT BRACKET/WIREWAY
2 025-39014-001 PULL SWITCH
3 GROMMET
4 1/4-20 PANEL NUT
5 025-39013-001 LIGHT FIXTURE W/ COVER
6 1/4-20 X 3/4 LG PAN HD SCREW
7 LIGHT BULB
8 FEMALE INSULATED TERMINAL
9 MALE INSULATED TERMINAL
10 CHAIN CONNECTOR, #6, NICKEL
PLATED BRASS
11 BALL CHAIN, #6, NICKEL PLATED
STEEL
12 WIRING HARNESS
13 SELF ADHESIVE CABLE MOUNT
14 CABLE TY-WRAP
REF LEADS FROM LIGHT FIXTURE
(ITEM 5)
WITH PULL SWITCH
WITHOUT PULL SWITCH
1
4
3
5
2
13
6
7
14
8
8
9
4 PLACES
4 PLACES
PRESS INTO ITEM 1
12
11
10
13 14
12
NOT USED
ON -002 NOT USED
ON -001
8
NOTE: 2 SCREWS TO ATTACH
COVER TO BASE SUPPLIED
WITH FIXTURE
TERMINALS TO BE WITHIN 3
INCHES OF EDGE
TERMINALS TO BE WITHIN 3
INCHES OF EDGE
SECURE TO LEAD
OF SWITCH (ITEM 2)
SECURE TO LEAD
OF SWITCH (ITEM 2)
3 PL SECURE TO LEADS OF
LIGHT FIXTURE (ITEM 5)
3 PL SECURE TO LEADS OF
LIGHT FIXTURE (ITEM 5)
SECURE TO ITEM 1
AND INSTALL ITEM
7 BEFORE
SECURING COVER
REF 3 LEADS FROM FIXTURE:
WHITE, BLACK & BARE
(GROUND)
REF FOAM PAD SECURED
TO BASE OF LIGHT FIXTURE
TO SEAL COVER
FIG. 17 - EXPLODED VIEW OF LIGHT ASSEMBLIES
LDO9696
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
60
ELECTRICAL REPLACEMENT PARTS
J-BOX ONLY ASSEMBLY
025-39009-001 COVER, 1-GANG, DRY TYPE, BLANK.
RECEPTACLE ONLY ASSEMBLY
025-39007-001 COVER, 1-GANG, DRY TYPE, 1-GFI
LIGHT SWITCH ONLY ASSEMBLY
025-39007-001 COVER, 1-GANG, DRY TYPE, 1-GFI
025-39003-001 SWITCH, 20 AMP ROCKER, IVORY
LIGHT SWITCH / RECEPTACLE ASSEMBLY
025-39007-002 COVER, 2-GANG, DRY TYPE, 2-GFI, RED DOT DRYTITE
025-39003-001 SWITCH, 20 AMP ROCKER, IVORY
025-39004-001 RECEPTACLE, 20 AMP, GFI, IVORY
1 HOUR TIMER ONLY ASSEMBLY
025-39008-001 COVER, 1-GANG, RED DOT, CODE KEEPER, 1-GFI
025-39012-001 TIMER, SWITCH, 1 HOUR W/ HOLD, 20 AMPS @ 125 VAC, IVORY DECORATOR
1 HOUR TIMER / RECEPTACLE ASSEMBLY
025-39008-002 COVER, 2-GANG, 2-GFI, RED DOT, CODE KEEPER
025-39004-001 RECEPTACLE, 20 AMP, GFI, IVORY (CONVENIENCE OUTLET)
025-39012-001 TIMER, SWITCH, 1 HOUR W/ HOLD, 20 AMPS @ 125 VAC, IVORY DECORATOR
WITH PULL SWITCH
(FEMALE TERMINALS, 3 PL)
(LIGHT FIXTURE & BULB)
5 7
GND (GREEN)GND (BARE)
LIGHT
8
BLK
WHT
BLK
WHT
(WIRING HARNESS) (-003 & -005)
12
WITHOUT PULL SWITCH
(MALE TERMINAL)
8
GND (BARE)
(FEMALE TERMINALS, 3 PL)
7
LIGHT
BLK
WHT
(WIRING HARNESS) (-004 & -006)
BLK
9
BLK
12
2
PULL SWITCH
GND (GREEN)
WHT
BLK
(FEMALE TERMINAL)
8
(LIGHT FIXTURE & BULB)
5

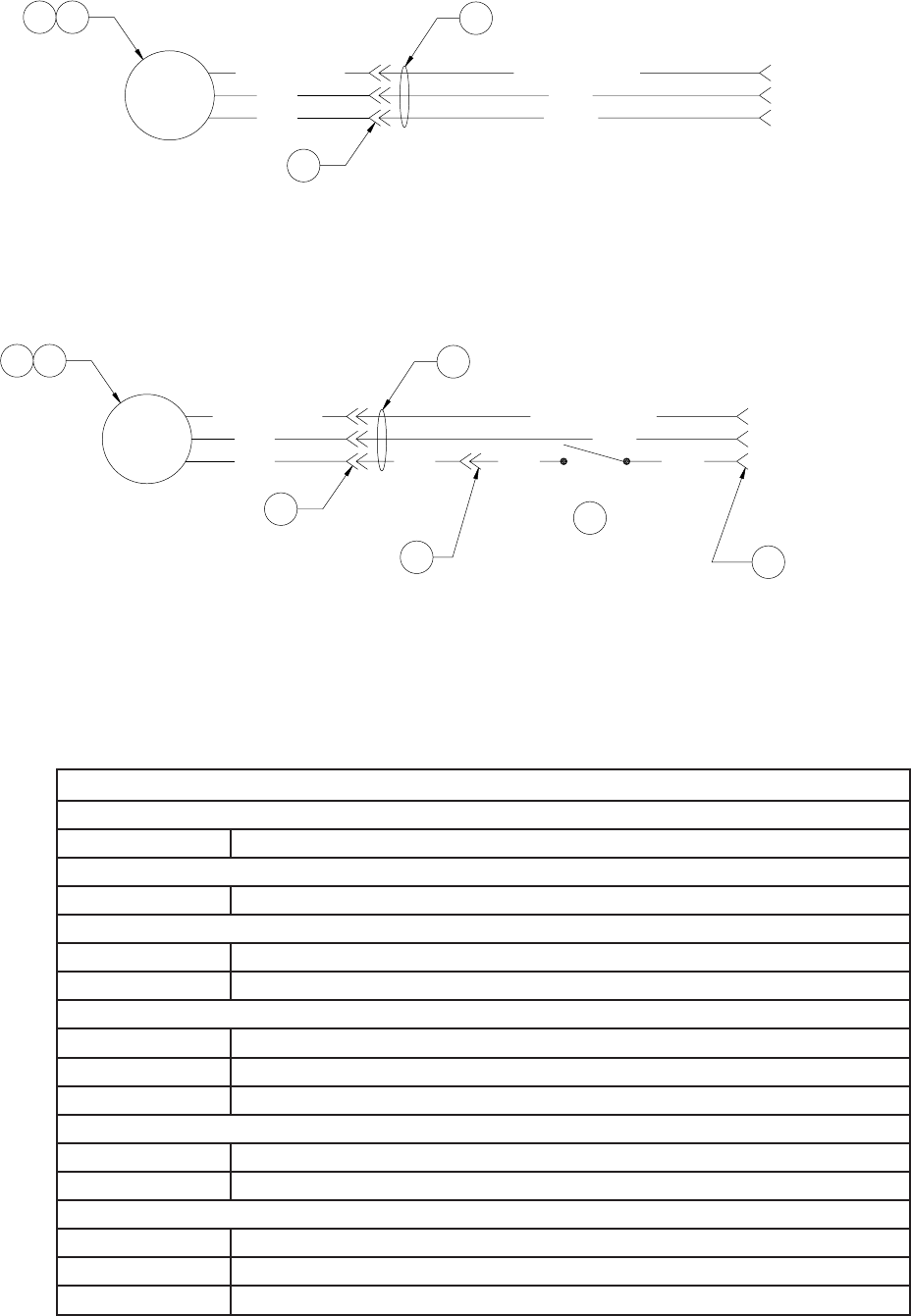

FIG. 18 - LIGHTING SCHEMATIC LDO9697
61
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
WIRING-HARNESSES LIGHT ASSEMBLY - PANEL TO WIRE TRACK
PART-NUMBER DESCRIPTION DIM A
INCHES
025-39020-001 Harness, Panel to Wire Track, #12 ga W/Conduit, 1’ LG. 12
025-39020-002 Harness, Panel to Wire Track, #12 ga W/Conduit, 2’ LG. 24
025-39020-003 Harness, Panel to Wire Track, #12 ga W/Conduit, 3’ LG. 36
025-39020-004 Harness, Panel to Wire Track, #12 ga W/Conduit, 4’ LG. 48
025-39020-005 Harness, Panel to Wire Track, #12 ga W/Conduit, 5’ LG. 60
025-39020-006 Harness, Panel to Wire Track, #12 ga W/Conduit, 6’ LG. 72
025-39020-007 Harness, Panel to Wire Track, #12 ga W/Conduit, 7’ LG. 84
025-39020-008 Harness, Panel to Wire Track, #12 ga W/Conduit, 8’ LG. 96
025-39020-009 Harness, Panel to Wire Track, #12 ga W/Conduit, 9’ LG. 108
025-39020-010 Harness, Panel to Wire Track, #12 ga W/Conduit, 10’ LG. 120
ADAPTALOK
ADAPTALOK
MALE TERMINALS 3 PLACES
3.0 ± .50
36.0 ± .50
90 DEG. NYLON
FTG. - 1/2 NPT
NYLON CONDUIT - 1/2 PIPE SIZE
STRAIGHT NYLON FTG - 1/2 NPT
DIM "A"
FIG. 19 - PANEL TO WIRETRACK
LDO9708
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
62
025-39022-001 Harness Wiretrack, 12 ga, 3 wire, 1’ LG. 12
025-39022-002 Harness Wiretrack, 12 ga, 3 wire, 2’ LG. 24
025-39022-003 Harness Wiretrack, 12 ga, 3 wire, 3’ LG. 36
025-39022-004 Harness Wiretrack, 12 ga, 3 wire, 4’ LG. 48
025-39022-005 Harness Wiretrack, 12 ga, 3 wire, 5’ LG. 60
025-39022-006 Harness Wiretrack, 12 ga, 3 wire, 6’ LG. 72
025-39022-007 Harness Wiretrack, 12 ga, 3 wire, 7’ LG. 84
025-39022-008 Harness Wiretrack, 12 ga, 3 wire, 8’ LG. 96
025-39022-009 Harness Wiretrack, 12 ga, 3 wire, 9’ LG. 108
025-39022-010 Harness Wiretrack, 12 ga, 3 wire, 10’ LG. 120
025-39022-011 Harness Wiretrack, 12 ga, 3 wire, 11’ LG. 132
025-39022-012 Harness Wiretrack, 12 ga, 3 wire, 12’ LG. 144
025-39022-013 Harness Wiretrack, 12 ga, 3 wire, 13’ LG. 156
025-39022-014 Harness Wiretrack, 12 ga, 3 wire, 14’ LG. 168
025-39022-015 Harness Wiretrack, 12 ga, 3 wire, 15’ LG. 180
025-39022-016 Harness Wiretrack, 12 ga, 3 wire, 16’ LG. 192
025-39022-017 Harness Wiretrack, 12 ga, 3 wire, 17 LG. 204
025-39022-018 Harness Wiretrack, 12 ga, 3 wire, 18’ LG. 216
025-39022-019 Harness Wiretrack, 12 ga, 3 wire, 19’ LG. 228
025-39022-020 Harness Wiretrack, 12 ga, 3 wire, 20’ LG. 240
386-02271-001 Harness, Wiretrack Tee Kit N/A
WIRING-HARNESSES LIGHT ASSEMBLY - WIRE TRACK
PART-NUMBER DESCRIPTION DIM A
INCHES
MALE
TERMINAL
END
TERMINAL
FEMALE
END
DIM "A" ± .50
3.0 ± .50 3.0 ± .50

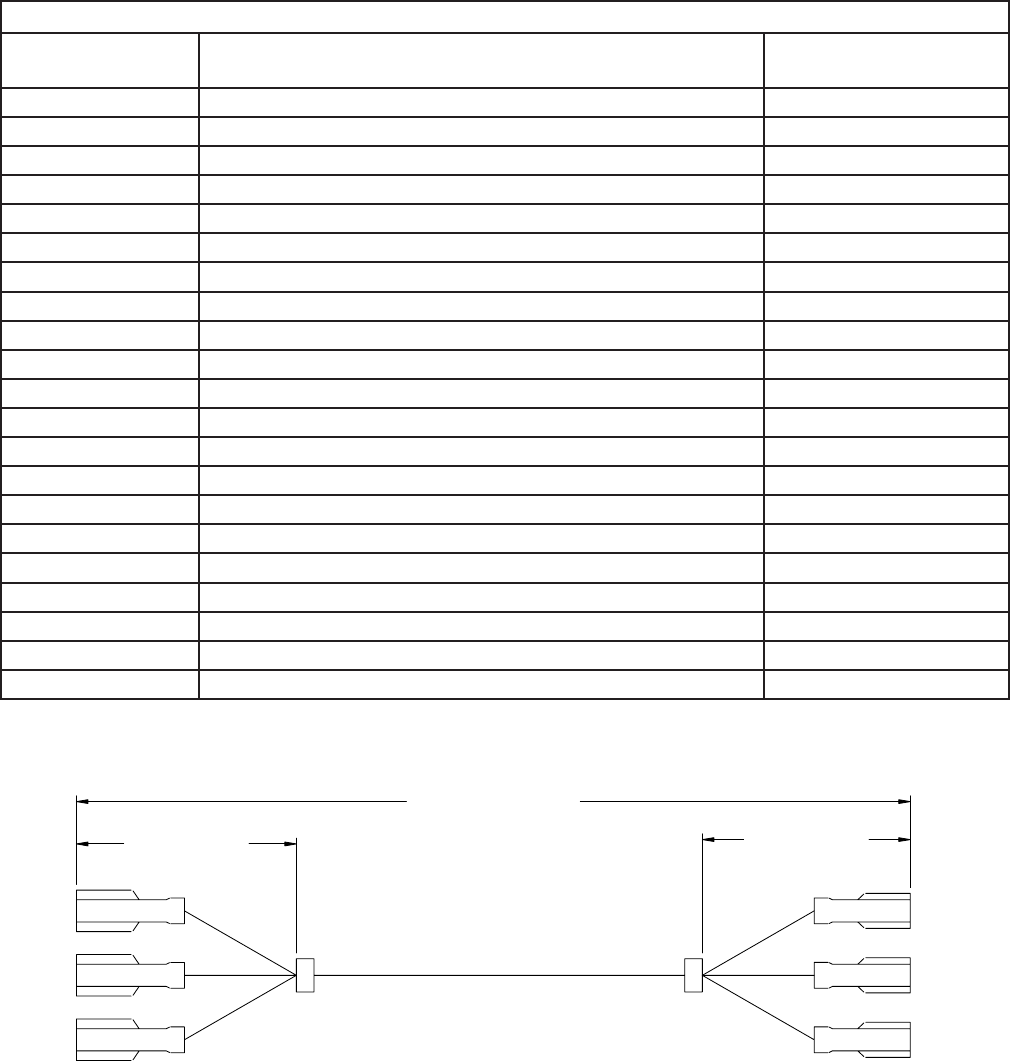

FIG. 20 - HARNESS-WIRETRACK LDO9709
63
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
SWITCH/RECEPTACLE
PART NUMBER DESCRIPTION
386-01156-001 Light Switch / Receptacle assembly
386-01157-001 Light Switch Only assembly
386-01158-001 Receptacle Only assembly
386-01159-001 J-box Only assembly
386-02206-001 1 Hour Timer Only assembly
386-02207-001 1 Hour Timer / Receptacle assembly
386-01160-001 Harness, Tier to Tier, #12 ga W/Conduit, 3’ LG.
386-01160-001 Harness, Tier to Tier, #12 ga W/Conduit, 3’ LG.
386-01160-002 Harness, Tier to Tier, #12 ga W/Conduit, 4’ LG.
386-01160-002 Harness, Tier to Tier, #12 ga W/Conduit, 4’ LG.
386-01160-002 Harness, Tier to Tier, #12 ga W/Conduit, 4’ LG.
386-01160-002 Harness, Tier to Tier, #12 ga W/Conduit, 4’ LG.
386-01160-003 Harness, Tier to Tier, #12 ga W/Conduit, 5’ LG.
386-01160-003 Harness, Tier to Tier, #12 ga W/Conduit, 5’ LG.
386-01160-003 Harness, Tier to Tier, #12 ga W/Conduit, 5’ LG.
386-01160-003 Harness, Tier to Tier, #12 ga W/Conduit, 5’ LG.
386-01160-004 Harness, Tier to Tier, #12 ga W/Conduit, 6’ LG.
386-01160-004 Harness, Tier to Tier, #12 ga W/Conduit, 6’ LG.
386-01160-004 Harness, Tier to Tier, #12 ga W/Conduit, 6’ LG.
386-01160-004 Harness, Tier to Tier, #12 ga W/Conduit, 6’ LG.
386-01160-005 Harness, Tier to Tier, #12 ga W/Conduit, 7’ LG.
386-01160-005 Harness, Tier to Tier, #12 ga W/Conduit, 7’ LG.
386-01160-005 Harness, Tier to Tier, #12 ga W/Conduit, 7’ LG.
386-01160-005 Harness, Tier to Tier, #12 ga W/Conduit, 7’ LG.
386-01160-006 Harness, Tier to Tier, #12 ga W/Conduit, 8’ LG.
386-01160-006 Harness, Tier to Tier, #12 ga W/Conduit, 8’ LG.
386-01160-007 Harness, Tier to Tier, #12 ga W/Conduit, 9’ LG.
386-01160-007 Harness, Tier to Tier, #12 ga W/Conduit, 9’ LG.
386-01160-008 Harness, Tier to Tier, #12 ga W/Conduit, 10’ LG.
386-01160-008 Harness, Tier to Tier, #12 ga W/Conduit, 10’ LG.
386-01160-009 Harness, Tier to Tier, #12 ga W/Conduit, 11’ LG.
386-01160-009 Harness, Tier to Tier, #12 ga W/Conduit, 11’ LG.
386-01160-010 Harness, Tier to Tier, #12 ga W/Conduit, 12’ LG.
386-02271-001 Harness, Wiretrack Tee Kit
WIRING-HARNESSES LIGHT ASSEMBLY - TIER TO TIER
PART-NUMBER DESCRIPTION
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
64

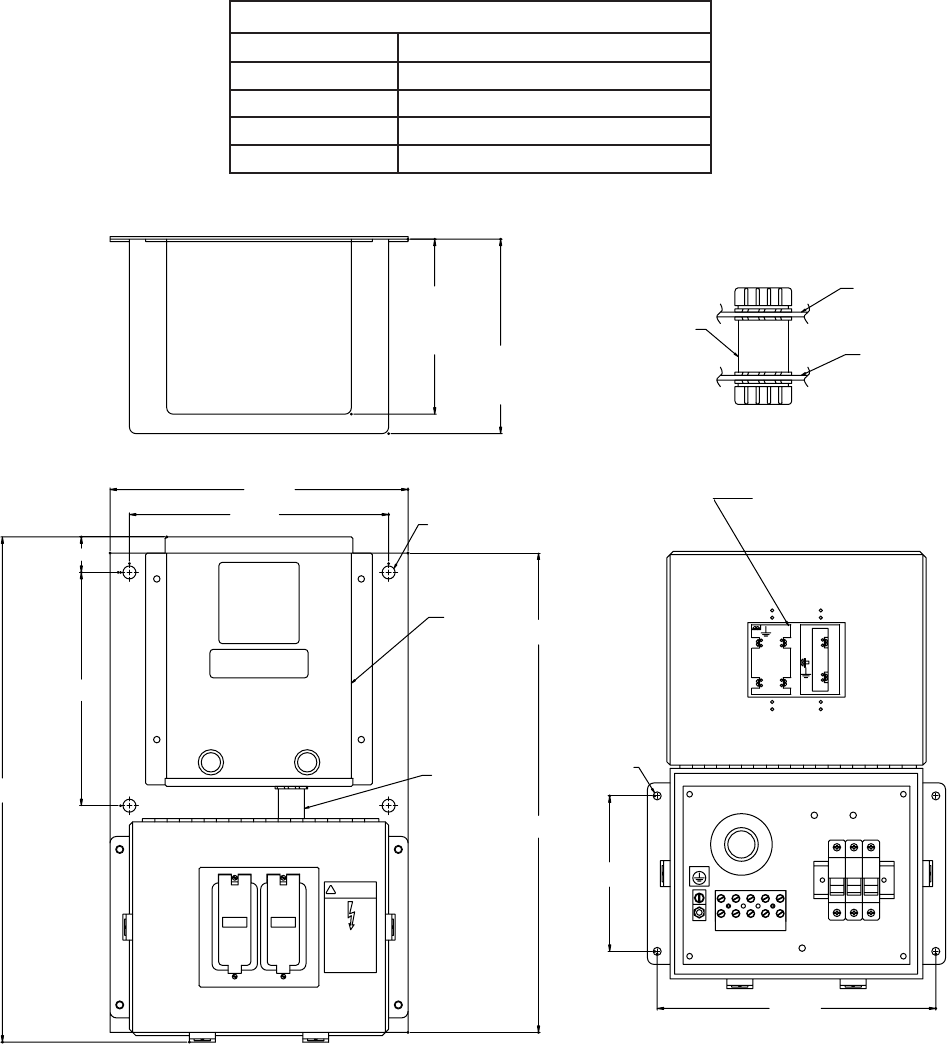

TRANSFORMER PANEL
PART NUMBER DESCRIPTION
025-39105-001 2KVA Transfomer Panel, 200-208v to 120vac
025-39105-003 2KVA Transfomer Panel, 230v to 120vac
025-39105-005 2KVA Transfomer Panel, 460v to 120vac
025-39105-007 2KVA Transfomer Panel, 575v to 120vac
LINE
LOAD
WHITE HOT
HOTWHITE
GRD
FU1 FU2FU1
N L S 1 X2
! WARNING
HAZARDOUS VOLTAGE
CAN CAUSE SEVERE
INJURY OR DEATH.
DISCONNECT POWER BEFORE
SERVICING THIS EQUIPMENT.
(DIMS IN INCHES)
COMPLETE ASSEMBLY
ENCLOSURE DETAIL SHOWN OPEN
9.00
19.50
10.00
11.50
(DIMS IN INCHES)
6.00
10.75
(4)Ø.50
(4)Ø.31
SEE
DETAIL "A"
TRANSFORMER
HOUSING
ENCLOSURE
(SHOWN BELOW)
3/4 IN PIPE NIPPLE
W/LOCKNUTS &
BUSHINGS
REF DUPLEX
OUTLET ON
ENCLOSURE COVER
1.37
REF
TRANSFORMER
HOUSING
18.50
6.75
REF
TRANSFORMER
HOUSING 7.50
REF BTM
ENCLOSURE
W/ OUTLETS
TOP VIEW
DETAIL "A"
LDO9710
FIG. 21 - TRANSFORMER PANEL DIMENSIONS
65
YORK INTERNATIONAL
FORM 102.20-RP1(1104)

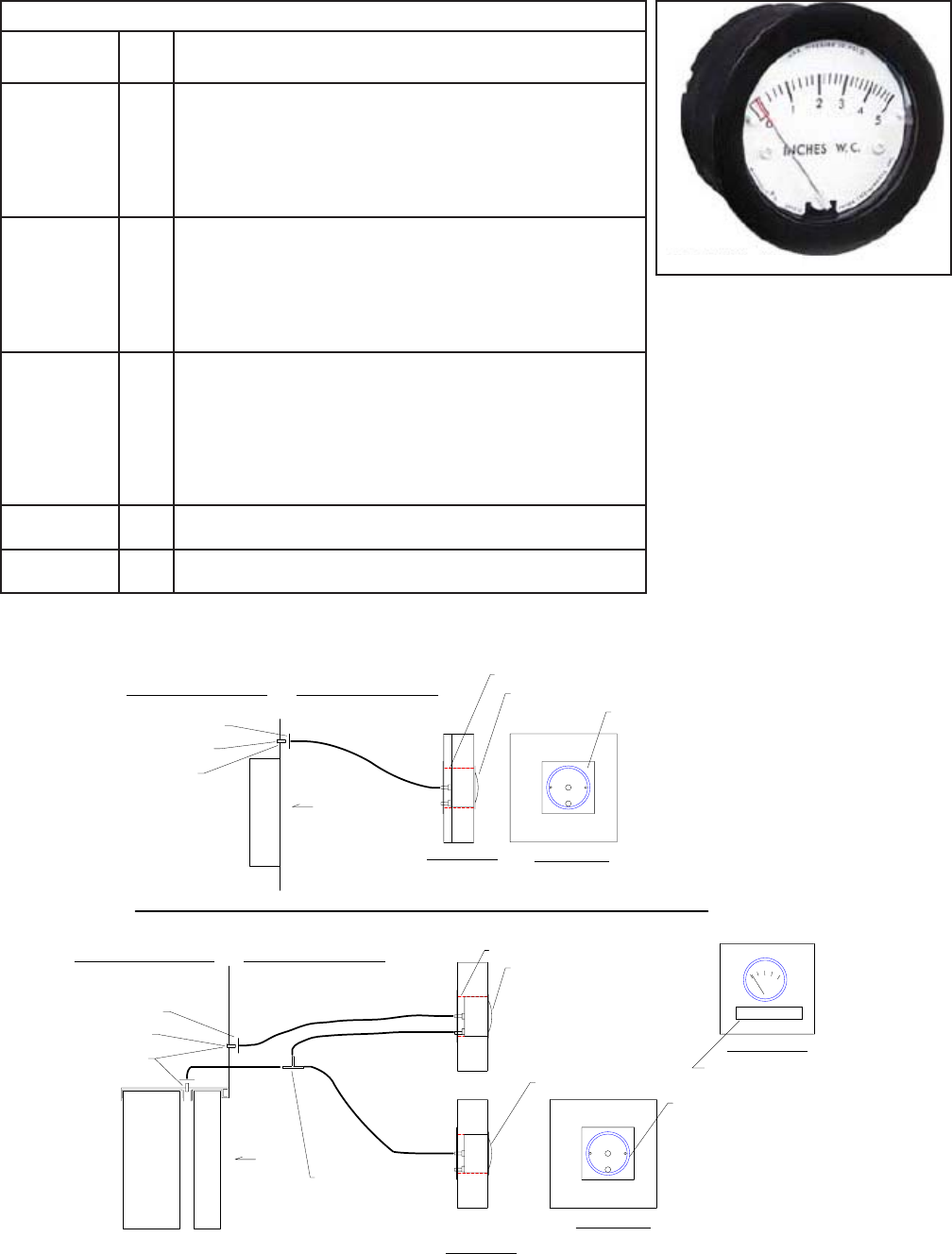

FILTER GAGE KITS
PART
NUMBER QTY DESCRIPTION
386-01161-001 1 FILTER GAGE ASSEMBLY - SINGLE FILTER BANK KIT
1 Ea. Gage, Differential Pressure, Minihelic II, 0-3”W.C
* 4 Ft. Tubing, Fire Rated Black Plastic,1/4” O.D.,.040” Wall
** 1 Ea. Eyelets, Flat Flange, .187 O.D., .503 Lg., .312 Flange,
Brass
1 Ea. Push Retainer for Non-Threaded Shaft, 3/16”
4 ea. Clamp, Tube, 1/4” O.D., Aluminum
386-01161-001 1 FILTER GAGE ASSEMBLY - TOTAL FILTER BANK KIT
1 Ea. Gage, Differential Pressure, Minihelic II, 0-3”W.C
* 4 Ft. Tubing, Fire Rated Black Plastic,1/4” O.D.,.040” Wall
** 1 Ea. Eyelets, Flat Flange, .187O.D., .503 Lg., .312 Flange,
Brass
1 Ea. Push Retainer for Non-Threaded Shaft, 3/16”
4 ea. Clamp, Tube, 1/4” O.D., Aluminum
386-01161-002 1 FILTER GAGE ASSEMBLY - COMBINED FILTERS KIT
2 Ea. Gage, Differential Pressure, Minihelic II, 0-3”W.C
* 6 Ft. Tubing, Fire Rated Black Plastic,1/4” O.D.,.040” Wall
** 2 Ea. Eyelets, Flat Flange, .187 O.D., .503 Lg., .312 Flange,
Brass
2 Ea. Push Retainer for Non-Threaded Shaft, 3/16”
6 Ea. Clamp, Tube, 1/4” O.D., Aluminum
1 Ea. Tee, Brass, Barbed, 1/4”
086-23690-001 1 Plate, Liner Cover, Minihelic II, 18 Ga., Stainless Steel
w/ 386-01161-001
086-23690-001 2 Plate, Liner Cover, Minihelic II, 18 Ga., Stainless Steel
w/ 386-01161-002
FIG. 22 - FILTER GAUGE DIAGRAMS
SIDE VIEW BACK VIEW
FILTER
AIRFLOW
PREFILTER
FINAL FILTER
BACK VIEW
AIRFLOW
LO
HI
SINGLE / TOTAL FILTER GAGE ONLY
PRE AND FINAL FILTER GAGES
PREFILTER
SIDE VIEW
FILTER
FINAL
MINIHELIC II 0-3"W.C.
MINIHELIC II 0-3"W.C.
MINIHELIC II 0-3"W.C.
LINER COVER PLATE
LINER COVER PLATE
1/4" BRASS TEE
RETAINER
EYELET
EYELET
RETAINER
2-5/8" DIA. MOUNTING HOLE
2-5/8" DIA. MOUNTING HOLE
3/16" DIA HOLE
3/16" DIA HOLE
NOTE:
IF FILTER GAGE IS MOUNTED
ON THE DOWNSTREAM SIDE
OF THE FILTER RACK, THEN
THE LOW PRESSURE PORT IS
TO BE LEFT OPEN AND THE
HI PRESSURE PORT IS TO BE
TUBED THROUGH THE BULKHEAD
PRESSURE PORT OF THE FINAL
IS TO BE TEE'D IN WITH HIGH
THE PREFILTER GAGE IS TO BE
THE HIGH PRESSURE PORT OF
OF THE FILTER RACK, THEN
ON THE DOWNSTREAM SIDE
IF FILTER GAGES ARE MOUNTED
NOTE:
TUBED THROUGH THE BULKHEAD
FILTER GAGE. THE LOW PRESSURE
PORT OF THE FINAL FILTER GAGE
IS TO BE LEFT OPEN.
AND THE LOW PRESSURE PORT
PREFILTER
FRONT VIEW
POLYESTER GAGE LABEL
HIGH PRESSURE SIDELOW PRESSURE SIDE
HIGH PRESSURE SIDELOW PRESSURE SIDE
LO
HI
FIG. 23 - TYPICAL FILTER GAUGE
LDO9660
LDO9711
* 1/4" tubing may be ordered separately, P/N 025-11958-000
** Sensor Probes (.187 eyelets) may be ordered separately. P/N 025-39050-000.
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
66
1.938"
.75"
L
Notes:
1. Select the C-Channel that is nearest to the size of your
opening and cut to fit.
2. Available lengths (L) for stiffeners:
PART NUMBER LENGTH (L)
087-40048-050 47.938”
087-40072-050 71.938”
087-40127-050 126.938”

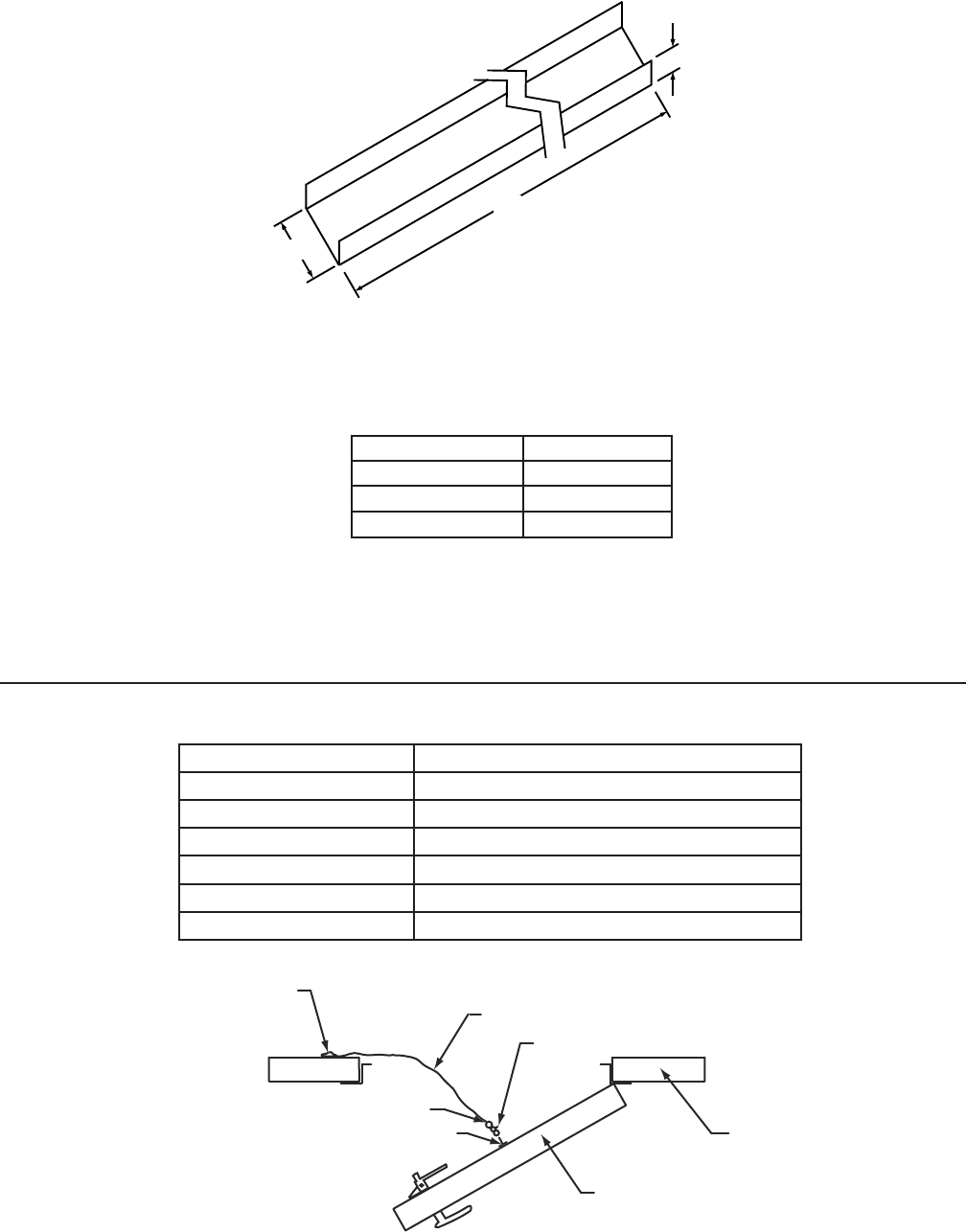

FIG. 24 - C-CHANNEL TRIM FOR:
FIELD CUT OPENINGS
FIELD MODIFICATION TO ADD DOORS
FIG. 25 - DOOR CHAIN ASSEMBLY
PART NUMBER DESCRIPTION
TAC2401012000 STEEL SECURITY CHAIN
TAC2401013000 BOLT SNAPS
TAC2401014000 STEEL STAPLE PLATE
TAC2401015000 COLD SHUTS
TAC3303006000 FENDER WASHER, .313"
013-02978-010 PERMA GUM/BUTYL TAPE, 0.5"W X .13" THK
PURCHASED DOOR
WALL PANEL
SELF TAPPING SCREW
& FENDER WASHER STEEL SECURITY CHAIN
STEEL STAPLE PLATE
BOLT SNAPS
COLD SHUTS
67
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
010-01017-010 Caulk, Sikafl ex, 221 SF, Sika Corp or Equal Gasket/Caulk/Adhesive for Solution Units 11
010-02917-000 Ins Therm 1/8 x 1-1/2 x 50 Lg, Ind. Rolls C3-241-DC 221 White
Ethafoam, w/psa, Std R749 DTD 10/8/90 Marriage Tape Gasket/Caulk/Adhesive for Solution Units 11
013-02966-011 Caulk, Manus-bond,75-am, Manus Products, or Equal Gasket/Caulk/Adhesive for Solution Units 11
013-02976-010 Tape, Butyl, 0.75W x .19THK, TC-49 Xl 121, Manus Products, or
Equal Gasket/Caulk/Adhesive for Solution Units 11
013-02977-010 Tape, Butyl, 1.5W x .13THK, TC-49 Xl 121, Manus Products, or
Equal Gasket/Caulk/Adhesive for Solution Units 11
013-02978-010 Tape, Butyl, 0.5W x .13THK, TC-49 Xl 121, Manus Products, or
Equal Gasket/Caulk/Adhesive for Solution Units 11
013-02978-010 Tape, Butyl, 0.5W x .13THK, TC-49 Xl 121, Manus Products, or
Equal Door Chain Assembly 66
013-02979-010 Tape, Butyl, 0.5W x .25THK, TC-49 Xl 121, Manus Products, or
Equal Gasket/Caulk/Adhesive for Solution Units 11
013-03317-010 Caulk, Solvent Free, Pace Gray or Equal, Sikafl ex 221 SF or
Manus-bond 75-AM Gasket/Caulk/Adhesive for Solution Units 11
013-22013-010 Adhesive, Super Fast,#74, 3M or Equal Gasket/Caulk/Adhesive for Solution Units 11
021- 02782- 000 Scr Hex Cap 5/16-18 X 1-1/4, 1-1/4 Lg Stl Zinc Pltd Fasteners for Solution Units 9
021-00331-000 Bolt, Lag Hex 3/8 X2-1/2 Zinc Plated Fasteners for Solution Units 9
021-01154-000 Wash, Lk Th Int 5/16 Hvy,zinc Pltd., Std. C-76 Fasteners for Solution Units 9
021-01155-000 Wash, Lk Th Int 3/8 Std C-76 Fans And Motors, Securing 32
021-01155-000 Wash, Lk Th Int 3/8 Std C-76 Fasteners for Solution Units 9
021-01155-000 Washer, Lock, Int, 3/8 Shell Components 35
021-01155-000 Wash Lk Th Int 3/8 Std C-76 Splice & Split Raceway Kits 37
021-01155-000 Wash, Lk Th Int 3/8 Std C-76 Thrust Restraint Kits 18
021-01163-000 Wash, Lk Th Int 1/2 Hvy Stl Zinc Pltd., Std. C-76 Fans And Motors, Securing 32
021-01163-000 Wash, Lk Th Int 1/2 Hvy Stl Zinc Pltd., Std. C-76 Fasteners for Solution Units 9
021-01163-000 Lockwasher, 1/2” Shell Components 35
021-01163-000 Wash, Lk Th Int 1/2 Hvy Stl Zinc Pltd., Std. C-76 Splice & Split Baserail Kits 36
021-01163-000 Wash, Lk Th Int 1/2 Hvy Stl Zinc Pltd., Std. C-76 Splice & Split Baserail Kits 36
021-01163-000 Wash, Lk Th Int 1/2 Hvy Stl Zinc Pltd., Std. C-76 Splice & Split Baserail Kits 36
021-01163-000 Wash, Lk Th Int 1/2 Hvy Stl Zinc Pltd., Std. C-76 Splice & Split Baserail Kits 36
021-01163-000 Wash, Lk Th Int 1/2 Hvy Stl Zinc Pltd., Std. C-76 Splice & Split Baserail Kits 36
021-01168-000 Wash Lk Th Int 5/8 Stl Zinc Pltd., Std. C-76 Fasteners for Solution Units 9
021-01248-000 Washer Plain 5/16 ID X 3/4 OD X 0.065 Nom Thk : Steel Fans And Motors, Securing 32
021-01248-000 Washer Plain 5/16 ID X 3/4 OD X 0.065 Nom Thk : Steel Fasteners for Solution Units 9
021-01267-000 Wash Flt 7/16 ID X 1 OD X 0.083 Thk Stl Zinc Pltd. Fans And Motors, Securing 32
021-01267-000 Wash Flt 7/16 ID X 1 OD X 0.083 Thk Stl Zinc Pltd. Fasteners for Solution Units 9
021-01267-000 Wash Flt 7/16 ID X 1 OD X 0.083 Thk Stl Zinc Pltd. Thrust Restraint Kits 18
021-01288-000 Wash Flt 11/16 ID X 1-3/4 OD 0.134 Thk Stl Zinc Pltd., Std. C-48 Fasteners for Solution Units 9
021-01481-000 Scr, Cap Hex 3/8 - 16 unc - 2a X 1.0, Zinc Plated Fasteners for Solution Units 9
021-01481-000 Bolt, 3/8”-16 Shell Components 35
021-01481-000 Scr, Cap Hex 3/8 - 16 unc - 2a X 1.0, Zinc Plated Thrust Restraint Kits 18
021-01499-000 Screw, Cap Hex 3/8 - 16 unc - 2a X 1.5, Zinc Plated Fans And Motors, Securing 32
021-01499-000 Screw, Cap Hex 3/8 - 16 unc - 2a X 1.5, Zinc Plated Fasteners for Solution Units 9
021-02523-000 Nut, Hex 5/16 - 18 unc - 2b Stl Zinc Pltd Fasteners for Solution Units 9
021-02794-000 Scr Hex 5/8-11unc-2a X 2.00” Sae J429 Fasteners for Solution Units 9
021-02860-000 Nut, Hex 1/2-13 Hvy 7/8 Stl Zinc Pltd., Std. C-85 Fans And Motors, Securing 32
021-02860-000 Nut, Hex 1/2-13 Hvy 7/8 Stl Zinc Pltd., Std. C-85 Fasteners for Solution Units 9
021-02860-000 Nut, 1/2”-13 Shell Components 35
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
68
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
021-02860-000 Nut, Hex 1/2-13 Hvy 7/8 Stl Zinc Pltd., Std. C-85 Splice & Split Baserail Kits 36
021-02860-000 Nut, Hex 1/2-13 Hvy 7/8 Stl Zinc Pltd., Std. C-85 Splice & Split Baserail Kits 36
021-02860-000 Nut, Hex 1/2-13 Hvy 7/8 Stl Zinc Pltd., Std. C-85 Splice & Split Baserail Kits 36
021-02860-000 Nut, Hex 1/2-13 Hvy 7/8 Stl Zinc Pltd., Std. C-85 Splice & Split Baserail Kits 36
021-02860-000 Nut, Hex 1/2-13 Hvy 7/8 Stl Zinc Pltd., Std. C-85 Splice & Split Baserail Kits 36
021-02862-000 Nut Hex 5/8-11 Hvy Stl Zinc Pltd., Std. C-85 Fasteners for Solution Units 9
021-03749-000 Scr Mach Rd Ph 1/4-20unc-2a X 1-1/4 Lg Stl Zinc Pltd. Fans And Motors, Securing 32
021-03749-000 Scr Mach Rd Ph 1/4-20unc-2a X 1-1/4 Lg Stl Zinc Pltd. Fasteners for Solution Units 9
021-05146-000 Wash, Flt 9/16 ID X 1-3/8 OD .109 Thk Stl Zinc Plated Fans And Motors, Securing 32
021-05146-000 Wash, Flt 9/16 ID X 1-3/8 OD .109 Thk Stl Zinc Plated Fasteners for Solution Units 9
021-08388-000 Scr, Hex 1/2-13unc-2a X 1” Stl Zinc Pltd, Sae J429 Fasteners for Solution Units 9
021-08388-000 Bolt, 1/2”-13 Shell Components 35
021-08394-000 Scr, Hex Cap 5/16-18 X 3/4 Lg Stl Zinc Pltd Fasteners for Solution Units 9
021-08395-000 Scr, Cap Hex 3/8 - 16 unc - 2a X 0.75, Stl Zinc Pltd Fasteners for Solution Units 9
021-09983-000 Wash, Flt 3/8 ID X 7/8 OD 0.083 Thk Stl Zinc Plated,ansi B27.2,
Std C-48 Fasteners for Solution Units 9
021-10186-000 Lock Washer Spg Helical 1/4, Steel Fasteners for Solution Units 9
021-11645-000 Nut, Ret 3/8-16.162/.210 .162 - .210 Panel Range, Std. C-77 Fasteners for Solution Units 9
021-12656-000 Nut Hex 3/4-10 Hvy Stl Zinc Ctd Asa B18 Fans And Motors, Securing 32
021-12656-000 Nut Hex 3/4-10 Hvy Stl Zinc Ctd Asa B18 Fasteners for Solution Units 9
021-12917-000 Scr, Tap Ty B Hex 5/16 X 3/4 5/16 Dia X 3/4 Lg Stl Cd Pl Fasteners for Solution Units 9
021-13291-000 Nut Ret 1/4-20 0125-0.156 Panel Range, Std. C-77 Fasteners for Solution Units 9
021-13734-000 Scr, Tap Ty F Pan 1/4 X 1/2 Lg Stl Zinc Pltd Fasteners for Solution Units 9
021-13830-000 Scr Hex Cap 3/4-10 X 2-1/2, Stl Zinc Pltd Fans And Motors, Securing 32
021-13830-000 Scr Hex Cap 3/4-10 X 2-1/2, Stl Zinc Pltd Fasteners for Solution Units 9
021-13863-000 Scr, Tap Self Drill 10-24 X 1/2 Hd #10-24 X 1/2 Lg Style 3
Shakeproof # 621-100880-00-0251t,stl,zinc Pltd Fasteners for Solution Units 9
021-13911-000 Scr, Tap Type B Hex 3/8 X 3/4 Stl Zinc Pltd. Fasteners for Solution Units 9
021-15802-000 Wash Flt 13/16 ID X 1-3/4 OD X 0.134 Thk Stl Zinc Fans And Motors, Securing 32
021-15802-000 Wash Flt 13/16 ID X 1-3/4 OD X 0.134 Thk Stl Zinc Fasteners for Solution Units 9
021-16151-000 Lock Washer Spg Helical 1/4, Steel Fans And Motors, Securing 32
021-16151-000 Lock Washer Spg Helical 1/4, Steel Fasteners for Solution Units 9
021-17212-000 Screw,hex Hd Cap,1/4-20x1-1/2”, Full Thread, Zinc Plated Fasteners for Solution Units 9
021-17711-000 Rivet, Pop, 1/8”x1/4” Grip Fasteners for Solution Units 9
021-17717-000 Nut, Hex Lk 3/8-16, Zinc Plated Fasteners for Solution Units 9
021-17718-000 Nut Hex 1/4 - 20 unc - 2b Fans And Motors, Securing 32
021-17718-000 Nut Hex 1/4 - 20 unc - 2b Fasteners for Solution Units 9
021-17722-000 Scr, Tap Ty A Ph 14-10 1/4 X3/4 Pan Head, Phillips (#1), Type A,
Zinc Plated Fasteners for Solution Units 9
021-17722-000 Screw, Pan Head, 1/4” X 3/4” Shell Components 35
021-17728-000 Scr Hex 1/2-13unc-2a X 1.75” Sae J429 Fans And Motors, Securing 32
021-17728-000 Scr Hex 1/2-13unc-2a X 1.75”, Stl Zinc Pltd, Sae J429 Fasteners for Solution Units 9
021-17728-000 Bolt, 1/2”-13 Shell Components 35
021-17728-000 Scr Hex 1/2-13unc-2a X 1.75” Sae J429 Splice & Split Baserail Kits 36
021-17728-000 Scr Hex 1/2-13unc-2a X 1.75” Sae J429 Splice & Split Baserail Kits 36
021-17728-000 Scr Hex 1/2-13unc-2a X 1.75” Sae J429 Splice & Split Baserail Kits 36
021-17728-000 Scr Hex 1/2-13unc-2a X 1.75” Sae J429 Splice & Split Baserail Kits 36
021-17728-000 Scr Hex 1/2-13unc-2a X 1.75” Sae J429 Splice & Split Baserail Kits 36
021-19305-016 Screw, 3/8”-16 Shell Components 35
69
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
021-19305-016 Screw, Cap Hex 3/8 - 16 unc - 2a X 1.0, Zinc Plated Grade 5 Splice & Split Raceway Kits 37
021-19307-000 Nut Hex Lk 3/8-16 Zinc Plated Fans And Motors, Securing 32
021-19307-000 Hex Nut, Lock, 3/8”-16 Shell Components 35
021-19307-000 Nut, Hex Lk 3/8-16 Zinc Plated Thrust Restraint Kits 18
021-19307-010 Nut, Hex 3/8-16, Zinc Plated Fasteners for Solution Units 9
021-19515-000 Screw, Self-drilling: 1/4 - 14 Un X 3/4 Lg, Stl Zinc Plated Fasteners for Solution Units 10
021-19515-000 Screw, Self-Drilling: 1/4 - 14 Un X 3/4 Lg, Zinc Plated Thrust Restraint Kits 18
021-19556-000 Scr, Hex 1/2-13unc-2a X 9” Stl Zinc Pltd, Sae J429, All Thread,
Or Equal Fasteners for Solution Units 10
021-19558-000 Block, Motor Base, 1/2-13 & 3/8-16 Thru Holes Fasteners for Solution Units 10
021-19559-000 Scr, Cap Hex 3/8 - 16 unc - 2a X 5.0, Stl Zinc Plated Fasteners for Solution Units 10
021-19560-000 Scr,1/4-14x1,phil Pan Self Drill Fasteners for Solution Units 10
021-19567-000 Plug, Steel Finishing To Fit 3/4” ID Hole Fasteners for Solution Units 10
021-19568-000 Plug, Steel Finishing To Fit 1-1/2” Hole Fasteners for Solution Units 10
021-19568-000 Steel Finishing Plug To Fit 1-1/2” Hole, (Not Shown) Splice & Split Raceway Kits 37
021-19570-000 Screw, Hex Socket Button Head, 3/8 -16 X 3/4, Stl Zinc Plated Fasteners for Solution Units 10
021-19570-000 Bolt, 3/8” X 3/4” Shell Components 35
021-19570-000 Screw, Hex Socket Button Head, 3/8 -16 X 3/4,stl Zinc Pltd,grade
5Splice & Split Raceway Kits 37
021-19571-000 Wash Lk Th Int 3/4 Stl Zinc Pltd., Std. C-76 Fans And Motors, Securing 32
021-19571-000 Wash Lk Th Int 3/4 Stl Zinc Pltd., Std. C-76 Fasteners for Solution Units 10
021-19579-000 Nut, Rivet Knurled, #10-31, Stl Zinc Pltd Fasteners for Solution Units 10
021-19580-000 Nut, Rivet Knurled, 3/8-16, Stl Zinc Pltd Fasteners for Solution Units 10
021-19581-000 Scr, Cap Hex 3/8 - 16 unc - 2a X 2.5, Stl Zinc Pltd Fasteners for Solution Units 10
021-19582-000 Scr, Pan Hd Phlps, Mach, #10-32 X 1/2 Lg, Stl Zinc Pltd, With
Captive Internal Tooth Washer Fasteners for Solution Units 10
021-19585-000 Screw, 1/4”-14 X 1”, Phillips Pan Hd., Self Driller w/washer, Zinc
w/epdm .25 Fasteners for Solution Units 10
021-19586-000 Nut, Hex 3/8-16, Zinc Plated Fasteners for Solution Units 10
021-19586-000 Nut, Hex 3/8-16, Zinc Plated Shell Components 35
021-19587-000 Rivet, Pop, 3/16”x3/8” Grip, Stl Zinc Pltd Fasteners for Solution Units 10
021-19750-000 Screw, Bh, Hex Socket Shell Components 35
024-14920-000 Mtr 50hp 200/208-3-60 Odp High 1800rpm Baldor M2543t-8 Fan Motors 22
024-23174-000 Mtr 1.5hp 200/208-3-60 Odp High 1800rpm Baldor M3154t-8 Fan Motors 22
024-23189-000 Mtr 2hp 230/460-3-60 Odp High 1800rpm Baldor M3157t Fan Motors 22
024-23191-000 Mtr 30hp 230/460-3-60 Odp High 1800rpm Baldor M2535t Fan Motors 22
024-23195-000 Mtr 40hp 230/460-3-60 Odp High 1800rpm Baldor M2539t Fan Motors 22
024-23196-000 Mtr 50hp 230/460-3-60 Odp High 1800rpm Baldor M2543t Fan Motors 22
024-23197-000 Mtr 60hp 230/460-3-60 Odp High 1800rpm Baldor M2547t Fan Motors 22
024-23914-000 Mtr 3hp 230/460-3-60 Tefc High 1800rpm Baldor M3611t Fan Motors 22
024-23915-000 Mtr 5hp 230/460-3-60 Tefc High 1800rpm Baldor M3615t Fan Motors 22
024-23916-000 Mtr 7.5hp 230/460-3-60 Tefc High 1800rpm Baldor M3710t Fan Motors 22
024-23917-000 Mtr 10hp 230/460-3-60 Tefc High 1800rpm Baldor M3714t Fan Motors 22
024-23918-000 Mtr 15hp 230/460-3-60 Tefc High 1800rpm Baldor M2333t Fan Motors 22
024-23919-000 Mtr 20hp 230/460-3-60 Tefc High 1800rpm Baldor M2334t Fan Motors 22
024-23920-000 Mtr 25hp 230/460-3-60 Tefc High 1800rpm Baldor M4103t Fan Motors 22
024-23921-000 Mtr 3hp 200/208-3-60 Tefc High 1800rpm Baldor M3611t-8 Fan Motors 22
024-23922-000 Mtr 5hp 200/208-3-60 Tefc High 1800rpm Baldor M3615t-8 Fan Motors 22
024-23923-000 Mtr 7.5hp 200/208-3-60 Tefc High 1800rpm Baldor M3710t-8 Fan Motors 22
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
70
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
024-23924-000 Mtr 10hp 200/208-3-60 Tefc High 1800rpm Baldor M3714t-8 Fan Motors 22
024-23925-000 Mtr 15hp 200/208-3-60 Tefc High 1800rpm Baldor M2333t-8 Fan Motors 22
024-23928-000 Mtr 3hp 230/460-3-60 Odp High 1800rpm Baldor M3211t Fan Motors 22
024-23929-000 Mtr 5hp 230/460-3-60 Odp High 1800rpm Baldor M3218t Fan Motors 22
024-23930-000 Mtr 7.5hp 230/460-3-60 Odp High 1800rpm Baldor M3311t Fan Motors 22
024-23931-000 Mtr 10hp 230/460-3-60 Odp High 1800rpm Baldor M3313t Fan Motors 22
024-23932-000 Mtr 15hp 230/460-3-60 Odp High 1800rpm Baldor M2513t Fan Motors 22
024-23933-000 Mtr 20hp 230/460-3-60 Odp High 1800rpm Baldor M2515t Fan Motors 22
024-23934-000 Mtr 25hp 230/460-3-60 Odp High 1800rpm Baldor M2531t Fan Motors 22
024-23935-000 Mtr 3hp 200/208-3-60 Odp High 1800rpm Baldor M3211t-8 Fan Motors 22
024-23936-000 Mtr 5hp 200/208-3-60 Odp High 1800rpm Baldor M3218t-8 Fan Motors 22
024-23937-000 Mtr 7.5hp 200/208-3-60 Odp High 1800rpm Baldor M3311t-8 Fan Motors 22
024-23938-000 Mtr 10hp 200/208-3-60 Odp High 1800rpm Baldor M3313t-8 Fan Motors 22
024-23939-000 Mtr 15hp 200/208-3-60 Odp High 1800rpm Baldor M2513t-8 Fan Motors 22
024-23940-000 Mtr 20hp 200/208-3-60 Odp High 1800rpm Baldor M2515t-8 Fan Motors 22
024-23941-000 Mtr 25hp 200/208-3-60 Odp High 1800rpm Baldor M2531t-8 Fan Motors 22
024-26203-000 Mtr 3hp 380-3-50 Odp High 1500rpm Baldor M3211t-50 Fan Motors 22
024-26204-000 Mtr 5hp 380-3-50 Odp High 1500rpm Baldor M3218t-50 Fan Motors 22
024-26205-000 Mtr 7.5hp 380-3-50 Odp High 1500rpm Baldor M3311t-50 Fan Motors 22
024-26221-000 Mtr 10hp 380-3-50 Tefc High 1500rpm Baldor M3714t-50 Fan Motors 22
024-26252-000 Mtr 15hp 380-3-50 Tefc High 1500rpm Baldor M2333t-50 Fan Motors 22
024-26261-000 Mtr 1hp 200/208-3-60 Odp High 1800rpm Baldor M3116t-8 Fan Motors 22
024-26262-000 Mtr 1hp 230/460-3-60 Odp High 1800rpm Baldor M3116t Fan Motors 22
024-26263-000 Mtr 1.5hp 230/460-3-60 Odp High 1800rpm Baldor M3154t Fan Motors 22
024-26264-000 Mtr 2hp 200/208-3-60 Odp High 1800rpm Baldor M3157t-8 Fan Motors 22
024-26265-000 Mtr 30hp 200/208-3-60 Odp High 1800rpm Baldor M2535t-8 Fan Motors 22
024-26266-000 Mtr 40hp 200/208-3-60 Odp High 1800rpm Baldor M2539t-8 Fan Motors 22
024-26267-000 Mtr 75hp 230/460-3-60 Odp High 1800rpm Baldor M2551t Fan Motors 22
024-26268-000 Mtr 100hp 230/460-3-60 Odp High 1800rpm Baldor M2555t Fan Motors 22
024-26271-000 Mtr 30hp 200/208-3-60 Tefc High 1800rpm Baldor M4104t-8 Fan Motors 22
024-26276-000 Mtr 1hp 200/208-3-60 Tefc High 1800rpm Baldor M3546t-8 Fan Motors 23
024-26277-000 Mtr 1hp 230/460-3-60 Tefc High 1800rpm Baldor M3546t Fan Motors 23
024-26278-000 Mtr 1.5hp 200/208-3-60 Tefc High 1800rpm Baldor M3554t-8 Fan Motors 23
024-26279-000 Mtr 1.5hp 230/460-3-60 Tefc High 1800rpm Baldor M3554t Fan Motors 23
024-26280-000 Mtr 2hp 200/208-3-60 Tefc High 1800rpm Baldor M3558t-8 Fan Motors 23
024-26281-000 Mtr 2hp 230/460-3-60 Tefc High 1800rpm Baldor M3558t Fan Motors 23
024-26282-000 Mtr 30hp 230/460-3-60 Tefc High 1800rpm Baldor M4104t Fan Motors 23
024-26283-000 Mtr 40hp 230/460-3-60 Tefc High 1800rpm Baldor M4110t Fan Motors 23
024-26284-000 Mtr 50hp 230/460-3-60 Tefc High 1800rpm Baldor M4115t Fan Motors 23
024-26285-000 Mtr 60hp 230/460-3-60 Tefc High 1800rpm Baldor M4314t Fan Motors 23
024-26286-000 Mtr 75hp 230/460-3-60 Tefc High 1800rpm Baldor M4316t Fan Motors 23
024-26287-000 Mtr 100hp 230/460-3-60 Tefc High 1800rpm Baldor M4400t Fan Motors 23
024-27005-000 Mtr 1hp 575-3-60 Odp High 1800rpm Baldor M3116t-5 Fan Motors 23
024-27006-000 Mtr 1.5hp 575-3-60 Odp High 1800rpm Baldor M3154t-5 Fan Motors 23
024-27007-000 Mtr 2hp 575-3-60 ODP High 1800rpm Baldor M3157t-5 Fan Motors 23
024-27008-000 Mtr 3hp 575-3-60 ODP High 1800rpm Baldor M3211t-5 Fan Motors 23
024-27009-000 Mtr 5hp 575-3-60 ODP High 1800rpm Baldor M3218t-5 Fan Motors 23
024-27010-000 Mtr 7.5hp 575-3-60 ODP High 1800rpm Baldor M3311t-5 Fan Motors 23
71
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
024-27011-000 Mtr 10hp 575-3-60 ODP High 1800rpm Baldor M3313t-5 Fan Motors 23
024-27012-000 Mtr 15hp 575-3-60 ODP High 1800rpm Baldor M2513t-5 Fan Motors 23
024-27013-000 Mtr 20hp 575-3-60 ODP High 1800rpm Baldor M2515t-5 Fan Motors 23
024-27014-000 Mtr 25hp 575-3-60 ODP High 1800rpm Baldor M2531t-5 Fan Motors 23
024-27015-000 Mtr 30hp 575-3-60 ODP High 1800rpm Baldor M2535t-5 Fan Motors 23
024-27016-000 Mtr 40hp 575-3-60 ODP High 1800rpm Baldor M2539t-5 Fan Motors 23
024-27017-000 Mtr 50hp 575-3-60 ODP High 1800rpm Baldor M2543t-5 Fan Motors 23
024-27018-000 Mtr 60hp 575-3-60 ODP High 1800rpm Baldor M2547t-5 Fan Motors 23
024-27019-000 Mtr 75hp 575-3-60 ODP High 1800rpm Baldor M2551t-5 Fan Motors 23
024-27020-000 Mtr 100hp 575-3-60 ODP High 1800rpm Baldor M2555t-5 Fan Motors 23
024-27037-000 Mtr 1hp 575-3-60 TEFC High 1800rpm Baldor M3546t-5 Fan Motors 23
024-27038-000 Mtr 1.5hp 575-3-60 TEFC High 1800rpm Baldor M3554t-5 Fan Motors 23
024-27039-000 Mtr 2hp 575-3-60 TEFC High 1800rpm Baldor M3558t-5 Fan Motors 23
024-27040-000 Mtr 3hp 575-3-60 TEFC High 1800rpm Baldor M3611t-5 Fan Motors 23
024-27041-000 Mtr 5hp 575-3-60 TEFC High 1800rpm Baldor M3615t-5 Fan Motors 23
024-27042-000 Mtr 7.5hp 575-3-60 TEFC High 1800rpm Baldor M3710t-5 Fan Motors 23
024-27043-000 Mtr 10hp 575-3-60 TEFC High 1800rpm Baldor M3714t-5 Fan Motors 23
024-27044-000 Mtr 15hp 575-3-60 TEFC High 1800rpm Baldor M2333t-5 Fan Motors 23
024-27045-000 Mtr 20hp 575-3-60 TEFC High 1800rpm Baldor M2334t-5 Fan Motors 23
024-27046-000 Mtr 25hp 575-3-60 TEFC High 1800rpm Baldor M4103t-5 Fan Motors 23
024-27047-000 Mtr 30hp 575-3-60 TEFC High 1800rpm Baldor M4104t-5 Fan Motors 23
024-27048-000 Mtr 40hp 575-3-60 TEFC High 1800rpm Baldor M4110t-5 Fan Motors 23
024-27049-000 Mtr 50hp 575-3-60 TEFC High 1800rpm Baldor M4115t-5 Fan Motors 23
024-27050-000 Mtr 60hp 575-3-60 TEFC High 1800rpm Baldor M4314t-5 Fan Motors 23
024-27051-000 Mtr 75hp 575-3-60 TEFC High 1800rpm Baldor M4316t-5 Fan Motors 23
024-27052-000 Mtr 100hp 575-3-60 TEFC High 1800rpm Baldor M4400t-5 Fan Motors 23
024-27054-000 Mtr 3hp 200/208-3-60 Odp Prem 1800rpm Baldor Em3211t-8 Fan Motors 23
024-27055-000 Mtr 3hp 460-3-60 Odp Prem 1800rpm Baldor Em3211t Fan Motors 23
024-27055-000 Mtr 3hp 230/460-3-60 Odp Prem 1800rpm Baldor Em3211t Fan Motors 23
024-27056-000 Mtr 5hp 200/208-3-60 Odp Prem 1800rpm Baldor Em3218t-8 Fan Motors 24
024-27057-000 Mtr 5hp 230/460-3-60 Odp Prem 1800rpm Baldor Em3218t Fan Motors 24
024-27058-000 Mtr 7.5hp 200/208-3-60 Odp Prem 1800rpm Baldor Em3311t-8 Fan Motors 24
024-27059-000 Mtr 7.5hp 230/460-3-60 Odp Prem 1800rpm Baldor Em3311t Fan Motors 24
024-27060-000 Mtr 10hp 200/208-3-60 Odp Prem 1800rpm Baldor Em3313t-8 Fan Motors 24
024-27062-000 Mtr 10hp 230/460-3-60 Odp Prem 1800rpm Baldor Em3313t Fan Motors 24
024-27063-000 Mtr 15hp 200/208-3-60 Odp Prem 1800rpm Baldor Em2513t-8 Fan Motors 24
024-27064-000 Mtr 15hp 230/460-3-60 Odp Prem 1800rpm Baldor Em2513t Fan Motors 24
024-27065-000 Mtr 20hp 200/208-3-60 Odp Prem 1800rpm Baldor Em2515t-8 Fan Motors 24
024-27066-000 Mtr 20hp 230/460-3-60 Odp Prem 1800rpm Baldor Em2515t Fan Motors 24
024-27067-000 Mtr 25hp 200/208-3-60 Odp Prem 1800rpm Baldor Em2531t-8 Fan Motors 24
024-27068-000 Mtr 25hp 230/460-3-60 Odp Prem 1800rpm Baldor Em2531t Fan Motors 24
024-27069-000 Mtr 30hp 200/208-3-60 Odp Prem 1800rpm Baldor Em2535t-8 Fan Motors 24
024-27070-000 Mtr 30hp 230/460-3-60 Odp Prem 1800rpm Baldor Em2535t Fan Motors 24
024-27071-000 Mtr 40hp 200/208-3-60 Odp Prem 1800rpm Baldor Em2539t-8 Fan Motors 24
024-27072-000 Mtr 40hp 230/460-3-60 Odp Prem 1800rpm Baldor Em2539t Fan Motors 24
024-27073-000 Mtr 50hp 200/208-3-60 Odp Prem 1800rpm Baldor Em2543t-8 Fan Motors 24
024-27074-000 Mtr 50hp 230/460-3-60 Odp Prem 1800rpm Baldor Em2543t Fan Motors 24
024-27075-000 Mtr 60hp 200/208-3-60 Odp Prem 1800rpm Baldor Em2547t-8 Fan Motors 24
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
72
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
024-27076-000 Mtr 60hp 230/460-3-60 Odp Prem 1800rpm Baldor Em2547t Fan Motors 24
024-27077-000 Mtr 75hp 200/208-3-60 Odp Prem 1800rpm Baldor Em2551t-8 Fan Motors 24
024-27078-000 Mtr 75hp 230/460-3-60 Odp Prem 1800rpm Baldor Em2551t Fan Motors 24
024-27079-000 Mtr 100hp 200/208-3-60 Odp Prem 1800rpm Baldor Em2555t-8 Fan Motors 24
024-27080-000 Mtr 100hp 460-3-60 Odp Prem 1800rpm Baldor Em2555t-4 Fan Motors 24
024-27081-000 Mtr 3hp 200/208-3-60 TEFC Prem 1800rpm Baldor Em3661t-8 Fan Motors 24
024-27082-000 Mtr 3hp 230/460-3-60 TEFC Prem 1800rpm Baldor Em3611t Fan Motors 24
024-27083-000 Mtr 5hp 200/208-3-60 TEFC Prem 1800rpm Baldor Em3665t-8 Fan Motors 24
024-27084-000 Mtr 5hp 230/460-3-60 TEFC Prem 1800rpm Baldor Em3615t Fan Motors 24
024-27085-000 Mtr 7.5hp 200/208-3-60 TEFC Prem 1800rpm Baldor Em3770t-8 Fan Motors 24
024-27086-000 Mtr 7.5hp 230/460-3-60 TEFC Prem 1800rpm Baldor Em3710t Fan Motors 24
024-27087-000 Mtr 10hp 200/208-3-60 TEFC Prem 1800rpm Baldor Em3774t-8 Fan Motors 24
024-27088-000 Mtr 10hp 230/460-3-60 TEFC Prem 1800rpm Baldor Em3714t Fan Motors 24
024-27089-000 Mtr 15hp 200/208-3-60 TEFC Prem 1800rpm Baldor Em2333t-8 Fan Motors 24
024-27090-000 Mtr 15hp 230/460-3-60 TEFC Prem 1800rpm Baldor Em2333t Fan Motors 24
024-27097-000 Mtr 20hp 200/208-3-60 TEFC Prem 1800rpm Baldor Em2334t-8 Fan Motors 24
024-27098-000 Mtr 20hp 230/460-3-60 TEFC Prem 1800rpm Baldor Em2334t Fan Motors 24
024-27099-000 Mtr 25hp 200/208-3-60 TEFC Prem 1800rpm Baldor Em4103t-8 Fan Motors 24
024-27300-000 Mtr 25hp 230/460-3-60 TEFC Prem 1800rpm Baldor Em4103t Fan Motors 24
024-27301-000 Mtr 30hp 230/460-3-60 TEFC Prem 1800rpm Baldor Em4104t Fan Motors 24
024-27302-000 Mtr 40hp 230/460-3-60 TEFC Prem 1800rpm Baldor Em4110t Fan Motors 24
024-27303-000 Mtr 50hp 230/460-3-60 TEFC Prem 1800rpm Baldor Em4115t Fan Motors 24
024-27304-000 Mtr 60hp 230/460-3-60 TEFC Prem 1800rpm Baldor Em4314t Fan Motors 24
024-27305-000 Mtr 75hp 230/460-3-60 TEFC Prem 1800rpm Baldor Em4316t Fan Motors 24
024-27306-000 Mtr 100hp 460-3-60 TEFC Prem 1800rpm Baldor Ecp4400t-4 Fan Motors 24
024-27307-000 Mtr 1hp 575-3-60 TEFC Prem 1800rpm Baldor Em3546t-5 Fan Motors 24
024-27308-000 Mtr 1.5hp 575-3-60 TEFC Prem 1800rpm Baldor Em3554t-5 Fan Motors 24
024-27309-000 Mtr 2hp 575-3-60 TEFC Prem 1800rpm Baldor Em3558t-5 Fan Motors 24
024-27310-000 Mtr 3hp 575-3-60 TEFC Prem 1800rpm Baldor Em3611t-5 Fan Motors 25
024-27311-000 Mtr 5hp 575-3-60 TEFC Prem 1800rpm Baldor Em3615t-5 Fan Motors 25
024-27312-000 Mtr 7.5hp 575-3-60 TEFC Prem 1800rpm Baldor Em3710t-5 Fan Motors 25
024-27313-000 Mtr 10hp 575-3-60 TEFC Prem 1800rpm Baldor. Em3714t-5 Fan Motors 25
024-27314-000 Mtr 15hp 575-3-60 TEFC Prem 1800rpm Baldor Em2333t-5 Fan Motors 25
024-27316-000 Mtr 25hp 575-3-60 TEFC Prem 1800rpm Baldor Ecp4103t-5 Fan Motors 25
024-34400-000 Mtr 1hp 230/460-3-60 ODP Prem 1800rpm Baldor Em3116t Fan Motors 25
024-34402-000 Mtr 1hp 575-3-60 ODP Prem 1800rpm Baldor Em3116t-5 Fan Motors 25
024-34403-000 Mtr 1hp 200/208-3-60 ODP Prem 1800rpm Baldor Em3116t-8 Fan Motors 25
024-34404-000 Mtr 1hp 230/460-3-60 TEFC Prem 1800rpm Baldor Em3546t Fan Motors 25
024-34406-000 Mtr 1hp 200/208-3-60 TEFC Prem 1800rpm Baldor Em3546t-8 Fan Motors 25
024-34407-000 Mtr 2hp 230/460-3-60 ODP Prem 1800rpm Baldor Em3157t Fan Motors 25
024-34409-000 Mtr 2hp 575-3-60 ODP Prem 1800rpm Baldor Em3157t-5 Fan Motors 25
024-34410-000 Mtr 2hp 200/208-3-60 ODP Prem 1800rpm Baldor Em3157t-8 Fan Motors 25
024-34411-000 Mtr 2hp 230/460-3-60 TEFC Prem 1800rpm Baldor Em3558t Fan Motors 25
024-34413-000 Mtr 2hp 200/208-3-60 TEFC Prem 1800rpm Baldor Em3558t-8 Fan Motors 25
024-34414-000 Mtr 3hp 575-3-60 ODP Prem 1800rpm Baldor Em3211t-5 Fan Motors 25
024-34415-000 Mtr 5hp 575-3-60 ODP Prem 1800rpm Baldor Em3218t-5 Fan Motors 25
024-34416-000 Mtr 7.5hp 575-3-60 ODP Prem 1800rpm Baldor Em3311t-5 Fan Motors 25
024-34417-000 Mtr 10hp 575-3-60 ODP Prem 1800rpm Baldor Em3313t-5 Fan Motors 25
73
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
024-34419-000 Mtr 1.5hp 230/460-3-60 ODP Prem 1800rpm Baldor Em3154t Fan Motors 25
024-34420-000 Mtr 1.5hp 575-3-60 ODP Prem 1800rpm Baldor Em3154t-5 Fan Motors 25
024-34421-000 Mtr 1.5hp 200/208-3-60 ODP Prem 1800rpm Baldor Em3154t-8 Fan Motors 25
024-34423-000 Mtr 1.5hp 230/460-3-60 TEFC Prem 1800rpm Baldor Em3554t Fan Motors 25
024-34424-000 Mtr 1.5hp 200/208-3-60 TEFC Prem 1800rpm Baldor Em3554t-8 Fan Motors 25
024-34425-000 Mtr 15hp 575-3-60 ODP Prem 1800rpm Baldor Em2513t-5 Fan Motors 25
024-34426-000 Mtr 20hp 200/208-3-60 TEFC High 1800rpm Baldor M2334t-8 Fan Motors 25
024-34427-000 Mtr 20hp 575-3-60 ODP Prem 1800rpm Baldor Em2515t-5 Fan Motors 25
024-34428-000 Mtr 20hp 575-3-60 TEFC Prem 1800rpm Baldor Ecp2334t-5 Fan Motors 25
024-34429-000 Mtr 25hp 200/208-3-60 TEFC High 1800rpm Baldor M4103t-8 Fan Motors 25
024-34430-000 Mtr 25hp 575-3-60 ODP Prem 1800rpm Baldor Em2531t-5 Fan Motors 25
024-34431-000 Mtr 30hp 575-3-60 ODP Prem 1800rpm Baldor Em2535t-5 Fan Motors 25
024-34432-000 Mtr 30hp 575-3-60 TEFC Prem 1800rpm Baldor Ecp4104t-5 Fan Motors 25
024-34433-000 Mtr 30hp 200/208-3-60 TEFC Prem 1800rpm Baldor Em4104t-8 Fan Motors 25
024-34434-000 Mtr 40hp 200/208-3-60 TEFC High 1800rpm Baldor M4110t-8 Fan Motors 25
024-34435-000 Mtr 40hp 575-3-60 ODP Prem 1800rpm Baldor Em2539t-5 Fan Motors 25
024-34436-000 Mtr 40hp 575-3-60 TEFC Prem 1800rpm Baldor Ecp4110t-5 Fan Motors 25
024-34437-000 Mtr 40hp 200/208-3-60 TEFC Prem 1800rpm Baldor Em4110t-8 Fan Motors 25
024-34438-000 Mtr 50hp 200/208-3-60 TEFC High 1800rpm Baldor M4115t-8 Fan Motors 25
024-34439-000 Mtr 50hp 575-3-60 ODP Prem 1800rpm Baldor Em2543t-5 Fan Motors 25
024-34440-000 Mtr 50hp 575-3-60 TEFC Prem 1800rpm Baldor Ecp4115t-5 Fan Motors 25
024-34441-000 Mtr 50hp 200/208-3-60 TEFC Prem 1800rpm Baldor Em4115t-8 Fan Motors 25
024-34442-000 Mtr 60hp 200/208-3-60 ODP High 1800rpm Baldor M2547t-8 Fan Motors 25
024-34443-000 Mtr 60hp 200/208-3-60 TEFC High 1800rpm Baldor Custom Fan Motors 25
024-34444-000 Mtr 60hp 575-3-60 ODP Prem 1800rpm Baldor Em2547t-5 Fan Motors 25
024-34445-000 Mtr 60hp 200/208-3-60 TEFC Prem 1800rpm Baldor Custom Fan Motors 25
024-34446-000 Mtr 60hp 575-3-60 TEFC Prem 1800rpm Baldor Ecp4314t-5 Fan Motors 25
024-34447-000 Mtr 75hp 200/208-3-60 ODP High 1800rpm Baldor M2551t-8 Fan Motors 26
024-34448-000 Mtr 75hp 200/208-3-60 TEFC High 1800rpm Baldor Custom Fan Motors 26
024-34449-000 Mtr 75hp 575-3-60 ODP Prem 1800rpm Baldor 44wgw126 Fan Motors 26
024-34450-000 Mtr 75hp 200/208-3-60 TEFC Prem 1800rpm Baldor Custom Fan Motors 26
024-34451-000 Mtr 75hp 575-3-60 TEFC Prem 1800rpm Baldor Ecp4316t-5 Fan Motors 26
024-34452-000 Mtr 100hp 200/208-3-60 ODP High 1800rpm Baldor M2555t-8 Fan Motors 26
024-34453-000 Mtr 100hp 200/208-3-60 TEFC High 1800rpm Baldor Custom Fan Motors 26
024-34454-000 Mtr 100hp 230/460-3-60 ODP Prem 1800rpm Baldor 16wgw559 Fan Motors 26
024-34455-000 Mtr 100hp 575-3-60 ODP Prem 1800rpm Baldor 16wgw614 Fan Motors 26
024-34456-000 Mtr 100hp 200/208-3-60 TEFC Prem 1800rpm Baldor Custom Fan Motors 26
024-34457-000 Mtr 100hp 230/460-3-60 TEFC Prem 1800rpm Baldor Custom Fan Motors 26
024-34458-000 Mtr 100hp 575-3-60 TEFC Prem 1800rpm Baldor Ecp4400t-5 Fan Motors 26
024-34459-000 Mtr 1hp 380-3-50 TEFC High 1500rpm Baldor M3546t-50 Fan Motors 26
024-34460-000 Mtr 1hp 380-3-50 ODP High 1500rpm Baldor M3116t-50 Fan Motors 26
024-34461-000 Mtr 1.5hp 380-3-50 ODP High 1500rpm Baldor M3154t-50 Fan Motors 26
024-34462-000 Mtr 2hp 380-3-50 ODP High 1500rpm Baldor M3157t-50 Fan Motors 26
024-34463-000 Mtr 5hp 380-3-50 TEFC High 1500rpm Baldor M3615t-50 Fan Motors 26
024-34464-000 Mtr 7.5hp 380-3-50 TEFC High 1500rpm Baldor M3710t-50 Fan Motors 26
024-34466-000 Mtr 10hp 380-3-50 ODP High 1500rpm Baldor M3313t-50 Fan Motors 26
024-34467-000 Mtr 15hp 380-3-50 ODP High 1500rpm Baldor M2513t-50 Fan Motors 26
024-34468-000 Mtr 20hp 380-3-50 ODP High 1500rpm Baldor M2515t-50 Fan Motors 26
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
74
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
024-34469-000 Mtr 25hp 380-3-50 ODP High 1500rpm Baldor 39x214 Fan Motors 26
024-34470-000 Mtr 30hp 380-3-50 ODP High 1500rpm Baldor 40w989 Fan Motors 26
024-34471-000 Mtr 40hp 380-3-50 ODP High 1500rpm Baldor 40w473 Fan Motors 26
024-34472-000 Mtr 50hp 380-3-50 ODP High 1500rpm Baldor 40w565 Fan Motors 26
024-34473-000 Mtr 60hp 380-3-50 ODP High 1500rpm Baldor 42w598 Fan Motors 26
024-34474-000 Mtr 75hp 380-3-50 ODP High 1500rpm Baldor 42w502 Fan Motors 26
024-34475-000 Mtr 100hp 380-3-50 ODP High 1500rpm Baldor 44w096 Fan Motors 26
024-34819-000 Mtr 1.5hp 380-3-50 TEFC High 1500rpm Baldor M3554t-50 Fan Motors 26
024-34820-000 Mtr 2hp 380-3-50 TEFC High 1500rpm Baldor M3558t-50 Fan Motors 26
024-34821-000 Mtr 3hp 380-3-50 TEFC High 1500rpm Baldor M3611t-50 Fan Motors 26
024-34822-000 Mtr 20hp 380-3-50 TEFC High 1500rpm Baldor M2334t-50 Fan Motors 26
024-34823-000 Mtr 25hp 380-3-50 TEFC High 1500rpm Baldor M4103t-50 Fan Motors 26
024-34824-000 Mtr 30hp 380-3-50 TEFC High 1500rpm Baldor M4104t-50 Fan Motors 26
024-34825-000 Mtr 40hp 380-3-50 TEFC High 1500rpm Baldor M4110t-50 Fan Motors 26
024-34826-000 Mtr 50hp 380-3-50 TEFC High 1500rpm Baldor M4115t-50 Fan Motors 26
024-34827-000 Mtr 60hp 380-3-50 TEFC High 1500rpm Baldor M4314t-50 Fan Motors 26
024-34828-000 Mtr 75hp 380-3-50 TEFC High 1500rpm Baldor 14x116 Fan Motors 26
024-34829-000 Mtr 100hp 380-3-50 TEFC High 1500rpm Baldor 16w740 Fan Motors 26
025-39003-001 Switch, 20 Amp Rocker, Ivory, (Light Switch Only Assembly) Electrical Replacement Parts 60
025-39003-001 Switch, 20 Amp Rocker, Ivory, (Light Switch / Receptacle
Assembly) Electrical Replacement Parts 60
025-39004-001 Receptacle, 20 Amp, Gfi , Ivory, (Light Switch / Receptacle
Assembly) Electrical Replacement Parts 60
025-39004-001 Receptacle, 20 Amp, Gfi , Ivory (Convenience Outlet), (1 Hour
Timer / Receptacle Assembly) Electrical Replacement Parts 60
025-39007-001 Cover, 1-gang, Dry Type, 1-gfi , (Receptacle Only Assembly) Electrical Replacement Parts 60
025-39007-001 Cover, 1-gang, Dry Type, 1-gfi , (Light Switch Only Assembly) Electrical Replacement Parts 60
025-39007-002 Cover, 2-gang, Dry Type, 2-gfi , Red Dot Drytite, (Light Switch /
Receptacle Assembly) Electrical Replacement Parts 60
025-39008-001 Cover, 1-gang, Red Dot, Code Keeper, 1-gfi , (1 Hour Timer Only
Assembly) Electrical Replacement Parts 60
025-39008-002 Cover, 2-gang, 2-gfi , Red Dot, Code Keeper, (1 Hour Timer /
Receptacle Assembly) Electrical Replacement Parts 60
025-39009-001 Cover, 1-gang, Dry Type, Blank, (J-box Only Assembly) Electrical Replacement Parts 60
025-39012-001 Timer, Switch, 1 Hour w/ Hold, 20 Amps @ 125 Vac, Ivory
Decorator, (1 Hour Timer Only Assembly) Electrical Replacement Parts 60
025-39012-001 Timer, Switch, 1 Hour w/ Hold, 20 Amps @ 125 Vac, Ivory
Decorator, (1 Hour Timer / Receptacle Assembly) Electrical Replacement Parts 60
025-39013-001 Light Fixture w/ Cover Light Assembly Breakdown 59
025-39014-001 Pull Switch Light Assembly Breakdown 59
025-39019-001 Light Assembly, w/o Switch, 11”lg. Light Assemblies 59
025-39019-002 Light Assembly, w/switch, 11”lg. Light Assemblies 59
025-39019-003 Light Assembly, w/o Switch, 17”lg. Light Assemblies 59
025-39019-004 Light Assembly, w/switch, 17”lg. Light Assemblies 59
025-39019-005 Light Assembly, w/o Switch, 28”lg. Light Assemblies 59
025-39019-006 Light Assembly, w/switch, 28”lg. Light Assemblies 59
025-39020-001 Harness, Panel to Wire Track, #12 ga w/Conduit, 1’ LG. Wiring-harn. Lt Assy - Pnl To Wire Track 61
025-39020-002 Harness, Panel to Wire Track, #12 ga w/Conduit, 2’ LG. Wiring-harn. Lt Assy - Pnl To Wire Track 61
025-39020-003 Harness, Panel to Wire Track, #12 ga w/Conduit, 3’ LG. Wiring-harn. Lt Assy - Pnl To Wire Track 61
025-39020-004 Harness, Panel to Wire Track, #12 ga w/Conduit, 4’ LG. Wiring-harn. Lt Assy - Pnl To Wire Track 61
025-39020-005 Harness, Panel to Wire Track, #12 ga w/Conduit, 5’ LG. Wiring-harn. Lt Assy - Pnl To Wire Track 61
75
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
025-39020-006 Harness, Panel to Wire Track, #12 ga w/Conduit, 6’ LG. Wiring-harn. Lt Assy - Pnl To Wire Track 61
025-39020-007 Harness, Panel to Wire Track, #12 ga w/Conduit, 7’ LG. Wiring-harn. Lt Assy - Pnl To Wire Track 61
025-39020-008 Harness, Panel to Wire Track, #12 ga w/Conduit, 8’ LG. Wiring-harn. Lt Assy - Pnl To Wire Track 61
025-39020-009 Harness, Panel to Wire Track, #12 ga w/Conduit, 9’ LG. Wiring-harn. Lt Assy - Pnl To Wire Track 61
025-39020-010 Harness, Panel to Wire Track, #12 ga w/Conduit, 10’ LG. Wiring-harn. Lt Assy - Pnl To Wire Track 61
025-39022-001 Harness Wiretrack, 12 ga, 3 wire, 1’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-002 Harness Wiretrack, 12 ga, 3 wire, 2’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-003 Harness Wiretrack, 12 ga, 3 wire, 3’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-004 Harness Wiretrack, 12 ga, 3 wire, 4’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-005 Harness Wiretrack, 12 ga, 3 wire, 5’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-006 Harness Wiretrack, 12 ga, 3 wire, 6’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-007 Harness Wiretrack, 12 ga, 3 wire, 7’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-008 Harness Wiretrack, 12 ga, 3 wire, 8’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-009 Harness Wiretrack, 12 ga, 3 wire, 9’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-010 Harness Wiretrack, 12 ga, 3 wire, 10’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-011 Harness Wiretrack, 12 ga, 3 wire, 11’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-012 Harness Wiretrack, 12 ga, 3 wire, 12’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-013 Harness Wiretrack, 12 ga, 3 wire, 13’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-014 Harness Wiretrack, 12 ga, 3 wire, 14’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-015 Harness Wiretrack, 12 ga, 3 wire, 15’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-016 Harness Wiretrack, 12 ga, 3 wire, 16’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-017 Harness Wiretrack, 12 ga, 3 wire, 17 LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-018 Harness Wiretrack, 12 ga, 3 wire, 18’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-019 Harness Wiretrack, 12 ga, 3 wire, 19’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39022-020 Harness Wiretrack, 12 ga, 3 wire, 20’ LG. Wiring-harnesses Light Assy - Wire Track 62
025-39042-001 Wire Connectors Motor Wiring Parts 27
025-39042-003 Wire Connectors Motor Wiring Parts 27
025-39043-001 Wire Connectors Motor Wiring Parts 27
025-39043-002 Wire Connectors Motor Wiring Parts 27
025-39043-003 Wire Connectors Motor Wiring Parts 27
025-39044-001 Wire Connectors Motor Wiring Parts 27
025-39044-002 Wire Connectors Motor Wiring Parts 27
025-39049-001 Flexible Cable Sleeves Motor Wiring Parts 27
025-39049-002 Flexible Cable Sleeves Motor Wiring Parts 27
025-39049-003 Flexible Cable Sleeves Motor Wiring Parts 27
025-39049-004 Flexible Cable Sleeves Motor Wiring Parts 27
025-39105-001 2KVA Transfomer Panel, 200-208v to 120vac Transformer Panel 64
025-39105-003 2KVA Transfomer Panel, 230v to 120vac Transformer Panel 64
025-39105-005 2KVA Transfomer Panel, 460v to 120vac Transformer Panel 64
025-39105-007 2KVA Transfomer Panel, 575v to 120vac Transformer Panel 64
026-02043-000 Filter, Throwaway, 20w x 20h x 2d, Fbrgls Filters 46
026-03617-000 Filter, Throwaway, 16w x 20h x 2d, Fbrgls Filters 46
026-10448-000 Filter, Cleanable, 16w x 20h x 2d, Alum Filters 44
026-10450-000 Filter, Cleanable, 20w x 20h x 2d, Alum Filters 44
026-21062-000 Filter, Perfectpleat, 16w x 20h x 2d, 30% Eff Filters 45
026-21063-000 Filter, Perfectpleat, 20w x 20h x 2d, 30% Eff Filters 45
026-28200-000 Filter, Pleated, 16w x 20h x 4d, 30% Eff Filters 45
026-28202-000 Filter, Pleated, 20w x 20h x 4d, 30% Eff Filters 45
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
76
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
026-32404-001 Filter, Cart, Varicel x Sh, 20w x 20h x 12d, 60-65% Filters 45
026-32404-002 Filter, Cart, Varicel x Sh, 20w x 24h x 12d, 60-65% Filters 45
026-32404-002 Filter, Cart, Varicel x Sh, 20w x 24h x 12d, 60-65% Filters 46
026-32404-003 Filter, Cart, Varicel x Sh, 20w x 20h x 12d, 80-85% Filters 45
026-32404-004 Filter, Cart, Varicel x Sh, 20w x 24h x 12d, 80-85% Filters 45
026-32404-005 Filter, Cart, Varicel x Sh, 20w x 20h x 12d, 90-95% Filters 45
026-32404-006 Filter, Cart, Varicel x Sh, 20w x 24h x 12d, 90-95% Filters 45
026-32404-006 Filter, Cart, Varicel x Sh, 20w x 24h x 12d, 90-95% Filters 46
026-32404-007 Filter, Cart, Varicel x Sh, 12w x 24h x 12d, 60-65% Filters 45
026-32404-007 Filter, Cart, Varicel x Sh, 12w x 24h x 12d, 60-65% Filters 46
026-32404-008 Filter, Cart, Varicel x Sh, 24w x 24h x 12d, 60-65% Filters 46
026-32404-009 Filter, Cart, Varicel x Sh, 12w x 24h x 12d, 80-85% Filters 45
026-32404-009 Filter, Cart, Varicel x Sh, 12w x 24h x 12d, 80-85% Filters 46
026-32404-010 Filter, Cart, Varicel x Sh, 24w x 24h x 12d, 80-85% Filters 46
026-32404-011 Filter, Cart, Varicel x Sh, 12w x 24h x 12d, 90-95% Filters 45
026-32404-011 Filter, Cart, Varicel x Sh, 12w x 24h x 12d, 90-95% Filters 46
026-32404-012 Filter, Cart, Varicel x Sh, 24w x 24h x 12d, 90-95% Filters 46
026-32404-013 Filter, Cart, Varicel x Sh, 16w x 20h x 12d, 80-85% Filters 45
026-32405-001 Filter, Bag, 20w x 20h x 22d, 60-65% Filters 42
026-32405-001 Filter, Bag, 20w x 20h x 22d, 60-65% Filters 44
026-32405-002 Filter, Bag, 20w x 24h x 22d, 60-65% Filters 42
026-32405-002 Filter, Bag, 20w x 24h x 22d, 60-65% Filters 44
026-32405-003 Filter, Bag, 24w x 12h x 22d, 60-65% Filters 43
026-32405-003 Filter, Bag, 24w x 12h x 22d, 60-65% Filters 44
026-32405-004 Filter, Bag, 20w x 20h x 22d, 80-85% Filters 42
026-32405-004 Filter, Bag, 20w x 20h x 22d, 80-85% Filters 44
026-32405-005 Filter, Bag, 20w x 24h x 22d, 80-85% Filters 42
026-32405-005 Filter, Bag, 20w x 24h x 22d, 80-85% Filters 44
026-32405-006 Filter, Bag, 24w x 12h x 22d, 80-85% Filters 43
026-32405-006 Filter, Bag, 24w x 12h x 22d, 80-85% Filters 44
026-32405-007 Filter, Bag, 20w x 20h x 22d, 90-95% Filters 42
026-32405-007 Filter, Bag, 20w x 20h x 22d, 90-95% Filters 44
026-32405-008 Filter, Bag, 20w x 24h x 22d, 90-95% Filters 42
026-32405-008 Filter, Bag, 20w x 24h x 22d, 90-95% Filters 44
026-32405-009 Filter, Bag, 24w x 12h x 22d, 90-95% Filters 43
026-32405-009 Filter, Bag, 24w x 12h x 22d, 90-95% Filters 44
026-32405-019 Filter, Bag, 12w x 24h x 22d, 60-65% Filters 42
026-32405-019 Filter, Bag, 12w x 24h x 22d, 60-65% Filters 44
026-32405-020 Filter, Bag, 24w x 24h x 22d, 60-65% Filters 42
026-32405-020 Filter, Bag, 24w x 24h x 22d, 60-65% Filters 44
026-32405-021 Filter, Bag, 12w x 24h x 22d, 80-85% Filters 42
026-32405-021 Filter, Bag, 12w x 24h x 22d, 80-85% Filters 44
026-32405-022 Filter, Bag, 24w x 24h x 22d, 80-85% Filters 42
026-32405-022 Filter, Bag, 24w x 24h x 22d, 80-85% Filters 44
026-32405-023 Filter, Bag, 12w x 24h x 22d, 90-95% Filters 42
026-32405-023 Filter, Bag, 12w x 24h x 22d, 90-95% Filters 44
026-32405-024 Filter, Bag, 24w x 24h x 22d, 90-95% Filters 43
026-32405-024 Filter, Bag, 24w x 24h x 22d, 90-95% Filters 44
77
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
026-32405-031 Filter, Bag, 24w x 20h x 22d, 60-65% Filters 42
026-32405-031 Filter, Bag, 24w x 20h x 22d, 60-65% Filters 44
026-32405-032 Filter, Bag, 24w x 20h x 22d, 80-85% Filters 42
026-32405-032 Filter, Bag, 24w x 20h x 22d, 80-85% Filters 44
026-32405-033 Filter, Bag, 24w x 20h x 22d, 90-95% Filters 42
026-32405-033 Filter, Bag, 24w x 20h x 22d, 90-95% Filters 44
026-32405-037 Filter, Bag, 16w x 20h x 22d, 60-65% Filters 42
026-32405-037 Filter, Bag, 16w x 20h x 22d, 60-65% Filters 44
026-32405-038 Filter, Bag, 16w x 20h x 22d, 80-85% Filters 42
026-32405-038 Filter, Bag, 16w x 20h x 22d, 80-85% Filters 44
026-32405-039 Filter, Bag, 16w x 20h x 22d, 90-95% Filters 42
026-32405-039 Filter, Bag, 16w x 20h x 22d, 90-95% Filters 44
026-32405-040 Filter, Bag, 20w x 16h x 22d, 60-65% Filters 42
026-32405-040 Filter, Bag, 20w x 16h x 22d, 60-65% Filters 44
026-32405-041 Filter, Bag, 20w x 16h x 22d, 80-85% Filters 42
026-32405-041 Filter, Bag, 20w x 16h x 22d, 80-85% Filters 44
026-32405-042 Filter, Bag, 20w x 16h x 22d, 90-95% Filters 42
026-32405-042 Filter, Bag, 20w x 16h x 22d, 90-95% Filters 44
026-32406-001 Filter, Perfectpleat, 12w x 24h x 2d, 30% Eff Filters 45
026-32406-002 Filter, Perfectpleat, 20w x 24h x 2d, 30% Eff Filters 45
026-32406-003 Filter, Perfectpleat, 24w x 24h x 2d, 30% Eff Filters 45
026-32406-004 Filter, Pleated, 12w x 24h x 4d, 30% Eff Filters 45
026-32406-006 Filter, Pleated, 24w x 24h x 4d, 30% Eff Filters 45
026-32406-007 Filter, Pleated, 20w x 24h x 4d, 30% Eff Filters 45
026-32406-008 Filter, Perfectpleat, 24w x 12h x 2d, 30% Eff Filters 45
026-32406-009 Filter, Perfectpleat, 24w x 20h x 2d, 30% Eff Filters 45
026-32406-010 Filter, Perfectpleat, 20w x 16h x 2d, 30% Eff Filters 45
026-32407-001 Filter, Throwaway, 12w x 24h x 2d, Fbrgls Filters 46
026-32407-002 Filter, Throwaway, 24w x 24h x 2d, Fbrgls Filters 46
026-32407-009 Filter, Throwaway, 20w x 24h x 2d, Fbrgls Filters 46
026-32408-001 Filter, Cleanable, 12w x 24h x 2d, Alum Filters 44
026-32408-002 Filter, Cleanable, 24w x 24h x 2d, Alum Filters 44
026-32408-009 Filter, Cleanable, 20w x 24h x 2d, Alum Filters 44
026-32410-008 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 80-85% Filters 43
026-32410-008 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 80-85% Filters 44
026-32410-008 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 80-85% Filters 45
026-32410-009 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 80-85% Filters 43
026-32410-009 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 80-85% Filters 44
026-32410-009 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 80-85% Filters 45
026-32410-011 Filter, Varicel, (Mini Pleated), 20w x 20h x 4d, 80-85% Filters 43
026-32410-011 Filter, Varicel, (Mini Pleated), 20w x 20h x 4d, 80-85% Filters 44
026-32410-012 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 80-85% Filters 43
026-32410-012 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 80-85% Filters 45
026-32410-014 Filter, Varicel, (Mini Pleated), 24w x 24h x 4d, 80-85% Filters 43
026-32410-014 Filter, Varicel, (Mini Pleated), 24w x 24h x 4d, 80-85% Filters 45
026-33587-001 Filter, HEPA, 24w x 12h x 11.5d Filters 42
026-33587-002 Filter, HEPA, 24w x 15h x 11.5d Filters 42
026-33587-003 Filter, HEPA, 24w x 24h x 11.5d Filters 42
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
78
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
026-33587-004 Filter, HEPA, 24w x 30h x 11.5d Filters 42
026-33587-005 Filter, HEPA, 12w x 24h x 11.5d Filters 42
026-33587-006 Filter, HEPA, 12w x 30h x 11.5d Filters 42
026-33587-007 Filter, HEPA, 30w x 12h x 11.5d Filters 42
026-33587-008 Filter, HEPA, 30w x 15h x 11.5d Filters 42
026-33587-009 Filter, HEPA, 30w x 24h x 11.5d Filters 42
026-33587-010 Filter, HEPA, 30w x 30h x 11.5d Filters 42
026-33587-101 Filter, HEPA, 24w x 12h x 11.5d Filters 42
026-33587-102 Filter, HEPA, 24w x 15h x 11.5d Filters 42
026-33587-103 Filter, HEPA, 24w x 24h x 11.5d Filters 42
026-33587-104 Filter, HEPA, 24w x 30h x 11.5d Filters 42
026-33587-105 Filter, HEPA, 12w x 24h x 11.5d Filters 42
026-33587-106 Filter, HEPA, 12w x 30h x 11.5d Filters 42
026-33587-107 Filter, HEPA, 30w x 12h x 11.5d Filters 42
026-33587-108 Filter, HEPA, 30w x 15h x 11.5d Filters 42
026-33587-109 Filter, HEPA, 30w x 24h x 11.5d Filters 42
026-33587-110 Filter, HEPA, 30w x 30h x 11.5d Filters 42
026-33782-001 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 60-65% Filters 43
026-33782-001 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 60-65% Filters 44
026-33782-001 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 60-65% Filters 45
026-33782-002 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 60-65% Filters 43
026-33782-002 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 60-65% Filters 44
026-33782-002 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 60-65% Filters 45
026-33782-005 Filter, Varicel, (Mini Pleated), 20w x 20h x 4d, 60-65% Filters 43
026-33782-005 Filter, Varicel, (Mini Pleated), 20w x 20h x 4d, 60-65% Filters 44
026-33782-006 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 60-65% Filters 43
026-33782-006 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 60-65% Filters 44
026-33782-006 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 60-65% Filters 45
026-33782-008 Filter, Varicel, (Mini Pleated), 24w x 24h x 4d, 60-65% Filters 43
026-33782-008 Filter, Varicel, (Mini Pleated), 24w x 24h x 4d, 60-65% Filters 45
026-33783-001 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 90-95% Filters 43
026-33783-001 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 90-95% Filters 44
026-33783-001 Filter, Varicel, (Mini Pleated), 12w x 24h x 4d, 90-95% Filters 45
026-33783-002 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 90-95% Filters 43
026-33783-002 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 90-95% Filters 44
026-33783-002 Filter, Varicel, (Mini Pleated), 16w x 20h x 4d, 90-95% Filters 45
026-33783-005 Filter, Varicel, (Mini Pleated), 20w x 20h x 4d, 90-95% Filters 43
026-33783-005 Filter, Varicel, (Mini Pleated), 20w x 20h x 4d, 90-95% Filters 44
026-33783-006 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 90-95% Filters 43
026-33783-006 Filter, Varicel, (Mini Pleated), 20w x 24h x 4d, 90-95% Filters 45
026-33783-008 Filter, Varicel, (Mini Pleated), 24w x 24h x 4d, 90-95% Filters 43
026-33783-008 Filter, Varicel, (Mini Pleated), 24w x 24h x 4d, 90-95% Filters 45
026-36339-000 4” Clip, Prefi lter Retainer Clip, Varicel Dh Universal Frame Latch Selection 57
026-36339-001 2” Clip, Prefi lter Retainer Clip, Varicel Dh Universal Frame Latch Selection 57
026-36340-009 Filter, Cart, Varicel x Sh, 16w x 20h x 12d, 60-65% Filters 45
026-36342-009 Filter, Cart, Varicel x Sh, 16w x 20h x 12d, 90-95% Filters 45
026-36343-000 SL-12” , Knock On Spring Latch, Varicel Dh Universal Frame Latch Selection 57
026-40200-001 Filetr, Cart, Varicel x Dh, 20w x 20h x 12d, 60-65% Filters 43
79
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
026-40200-002 Filetr, Cart, Varicel x Dh, 20w x 24h x 12d, 60-65% Filters 43
026-40200-003 Filetr, Cart, Varicel x Dh, 20w x 20h x 12d, 80-85% Filters 43
026-40200-004 Filetr, Cart, Varicel x Dh, 20w x 24h x 12d, 80-85% Filters 43
026-40200-005 Filetr, Cart, Varicel x Dh, 20w x 20h x 12d, 90-95% Filters 43
026-40200-006 Filetr, Cart, Varicel x Dh, 20w x 24h x 12d, 90-95% Filters 43
026-40200-007 Filetr, Cart, Varicel x Dh, 12w x 24h x 12d, 60-65% Filters 43
026-40200-007 Filetr, Cart, Varicel x Dh, 12w x 24h x 12d, 60-65% Filters 44
026-40200-008 Filetr, Cart, Varicel x Dh, 24w x 24h x 12d, 60-65% Filters 44
026-40200-009 Filetr, Cart, Varicel x Dh, 12w x 24h x 12d, 80-85% Filters 43
026-40200-009 Filetr, Cart, Varicel x Dh, 12w x 24h x 12d, 80-85% Filters 44
026-40200-010 Filetr, Cart, Varicel x Dh, 24w x 24h x 12d, 80-85% Filters 44
026-40200-011 Filetr, Cart, Varicel x Dh, 12w x 24h x 12d, 90-95% Filters 43
026-40200-011 Filetr, Cart, Varicel x Dh, 12w x 24h x 12d, 90-95% Filters 44
026-40200-012 Filetr, Cart, Varicel x Dh, 24w x 24h x 12d, 90-95% Filters 43
026-40200-013 Filetr, Cart, Varicel x Dh, 16w x 20h x 12d, 80-85% Filters 43
026-40200-014 Filetr, Cart, Varicel x Dh, 16w x 20h x 12d, 60-65% Filters 43
026-40200-015 Filetr, Cart, Varicel x Dh, 16w x 20h x 12d, 90-95% Filters 43
026-40824-001 Filter, HEPA, 15w x 24h x 11.5d Filters 42
026-40824-002 Filter, HEPA, 15w x 30h x 11.5d Filters 42
026-40824-101 Filter, HEPA, 15w x 24h x 11.5d Filters 42
026-40824-102 Filter, HEPA, 15w x 30h x 11.5d Filters 42
026-41366-001 Fltr,cleanable,15w_16h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-002 Fltr,cleanable,15w_17h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-004 Fltr,cleanable,15w_20h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-007 Fltr,cleanable,15w_24h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-008 Fltr,cleanable,15w_25h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-010 Fltr,cleanable,15w_27h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-011 Fltr,cleanable,16w_16h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-012 Fltr,cleanable,16w_17h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-013 Fltr,cleanable,16w_18h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-014 Fltr,cleanable,16w_19h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-015 Fltr,cleanable,16w_20h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-016 Fltr,cleanable,16w_22h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-018 Fltr,cleanable,16w_25h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-020 Fltr,cleanable,16w_28h_1d,alum OA Hood Moisture Eliminator Filters 48
026-41366-022 Fltr,cleanable,17w_17h_1d,alum OA Hood Moisture Eliminator Filters 48
026-41366-023 Fltr,cleanable,17w_19h_1d,alum OA Hood Moisture Eliminator Filters 48
026-41366-024 Fltr,cleanable,17w_20h_1d,alum OA Hood Moisture Eliminator Filters 48
026-41366-025 Fltr,cleanable,17w_21h_1d,alum OA Hood Moisture Eliminator Filters 48
026-41366-026 Fltr,cleanable,17w_22h_1d,alum OA Hood Moisture Eliminator Filters 48
026-41366-027 Fltr,cleanable,17w_23h_1d,alum OA Hood Moisture Eliminator Filters 48
026-41366-028 Fltr,cleanable,17w_24h_1d,alum OA Hood Moisture Eliminator Filters 48
026-41366-029 Fltr,cleanable,17w_25h_1d,alum OA Hood Moisture Eliminator Filters 48
026-41366-029 Fltr,cleanable,17w_25h_1d,alum OA Hood Moisture Eliminator Filters 49
026-41366-030 Fltr,cleanable,17w_26h_1d,alum OA Hood Moisture Eliminator Filters 49
026-41366-031 Fltr,cleanable,17w_27h_1d,alum OA Hood Moisture Eliminator Filters 49
026-41366-031 Fltr,cleanable,17w_27h_1d,alum OA Hood Moisture Eliminator Filters 49
026-41366-032 Fltr,cleanable,17w_28h_1d,alum OA Hood Moisture Eliminator Filters 49
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
80
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
026-41366-033 Fltr,cleanable,18w_18h_1d,alum OA Hood Moisture Eliminator Filters 49
026-41366-034 Fltr,cleanable,18w_19h_1d,alum OA Hood Moisture Eliminator Filters 49
026-41366-035 Fltr,cleanable,18w_20h_1d,alum OA Hood Moisture Eliminator Filters 49
026-41366-036 Fltr,cleanable,18w_21h_1d,alum OA Hood Moisture Eliminator Filters 49
026-41366-037 Fltr,cleanable,18w_22h_1d,alum OA Hood Moisture Eliminator Filters 49
026-41366-038 Fltr,cleanable,18w_23h_1d,alum OA Hood Moisture Eliminator Filters 49
026-41366-039 Fltr,cleanable,18w_24h_1d,alum OA Hood Moisture Eliminator Filters 49
026-41366-040 Fltr,cleanable,18w_25h_1d,alum OA Hood Moisture Eliminator Filters 49
026-41366-040 Fltr,cleanable,18w_25h_1d,alum OA Hood Moisture Eliminator Filters 50
026-41366-041 Fltr,cleanable,18w_26h_1d,alum OA Hood Moisture Eliminator Filters 50
026-41366-042 Fltr,cleanable,18w_27h_1d,alum OA Hood Moisture Eliminator Filters 50
026-41366-043 Fltr,cleanable,18w_28h_1d,alum OA Hood Moisture Eliminator Filters 50
026-41366-044 Fltr,cleanable,19w_19h_1d,alum OA Hood Moisture Eliminator Filters 50
026-41366-045 Fltr,cleanable,19w_20h_1d,alum OA Hood Moisture Eliminator Filters 50
026-41366-046 Fltr,cleanable,19w_21h_1d,alum OA Hood Moisture Eliminator Filters 50
026-41366-047 Fltr,cleanable,19w_22h_1d,alum OA Hood Moisture Eliminator Filters 50
026-41366-048 Fltr,cleanable,19w_23h_1d,alum OA Hood Moisture Eliminator Filters 50
026-41366-050 Fltr,cleanable,19w_25h_1d,alum OA Hood Moisture Eliminator Filters 50
026-41366-051 Fltr,cleanable,19w_26h_1d,alum OA Hood Moisture Eliminator Filters 50
026-41366-052 Fltr,cleanable,19w_27h_1d,alum OA Hood Moisture Eliminator Filters 51
026-41366-055 Fltr,cleanable,20w_20h_1d,alum OA Hood Moisture Eliminator Filters 51
026-41366-056 Fltr,cleanable,20w_21h_1d,alum OA Hood Moisture Eliminator Filters 51
026-41366-057 Fltr,cleanable,20w_22h_1d,alum OA Hood Moisture Eliminator Filters 51
026-41366-057 Fltr,cleanable,20w_22h_1d,alum OA Hood Moisture Eliminator Filters 51
026-41366-057 Fltr,cleanable,20w_22h_1d,alum OA Hood Moisture Eliminator Filters 51
026-41366-058 Fltr,cleanable,20w_23h_1d,alum OA Hood Moisture Eliminator Filters 51
026-41366-059 Fltr,cleanable,20w_24h_1d,alum OA Hood Moisture Eliminator Filters 51
026-41366-060 Fltr,cleanable,20w_25h_1d,alum OA Hood Moisture Eliminator Filters 51
026-41366-061 Fltr,cleanable,20w_26h_1d,alum OA Hood Moisture Eliminator Filters 51
026-41366-062 Fltr,cleanable,20w_27h_1d,alum OA Hood Moisture Eliminator Filters 51
026-41366-062 Fltr,cleanable,20w_27h_1d,alum OA Hood Moisture Eliminator Filters 52
026-41366-063 Fltr,cleanable,20w_28h_1d,alum OA Hood Moisture Eliminator Filters 52
026-41366-064 Fltr,cleanable,20w_29h_1d,alum OA Hood Moisture Eliminator Filters 52
026-41366-065 Fltr,cleanable,21w_21h_1d,alum OA Hood Moisture Eliminator Filters 52
026-41366-066 Fltr,cleanable,21w_22h_1d,alum OA Hood Moisture Eliminator Filters 52
026-41366-067 Fltr,cleanable,21w_23h_1d,alum OA Hood Moisture Eliminator Filters 52
026-41366-068 Fltr,cleanable,21w_24h_1d,alum OA Hood Moisture Eliminator Filters 52
026-41366-069 Fltr,cleanable,21w_25h_1d,alum OA Hood Moisture Eliminator Filters 52
026-41366-070 Fltr,cleanable,21w_26h_1d,alum OA Hood Moisture Eliminator Filters 52
026-41366-071 Fltr,cleanable,21w_27h_1d,alum OA Hood Moisture Eliminator Filters 52
026-41366-072 Fltr,cleanable,21w_28h_1d,alum OA Hood Moisture Eliminator Filters 53
026-41366-074 Fltr,cleanable,22w_22h_1d,alum OA Hood Moisture Eliminator Filters 53
026-41366-075 Fltr,cleanable,22w_23h_1d,alum OA Hood Moisture Eliminator Filters 53
026-41366-076 Fltr,cleanable,22w_24h_1d,alum OA Hood Moisture Eliminator Filters 53
026-41366-077 Fltr,cleanable,22w_25h_1d,alum OA Hood Moisture Eliminator Filters 53
026-41366-078 Fltr,cleanable,22w_26h_1d,alum OA Hood Moisture Eliminator Filters 53
026-41366-079 Fltr,cleanable,22w_27h_1d,alum OA Hood Moisture Eliminator Filters 53
026-41366-080 Fltr,cleanable,22w_28h_1d,alum OA Hood Moisture Eliminator Filters 53
81
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
026-41366-081 Fltr,cleanable,23w_23h_1d,alum OA Hood Moisture Eliminator Filters 53
026-41366-082 Fltr,cleanable,23w_24h_1d,alum OA Hood Moisture Eliminator Filters 53
026-41366-083 Fltr,cleanable,23w_25h_1d,alum OA Hood Moisture Eliminator Filters 53
026-41366-084 Fltr,cleanable,23w_26h_1d,alum OA Hood Moisture Eliminator Filters 53
026-41366-085 Fltr,cleanable,23w_27h_1d,alum OA Hood Moisture Eliminator Filters 53
026-41366-086 Fltr,cleanable,23w_28h_1d,alum OA Hood Moisture Eliminator Filters 53
026-41366-086 Fltr,cleanable,23w_28h_1d,alum OA Hood Moisture Eliminator Filters 54
026-41366-088 Fltr,cleanable,24w_24h_1d,alum OA Hood Moisture Eliminator Filters 54
026-41366-089 Fltr,cleanable,24w_25h_1d,alum OA Hood Moisture Eliminator Filters 54
026-41366-090 Fltr,cleanable,24w_26h_1d,alum OA Hood Moisture Eliminator Filters 54
026-41366-091 Fltr,cleanable,24w_27h_1d,alum OA Hood Moisture Eliminator Filters 54
026-41366-092 Fltr,cleanable,24w_28h_1d,alum OA Hood Moisture Eliminator Filters 54
026-41366-093 Fltr,cleanable,24w_29h_1d,alum OA Hood Moisture Eliminator Filters 54
026-41366-095 Fltr,cleanable,25w_26h_1d,alum OA Hood Moisture Eliminator Filters 54
026-41366-096 Fltr,cleanable,25w_27h_1d,alum OA Hood Moisture Eliminator Filters 54
026-41366-097 Fltr,cleanable,25w_28h_1d,alum OA Hood Moisture Eliminator Filters 54
026-41366-099 Fltr,cleanable,26w_26h_1d,alum OA Hood Moisture Eliminator Filters 54
026-41366-100 Fltr,cleanable,26w_27h_1d,alum OA Hood Moisture Eliminator Filters 54
026-41366-100 Fltr,cleanable,26w_27h_1d,alum OA Hood Moisture Eliminator Filters 55
026-41366-101 Fltr,cleanable,26w_28h_1d,alum OA Hood Moisture Eliminator Filters 55
026-41366-103 Fltr,cleanable,27w_27h_1d,alum OA Hood Moisture Eliminator Filters 55
026-41366-104 Fltr,cleanable,27w_28h_1d,alum OA Hood Moisture Eliminator Filters 55
026-41366-105 Fltr,cleanable,27w_29h_1d,alum OA Hood Moisture Eliminator Filters 55
026-41366-107 Fltr,cleanable,15w_15h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-108 Fltr,cleanable,15w_18h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-109 Fltr,cleanable,15w_21h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-110 Fltr,cleanable,15w_28h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-111 Fltr,cleanable,15w_29h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-112 Fltr,cleanable,16w_21h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-113 Fltr,cleanable,16w_23h_1d,alum OA Hood Moisture Eliminator Filters 47
026-41366-114 Fltr,cleanable,17w_18h_1d,alum OA Hood Moisture Eliminator Filters 48
026-41366-115 Fltr,cleanable,18w_29h_1d,alum OA Hood Moisture Eliminator Filters 50
026-41366-116 Fltr,cleanable,16w_27h_1d,alum OA Hood Moisture Eliminator Filters 48
026-41366-117 Fltr,cleanable,16w_24h_1d,alum OA Hood Moisture Eliminator Filters 47
028-11778-000 Foam Tape Shell Components 35
028-11778-010 Gasket, Neoprene, Closed Cell, B/G, 1.25W x 0.25THK Gasket/Caulk/Adhesive for Solution Units 11
028-11791-010 Gasket, Polyurethane, Open Cell, B/G, 1.0W x 1.0THK Gasket/Caulk/Adhesive for Solution Units 11
028-11861-000 Grommet, Supply/return Coil Hdr, 1/8” PVC, For 3.00” Conn. Gasket/Caulk/Adhesive for Solution Units 11
028-11861-000 Grommet, Supply/return Coil Header, 1/8” PVC Gasket/Caulk/Adhesive for Solution Units 11
028-11864-010 Gasket, Neoprene, Closed Cell, B/G, 0.75W x 0.5THK Gasket/Caulk/Adhesive for Solution Units 11
028-11865-010 Foam, #2 Polyester, Open Cell, 2W x 2THK, 4LG Gasket/Caulk/Adhesive for Solution Units 11
028-11865-010 Gasket, Neoprene, Closed Cell, B/G, 1.0W x 2.0THK Gasket/Caulk/Adhesive for Solution Units 11
028-11866-001 Tape, Polyethylene, Double, 0.375W x 0.032THK, 5,184 In / Roll Gasket/Caulk/Adhesive for Solution Units 11
028-11866-002 Tape, Polyethylene, Double, 0.375W x 0.032THK Gasket/Caulk/Adhesive for Solution Units 11
028-11866-010 Tape, Polyethylene, Double Sided, .38W x 0.13THK, Acrylic, Gasket/Caulk/Adhesive for Solution Units 11
028-11867-010 Gasket, Neoprene, Closed Cell, B/G, 1.25W x .50THK Gasket/Caulk/Adhesive for Solution Units 11
028-11871-000 Grommet, Supply/Return Coil Hdr, 1/8” PVC, for 2.5 & 2.0” Conn.. Gasket/Caulk/Adhesive for Solution Units 11
028-11872-000 Grommet, Sup/Ret Coil Hdr, 1/8” PVC, for 1.5, 1.25 & 1.0” Conn. Gasket/Caulk/Adhesive for Solution Units 11
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
82
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
028-11873-010 Gasket, Neoprene, Closed Cell, Grey, .75W X .25THK Gasket/Caulk/Adhesive for Solution Units 12
028-11875-010 Gasket, Ethafoam 221,Closed Cell, White, 1.5W X .13THK, Scott
Mfg or Equal Gasket/Caulk/Adhesive for Solution Units 12
029-01048-000 L-30 Single Latch Universal Frame Latch Selection 57
029-01048-005 L-10 Single Latch Universal Frame Latch Selection 57
029-01048-006 L-20 Single Latch Universal Frame Latch Selection 57
029-01048-007 L-40 Single Latch Universal Frame Latch Selection 57
029-01048-008 L-50 Single Latch Universal Frame Latch Selection 57
029-01048-009 Double Latch, L-42 Universal Frame Latch Selection 57
029-01048-010 Double Latch, L-41 Universal Frame Latch Selection 57
029-01048-011 Double Latch, L-44 Universal Frame Latch Selection 57
029-01048-012 L10 - Knockon Latch Universal Frame Latch Selection 57
029-01048-013 L40 - Knockon Latch Universal Frame Latch Selection 57
029-01048-014 L20 - Knockon Latch Universal Frame Latch Selection 57
029-21340-000 Lifting Lug, 6” Baserail Shell Components 35
029-21340-000 Lug,lifting,baserail, For 6” Baserail Only Splice & Split Baserail Kits 36
029-21364-001 Restraint Thrust 350lbs/pr Thrust Restraint Kits 17
029-21364-001 Restraint Thrust 350lbs/Pr Thrust Restraint Kits 18
029-21364-002 Restraint Thrust 550lbs/pr Thrust Restraint Kits 17
029-21364-002 Restraint Thrust 550lbs/Pr Thrust Restraint Kits 18
029-21364-003 Restraint Thrust 750lbs/pr Thrust Restraint Kits 17
029-21364-003 Restraint Thrust 750lbs/Pr Thrust Restraint Kits 18
029-21364-004 Restraint Thrust 1500lbs/pr Thrust Restraint Kits 17
029-21365-000 Lifting Lug, 8” & 10” Baserail Splice & Split Baserail Kits 36
029-21365-000 Lifting Lug, 8” & 10” Baserail Shell Components 35
029-22024-002 Top Cap Assy Isolators 33
029-22024-003 Top Cap Assy Isolators 33
029-22024-003 Top Cap Assy Isolators 34
029-22024-004 Top Cap Assy Isolators 33
029-22025-002 Isolator, 1” Outer Spring, Alcy-90 Isolators 33
029-22025-004 Isolator, 1” Outer Spring, Awcy-200 Isolators 33
029-22025-004 Isolator, 1” Outer Spring, Awcy-219 Isolators 33
029-22025-004 Isolator, 1” Outer Spring, Awcy-221 Isolators 33
029-22025-004 Isolator, 1” Outer Spring, Awcy-222 Isolators 33
029-22025-007 Isolator, 1” Outer Spring, Alcy-92 Isolators 33
029-22025-008 Isolator, 1” Inner Spring Isolators 33
029-22025-010 Isolator, 1” Inner Spring Isolators 33
029-22025-011 Isolator, 1” Outer Spring, Alcy-94 Isolators 33
029-22025-012 Isolator, 1” Outer Spring, Awcy-400 Isolators 33
029-22025-012 Isolator, 1” Outer Spring, Awcy-419 Isolators 33
029-22025-012 Isolator, 1” Outer Spring, Awcy-423 Isolators 33
029-22025-013 Isolator, 1” Outer Spring, Alcy-95 Isolators 33
029-22025-014 Isolator, 1” Inner Spring Isolators 33
029-22025-015 Isolator, 1” Outer Spring, Awcy-624 Isolators 33
029-22025-016 Isolator, 1” Outer Spring, Awcy-600 Isolators 33
029-22025-017 Isolator, 1” Inner Spring Isolators 33
029-22025-019 Isolator, 1” Outer Spring, Awcy-1023 Isolators 33
029-22025-019 Isolator, 1” Outer Spring, Awcy-1024 Isolators 33
83
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
029-22025-022 Isolator, 2” Outer Spring, Alcy-84 Isolators 33
029-22025-023 Isolator, 2” Outer Spring, Alcy-85 Isolators 33
029-22025-024 Isolator, 2” Outer Spring, Alcy-86 Isolators 33
029-22025-025 Isolator, 2” Outer Spring, Awcy-401 Isolators 34
029-22025-026 Isolator, 2” Outer Spring, Alcy-87 Isolators 33
029-22025-027 Isolator, 2” Outer Spring, Awcy-402 Isolators 34
029-22025-028 Isolator, 2” Outer Spring, Alcy-203 Isolators 33
029-22025-029 Isolator, 2” Outer Spring, Awcy-403 Isolators 34
029-22025-031 Isolator, 2” Outer Spring, Awcy-404 Isolators 34
029-22025-032 Isolator, 2” Outer Spring, Awcy-405 Isolators 34
029-22025-033 Isolator, 2” Outer Spring, Alcy-205 Isolators 33
029-22025-034 Isolator, 2” Outer Spring, Awcy-406 Isolators 34
029-22025-034 Isolator, 2” Outer Spring, Awcy-407 Isolators 34
029-22025-034 Isolator, 2” Outer Spring, Awcy-408 Isolators 34
029-22025-034 Isolator, 2” Outer Spring, Awcy-409 Isolators 34
029-22025-035 Isolator, 2” Inner Spring Isolators 34
029-22025-036 Isolator, 2” Inner Spring Isolators 34
029-22025-037 Isolator, 2” Inner Spring Isolators 34
029-22025-038 Isolator, 1” Outer Spring, Alcy-97 Isolators 33
029-22025-039 Isolator, 1” Outer Spring, Alcy-99 Isolators 33
029-22025-040 Isolator, 1” Outer Spring, Awcy-1621 Isolators 33
029-22025-040 Isolator, 1” Outer Spring, Awcy-1622 Isolators 33
029-22025-040 Isolator, 1” Outer Spring, Awcy-1626 Isolators 33
029-22025-040 Isolator, 1” Outer Spring, Awcy-1627 Isolators 33
029-22025-040 Isolator, 1” Outer Spring, Awcy-1631 Isolators 33
029-22025-040 Isolator, 1” Outer Spring, Awcy-1632 Isolators 33
029-22025-043 Isolator, 1” Inner Spring Isolators 33
029-22025-044 Isolator, 1” Inner Spring Isolators 33
029-22025-045 Isolator, 1” Inner Spring Isolators 33
029-22025-046 Isolator, 1” Inner Spring Isolators 33
029-22025-047 Isolator, 2” Outer Spring, Alcy-81 Isolators 33
029-22025-048 Isolator, 2” Outer Spring, Alcy-82 Isolators 33
029-22025-049 Isolator, 2” Outer Spring, Alcy-83 Isolators 33
029-22025-050 Isolator, 2” Outer Spring, Alcy-206 Isolators 33
029-22025-051 Isolator, 1” Outer Spring, Alcy-96 Isolators 33
029-22025-052 Isolator, 1” Outer Spring, Alcy-93 Isolators 33
029-22025-053 Isolator, 2” Outer Spring, Alcy-204 Isolators 33
029-22025-054 Isolator, 2” Outer Spring, Alcy-207 Isolators 33
029-22025-055 Isolator, 2” Outer Spring, Alcy-208 Isolators 33
029-22025-056 Isolator, 1” Inner Spring Isolators 33
029-22025-056 Isolator, 1” Inner Spring Isolators 33
029-22039-000 Lifting Lug, Raceway Shell Components 35
029-22039-000 Lifting Lug Splice & Split Raceway Kits 37
029-22043-000 Insert, Raceway Top, Shipping Split Shell Components 35
029-22043-000 Insert, Raceway Splice & Split Raceway Kits 37
029-22044-000 Insert, Raceway Bottom, Shipping Split Shell Components 35
029-22044-000 Insert, Raceway Bottom, Shipping Split Splice & Split Raceway Kits 37
029-22047-000 Bracket, Tie Down Shell Components 35
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
84
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
029-22048-000 Insert, Raceway Bottom, Splice Shell Components 35
029-22048-000 Insert, Raceway Splice Splice & Split Raceway Kits 37
029-22070-000 Lug, Lifting, Corner, Xt, .164 Thk, Galv. Shell Components 35
029-22070-000 Lug,lifting,corner,xt, .164_thk,g90_glv Splice & Split Raceway Kits 37
029-22081-000 Latch, HEPA Single, 11-1/2” Visual Control Filter Clamps For Hepa
Filters 58
029-22082-000 Latch, HEPA Double, 11-1/2” Visual Control Filter Clamps For Hepa
Filters 58
029-24219-002 Bottom Cup Isolators 33
029-24219-003 Bottom Cup Isolators 33
029-24219-003 Bottom Cup Isolators 34
029-24219-004 Bottom Cup Isolators 33
034-12001-001 Handle,Type_L,Lock_Non,Out-Swg,Roller_Straight,w/Screw &
Cover Plug. Door Latching Parts 13
034-12001-005 Inside Handle w/ Red Plastic Grip Door Latching Parts 13
034-12001-006 Handle,Type_L,Lock_Non,In-Swg ,Roller_Off-Set,w/Screw &
Cover Plug. Door Latching Parts 13
034-12001-007 Handle,Type_L,Lock_Key,Out-Swg,Roller_Straight,w/Screw &
Cover Plug, Key The Same,York Std. Door Latching Parts 13
034-12001-010 Handle,Type_L,Lock_Key,In-Swg , Roller_Off-Set,w/Screw &
Cover Plug, Key The Same,York Std. Door Latching Parts 13
034-12001-011 Handle,Type_L,Lock_Pad,Out-Swg, Roller_Straight,w/Screw &
Cover Plug. Door Latching Parts 13
034-12001-012 Handle,Type_L,Lock_Pad,In-Swg ,Roller_Off-Set,w/Screw &
Cover Plug. Door Latching Parts 13
034-12002-001 Mechanism, Latching,Includes Bushing, Lock nut, & Jam Nut. Door Latching Parts 13
034-12002-007 Plug, Cover For Latch Mechanism Door Latching Parts 13
034-12002-007 Cover Plug For Latching Mechanism For Single Point To Cover
Outside Latching Mech. Door Latching Parts 13
034-12002-009 3/8 Sae Flat Washer Door Latching Parts 13
034-12002-010 Linkage Adapter For 8 Mm (0.315”) Dia Rods Door Latching Parts 13
034-12002-011 Single Point Roller Cam, Snub Nose Outswing Doors Only Door Latching Parts 13
044-02912-000 Ultra Flex Elastomeric, #2260-0100(White) Coating: *an Expiration
Date Required on This Product (Drain Pan) Gasket/caulk/adhesive For Solution Units 12
044-02912-010 Coating, Ultra Flex Elastomeric, Mastic Coating for Drain Pan Gasket/caulk/adhesive For Solution Units 12
086-01320-001 Small Thrust Rest Brkt Thrust Restraint Kits 17
086-01320-001 Small Thrust Rest Brkt Thrust Restraint Kits 18
086-01320-002 Large Thrust Rest Brkt Thrust Restraint Kits 17
086-01320-002 Large Thrust Rest Brkt Thrust Restraint Kits 18
086-01321-001 Thrust Rest Support Thrust Restraint Kits 17
086-01321-002 Thrust Rest Support Thrust Restraint Kits 17
086-01321-003 Thrust Rest Support Thrust Restraint Kits 17
086-01321-004 Thrust Rest Support Thrust Restraint Kits 17
086-01321-005 Thrust Rest Support Thrust Restraint Kits 17
086-01321-006 Thrust Rest Support Thrust Restraint Kits 17
086-01321-007 Thrust Rest Support Thrust Restraint Kits 17
086-01321-008 Thrust Rest Support Thrust Restraint Kits 17
086-01321-009 Thrust Rest Support Thrust Restraint Kits 17
086-01321-010 Thrust Rest Support Thrust Restraint Kits 18
086-01321-011 Thrust Rest Support Thrust Restraint Kits 18
086-01321-012 Thrust Rest Support Thrust Restraint Kits 18
85
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
086-01321-013 Thrust Rest Support Thrust Restraint Kits 18
086-01321-014 Thrust Rest Support Thrust Restraint Kits 18
086-01321-015 Thrust Rest Support Thrust Restraint Kits 18
086-01321-016 Thrust Rest Support Thrust Restraint Kits 18
086-01321-017 Thrust Rest Support Thrust Restraint Kits 18
086-01321-018 Thrust Rest Support Thrust Restraint Kits 18
086-01321-019 Thrust Rest Support Thrust Restraint Kits 18
086-01321-020 Thrust Rest Support Thrust Restraint Kits 18
086-01321-021 Thrust Rest Support Thrust Restraint Kits 18
086-01321-022 Thrust Rest Support Thrust Restraint Kits 18
086-01321-023 Thrust Rest Support Thrust Restraint Kits 18
086-01321-024 Thrust Rest Support Thrust Restraint Kits 18
086-01322-002 Thrust Restraint SST Plate Thrust Restraint Kits 17
086-01837-008 Wireway Access Plate, Blank. Wireway Access Plates 41
086-01837-009 Wireway Access Plate 1/2” Conduit, Sst Wireway Access Plates 41
086-01837-010 Wireway Access Plate 3/4” Conduit, Sst Wireway Access Plates 41
086-01837-011 Wireway Access Plate 1” Conduit, Sst Wireway Access Plates 41
086-01837-012 Wireway Access Plate, Blank. Wireway Access Plates 41
086-01837-013 Wireway Access Plate 1/2” Conduit, Sst Wireway Access Plates 41
086-01837-014 Wireway Access Plate 3/4” Conduit, Sst Wireway Access Plates 41
086-01923-001 Raceway Positioning Angle, No Lifi ting Shell Components 35
086-01923-001 Raceway Positioning Angle Splice & Split Raceway Kits 37
086-02023-001 Rod 0.315” Dia 10” Long Zinc Plated Door Latching Parts 13
086-02023-002 Rod 0.315” Dia 13” Long Zinc Plated Door Latching Parts 13
086-02023-003 Rod 0.315” Dia 16” Long Zinc Plated Door Latching Parts 13
086-02023-004 Rod 0.315” Dia 19” Long Zinc Plated Door Latching Parts 13
086-02023-005 Rod 0.315” Dia 22” Long Zinc Plated Door Latching Parts 13
086-02023-006 Rod 0.315” Dia 25” Long Zinc Plated Door Latching Parts 13
086-02023-007 Rod 0.315” Dia 28” Long Zinc Plated Door Latching Parts 13
086-02023-008 Rod 0.315” Dia 31” Long Zinc Plated Door Latching Parts 13
086-02023-009 Rod 0.315” Dia 34” Long Zinc Plated Door Latching Parts 13
086-02023-010 Rod 0.315” Dia 37” Long Zinc Plated Door Latching Parts 13
086-02023-011 Rod 0.315” Dia 40” Long Zinc Plated Door Latching Parts 13
086-02023-012 Rod 0.315” Dia 43” Long Zinc Plated Door Latching Parts 13
086-02023-013 Rod 0.315” Dia 46” Long Zinc Plated Door Latching Parts 14
086-02023-014 Rod 0.315” Dia 49” Long Zinc Plated Door Latching Parts 14
086-02023-015 Rod 0.315” Dia 52” Long Zinc Plated Door Latching Parts 14
086-02023-016 Rod 0.315” Dia 55” Long Zinc Plated Door Latching Parts 14
086-02023-017 Rod 0.315” Dia 58” Long Zinc Plated Door Latching Parts 14
086-02023-018 Rod 0.315” Dia 61” Long Zinc Plated Door Latching Parts 14
086-02023-019 Rod 0.315” Dia 64” Long Zinc Plated Door Latching Parts 14
086-02023-020 Rod 0.315” Dia 67” Long Zinc Plated Door Latching Parts 14
086-02023-021 Rod 0.315” Dia 70” Long Zinc Plated Door Latching Parts 14
086-02023-022 Rod 0.315” Dia 73” Long Zinc Plated Door Latching Parts 14
086-02023-023 Rod 0.315” Dia 76” Long Zinc Plated Door Latching Parts 14
086-02023-024 Rod 0.315” Dia 79” Long Zinc Plated Door Latching Parts 14
086-02023-025 Rod 0.315” Dia 82” Long Zinc Plated Door Latching Parts 14
086-02023-026 Rod 0.315” Dia 85” Long Zinc Plated Door Latching Parts 14
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
86
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
086-02023-027 Rod 0.315” Dia 88” Long Zinc Plated Door Latching Parts 14
086-02023-028 Rod 0.315” Dia 91” Long Zinc Plated Door Latching Parts 14
086-02023-029 Rod 0.315” Dia 94” Long Zinc Plated Door Latching Parts 14
086-02023-030 Rod 0.315” Dia 97” Long Zinc Plated Door Latching Parts 14
086-02023-031 Rod 0.315” Dia 100” Long Zinc Plated Door Latching Parts 14
086-02023-032 Rod 0.315” Dia 103” Long Zinc Plated Door Latching Parts 14
086-02023-033 Rod 0.315” Dia 106” Long Zinc Plated Door Latching Parts 14
086-02023-034 Rod 0.315” Dia 109” Long Zinc Plated Door Latching Parts 14
086-02023-035 Rod 0.315” Dia 112” Long Zinc Plated Door Latching Parts 14
086-02023-036 Rod 0.315” Dia 115” Long Zinc Plated Door Latching Parts 14
086-02023-037 Rod 0.315” Dia 118” Long Zinc Plated Door Latching Parts 14
086-02026-000 Splice Plate, Raceway, No Lifting Shell Components 35
086-02026-000 Splice Plate - Rcway - No Lifting. Splice & Split Raceway Kits 37
086-02027-001 3” Baserail Splice Angle, Non Lifting Shell Components 35
086-02027-001 Splice Angle 3” - Baserails Splice Piece Splice & Split Baserail Kits 36
086-02027-002 6” Baserail Splice Angle, Non Lifting Shell Components 35
086-02027-002 Splice Angle 6” - Baserails Splice Piece Splice & Split Baserail Kits 36
086-02027-003 8” & 10” Baserail Splice Angle, Non Lifting Shell Components 35
086-02027-003 Splice Angle 8” - Baserails Splice Piece Splice & Split Baserail Kits 36
086-23690-001 Plate, Liner Cover, Minihelic Ii, 18 Ga., Stainless Steel Filter Gage Kits 65
086-23690-001 Plate, Liner Cover, Minihelic Ii, 18 Ga., Stainless Steel Filter Gage Kits 65
087-40048-050 C-channel Trim, 47.938” C-channel Trim 66
087-40072-050 C-channel Trim, 71.938” C-channel Trim 66
087-40127-050 C-channel Trim, 126.938” C-channel Trim 66
386-01156-001 Light Switch / Receptacle assembly Switch/receptacle 63
386-01157-001 Light Switch Only assembly Switch/receptacle 63
386-01158-001 Receptacle Only assembly Switch/receptacle 63
386-01159-001 J-box Only assembly Switch/receptacle 63
386-01160-001 Harness, Tier to Tier, #12 ga w/Conduit, 3’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-001 Harness, Tier to Tier, #12 ga w/Conduit, 3’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-002 Harness, Tier to Tier, #12 ga w/Conduit, 4’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-002 Harness, Tier to Tier, #12 ga w/Conduit, 4’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-002 Harness, Tier to Tier, #12 ga w/Conduit, 4’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-002 Harness, Tier to Tier, #12 ga w/Conduit, 4’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-003 Harness, Tier to Tier, #12 ga w/Conduit, 5’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-003 Harness, Tier to Tier, #12 ga w/Conduit, 5’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-003 Harness, Tier to Tier, #12 ga w/Conduit, 5’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-003 Harness, Tier to Tier, #12 ga w/Conduit, 5’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-004 Harness, Tier to Tier, #12 ga w/Conduit, 6’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-004 Harness, Tier to Tier, #12 ga w/Conduit, 6’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-004 Harness, Tier to Tier, #12 ga w/Conduit, 6’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-004 Harness, Tier to Tier, #12 ga w/Conduit, 6’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-005 Harness, Tier to Tier, #12 ga w/Conduit, 7’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-005 Harness, Tier to Tier, #12 ga w/Conduit, 7’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-005 Harness, Tier to Tier, #12 ga w/Conduit, 7’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-005 Harness, Tier to Tier, #12 ga w/Conduit, 7’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-006 Harness, Tier to Tier, #12 ga w/Conduit, 8’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-006 Harness, Tier to Tier, #12 ga w/Conduit, 8’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
87
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
386-01160-007 Harness, Tier to Tier, #12 ga w/Conduit, 9’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-007 Harness, Tier to Tier, #12 ga w/Conduit, 9’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-008 Harness, Tier to Tier, #12 ga w/Conduit, 10’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-008 Harness, Tier to Tier, #12 ga w/Conduit, 10’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-009 Harness, Tier to Tier, #12 ga w/Conduit, 11’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-009 Harness, Tier to Tier, #12 ga w/Conduit, 11’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01160-010 Harness, Tier to Tier, #12 ga w/Conduit, 12’ LG. Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-01161-001 Filter Gage Assembly - Single & Total Filter Bank Kit Filter Gage Kits 65
386-01161-002 Filter Gage Assembly - Combined Filters Kit Filter Gage Kits 65
386-02177-000 Kit, Latching Mechanism, Door Door Latching Parts 14
386-02206-001 1 Hour Timer Only assembly Switch/receptacle 63
386-02207-001 1 Hour Timer / Receptacle assembly Switch/receptacle 63
386-02271-001 Harness, Wiretrack Tee Kit Wiring-harnesses Lt. Assy. - Tier To Tier 63
386-02271-001 Harness, Wiretrack Tee Kit Wiring-harnesses Light Assy - Wire Track 62
386-11022-001 Corner Connector, Top & Bottom, With Shroud Shell Components 35
386-11022-001 Corner Connector, Top & Bottom, With Shroud Splice & Split Raceway Kits 37
386-17216-001 End Corners Kit - Xti No Baserail, Xti w/ Baserail , Xto w/ Baserail Splice & Split Raceway Kits 37
386-17216-002 Split Kit - w/ Lifting Xto & Xti Splice & Split Raceway Kits 37
386-17216-003 Splice Kit - Top Xto & Xti Splice & Split Raceway Kits 37
386-17216-004 Splice Kit - Bottom w/ Lifting Xto & Xti Splice & Split Raceway Kits 37
386-17216-005 End Corners Kit - Xto No Baserail Splice & Split Raceway Kits 37
386-17216-006 Split Kit - w/o Lifting Xto & Xti Splice & Split Raceway Kits 37
386-17216-007 Splice Kit - Bottom w/o Lifting Xto & Xti Splice & Split Raceway Kits 37
386-17216-008 Split/splice Kit, Baserail 6” Only With Lifting Splice & Split Baserail Kits 36
386-17216-009 Split/splice Kit, Baserail 8” & 10” Only With Lifting Splice & Split Baserail Kits 36
386-17216-010 Split/splice Kit, Baserail 3” Only Without Lifting Splice & Split Baserail Kits 36
386-17216-011 Splice Kit, Baserail 6” Only Without Lifting Splice & Split Baserail Kits 36
386-17216-012 Splice Kit, Baserail 8 & 10” Only Without Lifting Splice & Split Baserail Kits 36
386-17791-001 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-001 Thrust Rest Kit Thrust Restraint Kits 17
386-17791-002 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-002 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-002 Thrust Rest Kit Thrust Restraint Kits 17
386-17791-003 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-003 Thrust Rest Kit Thrust Restraint Kits 17
386-17791-004 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-004 Thrust Rest Kit Thrust Restraint Kits 17
386-17791-005 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-005 Thrust Rest Kit Thrust Restraint Kits 17
386-17791-006 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-006 Thrust Rest Kit Thrust Restraint Kits 17
386-17791-007 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-007 Thrust Rest Kit Thrust Restraint Kits 17
386-17791-008 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-008 Thrust Rest Kit Thrust Restraint Kits 17
386-17791-009 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-009 Thrust Rest Kit Thrust Restraint Kits 17
386-17791-010 Thrust Restraint Kit Thrust Restraint Kit Selection 16
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
FORM 102.20-RP1(1104)
YORK INTERNATIONAL
88
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
386-17791-010 Thrust Rest Kit Thrust Restraint Kits 17
386-17791-011 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-011 Thrust Rest Kit Thrust Restraint Kits 17
386-17791-012 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-012 Thrust Rest Kit Thrust Restraint Kits 17
386-17791-013 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-013 Thrust Rest Kit Thrust Restraint Kits 17
386-17791-014 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-014 Thrust Rest Kit Thrust Restraint Kits 17
386-17791-015 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-015 Thrust Rest Kit Thrust Restraint Kits 17
386-17791-016 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-016 Thrust Rest Kit Thrust Restraint Kits 17
386-17791-017 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-017 Thrust Rest Kit Thrust Restraint Kits 17
386-17791-018 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-018 Thrust Rest Kit Thrust Restraint Kits 17
386-17791-019 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-019 Thrust Restraint Kit Thrust Restraint Kits 18
386-17791-020 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-020 Thrust Restraint Kit Thrust Restraint Kits 18
386-17791-021 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-021 Thrust Restraint Kit Thrust Restraint Kits 18
386-17791-022 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-022 Thrust Restraint Kit Thrust Restraint Kits 18
386-17791-023 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-023 Thrust Restraint Kit Thrust Restraint Kits 18
386-17791-024 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-024 Thrust Restraint Kit Thrust Restraint Kits 18
386-17791-025 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-025 Thrust Restraint Kit Thrust Restraint Kits 18
386-17791-026 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-026 Thrust Restraint Kit Thrust Restraint Kits 18
386-17791-027 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-027 Thrust Restraint Kit Thrust Restraint Kits 18
386-17791-028 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-028 Thrust Restraint Kit Thrust Restraint Kits 18
386-17791-029 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-029 Thrust Restraint Kit Thrust Restraint Kits 18
386-17791-030 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-030 Thrust Restraint Kit Thrust Restraint Kits 18
386-17791-031 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-031 Thrust Restraint Kit Thrust Restraint Kits 18
386-17791-032 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-032 Thrust Restraint Kit Thrust Restraint Kits 18
386-17791-033 Thrust Restraint Kit Thrust Restraint Kit Selection 16
386-17791-033 Thrust Restraint Kit Thrust Restraint Kits 18
386-23937-001 Adjustable Motor Base Assembly Adjustable Motor Bases 28
89
YORK INTERNATIONAL
FORM 102.20-RP1(1104)
PART NUMBER INDEX
PART NUMBER DESCRIPTION Table PAGE
386-23940-001 Adjustable Motor Base Assembly Adjustable Motor Bases 28
386-23943-001 Adjustable Motor Base Assembly Adjustable Motor Bases 28
386-23946-001 Adjustable Motor Base Assembly Adjustable Motor Bases 28
386-23946-001 Adjustable Motor Base Assembly Adjustable Motor Bases 29
386-23949-001 Adjustable Motor Base Assembly Adjustable Motor Bases 28
386-23949-001 Adjustable Motor Base Assembly Adjustable Motor Bases 29
386-23952-001 Adjustable Motor Base Assembly Adjustable Motor Bases 28
386-23952-001 Adjustable Motor Base Assembly Adjustable Motor Bases 29
386-23956-001 Adjustable Motor Base Assembly Adjustable Motor Bases 28
386-23956-001 Adjustable Motor Base Assembly Adjustable Motor Bases 29
386-23956-001 Adjustable Motor Base Assembly Adjustable Motor Bases 29
386-23956-001 Adjustable Motor Base Assembly Adjustable Motor Bases 29
386-23960-001 Adjustable Motor Base Assembly Adjustable Motor Bases 28
386-23960-001 Adjustable Motor Base Assembly Adjustable Motor Bases 29
386-23960-001 Adjustable Motor Base Assembly Adjustable Motor Bases 30
386-23965-001 Adjustable Motor Base Assembly Adjustable Motor Bases 29
386-23965-001 Adjustable Motor Base Assembly Adjustable Motor Bases 30
1620 Gasket, Door, ____" High x _____" Wide Door 12
TAC01494 Standard Touchup Spray Paint, Dessert Sand Gasket/Caulk/Adhesive for Solution Units 12
TAC2401012000 Steel Security Chain Door Chain Assembly 66
TAC2401013000 Bolt Snaps Door Chain Assembly 66
TAC2401014000 Steel Staple Plate Door Chain Assembly 66
TAC2401015000 Cold Shuts Door Chain Assembly 66
TAC3303006000 Fender Washer, .313" Door Chain Assembly 66
NOTES
NOTES
Tele. 800-861-1001
www.York.com
P.O. Box 1592, York, Pennsylvania USA 17405-1592 Subject to change without notice. Printed in USA
Copyright © by York International Corporation 2004 ALL RIGHTS RESERVED
Form 102.20-NOM1 (1104)
Replaces 102.20-NOM1 (504)

Navigation menu
