Predator® Series
Single-Packaged
Rooftops
Predator® SerieS
3–12.5 toNS
These days, comfort in a
commercial building involves
a lot more than indoor air
temperature. You need a system
that’s dependable and easy to
maintain, helps manage your
energy costs, and works with
your region’s own climate. That’s
why the York Predator line gives
you so many choices. But one
thing is constant, inside each
one is the quality design and
innovative technology that York
has delivered for over a century.
Flexible Design
Convertible and flexible.
Thanks to the complete Predator® line, you can choose a design that meets
your building’s unique heating and cooling needs and available fuel sources.
You also get tool-free access for easy, fast installation.
Single Unit
Available with MagnaDRY™ technology.
MagnaDRY™ “Reheat” units are convertible single-packaged high efficiency
rooftops designed to precisely control both humidity and space temperature.
MagnaDRY™ technology removes moisture from the space without over- or
under-cooling and provides sensible cooling when required.
Indoor
Air Quality
Efficiency and air quality.
Cooling and heating units with ratings as high as 15 SEER on 3–5 ton and
12.2 EER on 6.5–12.5 ton, plus up to 80% steady-state efficiency on gas/
electric models. Foil-faced and closed-cell insulation helps improve building
indoor air quality.
MicroChannel
Durable, efficient MicroChannel coil.
The all-aluminum MicroChannel coil in air conditioning models provides
outstanding efficiency and reliability thanks to its advanced heat transfer
capabilities and durable construction.
Ease
Easy to service.
Designed with quick-access panels for fast inspection of control box,
compressors, filters and heating section. Slide-out motor and blower means
hassle-free maintenance. All access panels feature hinged and tool-free entry.
Easy installation.
Common footprint on the entire 3–12.5 product line means easy fit on curb,
slab, roof rack or frame. Full-perimeter base rail provides access to three-way
forklift and overhead rigging. Each unit is completely tested, charged, wired,
piped and ready for immediate installation.
Easy
Installation

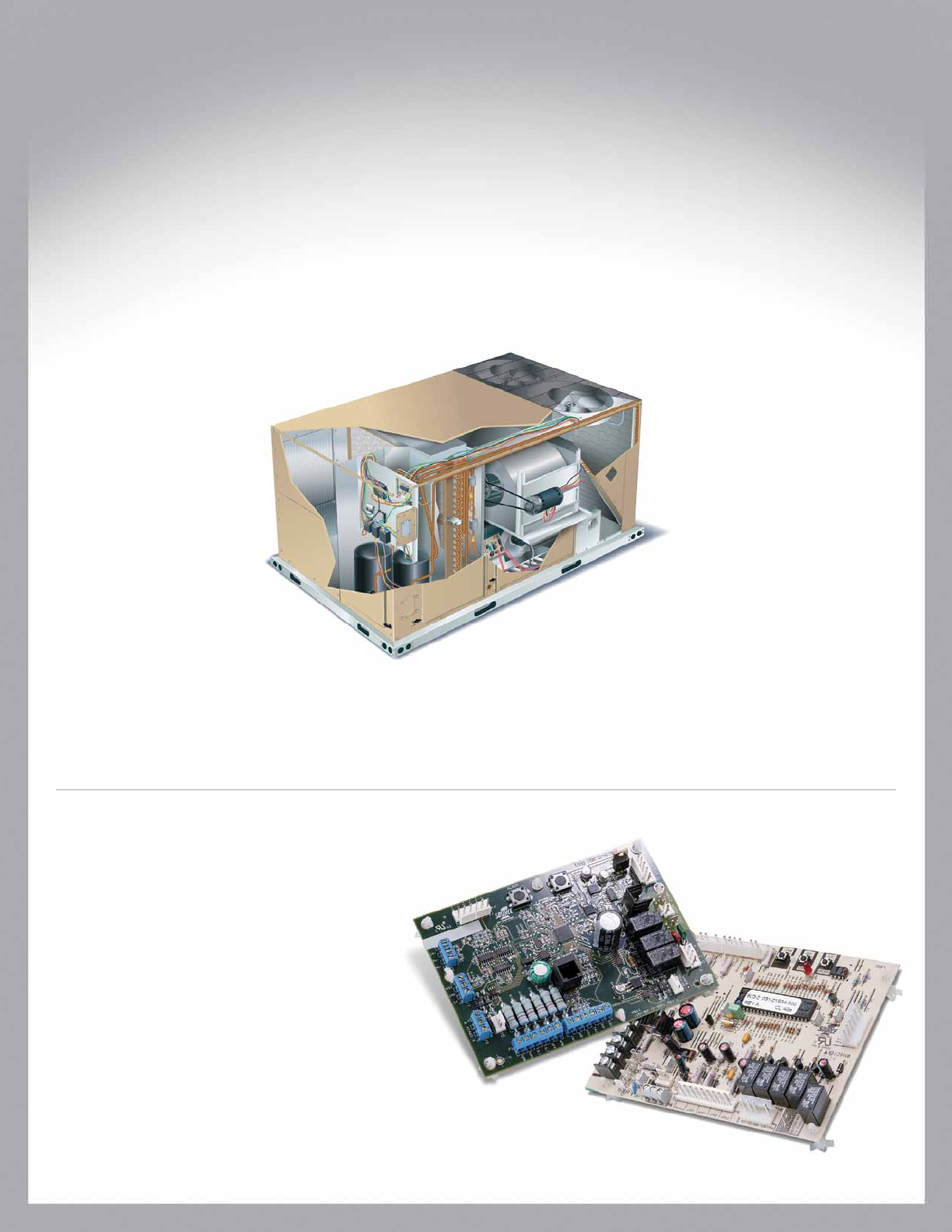

Commercial single-packaged unit
Durability, efficiency, easy installation, trouble-free operation—it’s all packed into these compact
units. For maximum flexibility, the convertible airflow design requires no panel cutting, and can
handle most airflow requirements. Gas and electric knockouts are supplied for easy access. And
units can be specified for cooling only, cooling with electric heat, cooling with gas heat or cooling
with a heat pump.
• Dual-stage cooling
for maximum comfort
(6.5–12.5 ton units)
• Simplicity® Control board
with screw connector for
thermostat wiring
• Second model nameplate
inside hinged access
panel (standard on all light
commercial products)
• Optional disconnect
• Base rails with forklift slots
on three sides and lifting holes
on each corner
• Optional powered or
non-powered 120 volt GFI
convenience outlet
• Common roof curb for all sizes
• Easy to clean and access
condenser system
• Tool-free door latches
• Compressor #2 access
(6.5–12.5 ton units)
• Slide-out motor and blower
assembly for easy adjustment
and service
• Belt-drive blower motor
• Slide-out filter access offering
2" or 4" filters
• Solid-core filter drier
• Hinged compressor #1 and/or
#2 access
• Removable and reversible
drain pan
• Bottom- and side-entry power
and control wiring knockouts
• Single or two-stage heating
available on 3–5 ton models
Two-stage gas heating
operation standard on
6.5–12.5 ton models
The big difference: Simplicity® Controls
It’s the built-in brain that requires no additional controls.
The Simplicity® Control System is part of each Predator®
model and, for the building manager, it monitors the
entire HVAC system continuously. All alarm and
diagnostic data can be set up and transmitted directly
to an onsite PC. Or, you can monitor the system over
the Internet.
• Single-button programming
• Five-minute anti-short cycle delay
• Alarm recall, even after power failures
• Three-minute minimum compressor run time
• Built-in low-voltage protection
• Independent monitoring of all safety switches
Predator® Cooling Only High-Efficiency
Rooftop Packaged Units (ZJ)
M O D E L
C O O L i n g
M B H E E R i P L V L B S .
ZJ037C00** 36 12.2 15.0 740
ZJ049C00** 48 12.2 15.0 762
ZJ061C00** 60 12.2 15.0 770
ZJ078C00 78 12.2 14.9 1030
ZJ090C00 90 12.2 14.1 1081
ZJ102C00 102 12.2 13.6 1060
ZJ120C00 120 12.2 13.4 1070
ZJ150C00 150 12.2 14.1 1280
Predator® Cooling Only Mid-Efficiency
Rooftop Packaged Units (ZH)
M O D E L
C O O L i n g
M B H E E R i P L V L B S .
ZH037C00* 36 11.8 14.0 723
ZH049C00* 48 11.8 14.0 763
ZH061C00* 60 11.8 14.0 772
ZH078C00 78 11.7 13.7 910
ZH090C00 90 11.7 13.0 910
ZH102C00 102 11.7 13.5 1030
ZH120C00 120 11.7 12.9 1090
ZH150C00 150 11.7 14.1 1215
Predator® Electric/Electric High-Efficiency
Rooftop Packaged Units (ZJ)
M O D E L
C O O L i n g
M B H E E R
E L E C t R i C
H E a t ( k W ) L B S .
ZJ037E** 36 12.2 3, 6, 9, 15 740
ZJ049E** 48 12.2 6, 9, 15, 20 762
ZJ061E** 60 12.2 6, 9, 15, 20, 24 770
ZJ078E 78 12.2 9, 18, 24, 36 1030
ZJ090E 90 12.2 9, 18, 24, 36 1081
ZJ102E 102 12.2 9, 18, 24, 36 1060
ZJ120E 120 12.2 18, 24, 36, 54 1070
ZJ150E 150 12.2 18, 24, 36, 54 1280
Predator® Electric/Electric Mid-Efficiency
Rooftop Packaged Units (ZH)
M O D E L
C O O L i n g
M B H E E R
E L E C t R i C
H E a t ( k W ) L B S .
ZH037E* 36 11.8 3, 6, 9, 15 723
ZH049E* 48 11.8 6, 9, 15, 20 763
ZH061E* 60 11.8 6, 9, 15, 20, 24 772
ZH078E 78 11.7 9, 18, 24, 36 910
ZH090E 90 11.7 9, 18, 24, 36 910
ZH102E 102 11.7 9, 18, 24, 36 1060
ZH120E 120 11.7 18, 24, 36, 54 1090
ZH150E 150 11.7 18, 24, 36, 54 1215
Predator® Cooling Only Mid-Efficiency
Rooftop Packaged Units (ZF)
M O D E L
C O O L i n g
M B H E E R i P L V L B S .
ZF078C00 78 11.2 12.9 860
ZF090C00 88 11.2 12.1 880
ZF102C00 101 11.2 12.5 1020
ZF120C00 120 11.2 12.6 1060
ZF150C00 150 11.2 13.0 1253
Predator® Electric/Electric Mid-Efficiency
Rooftop Packaged Units (ZF)
M O D E L
C O O L i n g
M B H E E R
E L E C t R i C
H E a t ( k W ) L B S .
ZF078E 78 11.2 9, 18, 24, 36 860
ZF090E 88 11.2 9, 18, 24, 36 880
ZF102E 101 11.2 9, 18, 24, 36 1020
ZF120E 120 11.2 18, 24, 36, 54 1060
ZF150E 150 11.2 18, 24, 36, 54 1253
ZH and ZJ gas/electric models are ENERGY STAR® qualified.
XP and ZF models meet or exceed ASHRAE 90.1-2007
Standards and are ENERGY STAR® qualified.
Limited warranties: XP models: 5-year compressor warranty,
1-year parts warranty; ZJ, ZF and ZH gas/electric models:
10-year heat exchanger warranty, 5-year compressor warranty, 1-year
parts warranty; ZJ, ZF and ZH electric/electric models: 5-year electric heat
warranty, 5-year compressor warranty, 1-year parts warranty.
Predator® Packaged Heat Pumps (XP)
M O D E L
C O O L i n g
M B H E E R i P L V
H E a t i n g
M B H
O U t P U t C O P
E L E C t R i C
H E a t ( k W ) L B S .
XP078C00 78 11.0 12.4 78 3.5 — 920
XP078E 78 11.0 12.4 78 3.5 9, 18, 24, 36 920
XP090C00 90 11.0 12.4 90 3.3 — 920
XP090E 90 11.0 12.4 90 3.3 9, 18, 24, 36 920
XP102C00 100 11.0 12.4 94 3.5 — 1135
XP102E 100 11.0 12.4 94 3.5 9, 18, 24, 36 1135
XP120C00 118 11.0 12.4 110 3.5 — 1135
XP120E 118 11.0 12.4 110 3.5 18, 24, 34, 54 1135
XP150C00 150 11.0 11.9 144 3.2 — 1400
XP150E 150 11.0 11.9 144 3.2 18, 24, 34, 54 1400
Predator® Gas/Electric High-Efficiency Rooftop Packaged Units (ZJ)
M O D E L
C O O L i n g
M B H E E R
H E a t i n g
M B H
O U t P U t % S S E L B S .
ZJ037n05** 36 12.2 49 80 740
ZJ037n07** 36 12.2 65 80 740
ZJ037n09** 36 12.2 97 80 740
ZJ049n05** 48 12.2 49 80 762
ZJ049n07** 48 12.2 65 80 762
ZJ049n09** 48 12.2 97 80 762
ZJ061n07** 60 12.2 65 80 770
ZJ061n09** 60 12.2 97 80 770
ZJ061n13** 60 12.2 129 80 770
ZJ078n10 78 12.2 96 80 1030
ZJ078n15 78 12.2 144 80 1030
ZJ090n10 90 12.2 96 80 1081
ZJ090n15 90 12.2 144 80 1081
ZJ102n10 102 12.2 96 80 1060
ZJ102n15 102 12.2 144 80 1060
ZJ120n15 120 12.2 144 80 1070
ZJ120n20 120 12.2 192 80 1070
ZJ150n15 150 12.2 144 80 1280
ZJ150n20 150 12.2 192 80 1280
Predator® Gas/Electric Mid-Efficiency Rooftop Packaged Units (ZF)
M O D E L
C O O L i n g
M B H E E R
H E a t i n g
M B H
O U t P U t % S S E L B S .
ZF078n10 78 11.2 96 80 860
ZF078n15 78 11.2 144 80 860
ZF090n10 88 11.2 96 80 880
ZF090n15 88 11.2 144 80 880
ZF102n10 101 11.2 96 80 1020
ZF102n15 101 11.2 144 80 1020
ZF120n15 120 11.2 144 80 1060
ZF120n20 120 11.2 192 80 1060
ZF150n15 150 11.2 144 80 1253
ZF150n20 150 11.2 192 80 1253
Predator® Gas/Electric Mid-Efficiency Rooftop Packaged Units (ZH)
M O D E L
C O O L i n g
M B H E E R
H E a t i n g
M B H
O U t P U t % S S E L B S .
ZH037a05* 36 11.8 49 80 723
ZH037a07* 36 11.8 65 80 723
ZH037a09* 36 11.8 97 80 723
ZH049a05* 48 11.8 49 80 763
ZH049a07* 48 11.8 65 80 763
ZH049a09* 48 11.8 97 80 763
ZH061a07* 60 11.8 65 80 772
ZH061a09* 60 11.8 97 80 772
ZH061a13* 60 11.8 129 80 772
ZH078n10 78 11.7 96 80 910
ZH078n15 78 11.7 144 80 910
ZH090n10 90 11.7 96 80 910
ZH090n15 90 11.7 144 80 910
ZH102n10 102 11.7 96 80 1030
ZH102n15 102 11.7 144 80 1030
ZH120n15 120 11.7 144 80 1090
ZH120n20 120 11.7 192 80 1090
ZH150n15 150 11.7 144 80 1215
ZH150n20 150 11.7 192 80 1215
*ZH037, 049 and 061 models are 14 SEER.
**ZJ037, 049 and 061 models are 15 SEER.
The York brand of Johnson Controls, Inc. ©2010 Johnson Controls, Inc.
5005 York Drive, Norman, OK 73069 www.york.com Subject to change without notice.
PUBL-6454-A-0710 Supersedes: Nothing. All rights reserved.
