FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
251933-YTG-X-0615
TECHNICAL GUIDE
Description
YORK® ZE/ZF/ZR/XN/XP Series units are convertible single
package high efficiency rooftops with a common roof curb for
the 3, 4, 5 and 6 Ton sizes (ZE, ZR, XN, XP not available in 6

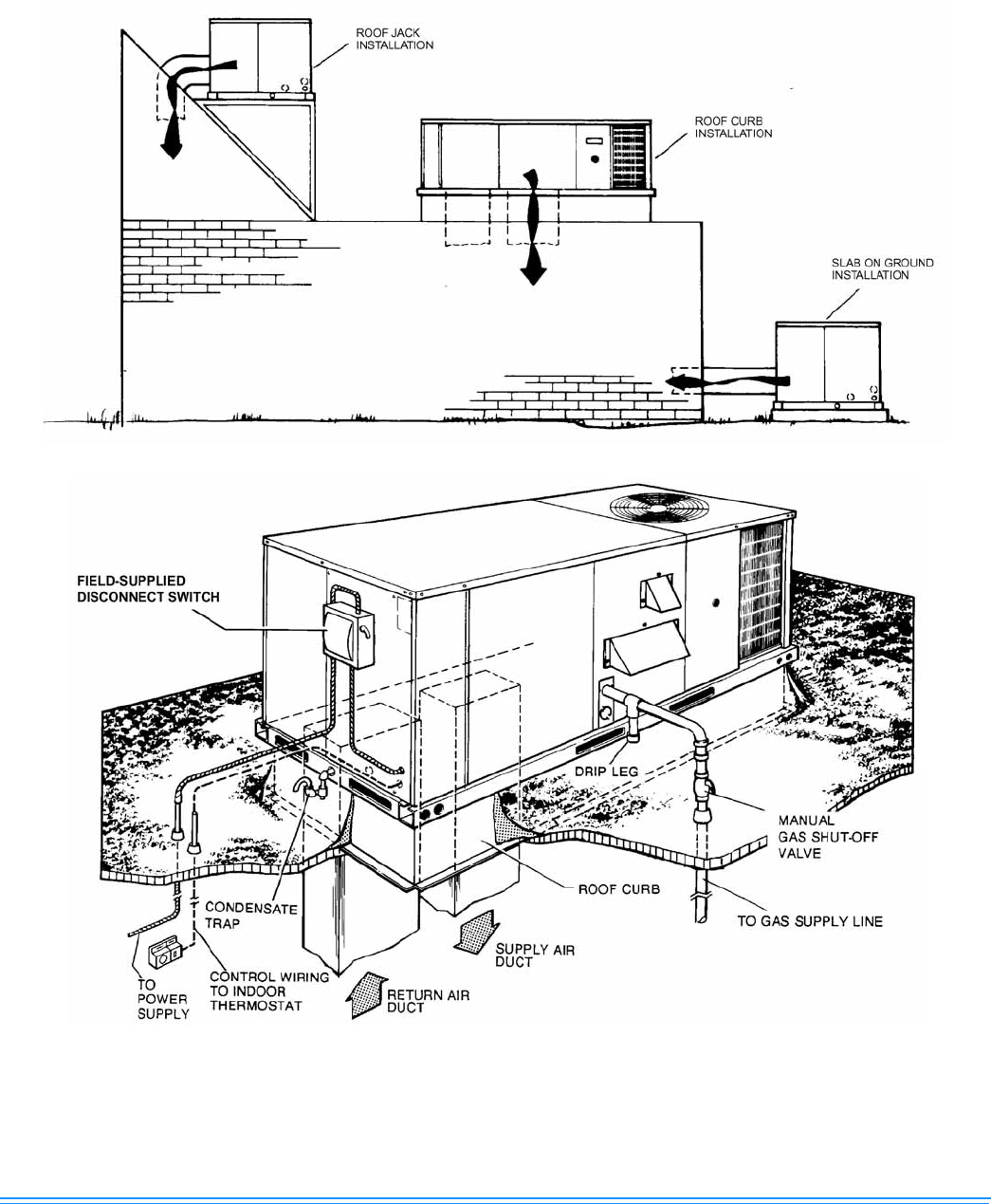

Ton). Although the units are primarily designed for curb
mounting on a roof, they can also be slab-mounted at ground
level or set on steel beams above a finished roof.
All ZE/ZF/ZR/XN/XP Series units are self-contained and
assembled on rigid full perimeter base rails allowing for
overhead rigging. Every unit is completely charged, wired,
piped and tested at the factory to provide a quick and easy field
installation.
All models (including those with an economizer) are convertible
between bottom and horizontal duct connections.
ZE/ZF/ZR Series units are available in the following
configurations: cooling only, cooling with electric heat, and
cooling with one or two stage gas heat. Electric heaters are
available as factory-installed option or field installed accessory.
XN/XP Series units are available in the following configurations:
cooling and heating only and cooling and heating with electric
heat.
Tested in accordance with:
R-410A
ZE/ZF/ZR/XN/XP SERIES
3 - 6 TON
60 Hertz
251933-YTG-X-0615
2Johnson Controls Unitary Products
Table of Contents
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Component Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Guide Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Physical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Capacity Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Airflow Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Sound Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

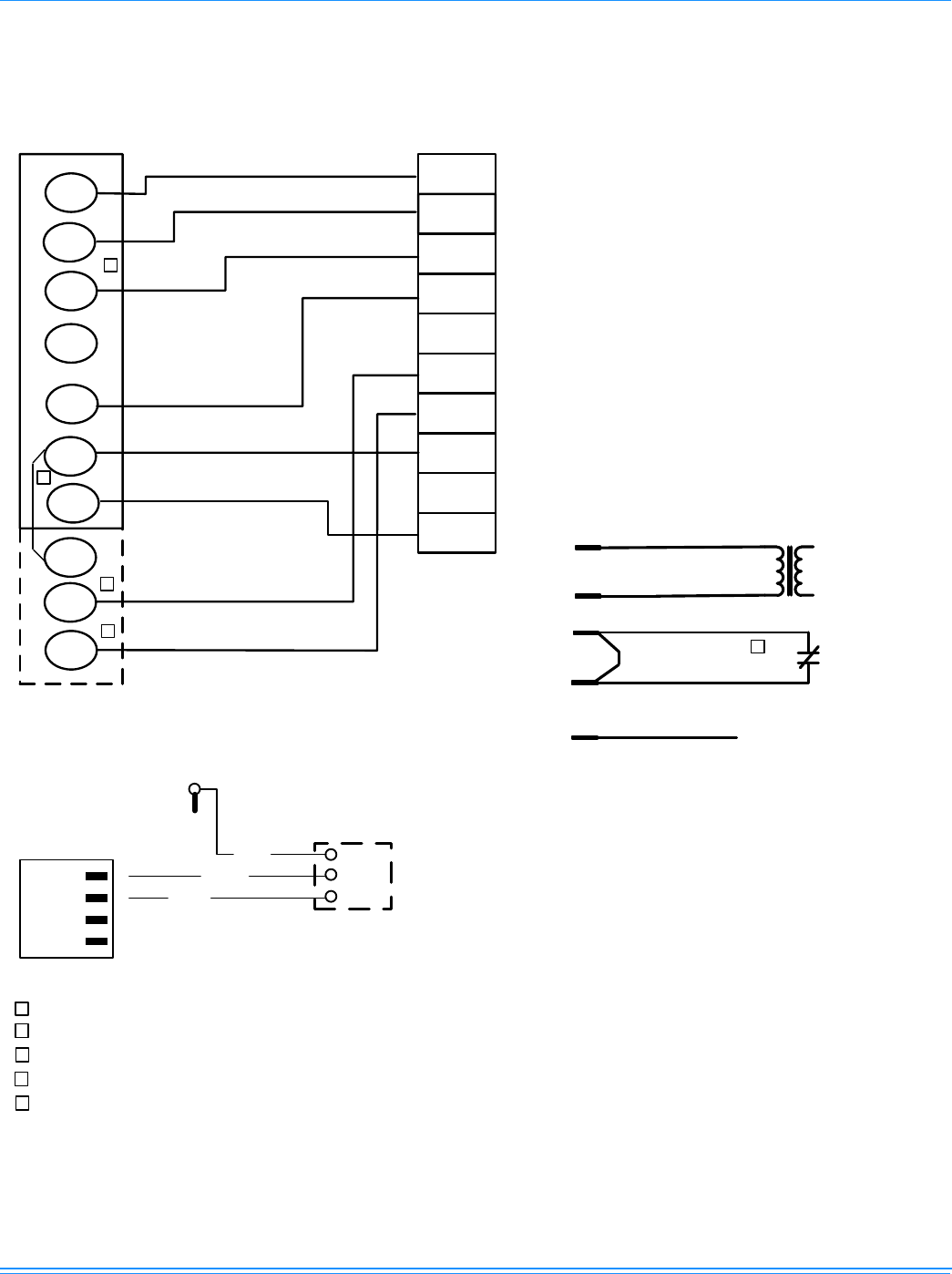

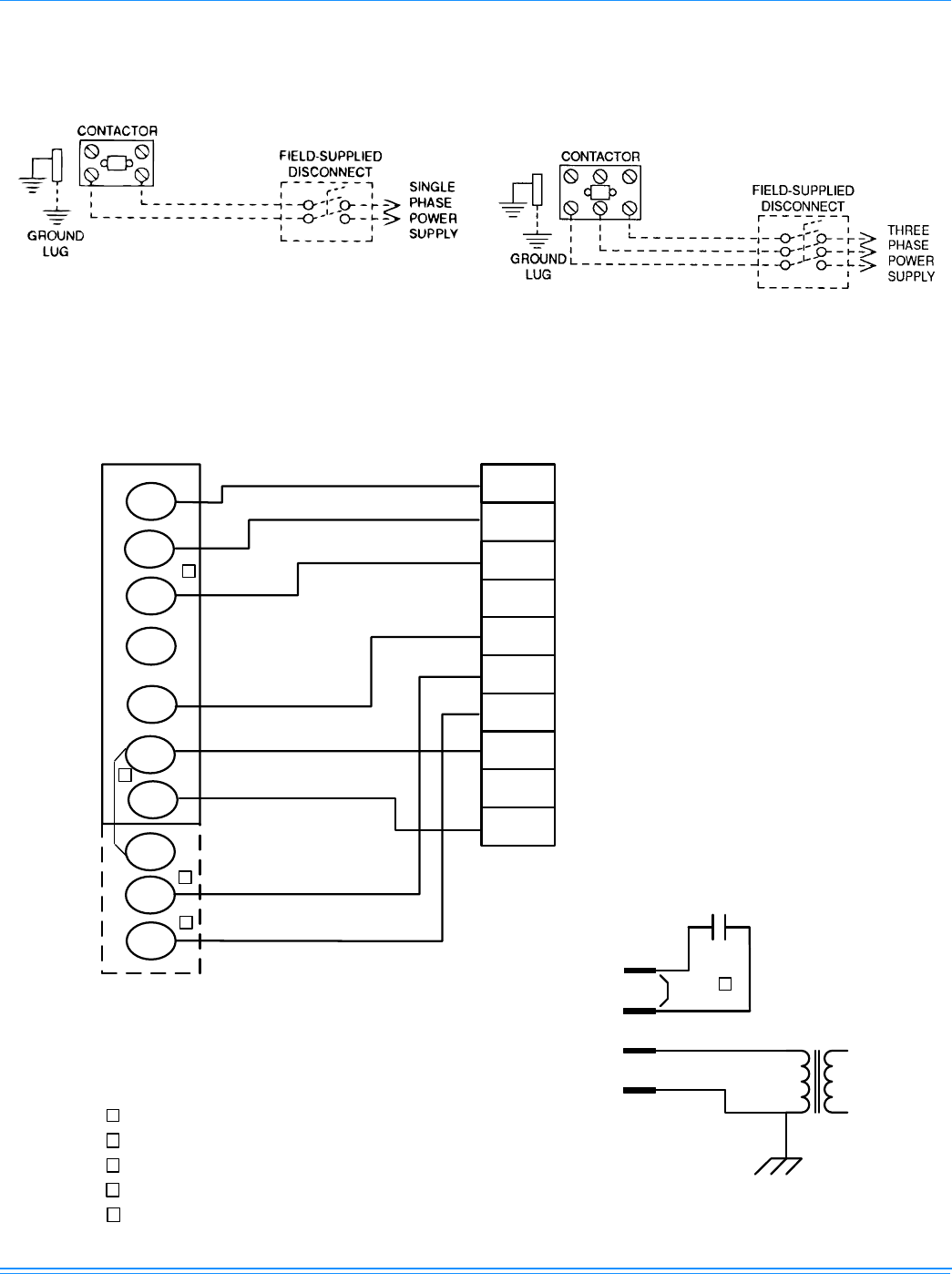

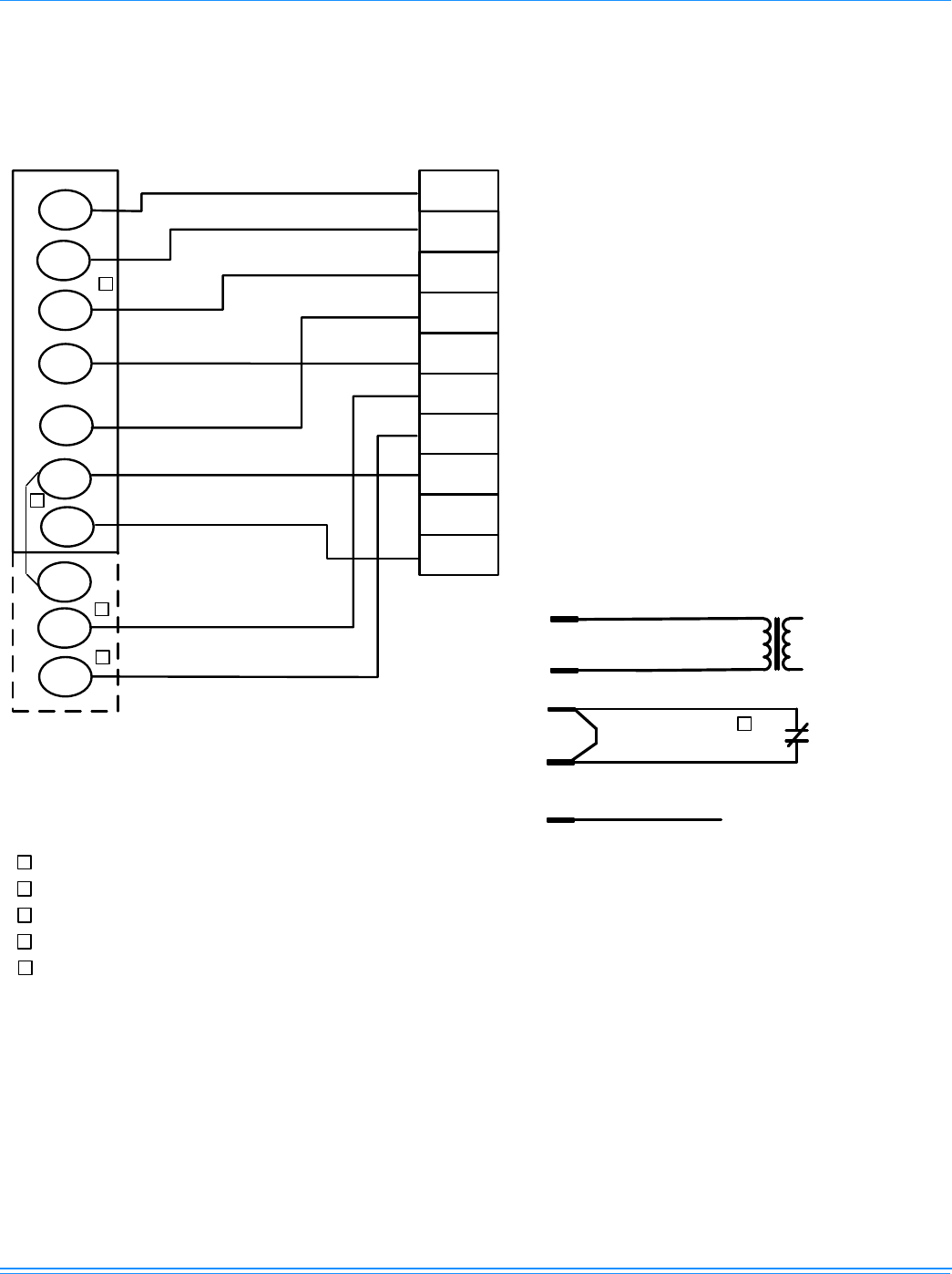

Typical Field Power and Control Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Weights and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

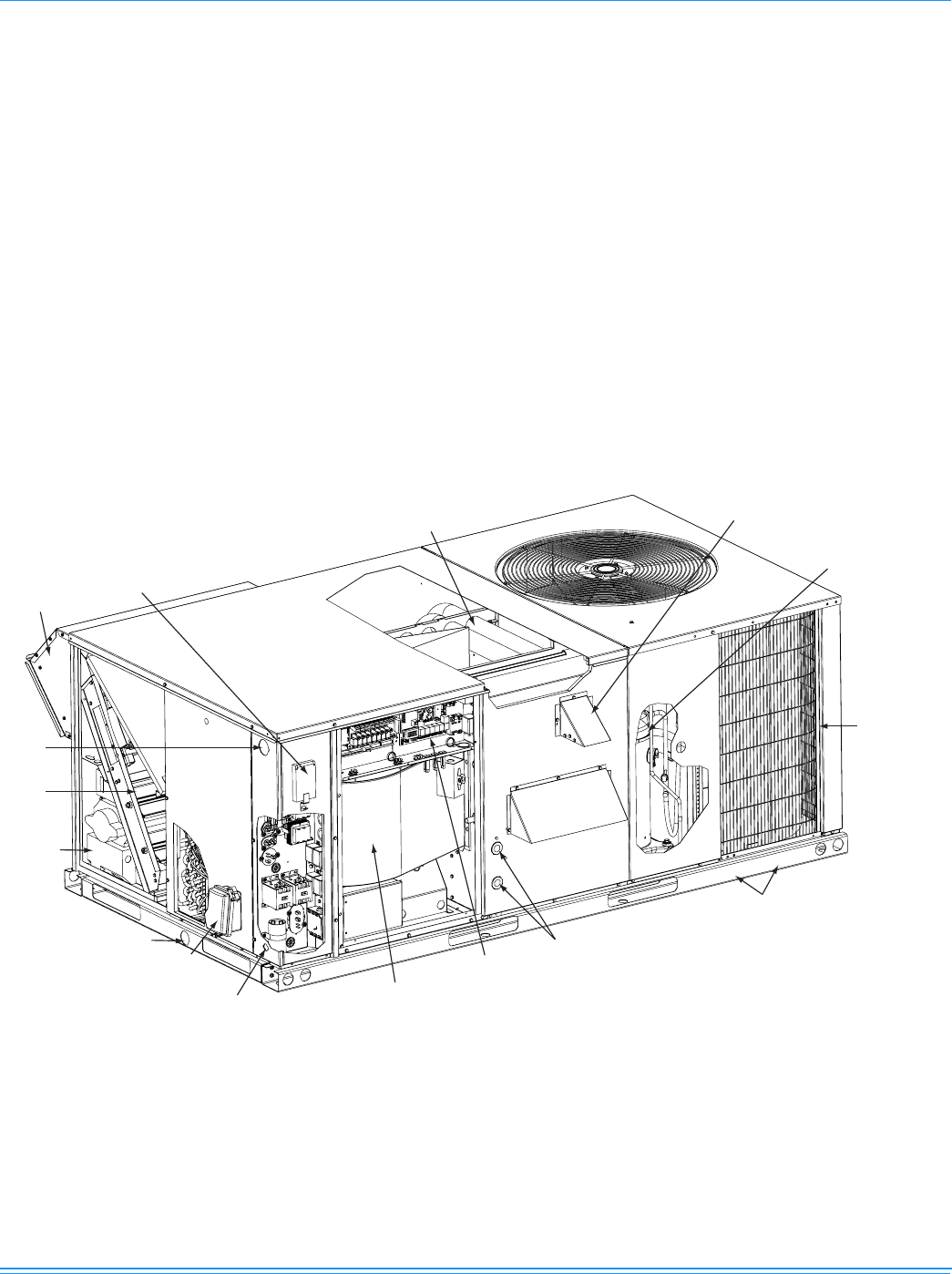

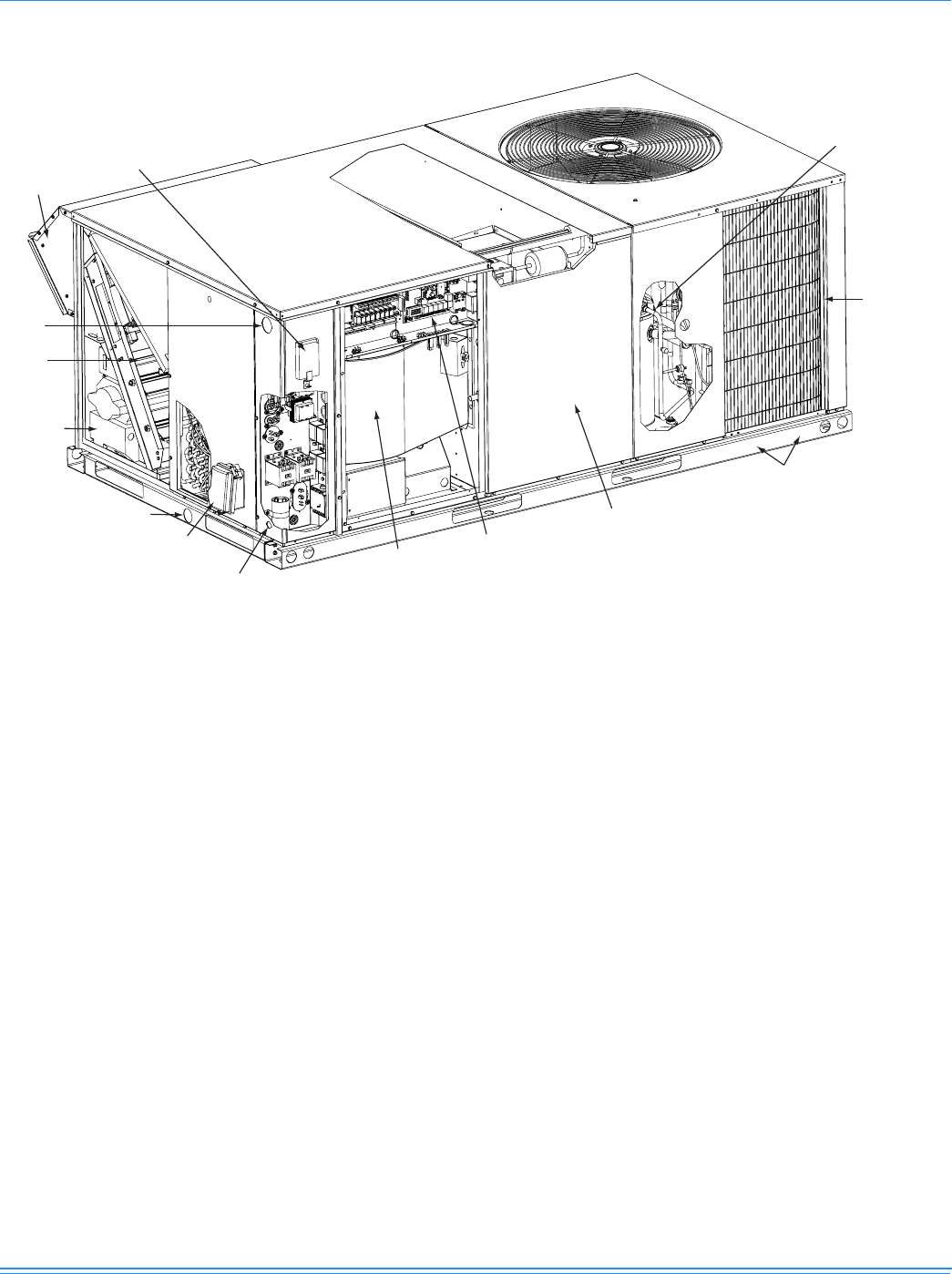

Component Location
Gas/Electric
Smoke
Detector
3/4” PVC Female
Condensate Drain
GFCI
Convenience Outlet
Knockout
For Side
Control Entry

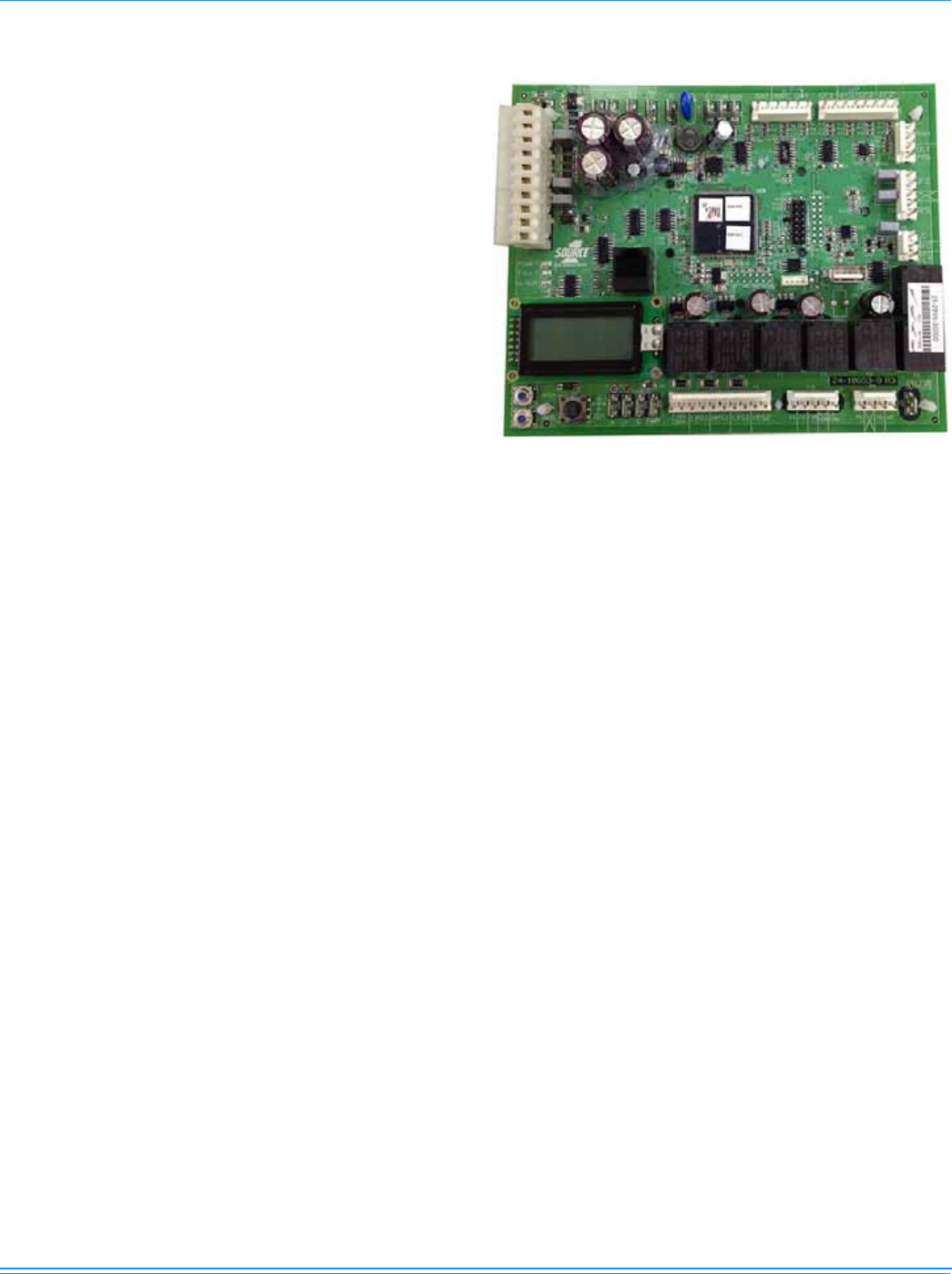

Simplicity® Lite™
Or Simplicity SE
Control Board
Knockout For Side
Gas Supply Entry
Full Perimeter Baserails
With Forklift Slots And
Lifting Holes
Highly Efficient
Enhanced Copper
Tube/Enhanced
Aluminum Fin
Or
Micro-Channel
Aluminum
Tube/Aluminum
Fin Condenser
High Efficiency
Compressor
Power Ventor Motor With
Post Purge Cycle
20 Gauge Aluminized
Steel Tubular Heat Exchanger
Belt Drive Or
Direct Drive
Blower
HACR
Breaker
Economizer
Hood
Knockout
For Side
Power Entry
Slide-In
Economizer
251933-YTG-X-0615
Johnson Controls Unitary Products 3
Electric/Electric and Heat Pump
Economizer
Hood
Electric Heat
Accessory Location
High Efficiency
Compressor
Highly Efficient
Enhanced Copper
Tube/Enhanced
Aluminum Fin
Or
Micro-Channel
Aluminum
Tube/Aluminum
Fin Condenser
Full Perimeter Baserails
With Forklift Slots And
Lifting Holes
Simplicity® Lite™
Or
Simplicity® SE
Control Board
Belt Drive Or
Direct Drive
Blower
Knockout
For Side
Control Entry
GFCI
Convenience Outlet
3/4” PVC Female
Condensate Drain
Smoke
Detector
Slide-In
Economizer
Knockout
For Side
Power Entry
HACR
Breaker
251933-YTG-X-0615
4Johnson Controls Unitary Products
Nomenclature
Z E 048 N04 A 2 A AA 4 0 1 2 4 A
Z = A/C, Single Pkg., R-410A
X = HP, Single Pkg., R-410A
Product Category
Airow
A = Direct Drive
B = Direct Drive/Single Input Low Leak Econo
D = Direct Drive/Motorized Damper
N = Belt Drive
P = Belt Drive/Single Input Low Leak Econo
R = Belt Drive/Motorized Damper
T = Belt Drive High Static
U = Belt Drive High Static/Single Input Low Leak Economizer
V = Belt Drive High Static/Motorized Damper
Product Generation
4 = Fourth Generation
*(D, T)10 = 92 MBH Output on 036 Models
036 = 3.0 Ton
Nominal Cooling Capacity
048 = 4.0 Ton
060 = 5.0 Ton
072 = 6.0 Ton
Product Identifier
= 11.2 EER
2
, A/C
= 11.0 EER
3
, CLG/GAS
R = 13.0 SEER Reheat
P = 13.0 SEER HP
Product Style
A = Style A
SS Drain Pan
Configuration Options (not required for all units)
These four digits will not be assigned until a quote is requested, or an order placed.
CPC Controller, DFS, APS
Honeywell Controller, DFS, APS
Novar Controller, DFS, APS
2" Pleated Filters, MERV 7
BAS Ready Economizer (2-10 V.D.C. Actuator Without a Controller)
Any Combination of Additional Options that Don’t Have an Option Code Pre-assigned
1. 3 thru 5 Ton Units
2. 6 Ton Units Cooling Only / Cooling With Electric Heat
3. 6 Ton Unit Cooling With Gas Heat
F = 13.0 SEER
1
, A/C
E = 14.0 SEER, A/C
N = 14.0 SEER HP Simplicity® Smart Equipment (SSE) w/Communication
BACnet MS/TP (programmable to Modbus or N2 protocols)
Johnson Controller UNT 1126 (N2 protocol), DFS, APS
C00 = Cooling Only. Suitable for Field
Installed Electric Heat
Heat Type and Nominal Heat Capacity
N04 = 40 MBH Output Aluminized Steel, 1 Stage (036)
N06 = 60 MBH Output Aluminized Steel, 1 Stage (048)
N08 = 80 MBH Output Aluminized Steel, 1 Stage
(036, 060, 072)
N10 = 100 MBH Output Aluminized Steel, 1 Stage
(048, 060, 072)
D06 = 60 MBH Output Aluminized Steel, 2 Stage
(036, 048, 060, 072)
D10 = 100 MBH Output Aluminized Steel, 2 Stage
(036*, 048, 060, 072)
S04 = 40 MBH Output Stainless Steel, 1 Stage (036)
S06 = 60 MBH Output Stainless Steel, 1 Stage (048)
S08 = 80 MBH Output Stainless Steel, 1 Stage
(036, 060, 072)
S10 = 100 MBH Output Stainless Steel, 1 Stage
(048, 060, 072)
T06 = 60 MBH Output Stainless Steel, 2 Stage
(036, 048, 060, 072)
T10 = 100 MBH Output Stainless Steel, 2 Stage
(036*, 048, 060, 072)
E05 = 5 KW
E07 = 7 KW
E10 = 10 KW
E15 = 15 KW
E20 = 20 KW
E30 = 30 KW
Gas Heat Options
Electric Heat Options
Voltage
1 = 208/230-1-60
2 = 208/230-3-60
4 = 460-3-60
5 = 575-3-60
York Commercial Comfort System (YCCS) Rtu Controller
3 = 380-3-60
A = No Options Installed
Installation Options
B = Option 1
C = Option 2
D = Options 1 & 2
E = Option 3
F = Option 4
G = Options 1 & 3
H = Options 1 & 4
J = Options 1, 2 & 3
K = Options 1, 2, & 4
L = Options 1,3 & 4
M = Options 1, 2, 3, & 4
N = Options 2 & 3
P = Options 2 & 4
Q = Options 2, 3, & 4
R = Options 3 & 4
S = Option 5
T = Options 1 & 5
U = Options 1, 3, & 5
V = Options 1, 4, & 5
W = Options 1, 3, 4, & 5
X = Options 3 & 5
Y = Options 4 & 5
Z = Options 3, 4 & 5
1 = Disconnect
2 = Non-Pwr'd Conv. Outlet
3 = Smoke Detector S.A.
4 = Smoke Detector R.A.
5 = Pwr'd Conv. Outlet
Options
AA = None
AB = Phase Monitor
AC = Coil Guard
AD = Dirty Filter Switch
AE = Phase Monitor & Coil Guard
AF = Phase Monitor & Dirty Filter Switch
AG = Coil Guard & Dirty Filter Switch
AH = Phase Monitor, Coil Guard & Dirty Filter Switch
AS = Bottom Drain Connection
RC = Coil Guard & American Flag
TA = Technicoat Condenser Coil
TJ = Technicoat Evaporator Coil
TS = Technicoat Evaporator and Condenser Coil
EA = E-Coat Condenser Coil
EJ = E-Coat Evaporator Coil
ES = E-Coat Cond & Evap Coils
1A = Simplicity SE
1B = Phase Monitor & Simplicity SE
1C = Coil Guard & Simplicity SE
1D = Dirty Filter Switch & Simplicity SE
1E = Phase Monitor, Coil Guard, Simplicity SE
1F = Phase Monitor, Dirty Filter Switch, Simplicity SE
1G = Coil Guard & Dirty Filter Switch, Simplicity SE
1H = Phase Monitor, Coil Guard, Dirty Filter Switch,
Simplicity SE
Standard Cabinet
Additional Options
ZZ = If desired option combination is not listed above, ZZ will be assigned and conguration options will be
located in digits 15-18.
Hinged & Toolless Access Cabinet
BA = Hinged & Toolless Filter, Motor and Electrical
Access Panels
BB = Phase Monitor, Hinged & Toolless Filter, Motor
and Electrical Access Panels
BC = Coil Guard, Hinged & Toolless Filter, Motor and
Electrical Access Panels
BD = Dirty Filter Switch, Hinged & Toolless Filter,
Motor and Electrical Access Panels
BE = Phase Monitor & Coil Guard, Hinged & Toolless
Filter, Motor and Electrical Access Panels
BF = Phase Monitor & Dirty Filter Switch, Hinged &
Toolless Filter, Motor and Electrical Access
Panels
BG = Coil Guard & Dirty Filter Switch, Hinged &
Toolless Filter, Motor and Electrical Access
Panels
BH = Phase Monitor, Coil Guard & Dirty Filter Switch,
Hinged & Toolless Filter, Motor and Electrical
Access Panels
2A = Hinged & Toolless Access Panels, Simplicity SE
2B = Hinged & Toolless Access Panels, Phase
Monitor, Simplicity SE
2C = Hinged & Toolless Access Panels, Coil Guard &
Simplicity SE
2D = Hinged & Toolless Access Panels, Dirty Filter
Switch, Simplicity SE
2E = Hinged & Toolless Access Panels, Phase
Monitor, Coil Guard, Simplicity SE
2F = Hinged & Toolless Access Panels, Phase
Monitor, Dirty Filter Switch, Simplicity SE
2G = Hinged & Toolless Access Panels, Coil Guard,
Dirty Filter Switch, Simplicity SE
2H = Hinged & Toolless Access Panels, Phase
Monitor, Coil Guard, Dirty Filter Switch,
Simplicity SE
251933-YTG-X-0615
Johnson Controls Unitary Products 5
Features and Benefits
Standard Features
•High Efficiency - High efficiency 3 thru 5 Ton units reach
14.0/13.0 SEER, 6 Ton Cooling only or Cooling with
Electric Heat reach 11.2 EER and 6 Ton Cooling with Gas
Heat reach 11.0 EER. Gas/electric units have electronic
spark ignition and power vented combustion with steady
state efficiencies of 80%. High efficiency heat pumps
reach 14/13 SEER and 8.0/7.7 H.S.P. F. These
efficiencies exceed all legislated minimum levels and
provide low operating costs.
•Coil Technology – All ZE/ZF condensers utilize Micro-
Channel “all-aluminum” condensers which provide
improved heat transfer capabilities and reduced charge
volumes. All evaporators utilize a conventional copper
tube/aluminum fin design for proven reliability and
performance.

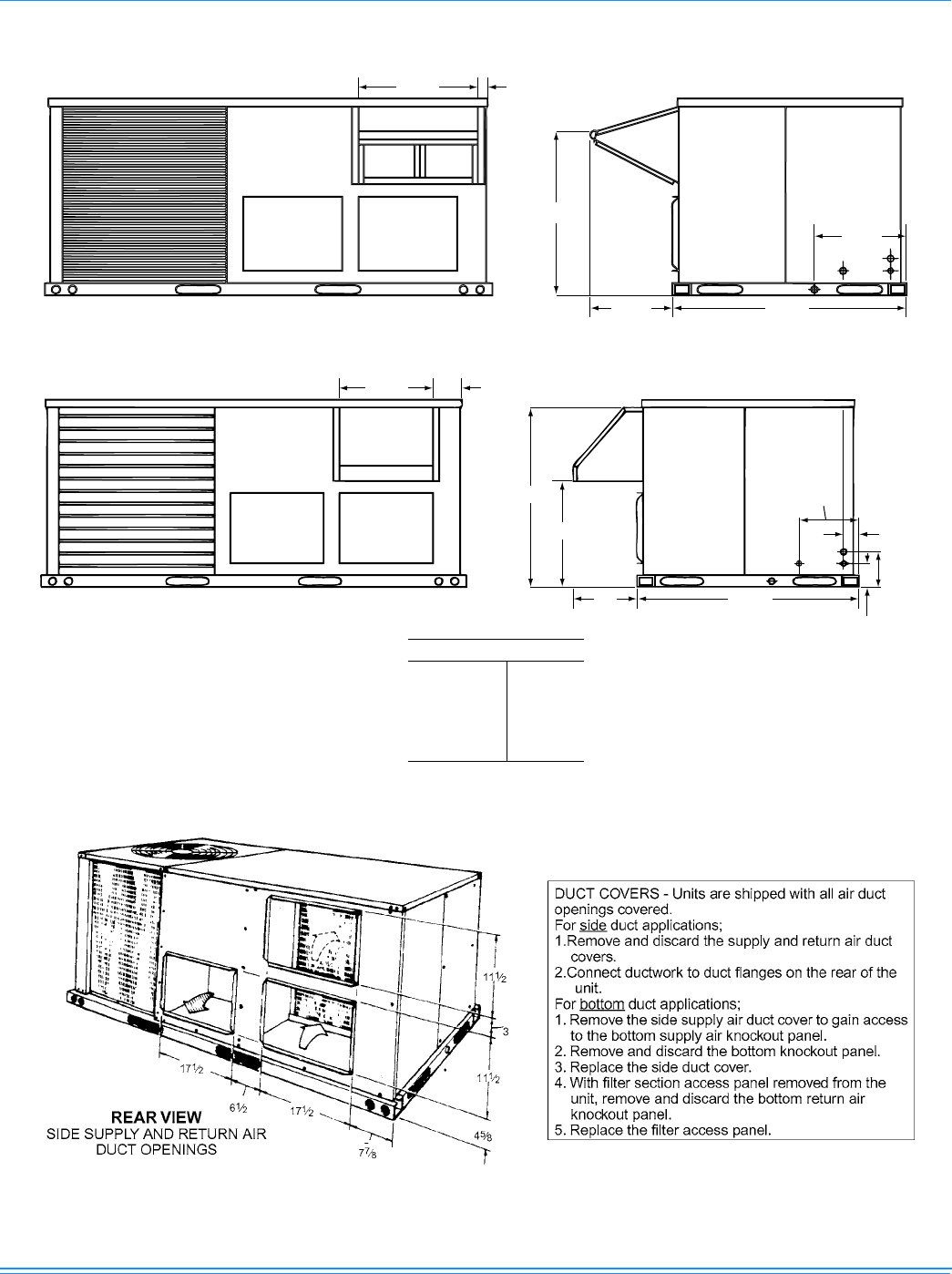

•Convertible Airflow Design - All models (including those
with an economizer) are suitable for either bottom or
horizontal duct connections. For bottom duct, remove the
sheet metal panels from the supply and return air openings
through the base of the unit. For horizontal duct, remove
the supply and return air panels on the rear of the unit.
•System Protection - Suction line freezestats are supplied
on all units to protect against loss of charge and coil
frosting when the economizer operates at low outdoor air
temperatures while the compressors are running. Every
unit has solid-core liquid line filter-driers and high and low-
pressure switches. Internal compressor protection is
standard on all compressors.
•Advanced Controls - ZE/ZF (Electric/Electric and Gas/
Electric) with no factory installed economizer or BAS
options will come standard with the reliable Simplicity®
Lite™ control. All ZE/ZF models with factory installed
economizers or any BAS option, reheat (ZR) and heat
pump (XP, XN) Units will come with the new state of the
art Simplicity SE (Smart Equipment) control system. The
new unit control incorporates the best of the already
proven Simplicity® unitary controls and creates a more
robust, intelligent control. The goal of this control is to
utilize cutting edge technology making the equipment
easier to install, operate, and service. All units are Factory
commissioned, configured, and run tested.
Simplicity SE Control Board
• Versatile - The Simplicity SE (not applicable with units
utilizing Simplicity Lite) control can be configured to use
with a standard thermostat (easy to connect screw
terminals), A zone sensor, or can be setup to
communicate with multiple BAS communication
protocols to integrate with building automation systems.
•Reduce field installed complexity - Each unit (not
applicable with units utilizing Simplicity Lite) will comes
equipped with factory installed supply air, return air, and
outdoor air temperature sensors providing key
temperature readings thus reduce field installed
complexity.
•On-board USB Port - The new control (not applicable
with units utilizing Simplicity Lite) comes with a long list
of features including data logging, current and previous
system faults and software update capabilities using the
on board USB port and common flash drive. Energy use
monitoring capabilities allow custom tailoring to allow a
system to work more efficiently at all times and
occupancy levels. Self test and start-up reports also
available from the board VIA the USB port.
•Embedded LCD Display - The board (not applicable
with units utilizing Simplicity Lite) has a easy to read,
built-in LCD display and easy to use navigation joystick
and buttons allowing the user to quickly navigate the
menus displaying unit status, options, current function,
supply, return and outdoor temperatures, fault codes
and other information.
•Low Ambient - An integrated low-ambient control
allows all units to operate in the cooling mode down to
0F outdoor ambient without additional assistance.
Optionally, the control board can be programmed to
lockout the compressors when the outdoor air
temperature is low or when free cooling is available.
251933-YTG-X-0615
6Johnson Controls Unitary Products
•Anti-Short Cycle Protection - To aid compressor life,
an anti-short cycle delay is incorporated into the
standard controls. Compressor reliability is further
ensured by programmable minimum run times. For
testing, the anti-short cycle delay can be temporarily
overridden with the push of a button.
•Fan Delays - Fan on and fan off delays are fully
programmable. Furthermore, the heating and cooling
fan delay times are independent of one another. All units
are programmed with default values based upon their
configuration of cooling and heat.
•Safety Monitoring - The control board monitors the
high and low-pressure switches, the freezestats, the gas
valve, if applicable, and the temperature limit switch on
gas and electric heat units. The unit control board will
alarm on ignition failures, compressor lockouts and
repeated limit switch trips.
•Nuisance Trip Protection and Strikes - To prevent
nuisance trouble calls, the control board uses a “three
times, you’re out” philosophy. The high and low-
pressure switches and the freezestats must trip three
times within two hours before the unit control board will
lock out the associated compressor.
•On Board Diagnostics - Each alarm will energize a
trouble light on the thermostat, if so equipped, and flash
an alarm code on the control board LED or on LCD with
Simplicity SE controlled units. Each high and low-
pressure switch alarm as well as each freezestat alarm
has its own flash code. The control board saves the five
most recent alarms in memory, and these alarms can be
reviewed at any time. Alarms and programmed values
are retained through the loss of power.
•Reliable - From the beginning - All units undergo
computer automated testing before they leave the factory.
Units are tested for refrigerant charge and pressure, unit
amperage, and 100% functionality. For the long term - All
units are painted with a long lasting, powder paint that
stands up over the life of the unit. The paint used has
been proven by a 1000 hour salt spray test.

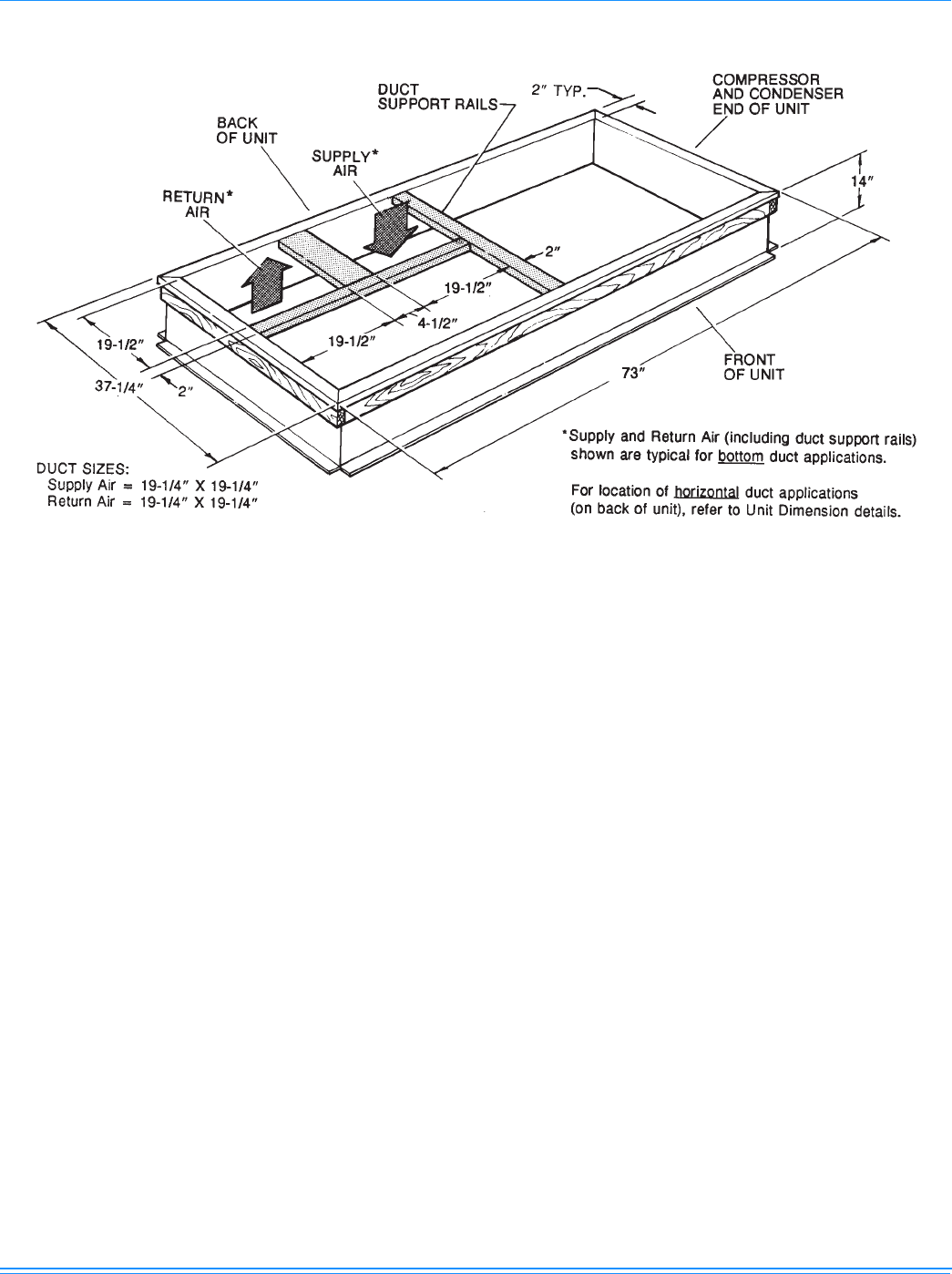

•Flexible Placement - All models and configurations share
the same cabinet/footprint and thus the same roof curb.
You have the flexibility to set one curb and choose the
correct tonnage size and heating option after the internal
loads have been determined.
•Full Perimeter Base Rails - The permanently attached
base rails provide a solid foundation for the entire unit and
protect the unit during shipment. The rails offer forklift
access from 3 sides, and rigging holes are available so that
an overhead crane can be used to place the units on a roof.

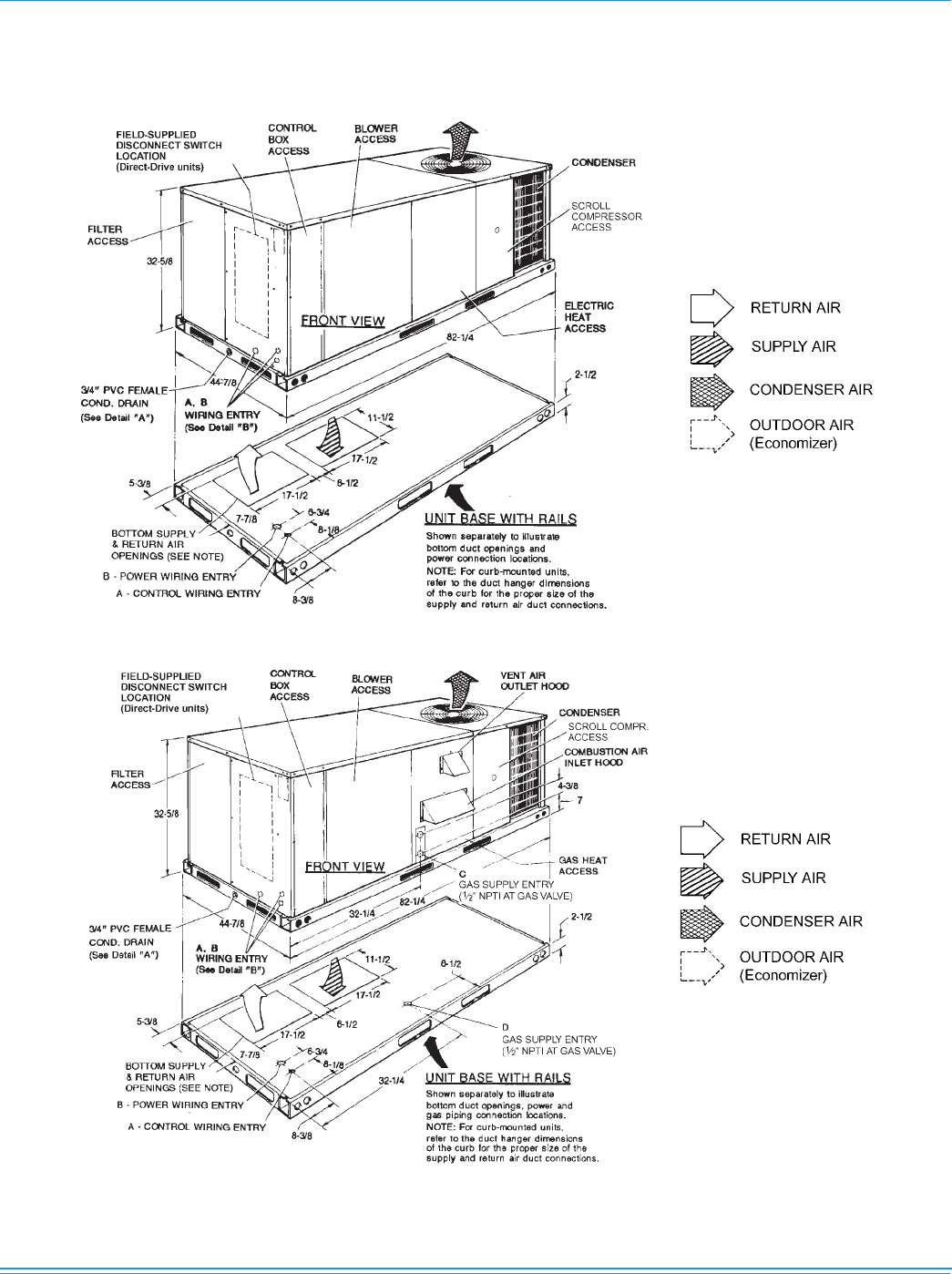

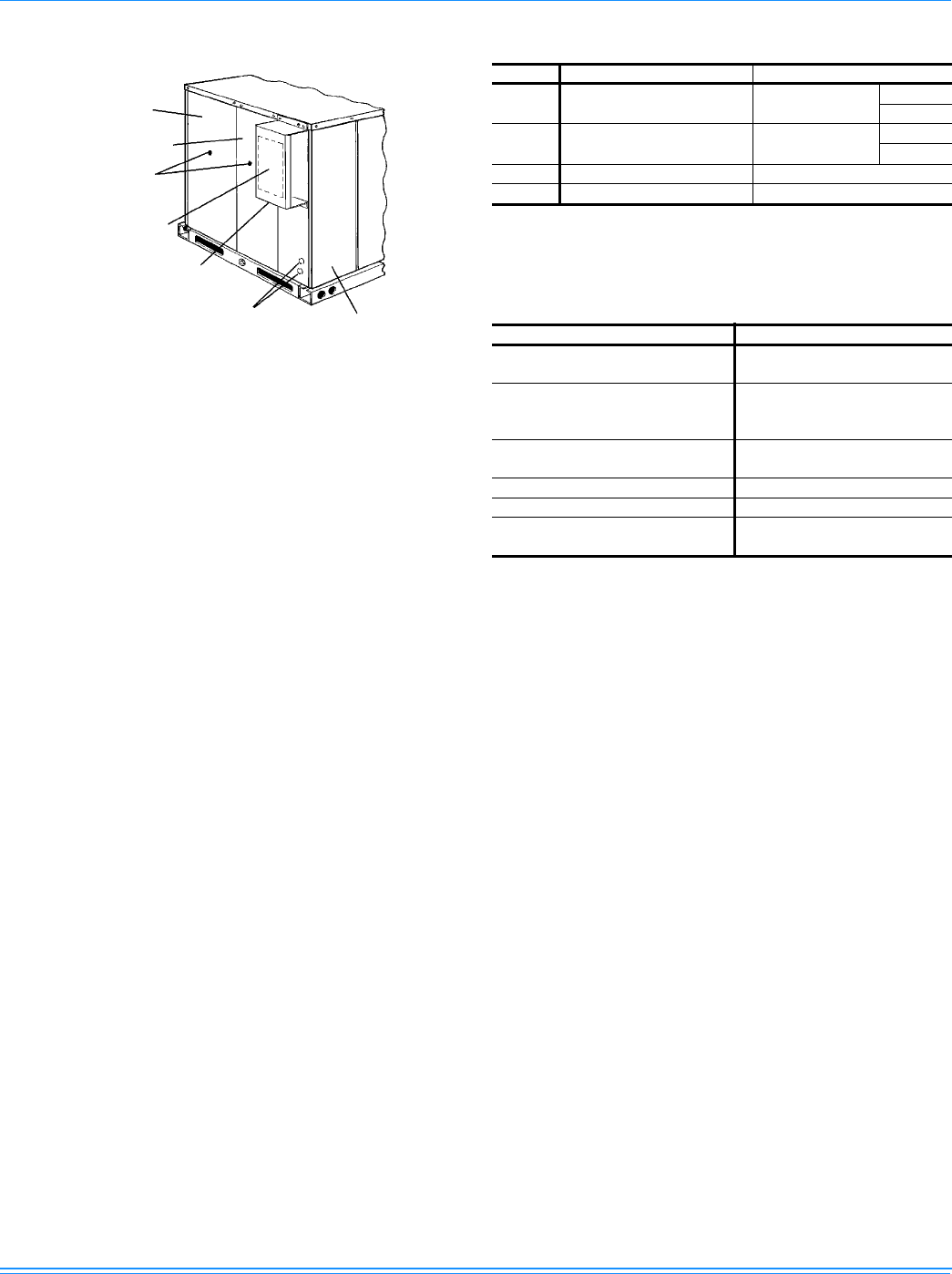

•Easy Installation - Gas and electric utility knockouts are
supplied in the unit underside as well as the side of the
unit. A clearly identified location is provided to mount a
field supplied electrical disconnect switch. Utility
connections can be made quickly and with a minimum
amount of field labor.
•Wide Range of Indoor Airflows - Indoor fan motors are
either direct-drive or belt-drive type providing maximum
flexibility to handle most airflow requirements.
•Gas Heat Operation - All single phase models with gas
heat have minimum annual fuel utilization efficiency
(AFUE) of 81%. All three phase models with gas heat
have minimum steady state efficiency of 80%. Each
section includes a durable heat exchanger with
aluminized steel or optional stainless steel tubes, a
redundant gas valve, spark ignition, power venting, an
ignition module for 100% shut-off and all of the safety
controls required to meet the latest ANSI standards.
The gas supply piping can be routed into the heating
compartment through a hole in the base pan of the unit or
through a knockout in the piping panel on the front of the
unit.
Electric Heat Operation - All electric heat models are
wired for a single power source and include a bank of
nickel chromium elements mounted at the discharge of
the supply air blower to provide a high velocity and
uniform distribution of air across the heating elements.
Every element is fully protected against excessive
temperature by thermal limit switches.
The power supply wiring can be routed into the control
box through a threaded pipe connection (field supplied) in
the base pan of the unit or through a knockout in the
wiring panel on the side of the unit.
•Warranty - All models include a 1-year limited warranty
on the complete unit. Compressors and electric heater
elements each carry a 5-year warranty. Aluminized steel
and stainless steel tubular heat exchangers carry a 10-
year warranty.
Factory Installed Options
NOTE: Simplicity Lite models are only available with a field
installed Honeywell Jade economizer which is
equipped standard with single enthalpy control (dual
enthalpy available as field installed kit). Simplicity SE
models are available with factory or field installed
economizers including options for a SSE controlled
economizer or an externally controlled BAS economizer
where both feature standard dry bulb control (single
and dual enthalpy available as field installed kits).
•Economizers - All units offer a variety of optional factory
installed economizers that are shipped, installed and
wired with AMCA 511 Licensed Class 1A low leak
The
Simplicity
® Lite or SE control board used in
this product will effectively operate the cooling sys-
tem down to 0°F when this product is applied in a
comfort cooling application for people. An econo-
mizer is typically included in this type of applica-
tion. When applying this product for process
cooling applications (computer rooms, switchgear,
etc.), please reference applications bulletin AE-
011-07 or call the applications department for Uni-
tary Products @ 1-877-UPG-SERV for guidance.
Additional accessories may be needed for stable
operation at temperatures below 30° F.
251933-YTG-X-0615
Johnson Controls Unitary Products 7
dampers designed to exceed ASHRAE 90.1-2010 and the
International Energy Conservation Code (IECC)
certification requirements by achieving leakage rates of 3
cfm/ sq. ft. at 1" of static pressure. Each economizer goes
through a rigorous 60,000 cycle test. Dry bulb, single
enthalpy, and dual enthalpy (with field installed kit) can be
selected. All economizer options are fully integrated into
the Simplicity SE controls. The economizer has spring
return, fully modulating damper actuators and is capable
of introducing up to 100% outdoor air. As the outdoor air
intake dampers open, the return air dampers close. The
changeover from mechanical refrigeration to economizer
operation is regulated by the outdoor air dry bulb
temperature or the outdoor air enthalpy input. The dual
enthalpy kit provides a second input used to monitor the
return air (field installed). The installer needs only to
assemble the outdoor air hood, attach the enthalpy control
the hood and mount the hood to the unit (Hood and
control are provided).
•Dry Bulb Economizer - Economizer operation is
enabled by the outdoor air temperature being less than
the setpoint of the economizer module.
•Enthalpy Economizer - The added outdoor air enthalpy
sensor enables economizer operation if the outdoor
enthalpy is less than the setpoint of the economizer
logic module.
•Motorized Outdoor Air Intake Damper -Includes a slide-
in / plug-in damper assembly with a 2-position, spring
return motor actuator which opens to a pre-set position
whenever the supply air blower is operating and will drive
fully closed when the blower unit shuts down.
The rain hood is painted to match the basic unit and must
be field assembled before installing.
•Technicoat Condenser Coils - The condenser coils are
coated with a phenolic coating for protection against
corrosion due to harsh environments.
• Technicoat Evaporator Coil - The evaporator coils are
coated with a phenolic coating for protection against
corrosion due to harsh environments.
• E-coat Condenser Coils - The condenser coils are
coated with an epoxy polymer coating to protect against
corrosion.
• E-coat Evaporator Coils - The evaporator coils are
coated with an epoxy polymer coating to protect against
corrosion.
•Electric Heaters - Wired for single point power supply.
These nickel chromium heater elements are provided with
limit and automatic reset capability to prevent operation at
excessive temperatures.
•Filter Options - Standard units are shipped with 1" throw-
away filters installed. 2" Pleated Filters, MERV 7 are
offered as a factory installed option.
•Convenience Outlet - This 110 volt outlet can be
“powered” by the unit with a stepdown transformer or the
unit may be ordered with a “non-powered” convenience
outlet that can be wired in the field.
•Disconnect Switch - For gas heat units and cooling units
with electric heat, a HACR breaker sized to the unit is
provided. For cooling only units, a switch sized to the
largest electric heat available for the particular unit is
provided. Factory installed option only.
•Smoke Detectors - (supply air & return air) The smoke
detectors stop operation of the unit by interrupting power
to the control board if smoke is detected within the air
compartment.
•Coil Guard - Customers can purchase a coil guard kit to
protect the condenser coil from damage. This is not a hail
guard kit.
•Stainless Steel Heat Exchanger - For applications in
corrosive environments, this option provides a full
stainless steel heat exchanger assembly.
•Stainless Steel Drain Pan - An optional rustproof
stainless steel drain pan is available to provide years of
trouble-free operation in corrosive environments.
•Bottom Drain Connection - An optional bottom drain
connection is available for inside the curb connections for
applications in cold environments to reduce freezing drain
lines.
•Phase Monitors - Designed to prevent unit damage. The
phase monitor will shut the unit down in an out-of phase
condition.
•Dirty Filter Switch - This kit includes a differential
pressure switch that energizes the fault light on the unit
thermostat, indicating that there is an abnormally high
pressure drop across the filters. Factory installed option or
field installed accessory.
•Hinged & Toolless Filter, Motor and Electrical Access
Panels - This option allows for easy access and
maintenance.
NOTE: Knobs are shipped inside the unit to prevent shipping
damage. These must be field installed for tool-less
operation.
•High Static Drive - May include a belt, blower pulley,
motor pulley or a motor change to enhance blower
performance.
Control Options
•Simplicity® SE with Communication Option Control -
The York® Simplicity® SE with Communication Option
Control is factory installed. It includes all the features of
the Simplicity® SE control with an additional gateway to
BACnet MS/TP (programmable to Modbus or N2
protocols).
Factory installed smoke detectors in the return air, may
be subjected to freezing temperatures during “off” times
due to out side air infiltration. These smoke detectors
have an operational limit of 32°F to 131°F. Smoke
detectors installed in areas that could be out side those
limitations will have to be moved to prevent having false
alarms.
251933-YTG-X-0615
8Johnson Controls Unitary Products
•Novar® BAS Control - The Novar® building automation
system controller is factory installed. Incudes supply air
sensor, return air sensor, dirty filter indicator switch, and
air proving switch.
•CPC BAS Control - The Computer Process Controls
Model 810-3060 ARTC Advanced Rooftop building
automation system controller is factory installed. Includes
supply air sensor, return air sensor, dirty filter indicator
switch and air proving switch.
•Honeywell BAS Control - The Honeywell W7750C
building automation system controller is factory installed.
Includes air supply sensor, return air sensor, dirty filter
indicator switch, and air proving switch.
•York Commercial Comfort System (YCCS) - Provides
rooftop system integration for YCCS single zone and
change-over bypass systems.
Field Installed Accessories
NOTE: Simplicity Lite models are only available with a field
installed Honeywell Jade economizer which is
equipped standard with single enthalpy control (dual
enthalpy available as field installed kit). Simplicity SE
models are available with factory or field installed
economizers including options for a SSE controlled
economizer or an externally controlled BAS economizer
where both feature standard dry bulb control (single
and dual enthalpy available as field installed kits).
•Economizers - All units offer a variety of optional field
installed economizers that are shipped, installed and
wired with AMCA 511 Licensed Class 1A low leak
dampers designed to exceed ASHRAE 90.1-2010 and the
International Energy Conservation Code (IECC)
certification requirements by achieving leakage rates of 3
cfm/ sq. ft. at 1" of static pressure. Each economizer goes
through a rigorous 60,000 cycle test. Dry bulb, single
enthalpy, and dual enthalpy (with field installed kit) can be
selected. All economizer options are fully integrated into
the Simplicity SE controls. The economizer has spring
return, fully modulating damper actuators and is capable
of introducing up to 100% outdoor air. As the outdoor air
intake dampers open, the return air dampers close. The
changeover from mechanical refrigeration to economizer
operation is regulated by the outdoor air dry bulb
temperature or the outdoor air enthalpy input. The dual
enthalpy kit provides a second input used to monitor the
return air (field installed). The installer needs only to
assemble the outdoor air hood, attach the enthalpy control
the hood and mount the hood to the unit (Hood and
control are provided).
•Dry Bulb Economizer - Economizer operation is
enabled by the outdoor air temperature being less than
the setpoint of the economizer module.
•Enthalpy Economizer - The added outdoor air enthalpy
sensor enables economizer operation if the outdoor
enthalpy is less than the setpoint of the economizer
logic module.
•Motorized Outdoor Air Intake Damper -Includes a slide-
in / plug-in damper assembly with a 2-position, spring
return motor actuator which opens to some pre-set
position whenever the supply air blower is operating and
will drive fully closed when the blower unit shuts down.
The rain hood is painted to match the basic unit and must
be field assembled before installing.
•Electric Heaters - wired for single point power supply.
These nickel chromium heater elements are provided with
limit and automatic reset capability to prevent operation at
excessive temperatures.

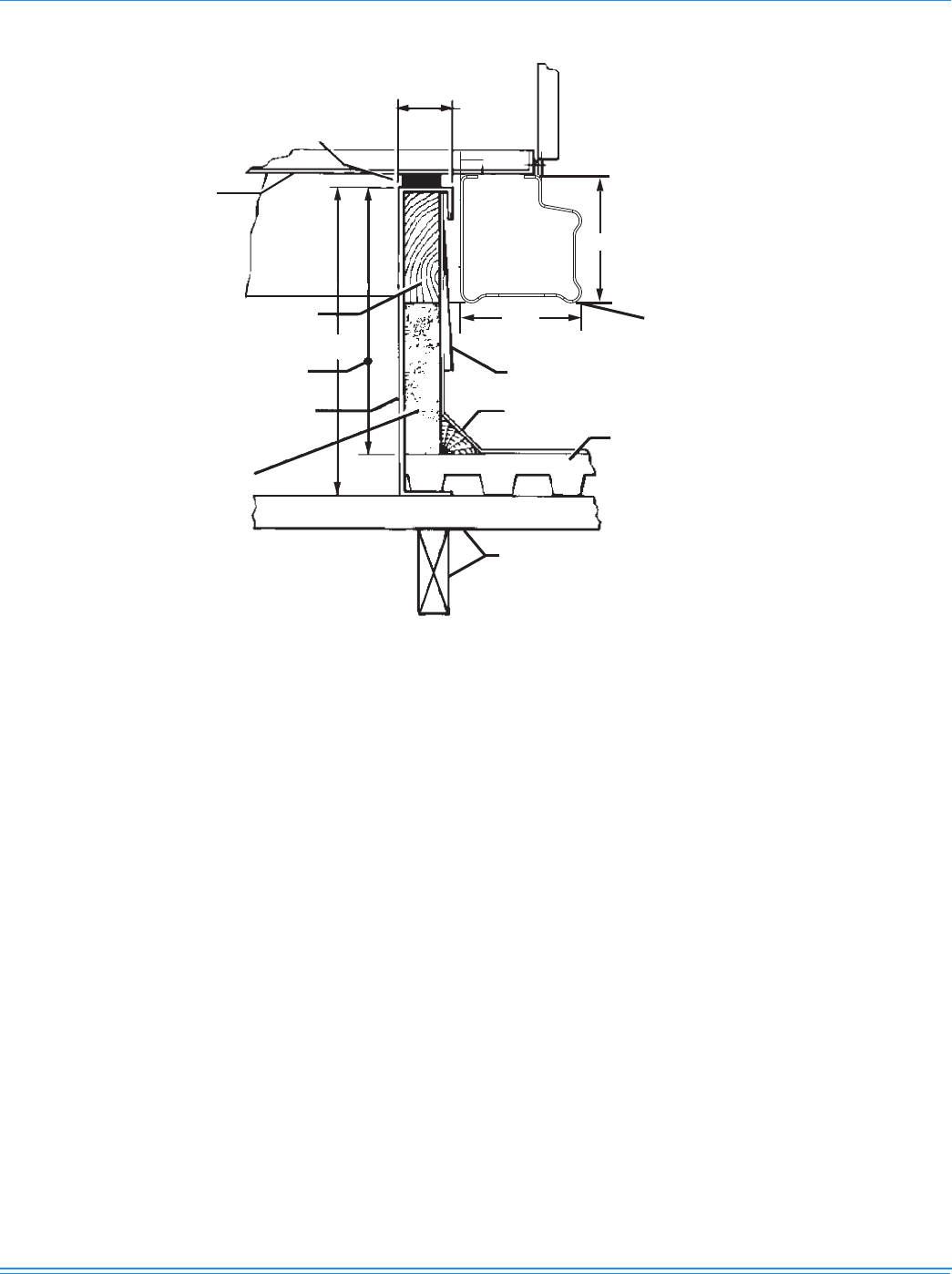

•Roof Curbs - Eight and fourteen-inch high roof curbs
provide a water-tight seal between the unit and the finished
roof. These full perimeter curbs meet the requirements of
the National Roofing Contractors Association (NRCA) and
are shipped knocked-down for field assembly.
Roof curbs are designed to fit inside the base rails of the
unit and include both a wood nailing strip and duct hanger
supports.
•High Altitude Natural Gas - Burner orifices and pilot
orifices are provided for proper furnace operation at
altitudes up to 6,000 feet.
•Propane - Burner orifices, pilot orifices and gas valve
parts are provided to convert a natural gas furnace to
propane.
•High Altitude Propane - Burner orifices and pilot orifices
are provided for proper furnace operation at altitudes up
to 6,000 feet. This accessory supplements the basic
propane conversion kit.
•Low Nox Kit - Required to reduce the emission of
nitrogen oxides below 40 nano grams per joule.
•Power Exhaust - Our single input economizer options are
available with power exhaust. Whenever the outdoor air
intake dampers are opened for free cooling, the exhaust
fan will be energized to prevent the conditioned space from
being over-pressurized during economizer operation.
The power exhaust option can only be used on bottom
duct configurations.
•Barometric Relief Damper - This damper accessory can
be used to relieve internal building air pressure on units
with an economizer without power exhaust. This
accessory includes a rain hood, a bird screen and a fully
assembled damper. With bottom duct connections, the
damper should be mounted over the opening in the return
air panel. With horizontal ductwork, the accessory should
be mounted on the return air duct.
•Enthalpy Accessory Control Kit - This kit contains the
required components to convert a single enthalpy
economizer to dual enthalpy.
•Burglar Bars - Mount in the supply and return openings
to prevent entry into the duct work.
•Flue Exhaust Extension Kit - In locations with wind or
weather conditions which may interfere with proper
exhausting of furnace combustion products, this kit can be
installed to prevent the flue exhaust from entering nearby
fresh air intakes.
•CO2 Sensor - Senses CO2 levels and automatically
overrides the economizer when levels rise above the
present limits.
251933-YTG-X-0615
Johnson Controls Unitary Products 9
•Coil Guard - Customers can purchase a coil guard kit to
protect the condenser coil from damage. This is not a hail
guard kit.
•Hail Guard - Hail Guard kit is available to prevent unit
from hail damage. This is a sloped hood that fits above
the coil.
•Gas Piping Kit - This kit supplies all necessary fittings
and shut off valve.
Guide Specifications
General
Units shall be manufactured by Johnson Controls Unitary
Products in an ISO 9001 certified facility.
York's ZE/ZF/ZR/XN/XP units are convertible single package
units. Although the units are primarily designed for curb
mounting on a roof, they can also be slab-mounted at ground
level or set on steel beams above a finished roof. Cooling only,
cooling with gas heat and cooling with electric heat models are
available with a wide variety of factory-mounted options and
field-installed accessories to make them suitable for almost
every application. All units are self-contained and assembled on
full perimeter base rails with holes in the four corners for
overhead rigging. Every unit is completely piped, wired,
charged and tested at the factory to simplify the field installation
and to provide years of dependable operation. All models
(including those with an economizer) are suitable for either
bottom or horizontal duct connections. Models with power
exhaust are suitable for bottom duct connections only. For
bottom duct, remove the sheet metal panels from the supply
and return air openings through the base of the unit. For
horizontal duct, remove the supply and return air panels on the
rear of the unit.
All non-Scroll compressors include crankcase heaters and all
compressors have internal pressure relief. Every refrigerant
circuit includes a liquid line filter-drier, a discharge line high
pressure switch and a suction line with a freezestat and low
pressure/loss of charge switch.The unit control circuit includes
a 75 VA transformer, a 24-volt circuit breaker and a relay board
with a compressor lockout circuit, a terminal strip for thermostat
wiring, plus an additional set of pin connectors to simplify the
interface of additional field controls. All models are CSA listed.
All models include a 1-year limited warranty on the complete
unit. Compressors and electric heater elements carry a 5-year
warranty. Aluminized steel and Stainless steel tubular heat
exchangers carry a 10-year warranty.
Description
Units shall be factory-assembled, single packaged, Electric
Cooling/Gas Heat, Electric Cooling/Optional Electric Heat, Heat
Pump/Optional Electric Heat are designed for outdoor mounted
installation.
The 3 ton, 4 ton and 5 ton units shall have minimum SEER
rating of 13.0 with heat pumps having a 7.7 H.S.P.F. The 6 Ton
Cooling only or Cooling with Electric Heat shall have 11.2 EER,
6 Ton Cooling with Gas Heat shall have 11.0 EER. They shall
have built-in field convertible duct connections for down
discharge supply/return or horizontal discharge supply/return,
and be available with factory installed options or field installed
accessories. The units shall be factory wired, piped, charged
with R-410A refrigerant and factory tested prior to shipment. All
unit wiring shall be both numbered and color coded. All units
the cooling performance shall be rated in accordance with DOE
and AHRI test procedures. Units shall be CSA listed, classified
to ANSI Z21.47, UL 1995/CSA No. 236 standards.
Unit Cabinet
Unit cabinet shall be constructed of galvanized steel, with
exterior surfaces coated with a non-chalking, powdered paint
finish, certified at 1000 hours salt spray test per ASTMB117
standards. Indoor blower section shall be insulated with a
minimum 1/2” thick insulation, coated on the airside. Aluminum
foil faced insulation shall be used in the furnace compartment
and be fastened with ridged fasteners to prevent insulation from
entering the air stream. Cabinet panels shall be “large” size,
easily removable for servicing and maintenance. Full perimeter
base rails shall be provided to assure reliable transit of
equipment, overhead rigging and proper sealing on roof curb
applications. Disposable 1" filters shall be furnished and be
accessible through a removable access door, sealed airtight.
Units filter track shall be designed to accommodate either 1" or
2" filters. Fan performance measuring ports shall be provided
on the outside of the cabinet to allow accurate air
measurements of evaporator fan performance without removing
panels or creating air by-pass of the coils. Condensate pan
shall be internally sloped and conform to ASHRAE 62-89 self-
draining standards. Condensate connection shall be a minimum
of 3/4” I.D. female and be a ridged mount connection.
Indoor (Evaporator) Fan Assembly
The indoor fan shall be a factory installed direct-drive or belt-
drive assembly that includes an adjustable pitch motor pulley.
Job site selected (B.H.P.) brake horsepower shall not exceed
the motors nameplate horsepower rating, plus the service
factor. Units shall be designed not to operate above service
factor. Fan wheel shall be double-inlet type with forward-curved
blades, dynamically balanced to operate smoothly throughout
the entire range of operation. Airflow design shall be constant
air volume. Bearings shall be sealed and permanently
lubricated for longer life and no maintenance.
Outdoor (Condenser) Fan Assembly
The outdoor fan shall be of the direct-driven propeller type,
discharge air vertically, have aluminum blades riveted to a
corrosion resistant steel spider bracket and shall be
dynamically balanced for smooth operation. The outdoor fan
motor shall be totally enclosed with permanently lubricated
bearings, internally protected against overload conditions and
staged independently.
251933-YTG-X-0615
10 Johnson Controls Unitary Products
Refrigerant Components
Compressor:
a. Shall be internally protected with internal high-pressure
relief and over temperature protection.
b. Shall have internal spring isolation and sound muffling to
minimize vibration and noise, and be externally isolated
on a dedicated, independent mounting.
Coils:
a. Evaporator coils shall have aluminum plate fins
mechanically bonded to seamless internally enhanced
copper tubes with all joints brazed. Special Phenolic
coating shall be available as a factory option.
b. Evaporator coils shall be of the direct expansion, draw-
thru design.
c. Condenser coils shall have aluminum plate fins
mechanically bonded to seamless internally enhanced
copper tubes with all joints brazed or Micro-Channel
aluminum tube, aluminum fins.
d. Condenser coils shall be of the direct expansion, draw-
thru design.
Refrigerant Circuit and Refrigerant Safety Components shall
include:
a. Independent fixed-orifice or thermally operated
expansion devices.
b. Filter drier/strainer to eliminate any moisture or foreign
matter.
c. Accessible service gage connections on both suction
and liquid lines to charge, evacuate, and measure
refrigerant pressure during any necessary servicing or
troubleshooting, without losing charge.
d. The refrigeration system shall provide at least 15°F of
sub-cooling at design conditions.
Unit Controls
a. Unit shall be complete with self-contained low-voltage
control circuit protected by a resettable circuit breaker on
the 24-volt transformer side.
b. Unit shall incorporate a lockout circuit which provides
reset capability at the space thermostat or base unit,
should any of the following standard safety devices trip
and shut off compressor.
c. Loss-of-charge/Low-pressure switch.
d. High-pressure switch.
e. Freeze-protection thermostat, evaporator coil.
f. Unit shall incorporate “AUTO RESET” compressor over
temperature, over current protection.
g. Unit shall operate with conventional thermostat designs
and have a low voltage terminal strip for easy hook-up.
h. Unit control board shall have on-board diagnostics and
fault code display.
i. Standard controls shall include anti-short cycle and low
voltage protection, and permit cooling operation down to
0°F.
j. Control board shall monitor each refrigerant safety switch
independently.
k. Control board shall retain last 5 fault codes in non volatile
memory which will not be lost in the event of a power loss.
Gas Heating Section (Single Or 2 Stage)
Shall be designed with induced draft combustion with post
purge logic, energy saving direct spark ignition, and redundant
main gas valve. Venter wheel shall be constructed of stainless
steel for corrosion resistance. The heat exchanger shall be of
the tubular type, constructed of T1-40 aluminized steel for
corrosion resistance and allowing minimum mixed air entering
temperature of 25°F. Burners shall be of the inshot type,
constructed of aluminum coated steel and contain air mixture
adjustments. All gas piping shall enter the unit cabinet at a
single location through either the side or curb without any field
modifications. Integrated control boards shall provide timed
control of evaporator fan functioning and burner ignition.
Heating section shall be provided with the following minimum
protection:
a. Primary and auxiliary high-temperature limit switches.
b. Induced draft motor speed sensor.
c. Flame roll out switch.
d. Flame proving controls.
e. If any of the above safety devices trip, a LED (light-
emitting diode) indicator shall flash a diagnostic code that
indicates which safety switch has tripped.
NOTE: All 2 Stage Gas Heat, 60% Capacity 1st Stage, 40%
Capacity 2nd Stage.
Electric Heating Section
An electric heating section, with nickel chromium elements,
shall be provided in a range of 5 thru 30 KW, offering two
stages of capacity - 16 KW and above on 208/230 volt heaters
and 20 KW and above on 460 and 575 volt heaters. The
heating section shall have a primary limit control(s) and
automatic reset to prevent the heating element system from
operating at an excessive temperature. The heating section
assembly shall slide out of the unit for easy maintenance and
service. Units with Electric Heating shall be wired for a single
point power supply with branch circuit fusing (where required).
Unit Operating Characteristics
Unit shall be capable of starting and running at 125°F outdoor
temperature, exceeding maximum load criteria of AHRI
Standard 210/240. The compressor, with standard controls,
shall be capable of operation down to 0°F outdoor temperature.
Unit shall be provided with fan time delay to prevent cold air
delivery before heat exchanger warms up (Gas heat only).
251933-YTG-X-0615
Johnson Controls Unitary Products 11
Electrical Requirements
All unit power wiring shall enter unit cabinet at a single factory
provided location and be capable of side or bottom entry, to
minimize roof penetrations and avoid unit field modifications.
Separate side and bottom openings shall be provided for the
control wiring.
Standard Limited Warranties
• Compressor 5 Years
• Heat Exchanger 10 Years
• Electric Heat Element 5 Years
• Other Parts 1 Year
Optional Outdoor Air
Shall be made available by either/or:
•Dry Bulb Automatic Economizer - Outdoor and return air
dampers that are interlocked and positioned by a fully-
modulating, spring-return damper actuator. The maximum
leakage rate for the outdoor air intake dampers shall be
designed to meet ASHRAE 90.1-2010, AMCA 511 Class
1A damper, and the International Energy Conservation
Code (IECC) certification requirements by achieving
leakage rates of 3 cfm/sq. ft. at 1" of static pressure.
Changeover from compressor to economizer operation
shall be provided by an integral electronic enthalpy control
that feeds input into the basic module. The outdoor intake
opening shall be covered with a rain hood that matches the
exterior of the unit. Water eliminator/filters shall be
provided. Simultaneous economizer/compressor operation
is also possible. Dampers shall fully close on power loss.
Available with barometric relief and power exhaust..
•Motorized Outdoor Air Dampers - Outdoor air dampers
are positioned by a 2-position, spring-return damper
actuator. A unit-mounted potentiometer shall be provided
to adjust the outdoor damper assembly to take in the
design CFM of outdoor air to meet the ventilation
requirements of the conditioned space during normal
operation. Whenever the indoor fan motor is energized,
the dampers open up to one of two pre-selected positions
- regardless of the outdoor air enthalpy. Dampers return to
the fully closed position when the indoor fan motor is de-
energized. Dampers shall fully close on power loss.
Other Pre-engineered Accessories Available
•Roof Curb - 14"and 8” high, full perimeter curb with wood
nailer (shipped knocked-down).
•Barometric Relief Damper - Contains a rain hood, air
inlet screen, exhaust damper and mounting hardware.
Used to relieve internal air pressure through the unit.
•Propane Conversion Kit - Contains new orifices and gas
valve parts to convert from natural to L.P. gas. One per
unit required.
•High Altitude - Natural Gas - Contains orifices required
for applications between 2000 and 6000 feet altitude.
•High Altitude - Propane Gas - Contains orifices required
for applications between 2000 and 6000 feet altitude.
Must be used with propane conversion kit.
•Low Nox - Required to reduce the emission of nitrogen
oxides below 40 nanograms per joule.
•Gas Piping - Contains 1/2” pipe nipples, fittings and gas
cock (including panel assess gaskets) required for bottom
gas supply connection with external shut off.
•Power Exhaust Option - To work in conjunction with
economizers.
• Electric Heaters
•Economizer/motorized Damper Rain Hood - Contains
all hood panels and the hardware for assembling.
• Manual Outdoor Air Damper
•Coil Guard Kit - Guard for cooling coil.
• Hail Guard
• Flue Exhaust Extension
OTHER FACTORY INSTALLED OPTIONS
•Power Exhaust Option - To work in conjunction with
economizers.
• Stainless Steel Heat Exchanger
• Stainless Steel Drain Pan
• Bottom Drain Connection
• Technicoat Phenolic Coated Condenser And
Evaporator Coil
• Electronic Single Enthalpy Economizer
• Dirty Filter Switch
• Phase Monitor
• Coil Guard
• Powered GFI Convenience Outlet
• Non-powered GFI Convenience Outlet
• BAS Controls - Simplicity® SE with BAS
Communication (BACnet MS/TP, Modbus, and
Johnson Controls N2) Option, CPC, HONEYWELL,
NOVAR, YORK
• Bas Ready Economizer (2-10 V.D.C. Actuator Without
a Controller)
• Hinged Filter Door Access And Toolless Access
Panels
• 2" Pleated Filters, MERV 7
• Disconnect Switch
• Supply Air Smoke Detector
• Return Air Smoke Detector
• Direct Drive Or Belt Drive Blower With High Static
Drive Option
• Hot Gas Reheat with Hot Gas Bypass (Not available
on 6 Ton)
251933-YTG-X-0615
12 Johnson Controls Unitary Products
Physical Data
ZE036-060 Physical Data
Component Models
ZE036 ZE048 ZE060
Nominal Tonnage 3 4 5
ARI COOLING PERFORMANCE
Gross Capacity @ AHRI A point (Btu) 36600 49100 59000
AHRI net capacity (Btu) 35500 47500 57000
EER 12.0 12.0 11.8
SEER 14.0 14.0 14.0
IPLV ---
CFM 1200 1450 1680
System power (KW) 2.96 3.96 4.83
Refrigerant type R-410A R-410A R-410A
Refrigerant charge (lb-oz)
System 1 4-4 5-6 6-6
AHRI HEATING PERFORMANCE
Heating model N04 N08 D06 D10 N06 N10 D06 D10 N08 N10 D06 D10
Heat input (K Btu) 50 100 75 115 75 125 75 125 100 125 75 125
Heat output (K Btu) 40 80 60.8 92 60 100 60.8 100.6 80 100 60.8 100.6
AFUE % 8181 - - 8181 - - 8181 - -
Steady state efficiency (%) - - 81.1 80.2 - - 81.1 80.5 - - 81.1 80.5
No. burners 243535354535
No. stages 1 1 2 2 1 1 2 2 1 1 2 2
Temperature Rise Range (ºF) 15-45 45-75 35-70 55-90 25-70 45-75 25-70 45-75 25-55 35-75 20-55 35-75
Gas Limit Setting (ºF) - Direct Drive 240 170 210 200 210 165 210 165 170 165 210 165
Gas Limit Setting (ºF) - Belt Drive 240 210 240 200 240 210 240 210 210 210 210 210
Gas piping connection (in.) 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2
DIMENSIONS (inches)
Length 82 1/4 82 1/4 82 1/4
Width 44 7/8 44 7/8 44 7/8
Height 32 5/8 32 5/8 32 5/8
OPERATING WT. (lbs.) 470 598 632
COMPRESSORS
Type SCROLL SCROLL SCROLL
Quantity 1 1 1
Unit Capacity Steps (%) 100 100 100
CONDENSER COIL DATA
Face area (Sq. Ft.) 16.3 16.3 16.3
Rows 111
Fins per inch 23 23 23
Tube diameter (in.) 0.71 / 18 0.71 / 18 1.00 / 25.4
Circuitry Type 2-pass Microchannel 2-pass Microchannel 2-pass Microchannel
EVAPORATOR COIL DATA
Face area (Sq. Ft.) 5.06 5.06 5.06
Rows 344
Fins per inch 13 13 13
Tube diameter 0.375 0.375 0.375
Circuitry Type Intertwined Intertwined Intertwined
Refrigerant control Orifice Orifice TXV
251933-YTG-X-0615
Johnson Controls Unitary Products 13
CONDENSER FAN DATA
Quantity of fans 1 1 1
Fan diameter (Inch) 24 24 24
Type Prop Prop Prop
Drive type Direct Direct Direct
Quantity of motors 1 1 1
Motor HP each 1/2 1/2 1/2
No. speeds 1 1 1
RPM 1090 1090 1100
CFM 4000 4000 4200
BELT DRIVE EVAP FAN DATA
Quantity 1 1 1
Fan Size (Inch) 12 x 10 12 x 10 12 x 10
Type Centrifugal Centrifugal Centrifugal
Motor Sheave 1VL44 1VP56 1VL44 1VP56 1VL44 1VP56
Blower Sheave AK64 AK66 AK56 AK61 AK56 AK56
Belt A37 A39 A36 A38 A36 A38
Motor HP each 1-1/2 1-1/2 1-1/2 1-1/2 1-1/2 2
RPM 1740 1740 1740
Frame size 56 56 56
DIRECT DRIVE EVAP FAN DATA
Quantity 1 1 1
Fan Size (Inch) 12 x 10 12 x 10 12 x 10
Type Centrifugal Centrifugal Centrifugal
Motor HP each 1/2 1 1
RPM 1050 1050 1050
FILTERS
15" x 20" x 1" or 2" 2 2 2
14" x 25" x 1" or 2" 1 1 1
NOTE: All 2 Stage Gas Heat, 60% Capacity 1st Stage , 40% 2nd Stage
ZE036-060 Physical Data (Continued)
Component Models
ZE036 ZE048 ZE060
Nominal Tonnage 3 4 5
251933-YTG-X-0615
14 Johnson Controls Unitary Products
ZF036-060 Physical Data
Component Models
ZF036 ZF048 ZF060
Nominal Tonnage 3.0 4.0 5.0
AHRI COOLING PERFORMANCE
Gross Capacity @ AHRI A point (Btu) 37000 49300 59000
AHRI net capacity (Btu) 35500 47500 56500
EER 11.0 11.0 10.8
SEER 13.0 13.0 13.0
IPLV - - -
CFM 1200 1500 1750
System power (KW) 3.23 4.32 5.23
Refrigerant type R-410A R-410A R-410A
Refrigerant charge (lb-oz)
System 1 4-4 5-8 5-8
AHRI HEATING PERFORMANCE
Heating model N04 N08 D06 D10 N06 N10 D06 D10 N08 N10 D06 D10
Heat input (K Btu) 50 100 75 115 75 125 75 125 100 125 75 125
Heat output (K Btu) 40 80 60.8 92 60 100 60.8 100.6 80 100 60.8 100.6
AFUE % ------------
Steady state efficiency (%) - - 80.0 80.0 - - 80.0 80.0 - - 80.0 80.0
No. burners 243535354535
No. stages 112211221122
Temperature Rise Range (ºF) 15-45 45-75 35-70 55-90 25-70 45-75 25-70 45-75 25-55 35-75 20-55 35-75
Gas Limit Setting (ºF) - Direct Drive 240 170 210 200 210 165 210 165 170 165 210 165
Gas Limit Setting (ºF) - Belt Drive 240 210 240 200 240 210 240 210 210 210 210 210
Gas piping connection (in.) 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2
DIMENSIONS (inches)
Length 82 1/4 82 1/4 82 1/4
Width 44 7/8 44 7/8 44 7/8
Height 32 5/8 32 5/8 32 5/8
OPERATING WT. (lbs.) 468 541 569
COMPRESSORS
Type Recip Recip Recip
Quantity 111
Unit Capacity Steps (%) 100 100 100
CONDENSER COIL DATA
Face area (Sq. Ft.) 16.3 16.3 16.3
Rows 111
Fins per inch 23 23 23
Tube diameter (in.) 0.71 / 18 0.71 / 18 0.71 / 18
Circuitry Type 2-pass Microchannel 2-pass Microchannel 2-pass Microchannel
EVAPORATOR COIL DATA
Face area (Sq. Ft.) 5.06 5.06 5.06
Rows 334
Fins per inch 13 13 13
Tube diameter 0.375 0.375 0.375
Circuitry Type Intertwined Intertwined Intertwined
Refrigerant control Orifice Orifice Orifice
251933-YTG-X-0615
Johnson Controls Unitary Products 15
CONDENSER FAN DATA
Quantity 111
Fan diameter (Inch) 24 24 24
Type Prop Prop Prop
Drive type Direct Direct Direct
Quantity of motors 111
Motor HP each 1/2 1/2 1/2
No. speeds 111
RPM 1090 1090 1090
CFM 3800 4200 4200
BELT DRIVE EVAP FAN DATA
Quantity 111
Fan Size (Inch) 11 x 10 11 x 10 11 x 10
Type Centrifugal Centrifugal Centrifugal
Motor Sheave 1VL44 1VP56 1VL44 1VP56 1VL44 1VP56
Blower Sheave AK64 AK66 AK56 AK61 AK56 AK56
Belt A37 A39 A36 A38 A36 A38
Motor HP each 1-1/2 1-1/2 1-1/2 1-1/2 1-1/2 2
RPM 1725 1725 1725
Frame size 56 56 56
DIRECT DRIVE EVAP FAN DATA
Quantity 111
Fan Size (Inch) 12 x 10 12 x 10 12 x 10
Type Centrifugal Centrifugal Centrifugal
Motor HP each 1/2 1 1
RPM 1050 1050 1050
FILTERS
15” x 20” x 1” or 2” 222
14” x 25” x 1” or 2” 111
NOTE: All 2 Stage Gas Heat, 60% Capacity 1st Stage, 40% Capacity 2nd Stage.
ZF036-060 Physical Data (Continued)
Component Models
ZF036 ZF048 ZF060
Nominal Tonnage 3.0 4.0 5.0
251933-YTG-X-0615
16 Johnson Controls Unitary Products
ZF072 Physical Data
Component Models
ZF072
Nominal Tonnage 6.0
AHRI COOLING PERFORMANCE
Gross Capacity @ AHRI A point (Btu) 70360
AHRI net capacity (Btu) 68000
EER 11.21 / 11.02
IEER 11.3
CFM 2000
System power (KW) 6.07
Refrigerant type R-410A
Refrigerant charge (lb-oz)
System 1 6-4
AHRI HEATING PERFORMANCE
Heating model N08 N10 D06 D10
Heat input (K Btu) 100 125 75 125
Heat output (K Btu) 80 100 60.8 100.6
AFUE % ----
Steady state efficiency (%) - - 80.0 80.0
No. burners 4535
No. stages 1122
Temperature Rise Range (ºF) 25-55 30-75 15-45 30-75
Gas Limit Setting (ºF) - Direct Drive 170 165 210 165
Gas Limit Setting (ºF) - Belt Drive 210 210 210 210
Gas piping connection (in.) 1/2 1/2 1/2 1/2
DIMENSIONS (inches)
Length 82 1/4
Width 44 7/8
Height 32 5/8
OPERATING WT. (lbs.) 640
COMPRESSORS
Type Scroll
Quantity 1
Unit Capacity Steps (%) 100
CONDENSER COIL DATA
Face area (Sq. Ft.) 16.3
Rows 1
Fins per inch 23
Tube diameter (in.) 1.0 / 25.4
Circuitry Type 2-pass Microchannel
EVAPORATOR COIL DATA
Face area (Sq. Ft.) 5.06
Rows 4
Fins per inch 13
Tube diameter 0.375
Circuitry Type Intertwined
Refrigerant control Fixed Orifice
251933-YTG-X-0615
Johnson Controls Unitary Products 17
NOTE: All 2 Stage Gas Heat, 60% Capacity 1st Stage, 40% Capacity 2nd Stage.
CONDENSER FAN DATA
Quantity 1
Fan diameter (Inch) 24
Type Prop
Drive type Direct Drive
No. speeds 1
Number of motors 1
Motor HP each 1/231/24
RPM 1100 1090
CFM 4200 4200
BELT DRIVE EVAP FAN DATA
Quantity 1
Fan Size (Inch) 12 x 10
Type Centrifugal
Motor Sheave 1VL44 1VP56
Blower Sheave AK56 AK56
Belt A36 A38
Motor HP each 1-1/2 3
RPM 1725
Frame size 56
DIRECT DRIVE EVAP FAN DATA
Quantity 1
Fan Size (Inch) 12 x 10
Type Centrifugal
Motor HP each 1
RPM 1050
FILTERS
15” x 20” x 1” or 2” 2
14” x 25” x 1” or 2” 1
1. Cooling Only or Cooling with Electric Heat Unit
2. Cooling with Gas Heat Unit
3. Cooling Only or Cooling with Electric Heat Unit (ECM O.D. Fan Motor)
4. Cooling with Gas Heat Unit (PSC O.D. Fan Motor)
ZF072 Physical Data (Continued)
Component Models
ZF072
Nominal Tonnage 6.0
251933-YTG-X-0615
18 Johnson Controls Unitary Products
ZR036-060 Physical Data
Component Models
ZR036 ZR048 ZR060
Nominal Tonnage 3.0 4.0 5.0
AHRI COOLING PERFORMANCE
Gross Capacity @ AHRI A point (Btu) 36300 49600 60800
AHRI net capacity (Btu) 35000 48000 58500
EER 11.2 11.2 11.2
SEER 13.0 13.0 13.0
IPLV ---
CFM 1200 1600 2000
System power (KW) 3.13 4.18 5.3
Refrigerant type R-410a R-410a R-410a
Refrigerant charge (lb-oz)
System 1 11-2 12-4 11-12
AHRI HEATING PERFORMANCE
Heating model N04 N08 D06 D10 N06 N10 D06 D10 N08 N10 D06 D10
Heat input (K Btu) 50 100 75 115 75 125 75 125 100 125 75 125
Heat output (K Btu) 40 80 60.8 92 60 100 60.8 100.6 80 100 60.8 100.6
AFUE % ------------
Steady state efficiency (%) - - 80.0 80.0 - - 80.0 80.0 - - 80.0 80.0
No. burners 243535354535
No. stages 112211221122
Temperature Rise Range (ºF) 15-45 45-75 35-70 55-90 25-70 45-75 25-70 45-75 25-55 35-75 20-55 35-75
Gas Limit Setting (ºF) - Direct Drive 240 170 210 200 210 165 210 165 170 165 210 165
Gas Limit Setting (ºF) - Belt Drive 240 210 240 200 240 210 240 210 210 210 210 210
Gas piping connection (in.) 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2
DIMENSIONS (inches)
Length 82 1/4 82 1/4 82 1/4
Width 44 7/8 44 7/8 44 7/8
Height 32 5/8 32 5/8 32 5/8
OPERATING WT. (lbs.) 575 585 590
COMPRESSORS
Type Scroll Scroll Scroll
Quantity 1 1 1
Unit Capacity Steps (%) 100 100 100
CONDENSER COIL DATA
Face area (Sq. Ft.) 16.9 16.9 16.9
Rows 222
Fins per inch 18 18 18
Tube diameter (in.) 3/8 3/8 3/8
Circuitry Type Split-face Split-face Split-face
EVAPORATOR COIL DATA
Face area (Sq. Ft.) 5.06 5.06 5.06
Rows 334
Fins per inch 13 13 13
Tube diameter 0.375 0.375 0.375
Circuitry Type Split-face Split-face Split-face
Refrigerant control TXV TXV TXV
251933-YTG-X-0615
Johnson Controls Unitary Products 19
CONDENSER FAN DATA
Quantity 1 1 1
Fan diameter (Inch) 24 24 24
Type Prop Prop Prop
Drive type Direct Drive Direct Drive Direct Drive
No. speeds 1 1 1
Number of motors 1 1 1
Motor HP each 1/2 1/2 1/2
RPM 1090 1090 1090
CFM 4200 4200 4200
BELT DRIVE EVAP FAN DATA
Quantity 1 1 1
Fan Size (Inch) 11 x 10 11 x 10 11 x 10
Type Centrifugal Centrifugal Centrifugal
Motor Sheave 1VL44 1VP56 1VL44 1VP56 1VL44 1VP56
Blower Sheave AK64 AK66 AK56 AK61 AK56 AK56
Belt A37 A39 A36 A38 A36 A38
Motor HP each 1-1/2 1-1/2 1-1/2 1-1/2 1-1/2 2
RPM 1725 1725 1725
Frame size 56 56 56
DIRECT DRIVE EVAP FAN DATA
Quantity 1 1 1
Fan Size (Inch) 11 x 10 11 x 10 11 x 10
Type Centrifugal Centrifugal Centrifugal
Motor HP each 1/2 1 1
RPM 1050 1050 1050
FILTERS
15” x 20” x 1” or 2” 2 2 2
14” x 25” x 1” or 2” 1 1 1
NOTE: All 2 Stage Gas Heat, 60% Capacity 1st Stage, 40% Capacity 2nd Stage.
ZR036-060 Physical Data (Continued)
Component Models
ZR036 ZR048 ZR060
Nominal Tonnage 3.0 4.0 5.0
251933-YTG-X-0615
20 Johnson Controls Unitary Products
XN036-060 Physical Data
Component Models
XN036 XN048 XN060
Nominal Tonnage 3 4 5
AHRI COOLING PERFORMANCE
Gross Capacity @ AHRI A point (Btu) 38,400 48,700 5,750
AHRI net capacity (MBH) 37,000 47,000 55,400
EER 12.0 11.8 11.0
SEER 14.0 14.0 14.0
CFM 1200 1450 1275/1850
System power (KW) 3.08 3.98 5.04
Refrigerant type R410A R410A R410A
Refrigerant charge (lb-oz)
System 1 13-8 13-10 11-10
ARI HEATING PERFORMANCE
47ºF capacity rating (MBH) 36,000 44,000 51,500
System power (KW) / COP 3.15 (kW) / 3.35 4.03 (kW) / 3.20 4.5 (kW) / 3.35
17ºF capacity rating (MBH) 19,000 24,900 30,000
System power (KW) / COP 2.5 (kW) / 2.2 3.48 (kW) / 2.10 4.11 (kW) / 2.14
HSPF (Btu/Watts-hr) 8.00 8.00 8.00
DIMENSIONS (inches)
Length 82-1/4 82-1/4 82-1/4
Width 44-7/8 44-7/8 44-7/8
Height 32-5/8 32-5/8 32-5/8
OPERATING WT. (lbs.) 610 616 620
COMPRESSORS
Type SCROLL SCROLL SCROLL
Quantity 1 1 1
CONDENSER COIL DATA
Face area (Sq. Ft.) 16.88 16.88 16.88
Rows 2 2 2
Fins per inch 18 18 18
Tube diameter 3/8 3/8 3/8
Circuitry Type Split-face Split-face Split-face
Refrigerant control TXV TXV TXV
EVAPORATOR COIL DATA
Face area (Sq. Ft.) 5.06 5.06 5.06
Rows 4 4 4
Fins per inch 13 13 13
Tube diameter 0.375 0.375 0.375
Circuitry Type Split-face Split-face Split-face
Refrigerant control TXV TXV TXV
251933-YTG-X-0615
Johnson Controls Unitary Products 21
CONDENSER FAN DATA
Quantity 1 1 1
Fan diameter (Inch) 24 24 24
Type Prop Prop Prop
Drive type DIRECT DRIVE DIRECT DRIVE DIRECT DRIVE
No. speeds 1 1 2
Number of motors 1 1 1
Motor HP each 1/4 1/4 1/2
RPM 850 850 850/1100
CFM 3000 3300 2800/3800
BELT DRIVE EVAP FAN DATA
Quantity 1 1 1
Fan diameter (Inch) 12 x 10 12 x 10 12 x 10
Type Centrifugal Centrifugal Centrifugal
Motor Sheave 1VL44 1VP56 1VL44 1VP56 1VL44 1VP56
Blower Sheave AK64 AK66 AK56 AK61 AK56 AK56
Belt A37 A39 A36 A38 A36 A38
Motor HP each 1-1/2 1-1/2 1-1/2 1-1/2 1-1/2 2
RPM 1740 1740 1740
Frame size 56 56 56
DIRECT DRIVE EVAP FAN DATA
Quantity 1 1 1
Fan Size (Inch) 12 x 10 12 x 10 12 x 10
Type Centrifugal Centrifugal Centrifugal
Motor HP each 1/2 1 1
RPM 1050 1050 1050
FILTERS
15" x 20" x 1" or 2" 2 2 2
14" x 25" x 1" or 2" 1 1 1
XN036-060 Physical Data (Continued)
Component Models
XN036 XN048 XN060
Nominal Tonnage 3 4 5
251933-YTG-X-0615
22 Johnson Controls Unitary Products
XP036-060 Physical Data
Component Models
XP036 XP048 XP060
Nominal Tonnage 3.0 4.0 5.0
AHRI COOLING PERFORMANCE
Gross Capacity @ AHRI A point (Btu) 37,500 46500 60100
AHRI net capacity (Btu) 36,000 44500 57500
EER 11.4 11.0 10.6
SEER 13.0 13.0 13.0
CFM 1300 1600 1850
System power (KW) 3.30 4.05 5.42
Refrigerant type R410A R410A R-410A
Refrigerant charge (lb-oz) 13-8 13-12 12-10
AHRI HEATING PERFORMANCE
47°F capacity rating (MBH) 35,000 41,000 56500
System power (KW) / COP 3.10 (kW) / 3.30 4.0 (kW) / 3.20 5.4 (kW) / 3.10
17°F capacity rating (MBH 21,200 22,400 34400
System power (KW) / COP 2.89(kW) / 2.15 3.8 (kW) / 2.10 4.75 (kW) / 2.10
HSPF (Btu/Watts-hr) 7.70 7.70 7.70
DIMENSIONS (inches)
Length 82-1/4 82-1/4 82-1/4
Width 44-7/8 44-7/8 44-7/8
Height 32-5/8 32-5/8 32-5/8
OPERATING WT. (lbs.) 575 585 590
COMPRESSORS
Type Scroll Scroll Scroll
Quantity 1 1 1
CONDENSER COIL DATA
Face area (Sq. Ft.) 16.88 16.88 16.88
Rows 222
Fins per inch 18 18 18
Tube diameter 3/8 3/8 3/8
Circuitry Type Split-face Split-face Split-face
EVAPORATOR COIL DATA
Face area (Sq. Ft.) 5.06 5.06 5.06
Rows 444
Fins per inch 13 13 13
Tube diameter 0.375 0.375 0.375
Circuitry Type Split-face Split-face Split-face
Refrigerant control TXV TXV TXV
251933-YTG-X-0615
Johnson Controls Unitary Products 23
CONDENSER FAN DATA
Quantity 1 1 1
Fan diameter (Inch) 24 24 24
Type Prop Prop Prop
Drive type Direct Drive Direct Drive Direct Drive
No. speeds 1 1 1
Number of motors 1 1 1
Motor HP each 1/4 1/4 1/2
RPM 850 850 1090
Nominal total CFM 3275 3800 4200
BELT DRIVE EVAP FAN DATA
Quantity 1 1 1
Fan Size (Inch) 11 x 10 11 x 10 11 x 10
Type Centrifugal Centrifugal Centrifugal
Motor Sheave 1VL44 1VP56 1VL44 1VP56 1VL44 1VP56
Blower Sheave AK64 AK66 AK56 AK61 AK56 AK56
Belt A37 A39 A36 A38 A36 A38
Motor HP each 1-1/2 1-1/2 1-1/2 1-1/2 1-1/2 2
RPM 1725 1725 1725
Frame size 56 56 56
DIRECT DRIVE EVAP FAN DATA
Quantity 1 1 1
Fan Size (Inch) 11 x 10 11 x 10 11 x 10
Type Centrifugal Centrifugal Centrifugal
Motor HP each 3/4 1 1
RPM 1050 1050 1050
FILTERS
15” x 20” x 1” or 2” 2 2 2
14” x 25” x 1” or 2” 1 1 1
XP036-060 Physical Data (Continued)
Component Models
XP036 XP048 XP060
Nominal Tonnage 3.0 4.0 5.0
251933-YTG-X-0615
24 Johnson Controls Unitary Products
ZF/ZR/XP036-072 Unit Limitations
Size
(Tons) Unit Voltage
Unit Limitations
Applied Voltage Outdoor DB Temp
Min Max Max (°F)
ZF/ZR/XP036
(3.0)
208/230-3-60 187 252 125
460-3-60 432 504 125
575-3-60 540 630 125
ZF/ZR/XP048
(4.0)
208/230-3-60 187 252 125
460-3-60 432 504 125
575-3-60 540 630 125
ZF/ZR/XP060
(5.0)
208/230-3-60 187 252 125
460-3-60 432 504 125
575-3-60 540 630 125
ZF072
(6.0)
208/230-3-60 187 252 125
460-3-60 432 504 125
575-3-60 540 630 125
ZE/XN036-060 Unit Limitations
Size
(Tons) Unit Voltage
Unit Limitations
Applied Voltage Outdoor DB Temp
Min Max Max (°F)
ZE/XN036
(3.0)
208/230-1-60 187 252 125
208/230-3-60 187 252 125
460-3-60 432 504 125
575-3-60 540 630 125
ZE/XN048
(4.0)
208/230-1-60 187 252 125
208/230-3-60 187 252 125
460-3-60 432 504 125
575-3-60 540 630 125
ZE/XN060
(5.0)
208/230-1-60 187 252 125
208/230-3-60 187 252 125
460-3-60 432 504 125
575-3-60 540 630 125
251933-YTG-X-0615
Johnson Controls Unitary Products 25
Capacity Performance
ZE036-060 Cooling Capacities
ZE036 (3.0 Ton)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
75°F 85°F
750
77 44.0 2.0 19.5 16.3 13.2 - - - 42.2 2.3 18.7 15.6 12.5 - - -
72 41.5 2.0 24.6 21.5 18.3 15.2 - - 39.2 2.2 23.6 20.4 17.3 14.1 - -
67 39.1 2.0 29.7 26.6 23.4 20.3 17.2 - 36.2 2.2 28.4 25.2 22.1 18.9 15.8 -
62 36.2 1.9 36.2 31.7 28.5 25.4 22.2 19.1 33.4 2.2 33.4 31.1 26.9 23.8 20.6 17.5
900
77 45.5 2.0 21.4 17.9 14.3 - - - 43.7 2.3 20.8 17.2 13.6 - - -
72 43.0 2.0 27.0 23.4 19.9 16.3 - - 40.6 2.2 26.1 22.5 18.9 15.3 - -
67 40.5 2.0 32.6 29.0 25.4 21.9 18.3 - 37.5 2.2 31.3 27.7 24.1 20.5 16.9 -
62 37.5 1.9 37.5 34.5 31.0 27.4 23.8 20.2 34.6 2.2 34.6 33.0 29.4 25.8 22.2 18.6
57 35.9 1.9 35.9 35.9 34.3 30.7 27.1 23.5 34.1 2.2 34.1 34.1 31.2 27.6 24.0 20.4
1050
77 47.1 2.0 23.4 19.4 15.4 - - - 45.3 2.3 22.9 18.9 14.8 - - -
72 44.5 2.0 29.4 25.4 21.4 17.4 - - 42.0 2.2 28.6 24.6 20.5 16.4 - -
67 41.9 1.9 35.4 31.4 27.4 23.4 19.5 - 38.8 2.2 34.3 30.3 26.2 22.1 18.1 -
62 38.8 1.9 38.8 37.3 33.4 29.4 25.4 21.4 35.8 2.2 35.8 35.0 31.9 27.9 23.8 19.7
57 37.1 1.9 37.1 37.1 37.0 33.0 29.0 25.0 35.3 2.2 35.3 35.3 33.8 29.8 25.7 21.6
1200
77 48.7 2.0 25.4 21.0 16.5 - - - 46.8 2.3 25.0 20.5 15.9 - - -
72 46.0 1.9 31.8 27.4 23.0 18.6 - - 43.4 2.2 31.2 26.6 22.1 17.6 - -
67 43.3 1.9 38.3 33.9 29.4 25.0 20.6 - 40.1 2.2 37.3 32.8 28.3 23.7 19.2 -
62 40.1 1.9 40.1 40.1 35.8 31.4 27.0 22.6 37.0 2.2 37.0 37.0 34.5 29.9 25.4 20.9
57 38.4 1.9 38.4 38.4 38.4 35.3 30.8 26.4 36.5 2.2 36.5 36.5 36.5 32.0 27.4 22.9
1350
72 47.4 1.9 35.0 30.4 25.7 21.1 - - 44.2 2.2 33.4 28.5 23.5 18.6 - -
67 44.6 1.9 42.1 37.6 32.9 28.3 23.6 - 40.8 2.2 39.5 35.0 30.1 25.2 20.2 -
62 41.3 1.9 41.3 41.3 39.5 34.9 30.2 25.6 37.7 2.2 37.7 37.7 36.4 31.5 26.6 21.6
57 39.5 1.9 39.5 39.5 39.5 36.2 31.5 26.9 37.2 2.2 37.2 37.2 37.2 32.2 27.3 22.4
1500
72 48.8 1.9 38.2 33.3 28.5 23.6 - - 45.1 2.2 35.7 30.3 25.0 19.6 - -
67 45.9 1.9 45.9 41.3 36.4 31.6 26.7 - 41.6 2.2 41.6 37.3 31.9 26.6 21.3 -
62 42.5 1.9 42.5 42.5 42.5 38.4 33.5 28.7 38.4 2.2 38.4 38.4 38.4 33.1 27.7 22.4
57 40.7 1.9 40.7 40.7 40.7 37.1 32.2 27.4 37.9 2.2 37.9 37.9 37.9 32.5 27.2 21.8
95°F 105°F
750
77 40.5 2.5 18.0 14.9 11.7 - - - 36.0 2.9 13.6 11.5 8.5 - - -
72 36.9 2.5 22.5 19.4 16.2 13.1 - - 33.0 2.9 19.9 16.8 13.7 10.7 - -
67 33.3 2.5 27.0 23.8 20.7 17.6 14.5 - 30.0 2.9 26.1 22.0 19.0 15.9 12.8 -
62 30.6 2.5 30.6 30.4 25.3 22.2 19.1 15.9 27.7 2.9 27.7 27.5 22.5 19.4 16.3 13.3
900
77 42.0 2.5 20.2 16.6 13.0 - - - 37.3 2.9 16.6 13.0 9.4 - - -
72 38.2 2.5 25.2 21.5 17.9 14.3 - - 34.2 2.9 22.5 18.9 15.3 11.7 - -
67 34.5 2.5 30.1 26.5 22.8 19.2 15.6 - 31.1 2.9 28.4 24.8 21.2 17.5 13.9 -
62 31.7 2.5 31.7 31.5 27.9 24.3 20.6 17.0 28.6 2.9 28.6 28.6 25.0 21.4 17.8 14.2
57 32.4 2.5 32.4 31.7 28.1 24.4 20.8 17.2 29.1 2.9 29.1 28.7 25.1 21.5 17.8 14.2
1050
77 43.4 2.5 22.4 18.3 14.2 - - - 38.5 2.9 19.6 14.5 10.3 - - -
72 39.5 2.5 27.8 23.7 19.6 15.4 - - 35.3 2.9 25.1 21.0 16.8 12.7 - -
67 35.7 2.5 33.2 29.1 25.0 20.8 16.7 - 32.1 2.9 30.7 27.5 23.3 19.2 15.0 -
62 32.8 2.5 32.8 32.7 30.5 26.4 22.2 18.1 29.6 2.8 29.6 29.6 27.6 23.5 19.3 15.2
57 33.5 2.5 33.5 33.1 30.7 26.5 22.4 18.3 30.1 2.8 30.1 29.9 27.6 23.5 19.3 15.2
1200
77 44.9 2.5 24.6 20.0 15.4 - - - 39.8 2.9 22.6 16.0 11.3 - - -
72 40.9 2.5 30.5 25.8 21.2 16.6 - - 36.5 2.9 27.8 23.1 18.4 13.7 - -
67 36.9 2.5 36.3 31.7 27.1 22.4 17.8 - 33.2 2.9 32.9 30.2 25.5 20.8 16.1 -
62 33.9 2.5 33.9 33.9 33.1 28.4 23.8 19.2 30.6 2.8 30.6 30.6 30.2 25.5 20.8 16.1
57 34.6 2.5 34.6 34.6 33.3 28.6 24.0 19.4 31.1 2.8 31.1 31.1 30.2 25.5 20.8 16.1
1350
72 41.1 2.6 31.8 26.6 21.4 16.1 - - 36.8 2.9 29.4 24.1 18.9 13.7 - -
67 37.1 2.5 36.8 32.5 27.3 22.0 16.8 - 33.5 2.9 33.3 31.0 26.3 21.1 15.9 -
62 34.1 2.5 34.1 34.1 33.3 28.1 22.9 17.7 30.9 2.9 30.9 30.9 30.5 25.2 20.0 14.8
57 34.8 2.5 34.8 34.8 33.5 28.3 23.1 17.8 31.4 2.9 31.4 31.4 30.6 25.4 20.2 14.9
1500
72 41.3 2.6 33.1 27.3 21.5 15.7 - - 37.1 2.9 31.0 25.2 19.5 13.7 - -
67 37.3 2.6 37.3 33.3 27.4 21.6 15.8 - 33.8 2.9 33.8 31.7 27.1 21.4 15.6 -
62 34.3 2.5 34.3 34.3 33.5 27.7 21.9 16.1 31.1 2.9 31.1 31.1 30.8 25.0 19.2 13.5
57 35.0 2.5 35.0 35.0 33.7 27.9 22.1 16.3 31.7 2.9 31.7 31.7 31.0 25.3 19.5 13.8
251933-YTG-X-0615
26 Johnson Controls Unitary Products
115°F 125°F
750
77 31.5 3.3 9.2 8.2 5.2 - - - 27.0 3.7 5.7 4.1 1.9 - - -
72 29.1 3.3 17.2 14.2 11.2 8.2 - - 25.2 3.6 14.6 11.6 8.7 5.7 - -
67 26.7 3.2 25.2 20.2 17.2 14.2 11.2 - 23.4 3.6 23.4 18.4 15.5 12.6 9.6 -
62 24.7 3.3 24.7 24.7 19.6 16.6 13.6 10.6 21.8 3.6 21.8 21.8 16.8 13.9 10.9 8.0
900
77 32.6 3.3 13.0 9.4 5.8 - - - 27.9 3.7 10.1 5.9 2.3 - - -
72 30.1 3.2 19.8 16.2 12.7 9.1 - - 26.1 3.6 17.2 13.6 10.0 6.5 - -
67 27.7 3.2 26.6 23.1 19.5 15.9 12.3 - 24.2 3.6 24.2 21.4 17.8 14.2 10.7 -
62 25.6 3.2 25.6 25.6 22.2 18.6 15.0 11.4 22.5 3.6 22.5 22.5 19.3 15.8 12.2 8.6
57 25.9 3.2 25.9 25.7 22.1 18.5 14.9 11.3 22.7 3.6 22.7 22.6 19.1 15.5 11.9 8.4
1050
77 33.7 3.3 16.8 10.7 6.5 - - - 28.8 3.6 14.5 7.6 2.7 - - -
72 31.1 3.2 22.5 18.3 14.1 9.9 - - 26.9 3.6 19.8 15.6 11.4 7.2 - -
67 28.6 3.2 28.1 25.9 21.7 17.5 13.4 - 25.0 3.6 25.0 24.3 20.1 15.9 11.7 -
62 26.4 3.2 26.4 26.4 24.7 20.6 16.4 12.2 23.3 3.6 23.3 23.3 21.8 17.7 13.5 9.3
57 26.8 3.2 26.8 26.7 24.6 20.4 16.3 12.1 23.4 3.6 23.4 23.4 21.6 17.4 13.2 9.0
1200
77 34.8 3.3 20.6 11.9 7.2 - - - 29.8 3.6 18.9 9.3 3.1 - - -
72 32.2 3.2 25.1 20.3 15.6 10.8 - - 27.8 3.6 22.4 17.6 12.7 7.9 - -
67 29.5 3.2 29.5 28.7 23.9 19.2 14.4 - 25.8 3.5 25.8 25.8 22.4 17.6 12.7 -
62 27.3 3.2 27.3 27.3 27.3 22.5 17.8 13.0 24.0 3.6 24.0 24.0 24.0 19.6 14.7 9.9
57 27.7 3.2 27.7 27.7 27.1 22.4 17.6 12.9 24.2 3.5 24.2 24.2 24.1 19.2 14.4 9.6
1350
72 32.5 3.3 26.9 21.7 16.5 11.3 - - 28.3 3.6 24.5 19.3 14.1 8.8 - -
67 29.9 3.2 29.9 29.5 25.4 20.1 14.9 - 26.3 3.6 26.3 26.3 24.4 19.2 14.0 -
62 27.6 3.2 27.6 27.6 27.6 22.4 17.2 11.9 24.4 3.6 24.4 24.4 24.4 19.5 14.3 9.1
57 28.0 3.2 28.0 28.0 27.7 22.5 17.3 12.0 24.6 3.6 24.6 24.6 24.6 19.6 14.4 9.1
1500
72 32.9 3.3 28.8 23.1 17.4 11.7 - - 28.7 3.6 26.7 21.0 15.4 9.7 - -
67 30.2 3.3 30.2 30.2 26.8 21.1 15.4 - 26.7 3.6 26.7 26.7 26.5 20.8 15.2 -
62 28.0 3.3 28.0 28.0 28.0 22.3 16.6 10.9 24.8 3.6 24.8 24.8 24.8 19.5 13.9 8.2
57 28.3 3.3 28.3 28.3 28.3 22.6 16.9 11.2 25.0 3.6 25.0 25.0 25.0 20.0 14.3 8.7
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
ZE036 (3.0 Ton) (Continued)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 27
ZE048 (4.0 Ton)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
75°F 85°F
1000
77 60.0 2.6 27.4 22.9 18.4 - - - 58.1 3.1 26.4 22.0 17.5 - - -
72 56.4 2.5 34.3 29.8 25.3 20.8 - - 54.1 3.0 33.1 28.6 24.2 19.7 - -
67 52.8 2.4 41.1 36.6 32.1 27.6 23.1 - 50.1 2.9 39.7 35.3 30.8 26.4 22.0 -
62 48.4 2.4 48.4 43.6 38.7 34.2 29.7 25.2 45.8 2.9 45.8 43.4 37.4 33.0 28.6 24.1
1200
77 62.1 2.7 30.0 25.0 20.0 - - - 59.8 3.1 29.0 24.0 19.0 - - -
72 58.3 2.6 37.4 32.4 27.4 22.3 - - 55.7 3.0 36.2 31.2 26.2 21.1 - -
67 54.6 2.5 44.8 39.8 34.8 29.7 24.7 - 51.6 3.0 43.4 38.4 33.4 28.3 23.3 -
62 50.1 2.5 50.1 46.9 41.9 36.9 31.9 26.8 47.1 2.9 47.1 45.5 40.5 35.5 30.4 25.4
57 47.7 2.4 47.7 47.7 44.8 39.8 34.8 29.7 46.1 2.9 46.1 46.1 42.4 37.3 32.3 27.3
1400
77 64.2 2.7 32.6 27.0 21.5 - - - 61.6 3.2 31.6 26.0 20.4 - - -
72 60.3 2.6 40.5 35.0 29.5 23.9 - - 57.3 3.1 39.4 33.8 28.1 22.5 - -
67 56.5 2.6 48.5 43.0 37.4 31.9 26.3 - 53.1 3.0 47.1 41.5 35.9 30.3 24.6 -
62 51.7 2.5 51.7 50.2 45.1 39.5 34.0 28.5 48.5 3.0 48.5 47.7 43.6 37.9 32.3 26.7
57 49.3 2.4 49.3 49.3 48.2 42.7 37.1 31.6 47.4 2.9 47.4 47.4 45.6 40.0 34.3 28.7
1600
77 66.3 2.8 35.1 29.1 23.0 - - - 63.3 3.2 34.3 28.0 21.8 - - -
72 62.3 2.7 43.7 37.6 31.5 25.5 - - 58.9 3.1 42.6 36.3 30.1 23.9 - -
67 58.3 2.6 52.2 46.1 40.1 34.0 28.0 - 54.5 3.1 50.8 44.6 38.4 32.2 26.0 -
62 53.4 2.6 53.4 53.4 48.3 42.2 36.2 30.1 49.9 3.0 49.9 49.9 46.6 40.4 34.2 28.0
57 50.9 2.5 50.9 50.9 50.9 45.6 39.5 33.4 48.8 3.0 48.8 48.8 48.8 42.6 36.3 30.1
1800
72 63.7 2.7 46.3 39.8 33.2 26.6 - - 60.0 3.2 45.7 38.9 32.1 25.2 - -
67 59.6 2.6 56.6 48.7 42.1 35.5 29.0 - 55.5 3.1 53.6 47.7 40.9 34.1 27.2 -
62 54.7 2.6 54.7 54.7 52.1 45.5 38.9 32.3 50.7 3.0 50.7 50.7 49.1 42.3 35.4 28.6
57 52.1 2.5 52.1 52.1 52.1 45.9 39.3 32.7 49.6 3.0 49.6 49.6 49.6 42.8 36.0 29.1
2000
72 65.2 2.7 49.0 41.9 34.8 27.7 - - 61.0 3.2 48.9 41.5 34.0 26.6 - -
67 61.0 2.6 61.0 51.3 44.2 37.1 30.0 - 56.4 3.1 56.4 50.8 43.4 36.0 28.5 -
62 55.9 2.6 55.9 55.9 55.9 48.8 41.7 34.5 51.6 3.1 51.6 51.6 51.6 44.2 36.7 29.3
57 53.3 2.5 53.3 53.3 53.3 46.1 39.0 31.9 50.5 3.0 50.5 50.5 50.5 43.0 35.6 28.1
95°F 105°F
1000
77 56.3 3.6 25.4 21.0 16.6 - - - 52.0 4.1 21.4 18.5 14.2 - - -
72 51.8 3.5 31.9 27.5 23.1 18.7 - - 47.3 4.0 29.3 25.0 20.7 16.4 - -
67 47.3 3.4 38.3 34.0 29.6 25.2 20.8 - 42.7 3.9 37.1 31.5 27.2 22.9 18.6 -
62 43.2 3.4 43.2 43.1 36.2 31.8 27.4 23.1 39.2 3.9 39.2 39.2 32.4 28.1 23.8 19.5
1200
77 57.6 3.6 28.1 23.0 18.0 - - - 53.3 4.2 25.6 20.5 15.5 - - -
72 53.1 3.5 35.1 30.0 25.0 19.9 - - 48.6 4.1 32.7 27.7 22.6 17.6 - -
67 48.5 3.4 42.1 37.0 32.0 26.9 21.9 - 43.8 4.0 39.9 34.8 29.8 24.8 19.7 -
62 44.2 3.4 44.2 44.2 39.1 34.1 29.0 24.0 40.2 3.9 40.2 40.2 35.5 30.4 25.4 20.4
57 44.6 3.4 44.6 44.6 40.0 34.9 29.9 24.8 41.0 3.9 41.0 40.8 36.0 31.0 26.0 21.0
1400
77 59.0 3.6 30.7 25.0 19.3 - - - 54.7 4.2 29.7 22.6 16.8 - - -
72 54.3 3.5 38.2 32.5 26.8 21.1 - - 49.8 4.1 36.2 30.4 24.6 18.8 - -
67 49.6 3.5 45.8 40.1 34.3 28.6 22.9 - 45.0 4.0 42.6 38.2 32.4 26.6 20.9 -
62 45.3 3.4 45.3 45.2 42.0 36.3 30.6 24.9 41.3 4.0 41.3 41.3 38.5 32.8 27.0 21.2
57 45.6 3.4 45.6 45.6 43.0 37.2 31.5 25.8 42.1 3.9 42.1 42.0 39.2 33.4 27.6 21.9
1600
77 60.4 3.6 33.4 27.0 20.6 - - - 56.0 4.2 33.8 24.7 18.2 - - -
72 55.6 3.6 41.4 35.1 28.7 22.3 - - 51.1 4.1 39.6 33.1 26.6 20.1 - -
67 50.8 3.5 49.5 43.1 36.7 30.3 24.0 - 46.1 4.0 45.4 41.5 35.0 28.5 22.0 -
62 46.3 3.4 46.3 46.3 45.0 38.6 32.2 25.8 42.3 4.0 42.3 42.3 41.6 35.1 28.6 22.1
57 46.7 3.4 46.7 46.7 45.9 39.6 33.2 26.8 43.1 4.0 43.1 43.1 42.3 35.8 29.3 22.8
1800
72 56.2 3.6 45.1 38.1 31.0 23.9 - - 51.9 4.1 43.0 35.9 28.7 21.5 - -
67 51.3 3.5 50.7 46.7 39.7 32.6 25.5 - 46.8 4.0 46.5 44.1 37.8 30.6 23.5 -
62 46.8 3.5 46.8 46.8 46.1 39.1 32.0 24.9 42.9 4.0 42.9 42.9 42.6 35.4 28.3 21.1
57 47.2 3.5 47.2 47.2 46.8 39.7 32.7 25.6 43.8 4.0 43.8 43.8 43.4 36.2 29.1 21.9
2000
72 56.8 3.6 48.8 41.1 33.3 25.5 - - 52.6 4.2 46.5 38.7 30.8 23.0 - -
67 51.9 3.5 51.9 50.4 42.6 34.8 27.1 - 47.5 4.1 47.5 46.8 40.6 32.8 25.0 -
62 47.3 3.5 47.3 47.3 47.3 39.5 31.8 24.0 43.6 4.0 43.6 43.6 43.6 35.8 28.0 20.2
57 47.7 3.5 47.7 47.7 47.7 39.9 32.1 24.4 44.5 4.0 44.5 44.5 44.5 36.7 28.8 21.0
251933-YTG-X-0615
28 Johnson Controls Unitary Products
115°F 125°F
1000
77 47.6 4.7 17.5 15.9 11.7 - - - 43.3 5.3 14.6 12.5 9.3 - - -
72 42.9 4.6 26.6 22.5 18.3 14.1 - - 38.4 5.2 24.0 19.9 15.9 11.8 - -
67 38.1 4.5 35.8 29.0 24.8 20.6 16.5 - 33.5 5.0 33.5 26.5 22.5 18.4 14.3 -
62 35.3 4.4 35.3 35.3 28.6 24.4 20.2 16.0 31.3 5.0 31.3 31.3 24.7 20.7 16.6 12.5
1200
77 49.0 4.7 23.0 18.0 13.0 - - - 44.7 5.3 21.4 15.6 10.6 - - -
72 44.1 4.6 30.3 25.3 20.3 15.3 - - 39.6 5.2 28.0 23.0 18.0 13.0 - -
67 39.2 4.5 37.6 32.6 27.6 22.6 17.6 - 34.6 5.1 34.6 30.5 25.5 20.5 15.5 -
62 36.3 4.5 36.3 36.3 31.8 26.8 21.8 16.8 32.3 5.0 32.3 32.3 28.1 23.2 18.2 13.2
57 37.5 4.4 37.5 37.1 32.1 27.1 22.1 17.1 34.0 4.9 34.0 33.4 28.2 23.2 18.2 13.2
1400
77 50.3 4.8 28.6 20.2 14.4 - - - 46.0 5.4 28.3 18.6 11.9 - - -
72 45.3 4.7 34.1 28.2 22.4 16.6 - - 40.8 5.2 32.0 26.1 20.2 14.3 - -
67 40.3 4.6 39.5 36.3 30.5 24.6 18.8 - 35.6 5.1 35.6 34.4 28.5 22.6 16.8 -
62 37.3 4.5 37.3 37.3 35.0 29.2 23.4 17.6 33.3 5.0 33.3 33.3 31.5 25.7 19.8 13.9
57 38.6 4.4 38.6 38.3 35.4 29.5 23.7 17.9 35.0 5.0 35.0 34.7 31.6 25.7 19.8 14.0
1600
77 51.7 4.8 34.1 22.3 15.7 - - - 47.4 5.4 35.2 21.6 13.2 - - -
72 46.5 4.7 37.8 31.1 24.5 17.8 - - 42.0 5.3 35.9 29.1 22.4 15.6 - -
67 41.4 4.6 41.4 39.9 33.3 26.6 20.0 - 36.7 5.1 36.7 36.7 31.5 24.8 18.0 -
62 38.3 4.5 38.3 38.3 38.3 31.6 25.0 18.4 34.3 5.1 34.3 34.3 34.3 28.2 21.4 14.6
57 39.6 4.5 39.6 39.6 38.6 32.0 25.4 18.7 36.0 5.0 36.0 36.0 35.0 28.2 21.5 14.7
1800
72 47.5 4.7 40.9 33.7 26.4 19.2 - - 43.2 5.3 38.8 31.5 24.2 16.8 - -
67 42.2 4.6 42.2 41.5 35.9 28.7 21.4 - 37.7 5.1 37.7 37.7 34.1 26.7 19.4 -
62 39.1 4.5 39.1 39.1 39.1 31.8 24.6 17.3 35.2 5.1 35.2 35.2 35.2 28.2 20.9 13.6
57 40.4 4.5 40.4 40.4 39.9 32.7 25.5 18.2 37.0 5.0 37.0 37.0 36.5 29.2 21.9 14.5
2000
72 48.5 4.7 44.1 36.3 28.4 20.5 - - 44.4 5.2 41.8 33.9 26.0 18.1 - -
67 43.1 4.6 43.1 43.1 38.6 30.7 22.9 - 38.7 5.1 38.7 38.7 36.6 28.7 20.8 -
62 39.9 4.5 39.9 39.9 39.9 32.0 24.2 16.3 36.2 5.1 36.2 36.2 36.2 28.3 20.4 12.5
57 41.3 4.5 41.3 41.3 41.3 33.4 25.5 17.7 38.0 5.0 38.0 38.0 38.0 30.1 22.2 14.4
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
ZE048 (4.0 Ton) (Continued)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 29
ZE060 (5.0 Ton)
Air on
Evaporator Coil
Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F)
Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
75°F 85°F
1250
77 74.6 3.2 34.0 28.7 23.4 - - - 70.6 3.8 31.6 26.4 21.1 - - -
72 69.2 3.2 42.2 36.9 31.6 26.3 - - 65.3 3.7 39.7 34.4 29.2 23.9 - -
67 63.8 3.2 50.4 45.1 39.8 34.5 29.2 - 60.1 3.7 47.7 42.5 37.2 32.0 26.7 -
62 58.4 3.1 58.4 56.3 48.8 43.5 38.2 32.9 55.1 3.7 55.1 53.7 45.6 40.4 35.1 29.9
1500
77 76.5 3.3 37.3 31.2 25.1 - - - 72.4 3.8 35.0 29.0 23.0 - - -
72 71.0 3.2 46.1 40.0 33.9 27.9 - - 67.1 3.7 43.8 37.7 31.7 25.7 - -
67 65.4 3.2 54.9 48.8 42.8 36.7 30.6 - 61.7 3.7 52.5 46.5 40.5 34.5 28.5 -
62 59.9 3.2 59.9 58.5 52.4 46.4 40.3 34.2 56.6 3.7 56.6 55.6 49.6 43.6 37.6 31.6
57 59.0 3.1 59.0 59.0 54.1 48.0 41.9 35.9 56.2 3.7 56.2 56.2 50.6 44.5 38.5 32.5
1750
77 78.4 3.3 40.6 33.7 26.9 - - - 74.3 3.8 38.4 31.6 24.9 - - -
72 72.7 3.3 50.0 43.1 36.3 29.5 - - 68.8 3.8 47.8 41.1 34.3 27.5 - -
67 67.1 3.2 59.4 52.5 45.7 38.9 32.1 - 63.3 3.7 57.3 50.5 43.8 37.0 30.2 -
62 61.4 3.2 61.4 60.7 56.1 49.2 42.4 35.6 58.1 3.7 58.1 57.6 53.6 46.9 40.1 33.3
57 60.5 3.2 60.5 60.5 57.8 51.0 44.2 37.4 57.7 3.7 57.7 57.7 54.6 47.9 41.1 34.3
2000
77 80.3 3.3 43.8 36.3 28.7 - - - 76.1 3.8 41.8 34.2 26.7 - - -
72 74.5 3.3 53.9 46.3 38.7 31.1 - - 70.5 3.8 51.9 44.4 36.9 29.4 - -
67 68.7 3.2 63.9 56.3 48.7 41.1 33.6 - 64.9 3.8 62.1 54.6 47.0 39.5 32.0 -
62 62.8 3.2 62.8 62.8 59.7 52.1 44.6 37.0 59.5 3.7 59.5 59.5 57.7 50.1 42.6 35.1
57 62.0 3.2 62.0 62.0 61.6 54.0 46.5 38.9 59.1 3.7 59.1 59.1 58.7 51.2 43.7 36.2
2250
72 81.4 2.6 59.5 51.3 43.0 34.7 - - 71.7 3.8 55.7 47.5 39.3 31.1 - -
67 75.0 2.6 72.6 63.7 54.1 45.8 37.5 - 66.0 3.8 64.6 58.3 50.1 42.0 33.8 -
62 68.6 2.5 68.6 68.6 67.1 58.8 50.5 42.2 60.5 3.7 60.5 60.5 59.6 51.4 43.3 35.1
57 67.8 2.5 67.8 67.8 67.6 59.3 51.0 42.7 60.1 3.7 60.1 60.1 59.9 51.8 43.6 35.4
2500
72 88.2 1.9 65.2 56.2 47.2 38.2 - - 73.0 3.8 59.4 50.6 41.7 32.9 - -
67 81.3 1.9 81.3 71.2 59.6 50.5 41.5 - 67.1 3.8 67.1 62.1 53.2 44.4 35.6 -
62 74.4 1.9 74.4 74.4 74.4 65.4 56.4 47.4 61.6 3.7 61.6 61.6 61.6 52.7 43.9 35.1
57 73.6 1.9 73.6 73.6 73.6 64.5 55.5 46.5 61.1 3.7 61.1 61.1 61.1 52.3 43.5 34.7
95°F 105°F
1250
77 66.5 4.3 29.3 24.1 18.9 - - - 61.4 4.9 24.0 19.8 14.7 - - -
72 61.5 4.2 37.1 32.0 26.8 21.6 - - 56.9 4.9 34.1 29.0 23.9 18.7 - -
67 56.4 4.2 45.0 39.8 34.6 29.4 24.2 - 52.5 4.9 44.2 38.1 33.0 27.9 22.8 -
62 51.9 4.2 51.9 51.1 42.4 37.3 32.1 26.9 48.7 4.8 48.7 48.3 39.8 34.7 29.6 24.4
1500
77 68.3 4.3 32.7 26.8 20.8 - - - 62.8 5.0 27.9 22.1 16.2 - - -
72 63.2 4.3 41.4 35.5 29.5 23.6 - - 58.3 4.9 38.0 32.2 26.3 20.4 - -
67 58.0 4.2 50.1 44.2 38.2 32.3 26.3 - 53.7 4.9 48.1 42.2 36.4 30.5 24.6 -
62 53.3 4.2 53.3 52.8 46.8 40.9 34.9 29.0 49.9 4.8 49.9 49.6 43.8 38.0 32.1 26.2
57 53.4 4.2 53.4 53.0 47.1 41.1 35.1 29.2 50.2 4.8 50.2 50.0 44.1 38.3 32.4 26.5
1750
77 70.2 4.3 36.2 29.5 22.8 - - - 64.3 5.0 31.9 24.3 17.7 - - -
72 64.9 4.3 45.7 39.0 32.3 25.6 - - 59.7 5.0 42.0 35.3 28.7 22.1 - -
67 59.5 4.3 55.2 48.5 41.8 35.1 28.4 - 55.0 4.9 52.0 46.3 39.7 33.1 26.4 -
62 54.8 4.2 54.8 54.5 51.2 44.5 37.8 31.1 51.0 4.9 51.0 50.9 47.9 41.2 34.6 28.0
57 54.8 4.2 54.8 54.6 51.5 44.7 38.0 31.3 51.4 4.9 51.4 51.3 48.2 41.6 34.9 28.3
2000
77 72.0 4.3 39.7 32.2 24.7 - - - 65.8 5.0 35.9 26.6 19.2 - - -
72 66.5 4.3 50.0 42.5 35.1 27.6 - - 61.0 5.0 45.9 38.5 31.1 23.7 - -
67 61.1 4.3 60.3 52.9 45.4 37.9 30.4 - 56.3 5.0 55.9 50.4 43.0 35.6 28.3 -
62 56.2 4.2 56.2 56.2 55.6 48.2 40.7 33.2 52.2 4.9 52.2 52.2 51.9 44.5 37.1 29.7
57 56.2 4.2 56.2 56.2 55.9 48.4 40.9 33.4 52.6 4.9 52.6 52.6 52.3 44.9 37.5 30.1
2250
72 62.1 5.0 51.8 43.7 35.7 27.6 - - 59.2 5.3 48.5 40.5 32.4 24.4 - -
67 57.0 4.9 56.6 52.9 46.2 38.1 30.0 - 54.6 5.3 54.4 51.7 45.0 37.0 29.0 -
62 52.5 4.9 52.5 52.5 52.2 44.1 36.1 28.0 50.7 5.2 50.7 50.7 50.5 42.5 34.5 26.5
57 52.5 4.9 52.5 52.5 52.3 44.2 36.2 28.1 51.1 5.2 51.1 51.1 50.9 42.9 34.9 26.9
2500
72 57.7 5.6 53.5 44.9 36.3 27.6 - - 57.4 5.6 51.1 42.4 33.8 25.1 - -
67 53.0 5.6 53.0 53.0 46.9 38.3 29.6 - 53.0 5.6 53.0 53.0 46.9 38.3 29.6 -
62 48.7 5.5 48.7 48.7 48.7 40.1 31.4 22.8 49.2 5.5 49.2 49.2 49.2 40.5 31.9 23.2
57 48.7 5.5 48.7 48.7 48.7 40.1 31.5 22.8 49.6 5.5 49.6 49.6 49.6 40.9 32.3 23.7
251933-YTG-X-0615
30 Johnson Controls Unitary Products
115°F 125°F
1250
77 56.2 5.6 18.7 15.6 10.5 - - - 51.0 6.2 13.2 11.3 6.3 - - -
72 52.4 5.6 31.1 26.0 20.9 15.9 - - 47.8 6.3 28.0 23.0 18.0 13.0 - -
67 48.5 5.6 43.4 36.5 31.4 26.3 21.3 - 44.6 6.3 42.7 34.8 29.8 24.8 19.8 -
62 45.5 5.5 45.5 45.5 37.2 32.1 27.1 22.0 42.2 6.1 42.2 42.2 34.6 29.6 24.6 19.6
1500
77 57.3 5.6 23.1 17.3 11.5 - - - 51.8 6.3 18.3 12.6 6.9 - - -
72 53.4 5.6 34.6 28.8 23.0 17.2 - - 48.5 6.3 31.2 25.5 19.8 14.0 - -
67 49.5 5.6 46.1 40.3 34.5 28.7 22.9 - 45.2 6.3 44.1 38.4 32.6 26.9 21.2 -
62 46.4 5.5 46.4 46.4 40.9 35.0 29.2 23.4 42.9 6.2 42.9 42.9 37.9 32.1 26.4 20.7
57 47.1 5.5 47.1 47.0 41.2 35.4 29.6 23.8 44.0 6.2 44.0 44.0 38.3 32.6 26.9 21.1
1750
77 58.4 5.6 27.6 19.1 12.6 - - - 52.6 6.3 23.5 13.9 7.4 - - -
72 54.4 5.6 38.2 31.6 25.1 18.5 - - 49.2 6.3 34.4 27.9 21.5 15.0 - -
67 50.5 5.6 48.8 44.1 37.6 31.0 24.5 - 45.9 6.3 45.5 41.9 35.5 29.0 22.5 -
62 47.3 5.5 47.3 47.3 44.5 38.0 31.4 24.9 43.5 6.2 43.5 43.5 41.2 34.7 28.2 21.8
57 48.1 5.5 48.1 48.0 44.9 38.4 31.8 25.3 44.7 6.2 44.7 44.7 41.7 35.2 28.7 22.3
2000
77 59.6 5.7 32.0 20.9 13.6 - - - 53.3 6.3 28.6 15.2 8.0 - - -
72 55.5 5.7 41.7 34.4 27.1 19.8 - - 50.0 6.3 37.6 30.4 23.2 16.0 - -
67 51.4 5.7 51.4 48.0 40.7 33.4 26.1 - 46.6 6.3 46.6 45.5 38.3 31.1 23.9 -
62 48.2 5.5 48.2 48.2 48.2 40.9 33.6 26.3 44.2 6.2 44.2 44.2 44.2 37.3 30.1 22.8
57 49.0 5.6 49.0 49.0 48.6 41.3 34.0 26.7 45.4 6.3 45.4 45.4 45.0 37.8 30.6 23.4
2250
72 56.3 5.6 45.2 37.2 29.2 21.3 - - 53.4 6.0 41.8 33.9 26.0 18.1 - -
67 52.2 5.6 52.2 50.5 43.8 35.8 27.9 - 49.8 6.0 49.8 49.2 42.6 34.7 26.8 -
62 48.9 5.5 48.9 48.9 48.9 40.9 33.0 25.0 47.1 5.9 47.1 47.1 47.1 39.3 31.4 23.5
57 49.7 5.6 49.7 49.7 49.5 41.6 33.6 25.6 48.3 5.9 48.3 48.3 48.1 40.2 32.3 24.4
2500
72 57.1 5.6 48.6 39.9 31.3 22.7 - - 56.9 5.6 46.1 37.5 28.8 20.2 - -
67 53.0 5.6 53.0 53.0 46.9 38.3 29.6 - 53.0 5.6 53.0 53.0 46.9 38.3 29.6 -
62 49.6 5.5 49.6 49.6 49.6 41.0 32.3 23.7 50.1 5.5 50.1 50.1 50.1 41.4 32.8 24.1
57 50.4 5.5 50.4 50.4 50.4 41.8 33.2 24.5 51.3 5.5 51.3 51.3 51.3 42.6 34.0 25.4
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
ZE060 (5.0 Ton) (Continued)
Air on
Evaporator Coil
Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F)
Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 31
ZF036-072 Cooling Capacities
ZF036 (3.0 Ton)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
75°F 85°F
750
77 50.6 2.5 21.4 18.3 15.1 - - - 42.9 2.5 18.6 15.6 12.6 - - -
72 45.4 2.4 26.1 23.0 19.8 16.7 - - 39.4 2.4 23.4 20.4 17.4 14.5 - -
67 40.2 2.2 30.8 27.7 24.6 21.4 18.3 - 35.9 2.4 28.2 25.3 22.3 19.3 16.3 -
62 39.9 2.3 39.9 34.7 32.0 28.8 25.7 22.5 34.2 2.4 34.2 31.5 28.0 25.0 22.0 19.0
900
77 51.0 2.4 22.5 19.2 15.9 - - - 44.2 2.5 20.2 16.9 13.6 - - -
72 45.7 2.3 27.4 24.1 20.7 17.4 - - 40.6 2.4 25.4 22.1 18.8 15.5 - -
67 40.4 2.2 32.3 28.9 25.6 22.3 19.0 - 37.0 2.4 30.6 27.3 24.0 20.7 17.4 -
62 40.2 2.3 40.2 36.8 33.4 30.1 26.8 23.4 35.2 2.4 35.2 33.5 30.2 26.9 23.6 20.3
57 38.4 2.3 38.4 38.4 35.2 31.9 28.5 25.2 33.7 2.4 33.7 33.7 31.0 27.7 24.4 21.1
1050
77 51.4 2.4 23.6 20.1 16.6 - - - 45.6 2.5 21.8 18.2 14.5 - - -
72 46.0 2.3 28.7 25.2 21.6 18.1 - - 41.8 2.5 27.3 23.7 20.1 16.5 - -
67 40.6 2.1 33.7 30.2 26.7 23.2 19.7 - 38.1 2.4 32.9 29.3 25.7 22.1 18.5 -
62 40.5 2.2 40.5 38.8 34.9 31.4 27.9 24.4 36.3 2.4 36.3 35.4 32.3 28.7 25.1 21.5
57 38.7 2.2 38.7 38.7 36.8 33.3 29.8 26.2 34.7 2.4 34.7 34.7 33.2 29.6 26.0 22.4
1200
77 51.8 2.3 24.8 21.1 17.4 - - - 46.9 2.5 23.4 19.4 15.5 - - -
72 46.3 2.2 30.0 26.3 22.6 18.8 - - 43.0 2.5 29.3 25.4 21.5 17.5 - -
67 40.8 2.1 35.2 31.5 27.8 24.0 20.3 - 39.2 2.4 35.3 31.3 27.4 23.5 19.6 -
62 40.8 2.2 40.8 40.8 36.4 32.7 29.0 25.3 37.3 2.4 37.3 37.3 34.5 30.6 26.6 22.7
57 39.0 2.2 39.0 39.0 38.4 34.7 31.0 27.3 35.7 2.4 35.7 35.7 35.5 31.5 27.6 23.7
1350
72 48.5 2.3 32.6 28.5 24.3 20.2 - - 44.0 2.5 31.3 27.0 22.7 18.4 - -
67 42.8 2.1 39.0 34.1 30.0 25.8 21.7 - 40.1 2.4 37.6 33.3 29.0 24.7 20.4 -
62 42.7 2.2 42.7 42.7 39.9 35.8 31.6 27.5 38.2 2.4 38.2 38.2 36.5 32.2 27.9 23.6
57 40.7 2.2 40.7 40.7 40.5 36.3 32.2 28.0 36.6 2.4 36.6 36.6 36.4 32.1 27.8 23.5
1500
72 50.6 2.3 35.2 30.7 26.1 21.5 - - 45.0 2.5 33.3 28.6 24.0 19.3 - -
67 44.8 2.2 42.8 36.8 32.2 27.6 23.0 - 40.9 2.4 40.0 35.3 30.6 26.0 21.3 -
62 44.5 2.3 44.5 44.5 43.5 38.9 34.3 29.8 39.0 2.4 39.0 39.0 38.5 33.8 29.2 24.5
57 42.5 2.3 42.5 42.5 42.5 38.0 33.4 28.8 37.4 2.4 37.4 37.4 37.4 32.7 28.0 23.4
95°F 105°F
750
77 35.3 2.4 15.8 12.9 10.1 - - - 34.5 2.8 14.6 12.5 9.7 - - -
72 33.4 2.5 20.7 17.9 15.0 12.2 - - 31.5 2.9 19.8 17.0 14.2 11.4 - -
67 31.5 2.6 25.7 22.8 20.0 17.2 14.3 - 28.5 2.9 25.0 21.5 18.7 15.9 13.1 -
62 28.5 2.5 28.5 28.3 24.0 21.2 18.4 15.5 27.2 2.8 27.2 27.1 22.7 19.9 17.1 14.3
900
77 37.5 2.5 17.8 14.6 11.3 - - - 35.9 2.9 17.2 14.0 10.7 - - -
72 35.5 2.6 23.4 20.1 16.8 13.6 - - 32.9 2.9 22.1 18.9 15.7 12.5 - -
67 33.5 2.7 28.9 25.6 22.4 19.1 15.8 - 29.8 2.9 27.1 23.9 20.7 17.5 14.3 -
62 30.3 2.5 30.3 30.2 26.9 23.6 20.4 17.1 28.3 2.8 28.3 28.3 25.1 21.9 18.7 15.5
57 29.1 2.5 29.1 29.1 26.9 23.6 20.3 17.1 25.4 2.8 25.4 25.4 23.1 19.9 16.7 13.5
1050
77 39.7 2.6 19.9 16.2 12.5 - - - 37.4 2.9 19.7 15.4 11.8 - - -
72 37.6 2.6 26.0 22.3 18.6 14.9 - - 34.2 2.9 24.4 20.8 17.2 13.6 - -
67 35.5 2.7 32.1 28.4 24.7 21.0 17.3 - 31.1 2.9 29.2 26.3 22.7 19.1 15.5 -
62 32.1 2.6 32.1 32.0 29.7 26.0 22.3 18.6 29.5 2.9 29.5 29.5 27.5 23.9 20.3 16.7
57 30.8 2.6 30.8 30.8 29.7 26.0 22.3 18.6 26.5 2.8 26.5 26.5 25.3 21.7 18.1 14.5
1200
77 41.9 2.6 21.9 17.8 13.7 - - - 38.8 3.0 22.3 16.8 12.8 - - -
72 39.7 2.7 28.6 24.5 20.4 16.3 - - 35.6 3.0 26.8 22.8 18.8 14.7 - -
67 37.5 2.8 35.3 31.2 27.1 23.0 18.8 - 32.3 3.0 31.2 28.7 24.7 20.7 16.7 -
62 33.9 2.7 33.9 33.9 32.6 28.4 24.3 20.2 30.6 2.9 30.6 30.6 29.9 25.9 21.9 17.9
57 32.5 2.6 32.5 32.5 32.5 28.4 24.3 20.1 27.6 2.8 27.6 27.6 27.6 23.6 19.6 15.5
1350
72 39.5 2.7 30.0 25.6 21.1 16.7 - - 35.8 3.0 28.5 24.1 19.7 15.4 - -
67 37.3 2.7 36.2 32.5 28.1 23.6 19.2 - 32.5 3.0 32.0 29.9 26.0 21.6 17.2 -
62 33.7 2.6 33.7 33.7 33.0 28.6 24.1 19.7 30.8 2.9 30.8 30.8 30.5 26.1 21.7 17.3
57 32.4 2.6 32.4 32.4 32.4 27.9 23.5 19.0 27.7 2.8 27.7 27.7 27.7 23.3 18.9 14.5
1500
72 39.3 2.6 31.4 26.6 21.9 17.1 - - 36.0 2.9 30.3 25.5 20.7 16.0 - -
67 37.1 2.7 37.1 33.8 29.1 24.3 19.5 - 32.7 2.9 32.7 31.0 27.3 22.5 17.7 -
62 33.5 2.6 33.5 33.5 33.5 28.8 24.0 19.2 31.0 2.9 31.0 31.0 31.0 26.3 21.5 16.7
57 32.2 2.6 32.2 32.2 32.2 27.4 22.6 17.9 27.9 2.8 27.9 27.9 27.9 23.1 18.3 13.5
251933-YTG-X-0615
32 Johnson Controls Unitary Products
115°F 125°F
750
77 33.7 3.2 13.4 12.1 9.3 - - - 32.9 3.6 13.5 10.8 9.0 - - -
72 29.6 3.2 18.9 16.1 13.4 10.6 - - 27.7 3.5 18.0 15.3 12.5 9.8 - -
67 25.6 3.1 24.4 20.2 17.4 14.6 11.9 - 22.6 3.4 22.6 18.9 16.1 13.4 10.6 -
62 25.8 3.1 25.8 25.8 21.3 18.6 15.8 13.0 24.5 3.4 24.5 24.5 20.0 17.2 14.5 11.7
900
77 34.3 3.3 16.5 13.3 10.2 - - - 32.8 3.6 17.0 12.7 9.7 - - -
72 30.2 3.2 20.9 17.8 14.6 11.5 - - 27.6 3.5 19.7 16.6 13.5 10.4 - -
67 26.1 3.1 25.3 22.2 19.0 15.9 12.7 - 22.4 3.4 22.4 20.5 17.4 14.3 11.2 -
62 26.4 3.1 26.4 26.4 23.3 20.2 17.0 13.9 24.4 3.4 24.4 24.4 21.6 18.5 15.4 12.3
57 21.7 3.0 21.7 21.7 19.3 16.1 13.0 9.9 18.0 3.2 18.0 18.0 15.5 12.4 9.3 6.3
1050
77 35.0 3.3 19.6 14.6 11.1 - - - 32.7 3.6 20.5 14.7 10.4 - - -
72 30.8 3.2 22.9 19.4 15.9 12.4 - - 27.4 3.5 21.3 17.9 14.5 11.1 - -
67 26.6 3.1 26.2 24.2 20.7 17.2 13.6 - 22.1 3.4 22.1 22.1 18.6 15.2 11.8 -
62 26.9 3.1 26.9 26.9 25.3 21.8 18.3 14.8 24.3 3.4 24.3 24.3 23.1 19.7 16.3 12.9
57 22.2 3.0 22.2 22.2 20.9 17.4 13.9 10.4 17.8 3.2 17.8 17.8 16.6 13.1 9.7 6.3
1200
77 35.7 3.3 22.6 15.8 11.9 - - - 32.6 3.6 24.1 16.6 11.1 - - -
72 31.4 3.2 24.9 21.0 17.1 13.2 - - 27.3 3.5 23.0 19.2 15.5 11.7 - -
67 27.1 3.2 27.1 26.2 22.3 18.4 14.5 - 21.9 3.4 21.9 21.9 19.9 16.1 12.4 -
62 27.4 3.1 27.4 27.4 27.3 23.4 19.6 15.7 24.2 3.4 24.2 24.2 24.2 20.9 17.2 13.4
57 22.6 3.0 22.6 22.6 22.6 18.7 14.8 11.0 17.6 3.2 17.6 17.6 17.6 13.9 10.1 6.4
1350
72 32.1 3.2 27.0 22.7 18.4 14.0 - - 28.4 3.5 25.5 21.2 17.0 12.7 - -
67 27.7 3.2 27.7 27.2 23.9 19.6 15.3 - 22.9 3.4 22.9 22.9 21.8 17.6 13.3 -
62 28.0 3.1 28.0 28.0 27.9 23.6 19.3 15.0 25.1 3.4 25.1 25.1 25.1 21.1 16.9 12.6
57 23.1 3.0 23.1 23.1 23.1 18.7 14.4 10.1 18.4 3.3 18.4 18.4 18.4 14.2 9.9 5.6
1500
72 32.7 3.3 29.2 24.4 19.6 14.8 - - 29.5 3.6 28.0 23.3 18.5 13.7 - -
67 28.3 3.2 28.3 28.3 25.5 20.7 16.0 - 23.8 3.4 23.8 23.8 23.8 19.0 14.2 -
62 28.6 3.2 28.6 28.6 28.6 23.8 19.0 14.2 26.1 3.4 26.1 26.1 26.1 21.3 16.5 11.7
57 23.5 3.1 23.5 23.5 23.5 18.8 14.0 9.2 19.2 3.3 19.2 19.2 19.2 14.4 9.7 4.9
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
ZF036 (3.0 Ton) (Continued)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 33
ZF048 (4.0 Ton)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
75°F 85°F
1000
77 77.9 3.2 31.9 28.0 24.2 - - - 73.0 3.5 29.8 25.8 21.9 - - -
72 64.5 3.1 35.4 31.6 27.7 23.9 - - 60.1 3.4 33.5 29.5 25.6 21.6 - -
67 51.1 3.1 38.9 35.1 31.2 27.4 23.6 - 47.2 3.4 37.2 33.2 29.3 25.3 21.4 -
62 45.0 3.0 45.0 42.8 37.5 33.7 29.9 26.0 42.2 3.3 42.2 41.1 35.5 31.6 27.6 23.7
1200
77 81.1 3.2 34.9 30.6 26.2 - - - 76.1 3.5 32.9 28.3 23.8 - - -
72 67.2 3.1 38.7 34.3 29.9 25.5 - - 62.7 3.4 36.9 32.4 27.9 23.3 - -
67 53.3 3.1 42.5 38.1 33.7 29.3 24.9 - 49.2 3.4 40.9 36.4 31.9 27.4 22.8 -
62 46.9 3.1 46.9 45.4 40.5 36.1 31.7 27.3 44.0 3.3 44.0 43.2 38.7 34.2 29.6 25.1
57 46.6 3.0 46.6 46.6 43.8 39.4 35.0 30.6 43.6 3.3 43.6 43.6 40.6 36.0 31.5 27.0
1400
77 84.3 3.2 38.0 33.1 28.1 - - - 79.2 3.5 36.0 30.9 25.8 - - -
72 69.9 3.1 42.1 37.1 32.1 27.2 - - 65.2 3.5 40.3 35.2 30.1 25.0 - -
67 55.4 3.1 46.1 41.1 36.2 31.2 26.3 - 51.2 3.4 44.7 39.6 34.5 29.4 24.3 -
62 48.8 3.1 48.8 48.0 43.5 38.5 33.6 28.6 45.7 3.4 45.7 45.4 41.9 36.7 31.6 26.5
57 48.5 3.0 48.5 48.5 47.1 42.1 37.2 32.2 45.4 3.3 45.4 45.4 43.9 38.8 33.7 28.6
1600
77 87.5 3.2 41.1 35.6 30.0 - - - 82.4 3.5 39.1 33.4 27.7 - - -
72 72.5 3.2 45.4 39.9 34.4 28.8 - - 67.8 3.5 43.8 38.1 32.4 26.7 - -
67 57.5 3.1 49.7 44.2 38.7 33.2 27.6 - 53.2 3.4 48.5 42.8 37.1 31.4 25.7 -
62 50.6 3.1 50.6 50.6 46.5 41.0 35.4 29.9 47.5 3.4 47.5 47.5 45.0 39.3 33.6 27.9
57 50.3 3.0 50.3 50.3 50.3 44.8 39.3 33.8 47.2 3.4 47.2 47.2 47.2 41.5 35.8 30.1
1800
72 74.0 3.2 47.9 42.0 36.2 30.3 - - 69.1 3.5 46.6 40.5 34.3 28.1 - -
67 58.7 3.1 54.2 46.6 40.7 34.9 29.0 - 54.3 3.4 51.6 45.4 39.3 33.1 26.9 -
62 51.6 3.1 51.6 51.6 49.6 43.7 37.8 32.0 48.5 3.4 48.5 48.5 47.2 41.0 34.8 28.7
57 51.3 3.1 51.3 51.3 51.3 45.5 39.6 33.8 48.1 3.4 48.1 48.1 48.1 41.9 35.8 29.6
2000
72 75.4 3.2 50.4 44.2 38.0 31.8 - - 70.4 3.5 49.5 42.8 36.2 29.5 - -
67 59.8 3.2 58.7 49.0 42.8 36.6 30.4 - 55.3 3.5 54.7 48.1 41.4 34.8 28.1 -
62 52.6 3.1 52.6 52.6 52.6 46.4 40.3 34.1 49.4 3.4 49.4 49.4 49.4 42.7 36.1 29.4
57 52.3 3.1 52.3 52.3 52.3 46.1 39.9 33.7 49.0 3.4 49.0 49.0 49.0 42.4 35.7 29.0
95°F 105°F
1000
77 68.2 3.8 27.7 23.6 19.5 - - - 61.9 4.1 24.7 21.6 17.5 - - -
72 55.7 3.7 31.6 27.5 23.4 19.4 - - 50.2 4.0 29.6 25.5 21.4 17.3 - -
67 43.3 3.7 35.5 31.4 27.3 23.3 19.2 - 38.4 4.0 34.5 29.5 25.4 21.3 17.2 -
62 39.3 3.6 39.3 39.3 33.5 29.5 25.4 21.4 34.5 3.9 34.5 34.5 29.5 25.4 21.3 17.2
1200
77 71.2 3.8 30.8 26.1 21.5 - - - 64.6 4.2 29.1 24.0 19.3 - - -
72 58.2 3.8 35.1 30.4 25.8 21.1 - - 52.4 4.1 33.2 28.4 23.6 18.9 - -
67 45.2 3.7 39.4 34.7 30.1 25.4 20.8 - 40.1 4.0 37.3 32.8 28.0 23.3 18.5 -
62 41.0 3.6 41.0 41.0 36.9 32.2 27.6 22.9 36.0 3.9 36.0 36.0 32.5 27.8 23.0 18.2
57 40.7 3.6 40.7 40.7 37.3 32.7 28.0 23.3 36.5 3.9 36.5 36.5 33.4 28.6 23.8 19.1
1400
77 74.2 3.8 34.0 28.7 23.4 - - - 67.4 4.2 33.5 26.5 21.1 - - -
72 60.6 3.8 38.6 33.4 28.1 22.9 - - 54.6 4.1 36.7 31.3 25.9 20.4 - -
67 47.0 3.7 43.3 38.1 32.8 27.5 22.3 - 41.9 4.0 40.0 36.1 30.7 25.2 19.8 -
62 42.7 3.6 42.7 42.7 40.2 35.0 29.7 24.4 37.5 3.9 37.5 37.5 35.6 30.1 24.7 19.3
57 42.4 3.7 42.4 42.4 40.7 35.4 30.2 24.9 38.1 4.0 38.1 38.1 36.5 31.1 25.6 20.2
1600
77 77.2 3.8 37.1 31.2 25.4 - - - 70.2 4.2 37.9 29.0 22.9 - - -
72 63.0 3.8 42.2 36.3 30.5 24.6 - - 56.9 4.1 40.3 34.2 28.1 22.0 - -
67 48.9 3.7 47.3 41.4 35.5 29.7 23.8 - 43.6 4.0 42.7 39.4 33.3 27.2 21.1 -
62 44.4 3.6 44.4 44.4 43.6 37.7 31.8 26.0 39.1 3.9 39.1 39.1 38.6 32.5 26.4 20.3
57 44.1 3.7 44.1 44.1 44.1 38.2 32.4 26.5 39.6 4.0 39.6 39.6 39.6 33.5 27.4 21.3
1800
72 64.2 3.8 45.4 38.9 32.4 25.9 - - 58.1 4.1 43.6 36.8 30.1 23.3 - -
67 49.9 3.7 49.0 44.3 37.8 31.3 24.8 - 44.5 4.0 44.1 41.5 35.6 28.9 22.1 -
62 45.3 3.7 45.3 45.3 44.8 38.3 31.8 25.3 39.9 4.0 39.9 39.9 39.7 32.9 26.2 19.4
57 44.9 3.7 44.9 44.9 44.9 38.4 31.9 25.4 40.4 4.0 40.4 40.4 40.4 33.7 27.0 20.2
2000
72 65.4 3.8 48.6 41.5 34.3 27.2 - - 59.3 4.1 46.8 39.4 32.0 24.6 - -
67 50.8 3.7 50.8 47.2 40.1 32.9 25.8 - 45.4 4.0 45.4 43.6 38.0 30.6 23.2 -
62 46.1 3.7 46.1 46.1 46.1 39.0 31.9 24.7 40.7 4.0 40.7 40.7 40.7 33.3 25.9 18.5
57 45.7 3.7 45.7 45.7 45.7 38.6 31.5 24.4 41.3 4.0 41.3 41.3 41.3 33.9 26.5 19.1
251933-YTG-X-0615
34 Johnson Controls Unitary Products
115°F 125°F
1000
77 55.5 4.5 21.8 19.5 15.4 - - - 49.2 4.8 22.7 16.2 13.3 - - -
72 44.6 4.4 27.7 23.5 19.4 15.3 - - 39.0 4.7 25.7 21.6 17.4 13.2 - -
67 33.6 4.2 33.6 27.6 23.4 19.3 15.2 - 28.8 4.5 28.8 26.4 21.5 17.3 13.1 -
62 29.6 4.2 29.6 29.6 25.4 21.3 17.1 13.0 24.8 4.5 24.8 24.8 21.3 17.2 13.0 8.8
1200
77 58.1 4.5 27.4 21.9 17.0 - - - 51.5 4.8 28.6 19.8 14.8 - - -
72 46.6 4.4 31.3 26.4 21.5 16.7 - - 40.8 4.7 29.3 24.4 19.4 14.4 - -
67 35.1 4.3 35.1 30.9 26.0 21.1 16.3 - 30.1 4.5 30.1 28.9 24.0 19.0 14.0 -
62 31.0 4.2 31.0 31.0 28.2 23.3 18.4 13.6 26.0 4.5 26.0 26.0 23.8 18.9 13.9 8.9
57 32.3 4.2 32.3 32.3 29.4 24.5 19.7 14.8 28.1 4.5 28.1 28.1 25.4 20.4 15.5 10.5
1400
77 60.6 4.5 33.0 24.3 18.7 - - - 53.8 4.9 34.4 23.4 16.4 - - -
72 48.6 4.4 34.8 29.2 23.6 18.0 - - 42.6 4.7 32.9 27.2 21.4 15.6 - -
67 36.7 4.3 36.7 34.1 28.5 22.9 17.3 - 31.5 4.6 31.5 31.5 26.4 20.6 14.9 -
62 32.3 4.2 32.3 32.3 30.9 25.3 19.7 14.1 27.1 4.5 27.1 27.1 26.3 20.5 14.8 9.0
57 33.7 4.3 33.7 33.7 32.3 26.7 21.1 15.5 29.4 4.6 29.4 29.4 28.0 22.3 16.5 10.7
1600
77 63.1 4.5 38.6 26.7 20.4 - - - 56.1 4.9 40.2 27.1 17.9 - - -
72 50.7 4.4 38.4 32.1 25.7 19.4 - - 44.5 4.7 36.5 30.0 23.4 16.8 - -
67 38.2 4.3 38.2 37.4 31.1 24.8 18.4 - 32.8 4.6 32.8 32.8 28.9 22.3 15.7 -
62 33.7 4.2 33.7 33.7 33.7 27.4 21.0 14.7 28.3 4.5 28.3 28.3 28.3 22.2 15.6 9.1
57 35.1 4.3 35.1 35.1 35.1 28.8 22.5 16.2 30.7 4.6 30.7 30.7 30.7 24.1 17.5 11.0
1800
72 51.9 4.4 41.7 34.7 27.7 20.7 - - 45.7 4.8 39.9 32.6 25.4 18.1 - -
67 39.1 4.3 39.1 38.7 33.5 26.5 19.5 - 33.7 4.6 33.7 33.7 31.3 24.1 16.8 -
62 34.5 4.3 34.5 34.5 34.5 27.5 20.5 13.5 29.1 4.6 29.1 29.1 29.1 22.1 14.8 7.6
57 36.0 4.3 36.0 36.0 36.0 29.0 22.0 15.0 31.5 4.6 31.5 31.5 31.5 24.3 17.0 9.8
2000
72 53.1 4.5 45.0 37.4 29.7 22.1 - - 46.9 4.8 43.2 35.3 27.4 19.5 - -
67 40.0 4.4 40.0 40.0 35.9 28.2 20.6 - 34.6 4.7 34.6 34.6 33.8 25.9 18.0 -
62 35.3 4.3 35.3 35.3 35.3 27.6 20.0 12.3 29.9 4.6 29.9 29.9 29.9 22.0 14.0 6.1
57 36.8 4.3 36.8 36.8 36.8 29.2 21.5 13.8 32.3 4.7 32.3 32.3 32.3 24.4 16.5 8.6
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
ZF048 (4.0 Ton) (Continued)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 35
ZF060 (5.0 Ton)
Air on
Evaporator Coil
Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F)
Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
75°F 85°F
1250
77 71.4 4.0 33.0 27.8 22.7 - - - 66.7 4.4 29.2 24.1 19.0 - - -
72 67.3 3.9 41.2 36.0 30.9 25.8 - - 62.8 4.2 38.4 33.3 28.1 23.0 - -
67 63.2 3.8 49.4 44.3 39.2 34.1 29.0 - 59.0 4.1 47.6 42.5 37.3 32.2 27.1 -
62 58.3 3.6 58.3 58.3 49.4 44.3 39.2 34.0 54.3 4.0 54.3 54.3 46.2 41.0 35.9 30.8
1500
77 73.4 4.0 35.9 30.3 24.6 - - - 68.7 4.4 32.2 26.4 20.6 - - -
72 69.2 3.9 44.9 39.2 33.5 27.8 - - 64.7 4.3 42.2 36.4 30.6 24.8 - -
67 65.0 3.8 53.8 48.1 42.4 36.7 31.0 - 60.8 4.1 52.1 46.4 40.6 34.8 29.0 -
62 60.0 3.7 60.0 60.0 53.5 47.8 42.1 36.4 55.9 4.0 55.9 55.9 50.2 44.4 38.6 32.9
57 58.5 3.7 58.5 58.5 53.7 48.0 42.3 36.6 55.0 4.0 55.0 55.0 50.1 44.3 38.5 32.8
1750
77 75.5 4.1 38.9 32.7 26.5 - - - 70.6 4.5 35.1 28.7 22.3 - - -
72 71.2 4.0 48.6 42.3 36.0 29.8 - - 66.6 4.3 45.9 39.5 33.1 26.6 - -
67 66.9 3.8 58.3 51.9 45.6 39.4 33.1 - 62.5 4.2 56.7 50.3 43.8 37.4 31.0 -
62 61.7 3.7 61.7 61.7 57.5 51.3 45.0 38.7 57.5 4.0 57.5 57.5 54.2 47.8 41.4 34.9
57 60.2 3.7 60.2 60.2 57.8 51.5 45.2 38.9 56.6 4.0 56.6 56.6 54.1 47.7 41.3 34.8
2000
77 77.6 4.1 41.9 35.2 28.3 - - - 72.6 4.5 38.1 31.0 23.9 - - -
72 73.2 4.0 52.3 45.5 38.6 31.8 - - 68.4 4.4 49.7 42.6 35.5 28.4 - -
67 68.7 3.9 62.7 55.7 48.9 42.0 35.2 - 64.3 4.2 61.3 54.2 47.1 40.0 32.9 -
62 63.4 3.7 63.4 63.4 61.6 54.8 47.9 41.0 59.1 4.1 59.1 59.1 58.2 51.2 44.1 37.0
57 61.9 3.7 61.9 61.9 61.9 55.0 48.1 41.3 58.1 4.1 58.1 58.1 58.1 51.1 44.0 36.9
2250
72 73.4 4.5 54.5 47.4 40.2 33.0 - - 68.9 4.6 52.3 44.8 37.3 29.8 - -
67 69.0 4.3 66.0 58.0 50.8 43.6 36.5 - 64.7 4.5 63.2 57.0 49.5 41.9 34.4 -
62 63.6 4.2 63.6 63.6 62.7 55.6 48.4 41.2 59.5 4.3 59.5 59.5 59.1 51.6 44.0 36.5
57 62.1 4.2 62.1 62.1 62.1 54.9 47.7 40.5 58.5 4.3 58.5 58.5 58.5 51.0 43.5 36.0
2500
72 73.7 4.9 56.8 49.3 41.8 34.3 - - 69.3 4.8 55.0 47.0 39.1 31.1 - -
67 69.2 4.8 69.2 60.3 52.8 45.3 37.8 - 65.1 4.7 65.1 59.8 51.8 43.9 35.9 -
62 63.8 4.6 63.8 63.8 63.8 56.3 48.8 41.3 59.9 4.5 59.9 59.9 59.9 52.0 44.0 36.1
57 62.3 4.6 62.3 62.3 62.3 54.8 47.3 39.8 58.9 4.5 58.9 58.9 58.9 51.0 43.0 35.1
95°F 105°F
1250
77 62.0 4.7 25.5 20.4 15.3 - - - 57.4 5.1 21.9 18.6 13.5 - - -
72 58.4 4.6 35.6 30.5 25.4 20.2 - - 53.5 4.9 33.6 28.5 23.4 18.3 - -
67 54.8 4.4 45.8 40.6 35.5 30.3 25.2 - 49.7 4.7 45.2 38.3 33.2 28.1 23.0 -
62 50.3 4.3 50.3 50.3 42.9 37.8 32.6 27.5 46.0 4.6 46.0 46.0 38.5 33.4 28.4 23.3
1500
77 63.9 4.8 28.4 22.6 16.7 - - - 59.1 5.1 26.7 20.8 14.9 - - -
72 60.2 4.6 39.4 33.6 27.7 21.9 - - 55.1 5.0 37.4 31.6 25.7 19.8 - -
67 56.5 4.5 50.5 44.6 38.7 32.9 27.0 - 51.2 4.8 48.1 42.4 36.5 30.6 24.8 -
62 51.8 4.3 51.8 51.8 46.9 41.0 35.2 29.3 47.3 4.7 47.3 47.3 42.4 36.5 30.6 24.8
57 51.4 4.4 51.4 51.4 46.5 40.7 34.8 28.9 47.1 4.7 47.1 47.1 42.1 36.3 30.4 24.5
1750
77 65.8 4.8 31.4 24.7 18.1 - - - 60.8 5.2 31.5 22.9 16.2 - - -
72 61.9 4.7 43.2 36.7 30.1 23.5 - - 56.7 5.0 41.3 34.7 28.0 21.4 - -
67 58.1 4.5 55.1 48.6 42.0 35.5 28.9 - 52.6 4.8 51.1 46.4 39.8 33.2 26.6 -
62 53.4 4.4 53.4 53.4 50.9 44.3 37.7 31.1 48.7 4.7 48.7 48.7 46.2 39.6 32.9 26.3
57 52.9 4.4 52.9 52.9 50.5 43.9 37.3 30.7 48.4 4.7 48.4 48.4 46.0 39.3 32.7 26.1
2000
77 67.6 4.8 34.3 26.8 19.5 - - - 62.5 5.2 36.3 25.1 17.6 - - -
72 63.7 4.7 47.0 39.7 32.4 25.1 - - 58.3 5.0 45.2 37.8 30.4 23.0 - -
67 59.8 4.5 59.8 52.6 45.3 38.0 30.7 - 54.1 4.9 54.1 50.5 43.2 35.7 28.3 -
62 54.9 4.4 54.9 54.9 54.9 47.6 40.3 33.0 50.1 4.7 50.1 50.1 50.1 42.7 35.2 27.8
57 54.4 4.4 54.4 54.4 54.4 47.1 39.8 32.5 49.8 4.8 49.8 49.8 49.8 42.4 35.0 27.6
2250
72 64.3 4.7 50.1 42.3 34.4 26.6 - - 58.8 5.2 48.4 40.4 32.4 24.4 - -
67 60.4 4.6 60.4 55.9 48.1 40.2 32.4 - 54.6 5.0 54.6 52.4 46.0 38.0 30.0 -
62 55.4 4.4 55.4 55.4 55.4 47.6 39.7 31.9 50.5 4.9 50.5 50.5 50.5 42.5 34.5 26.5
57 55.0 4.4 55.0 55.0 55.0 47.1 39.3 31.4 50.2 4.9 50.2 50.2 50.2 42.3 34.3 26.3
2500
72 65.0 4.8 53.2 44.8 36.4 28.0 - - 59.4 5.3 51.6 43.0 34.4 25.8 - -
67 61.0 4.6 61.0 59.3 50.9 42.5 34.1 - 55.1 5.1 55.1 54.2 48.9 40.3 31.8 -
62 56.0 4.5 56.0 56.0 56.0 47.6 39.2 30.8 51.0 5.0 51.0 51.0 51.0 42.4 33.8 25.2
57 55.5 4.5 55.5 55.5 55.5 47.1 38.7 30.3 50.7 5.0 50.7 50.7 50.7 42.1 33.5 25.0
251933-YTG-X-0615
36 Johnson Controls Unitary Products
115°F 125°F
1250
77 52.7 5.4 18.4 16.8 11.8 - - - 48.1 5.8 19.3 13.2 10.1 - - -
72 48.6 5.2 31.5 26.4 21.4 16.3 - - 43.8 5.6 29.4 24.4 19.4 14.4 - -
67 44.5 5.1 44.5 36.0 30.9 25.9 20.8 - 39.4 5.4 39.4 34.2 28.7 23.7 18.7 -
62 41.7 4.9 41.7 41.7 34.1 29.1 24.1 19.0 37.3 5.3 37.3 37.3 29.8 24.8 19.8 14.8
1500
77 54.3 5.5 25.0 19.0 13.1 - - - 49.4 5.8 26.3 17.2 11.3 - - -
72 50.0 5.3 35.4 29.6 23.7 17.8 - - 45.0 5.6 33.4 27.5 21.7 15.8 - -
67 45.8 5.1 45.8 40.1 34.3 28.4 22.5 - 40.5 5.4 40.5 37.9 32.0 26.2 20.3 -
62 42.9 5.0 42.9 42.9 37.8 32.0 26.1 20.2 38.4 5.3 38.4 38.4 33.3 27.4 21.6 15.7
57 42.7 5.0 42.7 42.7 37.8 31.9 26.0 20.1 38.4 5.3 38.4 38.4 33.4 27.5 21.6 15.7
1750
77 55.8 5.5 31.7 21.1 14.4 - - - 50.8 5.9 33.3 21.1 12.5 - - -
72 51.4 5.3 39.4 32.7 26.0 19.3 - - 46.2 5.7 37.5 30.7 24.0 17.2 - -
67 47.1 5.1 47.1 44.3 37.6 30.9 24.2 - 41.6 5.4 41.6 41.6 35.4 28.7 21.9 -
62 44.1 5.0 44.1 44.1 41.5 34.9 28.2 21.5 39.4 5.4 39.4 39.4 36.9 30.1 23.4 16.6
57 43.9 5.1 43.9 43.9 41.4 34.8 28.1 21.4 39.5 5.4 39.5 39.5 36.9 30.2 23.4 16.7
2000
77 57.3 5.6 38.3 23.3 15.7 - - - 52.1 5.9 40.3 25.1 13.7 - - -
72 52.8 5.4 43.3 35.8 28.3 20.8 - - 47.4 5.7 41.5 33.9 26.3 18.6 - -
67 48.4 5.2 48.4 48.4 41.0 33.5 26.0 - 42.7 5.5 42.7 42.7 38.8 31.2 23.6 -
62 45.3 5.1 45.3 45.3 45.3 37.7 30.2 22.7 40.4 5.4 40.4 40.4 40.4 32.8 25.2 17.6
57 45.1 5.1 45.1 45.1 45.1 37.6 30.1 22.6 40.5 5.4 40.5 40.5 40.5 32.9 25.2 17.6
2250
72 53.3 5.6 46.7 38.5 30.4 22.3 - - 47.8 6.0 45.0 36.7 28.4 20.1 - -
67 48.8 5.4 48.8 48.8 44.0 35.8 27.7 - 43.0 5.8 43.0 43.0 41.9 33.6 25.4 -
62 45.6 5.3 45.6 45.6 45.6 37.5 29.3 21.2 40.7 5.7 40.7 40.7 40.7 32.5 24.2 15.9
57 45.5 5.3 45.5 45.5 45.5 37.4 29.2 21.1 40.8 5.7 40.8 40.8 40.8 32.5 24.2 15.9
2500
72 53.7 5.8 50.0 41.2 32.5 23.7 - - 48.1 6.3 48.1 39.5 30.5 21.6 - -
67 49.2 5.6 49.2 49.2 47.0 38.2 29.4 - 43.3 6.1 43.3 43.3 43.3 36.1 27.1 -
62 46.0 5.5 46.0 46.0 46.0 37.2 28.5 19.7 41.0 6.0 41.0 41.0 41.0 32.1 23.1 14.2
57 45.9 5.5 45.9 45.9 45.9 37.1 28.4 19.6 41.1 6.0 41.1 41.1 41.1 32.1 23.2 14.2
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
ZF060 (5.0 Ton) (Continued)
Air on
Evaporator Coil
Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F)
Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 37
ZF072 (6.0 Ton)
Air on
Evaporator Coil
Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F)
Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
75°F 85°F
1800
77 79.0 4.7 34.3 28.0 21.7 - - - 75.7 5.2 33.1 26.7 20.2 - - -
72 76.3 4.6 45.4 39.1 32.8 26.5 - - 71.8 5.2 44.1 37.7 31.3 24.9 - -
67 73.6 4.6 56.5 50.3 44.0 37.7 31.4 - 67.9 5.1 55.1 48.7 42.3 35.9 29.5 -
62 68.3 4.5 68.3 62.8 55.5 49.3 43.0 36.7 63.4 5.0 63.4 60.7 53.2 46.8 40.3 33.9
2000
77 80.9 5.0 35.7 29.4 23.0 - - - 77.9 5.6 34.8 28.2 21.7 - - -
72 78.2 5.0 47.5 41.2 34.8 28.4 - - 73.9 5.5 46.6 40.0 33.4 26.9 - -
67 75.4 4.9 59.3 53.0 46.6 40.2 33.8 - 69.9 5.4 58.3 51.8 45.2 38.7 32.1 -
62 70.0 4.8 70.0 66.3 58.9 52.5 46.1 39.7 65.3 5.3 65.3 63.4 56.9 50.3 43.8 37.2
57 67.0 4.8 67.0 67.0 63.0 56.6 50.3 43.9 62.7 5.3 62.7 62.7 58.7 52.1 45.6 39.0
2200
77 82.8 5.4 37.2 30.8 24.3 - - - 80.1 5.9 36.4 29.7 23.1 - - -
72 80.0 5.3 49.7 43.2 36.8 30.3 - - 76.0 5.9 49.0 42.3 35.6 28.9 - -
67 77.2 5.3 62.1 55.7 49.2 42.8 36.3 - 71.9 5.8 61.6 54.9 48.2 41.5 34.8 -
62 71.7 5.2 71.7 69.8 62.2 55.7 49.3 42.8 67.1 5.7 67.1 66.2 60.6 53.9 47.2 40.5
57 68.6 5.2 68.6 68.6 66.6 60.1 53.7 47.2 64.5 5.7 64.5 64.5 62.5 55.8 49.1 42.4
2400
77 84.7 5.7 38.7 32.1 25.6 - - - 82.3 6.3 38.1 31.3 24.5 - - -
72 81.8 5.7 51.8 45.3 38.7 32.2 - - 78.1 6.2 51.4 44.6 37.8 31.0 - -
67 79.0 5.6 64.9 58.4 51.8 45.3 38.7 - 73.9 6.1 64.8 57.9 51.1 44.3 37.5 -
62 73.3 5.5 73.3 73.3 65.5 58.9 52.4 45.9 69.0 6.0 69.0 69.0 64.3 57.5 50.6 43.8
57 70.2 5.5 70.2 70.2 70.2 63.6 57.1 50.5 66.3 6.0 66.3 66.3 66.3 59.5 52.7 45.9
2575
72 82.8 5.8 53.5 46.7 39.9 33.0 - - 78.9 6.3 53.1 46.0 38.8 31.7 - -
67 79.9 5.7 67.0 60.2 53.4 46.5 39.7 - 74.6 6.2 66.8 59.7 52.5 45.4 38.2 -
62 74.2 5.6 74.2 74.2 67.8 60.9 54.1 47.3 69.7 6.1 69.7 69.7 66.1 58.9 51.8 44.6
57 71.0 5.6 71.0 71.0 71.0 64.2 57.3 50.5 67.0 6.1 67.0 67.0 67.0 59.8 52.7 45.5
2750
72 83.8 5.9 55.3 48.1 41.0 33.9 - - 79.6 6.4 54.8 47.4 39.9 32.4 - -
67 80.9 5.8 69.1 62.0 54.9 47.8 40.6 - 75.3 6.3 68.9 61.4 53.9 46.5 39.0 -
62 75.1 5.7 75.1 75.1 70.0 62.9 55.8 48.7 70.3 6.2 70.3 70.3 67.8 60.3 52.9 45.4
57 71.9 5.7 71.9 71.9 71.9 64.7 57.6 50.5 67.6 6.2 67.6 67.6 67.6 60.1 52.6 45.2
95°F 105°F
1800
77 72.3 5.8 31.9 25.4 18.8 - - - 69.8 6.4 29.8 23.5 16.8 - - -
72 67.3 5.7 42.8 36.3 29.7 23.2 - - 64.9 6.3 41.2 34.6 27.9 21.3 - -
67 62.3 5.6 53.7 47.2 40.6 34.1 27.5 - 59.9 6.2 52.6 45.7 39.1 32.4 25.8 -
62 58.5 5.5 58.5 58.5 50.8 44.3 37.7 31.2 56.5 6.1 56.5 56.5 47.8 41.2 34.5 27.9
2000
77 74.9 6.2 33.8 27.0 20.3 - - - 71.9 6.8 32.0 25.2 18.3 - - -
72 69.7 6.1 45.6 38.8 32.1 25.4 - - 66.8 6.7 44.1 37.2 30.4 23.5 - -
67 64.5 5.9 57.4 50.6 43.9 37.2 30.4 - 61.8 6.6 56.2 49.3 42.5 35.6 28.7 -
62 60.6 5.8 60.6 60.6 54.9 48.2 41.4 34.7 58.2 6.5 58.2 58.2 52.0 45.1 38.2 31.3
57 58.5 5.8 58.5 58.5 54.3 47.6 40.9 34.1 56.2 6.5 56.2 56.2 51.3 44.4 37.5 30.7
2200
77 77.4 6.5 35.7 28.7 21.8 - - - 74.0 7.1 34.2 26.8 19.7 - - -
72 72.0 6.4 48.3 41.4 34.5 27.6 - - 68.8 7.0 47.0 39.9 32.8 25.7 - -
67 66.6 6.3 61.0 54.1 47.2 40.3 33.3 - 63.6 6.9 59.8 53.0 45.8 38.7 31.6 -
62 62.6 6.2 62.6 62.6 59.0 52.1 45.2 38.3 59.9 6.8 59.9 59.9 56.1 49.0 41.9 34.8
57 60.5 6.2 60.5 60.5 58.4 51.5 44.6 37.6 57.8 6.8 57.8 57.8 55.4 48.3 41.2 34.1
2400
77 79.9 6.9 37.5 30.4 23.3 - - - 76.1 7.5 36.4 28.5 21.2 - - -
72 74.4 6.8 51.1 44.0 36.9 29.8 - - 70.8 7.4 49.9 42.5 35.2 27.9 - -
67 68.8 6.6 64.6 57.5 50.4 43.3 36.2 - 65.4 7.3 63.3 56.6 49.2 41.9 34.5 -
62 64.6 6.5 64.6 64.6 63.1 56.0 48.9 41.8 61.6 7.2 61.6 61.6 60.2 52.9 45.6 38.2
57 62.4 6.5 62.4 62.4 62.4 55.3 48.3 41.2 59.5 7.2 59.5 59.5 59.5 52.1 44.8 37.5
2575
72 74.9 6.9 52.8 45.3 37.8 30.4 - - 71.4 7.5 51.6 43.8 36.1 28.4 - -
67 69.3 6.7 66.6 59.2 51.7 44.3 36.8 - 66.0 7.4 64.6 58.2 50.5 42.8 35.1 -
62 65.1 6.6 65.1 65.1 64.3 56.9 49.4 41.9 62.1 7.3 62.1 62.1 61.4 53.7 46.0 38.3
57 62.9 6.6 62.9 62.9 62.9 55.4 48.0 40.5 60.0 7.3 60.0 60.0 60.0 52.2 44.5 36.8
2750
72 75.5 7.0 54.4 46.6 38.8 30.9 - - 71.9 7.6 53.3 45.1 37.0 28.9 - -
67 69.8 6.8 68.7 60.8 53.0 45.2 37.3 - 66.5 7.5 65.9 59.9 51.8 43.7 35.6 -
62 65.6 6.7 65.6 65.6 65.6 57.8 49.9 42.1 62.6 7.4 62.6 62.6 62.6 54.5 46.4 38.3
57 63.4 6.7 63.4 63.4 63.4 55.5 47.7 39.9 60.5 7.4 60.5 60.5 60.5 52.3 44.2 36.1
251933-YTG-X-0615
38 Johnson Controls Unitary Products
115°F 125°F
1800
77 67.2 7.0 27.8 21.6 14.9 - - - 64.6 7.7 24.7 19.7 12.9 - - -
72 62.4 6.9 39.7 32.9 26.2 19.4 - - 59.9 7.6 38.1 31.3 24.4 17.6 - -
67 57.6 6.8 51.6 44.2 37.5 30.8 24.0 - 55.3 7.5 50.5 42.8 35.9 29.1 22.3 -
62 54.4 6.7 54.4 54.4 44.8 38.1 31.3 24.6 52.3 7.4 52.3 52.3 41.8 35.0 28.2 21.3
2000
77 68.9 7.4 30.3 23.3 16.3 - - - 65.9 8.0 28.6 21.4 14.2 - - -
72 64.0 7.3 42.7 35.7 28.6 21.6 - - 61.2 7.9 41.2 34.1 26.9 19.7 - -
67 59.1 7.2 55.1 48.0 41.0 34.0 27.0 - 56.4 7.8 53.9 46.7 39.6 32.4 25.2 -
62 55.8 7.1 55.8 55.8 49.0 42.0 35.0 28.0 53.4 7.7 53.4 53.4 46.1 38.9 31.7 24.6
57 53.8 7.1 53.8 53.8 48.3 41.2 34.2 27.2 51.5 7.7 51.5 51.5 45.2 38.1 30.9 23.7
2200
77 70.6 7.8 32.8 24.9 17.6 - - - 67.2 8.4 32.5 23.1 15.6 - - -
72 65.6 7.7 45.7 38.4 31.1 23.8 - - 62.4 8.3 44.4 36.9 29.4 21.9 - -
67 60.6 7.6 58.5 51.8 44.5 37.2 29.9 - 57.5 8.2 57.3 50.7 43.2 35.7 28.2 -
62 57.2 7.4 57.2 57.2 53.2 45.9 38.6 31.3 54.5 8.1 54.5 54.5 50.3 42.8 35.3 27.8
57 55.2 7.4 55.2 55.2 52.4 45.1 37.8 30.5 52.5 8.1 52.5 52.5 49.4 41.9 34.4 26.9
2400
77 72.3 8.1 35.4 26.6 19.0 - - - 68.5 8.8 36.4 24.7 16.9 - - -
72 67.2 8.0 48.7 41.1 33.5 25.9 - - 63.6 8.7 47.5 39.7 31.8 24.0 - -
67 62.0 7.9 62.0 55.6 48.0 40.4 32.9 - 58.7 8.6 58.7 54.6 46.8 39.0 31.2 -
62 58.6 7.8 58.6 58.6 57.4 49.8 42.2 34.6 55.5 8.4 55.5 55.5 54.6 46.7 38.9 31.1
57 56.5 7.8 56.5 56.5 56.5 48.9 41.3 33.8 53.6 8.4 53.6 53.6 53.6 45.7 37.9 30.1
2575
72 67.8 8.1 50.4 42.4 34.4 26.4 - - 64.2 8.8 49.2 41.0 32.7 24.5 - -
67 62.6 8.0 62.6 57.3 49.3 41.3 33.3 - 59.2 8.7 59.2 56.3 48.1 39.9 31.6 -
62 59.1 7.9 59.1 59.1 58.5 50.5 42.6 34.6 56.1 8.5 56.1 56.1 55.6 47.4 39.1 30.9
57 57.0 7.9 57.0 57.0 57.0 49.0 41.1 33.1 54.1 8.5 54.1 54.1 54.1 45.8 37.6 29.4
2750
72 68.4 8.2 52.1 43.7 35.3 26.9 - - 64.9 8.8 50.9 42.3 33.6 24.9 - -
67 63.2 8.1 63.2 59.0 50.6 42.2 33.8 - 59.8 8.7 59.8 58.1 49.4 40.7 32.1 -
62 59.6 8.0 59.6 59.6 59.6 51.3 42.9 34.5 56.7 8.6 56.7 56.7 56.7 48.0 39.3 30.7
57 57.5 8.0 57.5 57.5 57.5 49.2 40.8 32.4 54.6 8.6 54.6 54.6 54.6 46.0 37.3 28.7
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
ZF072 (6.0 Ton) (Continued)
Air on
Evaporator Coil
Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F)
Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 39
ZR036-060 Cooling and Reheat Capacities
ZR036 (3.0 Ton) Cooling
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
75°F 85°F
750
77 45.1 2.3 19.4 16.4 13.4 - - - 42.4 2.5 18.1 15.2 12.2 - - -
72 40.6 2.3 24.0 21.0 17.9 14.9 - - 38.3 2.5 22.7 19.8 16.9 13.9 - -
67 36.2 2.3 28.6 25.5 22.5 19.5 16.4 - 34.3 2.5 27.3 24.4 21.5 18.5 15.6 -
62 32.2 2.2 32.2 31.0 26.7 23.7 20.6 17.6 30.6 2.5 30.6 30.0 25.8 22.9 19.9 17.0
900
77 48.1 2.3 21.9 18.4 14.9 - - - 44.9 2.5 20.5 17.0 13.6 - - -
72 43.4 2.3 27.0 23.5 20.0 16.5 - - 40.6 2.5 25.6 22.1 18.7 15.2 - -
67 38.7 2.3 32.1 28.6 25.1 21.5 18.0 - 36.3 2.5 30.7 27.3 23.8 20.4 16.9 -
62 34.4 2.2 34.4 33.6 29.7 26.2 22.7 19.2 32.4 2.5 32.4 32.1 28.6 25.2 21.7 18.3
57 32.3 2.2 32.3 32.3 30.3 26.8 23.3 19.8 30.7 2.5 30.7 30.7 28.6 25.1 21.7 18.2
1050
77 51.2 2.3 24.3 20.4 16.4 - - - 47.4 2.5 22.8 18.9 14.9 - - -
72 46.2 2.3 29.9 26.0 22.0 18.0 - - 42.9 2.5 28.5 24.5 20.5 16.6 - -
67 41.1 2.3 35.6 31.6 27.6 23.6 19.7 - 38.3 2.5 34.1 30.1 26.1 22.2 18.2 -
62 36.6 2.2 36.6 36.2 32.8 28.8 24.9 20.9 34.3 2.5 34.3 34.1 31.4 27.5 23.5 19.5
57 34.4 2.2 34.4 34.4 33.4 29.4 25.4 21.5 32.4 2.5 32.4 32.4 31.4 27.4 23.4 19.5
1200
77 54.2 2.3 26.8 22.4 17.9 - - - 50.0 2.5 25.2 20.7 16.2 - - -
72 48.9 2.3 32.9 28.5 24.0 19.6 - - 45.2 2.5 31.3 26.8 22.4 17.9 - -
67 43.6 2.3 39.1 34.6 30.2 25.7 21.3 - 40.4 2.5 37.4 33.0 28.5 24.0 19.5 -
62 38.8 2.3 38.8 38.8 35.8 31.4 27.0 22.5 36.1 2.5 36.1 36.1 34.2 29.7 25.3 20.8
57 36.5 2.3 36.5 36.5 36.5 32.0 27.6 23.2 34.2 2.5 34.2 34.2 34.2 29.7 25.2 20.7
1350
72 49.2 2.3 34.8 30.0 25.2 20.3 - - 45.9 2.5 33.3 28.4 23.6 18.8 - -
67 43.8 2.3 41.5 36.4 31.6 26.8 21.9 - 41.0 2.5 39.5 34.9 30.1 25.2 20.4 -
62 38.9 2.3 38.9 38.9 37.5 32.7 27.9 23.1 36.7 2.5 36.7 36.7 35.7 30.9 26.1 21.2
57 36.6 2.3 36.6 36.6 36.6 31.8 27.0 22.2 34.7 2.5 34.7 34.7 34.7 29.9 25.0 20.2
1500
72 49.4 2.3 36.6 31.4 26.3 21.1 - - 46.6 2.5 35.2 30.0 24.9 19.7 - -
67 44.0 2.3 44.0 38.1 32.9 27.8 22.6 - 41.6 2.5 41.6 36.8 31.7 26.5 21.3 -
62 39.1 2.3 39.1 39.1 39.1 33.9 28.8 23.6 37.2 2.5 37.2 37.2 37.2 32.1 26.9 21.7
57 36.8 2.3 36.8 36.8 36.8 31.6 26.5 21.3 35.2 2.5 35.2 35.2 35.2 30.1 24.9 19.7
95°F 105°F
750
77 39.7 2.7 16.8 14.0 11.1 - - - 37.2 3.1 15.0 12.6 9.8 - - -
72 36.0 2.8 21.5 18.6 15.8 13.0 - - 33.5 3.1 20.1 17.3 14.5 11.7 - -
67 32.3 2.8 26.1 23.3 20.5 17.6 14.8 - 29.9 3.1 25.2 22.0 19.2 16.4 13.7 -
62 29.1 2.8 29.1 29.1 24.9 22.1 19.3 16.4 27.0 3.1 27.0 27.0 23.0 20.2 17.4 14.6
900
77 41.7 2.7 19.1 15.7 12.3 - - - 38.9 3.0 17.5 14.2 10.8 - - -
72 37.8 2.8 24.2 20.8 17.4 14.0 - - 35.0 3.1 22.7 19.4 16.1 12.8 - -
67 33.9 2.8 29.4 26.0 22.6 19.2 15.8 - 31.2 3.1 27.9 24.6 21.3 18.0 14.7 -
62 30.5 2.8 30.5 30.5 27.5 24.1 20.7 17.3 28.2 3.1 28.2 28.2 25.4 22.1 18.8 15.5
57 29.1 2.7 29.1 29.1 26.8 23.4 20.0 16.6 27.3 3.0 27.3 27.3 24.9 21.6 18.3 15.0
1050
77 43.7 2.7 21.3 17.4 13.4 - - - 40.5 3.0 20.0 15.7 11.9 - - -
72 39.6 2.7 27.0 23.0 19.0 15.1 - - 36.5 3.0 25.3 21.4 17.6 13.8 - -
67 35.5 2.8 32.6 28.6 24.7 20.7 16.7 - 32.6 3.1 30.6 27.1 23.3 19.5 15.6 -
62 32.0 2.8 32.0 32.0 30.0 26.1 22.1 18.2 29.5 3.0 29.5 29.5 27.9 24.0 20.2 16.3
57 30.4 2.7 30.4 30.4 29.3 25.4 21.4 17.5 28.5 3.0 28.5 28.5 27.3 23.5 19.6 15.8
1200
77 45.7 2.7 23.6 19.1 14.6 - - - 42.2 3.0 22.5 17.3 12.9 - - -
72 41.4 2.7 29.7 25.2 20.7 16.1 - - 38.1 3.0 27.9 23.5 19.1 14.8 - -
67 37.1 2.8 35.8 31.3 26.8 22.2 17.7 - 33.9 3.1 33.2 29.7 25.4 21.0 16.6 -
62 33.4 2.7 33.4 33.4 32.6 28.1 23.6 19.0 30.7 3.0 30.7 30.7 30.3 25.9 21.6 17.2
57 31.8 2.7 31.8 31.8 31.8 27.3 22.8 18.3 29.7 3.0 29.7 29.7 29.7 25.3 21.0 16.6
1350
72 42.6 2.7 31.8 26.9 22.1 17.2 - - 39.3 3.0 29.8 25.1 20.4 15.7 - -
67 38.2 2.7 37.5 33.4 28.6 23.7 18.9 - 35.0 3.0 34.6 31.7 27.0 22.3 17.6 -
62 34.4 2.7 34.4 34.4 34.0 29.1 24.3 19.4 31.7 3.0 31.7 31.7 31.5 26.8 22.1 17.4
57 32.7 2.7 32.7 32.7 32.7 27.9 23.1 18.2 30.6 3.0 30.6 30.6 30.6 25.9 21.2 16.5
1500
72 43.8 2.7 33.8 28.6 23.5 18.3 - - 40.5 3.0 31.8 26.7 21.7 16.6 - -
67 39.3 2.7 39.3 35.6 30.4 25.2 20.0 - 36.0 3.0 36.0 33.8 28.7 23.7 18.6 -
62 35.3 2.7 35.3 35.3 35.3 30.2 25.0 19.8 32.6 3.0 32.6 32.6 32.6 27.6 22.6 17.5
57 33.7 2.7 33.7 33.7 33.7 28.5 23.3 18.1 31.6 3.0 31.6 31.6 31.6 26.5 21.5 16.4
251933-YTG-X-0615
40 Johnson Controls Unitary Products
115°F 125°F
750
77 34.6 3.4 13.1 11.2 8.5 - - - 32.0 3.7 11.0 9.8 7.2 - - -
72 31.0 3.4 18.7 16.0 13.2 10.5 - - 28.5 3.7 17.4 14.7 12.0 9.3 - -
67 27.4 3.4 24.3 20.7 18.0 15.3 12.5 - 25.0 3.7 23.4 19.5 16.8 14.1 11.4 -
62 25.0 3.4 25.0 25.0 21.0 18.3 15.6 12.8 23.0 3.6 23.0 23.0 19.1 16.4 13.7 11.0
900
77 36.0 3.4 15.9 12.6 9.4 - - - 33.1 3.7 14.2 11.1 8.0 - - -
72 32.2 3.4 21.1 17.9 14.7 11.5 - - 29.4 3.7 19.6 16.5 13.3 10.2 - -
67 28.5 3.4 26.4 23.2 20.0 16.8 13.5 - 25.8 3.7 25.0 21.8 18.7 15.6 12.4 -
62 26.0 3.3 26.0 26.0 23.4 20.1 16.9 13.7 23.7 3.6 23.7 23.7 21.3 18.2 15.0 11.9
57 25.6 3.3 25.6 25.6 23.0 19.7 16.5 13.3 23.8 3.6 23.8 23.8 21.0 17.9 14.8 11.6
1050
77 37.4 3.3 18.6 14.0 10.3 - - - 34.2 3.7 17.5 12.4 8.8 - - -
72 33.5 3.3 23.6 19.9 16.2 12.4 - - 30.4 3.6 21.9 18.3 14.7 11.1 - -
67 29.6 3.4 28.5 25.7 22.0 18.3 14.5 - 26.6 3.6 26.5 24.2 20.6 17.0 13.4 -
62 27.0 3.3 27.0 27.0 25.7 22.0 18.2 14.5 24.5 3.6 24.5 24.5 23.5 19.9 16.3 12.7
57 26.5 3.3 26.5 26.5 25.2 21.5 17.8 14.1 24.6 3.6 24.6 24.6 23.2 19.6 16.0 12.4
1200
77 38.7 3.3 21.3 15.5 11.3 - - - 35.2 3.6 20.8 13.6 9.6 - - -
72 34.7 3.3 26.0 21.8 17.6 13.4 - - 31.3 3.6 24.1 20.1 16.1 12.0 - -
67 30.7 3.3 30.7 28.1 23.9 19.7 15.6 - 27.4 3.6 27.4 26.5 22.5 18.5 14.5 -
62 28.0 3.3 28.0 28.0 28.0 23.8 19.6 15.4 25.2 3.6 25.2 25.2 25.2 21.6 17.6 13.6
57 27.5 3.3 27.5 27.5 27.5 23.3 19.1 14.9 25.3 3.6 25.3 25.3 25.3 21.3 17.3 13.3
1350
72 35.9 3.3 27.9 23.3 18.8 14.2 - - 32.6 3.6 25.9 21.5 17.1 12.7 - -
67 31.7 3.3 31.7 30.1 25.5 20.9 16.4 - 28.5 3.6 28.5 28.4 24.0 19.6 15.1 -
62 29.0 3.3 29.0 29.0 29.0 24.4 19.9 15.3 26.3 3.6 26.3 26.3 26.3 22.0 17.6 13.2
57 28.5 3.3 28.5 28.5 28.5 23.9 19.4 14.8 26.4 3.6 26.4 26.4 26.4 21.9 17.5 13.1
1500
72 37.1 3.3 29.7 24.8 19.9 15.0 - - 33.8 3.6 27.7 22.9 18.1 13.3 - -
67 32.8 3.3 32.8 32.0 27.1 22.1 17.2 - 29.6 3.6 29.6 29.6 25.4 20.6 15.8 -
62 29.9 3.3 29.9 29.9 29.9 25.0 20.1 15.2 27.3 3.6 27.3 27.3 27.3 22.5 17.7 12.9
57 29.5 3.3 29.5 29.5 29.5 24.5 19.6 14.7 27.4 3.6 27.4 27.4 27.4 22.6 17.8 13.0
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
ZR036 (3.0 Ton) Cooling (Continued)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 41
ZR036 (3.0 Ton) Reheat
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
45°F 55°F
750
77 22.7 1.7 8.8 7.2 5.6 - - - 28.2 1.9 11.2 9.7 8.1 - - -
72 24.7 1.6 13.5 11.9 10.3 8.7 - - 28.2 1.8 15.1 13.6 12.0 10.4 - -
67 26.7 1.6 18.2 16.6 15.1 13.5 11.9 - 28.3 1.8 19.0 17.5 15.9 14.3 12.7 -
62 27.2 1.6 22.3 20.7 19.2 17.6 16.0 14.4 27.0 1.8 22.3 20.7 19.1 17.5 16.0 14.4
900
77 22.5 1.7 9.0 7.4 5.8 - - - 29.1 1.8 12.0 10.3 8.6 - - -
72 24.6 1.6 14.0 12.4 10.7 9.1 - - 29.2 1.8 16.2 14.5 12.8 11.1 - -
67 26.7 1.6 19.0 17.4 15.7 14.1 12.5 - 29.3 1.8 20.3 18.6 16.9 15.2 13.5 -
62 27.4 1.6 23.3 21.7 20.1 18.5 16.9 15.2 27.9 1.8 23.8 22.1 20.4 18.7 17.0 15.3
57 19.4 1.7 19.4 19.4 17.9 16.3 14.7 13.1 21.9 1.8 21.9 21.9 20.7 19.0 17.3 15.6
1050
77 22.3 1.7 9.2 7.6 5.9 - - - 30.1 1.8 12.8 11.0 9.2 - - -
72 24.5 1.6 14.5 12.8 11.2 9.5 - - 30.1 1.8 17.2 15.4 13.6 11.8 - -
67 26.8 1.6 19.7 18.1 16.4 14.8 13.1 - 30.2 1.8 21.6 19.8 18.0 16.2 14.3 -
62 27.5 1.6 24.3 22.6 21.0 19.4 17.7 16.1 28.8 1.8 25.3 23.5 21.7 19.9 18.0 16.2
57 19.4 1.7 19.4 19.4 18.6 17.0 15.3 13.7 22.6 1.8 22.6 22.6 22.0 20.2 18.4 16.6
1200
77 22.1 1.6 9.4 7.8 6.1 - - - 31.0 1.8 13.6 11.6 9.7 - - -
72 24.5 1.6 15.0 13.3 11.6 9.9 - - 31.1 1.8 18.3 16.3 14.4 12.4 - -
67 26.9 1.6 20.5 18.8 17.1 15.4 13.8 - 31.2 1.8 22.9 21.0 19.1 17.1 15.2 -
62 27.7 1.6 25.3 23.6 21.9 20.2 18.6 16.9 29.7 1.8 26.8 24.9 23.0 21.0 19.1 17.1
57 19.4 1.7 19.4 19.4 19.4 17.7 16.0 14.3 23.3 1.8 23.3 23.3 23.3 21.4 19.4 17.5
1350
72 24.1 1.6 14.9 13.2 11.6 10.0 - - 31.2 1.8 18.6 16.6 14.7 12.7 - -
67 26.5 1.6 20.4 18.8 17.2 15.5 13.9 - 31.3 1.8 23.4 21.4 19.5 17.5 15.5 -
62 27.4 1.6 25.3 23.7 22.0 20.4 18.8 17.1 29.8 1.8 27.4 25.4 23.4 21.5 19.5 17.5
57 19.1 1.7 19.1 19.1 19.1 17.4 15.8 14.2 23.4 1.8 23.4 23.4 23.4 21.5 19.5 17.5
1500
72 23.7 1.6 14.8 13.2 11.6 10.0 - - 31.3 1.8 18.9 17.0 15.0 13.0 - -
67 26.1 1.6 20.4 18.8 17.2 15.6 14.1 - 31.4 1.8 23.8 21.8 19.9 17.9 15.9 -
62 27.1 1.6 25.3 23.8 22.2 20.6 19.0 17.4 30.0 1.8 27.9 25.9 23.9 21.9 20.0 18.0
57 18.8 1.7 18.8 18.8 18.8 17.2 15.6 14.0 23.5 1.8 23.5 23.5 23.5 21.5 19.6 17.6
65°F 75°F
750
77 33.6 2.0 13.7 12.1 10.6 - - - 33.7 2.3 13.1 11.6 10.1 - - -
72 31.8 2.0 16.8 15.2 13.6 12.1 - - 31.1 2.3 15.9 14.4 12.9 11.4 - -
67 29.9 2.0 19.9 18.3 16.7 15.1 13.6 - 28.4 2.3 18.7 17.2 15.7 14.2 12.7 -
62 26.7 2.0 22.2 20.7 19.1 17.5 15.9 14.4 24.7 2.3 20.7 19.2 17.7 16.2 14.7 13.2
900
77 35.7 2.0 15.1 13.3 11.5 - - - 35.7 2.3 14.4 12.7 11.0 - - -
72 33.8 2.0 18.4 16.6 14.8 13.0 - - 32.9 2.3 17.5 15.8 14.0 12.3 - -
67 31.8 2.0 21.7 19.9 18.1 16.3 14.6 - 30.1 2.3 20.6 18.8 17.1 15.4 13.7 -
62 28.4 2.0 24.3 22.5 20.7 18.9 17.1 15.4 26.2 2.3 22.7 21.0 19.2 17.5 15.8 14.1
57 24.4 2.0 24.4 24.4 23.6 21.8 20.0 18.2 22.1 2.3 22.1 22.1 21.1 19.4 17.7 15.9
1050
77 37.9 2.0 16.4 14.4 12.4 - - - 37.7 2.3 15.7 13.8 11.8 - - -
72 35.7 2.0 20.0 18.0 16.0 14.0 - - 34.7 2.3 19.1 17.1 15.2 13.2 - -
67 33.6 2.0 23.6 21.6 19.6 17.6 15.6 - 31.8 2.3 22.4 20.4 18.5 16.5 14.6 -
62 30.1 2.0 26.4 24.4 22.4 20.3 18.3 16.3 27.7 2.3 24.7 22.7 20.8 18.8 16.9 14.9
57 25.9 2.0 25.9 25.9 25.5 23.5 21.5 19.4 23.3 2.3 23.3 23.3 22.8 20.9 18.9 17.0
1200
77 40.0 2.0 17.7 15.5 13.3 - - - 39.7 2.3 17.1 14.9 12.7 - - -
72 37.7 2.0 21.6 19.4 17.1 14.9 - - 36.6 2.3 20.7 18.5 16.3 14.1 - -
67 35.5 2.0 25.4 23.2 21.0 18.8 16.5 - 33.5 2.3 24.2 22.0 19.9 17.7 15.5 -
62 31.8 2.0 28.4 26.2 24.0 21.8 19.5 17.3 29.1 2.3 26.7 24.5 22.4 20.2 18.0 15.8
57 27.3 2.0 27.3 27.3 27.3 25.1 22.9 20.7 24.5 2.3 24.5 24.5 24.5 22.3 20.2 18.0
1350
72 38.4 2.0 22.3 20.0 17.7 15.4 - - 37.5 2.3 21.6 19.3 17.0 14.7 - -
67 36.1 2.0 26.3 24.0 21.7 19.4 17.1 - 34.3 2.3 25.3 23.0 20.7 18.4 16.1 -
62 32.3 2.0 29.4 27.1 24.8 22.5 20.2 18.0 29.9 2.3 27.9 25.6 23.3 21.0 18.7 16.4
57 27.8 2.0 27.8 27.8 27.8 25.5 23.2 20.9 25.1 2.2 25.1 25.1 25.1 22.8 20.5 18.2
1500
72 39.0 2.0 23.1 20.7 18.3 16.0 - - 38.5 2.3 22.5 20.1 17.7 15.3 - -
67 36.7 2.0 27.2 24.8 22.5 20.1 17.7 - 35.2 2.3 26.4 24.0 21.6 19.1 16.7 -
62 32.8 2.0 30.4 28.0 25.7 23.3 21.0 18.6 30.6 2.3 29.1 26.7 24.2 21.8 19.4 17.0
57 28.3 2.0 28.3 28.3 28.3 25.9 23.5 21.2 25.7 2.2 25.7 25.7 25.7 23.3 20.9 18.5
251933-YTG-X-0615
42 Johnson Controls Unitary Products
85°F 95°F
750
77 33.8 2.5 12.4 11.0 9.6 - - - 33.9 2.8 11.8 10.4 9.1 - - -
72 30.4 2.5 15.0 13.6 12.2 10.7 - - 29.7 2.8 14.1 12.8 11.4 10.1 - -
67 27.0 2.5 17.6 16.2 14.7 13.3 11.9 - 25.5 2.8 16.5 15.1 13.8 12.4 11.1 -
62 22.8 2.5 19.1 17.7 16.3 14.9 13.4 12.0 20.8 2.8 17.6 16.2 14.9 13.5 12.2 10.8
900
77 35.7 2.5 13.8 12.1 10.4 - - - 35.6 2.8 13.1 11.5 9.9 - - -
72 32.1 2.5 16.6 14.9 13.3 11.6 - - 31.2 2.8 15.7 14.1 12.5 10.9 - -
67 28.5 2.5 19.4 17.7 16.1 14.4 12.8 - 26.8 2.8 18.2 16.6 15.0 13.5 11.9 -
62 24.0 2.5 21.1 19.4 17.8 16.1 14.4 12.8 21.8 2.8 19.5 17.9 16.3 14.7 13.1 11.5
57 19.7 2.5 19.7 19.7 18.6 17.0 15.3 13.6 17.3 2.7 17.3 17.3 16.1 14.5 12.9 11.3
1050
77 37.5 2.5 15.1 13.2 11.3 - - - 37.3 2.8 14.5 12.6 10.8 - - -
72 33.7 2.5 18.2 16.3 14.4 12.5 - - 32.7 2.8 17.2 15.4 13.6 11.7 - -
67 29.9 2.5 21.2 19.3 17.4 15.5 13.6 - 28.1 2.8 20.0 18.2 16.3 14.5 12.7 -
62 25.2 2.5 23.0 21.1 19.2 17.3 15.4 13.5 22.8 2.8 21.4 19.5 17.7 15.8 14.0 12.2
57 20.7 2.5 20.7 20.7 20.2 18.3 16.4 14.5 18.1 2.7 18.1 18.1 17.5 15.7 13.8 12.0
1200
77 39.4 2.5 16.4 14.3 12.2 - - - 39.1 2.8 15.8 13.7 11.6 - - -
72 35.4 2.5 19.7 17.6 15.5 13.3 - - 34.2 2.8 18.8 16.7 14.6 12.5 - -
67 31.4 2.5 23.0 20.9 18.8 16.6 14.5 - 29.4 2.8 21.8 19.7 17.6 15.5 13.5 -
62 26.5 2.5 25.0 22.9 20.7 18.6 16.4 14.3 23.9 2.8 23.3 21.2 19.1 17.0 14.9 12.8
57 21.7 2.5 21.7 21.7 21.7 19.6 17.4 15.3 18.9 2.7 18.9 18.9 18.9 16.8 14.7 12.6
1350
72 36.6 2.5 20.9 18.6 16.2 13.9 - - 35.8 2.8 20.1 17.8 15.5 13.2 - -
67 32.5 2.5 24.3 22.0 19.7 17.4 15.1 - 30.7 2.8 23.3 21.0 18.7 16.4 14.0 -
62 27.4 2.5 26.4 24.1 21.8 19.5 17.1 14.8 25.0 2.7 24.9 22.6 20.2 17.9 15.6 13.3
57 22.5 2.5 22.5 22.5 22.5 20.2 17.8 15.5 19.8 2.7 19.8 19.8 19.8 17.5 15.2 12.8
1500
72 37.9 2.5 22.0 19.5 17.0 14.5 - - 37.3 2.7 21.5 18.9 16.4 13.8 - -
67 33.6 2.5 25.6 23.1 20.6 18.2 15.7 - 32.1 2.7 24.8 22.3 19.7 17.2 14.6 -
62 28.4 2.5 27.8 25.3 22.8 20.3 17.8 15.3 26.1 2.7 26.1 23.9 21.4 18.8 16.3 13.7
57 23.2 2.5 23.2 23.2 23.2 20.7 18.3 15.8 20.7 2.7 20.7 20.7 20.7 18.2 15.6 13.1
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
ZR036 (3.0 Ton) Reheat (Continued)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 43
ZR048 (4.0 Ton) Cooling
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
75°F 85°F
1000
77 59.1 3.3 26.2 22.1 17.9 - - - 58.1 3.3 25.3 21.3 17.2 - - -
72 55.2 3.2 32.9 28.7 24.6 20.4 - - 53.3 3.2 31.7 27.6 23.6 19.6 - -
67 51.2 3.0 39.5 35.4 31.2 27.1 22.9 - 48.6 3.2 38.0 34.0 30.0 26.0 21.9 -
62 41.9 3.1 41.9 40.2 34.9 30.8 26.6 22.5 42.6 3.2 42.6 40.3 35.0 31.0 27.0 23.0
1200
77 63.5 3.2 29.7 24.9 20.0 - - - 61.6 3.2 28.6 23.9 19.1 - - -
72 59.3 3.0 37.2 32.3 27.5 22.6 - - 56.5 3.2 35.7 30.9 26.1 21.4 - -
67 55.0 2.9 44.6 39.7 34.9 30.0 25.2 - 51.5 3.2 42.8 38.0 33.2 28.4 23.6 -
62 45.0 3.0 45.0 43.9 39.1 34.2 29.3 24.5 45.1 3.2 45.1 43.6 38.8 34.0 29.3 24.5
57 45.2 2.9 45.2 45.2 42.4 37.6 32.7 27.9 43.5 3.1 43.5 43.5 40.5 35.8 31.0 26.2
1400
77 67.9 3.1 33.3 27.7 22.1 - - - 65.1 3.2 32.0 26.5 20.9 - - -
72 63.3 2.9 41.5 35.9 30.3 24.8 - - 59.7 3.2 39.8 34.2 28.7 23.2 - -
67 58.7 2.8 49.7 44.1 38.6 33.0 27.4 - 54.4 3.2 47.5 42.0 36.4 30.9 25.4 -
62 48.2 2.9 48.2 47.6 43.2 37.6 32.1 26.5 47.7 3.1 47.7 46.9 42.6 37.0 31.5 26.0
57 48.3 2.8 48.3 48.3 46.9 41.3 35.8 30.2 46.0 3.1 46.0 46.0 44.5 38.9 33.4 27.9
1600
77 72.3 3.0 36.8 30.5 24.2 - - - 68.5 3.2 35.4 29.1 22.8 - - -
72 67.4 2.8 45.8 39.5 33.2 27.0 - - 62.9 3.2 43.8 37.5 31.2 24.9 - -
67 62.5 2.6 54.8 48.5 42.2 36.0 29.7 - 57.3 3.1 52.2 45.9 39.7 33.4 27.1 -
62 51.3 2.8 51.3 51.3 47.3 41.1 34.8 28.5 50.2 3.1 50.2 50.2 46.3 40.1 33.8 27.5
57 51.4 2.7 51.4 51.4 51.4 45.1 38.8 32.6 48.5 3.1 48.5 48.5 48.4 42.1 35.8 29.5
1800
72 69.2 2.9 49.0 42.1 35.3 28.5 - - 64.9 3.2 46.9 40.2 33.4 26.6 - -
67 64.2 2.8 59.1 51.7 44.9 38.0 31.2 - 59.1 3.2 56.0 49.2 42.4 35.6 28.8 -
62 52.7 2.9 52.7 52.7 50.3 43.4 36.6 29.7 51.8 3.2 51.8 51.8 49.5 42.8 36.0 29.2
57 52.8 2.8 52.8 52.8 52.7 45.9 39.0 32.2 50.0 3.1 50.0 50.0 50.0 43.2 36.4 29.6
2000
72 70.9 3.1 52.2 44.8 37.4 30.0 - - 66.9 3.2 50.1 42.8 35.5 28.3 - -
67 65.8 2.9 63.3 54.9 47.5 40.1 32.6 - 60.9 3.2 59.7 52.4 45.1 37.9 30.6 -
62 54.0 3.0 54.0 54.0 53.2 45.7 38.3 30.9 53.4 3.2 53.4 53.4 52.8 45.5 38.2 30.9
57 54.1 3.0 54.1 54.1 54.1 46.7 39.3 31.8 51.6 3.2 51.6 51.6 51.6 44.3 37.0 29.7
95°F 105°F
1000
77 57.2 3.2 24.4 20.5 16.6 - - - 51.7 3.8 21.7 18.2 14.4 - - -
72 51.5 3.3 30.5 26.6 22.7 18.8 - - 47.0 3.8 28.4 24.5 20.6 16.8 - -
67 45.9 3.4 36.6 32.7 28.8 24.9 21.0 - 42.3 3.9 35.0 30.8 26.9 23.1 19.2 -
62 43.3 3.3 43.3 40.3 35.2 31.3 27.4 23.5 39.8 3.8 39.8 38.2 32.6 28.7 24.8 21.0
1200
77 59.7 3.3 27.6 22.9 18.1 - - - 54.1 3.8 25.1 20.5 15.8 - - -
72 53.8 3.4 34.2 29.5 24.8 20.1 - - 49.1 3.9 32.0 27.4 22.8 18.2 - -
67 47.9 3.5 40.9 36.2 31.5 26.8 22.1 - 44.2 3.9 39.0 34.4 29.7 25.1 20.5 -
62 45.3 3.3 45.3 43.3 38.6 33.9 29.2 24.5 41.7 3.8 41.7 40.6 36.0 31.3 26.7 22.1
57 41.9 3.3 41.9 41.9 38.6 33.9 29.2 24.5 39.0 3.8 39.0 39.0 35.7 31.0 26.4 21.8
1400
77 62.2 3.4 30.8 25.2 19.7 - - - 56.4 3.9 28.4 22.7 17.3 - - -
72 56.1 3.5 38.0 32.5 27.0 21.5 - - 51.3 3.9 35.7 30.3 24.9 19.6 - -
67 50.0 3.6 45.3 39.8 34.3 28.8 23.3 - 46.2 4.0 43.0 37.9 32.5 27.2 21.8 -
62 47.2 3.4 47.2 46.2 42.0 36.5 31.0 25.5 43.5 3.9 43.5 42.9 39.3 34.0 28.6 23.2
57 43.7 3.4 43.7 43.7 42.0 36.5 31.0 25.5 40.8 3.9 40.8 40.8 39.0 33.7 28.3 22.9
1600
77 64.8 3.4 33.9 27.6 21.3 - - - 58.8 3.9 31.8 25.0 18.8 - - -
72 58.4 3.5 41.8 35.5 29.2 22.9 - - 53.5 4.0 39.4 33.2 27.1 21.0 - -
67 52.0 3.6 49.7 43.4 37.1 30.8 24.5 - 48.1 4.0 47.0 41.5 35.4 29.2 23.1 -
62 49.1 3.5 49.1 49.1 45.4 39.0 32.7 26.4 45.3 3.9 45.3 45.3 42.7 36.6 30.5 24.3
57 45.5 3.5 45.5 45.5 45.4 39.1 32.8 26.5 42.5 3.9 42.5 42.5 42.4 36.3 30.1 24.0
1800
72 60.6 3.5 44.9 38.2 31.5 24.7 - - 55.1 3.9 42.1 35.6 29.0 22.5 - -
67 54.0 3.6 52.9 46.7 39.9 33.2 26.5 - 49.6 4.0 49.0 44.4 37.9 31.3 24.8 -
62 51.0 3.4 51.0 51.0 48.8 42.1 35.4 28.7 46.7 3.9 46.7 46.7 45.3 38.7 32.2 25.6
57 47.3 3.4 47.3 47.3 47.2 40.5 33.8 27.1 43.8 3.9 43.8 43.8 43.8 37.2 30.6 24.1
2000
72 62.9 3.4 48.0 40.9 33.7 26.6 - - 56.8 3.9 44.9 37.9 31.0 24.0 - -
67 56.0 3.5 56.0 49.9 42.8 35.6 28.5 - 51.1 4.0 51.1 47.4 40.4 33.4 26.4 -
62 52.9 3.4 52.9 52.9 52.3 45.2 38.1 30.9 48.2 3.9 48.2 48.2 47.9 40.9 33.9 26.9
57 49.0 3.4 49.0 49.0 49.0 41.9 34.7 27.6 45.1 3.9 45.1 45.1 45.1 38.1 31.1 24.2
251933-YTG-X-0615
44 Johnson Controls Unitary Products
115°F 125°F
1000
77 46.2 4.4 19.1 16.0 12.2 - - - 40.7 5.0 15.9 13.7 10.0 - - -
72 42.4 4.4 26.2 22.4 18.6 14.8 - - 37.9 4.9 24.1 20.4 16.6 12.8 - -
67 38.7 4.4 33.4 28.9 25.1 21.3 17.5 - 35.0 4.8 31.8 27.0 23.3 19.5 15.7 -
62 36.3 4.3 36.3 36.0 29.9 26.1 22.3 18.5 32.8 4.8 32.8 32.8 27.3 23.5 19.8 16.0
1200
77 48.4 4.4 22.6 18.1 13.5 - - - 42.8 5.0 20.1 15.7 11.2 - - -
72 44.5 4.4 29.8 25.3 20.7 16.2 - - 39.8 4.9 27.6 23.1 18.7 14.2 - -
67 40.5 4.4 37.0 32.5 27.9 23.4 18.9 - 36.8 4.8 35.1 30.6 26.2 21.7 17.3 -
62 38.0 4.3 38.0 37.9 33.3 28.8 24.3 19.7 34.4 4.8 34.4 34.4 30.7 26.3 21.8 17.4
57 36.2 4.3 36.2 36.2 32.7 28.2 23.6 19.1 33.3 4.8 33.3 33.3 29.7 25.3 20.9 16.4
1400
77 50.7 4.4 26.1 20.2 14.9 - - - 44.9 5.0 24.3 17.6 12.5 - - -
72 46.5 4.4 33.4 28.1 22.9 17.6 - - 41.7 4.9 31.0 25.9 20.8 15.7 - -
67 42.4 4.4 40.6 36.1 30.8 25.6 20.3 - 38.6 4.8 38.3 34.2 29.1 23.9 18.8 -
62 39.8 4.3 39.8 39.7 36.7 31.5 26.2 21.0 36.1 4.8 36.1 36.1 34.1 29.0 23.9 18.8
57 37.8 4.3 37.8 37.8 36.0 30.8 25.5 20.3 34.9 4.8 34.9 34.9 33.1 27.9 22.8 17.7
1600
77 52.9 4.4 29.6 22.3 16.3 - - - 47.0 4.9 28.6 19.6 13.8 - - -
72 48.6 4.4 36.9 30.9 25.0 19.0 - - 43.7 4.9 34.5 28.7 22.9 17.1 - -
67 44.2 4.4 44.2 39.6 33.7 27.7 21.7 - 40.4 4.8 40.4 37.7 31.9 26.2 20.4 -
62 41.5 4.4 41.5 41.5 40.1 34.2 28.2 22.2 37.8 4.8 37.8 37.8 37.5 31.7 25.9 20.2
57 39.5 4.4 39.5 39.5 39.4 33.4 27.5 21.5 36.5 4.8 36.5 36.5 36.4 30.6 24.8 19.0
1800
72 49.6 4.4 39.4 33.0 26.6 20.2 - - 44.1 4.9 36.6 30.4 24.1 17.9 - -
67 45.2 4.4 45.2 42.2 35.8 29.4 23.0 - 40.8 4.8 40.8 40.0 33.8 27.5 21.3 -
62 42.5 4.4 42.5 42.5 41.8 35.4 29.0 22.5 38.2 4.8 38.2 38.2 38.2 32.0 25.7 19.5
57 40.4 4.4 40.4 40.4 40.3 33.9 27.5 21.1 36.9 4.8 36.9 36.9 36.9 30.6 24.4 18.1
2000
72 50.7 4.4 41.9 35.0 28.2 21.4 - - 44.6 4.9 38.8 32.1 25.4 18.7 - -
67 46.2 4.4 46.2 44.8 38.0 31.1 24.3 - 41.3 4.9 41.3 41.3 35.6 28.9 22.2 -
62 43.4 4.4 43.4 43.4 43.4 36.5 29.7 22.9 38.6 4.9 38.6 38.6 38.6 32.2 25.5 18.8
57 41.2 4.4 41.2 41.2 41.2 34.4 27.5 20.7 37.3 4.9 37.3 37.3 37.3 30.6 23.9 17.3
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
ZR048 (4.0 Ton) Cooling (Continued)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 45
ZR048 (4.0 Ton) Reheat
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
45°F 55°F
1000
77 55.9 2.2 22.7 20.7 18.7 - - - 47.1 2.4 19.4 17.4 15.4 - - -
72 45.3 2.1 23.1 21.1 19.1 17.1 - - 40.3 2.3 20.9 19.0 17.0 15.1 - -
67 34.8 2.0 23.4 21.4 19.4 17.4 15.4 - 33.4 2.3 22.5 20.6 18.6 16.6 14.7 -
62 29.0 2.0 25.4 23.4 21.4 19.4 17.4 15.4 26.7 2.2 23.9 22.0 20.0 18.1 16.1 14.1
1200
77 62.4 2.2 25.6 23.4 21.1 - - - 53.3 2.4 22.0 19.8 17.6 - - -
72 50.6 2.1 26.0 23.7 21.4 19.2 - - 45.6 2.3 23.8 21.6 19.4 17.2 - -
67 38.7 2.0 26.3 24.0 21.8 19.5 17.2 - 37.8 2.3 25.6 23.4 21.2 19.0 16.8 -
62 32.3 2.0 28.6 26.3 24.1 21.8 19.5 17.3 30.3 2.2 27.2 25.0 22.8 20.6 18.4 16.2
57 26.0 2.0 26.0 26.0 25.6 23.4 21.1 18.8 24.6 2.2 24.6 24.6 24.5 22.3 20.1 17.8
1400
77 69.0 2.2 28.5 26.0 23.5 - - - 59.6 2.4 24.6 22.2 19.7 - - -
72 55.8 2.1 28.9 26.3 23.8 21.3 - - 50.9 2.4 26.6 24.2 21.7 19.3 - -
67 42.6 2.0 29.2 26.7 24.1 21.6 19.1 - 42.2 2.3 28.7 26.2 23.7 21.3 18.8 -
62 35.6 2.0 31.8 29.2 26.7 24.2 21.6 19.1 33.8 2.3 30.5 28.0 25.5 23.1 20.6 18.2
57 28.6 2.0 28.6 28.6 28.5 25.9 23.4 20.9 27.5 2.2 27.5 27.5 27.4 25.0 22.5 20.1
1600
77 75.6 2.2 31.4 28.6 25.8 - - - 65.8 2.4 27.2 24.5 21.8 - - -
72 61.1 2.1 31.8 29.0 26.2 23.4 - - 56.2 2.4 29.5 26.8 24.1 21.4 - -
67 46.5 2.0 32.1 29.3 26.5 23.7 20.9 - 46.6 2.3 31.7 29.0 26.3 23.6 20.9 -
62 38.9 2.0 34.9 32.2 29.4 26.6 23.8 21.0 37.3 2.3 33.7 31.0 28.3 25.6 22.9 20.2
57 31.3 2.0 31.3 31.3 31.3 28.5 25.7 22.9 30.4 2.3 30.4 30.4 30.4 27.7 25.0 22.3
1800
72 68.7 2.2 35.8 32.7 29.6 26.5 - - 61.1 2.4 32.2 29.3 26.3 23.4 - -
67 52.7 2.1 36.3 33.2 30.1 27.0 23.9 - 50.7 2.4 34.7 31.7 28.8 25.8 22.9 -
62 43.9 2.1 39.4 36.4 33.3 30.2 27.1 24.0 40.6 2.3 36.9 33.9 31.0 28.0 25.1 22.1
57 35.3 2.1 35.3 35.3 35.3 32.2 29.1 26.0 33.0 2.3 33.0 33.0 33.0 30.1 27.1 24.2
2000
72 76.4 2.2 39.7 36.3 32.9 29.5 - - 66.0 2.5 35.0 31.8 28.6 25.4 - -
67 58.9 2.1 40.5 37.1 33.7 30.3 26.9 - 54.7 2.4 37.7 34.5 31.3 28.0 24.8 -
62 49.0 2.1 43.9 40.5 37.2 33.8 30.4 27.0 43.8 2.3 40.1 36.8 33.6 30.4 27.2 24.0
57 39.4 2.1 39.4 39.4 39.4 36.0 32.6 29.2 35.7 2.3 35.7 35.7 35.7 32.5 29.3 26.1
65°F 75°F
1000
77 38.4 2.5 16.0 14.1 12.2 - - - 41.1 2.9 16.5 14.5 12.5 - - -
72 35.2 2.5 18.8 16.9 15.0 13.1 - - 37.3 2.9 19.9 17.9 15.9 14.0 - -
67 32.0 2.5 21.6 19.7 17.8 15.9 14.0 - 33.5 2.9 23.3 21.3 19.3 17.4 15.4 -
62 24.5 2.4 22.4 20.5 18.6 16.7 14.8 12.9 27.6 2.9 25.4 23.4 21.5 19.5 17.5 15.6
1200
77 44.3 2.6 18.3 16.2 14.0 - - - 45.1 3.0 17.9 15.8 13.6 - - -
72 40.6 2.6 21.6 19.5 17.3 15.2 - - 40.9 2.9 21.6 19.4 17.3 15.1 - -
67 36.9 2.6 24.9 22.7 20.6 18.4 16.3 - 36.8 2.9 25.2 23.1 20.9 18.8 16.7 -
62 28.3 2.5 25.8 23.6 21.5 19.3 17.2 15.0 30.1 2.9 27.4 25.3 23.2 21.0 18.9 16.7
57 23.3 2.4 23.3 23.3 23.3 21.1 19.0 16.8 23.7 2.8 23.7 23.7 23.7 21.5 19.4 17.3
1400
77 50.1 2.6 20.7 18.3 15.9 - - - 49.0 3.0 19.3 17.0 14.7 - - -
72 46.0 2.6 24.4 22.0 19.6 17.2 - - 44.5 3.0 23.2 20.9 18.6 16.3 - -
67 41.8 2.6 28.1 25.7 23.3 20.9 18.6 - 40.0 3.0 27.2 24.8 22.5 20.2 17.9 -
62 32.0 2.5 29.1 26.8 24.4 22.0 19.6 17.2 32.7 2.9 29.5 27.2 24.9 22.5 20.2 17.9
57 26.4 2.5 26.4 26.4 26.4 24.0 21.7 19.3 25.8 2.8 25.8 25.8 25.8 23.4 21.1 18.8
1600
77 56.0 2.7 23.0 20.4 17.8 - - - 52.9 3.0 20.7 18.2 15.8 - - -
72 51.4 2.7 27.2 24.6 21.9 19.3 - - 48.1 3.0 24.9 22.4 19.9 17.4 - -
67 46.7 2.6 31.3 28.7 26.1 23.5 20.8 - 43.3 3.0 29.1 26.6 24.1 21.6 19.1 -
62 35.8 2.6 32.5 29.9 27.3 24.6 22.0 19.4 35.3 2.9 31.5 29.0 26.5 24.0 21.6 19.1
57 29.6 2.5 29.6 29.6 29.6 26.9 24.3 21.7 27.8 2.8 27.8 27.8 27.8 25.3 22.9 20.4
1800
72 53.5 2.7 28.7 25.9 23.1 20.3 - - 50.7 3.0 27.2 24.5 21.7 18.9 - -
67 48.6 2.6 33.1 30.3 27.4 24.6 21.8 - 45.6 3.0 31.8 29.0 26.2 23.4 20.7 -
62 37.2 2.6 34.3 31.5 28.7 25.9 23.1 20.2 37.2 2.9 34.5 31.7 28.9 26.1 23.4 20.6
57 30.8 2.5 30.8 30.8 30.8 27.9 25.1 22.3 29.3 2.8 29.3 29.3 29.3 26.6 23.8 21.0
2000
72 55.6 2.7 30.3 27.3 24.2 21.2 - - 53.3 3.0 29.5 26.5 23.4 20.3 - -
67 50.6 2.7 34.8 31.8 28.8 25.8 22.8 - 47.9 3.0 34.5 31.4 28.3 25.3 22.2 -
62 38.7 2.6 36.2 33.1 30.1 27.1 24.1 21.1 39.1 3.0 37.4 34.4 31.3 28.2 25.2 22.1
57 32.0 2.5 32.0 32.0 32.0 28.9 25.9 22.9 30.8 2.8 30.8 30.8 30.8 27.8 24.7 21.6
251933-YTG-X-0615
46 Johnson Controls Unitary Products
85°F 95°F
1000
77 43.9 3.3 17.0 14.9 12.9 - - - 46.6 3.7 17.4 15.4 13.3 - - -
72 39.5 3.3 20.9 18.9 16.9 14.9 - - 41.6 3.7 22.0 19.9 17.9 15.8 - -
67 35.1 3.3 24.9 22.9 20.9 18.9 16.9 - 36.6 3.7 26.5 24.5 22.4 20.4 18.3 -
62 30.6 3.3 28.4 26.4 24.3 22.3 20.3 18.3 33.7 3.7 31.3 29.3 27.2 25.2 23.1 21.0
1200
77 45.9 3.3 17.4 15.3 13.2 - - - 46.7 3.7 17.0 14.9 12.8 - - -
72 41.3 3.3 21.5 19.4 17.2 15.1 - - 41.6 3.7 21.5 19.3 17.2 15.1 - -
67 36.7 3.3 25.6 23.4 21.3 19.2 17.0 - 36.5 3.7 25.9 23.8 21.7 19.6 17.4 -
62 32.0 3.3 29.1 27.0 24.8 22.7 20.6 18.5 33.9 3.7 30.7 28.6 26.5 24.4 22.3 20.2
57 24.0 3.1 24.0 24.0 24.0 21.9 19.8 17.7 24.4 3.5 24.4 24.4 24.4 22.3 20.2 18.1
1400
77 47.8 3.3 17.9 15.7 13.5 - - - 46.7 3.7 16.6 14.4 12.2 - - -
72 43.0 3.3 22.1 19.8 17.6 15.3 - - 41.6 3.7 20.9 18.7 16.6 14.4 - -
67 38.2 3.3 26.2 24.0 21.7 19.5 17.2 - 36.5 3.7 25.3 23.1 20.9 18.8 16.6 -
62 33.4 3.3 29.8 27.6 25.3 23.1 20.8 18.6 34.0 3.7 30.1 28.0 25.8 23.6 21.5 19.3
57 25.1 3.1 25.1 25.1 25.1 22.8 20.6 18.4 24.4 3.5 24.4 24.4 24.4 22.2 20.1 17.9
1600
77 49.8 3.3 18.4 16.1 13.7 - - - 46.7 3.7 16.1 13.9 11.7 - - -
72 44.8 3.3 22.6 20.3 17.9 15.6 - - 41.5 3.7 20.4 18.2 15.9 13.7 - -
67 39.8 3.3 26.9 24.5 22.1 19.8 17.4 - 36.4 3.6 24.6 22.4 20.2 17.9 15.7 -
62 34.7 3.3 30.5 28.2 25.8 23.5 21.1 18.7 34.2 3.7 29.6 27.3 25.1 22.9 20.6 18.4
57 26.1 3.1 26.1 26.1 26.1 23.8 21.4 19.0 24.4 3.5 24.4 24.4 24.4 22.2 19.9 17.7
1800
72 47.9 3.3 25.7 23.0 20.2 17.5 - - 45.1 3.7 24.2 21.5 18.8 16.1 - -
67 42.6 3.3 30.5 27.8 25.0 22.3 19.5 - 39.5 3.7 29.2 26.5 23.8 21.1 18.4 -
62 37.1 3.3 34.6 31.9 29.2 26.4 23.7 20.9 37.1 3.7 34.8 32.1 29.4 26.7 24.0 21.3
57 27.9 3.2 27.9 27.9 27.9 25.2 22.4 19.7 26.5 3.5 26.5 26.5 26.5 23.8 21.1 18.4
2000
72 51.0 3.4 28.8 25.7 22.6 19.4 - - 48.7 3.7 28.1 24.9 21.7 18.6 - -
67 45.3 3.3 34.1 31.0 27.9 24.8 21.6 - 42.7 3.7 33.8 30.6 27.4 24.2 21.1 -
62 39.5 3.3 38.7 35.6 32.5 29.4 26.3 23.1 40.0 3.7 40.0 36.9 33.7 30.5 27.3 24.2
57 29.7 3.2 29.7 29.7 29.7 26.6 23.5 20.4 28.6 3.5 28.6 28.6 28.6 25.4 22.3 19.1
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
ZR048 (4.0 Ton) Reheat (Continued)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 47
ZR060 (5.0 Ton) Cooling
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
75°F 85°F
1250
77 71.1 3.7 31.0 26.0 21.0 - - - 68.8 4.1 29.9 25.0 20.0 - - -
72 66.2 3.6 39.5 34.5 29.5 24.5 - - 63.4 4.1 38.1 33.2 28.2 23.3 - -
67 61.4 3.6 48.1 43.1 38.0 33.0 28.0 - 57.9 4.0 46.3 41.3 36.4 31.4 26.5 -
62 53.6 3.5 53.6 51.7 44.6 39.6 34.6 29.6 51.1 4.0 51.1 50.1 43.3 38.3 33.4 28.4
1500
77 76.0 3.7 35.1 29.2 23.3 - - - 73.0 4.1 33.7 27.9 22.1 - - -
72 70.8 3.7 44.5 38.6 32.8 26.9 - - 67.2 4.1 42.7 36.9 31.1 25.4 - -
67 65.6 3.6 54.0 48.1 42.2 36.3 30.5 - 61.4 4.0 51.7 45.9 40.2 34.4 28.6 -
62 57.3 3.5 57.3 56.1 49.5 43.6 37.7 31.9 54.2 4.0 54.2 53.5 47.7 42.0 36.2 30.4
57 55.0 3.5 55.0 55.0 51.8 45.9 40.1 34.2 52.7 4.0 52.7 52.7 49.4 43.6 37.8 32.1
1750
77 80.9 3.7 39.1 32.4 25.6 - - - 77.1 4.1 37.4 30.8 24.2 - - -
72 75.4 3.7 49.5 42.8 36.0 29.2 - - 71.0 4.1 47.3 40.7 34.1 27.5 - -
67 69.8 3.6 59.9 53.2 46.4 39.6 32.9 - 64.9 4.0 57.1 50.5 43.9 37.3 30.7 -
62 61.0 3.5 61.0 60.4 54.4 47.7 40.9 34.1 57.2 4.0 57.2 56.9 52.2 45.6 39.0 32.4
57 58.5 3.5 58.5 58.5 57.0 50.2 43.4 36.7 55.7 4.0 55.7 55.7 54.0 47.4 40.8 34.2
2000
77 85.8 3.7 43.2 35.5 27.9 - - - 81.3 4.2 41.1 33.7 26.3 - - -
72 79.9 3.7 54.5 46.9 39.2 31.6 - - 74.9 4.1 51.8 44.4 37.0 29.6 - -
67 74.0 3.6 65.9 58.2 50.6 43.0 35.3 - 68.4 4.0 62.5 55.1 47.7 40.3 32.9 -
62 64.7 3.6 64.7 64.7 59.3 51.7 44.1 36.4 60.3 4.0 60.3 60.3 56.7 49.3 41.9 34.5
57 62.1 3.6 62.1 62.1 62.1 54.5 46.8 39.2 58.7 4.0 58.7 58.7 58.7 51.2 43.8 36.4
2250
72 86.0 3.7 60.4 52.3 44.1 36.0 - - 75.7 4.1 54.9 47.0 39.1 31.1 - -
67 79.5 3.6 75.4 65.1 56.9 48.8 40.6 - 69.2 4.1 66.2 58.3 50.4 42.5 34.5 -
62 69.6 3.6 69.6 69.6 66.9 58.8 50.6 42.5 61.0 4.0 61.0 61.0 59.2 51.2 43.3 35.4
57 66.9 3.6 66.9 66.9 66.9 58.8 50.6 42.5 59.3 4.0 59.3 59.3 59.3 51.4 43.4 35.5
2500
72 92.1 3.7 66.4 57.7 49.0 40.4 - - 76.5 4.1 58.0 49.6 41.1 32.7 - -
67 85.0 3.6 85.0 71.9 63.2 54.6 45.9 - 69.9 4.1 69.9 61.5 53.1 44.6 36.2 -
62 74.5 3.6 74.5 74.5 74.5 65.8 57.2 48.5 61.6 4.0 61.6 61.6 61.6 53.2 44.7 36.3
57 71.7 3.6 71.7 71.7 71.7 63.0 54.4 45.7 59.9 4.0 59.9 59.9 59.9 51.5 43.1 34.6
95°F 105°F
1250
77 66.6 4.5 28.9 24.0 19.1 - - - 61.3 5.1 26.6 21.9 17.0 - - -
72 60.6 4.5 36.7 31.8 26.9 22.0 - - 55.8 5.1 34.6 29.8 24.9 20.0 - -
67 54.5 4.5 44.5 39.6 34.7 29.9 25.0 - 50.3 5.0 42.7 37.7 32.8 27.9 23.1 -
62 48.5 4.4 48.5 48.5 41.9 37.0 32.1 27.2 45.1 5.0 45.1 45.1 39.4 34.5 29.7 24.8
1500
77 70.0 4.5 32.2 26.6 20.9 - - - 64.5 5.1 29.9 24.3 18.7 - - -
72 63.6 4.5 40.8 35.2 29.5 23.9 - - 58.7 5.1 38.5 33.0 27.4 21.8 - -
67 57.3 4.5 49.4 43.8 38.1 32.4 26.8 - 52.9 5.0 47.2 41.6 36.0 30.5 24.9 -
62 51.0 4.4 51.0 51.0 46.0 40.3 34.7 29.0 47.4 5.0 47.4 47.4 43.3 37.7 32.1 26.6
57 50.3 4.4 50.3 50.3 46.9 41.3 35.6 30.0 46.9 5.0 46.9 46.9 43.6 38.1 32.5 26.9
1750
77 73.4 4.6 35.6 29.2 22.8 - - - 67.6 5.1 33.1 26.7 20.4 - - -
72 66.7 4.5 45.0 38.5 32.1 25.7 - - 61.6 5.1 42.4 36.1 29.8 23.5 - -
67 60.1 4.5 54.3 47.9 41.5 35.0 28.6 - 55.5 5.0 51.8 45.6 39.3 33.0 26.7 -
62 53.4 4.4 53.4 53.4 50.0 43.6 37.2 30.7 49.7 5.0 49.7 49.7 47.2 40.9 34.6 28.3
57 52.8 4.4 52.8 52.8 51.1 44.6 38.2 31.8 49.2 5.0 49.2 49.2 47.6 41.3 35.0 28.7
2000
77 76.7 4.6 39.0 31.8 24.6 - - - 70.8 5.1 36.4 29.1 22.1 - - -
72 69.8 4.5 49.1 41.9 34.7 27.5 - - 64.4 5.1 46.4 39.3 32.3 25.3 - -
67 62.8 4.5 59.2 52.0 44.8 37.6 30.4 - 58.1 5.0 56.3 49.6 42.6 35.5 28.5 -
62 55.9 4.5 55.9 55.9 54.1 46.9 39.7 32.5 52.0 5.0 52.0 52.0 51.1 44.1 37.1 30.1
57 55.2 4.5 55.2 55.2 55.2 48.0 40.8 33.6 51.5 5.0 51.5 51.5 51.5 44.5 37.5 30.4
2250
72 65.3 4.5 49.4 41.7 34.0 26.3 - - 64.2 5.1 49.1 41.6 34.0 26.5 - -
67 58.8 4.5 57.0 51.6 43.9 36.2 28.4 - 57.9 5.0 57.0 52.5 44.9 37.4 29.8 -
62 52.3 4.5 52.3 52.3 51.4 43.7 36.0 28.3 51.9 5.0 51.9 51.9 51.4 43.9 36.4 28.8
57 51.7 4.5 51.7 51.7 51.7 44.0 36.3 28.6 51.4 5.0 51.4 51.4 51.4 43.8 36.3 28.8
2500
72 60.9 4.5 49.7 41.5 33.2 25.0 - - 64.0 5.1 51.9 43.8 35.8 27.7 - -
67 54.8 4.5 54.8 51.1 42.9 34.7 26.5 - 57.7 5.0 57.7 55.3 47.3 39.2 31.2 -
62 48.8 4.5 48.8 48.8 48.8 40.5 32.3 24.1 51.7 5.0 51.7 51.7 51.7 43.7 35.6 27.6
57 48.2 4.5 48.2 48.2 48.2 40.0 31.7 23.5 51.2 5.0 51.2 51.2 51.2 43.2 35.1 27.1
251933-YTG-X-0615
48 Johnson Controls Unitary Products
115°F 125°F
1250
77 56.0 5.6 24.3 19.8 14.9 - - - 50.7 6.2 21.1 17.7 12.9 - - -
72 51.0 5.6 32.6 27.7 22.9 18.0 - - 46.3 6.2 30.5 25.7 20.9 16.1 - -
67 46.1 5.6 40.8 35.7 30.8 26.0 21.2 - 41.9 6.1 39.3 33.7 28.9 24.1 19.3 -
62 41.6 5.5 41.6 41.6 36.9 32.0 27.2 22.4 38.2 6.1 38.2 38.2 34.4 29.6 24.7 19.9
1500
77 58.9 5.6 27.5 22.0 16.5 - - - 53.4 6.2 25.1 19.7 14.2 - - -
72 53.7 5.6 36.2 30.7 25.2 19.7 - - 48.8 6.2 34.0 28.5 23.1 17.6 - -
67 48.5 5.6 45.0 39.5 34.0 28.5 23.0 - 44.1 6.1 42.8 37.4 31.9 26.5 21.1 -
62 43.8 5.5 43.8 43.8 40.7 35.1 29.6 24.1 40.2 6.1 40.2 40.2 38.0 32.6 27.1 21.7
57 43.5 5.5 43.5 43.5 40.3 34.8 29.3 23.8 40.1 6.1 40.1 40.1 37.1 31.6 26.2 20.7
1750
77 61.9 5.6 30.7 24.2 18.0 - - - 56.1 6.2 29.1 21.6 15.6 - - -
72 56.4 5.6 39.9 33.7 27.6 21.4 - - 51.2 6.1 37.4 31.3 25.3 19.2 - -
67 50.9 5.6 49.2 43.3 37.1 31.0 24.8 - 46.4 6.1 46.4 41.0 35.0 28.9 22.8 -
62 46.0 5.5 46.0 46.0 44.4 38.2 32.1 25.9 42.3 6.1 42.3 42.3 41.6 35.6 29.5 23.4
57 45.7 5.5 45.7 45.7 44.1 37.9 31.7 25.5 42.1 6.1 42.1 42.1 40.6 34.5 28.5 22.4
2000
77 64.8 5.6 33.9 26.4 19.5 - - - 58.9 6.2 33.1 23.6 16.9 - - -
72 59.1 5.6 43.6 36.8 29.9 23.0 - - 53.7 6.1 40.9 34.2 27.5 20.8 - -
67 53.3 5.6 53.3 47.1 40.3 33.4 26.6 - 48.6 6.1 48.6 44.7 38.0 31.3 24.6 -
62 48.2 5.5 48.2 48.2 48.2 41.3 34.5 27.6 44.3 6.1 44.3 44.3 44.3 38.6 31.9 25.2
57 47.8 5.5 47.8 47.8 47.8 41.0 34.1 27.3 44.1 6.1 44.1 44.1 44.1 37.4 30.8 24.1
2250
72 63.1 5.6 48.9 41.5 34.1 26.7 - - 61.9 6.1 48.6 41.4 34.2 27.0 - -
67 57.0 5.6 57.0 53.3 46.0 38.6 31.2 - 56.0 6.1 56.0 54.2 47.0 39.8 32.6 -
62 51.4 5.5 51.4 51.4 51.4 44.1 36.7 29.3 51.0 6.1 51.0 51.0 51.0 44.2 37.0 29.8
57 51.1 5.5 51.1 51.1 51.1 43.7 36.3 28.9 50.7 6.1 50.7 50.7 50.7 43.5 36.3 29.1
2500
72 67.1 5.6 54.1 46.2 38.3 30.4 - - 70.2 6.1 56.3 48.6 40.9 33.1 - -
67 60.6 5.6 60.6 59.5 51.6 43.8 35.9 - 63.4 6.1 63.4 63.4 56.0 48.3 40.6 -
62 54.7 5.5 54.7 54.7 54.7 46.8 38.9 31.0 57.7 6.1 57.7 57.7 57.7 49.9 42.2 34.5
57 54.3 5.5 54.3 54.3 54.3 46.4 38.5 30.6 57.4 6.1 57.4 57.4 57.4 49.6 41.9 34.2
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
ZR060 (5.0 Ton) Cooling (Continued)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 49
ZR060 (5.0 Ton) Reheat
Air on
Evaporator Coil
Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F)
Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
45°F 55°F
1250
77 49.2 2.8 21.4 19.2 17.0 - - - 45.5 2.9 19.4 17.3 15.2 - - -
72 43.8 2.7 24.0 21.8 19.6 17.4 - - 40.9 2.9 22.3 20.2 18.1 16.0 - -
67 38.5 2.7 26.6 24.4 22.2 20.0 17.9 - 36.3 2.9 25.1 23.0 21.0 18.9 16.8 -
62 29.7 2.6 27.4 25.2 23.1 20.9 18.7 16.6 27.6 2.7 25.9 23.8 21.7 19.6 17.5 15.4
1500
77 59.2 2.7 25.4 22.8 20.3 - - - 55.2 3.0 23.2 20.8 18.3 - - -
72 52.8 2.7 28.5 25.9 23.4 20.8 - - 49.6 2.9 26.7 24.2 21.7 19.3 - -
67 46.4 2.6 31.6 29.0 26.4 23.9 21.3 - 44.0 2.9 30.1 27.6 25.2 22.7 20.3 -
62 35.8 2.6 32.6 30.0 27.5 24.9 22.4 19.8 33.5 2.8 31.0 28.5 26.1 23.6 21.2 18.7
57 30.8 2.5 30.8 30.8 28.7 26.1 23.6 21.0 29.2 2.7 29.2 29.2 27.8 25.4 22.9 20.5
1750
77 69.2 2.7 29.4 26.5 23.5 - - - 64.9 3.0 27.0 24.2 21.4 - - -
72 61.7 2.7 33.0 30.1 27.1 24.2 - - 58.3 3.0 31.0 28.2 25.4 22.6 - -
67 54.2 2.6 36.6 33.6 30.7 27.7 24.8 - 51.8 2.9 35.1 32.2 29.4 26.6 23.8 -
62 41.8 2.6 37.8 34.8 31.9 28.9 26.0 23.0 39.4 2.8 36.1 33.3 30.5 27.6 24.8 22.0
57 36.0 2.5 36.0 36.0 33.3 30.3 27.4 24.4 34.3 2.8 34.3 34.3 32.5 29.7 26.9 24.1
2000
77 79.3 2.7 33.5 30.1 26.8 - - - 74.6 3.0 30.8 27.6 24.4 - - -
72 70.7 2.7 37.5 34.2 30.9 27.5 - - 67.1 3.0 35.4 32.2 29.0 25.9 - -
67 62.1 2.6 41.6 38.2 34.9 31.6 28.2 - 59.6 3.0 40.0 36.8 33.6 30.5 27.3 -
62 47.9 2.6 42.9 39.6 36.3 32.9 29.6 26.3 45.3 2.8 41.2 38.0 34.8 31.7 28.5 25.3
57 41.2 2.5 41.2 41.2 37.8 34.5 31.2 27.8 39.5 2.8 39.5 39.5 37.2 34.0 30.8 27.6
2250
72 76.8 2.7 43.2 39.4 35.6 31.7 - - 71.5 3.0 39.3 35.7 32.1 28.6 - -
67 67.5 2.6 48.0 44.1 40.3 36.5 32.6 - 63.5 3.0 44.4 40.8 37.2 33.7 30.1 -
62 52.0 2.6 49.6 45.7 41.9 38.0 34.2 30.3 48.3 2.8 45.7 42.1 38.6 35.0 31.4 27.9
57 44.8 2.5 44.8 44.8 43.4 39.5 35.7 31.8 42.1 2.8 42.1 42.1 41.0 37.4 33.8 30.3
2500
72 82.9 2.7 49.0 44.6 40.3 35.9 - - 76.0 3.0 43.1 39.2 35.2 31.3 - -
67 72.9 2.6 54.4 50.0 45.7 41.3 37.0 - 67.5 3.0 48.7 44.8 40.8 36.9 32.9 -
62 56.1 2.6 56.2 51.8 47.5 43.1 38.7 34.4 51.3 2.8 50.2 46.2 42.3 38.3 34.4 30.4
57 48.4 2.5 48.4 48.4 48.9 44.5 40.2 35.8 44.7 2.8 44.7 44.7 44.7 40.8 36.9 32.9
65°F 75°F
1250
77 41.8 3.1 17.4 15.4 13.4 - - - 41.6 3.5 17.1 15.2 13.2 - - -
72 37.9 3.1 20.6 18.6 16.6 14.6 - - 38.2 3.5 20.3 18.3 16.4 14.4 - -
67 34.0 3.1 23.7 21.7 19.7 17.7 15.7 - 34.8 3.5 23.5 21.5 19.6 17.6 15.6 -
62 25.5 2.8 24.4 22.3 20.3 18.3 16.3 14.3 27.5 3.4 25.0 23.0 21.0 19.1 17.1 15.1
1500
77 51.1 3.2 21.0 18.7 16.3 - - - 49.4 3.6 20.2 17.9 15.6 - - -
72 46.4 3.2 24.8 22.5 20.1 17.8 - - 45.3 3.6 24.0 21.7 19.4 17.1 - -
67 41.7 3.2 28.6 26.3 23.9 21.6 19.2 - 41.3 3.6 27.7 25.4 23.1 20.8 18.5 -
62 31.3 2.9 29.4 27.1 24.7 22.3 20.0 17.6 32.6 3.4 29.5 27.2 24.9 22.6 20.3 18.0
57 27.6 2.9 27.6 27.6 27.0 24.7 22.3 20.0 27.8 3.4 27.8 27.8 27.4 25.1 22.8 20.5
1750
77 60.5 3.3 24.6 21.9 19.2 - - - 57.2 3.7 23.2 20.6 18.0 - - -
72 54.9 3.3 29.1 26.4 23.7 21.0 - - 52.5 3.7 27.6 25.0 22.4 19.8 - -
67 49.4 3.3 33.6 30.9 28.2 25.5 22.8 - 47.8 3.7 31.9 29.3 26.7 24.1 21.5 -
62 37.0 3.0 34.5 31.8 29.1 26.4 23.7 21.0 37.6 3.5 33.9 31.3 28.7 26.1 23.5 20.9
57 32.7 3.0 32.7 32.7 31.8 29.1 26.4 23.7 32.2 3.5 32.2 32.2 31.6 29.0 26.4 23.8
2000
77 69.9 3.4 28.2 25.1 22.1 - - - 65.0 3.8 26.2 23.3 20.4 - - -
72 63.5 3.4 33.3 30.3 27.2 24.2 - - 59.6 3.8 31.2 28.3 25.4 22.4 - -
67 57.0 3.3 38.5 35.4 32.4 29.3 26.3 - 54.3 3.8 36.1 33.2 30.3 27.4 24.5 -
62 42.7 3.1 39.5 36.5 33.4 30.4 27.3 24.3 42.7 3.6 38.3 35.4 32.5 29.6 26.7 23.8
57 37.7 3.1 37.7 37.7 36.6 33.5 30.5 27.4 36.6 3.5 36.6 36.6 35.9 32.9 30.0 27.1
2250
72 66.3 3.4 35.3 32.0 28.7 25.4 - - 61.6 3.8 33.1 30.0 26.8 23.7 - -
67 59.6 3.3 40.7 37.5 34.2 30.9 27.6 - 56.0 3.8 38.3 35.2 32.0 28.9 25.7 -
62 44.6 3.1 41.8 38.6 35.3 32.0 28.7 25.4 44.1 3.6 40.7 37.5 34.4 31.2 28.1 24.9
57 39.4 3.1 39.4 39.4 38.6 35.3 32.0 28.7 37.7 3.5 37.7 37.7 37.3 34.1 31.0 27.8
2500
72 69.1 3.4 37.3 33.8 30.2 26.7 - - 63.5 3.8 35.1 31.7 28.3 24.9 - -
67 62.1 3.3 43.0 39.5 36.0 32.4 28.9 - 57.8 3.8 40.6 37.2 33.8 30.4 27.0 -
62 46.5 3.1 44.2 40.6 37.1 33.6 30.0 26.5 45.4 3.6 43.0 39.7 36.3 32.9 29.5 26.1
57 41.1 3.1 41.1 41.1 40.6 37.0 33.5 30.0 38.9 3.5 38.9 38.9 38.7 35.3 31.9 28.5
251933-YTG-X-0615
50 Johnson Controls Unitary Products
85°F 95°F
1250
77 41.4 4.0 16.8 14.9 12.9 - - - 41.2 4.4 16.5 14.6 12.6 - - -
72 38.5 4.0 20.1 18.1 16.1 14.2 - - 38.8 4.4 19.8 17.9 15.9 14.0 - -
67 35.6 4.0 23.3 21.4 19.4 17.4 15.5 - 36.3 4.5 23.1 21.2 19.2 17.3 15.3 -
62 29.5 3.9 25.7 23.7 21.7 19.8 17.8 15.8 31.4 4.4 26.3 24.4 22.4 20.5 18.5 16.6
1500
77 47.6 4.0 19.3 17.1 14.9 - - - 45.8 4.4 18.5 16.3 14.1 - - -
72 44.2 4.0 23.1 20.8 18.6 16.4 - - 43.2 4.5 22.2 20.0 17.8 15.6 - -
67 40.9 4.1 26.8 24.6 22.3 20.1 17.9 - 40.5 4.5 25.9 23.7 21.5 19.4 17.2 -
62 33.9 3.9 29.5 27.3 25.0 22.8 20.6 18.3 35.2 4.5 29.6 27.4 25.2 23.0 20.8 18.7
57 28.1 3.9 28.1 28.1 27.8 25.6 23.4 21.1 28.4 4.3 28.4 28.4 28.2 26.1 23.9 21.7
1750
77 53.8 4.1 21.8 19.3 16.8 - - - 50.4 4.5 20.4 18.0 15.6 - - -
72 50.0 4.1 26.1 23.5 21.0 18.5 - - 47.5 4.5 24.5 22.1 19.7 17.3 - -
67 46.2 4.1 30.3 27.8 25.3 22.8 20.3 - 44.7 4.6 28.6 26.2 23.8 21.4 19.0 -
62 38.3 4.0 33.3 30.8 28.3 25.8 23.3 20.8 39.0 4.5 32.8 30.4 28.0 25.5 23.1 20.7
57 31.8 3.9 31.8 31.8 31.5 29.0 26.5 24.0 31.3 4.4 31.3 31.3 31.3 28.9 26.5 24.1
2000
77 60.0 4.1 24.3 21.5 18.8 - - - 55.0 4.5 22.4 19.8 17.1 - - -
72 55.8 4.2 29.0 26.3 23.5 20.7 - - 51.9 4.6 26.9 24.3 21.6 19.0 - -
67 51.6 4.2 33.8 31.0 28.2 25.4 22.6 - 48.8 4.6 31.4 28.8 26.1 23.5 20.8 -
62 42.7 4.1 37.2 34.4 31.6 28.8 26.1 23.3 42.7 4.6 36.0 33.4 30.7 28.1 25.4 22.8
57 35.4 4.0 35.4 35.4 35.1 32.4 29.6 26.8 34.3 4.4 34.3 34.3 34.3 31.8 29.2 26.5
2250
72 56.8 4.2 30.9 27.9 24.9 21.9 - - 52.1 4.6 28.7 25.9 23.0 20.1 - -
67 52.5 4.2 35.9 32.9 29.9 26.9 23.9 - 49.0 4.6 33.5 30.6 27.8 24.9 22.0 -
62 43.5 4.1 39.5 36.5 33.5 30.5 27.5 24.5 42.9 4.5 38.4 35.5 32.6 29.8 26.9 24.0
57 36.1 4.0 36.1 36.1 35.9 32.9 29.9 26.9 34.4 4.4 34.4 34.4 34.4 31.8 28.9 26.0
2500
72 57.9 4.1 32.8 29.6 26.3 23.1 - - 52.2 4.5 30.6 27.5 24.4 21.3 - -
67 53.5 4.2 38.1 34.8 31.6 28.4 25.1 - 49.2 4.6 35.6 32.5 29.4 26.3 23.2 -
62 44.3 4.0 41.9 38.7 35.4 32.2 28.9 25.7 43.2 4.5 40.8 37.7 34.6 31.5 28.4 25.3
57 36.7 4.0 36.7 36.7 36.7 33.5 30.3 27.0 34.6 4.4 34.6 34.6 34.6 31.7 28.6 25.5
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
ZR060 (5.0 Ton) Reheat (Continued)
Air on
Evaporator Coil
Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F)
Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 51
XN036-060 Cooling Capacities
XN036 (3.0 Ton)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
75°F 85°F
750
77 50.3 2.0 22.1 18.7 15.4 - - - 48.2 2.3 20.9 17.6 14.2 - - -
72 46.0 2.0 26.9 23.6 20.2 16.9 - - 43.8 2.4 25.7 22.3 19.0 15.6 - -
67 41.8 2.1 31.7 28.4 25.0 21.7 18.4 - 39.4 2.4 30.4 27.0 23.7 20.3 17.0 -
62 37.5 2.0 37.5 35.1 30.6 27.2 23.9 20.6 35.7 2.3 35.7 33.7 28.8 25.5 22.1 18.8
900
77 51.9 2.0 24.5 20.6 16.7 - - - 49.4 2.4 23.3 19.4 15.5 - - -
72 47.5 2.0 29.8 25.8 21.9 18.0 - - 44.9 2.4 28.4 24.5 20.6 16.7 - -
67 43.1 2.1 35.0 31.1 27.1 23.2 19.3 - 40.4 2.4 33.6 29.7 25.8 21.8 17.9 -
62 38.7 2.0 38.7 37.1 33.1 29.2 25.3 21.4 36.6 2.4 36.6 35.3 31.4 27.4 23.5 19.6
57 38.5 2.0 38.5 38.5 35.1 31.2 27.3 23.3 36.7 2.4 36.7 36.6 32.7 28.8 24.9 21.0
1050
77 53.4 2.0 27.0 22.5 18.0 - - - 50.6 2.4 25.7 21.2 16.7 - - -
72 48.9 2.1 32.6 28.1 23.6 19.1 - - 46.0 2.4 31.2 26.7 22.3 17.8 - -
67 44.3 2.1 38.2 33.7 29.2 24.7 20.2 - 41.4 2.4 36.8 32.3 27.8 23.3 18.9 -
62 39.8 2.1 39.8 39.0 35.7 31.2 26.7 22.2 37.5 2.4 37.5 36.8 33.9 29.4 24.9 20.4
57 39.7 2.0 39.7 39.7 37.8 33.3 28.8 24.3 37.6 2.4 37.6 37.5 35.3 30.9 26.4 21.9
1200
77 55.0 2.1 29.5 24.4 19.3 - - - 51.8 2.4 28.0 23.0 17.9 - - -
72 50.3 2.1 35.5 30.4 25.3 20.2 - - 47.1 2.4 34.0 29.0 23.9 18.9 - -
67 45.6 2.1 41.5 36.4 31.3 26.2 21.1 - 42.3 2.5 40.0 34.9 29.9 24.8 19.8 -
62 41.0 2.1 41.0 41.0 38.3 33.2 28.1 23.0 38.4 2.4 38.4 38.4 36.4 31.3 26.3 21.3
57 40.9 2.1 40.9 40.9 40.5 35.4 30.4 25.3 38.5 2.4 38.5 38.5 38.0 32.9 27.9 22.8
1350
72 51.4 2.2 38.8 33.3 27.9 22.4 - - 48.2 2.5 37.0 31.5 26.0 20.5 - -
67 46.6 2.2 44.6 39.9 34.5 29.0 23.6 - 43.3 2.5 42.1 38.0 32.5 26.9 21.4 -
62 41.9 2.2 41.9 41.9 40.5 35.1 29.6 24.2 39.3 2.5 39.3 39.3 38.3 32.8 27.2 21.7
57 41.7 2.2 41.7 41.7 41.6 36.1 30.7 25.2 39.4 2.5 39.4 39.4 39.1 33.6 28.0 22.5
1500
72 52.5 2.3 42.0 36.2 30.4 24.6 - - 49.3 2.5 40.1 34.1 28.0 22.0 - -
67 47.6 2.4 47.6 43.5 37.7 31.8 26.0 - 44.3 2.5 44.3 41.1 35.0 29.0 23.0 -
62 42.7 2.3 42.7 42.7 42.7 36.9 31.1 25.3 40.2 2.5 40.2 40.2 40.2 34.2 28.2 22.2
57 42.6 2.3 42.6 42.6 42.6 36.8 31.0 25.2 40.2 2.5 40.2 40.2 40.2 34.2 28.2 22.2
95°F 105°F
750
77 46.1 2.7 19.8 16.4 13.1 - - - 41.7 3.2 17.1 14.6 11.3 - - -
72 41.6 2.7 24.4 21.1 17.7 14.3 - - 37.7 3.1 22.5 19.3 16.0 12.7 - -
67 37.0 2.7 29.1 25.7 22.4 19.0 15.6 - 33.7 3.1 27.9 23.9 20.7 17.4 14.1 -
62 34.0 2.7 34.0 32.3 27.1 23.7 20.4 17.0 31.1 3.1 31.1 29.9 24.6 21.3 18.1 14.8
900
77 47.0 2.7 22.0 18.1 14.2 - - - 42.7 3.2 20.2 16.3 12.5 - - -
72 42.3 2.7 27.1 23.2 19.3 15.4 - - 38.6 3.2 25.4 21.5 17.6 13.8 - -
67 37.7 2.7 32.2 28.3 24.4 20.5 16.6 - 34.4 3.2 30.5 26.6 22.8 18.9 15.1 -
62 34.6 2.7 34.6 33.5 29.6 25.7 21.8 17.8 31.8 3.1 31.8 31.0 27.1 23.3 19.4 15.5
57 34.8 2.7 34.8 34.2 30.3 26.4 22.5 18.6 31.9 3.1 31.9 31.3 27.5 23.6 19.8 15.9
1050
77 47.8 2.7 24.3 19.9 15.4 - - - 43.6 3.2 23.3 18.1 13.6 - - -
72 43.1 2.8 29.8 25.4 20.9 16.5 - - 39.4 3.2 28.2 23.7 19.3 14.8 - -
67 38.4 2.8 35.3 30.9 26.4 22.0 17.5 - 35.2 3.2 33.1 29.4 24.9 20.5 16.0 -
62 35.2 2.7 35.2 34.7 32.0 27.6 23.1 18.7 32.5 3.1 32.5 32.1 29.7 25.2 20.7 16.3
57 35.5 2.7 35.5 35.1 32.9 28.4 24.0 19.5 32.6 3.1 32.6 32.3 30.0 25.6 21.1 16.7
1200
77 48.6 2.8 26.6 21.6 16.6 - - - 44.6 3.2 26.4 19.8 14.8 - - -
72 43.8 2.8 32.5 27.5 22.5 17.5 - - 40.3 3.2 31.0 26.0 20.9 15.9 - -
67 39.0 2.8 38.4 33.4 28.5 23.5 18.5 - 36.0 3.2 35.7 32.1 27.0 22.0 16.9 -
62 35.8 2.8 35.8 35.8 34.5 29.5 24.5 19.5 33.2 3.2 33.2 33.2 32.2 27.1 22.1 17.0
57 36.1 2.8 36.1 36.1 35.4 30.4 25.4 20.4 33.3 3.2 33.3 33.3 32.6 27.6 22.5 17.5
1350
72 44.9 2.8 35.3 29.7 24.1 18.5 - - 41.0 3.2 33.5 27.9 22.3 16.7 - -
67 40.0 2.8 39.7 36.0 30.4 24.8 19.2 - 36.6 3.2 36.5 34.1 28.8 23.2 17.6 -
62 36.8 2.7 36.8 36.8 36.1 30.5 24.9 19.3 33.8 3.1 33.8 33.8 33.3 27.7 22.0 16.4
57 37.0 2.7 37.0 37.0 36.6 31.0 25.4 19.8 33.9 3.1 33.9 33.9 33.6 27.9 22.3 16.7
1500
72 46.1 2.7 38.1 31.9 25.7 19.5 - - 41.7 3.2 36.1 29.9 23.7 17.5 - -
67 41.0 2.7 41.0 38.7 32.4 26.2 20.0 - 37.3 3.1 37.3 36.1 30.6 24.4 18.2 -
62 37.7 2.7 37.7 37.7 37.7 31.4 25.2 19.0 34.4 3.1 34.4 34.4 34.4 28.2 22.0 15.8
57 37.9 2.7 37.9 37.9 37.9 31.7 25.4 19.2 34.5 3.1 34.5 34.5 34.5 28.3 22.1 16.0
251933-YTG-X-0615
52 Johnson Controls Unitary Products
115°F 125°F
750
77 37.3 3.6 14.4 12.8 9.6 - - - 32.9 4.1 11.6 10.9 7.9 - - -
72 33.8 3.6 20.6 17.4 14.3 11.1 - - 30.0 4.0 18.7 15.6 12.6 9.5 - -
67 30.3 3.6 26.8 22.1 19.0 15.8 12.6 - 27.0 4.0 25.6 20.3 17.3 14.2 11.1 -
62 28.2 3.5 28.2 27.5 22.1 18.9 15.8 12.6 25.2 4.0 25.2 25.1 19.6 16.5 13.5 10.4
900
77 38.4 3.6 18.3 14.5 10.7 - - - 34.1 4.1 16.5 12.7 9.0 - - -
72 34.8 3.6 23.6 19.8 16.0 12.1 - - 31.0 4.0 21.8 18.0 14.3 10.5 - -
67 31.2 3.6 28.8 25.0 21.2 17.4 13.6 - 28.0 4.0 27.1 23.4 19.6 15.8 12.0 -
62 29.0 3.6 29.0 28.5 24.7 20.9 17.1 13.2 26.1 4.0 26.1 26.0 22.3 18.5 14.7 10.9
57 29.0 3.6 29.0 28.5 24.6 20.8 17.0 13.2 26.1 4.0 26.1 25.6 21.8 18.0 14.3 10.5
1050
77 39.4 3.6 22.3 16.3 11.8 - - - 35.3 4.1 21.4 14.5 10.1 - - -
72 35.8 3.6 26.6 22.1 17.6 13.2 - - 32.1 4.0 24.9 20.5 16.0 11.5 - -
67 32.1 3.6 30.9 27.9 23.4 19.0 14.5 - 28.9 4.0 28.6 26.4 21.9 17.4 13.0 -
62 29.8 3.6 29.8 29.5 27.3 22.8 18.4 13.9 27.0 4.0 27.0 27.0 24.9 20.4 16.0 11.5
57 29.8 3.6 29.8 29.5 27.2 22.8 18.3 13.8 27.0 4.0 27.0 26.7 24.4 19.9 15.5 11.0
1200
77 40.5 3.6 26.2 18.1 13.0 - - - 36.4 4.1 26.2 16.3 11.2 - - -
72 36.7 3.6 29.5 24.4 19.3 14.2 - - 33.1 4.0 28.0 22.9 17.7 12.5 - -
67 32.9 3.6 32.9 30.8 25.6 20.5 15.4 - 29.9 4.0 29.9 29.4 24.2 19.1 13.9 -
62 30.6 3.6 30.6 30.6 29.9 24.8 19.7 14.5 27.9 4.0 27.9 27.9 27.6 22.4 17.2 12.1
57 30.6 3.6 30.6 30.6 29.8 24.7 19.6 14.5 27.9 4.0 27.9 27.9 27.0 21.9 16.7 11.5
1350
72 37.0 3.6 31.8 26.1 20.5 14.9 - - 33.1 4.0 30.0 24.3 18.7 13.1 - -
67 33.2 3.6 33.2 32.1 27.2 21.6 16.0 - 29.8 4.0 29.8 29.8 25.6 20.0 14.3 -
62 30.8 3.6 30.8 30.8 30.5 24.9 19.2 13.6 27.9 4.0 27.9 27.9 27.7 22.1 16.4 10.8
57 30.9 3.6 30.9 30.9 30.5 24.8 19.2 13.6 27.8 4.0 27.8 27.8 27.4 21.8 16.1 10.5
1500
72 37.4 3.6 34.0 27.8 21.7 15.5 - - 33.0 4.0 31.9 25.8 19.7 13.6 - -
67 33.5 3.6 33.5 33.5 28.8 22.7 16.5 - 29.7 4.0 29.7 29.7 27.0 20.9 14.8 -
62 31.1 3.5 31.1 31.1 31.1 24.9 18.8 12.7 27.8 4.0 27.8 27.8 27.8 21.7 15.6 9.5
57 31.1 3.6 31.1 31.1 31.1 25.0 18.8 12.7 27.7 4.0 27.7 27.7 27.7 21.6 15.5 9.4
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
XN036 (3.0 Ton) (Continued)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 53
XN048 (4.0 Ton)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
75°F 85°F
1000
77 60.7 2.7 28.7 24.3 19.9 - - - 56.8 3.1 26.8 22.4 18.0 - - -
72 56.1 2.6 34.6 30.2 25.8 21.4 - - 52.5 3.1 32.9 28.6 24.2 19.8 - -
67 51.5 2.6 40.5 36.1 31.7 27.3 22.9 - 48.2 3.0 39.1 34.7 30.3 26.0 21.6 -
62 47.2 2.6 47.2 46.3 38.8 34.4 30.0 25.6 44.2 3.0 44.2 43.7 37.2 32.9 28.5 24.1
1200
77 62.6 2.7 31.7 26.6 21.5 - - - 58.5 3.1 29.6 24.5 19.5 - - -
72 57.9 2.7 38.1 33.0 27.9 22.8 - - 54.0 3.1 36.2 31.1 26.1 21.0 - -
67 53.1 2.6 44.5 39.4 34.3 29.2 24.1 - 49.6 3.0 42.8 37.8 32.7 27.7 22.6 -
62 48.7 2.6 48.7 48.1 41.9 36.8 31.7 26.6 45.5 3.0 45.5 45.2 40.2 35.1 30.1 25.0
57 48.0 2.0 48.0 48.0 43.9 38.8 33.7 28.7 45.3 2.7 45.3 45.3 41.5 36.4 31.4 26.3
1400
77 64.5 2.7 34.7 28.9 23.2 - - - 60.2 3.1 32.3 26.6 20.9 - - -
72 59.6 2.7 41.5 35.8 30.0 24.2 - - 55.6 3.1 39.4 33.7 28.0 22.3 - -
67 54.7 2.6 48.4 42.6 36.9 31.1 25.3 - 51.0 3.1 46.6 40.8 35.1 29.4 23.7 -
62 50.2 2.6 50.2 49.9 45.0 39.3 33.5 27.7 46.8 3.0 46.8 46.7 43.1 37.4 31.6 25.9
57 49.5 2.0 49.5 49.5 47.2 41.4 35.7 29.9 46.6 2.7 46.6 46.6 44.5 38.8 33.1 27.4
1600
77 66.4 2.7 37.7 31.2 24.8 - - - 61.9 3.1 35.1 28.7 22.3 - - -
72 61.4 2.7 45.0 38.5 32.1 25.6 - - 57.2 3.1 42.7 36.3 29.9 23.5 - -
67 56.4 2.6 52.3 45.9 39.4 33.0 26.5 - 52.5 3.1 50.3 43.9 37.5 31.1 24.7 -
62 51.6 2.6 51.6 51.6 48.1 41.7 35.2 28.8 48.1 3.0 48.1 48.1 46.0 39.6 33.2 26.8
57 50.9 2.0 50.9 50.9 50.5 44.0 37.6 31.1 47.9 2.7 47.9 47.9 47.5 41.1 34.8 28.4
1800
72 62.4 2.7 48.3 41.3 34.2 27.1 - - 58.0 3.1 46.0 38.9 31.9 24.9 - -
67 57.3 2.6 55.3 49.1 42.0 35.0 27.9 - 53.2 3.1 52.1 47.1 40.1 33.0 26.0 -
62 52.5 2.6 52.5 52.5 50.8 43.7 36.6 29.6 48.8 3.0 48.8 48.8 47.8 40.8 33.7 26.7
57 51.8 2.0 51.8 51.8 51.5 44.5 37.4 30.4 48.6 2.7 48.6 48.6 48.4 41.4 34.4 27.4
2000
72 63.4 2.7 51.7 44.0 36.3 28.7 - - 58.8 3.1 49.3 41.6 34.0 26.3 - -
67 58.2 2.7 58.2 52.3 44.6 36.9 29.3 - 54.0 3.1 54.0 50.3 42.6 35.0 27.3 -
62 53.4 2.6 53.4 53.4 53.4 45.7 38.0 30.4 49.5 3.0 49.5 49.5 49.5 41.9 34.3 26.6
57 52.6 2.1 52.6 52.6 52.6 45.0 37.3 29.6 49.3 2.8 49.3 49.3 49.3 41.7 34.0 26.4
95°F 105°F
1000
77 52.9 3.5 24.9 20.5 16.1 - - - 49.1 4.1 22.1 18.8 14.5 - - -
72 48.9 3.5 31.3 26.9 22.5 18.2 - - 45.2 4.0 29.5 25.2 20.8 16.5 - -
67 44.8 3.5 37.7 33.3 29.0 24.6 20.2 - 41.3 4.0 36.9 31.5 27.2 22.9 18.5 -
62 41.2 3.4 41.2 41.2 35.7 31.3 27.0 22.6 38.2 4.0 38.2 38.2 32.7 28.3 24.0 19.7
1200
77 54.4 3.5 27.4 22.4 17.4 - - - 50.2 4.1 25.6 20.6 15.6 - - -
72 50.2 3.5 34.3 29.3 24.3 19.2 - - 46.2 4.1 32.4 27.5 22.5 17.5 - -
67 46.0 3.5 41.2 36.2 31.2 26.2 21.1 - 42.3 4.1 39.3 34.3 29.3 24.4 19.4 -
62 42.3 3.5 42.3 42.3 38.4 33.4 28.4 23.4 39.0 4.0 39.0 39.0 35.2 30.3 25.3 20.3
57 42.6 3.4 42.6 42.6 39.1 34.1 29.0 24.0 39.6 4.0 39.6 39.6 35.9 30.9 26.0 21.0
1400
77 55.9 3.5 29.9 24.3 18.6 - - - 51.4 4.1 29.1 22.4 16.8 - - -
72 51.6 3.5 37.3 31.7 26.0 20.3 - - 47.3 4.1 35.4 29.7 24.1 18.5 - -
67 47.3 3.5 44.7 39.1 33.4 27.7 22.0 - 43.2 4.1 41.6 37.1 31.5 25.9 20.3 -
62 43.5 3.5 43.5 43.5 41.1 35.5 29.8 24.1 39.9 4.0 39.9 39.9 37.8 32.2 26.6 21.0
57 43.8 3.4 43.8 43.8 41.8 36.2 30.5 24.8 40.4 4.0 40.4 40.4 38.5 32.9 27.3 21.7
1600
77 57.4 3.5 32.5 26.1 19.8 - - - 52.5 4.1 32.6 24.2 17.9 - - -
72 53.0 3.5 40.4 34.0 27.7 21.4 - - 48.3 4.1 38.3 32.0 25.8 19.5 - -
67 48.6 3.5 48.3 41.9 35.6 29.3 22.9 - 44.2 4.1 44.0 39.9 33.6 27.4 21.1 -
62 44.6 3.5 44.6 44.6 43.9 37.5 31.2 24.9 40.8 4.0 40.8 40.8 40.4 34.1 27.9 21.6
57 44.9 3.5 44.9 44.9 44.6 38.3 32.0 25.6 41.3 4.0 41.3 41.3 41.2 34.9 28.7 22.4
1800
72 53.6 3.5 43.6 36.6 29.7 22.7 - - 48.8 4.1 41.4 34.5 27.6 20.7 - -
67 49.2 3.5 49.0 45.1 38.1 31.1 24.1 - 44.6 4.1 44.5 42.1 36.1 29.2 22.3 -
62 45.2 3.5 45.2 45.2 44.8 37.8 30.8 23.9 41.2 4.0 41.2 41.2 41.0 34.1 27.2 20.3
57 45.5 3.5 45.5 45.5 45.3 38.3 31.4 24.4 41.8 4.0 41.8 41.8 41.7 34.8 27.9 21.0
2000
72 54.3 3.5 46.9 39.2 31.6 24.0 - - 49.3 4.1 44.6 37.0 29.5 22.0 - -
67 49.8 3.5 49.8 48.2 40.6 33.0 25.3 - 45.1 4.1 45.1 44.3 38.5 31.0 23.4 -
62 45.7 3.5 45.7 45.7 45.7 38.1 30.5 22.9 41.6 4.0 41.6 41.6 41.6 34.1 26.6 19.0
57 46.0 3.4 46.0 46.0 46.0 38.4 30.8 23.2 42.2 4.0 42.2 42.2 42.2 34.7 27.1 19.6
251933-YTG-X-0615
54 Johnson Controls Unitary Products
115°F 125°F
1000
77 45.3 4.6 19.3 17.1 12.8 - - - 41.5 5.2 17.6 15.2 11.2 - - -
72 41.6 4.6 27.8 23.4 19.1 14.8 - - 37.9 5.2 26.0 21.7 17.4 13.1 - -
67 37.8 4.6 36.2 29.7 25.4 21.1 16.8 - 34.4 5.2 34.4 27.9 23.7 19.4 15.1 -
62 35.2 4.5 35.2 35.2 29.6 25.3 21.0 16.7 32.2 5.1 32.2 32.2 26.6 22.3 18.0 13.8
1200
77 46.0 4.6 23.8 18.8 13.9 - - - 41.9 5.2 22.7 17.0 12.2 - - -
72 42.3 4.6 30.6 25.6 20.7 15.8 - - 38.3 5.2 28.7 23.8 18.9 14.0 - -
67 38.5 4.6 37.4 32.4 27.5 22.6 17.6 - 34.7 5.2 34.7 30.6 25.7 20.8 15.9 -
62 35.7 4.6 35.7 35.7 32.1 27.1 22.2 17.3 32.5 5.1 32.5 32.5 28.9 24.0 19.1 14.2
57 36.5 4.6 36.5 36.5 32.8 27.8 22.9 18.0 33.5 5.1 33.5 33.5 29.6 24.7 19.8 14.9
1400
77 46.8 4.7 28.2 20.5 14.9 - - - 42.2 5.2 27.8 18.9 13.1 - - -
72 43.0 4.7 33.4 27.8 22.3 16.7 - - 38.6 5.2 31.4 25.9 20.4 14.9 - -
67 39.1 4.6 38.6 35.2 29.6 24.0 18.5 - 35.0 5.2 35.0 33.2 27.7 22.2 16.7 -
62 36.3 4.6 36.3 36.3 34.5 28.9 23.4 17.8 32.8 5.2 32.8 32.8 31.2 25.7 20.2 14.7
57 37.1 4.6 37.1 37.1 35.2 29.7 24.1 18.6 33.8 5.2 33.8 33.8 31.9 26.4 20.9 15.4
1600
77 47.6 4.7 32.6 22.2 16.0 - - - 42.6 5.3 32.9 20.7 14.1 - - -
72 43.7 4.7 36.2 30.0 23.8 17.7 - - 39.0 5.3 34.1 28.0 21.9 15.8 - -
67 39.7 4.7 39.7 37.9 31.7 25.5 19.3 - 35.3 5.3 35.3 35.3 29.7 23.6 17.5 -
62 36.9 4.6 36.9 36.9 36.9 30.7 24.6 18.4 33.1 5.2 33.1 33.1 33.1 27.4 21.2 15.1
57 37.7 4.6 37.7 37.7 37.7 31.5 25.4 19.2 34.1 5.2 34.1 34.1 34.1 28.2 22.1 16.0
1800
72 44.0 4.7 39.2 32.4 25.6 18.8 - - 39.2 5.3 37.1 30.3 23.6 16.9 - -
67 40.1 4.7 40.1 39.1 34.0 27.2 20.4 - 35.5 5.3 35.5 35.5 32.0 25.3 18.6 -
62 37.2 4.6 37.2 37.2 37.2 30.4 23.6 16.8 33.3 5.2 33.3 33.3 33.3 26.7 20.0 13.3
57 38.0 4.6 38.0 38.0 38.0 31.2 24.4 17.6 34.3 5.2 34.3 34.3 34.3 27.6 20.9 14.2
2000
72 44.4 4.7 42.3 34.9 27.4 19.9 - - 39.4 5.3 39.4 32.7 25.3 17.9 - -
67 40.4 4.7 40.4 40.4 36.4 29.0 21.5 - 35.8 5.3 35.8 35.8 34.3 27.0 19.6 -
62 37.6 4.6 37.6 37.6 37.6 30.1 22.6 15.2 33.5 5.2 33.5 33.5 33.5 26.1 18.7 11.4
57 38.4 4.6 38.4 38.4 38.4 30.9 23.4 16.0 34.5 5.2 34.5 34.5 34.5 27.1 19.8 12.4
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
XN048 (4.0 Ton) (Continued)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 55
XN060 Low (5.0 Ton)
Air on
Evaporator Coil
Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F)
Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
75°F 85°F
1250
77 55.5 2.3 18.8 20.3 14.1 - - - 51.0 2.7 20.9 19.1 13.6 - - -
72 51.6 2.3 33.3 27.8 22.3 16.9 - - 47.2 2.7 32.1 26.6 21.1 15.6 - -
67 47.8 2.3 47.8 35.3 30.6 25.2 19.7 - 43.4 2.7 43.4 34.1 28.6 23.0 17.5 -
62 45.4 2.2 45.4 42.4 34.2 28.8 23.3 17.8 42.0 2.7 42.0 40.1 31.8 26.3 20.7 15.2
1500
77 57.2 2.3 26.4 22.1 15.8 - - - 52.7 2.7 28.1 21.7 15.3 - - -
72 53.2 2.2 37.8 31.4 25.0 18.7 - - 48.7 2.7 36.5 30.1 23.7 17.3 - -
67 49.2 2.2 49.2 40.7 34.3 28.0 21.6 - 44.8 2.6 44.8 38.5 32.1 25.7 19.3 -
62 46.7 2.2 46.7 44.8 38.4 32.0 25.6 19.2 43.3 2.6 43.3 42.1 35.7 29.3 23.0 16.6
57 46.5 2.2 46.5 44.6 38.2 31.9 25.5 19.1 43.3 2.7 43.3 41.9 35.5 29.1 22.8 16.4
1750
77 58.8 2.2 34.1 24.0 17.5 - - - 54.3 2.6 35.4 24.2 17.0 - - -
72 54.7 2.2 42.3 35.0 27.7 20.5 - - 50.2 2.6 40.8 33.5 26.3 19.1 - -
67 50.6 2.2 50.6 46.1 38.0 30.7 23.5 - 46.2 2.6 46.2 42.9 35.6 28.4 21.2 -
62 48.1 2.2 48.1 47.1 42.5 35.2 28.0 20.7 44.7 2.6 44.7 44.1 39.6 32.4 25.2 17.9
57 47.9 2.2 47.9 46.9 42.4 35.1 27.8 20.5 44.7 2.6 44.7 44.0 39.4 32.2 25.0 17.7
2000
77 60.5 2.2 41.7 25.8 19.1 - - - 55.9 2.6 42.7 26.8 18.7 - - -
72 56.2 2.2 46.9 38.7 30.5 22.2 - - 51.7 2.6 45.1 37.0 28.9 20.8 - -
67 52.0 2.2 52.0 51.5 41.8 33.5 25.3 - 47.5 2.6 47.5 47.3 39.2 31.1 23.0 -
62 49.4 2.1 49.4 49.4 46.7 38.5 30.3 22.1 46.0 2.6 46.0 46.0 43.6 35.5 27.4 19.3
57 49.2 2.2 49.2 49.2 46.5 38.3 30.1 21.9 46.0 2.6 46.0 46.0 43.4 35.3 27.2 19.1
2250
72 56.9 2.2 50.9 41.7 33.0 24.3 - - 52.5 2.6 48.5 39.9 31.3 22.6 - -
67 52.6 2.2 52.6 52.3 45.2 36.5 27.9 - 48.2 2.6 48.2 48.1 42.4 33.7 25.1 -
62 50.0 2.1 50.0 50.0 48.6 39.9 31.2 22.5 46.7 2.6 46.7 46.7 45.5 36.8 28.2 19.6
57 49.7 2.2 49.7 49.7 48.4 39.7 31.0 22.3 46.7 2.6 46.7 46.7 45.4 36.7 28.1 19.5
2500
72 57.5 2.2 54.9 44.7 35.5 26.4 - - 53.2 2.6 51.9 42.8 33.6 24.5 - -
67 53.2 2.2 53.2 53.2 48.7 39.5 30.4 - 48.9 2.6 48.9 48.9 45.6 36.4 27.2 -
62 50.5 2.1 50.5 50.5 50.5 41.3 32.1 22.9 47.4 2.6 47.4 47.4 47.4 38.2 29.0 19.9
57 50.3 2.2 50.3 50.3 50.3 41.1 31.9 22.7 47.4 2.6 47.4 47.4 47.4 38.2 29.0 19.9
95°F 105°F
1250
77 46.6 3.1 22.9 18.0 13.2 - - - 41.4 3.5 24.3 15.2 11.5 - - -
72 42.8 3.1 31.0 25.4 19.8 14.3 - - 38.3 3.5 29.8 23.7 18.2 12.7 - -
67 39.0 3.1 39.0 32.8 26.5 20.9 15.3 - 35.2 3.5 35.2 32.1 24.8 19.4 13.9 -
62 38.6 3.1 38.6 37.8 29.3 23.7 18.2 12.6 35.2 3.5 35.2 34.7 26.3 20.8 15.3 9.8
1500
77 48.2 3.1 29.9 21.2 14.8 - - - 42.8 3.5 30.1 19.5 13.0 - - -
72 44.3 3.1 35.1 28.7 22.3 16.0 - - 39.6 3.5 33.3 26.9 20.5 14.2 - -
67 40.4 3.1 40.4 36.2 29.9 23.5 17.1 - 36.4 3.5 36.4 34.3 28.0 21.7 15.3 -
62 39.9 3.1 39.9 39.4 33.0 26.7 20.3 13.9 36.4 3.5 36.4 36.0 29.7 23.3 16.9 10.6
57 40.1 3.1 40.1 39.2 32.8 26.4 20.1 13.7 36.6 3.5 36.6 35.8 29.5 23.1 16.7 10.4
1750
77 49.8 3.0 36.8 24.5 16.5 - - - 44.2 3.5 35.9 23.7 14.5 - - -
72 45.7 3.0 39.2 32.1 24.9 17.7 - - 40.9 3.5 36.7 30.1 22.9 15.6 - -
67 41.7 3.0 41.7 39.7 33.2 26.1 18.9 - 37.6 3.5 37.6 36.5 31.3 24.0 16.8 -
62 41.3 3.0 41.3 41.0 36.8 29.6 22.4 15.2 37.6 3.5 37.6 37.4 33.1 25.8 18.5 11.3
57 41.5 3.0 41.5 41.0 36.5 29.3 22.2 15.0 37.8 3.5 37.8 37.4 32.8 25.6 18.3 11.1
2000
77 51.4 3.0 43.7 27.7 18.2 - - - 45.6 3.4 41.7 28.0 16.0 - - -
72 47.2 3.0 43.4 35.4 27.4 19.4 - - 42.2 3.4 40.2 33.4 25.2 17.1 - -
67 43.1 3.0 43.1 43.1 36.6 28.6 20.6 - 38.8 3.4 38.8 38.8 34.5 26.3 18.2 -
62 42.6 3.0 42.6 42.6 40.5 32.5 24.5 16.5 38.7 3.4 38.7 38.7 36.4 28.3 20.2 12.0
57 42.8 3.0 42.8 42.8 40.2 32.2 24.3 16.3 39.0 3.5 39.0 39.0 36.2 28.0 19.9 11.8
2250
72 48.1 3.0 46.2 38.1 29.6 21.0 - - 43.0 3.4 42.0 35.0 26.5 17.9 - -
67 43.9 3.0 43.9 43.9 39.5 30.9 22.4 - 39.5 3.4 39.5 39.5 36.1 27.6 19.0 -
62 43.4 3.0 43.4 43.4 42.4 33.8 25.2 16.7 39.5 3.4 39.5 39.5 37.6 29.0 20.5 11.9
57 43.6 3.0 43.6 43.6 42.3 33.8 25.2 16.7 39.7 3.5 39.7 39.7 37.5 28.9 20.4 11.8
2500
72 49.0 3.0 49.0 40.9 31.7 22.6 - - 43.9 3.4 43.9 36.6 27.7 18.7 - -
67 44.7 3.0 44.7 44.7 42.4 33.2 24.1 - 40.3 3.4 40.3 40.3 37.8 28.8 19.9 -
62 44.2 3.0 44.2 44.2 44.2 35.1 26.0 16.8 40.3 3.5 40.3 40.3 38.7 29.8 20.8 11.9
57 44.5 3.0 44.5 44.5 44.5 35.3 26.2 17.0 40.5 3.5 40.5 40.5 38.7 29.8 20.8 11.9
251933-YTG-X-0615
56 Johnson Controls Unitary Products
115°F 125°F
1250
77 36.2 3.9 25.7 12.4 9.9 - - - 31.1 4.3 29.0 12.7 8.2 - - -
72 33.8 3.9 28.6 21.9 16.5 11.2 - - 29.3 4.3 28.0 20.2 14.9 9.6 - -
67 31.4 3.9 31.4 31.4 23.2 17.8 12.4 - 27.6 4.3 27.6 27.6 21.5 16.2 11.0 -
62 31.8 3.9 31.8 31.5 23.2 17.9 12.5 7.1 28.4 4.3 28.4 28.4 20.2 14.9 9.6 4.4
1500
77 37.4 3.9 30.4 17.7 11.2 - - - 32.0 4.4 30.7 18.0 9.4 - - -
72 34.9 3.9 31.4 25.1 18.7 12.4 - - 30.2 4.4 29.6 23.2 16.9 10.6 - -
67 32.4 3.9 32.4 32.4 26.2 19.9 13.5 - 28.5 4.3 28.5 28.5 24.4 18.1 11.7 -
62 32.8 3.9 32.8 32.6 26.3 19.9 13.6 7.2 29.2 4.3 29.2 29.2 22.9 16.6 10.2 3.9
57 33.0 3.9 33.0 32.4 26.1 19.7 13.4 7.0 29.5 4.4 29.5 29.1 22.7 16.4 10.0 3.7
1750
77 38.6 3.9 35.1 23.0 12.5 - - - 33.0 4.4 32.3 23.3 10.5 - - -
72 36.0 3.9 34.2 28.2 20.9 13.6 - - 31.1 4.4 31.1 26.3 18.9 11.5 - -
67 33.4 3.9 33.4 33.4 29.3 22.0 14.6 - 29.3 4.4 29.3 29.3 27.3 19.9 12.5 -
62 33.8 3.9 33.8 33.7 29.4 22.0 14.7 7.4 30.1 4.4 30.1 30.1 25.6 18.2 10.9 3.5
57 34.0 3.9 34.0 33.8 29.1 21.8 14.5 7.1 30.3 4.4 30.3 30.1 25.4 18.0 10.6 3.2
2000
77 39.7 3.9 39.7 28.3 13.8 - - - 33.9 4.4 33.9 28.6 11.7 - - -
72 37.1 3.9 37.1 31.4 23.1 14.8 - - 32.0 4.4 32.0 29.4 20.9 12.4 - -
67 34.4 3.9 34.4 34.4 32.3 24.0 15.7 - 30.1 4.4 30.1 30.1 30.1 21.7 13.3 -
62 34.9 3.9 34.9 34.9 32.4 24.1 15.8 7.5 31.0 4.4 31.0 31.0 28.4 19.9 11.5 3.0
57 35.1 3.9 35.1 35.1 32.2 23.9 15.6 7.3 31.2 4.4 31.2 31.2 28.1 19.7 11.2 2.8
2250
72 37.9 3.9 37.9 31.9 23.4 14.8 - - 32.8 4.4 32.8 28.8 20.3 11.7 - -
67 35.2 3.9 35.2 35.2 32.7 24.2 15.7 - 30.8 4.4 30.8 30.8 29.4 20.9 12.3 -
62 35.6 3.9 35.6 35.6 32.8 24.3 15.8 7.2 31.7 4.4 31.7 31.7 28.1 19.5 11.0 2.5
57 35.8 3.9 35.8 35.8 32.6 24.0 15.5 7.0 31.9 4.4 31.9 31.9 27.7 19.2 10.7 2.1
2500
72 38.7 3.9 38.7 32.4 23.7 14.9 - - 33.5 4.4 33.5 28.2 19.6 11.0 - -
67 35.9 3.9 35.9 35.9 33.2 24.4 15.6 - 31.5 4.4 31.5 31.5 28.6 20.0 11.4 -
62 36.4 3.9 36.4 36.4 33.2 24.5 15.7 6.9 32.4 4.4 32.4 32.4 27.7 19.2 10.6 2.0
57 36.6 3.9 36.6 36.6 33.0 24.2 15.5 6.7 32.7 4.4 32.7 32.7 27.2 18.7 10.1 1.5
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
XN060 Low (5.0 Ton) (Continued)
Air on
Evaporator Coil
Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F)
Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 57
XN060 High (5.0 Ton)
Air on
Evaporator Coil
Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F)
Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
75°F 85°F
1250
77 73.3 3.5 32.7 27.1 22.0 - - - 67.5 4.0 30.0 24.9 19.8 - - -
72 66.6 3.4 40.2 35.1 30.0 24.8 - - 62.0 3.9 38.2 33.1 28.0 22.9 - -
67 60.0 3.4 47.8 43.1 37.9 32.8 27.6 - 56.5 3.8 46.4 41.3 36.2 31.1 26.0 -
62 55.7 3.3 55.7 55.5 46.8 41.7 36.5 31.4 52.6 3.8 52.6 52.5 44.5 39.3 34.2 29.1
1500
77 75.7 3.6 35.7 29.8 23.8 - - - 69.6 4.0 33.3 27.4 21.5 - - -
72 68.9 3.5 44.4 38.4 32.5 26.5 - - 63.9 3.9 42.2 36.3 30.4 24.5 - -
67 62.0 3.4 53.0 47.1 41.1 35.2 29.2 - 58.3 3.9 51.1 45.2 39.3 33.4 27.5 -
62 57.5 3.3 57.5 57.4 50.7 44.8 38.8 32.9 54.3 3.8 54.3 54.2 48.3 42.4 36.5 30.6
57 57.4 3.3 57.4 57.4 52.2 46.2 40.3 34.3 54.4 3.8 54.4 54.4 49.1 43.2 37.3 31.4
1750
77 78.2 3.6 38.8 32.5 25.7 - - - 71.7 4.0 36.6 29.9 23.2 - - -
72 71.1 3.5 48.5 41.8 35.0 28.2 - - 65.9 4.0 46.2 39.5 32.8 26.1 - -
67 64.0 3.4 58.3 51.1 44.3 37.6 30.8 - 60.0 3.9 55.8 49.2 42.5 35.8 29.1 -
62 59.4 3.3 59.4 59.3 54.7 47.9 41.2 34.4 55.9 3.8 55.9 55.9 52.1 45.4 38.7 32.0
57 59.3 3.3 59.3 59.3 56.2 49.5 42.7 36.0 56.0 3.8 56.0 56.0 53.0 46.3 39.6 32.9
2000
77 80.6 3.6 41.8 35.1 27.6 - - - 73.8 4.1 39.9 32.4 24.9 - - -
72 73.3 3.5 52.7 45.1 37.5 30.0 - - 67.8 4.0 50.2 42.7 35.2 27.8 - -
67 66.0 3.4 63.5 55.1 47.5 39.9 32.4 - 61.8 3.9 60.6 53.1 45.6 38.1 30.6 -
62 61.2 3.4 61.2 61.2 58.6 51.1 43.5 35.9 57.5 3.8 57.5 57.5 56.0 48.5 41.0 33.5
57 61.1 3.3 61.1 61.1 60.3 52.7 45.2 37.6 57.6 3.8 57.6 57.6 56.9 49.4 41.9 34.4
2250
72 74.4 3.5 56.6 48.3 40.0 31.8 - - 68.5 4.0 54.0 45.8 37.6 29.5 - -
67 67.0 3.4 65.8 59.1 50.7 42.4 34.2 - 62.5 3.9 61.9 56.9 48.7 40.5 32.3 -
62 62.2 3.4 62.2 62.2 60.9 52.6 44.3 36.1 58.2 3.8 58.2 58.2 57.4 49.2 41.0 32.8
57 62.0 3.4 62.0 62.0 61.6 53.4 45.1 36.8 58.3 3.8 58.3 58.3 57.9 49.7 41.5 33.3
2500
72 75.5 3.5 60.5 51.5 42.6 33.6 - - 69.3 4.0 57.8 48.9 40.0 31.1 - -
67 68.0 3.4 68.0 63.0 53.9 44.9 35.9 - 63.2 3.9 63.2 60.7 51.8 42.9 34.0 -
62 63.1 3.4 63.1 63.1 63.1 54.1 45.2 36.2 58.8 3.8 58.8 58.8 58.8 49.9 41.0 32.1
57 63.0 3.4 63.0 63.0 63.0 54.0 45.1 36.1 58.9 3.9 58.9 58.9 58.9 50.0 41.1 32.2
95°F 105°F
1250
77 61.7 4.5 27.3 22.7 17.6 - - - 57.4 5.0 24.2 21.0 15.9 - - -
72 57.4 4.4 36.2 31.1 26.0 20.9 - - 53.1 5.0 34.3 29.3 24.2 19.2 - -
67 53.1 4.3 45.1 39.6 34.5 29.4 24.3 - 48.9 4.9 44.4 37.5 32.5 27.4 22.4 -
62 49.6 4.2 49.6 49.6 42.1 37.0 31.9 26.9 46.6 4.8 46.6 46.6 38.8 33.7 28.7 23.6
1500
77 63.5 4.5 30.8 25.0 19.1 - - - 58.9 5.0 29.1 23.2 17.4 - - -
72 59.0 4.4 40.0 34.2 28.3 22.5 - - 54.5 5.0 38.1 32.3 26.5 20.6 - -
67 54.6 4.3 49.2 43.4 37.5 31.7 25.8 - 50.1 4.9 47.2 41.3 35.5 29.7 23.8 -
62 51.0 4.3 51.0 51.0 45.8 40.0 34.1 28.3 47.8 4.9 47.8 47.8 42.4 36.5 30.7 24.9
57 51.3 4.3 51.3 51.3 46.0 40.1 34.3 28.4 47.8 4.9 47.8 47.8 42.5 36.6 30.8 25.0
1750
77 65.2 4.5 34.4 27.3 20.7 - - - 60.4 5.1 33.9 25.5 18.9 - - -
72 60.6 4.4 43.9 37.3 30.6 24.0 - - 55.9 5.0 41.9 35.3 28.7 22.1 - -
67 56.1 4.3 53.4 47.2 40.6 34.0 27.3 - 51.4 4.9 49.9 45.1 38.5 31.9 25.3 -
62 52.4 4.3 52.4 52.4 49.6 42.9 36.3 29.7 49.0 4.9 49.0 49.0 46.0 39.4 32.7 26.1
57 52.7 4.3 52.7 52.7 49.7 43.1 36.4 29.8 49.0 4.9 49.0 49.0 46.1 39.4 32.8 26.2
2000
77 67.0 4.5 37.9 29.6 22.2 - - - 61.9 5.1 38.7 27.7 20.3 - - -
72 62.3 4.4 47.7 40.3 32.9 25.5 - - 57.3 5.0 45.7 38.3 30.9 23.5 - -
67 57.6 4.4 57.6 51.0 43.6 36.2 28.8 - 52.7 4.9 52.7 48.9 41.5 34.1 26.7 -
62 53.8 4.3 53.8 53.8 53.3 45.9 38.5 31.1 50.2 4.9 50.2 50.2 49.6 42.2 34.8 27.4
57 54.1 4.3 54.1 54.1 53.4 46.0 38.6 31.2 50.3 4.9 50.3 50.3 49.6 42.3 34.9 27.5
2250
72 62.7 4.4 51.5 43.4 35.2 27.1 - - 57.6 5.0 49.4 41.3 33.2 25.1 - -
67 58.0 4.4 58.0 54.7 46.7 38.6 30.4 - 53.0 4.9 53.0 51.1 44.5 36.4 28.3 -
62 54.2 4.3 54.2 54.2 53.9 45.8 37.7 29.6 50.5 4.9 50.5 50.5 50.1 42.0 33.9 25.8
57 54.5 4.3 54.5 54.5 54.2 46.0 37.9 29.8 50.5 4.9 50.5 50.5 50.2 42.1 34.0 25.9
2500
72 63.1 4.5 55.2 46.4 37.5 28.7 - - 57.8 5.0 53.0 44.2 35.4 26.6 - -
67 58.4 4.4 58.4 58.4 49.7 40.9 32.1 - 53.2 4.9 53.2 53.2 47.5 38.7 29.9 -
62 54.6 4.3 54.6 54.6 54.6 45.7 36.9 28.1 50.7 4.9 50.7 50.7 50.7 41.9 33.1 24.3
57 54.9 4.3 54.9 54.9 54.9 46.0 37.2 28.4 50.7 4.9 50.7 50.7 50.7 41.9 33.1 24.3
251933-YTG-X-0615
58 Johnson Controls Unitary Products
115°F 125°F
1250
77 53.1 5.6 21.2 19.3 14.3 - - - 48.7 6.2 20.6 16.8 12.6 - - -
72 48.9 5.5 32.4 27.4 22.4 17.4 - - 44.6 6.1 30.6 25.6 20.6 15.6 - -
67 44.7 5.5 43.7 35.5 30.5 25.5 20.5 - 40.5 6.1 40.5 33.5 28.5 23.5 18.5 -
62 43.5 5.4 43.5 43.5 35.5 30.4 25.4 20.4 40.5 6.0 40.5 40.5 32.2 27.2 22.2 17.2
1500
77 54.3 5.6 27.3 21.5 15.7 - - - 49.7 6.2 27.2 19.7 13.9 - - -
72 50.0 5.6 36.2 30.4 24.6 18.8 - - 45.5 6.1 34.3 28.5 22.7 16.9 - -
67 45.7 5.5 45.1 39.3 33.5 27.7 21.8 - 41.3 6.1 41.3 37.2 31.4 25.6 19.9 -
62 44.6 5.4 44.6 44.6 38.9 33.1 27.3 21.5 41.4 6.0 41.4 41.4 35.5 29.7 23.9 18.1
57 44.3 5.4 44.3 44.3 38.9 33.1 27.3 21.5 40.8 6.0 40.8 40.8 35.4 29.6 23.9 18.1
1750
77 55.6 5.6 33.4 23.7 17.1 - - - 50.7 6.2 33.8 22.7 15.3 - - -
72 51.2 5.6 39.9 33.3 26.7 20.2 - - 46.4 6.1 38.0 31.4 24.8 18.2 - -
67 46.8 5.5 46.5 43.0 36.4 29.8 23.2 - 42.1 6.1 42.1 40.9 34.4 27.8 21.2 -
62 45.6 5.5 45.6 45.6 42.4 35.8 29.2 22.6 42.2 6.0 42.2 42.2 38.8 32.2 25.6 19.0
57 45.3 5.5 45.3 45.3 42.4 35.8 29.2 22.6 41.7 6.0 41.7 41.7 38.8 32.2 25.6 19.0
2000
77 56.8 5.6 39.6 25.8 18.5 - - - 51.7 6.2 40.4 25.6 16.6 - - -
72 52.3 5.6 43.7 36.3 28.9 21.5 - - 47.3 6.2 41.7 34.3 26.9 19.5 - -
67 47.8 5.5 47.8 46.8 39.4 32.0 24.6 - 42.9 6.1 42.9 42.9 37.3 29.9 22.5 -
62 46.6 5.5 46.6 46.6 45.8 38.4 31.1 23.7 43.0 6.1 43.0 43.0 42.1 34.7 27.4 20.0
57 46.4 5.5 46.4 46.4 45.9 38.5 31.1 23.7 42.5 6.1 42.5 42.5 42.1 34.7 27.3 19.9
2250
72 52.4 5.6 47.3 39.2 31.1 23.0 - - 47.3 6.1 45.2 37.1 29.0 21.0 - -
67 47.9 5.5 47.9 47.4 42.4 34.3 26.2 - 42.9 6.1 42.9 42.9 40.2 32.1 24.1 -
62 46.7 5.5 46.7 46.7 46.3 38.3 30.2 22.1 43.0 6.1 43.0 43.0 42.6 34.5 26.4 18.3
57 46.5 5.5 46.5 46.5 46.2 38.1 30.1 22.0 42.5 6.0 42.5 42.5 42.3 34.2 26.1 18.0
2500
72 52.6 5.6 50.8 42.1 33.3 24.5 - - 47.3 6.1 47.3 39.9 31.1 22.4 - -
67 48.1 5.5 48.1 48.1 45.3 36.5 27.7 - 42.9 6.1 42.9 42.9 42.9 34.3 25.6 -
62 46.8 5.5 46.8 46.8 46.8 38.1 29.3 20.5 43.0 6.0 43.0 43.0 43.0 34.2 25.5 16.7
57 46.6 5.5 46.6 46.6 46.6 37.8 29.0 20.2 42.4 6.0 42.4 42.4 42.4 33.7 24.9 16.2
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
XN060 High (5.0 Ton) (Continued)
Air on
Evaporator Coil
Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F)
Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 59
XP036-060 Cooling Capacities
XP036 (3.0 Ton)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
75°F 85°F
750
77 43.4 2.1 20.2 17.0 13.8 - - - 41.3 2.4 18.4 15.3 12.2 - - -
72 40.8 2.1 25.0 21.8 18.6 15.4 - - 38.5 2.4 23.2 20.2 17.1 14.0 - -
67 38.2 2.1 29.9 26.7 23.5 20.3 17.1 - 35.6 2.4 28.1 25.0 21.9 18.9 15.8 -
62 32.1 2.1 32.1 34.4 29.0 25.8 22.6 19.4 32.0 2.4 32.0 32.0 27.1 24.1 21.0 17.9
900
77 45.5 2.1 22.4 18.7 15.0 - - - 42.9 2.4 20.6 17.0 13.3 - - -
72 42.8 2.1 27.7 24.0 20.2 16.5 - - 40.0 2.4 25.9 22.3 18.6 15.0 - -
67 40.0 2.1 32.9 29.2 25.5 21.7 18.0 - 37.0 2.4 31.2 27.6 24.0 20.3 16.7 -
62 33.7 2.1 33.7 35.2 31.5 27.7 24.0 20.2 33.3 2.4 33.3 33.3 29.6 26.0 22.4 18.8
57 31.0 2.1 31.0 31.0 29.4 25.6 21.9 18.1 31.2 2.4 31.2 31.2 28.7 25.1 21.5 17.9
1050
77 47.6 2.1 24.7 20.4 16.1 - - - 44.5 2.4 22.8 18.6 14.5 - - -
72 44.7 2.1 30.4 26.1 21.8 17.5 - - 41.5 2.4 28.5 24.4 20.2 16.1 - -
67 41.9 2.1 36.0 31.7 27.5 23.2 18.9 - 38.4 2.4 34.3 30.1 26.0 21.8 17.7 -
62 35.3 2.1 35.3 36.0 33.9 29.6 25.3 21.1 34.5 2.4 34.5 34.5 32.1 28.0 23.8 19.7
57 32.5 2.1 32.5 32.5 31.6 27.4 23.1 18.8 32.4 2.4 32.4 32.4 31.1 27.0 22.8 18.7
1200
77 49.6 2.1 27.0 22.1 17.3 - - - 46.1 2.4 25.0 20.3 15.6 - - -
72 46.7 2.1 33.0 28.2 23.4 18.6 - - 43.0 2.4 31.1 26.5 21.8 17.1 - -
67 43.7 2.1 39.1 34.3 29.4 24.6 19.8 - 39.8 2.4 37.3 32.7 28.0 23.3 18.6 -
62 36.8 2.1 36.8 36.8 36.4 31.6 26.7 21.9 35.8 2.4 35.8 35.8 34.6 29.9 25.3 20.6
57 33.9 2.1 33.9 33.9 33.9 29.1 24.3 19.5 33.5 2.4 33.5 33.5 33.5 28.9 24.2 19.5
1350
72 46.9 2.1 35.4 30.1 24.8 19.5 - - 43.3 2.4 33.4 28.3 23.2 18.0 - -
67 43.9 2.1 41.6 36.6 31.3 26.0 20.7 - 40.1 2.4 38.8 34.9 29.8 24.6 19.5 -
62 37.0 2.1 37.0 37.0 36.8 31.5 26.2 20.9 36.0 2.4 36.0 36.0 35.4 30.3 25.2 20.0
57 34.1 2.1 34.1 34.1 34.1 28.8 23.5 18.2 33.8 2.4 33.8 33.8 33.8 28.6 23.5 18.4
1500
72 47.1 2.1 37.8 32.0 26.3 20.5 - - 43.6 2.4 35.7 30.2 24.6 19.0 - -
67 44.1 2.1 44.1 38.8 33.1 27.3 21.5 - 40.3 2.4 40.3 37.1 31.6 26.0 20.4 -
62 37.1 2.1 37.1 37.1 37.1 31.4 25.6 19.8 36.3 2.4 36.3 36.3 36.3 30.7 25.1 19.5
57 34.2 2.1 34.2 34.2 34.2 28.4 22.7 16.9 34.0 2.4 34.0 34.0 34.0 28.4 22.8 17.2
95°F 105°F
750
77 39.2 2.8 16.5 13.6 10.7 - - - 35.6 3.1 14.8 12.4 9.5 - - -
72 36.1 2.7 21.4 18.5 15.5 12.6 - - 32.9 3.1 20.2 17.2 14.3 11.4 - -
67 33.0 2.7 26.3 23.3 20.4 17.5 14.5 - 30.2 3.1 25.5 22.1 19.1 16.2 13.3 -
62 31.9 2.6 31.9 29.6 25.3 22.4 19.4 16.5 28.4 3.0 28.4 27.3 23.2 20.3 17.3 14.4
900
77 40.3 2.8 18.7 15.2 11.7 - - - 36.8 3.1 17.4 13.9 10.5 - - -
72 37.2 2.7 24.0 20.6 17.1 13.6 - - 34.0 3.1 22.7 19.3 15.8 12.3 - -
67 34.0 2.7 29.4 25.9 22.4 19.0 15.5 - 31.2 3.1 28.1 24.6 21.1 17.7 14.2 -
62 32.9 2.6 32.9 31.3 27.8 24.4 20.9 17.4 29.4 3.0 29.4 28.6 25.6 22.2 18.7 15.2
57 31.4 2.6 31.4 31.4 28.1 24.6 21.1 17.6 28.7 3.1 28.7 28.7 25.7 22.3 18.8 15.4
1050
77 41.5 2.8 20.8 16.8 12.8 - - - 38.0 3.1 19.9 15.4 11.5 - - -
72 38.2 2.7 26.7 22.6 18.6 14.6 - - 35.1 3.1 25.3 21.3 17.3 13.3 - -
67 35.0 2.7 32.5 28.5 24.5 20.5 16.5 - 32.3 3.1 30.6 27.1 23.2 19.2 15.2 -
62 33.8 2.6 33.8 33.0 30.4 26.4 22.3 18.3 30.4 3.0 30.4 30.0 28.0 24.1 20.1 16.1
57 32.3 2.7 32.3 32.3 30.6 26.6 22.6 18.6 29.7 3.1 29.7 29.7 28.2 24.2 20.2 16.2
1200
77 42.6 2.8 22.9 18.4 13.9 - - - 39.3 3.1 22.5 17.0 12.4 - - -
72 39.3 2.7 29.3 24.7 20.2 15.6 - - 36.3 3.1 27.8 23.3 18.8 14.3 - -
67 35.9 2.7 35.6 31.1 26.5 22.0 17.4 - 33.3 3.0 33.2 29.7 25.2 20.6 16.1 -
62 34.7 2.6 34.7 34.7 32.9 28.3 23.8 19.3 31.4 3.0 31.4 31.4 30.5 26.0 21.4 16.9
57 33.2 2.7 33.2 33.2 33.2 28.6 24.1 19.5 30.6 3.1 30.6 30.6 30.6 26.1 21.6 17.1
1350
72 39.7 2.8 31.5 26.5 21.5 16.6 - - 36.3 3.1 30.0 25.0 20.1 15.1 - -
67 36.3 2.7 36.1 33.3 28.3 23.3 18.3 - 33.4 3.1 33.3 31.2 26.9 21.9 17.0 -
62 35.1 2.7 35.1 35.1 34.1 29.2 24.2 19.2 31.4 3.0 31.4 31.4 31.0 26.0 21.1 16.1
57 33.5 2.7 33.5 33.5 33.5 28.5 23.5 18.5 30.7 3.1 30.7 30.7 30.7 25.7 20.7 15.8
1500
72 40.0 2.8 33.7 28.3 22.9 17.5 - - 36.4 3.1 32.2 26.8 21.4 16.0 - -
67 36.6 2.7 36.6 35.4 30.0 24.6 19.2 - 33.4 3.1 33.4 32.8 28.6 23.2 17.8 -
62 35.4 2.7 35.4 35.4 35.4 30.0 24.6 19.2 31.5 3.0 31.5 31.5 31.5 26.1 20.7 15.3
57 33.8 2.7 33.8 33.8 33.8 28.4 23.0 17.6 30.7 3.1 30.7 30.7 30.7 25.3 19.9 14.5
251933-YTG-X-0615
60 Johnson Controls Unitary Products
115°F 125°F
750
77 31.9 3.5 13.1 11.2 8.3 - - - 28.3 3.8 11.3 10.0 7.1 - - -
72 29.6 3.5 18.9 16.0 13.1 10.1 - - 26.4 3.8 17.7 14.8 11.9 8.9 - -
67 27.3 3.4 24.8 20.8 17.9 14.9 12.0 - 24.4 3.8 24.0 19.5 16.6 13.7 10.7 -
62 25.0 3.5 25.0 25.0 21.1 18.1 15.2 12.3 21.5 3.9 21.5 21.5 19.0 16.0 13.1 10.2
900
77 33.2 3.5 16.1 12.7 9.2 - - - 29.7 3.8 14.8 11.4 7.9 - - -
72 30.8 3.4 21.4 18.0 14.5 11.1 - - 27.7 3.8 20.1 16.7 13.2 9.8 - -
67 28.4 3.4 26.7 23.3 19.8 16.4 12.9 - 25.7 3.8 25.4 22.0 18.5 15.1 11.7 -
62 26.0 3.4 26.0 26.0 23.4 20.0 16.5 13.1 22.6 3.8 22.6 22.6 21.2 17.8 14.3 10.9
57 26.0 3.5 26.0 26.0 23.4 20.0 16.5 13.1 23.3 3.9 23.3 23.3 21.1 17.7 14.2 10.8
1050
77 34.6 3.4 19.1 14.1 10.1 - - - 31.1 3.8 18.3 12.7 8.8 - - -
72 32.1 3.4 23.9 19.9 16.0 12.0 - - 29.0 3.8 22.5 18.6 14.6 10.7 - -
67 29.6 3.4 28.7 25.8 21.8 17.9 13.9 - 26.9 3.8 26.8 24.4 20.5 16.5 12.6 -
62 27.0 3.4 27.0 27.0 25.7 21.8 17.8 13.8 23.6 3.8 23.6 23.6 23.4 19.5 15.5 11.6
57 27.0 3.5 27.0 27.0 25.8 21.8 17.8 13.8 24.4 3.9 24.4 24.4 23.3 19.4 15.4 11.5
1200
77 35.9 3.4 22.1 15.5 11.0 - - - 32.5 3.7 21.8 14.1 9.6 - - -
72 33.3 3.4 26.4 21.9 17.4 12.9 - - 30.3 3.7 24.9 20.5 16.0 11.6 - -
67 30.7 3.4 30.7 28.3 23.8 19.3 14.8 - 28.1 3.7 28.1 26.9 22.4 18.0 13.5 -
62 28.1 3.4 28.1 28.1 28.1 23.6 19.1 14.6 24.7 3.8 24.7 24.7 24.7 21.2 16.7 12.3
57 28.1 3.4 28.1 28.1 28.1 23.6 19.1 14.6 25.5 3.8 25.5 25.5 25.5 21.1 16.6 12.2
1350
72 33.0 3.4 28.5 23.6 18.6 13.7 - - 29.7 3.8 27.0 22.1 17.2 12.3 - -
67 30.4 3.4 30.4 29.2 25.5 20.5 15.6 - 27.5 3.8 27.5 27.2 24.1 19.1 14.2 -
62 27.8 3.4 27.8 27.8 27.8 22.9 17.9 13.0 24.2 3.8 24.2 24.2 24.2 19.7 14.8 9.9
57 27.8 3.5 27.8 27.8 27.8 22.9 17.9 13.0 25.0 3.8 25.0 25.0 25.0 20.1 15.2 10.2
1500
72 32.7 3.4 30.7 25.3 19.9 14.5 - - 29.0 3.8 29.0 23.7 18.4 13.0 - -
67 30.1 3.4 30.1 30.1 27.1 21.7 16.3 - 26.9 3.8 26.9 26.9 25.7 20.3 14.9 -
62 27.6 3.4 27.6 27.6 27.6 22.2 16.8 11.4 23.6 3.8 23.6 23.6 23.6 18.2 12.9 7.5
57 27.6 3.5 27.6 27.6 27.6 22.2 16.8 11.4 24.5 3.9 24.5 24.5 24.5 19.1 13.7 8.3
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
XP036 (3.0 Ton) (Continued)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 61
XP048 (4.0 Ton)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
75°F 85°F
1000
77 59.0 2.6 25.7 20.6 16.1 - - - 53.9 3.0 24.2 19.9 15.7 - - -
72 54.3 2.6 31.7 27.2 22.8 18.3 - - 49.6 3.0 30.5 26.2 22.0 17.7 - -
67 49.6 2.6 37.7 33.9 29.4 24.9 20.4 - 45.4 2.9 36.8 32.5 28.2 24.0 19.7 -
62 44.1 2.5 44.1 44.1 35.6 31.1 26.6 22.1 40.6 2.9 40.6 40.6 34.0 29.8 25.5 21.2
1200
77 61.0 2.6 28.2 23.1 18.0 - - - 55.9 3.0 27.2 22.3 17.3 - - -
72 56.2 2.6 35.6 30.5 25.4 20.3 - - 51.5 3.0 34.2 29.2 24.3 19.3 - -
67 51.4 2.6 43.0 37.9 32.8 27.7 22.6 - 47.1 2.9 41.2 36.2 31.2 26.3 21.3 -
62 45.7 2.5 45.7 45.7 39.7 34.5 29.4 24.3 42.2 2.9 42.2 42.2 37.6 32.6 27.7 22.7
57 44.8 2.5 44.8 44.8 39.5 34.4 29.3 24.2 42.1 2.9 42.1 42.1 37.9 32.9 27.9 23.0
1400
77 63.1 2.6 30.7 25.6 19.9 - - - 57.9 3.0 30.3 24.6 19.0 - - -
72 58.1 2.6 39.5 33.8 28.0 22.3 - - 53.4 3.0 37.9 32.2 26.6 20.9 - -
67 53.1 2.6 48.3 41.9 36.2 30.4 24.7 - 48.8 2.9 45.5 39.9 34.2 28.5 22.9 -
62 47.2 2.5 47.2 47.2 43.7 38.0 32.3 26.5 43.7 2.9 43.7 43.7 41.2 35.5 29.9 24.2
57 46.3 2.5 46.3 46.3 43.6 37.9 32.1 26.4 43.6 2.9 43.6 43.6 41.5 35.8 30.2 24.5
1600
77 65.2 2.6 33.2 28.1 21.7 - - - 60.0 3.0 33.3 27.0 20.6 - - -
72 60.0 2.6 43.4 37.0 30.6 24.3 - - 55.2 3.0 41.6 35.2 28.9 22.5 - -
67 54.9 2.6 53.6 45.9 39.5 33.2 26.8 - 50.5 2.9 49.9 43.5 37.2 30.8 24.5 -
62 48.7 2.5 48.7 48.7 47.8 41.5 35.1 28.7 45.2 2.9 45.2 45.2 44.8 38.4 32.1 25.7
57 47.8 2.5 47.8 47.8 47.7 41.3 34.9 28.6 45.2 2.9 45.2 45.2 45.1 38.7 32.4 26.0
1800
72 60.0 2.6 46.6 39.5 32.5 25.4 - - 55.8 3.0 45.0 38.0 30.9 23.9 - -
67 54.9 2.6 54.2 49.0 41.9 34.8 27.7 - 51.0 2.9 50.7 46.8 39.8 32.7 25.7 -
62 48.7 2.5 48.7 48.7 48.3 41.2 34.1 27.1 45.7 2.9 45.7 45.7 45.5 38.4 31.4 24.3
57 47.8 2.5 47.8 47.8 47.7 40.7 33.6 26.5 45.6 2.9 45.6 45.6 45.6 38.5 31.5 24.4
2000
72 60.0 2.6 49.8 42.1 34.3 26.5 - - 56.4 3.0 48.5 40.7 33.0 25.2 - -
67 54.9 2.6 54.9 52.1 44.2 36.5 28.7 - 51.5 3.0 51.5 50.2 42.4 34.7 26.9 -
62 48.8 2.5 48.8 48.8 48.8 41.0 33.2 25.4 46.2 2.9 46.2 46.2 46.2 38.4 30.6 22.9
57 47.8 2.5 47.8 47.8 47.8 40.0 32.2 24.4 46.1 2.9 46.1 46.1 46.1 38.3 30.6 22.8
95°F 105°F
1000
77 48.8 3.4 22.7 19.3 15.2 - - - 46.2 3.8 19.6 17.4 13.4 - - -
72 45.0 3.3 29.3 25.2 21.1 17.1 - - 42.4 3.8 27.6 23.5 19.4 15.4 - -
67 41.1 3.3 35.9 31.2 27.1 23.0 19.0 - 38.6 3.7 35.6 29.6 25.5 21.4 17.4 -
62 37.2 3.3 37.2 37.2 32.5 28.4 24.3 20.3 35.2 3.7 35.2 35.2 29.4 25.4 21.3 17.2
1200
77 50.8 3.4 26.3 21.4 16.6 - - - 47.7 3.8 24.4 19.6 14.7 - - -
72 46.8 3.3 32.8 28.0 23.1 18.3 - - 43.8 3.8 31.1 26.3 21.4 16.6 - -
67 42.8 3.3 39.3 34.5 29.7 24.9 20.0 - 39.9 3.7 37.8 33.0 28.2 23.3 18.5 -
62 38.7 3.3 38.7 38.7 35.6 30.8 25.9 21.1 36.3 3.7 36.3 36.3 32.5 27.6 22.8 18.0
57 39.4 3.3 39.4 39.4 36.2 31.4 26.6 21.7 36.9 3.7 36.9 36.9 33.0 28.2 23.4 18.5
1400
77 52.8 3.4 29.8 23.6 18.1 - - - 49.2 3.8 29.2 21.7 16.1 - - -
72 48.6 3.3 36.3 30.7 25.2 19.6 - - 45.1 3.8 34.6 29.0 23.4 17.9 - -
67 44.5 3.3 42.7 37.8 32.2 26.7 21.1 - 41.1 3.7 40.1 36.4 30.8 25.2 19.6 -
62 40.2 3.3 40.2 40.2 38.7 33.1 27.5 21.9 37.4 3.7 37.4 37.4 35.5 29.9 24.3 18.7
57 41.0 3.3 41.0 41.0 39.3 33.8 28.2 22.6 38.0 3.7 38.0 38.0 36.1 30.5 24.9 19.3
1600
77 54.8 3.4 33.4 25.8 19.5 - - - 50.6 3.8 33.9 23.8 17.5 - - -
72 50.5 3.3 39.8 33.5 27.2 20.8 - - 46.5 3.8 38.1 31.8 25.4 19.1 - -
67 46.2 3.3 46.2 41.1 34.8 28.5 22.2 - 42.3 3.7 42.3 39.8 33.4 27.1 20.7 -
62 41.7 3.3 41.7 41.7 41.7 35.4 29.1 22.8 38.5 3.7 38.5 38.5 38.5 32.2 25.8 19.5
57 42.5 3.3 42.5 42.5 42.5 36.2 29.8 23.5 39.2 3.7 39.2 39.2 39.2 32.8 26.5 20.1
1800
72 51.6 3.3 43.4 36.4 29.4 22.4 - - 47.4 3.8 41.5 34.5 27.5 20.5 - -
67 47.2 3.3 47.2 44.7 37.7 30.7 23.7 - 43.2 3.7 43.2 41.9 36.1 29.1 22.1 -
62 42.6 3.3 42.6 42.6 42.6 35.6 28.6 21.6 39.3 3.7 39.3 39.3 39.3 32.3 25.3 18.3
57 43.5 3.3 43.5 43.5 43.4 36.4 29.4 22.4 40.0 3.7 40.0 40.0 40.0 33.0 25.9 18.9
2000
72 52.7 3.3 47.1 39.4 31.7 23.9 - - 48.4 3.8 44.9 37.2 29.5 21.8 - -
67 48.2 3.3 48.2 48.2 40.6 32.9 25.1 - 44.0 3.7 44.0 44.0 38.8 31.1 23.4 -
62 43.6 3.3 43.6 43.6 43.6 35.8 28.1 20.4 40.1 3.7 40.1 40.1 40.1 32.4 24.7 17.0
57 44.4 3.3 44.4 44.4 44.4 36.7 28.9 21.2 40.8 3.7 40.8 40.8 40.8 33.1 25.4 17.7
251933-YTG-X-0615
62 Johnson Controls Unitary Products
115°F 125°F
1000
77 43.6 4.2 16.5 15.6 11.5 - - - 41.0 4.6 14.7 12.6 9.7 - - -
72 39.9 4.2 25.9 21.8 17.7 13.7 - - 37.3 4.6 24.1 20.1 16.0 12.0 - -
67 36.1 4.1 35.2 28.0 23.9 19.9 15.8 - 33.6 4.5 33.6 26.4 22.3 18.3 14.2 -
62 33.1 4.1 33.1 33.1 26.4 22.3 18.2 14.2 31.1 4.5 31.1 31.1 23.3 19.3 15.2 11.1
1200
77 44.6 4.2 22.5 17.7 12.8 - - - 41.4 4.6 21.5 15.8 10.9 - - -
72 40.7 4.2 29.4 24.6 19.7 14.9 - - 37.7 4.6 27.7 22.9 18.0 13.2 - -
67 36.9 4.1 36.3 31.5 26.6 21.8 17.0 - 33.9 4.6 33.9 29.9 25.1 20.3 15.4 -
62 33.9 4.1 33.9 33.9 29.4 24.5 19.7 14.9 31.5 4.5 31.5 31.5 26.2 21.4 16.6 11.7
57 34.4 4.1 34.4 34.4 29.8 25.0 20.1 15.3 31.9 4.6 31.9 31.9 26.6 21.8 16.9 12.1
1400
77 45.5 4.2 28.5 19.7 14.1 - - - 41.9 4.7 28.2 19.0 12.2 - - -
72 41.6 4.2 32.9 27.3 21.7 16.1 - - 38.1 4.6 31.3 25.6 20.0 14.4 - -
67 37.7 4.1 37.4 34.9 29.3 23.7 18.1 - 34.3 4.6 34.3 33.5 27.9 22.3 16.7 -
62 34.6 4.1 34.6 34.6 32.3 26.7 21.1 15.5 31.8 4.5 31.8 31.8 29.2 23.6 18.0 12.3
57 35.1 4.1 35.1 35.1 32.8 27.2 21.6 16.0 32.2 4.6 32.2 32.2 29.6 24.0 18.3 12.7
1600
77 46.5 4.2 34.5 21.8 15.4 - - - 42.3 4.7 35.0 22.2 13.4 - - -
72 42.5 4.2 36.5 30.1 23.7 17.4 - - 38.5 4.6 34.8 28.4 22.0 15.7 - -
67 38.5 4.2 38.5 38.4 32.0 25.7 19.3 - 34.6 4.6 34.6 34.6 30.7 24.3 17.9 -
62 35.3 4.1 35.3 35.3 35.3 29.0 22.6 16.2 32.1 4.6 32.1 32.1 32.1 25.7 19.3 13.0
57 35.9 4.1 35.9 35.9 35.9 29.5 23.1 16.8 32.5 4.6 32.5 32.5 32.5 26.2 19.8 13.4
1800
72 43.3 4.2 39.6 32.6 25.6 18.6 - - 39.1 4.6 37.6 30.6 23.6 16.7 - -
67 39.2 4.2 39.2 39.1 34.5 27.5 20.5 - 35.2 4.6 35.2 35.2 32.9 25.9 18.9 -
62 36.0 4.1 36.0 36.0 36.0 29.0 22.0 15.0 32.6 4.6 32.6 32.6 32.6 25.6 18.6 11.7
57 36.5 4.2 36.5 36.5 36.5 29.5 22.5 15.5 33.0 4.6 33.0 33.0 33.0 26.1 19.1 12.1
2000
72 44.0 4.2 42.7 35.0 27.4 19.7 - - 39.7 4.6 39.7 32.9 25.3 17.7 - -
67 39.9 4.2 39.9 39.9 37.0 29.3 21.7 - 35.7 4.6 35.7 35.7 35.2 27.6 20.0 -
62 36.6 4.1 36.6 36.6 36.6 29.0 21.3 13.7 33.1 4.6 33.1 33.1 33.1 25.5 17.9 10.3
57 37.2 4.2 37.2 37.2 37.2 29.5 21.9 14.2 33.6 4.6 33.6 33.6 33.6 26.0 18.4 10.8
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
XP048 (4.0 Ton) (Continued)
Air on
Evaporator Coil Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F) Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 63
XP060 (5.0 Ton)
Air on
Evaporator Coil
Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F)
Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
75°F 85°F
1250
77 69.7 3.8 25.8 21.7 17.7 - - - 67.7 4.3 26.6 21.9 17.2 - - -
72 64.2 3.7 34.2 30.1 26.0 22.0 - - 62.6 4.3 35.2 30.6 25.9 21.2 - -
67 58.7 3.7 42.6 38.5 34.4 30.3 26.3 - 57.5 4.2 43.9 39.2 34.5 29.9 25.2 -
62 52.8 3.6 52.8 47.5 41.2 37.1 33.1 29.0 52.0 4.2 52.0 49.4 42.1 37.4 32.7 28.0
1500
77 74.1 3.8 30.6 25.3 20.0 - - - 70.7 4.3 30.5 24.9 19.2 - - -
72 68.3 3.8 40.1 34.8 29.5 24.2 - - 65.4 4.3 40.2 34.5 28.8 23.1 - -
67 62.4 3.7 49.6 44.3 39.0 33.7 28.4 - 60.1 4.2 49.9 44.2 38.5 32.8 27.1 -
62 56.2 3.7 56.2 52.6 46.8 41.5 36.2 30.9 54.4 4.2 54.4 52.6 46.9 41.2 35.5 29.9
57 54.6 3.7 54.6 54.6 49.3 44.0 38.7 33.4 53.5 4.2 53.5 53.5 48.1 42.4 36.7 31.0
1750
77 78.6 3.9 35.4 28.9 22.3 - - - 73.8 4.4 34.5 27.8 21.1 - - -
72 72.3 3.8 46.0 39.5 33.0 26.5 - - 68.2 4.3 45.2 38.5 31.8 25.1 - -
67 66.1 3.7 56.7 50.1 43.6 37.1 30.6 - 62.7 4.2 55.9 49.2 42.5 35.8 29.1 -
62 59.6 3.7 59.6 57.8 52.3 45.8 39.3 32.7 56.8 4.2 56.8 55.9 51.8 45.1 38.4 31.7
57 57.9 3.7 57.9 57.9 55.1 48.6 42.1 35.5 55.8 4.2 55.8 55.8 53.0 46.3 39.6 32.9
2000
77 83.0 3.9 40.2 32.4 24.7 - - - 76.9 4.4 38.5 30.8 23.1 - - -
72 76.4 3.8 51.9 44.2 36.4 28.7 - - 71.1 4.3 50.2 42.5 34.8 27.1 - -
67 69.9 3.7 63.7 56.0 48.2 40.5 32.7 - 65.3 4.2 61.8 54.1 46.4 38.7 31.0 -
62 62.9 3.7 62.9 62.9 57.8 50.1 42.4 34.6 59.1 4.2 59.1 59.1 56.6 48.9 41.2 33.5
57 61.2 3.7 61.2 61.2 60.9 53.2 45.4 37.7 58.1 4.2 58.1 58.1 58.0 50.3 42.5 34.8
2250
72 77.0 3.8 54.6 46.4 38.3 30.2 - - 71.7 4.3 52.8 44.7 36.6 28.5 - -
67 70.4 3.8 67.3 58.8 50.7 42.5 34.4 - 65.9 4.3 64.1 57.0 48.9 40.8 32.7 -
62 63.4 3.7 63.4 63.4 60.9 52.7 44.6 36.4 59.6 4.2 59.6 59.6 58.4 50.3 42.1 34.0
57 61.7 3.7 61.7 61.7 61.5 53.4 45.2 37.1 58.6 4.2 58.6 58.6 58.5 50.4 42.3 34.2
2500
72 77.6 3.8 57.2 48.7 40.2 31.6 - - 72.3 4.3 55.5 47.0 38.5 30.0 - -
67 70.9 3.8 70.9 61.7 53.1 44.6 36.0 - 66.4 4.3 66.4 59.9 51.4 42.9 34.4 -
62 63.9 3.7 63.9 63.9 63.9 55.3 46.8 38.2 60.1 4.2 60.1 60.1 60.1 51.6 43.1 34.6
57 62.1 3.7 62.1 62.1 62.1 53.6 45.0 36.5 59.1 4.2 59.1 59.1 59.1 50.6 42.1 33.6
95°F 105°F
1250
77 65.6 4.8 27.3 22.0 16.7 - - - 61.6 5.4 25.0 20.8 15.6 - - -
72 60.9 4.8 36.3 31.0 25.7 20.4 - - 56.8 5.4 34.5 29.3 24.2 19.0 - -
67 56.3 4.7 45.3 40.0 34.7 29.4 24.1 - 52.0 5.3 44.1 37.9 32.7 27.6 22.4 -
62 51.3 4.7 51.3 51.3 43.0 37.7 32.4 27.1 48.0 5.3 48.0 48.0 39.8 34.6 29.5 24.3
1500
77 67.3 4.8 30.5 24.4 18.3 - - - 63.1 5.4 29.1 23.1 17.1 - - -
72 62.5 4.8 40.3 34.3 28.2 22.1 - - 58.2 5.4 38.5 32.5 26.6 20.6 - -
67 57.7 4.7 50.2 44.1 38.0 31.9 25.8 - 53.3 5.3 47.9 41.9 36.0 30.0 24.0 -
62 52.6 4.7 52.6 52.6 47.1 41.0 34.9 28.8 49.2 5.3 49.2 49.2 43.7 37.8 31.8 25.8
57 52.4 4.7 52.4 52.4 46.8 40.8 34.7 28.6 49.1 5.3 49.1 49.1 43.6 37.7 31.7 25.8
1750
77 69.0 4.9 33.7 26.8 19.9 - - - 64.7 5.4 33.2 25.4 18.7 - - -
72 64.1 4.8 44.4 37.5 30.6 23.7 - - 59.6 5.4 42.5 35.7 28.9 22.2 - -
67 59.2 4.7 55.1 48.2 41.3 34.4 27.5 - 54.6 5.3 51.7 46.0 39.2 32.5 25.7 -
62 54.0 4.7 54.0 54.0 51.2 44.3 37.4 30.6 50.4 5.3 50.4 50.4 47.7 40.9 34.1 27.4
57 53.7 4.7 53.7 53.7 50.9 44.1 37.2 30.3 50.3 5.3 50.3 50.3 47.6 40.8 34.1 27.3
2000
77 70.8 4.9 36.9 29.2 21.5 - - - 66.2 5.5 37.3 27.8 20.2 - - -
72 65.8 4.8 48.4 40.8 33.1 25.4 - - 61.1 5.4 46.4 38.9 31.3 23.8 - -
67 60.7 4.7 60.0 52.3 44.6 37.0 29.3 - 55.9 5.3 55.5 50.0 42.4 34.9 27.3 -
62 55.3 4.7 55.3 55.3 55.3 47.6 40.0 32.3 51.6 5.3 51.6 51.6 51.6 44.0 36.5 29.0
57 55.1 4.7 55.1 55.1 55.0 47.3 39.7 32.0 51.5 5.3 51.5 51.5 51.5 43.9 36.4 28.9
2250
72 66.4 4.8 51.1 43.0 35.0 26.9 - - 61.7 5.4 49.6 41.5 33.4 25.3 - -
67 61.3 4.7 60.9 55.2 47.2 39.1 31.0 - 56.5 5.3 56.3 52.6 45.3 37.2 29.1 -
62 55.9 4.7 55.9 55.9 55.9 47.8 39.7 31.6 52.1 5.3 52.1 52.1 52.1 44.1 36.0 27.9
57 55.6 4.7 55.6 55.6 55.6 47.5 39.4 31.4 52.1 5.3 52.1 52.1 52.1 44.0 35.9 27.8
2500
72 67.0 4.8 53.8 45.3 36.8 28.4 - - 62.4 5.4 52.7 44.1 35.5 26.9 - -
67 61.9 4.7 61.9 58.2 49.7 41.2 32.7 - 57.1 5.3 57.1 55.3 48.1 39.5 30.9 -
62 56.4 4.7 56.4 56.4 56.4 47.9 39.4 31.0 52.7 5.3 52.7 52.7 52.7 44.1 35.5 26.9
57 56.1 4.7 56.1 56.1 56.1 47.7 39.2 30.7 52.6 5.3 52.6 52.6 52.6 44.0 35.4 26.8
251933-YTG-X-0615
64 Johnson Controls Unitary Products
115°F 125°F
1250
77 57.6 6.0 22.6 19.5 14.5 - - - 53.6 6.6 20.0 18.3 13.4 - - -
72 52.7 5.9 32.7 27.7 22.6 17.6 - - 48.5 6.5 31.0 26.0 21.1 16.2 - -
67 47.7 5.9 42.9 35.8 30.8 25.7 20.7 - 43.5 6.5 41.7 33.8 28.8 23.9 19.0 -
62 44.7 5.9 44.7 44.7 36.6 31.6 26.5 21.5 41.4 6.4 41.4 41.4 33.4 28.5 23.6 18.7
1500
77 59.0 6.0 27.6 21.8 16.0 - - - 54.8 6.6 26.2 20.5 14.8 - - -
72 53.9 6.0 36.6 30.8 25.0 19.1 - - 49.6 6.5 34.8 29.1 23.4 17.7 - -
67 48.8 5.9 45.6 39.8 33.9 28.1 22.3 - 44.4 6.5 43.3 37.6 31.9 26.2 20.5 -
62 45.8 5.9 45.8 45.8 40.4 34.5 28.7 22.9 42.3 6.5 42.3 42.3 37.0 31.3 25.6 19.9
57 45.8 5.9 45.8 45.8 40.4 34.6 28.8 22.9 42.6 6.4 42.6 42.6 37.2 31.5 25.8 20.1
1750
77 60.3 6.0 32.7 24.1 17.5 - - - 56.0 6.6 32.4 22.7 16.2 - - -
72 55.1 6.0 40.5 33.9 27.3 20.7 - - 50.6 6.6 38.6 32.1 25.6 19.1 - -
67 50.0 5.9 48.3 43.7 37.1 30.5 23.8 - 45.3 6.5 45.0 41.5 35.0 28.5 22.0 -
62 46.8 5.9 46.8 46.8 44.1 37.5 30.9 24.2 43.2 6.5 43.2 43.2 40.5 34.1 27.6 21.1
57 46.9 5.9 46.9 46.9 44.2 37.6 30.9 24.3 43.5 6.5 43.5 43.5 40.8 34.3 27.8 21.3
2000
77 61.7 6.0 37.8 26.4 18.9 - - - 57.1 6.6 38.6 24.9 17.7 - - -
72 56.4 6.0 44.4 37.0 29.6 22.2 - - 51.7 6.6 42.4 35.1 27.9 20.6 - -
67 51.1 5.9 51.1 47.7 40.2 32.8 25.4 - 46.2 6.5 46.2 45.3 38.1 30.8 23.5 -
62 47.8 5.9 47.8 47.8 47.8 40.4 33.0 25.6 44.1 6.5 44.1 44.1 44.1 36.8 29.6 22.3
57 47.9 5.9 47.9 47.9 47.9 40.5 33.1 25.7 44.4 6.5 44.4 44.4 44.4 37.1 29.8 22.6
2250
72 57.1 6.0 48.1 40.0 31.9 23.8 - - 52.4 6.6 46.5 38.5 30.4 22.3 - -
67 51.7 5.9 51.7 50.0 43.4 35.3 27.2 - 46.9 6.5 46.9 46.9 41.5 33.4 25.3 -
62 48.4 5.9 48.4 48.4 48.4 40.4 32.3 24.2 44.7 6.5 44.7 44.7 44.7 36.6 28.6 20.5
57 48.5 5.9 48.5 48.5 48.5 40.5 32.4 24.3 45.0 6.5 45.0 45.0 45.0 36.9 28.8 20.8
2500
72 57.7 6.0 51.7 43.0 34.2 25.5 - - 53.1 6.6 50.6 41.8 32.9 24.0 - -
67 52.3 5.9 52.3 52.3 46.5 37.8 29.0 - 47.5 6.5 47.5 47.5 44.9 36.0 27.2 -
62 49.0 5.9 49.0 49.0 49.0 40.3 31.5 22.8 45.3 6.5 45.3 45.3 45.3 36.4 27.6 18.7
57 49.1 5.9 49.1 49.1 49.1 40.4 31.6 22.9 45.6 6.5 45.6 45.6 45.6 36.7 27.8 19.0
1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower
Performance Table for the kW of the supply air blower motor.
2. These ratings include the condenser fan motors (total 1 kW) and the compressor motors but not the supply air blower motor.
XP060 (5.0 Ton) (Continued)
Air on
Evaporator Coil
Temperature of Air on Condenser Coil
Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh) Total
Capacity1
(MBh)
Total
Input
(kW)2
Sensible Capacity (MBh)
CFM WB
(°F)
Return Dry Bulb (°F) Return Dry Bulb (°F)
90 85 80 75 70 65 90 85 80 75 70 65
251933-YTG-X-0615
Johnson Controls Unitary Products 65
XN036-060 Heating Capacities
Size
(Tons) Model Air Over Evaporator
Coil Capacity1 &
kW
1. These capacities do not include the supply air blower motor heat. For net capacity, add motor heat,
MBh = 3.415 x kW.
Outdoor Temperature (°F @ 72% RH)
CFM DB (°F) -10 0 10 20 30 40 50 60
036
(3.0) XN
900
55 MBH 6.6 11.5 16.4 21.3 26.2 31.1 36.1 41.0
KW 2.02 2.14 2.26 2.38 2.49 2.61 2.73 2.85
70 MBH 4.6 9.5 14.4 19.3 24.2 29.1 34.0 39.0
KW 2.55 2.67 2.78 2.90 3.02 3.14 3.26 3.37
80 MBH 3.3 8.2 13.1 18.1 23.0 27.9 32.8 37.7
KW 3.02 3.13 3.25 3.37 3.49 3.60 3.72 3.84
1200
55 MBH 8.0 12.9 17.8 22.8 27.7 32.6 37.5 42.4
KW 1.69 1.81 1.92 2.04 2.16 2.28 2.39 2.51
70 MBH 6.0 10.9 15.8 20.7 25.7 30.6 35.5 40.4
KW 2.21 2.33 2.45 2.56 2.68 2.80 2.92 3.04
80 MBH 4.7 9.7 14.6 19.5 24.4 29.3 34.2 39.2
KW 2.68 2.79 2.91 3.03 3.15 3.27 3.38 3.50
1500
55 MBH 8.3 13.2 18.2 23.1 28.0 32.9 37.8 42.7
KW 1.51 1.63 1.74 1.86 1.98 2.10 2.21 2.33
70 MBH 6.3 11.2 16.1 21.1 26.0 30.9 35.8 40.7
KW 2.03 2.15 2.27 2.39 2.50 2.62 2.74 2.86
80 MBH 5.1 10.0 14.9 19.8 24.7 29.6 34.6 39.5
KW 2.50 2.62 2.74 2.85 2.97 3.09 3.21 3.33
048
(4.0) XN
1200
55 MBH 7.6 14.0 20.3 26.7 33.1 39.4 45.8 52.2
KW 2.43 2.52 2.62 2.72 2.82 2.91 3.01 3.11
70 MBH 4.8 11.2 17.6 24.0 30.3 36.7 43.1 49.4
KW 2.98 3.08 3.18 3.27 3.37 3.47 3.57 3.66
80 MBH 2.8 9.2 15.5 21.9 28.3 34.6 41.0 47.4
KW 3.44 3.54 3.64 3.73 3.83 3.93 4.03 4.12
1600
55 MBH 9.2 15.5 21.9 28.3 34.6 41.0 47.4 53.8
KW 2.08 2.18 2.28 2.37 2.47 2.57 2.67 2.77
70 MBH 6.4 12.8 19.2 25.5 31.9 38.3 44.6 51.0
KW 2.63 2.73 2.83 2.93 3.02 3.12 3.22 3.32
80 MBH 4.8 11.2 17.5 23.9 30.3 36.7 43.0 49.4
KW 3.22 3.32 3.42 3.52 3.61 3.71 3.81 3.91
2000
55 MBH 10.1 16.4 22.8 29.2 35.5 41.9 48.3 54.7
KW 1.58 1.68 1.78 1.87 1.97 2.07 2.17 2.27
70 MBH 7.3 13.7 20.1 26.4 32.8 39.2 45.5 51.9
KW 2.14 2.23 2.33 2.43 2.53 2.62 2.72 2.82
80 MBH 5.3 11.6 18.0 24.4 30.8 37.1 43.5 49.9
KW 2.60 2.69 2.79 2.89 2.99 3.08 3.18 3.28
060
(5.0) XN
1500
55 MBH 5.9 13.9 21.9 29.9 38.0 46.0 54.0 62.0
KW 2.90 3.02 3.13 3.25 3.37 3.49 3.60 3.72
70 MBH 2.9 10.9 18.9 26.9 35.0 43.0 51.0 59.0
KW 3.43 3.55 3.67 3.79 3.90 4.02 4.14 4.26
80 MBH 0.6 8.6 16.6 24.6 32.7 40.7 48.7 56.7
KW 3.91 4.03 4.14 4.26 4.38 4.50 4.62 4.73
2000
55 MBH 8.1 16.1 24.1 32.1 40.1 48.2 56.2 64.2
KW 2.60 2.72 2.83 2.95 3.07 3.19 3.30 3.42
70 MBH 5.0 13.0 21.1 29.1 37.1 45.1 53.1 61.2
KW 3.12 3.24 3.36 3.47 3.59 3.71 3.83 3.94
80 MBH 2.7 10.7 18.8 26.8 34.8 42.8 50.9 58.9
KW 3.59 3.71 3.83 3.95 4.07 4.18 4.30 4.42
2500
55 MBH 12.2 20.2 28.2 36.3 44.3 52.3 60.3 68.4
KW 2.63 2.74 2.86 2.98 3.10 3.21 3.33 3.45
70 MBH 9.2 17.2 25.2 33.3 41.3 49.3 57.3 65.4
KW 3.16 3.28 3.40 3.51 3.63 3.75 3.87 3.98
80 MBH 6.9 14.9 23.0 31.0 39.0 47.0 55.1 63.1
KW 3.64 3.76 3.87 3.99 4.11 4.23 4.34 4.46
251933-YTG-X-0615
66 Johnson Controls Unitary Products
XP036-060 Heating Capacities
Size
(Tons) Model Air Over Evaporator
Coil Capacity1 &
kW
1. These capacities do not include the supply air blower motor heat. For net capacity, add motor heat,
MBh = 3.415 x kW.
Outdoor Temperature (°F @ 72% RH)
CFM DB (°F) -10 0 10 20 30 40 50 60
036
(3.0) XP
900
55 MBH 8.8 13.0 17.3 21.5 25.7 29.9 34.1 38.3
KW 1.61.61.71.71.81.91.92.0
70 MBH 5.5 9.8 14.0 18.2 22.4 26.6 30.8 35.0
KW 1.92.02.12.12.22.22.32.4
80 MBH 5.1 9.3 13.5 17.7 21.9 26.2 30.4 34.6
KW 2.22.22.32.42.42.52.62.6
1200
55 MBH 10.3 14.5 18.7 22.9 27.1 31.3 35.5 39.8
KW 1.21.31.41.41.51.61.61.7
70 MBH 7.0 11.2 15.4 19.6 23.8 28.0 32.2 36.4
KW 1.61.71.71.81.91.92.02.1
80 MBH 6.5 10.8 15.0 19.2 23.4 27.6 31.8 36.0
KW 1.81.92.02.02.12.22.22.3
1500
55 MBH 9.5 13.7 17.9 22.1 26.3 30.5 34.8 39.0
KW 0.50.60.70.70.80.90.91.0
70 MBH 6.2 10.4 14.6 18.8 23.0 27.3 31.5 35.7
KW 0.91.01.01.11.21.21.31.4
80 MBH 5.8 10.0 14.2 18.4 22.6 26.8 31.0 35.2
KW 1.21.21.31.41.41.51.51.6
048
(4.0) XP
1200
55 MBH 11.0 13.6 16.7 20.6 25.3 31.0 38.0 46.6
KW 2.12.22.42.52.72.83.03.1
70 MBH 11.7 14.2 17.4 21.2 25.9 31.7 38.7 47.3
KW 2.52.62.82.93.03.23.43.5
80 MBH 9.0 11.6 14.8 18.6 23.3 29.1 36.1 44.6
KW 2.62.72.83.03.13.33.43.6
1600
55 MBH 16.2 18.8 22.1 26.0 30.8 36.6 43.7 52.4
KW 1.92.02.22.32.52.72.83.0
70 MBH 12.0 14.7 17.9 21.8 26.6 32.4 39.5 48.2
KW 2.32.52.62.82.93.13.33.5
80 MBH 9.8 12.5 15.7 19.6 24.4 30.2 37.4 46.0
KW 2.72.82.93.13.33.43.63.8
2000
55 MBH 14.6 17.5 20.8 24.8 29.6 35.4 42.5 51.0
KW 1.31.41.51.61.71.82.02.1
70 MBH 10.5 13.5 16.8 20.7 25.5 31.3 38.3 46.9
KW 1.71.81.92.02.22.32.52.6
80 MBH 8.6 11.4 14.7 18.6 23.4 29.1 36.2 44.7
KW 2.02.22.32.42.52.72.83.0
060
(5.0) XP
1500
55 MBH 18.1 24.6 31.1 37.7 44.2 50.8 57.3 63.8
KW 3.53.63.73.94.04.14.24.4
70 MBH 17.5 24.0 30.6 37.1 43.6 50.2 56.7 63.3
KW 4.44.54.64.84.95.05.15.3
80 MBH 17.5 24.0 30.5 37.1 43.6 50.2 56.7 63.2
KW 4.95.05.25.35.45.55.75.8
2000
55 MBH 20.8 27.4 33.9 40.4 47.0 53.5 60.0 66.6
KW 3.73.83.94.04.24.34.44.6
70 MBH 20.2 26.8 33.3 39.9 46.4 52.9 59.5 66.0
KW 4.64.74.84.95.15.25.35.5
80 MBH 20.2 26.8 33.3 39.8 46.4 52.9 59.4 66.0
KW 5.15.25.35.55.65.75.96.0
2500
55 MBH 23.1 29.6 36.2 42.7 49.2 55.8 62.3 68.9
KW 3.94.04.14.34.44.54.64.8
70 MBH 22.5 29.1 35.6 42.1 48.7 55.2 61.7 68.3
KW 4.84.95.05.25.35.45.55.7
80 MBH 22.5 29.0 35.6 42.1 48.6 55.2 61.7 68.3
KW 5.35.45.55.75.85.96.16.2
251933-YTG-X-0615
Johnson Controls Unitary Products 67
Airflow Performance
ZE036-060 Side Duct Application
ZE036 (3 Ton Belt Drive) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
4. Field Supplied Drive.
0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
800 634 0.28 735 0.34 828 0.40 914 0.47 995 0.55 1070 0.63 1140 0.72 1207 0.81 1270 0.90 1332 0.98
1000 659 0.34 760 0.40 853 0.46 939 0.53 1019 0.61 1094 0.69 1165 0.77 1232 0.87 1295 0.95 1356 1.05
1200 685 0.42 786 0.47 879 0.54 965 0.61 1045 0.69 1120 0.77 1191 0.86 1258 0.94 1321 1.04 1382 1.12
1400 716 0.53 816 0.58 909 0.65 995 0.72 1076 0.79 1151 0.88 1221 0.96 1288 1.05 1352 1.15 1413 1.23
1600 752 0.66 852 0.72 945 0.78 1032 0.86 1112 0.93 1187 1.02 1258 1.10 1324 1.19 1388 1.27 1449 1.37
FS4
ZE048 (4 Ton Belt Drive) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
4. Field Supplied Drive.
0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
1000 703 0.27 786 0.42 866 0.49 942 0.58 1016 0.67 1087 0.76 1155 0.85 1221 0.96 1284 1.05 1345 1.16
1200 733 0.33 817 0.47 896 0.56 973 0.64 1047 0.73 1118 0.82 1186 0.92 1252 1.01 1315 1.11 1376 1.21
1400 770 0.42 853 0.56 933 0.63 1010 0.73 1083 0.81 1154 0.90 1222 1.00 1288 1.10 1352 1.19 1413 1.30
1600 811 0.55 895 0.67 974 0.76 1051 0.84 1125 0.94 1196 1.02 1264 1.12 1330 1.22 1393 1.32 1454 1.42
1800 857 0.73 940 0.84 1020 0.93 1097 1.01 1171 1.10 1242 1.19 1310 1.29 1375 1.38 1439 1.49 1500 1.59
2000 907 0.95 990 1.05 1070 1.14 1146 1.22 1220 1.31 1291 1.40 1359 1.50 1425 1.59 1488 1.70 1550 1.79
FS4
ZE060 (5 Ton Belt Drive) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
4. Field Supplied Drive.
0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
1200 733 0.39 817 0.47 896 0.56 973 0.64 1047 0.73 1118 0.82 1186 0.92 1252 1.01 1315 1.11 1376 1.21
1400 770 0.47 853 0.56 933 0.63 1010 0.73 1083 0.81 1154 0.91 1222 1.00 1288 1.10 1352 1.19 1413 1.30
1600 811 0.60 895 0.67 974 0.76 1051 0.84 1125 0.94 1196 1.02 1264 1.12 1330 1.22 1393 1.32 1454 1.43
1800 857 0.77 940 0.84 1020 0.93 1097 1.01 1171 1.10 1242 1.19 1310 1.29 1375 1.38 1439 1.49 1500 1.60
2000 907 0.98 990 1.05 1070 1.14 1146 1.22 1220 1.31 1291 1.40 1359 1.50 1425 1.60 1488 1.70 1550 1.80
2200 960 1.23 1043 1.31 1123 1.39 1199 1.48 1273 1.56 1344 1.66 1412 1.75 1478 1.85 1541 1.96 1602 2.05
2400 1015 1.52 1099 1.61 1178 1.68 1255 1.76 1329 1.86 1400 1.96 1468 2.05 1534 2.15 1597 2.24 1658 2.35
2600 1074 1.86 1157 1.93 1237 2.02 1314 2.10 1387 2.19 1458 2.28 - - - - - - - -
251933-YTG-X-0615
68 Johnson Controls Unitary Products
ZF036-072 Side Duct Application
ZE036 - 060 (3-5 Ton Direct Drive) Side Duct
UNIT
TONNAGE MOTOR1
SPEED
1. Factory set on medium speed tap.
AVAILABLE EXTERNAL STATIC PRESSURE - IWG2
2. Includes allowances for a wet evaporator coil, 1” filters, and the heat exchangers. Refer to STATIC RESISTANCES Table for resistance
values.
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
33
3. Side Duct application (230 Volts)
5 (HI) 1574 320 1530 335 1488 349 1451 363 1411 376 1374 390 1331 403 1292 417 1249 430
4 (MED/HI) 1480 263 1433 276 1389 290 1347 303 1303 316 1257 329 1208 343 1153 358 1080 374
3 (MED) 1332 208 1286 221 1241 234 1195 246 1146 258 1097 272 1031 288 962 303 919 313
2 (MED/LOW) 1227 171 1178 183 1129 195 1076 207 1021 220 953 235 891 248 - - - -
1 (LOW) 1075 130 992 134 930 145 858 158 - - - - - - - - - -
43
5 (HI) - - 2067 696 2027 714 1991 734 1953 749 1910 764 1860 769 1770 743 1621 685
4 (MED/HI) 1913 539 1877 557 1839 571 1798 585 1764 602 1721 619 1677 638 1621 653 1545 639
3 (MED) 1722 408 1682 426 1634 438 1597 455 1554 472 1506 490 1450 505 1404 521 1370 536
2 (MED/LOW) 1475 321 1435 335 1388 352 1359 362 1319 376 1271 393 1220 411 1186 422 1142 437
1 (LOW) 1332 223 1290 237 1232 247 - - - - - - - - - - - -
53
5 (HI) 2245 883 2247 931 2236 950 2211 964 2171 979 2114 971 2034 940 1948 898 1855 854
4 (MED/HI) 2135 771 2116 784 2108 808 2078 826 2041 844 2004 859 1955 861 1886 843 1792 806
3 (MED) 2010 637 1989 656 1975 675 1938 696 1900 715 1867 730 1822 740 1784 756 1716 748
2 (MED/LOW) 1672 408 1633 426 1586 438 1550 455 1509 472 1462 490 1408 505 1363 521 1330 536
1 (LOW) 1562 327 1529 339 1491 356 - - - - - - - - - - - -
ZF036 (3 Ton Belt Drive) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
4. Field Supplied Drive.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
800 634 0.34 735 0.39 828 0.45 914 0.52 995 0.59 1070 0.67 1140 0.75 1207 0.83 1270 0.92 1332 1.00
1000 659 0.39 760 0.45 853 0.51 939 0.57 1019 0.65 1094 0.72 1165 0.80 1232 0.89 1295 0.97 1356 1.06
1200 685 0.47 786 0.52 879 0.58 965 0.65 1045 0.72 1120 0.80 1191 0.88 1258 0.96 1321 1.05 1382 1.13
1400 716 0.57 816 0.62 909 0.68 995 0.75 1076 0.82 1151 0.90 1221 0.98 1288 1.06 1352 1.15 1413 1.23
1600 752 0.69 852 0.75 945 0.81 1032 0.88 1112 0.95 1187 1.03 1258 1.11 1324 1.19 1388 1.27 1449 1.36
FS4
ZF048 (4 Ton Belt Drive) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
4. Field Supplied Drive.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
1000 703 0.39 786 0.47 866 0.54 942 0.62 1016 0.71 1087 0.79 1155 0.88 1221 0.98 1284 1.07 1345 1.17
1200 733 0.44 817 0.52 896 0.60 973 0.68 1047 0.76 1118 0.85 1186 0.94 1252 1.03 1315 1.12 1376 1.22
1400 770 0.52 853 0.60 933 0.67 1010 0.76 1083 0.84 1154 0.93 1222 1.02 1288 1.11 1352 1.20 1413 1.30
1600 811 0.64 895 0.71 974 0.79 1051 0.87 1125 0.96 1196 1.04 1264 1.13 1330 1.23 1393 1.32 1454 1.42
1800 857 0.80 940 0.87 1020 0.95 1097 1.03 1171 1.11 1242 1.20 1310 1.29 1375 1.38 1439 1.48 1500 1.58
2000 907 1.00 990 1.07 1070 1.15 1146 1.23 1220 1.31 1291 1.40 1359 1.49 1425 1.58 1488 1.68 1550 1.77
FS4
251933-YTG-X-0615
Johnson Controls Unitary Products 69
ZF060 (5 Ton Belt Drive) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
1200 733 0.44 817 0.52 896 0.60 973 0.68 1047 0.76 1118 0.85 1186 0.94 1252 1.03 1315 1.12 1376 1.22
1400 770 0.52 853 0.60 933 0.67 1010 0.76 1083 0.84 1154 0.93 1222 1.02 1288 1.11 1352 1.20 1413 1.30
1600 811 0.64 895 0.71 974 0.79 1051 0.87 1125 0.96 1196 1.04 1264 1.13 1330 1.23 1393 1.32 1454 1.42
1800 857 0.80 940 0.87 1020 0.95 1097 1.03 1171 1.11 1242 1.20 1310 1.29 1375 1.38 1439 1.48 1500 1.58
2000 907 1.00 990 1.07 1070 1.15 1146 1.23 1220 1.31 1291 1.40 1359 1.49 1425 1.58 1488 1.68 1550 1.77
2200 960 1.24 1043 1.31 1123 1.39 1199 1.47 1273 1.55 1344 1.64 1412 1.73 1478 1.82 1541 1.92 1602 2.01
2400 1015 1.51 1099 1.59 1178 1.66 1255 1.74 1329 1.83 1400 1.92 1468 2.01 1534 2.10 1597 2.19 1658 2.29
2600 1074 1.83 1157 1.90 1237 1.98 1314 2.06 1387 2.14 1458 2.23 - - - - - - - -
ZF072 (6 Ton Belt Drive) - Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
1600 811 0.64 895 0.71 974 0.79 1051 0.87 1125 0.96 1196 1.04 1264 1.13 1330 1.23 1393 1.32 1454 1.42
1800 857 0.80 940 0.87 1020 0.95 1097 1.03 1171 1.11 1242 1.20 1310 1.29 1375 1.38 1439 1.48 1500 1.58
2000 907 1.00 990 1.07 1070 1.15 1146 1.23 1220 1.31 1291 1.40 1359 1.49 1425 1.58 1488 1.68 1550 1.77
2200 960 1.24 1043 1.31 1123 1.39 1199 1.47 1273 1.55 1344 1.64 1412 1.73 1478 1.82 1541 1.92 1602 2.01
2400 1015 1.51 1099 1.59 1178 1.66 1255 1.74 1329 1.83 1400 1.92 1468 2.01 1534 2.10 1597 2.19 1658 2.29
2600 1074 1.83 1157 1.90 1237 1.98 1314 2.06 1387 2.14 1458 2.23 1526 2.32 1592 2.41 1656 2.51 1717 2.61
2800 1135 2.18 1218 2.25 1298 2.33 1375 2.41 1448 2.49 1519 2.58 1587 2.67 1653 2.76 1717 2.86 1778 2.96
3000 1198 2.56 1281 2.64 1361 2.71 1438 2.79 1511 2.88 1582 2.96 1651 3.05 1716 3.15 1780 3.24 - -
Field Supplied Drive
ZF036 - 072 (3-6 Ton Direct Drive) Side Duct
UNIT
TONNAGE MOTOR1
SPEED
1. Factory set on medium speed tap.
AVAILABLE EXTERNAL STATIC PRESSURE - IWG2
2. Includes allowances for a wet evaporator coil, 1” filters, and the heat exchangers. Refer to STATIC RESISTANCES Table for resistance
values.
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
33
3. Side Duct application (230 Volts)
5 (HI) 1574 320 1530 335 1488 349 1451 363 1411 376 1374 390 1331 403 1292 417 1249 430
4 (MED/HI) 1480 263 1433 276 1389 290 1347 303 1303 316 1257 329 1208 343 1153 358 1080 374
3 (MED) 1332 208 1286 221 1241 234 1195 246 1146 258 1097 272 1031 288 962 303 919 313
2 (MED/LOW) 1227 171 1178 183 1129 195 1076 207 1021 220 953 235 891 248 - - - -
1 (LOW) 1075 130 992 134 930 145 858 158 - - - - - - - - - -
43
5 (HI) - - 2067 696 2027 714 1991 734 1953 749 1910 764 1860 769 1770 743 1621 685
4 (MED/HI) 1913 539 1877 557 1839 571 1798 585 1764 602 1721 619 1677 638 1621 653 1545 639
3 (MED) 1722 408 1682 426 1634 438 1597 455 1554 472 1506 490 1450 505 1404 521 1370 536
2 (MED/LOW) 1621 362 1580 380 1532 391 1502 406 1461 423 1411 440 1359 455 1324 469 1278 485
1 (LOW) 1332 223 1290 237 1232 247 - - - - - - - - - - - -
53
5 (HI) 2245 883 2247 931 2236 950 2211 964 2171 979 2114 971 2034 940 1948 898 1855 854
4 (MED/HI) 2135 771 2116 784 2108 808 2078 826 2041 844 2004 859 1955 861 1886 843 1792 806
3 (MED) 2010 637 1989 656 1975 675 1938 696 1900 715 1867 730 1822 740 1784 756 1716 748
2 (MED/LOW) 1748 413 1704 432 1669 451 1631 468 1589 479 1551 497 1513 513 1465 523 - -
1 (LOW) 1562 327 1529 339 1491 356 - - - - - - - - - - - -
63
5 (HI) 2256 883 2258 931 2247 950 2223 964 2182 979 2125 971 2044 940 1958 898 1864 854
4 (MED/HI) 2145 771 2127 784 2119 808 2089 826 2051 844 2014 859 1965 861 1896 843 1801 806
3 (MED) 2020 637 1999 656 1985 675 1947 696 1910 715 1876 730 1832 740 1793 756 - -
2 (MED/LOW)------------------
1 (LOW) ------------------
251933-YTG-X-0615
70 Johnson Controls Unitary Products
ZR036-060 Side Duct Application
ZR036 (3 Ton Belt Drive) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
4. Field Supplied Drive.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
800 634 0.34 735 0.39 828 0.45 914 0.52 995 0.59 1070 0.67 1140 0.75 1207 0.83 1270 0.92 1332 1.00
1000 659 0.39 760 0.45 853 0.51 939 0.57 1019 0.65 1094 0.72 1165 0.80 1232 0.89 1295 0.97 1356 1.06
1200 685 0.47 786 0.52 879 0.58 965 0.65 1045 0.72 1120 0.80 1191 0.88 1258 0.96 1321 1.05 1382 1.13
1400 716 0.57 816 0.62 909 0.68 995 0.75 1076 0.82 1151 0.90 1221 0.98 1288 1.06 1352 1.15 1413 1.23
1600 752 0.69 852 0.75 945 0.81 1032 0.88 1112 0.95 1187 1.03 1258 1.11 1324 1.19 1388 1.27 1449 1.36
FS4
ZR048 (4 Ton Belt Drive) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
4. Field Supplied Drive.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
1000 703 0.39 786 0.47 866 0.54 942 0.62 1016 0.71 1087 0.79 1155 0.88 1221 0.98 1284 1.07 1345 1.17
1200 733 0.44 817 0.52 896 0.60 973 0.68 1047 0.76 1118 0.85 1186 0.94 1252 1.03 1315 1.12 1376 1.22
1400 770 0.52 853 0.60 933 0.67 1010 0.76 1083 0.84 1154 0.93 1222 1.02 1288 1.11 1352 1.20 1413 1.30
1600 811 0.64 895 0.71 974 0.79 1051 0.87 1125 0.96 1196 1.04 1264 1.13 1330 1.23 1393 1.32 1454 1.42
1800 857 0.80 940 0.87 1020 0.95 1097 1.03 1171 1.11 1242 1.20 1310 1.29 1375 1.38 1439 1.48 1500 1.58
2000 907 1.00 990 1.07 1070 1.15 1146 1.23 1220 1.31 1291 1.40 1359 1.49 1425 1.58 1488 1.68 1550 1.77
FS4
ZR060 (5 Ton Belt Drive) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
1200 733 0.44 817 0.52 896 0.60 973 0.68 1047 0.76 1118 0.85 1186 0.94 1252 1.03 1315 1.12 1376 1.22
1400 770 0.52 853 0.60 933 0.67 1010 0.76 1083 0.84 1154 0.93 1222 1.02 1288 1.11 1352 1.20 1413 1.30
1600 811 0.64 895 0.71 974 0.79 1051 0.87 1125 0.96 1196 1.04 1264 1.13 1330 1.23 1393 1.32 1454 1.42
1800 857 0.80 940 0.87 1020 0.95 1097 1.03 1171 1.11 1242 1.20 1310 1.29 1375 1.38 1439 1.48 1500 1.58
2000 907 1.00 990 1.07 1070 1.15 1146 1.23 1220 1.31 1291 1.40 1359 1.49 1425 1.58 1488 1.68 1550 1.77
2200 960 1.24 1043 1.31 1123 1.39 1199 1.47 1273 1.55 1344 1.64 1412 1.73 1478 1.82 1541 1.92 1602 2.01
2400 1015 1.51 1099 1.59 1178 1.66 1255 1.74 1329 1.83 1400 1.92 1468 2.01 1534 2.10 1597 2.19 1658 2.29
2600 1074 1.83 1157 1.90 1237 1.98 1314 2.06 1387 2.14 1458 2.23 - - - - - - - -
251933-YTG-X-0615
Johnson Controls Unitary Products 71
ZE036-060 Bottom Duct Application
ZR036 - 060 (3-5 Ton Direct Drive) Side Duct
UNIT
TONNAGE MOTOR1
SPEED
1. Factory set on medium speed tap.
AVAILABLE EXTERNAL STATIC PRESSURE - IWG2
2. Includes allowances for a wet evaporator coil, 1” filters, and the heat exchangers. Refer to STATIC RESISTANCES Table for resistance
values.
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
33
3. Side Duct application (230 Volts)
5 (HI) 1574 320 1530 335 1488 349 1451 363 1411 376 1374 390 1331 403 1292 417 1249 430
4 (MED/HI) 1480 263 1433 276 1389 290 1347 303 1303 316 1257 329 1208 343 1153 358 1080 374
3 (MED) 1332 208 1286 221 1241 234 1195 246 1146 258 1097 272 1031 288 962 303 919 313
2 (MED/LOW) 1227 171 1178 183 1129 195 1076 207 1021 220 953 235 891 248 - - - -
1 (LOW) 1075 130 992 134 930 145 858 158 - - - - - - - - - -
43
5 (HI) - - 2067 696 2027 714 1991 734 1953 749 1910 764 1860 769 1770 743 1621 685
4 (MED/HI) 1913 539 1877 557 1839 571 1798 585 1764 602 1721 619 1677 638 1621 653 1545 639
3 (MED) 1722 408 1682 426 1634 438 1597 455 1554 472 1506 490 1450 505 1404 521 1370 536
2 (MED/LOW) 1621 362 1580 380 1532 391 1502 406 1461 423 1411 440 1359 455 1324 469 1278 485
1 (LOW) 1332 223 1290 237 1232 247 - - - - - - - - - - - -
53
5 (HI) 2245 883 2247 931 2236 950 2211 964 2171 979 2114 971 2034 940 1948 898 1855 854
4 (MED/HI) 2135 771 2116 784 2108 808 2078 826 2041 844 2004 859 1955 861 1886 843 1792 806
3 (MED) 2010 637 1989 656 1975 675 1938 696 1900 715 1867 730 1822 740 1784 756 1716 748
2 (MED/LOW) 1748 413 1704 432 1669 451 1631 468 1589 479 1551 497 1513 513 1465 523 - -
1 (LOW) 1562 327 1529 339 1491 356 - - - - - - - - - - - -
ZE036 (3 Ton Belt Drive) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
800 613 0.29 724 0.34 826 0.41 920 0.48 1007 0.56 1089 0.63 1165 0.71 1237 0.80 1306 0.88 1372 0.98
1000 640 0.34 751 0.41 853 0.47 947 0.53 1034 0.61 1116 0.69 1192 0.77 1264 0.86 1333 0.95 1399 1.03
1200 669 0.43 779 0.48 881 0.55 975 0.61 1063 0.69 1144 0.77 1220 0.85 1293 0.94 1361 1.02 1427 1.12
1400 702 0.52 812 0.59 914 0.65 1009 0.71 1096 0.79 1177 0.87 1254 0.96 1326 1.04 1394 1.13 1460 1.21
1600 741 0.66 852 0.71 954 0.78 1048 0.85 1135 0.93 1217 1.00 1293 1.08 1365 1.17 1434 1.25 1500 1.35
FS4
ZE048 (4 Ton Belt Drive) Bottom Duct
`Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
1000 688 0.34 779 0.42 866 0.50 949 0.59 1029 0.67 1107 0.77 1181 0.85 1253 0.95 1322 1.05 1388 1.15
1200 722 0.40 812 0.48 899 0.56 983 0.64 1063 0.73 1140 0.82 1215 0.90 1286 1.01 1355 1.11 1422 1.20
1400 761 0.48 852 0.56 939 0.64 1022 0.73 1103 0.81 1180 0.89 1254 0.99 1326 1.08 1395 1.19 1462 1.29
1600 807 0.61 897 0.68 984 0.76 1068 0.84 1148 0.93 1225 1.02 1300 1.12 1371 1.21 1440 1.31 1507 1.40
1800 856 0.77 947 0.84 1034 0.93 1118 1.00 1198 1.10 1275 1.18 1349 1.28 1421 1.37 1490 1.47 1557 1.57
2000 910 0.97 1001 1.04 1088 1.13 1172 1.21 1252 1.30 1329 1.39 1403 1.48 1475 1.57 1544 1.68 1611 1.77
FS4
251933-YTG-X-0615
72 Johnson Controls Unitary Products
ZF036-072 Bottom Duct Application
ZE060 (5 Ton Belt Drive) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
1200 722 0.40 812 0.48 899 0.56 983 0.64 1063 0.73 1140 0.82 1215 0.90 1286 1.01 1355 1.11 1422 1.20
1400 761 0.48 852 0.56 939 0.64 1022 0.73 1103 0.81 1180 0.89 1254 0.99 1326 1.08 1395 1.19 1462 1.29
1600 807 0.61 897 0.68 984 0.76 1068 0.84 1148 0.93 1225 1.02 1300 1.12 1371 1.21 1440 1.31 1507 1.40
1800 856 0.77 947 0.84 1034 0.93 1118 1.00 1198 1.10 1275 1.18 1349 1.28 1421 1.37 1490 1.47 1557 1.57
2000 910 0.97 1001 1.04 1088 1.13 1172 1.21 1252 1.30 1329 1.39 1403 1.48 1475 1.57 1544 1.68 1611 1.77
2200 968 1.22 1059 1.30 1146 1.37 1229 1.46 1309 1.54 1387 1.64 1461 1.73 1533 1.83 1602 1.92 1668 2.03
2400 1029 1.51 1119 1.58 1206 1.67 1290 1.74 1370 1.84 1448 1.92 1522 2.02 1593 2.11 1663 2.21 1729 2.31
2600 1093 1.84 1183 1.91 1270 1.98 1354 2.07 1434 2.15 1511 2.25 1586 2.34 - - - - - -
FS4
ZE036 - 060 (3-5 Ton Direct Drive) Bottom Duct
UNIT
TONNAGE MOTOR1
SPEED
1. Factory set on medium speed tap.
AVAILABLE EXTERNAL STATIC PRESSURE - IWG2
2. Includes allowances for a wet evaporator coil, 1” filters, and the heat exchangers. Refer to STATIC RESISTANCES Table for resistance
values.
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
33
3. Bottom Duct application (230 Volts)
5 (HI) 1520 320 1478 335 1438 349 1401 363 1363 376 1327 390 1286 403 1248 417 1207 430
4 (MED/HI) 1430 263 1384 276 1342 290 1302 303 1259 316 1215 329 1168 343 1114 358 1044 374
3 (MED) 1287 208 1242 221 1199 234 1155 246 1108 258 1060 272 997 288 930 303 889 313
2 (MED/LOW) 1185 171 1138 183 1091 195 1041 207 987 220 921 235 862 248 - - - -
1 (LOW) 1040 130 959 134 900 145 - - - - - - - - - - - -
43
5 (HI) - - 1995 696 1957 714 1922 734 1885 749 1844 764 1795 769 1709 743 1566 685
4 (MED/HI) 1846 539 1812 557 1776 571 1736 585 1704 602 1662 619 1619 638 1566 653 1492 639
3 (MED) 1662 408 1624 426 1577 438 1542 455 1501 472 1454 490 1400 505 1356 521 1323 536
2 (MED/LOW) 1566 362 1526 380 1480 391 1450 406 1411 423 1363 440 1312 455 1279 469 1235 485
1 (LOW) 1287 223 1246 237 1190 247 - - - - - - - - - - - -
53
5 (HI) 2166 883 2169 931 2158 950 2134 964 2095 979 2040 971 1963 940 1881 898 1791 854
4 (MED/HI) 2060 771 2042 784 2035 808 2006 826 1970 844 1934 859 1888 861 1821 843 1730 806
3 (MED) 1940 637 1920 656 1907 675 1870 696 1834 715 1802 730 1759 740 1722 756 1657 748
2 (MED/LOW) 1688 413 1645 432 1611 451 1575 468 1534 479 1498 497 1461 513 - - - -
1 (LOW) 1509 327 1477 339 - - - - - - - - - - - - - -
ZF036 (3 Ton Belt Drive) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
800 613 0.35 724 0.40 826 0.46 920 0.53 1007 0.60 1089 0.67 1165 0.75 1237 0.83 1306 0.91 1372 1.00
1000 640 0.40 751 0.46 853 0.52 947 0.58 1034 0.65 1116 0.73 1192 0.80 1264 0.89 1333 0.97 1399 1.05
1200 669 0.48 779 0.53 881 0.59 975 0.65 1063 0.73 1144 0.80 1220 0.88 1293 0.96 1361 1.04 1427 1.13
1400 702 0.57 812 0.63 914 0.69 1009 0.75 1096 0.82 1177 0.90 1254 0.98 1326 1.06 1394 1.14 1460 1.22
1600 741 0.70 852 0.75 954 0.81 1048 0.88 1135 0.95 1217 1.02 1293 1.10 1365 1.18 1434 1.26 1500 1.35
Field Supplied Drive
251933-YTG-X-0615
Johnson Controls Unitary Products 73
ZF048 (4 Ton Belt Drive) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
1000 688 0.40 779 0.47 866 0.55 949 0.63 1029 0.71 1107 0.80 1181 0.88 1253 0.97 1322 1.07 1388 1.16
1200 722 0.45 812 0.53 899 0.60 983 0.68 1063 0.76 1140 0.85 1215 0.93 1286 1.03 1355 1.12 1422 1.21
1400 761 0.53 852 0.60 939 0.68 1022 0.76 1103 0.84 1180 0.92 1254 1.01 1326 1.10 1395 1.20 1462 1.29
1600 807 0.65 897 0.72 984 0.79 1068 0.87 1148 0.95 1225 1.04 1300 1.13 1371 1.22 1440 1.31 1507 1.40
1800 856 0.80 947 0.87 1034 0.95 1118 1.02 1198 1.11 1275 1.19 1349 1.28 1421 1.37 1490 1.46 1557 1.56
2000 910 0.99 1001 1.06 1088 1.14 1172 1.22 1252 1.30 1329 1.39 1403 1.47 1475 1.56 1544 1.66 1611 1.75
Field Supplied Drive
ZF060 (5 Ton Belt Drive) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
1200 722 0.45 812 0.53 899 0.60 983 0.68 1063 0.76 1140 0.85 1215 0.93 1286 1.03 1355 1.12 1422 1.21
1400 761 0.53 852 0.60 939 0.68 1022 0.76 1103 0.84 1180 0.92 1254 1.01 1326 1.10 1395 1.20 1462 1.29
1600 807 0.65 897 0.72 984 0.79 1068 0.87 1148 0.95 1225 1.04 1300 1.13 1371 1.22 1440 1.31 1507 1.40
1800 856 0.80 947 0.87 1034 0.95 1118 1.02 1198 1.11 1275 1.19 1349 1.28 1421 1.37 1490 1.46 1557 1.56
2000 910 0.99 1001 1.06 1088 1.14 1172 1.22 1252 1.30 1329 1.39 1403 1.47 1475 1.56 1544 1.66 1611 1.75
2200 968 1.23 1059 1.30 1146 1.37 1229 1.45 1309 1.53 1387 1.62 1461 1.71 1533 1.80 1602 1.89 1668 1.99
2400 1029 1.50 1119 1.57 1206 1.65 1290 1.72 1370 1.81 1448 1.89 1522 1.98 1593 2.07 1663 2.16 1729 2.26
2600 1093 1.81 1183 1.88 1270 1.95 1354 2.03 1434 2.11 1511 2.20 1586 2.29 - -----
Field Supplied Drive
ZF072 (6 Ton Belt Drive) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option HIgh Static Drive Option
1600 807 0.65 897 0.72 984 0.79 1068 0.87 1148 0.95 1225 1.04 1300 1.13 1371 1.22 1440 1.31 1507 1.40
1800 856 0.80 947 0.87 1034 0.95 1118 1.02 1198 1.11 1275 1.19 1349 1.28 1421 1.37 1490 1.46 1557 1.56
2000 910 0.99 1001 1.06 1088 1.14 1172 1.22 1252 1.30 1329 1.39 1403 1.47 1475 1.56 1544 1.66 1611 1.75
2200 968 1.23 1059 1.30 1146 1.37 1229 1.45 1309 1.53 1387 1.62 1461 1.71 1533 1.80 1602 1.89 1668 1.99
2400 1029 1.50 1119 1.57 1206 1.65 1290 1.72 1370 1.81 1448 1.89 1522 1.98 1593 2.07 1663 2.16 1729 2.26
2600 1093 1.81 1183 1.88 1270 1.95 1354 2.03 1434 2.11 1511 2.20 1586 2.29 1657 2.38 1726 2.47 1793 2.57
2800 1159 2.15 1250 2.22 1337 2.29 1420 2.37 1500 2.46 1578 2.54 1652 2.63 1724 2.72 1793 2.81 - -
3000 1228 2.52 1318 2.59 1405 2.67 1489 2.75 1569 2.83 1646 2.91 1721 3.00 1792 3.09 - - - -
Field Supplied Drive
251933-YTG-X-0615
74 Johnson Controls Unitary Products
ZR036-060 Bottom Duct Application
ZF036 - 072 (3-6 Ton Direct Drive) Bottom Duct
UNIT
TONNAGE MOTOR1
SPEED
1. Factory set on medium speed tap.
AVAILABLE EXTERNAL STATIC PRESSURE - IWG2
2. Includes allowances for a wet evaporator coil, 1” filters, and the heat exchangers. Refer to STATIC RESISTANCES Table for resistance
values.
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
33
3. Bottom Duct application (230 Volts)
5 (HI) 1520 320 1478 335 1438 349 1401 363 1363 376 1327 390 1286 403 1248 417 1207 430
4 (MED/HI) 1430 263 1384 276 1342 290 1302 303 1259 316 1215 329 1168 343 1114 358 1044 374
3 (MED) 1287 208 1242 221 1199 234 1155 246 1108 258 1060 272 997 288 930 303 889 313
2 (MED/LOW) 1185 171 1138 183 1091 195 1041 207 987 220 921 235 862 248 - - - -
1 (LOW) 1040 130 959 134 900 145 - - - - - - - - - - - -
43
5 (HI) - - 1995 696 1957 714 1922 734 1885 749 1844 764 1795 769 1709 743 1566 685
4 (MED/HI) 1846 539 1812 557 1776 571 1736 585 1704 602 1662 619 1619 638 1566 653 1492 639
3 (MED) 1662 408 1624 426 1577 438 1542 455 1501 472 1454 490 1400 505 1356 521 1323 536
2 (MED/LOW) 1566 362 1526 380 1480 391 1450 406 1411 423 1363 440 1312 455 1279 469 1235 485
1 (LOW) 1287 223 1246 237 1190 247 - - - - - - - - - - - -
53
5 (HI) 2166 883 2169 931 2158 950 2134 964 2095 979 2040 971 1963 940 1881 898 1791 854
4 (MED/HI) 2060 771 2042 784 2035 808 2006 826 1970 844 1934 859 1888 861 1821 843 1730 806
3 (MED) 1940 637 1920 656 1907 675 1870 696 1834 715 1802 730 1759 740 1722 756 1657 748
2 (MED/LOW) 1688 413 1645 432 1611 451 1575 468 1534 479 1498 497 1461 513 - - - -
1 (LOW) 1509 327 1477 339 - - - - - - - - - - - - - -
63
5 (HI) 2177 883 2179 931 2169 950 2145 964 2106 979 2051 971 1973 940 1890 898 1800 854
4 (MED/HI) 2071 771 2053 784 2045 808 2016 826 1980 844 1944 859 1897 861 1830 843 - -
3 (MED) 1950 637 1929 656 1916 675 1880 696 1844 715 1811 730 1768 740 - - - -
2 (MED/LOW)------------------
1 (LOW) ------------------
ZR036 (3 Ton Belt Drive) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option HIgh Static Drive Option
800 613 0.35 724 0.40 826 0.46 920 0.53 1007 0.60 1089 0.67 1165 0.75 1237 0.83 1306 0.91 1372 1.00
1000 640 0.40 751 0.46 853 0.52 947 0.58 1034 0.65 1116 0.73 1192 0.80 1264 0.89 1333 0.97 1399 1.05
1200 669 0.48 779 0.53 881 0.59 975 0.65 1063 0.73 1144 0.80 1220 0.88 1293 0.96 1361 1.04 1427 1.13
1400 702 0.57 812 0.63 914 0.69 1009 0.75 1096 0.82 1177 0.90 1254 0.98 1326 1.06 1394 1.14 1460 1.22
1600 741 0.70 852 0.75 954 0.81 1048 0.88 1135 0.95 1217 1.02 1293 1.10 1365 1.18 1434 1.26 1500 1.35
Field Supplied Drive
ZR048 (4 Ton Belt Drive) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option HIgh Static Drive Option
1000 688 0.40 779 0.47 866 0.55 949 0.63 1029 0.71 1107 0.80 1181 0.88 1253 0.97 1322 1.07 1388 1.16
1200 722 0.45 812 0.53 899 0.60 983 0.68 1063 0.76 1140 0.85 1215 0.93 1286 1.03 1355 1.12 1422 1.21
1400 761 0.53 852 0.60 939 0.68 1022 0.76 1103 0.84 1180 0.92 1254 1.01 1326 1.10 1395 1.20 1462 1.29
1600 807 0.65 897 0.72 984 0.79 1068 0.87 1148 0.95 1225 1.04 1300 1.13 1371 1.22 1440 1.31 1507 1.40
1800 856 0.80 947 0.87 1034 0.95 1118 1.02 1198 1.11 1275 1.19 1349 1.28 1421 1.37 1490 1.46 1557 1.56
2000 910 0.99 1001 1.06 1088 1.14 1172 1.22 1252 1.30 1329 1.39 1403 1.47 1475 1.56 1544 1.66 1611 1.75
Field Supplied Drive
251933-YTG-X-0615
Johnson Controls Unitary Products 75
ZR060 (5 Ton Belt Drive) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option HIgh Static Drive Option
1200 722 0.45 812 0.53 899 0.60 983 0.68 1063 0.76 1140 0.85 1215 0.93 1286 1.03 1355 1.12 1422 1.21
1400 761 0.53 852 0.60 939 0.68 1022 0.76 1103 0.84 1180 0.92 1254 1.01 1326 1.10 1395 1.20 1462 1.29
1600 807 0.65 897 0.72 984 0.79 1068 0.87 1148 0.95 1225 1.04 1300 1.13 1371 1.22 1440 1.31 1507 1.40
1800 856 0.80 947 0.87 1034 0.95 1118 1.02 1198 1.11 1275 1.19 1349 1.28 1421 1.37 1490 1.46 1557 1.56
2000 910 0.99 1001 1.06 1088 1.14 1172 1.22 1252 1.30 1329 1.39 1403 1.47 1475 1.56 1544 1.66 1611 1.75
2200 968 1.23 1059 1.30 1146 1.37 1229 1.45 1309 1.53 1387 1.62 1461 1.71 1533 1.80 1602 1.89 1668 1.99
2400 1029 1.50 1119 1.57 1206 1.65 1290 1.72 1370 1.81 1448 1.89 1522 1.98 1593 2.07 1663 2.16 1729 2.26
2600 1093 1.81 1183 1.88 1270 1.95 1354 2.03 1434 2.11 1511 2.20 1586 2.29 - -----
Field Supplied Drive
251933-YTG-X-0615
76 Johnson Controls Unitary Products
XN036-060 Side Duct Application
ZR036 - 060 (3-5 Ton Direct Drive) Bottom Duct
UNIT
TONNAGE MOTOR1
SPEED
1. Factory set on medium speed tap.
AVAILABLE EXTERNAL STATIC PRESSURE - IWG2
2. Includes allowances for a wet evaporator coil, 1” filters, and the heat exchangers. Refer to STATIC RESISTANCES Table for resistance
values.
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
33
3. Bottom Duct application (230 Volts)
5 (HI) 1520 320 1478 335 1438 349 1401 363 1363 376 1327 390 1286 403 1248 417 1207 430
4 (MED/HI) 1430 263 1384 276 1342 290 1302 303 1259 316 1215 329 1168 343 1114 358 1044 374
3 (MED) 1287 208 1242 221 1199 234 1155 246 1108 258 1060 272 997 288 930 303 889 313
2 (MED/LOW) 1185 171 1138 183 1091 195 1041 207 987 220 921 235 862 248 - - - -
1 (LOW) 1040 130 959 134 900 145 - - - - - - - - - - - -
43
5 (HI) - - 1995 696 1957 714 1922 734 1885 749 1844 764 1795 769 1709 743 1566 685
4 (MED/HI) 1846 539 1812 557 1776 571 1736 585 1704 602 1662 619 1619 638 1566 653 1492 639
3 (MED) 1662 408 1624 426 1577 438 1542 455 1501 472 1454 490 1400 505 1356 521 1323 536
2 (MED/LOW) 1566 362 1526 380 1480 391 1450 406 1411 423 1363 440 1312 455 1279 469 1235 485
1 (LOW) 1287 223 1246 237 1190 247 - - - - - - - - - - - -
53
5 (HI) 2166 883 2169 931 2158 950 2134 964 2095 979 2040 971 1963 940 1881 898 1791 854
4 (MED/HI) 2060 771 2042 784 2035 808 2006 826 1970 844 1934 859 1888 861 1821 843 1730 806
3 (MED) 1940 637 1920 656 1907 675 1870 696 1834 715 1802 730 1759 740 1722 756 1657 748
2 (MED/LOW) 1688 413 1645 432 1611 451 1575 468 1534 479 1498 497 1461 513 - - - -
1 (LOW) 1509 327 1477 339 - - - - - - - - - - - - - -
XN036 (3 Ton Belt Drive) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
4. Field Supplied Drive.
0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
800 678 0.31 761 0.39 840 0.47 917 0.56 991 0.65 1062 0.74 1130 0.84 1195 0.94 1259 1.04 1320 1.16
1000 699 0.37 782 0.44 862 0.51 939 0.60 1012 0.69 1083 0.79 1151 0.88 1217 0.99 1280 1.10 1341 1.20
1200 727 0.40 810 0.47 889 0.56 966 0.64 1040 0.73 1110 0.82 1179 0.93 1244 1.02 1308 1.13 1369 1.23
1400 759 0.46 842 0.53 922 0.61 998 0.69 1072 0.79 1143 0.88 1211 0.98 1276 1.08 1340 1.19 1401 1.30
1600 795 0.56 878 0.63 958 0.70 1035 0.79 1108 0.88 1179 0.98 1247 1.07 1313 1.18 1376 1.28 1438 1.39
FS4
XN048 (4 Ton Belt Drive) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
4. Field Supplied Drive.
0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Drive
1000 699 0.37 782 0.44 862 0.51 939 0.60 1012 0.69 1083 0.79 1151 0.88 1217 0.99 1280 1.10 1341 1.20
1200 727 0.40 810 0.47 889 0.56 966 0.64 1040 0.73 1110 0.82 1179 0.93 1244 1.02 1308 1.13 1369 1.23
1400 759 0.46 842 0.53 922 0.61 998 0.69 1072 0.79 1143 0.88 1211 0.98 1276 1.08 1340 1.19 1401 1.30
1600 795 0.56 878 0.63 958 0.70 1035 0.79 1108 0.88 1179 0.98 1247 1.07 1313 1.18 1376 1.28 1438 1.39
1800 836 0.68 919 0.76 999 0.84 1075 0.93 1149 1.01 1220 1.11 1288 1.21 1353 1.31 1417 1.41 1478 1.52
2000 880 0.86 963 0.94 1042 1.02 1119 1.11 1193 1.19 1263 1.29 1331 1.39 1397 1.49 1460 1.59 1522 1.70
251933-YTG-X-0615
Johnson Controls Unitary Products 77
XP036-060 Side Duct Application
XN060 (5 Ton Belt Drive) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
4. Field Supplied Drive.
0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive
1200 727 0.40 810 0.47 889 0.56 966 0.64 1040 0.73 1110 0.82 1179 0.93 1244 1.02 1308 1.13 1369 1.23
1400 759 0.46 842 0.53 922 0.61 998 0.69 1072 0.79 1143 0.88 1211 0.98 1276 1.08 1340 1.19 1401 1.30
1600 795 0.56 878 0.63 958 0.70 1035 0.79 1108 0.88 1179 0.98 1247 1.07 1313 1.18 1376 1.28 1438 1.39
1800 836 0.68 919 0.76 999 0.84 1075 0.93 1149 1.01 1220 1.11 1288 1.21 1353 1.31 1417 1.41 1478 1.52
2000 880 0.86 963 0.94 1042 1.02 1119 1.11 1193 1.19 1263 1.29 1331 1.39 1397 1.49 1460 1.59 1522 1.70
2200 926 1.08 1009 1.16 1089 1.24 1166 1.33 1239 1.41 1310 1.51 1378 1.61 1444 1.71 1507 1.82 1568 1.92
2400 976 1.35 1059 1.42 1138 1.51 1215 1.59 1289 1.68 1359 1.77 1428 1.88 1493 1.97 1557 2.08 1618 2.19
2600 10281.6611111.7311901.8012671.9013401.9814112.0814792.1815452.2816082.39 -
XN036 - 060 (3-5 Ton Direct Drive) Side Duct
UNIT
TONNAGE MOTOR1
SPEED
AVAILABLE EXTERNAL STATIC PRESSURE - IWG2
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
33
5 (HI) 1528 320 1485 335 1445 349 1409 363 1370 376 1334 390 1292 403 1254 417 1213 430
4 (MED/HI) 1437 263 1391 276 1349 290 1308 303 1265 316 1220 329 1173 343 1119 358 1048 374
3 (MED) 1293 208 1248 221 1205 234 1160 246 1113 258 1065 272 1001 288 934 303 892 313
2 (MED/LOW) 1191 171 1144 183 1096 195 1045 207 991 220 925 235 865 248 - - - -
1 (LOW) 1044 130 963 134 903 145 833 158 - - - - - - - - - -
43
5 (HI) - - 2007 696 1968 714 1933 734 1896 749 1855 764 1806 769 1719 743 1574 685
4 (MED/HI) 1857 539 1822 557 1786 571 1746 585 1713 602 1671 619 1628 638 1574 657 1500 676
3 (MED) 1672 408 1633 426 1586 438 1550 455 1509 472 1462 490 1408 505 1363 521 1330 536
2 (MED/LOW) 1475 321 1435 335 1388 352 1359 362 1319 376 1271 393 1220 411 1186 422 1142 437
1 (LOW) 1293 223 1252 237 1196 247 - - - - - - - - - - - -
53
5 (HI) 2245 883 2247 931 2236 950 2211 964 2171 979 2114 971 2034 940 1948 898 1855 854
4 (MED/HI) 2135 771 2116 784 2108 808 2078 826 2041 844 2004 859 1955 861 1886 843 1792 806
3 (MED) 2010 637 1989 656 1975 675 1938 696 1900 715 1867 730 1822 740 1784 756 1716 748
2 (MED/LOW) 1857 539 1822 557 1786 571 1746 585 1713 602 1671 619 1628 638 1574 657 1500 676
1 (LOW) 1293 223 1252 237 1196 247 - - - - - - - - - - - -
1. Factory set on medium speed tap.
2. Includes allowances for a wet evaporator coil and 1” filters. Refer to STATIC RESISTANCES Table for resistance values.
3. Side Duct application (230 Volts)
XP036 (3 Ton Belt Drive) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
4. Field Supplied Drive.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option HIgh Static Drive Option
800 678 0.37 761 0.44 840 0.52 917 0.60 991 0.69 1062 0.77 1130 0.87 1195 0.96 1259 1.06 1320 1.17
1000 699 0.42 782 0.49 862 0.56 939 0.64 1012 0.73 1083 0.82 1151 0.91 1217 1.01 1280 1.11 1341 1.21
1200 727 0.45 810 0.52 889 0.60 966 0.68 1040 0.76 1110 0.85 1179 0.95 1244 1.04 1308 1.14 1369 1.24
1400 759 0.51 842 0.58 922 0.65 998 0.73 1072 0.82 1143 0.91 1211 1.00 1276 1.10 1340 1.20 1401 1.30
1600 795 0.60 878 0.67 958 0.74 1035 0.82 1108 0.91 1179 1.00 1247 1.09 1313 1.19 1376 1.28 1438 1.39
FS4
251933-YTG-X-0615
78 Johnson Controls Unitary Products
XP048 (4 Ton Belt Drive) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option HIgh Static Drive Option
1000 699 0.42 782 0.49 862 0.56 939 0.64 1012 0.73 1083 0.82 1151 0.91 1217 1.01 1280 1.11 1341 1.21
1200 727 0.45 810 0.52 889 0.60 966 0.68 1040 0.76 1110 0.85 1179 0.95 1244 1.04 1308 1.14 1369 1.24
1400 759 0.51 842 0.58 922 0.65 998 0.73 1072 0.82 1143 0.91 1211 1.00 1276 1.10 1340 1.20 1401 1.30
1600 795 0.60 878 0.67 958 0.74 1035 0.82 1108 0.91 1179 1.00 1247 1.09 1313 1.19 1376 1.28 1438 1.39
1800 836 0.72 919 0.79 999 0.87 1075 0.95 1149 1.03 1220 1.12 1288 1.22 1353 1.31 1417 1.41 1478 1.51
2000 880 0.89 963 0.96 1042 1.04 1119 1.12 1193 1.20 1263 1.29 1331 1.39 1397 1.48 1460 1.58 1522 1.68
XP060 (5 Ton Belt Drive) Side Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option HIgh Static Drive Option
1200 727 0.45 810 0.52 889 0.60 966 0.68 1040 0.76 1110 0.85 1179 0.95 1244 1.04 1308 1.14 1369 1.24
1400 759 0.51 842 0.58 922 0.65 998 0.73 1072 0.82 1143 0.91 1211 1.00 1276 1.10 1340 1.20 1401 1.30
1600 795 0.60 878 0.67 958 0.74 1035 0.82 1108 0.91 1179 1.00 1247 1.09 1313 1.19 1376 1.28 1438 1.39
1800 836 0.72 919 0.79 999 0.87 1075 0.95 1149 1.03 1220 1.12 1288 1.22 1353 1.31 1417 1.41 1478 1.51
2000 880 0.89 963 0.96 1042 1.04 1119 1.12 1193 1.20 1263 1.29 1331 1.39 1397 1.48 1460 1.58 1522 1.68
2200 926 1.10 1009 1.17 1089 1.25 1166 1.33 1239 1.41 1310 1.50 1378 1.60 1444 1.69 1507 1.79 1568 1.89
2400 976 1.35 1059 1.42 1138 1.50 1215 1.58 1289 1.66 1359 1.75 1428 1.85 1493 1.94 1557 2.04 1618 2.14
2600 1028 1.64 1111 1.71 1190 1.78 1267 1.87 1340 1.95 1411 2.04 1479 2.13 1545 2.23 1608 2.33 - -
XP036 - 060 (3-5 Ton Direct Drive) Side Duct
UNIT
TONNAGE MOTOR1
SPEED
1. Factory set on medium speed tap.
AVAILABLE EXTERNAL STATIC PRESSURE - IWG2
2. Includes allowances for a wet evaporator coil and 1” filters. Refer to STATIC RESISTANCES Table for resistance values.
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
33
3. Side Duct application (230 Volts)
5 (HI) 1528 320 1485 335 1445 349 1409 363 1370 376 1334 390 1292 403 1254 417 1213 430
4 (MED/HI) 1437 263 1391 276 1349 290 1308 303 1265 316 1220 329 1173 343 1119 358 1048 374
3 (MED) 1293 208 1248 221 1205 234 1160 246 1113 258 1065 272 1001 288 934 303 892 313
2 (MED/LOW) 1191 171 1144 183 1096 195 1045 207 991 220 925 235 865 248 - - - -
1 (LOW) 1044 130 963 134 903 145 833 158 - - - - - - - - - -
43
5 (HI) - - 2007 696 1968 714 1933 734 1896 749 1855 764 1806 769 1719 743 1574 685
4 (MED/HI) 1857 539 1822 557 1786 571 1746 585 1713 602 1671 619 1628 638 1574 653 1500 639
3 (MED) 1672 408 1633 426 1586 438 1550 455 1509 472 1462 490 1408 505 1363 521 1330 536
2 (MED/LOW) 1574 362 1534 380 1487 391 1458 406 1418 423 1370 440 1319 455 1285 469 1241 485
1 (LOW) 1293 223 1252 237 1196 247 - - - - - - - - - - - -
53
5 (HI) 2245 883 2247 931 2236 950 2211 964 2171 979 2114 971 2034 940 1948 898 1855 854
4 (MED/HI) 2135 771 2116 784 2108 808 2078 826 2041 844 2004 859 1955 861 1886 843 1792 806
3 (MED) 2010 637 1989 656 1975 675 1938 696 1900 715 1867 730 1822 740 1784 756 1716 748
2 (MED/LOW) 1748 413 1704 432 1669 451 1631 468 1589 479 1551 497 1513 513 1465 523 - -
1 (LOW) 1562 327 1529 339 1491 356 - - - - - - - - - - - -
251933-YTG-X-0615
Johnson Controls Unitary Products 79
XN036-060 Bottom Duct Application
XN036 (3 Ton Belt Drive) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive
800 661 0.33 751 0.40 838 0.48 922 0.57 1002 0.65 1079 0.75 1153 0.84 1225 0.94 1294 1.04 1361 1.15
1000 685 0.38 775 0.45 862 0.52 945 0.61 1025 0.69 1103 0.79 1177 0.88 1248 0.98 1317 1.08 1384 1.19
1200 714 0.41 805 0.48 892 0.56 975 0.64 1055 0.73 1132 0.82 1207 0.92 1278 1.02 1347 1.12 1414 1.22
1400 749 0.47 840 0.53 927 0.62 1010 0.70 1090 0.79 1167 0.88 1242 0.98 1313 1.07 1382 1.18 1449 1.29
1600 789 0.56 880 0.63 967 0.70 1050 0.79 1130 0.88 1207 0.97 1282 1.06 1353 1.17 1422 1.26 1489 1.37
FS4
XN048 (4 Ton Belt Drive) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive
1200 714 0.41 805 0.48 892 0.56 975 0.64 1055 0.73 1132 0.82 1207 0.92 1278 1.02 1347 1.12 1414 1.22
1400 749 0.47 840 0.53 927 0.62 1010 0.70 1090 0.79 1167 0.88 1242 0.98 1313 1.07 1382 1.18 1449 1.29
1600 789 0.56 880 0.63 967 0.70 1050 0.79 1130 0.88 1207 0.97 1282 1.06 1353 1.17 1422 1.26 1489 1.37
1800 833 0.69 924 0.77 1011 0.84 1094 0.93 1174 1.01 1251 1.11 1326 1.20 1397 1.30 1466 1.40 1533 1.51
2000 881 0.86 971 0.94 1058 1.01 1142 1.10 1222 1.19 1299 1.28 1373 1.37 1445 1.48 1514 1.58 1580 1.68
FS4
XN060 (5 Ton Belt Drive) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive
1200 714 0.41 805 0.48 892 0.56 975 0.64 1055 0.73 1132 0.82 1207 0.92 1278 1.02 1347 1.12 1414 1.22
1400 749 0.47 840 0.53 927 0.62 1010 0.70 1090 0.79 1167 0.88 1242 0.98 1313 1.07 1382 1.18 1449 1.29
1600 789 0.56 880 0.63 967 0.70 1050 0.79 1130 0.88 1207 0.97 1282 1.06 1353 1.17 1422 1.26 1489 1.37
1800 833 0.69 924 0.77 1011 0.84 1094 0.93 1174 1.01 1251 1.11 1326 1.20 1397 1.30 1466 1.40 1533 1.51
2000 881 0.86 971 0.94 1058 1.01 1142 1.10 1222 1.19 1299 1.28 1373 1.37 1445 1.48 1514 1.58 1580 1.68
2200 932 1.08 1022 1.16 1109 1.23 1193 1.32 1273 1.40 1350 1.50 1424 1.59 1496 1.69 1565 1.79 1631 1.90
2400 986 1.34 1076 1.41 1163 1.49 1246 1.57 1327 1.66 1404 1.75 1478 1.85 1550 1.95 1619 2.05 1685 2.15
2600 1042 1.64 1132 1.71 1219 1.78 1303 1.87 1383 1.95 1460 2.05 1534 2.14 1606 2.25 1675 2.34 FS4-
251933-YTG-X-0615
80 Johnson Controls Unitary Products
XP036-060 Bottom Duct Application
XN036 - 060 (3-5 Ton Direct Drive) Bottom Duct
UNIT
TONNAGE MOTOR1
SPEED
1. Factory set on medium speed tap.
AVAILABLE EXTERNAL STATIC PRESSURE - IWG2
2. Includes allowances for a wet evaporator coil and 1” filters. Refer to STATIC RESISTANCES Table for resistance values.
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
33
3. Bottom Duct application (230 Volts)
5 (HI) 1476 320 1435 335 1396 349 1361 363 1324 376 1289 390 1249 403 1212 417 1172 430
4 (MED/HI) 1388 263 1344 276 1303 290 1264 303 1222 316 1179 329 1134 343 1082 358 1013 374
3 (MED) 1250 208 1206 221 1164 234 1121 246 1076 258 1029 272 968 288 903 303 863 313
2 (MED/LOW) 1151 171 1105 183 1060 195 1010 207 958 220 895 235 - - - - - -
1 (LOW) 1009 130 932 134 874 145 - - - - - - - - - - - -
43
5 (HI) 1975 636 1937 696 1900 714 1866 734 1831 749 1791 764 1743 769 1660 743 1520 685
4 (MED/HI) 1793 539 1759 557 1724 571 1685 585 1654 602 1613 619 1572 638 1520 657 1449 676
3 (MED) 1614 408 1577 426 1532 438 1497 455 1458 472 1412 490 1360 505 1317 521 1285 536
2 (MED/LOW) 1450 321 1384 335 1338 352 1311 362 1274 376 1226 393 1177 411 1144 422 1098 437
1 (LOW) 1250 223 1210 237 1156 247 - - - - - - - - - - - -
53
5 (HI) 2166 883 2169 931 2158 950 2134 964 2095 979 2040 971 1963 940 1881 898 1791 854
4 (MED/HI) 2060 771 2042 784 2035 808 2006 826 1970 844 1934 859 1888 861 1821 843 1730 806
3 (MED) 1940 637 1920 656 1907 675 1870 696 1834 715 1802 730 1759 740 1722 756 1657 748
2 (MED/LOW) 1830 413 1759 432 1724 451 1685 468 1654 479 1613 497 1572 513 - - - -
1 (LOW) 1250 327 1210 339 - -
XP036 (3 Ton Belt Drive) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
800 661 0.39 751 0.45 838 0.53 922 0.61 1002 0.69 1079 0.78 1153 0.87 1225 0.96 1294 1.06 1361 1.16
1000 685 0.43 775 0.50 862 0.57 945 0.65 1025 0.73 1103 0.82 1177 0.91 1248 1.00 1317 1.10 1384 1.20
1200 714 0.46 805 0.53 892 0.60 975 0.68 1055 0.76 1132 0.85 1207 0.94 1278 1.04 1347 1.13 1414 1.23
1400 749 0.52 840 0.58 927 0.66 1010 0.74 1090 0.82 1167 0.91 1242 1.00 1313 1.09 1382 1.19 1449 1.29
1600 789 0.60 880 0.67 967 0.74 1050 0.82 1130 0.91 1207 0.99 1282 1.08 1353 1.18 1422 1.27 1489 1.37
Field Supplied Drive
XP048 (4 Ton Belt Drive) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
4. Field Supplied Drive.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
1000 685 0.43 775 0.50 862 0.57 945 0.65 1025 0.73 1103 0.82 1177 0.91 1248 1.00 1317 1.10 1384 1.20
1200 714 0.46 805 0.53 892 0.60 975 0.68 1055 0.76 1132 0.85 1207 0.94 1278 1.04 1347 1.13 1414 1.23
1400 749 0.52 840 0.58 927 0.66 1010 0.74 1090 0.82 1167 0.91 1242 1.00 1313 1.09 1382 1.19 1449 1.29
1600 789 0.60 880 0.67 967 0.74 1050 0.82 1130 0.91 1207 0.99 1282 1.08 1353 1.18 1422 1.27 1489 1.37
1800 833 0.73 924 0.80 1011 0.87 1094 0.95 1174 1.03 1251 1.12 1326 1.21 1397 1.30 1466 1.40 1533 1.50
2000 881 0.89 971 0.96 1058 1.03 1142 1.11 1222 1.20 1299 1.28 1373 1.37 1445 1.47 1514 1.57 1580 1.66
FS4
251933-YTG-X-0615
Johnson Controls Unitary Products 81
XP060 (5 Ton Belt Drive) Bottom Duct
Air Flow
(CFM)
Available External Static Pressure - IWG1
1. Blower performance includes 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option High Static Drive Option
1200 714 0.46 805 0.53 892 0.60 975 0.68 1055 0.76 1132 0.85 1207 0.94 1278 1.04 1347 1.13 1414 1.23
1400 749 0.52 840 0.58 927 0.66 1010 0.74 1090 0.82 1167 0.91 1242 1.00 1313 1.09 1382 1.19 1449 1.29
1600 789 0.60 880 0.67 967 0.74 1050 0.82 1130 0.91 1207 0.99 1282 1.08 1353 1.18 1422 1.27 1489 1.37
1800 833 0.73 924 0.80 1011 0.87 1094 0.95 1174 1.03 1251 1.12 1326 1.21 1397 1.30 1466 1.40 1533 1.50
2000 881 0.89 971 0.96 1058 1.03 1142 1.11 1222 1.20 1299 1.28 1373 1.37 1445 1.47 1514 1.57 1580 1.66
2200 932 1.10 1022 1.17 1109 1.24 1193 1.32 1273 1.40 1350 1.49 1424 1.58 1496 1.67 1565 1.77 1631 1.87
2400 986 1.34 1076 1.41 1163 1.48 1246 1.56 1327 1.64 1404 1.73 1478 1.82 1550 1.92 1619 2.01 1685 2.11
2600 1042 1.62 1132 1.69 1219 1.76 1303 1.84 1383 1.92 1460 2.01 1534 2.10 1606 2.20 1675 2.29 - -
Field Supplied Drive
XP036 - 060 (3-5 Ton Direct Drive) Bottom Duct
UNIT
TONNAGE MOTOR1
SPEED
1. Factory set on medium speed tap.
AVAILABLE EXTERNAL STATIC PRESSURE - IWG2
2. Includes allowances for a wet evaporator coil and 1” filters. Refer to STATIC RESISTANCES Table for resistance values.
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
CFM
WATTS
33
3. Bottom Duct application (230 Volts)
5 (HI) 1476 320 1435 335 1396 349 1361 363 1324 376 1289 390 1249 403 1212 417 1172 430
4 (MED/HI) 1388 263 1344 276 1303 290 1264 303 1222 316 1179 329 1134 343 1082 358 1013 374
3 (MED) 1250 208 1206 221 1164 234 1121 246 1076 258 1029 272 968 288 903 303 863 313
2 (MED/LOW) 1151 171 1105 183 1060 195 1010 207 958 220 895 235 - - - - - -
1 (LOW) 1009 130 932 134 874 145 - - - - - - - - - - - -
43
5 (HI) 1975 636 1937 696 1900 714 1866 734 1831 749 1791 764 1743 769 1660 743 1520 685
4 (MED/HI) 1793 539 1759 557 1724 571 1685 585 1654 602 1613 619 1572 638 1520 653 1449 639
3 (MED) 1614 408 1577 426 1532 438 1497 455 1458 472 1412 490 1360 505 1317 521 1285 536
2 (MED/LOW) 1520 362 1481 380 1437 391 1408 406 1370 423 1324 440 1274 455 1242 469 1199 485
1 (LOW) 1250 223 1210 237 1156 247 - - - - - - - - - - - -
53
5 (HI) 2166 883 2169 931 2158 950 2134 964 2095 979 2040 971 1963 940 1881 898 1791 854
4 (MED/HI) 2060 771 2042 784 2035 808 2006 826 1970 844 1934 859 1888 861 1821 843 1730 806
3 (MED) 1940 637 1920 656 1907 675 1870 696 1834 715 1802 730 1759 740 1722 756 1657 748
2 (MED/LOW) 1688 413 1645 432 1611 451 1575 468 1534 479 1498 497 1461 513 - - - -
1 (LOW) 1509 327 1477 339 - - - - - - - - - - - - - -
251933-YTG-X-0615
82 Johnson Controls Unitary Products
Belt Drive RPM Selection
Size
(Tons) Model HP Max
BHP Motor
Sheave Blower
Sheave 5 Turns
Open 4 Turns
Open 3 Turns
Open 2 Turns
Open 1 Turn
Open Fully
Closed
036
(3) ZE 1.5 1.73 1VL44 AK64 816 877 933 994 1049 1110
1.5 1.73 1VP56 AK66 1131 1186 1242 1298 1354 1409
048
(4) ZE 1.5 1.73 1VL44 AK56 943 1009 1075 1146 1212 1278
1.5 1.73 1VP56 AK61 1227 1288 1349 1409 1475 1536
060
(5) ZE 1.5 1.73 1VL44 AK56 943 1009 1075 1146 1212 1278
2 2.3 1VP56 AK56 1343 1414 1480 1546 1612 1683
036
(3) ZF/ZR 1.5 1.73 1VL44 AK64 805 865 920 980 1035 1095
1.5 1.73 1VP56 AK66 1115 1170 1225 1280 1335 1390
048
(4) ZF/ZR 1.5 1.73 1VL44 AK56 930 995 1060 1130 1195 1260
1.5 1.73 1VP56 AK61 1210 1270 1330 1390 1455 1515
060
(5) ZF/ZR 1.5 1.73 1VL44 AK56 930 995 1060 1130 1195 1260
2 2.3 1VP56 AK56 1325 1395 1460 1525 1590 1660
072
(6) ZF 1.5 1.73 1VL44 AK56 930 995 1060 1130 1195 1260
3 3.45 1VP56 AK56 1325 1395 1460 1525 1590 1660
036
(3) XN 1.5 1.73 1VL44 AK64 816 877 933 994 1049 1110
1.5 1.73 1VP56 AK66 1131 1186 1242 1298 1354 1409
048
(4) XN 1.5 1.73 1VL44 AK56 943 1009 1075 1146 1212 1278
1.5 1.73 1VP56 AK61 1227 1288 1349 1409 1475 1536
060
(5) XN 1.5 1.73 1VL44 AK56 943 1009 1075 1146 1212 1278
2 2.3 1VP56 AK56 1343 1414 1480 1546 1612 1683
036
(3) XP 1.5 1.73 1VL44 AK64 805 865 920 980 1035 1095
1.5 1.73 1VP56 AK66 1115 1170 1225 1280 1335 1390
048
(4) XP 1.5 1.73 1VL44 AK56 930 995 1060 1130 1195 1260
1.5 1.73 1VP56 AK61 1210 1270 1330 1390 1455 1515
060
(5) XP 1.5 1.73 1VL44 AK56 930 995 1060 1130 1195 1260
2 2.3 1VP56 AK56 1325 1395 1460 1525 1590 1660
Additional Static Resistance
Size
(Tons) CFM Cooling Only1
1. Add these values to the available static resistance in the respective Blower Performance
Tables (ZF, ZR Only).
Economizer2 3
2. Deduct these values from the available external static pressure shown in the respective
Blower Performance Tables.
3. The pressure drop through the economizer is greater for 100% outdoor air than for 100%
return air. If the resistance of the return air duct is less than 0.25 IWG, the unit will deliver
less CFM during full economizer operation.
Electric Heat kW2
7 - 15 20 - 30
036 (3.0)
048 (4.0)
060 (5.0)
072 (6.0)
1000 0.08 0.07 0.04 0.06
1200 0.10 0.08 0.05 0.07
1400 0.12 0.09 0.06 0.08
1600 0.14 0.11 0.07 0.09
1800 0.16 0.13 0.08 0.11
2000 0.18 0.15 0.10 0.13
2200 0.20 0.17 0.12 0.15
2400 0.23 0.20 0.14 0.17
2600 0.26 0.23 0.16 0.20
2800 0.29 0.26 0.19 0.23
3000 0.32 0.30 0.22 0.26
251933-YTG-X-0615
Johnson Controls Unitary Products 83
Drive Selection
1. Determine side or bottom supply air duct application.
2. Determine desired airflow.
3. Calculate or measure the amount of external static pressure.
4. Using the operating point determined from steps 1, 2 & 3, locate this point on the appropriate supply air blower performance table. (Linear
interpolation may be necessary.)
5. Noting the RPM and BHP from step 4, locate the appropriate motor and/or drive on the RPM selection table.
6. Review the BHP compared to the motor options available. Select the appropriate motor and/or drive.
7. Review the RPM range for the motor options available. Select the appropriate drive if multiple drives are available for the chosen motor.
8. Determine turns open to obtain the desired operation point.
Example
1. 2200 CFM
2. 1.6 iwg
3. Using the supply air blower performance table below, the following data point was located: 1478 RPM & 1.82 BHP.
4. Using the RPM selection table below, Size X and Model Y is found.
5. 1.82 BHP exceeds the maximum continuous BHP rating of the 1.5 HP motor. The 2 HP motor is required.
6. 1478 RPM is within the range of the 2 HP drive.
7. Using the 2 HP motor and drive, 2.5 turns open will achieve 1478 RPM.
Example Supply Air Blower Performance
Air Flow
(CFM)
Available External Static Pressure - IWG
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied
Drive Standard Drive Option HIgh Static Drive Option
2000 907 1.00 990 1.07 1070 1.15 1146 1.23 1220 1.31 1291 1.40 1359 1.49 1425 1.58 1488 1.68 1550 1.77
2200 960 1.24 1043 1.31 1123 1.39 1199 1.47 1273 1.55 1344 1.64 1412 1.73 1478 1.82 1541 1.92 1602 2.01
2400 1015 1.51 1099 1.59 1178 1.66 1255 1.74 1329 1.83 1400 1.92 1468 2.01 1534 2.10 1597 2.19 1658 2.29
2600 1074 1.83 1157 1.90 1237 1.98 1314 2.06 1387 2.14 1458 2.23 - - - - - - - -
Table X: RPM Selection
Size
(Tons) Model HP Max
BHP Motor
Sheave Blower
Sheave 5 Turns
Open 4 Turns
Open 3 Turns
Open 2 Turns
Open 1 Turn
Open Fully
Closed
XY
1.5 1.73 1VL44 AK56 930 995 1060 1130 1195 1260
2 2.3 1VP56 AK56 1325 1395 1460 1525 1590 1660
251933-YTG-X-0615
84 Johnson Controls Unitary Products
Altitude/Temperature Correction Factors
Air
Temp. Altitude (Ft.)
0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000
40 1.060 1.022 0.986 0.950 0.916 0.882 0.849 0.818 0.788 0.758 0.729
50 1.039 1.002 0.966 0.931 0.898 0.864 0.832 0.802 0.772 0.743 0.715
60 1.019 0.982 0.948 0.913 0.880 0.848 0.816 0.787 0.757 0.729 0.701
70 1.000 0.964 0.930 0.896 0.864 0.832 0.801 0.772 0.743 0.715 0.688
80 0.982 0.947 0.913 0.880 0.848 0.817 0.787 0.758 0.730 0.702 0.676
90 0.964 0.929 0.897 0.864 0.833 0.802 0.772 0.744 0.716 0.689 0.663
100 0.946 0.912 0.880 0.848 0.817 0.787 0.758 0.730 0.703 0.676 0.651
0.600
0.650
0.700
0.750
0.800
0.850
0.900
0.950
1.000
1.050
1.100
40 50 60 70 80 90 100
Air Temperature (ºF)
Correction Factor
Sea Level
1000 ft
2000 ft
3000 ft
4000 ft
6000 ft
7000 ft
8000 ft
9000 ft
10000 ft
5000 ft
251933-YTG-X-0615
Johnson Controls Unitary Products 85
Electric Heat Minimum Supply Air
Size
(Tons) Voltage
Minimum Supply Air (CFM)
Heater kW
5 7 10 15 20 30
036
(3.0)
208/230-1-60 900 900 900 900 900 -
208/230-3-60 900 900 900 900 900 -
460-3-60 - 900 900 900 900 -
600-3-60 - - 900 900 900 -
048
(4.0)
208/230-1-60 1200 1200 1200 1200 1200 -
208/230-3-60 1200 1200 1200 1200 1200 -
460-3-60 - 1200 1200 1200 1200 -
600-3-60 - - 1200 1200 1200 -
060
(5.0)
208/230-1-60 1500 1500 1500 1500 1500 1500
208/230-3-60 1500 1500 1500 1500 1500 1500
460-3-60 - 1500 1500 1500 1500 1500
600-3-60 - - 1500 1500 1500 1500
072
(6.0)
208/230-3-60 1500 1500 1500 1500 1500 1500
460-3-60 - 1500 1500 1500 1500 1500
600-3-60 - - 1500 1500 1500 1500
Indoor Blower Specifications (Belt Drive)
Size
(Tons)
Motor Motor Sheave Blower Sheave Belt
HP RPM Eff. SF Frame Datum Dia.
(in.) Bore (in.) Model Datum Dia.
(in.) Bore (in.) Model
036
(3.0)
1-1/2 1725 0.8 1.15 56 2.8 - 3.8 7/8 1VL44 6.0 1 AK64 A37
1-1/2 1725 0.8 1.15 56 4.0 - 5.0 7/8 1VP56 6.2 1 AK66 A39
048
(4.0)
1-1/2 1725 0.8 1.15 56 2.8 - 3.8 7/8 1VL44 5.2 1 AK56 A36
1-1/2 1725 0.8 1.15 56 4.0 - 5.0 7/8 1VP56 5.7 1 AK61 A38
060
(5.0)
1-1/2 1725 0.8 1.15 56 2.8 - 3.8 7/8 1VL44 5.2 1 AK56 A36
2 1725 0.8 1.15 56 4.0 - 5.0 7/8 1VP56 5.2 1 AK56 A38
072
(6.0)
1-1/2 1725 0.8 1.15 56 2.8 - 3.8 7/8 1VL44 5.2 1 AK56 A36
3 1725 0.8 1.15 56 4.0 - 5.0 7/8 1VP56 5.2 1 AK56 A38
Power Exhaust Specifications
Model Voltage Motor Motor Fuse
Size CFM @
0.1 ESP
HP RPM QTY LRA FLA MCA
2PE04703725 208/230-1-60 1/2 17251
1. Motors are multi-tapped and factory wired for high speed.
1 23.7 4.4 5.5 8 1350
2PE04703746 460-1-60 1/2 172511 4.1 1.7 2.1 5 1350
2PE04703758 575-3-60 1/2 1725 1 4.5 0.9 1.1 2 1350
Electric Heat Multipliers
Voltage kW Capacity Multipliers1
1. Electric heaters are rated at nominal voltage. Use this table to determine the electric heat
capacity for heaters applied at lower voltages.
Nominal Applied
240 208 0.75
230 0.92
480 460 0.92
600 575 0.92
251933-YTG-X-0615
86 Johnson Controls Unitary Products
Sound Performance
ZF/ZR/XP Indoor Sound Power Levels
Size
(Tons) CFM ESP
(IWG)
Blower Sound Power, dB (10-12) Watts
Sound Rating1
dB (A)
1. These values have been accessed using a model of sound propagation from a point source into the hemispheric/free field. The
dBA values provided are to be used for reference only. Calculation of dBA values cover matters of system design and the fan
manufacture has no way of knowing the details of each system. This constitutes an exception to any specification or guarantee
requiring a dBA value of sound data in any other form than sound power level ratings.
Octave Band Centerline Frequency (Hz)
RPM BHP 63 125 250 500 1000 2000 4000 8000
036
(3.0) 1200 0.2 630 0.41 63 82 77 59 50 43 42 40 45
048
(4.0) 1600 0.2 791 0.54 72 95 84 58 54 46 44 45 44
060
(5.0) 2000 0.2 840 0.67 62 84 71 58 53 50 49 49 49
072
(6.0) 2200 0.3 920 1.45 76 61 71 68 67 72 66 61 54
ZE/ZF/ZR Outdoor Sound Power Levels
Size
(Tons) Sound Rating1
dB (A)
1. Rated in accordance with AHRI 270 standard.
Octave Band Centerline Frequency (Hz)
63 125 250 500 1000 2000 4000 8000
036
(3.0) 81 87.5 86.0 81.0 77.0 75.0 69.5 65.5 70.5
048
(4.0) 80 84.5 81.0 80.0 78.0 75.0 70.0 67.0 70.5
060
(5.0) 82 86.5 87.5 81.5 77.5 75.0 71.5 68.0 70.5
XN/XP Outdoor Sound Power Levels
Size
(Tons) Sound Rating1
dB (A)
1. Rated in accordance with AHRI 270 standard.
Octave Band Centerline Frequency (Hz)
63 125 250 500 1000 2000 4000 8000
036
(3.0) 76 83.5 84.5 76.5 72.0 68.0 66.0 60.0 56.0
048
(4.0) 80 85.0 83.0 81.0 77.5 75.5 71.5 67.5 61.5
060
(5.0) 80 86.0 84.0 81.0 77.0 75.5 71.0 66.5 60.5
251933-YTG-X-0615
Johnson Controls Unitary Products 87
Electrical Data
Without Powered Convenience Outlet
ZE036-060 (Belt Drive)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3)
208-1-60 15.4 83.9 24 2.3 6.7 0
NONE - - - 28.3 35
E05 4 1 19.2 32.4 40
E07 5.6 1 26.9 42 45
E10 8 1 38.5 56.5 60
E15 11.9 2 57.2 79.9 80
E20 15.9 2 76.4 103.9 110
230-1-60 15.4 83.9 24 2.3 6.7 0
NONE - - - 28.3 35
E05 5.3 1 22.1 36 40
E07 7.5 1 31.2 47.4 50
E10 10.6 1 44.2 63.6 70
E15 15.9 2 66.2 91.2 100
E20 21.2 2 88.3 118.8 125
208-3-60 10.4 73 16.3 2.3 4.3 0
NONE - - - 19.6 25
E05 4 1 11.1 19.6 25
E07 5.6 1 15.5 24.8 30
E10 8 1 22.2 33.1 35
E15 11.9 2 33 46.7 50
E20 15.9 2 44.1 60.5 70
230-3-60 10.4 73 16.3 2.3 4.3 0
NONE - - - 19.6 25
E05 5.3 1 12.7 21.3 30
E07 7.5 1 18 27.9 30
E10 10.6 1 25.5 37.2 40
E15 15.9 2 38.2 53.2 60
E20 21.2 2 51 69.1 70
460-3-60 5.8 38 9 1.3 2.1 0
NONE - - - 10.6 15
E07 6.8 1 8.2 12.8 15
E10 10.1 1 12.1 17.8 20
E15 13.6 2 16.4 23.1 25
E20 19.5 2 23.5 31.9 35
575-3-60 4.2 36.5 5.9 1.3 1.9 0
NONE - - - 8.2 15
E10 10.6 1 10.2 15.1 20
E15 15.9 2 15.3 21.5 25
E20 21.2 2 20.4 27.9 30
251933-YTG-X-0615
88 Johnson Controls Unitary Products
048
(4)
208-1-60 19.6 130 30.5 2.3 6.7 0
NONE - - - 33.5 45
E05 4 1 19.2 33.5 45
E07 5.6 1 26.9 42 50
E10 8 1 38.5 56.5 60
E15 11.9 2 57.2 79.9 80
E20 15.9 2 76.4 103.9 110
230-1-60 19.6 130 30.5 2.3 6.7 0
NONE - - - 33.5 45
E05 5.3 1 22.1 36 45
E07 7.5 1 31.2 47.4 50
E10 10.6 1 44.2 63.6 70
E15 15.9 2 66.2 91.2 100
E20 21.2 2 88.3 118.8 125
208-3-60 13.7 83.1 21.4 2.3 4.3 0
NONE - - - 23.7 30
E05 4 1 11.1 23.7 30
E07 5.6 1 15.5 24.8 30
E10 8 1 22.2 33.1 35
E15 11.9 2 33 46.7 50
E20 15.9 2 44.1 60.5 70
230-3-60 13.7 83.1 21.4 2.3 4.3 0
NONE - - - 23.7 30
E05 5.3 1 12.7 23.7 30
E07 7.5 1 18 27.9 35
E10 10.6 1 25.5 37.2 40
E15 15.9 2 38.2 53.2 60
E20 21.2 2 51 69.1 70
460-3-60 6.2 41 9.7 1.3 2.1 0
NONE - - - 11.1 15
E07 6.8 1 8.2 12.8 15
E10 10.1 1 12.1 17.8 20
E15 13.6 2 16.4 23.1 25
E20 19.5 2 23.5 31.9 35
575-3-60 4.8 33 7.5 1.3 1.9 0
NONE - - - 8.9 15
E10 10.6 1 10.2 15.1 20
E15 15.9 2 15.3 21.5 25
E20 21.2 2 20.4 27.9 30
ZE036-060 (Belt Drive) (Continued)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
Johnson Controls Unitary Products 89
060
(5)
208-1-60 24.4 144.2 38 4.4 6.7 0
NONE - - - 41.6 50
E05 4 1 19.2 41.6 50
E07 5.6 1 26.9 42 60
E10 8 1 38.5 56.5 60
E15 11.9 2 57.2 79.9 80
E20 15.9 2 76.4 103.9 110
E30 22.2 2 106.7 141.8 150
230-1-60 24.4 144.2 38 4.4 6.7 0
NONE - - - 41.6 50
E05 5.3 1 22.1 41.6 50
E07 7.5 1 31.2 47.4 60
E10 10.6 1 44.2 63.6 70
E15 15.9 2 66.2 91.2 100
E20 21.2 2 88.3 118.8 125
E30 29.6 2 123.3 162.5 175
208-3-60 16 110 24.9 4.4 4.3 0
NONE - - - 28.7 35
E05 4 1 11.1 28.7 35
E07 5.6 1 15.5 28.7 35
E10 8 1 22.2 33.1 40
E15 11.9 2 33 46.7 50
E20 15.9 2 44.1 60.5 70
E30 22.2 2 61.6 82.4 90
230-3-60 16 110 24.9 4.4 4.3 0
NONE - - - 28.7 35
E05 5.3 1 12.7 28.7 35
E07 7.5 1 18 28.7 35
E10 10.6 1 25.5 37.2 40
E15 15.9 2 38.2 53.2 60
E20 21.2 2 51 69.1 70
E30 29.6 2 71.2 94.4 100
460-3-60 7.8 52 12.1 4.4 2.1 0
NONE - - - 14.1 20
E07 6.8 1 8.2 14.1 20
E10 10.1 1 12.1 17.8 20
E15 13.6 2 16.4 23.1 25
E20 19.5 2 23.5 31.9 35
E30 28.8 2 34.6 45.9 50
575-3-60 5.7 38.9 8.9 4.4 1.9 0
NONE - - - 10.8 15
E10 10.6 1 10.2 15.1 20
E15 15.9 2 15.3 21.5 25
E20 21.2 2 20.4 27.9 30
E30 30.4 2 29.3 38.9 40
1. Minimum Circuit Ampacity.
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
ZE036-060 (Belt Drive) (Continued)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
90 Johnson Controls Unitary Products
ZE036-060 (Belt Drive High Static)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3)
208-1-60 15.4 83.9 24 2.3 6.7 0
NONE - - - 28.3 35
E05 4 1 19.2 32.4 40
E07 5.6 1 26.9 42 45
E10 8 1 38.5 56.5 60
E15 11.9 2 57.2 79.9 80
E20 15.9 2 76.4 103.9 110
230-1-60 15.4 83.9 24 2.3 6.7 0
NONE - - - 28.3 35
E05 5.3 1 22.1 36 40
E07 7.5 1 31.2 47.4 50
E10 10.6 1 44.2 63.6 70
E15 15.9 2 66.2 91.2 100
E20 21.2 2 88.3 118.8 125
208-3-60 10.4 73 16.3 2.3 4.3 0
NONE - - - 19.6 25
E05 4 1 11.1 19.6 25
E07 5.6 1 15.5 24.8 30
E10 8 1 22.2 33.1 35
E15 11.9 2 33 46.7 50
E20 15.9 2 44.1 60.5 70
230-3-60 10.4 73 16.3 2.3 4.3 0
NONE - - - 19.6 25
E05 5.3 1 12.7 21.3 30
E07 7.5 1 18 27.9 30
E10 10.6 1 25.5 37.2 40
E15 15.9 2 38.2 53.2 60
E20 21.2 2 51 69.1 70
460-3-60 5.8 38 9 1.3 2.1 0
NONE - - - 10.6 15
E07 6.8 1 8.2 12.8 15
E10 10.1 1 12.1 17.8 20
E15 13.6 2 16.4 23.1 25
E20 19.5 2 23.5 31.9 35
575-3-60 4.2 36.5 5.9 1.3 1.9 0
NONE - - - 8.2 15
E10 10.6 1 10.2 15.1 20
E15 15.9 2 15.3 21.5 25
E20 21.2 2 20.4 27.9 30
251933-YTG-X-0615
Johnson Controls Unitary Products 91
048
(4)
208-1-60 19.6 130 30.5 2.3 6.7 0
NONE - - - 33.5 45
E05 4 1 19.2 33.5 45
E07 5.6 1 26.9 42 50
E10 8 1 38.5 56.5 60
E15 11.9 2 57.2 79.9 80
E20 15.9 2 76.4 103.9 110
230-1-60 19.6 130 30.5 2.3 6.7 0
NONE - - - 33.5 45
E05 5.3 1 22.1 36 45
E07 7.5 1 31.2 47.4 50
E10 10.6 1 44.2 63.6 70
E15 15.9 2 66.2 91.2 100
E20 21.2 2 88.3 118.8 125
208-3-60 13.7 83.1 21.4 2.3 4.3 0
NONE - - - 23.7 30
E05 4 1 11.1 23.7 30
E07 5.6 1 15.5 24.8 30
E10 8 1 22.2 33.1 35
E15 11.9 2 33 46.7 50
E20 15.9 2 44.1 60.5 70
230-3-60 13.7 83.1 21.4 2.3 4.3 0
NONE - - - 23.7 30
E05 5.3 1 12.7 23.7 30
E07 7.5 1 18 27.9 35
E10 10.6 1 25.5 37.2 40
E15 15.9 2 38.2 53.2 60
E20 21.2 2 51 69.1 70
460-3-60 6.2 41 9.7 1.3 2.1 0
NONE - - - 11.1 15
E07 6.8 1 8.2 12.8 15
E10 10.1 1 12.1 17.8 20
E15 13.6 2 16.4 23.1 25
E20 19.5 2 23.5 31.9 35
575-3-60 4.8 33 7.5 1.3 1.9 0
NONE - - - 8.9 15
E10 10.6 1 10.2 15.1 20
E15 15.9 2 15.3 21.5 25
E20 21.2 2 20.4 27.9 30
060
(5)
208-3-60 16 110 24.9 4.4 6.8 0
NONE - - - 31.2 40
E05 4 1 11.1 31.2 40
E07 5.6 1 15.5 31.2 40
E10 8 1 22.2 36.3 45
E15 11.9 2 33 49.8 50
E20 15.9 2 44.1 63.7 70
E30 22.2 2 61.6 85.5 90
230-3-60 16 110 24.9 4.4 6.8 0
NONE - - - 31.2 40
E05 5.3 1 12.7 31.2 40
E07 7.5 1 18 31.2 40
E10 10.6 1 25.5 40.4 45
E15 15.9 2 38.2 56.3 60
E20 21.2 2 51 72.2 80
E30 29.6 2 71.2 97.5 100
460-3-60 7.8 52 12.1 4.4 3.15 0
NONE - - - 15.1 20
E07 6.8 1 8.2 15.1 20
E10 10.1 1 12.1 19.1 20
E15 13.6 2 16.4 24.4 25
E20 19.5 2 23.5 33.3 35
E30 28.8 2 34.6 47.2 50
575-3-60 5.7 38.9 8.9 4.4 2.2 0
NONE - - - 11.1 15
E10 10.6 1 10.2 15.5 20
E15 15.9 2 15.3 21.9 25
E20 21.2 2 20.4 28.2 30
E30 30.4 2 29.3 39.3 40
1. Minimum Circuit Ampacity.
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
ZE036-060 (Belt Drive High Static) (Continued)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
92 Johnson Controls Unitary Products
ZE036-060 (Direct Drive)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-1-60 15.4 83.9 24 2.3 6 0
NONE - - - 27.5 35
E05 4 1 19.2 31.5 40
E07 5.6 1 26.9 41.2 45
E10 8 1 38.5 55.6 60
E15 11.9 2 57.2 79 80
E20 15.9 2 76.4 103.1 110
230-1-60 15.4 83.9 24 2.3 6 0
NONE - - - 27.5 35
E05 5.3 1 22.1 35.1 40
E07 7.5 1 31.2 46.6 50
E10 10.6 1 44.2 62.7 70
E15 15.9 2 66.2 90.3 100
E20 21.2 2 88.3 117.9 125
208-3-60 10.4 73 16.3 2.3 6 0
NONE - - - 21.3 30
E05 4 1 11.1 21.4 30
E07 5.6 1 15.5 26.9 30
E10 8 1 22.2 35.3 40
E15 11.9 2 33 48.8 50
E20 15.9 2 44.1 62.7 70
230-3-60 10.4 73 16.3 2.3 6 0
NONE - - - 21.3 30
E05 5.3 1 12.7 23.4 30
E07 7.5 1 18 30.1 35
E10 10.6 1 25.5 39.4 40
E15 15.9 2 38.2 55.3 60
E20 21.2 2 51 71.2 80
048
(4.0)
208-1-60 19.6 130 30.5 2.3 7.6 0
NONE - - - 34.4 45
E05 4 1 19.2 34.4 45
E07 5.6 1 26.9 43.2 50
E10 8 1 38.5 57.6 60
E15 11.9 2 57.2 81 90
E20 15.9 2 76.4 105.1 110
230-1-60 19.6 130 30.5 2.3 7.6 0
NONE - - - 34.4 45
E05 5.3 1 22.1 37.1 45
E07 7.5 1 31.2 48.6 50
E10 10.6 1 44.2 64.7 70
E15 15.9 2 66.2 92.3 100
E20 21.2 2 88.3 119.9 125
208-3-60 13.7 83.1 21.4 2.3 7.6 0
NONE - - - 27 35
E05 4 1 11.1 27 35
E07 5.6 1 15.5 28.9 35
E10 8 1 22.2 37.3 40
E15 11.9 2 33 50.8 60
E20 15.9 2 44.1 64.7 70
230-3-60 13.7 83.1 21.4 2.3 7.6 0
NONE - - - 27 35
E05 5.3 1 12.7 27 35
E07 7.5 1 18 32.1 40
E10 10.6 1 25.5 41.4 45
E15 15.9 2 38.2 57.3 60
E20 21.2 2 51 73.2 80
251933-YTG-X-0615
Johnson Controls Unitary Products 93
060
(5.0)
208-1-60 24.4 144.2 38 4.4 7.6 0
NONE - - - 42.5 60
E05 4 1 19.2 42.5 60
E07 5.6 1 26.9 43.2 60
E10 8 1 38.5 57.6 60
E15 11.9 2 57.2 81 90
E20 15.9 2 76.4 105.1 110
E30 22.2 2 106.7 142.9 150
230-1-60 24.4 144.2 38 4.4 7.6 0
NONE - - - 42.5 60
E05 5.3 1 22.1 42.5 60
E07 7.5 1 31.2 48.6 60
E10 10.6 1 44.2 64.7 70
E15 15.9 2 66.2 92.3 100
E20 21.2 2 88.3 119.9 125
E30 29.6 2 123.3 163.7 175
208-3-60 16 110 24.9 4.4 7.6 0
NONE - - - 32 40
E05 4 1 11.1 32 40
E07 5.6 1 15.5 32 40
E10 8 1 22.2 37.3 45
E15 11.9 2 33 50.8 60
E20 15.9 2 44.1 64.7 70
E30 22.2 2 61.6 86.5 90
230-3-60 16 110 24.9 4.4 7.6 0
NONE - - - 32 40
E05 5.3 1 12.7 32 40
E07 7.5 1 18 32.1 40
E10 10.6 1 25.5 41.4 45
E15 15.9 2 38.2 57.3 60
E20 21.2 2 51 73.2 80
E30 29.6 2 71.2 98.5 100
1. Minimum Circuit Ampacity.
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
ZE036-060 (Direct Drive) (Continued)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
94 Johnson Controls Unitary Products
ZF036-060 (Belt Drive)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 9.1 68 14.2 2.3 5.2 0
NONE - - - 18.9 25
E05 4 1 11.1 20.4 25
E07 5.6 1 15.5 25.9 30
E10 8 1 22.2 34.3 35
E15 11.9 2 33 47.8 50
E20 15.9 2 44.1 61.7 70
230-3-60 9.1 68 14.2 2.3 5.2 0
NONE - - - 18.9 25
E05 5.3 1 12.7 22.4 25
E07 7.5 1 18 29.1 30
E10 10.6 1 25.5 38.4 40
E15 15.9 2 38.2 54.3 60
E20 21.2 2 51 70.2 80
460-3-60 4.5 34 7 1.3 2.6 0
NONE - - - 9.5 15
E07 6.8 1 8.2 13.5 15
E10 10.1 1 12.1 18.4 20
E15 13.6 2 16.4 23.7 25
E20 19.5 2 23.5 32.6 35
575-3-60 3.8 28 6 1.3 2 0
NONE - - - 7.8 15
E10 10.6 1 10.2 15.2 20
E15 15.9 2 15.3 21.6 25
E20 21.2 2 20.4 28 30
048
(4.0)
208-3-60 11.2 88 17.5 2.3 5.2 0
NONE - - - 21.5 30
E05 4 1 11.1 21.5 30
E07 5.6 1 15.5 25.9 30
E10 8 1 22.2 34.3 35
E15 11.9 2 33 47.8 50
E20 15.9 2 44.1 61.7 70
230-3-60 11.2 88 17.5 2.3 5.2 0
NONE - - - 21.5 30
E05 5.3 1 12.7 22.4 30
E07 7.5 1 18 29.1 30
E10 10.6 1 25.5 38.4 40
E15 15.9 2 38.2 54.3 60
E20 21.2 2 51 70.2 80
460-3-60 5.6 44 8 1.3 2.6 0
NONE - - - 10.9 15
E07 6.8 1 8.2 13.5 15
E10 10.1 1 12.1 18.4 20
E15 13.6 2 16.4 23.7 25
E20 19.5 2 23.5 32.6 35
575-3-60 4.5 36 7 1.3 2 0
NONE - - - 8.7 15
E10 10.6 1 10.2 15.2 20
E15 15.9 2 15.3 21.6 25
E20 21.2 2 20.4 28 30
060
(5.0)
208-3-60 14.1 88 22 2.3 5.2 0
NONE - - - 25.1 35
E05 4 1 11.1 25.1 35
E07 5.6 1 15.5 25.9 35
E10 8 1 22.2 34.3 35
E15 11.9 2 33 47.8 50
E20 15.9 2 44.1 61.7 70
E30 22.2 2 61.6 83.5 90
230-3-60 14.1 88 22 2.3 5.2 0
NONE - - - 25.1 35
E05 5.3 1 12.7 25.1 35
E07 7.5 1 18 29.1 35
E10 10.6 1 25.5 38.4 40
E15 15.9 2 38.2 54.3 60
E20 21.2 2 51 70.2 80
E30 29.6 2 71.2 95.5 100
460-3-60 7.7 55 12 1.3 2.6 0
NONE - - - 13.5 20
E07 6.8 1 8.2 13.5 20
E10 10.1 1 12.1 18.4 20
E15 13.6 2 16.4 23.7 25
E20 19.5 2 23.5 32.6 35
E30 28.8 2 34.6 46.6 50
575-3-60 5.1 36 7.5 1.3 2 0
NONE - - - 9.4 15
E10 10.6 1 10.2 15.2 20
E15 15.9 2 15.3 21.6 25
E20 21.2 2 20.4 28 30
E30 30.4 2 29.3 39.1 40
251933-YTG-X-0615
Johnson Controls Unitary Products 95
ZF072 (Belt Drive) Cooling With/Without Electric Heat
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
072
(6.0)
208-3-60 19 123 29.7 4.4 5.2 0
NONE - - - 33.3 45
E05 4 1 11.1 33.3 45
E07 5.6 1 15.5 33.3 45
E10 8 1 22.2 34.3 45
E15 11.9 2 33 47.8 50
E20 15.9 2 44.1 61.7 70
E30 22.2 2 61.6 83.5 90
230-3-60 19 123 29.7 4.4 5.2 0
NONE - - - 33.3 45
E05 5.3 1 12.7 33.3 45
E07 7.5 1 18 33.3 45
E10 10.6 1 25.5 38.4 50
E15 15.9 2 38.2 54.3 60
E20 21.2 2 51 70.2 80
E30 29.6 2 71.2 95.5 100
460-3-60 9.7 62 15.2 4.4 2.6 0
NONE - - - 16.9 25
E07 6.8 1 8.2 16.9 25
E10 10.1 1 12.1 18.4 25
E15 13.6 2 16.4 23.7 25
E20 19.5 2 23.5 32.6 35
E30 28.8 2 34.6 46.6 50
575-3-60 7.4 50 11.6 4.4 2 0
NONE - - - 13 15
E10 10.6 1 10.2 15.2 20
E15 15.9 2 15.3 21.6 25
E20 21.2 2 20.4 28 30
E30 30.4 2 29.3 39.1 40
ZF072 (Belt Drive) Cooling With Gas Heat
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA
072
(6.0)
208-3-60 19 123 29.7 2.3 5.2 0 31.3 40
230-3-60
460-3-60 9.7 62 15.2 1.3 2.6 0 16.0 25
575-3-60 7.4 50 11.6 1.3 2 0 12.3 15
251933-YTG-X-0615
96 Johnson Controls Unitary Products
ZF036-060 (Belt Drive High Static)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 9.1 68 14.2 2.3 5.2 0
NONE - - - 18.9 25
E05 4 1 11.1 20.4 25
E07 5.6 1 15.5 25.9 30
E10 8 1 22.2 34.3 35
E15 11.9 2 33 47.8 50
E20 15.9 2 44.1 61.7 70
230-3-60 9.1 68 14.2 2.3 5.2 0
NONE - - - 18.9 25
E05 5.3 1 12.7 22.4 25
E07 7.5 1 18 29.1 30
E10 10.6 1 25.5 38.4 40
E15 15.9 2 38.2 54.3 60
E20 21.2 2 51 70.2 80
460-3-60 4.5 34 7 1.3 2.6 0
NONE - - - 9.5 15
E07 6.8 1 8.2 13.5 15
E10 10.1 1 12.1 18.4 20
E15 13.6 2 16.4 23.7 25
E20 19.5 2 23.5 32.6 35
575-3-60 3.8 28 6 1.3 2 0
NONE - - - 7.8 15
E10 10.6 1 10.2 15.2 20
E15 15.9 2 15.3 21.6 25
E20 21.2 2 20.4 28 30
048
(4.0)
208-3-60 11.2 88 17.5 2.3 5.2 0
NONE - - - 21.5 30
E05 4 1 11.1 21.5 30
E07 5.6 1 15.5 25.9 30
E10 8 1 22.2 34.3 35
E15 11.9 2 33 47.8 50
E20 15.9 2 44.1 61.7 70
230-3-60 11.2 88 17.5 2.3 5.2 0
NONE - - - 21.5 30
E05 5.3 1 12.7 22.4 30
E07 7.5 1 18 29.1 30
E10 10.6 1 25.5 38.4 40
E15 15.9 2 38.2 54.3 60
E20 21.2 2 51 70.2 80
460-3-60 5.6 44 8 1.3 2.6 0
NONE - - - 10.9 15
E07 6.8 1 8.2 13.5 15
E10 10.1 1 12.1 18.4 20
E15 13.6 2 16.4 23.7 25
E20 19.5 2 23.5 32.6 35
575-3-60 4.5 36 7 1.3 2 0
NONE - - - 8.7 15
E10 10.6 1 10.2 15.2 20
E15 15.9 2 15.3 21.6 25
E20 21.2 2 20.4 28 30
060
(5.0)
208-3-60 14.1 88 22 2.3 6.8 0
NONE - - - 26.7 35
E05 4 1 11.1 26.7 35
E07 5.6 1 15.5 27.9 35
E10 8 1 22.2 36.3 40
E15 11.9 2 33 49.8 50
E20 15.9 2 44.1 63.7 70
E30 22.2 2 61.6 85.5 90
230-3-60 14.1 88 22 2.3 6.8 0
NONE - - - 26.7 35
E05 5.3 1 12.7 26.7 35
E07 7.5 1 18 31.1 40
E10 10.6 1 25.5 40.4 45
E15 15.9 2 38.2 56.3 60
E20 21.2 2 51 72.2 80
E30 29.6 2 71.2 97.5 100
460-3-60 7.7 55 12 1.3 3.4 0
NONE - - - 14.3 20
E07 6.8 1 8.2 14.5 20
E10 10.1 1 12.1 19.4 20
E15 13.6 2 16.4 24.7 25
E20 19.5 2 23.5 33.6 35
E30 28.8 2 34.6 47.6 50
575-3-60 5.1 36 7.5 1.3 2.4 0
NONE - - - 9.8 15
E10 10.6 1 10.2 15.7 20
E15 15.9 2 15.3 22.1 25
E20 21.2 2 20.4 28.5 30
E30 30.4 2 29.3 39.6 40
1. Minimum Circuit Ampacity.
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
251933-YTG-X-0615
Johnson Controls Unitary Products 97
ZF072 (Belt Drive High Static) Cooling With/Without Electric Heat
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
072
(6.0)
208-3-60 19 123 29.7 4.4 9.6 0
NONE - - - 37.8 50
E05 4 1 11.1 37.8 50
E07 5.6 1 15.5 37.8 50
E10 8 1 22.2 39.8 50
E15 11.9 2 33 53.3 60
E20 15.9 2 44.1 67.2 70
E30 22.2 2 61.6 89 90
230-3-60 19 123 29.7 4.4 9.6 0
NONE - - - 37.8 50
E05 5.3 1 12.7 37.8 50
E07 7.5 1 18 37.8 50
E10 10.6 1 25.5 43.9 50
E15 15.9 2 38.2 59.8 60
E20 21.2 2 51 75.7 80
E30 29.6 2 71.2 101 110
460-3-60 9.7 62 15.2 4.4 4.7 0
NONE - - - 19 25
E07 6.8 1 8.2 19 25
E10 10.1 1 12.1 21.1 25
E15 13.6 2 16.4 26.3 30
E20 19.5 2 23.5 35.2 40
E30 28.8 2 34.6 49.2 50
575-3-60 7.4 50 11.6 4.4 3.6 0
NONE - - - 14.6 20
E10 10.6 1 10.2 17.2 20
E15 15.9 2 15.3 23.6 25
E20 21.2 2 20.4 30 30
E30 30.4 2 29.3 41.1 45
ZF072 (Belt Drive High Static) Cooling With Gas Heat
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA
072
(6.0)
208-3-60 19 123 29.7 2.3 9.6 0 35.7 45
230-3-60
460-3-60 9.7 62 15.2 1.3 4.7 0 18.1 25
575-3-60 7.4 50 11.6 1.3 3.6 0 13.9 20
251933-YTG-X-0615
98 Johnson Controls Unitary Products
ZF036-060 (Direct Drive)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 9.1 68 14.2 2.3 6 0
NONE - - - 19.7 25
E05 4 1 11.1 21.4 25
E07 5.6 1 15.5 26.9 30
E10 8 1 22.2 35.3 40
E15 11.9 2 33 48.8 50
E20 15.9 2 44.1 62.7 70
230-3-60 9.1 68 14.2 2.3 6 0
NONE - - - 19.7 25
E05 5.3 1 12.7 23.4 25
E07 7.5 1 18 30.1 35
E10 10.6 1 25.5 39.4 40
E15 15.9 2 38.2 55.3 60
E20 21.2 2 51 71.2 80
048
(4.0)
208-3-60 11.2 88 17.5 2.3 7.6 0
NONE - - - 23.9 30
E05 4 1 11.1 23.9 30
E07 5.6 1 15.5 28.9 35
E10 8 1 22.2 37.3 40
E15 11.9 2 33 50.8 60
E20 15.9 2 44.1 64.7 70
230-3-60 11.2 88 17.5 2.3 7.6 0
NONE - - - 23.9 30
E05 5.3 1 12.7 25.4 35
E07 7.5 1 18 32.1 35
E10 10.6 1 25.5 41.4 45
E15 15.9 2 38.2 57.3 60
E20 21.2 2 51 73.2 80
060
(5.0)
208-3-60 14.1 88 22 2.3 7.6 0
NONE - - - 27.5 35
E05 4 1 11.1 27.5 35
E07 5.6 1 15.5 28.9 35
E10 8 1 22.2 37.3 40
E15 11.9 2 33 50.8 60
E20 15.9 2 44.1 64.7 70
E30 22.2 2 61.6 86.5 90
230-3-60 14.1 88 22 2.3 7.6 0
NONE - - - 27.5 35
E05 5.3 1 12.7 27.5 35
E07 7.5 1 18 32.1 40
E10 10.6 1 25.5 41.4 45
E15 15.9 2 38.2 57.3 60
E20 21.2 2 51 73.2 80
E30 29.6 2 71.2 98.5 100
251933-YTG-X-0615
Johnson Controls Unitary Products 99
ZF072 (Direct Drive) Cooling With/Without Electric Heat
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
072
(6.0)
208-3-60 19 123 29.7 4.4 7.6 0
NONE - - - 35.8 50
E05 4 1 11.1 35.8 50
E07 5.6 1 15.5 35.8 50
E10 8 1 22.2 37.3 50
E15 11.9 2 33 50.8 60
E20 15.9 2 44.1 64.7 70
E30 22.2 2 61.6 86.5 90
230-3-60 19 123 29.7 4.4 7.6 0
NONE - - - 35.8 50
E05 5.3 1 12.7 35.8 50
E07 7.5 1 18 35.8 50
E10 10.6 1 25.5 41.4 50
E15 15.9 2 38.2 57.3 60
E20 21.2 2 51 73.2 80
E30 29.6 2 71.2 98.5 100
ZF072 (Direct Drive) Cooling With Gas Heat
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA
072
(6.0) 208-3-60 19 123 29.7 2.3 7.6 0 33.7 45
230-3-60
251933-YTG-X-0615
100 Johnson Controls Unitary Products
ZR036-060 (Belt Drive)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 10.4 73 16.3 2.3 5.2 0
NONE - - - 20.5 25
E05 4 1 11.1 20.5 25
E07 5.6 1 15.5 25.9 30
E10 8 1 22.2 34.3 35
E15 11.9 2 33 47.8 50
E20 15.9 2 44.1 61.7 70
230-3-60 10.4 73 16.3 2.3 5.2 0
NONE - - - 20.5 25
E05 5.3 1 12.7 22.4 30
E07 7.5 1 18 29.1 30
E10 10.6 1 25.5 38.4 40
E15 15.9 2 38.2 54.3 60
E20 21.2 2 51 70.2 80
460-3-60 5.8 38 9 1.3 2.6 0
NONE - - - 11.1 15
E07 6.8 1 8.2 13.5 15
E10 10.1 1 12.1 18.4 20
E15 13.6 2 16.4 23.7 25
E20 19.5 2 23.5 32.6 35
575-3-60 3.8 36.5 5.9 1.3 2 0
NONE - - - 7.8 15
E10 10.6 1 10.2 15.2 20
E15 15.9 2 15.3 21.6 25
E20 21.2 2 20.4 28 30
048
(4.0)
208-3-60 13.7 83.1 21.4 2.3 5.2 0
NONE - - - 24.6 30
E05 4 1 11.1 24.6 30
E07 5.6 1 15.5 25.9 35
E10 8 1 22.2 34.3 35
E15 11.9 2 33 47.8 50
E20 15.9 2 44.1 61.7 70
230-3-60 13.7 83.1 21.4 2.3 5.2 0
NONE - - - 24.6 30
E05 5.3 1 12.7 24.6 30
E07 7.5 1 18 29.1 35
E10 10.6 1 25.5 38.4 40
E15 15.9 2 38.2 54.3 60
E20 21.2 2 51 70.2 80
460-3-60 6.2 41 9.7 1.3 2.6 0
NONE - - - 11.6 15
E07 6.8 1 8.2 13.5 15
E10 10.1 1 12.1 18.4 20
E15 13.6 2 16.4 23.7 25
E20 19.5 2 23.5 32.6 35
575-3-60 4.8 33 7.5 1.3 2 0
NONE - - - 9 15
E10 10.6 1 10.2 15.2 20
E15 15.9 2 15.3 21.6 25
E20 21.2 2 20.4 28 30
251933-YTG-X-0615
Johnson Controls Unitary Products 101
060
(5.0)
208-3-60 16 110 24.9 2.3 5.2 0
NONE - - - 27.5 35
E05 4 1 11.1 27.5 35
E07 5.6 1 15.5 27.5 35
E10 8 1 22.2 34.3 40
E15 11.9 2 33 47.8 50
E20 15.9 2 44.1 61.7 70
E30 22.2 2 61.6 83.5 90
230-3-60 16 110 24.9 2.3 5.2 0
NONE - - - 27.5 35
E05 5.3 1 12.7 27.5 35
E07 7.5 1 18 29.1 35
E10 10.6 1 25.5 38.4 40
E15 15.9 2 38.2 54.3 60
E20 21.2 2 51 70.2 80
E30 29.6 2 71.2 95.5 100
460-3-60 7.8 52 12.1 1.3 2.6 0
NONE - - - 13.6 20
E07 6.8 1 8.2 13.6 20
E10 10.1 1 12.1 18.4 20
E15 13.6 2 16.4 23.7 25
E20 19.5 2 23.5 32.6 35
E30 28.8 2 34.6 46.6 50
575-3-60 5.7 38.9 8.9 1.3 2 0
NONE - - - 10.2 15
E10 10.6 1 10.2 15.2 20
E15 15.9 2 15.3 21.6 25
E20 21.2 2 20.4 28 30
E30 30.4 2 29.3 39.1 40
1. Minimum Circuit Ampacity.
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
ZR036-060 (Belt Drive) (Continued)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
102 Johnson Controls Unitary Products
ZR036-060 (Belt Drive High Static)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 10.4 73 16.3 2.3 5.2 0
NONE - - - 20.5 25
E05 4 1 11.1 20.5 25
E07 5.6 1 15.5 25.9 30
E10 8 1 22.2 34.3 35
E15 11.9 2 33 47.8 50
E20 15.9 2 44.1 61.7 70
230-3-60 10.4 73 16.3 2.3 5.2 0
NONE - - - 20.5 25
E05 5.3 1 12.7 22.4 30
E07 7.5 1 18 29.1 30
E10 10.6 1 25.5 38.4 40
E15 15.9 2 38.2 54.3 60
E20 21.2 2 51 70.2 80
460-3-60 5.8 38 9 1.3 2.6 0
NONE - - - 11.1 15
E07 6.8 1 8.2 13.5 15
E10 10.1 1 12.1 18.4 20
E15 13.6 2 16.4 23.7 25
E20 19.5 2 23.5 32.6 35
575-3-60 3.8 36.5 5.9 1.3 2 0
NONE - - - 7.8 15
E10 10.6 1 10.2 15.2 20
E15 15.9 2 15.3 21.6 25
E20 21.2 2 20.4 28 30
048
(4.0)
208-3-60 13.7 83.1 21.4 2.3 5.2 0
NONE - - - 24.6 30
E05 4 1 11.1 24.6 30
E07 5.6 1 15.5 25.9 35
E10 8 1 22.2 34.3 35
E15 11.9 2 33 47.8 50
E20 15.9 2 44.1 61.7 70
230-3-60 13.7 83.1 21.4 2.3 5.2 0
NONE - - - 24.6 30
E05 5.3 1 12.7 24.6 30
E07 7.5 1 18 29.1 35
E10 10.6 1 25.5 38.4 40
E15 15.9 2 38.2 54.3 60
E20 21.2 2 51 70.2 80
460-3-60 6.2 41 9.7 1.3 2.6 0
NONE - - - 11.6 15
E07 6.8 1 8.2 13.5 15
E10 10.1 1 12.1 18.4 20
E15 13.6 2 16.4 23.7 25
E20 19.5 2 23.5 32.6 35
575-3-60 4.8 33 7.5 1.3 2 0
NONE - - - 9 15
E10 10.6 1 10.2 15.2 20
E15 15.9 2 15.3 21.6 25
E20 21.2 2 20.4 28 30
251933-YTG-X-0615
Johnson Controls Unitary Products 103
060
(5.0)
208-3-60 16 110 24.9 2.3 6.8 0
NONE - - - 29.1 35
E05 4 1 11.1 29.1 35
E07 5.6 1 15.5 29.1 35
E10 8 1 22.2 36.3 45
E15 11.9 2 33 49.8 50
E20 15.9 2 44.1 63.7 70
E30 22.2 2 61.6 85.5 90
230-3-60 16 110 24.9 2.3 6.8 0
NONE - - - 29.1 35
E05 5.3 1 12.7 29.1 35
E07 7.5 1 18 31.1 40
E10 10.6 1 25.5 40.4 45
E15 15.9 2 38.2 56.3 60
E20 21.2 2 51 72.2 80
E30 29.6 2 71.2 97.5 100
460-3-60 7.8 52 12.1 1.3 3.4 0
NONE - - - 14.5 20
E07 6.8 1 8.2 14.5 20
E10 10.1 1 12.1 19.4 20
E15 13.6 2 16.4 24.7 25
E20 19.5 2 23.5 33.6 35
E30 28.8 2 34.6 47.6 50
575-3-60 5.7 38.9 8.9 1.3 2.4 0
NONE - - - 10.6 15
E10 10.6 1 10.2 15.7 20
E15 15.9 2 15.3 22.1 25
E20 21.2 2 20.4 28.5 30
E30 30.4 2 29.3 39.6 40
1. Minimum Circuit Ampacity.
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
ZR036-060 (Belt Drive High Static) (Continued)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
104 Johnson Controls Unitary Products
ZR036-060 (Direct Drive)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 10.4 73 16.3 2.3 6 0
NONE - - - 21.3 30
E05 4 1 11.1 21.4 30
E07 5.6 1 15.5 26.9 30
E10 8 1 22.2 35.3 40
E15 11.9 2 33 48.8 50
E20 15.9 2 44.1 62.7 70
230-3-60 10.4 73 16.3 2.3 6 0
NONE - - - 21.3 30
E05 5.3 1 12.7 23.4 30
E07 7.5 1 18 30.1 35
E10 10.6 1 25.5 39.4 40
E15 15.9 2 38.2 55.3 60
E20 21.2 2 51 71.2 80
048
(4.0)
208-3-60 13.7 83.1 21.4 2.3 7.6 0
NONE - - - 27 35
E05 4 1 11.1 27 35
E07 5.6 1 15.5 28.9 35
E10 8 1 22.2 37.3 40
E15 11.9 2 33 50.8 60
E20 15.9 2 44.1 64.7 70
230-3-60 13.7 83.1 21.4 2.3 7.6 0
NONE - - - 27 35
E05 5.3 1 12.7 27 35
E07 7.5 1 18 32.1 40
E10 10.6 1 25.5 41.4 45
E15 15.9 2 38.2 57.3 60
E20 21.2 2 51 73.2 80
060
(5.0)
208-3-60 16 110 24.9 2.3 7.6 0
NONE - - - 29.9 40
E05 4 1 11.1 29.9 40
E07 5.6 1 15.5 29.9 40
E10 8 1 22.2 37.3 45
E15 11.9 2 33 50.8 60
E20 15.9 2 44.1 64.7 70
E30 22.2 2 61.6 86.5 90
230-3-60 16 110 24.9 2.3 7.6 0
NONE - - - 29.9 40
E05 5.3 1 12.7 29.9 40
E07 7.5 1 18 32.1 40
E10 10.6 1 25.5 41.4 45
E15 15.9 2 38.2 57.3 60
E20 21.2 2 51 73.2 80
E30 29.6 2 71.2 98.5 100
251933-YTG-X-0615
Johnson Controls Unitary Products 105
XN036-060 (Belt Drive)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-1-60 16.7 109 26 1.3 6.7 0
NONE - - - 28.9 35
E05 4 1 19.2 52.9 60
E07 5.6 1 26.9 62.5 70
E10 8 1 38.5 77 80
E15 11.9 2 57.2 100.4 110
E20 15.9 2 76.4 124.4 125
230-1-60 16.7 109 26 1.3 6.7 0
NONE - - - 28.9 35
E05 5.3 1 22.1 56.5 60
E07 7.5 1 31.2 67.9 70
E10 10.6 1 44.2 84.1 90
E15 15.9 2 66.2 111.7 125
E20 21.2 2 88.3 139.3 150
208-3-60 11.2 88 17.5 1.3 4.3 0
NONE - - - 19.6 25
E05 4 1 11.1 33.5 40
E07 5.6 1 15.5 39 45
E10 8 1 22.2 47.4 50
E15 11.9 2 33 60.9 70
E20 15.9 2 44.1 74.8 80
230-3-60 11.2 88 17.5 1.3 4.3 0
NONE - - - 19.6 25
E05 5.3 1 12.7 35.5 40
E07 7.5 1 18 42.2 45
E10 10.6 1 25.5 51.5 60
E15 15.9 2 38.2 67.4 70
E20 21.2 2 51 83.3 90
460-3-60 5.5 43.2 7.7 0.8 2.1 0
NONE - - - 9.8 15
E07 6.8 1 8.2 20 20
E10 10.1 1 12.1 25 25
E15 13.6 2 16.4 30.2 35
E20 19.5 2 23.5 39.1 40
575-3-60 3.8 34 6 0.8 1.9 0
NONE - - - 7.3 15
E10 10.6 1 10.2 20 25
E15 15.9 2 15.3 26.4 30
E20 21.2 2 20.4 32.8 35
251933-YTG-X-0615
106 Johnson Controls Unitary Products
048
(4.0)
208-1-60 19.6 130 30.5 2.8 6.7 0
NONE - - - 34 45
E05 4 1 19.2 58 70
E07 5.6 1 26.9 67.7 80
E10 8 1 38.5 82.1 90
E15 11.9 2 57.2 105.5 110
E20 15.9 2 76.4 129.6 150
230-1-60 19.6 130 30.5 2.8 6.7 0
NONE - - - 34 45
E05 5.3 1 22.1 61.6 70
E07 7.5 1 31.2 73.1 80
E10 10.6 1 44.2 89.2 90
E15 15.9 2 66.2 116.8 125
E20 21.2 2 88.3 144.4 150
208-3-60 13.7 83.1 21.4 2.8 4.3 0
NONE - - - 24.2 30
E05 4 1 11.1 38.1 45
E07 5.6 1 15.5 43.7 50
E10 8 1 22.2 52 60
E15 11.9 2 33 65.5 70
E20 15.9 2 44.1 79.4 80
230-3-60 13.7 83.1 21.4 2.8 4.3 0
NONE - - - 24.2 30
E05 5.3 1 12.7 40.2 50
E07 7.5 1 18 46.8 50
E10 10.6 1 25.5 56.1 60
E15 15.9 2 38.2 72 80
E20 21.2 2 51 88 90
460-3-60 6.2 41 9.7 2.8 2.1 0
NONE - - - 11.3 15
E07 6.8 1 8.2 21.5 25
E10 10.1 1 12.1 26.4 30
E15 13.6 2 16.4 31.7 35
E20 19.5 2 23.5 40.6 45
575-3-60 4.8 33 7.5 2.8 1.9 0
NONE - - - 9 15
E10 10.6 1 10.2 21.8 25
E15 15.9 2 15.3 28.1 30
E20 21.2 2 20.4 34.5 35
XN036-060 (Belt Drive) (Continued)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
Johnson Controls Unitary Products 107
060
(5.0)
208-1-60 27.1 152.9 42.3 2.8 4.3 0
NONE - - - 41 50
E05 4 1 19.2 65 80
E07 5.6 1 26.9 74.6 90
E10 8 1 38.5 89.1 100
E15 11.9 2 57.2 112.5 125
E20 15.9 2 76.4 136.5 150
E30 22.2 2 106.7 174.4 175
230-1-60 27.1 152.9 42.3 2.8 4.3 0
NONE - - - 41 50
E05 5.3 1 22.1 68.6 90
E07 7.5 1 31.2 80 90
E10 10.6 1 44.2 96.2 110
E15 15.9 2 66.2 123.8 125
E20 21.2 2 88.3 151.4 175
E30 29.6 2 123.3 195.1 200
208-3-60 16.5 110 25.8 2.8 4.3 0
NONE - - - 27.7 35
E05 4 1 11.1 41.6 50
E07 5.6 1 15.5 47.2 50
E10 8 1 22.2 55.5 60
E15 11.9 2 33 69 70
E20 15.9 2 44.1 82.9 90
E30 22.2 2 61.6 104.8 110
230-3-60 16.5 110 25.8 2.8 4.3 0
NONE - - - 27.7 35
E05 5.3 1 12.7 43.7 50
E07 7.5 1 18 50.3 60
E10 10.6 1 25.5 59.6 60
E15 15.9 2 38.2 75.5 80
E20 21.2 2 51 91.5 100
E30 29.6 2 71.2 116.7 125
460-3-60 7.2 52 11.3 2.8 2.1 0
NONE - - - 12.5 15
E07 6.8 1 8.2 22.7 25
E10 10.1 1 12.1 27.7 30
E15 13.6 2 16.4 32.9 35
E20 19.5 2 23.5 41.8 45
E30 28.8 2 34.6 55.8 60
575-3-60 5.5 38.9 8.6 2.8 1.9 0
NONE - - - 9.9 15
E10 10.6 1 10.2 22.6 25
E15 15.9 2 15.3 29 30
E20 21.2 2 20.4 35.4 40
E30 30.4 2 29.3 46.5 50
1. Minimum Circuit Ampacity.
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
XN036-060 (Belt Drive) (Continued)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
108 Johnson Controls Unitary Products
XN036-060 (Belt Drive High Static)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-1-60 16.7 109 26 1.3 6.7 0
NONE - - - 28.9 35
E05 4 1 19.2 52.9 60
E07 5.6 1 26.9 62.5 70
E10 8 1 38.5 77 80
E15 11.9 2 57.2 100.4 110
E20 15.9 2 76.4 124.4 125
230-1-60 16.7 109 26 1.3 6.7 0
NONE - - - 28.9 35
E05 5.3 1 22.1 56.5 60
E07 7.5 1 31.2 67.9 70
E10 10.6 1 44.2 84.1 90
E15 15.9 2 66.2 111.7 125
E20 21.2 2 88.3 139.3 150
208-3-60 11.2 88 17.5 1.3 4.3 0
NONE - - - 19.6 25
E05 4 1 11.1 33.5 40
E07 5.6 1 15.5 39 45
E10 8 1 22.2 47.4 50
E15 11.9 2 33 60.9 70
E20 15.9 2 44.1 74.8 80
230-3-60 11.2 88 17.5 1.3 4.3 0
NONE - - - 19.6 25
E05 5.3 1 12.7 35.5 40
E07 7.5 1 18 42.2 45
E10 10.6 1 25.5 51.5 60
E15 15.9 2 38.2 67.4 70
E20 21.2 2 51 83.3 90
460-3-60 5.5 43.2 7.7 0.8 2.1 0
NONE - - - 9.8 15
E07 6.8 1 8.2 20 20
E10 10.1 1 12.1 25 25
E15 13.6 2 16.4 30.2 35
E20 19.5 2 23.5 39.1 40
575-3-60 3.8 34 6 0.8 1.9 0
NONE - - - 7.3 15
E10 10.6 1 10.2 20 25
E15 15.9 2 15.3 26.4 30
E20 21.2 2 20.4 32.8 35
251933-YTG-X-0615
Johnson Controls Unitary Products 109
048
(4.0)
208-1-60 19.6 130 30.5 2.8 6.7 0
NONE - - - 34 45
E05 4 1 19.2 58 70
E07 5.6 1 26.9 67.7 80
E10 8 1 38.5 82.1 90
E15 11.9 2 57.2 105.5 110
E20 15.9 2 76.4 129.6 150
230-1-60 19.6 130 30.5 2.8 6.7 0
NONE - - - 34 45
E05 5.3 1 22.1 61.6 70
E07 7.5 1 31.2 73.1 80
E10 10.6 1 44.2 89.2 90
E15 15.9 2 66.2 116.8 125
E20 21.2 2 88.3 144.4 150
208-3-60 13.7 83.1 21.4 2.8 4.3 0
NONE - - - 24.2 30
E05 4 1 11.1 38.1 45
E07 5.6 1 15.5 43.7 50
E10 8 1 22.2 52 60
E15 11.9 2 33 65.5 70
E20 15.9 2 44.1 79.4 80
230-3-60 13.7 83.1 21.4 2.8 4.3 0
NONE - - - 24.2 30
E05 5.3 1 12.7 40.2 50
E07 7.5 1 18 46.8 50
E10 10.6 1 25.5 56.1 60
E15 15.9 2 38.2 72 80
E20 21.2 2 51 88 90
460-3-60 6.2 41 9.7 2.8 2.1 0
NONE - - - 11.3 15
E07 6.8 1 8.2 21.5 25
E10 10.1 1 12.1 26.4 30
E15 13.6 2 16.4 31.7 35
E20 19.5 2 23.5 40.6 45
575-3-60 4.8 33 7.5 2.8 1.9 0
NONE - - - 9 15
E10 10.6 1 10.2 21.8 25
E15 15.9 2 15.3 28.1 30
E20 21.2 2 20.4 34.5 35
060
(5.0)
208-3-60 16.5 110 25.8 2.8 6.8 0
NONE - - - 30.2 40
E05 4 1 11.1 44.1 50
E07 5.6 1 15.5 49.7 60
E10 8 1 22.2 58 60
E15 11.9 2 33 71.5 80
E20 15.9 2 44.1 85.4 90
E30 22.2 2 61.6 107.3 110
230-3-60 16.5 110 25.8 2.8 6.8 0
NONE - - - 30.2 40
E05 5.3 1 12.7 46.2 50
E07 7.5 1 18 52.8 60
E10 10.6 1 25.5 62.1 70
E15 15.9 2 38.2 78 80
E20 21.2 2 51 94 100
E30 29.6 2 71.2 119.2 125
460-3-60 7.2 52 11.3 2.8 3.15 0
NONE - - - 13.6 20
E07 6.8 1 8.2 23.8 25
E10 10.1 1 12.1 28.7 30
E15 13.6 2 16.4 34 35
E20 19.5 2 23.5 42.9 45
E30 28.8 2 34.6 56.9 60
575-3-60 5.5 38.9 8.6 2.8 2.2 0
NONE - - - 10.2 15
E10 10.6 1 10.2 22.9 25
E15 15.9 2 15.3 29.3 30
E20 21.2 2 20.4 35.7 40
E30 30.4 2 29.3 46.8 50
1. Minimum Circuit Ampacity.
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
XN036-060 (Belt Drive High Static) (Continued)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
110 Johnson Controls Unitary Products
XN036-060 (Direct Drive)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-1-60 16.7 109 26 1.3 6 0
NONE - - - 28.2 35
E05 4 1 19.2 52.2 60
E07 5.6 1 26.9 61.8 70
E10 8 1 38.5 76.3 80
E15 11.9 2 57.2 99.7 100
E20 15.9 2 76.4 123.7 125
230-1-60 16.7 109 26 1.3 6 0
NONE - - - 28.2 35
E05 5.3 1 22.1 55.8 60
E07 7.5 1 31.2 67.2 70
E10 10.6 1 44.2 83.4 90
E15 15.9 2 66.2 111 125
E20 21.2 2 88.3 138.6 150
208-3-60 11.2 88 17.5 1.3 6 0
NONE - - - 21.3 30
E05 4 1 11.1 35.2 40
E07 5.6 1 15.5 40.7 45
E10 8 1 22.2 49.1 50
E15 11.9 2 33 62.6 70
E20 15.9 2 44.1 76.5 80
230-3-60 11.2 88 17.5 1.3 6 0
NONE - - - 21.3 30
E05 5.3 1 12.7 37.2 45
E07 7.5 1 18 43.9 50
E10 10.6 1 25.5 53.2 60
E15 15.9 2 38.2 69.1 70
E20 21.2 2 51 85 90
048
(4.0)
208-1-60 19.6 130 30.5 2.8 7.6 0
NONE - - - 34.9 45
E05 4 1 19.2 58.9 70
E07 5.6 1 26.9 68.6 80
E10 8 1 38.5 83 90
E15 11.9 2 57.2 106.4 110
E20 15.9 2 76.4 130.5 150
230-1-60 19.6 130 30.5 2.8 7.6 0
NONE - - - 34.9 45
E05 5.3 1 22.1 62.5 70
E07 7.5 1 31.2 74 80
E10 10.6 1 44.2 90.1 100
E15 15.9 2 66.2 117.7 125
E20 21.2 2 88.3 145.3 150
208-3-60 13.7 83.1 21.4 2.8 7.6 0
NONE - - - 27.5 35
E05 4 1 11.1 41.4 50
E07 5.6 1 15.5 47 50
E10 8 1 22.2 55.3 60
E15 11.9 2 33 68.8 70
E20 15.9 2 44.1 82.7 90
230-3-60 13.7 83.1 21.4 2.8 7.6 0
NONE - - - 27.5 35
E05 5.3 1 12.7 43.5 50
E07 7.5 1 18 50.1 60
E10 10.6 1 25.5 59.4 60
E15 15.9 2 38.2 75.3 80
E20 21.2 2 51 91.3 100
251933-YTG-X-0615
Johnson Controls Unitary Products 111
060
(5.0)
208-1-60 27.1 152.9 42.3 2.8 7.6 0
NONE - - - 44.3 60
E05 4 1 19.2 68.3 90
E07 5.6 1 26.9 77.9 90
E10 8 1 38.5 92.4 100
E15 11.9 2 57.2 115.8 125
E20 15.9 2 76.4 139.8 150
E30 22.2 2 106.7 177.7 200
230-1-60 27.1 152.9 42.3 2.8 7.6 0
NONE - - - 44.3 60
E05 5.3 1 22.1 71.9 90
E07 7.5 1 31.2 83.3 100
E10 10.6 1 44.2 99.5 110
E15 15.9 2 66.2 127.1 150
E20 21.2 2 88.3 154.7 175
E30 29.6 2 123.3 198.4 200
208-3-60 16.5 110 25.8 2.8 7.6 0
NONE - - - 31 40
E05 4 1 11.1 44.9 50
E07 5.6 1 15.5 50.5 60
E10 8 1 22.2 58.8 60
E15 11.9 2 33 72.3 80
E20 15.9 2 44.1 86.2 90
E30 22.2 2 61.6 108.1 110
230-3-60 16.5 110 25.8 2.8 7.6 0
NONE - - - 31 40
E05 5.3 1 12.7 47 60
E07 7.5 1 18 53.6 60
E10 10.6 1 25.5 62.9 70
E15 15.9 2 38.2 78.8 80
E20 21.2 2 51 94.8 100
E30 29.6 2 71.2 120 125
1. Minimum Circuit Ampacity.
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
XN036-060 (Direct Drive) (Continued)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
112 Johnson Controls Unitary Products
XP036-060 (Belt Drive)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 13.2 88 20.6 1.3 5.2 0
NONE - - - 23 30
E05 4 1 11.1 36.9 45
E07 5.6 1 15.5 42.4 50
E10 8 1 22.2 50.8 60
E15 11.9 2 33 64.3 70
E20 15.9 2 44.1 78.2 80
230-3-60 13.2 88 20.6 1.3 5.2 0
NONE - - - 23 30
E05 5.3 1 12.7 38.9 45
E07 7.5 1 18 45.6 50
E10 10.6 1 25.5 54.9 60
E15 15.9 2 38.2 70.8 80
E20 21.2 2 51 86.7 90
460-3-60 6 44 9.3 0.8 2.6 0
NONE - - - 10.9 15
E07 6.8 1 8.2 21.1 25
E10 10.1 1 12.1 26.1 30
E15 13.6 2 16.4 31.3 35
E20 19.5 2 23.5 40.2 45
575-3-60 4.2 30 6.5 0.8 2 0
NONE - - - 7.9 15
E10 10.6 1 10.2 20.6 25
E15 15.9 2 15.3 27 30
E20 21.2 2 20.4 33.4 35
048
(4.0)
208-3-60 13.1 83.1 20.5 1.3 5.2 0
NONE - - - 22.9 30
E05 4 1 11.1 36.8 45
E07 5.6 1 15.5 42.3 50
E10 8 1 22.2 50.6 60
E15 11.9 2 33 64.2 70
E20 15.9 2 44.1 78 80
230-3-60 13.1 83.1 20.5 1.3 5.2 0
NONE - - - 22.9 30
E05 5.3 1 12.7 38.8 45
E07 7.5 1 18 45.4 50
E10 10.6 1 25.5 54.7 60
E15 15.9 2 38.2 70.7 80
E20 21.2 2 51 86.6 90
460-3-60 6.1 41 9.5 0.8 2.6 0
NONE - - - 11 15
E07 6.8 1 8.2 21.2 25
E10 10.1 1 12.1 26.2 30
E15 13.6 2 16.4 31.5 35
E20 19.5 2 23.5 40.3 45
575-3-60 4.4 33 6.8 0.8 2 0
NONE - - - 8.1 15
E10 10.6 1 10.2 20.9 25
E15 15.9 2 15.3 27.3 30
E20 21.2 2 20.4 33.6 35
251933-YTG-X-0615
Johnson Controls Unitary Products 113
060
(5.0)
208-3-60 15.6 110 24.4 2.3 5.2 0
NONE - - - 27 35
E05 4 1 11.1 40.9 50
E07 5.6 1 15.5 46.4 50
E10 8 1 22.2 54.8 60
E15 11.9 2 33 68.3 70
E20 15.9 2 44.1 82.2 90
E30 22.2 2 61.6 104 110
230-3-60 15.6 110 24.4 2.3 5.2 0
NONE - - - 27 35
E05 5.3 1 12.7 42.9 50
E07 7.5 1 18 49.6 60
E10 10.6 1 25.5 58.9 60
E15 15.9 2 38.2 74.8 80
E20 21.2 2 51 90.7 100
E30 29.6 2 71.2 116 125
460-3-60 7.8 52 12.1 1.3 2.6 0
NONE - - - 13.6 20
E07 6.8 1 8.2 23.9 25
E10 10.1 1 12.1 28.8 30
E15 13.6 2 16.4 34.1 35
E20 19.5 2 23.5 43 45
E30 28.8 2 34.6 57 60
575-3-60 5.8 38.9 9.1 1.3 2 0
NONE - - - 10.3 15
E10 10.6 1 10.2 23 25
E15 15.9 2 15.3 29.4 30
E20 21.2 2 20.4 35.8 40
E30 30.4 2 29.3 46.9 50
1. Minimum Circuit Ampacity.
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
XP036-060 (Belt Drive) (Continued)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
114 Johnson Controls Unitary Products
XP036-060 (Belt Drive High Static)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 13.2 88 20.6 1.3 5.2 0
NONE - - - 23 30
E05 4 1 11.1 36.9 45
E07 5.6 1 15.5 42.4 50
E10 8 1 22.2 50.8 60
E15 11.9 2 33 64.3 70
E20 15.9 2 44.1 78.2 80
230-3-60 13.2 88 20.6 1.3 5.2 0
NONE - - - 23 30
E05 5.3 1 12.7 38.9 45
E07 7.5 1 18 45.6 50
E10 10.6 1 25.5 54.9 60
E15 15.9 2 38.2 70.8 80
E20 21.2 2 51 86.7 90
460-3-60 6 44 9.3 0.8 2.6 0
NONE - - - 10.9 15
E07 6.8 1 8.2 21.1 25
E10 10.1 1 12.1 26.1 30
E15 13.6 2 16.4 31.3 35
E20 19.5 2 23.5 40.2 45
575-3-60 4.2 30 6.5 0.8 2 0
NONE - - - 7.9 15
E10 10.6 1 10.2 20.6 25
E15 15.9 2 15.3 27 30
E20 21.2 2 20.4 33.4 35
048
(4.0)
208-3-60 13.1 83.1 20.5 1.3 5.2 0
NONE - - - 22.9 30
E05 4 1 11.1 36.8 45
E07 5.6 1 15.5 42.3 50
E10 8 1 22.2 50.6 60
E15 11.9 2 33 64.2 70
E20 15.9 2 44.1 78 80
230-3-60 13.1 83.1 20.5 1.3 5.2 0
NONE - - - 22.9 30
E05 5.3 1 12.7 38.8 45
E07 7.5 1 18 45.4 50
E10 10.6 1 25.5 54.7 60
E15 15.9 2 38.2 70.7 80
E20 21.2 2 51 86.6 90
460-3-60 6.1 41 9.5 0.8 2.6 0
NONE - - - 11 15
E07 6.8 1 8.2 21.2 25
E10 10.1 1 12.1 26.2 30
E15 13.6 2 16.4 31.5 35
E20 19.5 2 23.5 40.3 45
575-3-60 4.4 33 6.8 0.8 2 0
NONE - - - 8.1 15
E10 10.6 1 10.2 20.9 25
E15 15.9 2 15.3 27.3 30
E20 21.2 2 20.4 33.6 35
060
(5.0)
208-3-60 15.6 110 24.4 2.3 6.8 0
NONE - - - 28.6 35
E05 4 1 11.1 42.5 50
E07 5.6 1 15.5 48 50
E10 8 1 22.2 56.4 60
E15 11.9 2 33 69.9 70
E20 15.9 2 44.1 83.8 90
E30 22.2 2 61.6 105.6 110
230-3-60 15.6 110 24.4 2.3 6.8 0
NONE - - - 28.6 35
E05 5.3 1 12.7 44.5 50
E07 7.5 1 18 51.2 60
E10 10.6 1 25.5 60.5 70
E15 15.9 2 38.2 76.4 80
E20 21.2 2 51 92.3 100
E30 29.6 2 71.2 117.6 125
460-3-60 7.8 52 12.1 1.3 3.4 0
NONE - - - 14.5 20
E07 6.8 1 8.2 24.7 30
E10 10.1 1 12.1 29.6 30
E15 13.6 2 16.4 34.9 35
E20 19.5 2 23.5 43.8 45
E30 28.8 2 34.6 57.8 60
575-3-60 5.8 38.9 9.1 1.3 2.4 0
NONE - - - 10.7 15
E10 10.6 1 10.2 23.4 25
E15 15.9 2 15.3 29.8 30
E20 21.2 2 20.4 36.2 40
E30 30.4 2 29.3 47.3 50
251933-YTG-X-0615
Johnson Controls Unitary Products 115
XP036-060 (Direct Drive)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 13.2 88 20.6 1.3 6 0.0
None - - - 23.8 30
E05 4.0 1 11.1 37.7 45
E07 5.6 1 15.5 43.2 50
E10 8.0 1 22.2 51.6 60
E15 11.9 2 33.0 65.1 70
E20 15.9 2 44.1 79.0 80
230-3-60 13.2 88 20.6 1.3 6 0.0
None - - - 23.8 30
E05 5.3 1 12.7 39.7 45
E07 7.5 1 18.0 46.4 50
E10 10.6 1 25.5 55.7 60
E15 15.9 2 38.2 71.6 80
E20 21.2 2 51.0 87.5 90
048
(4.0)
208-3-60 13.1 83.1 20.5 1.3 7.6 0.0
None - - - 25.3 35
E05 4.0 1 11.1 39.2 45
E07 5.6 1 15.5 44.7 50
E10 8.0 1 22.2 53.0 60
E15 11.9 2 33.0 66.6 70
E20 15.9 2 44.1 80.4 90
230-3-60 13.1 83.1 20.5 1.3 7.6 0.0
None - - - 25.3 35
E05 5.3 1 12.7 41.2 50
E07 7.5 1 18.0 47.8 50
E10 10.6 1 25.5 57.1 60
E15 15.9 2 38.2 73.1 80
E20 21.2 2 51.0 89.0 90
060
(5.0)
208-3-60 15.6 110 24.4 2.3 7.6 0.0
None - - - 29.4 40
E05 4.0 1 11.1 43.3 50
E07 5.6 1 15.5 48.8 60
E10 8.0 1 22.2 57.2 60
E15 11.9 2 33.0 70.7 80
E20 15.9 2 44.1 84.6 90
E30 22.2 2 61.6 106.4 110
230-3-60 15.6 110 24.4 2.3 7.6 0.0
None - - - 29.4 40
E05 5.3 1 12.7 45.3 50
E07 7.5 1 18.0 52.0 60
E10 10.6 1 25.5 61.3 70
E15 15.9 2 38.2 77.2 80
E20 21.2 2 51.0 93.1 100
E30 29.6 2 71.2 118.4 125
251933-YTG-X-0615
116 Johnson Controls Unitary Products
With Powered Convenience Outlet
ZE036-060 (Belt Drive)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-1-60 15.4 83.9 24 2.3 6.7 10
NONE - - - 38.3 50
E05 4 1 19.2 44.9 50
E07 5.6 1 26.9 54.5 60
E10 8 1 38.5 69 70
E15 11.9 2 57.2 92.4 100
E20 15.9 2 76.4 116.4 125
230-1-60 15.4 83.9 24 2.3 6.7 10
NONE - - - 38.3 50
E05 5.3 1 22.1 48.5 50
E07 7.5 1 31.2 59.9 60
E10 10.6 1 44.2 76.1 80
E15 15.9 2 66.2 103.7 110
E20 21.2 2 88.3 131.3 150
208-3-60 10.4 73 16.3 2.3 4.3 10
NONE - - - 29.6 40
E05 4 1 11.1 31.8 40
E07 5.6 1 15.5 37.3 40
E10 8 1 22.2 45.6 50
E15 11.9 2 33 59.2 60
E20 15.9 2 44.1 73 80
230-3-60 10.4 73 16.3 2.3 4.3 10
NONE - - - 29.6 40
E05 5.3 1 12.7 33.8 40
E07 7.5 1 18 40.4 45
E10 10.6 1 25.5 49.7 50
E15 15.9 2 38.2 65.7 70
E20 21.2 2 51 81.6 90
460-3-60 5.8 38 9 1.3 2.1 5
NONE - - - 15.6 20
E07 6.8 1 8.2 19.1 20
E10 10.1 1 12.1 24.1 25
E15 13.6 2 16.4 29.3 30
E20 19.5 2 23.5 38.2 40
575-3-60 4.2 36.5 5.9 1.3 1.9 4
NONE - - - 12.2 15
E10 10.6 1 10.2 20.1 25
E15 15.9 2 15.3 26.5 30
E20 21.2 2 20.4 32.9 35
048
(4.0)
208-1-60 19.6 130 30.5 2.3 6.7 10
NONE - - - 43.5 60
E05 4 1 19.2 44.9 60
E07 5.6 1 26.9 54.5 60
E10 8 1 38.5 69 70
E15 11.9 2 57.2 92.4 100
E20 15.9 2 76.4 116.4 125
230-1-60 19.6 130 30.5 2.3 6.7 10
NONE - - - 43.5 60
E05 5.3 1 22.1 48.5 60
E07 7.5 1 31.2 59.9 60
E10 10.6 1 44.2 76.1 80
E15 15.9 2 66.2 103.7 110
E20 21.2 2 88.3 131.3 150
208-3-60 13.7 83.1 21.4 2.3 4.3 10
NONE - - - 33.7 45
E05 4 1 11.1 33.7 45
E07 5.6 1 15.5 37.3 45
E10 8 1 22.2 45.6 50
E15 11.9 2 33 59.2 60
E20 15.9 2 44.1 73 80
230-3-60 13.7 83.1 21.4 2.3 4.3 10
NONE - - - 33.7 45
E05 5.3 1 12.7 33.8 45
E07 7.5 1 18 40.4 45
E10 10.6 1 25.5 49.7 50
E15 15.9 2 38.2 65.7 70
E20 21.2 2 51 81.6 90
460-3-60 6.2 41 9.7 1.3 2.1 5
NONE - - - 16.1 20
E07 6.8 1 8.2 19.1 20
E10 10.1 1 12.1 24.1 25
E15 13.6 2 16.4 29.3 30
E20 19.5 2 23.5 38.2 40
575-3-60 4.8 33 7.5 1.3 1.9 4
NONE - - - 12.9 15
E10 10.6 1 10.2 20.1 25
E15 15.9 2 15.3 26.5 30
E20 21.2 2 20.4 32.9 35
251933-YTG-X-0615
Johnson Controls Unitary Products 117
060
(5.0)
208-1-60 24.4 144.2 38 4.4 6.7 10
NONE - - - 51.6 70
E05 4 1 19.2 51.6 70
E07 5.6 1 26.9 54.5 70
E10 8 1 38.5 69 70
E15 11.9 2 57.2 92.4 100
E20 15.9 2 76.4 116.4 125
E30 22.2 2 106.7 154.3 175
230-1-60 24.4 144.2 38 4.4 6.7 10
NONE - - - 51.6 70
E05 5.3 1 22.1 51.6 70
E07 7.5 1 31.2 59.9 70
E10 10.6 1 44.2 76.1 80
E15 15.9 2 66.2 103.7 110
E20 21.2 2 88.3 131.3 150
E30 29.6 2 123.3 175 200
208-3-60 16 110 24.9 4.4 4.3 10
NONE - - - 38.7 50
E05 4 1 11.1 38.7 50
E07 5.6 1 15.5 38.7 50
E10 8 1 22.2 45.6 50
E15 11.9 2 33 59.2 60
E20 15.9 2 44.1 73 80
E30 22.2 2 61.6 94.9 100
230-3-60 16 110 24.9 4.4 4.3 10
NONE - - - 38.7 50
E05 5.3 1 12.7 38.7 50
E07 7.5 1 18 40.4 50
E10 10.6 1 25.5 49.7 50
E15 15.9 2 38.2 65.7 70
E20 21.2 2 51 81.6 90
E30 29.6 2 71.2 106.9 110
460-3-60 7.8 52 12.1 4.4 2.1 5
NONE - - - 19 25
E07 6.8 1 8.2 19.1 25
E10 10.1 1 12.1 24.1 25
E15 13.6 2 16.4 29.3 30
E20 19.5 2 23.5 38.2 40
E30 28.8 2 34.6 52.2 60
575-3-60 5.7 38.9 8.9 4.4 1.9 4
NONE - - - 14.8 15
E10 10.6 1 10.2 20.1 25
E15 15.9 2 15.3 26.5 30
E20 21.2 2 20.4 32.9 35
E30 30.4 2 29.3 43.9 45
1. Minimum Circuit Ampacity.
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
ZE036-060 (Belt Drive) (Continued)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
118 Johnson Controls Unitary Products
ZE036-060 (Belt Drive High Static)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-1-60 15.4 83.9 24 2.3 6.7 10
NONE - - - 38.3 50
E05 4 1 19.2 44.9 50
E07 5.6 1 26.9 54.5 60
E10 8 1 38.5 69 70
E15 11.9 2 57.2 92.4 100
E20 15.9 2 76.4 116.4 125
230-1-60 15.4 83.9 24 2.3 6.7 10
NONE - - - 38.3 50
E05 5.3 1 22.1 48.5 50
E07 7.5 1 31.2 59.9 60
E10 10.6 1 44.2 76.1 80
E15 15.9 2 66.2 103.7 110
E20 21.2 2 88.3 131.3 150
208-3-60 10.4 73 16.3 2.3 4.3 10
NONE - - - 29.6 40
E05 4 1 11.1 31.8 40
E07 5.6 1 15.5 37.3 40
E10 8 1 22.2 45.6 50
E15 11.9 2 33 59.2 60
E20 15.9 2 44.1 73 80
230-3-60 10.4 73 16.3 2.3 4.3 10
NONE - - - 29.6 40
E05 5.3 1 12.7 33.8 40
E07 7.5 1 18 40.4 45
E10 10.6 1 25.5 49.7 50
E15 15.9 2 38.2 65.7 70
E20 21.2 2 51 81.6 90
460-3-60 5.8 38 9 1.3 2.1 5
NONE - - - 15.6 20
E07 6.8 1 8.2 19.1 20
E10 10.1 1 12.1 24.1 25
E15 13.6 2 16.4 29.3 30
E20 19.5 2 23.5 38.2 40
575-3-60 4.2 36.5 5.9 1.3 1.9 4
NONE - - - 12.2 15
E10 10.6 1 10.2 20.1 25
E15 15.9 2 15.3 26.5 30
E20 21.2 2 20.4 32.9 35
048
(4.0)
208-1-60 19.6 130 30.5 2.3 6.7 10
NONE - - - 43.5 60
E05 4 1 19.2 44.9 60
E07 5.6 1 26.9 54.5 60
E10 8 1 38.5 69 70
E15 11.9 2 57.2 92.4 100
E20 15.9 2 76.4 116.4 125
230-1-60 19.6 130 30.5 2.3 6.7 10
NONE - - - 43.5 60
E05 5.3 1 22.1 48.5 60
E07 7.5 1 31.2 59.9 60
E10 10.6 1 44.2 76.1 80
E15 15.9 2 66.2 103.7 110
E20 21.2 2 88.3 131.3 150
208-3-60 13.7 83.1 21.4 2.3 4.3 10
NONE - - - 33.7 45
E05 4 1 11.1 33.7 45
E07 5.6 1 15.5 37.3 45
E10 8 1 22.2 45.6 50
E15 11.9 2 33 59.2 60
E20 15.9 2 44.1 73 80
230-3-60 13.7 83.1 21.4 2.3 4.3 10
NONE - - - 33.7 45
E05 5.3 1 12.7 33.8 45
E07 7.5 1 18 40.4 45
E10 10.6 1 25.5 49.7 50
E15 15.9 2 38.2 65.7 70
E20 21.2 2 51 81.6 90
460-3-60 6.2 41 9.7 1.3 2.1 5
NONE - - - 16.1 20
E07 6.8 1 8.2 19.1 20
E10 10.1 1 12.1 24.1 25
E15 13.6 2 16.4 29.3 30
E20 19.5 2 23.5 38.2 40
575-3-60 4.8 33 7.5 1.3 1.9 4
NONE - - - 12.9 15
E10 10.6 1 10.2 20.1 25
E15 15.9 2 15.3 26.5 30
E20 21.2 2 20.4 32.9 35
251933-YTG-X-0615
Johnson Controls Unitary Products 119
060
(5.0)
208-3-60 16 110 24.9 4.4 6.8 10
NONE - - - 41.2 50
E05 4 1 11.1 41.2 50
E07 5.6 1 15.5 41.2 50
E10 8 1 22.2 48.8 50
E15 11.9 2 33 62.3 70
E20 15.9 2 44.1 76.2 80
E30 22.2 2 61.6 98 100
230-3-60 16 110 24.9 4.4 6.8 10
NONE - - - 41.2 50
E05 5.3 1 12.7 41.2 50
E07 7.5 1 18 43.6 50
E10 10.6 1 25.5 52.9 60
E15 15.9 2 38.2 68.8 70
E20 21.2 2 51 84.7 90
E30 29.6 2 71.2 110 125
460-3-60 7.8 52 12.1 4.4 3.15 5
NONE - - - 20.1 25
E07 6.8 1 8.2 20.4 25
E10 10.1 1 12.1 25.4 30
E15 13.6 2 16.4 30.6 35
E20 19.5 2 23.5 39.5 40
E30 28.8 2 34.6 53.5 60
575-3-60 5.7 38.9 8.9 4.4 2.2 4
NONE - - - 15.1 20
E10 10.6 1 10.2 20.5 25
E15 15.9 2 15.3 26.9 30
E20 21.2 2 20.4 33.2 35
E30 30.4 2 29.3 44.3 45
1. Minimum Circuit Ampacity.
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
ZE036-060 (Belt Drive High Static) (Continued)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
120 Johnson Controls Unitary Products
ZE036-060 (Direct Drive)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-1-60 15.4 83.9 24 2.3 6 10
NONE - - - 37.5 50
E05 4 1 19.2 44 50
E07 5.6 1 26.9 53.7 60
E10 8 1 38.5 68.1 70
E15 11.9 2 57.2 91.5 100
E20 15.9 2 76.4 115.6 125
230-1-60 15.4 83.9 24 2.3 6 10
NONE - - - 37.5 50
E05 5.3 1 22.1 47.6 50
E07 7.5 1 31.2 59.1 60
E10 10.6 1 44.2 75.2 80
E15 15.9 2 66.2 102.8 110
E20 21.2 2 88.3 130.4 150
208-3-60 10.4 73 16.3 2.3 6 10
NONE - - - 31.3 40
E05 4 1 11.1 33.9 40
E07 5.6 1 15.5 39.4 40
E10 8 1 22.2 47.8 50
E15 11.9 2 33 61.3 70
E20 15.9 2 44.1 75.2 80
230-3-60 10.4 73 16.3 2.3 6 10
NONE - - - 31.3 40
E05 5.3 1 12.7 35.9 40
E07 7.5 1 18 42.6 45
E10 10.6 1 25.5 51.9 60
E15 15.9 2 38.2 67.8 70
E20 21.2 2 51 83.7 90
048
(4.0)
208-1-60 19.6 130 30.5 2.3 7.6 10
NONE - - - 44.4 60
E05 4 1 19.2 46 60
E07 5.6 1 26.9 55.7 60
E10 8 1 38.5 70.1 80
E15 11.9 2 57.2 93.5 100
E20 15.9 2 76.4 117.6 125
230-1-60 19.6 130 30.5 2.3 7.6 10
NONE - - - 44.4 60
E05 5.3 1 22.1 49.6 60
E07 7.5 1 31.2 61.1 70
E10 10.6 1 44.2 77.2 80
E15 15.9 2 66.2 104.8 110
E20 21.2 2 88.3 132.4 150
208-3-60 13.7 83.1 21.4 2.3 7.6 10
NONE - - - 37 45
E05 4 1 11.1 37 45
E07 5.6 1 15.5 41.4 50
E10 8 1 22.2 49.8 50
E15 11.9 2 33 63.3 70
E20 15.9 2 44.1 77.2 80
230-3-60 13.7 83.1 21.4 2.3 7.6 10
NONE - - - 37 45
E05 5.3 1 12.7 37.9 50
E07 7.5 1 18 44.6 50
E10 10.6 1 25.5 53.9 60
E15 15.9 2 38.2 69.8 70
E20 21.2 2 51 85.7 90
251933-YTG-X-0615
Johnson Controls Unitary Products 121
060
(5.0)
208-1-60 24.4 144.2 38 4.4 7.6 10
NONE - - - 52.5 70
E05 4 1 19.2 52.5 70
E07 5.6 1 26.9 55.7 70
E10 8 1 38.5 70.1 80
E15 11.9 2 57.2 93.5 100
E20 15.9 2 76.4 117.6 125
E30 22.2 2 106.7 155.4 175
230-1-60 24.4 144.2 38 4.4 7.6 10
NONE - - - 52.5 70
E05 5.3 1 22.1 52.5 70
E07 7.5 1 31.2 61.1 70
E10 10.6 1 44.2 77.2 80
E15 15.9 2 66.2 104.8 110
E20 21.2 2 88.3 132.4 150
E30 29.6 2 123.3 176.2 200
208-3-60 16 110 24.9 4.4 7.6 10
NONE - - - 42 50
E05 4 1 11.1 42 50
E07 5.6 1 15.5 42 50
E10 8 1 22.2 49.8 50
E15 11.9 2 33 63.3 70
E20 15.9 2 44.1 77.2 80
E30 22.2 2 61.6 99 100
230-3-60 16 110 24.9 4.4 7.6 10
NONE - - - 42 50
E05 5.3 1 12.7 42 50
E07 7.5 1 18 44.6 50
E10 10.6 1 25.5 53.9 60
E15 15.9 2 38.2 69.8 70
E20 21.2 2 51 85.7 90
E30 29.6 2 71.2 111 125
1. Minimum Circuit Ampacity.
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
ZE036-060 (Direct Drive) (Continued)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
122 Johnson Controls Unitary Products
ZF036-060 (Belt Drive)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 9.1 68 14.2 2.3 5.2 10
NONE - - - 29.1 35
E05 4 1 11.1 32.9 35
E07 5.6 1 15.5 38.4 40
E10 8 1 22.2 46.8 50
E15 11.9 2 33 60.3 70
E20 15.9 2 44.1 74.2 80
230-3-60 9.1 68 14.2 2.3 5.2 10
NONE - - - 29.1 35
E05 5.3 1 12.7 34.9 40
E07 7.5 1 18 41.6 45
E10 10.6 1 25.5 50.9 60
E15 15.9 2 38.2 66.8 70
E20 21.2 2 51 82.7 90
460-3-60 4.5 34 7 1.3 2.6 5
NONE - - - 14.6 15
E07 6.8 1 8.2 19.7 20
E10 10.1 1 12.1 24.7 25
E15 13.6 2 16.4 29.9 30
E20 19.5 2 23.5 38.8 40
575-3-60 3.8 28 6 1.3 2 4
NONE - - - 11.8 15
E10 10.6 1 10.2 20.2 25
E15 15.9 2 15.3 26.6 30
E20 21.2 2 20.4 33 35
048
(4.0)
208-3-60 11.2 88 17.5 2.3 5.2 10
NONE - - - 31.5 40
E05 4 1 11.1 32.9 40
E07 5.6 1 15.5 38.4 40
E10 8 1 22.2 46.8 50
E15 11.9 2 33 60.3 70
E20 15.9 2 44.1 74.2 80
230-3-60 11.2 88 17.5 2.3 5.2 10
NONE - - - 31.5 40
E05 5.3 1 12.7 34.9 40
E07 7.5 1 18 41.6 45
E10 10.6 1 25.5 50.9 60
E15 15.9 2 38.2 66.8 70
E20 21.2 2 51 82.7 90
460-3-60 5.6 44 8 1.3 2.6 5
NONE - - - 15.9 20
E07 6.8 1 8.2 19.7 20
E10 10.1 1 12.1 24.7 25
E15 13.6 2 16.4 29.9 30
E20 19.5 2 23.5 38.8 40
575-3-60 4.5 36 7 1.3 2 4
NONE - - - 12.7 15
E10 10.6 1 10.2 20.2 25
E15 15.9 2 15.3 26.6 30
E20 21.2 2 20.4 33 35
060
(5.0)
208-3-60 14.1 88 22 2.3 5.2 10
NONE - - - 35.1 45
E05 4 1 11.1 35.1 45
E07 5.6 1 15.5 38.4 45
E10 8 1 22.2 46.8 50
E15 11.9 2 33 60.3 70
E20 15.9 2 44.1 74.2 80
E30 22.2 2 61.6 96 100
230-3-60 14.1 88 22 2.3 5.2 10
NONE - - - 35.1 45
E05 5.3 1 12.7 35.1 45
E07 7.5 1 18 41.6 45
E10 10.6 1 25.5 50.9 60
E15 15.9 2 38.2 66.8 70
E20 21.2 2 51 82.7 90
E30 29.6 2 71.2 108 110
460-3-60 7.7 55 12 1.3 2.6 5
NONE - - - 18.5 25
E07 6.8 1 8.2 19.7 25
E10 10.1 1 12.1 24.7 25
E15 13.6 2 16.4 29.9 30
E20 19.5 2 23.5 38.8 40
E30 28.8 2 34.6 52.8 60
575-3-60 5.1 36 7.5 1.3 2 4
NONE - - - 13.4 15
E10 10.6 1 10.2 20.2 25
E15 15.9 2 15.3 26.6 30
E20 21.2 2 20.4 33 35
E30 30.4 2 29.3 44.1 45
251933-YTG-X-0615
Johnson Controls Unitary Products 123
ZF072 (Belt Drive) Cooling With/Without Electric Heat
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
072
(6.0)
208-3-60 19 123 29.7 4.4 5.2 10
NONE - - - 43.3 60
E05 4 1 11.1 43.3 60
E07 5.6 1 15.5 43.3 60
E10 8 1 22.2 46.8 60
E15 11.9 2 33 60.3 70
E20 15.9 2 44.1 74.2 80
E30 22.2 2 61.6 96 100
230-3-60 19 123 29.7 4.4 5.2 10
NONE - - - 43.3 60
E05 5.3 1 12.7 43.3 60
E07 7.5 1 18 43.3 60
E10 10.6 1 25.5 50.9 60
E15 15.9 2 38.2 66.8 70
E20 21.2 2 51 82.7 90
E30 29.6 2 71.2 108 110
460-3-60 9.7 62 15.2 4.4 2.6 5
NONE - - - 21.9 30
E07 6.8 1 8.2 21.9 30
E10 10.1 1 12.1 24.7 30
E15 13.6 2 16.4 29.9 30
E20 19.5 2 23.5 38.8 40
E30 28.8 2 34.6 52.8 60
575-3-60 7.4 50 11.6 4.4 2 4
NONE - - - 17 20
E10 10.6 1 10.2 20.2 25
E15 15.9 2 15.3 26.6 30
E20 21.2 2 20.4 33 35
E30 30.4 2 29.3 44.1 45
ZF072 (Belt Drive) Cooling With Gas Heat
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA
072
(6.0)
208-3-60 19 123 29.7 2.3 5.2 10 41.3 60
230-3-60
460-3-60 9.7 62 15.2 1.3 2.6 5 21.0 30
575-3-60 7.4 50 11.6 1.3 2 4 16.3 20
251933-YTG-X-0615
124 Johnson Controls Unitary Products
ZF036-060 (Belt Drive High Static)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 9.1 68 14.2 2.3 5.2 10
NONE - - - 29.1 35
E05 4 1 11.1 32.9 35
E07 5.6 1 15.5 38.4 40
E10 8 1 22.2 46.8 50
E15 11.9 2 33 60.3 70
E20 15.9 2 44.1 74.2 80
230-3-60 9.1 68 14.2 2.3 5.2 10
NONE - - - 29.1 35
E05 5.3 1 12.7 34.9 40
E07 7.5 1 18 41.6 45
E10 10.6 1 25.5 50.9 60
E15 15.9 2 38.2 66.8 70
E20 21.2 2 51 82.7 90
460-3-60 4.5 34 7 1.3 2.6 5
NONE - - - 14.6 15
E07 6.8 1 8.2 19.7 20
E10 10.1 1 12.1 24.7 25
E15 13.6 2 16.4 29.9 30
E20 19.5 2 23.5 38.8 40
575-3-60 3.8 28 6 1.3 2 4
NONE - - - 11.8 15
E10 10.6 1 10.2 20.2 25
E15 15.9 2 15.3 26.6 30
E20 21.2 2 20.4 33 35
048
(4.0)
208-3-60 11.2 88 17.5 2.3 5.2 10
NONE - - - 31.5 40
E05 4 1 11.1 32.9 40
E07 5.6 1 15.5 38.4 40
E10 8 1 22.2 46.8 50
E15 11.9 2 33 60.3 70
E20 15.9 2 44.1 74.2 80
230-3-60 11.2 88 17.5 2.3 5.2 10
NONE - - - 31.5 40
E05 5.3 1 12.7 34.9 40
E07 7.5 1 18 41.6 45
E10 10.6 1 25.5 50.9 60
E15 15.9 2 38.2 66.8 70
E20 21.2 2 51 82.7 90
460-3-60 5.6 44 8 1.3 2.6 5
NONE - - - 15.9 20
E07 6.8 1 8.2 19.7 20
E10 10.1 1 12.1 24.7 25
E15 13.6 2 16.4 29.9 30
E20 19.5 2 23.5 38.8 40
575-3-60 4.5 36 7 1.3 2 4
NONE - - - 12.7 15
E10 10.6 1 10.2 20.2 25
E15 15.9 2 15.3 26.6 30
E20 21.2 2 20.4 33 35
060
(5.0)
208-3-60 14.1 88 22 2.3 6.8 10
NONE - - - 36.7 45
E05 4 1 11.1 36.7 45
E07 5.6 1 15.5 40.4 50
E10 8 1 22.2 48.8 50
E15 11.9 2 33 62.3 70
E20 15.9 2 44.1 76.2 80
E30 22.2 2 61.6 98 100
230-3-60 14.1 88 22 2.3 6.8 10
NONE - - - 36.7 45
E05 5.3 1 12.7 36.9 45
E07 7.5 1 18 43.6 50
E10 10.6 1 25.5 52.9 60
E15 15.9 2 38.2 68.8 70
E20 21.2 2 51 84.7 90
E30 29.6 2 71.2 110 125
460-3-60 7.7 55 12 1.3 3.4 5
NONE - - - 19.3 25
E07 6.8 1 8.2 20.7 25
E10 10.1 1 12.1 25.7 30
E15 13.6 2 16.4 30.9 35
E20 19.5 2 23.5 39.8 40
E30 28.8 2 34.6 53.8 60
575-3-60 5.1 36 7.5 1.3 2.4 4
NONE - - - 13.8 15
E10 10.6 1 10.2 20.7 25
E15 15.9 2 15.3 27.1 30
E20 21.2 2 20.4 33.5 35
E30 30.4 2 29.3 44.6 45
251933-YTG-X-0615
Johnson Controls Unitary Products 125
ZF072 (Belt Drive High Static) Cooling With/Without Electric Heat
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
072
(6.0)
208-3-60 19 123 29.7 4.4 9.6 10
NONE - - - 47.8 60
E05 4 1 11.1 47.8 60
E07 5.6 1 15.5 47.8 60
E10 8 1 22.2 52.3 60
E15 11.9 2 33 65.8 70
E20 15.9 2 44.1 79.7 80
E30 22.2 2 61.6 101.5 110
230-3-60 19 123 29.7 4.4 9.6 10
NONE - - - 47.8 60
E05 5.3 1 12.7 47.8 60
E07 7.5 1 18 47.8 60
E10 10.6 1 25.5 56.4 60
E15 15.9 2 38.2 72.3 80
E20 21.2 2 51 88.2 90
E30 29.6 2 71.2 113.5 125
460-3-60 9.7 62 15.2 4.4 4.7 5
NONE - - - 24 30
E07 6.8 1 8.2 24 30
E10 10.1 1 12.1 27.3 30
E15 13.6 2 16.4 32.6 35
E20 19.5 2 23.5 41.4 45
E30 28.8 2 34.6 55.4 60
575-3-60 7.4 50 11.6 4.4 3.6 4
NONE - - - 18.6 20
E10 10.6 1 10.2 22.2 25
E15 15.9 2 15.3 28.6 30
E20 21.2 2 20.4 35 35
E30 30.4 2 29.3 46.1 50
ZF072 (Belt Drive High Static) Cooling With Gas Heat
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA
072
(6.0)
208-3-60 19 123 29.7 2.3 9.6 10 45.7 60
230-3-60
460-3-60 9.7 62 15.2 1.3 4.7 5 23.1 30
575-3-60 7.4 50 11.6 1.3 3.6 4 17.9 25
251933-YTG-X-0615
126 Johnson Controls Unitary Products
ZF036-060 (Direct Drive)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 9.1 68 14.2 2.3 6 10
NONE - - - 29.9 35
E05 4 1 11.1 33.9 35
E07 5.6 1 15.5 39.4 40
E10 8 1 22.2 47.8 50
E15 11.9 2 33 61.3 70
E20 15.9 2 44.1 75.2 80
230-3-60 9.1 68 14.2 2.3 6 10
NONE - - - 29.9 35
E05 5.3 1 12.7 35.9 40
E07 7.5 1 18 42.6 45
E10 10.6 1 25.5 51.9 60
E15 15.9 2 38.2 67.8 70
E20 21.2 2 51 83.7 90
048
(4.0)
208-3-60 11.2 88 17.5 2.3 7.6 10
NONE - - - 33.9 45
E05 4 1 11.1 35.9 45
E07 5.6 1 15.5 41.4 45
E10 8 1 22.2 49.8 50
E15 11.9 2 33 63.3 70
E20 15.9 2 44.1 77.2 80
230-3-60 11.2 88 17.5 2.3 7.6 10
NONE - - - 33.9 45
E05 5.3 1 12.7 37.9 45
E07 7.5 1 18 44.6 45
E10 10.6 1 25.5 53.9 60
E15 15.9 2 38.2 69.8 70
E20 21.2 2 51 85.7 90
060
(5.0)
208-3-60 14.1 88 22 2.3 7.6 10
NONE - - - 37.5 50
E05 4 1 11.1 37.5 50
E07 5.6 1 15.5 41.4 50
E10 8 1 22.2 49.8 50
E15 11.9 2 33 63.3 70
E20 15.9 2 44.1 77.2 80
E30 22.2 2 61.6 99 100
230-3-60 14.1 88 22 2.3 7.6 10
NONE - - - 37.5 50
E05 5.3 1 12.7 37.9 50
E07 7.5 1 18 44.6 50
E10 10.6 1 25.5 53.9 60
E15 15.9 2 38.2 69.8 70
E20 21.2 2 51 85.7 90
E30 29.6 2 71.2 111 125
251933-YTG-X-0615
Johnson Controls Unitary Products 127
ZF072 (Direct Drive) Cooling With/Without Electric Heat
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
072
(6.0)
208-3-60 19 123 29.7 4.4 7.6 10
NONE - - - 45.8 60
E05 4 1 11.1 45.8 60
E07 5.6 1 15.5 45.8 60
E10 8 1 22.2 49.8 60
E15 11.9 2 33 63.3 70
E20 15.9 2 44.1 77.2 80
E30 22.2 2 61.6 99 100
230-3-60 19 123 29.7 4.4 7.6 10
NONE - - - 45.8 60
E05 5.3 1 12.7 45.8 60
E07 7.5 1 18 45.8 60
E10 10.6 1 25.5 53.9 60
E15 15.9 2 38.2 69.8 70
E20 21.2 2 51 85.7 90
E30 29.6 2 71.2 111 125
ZF072 (Direct Drive) Cooling With Gas Heat
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA
072
(6.0) 208-3-60 19 123 29.7 2.3 7.6 10 43.7 60
230-3-60
251933-YTG-X-0615
128 Johnson Controls Unitary Products
ZR036-060 (Belt Drive)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 10.4 73 16.3 2.3 5.2 10
NONE - - - 30.5 40
E05 4 1 11.1 32.9 40
E07 5.6 1 15.5 38.4 40
E10 8 1 22.2 46.8 50
E15 11.9 2 33 60.3 70
E20 15.9 2 44.1 74.2 80
230-3-60 10.4 73 16.3 2.3 5.2 10
NONE - - - 30.5 40
E05 5.3 1 12.7 34.9 40
E07 7.5 1 18 41.6 45
E10 10.6 1 25.5 50.9 60
E15 15.9 2 38.2 66.8 70
E20 21.2 2 51 82.7 90
460-3-60 5.8 38 9 1.3 2.6 5
NONE - - - 16.1 20
E07 6.8 1 8.2 19.7 20
E10 10.1 1 12.1 24.7 25
E15 13.6 2 16.4 29.9 30
E20 19.5 2 23.5 38.8 40
575-3-60 3.8 36.5 5.9 1.3 2 4
NONE - - - 11.8 15
E10 10.6 1 10.2 20.2 25
E15 15.9 2 15.3 26.6 30
E20 21.2 2 20.4 33 35
048
(4.0)
208-3-60 13.7 83.1 21.4 2.3 5.2 10
NONE - - - 34.6 45
E05 4 1 11.1 34.6 45
E07 5.6 1 15.5 38.4 45
E10 8 1 22.2 46.8 50
E15 11.9 2 33 60.3 70
E20 15.9 2 44.1 74.2 80
230-3-60 13.7 83.1 21.4 2.3 5.2 10
NONE - - - 34.6 45
E05 5.3 1 12.7 34.9 45
E07 7.5 1 18 41.6 45
E10 10.6 1 25.5 50.9 60
E15 15.9 2 38.2 66.8 70
E20 21.2 2 51 82.7 90
460-3-60 6.2 41 9.7 1.3 2.6 5
NONE - - - 16.6 20
E07 6.8 1 8.2 19.7 20
E10 10.1 1 12.1 24.7 25
E15 13.6 2 16.4 29.9 30
E20 19.5 2 23.5 38.8 40
575-3-60 4.8 33 7.5 1.3 2 4
NONE - - - 13 15
E10 10.6 1 10.2 20.2 25
E15 15.9 2 15.3 26.6 30
E20 21.2 2 20.4 33 35
060
(5.0)
208-3-60 16 110 24.9 2.3 5.2 10
NONE - - - 37.5 50
E05 4 1 11.1 37.5 50
E07 5.6 1 15.5 38.4 50
E10 8 1 22.2 46.8 50
E15 11.9 2 33 60.3 70
E20 15.9 2 44.1 74.2 80
E30 22.2 2 61.6 96 100
230-3-60 16 110 24.9 2.3 5.2 10
NONE - - - 37.5 50
E05 5.3 1 12.7 37.5 50
E07 7.5 1 18 41.6 50
E10 10.6 1 25.5 50.9 60
E15 15.9 2 38.2 66.8 70
E20 21.2 2 51 82.7 90
E30 29.6 2 71.2 108 110
460-3-60 7.8 52 12.1 1.3 2.6 5
NONE - - - 18.6 25
E07 6.8 1 8.2 19.7 25
E10 10.1 1 12.1 24.7 25
E15 13.6 2 16.4 29.9 30
E20 19.5 2 23.5 38.8 40
E30 28.8 2 34.6 52.8 60
575-3-60 5.7 38.9 8.9 1.3 2 4
NONE - - - 14.2 15
E10 10.6 1 10.2 20.2 25
E15 15.9 2 15.3 26.6 30
E20 21.2 2 20.4 33 35
E30 30.4 2 29.3 44.1 45
251933-YTG-X-0615
Johnson Controls Unitary Products 129
ZR036-060 (Belt Drive High Static)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 10.4 73 16.3 2.3 5.2 10
NONE - - - 30.5 40
E05 4 1 11.1 32.9 40
E07 5.6 1 15.5 38.4 40
E10 8 1 22.2 46.8 50
E15 11.9 2 33 60.3 70
E20 15.9 2 44.1 74.2 80
230-3-60 10.4 73 16.3 2.3 5.2 10
NONE - - - 30.5 40
E05 5.3 1 12.7 34.9 40
E07 7.5 1 18 41.6 45
E10 10.6 1 25.5 50.9 60
E15 15.9 2 38.2 66.8 70
E20 21.2 2 51 82.7 90
460-3-60 5.8 38 9 1.3 2.6 5
NONE - - - 16.1 20
E07 6.8 1 8.2 19.7 20
E10 10.1 1 12.1 24.7 25
E15 13.6 2 16.4 29.9 30
E20 19.5 2 23.5 38.8 40
575-3-60 3.8 36.5 5.9 1.3 2 4
NONE - - - 11.8 15
E10 10.6 1 10.2 20.2 25
E15 15.9 2 15.3 26.6 30
E20 21.2 2 20.4 33 35
048
(4.0)
208-3-60 13.7 83.1 21.4 2.3 5.2 10
NONE - - - 34.6 45
E05 4 1 11.1 34.6 45
E07 5.6 1 15.5 38.4 45
E10 8 1 22.2 46.8 50
E15 11.9 2 33 60.3 70
E20 15.9 2 44.1 74.2 80
230-3-60 13.7 83.1 21.4 2.3 5.2 10
NONE - - - 34.6 45
E05 5.3 1 12.7 34.9 45
E07 7.5 1 18 41.6 45
E10 10.6 1 25.5 50.9 60
E15 15.9 2 38.2 66.8 70
E20 21.2 2 51 82.7 90
460-3-60 6.2 41 9.7 1.3 2.6 5
NONE - - - 16.6 20
E07 6.8 1 8.2 19.7 20
E10 10.1 1 12.1 24.7 25
E15 13.6 2 16.4 29.9 30
E20 19.5 2 23.5 38.8 40
575-3-60 4.8 33 7.5 1.3 2 4
NONE - - - 13 15
E10 10.6 1 10.2 20.2 25
E15 15.9 2 15.3 26.6 30
E20 21.2 2 20.4 33 35
060
(5.0)
208-3-60 16 110 24.9 2.3 6.8 10
NONE - - - 39.1 50
E05 4 1 11.1 39.1 50
E07 5.6 1 15.5 40.4 50
E10 8 1 22.2 48.8 50
E15 11.9 2 33 62.3 70
E20 15.9 2 44.1 76.2 80
E30 22.2 2 61.6 98 100
230-3-60 16 110 24.9 2.3 6.8 10
NONE - - - 39.1 50
E05 5.3 1 12.7 39.1 50
E07 7.5 1 18 43.6 50
E10 10.6 1 25.5 52.9 60
E15 15.9 2 38.2 68.8 70
E20 21.2 2 51 84.7 90
E30 29.6 2 71.2 110 125
460-3-60 7.8 52 12.1 1.3 3.4 5
NONE - - - 19.5 25
E07 6.8 1 8.2 20.7 25
E10 10.1 1 12.1 25.7 30
E15 13.6 2 16.4 30.9 35
E20 19.5 2 23.5 39.8 40
E30 28.8 2 34.6 53.8 60
575-3-60 5.7 38.9 8.9 1.3 2.4 4
NONE - - - 14.6 20
E10 10.6 1 10.2 20.7 25
E15 15.9 2 15.3 27.1 30
E20 21.2 2 20.4 33.5 35
E30 30.4 2 29.3 44.6 45
251933-YTG-X-0615
130 Johnson Controls Unitary Products
ZR036-060 (Direct Drive)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 10.4 73 16.3 2.3 6 10
NONE - - - 31.3 40
E05 4 1 11.1 33.9 40
E07 5.6 1 15.5 39.4 40
E10 8 1 22.2 47.8 50
E15 11.9 2 33 61.3 70
E20 15.9 2 44.1 75.2 80
230-3-60 10.4 73 16.3 2.3 6 10
NONE - - - 31.3 40
E05 5.3 1 12.7 35.9 40
E07 7.5 1 18 42.6 45
E10 10.6 1 25.5 51.9 60
E15 15.9 2 38.2 67.8 70
E20 21.2 2 51 83.7 90
048
(4.0)
208-3-60 13.7 83.1 21.4 2.3 7.6 10
NONE - - - 37 45
E05 4 1 11.1 37 45
E07 5.6 1 15.5 41.4 50
E10 8 1 22.2 49.8 50
E15 11.9 2 33 63.3 70
E20 15.9 2 44.1 77.2 80
230-3-60 13.7 83.1 21.4 2.3 7.6 10
NONE - - - 37 45
E05 5.3 1 12.7 37.9 50
E07 7.5 1 18 44.6 50
E10 10.6 1 25.5 53.9 60
E15 15.9 2 38.2 69.8 70
E20 21.2 2 51 85.7 90
060
(5.0)
208-3-60 16 110 24.9 2.3 7.6 10
NONE - - - 39.9 50
E05 4 1 11.1 39.9 50
E07 5.6 1 15.5 41.4 50
E10 8 1 22.2 49.8 50
E15 11.9 2 33 63.3 70
E20 15.9 2 44.1 77.2 80
E30 22.2 2 61.6 99 100
230-3-60 16 110 24.9 2.3 7.6 10
NONE - - - 39.9 50
E05 5.3 1 12.7 39.9 50
E07 7.5 1 18 44.6 50
E10 10.6 1 25.5 53.9 60
E15 15.9 2 38.2 69.8 70
E20 21.2 2 51 85.7 90
E30 29.6 2 71.2 111 125
251933-YTG-X-0615
Johnson Controls Unitary Products 131
XN036-060 (Belt Drive)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-1-60 16.7 109 26 1.3 6.7 10
NONE - - - 38.9 50
E05 4 1 19.2 62.9 70
E07 5.6 1 26.9 72.5 80
E10 8 1 38.5 87 90
E15 11.9 2 57.2 110.4 125
E20 15.9 2 76.4 134.4 150
230-1-60 16.7 109 26 1.3 6.7 10
NONE - - - 38.9 50
E05 5.3 1 22.1 66.5 70
E07 7.5 1 31.2 77.9 80
E10 10.6 1 44.2 94.1 100
E15 15.9 2 66.2 121.7 125
E20 21.2 2 88.3 149.3 150
208-3-60 11.2 88 17.5 1.3 4.3 10
NONE - - - 29.6 40
E05 4 1 11.1 43.5 50
E07 5.6 1 15.5 49 50
E10 8 1 22.2 57.4 60
E15 11.9 2 33 70.9 80
E20 15.9 2 44.1 84.8 90
230-3-60 11.2 88 17.5 1.3 4.3 10
NONE - - - 29.6 40
E05 5.3 1 12.7 45.5 50
E07 7.5 1 18 52.2 60
E10 10.6 1 25.5 61.5 70
E15 15.9 2 38.2 77.4 80
E20 21.2 2 51 93.3 100
460-3-60 5.5 43.2 7.7 0.8 2.1 5
NONE - - - 14.8 20
E07 6.8 1 8.2 25 25
E10 10.1 1 12.1 30 30
E15 13.6 2 16.4 35.2 40
E20 19.5 2 23.5 44.1 45
575-3-60 3.8 34 6 0.8 1.9 4
NONE - - - 11.3 15
E10 10.6 1 10.2 24.1 25
E15 15.9 2 15.3 30.5 35
E20 21.2 2 20.4 36.8 40
251933-YTG-X-0615
132 Johnson Controls Unitary Products
048
(4.0)
208-1-60 19.6 130 30.5 2.8 6.7 10
NONE - - - 44 60
E05 4 1 19.2 68 80
E07 5.6 1 26.9 77.7 90
E10 8 1 38.5 92.1 100
E15 11.9 2 57.2 115.5 125
E20 15.9 2 76.4 139.6 150
230-1-60 19.6 130 30.5 2.8 6.7 10
NONE - - - 44 60
E05 5.3 1 22.1 71.6 80
E07 7.5 1 31.2 83.1 90
E10 10.6 1 44.2 99.2 100
E15 15.9 2 66.2 126.8 150
E20 21.2 2 88.3 154.4 175
208-3-60 13.7 83.1 21.4 2.8 4.3 10
NONE - - - 34.2 45
E05 4 1 11.1 48.1 50
E07 5.6 1 15.5 53.7 60
E10 8 1 22.2 62 70
E15 11.9 2 33 75.5 80
E20 15.9 2 44.1 89.4 90
230-3-60 13.7 83.1 21.4 2.8 4.3 10
NONE - - - 34.2 45
E05 5.3 1 12.7 50.2 60
E07 7.5 1 18 56.8 60
E10 10.6 1 25.5 66.1 70
E15 15.9 2 38.2 82 90
E20 21.2 2 51 98 100
460-3-60 6.2 41 9.7 2.8 2.1 5
NONE - - - 16.3 20
E07 6.8 1 8.2 26.5 30
E10 10.1 1 12.1 31.4 35
E15 13.6 2 16.4 36.7 40
E20 19.5 2 23.5 45.6 50
575-3-60 4.8 33 7.5 2.8 1.9 4
NONE - - - 13 15
E10 10.6 1 10.2 25.8 30
E15 15.9 2 15.3 32.1 35
E20 21.2 2 20.4 38.5 40
XN036-060 (Belt Drive) (Continued)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
Johnson Controls Unitary Products 133
060
(5.0)
208-1-60 27.1 152.9 42.3 2.8 4.3 10
NONE - - - 51 70
E05 4 1 19.2 75 90
E07 5.6 1 26.9 84.6 100
E10 8 1 38.5 99.1 110
E15 11.9 2 57.2 122.5 125
E20 15.9 2 76.4 146.5 150
E30 22.2 2 106.7 184.4 200
230-1-60 27.1 152.9 42.3 2.8 4.3 10
NONE - - - 51 70
E05 5.3 1 22.1 78.6 100
E07 7.5 1 31.2 90 100
E10 10.6 1 44.2 106.2 110
E15 15.9 2 66.2 133.8 150
E20 21.2 2 88.3 161.4 175
E30 29.6 2 123.3 205.1 225
208-3-60 16.5 110 25.8 2.8 4.3 10
NONE - - - 37.7 50
E05 4 1 11.1 51.6 60
E07 5.6 1 15.5 57.2 60
E10 8 1 22.2 65.5 70
E15 11.9 2 33 79 80
E20 15.9 2 44.1 92.9 100
E30 22.2 2 61.6 114.8 125
230-3-60 16.5 110 25.8 2.8 4.3 10
NONE - - - 37.7 50
E05 5.3 1 12.7 53.7 60
E07 7.5 1 18 60.3 70
E10 10.6 1 25.5 69.6 70
E15 15.9 2 38.2 85.5 90
E20 21.2 2 51 101.5 110
E30 29.6 2 71.2 126.7 150
460-3-60 7.2 52 11.3 2.8 2.1 5
NONE - - - 17.5 20
E07 6.8 1 8.2 27.7 30
E10 10.1 1 12.1 32.7 35
E15 13.6 2 16.4 37.9 40
E20 19.5 2 23.5 46.8 50
E30 28.8 2 34.6 60.8 70
575-3-60 5.5 38.9 8.6 2.8 1.9 4
NONE - - - 13.9 15
E10 10.6 1 10.2 26.6 30
E15 15.9 2 15.3 33 35
E20 21.2 2 20.4 39.4 40
E30 30.4 2 29.3 50.5 60
1. Minimum Circuit Ampacity.
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
XN036-060 (Belt Drive) (Continued)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
134 Johnson Controls Unitary Products
XN036-060 (Belt Drive High Static)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-1-60 16.7 109 26 1.3 6.7 10
NONE - - - 38.9 50
E05 4 1 19.2 62.9 70
E07 5.6 1 26.9 72.5 80
E10 8 1 38.5 87 90
E15 11.9 2 57.2 110.4 125
E20 15.9 2 76.4 134.4 150
230-1-60 16.7 109 26 1.3 6.7 10
NONE - - - 38.9 50
E05 5.3 1 22.1 66.5 70
E07 7.5 1 31.2 77.9 80
E10 10.6 1 44.2 94.1 100
E15 15.9 2 66.2 121.7 125
E20 21.2 2 88.3 149.3 150
208-3-60 11.2 88 17.5 1.3 4.3 10
NONE - - - 29.6 40
E05 4 1 11.1 43.5 50
E07 5.6 1 15.5 49 50
E10 8 1 22.2 57.4 60
E15 11.9 2 33 70.9 80
E20 15.9 2 44.1 84.8 90
230-3-60 11.2 88 17.5 1.3 4.3 10
NONE - - - 29.6 40
E05 5.3 1 12.7 45.5 50
E07 7.5 1 18 52.2 60
E10 10.6 1 25.5 61.5 70
E15 15.9 2 38.2 77.4 80
E20 21.2 2 51 93.3 100
460-3-60 5.5 43.2 7.7 0.8 2.1 5
NONE - - - 14.8 20
E07 6.8 1 8.2 25 25
E10 10.1 1 12.1 30 30
E15 13.6 2 16.4 35.2 40
E20 19.5 2 23.5 44.1 45
575-3-60 3.8 34 6 0.8 1.9 4
NONE - - - 11.3 15
E10 10.6 1 10.2 24.1 25
E15 15.9 2 15.3 30.5 35
E20 21.2 2 20.4 36.8 40
251933-YTG-X-0615
Johnson Controls Unitary Products 135
048
(4.0)
208-1-60 19.6 130 30.5 2.8 6.7 10
NONE - - - 44 60
E05 4 1 19.2 68 80
E07 5.6 1 26.9 77.7 90
E10 8 1 38.5 92.1 100
E15 11.9 2 57.2 115.5 125
E20 15.9 2 76.4 139.6 150
230-1-60 19.6 130 30.5 2.8 6.7 10
NONE - - - 44 60
E05 5.3 1 22.1 71.6 80
E07 7.5 1 31.2 83.1 90
E10 10.6 1 44.2 99.2 100
E15 15.9 2 66.2 126.8 150
E20 21.2 2 88.3 154.4 175
208-3-60 13.7 83.1 21.4 2.8 4.3 10
NONE - - - 34.2 45
E05 4 1 11.1 48.1 50
E07 5.6 1 15.5 53.7 60
E10 8 1 22.2 62 70
E15 11.9 2 33 75.5 80
E20 15.9 2 44.1 89.4 90
230-3-60 13.7 83.1 21.4 2.8 4.3 10
NONE - - - 34.2 45
E05 5.3 1 12.7 50.2 60
E07 7.5 1 18 56.8 60
E10 10.6 1 25.5 66.1 70
E15 15.9 2 38.2 82 90
E20 21.2 2 51 98 100
460-3-60 6.2 41 9.7 2.8 2.1 5
NONE - - - 16.3 20
E07 6.8 1 8.2 26.5 30
E10 10.1 1 12.1 31.4 35
E15 13.6 2 16.4 36.7 40
E20 19.5 2 23.5 45.6 50
575-3-60 4.8 33 7.5 2.8 1.9 4
NONE - - - 13 15
E10 10.6 1 10.2 25.8 30
E15 15.9 2 15.3 32.1 35
E20 21.2 2 20.4 38.5 40
060
(5.0)
208-3-60 16.5 110 25.8 2.8 6.8 10
NONE - - - 40.2 50
E05 4 1 11.1 54.1 60
E07 5.6 1 15.5 59.7 70
E10 8 1 22.2 68 70
E15 11.9 2 33 81.5 90
E20 15.9 2 44.1 95.4 100
E30 22.2 2 61.6 117.3 125
230-3-60 16.5 110 25.8 2.8 6.8 10
NONE - - - 40.2 50
E05 5.3 1 12.7 56.2 60
E07 7.5 1 18 62.8 70
E10 10.6 1 25.5 72.1 80
E15 15.9 2 38.2 88 90
E20 21.2 2 51 104 110
E30 29.6 2 71.2 129.2 150
460-3-60 7.2 52 11.3 2.8 3.15 5
NONE - - - 18.5 25
E07 6.8 1 8.2 28.8 30
E10 10.1 1 12.1 33.7 35
E15 13.6 2 16.4 39 40
E20 19.5 2 23.5 47.9 50
E30 28.8 2 34.6 61.9 70
575-3-60 5.5 38.9 8.6 2.8 2.2 4
NONE - - - 14.2 15
E10 10.6 1 10.2 26.9 30
E15 15.9 2 15.3 33.3 35
E20 21.2 2 20.4 39.7 40
E30 30.4 2 29.3 50.8 60
1. Minimum Circuit Ampacity.
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
XN036-060 (Belt Drive High Static) (Continued)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
136 Johnson Controls Unitary Products
XN036-060 (Direct Drive)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-1-60 16.7 109 26 1.3 6 10
NONE - - - 38.2 50
E05 4 1 19.2 62.2 70
E07 5.6 1 26.9 71.8 80
E10 8 1 38.5 86.3 90
E15 11.9 2 57.2 109.7 110
E20 15.9 2 76.4 133.7 150
230-1-60 16.7 109 26 1.3 6 10
NONE - - - 38.2 50
E05 5.3 1 22.1 65.8 70
E07 7.5 1 31.2 77.2 80
E10 10.6 1 44.2 93.4 100
E15 15.9 2 66.2 121 125
E20 21.2 2 88.3 148.6 150
208-3-60 11.2 88 17.5 1.3 6 10
NONE - - - 31.3 40
E05 4 1 11.1 45.2 50
E07 5.6 1 15.5 50.7 60
E10 8 1 22.2 59.1 60
E15 11.9 2 33 72.6 80
E20 15.9 2 44.1 86.5 90
230-3-60 11.2 88 17.5 1.3 6 10
NONE - - - 31.3 40
E05 5.3 1 12.7 47.2 50
E07 7.5 1 18 53.9 60
E10 10.6 1 25.5 63.2 70
E15 15.9 2 38.2 79.1 80
E20 21.2 2 51 95 100
048
(4.0)
208-1-60 19.6 130 30.5 2.8 7.6 10
NONE - - - 44.9 60
E05 4 1 19.2 68.9 80
E07 5.6 1 26.9 78.6 90
E10 8 1 38.5 93 100
E15 11.9 2 57.2 116.4 125
E20 15.9 2 76.4 140.5 150
230-1-60 19.6 130 30.5 2.8 7.6 10
NONE - - - 44.9 60
E05 5.3 1 22.1 72.5 80
E07 7.5 1 31.2 84 90
E10 10.6 1 44.2 100.1 110
E15 15.9 2 66.2 127.7 150
E20 21.2 2 88.3 155.3 175
208-3-60 13.7 83.1 21.4 2.8 7.6 10
NONE - - - 37.5 50
E05 4 1 11.1 51.4 60
E07 5.6 1 15.5 57 60
E10 8 1 22.2 65.3 70
E15 11.9 2 33 78.8 80
E20 15.9 2 44.1 92.7 100
230-3-60 13.7 83.1 21.4 2.8 7.6 10
NONE - - - 37.5 50
E05 5.3 1 12.7 53.5 60
E07 7.5 1 18 60.1 70
E10 10.6 1 25.5 69.4 70
E15 15.9 2 38.2 85.3 90
E20 21.2 2 51 101.3 110
251933-YTG-X-0615
Johnson Controls Unitary Products 137
060
(5.0)
208-1-60 27.1 152.9 42.3 2.8 7.6 10
NONE - - - 54.3 70
E05 4 1 19.2 78.3 100
E07 5.6 1 26.9 87.9 100
E10 8 1 38.5 102.4 110
E15 11.9 2 57.2 125.8 150
E20 15.9 2 76.4 149.8 150
E30 22.2 2 106.7 187.7 200
230-1-60 27.1 152.9 42.3 2.8 7.6 10
NONE - - - 54.3 70
E05 5.3 1 22.1 81.9 100
E07 7.5 1 31.2 93.3 110
E10 10.6 1 44.2 109.5 125
E15 15.9 2 66.2 137.1 150
E20 21.2 2 88.3 164.7 175
E30 29.6 2 123.3 208.4 225
208-3-60 16.5 110 25.8 2.8 7.6 10
NONE - - - 41 50
E05 4 1 11.1 54.9 60
E07 5.6 1 15.5 60.5 70
E10 8 1 22.2 68.8 70
E15 11.9 2 33 82.3 90
E20 15.9 2 44.1 96.2 100
E30 22.2 2 61.6 118.1 125
230-3-60 16.5 110 25.8 2.8 7.6 10
NONE - - - 41 50
E05 5.3 1 12.7 57 70
E07 7.5 1 18 63.6 70
E10 10.6 1 25.5 72.9 80
E15 15.9 2 38.2 88.8 90
E20 21.2 2 51 104.8 110
E30 29.6 2 71.2 130 150
1. Minimum Circuit Ampacity.
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
XN036-060 (Direct Drive) (Continued)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max
Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
138 Johnson Controls Unitary Products
XP036-060 (Belt Drive)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 13.2 88 20.6 1.3 5.2 10
NONE - - - 33 40
E05 4 1 11.1 46.9 50
E07 5.6 1 15.5 52.4 60
E10 8 1 22.2 60.8 70
E15 11.9 2 33 74.3 80
E20 15.9 2 44.1 88.2 90
230-3-60 13.2 88 20.6 1.3 5.2 10
NONE - - - 33 40
E05 5.3 1 12.7 48.9 50
E07 7.5 1 18 55.6 60
E10 10.6 1 25.5 64.9 70
E15 15.9 2 38.2 80.8 90
E20 21.2 2 51 96.7 100
460-3-60 6 44 9.3 0.8 2.6 5
NONE - - - 15.9 20
E07 6.8 1 8.2 26.1 30
E10 10.1 1 12.1 31.1 35
E15 13.6 2 16.4 36.3 40
E20 19.5 2 23.5 45.2 50
575-3-60 4.2 30 6.5 0.8 2 4
NONE - - - 11.9 15
E10 10.6 1 10.2 24.6 25
E15 15.9 2 15.3 31 35
E20 21.2 2 20.4 37.4 40
048
(4.0)
208-3-60 13.1 83.1 20.5 1.3 5.2 10
NONE - - - 32.9 40
E05 4 1 11.1 46.8 50
E07 5.6 1 15.5 52.3 60
E10 8 1 22.2 60.6 70
E15 11.9 2 33 74.2 80
E20 15.9 2 44.1 88 90
230-3-60 13.1 83.1 20.5 1.3 5.2 10
NONE - - - 32.9 40
E05 5.3 1 12.7 48.8 50
E07 7.5 1 18 55.4 60
E10 10.6 1 25.5 64.7 70
E15 15.9 2 38.2 80.7 90
E20 21.2 2 51 96.6 100
460-3-60 6.1 41 9.5 0.8 2.6 5
NONE - - - 16 20
E07 6.8 1 8.2 26.2 30
E10 10.1 1 12.1 31.2 35
E15 13.6 2 16.4 36.5 40
E20 19.5 2 23.5 45.3 50
575-3-60 4.4 33 6.8 0.8 2 4
NONE - - - 12.1 15
E10 10.6 1 10.2 24.9 25
E15 15.9 2 15.3 31.3 35
E20 21.2 2 20.4 37.6 40
251933-YTG-X-0615
Johnson Controls Unitary Products 139
060
(5.0)
208-3-60 15.6 110 24.4 2.3 5.2 10
NONE - - - 37 45
E05 4 1 11.1 50.9 60
E07 5.6 1 15.5 56.4 60
E10 8 1 22.2 64.8 70
E15 11.9 2 33 78.3 80
E20 15.9 2 44.1 92.2 100
E30 22.2 2 61.6 114 125
230-3-60 15.6 110 24.4 2.3 5.2 10
NONE - - - 37 45
E05 5.3 1 12.7 52.9 60
E07 7.5 1 18 59.6 70
E10 10.6 1 25.5 68.9 70
E15 15.9 2 38.2 84.8 90
E20 21.2 2 51 100.7 110
E30 29.6 2 71.2 126 150
460-3-60 7.8 52 12.1 1.3 2.6 5
NONE - - - 18.6 25
E07 6.8 1 8.2 28.9 30
E10 10.1 1 12.1 33.8 35
E15 13.6 2 16.4 39.1 40
E20 19.5 2 23.5 48 50
E30 28.8 2 34.6 62 70
575-3-60 5.8 38.9 9.1 1.3 2 4
NONE - - - 14.3 20
E10 10.6 1 10.2 27 30
E15 15.9 2 15.3 33.4 35
E20 21.2 2 20.4 39.8 40
E30 30.4 2 29.3 50.9 60
1. Minimum Circuit Ampacity.
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
XP036-060 (Belt Drive) (Continued)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
140 Johnson Controls Unitary Products
XP036-060 (Belt Drive High Static)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 13.2 88 20.6 1.3 5.2 10
NONE - - - 33 40
E05 4 1 11.1 46.9 50
E07 5.6 1 15.5 52.4 60
E10 8 1 22.2 60.8 70
E15 11.9 2 33 74.3 80
E20 15.9 2 44.1 88.2 90
230-3-60 13.2 88 20.6 1.3 5.2 10
NONE - - - 33 40
E05 5.3 1 12.7 48.9 50
E07 7.5 1 18 55.6 60
E10 10.6 1 25.5 64.9 70
E15 15.9 2 38.2 80.8 90
E20 21.2 2 51 96.7 100
460-3-60 6 44 9.3 0.8 2.6 5
NONE - - - 15.9 20
E07 6.8 1 8.2 26.1 30
E10 10.1 1 12.1 31.1 35
E15 13.6 2 16.4 36.3 40
E20 19.5 2 23.5 45.2 50
575-3-60 4.2 30 6.5 0.8 2 4
NONE - - - 11.9 15
E10 10.6 1 10.2 24.6 25
E15 15.9 2 15.3 31 35
E20 21.2 2 20.4 37.4 40
048
(4.0)
208-3-60 13.1 83.1 20.5 1.3 5.2 10
NONE - - - 32.9 40
E05 4 1 11.1 46.8 50
E07 5.6 1 15.5 52.3 60
E10 8 1 22.2 60.6 70
E15 11.9 2 33 74.2 80
E20 15.9 2 44.1 88 90
230-3-60 13.1 83.1 20.5 1.3 5.2 10
NONE - - - 32.9 40
E05 5.3 1 12.7 48.8 50
E07 7.5 1 18 55.4 60
E10 10.6 1 25.5 64.7 70
E15 15.9 2 38.2 80.7 90
E20 21.2 2 51 96.6 100
460-3-60 6.1 41 9.5 0.8 2.6 5
NONE - - - 16 20
E07 6.8 1 8.2 26.2 30
E10 10.1 1 12.1 31.2 35
E15 13.6 2 16.4 36.5 40
E20 19.5 2 23.5 45.3 50
575-3-60 4.4 33 6.8 0.8 2 4
NONE - - - 12.1 15
E10 10.6 1 10.2 24.9 25
E15 15.9 2 15.3 31.3 35
E20 21.2 2 20.4 37.6 40
251933-YTG-X-0615
Johnson Controls Unitary Products 141
060
(5.0)
208-3-60 15.6 110 24.4 2.3 6.8 10
NONE - - - 38.6 50
E05 4 1 11.1 52.5 60
E07 5.6 1 15.5 58 60
E10 8 1 22.2 66.4 70
E15 11.9 2 33 79.9 80
E20 15.9 2 44.1 93.8 100
E30 22.2 2 61.6 115.6 125
230-3-60 15.6 110 24.4 2.3 6.8 10
NONE - - - 38.6 50
E05 5.3 1 12.7 54.5 60
E07 7.5 1 18 61.2 70
E10 10.6 1 25.5 70.5 80
E15 15.9 2 38.2 86.4 90
E20 21.2 2 51 102.3 110
E30 29.6 2 71.2 127.6 150
460-3-60 7.8 52 12.1 1.3 3.4 5
NONE - - - 19.5 25
E07 6.8 1 8.2 29.7 35
E10 10.1 1 12.1 34.6 35
E15 13.6 2 16.4 39.9 40
E20 19.5 2 23.5 48.8 50
E30 28.8 2 34.6 62.8 70
575-3-60 5.8 38.9 9.1 1.3 2.4 4
NONE - - - 14.7 20
E10 10.6 1 10.2 27.4 30
E15 15.9 2 15.3 33.8 35
E20 21.2 2 20.4 40.2 45
E30 30.4 2 29.3 51.3 60
1. Minimum Circuit Ampacity.
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
XP036-060 (Belt Drive High Static) (Continued)
Size
(Tons) Volt Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
Max Fuse2/
Breaker3
Size
(Amps)
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
251933-YTG-X-0615
142 Johnson Controls Unitary Products
XP036-060 (Direct Drive)
Size
(Tons) Volt
Compressors
(each)
OD Fan
Motors
(each)
Supply
Blower
Motor
Pwr
Conv
Outlet Electric Heat Option MCA1
(Amps)
1. Minimum Circuit Ampacity.
Max
Fuse2/
Breaker3
Size
(Amps)
2. Dual Element, Time Delay Type.
3. HACR type per NEC.
RLA LRA MCC FLA FLA FLA Model kW Stages Amps
036
(3.0)
208-3-60 13.2 88 20.6 1.3 6 10
NONE - - - 33.8 45
E05 4 1 11.1 47.7 50
E07 5.6 1 15.5 53.2 60
E10 8 1 22.2 61.6 70
E15 11.9 2 33 75.1 80
E20 15.9 2 44.1 89 90
230-3-60 13.2 88 20.6 1.3 6 10
NONE - - - 33.8 45
E05 5.3 1 12.7 49.7 50
E07 7.5 1 18 56.4 60
E10 10.6 1 25.5 65.7 70
E15 15.9 2 38.2 81.6 90
E20 21.2 2 51 97.5 100
048
(4.0)
208-3-60 13.1 83.1 20.5 1.3 7.6 10
NONE - - - 35.3 45
E05 4 1 11.1 49.2 50
E07 5.6 1 15.5 54.7 60
E10 8 1 22.2 63 70
E15 11.9 2 33 76.6 80
E20 15.9 2 44.1 90.4 100
230-3-60 13.1 83.1 20.5 1.3 7.6 10
NONE - - - 35.3 45
E05 5.3 1 12.7 51.2 60
E07 7.5 1 18 57.8 60
E10 10.6 1 25.5 67.1 70
E15 15.9 2 38.2 83.1 90
E20 21.2 2 51 99 100
060
(5.0)
208-3-60 15.6 110 24.4 2.3 7.6 10
NONE - - - 39.4 50
E05 4 1 11.1 53.3 60
E07 5.6 1 15.5 58.8 70
E10 8 1 22.2 67.2 70
E15 11.9 2 33 80.7 90
E20 15.9 2 44.1 94.6 100
E30 22.2 2 61.6 116.4 125
230-3-60 15.6 110 24.4 2.3 7.6 10
NONE - - - 39.4 50
E05 5.3 1 12.7 55.3 60
E07 7.5 1 18 62 70
E10 10.6 1 25.5 71.3 80
E15 15.9 2 38.2 87.2 90
E20 21.2 2 51 103.1 110
E30 29.6 2 71.2 128.4 150
251933-YTG-X-0615
Johnson Controls Unitary Products 143
Typical Field Power and Control Wiring
Typical Power Wiring
Typical Cool/Heat Control Wiring (Simplicity Lite ZE036-060 / ZF036-072)
REFER TO THE ELECTRICAL DATA
TABLES TO SIZE THE DISCONNECT
SWITCH, OVERCURRENT PROTEC-
TION AND WIRING.
OCC
C
RC
G
Y2
Y1
W2
W1
X
R
THERMOSTAT
TERMINALS
CONTROL
TERMINAL
BLOCK
TERMINALS ON A
LIMITED NUMBER
OF THERMOSTATS
1
4
3
1
2
4
Second stageŚĞĂƟŶŐŶot required on single stage heĂƟŶg units.
Jumper is required if there is no Smoke Detector circuit.
Jumper is required for any coŵďŝŶĂƟŽŶ of R, RC, or RH.
5
5
OCC is an output from the thermostat to indicate the Occupied ĐŽŶĚŝƟon.
X is an input to the thermostat to display Error Status condiƟons.
3
W2
Y1
G
OCC
Y2
X
R
SD-24
C
W1
C
SD
SD
RJumper
Smoke
Detector
24 VAC
Class 2
2
251933-YTG-X-0615
144 Johnson Controls Unitary Products
Typical Cool/Heat Control Wiring (Simplicity S E ZE036-060 / ZF036-072 / XP036-060)
251933-YTG-X-0615
Johnson Controls Unitary Products 145
Typical Cool/Heat Control Wiring (Simplicity S E XN036-060)
OCC
C
RC
G
Y2
Y1
W2
W1
X
R
THERMOSTAT
TERMINALS
CONTROL
TERMINAL
BLOCK
TERMINALS ON A
LIMITED NUMBER
OF THERMOSTATS
1
4
3
1
2
4
Second stageŚĞĂƟŶŐŶot required on single stage heĂƟŶg units.
Jumper is required if there is no Smoke Detector circuit.
Jumper is required for any coŵďŝŶĂƟŽŶ of R, RC, or RH.
5
5
OCC is an output from the thermostat to indicate the Occupied ĐŽŶĚŝƟon.
X is an input to the thermostat to display Error Status condiƟons.
3
W2
Y1
G
OCC
Y2
X
R
SD-24
C
W1
2
24V
C
24 VAC
Class 2
SD-24
Jumper Located on Harness
Smoke
Detector
SD-R
24V Output
R
(If No Smoke Detector) (If Smoke Detector Is Used)
251933-YTG-X-0615
146 Johnson Controls Unitary Products
Typical Reheat Control Wiring (Simplicity S E ZR036-060)
OCC
C
RC
G
Y2
Y1
W2
W1
X
R
THERMOSTAT
TERMINALS
CONTROL
TERMINAL
BLOCK
TERMINALS ON A
LIMITED NUMBER
OF THERMOSTATS
1
4
3
1
4
Second stageŚĞĂƟŶŐŶot required on single stage heĂƟŶg units.
Jumper is required for any coŵďŝŶĂƟŽŶ of R, RC, or RH.
5
5
OCC is an output from the thermostat to indicate the Occupied ĐŽŶĚŝƟon.
X is an input to the thermostat to display Error Status condiƟons.
3
W2
Y1
G
OCC
Y2
X
R
SD-24
C
W1
24V
COM
OUT
Return or Space Humidity
Sensor (0-10VDC)
TB 1
823/R
-
+
+
RAH
DCT
PRS
-
P4
1)
2)
3)
4)
825/W
824/BK
S4
24V
C
24 VAC
Class 2
SD-24
Jumper Located on Harness
Smoke
Detector
SD-R
24V Output
R
(If No Smoke Detector) (If Smoke Detector Is Used)
2Jumper is required if there is no Smoke Detector circuit.
2
251933-YTG-X-0615
Johnson Controls Unitary Products 147
Weights and Dimensions
ZE/ZF/ZR/XN/XP036-072 Unit Weights
Unit 4 Point Load Weight Unit 6 Point Load Weight
A
D
B
Front
C
A
F
C
BFront
D
E
ZE036-060
Size
(Tons)
Weight (lbs.) Center of 4 point Load Location (lbs.) 6 point Load Location (lbs.)
Shipping Operating X Y A B C D A B C D E F
036
(3) 475 470 34.5 18.25 111 80 117 162 78 62 51 74 91 114
048
(4) 603 598 36 18.5 139 108 154 198 96 81 69 98 116 137
060
(5) 637 632 37.5 18.2 139 117 171 204 96 85 76 111 124 140
ZF036-072
Size
(Tons) Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.) 6 Point Load Location (lbs.)
ShippingOperatingX Y ABCDABCDEF
036
(3.0) 473 468 33 18.25 114 76 111 166 81 61 48 70 89 119
048
(4.0) 546 541 31.5 18.5 138 85 122 196 100 71 53 75 101 142
060
(5.0) 574 569 37 15 105 86 170 208 72 63 55 110 125 144
072
(6.0) 645 640 37 15 118 96 192 234 81 71 62 124 141 162
XY
LEFT FRONT
251933-YTG-X-0615
148 Johnson Controls Unitary Products
ZR036-060
Size
(Tons) Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.) 6 Point Load Location (lbs.)
ShippingOperatingXYABCDABCDEF
036
(3.0) 580 575 40 20 132 125 155 164 89 85 82 102 106 110
048
(4.0) 590 585 40 20 134 127 158 167 90 87 84 104 108 112
060
(5.0) 595 590 40 20 135 128 159 168 91 88 84 105 109 113
XN036-060
Size
(Tons)
Weight (lbs.) Center of Gravity 4 point Load Location (lbs.) 6 point Load Location (lbs.)
Shipping Operating X Y A B C D A B C D E F
036
(3) 615 610 38.3 18.75 136 119 165 190 93 85 77 108 118 129
048
(4) 621 616 38.2 18.4 135 117 169 195 92 84 76 110 121 133
060
(5) 625 620 38.6 18 132 117 174 197 90 83 76 114 123 134
XP036-060
Size
(Tons) Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.) 6 Point Load Location (lbs.)
ShippingOperatingXYABCDABCDEF
036
(3.0) 580 575 39 20 135 121 151 168 91 85 80 99 106 114
048
(4.0) 590 585 39 20 137 124 154 171 93 87 81 101 108 116
060
(5.0) 595 590 39 20 138 125 155 172 94 87 82 102 109 117
ZE/ZF/ZR/XN/XP036-072 Unit Accessory Weights
Unit Accessory Weight (lbs.)
Shipping Operating
Economizer 55 50
Power Exhaust 55 50
Electric Heat128 28
Gas Heat270 70
1. Weight given is for the maximum heater size available
(30KW).
2. Weight given is for the maximum number of tube heat
exchangers available (5 tube).
251933-YTG-X-0615
Johnson Controls Unitary Products 149
ZE/ZF/ZR/XN/XP036-072 Unit Dimensions
ZE/ZF/ZR036-072 Cooling Only/Electric Heat Front View
XN/XP036-060 Heat Pump/Electric Heat Front View
ZE/ZF/ZR036-072 Cooling Only/Gas Heat Front View
251933-YTG-X-0615
150 Johnson Controls Unitary Products
ZE/ZF/ZR/XN/XP036-072 Fixed Outdoor Air Motorized Damper Rain Hood
ZE/ZF/ZR/XN/XP036-072 Rear View
Detail “A”
27-1/2
27-1/2
1-5/8
19-1/2 44-7/8
19-3/4
Rear View
Detail “B”
Dimension “A”
Fixed
Outdoor
Air Damper 12
16-1/2
Motorized
Damper
LH End View
27-1/2
27-1/2
7-1/4
“A” 44-7/8
4-3/8
8-1/4
3-1/2
10-1/4
19-1/8
251933-YTG-X-0615
Johnson Controls Unitary Products 151
ZR/ZF/ZR/XN/XP036-072 Disconnect
Disconnect Switch Location
and Motor Access Panel for
Unit with “Belt-Drive” Option
Control Box Access
A,B
Wiring Entry
(See Detail “B”)
Mounting Bracket for
Disconnect Switch
(Field Supplied)
Field-Supplied Disconnect
Switch Location
Blower Motor Access
Filter Access
Dot Plugs
ZE/ZF/ZR/XN/XP036-072 Utilities Entry
Hole Opening Size (Dia.) Used For
A7/8” KO
1
1. Opening in the bottom to the unit can be located by the
slice in the insulation.
Control Wiring2
2. Do not remove the 2” knockout ring.
Side
Bottom
B2” KO
1Power Wiring Side
Bottom
C 1-5/8” KO Gas Piping (Front)
D 1-1/2” KO Gas Piping (Bottom)
ZE/ZF/ZR/XN/XP036-072 Minimum Clearances
Location Clearance
Front 24” (Cooling/Electric Heat)
32” (Gas Heat)
Rear
12” (Less Economizer)
36” (With Economizer or Fixed
Air/Motorized Damper)
Left Side (Filter Access) 24” (Less Economizer)
36” (With Economizer)
Right Side (Cond. Coil) 24”
Below Unit1
1. Units may be installed on combustible floors made from
wood or class A, B, or C roof covering material.
0”
Above Unit2
2. Units must be installed outdoors. Overhanging structures
or shrubs should not obstruct condenser air discharge
outlet.
72” (For
Condenser Air Discharge)
3/4” X 1-1/4” WIDE GASKETING FOR CURB
FRAME AND ALL DUCT SUPPORT SURFACES
2“
UNIT BASE
WOOD NAILER
8“ MIN. ABOVE FINISHED ROOF
CURB FRAME
INSULATION
UNIT BASE RAILS
COUNTERFLASHING
CAN’T STRIP
INSULATION AND ROOFING MATERIAL
ROOF DECK AND SUPPORT STRUCTURE
14”
3.56”
3.75”
251933-YTG-X-0615
152 Johnson Controls Unitary Products
ZE/ZF/ZR/XN/XP036-072 Roof Curb Cutaway
251933-YTG-X-0615
Johnson Controls Unitary Products 153
ZE/ZF/ZR/XN/XP036-072 Roof Curb Dimensions
Subject to change without notice. Printed in U.S.A. 251933-YTG-X-0615
Copyright © 2015 by Johnson Controls, Inc. All rights reserved. Supersedes: 251933-YTG-W-1214
York International Corporation
5005 York Drive
Norman, OK 73069
ZE/ZF/ZR/XN/XP036-072 Typical Applications

Navigation menu
