TECHNICAL GUIDE
LX SERIES
SPLIT SYSTEM
AIR CONDITIONERS
14 SEER – R-410A – 1 PHASE
1.5 THRU 5 NOMINAL TONS
MODELS: YCS18 THRU 60
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at
www.upgnet.com and www.york.com
Additional rating information can be found at
www.ahridirectory.org
WARRANTY SUMMARY*
Standard 5-year limited parts warranty.
Standard 10-year limited compressor warranty.
Extended 10-Years limited parts warranty when product is
registered online within 90 days of purchase for replacement
or closing for new home construction.
*Does not apply to R-22 models, 3-Phase models, or internet sales.
See Limited Warranty certificate in User's Information Manual for details.
FOR INSTALLATION IN ALL US REGIONS AND CANADA
Installation Allowed
®
5006080-YTG-A-0815
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
The YCS models are the newest addition to our successful LX
Series split system air conditioner lineup. Optimized for the new
14 SEER Regional Minimum Efficiency and the high EER
required in the Southwest US, these outdoor units are specifi-
cally designed to be matched with Johnson Controls Unitary
Products indoor coils, furnaces, and air handlers to provide a
complete system solution.
FEATURES
•Small Footprint - Minimum footprint for easier handling,
transportation, and installation.
•Easier Installation - Independent panels provide quick
access for unit setup. Installation time is reduced by easy
power and control wiring access. Select indoor matches with
factory-mounted TXVs are available for quicker system
installation. The factory installed filter-drier and factory
charge for a 15-Ft lineset means less time spent brazing and
charging the system. The small base dimension and reduced
unit clearances make for easier retrofits.
•Accessible Information - QR code on unit provides quick
access to technical documents and warranty information.
•Durable Finish - The coated steel wire fan guard, coated
external fasteners, and pre-treated G90-equivalent galva-
nized steel chassis components resist corrosion and rust
creep. Champagne colored powdercoat paint further protects
external panels.
•Quality Coils - The high efficiency microchannel aluminum
coil is manufactured using an improved material system pro-
viding reliable performance and small unit size.
•Rugged Coil Protection - Coils are protected from mechan-
ical damage by a proven stamped steel coil guard design.
•Protected Compressor - Compressors are protected inter-
nally by a high pressure relief valve and a temperature sen-
sor, and externally by the system high pressure switch. The
liquid line filter-drier is factory installed to protect the com-
pressor against moisture and debris.
•Reliable Operation - Ball bearing fan motors provide supe-
rior performance in extreme temperatures.
•Environmentally Friendly - CFC-free R-410A refrigerant
delivers environmentally friendly performance with zero
ozone depletion.
•Top Discharge - Warm air is blown up, away from the struc-
ture and any landscaping and allows compact location on
multi-unit applications.
•Low Operating Sound Levels - Developed using CFD and
FEA tools, the sturdy cabinet and top design provides sound
performance of 76 dBA or lower. Compatible accessories for
further sound reduction are also available.
•Better Service Access - Diagonal base valves with open
access for low-loss fittings, single panel access to the electri-
cal controls, swing out control box for full corner access, and
removable fan guard allow easy access for unit mainte-
nance.
•Agency Listed - Safety certified by CSA to UL 1995 / CSA
22.2. Performance certified to ANSI/AHRI Standard 210/240
in accordance with the Unitary Small Equipment certification
program.
5006080-YTG-A-0815
2 Johnson Controls Unitary Products
LIST OF SECTIONS
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
NOMENCLATURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PHYSICAL AND ELECTRICAL DATA . . . . . . . . . . . . . . . . . . . . . . . 3
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SYSTEM CHARGE FOR VARIOUS MATCHED SYSTEMS . . . . . . . 4
COOLING CAPACITY - With Air Handler Coils . . . . . . . . . . . . . . . 5
COOLING CAPACITY - Upflow, Downflow &
Horizontal Furnaces and Coils (Coil Only Ratings) . . . . . . . . . . . 9
COOLING CAPACITY - With High Efficiency Motor Furnaces . . 11
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
SOUND POWER RATINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
MECHANICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . 42

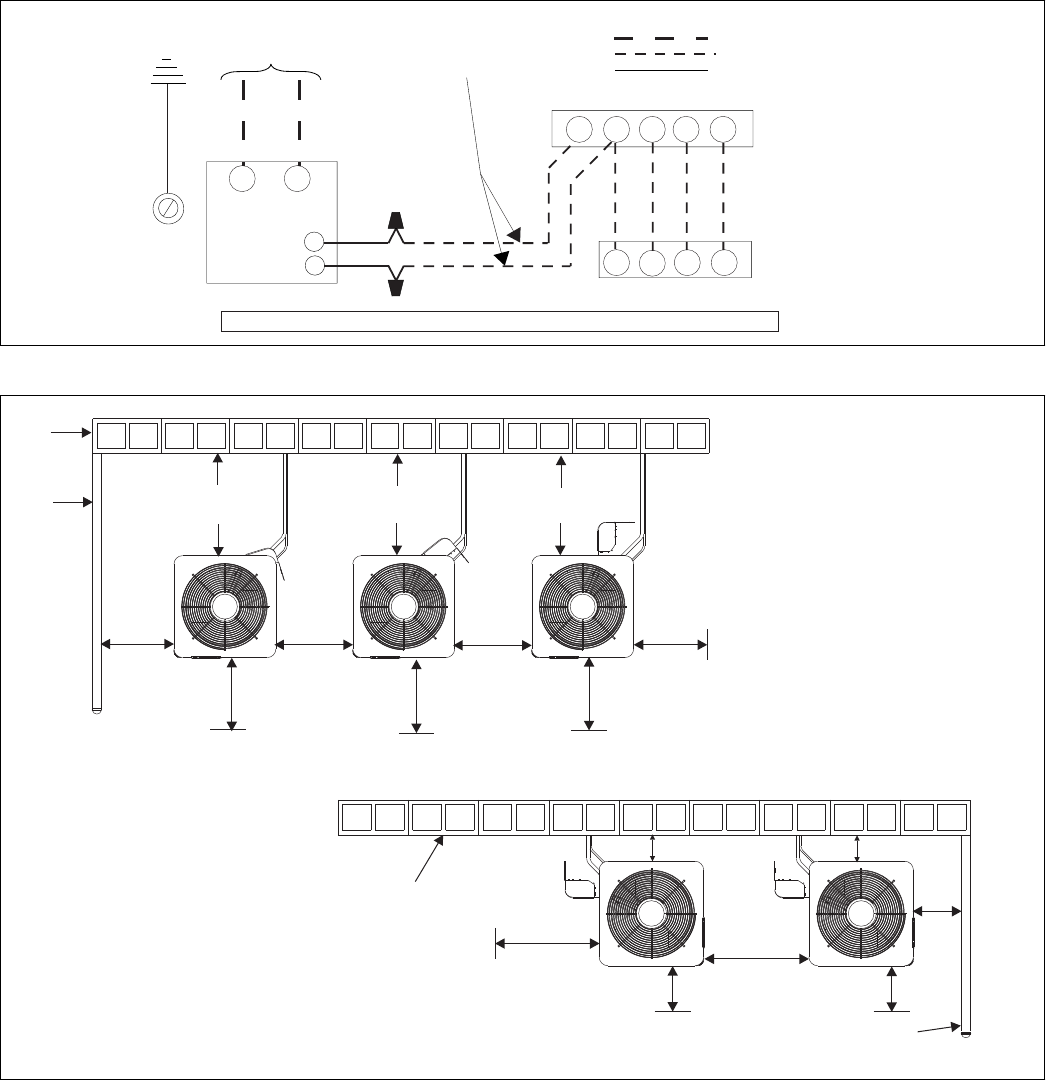

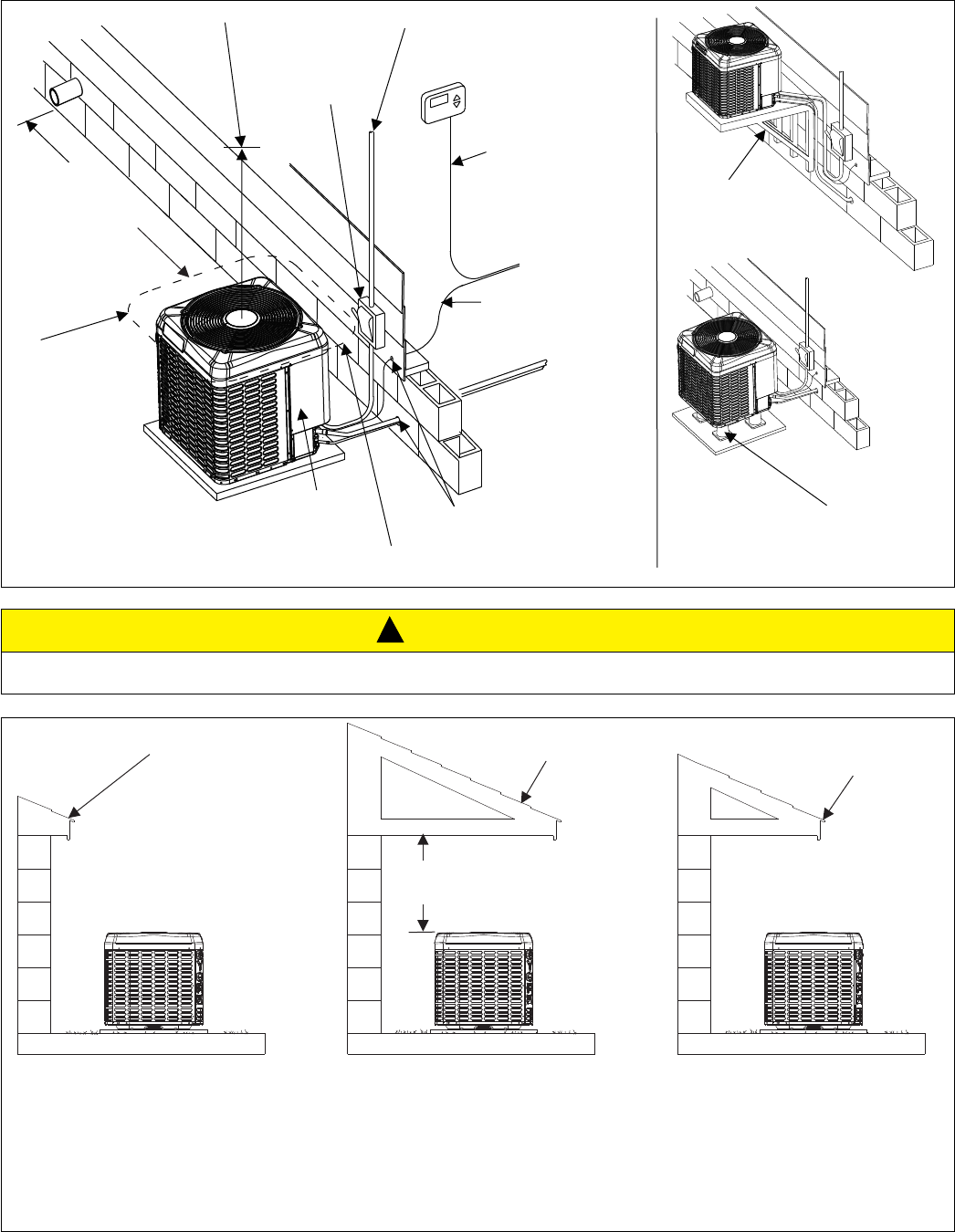

TYPICAL INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
TYPICAL FIELD WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
ALTERNATIVE INSTALLATION CLEARANCES . . . . . . . . . . . . . . 44
PERFORMANCE DATA - 1.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . 45
COIL MULTIPLIERS- 1.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
FURNACE MULTIPLIERS- 1.5 TON . . . . . . . . . . . . . . . . . . . . . . 46
PERFORMANCE DATA - 2 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 48
COIL MULTIPLIERS- 2 TON . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
FURNACE MULTIPLIERS- 2 TON . . . . . . . . . . . . . . . . . . . . . . . . 49
PERFORMANCE DATA - 2.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . 52
COIL MULTIPLIERS- 2.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
FURNACE MULTIPLIERS- 2.5 TON . . . . . . . . . . . . . . . . . . . . . . 53
PERFORMANCE DATA - 3 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 56
COIL MULTIPLIERS- 3 TON . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
FURNACE MULTIPLIERS- 3 TON . . . . . . . . . . . . . . . . . . . . . . . . 57
PERFORMANCE DATA - 3.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . 60
COIL MULTIPLIERS- 3.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
FURNACE MULTIPLIERS- 3.5 TON . . . . . . . . . . . . . . . . . . . . . . 61
PERFORMANCE DATA - 4 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 64
COIL MULTIPLIERS- 4 TON . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
FURNACE MULTIPLIERS- 4 TON . . . . . . . . . . . . . . . . . . . . . . . . 65
PERFORMANCE DATA - 5 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 68
COIL MULTIPLIERS- 5 TON . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
FURNACE MULTIPLIERS- 5 TON . . . . . . . . . . . . . . . . . . . . . . . . 69
NOMENCLATURE
BRAND YY = York
PRODUCT TYPE CC = Air Conditioner
H = Heat Pump
F = Fin & Tube Air Conditioner
NOMINAL
SERIES EFFICIENCY
AND STAGING S
D = 13 SEER / 1-Stage
(US Northern Region)
E = 14 SEER / 1-Stage
(US Southeast Region)
S = 14 SEER / 1-Stage
(US Southwest Region)
NOMINAL
UNIT CAPACITY
(MBH) 36
18 = 1.5 Ton 42 = 3.5 Ton
24 = 2 Ton 48 = 4 Ton
30 = 2.5 Ton 60 = 5 Ton
36 = 3 Ton
REFRIGERANT BB = R-410A
VOLTAGE
(Voltage-Phase-Hertz) 22 = 208/230-1-60
GENERATION
(MAJOR REVISION) 11 = 1st Gen
2 = 2nd Gen
etc
FACTORY OPTION SS = Standard (No Options)
H = Hard Start Kit
STYLE LETTER
(MINOR REVISION)
NOT USED
FOR ORDERING
A
A = Style A
B = Style B
etc
5006080-YTG-A-0815
Johnson Controls Unitary Products 3
‡ Adapter fitting must be field installed for the required 1-1/8” line set.
All dimensions are in inches and are subject to change without notice.
Overall height is from bottom of base pan to top of fan guard.
Overall length and width include screw heads.

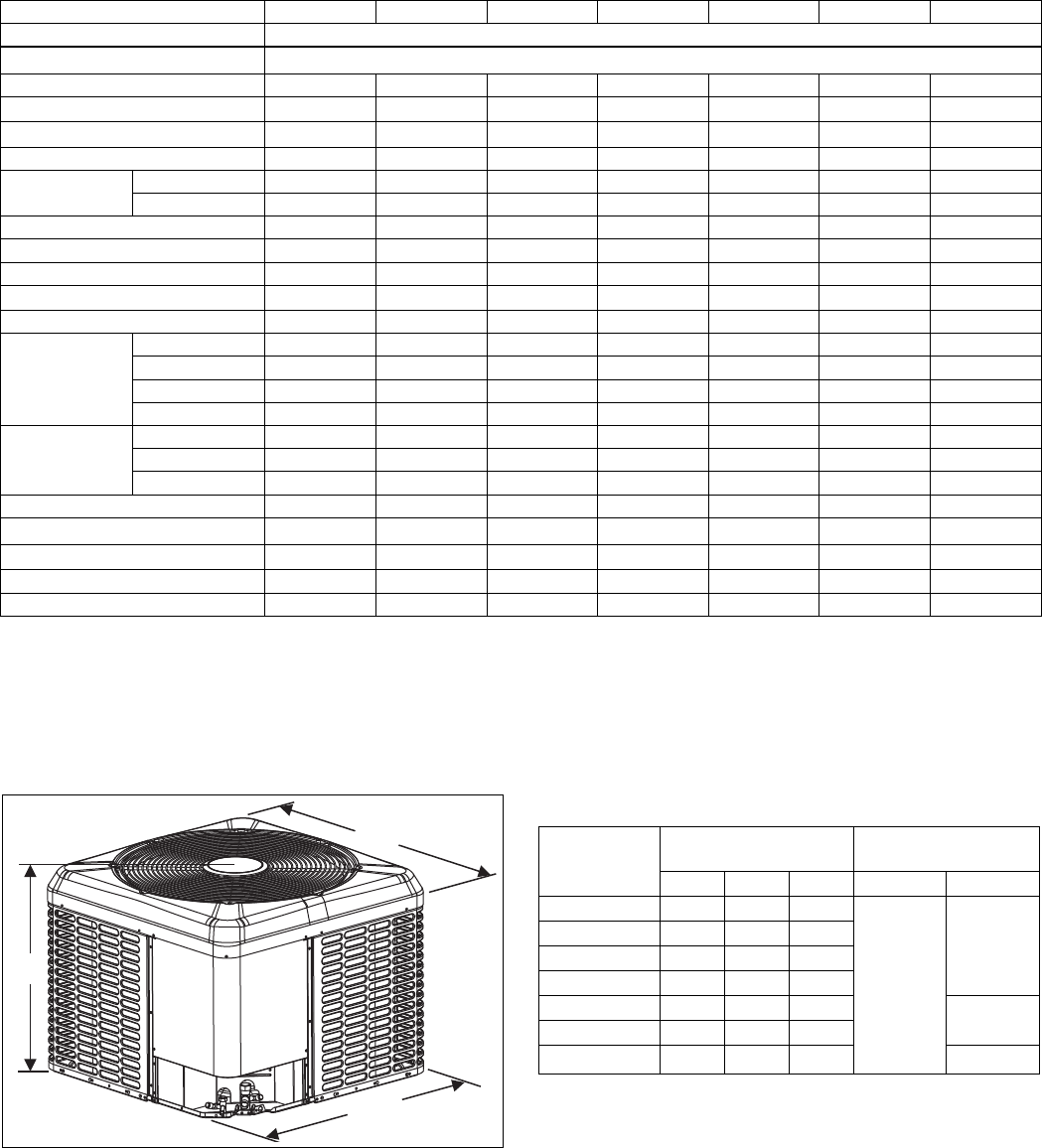

PHYSICAL AND ELECTRICAL DATA
MODEL YCS18B21S YCS24B21S YCS30B21S YCS36B21S YCS42B21S YCS48B21S YCS60B21S
Unit Supply Voltage 208-230V, 1 60Hz
Normal Voltage Range 1187 to 252
Minimum Circuit Ampacity 11.8 13.6 17.6 20.5 22.1 25.7 31.7
Max. Overcurrent Device Amps 220 20 30 35 35 45 50
Min. Overcurrent Device Amps 315 15 20 25 25 30 35
Compressor Type Scroll Scroll Scroll Scroll Scroll Scroll Scroll
Compressor
Amps
Rated Load 9.0 10.2 13.4 15.4 16.6 19.5 24.3
Locked Rotor 56.3 61.6 72.5 83.9 109.0 130.0 144.2
Crankcase Heater No No No No No No No
Factory External Discharge Muffler No No No No No No No
Factory External Check Valve No No No No No No No
HS Kit Required with TXV 4No No No No No No No
Fan Diameter Inches 18 22 22 22 24 24 26
Fan Motor
Rated HP 1/12 1/8 1/8 1/4 1/4 1/4 1/4
Rated Load Amps 0.64 0.80 0.80 1.3 1.3 1.3 1.3
Nominal RPM 1000 1075 1075 850 850 850 850
Nominal CFM 1900 2875 2950 3275 3500 3500 4300
Coil
Face Area Sq. Ft. 12.37 13.83 13.83 17.37 18.74 18.74 23.40
Rows Deep 1 1 1 1 1 1 1
Fins / Inch 23 23 23 23 23 23 23
Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line Set OD (Field Installed) 53/4 3/4 3/4 3/4 7/8 7/8 1-1/8‡
Unit Charge (Lbs. - Oz.) 63-6 3-12 3-15 4-10 4-15 4 - 15 5 - 12
Charge Per Foot, Oz. 0.62 0.62 0.62 0.62 0.67 0.67 0.75
Operating Weight Lbs. 130 135 140 155 200 200 205
1. Rated in accordance with AHRI Standard 110-2012, utilization range “A”.
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
4. See Hard Start Kit Accessory Installation Manual for Hard Start Kit part number for each model.
5. For applications with non-standard vapor line sizes, see the "Applications & Accessories" section of this Technical Guide.
6. The Unit Charge is correct for the outdoor unit, smallest matched indoor unit, and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add or subtract
the amount of refrigerant, using the difference in actual lineset length (not equivalent length) multiplied by the per foot value.
A
C
B
A0339-001
DIMENSIONS
Unit
Model
Dimensions
(Inches) Refrigerant Connection
Service Valve Size
A B C Liquid Vapor
YCS18B21S 33-1/4 24 24
3/8
3/4
YCS24B21S 30 29-1/4 29-1/4
YCS30B21S 30 29-1/4 29-1/4
YCS36B21S 36-1/4 29-1/4 29-1/4
YCS42B21S 33-1/4 35-1/4 31-3/4 7/8
YCS48B21S 33-1/4 35-1/4 31-3/4
YCS60B21S 36-1/4 38 34-1/4 7/8‡
5006080-YTG-A-0815
4 Johnson Controls Unitary Products
CHARGING PROCEDURES:
1. Unit factory charge listed on the unit nameplate includes refrigerant for the outdoor unit, the smallest matched indoor unit, and 15 feet of interconnecting line tubing.
2. Verify the indoor metering device and additional charge required for specific matched indoor unit in the system using the above table.
3. Add additional charge for the amount of interconnecting line tubing greater than 15 feet at the rate specified in Physical and Electrical Data Table.
4. For indoor matches requiring additional charge, the refrigerant needs to be weighed in for specific matched indoor unit and actual lineset length.
5. Once lineset and coil adders have been applied, system operation will need to be matched to the temperatures and pressures noted on the Charging Chart for the
given outdoor and indoor conditions. Charging Charts can be found on the outdoor unit or in the Service Data Application Guide on www.upgnet.com. Subcool or
Superheat charging procedures are determined by the type of indoor metering device. These charging procedures can be found in the Installation Manual included
with outdoor unit.
6. Permanently mark the unit nameplate with the total system charge. Total System Charge = Base Charge (as shipped) + charge adder for matched indoor unit +
charge adder for actual lineset length + charge adjustments to match Charging Chart.
SYSTEM CHARGE FOR VARIOUS MATCHED SYSTEMS
Outdoor Unit YCS18B21S YCS24B21S YCS30B21S YCS36B21S YCS42B21S YCS48B21S YCS60B21S
Required TXV 1,2BA1 BA1 BB1 BC1 BC1 BC1 BD1
Indoor Unit 3,4,5 Additional Charge, oz
AP18B 0––––––
AP24B 30–––––
AP30B 10 72––––
AP36B 10 720–––
AP36C – 11 22–––
AP42C – 11 220––
AP48(C,D) –––520–
AP60(C,D) ––––920
AE18B 0––––––
AE24B 30–––––
AE30B 850––––
AE36(B,C) 10 720–––
AE42C –––52––
AE48(C,D) –––520–
AE60C ––––920
AE60D ––––292220
AVC18B 0––––––
AVC24B 30–––––
AVC30B 850––––
AVC36(B,C) 10 720–––
AVC42C –––52––
AVC48(C,D) –––520–
AVC60C ––––920
AVC60D ––––292220
CF/CM/CU18(A,B) 0––––––
CF/CM/CU24(A,B) 30–––––
CF/CM/CU30(A,B,C) 850––––
CF/CM/CU36(A,B,C) 10 720–––
CF/CM/CU42(B,C,D) – 11 220––
CF/CM/CU48(C,D) –––520–
CF/CM/CU60(C,D) ––––920
CF/CM64D ––––292220
Some of the combinations shown in the above System Charge table require Advanced Main Air Circulating Fan indoor product. For approved coil
only matches, please see the “COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils” table.
FOOTNOTES:
1. For applications requiring a TXV, use S1-1TVM*** series kit.
2. A TXV kit must be used with these indoor units to obtain system performance.
3. Systems matched with furnaces or air handlers not equipped with blower-off delays may require blower Time Delay Kit S1-2FD06700224.
4. CF coils cannot be used in horizontal applications.
5. Charge adders shown above do not indicate that coils are rated for every application. Refer to Performance Data Tables for actual performance for specified sys-
tem matches. Obtain certified system ratings from www.ahridirectory.org.
5006080-YTG-A-0815
Johnson Controls Unitary Products 5
COOLING CAPACITY - With Air Handler Coils
UNIT
MODEL
AIR HANDLER COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
YCS18B21S AE18BX21 17.5 – 600 18.0 12.1 16.25 13.25
YCS18B21S AE24BX21 17.5 – 600 18.0 12.0 16.25 13.25
YCS18B21S AE30BX21 17.5 – 600 18.0 12.2 16.25 13.25
YCS18B21S AE36BX21 17.5 – 600 18.0 12.0 15.75 12.75
YCS18B21S AE36CX21 21.0 – 600 18.0 12.1 16.00 13.00
YCS18B21S AP18BX21 17.5 – 600 18.0 12.1 14.75 12.50
YCS18B21S AP24BX21 17.5 – 600 18.0 12.0 14.50 12.25
YCS18B21S AP30BX21 17.5 – 600 18.0 12.3 14.75 12.25
YCS18B21S AVC18BX21 17.5 – 600 18.0 12.1 16.25 13.25
YCS18B21S AVC24BX21 17.5 – 600 18.0 12.1 16.25 13.25
YCS18B21S AVC30BX21 17.5 – 600 18.0 12.0 16.25 13.25
YCS18B21S ME08BN21 17.5 CF/CM18B 600 18.0 12.1 16.25 13.25
YCS18B21S ME08BN21 17.5 CF/CM24B 600 18.0 12.2 16.25 13.25
YCS18B21S ME08BN21 17.5 CF/CM30B 600 18.0 12.0 16.25 13.25
YCS18B21S ME08BN21 17.5 CF/CM36B 600 18.0 12.3 16.25 13.25
YCS18B21S ME12BN21 17.5 CF/CM18B 600 18.0 12.1 15.00 12.50
YCS18B21S ME12BN21 17.5 CF/CM24B 625 18.0 12.3 15.25 12.50
YCS18B21S ME12BN21 17.5 CF/CM30B 625 18.0 12.2 15.75 12.75
YCS18B21S ME12BN21 17.5 CF/CM36B 650 18.0 12.5 16.00 13.00
YCS18B21S MVC08BN21 17.5 CF/CM18B 550 18.0 11.7 16.25 13.25
YCS18B21S MVC08BN21 17.5 CF/CM24B 575 18.0 12.0 16.25 13.25
YCS18B21S MVC08BN21 17.5 CF/CM30B 600 18.0 12.0 16.25 13.25
YCS18B21S MVC12BN21 17.5 CF/CM36B 675 18.0 12.5 16.25 13.25
YCS24B21S AE24BX21 17.5 – 800 24.0 16.8 16.25 13.25
YCS24B21S AE30BX21 17.5 – 800 24.0 16.8 16.25 13.25
YCS24B21S AE36BX21 17.5 – 800 24.0 16.8 16.25 13.25
YCS24B21S AE36CX21 21.0 – 800 24.0 16.8 16.25 13.25
YCS24B21S AP24BX21 17.5 – 800 24.0 16.8 14.25 12.25
YCS24B21S AP30BX21 17.5 – 800 24.0 16.6 15.25 12.50
YCS24B21S AP36BX21 17.5 – 900 24.0 17.4 14.50 12.25
YCS24B21S AP36CX21 21.0 – 850 24.0 17.0 14.75 12.50
YCS24B21S AVC24BX21 17.5 – 750 24.0 16.4 15.75 13.00
YCS24B21S AVC30BX21 17.5 – 775 24.0 16.6 16.25 13.25
YCS24B21S AVC36BX21 17.5 – 800 24.0 16.6 16.25 13.25
YCS24B21S AVC36CX21 21.0 – 800 24.0 16.8 16.25 13.25
YCS24B21S ME08BN21 17.5 CF/CM24B 800 24.0 16.8 16.25 13.25
YCS24B21S ME08BN21 17.5 CF/CM30B 800 24.0 17.0 16.25 13.25
YCS24B21S ME08BN21 17.5 CF/CM36B 800 24.0 16.6 16.25 13.25
YCS24B21S ME08BN21 17.5 CF42B 800 24.0 16.8 16.25 13.25
YCS24B21S ME12BN21 17.5 CF/CM24B 800 24.0 16.8 16.00 13.00
YCS24B21S ME12BN21 17.5 CF/CM30B 800 24.0 16.8 16.25 13.25
YCS24B21S ME12BN21 17.5 CF/CM36B 800 24.0 16.6 16.25 13.25
YCS24B21S ME12BN21 17.5 CF42B 800 24.0 16.8 16.25 13.25
YCS24B21S ME14DN21 24.5 CF/CM30D 800 24.0 16.8 16.00 13.00
YCS24B21S ME14DN21 24.5 CF/CM36D 800 24.0 16.6 16.00 13.00
YCS24B21S ME14DN21 24.5 CF/CM42D 800 24.0 16.8 16.00 13.00
YCS24B21S ME16CN21 21.0 CF/CM24C 875 24.0 17.4 14.75 12.50
YCS24B21S MVC08BN21 17.5 CF/CM24B 800 24.0 16.8 16.25 13.25
YCS24B21S MVC08BN21 17.5 CF/CM30B 700 24.0 16.2 16.25 13.25
For Notes See Page 9.
5006080-YTG-A-0815
6 Johnson Controls Unitary Products
YCS24B21S MVC08BN21 17.5 CF/CM36B 775 24.0 16.6 16.25 13.25
YCS24B21S MVC08BN21 17.5 CF42B 800 24.0 16.8 16.25 13.25
YCS24B21S MVC12BN21 17.5 CF/CM24B 800 24.0 16.8 16.00 13.00
YCS24B21S MVC12BN21 17.5 CF/CM30B 850 24.0 17.2 16.25 13.25
YCS24B21S MVC12BN21 17.5 CF/CM36B 775 24.0 16.6 16.25 13.25
YCS24B21S MVC12BN21 17.5 CF42B 800 24.0 16.8 16.25 13.25
YCS24B21S MVC14DN21 24.5 CF/CM30D 800 24.0 16.8 16.25 13.25
YCS24B21S MVC14DN21 24.5 CF/CM36D 850 24.0 17.2 16.25 13.25
YCS24B21S MVC14DN21 24.5 CF/CM42D 825 24.0 16.8 16.25 13.25
YCS24B21S MVC16CN21 21.0 CF/CM42C 900 24.0 17.4 16.25 13.25
YCS30B21S AE30BX21 17.5 – 1000 29.4 21.0 15.00 12.50
YCS30B21S AE36BX21 17.5 – 975 29.8 21.2 15.25 12.75
YCS30B21S AE36CX21 21.0 – 1000 30.0 21.2 15.75 13.00
YCS30B21S AP30BX21 17.5 – 1000 29.4 20.6 14.00 12.25
YCS30B21S AP36BX21 17.5 – 1000 29.2 20.6 14.00 12.25
YCS30B21S AP36CX21 21.0 – 1000 29.2 20.6 14.00 12.25
YCS30B21S AP42CX21 21.0 – 1100 29.6 21.6 14.00 12.25
YCS30B21S AVC30BX21 17.5 – 975 29.4 20.8 15.00 12.50
YCS30B21S AVC36BX21 17.5 – 975 30.0 21.4 15.75 13.00
YCS30B21S AVC36CX21 21.0 – 975 30.0 21.6 16.00 13.00
YCS30B21S ME08BN21 17.5 CF/CM30B 900 29.2 20.4 15.50 12.75
YCS30B21S ME08BN21 17.5 CF/CM36B 900 29.4 20.0 15.75 13.00
YCS30B21S ME08BN21 17.5 CF42B 875 29.4 19.8 15.50 12.75
YCS30B21S ME12BN21 17.5 CF/CM30B 825 28.6 19.0 15.50 12.75
YCS30B21S ME12BN21 17.5 CF/CM36B 1025 29.8 21.4 15.50 12.75
YCS30B21S ME12BN21 17.5 CF42B 975 29.8 21.0 15.25 12.75
YCS30B21S ME14DN21 24.5 CF/CM30D 1050 30.0 21.8 16.00 13.00
YCS30B21S ME14DN21 24.5 CF/CM36D 1025 30.0 21.6 16.00 13.00
YCS30B21S ME14DN21 24.5 CF/CM42D 1000 30.0 21.0 16.00 13.00
YCS30B21S ME16CN21 21.0 CF/CM30C 1075 29.6 21.8 15.00 12.50
YCS30B21S ME16CN21 21.0 CF/CM36C 1100 30.0 22.0 15.25 12.50
YCS30B21S ME16CN21 21.0 CF/CM42C 1000 29.6 20.8 14.75 12.50
YCS30B21S MVC08BN21 17.5 CF42B 825 29.0 19.2 15.50 12.75
YCS30B21S MVC12BN21 17.5 CF/CM30B 850 28.6 19.0 15.25 12.50
YCS30B21S MVC12BN21 17.5 CF/CM36B 1000 29.6 21.0 15.00 12.50
YCS30B21S MVC12BN21 17.5 CF42B 975 29.6 21.0 15.25 12.50
YCS30B21S MVC14DN21 24.5 CF/CM30D 925 29.4 20.4 16.00 13.00
YCS30B21S MVC14DN21 24.5 CF/CM36D 975 29.8 21.0 16.00 13.00
YCS30B21S MVC14DN21 24.5 CF/CM42D 1000 30.0 21.0 16.00 13.00
YCS30B21S MVC16CN21 21.0 CF/CM30C 925 29.2 20.4 15.75 13.00
YCS30B21S MVC16CN21 21.0 CF/CM36C 1025 30.0 21.6 16.00 13.00
YCS30B21S MVC16CN21 21.0 CF/CM42C 900 29.6 20.2 16.00 13.00
YCS30B21S MVC20DN21 24.5 CF/CM36D 1120 30.0 22.2 16.00 13.00
YCS30B21S MVC20DN21 24.5 CF/CM42D 1100 30.0 22.0 15.50 12.75
YCS36B21S AE36BX21 17.5 – 1000 36.0 24.0 15.25 12.50
YCS36B21S AE36CX21 21.0 – 1225 36.0 26.0 15.75 13.00
YCS36B21S AE42CX21 21.0 – 1200 36.0 25.6 15.50 12.75
YCS36B21S AE48CX21 21.0 – 1250 36.0 26.0 15.75 13.00
YCS36B21S AE48DX21 24.5 – 1225 36.0 25.8 16.00 13.00
For Notes See Page 9.
COOLING CAPACITY - With Air Handler Coils (Continued)
UNIT
MODEL
AIR HANDLER COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
Johnson Controls Unitary Products 7
YCS36B21S AP36BX21 17.5 – 1000 35.4 23.6 14.00 12.25
YCS36B21S AP36CX21 21.0 – 1225 36.0 25.8 14.25 12.25
YCS36B21S AP42CX21 21.0 – 1225 36.0 26.0 14.00 12.25
YCS36B21S AP48CX21 21.0 – 1200 36.0 25.4 14.25 12.25
YCS36B21S AP48DX21 24.5 – 1325 36.0 26.6 14.25 12.25
YCS36B21S AVC36BX21 17.5 – 1025 36.0 24.0 15.25 12.50
YCS36B21S AVC36CX21 21.0 – 1125 36.0 25.4 15.75 13.00
YCS36B21S AVC42CX21 21.0 – 1100 36.0 25.2 16.00 13.00
YCS36B21S AVC48CX21 21.0 – 1075 36.0 24.6 15.75 13.00
YCS36B21S AVC48DX21 24.5 – 1350 36.0 26.8 16.00 13.00
YCS36B21S ME12BN21 17.5 CF/CM36B 1025 36.0 24.0 15.25 12.50
YCS36B21S ME12BN21 17.5 CF42B 975 36.0 24.0 15.25 12.50
YCS36B21S ME14DN21 24.5 CF/CM36D 1250 36.0 26.2 16.00 13.00
YCS36B21S ME14DN21 24.5 CF/CM42D 1225 36.0 26.0 16.00 13.00
YCS36B21S ME14DN21 24.5 CF/CM48D 1200 36.0 25.6 16.00 13.00
YCS36B21S ME16CN21 21.0 CF/CM36C 1225 36.0 26.0 15.75 13.00
YCS36B21S ME16CN21 21.0 CF/CM42C 1225 36.0 25.8 15.75 13.00
YCS36B21S ME16CN21 21.0 CF/CM48C 1225 36.0 25.8 16.00 13.00
YCS36B21S ME20DN21 24.5 CF/CM36D 1325 36.0 26.8 15.00 12.50
YCS36B21S ME20DN21 24.5 CF/CM42D 1325 36.0 26.8 15.00 12.50
YCS36B21S ME20DN21 24.5 CF/CM48D 1325 36.0 26.6 15.00 12.50
YCS36B21S MVC08BN21 17.5 CF42B 975 36.0 24.0 15.00 12.50
YCS36B21S MVC12BN21 17.5 CF/CM36B 1025 36.0 24.0 14.75 12.50
YCS36B21S MVC12BN21 17.5 CF42B 975 36.0 24.0 15.25 12.50
YCS36B21S MVC14DN21 24.5 CF/CM36D 975 36.0 23.6 15.50 12.75
YCS36B21S MVC14DN21 24.5 CF/CM42D 1275 36.0 26.2 15.75 13.00
YCS36B21S MVC14DN21 24.5 CF/CM48D 1150 36.0 25.2 16.00 13.00
YCS36B21S MVC16CN21 21.0 CF/CM36C 1100 36.0 24.8 15.75 13.00
YCS36B21S MVC16CN21 21.0 CF/CM42C 1250 36.0 26.4 15.50 12.75
YCS36B21S MVC16CN21 21.0 CF/CM48C 1200 36.0 25.4 15.75 13.00
YCS36B21S MVC20DN21 24.5 CF/CM36D 1120 36.0 25.0 15.75 13.00
YCS36B21S MVC20DN21 24.5 CF/CM42D 1200 36.0 25.6 15.50 12.75
YCS36B21S MVC20DN21 24.5 CF/CM48D 1200 36.0 25.4 15.75 13.00
YCS42B21S AE42CX21 21.0 – 1375 41.5 33.0 14.75 12.50
YCS42B21S AE48CX21 21.0 – 1225 41.0 30.5 15.25 12.75
YCS42B21S AE48DX21 24.5 – 1225 41.0 31.0 15.50 12.75
YCS42B21S AE60CX21 21.0 – 1425 42.0 33.5 15.25 12.50
YCS42B21S AE60DX21 24.5 – 1400 42.0 33.5 15.50 12.75
YCS42B21S AP42CX21 21.0 – 1225 40.0 30.0 14.00 12.25
YCS42B21S AP48CX21 21.0 – 1300 40.5 31.0 14.00 12.25
YCS42B21S AP48DX21 24.5 – 1350 40.5 31.5 14.00 12.25
YCS42B21S AVC42CX21 21.0 – 1275 41.0 31.0 15.00 12.50
YCS42B21S AVC48CX21 21.0 – 1225 40.5 30.5 15.25 12.50
YCS42B21S AVC48DX21 24.5 – 1300 41.5 32.0 15.50 12.75
YCS42B21S AVC60CX21 21.0 – 1275 41.5 31.5 15.25 12.50
YCS42B21S AVC60DX21 24.5 – 1200 41.5 30.5 15.50 12.75
YCS42B21S ME14DN21 24.5 CF/CM42D 1400 41.5 33.0 15.25 12.75
YCS42B21S ME14DN21 24.5 CF/CM48D 1400 41.5 33.0 15.25 12.50
YCS42B21S ME14DN21 24.5 CF/CM60D 1225 41.5 31.0 15.75 13.00
For Notes See Page 9.
COOLING CAPACITY - With Air Handler Coils (Continued)
UNIT
MODEL
AIR HANDLER COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
8 Johnson Controls Unitary Products
YCS42B21S ME14DN21 24.5 CF/CM64D 1375 42.0 33.0 14.75 12.50
YCS42B21S ME16CN21 21.0 CF/CM42C 1400 41.0 33.0 15.00 12.50
YCS42B21S ME16CN21 21.0 CF/CM48C 1225 41.0 30.5 15.50 12.75
YCS42B21S ME16CN21 21.0 CF/CM60C 1225 41.5 31.0 15.75 13.00
YCS42B21S ME20DN21 24.5 CF/CM42D 1450 41.5 33.5 15.25 12.50
YCS42B21S ME20DN21 24.5 CF/CM48D 1475 42.0 34.0 15.25 12.75
YCS42B21S ME20DN21 24.5 CF/CM60D 1425 42.0 33.0 15.25 12.75
YCS42B21S ME20DN21 24.5 CF/CM64D 1400 42.0 33.0 15.25 12.75
YCS42B21S MVC12BN21 17.5 CF42B 1175 40.0 29.0 14.25 12.25
YCS42B21S MVC14DN21 24.5 CF/CM42D 1375 41.5 32.5 15.00 12.50
YCS42B21S MVC14DN21 24.5 CF/CM48D 1325 41.5 32.0 15.25 12.75
YCS42B21S MVC14DN21 24.5 CF/CM60D 1225 41.0 31.0 15.50 12.75
YCS42B21S MVC16CN21 21.0 CF/CM42C 1250 41.0 31.0 15.25 12.75
YCS42B21S MVC16CN21 21.0 CF/CM48C 1275 41.0 31.5 15.25 12.75
YCS42B21S MVC20DN21 24.5 CF/CM42D 1225 40.5 30.5 15.00 12.50
YCS42B21S MVC20DN21 24.5 CF/CM48D 1300 41.5 32.0 15.25 12.75
YCS42B21S MVC20DN21 24.5 CF/CM60D 1250 41.5 31.5 15.75 13.00
YCS48B21S AE48CX21 21.0 – 1425 48.0 34.5 15.75 12.75
YCS48B21S AE48DX21 24.5 – 1425 48.0 34.5 16.00 13.00
YCS48B21S AE60CX21 21.0 – 1425 48.0 35.0 15.75 12.75
YCS48B21S AE60DX21 24.5 – 1400 48.0 34.5 16.25 13.25
YCS48B21S AP48CX21 21.0 – 1300 48.0 33.5 14.50 12.00
YCS48B21S AP48DX21 24.5 – 1600 47.5 34.0 14.00 11.75
YCS48B21S AP60CX21 21.0 – 1600 48.0 36.5 14.50 12.00
YCS48B21S AP60DX21 24.5 – 1600 48.0 36.0 14.50 12.00
YCS48B21S AVC48CX21 21.0 – 1350 48.0 34.0 15.50 12.75
YCS48B21S AVC48DX21 24.5 – 1350 48.0 34.5 16.00 13.00
YCS48B21S AVC60CX21 21.0 – 1350 48.0 34.5 15.75 13.00
YCS48B21S AVC60DX21 24.5 – 1475 48.0 35.0 15.75 13.00
YCS48B21S ME14DN21 24.5 CF/CM60D 1425 48.0 34.5 16.00 13.00
YCS48B21S ME14DN21 24.5 CF/CM64D 1375 48.0 34.0 16.00 13.00
YCS48B21S ME16CN21 21.0 CF/CM48C 1475 48.0 35.5 15.75 13.00
YCS48B21S ME16CN21 21.0 CF/CM60C 1450 48.0 35.0 16.00 13.00
YCS48B21S ME20DN21 24.5 CF/CM48D 1475 48.0 35.5 16.00 13.00
YCS48B21S ME20DN21 24.5 CF/CM60D 1400 48.0 34.5 15.75 12.75
YCS48B21S ME20DN21 24.5 CF/CM64D 1425 48.0 35.0 16.00 13.00
YCS48B21S MVC14DN21 24.5 CF/CM48D 1325 48.0 33.5 15.75 12.75
YCS48B21S MVC14DN21 24.5 CF/CM60D 1350 48.0 33.5 15.75 12.75
YCS48B21S MVC14DN21 24.5 CF/CM64D 1325 48.0 33.5 16.00 13.00
YCS48B21S MVC16CN21 21.0 CF/CM48C 1425 48.0 34.5 15.75 12.75
YCS48B21S MVC16CN21 21.0 CF/CM60C 1650 48.0 37.0 16.25 13.25
YCS48B21S MVC20DN21 24.5 CF/CM48D 1450 48.0 35.0 15.75 12.75
YCS48B21S MVC20DN21 24.5 CF/CM60D 1475 48.0 35.5 15.75 13.00
YCS48B21S MVC20DN21 24.5 CF/CM64D 1375 48.0 34.0 16.00 13.00
YCS60B21S AE60CX21 21.0 – 1625 56.0 40.0 14.25 12.00
YCS60B21S AE60DX21 24.5 – 1775 57.5 42.0 14.25 12.25
YCS60B21S AVC60CX21 21.0 – 1750 56.5 41.5 14.00 12.00
YCS60B21S AVC60DX21 24.5 – 1650 57.5 41.0 14.75 12.25
YCS60B21S ME16CN21 21.0 CF/CM60C 1625 56.0 40.0 14.50 12.25
For Notes See Page 9.
COOLING CAPACITY - With Air Handler Coils (Continued)
UNIT
MODEL
AIR HANDLER COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
Johnson Controls Unitary Products 9
— = Not applicable.
MP Modular Air Handlers use Coil Only Ratings.
YCS60B21S ME20DN21 24.5 CF/CM60D 1650 56.5 40.0 14.50 12.25
YCS60B21S ME20DN21 24.5 CF/CM64D 1625 57.5 40.5 14.75 12.25
YCS60B21S MVC16CN21 21.0 CF/CM60C 1650 57.0 40.5 15.50 12.75
YCS60B21S MVC20DN21 24.5 CF/CM60D 1700 56.0 40.0 14.50 12.25
YCS60B21S MVC20DN21 24.5 CF/CM64D 1700 57.0 40.5 14.75 12.25
Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ANSI/AHRI Standard 210/240.
Cooling MBH based on 80°F entering air temperature, 50% RH (Relative Humidity), and rated air flow.
EER (Energy Efficiency Ratio) is the total cooling output in BTUs at 95°F outdoor ambient divided by the total electric power in watt-hours at those conditions.
SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTUs during a normal annual usage period for cooling divided by the total
electric power input in watt-hours during the same period.
1. CM coils available with a factory installed horizontal drain pan. See price pages for specific model number.
COOLING CAPACITY - With Air Handler Coils (Continued)
UNIT
MODEL
AIR HANDLER COIL
MODEL1
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils (Coil Only Ratings)
UNIT MODEL
COIL CFM RANGE
(MIN.-MAX.)
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER 1EER
TOTAL SENS.
YCS18B21S CF/CM/CU18A 14.5 450 - 750 600 18.0 12.0 14.00 12.20
YCS18B21S CF/CM/CU18B 17.5 450 - 750 600 18.0 12.0 14.25 12.25
YCS18B21S CF/CM/CU24A 14.5 450 - 750 600 18.0 12.0 14.50 12.25
YCS18B21S CF/CM/CU24B 17.5 450 - 750 600 18.0 12.0 14.50 12.25
YCS18B21S CF/CM/CU24C 21 450 - 750 600 18.0 12.0 14.50 12.25
YCS18B21S CF/CM/CU30A 14.5 450 - 750 600 18.0 11.9 14.50 12.25
YCS18B21S CF/CM/CU30B 17.5 450 - 750 600 18.0 11.9 14.50 12.25
YCS18B21S CF/CM/CU30C 21 450 - 750 600 18.0 11.9 14.50 12.25
YCS18B21S CF/CM/CU30D 24.5 450 - 750 600 18.0 11.9 14.50 12.25
YCS18B21S CF/CM/CU36B 17.5 450 - 750 600 18.0 12.3 14.75 12.25
YCS18B21S CF/CM/CU36C 21 450 - 750 600 18.0 12.3 14.75 12.25
YCS18B21S CF/CM/CU36D 24.5 450 - 750 600 18.0 12.3 14.75 12.25
YCS18B21S CF/CM36A 14.5 450 - 750 600 18.0 12.3 14.75 12.25
YCS24B21S CF/CM/CU24A 14.5 600 - 1000 800 24.0 16.8 14.00 12.20
YCS24B21S CF/CM/CU24B 17.5 600 - 1000 800 24.0 16.8 14.25 12.25
YCS24B21S CF/CM/CU24C 21 600 - 1000 800 24.0 16.8 14.25 12.25
YCS24B21S CF/CM/CU30A 14.5 600 - 1000 800 24.0 16.8 14.50 12.25
YCS24B21S CF/CM/CU30B 17.5 600 - 1000 800 24.0 16.8 14.50 12.25
YCS24B21S CF/CM/CU30C 21 600 - 1000 800 24.0 16.8 14.50 12.25
YCS24B21S CF/CM/CU30D 24.5 600 - 1000 800 24.0 16.8 14.50 12.25
YCS24B21S CF/CM/CU36B 17.5 600 - 1000 800 24.0 16.4 14.75 12.25
YCS24B21S CF/CM/CU36C 21 600 - 1000 800 24.0 16.4 14.75 12.25
YCS24B21S CF/CM/CU36D 24.5 600 - 1000 800 24.0 16.4 14.75 12.25
YCS24B21S CF/CM/CU42C 21 600 - 1000 800 24.0 16.8 14.75 12.25
YCS24B21S CF/CM/CU42D 24.5 600 - 1000 800 24.0 16.8 14.75 12.25
YCS24B21S CF/CM36A 14.5 600 - 1000 800 24.0 16.4 14.75 12.25
YCS24B21S CF42B 17.5 600 - 1000 800 24.0 16.8 14.75 12.25
YCS30B21S CF/CM/CU30B 17.5 800 - 1200 1000 28.8 20.6 14.00 12.20
YCS30B21S CF/CM/CU30C 21 800 - 1200 1000 28.8 20.6 14.00 12.20
YCS30B21S CF/CM/CU30D 24.5 800 - 1200 1000 28.8 20.6 14.00 12.20
YCS30B21S CF/CM/CU36B 17.5 800 - 1200 1000 29.2 20.6 14.00 12.25
YCS30B21S CF/CM/CU36C 21 800 - 1200 1000 29.2 20.6 14.00 12.25
YCS30B21S CF/CM/CU36D 24.5 800 - 1200 1000 29.2 20.6 14.00 12.25
For Notes See Page 10.
5006080-YTG-A-0815
10 Johnson Controls Unitary Products
— = Not Applicable.
MP Modular Air Handlers use Coil Only Ratings.
PSC furnaces, such as the TG8S, TGLS, and TG9S, use Coil Only Ratings.
YCS30B21S CF/CM/CU42C 21 800 - 1200 1000 29.2 20.6 14.00 12.25
YCS30B21S CF/CM/CU42D 24.5 800 - 1200 1000 29.2 20.6 14.00 12.25
YCS30B21S CF/CM36A 14.5 800 - 1200 900 28.8 19.4 14.00 12.25
YCS30B21S CF42B 17.5 800 - 1200 1000 29.2 20.6 14.00 12.20
YCS36B21S CF/CM/CU36B 17.5 1000 - 1400 1200 35.0 25.0 14.00 12.20
YCS36B21S CF/CM/CU36C 21 1000 - 1400 1200 35.0 25.0 14.00 12.20
YCS36B21S CF/CM/CU36D 24.5 1000 - 1400 1200 35.0 25.0 14.00 12.20
YCS36B21S CF/CM/CU42C 21 1000 - 1400 1200 36.0 25.6 14.00 12.25
YCS36B21S CF/CM/CU42D 24.5 1000 - 1400 1200 36.0 25.6 14.00 12.25
YCS36B21S CF/CM/CU48C 21 1000 - 1400 1200 36.0 25.6 14.00 12.25
YCS36B21S CF/CM/CU48D 24.5 1000 - 1400 1200 36.0 25.6 14.00 12.25
YCS36B21S CF42B 17.5 1000 - 1400 1200 36.0 25.6 14.00 12.25
YCS42B21S CF/CM/CU42C 21 1200 - 1600 1400 40.0 30.0 14.00 12.20
YCS42B21S CF/CM/CU42D 24.5 1200 - 1600 1400 40.0 30.0 14.00 12.20
YCS42B21S CF/CM/CU48C 21 1200 - 1600 1400 40.5 32.0 14.00 12.25
YCS42B21S CF/CM/CU48D 24.5 1200 - 1600 1400 40.5 32.0 14.00 12.25
YCS42B21S CF/CM/CU60C 21 1200 - 1600 1400 41.0 32.5 14.00 12.25
YCS42B21S CF/CM/CU60D 24.5 1200 - 1600 1400 41.0 32.5 14.00 12.25
YCS42B21S CF/CM64D 24.5 1200 - 1600 1400 41.5 32.5 14.00 12.25
YCS42B21S CF42B 17.5 1200 - 1600 1225 38.5 29.0 14.00 12.20
YCS48B21S CF/CM/CU48C 21 1400 - 1800 1600 47.5 34.2 14.00 11.75
YCS48B21S CF/CM/CU48D 24.5 1400 - 1800 1600 47.5 34.2 14.00 11.75
YCS48B21S CF/CM/CU60C 21 1400 - 1800 1600 48.0 36.0 14.50 12.25
YCS48B21S CF/CM/CU60D 24.5 1400 - 1800 1600 48.0 36.0 14.50 12.25
YCS48B21S CF/CM64D 24.5 1400 - 1800 1600 48.0 36.0 14.75 12.25
YCS60B21S CF/CM/CU60C 21 1535 - 1935 1735 56.0 41.0 14.00 11.75
YCS60B21S CF/CM/CU60D 24.5 1535 - 1935 1725 56.0 41.0 14.00 11.75
YCS60B21S CF/CM64D 24.5 1535 - 1935 1775 57.0 42.0 14.00 11.75
For rated condition information, see the footnotes below the System Capacity - Single Piece and Modular Air Handlers table.
1. Requires a S1-2FD06700224 Blower Time Delay unless a standard furnace is equipped with one.
COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils (Coil Only Ratings) (Continued)
UNIT MODEL
COIL CFM RANGE
(MIN.-MAX.)
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER 1EER
TOTAL SENS.
5006080-YTG-A-0815
Johnson Controls Unitary Products 11
COOLING CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
YCS18B21S TM8V060A12MP11 14.5 CF/CM/CU18A 525 18.0 11.4 15.50 12.75
YCS18B21S TM8V060A12MP11 14.5 CF/CM/CU24A 550 18.0 11.6 16.00 13.00
YCS18B21S TM8V060A12MP11 14.5 CF/CM/CU30A 550 18.0 11.6 16.25 13.25
YCS18B21S TM8V080B12MP11 17.5 CF/CM/CU18B 650 18.0 12.5 15.75 13.00
YCS18B21S TM8V080B12MP11 17.5 CF/CM/CU24B 675 18.0 12.7 16.25 13.25
YCS18B21S TM8V080B12MP11 17.5 CF/CM/CU30B 625 18.0 12.3 16.25 13.25
YCS18B21S TM8V080B12MP11 17.5 CF/CM/CU36B 675 18.0 12.6 16.25 13.25
YCS18B21S TM8X060A12MP11 14.5 CF/CM/CU18A 600 18.0 12.0 15.50 12.75
YCS18B21S TM8X060A12MP11 14.5 CF/CM/CU24A 600 18.0 12.1 16.00 13.00
YCS18B21S TM8X060A12MP11 14.5 CF/CM/CU30A 625 18.0 12.3 16.25 13.25
YCS18B21S TM8X060A12MP11 14.5 CF/CM36A 600 18.0 12.3 16.25 13.25
YCS18B21S TM8X080B12MP11 17.5 CF/CM/CU18B 600 18.0 12.1 15.75 13.00
YCS18B21S TM8X080B12MP11 17.5 CF/CM/CU24B 600 18.0 12.1 16.00 13.00
YCS18B21S TM8X080B12MP11 17.5 CF/CM/CU30B 600 18.0 11.9 16.25 13.25
YCS18B21S TM8X080B12MP11 17.5 CF/CM/CU36B 600 18.0 12.3 16.25 13.25
YCS18B21S TM8X080C16MP11 21.0 CF/CM/CU24C 600 18.0 12.0 15.75 12.75
YCS18B21S TM8X080C16MP11 21.0 CF/CM/CU30C 600 18.0 12.0 16.00 13.00
YCS18B21S TM8X080C16MP11 21.0 CF/CM/CU30D 625 18.0 12.3 16.25 13.25
YCS18B21S TM8X080C16MP11 21.0 CF/CM/CU36C 600 18.0 12.3 16.25 13.25
YCS18B21S TM8X080C16MP11 21.0 CF/CM/CU36D 625 18.0 12.2 16.25 13.25
YCS18B21S TM8X100C16MP11 21.0 CF/CM/CU24C 600 18.0 12.0 15.75 12.75
YCS18B21S TM8X100C16MP11 21.0 CF/CM/CU30C 600 18.0 12.0 16.00 13.00
YCS18B21S TM8X100C16MP11 21.0 CF/CM/CU30D 625 18.0 12.3 16.25 13.25
YCS18B21S TM8X100C16MP11 21.0 CF/CM/CU36C 600 18.0 12.3 16.25 13.25
YCS18B21S TM8X100C16MP11 21.0 CF/CM/CU36D 625 18.0 12.2 16.25 13.25
YCS18B21S TM8Y060A12MP11 14.5 CF/CM/CU18A 600 18.0 12.0 15.50 12.75
YCS18B21S TM8Y060A12MP11 14.5 CF/CM/CU24A 600 18.0 12.1 16.00 13.00
YCS18B21S TM8Y060A12MP11 14.5 CF/CM/CU30A 625 18.0 12.3 16.25 13.25
YCS18B21S TM8Y060A12MP11 14.5 CF/CM36A 600 18.0 12.3 16.25 13.25
YCS18B21S TM8Y080B12MP11 17.5 CF/CM/CU18B 600 18.0 12.1 15.75 13.00
YCS18B21S TM8Y080B12MP11 17.5 CF/CM/CU24B 600 18.0 12.1 16.00 13.00
YCS18B21S TM8Y080B12MP11 17.5 CF/CM/CU30B 600 18.0 11.9 16.25 13.25
YCS18B21S TM8Y080B12MP11 17.5 CF/CM/CU36B 600 18.0 12.3 16.25 13.25
YCS18B21S TM8Y080C16MP11 21.0 CF/CM/CU24C 600 18.0 12.0 15.75 12.75
YCS18B21S TM8Y080C16MP11 21.0 CF/CM/CU30C 600 18.0 12.0 16.00 13.00
YCS18B21S TM8Y080C16MP11 21.0 CF/CM/CU30D 625 18.0 12.3 16.25 13.25
YCS18B21S TM8Y080C16MP11 21.0 CF/CM/CU36C 600 18.0 12.3 16.25 13.25
YCS18B21S TM8Y080C16MP11 21.0 CF/CM/CU36D 625 18.0 12.2 16.25 13.25
YCS18B21S TM8Y100C16MP11 21.0 CF/CM/CU24C 600 18.0 12.0 15.75 12.75
YCS18B21S TM8Y100C16MP11 21.0 CF/CM/CU30C 600 18.0 12.0 16.00 13.00
YCS18B21S TM8Y100C16MP11 21.0 CF/CM/CU30D 625 18.0 12.3 16.25 13.25
YCS18B21S TM8Y100C16MP11 21.0 CF/CM/CU36C 600 18.0 12.3 16.25 13.25
YCS18B21S TM8Y100C16MP11 21.0 CF/CM/CU36D 625 18.0 12.2 16.25 13.25
YCS18B21S TM9E040A10MP11 14.5 CF/CM/CU18A 600 18.0 12.1 15.75 13.00
YCS18B21S TM9E040A10MP11 14.5 CF/CM/CU24A 575 18.0 11.8 15.75 13.00
YCS18B21S TM9E040A10MP11 14.5 CF/CM/CU30A 600 18.0 11.9 16.25 13.25
YCS18B21S TM9E040A10MP11 14.5 CF/CM36A 600 18.0 12.3 16.25 13.25
YCS18B21S TM9E060B12MP11 17.5 CF/CM/CU18B 600 18.0 12.1 15.50 12.75
YCS18B21S TM9E060B12MP11 17.5 CF/CM/CU24B 600 18.0 12.0 15.75 12.75
For notes see Page 40.
5006080-YTG-A-0815
12 Johnson Controls Unitary Products
YCS18B21S TM9E060B12MP11 17.5 CF/CM/CU30B 600 18.0 12.0 16.00 13.00
YCS18B21S TM9E060B12MP11 17.5 CF/CM/CU36B 600 18.0 12.3 16.25 13.25
YCS18B21S TM9E080B12MP11 17.5 CF/CM/CU18B 600 18.0 12.1 15.50 12.75
YCS18B21S TM9E080B12MP11 17.5 CF/CM/CU24B 600 18.0 12.0 15.75 12.75
YCS18B21S TM9E080B12MP11 17.5 CF/CM/CU30B 600 18.0 12.0 16.00 13.00
YCS18B21S TM9E080B12MP11 17.5 CF/CM/CU36B 600 18.0 12.3 16.25 13.25
YCS18B21S TM9E080C16MP11 21.0 CF/CM/CU24C 600 18.0 12.1 16.25 13.25
YCS18B21S TM9E080C16MP11 21.0 CF/CM/CU30C 600 18.0 12.0 16.25 13.25
YCS18B21S TM9E080C16MP11 21.0 CF/CM/CU30D 600 18.0 12.0 16.25 13.25
YCS18B21S TM9E080C16MP11 21.0 CF/CM/CU36C 600 18.0 12.3 16.25 13.25
YCS18B21S TM9E080C16MP11 21.0 CF/CM/CU36D 600 18.0 12.3 16.25 13.25
YCS18B21S TM9E100C16MP11 21.0 CF/CM/CU24C 600 18.0 12.1 16.25 13.25
YCS18B21S TM9E100C16MP11 21.0 CF/CM/CU30C 600 18.0 12.0 16.25 13.25
YCS18B21S TM9E100C16MP11 21.0 CF/CM/CU30D 600 18.0 12.0 16.25 13.25
YCS18B21S TM9E100C16MP11 21.0 CF/CM/CU36C 600 18.0 12.3 16.25 13.25
YCS18B21S TM9E100C16MP11 21.0 CF/CM/CU36D 600 18.0 12.3 16.25 13.25
YCS18B21S TM9E100C20MP11 21.0 CF/CM/CU24C 625 18.0 12.3 14.75 12.25
YCS18B21S TM9E100C20MP11 21.0 CF/CM/CU30C 625 18.0 12.2 15.00 12.50
YCS18B21S TM9E100C20MP11 21.0 CF/CM/CU30D 650 18.0 12.3 15.25 12.50
YCS18B21S TM9E100C20MP11 21.0 CF/CM/CU36C 625 18.0 12.1 15.25 12.50
YCS18B21S TM9E100C20MP11 21.0 CF/CM/CU36D 650 18.0 12.5 15.25 12.50
YCS18B21S TM9E120D20MP11 24.5 CF/CM/CU30D 600 18.0 11.9 15.00 12.50
YCS18B21S TM9E120D20MP11 24.5 CF/CM/CU36D 600 18.0 12.2 15.25 12.50
YCS18B21S TM9V040A10MP11 14.5 CF/CM/CU24A 675 18.0 12.6 14.75 12.50
YCS18B21S TM9V060B12MP11 17.5 CF/CM/CU18B 625 18.0 12.3 15.75 12.75
YCS18B21S TM9V060B12MP11 17.5 CF/CM/CU24B 550 18.0 11.6 16.25 13.25
YCS18B21S TM9V060B12MP11 17.5 CF/CM/CU30B 650 18.0 12.4 16.25 13.25
YCS18B21S TM9V060B12MP11 17.5 CF/CM/CU36B 600 18.0 12.3 16.25 13.25
YCS18B21S TM9V080B12MP11 17.5 CF/CM/CU18B 625 18.0 12.3 15.75 12.75
YCS18B21S TM9V080B12MP11 17.5 CF/CM/CU24B 550 18.0 11.6 16.25 13.25
YCS18B21S TM9V080B12MP11 17.5 CF/CM/CU30B 650 18.0 12.4 16.25 13.25
YCS18B21S TM9V080B12MP11 17.5 CF/CM/CU36B 600 18.0 12.3 16.25 13.25
YCS18B21S TM9Y040A10MP11 14.5 CF/CM/CU18A 600 18.0 12.1 15.75 13.00
YCS18B21S TM9Y040A10MP11 14.5 CF/CM/CU24A 575 18.0 11.8 15.75 13.00
YCS18B21S TM9Y040A10MP11 14.5 CF/CM/CU30A 600 18.0 11.9 16.25 13.25
YCS18B21S TM9Y040A10MP11 14.5 CF/CM36A 600 18.0 12.3 16.25 13.25
YCS18B21S TM9Y060B12MP11 17.5 CF/CM/CU18B 600 18.0 12.1 15.50 12.75
YCS18B21S TM9Y060B12MP11 17.5 CF/CM/CU24B 600 18.0 12.0 15.75 12.75
YCS18B21S TM9Y060B12MP11 17.5 CF/CM/CU30B 600 18.0 12.0 16.00 13.00
YCS18B21S TM9Y060B12MP11 17.5 CF/CM/CU36B 600 18.0 12.3 16.25 13.25
YCS18B21S TM9Y080B12MP11 17.5 CF/CM/CU18B 600 18.0 12.1 15.50 12.75
YCS18B21S TM9Y080B12MP11 17.5 CF/CM/CU24B 600 18.0 12.0 15.75 12.75
YCS18B21S TM9Y080B12MP11 17.5 CF/CM/CU30B 600 18.0 12.0 16.00 13.00
YCS18B21S TM9Y080B12MP11 17.5 CF/CM/CU36B 600 18.0 12.3 16.25 13.25
YCS18B21S TM9Y080C16MP11 21.0 CF/CM/CU24C 600 18.0 12.1 16.25 13.25
YCS18B21S TM9Y080C16MP11 21.0 CF/CM/CU30C 600 18.0 12.0 16.25 13.25
YCS18B21S TM9Y080C16MP11 21.0 CF/CM/CU30D 600 18.0 12.0 16.25 13.25
YCS18B21S TM9Y080C16MP11 21.0 CF/CM/CU36C 600 18.0 12.3 16.25 13.25
YCS18B21S TM9Y080C16MP11 21.0 CF/CM/CU36D 600 18.0 12.3 16.25 13.25
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
Johnson Controls Unitary Products 13
YCS18B21S TM9Y100C16MP11 21.0 CF/CM/CU24C 600 18.0 12.1 16.25 13.25
YCS18B21S TM9Y100C16MP11 21.0 CF/CM/CU30C 600 18.0 12.0 16.25 13.25
YCS18B21S TM9Y100C16MP11 21.0 CF/CM/CU30D 600 18.0 12.0 16.25 13.25
YCS18B21S TM9Y100C16MP11 21.0 CF/CM/CU36C 600 18.0 12.3 16.25 13.25
YCS18B21S TM9Y100C16MP11 21.0 CF/CM/CU36D 600 18.0 12.3 16.25 13.25
YCS18B21S TM9Y100C20MP11 21.0 CF/CM/CU24C 625 18.0 12.3 14.75 12.25
YCS18B21S TM9Y100C20MP11 21.0 CF/CM/CU30C 625 18.0 12.2 15.00 12.50
YCS18B21S TM9Y100C20MP11 21.0 CF/CM/CU30D 650 18.0 12.3 15.25 12.50
YCS18B21S TM9Y100C20MP11 21.0 CF/CM/CU36C 625 18.0 12.1 15.25 12.50
YCS18B21S TM9Y100C20MP11 21.0 CF/CM/CU36D 650 18.0 12.5 15.25 12.50
YCS18B21S TM9Y120D20MP11 24.5 CF/CM/CU30D 600 18.0 11.9 15.00 12.50
YCS18B21S TM9Y120D20MP11 24.5 CF/CM/CU36D 600 18.0 12.2 15.25 12.50
YCS18B21S TMLV060A12MP11 14.5 CF/CM/CU18A 525 18.0 11.4 15.50 12.75
YCS18B21S TMLV060A12MP11 14.5 CF/CM/CU24A 550 18.0 11.6 16.00 13.00
YCS18B21S TMLV060A12MP11 14.5 CF/CM/CU30A 550 18.0 11.6 16.25 13.25
YCS18B21S TMLV080B12MP11 17.5 CF/CM/CU18B 650 18.0 12.5 15.75 13.00
YCS18B21S TMLV080B12MP11 17.5 CF/CM/CU24B 675 18.0 12.7 16.25 13.25
YCS18B21S TMLV080B12MP11 17.5 CF/CM/CU30B 625 18.0 12.3 16.25 13.25
YCS18B21S TMLV080B12MP11 17.5 CF/CM/CU36B 675 18.0 12.6 16.25 13.25
YCS18B21S TMLX060A12MP11 14.5 CF/CM/CU18A 600 18.0 12.0 15.50 12.75
YCS18B21S TMLX060A12MP11 14.5 CF/CM/CU24A 600 18.0 12.1 16.00 13.00
YCS18B21S TMLX060A12MP11 14.5 CF/CM/CU30A 625 18.0 12.3 16.25 13.25
YCS18B21S TMLX060A12MP11 14.5 CF/CM36A 600 18.0 12.3 16.25 13.25
YCS18B21S TMLX080B12MP11 17.5 CF/CM/CU18B 600 18.0 12.1 15.75 13.00
YCS18B21S TMLX080B12MP11 17.5 CF/CM/CU24B 600 18.0 12.1 16.00 13.00
YCS18B21S TMLX080B12MP11 17.5 CF/CM/CU30B 600 18.0 11.9 16.25 13.25
YCS18B21S TMLX080B12MP11 17.5 CF/CM/CU36B 600 18.0 12.3 16.25 13.25
YCS18B21S TMLX080C16MP11 21.0 CF/CM/CU24C 600 18.0 12.0 15.75 12.75
YCS18B21S TMLX080C16MP11 21.0 CF/CM/CU30C 600 18.0 12.0 16.00 13.00
YCS18B21S TMLX080C16MP11 21.0 CF/CM/CU30D 625 18.0 12.3 16.25 13.25
YCS18B21S TMLX080C16MP11 21.0 CF/CM/CU36C 600 18.0 12.3 16.25 13.25
YCS18B21S TMLX080C16MP11 21.0 CF/CM/CU36D 625 18.0 12.2 16.25 13.25
YCS18B21S TMLX100C16MP11 21.0 CF/CM/CU24C 600 18.0 12.0 15.75 12.75
YCS18B21S TMLX100C16MP11 21.0 CF/CM/CU30C 600 18.0 12.0 16.00 13.00
YCS18B21S TMLX100C16MP11 21.0 CF/CM/CU30D 625 18.0 12.3 16.25 13.25
YCS18B21S TMLX100C16MP11 21.0 CF/CM/CU36C 600 18.0 12.3 16.25 13.25
YCS18B21S TMLX100C16MP11 21.0 CF/CM/CU36D 625 18.0 12.2 16.25 13.25
YCS18B21S TP9C060B12MP12 17.5 CF/CM/CU18B 625 18.0 12.3 15.75 12.75
YCS18B21S TP9C060B12MP12 17.5 CF/CM/CU24B 550 18.0 11.6 16.25 13.25
YCS18B21S TP9C060B12MP12 17.5 CF/CM/CU30B 650 18.0 12.4 16.25 13.25
YCS18B21S TP9C060B12MP12 17.5 CF/CM/CU36B 600 18.0 12.3 16.25 13.25
YCS18B21S TP9C080B12MP12 17.5 CF/CM/CU18B 625 18.0 12.3 15.75 12.75
YCS18B21S TP9C080B12MP12 17.5 CF/CM/CU24B 550 18.0 11.6 16.25 13.25
YCS18B21S TP9C080B12MP12 17.5 CF/CM/CU30B 650 18.0 12.4 16.25 13.25
YCS18B21S TP9C080B12MP12 17.5 CF/CM/CU36B 600 18.0 12.3 16.25 13.25
YCS18B21S TPLC060A12MP12 14.5 CF/CM/CU18A 525 18.0 11.4 15.50 12.75
YCS18B21S TPLC060A12MP12 14.5 CF/CM/CU24A 550 18.0 11.6 16.00 13.00
YCS18B21S TPLC060A12MP12 14.5 CF/CM/CU30A 550 18.0 11.6 16.25 13.25
YCS18B21S TPLC080B12MP12 17.5 CF/CM/CU18B 650 18.0 12.5 15.75 13.00
YCS18B21S TPLC080B12MP12 17.5 CF/CM/CU24B 675 18.0 12.7 16.25 13.25
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
14 Johnson Controls Unitary Products
YCS18B21S TPLC080B12MP12 17.5 CF/CM/CU30B 625 18.0 12.3 16.25 13.25
YCS18B21S TPLC080B12MP12 17.5 CF/CM/CU36B 675 18.0 12.6 16.25 13.25
YCS18B21S YP9C060B12MP12 17.5 CF/CM/CU18B 625 18.0 12.3 15.75 12.75
YCS18B21S YP9C060B12MP12 17.5 CF/CM/CU24B 550 18.0 11.6 16.25 13.25
YCS18B21S YP9C060B12MP12 17.5 CF/CM/CU30B 650 18.0 12.4 16.25 13.25
YCS18B21S YP9C060B12MP12 17.5 CF/CM/CU36B 600 18.0 12.3 16.25 13.25
YCS18B21S YP9C080B12MP12 17.5 CF/CM/CU18B 625 18.0 12.3 15.75 12.75
YCS18B21S YP9C080B12MP12 17.5 CF/CM/CU24B 550 18.0 11.6 16.25 13.25
YCS18B21S YP9C080B12MP12 17.5 CF/CM/CU30B 650 18.0 12.4 16.25 13.25
YCS18B21S YP9C080B12MP12 17.5 CF/CM/CU36B 600 18.0 12.3 16.25 13.25
YCS18B21S YPLC060A12MP12 14.5 CF/CM/CU18A 525 18.0 11.4 15.50 12.75
YCS18B21S YPLC060A12MP12 14.5 CF/CM/CU24A 550 18.0 11.6 16.00 13.00
YCS18B21S YPLC060A12MP12 14.5 CF/CM/CU30A 550 18.0 11.6 16.25 13.25
YCS18B21S YPLC080B12MP12 17.5 CF/CM/CU18B 650 18.0 12.5 15.75 13.00
YCS18B21S YPLC080B12MP12 17.5 CF/CM/CU24B 675 18.0 12.7 16.25 13.25
YCS18B21S YPLC080B12MP12 17.5 CF/CM/CU30B 625 18.0 12.3 16.25 13.25
YCS18B21S YPLC080B12MP12 17.5 CF/CM/CU36B 675 18.0 12.6 16.25 13.25
YCS24B21S TM8V060A12MP11 14.5 CF/CM/CU24A 725 24.0 16.2 15.25 12.50
YCS24B21S TM8V060A12MP11 14.5 CF/CM/CU30A 725 24.0 16.6 15.75 12.75
YCS24B21S TM8V060A12MP11 14.5 CF/CM36A 700 24.0 15.8 15.75 13.00
YCS24B21S TM8V080B12MP11 17.5 CF/CM/CU24B 850 24.0 17.2 15.50 12.75
YCS24B21S TM8V080B12MP11 17.5 CF/CM/CU30B 800 24.0 16.8 16.00 13.00
YCS24B21S TM8V080B12MP11 17.5 CF/CM/CU36B 675 24.0 15.6 16.00 13.00
YCS24B21S TM8V080B12MP11 17.5 CF42B 850 24.0 17.0 16.25 13.25
YCS24B21S TM8X060A12MP11 14.5 CF/CM/CU24A 800 24.0 16.8 16.00 13.00
YCS24B21S TM8X060A12MP11 14.5 CF/CM/CU30A 800 24.0 16.8 16.25 13.25
YCS24B21S TM8X060A12MP11 14.5 CF/CM36A 775 24.0 16.6 16.25 13.25
YCS24B21S TM8X080B12MP11 17.5 CF/CM/CU24B 800 24.0 16.8 16.00 13.00
YCS24B21S TM8X080B12MP11 17.5 CF/CM/CU30B 800 24.0 16.8 16.25 13.25
YCS24B21S TM8X080B12MP11 17.5 CF/CM/CU36B 800 24.0 16.6 16.25 13.25
YCS24B21S TM8X080B12MP11 17.5 CF42B 800 24.0 16.8 16.25 13.25
YCS24B21S TM8X080C16MP11 21.0 CF/CM/CU24C 800 24.0 16.8 16.25 13.25
YCS24B21S TM8X080C16MP11 21.0 CF/CM/CU30C 800 24.0 16.8 16.25 13.25
YCS24B21S TM8X080C16MP11 21.0 CF/CM/CU30D 800 24.0 16.8 16.25 13.25
YCS24B21S TM8X080C16MP11 21.0 CF/CM/CU36C 800 24.0 16.6 16.25 13.25
YCS24B21S TM8X080C16MP11 21.0 CF/CM/CU36D 800 24.0 16.6 16.25 13.25
YCS24B21S TM8X080C16MP11 21.0 CF/CM/CU42C 800 24.0 16.8 16.25 13.25
YCS24B21S TM8X080C16MP11 21.0 CF/CM/CU42D 800 24.0 16.8 16.25 13.25
YCS24B21S TM8X100C16MP11 21.0 CF/CM/CU24C 800 24.0 16.8 16.25 13.25
YCS24B21S TM8X100C16MP11 21.0 CF/CM/CU30C 800 24.0 16.8 16.25 13.25
YCS24B21S TM8X100C16MP11 21.0 CF/CM/CU30D 800 24.0 16.8 16.25 13.25
YCS24B21S TM8X100C16MP11 21.0 CF/CM/CU36C 800 24.0 16.6 16.25 13.25
YCS24B21S TM8X100C16MP11 21.0 CF/CM/CU36D 800 24.0 16.6 16.25 13.25
YCS24B21S TM8X100C16MP11 21.0 CF/CM/CU42C 800 24.0 16.8 16.25 13.25
YCS24B21S TM8X100C16MP11 21.0 CF/CM/CU42D 800 24.0 16.8 16.25 13.25
YCS24B21S TM8X100C20MP11 21.0 CF/CM/CU30C 800 24.0 16.8 15.25 12.50
YCS24B21S TM8X100C20MP11 21.0 CF/CM/CU30D 825 24.0 17.0 15.25 12.50
YCS24B21S TM8X100C20MP11 21.0 CF/CM/CU36C 825 24.0 16.8 15.50 12.75
YCS24B21S TM8X100C20MP11 21.0 CF/CM/CU36D 825 24.0 16.8 15.50 12.75
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
Johnson Controls Unitary Products 15
YCS24B21S TM8X100C20MP11 21.0 CF/CM/CU42C 825 24.0 16.8 15.50 12.75
YCS24B21S TM8X100C20MP11 21.0 CF/CM/CU42D 825 24.0 16.8 15.50 12.75
YCS24B21S TM8X120C20MP11 21.0 CF/CM/CU30C 800 24.0 16.8 15.25 12.50
YCS24B21S TM8X120C20MP11 21.0 CF/CM/CU30D 825 24.0 17.0 15.25 12.50
YCS24B21S TM8X120C20MP11 21.0 CF/CM/CU36C 825 24.0 16.8 15.50 12.75
YCS24B21S TM8X120C20MP11 21.0 CF/CM/CU36D 825 24.0 16.8 15.50 12.75
YCS24B21S TM8X120C20MP11 21.0 CF/CM/CU42C 825 24.0 16.8 15.50 12.75
YCS24B21S TM8X120C20MP11 21.0 CF/CM/CU42D 825 24.0 16.8 15.50 12.75
YCS24B21S TM8Y060A12MP11 14.5 CF/CM/CU24A 800 24.0 16.8 16.00 13.00
YCS24B21S TM8Y060A12MP11 14.5 CF/CM/CU30A 800 24.0 16.8 16.25 13.25
YCS24B21S TM8Y060A12MP11 14.5 CF/CM36A 775 24.0 16.6 16.25 13.25
YCS24B21S TM8Y080B12MP11 17.5 CF/CM/CU24B 800 24.0 16.8 16.00 13.00
YCS24B21S TM8Y080B12MP11 17.5 CF/CM/CU30B 800 24.0 16.8 16.25 13.25
YCS24B21S TM8Y080B12MP11 17.5 CF/CM/CU36B 800 24.0 16.6 16.25 13.25
YCS24B21S TM8Y080B12MP11 17.5 CF42B 800 24.0 16.8 16.25 13.25
YCS24B21S TM8Y080C16MP11 21.0 CF/CM/CU24C 800 24.0 16.8 16.25 13.25
YCS24B21S TM8Y080C16MP11 21.0 CF/CM/CU30C 800 24.0 16.8 16.25 13.25
YCS24B21S TM8Y080C16MP11 21.0 CF/CM/CU30D 800 24.0 16.8 16.25 13.25
YCS24B21S TM8Y080C16MP11 21.0 CF/CM/CU36C 800 24.0 16.6 16.25 13.25
YCS24B21S TM8Y080C16MP11 21.0 CF/CM/CU36D 800 24.0 16.6 16.25 13.25
YCS24B21S TM8Y080C16MP11 21.0 CF/CM/CU42C 800 24.0 16.8 16.25 13.25
YCS24B21S TM8Y080C16MP11 21.0 CF/CM/CU42D 800 24.0 16.8 16.25 13.25
YCS24B21S TM8Y100C16MP11 21.0 CF/CM/CU24C 800 24.0 16.8 16.25 13.25
YCS24B21S TM8Y100C16MP11 21.0 CF/CM/CU30C 800 24.0 16.8 16.25 13.25
YCS24B21S TM8Y100C16MP11 21.0 CF/CM/CU30D 800 24.0 16.8 16.25 13.25
YCS24B21S TM8Y100C16MP11 21.0 CF/CM/CU36C 800 24.0 16.6 16.25 13.25
YCS24B21S TM8Y100C16MP11 21.0 CF/CM/CU36D 800 24.0 16.6 16.25 13.25
YCS24B21S TM8Y100C16MP11 21.0 CF/CM/CU42C 800 24.0 16.8 16.25 13.25
YCS24B21S TM8Y100C16MP11 21.0 CF/CM/CU42D 800 24.0 16.8 16.25 13.25
YCS24B21S TM8Y100C20MP11 21.0 CF/CM/CU30C 800 24.0 16.8 15.25 12.50
YCS24B21S TM8Y100C20MP11 21.0 CF/CM/CU30D 825 24.0 17.0 15.25 12.50
YCS24B21S TM8Y100C20MP11 21.0 CF/CM/CU36C 825 24.0 16.8 15.50 12.75
YCS24B21S TM8Y100C20MP11 21.0 CF/CM/CU36D 825 24.0 16.8 15.50 12.75
YCS24B21S TM8Y100C20MP11 21.0 CF/CM/CU42C 825 24.0 16.8 15.50 12.75
YCS24B21S TM8Y100C20MP11 21.0 CF/CM/CU42D 825 24.0 16.8 15.50 12.75
YCS24B21S TM8Y120C20MP11 21.0 CF/CM/CU30C 800 24.0 16.8 15.25 12.50
YCS24B21S TM8Y120C20MP11 21.0 CF/CM/CU30D 825 24.0 17.0 15.25 12.50
YCS24B21S TM8Y120C20MP11 21.0 CF/CM/CU36C 825 24.0 16.8 15.50 12.75
YCS24B21S TM8Y120C20MP11 21.0 CF/CM/CU36D 825 24.0 16.8 15.50 12.75
YCS24B21S TM8Y120C20MP11 21.0 CF/CM/CU42C 825 24.0 16.8 15.50 12.75
YCS24B21S TM8Y120C20MP11 21.0 CF/CM/CU42D 825 24.0 16.8 15.50 12.75
YCS24B21S TM9E040A10MP11 14.5 CF/CM/CU24A 750 24.0 16.2 15.00 12.50
YCS24B21S TM9E040A10MP11 14.5 CF/CM/CU30A 775 24.0 16.4 15.50 12.75
YCS24B21S TM9E040A10MP11 14.5 CF/CM36A 775 24.0 16.4 15.50 12.75
YCS24B21S TM9E060B12MP11 17.5 CF/CM/CU24B 750 24.0 16.4 16.00 13.00
YCS24B21S TM9E060B12MP11 17.5 CF/CM/CU30B 750 24.0 16.4 16.25 13.25
YCS24B21S TM9E060B12MP11 17.5 CF/CM/CU36B 750 24.0 16.4 16.25 13.25
YCS24B21S TM9E060B12MP11 17.5 CF42B 750 24.0 16.4 16.25 13.25
YCS24B21S TM9E080B12MP11 17.5 CF/CM/CU24B 750 24.0 16.4 16.00 13.00
YCS24B21S TM9E080B12MP11 17.5 CF/CM/CU30B 750 24.0 16.4 16.25 13.25
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
16 Johnson Controls Unitary Products
YCS24B21S TM9E080B12MP11 17.5 CF/CM/CU36B 750 24.0 16.4 16.25 13.25
YCS24B21S TM9E080B12MP11 17.5 CF42B 750 24.0 16.4 16.25 13.25
YCS24B21S TM9E080C16MP11 21.0 CF/CM/CU24C 750 24.0 16.4 16.25 13.25
YCS24B21S TM9E080C16MP11 21.0 CF/CM/CU30C 750 24.0 16.4 16.25 13.25
YCS24B21S TM9E080C16MP11 21.0 CF/CM/CU30D 775 24.0 16.6 16.25 13.25
YCS24B21S TM9E080C16MP11 21.0 CF/CM/CU36C 750 24.0 16.4 16.25 13.25
YCS24B21S TM9E080C16MP11 21.0 CF/CM/CU36D 775 24.0 16.6 16.25 13.25
YCS24B21S TM9E080C16MP11 21.0 CF/CM/CU42C 750 24.0 16.4 16.25 13.25
YCS24B21S TM9E080C16MP11 21.0 CF/CM/CU42D 775 24.0 16.6 16.25 13.25
YCS24B21S TM9E100C16MP11 21.0 CF/CM/CU24C 750 24.0 16.4 16.25 13.25
YCS24B21S TM9E100C16MP11 21.0 CF/CM/CU30C 750 24.0 16.4 16.25 13.25
YCS24B21S TM9E100C16MP11 21.0 CF/CM/CU30D 775 24.0 16.6 16.25 13.25
YCS24B21S TM9E100C16MP11 21.0 CF/CM/CU36C 750 24.0 16.4 16.25 13.25
YCS24B21S TM9E100C16MP11 21.0 CF/CM/CU36D 775 24.0 16.6 16.25 13.25
YCS24B21S TM9E100C16MP11 21.0 CF/CM/CU42C 750 24.0 16.4 16.25 13.25
YCS24B21S TM9E100C16MP11 21.0 CF/CM/CU42D 775 24.0 16.6 16.25 13.25
YCS24B21S TM9E100C20MP11 21.0 CF/CM/CU24C 825 24.0 17.0 15.50 12.75
YCS24B21S TM9E100C20MP11 21.0 CF/CM/CU30C 825 24.0 17.2 15.75 13.00
YCS24B21S TM9E100C20MP11 21.0 CF/CM/CU30D 825 24.0 17.2 15.75 13.00
YCS24B21S TM9E100C20MP11 21.0 CF/CM/CU36C 825 24.0 16.8 16.00 13.00
YCS24B21S TM9E100C20MP11 21.0 CF/CM/CU36D 825 24.0 16.8 16.00 13.00
YCS24B21S TM9E100C20MP11 21.0 CF/CM/CU42C 825 24.0 16.8 16.00 13.00
YCS24B21S TM9E100C20MP11 21.0 CF/CM/CU42D 825 24.0 16.8 16.00 13.00
YCS24B21S TM9E120D20MP11 24.5 CF/CM/CU30D 825 24.0 17.0 16.25 13.25
YCS24B21S TM9E120D20MP11 24.5 CF/CM/CU36D 800 24.0 16.6 16.25 13.25
YCS24B21S TM9E120D20MP11 24.5 CF/CM/CU42D 800 24.0 16.8 16.25 13.25
YCS24B21S TM9V040A10MP11 14.5 CF/CM/CU24A 675 23.8 15.4 14.50 12.25
YCS24B21S TM9V040A10MP11 14.5 CF/CM/CU30A 700 24.0 16.0 15.00 12.50
YCS24B21S TM9V060B12MP11 17.5 CF/CM/CU24B 800 24.0 16.8 16.25 13.25
YCS24B21S TM9V060B12MP11 17.5 CF/CM/CU30B 650 24.0 15.6 16.00 13.00
YCS24B21S TM9V060B12MP11 17.5 CF/CM/CU36B 725 24.0 16.2 16.25 13.25
YCS24B21S TM9V060B12MP11 17.5 CF42B 825 24.0 16.8 16.25 13.25
YCS24B21S TM9V080B12MP11 17.5 CF/CM/CU24B 800 24.0 16.8 16.25 13.25
YCS24B21S TM9V080B12MP11 17.5 CF/CM/CU30B 650 24.0 15.6 16.00 13.00
YCS24B21S TM9V080B12MP11 17.5 CF/CM/CU36B 725 24.0 16.2 16.25 13.25
YCS24B21S TM9V080B12MP11 17.5 CF42B 825 24.0 16.8 16.25 13.25
YCS24B21S TM9V080C16MP11 21.0 CF/CM/CU36C 875 24.0 17.2 16.25 13.25
YCS24B21S TM9V100C16MP11 21.0 CF/CM/CU36C 875 24.0 17.2 16.25 13.25
YCS24B21S TM9Y040A10MP11 14.5 CF/CM/CU24A 750 24.0 16.2 15.00 12.50
YCS24B21S TM9Y040A10MP11 14.5 CF/CM/CU30A 775 24.0 16.4 15.50 12.75
YCS24B21S TM9Y040A10MP11 14.5 CF/CM36A 775 24.0 16.4 15.50 12.75
YCS24B21S TM9Y060B12MP11 17.5 CF/CM/CU24B 750 24.0 16.4 16.00 13.00
YCS24B21S TM9Y060B12MP11 17.5 CF/CM/CU30B 750 24.0 16.4 16.25 13.25
YCS24B21S TM9Y060B12MP11 17.5 CF/CM/CU36B 750 24.0 16.4 16.25 13.25
YCS24B21S TM9Y060B12MP11 17.5 CF42B 750 24.0 16.4 16.25 13.25
YCS24B21S TM9Y080B12MP11 17.5 CF/CM/CU24B 750 24.0 16.4 16.00 13.00
YCS24B21S TM9Y080B12MP11 17.5 CF/CM/CU30B 750 24.0 16.4 16.25 13.25
YCS24B21S TM9Y080B12MP11 17.5 CF/CM/CU36B 750 24.0 16.4 16.25 13.25
YCS24B21S TM9Y080B12MP11 17.5 CF42B 750 24.0 16.4 16.25 13.25
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
Johnson Controls Unitary Products 17
YCS24B21S TM9Y080C16MP11 21.0 CF/CM/CU24C 750 24.0 16.4 16.25 13.25
YCS24B21S TM9Y080C16MP11 21.0 CF/CM/CU30C 750 24.0 16.4 16.25 13.25
YCS24B21S TM9Y080C16MP11 21.0 CF/CM/CU30D 775 24.0 16.6 16.25 13.25
YCS24B21S TM9Y080C16MP11 21.0 CF/CM/CU36C 750 24.0 16.4 16.25 13.25
YCS24B21S TM9Y080C16MP11 21.0 CF/CM/CU36D 775 24.0 16.6 16.25 13.25
YCS24B21S TM9Y080C16MP11 21.0 CF/CM/CU42C 750 24.0 16.4 16.25 13.25
YCS24B21S TM9Y080C16MP11 21.0 CF/CM/CU42D 775 24.0 16.6 16.25 13.25
YCS24B21S TM9Y100C16MP11 21.0 CF/CM/CU24C 750 24.0 16.4 16.25 13.25
YCS24B21S TM9Y100C16MP11 21.0 CF/CM/CU30C 750 24.0 16.4 16.25 13.25
YCS24B21S TM9Y100C16MP11 21.0 CF/CM/CU30D 775 24.0 16.6 16.25 13.25
YCS24B21S TM9Y100C16MP11 21.0 CF/CM/CU36C 750 24.0 16.4 16.25 13.25
YCS24B21S TM9Y100C16MP11 21.0 CF/CM/CU36D 775 24.0 16.6 16.25 13.25
YCS24B21S TM9Y100C16MP11 21.0 CF/CM/CU42C 750 24.0 16.4 16.25 13.25
YCS24B21S TM9Y100C16MP11 21.0 CF/CM/CU42D 775 24.0 16.6 16.25 13.25
YCS24B21S TM9Y100C20MP11 21.0 CF/CM/CU24C 825 24.0 17.0 15.50 12.75
YCS24B21S TM9Y100C20MP11 21.0 CF/CM/CU30C 825 24.0 17.2 15.75 13.00
YCS24B21S TM9Y100C20MP11 21.0 CF/CM/CU30D 825 24.0 17.2 15.75 13.00
YCS24B21S TM9Y100C20MP11 21.0 CF/CM/CU36C 825 24.0 16.8 16.00 13.00
YCS24B21S TM9Y100C20MP11 21.0 CF/CM/CU36D 825 24.0 16.8 16.00 13.00
YCS24B21S TM9Y100C20MP11 21.0 CF/CM/CU42C 825 24.0 16.8 16.00 13.00
YCS24B21S TM9Y100C20MP11 21.0 CF/CM/CU42D 825 24.0 16.8 16.00 13.00
YCS24B21S TM9Y120D20MP11 24.5 CF/CM/CU30D 825 24.0 17.0 16.25 13.25
YCS24B21S TM9Y120D20MP11 24.5 CF/CM/CU36D 800 24.0 16.6 16.25 13.25
YCS24B21S TM9Y120D20MP11 24.5 CF/CM/CU42D 800 24.0 16.8 16.25 13.25
YCS24B21S TMLV060A12MP11 14.5 CF/CM/CU24A 725 24.0 16.2 15.25 12.50
YCS24B21S TMLV060A12MP11 14.5 CF/CM/CU30A 725 24.0 16.6 15.75 12.75
YCS24B21S TMLV060A12MP11 14.5 CF/CM36A 700 24.0 15.8 15.75 13.00
YCS24B21S TMLV080B12MP11 17.5 CF/CM/CU24B 850 24.0 17.2 15.50 12.75
YCS24B21S TMLV080B12MP11 17.5 CF/CM/CU30B 800 24.0 16.8 16.00 13.00
YCS24B21S TMLV080B12MP11 17.5 CF/CM/CU36B 675 24.0 15.6 16.00 13.00
YCS24B21S TMLV080B12MP11 17.5 CF42B 850 24.0 17.0 16.25 13.25
YCS24B21S TMLX060A12MP11 14.5 CF/CM/CU24A 800 24.0 16.8 16.00 13.00
YCS24B21S TMLX060A12MP11 14.5 CF/CM/CU30A 800 24.0 16.8 16.25 13.25
YCS24B21S TMLX060A12MP11 14.5 CF/CM36A 775 24.0 16.6 16.25 13.25
YCS24B21S TMLX080B12MP11 17.5 CF/CM/CU24B 800 24.0 16.8 16.00 13.00
YCS24B21S TMLX080B12MP11 17.5 CF/CM/CU30B 800 24.0 16.8 16.25 13.25
YCS24B21S TMLX080B12MP11 17.5 CF/CM/CU36B 800 24.0 16.6 16.25 13.25
YCS24B21S TMLX080B12MP11 17.5 CF42B 800 24.0 16.8 16.25 13.25
YCS24B21S TMLX080C16MP11 21.0 CF/CM/CU24C 800 24.0 16.8 16.25 13.25
YCS24B21S TMLX080C16MP11 21.0 CF/CM/CU30C 800 24.0 16.8 16.25 13.25
YCS24B21S TMLX080C16MP11 21.0 CF/CM/CU30D 800 24.0 16.8 16.25 13.25
YCS24B21S TMLX080C16MP11 21.0 CF/CM/CU36C 800 24.0 16.6 16.25 13.25
YCS24B21S TMLX080C16MP11 21.0 CF/CM/CU36D 800 24.0 16.6 16.25 13.25
YCS24B21S TMLX080C16MP11 21.0 CF/CM/CU42C 800 24.0 16.8 16.25 13.25
YCS24B21S TMLX080C16MP11 21.0 CF/CM/CU42D 800 24.0 16.8 16.25 13.25
YCS24B21S TMLX100C16MP11 21.0 CF/CM/CU24C 800 24.0 16.8 16.25 13.25
YCS24B21S TMLX100C16MP11 21.0 CF/CM/CU30C 800 24.0 16.8 16.25 13.25
YCS24B21S TMLX100C16MP11 21.0 CF/CM/CU30D 800 24.0 16.8 16.25 13.25
YCS24B21S TMLX100C16MP11 21.0 CF/CM/CU36C 800 24.0 16.6 16.25 13.25
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
18 Johnson Controls Unitary Products
YCS24B21S TMLX100C16MP11 21.0 CF/CM/CU36D 800 24.0 16.6 16.25 13.25
YCS24B21S TMLX100C16MP11 21.0 CF/CM/CU42C 800 24.0 16.8 16.25 13.25
YCS24B21S TMLX100C16MP11 21.0 CF/CM/CU42D 800 24.0 16.8 16.25 13.25
YCS24B21S TMLX100C20MP11 21.0 CF/CM/CU30C 800 24.0 16.8 15.25 12.50
YCS24B21S TMLX100C20MP11 21.0 CF/CM/CU30D 825 24.0 17.0 15.25 12.50
YCS24B21S TMLX100C20MP11 21.0 CF/CM/CU36C 825 24.0 16.8 15.50 12.75
YCS24B21S TMLX100C20MP11 21.0 CF/CM/CU36D 825 24.0 16.8 15.50 12.75
YCS24B21S TMLX100C20MP11 21.0 CF/CM/CU42C 825 24.0 16.8 15.50 12.75
YCS24B21S TMLX100C20MP11 21.0 CF/CM/CU42D 825 24.0 16.8 15.50 12.75
YCS24B21S TMLX120C20MP11 21.0 CF/CM/CU30C 800 24.0 16.8 15.25 12.50
YCS24B21S TMLX120C20MP11 21.0 CF/CM/CU30D 825 24.0 17.0 15.25 12.50
YCS24B21S TMLX120C20MP11 21.0 CF/CM/CU36C 825 24.0 16.8 15.50 12.75
YCS24B21S TMLX120C20MP11 21.0 CF/CM/CU36D 825 24.0 16.8 15.50 12.75
YCS24B21S TMLX120C20MP11 21.0 CF/CM/CU42C 825 24.0 16.8 15.50 12.75
YCS24B21S TMLX120C20MP11 21.0 CF/CM/CU42D 825 24.0 16.8 15.50 12.75
YCS24B21S TP9C060B12MP12 17.5 CF/CM/CU24B 800 24.0 16.8 16.25 13.25
YCS24B21S TP9C060B12MP12 17.5 CF/CM/CU30B 650 24.0 15.6 16.00 13.00
YCS24B21S TP9C060B12MP12 17.5 CF/CM/CU36B 725 24.0 16.2 16.25 13.25
YCS24B21S TP9C060B12MP12 17.5 CF42B 825 24.0 16.8 16.25 13.25
YCS24B21S TP9C080B12MP12 17.5 CF/CM/CU24B 800 24.0 16.8 16.25 13.25
YCS24B21S TP9C080B12MP12 17.5 CF/CM/CU30B 650 24.0 15.6 16.00 13.00
YCS24B21S TP9C080B12MP12 17.5 CF/CM/CU36B 725 24.0 16.2 16.25 13.25
YCS24B21S TP9C080B12MP12 17.5 CF42B 825 24.0 16.8 16.25 13.25
YCS24B21S TP9C080C16MP12 21.0 CF/CM/CU36C 875 24.0 17.2 16.25 13.25
YCS24B21S TP9C100C16MP12 21.0 CF/CM/CU36C 875 24.0 17.2 16.25 13.25
YCS24B21S TPLC060A12MP12 14.5 CF/CM/CU24A 725 24.0 16.2 15.25 12.50
YCS24B21S TPLC060A12MP12 14.5 CF/CM/CU30A 725 24.0 16.6 15.75 12.75
YCS24B21S TPLC060A12MP12 14.5 CF/CM36A 700 24.0 15.8 15.75 13.00
YCS24B21S TPLC080B12MP12 17.5 CF/CM/CU24B 850 24.0 17.2 15.50 12.75
YCS24B21S TPLC080B12MP12 17.5 CF/CM/CU30B 800 24.0 16.8 16.00 13.00
YCS24B21S TPLC080B12MP12 17.5 CF/CM/CU36B 675 24.0 15.6 16.00 13.00
YCS24B21S TPLC080B12MP12 17.5 CF42B 850 24.0 17.0 16.25 13.25
YCS24B21S YP9C060B12MP12 17.5 CF/CM/CU24B 800 24.0 16.8 16.25 13.25
YCS24B21S YP9C060B12MP12 17.5 CF/CM/CU30B 650 24.0 15.6 16.00 13.00
YCS24B21S YP9C060B12MP12 17.5 CF/CM/CU36B 725 24.0 16.2 16.25 13.25
YCS24B21S YP9C060B12MP12 17.5 CF42B 825 24.0 16.8 16.25 13.25
YCS24B21S YP9C080B12MP12 17.5 CF/CM/CU24B 800 24.0 16.8 16.25 13.25
YCS24B21S YP9C080B12MP12 17.5 CF/CM/CU30B 650 24.0 15.6 16.00 13.00
YCS24B21S YP9C080B12MP12 17.5 CF/CM/CU36B 725 24.0 16.2 16.25 13.25
YCS24B21S YP9C080B12MP12 17.5 CF42B 825 24.0 16.8 16.25 13.25
YCS24B21S YP9C080C16MP12 21.0 CF/CM/CU36C 875 24.0 17.2 16.25 13.25
YCS24B21S YP9C100C16MP12 21.0 CF/CM/CU36C 875 24.0 17.2 16.25 13.25
YCS24B21S YPLC060A12MP12 14.5 CF/CM/CU24A 725 24.0 16.2 15.25 12.50
YCS24B21S YPLC060A12MP12 14.5 CF/CM/CU30A 725 24.0 16.6 15.75 12.75
YCS24B21S YPLC060A12MP12 14.5 CF/CM36A 700 24.0 15.8 15.75 13.00
YCS24B21S YPLC080B12MP12 17.5 CF/CM/CU24B 850 24.0 17.2 15.50 12.75
YCS24B21S YPLC080B12MP12 17.5 CF/CM/CU30B 800 24.0 16.8 16.00 13.00
YCS24B21S YPLC080B12MP12 17.5 CF/CM/CU36B 675 24.0 15.6 16.00 13.00
YCS24B21S YPLC080B12MP12 17.5 CF42B 850 24.0 17.0 16.25 13.25
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
Johnson Controls Unitary Products 19
YCS30B21S TM8V060A12MP11 14.5 CF/CM/CU30A 975 29.0 20.4 14.25 12.25
YCS30B21S TM8V060A12MP11 14.5 CF/CM36A 875 29.0 19.4 14.75 12.50
YCS30B21S TM8V080B12MP11 17.5 CF/CM/CU36B 975 29.4 20.6 14.50 12.50
YCS30B21S TM8V080B12MP11 17.5 CF42B 850 29.0 19.2 15.00 12.50
YCS30B21S TM8V080C16MP11 21.0 CF/CM/CU30C 950 29.4 20.4 15.25 12.50
YCS30B21S TM8V080C16MP11 21.0 CF/CM/CU36C 1100 30.0 22.2 15.25 12.75
YCS30B21S TM8V080C16MP11 21.0 CF/CM/CU42C 925 29.4 20.4 15.25 12.75
YCS30B21S TM8V100C16MP11 21.0 CF/CM/CU30C 950 29.4 20.4 15.25 12.50
YCS30B21S TM8V100C16MP11 21.0 CF/CM/CU36C 1100 30.0 22.2 15.25 12.75
YCS30B21S TM8V100C16MP11 21.0 CF/CM/CU42C 925 29.4 20.4 15.25 12.75
YCS30B21S TM8V100C20MP11 21.0 CF/CM/CU36C 1100 30.0 22.0 15.00 12.50
YCS30B21S TM8V100C20MP11 21.0 CF/CM/CU42C 1100 30.0 22.0 15.25 12.50
YCS30B21S TM8V120C20MP11 21.0 CF/CM/CU36C 1100 30.0 22.0 15.00 12.50
YCS30B21S TM8V120C20MP11 21.0 CF/CM/CU42C 1100 30.0 22.0 15.25 12.50
YCS30B21S TM8X060A12MP11 14.5 CF/CM/CU30A 1000 29.4 21.0 14.75 12.50
YCS30B21S TM8X060A12MP11 14.5 CF/CM36A 975 29.4 20.6 14.75 12.50
YCS30B21S TM8X080B12MP11 17.5 CF/CM/CU30B 1000 29.4 21.0 15.00 12.50
YCS30B21S TM8X080B12MP11 17.5 CF/CM/CU36B 1000 29.8 21.0 15.25 12.50
YCS30B21S TM8X080B12MP11 17.5 CF42B 1000 29.6 20.8 15.00 12.50
YCS30B21S TM8X080C16MP11 21.0 CF/CM/CU30C 1050 29.8 21.6 15.50 12.75
YCS30B21S TM8X080C16MP11 21.0 CF/CM/CU30D 1075 29.8 22.0 15.50 12.75
YCS30B21S TM8X080C16MP11 21.0 CF/CM/CU36C 1050 30.0 21.8 15.50 12.75
YCS30B21S TM8X080C16MP11 21.0 CF/CM/CU36D 1075 30.0 21.8 15.75 13.00
YCS30B21S TM8X080C16MP11 21.0 CF/CM/CU42C 1050 30.0 21.6 15.50 12.75
YCS30B21S TM8X080C16MP11 21.0 CF/CM/CU42D 1075 30.0 21.8 15.75 13.00
YCS30B21S TM8X100C16MP11 21.0 CF/CM/CU30C 1050 29.8 21.6 15.50 12.75
YCS30B21S TM8X100C16MP11 21.0 CF/CM/CU30D 1075 29.8 22.0 15.50 12.75
YCS30B21S TM8X100C16MP11 21.0 CF/CM/CU36C 1050 30.0 21.8 15.50 12.75
YCS30B21S TM8X100C16MP11 21.0 CF/CM/CU36D 1075 30.0 21.8 15.75 13.00
YCS30B21S TM8X100C16MP11 21.0 CF/CM/CU42C 1050 30.0 21.6 15.50 12.75
YCS30B21S TM8X100C16MP11 21.0 CF/CM/CU42D 1075 30.0 21.8 15.75 13.00
YCS30B21S TM8X100C20MP11 21.0 CF/CM/CU30C 1075 29.8 22.0 15.50 12.75
YCS30B21S TM8X100C20MP11 21.0 CF/CM/CU30D 1050 29.8 21.6 15.25 12.75
YCS30B21S TM8X100C20MP11 21.0 CF/CM/CU36C 1075 30.0 21.8 15.75 13.00
YCS30B21S TM8X100C20MP11 21.0 CF/CM/CU36D 1100 30.0 22.0 15.75 13.00
YCS30B21S TM8X100C20MP11 21.0 CF/CM/CU42C 1075 30.0 21.8 15.75 13.00
YCS30B21S TM8X100C20MP11 21.0 CF/CM/CU42D 1100 30.0 22.2 15.75 13.00
YCS30B21S TM8X120C20MP11 21.0 CF/CM/CU30C 1075 29.8 22.0 15.50 12.75
YCS30B21S TM8X120C20MP11 21.0 CF/CM/CU30D 1050 29.8 21.6 15.25 12.75
YCS30B21S TM8X120C20MP11 21.0 CF/CM/CU36C 1075 30.0 21.8 15.75 13.00
YCS30B21S TM8X120C20MP11 21.0 CF/CM/CU36D 1100 30.0 22.0 15.75 13.00
YCS30B21S TM8X120C20MP11 21.0 CF/CM/CU42C 1075 30.0 21.8 15.75 13.00
YCS30B21S TM8X120C20MP11 21.0 CF/CM/CU42D 1100 30.0 22.2 15.75 13.00
YCS30B21S TM8Y060A12MP11 14.5 CF/CM/CU30A 1000 29.4 21.0 14.75 12.50
YCS30B21S TM8Y060A12MP11 14.5 CF/CM36A 975 29.4 20.6 14.75 12.50
YCS30B21S TM8Y080B12MP11 17.5 CF/CM/CU30B 1000 29.4 21.0 15.00 12.50
YCS30B21S TM8Y080B12MP11 17.5 CF/CM/CU36B 1000 29.8 21.0 15.25 12.50
YCS30B21S TM8Y080B12MP11 17.5 CF42B 1000 29.6 20.8 15.00 12.50
YCS30B21S TM8Y080C16MP11 21.0 CF/CM/CU30C 1050 29.8 21.6 15.50 12.75
YCS30B21S TM8Y080C16MP11 21.0 CF/CM/CU30D 1075 29.8 22.0 15.50 12.75
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
20 Johnson Controls Unitary Products
YCS30B21S TM8Y080C16MP11 21.0 CF/CM/CU36C 1050 30.0 21.8 15.50 12.75
YCS30B21S TM8Y080C16MP11 21.0 CF/CM/CU36D 1075 30.0 21.8 15.75 13.00
YCS30B21S TM8Y080C16MP11 21.0 CF/CM/CU42C 1050 30.0 21.6 15.50 12.75
YCS30B21S TM8Y080C16MP11 21.0 CF/CM/CU42D 1075 30.0 21.8 15.75 13.00
YCS30B21S TM8Y100C16MP11 21.0 CF/CM/CU30C 1050 29.8 21.6 15.50 12.75
YCS30B21S TM8Y100C16MP11 21.0 CF/CM/CU30D 1075 29.8 22.0 15.50 12.75
YCS30B21S TM8Y100C16MP11 21.0 CF/CM/CU36C 1050 30.0 21.8 15.50 12.75
YCS30B21S TM8Y100C16MP11 21.0 CF/CM/CU36D 1075 30.0 21.8 15.75 13.00
YCS30B21S TM8Y100C16MP11 21.0 CF/CM/CU42C 1050 30.0 21.6 15.50 12.75
YCS30B21S TM8Y100C16MP11 21.0 CF/CM/CU42D 1075 30.0 21.8 15.75 13.00
YCS30B21S TM8Y100C20MP11 21.0 CF/CM/CU30C 1075 29.8 22.0 15.50 12.75
YCS30B21S TM8Y100C20MP11 21.0 CF/CM/CU30D 1050 29.8 21.6 15.25 12.75
YCS30B21S TM8Y100C20MP11 21.0 CF/CM/CU36C 1075 30.0 21.8 15.75 13.00
YCS30B21S TM8Y100C20MP11 21.0 CF/CM/CU36D 1100 30.0 22.0 15.75 13.00
YCS30B21S TM8Y100C20MP11 21.0 CF/CM/CU42C 1075 30.0 21.8 15.75 13.00
YCS30B21S TM8Y100C20MP11 21.0 CF/CM/CU42D 1100 30.0 22.2 15.75 13.00
YCS30B21S TM8Y120C20MP11 21.0 CF/CM/CU30C 1075 29.8 22.0 15.50 12.75
YCS30B21S TM8Y120C20MP11 21.0 CF/CM/CU30D 1050 29.8 21.6 15.25 12.75
YCS30B21S TM8Y120C20MP11 21.0 CF/CM/CU36C 1075 30.0 21.8 15.75 13.00
YCS30B21S TM8Y120C20MP11 21.0 CF/CM/CU36D 1100 30.0 22.0 15.75 13.00
YCS30B21S TM8Y120C20MP11 21.0 CF/CM/CU42C 1075 30.0 21.8 15.75 13.00
YCS30B21S TM8Y120C20MP11 21.0 CF/CM/CU42D 1100 30.0 22.2 15.75 13.00
YCS30B21S TM9E040A10MP11 14.5 CF/CM/CU30A 875 28.6 19.4 14.25 12.25
YCS30B21S TM9E040A10MP11 14.5 CF/CM36A 875 28.8 19.2 14.25 12.25
YCS30B21S TM9E060B12MP11 17.5 CF/CM/CU30B 900 29.0 20.2 15.00 12.50
YCS30B21S TM9E060B12MP11 17.5 CF/CM/CU36B 900 29.4 20.0 15.25 12.75
YCS30B21S TM9E060B12MP11 17.5 CF42B 900 29.4 20.0 15.25 12.75
YCS30B21S TM9E080B12MP11 17.5 CF/CM/CU30B 900 29.0 20.2 15.00 12.50
YCS30B21S TM9E080B12MP11 17.5 CF/CM/CU36B 900 29.4 20.0 15.25 12.75
YCS30B21S TM9E080B12MP11 17.5 CF42B 900 29.4 20.0 15.25 12.75
YCS30B21S TM9E080C16MP11 21.0 CF/CM/CU30C 1075 29.8 21.8 15.25 12.75
YCS30B21S TM9E080C16MP11 21.0 CF/CM/CU30D 1050 29.8 21.6 15.25 12.75
YCS30B21S TM9E080C16MP11 21.0 CF/CM/CU36C 1025 29.8 21.2 15.00 12.50
YCS30B21S TM9E080C16MP11 21.0 CF/CM/CU42C 1000 29.6 20.8 15.00 12.50
YCS30B21S TM9E100C16MP11 21.0 CF/CM/CU30C 1075 29.8 21.8 15.25 12.75
YCS30B21S TM9E100C16MP11 21.0 CF/CM/CU30D 1050 29.8 21.6 15.25 12.75
YCS30B21S TM9E100C16MP11 21.0 CF/CM/CU36C 1025 29.8 21.2 15.00 12.50
YCS30B21S TM9E100C16MP11 21.0 CF/CM/CU42C 1000 29.6 20.8 15.00 12.50
YCS30B21S TM9E100C20MP11 21.0 CF/CM/CU30C 975 29.4 20.8 15.50 12.75
YCS30B21S TM9E100C20MP11 21.0 CF/CM/CU36C 975 29.8 20.8 15.50 12.75
YCS30B21S TM9E100C20MP11 21.0 CF/CM/CU42C 975 29.8 21.0 15.75 13.00
YCS30B21S TM9E120D20MP11 24.5 CF/CM/CU30D 975 29.6 21.0 15.75 13.00
YCS30B21S TM9E120D20MP11 24.5 CF/CM/CU36D 975 29.8 20.8 15.75 13.00
YCS30B21S TM9E120D20MP11 24.5 CF/CM/CU42D 975 30.0 21.0 16.00 13.00
YCS30B21S TM9V060B12MP11 17.5 CF/CM/CU30B 825 28.4 18.8 15.00 12.50
YCS30B21S TM9V060B12MP11 17.5 CF/CM/CU36B 950 29.4 20.4 15.00 12.50
YCS30B21S TM9V060B12MP11 17.5 CF42B 925 29.4 20.4 15.25 12.50
YCS30B21S TM9V080B12MP11 17.5 CF/CM/CU30B 825 28.4 18.8 15.00 12.50
YCS30B21S TM9V080B12MP11 17.5 CF/CM/CU36B 950 29.4 20.4 15.00 12.50
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
Johnson Controls Unitary Products 21
YCS30B21S TM9V080B12MP11 17.5 CF42B 925 29.4 20.4 15.25 12.50
YCS30B21S TM9V080C16MP11 21.0 CF/CM/CU30C 950 29.4 20.6 15.25 12.75
YCS30B21S TM9V080C16MP11 21.0 CF/CM/CU36C 975 29.8 20.8 15.50 12.75
YCS30B21S TM9V080C16MP11 21.0 CF/CM/CU42C 975 29.8 21.0 15.50 12.75
YCS30B21S TM9V100C16MP11 21.0 CF/CM/CU30C 950 29.4 20.6 15.25 12.75
YCS30B21S TM9V100C16MP11 21.0 CF/CM/CU36C 975 29.8 20.8 15.50 12.75
YCS30B21S TM9V100C16MP11 21.0 CF/CM/CU42C 975 29.8 21.0 15.50 12.75
YCS30B21S TM9V100C20MP11 21.0 CF/CM/CU30C 1075 29.6 21.8 15.00 12.50
YCS30B21S TM9V100C20MP11 21.0 CF/CM/CU36C 1075 30.0 21.8 15.00 12.50
YCS30B21S TM9V120D20MP11 24.5 CF/CM/CU36D 1125 30.0 22.2 16.00 13.00
YCS30B21S TM9V120D20MP11 24.5 CF/CM/CU42D 1125 30.0 22.2 15.50 12.75
YCS30B21S TM9Y040A10MP11 14.5 CF/CM/CU30A 875 28.6 19.4 14.25 12.25
YCS30B21S TM9Y040A10MP11 14.5 CF/CM36A 875 28.8 19.2 14.25 12.25
YCS30B21S TM9Y060B12MP11 17.5 CF/CM/CU30B 900 29.0 20.2 15.00 12.50
YCS30B21S TM9Y060B12MP11 17.5 CF/CM/CU36B 900 29.4 20.0 15.25 12.75
YCS30B21S TM9Y060B12MP11 17.5 CF42B 900 29.4 20.0 15.25 12.75
YCS30B21S TM9Y080B12MP11 17.5 CF/CM/CU30B 900 29.0 20.2 15.00 12.50
YCS30B21S TM9Y080B12MP11 17.5 CF/CM/CU36B 900 29.4 20.0 15.25 12.75
YCS30B21S TM9Y080B12MP11 17.5 CF42B 900 29.4 20.0 15.25 12.75
YCS30B21S TM9Y080C16MP11 21.0 CF/CM/CU30C 1075 29.8 21.8 15.25 12.75
YCS30B21S TM9Y080C16MP11 21.0 CF/CM/CU30D 1050 29.8 21.6 15.25 12.75
YCS30B21S TM9Y080C16MP11 21.0 CF/CM/CU36C 1025 29.8 21.2 15.00 12.50
YCS30B21S TM9Y080C16MP11 21.0 CF/CM/CU42C 1000 29.6 20.8 15.00 12.50
YCS30B21S TM9Y100C16MP11 21.0 CF/CM/CU30C 1075 29.8 21.8 15.25 12.75
YCS30B21S TM9Y100C16MP11 21.0 CF/CM/CU30D 1050 29.8 21.6 15.25 12.75
YCS30B21S TM9Y100C16MP11 21.0 CF/CM/CU36C 1025 29.8 21.2 15.00 12.50
YCS30B21S TM9Y100C16MP11 21.0 CF/CM/CU42C 1000 29.6 20.8 15.00 12.50
YCS30B21S TM9Y100C20MP11 21.0 CF/CM/CU30C 975 29.4 20.8 15.50 12.75
YCS30B21S TM9Y100C20MP11 21.0 CF/CM/CU36C 975 29.8 20.8 15.50 12.75
YCS30B21S TM9Y100C20MP11 21.0 CF/CM/CU42C 975 29.8 21.0 15.75 13.00
YCS30B21S TM9Y120D20MP11 24.5 CF/CM/CU30D 975 29.6 21.0 15.75 13.00
YCS30B21S TM9Y120D20MP11 24.5 CF/CM/CU36D 975 29.8 20.8 15.75 13.00
YCS30B21S TM9Y120D20MP11 24.5 CF/CM/CU42D 975 30.0 21.0 16.00 13.00
YCS30B21S TMLV060A12MP11 14.5 CF/CM/CU30A 975 29.0 20.4 14.25 12.25
YCS30B21S TMLV060A12MP11 14.5 CF/CM36A 875 29.0 19.4 14.75 12.50
YCS30B21S TMLV080B12MP11 17.5 CF/CM/CU36B 975 29.4 20.6 14.50 12.50
YCS30B21S TMLV080B12MP11 17.5 CF42B 850 29.0 19.2 15.00 12.50
YCS30B21S TMLV080C16MP11 21.0 CF/CM/CU30C 950 29.4 20.4 15.25 12.50
YCS30B21S TMLV080C16MP11 21.0 CF/CM/CU36C 1100 30.0 22.2 15.25 12.75
YCS30B21S TMLV080C16MP11 21.0 CF/CM/CU42C 925 29.4 20.4 15.25 12.75
YCS30B21S TMLV100C16MP11 21.0 CF/CM/CU30C 950 29.4 20.4 15.25 12.50
YCS30B21S TMLV100C16MP11 21.0 CF/CM/CU36C 1100 30.0 22.2 15.25 12.75
YCS30B21S TMLV100C16MP11 21.0 CF/CM/CU42C 925 29.4 20.4 15.25 12.75
YCS30B21S TMLV100C20MP11 21.0 CF/CM/CU36C 1100 30.0 22.0 15.00 12.50
YCS30B21S TMLV100C20MP11 21.0 CF/CM/CU42C 1100 30.0 22.0 15.25 12.50
YCS30B21S TMLV120C20MP11 21.0 CF/CM/CU36C 1100 30.0 22.0 15.00 12.50
YCS30B21S TMLV120C20MP11 21.0 CF/CM/CU42C 1100 30.0 22.0 15.25 12.50
YCS30B21S TMLX060A12MP11 14.5 CF/CM/CU30A 1000 29.4 21.0 14.75 12.50
YCS30B21S TMLX060A12MP11 14.5 CF/CM36A 975 29.4 20.6 14.75 12.50
YCS30B21S TMLX080B12MP11 17.5 CF/CM/CU30B 1000 29.4 21.0 15.00 12.50
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
22 Johnson Controls Unitary Products
YCS30B21S TMLX080B12MP11 17.5 CF/CM/CU36B 1000 29.8 21.0 15.25 12.50
YCS30B21S TMLX080B12MP11 17.5 CF42B 1000 29.6 20.8 15.00 12.50
YCS30B21S TMLX080C16MP11 21.0 CF/CM/CU30C 1050 29.8 21.6 15.50 12.75
YCS30B21S TMLX080C16MP11 21.0 CF/CM/CU30D 1075 29.8 22.0 15.50 12.75
YCS30B21S TMLX080C16MP11 21.0 CF/CM/CU36C 1050 30.0 21.8 15.50 12.75
YCS30B21S TMLX080C16MP11 21.0 CF/CM/CU36D 1075 30.0 21.8 15.75 13.00
YCS30B21S TMLX080C16MP11 21.0 CF/CM/CU42C 1050 30.0 21.6 15.50 12.75
YCS30B21S TMLX080C16MP11 21.0 CF/CM/CU42D 1075 30.0 21.8 15.75 13.00
YCS30B21S TMLX100C16MP11 21.0 CF/CM/CU30C 1050 29.8 21.6 15.50 12.75
YCS30B21S TMLX100C16MP11 21.0 CF/CM/CU30D 1075 29.8 22.0 15.50 12.75
YCS30B21S TMLX100C16MP11 21.0 CF/CM/CU36C 1050 30.0 21.8 15.50 12.75
YCS30B21S TMLX100C16MP11 21.0 CF/CM/CU36D 1075 30.0 21.8 15.75 13.00
YCS30B21S TMLX100C16MP11 21.0 CF/CM/CU42C 1050 30.0 21.6 15.50 12.75
YCS30B21S TMLX100C16MP11 21.0 CF/CM/CU42D 1075 30.0 21.8 15.75 13.00
YCS30B21S TMLX100C20MP11 21.0 CF/CM/CU30C 1075 29.8 22.0 15.50 12.75
YCS30B21S TMLX100C20MP11 21.0 CF/CM/CU30D 1050 29.8 21.6 15.25 12.75
YCS30B21S TMLX100C20MP11 21.0 CF/CM/CU36C 1075 30.0 21.8 15.75 13.00
YCS30B21S TMLX100C20MP11 21.0 CF/CM/CU36D 1100 30.0 22.0 15.75 13.00
YCS30B21S TMLX100C20MP11 21.0 CF/CM/CU42C 1075 30.0 21.8 15.75 13.00
YCS30B21S TMLX100C20MP11 21.0 CF/CM/CU42D 1100 30.0 22.2 15.75 13.00
YCS30B21S TMLX120C20MP11 21.0 CF/CM/CU30C 1075 29.8 22.0 15.50 12.75
YCS30B21S TMLX120C20MP11 21.0 CF/CM/CU30D 1050 29.8 21.6 15.25 12.75
YCS30B21S TMLX120C20MP11 21.0 CF/CM/CU36C 1075 30.0 21.8 15.75 13.00
YCS30B21S TMLX120C20MP11 21.0 CF/CM/CU36D 1100 30.0 22.0 15.75 13.00
YCS30B21S TMLX120C20MP11 21.0 CF/CM/CU42C 1075 30.0 21.8 15.75 13.00
YCS30B21S TMLX120C20MP11 21.0 CF/CM/CU42D 1100 30.0 22.2 15.75 13.00
YCS30B21S TP9C060B12MP12 17.5 CF/CM/CU30B 825 28.4 18.8 15.00 12.50
YCS30B21S TP9C060B12MP12 17.5 CF/CM/CU36B 950 29.4 20.4 15.00 12.50
YCS30B21S TP9C060B12MP12 17.5 CF42B 925 29.4 20.4 15.25 12.50
YCS30B21S TP9C080B12MP12 17.5 CF/CM/CU30B 825 28.4 18.8 15.00 12.50
YCS30B21S TP9C080B12MP12 17.5 CF/CM/CU36B 950 29.4 20.4 15.00 12.50
YCS30B21S TP9C080B12MP12 17.5 CF42B 925 29.4 20.4 15.25 12.50
YCS30B21S TP9C080C16MP12 21.0 CF/CM/CU30C 950 29.4 20.6 15.25 12.75
YCS30B21S TP9C080C16MP12 21.0 CF/CM/CU36C 975 29.8 20.8 15.50 12.75
YCS30B21S TP9C080C16MP12 21.0 CF/CM/CU42C 975 29.8 21.0 15.50 12.75
YCS30B21S TP9C100C16MP12 21.0 CF/CM/CU30C 950 29.4 20.6 15.25 12.75
YCS30B21S TP9C100C16MP12 21.0 CF/CM/CU36C 975 29.8 20.8 15.50 12.75
YCS30B21S TP9C100C16MP12 21.0 CF/CM/CU42C 975 29.8 21.0 15.50 12.75
YCS30B21S TP9C100C20MP12 21.0 CF/CM/CU30C 1075 29.6 21.8 15.00 12.50
YCS30B21S TP9C100C20MP12 21.0 CF/CM/CU36C 1075 30.0 21.8 15.00 12.50
YCS30B21S TP9C120D20MP12 24.5 CF/CM/CU36D 1125 30.0 22.2 16.00 13.00
YCS30B21S TP9C120D20MP12 24.5 CF/CM/CU42D 1125 30.0 22.2 15.50 12.75
YCS30B21S TPLC060A12MP12 14.5 CF/CM/CU30A 975 29.0 20.4 14.25 12.25
YCS30B21S TPLC060A12MP12 14.5 CF/CM36A 875 29.0 19.4 14.75 12.50
YCS30B21S TPLC080B12MP12 17.5 CF/CM/CU36B 975 29.4 20.6 14.50 12.50
YCS30B21S TPLC080B12MP12 17.5 CF42B 850 29.0 19.2 15.00 12.50
YCS30B21S TPLC080C16MP12 21.0 CF/CM/CU30C 950 29.4 20.4 15.25 12.50
YCS30B21S TPLC080C16MP12 21.0 CF/CM/CU36C 1100 30.0 22.2 15.25 12.75
YCS30B21S TPLC080C16MP12 21.0 CF/CM/CU42C 925 29.4 20.4 15.25 12.75
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
Johnson Controls Unitary Products 23
YCS30B21S TPLC100C16MP12 21.0 CF/CM/CU30C 950 29.4 20.4 15.25 12.50
YCS30B21S TPLC100C16MP12 21.0 CF/CM/CU36C 1100 30.0 22.2 15.25 12.75
YCS30B21S TPLC100C16MP12 21.0 CF/CM/CU42C 925 29.4 20.4 15.25 12.75
YCS30B21S TPLC100C20MP12 21.0 CF/CM/CU36C 1100 30.0 22.0 15.00 12.50
YCS30B21S TPLC100C20MP12 21.0 CF/CM/CU42C 1100 30.0 22.0 15.25 12.50
YCS30B21S TPLC120C20MP12 21.0 CF/CM/CU36C 1100 30.0 22.0 15.00 12.50
YCS30B21S TPLC120C20MP12 21.0 CF/CM/CU42C 1100 30.0 22.0 15.25 12.50
YCS30B21S YP9C060B12MP12 17.5 CF/CM/CU30B 825 28.4 18.8 15.00 12.50
YCS30B21S YP9C060B12MP12 17.5 CF/CM/CU36B 950 29.4 20.4 15.00 12.50
YCS30B21S YP9C060B12MP12 17.5 CF42B 925 29.4 20.4 15.25 12.50
YCS30B21S YP9C080B12MP12 17.5 CF/CM/CU30B 825 28.4 18.8 15.00 12.50
YCS30B21S YP9C080B12MP12 17.5 CF/CM/CU36B 950 29.4 20.4 15.00 12.50
YCS30B21S YP9C080B12MP12 17.5 CF42B 925 29.4 20.4 15.25 12.50
YCS30B21S YP9C080C16MP12 21.0 CF/CM/CU30C 950 29.4 20.6 15.25 12.75
YCS30B21S YP9C080C16MP12 21.0 CF/CM/CU36C 975 29.8 20.8 15.50 12.75
YCS30B21S YP9C080C16MP12 21.0 CF/CM/CU42C 975 29.8 21.0 15.50 12.75
YCS30B21S YP9C100C16MP12 21.0 CF/CM/CU30C 950 29.4 20.6 15.25 12.75
YCS30B21S YP9C100C16MP12 21.0 CF/CM/CU36C 975 29.8 20.8 15.50 12.75
YCS30B21S YP9C100C16MP12 21.0 CF/CM/CU42C 975 29.8 21.0 15.50 12.75
YCS30B21S YP9C100C20MP12 21.0 CF/CM/CU30C 1075 29.6 21.8 15.00 12.50
YCS30B21S YP9C100C20MP12 21.0 CF/CM/CU36C 1075 30.0 21.8 15.00 12.50
YCS30B21S YP9C120D20MP12 24.5 CF/CM/CU36D 1125 30.0 22.2 16.00 13.00
YCS30B21S YP9C120D20MP12 24.5 CF/CM/CU42D 1125 30.0 22.2 15.50 12.75
YCS30B21S YPLC060A12MP12 14.5 CF/CM/CU30A 975 29.0 20.4 14.25 12.25
YCS30B21S YPLC060A12MP12 14.5 CF/CM36A 875 29.0 19.4 14.75 12.50
YCS30B21S YPLC080B12MP12 17.5 CF/CM/CU36B 975 29.4 20.6 14.50 12.50
YCS30B21S YPLC080B12MP12 17.5 CF42B 850 29.0 19.2 15.00 12.50
YCS30B21S YPLC080C16MP12 21.0 CF/CM/CU30C 950 29.4 20.4 15.25 12.50
YCS30B21S YPLC080C16MP12 21.0 CF/CM/CU36C 1100 30.0 22.2 15.25 12.75
YCS30B21S YPLC080C16MP12 21.0 CF/CM/CU42C 925 29.4 20.4 15.25 12.75
YCS30B21S YPLC100C16MP12 21.0 CF/CM/CU30C 950 29.4 20.4 15.25 12.50
YCS30B21S YPLC100C16MP12 21.0 CF/CM/CU36C 1100 30.0 22.2 15.25 12.75
YCS30B21S YPLC100C16MP12 21.0 CF/CM/CU42C 925 29.4 20.4 15.25 12.75
YCS30B21S YPLC100C20MP12 21.0 CF/CM/CU36C 1100 30.0 22.0 15.00 12.50
YCS30B21S YPLC100C20MP12 21.0 CF/CM/CU42C 1100 30.0 22.0 15.25 12.50
YCS30B21S YPLC120C20MP12 21.0 CF/CM/CU36C 1100 30.0 22.0 15.00 12.50
YCS30B21S YPLC120C20MP12 21.0 CF/CM/CU42C 1100 30.0 22.0 15.25 12.50
YCS36B21S TM8V060A12MP11 14.5 CF/CM36A 975 35.4 23.2 14.25 12.25
YCS36B21S TM8V080B12MP11 17.5 CF/CM/CU36B 1025 36.0 24.0 14.75 12.50
YCS36B21S TM8V080B12MP11 17.5 CF42B 1000 35.8 24.0 14.75 12.50
YCS36B21S TM8V080C16MP11 21.0 CF/CM/CU36C 1100 36.0 24.8 15.25 12.50
YCS36B21S TM8V080C16MP11 21.0 CF/CM/CU42C 1325 36.0 26.8 14.75 12.50
YCS36B21S TM8V080C16MP11 21.0 CF/CM/CU48C 1050 36.0 24.4 15.50 12.75
YCS36B21S TM8V080C16MP11 21.0 CF/CM/CU48D 1050 36.0 24.4 15.50 12.75
YCS36B21S TM8V100C16MP11 21.0 CF/CM/CU36C 1100 36.0 24.8 15.25 12.50
YCS36B21S TM8V100C16MP11 21.0 CF/CM/CU42C 1325 36.0 26.8 14.75 12.50
YCS36B21S TM8V100C16MP11 21.0 CF/CM/CU48C 1050 36.0 24.4 15.50 12.75
YCS36B21S TM8V100C16MP11 21.0 CF/CM/CU48D 1050 36.0 24.4 15.50 12.75
YCS36B21S TM8V100C20MP11 21.0 CF/CM/CU36C 1100 36.0 24.8 15.00 12.50
YCS36B21S TM8V100C20MP11 21.0 CF/CM/CU42C 1100 36.0 25.0 15.00 12.50
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
24 Johnson Controls Unitary Products
YCS36B21S TM8V100C20MP11 21.0 CF/CM/CU48C 1250 36.0 26.0 15.25 12.50
YCS36B21S TM8V100C20MP11 21.0 CF/CM/CU48D 1125 36.0 25.0 16.25 13.25
YCS36B21S TM8V120C20MP11 21.0 CF/CM/CU36C 1100 36.0 24.8 15.00 12.50
YCS36B21S TM8V120C20MP11 21.0 CF/CM/CU42C 1100 36.0 25.0 15.00 12.50
YCS36B21S TM8V120C20MP11 21.0 CF/CM/CU48C 1250 36.0 26.0 15.25 12.50
YCS36B21S TM8V120C20MP11 21.0 CF/CM/CU48D 1125 36.0 25.0 16.25 13.25
YCS36B21S TM8X060A12MP11 14.5 CF/CM36A 975 35.6 23.4 14.75 12.50
YCS36B21S TM8X080B12MP11 17.5 CF/CM/CU36B 1000 35.8 23.4 15.00 12.50
YCS36B21S TM8X080B12MP11 17.5 CF42B 1000 36.0 24.0 15.00 12.50
YCS36B21S TM8X080C16MP11 21.0 CF/CM/CU36C 1050 36.0 24.4 15.25 12.75
YCS36B21S TM8X080C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.6 15.50 12.75
YCS36B21S TM8X080C16MP11 21.0 CF/CM/CU42C 1225 36.0 26.0 15.25 12.75
YCS36B21S TM8X080C16MP11 21.0 CF/CM/CU42D 1075 36.0 24.6 15.50 12.75
YCS36B21S TM8X080C16MP11 21.0 CF/CM/CU48C 1225 36.0 25.8 15.50 12.75
YCS36B21S TM8X080C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.6 15.75 13.00
YCS36B21S TM8X100C16MP11 21.0 CF/CM/CU36C 1050 36.0 24.4 15.25 12.75
YCS36B21S TM8X100C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.6 15.50 12.75
YCS36B21S TM8X100C16MP11 21.0 CF/CM/CU42C 1225 36.0 26.0 15.25 12.75
YCS36B21S TM8X100C16MP11 21.0 CF/CM/CU42D 1075 36.0 24.6 15.50 12.75
YCS36B21S TM8X100C16MP11 21.0 CF/CM/CU48C 1225 36.0 25.8 15.50 12.75
YCS36B21S TM8X100C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.6 15.75 13.00
YCS36B21S TM8X100C20MP11 21.0 CF/CM/CU36C 1300 36.0 26.4 15.50 12.75
YCS36B21S TM8X100C20MP11 21.0 CF/CM/CU36D 1300 36.0 26.4 15.50 12.75
YCS36B21S TM8X100C20MP11 21.0 CF/CM/CU42C 1075 36.0 24.6 15.50 12.75
YCS36B21S TM8X100C20MP11 21.0 CF/CM/CU42D 1100 36.0 24.8 15.50 12.75
YCS36B21S TM8X100C20MP11 21.0 CF/CM/CU48C 1300 36.0 26.6 15.50 12.75
YCS36B21S TM8X100C20MP11 21.0 CF/CM/CU48D 1200 36.0 25.6 15.25 12.50
YCS36B21S TM8X120C20MP11 21.0 CF/CM/CU36C 1300 36.0 26.4 15.50 12.75
YCS36B21S TM8X120C20MP11 21.0 CF/CM/CU36D 1300 36.0 26.4 15.50 12.75
YCS36B21S TM8X120C20MP11 21.0 CF/CM/CU42C 1075 36.0 24.6 15.50 12.75
YCS36B21S TM8X120C20MP11 21.0 CF/CM/CU42D 1100 36.0 24.8 15.50 12.75
YCS36B21S TM8X120C20MP11 21.0 CF/CM/CU48C 1300 36.0 26.6 15.50 12.75
YCS36B21S TM8X120C20MP11 21.0 CF/CM/CU48D 1200 36.0 25.6 15.25 12.50
YCS36B21S TM8Y060A12MP11 14.5 CF/CM36A 975 35.6 23.4 14.75 12.50
YCS36B21S TM8Y080B12MP11 17.5 CF/CM/CU36B 1000 35.8 23.4 15.00 12.50
YCS36B21S TM8Y080B12MP11 17.5 CF42B 1000 36.0 24.0 15.00 12.50
YCS36B21S TM8Y080C16MP11 21.0 CF/CM/CU36C 1050 36.0 24.4 15.25 12.75
YCS36B21S TM8Y080C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.6 15.50 12.75
YCS36B21S TM8Y080C16MP11 21.0 CF/CM/CU42C 1225 36.0 26.0 15.25 12.75
YCS36B21S TM8Y080C16MP11 21.0 CF/CM/CU42D 1075 36.0 24.6 15.50 12.75
YCS36B21S TM8Y080C16MP11 21.0 CF/CM/CU48C 1225 36.0 25.8 15.50 12.75
YCS36B21S TM8Y080C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.6 15.75 13.00
YCS36B21S TM8Y100C16MP11 21.0 CF/CM/CU36C 1050 36.0 24.4 15.25 12.75
YCS36B21S TM8Y100C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.6 15.50 12.75
YCS36B21S TM8Y100C16MP11 21.0 CF/CM/CU42C 1225 36.0 26.0 15.25 12.75
YCS36B21S TM8Y100C16MP11 21.0 CF/CM/CU42D 1075 36.0 24.6 15.50 12.75
YCS36B21S TM8Y100C16MP11 21.0 CF/CM/CU48C 1225 36.0 25.8 15.50 12.75
YCS36B21S TM8Y100C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.6 15.75 13.00
YCS36B21S TM8Y100C20MP11 21.0 CF/CM/CU36C 1300 36.0 26.4 15.50 12.75
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
Johnson Controls Unitary Products 25
YCS36B21S TM8Y100C20MP11 21.0 CF/CM/CU36D 1300 36.0 26.4 15.50 12.75
YCS36B21S TM8Y100C20MP11 21.0 CF/CM/CU42C 1075 36.0 24.6 15.50 12.75
YCS36B21S TM8Y100C20MP11 21.0 CF/CM/CU42D 1100 36.0 24.8 15.50 12.75
YCS36B21S TM8Y100C20MP11 21.0 CF/CM/CU48C 1300 36.0 26.6 15.50 12.75
YCS36B21S TM8Y100C20MP11 21.0 CF/CM/CU48D 1200 36.0 25.6 15.25 12.50
YCS36B21S TM8Y120C20MP11 21.0 CF/CM/CU36C 1300 36.0 26.4 15.50 12.75
YCS36B21S TM8Y120C20MP11 21.0 CF/CM/CU36D 1300 36.0 26.4 15.50 12.75
YCS36B21S TM8Y120C20MP11 21.0 CF/CM/CU42C 1075 36.0 24.6 15.50 12.75
YCS36B21S TM8Y120C20MP11 21.0 CF/CM/CU42D 1100 36.0 24.8 15.50 12.75
YCS36B21S TM8Y120C20MP11 21.0 CF/CM/CU48C 1300 36.0 26.6 15.50 12.75
YCS36B21S TM8Y120C20MP11 21.0 CF/CM/CU48D 1200 36.0 25.6 15.25 12.50
YCS36B21S TM9E060B12MP11 17.5 CF/CM/CU36B 975 35.6 23.4 14.75 12.50
YCS36B21S TM9E060B12MP11 17.5 CF42B 975 36.0 24.0 15.00 12.50
YCS36B21S TM9E080B12MP11 17.5 CF/CM/CU36B 975 35.6 23.4 14.75 12.50
YCS36B21S TM9E080B12MP11 17.5 CF42B 975 36.0 24.0 15.00 12.50
YCS36B21S TM9E080C16MP11 21.0 CF/CM/CU36C 1075 36.0 24.6 15.25 12.75
YCS36B21S TM9E080C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.8 15.25 12.75
YCS36B21S TM9E080C16MP11 21.0 CF/CM/CU42C 1075 36.0 24.6 15.25 12.75
YCS36B21S TM9E080C16MP11 21.0 CF/CM/CU42D 1075 36.0 24.6 15.25 12.75
YCS36B21S TM9E080C16MP11 21.0 CF/CM/CU48C 1075 36.0 24.6 15.50 12.75
YCS36B21S TM9E080C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.6 15.50 12.75
YCS36B21S TM9E100C16MP11 21.0 CF/CM/CU36C 1075 36.0 24.6 15.25 12.75
YCS36B21S TM9E100C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.8 15.25 12.75
YCS36B21S TM9E100C16MP11 21.0 CF/CM/CU42C 1075 36.0 24.6 15.25 12.75
YCS36B21S TM9E100C16MP11 21.0 CF/CM/CU42D 1075 36.0 24.6 15.25 12.75
YCS36B21S TM9E100C16MP11 21.0 CF/CM/CU48C 1075 36.0 24.6 15.50 12.75
YCS36B21S TM9E100C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.6 15.50 12.75
YCS36B21S TM9E100C20MP11 21.0 CF/CM/CU36C 975 35.8 23.6 15.25 12.75
YCS36B21S TM9E100C20MP11 21.0 CF/CM/CU36D 975 35.8 23.6 15.25 12.50
YCS36B21S TM9E100C20MP11 21.0 CF/CM/CU42C 1250 36.0 26.4 15.25 12.75
YCS36B21S TM9E100C20MP11 21.0 CF/CM/CU42D 975 36.0 24.0 15.50 12.75
YCS36B21S TM9E100C20MP11 21.0 CF/CM/CU48C 975 36.0 24.0 15.75 13.00
YCS36B21S TM9E100C20MP11 21.0 CF/CM/CU48D 1000 36.0 24.0 15.75 13.00
YCS36B21S TM9E120D20MP11 24.5 CF/CM/CU36D 1275 36.0 26.2 15.50 12.75
YCS36B21S TM9E120D20MP11 24.5 CF/CM/CU42D 1275 36.0 26.4 15.50 12.75
YCS36B21S TM9E120D20MP11 24.5 CF/CM/CU48D 1275 36.0 26.2 15.75 13.00
YCS36B21S TM9V060B12MP11 17.5 CF/CM/CU36B 1050 36.0 24.2 14.75 12.50
YCS36B21S TM9V060B12MP11 17.5 CF42B 1175 36.0 25.4 15.00 12.50
YCS36B21S TM9V080B12MP11 17.5 CF/CM/CU36B 1050 36.0 24.2 14.75 12.50
YCS36B21S TM9V080B12MP11 17.5 CF42B 1175 36.0 25.4 15.00 12.50
YCS36B21S TM9V080C16MP11 21.0 CF/CM/CU36C 975 35.8 23.6 15.25 12.50
YCS36B21S TM9V080C16MP11 21.0 CF/CM/CU42C 975 36.0 24.0 15.50 12.75
YCS36B21S TM9V080C16MP11 21.0 CF/CM/CU48C 1275 36.0 26.2 15.25 12.50
YCS36B21S TM9V080C16MP11 21.0 CF/CM/CU48D 1200 36.0 25.6 15.50 12.75
YCS36B21S TM9V100C16MP11 21.0 CF/CM/CU36C 975 35.8 23.6 15.25 12.50
YCS36B21S TM9V100C16MP11 21.0 CF/CM/CU42C 975 36.0 24.0 15.50 12.75
YCS36B21S TM9V100C16MP11 21.0 CF/CM/CU48C 1275 36.0 26.2 15.25 12.50
YCS36B21S TM9V100C16MP11 21.0 CF/CM/CU48D 1200 36.0 25.6 15.50 12.75
YCS36B21S TM9V100C20MP11 21.0 CF/CM/CU36C 1075 36.0 24.6 15.00 12.50
YCS36B21S TM9V100C20MP11 21.0 CF/CM/CU42C 1275 36.0 26.4 14.75 12.50
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
26 Johnson Controls Unitary Products
YCS36B21S TM9V100C20MP11 21.0 CF/CM/CU48C 1200 36.0 25.6 15.00 12.50
YCS36B21S TM9V100C20MP11 21.0 CF/CM/CU48D 1250 36.0 26.0 15.25 12.50
YCS36B21S TM9V120D20MP11 24.5 CF/CM/CU36D 1125 36.0 25.0 15.75 13.00
YCS36B21S TM9V120D20MP11 24.5 CF/CM/CU42D 1125 36.0 25.0 15.50 12.75
YCS36B21S TM9V120D20MP11 24.5 CF/CM/CU48D 1250 36.0 25.8 15.50 12.75
YCS36B21S TM9Y060B12MP11 17.5 CF/CM/CU36B 975 35.6 23.4 14.75 12.50
YCS36B21S TM9Y060B12MP11 17.5 CF42B 975 36.0 24.0 15.00 12.50
YCS36B21S TM9Y080B12MP11 17.5 CF/CM/CU36B 975 35.6 23.4 14.75 12.50
YCS36B21S TM9Y080B12MP11 17.5 CF42B 975 36.0 24.0 15.00 12.50
YCS36B21S TM9Y080C16MP11 21.0 CF/CM/CU36C 1075 36.0 24.6 15.25 12.75
YCS36B21S TM9Y080C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.8 15.25 12.75
YCS36B21S TM9Y080C16MP11 21.0 CF/CM/CU42C 1075 36.0 24.6 15.25 12.75
YCS36B21S TM9Y080C16MP11 21.0 CF/CM/CU42D 1075 36.0 24.6 15.25 12.75
YCS36B21S TM9Y080C16MP11 21.0 CF/CM/CU48C 1075 36.0 24.6 15.50 12.75
YCS36B21S TM9Y080C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.6 15.50 12.75
YCS36B21S TM9Y100C16MP11 21.0 CF/CM/CU36C 1075 36.0 24.6 15.25 12.75
YCS36B21S TM9Y100C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.8 15.25 12.75
YCS36B21S TM9Y100C16MP11 21.0 CF/CM/CU42C 1075 36.0 24.6 15.25 12.75
YCS36B21S TM9Y100C16MP11 21.0 CF/CM/CU42D 1075 36.0 24.6 15.25 12.75
YCS36B21S TM9Y100C16MP11 21.0 CF/CM/CU48C 1075 36.0 24.6 15.50 12.75
YCS36B21S TM9Y100C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.6 15.50 12.75
YCS36B21S TM9Y100C20MP11 21.0 CF/CM/CU36C 975 35.8 23.6 15.25 12.75
YCS36B21S TM9Y100C20MP11 21.0 CF/CM/CU36D 975 35.8 23.6 15.25 12.50
YCS36B21S TM9Y100C20MP11 21.0 CF/CM/CU42C 1250 36.0 26.4 15.25 12.75
YCS36B21S TM9Y100C20MP11 21.0 CF/CM/CU42D 975 36.0 24.0 15.50 12.75
YCS36B21S TM9Y100C20MP11 21.0 CF/CM/CU48C 975 36.0 24.0 15.75 13.00
YCS36B21S TM9Y100C20MP11 21.0 CF/CM/CU48D 1000 36.0 24.0 15.75 13.00
YCS36B21S TM9Y120D20MP11 24.5 CF/CM/CU36D 1275 36.0 26.2 15.50 12.75
YCS36B21S TM9Y120D20MP11 24.5 CF/CM/CU42D 1275 36.0 26.4 15.50 12.75
YCS36B21S TM9Y120D20MP11 24.5 CF/CM/CU48D 1275 36.0 26.2 15.75 13.00
YCS36B21S TMLV060A12MP11 14.5 CF/CM36A 975 35.4 23.2 14.25 12.25
YCS36B21S TMLV080B12MP11 17.5 CF/CM/CU36B 1025 36.0 24.0 14.75 12.50
YCS36B21S TMLV080B12MP11 17.5 CF42B 1000 35.8 24.0 14.75 12.50
YCS36B21S TMLV080C16MP11 21.0 CF/CM/CU36C 1100 36.0 24.8 15.25 12.50
YCS36B21S TMLV080C16MP11 21.0 CF/CM/CU42C 1325 36.0 26.8 14.75 12.50
YCS36B21S TMLV080C16MP11 21.0 CF/CM/CU48C 1050 36.0 24.4 15.50 12.75
YCS36B21S TMLV080C16MP11 21.0 CF/CM/CU48D 1050 36.0 24.4 15.50 12.75
YCS36B21S TMLV100C16MP11 21.0 CF/CM/CU36C 1100 36.0 24.8 15.25 12.50
YCS36B21S TMLV100C16MP11 21.0 CF/CM/CU42C 1325 36.0 26.8 14.75 12.50
YCS36B21S TMLV100C16MP11 21.0 CF/CM/CU48C 1050 36.0 24.4 15.50 12.75
YCS36B21S TMLV100C16MP11 21.0 CF/CM/CU48D 1050 36.0 24.4 15.50 12.75
YCS36B21S TMLV100C20MP11 21.0 CF/CM/CU36C 1100 36.0 24.8 15.00 12.50
YCS36B21S TMLV100C20MP11 21.0 CF/CM/CU42C 1100 36.0 25.0 15.00 12.50
YCS36B21S TMLV100C20MP11 21.0 CF/CM/CU48C 1250 36.0 26.0 15.25 12.50
YCS36B21S TMLV100C20MP11 21.0 CF/CM/CU48D 1125 36.0 25.0 16.25 13.25
YCS36B21S TMLV120C20MP11 21.0 CF/CM/CU36C 1100 36.0 24.8 15.00 12.50
YCS36B21S TMLV120C20MP11 21.0 CF/CM/CU42C 1100 36.0 25.0 15.00 12.50
YCS36B21S TMLV120C20MP11 21.0 CF/CM/CU48C 1250 36.0 26.0 15.25 12.50
YCS36B21S TMLV120C20MP11 21.0 CF/CM/CU48D 1125 36.0 25.0 16.25 13.25
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
Johnson Controls Unitary Products 27
YCS36B21S TMLX060A12MP11 14.5 CF/CM36A 975 35.6 23.4 14.75 12.50
YCS36B21S TMLX080B12MP11 17.5 CF/CM/CU36B 1000 35.8 23.4 15.00 12.50
YCS36B21S TMLX080B12MP11 17.5 CF42B 1000 36.0 24.0 15.00 12.50
YCS36B21S TMLX080C16MP11 21.0 CF/CM/CU36C 1050 36.0 24.4 15.25 12.75
YCS36B21S TMLX080C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.6 15.50 12.75
YCS36B21S TMLX080C16MP11 21.0 CF/CM/CU42C 1225 36.0 26.0 15.25 12.75
YCS36B21S TMLX080C16MP11 21.0 CF/CM/CU42D 1075 36.0 24.6 15.50 12.75
YCS36B21S TMLX080C16MP11 21.0 CF/CM/CU48C 1225 36.0 25.8 15.50 12.75
YCS36B21S TMLX080C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.6 15.75 13.00
YCS36B21S TMLX100C16MP11 21.0 CF/CM/CU36C 1050 36.0 24.4 15.25 12.75
YCS36B21S TMLX100C16MP11 21.0 CF/CM/CU36D 1075 36.0 24.6 15.50 12.75
YCS36B21S TMLX100C16MP11 21.0 CF/CM/CU42C 1225 36.0 26.0 15.25 12.75
YCS36B21S TMLX100C16MP11 21.0 CF/CM/CU42D 1075 36.0 24.6 15.50 12.75
YCS36B21S TMLX100C16MP11 21.0 CF/CM/CU48C 1225 36.0 25.8 15.50 12.75
YCS36B21S TMLX100C16MP11 21.0 CF/CM/CU48D 1075 36.0 24.6 15.75 13.00
YCS36B21S TMLX100C20MP11 21.0 CF/CM/CU36C 1300 36.0 26.4 15.50 12.75
YCS36B21S TMLX100C20MP11 21.0 CF/CM/CU36D 1300 36.0 26.4 15.50 12.75
YCS36B21S TMLX100C20MP11 21.0 CF/CM/CU42C 1075 36.0 24.6 15.50 12.75
YCS36B21S TMLX100C20MP11 21.0 CF/CM/CU42D 1100 36.0 24.8 15.50 12.75
YCS36B21S TMLX100C20MP11 21.0 CF/CM/CU48C 1300 36.0 26.6 15.50 12.75
YCS36B21S TMLX100C20MP11 21.0 CF/CM/CU48D 1200 36.0 25.6 15.25 12.50
YCS36B21S TMLX120C20MP11 21.0 CF/CM/CU36C 1300 36.0 26.4 15.50 12.75
YCS36B21S TMLX120C20MP11 21.0 CF/CM/CU36D 1300 36.0 26.4 15.50 12.75
YCS36B21S TMLX120C20MP11 21.0 CF/CM/CU42C 1075 36.0 24.6 15.50 12.75
YCS36B21S TMLX120C20MP11 21.0 CF/CM/CU42D 1100 36.0 24.8 15.50 12.75
YCS36B21S TMLX120C20MP11 21.0 CF/CM/CU48C 1300 36.0 26.6 15.50 12.75
YCS36B21S TMLX120C20MP11 21.0 CF/CM/CU48D 1200 36.0 25.6 15.25 12.50
YCS36B21S TP9C060B12MP12 17.5 CF/CM/CU36B 1050 36.0 24.2 14.75 12.50
YCS36B21S TP9C060B12MP12 17.5 CF42B 1175 36.0 25.4 15.00 12.50
YCS36B21S TP9C080B12MP12 17.5 CF/CM/CU36B 1050 36.0 24.2 14.75 12.50
YCS36B21S TP9C080B12MP12 17.5 CF42B 1175 36.0 25.4 15.00 12.50
YCS36B21S TP9C080C16MP12 21.0 CF/CM/CU36C 975 35.8 23.6 15.25 12.50
YCS36B21S TP9C080C16MP12 21.0 CF/CM/CU42C 975 36.0 24.0 15.50 12.75
YCS36B21S TP9C080C16MP12 21.0 CF/CM/CU48C 1275 36.0 26.2 15.25 12.50
YCS36B21S TP9C080C16MP12 21.0 CF/CM/CU48D 1200 36.0 25.6 15.50 12.75
YCS36B21S TP9C100C16MP12 21.0 CF/CM/CU36C 975 35.8 23.6 15.25 12.50
YCS36B21S TP9C100C16MP12 21.0 CF/CM/CU42C 975 36.0 24.0 15.50 12.75
YCS36B21S TP9C100C16MP12 21.0 CF/CM/CU48C 1275 36.0 26.2 15.25 12.50
YCS36B21S TP9C100C16MP12 21.0 CF/CM/CU48D 1200 36.0 25.6 15.50 12.75
YCS36B21S TP9C100C20MP12 21.0 CF/CM/CU36C 1075 36.0 24.6 15.00 12.50
YCS36B21S TP9C100C20MP12 21.0 CF/CM/CU42C 1275 36.0 26.4 14.75 12.50
YCS36B21S TP9C100C20MP12 21.0 CF/CM/CU48C 1200 36.0 25.6 15.00 12.50
YCS36B21S TP9C100C20MP12 21.0 CF/CM/CU48D 1250 36.0 26.0 15.25 12.50
YCS36B21S TP9C120D20MP12 24.5 CF/CM/CU36D 1125 36.0 25.0 15.75 13.00
YCS36B21S TP9C120D20MP12 24.5 CF/CM/CU42D 1125 36.0 25.0 15.50 12.75
YCS36B21S TP9C120D20MP12 24.5 CF/CM/CU48D 1250 36.0 25.8 15.50 12.75
YCS36B21S TPLC060A12MP12 14.5 CF/CM36A 975 35.4 23.2 14.25 12.25
YCS36B21S TPLC080B12MP12 17.5 CF/CM/CU36B 1025 36.0 24.0 14.75 12.50
YCS36B21S TPLC080B12MP12 17.5 CF42B 1000 35.8 24.0 14.75 12.50
YCS36B21S TPLC080C16MP12 21.0 CF/CM/CU36C 1100 36.0 24.8 15.25 12.50
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
28 Johnson Controls Unitary Products
YCS36B21S TPLC080C16MP12 21.0 CF/CM/CU42C 1325 36.0 26.8 14.75 12.50
YCS36B21S TPLC080C16MP12 21.0 CF/CM/CU48C 1050 36.0 24.4 15.50 12.75
YCS36B21S TPLC080C16MP12 21.0 CF/CM/CU48D 1050 36.0 24.4 15.50 12.75
YCS36B21S TPLC100C16MP12 21.0 CF/CM/CU36C 1100 36.0 24.8 15.25 12.50
YCS36B21S TPLC100C16MP12 21.0 CF/CM/CU42C 1325 36.0 26.8 14.75 12.50
YCS36B21S TPLC100C16MP12 21.0 CF/CM/CU48C 1050 36.0 24.4 15.50 12.75
YCS36B21S TPLC100C16MP12 21.0 CF/CM/CU48D 1050 36.0 24.4 15.50 12.75
YCS36B21S TPLC100C20MP12 21.0 CF/CM/CU36C 1100 36.0 24.8 15.00 12.50
YCS36B21S TPLC100C20MP12 21.0 CF/CM/CU42C 1100 36.0 25.0 15.00 12.50
YCS36B21S TPLC100C20MP12 21.0 CF/CM/CU48C 1250 36.0 26.0 15.25 12.50
YCS36B21S TPLC100C20MP12 21.0 CF/CM/CU48D 1125 36.0 25.0 16.25 13.25
YCS36B21S TPLC120C20MP12 21.0 CF/CM/CU36C 1100 36.0 24.8 15.00 12.50
YCS36B21S TPLC120C20MP12 21.0 CF/CM/CU42C 1100 36.0 25.0 15.00 12.50
YCS36B21S TPLC120C20MP12 21.0 CF/CM/CU48C 1250 36.0 26.0 15.25 12.50
YCS36B21S TPLC120C20MP12 21.0 CF/CM/CU48D 1125 36.0 25.0 16.25 13.25
YCS36B21S YP9C060B12MP12 17.5 CF/CM/CU36B 1050 36.0 24.2 14.75 12.50
YCS36B21S YP9C060B12MP12 17.5 CF42B 1175 36.0 25.4 15.00 12.50
YCS36B21S YP9C080B12MP12 17.5 CF/CM/CU36B 1050 36.0 24.2 14.75 12.50
YCS36B21S YP9C080B12MP12 17.5 CF42B 1175 36.0 25.4 15.00 12.50
YCS36B21S YP9C080C16MP12 21.0 CF/CM/CU36C 975 35.8 23.6 15.25 12.50
YCS36B21S YP9C080C16MP12 21.0 CF/CM/CU42C 975 36.0 24.0 15.50 12.75
YCS36B21S YP9C080C16MP12 21.0 CF/CM/CU48C 1275 36.0 26.2 15.25 12.50
YCS36B21S YP9C080C16MP12 21.0 CF/CM/CU48D 1200 36.0 25.6 15.50 12.75
YCS36B21S YP9C100C16MP12 21.0 CF/CM/CU36C 975 35.8 23.6 15.25 12.50
YCS36B21S YP9C100C16MP12 21.0 CF/CM/CU42C 975 36.0 24.0 15.50 12.75
YCS36B21S YP9C100C16MP12 21.0 CF/CM/CU48C 1275 36.0 26.2 15.25 12.50
YCS36B21S YP9C100C16MP12 21.0 CF/CM/CU48D 1200 36.0 25.6 15.50 12.75
YCS36B21S YP9C100C20MP12 21.0 CF/CM/CU36C 1075 36.0 24.6 15.00 12.50
YCS36B21S YP9C100C20MP12 21.0 CF/CM/CU42C 1275 36.0 26.4 14.75 12.50
YCS36B21S YP9C100C20MP12 21.0 CF/CM/CU48C 1200 36.0 25.6 15.00 12.50
YCS36B21S YP9C100C20MP12 21.0 CF/CM/CU48D 1250 36.0 26.0 15.25 12.50
YCS36B21S YP9C120D20MP12 24.5 CF/CM/CU36D 1125 36.0 25.0 15.75 13.00
YCS36B21S YP9C120D20MP12 24.5 CF/CM/CU42D 1125 36.0 25.0 15.50 12.75
YCS36B21S YP9C120D20MP12 24.5 CF/CM/CU48D 1250 36.0 25.8 15.50 12.75
YCS36B21S YPLC060A12MP12 14.5 CF/CM36A 975 35.4 23.2 14.25 12.25
YCS36B21S YPLC080B12MP12 17.5 CF/CM/CU36B 1025 36.0 24.0 14.75 12.50
YCS36B21S YPLC080B12MP12 17.5 CF42B 1000 35.8 24.0 14.75 12.50
YCS36B21S YPLC080C16MP12 21.0 CF/CM/CU36C 1100 36.0 24.8 15.25 12.50
YCS36B21S YPLC080C16MP12 21.0 CF/CM/CU42C 1325 36.0 26.8 14.75 12.50
YCS36B21S YPLC080C16MP12 21.0 CF/CM/CU48C 1050 36.0 24.4 15.50 12.75
YCS36B21S YPLC080C16MP12 21.0 CF/CM/CU48D 1050 36.0 24.4 15.50 12.75
YCS36B21S YPLC100C16MP12 21.0 CF/CM/CU36C 1100 36.0 24.8 15.25 12.50
YCS36B21S YPLC100C16MP12 21.0 CF/CM/CU42C 1325 36.0 26.8 14.75 12.50
YCS36B21S YPLC100C16MP12 21.0 CF/CM/CU48C 1050 36.0 24.4 15.50 12.75
YCS36B21S YPLC100C16MP12 21.0 CF/CM/CU48D 1050 36.0 24.4 15.50 12.75
YCS36B21S YPLC100C20MP12 21.0 CF/CM/CU36C 1100 36.0 24.8 15.00 12.50
YCS36B21S YPLC100C20MP12 21.0 CF/CM/CU42C 1100 36.0 25.0 15.00 12.50
YCS36B21S YPLC100C20MP12 21.0 CF/CM/CU48C 1250 36.0 26.0 15.25 12.50
YCS36B21S YPLC100C20MP12 21.0 CF/CM/CU48D 1125 36.0 25.0 16.25 13.25
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
Johnson Controls Unitary Products 29
YCS36B21S YPLC120C20MP12 21.0 CF/CM/CU36C 1100 36.0 24.8 15.00 12.50
YCS36B21S YPLC120C20MP12 21.0 CF/CM/CU42C 1100 36.0 25.0 15.00 12.50
YCS36B21S YPLC120C20MP12 21.0 CF/CM/CU48C 1250 36.0 26.0 15.25 12.50
YCS36B21S YPLC120C20MP12 21.0 CF/CM/CU48D 1125 36.0 25.0 16.25 13.25
YCS42B21S TM8V080C16MP11 21.0 CF/CM/CU42C 1325 41.0 31.5 14.50 12.50
YCS42B21S TM8V080C16MP11 21.0 CF/CM/CU48C 1325 41.0 31.5 14.50 12.50
YCS42B21S TM8V080C16MP11 21.0 CF/CM/CU48D 1300 41.0 31.5 14.75 12.50
YCS42B21S TM8V080C16MP11 21.0 CF/CM/CU60C 1325 41.5 32.0 15.00 12.50
YCS42B21S TM8V080C16MP11 21.0 CF/CM64D 1250 41.5 31.5 15.00 12.50
YCS42B21S TM8V100C16MP11 21.0 CF/CM/CU42C 1325 41.0 31.5 14.50 12.50
YCS42B21S TM8V100C16MP11 21.0 CF/CM/CU48C 1325 41.0 31.5 14.50 12.50
YCS42B21S TM8V100C16MP11 21.0 CF/CM/CU48D 1300 41.0 31.5 14.75 12.50
YCS42B21S TM8V100C16MP11 21.0 CF/CM/CU60C 1325 41.5 32.0 15.00 12.50
YCS42B21S TM8V100C16MP11 21.0 CF/CM64D 1250 41.5 31.5 15.00 12.50
YCS42B21S TM8V100C20MP11 21.0 CF/CM/CU42C 1225 40.5 30.5 14.75 12.50
YCS42B21S TM8V100C20MP11 21.0 CF/CM/CU48C 1300 41.0 31.5 14.75 12.50
YCS42B21S TM8V100C20MP11 21.0 CF/CM/CU60C 1400 41.5 33.0 14.75 12.50
YCS42B21S TM8V100C20MP11 21.0 CF/CM/CU60D 1225 41.0 30.5 15.00 12.50
YCS42B21S TM8V100C20MP11 21.0 CF/CM64D 1200 41.0 30.0 15.00 12.50
YCS42B21S TM8V120C20MP11 21.0 CF/CM/CU42C 1225 40.5 30.5 14.75 12.50
YCS42B21S TM8V120C20MP11 21.0 CF/CM/CU48C 1300 41.0 31.5 14.75 12.50
YCS42B21S TM8V120C20MP11 21.0 CF/CM/CU60C 1400 41.5 33.0 14.75 12.50
YCS42B21S TM8V120C20MP11 21.0 CF/CM/CU60D 1225 41.0 30.5 15.00 12.50
YCS42B21S TM8V120C20MP11 21.0 CF/CM64D 1200 41.0 30.0 15.00 12.50
YCS42B21S TM8X080B12MP11 17.5 CF42B 1175 40.0 29.5 14.50 12.50
YCS42B21S TM8X080C16MP11 21.0 CF/CM/CU42C 1200 40.0 29.5 14.75 12.50
YCS42B21S TM8X080C16MP11 21.0 CF/CM/CU42D 1400 41.0 32.5 14.50 12.50
YCS42B21S TM8X080C16MP11 21.0 CF/CM/CU48C 1400 41.0 32.5 14.50 12.50
YCS42B21S TM8X080C16MP11 21.0 CF/CM/CU48D 1400 41.0 32.5 14.50 12.50
YCS42B21S TM8X080C16MP11 21.0 CF/CM/CU60C 1200 40.5 30.0 15.00 12.50
YCS42B21S TM8X080C16MP11 21.0 CF/CM/CU60D 1200 40.5 30.0 15.00 12.50
YCS42B21S TM8X080C16MP11 21.0 CF/CM64D 1200 41.0 30.0 15.00 12.50
YCS42B21S TM8X100C16MP11 21.0 CF/CM/CU42C 1200 40.0 29.5 14.75 12.50
YCS42B21S TM8X100C16MP11 21.0 CF/CM/CU42D 1400 41.0 32.5 14.50 12.50
YCS42B21S TM8X100C16MP11 21.0 CF/CM/CU48C 1400 41.0 32.5 14.50 12.50
YCS42B21S TM8X100C16MP11 21.0 CF/CM/CU48D 1400 41.0 32.5 14.50 12.50
YCS42B21S TM8X100C16MP11 21.0 CF/CM/CU60C 1200 40.5 30.0 15.00 12.50
YCS42B21S TM8X100C16MP11 21.0 CF/CM/CU60D 1200 40.5 30.0 15.00 12.50
YCS42B21S TM8X100C16MP11 21.0 CF/CM64D 1200 41.0 30.0 15.00 12.50
YCS42B21S TM8X100C20MP11 21.0 CF/CM/CU42C 1400 41.0 32.5 14.50 12.50
YCS42B21S TM8X100C20MP11 21.0 CF/CM/CU42D 1275 41.0 31.0 15.25 12.75
YCS42B21S TM8X100C20MP11 21.0 CF/CM/CU48C 1275 41.0 31.0 15.00 12.50
YCS42B21S TM8X100C20MP11 21.0 CF/CM/CU48D 1300 41.5 32.0 15.25 12.75
YCS42B21S TM8X100C20MP11 21.0 CF/CM/CU60C 1275 41.5 31.5 15.25 12.75
YCS42B21S TM8X100C20MP11 21.0 CF/CM/CU60D 1275 41.5 31.5 15.25 12.75
YCS42B21S TM8X100C20MP11 21.0 CF/CM64D 1275 42.0 32.0 15.50 12.75
YCS42B21S TM8X120C20MP11 21.0 CF/CM/CU42C 1400 41.0 32.5 14.50 12.50
YCS42B21S TM8X120C20MP11 21.0 CF/CM/CU42D 1275 41.0 31.0 15.25 12.75
YCS42B21S TM8X120C20MP11 21.0 CF/CM/CU48C 1275 41.0 31.0 15.00 12.50
YCS42B21S TM8X120C20MP11 21.0 CF/CM/CU48D 1300 41.5 32.0 15.25 12.75
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
30 Johnson Controls Unitary Products
YCS42B21S TM8X120C20MP11 21.0 CF/CM/CU60C 1275 41.5 31.5 15.25 12.75
YCS42B21S TM8X120C20MP11 21.0 CF/CM/CU60D 1275 41.5 31.5 15.25 12.75
YCS42B21S TM8X120C20MP11 21.0 CF/CM64D 1275 42.0 32.0 15.50 12.75
YCS42B21S TM8Y080B12MP11 17.5 CF42B 1175 40.0 29.5 14.50 12.50
YCS42B21S TM8Y080C16MP11 21.0 CF/CM/CU42C 1200 40.0 29.5 14.75 12.50
YCS42B21S TM8Y080C16MP11 21.0 CF/CM/CU42D 1400 41.0 32.5 14.50 12.50
YCS42B21S TM8Y080C16MP11 21.0 CF/CM/CU48C 1400 41.0 32.5 14.50 12.50
YCS42B21S TM8Y080C16MP11 21.0 CF/CM/CU48D 1400 41.0 32.5 14.50 12.50
YCS42B21S TM8Y080C16MP11 21.0 CF/CM/CU60C 1200 40.5 30.0 15.00 12.50
YCS42B21S TM8Y080C16MP11 21.0 CF/CM/CU60D 1200 40.5 30.0 15.00 12.50
YCS42B21S TM8Y080C16MP11 21.0 CF/CM64D 1200 41.0 30.0 15.00 12.50
YCS42B21S TM8Y100C16MP11 21.0 CF/CM/CU42C 1200 40.0 29.5 14.75 12.50
YCS42B21S TM8Y100C16MP11 21.0 CF/CM/CU42D 1400 41.0 32.5 14.50 12.50
YCS42B21S TM8Y100C16MP11 21.0 CF/CM/CU48C 1400 41.0 32.5 14.50 12.50
YCS42B21S TM8Y100C16MP11 21.0 CF/CM/CU48D 1400 41.0 32.5 14.50 12.50
YCS42B21S TM8Y100C16MP11 21.0 CF/CM/CU60C 1200 40.5 30.0 15.00 12.50
YCS42B21S TM8Y100C16MP11 21.0 CF/CM/CU60D 1200 40.5 30.0 15.00 12.50
YCS42B21S TM8Y100C16MP11 21.0 CF/CM64D 1200 41.0 30.0 15.00 12.50
YCS42B21S TM8Y100C20MP11 21.0 CF/CM/CU42C 1400 41.0 32.5 14.50 12.50
YCS42B21S TM8Y100C20MP11 21.0 CF/CM/CU42D 1275 41.0 31.0 15.25 12.75
YCS42B21S TM8Y100C20MP11 21.0 CF/CM/CU48C 1275 41.0 31.0 15.00 12.50
YCS42B21S TM8Y100C20MP11 21.0 CF/CM/CU48D 1300 41.5 32.0 15.25 12.75
YCS42B21S TM8Y100C20MP11 21.0 CF/CM/CU60C 1275 41.5 31.5 15.25 12.75
YCS42B21S TM8Y100C20MP11 21.0 CF/CM/CU60D 1275 41.5 31.5 15.25 12.75
YCS42B21S TM8Y100C20MP11 21.0 CF/CM64D 1275 42.0 32.0 15.50 12.75
YCS42B21S TM8Y120C20MP11 21.0 CF/CM/CU42C 1400 41.0 32.5 14.50 12.50
YCS42B21S TM8Y120C20MP11 21.0 CF/CM/CU42D 1275 41.0 31.0 15.25 12.75
YCS42B21S TM8Y120C20MP11 21.0 CF/CM/CU48C 1275 41.0 31.0 15.00 12.50
YCS42B21S TM8Y120C20MP11 21.0 CF/CM/CU48D 1300 41.5 32.0 15.25 12.75
YCS42B21S TM8Y120C20MP11 21.0 CF/CM/CU60C 1275 41.5 31.5 15.25 12.75
YCS42B21S TM8Y120C20MP11 21.0 CF/CM/CU60D 1275 41.5 31.5 15.25 12.75
YCS42B21S TM8Y120C20MP11 21.0 CF/CM64D 1275 42.0 32.0 15.50 12.75
YCS42B21S TM9E080C16MP11 21.0 CF/CM/CU42C 1225 40.5 30.5 14.75 12.50
YCS42B21S TM9E080C16MP11 21.0 CF/CM/CU42D 1325 41.0 31.5 14.50 12.50
YCS42B21S TM9E080C16MP11 21.0 CF/CM/CU48C 1325 41.0 31.5 14.50 12.50
YCS42B21S TM9E080C16MP11 21.0 CF/CM/CU48D 1225 40.5 30.5 14.75 12.50
YCS42B21S TM9E080C16MP11 21.0 CF/CM/CU60C 1200 40.5 29.5 14.75 12.50
YCS42B21S TM9E080C16MP11 21.0 CF/CM/CU60D 1200 40.5 29.5 14.75 12.50
YCS42B21S TM9E080C16MP11 21.0 CF/CM64D 1225 41.5 31.0 15.25 12.75
YCS42B21S TM9E100C16MP11 21.0 CF/CM/CU42C 1225 40.5 30.5 14.75 12.50
YCS42B21S TM9E100C16MP11 21.0 CF/CM/CU42D 1325 41.0 31.5 14.50 12.50
YCS42B21S TM9E100C16MP11 21.0 CF/CM/CU48C 1325 41.0 31.5 14.50 12.50
YCS42B21S TM9E100C16MP11 21.0 CF/CM/CU48D 1225 40.5 30.5 14.75 12.50
YCS42B21S TM9E100C16MP11 21.0 CF/CM/CU60C 1200 40.5 29.5 14.75 12.50
YCS42B21S TM9E100C16MP11 21.0 CF/CM/CU60D 1200 40.5 29.5 14.75 12.50
YCS42B21S TM9E100C16MP11 21.0 CF/CM64D 1225 41.5 31.0 15.25 12.75
YCS42B21S TM9E100C20MP11 21.0 CF/CM/CU42C 1225 40.5 30.5 14.75 12.50
YCS42B21S TM9E100C20MP11 21.0 CF/CM/CU42D 1225 40.5 30.5 14.75 12.50
YCS42B21S TM9E100C20MP11 21.0 CF/CM/CU48C 1225 40.5 30.5 15.00 12.50
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
Johnson Controls Unitary Products 31
YCS42B21S TM9E100C20MP11 21.0 CF/CM/CU48D 1225 40.5 30.5 15.00 12.50
YCS42B21S TM9E100C20MP11 21.0 CF/CM/CU60C 1225 41.0 31.0 15.25 12.75
YCS42B21S TM9E100C20MP11 21.0 CF/CM/CU60D 1250 41.5 31.0 15.25 12.75
YCS42B21S TM9E100C20MP11 21.0 CF/CM64D 1225 41.5 31.0 15.25 12.75
YCS42B21S TM9E120D20MP11 24.5 CF/CM/CU42D 1250 40.5 31.0 15.25 12.75
YCS42B21S TM9E120D20MP11 24.5 CF/CM/CU48D 1250 41.0 31.0 15.25 12.75
YCS42B21S TM9E120D20MP11 24.5 CF/CM/CU60D 1225 41.0 31.0 15.25 12.75
YCS42B21S TM9E120D20MP11 24.5 CF/CM64D 1225 41.5 31.0 15.25 12.75
YCS42B21S TM9V060B12MP11 17.5 CF42B 1175 40.0 29.0 14.25 12.25
YCS42B21S TM9V080B12MP11 17.5 CF42B 1175 40.0 29.0 14.25 12.25
YCS42B21S TM9V080C16MP11 21.0 CF/CM/CU42C 1275 40.5 31.0 14.75 12.50
YCS42B21S TM9V080C16MP11 21.0 CF/CM/CU48C 1275 41.0 31.0 14.75 12.50
YCS42B21S TM9V080C16MP11 21.0 CF/CM/CU48D 1425 41.5 33.0 15.00 12.50
YCS42B21S TM9V080C16MP11 21.0 CF/CM/CU60C 1200 41.0 30.0 15.00 12.50
YCS42B21S TM9V080C16MP11 21.0 CF/CM/CU60D 1425 42.0 33.0 14.50 12.50
YCS42B21S TM9V080C16MP11 21.0 CF/CM64D 1300 41.5 32.0 15.00 12.50
YCS42B21S TM9V100C16MP11 21.0 CF/CM/CU42C 1275 40.5 31.0 14.75 12.50
YCS42B21S TM9V100C16MP11 21.0 CF/CM/CU48C 1275 41.0 31.0 14.75 12.50
YCS42B21S TM9V100C16MP11 21.0 CF/CM/CU48D 1425 41.5 33.0 15.00 12.50
YCS42B21S TM9V100C16MP11 21.0 CF/CM/CU60C 1200 41.0 30.0 15.00 12.50
YCS42B21S TM9V100C16MP11 21.0 CF/CM/CU60D 1425 42.0 33.0 14.50 12.50
YCS42B21S TM9V100C16MP11 21.0 CF/CM64D 1300 41.5 32.0 15.00 12.50
YCS42B21S TM9V100C20MP11 21.0 CF/CM/CU42C 1275 40.5 31.0 14.50 12.50
YCS42B21S TM9V100C20MP11 21.0 CF/CM/CU48C 1275 41.0 31.0 14.75 12.50
YCS42B21S TM9V100C20MP11 21.0 CF/CM/CU48D 1300 41.0 31.5 14.75 12.50
YCS42B21S TM9V100C20MP11 21.0 CF/CM/CU60C 1275 41.0 31.5 14.75 12.50
YCS42B21S TM9V100C20MP11 21.0 CF/CM/CU60D 1250 41.5 31.0 15.00 12.50
YCS42B21S TM9V100C20MP11 21.0 CF/CM64D 1225 41.5 31.0 15.00 12.50
YCS42B21S TM9V120D20MP11 24.5 CF/CM/CU42D 1300 41.0 31.5 15.00 12.50
YCS42B21S TM9V120D20MP11 24.5 CF/CM/CU48D 1300 41.0 31.5 15.00 12.50
YCS42B21S TM9V120D20MP11 24.5 CF/CM/CU60D 1250 41.5 31.0 15.25 12.50
YCS42B21S TM9V120D20MP11 24.5 CF/CM64D 1250 42.0 31.5 15.25 12.75
YCS42B21S TM9Y080C16MP11 21.0 CF/CM/CU42C 1225 40.5 30.5 14.75 12.50
YCS42B21S TM9Y080C16MP11 21.0 CF/CM/CU42D 1325 41.0 31.5 14.50 12.50
YCS42B21S TM9Y080C16MP11 21.0 CF/CM/CU48C 1325 41.0 31.5 14.50 12.50
YCS42B21S TM9Y080C16MP11 21.0 CF/CM/CU48D 1225 40.5 30.5 14.75 12.50
YCS42B21S TM9Y080C16MP11 21.0 CF/CM/CU60C 1200 40.5 29.5 14.75 12.50
YCS42B21S TM9Y080C16MP11 21.0 CF/CM/CU60D 1200 40.5 29.5 14.75 12.50
YCS42B21S TM9Y080C16MP11 21.0 CF/CM64D 1225 41.5 31.0 15.25 12.75
YCS42B21S TM9Y100C16MP11 21.0 CF/CM/CU42C 1225 40.5 30.5 14.75 12.50
YCS42B21S TM9Y100C16MP11 21.0 CF/CM/CU42D 1325 41.0 31.5 14.50 12.50
YCS42B21S TM9Y100C16MP11 21.0 CF/CM/CU48C 1325 41.0 31.5 14.50 12.50
YCS42B21S TM9Y100C16MP11 21.0 CF/CM/CU48D 1225 40.5 30.5 14.75 12.50
YCS42B21S TM9Y100C16MP11 21.0 CF/CM/CU60C 1200 40.5 29.5 14.75 12.50
YCS42B21S TM9Y100C16MP11 21.0 CF/CM/CU60D 1200 40.5 29.5 14.75 12.50
YCS42B21S TM9Y100C16MP11 21.0 CF/CM64D 1225 41.5 31.0 15.25 12.75
YCS42B21S TM9Y100C20MP11 21.0 CF/CM/CU42C 1225 40.5 30.5 14.75 12.50
YCS42B21S TM9Y100C20MP11 21.0 CF/CM/CU42D 1225 40.5 30.5 14.75 12.50
YCS42B21S TM9Y100C20MP11 21.0 CF/CM/CU48C 1225 40.5 30.5 15.00 12.50
YCS42B21S TM9Y100C20MP11 21.0 CF/CM/CU48D 1225 40.5 30.5 15.00 12.50
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
32 Johnson Controls Unitary Products
YCS42B21S TM9Y100C20MP11 21.0 CF/CM/CU60C 1225 41.0 31.0 15.25 12.75
YCS42B21S TM9Y100C20MP11 21.0 CF/CM/CU60D 1250 41.5 31.0 15.25 12.75
YCS42B21S TM9Y100C20MP11 21.0 CF/CM64D 1225 41.5 31.0 15.25 12.75
YCS42B21S TM9Y120D20MP11 24.5 CF/CM/CU42D 1250 40.5 31.0 15.25 12.75
YCS42B21S TM9Y120D20MP11 24.5 CF/CM/CU48D 1250 41.0 31.0 15.25 12.75
YCS42B21S TM9Y120D20MP11 24.5 CF/CM/CU60D 1225 41.0 31.0 15.25 12.75
YCS42B21S TM9Y120D20MP11 24.5 CF/CM64D 1225 41.5 31.0 15.25 12.75
YCS42B21S TMLV080C16MP11 21.0 CF/CM/CU42C 1325 41.0 31.5 14.50 12.50
YCS42B21S TMLV080C16MP11 21.0 CF/CM/CU48C 1325 41.0 31.5 14.50 12.50
YCS42B21S TMLV080C16MP11 21.0 CF/CM/CU48D 1300 41.0 31.5 14.75 12.50
YCS42B21S TMLV080C16MP11 21.0 CF/CM/CU60C 1325 41.5 32.0 15.00 12.50
YCS42B21S TMLV080C16MP11 21.0 CF/CM64D 1250 41.5 31.5 15.00 12.50
YCS42B21S TMLV100C16MP11 21.0 CF/CM/CU42C 1325 41.0 31.5 14.50 12.50
YCS42B21S TMLV100C16MP11 21.0 CF/CM/CU48C 1325 41.0 31.5 14.50 12.50
YCS42B21S TMLV100C16MP11 21.0 CF/CM/CU48D 1300 41.0 31.5 14.75 12.50
YCS42B21S TMLV100C16MP11 21.0 CF/CM/CU60C 1325 41.5 32.0 15.00 12.50
YCS42B21S TMLV100C16MP11 21.0 CF/CM64D 1250 41.5 31.5 15.00 12.50
YCS42B21S TMLV100C20MP11 21.0 CF/CM/CU42C 1225 40.5 30.5 14.75 12.50
YCS42B21S TMLV100C20MP11 21.0 CF/CM/CU48C 1300 41.0 31.5 14.75 12.50
YCS42B21S TMLV100C20MP11 21.0 CF/CM/CU60C 1400 41.5 33.0 14.75 12.50
YCS42B21S TMLV100C20MP11 21.0 CF/CM/CU60D 1225 41.0 30.5 15.00 12.50
YCS42B21S TMLV100C20MP11 21.0 CF/CM64D 1200 41.0 30.0 15.00 12.50
YCS42B21S TMLV120C20MP11 21.0 CF/CM/CU42C 1225 40.5 30.5 14.75 12.50
YCS42B21S TMLV120C20MP11 21.0 CF/CM/CU48C 1300 41.0 31.5 14.75 12.50
YCS42B21S TMLV120C20MP11 21.0 CF/CM/CU60C 1400 41.5 33.0 14.75 12.50
YCS42B21S TMLV120C20MP11 21.0 CF/CM/CU60D 1225 41.0 30.5 15.00 12.50
YCS42B21S TMLV120C20MP11 21.0 CF/CM64D 1200 41.0 30.0 15.00 12.50
YCS42B21S TMLX080B12MP11 17.5 CF42B 1175 40.0 29.5 14.50 12.50
YCS42B21S TMLX080C16MP11 21.0 CF/CM/CU42C 1200 40.0 29.5 14.75 12.50
YCS42B21S TMLX080C16MP11 21.0 CF/CM/CU42D 1400 41.0 32.5 14.50 12.50
YCS42B21S TMLX080C16MP11 21.0 CF/CM/CU48C 1400 41.0 32.5 14.50 12.50
YCS42B21S TMLX080C16MP11 21.0 CF/CM/CU48D 1400 41.0 32.5 14.50 12.50
YCS42B21S TMLX080C16MP11 21.0 CF/CM/CU60C 1200 40.5 30.0 15.00 12.50
YCS42B21S TMLX080C16MP11 21.0 CF/CM/CU60D 1200 40.5 30.0 15.00 12.50
YCS42B21S TMLX080C16MP11 21.0 CF/CM64D 1200 41.0 30.0 15.00 12.50
YCS42B21S TMLX100C16MP11 21.0 CF/CM/CU42C 1200 40.0 29.5 14.75 12.50
YCS42B21S TMLX100C16MP11 21.0 CF/CM/CU42D 1400 41.0 32.5 14.50 12.50
YCS42B21S TMLX100C16MP11 21.0 CF/CM/CU48C 1400 41.0 32.5 14.50 12.50
YCS42B21S TMLX100C16MP11 21.0 CF/CM/CU48D 1400 41.0 32.5 14.50 12.50
YCS42B21S TMLX100C16MP11 21.0 CF/CM/CU60C 1200 40.5 30.0 15.00 12.50
YCS42B21S TMLX100C16MP11 21.0 CF/CM/CU60D 1200 40.5 30.0 15.00 12.50
YCS42B21S TMLX100C16MP11 21.0 CF/CM64D 1200 41.0 30.0 15.00 12.50
YCS42B21S TMLX100C20MP11 21.0 CF/CM/CU42C 1400 41.0 32.5 14.50 12.50
YCS42B21S TMLX100C20MP11 21.0 CF/CM/CU42D 1275 41.0 31.0 15.25 12.75
YCS42B21S TMLX100C20MP11 21.0 CF/CM/CU48C 1275 41.0 31.0 15.00 12.50
YCS42B21S TMLX100C20MP11 21.0 CF/CM/CU48D 1300 41.5 32.0 15.25 12.75
YCS42B21S TMLX100C20MP11 21.0 CF/CM/CU60C 1275 41.5 31.5 15.25 12.75
YCS42B21S TMLX100C20MP11 21.0 CF/CM/CU60D 1275 41.5 31.5 15.25 12.75
YCS42B21S TMLX100C20MP11 21.0 CF/CM64D 1275 42.0 32.0 15.50 12.75
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
Johnson Controls Unitary Products 33
YCS42B21S TMLX120C20MP11 21.0 CF/CM/CU42C 1400 41.0 32.5 14.50 12.50
YCS42B21S TMLX120C20MP11 21.0 CF/CM/CU42D 1275 41.0 31.0 15.25 12.75
YCS42B21S TMLX120C20MP11 21.0 CF/CM/CU48C 1275 41.0 31.0 15.00 12.50
YCS42B21S TMLX120C20MP11 21.0 CF/CM/CU48D 1300 41.5 32.0 15.25 12.75
YCS42B21S TMLX120C20MP11 21.0 CF/CM/CU60C 1275 41.5 31.5 15.25 12.75
YCS42B21S TMLX120C20MP11 21.0 CF/CM/CU60D 1275 41.5 31.5 15.25 12.75
YCS42B21S TMLX120C20MP11 21.0 CF/CM64D 1275 42.0 32.0 15.50 12.75
YCS42B21S TP9C060B12MP12 17.5 CF42B 1175 40.0 29.0 14.25 12.25
YCS42B21S TP9C080B12MP12 17.5 CF42B 1175 40.0 29.0 14.25 12.25
YCS42B21S TP9C080C16MP12 21.0 CF/CM/CU42C 1275 40.5 31.0 14.75 12.50
YCS42B21S TP9C080C16MP12 21.0 CF/CM/CU48C 1275 41.0 31.0 14.75 12.50
YCS42B21S TP9C080C16MP12 21.0 CF/CM/CU48D 1425 41.5 33.0 15.00 12.50
YCS42B21S TP9C080C16MP12 21.0 CF/CM/CU60C 1200 41.0 30.0 15.00 12.50
YCS42B21S TP9C080C16MP12 21.0 CF/CM/CU60D 1425 42.0 33.0 14.50 12.50
YCS42B21S TP9C080C16MP12 21.0 CF/CM64D 1300 41.5 32.0 15.00 12.50
YCS42B21S TP9C100C16MP12 21.0 CF/CM/CU42C 1275 40.5 31.0 14.75 12.50
YCS42B21S TP9C100C16MP12 21.0 CF/CM/CU48C 1275 41.0 31.0 14.75 12.50
YCS42B21S TP9C100C16MP12 21.0 CF/CM/CU48D 1425 41.5 33.0 15.00 12.50
YCS42B21S TP9C100C16MP12 21.0 CF/CM/CU60C 1200 41.0 30.0 15.00 12.50
YCS42B21S TP9C100C16MP12 21.0 CF/CM/CU60D 1425 42.0 33.0 14.50 12.50
YCS42B21S TP9C100C16MP12 21.0 CF/CM64D 1300 41.5 32.0 15.00 12.50
YCS42B21S TP9C100C20MP12 21.0 CF/CM/CU42C 1275 40.5 31.0 14.50 12.50
YCS42B21S TP9C100C20MP12 21.0 CF/CM/CU48C 1275 41.0 31.0 14.75 12.50
YCS42B21S TP9C100C20MP12 21.0 CF/CM/CU48D 1300 41.0 31.5 14.75 12.50
YCS42B21S TP9C100C20MP12 21.0 CF/CM/CU60C 1275 41.0 31.5 14.75 12.50
YCS42B21S TP9C100C20MP12 21.0 CF/CM/CU60D 1250 41.5 31.0 15.00 12.50
YCS42B21S TP9C100C20MP12 21.0 CF/CM64D 1225 41.5 31.0 15.00 12.50
YCS42B21S TP9C120D20MP12 24.5 CF/CM/CU42D 1300 41.0 31.5 15.00 12.50
YCS42B21S TP9C120D20MP12 24.5 CF/CM/CU48D 1300 41.0 31.5 15.00 12.50
YCS42B21S TP9C120D20MP12 24.5 CF/CM/CU60D 1250 41.5 31.0 15.25 12.50
YCS42B21S TP9C120D20MP12 24.5 CF/CM64D 1250 42.0 31.5 15.25 12.75
YCS42B21S TPLC080C16MP12 21.0 CF/CM/CU42C 1325 41.0 31.5 14.50 12.50
YCS42B21S TPLC080C16MP12 21.0 CF/CM/CU48C 1325 41.0 31.5 14.50 12.50
YCS42B21S TPLC080C16MP12 21.0 CF/CM/CU48D 1300 41.0 31.5 14.75 12.50
YCS42B21S TPLC080C16MP12 21.0 CF/CM/CU60C 1325 41.5 32.0 15.00 12.50
YCS42B21S TPLC080C16MP12 21.0 CF/CM64D 1250 41.5 31.5 15.00 12.50
YCS42B21S TPLC100C16MP12 21.0 CF/CM/CU42C 1325 41.0 31.5 14.50 12.50
YCS42B21S TPLC100C16MP12 21.0 CF/CM/CU48C 1325 41.0 31.5 14.50 12.50
YCS42B21S TPLC100C16MP12 21.0 CF/CM/CU48D 1300 41.0 31.5 14.75 12.50
YCS42B21S TPLC100C16MP12 21.0 CF/CM/CU60C 1325 41.5 32.0 15.00 12.50
YCS42B21S TPLC100C16MP12 21.0 CF/CM64D 1250 41.5 31.5 15.00 12.50
YCS42B21S TPLC100C20MP12 21.0 CF/CM/CU42C 1225 40.5 30.5 14.75 12.50
YCS42B21S TPLC100C20MP12 21.0 CF/CM/CU48C 1300 41.0 31.5 14.75 12.50
YCS42B21S TPLC100C20MP12 21.0 CF/CM/CU60C 1400 41.5 33.0 14.75 12.50
YCS42B21S TPLC100C20MP12 21.0 CF/CM/CU60D 1225 41.0 30.5 15.00 12.50
YCS42B21S TPLC100C20MP12 21.0 CF/CM64D 1200 41.0 30.0 15.00 12.50
YCS42B21S TPLC120C20MP12 21.0 CF/CM/CU42C 1225 40.5 30.5 14.75 12.50
YCS42B21S TPLC120C20MP12 21.0 CF/CM/CU48C 1300 41.0 31.5 14.75 12.50
YCS42B21S TPLC120C20MP12 21.0 CF/CM/CU60C 1400 41.5 33.0 14.75 12.50
YCS42B21S TPLC120C20MP12 21.0 CF/CM/CU60D 1225 41.0 30.5 15.00 12.50
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
34 Johnson Controls Unitary Products
YCS42B21S TPLC120C20MP12 21.0 CF/CM64D 1200 41.0 30.0 15.00 12.50
YCS42B21S YP9C060B12MP12 17.5 CF42B 1175 40.0 29.0 14.25 12.25
YCS42B21S YP9C080B12MP12 17.5 CF42B 1175 40.0 29.0 14.25 12.25
YCS42B21S YP9C080C16MP12 21.0 CF/CM/CU42C 1275 40.5 31.0 14.75 12.50
YCS42B21S YP9C080C16MP12 21.0 CF/CM/CU48C 1275 41.0 31.0 14.75 12.50
YCS42B21S YP9C080C16MP12 21.0 CF/CM/CU48D 1425 41.5 33.0 15.00 12.50
YCS42B21S YP9C080C16MP12 21.0 CF/CM/CU60C 1200 41.0 30.0 15.00 12.50
YCS42B21S YP9C080C16MP12 21.0 CF/CM/CU60D 1425 42.0 33.0 14.50 12.50
YCS42B21S YP9C080C16MP12 21.0 CF/CM64D 1300 41.5 32.0 15.00 12.50
YCS42B21S YP9C100C16MP12 21.0 CF/CM/CU42C 1275 40.5 31.0 14.75 12.50
YCS42B21S YP9C100C16MP12 21.0 CF/CM/CU48C 1275 41.0 31.0 14.75 12.50
YCS42B21S YP9C100C16MP12 21.0 CF/CM/CU48D 1425 41.5 33.0 15.00 12.50
YCS42B21S YP9C100C16MP12 21.0 CF/CM/CU60C 1200 41.0 30.0 15.00 12.50
YCS42B21S YP9C100C16MP12 21.0 CF/CM/CU60D 1425 42.0 33.0 14.50 12.50
YCS42B21S YP9C100C16MP12 21.0 CF/CM64D 1300 41.5 32.0 15.00 12.50
YCS42B21S YP9C100C20MP12 21.0 CF/CM/CU42C 1275 40.5 31.0 14.50 12.50
YCS42B21S YP9C100C20MP12 21.0 CF/CM/CU48C 1275 41.0 31.0 14.75 12.50
YCS42B21S YP9C100C20MP12 21.0 CF/CM/CU48D 1300 41.0 31.5 14.75 12.50
YCS42B21S YP9C100C20MP12 21.0 CF/CM/CU60C 1275 41.0 31.5 14.75 12.50
YCS42B21S YP9C100C20MP12 21.0 CF/CM/CU60D 1250 41.5 31.0 15.00 12.50
YCS42B21S YP9C100C20MP12 21.0 CF/CM64D 1225 41.5 31.0 15.00 12.50
YCS42B21S YP9C120D20MP12 24.5 CF/CM/CU42D 1300 41.0 31.5 15.00 12.50
YCS42B21S YP9C120D20MP12 24.5 CF/CM/CU48D 1300 41.0 31.5 15.00 12.50
YCS42B21S YP9C120D20MP12 24.5 CF/CM/CU60D 1250 41.5 31.0 15.25 12.50
YCS42B21S YP9C120D20MP12 24.5 CF/CM64D 1250 42.0 31.5 15.25 12.75
YCS42B21S YPLC080C16MP12 21.0 CF/CM/CU42C 1325 41.0 31.5 14.50 12.50
YCS42B21S YPLC080C16MP12 21.0 CF/CM/CU48C 1325 41.0 31.5 14.50 12.50
YCS42B21S YPLC080C16MP12 21.0 CF/CM/CU48D 1300 41.0 31.5 14.75 12.50
YCS42B21S YPLC080C16MP12 21.0 CF/CM/CU60C 1325 41.5 32.0 15.00 12.50
YCS42B21S YPLC080C16MP12 21.0 CF/CM64D 1250 41.5 31.5 15.00 12.50
YCS42B21S YPLC100C16MP12 21.0 CF/CM/CU42C 1325 41.0 31.5 14.50 12.50
YCS42B21S YPLC100C16MP12 21.0 CF/CM/CU48C 1325 41.0 31.5 14.50 12.50
YCS42B21S YPLC100C16MP12 21.0 CF/CM/CU48D 1300 41.0 31.5 14.75 12.50
YCS42B21S YPLC100C16MP12 21.0 CF/CM/CU60C 1325 41.5 32.0 15.00 12.50
YCS42B21S YPLC100C16MP12 21.0 CF/CM64D 1250 41.5 31.5 15.00 12.50
YCS42B21S YPLC100C20MP12 21.0 CF/CM/CU42C 1225 40.5 30.5 14.75 12.50
YCS42B21S YPLC100C20MP12 21.0 CF/CM/CU48C 1300 41.0 31.5 14.75 12.50
YCS42B21S YPLC100C20MP12 21.0 CF/CM/CU60C 1400 41.5 33.0 14.75 12.50
YCS42B21S YPLC100C20MP12 21.0 CF/CM/CU60D 1225 41.0 30.5 15.00 12.50
YCS42B21S YPLC100C20MP12 21.0 CF/CM64D 1200 41.0 30.0 15.00 12.50
YCS42B21S YPLC120C20MP12 21.0 CF/CM/CU42C 1225 40.5 30.5 14.75 12.50
YCS42B21S YPLC120C20MP12 21.0 CF/CM/CU48C 1300 41.0 31.5 14.75 12.50
YCS42B21S YPLC120C20MP12 21.0 CF/CM/CU60C 1400 41.5 33.0 14.75 12.50
YCS42B21S YPLC120C20MP12 21.0 CF/CM/CU60D 1225 41.0 30.5 15.00 12.50
YCS42B21S YPLC120C20MP12 21.0 CF/CM64D 1200 41.0 30.0 15.00 12.50
YCS48B21S TM8V080C16MP11 21.0 CF/CM/CU48C 1325 48.0 33.5 15.00 12.50
YCS48B21S TM8V080C16MP11 21.0 CF/CM/CU48D 1300 48.0 33.5 15.25 12.50
YCS48B21S TM8V080C16MP11 21.0 CF/CM/CU60C 1325 48.0 33.5 15.50 12.75
YCS48B21S TM8V080C16MP11 21.0 CF/CM/CU60D 1325 48.0 33.5 15.50 12.75
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
Johnson Controls Unitary Products 35
YCS48B21S TM8V080C16MP11 21.0 CF/CM64D 1400 48.0 34.5 15.50 12.75
YCS48B21S TM8V100C16MP11 21.0 CF/CM/CU48C 1325 48.0 33.5 15.00 12.50
YCS48B21S TM8V100C16MP11 21.0 CF/CM/CU48D 1300 48.0 33.5 15.25 12.50
YCS48B21S TM8V100C16MP11 21.0 CF/CM/CU60C 1325 48.0 33.5 15.50 12.75
YCS48B21S TM8V100C16MP11 21.0 CF/CM/CU60D 1325 48.0 33.5 15.50 12.75
YCS48B21S TM8V100C16MP11 21.0 CF/CM64D 1400 48.0 34.5 15.50 12.75
YCS48B21S TM8V100C20MP11 21.0 CF/CM/CU48C 1300 48.0 33.5 15.25 12.50
YCS48B21S TM8V100C20MP11 21.0 CF/CM/CU48D 1650 48.0 35.5 15.75 12.75
YCS48B21S TM8V100C20MP11 21.0 CF/CM/CU60C 1400 48.0 34.5 15.50 12.75
YCS48B21S TM8V100C20MP11 21.0 CF/CM/CU60D 1350 48.0 34.0 15.25 12.50
YCS48B21S TM8V100C20MP11 21.0 CF/CM64D 1425 48.0 35.0 15.50 12.75
YCS48B21S TM8V120C20MP11 21.0 CF/CM/CU48C 1300 48.0 33.5 15.25 12.50
YCS48B21S TM8V120C20MP11 21.0 CF/CM/CU48D 1650 48.0 35.5 15.75 12.75
YCS48B21S TM8V120C20MP11 21.0 CF/CM/CU60C 1400 48.0 34.5 15.50 12.75
YCS48B21S TM8V120C20MP11 21.0 CF/CM/CU60D 1350 48.0 34.0 15.25 12.50
YCS48B21S TM8V120C20MP11 21.0 CF/CM64D 1425 48.0 35.0 15.50 12.75
YCS48B21S TM8X080C16MP11 21.0 CF/CM/CU48C 1400 48.0 35.0 15.25 12.50
YCS48B21S TM8X080C16MP11 21.0 CF/CM/CU48D 1425 48.0 34.0 15.25 12.50
YCS48B21S TM8X080C16MP11 21.0 CF/CM/CU60C 1400 48.0 34.5 15.25 12.50
YCS48B21S TM8X080C16MP11 21.0 CF/CM/CU60D 1425 48.0 34.5 15.50 12.75
YCS48B21S TM8X080C16MP11 21.0 CF/CM64D 1400 48.0 34.5 15.50 12.75
YCS48B21S TM8X100C16MP11 21.0 CF/CM/CU48C 1400 48.0 35.0 15.25 12.50
YCS48B21S TM8X100C16MP11 21.0 CF/CM/CU48D 1425 48.0 34.0 15.25 12.50
YCS48B21S TM8X100C16MP11 21.0 CF/CM/CU60C 1400 48.0 34.5 15.25 12.50
YCS48B21S TM8X100C16MP11 21.0 CF/CM/CU60D 1425 48.0 34.5 15.50 12.75
YCS48B21S TM8X100C16MP11 21.0 CF/CM64D 1400 48.0 34.5 15.50 12.75
YCS48B21S TM8X100C20MP11 21.0 CF/CM/CU48C 1425 48.0 34.5 15.50 12.75
YCS48B21S TM8X100C20MP11 21.0 CF/CM/CU48D 1300 48.0 33.5 15.75 13.00
YCS48B21S TM8X100C20MP11 21.0 CF/CM/CU60C 1450 48.0 35.5 15.50 12.75
YCS48B21S TM8X100C20MP11 21.0 CF/CM/CU60D 1475 48.0 35.0 15.75 13.00
YCS48B21S TM8X100C20MP11 21.0 CF/CM64D 1450 48.0 35.0 15.75 13.00
YCS48B21S TM8X120C20MP11 21.0 CF/CM/CU48C 1425 48.0 34.5 15.50 12.75
YCS48B21S TM8X120C20MP11 21.0 CF/CM/CU48D 1300 48.0 33.5 15.75 13.00
YCS48B21S TM8X120C20MP11 21.0 CF/CM/CU60C 1450 48.0 35.5 15.50 12.75
YCS48B21S TM8X120C20MP11 21.0 CF/CM/CU60D 1475 48.0 35.0 15.75 13.00
YCS48B21S TM8X120C20MP11 21.0 CF/CM64D 1450 48.0 35.0 15.75 13.00
YCS48B21S TM8Y080C16MP11 21.0 CF/CM/CU48C 1400 48.0 35.0 15.25 12.50
YCS48B21S TM8Y080C16MP11 21.0 CF/CM/CU48D 1425 48.0 34.0 15.25 12.50
YCS48B21S TM8Y080C16MP11 21.0 CF/CM/CU60C 1400 48.0 34.5 15.25 12.50
YCS48B21S TM8Y080C16MP11 21.0 CF/CM/CU60D 1425 48.0 34.5 15.50 12.75
YCS48B21S TM8Y080C16MP11 21.0 CF/CM64D 1400 48.0 34.5 15.50 12.75
YCS48B21S TM8Y100C16MP11 21.0 CF/CM/CU48C 1400 48.0 35.0 15.25 12.50
YCS48B21S TM8Y100C16MP11 21.0 CF/CM/CU48D 1425 48.0 34.0 15.25 12.50
YCS48B21S TM8Y100C16MP11 21.0 CF/CM/CU60C 1400 48.0 34.5 15.25 12.50
YCS48B21S TM8Y100C16MP11 21.0 CF/CM/CU60D 1425 48.0 34.5 15.50 12.75
YCS48B21S TM8Y100C16MP11 21.0 CF/CM64D 1400 48.0 34.5 15.50 12.75
YCS48B21S TM8Y100C20MP11 21.0 CF/CM/CU48C 1425 48.0 34.5 15.50 12.75
YCS48B21S TM8Y100C20MP11 21.0 CF/CM/CU48D 1300 48.0 33.5 15.75 13.00
YCS48B21S TM8Y100C20MP11 21.0 CF/CM/CU60C 1450 48.0 35.5 15.50 12.75
YCS48B21S TM8Y100C20MP11 21.0 CF/CM/CU60D 1475 48.0 35.0 15.75 13.00
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
36 Johnson Controls Unitary Products
YCS48B21S TM8Y100C20MP11 21.0 CF/CM64D 1450 48.0 35.0 15.75 13.00
YCS48B21S TM8Y120C20MP11 21.0 CF/CM/CU48C 1425 48.0 34.5 15.50 12.75
YCS48B21S TM8Y120C20MP11 21.0 CF/CM/CU48D 1300 48.0 33.5 15.75 13.00
YCS48B21S TM8Y120C20MP11 21.0 CF/CM/CU60C 1450 48.0 35.5 15.50 12.75
YCS48B21S TM8Y120C20MP11 21.0 CF/CM/CU60D 1475 48.0 35.0 15.75 13.00
YCS48B21S TM8Y120C20MP11 21.0 CF/CM64D 1450 48.0 35.0 15.75 13.00
YCS48B21S TM9E080C16MP11 21.0 CF/CM/CU48C 1325 48.0 33.5 15.00 12.50
YCS48B21S TM9E080C16MP11 21.0 CF/CM/CU48D 1350 48.0 33.5 15.00 12.50
YCS48B21S TM9E080C16MP11 21.0 CF/CM/CU60C 1325 48.0 34.0 15.25 12.50
YCS48B21S TM9E080C16MP11 21.0 CF/CM/CU60D 1325 48.0 34.0 15.25 12.50
YCS48B21S TM9E080C16MP11 21.0 CF/CM64D 1350 48.0 33.5 15.50 12.75
YCS48B21S TM9E100C16MP11 21.0 CF/CM/CU48C 1325 48.0 33.5 15.00 12.50
YCS48B21S TM9E100C16MP11 21.0 CF/CM/CU48D 1350 48.0 33.5 15.00 12.50
YCS48B21S TM9E100C16MP11 21.0 CF/CM/CU60C 1325 48.0 34.0 15.25 12.50
YCS48B21S TM9E100C16MP11 21.0 CF/CM/CU60D 1325 48.0 34.0 15.25 12.50
YCS48B21S TM9E100C16MP11 21.0 CF/CM64D 1350 48.0 33.5 15.50 12.75
YCS48B21S TM9E100C20MP11 21.0 CF/CM/CU48C 1400 48.0 35.0 15.25 12.50
YCS48B21S TM9E100C20MP11 21.0 CF/CM/CU48D 1425 48.0 34.5 15.50 12.75
YCS48B21S TM9E100C20MP11 21.0 CF/CM/CU60C 1400 48.0 34.5 15.50 12.75
YCS48B21S TM9E100C20MP11 21.0 CF/CM/CU60D 1450 48.0 35.5 15.50 12.75
YCS48B21S TM9E100C20MP11 21.0 CF/CM64D 1400 48.0 34.5 15.50 12.75
YCS48B21S TM9E120D20MP11 24.5 CF/CM/CU48D 1425 48.0 34.5 15.50 12.75
YCS48B21S TM9E120D20MP11 24.5 CF/CM/CU60D 1425 48.0 34.5 15.75 12.75
YCS48B21S TM9E120D20MP11 24.5 CF/CM64D 1400 48.0 34.5 15.75 12.75
YCS48B21S TM9V080C16MP11 21.0 CF/CM/CU48C 1425 48.0 34.5 15.25 12.50
YCS48B21S TM9V080C16MP11 21.0 CF/CM/CU48D 1425 48.0 34.5 15.75 13.00
YCS48B21S TM9V080C16MP11 21.0 CF/CM/CU60C 1325 48.0 34.0 15.25 12.50
YCS48B21S TM9V080C16MP11 21.0 CF/CM/CU60D 1425 48.0 34.5 15.25 12.50
YCS48B21S TM9V080C16MP11 21.0 CF/CM64D 1300 48.0 33.5 15.75 12.75
YCS48B21S TM9V100C16MP11 21.0 CF/CM/CU48C 1425 48.0 34.5 15.25 12.50
YCS48B21S TM9V100C16MP11 21.0 CF/CM/CU48D 1425 48.0 34.5 15.75 13.00
YCS48B21S TM9V100C16MP11 21.0 CF/CM/CU60C 1325 48.0 34.0 15.25 12.50
YCS48B21S TM9V100C16MP11 21.0 CF/CM/CU60D 1425 48.0 34.5 15.25 12.50
YCS48B21S TM9V100C16MP11 21.0 CF/CM64D 1300 48.0 33.5 15.75 12.75
YCS48B21S TM9V100C20MP11 21.0 CF/CM/CU48C 1450 48.0 34.5 14.75 12.25
YCS48B21S TM9V100C20MP11 21.0 CF/CM/CU48D 1300 48.0 33.5 15.25 12.50
YCS48B21S TM9V100C20MP11 21.0 CF/CM/CU60C 1500 48.0 35.5 15.00 12.50
YCS48B21S TM9V100C20MP11 21.0 CF/CM/CU60D 1325 48.0 33.5 15.50 12.75
YCS48B21S TM9V100C20MP11 21.0 CF/CM64D 1300 48.0 33.5 15.75 12.75
YCS48B21S TM9V120D20MP11 24.5 CF/CM/CU48D 1300 48.0 33.5 15.50 12.75
YCS48B21S TM9V120D20MP11 24.5 CF/CM/CU60D 1300 48.0 33.5 15.75 12.75
YCS48B21S TM9V120D20MP11 24.5 CF/CM64D 1525 48.0 35.5 15.25 12.50
YCS48B21S TM9Y080C16MP11 21.0 CF/CM/CU48C 1325 48.0 33.5 15.00 12.50
YCS48B21S TM9Y080C16MP11 21.0 CF/CM/CU48D 1350 48.0 33.5 15.00 12.50
YCS48B21S TM9Y080C16MP11 21.0 CF/CM/CU60C 1325 48.0 34.0 15.25 12.50
YCS48B21S TM9Y080C16MP11 21.0 CF/CM/CU60D 1325 48.0 34.0 15.25 12.50
YCS48B21S TM9Y080C16MP11 21.0 CF/CM64D 1350 48.0 33.5 15.50 12.75
YCS48B21S TM9Y100C16MP11 21.0 CF/CM/CU48C 1325 48.0 33.5 15.00 12.50
YCS48B21S TM9Y100C16MP11 21.0 CF/CM/CU48D 1350 48.0 33.5 15.00 12.50
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
Johnson Controls Unitary Products 37
YCS48B21S TM9Y100C16MP11 21.0 CF/CM/CU60C 1325 48.0 34.0 15.25 12.50
YCS48B21S TM9Y100C16MP11 21.0 CF/CM/CU60D 1325 48.0 34.0 15.25 12.50
YCS48B21S TM9Y100C16MP11 21.0 CF/CM64D 1350 48.0 33.5 15.50 12.75
YCS48B21S TM9Y100C20MP11 21.0 CF/CM/CU48C 1400 48.0 35.0 15.25 12.50
YCS48B21S TM9Y100C20MP11 21.0 CF/CM/CU48D 1425 48.0 34.5 15.50 12.75
YCS48B21S TM9Y100C20MP11 21.0 CF/CM/CU60C 1400 48.0 34.5 15.50 12.75
YCS48B21S TM9Y100C20MP11 21.0 CF/CM/CU60D 1450 48.0 35.5 15.50 12.75
YCS48B21S TM9Y100C20MP11 21.0 CF/CM64D 1400 48.0 34.5 15.50 12.75
YCS48B21S TM9Y120D20MP11 24.5 CF/CM/CU48D 1425 48.0 34.5 15.50 12.75
YCS48B21S TM9Y120D20MP11 24.5 CF/CM/CU60D 1425 48.0 34.5 15.75 12.75
YCS48B21S TM9Y120D20MP11 24.5 CF/CM64D 1400 48.0 34.5 15.75 12.75
YCS48B21S TMLV080C16MP11 21.0 CF/CM/CU48C 1325 48.0 33.5 15.00 12.50
YCS48B21S TMLV080C16MP11 21.0 CF/CM/CU48D 1300 48.0 33.5 15.25 12.50
YCS48B21S TMLV080C16MP11 21.0 CF/CM/CU60C 1325 48.0 33.5 15.50 12.75
YCS48B21S TMLV080C16MP11 21.0 CF/CM/CU60D 1325 48.0 33.5 15.50 12.75
YCS48B21S TMLV080C16MP11 21.0 CF/CM64D 1400 48.0 34.5 15.50 12.75
YCS48B21S TMLV100C16MP11 21.0 CF/CM/CU48C 1325 48.0 33.5 15.00 12.50
YCS48B21S TMLV100C16MP11 21.0 CF/CM/CU48D 1300 48.0 33.5 15.25 12.50
YCS48B21S TMLV100C16MP11 21.0 CF/CM/CU60C 1325 48.0 33.5 15.50 12.75
YCS48B21S TMLV100C16MP11 21.0 CF/CM/CU60D 1325 48.0 33.5 15.50 12.75
YCS48B21S TMLV100C16MP11 21.0 CF/CM64D 1400 48.0 34.5 15.50 12.75
YCS48B21S TMLV100C20MP11 21.0 CF/CM/CU48C 1300 48.0 33.5 15.25 12.50
YCS48B21S TMLV100C20MP11 21.0 CF/CM/CU48D 1650 48.0 35.5 15.75 12.75
YCS48B21S TMLV100C20MP11 21.0 CF/CM/CU60C 1400 48.0 34.5 15.50 12.75
YCS48B21S TMLV100C20MP11 21.0 CF/CM/CU60D 1350 48.0 34.0 15.25 12.50
YCS48B21S TMLV100C20MP11 21.0 CF/CM64D 1425 48.0 35.0 15.50 12.75
YCS48B21S TMLV120C20MP11 21.0 CF/CM/CU48C 1300 48.0 33.5 15.25 12.50
YCS48B21S TMLV120C20MP11 21.0 CF/CM/CU48D 1650 48.0 35.5 15.75 12.75
YCS48B21S TMLV120C20MP11 21.0 CF/CM/CU60C 1400 48.0 34.5 15.50 12.75
YCS48B21S TMLV120C20MP11 21.0 CF/CM/CU60D 1350 48.0 34.0 15.25 12.50
YCS48B21S TMLV120C20MP11 21.0 CF/CM64D 1425 48.0 35.0 15.50 12.75
YCS48B21S TMLX080C16MP11 21.0 CF/CM/CU48C 1400 48.0 35.0 15.25 12.50
YCS48B21S TMLX080C16MP11 21.0 CF/CM/CU48D 1425 48.0 34.0 15.25 12.50
YCS48B21S TMLX080C16MP11 21.0 CF/CM/CU60C 1400 48.0 34.5 15.25 12.50
YCS48B21S TMLX080C16MP11 21.0 CF/CM/CU60D 1425 48.0 34.5 15.50 12.75
YCS48B21S TMLX080C16MP11 21.0 CF/CM64D 1400 48.0 34.5 15.50 12.75
YCS48B21S TMLX100C16MP11 21.0 CF/CM/CU48C 1400 48.0 35.0 15.25 12.50
YCS48B21S TMLX100C16MP11 21.0 CF/CM/CU48D 1425 48.0 34.0 15.25 12.50
YCS48B21S TMLX100C16MP11 21.0 CF/CM/CU60C 1400 48.0 34.5 15.25 12.50
YCS48B21S TMLX100C16MP11 21.0 CF/CM/CU60D 1425 48.0 34.5 15.50 12.75
YCS48B21S TMLX100C16MP11 21.0 CF/CM64D 1400 48.0 34.5 15.50 12.75
YCS48B21S TMLX100C20MP11 21.0 CF/CM/CU48C 1425 48.0 34.5 15.50 12.75
YCS48B21S TMLX100C20MP11 21.0 CF/CM/CU48D 1300 48.0 33.5 15.75 13.00
YCS48B21S TMLX100C20MP11 21.0 CF/CM/CU60C 1450 48.0 35.5 15.50 12.75
YCS48B21S TMLX100C20MP11 21.0 CF/CM/CU60D 1475 48.0 35.0 15.75 13.00
YCS48B21S TMLX100C20MP11 21.0 CF/CM64D 1450 48.0 35.0 15.75 13.00
YCS48B21S TMLX120C20MP11 21.0 CF/CM/CU48C 1425 48.0 34.5 15.50 12.75
YCS48B21S TMLX120C20MP11 21.0 CF/CM/CU48D 1300 48.0 33.5 15.75 13.00
YCS48B21S TMLX120C20MP11 21.0 CF/CM/CU60C 1450 48.0 35.5 15.50 12.75
YCS48B21S TMLX120C20MP11 21.0 CF/CM/CU60D 1475 48.0 35.0 15.75 13.00
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
38 Johnson Controls Unitary Products
YCS48B21S TMLX120C20MP11 21.0 CF/CM64D 1450 48.0 35.0 15.75 13.00
YCS48B21S TP9C080C16MP12 21.0 CF/CM/CU48C 1425 48.0 34.5 15.25 12.50
YCS48B21S TP9C080C16MP12 21.0 CF/CM/CU48D 1425 48.0 34.5 15.75 13.00
YCS48B21S TP9C080C16MP12 21.0 CF/CM/CU60C 1325 48.0 34.0 15.25 12.50
YCS48B21S TP9C080C16MP12 21.0 CF/CM/CU60D 1425 48.0 34.5 15.25 12.50
YCS48B21S TP9C080C16MP12 21.0 CF/CM64D 1300 48.0 33.5 15.75 12.75
YCS48B21S TP9C100C16MP12 21.0 CF/CM/CU48C 1425 48.0 34.5 15.25 12.50
YCS48B21S TP9C100C16MP12 21.0 CF/CM/CU48D 1425 48.0 34.5 15.75 13.00
YCS48B21S TP9C100C16MP12 21.0 CF/CM/CU60C 1325 48.0 34.0 15.25 12.50
YCS48B21S TP9C100C16MP12 21.0 CF/CM/CU60D 1425 48.0 34.5 15.25 12.50
YCS48B21S TP9C100C16MP12 21.0 CF/CM64D 1300 48.0 33.5 15.75 12.75
YCS48B21S TP9C100C20MP12 21.0 CF/CM/CU48C 1450 48.0 34.5 14.75 12.25
YCS48B21S TP9C100C20MP12 21.0 CF/CM/CU48D 1300 48.0 33.5 15.25 12.50
YCS48B21S TP9C100C20MP12 21.0 CF/CM/CU60C 1500 48.0 35.5 15.00 12.50
YCS48B21S TP9C100C20MP12 21.0 CF/CM/CU60D 1325 48.0 33.5 15.50 12.75
YCS48B21S TP9C100C20MP12 21.0 CF/CM64D 1300 48.0 33.5 15.75 12.75
YCS48B21S TP9C120D20MP12 24.5 CF/CM/CU48D 1300 48.0 33.5 15.50 12.75
YCS48B21S TP9C120D20MP12 24.5 CF/CM/CU60D 1300 48.0 33.5 15.75 12.75
YCS48B21S TP9C120D20MP12 24.5 CF/CM64D 1525 48.0 35.5 15.25 12.50
YCS48B21S TPLC080C16MP12 21.0 CF/CM/CU48C 1325 48.0 33.5 15.00 12.50
YCS48B21S TPLC080C16MP12 21.0 CF/CM/CU48D 1300 48.0 33.5 15.25 12.50
YCS48B21S TPLC080C16MP12 21.0 CF/CM/CU60C 1325 48.0 33.5 15.50 12.75
YCS48B21S TPLC080C16MP12 21.0 CF/CM/CU60D 1325 48.0 33.5 15.50 12.75
YCS48B21S TPLC080C16MP12 21.0 CF/CM64D 1400 48.0 34.5 15.50 12.75
YCS48B21S TPLC100C16MP12 21.0 CF/CM/CU48C 1325 48.0 33.5 15.00 12.50
YCS48B21S TPLC100C16MP12 21.0 CF/CM/CU48D 1300 48.0 33.5 15.25 12.50
YCS48B21S TPLC100C16MP12 21.0 CF/CM/CU60C 1325 48.0 33.5 15.50 12.75
YCS48B21S TPLC100C16MP12 21.0 CF/CM/CU60D 1325 48.0 33.5 15.50 12.75
YCS48B21S TPLC100C16MP12 21.0 CF/CM64D 1400 48.0 34.5 15.50 12.75
YCS48B21S TPLC100C20MP12 21.0 CF/CM/CU48C 1300 48.0 33.5 15.25 12.50
YCS48B21S TPLC100C20MP12 21.0 CF/CM/CU48D 1650 48.0 35.5 15.75 12.75
YCS48B21S TPLC100C20MP12 21.0 CF/CM/CU60C 1400 48.0 34.5 15.50 12.75
YCS48B21S TPLC100C20MP12 21.0 CF/CM/CU60D 1350 48.0 34.0 15.25 12.50
YCS48B21S TPLC100C20MP12 21.0 CF/CM64D 1425 48.0 35.0 15.50 12.75
YCS48B21S TPLC120C20MP12 21.0 CF/CM/CU48C 1300 48.0 33.5 15.25 12.50
YCS48B21S TPLC120C20MP12 21.0 CF/CM/CU48D 1650 48.0 35.5 15.75 12.75
YCS48B21S TPLC120C20MP12 21.0 CF/CM/CU60C 1400 48.0 34.5 15.50 12.75
YCS48B21S TPLC120C20MP12 21.0 CF/CM/CU60D 1350 48.0 34.0 15.25 12.50
YCS48B21S TPLC120C20MP12 21.0 CF/CM64D 1425 48.0 35.0 15.50 12.75
YCS48B21S YP9C080C16MP12 21.0 CF/CM/CU48C 1425 48.0 34.5 15.25 12.50
YCS48B21S YP9C080C16MP12 21.0 CF/CM/CU48D 1425 48.0 34.5 15.75 13.00
YCS48B21S YP9C080C16MP12 21.0 CF/CM/CU60C 1325 48.0 34.0 15.25 12.50
YCS48B21S YP9C080C16MP12 21.0 CF/CM/CU60D 1425 48.0 34.5 15.25 12.50
YCS48B21S YP9C080C16MP12 21.0 CF/CM64D 1300 48.0 33.5 15.75 12.75
YCS48B21S YP9C100C16MP12 21.0 CF/CM/CU48C 1425 48.0 34.5 15.25 12.50
YCS48B21S YP9C100C16MP12 21.0 CF/CM/CU48D 1425 48.0 34.5 15.75 13.00
YCS48B21S YP9C100C16MP12 21.0 CF/CM/CU60C 1325 48.0 34.0 15.25 12.50
YCS48B21S YP9C100C16MP12 21.0 CF/CM/CU60D 1425 48.0 34.5 15.25 12.50
YCS48B21S YP9C100C16MP12 21.0 CF/CM64D 1300 48.0 33.5 15.75 12.75
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
Johnson Controls Unitary Products 39
YCS48B21S YP9C100C20MP12 21.0 CF/CM/CU48C 1450 48.0 34.5 14.75 12.25
YCS48B21S YP9C100C20MP12 21.0 CF/CM/CU48D 1300 48.0 33.5 15.25 12.50
YCS48B21S YP9C100C20MP12 21.0 CF/CM/CU60C 1500 48.0 35.5 15.00 12.50
YCS48B21S YP9C100C20MP12 21.0 CF/CM/CU60D 1325 48.0 33.5 15.50 12.75
YCS48B21S YP9C100C20MP12 21.0 CF/CM64D 1300 48.0 33.5 15.75 12.75
YCS48B21S YP9C120D20MP12 24.5 CF/CM/CU48D 1300 48.0 33.5 15.50 12.75
YCS48B21S YP9C120D20MP12 24.5 CF/CM/CU60D 1300 48.0 33.5 15.75 12.75
YCS48B21S YP9C120D20MP12 24.5 CF/CM64D 1525 48.0 35.5 15.25 12.50
YCS48B21S YPLC080C16MP12 21.0 CF/CM/CU48C 1325 48.0 33.5 15.00 12.50
YCS48B21S YPLC080C16MP12 21.0 CF/CM/CU48D 1300 48.0 33.5 15.25 12.50
YCS48B21S YPLC080C16MP12 21.0 CF/CM/CU60C 1325 48.0 33.5 15.50 12.75
YCS48B21S YPLC080C16MP12 21.0 CF/CM/CU60D 1325 48.0 33.5 15.50 12.75
YCS48B21S YPLC080C16MP12 21.0 CF/CM64D 1400 48.0 34.5 15.50 12.75
YCS48B21S YPLC100C16MP12 21.0 CF/CM/CU48C 1325 48.0 33.5 15.00 12.50
YCS48B21S YPLC100C16MP12 21.0 CF/CM/CU48D 1300 48.0 33.5 15.25 12.50
YCS48B21S YPLC100C16MP12 21.0 CF/CM/CU60C 1325 48.0 33.5 15.50 12.75
YCS48B21S YPLC100C16MP12 21.0 CF/CM/CU60D 1325 48.0 33.5 15.50 12.75
YCS48B21S YPLC100C16MP12 21.0 CF/CM64D 1400 48.0 34.5 15.50 12.75
YCS48B21S YPLC100C20MP12 21.0 CF/CM/CU48C 1300 48.0 33.5 15.25 12.50
YCS48B21S YPLC100C20MP12 21.0 CF/CM/CU48D 1650 48.0 35.5 15.75 12.75
YCS48B21S YPLC100C20MP12 21.0 CF/CM/CU60C 1400 48.0 34.5 15.50 12.75
YCS48B21S YPLC100C20MP12 21.0 CF/CM/CU60D 1350 48.0 34.0 15.25 12.50
YCS48B21S YPLC100C20MP12 21.0 CF/CM64D 1425 48.0 35.0 15.50 12.75
YCS48B21S YPLC120C20MP12 21.0 CF/CM/CU48C 1300 48.0 33.5 15.25 12.50
YCS48B21S YPLC120C20MP12 21.0 CF/CM/CU48D 1650 48.0 35.5 15.75 12.75
YCS48B21S YPLC120C20MP12 21.0 CF/CM/CU60C 1400 48.0 34.5 15.50 12.75
YCS48B21S YPLC120C20MP12 21.0 CF/CM/CU60D 1350 48.0 34.0 15.25 12.50
YCS48B21S YPLC120C20MP12 21.0 CF/CM64D 1425 48.0 35.0 15.50 12.75
YCS60B21S TM8V080C16MP11 21.0 CF/CM64D 1650 56.5 40.0 14.00 11.75
YCS60B21S TM8V100C16MP11 21.0 CF/CM64D 1650 56.5 40.0 14.00 11.75
YCS60B21S TM8V100C20MP11 21.0 CF/CM/CU60D 1700 55.5 39.5 14.00 11.75
YCS60B21S TM8V120C20MP11 21.0 CF/CM/CU60D 1700 55.5 39.5 14.00 11.75
YCS60B21S TM8X100C20MP11 21.0 CF/CM/CU60C 1625 56.0 40.0 14.25 12.00
YCS60B21S TM8X100C20MP11 21.0 CF/CM/CU60D 1650 56.0 40.0 14.25 12.00
YCS60B21S TM8X100C20MP11 21.0 CF/CM64D 1625 57.0 40.5 14.50 12.25
YCS60B21S TM8X120C20MP11 21.0 CF/CM/CU60C 1625 56.0 40.0 14.25 12.00
YCS60B21S TM8X120C20MP11 21.0 CF/CM/CU60D 1650 56.0 40.0 14.25 12.00
YCS60B21S TM8X120C20MP11 21.0 CF/CM64D 1625 57.0 40.5 14.50 12.25
YCS60B21S TM8Y100C20MP11 21.0 CF/CM/CU60C 1625 56.0 40.0 14.25 12.00
YCS60B21S TM8Y100C20MP11 21.0 CF/CM/CU60D 1650 56.0 40.0 14.25 12.00
YCS60B21S TM8Y100C20MP11 21.0 CF/CM64D 1625 57.0 40.5 14.50 12.25
YCS60B21S TM8Y120C20MP11 21.0 CF/CM/CU60C 1625 56.0 40.0 14.25 12.00
YCS60B21S TM8Y120C20MP11 21.0 CF/CM/CU60D 1650 56.0 40.0 14.25 12.00
YCS60B21S TM8Y120C20MP11 21.0 CF/CM64D 1625 57.0 40.5 14.50 12.25
YCS60B21S TM9E100C20MP11 21.0 CF/CM/CU60D 1625 56.0 40.0 14.00 11.75
YCS60B21S TM9E120D20MP11 24.5 CF/CM/CU60D 1625 56.0 40.0 14.25 12.00
YCS60B21S TM9V080C16MP11 21.0 CF/CM/CU60C 1650 55.5 40.0 14.00 11.75
YCS60B21S TM9V080C16MP11 21.0 CF/CM64D 1650 57.0 40.5 14.25 12.00
YCS60B21S TM9V100C16MP11 21.0 CF/CM/CU60C 1650 55.5 40.0 14.00 11.75
For notes see Page 40.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
40 Johnson Controls Unitary Products
PSC furnaces, such as the TG8S, TGLS, and TG9S, use Coil Only Ratings.
YCS60B21S TM9V100C16MP11 21.0 CF/CM64D 1650 57.0 40.5 14.25 12.00
YCS60B21S TM9V100C20MP11 21.0 CF/CM64D 1675 56.5 40.0 14.00 11.75
YCS60B21S TM9V120D20MP11 24.5 CF/CM/CU60D 1775 56.5 41.5 14.00 11.75
YCS60B21S TM9V120D20MP11 24.5 CF/CM64D 1750 57.0 42.0 14.00 11.75
YCS60B21S TM9Y100C20MP11 21.0 CF/CM/CU60D 1625 56.0 40.0 14.00 11.75
YCS60B21S TM9Y120D20MP11 24.5 CF/CM/CU60D 1625 56.0 40.0 14.25 12.00
YCS60B21S TMLV080C16MP11 21.0 CF/CM64D 1650 56.5 40.0 14.00 11.75
YCS60B21S TMLV100C16MP11 21.0 CF/CM64D 1650 56.5 40.0 14.00 11.75
YCS60B21S TMLV100C20MP11 21.0 CF/CM/CU60D 1700 55.5 39.5 14.00 11.75
YCS60B21S TMLV120C20MP11 21.0 CF/CM/CU60D 1700 55.5 39.5 14.00 11.75
YCS60B21S TMLX100C20MP11 21.0 CF/CM/CU60C 1625 56.0 40.0 14.25 12.00
YCS60B21S TMLX100C20MP11 21.0 CF/CM/CU60D 1650 56.0 40.0 14.25 12.00
YCS60B21S TMLX100C20MP11 21.0 CF/CM64D 1625 57.0 40.5 14.50 12.25
YCS60B21S TMLX120C20MP11 21.0 CF/CM/CU60C 1625 56.0 40.0 14.25 12.00
YCS60B21S TMLX120C20MP11 21.0 CF/CM/CU60D 1650 56.0 40.0 14.25 12.00
YCS60B21S TMLX120C20MP11 21.0 CF/CM64D 1625 57.0 40.5 14.50 12.25
YCS60B21S TP9C080C16MP12 21.0 CF/CM/CU60C 1650 55.5 40.0 14.00 11.75
YCS60B21S TP9C080C16MP12 21.0 CF/CM64D 1650 57.0 40.5 14.25 12.00
YCS60B21S TP9C100C16MP12 21.0 CF/CM/CU60C 1650 55.5 40.0 14.00 11.75
YCS60B21S TP9C100C16MP12 21.0 CF/CM64D 1650 57.0 40.5 14.25 12.00
YCS60B21S TP9C100C20MP12 21.0 CF/CM64D 1675 56.5 40.0 14.00 11.75
YCS60B21S TP9C120D20MP12 24.5 CF/CM/CU60D 1775 56.5 41.5 14.00 11.75
YCS60B21S TP9C120D20MP12 24.5 CF/CM64D 1750 57.0 42.0 14.00 11.75
YCS60B21S TPLC080C16MP12 21.0 CF/CM64D 1650 56.5 40.0 14.00 11.75
YCS60B21S TPLC100C16MP12 21.0 CF/CM64D 1650 56.5 40.0 14.00 11.75
YCS60B21S TPLC100C20MP12 21.0 CF/CM/CU60D 1700 55.5 39.5 14.00 11.75
YCS60B21S TPLC120C20MP12 21.0 CF/CM/CU60D 1700 55.5 39.5 14.00 11.75
YCS60B21S YP9C080C16MP12 21.0 CF/CM/CU60C 1650 55.5 40.0 14.00 11.75
YCS60B21S YP9C080C16MP12 21.0 CF/CM64D 1650 57.0 40.5 14.25 12.00
YCS60B21S YP9C100C16MP12 21.0 CF/CM/CU60C 1650 55.5 40.0 14.00 11.75
YCS60B21S YP9C100C16MP12 21.0 CF/CM64D 1650 57.0 40.5 14.25 12.00
YCS60B21S YP9C100C20MP12 21.0 CF/CM64D 1675 56.5 40.0 14.00 11.75
YCS60B21S YP9C120D20MP12 24.5 CF/CM/CU60D 1775 56.5 41.5 14.00 11.75
YCS60B21S YP9C120D20MP12 24.5 CF/CM64D 1750 57.0 42.0 14.00 11.75
YCS60B21S YPLC080C16MP12 21.0 CF/CM64D 1650 56.5 40.0 14.00 11.75
YCS60B21S YPLC100C16MP12 21.0 CF/CM64D 1650 56.5 40.0 14.00 11.75
YCS60B21S YPLC100C20MP12 21.0 CF/CM/CU60D 1700 55.5 39.5 14.00 11.75
YCS60B21S YPLC120C20MP12 21.0 CF/CM/CU60D 1700 55.5 39.5 14.00 11.75
For rated condition information, see the footnotes below the System Capacity - Single Piece and Modular Air Handlers table.
1. High Efficiency Motor Furnaces have B.O.D (Blower Off Delay) standard.
2. CM coils available with a factory installed horizontal drain pan. See price pages for specific model number.
COOLING CAPACITY - With High Efficiency Motor Furnaces1 (Continued)
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING
MODEL WIDTH RATED
CFM
NET MBH SEER EER
TOTAL SENS.
5006080-YTG-A-0815
Johnson Controls Unitary Products 41
ACCESSORIES
Refer to Price Manual for specific model numbers.
* For Low Ambient and/or Long Lineset Applications, please see the acces-
sories listed below.
Compressor Crankcase Heater Kit (S1-025-*****-***): A
wrap-around electrical resistance heater that warms the com-
pressor sump, reducing the chance of liquid slugging on
startup. Required on all long lineset and low ambient applica-
tions. See Price Pages or Source1 SmartSearch for the correct
part for each application.
Indoor Blower-Off Delay Kit S1-2FD06700224: Provides a 1-
minute blower-off delay at the end of the cooling cycle. May be
required for retrofits with non-Johnson Controls Unitary Prod-
ucts indoor units. This feature is factory-provided on all JCUP
indoor products.
Support Feet S1-HPRKIT-**: Kit of 5 support feet to raise unit
above snow or landscaping. Available in heights of 3", 6" or 12".
Anchor Bracket Kit S1-1HK0401: Firmly anchors unit to pad
or support structure. When properly installed, approved for
ground-mounted or roof-mounted applications.
Indoor TXV Kit S1-1TVM***: Thermal expansion valves pre-
cisely meter refrigerant for optimum performance over a wide
range of conditions. See System Charge Table, Price Pages, or
Source1 Smart Search for TXV part number for each AC & HP
model.
Wall Mount Kit (S1-ACB-**): Includes two brackets to allow
outdoor unit to be securely mounted to a vertical wall. Mounting
hardware is field sourced according to the specific application.
Winter Cover Kit S1-CCVRE***: Custom fit winter cover pro-
tects AC condensing unit from debris during the off-season.
Must be removed prior to unit operation. See Price Pages or
Source1 SmartSearch for the correct cover for each application.
Cold Weather Charging Tent S1-CHGTENT01: Provides
warm environment to accurately service AC & HP systems in
ambient conditions 55ºF (13ºC) or colder.
Touch-up Paint S1-5130153****: Color matched aerosol paint
for touching up unit chassis and panels. See Price Pages or
Source1 SmartSearch for the correct color for each application.
Compressor Sound Blanket S1-010-07xxx-000: A field
installed dense foam cover that provides 2dBA sound level
reduction. See Price Pages or Source1 SmartSearch for the
correct blanket for each application.
Long Lineset Applications - For installations with more than
80' of equivalent lineset length, refer to the current version of
the Piping Application Guide 247077-UAD-H-0209, available in
the Application Bulletins section on www.upgnet.com.
OD Unit Anti Short Cycle Kit (10 Pack) S1-2TD08700124BK:
A time delay that prevents rapid compressor restarting as a
result of power interruption, limit switch operation, or thermostat
resetting. Not required for HP models, or for AC models with
factory electronic controls.
Standard Low Ambient Control Kit S1-2LA06700424: Allows
the use of air conditioning at low outdoor ambient temperatures
down to +20°F (-7°C). For use with all R-410A single stage AC
& HP models.
Advanced Low Ambient Control Kit S1-2LA04701024: Con-
tains the necessary components and controls to allow cooling
operation down to -20ºF (-29ºC). For use with all R-410A single
stage AC & HP models.
Low Pressure Switch Kit S1-2PS06700524: Provides field
installed low pressure (loss of charge) protection. Not required
for HP models, or for AC models with factory electronic con-
trols.
High Ambient Condenser Fan Motor S1-FHM****HT: Class F
70°C motor to allow cooling operation up to 160ºF air entering
the condenser. For use with all R-410A single stage AC & HP
models containing R-410A refrigerant only.
Outdoor Communicating Board Kit (S1-33102952310): Elec-
tronic control upgrade for standard AC & HP units to provide
compatibility with the Residential Touch Screen Communicating
Control.
Start Assist Kit S1-2SA067*****: Provides increased compres-
sor starting torque for areas with low supply voltage. Required
for units with recip compressors when applied with indoor TXV,
and for all units when applied with long linesets or low ambient
kits. May be factory installed on select AC & HP units (see
Physical & Electrical Table). See Price Pages or Source1
SmartSearch for the correct kit for each application.
SOUND POWER RATINGS
Rated in accordance with ARI Standard 270.
Standard Application Limits*
Maximum Lineset Equivalent Length 80 Ft
Outdoor Ambient Temperature Limits
Cooling Operation Maximum DB 125°F
Minimum DB 55°F
Cooling Octave Band Sound Power Level (db re. 1-pW)
Model Number 63 125 250 500 1000 2000 4000 8000 dBA SQI
YCS18B21S 70.8 67.1 62.1 65.4 63.8 66.7 56.1 55.8 70.0 19.0
YCS24B21S 68.8 71.9 66.4 70.0 68.3 63.5 59.2 56.1 72.0 19.0
YCS30B21S 68.9 71.6 67.4 70.8 67.2 66.2 59.3 60.5 73.0 19.2
YCS36B21S 71.6 76.2 68.5 69.5 67.1 62.6 57.7 57.0 72.0 19.1
YCS42B21S 70.3 72.5 71.7 72.3 69.7 65.9 61.8 58.4 74.0 19.1
YCS48B21S 68.6 76.8 71.4 71.4 70.9 63.8 60.9 58.7 75.0 19.0
YCS60B21S 72.9 73.3 71.3 74.3 70.7 66.5 64.5 64.4 76.0 19.2
5006080-YTG-A-0815
42 Johnson Controls Unitary Products
MECHANICAL SPECIFICATIONS
MANUFACTURE AND CERTIFICATIONS
• Units shall be manufactured in an ISO 9001 certified facility.
• Units shall be certified by CSA to UL 1995 / CSA 22.2 and
performance certified to ANSI/AHRI Standard 210/240.
• Units shall be sound tested according to ANSI/AHRI Stan-
dard 270.
• Certified matched system ratings will be available for down-
load from the AHRI online directory at www.ahridirectory.org
• Unit packaging shall be marked, “Assembled in the USA”
UNIT APPLICATION
• Units shall be approved for cooling operation between 55ºF
and 125°F without modification.
• Units shall be approved for linesets up to 80 feet equivalent
length without modification.
• Units shall be approved for installation within 6 inches of a
flat vertical wall without modification, according to the
instructions in the technical literature.
• Units shall be certified to the 5th Edition (2014) of the Florida
Building Code for both Ground Mounted and Rooftop
Mounted applications up to 200 feet above grade with
approved mounting kit.
• Units shall be designed to 76dBA or less to minimize sound
pollution.
UNIT ACCESS
• Units shall have a removable fan guard that can be removed
independently of the top for interior access through the top of
the unit without damaging the coil.
• Units shall have two removable stamped steel coil guards for
exterior coil access.
• Units shall have a separate compartment for electrical con-
trols that can be accessed without disturbing the unit airflow.
• Units shall have a blockoff panel that can be removed to pro-
vide interior unit access through the side of the unit.
• Units shall have a removable blockoff panel and a swing
away removable electrical panel that provides sufficient inte-
rior unit access for removing the compressor through the
side of the unit.
UNIT CONSTRUCTION
• Units shall be shipped completely wired, piped and assem-
bled. Wiring pigtails shall be provided for field control wiring
connections. Service valves shall be provided for field refrig-
erant line connections.
• Units shall be factory leak checked, run tested, and shipped
with a holding charge of R-410A refrigerant.
• Unit cabinet components shall be G90 equivalent steel fin-
ished with powder-coat paint rated at a minimum of 500
hours under ASTM B117 testing.
• Unit base pan shall be stamped G90 equivalent steel fin-
ished with powder-coat paint rated at a minimum of 500
hours under ASTM B117 testing.
• Units shall have a single corner post opposite the electrical
control box and two independently removable steel coil
guard panels to optimize cabinet strength and serviceability.
• Units shall have L-shaped stamped sheet metal coil guards
with punched and extruded slots for maximum panel durabil-
ity and stiffness.
• Units shall have a factory installed filter-drier for faster instal-
lation and improved system reliability.
• Unit base valves shall be mounted diagonally on the unit
base pan with service ports that provide sufficient clearance
for low-loss hose fittings.
• Units shall be constructed with a high pressure switch for
system protection.
• Units shall be constructed with all badging and labels applied
at the factory.
UNIT COMPONENTS
• Compressor shall be hermetic with internal electrical over-
load protection and internal overpressure protection.
• Compressor shall be mounted on rubber vibration isolators
that do not require the removal of transportation clips or
brackets.
• Units shall be constructed with scroll compressors.
• Condenser fan shall be direct drive with vertical air discharge
for low sound levels.
• Condenser fan motor shall be totally enclosed with perma-
nently lubricated ball bearings motors approved for vertical
shaft applications.
• Condenser coil shall be air cooled and constructed of zinc-
coated aluminum microchannel construction for small size
and low weight.
UNIT WARRANTIES
• Unit manufacturer shall provide a 10-Year compressor war-
ranty without a requirement for unit registration.
• Unit manufacturer shall provide a 5-Year parts warranty with-
out a requirement for unit registration.
5006080-YTG-A-0815
Johnson Controls Unitary Products 43
TYPICAL INSTALLATION
NOTE:
Ensure a minimum of
24” clearance between
any two units.
60” CLEARANCE
Do not locate
outdoor unit closer
than the indicated
clearance to a dryer
vent or to a 90+%
furnace flue.
10” CLEARANCE
AROUND PERIMETER
(6” clearance
permissible on one
side only, see
Alternative
Installation
Clearances.)
48” OVERHEAD CLEARANCE
MINIMUM 18” SERVICE ACCESS CLEARANCE
Maintain minimum clearance on one side of access panel.
WEATHERPROOF
DISCONNECT
SWITCH
NEC CLASS 1 WIRING
THERMOSTAT
NEC CLASS 2 WIRING
TO FURNACE OR
AIR HANDLER
TERMINAL BLOCK
NEC CLASS 2 WIRING
CONTROL
ACCESS
PANEL
SEAL OPENINGS
Use permagum or equivalent.
NOTE:
All outdoor wiring
must be weatherproof.
5 SNOW PUMP-UPS
Use in deep snow areas
with fifth pump-up under
center of compressor.
A0260-001
3 BRACES
Use for wall mount with
center brace under
center of compressor.
NOTE:
Ensure adequate
wall support.
CAUTION
Care must be taken to prevent ice from damaging the unit. Damage may occur from ice falling onto unit from a sloped roof or from a vertical drip
line due to a partial overhang.
!
A0291-001
(Refer to CAUTION above.)
INSTALLATION ACCEPTABLE INSTALLATION ACCEPTABLE INSTALLATION NOT RECOMMENDED
NO OVERHANG COVERING UNIT OVERHANG COMPLETELY
COVERING UNIT OVERHANG PARTIALLY
COVERING UNIT
48” MINIMUM
OVERHEAD
CLEARANCE
NOTE:
The unit must be installed on a solid base above the grade.
The base must not be able to settle or shift causing strain on
refrigerant lines and possible leaks.
NOTE:
Install unit on flat surface. If installation surface is sloped, ensure
that unit slopes away from house structure at 1/4” per foot.
CAUTION:
Special care must be taken to avoid recirculation of discharge air through condenser coil.
(Refer to CAUTION above.)
5006080-YTG-A-0815
44 Johnson Controls Unitary Products
TYPICAL FIELD WIRING
ALTERNATIVE INSTALLATION CLEARANCES
ALL FIELD WIRING TO BE IN ACCORDANCE WITH ELECTRIC CODE (NEC) AND/OR LOCAL CODES
POWER WIRING
208/230-1-60
CONTACTOR
TERMINALS
COIL
GND.
LUG
CYRGW
YRGW
POWER WIRING
CONTROL WIRING
FACTORY WIRING
24 VOLT CONTROL WIRING
MINIMUM 18 GA. WIRE
(NEC CLASS 2)
FURNACE OR AIR HANDLER TERMINAL BLOCK
ROOM THERMOSTAT
CONDENSING UNIT
ALL OUTDOOR WIRING MUST BE WEATHERPROOF. USE COPPER CONDUCTORS ONLY.
TERMINAL W IS ONLY
REQUIRED ON SYSTEMS
WITH HEAT.
*
*
A
A0287-001
MINIMUM CLEARANCE BETWEEN UNITS
NOTE:
Clearance between two units may be
reduced to 18” minimum provided
the service access clearance is
increased to 24” minimum, and the
clearance on each remaining side
is maintained at 18” minimum.
NOTE:
Clearance to one side of the
unit may be reduced to 6” provided
the clearance to each remaining side
is increased to 12” minimum, the
service access is increased to 24”
minimum, and the clearances between
any two units is maintained at 24”
minimum.
MINIMUM CLEARANCE FROM WALL
6” 6”
24”
SERVICE
AND UNIT-
TO-UNIT
24”
SERVICE
12”
12”
12”
WALL
FENCE
24”
SERVICE
24”
SERVICE 24”
SERVICE
18”
UNIT-
TO-UNIT
18”
UNIT-
TO-UNIT
18”
18” 18”
18”
18”
WALL
F
ENCE
CAUTION:
Special care must be taken to avoid recirculation of discharge air through condenser coil.
5006080-YTG-A-0815
Johnson Controls Unitary Products 45
PERFORMANCE DATA - 1.5 TON
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
CONDENSER-ONLY DATA (OUTDOOR UNIT)
MODEL
SATURATED SUCTION
@ COMPRESSOR
Outdoor Ambient Temperature
55 °F 65 °F 75 °F 85 °F 95 °F 105 °F 115 °F 125 °F
T (°F) P (PSIG) MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW
YCS18B21S
35 107 17.0 0.82 16.2 0.94 15.4 1.06 14.5 1.20 13.6 1.35 12.6 1.53 11.6 1.73 10.6 1.96
40 118 18.8 0.80 17.9 0.92 17.0 1.05 16.0 1.18 15.0 1.33 14.0 1.51 12.9 1.72 11.8 1.95
45 130 20.7 0.78 19.7 0.90 18.7 1.03 17.7 1.17 16.6 1.32 15.5 1.49 14.3 1.70 13.1 1.93
50 142 22.8 0.76 21.7 0.88 20.6 1.01 19.5 1.15 18.3 1.30 17.1 1.48 15.8 1.68 14.5 1.90
55 156 24.9 0.74 23.8 0.86 22.6 0.99 21.3 1.13 20.1 1.28 18.8 1.46 17.4 1.66 16.0 1.88
Notes:
1. For Outdoor Unit (Condenser) performance only. Data does not include the effects of air handler power or heat.
2. Performance based on 15°F subcooling and 15°F superheat at the Outdoor Unit base valves.
a. Increase capacity by 1% for each 2°F increase in subcooling.
b. Decrease capacity by 1% for each 2°F decrease in subcooling.
3. Maximum recommended condensing temperature is 140°F.
COOLING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YCS18B21S
INDOOR COIL MODEL NO. CF18AXA1
AIR TEMP.
ENTERING
OUTDOOR UNIT (°F)
ID CFM 450 600 750
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
55
T.C. 16.0 18.2 18.3 20.3 22.0 17.4 19.1 19.3 21.1 22.6 18.7 20.0 20.2 21.8 23.3
S.C. 14.6 13.7 11.9 12.0 9.6 16.5 15.8 13.5 13.4 10.4 18.5 17.9 15.1 14.8 11.2
KW 0.97 0.96 0.95 0.94 0.94 1.02 1.01 1.00 1.00 1.00 1.06 1.06 1.05 1.05 1.05
65
T.C. 15.4 17.5 17.6 19.5 21.3 16.7 18.4 18.5 20.3 22.0 18.1 19.2 19.4 21.1 22.7
S.C. 14.2 13.3 11.5 11.6 9.3 15.9 15.3 13.0 13.1 10.2 17.6 17.3 14.6 14.6 11.1
KW 1.07 1.07 1.06 1.05 1.04 1.12 1.11 1.11 1.10 1.09 1.16 1.16 1.16 1.15 1.15
75
T.C. 14.8 16.8 16.9 18.7 20.6 16.1 17.6 17.7 19.6 21.4 17.5 18.4 18.5 20.4 22.2
S.C. 13.9 12.8 11.1 11.2 9.0 15.4 14.8 12.6 12.8 10.0 16.8 16.7 14.1 14.4 11.0
KW 1.17 1.17 1.16 1.15 1.14 1.22 1.22 1.21 1.20 1.19 1.26 1.26 1.26 1.25 1.24
85
T.C. 14.5 16.2 16.3 18.0 19.8 15.7 16.9 17.0 18.8 20.5 17.0 17.7 17.8 19.5 21.3
S.C. 13.7 12.6 10.8 10.9 8.7 15.1 14.5 12.3 12.4 9.7 16.4 16.3 13.8 13.9 10.6
KW 1.30 1.30 1.30 1.29 1.28 1.35 1.35 1.34 1.34 1.33 1.39 1.39 1.39 1.39 1.38
95
T.C. 14.2 15.6 15.7 17.4 19.0 15.3 16.2 16.4 18.0 19.7 16.5 16.9 17.1 18.6 20.3
S.C. 13.6 12.4 10.6 10.6 8.5 14.8 14.1 12.1 12.0 9.4 15.9 15.8 13.6 13.4 10.3
KW 1.43 1.43 1.43 1.43 1.41 1.48 1.48 1.48 1.48 1.46 1.53 1.53 1.53 1.52 1.51
105
T.C. 13.4 14.7 14.8 16.5 18.1 14.6 15.4 15.4 17.0 18.7 15.7 16.0 16.1 17.6 19.3
S.C. 12.9 12.0 10.2 10.3 8.2 14.1 13.6 11.8 11.7 9.1 15.2 15.2 13.3 13.1 10.0
KW 1.67 1.66 1.66 1.64 1.62 1.70 1.70 1.70 1.68 1.67 1.74 1.74 1.74 1.73 1.72
115
T.C. 12.7 13.9 13.9 15.6 17.2 13.9 14.6 14.5 16.1 17.7 15.0 15.2 15.1 16.6 18.3
S.C. 12.3 11.7 9.8 10.0 7.9 13.4 13.1 11.4 11.4 8.8 14.6 14.6 13.0 12.9 9.6
KW 1.90 1.88 1.88 1.85 1.82 1.92 1.91 1.91 1.89 1.87 1.94 1.94 1.94 1.93 1.92
125
T.C. 11.9 13.1 13.0 14.7 16.3 13.1 13.8 13.6 15.1 16.8 14.3 14.4 14.2 15.6 17.3
S.C. 11.7 11.3 9.4 9.7 7.6 12.8 12.6 11.1 11.2 8.5 13.9 14.0 12.7 12.6 9.3
KW 2.14 2.10 2.10 2.05 2.03 2.14 2.12 2.13 2.09 2.07 2.14 2.14 2.15 2.13 2.12
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).
Green shaded cells are ACCA (TVA) conditions.
Blue shaded cells are AHRI conditions.
5006080-YTG-A-0815
46 Johnson Controls Unitary Products
COIL MULTIPLIERS- 1.5 TON
Air Handler Coil T.C. S.C. KW
– CF/CM/CU18A 1.00 1.00 1.00
– CF/CM/CU18B 1.00 1.00 1.00
– CF/CM/CU24A 1.00 1.00 1.00
– CF/CM/CU24B 1.00 1.00 1.00
– CF/CM/CU24C 1.00 1.00 1.00
– CF/CM/CU30A 1.00 0.99 1.00
– CF/CM/CU30B 1.00 0.99 1.00
– CF/CM/CU30C 1.00 0.99 1.00
– CF/CM/CU30D 1.00 0.99 1.00
– CF/CM/CU36B 1.00 1.03 1.00
– CF/CM/CU36C 1.00 1.03 1.00
– CF/CM/CU36D 1.00 1.03 1.00
– CF/CM36A 1.00 1.03 1.00
AE18BX21 – 1.00 1.01 0.92
AE24BX21 – 1.00 1.00 0.92
AE30BX21 – 1.00 1.02 0.92
AE36BX21 – 1.00 1.00 0.96
AE36CX21 – 1.00 1.01 0.94
AP18BX21 – 1.00 1.01 0.98
AP24BX21 – 1.00 1.00 1.00
AP30BX21 – 1.00 1.03 1.00
AVC18BX21 – 1.00 1.01 0.92
AVC24BX21 – 1.00 1.01 0.92
AVC30BX21 – 1.00 1.00 0.92
ME08BN21 CF/CM18B 1.00 1.01 0.92
ME08BN21 CF/CM24B 1.00 1.02 0.92
ME08BN21 CF/CM30B 1.00 1.00 0.92
ME08BN21 CF/CM36B 1.00 1.03 0.92
ME12BN21 CF/CM18B 1.00 1.01 0.98
ME12BN21 CF/CM24B 1.00 1.03 0.98
ME12BN21 CF/CM30B 1.00 1.02 0.96
ME12BN21 CF/CM36B 1.00 1.04 0.94
MVC08BN21 CF/CM18B 1.00 0.98 0.92
MVC08BN21 CF/CM24B 1.00 1.00 0.92
MVC08BN21 CF/CM30B 1.00 1.00 0.92
MVC12BN21 CF/CM36B 1.00 1.04 0.92
FURNACE MULTIPLIERS- 1.5 TON
Furnaces Coil T.C. S.C. KW
TM8V060A12MP11 CF/CM/CU18A 1.00 0.95 0.96
TM8V060A12MP11 CF/CM/CU24A 1.00 0.97 0.94
TM8V060A12MP11 CF/CM/CU30A 1.00 0.97 0.92
TM8V080B12MP11 CF/CM/CU18B 1.00 1.04 0.94
TM8V080B12MP11 CF/CM/CU24B 1.00 1.06 0.92
TM8V080B12MP11 CF/CM/CU30B 1.00 1.03 0.92
TM8V080B12MP11 CF/CM/CU36B 1.00 1.05 0.92
TM8X060A12MP11 CF/CM/CU18A 1.00 1.00 0.96
TM8X060A12MP11 CF/CM/CU24A 1.00 1.01 0.94
TM8X060A12MP11 CF/CM/CU30A 1.00 1.03 0.92
TM8X060A12MP11 CF/CM36A 1.00 1.03 0.92
TM8X080B12MP11 CF/CM/CU18B 1.00 1.01 0.94
TM8X080B12MP11 CF/CM/CU24B 1.00 1.01 0.94
TM8X080B12MP11 CF/CM/CU30B 1.00 0.99 0.92
TM8X080B12MP11 CF/CM/CU36B 1.00 1.03 0.92
TM8X080C16MP11 CF/CM/CU24C 1.00 1.00 0.96
TM8X080C16MP11 CF/CM/CU30C 1.00 1.00 0.94
TM8X080C16MP11 CF/CM/CU30D 1.00 1.03 0.92
TM8X080C16MP11 CF/CM/CU36C 1.00 1.03 0.92
TM8X080C16MP11 CF/CM/CU36D 1.00 1.02 0.92
TM8X100C16MP11 CF/CM/CU24C 1.00 1.00 0.96
TM8X100C16MP11 CF/CM/CU30C 1.00 1.00 0.94
TM8X100C16MP11 CF/CM/CU30D 1.00 1.03 0.92
TM8X100C16MP11 CF/CM/CU36C 1.00 1.03 0.92
TM8X100C16MP11 CF/CM/CU36D 1.00 1.02 0.92
TM8Y060A12MP11 CF/CM/CU18A 1.00 1.00 0.96
TM8Y060A12MP11 CF/CM/CU24A 1.00 1.01 0.94
TM8Y060A12MP11 CF/CM/CU30A 1.00 1.03 0.92
TM8Y060A12MP11 CF/CM36A 1.00 1.03 0.92
TM8Y080B12MP11 CF/CM/CU18B 1.00 1.01 0.94
TM8Y080B12MP11 CF/CM/CU24B 1.00 1.01 0.94
TM8Y080B12MP11 CF/CM/CU30B 1.00 0.99 0.92
TM8Y080B12MP11 CF/CM/CU36B 1.00 1.03 0.92
TM8Y080C16MP11 CF/CM/CU24C 1.00 1.00 0.96
TM8Y080C16MP11 CF/CM/CU30C 1.00 1.00 0.94
TM8Y080C16MP11 CF/CM/CU30D 1.00 1.03 0.92
TM8Y080C16MP11 CF/CM/CU36C 1.00 1.03 0.92
TM8Y080C16MP11 CF/CM/CU36D 1.00 1.02 0.92
TM8Y100C16MP11 CF/CM/CU24C 1.00 1.00 0.96
TM8Y100C16MP11 CF/CM/CU30C 1.00 1.00 0.94
TM8Y100C16MP11 CF/CM/CU30D 1.00 1.03 0.92
TM8Y100C16MP11 CF/CM/CU36C 1.00 1.03 0.92
TM8Y100C16MP11 CF/CM/CU36D 1.00 1.02 0.92
TM9E040A10MP11 CF/CM/CU18A 1.00 1.01 0.94
TM9E040A10MP11 CF/CM/CU24A 1.00 0.98 0.94
TM9E040A10MP11 CF/CM/CU30A 1.00 0.99 0.92
TM9E040A10MP11 CF/CM36A 1.00 1.03 0.92
TM9E060B12MP11 CF/CM/CU18B 1.00 1.01 0.96
TM9E060B12MP11 CF/CM/CU24B 1.00 1.00 0.96
TM9E060B12MP11 CF/CM/CU30B 1.00 1.00 0.94
TM9E060B12MP11 CF/CM/CU36B 1.00 1.03 0.92
TM9E080B12MP11 CF/CM/CU18B 1.00 1.01 0.96
TM9E080B12MP11 CF/CM/CU24B 1.00 1.00 0.96
TM9E080B12MP11 CF/CM/CU30B 1.00 1.00 0.94
TM9E080B12MP11 CF/CM/CU36B 1.00 1.03 0.92
TM9E080C16MP11 CF/CM/CU24C 1.00 1.01 0.92
TM9E080C16MP11 CF/CM/CU30C 1.00 1.00 0.92
TM9E080C16MP11 CF/CM/CU30D 1.00 1.00 0.92
TM9E080C16MP11 CF/CM/CU36C 1.00 1.03 0.92
TM9E080C16MP11 CF/CM/CU36D 1.00 1.03 0.92
TM9E100C16MP11 CF/CM/CU24C 1.00 1.01 0.92
TM9E100C16MP11 CF/CM/CU30C 1.00 1.00 0.92
TM9E100C16MP11 CF/CM/CU30D 1.00 1.00 0.92
TM9E100C16MP11 CF/CM/CU36C 1.00 1.03 0.92
TM9E100C16MP11 CF/CM/CU36D 1.00 1.03 0.92
FURNACE MULTIPLIERS- 1.5 TON (Continued)
Furnaces Coil T.C. S.C. KW
5006080-YTG-A-0815
Johnson Controls Unitary Products 47
TM9E100C20MP11 CF/CM/CU24C 1.00 1.03 1.00
TM9E100C20MP11 CF/CM/CU30C 1.00 1.02 0.98
TM9E100C20MP11 CF/CM/CU30D 1.00 1.03 0.98
TM9E100C20MP11 CF/CM/CU36C 1.00 1.01 0.98
TM9E100C20MP11 CF/CM/CU36D 1.00 1.04 0.98
TM9E120D20MP11 CF/CM/CU30D 1.00 0.99 0.98
TM9E120D20MP11 CF/CM/CU36D 1.00 1.02 0.98
TM9V040A10MP11 CF/CM/CU24A 1.00 1.05 0.98
TM9V060B12MP11 CF/CM/CU18B 1.00 1.03 0.96
TM9V060B12MP11 CF/CM/CU24B 1.00 0.97 0.92
TM9V060B12MP11 CF/CM/CU30B 1.00 1.03 0.92
TM9V060B12MP11 CF/CM/CU36B 1.00 1.03 0.92
TM9V080B12MP11 CF/CM/CU18B 1.00 1.03 0.96
TM9V080B12MP11 CF/CM/CU24B 1.00 0.97 0.92
TM9V080B12MP11 CF/CM/CU30B 1.00 1.03 0.92
TM9V080B12MP11 CF/CM/CU36B 1.00 1.03 0.92
TM9Y040A10MP11 CF/CM/CU18A 1.00 1.01 0.94
TM9Y040A10MP11 CF/CM/CU24A 1.00 0.98 0.94
TM9Y040A10MP11 CF/CM/CU30A 1.00 0.99 0.92
TM9Y040A10MP11 CF/CM36A 1.00 1.03 0.92
TM9Y060B12MP11 CF/CM/CU18B 1.00 1.01 0.96
TM9Y060B12MP11 CF/CM/CU24B 1.00 1.00 0.96
TM9Y060B12MP11 CF/CM/CU30B 1.00 1.00 0.94
TM9Y060B12MP11 CF/CM/CU36B 1.00 1.03 0.92
TM9Y080B12MP11 CF/CM/CU18B 1.00 1.01 0.96
TM9Y080B12MP11 CF/CM/CU24B 1.00 1.00 0.96
TM9Y080B12MP11 CF/CM/CU30B 1.00 1.00 0.94
TM9Y080B12MP11 CF/CM/CU36B 1.00 1.03 0.92
TM9Y080C16MP11 CF/CM/CU24C 1.00 1.01 0.92
TM9Y080C16MP11 CF/CM/CU30C 1.00 1.00 0.92
TM9Y080C16MP11 CF/CM/CU30D 1.00 1.00 0.92
TM9Y080C16MP11 CF/CM/CU36C 1.00 1.03 0.92
TM9Y080C16MP11 CF/CM/CU36D 1.00 1.03 0.92
TM9Y100C16MP11 CF/CM/CU24C 1.00 1.01 0.92
TM9Y100C16MP11 CF/CM/CU30C 1.00 1.00 0.92
TM9Y100C16MP11 CF/CM/CU30D 1.00 1.00 0.92
TM9Y100C16MP11 CF/CM/CU36C 1.00 1.03 0.92
TM9Y100C16MP11 CF/CM/CU36D 1.00 1.03 0.92
TM9Y100C20MP11 CF/CM/CU24C 1.00 1.03 1.00
TM9Y100C20MP11 CF/CM/CU30C 1.00 1.02 0.98
TM9Y100C20MP11 CF/CM/CU30D 1.00 1.03 0.98
TM9Y100C20MP11 CF/CM/CU36C 1.00 1.01 0.98
TM9Y100C20MP11 CF/CM/CU36D 1.00 1.04 0.98
TM9Y120D20MP11 CF/CM/CU30D 1.00 0.99 0.98
TM9Y120D20MP11 CF/CM/CU36D 1.00 1.02 0.98
TMLV060A12MP11 CF/CM/CU18A 1.00 0.95 0.96
TMLV060A12MP11 CF/CM/CU24A 1.00 0.97 0.94
TMLV060A12MP11 CF/CM/CU30A 1.00 0.97 0.92
TMLV080B12MP11 CF/CM/CU18B 1.00 1.04 0.94
TMLV080B12MP11 CF/CM/CU24B 1.00 1.06 0.92
TMLV080B12MP11 CF/CM/CU30B 1.00 1.03 0.92
FURNACE MULTIPLIERS- 1.5 TON (Continued)
Furnaces Coil T.C. S.C. KW
TMLV080B12MP11 CF/CM/CU36B 1.00 1.05 0.92
TMLX060A12MP11 CF/CM/CU18A 1.00 1.00 0.96
TMLX060A12MP11 CF/CM/CU24A 1.00 1.01 0.94
TMLX060A12MP11 CF/CM/CU30A 1.00 1.03 0.92
TMLX060A12MP11 CF/CM36A 1.00 1.03 0.92
TMLX080B12MP11 CF/CM/CU18B 1.00 1.01 0.94
TMLX080B12MP11 CF/CM/CU24B 1.00 1.01 0.94
TMLX080B12MP11 CF/CM/CU30B 1.00 0.99 0.92
TMLX080B12MP11 CF/CM/CU36B 1.00 1.03 0.92
TMLX080C16MP11 CF/CM/CU24C 1.00 1.00 0.96
TMLX080C16MP11 CF/CM/CU30C 1.00 1.00 0.94
TMLX080C16MP11 CF/CM/CU30D 1.00 1.03 0.92
TMLX080C16MP11 CF/CM/CU36C 1.00 1.03 0.92
TMLX080C16MP11 CF/CM/CU36D 1.00 1.02 0.92
TMLX100C16MP11 CF/CM/CU24C 1.00 1.00 0.96
TMLX100C16MP11 CF/CM/CU30C 1.00 1.00 0.94
TMLX100C16MP11 CF/CM/CU30D 1.00 1.03 0.92
TMLX100C16MP11 CF/CM/CU36C 1.00 1.03 0.92
TMLX100C16MP11 CF/CM/CU36D 1.00 1.02 0.92
TP9C060B12MP12 CF/CM/CU18B 1.00 1.03 0.96
TP9C060B12MP12 CF/CM/CU24B 1.00 0.97 0.92
TP9C060B12MP12 CF/CM/CU30B 1.00 1.03 0.92
TP9C060B12MP12 CF/CM/CU36B 1.00 1.03 0.92
TP9C080B12MP12 CF/CM/CU18B 1.00 1.03 0.96
TP9C080B12MP12 CF/CM/CU24B 1.00 0.97 0.92
TP9C080B12MP12 CF/CM/CU30B 1.00 1.03 0.92
TP9C080B12MP12 CF/CM/CU36B 1.00 1.03 0.92
TPLC060A12MP12 CF/CM/CU18A 1.00 0.95 0.96
TPLC060A12MP12 CF/CM/CU24A 1.00 0.97 0.94
TPLC060A12MP12 CF/CM/CU30A 1.00 0.97 0.92
TPLC080B12MP12 CF/CM/CU18B 1.00 1.04 0.94
TPLC080B12MP12 CF/CM/CU24B 1.00 1.06 0.92
TPLC080B12MP12 CF/CM/CU30B 1.00 1.03 0.92
TPLC080B12MP12 CF/CM/CU36B 1.00 1.05 0.92
YP9C060B12MP12 CF/CM/CU18B 1.00 1.03 0.96
YP9C060B12MP12 CF/CM/CU24B 1.00 0.97 0.92
YP9C060B12MP12 CF/CM/CU30B 1.00 1.03 0.92
YP9C060B12MP12 CF/CM/CU36B 1.00 1.03 0.92
YP9C080B12MP12 CF/CM/CU18B 1.00 1.03 0.96
YP9C080B12MP12 CF/CM/CU24B 1.00 0.97 0.92
YP9C080B12MP12 CF/CM/CU30B 1.00 1.03 0.92
YP9C080B12MP12 CF/CM/CU36B 1.00 1.03 0.92
YPLC060A12MP12 CF/CM/CU18A 1.00 0.95 0.96
YPLC060A12MP12 CF/CM/CU24A 1.00 0.97 0.94
YPLC060A12MP12 CF/CM/CU30A 1.00 0.97 0.92
YPLC080B12MP12 CF/CM/CU18B 1.00 1.04 0.94
YPLC080B12MP12 CF/CM/CU24B 1.00 1.06 0.92
YPLC080B12MP12 CF/CM/CU30B 1.00 1.03 0.92
YPLC080B12MP12 CF/CM/CU36B 1.00 1.05 0.92
FURNACE MULTIPLIERS- 1.5 TON (Continued)
Furnaces Coil T.C. S.C. KW
5006080-YTG-A-0815
48 Johnson Controls Unitary Products
PERFORMANCE DATA - 2 TON
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
CONDENSER-ONLY DATA (OUTDOOR UNIT)
MODEL
SATURATED SUCTION
@ COMPRESSOR
Outdoor Ambient Temperature
55 °F 65 °F 75 °F 85 °F 95 °F 105 °F 115 °F 125 °F
T (°F) P (PSIG) MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW
YCS24B21S
35 107 23.4 1.10 22.2 1.25 21.1 1.41 19.9 1.59 18.6 1.80 17.3 2.04 15.9 2.33 14.5 2.67
40 118 25.8 1.08 24.5 1.24 23.3 1.40 22.0 1.58 20.7 1.78 19.2 2.02 17.7 2.31 16.2 2.63
45 130 28.3 1.06 27.0 1.22 25.7 1.38 24.3 1.56 22.8 1.76 21.3 2.00 19.7 2.28 17.9 2.60
50 142 31.1 1.04 29.7 1.20 28.2 1.37 26.7 1.55 25.1 1.74 23.4 1.98 21.7 2.26 19.9 2.57
55 156 34.0 1.01 32.5 1.18 30.9 1.35 29.2 1.53 27.5 1.73 25.7 1.96 23.9 2.24 21.9 2.54
Notes:
1. For Outdoor Unit (Condenser) performance only. Data does not include the effects of air handler power or heat.
2. Performance based on 15°F subcooling and 15°F superheat at the Outdoor Unit base valves.
a. Increase capacity by 1% for each 2°F increase in subcooling.
b. Decrease capacity by 1% for each 2°F decrease in subcooling.
3. Maximum recommended condensing temperature is 140°F.
COOLING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YCS24B21S
INDOOR COIL MODEL NO. CF24AXA1
AIR TEMP.
ENTERING
OUTDOOR UNIT (°F)
ID CFM 600 800 1000
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
55
T.C. 22.1 24.3 24.5 26.6 28.5 23.8 25.3 25.4 27.5 28.9 25.4 26.4 26.4 28.4 29.4
S.C. 21.7 19.3 16.5 16.3 13.0 23.7 21.8 18.5 18.0 13.8 25.4 24.4 20.5 19.6 14.5
KW 1.27 1.26 1.26 1.25 1.24 1.33 1.33 1.33 1.32 1.32 1.39 1.39 1.39 1.39 1.39
65
T.C. 21.3 23.0 23.7 25.9 28.0 23.0 24.2 24.6 26.8 28.6 24.7 25.5 25.5 27.7 29.3
S.C. 20.9 19.2 15.9 15.8 12.8 22.8 21.5 18.0 17.7 13.8 24.7 23.9 20.1 19.6 14.8
KW 1.41 1.41 1.40 1.39 1.38 1.47 1.47 1.46 1.46 1.45 1.53 1.53 1.53 1.53 1.52
75
T.C. 20.4 21.6 22.8 25.2 27.6 22.2 23.1 23.8 26.1 28.4 24.0 24.6 24.7 27.0 29.2
S.C. 20.1 19.1 15.3 15.3 12.5 22.0 21.2 17.6 17.5 13.8 24.0 23.4 19.8 19.7 15.0
KW 1.55 1.57 1.53 1.52 1.52 1.61 1.62 1.60 1.59 1.58 1.67 1.68 1.66 1.66 1.65
85
T.C. 19.7 20.5 21.9 24.2 26.4 21.4 22.0 22.7 25.0 27.2 23.2 23.6 23.6 25.9 28.1
S.C. 19.4 19.0 15.0 15.0 12.1 21.3 20.9 17.2 17.2 13.4 23.1 22.9 19.3 19.3 14.7
KW 1.74 1.79 1.72 1.71 1.70 1.80 1.83 1.79 1.78 1.77 1.86 1.87 1.86 1.85 1.83
95
T.C. 19.0 19.3 20.9 23.2 25.2 20.7 20.9 21.7 24.0 26.1 22.3 22.5 22.5 24.8 27.0
S.C. 18.8 18.9 14.6 14.6 11.7 20.5 20.6 16.7 16.8 13.0 22.3 22.4 18.9 19.0 14.3
KW 1.93 2.02 1.92 1.90 1.89 1.99 2.04 1.98 1.97 1.95 2.04 2.06 2.05 2.03 2.01
105
T.C. 18.1 18.6 19.5 21.7 23.2 19.6 19.9 20.3 22.4 24.3 21.1 21.2 21.0 23.1 25.3
S.C. 17.8 17.7 14.0 14.0 11.5 19.4 19.4 16.0 16.1 12.6 21.0 21.2 18.0 18.2 13.7
KW 2.31 2.38 2.33 2.27 2.23 2.35 2.39 2.36 2.32 2.29 2.39 2.39 2.40 2.37 2.34
115
T.C. 17.1 17.8 18.1 20.2 21.3 18.5 18.9 18.9 20.9 22.5 19.9 19.9 19.6 21.5 23.7
S.C. 16.9 16.6 13.4 13.4 11.2 18.4 18.3 15.3 15.5 12.2 19.8 19.9 17.2 17.5 13.1
KW 2.67 2.73 2.73 2.63 2.57 2.70 2.72 2.73 2.67 2.61 2.73 2.71 2.74 2.71 2.66
125
T.C. 16.2 17.1 16.8 18.7 19.4 17.4 17.9 17.5 19.3 20.8 18.6 18.6 18.1 19.9 22.1
S.C. 16.0 15.4 12.7 12.8 10.9 17.4 17.2 14.6 14.8 11.7 18.6 18.6 16.4 16.7 12.5
KW 3.03 3.07 3.12 2.99 2.91 3.05 3.05 3.10 3.01 2.94 3.06 3.04 3.09 3.04 2.98
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).
Green shaded cells are ACCA (TVA) conditions.
Blue shaded cells are AHRI conditions.
5006080-YTG-A-0815
Johnson Controls Unitary Products 49
COIL MULTIPLIERS- 2 TON
Air Handler Coil T.C. S.C. KW
– CF/CM/CU24A 1.00 1.00 1.00
– CF/CM/CU24B 1.00 1.00 1.00
– CF/CM/CU24C 1.00 1.00 1.00
– CF/CM/CU30A 1.00 1.00 1.00
– CF/CM/CU30B 1.00 1.00 1.00
– CF/CM36A 1.00 0.98 1.00
– CF42B 1.00 1.00 1.00
AE24BX21 – 1.00 1.00 0.92
AE30BX21 – 1.00 1.00 0.92
AE36BX21 – 1.00 1.00 0.92
AE36CX21 – 1.00 1.00 0.92
AP24BX21 – 1.00 1.00 1.00
AP30BX21 – 1.00 0.99 0.98
AP36BX21 – 1.00 1.04 1.00
AP36CX21 – 1.00 1.01 0.98
AVC24BX21 – 1.00 0.98 0.94
AVC30BX21 – 1.00 0.99 0.92
AVC36BX21 – 1.00 0.99 0.92
AVC36CX21 – 1.00 1.00 0.92
ME08BN21 CF/CM24B 1.00 1.00 0.92
ME08BN21 CF/CM30B 1.00 1.01 0.92
ME08BN21 CF/CM36B 1.00 0.99 0.92
ME08BN21 CF42B 1.00 1.00 0.92
ME12BN21 CF/CM24B 1.00 1.00 0.94
ME12BN21 CF/CM30B 1.00 1.00 0.92
ME12BN21 CF/CM36B 1.00 0.99 0.92
ME12BN21 CF42B 1.00 1.00 0.92
ME14DN21 CF/CM30D 1.00 1.00 0.94
ME14DN21 CF/CM36D 1.00 0.99 0.94
ME14DN21 CF/CM42D 1.00 1.00 0.94
ME16CN21 CF/CM24C 1.00 1.04 0.98
MVC08BN21 CF/CM24B 1.00 1.00 0.92
MVC08BN21 CF/CM30B 1.00 0.96 0.92
MVC08BN21 CF/CM36B 1.00 0.99 0.92
MVC08BN21 CF42B 1.00 1.00 0.92
MVC12BN21 CF/CM24B 1.00 1.00 0.94
MVC12BN21 CF/CM30B 1.00 1.02 0.92
MVC12BN21 CF/CM36B 1.00 0.99 0.92
MVC12BN21 CF42B 1.00 1.00 0.92
MVC14DN21 CF/CM30D 1.00 1.00 0.92
MVC14DN21 CF/CM36D 1.00 1.02 0.92
MVC14DN21 CF/CM42D 1.00 1.00 0.92
MVC16CN21 CF/CM42C 1.00 1.04 0.92
FURNACE MULTIPLIERS- 2 TON
Furnaces Coil T.C. S.C. KW
TM8V060A12MP11 CF/CM/CU24A 1.00 0.96 0.98
TM8V060A12MP11 CF/CM/CU30A 1.00 0.99 0.96
TM8V060A12MP11 CF/CM36A 1.00 0.94 0.94
TM8V080B12MP11 CF/CM/CU24B 1.00 1.02 0.96
TM8V080B12MP11 CF/CM/CU30B 1.00 1.00 0.94
TM8V080B12MP11 CF/CM/CU36B 1.00 0.93 0.94
TM8V080B12MP11 CF42B 1.00 1.01 0.92
TM8X060A12MP11 CF/CM/CU24A 1.00 1.00 0.94
TM8X060A12MP11 CF/CM/CU30A 1.00 1.00 0.92
TM8X060A12MP11 CF/CM36A 1.00 0.99 0.92
TM8X080B12MP11 CF/CM/CU24B 1.00 1.00 0.94
TM8X080B12MP11 CF/CM/CU30B 1.00 1.00 0.92
TM8X080B12MP11 CF/CM/CU36B 1.00 0.99 0.92
TM8X080B12MP11 CF42B 1.00 1.00 0.92
TM8X080C16MP11 CF/CM/CU24C 1.00 1.00 0.92
TM8X080C16MP11 CF/CM/CU30C 1.00 1.00 0.92
TM8X080C16MP11 CF/CM/CU30D 1.00 1.00 0.92
TM8X080C16MP11 CF/CM/CU36C 1.00 0.99 0.92
TM8X080C16MP11 CF/CM/CU36D 1.00 0.99 0.92
TM8X080C16MP11 CF/CM/CU42C 1.00 1.00 0.92
TM8X080C16MP11 CF/CM/CU42D 1.00 1.00 0.92
TM8X100C16MP11 CF/CM/CU24C 1.00 1.00 0.92
TM8X100C16MP11 CF/CM/CU30C 1.00 1.00 0.92
TM8X100C16MP11 CF/CM/CU30D 1.00 1.00 0.92
TM8X100C16MP11 CF/CM/CU36C 1.00 0.99 0.92
TM8X100C16MP11 CF/CM/CU36D 1.00 0.99 0.92
TM8X100C16MP11 CF/CM/CU42C 1.00 1.00 0.92
TM8X100C16MP11 CF/CM/CU42D 1.00 1.00 0.92
TM8X100C20MP11 CF/CM/CU30C 1.00 1.00 0.98
TM8X100C20MP11 CF/CM/CU30D 1.00 1.01 0.98
TM8X100C20MP11 CF/CM/CU36C 1.00 1.00 0.96
TM8X100C20MP11 CF/CM/CU36D 1.00 1.00 0.96
TM8X100C20MP11 CF/CM/CU42C 1.00 1.00 0.96
TM8X100C20MP11 CF/CM/CU42D 1.00 1.00 0.96
TM8X120C20MP11 CF/CM/CU30C 1.00 1.00 0.98
TM8X120C20MP11 CF/CM/CU30D 1.00 1.01 0.98
TM8X120C20MP11 CF/CM/CU36C 1.00 1.00 0.96
TM8X120C20MP11 CF/CM/CU36D 1.00 1.00 0.96
TM8X120C20MP11 CF/CM/CU42C 1.00 1.00 0.96
TM8X120C20MP11 CF/CM/CU42D 1.00 1.00 0.96
TM8Y060A12MP11 CF/CM/CU24A 1.00 1.00 0.94
TM8Y060A12MP11 CF/CM/CU30A 1.00 1.00 0.92
TM8Y060A12MP11 CF/CM36A 1.00 0.99 0.92
TM8Y080B12MP11 CF/CM/CU24B 1.00 1.00 0.94
TM8Y080B12MP11 CF/CM/CU30B 1.00 1.00 0.92
TM8Y080B12MP11 CF/CM/CU36B 1.00 0.99 0.92
TM8Y080B12MP11 CF42B 1.00 1.00 0.92
TM8Y080C16MP11 CF/CM/CU24C 1.00 1.00 0.92
TM8Y080C16MP11 CF/CM/CU30C 1.00 1.00 0.92
TM8Y080C16MP11 CF/CM/CU30D 1.00 1.00 0.92
TM8Y080C16MP11 CF/CM/CU36C 1.00 0.99 0.92
TM8Y080C16MP11 CF/CM/CU36D 1.00 0.99 0.92
TM8Y080C16MP11 CF/CM/CU42C 1.00 1.00 0.92
TM8Y080C16MP11 CF/CM/CU42D 1.00 1.00 0.92
TM8Y100C16MP11 CF/CM/CU24C 1.00 1.00 0.92
5006080-YTG-A-0815
50 Johnson Controls Unitary Products
TM8Y100C16MP11 CF/CM/CU30C 1.00 1.00 0.92
TM8Y100C16MP11 CF/CM/CU30D 1.00 1.00 0.92
TM8Y100C16MP11 CF/CM/CU36C 1.00 0.99 0.92
TM8Y100C16MP11 CF/CM/CU36D 1.00 0.99 0.92
TM8Y100C16MP11 CF/CM/CU42C 1.00 1.00 0.92
TM8Y100C16MP11 CF/CM/CU42D 1.00 1.00 0.92
TM8Y100C20MP11 CF/CM/CU30C 1.00 1.00 0.98
TM8Y100C20MP11 CF/CM/CU30D 1.00 1.01 0.98
TM8Y100C20MP11 CF/CM/CU36C 1.00 1.00 0.96
TM8Y100C20MP11 CF/CM/CU36D 1.00 1.00 0.96
TM8Y100C20MP11 CF/CM/CU42C 1.00 1.00 0.96
TM8Y100C20MP11 CF/CM/CU42D 1.00 1.00 0.96
TM8Y120C20MP11 CF/CM/CU30C 1.00 1.00 0.98
TM8Y120C20MP11 CF/CM/CU30D 1.00 1.01 0.98
TM8Y120C20MP11 CF/CM/CU36C 1.00 1.00 0.96
TM8Y120C20MP11 CF/CM/CU36D 1.00 1.00 0.96
TM8Y120C20MP11 CF/CM/CU42C 1.00 1.00 0.96
TM8Y120C20MP11 CF/CM/CU42D 1.00 1.00 0.96
TM9E040A10MP11 CF/CM/CU24A 1.00 0.96 0.98
TM9E040A10MP11 CF/CM/CU30A 1.00 0.98 0.96
TM9E040A10MP11 CF/CM36A 1.00 0.98 0.96
TM9E060B12MP11 CF/CM/CU24B 1.00 0.98 0.94
TM9E060B12MP11 CF/CM/CU30B 1.00 0.98 0.92
TM9E060B12MP11 CF/CM/CU36B 1.00 0.98 0.92
TM9E060B12MP11 CF42B 1.00 0.98 0.92
TM9E080B12MP11 CF/CM/CU24B 1.00 0.98 0.94
TM9E080B12MP11 CF/CM/CU30B 1.00 0.98 0.92
TM9E080B12MP11 CF/CM/CU36B 1.00 0.98 0.92
TM9E080B12MP11 CF42B 1.00 0.98 0.92
TM9E080C16MP11 CF/CM/CU24C 1.00 0.98 0.92
TM9E080C16MP11 CF/CM/CU30C 1.00 0.98 0.92
TM9E080C16MP11 CF/CM/CU30D 1.00 0.99 0.92
TM9E080C16MP11 CF/CM/CU36C 1.00 0.98 0.92
TM9E080C16MP11 CF/CM/CU36D 1.00 0.99 0.92
TM9E080C16MP11 CF/CM/CU42C 1.00 0.98 0.92
TM9E080C16MP11 CF/CM/CU42D 1.00 0.99 0.92
TM9E100C16MP11 CF/CM/CU24C 1.00 0.98 0.92
TM9E100C16MP11 CF/CM/CU30C 1.00 0.98 0.92
TM9E100C16MP11 CF/CM/CU30D 1.00 0.99 0.92
TM9E100C16MP11 CF/CM/CU36C 1.00 0.98 0.92
TM9E100C16MP11 CF/CM/CU36D 1.00 0.99 0.92
TM9E100C16MP11 CF/CM/CU42C 1.00 0.98 0.92
TM9E100C16MP11 CF/CM/CU42D 1.00 0.99 0.92
TM9E100C20MP11 CF/CM/CU24C 1.00 1.01 0.96
TM9E100C20MP11 CF/CM/CU30C 1.00 1.02 0.94
TM9E100C20MP11 CF/CM/CU30D 1.00 1.02 0.94
TM9E100C20MP11 CF/CM/CU36C 1.00 1.00 0.94
TM9E100C20MP11 CF/CM/CU36D 1.00 1.00 0.94
TM9E100C20MP11 CF/CM/CU42C 1.00 1.00 0.94
TM9E100C20MP11 CF/CM/CU42D 1.00 1.00 0.94
TM9E120D20MP11 CF/CM/CU30D 1.00 1.01 0.92
TM9E120D20MP11 CF/CM/CU36D 1.00 0.99 0.92
TM9E120D20MP11 CF/CM/CU42D 1.00 1.00 0.92
TM9V040A10MP11 CF/CM/CU24A 0.99 0.92 0.99
TM9V040A10MP11 CF/CM/CU30A 1.00 0.95 0.98
FURNACE MULTIPLIERS- 2 TON (Continued)
Furnaces Coil T.C. S.C. KW
TM9V060B12MP11 CF/CM/CU24B 1.00 1.00 0.92
TM9V060B12MP11 CF/CM/CU30B 1.00 0.93 0.94
TM9V060B12MP11 CF/CM/CU36B 1.00 0.96 0.92
TM9V060B12MP11 CF42B 1.00 1.00 0.92
TM9V080B12MP11 CF/CM/CU24B 1.00 1.00 0.92
TM9V080B12MP11 CF/CM/CU30B 1.00 0.93 0.94
TM9V080B12MP11 CF/CM/CU36B 1.00 0.96 0.92
TM9V080B12MP11 CF42B 1.00 1.00 0.92
TM9V080C16MP11 CF/CM/CU36C 1.00 1.02 0.92
TM9V100C16MP11 CF/CM/CU36C 1.00 1.02 0.92
TM9Y040A10MP11 CF/CM/CU24A 1.00 0.96 0.98
TM9Y040A10MP11 CF/CM/CU30A 1.00 0.98 0.96
TM9Y040A10MP11 CF/CM36A 1.00 0.98 0.96
TM9Y060B12MP11 CF/CM/CU24B 1.00 0.98 0.94
TM9Y060B12MP11 CF/CM/CU30B 1.00 0.98 0.92
TM9Y060B12MP11 CF/CM/CU36B 1.00 0.98 0.92
TM9Y060B12MP11 CF42B 1.00 0.98 0.92
TM9Y080B12MP11 CF/CM/CU24B 1.00 0.98 0.94
TM9Y080B12MP11 CF/CM/CU30B 1.00 0.98 0.92
TM9Y080B12MP11 CF/CM/CU36B 1.00 0.98 0.92
TM9Y080B12MP11 CF42B 1.00 0.98 0.92
TM9Y080C16MP11 CF/CM/CU24C 1.00 0.98 0.92
TM9Y080C16MP11 CF/CM/CU30C 1.00 0.98 0.92
TM9Y080C16MP11 CF/CM/CU30D 1.00 0.99 0.92
TM9Y080C16MP11 CF/CM/CU36C 1.00 0.98 0.92
TM9Y080C16MP11 CF/CM/CU36D 1.00 0.99 0.92
TM9Y080C16MP11 CF/CM/CU42C 1.00 0.98 0.92
TM9Y080C16MP11 CF/CM/CU42D 1.00 0.99 0.92
TM9Y100C16MP11 CF/CM/CU24C 1.00 0.98 0.92
TM9Y100C16MP11 CF/CM/CU30C 1.00 0.98 0.92
TM9Y100C16MP11 CF/CM/CU30D 1.00 0.99 0.92
TM9Y100C16MP11 CF/CM/CU36C 1.00 0.98 0.92
TM9Y100C16MP11 CF/CM/CU36D 1.00 0.99 0.92
TM9Y100C16MP11 CF/CM/CU42C 1.00 0.98 0.92
TM9Y100C16MP11 CF/CM/CU42D 1.00 0.99 0.92
TM9Y100C20MP11 CF/CM/CU24C 1.00 1.01 0.96
TM9Y100C20MP11 CF/CM/CU30C 1.00 1.02 0.94
TM9Y100C20MP11 CF/CM/CU30D 1.00 1.02 0.94
TM9Y100C20MP11 CF/CM/CU36C 1.00 1.00 0.94
TM9Y100C20MP11 CF/CM/CU36D 1.00 1.00 0.94
TM9Y100C20MP11 CF/CM/CU42C 1.00 1.00 0.94
TM9Y100C20MP11 CF/CM/CU42D 1.00 1.00 0.94
TM9Y120D20MP11 CF/CM/CU30D 1.00 1.01 0.92
TM9Y120D20MP11 CF/CM/CU36D 1.00 0.99 0.92
TM9Y120D20MP11 CF/CM/CU42D 1.00 1.00 0.92
TMLV060A12MP11 CF/CM/CU24A 1.00 0.96 0.98
TMLV060A12MP11 CF/CM/CU30A 1.00 0.99 0.96
TMLV060A12MP11 CF/CM36A 1.00 0.94 0.94
TMLV080B12MP11 CF/CM/CU24B 1.00 1.02 0.96
TMLV080B12MP11 CF/CM/CU30B 1.00 1.00 0.94
TMLV080B12MP11 CF/CM/CU36B 1.00 0.93 0.94
TMLV080B12MP11 CF42B 1.00 1.01 0.92
TMLX060A12MP11 CF/CM/CU24A 1.00 1.00 0.94
TMLX060A12MP11 CF/CM/CU30A 1.00 1.00 0.92
TMLX060A12MP11 CF/CM36A 1.00 0.99 0.92
FURNACE MULTIPLIERS- 2 TON (Continued)
Furnaces Coil T.C. S.C. KW
5006080-YTG-A-0815
Johnson Controls Unitary Products 51
TMLX080B12MP11 CF/CM/CU24B 1.00 1.00 0.94
TMLX080B12MP11 CF/CM/CU30B 1.00 1.00 0.92
TMLX080B12MP11 CF/CM/CU36B 1.00 0.99 0.92
TMLX080B12MP11 CF42B 1.00 1.00 0.92
TMLX080C16MP11 CF/CM/CU24C 1.00 1.00 0.92
TMLX080C16MP11 CF/CM/CU30C 1.00 1.00 0.92
TMLX080C16MP11 CF/CM/CU30D 1.00 1.00 0.92
TMLX080C16MP11 CF/CM/CU36C 1.00 0.99 0.92
TMLX080C16MP11 CF/CM/CU36D 1.00 0.99 0.92
TMLX080C16MP11 CF/CM/CU42C 1.00 1.00 0.92
TMLX080C16MP11 CF/CM/CU42D 1.00 1.00 0.92
TMLX100C16MP11 CF/CM/CU24C 1.00 1.00 0.92
TMLX100C16MP11 CF/CM/CU30C 1.00 1.00 0.92
TMLX100C16MP11 CF/CM/CU30D 1.00 1.00 0.92
TMLX100C16MP11 CF/CM/CU36C 1.00 0.99 0.92
TMLX100C16MP11 CF/CM/CU36D 1.00 0.99 0.92
TMLX100C16MP11 CF/CM/CU42C 1.00 1.00 0.92
TMLX100C16MP11 CF/CM/CU42D 1.00 1.00 0.92
TMLX100C20MP11 CF/CM/CU30C 1.00 1.00 0.98
TMLX100C20MP11 CF/CM/CU30D 1.00 1.01 0.98
TMLX100C20MP11 CF/CM/CU36C 1.00 1.00 0.96
TMLX100C20MP11 CF/CM/CU36D 1.00 1.00 0.96
TMLX100C20MP11 CF/CM/CU42C 1.00 1.00 0.96
TMLX100C20MP11 CF/CM/CU42D 1.00 1.00 0.96
TMLX120C20MP11 CF/CM/CU30C 1.00 1.00 0.98
TMLX120C20MP11 CF/CM/CU30D 1.00 1.01 0.98
TMLX120C20MP11 CF/CM/CU36C 1.00 1.00 0.96
TMLX120C20MP11 CF/CM/CU36D 1.00 1.00 0.96
TMLX120C20MP11 CF/CM/CU42C 1.00 1.00 0.96
TMLX120C20MP11 CF/CM/CU42D 1.00 1.00 0.96
TP9C060B12MP12 CF/CM/CU24B 1.00 1.00 0.92
TP9C060B12MP12 CF/CM/CU30B 1.00 0.93 0.94
TP9C060B12MP12 CF/CM/CU36B 1.00 0.96 0.92
FURNACE MULTIPLIERS- 2 TON (Continued)
Furnaces Coil T.C. S.C. KW
TP9C060B12MP12 CF42B 1.00 1.00 0.92
TP9C080B12MP12 CF/CM/CU24B 1.00 1.00 0.92
TP9C080B12MP12 CF/CM/CU30B 1.00 0.93 0.94
TP9C080B12MP12 CF/CM/CU36B 1.00 0.96 0.92
TP9C080B12MP12 CF42B 1.00 1.00 0.92
TP9C080C16MP12 CF/CM/CU36C 1.00 1.02 0.92
TP9C100C16MP12 CF/CM/CU36C 1.00 1.02 0.92
TPLC060A12MP12 CF/CM/CU24A 1.00 0.96 0.98
TPLC060A12MP12 CF/CM/CU30A 1.00 0.99 0.96
TPLC060A12MP12 CF/CM36A 1.00 0.94 0.94
TPLC080B12MP12 CF/CM/CU24B 1.00 1.02 0.96
TPLC080B12MP12 CF/CM/CU30B 1.00 1.00 0.94
TPLC080B12MP12 CF/CM/CU36B 1.00 0.93 0.94
TPLC080B12MP12 CF42B 1.00 1.01 0.92
YP9C060B12MP12 CF/CM/CU24B 1.00 1.00 0.92
YP9C060B12MP12 CF/CM/CU30B 1.00 0.93 0.94
YP9C060B12MP12 CF/CM/CU36B 1.00 0.96 0.92
YP9C060B12MP12 CF42B 1.00 1.00 0.92
YP9C080B12MP12 CF/CM/CU24B 1.00 1.00 0.92
YP9C080B12MP12 CF/CM/CU30B 1.00 0.93 0.94
YP9C080B12MP12 CF/CM/CU36B 1.00 0.96 0.92
YP9C080B12MP12 CF42B 1.00 1.00 0.92
YP9C080C16MP12 CF/CM/CU36C 1.00 1.02 0.92
YP9C100C16MP12 CF/CM/CU36C 1.00 1.02 0.92
YPLC060A12MP12 CF/CM/CU24A 1.00 0.96 0.98
YPLC060A12MP12 CF/CM/CU30A 1.00 0.99 0.96
YPLC060A12MP12 CF/CM36A 1.00 0.94 0.94
YPLC080B12MP12 CF/CM/CU24B 1.00 1.02 0.96
YPLC080B12MP12 CF/CM/CU30B 1.00 1.00 0.94
YPLC080B12MP12 CF/CM/CU36B 1.00 0.93 0.94
YPLC080B12MP12 CF42B 1.00 1.01 0.92
FURNACE MULTIPLIERS- 2 TON (Continued)
Furnaces Coil T.C. S.C. KW
5006080-YTG-A-0815
52 Johnson Controls Unitary Products
PERFORMANCE DATA - 2.5 TON
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
CONDENSER-ONLY DATA (OUTDOOR UNIT)
MODEL
SATURATED SUCTION
@ COMPRESSOR
Outdoor Ambient Temperature
55 °F 65 °F 75 °F 85 °F 95 °F 105 °F 115 °F 125 °F
T (°F) P (PSIG) MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW
YCS30B21S
35 107 26.5 1.33 25.2 1.50 23.8 1.69 22.5 1.89 21.1 2.12 19.6 2.38 18.1 2.69 16.5 3.04
40 118 29.2 1.32 27.7 1.49 26.3 1.67 24.8 1.88 23.3 2.10 21.8 2.37 20.1 2.68 18.3 3.03
45 130 32.1 1.31 30.5 1.48 29.0 1.66 27.4 1.86 25.7 2.09 24.0 2.35 22.2 2.67 20.3 3.01
50 142 35.2 1.31 33.5 1.47 31.8 1.65 30.1 1.85 28.3 2.07 26.5 2.34 24.5 2.65 22.5 3.00
55 156 38.5 1.30 36.7 1.46 34.9 1.64 33.0 1.83 31.1 2.05 29.1 2.32 27.0 2.63 24.8 2.98
Notes:
1. For Outdoor Unit (Condenser) performance only. Data does not include the effects of air handler power or heat.
2. Performance based on 15°F subcooling and 15°F superheat at the Outdoor Unit base valves.
a. Increase capacity by 1% for each 2°F increase in subcooling.
b. Decrease capacity by 1% for each 2°F decrease in subcooling.
3. Maximum recommended condensing temperature is 140°F.
COOLING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YCS30B21S
INDOOR COIL MODEL NO. CF30BXA1
AIR TEMP.
ENTERING
OUTDOOR UNIT (°F)
ID CFM 800 1000 1200
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
55
T.C. 27.0 29.0 29.1 30.9 32.5 28.1 29.3 29.4 31.2 32.5 29.1 29.7 29.7 31.5 32.5
S.C. 26.8 23.6 20.4 19.5 15.5 27.8 25.0 21.4 20.2 15.7 28.7 26.3 22.3 20.9 16.0
KW 1.56 1.56 1.56 1.57 1.58 1.63 1.64 1.63 1.64 1.65 1.70 1.71 1.71 1.71 1.73
65
T.C. 26.4 28.2 28.3 30.6 32.7 27.7 28.8 28.8 30.9 32.8 29.0 29.5 29.3 31.3 33.0
S.C. 26.1 23.2 20.0 19.6 15.6 27.4 25.1 21.4 20.7 16.0 28.6 27.0 22.8 21.8 16.5
KW 1.72 1.72 1.72 1.72 1.73 1.79 1.79 1.79 1.79 1.80 1.86 1.86 1.86 1.87 1.87
75
T.C. 25.7 27.3 27.4 30.3 32.9 27.3 28.3 28.2 30.7 33.2 28.9 29.3 28.9 31.1 33.5
S.C. 25.4 22.9 19.6 19.7 15.7 26.9 25.3 21.5 21.2 16.3 28.4 27.6 23.4 22.7 17.0
KW 1.88 1.88 1.88 1.88 1.88 1.95 1.95 1.95 1.95 1.95 2.02 2.02 2.02 2.02 2.02
85
T.C. 25.0 26.3 26.3 29.2 31.8 26.4 27.0 26.9 29.7 32.2 27.9 27.8 27.6 30.3 32.6
S.C. 24.6 22.6 19.1 19.2 15.2 26.0 24.9 21.0 20.9 16.1 27.4 27.1 22.9 22.6 16.9
KW 2.10 2.10 2.10 2.09 2.08 2.16 2.17 2.17 2.15 2.15 2.23 2.23 2.23 2.22 2.22
95
T.C. 24.2 25.3 25.2 28.1 30.8 25.6 25.8 25.7 28.8 31.2 26.9 26.2 26.2 29.5 31.7
S.C. 23.8 22.4 18.5 18.6 14.8 25.1 24.5 20.5 20.6 15.8 26.4 26.2 22.5 22.6 16.8
KW 2.31 2.32 2.32 2.30 2.28 2.37 2.38 2.38 2.36 2.35 2.43 2.44 2.44 2.42 2.42
105
T.C. 22.9 23.8 23.5 26.3 29.1 24.2 24.3 24.0 26.8 29.4 25.4 24.9 24.5 27.4 29.8
S.C. 22.7 21.5 17.7 17.9 14.2 23.8 23.2 19.6 19.7 15.3 25.0 24.9 21.6 21.5 16.4
KW 2.79 2.78 2.85 2.70 2.64 2.81 2.82 2.85 2.75 2.70 2.83 2.86 2.86 2.81 2.76
115
T.C. 21.7 22.2 21.8 24.5 27.4 22.9 22.9 22.3 24.9 27.7 24.0 23.5 22.8 25.4 28.0
S.C. 21.6 20.7 16.8 17.3 13.7 22.6 22.0 18.8 18.9 14.8 23.6 23.4 20.7 20.5 15.9
KW 3.26 3.23 3.36 3.08 2.98 3.23 3.25 3.31 3.14 3.04 3.21 3.26 3.26 3.19 3.10
125
T.C. 20.4 20.7 20.1 22.7 25.7 21.5 21.5 20.6 23.0 25.9 22.6 22.2 21.1 23.3 26.1
S.C. 20.4 19.8 16.0 16.6 13.2 21.3 20.8 17.9 18.0 14.3 22.2 21.8 19.8 19.4 15.5
KW 3.72 3.68 3.87 3.47 3.33 3.65 3.67 3.76 3.52 3.38 3.59 3.67 3.66 3.57 3.43
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).
Green shaded cells are ACCA (TVA) conditions.
Blue shaded cells are AHRI conditions.
5006080-YTG-A-0815
Johnson Controls Unitary Products 53
COIL MULTIPLIERS- 2.5 TON
Air Handler Coil T.C. S.C. KW
– CF/CM/CU30B 1.00 1.00 1.00
– CF/CM/CU30C 1.00 1.00 1.00
– CF/CM/CU30D 1.00 1.00 1.00
– CF/CM/CU36B 1.01 1.00 1.01
– CF/CM/CU36C 1.01 1.00 1.01
– CF/CM/CU36D 1.01 1.00 1.01
– CF/CM/CU42C 1.01 1.00 1.01
– CF/CM/CU42D 1.01 1.00 1.01
– CF/CM36A 1.00 0.94 1.00
– CF42B 1.01 1.00 1.01
AE30BX21 – 1.02 1.02 1.00
AE36BX21 – 1.03 1.03 0.99
AE36CX21 – 1.04 1.03 0.98
AP30BX21 – 1.02 1.00 1.02
AP36BX21 – 1.01 1.00 1.01
AP36CX21 – 1.01 1.00 1.01
AP42CX21 – 1.03 1.05 1.02
AVC30BX21 – 1.02 1.01 1.00
AVC36BX21 – 1.04 1.04 0.98
AVC36CX21 – 1.04 1.05 0.98
ME08BN21 CF/CM30B 1.01 0.99 0.97
ME08BN21 CF/CM36B 1.02 0.97 0.96
ME08BN21 CF42B 1.02 0.96 0.98
ME12BN21 CF/CM30B 0.99 0.92 0.95
ME12BN21 CF/CM36B 1.03 1.04 0.99
ME12BN21 CF42B 1.03 1.02 0.99
ME14DN21 CF/CM30D 1.04 1.06 0.98
ME14DN21 CF/CM36D 1.04 1.05 0.98
ME14DN21 CF/CM42D 1.04 1.02 0.98
ME16CN21 CF/CM30C 1.03 1.06 1.00
ME16CN21 CF/CM36C 1.04 1.07 1.02
ME16CN21 CF/CM42C 1.03 1.01 1.00
MVC08BN21 CF42B 1.01 0.93 0.96
MVC12BN21 CF/CM30B 0.99 0.92 0.97
MVC12BN21 CF/CM36B 1.03 1.02 1.00
MVC12BN21 CF42B 1.03 1.02 1.00
MVC14DN21 CF/CM30D 1.02 0.99 0.96
MVC14DN21 CF/CM36D 1.03 1.02 0.97
MVC14DN21 CF/CM42D 1.04 1.02 0.98
MVC16CN21 CF/CM30C 1.01 0.99 0.95
MVC16CN21 CF/CM36C 1.04 1.05 0.98
MVC16CN21 CF/CM42C 1.03 0.98 0.96
MVC20DN21 CF/CM36D 1.04 1.08 0.98
MVC20DN21 CF/CM42D 1.04 1.07 1.00
FURNACE MULTIPLIERS- 2.5 TON
Furnaces Coil T.C. S.C. KW
TM8V060A12MP11 CF/CM/CU30A 1.01 0.99 1.00
TM8V060A12MP11 CF/CM36A 1.01 0.94 0.98
TM8V080B12MP11 CF/CM/CU36B 1.02 1.00 1.00
TM8V080B12MP11 CF42B 1.01 0.93 0.98
TM8V080C16MP11 CF/CM/CU30C 1.02 0.99 1.00
TM8V080C16MP11 CF/CM/CU36C 1.04 1.08 1.00
TM8V080C16MP11 CF/CM/CU42C 1.02 0.99 0.98
TM8V100C16MP11 CF/CM/CU30C 1.02 0.99 1.00
TM8V100C16MP11 CF/CM/CU36C 1.04 1.08 1.00
TM8V100C16MP11 CF/CM/CU42C 1.02 0.99 0.98
TM8V100C20MP11 CF/CM/CU36C 1.04 1.07 1.02
TM8V100C20MP11 CF/CM/CU42C 1.04 1.07 1.02
TM8V120C20MP11 CF/CM/CU36C 1.04 1.07 1.02
TM8V120C20MP11 CF/CM/CU42C 1.04 1.07 1.02
TM8X060A12MP11 CF/CM/CU30A 1.02 1.02 1.00
TM8X060A12MP11 CF/CM36A 1.02 1.00 1.00
TM8X080B12MP11 CF/CM/CU30B 1.02 1.02 1.00
TM8X080B12MP11 CF/CM/CU36B 1.03 1.02 1.01
TM8X080B12MP11 CF42B 1.03 1.01 1.00
TM8X080C16MP11 CF/CM/CU30C 1.03 1.05 0.99
TM8X080C16MP11 CF/CM/CU30D 1.03 1.07 0.99
TM8X080C16MP11 CF/CM/CU36C 1.04 1.06 1.00
TM8X080C16MP11 CF/CM/CU36D 1.04 1.06 0.98
TM8X080C16MP11 CF/CM/CU42C 1.04 1.05 1.00
TM8X080C16MP11 CF/CM/CU42D 1.04 1.06 0.98
TM8X100C16MP11 CF/CM/CU30C 1.03 1.05 0.99
TM8X100C16MP11 CF/CM/CU30D 1.03 1.07 0.99
TM8X100C16MP11 CF/CM/CU36C 1.04 1.06 1.00
TM8X100C16MP11 CF/CM/CU36D 1.04 1.06 0.98
TM8X100C16MP11 CF/CM/CU42C 1.04 1.05 1.00
TM8X100C16MP11 CF/CM/CU42D 1.04 1.06 0.98
TM8X100C20MP11 CF/CM/CU30C 1.03 1.07 0.99
TM8X100C20MP11 CF/CM/CU30D 1.03 1.05 0.99
TM8X100C20MP11 CF/CM/CU36C 1.04 1.06 0.98
TM8X100C20MP11 CF/CM/CU36D 1.04 1.07 0.98
TM8X100C20MP11 CF/CM/CU42C 1.04 1.06 0.98
TM8X100C20MP11 CF/CM/CU42D 1.04 1.08 0.98
TM8X120C20MP11 CF/CM/CU30C 1.03 1.07 0.99
TM8X120C20MP11 CF/CM/CU30D 1.03 1.05 0.99
TM8X120C20MP11 CF/CM/CU36C 1.04 1.06 0.98
TM8X120C20MP11 CF/CM/CU36D 1.04 1.07 0.98
TM8X120C20MP11 CF/CM/CU42C 1.04 1.06 0.98
TM8X120C20MP11 CF/CM/CU42D 1.04 1.08 0.98
TM8Y060A12MP11 CF/CM/CU30A 1.02 1.02 1.00
TM8Y060A12MP11 CF/CM36A 1.02 1.00 1.00
TM8Y080B12MP11 CF/CM/CU30B 1.02 1.02 1.00
TM8Y080B12MP11 CF/CM/CU36B 1.03 1.02 1.01
TM8Y080B12MP11 CF42B 1.03 1.01 1.00
TM8Y080C16MP11 CF/CM/CU30C 1.03 1.05 0.99
TM8Y080C16MP11 CF/CM/CU30D 1.03 1.07 0.99
TM8Y080C16MP11 CF/CM/CU36C 1.04 1.06 1.00
TM8Y080C16MP11 CF/CM/CU36D 1.04 1.06 0.98
5006080-YTG-A-0815
54 Johnson Controls Unitary Products
TM8Y080C16MP11 CF/CM/CU42C 1.04 1.05 1.00
TM8Y080C16MP11 CF/CM/CU42D 1.04 1.06 0.98
TM8Y100C16MP11 CF/CM/CU30C 1.03 1.05 0.99
TM8Y100C16MP11 CF/CM/CU30D 1.03 1.07 0.99
TM8Y100C16MP11 CF/CM/CU36C 1.04 1.06 1.00
TM8Y100C16MP11 CF/CM/CU36D 1.04 1.06 0.98
TM8Y100C16MP11 CF/CM/CU42C 1.04 1.05 1.00
TM8Y100C16MP11 CF/CM/CU42D 1.04 1.06 0.98
TM8Y100C20MP11 CF/CM/CU30C 1.03 1.07 0.99
TM8Y100C20MP11 CF/CM/CU30D 1.03 1.05 0.99
TM8Y100C20MP11 CF/CM/CU36C 1.04 1.06 0.98
TM8Y100C20MP11 CF/CM/CU36D 1.04 1.07 0.98
TM8Y100C20MP11 CF/CM/CU42C 1.04 1.06 0.98
TM8Y100C20MP11 CF/CM/CU42D 1.04 1.08 0.98
TM8Y120C20MP11 CF/CM/CU30C 1.03 1.07 0.99
TM8Y120C20MP11 CF/CM/CU30D 1.03 1.05 0.99
TM8Y120C20MP11 CF/CM/CU36C 1.04 1.06 0.98
TM8Y120C20MP11 CF/CM/CU36D 1.04 1.07 0.98
TM8Y120C20MP11 CF/CM/CU42C 1.04 1.06 0.98
TM8Y120C20MP11 CF/CM/CU42D 1.04 1.08 0.98
TM9E040A10MP11 CF/CM/CU30A 0.99 0.94 0.99
TM9E040A10MP11 CF/CM36A 1.00 0.93 1.00
TM9E060B12MP11 CF/CM/CU30B 1.01 0.98 0.98
TM9E060B12MP11 CF/CM/CU36B 1.02 0.97 0.98
TM9E060B12MP11 CF42B 1.02 0.97 0.98
TM9E080B12MP11 CF/CM/CU30B 1.01 0.98 0.98
TM9E080B12MP11 CF/CM/CU36B 1.02 0.97 0.98
TM9E080B12MP11 CF42B 1.02 0.97 0.98
TM9E080C16MP11 CF/CM/CU30C 1.03 1.06 0.99
TM9E080C16MP11 CF/CM/CU30D 1.03 1.05 0.99
TM9E080C16MP11 CF/CM/CU36C 1.03 1.03 1.01
TM9E080C16MP11 CF/CM/CU42C 1.03 1.01 1.00
TM9E100C16MP11 CF/CM/CU30C 1.03 1.06 0.99
TM9E100C16MP11 CF/CM/CU30D 1.03 1.05 0.99
TM9E100C16MP11 CF/CM/CU36C 1.03 1.03 1.01
TM9E100C16MP11 CF/CM/CU42C 1.03 1.01 1.00
TM9E100C20MP11 CF/CM/CU30C 1.02 1.01 0.98
TM9E100C20MP11 CF/CM/CU36C 1.03 1.01 0.99
TM9E100C20MP11 CF/CM/CU42C 1.03 1.02 0.97
TM9E120D20MP11 CF/CM/CU30D 1.03 1.02 0.96
TM9E120D20MP11 CF/CM/CU36D 1.03 1.01 0.97
TM9E120D20MP11 CF/CM/CU42D 1.04 1.02 0.98
TM9V060B12MP11 CF/CM/CU30B 0.99 0.91 0.96
TM9V060B12MP11 CF/CM/CU36B 1.02 0.99 1.00
TM9V060B12MP11 CF42B 1.02 0.99 1.00
TM9V080B12MP11 CF/CM/CU30B 0.99 0.91 0.96
TM9V080B12MP11 CF/CM/CU36B 1.02 0.99 1.00
TM9V080B12MP11 CF42B 1.02 0.99 1.00
TM9V080C16MP11 CF/CM/CU30C 1.02 1.00 0.98
TM9V080C16MP11 CF/CM/CU36C 1.03 1.01 0.99
TM9V080C16MP11 CF/CM/CU42C 1.03 1.02 0.99
TM9V100C16MP11 CF/CM/CU30C 1.02 1.00 0.98
FURNACE MULTIPLIERS- 2.5 TON (Continued)
Furnaces Coil T.C. S.C. KW
TM9V100C16MP11 CF/CM/CU36C 1.03 1.01 0.99
TM9V100C16MP11 CF/CM/CU42C 1.03 1.02 0.99
TM9V100C20MP11 CF/CM/CU30C 1.03 1.06 1.00
TM9V100C20MP11 CF/CM/CU36C 1.04 1.06 1.02
TM9V120D20MP11 CF/CM/CU36D 1.04 1.08 0.98
TM9V120D20MP11 CF/CM/CU42D 1.04 1.08 1.00
TM9Y040A10MP11 CF/CM/CU30A 0.99 0.94 0.99
TM9Y040A10MP11 CF/CM36A 1.00 0.93 1.00
TM9Y060B12MP11 CF/CM/CU30B 1.01 0.98 0.98
TM9Y060B12MP11 CF/CM/CU36B 1.02 0.97 0.98
TM9Y060B12MP11 CF42B 1.02 0.97 0.98
TM9Y080B12MP11 CF/CM/CU30B 1.01 0.98 0.98
TM9Y080B12MP11 CF/CM/CU36B 1.02 0.97 0.98
TM9Y080B12MP11 CF42B 1.02 0.97 0.98
TM9Y080C16MP11 CF/CM/CU30C 1.03 1.06 0.99
TM9Y080C16MP11 CF/CM/CU30D 1.03 1.05 0.99
TM9Y080C16MP11 CF/CM/CU36C 1.03 1.03 1.01
TM9Y080C16MP11 CF/CM/CU42C 1.03 1.01 1.00
TM9Y100C16MP11 CF/CM/CU30C 1.03 1.06 0.99
TM9Y100C16MP11 CF/CM/CU30D 1.03 1.05 0.99
TM9Y100C16MP11 CF/CM/CU36C 1.03 1.03 1.01
TM9Y100C16MP11 CF/CM/CU42C 1.03 1.01 1.00
TM9Y100C20MP11 CF/CM/CU30C 1.02 1.01 0.98
TM9Y100C20MP11 CF/CM/CU36C 1.03 1.01 0.99
TM9Y100C20MP11 CF/CM/CU42C 1.03 1.02 0.97
TM9Y120D20MP11 CF/CM/CU30D 1.03 1.02 0.96
TM9Y120D20MP11 CF/CM/CU36D 1.03 1.01 0.97
TM9Y120D20MP11 CF/CM/CU42D 1.04 1.02 0.98
TMLV060A12MP11 CF/CM/CU30A 1.01 0.99 1.00
TMLV060A12MP11 CF/CM36A 1.01 0.94 0.98
TMLV080B12MP11 CF/CM/CU36B 1.02 1.00 1.00
TMLV080B12MP11 CF42B 1.01 0.93 0.98
TMLV080C16MP11 CF/CM/CU30C 1.02 0.99 1.00
TMLV080C16MP11 CF/CM/CU36C 1.04 1.08 1.00
TMLV080C16MP11 CF/CM/CU42C 1.02 0.99 0.98
TMLV100C16MP11 CF/CM/CU30C 1.02 0.99 1.00
TMLV100C16MP11 CF/CM/CU36C 1.04 1.08 1.00
TMLV100C16MP11 CF/CM/CU42C 1.02 0.99 0.98
TMLV100C20MP11 CF/CM/CU36C 1.04 1.07 1.02
TMLV100C20MP11 CF/CM/CU42C 1.04 1.07 1.02
TMLV120C20MP11 CF/CM/CU36C 1.04 1.07 1.02
TMLV120C20MP11 CF/CM/CU42C 1.04 1.07 1.02
TMLX060A12MP11 CF/CM/CU30A 1.02 1.02 1.00
TMLX060A12MP11 CF/CM36A 1.02 1.00 1.00
TMLX080B12MP11 CF/CM/CU30B 1.02 1.02 1.00
TMLX080B12MP11 CF/CM/CU36B 1.03 1.02 1.01
TMLX080B12MP11 CF42B 1.03 1.01 1.00
TMLX080C16MP11 CF/CM/CU30C 1.03 1.05 0.99
TMLX080C16MP11 CF/CM/CU30D 1.03 1.07 0.99
TMLX080C16MP11 CF/CM/CU36C 1.04 1.06 1.00
TMLX080C16MP11 CF/CM/CU36D 1.04 1.06 0.98
TMLX080C16MP11 CF/CM/CU42C 1.04 1.05 1.00
FURNACE MULTIPLIERS- 2.5 TON (Continued)
Furnaces Coil T.C. S.C. KW
5006080-YTG-A-0815
Johnson Controls Unitary Products 55
TMLX080C16MP11 CF/CM/CU42D 1.04 1.06 0.98
TMLX100C16MP11 CF/CM/CU30C 1.03 1.05 0.99
TMLX100C16MP11 CF/CM/CU30D 1.03 1.07 0.99
TMLX100C16MP11 CF/CM/CU36C 1.04 1.06 1.00
TMLX100C16MP11 CF/CM/CU36D 1.04 1.06 0.98
TMLX100C16MP11 CF/CM/CU42C 1.04 1.05 1.00
TMLX100C16MP11 CF/CM/CU42D 1.04 1.06 0.98
TMLX100C20MP11 CF/CM/CU30C 1.03 1.07 0.99
TMLX100C20MP11 CF/CM/CU30D 1.03 1.05 0.99
TMLX100C20MP11 CF/CM/CU36C 1.04 1.06 0.98
TMLX100C20MP11 CF/CM/CU36D 1.04 1.07 0.98
TMLX100C20MP11 CF/CM/CU42C 1.04 1.06 0.98
TMLX100C20MP11 CF/CM/CU42D 1.04 1.08 0.98
TMLX120C20MP11 CF/CM/CU30C 1.03 1.07 0.99
TMLX120C20MP11 CF/CM/CU30D 1.03 1.05 0.99
TMLX120C20MP11 CF/CM/CU36C 1.04 1.06 0.98
TMLX120C20MP11 CF/CM/CU36D 1.04 1.07 0.98
TMLX120C20MP11 CF/CM/CU42C 1.04 1.06 0.98
TMLX120C20MP11 CF/CM/CU42D 1.04 1.08 0.98
TP9C060B12MP12 CF/CM/CU30B 0.99 0.91 0.96
TP9C060B12MP12 CF/CM/CU36B 1.02 0.99 1.00
TP9C060B12MP12 CF42B 1.02 0.99 1.00
TP9C080B12MP12 CF/CM/CU30B 0.99 0.91 0.96
TP9C080B12MP12 CF/CM/CU36B 1.02 0.99 1.00
TP9C080B12MP12 CF42B 1.02 0.99 1.00
TP9C080C16MP12 CF/CM/CU30C 1.02 1.00 0.98
TP9C080C16MP12 CF/CM/CU36C 1.03 1.01 0.99
TP9C080C16MP12 CF/CM/CU42C 1.03 1.02 0.99
TP9C100C16MP12 CF/CM/CU30C 1.02 1.00 0.98
TP9C100C16MP12 CF/CM/CU36C 1.03 1.01 0.99
TP9C100C16MP12 CF/CM/CU42C 1.03 1.02 0.99
TP9C100C20MP12 CF/CM/CU30C 1.03 1.06 1.00
TP9C100C20MP12 CF/CM/CU36C 1.04 1.06 1.02
TP9C120D20MP12 CF/CM/CU36D 1.04 1.08 0.98
TP9C120D20MP12 CF/CM/CU42D 1.04 1.08 1.00
TPLC060A12MP12 CF/CM/CU30A 1.01 0.99 1.00
TPLC060A12MP12 CF/CM36A 1.01 0.94 0.98
TPLC080B12MP12 CF/CM/CU36B 1.02 1.00 1.00
TPLC080B12MP12 CF42B 1.01 0.93 0.98
TPLC080C16MP12 CF/CM/CU30C 1.02 0.99 1.00
TPLC080C16MP12 CF/CM/CU36C 1.04 1.08 1.00
FURNACE MULTIPLIERS- 2.5 TON (Continued)
Furnaces Coil T.C. S.C. KW
TPLC080C16MP12 CF/CM/CU42C 1.02 0.99 0.98
TPLC100C16MP12 CF/CM/CU30C 1.02 0.99 1.00
TPLC100C16MP12 CF/CM/CU36C 1.04 1.08 1.00
TPLC100C16MP12 CF/CM/CU42C 1.02 0.99 0.98
TPLC100C20MP12 CF/CM/CU36C 1.04 1.07 1.02
TPLC100C20MP12 CF/CM/CU42C 1.04 1.07 1.02
TPLC120C20MP12 CF/CM/CU36C 1.04 1.07 1.02
TPLC120C20MP12 CF/CM/CU42C 1.04 1.07 1.02
YP9C060B12MP12 CF/CM/CU30B 0.99 0.91 0.96
YP9C060B12MP12 CF/CM/CU36B 1.02 0.99 1.00
YP9C060B12MP12 CF42B 1.02 0.99 1.00
YP9C080B12MP12 CF/CM/CU30B 0.99 0.91 0.96
YP9C080B12MP12 CF/CM/CU36B 1.02 0.99 1.00
YP9C080B12MP12 CF42B 1.02 0.99 1.00
YP9C080C16MP12 CF/CM/CU30C 1.02 1.00 0.98
YP9C080C16MP12 CF/CM/CU36C 1.03 1.01 0.99
YP9C080C16MP12 CF/CM/CU42C 1.03 1.02 0.99
YP9C100C16MP12 CF/CM/CU30C 1.02 1.00 0.98
YP9C100C16MP12 CF/CM/CU36C 1.03 1.01 0.99
YP9C100C16MP12 CF/CM/CU42C 1.03 1.02 0.99
YP9C100C20MP12 CF/CM/CU30C 1.03 1.06 1.00
YP9C100C20MP12 CF/CM/CU36C 1.04 1.06 1.02
YP9C120D20MP12 CF/CM/CU36D 1.04 1.08 0.98
YP9C120D20MP12 CF/CM/CU42D 1.04 1.08 1.00
YPLC060A12MP12 CF/CM/CU30A 1.01 0.99 1.00
YPLC060A12MP12 CF/CM36A 1.01 0.94 0.98
YPLC080B12MP12 CF/CM/CU36B 1.02 1.00 1.00
YPLC080B12MP12 CF42B 1.01 0.93 0.98
YPLC080C16MP12 CF/CM/CU30C 1.02 0.99 1.00
YPLC080C16MP12 CF/CM/CU36C 1.04 1.08 1.00
YPLC080C16MP12 CF/CM/CU42C 1.02 0.99 0.98
YPLC100C16MP12 CF/CM/CU30C 1.02 0.99 1.00
YPLC100C16MP12 CF/CM/CU36C 1.04 1.08 1.00
YPLC100C16MP12 CF/CM/CU42C 1.02 0.99 0.98
YPLC100C20MP12 CF/CM/CU36C 1.04 1.07 1.02
YPLC100C20MP12 CF/CM/CU42C 1.04 1.07 1.02
YPLC120C20MP12 CF/CM/CU36C 1.04 1.07 1.02
YPLC120C20MP12 CF/CM/CU42C 1.04 1.07 1.02
FURNACE MULTIPLIERS- 2.5 TON (Continued)
Furnaces Coil T.C. S.C. KW
5006080-YTG-A-0815
56 Johnson Controls Unitary Products
PERFORMANCE DATA - 3 TON
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
CONDENSER-ONLY DATA (OUTDOOR UNIT)
MODEL
SATURATED SUCTION
@ COMPRESSOR
Outdoor Ambient Temperature
55 °F 65 °F 75 °F 85 °F 95 °F 105 °F 115 °F 125 °F
T (°F) P (PSIG) MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW
YCS36B21S
35 107 34.0 1.68 32.3 1.88 30.6 2.10 28.8 2.35 27.0 2.62 25.1 2.96 23.0 3.36 20.9 3.82
40 118 37.4 1.67 35.6 1.87 33.8 2.09 31.9 2.33 29.9 2.61 27.8 2.94 25.6 3.34 23.3 3.79
45 130 41.1 1.67 39.2 1.86 37.2 2.08 35.2 2.32 33.0 2.59 30.8 2.92 28.4 3.32 25.9 3.76
50 142 45.1 1.67 43.0 1.86 40.9 2.07 38.7 2.31 36.4 2.57 33.9 2.90 31.4 3.29 28.7 3.73
55 156 49.3 1.67 47.0 1.86 44.7 2.06 42.4 2.30 39.9 2.56 37.3 2.89 34.6 3.27 31.7 3.70
Notes:
1. For Outdoor Unit (Condenser) performance only. Data does not include the effects of air handler power or heat.
2. Performance based on 15°F subcooling and 15°F superheat at the Outdoor Unit base valves.
a. Increase capacity by 1% for each 2°F increase in subcooling.
b. Decrease capacity by 1% for each 2°F decrease in subcooling.
3. Maximum recommended condensing temperature is 140°F.
COOLING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YCS36B21S
INDOOR COIL MODEL NO. CF36BXA1
AIR TEMP.
ENTERING
OUTDOOR UNIT (°F)
ID CFM 1000 1200 1400
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
55
T.C. 34.1 37.4 37.7 39.0 40.2 32.6 38.1 38.4 39.7 40.3 31.0 38.9 39.1 40.5 40.4
S.C. 34.1 30.8 26.3 24.8 19.1 32.6 32.9 28.0 25.9 19.5 31.0 35.0 29.8 27.1 20.0
KW 1.89 1.89 1.89 1.89 1.91 1.96 1.96 1.96 1.97 1.98 2.03 2.03 2.03 2.04 2.05
65
T.C. 32.8 45.3 36.1 38.6 40.8 33.0 41.5 37.0 39.2 41.0 33.3 37.7 37.9 39.9 41.3
S.C. 32.8 29.8 25.4 24.7 19.3 33.0 32.3 27.4 26.4 20.0 33.3 34.7 29.4 28.0 20.7
KW 2.08 2.08 2.08 2.08 2.09 2.15 2.15 2.15 2.15 2.16 2.21 2.22 2.22 2.22 2.23
75
T.C. 31.6 53.1 34.6 38.2 41.4 33.5 44.8 35.6 38.8 41.7 35.5 36.6 36.7 39.3 42.1
S.C. 31.6 28.8 24.6 24.7 19.5 33.5 31.6 26.8 26.8 20.5 35.5 34.5 29.1 28.9 21.5
KW 2.28 2.28 2.28 2.27 2.27 2.34 2.34 2.34 2.33 2.34 2.40 2.40 2.41 2.40 2.41
85
T.C. 30.4 42.1 32.9 36.3 39.8 32.2 38.3 33.8 36.9 40.3 34.0 34.6 34.7 37.5 40.8
S.C. 30.4 27.9 23.7 23.8 19.0 32.2 30.5 25.8 25.9 20.1 34.0 33.2 27.9 28.0 21.1
KW 2.58 2.57 2.59 2.55 2.52 2.63 2.63 2.64 2.60 2.59 2.68 2.68 2.69 2.66 2.66
95
T.C. 29.3 31.0 31.3 34.3 38.2 30.8 31.8 32.0 35.0 38.9 32.4 32.6 32.7 35.7 39.5
S.C. 29.3 27.1 22.8 22.9 18.4 30.8 29.5 24.7 25.0 19.6 32.4 31.9 26.7 27.1 20.8
KW 2.88 2.86 2.90 2.82 2.78 2.92 2.91 2.94 2.87 2.85 2.95 2.96 2.97 2.91 2.92
105
T.C. 27.9 28.8 29.0 32.1 35.6 29.4 29.8 29.8 32.7 36.1 30.9 30.7 30.5 33.3 36.7
S.C. 27.9 26.0 21.9 22.2 17.6 29.4 28.1 24.0 24.3 18.7 30.9 30.2 26.0 26.4 19.9
KW 3.42 3.46 3.48 3.34 3.28 3.44 3.47 3.50 3.38 3.34 3.45 3.47 3.52 3.43 3.40
115
T.C. 26.5 26.7 26.8 30.1 33.1 28.0 27.8 27.6 30.5 33.5 29.4 28.9 28.5 31.0 34.0
S.C. 26.5 25.0 21.1 21.5 16.7 28.0 26.8 23.2 23.6 17.8 29.4 28.7 25.4 25.7 18.9
KW 3.94 4.05 4.05 3.84 3.77 3.94 4.00 4.05 3.89 3.82 3.94 3.95 4.04 3.93 3.87
125
T.C. 25.2 24.6 24.6 28.0 30.5 26.6 25.8 25.5 28.3 30.9 27.9 27.1 26.4 28.6 31.3
S.C. 25.2 24.0 20.2 20.7 15.8 26.6 25.5 22.5 22.9 16.9 27.9 27.1 24.8 25.0 18.0
KW 4.46 4.63 4.62 4.35 4.26 4.44 4.54 4.59 4.39 4.30 4.43 4.44 4.57 4.43 4.33
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).
Green shaded cells are ACCA (TVA) conditions.
Blue shaded cells are AHRI conditions.
5006080-YTG-A-0815
Johnson Controls Unitary Products 57
COIL MULTIPLIERS- 3 TON
Air Handler Coil T.C. S.C. KW
– CF/CM/CU36B 1.00 1.00 1.00
– CF/CM/CU36C 1.00 1.00 1.00
– CF/CM/CU36D 1.00 1.00 1.00
– CF/CM/CU42C 1.03 1.02 1.02
– CF/CM/CU42D 1.03 1.02 1.02
– CF/CM/CU48C 1.03 1.02 1.02
– CF/CM/CU48D 1.03 1.02 1.02
– CF42B 1.03 1.02 1.02
AE36BX21 – 1.03 0.96 1.00
AE36CX21 – 1.03 1.04 0.97
AE42CX21 – 1.03 1.02 0.98
AE48CX21 – 1.03 1.04 0.97
AE48DX21 – 1.03 1.03 0.97
AP36BX21 – 1.01 0.94 1.01
AP36CX21 – 1.03 1.03 1.02
AP42CX21 – 1.03 1.04 1.02
AP48CX21 – 1.03 1.02 1.02
AP48DX21 – 1.03 1.06 1.02
AVC36BX21 – 1.03 0.96 1.00
AVC36CX21 – 1.03 1.02 0.97
AVC42CX21 – 1.03 1.01 0.97
AVC48CX21 – 1.03 0.98 0.97
AVC48DX21 – 1.03 1.07 0.97
ME12BN21 CF/CM36B 1.03 0.96 1.00
ME12BN21 CF42B 1.03 0.96 1.00
ME14DN21 CF/CM36D 1.03 1.05 0.97
ME14DN21 CF/CM42D 1.03 1.04 0.97
ME14DN21 CF/CM48D 1.03 1.02 0.97
ME16CN21 CF/CM36C 1.03 1.04 0.97
ME16CN21 CF/CM42C 1.03 1.03 0.97
ME16CN21 CF/CM48C 1.03 1.03 0.97
ME20DN21 CF/CM36D 1.03 1.07 1.00
ME20DN21 CF/CM42D 1.03 1.07 1.00
ME20DN21 CF/CM48D 1.03 1.06 1.00
MVC08BN21 CF42B 1.03 0.96 1.00
MVC12BN21 CF/CM36B 1.03 0.96 1.00
MVC12BN21 CF42B 1.03 0.96 1.00
MVC14DN21 CF/CM36D 1.03 0.94 0.98
MVC14DN21 CF/CM42D 1.03 1.05 0.97
MVC14DN21 CF/CM48D 1.03 1.01 0.97
MVC16CN21 CF/CM36C 1.03 0.99 0.97
MVC16CN21 CF/CM42C 1.03 1.06 0.98
MVC16CN21 CF/CM48C 1.03 1.02 0.97
MVC20DN21 CF/CM36D 1.03 1.00 0.97
MVC20DN21 CF/CM42D 1.03 1.02 0.98
MVC20DN21 CF/CM48D 1.03 1.02 0.97
FURNACE MULTIPLIERS- 3 TON
Furnaces Coil T.C. S.C. KW
TM8V060A12MP11 CF/CM36A 1.01 0.93 1.01
TM8V080B12MP11 CF/CM/CU36B 1.03 0.96 1.00
TM8V080B12MP11 CF42B 1.02 0.96 1.00
TM8V080C16MP11 CF/CM/CU36C 1.03 0.99 1.00
TM8V080C16MP11 CF/CM/CU42C 1.03 1.07 1.00
TM8V080C16MP11 CF/CM/CU48C 1.03 0.98 0.98
TM8V080C16MP11 CF/CM/CU48D 1.03 0.98 0.98
TM8V100C16MP11 CF/CM/CU36C 1.03 0.99 1.00
TM8V100C16MP11 CF/CM/CU42C 1.03 1.07 1.00
TM8V100C16MP11 CF/CM/CU48C 1.03 0.98 0.98
TM8V100C16MP11 CF/CM/CU48D 1.03 0.98 0.98
TM8V100C20MP11 CF/CM/CU36C 1.03 0.99 1.00
TM8V100C20MP11 CF/CM/CU42C 1.03 1.00 1.00
TM8V100C20MP11 CF/CM/CU48C 1.03 1.04 1.00
TM8V100C20MP11 CF/CM/CU48D 1.03 1.00 0.95
TM8V120C20MP11 CF/CM/CU36C 1.03 0.99 1.00
TM8V120C20MP11 CF/CM/CU42C 1.03 1.00 1.00
TM8V120C20MP11 CF/CM/CU48C 1.03 1.04 1.00
TM8V120C20MP11 CF/CM/CU48D 1.03 1.00 0.95
TM8X060A12MP11 CF/CM36A 1.02 0.94 0.99
TM8X080B12MP11 CF/CM/CU36B 1.02 0.94 1.00
TM8X080B12MP11 CF42B 1.03 0.96 1.00
TM8X080C16MP11 CF/CM/CU36C 1.03 0.98 0.98
TM8X080C16MP11 CF/CM/CU36D 1.03 0.98 0.98
TM8X080C16MP11 CF/CM/CU42C 1.03 1.04 0.98
TM8X080C16MP11 CF/CM/CU42D 1.03 0.98 0.98
TM8X080C16MP11 CF/CM/CU48C 1.03 1.03 0.98
TM8X080C16MP11 CF/CM/CU48D 1.03 0.98 0.97
TM8X100C16MP11 CF/CM/CU36C 1.03 0.98 0.98
TM8X100C16MP11 CF/CM/CU36D 1.03 0.98 0.98
TM8X100C16MP11 CF/CM/CU42C 1.03 1.04 0.98
TM8X100C16MP11 CF/CM/CU42D 1.03 0.98 0.98
TM8X100C16MP11 CF/CM/CU48C 1.03 1.03 0.98
TM8X100C16MP11 CF/CM/CU48D 1.03 0.98 0.97
TM8X100C20MP11 CF/CM/CU36C 1.03 1.06 0.98
TM8X100C20MP11 CF/CM/CU36D 1.03 1.06 0.98
TM8X100C20MP11 CF/CM/CU42C 1.03 0.98 0.98
TM8X100C20MP11 CF/CM/CU42D 1.03 0.99 0.98
TM8X100C20MP11 CF/CM/CU48C 1.03 1.06 0.98
TM8X100C20MP11 CF/CM/CU48D 1.03 1.02 1.00
TM8X120C20MP11 CF/CM/CU36C 1.03 1.06 0.98
TM8X120C20MP11 CF/CM/CU36D 1.03 1.06 0.98
TM8X120C20MP11 CF/CM/CU42C 1.03 0.98 0.98
TM8X120C20MP11 CF/CM/CU42D 1.03 0.99 0.98
TM8X120C20MP11 CF/CM/CU48C 1.03 1.06 0.98
TM8X120C20MP11 CF/CM/CU48D 1.03 1.02 1.00
TM8Y060A12MP11 CF/CM36A 1.02 0.94 0.99
TM8Y080B12MP11 CF/CM/CU36B 1.02 0.94 1.00
TM8Y080B12MP11 CF42B 1.03 0.96 1.00
TM8Y080C16MP11 CF/CM/CU36C 1.03 0.98 0.98
TM8Y080C16MP11 CF/CM/CU36D 1.03 0.98 0.98
TM8Y080C16MP11 CF/CM/CU42C 1.03 1.04 0.98
TM8Y080C16MP11 CF/CM/CU42D 1.03 0.98 0.98
TM8Y080C16MP11 CF/CM/CU48C 1.03 1.03 0.98
TM8Y080C16MP11 CF/CM/CU48D 1.03 0.98 0.97
TM8Y100C16MP11 CF/CM/CU36C 1.03 0.98 0.98
5006080-YTG-A-0815
58 Johnson Controls Unitary Products
TM8Y100C16MP11 CF/CM/CU36D 1.03 0.98 0.98
TM8Y100C16MP11 CF/CM/CU42C 1.03 1.04 0.98
TM8Y100C16MP11 CF/CM/CU42D 1.03 0.98 0.98
TM8Y100C16MP11 CF/CM/CU48C 1.03 1.03 0.98
TM8Y100C16MP11 CF/CM/CU48D 1.03 0.98 0.97
TM8Y100C20MP11 CF/CM/CU36C 1.03 1.06 0.98
TM8Y100C20MP11 CF/CM/CU36D 1.03 1.06 0.98
TM8Y100C20MP11 CF/CM/CU42C 1.03 0.98 0.98
TM8Y100C20MP11 CF/CM/CU42D 1.03 0.99 0.98
TM8Y100C20MP11 CF/CM/CU48C 1.03 1.06 0.98
TM8Y100C20MP11 CF/CM/CU48D 1.03 1.02 1.00
TM8Y120C20MP11 CF/CM/CU36C 1.03 1.06 0.98
TM8Y120C20MP11 CF/CM/CU36D 1.03 1.06 0.98
TM8Y120C20MP11 CF/CM/CU42C 1.03 0.98 0.98
TM8Y120C20MP11 CF/CM/CU42D 1.03 0.99 0.98
TM8Y120C20MP11 CF/CM/CU48C 1.03 1.06 0.98
TM8Y120C20MP11 CF/CM/CU48D 1.03 1.02 1.00
TM9E060B12MP11 CF/CM/CU36B 1.02 0.94 0.99
TM9E060B12MP11 CF42B 1.03 0.96 1.00
TM9E080B12MP11 CF/CM/CU36B 1.02 0.94 0.99
TM9E080B12MP11 CF42B 1.03 0.96 1.00
TM9E080C16MP11 CF/CM/CU36C 1.03 0.98 0.98
TM9E080C16MP11 CF/CM/CU36D 1.03 0.99 0.98
TM9E080C16MP11 CF/CM/CU42C 1.03 0.98 0.98
TM9E080C16MP11 CF/CM/CU42D 1.03 0.98 0.98
TM9E080C16MP11 CF/CM/CU48C 1.03 0.98 0.98
TM9E080C16MP11 CF/CM/CU48D 1.03 0.98 0.98
TM9E100C16MP11 CF/CM/CU36C 1.03 0.98 0.98
TM9E100C16MP11 CF/CM/CU36D 1.03 0.99 0.98
TM9E100C16MP11 CF/CM/CU42C 1.03 0.98 0.98
TM9E100C16MP11 CF/CM/CU42D 1.03 0.98 0.98
TM9E100C16MP11 CF/CM/CU48C 1.03 0.98 0.98
TM9E100C16MP11 CF/CM/CU48D 1.03 0.98 0.98
TM9E100C20MP11 CF/CM/CU36C 1.02 0.94 0.98
TM9E100C20MP11 CF/CM/CU36D 1.02 0.94 1.00
TM9E100C20MP11 CF/CM/CU42C 1.03 1.06 0.98
TM9E100C20MP11 CF/CM/CU42D 1.03 0.96 0.98
TM9E100C20MP11 CF/CM/CU48C 1.03 0.96 0.97
TM9E100C20MP11 CF/CM/CU48D 1.03 0.96 0.97
TM9E120D20MP11 CF/CM/CU36D 1.03 1.05 0.98
TM9E120D20MP11 CF/CM/CU42D 1.03 1.06 0.98
TM9E120D20MP11 CF/CM/CU48D 1.03 1.05 0.97
TM9V060B12MP11 CF/CM/CU36B 1.03 0.97 1.00
TM9V060B12MP11 CF42B 1.03 1.02 1.00
TM9V080B12MP11 CF/CM/CU36B 1.03 0.97 1.00
TM9V080B12MP11 CF42B 1.03 1.02 1.00
TM9V080C16MP11 CF/CM/CU36C 1.02 0.94 1.00
TM9V080C16MP11 CF/CM/CU42C 1.03 0.96 0.98
TM9V080C16MP11 CF/CM/CU48C 1.03 1.05 1.00
TM9V080C16MP11 CF/CM/CU48D 1.03 1.02 0.98
TM9V100C16MP11 CF/CM/CU36C 1.02 0.94 1.00
TM9V100C16MP11 CF/CM/CU42C 1.03 0.96 0.98
TM9V100C16MP11 CF/CM/CU48C 1.03 1.05 1.00
TM9V100C16MP11 CF/CM/CU48D 1.03 1.02 0.98
TM9V100C20MP11 CF/CM/CU36C 1.03 0.98 1.00
TM9V100C20MP11 CF/CM/CU42C 1.03 1.06 1.00
FURNACE MULTIPLIERS- 3 TON (Continued)
Furnaces Coil T.C. S.C. KW
TM9V100C20MP11 CF/CM/CU48C 1.03 1.02 1.00
TM9V100C20MP11 CF/CM/CU48D 1.03 1.04 1.00
TM9V120D20MP11 CF/CM/CU36D 1.03 1.00 0.97
TM9V120D20MP11 CF/CM/CU42D 1.03 1.00 0.98
TM9V120D20MP11 CF/CM/CU48D 1.03 1.03 0.98
TM9Y060B12MP11 CF/CM/CU36B 1.02 0.94 0.99
TM9Y060B12MP11 CF42B 1.03 0.96 1.00
TM9Y080B12MP11 CF/CM/CU36B 1.02 0.94 0.99
TM9Y080B12MP11 CF42B 1.03 0.96 1.00
TM9Y080C16MP11 CF/CM/CU36C 1.03 0.98 0.98
TM9Y080C16MP11 CF/CM/CU36D 1.03 0.99 0.98
TM9Y080C16MP11 CF/CM/CU42C 1.03 0.98 0.98
TM9Y080C16MP11 CF/CM/CU42D 1.03 0.98 0.98
TM9Y080C16MP11 CF/CM/CU48C 1.03 0.98 0.98
TM9Y080C16MP11 CF/CM/CU48D 1.03 0.98 0.98
TM9Y100C16MP11 CF/CM/CU36C 1.03 0.98 0.98
TM9Y100C16MP11 CF/CM/CU36D 1.03 0.99 0.98
TM9Y100C16MP11 CF/CM/CU42C 1.03 0.98 0.98
TM9Y100C16MP11 CF/CM/CU42D 1.03 0.98 0.98
TM9Y100C16MP11 CF/CM/CU48C 1.03 0.98 0.98
TM9Y100C16MP11 CF/CM/CU48D 1.03 0.98 0.98
TM9Y100C20MP11 CF/CM/CU36C 1.02 0.94 0.98
TM9Y100C20MP11 CF/CM/CU36D 1.02 0.94 1.00
TM9Y100C20MP11 CF/CM/CU42C 1.03 1.06 0.98
TM9Y100C20MP11 CF/CM/CU42D 1.03 0.96 0.98
TM9Y100C20MP11 CF/CM/CU48C 1.03 0.96 0.97
TM9Y100C20MP11 CF/CM/CU48D 1.03 0.96 0.97
TM9Y120D20MP11 CF/CM/CU36D 1.03 1.05 0.98
TM9Y120D20MP11 CF/CM/CU42D 1.03 1.06 0.98
TM9Y120D20MP11 CF/CM/CU48D 1.03 1.05 0.97
TMLV060A12MP11 CF/CM36A 1.01 0.93 1.01
TMLV080B12MP11 CF/CM/CU36B 1.03 0.96 1.00
TMLV080B12MP11 CF42B 1.02 0.96 1.00
TMLV080C16MP11 CF/CM/CU36C 1.03 0.99 1.00
TMLV080C16MP11 CF/CM/CU42C 1.03 1.07 1.00
TMLV080C16MP11 CF/CM/CU48C 1.03 0.98 0.98
TMLV080C16MP11 CF/CM/CU48D 1.03 0.98 0.98
TMLV100C16MP11 CF/CM/CU36C 1.03 0.99 1.00
TMLV100C16MP11 CF/CM/CU42C 1.03 1.07 1.00
TMLV100C16MP11 CF/CM/CU48C 1.03 0.98 0.98
TMLV100C16MP11 CF/CM/CU48D 1.03 0.98 0.98
TMLV100C20MP11 CF/CM/CU36C 1.03 0.99 1.00
TMLV100C20MP11 CF/CM/CU42C 1.03 1.00 1.00
TMLV100C20MP11 CF/CM/CU48C 1.03 1.04 1.00
TMLV100C20MP11 CF/CM/CU48D 1.03 1.00 0.95
TMLV120C20MP11 CF/CM/CU36C 1.03 0.99 1.00
TMLV120C20MP11 CF/CM/CU42C 1.03 1.00 1.00
TMLV120C20MP11 CF/CM/CU48C 1.03 1.04 1.00
TMLV120C20MP11 CF/CM/CU48D 1.03 1.00 0.95
TMLX060A12MP11 CF/CM36A 1.02 0.94 0.99
TMLX080B12MP11 CF/CM/CU36B 1.02 0.94 1.00
TMLX080B12MP11 CF42B 1.03 0.96 1.00
TMLX080C16MP11 CF/CM/CU36C 1.03 0.98 0.98
TMLX080C16MP11 CF/CM/CU36D 1.03 0.98 0.98
TMLX080C16MP11 CF/CM/CU42C 1.03 1.04 0.98
TMLX080C16MP11 CF/CM/CU42D 1.03 0.98 0.98
FURNACE MULTIPLIERS- 3 TON (Continued)
Furnaces Coil T.C. S.C. KW
5006080-YTG-A-0815
Johnson Controls Unitary Products 59
TMLX080C16MP11 CF/CM/CU48C 1.03 1.03 0.98
TMLX080C16MP11 CF/CM/CU48D 1.03 0.98 0.97
TMLX100C16MP11 CF/CM/CU36C 1.03 0.98 0.98
TMLX100C16MP11 CF/CM/CU36D 1.03 0.98 0.98
TMLX100C16MP11 CF/CM/CU42C 1.03 1.04 0.98
TMLX100C16MP11 CF/CM/CU42D 1.03 0.98 0.98
TMLX100C16MP11 CF/CM/CU48C 1.03 1.03 0.98
TMLX100C16MP11 CF/CM/CU48D 1.03 0.98 0.97
TMLX100C20MP11 CF/CM/CU36C 1.03 1.06 0.98
TMLX100C20MP11 CF/CM/CU36D 1.03 1.06 0.98
TMLX100C20MP11 CF/CM/CU42C 1.03 0.98 0.98
TMLX100C20MP11 CF/CM/CU42D 1.03 0.99 0.98
TMLX100C20MP11 CF/CM/CU48C 1.03 1.06 0.98
TMLX100C20MP11 CF/CM/CU48D 1.03 1.02 1.00
TMLX120C20MP11 CF/CM/CU36C 1.03 1.06 0.98
TMLX120C20MP11 CF/CM/CU36D 1.03 1.06 0.98
TMLX120C20MP11 CF/CM/CU42C 1.03 0.98 0.98
TMLX120C20MP11 CF/CM/CU42D 1.03 0.99 0.98
TMLX120C20MP11 CF/CM/CU48C 1.03 1.06 0.98
TMLX120C20MP11 CF/CM/CU48D 1.03 1.02 1.00
TP9C060B12MP12 CF/CM/CU36B 1.03 0.97 1.00
TP9C060B12MP12 CF42B 1.03 1.02 1.00
TP9C080B12MP12 CF/CM/CU36B 1.03 0.97 1.00
TP9C080B12MP12 CF42B 1.03 1.02 1.00
TP9C080C16MP12 CF/CM/CU36C 1.02 0.94 1.00
TP9C080C16MP12 CF/CM/CU42C 1.03 0.96 0.98
TP9C080C16MP12 CF/CM/CU48C 1.03 1.05 1.00
TP9C080C16MP12 CF/CM/CU48D 1.03 1.02 0.98
TP9C100C16MP12 CF/CM/CU36C 1.02 0.94 1.00
TP9C100C16MP12 CF/CM/CU42C 1.03 0.96 0.98
TP9C100C16MP12 CF/CM/CU48C 1.03 1.05 1.00
TP9C100C16MP12 CF/CM/CU48D 1.03 1.02 0.98
TP9C100C20MP12 CF/CM/CU36C 1.03 0.98 1.00
TP9C100C20MP12 CF/CM/CU42C 1.03 1.06 1.00
TP9C100C20MP12 CF/CM/CU48C 1.03 1.02 1.00
TP9C100C20MP12 CF/CM/CU48D 1.03 1.04 1.00
TP9C120D20MP12 CF/CM/CU36D 1.03 1.00 0.97
TP9C120D20MP12 CF/CM/CU42D 1.03 1.00 0.98
TP9C120D20MP12 CF/CM/CU48D 1.03 1.03 0.98
TPLC060A12MP12 CF/CM36A 1.01 0.93 1.01
TPLC080B12MP12 CF/CM/CU36B 1.03 0.96 1.00
TPLC080B12MP12 CF42B 1.02 0.96 1.00
TPLC080C16MP12 CF/CM/CU36C 1.03 0.99 1.00
TPLC080C16MP12 CF/CM/CU42C 1.03 1.07 1.00
TPLC080C16MP12 CF/CM/CU48C 1.03 0.98 0.98
TPLC080C16MP12 CF/CM/CU48D 1.03 0.98 0.98
TPLC100C16MP12 CF/CM/CU36C 1.03 0.99 1.00
TPLC100C16MP12 CF/CM/CU42C 1.03 1.07 1.00
TPLC100C16MP12 CF/CM/CU48C 1.03 0.98 0.98
FURNACE MULTIPLIERS- 3 TON (Continued)
Furnaces Coil T.C. S.C. KW
TPLC100C16MP12 CF/CM/CU48D 1.03 0.98 0.98
TPLC100C20MP12 CF/CM/CU36C 1.03 0.99 1.00
TPLC100C20MP12 CF/CM/CU42C 1.03 1.00 1.00
TPLC100C20MP12 CF/CM/CU48C 1.03 1.04 1.00
TPLC100C20MP12 CF/CM/CU48D 1.03 1.00 0.95
TPLC120C20MP12 CF/CM/CU36C 1.03 0.99 1.00
TPLC120C20MP12 CF/CM/CU42C 1.03 1.00 1.00
TPLC120C20MP12 CF/CM/CU48C 1.03 1.04 1.00
TPLC120C20MP12 CF/CM/CU48D 1.03 1.00 0.95
YP9C060B12MP12 CF/CM/CU36B 1.03 0.97 1.00
YP9C060B12MP12 CF42B 1.03 1.02 1.00
YP9C080B12MP12 CF/CM/CU36B 1.03 0.97 1.00
YP9C080B12MP12 CF42B 1.03 1.02 1.00
YP9C080C16MP12 CF/CM/CU36C 1.02 0.94 1.00
YP9C080C16MP12 CF/CM/CU42C 1.03 0.96 0.98
YP9C080C16MP12 CF/CM/CU48C 1.03 1.05 1.00
YP9C080C16MP12 CF/CM/CU48D 1.03 1.02 0.98
YP9C100C16MP12 CF/CM/CU36C 1.02 0.94 1.00
YP9C100C16MP12 CF/CM/CU42C 1.03 0.96 0.98
YP9C100C16MP12 CF/CM/CU48C 1.03 1.05 1.00
YP9C100C16MP12 CF/CM/CU48D 1.03 1.02 0.98
YP9C100C20MP12 CF/CM/CU36C 1.03 0.98 1.00
YP9C100C20MP12 CF/CM/CU42C 1.03 1.06 1.00
YP9C100C20MP12 CF/CM/CU48C 1.03 1.02 1.00
YP9C100C20MP12 CF/CM/CU48D 1.03 1.04 1.00
YP9C120D20MP12 CF/CM/CU36D 1.03 1.00 0.97
YP9C120D20MP12 CF/CM/CU42D 1.03 1.00 0.98
YP9C120D20MP12 CF/CM/CU48D 1.03 1.03 0.98
YPLC060A12MP12 CF/CM36A 1.01 0.93 1.01
YPLC080B12MP12 CF/CM/CU36B 1.03 0.96 1.00
YPLC080B12MP12 CF42B 1.02 0.96 1.00
YPLC080C16MP12 CF/CM/CU36C 1.03 0.99 1.00
YPLC080C16MP12 CF/CM/CU42C 1.03 1.07 1.00
YPLC080C16MP12 CF/CM/CU48C 1.03 0.98 0.98
YPLC080C16MP12 CF/CM/CU48D 1.03 0.98 0.98
YPLC100C16MP12 CF/CM/CU36C 1.03 0.99 1.00
YPLC100C16MP12 CF/CM/CU42C 1.03 1.07 1.00
YPLC100C16MP12 CF/CM/CU48C 1.03 0.98 0.98
YPLC100C16MP12 CF/CM/CU48D 1.03 0.98 0.98
YPLC100C20MP12 CF/CM/CU36C 1.03 0.99 1.00
YPLC100C20MP12 CF/CM/CU42C 1.03 1.00 1.00
YPLC100C20MP12 CF/CM/CU48C 1.03 1.04 1.00
YPLC100C20MP12 CF/CM/CU48D 1.03 1.00 0.95
YPLC120C20MP12 CF/CM/CU36C 1.03 0.99 1.00
YPLC120C20MP12 CF/CM/CU42C 1.03 1.00 1.00
YPLC120C20MP12 CF/CM/CU48C 1.03 1.04 1.00
YPLC120C20MP12 CF/CM/CU48D 1.03 1.00 0.95
FURNACE MULTIPLIERS- 3 TON (Continued)
Furnaces Coil T.C. S.C. KW
5006080-YTG-A-0815
60 Johnson Controls Unitary Products
PERFORMANCE DATA - 3.5 TON
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
CONDENSER-ONLY DATA (OUTDOOR UNIT)
MODEL
SATURATED SUCTION
@ COMPRESSOR
Outdoor Ambient Temperature
55 °F 65 °F 75 °F 85 °F 95 °F 105 °F 115 °F 125 °F
T (°F) P (PSIG) MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW
YCS42B21S
35 107 37.5 1.82 35.8 2.04 34.1 2.29 32.2 2.56 30.3 2.87 28.3 3.23 26.2 3.64 24.0 4.09
40 118 41.4 1.81 39.4 2.03 37.5 2.27 35.5 2.55 33.4 2.86 31.2 3.22 28.9 3.63 26.5 4.08
45 130 45.5 1.81 43.4 2.02 41.2 2.26 39.0 2.54 36.8 2.85 34.4 3.21 31.9 3.62 29.3 4.07
50 142 50.0 1.80 47.6 2.01 45.3 2.25 42.9 2.53 40.4 2.83 37.8 3.19 35.1 3.61 32.3 4.05
55 156 54.8 1.79 52.2 2.00 49.6 2.24 47.0 2.51 44.3 2.81 41.5 3.18 38.6 3.59 35.5 4.03
Notes:
1. For Outdoor Unit (Condenser) performance only. Data does not include the effects of air handler power or heat.
2. Performance based on 15°F subcooling and 15°F superheat at the Outdoor Unit base valves.
a. Increase capacity by 1% for each 2°F increase in subcooling.
b. Decrease capacity by 1% for each 2°F decrease in subcooling.
3. Maximum recommended condensing temperature is 140°F.
COOLING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YCS42B21S
INDOOR COIL MODEL NO. CF42CXA1
AIR TEMP.
ENTERING
OUTDOOR UNIT (°F)
ID CFM 1200 1400 1600
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
55
T.C. 38.7 42.0 41.9 44.4 45.5 39.0 42.0 41.7 44.0 45.0 39.3 42.0 41.6 43.7 44.5
S.C. 36.8 35.3 30.3 29.0 22.7 37.1 36.0 31.1 29.4 22.9 37.4 36.6 31.9 29.8 23.1
KW 2.18 2.18 2.18 2.19 2.20 2.24 2.25 2.25 2.26 2.27 2.31 2.32 2.32 2.34 2.34
65
T.C. 37.8 40.7 40.5 43.5 46.1 38.5 40.9 40.7 43.6 45.8 39.1 41.1 40.9 43.7 45.5
S.C. 36.0 35.0 29.9 29.2 23.1 36.6 36.2 31.2 30.2 23.6 37.2 37.4 32.6 31.2 24.0
KW 2.39 2.40 2.39 2.41 2.40 2.45 2.47 2.46 2.48 2.48 2.52 2.54 2.53 2.55 2.55
75
T.C. 36.9 39.3 39.0 42.6 46.7 37.9 39.8 39.6 43.2 46.6 38.9 40.3 40.3 43.8 46.6
S.C. 35.1 34.6 29.5 29.4 23.5 36.1 36.4 31.4 31.0 24.2 37.0 38.3 33.3 32.6 25.0
KW 2.60 2.62 2.60 2.62 2.61 2.66 2.69 2.67 2.69 2.69 2.73 2.75 2.74 2.76 2.76
85
T.C. 35.9 37.7 37.4 41.0 45.2 36.8 38.2 38.1 41.6 45.3 37.7 38.7 38.7 42.2 45.4
S.C. 34.1 33.7 28.8 28.7 23.0 35.0 35.3 30.7 30.5 24.0 35.8 36.8 32.6 32.3 25.1
KW 2.90 2.93 2.90 2.92 2.89 2.96 2.98 2.96 2.99 2.96 3.01 3.04 3.02 3.05 3.04
95
T.C. 34.8 36.1 35.8 39.4 43.7 35.6 36.7 36.5 40.0 44.0 36.4 37.2 37.1 40.6 44.3
S.C. 33.1 32.8 28.1 28.0 22.5 33.9 34.1 30.0 30.0 23.8 34.6 35.4 31.9 32.0 25.2
KW 3.20 3.23 3.20 3.22 3.17 3.25 3.28 3.25 3.28 3.24 3.30 3.33 3.31 3.33 3.31
105
T.C. 32.6 33.8 33.3 37.0 41.0 33.6 34.4 34.0 37.6 41.3 34.5 35.1 34.6 38.1 41.7
S.C. 31.0 31.1 26.8 27.0 21.5 31.9 32.2 28.7 29.0 22.9 32.8 33.3 30.7 31.0 24.3
KW 3.84 3.82 3.84 3.74 3.67 3.81 3.82 3.83 3.78 3.72 3.78 3.81 3.81 3.81 3.77
115
T.C. 30.5 31.6 30.9 34.7 38.4 31.6 32.2 31.5 35.2 38.8 32.6 32.9 32.2 35.7 39.2
S.C. 29.0 29.5 25.5 26.0 20.6 30.0 30.4 27.5 28.0 22.1 31.0 31.3 29.5 30.0 23.5
KW 4.46 4.38 4.46 4.25 4.16 4.35 4.33 4.38 4.26 4.19 4.24 4.28 4.30 4.28 4.22
125
T.C. 28.4 29.3 28.4 32.3 35.7 29.6 30.1 29.1 32.8 36.2 30.7 30.8 29.8 33.3 36.7
S.C. 27.0 27.9 24.2 25.0 19.7 28.1 28.6 26.3 27.0 21.2 29.2 29.3 28.3 29.1 22.7
KW 5.08 4.95 5.09 4.75 4.65 4.89 4.85 4.94 4.75 4.66 4.71 4.75 4.79 4.75 4.68
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).
Green shaded cells are ACCA (TVA) conditions.
Blue shaded cells are AHRI conditions.
5006080-YTG-A-0815
Johnson Controls Unitary Products 61
COIL MULTIPLIERS- 3.5 TON
Air Handler Coil T.C. S.C. KW
– CF/CM/CU42C 1.00 1.00 1.00
– CF/CM/CU42D 1.00 1.00 1.00
– CF/CM/CU48C 1.01 1.07 1.01
– CF/CM/CU48D 1.01 1.07 1.01
– CF/CM/CU60C 1.03 1.08 1.02
– CF/CM/CU60D 1.03 1.08 1.02
– CF/CM64D 1.04 1.08 1.03
– CF42B 0.96 0.97 0.96
AE42CX21 – 1.04 1.10 1.01
AE48CX21 – 1.03 1.02 0.98
AE48DX21 – 1.03 1.03 0.98
AE60CX21 – 1.05 1.12 1.02
AE60DX21 – 1.05 1.12 1.00
AP42CX21 – 1.00 1.00 1.00
AP48CX21 – 1.01 1.03 1.01
AP48DX21 – 1.01 1.05 1.01
AVC42CX21 – 1.03 1.03 1.00
AVC48CX21 – 1.01 1.02 0.99
AVC48DX21 – 1.04 1.07 0.99
AVC60CX21 – 1.04 1.05 1.01
AVC60DX21 – 1.04 1.02 0.99
ME14DN21 CF/CM42D 1.04 1.10 0.99
ME14DN21 CF/CM48D 1.04 1.10 1.01
ME14DN21 CF/CM60D 1.04 1.03 0.97
ME14DN21 CF/CM64D 1.05 1.10 1.02
ME16CN21 CF/CM42C 1.03 1.10 1.00
ME16CN21 CF/CM48C 1.03 1.02 0.98
ME16CN21 CF/CM60C 1.04 1.03 0.97
ME20DN21 CF/CM42D 1.04 1.12 1.01
ME20DN21 CF/CM48D 1.05 1.13 1.00
ME20DN21 CF/CM60D 1.05 1.10 1.00
ME20DN21 CF/CM64D 1.05 1.10 1.00
MVC12BN21 CF42B 1.00 0.97 1.00
MVC14DN21 CF/CM42D 1.04 1.08 1.01
MVC14DN21 CF/CM48D 1.04 1.07 0.99
MVC14DN21 CF/CM60D 1.03 1.03 0.98
MVC16CN21 CF/CM42C 1.03 1.03 0.98
MVC16CN21 CF/CM48C 1.03 1.05 0.98
MVC20DN21 CF/CM42D 1.01 1.02 0.99
MVC20DN21 CF/CM48D 1.04 1.07 0.99
MVC20DN21 CF/CM60D 1.04 1.05 0.97
FURNACE MULTIPLIERS- 3.5 TON
Furnaces Coil T.C. S.C. KW
TM8V080C16MP11 CF/CM/CU42C 1.03 1.05 1.00
TM8V080C16MP11 CF/CM/CU48C 1.03 1.05 1.00
TM8V080C16MP11 CF/CM/CU48D 1.03 1.05 1.00
TM8V080C16MP11 CF/CM/CU60C 1.04 1.07 1.01
TM8V080C16MP11 CF/CM64D 1.04 1.05 1.01
TM8V100C16MP11 CF/CM/CU42C 1.03 1.05 1.00
TM8V100C16MP11 CF/CM/CU48C 1.03 1.05 1.00
TM8V100C16MP11 CF/CM/CU48D 1.03 1.05 1.00
TM8V100C16MP11 CF/CM/CU60C 1.04 1.07 1.01
TM8V100C16MP11 CF/CM64D 1.04 1.05 1.01
TM8V100C20MP11 CF/CM/CU42C 1.01 1.02 0.99
TM8V100C20MP11 CF/CM/CU48C 1.03 1.05 1.00
TM8V100C20MP11 CF/CM/CU60C 1.04 1.10 1.01
TM8V100C20MP11 CF/CM/CU60D 1.03 1.02 1.00
TM8V100C20MP11 CF/CM64D 1.03 1.00 1.00
TM8V120C20MP11 CF/CM/CU42C 1.01 1.02 0.99
TM8V120C20MP11 CF/CM/CU48C 1.03 1.05 1.00
TM8V120C20MP11 CF/CM/CU60C 1.04 1.10 1.01
TM8V120C20MP11 CF/CM/CU60D 1.03 1.02 1.00
TM8V120C20MP11 CF/CM64D 1.03 1.00 1.00
TM8X080B12MP11 CF42B 1.00 0.98 0.98
TM8X080C16MP11 CF/CM/CU42C 1.00 0.98 0.98
TM8X080C16MP11 CF/CM/CU42D 1.03 1.08 1.00
TM8X080C16MP11 CF/CM/CU48C 1.03 1.08 1.00
TM8X080C16MP11 CF/CM/CU48D 1.03 1.08 1.00
TM8X080C16MP11 CF/CM/CU60C 1.01 1.00 0.99
TM8X080C16MP11 CF/CM/CU60D 1.01 1.00 0.99
TM8X080C16MP11 CF/CM64D 1.03 1.00 1.00
TM8X100C16MP11 CF/CM/CU42C 1.00 0.98 0.98
TM8X100C16MP11 CF/CM/CU42D 1.03 1.08 1.00
TM8X100C16MP11 CF/CM/CU48C 1.03 1.08 1.00
TM8X100C16MP11 CF/CM/CU48D 1.03 1.08 1.00
TM8X100C16MP11 CF/CM/CU60C 1.01 1.00 0.99
TM8X100C16MP11 CF/CM/CU60D 1.01 1.00 0.99
TM8X100C16MP11 CF/CM64D 1.03 1.00 1.00
TM8X100C20MP11 CF/CM/CU42C 1.03 1.08 1.00
TM8X100C20MP11 CF/CM/CU42D 1.03 1.03 0.98
TM8X100C20MP11 CF/CM/CU48C 1.03 1.03 1.00
TM8X100C20MP11 CF/CM/CU48D 1.04 1.07 0.99
TM8X100C20MP11 CF/CM/CU60C 1.04 1.05 0.99
TM8X100C20MP11 CF/CM/CU60D 1.04 1.05 0.99
TM8X100C20MP11 CF/CM64D 1.05 1.07 1.00
TM8X120C20MP11 CF/CM/CU42C 1.03 1.08 1.00
TM8X120C20MP11 CF/CM/CU42D 1.03 1.03 0.98
TM8X120C20MP11 CF/CM/CU48C 1.03 1.03 1.00
TM8X120C20MP11 CF/CM/CU48D 1.04 1.07 0.99
TM8X120C20MP11 CF/CM/CU60C 1.04 1.05 0.99
TM8X120C20MP11 CF/CM/CU60D 1.04 1.05 0.99
TM8X120C20MP11 CF/CM64D 1.05 1.07 1.00
TM8Y080B12MP11 CF42B 1.00 0.98 0.98
TM8Y080C16MP11 CF/CM/CU42C 1.00 0.98 0.98
TM8Y080C16MP11 CF/CM/CU42D 1.03 1.08 1.00
TM8Y080C16MP11 CF/CM/CU48C 1.03 1.08 1.00
TM8Y080C16MP11 CF/CM/CU48D 1.03 1.08 1.00
TM8Y080C16MP11 CF/CM/CU60C 1.01 1.00 0.99
TM8Y080C16MP11 CF/CM/CU60D 1.01 1.00 0.99
TM8Y080C16MP11 CF/CM64D 1.03 1.00 1.00
TM8Y100C16MP11 CF/CM/CU42C 1.00 0.98 0.98
TM8Y100C16MP11 CF/CM/CU42D 1.03 1.08 1.00
TM8Y100C16MP11 CF/CM/CU48C 1.03 1.08 1.00
TM8Y100C16MP11 CF/CM/CU48D 1.03 1.08 1.00
TM8Y100C16MP11 CF/CM/CU60C 1.01 1.00 0.99
TM8Y100C16MP11 CF/CM/CU60D 1.01 1.00 0.99
TM8Y100C16MP11 CF/CM64D 1.03 1.00 1.00
TM8Y100C20MP11 CF/CM/CU42C 1.03 1.08 1.00
TM8Y100C20MP11 CF/CM/CU42D 1.03 1.03 0.98
TM8Y100C20MP11 CF/CM/CU48C 1.03 1.03 1.00
TM8Y100C20MP11 CF/CM/CU48D 1.04 1.07 0.99
FURNACE MULTIPLIERS- 3.5 TON (Continued)
Furnaces Coil T.C. S.C. KW
5006080-YTG-A-0815
62 Johnson Controls Unitary Products
TM8Y100C20MP11 CF/CM/CU60C 1.04 1.05 0.99
TM8Y100C20MP11 CF/CM/CU60D 1.04 1.05 0.99
TM8Y100C20MP11 CF/CM64D 1.05 1.07 1.00
TM8Y120C20MP11 CF/CM/CU42C 1.03 1.08 1.00
TM8Y120C20MP11 CF/CM/CU42D 1.03 1.03 0.98
TM8Y120C20MP11 CF/CM/CU48C 1.03 1.03 1.00
TM8Y120C20MP11 CF/CM/CU48D 1.04 1.07 0.99
TM8Y120C20MP11 CF/CM/CU60C 1.04 1.05 0.99
TM8Y120C20MP11 CF/CM/CU60D 1.04 1.05 0.99
TM8Y120C20MP11 CF/CM64D 1.05 1.07 1.00
TM9E080C16MP11 CF/CM/CU42C 1.01 1.02 0.99
TM9E080C16MP11 CF/CM/CU42D 1.03 1.05 1.00
TM9E080C16MP11 CF/CM/CU48C 1.03 1.05 1.00
TM9E080C16MP11 CF/CM/CU48D 1.01 1.02 0.99
TM9E080C16MP11 CF/CM/CU60C 1.01 0.98 0.99
TM9E080C16MP11 CF/CM/CU60D 1.01 0.98 0.99
TM9E080C16MP11 CF/CM64D 1.04 1.03 0.99
TM9E100C16MP11 CF/CM/CU42C 1.01 1.02 0.99
TM9E100C16MP11 CF/CM/CU42D 1.03 1.05 1.00
TM9E100C16MP11 CF/CM/CU48C 1.03 1.05 1.00
TM9E100C16MP11 CF/CM/CU48D 1.01 1.02 0.99
TM9E100C16MP11 CF/CM/CU60C 1.01 0.98 0.99
TM9E100C16MP11 CF/CM/CU60D 1.01 0.98 0.99
TM9E100C16MP11 CF/CM64D 1.04 1.03 0.99
TM9E100C20MP11 CF/CM/CU42C 1.01 1.02 0.99
TM9E100C20MP11 CF/CM/CU42D 1.01 1.02 0.99
TM9E100C20MP11 CF/CM/CU48C 1.01 1.02 0.99
TM9E100C20MP11 CF/CM/CU48D 1.01 1.02 0.99
TM9E100C20MP11 CF/CM/CU60C 1.03 1.03 0.98
TM9E100C20MP11 CF/CM/CU60D 1.04 1.03 0.99
TM9E100C20MP11 CF/CM64D 1.04 1.03 0.99
TM9E120D20MP11 CF/CM/CU42D 1.01 1.03 0.97
TM9E120D20MP11 CF/CM/CU48D 1.03 1.03 0.98
TM9E120D20MP11 CF/CM/CU60D 1.03 1.03 0.98
TM9E120D20MP11 CF/CM64D 1.04 1.03 0.99
TM9V060B12MP11 CF42B 1.00 0.97 1.00
TM9V080B12MP11 CF42B 1.00 0.97 1.00
TM9V080C16MP11 CF/CM/CU42C 1.01 1.03 0.99
TM9V080C16MP11 CF/CM/CU48C 1.03 1.03 1.00
TM9V080C16MP11 CF/CM/CU48D 1.04 1.10 1.01
TM9V080C16MP11 CF/CM/CU60C 1.03 1.00 1.00
TM9V080C16MP11 CF/CM/CU60D 1.05 1.10 1.02
TM9V080C16MP11 CF/CM64D 1.04 1.07 1.01
TM9V100C16MP11 CF/CM/CU42C 1.01 1.03 0.99
TM9V100C16MP11 CF/CM/CU48C 1.03 1.03 1.00
TM9V100C16MP11 CF/CM/CU48D 1.04 1.10 1.01
TM9V100C16MP11 CF/CM/CU60C 1.03 1.00 1.00
TM9V100C16MP11 CF/CM/CU60D 1.05 1.10 1.02
TM9V100C16MP11 CF/CM64D 1.04 1.07 1.01
TM9V100C20MP11 CF/CM/CU42C 1.01 1.03 0.99
TM9V100C20MP11 CF/CM/CU48C 1.03 1.03 1.00
TM9V100C20MP11 CF/CM/CU48D 1.03 1.05 1.00
TM9V100C20MP11 CF/CM/CU60C 1.03 1.05 1.00
TM9V100C20MP11 CF/CM/CU60D 1.04 1.03 1.01
TM9V100C20MP11 CF/CM64D 1.04 1.03 1.01
TM9V120D20MP11 CF/CM/CU42D 1.03 1.05 1.00
FURNACE MULTIPLIERS- 3.5 TON (Continued)
Furnaces Coil T.C. S.C. KW
TM9V120D20MP11 CF/CM/CU48D 1.03 1.05 1.00
TM9V120D20MP11 CF/CM/CU60D 1.04 1.03 1.01
TM9V120D20MP11 CF/CM64D 1.05 1.05 1.00
TM9Y080C16MP11 CF/CM/CU42C 1.01 1.02 0.99
TM9Y080C16MP11 CF/CM/CU42D 1.03 1.05 1.00
TM9Y080C16MP11 CF/CM/CU48C 1.03 1.05 1.00
TM9Y080C16MP11 CF/CM/CU48D 1.01 1.02 0.99
TM9Y080C16MP11 CF/CM/CU60C 1.01 0.98 0.99
TM9Y080C16MP11 CF/CM/CU60D 1.01 0.98 0.99
TM9Y080C16MP11 CF/CM64D 1.04 1.03 0.99
TM9Y100C16MP11 CF/CM/CU42C 1.01 1.02 0.99
TM9Y100C16MP11 CF/CM/CU42D 1.03 1.05 1.00
TM9Y100C16MP11 CF/CM/CU48C 1.03 1.05 1.00
TM9Y100C16MP11 CF/CM/CU48D 1.01 1.02 0.99
TM9Y100C16MP11 CF/CM/CU60C 1.01 0.98 0.99
TM9Y100C16MP11 CF/CM/CU60D 1.01 0.98 0.99
TM9Y100C16MP11 CF/CM64D 1.04 1.03 0.99
TM9Y100C20MP11 CF/CM/CU42C 1.01 1.02 0.99
TM9Y100C20MP11 CF/CM/CU42D 1.01 1.02 0.99
TM9Y100C20MP11 CF/CM/CU48C 1.01 1.02 0.99
TM9Y100C20MP11 CF/CM/CU48D 1.01 1.02 0.99
TM9Y100C20MP11 CF/CM/CU60C 1.03 1.03 0.98
TM9Y100C20MP11 CF/CM/CU60D 1.04 1.03 0.99
TM9Y100C20MP11 CF/CM64D 1.04 1.03 0.99
TM9Y120D20MP11 CF/CM/CU42D 1.01 1.03 0.97
TM9Y120D20MP11 CF/CM/CU48D 1.03 1.03 0.98
TM9Y120D20MP11 CF/CM/CU60D 1.03 1.03 0.98
TM9Y120D20MP11 CF/CM64D 1.04 1.03 0.99
TMLV080C16MP11 CF/CM/CU42C 1.03 1.05 1.00
TMLV080C16MP11 CF/CM/CU48C 1.03 1.05 1.00
TMLV080C16MP11 CF/CM/CU48D 1.03 1.05 1.00
TMLV080C16MP11 CF/CM/CU60C 1.04 1.07 1.01
TMLV080C16MP11 CF/CM64D 1.04 1.05 1.01
TMLV100C16MP11 CF/CM/CU42C 1.03 1.05 1.00
TMLV100C16MP11 CF/CM/CU48C 1.03 1.05 1.00
TMLV100C16MP11 CF/CM/CU48D 1.03 1.05 1.00
TMLV100C16MP11 CF/CM/CU60C 1.04 1.07 1.01
TMLV100C16MP11 CF/CM64D 1.04 1.05 1.01
TMLV100C20MP11 CF/CM/CU42C 1.01 1.02 0.99
TMLV100C20MP11 CF/CM/CU48C 1.03 1.05 1.00
TMLV100C20MP11 CF/CM/CU60C 1.04 1.10 1.01
TMLV100C20MP11 CF/CM/CU60D 1.03 1.02 1.00
TMLV100C20MP11 CF/CM64D 1.03 1.00 1.00
TMLV120C20MP11 CF/CM/CU42C 1.01 1.02 0.99
TMLV120C20MP11 CF/CM/CU48C 1.03 1.05 1.00
TMLV120C20MP11 CF/CM/CU60C 1.04 1.10 1.01
TMLV120C20MP11 CF/CM/CU60D 1.03 1.02 1.00
TMLV120C20MP11 CF/CM64D 1.03 1.00 1.00
TMLX080B12MP11 CF42B 1.00 0.98 0.98
TMLX080C16MP11 CF/CM/CU42C 1.00 0.98 0.98
TMLX080C16MP11 CF/CM/CU42D 1.03 1.08 1.00
TMLX080C16MP11 CF/CM/CU48C 1.03 1.08 1.00
TMLX080C16MP11 CF/CM/CU48D 1.03 1.08 1.00
TMLX080C16MP11 CF/CM/CU60C 1.01 1.00 0.99
TMLX080C16MP11 CF/CM/CU60D 1.01 1.00 0.99
TMLX080C16MP11 CF/CM64D 1.03 1.00 1.00
FURNACE MULTIPLIERS- 3.5 TON (Continued)
Furnaces Coil T.C. S.C. KW
5006080-YTG-A-0815
Johnson Controls Unitary Products 63
TMLX100C16MP11 CF/CM/CU42C 1.00 0.98 0.98
TMLX100C16MP11 CF/CM/CU42D 1.03 1.08 1.00
TMLX100C16MP11 CF/CM/CU48C 1.03 1.08 1.00
TMLX100C16MP11 CF/CM/CU48D 1.03 1.08 1.00
TMLX100C16MP11 CF/CM/CU60C 1.01 1.00 0.99
TMLX100C16MP11 CF/CM/CU60D 1.01 1.00 0.99
TMLX100C16MP11 CF/CM64D 1.03 1.00 1.00
TMLX100C20MP11 CF/CM/CU42C 1.03 1.08 1.00
TMLX100C20MP11 CF/CM/CU42D 1.03 1.03 0.98
TMLX100C20MP11 CF/CM/CU48C 1.03 1.03 1.00
TMLX100C20MP11 CF/CM/CU48D 1.04 1.07 0.99
TMLX100C20MP11 CF/CM/CU60C 1.04 1.05 0.99
TMLX100C20MP11 CF/CM/CU60D 1.04 1.05 0.99
TMLX100C20MP11 CF/CM64D 1.05 1.07 1.00
TMLX120C20MP11 CF/CM/CU42C 1.03 1.08 1.00
TMLX120C20MP11 CF/CM/CU42D 1.03 1.03 0.98
TMLX120C20MP11 CF/CM/CU48C 1.03 1.03 1.00
TMLX120C20MP11 CF/CM/CU48D 1.04 1.07 0.99
TMLX120C20MP11 CF/CM/CU60C 1.04 1.05 0.99
TMLX120C20MP11 CF/CM/CU60D 1.04 1.05 0.99
TMLX120C20MP11 CF/CM64D 1.05 1.07 1.00
TP9C060B12MP12 CF42B 1.00 0.97 1.00
TP9C080B12MP12 CF42B 1.00 0.97 1.00
TP9C080C16MP12 CF/CM/CU42C 1.01 1.03 0.99
TP9C080C16MP12 CF/CM/CU48C 1.03 1.03 1.00
TP9C080C16MP12 CF/CM/CU48D 1.04 1.10 1.01
TP9C080C16MP12 CF/CM/CU60C 1.03 1.00 1.00
TP9C080C16MP12 CF/CM/CU60D 1.05 1.10 1.02
TP9C080C16MP12 CF/CM64D 1.04 1.07 1.01
TP9C100C16MP12 CF/CM/CU42C 1.01 1.03 0.99
TP9C100C16MP12 CF/CM/CU48C 1.03 1.03 1.00
TP9C100C16MP12 CF/CM/CU48D 1.04 1.10 1.01
TP9C100C16MP12 CF/CM/CU60C 1.03 1.00 1.00
TP9C100C16MP12 CF/CM/CU60D 1.05 1.10 1.02
TP9C100C16MP12 CF/CM64D 1.04 1.07 1.01
TP9C100C20MP12 CF/CM/CU42C 1.01 1.03 0.99
TP9C100C20MP12 CF/CM/CU48C 1.03 1.03 1.00
TP9C100C20MP12 CF/CM/CU48D 1.03 1.05 1.00
TP9C100C20MP12 CF/CM/CU60C 1.03 1.05 1.00
TP9C100C20MP12 CF/CM/CU60D 1.04 1.03 1.01
TP9C100C20MP12 CF/CM64D 1.04 1.03 1.01
TP9C120D20MP12 CF/CM/CU42D 1.03 1.05 1.00
TP9C120D20MP12 CF/CM/CU48D 1.03 1.05 1.00
TP9C120D20MP12 CF/CM/CU60D 1.04 1.03 1.01
TP9C120D20MP12 CF/CM64D 1.05 1.05 1.00
TPLC080C16MP12 CF/CM/CU42C 1.03 1.05 1.00
TPLC080C16MP12 CF/CM/CU48C 1.03 1.05 1.00
TPLC080C16MP12 CF/CM/CU48D 1.03 1.05 1.00
TPLC080C16MP12 CF/CM/CU60C 1.04 1.07 1.01
TPLC080C16MP12 CF/CM64D 1.04 1.05 1.01
TPLC100C16MP12 CF/CM/CU42C 1.03 1.05 1.00
TPLC100C16MP12 CF/CM/CU48C 1.03 1.05 1.00
TPLC100C16MP12 CF/CM/CU48D 1.03 1.05 1.00
TPLC100C16MP12 CF/CM/CU60C 1.04 1.07 1.01
TPLC100C16MP12 CF/CM64D 1.04 1.05 1.01
TPLC100C20MP12 CF/CM/CU42C 1.01 1.02 0.99
FURNACE MULTIPLIERS- 3.5 TON (Continued)
Furnaces Coil T.C. S.C. KW
TPLC100C20MP12 CF/CM/CU48C 1.03 1.05 1.00
TPLC100C20MP12 CF/CM/CU60C 1.04 1.10 1.01
TPLC100C20MP12 CF/CM/CU60D 1.03 1.02 1.00
TPLC100C20MP12 CF/CM64D 1.03 1.00 1.00
TPLC120C20MP12 CF/CM/CU42C 1.01 1.02 0.99
TPLC120C20MP12 CF/CM/CU48C 1.03 1.05 1.00
TPLC120C20MP12 CF/CM/CU60C 1.04 1.10 1.01
TPLC120C20MP12 CF/CM/CU60D 1.03 1.02 1.00
TPLC120C20MP12 CF/CM64D 1.03 1.00 1.00
YP9C060B12MP12 CF42B 1.00 0.97 1.00
YP9C080B12MP12 CF42B 1.00 0.97 1.00
YP9C080C16MP12 CF/CM/CU42C 1.01 1.03 0.99
YP9C080C16MP12 CF/CM/CU48C 1.03 1.03 1.00
YP9C080C16MP12 CF/CM/CU48D 1.04 1.10 1.01
YP9C080C16MP12 CF/CM/CU60C 1.03 1.00 1.00
YP9C080C16MP12 CF/CM/CU60D 1.05 1.10 1.02
YP9C080C16MP12 CF/CM64D 1.04 1.07 1.01
YP9C100C16MP12 CF/CM/CU42C 1.01 1.03 0.99
YP9C100C16MP12 CF/CM/CU48C 1.03 1.03 1.00
YP9C100C16MP12 CF/CM/CU48D 1.04 1.10 1.01
YP9C100C16MP12 CF/CM/CU60C 1.03 1.00 1.00
YP9C100C16MP12 CF/CM/CU60D 1.05 1.10 1.02
YP9C100C16MP12 CF/CM64D 1.04 1.07 1.01
YP9C100C20MP12 CF/CM/CU42C 1.01 1.03 0.99
YP9C100C20MP12 CF/CM/CU48C 1.03 1.03 1.00
YP9C100C20MP12 CF/CM/CU48D 1.03 1.05 1.00
YP9C100C20MP12 CF/CM/CU60C 1.03 1.05 1.00
YP9C100C20MP12 CF/CM/CU60D 1.04 1.03 1.01
YP9C100C20MP12 CF/CM64D 1.04 1.03 1.01
YP9C120D20MP12 CF/CM/CU42D 1.03 1.05 1.00
YP9C120D20MP12 CF/CM/CU48D 1.03 1.05 1.00
YP9C120D20MP12 CF/CM/CU60D 1.04 1.03 1.01
YP9C120D20MP12 CF/CM64D 1.05 1.05 1.00
YPLC080C16MP12 CF/CM/CU42C 1.03 1.05 1.00
YPLC080C16MP12 CF/CM/CU48C 1.03 1.05 1.00
YPLC080C16MP12 CF/CM/CU48D 1.03 1.05 1.00
YPLC080C16MP12 CF/CM/CU60C 1.04 1.07 1.01
YPLC080C16MP12 CF/CM64D 1.04 1.05 1.01
YPLC100C16MP12 CF/CM/CU42C 1.03 1.05 1.00
YPLC100C16MP12 CF/CM/CU48C 1.03 1.05 1.00
YPLC100C16MP12 CF/CM/CU48D 1.03 1.05 1.00
YPLC100C16MP12 CF/CM/CU60C 1.04 1.07 1.01
YPLC100C16MP12 CF/CM64D 1.04 1.05 1.01
YPLC100C20MP12 CF/CM/CU42C 1.01 1.02 0.99
YPLC100C20MP12 CF/CM/CU48C 1.03 1.05 1.00
YPLC100C20MP12 CF/CM/CU60C 1.04 1.10 1.01
YPLC100C20MP12 CF/CM/CU60D 1.03 1.02 1.00
YPLC100C20MP12 CF/CM64D 1.03 1.00 1.00
YPLC120C20MP12 CF/CM/CU42C 1.01 1.02 0.99
YPLC120C20MP12 CF/CM/CU48C 1.03 1.05 1.00
YPLC120C20MP12 CF/CM/CU60C 1.04 1.10 1.01
YPLC120C20MP12 CF/CM/CU60D 1.03 1.02 1.00
YPLC120C20MP12 CF/CM64D 1.03 1.00 1.00
FURNACE MULTIPLIERS- 3.5 TON (Continued)
Furnaces Coil T.C. S.C. KW
5006080-YTG-A-0815
64 Johnson Controls Unitary Products
PERFORMANCE DATA - 4 TON
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
CONDENSER-ONLY DATA (OUTDOOR UNIT)
MODEL
SATURATED SUCTION
@ COMPRESSOR
Outdoor Ambient Temperature
55 °F 65 °F 75 °F 85 °F 95 °F 105 °F 115 °F 125 °F
T (°F) P (PSIG) MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW
YCS48B21S
35 107 47.8 2.16 45.5 2.42 43.2 2.72 40.8 3.05 38.3 3.44 35.7 3.90 32.8 4.41 29.8 4.99
40 118 52.5 2.16 50.0 2.42 47.5 2.71 44.9 3.05 42.3 3.43 39.4 3.89 36.4 4.40 33.1 4.98
45 130 57.6 2.17 54.8 2.42 52.1 2.71 49.4 3.04 46.5 3.42 43.4 3.88 40.2 4.40 36.7 4.96
50 142 63.0 2.18 60.0 2.43 57.0 2.72 54.0 3.06 50.9 3.42 47.7 3.87 44.1 4.39 40.5 4.94
55 156 68.7 2.19 65.4 2.44 62.2 2.73 58.9 3.07 55.6 3.44 52.2 3.88 48.4 4.39 44.5 4.93
Notes:
1. For Outdoor Unit (Condenser) performance only. Data does not include the effects of air handler power or heat.
2. Performance based on 15°F subcooling and 15°F superheat at the Outdoor Unit base valves.
a. Increase capacity by 1% for each 2°F increase in subcooling.
b. Decrease capacity by 1% for each 2°F decrease in subcooling.
3. Maximum recommended condensing temperature is 140°F.
COOLING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YCS48B21S
INDOOR COIL MODEL NO. CF48CXA1
AIR TEMP.
ENTERING
OUTDOOR UNIT (°F)
ID CFM 1400 1600 1800
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
55
T.C. 44.9 47.6 47.5 49.3 49.9 45.1 47.8 47.5 49.4 49.9 45.3 48.0 47.6 49.5 49.9
S.C. 44.1 37.8 32.4 30.3 23.1 44.5 38.9 33.1 30.8 23.3 44.9 39.9 33.9 31.3 23.5
KW 2.62 2.66 2.66 2.68 2.70 2.70 2.74 2.74 2.76 2.78 2.77 2.81 2.81 2.84 2.86
65
T.C. 44.6 47.3 47.0 49.6 50.9 45.4 47.6 47.4 49.9 51.0 46.2 48.0 47.7 50.1 51.1
S.C. 43.9 39.2 33.1 31.4 23.8 44.8 40.6 34.3 32.2 24.1 45.6 42.1 35.5 33.1 24.5
KW 2.89 2.92 2.92 2.95 2.97 2.97 3.00 3.00 3.03 3.05 3.05 3.07 3.07 3.10 3.13
75
T.C. 44.4 46.9 46.6 49.9 51.9 45.7 47.4 47.2 50.3 52.1 47.1 47.9 47.8 50.7 52.3
S.C. 43.8 40.5 33.9 32.5 24.5 45.1 42.4 35.5 33.7 25.0 46.4 44.3 37.2 34.8 25.4
KW 3.17 3.18 3.18 3.22 3.23 3.24 3.26 3.26 3.29 3.31 3.32 3.33 3.33 3.36 3.39
85
T.C. 42.6 44.8 44.6 48.4 51.2 44.0 45.5 45.3 48.9 51.5 45.5 46.2 46.0 49.4 51.8
S.C. 42.0 39.2 32.9 32.3 24.6 43.4 41.4 34.8 33.9 25.3 44.8 43.7 36.7 35.5 26.1
KW 3.56 3.59 3.57 3.59 3.61 3.63 3.66 3.64 3.67 3.68 3.70 3.73 3.71 3.74 3.76
95
T.C. 40.8 42.7 42.6 46.9 50.4 42.3 43.5 43.4 47.5 50.9 43.9 44.4 44.2 48.1 51.3
S.C. 40.2 37.8 32.0 32.2 24.7 41.7 40.5 34.1 34.2 25.7 43.3 43.2 36.2 36.2 26.7
KW 3.96 3.99 3.96 3.97 3.98 4.02 4.05 4.03 4.04 4.05 4.08 4.12 4.10 4.12 4.13
105
T.C. 38.9 40.2 40.1 44.1 47.8 40.3 41.1 40.8 44.6 48.2 41.7 42.0 41.5 45.2 48.7
S.C. 38.5 36.6 30.9 31.0 23.8 39.8 38.9 32.9 33.0 24.8 41.2 41.2 35.0 35.0 25.8
KW 4.68 4.73 4.73 4.68 4.64 4.73 4.77 4.79 4.74 4.71 4.78 4.82 4.84 4.80 4.78
115
T.C. 37.2 37.8 37.6 41.4 45.2 38.4 38.8 38.3 41.9 45.6 39.7 39.8 38.9 42.3 46.1
S.C. 36.9 35.5 29.9 29.9 22.9 38.0 37.3 31.8 31.8 23.9 39.1 39.2 33.7 33.8 24.9
KW 5.38 5.44 5.47 5.37 5.27 5.42 5.47 5.52 5.41 5.34 5.45 5.50 5.56 5.46 5.41
125
T.C. 35.4 35.4 35.2 38.7 42.6 36.5 36.4 35.7 39.1 43.0 37.6 37.5 36.3 39.5 43.5
S.C. 35.2 34.3 28.9 28.8 22.0 36.1 35.8 30.7 30.7 23.0 37.0 37.2 32.5 32.6 24.0
KW 6.09 6.16 6.21 6.07 5.91 6.10 6.17 6.25 6.09 5.97 6.12 6.18 6.29 6.12 6.04
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).
Green shaded cells are ACCA (TVA) conditions.
Blue shaded cells are AHRI conditions.
5006080-YTG-A-0815
Johnson Controls Unitary Products 65
COIL MULTIPLIERS- 4 TON
Air Handler Coil T.C. S.C. KW
– CF/CM/CU48C 1.00 1.00 1.00
– CF/CM/CU48D 1.00 1.00 1.00
– CF/CM/CU60C 1.01 1.05 0.97
– CF/CM/CU60D 1.01 1.05 0.97
– CF/CM64D 1.01 1.05 0.97
AE48CX21 – 1.01 1.01 0.93
AE48DX21 – 1.01 1.01 0.91
AE60CX21 – 1.01 1.02 0.93
AE60DX21 – 1.01 1.01 0.90
AP48CX21 – 1.01 0.98 0.99
AP48DX21 – 1.00 0.99 1.00
AP60CX21 – 1.01 1.07 0.99
AP60DX21 – 1.01 1.05 0.99
AVC48CX21 – 1.01 0.99 0.93
AVC48DX21 – 1.01 1.01 0.91
AVC60CX21 – 1.01 1.01 0.91
AVC60DX21 – 1.01 1.02 0.91
ME14DN21 CF/CM60D 1.01 1.01 0.91
ME14DN21 CF/CM64D 1.01 0.99 0.91
ME16CN21 CF/CM48C 1.01 1.04 0.91
ME16CN21 CF/CM60C 1.01 1.02 0.91
ME20DN21 CF/CM48D 1.01 1.04 0.91
ME20DN21 CF/CM60D 1.01 1.01 0.93
ME20DN21 CF/CM64D 1.01 1.02 0.91
MVC14DN21 CF/CM48D 1.01 0.98 0.93
MVC14DN21 CF/CM60D 1.01 0.98 0.93
MVC14DN21 CF/CM64D 1.01 0.98 0.91
MVC16CN21 CF/CM48C 1.01 1.01 0.93
MVC16CN21 CF/CM60C 1.01 1.08 0.90
MVC20DN21 CF/CM48D 1.01 1.02 0.93
MVC20DN21 CF/CM60D 1.01 1.04 0.91
MVC20DN21 CF/CM64D 1.01 0.99 0.91
FURNACE MULTIPLIERS- 4 TON
Furnaces Coil T.C. S.C. KW
TM8V080C16MP11 CF/CM/CU48C 1.01 0.98 0.95
TM8V080C16MP11 CF/CM/CU48D 1.01 0.98 0.95
TM8V080C16MP11 CF/CM/CU60C 1.01 0.98 0.93
TM8V080C16MP11 CF/CM/CU60D 1.01 0.98 0.93
TM8V080C16MP11 CF/CM64D 1.01 1.01 0.93
TM8V100C16MP11 CF/CM/CU48C 1.01 0.98 0.95
TM8V100C16MP11 CF/CM/CU48D 1.01 0.98 0.95
TM8V100C16MP11 CF/CM/CU60C 1.01 0.98 0.93
TM8V100C16MP11 CF/CM/CU60D 1.01 0.98 0.93
TM8V100C16MP11 CF/CM64D 1.01 1.01 0.93
TM8V100C20MP11 CF/CM/CU48C 1.01 0.98 0.95
TM8V100C20MP11 CF/CM/CU48D 1.01 1.04 0.93
TM8V100C20MP11 CF/CM/CU60C 1.01 1.01 0.93
TM8V100C20MP11 CF/CM/CU60D 1.01 0.99 0.95
TM8V100C20MP11 CF/CM64D 1.01 1.02 0.93
TM8V120C20MP11 CF/CM/CU48C 1.01 0.98 0.95
TM8V120C20MP11 CF/CM/CU48D 1.01 1.04 0.93
TM8V120C20MP11 CF/CM/CU60C 1.01 1.01 0.93
TM8V120C20MP11 CF/CM/CU60D 1.01 0.99 0.95
TM8V120C20MP11 CF/CM64D 1.01 1.02 0.93
TM8X080C16MP11 CF/CM/CU48C 1.01 1.02 0.95
TM8X080C16MP11 CF/CM/CU48D 1.01 0.99 0.95
TM8X080C16MP11 CF/CM/CU60C 1.01 1.01 0.95
TM8X080C16MP11 CF/CM/CU60D 1.01 1.01 0.93
TM8X080C16MP11 CF/CM64D 1.01 1.01 0.93
TM8X100C16MP11 CF/CM/CU48C 1.01 1.02 0.95
TM8X100C16MP11 CF/CM/CU48D 1.01 0.99 0.95
TM8X100C16MP11 CF/CM/CU60C 1.01 1.01 0.95
TM8X100C16MP11 CF/CM/CU60D 1.01 1.01 0.93
TM8X100C16MP11 CF/CM64D 1.01 1.01 0.93
TM8X100C20MP11 CF/CM/CU48C 1.01 1.01 0.93
TM8X100C20MP11 CF/CM/CU48D 1.01 0.98 0.91
TM8X100C20MP11 CF/CM/CU60C 1.01 1.04 0.93
TM8X100C20MP11 CF/CM/CU60D 1.01 1.02 0.91
TM8X100C20MP11 CF/CM64D 1.01 1.02 0.91
TM8X120C20MP11 CF/CM/CU48C 1.01 1.01 0.93
TM8X120C20MP11 CF/CM/CU48D 1.01 0.98 0.91
TM8X120C20MP11 CF/CM/CU60C 1.01 1.04 0.93
TM8X120C20MP11 CF/CM/CU60D 1.01 1.02 0.91
TM8X120C20MP11 CF/CM64D 1.01 1.02 0.91
TM8Y080C16MP11 CF/CM/CU48C 1.01 1.02 0.95
TM8Y080C16MP11 CF/CM/CU48D 1.01 0.99 0.95
TM8Y080C16MP11 CF/CM/CU60C 1.01 1.01 0.95
TM8Y080C16MP11 CF/CM/CU60D 1.01 1.01 0.93
TM8Y080C16MP11 CF/CM64D 1.01 1.01 0.93
TM8Y100C16MP11 CF/CM/CU48C 1.01 1.02 0.95
TM8Y100C16MP11 CF/CM/CU48D 1.01 0.99 0.95
TM8Y100C16MP11 CF/CM/CU60C 1.01 1.01 0.95
TM8Y100C16MP11 CF/CM/CU60D 1.01 1.01 0.93
TM8Y100C16MP11 CF/CM64D 1.01 1.01 0.93
TM8Y100C20MP11 CF/CM/CU48C 1.01 1.01 0.93
TM8Y100C20MP11 CF/CM/CU48D 1.01 0.98 0.91
TM8Y100C20MP11 CF/CM/CU60C 1.01 1.04 0.93
TM8Y100C20MP11 CF/CM/CU60D 1.01 1.02 0.91
TM8Y100C20MP11 CF/CM64D 1.01 1.02 0.91
TM8Y120C20MP11 CF/CM/CU48C 1.01 1.01 0.93
TM8Y120C20MP11 CF/CM/CU48D 1.01 0.98 0.91
TM8Y120C20MP11 CF/CM/CU60C 1.01 1.04 0.93
TM8Y120C20MP11 CF/CM/CU60D 1.01 1.02 0.91
TM8Y120C20MP11 CF/CM64D 1.01 1.02 0.91
TM9E080C16MP11 CF/CM/CU48C 1.01 0.98 0.95
TM9E080C16MP11 CF/CM/CU48D 1.01 0.98 0.95
TM9E080C16MP11 CF/CM/CU60C 1.01 0.99 0.95
TM9E080C16MP11 CF/CM/CU60D 1.01 0.99 0.95
TM9E080C16MP11 CF/CM64D 1.01 0.98 0.93
TM9E100C16MP11 CF/CM/CU48C 1.01 0.98 0.95
TM9E100C16MP11 CF/CM/CU48D 1.01 0.98 0.95
TM9E100C16MP11 CF/CM/CU60C 1.01 0.99 0.95
TM9E100C16MP11 CF/CM/CU60D 1.01 0.99 0.95
FURNACE MULTIPLIERS- 4 TON (Continued)
Furnaces Coil T.C. S.C. KW
5006080-YTG-A-0815
66 Johnson Controls Unitary Products
TM9E100C16MP11 CF/CM64D 1.01 0.98 0.93
TM9E100C20MP11 CF/CM/CU48C 1.01 1.02 0.95
TM9E100C20MP11 CF/CM/CU48D 1.01 1.01 0.93
TM9E100C20MP11 CF/CM/CU60C 1.01 1.01 0.93
TM9E100C20MP11 CF/CM/CU60D 1.01 1.04 0.93
TM9E100C20MP11 CF/CM64D 1.01 1.01 0.93
TM9E120D20MP11 CF/CM/CU48D 1.01 1.01 0.93
TM9E120D20MP11 CF/CM/CU60D 1.01 1.01 0.93
TM9E120D20MP11 CF/CM64D 1.01 1.01 0.93
TM9V080C16MP11 CF/CM/CU48C 1.01 1.01 0.95
TM9V080C16MP11 CF/CM/CU48D 1.01 1.01 0.91
TM9V080C16MP11 CF/CM/CU60C 1.01 0.99 0.95
TM9V080C16MP11 CF/CM/CU60D 1.01 1.01 0.95
TM9V080C16MP11 CF/CM64D 1.01 0.98 0.93
TM9V100C16MP11 CF/CM/CU48C 1.01 1.01 0.95
TM9V100C16MP11 CF/CM/CU48D 1.01 1.01 0.91
TM9V100C16MP11 CF/CM/CU60C 1.01 0.99 0.95
TM9V100C16MP11 CF/CM/CU60D 1.01 1.01 0.95
TM9V100C16MP11 CF/CM64D 1.01 0.98 0.93
TM9V100C20MP11 CF/CM/CU48C 1.01 1.01 0.97
TM9V100C20MP11 CF/CM/CU48D 1.01 0.98 0.95
TM9V100C20MP11 CF/CM/CU60C 1.01 1.04 0.95
TM9V100C20MP11 CF/CM/CU60D 1.01 0.98 0.93
TM9V100C20MP11 CF/CM64D 1.01 0.98 0.93
TM9V120D20MP11 CF/CM/CU48D 1.01 0.98 0.93
TM9V120D20MP11 CF/CM/CU60D 1.01 0.98 0.93
TM9V120D20MP11 CF/CM64D 1.01 1.04 0.95
TM9Y080C16MP11 CF/CM/CU48C 1.01 0.98 0.95
TM9Y080C16MP11 CF/CM/CU48D 1.01 0.98 0.95
TM9Y080C16MP11 CF/CM/CU60C 1.01 0.99 0.95
TM9Y080C16MP11 CF/CM/CU60D 1.01 0.99 0.95
TM9Y080C16MP11 CF/CM64D 1.01 0.98 0.93
TM9Y100C16MP11 CF/CM/CU48C 1.01 0.98 0.95
TM9Y100C16MP11 CF/CM/CU48D 1.01 0.98 0.95
TM9Y100C16MP11 CF/CM/CU60C 1.01 0.99 0.95
TM9Y100C16MP11 CF/CM/CU60D 1.01 0.99 0.95
TM9Y100C16MP11 CF/CM64D 1.01 0.98 0.93
TM9Y100C20MP11 CF/CM/CU48C 1.01 1.02 0.95
TM9Y100C20MP11 CF/CM/CU48D 1.01 1.01 0.93
TM9Y100C20MP11 CF/CM/CU60C 1.01 1.01 0.93
TM9Y100C20MP11 CF/CM/CU60D 1.01 1.04 0.93
TM9Y100C20MP11 CF/CM64D 1.01 1.01 0.93
TM9Y120D20MP11 CF/CM/CU48D 1.01 1.01 0.93
TM9Y120D20MP11 CF/CM/CU60D 1.01 1.01 0.93
TM9Y120D20MP11 CF/CM64D 1.01 1.01 0.93
TMLV080C16MP11 CF/CM/CU48C 1.01 0.98 0.95
TMLV080C16MP11 CF/CM/CU48D 1.01 0.98 0.95
TMLV080C16MP11 CF/CM/CU60C 1.01 0.98 0.93
TMLV080C16MP11 CF/CM/CU60D 1.01 0.98 0.93
TMLV080C16MP11 CF/CM64D 1.01 1.01 0.93
TMLV100C16MP11 CF/CM/CU48C 1.01 0.98 0.95
TMLV100C16MP11 CF/CM/CU48D 1.01 0.98 0.95
FURNACE MULTIPLIERS- 4 TON (Continued)
Furnaces Coil T.C. S.C. KW
TMLV100C16MP11 CF/CM/CU60C 1.01 0.98 0.93
TMLV100C16MP11 CF/CM/CU60D 1.01 0.98 0.93
TMLV100C16MP11 CF/CM64D 1.01 1.01 0.93
TMLV100C20MP11 CF/CM/CU48C 1.01 0.98 0.95
TMLV100C20MP11 CF/CM/CU48D 1.01 1.04 0.93
TMLV100C20MP11 CF/CM/CU60C 1.01 1.01 0.93
TMLV100C20MP11 CF/CM/CU60D 1.01 0.99 0.95
TMLV100C20MP11 CF/CM64D 1.01 1.02 0.93
TMLV120C20MP11 CF/CM/CU48C 1.01 0.98 0.95
TMLV120C20MP11 CF/CM/CU48D 1.01 1.04 0.93
TMLV120C20MP11 CF/CM/CU60C 1.01 1.01 0.93
TMLV120C20MP11 CF/CM/CU60D 1.01 0.99 0.95
TMLV120C20MP11 CF/CM64D 1.01 1.02 0.93
TMLX080C16MP11 CF/CM/CU48C 1.01 1.02 0.95
TMLX080C16MP11 CF/CM/CU48D 1.01 0.99 0.95
TMLX080C16MP11 CF/CM/CU60C 1.01 1.01 0.95
TMLX080C16MP11 CF/CM/CU60D 1.01 1.01 0.93
TMLX080C16MP11 CF/CM64D 1.01 1.01 0.93
TMLX100C16MP11 CF/CM/CU48C 1.01 1.02 0.95
TMLX100C16MP11 CF/CM/CU48D 1.01 0.99 0.95
TMLX100C16MP11 CF/CM/CU60C 1.01 1.01 0.95
TMLX100C16MP11 CF/CM/CU60D 1.01 1.01 0.93
TMLX100C16MP11 CF/CM64D 1.01 1.01 0.93
TMLX100C20MP11 CF/CM/CU48C 1.01 1.01 0.93
TMLX100C20MP11 CF/CM/CU48D 1.01 0.98 0.91
TMLX100C20MP11 CF/CM/CU60C 1.01 1.04 0.93
TMLX100C20MP11 CF/CM/CU60D 1.01 1.02 0.91
TMLX100C20MP11 CF/CM64D 1.01 1.02 0.91
TMLX120C20MP11 CF/CM/CU48C 1.01 1.01 0.93
TMLX120C20MP11 CF/CM/CU48D 1.01 0.98 0.91
TMLX120C20MP11 CF/CM/CU60C 1.01 1.04 0.93
TMLX120C20MP11 CF/CM/CU60D 1.01 1.02 0.91
TMLX120C20MP11 CF/CM64D 1.01 1.02 0.91
TP9C080C16MP12 CF/CM/CU48C 1.01 1.01 0.95
TP9C080C16MP12 CF/CM/CU48D 1.01 1.01 0.91
TP9C080C16MP12 CF/CM/CU60C 1.01 0.99 0.95
TP9C080C16MP12 CF/CM/CU60D 1.01 1.01 0.95
TP9C080C16MP12 CF/CM64D 1.01 0.98 0.93
TP9C100C16MP12 CF/CM/CU48C 1.01 1.01 0.95
TP9C100C16MP12 CF/CM/CU48D 1.01 1.01 0.91
TP9C100C16MP12 CF/CM/CU60C 1.01 0.99 0.95
TP9C100C16MP12 CF/CM/CU60D 1.01 1.01 0.95
TP9C100C16MP12 CF/CM64D 1.01 0.98 0.93
TP9C100C20MP12 CF/CM/CU48C 1.01 1.01 0.97
TP9C100C20MP12 CF/CM/CU48D 1.01 0.98 0.95
TP9C100C20MP12 CF/CM/CU60C 1.01 1.04 0.95
TP9C100C20MP12 CF/CM/CU60D 1.01 0.98 0.93
TP9C100C20MP12 CF/CM64D 1.01 0.98 0.93
TP9C120D20MP12 CF/CM/CU48D 1.01 0.98 0.93
TP9C120D20MP12 CF/CM/CU60D 1.01 0.98 0.93
TP9C120D20MP12 CF/CM64D 1.01 1.04 0.95
TPLC080C16MP12 CF/CM/CU48C 1.01 0.98 0.95
FURNACE MULTIPLIERS- 4 TON (Continued)
Furnaces Coil T.C. S.C. KW
5006080-YTG-A-0815
Johnson Controls Unitary Products 67
TPLC080C16MP12 CF/CM/CU48D 1.01 0.98 0.95
TPLC080C16MP12 CF/CM/CU60C 1.01 0.98 0.93
TPLC080C16MP12 CF/CM/CU60D 1.01 0.98 0.93
TPLC080C16MP12 CF/CM64D 1.01 1.01 0.93
TPLC100C16MP12 CF/CM/CU48C 1.01 0.98 0.95
TPLC100C16MP12 CF/CM/CU48D 1.01 0.98 0.95
TPLC100C16MP12 CF/CM/CU60C 1.01 0.98 0.93
TPLC100C16MP12 CF/CM/CU60D 1.01 0.98 0.93
TPLC100C16MP12 CF/CM64D 1.01 1.01 0.93
TPLC100C20MP12 CF/CM/CU48C 1.01 0.98 0.95
TPLC100C20MP12 CF/CM/CU48D 1.01 1.04 0.93
TPLC100C20MP12 CF/CM/CU60C 1.01 1.01 0.93
TPLC100C20MP12 CF/CM/CU60D 1.01 0.99 0.95
TPLC100C20MP12 CF/CM64D 1.01 1.02 0.93
TPLC120C20MP12 CF/CM/CU48C 1.01 0.98 0.95
TPLC120C20MP12 CF/CM/CU48D 1.01 1.04 0.93
TPLC120C20MP12 CF/CM/CU60C 1.01 1.01 0.93
TPLC120C20MP12 CF/CM/CU60D 1.01 0.99 0.95
TPLC120C20MP12 CF/CM64D 1.01 1.02 0.93
YP9C080C16MP12 CF/CM/CU48C 1.01 1.01 0.95
YP9C080C16MP12 CF/CM/CU48D 1.01 1.01 0.91
YP9C080C16MP12 CF/CM/CU60C 1.01 0.99 0.95
YP9C080C16MP12 CF/CM/CU60D 1.01 1.01 0.95
YP9C080C16MP12 CF/CM64D 1.01 0.98 0.93
YP9C100C16MP12 CF/CM/CU48C 1.01 1.01 0.95
YP9C100C16MP12 CF/CM/CU48D 1.01 1.01 0.91
YP9C100C16MP12 CF/CM/CU60C 1.01 0.99 0.95
YP9C100C16MP12 CF/CM/CU60D 1.01 1.01 0.95
YP9C100C16MP12 CF/CM64D 1.01 0.98 0.93
YP9C100C20MP12 CF/CM/CU48C 1.01 1.01 0.97
FURNACE MULTIPLIERS- 4 TON (Continued)
Furnaces Coil T.C. S.C. KW
YP9C100C20MP12 CF/CM/CU48D 1.01 0.98 0.95
YP9C100C20MP12 CF/CM/CU60C 1.01 1.04 0.95
YP9C100C20MP12 CF/CM/CU60D 1.01 0.98 0.93
YP9C100C20MP12 CF/CM64D 1.01 0.98 0.93
YP9C120D20MP12 CF/CM/CU48D 1.01 0.98 0.93
YP9C120D20MP12 CF/CM/CU60D 1.01 0.98 0.93
YP9C120D20MP12 CF/CM64D 1.01 1.04 0.95
YPLC080C16MP12 CF/CM/CU48C 1.01 0.98 0.95
YPLC080C16MP12 CF/CM/CU48D 1.01 0.98 0.95
YPLC080C16MP12 CF/CM/CU60C 1.01 0.98 0.93
YPLC080C16MP12 CF/CM/CU60D 1.01 0.98 0.93
YPLC080C16MP12 CF/CM64D 1.01 1.01 0.93
YPLC100C16MP12 CF/CM/CU48C 1.01 0.98 0.95
YPLC100C16MP12 CF/CM/CU48D 1.01 0.98 0.95
YPLC100C16MP12 CF/CM/CU60C 1.01 0.98 0.93
YPLC100C16MP12 CF/CM/CU60D 1.01 0.98 0.93
YPLC100C16MP12 CF/CM64D 1.01 1.01 0.93
YPLC100C20MP12 CF/CM/CU48C 1.01 0.98 0.95
YPLC100C20MP12 CF/CM/CU48D 1.01 1.04 0.93
YPLC100C20MP12 CF/CM/CU60C 1.01 1.01 0.93
YPLC100C20MP12 CF/CM/CU60D 1.01 0.99 0.95
YPLC100C20MP12 CF/CM64D 1.01 1.02 0.93
YPLC120C20MP12 CF/CM/CU48C 1.01 0.98 0.95
YPLC120C20MP12 CF/CM/CU48D 1.01 1.04 0.93
YPLC120C20MP12 CF/CM/CU60C 1.01 1.01 0.93
YPLC120C20MP12 CF/CM/CU60D 1.01 0.99 0.95
YPLC120C20MP12 CF/CM64D 1.01 1.02 0.93
FURNACE MULTIPLIERS- 4 TON (Continued)
Furnaces Coil T.C. S.C. KW
5006080-YTG-A-0815
68 Johnson Controls Unitary Products
PERFORMANCE DATA - 5 TON
Multipliers for determining the performance with other indoor sections.
NOTE: For dry bulb temperatures different than those listed (between 73-87 °F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed
temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.
CONDENSER-ONLY DATA (OUTDOOR UNIT)
MODEL
SATURATED SUCTION
@ COMPRESSOR
Outdoor Ambient Temperature
55 °F 65 °F 75 °F 85 °F 95 °F 105 °F 115 °F 125 °F
T (°F) P (PSIG) MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW MBH KW
YCS60B21S
35 107 61.4 2.72 58.5 2.99 55.5 3.32 52.5 3.70 49.3 4.16 46.0 4.70 42.3 5.30 38.4 6.00
40 118 67.5 2.73 64.3 3.00 61.1 3.33 57.8 3.71 54.4 4.17 50.7 4.70 46.9 5.31 42.7 6.00
45 130 73.9 2.74 70.5 3.01 67.1 3.34 63.5 3.72 59.8 4.17 55.8 4.71 51.7 5.32 47.2 5.99
50 142 80.8 2.75 77.0 3.03 73.3 3.35 69.5 3.73 65.6 4.17 61.3 4.72 56.8 5.33 52.1 5.99
55 156 88.2 2.76 84.1 3.04 80.0 3.37 75.8 3.76 71.6 4.19 67.1 4.73 62.3 5.34 57.3 5.99
Notes:
1. For Outdoor Unit (Condenser) performance only. Data does not include the effects of air handler power or heat.
2. Performance based on 15°F subcooling and 15°F superheat at the Outdoor Unit base valves.
a. Increase capacity by 1% for each 2°F increase in subcooling.
b. Decrease capacity by 1% for each 2°F decrease in subcooling.
3. Maximum recommended condensing temperature is 140°F.
COOLING PERFORMANCE DATA
OUTDOOR UNIT MODEL NO. YCS60B21S
INDOOR COIL MODEL NO. CF60CXA1
AIR TEMP.
ENTERING
OUTDOOR UNIT (°F)
ID CFM 1530 1730 1930
ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80
ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72
55
T.C. 55.3 58.7 59.6 63.7 66.8 57.5 59.6 60.2 64.3 67.1 59.7 60.5 60.7 65.0 67.5
S.C. 55.3 49.6 44.3 43.0 33.6 57.5 52.4 46.2 44.3 34.5 59.7 55.2 48.1 45.7 35.4
KW 3.10 3.14 3.13 3.15 3.17 3.19 3.22 3.21 3.24 3.25 3.27 3.30 3.29 3.32 3.33
65
T.C. 54.1 57.2 57.2 62.0 65.7 56.1 58.2 58.0 62.9 66.4 58.0 59.1 58.9 63.8 67.1
S.C. 54.1 49.2 42.6 41.9 33.0 56.1 52.1 44.9 43.7 34.1 58.0 54.9 47.2 45.5 35.1
KW 3.43 3.46 3.45 3.47 3.48 3.51 3.54 3.53 3.55 3.56 3.59 3.62 3.61 3.63 3.64
75
T.C. 52.9 55.6 54.7 60.3 64.7 54.6 56.7 55.9 61.5 65.7 56.4 57.8 57.1 62.6 66.8
S.C. 52.9 48.9 40.9 40.9 32.5 54.6 51.7 43.6 43.2 33.7 56.4 54.6 46.3 45.4 34.8
KW 3.76 3.78 3.77 3.78 3.78 3.84 3.86 3.85 3.86 3.86 3.91 3.93 3.92 3.94 3.94
85
T.C. 50.4 53.2 52.1 57.9 62.4 52.1 54.2 53.4 58.7 63.3 53.7 55.1 54.7 59.6 64.1
S.C. 50.4 47.4 39.6 39.9 31.5 52.1 50.2 42.3 42.1 32.6 53.7 52.9 45.0 44.2 33.8
KW 4.22 4.25 4.25 4.24 4.23 4.30 4.32 4.31 4.31 4.30 4.37 4.39 4.38 4.39 4.38
95
T.C. 47.9 50.8 49.6 55.4 60.2 49.5 51.6 50.9 56.0 60.8 51.1 52.5 52.3 56.6 61.4
S.C. 47.9 46.0 38.3 38.9 30.5 49.5 48.6 41.0 41.0 31.6 51.1 51.2 43.7 43.1 32.7
KW 4.69 4.71 4.72 4.70 4.67 4.75 4.78 4.78 4.77 4.75 4.82 4.84 4.84 4.83 4.82
105
T.C. 46.0 47.7 46.1 52.4 57.0 47.5 48.6 47.5 53.0 57.4 49.0 49.6 48.8 53.6 57.8
S.C. 46.0 44.5 36.4 37.6 29.1 47.5 46.9 39.0 39.7 30.2 49.0 49.3 41.7 41.8 31.4
KW 5.49 5.51 5.51 5.47 5.41 5.52 5.56 5.57 5.53 5.48 5.56 5.61 5.63 5.58 5.56
115
T.C. 44.1 44.7 42.8 49.5 53.8 45.5 45.7 44.1 50.1 54.0 46.9 46.7 45.4 50.7 54.2
S.C. 44.1 43.0 34.6 36.3 27.7 45.5 45.3 37.1 38.4 28.9 46.9 46.7 39.7 40.5 30.0
KW 6.26 6.29 6.28 6.22 6.13 6.27 6.32 6.34 6.26 6.20 6.28 6.36 6.39 6.31 6.28
125
T.C. 42.3 41.8 39.4 46.5 50.7 43.6 42.8 40.7 47.2 50.7 44.9 43.9 42.0 47.8 50.7
S.C. 42.3 41.6 32.7 35.0 26.4 43.6 42.8 35.2 37.1 27.5 44.9 43.9 37.8 39.3 28.7
KW 7.03 7.07 7.05 6.96 6.84 7.02 7.08 7.10 7.00 6.92 7.00 7.10 7.15 7.04 7.00
NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT. KW VALUES ARE FOR THE SYSTEM (OUTDOOR + INDOOR).
Green shaded cells are ACCA (TVA) conditions.
Blue shaded cells are AHRI conditions.
5006080-YTG-A-0815
Johnson Controls Unitary Products 69
COIL MULTIPLIERS- 5 TON
Air Handler Coil T.C. S.C. KW
– CF/CM/CU60C 1.00 1.00 1.00
– CF/CM/CU60D 1.00 1.00 1.00
– CF/CM64D 1.02 1.02 1.02
AE60CX21 – 1.00 0.98 0.98
AE60DX21 – 1.03 1.02 0.98
AVC60CX21 – 1.01 1.01 0.99
AVC60DX21 – 1.03 1.00 0.98
ME16CN21 CF/CM60C 1.00 0.98 0.96
ME20DN21 CF/CM60D 1.01 0.98 0.97
ME20DN21 CF/CM64D 1.03 0.99 0.98
MVC16CN21 CF/CM60C 1.02 0.99 0.94
MVC20DN21 CF/CM60D 1.00 0.98 0.96
MVC20DN21 CF/CM64D 1.02 0.99 0.98
FURNACE MULTIPLIERS- 5 TON
Furnaces Coil T.C. S.C. KW
TM8V080C16MP11 CF/CM64D 1.01 0.98 1.01
TM8V100C16MP11 CF/CM64D 1.01 0.98 1.01
TM8V100C20MP11 CF/CM/CU60D 0.99 0.96 0.99
TM8V120C20MP11 CF/CM/CU60D 0.99 0.96 0.99
TM8X100C20MP11 CF/CM/CU60C 1.00 0.98 0.98
TM8X100C20MP11 CF/CM/CU60D 1.00 0.98 0.98
TM8X100C20MP11 CF/CM64D 1.02 0.99 0.98
TM8X120C20MP11 CF/CM/CU60C 1.00 0.98 0.98
TM8X120C20MP11 CF/CM/CU60D 1.00 0.98 0.98
TM8X120C20MP11 CF/CM64D 1.02 0.99 0.98
TM8Y100C20MP11 CF/CM/CU60C 1.00 0.98 0.98
TM8Y100C20MP11 CF/CM/CU60D 1.00 0.98 0.98
TM8Y100C20MP11 CF/CM64D 1.02 0.99 0.98
TM8Y120C20MP11 CF/CM/CU60C 1.00 0.98 0.98
TM8Y120C20MP11 CF/CM/CU60D 1.00 0.98 0.98
TM8Y120C20MP11 CF/CM64D 1.02 0.99 0.98
TM9E100C20MP11 CF/CM/CU60D 1.00 0.98 1.00
TM9E120D20MP11 CF/CM/CU60D 1.00 0.98 0.98
TM9V080C16MP11 CF/CM/CU60C 0.99 0.98 0.99
TM9V080C16MP11 CF/CM64D 1.02 0.99 1.00
TM9V100C16MP11 CF/CM/CU60C 0.99 0.98 0.99
TM9V100C16MP11 CF/CM64D 1.02 0.99 1.00
TM9V100C20MP11 CF/CM64D 1.01 0.98 1.01
TM9V120D20MP11 CF/CM/CU60D 1.01 1.01 1.01
TM9V120D20MP11 CF/CM64D 1.02 1.02 1.02
TM9Y100C20MP11 CF/CM/CU60D 1.00 0.98 1.00
TM9Y120D20MP11 CF/CM/CU60D 1.00 0.98 0.98
TMLV080C16MP11 CF/CM64D 1.01 0.98 1.01
TMLV100C16MP11 CF/CM64D 1.01 0.98 1.01
TMLV100C20MP11 CF/CM/CU60D 0.99 0.96 0.99
TMLV120C20MP11 CF/CM/CU60D 0.99 0.96 0.99
TMLX100C20MP11 CF/CM/CU60C 1.00 0.98 0.98
TMLX100C20MP11 CF/CM/CU60D 1.00 0.98 0.98
TMLX100C20MP11 CF/CM64D 1.02 0.99 0.98
TMLX120C20MP11 CF/CM/CU60C 1.00 0.98 0.98
TMLX120C20MP11 CF/CM/CU60D 1.00 0.98 0.98
TMLX120C20MP11 CF/CM64D 1.02 0.99 0.98
TP9C080C16MP12 CF/CM/CU60C 0.99 0.98 0.99
TP9C080C16MP12 CF/CM64D 1.02 0.99 1.00
TP9C100C16MP12 CF/CM/CU60C 0.99 0.98 0.99
TP9C100C16MP12 CF/CM64D 1.02 0.99 1.00
TP9C100C20MP12 CF/CM64D 1.01 0.98 1.01
TP9C120D20MP12 CF/CM/CU60D 1.01 1.01 1.01
TP9C120D20MP12 CF/CM64D 1.02 1.02 1.02
TPLC080C16MP12 CF/CM64D 1.01 0.98 1.01
TPLC100C16MP12 CF/CM64D 1.01 0.98 1.01
TPLC100C20MP12 CF/CM/CU60D 0.99 0.96 0.99
TPLC120C20MP12 CF/CM/CU60D 0.99 0.96 0.99
YP9C080C16MP12 CF/CM/CU60C 0.99 0.98 0.99
YP9C080C16MP12 CF/CM64D 1.02 0.99 1.00
YP9C100C16MP12 CF/CM/CU60C 0.99 0.98 0.99
YP9C100C16MP12 CF/CM64D 1.02 0.99 1.00
YP9C100C20MP12 CF/CM64D 1.01 0.98 1.01
YP9C120D20MP12 CF/CM/CU60D 1.01 1.01 1.01
YP9C120D20MP12 CF/CM64D 1.02 1.02 1.02
YPLC080C16MP12 CF/CM64D 1.01 0.98 1.01
YPLC100C16MP12 CF/CM64D 1.01 0.98 1.01
YPLC100C20MP12 CF/CM/CU60D 0.99 0.96 0.99
YPLC120C20MP12 CF/CM/CU60D 0.99 0.96 0.99
FURNACE MULTIPLIERS- 5 TON (Continued)
Furnaces Coil T.C. S.C. KW
Subject to change without notice. Published in U.S.A. 5006080-YTG-A-0815
Copyright © 2015 by Johnson Controls, Inc. All rights reserved. Supersedes: Nothing
York International Corp.
5005 York Drive
Norman, OK 73069
NOTES

Navigation menu
