FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

862075-XTG-G-0415

TECHNICAL GUIDE

Description

ASHRAE 90.1 COMPLIANT

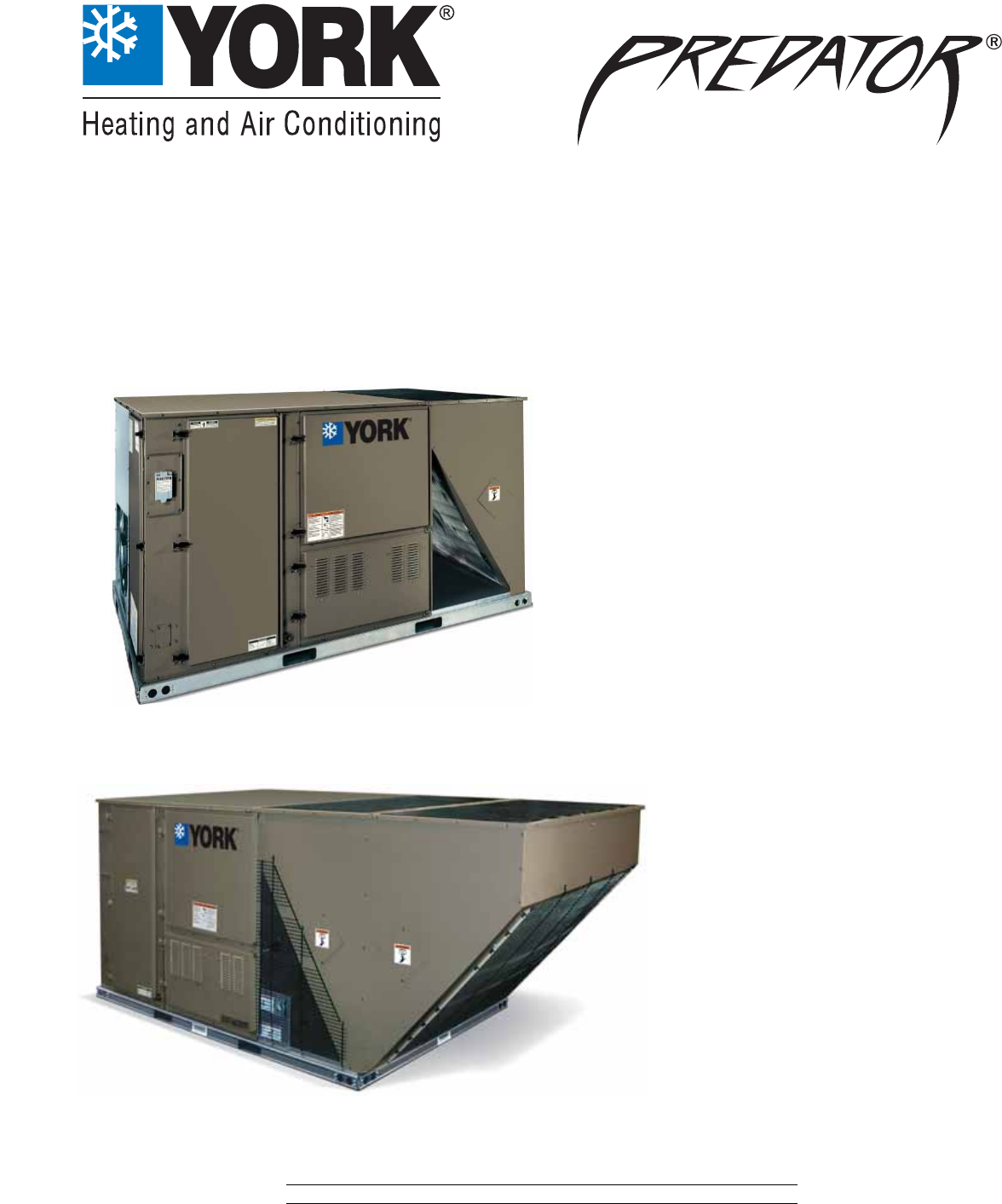

YORK® Predator® units are convertible single packages

with a common footprint cabinet and common roof curb for

all 7-1/2 through 12-1/2 ton models. All units have two

compressors with independent refrigeration circuits to

provide 2 stages of cooling. The units were designed for

light commercial applications and can be easily installed on

a roof curb, slab, or frame.

All Predator® units are self-contained and assembled on

rigid full perimeter base rails allowing for 3-way forklift

access and overhead rigging. Every unit is completely

charged, wired, piped, and tested at the factory to provide a

quick and easy field installation.

All units are convertible between side and down airflow.

Independent economizer designs are used on side and

down discharge applications, as well as all tonnage sizes.

Predator® units are available in the following configurations:

cooling only, cooling with electric heat, and cooling with gas

heat. Electric heaters are available as factory-installed

options or field-installed accessories.

All units provide constant supply air volume.

R-410A

ZF SERIES

7-1/2 THRU 12-1/2 TON

50 Hz (Export)

ZF 7-1/2 AND 10 TON

ZF 12-1/2 TON

862075-XTG-G-0415

2Johnson Controls Unitary Products

Table of Contents

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Component Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Guide Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Physical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Capacity Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Airflow Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Sound Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

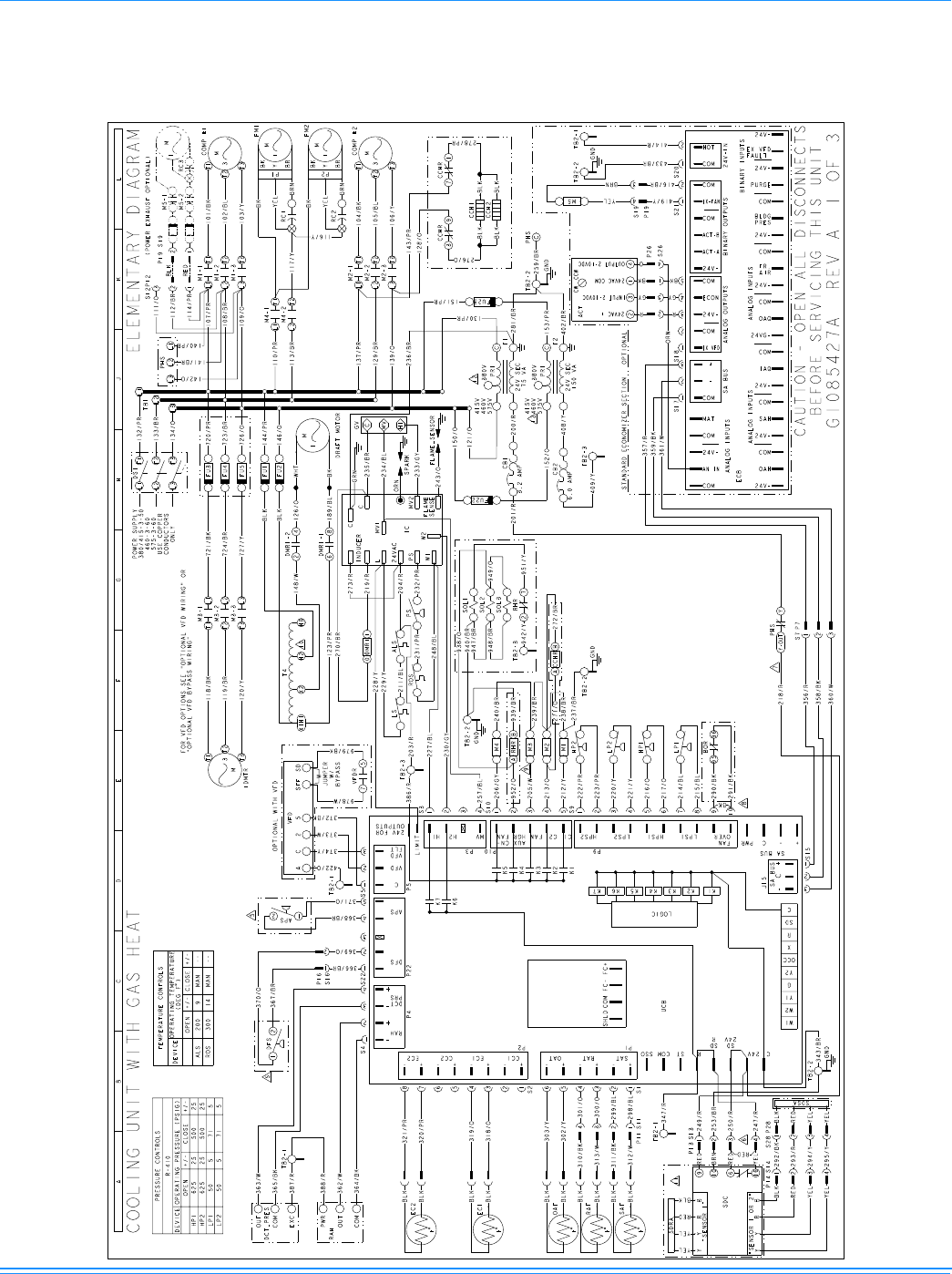

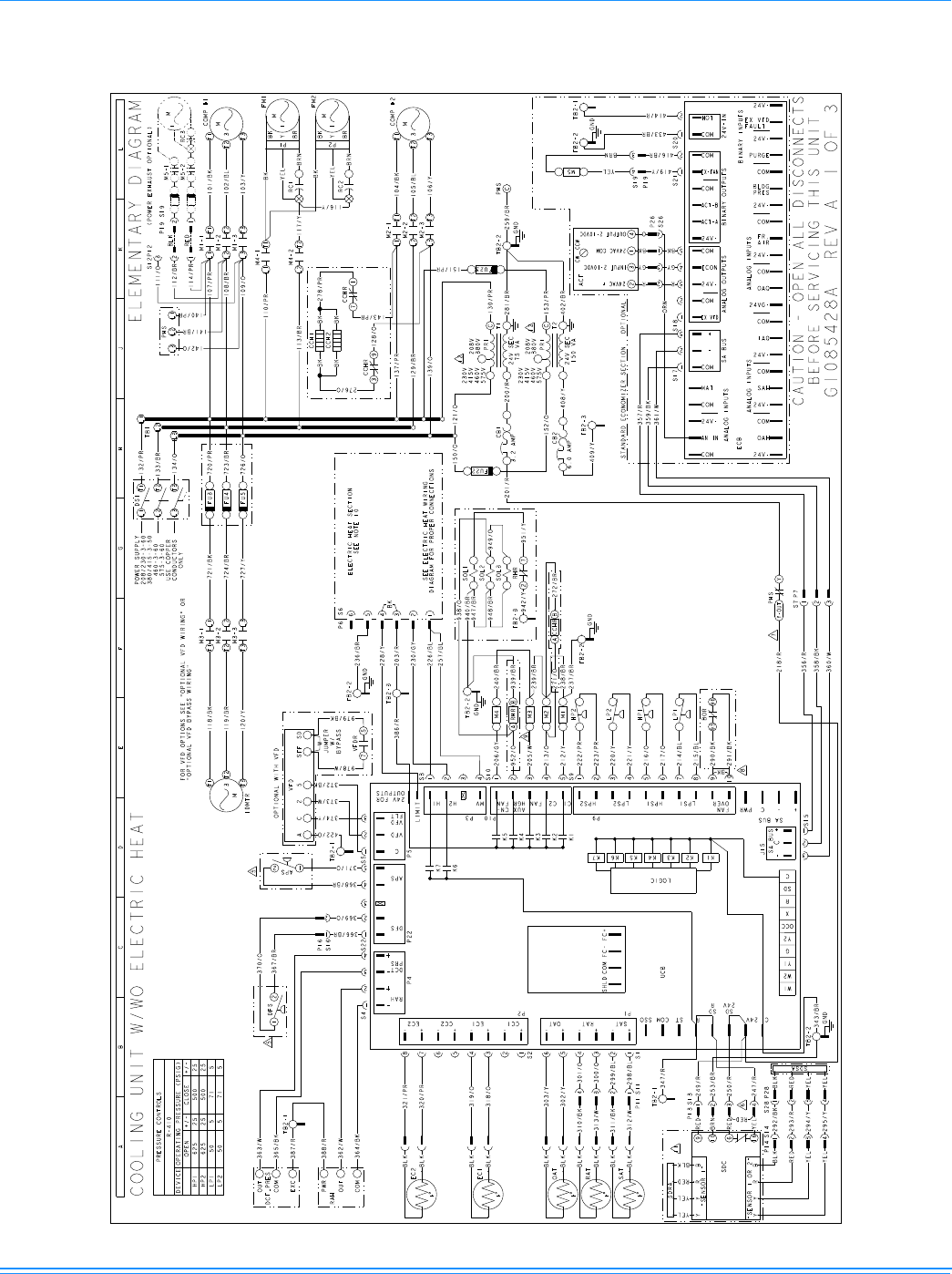

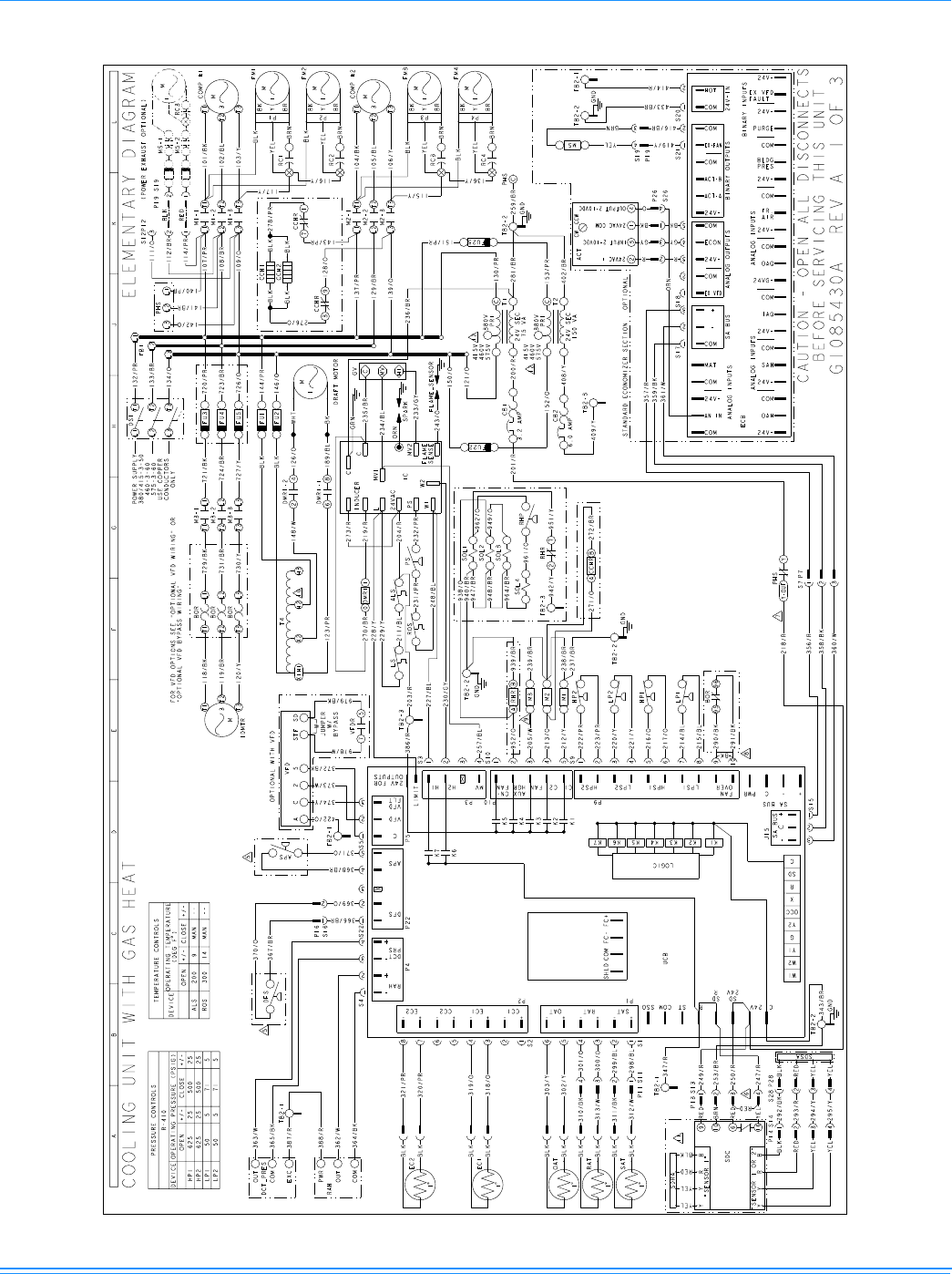

Typical Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Weights and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Economizer Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Component Location

Cooling With Gas Heat

Roof curbs in eight- and

fourteen-inch heights. Roof

curbs for transitioning from

York Sunline™ footprint to

the ZF Series footprints

are also available (field

installed accessory)

Base rails w/forklift

slots (three sides)

and lifting holes

Compressor #2

access (high-

efficiency

compressor

w/crankcase

heater)

Dual stage

cooling for

maximum

comfort

Second model

nameplate

inside hinged

access panel

Terminal block for

hi-voltage connection

Simplicity® SE control board

w/screw connector for T-stat

wiring and network connections

Disconnect location

(optional disconnect switch)

Filter Access

(2” or 4” filter options) Filter drier

(solid core)

Slide-out motor and

blower assembly for

easy adjustment

and service

Belt-drive

blower motor

Power ventor motor

20-gauge alumi-

nized steel tubular

heat exchanger for

long life (stainless

steel option)

Two-stage gas

heating to maintain

warm, comfortable

temperature

Ignition control

board for safe and

efficient operation

Compressor #1 access

(high-efficiency compressor

w/crankcase heater)

Toolless

door latch

Side entry power

and control wiring

knockouts

Slide-out drain pan

with 3/4” NPT,

female connection

ZF Series utilize Micro-Channel

Aluminum Tube/Aluminum Fin

Condenser

862075-XTG-G-0415

Johnson Controls Unitary Products 3

Nomenclature

Z F 090 N10 A 7 A AA 7 0 1 2 4 A

Z = A/C, Single Pkg., R410A

Product Category

7 = Seventh Generation

Product Generation

C00 = Cooling Only. No heat installed

Heat Type and Nominal Heat Capacity

N10 = 100 MBH Output Aluminized Steel

N15 = 150 MBH Output Aluminized Steel

S10 = 100 MBH Output Stainless Steel

S15 = 150 MBH Output Stainless Steel

E18 = 18 KW

E24 = 24 KW

E36 = 36 KW

E54 = 54 KW

Gas Heat Options*

Electric Heat Options*

Nominal Cooling Capacity

090 = 7.5 Ton

120 = 10.0 Ton

150 = 12.5 Ton

Product Identifier

F = 11.2 EER 7.5 & 10 Ton A/C

Voltage

7 = 380/415-3-50

Product Style

A = Style A

A = No Options Installed

Installation Options

B = Option 1

E = Option 3

F = Option 4

G = Options 1 & 3

H = Options 1 & 4

L = Options 1,3 & 4

R = Options 3 & 4

1 = Disconnect

3 = Smoke Detector S.A.

4 = Smoke Detector R.A.

Options

SS Drain Pan

Configuration Options (not required for all units)

These four digits will not be assigned until a quote is requested, or an order placed.

Honeywell Controller, DFS, APS

Simplicity®Smart Equipment w/Comm Card (BACnet, N2, Mod-Bus)

BAS Ready Unit with Belimo Economizer

Shipping Bag

Any Combination of Additional Options that Don’t Have an Option Code Pre-assigned

AA = None

AB = Phase Monitor

AC = Coil Guard

AD = Dirty Filter Switch

AE = Phase Monitor & Coil Guard

AF = Phase Monitor & Dirty Filter Switch

AG = Coil Guard & Dirty Filter Switch

AH = Phase Monitor, Coil Guard & Dirty Filter Switch

Additional Options

RC = Coil Guard & American Flag

TA = Technicoat Condenser Coil

TJ = Technicoat Evaporator Coil

TS = Technicoat Evaporator & Condenser Coils

7.5-12.5 Ton York® Model Number Nomenclature

ZZ = If desired option combination is not listed above, ZZ will be assigned and configuration options will be

located in digits 15-18.

* No Electric Heat Options for ZF090

** Only Hi Static Is Offered On ZF150

11.0 EER 12.5 Ton A/C

2" Pleated Filters, MERV 7

4" Pleated Filters, MERV 13

EA = ElectroFin Condenser Coil

EJ = ElectroFin Evaporator Coil

ES = ElectroFin Cond & Evap Coils

N20 = 200 MBH Output Aluminized Steel

S20 = 200 MBH Output Stainless Steel

* N10/S10 Not Available on ZF120/150

Airow

A = Std. Motor

D = Std. Motor/Motorized Damper (Downow Only)

H = Std Motor/Low Leak Econ/Barometric Relief (Downow

& Horizontal End Return Only)

J = Std Motor/Low Leak Econ/Power Exhaust (Downow

& Horizontal End Return Only)

N = Hi Static

R = Hi Static/Motorized Damper (Downow Only)

V = Hi Static Mtr/Low Leak Econ/Barometric Relief

(Downow & Horizontal End Return Only)

W = Hi Static Mtr/Low Leak Econ/Power Exhaust

(Downow & Horizontal End Return Only)

862075-XTG-G-0415

4Johnson Controls Unitary Products

Features and Benefits

Standard Features

•High Efficiency – High efficiency units reach as high as

11.2 EER. Gas/electric units have electronic spark ignition

and power vented combustion with steady state efficiencies

of 80%. These efficiencies exceed all legislated minimum

levels and provide low operating costs.

•Service Friendly – The Predator® incorporates a number

of enhancements which improve serviceability.

The motor and blower slide out of the unit as a common

assembly. This facilitates greater access to all the indoor

airflow components, thus simplifying maintenance and

adjustment.

Service time is reduced through the use of hinged,

toolless panels. Such panels provide access to frequently

inspected components and areas, including the control

box, compressors, filters, indoor motor & blower, and the

heating section. The panels are screwed in place at the

factory to prevent access by children or other

unauthorized persons. It is recommended that the panels

be secured with screws once service is complete.

Service windows have been placed in both condenser

section walls. Rotation of the cover allows easy access to

the condenser coils for cleaning or inspection.

The Simplicity® SE control board provides alarm

messages to help quickly identify any faults.

All units use the same standard filter size. This

standardization removes any confusion on which filter

sizes are needed for replacement.

The non-corrosive drain pan slides out of the unit to permit

easy cleaning. The drain pan is accessed by removing the

drain pan cover plate on the rear of the unit. Once the plate is

removed, the drain pan slides out through the rear of the unit.

All Predator® units have a second model nameplate

located inside the control access door. This is to prevent

deterioration of the nameplate through weathering.

• Coil Technology – ZF condensers utilize Micro-Channel

“all aluminum” condensers which provide improved heat

transfer capabilities and reduced charge volumes.

•Environmentally Aware – For improved Indoor Air

Quality, a combination of foil faced and elastometric

rubber insulation is used exclusively throughout the units.

•Balanced Heating – The Predator® offers “Ultimate

Heating Comfort” with a balance between 1st and 2nd stage

gas heating. The first stage of a gas heat Predator® unit

provides 60% of the heating capacity. Balanced heating

allows the unit to better maintain desired temperatures.

•Convertible Airflow Design – The side duct openings

are covered when they leave the factory. If a side supply/

return is desired, the installer simply removes the two side

duct covers from the outside of the unit and installs them

over the down shot openings. No panel cutting is required.

Convertible airflow design allows maximum field flexibility

and minimum inventory.

•System Protection - Suction line freezestats are supplied

on all units to protect against loss of charge and coil frosting

when the economizer operates at low outdoor air

temperatures while the compressors are running. Every unit

has solid-core liquid line filter-driers and high and low-

pressure switches. Internal compressor protection is

standard on all compressors. Crankcase heaters are

standard on reciprocating compressors. Scroll compressors

do not require crankcase heaters. Phase Monitors are

standard on units with scroll compressors. This accessory

monitors the incoming power to the unit and protects the

unit from phase loss and reversed phase rotation.

•Advanced Controls - Simplicity® SE control boards have

standardized a number of features previously available only

as options or by utilizing additional controls.

•Units will come with the new state of the art Simplicity

SE (Smart Equipment) control system. The new unit

control incorporates the best of the already proven

Simplicity™ unitary controls and creates a more robust,

intelligent control. The goal of this control is to utilize

cutting edge technology making the equipment easier to

install, operate, and service. All units are Factory

commissioned, configured, and run tested.

•Versatile - The Simplicity SE control can be configured to

use with a standard thermostat (easy to connect screw

terminals), A zone sensor, or can be setup to

The Simplicity® SE control board used in this

product will effectively operate the cooling system

down to 0°F when this product is applied in a comfort

cooling application for people. An economizer is

typically included in this type of application. When

applying this product for process cooling applications

(computer rooms, switchgear, etc.), please

reference applications bulletin AE-011-07 or call the

applications department for Unitary Products @ 1-

877-UPG-SERV for guidance. Additional

accessories may be needed for stable operation at

temperatures below 30°F.

862075-XTG-G-0415

Johnson Controls Unitary Products 5

communicate with multiple BAS communication protocols

to integrate with building automation systems.

•Reduce field installed complexity - Each unit will comes

equipped with factory installed supply air, return air, and

outdoor air temperature sensors providing key

temperature readings thus reduce field installed

complexity.

•On-board USB Port - The new control comes with a long

list of features including data logging, current and

previous system faults and software update capabilities

using the on board USB port and common flash drive.

Energy use monitoring capabilities allow custom tailoring

to allow a system to work more efficiently at all times and

occupancy levels. Self test and start-up reports also

available from the board VIA the USB port.

•Embedded LCD Display - The board has a easy to read,

built-in LCD display and easy to use navigation joystick

and buttons allowing the user to quickly navigate the

menus displaying unit status, options, current function,

supply, return and outdoor temperatures, fault codes and

other information.

•Safety Monitoring - The control monitors the outdoor,

supply, and return air temperatures and the high and low

pressure switch status on the independent refrigerant

circuits. On units with heating the gas valve and high

temperature limit switches are monitored on gas and

electric heating units. The control also monitors the

voltage supplied to the unit and will protect the unit if low

voltage due to a brown out, or other electrical issue

occurs.

•Low Ambient - An integrated low-ambient control allows

units to operate in the cooling mode down to 0°F outdoor

ambient without additional components or intervention.

Optionally, the control board can be programmed to

lockout the compressors when the outdoor air

temperature is low or when free cooling is available.

•Anti-Short Cycle Protection - To aid compressor life, an

anti- short cycle delay is incorporated into the standard

control. Compressor reliability is further ensured by

programmable minimum run times. For testing, the anti-

short cycle delay can be temporarily overridden with the

push of a button.

•Fan Delays - Fan on and fan off delays are fully

programmable. Furthermore, the heating and cooling fan

delay times are independent of one another. All units are

programmed with default values based upon their

configuration of cooling and/or heating capacity.

•Nuisance Trip Protection and Three Strikes - To

prevent nuisance calls, the control board uses a three

times, you're out philosophy. The high, low-pressure

switch, anti-freeze protection, low voltage or heating high

limit must trip three times within two hours before the unit

control board will lock out the associated compressor.An

alarm message will be displayed on the LCD screen.

•Lead-Lag - An integrated Lead-Lag option allows equal

run time hours on all compressors, thereby extending the

life of all compressors. This option is selectable on the unit

control board.

•Low Limit Control (LLC) - To prevent the supply air from

dropping below a specified set point, when there is a

demand for cooling during cold outside conditions.

(Programmable Set point)

•Reliable – From the beginning – All units undergo

computer automated testing before they leave the factory.

Units are tested for refrigerant charge and pressure, unit

amperage, and 100% functionality. For the long term – All

Predator® units are painted with a long lasting, powder

paint that stands up over the life of the unit. The paint

used has been proven by a 1000 hour salt spray test.

•Flexible Placement – All models and configurations

share the same cabinet/footprint and thus the same roof

curb. You have the flexibility to set one curb and choose

the correct tonnage size and heating option after the

internal loads have been determined.

To further simplify planning and installation, Predator® ZF

cabinets are designed to fit your roof. With the optional

roof curb, the unit ductwork is designed to fit around 24”

on-center joists or between 48” on-center joists.

The drain pan can be rotated to drain to either the front or

the rear of the unit. Additionally, the drain pan can be

fitted to drain through the roof curb. As it is sometimes

difficult to have a level installation, the drain pan features

a generous slope to ensure proper drainage.

•Full Perimeter Base Rails – The permanently attached

base rails provide a solid foundation for the entire unit and

protect the unit during shipment. The rails offer forklift

access from 3 sides, and rigging holes are available so that

an overhead crane can be used to place the units on a roof.

•Easy Installation – Gas and electric utility knockouts are

supplied in the unit underside as well as the side of the unit.

A clearly identified location is provided to mount a field

supplied electrical disconnect switch. Utility connections can

be made quickly and with a minimum amount of field labor.

All units are shipped with 2” throw-away filters installed.

•Wide Range of Indoor Airflows – All indoor fan motors

are belt-drive type providing maximum flexibility to handle

most airflow requirements. For high static applications,

factory installed alternate indoor fan motors are available.

With the optional indoor fan motor, all units can supply

nominal airflow at a minimum of 1.5” ESP.

•Warranty - All models include a 1-year limited warranty

on the complete unit. Compressors and electric heater

elements each carry a 5-year warranty. Aluminized steel

and stainless steel tubular heat exchangers carry a 10-

year warranty.

Factory Installed Options

YORK® offers several equipment options factory installed, for

the Predator®line.

•Optional Factory Installed Economizers - Predator units

offer a variety of optional factory installed economizers

with low leak dampers. The outdoor air enthalpy sensor

enables economizer operation if the outdoor enthalpy is

less than the setpoint of the economizer logic module. See

economizer options section to determine the correct

economizer for your application.

862075-XTG-G-0415

6Johnson Controls Unitary Products

•Down flow / End Return Economizers (with barometric

relief and fresh air hood) - All units offer a variety of

optional factory installed down flow economizers that are

shipped, installed and wired with low leak dampers

designed to meet ASHRAE 90.1-2010, AMCA 511 Class

1A damper, and the International Energy Conservation

Code (IECC) certification requirements by achieving

leakage rates of 3 cfm/sq. ft. at 1" of static pressure. Each

economizer goes through a rigorous 60,000 cycle test. Dry

bulb, single enthalpy, and dual enthalpy (with field installed

kit) can be selected. The economizer has spring return,

fully modulating damper actuators and is capable of

introducing up to 100% outdoor air. As the outdoor air

intake dampers open, the return air dampers close. The

changeover from mechanical refrigeration to economizer

operation is regulated by the outdoor air dry bulb

temperature or the outdoor air enthalpy input. The optional

(field installed) single or dual enthalpy kits provide

additional inputs to monitor outdoor air/ or return air

humidity and temperature for true enthalpy control. The

installer needs only to assemble the outdoor air hood,

attach the enthalpy control the hood and mount the hood

to the unit (Hood and control are provided).

•Power Exhaust - This factory option allows down flow or

horizontal end return economizer operation. The power

exhaust must be removed from the unit and mounted

in the horizontal end return duct work when applying

the product in the horizontal, end return

configuration.

•Motorized Outdoor Air Damper - The motorized outdoor

air damper includes a slide-in/plug-in damper assembly

with an outdoor air hood and filters. The outdoor air

dampers open to the preset position when the indoor fan

motor is energized. The damper has a range of 0% to

100% outdoor air entry. Factory installed option or field

installed accessory.

•Alternate Indoor Blower Motor - For applications with

high static restrictions, units are offered with optional

indoor motors that provide higher static output and/or

higher airflow, depending upon the installer’s needs.

•Aluminized Steel Gas Heat Exchanger - For

applications in non-corrosive environments.

•Stainless Steel Gas Heat Exchanger - For applications

in corrosive environments, this option provides a full

stainless steel heat exchanger assembly.

•Stainless Steel Drain Pan - An optional rust-proof

stainless steel drain pan is available to provide years of

trouble-free operation in corrosive environments.

•Electric Heaters (10 & 12.5 Ton Only) - The electric

heaters range from 18KW to 54kW and are available in all

the voltage options of the base units. All heaters are dual

staged. All heaters are intended for single point power

supply.

•Disconnect Switch - For gas heat units and cooling units

with electric heat, a HACR breaker sized to the unit is

provided. For cooling only units, a switch sized to the

largest electric heat available for the particular unit is

provided. Factory installed option only.

•Smoke Detectors - The smoke detectors stop operation

of the unit by interrupting power to the control board if

smoke is detected within the air compartment. Available

for both the supply and/or return air configurations.

•Filters – 2” Pleated MERV 7 or 4” Pleated MERV 13 are

available to meet LEED requirements. A 2” Throwaway is

shipped as standard.

•Phase Monitors - Designed to prevent unit damage. The

phase monitor will shut the unit down in an out-of phase

condition. (Standard on units with Scroll Compressors.)

•Coil Guard - Customers can purchase a coil guard kit to

protect the condenser coil from damage. Additionally, this

kit stops animals and foreign objects from entering the

space between the inner condenser coil and the main

cabinet. This is not a hail guard kit.

•Dirty Filter Switch - This kit includes a differential

pressure switch that energizes the fault light on the unit

thermostat, indicating that there is an abnormally high

pressure drop across the filters. Factory installed option or

field installed accessory.

•Technicoat Condenser Coils - The condenser coils are

coated with a phenolic coating for protection against

corrosion due to harsh environments.

•Technicoat Evaporator Coil - The evaporator coils are

coated with a phenolic coating for protection against

corrosion due to harsh environments.

•ElectroFin® E-coat Condenser Coils - The condenser

coils are coated with an epoxy polymer coating to protect

against corrosion.

•ElectroFin® E-coat Evaporator Coils - The evaporator

coils are coated with an epoxy polymer coating to protect

against corrosion.

Control Options

•Simplicity® SE with Communication Option Control -

The York® Simplicity® SE with Communication Option

Control is factory installed. It includes all the features of

the Simplicity® SE control with an additional gateway to

BACnet MS/TP (programmable to Modbus or N2

protocols).

•Novar® BAS Control - The Novar® building automation

system controller is factory installed. Incudes supply air

sensor, return air sensor, dirty filter indicator switch, and

air proving switch.

•CPC BAS Control - The Computer Process Controls

Model 810-3060 ARTC Advanced Rooftop building

automation system controller is factory installed. Includes

Factory-installed smoke detectors may be subjected to

extreme temperatures during "off" times due to outside air

infiltration. These smoke detectors have an operational

range of -4 °F to 158°F. Smoke detectors installed in areas

that could be outside this range will have to be relocated to

prevent false alarms.

862075-XTG-G-0415

Johnson Controls Unitary Products 7

supply air sensor, return air sensor, dirty filter indicator

switch and air proving switch.

•Honeywell BAS Control - The Honeywell W7750C

building automation system controller is factory installed.

Includes air supply sensor, return air sensor, dirty filter

indicator switch, and air proving switch.

Field Installed Accessories

YORK® offers several equipment accessories for field

installation, for the Predator® line.

•Down flow and End Return Economizers (with fresh air

hood and barometric relief) - All units offer a variety of

optional factory installed down flow economizers that are

shipped, installed and wired with low leak dampers designed

to meet ASHRAE 90.1-2010, AMCA 511 Class 1A damper,

and the International Energy Conservation Code (IECC)

certification requirements by achieving leakage rates of 3

cfm/sq. ft. at 1" of static pressure. Each economizer goes

through a rigorous 60,000 cycle test. Dry bulb, single

enthalpy, and dual enthalpy (with field installed kit) can be

selected. The economizer has spring return, fully modulating

damper actuators and is capable of introducing up to 100%

outdoor air. As the outdoor air intake dampers open, the

return air dampers close. The changeover from mechanical

refrigeration to economizer operation is regulated by the

outdoor air dry bulb temperature or the outdoor air enthalpy

input. The dual enthalpy kit provides a second input used to

monitor the return air (field installed). The installer needs only

to assemble the outdoor air hood, attach the enthalpy control

the hood and mount the hood to the unit (Hood and control

are provided).

•Single or Dual Enthalpy Control, Accessories - These

kits contain the required components to convert a dry bulb

economizer to a single enthalpy and/or dual enthalpy

economizer.

•Barometric Relief Damper - Zero to 100% capacity

barometric relief dampers for use with horizontal flow, or

field installed slab economizers.

•Power Exhaust - This accessory installs in the unit with a

down flow economizer. Power exhaust plugs into the

connector in the unit bulkhead. You must purchase

1EH0408 barometric relief when applying to a

horizontal flow application.

•Manual Outdoor Air Damper - Like the motorized outdoor

air damper, each manual outdoor air damper includes a

slide-in damper assembly with an outdoor air hood and

filters. Customers have a choice of dampers with ranges of

0% to 100% or 0% to 35% outdoor air entry.

•Motorized Outdoor Air Damper - The motorized outdoor

air damper includes a slide-in/plug-in damper assembly with

an outdoor air hood and filters. The outdoor air dampers

open to the preset position when the indoor fan motor is

energized. The damper has a range of 0% to 100% outdoor

air entry. Factory installed option or field installed accessory.

•Smoke Detectors - The smoke detectors stop operation

of the unit by interrupting power to the control board if

smoke is detected within the air compartment.

•CO2 Sensor - Senses CO2 levels and automatically

overrides the economizer when levels rise above the

preset limits.

•Dirty Filter Switch - This kit includes a differential

pressure switch that energizes the fault light on the unit

thermostat, indicating that there is an abnormally high

pressure drop across the filters.

•Coil Guard - Field installed decorative wire coil guard.

•Hail Guard - This kit includes a sloped hood which installs

over the outside condenser coil and prevents damage to

the coil fins from hail strikes. Field installed accessory only.

•Flue Exhaust Extension Kit - In locations with wind or

weather conditions which may interfere with proper

exhausting of furnace combustion products, this kit can be

installed to prevent the flue exhaust from entering nearby

fresh air intakes.

•-60°F Gas Heat Kit - For installations which require gas

heat units to perform in low ambient temperatures, a gas

section heating kit is available. This kit provides electric

heat in the gas heat controls section to ensure the gas

valve and controls will continue to function properly at

extremely low temperatures.

•Gas Heat High Altitude Kit - This kit converts a gas heat

unit to operate at high altitudes, 2,000 to 6,000 feet.

Conversion kits are available for natural gas and propane.

•Gas Heat Propane Conversion Kit - This kit converts a

gas-fired heater from natural gas to propane. It contains the

main burner orifices and gas valve replacement springs.

•Gas Piping Kit - Contains pipe nipples, fittings and gas cock

required for gas supply connection with external shut off.

•Electric Heaters (10 & 12.5 Ton Only) - The electric

heaters range from 18 kW to 54kW.

All heaters are dual staged. Cooling units include an

adapter panel for easy installation of the electric heaters.

Necessary hardware and connectors are included with the

heaters. All heaters are intended for single point power

supply.

• Low Limit / Compressor Lockout Kit

•Compressor Lockout (CLO): To prevent mechanical

(compressorized) operation of the unit during cold

outdoor conditions where there is a risk of returning

liquid refrigerant back to the compressors.

•Low Limit Control (LLC): To prevent the supply air

from dropping below a specified setpoint by utilizing the

units first stage heating means when there is a demand

for cooling during cold outside conditions.

•Metal Frame Filter Kit - Metal frame with polyester filter

medium.

•Permanent Filters - Permanent filters are available.

•Roof Curbs - The roof curbs have insulated decks and are

shipped disassembled The roof curbs are available in 8” and

14” heights. For applications with security concerns, burglar

bars are available for the duct openings of the roof curbs.

•Roof Curb Transition - Single Piece Adapter (10” High) -

Roof curbs for transitioning from Sunline™ units to

Predator® units. Fits 7.5 to 12.5 Sunline™ roof curbs only.

862075-XTG-G-0415

8Johnson Controls Unitary Products

•Burglar Bars - Mount in the supply and return openings

to prevent entry into the duct work.

•Thermostat - The units are designed to operate with 24-

volt electronic and electro-mechanical thermostats. All

units (with or without an economizer) operate with two-

stage heat/two-stage cool or two-stage cooling only

thermostats, depending upon unit configuration.

Accessories

Field Installed Accessories - Non-Electrical

MODEL VOLTAGE DESCRIPTION WHERE USED

1BD0408 All Burglar Bars, Downflow All Cabinets

1CG0419 All Coil Guard (Electric / Electric Models), 50” Tall Standard Cabinets

1CG0420 All Coil Guard (Gas / Electric Models), 50" Tall Standard Cabinets

1CG0427 All Coil Guard (Electric / Electric Models), 42” Tall Cabinets

1CG0428 All Coil Guard (Gas / Electric Models), 42" Tall Cabinets

1HG0411 All Hail Guard Kit

All Tall (50") Standard Cabinets, (Excludes 12.5T "V"

cabinets)

1HG0415 All Hail Guard Kit All Short (42") Standard Cabinets

1FE0411 All Flue Exhaust Extension Kit All Cabinets

1FF0414 All 2" only Metal Filter Frame Kit All Tall 50" Cabinets

1FF0415 All 2" only Metal Filter Frame Kit All Tall 42" Cabinets

1FL0402 All Permanent 2" only Filter Kit Includes (4) Four Filters) All Tall 50" Cabinets

1FL0423 All Permanent 2" only Filter Kit (Includes (4) four Filters) All Tall 42" Cabinets

1GP0405 All Gas Piping Kit All Cabinets

1HA0442 All High Altitude Kit for Natural Gas All 7 1/2 - 12T Cabinets

1HA0443 All High Altitude Kit for Propane All 7 1/2 - 12T Cabinets

1NP0442 All Propane Conversion Kit All 6 - 12T Cabinets

1RC0470 All Roof Curb, 8" Height All Cabinets

1RC0471 All Roof Curb, 14" Height All Cabinets

1RC0472 All

Roof Curb, Transition (7.5 T thru 12.5T Sunline to

Predator 3- 12T) All Cabinets

1WC0412 All

Wooden Crate for extra protection during shipping and

handling

Standard Cabinets Only (not applicable to units 119" in

length)

Field Installed Accessories - Electric Heat

MODEL VOLTAGE DESCRIPTION WHERE USED

2TP04521850 380/415-3-50 18kW Electric Heat All 50" Cabinet 10 Ton Models

2TP04522450 380/415-3-50 24kW Electric Heat All 50" Cabinet 10 and 12.5 Ton Models

2TP04523650 380/415-3-50 36kW Electric Heat All 50" Cabinet 10 and 12.5 Ton Models

2TP04525450 380/415-3-50 54kW Electric Heat All 50" Cabinet 10 and 12.5 Ton Models

*Note: No factory or field installed electric heater available for 42” Cabinet ZF090

862075-XTG-G-0415

Johnson Controls Unitary Products 9

Guide Specifications

GENERAL

Units shall be manufactured by York International Unitary

Products in an ISO 9001 certified facility. YORK® Predator®

units are convertible single packages with a common footprint

cabinet and common roof curb for all 7-1/2 through 12-1/2 ton

models. All units have two compressors with independent R-

410A refrigeration circuits to provide 2 stages of cooling. The

units were designed for light commercial applications and can

be easily installed on a roof curb, slab, or frame. All Predator®

units are self-contained and assembled on rigid full perimeter

base rails allowing for 3-way forklift access and overhead

rigging. Every unit is completely charged with R-410A, wired,

piped, and tested at the factory to provide a quick and easy

field installation. All units are convertible between side and

down airflow. Independent economizer designs are used on

side and down discharge applications, as well as all tonnage

sizes. Predator® units are available in the following

configurations: cooling only, cooling with electric heat, cooling

with gas heat, heat pump, and heat pump with electric heat.

Electric heaters are available as factory-installed options or

field-installed accessories.

DESCRIPTION

Units shall be factory assembled, single package, (Elec/Elec, Gas/

Elec), designed for outdoor installation. They shall have built in

Field Installed Accessories - Fresh Air

MODEL VOLTAGE DESCRIPTION WHERE USED

1FA0413 All Manual Outside Air Damper 0-35%, Downflow All Cabinets

1FA0414 All Manual Outside Air Damper 0-100%, Downflow All Cabinets

1EH0408 All Barometric Relief Kit for Power Exhaust, Horizontal

Application All Cabinets

2EC0401 All Single Enthalpy Control All Cabinets

2EC0402 All Dual Enthalpy Control (Includes 2 Sensors) All Cabinets

2EE04707624 All

Economizer for Downflow, End Return Horizontal, or

ERV Applications. Includes FA Hood, Exhaust Hood w/

Baro Relief

All 50" Cabinets

2EE04707424 All

Economizer for Downflow, End Return Horizontal, or

ERV Applications. Includes FA Hood, Exhaust Hood w/

Baro Relief

All 42" Cabinets

2EE04706924 All Horizontal Economizer without Barometric Relief All Cabinets

2MD04703824 All Motorized Damper, Downflow without Barometric Relief All Cabinets

2MD04703924 All Motorized Damper, Horizontal without Barometric

Relief All Cabinets

2PE04704706* 230 Power Exhaust 230V Downflow or Horizontal All Cabinets

2PE04704746* 460 Power Exhaust 460V Downflow or Horizontal All Cabinets

2PE04704758* 575 Power Exhaust 575V Downflow or Horizontal All Cabinets

* Must be installed in return Duct on Horizontal Applications and a 1EH0408 is required. Approved for operation on 50Hz

Field Installed Accessories - Controls

MODEL VOLTAGE DESCRIPTION WHERE USED

2AP0401 All Air Proving Switch All Units

2AQ04700324 All CO2 Space Accessory All Units

2AQ04700424 All CO2 Unit Accessory All Units

2DF0402 All Dirty Air Switch All Units

2SH0401 All Wall Mounted humidity sensor-For use with MagnaDry

Reheat or space humidity input to Simplicity SE board. All Cabinets

2SD04700824 All Smoke Detector for Supply All Gen 5 units and greater with 2" & 4" Filters

2SD04700924 All Smoke Detector for Return All Gen 5 units and greater with 2" & 4" Filters

2SD04701024 All Smoke Detector for Supply and Return All Gen 5 units and greater with 2" & 4" Filters

S1-YK-

MAP1810-0P All MAP (Mobile Access Portal) Gateway- For use with

Simplicity SE Control. All Units

S1-MP-PRTKIT-

0P All

MAP (Multiple Access Portal) Gateway Kit-

Replacement MAP gateway protective case, lanyard

and communication cable. Use only to replace worn or

damaged components.

All Units

Field Installed Accessories - Electrical

MODEL VOLTAGE DESCRIPTION WHERE USED

2BC04700106 230 Gas heat kit, -60ºF All Units

2BC04700151 460 Gas heat kit, -60ºF All Units

2BC04700154 575 Gas heat kit, -60ºF All Units

2LA04704632 All Low Ambient Kit All 3 - 10T units (excludes 12.5T "V" cabinets)

Accessories (Continued)

862075-XTG-G-0415

10 Johnson Controls Unitary Products

field convertible duct connections for down discharge supply/return

or horizontal discharge supply/return and be available with factory

installed options or field installed accessories. The units shall be

factory wired, piped and charged with R-410A refrigerant and

factory tested prior to shipment. All unit wiring shall be both

numbered and color coded. The cooling performance shall be

rated in accordance with DOE and AHRI test procedures and

MEW-2010.

UNIT CABINET

Unit cabinet shall be constructed of galvanized steel with

exterior surfaces coated with a non-chalking, powder paint

finish, certified at 1000 hour salt spray test per ASTM-B117

standards. Indoor blower sections shall be insulated with up to

1” thick insulation coated on the airside. Either aluminum foil

faced or elastometric rubber insulation shall be used in the

unit’s compartments and be fastened to prevent insulation from

entering the air stream. Cabinet doors shall be hinged with

toolless access for easy servicing and maintenance. Full

perimeter base rails shall be provided to assure reliable transit

of equipment, overhead rigging, fork truck access and proper

sealing on roof curb applications. Disposable 2” filters shall be

furnished as standard and be accessible through hinged access

door. Fan performance measuring ports shall be provided on

the outside of the cabinet to allow accurate air measurements

of evaporator fan performance without removing panels or

creating bypass of the coils. Condensate pan shall be slide out

design, constructed of a non corrosive material, internally

sloped and conforming to ASHRAE 62-B9 standards.

Condensate connection shall be a minimum of ¾” I.D. female

and be rigid mount connection.

INDOOR (EVAPORATOR) FAN ASSEMBLY

Fan shall be a belt drive assembly and include an adjustable

pitch motor pulley. Job site selected brake horsepower shall not

exceed the motors nameplate horsepower rating plus the ser-

vice factor. Units shall be designed to operate within the service

factor. Fan wheel shall be double inlet type with forward curve

blades, dynamically balanced to operate smoothly throughout

the entire range of operation. Airflow design shall be constant

volume. Bearings shall be sealed and permanently lubricated

for longer life and no maintenance. Entire blower assembly and

motor shall be slide out design.

OUTDOOR (CONDENSER) FAN ASSEMBLY

The outdoor fans shall be of the direct drive type, discharge air

vertically, have aluminum blades riveted to corrosion resistant

steel spider brackets and shall be dynamically balanced for

smooth operation. The outdoor fan motors shall have permanently

lubricated bearings internally protected against overload

conditions and staged independently. A cleaning window shall be

provided on two sides of the units for coil cleaning.

REFRIGERANT COMPONENTS

Compressors:

a. Shall be fully hermetic type, direct drive, internally

protected with internal high-pressure relief and over

temperature protection. The hermetic motor shall be

suction gas cooled and have a voltage range of + or –

10% of the unit nameplate voltage.

b. Shall have internal spring isolation and sound muffling to

minimize vibration and noise, and be externally isolated

on a dedicated, independent mounting.

Coils:

a. Evaporator coils shall have aluminum plate fins

mechanically bonded to seamless internally enhanced

copper tubes with all joints brazed. Special Phenolic

coating shall be available as a factory option.

b. Evaporator coils shall be of the direct expansion, draw-

thru design.

c. Condenser coils shall have Micro-Channel aluminum

tube, aluminum fins.

d. Condenser coils shall be of the draw-thru design.

Refrigerant Circuit and Refrigerant Safety Components shall

include:

a. Independent thermally operated expansion devices.

b. Solid core filter drier/strainer to eliminate any moisture or

foreign matter.

c. Accessible service gage connections on both suction

and discharge lines to charge, evacuate, and measure

refrigerant pressure during any necessary servicing or

troubleshooting, without losing charge.

d. The unit shall have two independent refrigerant circuits,

equally split in 50% capacity increments.

Unit Controls:

a. Unit shall be complete with self-contained low-voltage

control circuit protected by a resettable circuit breaker on

the 24-volt transformer side.

b. Unit shall incorporate a lockout circuit which provides

reset capability at the space thermostat or base unit

should any of the following standard safety devices trip

and shut off compressor:

c. Loss-of-charge/Low-pressure switch.

• High-pressure switch.

• Freeze-protection thermostat, evaporator coil. If any of

the above safety devices trip, an LED (light-emitting

diode) indicator shall flash a diagnostic code that

indicates which safety switch has tripped.

d. Unit shall incorporate “AUTO RESET” compressor over

temperature, over current protection.

e. Unit shall operate with conventional thermostat designs

and have a low voltage terminal strip for easy hook-up.

f. Unit control board shall have on-board diagnostics and

fault code display.

g. Standard controls shall include anti-short cycle and low

voltage protection, and permit cooling operation down to

0 ºF.

862075-XTG-G-0415

Johnson Controls Unitary Products 11

h. Control board shall monitor each refrigerant safety switch

independently.

i. Control board shall retain last 5 fault codes in non-

volatile memory, which will not be lost in the event of a

power loss.

GAS HEATING SECTION (IF EQUIPPED)

Heat exchanger and exhaust system shall be constructed of

aluminized steel and shall be designed with induced draft com-

bustion with post purge logic, energy saving direct spark igni-

tion, and redundant main gas valve. The heat exchanger shall

be of the tubular type, constructed of T1-40 aluminized steel for

corrosion resistance and allowing minimum mixed air entering

temperature of 40 ºF. Burners shall be of the in-shot type, con-

structed of aluminum-coated steel. All gas piping shall enter the

unit cabinet at a single location, through either the side or bot-

tom, without any field modifications. An integrated control board

shall provide timed control of evaporator fan functioning and

burner ignition. Heating section shall be provided with the fol-

lowing minimum protection:

a. Primary and auxiliary high-temperature limit switches.

b. Induced draft pressure sensor.

c. Flame roll out switch (manual reset).

d. Flame proving controls.

e. All two stage units shall have two independent stages of

capacity (60% 1st stage, 100% 2nd stage).

ELECTRIC HEATING SECTION (IF EQUIPPED)

An electric heating section, with nickel chromium elements,

shall be provided in a range of 18 thru 54 KW, offering two

states of capacity all sizes. The heating section shall have a pri-

mary limit control(s) (automatic reset) to prevent the heating

element system from operating at an excessive temperature.

The Heating Section assembly shall slide out of the unit for

easy maintenance and service. Units with Electric Heating Sec-

tions shall be wired for a single point power supply with branch

circuit fusing (where required).

UNIT OPERATING CHARACTERISTICS

Unit shall be capable of starting and running at 125 ºF outdoor

temperature, exceeding maximum load criteria of AHRI Stan-

dard 340/360. The compressor, with standard controls, shall be

capable of operation down to 0 ºF outdoor temperature. Unit

shall be provided with fan time delay to prevent cold air delivery

before heat exchanger warms up. (Gas heat only)

ELECTRICAL REQUIREMENTS - All unit power wiring shall

enter unit cabinet at a single factory provided location and be

capable of side or bottom entry to minimize roof penetrations

and avoid unit field modifications. Separate side and bottom

openings shall be provided for the control wiring.

STANDARD LIMITED WARRANTIES - Compressor – 5 Years,

Heat Exchanger – 10 Years, Elect. Heat Elem. – 5 Years,

Parts – 1 Year

FACTORY INSTALLED OPTIONAL OUTDOOR AIR (Shall be

made available by either/or):

•DRY BULB AUTOMATIC ECONOMIZER - Outdoor and

return air dampers that are interlocked and positioned by

a fully-modulating, spring-return damper actuator. The

maximum leakage rate for the outdoor air intake dampers

shall be designed to meet ASHRAE 90.1-2010, AMCA

511 Class 1A damper, and the International Energy

Conservation Code (IECC) certification requirements by

achieving leakage rates of 3 cfm/sq. ft. at 1" of static

pressure. Changeover from compressor to economizer

operation shall be provided by an integral electronic

enthalpy control that feeds input into the basic module.

The outdoor intake opening shall be covered with a rain

hood that matches the exterior of the unit. Water

eliminator/filters shall be provided.

•MOTORIZED OUTDOOR AIR DAMPERS – Outdoor and

return air dampers that are interlocked and positioned by

a 2-position, spring-return damper actuator. The

maximum leakage rate for the outdoor air intake dampers

shall not exceed 2% when dampers are fully closed and

operating against a pressure differential of 0.5 IWG. A

unit-mounted potentiometer shall be provided to adjust

the outdoor and return air damper assembly to take in the

design CFM of outdoor air to meet the ventilation

requirements of the conditioned space during normal

operation. Whenever the indoor fan motor is energized,

the dampers open up to one of two pre-selected positions

– regardless of the outdoor air enthalpy. Dampers return

to the fully closed position when the indoor fan motor is

de-energized. Dampers shall fully close on power loss.

ADDITIONAL FACTORY INSTALLED OPTIONS

•ALTERNATE INDOOR BLOWER MOTOR – For

applications with high restrictions, units are available with

optional indoor blower motors that provide higher static

output and/or higher airflow.

•ELECTRIC HEAT (10 & 12.5 Ton Only) - Electric Heaters

range from 18 kW to 54 kW and are available in all the

voltage options of the base unit.

•PHASE MONITOR - Designed to prevent damage in out-

of-phase condition.

•COIL GUARD - Designed to prevent condenser coil

damage.

•BAS CONTROLS - Include supply air sensor, return air

sensor, dirty filter indicator and air proving switch.

•DIRTY FILTER SWITCH – This kit includes a differential

pressure switch that energizes the fault light on the unit

thermostat, indicating that there is an abnormally high-

pressure drop across the filters.

•BREAKER – An HACR breaker can be factory installed

on gas heat units or cooling units with electric heat.

•DISCONNECT SWITCH - A disconnect can be factory

installed on a cooling only units sized for the largest

electric heat available.

862075-XTG-G-0415

12 Johnson Controls Unitary Products

•STAINLESS STEEL HEAT EXCHANGER – For

applications in a corrosive environment, this option

provides a full stainless steel heat exchanger assembly.

•SMOKE DETECTOR – A smoke detector can be factory

mounted and wired in the supply and/or return air

compartments.

OTHER PRE-ENGINEERED ACCESSORIES AVAILABLE

•ROOF CURB - 14” and 8” high, full perimeter knockdown

curb, with hinged design for quick assembly.

•BAROMETRIC RELIEF DAMPER – (Unit mounted –

Downflow, Duct Mounted – Horizontal) – Contains a rain

hood, air inlet screen, exhaust damper and mounting

hardware. Used to relieve internal air pressure through

the unit during economizer operation.

•PROPANE CONVERSION KIT – Contains new orifices

and gas valve springs to convert from natural to L.P. gas.

•60ºF GAS HEAT KIT – Provides an electric heat kit for the

gas compartment for use in extreme low ambient

conditions.

•ECONOMIZER (Downflow and Horizontal flow)

•POWER EXHAUST – (Unit mount – Downflow, Duct

mount – Horizontal flow)

•DUAL ENTHALPY KIT - Provides a second input to

economizer to monitor return air.

862075-XTG-G-0415

Johnson Controls Unitary Products 13

Physical Data

ZF090-150 Physical Data

Component Models

ZF090 ZF120 ZF150

Nominal Tonnage 7.5 10 12.5

Gross Capacity @ AHRI A point (Mbh) 88200 115300 151500

EER 11.2 11.2 11.0

Nominal CFM 3000 4000 5000

System power (KW) 7.21 10.05 12.7

Refrigerant type R-410A R-410A R-410A

Refrigerant charge (lb-oz)

System 1 4-12 7-12 8-3

System 2 4-12 7-8 8-10

AHRI HEATING PERFORMANCE

Heating model 10 15 15 20 15 20

Heat input (K Btu) 120 180 180 240 180 240

Heat output (K Btu) 96 144 144 192 144 192

AFUE % ------

Steady state efficiency (%) 80 80 80 80 80 80

No. burners 466868

No. stages 212121212121

Temperature Rise Range (ºF) 15-45 30-60 20-50 35-65 10-40 25-55

Gas Limit Setting (ºF) 165 165 195 160 195 160

Gas piping connection (in.) 3/4 3/4 3/4 3/4 3/4 3/4

DIMENSIONS (inches)

Length 89 89 119-1/2

Width 595959

Height 42 50-3/4 50-3/4

OPERATING WT. (lbs.) 880 1060 1253

COMPRESSORS

Type Scroll Scroll Scroll

Quantity 2 2 2

Unit Capacity Steps (%) 50 / 100 50 / 100 50 / 100

CONDENSER COIL DATA

Face area (Sq. Ft.) 18.5 29.0 29.0

Rows 1 1 1

Fins per inch 23 23 23

Tube diameter (in.)/mm .71/18 1/25 1/25

Circuitry Type 2-pass Microchannel 2-pass Microchannel 2-pass Microchannel

EVAPORATOR COIL DATA

Face area (Sq. Ft.) 10.6 13.2 13.2

Rows 3 4 4

Fins per inch 15 15 15

Tube diameter 0.375 0.375 0.375

Circuitry Type Intertwined Intertwined Intertwined

Refrigerant control TXV TXV TXV

862075-XTG-G-0415

14 Johnson Controls Unitary Products

Component Models

ZF090 ZF120 ZF150

Nominal Tonnage 7.5 10 12.5

CONDENSER FAN DATA

Quantity of Fans 2 2 4

Fan diameter (Inch) 24 24 24

Type Prop Prop Prop

Drive type Direct Direct Direct

Quantity of motors 2 2 4

Motor HP each @ 50 Hz. 3/4 3/4 3/4

No. speeds 1 1 1

RPM @ 50 Hz. 940294029402

Nominal total CFM 7600 9500 13900

BELT DRIVE EVAP FAN DATA

Quantity 1 1 1

Fan Size (Inch) 12 x 12 15 x 15 15 x 15

Type Centrifugal Centrifugal Centrifugal

Motor Sheave 1VM50 1VM50 1VM50 1VP56 1VP56

Blower Sheave AK59 AK54 AK74 AK66 BK72

Belt A49 A47 A54 A56 BX56

Motor HP each @ 50 Hz. 2224 4

RPM @ 50 Hz. 1425314253142531455314553

Frame size 56 56 56 184T 184T

FILTERS

Quantity - Size 4 - (24 x 16 x 2)4, 54 - (24 x 20 x 2)4,5 4 - (24 x 20 x 2)4, 5

4 - (24 x 16 x 4)64 - (24 x 20 x 4)64 - (24 x 20 x 4)6

1. 1ST Stage 60% of 2nd Stage

2. 1110 RPM 60 Hz.

3. 1725 RPM 60 Hz.

4. 2 In. Throwaway, Standard, MERV (Minimum Efficiency Reporting Value) 3

5. 2 In. Pleated, Optional, MERV 7

6. 4 In. Pleated, Optional, MERV 13

ZF090-150 Physical Data (Continued)

862075-XTG-G-0415

Johnson Controls Unitary Products 15

ZF078-150 Unit Limitations

Size

(Tons/KW) Model Unit Voltage

Unit Limitations

Applied Voltage Outdoor DB Temp

Min Max Max (°F/°C)

090

(7.5/26) ZF 380/415-3-50 342 457 125/52

120

(10/35) ZF 380/415-3-50 342 457 125/52

150

(12.5/44) ZF 380/415-3-50 342 457 125/52

862075-XTG-G-0415

16 Johnson Controls Unitary Products

Capacity Performance

ZF090-150 Cooling Capacities

ZF090 (7.5 Ton) Imperial

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1,2

(MBh)

Total

Input

(kW)3

Sensible Capacity (MBh) Total

Capacity1,2

(MBh)

Total

Input

(kW)3

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

85°F 95°F

2250

77 105.2 6.36 45.4 36.2 33.7 - - - 102.4 7.01 45.6 36.3 27.0 - - -

72 98.1 6.35 58.7 49.6 45.4 31.2 - - 94.4 6.99 59.0 49.7 40.4 31.0 - -

67 90.9 6.33 72.1 62.9 57.1 44.5 35.4 - 86.4 6.98 72.4 63.1 53.7 44.4 35.1 -

62 82.9 6.33 79.2 76.7 71.5 58.3 49.1 39.9 79.2 6.97 79.2 76.8 67.5 58.1 48.8 39.5

57 82.6 5.78 78.7 78.7 76.4 63.0 53.9 44.7 78.7 6.96 78.7 78.7 72.2 62.9 53.6 44.2

2625

77 108.4 6.86 48.1 38.7 35.9 - - - 104.1 7.19 57.7 43.5 29.3 - - -

72 101.0 6.85 63.7 53.8 48.3 34.0 - - 95.9 7.17 63.9 53.9 43.9 33.9 - -

67 93.6 6.84 79.4 68.9 60.7 48.0 37.5 - 87.8 7.16 70.1 64.3 58.4 52.6 46.8 -

62 85.4 6.83 80.5 79.2 76.0 62.6 51.8 41.0 80.5 7.15 80.5 79.3 73.4 62.6 51.8 40.9

57 85.0 6.25 80.0 80.0 81.2 67.4 56.3 45.1 80.0 7.15 80.0 80.0 78.6 67.3 56.0 44.7

3000

77 111.5 7.42 50.8 41.2 38.0 - - - 105.8 7.42 69.8 50.8 31.7 - - -

72 103.9 7.40 68.7 58.1 51.1 36.8 - - 97.5 7.41 68.8 58.1 47.4 36.7 - -

67 96.3 7.39 86.7 74.9 64.3 51.4 39.6 - 89.3 7.39 67.8 65.5 63.1 60.8 58.5 -

62 87.9 7.38 81.8 81.8 80.4 66.9 54.4 42.0 81.8 7.38 81.8 81.8 79.3 67.0 54.7 42.4

57 87.5 6.77 81.3 81.3 86.0 71.8 58.7 45.6 81.3 7.38 81.3 81.3 84.9 71.7 58.4 45.2

3325

77 112.9 7.43 58.7 44.9 40.3 - - - 107.3 7.74 68.1 49.6 33.4 - - -

72 105.2 7.41 74.0 62.0 54.3 38.0 - - 98.9 7.73 73.9 62.0 50.0 38.0 - -

67 97.5 7.40 89.2 79.1 68.3 54.0 41.4 - 90.5 7.71 79.8 74.3 66.6 58.8 51.0 -

62 88.9 7.39 83.0 83.0 85.2 68.8 55.9 43.1 83.0 7.70 83.0 83.0 81.7 68.9 56.2 43.4

57 88.6 6.81 82.5 82.5 87.8 71.0 57.8 44.6 82.5 7.70 82.5 82.5 84.3 71.0 57.8 44.6

3650

77 114.2 7.43 66.7 48.5 42.7 - - - 108.8 8.06 66.3 48.4 35.1 - - -

72 106.4 7.42 79.2 65.9 57.5 39.2 - - 100.3 8.05 79.1 65.8 52.6 39.3 - -

67 98.7 7.41 91.8 83.3 72.3 56.6 43.3 - 91.8 8.03 91.8 83.2 70.0 56.7 43.5 -

62 90.0 7.40 84.1 84.1 90.0 70.8 57.4 44.1 84.1 8.02 84.1 84.1 84.1 70.9 57.6 44.4

57 89.6 6.85 83.6 83.6 89.6 70.3 56.9 43.6 83.6 8.02 83.6 83.6 83.6 70.4 57.1 43.9

105°F 115°F

2250

77 96.0 7.80 42.6 33.4 24.1 - - - 89.6 8.60 39.6 30.4 21.3 - - -

72 88.3 7.79 55.9 46.6 37.3 28.1 - - 82.2 8.59 52.7 43.5 34.3 25.1 - -

67 80.6 7.78 69.1 59.8 50.6 41.3 32.0 - 74.8 8.57 65.8 56.6 47.4 38.2 29.0 -

62 73.9 7.77 73.9 72.8 63.5 54.2 45.0 35.7 68.7 8.58 68.7 68.7 59.5 50.3 41.1 32.0

57 73.6 7.77 73.6 73.6 67.4 58.2 48.9 39.6 68.4 8.58 68.4 68.4 62.6 53.4 44.2 35.0

2625

77 97.4 7.98 50.6 38.1 26.4 - - - 90.8 8.78 43.5 32.7 23.4 - - -

72 89.6 7.97 60.7 50.7 40.8 30.9 - - 83.3 8.77 57.4 47.6 37.8 28.0 - -

67 81.8 7.96 70.7 63.4 55.3 47.2 39.1 - 75.8 8.75 71.3 62.5 52.2 41.8 31.5 -

62 75.0 7.95 75.0 74.5 69.5 58.7 47.9 37.1 69.6 8.76 69.6 69.6 65.5 54.8 44.0 33.2

57 74.7 7.95 74.7 74.7 73.7 62.6 51.4 40.2 69.3 8.76 69.3 69.3 68.9 57.9 46.8 35.7

3000

77 98.9 8.21 58.6 42.8 28.6 - - - 92.0 9.01 47.4 34.9 25.5 - - -

72 90.9 8.20 65.4 54.9 44.3 33.8 - - 84.4 9.00 62.1 51.7 41.2 30.8 - -

67 83.0 8.19 72.3 66.9 60.0 53.1 46.2 - 76.7 8.98 76.7 68.4 56.9 45.4 34.0 -

62 76.2 8.18 76.2 76.2 75.4 63.1 50.7 38.4 70.5 8.99 70.5 70.5 71.6 59.2 46.8 34.4

57 75.8 8.18 75.8 75.8 80.1 67.0 53.9 40.8 70.2 8.99 70.2 70.2 75.3 62.3 49.3 36.4

3325

77 100.3 8.53 61.9 43.8 30.1 - - - 93.3 9.33 55.7 38.0 26.8 - - -

72 92.2 8.52 70.4 58.5 46.6 34.8 - - 85.6 9.31 66.8 55.0 43.3 31.5 - -

67 84.2 8.51 78.8 73.2 63.2 53.1 43.1 - 77.9 9.30 77.9 72.0 59.7 47.4 35.1 -

62 77.3 8.50 77.3 77.3 76.9 64.1 51.4 38.6 71.6 9.30 71.6 71.6 72.1 59.3 46.6 33.8

57 76.9 8.50 76.9 76.9 79.0 65.9 52.7 39.6 71.3 9.30 71.3 71.3 73.8 60.7 47.7 34.7

3650

77 101.7 8.85 65.2 44.8 31.6 - - - 94.7 9.65 64.1 41.2 28.1 - - -

72 93.6 8.84 75.3 62.1 48.9 35.7 - - 86.9 9.63 71.6 58.4 45.3 32.2 - -

67 85.4 8.83 85.4 79.5 66.3 53.1 39.9 - 79.0 9.62 79.0 75.7 62.6 49.4 36.3 -

62 78.4 8.82 78.4 78.4 78.4 65.2 52.0 38.8 72.6 9.62 72.6 72.6 72.6 59.5 46.4 33.2

57 78.0 8.82 78.0 78.0 78.0 64.8 51.6 38.4 72.3 9.62 72.3 72.3 72.3 59.2 46.1 32.9

862075-XTG-G-0415

Johnson Controls Unitary Products 17

118.4°F 125°F

2250

77 88.3 8.85 33.5 26.8 20.2 - - - 85.8 9.48 21.5 19.8 18.1 - - -

72 80.4 8.84 46.7 40.1 33.4 26.8 - - 76.9 9.47 35.1 33.4 31.6 29.9 - -

67 72.5 8.84 59.9 53.3 46.6 40.0 33.3 - 68.0 9.45 48.6 46.9 45.2 43.5 41.7 -

62 68.0 8.83 64.0 63.4 56.8 50.1 43.5 36.8 66.8 9.45 54.8 53.1 51.4 49.7 47.9 46.2

57 67.8 8.83 64.2 63.6 59.2 52.5 45.9 39.2 66.6 9.45 55.9 54.2 52.5 50.8 49.1 47.4

2625

77 89.2 9.04 36.7 29.1 22.5 - - - 86.1 9.66 23.3 22.1 20.8 - - -

72 81.5 9.03 50.8 43.8 36.8 29.8 - - 78.0 9.64 38.0 36.4 34.8 33.3 - -

67 73.7 9.02 64.9 58.5 51.0 43.6 36.1 - 69.8 9.63 52.6 50.8 48.9 47.0 45.1 -

62 68.9 9.02 66.6 65.9 62.5 54.7 46.9 39.0 67.7 9.63 60.6 58.6 56.6 54.5 52.5 50.4

57 68.7 9.01 66.8 66.1 65.1 57.2 49.2 41.2 67.5 9.63 61.8 59.8 57.8 55.8 53.8 51.7

3000

77 90.1 9.28 39.8 31.3 24.8 - - - 86.4 9.88 25.1 24.3 23.5 - - -

72 82.5 9.26 54.9 47.5 40.1 32.8 - - 79.0 9.87 40.9 39.5 38.0 36.6 - -

67 75.0 9.26 69.9 63.7 55.5 47.2 38.9 - 71.6 9.86 56.7 54.6 52.6 50.5 48.5 -

62 69.8 9.25 69.2 68.3 68.2 59.2 50.2 41.3 68.5 9.86 66.5 64.1 61.7 59.4 57.0 54.6

57 69.6 9.24 69.4 68.6 71.1 61.8 52.4 43.1 68.4 9.86 67.8 65.4 63.1 60.8 58.4 56.1

3325

77 91.7 9.60 45.7 33.5 25.5 - - - 88.6 10.20 26.2 24.7 23.1 - - -

72 83.7 9.59 58.9 50.5 42.1 33.7 - - 80.1 10.19 43.6 41.8 39.9 38.0 - -

67 75.8 9.58 72.2 67.6 58.7 49.9 41.0 - 71.7 10.18 61.1 58.9 56.7 54.5 52.4 -

62 70.9 9.57 70.5 70.1 69.6 60.4 51.2 42.0 69.6 10.17 68.5 67.1 64.8 62.4 60.1 57.8

57 70.6 9.56 70.5 70.1 71.2 61.8 52.4 43.0 69.4 10.17 69.1 67.9 66.2 63.9 61.6 59.3

3650

77 93.3 9.92 51.6 35.7 26.2 - - - 90.7 10.51 27.3 25.0 22.7 - - -

72 85.0 9.91 63.0 53.6 44.1 34.7 - - 81.3 10.51 46.4 44.1 41.8 39.5 - -

67 76.6 9.90 74.4 71.4 62.0 52.5 43.1 - 71.9 10.50 65.5 63.2 60.8 58.5 56.2 -

62 71.9 9.89 71.9 71.8 71.0 61.5 52.1 42.6 70.6 10.49 70.6 70.2 67.8 65.5 63.2 60.9

57 71.7 9.88 71.7 71.7 71.3 61.8 52.4 42.9 70.4 10.49 70.4 70.4 69.3 67.0 64.7 62.4

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. Capacity rating are based on 80 F (26.6 C) Entering Air Dry Bulb Temperature.

3. These ratings include the condenser fan motors, the compressor motors and supply air blower motor (External Static Pressure 0.25 IWG/

62.3 Pa).

ZF090 (7.5 Ton) Imperial (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1,2

(MBh)

Total

Input

(kW)3

Sensible Capacity (MBh) Total

Capacity1,2

(MBh)

Total

Input

(kW)3

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

862075-XTG-G-0415

18 Johnson Controls Unitary Products

ZF090 (26 kW) Metric

Air on

Evaporator Coil Temperature of Air on Condenser Coil

Total

Capacity1,2

(kW)

Total

Input

(kW)3

Sensible Capacity (kW) Total

Capacity1,2

(kW)

Total

Input

(kW)3

Sensible Capacity (kW)

m3/s WB

(°C) Return Dry Bulb (°C) Return Dry Bulb (°C)

32 29 27 24 21 18 32 29 27 24 21 18

29°C 35°C

1.06

25 30.8 6.36 13.3 10.6 9.9 - - - 30.0 7.01 13.4 10.6 7.9 - - -

22 28.7 6.35 17.2 14.5 13.3 9.1 - - 27.7 6.99 17.3 14.6 11.8 9.1 - -

19 26.6 6.33 21.1 18.4 16.7 13.1 10.4 - 25.3 6.98 21.2 18.5 15.8 13.0 10.3 -

17 24.3 6.33 23.2 22.5 20.9 17.1 14.4 11.7 23.2 6.97 23.2 22.5 19.8 17.0 14.3 11.6

14 24.2 5.78 23.1 23.1 22.4 18.5 15.8 13.1 23.1 6.96 23.1 23.1 21.2 18.4 15.7 13.0

1.24

25 31.8 6.86 14.1 11.3 10.5 - - - 30.5 7.19 16.9 12.8 8.6 - - -

22 29.6 6.85 18.7 15.8 14.1 10.0 - - 28.1 7.17 18.7 15.8 12.9 9.9 - -

19 27.4 6.84 23.3 20.2 17.8 14.1 11.0 - 25.7 7.16 20.5 18.8 17.1 15.4 13.7 -

17 25.0 6.83 23.6 23.2 22.3 18.3 15.2 12.0 23.6 7.15 23.6 23.2 21.5 18.3 15.2 12.0

14 24.9 6.25 23.5 23.5 23.8 19.8 16.5 13.2 23.5 7.14 23.5 23.5 23.0 19.7 16.4 13.1

1.42

25 32.7 7.42 14.9 12.1 11.1 - - - 31.0 7.42 20.5 14.9 9.3 - - -

22 30.5 7.40 20.1 17.0 15.0 10.8 - - 28.6 7.40 20.2 17.0 13.9 10.8 - -

19 28.2 7.39 25.4 22.0 18.8 15.1 11.6 - 26.2 7.39 19.9 19.2 18.5 17.8 17.1 -

17 25.8 7.38 24.0 24.0 23.6 19.6 16.0 12.3 24.0 7.38 24.0 24.0 23.2 19.6 16.0 12.4

14 25.6 6.77 23.8 23.8 25.2 21.0 17.2 13.4 23.8 7.38 23.8 23.8 24.9 21.0 17.1 13.3

1.57

25 33.1 7.43 17.2 13.1 11.8 - - - 31.4 7.74 20.0 14.5 9.8 - - -

22 30.8 7.41 21.7 18.2 15.9 11.1 - - 29.0 7.73 21.7 18.2 14.6 11.1 - -

19 28.6 7.40 26.2 23.2 20.0 15.8 12.1 - 26.5 7.71 23.4 21.8 19.5 17.2 14.9 -

17 26.1 7.39 24.3 24.3 25.0 20.2 16.4 12.6 24.3 7.70 24.3 24.3 23.9 20.2 16.5 12.7

14 26.0 6.81 24.2 24.2 25.7 20.8 16.9 13.1 24.2 7.70 24.2 24.2 24.7 20.8 16.9 13.1

1.72

25 33.5 7.43 19.6 14.2 12.5 - - - 31.9 8.06 19.4 14.2 10.3 - - -

22 31.2 7.42 23.2 19.3 16.8 11.5 - - 29.4 8.05 23.2 19.3 15.4 11.5 - -

19 28.9 7.41 26.9 24.4 21.2 16.6 12.7 - 26.9 8.03 26.9 24.4 20.5 16.6 12.7 -

17 26.4 7.40 24.7 24.7 26.4 20.7 16.8 12.9 24.7 8.02 24.7 24.7 24.7 20.8 16.9 13.0

14 26.3 6.85 24.5 24.5 26.3 20.6 16.7 12.8 24.5 8.02 24.5 24.5 24.5 20.6 16.7 12.9

41°C 46°C

1.06

25 28.1 7.78 12.5 9.8 7.1 - - - 26.3 8.56 11.6 8.9 6.2 - - -

22 25.9 7.78 16.4 13.7 10.9 8.2 - - 24.1 8.57 15.4 12.8 10.1 7.4 - -

19 23.6 7.78 20.2 17.5 14.8 12.1 9.4 - 21.9 8.57 19.3 16.6 13.9 11.2 8.5 -

17 21.7 7.77 21.7 21.3 18.6 15.9 13.2 10.5 20.1 8.58 20.1 20.1 17.4 14.8 12.1 9.4

14 21.6 7.77 21.6 21.6 19.8 17.0 14.3 11.6 20.0 8.58 20.0 20.0 18.4 15.7 13.0 10.3

1.24

25 28.6 7.96 14.8 11.2 7.7 - - - 26.6 8.74 12.8 9.6 6.9 - - -

22 26.3 7.96 17.8 14.9 12.0 9.1 - - 24.4 8.75 16.8 13.9 11.1 8.2 - -

19 24.0 7.96 20.7 18.6 16.2 13.8 11.5 - 22.2 8.75 20.9 18.3 15.3 12.3 9.2 -

17 22.0 7.95 22.0 21.8 20.4 17.2 14.0 10.9 20.4 8.76 20.4 20.4 19.2 16.0 12.9 9.7

14 21.9 7.95 21.9 21.9 21.6 18.3 15.1 11.8 20.3 8.76 20.3 20.3 20.2 17.0 13.7 10.5

1.42

25 29.0 8.19 17.2 12.6 8.4 - - - 27.0 8.97 13.9 10.2 7.5 - - -

22 26.6 8.19 19.2 16.1 13.0 9.9 - - 24.7 8.98 18.2 15.1 12.1 9.0 - -

19 24.3 8.19 21.2 19.6 17.6 15.6 13.5 - 22.5 8.98 22.5 20.1 16.7 13.3 10.0 -

17 22.3 8.18 22.3 22.3 22.1 18.5 14.9 11.3 20.7 8.99 20.7 20.7 21.0 17.3 13.7 10.1

14 22.2 8.18 22.2 22.2 23.5 19.6 15.8 12.0 20.6 8.99 20.6 20.6 22.1 18.3 14.5 10.7

1.57

25 29.4 8.51 18.1 12.8 8.8 - - - 27.4 9.29 16.3 11.2 7.9 - - -

22 27.0 8.51 20.6 17.1 13.7 10.2 - - 25.1 9.29 19.6 16.1 12.7 9.2 - -

19 24.7 8.51 23.1 21.5 18.5 15.6 12.6 - 22.8 9.30 22.8 21.1 17.5 13.9 10.3 -

17 22.6 8.50 22.6 22.6 22.5 18.8 15.1 11.3 21.0 9.30 21.0 21.0 21.1 17.4 13.6 9.9

14 22.5 8.50 22.5 22.5 23.2 19.3 15.5 11.6 20.9 9.30 20.9 20.9 21.6 17.8 14.0 10.2

1.72

25 29.8 8.83 19.1 13.1 9.3 - - - 27.8 9.61 18.8 12.1 8.2 - - -

22 27.4 8.83 22.1 18.2 14.3 10.5 - - 25.5 9.61 21.0 17.1 13.3 9.4 - -

19 25.0 8.83 25.0 23.3 19.4 15.6 11.7 - 23.2 9.62 23.2 22.2 18.3 14.5 10.6 -

17 23.0 8.82 23.0 23.0 23.0 19.1 15.2 11.4 21.3 9.62 21.3 21.3 21.3 17.4 13.6 9.7

14 22.9 8.82 22.9 22.9 22.9 19.0 15.1 11.3 21.2 9.62 21.2 21.2 21.2 17.3 13.5 9.7

862075-XTG-G-0415

Johnson Controls Unitary Products 19

48°C 52°C

1.06

25 25.9 8.85 9.8 7.9 5.9 - - - 25.2 9.48 6.3 5.8 5.3 - - -

22 23.6 8.84 13.7 11.7 9.8 7.8 - - 22.5 9.47 10.3 9.8 9.3 8.8 - -

19 21.2 8.84 17.6 15.6 13.7 11.7 9.8 - 19.9 9.45 14.2 13.7 13.2 12.7 12.2 -

17 19.9 8.83 18.7 18.6 16.6 14.7 12.7 10.8 19.6 9.45 16.1 15.6 15.1 14.6 14.0 13.5

14 19.9 8.83 18.8 18.6 17.3 15.4 13.4 11.5 19.5 9.45 16.4 15.9 15.4 14.9 14.4 13.9

1.24

25 26.1 9.04 10.7 8.5 6.6 - - - 25.2 9.66 6.8 6.5 6.1 - - -

22 23.9 9.03 14.9 12.8 10.8 8.7 - - 22.8 9.64 11.1 10.7 10.2 9.7 - -

19 21.6 9.02 19.0 17.1 15.0 12.8 10.6 - 20.5 9.63 15.4 14.9 14.3 13.8 13.2 -

17 20.2 9.02 19.5 19.3 18.3 16.0 13.7 11.4 19.8 9.63 17.8 17.2 16.6 16.0 15.4 14.8

14 20.1 9.01 19.6 19.4 19.1 16.8 14.4 12.1 19.8 9.63 18.1 17.5 16.9 16.3 15.8 15.2

1.42

25 26.4 9.28 11.7 9.2 7.3 - - - 25.3 9.88 7.4 7.1 6.9 - - -

22 24.2 9.26 16.1 13.9 11.8 9.6 - - 23.1 9.87 12.0 11.6 11.1 10.7 - -

19 22.0 9.26 20.5 18.7 16.3 13.8 11.4 - 21.0 9.86 16.6 16.0 15.4 14.8 14.2 -

17 20.5 9.25 20.3 20.0 20.0 17.4 14.7 12.1 20.1 9.86 19.5 18.8 18.1 17.4 16.7 16.0

14 20.4 9.24 20.3 20.1 20.8 18.1 15.4 12.6 20.0 9.86 19.9 19.2 18.5 17.8 17.1 16.4

1.57

25 26.9 9.60 13.4 9.8 7.5 - - - 26.0 10.20 7.7 7.2 6.8 - - -

22 24.5 9.59 17.3 14.8 12.3 9.9 - - 23.5 10.19 12.8 12.2 11.7 11.1 - -

19 22.2 9.58 21.2 19.8 17.2 14.6 12.0 - 21.0 10.18 17.9 17.3 16.6 16.0 15.3 -

17 20.8 9.57 20.7 20.5 20.4 17.7 15.0 12.3 20.4 10.17 20.1 19.7 19.0 18.3 17.6 16.9

14 20.7 9.56 20.7 20.6 20.9 18.1 15.4 12.6 20.3 10.17 20.2 19.9 19.4 18.7 18.0 17.4

1.72

25 27.4 9.92 15.1 10.5 7.7 - - - 26.6 10.51 8.0 7.3 6.7 - - -

22 24.9 9.91 18.5 15.7 12.9 10.2 - - 23.8 10.51 13.6 12.9 12.2 11.6 - -

19 22.5 9.90 21.8 20.9 18.2 15.4 12.6 - 21.1 10.50 19.2 18.5 17.8 17.2 16.5 -

17 21.1 9.89 21.1 21.0 20.8 18.0 15.3 12.5 20.7 10.49 20.7 20.6 19.9 19.2 18.5 17.8

14 21.0 9.88 21.0 21.0 20.9 18.1 15.4 12.6 20.6 10.49 20.6 20.6 20.3 19.6 19.0 18.3

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. Capacity rating are based on 80 F (26.6 C) Entering Air Dry Bulb Temperature.

3. These ratings include the condenser fan motors, the compressor motors and supply air blower motor (External Static Pressure 0.25 IWG/

62.3 Pa).

ZF090 (26 kW) Metric (Continued)

Air on

Evaporator Coil Temperature of Air on Condenser Coil

Total

Capacity1,2

(kW)

Total

Input

(kW)3

Sensible Capacity (kW) Total

Capacity1,2

(kW)

Total

Input

(kW)3

Sensible Capacity (kW)

m3/s WB

(°C) Return Dry Bulb (°C) Return Dry Bulb (°C)

32 29 27 24 21 18 32 29 27 24 21 18

862075-XTG-G-0415

20 Johnson Controls Unitary Products

ZF120 (10 Ton) Imperial

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1,2

(MBh)

Total

Input

(kW)3

Sensible Capacity (MBh) Total

Capacity1,2

(MBh)

Total

Input

(kW)3

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

85°F 95°F

3000

77 120.6 8.40 68.1 55.8 43.5 - - - 120.7 9.61 67.5 55.2 42.9 - - -

72 115.1 8.47 83.7 71.4 59.1 46.8 - - 112.0 9.59 81.3 69.0 56.7 44.4 - -

67 109.6 8.54 99.2 86.9 74.7 62.4 50.1 - 103.2 9.57 95.1 82.8 70.5 58.2 45.9 -

62 103.7 8.56 103.7 89.8 77.5 65.2 52.9 40.7 96.8 9.56 96.8 87.4 75.1 62.8 50.5 38.2

57 95.5 8.56 95.5 95.5 92.3 80.0 67.7 55.5 90.4 9.54 90.4 90.4 86.3 74.0 61.7 49.4

3500

77 128.2 8.64 70.2 59.1 46.9 - - - 128.2 9.88 70.6 58.5 46.4 - - -

72 122.4 8.71 90.3 77.0 63.7 50.4 - - 118.9 9.86 87.7 74.6 61.4 48.2 - -

67 116.6 8.78 110.4 94.9 80.5 66.2 51.8 - 109.6 9.83 104.9 90.6 76.3 62.0 47.7 -

62 110.3 8.80 110.3 99.7 83.6 69.2 54.9 40.6 102.8 9.82 102.8 95.7 81.3 67.0 52.6 38.3

57 101.6 8.80 101.6 101.6 99.6 84.7 69.9 55.1 96.0 9.80 96.0 96.0 93.5 78.7 63.9 49.2

4000

77 135.9 8.97 72.2 62.4 50.3 - - - 135.7 10.24 73.7 61.8 50.0 - - -

72 129.7 9.04 96.9 82.6 68.3 54.1 - - 125.8 10.22 94.2 80.1 66.1 52.0 - -

67 123.5 9.11 121.5 102.8 86.4 69.9 53.5 - 116.0 10.20 114.7 98.4 82.1 65.9 49.6 -

62 116.8 9.14 116.8 109.6 89.6 73.2 56.9 40.5 108.8 10.18 108.8 103.9 87.5 71.1 54.7 38.4

57 107.6 9.14 107.6 107.6 106.8 89.5 72.1 54.7 101.6 10.17 101.6 101.6 100.6 83.4 66.2 48.9

4550

77 134.8 9.53 92.3 68.8 54.6 - - - 135.5 10.80 94.5 70.2 54.8 - - -

72 128.7 9.60 107.0 90.6 74.2 57.8 - - 125.7 10.78 104.8 88.6 72.4 56.2 - -

67 122.7 9.67 121.7 112.3 93.8 76.3 58.8 - 115.8 10.76 115.2 107.0 90.0 72.7 55.4 -

62 116.1 9.69 116.1 112.4 99.3 81.9 64.4 47.0 108.6 10.74 108.6 106.2 95.9 78.5 61.1 43.8

57 106.9 9.69 106.9 106.9 106.5 88.5 70.6 52.6 101.4 10.73 101.4 101.4 101.0 83.1 65.3 47.5

5100

77 133.8 9.98 112.4 75.3 58.8 - - - 135.3 11.26 115.3 78.5 59.6 - - -

72 127.8 10.05 117.1 98.6 80.0 61.5 - - 125.5 11.24 115.5 97.1 78.7 60.3 - -

67 121.8 10.12 121.8 121.8 101.2 82.7 64.1 - 115.7 11.22 115.7 115.7 97.9 79.5 61.1 -

62 115.3 10.15 115.3 115.3 109.1 90.5 72.0 53.4 108.5 11.20 108.5 108.5 104.3 85.9 67.5 49.2

57 106.2 10.14 106.2 106.2 106.2 87.6 69.1 50.5 101.3 11.19 101.3 101.3 101.3 82.9 64.5 46.1

105°F 115°F

3000

77 120.9 10.83 66.9 54.6 42.2 - - - 121.0 12.04 66.3 53.9 41.6 - - -

72 108.8 10.72 78.9 66.6 54.3 41.9 - - 105.7 11.84 76.6 64.2 51.8 39.5 - -

67 96.8 10.60 91.0 78.6 66.3 54.0 41.6 - 90.4 11.64 86.8 74.5 62.1 49.8 37.4 -

62 89.8 10.55 89.8 85.0 72.7 60.3 48.0 35.7 82.9 11.54 82.9 82.6 70.2 57.9 45.5 33.2

57 85.2 10.52 85.2 85.2 80.4 68.0 55.7 43.4 80.0 11.50 80.0 80.0 74.4 62.0 49.7 37.3

3500

77 128.2 11.12 71.0 57.9 46.0 - - - 128.1 12.36 71.5 57.3 45.5 - - -

72 115.4 11.01 85.2 72.1 59.0 45.9 - - 111.9 12.16 82.7 69.7 56.7 43.7 - -

67 102.6 10.89 99.4 86.3 72.1 57.9 43.7 - 95.7 11.95 93.9 82.1 67.9 53.8 39.6 -

62 95.3 10.84 95.3 91.6 79.1 64.7 50.3 35.9 87.8 11.85 87.8 87.6 76.8 62.4 48.0 33.6

57 90.3 10.81 90.3 90.3 87.4 72.7 58.0 43.2 84.7 11.81 84.7 84.7 81.3 66.6 52.0 37.3

4000

77 135.5 11.51 75.2 61.3 49.7 - - - 135.3 12.78 76.7 60.7 49.4 - - -

72 122.0 11.40 91.5 77.7 63.8 49.9 - - 118.1 12.57 88.8 75.2 61.5 47.9 - -

67 108.5 11.28 107.8 94.0 77.9 61.8 45.7 - 101.0 12.37 101.0 89.7 73.7 57.8 41.8 -

62 100.7 11.22 100.7 98.3 85.5 69.0 52.6 36.2 92.7 12.27 92.7 92.7 83.4 66.9 50.5 34.1

57 95.5 11.20 95.5 95.5 94.5 77.3 60.2 43.1 89.4 12.23 89.4 89.4 88.3 71.3 54.3 37.3

4550

77 136.2 12.08 96.7 71.6 55.0 - - - 136.8 13.35 98.9 72.9 55.2 - - -

72 122.6 11.96 102.7 86.7 70.6 54.6 - - 119.5 13.15 100.6 84.7 68.8 53.0 - -

67 109.0 11.85 108.7 101.8 86.2 69.1 51.9 - 102.2 12.94 102.2 96.5 82.5 65.5 48.5 -

62 101.2 11.79 101.2 100.0 92.5 75.2 57.9 40.6 93.7 12.84 93.7 93.7 89.1 71.8 54.6 37.4

57 95.9 11.76 95.9 95.9 95.4 77.7 60.1 42.4 90.5 12.80 90.5 90.5 89.9 72.4 54.8 37.3

5100

77 136.8 12.54 118.3 81.8 60.3 - - - 138.4 13.82 121.2 85.1 61.1 - - -

72 123.2 12.43 113.9 95.7 77.4 59.2 - - 120.9 13.62 112.3 94.2 76.2 58.1 - -

67 109.5 12.32 109.5 109.5 94.6 76.3 58.1 - 103.3 13.41 103.3 103.3 91.2 73.2 55.1 -

62 101.6 12.26 101.6 101.6 99.5 81.3 63.1 44.9 94.8 13.31 94.8 94.8 94.8 76.7 58.7 40.6

57 96.4 12.23 96.4 96.4 96.4 78.2 59.9 41.7 91.5 13.27 91.5 91.5 91.5 73.4 55.4 37.3

862075-XTG-G-0415

Johnson Controls Unitary Products 21

118.4°F 125°F

3000

77 118.0 12.34 67.4 53.5 41.1 - - - 112.2 12.91 69.7 52.6 40.2 - - -

72 102.1 12.21 75.7 63.3 50.9 38.6 - - 95.2 12.94 73.9 61.5 49.1 36.7 - -

67 86.2 12.09 83.9 73.1 60.7 48.4 36.0 - 78.1 12.96 78.1 70.4 58.1 45.7 33.3 -

62 80.0 11.98 80.0 79.8 69.0 56.6 44.3 31.9 74.5 12.84 74.5 74.5 66.6 54.2 41.8 29.4

57 77.7 11.96 77.7 77.7 71.8 59.5 47.1 34.7 73.2 12.84 73.2 73.2 66.9 54.5 42.1 29.7

3500

77 124.8 12.67 73.2 57.3 45.4 - - - 118.3 13.28 76.7 57.4 45.3 - - -

72 108.1 12.53 81.8 68.7 55.7 42.6 - - 100.8 13.26 80.0 66.8 53.7 40.6 - -

67 91.4 12.39 90.3 80.1 66.0 51.8 37.7 - 83.2 13.23 83.2 76.3 62.2 48.0 33.9 -

62 84.7 12.30 84.7 84.6 75.4 60.9 46.4 31.9 78.8 13.16 78.8 78.8 72.8 58.0 43.3 28.5

57 82.3 12.27 82.3 82.3 78.5 63.8 49.1 34.4 77.5 13.16 77.5 77.5 73.1 58.3 43.5 28.7

4000

77 131.6 13.11 79.0 61.2 49.7 - - - 124.5 13.76 83.7 62.2 50.4 - - -

72 114.1 12.95 87.9 74.2 60.4 46.7 - - 106.4 13.68 86.0 72.2 58.3 44.5 - -

67 96.7 12.79 96.7 87.1 71.2 55.3 39.4 - 88.3 13.61 88.3 82.1 66.3 50.4 34.6 -

62 89.5 12.71 89.5 89.5 81.9 65.2 48.6 31.9 83.2 13.58 83.2 83.2 79.0 61.9 44.8 27.6

57 86.9 12.69 86.9 86.9 85.2 68.2 51.1 34.1 81.8 13.58 81.8 81.8 79.4 62.2 45.0 27.8

4550

77 132.7 13.69 100.8 74.0 55.0 - - - 124.8 14.34 104.4 76.2 54.5 - - -

72 115.5 13.52 99.5 83.7 67.6 51.6 - - 107.6 14.26 97.4 81.8 65.3 48.8 - -

67 98.2 13.36 98.2 93.4 80.3 63.1 45.9 - 90.4 14.17 90.4 87.3 76.0 58.5 41.0 -

62 90.5 13.29 90.5 90.5 86.7 69.2 51.6 34.1 84.2 14.16 84.2 84.2 82.1 63.9 45.8 27.6

57 87.8 13.26 87.8 87.8 87.0 69.3 51.5 33.8 82.8 14.15 82.8 82.8 81.5 63.4 45.2 27.0

5100

77 133.9 14.16 122.6 86.8 60.2 - - - 125.2 14.82 125.2 90.2 58.6 - - -

72 116.8 14.00 111.1 93.2 74.8 56.4 - - 108.8 14.73 108.8 91.4 72.2 53.0 - -

67 99.6 13.83 99.6 99.6 89.4 70.9 52.5 - 92.5 14.64 92.5 92.5 85.7 66.6 47.4 -

62 91.5 13.76 91.5 91.5 91.5 73.1 54.6 36.2 85.1 14.64 85.1 85.1 85.1 66.0 46.8 27.6

57 88.8 13.74 88.8 88.8 88.8 70.4 52.0 33.5 83.7 14.63 83.7 83.7 83.7 64.5 45.4 26.2

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. Capacity rating are based on 80 F (26.6 C) Entering Air Dry Bulb Temperature.

3. These ratings include the condenser fan motors, the compressor motors and supply air blower motor (External Static Pressure 0.30 IWG/

74.7 Pa).

ZF120 (10 Ton) Imperial (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1,2

(MBh)

Total

Input

(kW)3

Sensible Capacity (MBh) Total

Capacity1,2

(MBh)

Total

Input

(kW)3

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

862075-XTG-G-0415

22 Johnson Controls Unitary Products

ZF120 (35 kW) Metric

Air on

Evaporator Coil Temperature of Air on Condenser Coil

Total

Capacity1,2

(kW)

Total

Input

(kW)3

Sensible Capacity (kW) Total

Capacity1

(kW)

Total

Input

(kW)2

Sensible Capacity (kW)

m3/s WB

(°C) Return Dry Bulb (°C) Return Dry Bulb (°C)

32 29 27 24 21 18 32 29 27 24 21 18

29°C 35°C

1.42

25 35.3 8.40 20.0 16.4 12.8 - - - 35.4 9.61 19.8 16.2 12.6 - - -

22 33.7 8.47 24.5 20.9 17.3 13.7 - - 32.8 9.59 23.8 20.2 16.6 13.0 - -

19 32.1 8.54 29.1 25.5 21.9 18.3 14.7 - 30.2 9.57 27.9 24.3 20.7 17.0 13.4 -

17 30.4 8.56 30.4 26.3 22.7 19.1 15.5 11.9 28.4 9.56 28.4 25.6 22.0 18.4 14.8 11.2

14 28.0 8.56 28.0 28.0 27.1 23.5 19.9 16.3 26.5 9.54 26.5 26.5 25.3 21.7 18.1 14.5

1.65

25 37.6 8.64 20.6 17.3 13.8 - - - 37.6 9.88 20.7 17.2 13.6 - - -

22 35.9 8.71 26.5 22.6 18.7 14.8 - - 34.8 9.86 25.7 21.9 18.0 14.1 - -

19 34.2 8.78 32.3 27.8 23.6 19.4 15.2 - 32.1 9.83 30.7 26.6 22.4 18.2 14.0 -

17 32.3 8.80 32.3 29.2 24.5 20.3 16.1 11.9 30.1 9.82 30.1 28.0 23.8 19.6 15.4 11.2

14 29.8 8.80 29.8 29.8 29.2 24.8 20.5 16.2 28.1 9.80 28.1 28.1 27.4 23.1 18.7 14.4

1.89

25 39.8 8.97 21.2 18.3 14.7 - - - 39.8 10.24 21.6 18.1 14.7 - - -

22 38.0 9.04 28.4 24.2 20.0 15.8 - - 36.9 10.22 27.6 23.5 19.4 15.2 - -

19 36.2 9.11 35.6 30.1 25.3 20.5 15.7 - 34.0 10.20 33.6 28.8 24.1 19.3 14.5 -

17 34.2 9.14 34.2 32.1 26.3 21.5 16.7 11.9 31.9 10.18 31.9 30.5 25.7 20.8 16.0 11.2

14 31.5 9.14 31.5 31.5 31.3 26.2 21.1 16.0 29.8 10.17 29.8 29.8 29.5 24.4 19.4 14.3

2.15

25 39.5 9.53 27.0 20.2 16.0 - - - 39.7 10.80 27.7 20.6 16.1 - - -

22 37.7 9.60 31.4 26.5 21.7 16.9 - - 36.8 10.78 30.7 26.0 21.2 16.5 - -

19 36.0 9.67 35.7 32.9 27.5 22.4 17.2 - 33.9 10.76 33.8 31.4 26.4 21.3 16.2 -

17 34.0 9.69 34.0 33.0 29.1 24.0 18.9 13.8 31.8 10.74 31.8 31.1 28.1 23.0 17.9 12.8

14 31.3 9.69 31.3 31.3 31.2 26.0 20.7 15.4 29.7 10.73 29.7 29.7 29.6 24.4 19.1 13.9

2.41

25 39.2 9.98 32.9 22.1 17.2 - - - 39.7 11.26 33.8 23.0 17.5 - - -

22 37.5 10.05 34.3 28.9 23.5 18.0 - - 36.8 11.24 33.8 28.5 23.1 17.7 - -

19 35.7 10.12 35.7 35.7 29.7 24.2 18.8 - 33.9 11.22 33.9 33.9 28.7 23.3 17.9 -

17 33.8 10.15 33.8 33.8 32.0 26.5 21.1 15.7 31.8 11.20 31.8 31.8 30.6 25.2 19.8 14.4

14 31.1 10.14 31.1 31.1 31.1 25.7 20.2 14.8 29.7 11.19 29.7 29.7 29.7 24.3 18.9 13.5

41°C 46°C

1.42

25 35.4 10.83 19.6 16.0 12.4 - - - 35.5 12.04 19.4 15.8 12.2 - - -

22 31.9 10.72 23.1 19.5 15.9 12.3 - - 31.0 11.84 22.4 18.8 15.2 11.6 - -

19 28.4 10.60 26.7 23.0 19.4 15.8 12.2 - 26.5 11.64 25.4 21.8 18.2 14.6 11.0 -

17 26.3 10.55 26.3 24.9 21.3 17.7 14.1 10.5 24.3 11.54 24.3 24.2 20.6 17.0 13.3 9.7

14 25.0 10.52 25.0 25.0 23.6 19.9 16.3 12.7 23.4 11.50 23.4 23.4 21.8 18.2 14.6 10.9

1.65

25 37.6 11.12 20.8 17.0 13.5 - - - 37.6 12.36 21.0 16.8 13.3 - - -

22 33.8 11.01 25.0 21.1 17.3 13.5 - - 32.8 12.16 24.2 20.4 16.6 12.8 - -

19 30.1 10.89 29.1 25.3 21.1 17.0 12.8 - 28.0 11.95 27.5 24.1 19.9 15.8 11.6 -

17 27.9 10.84 27.9 26.9 23.2 19.0 14.7 10.5 25.7 11.85 25.7 25.7 22.5 18.3 14.1 9.9

14 26.5 10.81 26.5 26.5 25.6 21.3 17.0 12.7 24.8 11.81 24.8 24.8 23.8 19.5 15.2 10.9

1.89

25 39.7 11.51 22.0 18.0 14.6 - - - 39.6 12.78 22.5 17.8 14.5 - - -

22 35.8 11.40 26.8 22.8 18.7 14.6 - - 34.6 12.57 26.0 22.0 18.0 14.0 - -

19 31.8 11.28 31.6 27.6 22.8 18.1 13.4 - 29.6 12.37 29.6 26.3 21.6 16.9 12.3 -

17 29.5 11.22 29.5 28.8 25.0 20.2 15.4 10.6 27.2 12.27 27.2 27.2 24.4 19.6 14.8 10.0

14 28.0 11.20 28.0 28.0 27.7 22.7 17.6 12.6 26.2 12.23 26.2 26.2 25.9 20.9 15.9 10.9

2.15

25 39.9 12.08 28.3 21.0 16.1 - - - 40.1 13.35 29.0 21.4 16.2 - - -

22 35.9 11.96 30.1 25.4 20.7 16.0 - - 35.0 13.15 29.5 24.8 20.2 15.5 - -

19 31.9 11.85 31.9 29.8 25.3 20.2 15.2 - 29.9 12.94 29.9 28.3 24.2 19.2 14.2 -

17 29.7 11.79 29.7 29.3 27.1 22.0 17.0 11.9 27.5 12.84 27.5 27.5 26.1 21.1 16.0 11.0

14 28.1 11.76 28.1 28.1 28.0 22.8 17.6 12.4 26.5 12.80 26.5 26.5 26.3 21.2 16.1 10.9

2.41

25 40.1 12.54 34.7 24.0 17.7 - - - 40.6 13.82 35.5 24.9 17.9 - - -

22 36.1 12.43 33.4 28.0 22.7 17.4 - - 35.4 13.62 32.9 27.6 22.3 17.0 - -

19 32.1 12.32 32.1 32.1 27.7 22.4 17.0 - 30.3 13.41 30.3 30.3 26.7 21.4 16.2 -

17 29.8 12.26 29.8 29.8 29.2 23.8 18.5 13.2 27.8 13.31 27.8 27.8 27.8 22.5 17.2 11.9

14 28.2 12.23 28.2 28.2 28.2 22.9 17.6 12.2 26.8 13.27 26.8 26.8 26.8 21.5 16.2 10.9

862075-XTG-G-0415

Johnson Controls Unitary Products 23

48°C 52°C

1.42

25 34.6 12.34 19.8 15.7 12.1 - - - 32.9 12.91 20.4 15.4 11.8 - - -

22 29.9 12.21 22.2 18.5 14.9 11.3 - - 27.9 12.94 21.7 18.0 14.4 10.8 - -

19 25.3 12.09 24.6 21.4 17.8 14.2 10.5 - 22.9 12.96 22.9 20.6 17.0 13.4 9.8 -

17 23.5 11.98 23.5 23.4 20.2 16.6 13.0 9.3 21.8 12.84 21.8 21.8 19.5 15.9 12.3 8.6

14 22.8 11.96 22.8 22.8 21.0 17.4 13.8 10.2 21.5 12.84 21.5 21.5 19.6 16.0 12.3 8.7

1.65

25 36.6 12.67 21.5 16.8 13.3 - - - 34.7 13.28 22.5 16.8 13.3 - - -

22 31.7 12.53 24.0 20.1 16.3 12.5 - - 29.5 13.26 23.4 19.6 15.7 11.9 - -

19 26.8 12.39 26.5 23.5 19.3 15.2 11.0 - 24.4 13.23 24.4 22.4 18.2 14.1 9.9 -

17 24.8 12.30 24.8 24.8 22.1 17.9 13.6 9.3 23.1 13.16 23.1 23.1 21.3 17.0 12.7 8.4

14 24.1 12.27 24.1 24.1 23.0 18.7 14.4 10.1 22.7 13.16 22.7 22.7 21.4 17.1 12.8 8.4

1.89

25 38.6 13.11 23.2 17.9 14.6 - - - 36.5 13.76 24.5 18.2 14.8 - - -

22 33.5 12.95 25.8 21.7 17.7 13.7 - - 31.2 13.68 25.2 21.1 17.1 13.0 - -

19 28.3 12.79 28.3 25.5 20.9 16.2 11.5 - 25.9 13.61 25.9 24.1 19.4 14.8 10.1 -

17 26.2 12.71 26.2 26.2 24.0 19.1 14.2 9.4 24.4 13.58 24.4 24.4 23.2 18.1 13.1 8.1

14 25.5 12.69 25.5 25.5 25.0 20.0 15.0 10.0 24.0 13.58 24.0 24.0 23.3 18.2 13.2 8.1

2.15

25 38.9 13.69 29.5 21.7 16.1 - - - 36.6 14.34 30.6 22.3 16.0 - - -

22 33.8 13.52 29.2 24.5 19.8 15.1 - - 31.5 14.26 28.5 24.0 19.1 14.3 - -

19 28.8 13.36 28.8 27.4 23.5 18.5 13.5 - 26.5 14.17 26.5 25.6 22.3 17.1 12.0 -

17 26.5 13.29 26.5 26.5 25.4 20.3 15.1 10.0 24.7 14.16 24.7 24.7 24.1 18.7 13.4 8.1

14 25.7 13.26 25.7 25.7 25.5 20.3 15.1 9.9 24.3 14.15 24.3 24.3 23.9 18.6 13.2 7.9

2.41

25 39.2 14.16 35.9 25.5 17.7 - - - 36.7 14.82 36.7 26.4 17.2 - - -

22 34.2 14.00 32.6 27.3 21.9 16.5 - - 31.9 14.73 31.9 26.8 21.2 15.5 - -

19 29.2 13.83 29.2 29.2 26.2 20.8 15.4 - 27.1 14.64 27.1 27.1 25.1 19.5 13.9 -

17 26.8 13.76 26.8 26.8 26.8 21.4 16.0 10.6 25.0 14.64 25.0 25.0 25.0 19.3 13.7 8.1

14 26.0 13.74 26.0 26.0 26.0 20.6 15.2 9.8 24.5 14.63 24.5 24.5 24.5 18.9 13.3 7.7

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. Capacity rating are based on 80 F (26.6 C) Entering Air Dry Bulb Temperature.

3. These ratings include the condenser fan motors, the compressor motors and supply air blower motor (External Static Pressure 0.30 IWG/

74.7 Pa).

ZF120 (35 kW) Metric (Continued)

Air on

Evaporator Coil Temperature of Air on Condenser Coil

Total

Capacity1,2

(kW)

Total

Input

(kW)3

Sensible Capacity (kW) Total

Capacity1

(kW)

Total

Input

(kW)2

Sensible Capacity (kW)

m3/s WB

(°C) Return Dry Bulb (°C) Return Dry Bulb (°C)

32 29 27 24 21 18 32 29 27 24 21 18

862075-XTG-G-0415

24 Johnson Controls Unitary Products

ZF150 (12.5 Ton) Imperial

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1,2

(MBh)

Total

Input

(kW)3

Sensible Capacity (MBh) Total

Capacity1,2

(MBh)

Total

Input

(kW)3

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

85°F 95°F

3750

77 185.6 11.34 82.4 66.9 51.4 - - - 170.6 12.56 79.4 64.1 48.9 - - -

72 168.8 11.18 104.3 88.8 73.3 57.8 - - 155.7 12.43 100.6 85.3 70.1 54.8 - -

67 151.9 11.02 126.3 110.8 95.2 79.7 64.2 - 140.7 12.29 121.8 106.5 91.3 76.0 60.7 -

62 146.1 10.96 145.6 122.7 106.4 90.9 75.4 59.8 134.2 12.23 133.9 118.6 103.4 88.1 72.9 57.6

57 141.4 10.92 141.4 133.8 116.3 100.8 85.3 69.8 131.0 12.20 131.0 125.9 110.6 95.4 80.1 64.9

4375

77 190.5 11.63 85.8 71.6 55.5 - - - 175.4 12.85 83.8 68.3 52.7 - - -

72 173.2 11.47 112.8 96.0 79.2 62.4 - - 160.0 12.71 108.4 92.0 75.6 59.2 - -

67 155.9 11.31 139.8 120.4 102.9 85.4 67.8 - 144.7 12.57 133.0 115.8 98.5 81.2 63.9 -

62 149.9 11.25 149.7 136.9 115.0 96.9 78.9 60.9 138.0 12.51 137.8 129.3 111.5 93.8 76.0 58.3

57 145.1 11.21 145.1 141.3 125.7 107.3 88.9 70.4 134.6 12.48 134.6 132.1 119.4 101.3 83.2 65.0

5000

77 195.4 11.89 89.2 76.3 59.6 - - - 180.2 13.12 88.3 72.4 56.6 - - -

72 177.6 11.73 121.3 103.2 85.1 67.0 - - 164.4 12.98 116.3 98.7 81.1 63.5 - -

67 159.9 11.57 153.4 130.1 110.6 91.0 71.5 - 148.6 12.84 144.3 125.0 105.7 86.4 67.1 -

62 153.8 11.51 153.8 151.0 123.5 103.0 82.5 61.9 141.7 12.78 141.7 139.9 119.7 99.5 79.2 59.0

57 148.8 11.47 148.8 148.8 135.1 113.8 92.4 71.1 138.3 12.75 138.3 138.3 128.1 107.1 86.2 65.2

5575

77 200.8 12.68 93.4 80.3 60.9 - - - 184.3 13.90 95.8 77.0 58.2 - - -

72 182.6 12.52 127.2 107.0 86.9 66.7 - - 168.2 13.76 122.8 103.2 83.5 63.8 - -

67 164.3 12.36 161.0 133.8 112.9 92.0 71.1 - 152.0 13.62 149.8 129.3 108.7 88.2 67.7 -

62 158.0 12.30 158.0 156.7 126.7 105.3 83.9 62.5 145.0 13.55 145.0 144.1 123.2 102.2 81.2 60.2

57 152.9 12.26 152.9 152.9 139.2 117.4 95.6 73.8 141.5 13.53 141.5 141.5 131.8 110.5 89.1 67.7

6150

77 206.2 13.46 97.6 84.3 62.1 - - - 188.5 14.67 103.4 81.6 59.9 - - -

72 187.5 13.30 133.1 110.9 88.6 66.4 - - 172.0 14.53 129.4 107.6 85.8 64.1 - -

67 168.8 13.14 168.6 137.4 115.1 92.9 70.6 - 155.5 14.39 155.3 133.6 111.8 90.0 68.3 -

62 162.3 13.08 162.3 162.3 129.8 107.5 85.3 63.1 148.3 14.32 148.3 148.3 126.6 104.9 83.1 61.3

57 157.0 13.04 157.0 157.0 143.3 121.1 98.8 76.6 144.7 14.30 144.7 144.7 135.6 113.8 92.0 70.3

105°F 115°F

3750

77 155.6 13.79 76.4 61.4 46.4 - - - 140.6 15.02 73.4 58.6 43.9 - - -

72 142.6 13.67 96.8 81.8 66.8 51.8 - - 129.5 14.92 93.1 78.4 63.6 48.9 - -

67 129.5 13.56 117.3 102.3 87.3 72.3 57.3 - 118.3 14.83 112.8 98.1 83.3 68.6 53.8 -

62 122.3 13.49 122.2 114.6 100.4 85.4 70.4 55.4 110.5 14.76 110.5 110.5 97.4 82.6 67.9 53.1

57 120.6 13.48 120.6 118.0 104.9 89.9 74.9 59.9 110.2 14.76 110.2 110.2 99.2 84.5 69.8 55.0

4375

77 160.3 14.08 81.9 65.0 50.0 - - - 145.2 15.30 79.9 61.7 47.2 - - -

72 146.9 13.96 104.0 88.0 72.0 56.0 - - 133.7 15.20 99.6 84.0 68.4 52.8 - -

67 133.4 13.84 126.2 111.1 94.0 77.0 60.0 - 122.2 15.11 119.4 106.4 89.6 72.8 56.1 -

62 126.0 13.78 125.9 121.7 108.1 90.6 73.2 55.7 114.1 15.04 114.1 114.1 104.7 87.5 70.3 53.2

57 124.2 13.76 124.2 122.9 113.0 95.2 77.4 59.6 113.8 15.04 113.8 113.8 106.7 89.2 71.7 54.2

5000

77 165.0 14.34 87.3 68.6 53.5 - - - 149.8 15.56 86.4 64.7 50.5 - - -

72 151.1 14.22 111.2 94.2 77.1 60.1 - - 137.9 15.47 106.2 89.7 73.2 56.7 - -

67 137.3 14.10 135.1 119.8 100.8 81.7 62.7 - 126.0 15.37 126.0 114.7 95.9 77.1 58.3 -

62 129.7 14.04 129.7 128.8 115.8 95.9 76.0 56.1 117.7 15.30 117.7 117.7 112.0 92.4 72.8 53.2

57 127.8 14.03 127.8 127.8 121.1 100.5 79.9 59.3 117.3 15.30 117.3 117.3 114.2 93.9 73.7 53.5

5575

77 167.9 15.11 98.2 73.7 55.6 - - - 151.5 16.32 100.6 70.5 52.9 - - -

72 153.8 14.99 118.4 99.3 80.1 60.9 - - 139.5 16.23 114.1 95.4 76.7 58.1 - -

67 139.8 14.87 138.6 124.8 104.6 84.5 64.3 - 127.5 16.13 127.5 120.3 100.5 80.7 60.9 -

62 132.0 14.81 132.0 131.6 119.7 99.1 78.5 57.9 119.0 16.06 119.0 119.0 116.2 96.0 75.8 55.6

57 130.1 14.80 130.1 130.1 124.5 103.5 82.6 61.6 118.7 16.06 118.7 118.7 117.1 96.6 76.0 55.5

6150

77 170.9 15.87 109.2 78.9 57.6 - - - 153.2 17.07 114.9 76.2 55.4 - - -

72 156.5 15.75 125.6 104.4 83.1 61.8 - - 141.1 16.98 121.9 101.1 80.3 59.5 - -

67 142.2 15.63 142.1 129.8 108.5 87.2 65.9 - 128.9 16.88 128.9 126.0 105.2 84.4 63.6 -

62 134.3 15.57 134.3 134.3 123.5 102.2 80.9 59.6 120.4 16.81 120.4 120.4 120.4 99.5 78.7 57.9

57 132.4 15.56 132.4 132.4 127.8 106.5 85.2 63.9 120.0 16.82 120.0 120.0 120.0 99.2 78.4 57.6

862075-XTG-G-0415

Johnson Controls Unitary Products 25

118.4°F 125°F

3750

77 136.5 15.57 71.2 56.3 41.4 - - - 128.4 16.65 67.0 51.9 36.7 - - -

72 125.7 15.43 91.0 76.1 61.3 46.4 - - 118.5 16.41 87.0 71.9 56.7 41.5 - -

67 115.0 15.28 110.9 96.0 81.1 66.2 51.3 - 108.5 16.17 107.1 91.9 76.7 61.5 46.4 -

62 104.8 15.16 104.8 104.8 96.2 81.3 66.4 51.5 93.9 15.95 93.9 93.9 93.9 78.7 63.5 48.3

57 104.5 15.16 104.5 104.5 97.3 82.4 67.5 52.6 93.6 15.95 93.6 93.6 93.6 78.4 63.2 48.1

4375

77 140.9 15.85 78.2 59.1 44.5 - - - 132.6 16.91 75.0 54.3 39.4 - - -

72 129.8 15.71 97.4 81.6 65.9 50.1 - - 122.3 16.70 93.1 77.1 61.0 44.9 - -

67 118.7 15.58 116.7 104.2 87.2 70.2 53.2 - 112.0 16.48 111.3 99.9 82.5 65.1 47.8 -

62 108.2 15.45 108.2 108.2 104.1 86.7 69.2 51.8 96.9 16.23 96.9 96.9 103.1 85.1 67.0 49.0

57 107.9 15.45 107.9 107.9 105.8 88.1 70.5 52.8 96.6 16.23 96.6 96.6 104.1 86.1 68.1 50.0

5000

77 145.4 16.10 85.2 62.0 47.7 - - - 136.9 17.15 83.0 56.6 42.2 - - -

72 133.9 15.97 103.8 87.2 70.5 53.8 - - 126.2 16.96 99.2 82.2 65.2 48.2 - -

67 122.4 15.85 122.4 112.3 93.3 74.2 55.2 - 115.5 16.77 115.5 107.8 88.3 68.7 49.2 -

62 111.7 15.71 111.7 111.7 112.1 92.1 72.0 52.0 100.0 16.50 100.0 100.0 112.3 91.4 70.5 49.7

57 111.3 15.71 111.3 111.3 114.3 93.9 73.4 53.0 99.7 16.49 99.7 99.7 114.6 93.7 72.9 52.0

5575

77 146.6 16.85 99.5 68.2 50.4 - - - 137.2 17.88 97.2 63.7 45.4 - - -

72 135.5 16.74 111.9 92.9 73.9 54.9 - - 127.6 17.72 107.6 88.0 68.4 48.8 - -

67 124.3 16.62 124.3 117.6 97.4 77.3 57.1 - 118.1 17.57 118.1 112.3 91.4 70.5 49.6 -

62 112.9 16.47 112.9 112.9 113.2 92.5 71.8 51.2 101.1 17.26 101.1 101.1 107.3 85.7 64.2 42.6

57 112.6 16.47 112.6 112.6 114.1 93.2 72.4 51.5 100.8 17.26 100.8 100.8 108.3 86.7 65.2 43.6

6150

77 147.9 17.59 113.7 74.4 53.1 - - - 137.5 18.60 111.4 70.8 48.6 - - -

72 137.0 17.49 119.9 98.6 77.3 56.0 - - 129.1 18.48 116.0 93.8 71.6 49.3 - -

67 126.1 17.38 126.1 122.9 101.6 80.3 59.0 - 120.7 18.35 120.7 116.8 94.6 72.3 50.1 -

62 114.2 17.22 114.2 114.2 114.2 92.9 71.6 50.3 102.3 18.01 102.3 102.3 102.3 80.0 57.8 35.6

57 113.9 17.22 113.9 113.9 113.9 92.6 71.3 50.0 102.0 18.01 102.0 102.0 102.0 79.7 57.5 35.2

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. Capacity rating are based on 80 F (26.6 C) Entering Air Dry Bulb Temperature.

3. These ratings include the condenser fan motors, the compressor motors and supply air blower motor (External Static Pressure 0.35 IWG/

87.1 Pa).

ZF150 (12.5 Ton) Imperial (Continued)

Air on

Evaporator Coil

Temperature of Air on Condenser Coil

Total

Capacity1,2

(MBh)

Total

Input

(kW)3

Sensible Capacity (MBh) Total

Capacity1,2

(MBh)

Total

Input

(kW)3

Sensible Capacity (MBh)

CFM WB

(°F)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

862075-XTG-G-0415

26 Johnson Controls Unitary Products

ZF150 (44 kW) Metric

Air on

Evaporator Coil Temperature of Air on Condenser Coil

Total

Capacity1,2

(kW)

Total

Input

(kW)3

Sensible Capacity (kW) Total

Capacity1,2

(kW)

Total

Input

(kW)3

Sensible Capacity (kW)

m3/s WB

(°C) Return Dry Bulb (°C) Return Dry Bulb (°C)

32 29 27 24 21 18 32 29 27 24 21 18

29°C 35°C

1.77

25 54.4 11.34 24.1 19.6 15.1 - - - 50.0 12.56 23.3 18.8 14.3 - - -

22 49.5 11.18 30.6 26.0 21.5 16.9 - - 45.6 12.43 29.5 25.0 20.5 16.1 - -

19 44.5 11.02 37.0 32.5 27.9 23.4 18.8 - 41.2 12.29 35.7 31.2 26.7 22.3 17.8 -

17 42.8 10.96 42.7 36.0 31.2 26.6 22.1 17.5 39.3 12.23 39.2 34.8 30.3 25.8 21.4 16.9

14 41.4 10.92 41.4 39.2 34.1 29.6 25.0 20.5 38.4 12.20 38.4 36.9 32.4 28.0 23.5 19.0

2.06

25 55.8 11.63 25.2 21.0 16.3 - - - 51.4 12.85 24.6 20.0 15.5 - - -

22 50.8 11.47 33.1 28.1 23.2 18.3 - - 46.9 12.71 31.8 27.0 22.2 17.3 - -

19 45.7 11.31 41.0 35.3 30.2 25.0 19.9 - 42.4 12.57 39.0 33.9 28.9 23.8 18.7 -

17 43.9 11.25 43.9 40.1 33.7 28.4 23.1 17.8 40.4 12.51 40.4 37.9 32.7 27.5 22.3 17.1

14 42.5 11.21 42.5 41.4 36.8 31.4 26.0 20.6 39.5 12.48 39.5 38.7 35.0 29.7 24.4 19.1

2.36

25 57.3 11.89 26.2 22.4 17.5 - - - 52.8 13.12 25.9 21.2 16.6 - - -

22 52.1 11.73 35.6 30.2 24.9 19.6 - - 48.2 12.98 34.1 28.9 23.8 18.6 - -

19 46.9 11.57 45.0 38.1 32.4 26.7 20.9 - 43.6 12.84 42.3 36.6 31.0 25.3 19.7 -

17 45.1 11.51 45.1 44.3 36.2 30.2 24.2 18.1 41.5 12.78 41.5 41.0 35.1 29.2 23.2 17.3

14 43.6 11.47 43.6 43.6 39.6 33.3 27.1 20.8 40.5 12.75 40.5 40.5 37.5 31.4 25.3 19.1

2.63

25 58.8 12.68 27.4 23.5 17.8 - - - 54.0 13.90 28.1 22.6 17.1 - - -

22 53.5 12.52 37.3 31.4 25.5 19.5 - - 49.3 13.76 36.0 30.2 24.5 18.7 - -

19 48.2 12.36 47.2 39.2 33.1 27.0 20.8 - 44.6 13.62 43.9 37.9 31.9 25.9 19.8 -

17 46.3 12.30 46.3 45.9 37.1 30.9 24.6 18.3 42.5 13.55 42.5 42.2 36.1 29.9 23.8 17.6

14 44.8 12.26 44.8 44.8 40.8 34.4 28.0 21.6 41.5 13.53 41.5 41.5 38.6 32.4 26.1 19.9

2.90

25 60.4 13.46 28.6 24.7 18.2 - - - 55.2 14.67 30.3 23.9 17.5 - - -

22 54.9 13.30 39.0 32.5 26.0 19.5 - - 50.4 14.53 37.9 31.5 25.2 18.8 - -

19 49.5 13.14 49.4 40.3 33.7 27.2 20.7 - 45.6 14.39 45.5 39.2 32.8 26.4 20.0 -

17 47.6 13.08 47.6 47.6 38.0 31.5 25.0 18.5 43.5 14.32 43.5 43.5 37.1 30.7 24.4 18.0

14 46.0 13.04 46.0 46.0 42.0 35.5 29.0 22.4 42.4 14.30 42.4 42.4 39.7 33.3 27.0 20.6

41°C 46°C

1.77

25 45.6 11.34 22.4 18.0 13.6 - - - 41.2 15.02 21.5 17.2 12.9 - - -

22 41.8 11.18 28.4 24.0 19.6 15.2 - - 37.9 14.92 27.3 23.0 18.6 14.3 - -

19 38.0 11.02 34.4 30.0 25.6 21.2 16.8 - 34.7 14.83 33.1 28.7 24.4 20.1 15.8 -

17 35.9 10.96 35.8 33.6 29.4 25.0 20.6 16.2 32.4 14.76 32.4 32.4 28.5 24.2 19.9 15.6

14 35.3 10.92 35.3 34.6 30.8 26.4 22.0 17.6 32.3 14.76 32.3 32.3 29.1 24.8 20.4 16.1

2.06

25 47.0 11.63 24.0 19.0 14.6 - - - 42.6 15.30 23.4 18.1 13.8 - - -

22 43.0 11.47 30.5 25.8 21.1 16.4 - - 39.2 15.20 29.2 24.6 20.0 15.5 - -

19 39.1 11.31 37.0 32.5 27.6 22.6 17.6 - 35.8 15.11 35.0 31.2 26.3 21.3 16.4 -

17 36.9 11.25 36.9 35.7 31.7 26.6 21.5 16.3 33.4 15.04 33.4 33.4 30.7 25.6 20.6 15.6

14 36.4 11.21 36.4 36.0 33.1 27.9 22.7 17.5 33.3 15.04 33.3 33.3 31.3 26.1 21.0 15.9

2.36

25 48.4 11.89 25.6 20.1 15.7 - - - 43.9 15.56 25.3 19.0 14.8 - - -

22 44.3 11.73 32.6 27.6 22.6 17.6 - - 40.4 15.47 31.1 26.3 21.4 16.6 - -

19 40.2 11.57 39.6 35.1 29.5 24.0 18.4 - 36.9 15.37 36.9 33.6 28.1 22.6 17.1 -

17 38.0 11.51 38.0 37.7 34.0 28.1 22.3 16.4 34.5 15.30 34.5 34.5 32.8 27.1 21.3 15.6

14 37.5 11.47 37.5 37.5 35.5 29.5 23.4 17.4 34.4 15.30 34.4 34.4 33.5 27.5 21.6 15.7

2.63

25 49.2 12.68 28.8 21.6 16.3 - - - 44.4 16.32 29.5 20.6 15.5 - - -

22 45.1 12.52 34.7 29.1 23.5 17.9 - - 40.9 16.23 33.4 28.0 22.5 17.0 - -

19 41.0 12.36 40.6 36.6 30.7 24.8 18.8 - 37.4 16.13 37.4 35.3 29.5 23.7 17.9 -

17 38.7 12.30 38.7 38.6 35.1 29.0 23.0 17.0 34.9 16.06 34.9 34.9 34.0 28.1 22.2 16.3

14 38.1 12.26 38.1 38.1 36.5 30.3 24.2 18.1 34.8 16.06 34.8 34.8 34.3 28.3 22.3 16.3

2.90

25 50.1 13.46 32.0 23.1 16.9 - - - 44.9 17.07 33.7 22.3 16.2 - - -

22 45.9 13.30 36.8 30.6 24.3 18.1 - - 41.3 16.98 35.7 29.6 23.5 17.4 - -

19 41.7 13.14 41.7 38.0 31.8 25.6 19.3 - 37.8 16.88 37.8 36.9 30.8 24.7 18.6 -

17 39.4 13.08 39.4 39.4 36.2 30.0 23.7 17.5 35.3 16.81 35.3 35.3 35.3 29.2 23.1 17.0

14 38.8 13.04 38.8 38.8 37.5 31.2 25.0 18.7 35.2 16.82 35.2 35.2 35.2 29.1 23.0 16.9

862075-XTG-G-0415

Johnson Controls Unitary Products 27

48°C 52°C

1.77

25 40.0 15.57 20.9 16.5 12.1 - - - 37.6 16.65 19.6 15.2 10.8 - - -

22 36.8 15.43 26.7 22.3 18.0 13.6 - - 34.7 16.41 25.5 21.1 16.6 12.2 - -

19 33.7 15.28 32.5 28.1 23.8 19.4 15.0 - 31.8 16.17 31.4 26.9 22.5 18.0 13.6 -

17 30.7 15.16 30.7 30.7 28.2 23.8 19.5 15.1 27.5 15.95 27.5 27.5 27.5 23.1 18.6 14.2

14 30.6 15.16 30.6 30.6 28.5 24.2 19.8 15.4 27.4 15.95 27.4 27.4 27.4 23.0 18.5 14.1

2.06

25 41.3 15.85 22.9 17.3 13.1 - - - 38.9 16.91 22.0 15.9 11.6 - - -

22 38.0 15.71 28.6 23.9 19.3 14.7 - - 35.9 16.70 27.3 22.6 17.9 13.2 - -

19 34.8 15.58 34.2 30.5 25.6 20.6 15.6 - 32.8 16.48 32.6 29.3 24.2 19.1 14.0 -

17 31.7 15.45 31.7 31.7 30.5 25.4 20.3 15.2 28.4 16.23 28.4 28.4 30.2 24.9 19.6 14.4

14 31.6 15.45 31.6 31.6 31.0 25.8 20.7 15.5 28.3 16.23 28.3 28.3 30.5 25.2 19.9 14.7

2.36

25 42.6 16.10 25.0 18.2 14.0 - - - 40.1 17.15 24.3 16.6 12.4 - - -

22 39.2 15.97 30.4 25.5 20.7 15.8 - - 37.0 16.96 29.1 24.1 19.1 14.1 - -

19 35.9 15.85 35.9 32.9 27.3 21.8 16.2 - 33.9 16.77 33.9 31.6 25.9 20.1 14.4 -

17 32.7 15.71 32.7 32.7 32.9 27.0 21.1 15.2 29.3 16.50 29.3 29.3 32.9 26.8 20.7 14.6

14 32.6 15.71 32.6 32.6 33.5 27.5 21.5 15.5 29.2 16.49 29.2 29.2 33.6 27.5 21.4 15.2

2.63

25 43.0 16.85 29.2 20.0 14.8 - - - 40.2 17.88 28.5 18.7 13.3 - - -

22 39.7 16.74 32.8 27.2 21.7 16.1 - - 37.4 17.72 31.5 25.8 20.0 14.3 - -

19 36.4 16.62 36.4 34.5 28.6 22.6 16.7 - 34.6 17.57 34.6 32.9 26.8 20.7 14.5 -

17 33.1 16.47 33.1 33.1 33.2 27.1 21.1 15.0 29.6 17.26 29.6 29.6 31.4 25.1 18.8 12.5

14 33.0 16.47 33.0 33.0 33.4 27.3 21.2 15.1 29.5 17.26 29.5 29.5 31.7 25.4 19.1 12.8

2.90

25 43.3 17.59 33.3 21.8 15.6 - - - 40.3 18.60 32.6 20.7 14.2 - - -

22 40.1 17.49 35.1 28.9 22.7 16.4 - - 37.8 18.48 34.0 27.5 21.0 14.5 - -

19 37.0 17.38 37.0 36.0 29.8 23.5 17.3 - 35.4 18.35 35.4 34.2 27.7 21.2 14.7 -

17 33.5 17.22 33.5 33.5 33.5 27.2 21.0 14.7 30.0 18.01 30.0 30.0 30.0 23.5 16.9 10.4

14 33.4 17.22 33.4 33.4 33.4 27.1 20.9 14.7 29.9 18.01 29.9 29.9 29.9 23.4 16.8 10.3

1. These capacities are gross ratings. For net capacity, deduct air blower motor, MBh = 3.415 x kW. Refer to the appropriate Blower

Performance Table for the kW of the supply air blower motor.

2. Capacity rating are based on 80 F (26.6 C) Entering Air Dry Bulb Temperature.

3. These ratings include the condenser fan motors, the compressor motors and supply air blower motor (External Static Pressure 0.35 IWG/

87.1 Pa).

ZF150 (44 kW) Metric (Continued)

Air on

Evaporator Coil Temperature of Air on Condenser Coil

Total

Capacity1,2

(kW)

Total

Input

(kW)3

Sensible Capacity (kW) Total

Capacity1,2

(kW)

Total

Input

(kW)3

Sensible Capacity (kW)

m3/s WB

(°C) Return Dry Bulb (°C) Return Dry Bulb (°C)

32 29 27 24 21 18 32 29 27 24 21 18

862075-XTG-G-0415

28 Johnson Controls Unitary Products

Airflow Performance

ZF090-150 Side Duct Application

ZF090 (7.5 Ton) Standard Motor Side Duct Imperial

ESP

(iwg)

Turns Open

012345

CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP

0.2 – – – – – – – – – – – – 3193 1490 1.60 2981 1310 1.41

0.4 3690 2230 2.39 3468 1950 2.09 3294 1750 1.88 3105 1550 1.66 2922 1370 1.47 2694 1210 1.30

0.6 3478 2110 2.26 3239 1830 1.96 3044 1640 1.76 2850 1440 1.54 2651 1270 1.36 2423 1120 1.20

0.8 3243 1980 2.12 3001 1720 1.85 2790 1520 1.63 2576 1330 1.43 2370 1170 1.26 2105 1020 1.09

1.0 3006 1830 1.96 2758 1580 1.70 2544 1400 1.50 2303 1230 1.32 2017 1050 1.13 1624 880 0.94

1.2 2758 1720 1.85 2533 1510 1.62 2230 1290 1.38 1891 1080 1.16 – – – – – –

1.4 2447 1570 1.68 2182 1350 1.45 1769 1110 1.19 – – – – – – – – –

1.6 2085 1410 1.51 – – – – – – – – – – – – – – –

ZF090 (26 kW) Standard Motor Side Duct Metric

ESP

(Pa)

Turns Open

012345

m3/s In Out m3/s In Out m3/s In Out m3/s In Out m3/s In Out m3/s In Out

50 – – – – – – – – – – – – 1.51 1.49 1.19 1.36 1.31 1.05

100 1.74 2.23 1.78 1.64 1.95 1.55 1.55 1.75 1.40 1.46 1.55 1.24 1.38 1.37 1.10 1.27 1.21 0.97

149 1.64 2.11 1.68 1.53 1.83 1.46 1.44 1.64 1.39 1.34 1.44 1.15 1.25 1.27 1.01 1.14 1.12 0.89

199 1.53 1.98 1.58 1.42 1.72 1.38 1.32 1.52 1.38 1.22 1.33 1.07 1.12 1.17 0.94 0.99 1.02 0.81

249 1.42 1.83 1.46 1.30 1.58 1.27 1.20 1.40 1.28 1.09 1.23 0.98 0.95 1.05 0.84 0.77 0.88 0.70

299 1.30 1.72 1.38 1.20 1.51 1.21 1.05 1.29 1.17 0.89 1.08 0.91 – – – – – –

349 1.15 1.57 1.25 1.03 1.35 1.08 0.83 1.11 1.01 – – – – – – – – –

399 0.98 1.41 1.26 – – – – – – – – – – – – – – –

ZF090 (7.5) Ton Optional Motor Side Duct Imperial

ESP

(iwg)

Turns Open

012345

CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP

0.25 – – – – – – – – – – – – 3650 1800 1.95 3290 1560 1.68

0.5 – – – – – – – – – – – – 3250 1650 1.78 2930 1430 1.53

0.8 – – – – – – – – – – – – 2783 1500 1.61 2507 1300 1.39

13555 2440 2.62 3285 2120 2.27 3047 1860 2.00 2778 1590 1.71 2507 1390 1.49 2209 1180 1.27

1.2 3320 2310 2.48 3034 1990 2.13 2799 1730 1.86 2510 1480 1.59 2213 1260 1.35 1846 1050 1.13

1.4 3101 2160 2.32 2796 1860 2.00 2466 1590 1.71 2188 1330 1.43 1721 1090 1.17 – – –

1.6 2864 2040 2.19 2489 1710 1.83 2145 1450 1.56 – – – – – – – – –

1.8 2524 1860 2.00 2182 1550 1.66 – – – – – – – – – – – –

862075-XTG-G-0415

Johnson Controls Unitary Products 29

22189 1680 1.80 – – – – – – – – – – – – – – –

ZF090 (7.5) Ton Optional Motor Side Duct Imperial

ESP

(iwg)

Turns Open

012345

CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP

ZF090 (26 kW) Optional Motor Side Duct Metric

ESP

(Pa)

Turns Open

0 1 2 3 4 5

m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW)

62 – – – – – – – – – – – – 1.72 1.8 1.46 1.55 1.56 1.25

125 – – – – – – – – – – – – 1.53 1.65 1.33 1.38 1.43 1.14

199 – – – – – – – – – – – – 1.31 1.5 1.20 1.18 1.3 1.04

249 1.68 2.44 1.95 1.55 2.12 1.70 1.44 1.86 1.49 1.31 1.59 1.27 1.18 1.39 1.11 1.04 1.18 0.94

299 1.52 2.31 1.85 1.43 1.99 1.59 1.32 1.73 1.38 1.18 1.48 1.18 1.04 1.26 1.01 0.87 1.05 0.84

349 1.46 2.16 1.73 1.31 1.86 1.49 1.16 1.59 1.27 1.03 1.33 1.06 0.81 1.09 0.87 – – –

399 1.35 2.04 1.63 1.17 1.71 1.36 1.01 1.45 1.16 – – – – – – – – –

448 1.19 1.86 1.49 1.03 1.55 1.24 – – – – – – – – – – – –

498 1.03 1.68 1.34 – – – – – – – – – – – – – – –

ZF120 (10 Ton) Standard Motor Side Duct Imperial

ESP

(iwg)

Turns Open

012345

CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP

0.35 4820 2675 2.87 4582 2362 2.53 4319 2080 2.23 4086 1842 1.98 3863 1648 1.77 3590 1430 1.53

0.6 4522 2496 2.68 4307 2215 2.38 4025 1941 2.08 3713 1678 1.80 3464 1499 1.61 3149 1291 1.38

0.8 4223 2332 2.50 3973 2062 2.21 3656 1783 1.91 3363 1550 1.66 3026 1350 1.45 - - -

1.0 3913 2174 2.33 3679 1923 2.06 3262 1619 1.74 2721 1330 1.43 - - - - - -

1.2 3521 1978 2.12 3104 1693 1.82 - - - - - - - - - - - -

1.4 2790 1660 1.78 - - - - - - - - - - - - - - -

ZF120 (35 kW) Standard Motor Side Duct Metric

ESP

(Pa)

Turns Open

0 1 2 3 4 5

m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW)

87 2.27 2.68 2.14 2.16 2.36 1.89 2.04 2.08 1.66 1.93 1.84 1.47 1.82 1.65 1.32 1.69 1.43 1.14

149 2.13 2.50 2.00 2.03 2.22 1.77 1.90 1.94 1.55 1.75 1.68 1.34 1.63 1.50 1.20 1.49 1.29 1.03

199 1.99 2.33 1.87 1.88 2.06 1.65 1.73 1.78 1.43 1.59 1.55 1.24 1.43 1.35 1.08 ---

249 1.85 2.17 1.74 1.74 1.92 1.54 1.54 1.62 1.30 1.28 1.33 1.06 ------

299 1.66 1.98 1.58 1.46 1.69 1.35 ------------

349 1.32 1.66 1.33 ---------------

862075-XTG-G-0415

30 Johnson Controls Unitary Products

ZF120 (10 Ton) Optional Motor Side Duct Imperial

ESP

(iwg)

Turns Open

012345

CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP

0.35 - - - - - - - - - - - - - - - 5100 2495 2.68

0.6 - - - - - - - - - - - - 5091 2745 2.94 4646 2314 2.48

0.8 - - - - - - - - - 5078 2937 3.15 4839 2584 2.77 4347 2153 2.31

1.0 - - - - - - 5075 3117 3.34 4767 2730 2.93 4487 2377 2.55 3946 1942 2.08

1.2 - - - 5068 3308 3.55 4742 2881 3.09 4427 2513 2.69 4108 2159 2.32 3501 1723 1.85

1.4 5079 3595 3.86 4787 3105 3.33 4452 2713 2.91 4012 2259 2.42 3665 1926 2.07 - - -

1.6 4739 3316 3.56 4482 2892 3.10 4098 2474 2.65 3543 2006 2.15 3057 1642 1.76 - - -

1.8 4461 3111 3.34 4070 2621 2.81 3552 2160 2.32 - - - - - - - - -

2.0 3997 2782 2.98 3400 2219 2.38 - - - - - - - - - - - -

2.2 3496 2480 2.66 - - - - - - - - - - - - - - -

ZF120 (35 kW) Optional Motor Side Duct Metric

ESP

(Pa)

Turns Open

0 1 2 3 4 5

m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW)

87 ---------------2.4 2.50 2.00

149 ------------2.40 2.75 2.20 2.19 2.31 1.85

199 ---------2.40 2.94 2.35 2.28 2.58 2.07 2.05 2.15 1.72

249 ------2.40 3.12 2.49 2.25 2.73 2.18 2.12 2.38 1.90 1.86 1.94 1.55

299 ---2.39 3.31 2.65 2.24 2.88 2.30 2.09 2.51 2.01 1.94 2.16 1.73 1.65 1.72 1.38

349 2.40 3.60 2.88 2.26 3.11 2.48 2.10 2.71 2.17 1.89 2.26 1.81 1.73 1.93 1.54 ---

399 2.24 3.32 2.65 2.12 2.89 2.31 1.93 2.47 1.98 1.67 2.01 1.60 1.44 1.64 1.31 ---

448 2.11 3.11 2.49 1.92 2.62 2.10 1.68 2.16 1.73 ---------

498 1.89 2.78 2.23 1.60 2.22 1.78 ------------

548 1.65 2.48 1.98 ---------------

862075-XTG-G-0415

Johnson Controls Unitary Products 31

ZF150 (12.5 Ton) Side Duct Imperial

ESP

(iwg)

Turns Open

012345

CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP

0.35 - - - 6150 4171 4.47 5915 3774 4.05 5610 3309 3.55 5396 2948 3.16 4960 2495 2.68

0.6 - - - 5850 3932 4.22 5648 3565 3.82 5363 3136 3.36 5091 2745 2.94 4646 2314 2.48

0.8 5870 4273 4.58 5567 3715 3.98 5406 3380 3.62 5078 2937 3.15 4839 2584 2.77 4347 2153 2.31

1.0 5652 4087 4.38 5327 3518 3.77 5075 3117 3.34 4767 2730 2.93 4487 2377 2.55 3946 1942 2.08

1.2 5350 3820 4.10 5068 3308 3.55 4742 2881 3.09 4427 2513 2.69 4108 2159 2.32 - - -

1.4 5079 3595 3.86 4787 3105 3.33 4452 2713 2.91 4012 2259 2.42 3665 1926 2.07 - - -

1.6 4739 3316 3.56 4482 2892 3.10 4098 2474 2.65 - - - - - - - - -

1.8 4461 3111 3.34 4070 2621 2.81 - - - - - - - - - - - -

2.0 3997 2782 2.98 - - - - - - - - - - - - - - -

ZF150 (44 kW) Side Duct Metric

ESP

(Pa)

Turns Open

0 1 2 3 4 5

m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW)

87 ---2.90 4.17 3.34 2.79 3.77 3.02 2.65 3.31 2.65 2.55 2.95 2.36 2.34 2.50 2.00

149 ---2.76 3.93 3.15 2.67 3.57 2.85 2.53 3.14 2.51 2.40 2.75 2.20 2.19 2.31 1.85

199 2.77 4.27 3.42 2.63 3.72 2.97 2.55 3.38 2.70 2.40 2.94 2.35 2.28 2.58 2.07 2.05 2.15 1.72

249 2.67 4.09 3.27 2.51 3.52 2.81 2.40 3.12 2.49 2.25 2.73 2.18 2.12 2.38 1.90 1.86 1.94 1.55

299 2.52 3.82 3.06 2.39 3.31 2.65 2.24 2.88 2.30 2.09 2.51 2.01 1.94 2.16 1.73 ---

349 2.40 3.60 2.88 2.26 3.11 2.48 2.10 2.71 2.17 1.89 2.26 1.81 1.73 1.93 1.54 ---

399 2.24 3.32 2.65 2.12 2.89 2.31 1.93 2.47 1.98 ---------

448 2.11 3.11 2.49 1.92 2.62 2.10 -- ---------

498 1.89 2.78 2.23 ---------------

862075-XTG-G-0415

32 Johnson Controls Unitary Products

862075-XTG-G-0415

Johnson Controls Unitary Products 33

ZF090-150 Bottom Duct Application

ZF090 (26 kW) Standard Motor Bottom Duct Metric

ESP

(Pa)

Turns Open

0 1 2 3 4 5

m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW)

50 1.64 2.11 1.68 1.53 1.83 1.46 1.44 1.64 1.39 1.34 1.44 1.15 1.25 1.27 1.01 1.14 1.12 0.89

100 1.53 1.98 1.58 1.42 1.72 1.38 1.32 1.52 1.38 1.22 1.33 1.07 1.12 1.17 0.94 0.99 1.02 0.81

149 1.42 1.83 1.46 1.30 1.58 1.27 1.20 1.40 1.28 1.09 1.23 0.98 0.95 1.05 0.84 0.77 0.88 0.70

199 1.30 1.72 1.38 1.20 1.51 1.21 1.05 1.29 1.17 0.89 1.08 0.91 ––––––

249 1.15 1.57 1.25 1.03 1.35 1.08 0.83 1.11 1.01 –––––––––

299 0.98 1.41 1.26 –––––––––––––––

ZF090 (7.5 Ton) Optional Motor Bottom Duct Imperial

ESP

(iwg)

Turns Open

012345

CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP

0.4 – – – – – – – – – – – – 2783 1500 1.61 2507 1300 1.39

0.6 – – – 3285 2120 2.27 3047 1860 2.00 2778 1590 1.71 2507 1390 1.49 2209 1180 1.27

0.8 – – – 3034 1990 2.13 2799 1730 1.86 2510 1480 1.59 2213 1260 1.35 1846 1050 1.13

1.0 3101 2160 2.32 2796 1860 2.00 2466 1590 1.71 2188 1330 1.43 1721 1090 1.17 – – –

1.2 2864 2040 2.19 2489 1710 1.83 2145 1450 1.56 – – – – – – – – –

1.4 2524 1860 2.00 2182 1550 1.66 – – – – – – – – – – – –

1.6 2189 1680 1.80 – – – – – – – – – – – – – – –

ZF090 (7.5 Ton) Standard Motor Bottom Duct Imperial

ESP

(iwg)

Turns Open

012345

CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP

0.2 3478 2110 2.26 3239 1830 1.96 3044 1640 1.76 2850 1440 1.54 2651 1270 1.36 2423 1120 1.20

0.4 3243 1980 2.12 3001 1720 1.85 2790 1520 1.63 2576 1330 1.43 2370 1170 1.26 2105 1020 1.09

0.6 3006 1830 1.96 2758 1580 1.70 2544 1400 1.50 2303 1230 1.32 2017 1050 1.13 1624 880 0.94

0.8 2758 1720 1.85 2533 1510 1.62 2230 1290 1.38 1891 1080 1.16 – – – – – –

1.0 2447 1570 1.68 2182 1350 1.45 1769 1110 1.19 – – – – – – – – –

1.2 2085 1410 1.51 – – – – – – – – – – – – – – –

ZF090 (26 kW) Optional Motor Bottom Duct Metric

ESP

(Pa)

Turns Open

0 1 2 3 4 5

m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW)

100 – – – – – – – – – – – – 1.31 1.5 1.20 1.18 1.3 1.04

149 1.67 2.44 1.95 1.55 2.12 1.70 1.44 1.86 1.49 1.31 1.59 1.27 1.18 1.39 1.11 1.04 1.18 0.94

199 1.57 2.31 1.85 1.43 1.99 1.59 1.32 1.73 1.38 1.18 1.48 1.18 1.04 1.26 1.01 0.87 1.05 0.84

249 1.46 2.16 1.73 1.31 1.86 1.49 1.16 1.59 1.27 1.03 1.33 1.06 0.81 1.09 0.87 – – –

299 1.35 2.04 1.63 1.17 1.71 1.36 1.01 1.45 1.16 – – – – – – – – –

349 1.19 1.86 1.49 1.03 1.55 1.24 – – – – – – – – – – – –

399 1.03 1.68 1.34 – – – – – – – – – – – – – – –

862075-XTG-G-0415

34 Johnson Controls Unitary Products

ZF120 (10 Ton) Standard Motor Bottom Duct Imperial

ESP

(iwg)

Turns Open

012345

CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP

0.2 4543 2511 2.69 4362 2250 2.41 4139 1996 2.14 3911 1766 1.89 3719 1594 1.71 3518 1407 1.51

0.4 4311 2381 2.55 4115 2127 2.28 3862 1871 2.01 3611 1644 1.76 3386 1471 1.58 3153 1293 1.39

0.6 4032 2232 2.39 3804 1982 2.13 3508 1720 1.84 3246 1506 1.61 2971 1332 1.43 - - -

0.8 3706 2068 2.22 3428 1818 1.95 3078 1548 1.66 - - - - - - - - -

1.0 3333 1892 2.03 2989 1644 1.76 - - -- - - - - - - - -

1.2 2914 1711 1.83 - - -- - -- - - - - - - - -

ZF120 (35 kW) Standard Motor Bottom Duct Metric

ESP

(Pa)

Turns Open

0 1 2 3 4 5

m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW)

50 2.14 2.51 2.01 2.06 2.25 1.80 1.95 2.00 1.60 1.85 1.77 1.41 1.75 1.59 1.27 1.66 1.41 1.13

100 2.03 2.38 1.91 1.94 2.13 1.70 1.82 1.87 1.50 1.70 1.64 1.31 1.60 1.47 1.18 1.49 1.29 1.03

149 1.90 2.23 1.79 1.80 1.98 1.59 1.66 1.72 1.38 1.53 1.51 1.20 1.40 1.33 1.07 ---

199 1.75 2.07 1.65 1.62 1.82 1.45 1.45 1.55 1.24 ---------

249 1.57 1.89 1.51 1.41 1.64 1.32 ------------

299 1.38 1.71 1.37 --------------

ZF120 (10 Ton) Optional Motor Bottom Duct Imperial

ESP

(iwg)

Turns Open

012345

CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP

0.2 - - - - - - - - - - - -4966 2666 2.86 4605 2290 2.46

0.4 - - -- - -- - -4919 2473 2.65 4721 2515 2.70 4344 2145 2.30

0.6 - - -- - -4929 3022 3.24 4665 2324 2.49 4450 2353 2.52 4048 1991 2.13

0.8 - - -4908 3197 3.43 4668 2841 3.05 4391 2171 2.33 4151 2183 2.34 3717 1829 1.96

1.0 4915 3456 3.71 4651 3013 3.23 4388 2656 2.85 4096 2015 2.16 3825 2008 2.15 3352 1664 1.78

1.2 4653 3253 3.49 4377 2823 3.03 4089 2467 2.65 3779 1858 1.99 3471 1830 1.96 2951 1499 1.61

1.4 4372 3046 3.27 4087 2631 2.82 3771 2277 2.44 3442 1703 1.83 3090 1652 1.77 - - -

1.6 4070 2837 3.04 3780 2437 2.61 3434 2089 2.24 3084 1552 1.66 - - - - - -

1.8 3748 2629 2.82 3455 2243 2.41 3078 1904 2.04 - - - - - - - - -

2.0 3406 2425 2.60 3114 2051 2.20 - - -- - - - - - - - -

2.2 3044 2228 2.39 - - - - - - - - - - - - - - -

ZF120 (35 kW) Optional Motor Bottom Duct Metric

ESP

(Pa)

Turns Open

012345

m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW)

50 - - - - - - - - - - - - 2.34 2.67 2.13 2.17 2.29 1.83

100 - - - - - - - - - 2.32 2.47 1.98 2.23 2.51 2.01 2.05 2.15 1.72

149 - - - - - - 2.33 3.02 2.42 2.20 2.32 1.86 2.10 2.35 1.88 1.91 1.99 1.59

199 - - - 2.32 3.20 2.56 2.20 2.84 2.27 2.07 2.17 1.74 1.96 2.18 1.75 1.75 1.83 1.46

249 2.32 3.46 2.76 2.20 3.01 2.41 2.07 2.66 2.12 1.93 2.01 1.61 1.81 2.01 1.61 1.58 1.66 1.33

299 2.20 3.25 2.60 2.07 2.82 2.26 1.93 2.47 1.97 1.78 1.86 1.49 1.64 1.83 1.46 1.39 1.50 1.20

349 2.06 3.05 2.44 1.93 2.63 2.10 1.78 2.28 1.82 1.62 1.70 1.36 1.46 1.65 1.32 - - -

399 1.92 2.84 2.27 1.78 2.44 1.95 1.62 2.09 1.67 1.46 1.55 1.24 - - - - - -

448 1.77 2.63 2.10 1.63 2.24 1.79 1.45 1.90 1.52 - - - - - - - - -

498 1.61 2.43 1.94 1.47 2.05 1.64 - - - - - - - - - - - -

548 1.44 2.23 1.78 - - - - - - - - - - - - - - -

862075-XTG-G-0415

Johnson Controls Unitary Products 35

ZF150 (12.5 Ton) Bottom Duct Imperial

ESP

(iwg)

Turns Open

012345

CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP CFM Watts BHP

0.35 5576 4015 4.32 5370 3547 3.80 5171 3197 3.43 5007 2884 3.09 4721 2515 2.70 4344 2145 2.30

0.6 5376 3839 4.12 5147 3376 3.62 4929 3022 3.24 4735 2704 2.90 4450 2353 2.52 4048 1991 2.13

0.8 5155 3652 3.92 4908 3197 3.43 4668 2841 3.05 4411 2501 2.68 4151 2183 2.34 3717 1829 1.96

1.0 4915 3456 3.71 4651 3013 3.23 4388 2656 2.85 4035 2281 2.45 3825 2008 2.15 - - -

1.2 4653 3253 3.49 4377 2823 3.03 4089 2467 2.65 3608 2051 2.20 - - - - - -

1.4 4372 3046 3.27 4087 3621 2.82 3771 2277 2.44 - - - - - - - - -

1.6 4070 2837 3.04 3780 2437 2.61 - - - - - - - - - - - -

1.8 3748 2629 2.82 - - - - - - - - - - - - - - -

ZF150 (44 kW) Bottom Duct Metric

ESP

(Pa)

Turns Open

0 1 2 3 4 5

m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW) m3/s In

(kW)

Out

(kW)

87 2.63 4.01 3.21 2.53 3.55 2.84 2.44 3.20 2.56 2.36 2.88 2.31 2.23 2.51 2.01 2.05 2.15 1.72

149 2.54 3.84 3.07 2.43 3.38 2.70 2.33 3.02 2.42 2.23 2.70 2.16 2.10 2.35 1.88 1.91 1.99 1.59

199 2.43 3.65 2.92 2.32 3.20 2.56 2.20 2.84 2.27 2.08 2.50 2.00 1.96 2.18 1.75 1.75 1.83 1.46

249 2.32 3.46 2.76 2.20 3.01 2.41 2.07 2.66 2.12 1.90 2.28 1.83 1.81 2.01 1.61 ---

299 2.20 3.25 2.60 2.07 2.82 2.26 1.93 2.47 1.97 1.70 2.05 1.64 ------

349 2.06 3.05 2.44 1.93 2.63 2.10 1.78 2.28 1.82 ---------

399 1.92 2.84 2.27 1.78 2.44 1.95 ------------

448 1.77 2.63 2.10 ---------------

862075-XTG-G-0415

36 Johnson Controls Unitary Products

NOTES FOR TABLES ON PAGES 30 THROUGH 37:

• “Turns Open” refers to the setting of the variable pitch

motor sheave, where “0 Turns Open” is fully closed.

• Blower performance includes dry coil and 2” (51mm) throw-

away filters.

• Blower performance for gas heat includes the maximum

number of heat tubes available for each tonnage.

• ESP (External Static Pressure) given is that available for

the supply and return air duct system. All internal resis-

tances have been deducted from the total static pressure of

the blower.

Rated Airflow Imperial

Model CFM ESP (iwg)

ZF090 3650 0.2

ZF120 5000 0.3

ZF150 6250 0.3

862075-XTG-G-0415

Johnson Controls Unitary Products 37

Additional Static Resistance ZF120/150 Cabinet (IMPERIAL)

CFM Cooling Only1

1. Add these resistance values to the available static resistance in the respective Blower Performance Tables.

Economizer2 3

2. Deduct these resistance values from the available external static pressure shown in the respective Blower Perfor-

mance Table.

3. The pressure drop through the economizer is greater for 100% outdoor air than for 100% return air. If the resistance of

the return air duct system is less than 0.25 IWG, the unit will deliver less CFM during full economizer operation.

Electric Heat KW2

18 24 36 54

1900 0.06 0.02 0.06 0.07 0.08 0.10

2100 0.07 0.02 0.07 0.08 0.09 0.11

2300 0.08 0.02 0.08 0.09 0.10 0.13

2500 0.09 0.02 0.09 0.10 0.11 0.14

2700 0.11 0.03 0.10 0.12 0.13 0.16

2900 0.12 0.03 0.11 0.13 0.14 0.18

3100 0.14 0.03 0.13 0.15 0.16 0.20

3300 0.16 0.03 0.14 0.17 0.18 0.22

3500 0.18 0.04 0.16 0.19 0.20 0.24

3700 0.20 0.04 0.18 0.21 0.22 0.26

3900 0.23 0.04 0.20 0.23 0.24 0.28

4100 0.25 0.04 0.22 0.25 0.26 0.31

4300 0.28 0.05 0.24 0.28 0.29 0.34

4500 0.30 0.05 0.26 0.30 0.31 0.37

4700 0.33 0.05 0.29 0.33 0.34 0.40

4900 0.36 0.05 0.31 0.35 0.37 0.43

5100 0.39 0.06 0.34 0.38 0.40 0.46

5300 0.42 0.06 0.37 0.41 0.43 0.49

5500 0.45 0.06 0.40 0.44 0.46 0.53

5700 0.48 0.06 0.43 0.47 0.49 0.56

5900 0.52 0.07 0.46 0.50 0.53 0.59

6100 0.56 0.07 0.49 0.53 0.56 0.62

6300 0.60 0.07 0.53 0.56 0.59 0.65

Additional Static Resistance ZF090 Cabinet (Imperial)

CFM Cooling Only1

1. Add these resistance values to the available static resistance in the respective Blower

Performance Tables.

Economizer2 3

2. Deduct these resistance values from the available external static pressure shown in the

respective Blower Performance Table.

3. The pressure drop through the economizer is greater for 100% outdoor air than for 100%

return air. If the resistance of the return air duct system is less than 0.25 IWG, the unit will

deliver less CFM during full economizer operation.

1900 -0.004 0.07

2100 0.01 0.09

2300 0.01 0.11

2500 0.02 0.13

2700 0.03 0.16

2900 0.04 0.18

3100 0.05 0.20

3300 0.06 0.22

3500 0.07 0.24

3700 0.08 0.27

3900 0.09 0.29

4100 0.09 0.31

4300 0.10 0.33

Additional Static Resistance ZF120/150 Cabinet (Metric)

M3SCooling Only1Economizer2 3

0.89 14.9 5.0 14.9 17.4 19.9 24.8

862075-XTG-G-0415

38 Johnson Controls Unitary Products

Electric Heat kW2

18 24 36 54

0.99 17.4 5.0 17.4 19.9 22.4 27.3

1.08 19.9 5.0 19.9 22.4 24.8 32.3

1.18 22.4 5.0 22.4 24.8 27.3 34.8

1.27 27.3 7.5 24.8 29.8 32.3 39.7

1.36 29.8 7.5 27.3 32.3 34.8 44.7

1.46 34.8 7.5 32.3 37.3 39.7 49.7

1.55 39.7 7.5 34.8 42.2 44.7 54.6

1.65 44.7 9.9 39.7 47.2 49.7 59.6

1.74 49.7 9.9 44.7 52.2 49.7 64.6

1.83 57.1 9.9 49.7 57.1 59.6 69.5

1.93 62.1 9.9 54.6 62.1 64.6 77.0

1.02 69.5 12.4 59.6 69.5 72.0 84.4

2.12 74.5 12.4 64.6 74.5 77.0 91.9

2.21 82.0 12.4 72.0 82.0 84.4 99.3

2.30 89.4 12.4 77.0 86.9 91.9 106.8

2.40 96.9 14.9 84.4 94.4 99.3 114.2

2.49 104.3 14.9 91.9 101.8 106.8 121.7

2.59 111.8 14.9 99.3 109.3 114.2 131.6

2.68 119.2 14.9 106.8 116.7 121.7 139.1

2.77 129.1 17.4 114.2 124.2 131.6 146.5

2.87 139.1 17.4 121.7 131.6 139.1 154.0

2.96 149.0 17.4 131.6 139.1 146.5 161.4

1. Add these resistance values to the available static resistance in the respective Blower Performance Tables.

2. Deduct these resistance values from the available external static pressure shown in the respective Blower Perfor-

mance Table.

3. The pressure drop through the economizer is greater for 100% outdoor air than for 100% return air. If the resistance of

the return air duct system is less than 62.1 Pa, the unit will deliver less M3S during full economizer operation.

Additional Static Resistance ZF090 Cabinet (Metric)

M3SCooling Only1Economizer2 3

0.9 -0.99 17.40

0.99 2.50 22.40

1.09 2.50 27.40

1.18 4.98 32.40

1.27 7.50 39.90

1.37 10.00 44.83

1.46 12.50 49.81

1.56 14.90 54.80

1.65 17.40 59.80

1.75 19.90 67.20

1.84 22.40 72.20

1.93 22.40 77.20

2.03 24.90 82.20

1. Add these resistance values to the available static resistance in the respective Blower

Performance Tables.

2. Deduct these resistance values from the available external static pressure shown in

the respective Blower Performance Table.

3. The pressure drop through the economizer is greater for 100% outdoor air than for

100% return air. If the resistance of the return air duct system is less than 62.1 Pa, the

unit will deliver less M3S during full economizer operation.

862075-XTG-G-0415

Johnson Controls Unitary Products 39

Gas Heat Minimum Supply Air Imperial

Size

(Ton) Model Heat

Size

Supply Air (CFM)

Cooling Heating

Min Max Min Max

090

(7.5) ZF 10 2250 3750 2250 3750

15 2250 3750 2250 3750

120

(10) ZF 15 3000 5000 3000 5000

20 3000 5000 3000 5000

150

(12.5) ZF 15 3750 6250 3750 6250

20 3750 6250 3750 6250

Gas Heat Minimum Supply Air Metric

Size

(KW) Model Heat

Size

Supply Air (M3S)

Cooling Heating

Min Max Min Max

090

(26) ZF 10 1.06 1.76 1.06 1.76

15 1.06 1.76 1.06 1.76

120

(35) ZF 15 1.42 2.36 1.42 2.36

20 1.42 2.36 1.42 2.36

150

(44) ZF 15 1.76 2.95 1.76 2.95

20 1.76 2.95 1.76 2.95

Electric Heat Minimum Supply Air Imperial

Size

(Tons) Model Voltage

Minimum Supply Air (CFM)

Heater kW

18 24 36 54

120

(10) ZF 380/415-3-50 3000 3000 3000 3500

150

(12.5) ZF 380/415-3-50 3750 3750 3750 3750

Electric Heat Minimum Supply Air Metric

Size

(KW) Model Voltage

Minimum Supply Air (C3S)

Heater kW

18 24 36 54

120

(35) ZF 380/415-3-50 1.42 1.42 1.42 1.42

150

(44) ZF 380/415-3-50 1.76 1.76 1.76 1.76

Indoor Blower Specifications

Size

(Tons) Model Motor Motor Sheave Blower Sheave Belt

HP RPM1

1. 1725 RPM at 60 Hz.

Eff. SF Frame Datum Dia.

(In.) Bore (In.) Model Datum Dia.

(In.) Bore (In.) Model

90

(7.5) ZF 2 1425 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 5.5 1 AK59 A49

2 1425 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 5 1 AK54 A47

120

(10) ZF 2 1425 0.8 1.15 56 3.4 - 4.4 7/8 1VM50 7 1 AK74 A54

4 1455 0.87 1.15 184T 4.0 - 5.0 1-1/8 1VP56 6.2 1 AK66 A56

150

(12.5) ZF 4 1455 0.87 1.15 184T 4.3 - 5.3 1-1/8 1VP56 6.6 1 BK72 BX56

862075-XTG-G-0415

40 Johnson Controls Unitary Products

Sound Performance

Power Exhaust Specifications

Model Voltage Motor Motor Fuse Size CFM @

0.1 ESP

HP RPM1QTY LRA FLA MCA

2PE04703246 460-1-60 3/4 1075 1 3.4 2.2 2.8 5 3800

1. Motors are multi-tapped and factory wired for high speed, suitable for 50 HZ power supply

Indoor Sound Power Levels

Size

(Tons) Model CFM ESP

(IWG)

Blower Sound Power, dB (10-12) Watts

Sound Rating1

dB (A)

1. These values have been accessed using a model of sound propagation from a point source into the hemispheric/free field. The dBA values

provided are to be used for reference only. Calculation of dBA values cover matters of system design and the fan manufacture has no way

of knowing the details of each system. This constitutes an exception to any specification or guarantee requiring a dBA value of sound data

in any other form than sound power level ratings.

Octave Band Centerline Frequency (Hz)

RPM BHP 63 125 250 500 1000 2000 4000 8000

090

(7.5) ZF 3000 0.6 854 1.47 77 74 76 76 74 72 68 68 63

120

(10) ZF 4000 0.6 959 2.29 83 80 82 82 80 78 74 74 69

150

(12.5) ZF 5000 0.6 1132 3.74 87 84 86 86 84 82 78 78 73

862075-XTG-G-0415

Johnson Controls Unitary Products 41

Electrical Data

ZF090-120 Standard Motor

Size

(Tons) Volt

Compressors (each) OD Fan

Motors

(each)

Supply

Blower

Motor

Pwr

Exh

Motor Electric Heat Option MCA1

(Amps)

MCA1 w/

Pwr Exh

(Amps)

Max Fuse2/

Breaker3

Size (Amps)

Max Fuse2/

Breaker3

Size w/ Pwr

Exh (Amps)

RLA LRA MCC FLA FLA FLA Model KW Stages Amps

ZF090 380 6.2 52.0 9.7 1.6 4.3 2.2 None - - - 21.5 23.7 25 25

415 6.2 52.0 9.7 1.6 4.3 2.2 None - - - 21.5 23.7 25 25

ZF120

380 8.0 67.1 12.5 1.6 4.3 2.2

None - - - 25.5 27.7 30 35

2TP04521850 11.3 2 17.2 26.8 29.6 30 35

2TP04522450 15.0 2 22.8 33.9 36.6 35 40

2TP04523650 21.3 2 32.4 45.8 48.6 50 50

2TP04525450 33.8 2 51.4 69.6 72.3 70 80

415 8.0 67.1 12.5 1.6 4.3 2.2

None - - - 25.5 27.7 30 35

2TP04521850 13.5 2 18.8 28.9 31.6 30 35

2TP04522450 17.9 2 24.9 36.5 39.3 40 40

2TP04523650 25.4 2 35.3 49.5 52.3 50 60

2TP04525450 40.4 2 56.2 75.6 78.4 80 80

1. Minimum Circuit Ampacity.

2. Maximum Over current Protection per Standard UL 1995.

3. Fuse or HACR circuit breaker size installed at factory or field installed.

ZF090-150 Hi Static Motor

Size

(Tons) Volt

Compressors (each) OD Fan

Motors

(each)

Supply

Blower

Motor

Pwr Exh

Motor Electric Heat Option MCA1

(Amps)

1. Minimum Circuit Ampacity.

MCA1 w/

Pwr Exh

(Amps)

Max

Fuse2/

Breaker3

Size

(Amps)

2. Maximum Over current Protection per Standard UL 1995.

3. Fuse or HACR circuit breaker size installed at factory or field installed.

Max Fuse2/

Breaker3 Size

w/ Pwr Exh

(Amps)

RLA LRA MCC FLA FLA FLA Model KW Stages Amps

ZF090 380 6.2 52.0 9.7 1.6 4.3 2.2 None - - - 21.5 23.7 25 25

415 6.2 52.0 9.7 1.6 4.3 2.2 None - - - 21.5 23.7 25 25

ZF120

380 8.0 67.1 12.5 1.6 6.4 2.2

None - - - 27.6 29.8 35 35

2TP04521850 11.3 2 17.2 29.5 32.2 35 35

2TP04522450 15.0 2 22.8 36.5 39.2 40 40

2TP04523650 21.3 2 32.4 48.5 51.2 50 60

2TP04525450 33.8 2 51.4 72.2 74.9 80 80

415 8.0 67.1 12.5 1.6 6.4 2.2

None - - - 27.6 29.8 35 35

2TP04521850 13.5 2 18.8 31.5 34.2 35 35

2TP04522450 17.9 2 24.9 39.1 41.9 40 45

2TP04523650 25.4 2 35.3 52.2 54.9 60 60

2TP04525450 40.4 2 56.2 78.3 81.0 80 90

ZF150

380 11.2 75.0 17.5 1.6 6.4 2.2

None - - - 38.0 40.2 45 50

2TP04521850 11.3 2 17.2 38.0 40.2 45 50

2TP04522450 15.0 2 22.8 38.0 40.2 45 50

2TP04523650 21.3 2 32.4 48.5 51.2 50 60

2TP04525450 33.8 2 51.4 72.2 74.9 80 80

415 11.2 75.0 17.5 1.6 6.4 2.2

None - - - 38.0 40.2 45 50

2TP04521850 13.5 2 18.8 38.0 40.2 45 50

2TP04522450 17.9 2 24.9 39.1 41.9 45 50

2TP04523650 25.4 2 35.3 52.2 54.9 60 60

2TP04525450 40.4 2 56.2 78.3 81.0 80 90

862075-XTG-G-0415

42 Johnson Controls Unitary Products

Typical Wiring Diagrams

ZF090-150 Typical Wiring Diagrams

Typical ZF090-120 Cooling Unit with Gas Heat Volt Wiring Diagram

862075-XTG-G-0415

Johnson Controls Unitary Products 43

Typical ZF090-120 Cooling Unit with/without Electric Heat Wiring Diagram

862075-XTG-G-0415

44 Johnson Controls Unitary Products

Typical ZF150 Cooling Unit with Gas Heat Volt Wiring Diagram

862075-XTG-G-0415

Johnson Controls Unitary Products 45

Typical ZF150 Cooling Unit with Gas Heat 380/415 Volt 50 Hz. Wiring Diagram

862075-XTG-G-0415

46 Johnson Controls Unitary Products

Weights and Dimensions

ZF090-150 Unit Weights

Unit 4 Point Load Weight Unit 6 Point Load Weight

D

A

CB

LEFT

FRONT

D

A

C

B

E

F

LEFT

FRONT

XY

LEFT FRONT

Imperial

Size

(Tons) Model Weight (lbs.) Center of

Gravity (in.) 4 Point Load Location (lbs.) 6 Point Load Location (lbs.)

ShippingOperatingXYABCDABCDEF

090

(7.5) ZF 885 860 38 24 205 153 223 299 144 117 97 142 171 210

120

(10) ZF 1065 1060 38 24 247 184 268 360 173 141 117 171 206 253

150

(12.5) ZF 1258 1253 47 25 251 280 381 341 164 176 190 259 240 223

Metric

Size

(KW) Model Weight (kg.) Center of

Gravity (mm) 4 Point Load Location (kg.) 6 Point Load Location (kg.)

ShippingOperatingXYABCDABCDEF

090

(22) ZF 401 390 965.2 609.7 93 69.4 101.2 135.6 65.3 53.1 44 64.4 77.6 95.3

120

(35) ZF 483 480 965.2 609.7 112 83.5 121.6 163.3 78.5 64 53.1 77.6 93.4 114.8

150

(44) ZF 571 568 1193.8 635 113.9 127 172.8 154.7 74.4 79.8 86.2 117.5 108.9 101.2

862075-XTG-G-0415

Johnson Controls Unitary Products 47

ZF090-150 Unit Dimensions

ZF090 - 120

ZF090-150 Unit Accessory Weights Imperial

Unit Accessory Weight (lbs.)

Shipping Operating

Economizer 90 85

Power Exhaust 40 35

Electric Heat1

1. Weight given is for the maximum heater size available

(54KW).

49 49

Gas Heat2

2. Weight given is for the maximum number of tube heat

exchangers available (8 tube).

110 110

ZF090-150 Unit Accessory Weights Metric

Unit Accessory Weight (kg.)

Shipping Operating

Economizer 40.8 38.6

Power Exhaust 18.1 15.9

Electric Heat1

1. Weight given is for the maximum heater size available

(54KW).

22.2 22.2

Gas Heat2

2. Weight given is for the maximum number of tube heat

exchangers available (8 tube).

49.9 49.9

LEFT

A

59.00

C

D

E

F

4.19

27.31

89.00

21.19

11.38

15.38

59.00

15.38

29.69

15.25

FRONT

SEE DETAIL B

FOR DRAIN LOCATION

SEE DETAIL A FOR GAS INLET

B

2X Ø 24.38

(619)

(754)

(387)

(391)

(1499)

(391)

(1499)

(538)

(2261)

(106)

(694)

(289)

NOTE: (XXX) Indicates Millimeters

862075-XTG-G-0415

48 Johnson Controls Unitary Products

ZF150

LEFT

59.00

A

C

D

E

F

4.19

27.31

89.00

21.19

FRONT

SEE DETAIL B

FOR DRAIN LOCATION

11.38

SEE DETAIL A FOR GAS INLET

B

29.95 30.11

14.92

59.00

14.92

14.92

45.64

4X Ø 24.38

NOTE: (XXX) Indicates Millimeters

(619)

(1159)

(379)

(379)

(1499)

(379)

(765)

(761)

(1499)

(106)

(694) (538)

(2261)

(289)

ZF090-150 Unit Physical Dimensions Imperial

Unit Model Number Dimension (in.)

ABCDEF

090 42 89 22 1/8 18 3/16 15 3/16 6 3/16

120 50 3/4 89 30 3/16 24 3/16 17 3/16 6 3/16

150 50 3/4 119 1/2 30 3/16 24 3/16 17 3/16 6 3/16

ZF090-150 Unit Physical Dimensions Metric

Unit Model Number Dimension (mm)

ABCDEF

090 1067 2261 562 462 386 157

120 1289 2261 767 614 437 157

150 1289 3035 767 614 437 157

862075-XTG-G-0415

Johnson Controls Unitary Products 49

Detail A

Detail B

ZF090-150 Unit Clearances Imperial

Direction Distance (in.) Direction Distance (in.)

Top1

1. Units must be installed outdoors. Over hanging structure or shrubs should not obscure condenser air discharge outlet.

72 Right 12

Front 36 Left 36

Rear 36 Bottom2

2. Units may be installed on combustible floors made from wood or class A, B or C roof covering materials.

0

ZF090-150 Unit Clearances Metric

Direction Distance (mm) Direction Distance (mm)

Top1

1. Units must be installed outdoors. Over hanging structure or shrubs should not obscure condenser air discharge outlet.

1829 Right 305

Front 914 Left 914

Rear 914 Bottom2

2. Units may be installed on combustible floors made from wood or class A, B or C roof covering materials.

0

42”/1067mm CABINET

Ø 3.126

Ø 2.000

3.184

4.727

7.705

14.594

Gas Pipe Inlet

Gas Exhaust Vent

50 3/4”/1289mm CABINET

Ø 3.126

Ø 2.000

3.184

4.737

7.715

17.541

Gas Pipe Inlet

Gas Exhaust Vent

(81)

(51)

(587)

(120)

(371)

(196)

NOTE: (XXX) Indicates Millimeters

5-3/8

3/4” FPT

(137)

(19.05)

NOTE: (XXX) Indicates Millimeters

862075-XTG-G-0415

50 Johnson Controls Unitary Products

ZF090-150 Unit Bottom Duct Opening

TOP VIEW

Bottom condensate drain

Bottom gas

supply entry

FRONT

RETURN

AIR

SUPPLY

AIR

RIGHT

LEFT

20 1/8 19 1/8 17 1/8

6 13/16

6 13/16

32 11/16

14 1/2

16 3/8

18 1/16

25 9/16

12 5/16

27 1/2 24

21

18

89

(2261)

(830)

(173)

(173)

(690)

(457)

(610)

(533)

(511) (486) (435)

(368)

(416)

(459)

(649)

(313)

NOTE: (XXX) Indicates Millimeters

Ø 2.469

3X Ø 0.875

Bottom power, control

and convenience outlet

wiring entry

(22)

(63)

862075-XTG-G-0415

Johnson Controls Unitary Products 51

ZF090-150 Unit Electrical Entry

ZF090-120 Unit Side Duct Openings

Disconnect Swith Cover

Power Entry Ø 2-1/2

Control Entry Ø 7/8

Power Entry Ø 2-1/2

Convenience Outlet Cover

Convenience Outlet

Power Entry Ø 7/8 FRONT

(64)

(22)

(64)

(22)

D o t P l u g s

5 - 5 /3 2

3 1 - 1 1 /1 6

2 - 3 1 /3 2

1 8 - 1 /4

Return

Air

Supply Air

A

B

C

D

(464)

(75)

(805)

(131)

NOTE: (XXX) Indicates Millimeters

862075-XTG-G-0415

52 Johnson Controls Unitary Products

ZF150 Unit Side Duct Openings

ZF090-150 Unit Left Duct Opening

ZF Side Duct Dimensions Imperial ZF Side Duct Dimensions Metric

Unit Model Number Dimension (in.) Unit Model Number Dimension (mm)

ABCD ABCD

090 27 3/4 12 1/16 27 1/2 16 090 705 306 698 406

120 28 1/4 18 1/16 28 1/4 18 1/4 120 718 459 718 464

150 28 1/4 18 1/16 28 1/4 18 1/4 150 718 459 718 464

Dot Plugs

2-7/8

5-5/32

D

C31-5/8

18-1/4

B

A

(464)

(75)

(805)

(131)

NOTE: (XXX) Indicates Millimeters

4-5/16

30-3/8

(772)

(110)

862075-XTG-G-0415

Johnson Controls Unitary Products 53

ZF090-150 Unit Accessory Dimensions

ZF090-150 Roof Curb

ZF090-150 Transition Roof Curb

5 0 - 1 / 2

( 1 2 8 5 )

3 0

( 7 6 0 )

2 0

( 5 1 0 )

8 0 - 5 / 8

( 2 0 5 0 )

6

( 1 5 0 )

2 T Y P .

( 5 0 )

I N S U L A T E D D E C K U N D E R

C O M P R E S S O R S E C T I O N

I N S U L A T E D D E C K U N D E R

C O N D E N S E R S E C T I O N

F R O N T

R I G H T

S U P P L Y

R E T U R N

2 0

( 5 1 0 )

N O T E : ( X X X ) I N D I C A T E S

D I M E N S I O N S I N

M I L L I M E T E R S

1 4

( 3 5 5 )

8

( 2 0 5 ) O R

7 6 - 5 / 8

( 1 9 4 5 )

9 4

( 2 3 9 0 )

5 0 - 1 / 2

( 1 2 8 5 )

3 0 - 1 / 2

( 7 7 5 )

6 4 - 1 / 4

( 1 6 3 0 )

5 9 - 1 / 4

( 1 5 0 5 )

1 0

( 2 5 5 )

2 3

( 5 8 5 )

4

( 1 0 0 )

2 6

( 6 6 0 )

8 0 - 5 / 8

( 2 0 5 0 )

2 T Y P

( 5 0 )

F R O N T

R I G H T

S U P P L Y

R E T U R N

862075-XTG-G-0415

54 Johnson Controls Unitary Products

Economizer Options

Economizer Downflow W/Power Exhaust

Economizer Usage

Application Cabinet Height Description Model

Side Return All Horizontal economizer without barometric relief 2EE047069241

Downflow, End Return

Horizontal or ERV

42" Economizer, 42” tall cabinet 2EE047074242

50" Economizer, 50” tall cabinet 2EE047076242

1. Barometric relief must be ordered separately and installed in duct work.

2. Includes fresh air hood, exhaust hood and barometric relief.

Fresh Air Hood

Barometric Relief

Hood

Barometric

Relief Damper

Power Exhaust

Low Leak Economizer

Subject to change without notice. Printed in U.S.A. 862075-XTG-G-0415

Copyright © 2015 by Johnson Controls, Inc. All rights reserved. Supersedes: 862075-XTG-F-0513

York International Corporation

5005 York Drive

Norman, OK 73069

Economizer End Return W/Power Exhaust

Field Installed Horizontal Economizer W/Power Exhaust

Fresh Air Hood

Field Installed

Duct Work

Power Exhaust

Barometric Relief Damper

Barometric Relief Hood

Low Leak

Economizer

Barometric

Relief Hood

Barometric

Relief Damper

Power Exhaust

Fresh Air Hood

Fresh Air Damper

Return Air Damper

Field Installed

Duct Work
