USER’S GUIDE
By Firstech, Inc.
Website: www.compustar.org
TABLE OF CONTENTS
Safety Information……………………………...Page 1
Remote: 1WFM4R ………………..……..……………1
Remote Button Functions………………..…………...1
Remote Learning Routine……...………..……………2
Keyless Entry……………………………..……………2
Auto-start Function……………………….……………2
Reservation Mode…...…………………..…………….2
Trunk Release…………………………….……………3
Timer Start Mode……………………….……………..4
Safety Shutdown Features………………...…………4
Optional Programmable Features ……………..……4
Ignition Lock …………………………………..……4
Passive Lock…………….………………………….4
Turbo Mode…………….…………………………..4
Optional Installation Features………………….…….4
Cold Start Mode ……………………………..……..…5
Warranty………………………………..…….5
Safety Information
Please take these safety precautions into
consideration under the following conditions:
1. Servicing the vehicle
When servicing (i.e. changing the oil, washing your
car) your automobile, the CompuStar system should
be in Valet Mode. There is a safety shutdown switch
under the hood that deactivates the remote starter
function if the hood is open. However, if the switch
has been damaged or the switch has been installed
improperly, the vehicle may start when Button
is pressed for 2 seconds even if the hood is open.
2. Loaning your vehicle to others
Whenever you loan your vehicle to an individual who
is not familiar with Compustar, please put the vehicle
in Valet mode. This will prevent the vehicle barrower
from accidentally activating the CompuStar auto-
security system.
3. For manual transmission vehicles
If the Compustar 1WFM4R is installed in a manual
transmission vehicle, extra precautions are required
because the Compustar does not monitor the gear
shift:
Important! Under normal circumstances,
Reservation Mode is cancelled when a door or
hatchback opens. Please verify if the opening of any
door or hatchback cancels Reservation Mode. If any
of the doors or hatchback are not being monitored by
the CompuStar because of improper installation, or a
faulty dome light switch, do not use the CompuStar
and take your vehicle to the dealer immediately for
repair. Do not set Reservation Mode when the
window(s) are open or if there is anyone inside of the
vehicle including animals.
Remote: 1WFM4R
The model name, 1WFM4R, stands for One Way FM
4 Button Remote.
Remote Button Functions
Button Press
Function
1. .5 sec Lock/Unlock
2. .5 sec Programmable Aux Output
1
3. .5 sec Programmable Aux Output
2
4. .5 sec Query Function
5. 2 sec Auto-start Function - on/off
6. 2 sec Trunk Release – on/off
7. 2 sec Panic, Press I to shut off.
8. .5 sec Siren Chirps – on/off
9. .5 sec Valet Mode – on/off
10. .5 sec Passive Locking – on/off
11. .5 sec Timer Start Mode - on/off
12. .5 sec Turbo Mode – On/Off
User’s Guide Page 2 of 6
13 2 sec Shock Sensor – on/off
10.
- 2 sec Programming Menu 1 –
Installer Only
11. 2 sec Programming Menu 2 –
Installer Only
Note:
Note:
- meand pressing the button for 2 seconds.
( ) means simultaneously pressing the buttons
( ) – means simultaneously pressing the buttons for 2
seconds
Remote Learn Routine
The Compustar will allow up to three remotes to be
programmed to one vehicle. Please perform the
following procedure to add or reprogram additional
remotes.

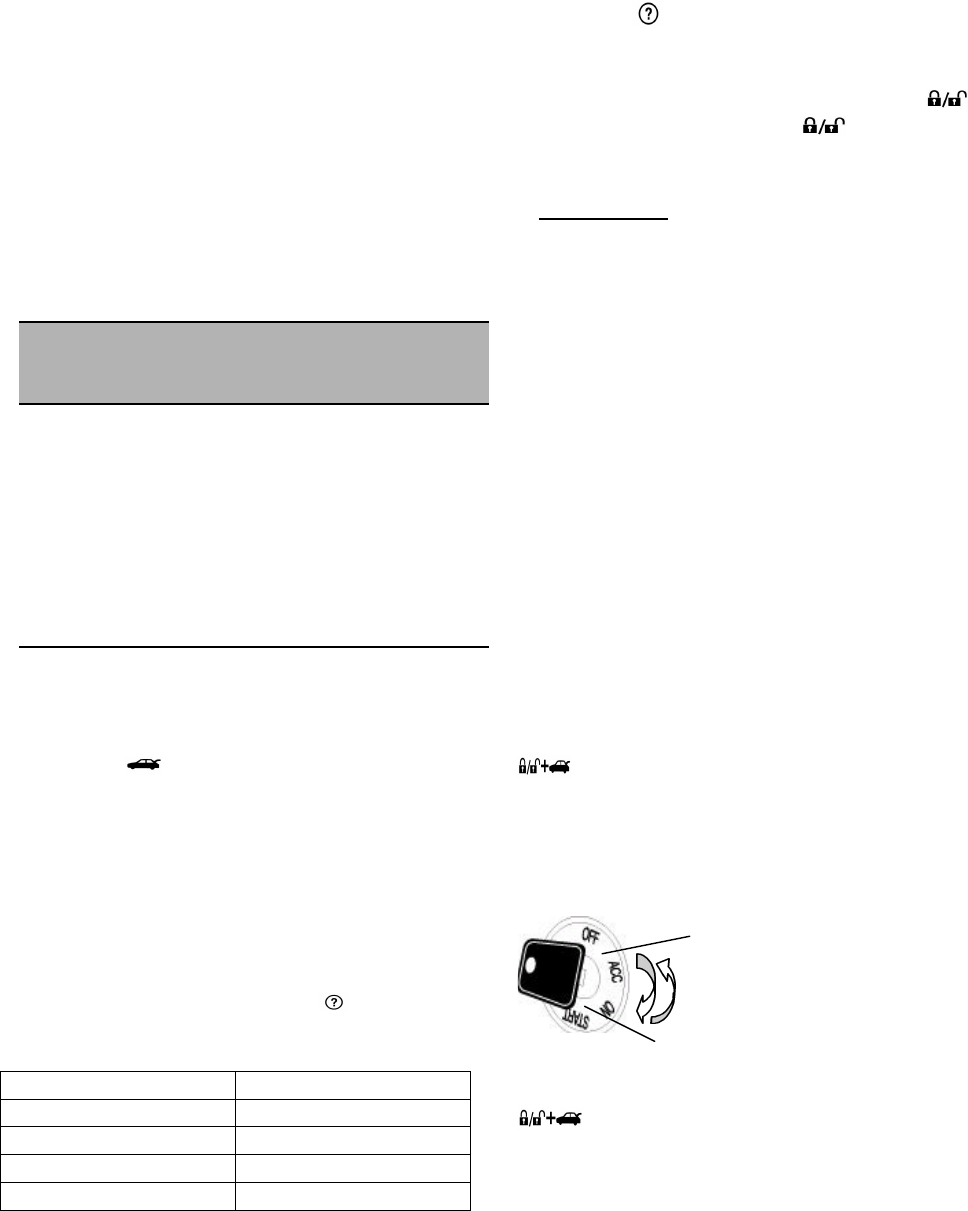

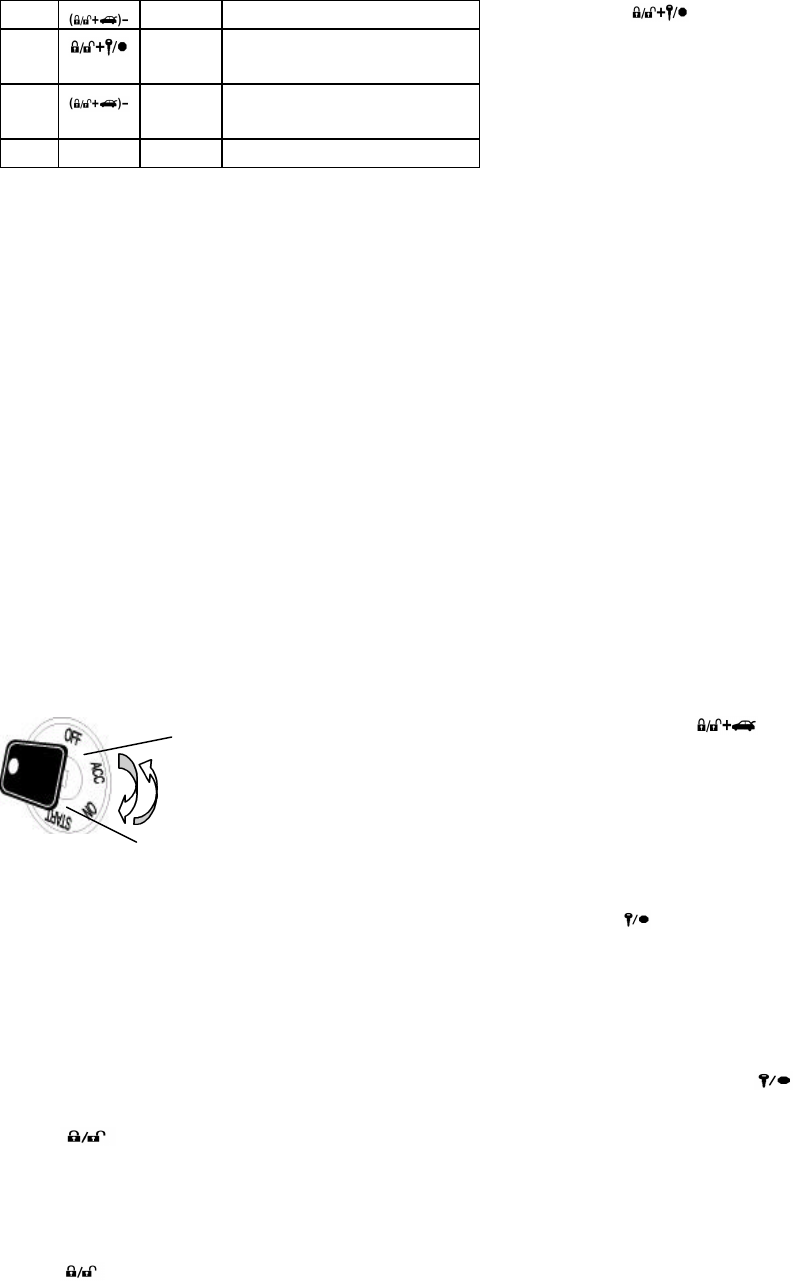

Step 1: Activate Valet/Programming mode by
manually turning the ignition on and off five times
(between Acc and On) with car key within a 10
second period. The parking lights will flash once with
successful completion of this step.
Step 2: Within a 10 second period after cycling the
ignition for the 5th time, press button I ½ sec. The
car parking lights will flash once to confirm that the
transmitter has been programmed. Continue
programming the additional remotes. The parking
lights will flash two times when the programming
mode is expired.
Keyless Entry
You can lock or unlock the vehicle by pressing
Button for a ½ second.
Alarm Mode
You can arm or disarm alarm mode by pressing
Button for a ½ second.
Press Buttons for a ½ second to make your
car siren mute when arming or disarming your vehicle.
Keep in mind that your car siren will still activate for all
other modes (i.e. panic, alarm, shock sensor)
regardless of whether or not your car siren is in mute
mode. The car siren will be mute only when arming
or disarming your vehicle.
In alarm mode, the starter kill function (this maybe
an optional feature provided by your installer) is
activated. This feature disengages the starter
mechanism on your car that prevents you from
starting your car even with a manual key when your
vehicle’s alarm mode is activated.
Note: If you lose your remote after you have armed
the vehicle, use your key to open the vehicle. The
siren will go off. Turn on and off ignition 5 times with
your key to shut off the siren and turn the system into
valet mode. Cancel the valet mode with remote later.
See Valet mode.
Note: (Siren duration is 30 to 60 sec depending on the options set at the
time of initial installation.)
Dual Stage Shock Sensor
• Press Buttons for 2 seconds to
activate or deactivate the dual stage shock
sensor. The dual stage shock sensor will
activate 30 seconds after the CompuStar
alarm mode is armed.
Auto-Start Function
Press Button for 2 seconds to auto-start an
automatic transmission engine.
Remember that actual key in the ignition is required to
drive the car. In addition, the anti-grind circuit (this
maybe an optional feature provided by your installer)
prevents you from re-cranking the starter on a remote-
started vehicle. Press Button for 2 seconds in
order to turn off an auto-started car. For manual
transmission vehicles, please use reservation mode.
Refer to page 3.
The engine will run 15 or 25 minutes (25 or 40 min for
diesel) depending on preset options at the time of
installation, and then shut off. If your vehicle has a
problem starting with the remotestart, the CompuStar
User’s Guide Page 3 of 6
will try 2 additional times. If the engine does not start
after the third attempt, please contact your
authorized CompuStar dealer.
Continuation Mode: (Stop and Go feature)
While your vehicle is running with your key, press
button for 2 seconds, you are now in the
continuation mode. Your engine will continue
running for the preset time even if you take your key
out of the ignition. Example: For that quick in and out
of the vehicle, with out restarting.
Diagnosing problems with Auto-Start
If there is a problem in auto-starting your car, wait for
few seconds and the cause for the error will be
indicated by the number of times the car parking
lights flash.
Error Number (# of times the car
chirps & parking lights flash) Error Reason
1 Engine On
2 Key On
3 Door Open
4 Trunk Open
5 Brake/E-Brake On
6 Hood Open
7 Reservation Off (Manual Transmission
Only)
Reservation Mode (manual
transmission only)
In order to auto-start your manual transmission car,
you must first set the CompuStar system to
Reservation Mode before leaving your vehicle. The
purpose of Reservation Mode is to leave the
transmission gear in the neutral position when you
leave your vehicle. Reservation mode is intended for
use in MANUAL TRANSMISSIONS ONLY and NOT
FOR AUTOMATIC TRANSMISSIONS. Reservation
Mode must be engaged each and every time you
leave your manual transmission car in order to auto-
start the vehicle.
Note: The system is not recommended for vehicles with removable
tops.
Important Requirements to activate Reservation
Mode
• The transmission must be in the NEUTRAL
position.
• The vehicle windows must be rolled up.
• Do not set the reservation mode with people
in the vehicle.
• Do not auto-start the car with people in the
vehicle.
Activating Reservation Mode (MANUAL
TRANSMISSION ONLY)
Step 1: After arriving at your destination, and
BEFORE TURNING YOUR ENGINE OFF, place the
transmission in the Neutral position.
Step 2: Remove your foot from the foot brake.
Step 3: Activate the parking brake.
Step 4: Remove the key from the ignition. The engine
will remain running.
Step 5: Exit the vehicle and close the door within two
minutes after activating the parking brake. The engine
will shut off and reservation mode for the remote
starter is now complete.
Your vehicle is now ready for auto-starting. However,
the reservation mode will be cancelled if the door or
hatch is opened or the CompuStar system is put in
Valet mode after the reservation has been set. Once
cancelled, you will have to start the vehicle with the
manual key and repeat the above 5 steps if you want
to restore reservation mode.
Important! If you try to auto-start the vehicle when
reservation mode has not been set or turned on, the
auto-start feature will not work. When you press the
auto-start button, the car parking lights will flash five
times. A couple of seconds later, the cause for the
error will be indicated by the number of times the car
chirps and parking lights flash. See the following
chart for error messages.
Canceling Reservation Mode
If you do not want to set reservation mode, shut off
the engine before you exit the vehicle. The engine will
shut off for the following reasons:
• You did not activate the parking brake or
press the foot brake when you turned the
manual key to the off position.
User’s Guide Page 4 of 6
• You released the parking brake while the
engine was running.
• You entered Valet Mode after the
Reservation Mode has been completed.
Error Messages
If there is a problem in auto-starting your car, you
will hear three chirps when you attempt to auto-start
the car. Wait for 2 seconds and the cause for the
error will be indicated by the number of times the car
chirps and parking lights flash.
Error Number (# of
times the car parking
lights flash)
Error Reason
1 Engine On
2 Key On
3 Door Open
4 Trunk Open
5 Brake On, Emergency
Brake Released
6 Hood Open
7 Reservation Off (Manual
Transmission Only)
Trunk Release
Press Button for 2 seconds in order to unlock
and release your trunk door. Note that the trunk
release function will not only release the trunk but
will unlock all the doors as well.
Note: This option must be installed.
Query Function
Query Function allows the owner to visually monitor
the status of your car. Press Button for a ½
second to activate the Query Function. You will
notice the parking lights flash as follows:
Parking Lights Flash Arming/Engine Status
Once Armed, Engine Off
Twice Disarmed, Engine Off
Three Times Armed, Engine On
Four Times Disarmed, Engine On
P
anic Mode
Press Button for 2 seconds to enter Panic Mode.
In this mode, the car will arm if not armed already and
the siren will activate and the parking lights will flash.
In order to disengage Panic Mode, press Button
for ½ second. Then, press Button for a ½
second to unlock/disarm your vehicle.
If Anti-Jacking option has been programmed
(ask your dealer if you like to have this option)
and the Ignition-Kill has been installed , the
Panic Mode works as Anti-Jacking if the car key
in the ignition. In Anti-Jacking mode is
activated while key is in the ignition,
a)Siren will go off for 1.5 minutes, and b)
Ignition-Kill will be activated after the first 30
seconds. That is to give warning to the hijacker
for the first 30 seconds and then to disconnect
the ignition after that to stop the vehicle
Valet Mode
While the vehicle is in valet mode, the only features
that will function will be the keyless entry and optional
auxiliary functions.
In order to enter Valet mode, press Buttons
simultaneously for ½ second.. In order to
manually enter Valet Mode, insert your car key into
the ignition and turn the ignition on and off (between
ACC and ON) five times within 10 seconds
You can exit Valet Mode only by pressing Buttons
simultaneously.
Timer Start Mode
In Timer Start Mode, your car automatically starts
every 1.5 or 3.0 hours depending on preset options
during the time of installation for a 24-hour period.
User’s Guide Page 5 of 6
This mode is deleted automatically after 24 hours or
once you start your car with either your manual key
or remote. In order to enter Timer Start Mode, press
Buttons simultaneously for a ½ second.
Please note: Timer Start Mode becomes Cold Start
Mode once an optional temperature sensor is
installed.
Important! Timer Start Mode should be used only in
open areas. Never start and run the vehicle in an
enclosed space such as a garage or carport.
Safety Shut Down Features
CompuStar 1WFM4R system has several safety
shut down features. The following actions will shut
down the engine or prevent the car from auto-
starting:
Opening of the car engine hood, Pressing of the
brake or Valet mode is turned on.
OPTIONAL PROGRAMMABLE
FEATURES
These additional features may be programmed to
the CompuStar system by your authorized
CompuStar dealer.
Ignition Lock
Automatic Transmission Vehicle: This programmable
option enables your vehicle to automatically lock the
doors upon starting the vehicle with a key. In
addition, the vehicle will automatically unlock the
doors upon pulling the key out from the ignition.
This option must be chosen at the time of installation.
Manual Transmission Vehicle or Turbo Mode: This
programmable option will locks the doors with in 5
seconds after starting the vehicle with a key and the
emergency brake is released.
Passive Locking
You can turn this function on or off by pressing
Buttons for a ½ second.
When set to passive locking, your system will lock
automatically 30 seconds after all the car doors are
closed.
Turbo Mode
If this optional Turbo Mode has been programmed
at the time of installation, you can turn this feature
on and off by pressing Buttons .
Under this mode, engine continues running for 2
minutes after key has been taken out from the ignition
if emergency brake was on when the key is taken out.
To utilize this mode, the emergency brake sensing
wire has to be connected to the emergency brake wire
of the vehicle. Consult the authorized dealer for this
mode.
This option is ideal for turbo charged vehicles.
OPTIONAL INSTALLATION
FEATURES
The CompuStar 1WFM4R remote has additional
features and expansion possibilities that require
additional parts and labor.
Cold Start Mode
If the optional temperature sensor has been installed, Timer
Start Mode becomes Cold Start Mode. Under this mode, your car
automatically starts if the temperature of the inside of the vehicle
goes below the preset temperature. The minimum interval
between the starts will be 1.5 or 3.0 hours depending on preset
options during the time of installation. Cold Start Mode is
activated or deactivated by pressing Buttons for a ½
second.
Limited Lifetime Consumer
Warranty
Firstech, Inc Warrants to the original purchaser that this product
shall be free of defects in material and workmanship under
normal use and circumstances for the period of time that the
original owner of this product owns the vehicle in which it is
installed; except that the remote controller unit for the period of
one year from the date of installation to the original owner of this
product. When the original purchaser returns the product to the
retail store where it was purchased or pre-paid postal to Firstech,
Inc., 801 E. 82nd Ave Suite 1 Anchorage, Alaska 99518, USA
within the warranty period, and if the product is defective,
Firstech, Inc, will at its option repair or replace such.
User’s Guide Page 6 of 6
TO THE MAXIMUM EXTENT ALLOWED BY LAW, ANY AND
ALL WARRANTIES ARE EXCLUDED BY THE
MANUFACTURER AND EACH ENTITY PARTICIPATING IN
THE STREAM OF COMMERCE THEREWITH. THIS
EXCLUSION INCLUDES BUT IS NOT LIMITED TO, THE
EXCLUSION OF ANY AND ALL WARRANTY OF
MERCHANTABILITY AND/OR ANY AND ALL WARRANTY OF
FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY
AND ALL WARRANTY OF NON-INFRINGEMENT OR
PATENTS, IN THE UNITED STATES OF AMERICA AND/OR
ABROAD. NEITHER THE MANUFACTURER OF ANY
ENTITIES CONNECTED THEREWITH SHALL BE
RESPONSIBLE OR LIABLE FOR ANY DAMAGES
WHATSOEVER, INCLUDING BUT NOT LIMITED TO, ANY
CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES,
DAMAGES FOR LOSS OF TIME, LOSS OF EARNINGS,
COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY
AND THE LIKE. NOTWITHSTANDING THE ABOVE,
MANUFACTURER DOES OFFER A LIMITED WARRANTY TO
REPLACE OR REPAIR THE CONTROL MODULE AS
DESCRIBED ABOVE. Some states do not allow limitations on
how long an implied warranty will last or the exclusion or
limitation on how long an implied warranty will last or the
exclusion or limitation of incidental or consequential damages.
This warranty gives you specific legal rights, and you may also
have other rights, which vary State to State.
Firstech, Inc. is not RESPONSIBLE OR LIABLE
FOR ANY DAMAGES WHATSOEVER, INCLUDING
BUT NOT LIMITED TO, ANY CONSEQUENTIAL
DAMAGES, INCIDENTAL DAMAGES, DAMAGES
FOR LOSS OF TIME, LOSS OF EARNINGS,
COMMERCIAL LOSS, LOSS OF ECOMONIC
OPPORTUNITY AND THE LIKE that may or may
not resulted from the operation of Compustar. NOT
WITHSTANDING THE ABOVE, THE
MANUFACTURER DOES OFFER A LIMITED
WARRANTY TO REPLACE OR REPAIR THE
CONTROL MODULE AS DESCRIBED ABOVE.
Your Warranty
The product’s warranty is automatically void if its date code or
serial number is defaced, missing or altered. This warranty will
not be valid unless you have completed the registration card
and mailed it to Firstech, Inc., within 10 days after the purchase
to the address listed on the registration card.
Firstech, Inc.
801 E. 82nd Ave.
Bldg. B. Suite 1
Anchorage, AK. 99518
888-820-3690
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received. Including interference that may cause
undesired operation.
CAUTION : Changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate this device.
WARRANTY REGISTRATION
Name:________________________________.
Address:________________________________
____________________________________.
City:_________________. State____________.
Zip:__________________.
Place of purchase:_______________________.
Date of Purchase:_______________________.
Model Number:________________________.
Purchase Price:_________________________.
Vehicle Make:_________________________.
Model:_______________________________.
How did you hear about CompuStar? (ie:Trade
publications, Internet, Dealership, Friend, etc.)
_______________________________________
_______________________________________
_______________________________________
_______________________________________
_______________________________________
_______________________________________
_______________________________________
_______________________________________
_______________________________________
____________________________.
