USER’S GUIDE
R1900
One-Way AM Remote
YoungShin Elc.
www.magicar.com
USER’S GUIDE
R1900
FCC ID : O44JR5120AMSH
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
CAUTION :
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate this device.
One-Way Remote Owner's Manual
2
TABLE OF CONTENTS
Safety Information....................................................... 3
Remote Button Functions
............................................. 4
Remote Learn Routine
................................................. 4
Reservation Mode
........................................................ 5
Valet Mode
.................................................................. 6
0.5
0.5
0.5
0.5
2
2
3.5
0.5
0.5
0.5
0.5
0.5
2
2
2
One-Way Remote Owner's Manual
4

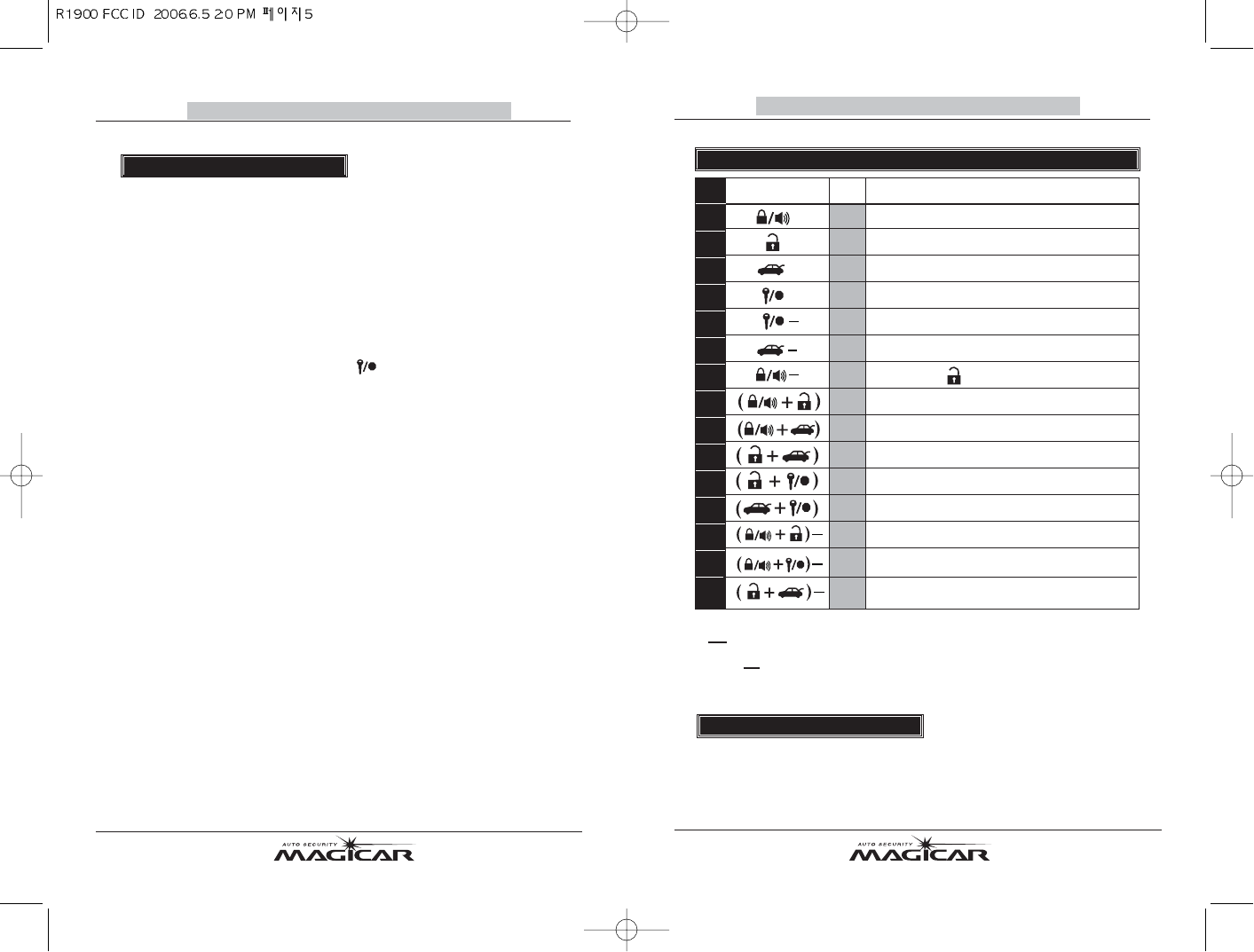

Remote Button Functions
Unlock
Auxiliary Option 1
Auxiliary Option 2
Auto -start Function - on/off
Trunk Release
Panic, Press to shut off.
Horn - on/off
Valet Mode - on/off
Passive Locking - on/off
Timer Start Mode - on/off
Turbo Mode - on/off
Programming Menu 1- Installer Only
Programming Menu 2- Installer Only
Button
Press
(sec)
Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Lock. If held for 3.5 seconds, it will panic the system.
Please take these safety precautions into consideration under the fol-
lowing conditions :
1. Servicing the vehicle
When servicing your automobile (i.e. changing the oil, washing
your car), the
MAGICAR
system should be in Valet Mode.
There is a safety shutdown switch under the hood that deactivates
the remote starter function if the hood is open. However, if the
switch has been damaged or the switch has been installed improp
erly,the vehicle may start when the button is pressed for
2 seconds, even if the hood is open.
2. Loaning your vehicle to others
Whenever you loan your vehicle to an individual who is not familiar
with
MAGICAR
, you may want to put the vehicle in Valet mode.
This will prevent the borrower from accidentally activating the
MAGICAR
auto-security system.
3. For manual transmission vehicles
If the
MAGICAR
is installed in a manual transmission vehicle, extra
precautions are required because the
MAGICAR
does not monitor
the gear shifter :
Important!
Under normal circumstances, Reservation
Mode is cancelled when a door or hatchback opens. Please verify
that the opening of any door or hatchback cancels Reservation
Mode. If any of the doors or hatchback are not monitored by the
MAGICAR
because of improper installation or a faulty dome light
switch, do not use the
MAGICAR
and take your vehicle immediate-
ly to the dealer for repair.
Do not set Reservation Mode if the window(s) are open or if there
is anyone inside the vehicle, this includes animals. Remote start
installation in a manual transmission vehicle with a convertible top
is not recommended.
One-Way Remote Owner's Manual
Safety Information
3
The MAGICAR system will allow up to three remotes to be programmed to
one vehicle, and each remote can be programmed to two vehicles. Please per-
form the following procedure to add or reprogram new or existing remotes.
Remote Learn Routine
Note :
"" :Means, to press the button for 2 seconds.
"
()
" : Means, to simultaneously press the buttons.
"
()
" : Means to simultaneously press the buttons for 2 seconds.
2nd car for 30 Seconde
One-Way Remote Owner's Manual
6
Important Requirements to activate Reservation Mode
- The transmission must be in the NEUTRAL position.
- The vehicle windows must be rolled up.
- Do not set the reservation mode with people in the vehicle.
- Do not auto-start the vehicle with people inside it.
Activating Reservation Mode
(
MANUAL TRANSMISSION ONLY
)
Step 1
:
After arriving at your destination, and
BEFORE TURNING YOUR ENGINE OFF, place the
transmission in the Neutral position.
Step 2
:
Activate the parking brake.
Step 3
:
Remove your foot from the foot brake.
Step 4
:
Remove the key from the ignition, and the engine will
remain running.
Step 5
:
Exit the vehicle and close the door within two
minutes after activating the parking brake. The engine will
shut off and reservation mode for the remote starter is now
complete.
One-Way Remote Owner's Manual
5

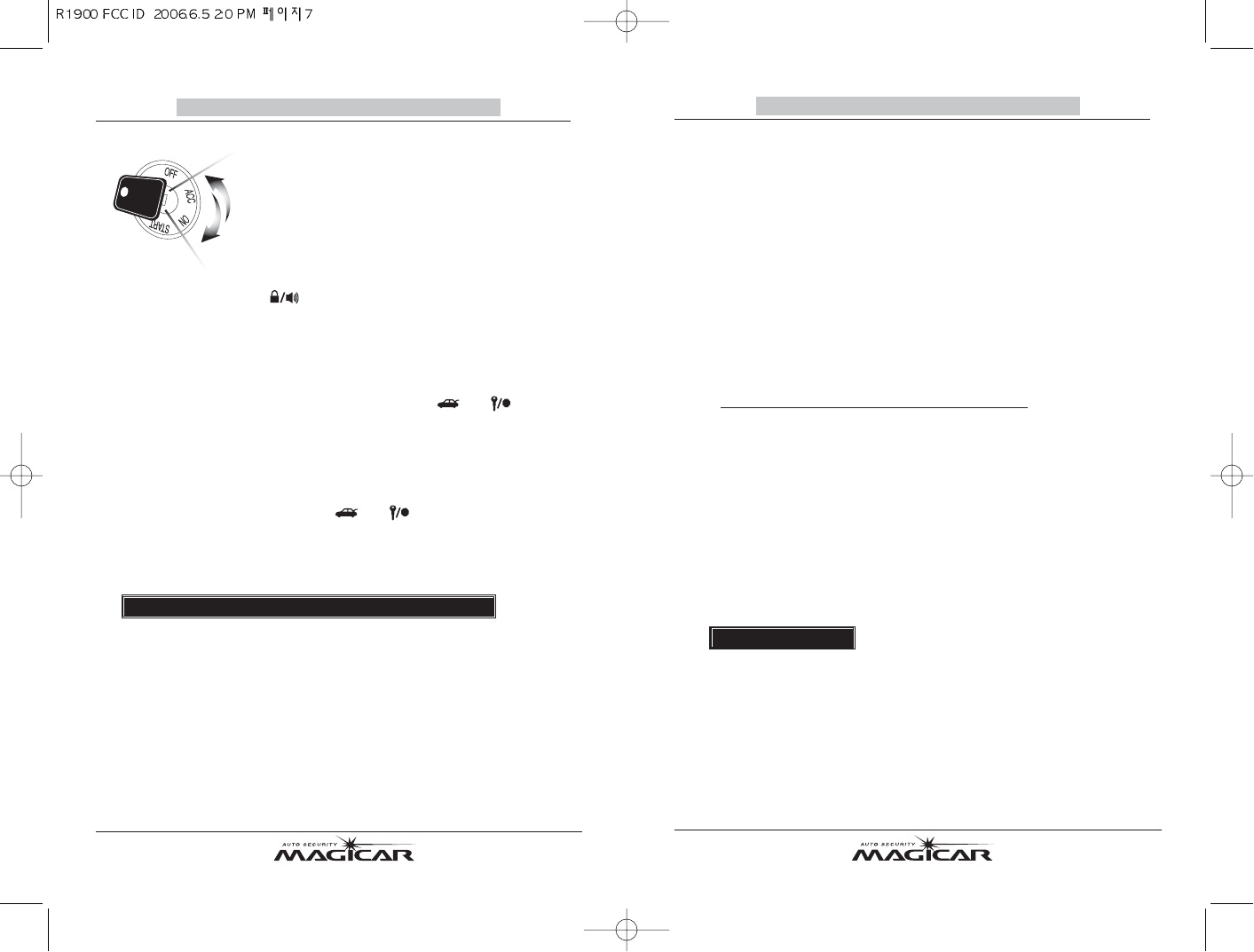

Step 1: Activate Valet/ Programming mode by man-
ually turning the ignition on then off (between Acc and
On) five times within seven seconds. The parking
lights will flash once with successful completion of
this step.
Step 2
:
Within a seven second period after cycling the ignition for
the 5th time, Press the button for a 1/2second. The vehicle
parking lights will flash once to confirm that the transmitter has been
programmed. You can continue programming the additional remotes at
This Time. The parking lights will flash two times when the program-
ming mode has expired.
In order to auto-start your manual transmission vehicle, you must first
set the MAGICAR system to Reservation Mode before leaving your
vehicle. The purpose of Reservation Mode is to leave the transmission
gear in the neutral position when you leave your vehicle. Reservation
mode is intended for use on MANUAL TRANSMISSIONS ONLY
and NOT FOR AUTOMATIC TRANSMISSIONS. Reservation Mode
must be engaged each and every time you leave your manual transmis-
sion vehicle in order to auto-start it.
Reservation Mode (manual transmission only)
Note :
The system is not recommended for manual transmis-
sion vehicles with removable or convertible tops.
While the vehicle is in valet mode, the only features that will function
will be the keyless entry and optional auxiliary functions. In order to
enter Valet mode, press thebuttons simultaneously for a 1/2second.
In order to manually enter Valet Mode, insert your key into the igni-
tion and turn the ignition on and off
(between ACC and ON)
five times
within 7 seconds
Valet Mode
To program remote to a secondary vechicle, press the and buttons
simultaneously for 2.5 senconds. The LED on the remote will begin to flash
once every two seconds, for 30 seconds. This is the 2nd car mode. During this
time you can perform the above programming steps on the vehicle you wish to
use as the secondary vehicle.
To activate 2nd car mode, press the and buttons simultaneously for
2.5 seconds. The LED on the remote will begin to flash once every two seconds,
for 30 seconds. During this time, you can use the remote to control the function
of the secondary vehicle.
One-Way Remote Owner's Manual
8
One-Way Remote Owner's Manual
7
Safety Information.
You can exit Valet Mode only by pressing
buttons simultaneously for 1/2
second.
Trunk Open
Brake On
Hood Open
Reservation Off (Manual Transmission Only)
1
2
3
4
5
6
7
Engine On
Key On
Door Open

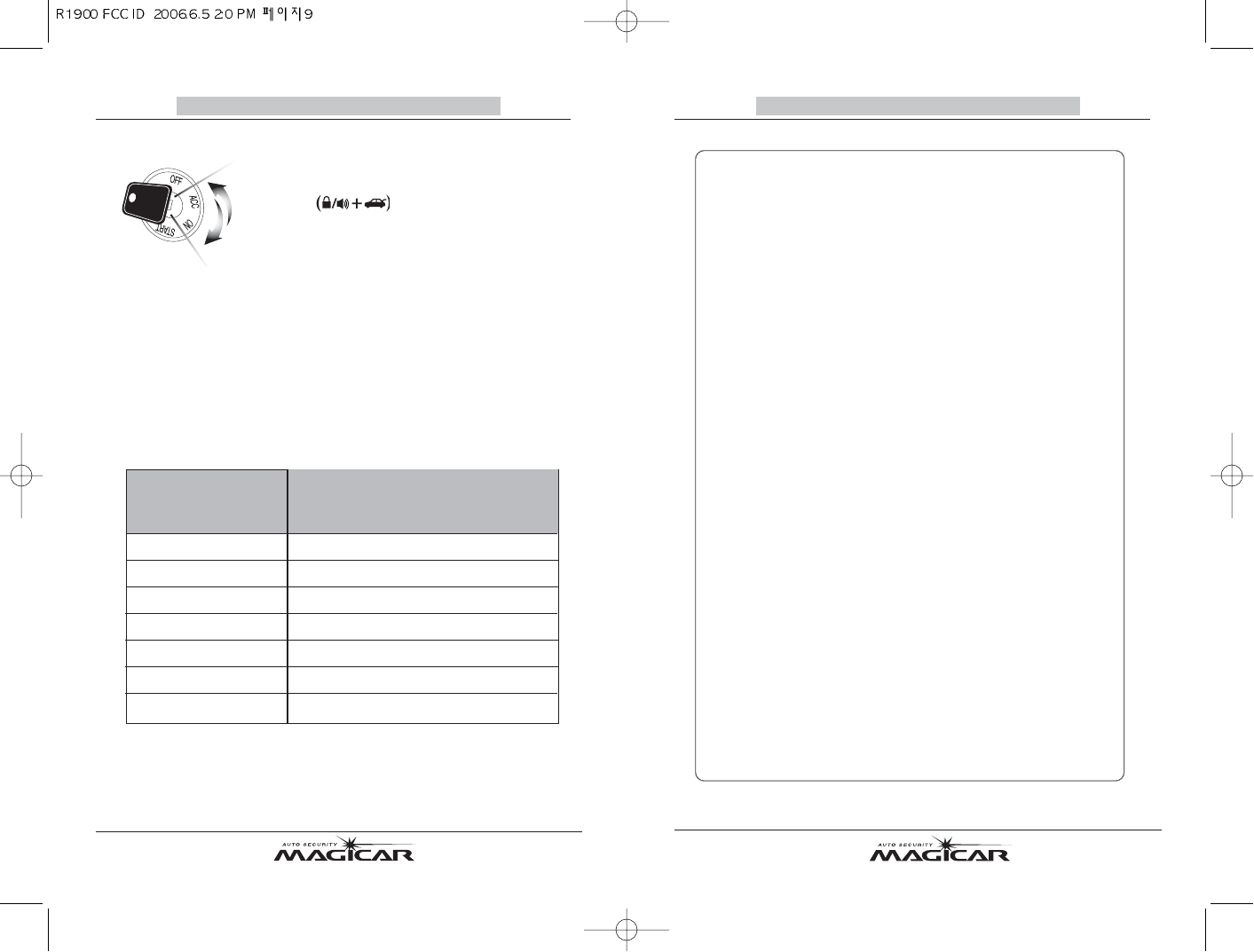

Diagnosing problems with Auto-Start
If there is a problem in auto-starting your vehicle,the the MAGICAR
system will do one of two things; if it fails for any of the reasons
listed in the table below, it will flash the parkinglights three times
then flash the error number. Otherwise, it will attempt to start the
vehicle three times. If, after three times, the vehicle will not start or
stay running, the the MAGICAR system will shut down. In either
case, please see your istaller to resolve the situation.
Error Number
( # of times the car chirps
& parking lights flash )
Error Reason
