Getting Started
This guide has been designed to help familiarize you with the features and functions of
the Kickstand 11 Draw, and get you ‘up-and-running’ as soon as possible. Once you’re
online, visit www.nuvision.com to register your tablet, and access more information to
optimize your NuVision experience.
3

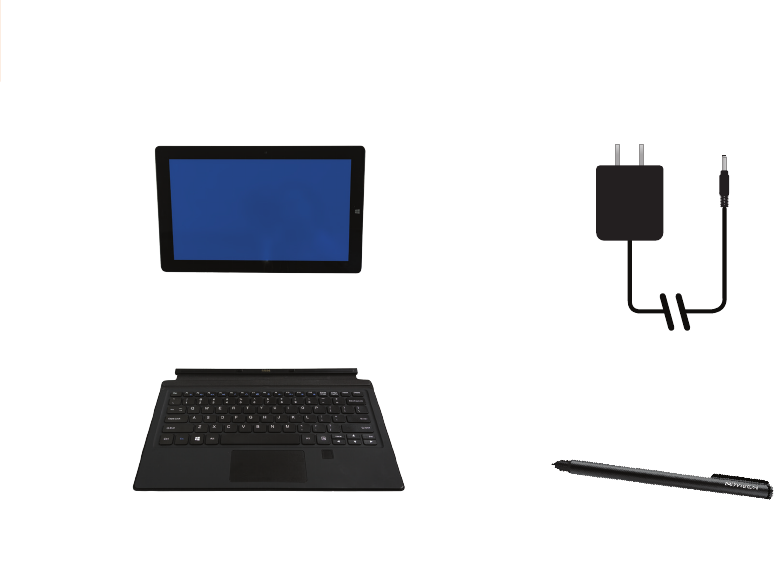

Check Package Contents
Tablet
Keyboard / Cover
AC/DC Adapter
Digital Pen &
(1) AAAA Battery
4
Tablet Overview
5
4
6 7 8
10
12
13
2 1
14
9
11
3
1 2
5
1Kickstand Pull Holds
2Speaker
3Micro TF Memory Card Slot
4USB 2.0
53.5mm Headphone Jack
6Front Camera Lens
7Volume (+/-)
8Power Button
9A/C Adapter Connection
10 Micro USB
11 Micro HDMI Port
12 USB 3.0
13 Windows Button
14 Keyboard Dock Connection
15 Rear Camera Lens
16 Kickstand (Use Pull Holds to
adjust stand height.)
15
16
BACK with KICKSTAND
6
Keyboard Overview
1Function Key
2Track Pad
3Fingerprint ID Scanner
4Open Active Menu
5Magnet (Attaches to front
of Tablet when Keyboard is
connected.)
6Keyboard Dock Connection
1 2
6
5
3
4
Pen Overview
7
1Tip
2Pen Head
3Eraser Button
4Alt Button (Mouse Right-Click)
5Clip
6Pen Back
7AAAA Battery (Inserts Positive
end towards the Tip)
8Use Pen Replacement Tool to
remove/replace Tip
1
24
5
6
7
38
8

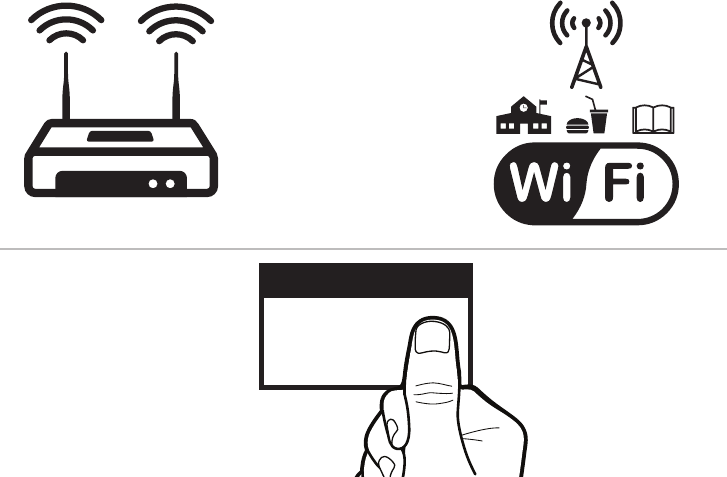

To Connect to the Internet, you will need:
or
and
NAME (SSID): XXXXXX
WIFI INFO
PASSWORD: XXXXXX
(Home WiFi Router)
9
• A Home WiFi Router OR a publicly-available WiFi signal
(ie., In a library, coffee shop or school.)
• The Network Name (SSID) and Network Security Key
(ie., Password) for the Internet Connection.
10
Charge the Tablet
1
11

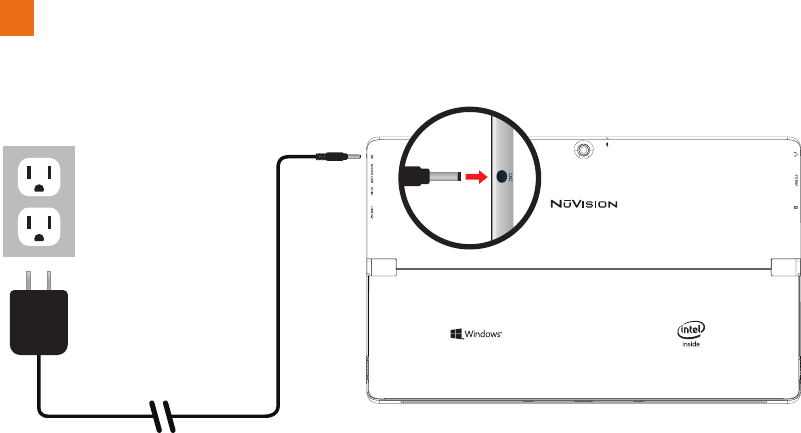

Connect the AC/DC power adapter to a wall outlet, then to
the tablet’s DC port as shown. A blue light above the DC port
will indicate that the tablet is charging.
It is recommended to fully charge the battery before first use.
Typical battery charge time is between 4-6 hours.
Note: It is normal for the tablet to become warm while charging.
12
Connecting the Tablet and Keyboard
Your tablet features a specially-designed magnetic hinge that attaches and secures the
tablet and keyboard together, enabling quick and easy docking.
1. Dock Port
Connect the 5-pin magnetic dock port
to support the keyboard.
2. Hinge Tabs
Align and insert tabs into their
respective slots in the tablet.
2
1
13

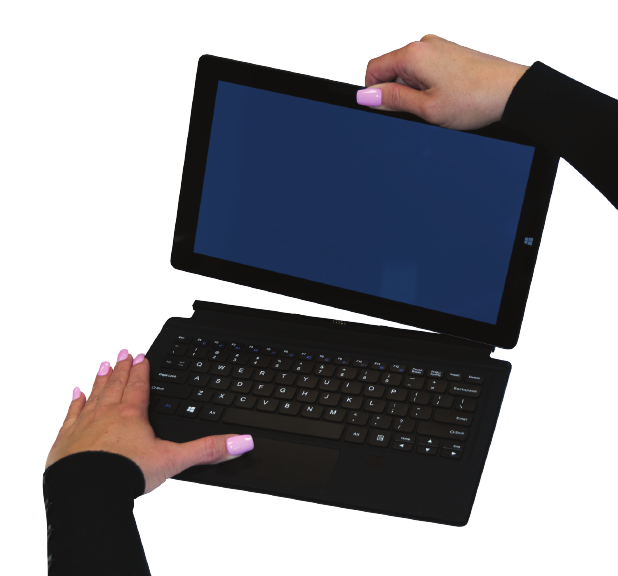

Undocking the Tablet
Firmly grasp the
tablet and secure the
keyboard at the same
time, then gently pull
up on the tablet.
5
Seconds
14

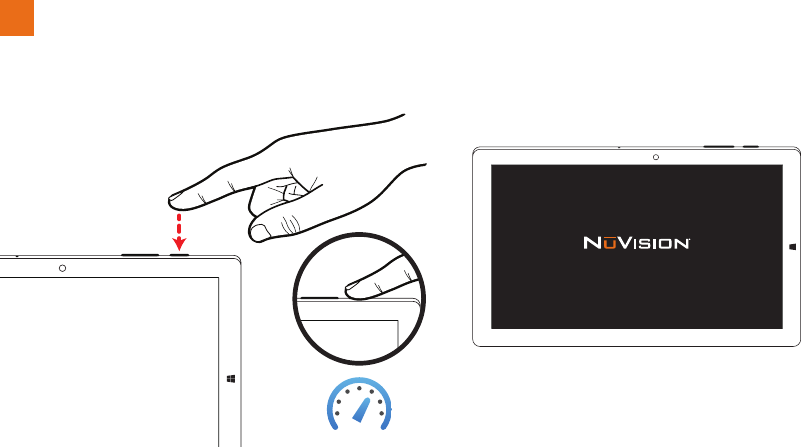

Turn-on the Tablet and follow the prompts.
14
2
15
Hi there.
Select a WiFi Network and type-in the Password
or
Select ‘skip this section’ at the bottom of the list.
You’ll be able to connect later (See page 18)
3
Use the Setup Wizard
During the setup process,
you will be able to:
• Create a Microsoft account
• Personalize the unit
• Establish a Password.
16
Familiarize yourself with Windows.
(Shown here in Tablet Mode, with live tiles.)
3
15
6 7
5
1
2
3
4
8
12
910 11 13 14
17
1Select Pinned tiles or All apps menu
2Account Settings: Change account settings or Sign out.
3Windows Settings : View and adjust settings for the System, Internet, Security, etc.
4Power: Sleep, Shut down or restart the system.
5Windows: Return to Home screen. (Desktop Mode) View Apps menu and pinned tiles.
6Go to Previous screen
7Activate Cortana
8Task View: View active windows.
9Battery: Shows battery level.
10 WiFi: View network settings or activate Airplane mode.
11 Volume: Adjust volume level.
12 Windows Ink Workspace: Opens menu featuring Windows Ink apps.
13 Keyboard: While in Desktop Mode, tap or click to use the virtual keyboard.
14 Date & Time: Adjust settings.
15 Action Center: Opens the Action Center menu.

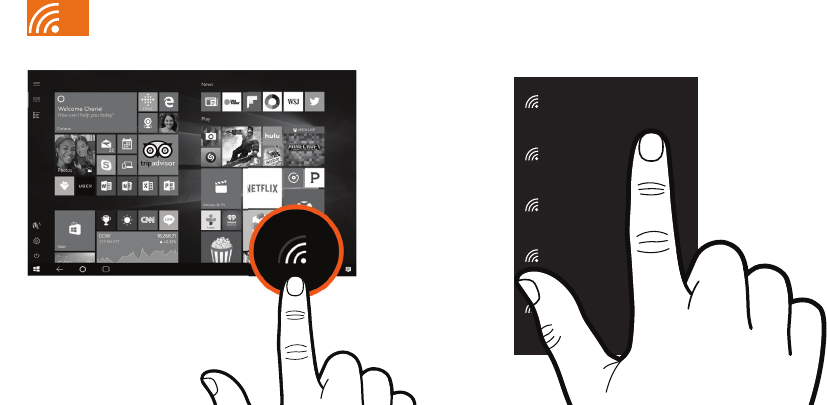

Tap on the WiFi icon, and a menu will appear with all available
WiFi signals. Look for and select the Network Name in your
WiFi listing, on your tablet.
MyHomeRouter
Secured
MySmartphone
Secured
Private
Secured
CoffeeShop WiFi
Secured
LibraryInternet
Secured
18
Connecting to the Internet
4
19
MyHomeRouter
Secured
Connect Automatically
MySmartphone
Secured
Private
Secured
CoffeeShop WiFi
Secured
LibraryInternet
Secured
Connect
MyHomeRouter
Secured
Enter the Network Security Key
You can also connect by pushing the button on
the router.
MySmartphone
Secured
Private
Secured
CoffeeShop WiFi
Secured
LibraryInternet
Secured
••••••••
Select Connect. If a Network Security Key is required,
tapping on the input window will open a keyboard
(in ‘Tablet Mode’) to use for typing the information.
See page 8 for information on finding your Network Name
and Network Security Key (ie., Password).

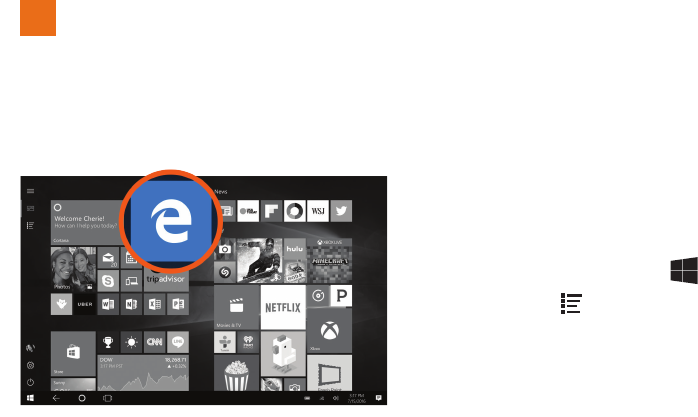

Once you have a WiFi connection, you can go to the internet
using the Microsoft Edge Browser.
Tip: If you don’t see the Edge
icon on your desktop, tap on
the Windows logo > All
apps Icon and scroll down
the list until you see “Edge”.
20
Connecting to the Internet
5
21
Visit Nuvision online! 6
NuVision.com is your online resource for:
• Product Registration
• Frequently-Asked Questions (F.A.Qs)
• Information and tips on how to best use your tablet.
• Customer Service Chat & email.
www.NuVision.com
& shopNuVision.com
22
Apps Menu
23
Tap on the ‘All apps’ icon in the Windows menu to open a
list of all your tablet’s available apps.
To make an app available as a tile on the Start screen
(“Pin to start”), press and hold the app ‘tile’ for 2 seconds,
then release and select “Pin to start” from the app’s menu.
24 24
Chat @ www.NuVision.com
www.nuvision.com/support
Phone:
(800) 890-1288
Hours: 8:30am to 5:30pm PST M-F
Email: cs@nuvision.com
Customer Service
Register your tablet today at www.nuvision.com
