User Manual

Coolpad Catalyst
User Manual
www.coolpad.com/us
Table of Contents
HELLO FROM COOLPAD 1
TRADEMARKS AND COPYRIGHTS 1
GETTING STARTED 2
Device layout 2
Main keys 3
Charging the battery 3
Power phone on & off 3
SIM or USIM card 5
Touch screen 7
Home screen 8
SETTINGS 10
Sound settings 10
Display settings 10
Taking screenshots 10
Location settings 10
Notifications and Quick Settings panel 11
Data and privacy management 12
Operating the alarm 14
Managing your downloads 14
Optimizing the battery life 15
Wireless settings 15
Bluetooth settings 17
APPS 20
Phone 20
Contacts 22
Messaging 23
Email 24
Calendar 26
Camera 27
Photos 28
Google apps 28
STAY CONNECTED & GET UPDATES 29
Specs & hardware 30
In-box contents 31
Declaration of hazardous substances 32
SAFETY AND WARRANTY INFO 33
Important health information and safety
precautions 33
TIA safety information 43
Safety information 47
FDA consumer update 53
Nine driver safety tips 63
Consumer information on SAR 67
Standard limited warranty 75
1
Hello from Coolpad
Thank you for purchasing your Coolpad Catalyst
mobile phone! Please follow these simple but
important instructions for optimal use of your new
phone:
Notice: Products or services of the vendor or carrier
are subject to change within this User Guide without
prior notice.
Application features and functions may vary among
countries, regions or hardware specifications, and
any third-party application malfunctions are the
responsibility of those manufacturers.
Exercise caution when editing User Registration
Settings as this may cause functional or compatibility
problems for which Coolpad will not be responsible.
We offer self-service for our smart terminal device
users. Please visit the Coolpad Americas official
website (at www.coolpad.com/us/) for more
information on supported product models. Information
on the website takes precedence.
Trademarks and Copyrights
Coolpad and the Coolpad logo are registered
trademarks of Yulong Computer Telecommunication
Scientific (Shenzhen) Co., Ltd.
Google and Android are trademarks of Google Inc.
Other trademarks and trade names are the property
of their respective owners.
Note: Pictures shown are for illustration only and do not
represent actual devices.
2
Getting Started
Get off to a running start with your new Coolpad
Catalyst!
Device layout
Light/promixity
sensor
Headset jack
Receiver
Volume key
Power key
Back
Front camera
Recents
Rear camera
Speaker
Flash
USB port
3
Main keys
Key
Function
Power
Press and hold to turn your
phone on or off.
Press to turn on or lock the
screen.
Recents
Tap to open the list of recent
apps.
Home
Tap to return to the Home
screen.
Tap and hold to activate
Google Search.
Back
Tap to return to the previous
screen.
Volume
Press to adjust the phone
volume.
Charging the battery
1. Connect one end of the data cable to the USB
port. This is located on the lower right side of
your phone.
2. Connect the other end to the travel adapter.
3. Connect the travel adapter to an electrical outlet
to fully charge your phone.
Use the travel adapter that comes with
your phone; using other adapters may
damage your phone.
Charging your phone through a USB cable
that is attached to a laptop takes more time
than charging it with the travel adapter.
Power phone on & off
The Power key is located on the upper,
4
right-hand side of your phone. Press and hold
the Power key for a few seconds to turn on your
phone.
To turn off your phone, press and hold the
Power key for the menu to pops up, and then
select Power off.
5

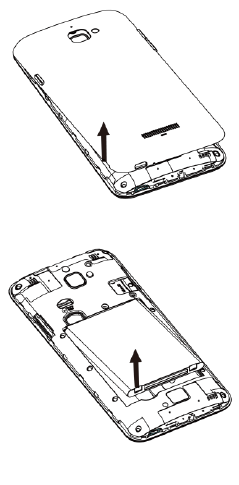

SIM or USIM card
1. Open the back cover.
2. Remove the battery.
6

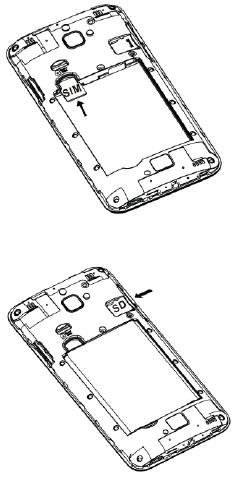

3. Insert the SIM card.
4. Insert the SD card.
7
Touch screen
Tapping: To open an app, to select
a menu item, to press an on-screen
button, or to enter a character using
the keyboard on the screen, tap it
with your finger.
Tapping and holding: Tap and hold
an item or the screen for more than 2
seconds to access available options.
Dragging: To move an item, tap
and hold it and drag it to the target
position.
Double-tapping: Double tap on
an image to zoom in. Double tap again
to return.
Swiping: Swipe to the left or right on the
Home screen or the Apps screen to view
other panels.
Spreading and pinching: Spread two
fingers apart on a map or image to
zoom in a part. Pinch to zoom out.
8
Home screen
Basic layout
Customizing your Home screen
The Home screen displays widgets, favorite apps,
and more. To view other panels, swipe to the left or
right, or tap one of the screen indicators at the bottom
of the screen.
On the Home screen, tap and hold an empty area to
access the available options including changing
wallpaper settings and add widgets.
To add an app, tap and hold it from the Apps
screen, and then drag it to the Home screen. To
add widgets, tap and hold an empty area on the
Home screen, tap Widgets, tap and hold a
widget, and then drag it to the Home screen.
Screen
indicator
A widget
Status bar
App
folder
Apps screen
9
To move an app, tap and hold an item on the
Home screen, and then drag it to a new location.
To move the item to another panel, drag it to the
side of the screen.
To remove an item, tap and hold the item. Then,
drag it to Remove at the top of the screen.
To create a folder, tap and hold an app, and
then drag it over another app; drop the app
when a folder frame appears around the apps; a
new folder containing the selected apps will be
created. To add more apps to the folder, tap and
hold another app, and then drag it to the folder.
Screen-lock security options
To lock your phone, press the Power key (on
the phone’s right side) briefly, and let go.
To unlock, press Power key to turn on the
screen, let go and slide the Padlock icon up.
10
Settings
Sound settings
On the Home screen, tap > to enter
Settings screen. Then, choose Device > Sound &
notification.
Drag the slider to adjust the Media volume, Alarm
volume, or Ring volume. You can also adjust the
Ring volume by pressing the Volume key on the left
side of your phone.
Tap Phone ringtone. Choose a desired ringtone for
your phone.
Display settings
On the Home screen, tap > > Device >
Display to change the brightness or font size settings
and customize the wallpaper on your phone.
Taking screenshots
1. Focus on the image displayed on your phone
screen.
2. Press the Power key and lower Volume key
at the same time. Release until image saved.
3. The image will be auto-saved in Photos.
Location settings
On the Home screen, tap > to enter
Settings screen. Then, choose Personal > Location.
On the Location screen, you can perform the
following operations:
1. Turn on or off the location service.
2. Set Location mode to High accuracy, Battery
saving, or Device only.
11
3. View recent location requests.
4. View location services.
Notifications and Quick Settings
panel
Notifications alert you to the arrival of new messages,
calendar events, and alarms, as well as ongoing
events.
When a notification arrives, its icon appears at
the top of the screen. Icons for pending
notifications appear on the left, and system
icons showing things like the WLAN signal,
mobile carrier signal, or battery strength are on
the right.
Swipe down from the top of your phone screen
to open the notification panel and view details.
When you’re finished with a notification, swipe it
away. To dismiss all notifications, touch at
the bottom right of the notifications list.
Use Quick Settings to easily get to frequently used
settings, like turning on airplane mode. To access the
Quick Settings panel, swipe down from the top of
your phone screen twice with one finger or once with
two fingers.
To change a setting, just touch the icon:
WLAN network: Turn WLAN on or off. To
open WLAN settings, touch the WLAN network
name.
Bluetooth settings: Turn Bluetooth on or off.
To open Bluetooth settings, touch the word
“Bluetooth”.
Cellular data: See cellular usage data and
turn it on or off.
12
Airplane mode: Turn airplane mode on or
off. Airplane mode means your phone won’t
connect to WLAN or a cell signal, even if one is
available.
Auto-rotate: Lock your device’s orientation
in portrait or landscape mode.
Flashlight: Turn the flashlight on or off.
Location: Turn the location service on or
off.
Display brightness: Slide to lower or
increase the brightness of your screen.
Data and privacy management
USB file transfer
With a USB cable, you can transfer pictures, music,
and other data files between your Coolpad Catalyst
phone and your computer.
1. Connect your phone to the computer’s USB port.
13
Its USB storage drive will appear on the
computer screen.
2. Transfer files between your phone and the
computer.
3. When transfer completed, eject the phone from
Windows before unplugging the USB cable.
Privacy settings & accounts
Perform either of the following operations:
On the Home screen, tap > to enter
Settings screen. Then, choose Personal >
Accounts > Google > Search > Accounts &
privacy.
Note: These settings control your phone’s Google
Search privacy features and search-related
confidentiality selections for your Google
account.
If you have multiple Google Accounts, you can
add others later from Settings > Personal >
Accounts. You can also add guest users in
Settings > Device > Users.
Data usage settings
On the Home screen, tap > to enter
Settings screen. Then, choose Wireless &
networks > Data usage.
Cellular data: Set your phone to use data
connections on any cellular network
Set cellular data limit: Set a limit for cellular
data usage.
You may limit the cellular data usage by following
steps:
1. Drag the slider for Set cellular data limit to the
right.
2. Drag the limit adjustment bar upwards or
downwards to set the limit.
3. Drag the warning adjustment bar upwards or
14
downwards to set a data usage alert level. Your
phone will alert you when the warning level is
reached.
Operating the alarm
On the Home screen, tap > to enter Clock
screen. Then, tap to switch to the Alarm tab.
Tap and the time displayed to set your
alarm.
Once your alarm is set, you may add a label to
it.
Tick the Vibrate check box and choose your
ringtone from the Cesium pop-up screen.
Managing your downloads
On the Home screen, tap > to enter
Downloads screen.
You can download files from Gmail or other
areas.
On the Downloads screen, tap an item to open
it.
Tap and hold an item until appears, and
then tap it to share the item through one of the
many sharing methods.
Tap and hold an item until appears, and
then tap it to delete the item.
Tap > By name, By date modified, or
By size to sort the downloaded items.
15
Optimizing the battery life
On the Home screen, tap > to enter
Settings screen. Then, choose Device >
Battery.
Here you may monitor how apps, other data and your
phone system all consume battery power.
Prolong your phone battery life by turning on
Battery saver. On the Battery screen, tap
and then tap Battery saver, drag the slider to
On. Battery saver turns off automatically when
your phone is charging.
The usage time left shows the time remaining
before the battery power runs out. Usage time
left may vary depending on your device settings
and operating conditions.
Wireless settings
Connecting to a WLAN network
1. On the Home screen, tap > to enter
Settings screen. Then, choose Wireless &
networks > WLAN to turn WLAN on/off.
2. Drag the slider to On enabling your phone to
scan for available WLAN networks.
3. Tap the name of a desired network to connect,
entering the password if necessary.
Previously connected and saved networks, will
be automatically joined, a user can join a
network and forget it, removing it from the
known networks list.
To add a network
1. Tap at the top right corner of the WLAN
settings screen. Then tap Add network in the
pop-up window.
16
2. Enter the SSID network name and select the
correct security mode.
3. Tap SAVE.
Once the phone connects to a WLAN network,
the phone will reconnect to that network each
time it is available without requiring a password.
To prevent the phone connecting to the network
automatically, select it from the list of networks
and tap FORGET.
Setting advanced WLAN options
On WLAN settings screen, tap > Advanced.
You will be notified whenever a public network is
available. If you do not want to be notified, drag the
slider for Network notification to the left.
To save your phone’s data usage, your phone will
remain connected to WLAN when your screen
sleeps.
Airplane mode
On the Home screen, tap > to enter
Settings screen. Then, choose Wireless &
networks > More > Airplane mode.
This mode is used to disable all radio communication
in the device, WLAN, BT, and Cellular. This mode
allows the user to keep the device enabled and use
other applications which do not require RF signals.
17
Bluetooth settings
Bluetooth has the capacity to connect several mobile
devices at once, enabling superior synchronization
while reversing challenges and problems that would
otherwise occur. Use Bluetooth to maximize
awesome phone capabilities and functions of your
Coolpad Catalyst.
Turning Bluetooth on/off
On the Home screen, tap > to enter
Settings screen. Then, choose Wireless &
networks > Bluetooth to turn Bluetooth on/off.
Changing your phones Bluetooth
name
Your phone contains a random Bluetooth name which
will be visible to other Bluetooth devices during
connection attempts. You can change the random
name to a more identifiable one.
1. On the Home screen, tap > to
enter Settings screen. Then, choose Wireless
& networks > Bluetooth to turn Bluetooth on.
18
2. On the Bluetooth settings screen, tap >
Rename this device.
3. Enter a new name and tap Rename.
Pairing your phone with a
Bluetooth device
When initially using a new Bluetooth device, it will be
necessary to pair it with your phone, which is crucial
in order to connect.
Now both devices save the connected record and will
auto-connect for you next time. If the device to pair
with is not contained in the list, ensure that it is turned
on and that it is set to be detectable.
1. On the Home screen, tap > to
enter Settings screen. Then, choose Wireless
& networks > Bluetooth to turn Bluetooth on.
2. Your phone will begin searching for nearby
Bluetooth devices.
3. If your phone stops scanning before your
Bluetooth device is ready, tap >
Refresh.
4. Within the list, tap the ID of the Bluetooth device
so as to pair with it.
5. Ensure that both devices show the same
passkey and tap Pair.
Connecting to a Bluetooth device
Now that your phone is paired with a Bluetooth device,
they can be connected manually.
1. On the Home screen, tap > to enter
Settings screen. Then, choose Wireless &
networks > Bluetooth to turn Bluetooth on.
2. Within the devices list, tap a paired and
unconnected device.
3. The list will indicate that the device and the
phone are connected.
19
Unpairing or aligning a Bluetooth
device
Some Bluetooth devices have multiple profiles.
Profiles can include the ability to transmit your
conversations, play music in stereo, or transfer files
or other data.
You can select which profiles you want to use with
your phone. You can also change the name of the
Bluetooth device as it appears on your phone.
1. On the Home screen, tap > to
enter Settings screen. Then, choose Wireless
& networks > Bluetooth to turn Bluetooth on.
2. On the Bluetooth settings screen, tap next
to the connected Bluetooth device which you
are configuring.
3. Enter a new name and tap OK to change the
name, tap Forget to unpair it.
20
Apps
Phone
Making a call
On the Home screen, tap at the bottom or tap
> to enter Phone screen.
1. Enter a phone number in the keypad to make a
call. If the keypad does not appear on the
screen, tap to open it.
2. Tap to enter Phone screen, and then
choose someone to call from your contacts list.
To choose someone to call scroll, type a name
or use the voice calling Google option.
3. To place a call, tap the contact’s name.
4. To view recent calls, tap the Recents tab.
5. During a call, you can tap at the bottom
of the screen to hang up.
6. Calls can also be made from other widgets or
apps that contain your contact information, by
simply tapping the phone number.
Receiving a call
The Incoming Call screen pops up when a call
comes in, along with the caller ID and other
information you’ve entered in the Contacts.
Any missed calls are logged in the Call log,
along with a notification.
Press the lower part of Volume key on the left
side of your phone to mute the ringer.
There are various options available when a call
comes in.
To answer a call, slide towards on the
right.
21
To reject a call, slide towards on the left.
To reject the call and send an SMS message to the
caller, slide towards on the top.
Exploring the call log
The Call log contains your history of calls received,
missed or made. It's an easy way to redial a number,
return a call or add a number to your contacts.
1. Tap to enter Phone screen.
2. Tap the Recents tab. You'll see a list of your
most recent incoming and outgoing calls.
3. Tap and then choose Call history to see
more calls. Arrow icons beside a call indicate
the type of call, and multiple arrows indicate
multiple calls:
Missed call
Incoming call
Outgoing call
You have the following options for Call History
1. Search call log
2. Clear Call log
You have the following options for recent calls:
1. Tap a number or contact, and then tap Details
for more information about the call.
2. Tap Call back to dial the number.
3. Tap to delete the call from your call log.
22
4. Tap > Edit number before call, to make
changes to the call back number.
Contacts
On the Home screen, tap at the bottom or tap
> to enter Contacts screen. This app
easily saves all of your important contact information
including contact names, numbers and email
addresses.
It also supports lots of other communication
operations.
To search for your contacts, tap at
the top right corner of the Contacts screen;
enter keywords in the search box. The phone
system will automatically display the matched
results.
To add a new contact, tap at the lower
right corner of the Contacts screen.
Enter the contact information and tap to
save it.
23
Messaging
On the Home screen, tap at the bottom or tap
> to enter Messaging screen.
Entering & editing text
Enter text by using the screen’s keyboard. To open
your phone’s keyboard, simply tap where you want to
type. Tap the Back key to close the keyboard.

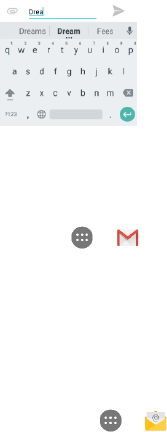

Next-word suggestions
1. Tap where you want to type text.
2. Begin typing a word. Choose one of the
words displayed above the keyboard.
3. If you do not want to use those words, type
the next word without using the space bar.
4. Your phone will continue to present word
choices while you type.
24
Email
Setting up & using Gmail
The Gmail app allows you to read and compose
emails.
On the Home screen, tap > to enter the
Gmail screen. Here Gmail has various uses. For
instance, utilize your Gmail account for signing in to
all Google apps & services including but not limited
to:
Google Play Music
Google Play Store
Google Drive
Getting familiar with your Email
app
On the Home screen, tap > to
enter the Email screen. When using it for the
first time, you need to enter your email address
and password to configure an account.
After your email account is configured, you can
archive, delete, label, or perform other mail
operations.
Tap the icon on the left of a mail thread to select
it.
After opening a mail, swipe to the left or right to
read earlier or later mail conversations.
25
Tap at the top of your phone screen to
manage your mails.
On the Email screen, you can tap >
Settings to add a new email account.
On the Email settings screen, tap an email
account and customize your Email settings.
26
Calendar
On the Home screen, tap > to enter
Calendar screen.
If you have synced your Gmail account, the first
time you open the Calendar app on your phone;
it will show your current calendar events.
To modify the Calendar view, tap and
choose Schedule, Day, 3 Day, Week or Month
from the top of the Calendar screen.
View or edit event details by tapping an Event.
27
Camera
You can use Camera app for both taking picture and
recording videos.
Taking a photo
1. On the Home screen, tap > to enter
Camera screen.
2. Focus on your subject by looking through your
phone screen.
3. Tap to take a photo. Or swipe to the left to
activate the Pro mode and tap to take a
photo.
Creating a video
1. On the Home screen, tap > to
enter Camera screen.
2. Swipe to the right to activate the Video mode.
3. Tap to start recording a video.
4. Tap to stop when you finish recording.
Sharing a video or photo
1. On the Home screen, tap > to
enter the Photos screen.
2. Select a video or photo and tap .
3. From the pop-up screen, select your desired
sharing method.
28
Photos
On the Home screen, tap > to enter the
Photos screen.
You can view and manage photos and videos stored
in your phone.
When you’re signed into your device with your
Google Account, the Photos app makes it easy to
auto-backup all the photos and videos you take,
organize them, and share with friends.
To delete an image or a video, select an image
or a video, tap on the top right of the
Photos screen and tap Delete device copy.
To delete multiple images and videos, tap and
hold any image or video to delete, and then tap
other images or videos to delete for multiple
images or videos selecting. Then tap on
the top right of the Photos screen and tap
Delete device copy.
Google apps
Google provides entertainment, social media, and
business apps.
Google Play Store is all-in-one entertainment point
with music, movies, books and apps on the web.
For more details, visit
www.support.google.com/android.
29
Stay Connected & Get
Updates
Get updates, user guides and more information for
your Coolpad Catalyst at www.coolpad.com/us.
Discover what’s going on right now in cell phone
news, trends, techniques & other cool stuff by
connecting with us by:
30
Specs & hardware
Specifications
Dimensions
5.62x 2.81x 0.42 inches
Form Factor
Bar, Touch screen
Antenna
Built-in
Network Mode
FDD LTE/WCDMA/GSM
Camera
Rear camera: 5.0 MP AF;
Front camera: 2 MP FF
Earphone Jack
CTIA Standard earphone jack
Screen Parameters
Type
Screen Size
Resolution
TN
5 inches
854x480
Accessories
Battery
Battery
Type
Lithium Ion
Polymer
Rechargeable
Battery
Rated
Capacity
2200 mAh
Nominal
Voltage
3.7 V
Note: The battery capacity is subject to update and
change.
31
In-box contents
No.
Name
Quantity
1
Phone
1
2
Battery
1
3
Travel Charger
1
4
USB Cable
1
5
Warranty Card
1
6
Quick Start Guide
1
Note: The items supplied with the phone and any
available accessories may vary depending on the
region or service provider.
32
Declaration of hazardous
substances
Parts Name
Toxic or hazardous substances or
elements
Pl
u
m
bu
m
(P
b)
M
er
cu
ry
(H
g)
C
ad
mi
u
m
(C
d)
C
hr
o
mi
u
m
VI
(C
r(
VI
))
Po
lyb
ro
mi
na
te
d
Bi
ph
en
yls
(P
B
B)
Polyb
romin
ated
Diph
enyl
Ether
s
(PBD
E)
PCB
Board
and
Access
ories
Plastics
Metals
Battery
Other
○: indicates that the content of the toxic or hazardous substance
in all homogeneous materials is within the limit of the
SJ/T11363-2006 standard.
×: indicates that the content of the toxic or hazardous substance
in some homogeneous materials exceeds the limit of the
SJ/T11363-2006 standard.
The Environmentally Friendly Use Period of this product
is 20 years, as shown by the symbol on the left. The
Environmentally Friendly Use Period of replaceable parts,
such as battery, may be different from that of the product.
The Environmentally Friendly Use Period is valid only
when the product is operated under the conditions
defined in this User Guide.
33
Safety and Warranty Info
Important health information and
safety precautions
When using this product, the safety precautions
below must be taken to avoid possible legal liabilities
and damages. Retain and follow all product safety
and operating instructions.
Observe all warnings in the product operating
instructions. To reduce the risk of bodily injury,
electric shock, fire and damage to the equipment,
closely observe the all of the following precautions.
SAFETY PRECAUTIONS FOR PROPER
GROUNDING INSTALLATION
CAUTION: Connecting to improperly grounded
equipment can result in an electric shock to either you
or your device. This product is equipped with a USB
Cable for connecting to a desktop or notebook
computer. Be sure your computer is properly
grounded before connecting this product to the
computer. The power supply cord of a desktop or
notebook computer has an equipment-grounding
conductor and a grounding plug. The grounding plug
must be plugged into an appropriate outlet which is
properly installed and grounded in accordance with
all local codes and ordinances.
SAFETY PRECAUTIONS FOR POWER SUPPLY
UNIT
Use the correct external power source. A product
should be operated only from the type of power
source indicated on the electrical ratings label. If you
are not sure of the type of power source required,
34
consult your authorized service provider or local
power company. For a product that operates from
battery power or other sources, refer to the operating
instructions that are included with the product.
ELECTRICAL SAFETY
This product is intended for use when supplied with
power from the designated battery or power supply
unit. Other usage may be dangerous and will
invalidate any approval given to this product. Handle
battery packs carefully. This product contains a
Li-ion battery. There is a risk of fire and burns if the
battery pack is handled improperly. Do not attempt to
open or service the battery pack. Do not disassemble,
crush, puncture, short external contacts or circuits,
dispose of in fire or water, or expose a battery pack to
temperatures higher than 60°C (140°F).
NOTE: Danger of explosion if battery is incorrectly
replaced. Replace only with specified batteries.
Recycle or dispose of used batteries according to all
applicable local regulations, or in accordance with the
instructions in the reference guide.
Follow these other specific precautions:
1. Keep the battery or device dry and away from
water or any liquid as it may cause a short
circuit.
2. The phone should be connected only to
products that bear the USB-IF logo or have
completed the USB-IF compliance program.
3. Keep metal objects away so they do not come
in contact with the battery or its connectors as
it may lead to short circuit during operation.
35
4. Always keep the battery out of the reach of
babies and small children to avoid swallowing.
Consult a doctor immediately if the battery is
swallowed.
5. Do not use a battery that appears damaged,
deformed, discolored, has any rust on its
casing, if it overheats, and/or if it emits a foul
odor.
6. Use of an unqualified battery or charger may
present a risk of fire, explosion, leakage or
other hazard.
7. Only use the battery with a charging system
that has been qualified with the system per this
standard: IEEE-Std-1725-200x.
8. Use of an unqualified battery may present a
risk of fire, explosion, leakage or other hazard.
9. Replace the battery only with another battery
that has been qualified with the system per this
standard: IEEE-Std-1725-200x.
10. Avoid dropping the phone or battery. If the
phone or battery is dropped, especially on a
hard surface causing damage, take it to a
service center for inspection.
11. If the battery leaks: Do not allow the leaking
fluid to come in contact with eyes. If contact
occurs, DO NOT rub the eyes. Rinse with
clean water immediately and seek medical
advice. Do not allow the leaking fluid to come
in contact with skin or clothing. If contact
occurs, flush the affected area immediately
with clean water and seek medical advice.
36
Take other precautions to keep a leaking
battery away from fire as there is a danger of
ignition or explosion.
Prevention of hearing loss
CAUTION: Permanent hearing loss may occur if
earphones or headphones are used at high-volume
levels for prolonged periods of time.
SAFETY PRECAUTIONS FOR DIRECT SUNLIGHT
Store this product away from excessive moisture and
extreme temperatures. Do not leave the product or its
battery inside a vehicle or in places where the
temperature may exceed 60°C (140°F), such as on a
car dashboard, window sill, or behind glass that is
exposed to direct sunlight or strong ultraviolet light for
extended periods of time. This may damage the
product, overheat the battery, or pose a risk to the
vehicle.
ENVIRONMENTAL RESTRICTIONS
Do not use this product in gas stations, fuel depots,
chemical plants or where blasting operations are in
progress, or in potentially explosive atmospheres
such as fueling areas, fuel storehouses, below deck
on boats, chemical plants, fuel or chemical transfer or
storage facilities, and areas where the air contains
chemicals or particles, such as grain, dust, or metal
powders. Please be aware that sparks in such areas
could cause an explosion or fire resulting in bodily
injury or even death.
AIRCRAFT SAFETY
Due to the possible interference caused by this
product to an aircraft’s navigation system and its
37
communications network, using this device’s phone
function on board an airplane is prohibited in most
countries. If flight personnel authorize use of
electronic devices, switch device to Airplane Mode
(consult User Guide for instructions) to turn off RF
functions that may cause interference.
ROAD SAFETY
In many jurisdictions, vehicle operators are not
permitted to use communication services with
handheld devices while the vehicle is in motion,
except in the case of emergency. In some countries,
using hands-free devices as an alternative is allowed.
SAFETY PRECAUTIONS FOR RF EXPOSURE
1. Use of non-original,
non-manufacturer-approved accessories may
violate your local RF exposure guidelines and
should be avoided.
2. Use only original, manufacturer-approved
accessories when such accessories contain
metal of any kind.
3. Avoid using your phone near strong
electromagnetic sources, such as microwave
ovens, sound speakers, TV and radio.
4. Avoid using your phone near metal structures
(for example, the steel frame of a building).
EXPLOSIVE ATMOSPHERES
When in an area with a potentially explosive
atmosphere or where flammable materials exist, the
device should be turned off and the user should obey
all signs and instructions. Sparks in such areas could
cause an explosion or fire resulting in bodily injury or
38
even death. Users are advised not to use the
equipment at refueling points such as service or gas
stations, and are reminded of the need to observe
restrictions on the use of radio equipment in fuel
depots, chemical plants, or where blasting operations
are in progress. Areas with a potentially explosive
atmosphere are often, but not always, clearly marked
such as fueling areas, below deck on boats, fuel or
chemical transfer or storage facilities, and including,
but not limited to areas where the air contains
chemicals or particles such as grain, dust, or metal
powders.
INTERFERENCE WITH MEDICAL EQUIPMENT
FUNCTIONS
This product may cause medical equipment to
malfunction. The use of this device is prohibited in
most hospitals and medical clinics for which
regulations and rules are commonly posted in such
facilities. In these instances, turn your phone OFF as
health care facilities frequently use equipment that is
adversely affected by RF energy. If you use any
personal medical device(s), consult the manufacturer
of your device(s) to determine if the device(s) is
adequately shielded from external RF energy. Your
health care provider may be able to assist you in
obtaining this information.
NON-IONIZING RADIATION
Your device has an internal antenna. This product
should be operated in its normal-use position to
ensure the radiative performance and safety from
interference. As with other mobile radio transmitting
39
equipment, users are advised that for satisfactory
operation of the equipment and for personal safety, it
is recommended that no part of the human body
should come too close to the antenna during
equipment operation.
Use only the supplied integral antenna. Use of
unauthorized or modified antennas may impair call
quality and damage the phone, causing loss of
performance and SAR levels exceeding the
recommended limits, as well as causing
non-compliance with local and national regulatory
requirements. In order to limit RF energy exposure
and to ensure optimal phone performance, operate
the device only it its normal-use position. Contact
with the antenna area may impair call quality and
cause your device to operate at a higher power level
than needed which can reduce antenna performance
and battery life.
BATTERY INFORMATION AND PRECAUTIONS
To assure product safety, there shall be precautions
below.
! Danger
- Use dedicated chargers and follow the specified
conditions when charging the cell.
- Use the cell only with the specified equipment.
- Do not put or store cell together with metal articles
such as necklaces, hairpins, coins, or screws.
- Do not short circuit the (+) and (-) terminals with
metal conductors.
- Do not place cell in a device with the (+) and (-) in a
reverse way.
40
- Do not penetrate cell with a sharp articles such as a
needle.
- Do not disassemble the cell.
- Do not weld the cell directly.
- Do not use a seriously damaged or deformed cell.
- Thoroughly read the user’s manual before use,
Inaccurate handling of polymer lithium ion cell may
result in heat, fire, explosion, damage or the capacity
loss of the cell.
! Warning
- Do not put cell into a heating vessel, washing
machine or high-pressure container.
- Do not use cell with primary batteries, or batteries of
a different package, type, or brand.
- Stop charging the cell if charging is not completed
within the specified time.
- Stop using the cell if abnormal heat, odor,
discoloration, deformation or abnormal condition is
detected during use, charge, or storage.
- Keep away from cell immediately when leakage or
foul odor is detected.
- Wash well with clean water immediately if liquid
leaks onto your skin or clothes.
- If liquid leaking from the cell gets into your eyes, do
not rub your eyes. Wash them well with clean water
and call physician immediately.
! Caution
- Store batteries out of reach of children so that they
are not accidentally swallowed or handled.
- If younger children use the cell, their guardians
should explain the proper handling.
41
- Be sure to read the user’s manual and cautions on
handling thoroughly before using the cell.
- Batteries have cycle life. Replace failed cell with a
new cell that is the same brand immediately after
normal life cycle expiration, or if expiration has
occurred prematurely.
Store battery in a low-humidity and low-temperature
environment if the battery won’t be used for an
extended period of time.
- Keep it far away from articles or materials with static
electric charges while the cell is charged, used or
stored.
- Wipe with a dry cloth before using the cell if the
terminals of the cell become dirty.
SAFETY INSTRUCTIONS OF TRAVEL CHARGER
Please read the following information carefully.
1. The maximum ambient temperature of the
travel charger shall not exceed 40°C (104
degrees F).
2. The Travel Charger shall be installed
according to specification. The current of load
and output power shall not exceed the
following value:
Input: AC100-240V~ 50/60Hz 0.15A
Output: DC5V 1A
3. The Travel Charger shall be used for I.T.
equipment only.
4. For indoor use only.
5. Cleaning Unplug this from the wall outlet
before cleaning. Do not use liquid cleaners or
aerosol cleaners to clean; use only a dry cloth.
42
6. Water and moisture Do not use this product
under moist environment.
7. Self-servicing Attempting to service this
product on your own, or opening or removing
device covers may result in exposure to
dangerous voltage or other hazards.
8. Unplug this apparatus during lighting storms or
when unused for lengthy durations.
9. This Travel Charger is not intended to be
repaired by service personnel in case of failure
or component defect.
FCC NOTICE AND CAUTIONS
This device and its accessories comply with Part 15
of FCC Rules.
Operation is subject to the following conditions:
(1) This device and its accessories may not cause
harmful interference.
(2) This device and its accessories must accept any
interference received, including interference that may
cause undesired operation.
Part 15.21 Statement
Changes or modifications that are not expressly
approved by the manufacturer could void the user’s
authority to operate the equipment.
Part of Statement 15.105:
This equipment has been tested and found to comply
with the limits for a class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
43
is no guarantee that interference will not occur in a
particular installation. If you experience interference
with reception (e.g., television), determine if this
equipment is causing the harmful interference by
turning the equipment off and then back on to see if
the interference is affected.
If necessary, try correcting the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for further assistance.
HAC
This phone meets the M4/T3 level rating.
This phone has been tested and rated for use with
hearing aids for some of the wireless technologies
that it uses. However, there may be some newer
wireless technologies used in this phone that have
not been tested yet for use with hearing aids.
Therefore, it is important to experiment with the
various features of this phone and in different
locations using your hearing aid or cochlear implant,
to determine if you hear any interfering noise. Consult
your service provider or the manufacturer of this
phone for information on hearing aid compatibility. If
you have questions about return or exchange policies,
consult your service provider or phone retailer.
TIA safety information
The following is the complete TIA Safety Information
44
for wireless handheld phones:
Exposure to Radio Frequency Signal
Your wireless handheld portable phone is a
low-power radio transmitter and receiver. When ON,
it receives and sends out Radio Frequency (RF)
signals. In August 1996, the Federal Communications
Commissions (FCC) adopted RF exposure guidelines
with safety levels for handheld wireless phones.
Those guidelines are consistent with the safety
standards previously set by both U.S. and
international standards ‘bodies, as follows:
ANSI C95.1 (1992) *
NCRP Report 86 (1986)
ICNIRP (1996)
* American National Standards Institute; National
Council on Radiation Protection and Measurements;
International Commission on Non-Ionizing Radiation
Protection. Those standards were based on
comprehensive and periodic evaluations of the
relevant scientific literature. For example, over 120
scientists, engineers, and physicians from
universities, government health agencies, and
industry reviewed the available body of research to
develop the ANSI Standard (C95.1). The design of
your phone complies with the FCC guidelines (and
those standards).
Antenna Care
Use only the supplied or approved replacement
antenna. Unauthorized antennas, modifications, or
attachments could damage the phone and may
violate FCC regulations.
45
Phone Operation
NORMAL POSITION: Hold the phone as you would
any other telephone with the antenna pointed up and
over your shoulder.
Tips on Efficient Operation
For your phone to operate most efficiently, do not
touch the antenna unnecessarily when operating the
phone. Contact with the antenna affects call quality
and may cause the phone to operate at a higher
power level than otherwise needed, thus reducing
battery life.
Driving
Always observe the laws and regulations regarding
wireless phone usages while driving. Where cell
phone use is permitted while driving, you MUST
observe the following:
1. Give full attention to driving -- driving safely is
your first responsibility;
2. Use hands-free operation, if available;
3. Pull off the road and park before making or
answering a call if driving conditions or the law
requires that you do so.
Pacemakers
The Health Industry Manufacturers Association
recommends that a minimum separation of six (6)
inches be maintained between a handheld wireless
phone and a pacemaker to avoid potential
interference with the pacemaker. These
recommendations are consistent with the
independent research by and recommendations of
Wireless Technology Research.
46
Persons with pacemakers:
1. Should ALWAYS keep the phone more than
six (6) inches from their pacemaker when the
phone is turned ON;
2. Should not carry the phone in a breast pocket;
3. Should use the ear opposite the pacemaker to
minimize the potential for interference;
4. Should turn the phone OFF immediately if
there is any reason to suspect that
interference is occurring.
Electronic Devices
Most modern electronic equipment is shielded from
RF signals but some equipment or devices might not
be.
Hearing Aids
Some digital wireless phones may interfere with
hearing aids. In the event of such interference, you
please consult your service provider, or call customer
service regarding alternatives.
Other Medical Devices
If you use other personal medical devices, consult the
device manufacturer to determine if it is adequately
shielded from external RF energy, or your health care
provider may be able to advice about any harmful
device interactions.
Vehicles
RF signals may affect improperly installed or
inadequately shielded electronic systems in motor
vehicles. Be certain to contact the manufacturer or
representative regarding this as well as manufacturer
of any additional vehicle equipment.
47
Health Care Facilities
Please refer to pages 10 and 11 of this guide for
information regarding medical interference with your
device.
Aircraft
Please refer to pages 6 and 7 of this guide for
information regarding operating electronic devices on
aircrafts.
Posted Facilities
Turn your phone OFF in any facility where posted
notices so require.
For Vehicles Equipped with an Air Bag
DO NOT place objects, including installed or portable
wireless equipment, in the area over the air bag or in
the air bag deployment area. If in-vehicle wireless
equipment is improperly installed and the air bag
inflates, serious injury could result since air bags
inflate with great force.
Safety information
Please read and observe the following information for
safe and proper use of your phone and to prevent
damage. Also, keep the user guide in an accessible
place after reading it for ease in locating it for future
reference.
Violation of the instructions may cause minor or
serious damage to the product.
1. Do not disassemble, open, crush, bend or
deform, puncture or shred your equipment.
2. Do not modify or remanufacture your
equipment. Do not attempt to insert foreign
objects into the battery. Do not immerse your
48
equipment in water or other liquids, or expose
it to water or other liquids, fire, explosions or
other hazards.
3. Do not short-circuit the battery or allow metallic
conductive objects to contact the battery
terminals.
4. Avoid dropping the phone. If the phone is
dropped on a hard surface or elsewhere, take
it to a service center for inspection if damage is
suspected.
Charger and Adapter Safety
1. The charger and adapter are intended for
indoor use only.
2. Insert the battery pack charger vertically into
the wall power socket.
3. Only use the approved battery charger so as to
avoid serious damage to your phone.
4. When traveling abroad, only use the approved
battery pack charger along with the correct
phone adapter.
Battery Information: Care and Proper Disposal
1. Please dispose of your battery properly or take
it to your local wireless carrier for recycling.
2. The battery doesn’t need to be empty before
recharging, and replace the battery when it no
longer provides acceptable performance.
Note: The battery can be recharged several
hundred times and it does not need to be
empty in order to recharge.
3. Use only Coolpad-approved chargers specific
to your phone model as they are designed to
49
maximize battery life.
4. Do not disassemble or short-circuit the battery.
5. Keep the battery’s metal contacts clean.
6. Recharge the battery after long periods of
non-use to maximize battery life. Note:
Battery life will vary due to usage patterns and
environmental conditions.
7. Use of extended backlighting, Browser, and
data connectivity kits affect battery life as well
as talk/standby times.
8. The self-protection function of the battery cuts
the power of the phone when its operation is in
an abnormal state. In this case, remove the
battery from the phone, reinstall it, and turn the
phone on.
Explosion, Shock, and Fire Hazards
1. Do not put your phone in a place that is subject
to excessive dust, and always keep the
minimum required distance between the power
cord and heat sources.
2. Unplug the power cord prior to cleaning your
phone, and clean the power plug pin when
necessary.
3. When using the power plug, ensure that it’s
firmly connected.
4. Placing the phone in a pocket or bag without
covering the phone receptacle (power plug
pin), metallic articles (e.g.: coins, paperclips,
pens) may short-circuit the phone. Always
cover the receptacle when not in use.
5. Metallic articles that come into contact with the
50
phone may short-circuit the + and battery
terminals (metal strips) which may result in
battery damage, or even an explosion.
General Notice
1. Using a damaged battery or placing a battery
in your mouth may cause serious injury.
2. Placing items containing magnetic strip
components (e.g.: credit cards, phone cards,
bank books, subway tickets) near your phone
may damage the data stored in the magnetic
strips.
3. Talking on the phone for long periods of time
may reduce call quality due to heat generation.
4. Do not use the phone if the antenna is
damaged as it may cause a slight contact burn.
Please communicate with a Coolpad
Authorized Service Center to replace the
damaged antenna.
5. Do not immerse your phone in water. If this
happens, immediately turn the phone OFF and
remove the battery. If the phone does not work,
take it to a Coolpad Authorized Service
Center.
6. Do not paint your phone.
7. Phone data, including contact information,
ringtones, text messages, voice messages,
pictures or videos, etc., may be inadvertently
deleted due to careless use, phone repair, or
software upgrades. Please back up your
important phone numbers and all other vital
data. Note: Neither the manufacturer nor any
51
person or entity associated therewith is liable
for any damages whatsoever due to loss of
any or all data stored on any of your devices.
8. When using the phone in public places, set the
ringtone to vibration so you don't disturb
others.
9. Do not turn your phone on or off while the
device is in close proximity to your ear.
10. Use accessories, such as earphones and
headsets with caution. Ensure that cables are
tucked away safely and do not touch the
antenna.
Caution:
Avoid potential hearing loss.
Prolonged exposure to loud sounds (including music)
is the most common cause of preventable hearing
loss. Some scientific research suggests that using
portable audio devices, such as portable music
players and cellular telephones, at high volume
settings for long durations may lead to permanent
hearing loss. This includes the use of headphones
(including headsets, ear buds and Bluetooth®, or
other wireless devices). Exposure to very loud sound
has also been associated in some studies with
tinnitus (ringing in the ear), hypersensitivity to sound,
and distorted hearing. The amount of sound
produced by a portable audio device varies
depending on the nature of the sound, the device, the
device settings and the headphones. Hence,
individual susceptibility to noise-induced hearing loss
and other hearing problems can vary. Please follow
52
these important guidelines for hearing loss
prevention:
1. Set the phone’s volume in a quiet environment
and select the lowest volume for which you
can hear clearly.
2. When using headphones, turn the volume
down if you cannot hear the people speaking
near you or if the person sitting next to you can
hear what you are listening to.
3. Do not turn the volume up to block out noisy
surroundings. If you choose to listen to your
portable device in a noisy environment,
consider using noise-cancelling headphones
to block out background noise.
4. As the volume increases, less time is required
before your hearing could be affected, so
consider limiting your listening time.
5. Avoid using headphones after exposure to
extremely loud noises (e.g.: live concerts) that
might cause temporary hearing loss which, in
turn, might cause unsafe volume levels to
sound like normal levels.
6. Do not listen at any volume that causes you
discomfort. If you experience ringing in your
ears, hear muffled speech or experience any
temporary hearing difficulty after listening to
your portable audio device, discontinue use
and consult your health care provider.
You can obtain additional information on this subject
from the following sources:
American Academy of Audiology
11730 Plaza American Drive, Suite 300 Reston, VA 20190
53
Voice: (800) 222-2336
Email: info@audiology.org
Internet: www.audiology.org
National Institute on Deafness and Other
Communication Disorders
National Institutes of Health
31 Center Drive, MSC 2320 Bethesda, MD USA 20892-2320
Voice: (301) 496-7243
Email: nidcdinfo@nih.gov
Internet: http://www.nidcd.nih.gov/health/hearing
National Institute for Occupational Safety and
Health
Hubert H. Humphrey Bldg. 200 Independence Ave., SW
Washington, DC 20201
Voice: 1-800-35-NIOSH (1-800-232-4636)
Internet: http://www.cdc.gov/niosh/topics/noise/default.html
FDA consumer update
The U.S. Food and Drug Administration’s (FDA)
Center for Devices and Radiological Health
Consumer Update on Mobile Phones:
1. What is the FDA's role concerning the safety of
wireless phones?
Under the law, the FDA does not review the safety of
radiation-emitting consumer products such as
wireless phones before they can be sold, as it does
with new drugs or medical devices. However, the
agency has authority to take action if wireless phones
are shown to emit Radio Frequency (RF) energy at a
level that is hazardous to the user. In such a case, the
FDA could require the manufacturers of wireless
phones to notify users of the health hazard and to
repair, replace, or recall the phones so that the
54
hazard no longer exists.
Although the existing scientific data does not justify
FDA regulatory actions, the FDA has urged the
wireless phone industry to take a number of steps,
including the following:
1. Support current and future research regarding
possible biological effects of the type of RF
emitted by wireless phones;
2. Design wireless phones in a way that
minimizes any RF exposure to the user that is
not necessary for device function; and
3. Cooperate in providing users of wireless
phones with complete and accurate
information regarding possible effects of
wireless phone use on human health and
safety.
The FDA belongs to an interagency working group of
the federal agencies that have responsibility for
different aspects of RF safety to ensure coordinated
efforts at the federal level. The following agencies
belong to this working group:
1. National Institute for Occupational Safety and
Health
2. Environmental Protection Agency
3. Occupational Safety and Health Administration
4. National Telecommunications and Information
Administration
The National Institutes of Health participates in some
interagency working group activities as well. The FDA
shares regulatory responsibilities for wireless phones
with the Federal Communications Commission (FCC).
55
All phones that are sold in the United States must
comply with FCC safety guidelines that act to limit RF
exposure. The FCC relies on the FDA and other
health agencies for safety questions about wireless
phones.
The FCC also regulates the base stations that the
wireless phone networks rely upon. While these base
stations operate at higher power than do the wireless
phones themselves, the RF exposures that people
get from these base stations are typically thousands
of times lower than those they can get from wireless
phones. Base stations are thus not the subject of the
safety questions discussed in this document.
2. Do wireless phones pose a health hazard?
Current scientific evidence does not show that any
health problems are associated with using wireless
phones. There is no proof, however, that wireless
phones are absolutely safe. Wireless phones emit
low levels of Radio Frequency (RF) energy while
operating microwave ranges (which also emit very
low levels of RF when they are in standby mode).
While high levels of RF can produce health effects
(by heating tissue), exposure to low-level RF that
does not produce heating effects results in no known
adverse health effects. Many studies of low-level RF
exposures have not uncovered any biological effects.
Although some studies have suggested that some
biological effects may occur, such findings have not
been confirmed by additional research. In some
cases, other researchers have had difficulty in
reproducing those studies, and/or determining the
56
reasons for inconsistent results.
3. What are the results of the research done
already?
The research conducted thus far has produced
conflicting results, and many studies have suffered
from flaws in their research methods. Animal
experiments investigating the effects of Radio
Frequency (RF) energy exposures characteristic of
wireless phones have yielded conflicting results that
often cannot be repeated in other laboratories. A few
animal studies, however, have suggested that low
levels of RF could accelerate the development of
cancer in laboratory animals. However, many of the
studies that showed increased tumor development
used animals that had been genetically engineered or
treated with cancer-causing chemicals so as to be
pre-disposed to develop cancer in the absence of RF
exposure. Other studies exposed the animals to RF
for up to 22 hours per day. These conditions are not
similar to the conditions under which people use
wireless phones, so it is largely unknown what the
results of such studies mean for human health and
safety. Three large epidemiology studies have been
published since December 2000. These studies
investigated possible associations between the use
of wireless phones and primary brain cancer (glioma,
meningioma, acoustic neuroma, other brain tumors,
and salivary gland tumors), leukemia, or other types
of cancer. None of the studies demonstrated the
existence of any harmful health effects from wireless
phone RF exposures. However, none of the studies
57
can provide absolute findings about long-term
exposures since the average period of phone use in
these studies was approximately three years.
4. What kinds of phones are the subjects of this
update?
Here the term “wireless phone” refers to handheld
wireless phones with built-in antennas, often called
“cell”, “mobile”, or “PCS” phones. These types of
wireless phones can expose the user to measurable
Radio Frequency (RF) energy because of the short
distance between the phone and the user’s head.
These RF exposures are limited by FCC safety
guidelines that were developed with the advice of the
FDA and other federal health and safety agencies.
When the phone is located at greater distances from
the user, the exposure to RF is drastically reduced
due to a person's RF exposure rapidly decreasing
with increasing distance from the source.
The so-called “cordless phones,” which have a base
unit connected to the telephone wiring in a house,
typically operate at far lower power levels, thus
producing RF exposures far below the FCC safety
limits.
5. What is the FDA doing to find out more about
the possible health effects of wireless phone RF?
The FDA is working with the U.S. National Toxicology
Program and with groups of investigators around the
world to ensure that high-priority animal studies are
conducted to address concerns about the effects of
exposure to Radio Frequency (RF) energy.
The FDA has been a leading participant in the World
58
Health Organization International Electro Magnetic
Fields (EMF) Project since its inception in 1996. An
influential result of this work has been the
development of a detailed agenda of research needs
that has implemented new research programs around
the world. The project has also resulted in a series of
public information documents on EMF issues. The
FDA and the Cellular Telecommunications & Internet
Association (CTIA) have a formal Cooperative
Research and Development Agreement (CRADA) to
conduct research on wireless phone safety. The FDA
provides the scientific oversight, obtaining input from
experts in government, industry, and academic
organizations. CTIA-funded research is conducted
through contracts with independent investigators. The
initial research will include both laboratory studies
and studies of wireless phone users. The CRADA will
also include a broad assessment of additional
research needs in the context of the latest research
developments around the world.
6. What research is needed to decide whether RF
exposure from wireless phones poses a health
risk?
A combination of laboratory studies and
epidemiological studies of people actually using
wireless phones would provide some of the vital data.
Lifetime animal exposure studies could be completed
in a few years. However, very large numbers of
animals would be needed to provide reliable proof of
a cancer-promoting effect, if one exists.
Epidemiological studies can provide data that is
59
directly applicable to human populations, but ten or
more years of follow-up research may be needed to
provide answers about certain health effects, such as
cancer.
This is due to the interval between exposure time to a
cancer-causing agent and the rate for which tumors
develop - if they do. This could take several years
into the future. The interpretation of epidemiological
studies is hampered by difficulties in measuring
actual RF exposure during day-to-day use of wireless
phones. Many factors affect this measurement, such
as the angle at which the phone is held, or which
model of phone is used.
7. What has the FDA done to measure the Radio
Frequency energy coming from wireless phones?
The Institute of Electrical and Electronic Engineers
(IEEE) is developing a technical standard for
measuring the Radio Frequency (RF) energy
exposure from wireless phones and other wireless
handsets with the participation and leadership of FDA
scientists and engineers. The standard,
“Recommended Practice for Determining the
Spatial-Peak Specific Absorption Rate (SAR) in the
Human Body Due to Wireless Communications
Devices: Experimental Techniques”, sets forth the
first consistent test methodology for measuring the
rate at which RF is deposited in the heads of wireless
phone users. The test method uses a
tissue-simulating model of the human head.
Standardized SAR test methodology is expected to
greatly improve the consistency of measurements
60
made at different laboratories on the same phone.
SAR is the measurement of the amount of energy
absorbed in tissue, either by the whole body or a
small part of the body. It is measured in watts/kg (or
mill-watts/g) of matter. This measurement is used to
determine whether a wireless phone complies with
safety guidelines.
8. How can I find out how much Radio Frequency
energy exposure I can get by using my wireless
phone?
All phones sold in the United States must comply with
Federal Communications Commission (FCC)
guidelines that limit Radio Frequency (RF) energy
exposures. The FCC established these guidelines in
consultation with the FDA and the other federal
health and safety agencies. The FCC limit for RF
exposure from wireless phones is set at a Specific
Absorption Rate (SAR) of 1.6 watts per kilogram
(1.6W/kg). The FCC limit is consistent with the safety
standards developed by the Institute of Electrical and
Electronic Engineering (IEEE) and the National
Council on Radiation Protection and Measurement.
The exposure limit takes into consideration the body’s
ability to remove heat from the tissues that absorb
energy from the wireless phone and is set well below
levels known to have effects. Manufacturers of
wireless phones must report the RF exposure level
for each model of phone to the FCC.
The FCC website
(http://www.fcc.gov/cgb/cellular.html) gives directions
for locating the FCC identification number on your
61
phone, so you can find your phone’s RF exposure
level in the online listing.
9. What about children using wireless phones?
The scientific evidence does not show a danger to
users of wireless phones, including children and
teenagers. If you want to take steps to lower
exposure to Radio Frequency (RF) energy, the
measures described above would apply to children
and teenagers using wireless phones. Reducing the
time of wireless phone use and increasing the
distance between the user and the RF source will
reduce RF exposure.
Some groups sponsored by other national
governments have advised that children be
discouraged from using wireless phones at all. For
example, the government in the United Kingdom
distributed leaflets containing such a
recommendation in December 2000. They noted that
no evidence exists that using a wireless phone
causes brain tumors or other ill effects. Their
recommendation to limit wireless phone use by
children was strictly precautionary; it was not based
on scientific evidence that any health hazard exists.
10. What steps can I take to reduce my exposure
to Radio Frequency energy from my wireless
phone?
If there is a risk from these products- and at this point
we do not know that there is - it is probably very small.
But if you are concerned about avoiding even
potential risks, you can take a few simple steps to
minimize your exposure to Radio Frequency (RF)
62
energy. Since time is a key factor in how much
exposure a person receives, reducing the amount of
time spent using a wireless phone will reduce RF
exposure. If you must conduct extended
conversations by wireless phone on a daily basis,
consider placing more distance between your body
and the source of the RF, since the exposure level
drops off dramatically with distance. For example,
you could use a headset and carry the wireless
phone away from your body or use a wireless phone
connected to a remote antenna. Again, the scientific
data does not demonstrate that wireless phones are
harmful. But if you are concerned about the RF
exposure from these products, you can use
measures like those described above to reduce your
RF exposure from wireless phone use.
11. What about wireless phone interference with
medical equipment?
Radio Frequency (RF) energy from wireless phones
can interact with some electronic devices. For this
reason, the FDA helped develop a detailed test
method to measure Electro Magnetic Interference
(EMI) of implanted cardiac pacemakers and
defibrillators from wireless telephones. This test
method is now part of a standard sponsored by the
Association for the Advancement of Medical
Instrumentation (AAMI). The final draft, a joint effort
by the FDA, medical device manufacturers, and many
other groups, was completed in late 2000. This
standard will allow manufacturers to ensure that
cardiac pacemakers and defibrillators are safe from
63
wireless phone EMI. The FDA has tested hearing
aids for interference from handheld wireless phones
and helped develop a voluntary standard sponsored
by the Institute of Electrical and Electronic Engineers
(IEEE). This standard specifies test methods and
performance requirements for hearing aids and
wireless phones so that no interference occurs when
a person uses a “compatible” phone and a
“compatible” hearing aid simultaneously. This
standard was approved by the IEEE in 2000. The
FDA continues to monitor the use of wireless phones
for possible interactions with other medical devices.
Should harmful interference be found to occur, the
FDA will conduct testing to assess the interference
and work to resolve the problem.
12. Where can I find additional information?
For additional information, please refer to the
following resources: FDA web page on wireless
phones (http://www.fda.gov), under “C” in the subject
index, select Cell Phones > Current Research
Results. Federal Communications Commission (FCC)
RF Safety Program
(http://www.fcc.gov/cgb/cellular.html) International
Commission on Nonionizing Radiation Protection
(http://www.icnirp.de)
World Health Organization (WHO) International EMF
Project (http://www.who.int/emf)
Health Protection Agency (http://www.hpa.org.uk/)
Nine driver safety tips
Your wireless phone gives you the powerful ability to
communicate by voice almost anywhere, anytime. An
64
important responsibility accompanies the benefits of
wireless phones, one that every user must uphold.
When operating a car, driving is your first
responsibility. When using your wireless phone
behind the wheel of a car, when permitted by local
law, practice good common sense and remember the
following tips:
1. When available and permitted by local law,
use a hands-free device. A number of
hands-free wireless phone accessories are
readily available today. Whether you choose
an installed mounted device for your wireless
phone or a speaker phone accessory, take
advantage of these devices if available to you.
2. Get to know your wireless phone and its
features such as speed dial and redial.
Carefully read your instruction manual and
learn to take advantage of valuable features
most phones offer, including automatic redial
and memory. Also, work to memorize the
phone keypad so you can use the speed dial
function without taking your attention off the
road.
3. Suspend conversations during hazardous
driving conditions or situations. Let the person
you are speaking with know you are driving; if
necessary; suspend the call in heavy traffic or
hazardous weather conditions. Rain, sleet,
snow, and ice can be hazardous, but so is
heavy traffic. As a driver, your first
responsibility is to pay attention to the road.
65
4. Make sure you place your wireless phone
within easy reach and where you can reach it
without removing your eyes from the road. If
you get an incoming call at an inconvenient
time, if possible, let your voicemail answer it
for you.
5. Dial sensibly and assess the traffic; if possible,
place calls when you are not moving or before
pulling into traffic. Try to plan your calls before
you begin your trip or attempt to coincide your
calls with times you may be at a stop sign, red
light, or otherwise stationary. But if you need to
dial while driving, follow this simple tip - dial
only a few numbers, and then check the road
and your mirrors then continue.
6. Do not take notes or look up phone numbers
while driving. If you are reading an address
book or business card, or writing a “to-do” list
while driving a car, you are not watching where
you are going. Use common sense. Do not get
caught in a dangerous situation because you
are reading or writing and not paying attention
to the road or nearby vehicles.
7. Use your wireless phone to call for help. Your
wireless phone is one of the greatest tools you
can own to protect yourself and your family in
dangerous situations -- with your phone at
your side, help is only three numbers away.
Dial 911 or other local emergency number in
the case of fire, traffic accident, road hazard,
or medical emergency. Remember, it’s a free
66
call on your wireless phone!
8. Do not engage in stressful or emotional
conversations that may be distracting.
Stressful or emotional conversations and
driving do not mix; they are distracting and
even dangerous when you are behind the
wheel of a car. Make people you are talking
with aware you are driving and if necessary,
suspend conversations which have the
potential to divert your attention from the road.
Call roadside assistance or a special wireless
non-emergency assistance number when
necessary. Certain situations you encounter
while driving may require attention, but are not
urgent enough to merit a call for emergency
services. But you can still use your wireless
phone to lend a hand. If you see a
broken-down vehicle posing no serious hazard,
a broken traffic signal, a minor traffic accident
where no one appears injured or a vehicle you
know to be stolen, call roadside assistance or
other special non-emergency wireless number.
The above tips are meant as general
guidelines. Before deciding to use your mobile
device while operating a vehicle, it is
recommended that you consult your applicable
jurisdiction’s local laws or other regulations
regarding such use. Such laws or other
regulations may prohibit or otherwise restrict
the manner in which a driver may use his or
her phone while operating a vehicle.
67
9. Use your wireless phone to help others in
emergencies. Your wireless phone provides
you a perfect opportunity to be a “Good
Samaritan” in your community. If you see an
auto accident, crime in progress or other
serious emergency where lives are in danger,
call 911 or other local emergency number, as
you would want others to do for you.
Consumer information on SAR
This Model Phone Meets the Government’s
Requirements for Exposure to Radio Waves. Your
wireless phone is a radio transmitter and receiver. It
is designed and manufactured not to exceed the
emission limits for exposure to radiofrequency (RF)
energy set by the Federal Communications
Commission (FCC) of the U.S. Government. These
FCC exposure limits are derived from the
recommendations of two expert organizations, the
National Council on Radiation Protection and
Measurement (NCRP) and the Institute of Electrical
and Electronics Engineers (IEEE). In both cases, the
recommendations were developed by scientific and
engineering experts drawn from industry, government,
and academia after extensive reviews of the scientific
literature related to the biological effects of RF energy.
The exposure limit for wireless mobile phones
employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR is a
measure of the rate of absorption of RF energy by the
human body expressed in units of watts per kilogram
68
(W/kg). The FCC requires wireless phones to comply
with a safety limit of 1.6 watts per kilogram (1.6 W/kg).
The FCC exposure limit incorporates a substantial
margin of safety to give additional protection to the
public and to account for any variations in
measurements. Tests for SAR are conducted using
standard operating positions specified by the FCC
with the phone transmitting at its highest certified
power level in all tested frequency bands. Although
SAR is determined at the highest certified power level,
the actual SAR level of the phone while operating can
be well below the maximum value. Because the
phone is designed to operate at multiple power levels
to use only the power required to reach the network,
generally, the closer you are to a wireless base
station antenna, the lower the power output. Before a
phone model is available for sale to the public, it must
be tested and certified to the FCC that it does not
exceed the limit established by the government
adopted requirement for safe exposure. The tests are
performed in positions and locations (e.g., at the ear
and worn on the body) as required by the FCC for
each model. This device was tested for typical
body-worn operations with the back of the phone kept
0.39 inches (1.0 cm) between the user’s body and the
back of the phone. To comply with FCC RF exposure
requirements, a minimum separation distance of 0.39
inches (1.0 cm) must be maintained between the
user's body and the back of the phone. Third-party
belt clips, holsters, and similar accessories containing
metallic components should not be used.
69
Body-worn accessories that cannot maintain
0.39 inches (1.0 cm) separation distance
between the user's body and the back of the phone,
and have not been tested for typical body-worn
operations may not comply with FCC RF exposure
limits and should be avoided.
The FCC has granted an Equipment Authorization for
this model phone with all reported SAR levels
evaluated as in compliance with the FCC RF
emission guidelines.
The highest SAR value for this model phone when
tested for use at the ear is 0.83 W/kg and when
worn on the body, as described in this user’s manual,
is 1.10 W/kg. While there may be differences
between SAR levels of various phones and at various
positions, they all meet the government requirement
for safe exposure.
SAR information on this model phone is on file with
the FCC and can be found under the Display Grant
section of http://www.fcc.gov/oet/ea/fccid/ after
searching on FCC ID.
To find information that pertains to a particular model
phone, this site uses the phone FCC ID number
which is usually printed somewhere on the case of
the phone. Sometimes it may be necessary to
remove the battery pack to find the number. Once
you have the FCC ID number for your phone, follow
the instructions on the website and it should provide
values for typical or maximum SAR for that phone.
Additional information on Specific Absorption Rates
(SAR) can be found on the Cellular
70
Telecommunications Industry Association (CTIA)
website at http://www.ctia.org/
In the United States and Canada, the SAR limit for
mobile phones used by the public is 1.6 watts/kg
(W/kg) averaged over one gram of tissue. The
standard incorporates a substantial margin of safety
to give additional protection for the public and to
account for any variations in measurements.
FCC Hearing-Aid Compatibility (HAC) Regulations
for Wireless Devices
On July 10, 2003, the U.S. Federal Communications
Commission (FCC) Report and Order in WT Docket
01- 309 modified the exception of wireless phones
under the Hearing Aid Compatibility Act of 1988 (HAC
Act) to require digital wireless phones be compatible
with hearing-aids. The intent of the HAC Act is to
ensure reasonable access to telecommunications
services for persons with hearing disabilities. While
some wireless phones are used near some hearing
devices (hearing aids and cochlear implants), users
may detect a buzzing, humming, or whining noise.
Some hearing devices are more immune than others
to this interference noise, and phones also vary in the
amount of interference they generate. The wireless
telephone industry has developed a rating system for
wireless phones, to assist hearing device users to
find phones that may be compatible with their hearing
devices. Not all phones have been rated. Phones that
are rated have the rating on their box or a label
located on the box. The ratings are not guarantees.
Results will vary depending on the user's hearing
71
device and hearing loss. If your hearing device
happens to be vulnerable to interference, you may
not be able to use a rated phone successfully. Trying
out the phone with your hearing device is the best
way to evaluate this.
M-Ratings: Phones rated M3 or M4 meet FCC
requirements and are likely to generate less
interference to hearing devices than phones that are
not labeled. M4 is the better/higher of the two ratings.
T-Ratings: Phones rated T3 or T4 meet FCC
requirements and are likely to generate less
interference to hearing devices than phones that are
not labeled. T4 is the better/ higher of the two ratings.
Hearing devices may also be rated. Your hearing
device manufacturer or hearing health professional
may help you find this rating. Higher ratings mean
that the hearing device is relatively immune to
interference noise. The hearing aid and wireless
phone rating values are then added together. A sum
of 5 is considered acceptable for normal use. A sum
of 6 is considered for best use.
In the example illustrated above, if a hearing aid
meets the M2 level rating and the wireless phone
meets the M3 level rating, the sum of the two values
equal M5. This should provide the hearing-aid user
with “normal usage” while using their hearing aid with
72
the particular wireless phone. “Normal usage” in this
context is defined as a signal quality that’s acceptable
for normal operation.
The M mark is intended to be synonymous with the U
mark. The T mark is intended to be synonymous with
the UT mark. The M and T marks are recommended
by the Alliance for Telecommunications Industries
Solutions (ATIS). The U and UT marks are
referenced in Section 20.19 of the FCC Rules. The
HAC rating and measurement procedure are
described in the American National Standards
Institute (ANSI) C63.19 standard.
When you're talking on a cell phone, it's
recommended that you turn the BT (Bluetooth) mode
off for HAC.
For information about hearing aids and digital
wireless phones
Wireless Phones and Hearing Aid Accessibility
http://www.accesswireless.org/Home.aspx
FCC Hearing Aid Compatibility and Volume Control
http://www.fcc.gov/cgb/consumerfacts/hac_wireless.
htm
Gallaudet University, RERC:
https://fjallfoss.fcc.gov/oetcf/eas/reports/GenericSear
ch.cfm
Note: Some content and services accessible through
this device belong to third parties and are protected
by copyright, patent, trademark and/or other
intellectual property laws. Such content and services
are provided solely for your personal noncommercial
use. You may not use any content or services in a
73
manner that has not been authorized by the content
owner or service provider. Without limiting the
foregoing, unless expressly authorized by the
applicable content owner or service provider, you
may not modify, copy, republish, upload, post,
transmit, translate, sell, create derivative works,
exploit, or distribute in any manner or medium any
content or services displayed through this device.
“THIRD PARTY CONTENT AND SERVICES ARE
PROVIDED “AS IS.” NEITHER COOLPAD NOR ANY
AFFILIATE THEREOF (COLLECTIVELY,
"COOLPAD") WARRANT IN ANY MANNER
CONTENT OR SERVICES SO PROVIDED, EITHER
EXPRESSLY OR IMPLIEDLY, FOR ANY PURPOSE.
COOLPAD EXPRESSLY DISCLAIMS ANY IMPLIED
WARRANTIES, INCLUDING BUT NOT LIMITED TO,
WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE AND
NON-INFERINGEMENT. COOLPAD DOES NOT
GUARANTEE THE ACCURACY, VALIDITY,
TIMELINESS, LEGALITY, OR COMPLETENESS OF
ANY CONTENT OR SERVICE MADE AVAILABLE
THROUGH THIS DEVICE AND UNDER NO
CIRCUMSTANCES, INCLUDING NEGLIGENCE,
SHALL COOLPAD BE LIABLE, WHETHER IN
CONTRACT OR TORT, FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES, ATTORNEY FEES,
EXPENSES, OR ANY OTHER DAMAGES ARISING
OUT OF, OR IN CONNECTION WITH, ANY
INFORMATION CONTAINED IN, OR AS A RESULT
74
OF THE USE OF ANY CONTENT OR SERVICE BY
YOU OR ANY THIRD PARTY, EVEN IF ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES.”
Third party services may be terminated or interrupted
at any time, and CoolpadTM makes no representation
or warranty that any content or service will remain
available for any period of time. Content and services
are transmitted by third parties by means of networks
and transmission facilities over which Coolpad has no
control. Without limiting the generality of this
disclaimer, Coolpad expressly disclaims any
responsibility or liability for any interruption or
suspension of any content or service made available
through this device. Coolpad is neither responsible
nor liable for customer service related to the content
and services. Any question or request for service
relating to the content or services should be made
directly to the respective content and service
provider.
75
Standard limited warranty
(This standard Limited Warranty is effective May 15,
2016 and supersedes and replaces for all purposes
the Standard Limited Warranty that appears in the
enclosed documentation, if any)
COOLPAD TECHNOLOGIES, INC.("COOLPAD")
warrants that COOLPAD's the handsets and
accessories enclosed herein ("Products") are free
from defects in material and workmanship under
normal use and service for the period commencing
upon the date of purchase by the first consumer
purchaser and continuing for the following specified
period of time after that date:
Phone
12
months
Battery and Charger
6 months
Other Accessories(If included in
the box set)
3 months
This Limited Warranty is conditioned upon proper use
of the Products. This Limited Warranty does not
cover: (a) defects or damage resulting from accident,
misuse, abnormal use, abnormal conditions,
improper storage, exposure to liquid, moisture,
dampness, sand or dirt, neglect, or unusual physical,
electrical or electromechanical stress; (b) scratches,
dents and cosmetic damage, unless caused by
COOLPAD; (c) defects or damage resulting from
excessive force or use of a metallic object when
pressing on a touch screen; (d) equipment from which
the serial number and/or the enhancement data code
have been removed, defaced, damaged, altered,
76
made illegible, and/or otherwise tampered with; (e)
ordinary wear and tear; (f) defects or damage
resulting from the use of Product in conjunction or
connection with accessories, products, or
ancillary/peripheral equipment not furnished or
approved by COOLPAD; (g) defects or damage
resulting from improper testing, operation,
maintenance, installation, service, or adjustment not
furnished or approved by COOLPAD; (h) defects or
damage resulting from external causes such as
collision with an object, fire, flooding, dirt, windstorm,
lightning, earthquake, exposure to weather conditions,
theft, blown fuse, or improper use of any electrical
source; (i) defects or damage resulting from cellular
signal reception or transmission, viruses and/or other
software problems introduced into the Product; or (j)
Product used or purchased outside the United States.
This Limited Warranty covers batteries only if battery
capacity falls below 80% of rated capacity or the
battery leaks, and this Limited Warranty does not
cover any battery if: (i) the battery has been charged
by a battery charger not specified or approved by
COOLPAD for charging the battery; (ii) any of the
seals on the battery are broken or show evidence of
tampering; or (iii) the battery has been used in
equipment other than the COOLPAD phone for which
it is specified.
During the applicable warranty period, provided the
Product subject to the warranty claim is returned in
accordance with the terms of this Limited Warranty,
COOLPAD will repair or replace such Product, at
77
COOLPAD'S sole option, without charge. COOLPAD
may, at COOLPAD's sole option, use rebuilt,
reconditioned, or new parts or components when
repairing any Product, or may replace the Product
with a rebuilt, reconditioned or new Product. All other
repaired/replaced Products will be warranted for a
period equal to the remainder of the original Limited
Warranty on the original Product or for ninety (90)
days, whichever is longer. All replaced Products,
parts, components, boards and equipment shall
become the property of COOLPAD. Except to any
extent expressly allowed by applicable law, transfer
or assignment of this Limited Warranty is prohibited.
To obtain service under this Limited Warranty, you
must return the Product to an authorized phone
service facility in an adequate container for shipping,
accompanied by the sales receipt or comparable
proof of sale showing the original date of purchase,
the serial number of the Product and the seller's
name and address. To obtain assistance on where to
deliver the Product, please call COOLPAD Customer
Care at 1-877-606-5753. If COOLPAD determines
that any Product is not covered by this Limited
Warranty, you must pay all parts, shipping, and labor
charges for the repair or return of such Product.
You should keep a separate backup copy of any
contents of the Product before delivering the Product
to COOLPAD for warranty service, as some or all of
the contents may be deleted or reformatted during the
course of warranty service.
THIS LIMITED WARRANTY SETS OUT THE FULL
78
EXTENT OF COOLPAD'S RESPONSIBILITIES,
AND THE EXCLUSIVE REMEDY REGARDING THE
PRODUCTS.
ALL DISPUTES WITH COOLPAD ARISING IN ANY
WAY FROM THIS LIMITED WARRANTY OR THE
SALE, CONDITION OR PERFORMANCE OF THE
PRODUCTS SHALL BE RESOLVED EXCLUSIVELY
BY ANY COURT WITH COMPETENT
JURISDICTION. Any such dispute shall not be
combined or consolidated with a dispute involving
any other person's or entity's Product or claim, and
specifically, without limitation of the foregoing, shall
not under any circumstances proceed as part of a
class action. The laws of the State of California,
without reference to its choice of laws principles, shall
govern the interpretation of the Limited Warranty and
all disputes arising out of the products or services.
This settlement of disputes also applies to claims
against COOLPAD'S employees, contractors, agents,
and/or other representatives, as well as any of all of
its affiliated entities, regardless of place of
incorporation, if any such claim arises from the
Product's sale, condition or performance.
Notwithstanding the foregoing, neither this warranty
nor provision of any Product shall, in and of itself,
provide for in persona jurisdiction over any of
COOLPAD's employees, contractors, agents, and/or
other representatives, or over its affiliated entities.
Severability
If any portion of this Limited Warranty is held to be
illegal or unenforceable, such partial illegality or
79
unenforceability shall not affect the enforceability of
the remainder of the Limited Warranty.
Coolpad Technologies, Inc.
6650 Lusk Blvd Suite B204
San Diego, CA 92121
Customer Service: 1-877-606-5753

Navigation menu
