Yulong Computer Telecommunication Scientific YL5860E CDMA/LTE DUAL-MODE MOBILE PHONE User Manual USERS MANUAL

Yulong Computer Telecommunication Scientific (Shenzhen) Co. LTD CDMA/LTE DUAL-MODE MOBILE PHONE USERS MANUAL

USERS MANUAL

5860E
User Manual
Coolpad 5860E
Copyright ©2012 Yulong Computer Telecommunication Scientific (Shenzhen) Co., Ltd. All rights
reserved. Coolpad logo are registered trademarks of Yulong Computer Telecommunication
Scientific (Shenzhen) Co., Ltd. All other trademarks are the property of their respective owners.
No part of this user manual may be reproduced, distributed, translated, or transmitted in any
form or by any means, electronic or mechanical, including photocopying, recording, or storing
in any information storage and retrieval system, without the prior written permission of Yulong
Computer Telecommunication Scientific (Shenzhen) Co., Ltd.
Coolpad 5860E
Table of Contents
PHONE OVERVIEW .................... 1
BACK COVER AND BATTERY: 2
BASIC OPERATIONS .............................. 6
POWERING ON/OFF ................................ 6
HOME SCREEN ........................................ 7
APPLICATIONS INTERFACE ................ 7
CONTACTS .................................... 7
VIEW AND EDIT CONTACT ...... 8
MESSAGING.................................. 9
COMPOSING SMS/MMS ......................... 9
DIALING ....................................... 11

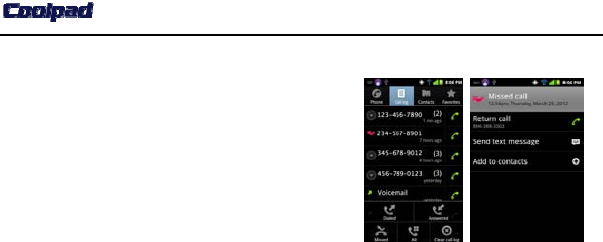

CALL LOG ................................... 14
BROWSER .................................... 15
CLOCK .......................................... 15
CALENDAR .................................. 15

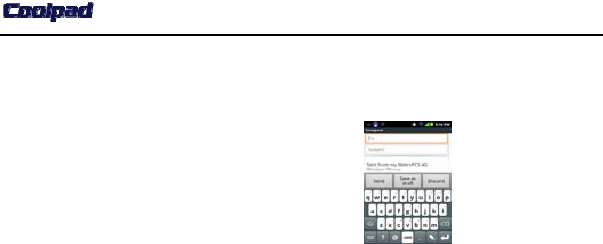

SENDING E-MAIL ...................... 16
MUSIC ........................................... 18
SOUND RECORDER ................... 19
GALLERY ..................................... 19
CAMERA ...................................... 19
Coolpad 5860E
VIDEO ........................................... 20
INTRODUCTION TO METRO
APPLICATIONS .......................... 20
IM AND SOCIAL™ ................................20
METRO411 ..............................................21
APPSTORE ..............................................21
TOTAL PROTECTION ...........................21
METROPCS EASY WI-FI .......................22
MSTUDIO ................................................22
MYEXTRAS ............................................22
MYMETRO .............................................23
POCKET EXPRESS ................................23
RHAPSODY ............................................23
TALK ....................................................... 23
SETTINGS .................................... 24
WIRELESS AND NETWORK ............... 24
CALL SETTINGS ................................... 25
SOUND .................................................... 25
DISPLAY................................................. 25
LOCATION AND SECURITY ............... 25
APPLICATIONS ..................................... 26
ACCOUNT AND SYNC ......................... 26
PRIVACY ................................................ 26
STORAGE ............................................... 26
LANGUAGE AND KEYBOARD .......... 27
VOICE INPUT AND OUTPUT .............. 27
DATE AND TIME ................................... 27
Coolpad 5860E
ABOUT PHONE ......................................27
CALCULATOR ............................ 27
VOICE DIALER .......................... 27
GOOGLE SEARCH ..................... 28
MAPS ............................................ 28
NAVIGATION .............................. 28
PLACES ........................................ 28
VOICE SEARCH ......................... 28
TECHNOLOGICAL DATA ........ 29
ACCESSORY LIST ..................... 31
Coolpad 5860E
Using this manual
Thank you for purchasing this
Coolpad mobile device. Before proceeding
further, Coolpad requests that you comply
with the following:
1. Please read this manual and the safety
precautions therein carefully before using
your new device.
2. The content identified in this user
manual may differ from the product, or
from software provided by service
providers or carriers, and is subject to
change without prior notice.
3. Applications, their features and their
functions may vary by country, region, or
hardware specifications. Coolpad is not
liable for performance issues caused by
third-party applications.
4. Coolpad is not liable for performance
issues or incompatibilities caused by user
editing of registry settings.
Coolpad 5860E

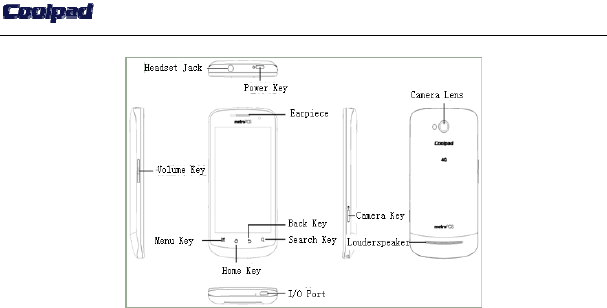

PHONE OVERVIEW
Note: All the keys on the touch screen interface are all touch keys.
Coolpad 5860E
Key Functionality
Power Key When the backlight is on, press the button shortly to turn off the backlight.
Press and hold the key to select from: Power Off; Restart; Airplane Mode or
Slient Mode. While the device is asleep, press the Power Key to wake it up.
Menu Key Tap for the menu to pop up at the functionality interface
Home Key Tap to go back to the functionality interface from the application interface
Back Key Tap to go back to the previous interface
Search Key Tap to perform a search
Volume Key Adjust call, ringtone, music and video volumes
Camera Key Press and hold the camera key to activate the camera application. Once the
application is running, press the camera key to take photos or record videos.
Coolpad 5860E
BACK COVER AND BATTERY:

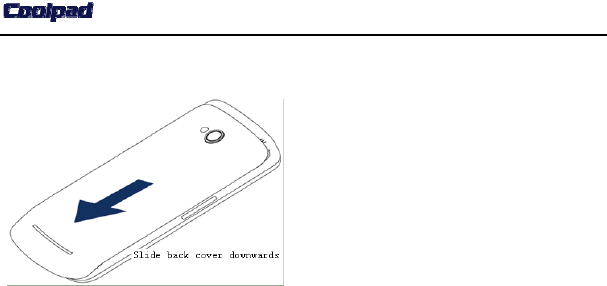

Uninstalling the back cover:
1. With one hand, tightly hold the
device face down.
2. With the other hand, slide the back
cover downwards and lift to remove
the cover.
Coolpad 5860E

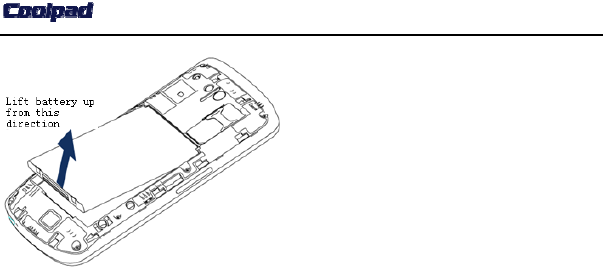

Taking out the battery:
1. With one hand, tightly hold the
device face down.
2. With the other hand, lift the battery
to remove it.
Note: Your device must be powered
off before exchanging or
uninstalling the battery!
Charging the battery:
1. Insert the end of the USB cable
corresponding to your device into the
I/O port.
2. Connect the other end of the USB
cable to the power plug, and insert the
Coolpad 5860E
power plug into the outlet. When
these steps are completed, your
device can be charged.
3. If your battery has been not used for a
long time, it will gradually discharge.
If this happens and you want to use
your device, you must first recharge
the battery.
Notes:
1) You can view battery information by
use of the battery icon located in the
tray.
2) When your device is powered on and
charging is in progress, the battery
icon in the tray will display a
charging status. While your device is
powered off and charging is in
progress, the charging icon will be
displayed on the screen.
3) When the battery is at low levels,
your device will automatically power
off. Please recharge the battery to
continue using your device.
PHONE CARD AND SD CARD
Coolpad 5860E
You can use your device to perform
certain operations without a phone card,
but functionalities related to network and
telecommunications are not available
without a phone card. Your device is a
LTE 4G Network mobile phone and will
only operate properly with a corresponding
phone card.
Note: To use a Micro SD card, insert and
push it into the card slot, the card slot is
located at the left of phone card slot; pull
down on the card to remove it from the
slot. Please take good care of your phone
card and SD card. Do not bend, scratch, or
expose your phone or SD card to static
electricity or water.
BASIC OPERATIONS
POWERING ON/OFF
1. When your device is powered off,
press and hold the Power key to
power on and boot up the main
interface.
2. When your device is powered on,
press and hold the Power key for
Coolpad 5860E
“Phone options” to select from:
Airplane Mode; Silent Mode; Restart
or Power Off based on your needs.
HOME SCREEN
You can easily and conveniently view
applications on the Home screen. Slide
your finger to the left or right to scroll
through the Home screen pages. Tap the
Menu Key to Add and Manage
applications, Change the wallpaper, Edit,
and access phone settings.
APPLICATIONS INTERFACE
At the applications interface, press,
hold, and drag the selected application to
adjust its location.
CONTACTS
In “Contacts”, you can store and
manage contact information. Select your
contact to edit your contact’s name, phone
number, e-mail address, and other
information. Also, you can execute various
communication options (e.g. send a SMS)
from the Contact’s interface. Morover, you
Coolpad 5860E
can view, add, manage, and sync your
Contacts information to and from your PC.

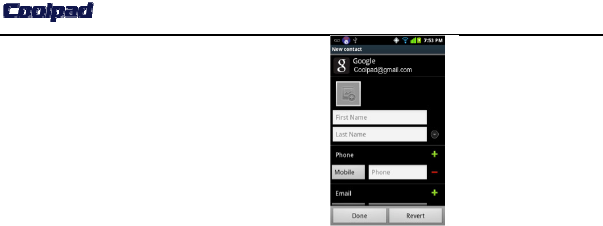

Create New Contact
1. Tap the Contact icon on the home
interface
2. Tap the Menu key and select “New
Contact” to enter the interface for
creating a new contact.
3. Input the contact information and tap
“Done” to finish creating the new
contact.
View and edit contact
Select the contact to view details for
that contact:
Coolpad 5860E
1. You can view and/or edit the
contact’s stored information.
2. Tap the Menu key and select “Edit
Contact” to edit information
pertaining to the contact. When
finished editing, tap “Done” to save
the changes and exit the interface.
Search for contact(s)
Your device features a search
functionality for Contacts. Tap the Menu
key and select “Search”, then input key
words to quickly search for your desired
contact.
MESSAGING
COMPOSING SMS/MMS
1. Tap the Messaging icon to enter the
messaging main interface, and then
tap “Compose new message” to
create a new message. Directly input
the message recipient's phone number
into the “To:” box or tap the
Recipient icon to select the desired
Coolpad 5860E
recipient(s) from your Contacts list.
2. Type your desired message into the
message box.
3. Tap “Send” to send your message and
a copy of it will be saved in the Sent
mailbox. If you tap the “Back” button
prior to sending the message, the
message will be automatically saved
in the Drafts mailbox.
4. You can tap the Menu key to attach
photos, audio files, videos, and other
types of files based on your needs.
5. Tap “Send” to send the message as a
MMS. If you tap “Back” prior to
sending the message, the message
will be automatically saved in Drafts.
Searching messages
At the main messaging interface, tap
the Menu key to select “Search” from the
Coolpad 5860E
pop-up menu and input key words(it can
search messages by receiver’s names) to
search for your desired message(s).

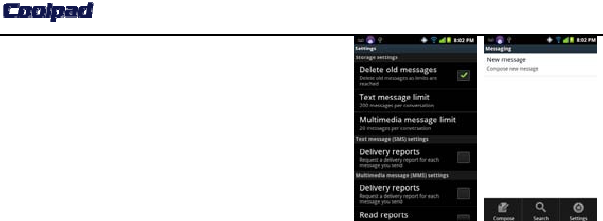

Settings
1. At the main messaging interface, tap
the Menu key to select “Settings”
from the pop-up menu.
2. You can access various settings for
message storage, SMS, MMS,
notifications, signature, sending
options, and message statistics.
DIALING
You can dial a phone number through
the Dialpad, Contacts, or Call log
Coolpad 5860E
interfaces. From the main interface, select
“Phone” to access the Dialpad and input
the phone number with the on-screen
keyboard. Tap the green Call icon to place
the call. For other dialing methods, please
refer to the relevant sections.
Answering a call
When you receive an incoming call,
slide your finger across the screen to
answer it.
Answering/Placing a call via earphone
During incoming calls: When there is an
incoming call, the backlight is on
automatically. Short press to answer and
long press to hand up.
During active calls:
Backlight on Backlight off
Short
press
Mute Mute
Long
press
Hand up in
one second
Release to
hand up

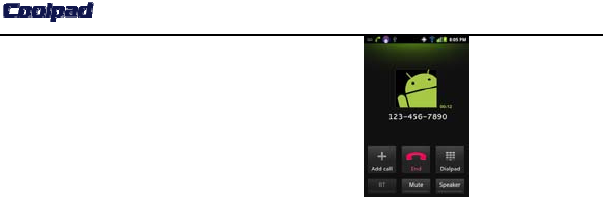

Functionalities during active calls
Coolpad 5860E
On the active call interface, tap
“Mute” to mute your voice but continue
hearing the receiver’s; tap “Speaker” to
activate the Speaker function; tap+to
access Dial pad to add a new caller; tap
“Dialpad” to access the input keyboard of
the active call interface. If a Bluetooth
accessory is connected, tap “BT” to switch
to Bluetooth mode. Tap “End” to end the
call.
Coolpad 5860E
CALL LOG
The call log stores your dialed, received
and missed calls.
Basic operations
1. Select a specific list/history to view
its details.
2. Click the number listed to access
Call Log options: tap “Call Back” to
call the selected phone number; tap
“Send Text Message” to send a
message to the selected phone
number;and tap “Add to Contacts”
to add and store the selected phone
number.
Deleting the call log
At the main call log interface, tap
the Menu key and select “Clear Call Log”.
Coolpad 5860E
This command will clear all the call
histories within the call log.
BROWSER
With the device’s web browser, you
can easily and rapidly connect to a
network and/or webpage(s). While
accessing a website, you can perform basic
web browsing operations, such as opening
a new window, adding bookmarks, and
refreshing the website, by tapping the
Menu key and selecting the desired
command.
Note: Access to the network depends on if
the network service provider offers the
requested service and whether you have
subscribed to it. Please contact the network
service provider for specific details.
CLOCK
With the clock function, you can set
alarm time(s), alarm ringtone(s), and day(s)
to repeat the alarm.

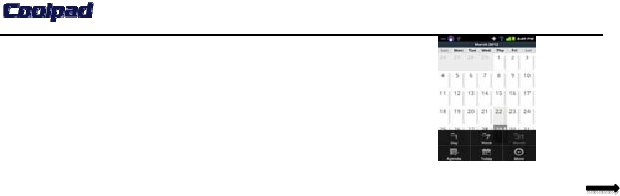

CALENDAR
The Calendar application includes
numerous functions such as a Calendar and
Coolpad 5860E
Agenda. To switch between different
views of the calendar, tap either “List”,
“Day”, “Week”, or “Month”. To add
events to the Calendar/Agenda, at the
screen of Month, long press the day you
want to add events to pop up context menu
and click Add to build new events, and tap
on “Done” to save the event on the
Calendar.
SENDING E-MAIL
With your device, you can send,
receive, and manage e-mails.

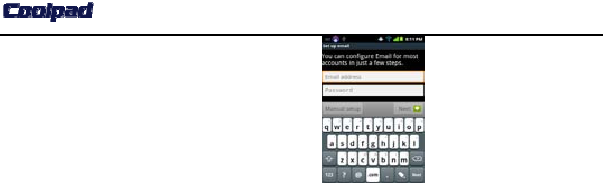

Creating a new account
Coolpad 5860E
Before using the e-mail function,
you must first set up your own e-mail
address/mailbox. You can apply for an
e-mail address and/or mailbox from
third-party websites, or use your own
pre-existing e-mail address/mailbox.
Account management
At the e-mail inbox interface, tap the
Menu key to select your account. Press and
hold the selected e-mail account to access
a pop-up menu with account settings and
Coolpad 5860E
operations. At the account interface, tap
the Menu key to add e-mail accounts.
Note: If you do not specify which account
to use to send your e-mail, the system will
use the default account to send your
e-mail.
Composing new e-mail
At the e-mail inbox interface, tap
the Menu key and select “Compose” to
compose a new e-mail message. Manually
input the receiver’s e-mail address into the
“To:” box, write the Subject and Content
of the message, and tap “Send” to deliver
the e-mail to the specified receiver.
MUSIC
Select the Music application to enter
the Music interface, where you can view
and select to play audio files organized by
song titles, playlists, albums, or artists.
While a song is playing, you can perform
operations such as Stop, Pause/Play,
Previous, Next, and Set loop mode.
Coolpad 5860E
SOUND RECORDER
Your device has a recording
function to record audio file(s).
GALLERY
Select the “Gallery” application from
the Applications menu. From the Gallery
interface, you can perform operations such
as managing and viewing photos and
videos.
CAMERA
Your device has a camera for taking
photos and videos.
Taking pictures
Select the “Camera” application from
the Applications menu. While in the
camera interface, tap the icons shown on
the screen to adjust the white balance,
picture size, picture quality, color effect(s),
etc. for your photo. After adjusting your
camera settings, aim your camera lens and
tap “Shoot” to capture the image. Tap the
picture to delete, share, set the picture as
wallpaper, or perform other operations.
Note: please remove the camera lens
cover before using the camera.
Coolpad 5860E
VIDEO
Select the “Camcorder” application
from the applications menu. While in the
camcorder interface, tap the icons shown
on the interface to adjust the color effect(s),
white balance, video quality, etc. for your
video. After adjusting your settings, aim
your camera lens and tap “Shoot” to start
recording a video. While the video is
shooting, the amount of time available for
recording and the amount of time that has
been recorded is displayed at the bottom of
the screen. Tap the button to stop
recording the video. Tap the video to
delete, share, and play your short video(s).
INTRODUCTION TO METRO
APPLICATIONS
IM AND SOCIAL™
With your MetroPCS cell phone,
you can stay connected to your friends
through Facebook, Twitter, and instant
messaging (IM) all through one
easy-to-use application, IM and Social.
Coolpad 5860E
Open up the application and log in to your
accounts to get started.
MAIL@METRO
With Mail@metro, you can send
and receive email wherever you go. You
can directly access your existing e-mail
account from your MetroPCS phone as
well as set up alerts for when new emails
are received.
METRO411
With Metro411, you have quick and
easy access to directory assistance
information through one of the MetroPCS
Directory Assistance Services.
APPSTORE
Download the most popular games
and applications from the Metro App Store
to customize your phone.
TOTAL PROTECTION
To give the user the best protection
against viruses and spyware, we've
combined all the great features of
MetroGUARD and MetroBACKUP into a
single application. You can adjust your
Coolpad 5860E
cell phone’s security and backup settings
for your desired level of protection.
METROPCS EASY WI-FI
With MetroPCS Wi-Fi, your
MetroPCS cell phone can find and connect
to hundreds of thousands of free Wi-Fi
hotspots around the world. Add to and
save personalized lists of your own hotspot
accounts, such as the Wi-Fi bundled with
your home service or with other network.
MSTUDIO
MetroSTUDIO offers full song
tracks, ringtones and ringback tones from
today’s hottest artists. Watch TV shows,
news, sports, and other entertainment on
your cell phone with Video On Demand.
MYEXTRAS
MyExtrasSM provides you with
informational content such as weather
forecasts, sports scores, entertainment
highlights, information about local events,
promotional offers, and exclusive
discounts.
Coolpad 5860E
MYMETRO
MyMetro can help you manage your
MetroPCS account from anywhere and at
anytime. View your account information,
pay your bill, add features, and more
directly from your mobile phone screen.
POCKET EXPRESS
Pocket Express streamlines your
customized news sources for quicker and
easier perusal at your fingertips. View
news, sports, weather, maps, and more
without the browse-and-wait of mobile
Internet.
RHAPSODY
Rhapsody is one of the leading
online music subscription services in the
United States. A subscription allows
members access to numerous full-length
songs from almost anywhere, such as web
browsers, mobile applications, MP3
players, and hi-fi systems.
TALK
Log in with your Gmail account to
chat, text, and call your friends all in one
easy-to-use application.
Coolpad 5860E
SETTINGS
WIRELESS AND NETWORK
You can adjust your cell phone’s
wireless and network settings such as
putting your phone in airplane mode and
modifying your Bluetooth connections.
Airplane mode: Select this option to stop
all wireless connections.
Wi-FiTap to turn on/off Wi-Fi.
Wi-Fi settings: You can adjust the settings
for Wi-Fi and other networks.
BluetoothTap to turn on/off Bluetooth.
Bluetooth settings
Your device supports Bluetooth. Your
Bluetooth device can connect with your
device from up to 10 meters. If there is any
obstacle between the transmitting and
receiving devices, the Bluetooth signal
may be disrupted and/or weakened. At the
Settings interface, select “Bluetooth
Settings” to enter the interface. Tap
“Bluetooth” to turn it on, tap “Device
Name” to change the Bluetooth device’s
name, tap “Discoverable” to let your
device be viewed by other Bluetooth
Coolpad 5860E
devices (it is only discoverable for 120
seconds), tap “Scan for Devices” to search
for other discoverable devices.
CALL SETTINGS
You can adjust your call settings as
well as set your voicemail. Before using
this network service, please consult your
network service provider to confirm if you
have opened or subscribed to this service.
SOUND
You can set the general volume for
incoming calls, notifications, applications,
media, and alerts.
DISPLAY
You can adjust the brightness of
your cell phone, the auto-rotate settings,
animations and screen timeout.
LOCATION AND SECURITY
You can adjust your settings for
detecting your location, screen lock
properties, password storage, device
Coolpad 5860E
administration, credential storage, and
other security features.
APPLICATIONS
You can adjust the installation of
non-market applications, manage and
delete installed applications, view and
control current running services, etc.
ACCOUNT AND SYNC
You can add or modify accounts,
control auto-sync properties, and set how
background data is saved.
PRIVACY
You can set back-up and data
restore properties, reset the phone back to
factory settings, adjust privacy levels, etc.
Note: If you have established password
protection, you must verify your password
before resetting the phone to factory
settings.
STORAGE
You can view your disk space usage
statistics on your Micro SD card and
internal hard drive.
Coolpad 5860E
LANGUAGE AND KEYBOARD
You can select and set the language
on your cell phone, adjust keyboard input
method(s), and modify the user dictionary.
VOICE INPUT AND OUTPUT
You can adjust voice input and output
settings on this interface.
DATE AND TIME
You can set the date and time
manually or have them automatically
updated.
ABOUT PHONE
At this interface, you can view cell
phone status information, check for system
updates, and view battery use, legal
information, model number, OS version,
etc.
CALCULATOR
Your device provides a basic
calculator for your convenience.
VOICE DIALER
Your device provides a voice dialer
to help you make phone calls.
Coolpad 5860E
GOOGLE SEARCH
Your device offers you the Google
search functionality for your convenience.
MAPS
Your device provides maps to help
you navigate, search for a route, and get
directions.
NAVIGATION
Your device provides a navigation
system to any destination that you input.
PLACES
With Places, you can search and
locate restaurants, coffee shops, concert
halls, bars, ATM machines, gas station,
grocery stores, and other businesses.
VOICE SEARCH
Your device supports Voice Search.
Verbally and hands-free, you can execute
searches for phone applications and
commands as well as on the web.
Coolpad 5860E
TECHNOLOGICAL DATA
Basic Specifications
Size 126×66×12.9mm
Type PDA
Antenna Built-in
Phone Card Micro SD card
Network modes
CDMA 1X - 850/1900/1700/2100 MHz
CDMA 1X EVDO Rev.A - 1900/1700/2100 MHz
LTE 1900/1700/2100 MHz
Memory 512MB NAND+512MB DDR2 SDRAM
Camera Main camera: 3.0 megapixels
Coolpad 5860E
Secondary camera: 0.3 megapixels
Interface Top: 3.5 headset jack
Bottom: Mirco USB cable port
Screen parameters
Type Size Resolution
WVGA 4.05 inch 480*800
Accessories
Battery
Name CPLD-74
Specific capacity 1600mAh
Normal voltage 3.7V
Coolpad 5860E
ACCESSORY LIST
Series No. Name Quantity Series
No. Name Quantity
1 Device body 1 9
2 Battery 1 10
3 Travel charger 1 11 User manual 1
4 USB cable 1 12 Warranty
card 1
5 2G Micro SD
CARD 1 13 Certificate 1
Note: The accessories listed on the Accessory list are the standard items that come with the
purchase of your phone. Please consult your dealer for more details.
Coolpad 5860E
IMPORTANT HEALTH
INFORMATION AND SAFETY
PRECAUTIONS
When using this product, the safety
precautions below must be taken to avoid
possible legal liabilities and damages.
Retain and follow all product safety and
operating instructions.
Observe all warnings in the product
operating instructions. To reduce the risk
of bodily injury, electric shock, fire, and
damage to the equipment, observe the
following precautions.
SAFETY PRECAUTIONS FOR
PROPER GROUNDING
INSTALLATION
CAUTION: Connecting to improperly
grounded equipment can result in an
electric shock to either you or your device.
This product is equipped with a USB Cable
for connecting to a desktop or notebook
computer. Be sure your computer is
properly grounded before connecting this
product to the computer. The power supply
cord of a desktop or notebook computer
has an equipment-grounding conductor and
Coolpad 5860E
a grounding plug. The plug must be
plugged into an appropriate outlet which is
properly installed and grounded in
accordance with all local codes and
ordinances.
SAFETY PRECAUTIONS FOR
POWER SUPPLY UNIT
Use the correct external power
source. A product should be operated
only from the type of power source
indicated on the electrical ratings label. If
you are not sure of the type of power
source required, consult your authorized
service provider or local power company.
For a product that operates from battery
power or other sources, refer to the
operating instructions
that are included with the product.
ELECTRICAL SAFETY
This product is intended for use
when supplied with power from the
designated battery or power supply unit.
Other usage may be dangerous and will
invalidate any approval given to this
product. Handle battery packs carefully.
This product contains a Li-ion battery.
Coolpad 5860E
There is a risk of fire and burns if the
battery pack is handled improperly. Do not
attempt to open or service the battery pack.
Do not disassemble, crush, puncture, short
external contacts or circuits, dispose of in
fire or water, or expose a battery pack to
temperatures higher than 60°C (140°F).
NOTE: Danger of explosion if battery is
incorrectly replaced. To reduce risk of fire
or burns, do not disassemble, crush,
puncture, short external contacts, expose to
temperature above 60°C (140°F), or
dispose of in fire or water. Replace only
with specified batteries. Recycle or dispose
of used batteries according to all applicable
local regulations, or in accordance with the
instructions in the reference guide supplied
with your product. Take these other
precautions:
1. Keep the battery or device dry and
away from water or any liquid as it
may cause a short circuit.
2. The phone should be connected only
to products that bear the USB-IF logo
or have completed the USB-IF
compliance program.
Coolpad 5860E
3. Keep metal objects away so they
don’t come in contact with the
battery or its connectors as it may
lead to short circuit during operation.
4. Always keep the battery out of the
reach of babies and small children, to
avoid swallowing of the battery.
Consult a doctor immediately if the
battery is swallowed.
5. Do not use a battery that appears
damaged, deformed, or discolored, or
one that has any rust on its casing,
overheats, or emits a foul odor.
6. Use of an unqualified battery or
charger may present a risk of fire,
explosion, leakage or other hazard.
7. Only use the battery with a charging
system that has been qualified with
the system per this standard:
IEEE-Std-1725-200x.
8. Use of an unqualified battery may
present a risk of fire, explosion,
leakage or other hazard.
9. Replace the battery only with another
battery that has been qualified with
Coolpad 5860E
the system per this standard:
IEEE-Std-1725-200x.
10. Avoid dropping the phone or battery.
If the phone or battery is dropped,
especially on a hard surface, and the
user suspects damage, take it to a
service center for inspection.
11. If the battery leaks: Do not allow the
leaking fluid to come in contact with
eyes. If contact occurs, DO NOT rub;
rinse with clean water immediately
and seek medical advice. Do not
allow the leaking fluid to come in
contact with skin or clothing. If
contact occurs, flush the affected area
immediately with clean water and
seek medical advice. Take other
precautions to keep a leaking battery
away from fire as there is a danger of
ignition or explosion.
PREVENTION OF HEARING LOSS
CAUTION: Permanent hearing loss may
occur if earphones or headphones are used
at high volume for prolonged periods of
time.
Coolpad 5860E
SAFETY PRECAUTIONS FOR
DIRECT SUNLIGHT
Keep this product away from
excessive moisture and extreme
temperatures. Do not leave the product or
its battery inside a vehicle or in places
where the temperature may exceed 60°C
(140°F), such as on a car dashboard,
window sill, or behind glass that is exposed
to direct sunlight or strong ultraviolet light
for extended periods of time. This may
damage the product, overheat the battery,
or pose a risk to the vehicle.
ENVIRONMENTAL RESTRICTIONS
Do not use this product in gas
stations, fuel depots, chemical plants or
where blasting operations are in progress,
or in potentially explosive atmospheres
such as fueling areas, fuel storehouses,
below deck on boats, chemical plants, fuel
or chemical transfer or storage facilities,
and areas where the air contains chemicals
or particles, such as grain, dust, or metal
powders. Please be aware that sparks in
such areas could cause an explosion or fire
resulting in bodily injury or even death.
Coolpad 5860E
AIRCRAFT SAFETY
Due to the possible interference
caused by this product to an aircraft’s
navigation system and its communications
network, using this device’s phone
function on board an airplane is against the
law in most countries. If you want to use
this device when use of other electronic
devices is permitted on board an aircraft,
you must switch to Airplane Mode, which
turns off RF functions that could cause
interference.
ROAD SAFETY
In many jurisdictions, vehicle
operators are not permitted to use
communication services with handheld
devices while the vehicle is in motion,
except in the case of emergency. In some
countries, using hands-free devices as an
alternative is allowed.
SAFETY PRECAUTIONS FOR RF
EXPOSURE
1. Use of non-original,
manufacturer-approved accessories
may violate your local RF exposure
guidelines and should be avoided.
Coolpad 5860E
2. Use only original,
manufacturer-approved accessories
when such accessories contain metal
of any kind,.
3. Avoid using your phone near strong
electromagnetic sources, such as
microwave ovens, sound speakers,
TV and radio.
4. Avoid using your phone near metal
structures (for example, the steel
frame of a building).
EXPLOSIVE ATMOSPHERES
When in any area with a potentially
explosive atmosphere or where flammable
materials exist, the product should be
turned off and the user should obey all
signs and instructions. Sparks in such areas
could cause an explosion or fire resulting
in bodily injury or even death. Users are
advised not to use the equipment at
refueling points such as service or gas
stations, and are reminded of the need to
observe restrictions on the use of radio
equipment in fuel depots, chemical plants,
or where blasting operations are in
Coolpad 5860E
progress. Areas with a potentially
explosive atmosphere are often, but not
always, clearly marked. These include
fueling areas, below deck on boats, fuel or
chemical transfer or storage facilities, and
areas where the air contains chemicals or
particles, such as grain, dust, or metal
powders.
INTERFERENCE WITH MEDICAL
EQUIPMENT FUNCTIONS
This product may cause medical
equipment to malfunction. The use of this
device is prohibited in most hospitals and
medical clinics. If you use any personal
medical device(s), consult the
manufacturer of your device(s) to
determine if the device(s) are adequately
shielded from external RF energy. Your
physician may be able to assist you in
obtaining this information. Turn your
phone OFF in health care facilities when
any regulations posted in these areas
instruct you to do so. Hospitals or health
care facilities may be using equipment that
could be sensitive to external RF energy.
HEARING AIDS
Coolpad 5860E
Some digital wireless phones may
interfere with some hearing aids. In the
event of such interference, you may want
to consult your service provider, or call the
customer service line to discuss
alternatives.
NON-IONIZING RADIATION
Your device has an internal antenna.
This product should be operated in its
normal-use position to ensure the radiative
performance and safety from interference.
As with other mobile radio transmitting
equipment, users are advised that for
satisfactory operation of the equipment and
for personal safety, it is recommended that
no part of the human body be allowed to
come too close to the antenna during
operation of the equipment.
Use only the supplied integral
antenna. Use of unauthorized or modified
antennas may impair call quality and
damage the phone, causing loss of
performance and SAR levels exceeding the
recommended limits, as well as result in
non-compliance with local regulatory
requirements in your country. To assure
Coolpad 5860E
optimal phone performance and ensure
human exposure to RF energy is within the
guidelines set forth in the relevant
standards, always use your device only in
its normal-use position.
Contact with the antenna area may impair
call quality and cause your device to
operate at a higher power level than
needed.
Avoiding contact with the antenna
area when the phone is in use optimizes the
antenna performance and the battery life.
FCC Notice and Cautions
Part of Statement 15.19: This device
and its accessories comply with Part 15 of
FCC Rules.
Operation is subject to the following two
conditions:
(1) This device and its accessories may not
cause harmful interference.
(2) This device and its accessories must
accept any interference received, including
interference that may cause undesired
operation. Part 15.21 Statement
Coolpad 5860E
Changes or modifications that are not
expressly approved by the manufacturer
could void the user’s authority to operate
the equipment.
Part of Statement 15.105: This
equipment has been tested and found to
comply with the limits for a class B digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If you experience interference
with reception (e.g., television),determine
if this equipment is causing the harmful
interference by turning the equipment off
and then back on to see if the interference
is affected.
Coolpad 5860E
If necessary, try correcting the
interference by one or more of the
following measures:
- Reorient or relocate the receiving
antenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced
radio/TV technician for help.

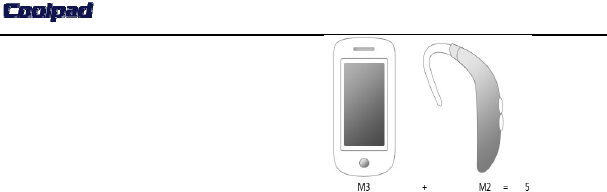

HAC
This phone has been tested and rated
for use with hearing aids for some of the
wireless technologies that it uses.
However, there may be some newer
wireless technologies used in this phone
that have not been tested yet for use with
hearing aids.
It is important to try the different
features of this phone thoroughly and in
different locations, using your hearing aid
or cochlear implant, to determine if you
hear any interfering noise.
Coolpad 5860E
Consult your service provider or the
manufacturer of this phone for information
on hearing aid compatibility.
If you have questions about return or
exchange policies, consult your service
provider or phone retailer.
TIA Safety Information
The following is the complete TIA
Safety Information for wireless
handheld phones:
Exposure to Radio Frequency
Signal
Your wireless handheld portable
phone is a low power radio transmitter and
receiver. When ON, it receives and sends
out Radio Frequency (RF) signals. In
August, 1996, the Federal Communications
Commissions (FCC) adopted RF exposure
guidelines with safety levels for handheld
wireless phones. Those guidelines are
consistent with the safety standards
previously set by both U.S. and
international standards bodies:
ANSI C95.1 (1992) *
NCRP Report 86 (1986)
Coolpad 5860E
ICNIRP (1996)
* American National Standards Institute;
National Council on Radiation Protection
and Measurements; International
Commission on Non-Ionizing Radiation
Protection. Those standards were based on
comprehensive and periodic evaluations of
the relevant scientific literature. For
example, over 120 scientists, engineers,
and physicians from universities,
government health agencies, and industry
reviewed the available body of research to
develop the ANSI Standard (C95.1). The
design of your phone complies with the
FCC guidelines (and those standards).
Antenna Care
Use only the supplied or an
approved replacement antenna.
Unauthorized antennas,
modifications, or attachments could
damage the phone and may violate FCC
regulations.
Phone Operation NORMAL POSITION:
Hold the phone as you would any other
telephone with the antenna pointed up and
over your shoulder.
Coolpad 5860E
Tips on Efficient Operation
For your phone to operate most efficiently:
Driving
Check the laws and regulations on
the use of wireless phones in the areas
where you drive and always obey them.
Also, if using your phone while driving
when, where and as permitted by law, you
MUST observe the following:
1. Give full attention to driving --
driving safely is your first
responsibility;
2. Use hands-free operation, if
available;
3. Pull off the road and park before
making or answering a call if driving
conditions or the law requires that
you do so.
Don’t touch the antenna
unnecessarily when the phone is in use.
Contact with the antenna affects call
quality and may cause the phone to operate
at a higher power level than otherwise
needed.
Pacemakers
Coolpad 5860E
The Health Industry Manufacturers
Association recommends that a minimum
separation of six (6) inches be maintained
between a handheld wireless phone and a
pacemaker to avoid potential interference
with the pacemaker. These
recommendations are consistent with the
independent research by and
recommendations of Wireless Technology
Research.
Persons with pacemakers:
1. Should ALWAYS keep the phone
more than six (6) inches from their
pacemaker when the phone is turned
ON;
2. Should not carry the phone in a
breast pocket;
3. Should use the ear opposite the
pacemaker to minimize the potential
for interference;
4. Should turn the phone OFF
immediately if there is any reason to
suspect that interference is taking
place.
Electronic Devices
Coolpad 5860E
Most modern electronic equipment
is shielded from RF signals. However,
certain electronic equipment may not be
shielded against the RF signals from your
wireless phone.
Hearing Aids
Some digital wireless phones may
interfere with some hearing aids. In the
event of such interference, you may want
to consult your service provider (or call the
customer service line to discuss
alternatives).
Other Medical Devices
If you use any other personal
medical device, consult the manufacturer
of your device to determine if it is
adequately shielded from external RF
energy. Your physician may be able to
assist you in obtaining this information.
Vehicles
RF signals may affect improperly
installed or inadequately shielded
electronic systems in motor vehicles.
Check with the manufacturer or its
representative regarding your vehicle. You
should also consult the manufacturer of
Coolpad 5860E
any equipment that has been added to your
vehicle.
Health Care Facilities
Turn your phone OFF in health care
facilities when any regulations posted in
these areas instruct you to do so. Hospitals
or health care facilities may use equipment
that could be sensitive to external RF
energy.
Aircraft
FCC regulations prohibit using your
phone while in the air. Switch OFF your
phone before boarding an aircraft.
Posted Facilities
Turn your phone OFF in any facility
where posted notices so require.
Blasting Areas
To avoid interfering with blasting
operations, turn your phone OFF when in a
“blasting area” or in areas posted: “Turn
off two-way radio”. Obey all signs and
instructions. Potentially Explosive
Atmosphere Turn your phone OFF when in
any area with a potentially explosive
atmosphere and obey all signs and
instructions. Sparks in such areas could
Coolpad 5860E
cause an explosion or fire resulting in
bodily injury or even death.
Areas with a potentially explosive
atmosphere are often, but not always
marked clearly. Potential areas may
include: fueling areas (such as gasoline
stations); below deck on boats; fuel or
chemical transfer or storage facilities;
vehicles using liquefied petroleum gas
(such as propane or butane); areas where
the air contains chemicals or particles
(such as grain, dust, or metal powders);
and any other area where you would
normally be advised to turn off your
vehicle engine.
For Vehicles Equipped with an
Air Bag
An air bag inflates with great force.
DO NOT place objects, including either
installed or portable wireless equipment, in
the area over the air bag or in the air bag
deployment area. If in-vehicle wireless
equipment is improperly installed and the
air bag inflates, serious injury could result.
Safety Information
Coolpad 5860E
Please read and observe the
following information for safe and proper
use of your phone and to prevent damage.
Also, keep the user guide in an accessible
place at all times after reading it.
Violation of the instructions may cause
minor or serious damage to the product.
1. Do not disassemble, open, crush,
bend or deform, puncture or shred
your equipment.
2. Do not modify or remanufacture your
equipment. Do not attempt to insert
foreign objects into the battery. Do
not immerse your equipment in water
or other liquids, or expose it to water
or other liquids, fire, explosions or
other hazards.
3. Do not short circuit the battery or
allow metallic conductive objects to
contact the battery terminals.
4. Avoid dropping the phone or battery.
If the phone or battery is dropped,
especially on a hard surface, and the
user suspects damage, take it to a
service center for inspection.
Coolpad 5860E
5. Only use the battery with the system
for which it is specified.
6. Promptly dispose of used batteries in
accordance with all applicable laws
and regulations.
7. Battery usage by children should be
supervised.
8. Only use the battery with a charging
system that has been qualified with
the system per the standards set forth
herein. Use of an unqualified battery
or charger may present a risk of fire,
explosion, leakage, or other hazard.
9. For those host devices that utilize a
USB port as a charging source, check
the host device's user manual for the
USB-IF logo or some other means to
ensure that it has completed the
USB-IF compliance program.
Charger and Adapter Safety
1. The charger and adapter are intended
for indoor use only.
2. Insert the battery pack charger
vertically into the wall power socket.
Coolpad 5860E
3. Only use the approved battery
charger. Otherwise, you may cause
serious damage to your phone.
4. Use the correct adapter for your
phone when using the battery pack
charger abroad.
Battery Information and Care
1. Please dispose of your battery
properly or take it to your local
wireless carrier for recycling.
2. The battery doesn’t need to be empty
before recharging.
3. Use only Yulong-approved chargers
specific to your phone model because
they are designed to maximize
battery life.
4. Do not disassemble or shortcircuit the
battery.
5. Keep the battery’s metal contacts
clean.
6. Replace the battery when it no longer
provides acceptable performance.
The battery can be recharged several
hundred times before replacement.
Coolpad 5860E
7. Recharge the battery after long
periods of non-use to maximize
battery life.
8. Battery life will vary due to usage
patterns and environmental
conditions.
9. Use of extended backlighting,
Browser, and data connectivity kits
affect battery life and talk/standby
times.
10. The self-protection function of the
battery cuts the power of the phone
when its operation is in an abnormal
state. In this case, remove the battery
from the phone, reinstall it, and turn
the phone on.
Explosion, Shock, and Fire Hazards
1. Do not put your phone in a place that
is subject to excessive dust, and
always keep the minimum required
distance between the power cord and
heat sources.
2. Unplug the power cord prior to
cleaning your phone, and clean the
power plug pin when it’s dirty.
Coolpad 5860E
3. When using the power plug, ensure
that it’s firmly connected. If not, it
may cause excessive heat or fire.
4. If you put your phone in a pocket or
bag without covering the receptacle
of the phone (power plug pin),
metallic articles (such as a coin,
paperclip or pen) may short-circuit
the phone. Always cover the
receptacle when not in use.
5. Don’t short-circuit the battery.
Metallic articles such as a coin,
paperclip or pen in your pocket or
bag may short-circuit the + and –
terminals of the battery (metal strips
on the battery) upon moving.
Short-circuit of the terminal may
damage the battery and cause an
explosion.
General Notice
1. Using a damaged battery or placing a
battery in your mouth may cause
serious injury.
2. Do not place items containing
magnetic components such as a credit
card, phone card, bank book, or
Coolpad 5860E
subway ticket near your phone. The
magnetism of the phone may damage
the data stored in the magnetic strip.
3. Talking on your phone for a long
period of time may reduce call
quality due to heat generated during
use.
4. When the phone is not used for a
long period time, store it in a safe
place with the power cord unplugged.
5. Using the phone in proximity to
receiving equipment (i.e., TV or
radio) may interfere with the phone's
functions.
6. Do not use the phone if the antenna is
damaged. If a damaged antenna
contacts skin, it may cause a slight
burn. Please contact an Yulong
Authorized Service Center to replace
the damaged antenna.
7. Do not immerse your phone in water.
If this happens, immediately turn the
phone OFF and remove the battery. If
the phone does not work, take it to an
Yulong Authorized Service Center.
Coolpad 5860E
8. Do not paint your phone.
9. Data, including contact information,
ringtones, text messages, voice
messages, pictures or videos, and
other files that saved in your phone
may be deleted due to careless use,
phone repair , or software upgrades .
Please backup your important phone
numbers and all other data that you
wish to retain. Neither the
manufacturer nor any person or entity
associated therewith is liable for any
damages of any nature whatsoever
due to loss of any or all data stored
on any device.
10. When you use the phone in public
places, set the ringtone to vibration so
you don't disturb others.
11. Do not turn your phone on or off
while the device is in close proximity
to your ear.
12. Use accessories, such as earphones
and headsets, with caution. Ensure
that cables are tucked away safely
and do not touch the antenna
unnecessarily.
Coolpad 5860E
Caution: Avoid potential hearing loss.
Prolonged exposure to loud sounds
(including music) is the most common
cause of preventable hearing loss. Some
scientific research suggests that using
portable audio devices, such as portable
music players and cellular telephones, at
high volume settings for long durations
may lead to permanent noise induced
hearing loss. This includes the use of
headphones (including headsets, earbuds
and Bluetooth® or other wireless devices).
Exposure to very loud sound has also been
associated in some studies with tinnitus (a
ringing in the ear), hypersensitivity to
sound and distorted hearing.
Individual susceptibility to noise
induced hearing loss and other potential
hearing problems varies. The amount of
sound produced by a portable audio device
varies depending on the nature of the
sound, the device, the device settings and
the headphones. You should follow some
commonsense recommendations when
using any portable audio device:
Coolpad 5860E
1. Set the volume in a quiet
environment and select the lowest
volume at which you can hear
adequately.
2. When using headphones, turn the
volume down if you cannot hear the
people speaking near you or if the
person sitting next to you can hear
what you are listening to.
3. Do not turn the volume up to block
out noisy surroundings. If you choose
to listen to your portable device in a
noisy environment, use
noise-cancelling headphones to block
out background environmental noise.
4. Limit the amount of time you listen.
As the volume increases, less time is
required before your hearing could be
affected.
5. Avoid using headphones after
exposure to extremely loud noises,
such as rock concerts, that might
cause temporary hearing loss.
Temporary hearing loss might cause
unsafe volumes to sound normal.
Coolpad 5860E
6. Do not listen at any volume that
causes you discomfort. If you
experience ringing in your ears, hear
muffled speech or experience any
temporary hearing difficulty after
listening to your portable audio
device, discontinue use and consult
your doctor.
You can obtain additional information on
this subject from the following sources:
American Academy of Audiology
11730 Plaza American Drive, Suite 300
Reston, VA 20190
Voice: (800) 222-2336
Email: info@audiology.org
Internet: www.audiology.org
National Institute on Deafness and Other
Communication Disorders
National Institutes of Health
31 Center Drive, MSC 2320 Bethesda, MD
USA 20892-2320
Voice: (301) 496-7243
Email: nidcdinfo@nih.gov
Coolpad 5860E
Internet:
http://www.nidcd.nih.gov/health/hearing
National Institute for Occupational Safety
and Health
Hubert H. Humphrey Bldg. 200
Independence Ave., SW Washington, DC
20201
Voice: 1-800-35-NIOSH (1-800-356-
4674)
Internet:
http://www.cdc.gov/niosh/topics/noise/defa
ult.html
FDA Consumer Update
The U.S. Food and Drug Administration’s
Center for Devices and Radiological
Health Consumer
Update on Mobile Phones:
1. What is the FDA's role concerning the
safety of wireless phones?
Under the law, the FDA does not
review the safety of radiation emitting
consumer products such as wireless phones
before they can be sold, as it does with new
drugs or medical devices. However, the
agency has authority to take action if
wireless phones are shown to emit Radio
Coolpad 5860E
Frequency (RF) energy at a level that is
hazardous to the user. In such a case, the
FDA could require the manufacturers of
wireless phones to notify users of the
health hazard and to repair, replace, or
recall the phones so that the hazard no
longer exists.
Although the existing scientific data
does not justify FDA regulatory actions,
the FDA has urged the wireless phone
industry to take a number of steps,
including the following:
1. Support needed research into possible
biological effects of RF of the type
emitted by wireless phones;
2. Design wireless phones in a way that
minimizes any RF exposure to the
user that is not necessary for device
function; and
3. Cooperate in providing users of
wireless phones with the best
possible information on possible
effects of wireless phone use on
human health.
Coolpad 5860E
The FDA belongs to an interagency
working group of the federal agencies that
have responsibility for different aspects of
RF safety to ensure coordinated efforts at
the federal level. The following agencies
belong to this working group:
1. National Institute for Occupational
Safety and Health
2. Environmental Protection Agency
3. Occupational Safety and Health
Administration
4. National Telecommunications and
Information Administration
The National Institutes of Health
participates in some interagency working
group activities, as well. The FDA shares
regulatory responsibilities for wireless
phones with the Federal Communications
Commission (FCC). All phones that are
sold in the United States must comply with
FCC safety guidelines that limit RF
exposure. The FCC relies on the FDA and
other health agencies for safety questions
about wireless phones.
The FCC also regulates the base
stations that the wireless phone networks
Coolpad 5860E
rely upon. While these base stations
operate at higher power than do the
wireless phones themselves, the RF
exposures that people get from these base
stations are typically thousands of times
lower than those they can get from wireless
phones. Base stations are thus not the
subject of the safety questions discussed in
this document.
2. Do wireless phones pose a health
hazard?
The available scientific evidence
does not show that any health problems are
associated with using wireless phones.
There is no proof, however, that wireless
phones are absolutely safe. Wireless
phones emit low levels of Radio Frequency
(RF) energy in the microwave range while
being used. They also emit very low levels
of RF when in standby mode. Whereas
high levels of RF can produce health
effects (by heating tissue), exposure to low
level RF that does not produce heating
effects causes no known adverse health
effects. Many studies of low level RF
exposures have not found any biological
Coolpad 5860E
effects. Some studies have suggested that
some biological effects may occur, but
such findings have not been confirmed by
additional research. In some cases, other
researchers have had difficulty in
reproducing those studies, or in
determining the reasons for inconsistent
results.
3. What are the results of the research
done already?
The research done thus far has
produced conflicting results, and many
studies have suffered from flaws in their
research methods. Animal experiments
investigating the effects of Radio
Frequency (RF) energy exposures
characteristic of wireless phones have
yielded conflicting results that often cannot
be repeated in other laboratories. A few
animal studies, however, have suggested
that low levels of RF could accelerate the
development of cancer in laboratory
animals. However, many of the studies that
showed increased tumor development used
animals that had been genetically
engineered or treated with cancer-causing
Coolpad 5860E
chemicals so as to be pre-disposed to
develop cancer in the absence of RF
exposure. Other studies exposed the
animals to RF for up to 22 hours per day.
These conditions are not similar to the
conditions under which people use wireless
phones, so we do not know with certainty
what the results of such studies mean for
human health. Three large epidemiology
studies have been published since
December 2000. Between them, the studies
investigated any possible association
between the use of wireless phones and
primary brain cancer, glioma, meningioma,
or acoustic neuroma, tumors of the brain or
salivary gland, leukemia, or other cancers.
None of the studies demonstrated the
existence of any harmful health effects
from wireless phone RF exposures.
However, none of the studies can answer
questions about long-term exposures, since
the average period of phone use in these
studies was around three years.
4. What kinds of phones are the subject of
this update?
Coolpad 5860E
The term “wireless phone” refers
here to handheld wireless phones with
built-in antennas, often called “cell”,
“mobile”, or “PCS” phones. These types of
wireless phones can expose the user to
measurable Radio Frequency (RF) energy
because of the short distance between the
phone and the user’s head. These RF
exposures are limited by FCC safety
guidelines that were developed with the
advice of the FDA and other federal health
and safety agencies. When the phone is
located at greater distances from the user,
the exposure to RF is drastically lower
because a person's RF exposure decreases
rapidly with increasing distance from the
source.
The so-called “cordless phones,”
which have a base unit connected to the
telephone wiring in a house, typically
operate at far lower power levels, and thus
produce RF exposures far below the FCC
safety limits.
5. What is the FDA doing to find out more
about the possible health effects of wireless
phone RF?
Coolpad 5860E
The FDA is working with the U.S.
National Toxicology Program and with
groups of investigators around the world to
ensure that high priority animal studies are
conducted to address important questions
about the effects of exposure to Radio
Frequency (RF) energy.
The FDA has been a leading
participant in the World Health
Organization International Electro
Magnetic Fields (EMF) Project since its
inception in 1996. An influential result of
this work has been the development of a
detailed agenda of research needs that has
driven the establishment of new research
programs around the world. The project
has also helped develop a series of public
information documents on EMF issues.
The FDA and the Cellular
Telecommunications & Internet
Association (CTIA) have a formal
Cooperative Research And Development
Agreement (CRADA) to do research on
wireless phone safety. The FDA provides
the scientific oversight, obtaining input
from experts in government, industry, and
Coolpad 5860E
academic organizations. CTIA-funded
research is conducted through contracts
with independent investigators. The initial
research will include both laboratory
studies and studies of wireless phone users.
The CRADA will also include a broad
assessment of additional research needs in
the context of the latest research
developments around the world.
6. What research is needed to decide
whether RF exposure from wireless phones
poses a health risk?
A combination of laboratory studies
and epidemiological studies of people
actually using wireless phones would
provide some of the data that are needed.
Lifetime animal exposure studies could be
completed in a few years. However, very
large numbers of animals would be needed
to provide reliable proof of a cancer
promoting effect, if one exists.
Epidemiological studies can provide data
that is directly applicable to human
populations, but ten or more years
follow-up may be needed to provide
Coolpad 5860E
answers about some health effects, such as
cancer.
This is because the interval between
the time of exposure to a cancer causing
agent and the time tumors develop - if they
do - may be many, many years. The
interpretation of epidemiological studies is
hampered by difficulties in measuring
actual RF exposure during day-to-day use
of wireless phones. Many factors affect
this measurement, such as the angle
at which the phone is held, or which model
of phone is used.
7. What has the FDA done to measure the
Radio Frequency energy coming from
wireless phones?
The Institute of Electrical and
Electronic Engineers (IEEE) is developing
a technical standard for measuring the
Radio Frequency (RF) energy exposure
from wireless phones and other wireless
handsets with the participation and
leadership of FDA scientists and engineers.
The standard, “Recommended Practice for
Determining the Spatial-Peak Specific
Absorption Rate (SAR) in the Human
Coolpad 5860E
Body Due to Wireless Communications
Devices: Experimental Techniques”, sets
forth the first consistent test methodology
for measuring the rate at which RF is
deposited in the heads of wireless phone
users. The test method uses a
tissue-simulating model of the human head.
Standardized SAR test methodology is
expected to greatly improve the
consistency of measurements made at
different laboratories on the same phone.
SAR is the measurement of the amount of
energy absorbed in tissue, either by the
whole body or a small part of the body. It
is measured in watts/kg (or milliwatts/g) of
matter. This measurement is used to
determine whether a wireless phone
complies with safety guidelines.
8. How can I find out how much Radio
Frequency energy exposure I can get by
using my wireless phone?
All phones sold in the United States
must comply with Federal
Communications Commission (FCC)
guidelines that limit Radio Frequency (RF)
energy exposures. The FCC established
Coolpad 5860E
these guidelines in consultation with the
FDA and the other federal health and
safety agencies. The FCC limit for RF
exposure from wireless phones is set at a
Specific Absorption Rate (SAR) of 1.6
watts per kilogram (1.6W/kg). The FCC
limit is consistent with the safety standards
developed by the Institute of Electrical and
Electronic Engineering (IEEE) and the
National Council on Radiation Protection
and Measurement. The exposure limit
takes into consideration the body’s ability
to remove heat from the tissues that absorb
energy from the wireless phone and is set
well below levels known to have effects.
Manufacturers of wireless phones must
report the RF exposure level for each
model of phone to the FCC.
The FCC website
(http://www.fcc.gov/cgb/cellular.html)
gives directions for locating the FCC
identification number on your phone, so
you can find your phone’s RF exposure
level in the online listing.
9. What about children using wireless
phones?
Coolpad 5860E
The scientific evidence does not
show a danger to users of wireless phones,
including children and teenagers. If you
want to take steps to lower exposure to
Radio Frequency (RF) energy, the
measures described above would apply to
children and teenagers using wireless
phones. Reducing the time of wireless
phone use and increasing the distance
between the user and the RF source will
reduce RF exposure.
Some groups sponsored by other
national governments have advised that
children be discouraged from using
wireless phones at all. For example, the
government in the United Kingdom
distributed leaflets containing such a
recommendation in December 2000. They
noted that no evidence exists that using a
wireless phone causes brain tumors or
other ill effects. Their recommendation to
limit wireless phone use by children was
strictly precautionary; it was not based on
scientific evidence that any health hazard
exists.
Coolpad 5860E
10. What steps can I take to reduce my
exposure to Radio Frequency energy from
my wireless phone?
If there is a risk from these products-
and at this point we do not know that there
is - it is probably very small. But if you are
concerned about avoiding even potential
risks, you can take a few simple steps to
minimize your exposure to Radio
Frequency (RF) energy. Since time is a key
factor in how much exposure a person
receives, reducing the amount of time
spent using a wireless phone will reduce
RF exposure. If you must conduct
extended conversations by wireless phone
every day, you could place more distance
between your body and the source of the
RF, since the exposure level drops off
dramatically with distance. For example,
you could use a headset and carry the
wireless phone away from your body or
use a wireless phone connected to a remote
antenna. Again, the scientific data does not
demonstrate that wireless phones are
harmful. But if you are concerned about
the RF exposure from these products, you
Coolpad 5860E
can use measures like those described
above to reduce your RF exposure from
wireless phone use.
11. What about wireless phone interference
with medical equipment?
Radio Frequency (RF) energy from
wireless phones can interact with some
electronic devices. For this reason, the
FDA helped develop a detailed test method
to measure Electro Magnetic Interference
(EMI) of implanted cardiac pacemakers
and defibrillators from wireless telephones.
This test method is now part of a standard
sponsored by the Association for the
Advancement of Medical Instrumentation
(AAMI). The final draft, a joint effort by
the FDA, medical device manufacturers,
and many other groups, was completed in
late 2000. This standard will allow
manufacturers to ensure that cardiac
pacemakers and defibrillators are safe from
wireless phone EMI. The FDA has tested
hearing aids for interference from handheld
wireless phones and helped develop a
voluntary standard sponsored by the
Institute of Electrical and Electronic
Coolpad 5860E
Engineers (IEEE). This standard specifies
test methods and performance
requirements for hearing aids and wireless
phones so that no interference occurs when
a person uses a “compatible” phone and a
“compatible” hearing aid at the same time.
This standard was approved by the IEEE in
2000. The FDA continues to monitor the
use of wireless phones for possible
interactions with other medical devices.
Should harmful interference be found to
occur, the FDA will conduct testing to
assess the interference and work to resolve
the problem.
12. Where can I find additional
information?
For additional information, please
refer to the following resources: FDA web
page on wireless phones
(http://www.fda.gov), under “C” in the
subject index, select Cell Phones >
Research. Federal Communications
Commission (FCC) RF Safety Program
(http://www.fcc.gov/cgb/cellular.html)
International Commission on Nonionizing
Coolpad 5860E
Radiation Protection (http://www.icnirp.de)
World Health Organization (WHO)
International EMF Project
(http://www.who.int/emf) Health
Protection Agency
(http://www.hpa.org.uk/)
Ten Driver Safety Tips
Your wireless phone gives you the
powerful ability to communicate by voice
almost anywhere, anytime. An important
responsibility accompanies the benefits of
wireless phones, one that every user must
uphold. When operating a car, driving is
your first responsibility. When using your
wireless phone behind the wheel of a car,
when permitted by local law, practice good
common sense and remember the
following tips:
1. When available and if permitted by local
law, use a hands-free device. A number of
hands-free wireless phone accessories are
readily available today. Whether you
choose an installed mounted device for
your wireless phone or a speaker phone
accessory, take advantage of these devices
if available to you.
Coolpad 5860E
2. Get to know your wireless phone and its
features such as speed dial and redial.
Carefully read your instruction manual and
learn to take advantage of valuable features
most phones offer, including automatic
redial and memory. Also, work to
memorize the phone keypad so you can use
the speed dial function without taking your
attention off the road.
3. Suspend conversations during hazardous
driving conditions or situations. Let the
person you are speaking with know you are
driving; if necessary, suspend the call in
heavy traffic or hazardous weather
conditions. Rain, sleet, snow, and ice can
be hazardous, but so is heavy traffic. As a
driver, your first responsibility is to pay
attention to the road.
4. Make sure you place your wireless
phone within easy reach and where you
can reach it without removing your eyes
from the road. If you get an incoming call
at an inconvenient time, if possible, let
your voicemail answer it for you.
Coolpad 5860E
5. Dial sensibly and assess the traffic; if
possible, place calls when you are not
moving or before pulling into traffic. Try
to plan your calls before you begin your
trip or attempt to coincide your calls with
times you may be stopped at a stop sign,
red light, or otherwise stationary. But if
you need to dial while driving, follow this
simple tip - dial only a few numbers, check
the road and your mirrors, then continue.
6. Don’t take notes or look up phone
numbers while driving. If you are reading
an address book or business card, or
writing a “to-do” list while driving a car,
you are not watching where you are going.
Use common sense. Do not get caught in a
dangerous situation because
you are reading or writing and not paying
attention to the road or nearby vehicles.
7. Use your wireless phone to call for help.
Your wireless phone is one of the greatest
tools you can own to protect yourself and
your family in dangerous situations -- with
your phone at your side, help is only three
numbers away. Dial 911 or other local
emergency number in the case of fire,
Coolpad 5860E
traffic accident, road hazard, or medical
emergency. Remember, it’s a free call on
your wireless phone!
8. Do not engage in stressful or emotional
conversations that may be distracting.
Stressful or emotional conversations and
driving do not mix; they are distracting and
even dangerous when you are behind the
wheel of a car. Make people you are
talking with aware you are driving and if
necessary, suspend conversations which
have the potential to divert your attention
from the road.
9. Call roadside assistance or a special
wireless non-emergency assistance number
when necessary. Certain situations you
encounter while driving may require
attention, but are not urgent enough to
merit a call for emergency services. But
you can still use your wireless phone to
lend a hand. If you see a broken-down
vehicle posing no serious hazard, a broken
traffic signal, a minor traffic accident
where no one appears injured or a vehicle
you know to be stolen, call roadside
assistance or other special non-emergency
Coolpad 5860E
wireless number. The above tips are meant
as general guidelines. Before deciding to
use your mobile device while operating a
vehicle, it is recommended that you consult
your applicable jurisdiction’s local laws or
other regulations regarding such use. Such
laws or other regulations may prohibit or
otherwise restrict the manner in which a
driver may use his or her phone while
operating a vehicle.
10. Use your wireless phone to help others
in emergencies. Your wireless phone
provides you a perfect opportunity to be a
“Good Samaritan” in your community. If
you see an auto accident, crime in progress
or other serious emergency where lives are
in danger, call 911 or other local
emergency number, as you would want
others to do for you.
Consumer Information on SAR
(Specific Absorption Rate)
This Model Phone Meets the
Government’s Requirements for Exposure
to Radio Waves. Your wireless phone is a
radio transmitter and receiver. It is
designed and manufactured not to exceed
Coolpad 5860E
the emission limits for exposure to
radiofrequency (RF) energy set by the
Federal Communications Commission
(FCC) of the U.S. Government. These FCC
exposure limits are derived from the
recommendations of two expert
organizations, the National Council on
Radiation Protection and Measurement
(NCRP) and the Institute of Electrical and
Electronics Engineers (IEEE). In both
cases, the recommendations were
developed by scientific and engineering
experts drawn from industry, government,
and academia after extensive reviews of
the scientific literature related to the
biological effects of RF energy. The
exposure limit for wireless mobile phones
employs a unit of measurement known as
the Specific Absorption Rate, or SAR. The
SAR is a measure of the rate of absorption
of RF energy by the human body expressed
in units of watts per kilogram (W/kg). The
FCC requires wireless phones to comply
with a safety limit of 1.6 watts per
kilogram (1.6 W/kg). The FCC exposure
limit incorporates a substantial margin of
Coolpad 5860E
safety to give additional protection to the
public and to account for any variations in
measurements. Tests for SAR are
conducted using standard operating
positions specified by the FCC with the
phone transmitting at its highest certified
power level in all tested frequency bands.
Although SAR is determined at the highest
certified power level, the actual SAR level
of the phone while operating can be well
below the maximum value. Because the
phone is designed to operate at multiple
power levels to use only the power
required to reach the network, in general,
the closer you are to a wireless base station
antenna, the lower the power output.
Before a phone model is available for sale
to the public, it must be tested and certified
to the FCC that it does not exceed the limit
established by the government adopted
requirement for safe exposure. The tests
are performed in positions and locations
(e.g., at the ear and worn on the body) as
required by the FCC for each model.
This device was tested for typical
body-worn operations with the back of the
Coolpad 5860E
phone kept 1.0 cm between the user’s body
and the back of the phone. To comply with
FCC RF exposure requirements, a
minimum separation distance of 1.0 cm
must be maintained between the user's
body and the back of the phone.
Third-party beltclips,
holsters, and similar accessories containing
metallic components should not be used.
Body-worn accessories that cannot
maintain 1.0 cm separation distance
between the user's body and the back of the
phone, and have not been tested for typical
body-worn operations may not comply
with FCC RF exposure limits and should
be avoided.
The FCC has granted an Equipment
Authorization for this model phone with all
reported SAR levels evaluated as in
compliance with the FCC RF emission
guidelines.
The highest SAR value for this
model phone when tested for use at the ear
is 1.4 W/kg and when worn on the body, as
described in this user’s manual, is 1.42
Coolpad 5860E
W/kg. While there may be differences
between SAR levels of various phones and
at various positions, they all meet the
government requirement for safe exposure.
SAR information on this model phone is
on file with the FCC and can be found
under the Display Grant section of
http://www.fcc.gov/oet/ea/fccid/ after
searching on FCC ID.
To find information that pertains to a
particular model phone, this site uses the
phone FCC ID number which is usually
printed somewhere on the case of the
phone. Sometimes it may be necessary to
remove the battery pack to find the number.
Once you have the FCC ID number for a
particular phone, follow the instructions on
the website and it should provide values
for typical or maximum SAR for a
particular phone.
Additional information on Specific
Absorption Rates (SAR) can be found on
the Cellular Telecommunications Industry
Association (CTIA) website at
http://www.ctia.org/ In the United States
and Canada, the SAR limit for mobile
Coolpad 5860E
phones used by the public is 1.6 watts/kg
(W/kg) averaged over one gram of tissue.
The standard incorporates a substantial
margin of safety to give additional
protection for the public and to account for
any variations in measurements.
FCC Hearing-Aid Compatibility (HAC)
Regulations for Wireless Devices
On July 10, 2003, the U.S. Federal
Communications Commission (FCC)
Report and Order in WT Docket 01- 309
modified the exception of wireless phones
under the Hearing Aid Compatibility Act
of 1988 (HAC Act) to require digital
wireless phones be compatible with
hearing-aids. The intent of the HAC Act is
to ensure reasonable access to
telecommunications services for persons
with hearing disabilities. While some
wireless phones are used near some
hearing devices (hearing aids and cochlear
implants), users may detect a buzzing,
humming, or whining noise. Some hearing
devices are more immune than others to
this interference noise, and phones also
vary in the amount of interference they
Coolpad 5860E
generate. The wireless telephone industry
has developed a rating system for wireless
phones, to assist hearing device users to
find phones that may be compatible with
their hearing devices. Not all phones have
been rated. Phones that are rated have the
rating on their box or a label located on the
box. The ratings are not guarantees.
Results will vary depending on the
user's hearing device and hearing loss. If
your hearing device happens to be
vulnerable to interference, you may not be
able to use a rated phone successfully.
Trying out the phone with your hearing
device is the best way to evaluate it for
your personal needs.
M-Ratings: Phones rated M3 or M4 meet
FCC requirements and are likely to
generate less interference to hearing
devices than phones that are not labeled.
M4 is the better/higher of
the two ratings.
T-Ratings: Phones rated T3 or T4
meet FCC requirements and are likely to
generate less interference to hearing
Coolpad 5860E
devices than phones that are not labeled.
T4 is the better/ higher of the two ratings.
Hearing devices may also be rated. Your
hearing device manufacturer or hearing
health professional may help you find this
rating. Higher ratings mean that the
hearing device is relatively immune to
interference noise. The hearing aid and
wireless phone rating values are then added
together. A sum of 5 is considered
acceptable for normal use. A sum of 6 is
considered for best use.
In the example to the above, if a
hearing aid meets the M2 level rating and
the wireless phone meets the M3 level
rating, the sum of the two values equal M5.
This should provide the hearing aid user
Coolpad 5860E
with “normal usage” while using their
hearing aid with the particular wireless
phone. “Normal usage” in this context is
defined as a signal quality that’s acceptable
for normal operation.
The M mark is intended to be
synonymous with the U mark. The T mark
is intended to be synonymous with the UT
mark. The M and T marks are
recommended by the Alliance for
Telecommunications Industries Solutions
(ATIS). The U and UT marks are
referenced in Section 20.19 of the FCC
Rules. The HAC rating and measurement
procedure are described in the American
National Standards Institute (ANSI)
C63.19 standard.
When you're talking on a cell phone,
it's recommended that you turn the BT
(Bluetooth) mode off for HAC.
For information about hearing aids
and digital wireless phones
Wireless Phones and Hearing Aid
Accessibility
http://www.accesswireless.org/hearingaid/
Coolpad 5860E
FCC Hearing Aid Compatibility and
Volume Control
http://www.fcc.gov/cgb/consumerfacts/ha_
wireless.htm
Coolpad 5860E
Some content and services accessible
through this device belong to third parties
and are protected by copyright, patent,
trademark and/or other intellectual
property laws. Such content and services
are provided solely for your personal
noncommercial use. You may not use any
content or services in a manner that has not
been authorized by the content owner or
service provider. Without limiting the
foregoing, unless expressly authorized by
the applicable content owner or service
provider, you may not modify, copy,
republish, upload, post, transmit, translate,
sell, create derivative works, exploit, or
distribute in any manner or medium any
content or services displayed through this
device.
“THIRD PARTY CONTENT AND
SERVICES ARE PROVIDED “AS IS.”
NEITHER COOLPAD NOR ANY
AFFILIATE THEREOF
(COLLECTIVELY, "COOLPAD")
WARRANTS IN ANY MANNER
CONTENT OR SERVICES SO
Coolpad 5860E
PROVIDED, EITHER EXPRESSLY OR
IMPLIEDLY, FOR ANY PURPOSE.
COO EXPRESSLY DISCLAIMS ANY
IMPLIED WARRANTIES, INCLUDING
BUT NOT LIMITED TO, WARRANTIES
OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
COOLPAD DOES NOT GUARANTEE
THE ACCURACY, VALIDITY,
TIMELINESS, LEGALITY, OR
COMPLETENESS OF ANY CONTENT
OR SERVICE MADE AVAILABLE
THROUGH THIS DEVICE AND UNDER
NO CIRCUMSTANCES, INCLUDING
NEGLIGENCE, SHALL COOLPAD BE
LIABLE, WHETHER IN CONTRACT
OR TORT, FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES,
ATTORNEY FEES, EXPENSES, OR
ANY OTHER DAMAGES ARISING
OUT OF, OR IN CONNECTION WITH,
ANY INFORMATION CONTAINED IN,
OR AS A RESULT OF THE USE OF
ANY CONTENT OR SERVICE BY YOU
OR ANY THIRD PARTY, EVEN IF
Coolpad 5860E
ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.”
Third party services may be terminated or
interrupted at any time, and Coolpad
makes no representation or warranty that
any content or service will remain
available for any period of time. Content
and services are transmitted by third parties
by means of networks and transmission
facilities over which Coolpad has no
control. Without limiting the generality of
this disclaimer, Coolpad expressly
disclaims any responsibility or liability for
any interruption or suspension of any
content or service made available through
this device. Coolpad is neither
responsible nor liable for customer service
related to the content and services. Any
question or request for service relating to
the content or services should be made
directly to the respective content and
service provider.
Coolpad 5860E
Do not distribute copyright-
protected material:
Do not distribute copyright-protected
material that you have recorded to others
without the permission of the content
owners. Doing this may violate copyright
laws. Coolpad is not liable for any legal
issues caused by the user’s illegal use of
copyrighted material.

Navigation menu
