1. Your mobile
1.1 Removing the back cover
Removing the back cover: Hold the sides of the phone
securely; use a thumbnail to lift up the back cover from
the notch.
Removing the battery: Hold the sides of the phone
securely and lift up the battery from the slot notch.
Note: Make sure that you turn off the phone before
replacing or removing the battery.
Indicator
Flash
Camera
Headset
connector
Proximity sensor Front camera
Menu key
Back key
Home
key
Power
key
Receiver
Loudspeaker
Volume
keys
Micro USB port
This is the
back cover notch. This is the
battery slot notch.
Lift up the back cover
from the notch.
Lift up the battery from
the slot notch.
2
1.2 Charging the battery
1. Connect the small end of the supplied USB
charging/data cable to your phone, using the Micro
USB port at the top.
2. Connect the other end to the supplied plug and insert
that into a mains socket to start charging your phone.
3. The indicator LED will glow green when battery level is
at least 98%.
Hints:
• You can also charge your phone, though more slowly,
using the powered USB ports on your computer.
• You can view the battery information by touching the
battery icon in the quick access panel.
• The phone will power off automatically when the
battery is too low. Charge the battery if this happens.
When the battery is critically low, the charging status
may not be displayed immediately (you must wait
before it is displayed). Using the phone to play games
or perform other activities during the charging process
may cause the phone to power off due to low battery.
• The battery will gradually discharge if is left for a long
period of time. Before using the battery again, you
must recharge it in order to power on and use your
phone as normal.
1.3 SIM card and microSD card

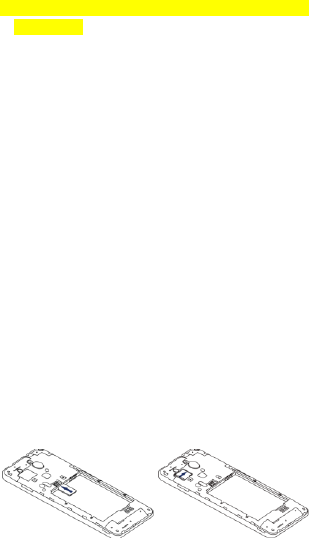

Insert the SIM card and the microSD card as shown in the
images below.
Insert
SIM card. Insert
microSD
card.
3
Notes:
• Take care to keep the SIM card safe. Do not bend it,
damage it, or allow it come into contact with static
electricity or water.
• The SIM card must be inserted correctly according to
the markings on the case.
• Make sure that your SIM card is a micro SIM (3FF) type.
• This phone does not support hot swapping. Unplug the
data cable and power off the phone before inserting or
removing the SIM card and microSD card.
1.4 Powering on/off, Reboot and
Aeroplane mode
Power on: When the phone is off, press and hold the
Power key to turn on the phone.
Power off: When the phone is on, press and hold the
Power key until the options pop up. Select Power off and
then OK to turn off the phone.
Reboot: When the phone is on, press and hold the Power
key until the options pop up. Select Reboot to reboot the
phone.
Aeroplane mode: When the phone is on, press and hold
the Power key until the options pop up. Select Aeroplane
mode and the phone will automatically disable all signal
transmission.
1.5 Locking/unlocking the screen
Locking the phone turns the screen off and stops any
unwanted button presses. To lock the screen while using
the phone, simply press the Power key.
To unlock it, press the Power key, drag to the right,
you can also drag it in other directions.
4
Note: Touch > > Security > Screen lock to set
the type of lock screen. You can also find on the
right-most Home screen.
1.6 Home screen
1. Status bar: Displays notifications and status icons.
Gently slide down to open the Notification panel.
2. Display area: The main display area of the phone.
3. Touch to open the applications list.
4. Shortcut bar: Touch to enter the corresponding
application.
Hints:
1. Swipe your finger left or right to access other home
screen panels.
2. Go to Settings > Display, mark the Home screen
checkbox to enable the home screen looping function.
1
2
4
3
5
1.7 Using the touchscreen
Touch: Launch applications and other functions.
Touch and hold: Touch and hold the screen for 2 or
more seconds to open the control options for the current
screen.
Slide/swipe: Slide the screen up, down, left and right to
view information, applications, web pages, etc.
Drag: Touch and hold the selected application and drag
it to another location.
Pinch/spread: Place two fingers on the screen and draw
them apart to zoom in or together to zoom out.
Rotate: Automatically change the screen
orientation from portrait to landscape by turning
the phone sideways.
1.8 Using the hard keys
(Back key): Touch the back key to view the screen
for the previous operation.
(Home key): Touch the home key to view the
homescreen. Press and hold the home key to open
Google Now TM.
(Menu key): Touch the menu key to display or hide
the menu of applications. Press and hold the menu key
to view the multiple applications.
6
1.9 Notification and status icons

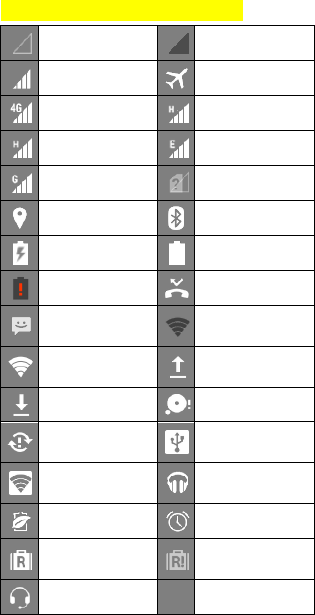

No signal No network
Signal strength Aeroplane mode
4G in use HSPAP in use
HSDPA in use EDGE in use
GPRS in use No SIM card
GPS is on Bluetooth is on
Battery is charging Battery is full
Battery is very low Missed call
New message
An open Wi-Fi
network is available
Connected to a Wi-Fi
network Uploading data
Downloading data microSD card is full
Problem with sign-in
or synchronisation USB tethering is on
Portable Wi-Fi
hotspot is on
Google Play Music is
running
Battery Saver Alarm is set
Data Roaming is on Data Roaming is off
Headset connected
7
1.10 Notification panel

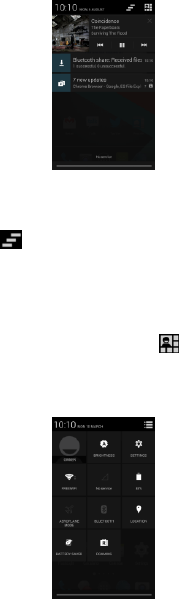

Pull down the Status bar to open the Notification panel.
You can view phone network information, new events,
etc.
From the Notification panel, you can do any of the
following:
• Quickly open or close relevant applications.
• Touch to clear all notifications.
• Pull up from the bottom of the panel to close the
Notification panel.
Using the Quick Settings button
Open the Notification panel and touch to switch to
the Quick Settings button panel. Dragging down the
status bar with two fingers also opens the Quick Settings
panel.
8
In the Quick Settings button panel, you can configure the
following settings:
• Touch to set the brightness.
• Touch to open the Settings.
• Touch to check the Wi-Fi settings, and long press
to turn Wi-Fi on or off quickly.
• Touch to change mobile data usage.
• Touch to check the battery status.
• Touch to turn Aeroplane Mode on or off.
• Touch to open the Bluetooth settings, and long
press to turn Bluetooth on or off quickly.
• Touch to open the Location settings, and long
press to turn Location on or off quickly.
• Touch to open the Battery Saver settings, and
long press to turn Battery Saver on or off quickly.
• Touch to open the Clock settings.
• Touch to turn Data Roaming on or off.
1.11 Managing applications
On the Home screen, touch to enter the
applications list. In the applications list, you can do any of
the following:
• Touch an application icon to open it.
• Swipe left or right to view another list screen.
• Touch and hold an application icon, and drag it onto
the Home screen.
1.12 Managing Home screen
• On the Home screen, touch (Menu key) > to
enter the widgets list.
9
• In the widgets list, touch and hold a widget, and drag it
onto the Home screen.
• On the Home screen, touch (Menu key), touch
and hold a Home screen panel to rearrange the order.
• On the Home screen, touch and hold a shortcut or
widget and drag it to the to delete it.
Tip: To help you set up your phone the way you like it,
drag from the right-most Home screen to the main
Home screen, so you can access it more easily.
1.13 Managing folders
• Add folders: On the Home screen, touch and hold an
application icon and stack it on top of another
application icon to create a folder.
• Rename folders: On the Home screen, touch a folder
and then touch the folder name in the popup to
rename the folder.
• Delete folders: On the Home screen, touch and hold
a folder and drag it to the to delete it.
• Move folders to the shortcut bar: When there is
space on the shortcut bar at the bottom of the screen,
touch and hold a folder and drag it to the shortcut bar.
2. Phone calls
You can make a phone call from the keypad, People or
the Call log. While you are in a call, you can also answer
another incoming call, send it to your voicemail or
conduct a conference call.
Touch at the bottom of the Home screen or touch
> to open the dial application.
10
2.1 Making a call
• On the dial application screen, touch to open the
keypad.
• Touch the number keys to enter the telephone
number.
• Touch at the bottom of the screen to dial the
number.
Hint: To avoid affecting the quality of the call, do not
touch the receiver or loudspeaker when making or
answering a call.
Making a call from Contacts
• On the dial application screen, touch to
open the All contacts list.
• Touch a contact to make the call.
Making a call from Call log
• On the dial application screen, touch to view the
call log.
• Touch a call in the Call log to make a call.
• Touch on the right side of the Call log to view the
Call details.
2.2 Answering or rejecting a call
When you receive an incoming call, you can do any of the
following:
• Answer the call: Slide to on the right to answer
the call.
• Reject the call: Slide to on the left to reject
the call.
• Rejection SMS: Slide to upward to reject the call
and send an SMS message to the caller.
11
Hint: On the dial application screen, press (Menu
key) > Settings > Quick responses to edit the rejection
SMS.
2.3 During a call
On the call screen, you can do any of the following:
• Hang up the call: Touch to hang up the call.
• Enter another number: Touch to open the keypad
and enter another number.
• Turn on Speakerphone: Touch to hear the caller on
the loudspeaker (so you don’t need to hold it to your
ear).
• Mute: Touch to mute the call so that the other
person cannot hear your voice.
• Hold the call: Touch to put the current call on
hold.
• Add a third person to the call: Touch to enter the
dial screen and add a third person to the call.
Hint: You can touch and use other functions during a call.
To return to the call screen, open the Notification panel
and touch the current call.
2.4 Conference calls
You can hold a conference call with multiple participants.
• Place a call to the first participant.
• Touch during the call with the first participant.
• Use the keypad to enter the phone number of the
second participant you want to add, or touch to
select the call log.
• After connecting with the second participant, touch
to start the conference call.
12
• Touch to end the conference call.
Hint: You can have up to 6 participants in conference call
mode. See the Vodafone website or contact Vodafone
customer services for details.
2.5 Answering another incoming call
If you receive another incoming call while you are in a
call, you can accept the incoming call and automatically
place the current call on hold without hanging up.
Hint: You need to enable call waiting before you can use
this service. See the Vodafone website or contact
Vodafone customer services for details.
2.6 Supplementary services
Your phone supports a variety of supplementary services.
These include call forwarding and call waiting.
Hint: These services require network support. See the
Vodafone website or contact Vodafone customer
services for details.
Setting up call forwarding
If you are unable to answer calls, you can set up this
function to forward incoming calls to another number.
• On the dial application screen, touch (Menu key) >
Settings > Call forwarding.
• Select a forwarding type, enter the number you want
to forward calls to.
• Select Enable to enable this function.
Setting up call waiting
After setting up this function, the phone will notify you if
you receive an incoming call while already in a call. It will
also inform the incoming caller to wait for you to end
your current call before they are connected. You can also
13
answer the incoming call and switch between the two
calls.
• On the dial application screen, touch (Menu key) >
Settings > Additional settings > Call waiting.
• Mark the Call waiting checkbox to enable this function.
2.7 Voicemail
If you activate and set up voicemail, your phone will
automatically send unanswered calls to voicemail
(including calls that are unanswered when you are in
another call and when your phone is off).
• On the dial application screen, touch (Menu key) >
Settings > Voicemail > Setup.
• Touch Voicemail number, enter your voicemail
number and then touch OK to set up voicemail.
• To listen to your voicemail, press and hold the 1 key
on the dial keypad screen and follow the server
instructions.
Hint: Before using this function, contact Vodafone
customer services to activate voicemail. See the
Vodafone website or contact Vodafone customer
services for details.
3. People
You can use the People application to save and manage
phone numbers, addresses and other information.
To open the People application, swipe the main Home
screen to the right to reveal another Home screen, then
touch . You can also touch > .
3.1 Adding a contact
• On the Contacts screen, touch .
• Select where to save the contact.
14
• Enter the contact information.
• Touch to save the contact information.
Hint: In the Call log, touch on the right side of the
call log you want to save to save it directly as a contact.
3.2 Quick Contact
On the Contacts screen, touch the avatar (image) of a
contact and select the icon for the way you want to
communicate with the contact. You can quickly call the
contact or send them an SMS or email. The icons
available depend on the information you have for the
contact and the applications and accounts on your
phone.
3.3 Managing contacts
Adding a contact to Favourites
On the Contacts screen, select the contact you want to
add to Favourites and then touch the at the right of
the contact name. The star will fill colour ( ) to
indicate that the contact has been added to Favourites.
Searching for a contact
• On the Contacts screen, touch .
• Enter the name of the contact you want to search for.
Search results will be displayed below the search bar.
Hint: You can also slide the scroll bar at the right of
Contacts to quickly search for a contact.
Editing a contact
• On the Contacts screen, select the contact you want
to edit then touch (Menu key) > Edit.
• Edit relevant information and then touch to
15
save the contact. Alternatively, touch (Menu
key) > Discard to cancel your changes.
Deleting a contact
• On the Contacts screen, select the contact you want
to delete then touch (Menu key) > Delete.
• Touch OK to confirm that you want to delete the
contact.
Sending a contact vCard
You can send a “.vcf ” format vCard via email, Bluetooth
or MMS. Before using email to send a vCard, you need to
set up an email account on the phone. (Read the “7.1
Adding an email account” section of this user manual, on
page 21.)
• Touch a contact on the Contacts screen.
• Touch (Menu key) > Share.
• Select how to send the vCard.
3.4 Managing groups
Creating a group
• On the Contacts screen, touch to switch to the
Groups screen.
• Touch and select an account.
• Enter the group name.
• Touch , select one or multiple contacts and then
touch .
• Touch to save the group information.
Editing a group
You can always make changes to the information you
have stored for a group.
• Select a group and touch (Menu key) > Edit.
16
• Edit the group name and add or delete members.
• Touch .
Adding a contact to your groups
To add a contact to your groups, you can do any of the
following:
• When editing contact information, touch the group
names below GROUPS to select groups.
• When editing a group, enter a contact name. The
phone will automatically display the names of stored
contacts as you enter the name. Touch the contact
you want to add to the group.
3.5 Importing contacts from SIM card or
storage
• On the People screen, touch (Menu key) >
Import/export, and select the corresponding option.
• Select one or multiple contacts.
• Touch to finish copying the contact(s).
Hint: Read the “Frequently Asked Questions” section of
this user manual to get more information about how to
import contacts from another phone by using the
microSD card, on page 47.)
17
4. Text input methods
4.1 Using the text input panel
The input panel can be used to enter text. When you
need to enter text, touch the text input area to open the
input panel. Touch Back key to hide the input panel.
4.2 Switching input methods
When you installed other different input methods, you
can switch the input methods.
• When the keyboard is displayed on the screen, gently
slide down the Status bar to open the Notification
Panel.
• Touch Select Input Method and select the input
method you want to use.
Hint: Touch > > Language & input > Default,
then select which input method to set as the default.
4.3 Editing text
Touch and hold the text you have entered and select the
content you want to edit. You can use the icons that
appear on the top right of the screen to quickly edit the
text.
18

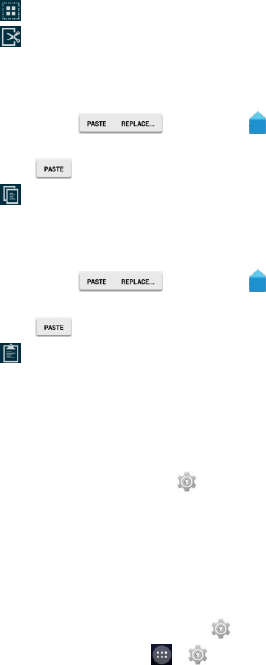

• : Select all text.
• : Cut selected text. Touch and hold the text you
have entered, move the cursor to select the text you
want to edit and touch this icon to cut the text. After
cutting, you can touch and hold a blank area in the
text field until appears. Move to
the location where you want to paste the text and then
touch to paste the text you previously cut.
• : Copy selected text. Touch and hold the text you
have entered. Move the cursor to select the text you
want to copy and touch this icon to copy the text. After
copying, you can touch and hold a blank area in the
text field until appears. Move to
the location where you want to paste the text and then
touch to paste the text you previously copied
• : Replace text. Touch and hold the text you have
entered. Move the cursor to select the text you want to
replace and touch this icon to replace the selected
text with the text you previously cut or copied.
4.4 Horizontal keyboard
If you have enabled auto-rotate (in > Display), rotate
the phone when entering text to switch to a horizontal
onscreen keyboard for easier input.
4.5 Input method settings
After selecting an input method, you can configure its
specific settings.
• On the right-most Home screen touch >
Language & input, or touch > > Language &
19
input.
• In Keyboard & Input Methods, touch next to an
input method to configure its settings.
5. Message+
Message+ allows you to share the photo, video and audio
to your friends, it also allows you to make chat or group
chat with your friends.
Touch at the bottom of the Home screen or touch
> to open the Message+.
5.1 Verify number
You should verify your number on first start up.
• Follow the onscreen instructions to enter your phone
number.
• Touch OK to confirm the number.
• The app will connects to the Message+ provisioning
system and sends back a hidden confirmation SMS. If
the SMS has been received after a specific time, the
app is registered and starts.
Hint: Make sure you already connected to the internet to
activate the Chat & File Share.
5.2 Start a message

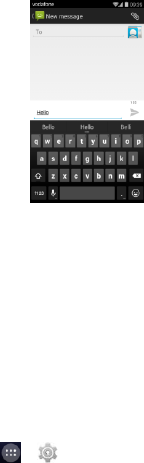

• On the Message+ screen, touch .
• Choose the recipients and add your message. Touch
to choose the attachment you want to share, such
as photo, video, location, file, etc.
• Touch Send to send the message.
• You can check the status of message after you sent.
Hint: The message will be sent as an SMS/MMS if your
friends didn’t activate Message+.
20
5.3 Start a group chat
• On the Message+ screen, touch .
• Enter the topic for this chat group.
• Type a name or number to search the contact. Or you
can touch to choose the contact. Then start your
chat.
• Touch the chat title to check the status of your friends
or add a new contact to this group when during a chat.
5.4 Settings
On the Message+ screen, touch (Menu key) >
Settings to configure Look & Feel, Chat & SMS, Sharing,
Notifications, etc.
6. Messaging
On the Home screen touch > to open the
Messaging.
6.1 Creating a message
• On the Messaging screen, touch .
• Enter the recipient's number or you can touch to
select contacts.
• Add your message. Touch to attach media files
such as photo, audio and slides.
• Touch to send the message.
Hint: An SMS will be sent as an MMS when media files are
added.
21
6.2 Replying to a message
• On the Messaging screen, select the message you
want to reply to.
• Compose your message and touch to send it.
6.3 Searching messages
On the Messaging screen, you can touch and enter
message content or keywords to quickly search for the
message you need.
6.4 Deleting a message
On the Messaging screen, touch and hold the message
conversation you want to delete. Touch to delete
the message conversation.
6.5 Customising message settings
On the Messaging screen, touch (Menu key) >
Settings to configure SMS, MMS, message notifications
and other settings.
7. Email
You can use the email application to send and receive
emails.
Touch on the Home screen or touch > to
open the Email.
7.1 Adding an email account
You must configure an email account before you can
send and receive emails. Sending and receiving emails
requires you to have a Vodafone data service for your
phone. This is usually part of your Vodafone price plan.
22
• Select an account, enter the email address and
password, and then touch Next. Follow the onscreen
instructions to configure the relevant settings.
Hints:
1. After creating your initial email account, from the
Inbox screen you can touch (Menu key) >
Settings > ADD ACCOUNT to add another email
account.
2. Set up your email account according to the
instructions provided by your email service provider.
Log on to the email service provider's website for
specific settings.
7.2 Switching accounts
On the Inbox screen, touch the email address field at the
top of the screen. Select an email account from the list
that is displayed. After making your selection, the Inbox
for the selected account will be opened automatically.
7.3 Combined account view
You can show the Inbox emails from all your accounts on
one screen. On the Inbox screen, touch the email address
field at the top of the screen, then select Combined view.
7.4 Viewing emails
On the Inbox screen, touch the email you want to view to
open it.
7.5 Creating and sending emails
• On the Inbox screen, touch .
• Touch the To field and enter the recipient's email
address. Or you can touch to select contacts.
• Enter the subject and content of the message in the
23
relevant fields.
• Touch to send the email.
7.6 Replying to and forwarding emails
On the Inbox screen, touch the email you want to reply
to.
• Touch to reply directly to the sender.
• Touch > Reply all to reply to everyone.
• Touch > Forward to forward the email.
7.7 Saving email attachments
• On the Inbox screen, touch the email you want to view.
• Slide down to find the attachments after the content.
• Touch > Save to download the attachment.
Hints:
1. If your phone has a microSD card installed, the
downloaded file will save to the download folder
(/storage/external_sd/Download) in microSD card by
default.
2. You can change the default storage location in
Settings > Storage > DEFAULT WRITE DISK.
7.8 Deleting an email account
• On the Settings screen (On the Home screen touch
> ).
• In ACCOUNTS, touch an email account.
• Touch the name of account, then touch (Menu
key) > Remove account to delete the account.
7.9 Customising email account settings
• On the Inbox screen, touch (Menu key) > Settings
to enter the account settings screen.
24
• Touch an email account.
• Change account settings such as data usage,
notification settings, server settings, etc.
8. Data service
8.1 Turning on the data service
• Touch > .
• In WIRELESS & NETWORKS, touch More... > Mobile
networks.
• Mark the Data enabled checkbox to turn on the data
service.
• Mark the Data Roaming checkbox to turn on the data
roaming service.
Hints:
1. To extend standby time and save data usage, switch
off the data service when network services are not
needed.
2. Using mobile networks while roaming may incur
additional charges. See the Vodafone website for
details.
3. The phone's access points have already been
configured for you. Do not change access point
parameters without permission; otherwise you may be
unable to access networks.
8.2 Wi-Fi
You can use the phone's Wi-Fi function to access the
Internet and pick up and send emails.
• Touch > .
• In WIRELESS & NETWORKS, touch Wi-Fi switch to turn
on/off Wi-Fi.
• In WIRELESS & NETWORKS, touch Wi-Fi to enter the
Wi-Fi settings screen. The phone will search for and list
25
nearby Wi-Fi hotspots.
• Select the Wi-Fi hotspot you want to connect to. If the
network you selected is secured, you are required to
enter a password before you can connect.
Hints:
1. If you turn on Wi-Fi and the data service
simultaneously, the phone will automatically use the
Wi-Fi connection. If Wi-Fi is disconnected, the phone
will use the data service to continue the data
connection.
2. On the Wi-Fi settings screen, touch and configure
authentication to add a new Wi-Fi hotspot SSID
(service set identifier).
3. Wi-Fi signals may be obstructed and weakened by
obstacles like walls.
Connecting to Wi-Fi using WPS
WPS (Wi-Fi Protected Setup), also called quick secure
setup, is an operation that can simplify Wi-Fi connection
settings. You can simply press the WPS button or enter a
PIN number to automatically establish a secure
connection. There is no need to configure complicated
settings in the Wi-Fi hotspot administration software.
Hint: When using WPS to connect to a Wi-Fi hotspot,
make sure that the Wi-Fi hotspot supports WPS; otherwise
you will be unable to use this function.
WPS button connection
• Enable Wi-Fi.
• On the Wi-Fi settings screen, touch .
• Press the WPS button on the Wi-Fi hotspot device.
26
WPS PIN number connection
• Enable Wi-Fi.
• On the Wi-Fi settings screen, touch (Menu key) >
WPS Pin Entry. The phone will automatically create a
PIN number.
• Enter this PIN number into the Wi-Fi hotspot device.
Hint: You can also connect by creating a PIN number
using the Wi-Fi device and entering this PIN number into
the phone.
8.3 Sharing your phone's data connection
You can share your phone's mobile network with a single
computer via a USB data cable. This is called USB
tethering. You can also share your phone’s mobile
network as a portable Wi-Fi hotspot or Bluetooth.
Hint: Using this function may incur additional data
charges, depending on your data plan. See the Vodafone
website for more details, or contact Vodafone customer
support.
Sharing your phone's mobile network via USB
If your computer's operating system is Windows XP or a
later or a new release of Linux (e.g. Ubuntu 10.4), you can
use USB tethering without changing any settings on your
computer. If you use USB tethering with computers with
different operating systems, you may need to establish
corresponding network connections on each computer.
• Touch > .
• In WIRELESS & NETWORKS, touch More... > Tethering
& portable hotspot.
• Mark the USB tethering checkbox to share your
phone's mobile network with a computer and use the
computer to connect to the internet.
27
Hint: While you are sharing your phone's data connection
via USB tethering, you cannot set the microSD card as a
mass storage device.
Sharing your phone's data connection as
a portable Wi-Fi hotspot
By setting your phone as a Wi-Fi hotspot you can connect
up to eight wireless devices at most.
• Touch > .
• In WIRELESS & NETWORKS, touch More... > Tethering
& portable hotspot.
• Touch the Portable Wi-Fi hotspot checkbox to activate
the Wi-Fi hotspot and share your mobile network.
Hints:
1. You can touch Set up Wi-Fi hotspot to set the name,
security and password for the Wi-Fi hotspot. To protect
your network, it is recommended that you secure it
using WPA2 PSK.
2. You cannot use Wi-Fi hotspot and Wi-Fi at the same
time.
Sharing your phone's data connection via
Bluetooth
You can also use the Bluetooth to sharing your mobile
networks.
• Touch > .
• In WIRELESS & NETWORKS, touch More... > Tethering
& portable hotspot.
• Touch the Bluetooth tethering checkbox to share your
mobile network.
• In WIRELESS & NETWORKS, touch Bluetooth, in
PAIRED DEVICES list, touch of device that you
want to share the mobile network. In device settings
28
screen, touch the Internet access checkbox to allow
the internet access.
8.4 Bluetooth
Your phone supports Bluetooth, which allows you to
create a wireless connection with other compatible
devices so you can share data.
Hint: Bluetooth has a maximum reception distance of 10
meters. Keep devices connected by Bluetooth within 10
meters of each other. Obstacles like walls or other
electronic equipment may interfere with Bluetooth
signals.
Turning on Bluetooth
• Touch > .
• In WIRELESS & NETWORKS, touch the Bluetooth
switch to turn on Bluetooth. The Status bar will display
the Bluetooth icon.
• If you need to change the device name of your phone,
touch (Menu key) > Rename phone. Enter a
name and touch Rename to save your change.
Searching for and pairing with other
Bluetooth devices
You need to pair with a Bluetooth device before you can
share data with it. Once a device is paired with your
phone, it will automatically connect to your phone
whenever it is turned on.
• Check your phone's settings to make sure that the
Bluetooth is enabled.
• In WIRELESS & NETWORKS, touch Bluetooth list to
enter the Bluetooth settings screen. The phone will
automatically scan for nearby Bluetooth devices.
• Touch the one that you want to pair with and follow
29
the onscreen instructions to pair with it. If you don’t
know the password for the device you’re trying to pair
with, try 0000 (this is the default password for most BT
devices).
• If you want to unpair, in Paired devices touch >
Unpair to stop it connecting automatically. You can
always go through the pairing process again if you
change your mind.
• To stop a connection with a Bluetooth device, the
simplest way is to turn the device off. Otherwise, just
turn Bluetooth off on your phone using the Quick
Settings menu.
Sending files via Bluetooth
With Bluetooth, you can share pictures, videos or music
files with your family and friends.
• In ES File Explorer application, touch and hold the file
you want to send. After the file has been selected,
touch > Share, on the options menu that pops up,
select Bluetooth.
• The screen will list the Bluetooth devices that have
been found. Select the device you want to send the
file to.
9. Browser
Touch at the bottom of the Home screen or touch
> to open the Browser.
9.1 Browsing web pages
• Enter a web page address in the URL field at the top.
• Touch on the top right of the screen to browse
thumbnails of multiple open web pages and switch to
30
any web page window.
• Touch to open a new window.
Hint: If you have installed other browsers, it will pop up a
selection for choosing browsers when you click a web
link.
9.2 Managing bookmarks
Adding a bookmark
• Use the browser to open the web page you want to
bookmark.
• Touch (Menu key) > Save to bookmarks.
• Enter the bookmark name and touch OK to add the
bookmark.
Opening a bookmark
• On the browser screen, touch (Menu key) >
Bookmarks.
• Select the bookmark of the website you want to view.
• On the Bookmarks screen, touch the History tab to
view the web pages you have visited.
9.3 Setting a home page
• On the browser screen, touch (Menu key) >
Settings > General > Set homepage.
• Select a home page from the list or touch Other to
enter a web address and then touch OK to save the
home page.
9.4 Customising browser settings
• On the browser screen, touch (Menu key) >
Settings.
• On the Settings list, you can select menus to
customise the browser.
31
10. Camera and video camera
You can use your phone to shoot and share both photos
and videos. Your camera supports numerous modes.
Touch at the bottom of the Home screen or touch
> to open the Camera. On the Lock screen,
slide from right side of screen to left, can open the
Camera quickly.
10.1 Taking a photo
• Open the camera and aim the lens at the subject.
• Touch the screen where you want to focus, when the
lines in the circle turn green, then that point is in
focus.
• Pinch or spread in the viewfinder, you can change the
focal length.
• Touch to take the photo.
• Before you take a photo you can touch and hold
anywhere on the screen to see the camera options.
You have to keep touching and slide onto the option
button, then select the option or value.
32
Hint: For a better result, you can open the settings menu
and adjust camera parameters before taking the photo.
The viewfinder will change accordingly after you have
adjusted the settings.
10.2 Recording a video
• Open the camera and aim the lens at the subject.
• Touch the Camera icon on the lower left of the screen,
and select to activate video mode.
• Pinch or spread in the viewfinder, you can change the
focal length.
• Touch to start recording.
• Touch to stop when you finish recording.
• Before you record a video you can touch and hold
anywhere on the screen to see the options. You have
to keep touching and slide onto the option button,
then select the option or value.
Hints:
1. To share the video via MMS, the video size should be
less than 300K.
2. For a better result, you can open the settings menu
and adjust camera parameters before recording the
video. The viewfinder will change accordingly after you
have adjusted the settings.
10.3 Panoramic mode
• Open the camera, touch the Camera icon on the lower
left of the screen, and select to activate
panoramic mode.
• Touch to start capturing panorama.
• You can check the progress under the viewfinder.
• Touch to stop when you finish.
33
After taking your photo or video, you can slide from right
to left to view the photo or video you just took.
When viewing a photo or video, you can do any of the
following:
• Touch to send the photo or video to a friend via
MMS, email, Bluetooth or another method.
• Touch to delete the photo or video.
11. Gallery
You can use the Gallery to manage picture and video
files.
On the Home screen touch > to open the
Gallery.
11.1 Viewing pictures and videos
• On the library screen, touch the folder you want to
view.
• Touch the picture or video you want to view.

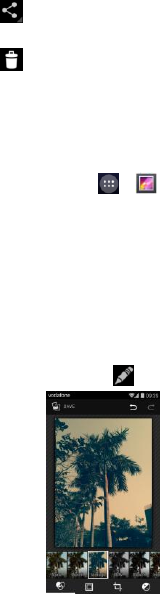

11.2 Editing a picture
When viewing a picture, touch to edit it.
34

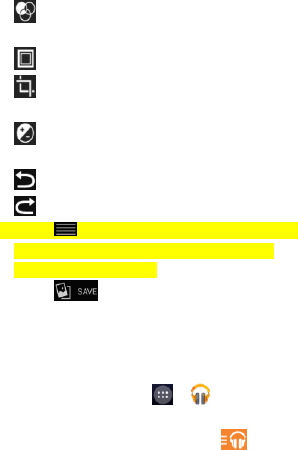

On the editing screen, you can do any of the following:
• : Perform photo effects such as Punch, Vintage,
B/W, Bleach, etc. on the image.
• : Perform photo border on the images.
• : Perform operations such as Crop, Straighten,
Rotate and Mirror on the image.
• : Perform operations such as Autocolour, Exposure,
Vignette, etc.
• : Undo the last step.
• : Redo the operation.
• Touch (Menu key) to select Reset, Information,
Show Applied Effects, Export, or Print to perform
corresponding operations.
• Touch to save a picture after you have
finished editing it.
12. Google PlayTM Music
On the Home screen touch > to open the
Google Play Music.
On the Google Play Music screen, touch in the
upper left of the screen to switch between Listen Now,
My Library and Playlists.
My Library contains the following tabs: GENRES, ARTISTS,
ALBUMS and SONGS. You can slide left and right to view
and select the content of each tab.
Hints:
1. You can play music files stored on the microSD card in
your phone. Music files can be downloaded from
computer to microSD card by using an USB cable.
35
2. Touch > Help to get more introductions from
Google Play.
12.1 Adding music to a playlist
• Touch on the music file that you want to add to a
playlist.
• On the options menu that pops up, touch Add to
playlist.
• On the playlist that pops up, select a playlist to add the
song to it.
12.2 Playing a playlist
• On the Playlists screen, touch the playlist you want to
play.
• Touch the cover of the playlist to play this playlist.
12.3 Playing a music file
• On the My Library screen, slide to SONGS tab.
• Touch a music file to play it.
• Touch or slide up the bottom of the screen to see the
music playback screen.
On the music playback screen, you can do any of the
following:
• Touch to enter the playlist screen.
• Check music playback progress.
• Touch to pause or touch to resume. Touch
to play the next song. Touch to play the
previous song.
• Touch or slide down the top of the screen to back to
the My Library.
Hints: During music playback, touch the Home key to go
back to the Home screen. The music will continue to play
in the background and you can use other applications.
36
Open the Status bar and select the currently playing
song to go back to the music playback screen.
13. Accounts and syncing
Use the Accounts settings to add, remove, and manage
your accounts. It includes Corporate, Email, Facebook,
Google, Twitter and other supported accounts. You can
also use these settings to control how and whether all
applications send, receive, and synchronize data on their
own schedules, and whether all applications can
synchronize user data automatically.
Gmail, Google Calendar, and other applications may also
have their own settings to control how they synchronize
data.
On the right-most Home screen touch or touch
> . In ACCOUNTS, you can see the accounts you
already added or manage your accounts.
13.1 Adding an account
• In ACCOUNTS, touch Add account.
• Select the kind of account to add.
• Follow the onscreen instructions to enter the required
information about the account.
• Configure the account. Set what information you want
to sync to the phone.
• When you are finished, the account you configured is
added to ACCOUNTS.
Hint: The information you are able to configure for
syncing depends on the kind of account you added.
13.2 Enabling syncing
• In ACCOUNTS, select the account you want enable
syncing for.
37
• Mark the check box to permit applications to
synchronise data on their own schedule.
14. More applications
14.1 Calendar
You can use Calendar to manage and arrange events.
On the right-most Home screen touch or touch
> to open the Calendar.
Multimode view
On the Calendar screen, you can display the Calendar in
daily, weekly, monthly, or agenda view. Touch the time in
the upper left of the screen to switch between Day, Week,
Month and Agenda view.
Adding a new event
• On the Calendar screen, touch (Menu key) > New
event.
• Edit upcoming event information such as a name,
location, time, etc.
• Touch to save the event.
Hint: You can double touch any day on the screen to
create a new event. You can also tap and hold for a Quick
Event entry.
Customising Calendar settings
On the Calendar screen, touch (Menu key) >
Settings to configure Calendar.
Setting an event reminder
• On any calendar view, touch an event to view its
details or summary.
38
• Touch Add reminder to add a reminder for the event.
Alternatively, touch to delete a reminder that has
already been set.
• Touch the reminder time. In the drop-down list that
opens, select a time period to set the length of time
before the event when you want to be reminded.
When the time comes, you will receive a notification or
an email about the event.
Syncing and displaying the Calendar
Calendar events for accounts (e.g. email accounts) that
have been added to your phone can be synced to and
displayed in your Calendar application.
• On any Calendar view, touch (Menu key) >
Calendars to display.
• Mark the check box to enable or disable syncing.
Hint: If you have already configured an account to sync
events to your phone, that account will appear on the
Calendars to display list.
14.2 Alarm clock
On the Home screen touch > to enter the Clock
screen, and then touch to switch to the Alarm tab.
On the alarm list screen, follow the instructions below to
set your alarm:
• Touch Time to set the time of the alarm.
• Mark the REPEAT check box to set the days when you
want the alarm to sound.
• Touch Ringtone to select a ringtone for the alarm.
• Mark the VIBRATE checkbox to have the phone vibrate,
in addition to playing the ringtone.
• Touch Label to enter a name for the alarm.
• Touch the switch of the alarm to turn on the alarm.
39
14.3 Calculator
On Home screen touch > to open the
Calculator.
On the Calculator screen, swipe the screen right or left to
switch between the Advanced panel and Basic panel.
15. Settings
On the right-most Home screen touch or touch
> to configure detailed phone settings.
15.1 Setting the date and time
• On the Settings screen, touch Date & time.
• Unmark the Automatic date & time checkbox.
• Unmark the Automatic time zone checkbox.
• Touch Set date. Slide up and down to adjust the date
and then touch Done.
• Touch Set time. Slide up and down to adjust the time
and then touch Done.
• Touch Select time zone and then select the desired
time zone from the list. Scroll the list to view more
time zones.
• Mark or unmark the Use 24-hour format checkbox to
switch between 24-hour format and 12-hour format.
• Touch Choose date format to select how you want the
date to display on your phone.
Hint: When your phone is using date and time settings
provided automatically by the network, you cannot
manually set the date, time and time zone.
15.2 Setting the display
On the Settings screen, touch Display to set the screen
display.
40
• Brightness: Set the brightness of the display. Touch
AUTO to turn off the auto-brightness, or adjust the
brightness manually.
• Wallpaper: Change the background picture of the
Home screen.
• Home screen: Mark or unmark this checkbox to turn
on or off loop panels function.
• Auto-rotate screen: After setting this function, the
phone will automatically switch orientation if you
rotate the phone while browsing web pages, viewing
pictures, editing information and performing other
operations.
• Sleep: Set the screen sleep time. Your screen will
automatically turn off if no operations are performed
within the time set.
• Key light duration: Set the touch key light duration
time.
• Daydream: When Daydream is on, your device
displays photos, colours, and more while it is charging
or docked. Set the daydream type or when to
daydream. Touch the daydream switch to turn off this
function.
• Font size: Set the font size according to your
preference.
• Pulse notification light: Mark or unmark this
checkbox to control the phone’s light pulse when has
a new notification.
• Wireless display: When you turn on this function, the
phone will automatically search for nearby displays.
15.3 Adjusting the volume
You can use the Volume key to adjust the volume from
the Home screen or many application screens. For
example, during a call or when playing music or videos.
You can also adjust the volume using the following
41
method:
• On the Settings screen, touch Sound.
• Select Volumes and drag the slider left to make the
volume lower, or right to make it higher.
• Touch OK to save the adjustment.
15.4 Changing the phone ringtone
• On the Settings screen, touch Sound > Phone
ringtone.
• On the options menu that pops up, select a path of the
ringtone.
• Select the ringtone you want to use.
15.5 Managing applications
On the Settings screen, touch Apps to open a list of all
applications.
Viewing and uninstalling applications
• Touch an application to view its information.
• If you want to uninstall the application, touch Uninstall
and follow the onscreen instructions.
Hints:
1. Some applications are subject to system restrictions
and cannot be uninstalled. The Uninstall option will
not appear on the Application info screen for such
applications.
2. On the list of all applications, touch (Menu key) >
Sort by size to rearrange applications by file size.
Moving larger applications to microSD
The storage location of some applications can be
changed. Moving larger applications to microSD card can
free up more space to store applications that cannot be
moved.
42
• Touch the application you want to move and then
touch Move to SD card to move the entire application
out of the phone's internal storage.
• Touch Move to phone to move the application back to
the phone's internal storage.
Hints:
1. The Storage list on the Application info screen displays
detailed data showing which storage space the
application occupies.
2. If the application can be moved, you can use a move
button.
15.6 Security settings
Turning on screen unlock pattern protection
You can set a screen unlock pattern. Once the screen has
locked, it needs to be drawn correctly in order to unlock
the screen.
• On the Settings screen, touch Security > Screen lock >
Pattern.
• Follow the onscreen instructions to draw the unlock
pattern.
• Touch Continue.
• Draw the same unlock pattern again and touch
Confirm.
Turning on numeric PIN protection
You can set a numeric PIN to lock your phone. Once the
screen has locked, it needs to be entered correctly in
order to unlock the phone.
• On the Settings screen, touch Security > Screen lock >
PIN.
• Enter at least four-digit numbers.
• Touch Continue.
• Enter the same number again and touch OK.
43
Turning on SIM card PIN protection
A PIN (personal identification number) can prevent other
people using your SIM card without permission. A PUK
(personal unlock key) can be used to unlock a blocked
PIN. If an incorrect PIN is entered three times in a row,
your SIM will be blocked. To unblock your SIM, you'll
need to enter your PUK. If the wrong PUK is entered ten
times in a row, your SIM will be blocked permanently. If
these two codes were not provided with your SIM card or
if you forget either one, contact Vodafone customer
services. If you turn on SIM card PIN protection, your SIM
card PIN needs to be entered every time you turn on your
phone.
• On the Settings screen, touch Security > Set up SIM
card lock.
• Mark the Lock SIM card checkbox.
• Enter the SIM card PIN and touch OK to turn on PIN
protection.
Hint: To change your SIM card PIN, touch Change SIM
PIN.
16. NFC
NFC (Near Field Communication) is a new, short-range
wireless connectivity technology which allows mobile
users to read and write NFC tags, pair with other NFC
devices, and even make fast and secure mobile
payments. With NFC activated, you can use this
application to open, act on and organize the tags you've
scanned. In Settings > WIRELESS & NETWORKS, touch
More..., check NFC to turn on/off NFC function.
Tap & pay
When NFC is turned on, you can use the tap & pay feature
to pay for items just by touching your phone to a reader
44
at a register.
To manage your apps for the tap & pay option, follow
these steps:
• On the Settings screen, touch Tap & pay.
• Touch an app to make it your default payment app.
If your device doesn’t have a default app, you can browse
Google PlayTM for other payment apps.
Hints:
1. The tap & pay option doesn’t apply to Android Beam
and won’t include certain apps, such as money transfer
apps.
2. NFC is only available in some countries/areas.
17. Location access
You can let your device access GPS, Wi-Fi networks, and
mobile networks to estimate your location. Apps that
have your permission can use this information to deliver
location-based services, such as the ability to check in,
view commute traffic, or find nearby restaurants.
To control what location information your device can use,
go to Settings > PERSONAL > Location.
When the Location switch is on, you can do any of the
following:
• Change the location mode between High accuracy,
Battery saving and Device only.
• Check the Recent location requests.
• Check the Location services.
• AGPS Setting: Touch to set the AGPS server address
and the port.
Hint: Using location access does make more demands
on your battery. If you need to save battery life then you
can turn it off in Settings, though when the switch is off,
your device won’t be able to find your precise location or
share it with any apps.
45
18. Restoring factory settings
Restoring factory settings erases all of your personal data
stored on the phone, including email accounts, system
settings, application settings, and any applications you
have installed.
• On the Settings screen, touch Backup & reset >
Factory data reset.
• Follow the onscreen instructions and touch Reset
phone. Then touch Erase everything. The phone will
restore the factory settings and restart automatically.
Warning: Before restoring factory settings, it is vital that
you first back up any important data on the phone;
otherwise all data will be lost after factory settings have
been restored.
19. FOTA (Firmware Over The
Air) updating
Using the FOTA Upgrade tool you can update your
phone's software.
• On the right-most Home screen touch > About
phone > System updates, or touch > > About
phone > System updates.
• Touch Check for updates, and the phone will search
for the latest software. If you want to update the
system, please touch the button Download, after it
done please touch Update now to complete the
upgrade. Then your phone's software will have the
latest version.
Hints:
1. During FOTA downloading or updating, do not change
your default storage location, to avoid errors in
locating the correct update packages.
46
2. Upgrading your phone software will not affect your
mobile phone data.
47
Frequently Asked Questions
How do I free up my phone's internal storage?
• Move files and email attachments to the microSD card.
• In Browser, clear all temporary Internet files and
Browser history information.
• Uninstall any applications that you no longer use.
• Reset your phone to factory settings.
How can I use the microSD card to import
contacts from another phone onto my phone?
Your phone supports “.vcf” format contact files. “.vcf” is
the standard format for storing personal and company
contacts. It usually includes name, address, telephone
number, mobile phone number, email and other contact
information. It also supports custom fields, pictures and
other media information.
• Back up the contact you want to import as a “.vcf” file
and save it to the microSD card.
• Insert the microSD card into your phone. In ES File
Explorer, find the “.vcf” file saved on the microSD card.
• Touch the “.vcf” file. On the window that pops up,
select the account you want to import the contact to.
Hint: Because “.vcf” files backed up by different systems
may cause compatibility problems, some contact
information may be lost after the contact has been
imported.
How do I turn off auto-rotate?
• On the right-most Home screen touch > Display,
or touch > > Display.
• Unmark the Auto-rotate screen checkbox to disable
this function.
48
How do I set the screen unlock pattern?
• On the right-most Home screen touch > Security >
Screen lock > Pattern, or touch > > Security >
Screen lock > Pattern.
• Follow the onscreen instructions to set the unlock
pattern.
How do I switch input method?
When you installed other different input methods, you
can switch the input methods.
• When the keyboard is displayed on the screen, gently
drag down the Status bar to open the Notification
Panel.
• Touch Choose input method and select the input
method you want to use.
How do I stop music playing in the
background?
Gently drag down Status bar to open the Notification
panel. Touch the music playback information bar to enter
the music playback screen and stop playback.
How do I return to the call screen?
If you are in another screen during a phone call, you can
get back to the call screen by gently dragging down the
Status bar to open the Notification panel and the
touching the current call.
How do I create a shortcut on the Home
screen?
On the applications list, touch and hold an application
icon until the Home screen is displayed. Then drag the
icon where you want it to go and release your finger.
49
How do I hide the keyboard?
Touch Back key to hide the keyboard when it is displayed
on the screen.
How do I forward a message?
Touch and open the message you want to forward. Touch
and hold the message content. On the options menu that
pops up, touch Forward.
How do I take a quick capture of the current
screen?
Press the Volume key (Down) and Power key at the same
time, and make a little pause to take a capture of the
current screen.
If your phone has a microSD card installed, the
screenshots will save to the screenshots folder
(/storage/external_sd/Pictures/Screenshots/) in
microSD card by default.
50
Product Safety Information
Pictograms and Graphic Symbols
Read the Safety
Information section
of this user guide
on page 51
Do not use while
re-fuelling
Do not use
hand-held while
driving
This device may
produce a bright or
flashing light
For body-worn
operation maintain
a separation of
15 mm
Do not dispose of in
a fire
Small parts may
cause a choking
hazard
Avoid contact with
magnetic media
This device
may produce a loud
sound
Avoid Extreme
Temperatures
Keep away from
pacemakers and
other personal
medical devices
Avoid contact with
liquid, keep dry
Switch off when
instructed in
hospitals and
medical facilities
Do not try and
disassemble
Switch off when
instructed in
aircrafts and airports
Do not rely on this
device for
emergency
communications
Switch off in
explosive
environments
Only use approved
accessories
51
RF Exposure
General Statement on RF energy
Your phone contains a transmitter and a receiver. When it
is ON, it receives and transmits RF energy. When you
communicate with your phone, the system handling your
call controls the power level at which your phone
transmits.
Specific Absorption Rate (SAR)
Your mobile device is a radio transmitter and receiver. It is
designed not to exceed the limits for exposure to radio
waves recommended by international guidelines. These
guidelines were developed by the independent scientific
organisation ICNIRP and include safety margins designed
to assure the protection of all persons, regardless of age
and health.
The guidelines use a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit for mobile
devices is 2 W/kg and the highest SAR value for this
device when tested at the ear was W/kg and when
tested near the body (at a distance of 15mm) the highest
SAR value was W/kg. As mobile devices offer a
range of functions, they can be used in other positions,
such as on the body as described in this user guide.
As SAR is measured utilising the device’s highest
transmitting power, the actual SAR of this device while
operating is typically below that indicated above. This is
due to automatic changes to the power level of the
device to ensure it only uses the minimum power
required to communicate with the network.
Body worn operation
Important safety information regarding radiofrequency
radiation (RF) exposure.
To ensure compliance with RF exposure guidelines the
phone must be used with a minimum of 15 mm
separation from the body.
Failure to observe these instructions could result in your
RF exposure exceeding the relevant guideline limits.
0.851
call controls the power level at which your phone call controls the power level at which your phone call controls the power level at which your phone call controls the power level at which your phone
0.691
52
Limiting exposure to radio frequency (RF)
fields
For individuals concerned about limiting their exposure
to RF fields, the World Health Organisation (WHO)
provides the following advice:
Precautionary measures: Present scientific information
does not indicate the need for any special precautions for
the use of mobile phones. If individuals are concerned,
they might choose to limit their own or their children’s RF
exposure by limiting the length of calls, or using
‘hands-free’ devices to keep mobile phones away from
the head and body.
Further information on this subject can be obtained from
the WHO home page http://www.who.int/peh-emf WHO
Fact sheet 193: June 2000.
Regulatory information
The following approvals and notices apply in specific
regions as noted.
EU Declaration of Conformity
according to the Radio Equipment and
Telecommunications Terminal Equipment Directive
1999/5/EC
For the following equipment
Product :
Yulong Computer Telecommunication Scientific
(Shenzhen) Co., Ltd
Type Designation/Trademark :
vodafone 890N / Vodafone Smart 4 turbo
Manufacturer’s Name :
Yulong Computer Telecommunication Scientific
(Shenzhen) Co., Ltd
Manufacturer’s Address :
Coolpad Information Harbor, 2nd Mengxi Road, Hi-Tech
Industrial Park(North), Nanshan district, Shenzhen, P.R.C
is herewith confirmed to comply with the requirements set out in the Council
Directive1999/5/EC for radio equipment and telecommunications terminal equipment.
For the evaluation of the compliance with this Directive, the following standards
were applied:
Safety: EN 60950-1: 2006+ A11: 2009 + A1: 2010 + A12: 2011
Health: EN 62209-1:2006, EN 62209-2:2010, EN 50566:2013, EN 62479:2010,
EN 50360:2001/A1:2012, EN 62311:2008
EMC: EN 301 489-1 V1.9.2, EN 301 489-3 V1.6.1, EN 301 489-7 V1.3.1,
EN 301 489-17 V2.2.1, EN 301 489-24 V1.5.1, EN 55022 2010, EN 55024 2010
Radio : EN 300 328 V1.8.1, EN 300 440-2 V1.4.1, EN 300 440-1 V1.6.1, EN 301 511
V9.0.2, EN 301 908-1 V6.2.1, EN 301 908-2 V6.2.1, , EN 301 908-13 V5.2.1, EN 301 893
V1.7.1
Responsible for making this declaration is the:
Manufacturer Authorised representative established within the EU
Identification Mark
Person responsible for making this declaration
Name, Surname : Li Amei
Position/Title : Project Manager
Shenzhen 2014-09-22
(Place) (Date) (Company stamp and legal signature)
54
Distraction
Driving
Full attention must be given to driving at all times in
order to reduce the risk of an accident. Using a phone
while driving (even with a hands-free kit) causes
distraction and can lead to an accident. You must comply
with local laws and regulations restricting the use of
wireless devices while driving.
Operating machinery
Full attention must be given to operating the machinery
in order to reduce the risk of an accident.
Product Handling
General Statement on handling and use
You alone are responsible for how you use your phone
and any consequences of its use.
You must always switch off your phone wherever the use
of a phone is prohibited. Use of your phone is subject to
safety measures designed to protect users and their
environment.
• Always treat your phone and its accessories with care
and keep it in a clean and dust-free place.
• Do not expose your phone or its accessories to open
flames or lit tobacco products.
• Do not expose your phone or its accessories to liquid,
moisture or high humidity.
• Do not drop, throw or try to bend your phone or its
accessories.
• Do not use harsh chemicals, cleaning solvents, or
aerosols to clean the device or its accessories.
• Do not paint your phone or its accessories.
• Do not attempt to disassemble your phone or its
accessories, only authorised personnel must do so.
• Do not expose your phone or its accessories to
extreme temperatures, minimum 0 and maximum +45
degrees Celsius.
55
• Please check local regulations for disposal of
electronic products.
• Do not carry your phone in your back pocket as it
could break when you sit down.
Small Children
Do not leave your phone and its accessories within the
reach of small children or allow them to play with it.
They could hurt themselves or others, or could
accidentally damage the phone.
Your phone contains small parts with sharp edges that
may cause an injury or which could become detached
and create a choking hazard.
Demagnetisation
To avoid the risk of demagnetisation, do not allow
electronic devices or magnetic media close to your
phone for a long time.
Electrostatic discharge (ESD)
Do not touch the SIM card’s metal connectors.
Power supply
Do not connect your device to the power supply or
switch it on until instructed to do so in the installation
instructions.
Antenna
Do not touch the antenna unnecessarily.
Normal use position
When placing or receiving a phone call, hold your phone
to your ear, with the bottom towards your mouth or as
you would a fixed line phone.
56
Air Bags
Do not place a phone in the area over an air bag or in the
air bag deployment area.
Store the phone safely before driving your vehicle.
Seizures/Blackouts
This phone is capable of producing bright flashing lights.
Repetitive Motion Injuries
To minimise the risk of RSI, when Texting or playing
games with your phone:
• Do not grip the phone too tightly.
• Press the buttons lightly.
• Make use of the special features in the handset which
minimise the number of buttons which have to be
pressed, such as message templates and predictive
text.
• Take lots of breaks to stretch and relax.
Emergency Calls
This phone, like any wireless phone, operates using radio
signals, which cannot guarantee connection in all
conditions. Therefore, you must never rely solely on any
wireless phone for emergency communications.
57
Loud Noise
This phone is capable of producing loud noises which
may damage your hearing. Prolonged exposure to music
at full volume on the music player may damage the
listener's hearing. Use the recommended headphones
only.
PROTECT YOUR HEARING
To prevent possible hearing damage, do
not listen at high volume levels for long
periods. Exercise caution when holding
your device near your ear while the
loudspeaker is in use.
Bright Light
This phone is capable of producing flash of light or use as
a torch, do not use it too close to the eyes.
Phone Heating
Your phone may become warm during charging and
during normal use.
Electrical Safety
Accessories
Use only approved accessories.
Do not connect with incompatible products
or accessories.
Take care not to touch or allow metal objects, such as
coins or key rings, to contact or short-circuit the battery
terminals.
Connection to a Car
Seek professional advice when connecting a phone
interface to the vehicle electrical system.
58
Faulty and Damaged Products
Do not attempt to disassemble the phone or its
accessory.
Only qualified personnel must service or repair the
phone or its accessory.
If your phone or its accessory has been submerged in
water, punctured, or subjected to a severe fall, do not
use it until you have taken it to be checked at an
authorised service centre.
Battery Handling & Safety
Always switch the device off and disconnect the charger
before removing the battery.
Only use the battery and charger supplied, or
manufacturer approved replacements intended for use
with your phone. Using other batteries and chargers
could be dangerous.
Do not disassemble or short-circuit the battery.
Accidental short-circuiting can occur if a metallic object
such as a key, paper clip, or pen touches the terminals of
the battery.
Improper battery use may result in a fire, explosion, or
other hazard. If you believe the battery has been
damaged, do not use it, take it to a service centre for
testing.
Interference
General statement on interference
Care must be taken when using the phone in close
proximity to personal medical devices, such as
pacemakers and hearing aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile
phone and a pacemaker to avoid potential interference
with the pacemaker. To achieve this use the phone on
59
the opposite ear to your pacemaker and do not carry it in
a breast pocket.
Hearing Aids
People with hearing aids or other cochlear implants may
experience interfering noises when using wireless
devices or when one is nearby.
The level of interference will depend on the type of
hearing device and the distance from the interference
source, increasing the separation between them may
reduce the interference. You may also consult your
hearing aid manufacturer to discuss alternatives.
Medical devices
Please consult your doctor and the device manufacturer
to determine if operation of your phone may interfere
with the operation of your medical device.
Hospitals
Switch off your wireless device when requested to do so
in hospitals, clinics or health care facilities. These
requests are designed to prevent possible interference
with sensitive medical equipment.
Aircraft
Switch off your wireless device whenever you are
instructed to do so by airport or airline staff.
Consult the airline staff about the use of wireless devices
on board the aircraft, if your device offers a ‘flight mode’
this must be enabled prior to boarding an aircraft.
Interference in cars
Please note that because of possible interference to
electronic equipment, some vehicle manufacturers
forbid the use of mobile phones in their vehicles unless a
hands-free kit with an external antenna is included in the
installation.
60
Explosive environments
Petrol stations and explosive atmospheres
In locations with potentially explosive atmospheres, obey
all posted signs to turn off wireless devices such as your
phone or other radio equipment.
Areas with potentially explosive atmospheres include
fuelling areas, below decks on boats, fuel or chemical
transfer or storage facilities, areas where the air contains
chemicals or particles, such as grain, dust, or metal
powders.
Blasting Caps and Areas
Turn off your mobile phone or wireless device when in a
blasting area or in areas posted turn off “two-way radios”
or “electronic devices” to avoid interfering with blasting
operations.
Protection against theft
Your telephone is identified by an IMEI (phone serial
number) shown on the packaging label and in the
product’s memory. We recommend that you note the
number the first time you use your telephone by
entering * # 0 6 # and keep it in a safe place. It may be
requested by the police or your operator if your
telephone is stolen. This number allows your mobile
telephone to be blocked preventing a third person from
using it, even with a different SIM card.
Recycling information
This symbol on your telephone, the
battery and the accessories means that
these products must be taken to
collection points at the end of their life:
- Municipal waste disposal centres with
specific bins for these items of
equipment
- Collection bins at points of sale.
61
They will then be recycled, preventing substances being
disposed of in the environment, so that their
components can be reused.
In European Union countries:
These collection points are accessible free of charge.
All products with this sign must be brought to these
collection points.
In non European Union jurisdictions:
Items of equipment with this symbol are not to be
thrown into ordinary bins if your jurisdiction or your
region has suitable recycling and collection facilities;
instead they are to be taken to collection points for them
to be recycled.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS.
FCC Regulations
• This mobile phone complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that may
cause undesired operation.
• This mobile phone has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
62
and on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment
and receiver.
c) Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
d) Consult the dealer or an experienced radio/TV
technician for help.
Caution: Changes or modifications not expressly
approved by the party responsible for compliance could
void the user‘s authority to operate the equipment.
• The antenna(s) used for this transmitter must not be
co-located or operating in conjunction with any other
antenna or transmitter.
RF Exposure Information (SAR)
This phone is designed and manufactured not to exceed
the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission
of the United States.
During SAR testing, this device was set to transmit at its
highest certified power level in all tested frequency
bands, and placed in positions that simulate RF exposure
in usage against the head with no separation, and near
the body with the separation of 10 mm. Although the
SAR is determined at the highest certified power level,
the actual SAR level of the device while operating can be
well below the maximum value. This is because the
phone is designed to operate at multiple power levels so
as to use only the power required to reach the network.
In general, the closer you are to a wireless base station
antenna, the lower the power output.
The exposure standard for wireless devices employing a
unit of measurement is known as the Specific Absorption
Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg for
an uncontrolled environment.
1.146
R38YL890N
63
Tests for SAR are conducted using standard operating
positions accepted by the FCC with the device
transmitting at its highest certified power level in all
tested frequency bands.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines.
SAR information on this model phone:
FCC ID:
Highest SAR for head W/kg
Highest SAR for body W/kg
While there may be differences between the SAR levels
of various phones and at various positions, they all meet
the government requirements.
SAR compliance for body-worn operation is based on a
separation distance of 10 mm between the unit and the
human body. Carry this device at least 10 mm away from
your body to ensure RF exposure level compliant or
lower to the reported level. To support body-worn
operation, choose the belt clips or holsters, which do
not contain metallic components, to maintain a
separation of 10 mm between this device and your body.
RF exposure compliance with any body-worn accessory,
which contains metal, was not tested and certified, and
use such body-worn accessory should be avoided.
Licences
Some services and apps may not be available in all
countries.
Please ask in-store for details.
Android, Google, Google Play and other marks are
trademarks of Google Inc.
0.370
64
© Vodafone Group 2014. Vodafone and the Vodafone
logos are trade marks of Vodafone Group. Any product or
company names mentioned herein may be the trade
marks of their respective owners.
Notice
The information in this manual is subject to change
without notice. Every effort has been made in the
preparation of this manual to ensure accuracy of the
contents, but all statements, information, and
recommendations in this manual do not constitute a
warranty of any kind, expressed or implied. Read the
safety precautions and safety information carefully to
ensure that you use this wireless device in a correct and
safe manner.
Yulong Computer Telecommunication Scientific
(Shenzhen) Co., Ltd.
Address:
Coolpad Information Harbor, 2nd Mengxi Road, Northern
Part of Science&Technology Park, Nanshan district,
Shenzhen, P.R.China
65
Telephone warranty
WARRANTY TERMS AND CONDITIONS
1. Vodafone undertakes the warranty of this Mobile
Phone for a period of two (2) years from the date of
Purchase by the original owner (not transferable)
under normal use.
2. The Battery has a limited warranty for twelve (12)
months, and Charger for twenty-four (24) months
against manufacturing defects. Other accessories have
a limited warranty for twenty-four (24) months against
manufacturing defects.
3. This Warranty does not cover damage resulting from:
a) Normal wear & tear of the equipment;
b) Defects and damages due to the equipment being
used other than its normal and customary manner;
c) An unauthorized disassembly, repair, alteration or
modification being carried out;
d) Misuse, abuse, negligence or accident howsoever
caused;
e) Defects or damage arising from improper testing,
operation, maintenance, installation, or any
alteration or modification;
f) Defects or damage due to spillage of food or liquids,
corrosion, rust or the use of wrong voltage;
g) Scratches or damage to plastic surfaces and all
other externally exposed parts that are due to
normal customer use;
4. The Handset requiring service/repair must be
delivered at the user's cost.
5. This warranty will be null and void in any of the
following events:
a) If the serial number or warranty seal on the
equipment has been defaced or removed.
b) If any term contained in this warranty has been
altered or modified in any way without prior written
consent of Vodafone.
66
6. The limited warranty extends only to customer who
purchase the product in one of the countries (or areas)
set forth at the end of this document. The limited
warranty is only valid in Vodafone's intended country
(or area) of sale of the Product.
7. If the product is returned to Vodafone after the
expiration of the warranty period, Vodafone's normal
service policies shall apply and the Consumer will be
charged accordingly.
a) Vodafone neither assumes for it any other
obligation or liability beyond that which is expressly
provided for in this limited warranty.
b) All warranty information, product features and
specifications are subject to change without notice.
8. THIS WARRANTY IS IN LIEU OF ANY AND OTHER
WARRANTIES EXPRESSED OR IMPLIED, SPECIFICALLY
INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. VODAFONE ASSUMES NO LIABILITY FOR
THE BREACH OF THE WARRANTY BEYOND
CORRECTING THE BREACH IN THE MANNER
DESCRIBED ABOVE. IN NO EVENT SHALL VODAFONE
BE LIABLE FOR CONSEQUENCES.
67
Technical data
Basic specifications
Processor Qualcomm MSM8916
Platform Android 4.4.4
Dimensions 134 × 67.5 × 10.4 mm
Form factor Bar
Antenna Internal
SIM card Micro-SIM
Network
GSM (900/1800/1900MHz)
WCDMA (900/2100MHz)
LTE (800/1800/2600MHz)
WLAN 2.4 GHz
Camera Front 0.3M pixel + Rear 5M pixel AF
Headset
connector Ф3.5mm CTIA standard
Screen parameters
Type Dimensions Resolution
LCD, FWVGA 4.5-inch 480×854
Accessories
Battery
Battery name
Lithium-ion
polymer
rechargeable
battery
Rated capacity 1,880 mAh
Nominal voltage 3.7 V
68
Accessories
No. Name Quantity
1 Phone 1
2 Battery 1
3 Travel charger 1
4 USB charge/data cable 1
5 Headset 1
6 Quick start guide 1
7 Safety & warranty information 1
8
NFC TAG guide with 2 TAGs
(This is only available in some
countries/areas)
1
Note: Accessories included are dependent on the final
seller. Contact the retailer for details.
