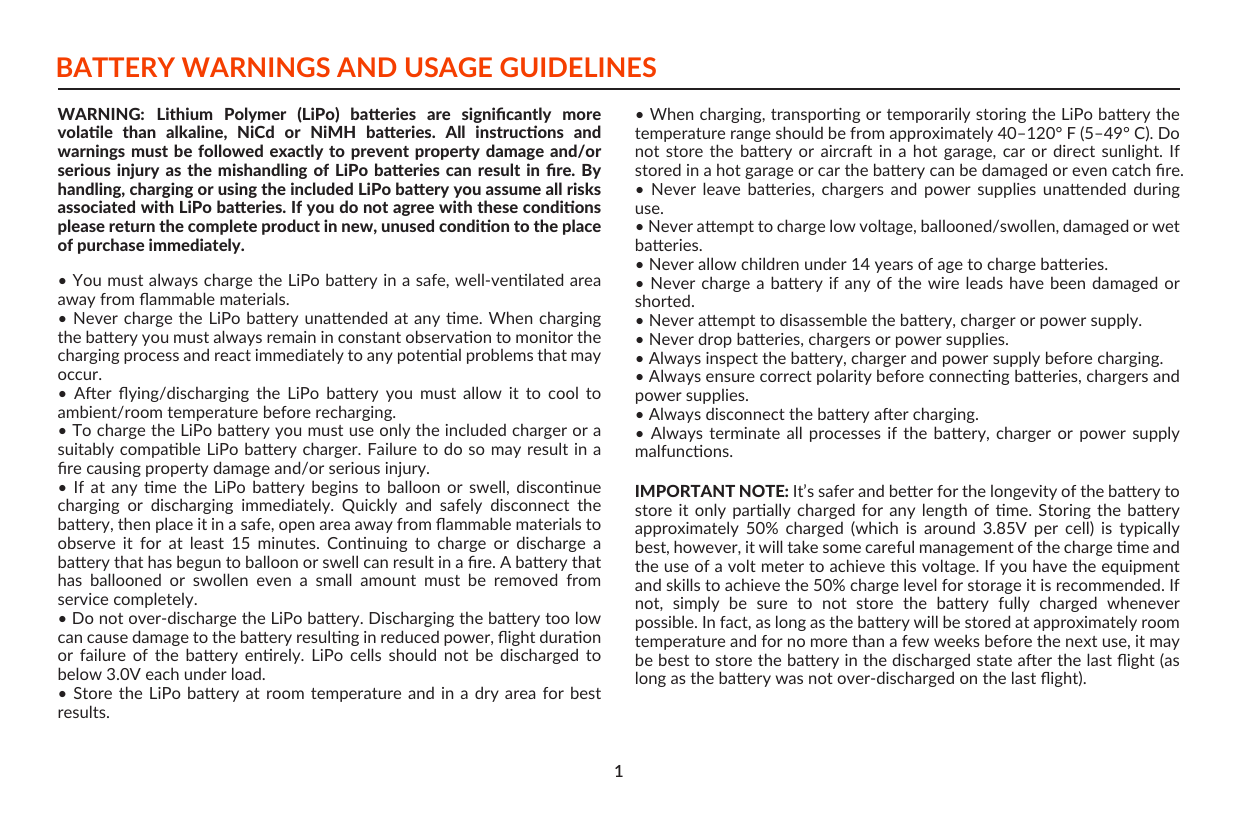

1BATTERY WARNINGS AND USAGE GUIDELINESWARNING: Lithium Polymer (LiPo) baeries are significantly more volale than alkaline, NiCd or NiMH baeries. All instrucons and warnings must be followed exactly to prevent property damage and/or serious injury as the mishandling of LiPo baeries can result in fire. By handling, charging or using the included LiPo baery you assume all risks associated with LiPo baeries. If you do not agree with these condions please return the complete product in new, unused condion to the place of purchase immediately.• You must always charge the LiPo baery in a safe, well-venlated area away from flammable materials.• Never charge the LiPo baery unaended at any me. When charging the baery you must always remain in constant observaon to monitor the charging process and react immediately to any potenal problems that may occur.• Aer flying/discharging the LiPo baery you must allow it to cool to ambient/room temperature before recharging.• To charge the LiPo baery you must use only the included charger or a suitably compable LiPo baery charger. Failure to do so may result in a fire causing property damage and/or serious injury.• If at any me the LiPo baery begins to balloon or swell, disconnue charging or discharging immediately. Quickly and safely disconnect the baery, then place it in a safe, open area away from flammable materials to observe it for at least 15 minutes. Connuing to charge or discharge a baery that has begun to balloon or swell can result in a fire. A baery that has ballooned or swollen even a small amount must be removed from service completely.• Do not over-discharge the LiPo baery. Discharging the baery too low can cause damage to the baery resulng in reduced power, flight duraon or failure of the baery enrely. LiPo cells should not be discharged to below 3.0V each under load.• Store the LiPo baery at room temperature and in a dry area for best results.• When charging, transporng or temporarily storing the LiPo baery the temperature range should be from approximately 40–120° F (5–49° C). Do not store the baery or aircra in a hot garage, car or direct sunlight. If stored in a hot garage or car the baery can be damaged or even catch fire.• Never leave baeries, chargers and power supplies unaended during use.• Never aempt to charge low voltage, ballooned/swollen, damaged or wet baeries.• Never allow children under 14 years of age to charge baeries.• Never charge a baery if any of the wire leads have been damaged or shorted.• Never aempt to disassemble the baery, charger or power supply.• Never drop baeries, chargers or power supplies.• Always inspect the baery, charger and power supply before charging.• Always ensure correct polarity before connecng baeries, chargers and power supplies.• Always disconnect the baery aer charging.• Always terminate all processes if the baery, charger or power supply malfuncons.IMPORTANT NOTE: It’s safer and beer for the longevity of the baery to store it only parally charged for any length of me. Storing the baery approximately 50% charged (which is around 3.85V per cell) is typically best, however, it will take some careful management of the charge me and the use of a volt meter to achieve this voltage. If you have the equipment and skills to achieve the 50% charge level for storage it is recommended. If not, simply be sure to not store the baery fully charged whenever possible. In fact, as long as the baery will be stored at approximately room temperature and for no more than a few weeks before the next use, it may be best to store the baery in the discharged state aer the last flight (as long as the baery was not over-discharged on the last flight).

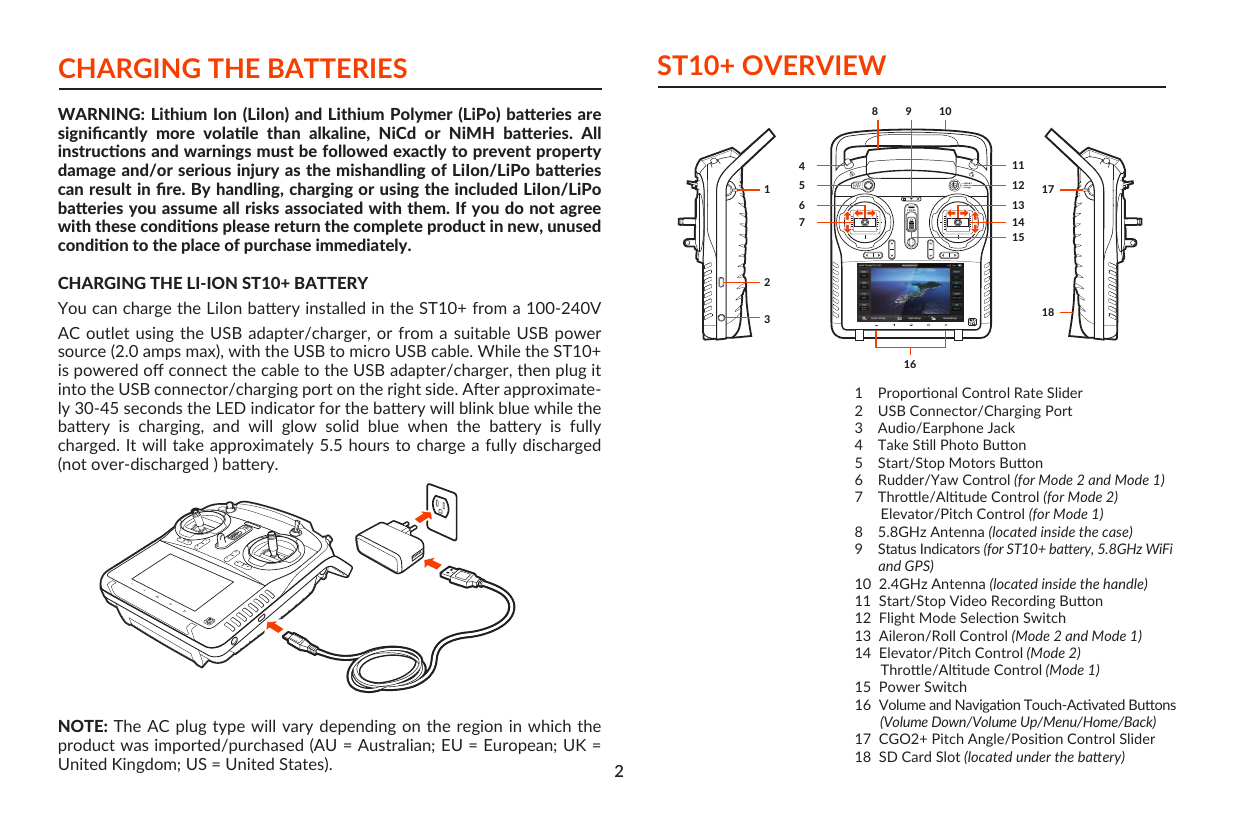

CHARGING THE BATTERIESWARNING: Lithium Ion (LiIon) and Lithium Polymer (LiPo) baeries are significantly more volale than alkaline, NiCd or NiMH baeries. All instrucons and warnings must be followed exactly to prevent property damage and/or serious injury as the mishandling of LiIon/LiPo baeries can result in fire. By handling, charging or using the included LiIon/LiPo baeries you assume all risks associated with them. If you do not agree with these condions please return the complete product in new, unused condion to the place of purchase immediately.CHARGING THE LI-ION ST10+ BATTERYYou can charge the LiIon baery installed in the ST10+ from a 100-240V AC outlet using the USB adapter/charger, or from a suitable USB power source (2.0 amps max), with the USB to micro USB cable. While the ST10+ is powered off connect the cable to the USB adapter/charger, then plug it into the USB connector/charging port on the right side. Aer approximate-ly 30-45 seconds the LED indicator for the baery will blink blue while the baery is charging, and will glow solid blue when the baery is fully charged. It will take approximately 5.5 hours to charge a fully discharged (not over-discharged ) baery.NOTE: The AC plug type will vary depending on the region in which the product was imported/purchased (AU = Australian; EU = European; UK = United Kingdom; US = United States). 212345678 9 101112131415171816ST10+ OVERVIEW1 Proporonal Control Rate Slider2 USB Connector/Charging Port3 Audio/Earphone Jack4 Take Sll Photo Buon5 Start/Stop Motors Buon6 Rudder/Yaw Control (for Mode 2 and Mode 1)7 Throle/Altude Control (for Mode 2) Elevator/Pitch Control (for Mode 1)8 5.8GHz Antenna (located inside the case)9 Status Indicators (for ST10+ baery, 5.8GHz WiFi and GPS)10 2.4GHz Antenna (located inside the handle)11 Start/Stop Video Recording Buon12 Flight Mode Selecon Switch13 Aileron/Roll Control (Mode 2 and Mode 1)14 Elevator/Pitch Control (Mode 2) Throle/Altude Control (Mode 1)15 Power Switch16 Volume and Navigaon Touch-Acvated Buons (Volume Down/Volume Up/Menu/Home/Back)17 CGO2+ Pitch Angle/Posion Control Slider18 SD Card Slot (located under the baery)

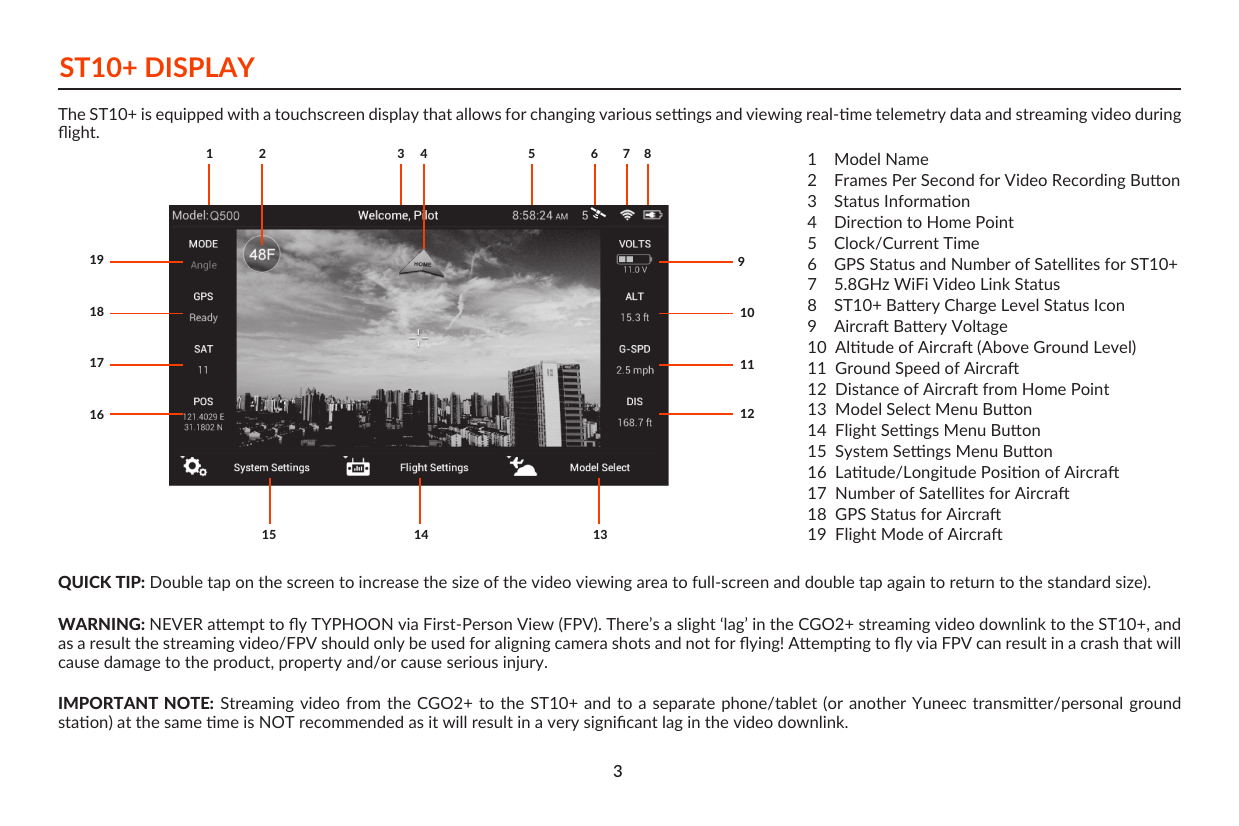

3ST10+ DISPLAY1 Model Name2 Frames Per Second for Video Recording Buon3 Status Informaon4 Direcon to Home Point5 Clock/Current Time6 GPS Status and Number of Satellites for ST10+7 5.8GHz WiFi Video Link Status8 ST10+ Baery Charge Level Status Icon9 Aircra Baery Voltage10 Altude of Aircra (Above Ground Level)11 Ground Speed of Aircra12 Distance of Aircra from Home Point13 Model Select Menu Buon14 Flight Sengs Menu Buon15 System Sengs Menu Buon16 Latude/Longitude Posion of Aircra17 Number of Satellites for Aircra18 GPS Status for Aircra19 Flight Mode of AircraThe ST10+ is equipped with a touchscreen display that allows for changing various sengs and viewing real-me telemetry data and streaming video during flight.QUICK TIP: Double tap on the screen to increase the size of the video viewing area to full-screen and double tap again to return to the standard size).WARNING: NEVER aempt to fly TYPHOON via First-Person View (FPV). There’s a slight ‘lag’ in the CGO2+ streaming video downlink to the ST10+, and as a result the streaming video/FPV should only be used for aligning camera shots and not for flying! Aempng to fly via FPV can result in a crash that will cause damage to the product, property and/or cause serious injury. IMPORTANT NOTE: Streaming video from the CGO2+ to the ST10+ and to a separate phone/tablet (or another Yuneec transmier/personal ground staon) at the same me is NOT recommended as it will result in a very significant lag in the video downlink.9101112191817161415 1365213 4 87

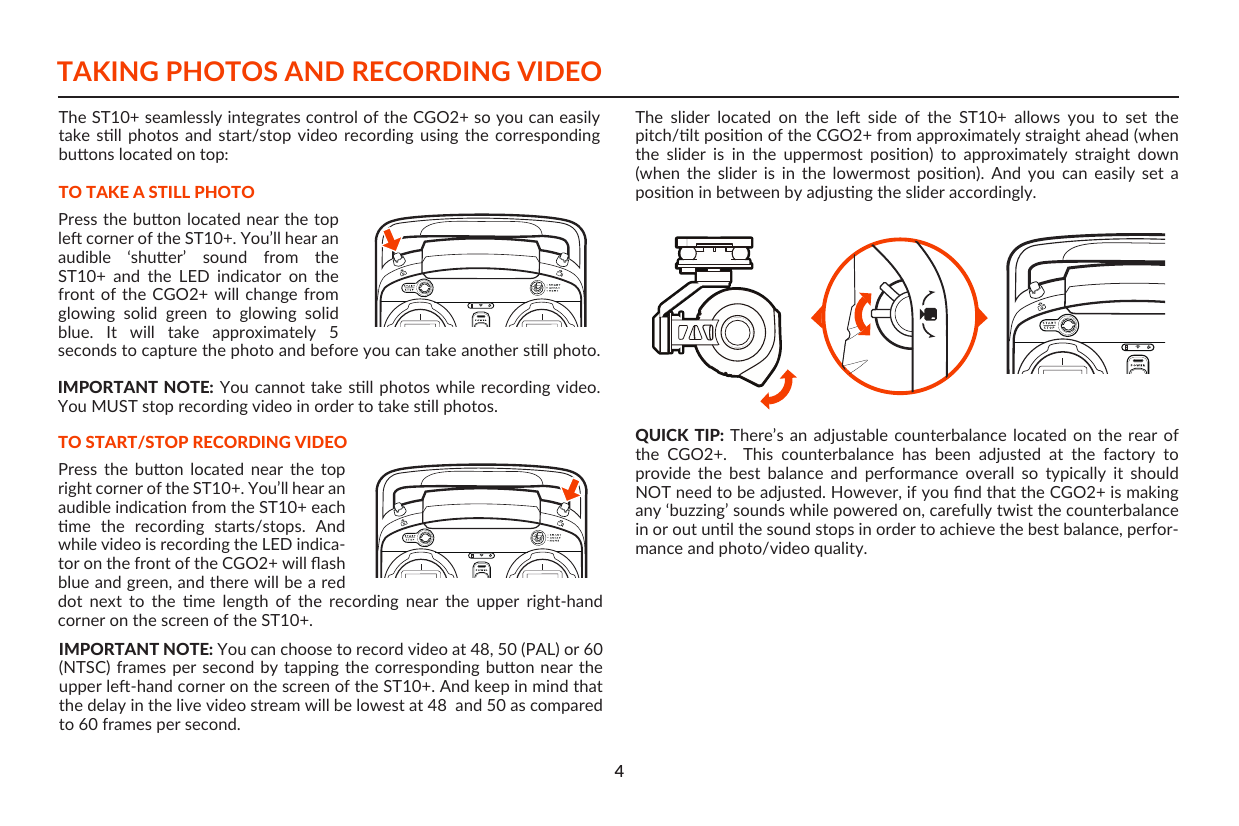

dot next to the me length of the recording near the upper right-hand corner on the screen of the ST10+.TAKING PHOTOS AND RECORDING VIDEOThe ST10+ seamlessly integrates control of the CGO2+ so you can easily take sll photos and start/stop video recording using the corresponding buons located on top:TO TAKE A STILL PHOTOTO START/STOP RECORDING VIDEOPress the buon located near the top right corner of the ST10+. You’ll hear an audible indicaon from the ST10+ each me the recording starts/stops. And while video is recording the LED indica-tor on the front of the CGO2+ will flash blue and green, and there will be a red Press the buon located near the top le corner of the ST10+. You’ll hear an audible ‘shuer’ sound from the ST10+ and the LED indicator on the front of the CGO2+ will change from glowing solid green to glowing solid blue. It will take approximately 5 seconds to capture the photo and before you can take another sll photo.IMPORTANT NOTE: You cannot take sll photos while recording video. You MUST stop recording video in order to take sll photos.IMPORTANT NOTE: You can choose to record video at 48, 50 (PAL) or 60 (NTSC) frames per second by tapping the corresponding buon near the upper le-hand corner on the screen of the ST10+. And keep in mind that the delay in the live video stream will be lowest at 48 and 50 as compared to 60 frames per second.The slider located on the le side of the ST10+ allows you to set the pitch/lt posion of the CGO2+ from approximately straight ahead (when the slider is in the uppermost posion) to approximately straight down (when the slider is in the lowermost posion). And you can easily set a posion in between by adjusng the slider accordingly. QUICK TIP: There’s an adjustable counterbalance located on the rear of the CGO2+. This counterbalance has been adjusted at the factory to provide the best balance and performance overall so typically it should NOT need to be adjusted. However, if you find that the CGO2+ is making any ‘buzzing’ sounds while powered on, carefully twist the counterbalance in or out unl the sound stops in order to achieve the best balance, perfor-mance and photo/video quality.4

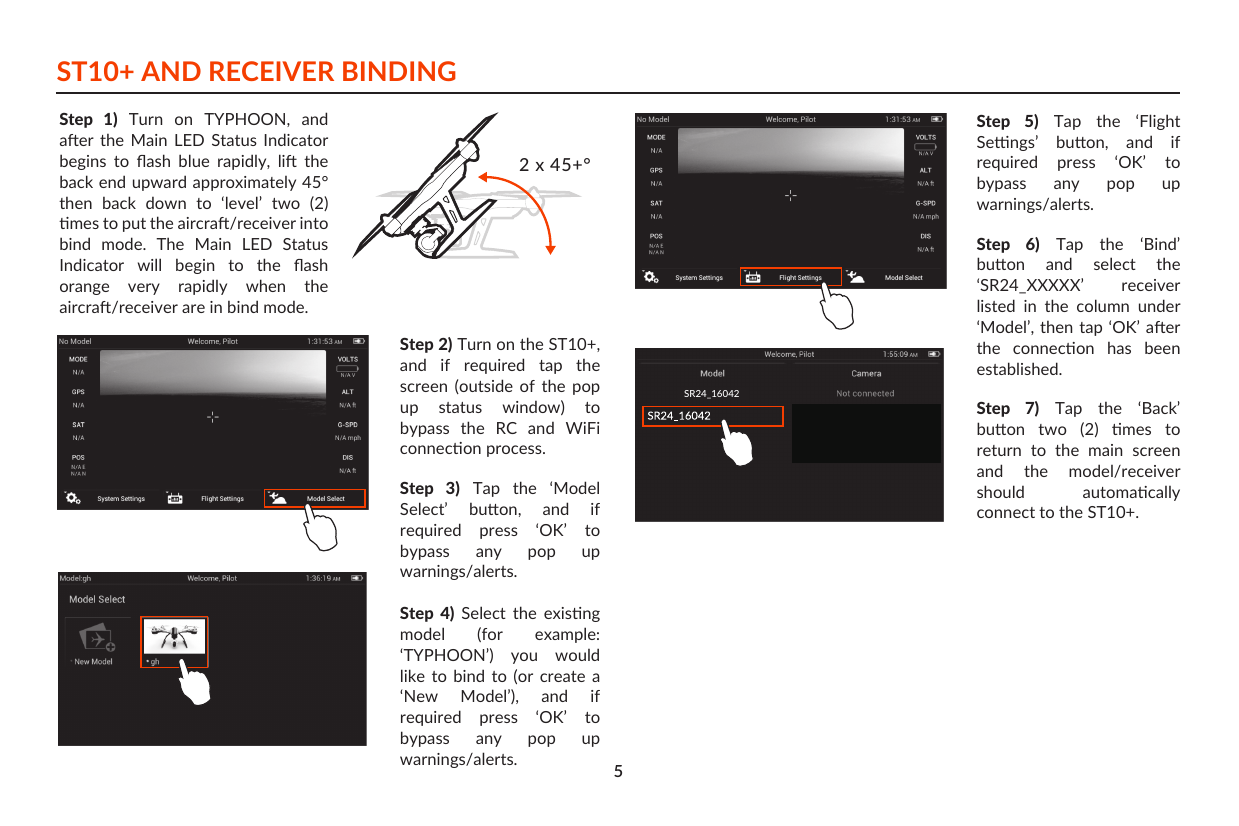

ST10+ AND RECEIVER BINDINGStep 1) Turn on TYPHOON, and aer the Main LED Status Indicator begins to flash blue rapidly, li the back end upward approximately 45° then back down to ‘level’ two (2) mes to put the aircra/receiver into bind mode. The Main LED Status Indicator will begin to the flash orange very rapidly when the aircra/receiver are in bind mode.2 x 45+°Step 2) Turn on the ST10+, and if required tap the screen (outside of the pop up status window) to bypass the RC and WiFi connecon process.Step 3) Tap the ‘Model Select’ buon, and if required press ‘OK’ to bypass any pop up warnings/alerts.Step 4) Select the exisng model (for example: ‘TYPHOON’) you would like to bind to (or create a ‘New Model’), and if required press ‘OK’ to bypass any pop up warnings/alerts.Step 5) Tap the ‘Flight Sengs’ buon, and if required press ‘OK’ to bypass any pop up warnings/alerts.Step 6) Tap the ‘Bind’ buon and select the ‘SR24_XXXXX’ receiver listed in the column under ‘Model’, then tap ‘OK’ aer the connecon has been established.Step 7) Tap the ‘Back’ buon two (2) mes to return to the main screen and the model/receiver should automacally connect to the ST10+.5SR24_16042

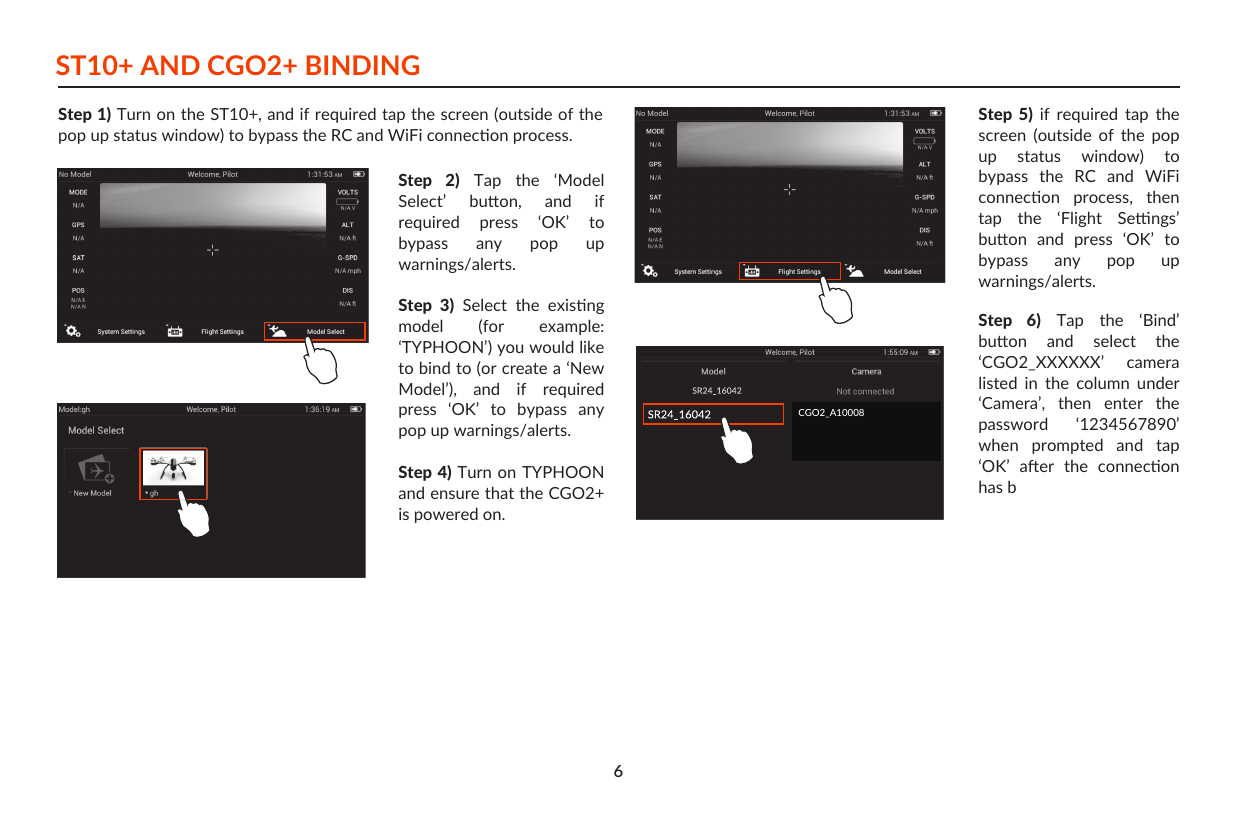

ST10+ AND CGO2+ BINDINGStep 1) Turn on the ST10+, and if required tap the screen (outside of the pop up status window) to bypass the RC and WiFi connecon process.Step 5) if required tap the screen (outside of the pop up status window) to bypass the RC and WiFi connecon process, then tap the ‘Flight Sengs’ buon and press ‘OK’ to bypass any pop up warnings/alerts.Step 6) Tap the ‘Bind’ buon and select the ‘CGO2_XXXXXX’ camera listed in the column under ‘Camera’, then enter the password ‘1234567890’ when prompted and tap ‘OK’ aer the connecon has b Step 2) Tap the ‘Model Select’ buon, and if required press ‘OK’ to bypass any pop up warnings/alerts.Step 3) Select the exisng model (for example: ‘TYPHOON’) you would like to bind to (or create a ‘New Model’), and if required press ‘OK’ to bypass any pop up warnings/alerts.Step 4) Turn on TYPHOON and ensure that the CGO2+ is powered on.6CGO2_A10008

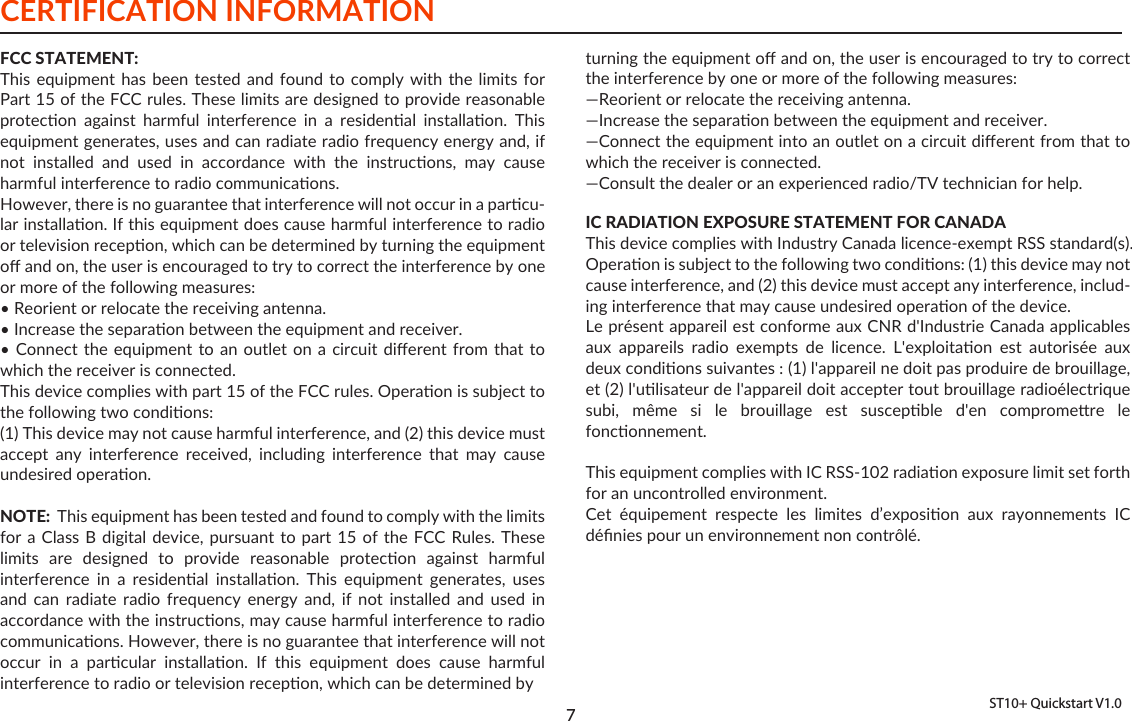

CERTIFICATION INFORMATION 7ST10+ Quickstart V1.0FCC STATEMENT:This equipment has been tested and found to comply with the limits for Part 15 of the FCC rules. These limits are designed to provide reasonable protecon against harmful interference in a residenal installaon. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instrucons, may cause harmful interference to radio communicaons. However, there is no guarantee that interference will not occur in a parcu-lar installaon. If this equipment does cause harmful interference to radio or television recepon, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separaon between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.This device complies with part 15 of the FCC rules. Operaon is subject to the following two condions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operaon. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference in a residenal installaon. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instrucons, may cause harmful interference to radio communicaons. However, there is no guarantee that interference will not occur in a parcular installaon. If this equipment does cause harmful interference to radio or television recepon, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separaon between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help.IC RADIATION EXPOSURE STATEMENT FOR CANADAThis device complies with Industry Canada licence-exempt RSS standard(s).Operaon is subject to the following two condions: (1) this device may not cause interference, and (2) this device must accept any interference, includ-ing interference that may cause undesired operaon of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitaon est autorisée aux deux condions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'ulisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est suscepble d'en compromere le fonconnement.This equipment complies with IC RSS-102 radiaon exposure limit set forth for an uncontrolled environment. Cet équipement respecte les limites d’exposion aux rayonnements IC définies pour un environnement non contrôlé.
