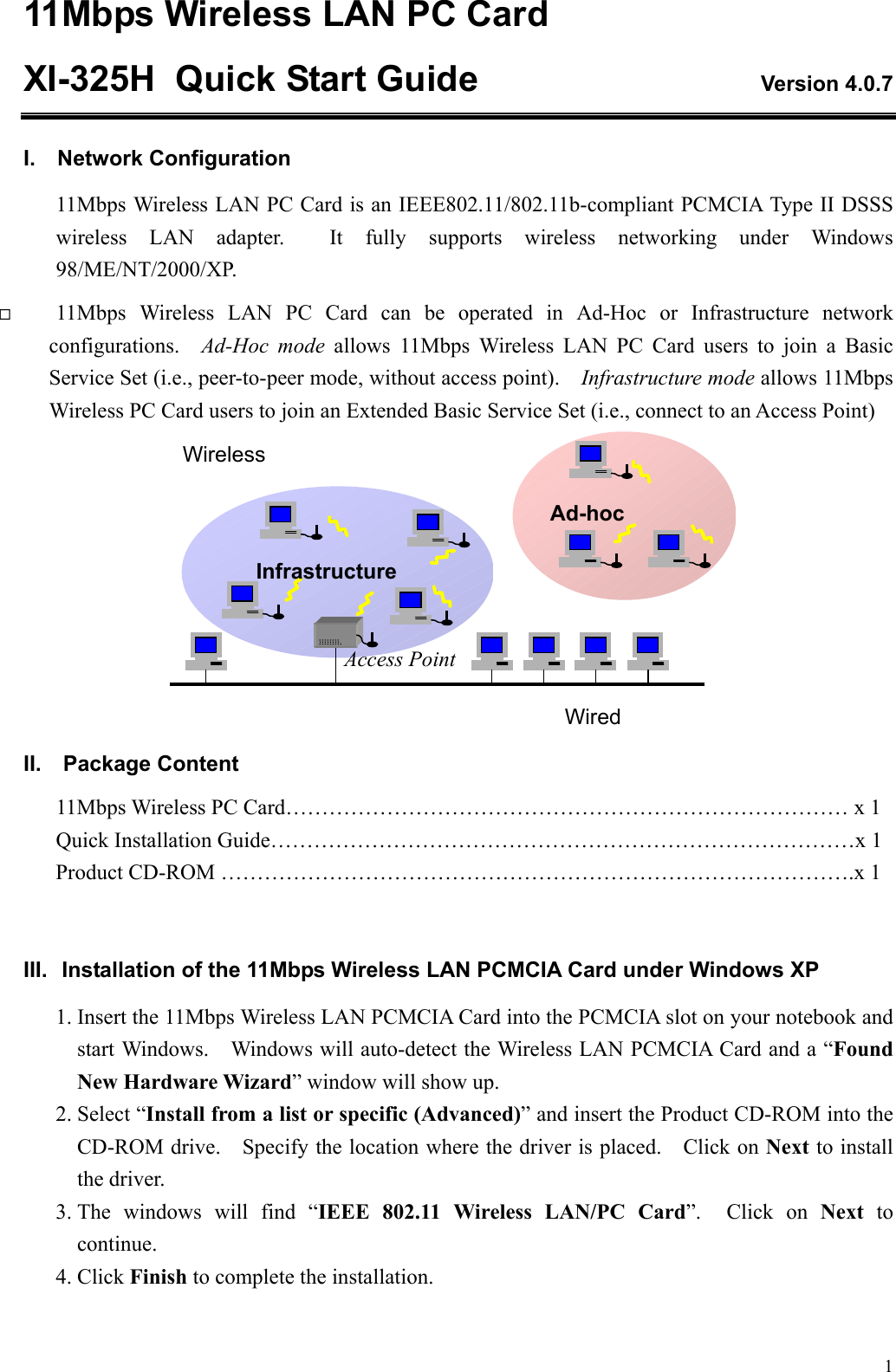

111Mbps Wireless LAN PC Card XI-325H Quick Start Guide Version 4.0.7 I. Network Configuration 11Mbps Wireless LAN PC Card is an IEEE802.11/802.11b-compliant PCMCIA Type II DSSS wireless LAN adapter. It fully supports wireless networking under Windows 98/ME/NT/2000/XP.  11Mbps Wireless LAN PC Card can be operated in Ad-Hoc or Infrastructure network configurations. Ad-Hoc mode allows 11Mbps Wireless LAN PC Card users to join a Basic Service Set (i.e., peer-to-peer mode, without access point). Infrastructure mode allows 11Mbps Wireless PC Card users to join an Extended Basic Service Set (i.e., connect to an Access Point) II. Package Content 11Mbps Wireless PC Card…………………………………………………………………… x 1 Quick Installation Guide………………………………………………………………………x 1 Product CD-ROM …………………………………………………………………………….x 1 III. Installation of the 11Mbps Wireless LAN PCMCIA Card under Windows XP 1. Insert the 11Mbps Wireless LAN PCMCIA Card into the PCMCIA slot on your notebook and start Windows. Windows will auto-detect the Wireless LAN PCMCIA Card and a “Found New Hardware Wizard” window will show up. 2. Select “Install from a list or specific (Advanced)” and insert the Product CD-ROM into the CD-ROM drive. Specify the location where the driver is placed. Click on Next to install the driver. 3. The windows will find “IEEE 802.11 Wireless LAN/PC Card”. Click on Next to continue. 4. Click Finish to complete the installation. Infrastructure Ad-hoc Wired Wireless Access Point

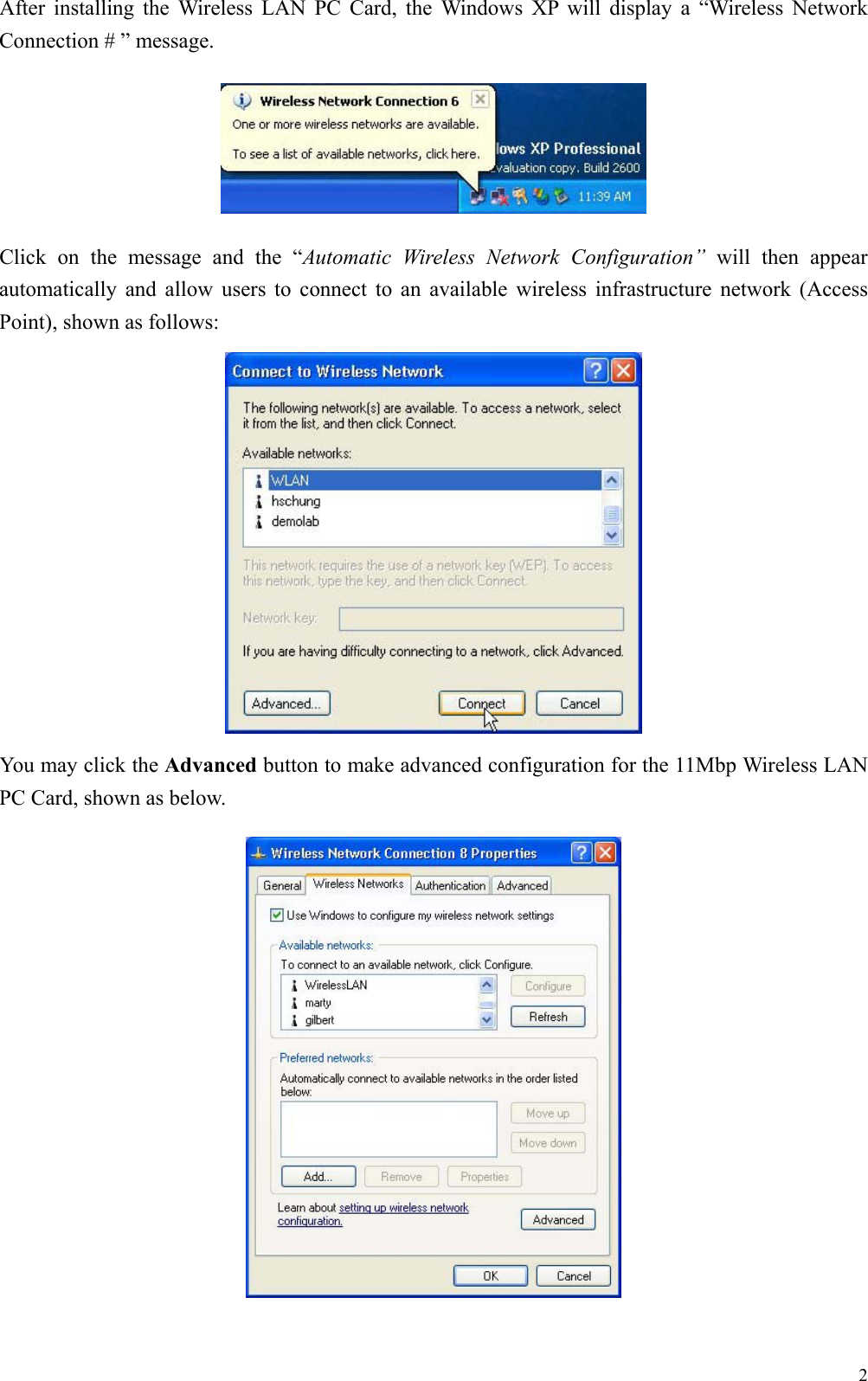

2After installing the Wireless LAN PC Card, the Windows XP will display a “Wireless Network Connection # ” message. Click on the message and the “Automatic Wireless Network Configuration” will then appear automatically and allow users to connect to an available wireless infrastructure network (Access Point), shown as follows: You may click the Advanced button to make advanced configuration for the 11Mbp Wireless LAN PC Card, shown as below.

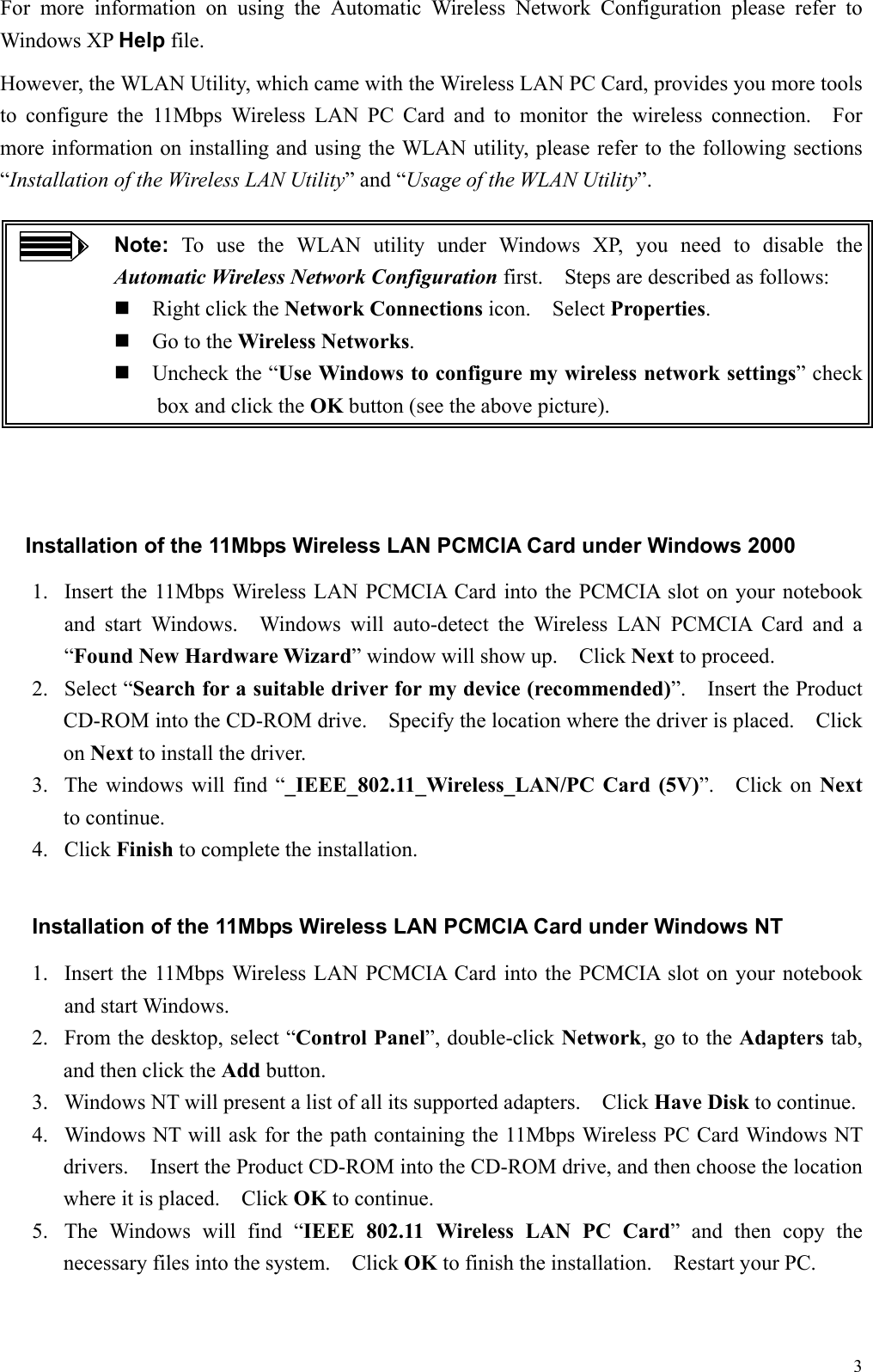

3For more information on using the Automatic Wireless Network Configuration please refer to Windows XP Help file. However, the WLAN Utility, which came with the Wireless LAN PC Card, provides you more tools to configure the 11Mbps Wireless LAN PC Card and to monitor the wireless connection. For more information on installing and using the WLAN utility, please refer to the following sections “Installation of the Wireless LAN Utility” and “Usage of the WLAN Utility”. Note: To use the WLAN utility under Windows XP, you need to disable the Automatic Wireless Network Configuration first. Steps are described as follows:  Right click the Network Connections icon. Select Properties.  Go to the Wireless Networks.  Uncheck the “Use Windows to configure my wireless network settings” check box and click the OK button (see the above picture). Installation of the 11Mbps Wireless LAN PCMCIA Card under Windows 2000 1. Insert the 11Mbps Wireless LAN PCMCIA Card into the PCMCIA slot on your notebook and start Windows. Windows will auto-detect the Wireless LAN PCMCIA Card and a “Found New Hardware Wizard” window will show up. Click Next to proceed. 2. Select “Search for a suitable driver for my device (recommended)”. Insert the Product CD-ROM into the CD-ROM drive. Specify the location where the driver is placed. Click on Next to install the driver. 3. The windows will find “_IEEE_802.11_Wireless_LAN/PC Card (5V)”. Click on Next to continue. 4. Click Finish to complete the installation. Installation of the 11Mbps Wireless LAN PCMCIA Card under Windows NT 1. Insert the 11Mbps Wireless LAN PCMCIA Card into the PCMCIA slot on your notebook and start Windows. 2. From the desktop, select “Control Panel”, double-click Network, go to the Adapters tab, and then click the Add button. 3. Windows NT will present a list of all its supported adapters. Click Have Disk to continue. 4. Windows NT will ask for the path containing the 11Mbps Wireless PC Card Windows NT drivers. Insert the Product CD-ROM into the CD-ROM drive, and then choose the location where it is placed. Click OK to continue. 5. The Windows will find “IEEE 802.11 Wireless LAN PC Card” and then copy the necessary files into the system. Click OK to finish the installation. Restart your PC.

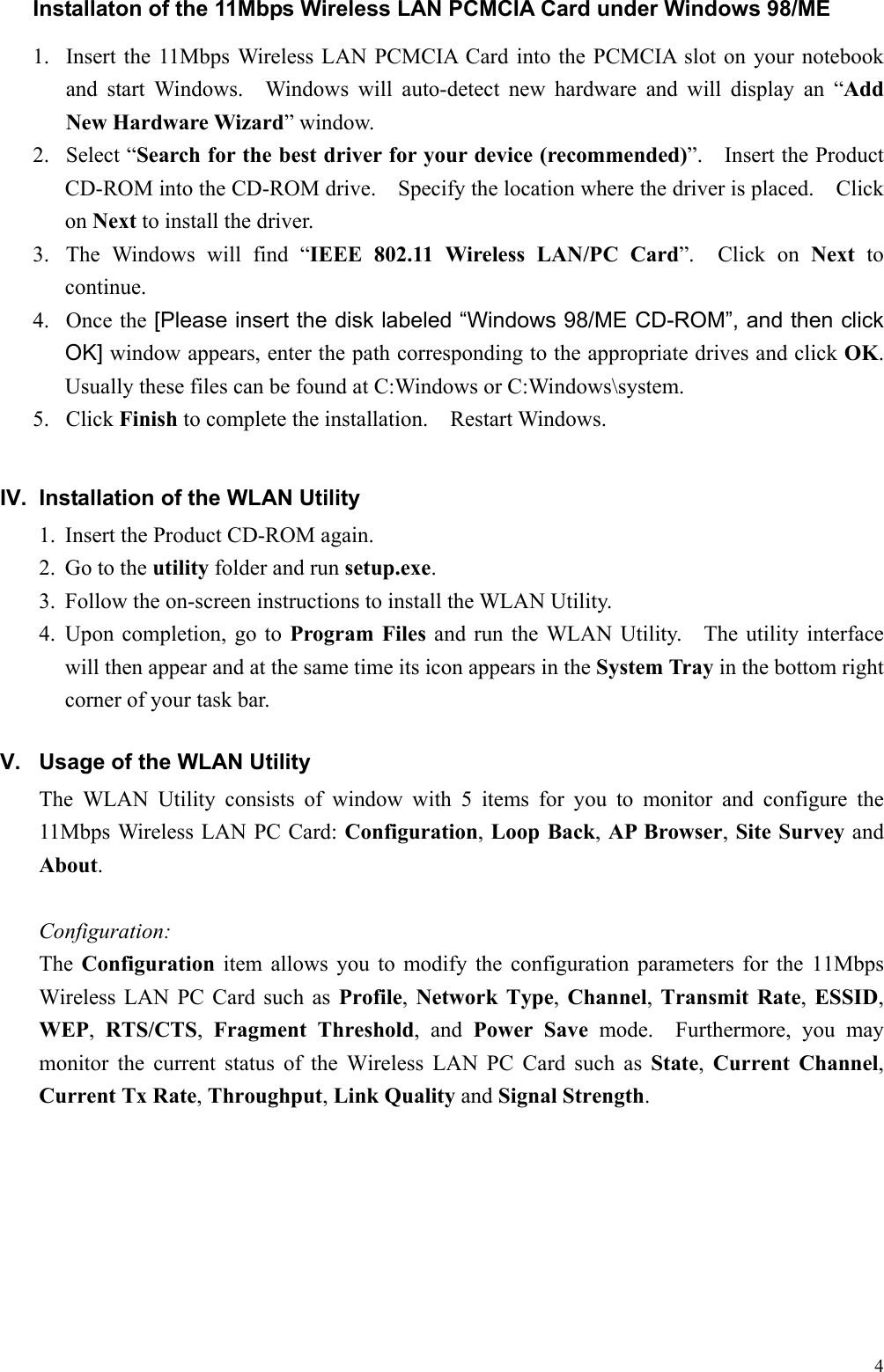

4Installaton of the 11Mbps Wireless LAN PCMCIA Card under Windows 98/ME 1. Insert the 11Mbps Wireless LAN PCMCIA Card into the PCMCIA slot on your notebook and start Windows. Windows will auto-detect new hardware and will display an “Add New Hardware Wizard” window. 2. Select “Search for the best driver for your device (recommended)”. Insert the Product CD-ROM into the CD-ROM drive. Specify the location where the driver is placed. Click on Next to install the driver. 3. The Windows will find “IEEE 802.11 Wireless LAN/PC Card”. Click on Next to continue. 4. Once the [Please insert the disk labeled “Windows 98/ME CD-ROM”, and then click OK] window appears, enter the path corresponding to the appropriate drives and click OK. Usually these files can be found at C:Windows or C:Windows\system. 5. Click Finish to complete the installation. Restart Windows. IV. Installation of the WLAN Utility 1. Insert the Product CD-ROM again. 2. Go to the utility folder and run setup.exe. 3. Follow the on-screen instructions to install the WLAN Utility. 4. Upon completion, go to Program Files and run the WLAN Utility. The utility interface will then appear and at the same time its icon appears in the System Tray in the bottom right corner of your task bar. V. Usage of the WLAN Utility The WLAN Utility consists of window with 5 items for you to monitor and configure the 11Mbps Wireless LAN PC Card: Configuration, Loop Back, AP Browser, Site Survey and About. Configuration: The Configuration item allows you to modify the configuration parameters for the 11Mbps Wireless LAN PC Card such as Profile, Network Type, Channel, Transmit Rate, ESSID, WEP, RTS/CTS, Fragment Threshold, and Power Save mode. Furthermore, you may monitor the current status of the Wireless LAN PC Card such as State, Current Channel, Current Tx Rate, Throughput, Link Quality and Signal Strength.

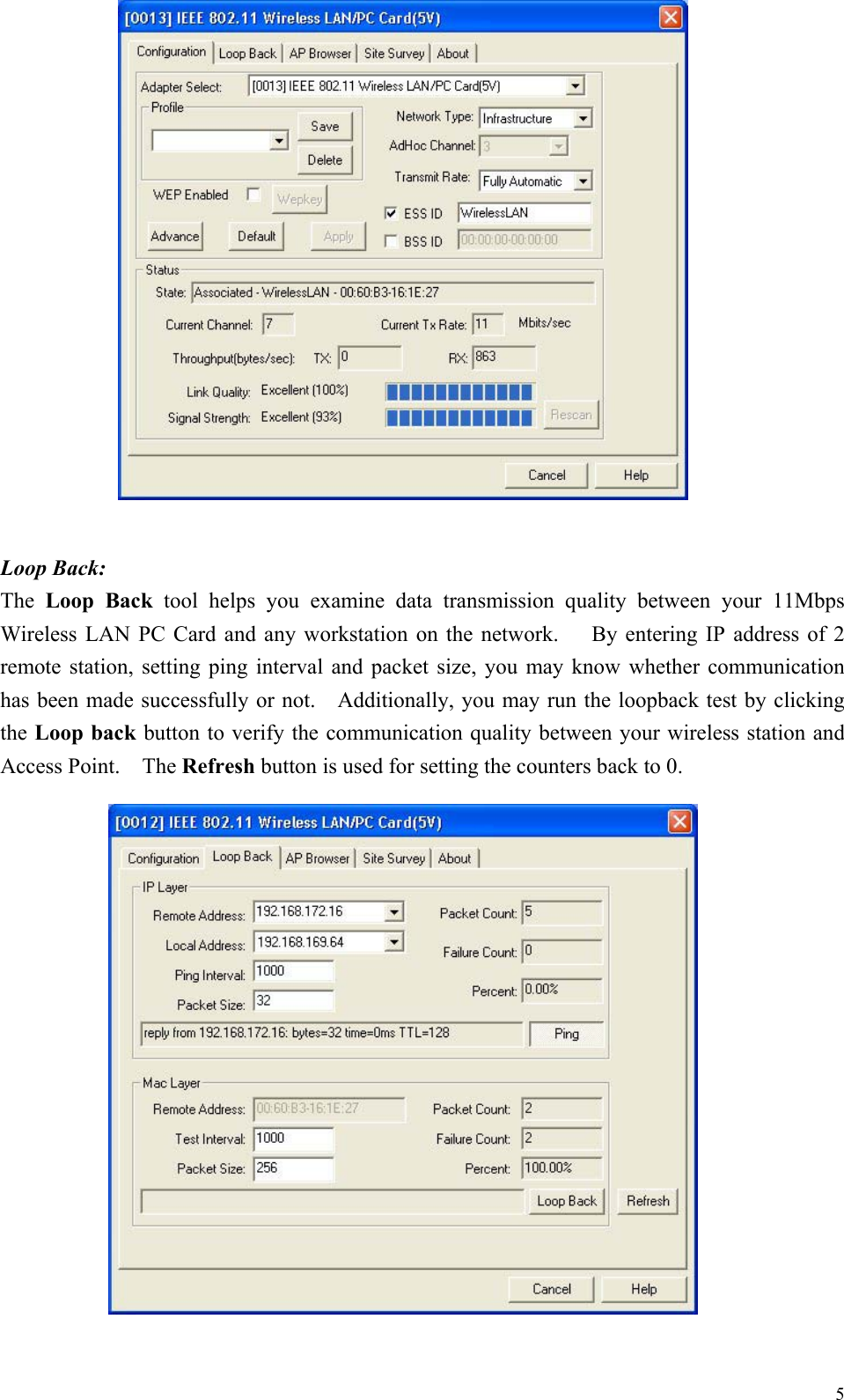

5 Loop Back: The Loop Back tool helps you examine data transmission quality between your 11Mbps Wireless LAN PC Card and any workstation on the network. By entering IP address of 2 remote station, setting ping interval and packet size, you may know whether communication has been made successfully or not. Additionally, you may run the loopback test by clicking the Loop back button to verify the communication quality between your wireless station and Access Point. The Refresh button is used for setting the counters back to 0.
6AP Browser: By clicking the Rescan button, the AP Browser can display Access Points around the working environment. Besides showing the ESSID of each Access Point, it also displays BSSID, Channel, Signal, Quality and Supported Rates. To join any of the displayed Access Points, highlight the Access Point you desire to connect and then click the Join BSS (when there are more than 2 Access Points with the same ESSID), or Join ESS button to join the group. Site Survey: When the Site Survey screen is displayed, the channel quality of all 14 radio channels will be displayed. These channel quality measurements are shown on each gauge for the 14 radio channels. The blue bar indicated the channel quality is clear and good. The higher the blue bar is, the better quality you have (i.e., less interference). The yellow bar indicates the channel quality is fair and the red bar indicates the channel is busy or having severe interference.

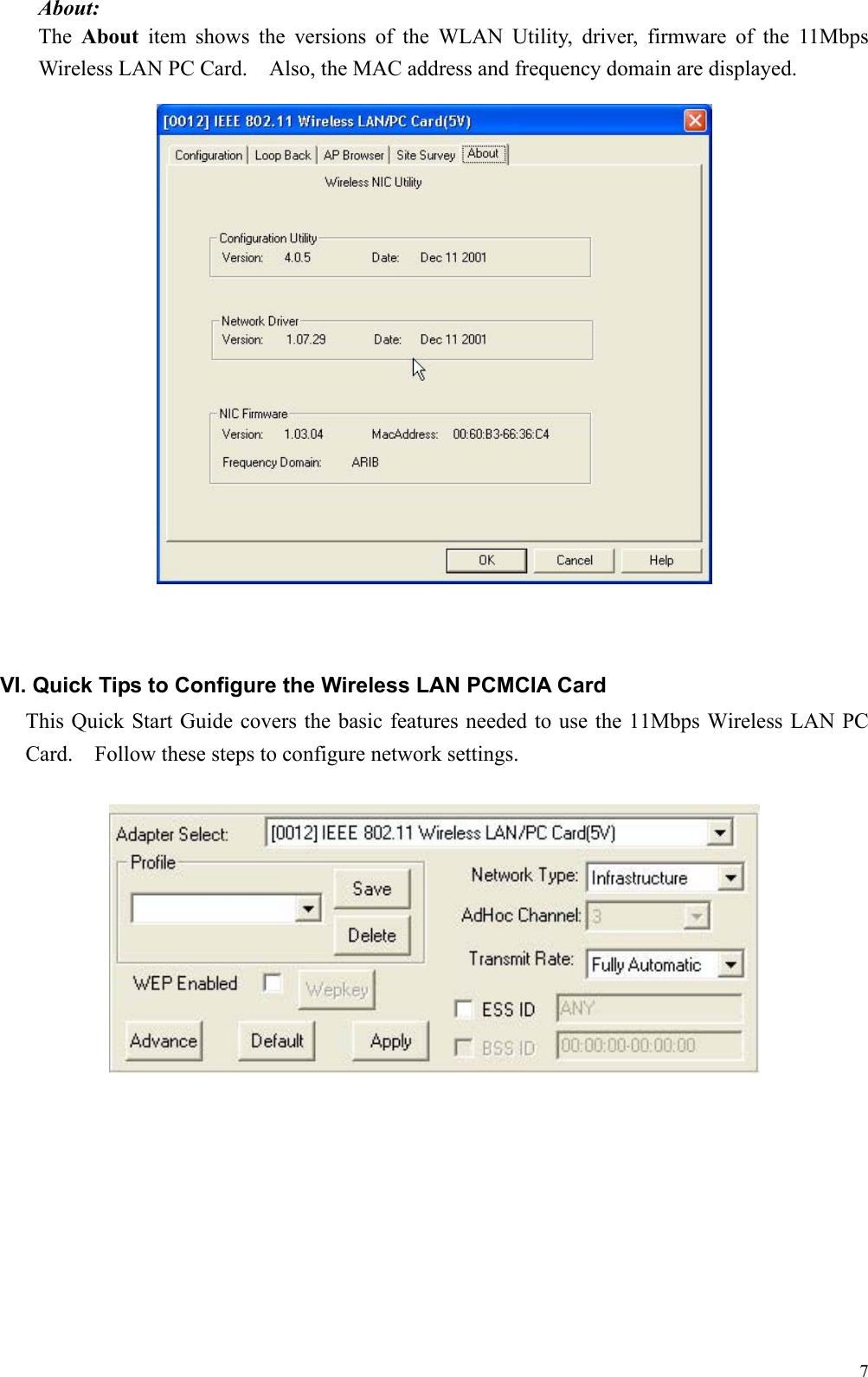

7About: The About item shows the versions of the WLAN Utility, driver, firmware of the 11Mbps Wireless LAN PC Card. Also, the MAC address and frequency domain are displayed. VI. Quick Tips to Configure the Wireless LAN PCMCIA Card This Quick Start Guide covers the basic features needed to use the 11Mbps Wireless LAN PC Card. Follow these steps to configure network settings.
8Set the Profile (Optional) The Profile field allows you to set values for all parameters by selecting a previously defined profile. To create the profile, go to the Profile field, type a profile name and set the corresponding parameters. After changing parameters, save the profile and click the Apply button to take effect. You can have multiple profiles and modify the profile at any time. Set the Network Type From the Main Menu, click the Configuration tab, go to Network Type and click the down arrow at the right of the Network Type field. You will then see 3 network types for the 11Mbps Wireless LAN PC Card to operate. If you need to access company network or Internet via Access Point, select “Infrastructure”. To set up a group of wireless stations for file and printer sharing, select “AdHoc” or “802.11 AdHoc” (without Access Point). If Ad-Hoc (without access point) is selected, you need to set wireless stations with the same channel. For 802.11 AdHoc, the same channel and ESS ID are required to the wireless stations. Set the ESS ID The ESS ID is the unique ID used by Access Points and stations to identify a wireless LAN. Wireless clients associating to any Access Point must have the same ESS ID. The default setting is ANY, which allows your Wireless LAN PC Card to automatically associate to any Access Point (Infrastructure mode) in the vicinity of your wireless adapter. Alternatively, you may check the ESS ID check box to specify the ESS ID. It will then attempt to associate with Access Points or stations with the same ESS ID. The ESS ID can be set up to 32 characters and is case sensitive. Check here before entering the ESS ID

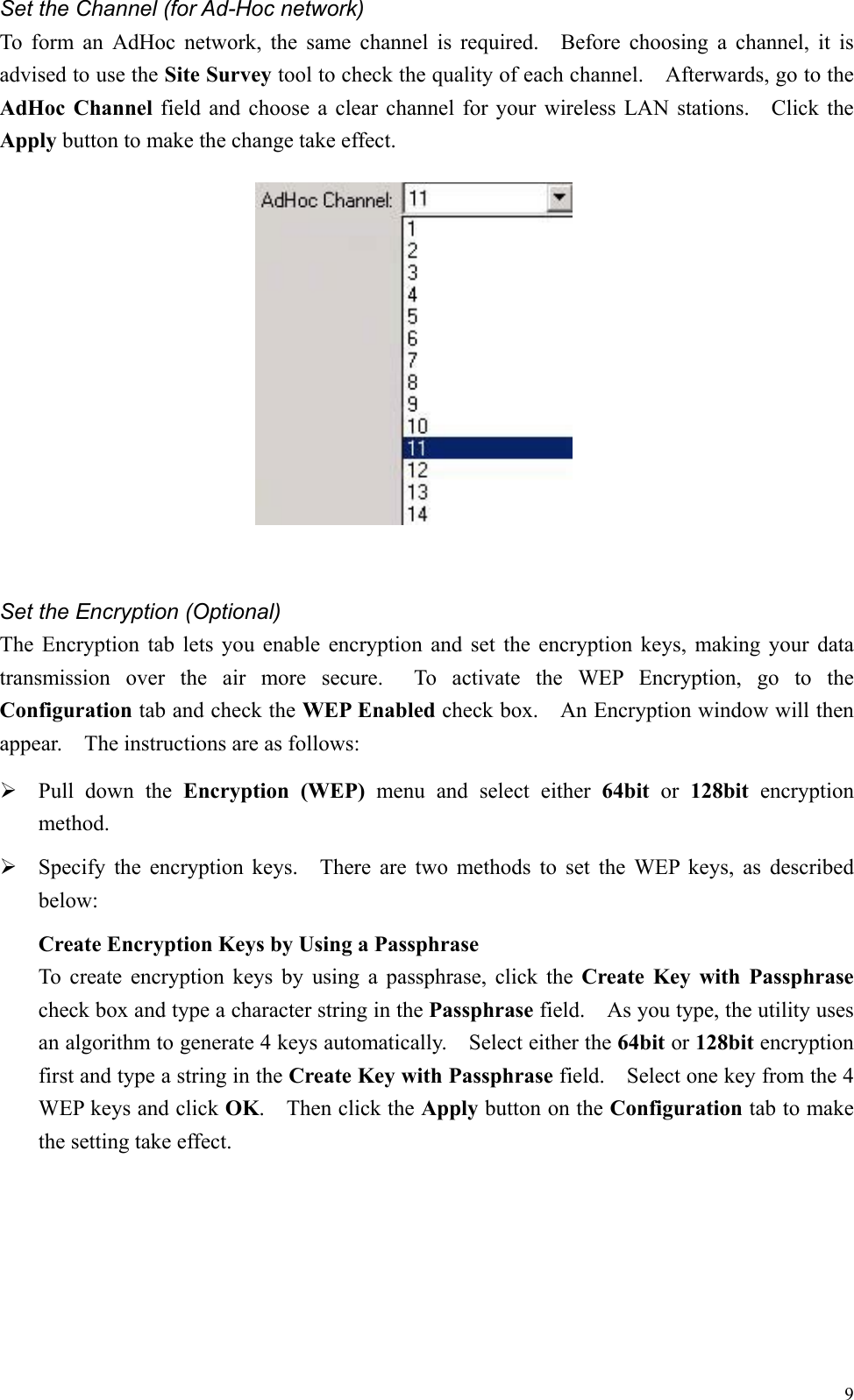

9Set the Channel (for Ad-Hoc network) To form an AdHoc network, the same channel is required. Before choosing a channel, it is advised to use the Site Survey tool to check the quality of each channel. Afterwards, go to the AdHoc Channel field and choose a clear channel for your wireless LAN stations. Click the Apply button to make the change take effect. Set the Encryption (Optional) The Encryption tab lets you enable encryption and set the encryption keys, making your data transmission over the air more secure. To activate the WEP Encryption, go to the Configuration tab and check the WEP Enabled check box. An Encryption window will then appear. The instructions are as follows:  Pull down the Encryption (WEP) menu and select either 64bit or 128bit encryption method.  Specify the encryption keys. There are two methods to set the WEP keys, as described below: Create Encryption Keys by Using a Passphrase To create encryption keys by using a passphrase, click the Create Key with Passphrase check box and type a character string in the Passphrase field. As you type, the utility uses an algorithm to generate 4 keys automatically. Select either the 64bit or 128bit encryption first and type a string in the Create Key with Passphrase field. Select one key from the 4 WEP keys and click OK. Then click the Apply button on the Configuration tab to make the setting take effect.

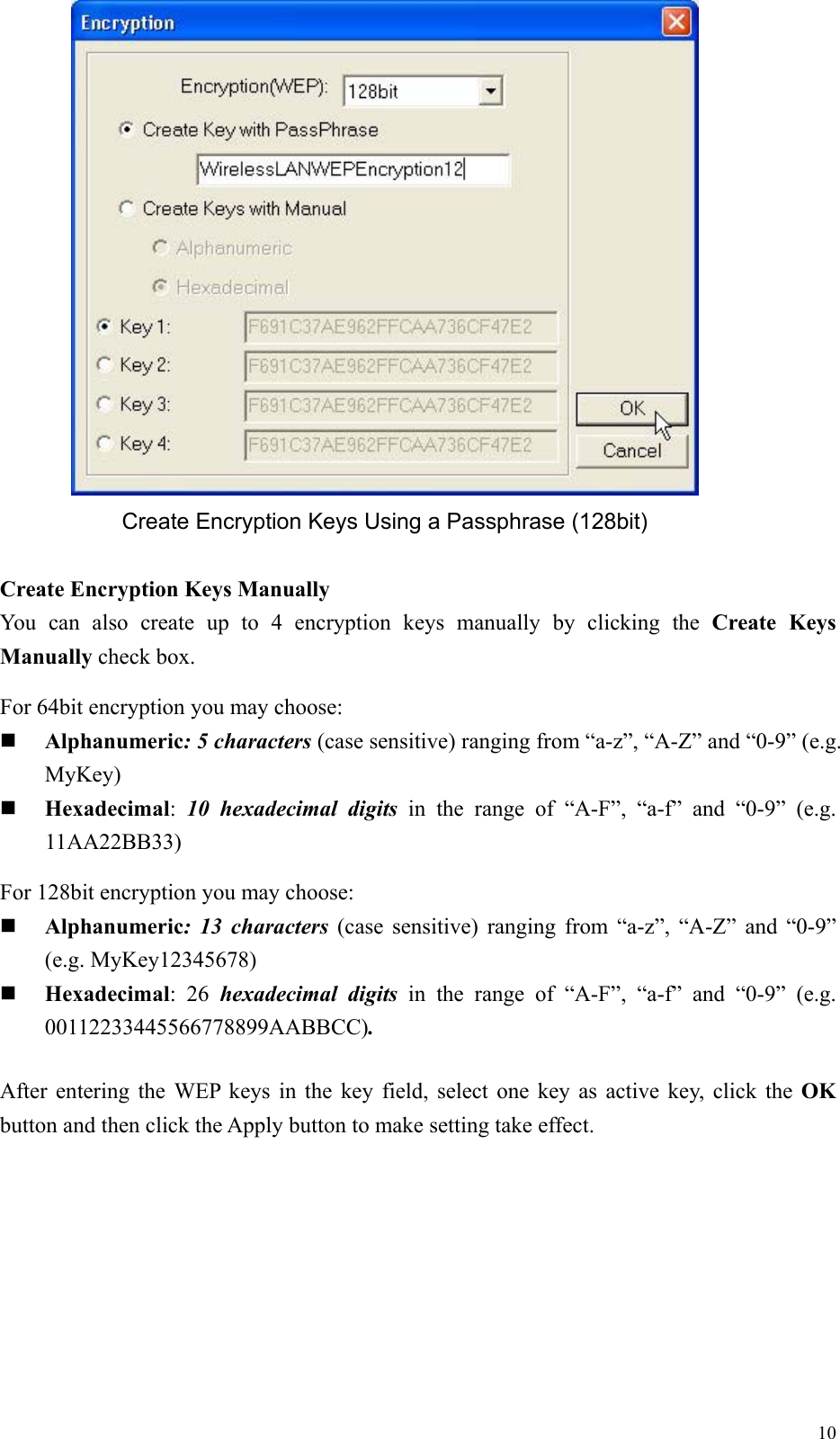

10 Create Encryption Keys Using a Passphrase (128bit) Create Encryption Keys Manually You can also create up to 4 encryption keys manually by clicking the Create Keys Manually check box. For 64bit encryption you may choose:  Alphanumeric: 5 characters (case sensitive) ranging from “a-z”, “A-Z” and “0-9” (e.g. MyKey)  Hexadecimal: 10 hexadecimal digits in the range of “A-F”, “a-f” and “0-9” (e.g. 11AA22BB33) For 128bit encryption you may choose:  Alphanumeric: 13 characters (case sensitive) ranging from “a-z”, “A-Z” and “0-9” (e.g. MyKey12345678)  Hexadecimal: 26 hexadecimal digits in the range of “A-F”, “a-f” and “0-9” (e.g. 00112233445566778899AABBCC). After entering the WEP keys in the key field, select one key as active key, click the OK button and then click the Apply button to make setting take effect.

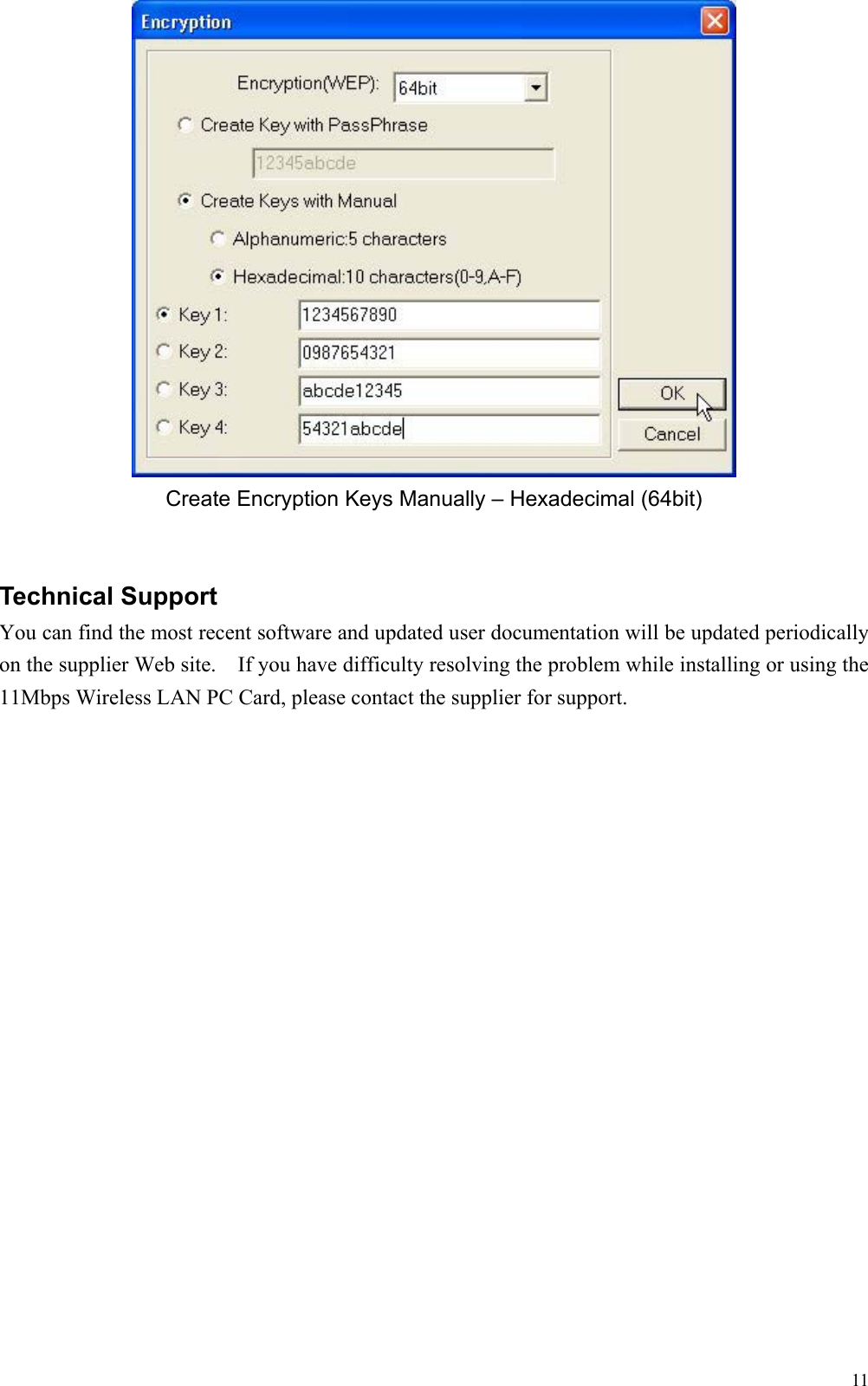

11 Create Encryption Keys Manually – Hexadecimal (64bit) Technical Support You can find the most recent software and updated user documentation will be updated periodically on the supplier Web site. If you have difficulty resolving the problem while installing or using the 11Mbps Wireless LAN PC Card, please contact the supplier for support.

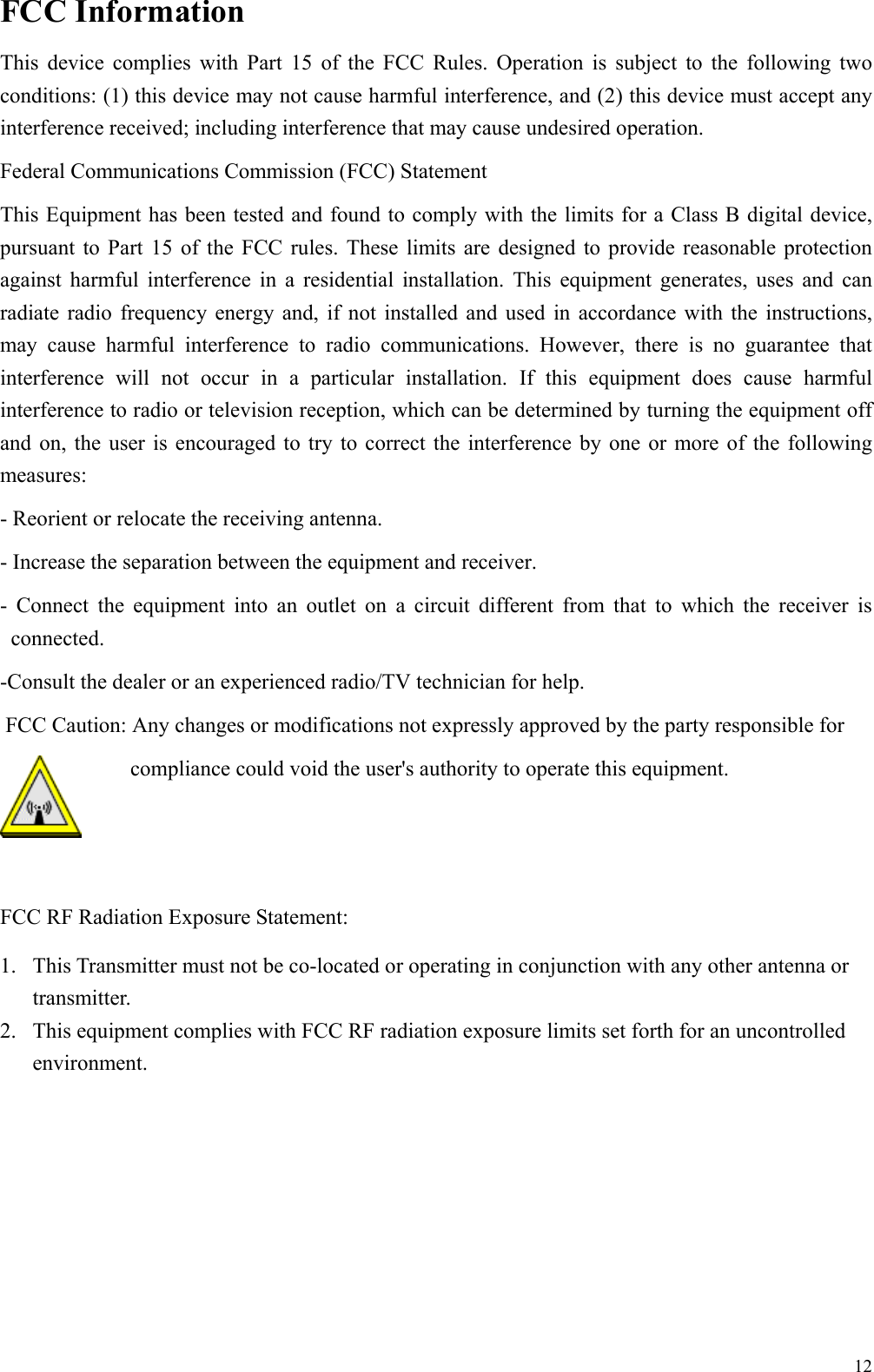

12FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
13Limited Warranty This Warranty constitutes the sole and exclusive remedy of any buyer or reseller’s equipment and the sole and exclusive liability of the supplier in connection with the products and is in lieu of all other warranties, express, implied or statutory, including, but not limited to, any implied warranty of merchantability of fitness for a particular use and all other obligations or liabilities of the supplier. In no even will the supplier or any other party or person be liable to your or anyone else for any damages, including lost profits, lost savings or other incidental or consequential damages, or inability to use the software provided on the software media even if the supplier or the other party person has been advised of the possibility of such damages. The following are special terms applicable to your hardware warranty as well as services you may use during part of the warranty period. Your formal Warranty Statement, including the warranty applicable to our Wireless LAN products, appears in the Quick Installation Guide which accompanies your products. Duration of Hardware Warranty: One Year Replacement, Repair or Refund Procedure for Hardware: If your unit needs a repair or replacement, return it to your dealer/distributor in its original packaging. When returning a defective product for Warranty, always include the following documents:  The Warranty Repair Card  A copy of the invoice/proof of purchase, and  The RMA Report Form (To receive a Return Materials Authorization form (RMA), please contact the party from whom you purchased the product). Upon proof-of-purchase we shall, at its option, repair or replace the defective item at no cost to the buyer. This warranty is contingent upon proper use in the application for which the products are intended and does not cover products which have been modified without the reseller’s approval or which have been subjected to unusual physical or electrical demands or damaged in any way.

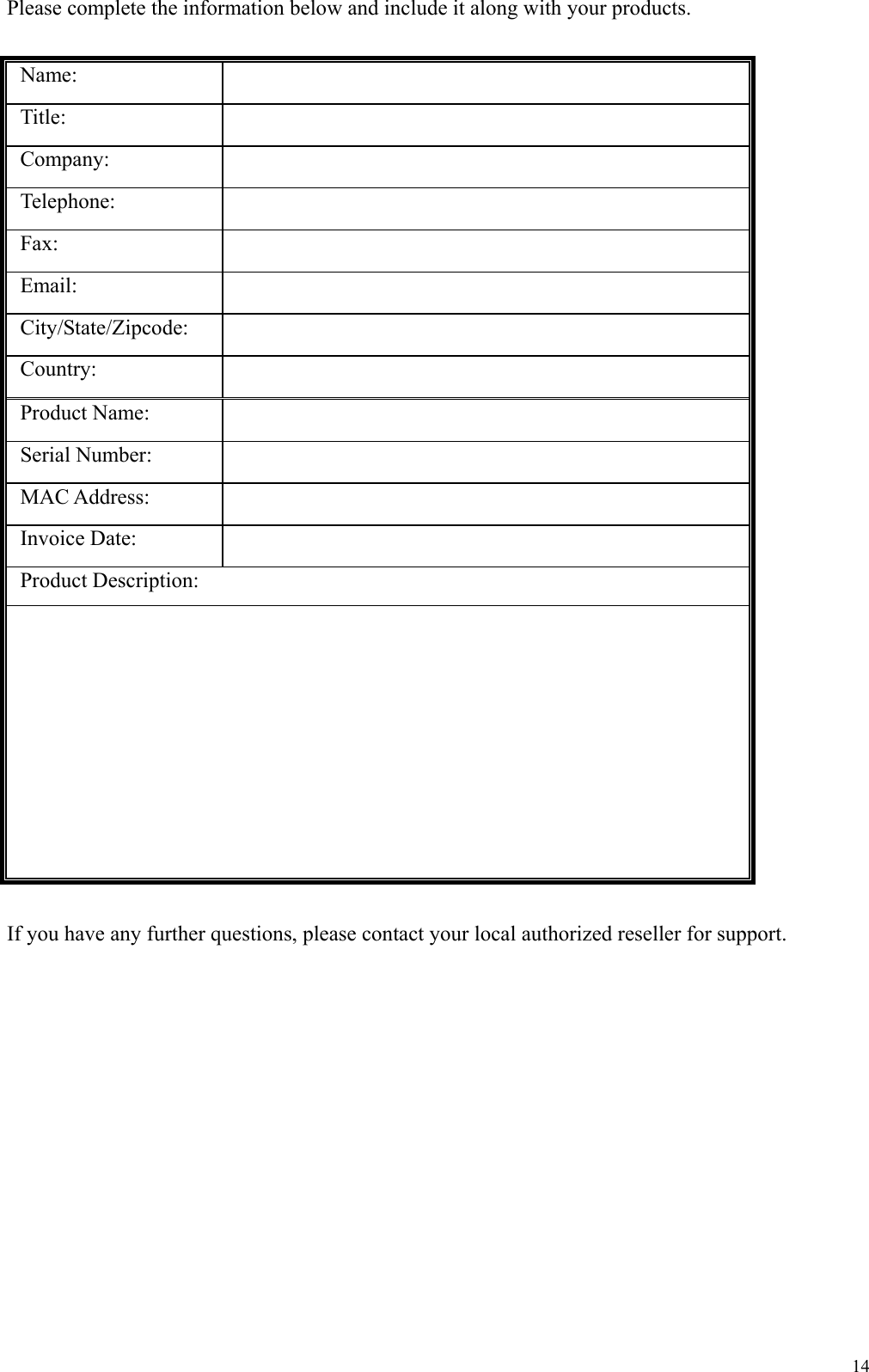

14Please complete the information below and include it along with your products. Name: Title: Company: Telephone: Fax: Email: City/State/Zipcode: Country: Product Name: Serial Number: MAC Address: Invoice Date: Product Description: If you have any further questions, please contact your local authorized reseller for support.
