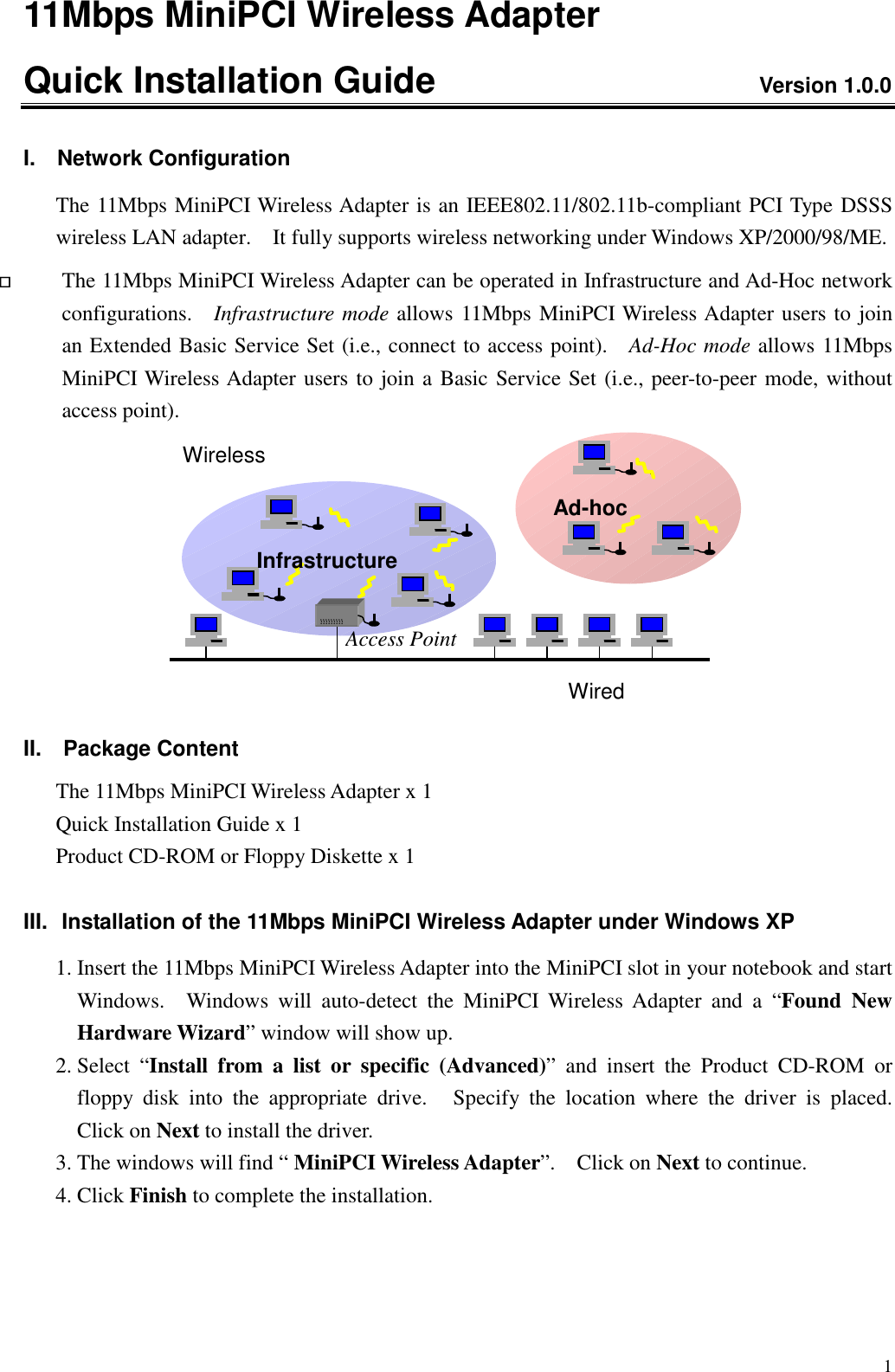

111Mbps MiniPCI Wireless AdapterQuick Installation Guide    Version 1.0.0I. Network ConfigurationThe 11Mbps MiniPCI Wireless Adapter is an IEEE802.11/802.11b-compliant PCI Type DSSSwireless LAN adapter.    It fully supports wireless networking under Windows XP/2000/98/ME. The 11Mbps MiniPCI Wireless Adapter can be operated in Infrastructure and Ad-Hoc networkconfigurations.  Infrastructure mode allows 11Mbps MiniPCI Wireless Adapter users to joinan Extended Basic Service Set (i.e., connect to access point).  Ad-Hoc mode allows 11MbpsMiniPCI Wireless Adapter users to join a Basic Service Set (i.e., peer-to-peer mode, withoutaccess point).II.  Package ContentThe 11Mbps MiniPCI Wireless Adapter x 1Quick Installation Guide x 1Product CD-ROM or Floppy Diskette x 1III.  Installation of the 11Mbps MiniPCI Wireless Adapter under Windows XP1. Insert the 11Mbps MiniPCI Wireless Adapter into the MiniPCI slot in your notebook and startWindows.  Windows will auto-detect the MiniPCI Wireless Adapter and a “Found NewHardware Wizard” window will show up.2. Select “Install from a list or specific (Advanced)” and insert the Product CD-ROM orfloppy disk into the appropriate drive.   Specify the location where the driver is placed.Click on Next to install the driver.3. The windows will find “ MiniPCI Wireless Adapter”.  Click on Next to continue.4. Click Finish to complete the installation.InfrastructureAd-hocWiredWirelessAccess Point
2Installation of the 11Mbps MiniPCI Wireless Adapter under Windows 20001. Insert the 11Mbps MiniPCI Wireless Adapter into the MiniPCI slot in your notebook andstart Windows.    Windows will auto-detect the MiniPCI Wireless Adapter and a “FoundNew Hardware Wizard” window will show up.    Click Next to proceed.2. Select “Search for a suitable driver for my device (recommended)”.    Insert the ProductCD-ROM or floppy disk into the appropriate drive.    Specify the location where the driveris placed.  Click on Next to install the driver.3. The windows will find “ MiniPCI Wireless Adapter”.  Click on Next to continue.4. Click Finish to complete the installation.Installaton of the 11Mbps MiniPCI Wireless Adapter under Windows 98/ME1. Insert the 11Mbps MiniPCI Wireless Adapter into the MiniPCI slot in your notebook andstart Windows.    Windows will auto-detect new hardware and will display a “Add NewHardware Wizard” window.2. Select “Search for a best driver for your device (recommended)”.  Insert the ProductCD-ROM or floppy disk into the appropriate drive.    Specify the location where the driveris placed.  Click on Next to install the driver.3. The Windows will find “MiniPCI Wireless Adapter”.  Click on Next to continue.4. Once the [Please insert the disk labeled “Windows 98/ME CD-ROM”, and then clickOK] window appears, enter the path corresponding to the appropriate drives and click OK.5. Click Finish to complete the installation.    Restart Windows.IV.  Installation of the Wireless LAN Utility1. Insert the Product CD-ROM or floppy disk again.2. Go the utility folder and run setup.exe.3. Follow the on-screen instructions to install the Wireless LAN Utility.4. Upon completion, go to Program Files and run the Wireless LAN Utility.   The utilityinterface will then appear and at the same time its icon appears in the System Tray in thebottom right corner of your task bar.V.  Usage of the Wireless LAN UtilityThe Wireless LAN Utility consists of window with 5 items for you to monitor and configurethe 11Mbps MiniPCI Wireless Adapter: Configuration,  Loop Back,  AP Browser,  SiteSurvey and About.

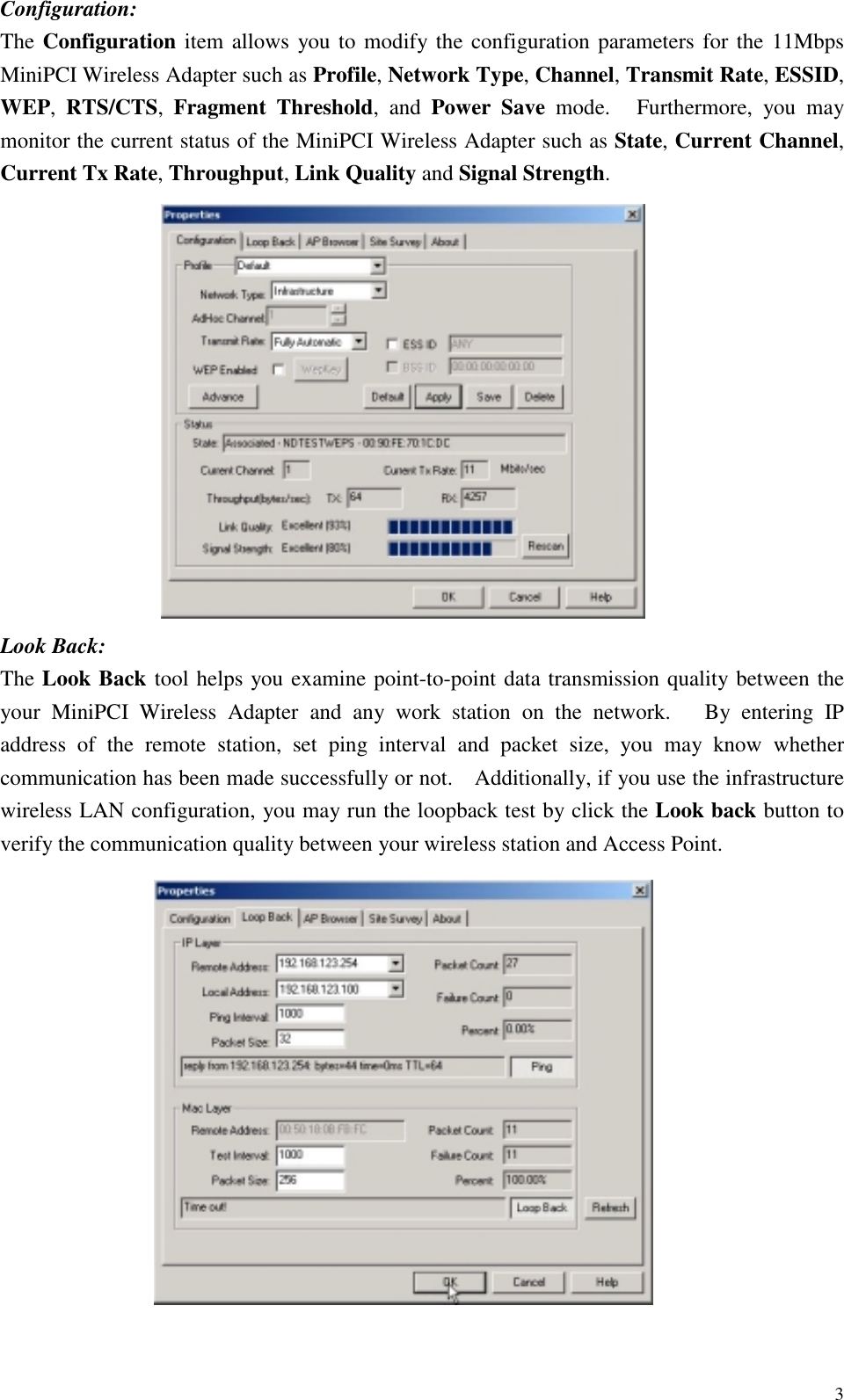

3Configuration:The Configuration item allows you to modify the configuration parameters for the 11MbpsMiniPCI Wireless Adapter such as Profile, Network Type, Channel, Transmit Rate, ESSID,WEP,  RTS/CTS,  Fragment Threshold, and Power Save mode.   Furthermore, you maymonitor the current status of the MiniPCI Wireless Adapter such as State, Current Channel,Current Tx Rate, Throughput, Link Quality and Signal Strength.Look Back:The Look Back tool helps you examine point-to-point data transmission quality between theyour MiniPCI Wireless Adapter and any work station on the network.   By entering IPaddress of the remote station, set ping interval and packet size, you may know whethercommunication has been made successfully or not.    Additionally, if you use the infrastructurewireless LAN configuration, you may run the loopback test by click the Look back button toverify the communication quality between your wireless station and Access Point.

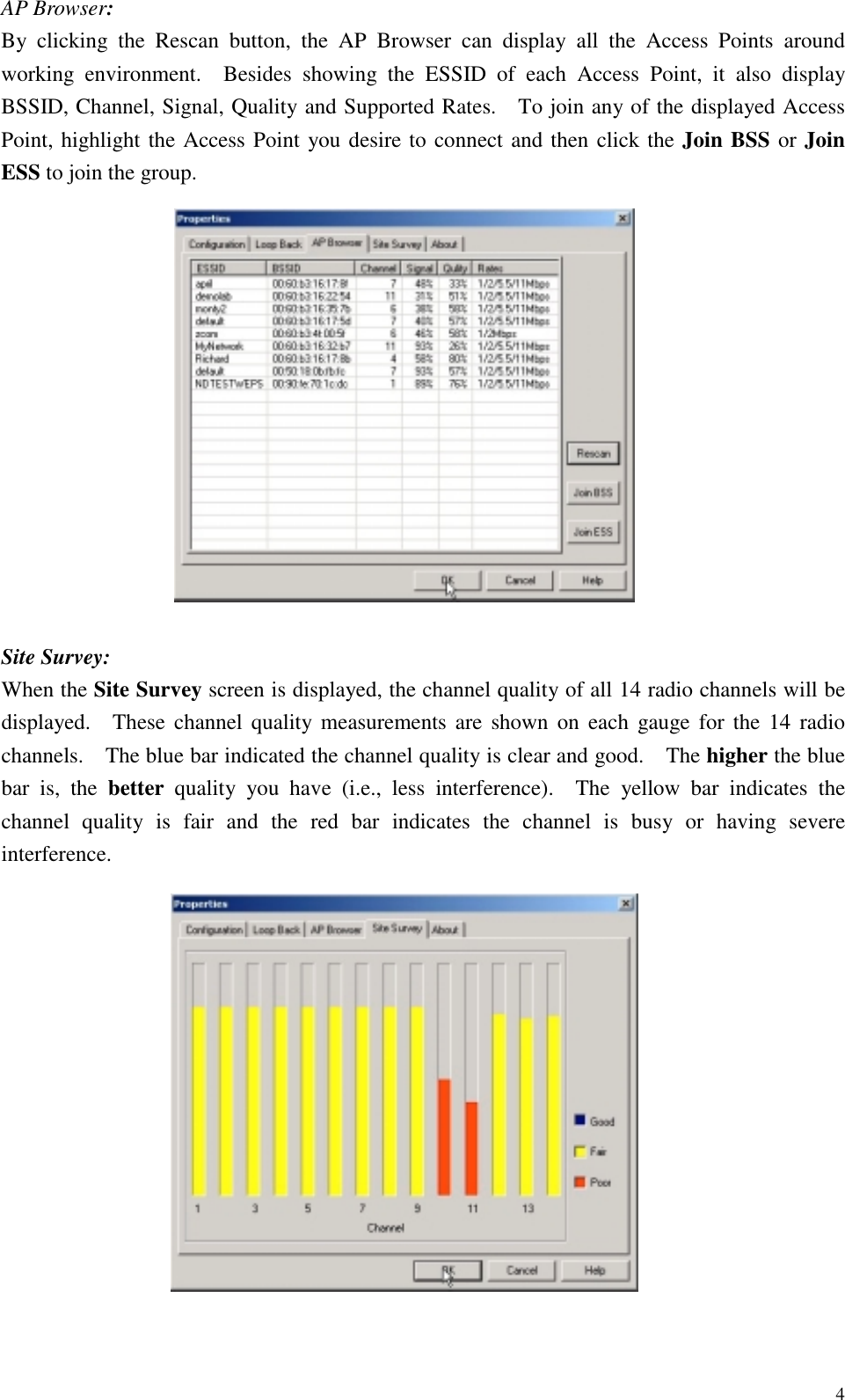

4AP Browser:By clicking the Rescan button, the AP Browser can display all the Access Points aroundworking environment.  Besides showing the ESSID of each Access Point, it also displayBSSID, Channel, Signal, Quality and Supported Rates.   To join any of the displayed AccessPoint, highlight the Access Point you desire to connect and then click the Join BSS or JoinESS to join the group.Site Survey:When the Site Survey screen is displayed, the channel quality of all 14 radio channels will bedisplayed.  These channel quality measurements are shown on each gauge for the 14 radiochannels.    The blue bar indicated the channel quality is clear and good.    The higher the bluebar is, the better  quality you have (i.e., less interference).  The yellow bar indicates thechannel quality is fair and the red bar indicates the channel is busy or having severeinterference.

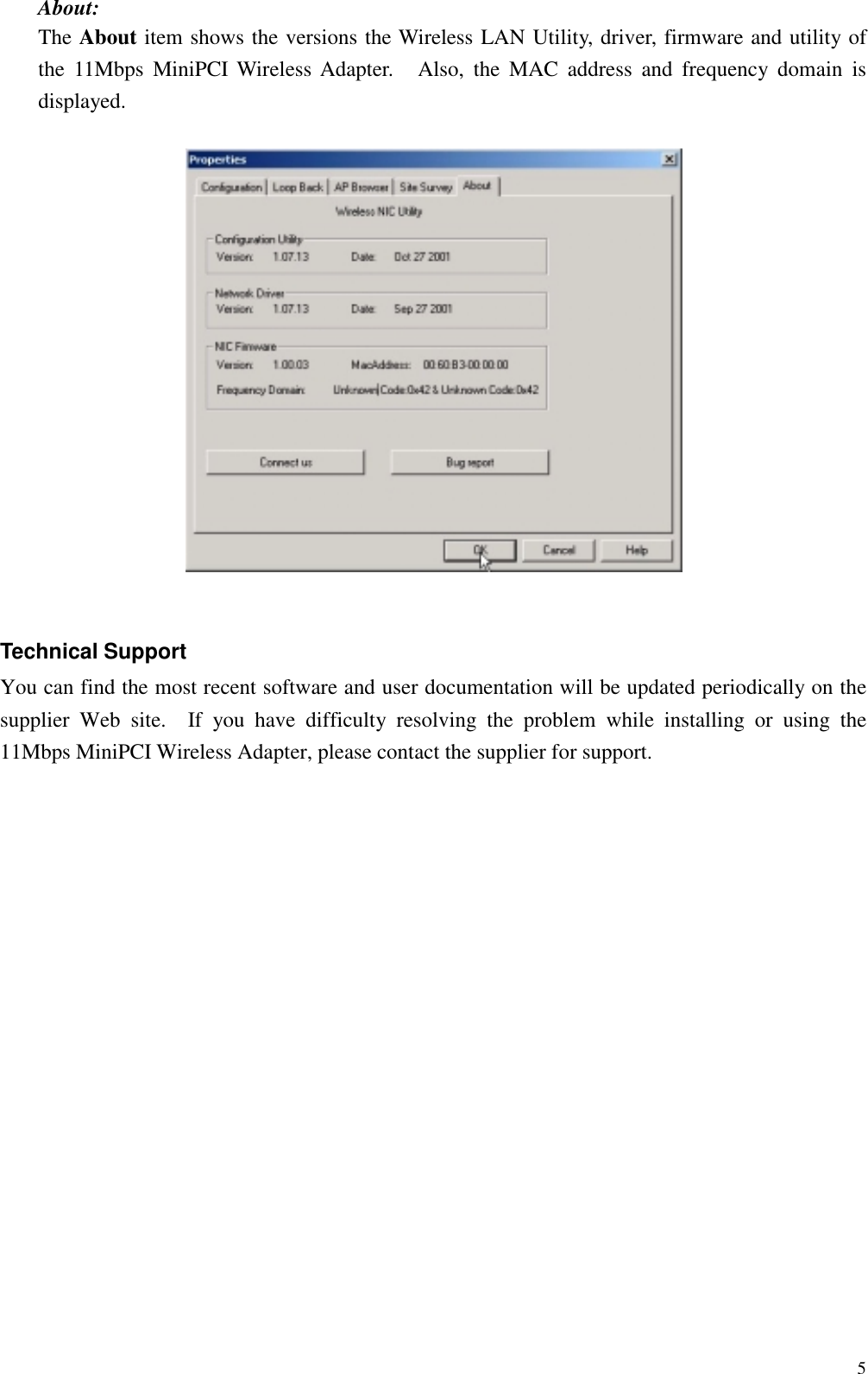

5About:The About item shows the versions the Wireless LAN Utility, driver, firmware and utility ofthe 11Mbps MiniPCI Wireless Adapter.   Also, the MAC address and frequency domain isdisplayed.Technical SupportYou can find the most recent software and user documentation will be updated periodically on thesupplier Web site.  If you have difficulty resolving the problem while installing or using the11Mbps MiniPCI Wireless Adapter, please contact the supplier for support.

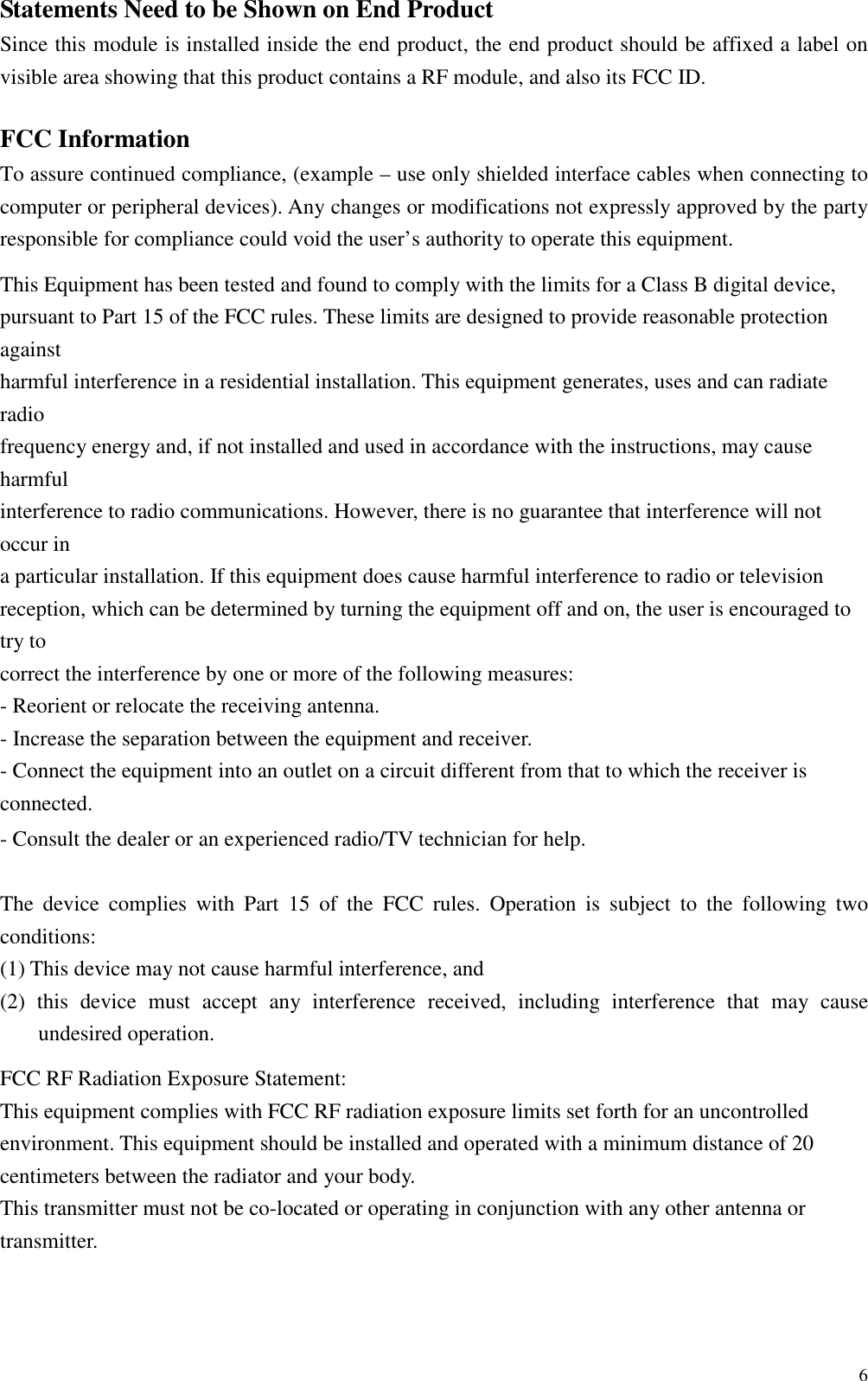

6Statements Need to be Shown on End ProductSince this module is installed inside the end product, the end product should be affixed a label onvisible area showing that this product contains a RF module, and also its FCC ID.FCC InformationTo assure continued compliance, (example – use only shielded interface cables when connecting tocomputer or peripheral devices). Any changes or modifications not expressly approved by the partyresponsible for compliance could void the user’s authority to operate this equipment.This Equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protectionagainstharmful interference in a residential installation. This equipment generates, uses and can radiateradiofrequency energy and, if not installed and used in accordance with the instructions, may causeharmfulinterference to radio communications. However, there is no guarantee that interference will notoccur ina particular installation. If this equipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off and on, the user is encouraged totry tocorrect the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.- Consult the dealer or an experienced radio/TV technician for help.The device complies with Part 15 of the FCC rules. Operation is subject to the following twoconditions:(1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may causeundesired operation.FCC RF Radiation Exposure Statement:This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolledenvironment. This equipment should be installed and operated with a minimum distance of 20centimeters between the radiator and your body.This transmitter must not be co-located or operating in conjunction with any other antenna ortransmitter.
7Limited Warranty StatementThis Warranty constitutes the sole and exclusive remedy of any buyer or reseller’s equipment andthe sole and exclusive liability of the supplier in connection with the products and is in lieu of allother warranties, express, implied or statutory, including, but not limited to, any implied warranty ofmerchantability of fitness for a particular use and all other obligations or liabilities of the supplier.In no even will the supplier or any other party or person be liable to your or anyone else for anydamages, including lost profits, lost savings or other incidental or consequential damages, orinability to use the software provided on the software media even if the supplier or the other partyperson has been advised of the possibility of such damages.The following are special terms applicable to your hardware warranty as well as services you mayuse during part of the warranty period.    Your formal Warranty Statement, including the warrantyapplicable to our Wireless LAN products, appears in the Quick Installation Guide whichaccompanies your products.Duration of Hardware Warranty: One YearReplacement, Repair or Refund Procedure for Hardware:If your unit needs a repair or replacement, return it to your dealer/distributor in its originalpackaging.  When returning a defective product for Warranty, always include the followingdocuments: The Warranty Repair Card A copy of the invoice/proof of purchase, and The RMA Report Form (To receive a Return Materials Authorization form (RMA), pleasecontact the party from whom you purchased the product).Upon proof-of-purchase we shall, at its option, repair or replace the defective item at no cost to thebuyer.This warranty is contingent upon proper use in the application for which the products are intendedand does not cover products which have been modified without the reseller’s approval or whichhave been subjected to unusual physical or electrical demands or damaged in any way.

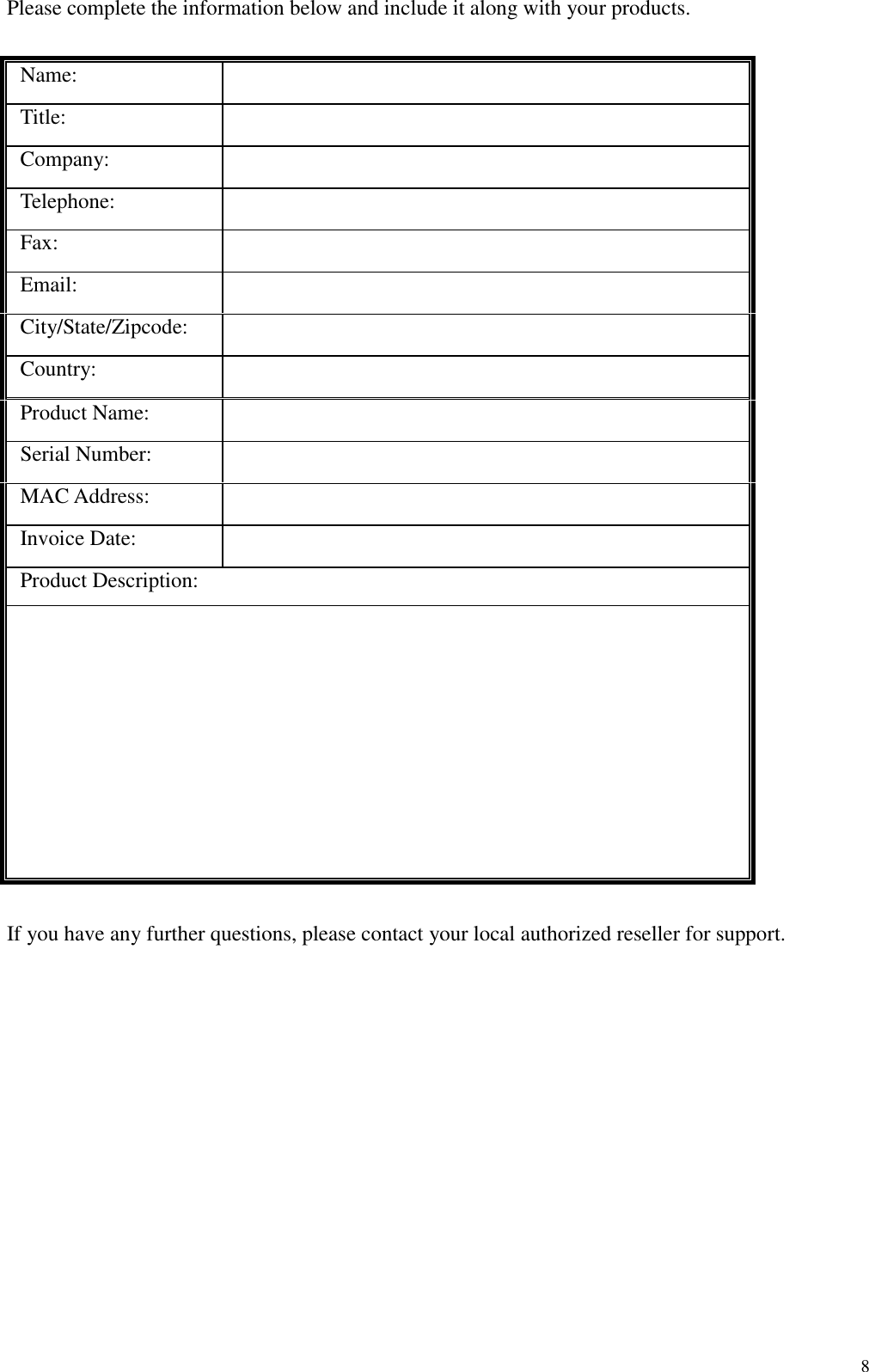

8Please complete the information below and include it along with your products.Name:Title:Company:Telephone:Fax:Email:City/State/Zipcode:Country:Product Name:Serial Number:MAC Address:Invoice Date:Product Description:If you have any further questions, please contact your local authorized reseller for support.
