 1    User’s Manual  CF Card   XI-835C
 2 11Mbps Wireless LAN CF Card Quick Start Guide              I. Network Configuration 11Mbps Wireless LAN CF Card is an IEEE802.11/802.11b compliant CF Type I DSSS wireless LAN adapter.  It fully supports wireless networking under Windows  2000/XP/CE. ¨  11Mbps Wireless CF Card can be operated in Ad-Hoc or Infrastructure network configurations.   Ad-Hoc mode allows 11Mbps Wireless LAN CF Card users to join a Basic Service Set (i.e., peer-to-peer mode, without access point).  Infrastructure mode allows 11Mbps Wireless LAN CF Card users to join an Extended Basic Service Set (i.e., connect to access point)          II. Package Content 11Mbps Wireless LAN CF Card x 1 Quick Installation Guide x 1 Product CD-ROM x 1 III. Wireless LAN CF Card and Utility Installation under Pocket PC/Handheld PC Installation of the 11Mbps Wireless LAN CF Card under CE 3.0/Pocket PC 2002 1. Establish a connection between host PC and PDA (only for hand-held) device by Microsoft Active Sync program. 2. Insert and run SanDisk AutoRun Program Source CD-ROM/Pocket PC 2002 to install the driver and utility. 3. Once SanDisk ConnectPlus Front Page appears, click on ‘Installation’ 4. Following the necessary prompts.  Once SanDisk ConnectPlus Front Page re-appears, click ‘Exit’ 5. Click ‘OK’ and reset your Pocket PC accordingly. 6. Insert the 11Mbps Wireless LAN Compact Flash Card into the compact flash slot of your PDA (only for hand-held).  The PDA (only for hand-held) will auto-detect the Wireless LAN Compact Flash Card and automatically install the corresponding driver.   Infrastructure Network Ad-hoc Network Wired Network Wireless Network Access Point
 3  7. Assign an IP address to your Wireless LAN Compact Flash Card.  You may either choose to give a fixed IP address or have the Wireless LAN Compact Flash Card automatically obtain an IP address from your DHCP server.  Set the Proxy server, DNS, WINS if needed (Most of IP addresses are automatically assigned.) 8. Reset your PDA (only for hand-held) to complete the installation. Ø    Caveat n  When the Pocket PC is idle (not in use) without A/C power being present, it is highly advised to remove the 11Mbps Wireless LAN CF Card in order to prevent from complete battery drain. n  Due to WinCE's nature of the first application at power-on resuming to that at power-off, if you are stuck at the utility program, you may use the PDA's (only for hand-held) reset bottom to terminate it.  And activate it again when needed. n  Sometimes, your wireless connection to AP may disconnect for any reason.  You can reset and force a connection request by going to utility program, then select "Configuration", check parameters, then select "Apply" to force a re-scan. n  If your device roams to a new AP which is in a different subnet, you may need the following two actions: (1) Unplug and re-insert the Wireless LAN Compact Flash Card, or (2) Hard reset your device to force an execution of "release and renew" of an re-assignment of IP address in a DHCP Access Point environment.  IV. Wireless LAN CF Card and Utility Installation under Windows XP/2000/NT/98/ME Installation of the11Mbps Wireless LAN CF Card under Windows XP 1. If your PC has a compact flash type I slot, simply insert the Wireless LAN CF Card into the CF slot.  If not, use a CF/PCMCIA Adapter as described in the next procedure. 2. Firmly insert the 11Mbps Wireless LAN CF Card into the CF/PCMCIA Adapter, figured as below.  Then insert the 11Mbps Wireless LAN CF Card into the PCMCIA slot and start Windows.  CF/PCMCIA Adapter        CF Card

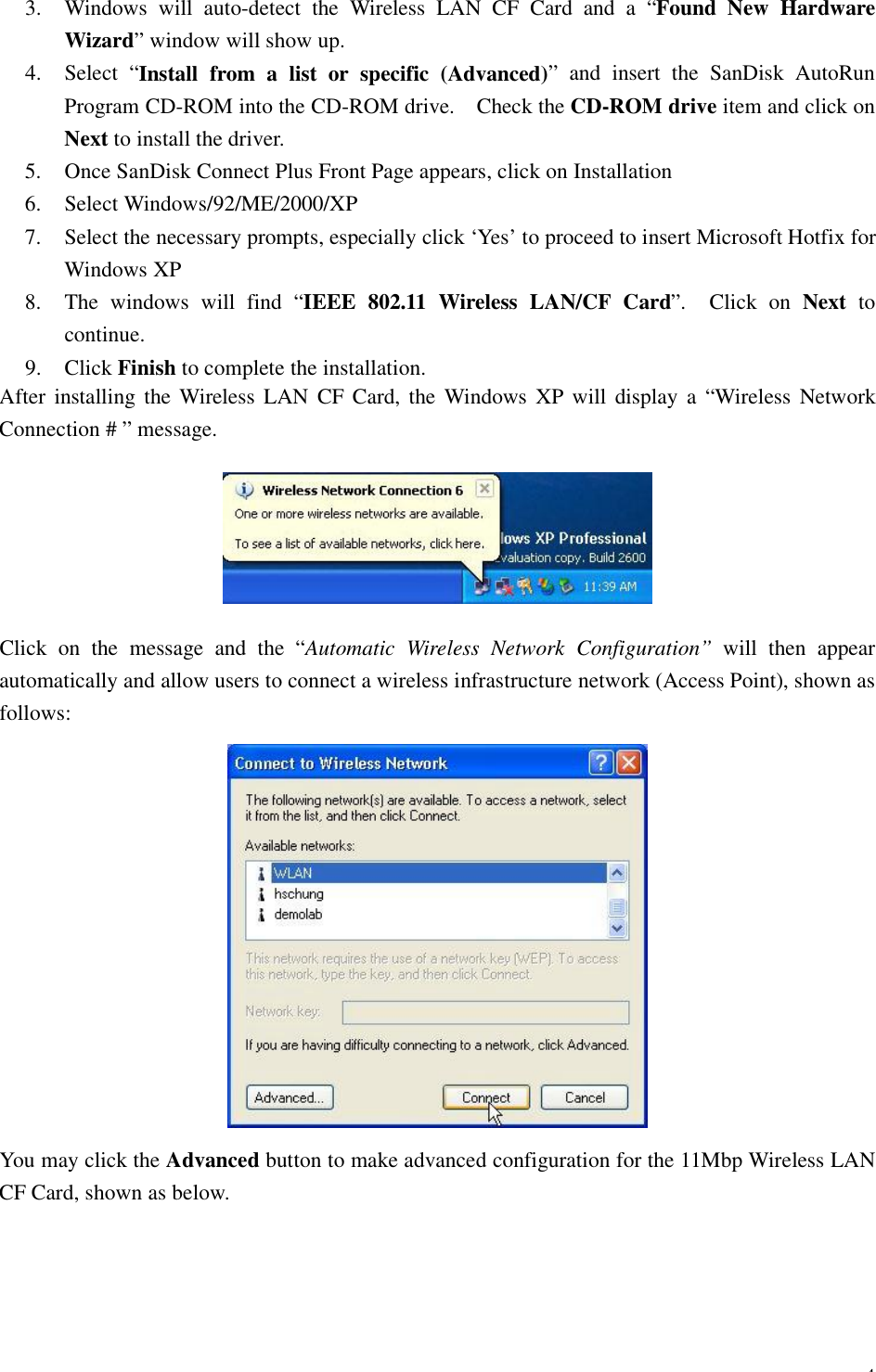

 4  3. Windows will auto-detect the Wireless LAN CF Card and a “Found New Hardware Wizard” window will show up. 4. Select “Install from a list or specific (Advanced)” and insert the SanDisk AutoRun Program CD-ROM into the CD-ROM drive.  Check the CD-ROM drive item and click on Next to install the driver. 5. Once SanDisk Connect Plus Front Page appears, click on Installation 6. Select Windows/92/ME/2000/XP 7. Select the necessary prompts, especially click ‘Yes’ to proceed to insert Microsoft Hotfix for Windows XP  8. The windows will find “IEEE 802.11 Wireless LAN/CF Card”.  Click on  Next to continue. 9. Click Finish to complete the installation. After installing the Wireless LAN CF Card, the Windows XP will display a “Wireless Network Connection # ” message.  Click on the message and the “Automatic Wireless Network Configuration” will then appear automatically and allow users to connect a wireless infrastructure network (Access Point), shown as follows:  You may click the Advanced button to make advanced configuration for the 11Mbp Wireless LAN CF Card, shown as below.

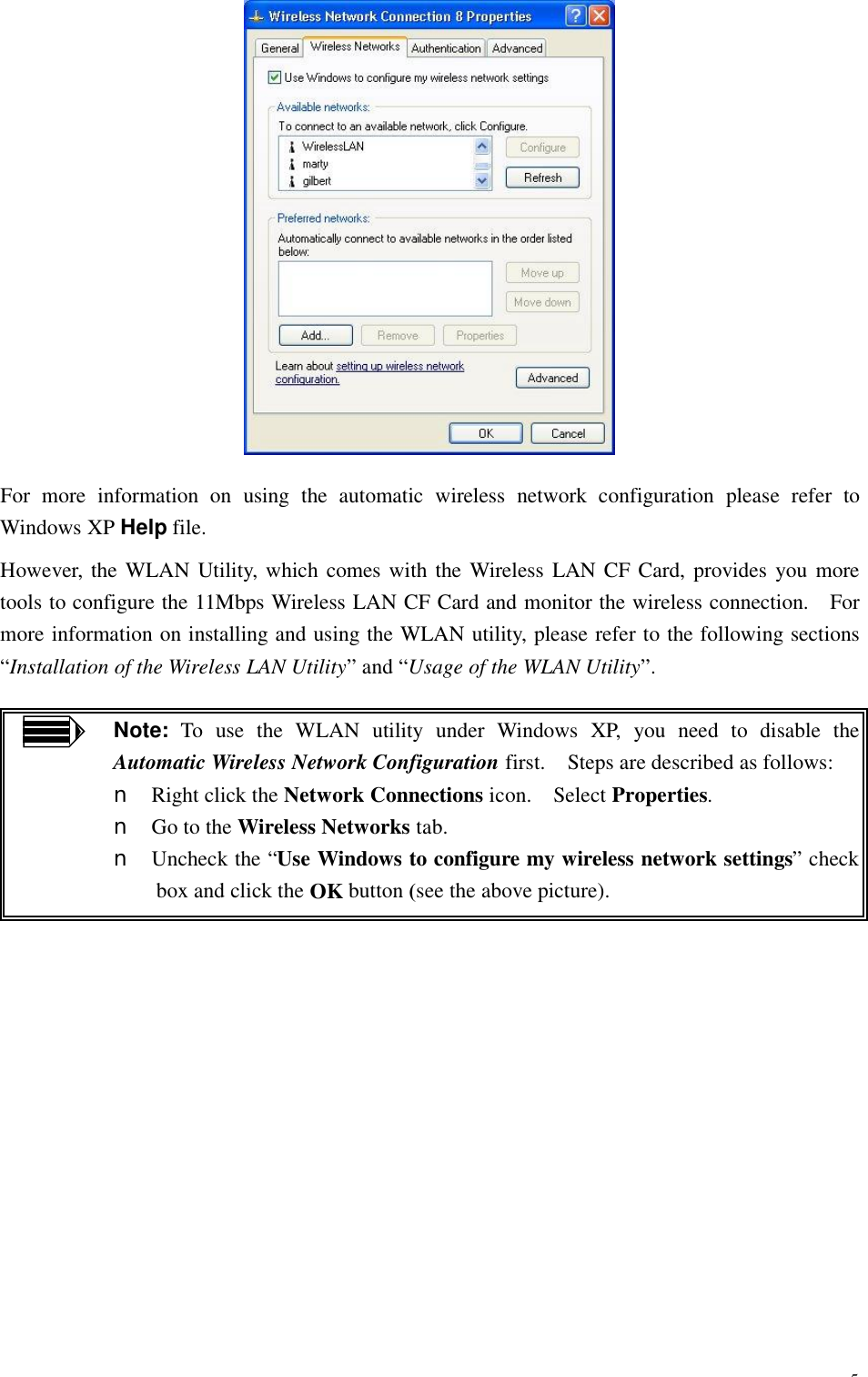

 5  For more information on using the automatic wireless network configuration please refer to Windows XP Help file. However, the WLAN Utility, which comes with the Wireless LAN CF Card, provides you more tools to configure the 11Mbps Wireless LAN CF Card and monitor the wireless connection.  For more information on installing and using the WLAN utility, please refer to the following sections “Installation of the Wireless LAN Utility” and “Usage of the WLAN Utility”.  Note: To use the WLAN utility under Windows XP, you need to disable the Automatic Wireless Network Configuration first.  Steps are described as follows: n Right click the Network Connections icon.  Select Properties. n Go to the Wireless Networks tab. n Uncheck the “Use Windows to configure my wireless network settings” check box and click the OK button (see the above picture).

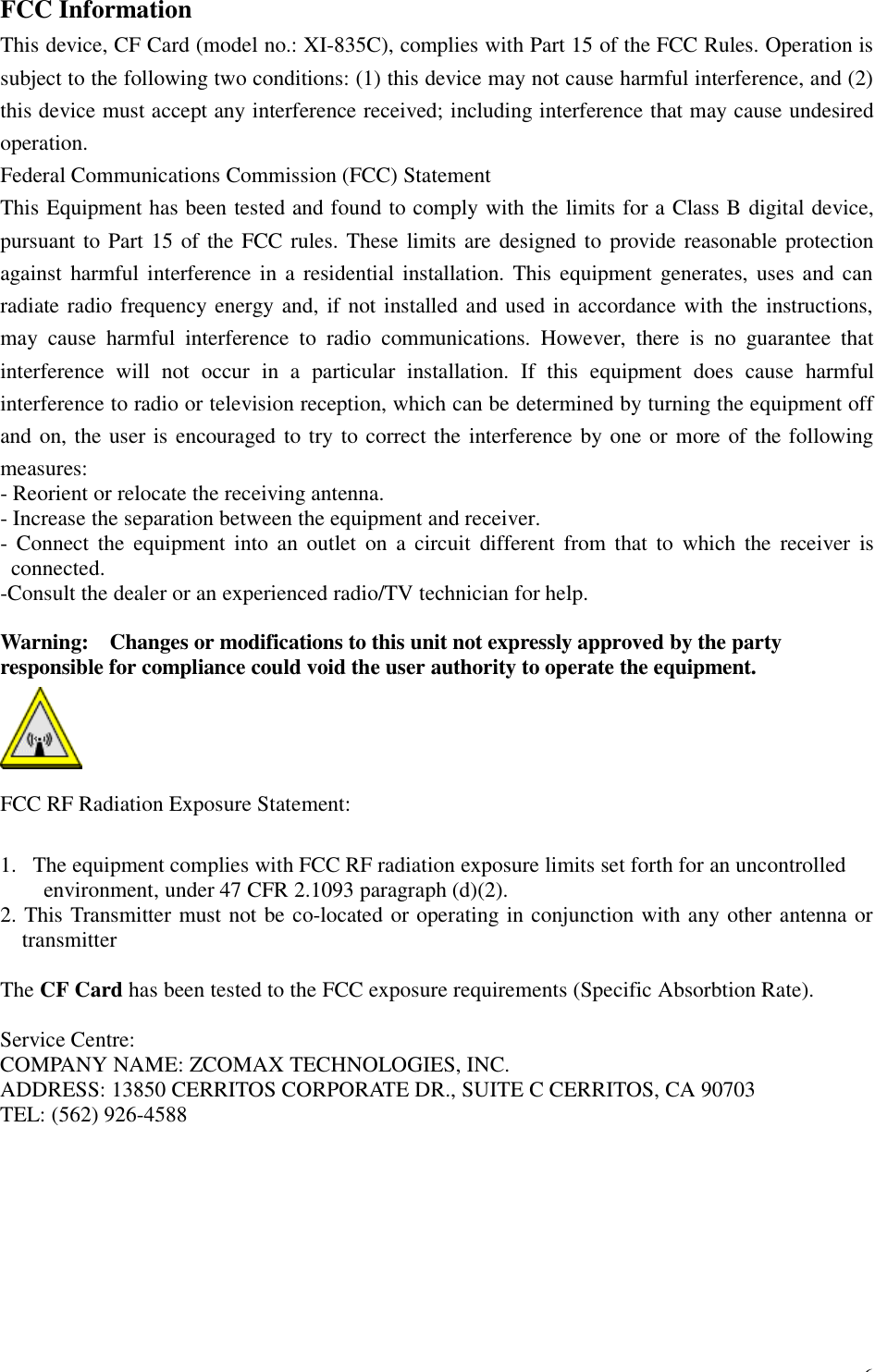

 6  FCC Information This device, CF Card (model no.: XI-835C), complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.  Warning:  Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.   FCC RF Radiation Exposure Statement:  1. The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled  environment, under 47 CFR 2.1093 paragraph (d)(2). 2. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter   The CF Card has been tested to the FCC exposure requirements (Specific Absorbtion Rate).  Service Centre:  COMPANY NAME: ZCOMAX TECHNOLOGIES, INC.  ADDRESS: 13850 CERRITOS CORPORATE DR., SUITE C CERRITOS, CA 90703  TEL: (562) 926-4588
 7  802.11b+128Mb Memory CompactFlash Card Specification Protocol Standard  Compliant to IEEE 802.11b, WI-FI certified Host Interface Standard  CompatFlash V1.4, CF+I/O Interface, Type I Operation Voltage  3.3v ± 5%, 5V tolerant Link Indtorica  Green LED 3-state indication: Off:          Power off Blinking:  Power on, not connected Stable:    Power on, connected  Data Rate  1, 2, 5.5, 11Mbps, Auto Fall-back Cover Range (Open Space)  11Mbps:         450 feet 5.5Mbps:        650 feet 2Mbps:           800 feet 1Mbps:           1200 feet Tx:                <330mA Rx:                <260 Standby:       <(80mA)    Sleep current: <4.0mA Power Consumption Software Power Management: Automatically disable 802.11b I/O function according to user selectable battery level in PocketPC hosts.(TBD) Max RF Output  15dBm Receive Sensitivity (PER < 8%) 11Mbps:    -80dBm  5.5Mbps:  -82dBm  2 Mbps:    -83dBm  1 Mbps:    -85dBm Network Architecture  Infrastructure, Ad-hoc, Roaming Operating Channels  2400-2483 MHz North America:    Channel 1-11 Europe:               Channel 1-14 France:                Channel 10-13 Spain:                  Channel 10-11 Japan:                 Channel  1-14 Software Support  Pocket PC: Windows CE3.0, , Pocket PC 2002, Boingo UI Laptop/desktop: Windows 2000/XP/ME Memory Capacity  1Gbit(128Mbyte) MLC NAND Flash Card should function as a single-function CompactFlash memory card when host 802.11b I/O driver in absence Memory Function Performance  Read: >3Mbyte/sec Write: >1Mbyte/sec Weight    < 25g Operating Temperature Range   0 ~ 55C Storage Temperature Range  -20 ~ 80C Operating Humidity Range   5 ~ 90% (non-condensing) EMC Certification  FCC, ETSI, C-Tick, TELEC
