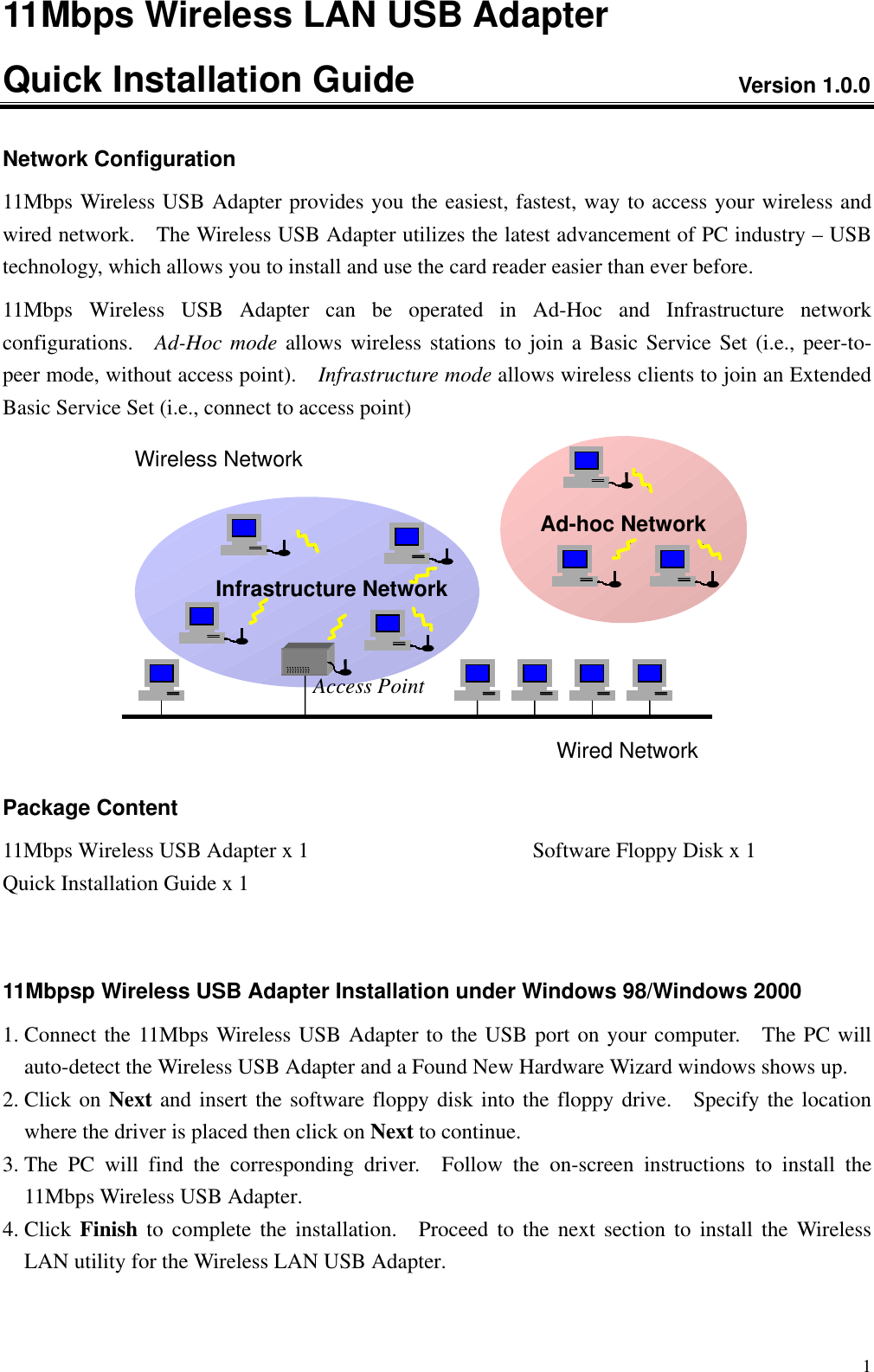

111Mbps Wireless LAN USB AdapterQuick Installation Guide    Version 1.0.0Network Configuration11Mbps Wireless USB Adapter provides you the easiest, fastest, way to access your wireless andwired network.    The Wireless USB Adapter utilizes the latest advancement of PC industry – USBtechnology, which allows you to install and use the card reader easier than ever before.11Mbps Wireless USB Adapter can be operated in Ad-Hoc and Infrastructure networkconfigurations.   Ad-Hoc mode allows wireless stations to join a Basic Service Set (i.e., peer-to-peer mode, without access point).    Infrastructure mode allows wireless clients to join an ExtendedBasic Service Set (i.e., connect to access point)Package Content11Mbps Wireless USB Adapter x 1              Software Floppy Disk x 1Quick Installation Guide x 111Mbpsp Wireless USB Adapter Installation under Windows 98/Windows 20001. Connect the 11Mbps Wireless USB Adapter to the USB port on your computer.  The PC willauto-detect the Wireless USB Adapter and a Found New Hardware Wizard windows shows up.2. Click on Next and insert the software floppy disk into the floppy drive.  Specify the locationwhere the driver is placed then click on Next to continue.3. The PC will find the corresponding driver.  Follow the on-screen instructions to install the11Mbps Wireless USB Adapter.4. Click  Finish to complete the installation.  Proceed to the next section to install the WirelessLAN utility for the Wireless LAN USB Adapter.Infrastructure NetworkAd-hoc NetworkWired NetworkWireless NetworkAccess Point

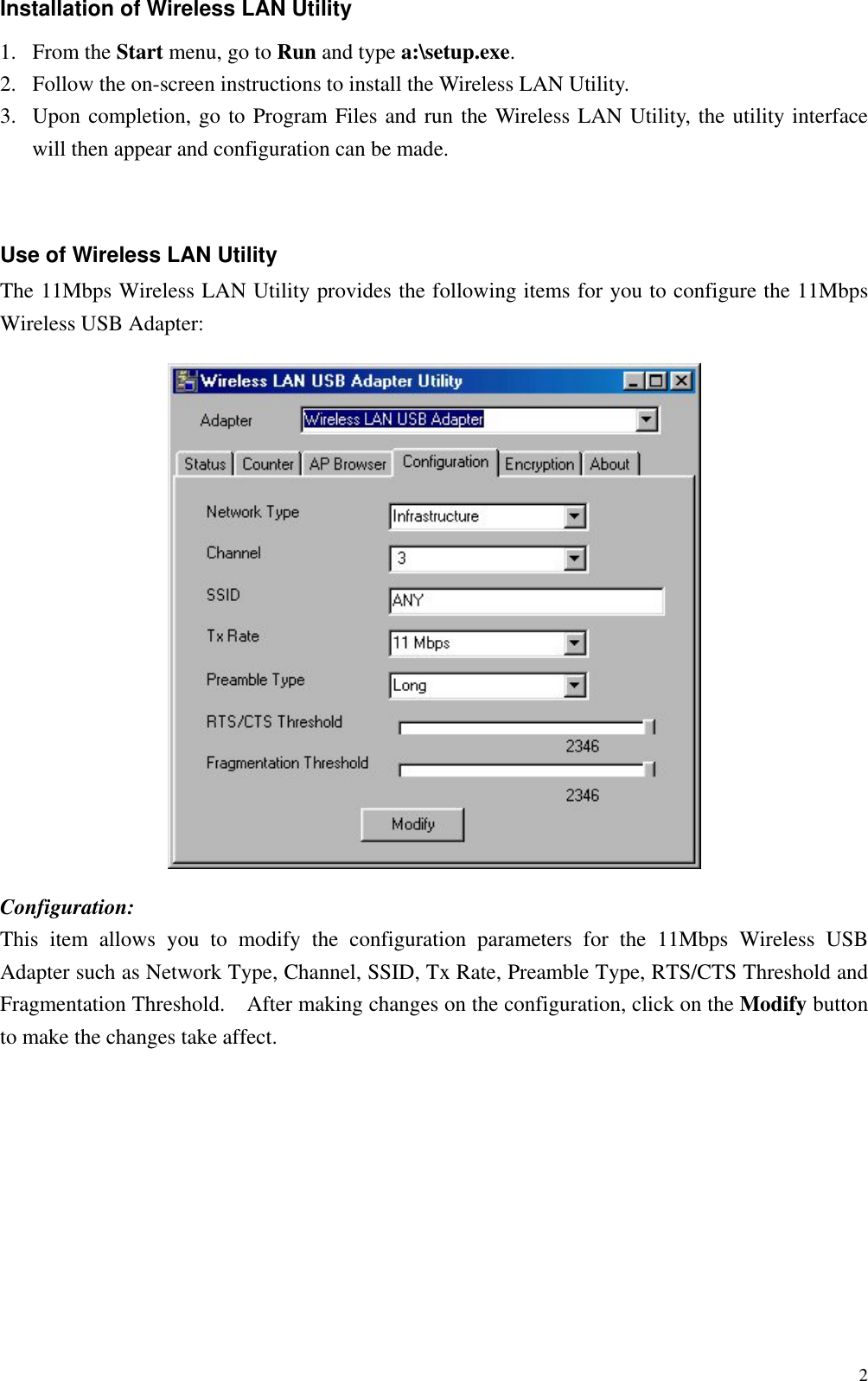

2Installation of Wireless LAN Utility1. From the Start menu, go to Run and type a:\setup.exe.2. Follow the on-screen instructions to install the Wireless LAN Utility.3. Upon completion, go to Program Files and run the Wireless LAN Utility, the utility interfacewill then appear and configuration can be made.Use of Wireless LAN UtilityThe 11Mbps Wireless LAN Utility provides the following items for you to configure the 11MbpsWireless USB Adapter:Configuration:This item allows you to modify the configuration parameters for the 11Mbps Wireless USBAdapter such as Network Type, Channel, SSID, Tx Rate, Preamble Type, RTS/CTS Threshold andFragmentation Threshold.    After making changes on the configuration, click on the Modify buttonto make the changes take affect.
3Status:This item shows the current information on the 11Mbps Wireless LAN USB Adapter such as MACaddress, Channel, SSID, Status, Signal Strength and Link Quality.Counter:You may monitor wireless traffic on the network.

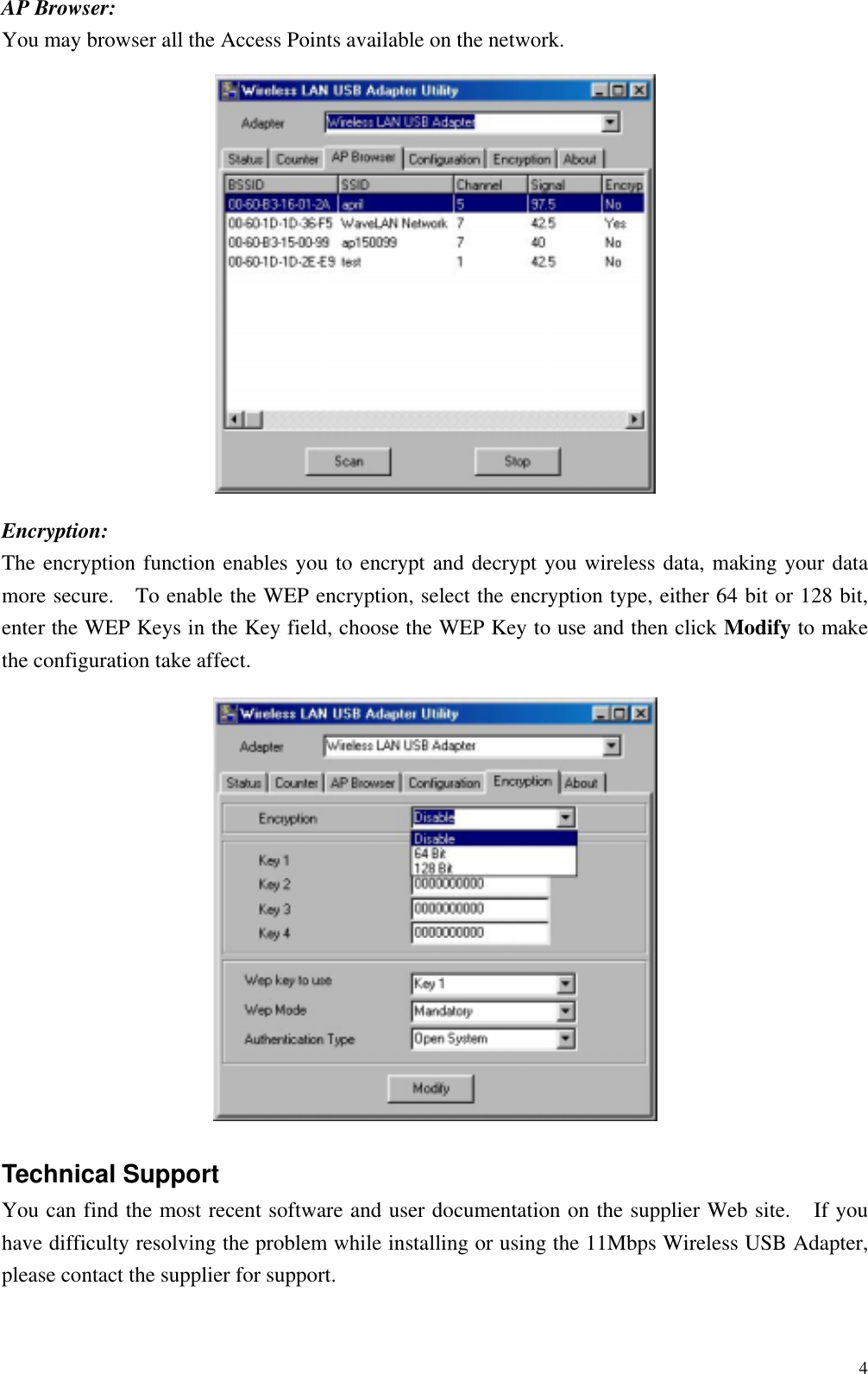

4AP Browser:You may browser all the Access Points available on the network.Encryption:The encryption function enables you to encrypt and decrypt you wireless data, making your datamore secure.    To enable the WEP encryption, select the encryption type, either 64 bit or 128 bit,enter the WEP Keys in the Key field, choose the WEP Key to use and then click Modify to makethe configuration take affect.Technical SupportYou can find the most recent software and user documentation on the supplier Web site.    If youhave difficulty resolving the problem while installing or using the 11Mbps Wireless USB Adapter,please contact the supplier for support.
5FCC InformationThis device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) this device may not cause harmful interference, and (2) this device must accept anyinterference received; including interference that may cause undesired operation.Federal Communications Commission (FCC) StatementThis Equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates, uses and canradiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipment offand on, the user is encouraged to try to correct the interference by one or more of the followingmeasures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.- Consult the dealer or an experienced radio/TV technician for help.

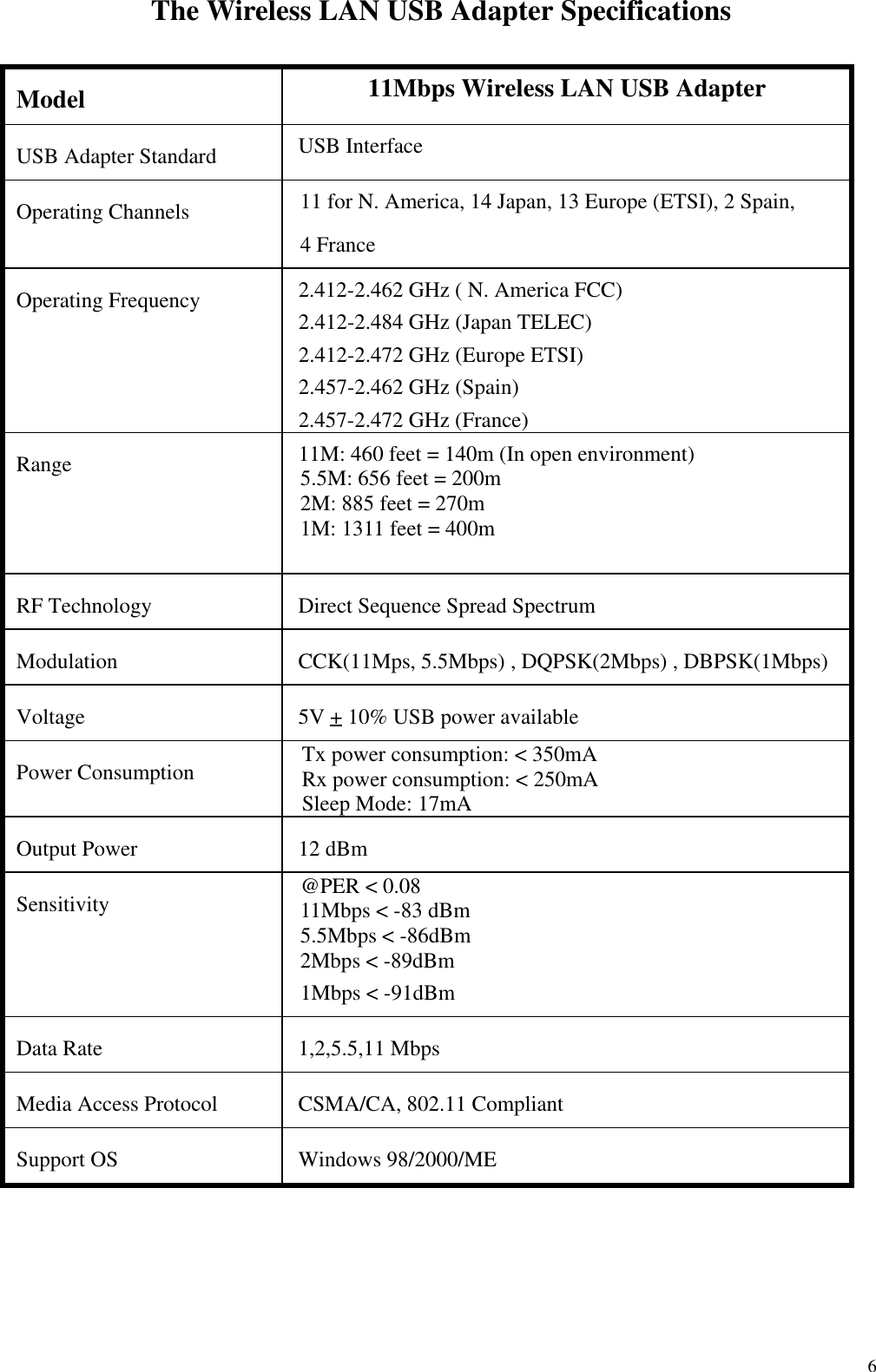

6The Wireless LAN USB Adapter SpecificationsModel 11Mbps Wireless LAN USB AdapterUSB Adapter Standard USB InterfaceOperating Channels 11 for N. America, 14 Japan, 13 Europe (ETSI), 2 Spain,4 FranceOperating Frequency 2.412-2.462 GHz ( N. America FCC)2.412-2.484 GHz (Japan TELEC)2.412-2.472 GHz (Europe ETSI)2.457-2.462 GHz (Spain)2.457-2.472 GHz (France)Range 11M: 460 feet = 140m (In open environment)5.5M: 656 feet = 200m2M: 885 feet = 270m1M: 1311 feet = 400mRF Technology Direct Sequence Spread SpectrumModulation CCK(11Mps, 5.5Mbps) , DQPSK(2Mbps) , DBPSK(1Mbps)Voltage 5V + 10% USB power availablePower Consumption Tx power consumption: < 350mARx power consumption: < 250mASleep Mode: 17mAOutput Power 12 dBmSensitivity @PER < 0.0811Mbps < -83 dBm5.5Mbps < -86dBm2Mbps < -89dBm1Mbps < -91dBmData Rate 1,2,5.5,11 MbpsMedia Access Protocol CSMA/CA, 802.11 CompliantSupport OS Windows 98/2000/ME
