Z Com AG623C IEEE 802.11 a/b/g Wireless Network Mini PCI User Manual

Z Com Inc IEEE 802.11 a/b/g Wireless Network Mini PCI Users Manual

Contents

Users Manual

End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: M4Y-AG623C”.

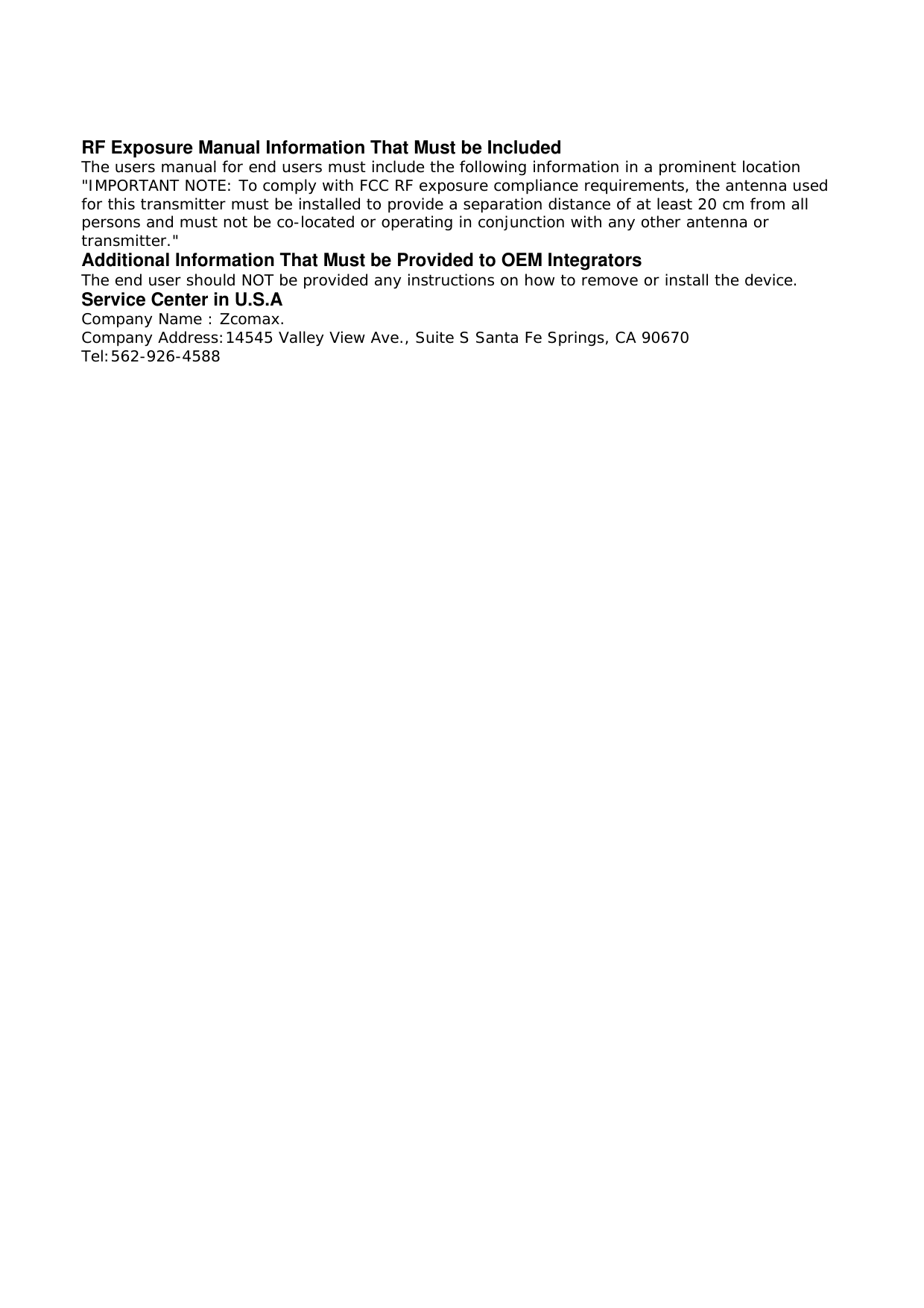

RF Exposure Manual Information That Must be Included The users manual for end users must include the following information in a prominent location "IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter." Additional Information That Must be Provided to OEM Integrators The end user should NOT be provided any instructions on how to remove or install the device. Service Center in U.S.A Company Name : Zcomax. Company Address:14545 Valley View Ave., Suite S Santa Fe Springs, CA 90670 Tel:562-926-4588

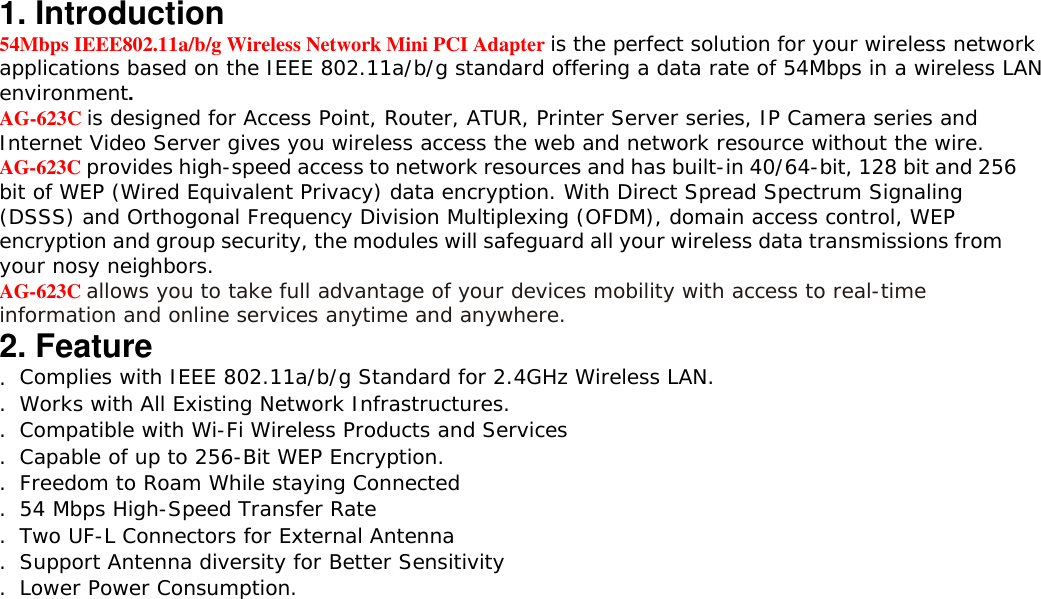

1. Introduction 54Mbps IEEE802.11a/b/g Wireless Network Mini PCI Adapter is the perfect solution for your wireless network applications based on the IEEE 802.11a/b/g standard offering a data rate of 54Mbps in a wireless LAN environment. AG-623C is designed for Access Point, Router, ATUR, Printer Server series, IP Camera series and Internet Video Server gives you wireless access the web and network resource without the wire. AG-623C provides high-speed access to network resources and has built-in 40/64-bit, 128 bit and 256 bit of WEP (Wired Equivalent Privacy) data encryption. With Direct Spread Spectrum Signaling (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM), domain access control, WEP encryption and group security, the modules will safeguard all your wireless data transmissions from your nosy neighbors. AG-623C allows you to take full advantage of your devices mobility with access to real-time information and online services anytime and anywhere. 2. Feature . Complies with IEEE 802.11a/b/g Standard for 2.4GHz Wireless LAN. . Works with All Existing Network Infrastructures. . Compatible with Wi-Fi Wireless Products and Services . Capable of up to 256-Bit WEP Encryption. . Freedom to Roam While staying Connected . 54 Mbps High-Speed Transfer Rate . Two UF-L Connectors for External Antenna . Support Antenna diversity for Better Sensitivity . Lower Power Consumption.

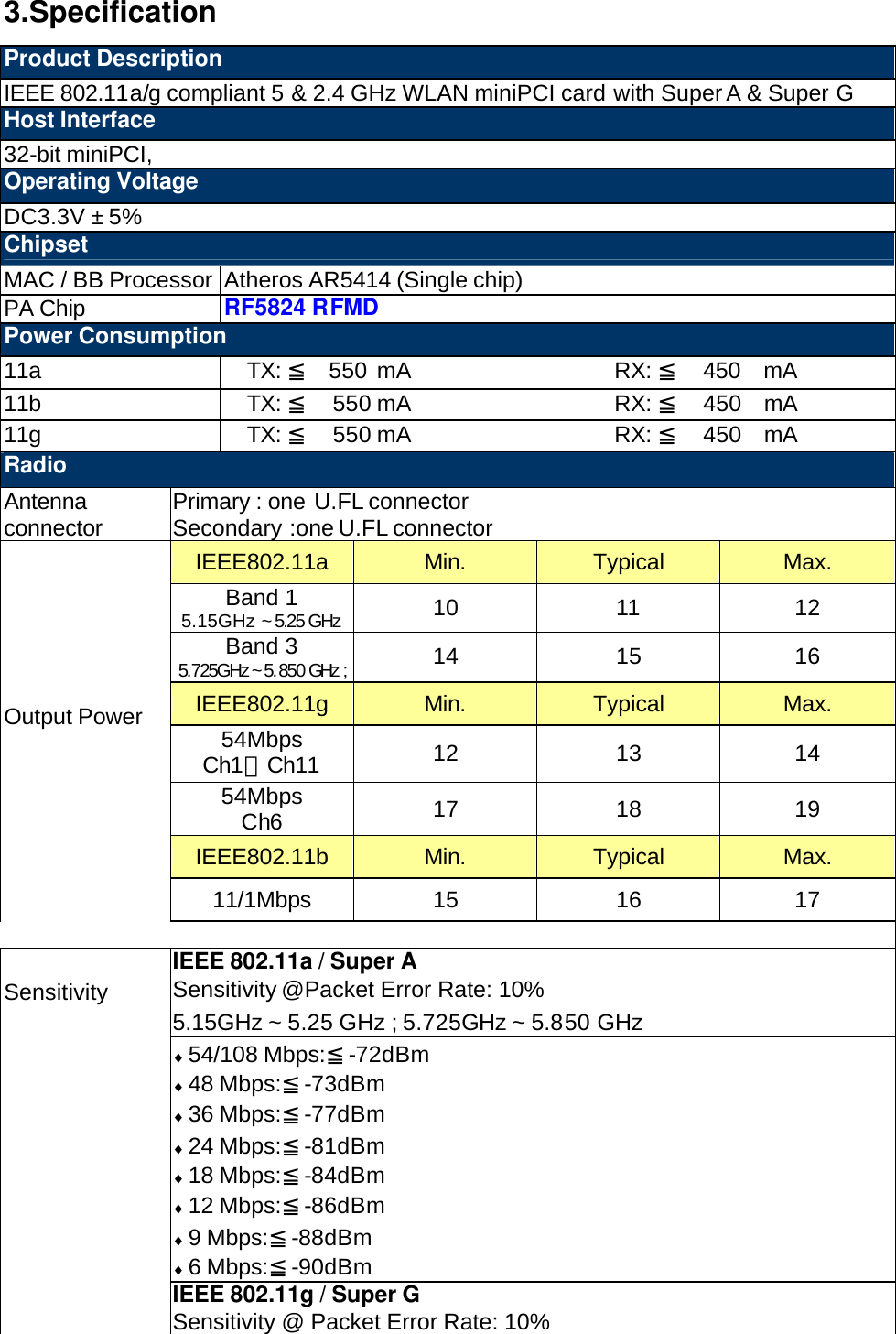

3.Specification Product Description IEEE 802.11a/g compliant 5 & 2.4 GHz WLAN miniPCI card with Super A & Super G Host Interface 32-bit miniPCI, Operating Voltage DC3.3V ± 5% Chipset MAC / BB Processor Atheros AR5414 (Single chip) PA Chip RF5824 RFMD Power Consumption 11a TX: ≦ 550 mA RX: ≦ 450 mA 11b TX: ≦ 550 mA RX: ≦ 450 mA 11g TX: ≦ 550 mA RX: ≦ 450 mA Radio Antenna connector Primary : one U.FL connector Secondary :one U.FL connector IEEE802.11a Min. Typical Max. Band 1 5.15GHz ~ 5.25 GHz 10 11 12 Band 3 5.725GHz ~ 5. 850 GHz ; 14 15 16 IEEE802.11g Min. Typical Max. 54Mbps Ch1、Ch11 12 13 14 54Mbps Ch6 17 18 19 IEEE802.11b Min. Typical Max. Output Power 11/1Mbps 15 16 17 IEEE 802.11a / Super A Sensitivity @Packet Error Rate: 10% 5.15GHz ~ 5.25 GHz ; 5.725GHz ~ 5.850 GHz ♦ 54/108 Mbps:≦-72dBm ♦ 48 Mbps:≦-73dBm ♦ 36 Mbps:≦-77dBm ♦ 24 Mbps:≦-81dBm ♦ 18 Mbps:≦-84dBm ♦ 12 Mbps:≦-86dBm ♦ 9 Mbps:≦-88dBm ♦ 6 Mbps:≦-90dBm Sensitivity IEEE 802.11g / Super G Sensitivity @ Packet Error Rate: 10%

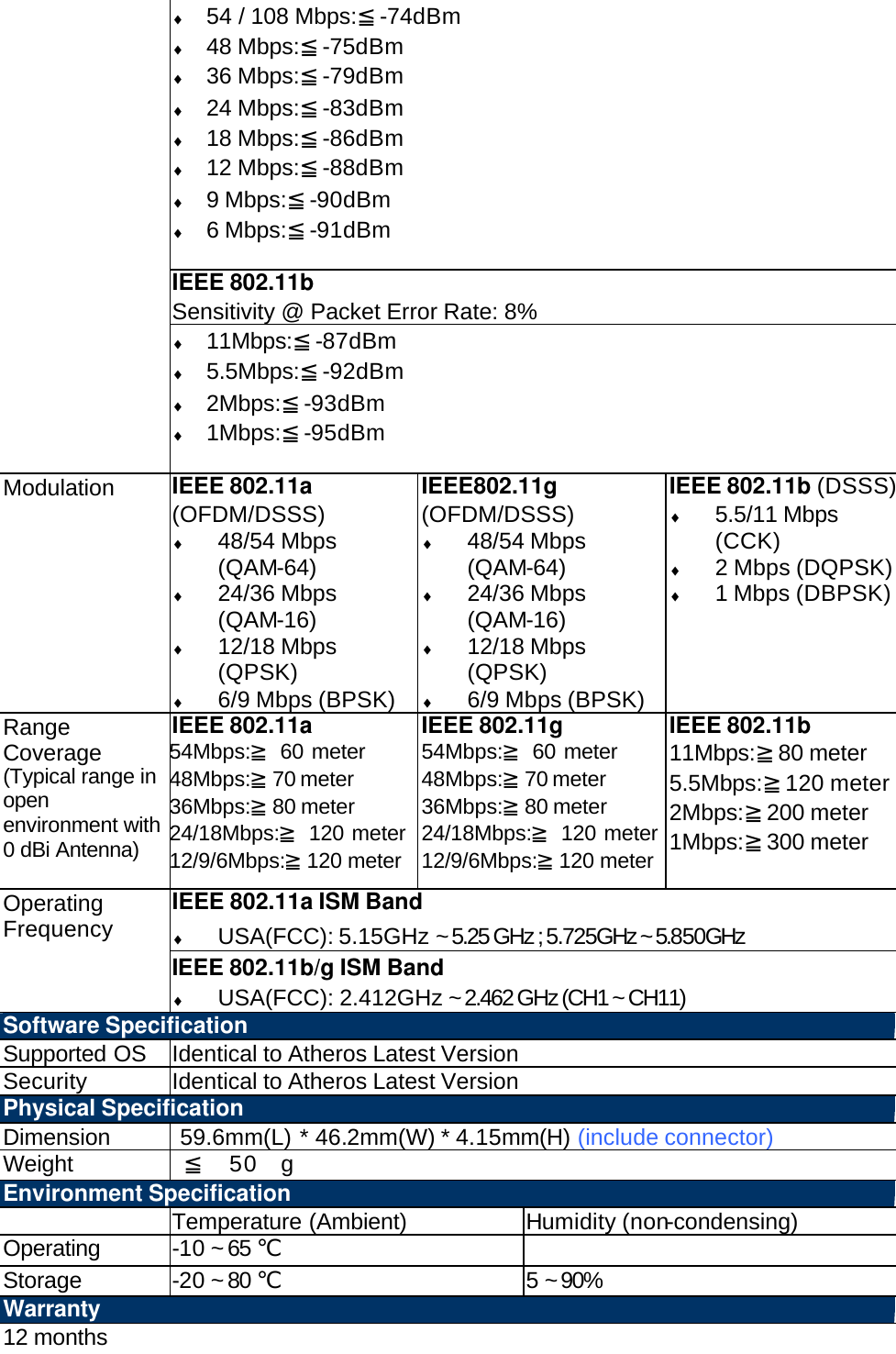

♦ 54 / 108 Mbps:≦-74dBm ♦ 48 Mbps:≦-75dBm ♦ 36 Mbps:≦-79dBm ♦ 24 Mbps:≦-83dBm ♦ 18 Mbps:≦-86dBm ♦ 12 Mbps:≦-88dBm ♦ 9 Mbps:≦-90dBm ♦ 6 Mbps:≦-91dBm IEEE 802.11b Sensitivity @ Packet Error Rate: 8% ♦ 11Mbps:≦-87dBm ♦ 5.5Mbps:≦-92dBm ♦ 2Mbps:≦-93dBm ♦ 1Mbps:≦-95dBm Modulation IEEE 802.11a (OFDM/DSSS) ♦ 48/54 Mbps (QAM-64) ♦ 24/36 Mbps (QAM-16) ♦ 12/18 Mbps (QPSK) ♦ 6/9 Mbps (BPSK) IEEE802.11g (OFDM/DSSS) ♦ 48/54 Mbps (QAM-64) ♦ 24/36 Mbps (QAM-16) ♦ 12/18 Mbps (QPSK) ♦ 6/9 Mbps (BPSK) IEEE 802.11b (DSSS) ♦ 5.5/11 Mbps (CCK) ♦ 2 Mbps (DQPSK) ♦ 1 Mbps (DBPSK) Range Coverage (Typical range in open environment with 0 dBi Antenna) IEEE 802.11a 54Mbps:≧ 60 meter 48Mbps:≧70 meter 36Mbps:≧80 meter 24/18Mbps:≧ 120 meter 12/9/6Mbps:≧120 meter IEEE 802.11g 54Mbps:≧ 60 meter 48Mbps:≧70 meter 36Mbps:≧80 meter 24/18Mbps:≧ 120 meter 12/9/6Mbps:≧120 meter IEEE 802.11b 11Mbps:≧80 meter 5.5Mbps:≧120 meter 2Mbps:≧200 meter 1Mbps:≧300 meter IEEE 802.11a ISM Band ♦ USA(FCC): 5.15GHz ~ 5.25 GHz ; 5.725GHz ~ 5.850GHz Operating Frequency IEEE 802.11b/g ISM Band ♦ USA(FCC): 2.412GHz ~ 2.462 GHz (CH1 ~ CH11) Software Specification Supported OS Identical to Atheros Latest Version Security Identical to Atheros Latest Version Physical Specification Dimension 59.6mm(L) * 46.2mm(W) * 4.15mm(H) (include connector) Weight ≦ 50 g Environment Specification Temperature (Ambient) Humidity (non-condensing) Operating -10 ~ 65 ℃ Storage -20 ~ 80 ℃ 5 ~ 90% Warranty 12 months

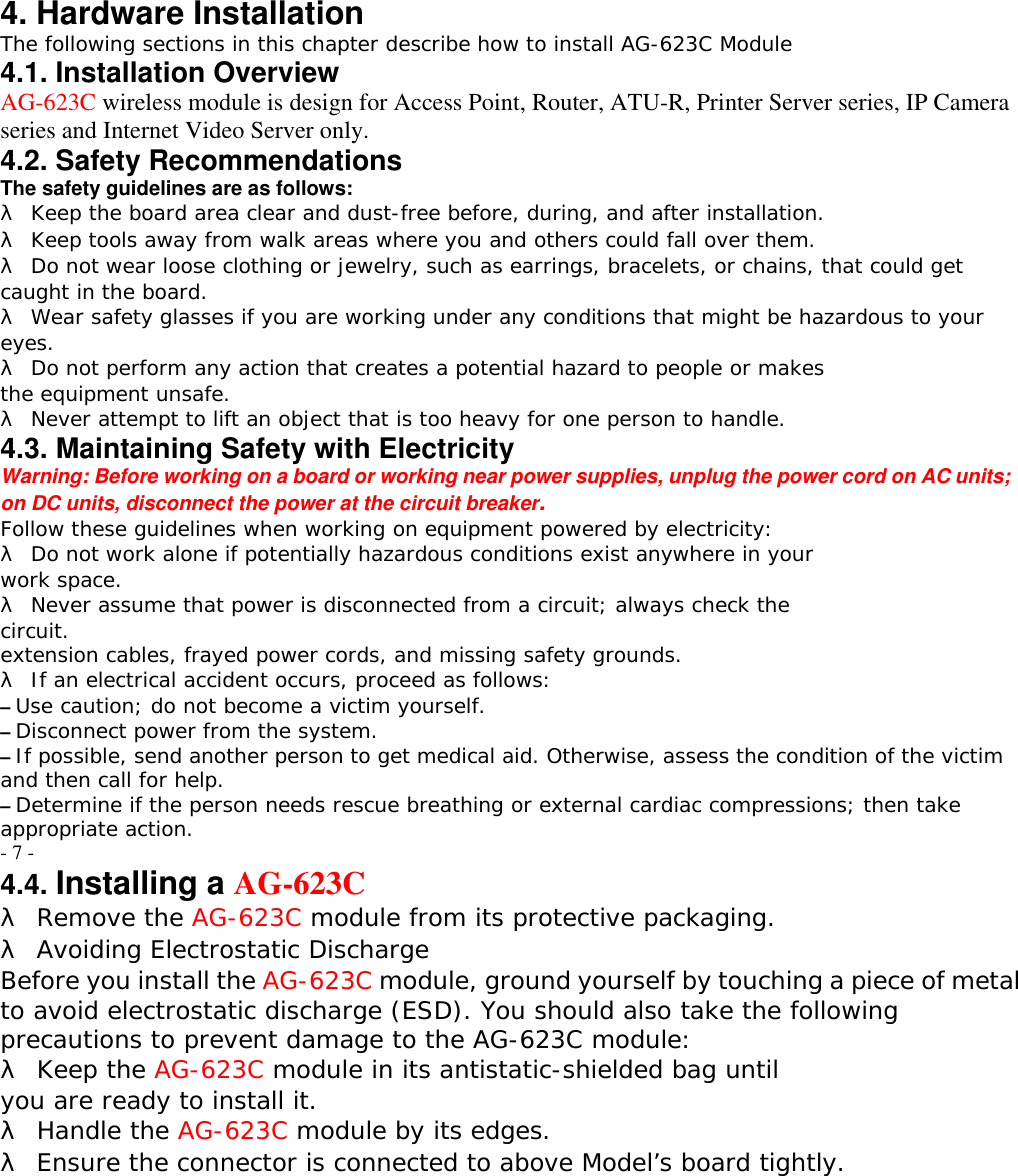

4. Hardware Installation The following sections in this chapter describe how to install AG-623C Module 4.1. Installation Overview AG-623C wireless module is design for Access Point, Router, ATU-R, Printer Server series, IP Camera series and Internet Video Server only. 4.2. Safety Recommendations The safety guidelines are as follows: λ Keep the board area clear and dust-free before, during, and after installation. λ Keep tools away from walk areas where you and others could fall over them. λ Do not wear loose clothing or jewelry, such as earrings, bracelets, or chains, that could get caught in the board. λ Wear safety glasses if you are working under any conditions that might be hazardous to your eyes. λ Do not perform any action that creates a potential hazard to people or makes the equipment unsafe. λ Never attempt to lift an object that is too heavy for one person to handle. 4.3. Maintaining Safety with Electricity Warning: Before working on a board or working near power supplies, unplug the power cord on AC units; on DC units, disconnect the power at the circuit breaker. Follow these guidelines when working on equipment powered by electricity: λ Do not work alone if potentially hazardous conditions exist anywhere in your work space. λ Never assume that power is disconnected from a circuit; always check the circuit. extension cables, frayed power cords, and missing safety grounds. λ If an electrical accident occurs, proceed as follows: – Use caution; do not become a victim yourself. – Disconnect power from the system. – If possible, send another person to get medical aid. Otherwise, assess the condition of the victim and then call for help. – Determine if the person needs rescue breathing or external cardiac compressions; then take appropriate action. - 7 - 4.4. Installing a AG-623C λ Remove the AG-623C module from its protective packaging. λ Avoiding Electrostatic Discharge Before you install the AG-623C module, ground yourself by touching a piece of metal to avoid electrostatic discharge (ESD). You should also take the following precautions to prevent damage to the AG-623C module: λ Keep the AG-623C module in its antistatic-shielded bag until you are ready to install it. λ Handle the AG-623C module by its edges. λ Ensure the connector is connected to above Model’s board tightly.
