Z Com AG623G2 IEEE 802.11 a/b/g Wireless Network Mini PCI User Manual AG 623G2

Z Com Inc IEEE 802.11 a/b/g Wireless Network Mini PCI AG 623G2

Contents

USer Manual

        Z-Com AG-623G2    IEEE 802.11 a/b/g   Wireless Network Mini PCI     User’s Manual         V1.0 January 2010

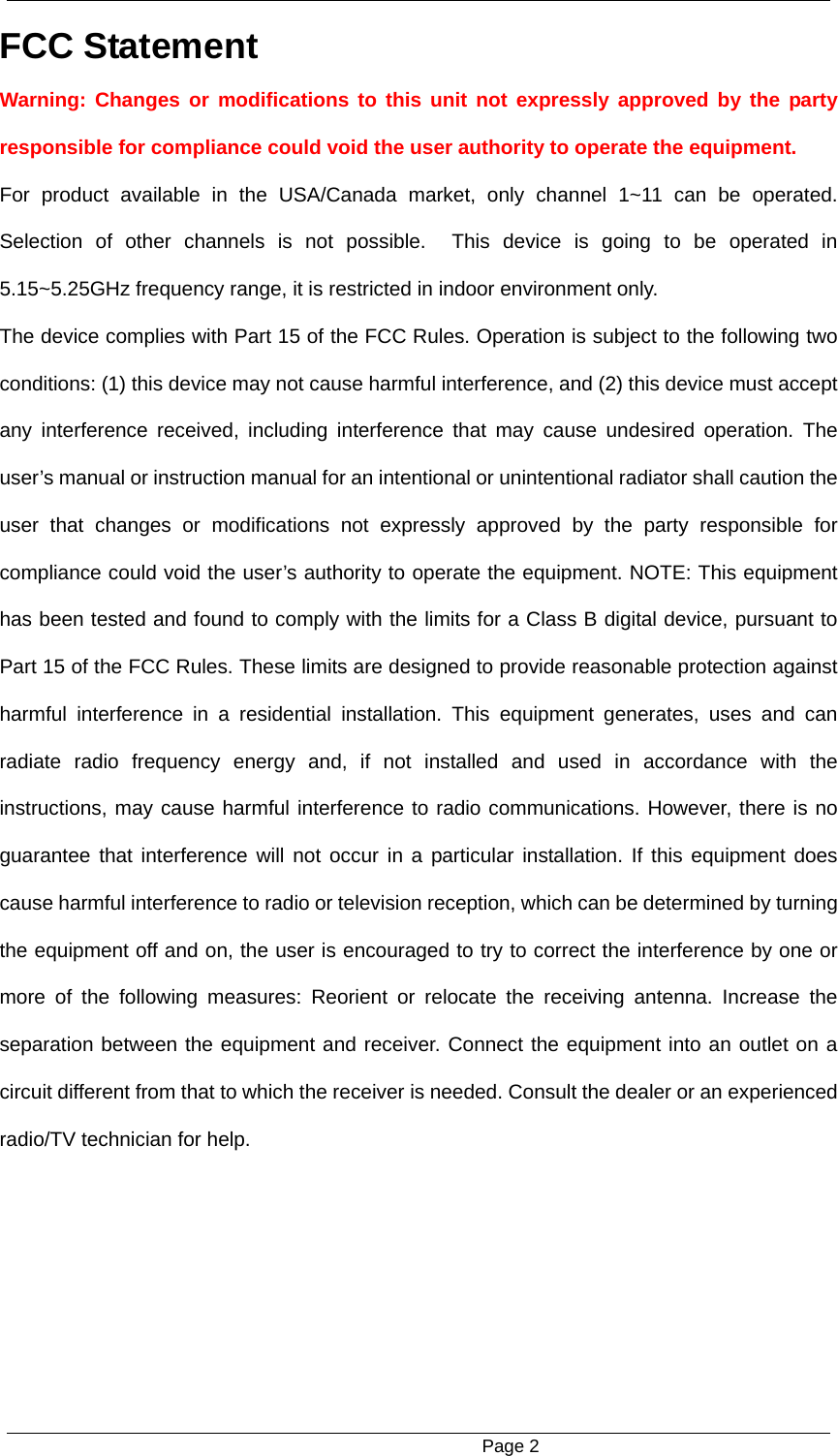

                                                     Page 2 FCC Statement   Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.   For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.  This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only. The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. Consult the dealer or an experienced radio/TV technician for help.

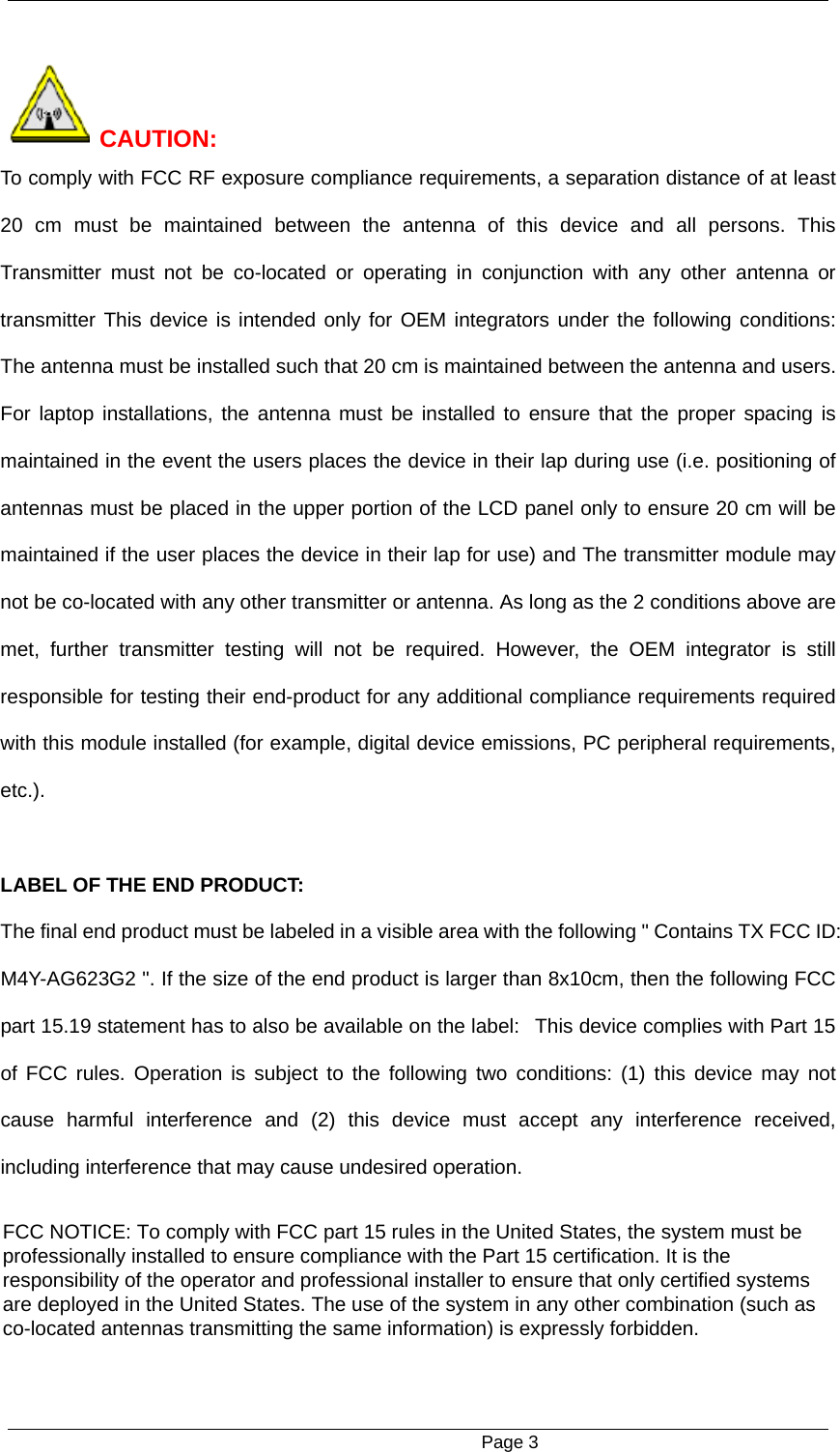

                                                     Page 3   CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users. For laptop installations, the antenna must be installed to ensure that the proper spacing is maintained in the event the users places the device in their lap during use (i.e. positioning of antennas must be placed in the upper portion of the LCD panel only to ensure 20 cm will be maintained if the user places the device in their lap for use) and The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.).  LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: M4Y-AG623G2 ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label:   This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.  FCC NOTICE: To comply with FCC part 15 rules in the United States, the system must beprofessionally installed to ensure compliance with the Part 15 certification. It is theresponsibility of the operator and professional installer to ensure that only certified systemsare deployed in the United States. The use of the system in any other combination (such asco-located antennas transmitting the same information) is expressly forbidden.

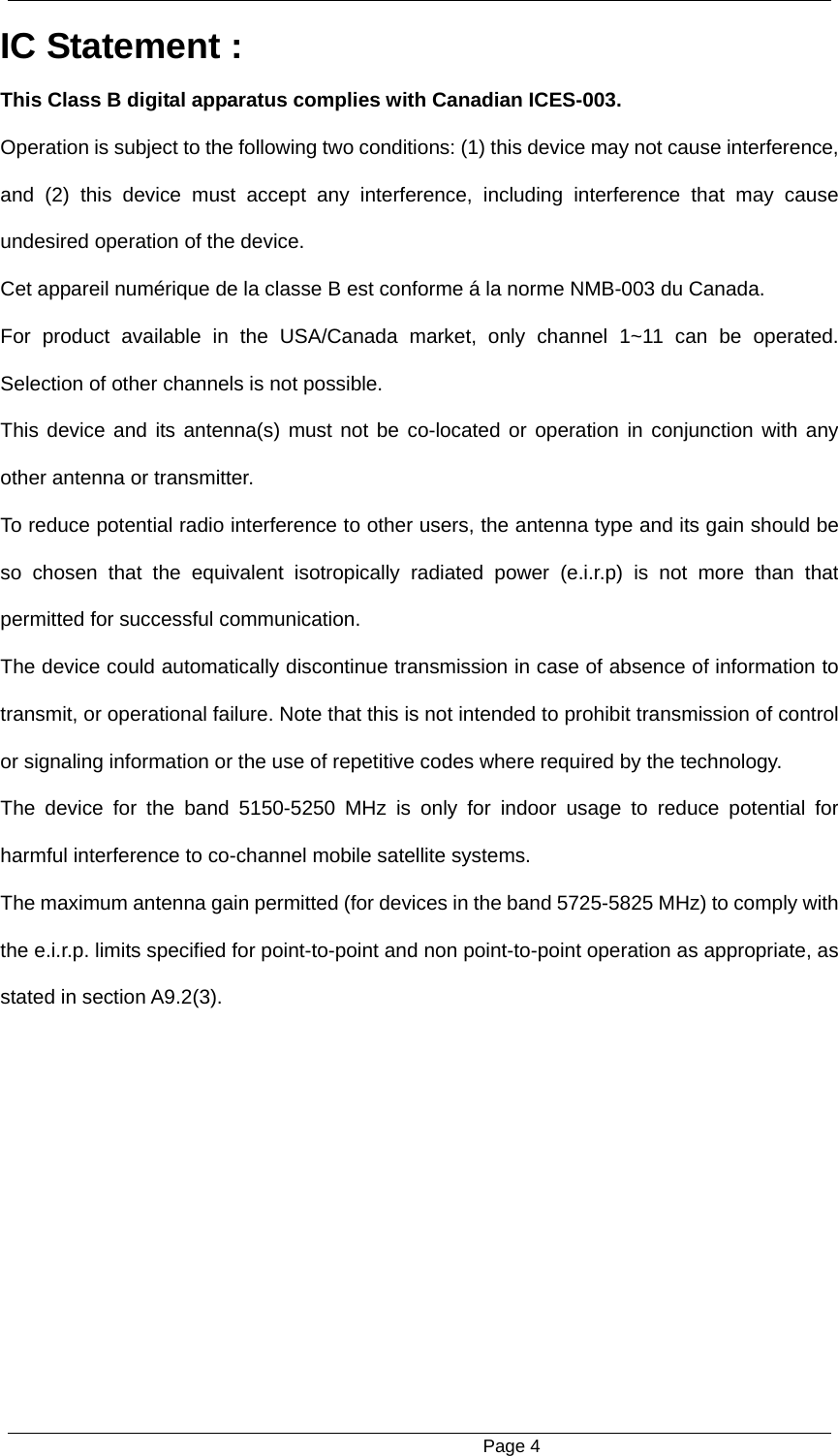

                                                     Page 4 IC Statement : This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p) is not more than that permitted for successful communication. The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology. The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems. The maximum antenna gain permitted (for devices in the band 5725-5825 MHz) to comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate, as stated in section A9.2(3).
                                                     Page 5 IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This module is intended for OEM integrator. The OEM integrator is still responsible for the IC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the IC RSS-102 radiation exposure limits set forth for an population/uncontrolled environment can be satisfied.   Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment.  USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the IC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. IC statement is required to be available in the users manual: This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.     LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX IC : 3195A-AG623G2”.
                                                     Page 6 1. Introduction  54Mbps IEEE802.11a/b/g Wireless Network Mini PCI Adapter is the perfect solution for your wireless network applications based on the IEEE 802.11a/b/g standard offering a data rate of 54Mbps in a wireless LAN environment. AG-623G2 is designed for Access Point, Router, ATUR, Printer Server series, IP Camera series and Internet Video Server gives you wireless access the web and network resource without the wire. AG-623G2 provides high-speed access to network resources and has built-in 40/64-bit, 128 bit and 256 bit of WEP (Wired Equivalent Privacy) data encryption. With Direct Spread Spectrum Signaling (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM), domain access control, WEP encryption and group security, the modules will safeguard all your wireless data transmissions from your nosy neighbors. AG-623G2 allows you to take full advantage of your devices mobility with access to real-time information and online services anytime and anywhere.  2. Features  1.  Complies with IEEE 802.11a/b/g Standard for Wireless LAN. 2.  Works with All Existing Network Infrastructures. 3.  Compatible with Wi-Fi Wireless Products and Services.   4.  Capable of up to 256-Bit WEP Encryption. 5.  Freedom to Roam While staying Connected.   6.  Delivers data rate up to 54 Mbps in G mode and up to 108 Mbps in Turbo AG mode. 7.  Two UF-L Connectors for External Antenna.   8.  Support Antenna diversity for Better Sensitivity.   9. Lower Power Consumption.

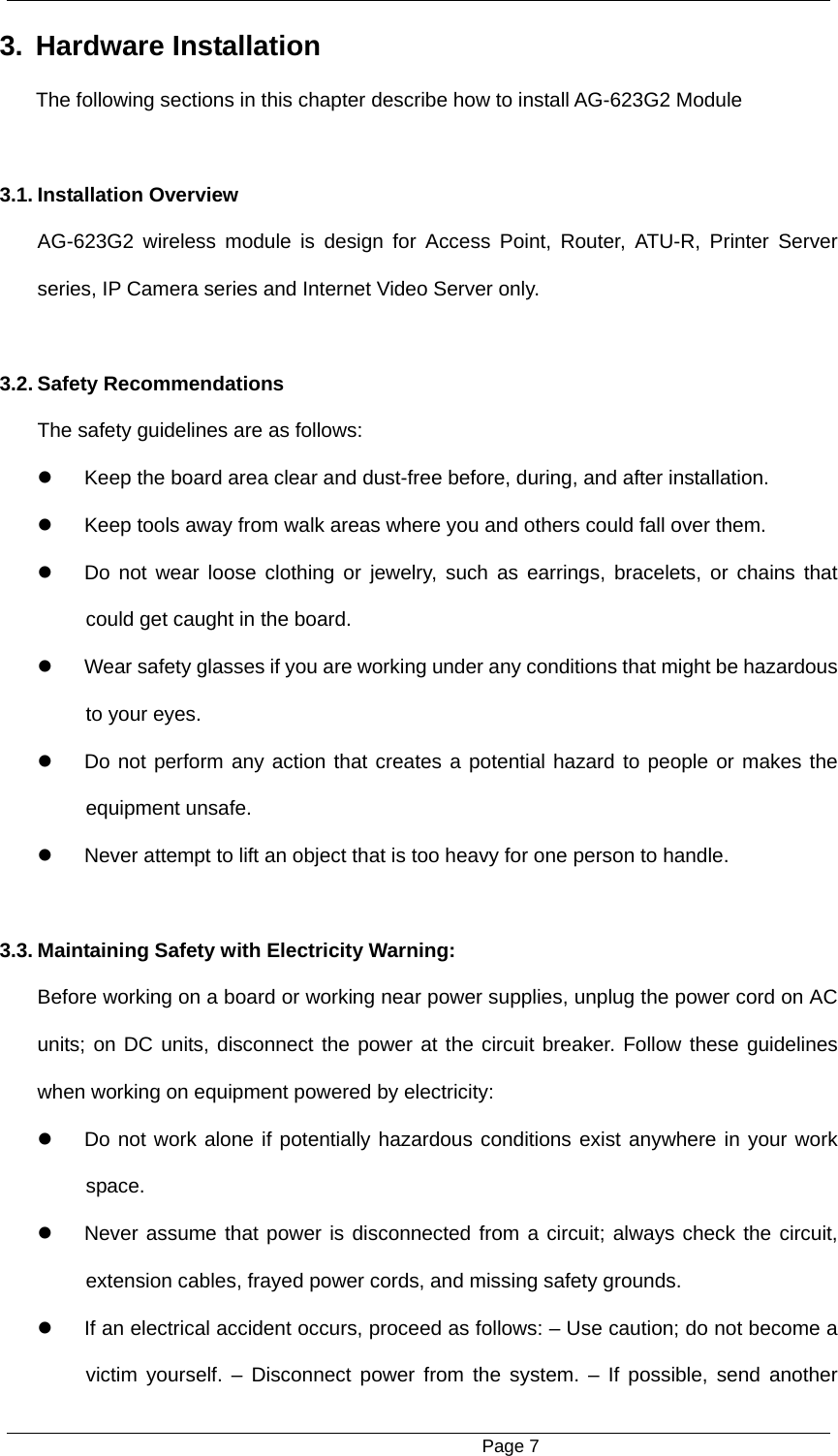

                                                     Page 7 3. Hardware Installation  The following sections in this chapter describe how to install AG-623G2 Module  3.1. Installation Overview   AG-623G2 wireless module is design for Access Point, Router, ATU-R, Printer Server series, IP Camera series and Internet Video Server only.  3.2. Safety Recommendations   The safety guidelines are as follows:     Keep the board area clear and dust-free before, during, and after installation.     Keep tools away from walk areas where you and others could fall over them.     Do not wear loose clothing or jewelry, such as earrings, bracelets, or chains that could get caught in the board.     Wear safety glasses if you are working under any conditions that might be hazardous to your eyes.     Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.     Never attempt to lift an object that is too heavy for one person to handle.  3.3. Maintaining Safety with Electricity Warning:   Before working on a board or working near power supplies, unplug the power cord on AC units; on DC units, disconnect the power at the circuit breaker. Follow these guidelines when working on equipment powered by electricity:     Do not work alone if potentially hazardous conditions exist anywhere in your work space.    Never assume that power is disconnected from a circuit; always check the circuit, extension cables, frayed power cords, and missing safety grounds.     If an electrical accident occurs, proceed as follows: – Use caution; do not become a victim yourself. – Disconnect power from the system. – If possible, send another
                                                     Page 8 person to get medical aid. Otherwise, assess the condition of the victim and then call for help. – Determine if the person needs rescue breathing or external cardiac compressions; then take appropriate action.   3.4. Installing a AG-623G2   1.  Remove the AG-623G2 module from its protective packaging.   2.  Avoiding Electrostatic Discharge.  Before you install the AG-623G2 module, ground yourself by touching a piece of metal to avoid electrostatic discharge (ESD). You should also take the following precautions to prevent damage to the AG-623G2 module:   Keep the AG-623G2 module in its antistatic-shielded bag until you are ready to install it.    Handle the AG-623G2 module by its edges.     Ensure the connector is connected to above Model’s board tightly.
