Z Com >
User Manual
IEEE802.11g/b WLAN USB2.0
Adapter
Date of Issue: November. 4, 2003
IEEE 802.11g/b 54Mbps WLAN
USB2.0 Adapter
Technical Support

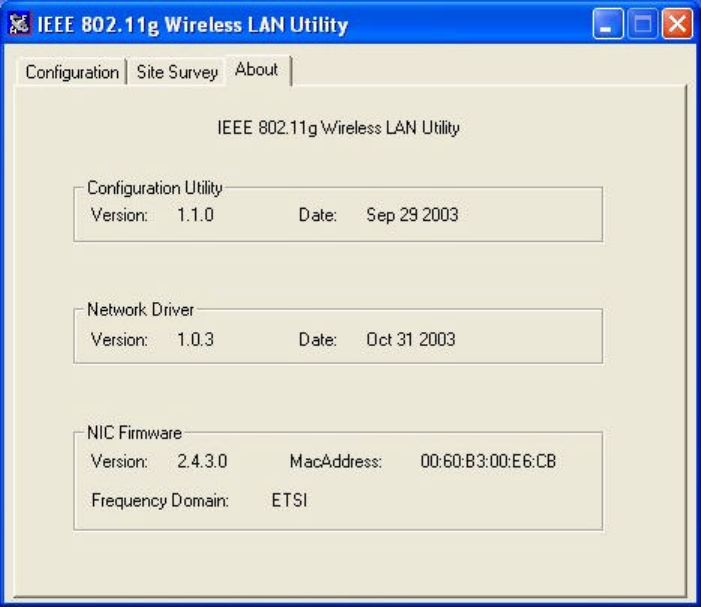

The firmware version of the IEEE 802.11g Wireless LAN USB card is displayed on the utility
About window. Users could download the most recent software version from the supplier’s
web site or refer to the selling contact for the latest software information. If you have difficulty
resolving the problem while installing or using the IEEE 802.11g Wireless LAN USB card, please
contact the supplier for support.
About This Manual
IEEE 802.11g Wireless LAN USB card User Manual is first published on November, 2003.
The manual includes procedures for the setup of the IEEE 802.11g Wireless LAN USB card
under Windows XP, Windows 2000, Windows 98SE or Windows ME. Take a moment to
read through this manual and familiarize yourself with wireless technology.
FCC Information
This device, IEEE 802.11g Wireless LAN USB card, complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received; including interference that may cause
undesired operation.
Federal Communications Commission (FCC) Statement
This Equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the equipment.
Tested to comply with FCC standard. FOR HOME OR OFFICE USE.
FCC RF Radiation Exposure Statement:
1. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment, under 47 CFR 2.1093 paragraph (d)(2).
2. This Transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The IEEE 802.11g Wireless LAN USB card has been tested to the FCC exposure requirements
(Specific Absorbtion Rate).
Z-Com. declare that XG-702B (IEEE 802.11b/g 54Mbps WLAN USB2.0 Adapter ) is limited in CH1~CH11
by specified firmware controlled in U.S.A.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
End users must follow the specific operating instructions for satisfying RF exposure compliance.This
transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Table of Contents
Chapter 1 About IEEE 802.11g Wireless LAN USB card......................1
1-1 Features and Benefits............................................................................ 1
1-2 Applications.......................................................................................... 2
1-3 Product Kit ........................................................................................... 3
1-4 About IEEE 802.11g Wireless LAN USB card LED
Indicators …………….……….……….3
Chapter 2 Getting Started...........................................................................5
2-1 Before Installation................................................................................. 5
2-2 Insert the IEEE 802.11g Wireless LAN USB card.................................. 6
Chapter 3 Install Driver for Windows........................................................7
3-1 Set up IEEE 802.11g Wireless LAN USB card for Windows XP ............ 7
3-2 Set up IEEE 802.11g Wireless LAN USB card for Windows 2000....... 13
3-3 Set up IEEE 802.11g Wireless LAN USB card for Windows 98SE/ ME16
Chapter 4 Configure the IEEE 802.11g Wireless LAN USB card ......21
4-1 Install the WLAN Utility ...................................................................... 21
4-2 Use the WLAN Utility.......................................................................... 23
Limited Warranty........................................................................................31
-1-
About IEEE 802.11g Wireless LAN USB card 1
The IEEE 802.11g Wireless LAN USB card is a standard USB adapter that fits into any standard
USB 2.0 and 1.1 slot in a notebook computer. Its 54Mbps data rate gives equivalent Ethernet speed
to access corporate network or the Internet in a wireless environment. When installed, IEEE 802.11g
Wireless LAN USB card is able to communicate with any 802.11/b and 802.11g compliant products.
1-1 Features and Benefits
1. Fully IEEE 802.11g compatible.
2. Direct Sequence Spread Spectrum (DSSS) technology provides robust, interference-resistant
and secure wireless connection.
3. Supports 1, 2, 5.5 and 11 Mbps and up to 54Mbps data rate.
4. Working range up to 800 ft. in an open environment.
5. Seamless connectivity to wired Ethernet and PC network LAN’s augments existing networks
quickly and easily.
6. Greater flexibility to locate or move networked PCs.
7. Wireless connection without the cost of cabling.
8. Easy to install and user friendly, just Plug and Play.
9. Low power consumption.
10. Supports a variety of operating systems (Win98SE/ME/2000/XP)
11. 64-bit and 128-bits WEP encryption capable.

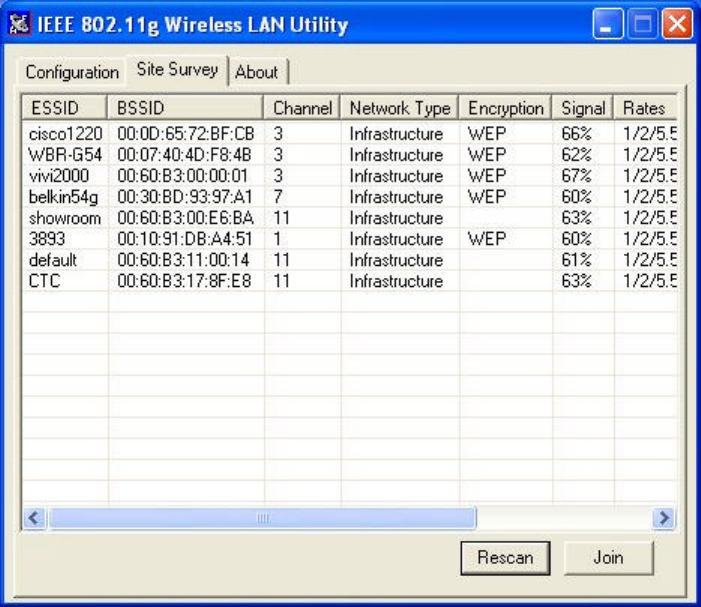

12. Provides Window-based Diagnostic Tools, most notably, Site Survey, Link Quality Test and
Access Point Browser.
-2-
1-2 Applications
IEEE 802.11g Wireless LAN USB card offers a fast, reliable, cost-effective solution for wireless client
access to the network in applications like these:
1. Remote access to corporate network information
E-mail, file transfer and terminal emulation.
2. Difficult-to-wire environments
Historical or old buildings, asbestos installations, and open area where wiring is difficult to
deploy.
3. Frequently changing environments
Retailers, manufacturers and those who frequently rearrange the workplace and change
location.
4. Temporary LANs for special projects or peak time
- Trade shows, exhibitions and construction sites where a temporary network will be practical.
- Retailers, airline and shipping companies need additional workstations during peak period.
- Auditors requiring workgroups at customer sites.
5. Access to database for mobile workers
Doctors, nurses, retailers, accessing their database while being mobile in the hospital, retail
store or office campus.
6. SOHO (Small Office and Home Office) users
SOHO users need easy and quick installation of a small computer network.
7. High security connection
The secure wireless network can be installed quickly and provide flexibility. (Please refer to

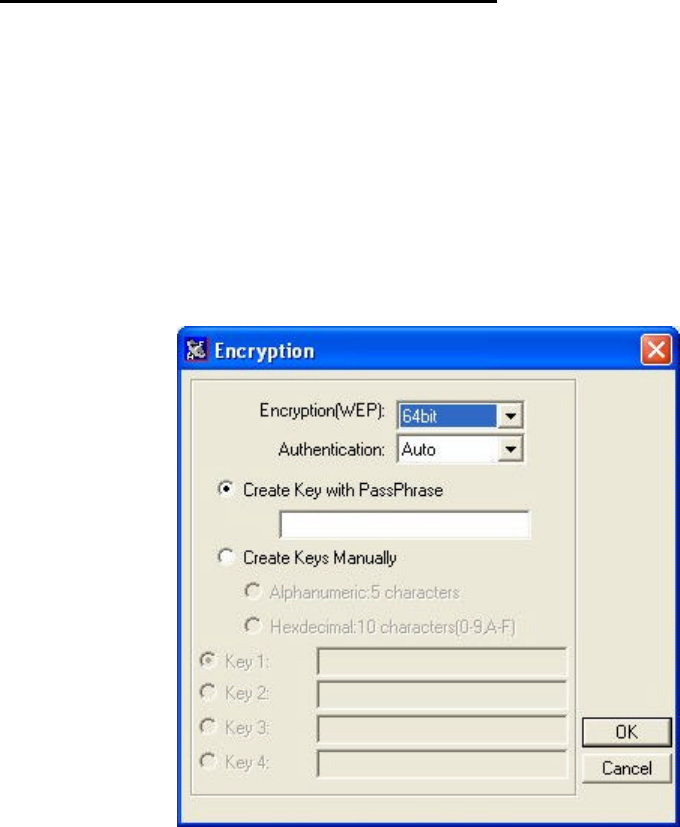

page 24 for encryption configuration.)
-3-

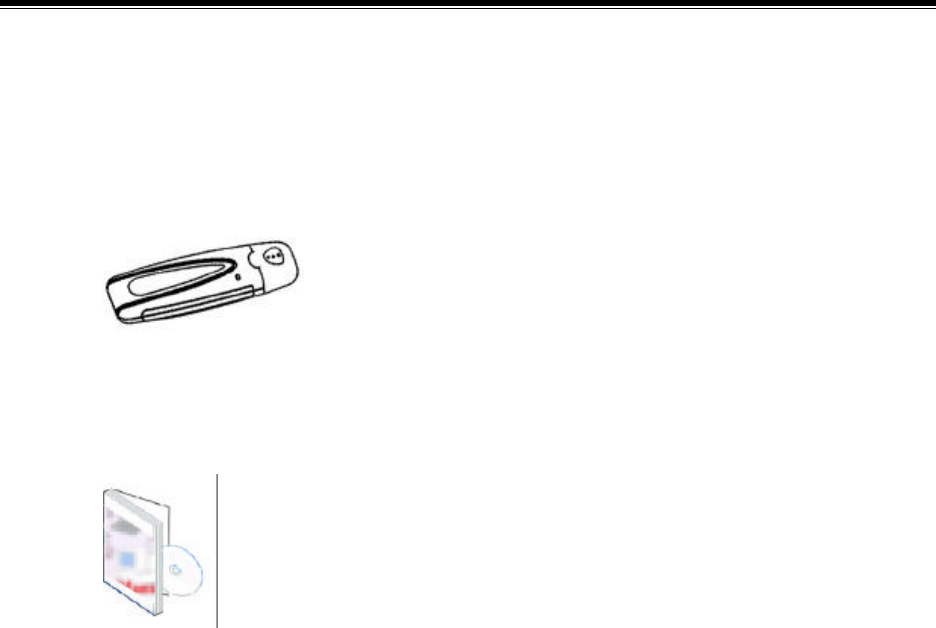

1-3 Product Kit
IEEE 802.11g Wireless LAN USB card comes with the following items. Please go through each item
below. If any of listed items appears to be damaged or missing, please contact your local dealer.
IEEE 802.11g Wireless LAN USB card
l IEEE 802.11g Wireless LAN USB card………………….…………………….… .… x 1
l USB Cable…………………………………………………………………………… x1
l USB card Software and Documentation CD…………………………..……..…..… .. x 1
l USB card Quick Start Guide……..…………………..……………………………….x 1
-4-

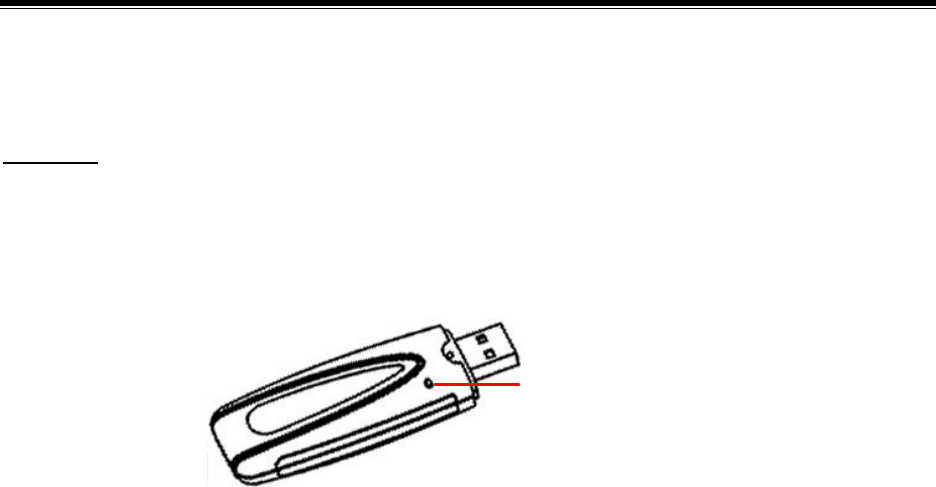

1-4 About IEEE 802.11g Wireless LAN USB card LED
Indicators
The IEEE 802.11g Wireless LAN USB card has one LED indicators. The behavior of the indicators is
described as below:
Link LED
n Solid Green – Connecting to the Access Point or Ad-Hoc wireless workstation and transmitting
data.
n Blinking Green – Before connecting to the Access Point or Ad-Hoc wireless workstation.
Link
-5-
Getting Started 2
This chapter describes the instructions that guide you through the proper installation of your IEEE
802.11g Wireless LAN USB card for the Windows XP/2000/ME/98SE operating systems.
The complete installation of the IEEE 802.11g Wireless LAN USB card consists of the following steps:
STEP 1: Insert your IEEE 802.11g Wireless LAN USB card into your notebook.
STEP 2: Install the corresponding driver and utility.
STEP 3: Set basic settings.
STEP 4: Finish Installation.
2-1 Before Installation
In addition to the items shipped with the client adapter, you will also need the following in order to
install the adapter:
1. A computer equipped with a USB slot, and a USB card and socket services compliant with
revision 1.1 and 2.0 of the USB specification.
2. Windows XP/2000/98SE/ME (with a Windows installation CD-ROM, diskettes for use during
installation)
3. Minimum 5 Mbps free disk space for installing driver and utility program.
-6-
2-2 Insert the IEEE 802.11g Wireless LAN USB card
To install the IEEE 802.11g Wireless LAN USB card, please do the following:
1. Find an available USB slot on your computer.
2. Insert the IEEE 802.11g Wireless LAN USB card, with its label facing up, into the USB slot on
your computer.
CAUTION: Do not force the client adapter into the slot. Forcing it will damage both
the client adapter and the slot. If the client adapter does not go in easily, remove the
card and reinsert it.
-7-
Install Driver for Windows 3
This section describes the installation of the IEEE 802.11g Wireless LAN USB card driver for the
Windows 98SE/ME/2000 and Windows XP operating systems. The installation procedures for
Windows XP refer to 3-1 Set up IEEE 802.11g Wireless LAN USB card for Windows XP; for
Windows 2000 please see 3-2 Set up IEEE 802.11g Wireless LAN USB card for Windows 2000;
for Windows 98SE/ME refer to 3-3 Set up IEEE 802.11g Wireless LAN USB card for Windows
98SE/ME.
Note: Before you start the installation, you are advised to keep the Windows CD-ROM
in case you might need certain system files.
3-1 Set up IEEE 802.11g Wireless LAN USB card for Windows XP

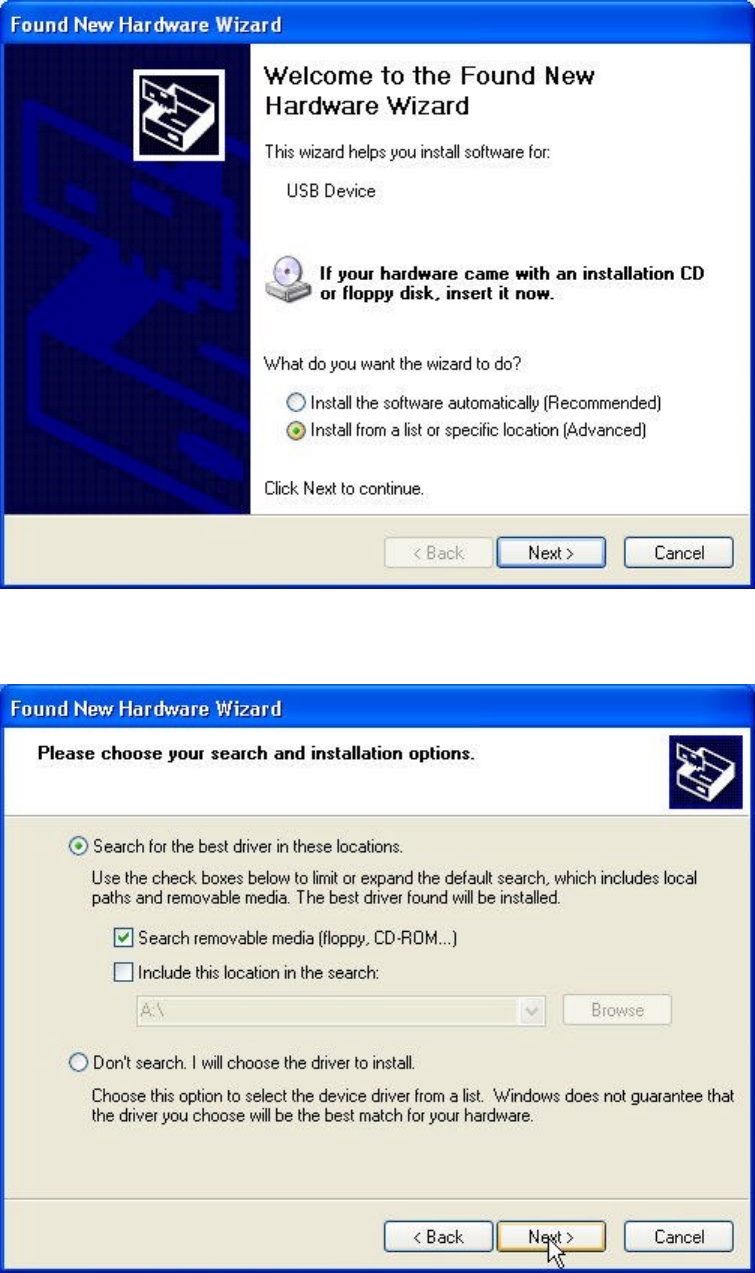

Step 1: After inserting the IEEE 802.11g Wireless LAN USB card into the USB slot on your
notebook, the Windows will auto-detect the IEEE 802.11g Wireless LAN USB card and a “Found
New Hardware Wizard” window will show up. Select “Install from a list or specific
(Advanced)” to install the driver.
-8-

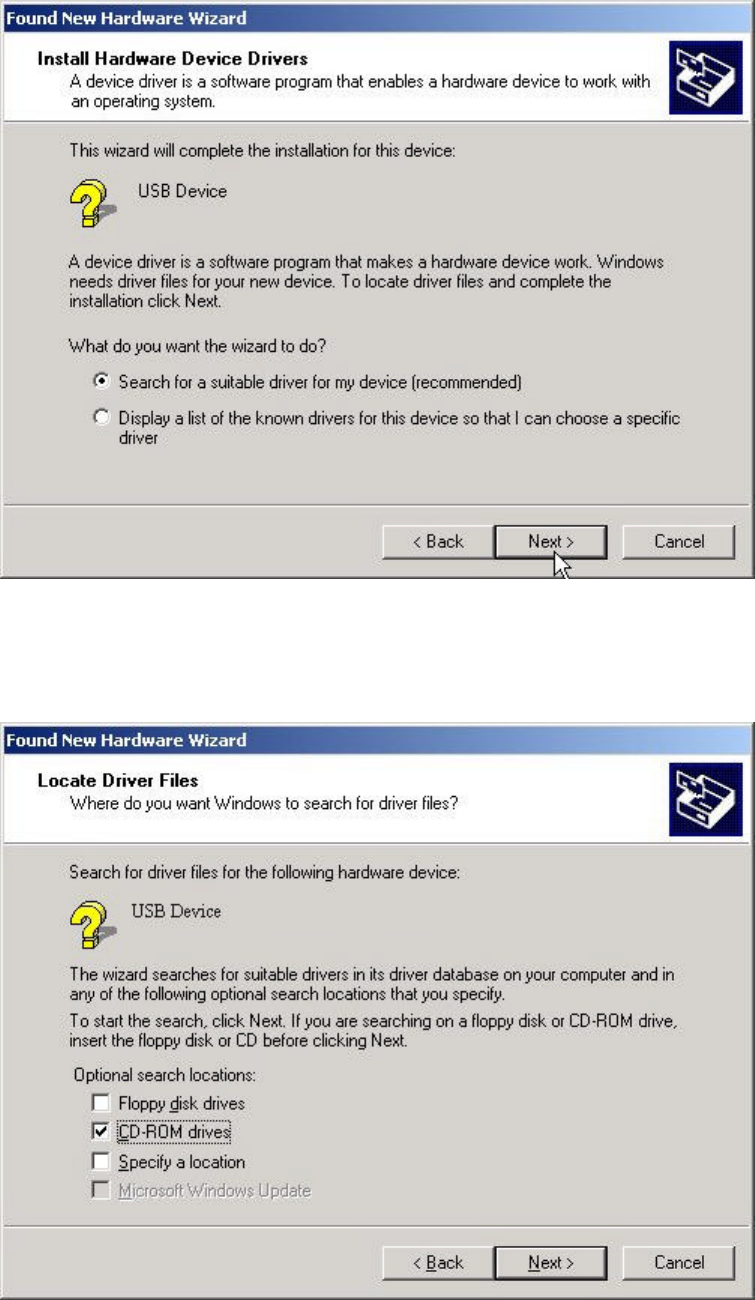

Step 2: Insert the Product CD-ROM into the CD-ROM drive. Check the “Search removable
media (floppy, CD-ROM…)” check box and click on Next to install the driver.
-9-

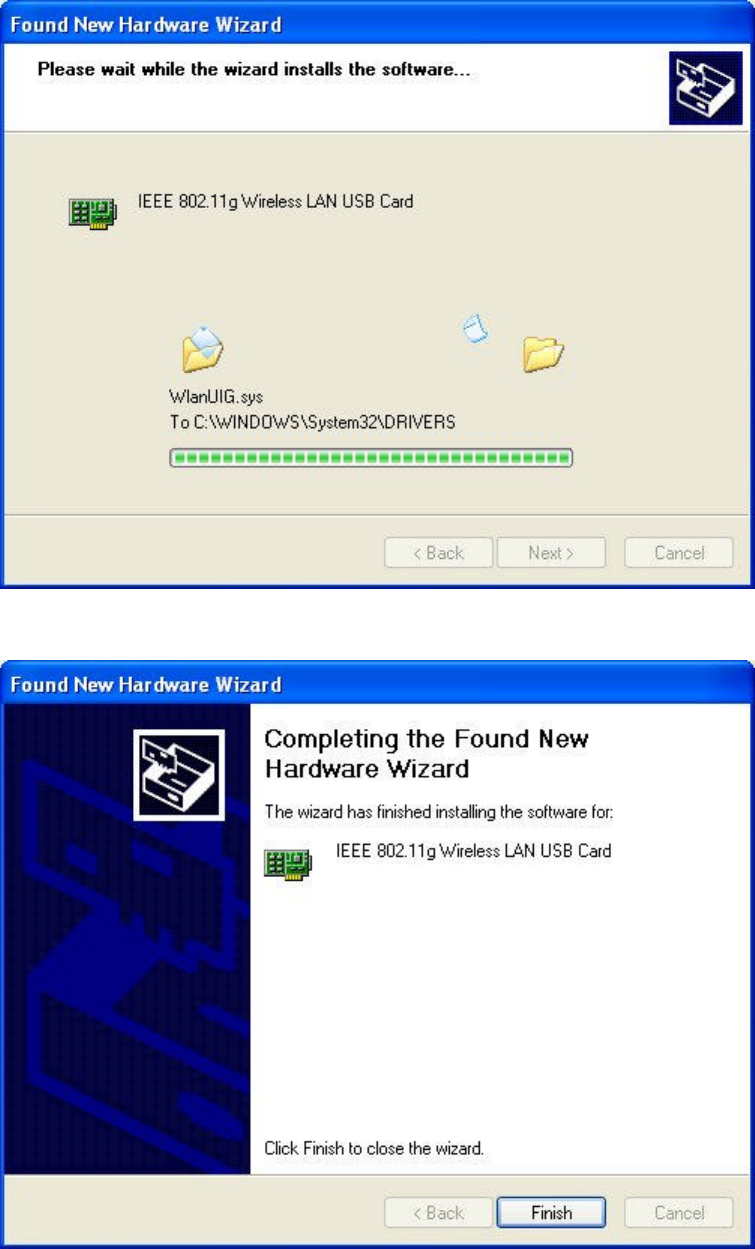

Step 3: The windows will find “IEEE 802.11g Wireless LAN USB card” and start copying
corresponding files into the system. Click on Next to continue.
Step 4: Click Finish to complete the installation.
-10-
Step 5: Right click “My Computer” from Start, select Properties, go to the Hardware tab and
click the Device Manager button to see if any exclamation mark appears next to the Network
Adapter/IEEE 802.11g Wireless LAN USB card. If no, your IEEE 802.11g Wireless LAN USB
card is working well.
After installing the IEEE 802.11g Wireless LAN USB card, the Windows XP will display a “Wireless
Network Connection # ” message.
Click on the message and the “Automatic Wireless Network Configuration will then appear
automatically. You may click on Connect button to allow users to connect to an available wireless
infrastructure network (Access Point). You may also click the Advanced button to make advanced
configuration for the Wireless LAN PC Card, shown as below.
Check if there is exclamation
mark next to the Wireless LAN
USB Card
-11-
For more information on using the automatic wireless network configuration please refer to Windows
XP Help file.

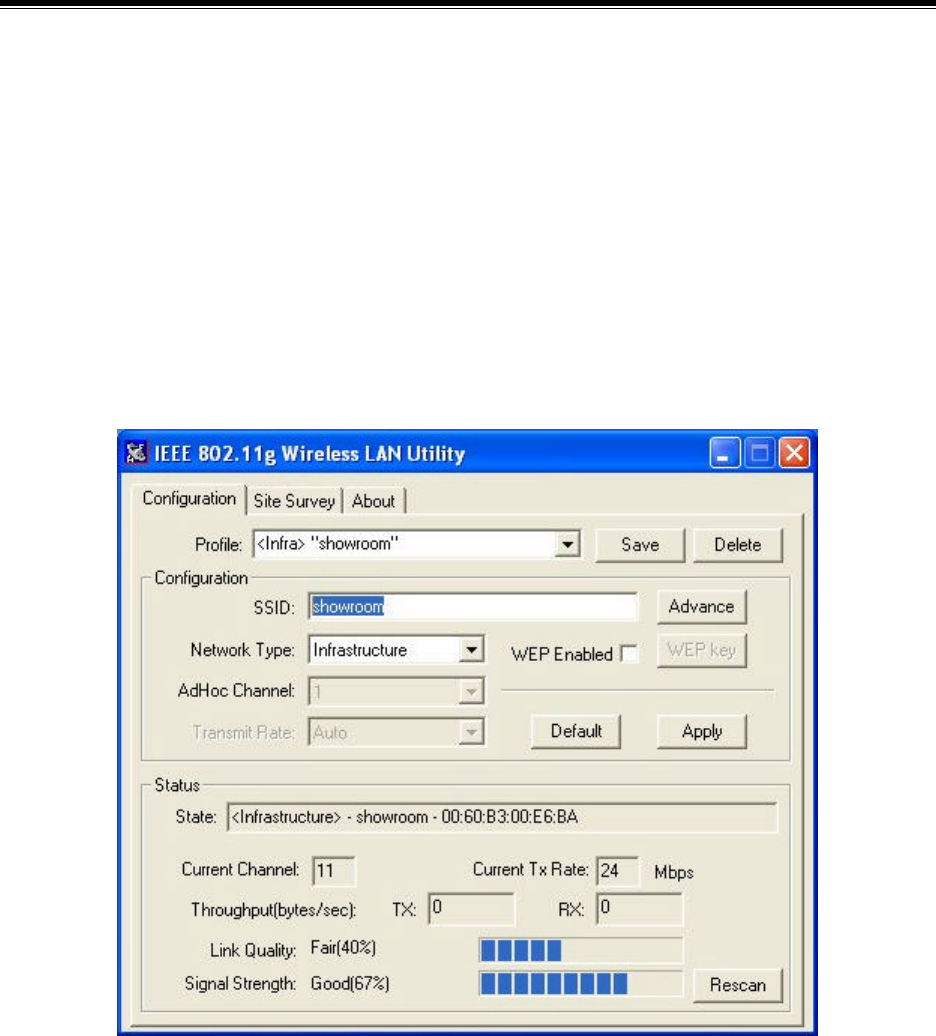

However, the WLAN Utility, which comes with the IEEE 802.11g Wireless LAN USB card, provides
you more tools to configure the IEEE 802.11g Wireless LAN USB card and monitor the wireless
connection. For more information on installing and using the WLAN utility, please refer to the
following sections “Installation of the WLAN Utility” and “Usage of the WLAN Utility”.
Warning: You must choose one
way to configure Wireless LAN
PC Card either of using our
WLAN Utility by un-checking
this check box or using
Windows XP
Automatic Wireless
Network Configuration first by
checking this check box.
-12-
Note: To use the WLAN utility under Windows XP, you need to disable the
Automatic Wireless Network Configuration first. Steps are described as follows:
n Right click the Network Connections icon. Select Properties.
n Go to the Wireless Networks tab.
n Uncheck the “Use Windows to configure my wireless network settings”
check box and click the OK button (see the above picture).
-13-
3-2 Set up IEEE 802.11g Wireless LAN USB card for Windows
2000

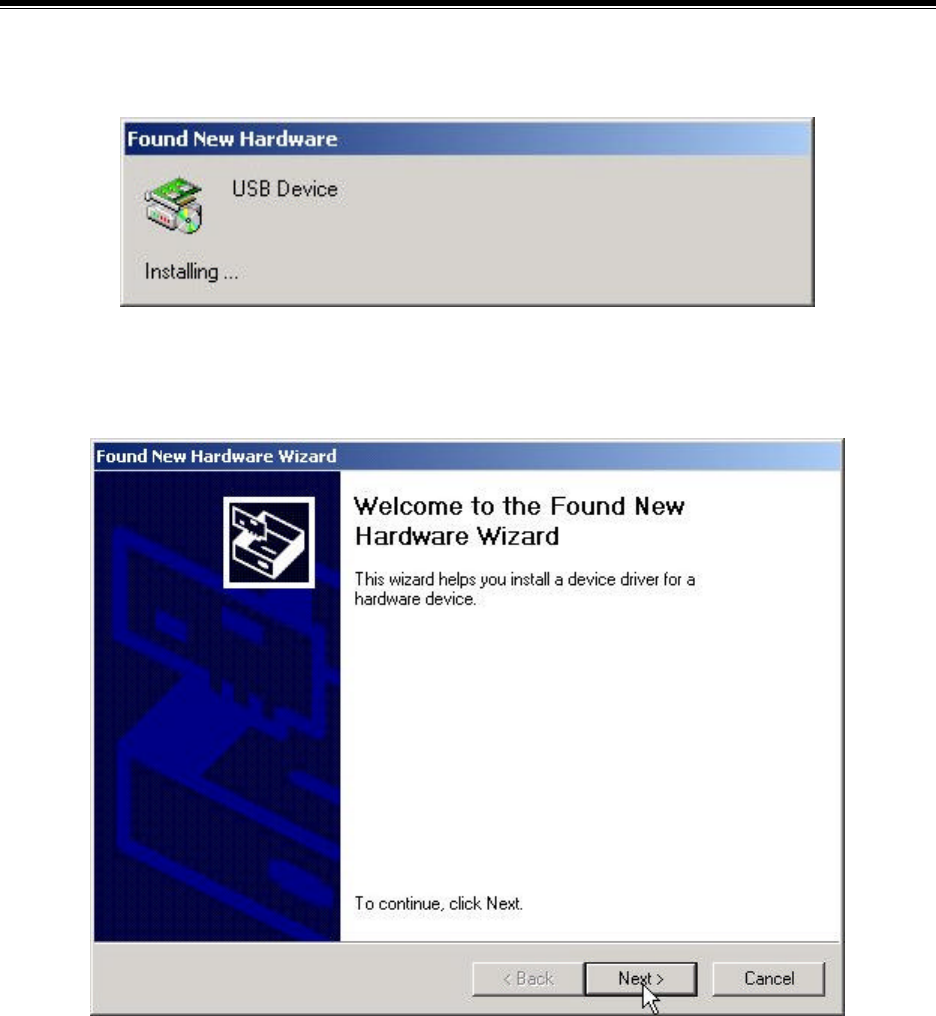

Step 1: After inserting the IEEE 802.11g Wireless LAN USB card into the USB slot on your
computer, Windows will auto-detect the IEEE 802.11g Wireless LAN USB card.
Step 2: A “Found New Hardware Wizard” window shows up. Click Next to proceed.
-14-
Step 3: Select “Search for a suitable driver for my device (recommended)”.
Step 4: Insert the Product CD-ROM into the CD-ROM drive. Specify the location where the
driver is placed. Click on Next to install the driver.
-15-

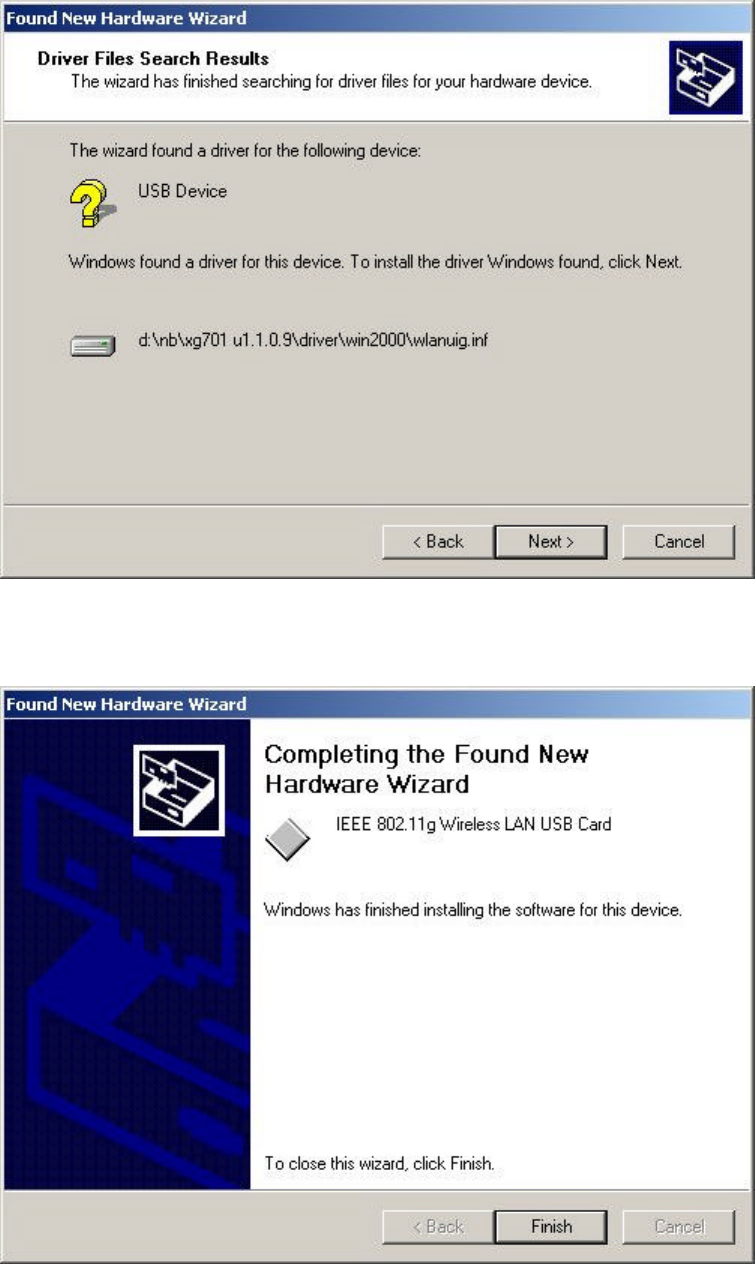

Step 5: The windows will find “USB Device”. Click on Next to continue.
Step 6: Click Finish to complete the installation.
-16-
Step 7: Open Control Panel/System/Device Manager, and check Network Adapters to see if
exclamation mark appears. If no, your IEEE 802.11g Wireless LAN USB card is working well.
3-3 Set up IEEE 802.11g Wireless LAN USB card for Windows
98SE/ ME

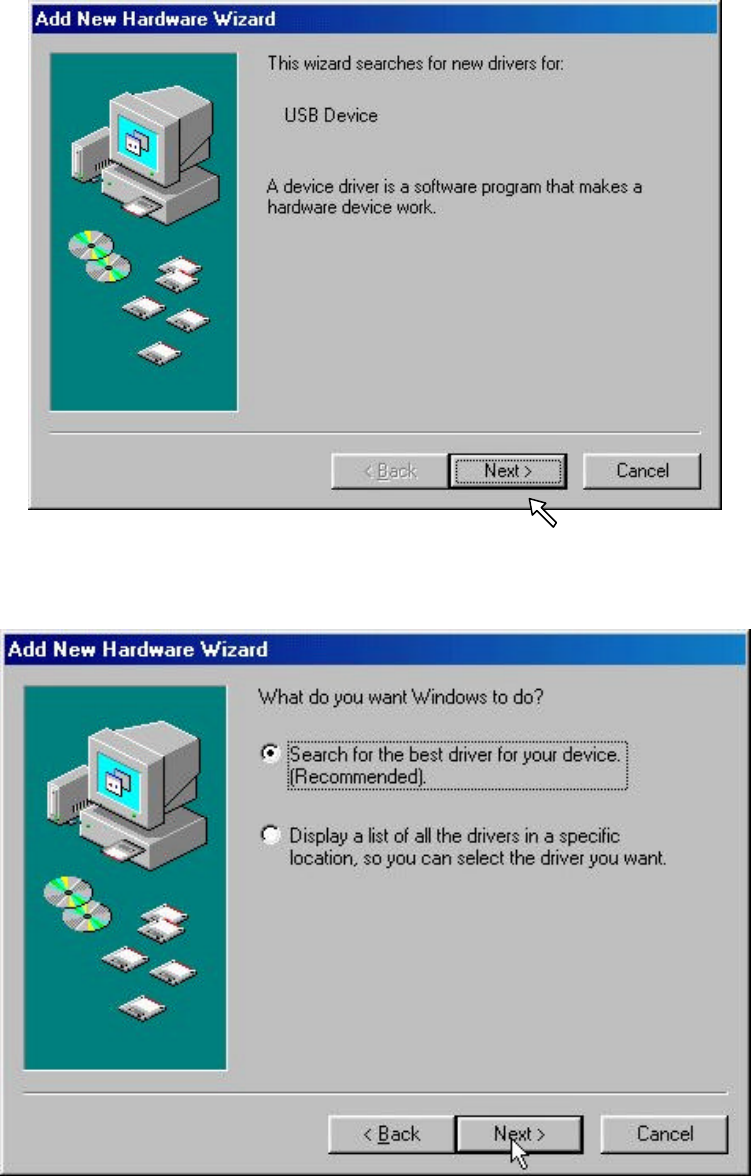

Step 1: After inserting the IEEE 802.11g Wireless LAN USB card into the USB slot on your
computer, Windows will auto-detect new hardware and will display an “Add New Hardware
Wizard” window. Click Next to continue.
Check if there is exclamation
mark next to the Wireless
LAN USB Card
-17-
Step 2: Select “Search for the best driver for your device (Recommended)” and click Next to
proceed.
-18-

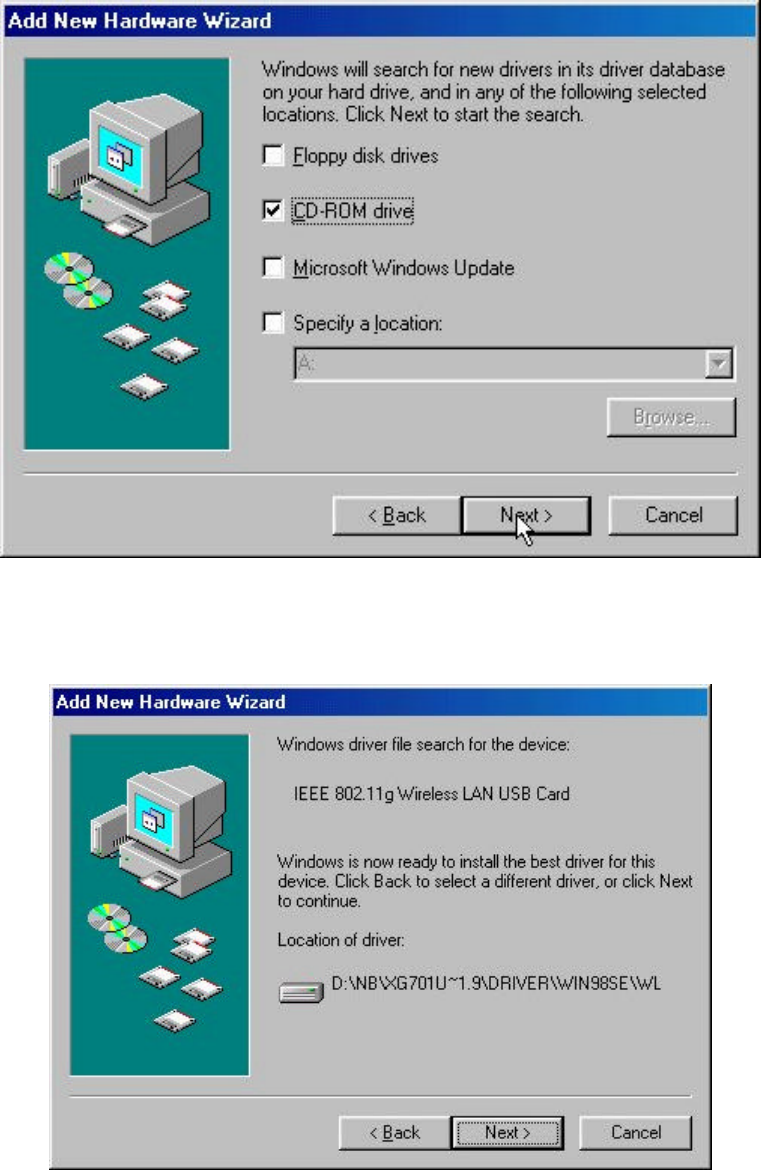

Step 3: Insert the Product CD-ROM into the CD-ROM drive. Select the “CD-ROM drive”
check box and click on Next to install the driver.
Step 4: The Windows will find “IEEE 802.11g Wireless LAN USB card”. Click Next to
continue.
-19-

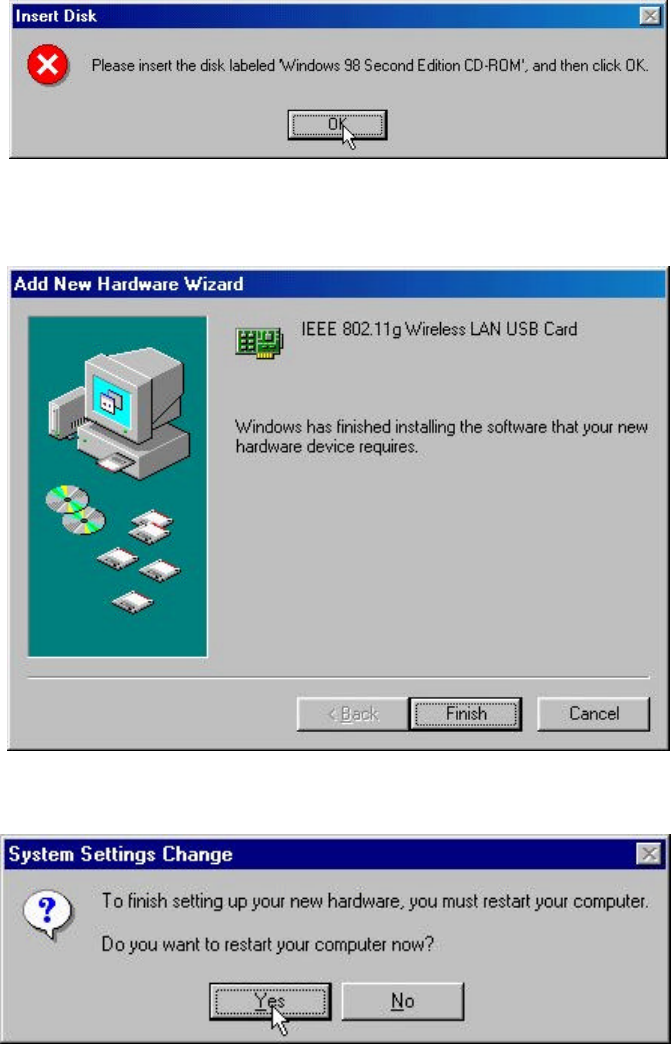

Step 5: Once the [Please insert the disk labeled “Windows 98SE/ME CD-ROM”, and
then click OK] window appears, enter the path corresponding to the appropriate drives and click OK.
Usually these files can be found at C:Windows or C:Windows\system.
Step 6: Click Finish to complete the software installation.
Step 7: Restart the computer.
-20-
Step 8: Open Control Panel/System/Device Manager, and check Network Adapters to see if
exclamation mark appears next to the IEEE 802.11 IEEE 802.11g Wireless LAN USB card. If no,
your IEEE 802.11g Wireless LAN USB card is working well.
Check if there is
exclamation mark next
to the Wireless LAN USB
Card
-21-
Configure the IEEE 802.11g Wireless LAN USB card 4
This chapter gives you assistance with detailed configuration for the IEEE 802.11g Wireless LAN USB
card under Windows XP/2000/98SE/ME.
4-1 Install the WLAN Utility
To install the WLAN Utility, follow these steps:
Step 1: Insert the Product CD-ROM.
Step 2: Go to the utility folder and run setup.exe.
Step 3: The InstallShield Wizard will show up and guide you through the rest of the setup process.
Run the Setup
Utility
Choose Destination
Location and click
Next to continue.
-22-
Select a program
folder and click
Next.
You may add a
shortcut in the
startup folder as
desired.
Upon completion, go to Program Files and run the WLAN Utility and its icon will appear in the
System Tray in the bottom right corner of your task bar. Clicking on the icon will open the
configuration window. When you minimize the window, the system tray icon will be loaded in the
System Tray again.
The color behind the system tray icon indicates the link status:
Blue indicates a good or excellent link.
Yellow indicates a usable but weak link.
Red indicates no or very poor link quality. When you minimize the window, the system tray
icon will be loaded in the System Tray again.
-23-
4-2 Use the WLAN Utility
The WLAN Utility enables you to make configuration changes and perform user-level diagnostics on
your IEEE 802.11g Wireless LAN USB card in the Windows XP/2000/98SE/ME operating system
environments. The WLAN Utility consists of window with 5 items for you to monitor and configure
the IEEE 802.11g Wireless LAN USB card: Configuration, Site Survey, and About.
Configuration:
The Configuration item allows you to modify the configuration parameters for the IEEE 802.11g
Wireless LAN USB card such as Profile, Network Type, Ad-Hoc Channel, Transmit Rate
(TBD), ESSID, WEP, RTS/CTS, Fragment Threshold, and Power Save mode. Furthermore,
you may monitor the current status of the IEEE 802.11g Wireless LAN USB card such as State,
Current Channel, Current Tx Rate, Throughput, Link Quality and Signal Strength.
-24-
Profile
The Profile field allows you to set values for all parameters by selecting a previously defined profile. To
create the profile, go to the Profile field, type a profile name and set the corresponding parameters. If
one of the profiles is no longer used, you may remove it by clicking the Delete button. After changing
parameters, save the profile and click the Apply button to take effect. You can have multiple profiles
and modify the profile at any time.
Network Type
There are 2 network types for the IEEE 802.11g Wireless LAN USB card to operate. If you need to
access company network or Internet via an Access Point, select “Infrastructure”. To set up a group
of wireless stations for file and printer sharing, select “ AdHoc” (without Access Point). For standard
802.11 AdHoc, the same ESS ID is required to the wireless stations, you may set wireless stations
with the same channel as well.
ESSID
The ESS ID is the unique ID used by Access Points and stations to identify a wireless LAN. Wireless
clients associating to any Access Point must have the same ESSID. The default setting is ANY, which
allows your IEEE 802.11g Wireless LAN USB card to automatically associate to any Access Point
(Infrastructure mode) in the vicinity of your wireless adapter. Alternatively, you may check the ESS ID
check box to specify the ESS ID. It will then attempt to associate with Access Points or stations with
the same ESS ID. The ESS ID can be set up to 32 characters and is case sensitive.
Transmit Rate (TBD)
The IEEE 802.11g Wireless LAN USB card provides various data rate options for you to select.
Data rates options include Fully Auto, 1 or 2 Mb, 5.5 Mb, 11 Mb and up to 54Mb in most
networking scenarios, you will see that the factory-set default “Fully Auto” will prove the most efficient.
This setting will allow your IEEE 802.11g Wireless LAN USB card to operate at the maximum data
rate. When the communications quality drops below a certain level, the PC Card will automatically
switch to a lower data rate. Transmission at lower data speeds are usually more reliable. However,
when the communications quality improves again, the IEEE 802.11g Wireless LAN USB card will
gradually increase the data rate again, until it has reached the highest available transmit rate.
WEP
To prevent unauthorized wireless stations from accessing data transmitted over the network, the
WLAN Utility offers highly secure data encryption, known as WEP, making your data transmission
over air more secure. To activate the WEP Encryption, check the WEP Enabled check box. An
Encryption window will then appear. The instructions are as follows:
Ø Pull down the Encryption (WEP) menu and select either 64bit or 128bit encryption method.
-25-
Ø Specify the encryption keys. There are two methods to set the WEP keys, as described below:
Create Encryption Keys by Using a Passphrase
To create encryption keys by using a passphrase, click the Create Key with Passphrase check
box and type a character string in the Passphrase field. As you type, the utility uses an algorithm
to generate 4 keys automatically. Select either the 64bit or 128bit encryption first, and type a
string in the Create Key with Passphrase field. Select one key from the 4 WEP keys and click
OK. Then click the Apply button on the Configuration tab to make the setting take effect.
Warning: When Create Key with Passphrase is enabled, the wireless device’s Key with
PassPhrase must match the Key with PassPharse used by the access point with which
wireless device is planning to communicate.
Create Encryption Keys Using a Passphrase (128bit)
-26-
Create Encryption Keys Manually
You can also create encryption keys manually by clicking the Create Keys Manually check
box.
For 64bit encryption you may choose:
n Alphanumeric: 5 characters (case sensitive) ranging from “a-z”, “A-Z” and “0-9” (e.g.
MyKey)
n Hexadecimal: 10 hexadecimal digits in the range of “A-F”, “a-f” and “0-9” (e.g.
11AA22BB33)
For 128bit encryption you may choose:
n Alphanumeric: 13 characters (case sensitive) ranging from “a-z”, “A-Z” and “0-9” (e.g.
MyKey12345678)
n Hexadecimal: 26 hexadecimal digits in the range of “A-F”, “a-f” and “0-9” (e.g.
00112233445566778899AABBCC).
After entering the WEP keys in the key field, select one key as active key, click the OK button and
then click the Apply button on the Configuration tab to make the setting take effect.
Warning: The WEP key must be set up exactly the same on the Wireless LAN
stations as they are on the wireless Access Points. If you set “MyKey” for the
Wireless LAN CF Card, the same WEP Key “MyKey” must be assigned to the
Access Point or other stations.
Note: Different factories would have some different WEP setting. Therefore, before
setting access point or PCC WEP, please refer to manual respectively.
-27-
Advance
The WLAN Utility also offers the advanced configuration for user to set the IEEE 802.11g Wireless
LAN USB card under certain network environment. These advanced options include Power
Management, RTS/CTS and Fragmentation Threshold. To enable the advanced configuration, go to
the Configuration tab and click the Advance button.
Power Management
The Power Save option is designed to conserve battery life of you computer. When Power Save is
enabled, your IEEE 802.11g Wireless LAN USB card will go into sleep mode to minimize power
consumption.
Note: When power saving mode is enabled, the Access Points you use need to
support power saving as well so that the communication can be established.
RTS Threshold
RTS Threshold is a mechanism implemented to prevent the “Hidden Node” problem. If the “Hidden
Node” problem is an issue, please specify the packet size. The RTS mechanism will be activated if
the data size exceeds the value you set. It is highly recommended that you set the value ranging
from 0 to 1500. The default value is Disable.
Note: Enabling RTS Threshold would cause redundant network overhead that could
negatively affect the throughput performance instead of providing a remedy.
-28-
Frag. Threshold
Fragmentation mechanism is used for improving the efficiency when high traffic flows along in the
wireless network. If your IEEE 802.11g Wireless LAN USB card often transmit large files in
wireless network, you can enable the Fragmentation Threshold by clicking the Enable button and
the mechanism will split the packet. The value can be set from 256 to 2432. The default value is
Disable.
Nitro time
This technology delivers throughput enhancement in both mixed and g-only networks. By
introducing Intersil’s packet bursting technology, administrators can easily enrich network
performance and stability with higher speeds. 650 is a default value. By increasing the value, the
IEEE 802.11g Wireless LAN USB card will be able to logically consume more bandwidth than
legacy 11b product does.
Status:
The Status field on the Configuration menu provides the following information.
State: When operating in Infrastructure mode, this field shows the MAC address of the Access Point
with which the IEEE 802.11g Wireless LAN USB card is communicating. When operating in
Ad-Hoc mode, it shows the virtual MAC address used by computers participating in the Ad-Hoc
network.
Current Channel: Shows the channel on which the connection is made.
Current Tx Rate: Shows the highest transmit rate of the current association.
Throughput: Shows the short term transmit and receive throughput in bytes/second, and is
continuously updated.
Link Quality: Based on the quality of the received signal of the Access Point beacon. There are 5
states of link quality:
100%~80%: Excellent link.
80%~60%: Good link quality.
60%~40%: Fair link quality.
Under 40%: Poor or no connection.
Signal Strength: Based on the received signal strength measurement of the baseband processor of the
Beacon signal. Same as link quality, there are 5 states of signal strength:
100%~80%: Excellent signal strength.
80%~60%: Good signal strength.
60%~40%: Fair signal strength.
Under 40%: Poor or no signal strength.
-29-
You can click the Rescan button to force the radio to rescan all available channels. If your link
quality or signal strength is poor, rescanning can be used to push the radio off a weak Access Point and
search for a better link with another Access Point.
Site Survey:
By clicking the Rescan button, the AP Browser can display Access Points around the working
environment. Besides showing the ESSID of each Access Point, it also displays BSSID, Channel,
Capability, Signal, and Rates. To join any of the displayed Access Points, highlight the Access Point
you desire to connect and then click the Join button to associate to the AP.
About:
The About item shows the versions of the Wireless LAN Utility, driver, firmware of the IEEE 802.11g
Wireless LAN USB card. Also, the MAC address and frequency domain are displayed.
-30-
-31-
Limited Warranty
This Warranty constitutes the sole and exclusive remedy of any buyer or reseller’s equipment and the
sole and exclusive liability of the supplier in connection with the products and is in lieu of all other
warranties, express, implied or statutory, including, but not limited to, any implied warranty of
merchantability of fitness for a particular use and all other obligations or liabilities of the supplier.
In no even will the supplier or any other party or person be liable to your or anyone else for any
damages, including lost profits, lost savings or other incidental or consequential damages, or inability to
use the software provided on the software media even if the supplier or the other party person has been
advised of the possibility of such damages.
The following are special terms applicable to your hardware warranty as well as services you may use
during part of the warranty period. Your formal Warranty Statement, including the warranty
applicable to our Wireless LAN products, appears in the Quick Installation Guide which accompanies
your products.
Duration of Hardware Warranty: One Year
Replacement, Repair or Refund Procedure for Hardware:
If your unit needs a repair or replacement, return it to your dealer/distributor in its original packaging.
When returning a defective product for Warranty, always include the following documents:
n The Warranty Repair Card
n A copy of the invoice/proof of purchase, and
n The RMA Report Form (To receive a Return Materials Authorization form (RMA), please
contact the party from whom you purchased the product).
Upon proof-of-purchase we shall, at its option, repair or replace the defective item at no cost to the
buyer.
This warranty is contingent upon proper use in the application for which the products are intended and
does not cover products which have been modified without the reseller’s approval or which have been
subjected to unusual physical or electrical demands or damaged in any way.
-32-
Please complete the information below and include it along with your products.
Name:
Title:
Company:
Telephone:
Fax:
Email:
City/State/Zipcode:
Country:
Product Name:
Serial Number:
MAC Address:
Invoice Date:
Product Description:
If you have any further questions, please contact your local authorized reseller for support.
