Z Com ZAC10235 IEEE 802.11 a/n Wireless Indoor CPE User Manual Revised 2

Z Com Inc IEEE 802.11 a/n Wireless Indoor CPE Revised 2

User Manual Revised 2

      IEEE 802.11b/g/n Wireless CPE/ IEEE 802.11a/n Wireless CPE User’s Manual Model name: ZAC-1023-2 / ZAC-1023-5 ZAC-503 / ZAC-504 ZWA-3090 / ZWA-3100 ZN-7200-2EI-O / ZN-7200-2AEI-O  V1.0 May. 2014

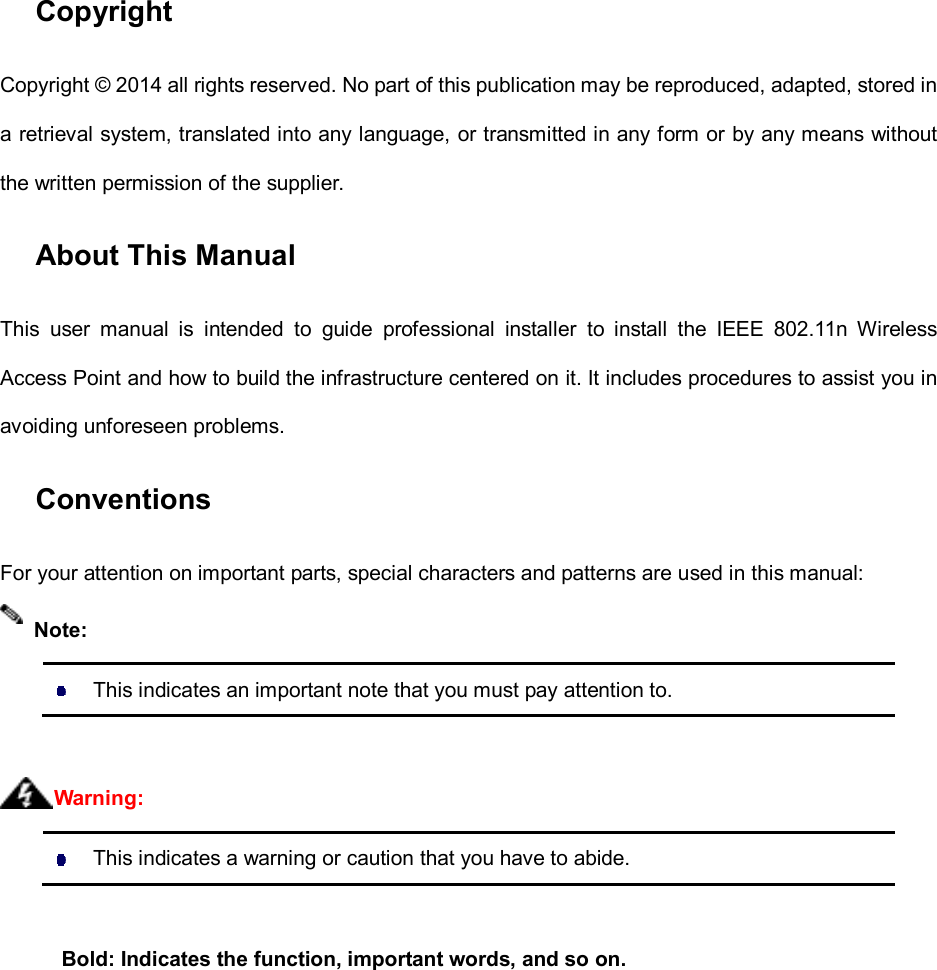

  Copyright Copyright © 2014 all rights reserved. No part of this publication may be reproduced, adapted, stored in a retrieval system, translated into any language, or transmitted in any form or by any means without the written permission of the supplier. About This Manual This  user  manual  is  intended  to  guide  professional  installer  to  install  the  IEEE  802.11n  Wireless Access Point and how to build the infrastructure centered on it. It includes procedures to assist you in avoiding unforeseen problems. Conventions For your attention on important parts, special characters and patterns are used in this manual:    This indicates an important note that you must pay attention to.     This indicates a warning or caution that you have to abide.  Bold: Indicates the function, important words, and so on.Warning: Note:
  Federal Communication Commission Interference Statement This  equipment  has  been  tested  and  found  to  comply  with  the  limits  for  a  Class  B  digital  device, pursuant  to Part 15 of the FCC Rules.    These limits are  designed to provide reasonable protection against  harmful  interference  in  a  residential  installation.    This  equipment  generates  uses  and  can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause  harmful  interference  to  radio  communications.    However,  there  is  no  guarantee  that interference  will  not  occur  in  a  particular  installation.    If  this  equipment  does  cause  harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  -  Reorient or relocate the receiving antenna. -  Increase the separation between the equipment and receiver. -  Connect  the  equipment  into  an  outlet  on  a  circuit  different  from  that  to  which  the  receiver  is connected. -  Consult the dealer or an experienced radio/TV technician for help. -  Verify that the ambient temperature remains between 0 to 40° C, taking into account the elevated temperatures when installed in a rack or enclosed space. -  Verify the integrity of the electrical ground before installing the device.  This  device  complies  with  Part  15  of  the  FCC  Rules.  Operation  is  subject  to  the  following  two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  FCC  Caution:  Any  changes  or  modifications  not  expressly  approved  by  the  party  responsible  for compliance could void the user's authority to operate this equipment. This transmitter is restricted to indoor use only within the 5.15-5.25GHz and 5.470-5.725GHz bands.
  FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.   To avoid the possibility of exceeding radio frequency exposure limits, you shall beep a distance of at least 100cm between you and the antenna of the installed equipment.    This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.  The  availability  of  some  specific  channels  and/or  operational  frequency  bands  are  country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.  根據低功率電波輻射性電機管理辦法 (1) 經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 (2) 低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應立即停用,並改善至無干擾時方得繼續使用。  前項合法通信,指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
  Warranty Hardware warranty is for one (1) year from date of shipment from Distributor warrants that hardware will conform to the current relevant published specifications and will be free from material defects in material and workmanship under normal use and service.    IN  NO  EVENT  SHALL DISTRIBUTOR  BE  LIABLE TO  YOU OR  ANY  OTHER  PARTY FOR  ANY DIRECT,  INDIRECT,  GENERAL,  SPECIAL,  INCIDENTAL,  CONSEQUENTIAL,  EXEMPLARY  OR OTHER DAMAGE RISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT (INCLUDING, WITHOUT  LIMITATION,  DAMAGES  FOR  LOSS  OF  BUSINESS  PROFITS,  BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION OR ANY OTHER PECUNIARY LOSS, OR FROM  ANY  BREACH  OF  WARRANTY,  EVEN  IF DISTRIBUTOR  HAS  BEEN  ADVISED  OF  THE POSSIBILITY OF SUCH DAMAGES.      IN NO CASE  SHALL EXCEED THE AMOUNT YOU PAID FOR THE PRODUCT.  本器材須經專業工程人員安裝及設定,始得設置使用,且不得直接販售給一般消費者

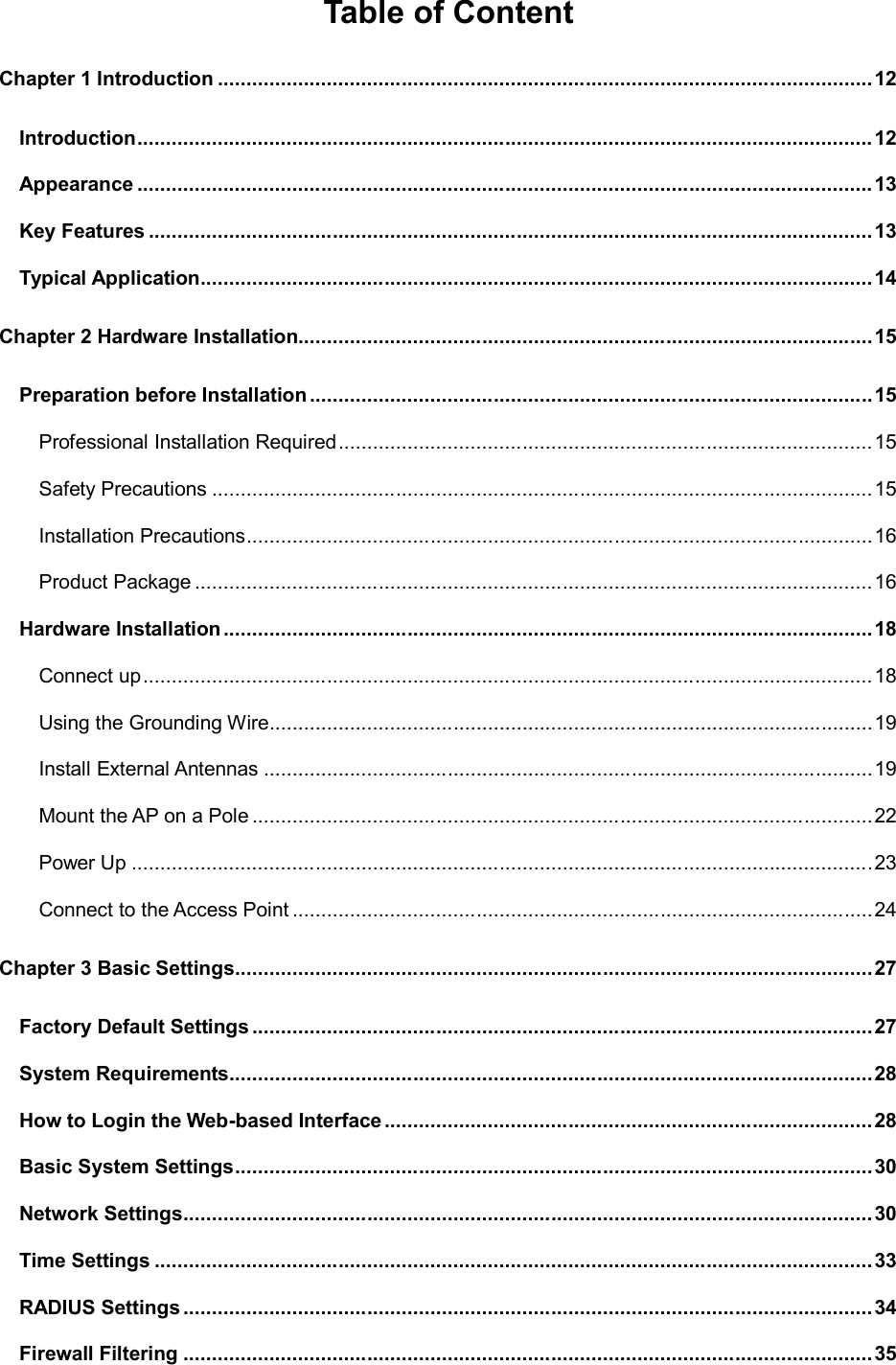

  Table of Content Chapter 1 Introduction .................................................................................................................. 12 Introduction ................................................................................................................................ 12 Appearance ................................................................................................................................ 13 Key Features .............................................................................................................................. 13 Typical Application ..................................................................................................................... 14 Chapter 2 Hardware Installation.................................................................................................... 15 Preparation before Installation .................................................................................................. 15 Professional Installation Required ............................................................................................. 15 Safety Precautions ................................................................................................................... 15 Installation Precautions ............................................................................................................. 16 Product Package ...................................................................................................................... 16 Hardware Installation ................................................................................................................. 18 Connect up ............................................................................................................................... 18 Using the Grounding Wire ......................................................................................................... 19 Install External Antennas .......................................................................................................... 19 Mount the AP on a Pole ............................................................................................................ 22 Power Up ................................................................................................................................. 23 Connect to the Access Point ..................................................................................................... 24 Chapter 3 Basic Settings ............................................................................................................... 27 Factory Default Settings ............................................................................................................ 27 System Requirements ................................................................................................................ 28 How to Login the Web-based Interface ..................................................................................... 28 Basic System Settings ............................................................................................................... 30 Network Settings ........................................................................................................................ 30 Time Settings ............................................................................................................................. 33 RADIUS Settings ........................................................................................................................ 34 Firewall Filtering ........................................................................................................................ 35

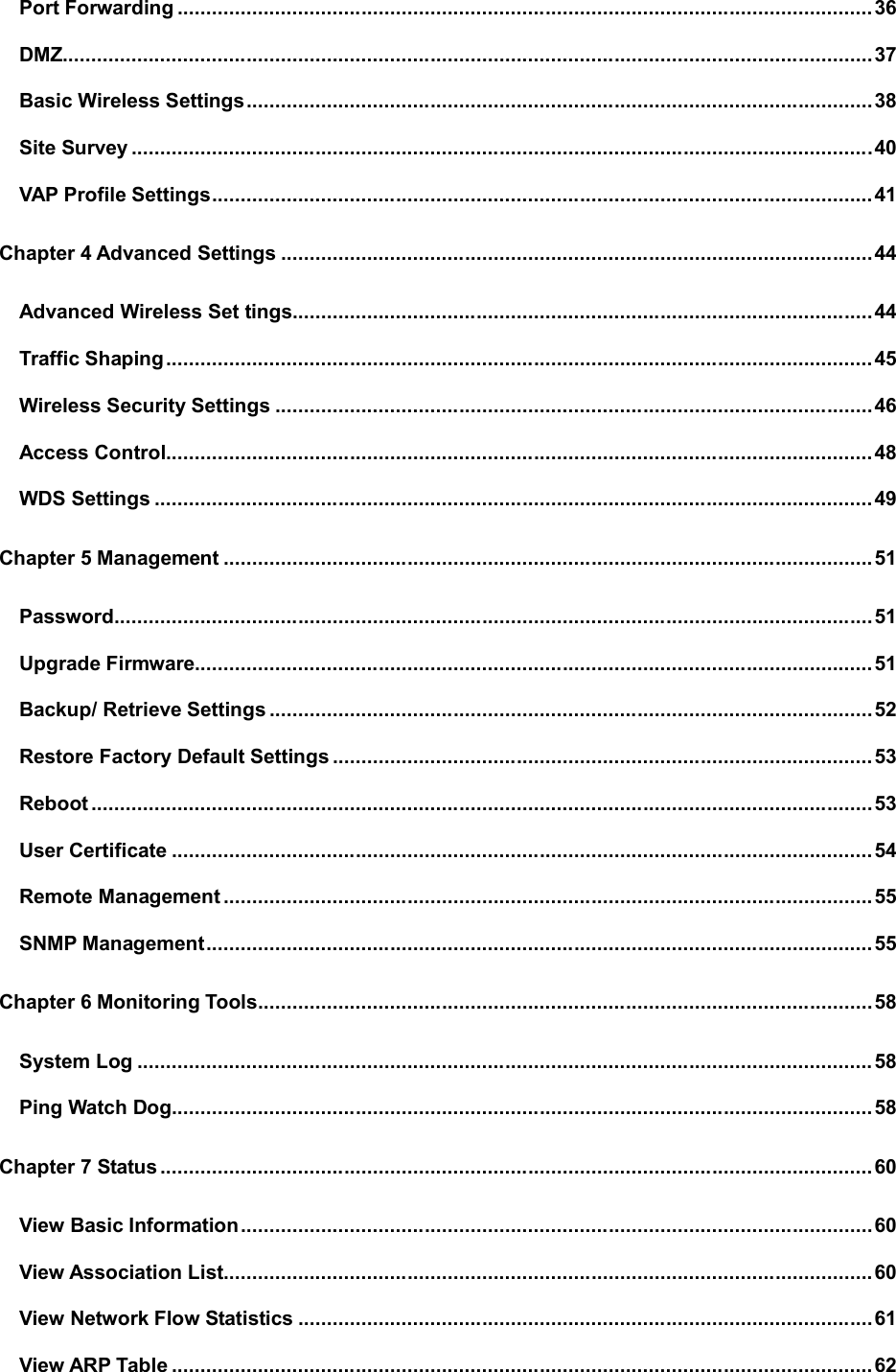

  Port Forwarding ......................................................................................................................... 36 DMZ............................................................................................................................................. 37 Basic Wireless Settings ............................................................................................................. 38 Site Survey ................................................................................................................................. 40 VAP Profile Settings ................................................................................................................... 41 Chapter 4 Advanced Settings ....................................................................................................... 44 Advanced Wireless Set tings ..................................................................................................... 44 Traffic Shaping ........................................................................................................................... 45 Wireless Security Settings ........................................................................................................ 46 Access Control........................................................................................................................... 48 WDS Settings ............................................................................................................................. 49 Chapter 5 Management ................................................................................................................. 51 Password .................................................................................................................................... 51 Upgrade Firmware...................................................................................................................... 51 Backup/ Retrieve Settings ......................................................................................................... 52 Restore Factory Default Settings .............................................................................................. 53 Reboot ........................................................................................................................................ 53 User Certificate .......................................................................................................................... 54 Remote Management ................................................................................................................. 55 SNMP Management .................................................................................................................... 55 Chapter 6 Monitoring Tools ........................................................................................................... 58 System Log ................................................................................................................................ 58 Ping Watch Dog.......................................................................................................................... 58 Chapter 7 Status ............................................................................................................................ 60 View Basic Information .............................................................................................................. 60 View Association List................................................................................................................. 60 View Network Flow Statistics .................................................................................................... 61 View ARP Table .......................................................................................................................... 62

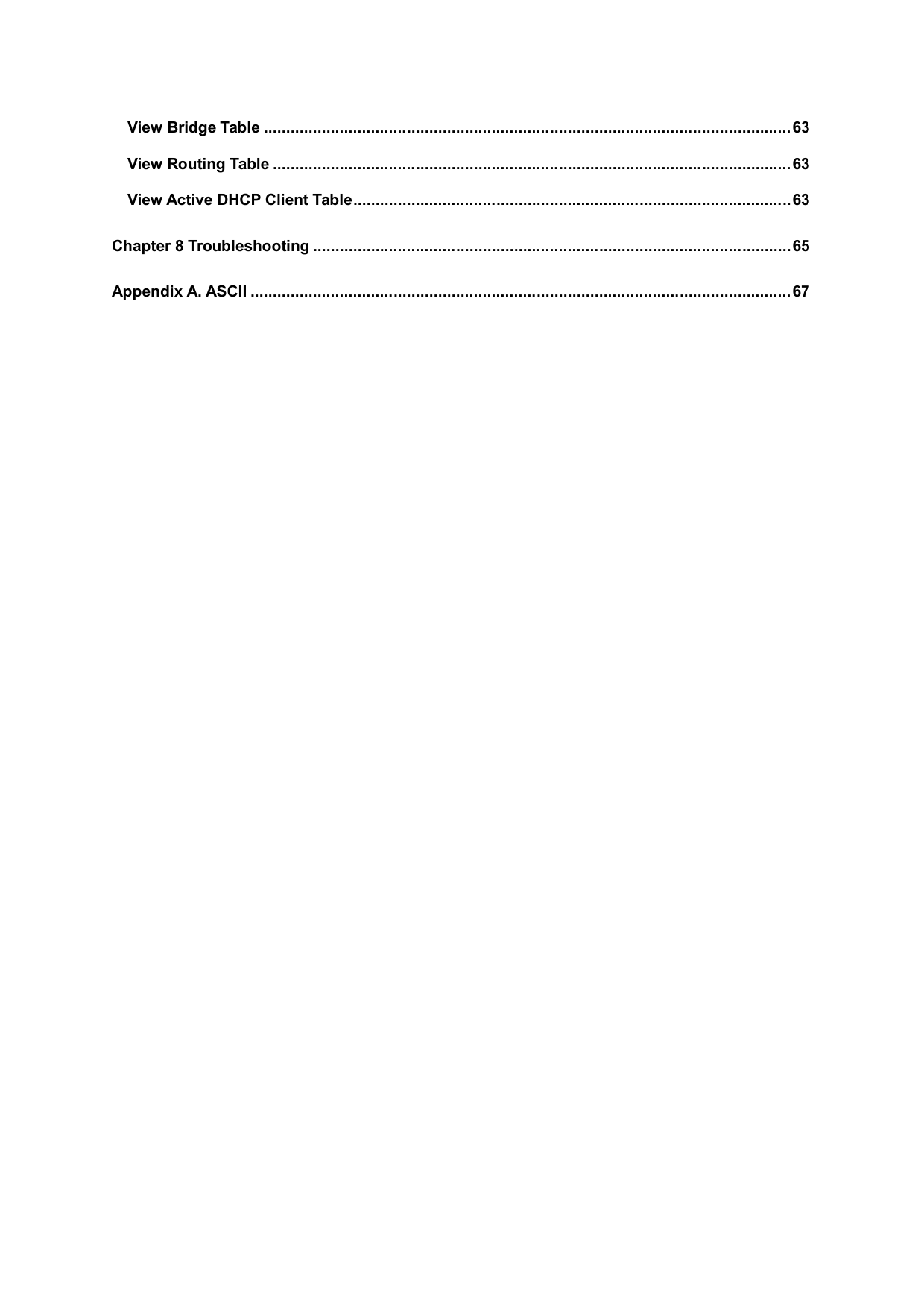

  View Bridge Table ...................................................................................................................... 63 View Routing Table .................................................................................................................... 63 View Active DHCP Client Table .................................................................................................. 63 Chapter 8 Troubleshooting ........................................................................................................... 65 Appendix A. ASCII ......................................................................................................................... 67

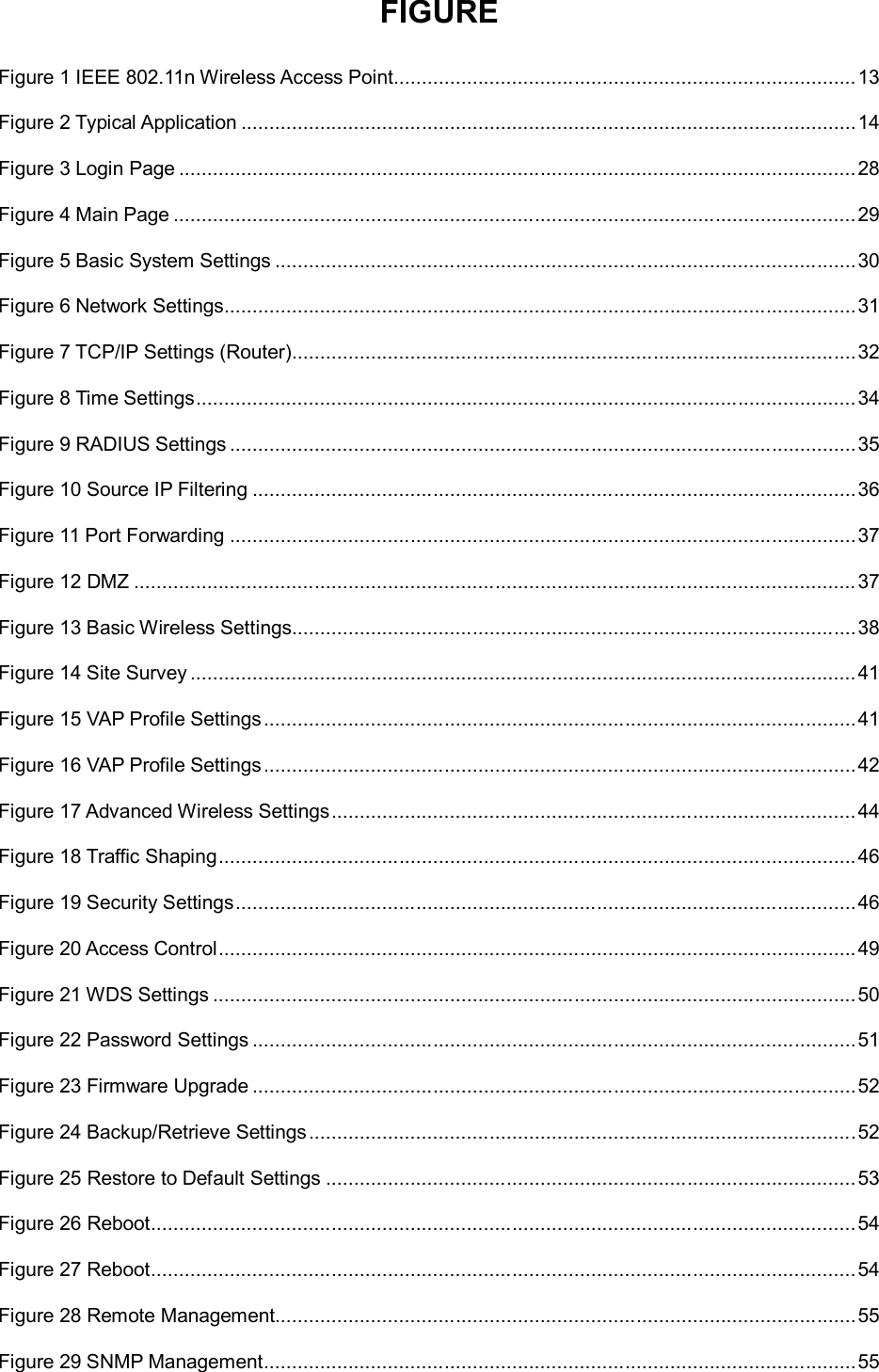

  FIGURE Figure 1 IEEE 802.11n Wireless Access Point.................................................................................. 13 Figure 2 Typical Application ............................................................................................................. 14 Figure 3 Login Page ........................................................................................................................ 28 Figure 4 Main Page ......................................................................................................................... 29 Figure 5 Basic System Settings ....................................................................................................... 30 Figure 6 Network Settings ................................................................................................................ 31 Figure 7 TCP/IP Settings (Router).................................................................................................... 32 Figure 8 Time Settings ..................................................................................................................... 34 Figure 9 RADIUS Settings ............................................................................................................... 35 Figure 10 Source IP Filtering ........................................................................................................... 36 Figure 11 Port Forwarding ............................................................................................................... 37 Figure 12 DMZ ................................................................................................................................ 37 Figure 13 Basic Wireless Settings .................................................................................................... 38 Figure 14 Site Survey ...................................................................................................................... 41 Figure 15 VAP Profile Settings ......................................................................................................... 41 Figure 16 VAP Profile Settings ......................................................................................................... 42 Figure 17 Advanced Wireless Settings ............................................................................................. 44 Figure 18 Traffic Shaping ................................................................................................................. 46 Figure 19 Security Settings .............................................................................................................. 46 Figure 20 Access Control ................................................................................................................. 49 Figure 21 WDS Settings .................................................................................................................. 50 Figure 22 Password Settings ........................................................................................................... 51 Figure 23 Firmware Upgrade ........................................................................................................... 52 Figure 24 Backup/Retrieve Settings ................................................................................................. 52 Figure 25 Restore to Default Settings .............................................................................................. 53 Figure 26 Reboot ............................................................................................................................. 54 Figure 27 Reboot ............................................................................................................................. 54 Figure 28 Remote Management....................................................................................................... 55 Figure 29 SNMP Management ......................................................................................................... 55

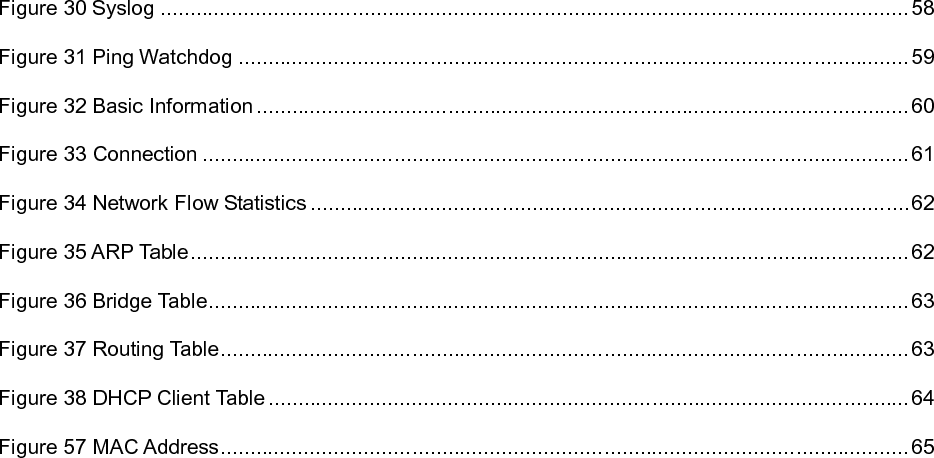

  Figure 30 Syslog ............................................................................................................................. 58 Figure 31 Ping Watchdog ................................................................................................................ 59 Figure 32 Basic Information ............................................................................................................. 60 Figure 33 Connection ...................................................................................................................... 61 Figure 34 Network Flow Statistics .................................................................................................... 62 Figure 35 ARP Table ........................................................................................................................ 62 Figure 36 Bridge Table ..................................................................................................................... 63 Figure 37 Routing Table ................................................................................................................... 63 Figure 38 DHCP Client Table ........................................................................................................... 64 Figure 57 MAC Address ................................................................................................................... 65
  TABLE Table 1 IEEE 802.11n Wireless Access Point Factory Default Settings ............................................. 27 Table 2 ACSII................................................................................................................................... 67

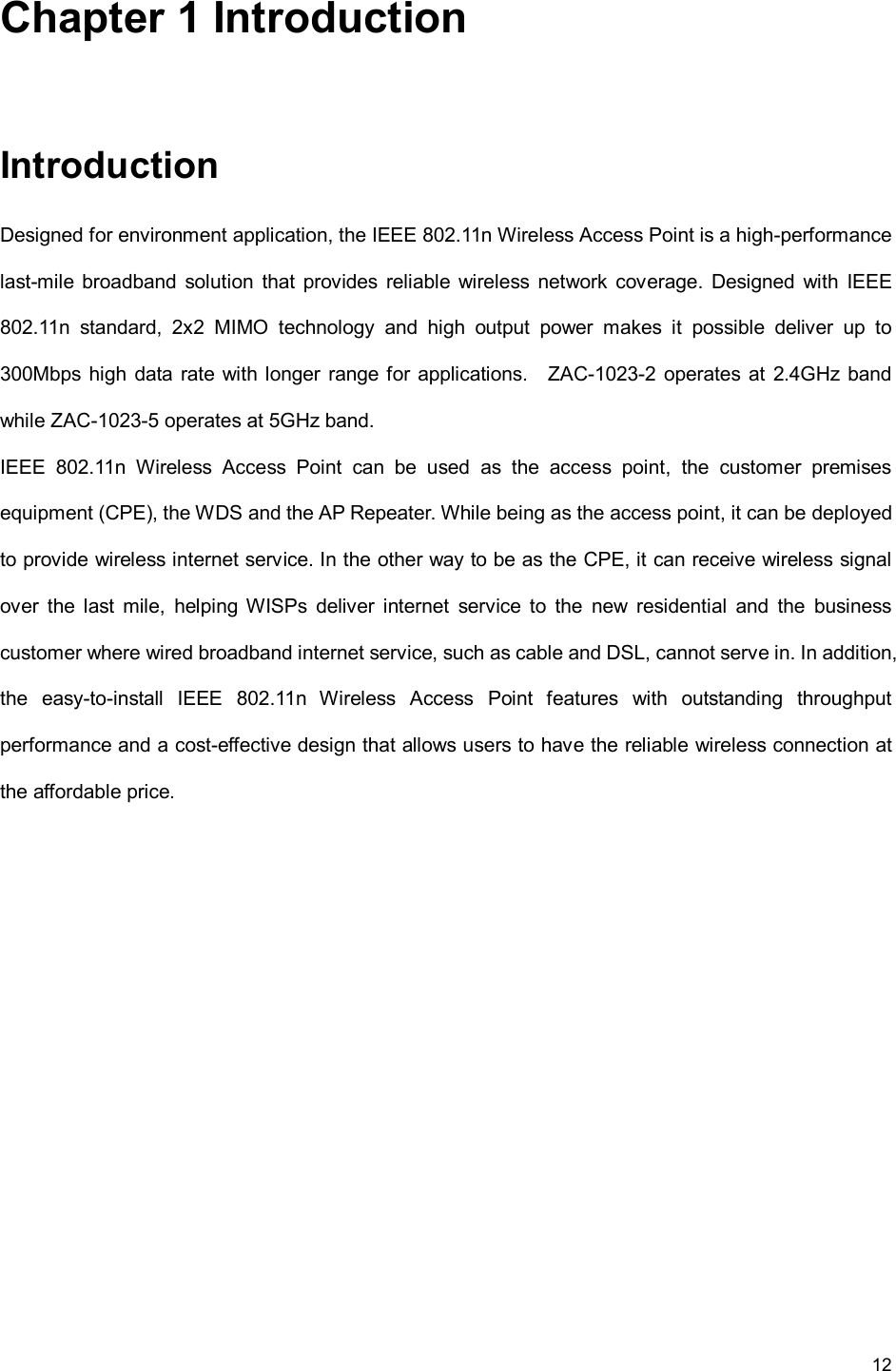

 12  Chapter 1 Introduction  Introduction Designed for environment application, the IEEE 802.11n Wireless Access Point is a high-performance last-mile  broadband  solution  that  provides  reliable  wireless  network  coverage.  Designed  with  IEEE 802.11n  standard,  2x2  MIMO  technology  and  high  output  power  makes  it  possible  deliver  up  to 300Mbps high data rate with longer range for applications.    ZAC-1023-2 operates  at  2.4GHz  band while ZAC-1023-5 operates at 5GHz band. IEEE  802.11n  Wireless  Access  Point  can  be  used  as  the  access  point,  the  customer  premises equipment (CPE), the WDS and the AP Repeater. While being as the access point, it can be deployed to provide wireless internet service. In the other way to be as the CPE, it can receive wireless signal over  the  last  mile,  helping  WISPs  deliver  internet  service  to  the  new  residential  and  the  business customer where wired broadband internet service, such as cable and DSL, cannot serve in. In addition, the  easy-to-install  IEEE  802.11n  Wireless  Access  Point  features  with  outstanding  throughput performance and a cost-effective design that allows users to have the reliable wireless connection at the affordable price.

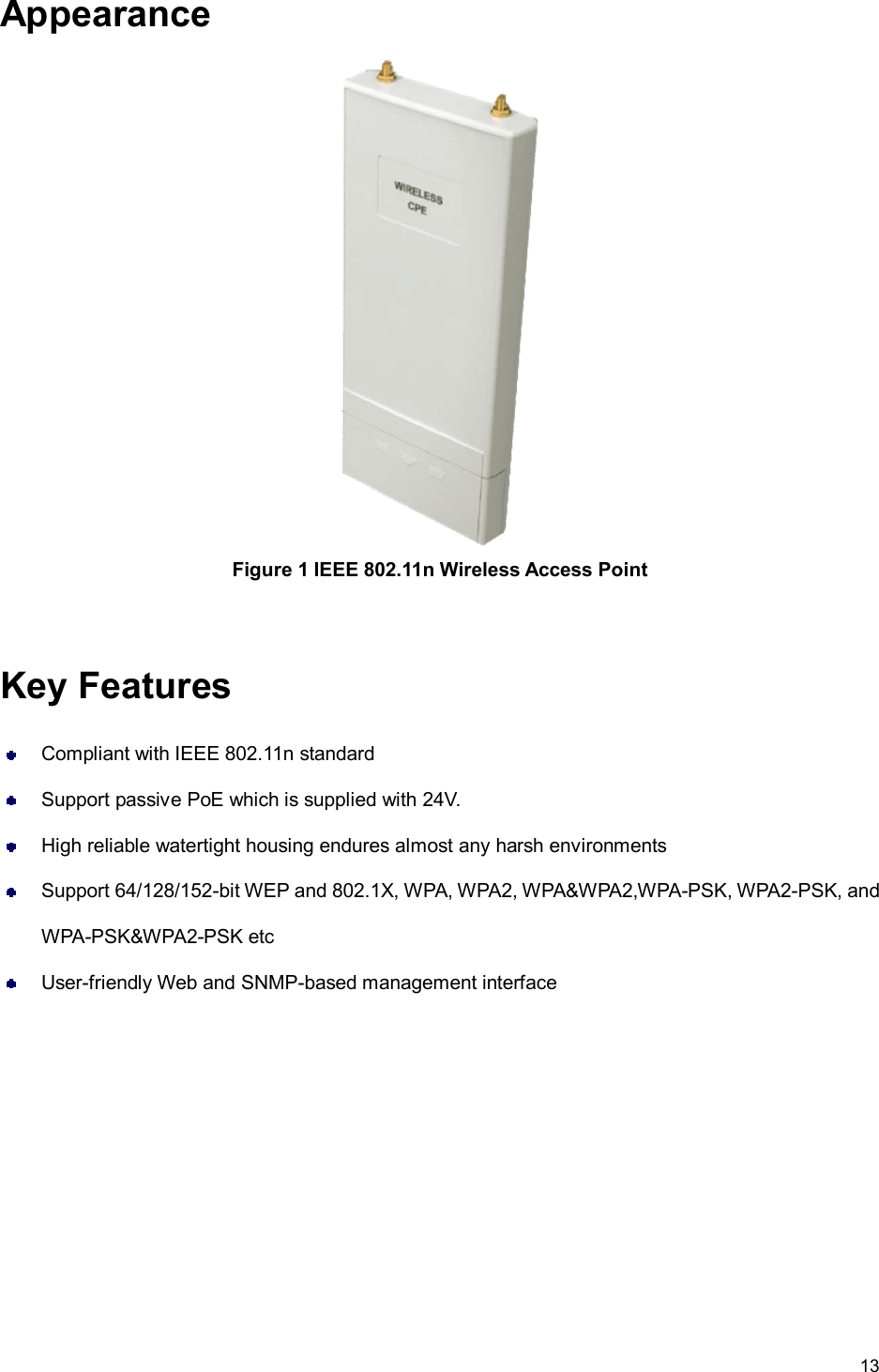

 13  Appearance  Figure 1 IEEE 802.11n Wireless Access Point  Key Features   Compliant with IEEE 802.11n standard   Support passive PoE which is supplied with 24V.   High reliable watertight housing endures almost any harsh environments   Support 64/128/152-bit WEP and 802.1X, WPA, WPA2, WPA&WPA2,WPA-PSK, WPA2-PSK, and WPA-PSK&WPA2-PSK etc   User-friendly Web and SNMP-based management interface

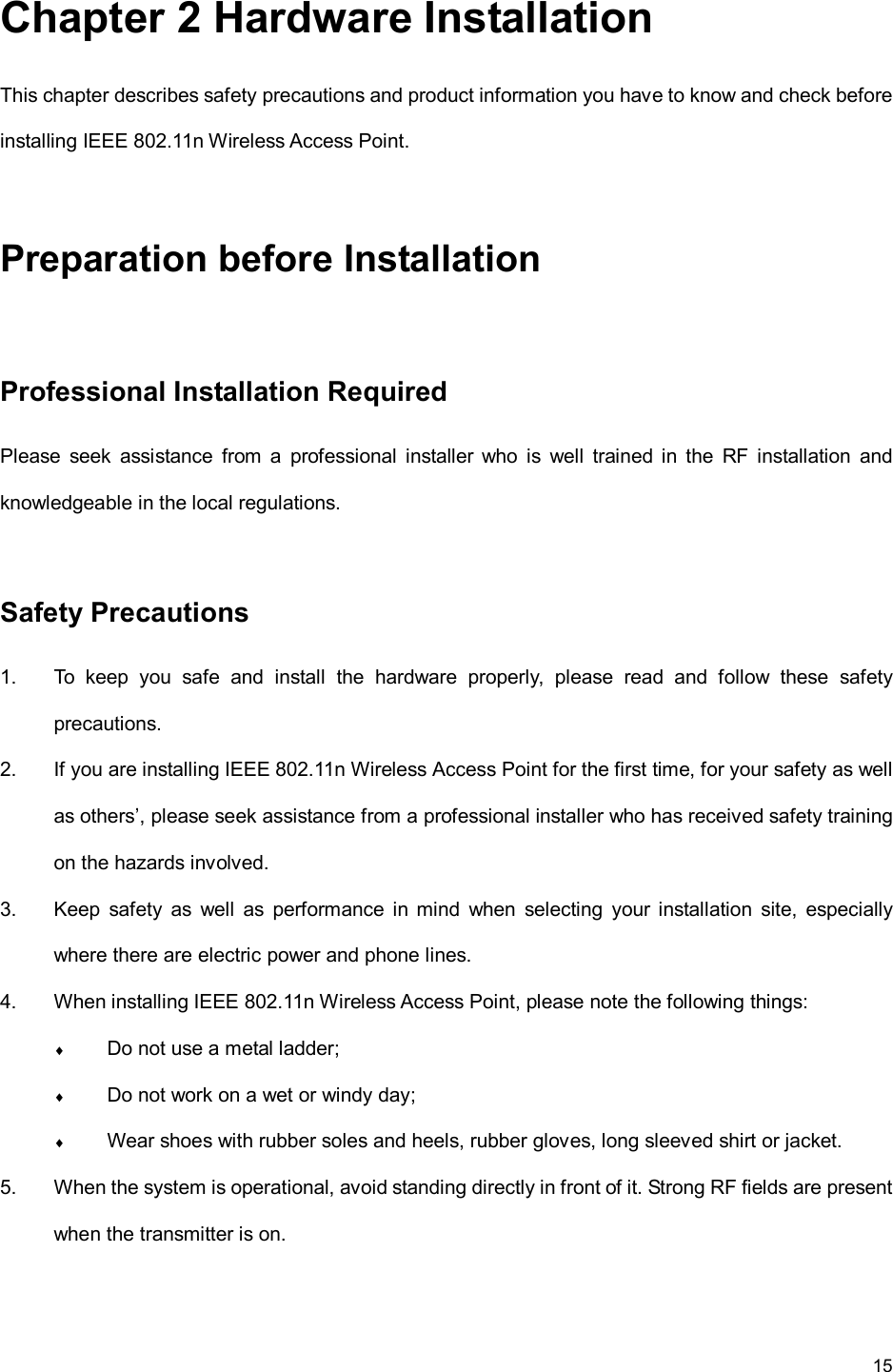

 15  Chapter 2 Hardware Installation This chapter describes safety precautions and product information you have to know and check before installing IEEE 802.11n Wireless Access Point.  Preparation before Installation  Professional Installation Required Please  seek  assistance  from  a  professional  installer  who  is  well  trained  in  the  RF  installation  and knowledgeable in the local regulations.  Safety Precautions 1.  To  keep  you  safe  and  install  the  hardware  properly,  please  read  and  follow  these  safety precautions. 2.  If you are installing IEEE 802.11n Wireless Access Point for the first time, for your safety as well as others’, please seek assistance from a professional installer who has received safety training on the hazards involved. 3.  Keep  safety  as  well  as  performance  in  mind  when  selecting  your  installation  site,  especially where there are electric power and phone lines. 4.  When installing IEEE 802.11n Wireless Access Point, please note the following things:  Do not use a metal ladder;  Do not work on a wet or windy day;  Wear shoes with rubber soles and heels, rubber gloves, long sleeved shirt or jacket. 5.  When the system is operational, avoid standing directly in front of it. Strong RF fields are present when the transmitter is on.

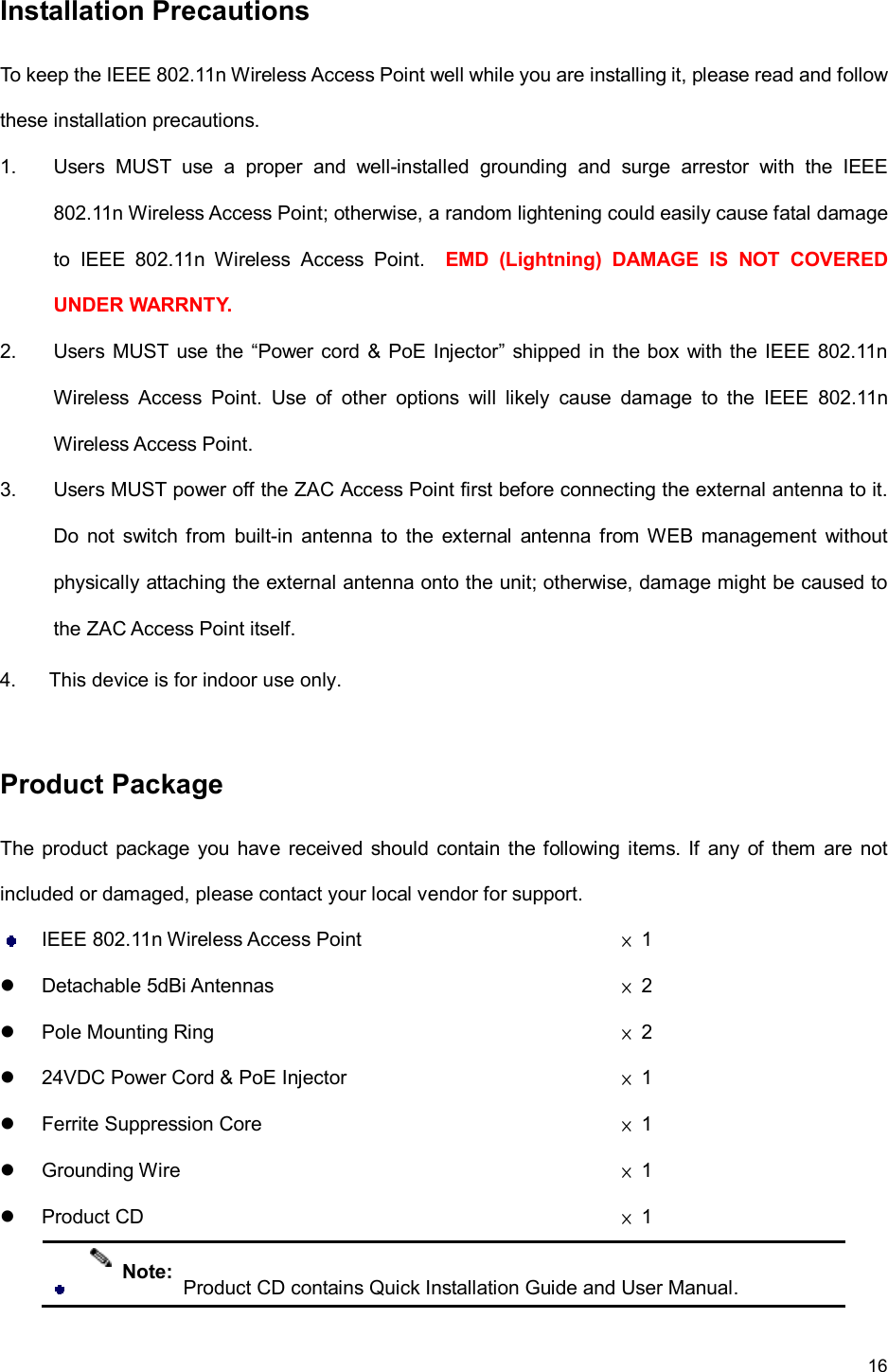

 16  Installation Precautions To keep the IEEE 802.11n Wireless Access Point well while you are installing it, please read and follow these installation precautions. 1.  Users  MUST  use  a  proper  and  well-installed  grounding  and  surge  arrestor  with  the  IEEE 802.11n Wireless Access Point; otherwise, a random lightening could easily cause fatal damage to  IEEE  802.11n  Wireless  Access  Point.    EMD  (Lightning)  DAMAGE  IS  NOT  COVERED UNDER WARRNTY. 2.  Users MUST use the  “Power  cord & PoE Injector” shipped in  the  box  with the IEEE 802.11n Wireless  Access  Point.  Use  of  other  options  will  likely  cause  damage  to  the  IEEE  802.11n Wireless Access Point. 3.  Users MUST power off the ZAC Access Point first before connecting the external antenna to it. Do  not  switch  from  built-in  antenna  to  the  external  antenna  from WEB  management  without physically attaching the external antenna onto the unit; otherwise, damage might be caused to the ZAC Access Point itself.   Product Package The product package you have received  should contain the following items. If  any of them  are  not included or damaged, please contact your local vendor for support.   IEEE 802.11n Wireless Access Point              ×  1             Detachable 5dBi Antennas                  ×  2   Pole Mounting Ring                    ×  2   24VDC Power Cord & PoE Injector              ×  1   Ferrite Suppression Core                  ×  1   Grounding Wire                        ×  1   Product CD                        ×  1   Product CD contains Quick Installation Guide and User Manual. Note: 4.      This device is for indoor use only.

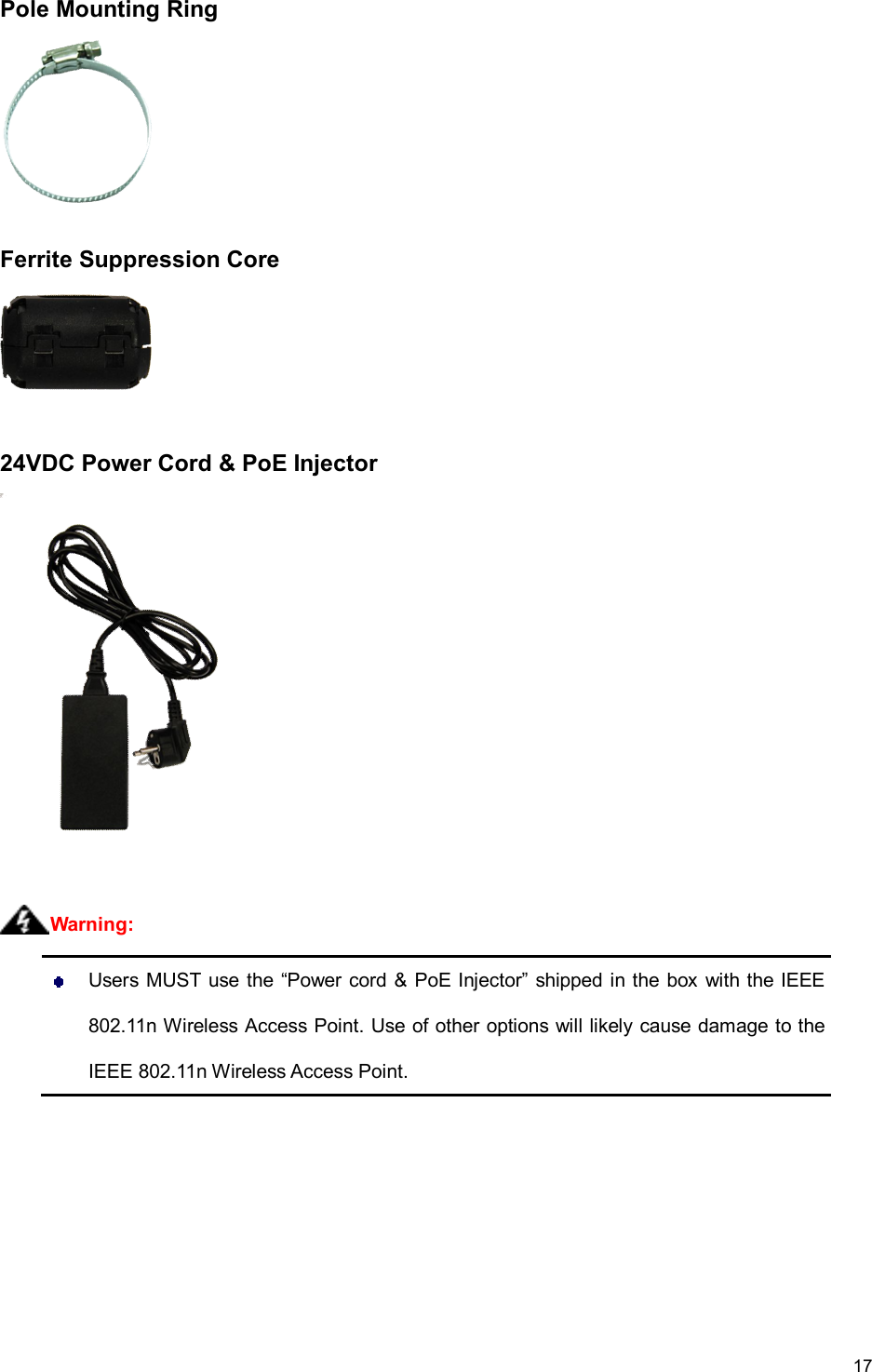

 17  Pole Mounting Ring      Ferrite Suppression Core  24VDC Power Cord & PoE Injector      Users MUST use the “Power cord & PoE Injector” shipped in the box with the IEEE 802.11n Wireless Access Point. Use of other options will likely cause damage to the IEEE 802.11n Wireless Access Point.  Warning:

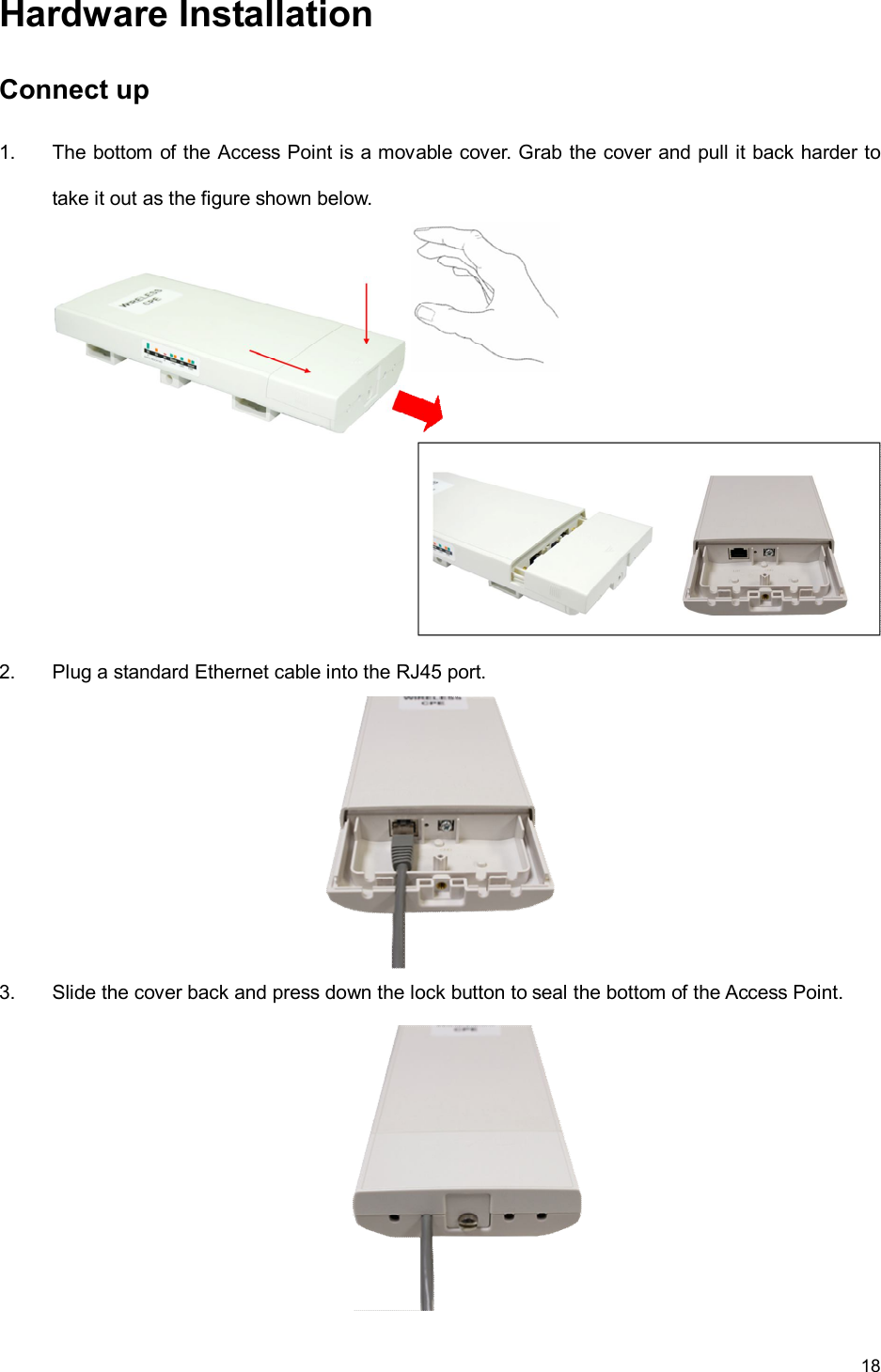

 18  Hardware Installation Connect up 1.  The bottom of the Access Point is a movable cover. Grab the cover and pull it back harder to take it out as the figure shown below.   2.  Plug a standard Ethernet cable into the RJ45 port.  3.  Slide the cover back and press down the lock button to seal the bottom of the Access Point.
19 Using the Grounding Wire The IEEE802.11n Wireless  Access  Point is equipped with  a grounding wire.  It is important that the Access Point, cables, and PoE Injector must be properly connected to earth ground during normal use against surges or ESD.       1. Remove the screw on the grounding point at the bottom of the Access Point.2. Put the grounding wire on the grounding point at the bottom of the Access Point.    Then screw thegrounding wire to tighten up.Install External Antennas The Access Point provides two reverse SMA antenna connectors for connecting external antennas. 1. Connect external antennas that came with the package to the SMA-type connectors on top of the Access Point.

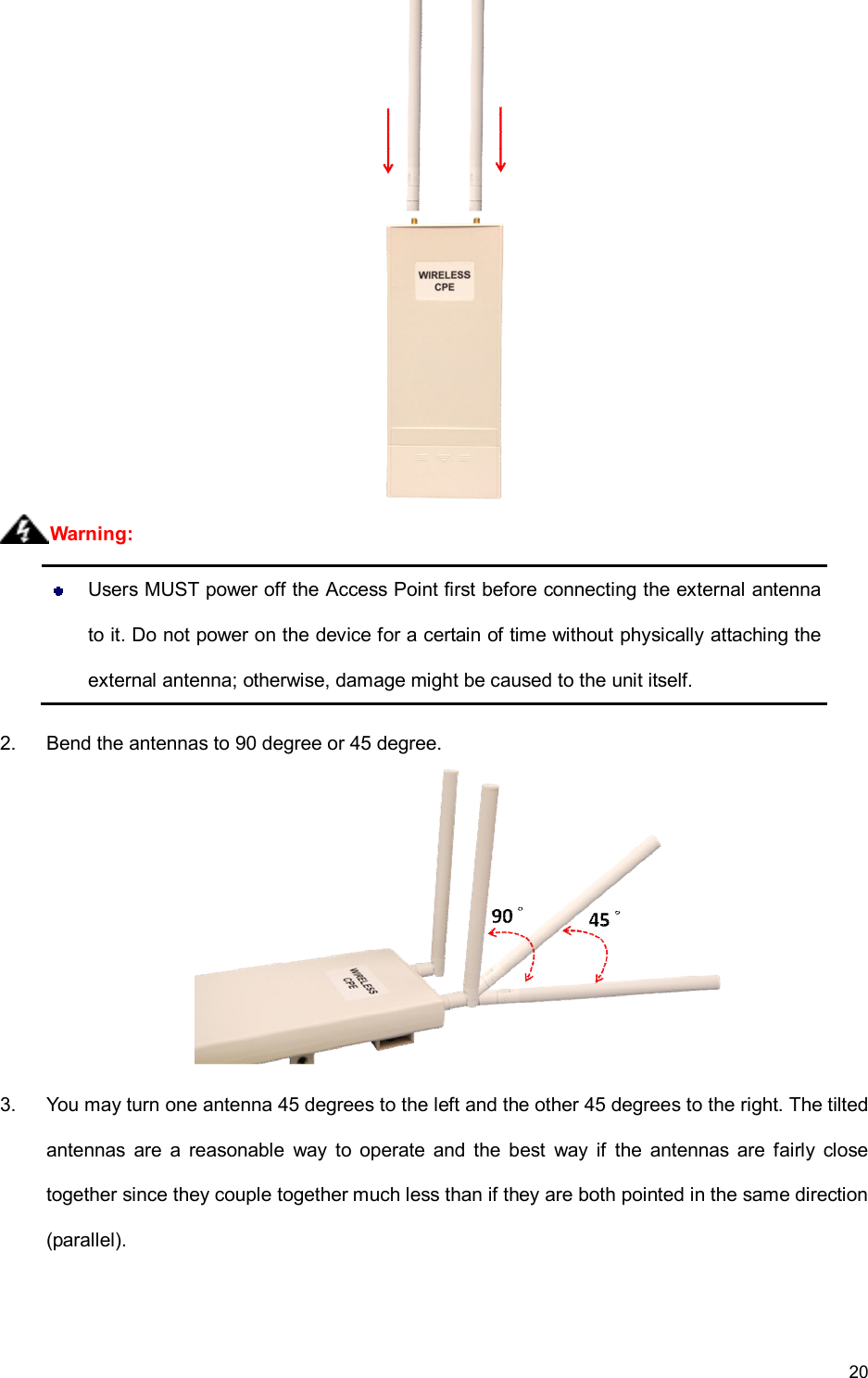

 20          Users MUST power off the Access Point first before connecting the external antenna to it. Do not power on the device for a certain of time without physically attaching the external antenna; otherwise, damage might be caused to the unit itself. 2.  Bend the antennas to 90 degree or 45 degree.    3.  You may turn one antenna 45 degrees to the left and the other 45 degrees to the right. The tilted antennas  are  a  reasonable  way  to  operate  and  the  best  way  if  the  antennas  are  fairly  close together since they couple together much less than if they are both pointed in the same direction (parallel).   Warning:
 21      The  polarization  of  antennas  should  be  properly  aligned.  Maximum  signal  strength between bridges occurs when both bridges are using identical polarization. 4.  Tighten up the connector joint clockwise to fix the antennas.  5.  To adjust antennas, loose the connector joint counterclockwise first, then adjust antenna to the desired  position.    DO  NOT  bend  or  turn  the  antennas  without  loosening  the  connector  joint, otherwise, damage might be caused to the antennas. Note:

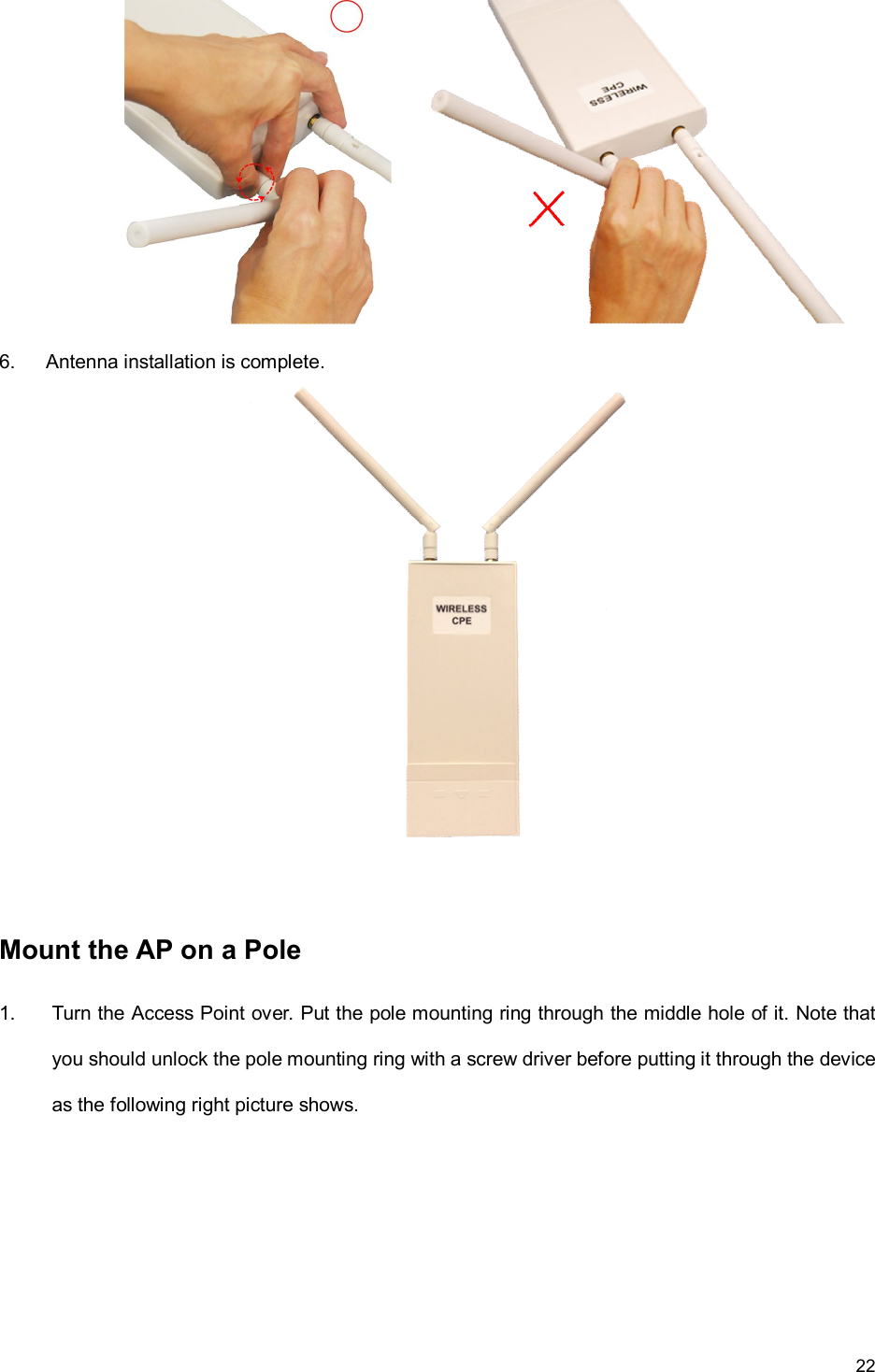

 22        6.  Antenna installation is complete.   Mount the AP on a Pole   1.  Turn the Access Point over. Put the pole mounting ring through the middle hole of it. Note that you should unlock the pole mounting ring with a screw driver before putting it through the device as the following right picture shows.

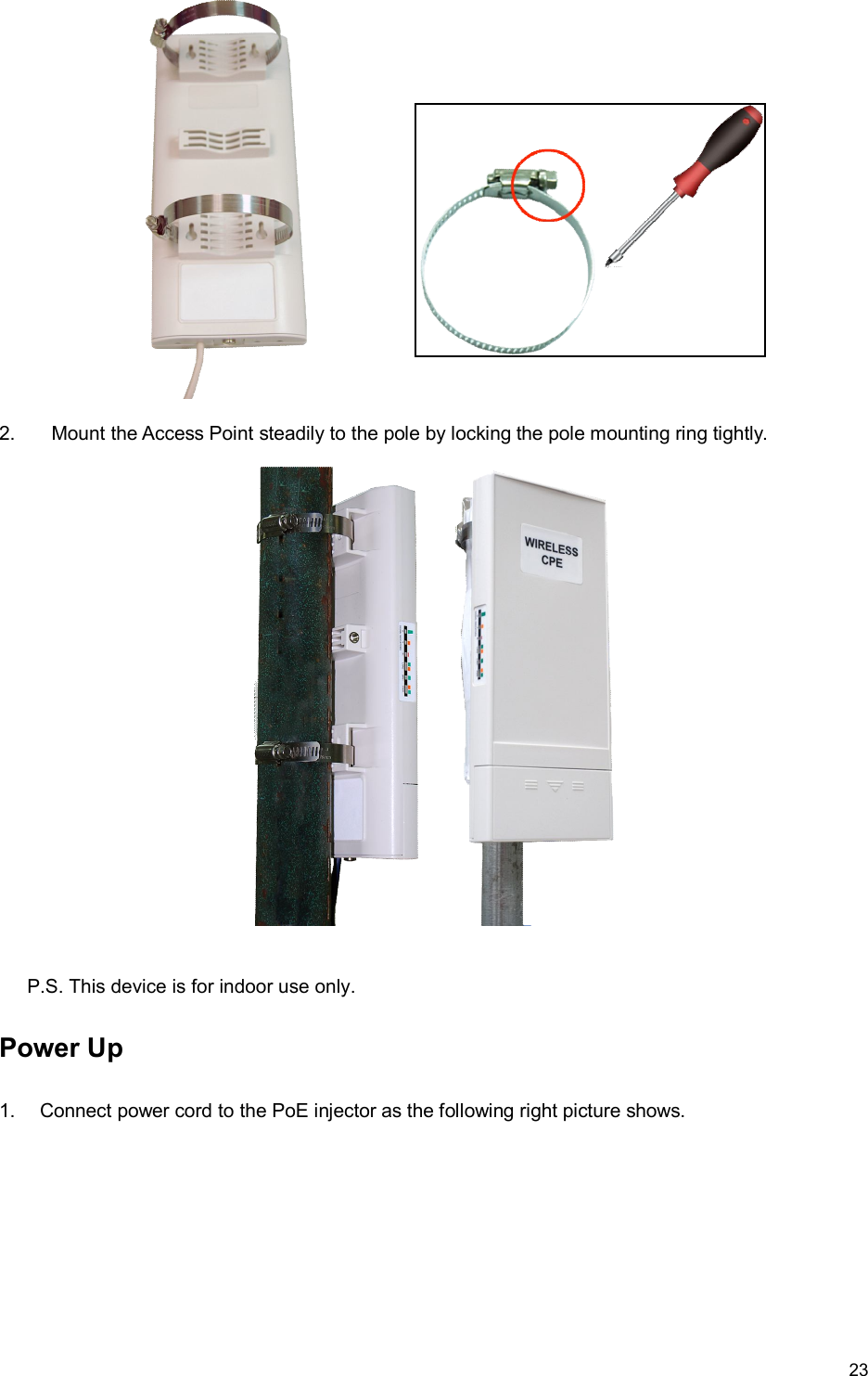

 23   2.  Mount the Access Point steadily to the pole by locking the pole mounting ring tightly.        Power Up   1.  Connect power cord to the PoE injector as the following right picture shows. P.S. This device is for indoor use only.

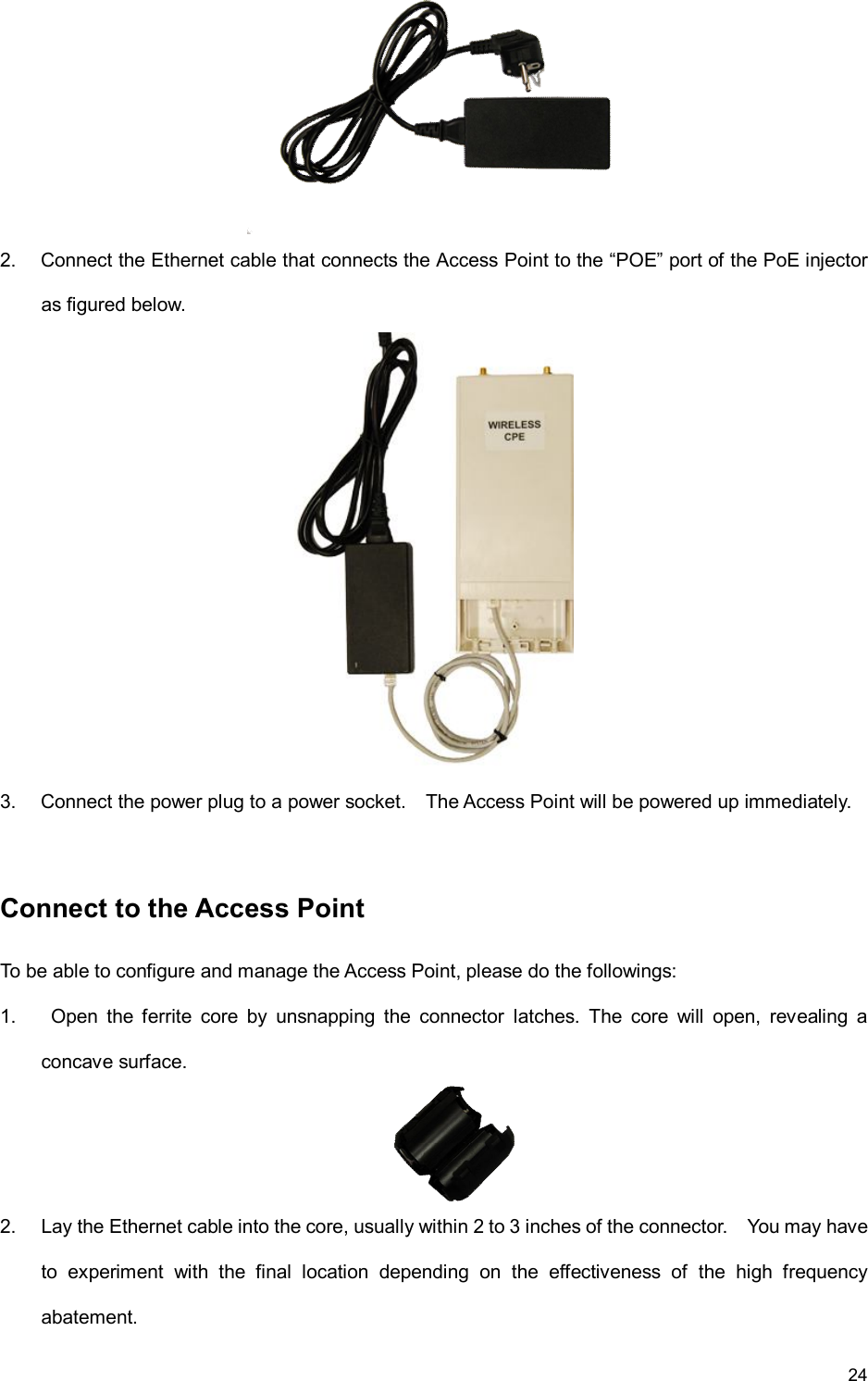

 24   2.  Connect the Ethernet cable that connects the Access Point to the “POE” port of the PoE injector as figured below.    3.  Connect the power plug to a power socket.    The Access Point will be powered up immediately.  Connect to the Access Point To be able to configure and manage the Access Point, please do the followings: 1.    Open  the  ferrite  core  by  unsnapping  the  connector  latches.  The  core  will  open,  revealing  a concave surface.  2.  Lay the Ethernet cable into the core, usually within 2 to 3 inches of the connector.    You may have to  experiment  with  the  final  location  depending  on  the  effectiveness  of  the  high  frequency abatement.

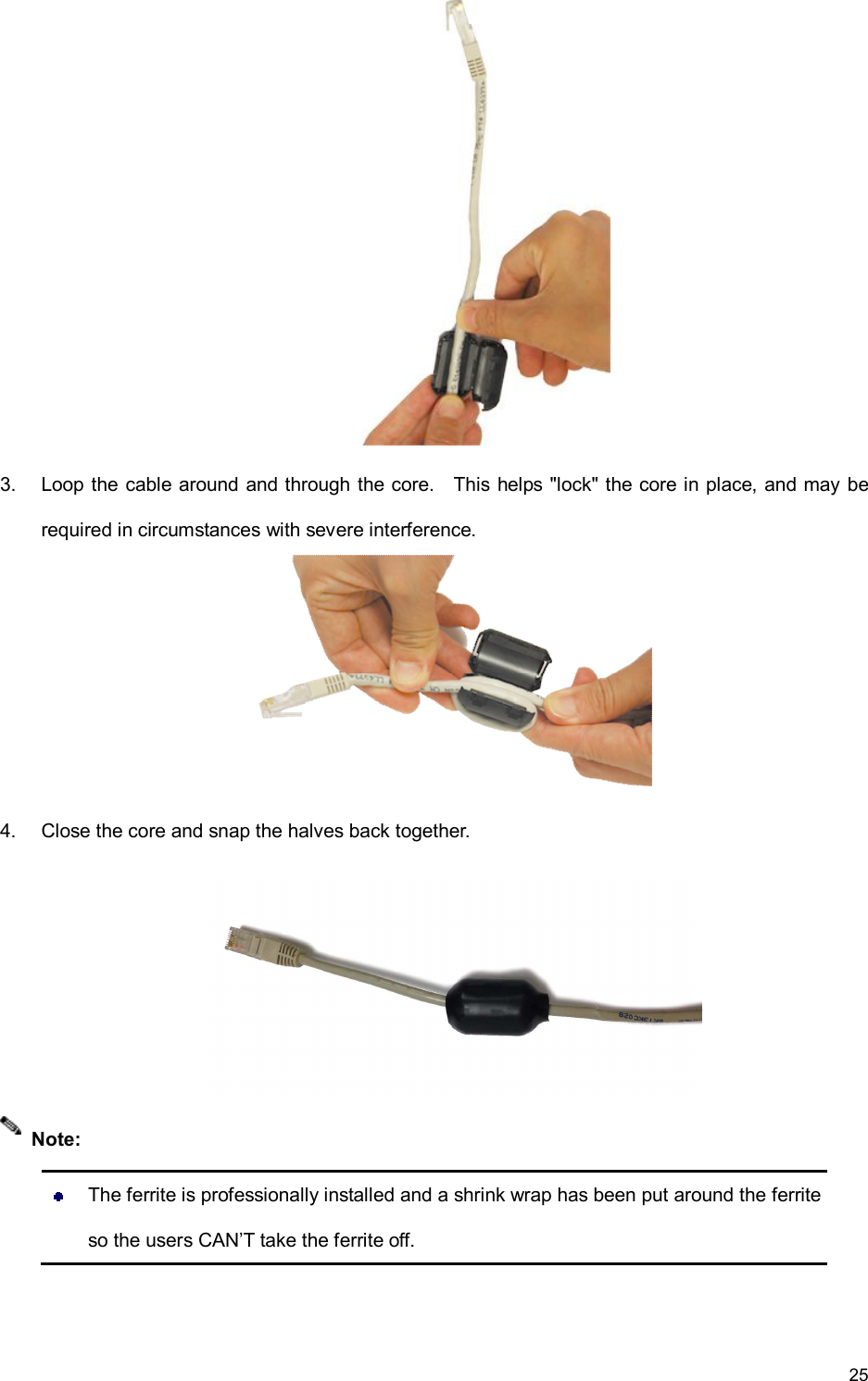

 25   3.  Loop the cable around and through the core.    This helps "lock" the core in place,  and may be required in circumstances with severe interference.  4.  Close the core and snap the halves back together.     The ferrite is professionally installed and a shrink wrap has been put around the ferrite so the users CAN’T take the ferrite off.  Note:
 26  5.  Connect the Ethernet cable with suppression core to the “Data In” port of the PoE injector.  6.  Connect the other end of Ethernet cable to a PC or a switch hub.    The hardware installation is complete.    To configure the Access Point, please refer to Chapter 3 Basic Settings.
 27  Chapter 3 Basic Settings  Factory Default Settings We’ll elaborate the IEEE 802.11n Wireless Access Point factory default settings. You can re-acquire these parameters by default. If necessary, please refer to the “Restore Factory Default Settings”. Table 1 IEEE 802.11n Wireless Access Point Factory Default Settings Features  Factory Default Settings Username  admin Password  password Wireless Device Name  apXXXXXX (X represents the last 6 digits of Ethernet MAC address) Operating Mode  AP Data Rate  Auto LAN   IP Address  192.168.1.1 Subnet Mask  255.255.255.0 Gateway  0.0.0.0 Primary DNS Server  0.0.0.0 Secondary DNS Server  0.0.0.0 Spanning Tree  Enable Data Rate  Auto Output Power  Full WMM  Enabled RTS Threshold (byte)  2346 Fragmentation Length (byte)  2346 Channel Protection  None Short GI  Enable Distance  1000m Flow Control by AP  Disable Security  Open System Encryption  None

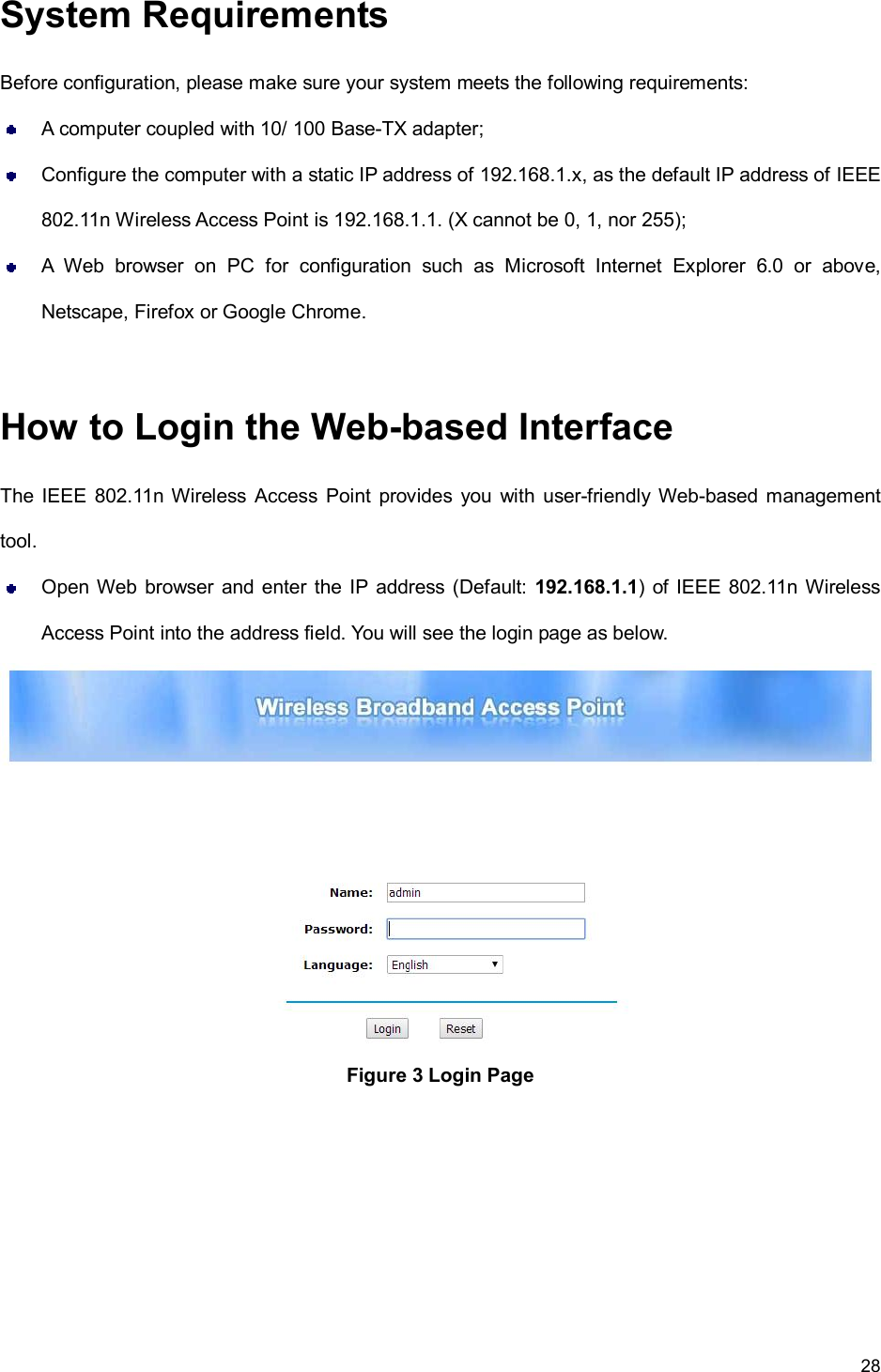

 28  System Requirements Before configuration, please make sure your system meets the following requirements:   A computer coupled with 10/ 100 Base-TX adapter;   Configure the computer with a static IP address of 192.168.1.x, as the default IP address of IEEE 802.11n Wireless Access Point is 192.168.1.1. (X cannot be 0, 1, nor 255);   A  Web  browser  on  PC  for  configuration  such  as  Microsoft  Internet  Explorer  6.0  or  above, Netscape, Firefox or Google Chrome.  How to Login the Web-based Interface The IEEE  802.11n Wireless  Access  Point  provides  you  with  user-friendly Web-based management tool.   Open Web  browser and enter the IP  address  (Default: 192.168.1.1)  of IEEE 802.11n Wireless Access Point into the address field. You will see the login page as below.  Figure 3 Login Page

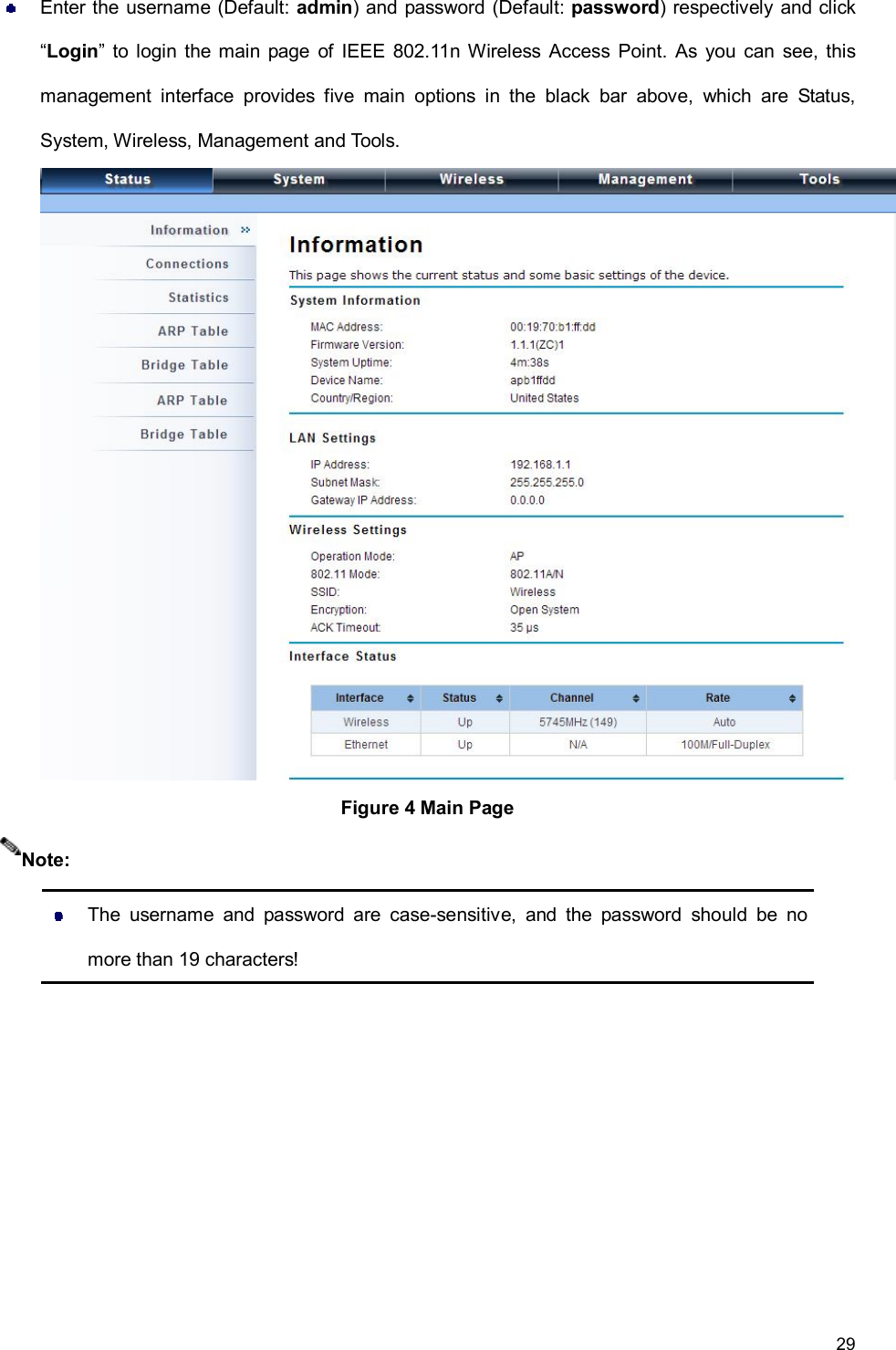

 29    Enter the username (Default: admin) and password (Default: password) respectively and click “Login” to login  the  main  page  of IEEE  802.11n Wireless  Access  Point.  As  you  can  see, this management  interface  provides  five  main  options  in  the  black  bar  above,  which  are  Status, System, Wireless, Management and Tools.  Figure 4 Main Page    The  username  and  password  are  case-sensitive,  and  the  password  should  be  no more than 19 characters! Note:

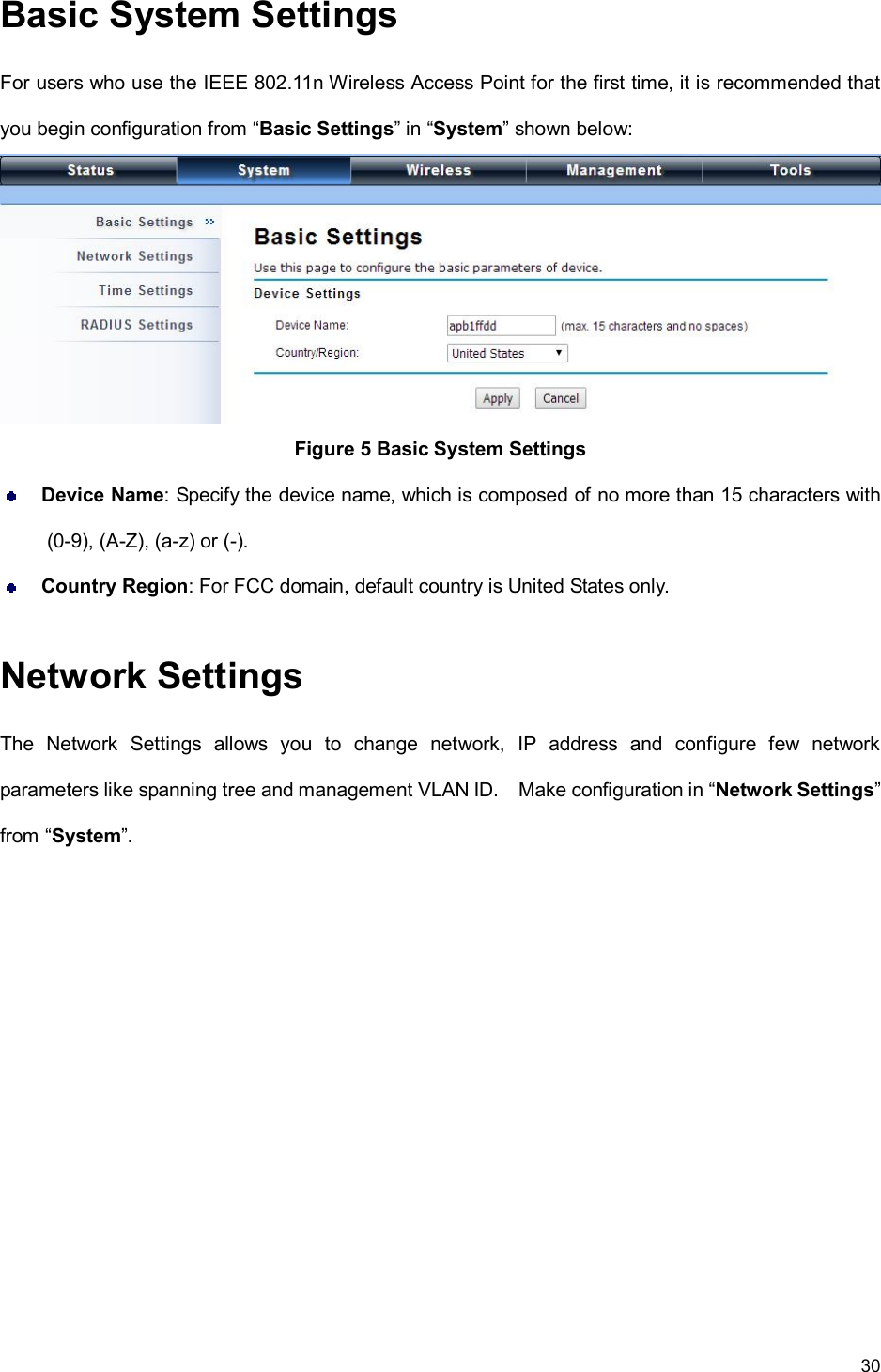

 30  Basic System Settings For users who use the IEEE 802.11n Wireless Access Point for the first time, it is recommended that you begin configuration from “Basic Settings” in “System” shown below:  Figure 5 Basic System Settings  Device Name: Specify the device name, which is composed of no more than 15 characters with (0-9), (A-Z), (a-z) or (-).  Country Region: For FCC domain, default country is United States only. Network Settings The  Network  Settings  allows  you  to  change  network,  IP  address  and  configure  few  network parameters like spanning tree and management VLAN ID.    Make configuration in “Network Settings” from “System”.

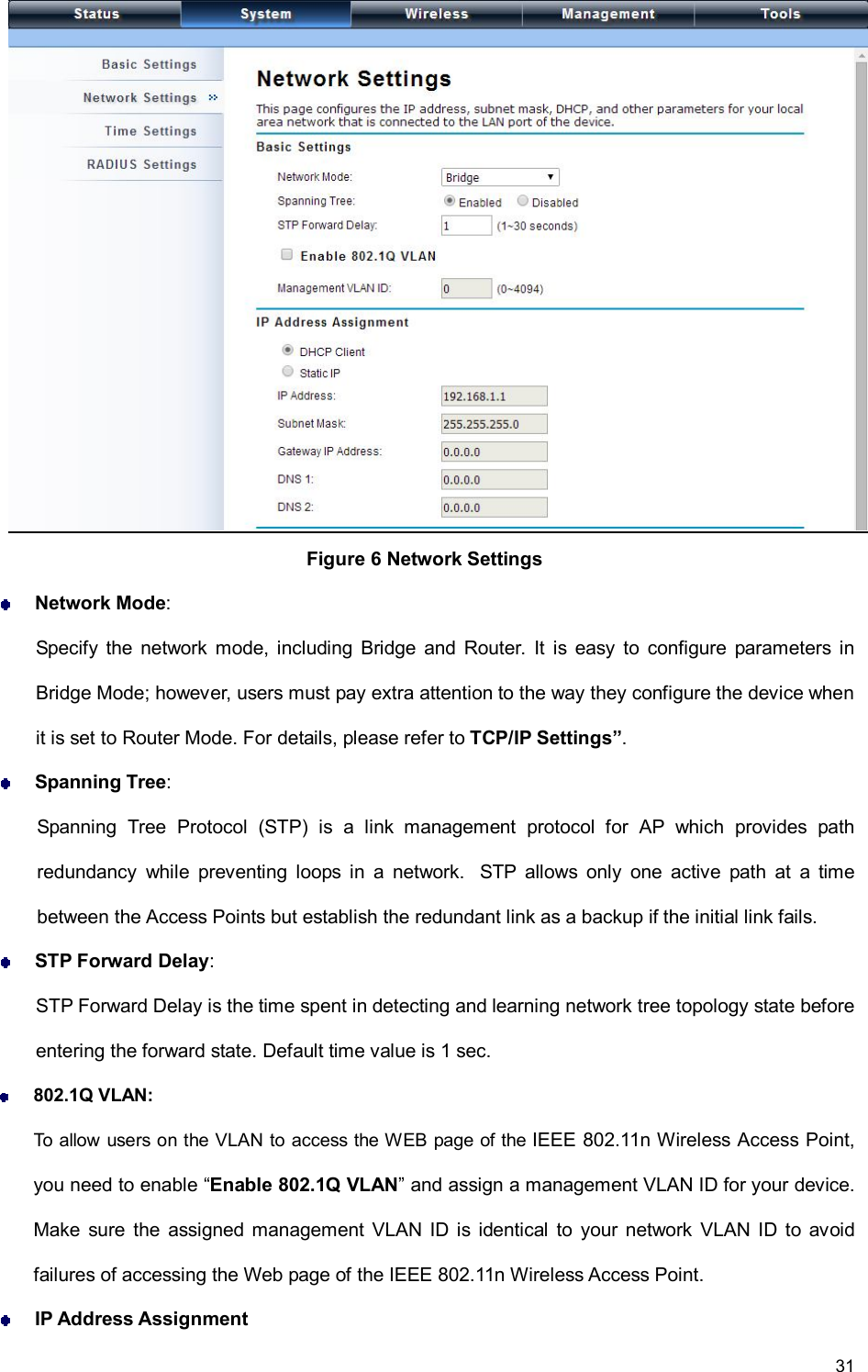

 31   Figure 6 Network Settings  Network Mode:   Specify  the  network  mode, including  Bridge  and  Router.  It  is  easy  to  configure  parameters  in Bridge Mode; however, users must pay extra attention to the way they configure the device when it is set to Router Mode. For details, please refer to TCP/IP Settings”.  Spanning Tree:   Spanning  Tree  Protocol  (STP)  is  a  link  management  protocol  for  AP  which  provides  path redundancy  while  preventing  loops  in  a  network.   STP  allows  only  one  active  path  at  a  time between the Access Points but establish the redundant link as a backup if the initial link fails.  STP Forward Delay:   STP Forward Delay is the time spent in detecting and learning network tree topology state before entering the forward state. Default time value is 1 sec.   802.1Q VLAN:  To allow users on the VLAN to access the WEB page of the IEEE 802.11n Wireless Access Point, you need to enable “Enable 802.1Q VLAN” and assign a management VLAN ID for your device.   Make  sure  the  assigned management  VLAN  ID  is identical  to  your  network  VLAN  ID  to  avoid failures of accessing the Web page of the IEEE 802.11n Wireless Access Point.  IP Address Assignment

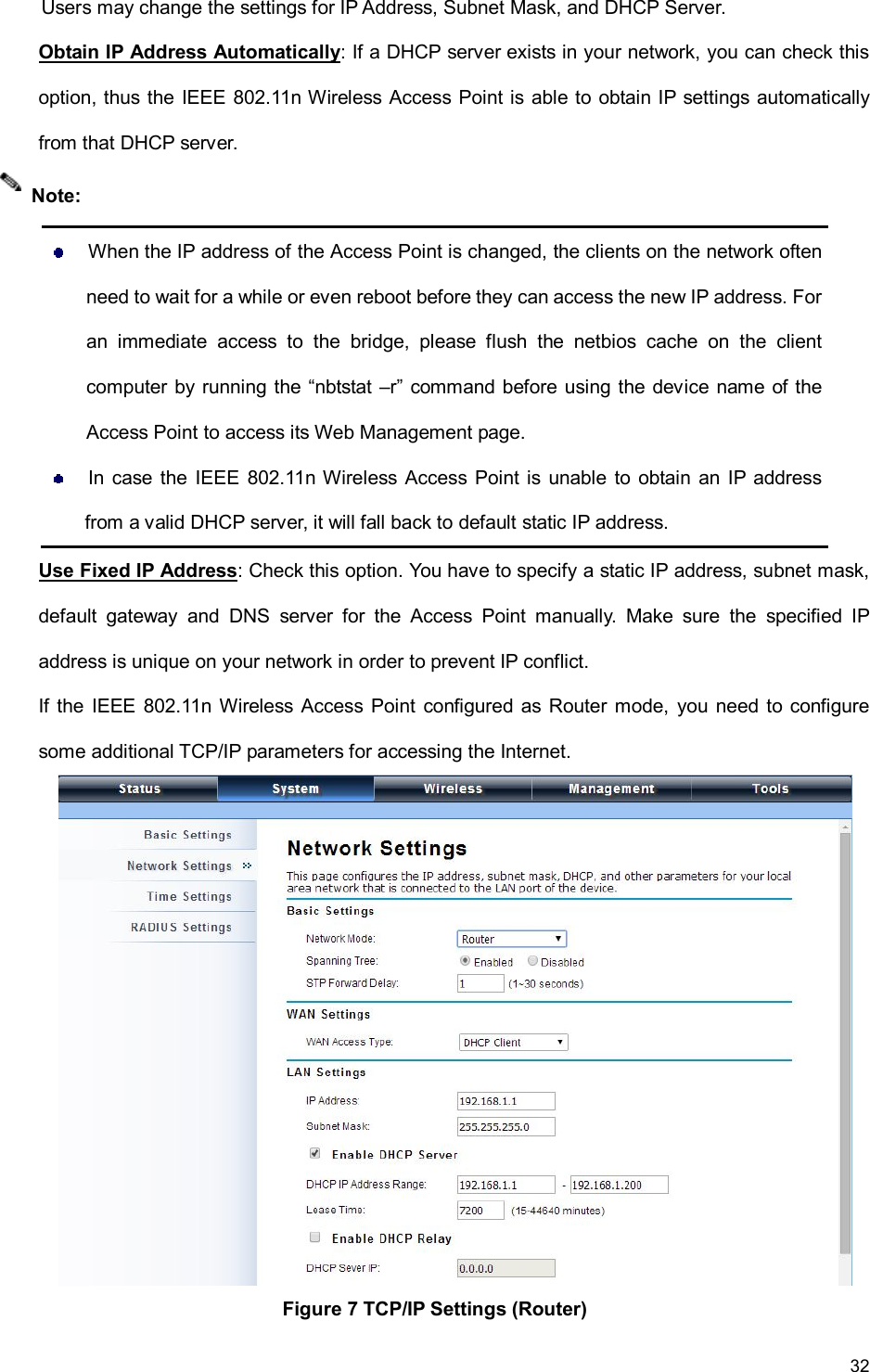

 32  Users may change the settings for IP Address, Subnet Mask, and DHCP Server. Obtain IP Address Automatically: If a DHCP server exists in your network, you can check this option, thus the IEEE 802.11n Wireless Access Point is able to obtain IP settings automatically from that DHCP server.    When the IP address of the Access Point is changed, the clients on the network often need to wait for a while or even reboot before they can access the new IP address. For an  immediate  access  to  the  bridge,  please  flush  the  netbios  cache  on  the  client computer by running the “nbtstat –r” command before using the device name of the Access Point to access its Web Management page.   In  case  the  IEEE  802.11n Wireless  Access Point is unable to  obtain  an IP  address from a valid DHCP server, it will fall back to default static IP address. Use Fixed IP Address: Check this option. You have to specify a static IP address, subnet mask, default  gateway  and  DNS  server  for  the  Access  Point  manually.  Make  sure  the  specified  IP address is unique on your network in order to prevent IP conflict. If the IEEE 802.11n Wireless  Access Point  configured  as  Router mode, you need to configure some additional TCP/IP parameters for accessing the Internet.  Figure 7 TCP/IP Settings (Router)       Note:
 33   WAN Access Type:   Specify  the  Internet  access  method  to  Static  IP,  DHCP  or  PPPOE.  Users  must  enter  WAN  IP Address, Subnet Mask, Gateway settings provided by your ISPs.  LAN Settings:   When DHCP Server is disabled, users can specify IP address and subnet mask for the Access Point manually. Make sure the specified IP address is unique on your network in order to prevent IP conflict. When DHCP Server is enabled, users may specify DHCP IP Address Range, DHCP Subnet  Mask,  DHCP Gateway  and Lease  Time (15-44640  minutes).    A  DHCP relay agents  is used to forward DHCP requests and replies between clients and servers when they are not on the same  physical  subnet.    To  enable  the  DHCP  relay  agent,  check  the  “Enable  DHCP  Relay” checkbox and enter the IP address of the DHCP server.    In AP mode, the IEEE 802.11n Wireless Access Point must establish connection with another wireless device before it is set to Router mode. To access the unit in Router mode via wired port, please type the WAN IP address to enter the web page for WAN is on wired port and LAN is on wireless port. Or, you can access device through the wireless device connected with the Access Point.   In wireless client mode, users can access the Access Point via its wired port, for WAN is on wireless port and LAN is on wired port when device is set to Router mode.     Bridge mode and AP Repeater mode are similar to AP mode when device is set to Router mode; WAN is on wired port and LAN is on wireless port. Thus users must also connect the Access Point with another wireless device before it is set to Router mode and access the Access Point via the connected wireless device.    Time Settings Compliant  with  NTP,  the  IEEE  802.11n  Wireless  Access  Point  is  capable  of  keeping  its  time  in complete accord with the Internet time. Make configuration in “Time Settings” from “System”. To use this feature, check “Enable NTP Client Update” in advance. Warning:

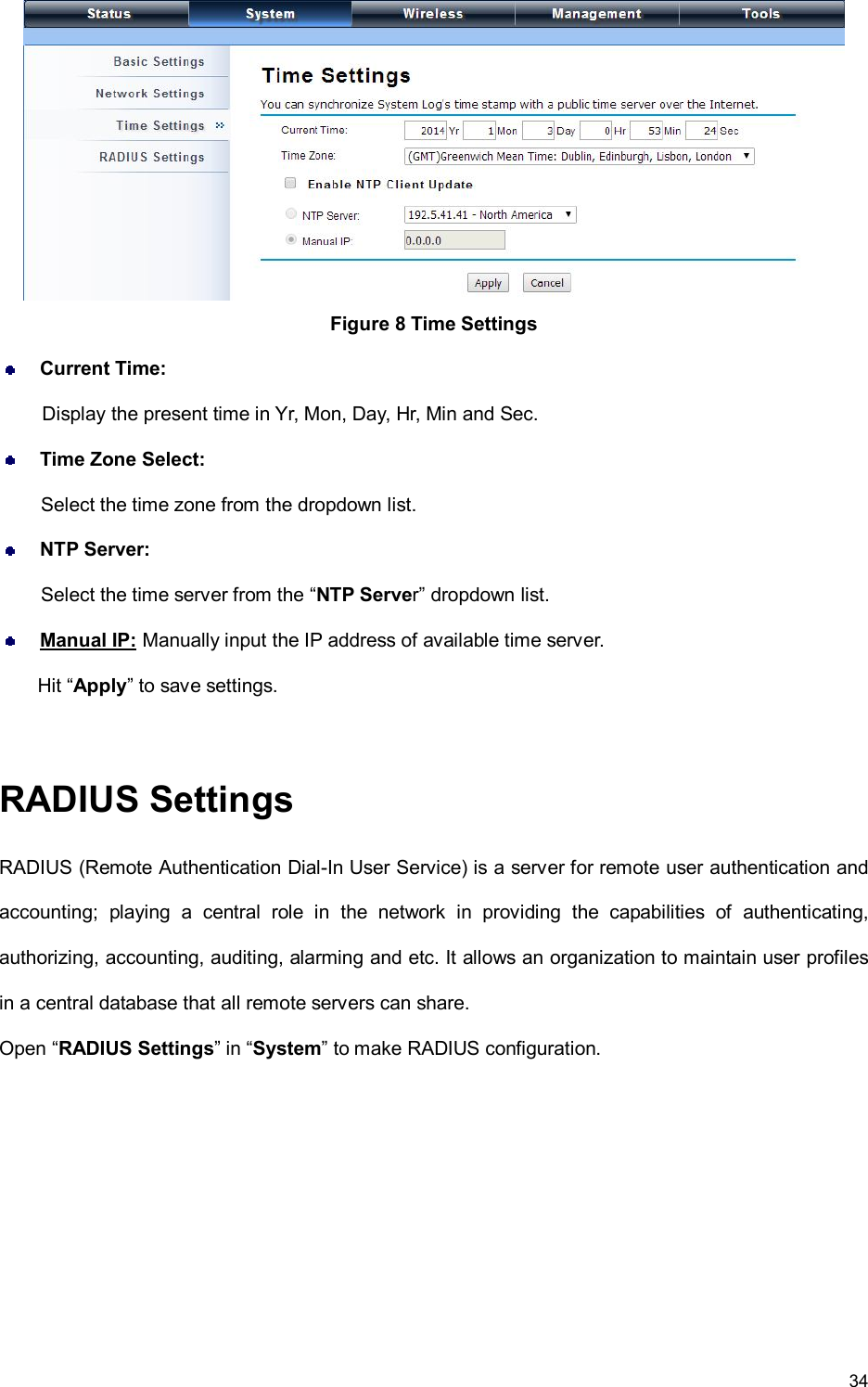

 34   Figure 8 Time Settings  Current Time:   Display the present time in Yr, Mon, Day, Hr, Min and Sec.  Time Zone Select:   Select the time zone from the dropdown list.  NTP Server:   Select the time server from the “NTP Server” dropdown list.  Manual IP: Manually input the IP address of available time server. Hit “Apply” to save settings.  RADIUS Settings RADIUS (Remote Authentication Dial-In User Service) is a server for remote user authentication and accounting;  playing  a  central  role  in  the  network  in  providing  the  capabilities  of  authenticating, authorizing, accounting, auditing, alarming and etc. It allows an organization to maintain user profiles in a central database that all remote servers can share. Open “RADIUS Settings” in “System” to make RADIUS configuration.

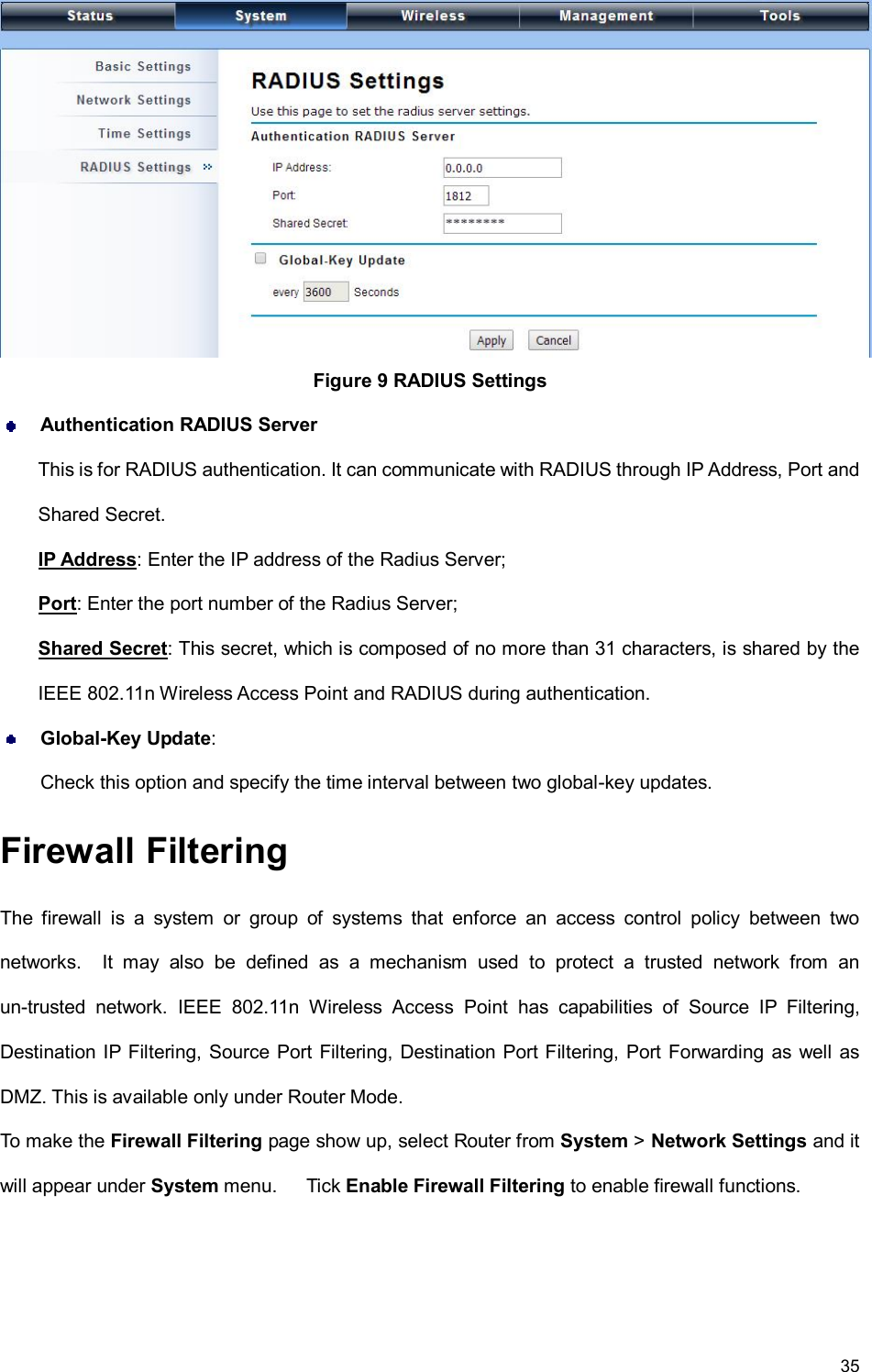

 35   Figure 9 RADIUS Settings  Authentication RADIUS Server This is for RADIUS authentication. It can communicate with RADIUS through IP Address, Port and Shared Secret. IP Address: Enter the IP address of the Radius Server; Port: Enter the port number of the Radius Server; Shared Secret: This secret, which is composed of no more than 31 characters, is shared by the IEEE 802.11n Wireless Access Point and RADIUS during authentication.  Global-Key Update:   Check this option and specify the time interval between two global-key updates. Firewall Filtering The  firewall  is  a  system  or  group  of  systems  that  enforce  an  access  control  policy  between  two networks.    It  may  also  be  defined  as  a  mechanism  used  to  protect  a  trusted  network  from  an un-trusted  network.  IEEE  802.11n  Wireless  Access  Point  has  capabilities  of  Source  IP  Filtering, Destination IP  Filtering, Source Port Filtering,  Destination Port Filtering,  Port Forwarding as well  as DMZ. This is available only under Router Mode. To make the Firewall Filtering page show up, select Router from System > Network Settings and it will appear under System menu.      Tick Enable Firewall Filtering to enable firewall functions.
 36     Figure 10 Source IP Filtering  Filter Type: MAC Filtering: The MAC filtering gives users the ability to restrict packets from certain devices by entering MAC address. Source IP Filtering: The source IP filtering gives users the ability to restrict certain types of data packets from your local network to Internet through IEEE 802.11n Wireless Access Point. Use of such filters can be helpful in securing or restricting your local network. Destination IP Filtering: The destination IP filtering gives you the ability to restrict the computers in LAN from accessing certain websites in WAN according to specified IP addresses.     Source Port Filtering: The source port filtering enable you to restrict certain ports of data packets from  your local network to  Internet through  IEEE 802.11n Wireless  Access Point.  Use of  such filters can be helpful in securing or restricting your local network. Destination Port Filtering: The destination port filtering enables you to restrict certain ports of data packets from your local network to Internet through IEEE 802.11n Wireless Access Point. Use of such filters can be helpful in securing or restricting your local network.  Port Forwarding The  port  forwarding  allows  you  to  automatically  redirect  common  network  services  to  a  specific machine behind the NAT firewall. These settings ne are only necessary if you wish to host some sort of

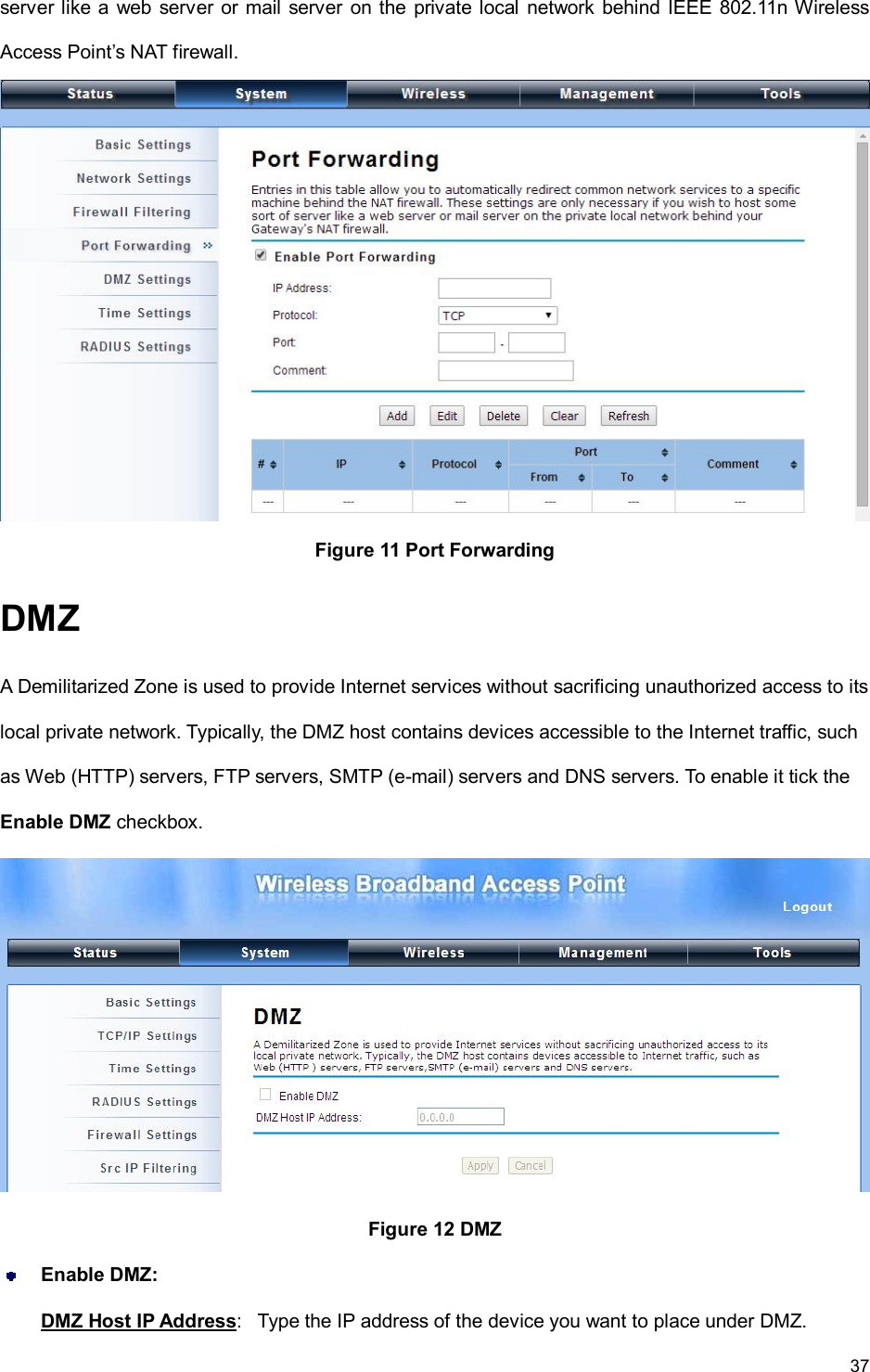

 37  server  like a web  server or mail server on the private  local  network  behind IEEE 802.11n Wireless Access Point’s NAT firewall.  Figure 11 Port Forwarding DMZ A Demilitarized Zone is used to provide Internet services without sacrificing unauthorized access to its local private network. Typically, the DMZ host contains devices accessible to the Internet traffic, such as Web (HTTP) servers, FTP servers, SMTP (e-mail) servers and DNS servers. To enable it tick the Enable DMZ checkbox.      Figure 12 DMZ  Enable DMZ: DMZ Host IP Address:   Type the IP address of the device you want to place under DMZ.

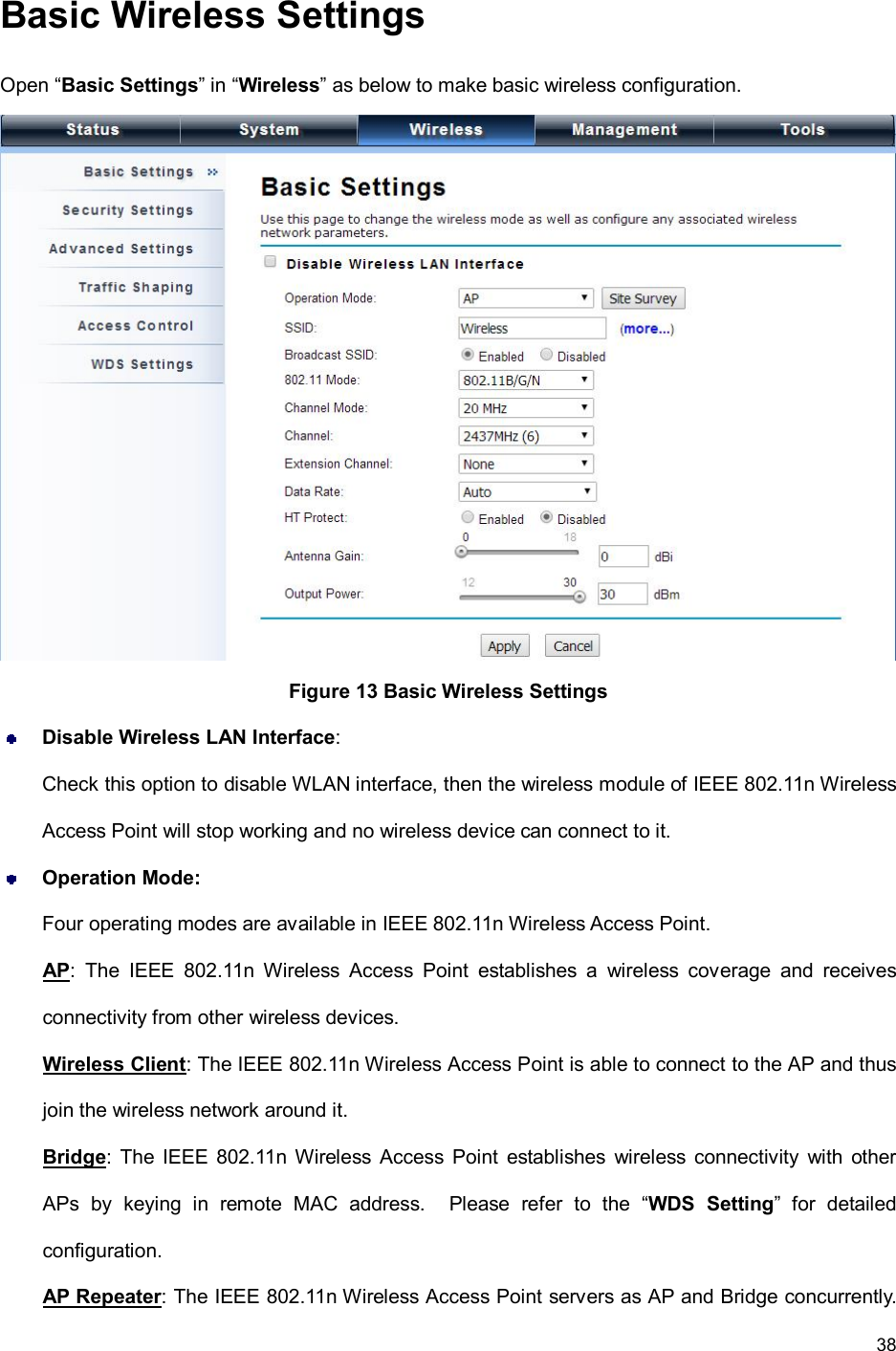

 38   Basic Wireless Settings Open “Basic Settings” in “Wireless” as below to make basic wireless configuration.  Figure 13 Basic Wireless Settings  Disable Wireless LAN Interface:   Check this option to disable WLAN interface, then the wireless module of IEEE 802.11n Wireless Access Point will stop working and no wireless device can connect to it.  Operation Mode:   Four operating modes are available in IEEE 802.11n Wireless Access Point. AP:  The  IEEE  802.11n  Wireless  Access  Point  establishes  a  wireless  coverage  and  receives connectivity from other wireless devices. Wireless Client: The IEEE 802.11n Wireless Access Point is able to connect to the AP and thus join the wireless network around it. Bridge:  The  IEEE  802.11n Wireless  Access  Point  establishes  wireless  connectivity  with  other APs  by  keying  in  remote  MAC  address.    Please  refer  to  the  “WDS  Setting”  for  detailed configuration. AP Repeater: The IEEE 802.11n Wireless Access Point servers as AP and Bridge concurrently.

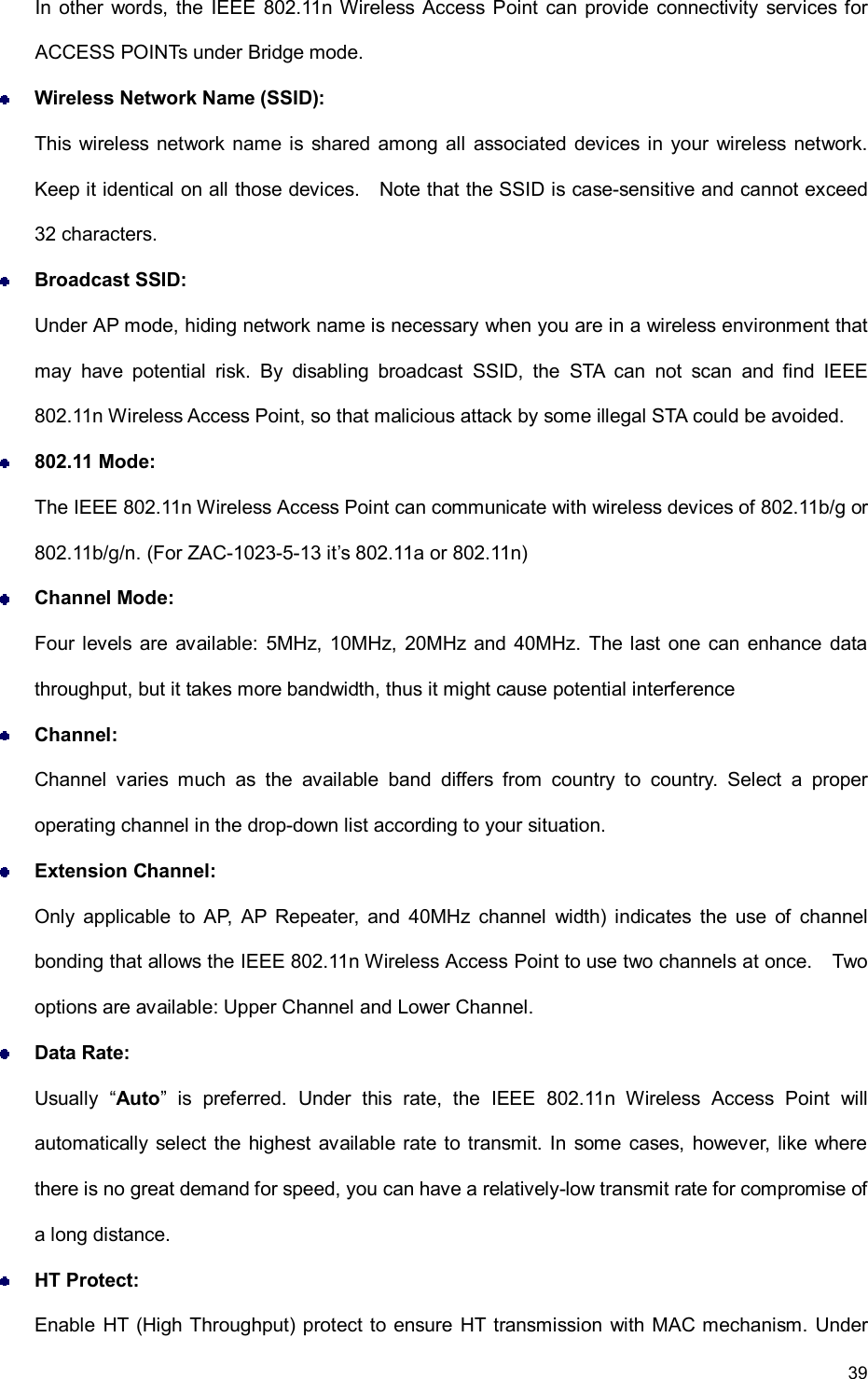

 39  In  other words, the IEEE  802.11n Wireless  Access Point  can  provide connectivity  services for ACCESS POINTs under Bridge mode.  Wireless Network Name (SSID):   This wireless  network name is shared among all  associated devices  in  your wireless network. Keep it identical on all those devices.    Note that the SSID is case-sensitive and cannot exceed 32 characters.  Broadcast SSID:   Under AP mode, hiding network name is necessary when you are in a wireless environment that may  have  potential  risk.  By  disabling  broadcast  SSID,  the  STA  can  not  scan  and  find  IEEE 802.11n Wireless Access Point, so that malicious attack by some illegal STA could be avoided.  802.11 Mode:   The IEEE 802.11n Wireless Access Point can communicate with wireless devices of 802.11b/g or 802.11b/g/n. (For ZAC-1023-5-13 it’s 802.11a or 802.11n)  Channel Mode:   Four levels are  available:  5MHz,  10MHz, 20MHz  and 40MHz. The last  one can enhance  data throughput, but it takes more bandwidth, thus it might cause potential interference  Channel:   Channel  varies  much  as  the  available  band  differs  from  country  to  country.  Select  a  proper operating channel in the drop-down list according to your situation.  Extension Channel:   Only  applicable  to  AP,  AP  Repeater,  and  40MHz  channel  width)  indicates  the  use  of  channel bonding that allows the IEEE 802.11n Wireless Access Point to use two channels at once.    Two options are available: Upper Channel and Lower Channel.  Data Rate: Usually  “Auto”  is  preferred.  Under  this  rate,  the  IEEE  802.11n  Wireless  Access  Point  will automatically select the highest  available rate to transmit. In  some cases,  however, like where there is no great demand for speed, you can have a relatively-low transmit rate for compromise of a long distance.  HT Protect:   Enable HT  (High  Throughput) protect to ensure  HT  transmission with MAC mechanism.  Under

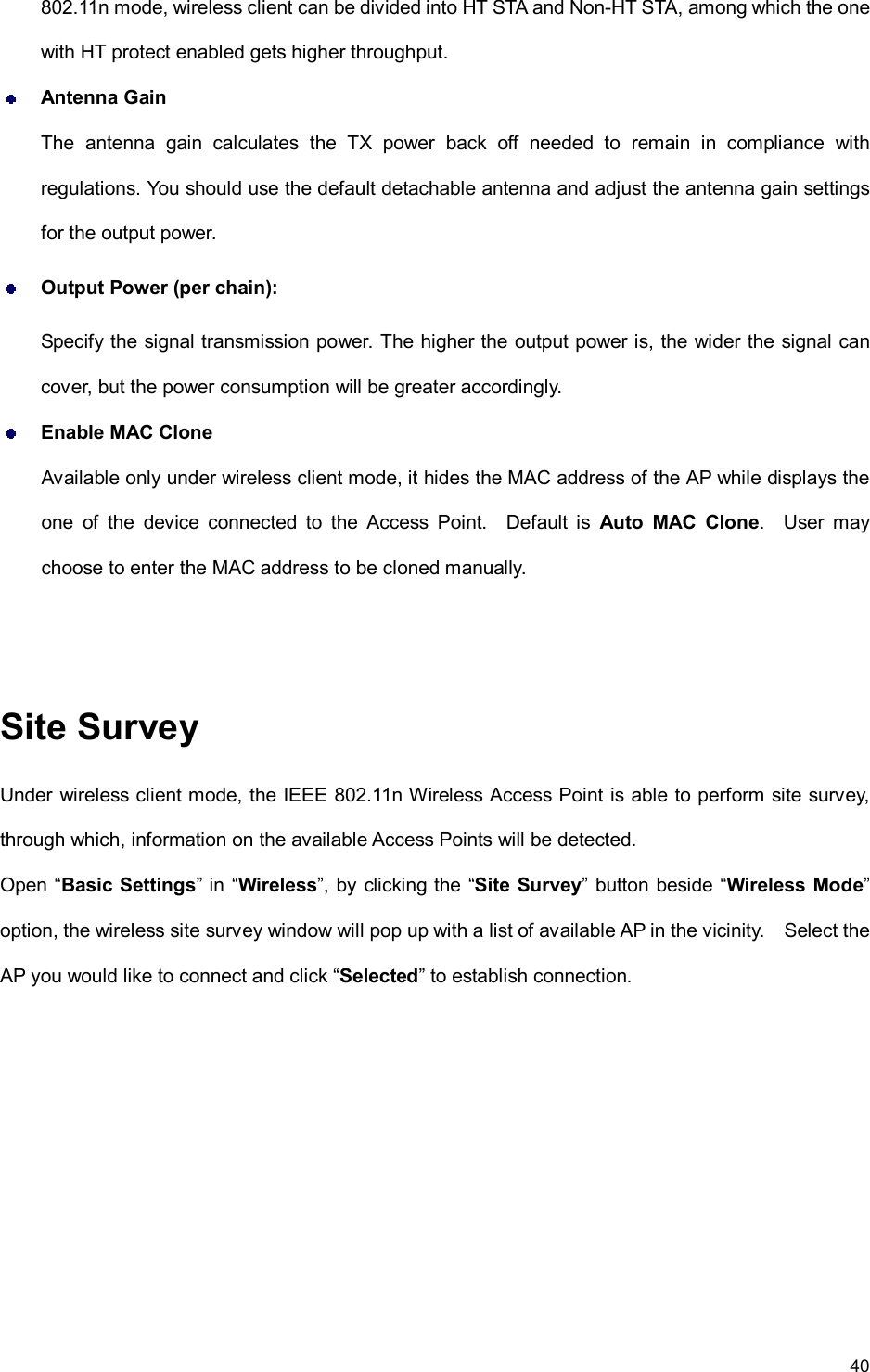

 40  802.11n mode, wireless client can be divided into HT STA and Non-HT STA, among which the one with HT protect enabled gets higher throughput.  Antenna Gain The  antenna  gain  calculates  the  TX  power  back  off  needed  to  remain  in  compliance  with regulations. You should use the default detachable antenna and adjust the antenna gain settings for the output power.  Output Power (per chain):   Specify the signal transmission power. The higher the output power is, the wider the signal can cover, but the power consumption will be greater accordingly.  Enable MAC Clone Available only under wireless client mode, it hides the MAC address of the AP while displays the one  of  the  device  connected  to  the  Access  Point.    Default  is  Auto  MAC  Clone.    User  may choose to enter the MAC address to be cloned manually.   Site Survey Under  wireless client mode, the IEEE 802.11n Wireless Access Point is able to perform site survey, through which, information on the available Access Points will be detected. Open “Basic Settings” in “Wireless”, by clicking the “Site Survey” button beside “Wireless Mode” option, the wireless site survey window will pop up with a list of available AP in the vicinity.    Select the AP you would like to connect and click “Selected” to establish connection.
 41   Figure 14 Site Survey VAP Profile Settings Available in AP mode, the IEEE 802.11n Wireless Access Point allows up to 8 virtual SSIDs on a single BSSID and to configure different profile settings such as security and VLAN ID to each SSID.    To create a virtual  AP,  you may check the  Enabled  box  of  the  profile  and click  on  the profile  (eg.  Profile  2)  to configure wireless and security settings.    Hit Apply to active the profile.  Figure 15 VAP Profile Settings

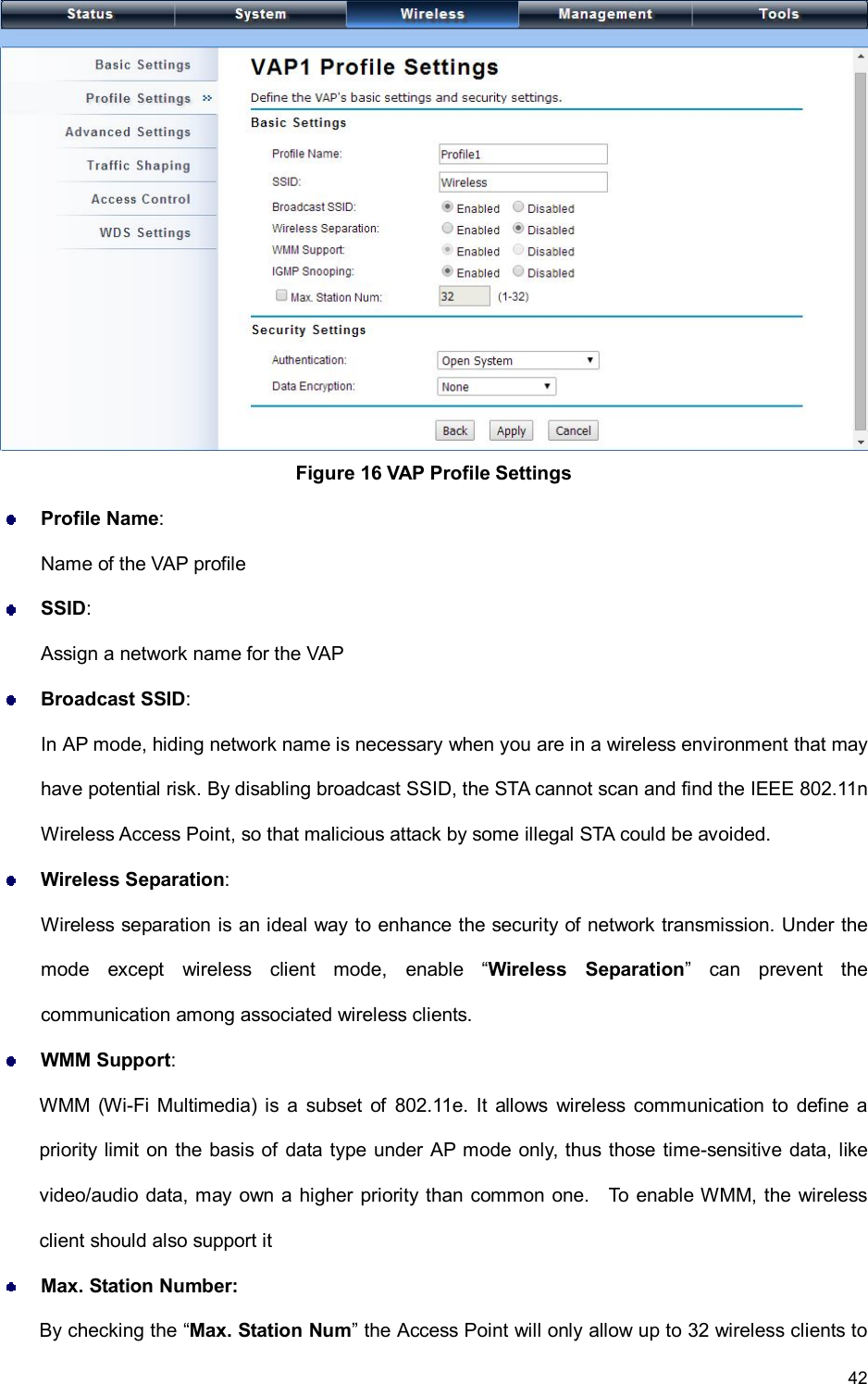

 42   Figure 16 VAP Profile Settings  Profile Name:   Name of the VAP profile  SSID:   Assign a network name for the VAP    Broadcast SSID:   In AP mode, hiding network name is necessary when you are in a wireless environment that may have potential risk. By disabling broadcast SSID, the STA cannot scan and find the IEEE 802.11n Wireless Access Point, so that malicious attack by some illegal STA could be avoided.  Wireless Separation:   Wireless separation is an ideal way to enhance the security of network transmission. Under the mode  except  wireless  client  mode,  enable  “Wireless  Separation”  can  prevent  the communication among associated wireless clients.  WMM Support:   WMM  (Wi-Fi  Multimedia)  is  a  subset  of  802.11e.  It  allows  wireless  communication  to  define  a priority limit on the basis of data type under AP mode only, thus those time-sensitive data, like video/audio data, may own  a higher priority than common one.    To enable WMM, the wireless client should also support it  Max. Station Number:   By checking the “Max. Station Num” the Access Point will only allow up to 32 wireless clients to

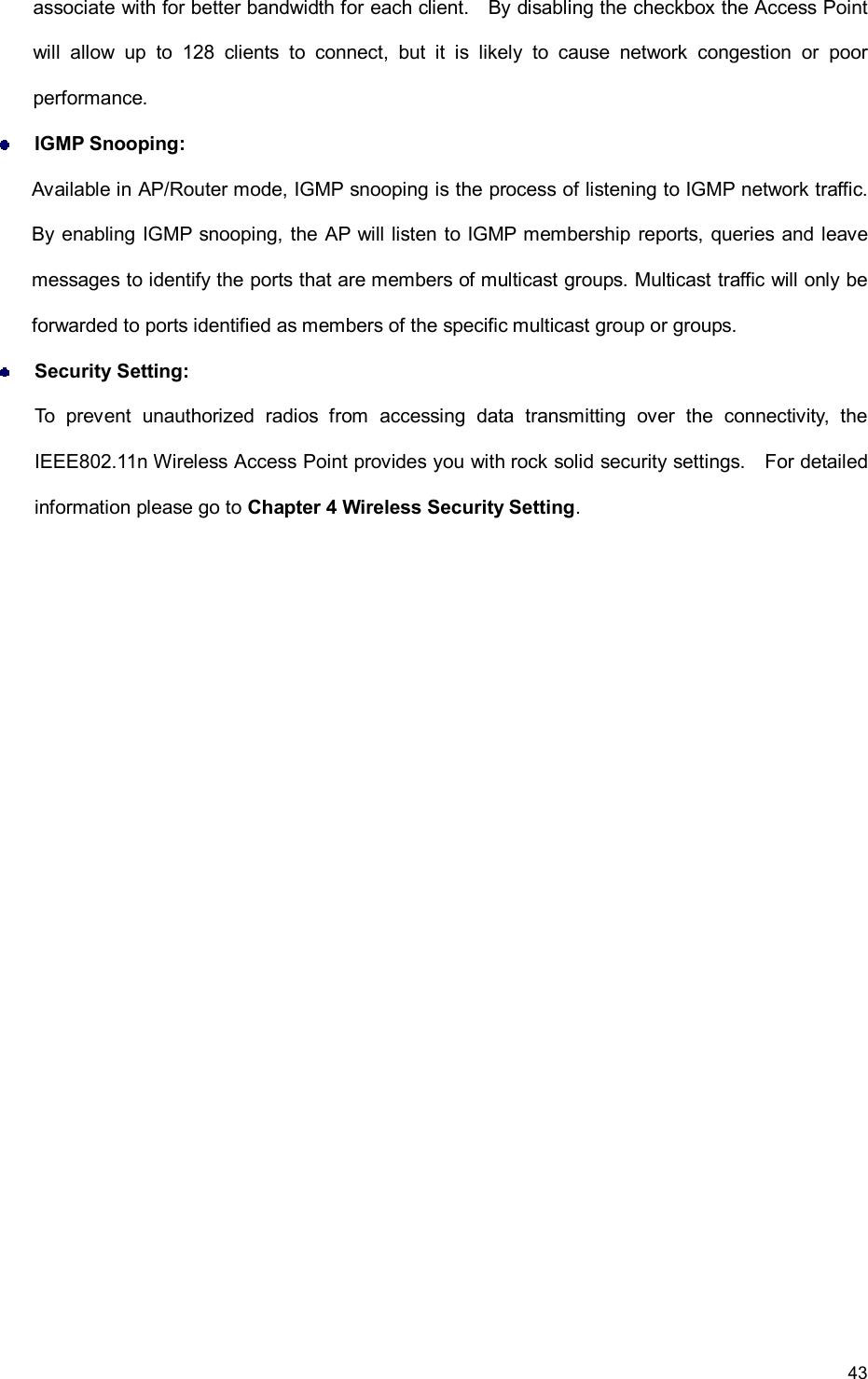

 43  associate with for better bandwidth for each client.    By disabling the checkbox the Access Point will  allow  up  to  128  clients  to  connect,  but  it  is  likely  to  cause  network  congestion  or  poor performance.  IGMP Snooping:   Available in AP/Router mode, IGMP snooping is the process of listening to IGMP network traffic. By enabling IGMP  snooping, the AP will listen to IGMP membership reports, queries and leave messages to identify the ports that are members of multicast groups. Multicast traffic will only be forwarded to ports identified as members of the specific multicast group or groups.  Security Setting: To  prevent  unauthorized  radios  from  accessing  data  transmitting  over  the  connectivity,  the IEEE802.11n Wireless Access Point provides you with rock solid security settings.    For detailed information please go to Chapter 4 Wireless Security Setting.

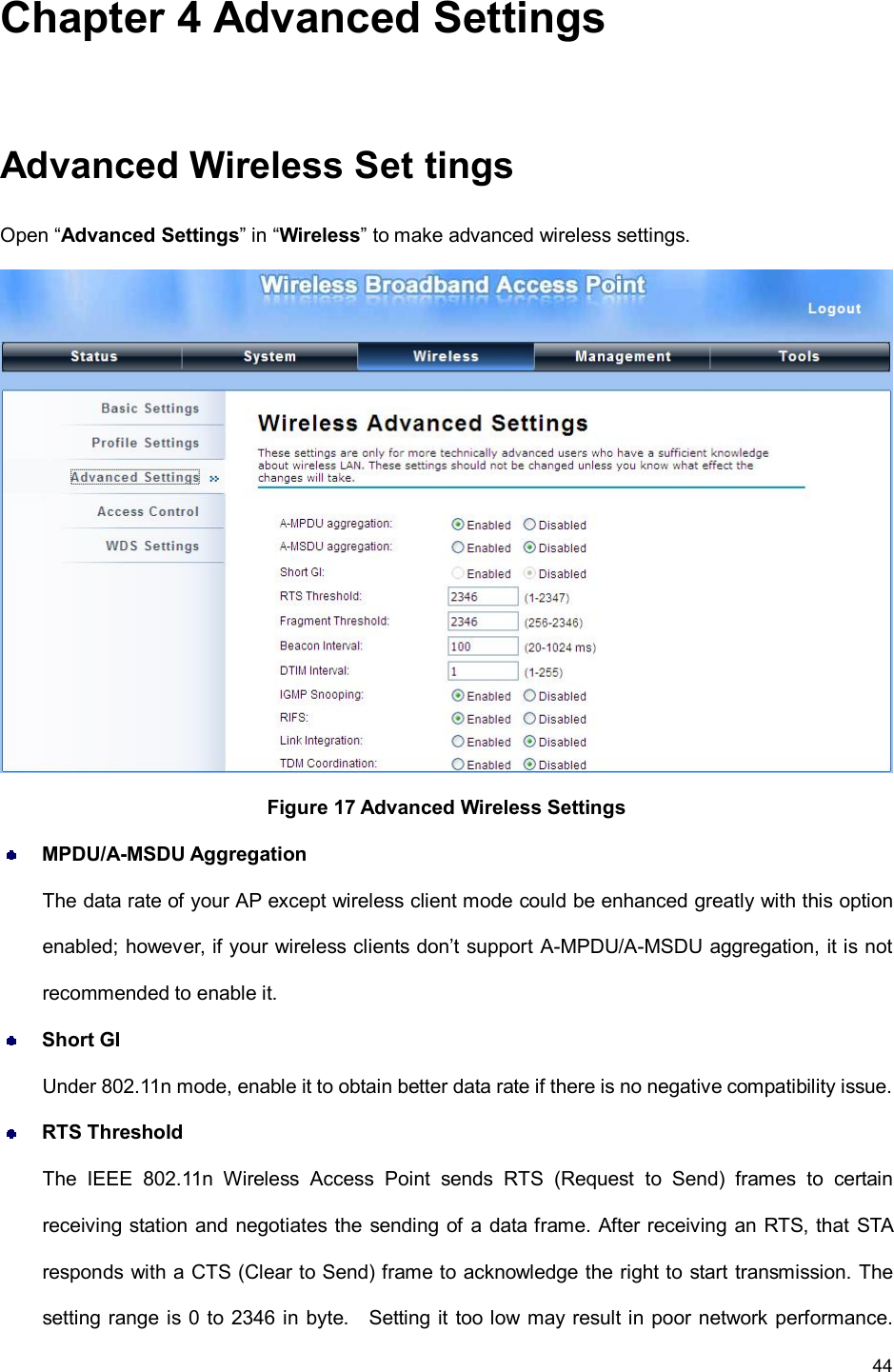

 44  Chapter 4 Advanced Settings  Advanced Wireless Set tings Open “Advanced Settings” in “Wireless” to make advanced wireless settings.  Figure 17 Advanced Wireless Settings  MPDU/A-MSDU Aggregation The data rate of your AP except wireless client mode could be enhanced greatly with this option enabled; however, if your wireless clients don’t support A-MPDU/A-MSDU aggregation, it is not recommended to enable it.  Short GI Under 802.11n mode, enable it to obtain better data rate if there is no negative compatibility issue.  RTS Threshold The  IEEE  802.11n  Wireless  Access  Point  sends  RTS  (Request  to  Send)  frames  to  certain receiving station and negotiates the sending of a data frame. After receiving an RTS, that STA responds with a CTS (Clear to Send) frame to acknowledge the right to start transmission. The setting range is 0 to 2346 in byte.    Setting it too low may result in poor network performance.

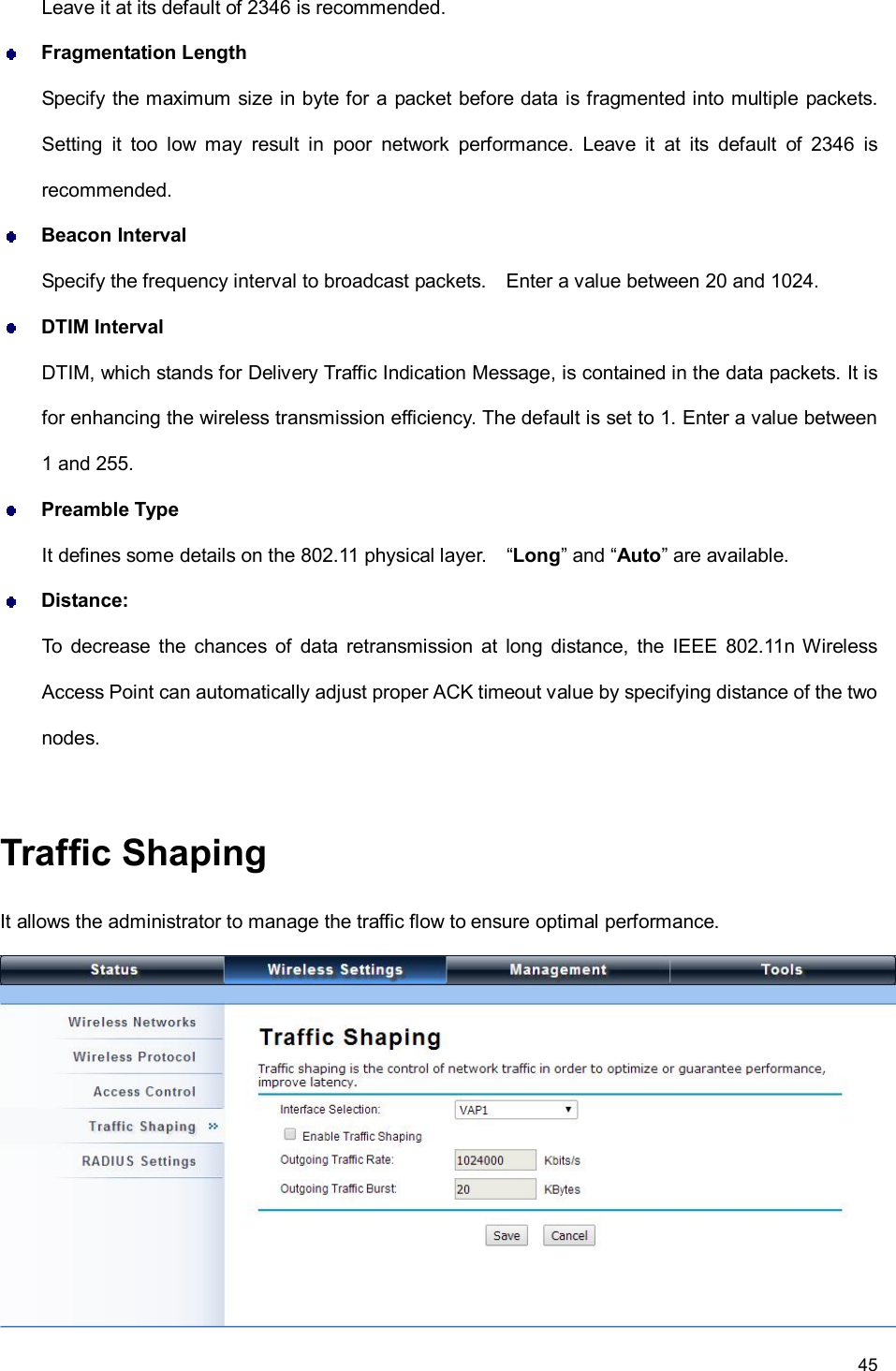

 45  Leave it at its default of 2346 is recommended.  Fragmentation Length Specify the maximum size  in byte for  a packet before data is fragmented into multiple packets. Setting  it  too  low  may  result  in  poor  network  performance.  Leave  it  at  its  default  of  2346  is recommended.  Beacon Interval Specify the frequency interval to broadcast packets.    Enter a value between 20 and 1024.  DTIM Interval DTIM, which stands for Delivery Traffic Indication Message, is contained in the data packets. It is for enhancing the wireless transmission efficiency. The default is set to 1. Enter a value between 1 and 255.  Preamble Type It defines some details on the 802.11 physical layer.    “Long” and “Auto” are available.  Distance: To  decrease  the  chances  of  data  retransmission  at  long  distance,  the  IEEE  802.11n Wireless Access Point can automatically adjust proper ACK timeout value by specifying distance of the two nodes.  Traffic Shaping It allows the administrator to manage the traffic flow to ensure optimal performance.

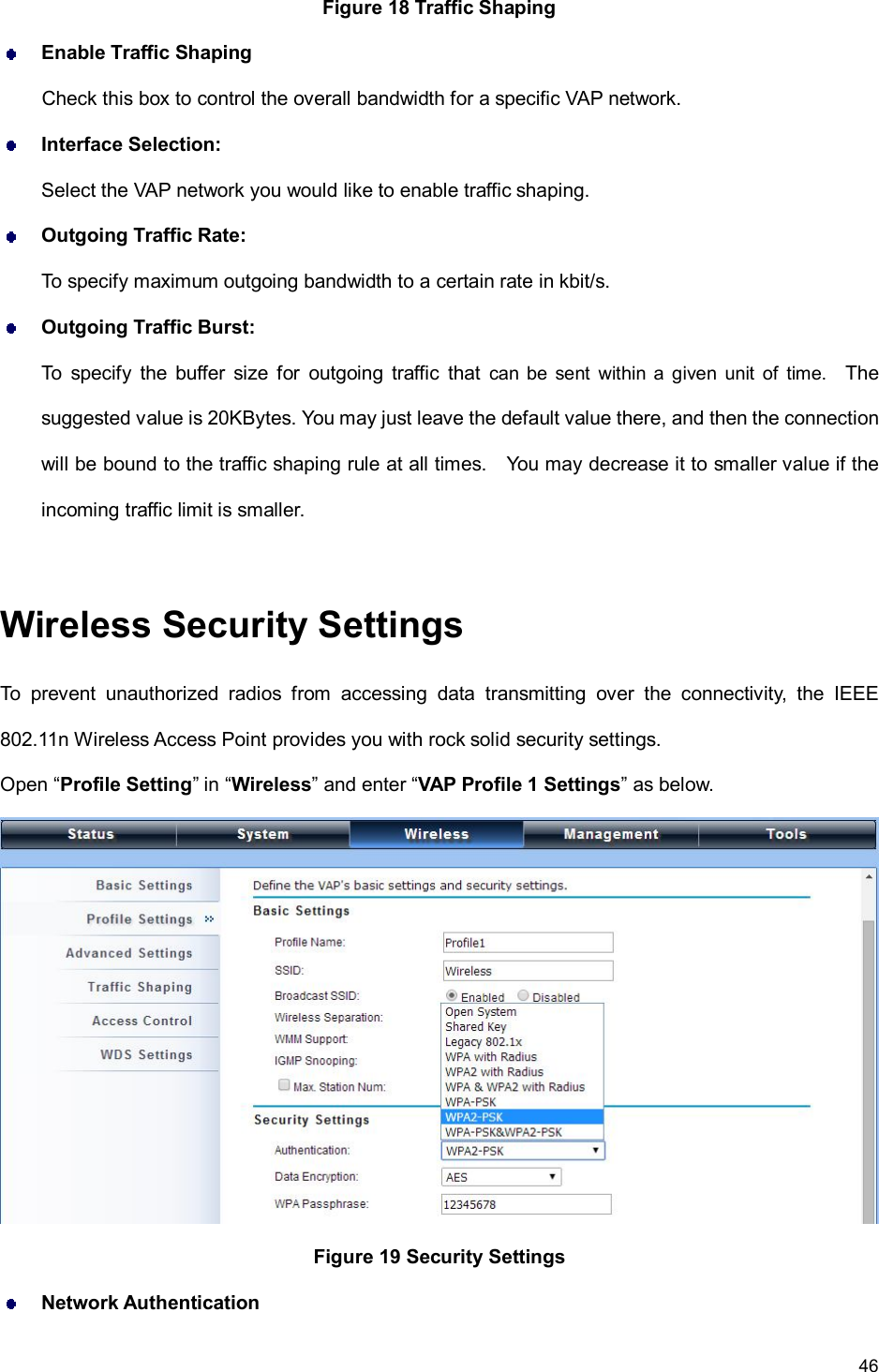

 46  Figure 18 Traffic Shaping  Enable Traffic Shaping Check this box to control the overall bandwidth for a specific VAP network.  Interface Selection:   Select the VAP network you would like to enable traffic shaping.  Outgoing Traffic Rate:   To specify maximum outgoing bandwidth to a certain rate in kbit/s.  Outgoing Traffic Burst:   To  specify  the  buffer  size  for  outgoing  traffic  that  can  be  sent  within  a  given  unit  of  time.    The suggested value is 20KBytes. You may just leave the default value there, and then the connection will be bound to the traffic shaping rule at all times.    You may decrease it to smaller value if the incoming traffic limit is smaller.  Wireless Security Settings To  prevent  unauthorized  radios  from  accessing  data  transmitting  over  the  connectivity,  the  IEEE 802.11n Wireless Access Point provides you with rock solid security settings. Open “Profile Setting” in “Wireless” and enter “VAP Profile 1 Settings” as below.  Figure 19 Security Settings  Network Authentication
 47  Open System: It allows any device to join the network without performing any security check. Shared Key: Data encryption and key are required for wireless authentication (Not available in Bridge/AP Repeater mode). Legacy  802.1x:  Available  in  AP/Wireless  Client  mode,  it  provides  the  rights  to  access  the wireless network and wired Ethernet. With User and PC identity, centralized authentication as well as  dynamic key management, it controls the security risk of wireless network to the lowest. To serve  the 802.1x,  at least one EAP type should  be supported by  the RADIUS Server,  AP  and wireless client.    For  first  time  users,  if  EAP  type  “TLS”  is  selected,  you  need  to  import  valid  user certificate given by CA in prior.    To import user certificates, please refer to Chapter 5 Management/Certificate Settings for more details. .  WPA  with  RADIUS:  Available in  AP/Wireless  Client  mode, with  warrant  (username,  password and etc.) offered by user, this kind of authentication can be realized with specific RADIUS server. This is the common way to be adopted in large enterprise network.     WPA2 with RADIUS: Available in AP/Wireless Client mode, as a new version of WPA, only all the clients support WPA2, can it be available. If it is selected, AES encryption and RADIUS server is required.    It is only available in AP/Wireless Client mode. WPA&WPA2 with RADIUS: Available in AP mode, it provides options of WPA (TKIP) or WPA2 (AES)  for  the  client.  If  it  is  selected,  the  data  encryption  type  must  be  TKIP  +  AES  and  the RADIUS server must be set. WPA-PSK:  It is  a  simplified WPA  mode  with  no  need for  specific  authentication  server. In  this so-called WPA Pre-Shared Key, all you have to do is just pre-enter a key in each WLAN node and this  is  the  common  way  to  be  adopted  in  large  and  middle  enterprise  as  well  as  residential network. WPA2-PSK: As a new version of WPA, only all the clients support WPA2, can it be available. If it is selected, the data encryption can only be AES and the passphrase is required. WPA-PSK&WPA2-PSK: Available in AP mode, it provides options of WPA (TKIP) or WPA2 (AES) Note:

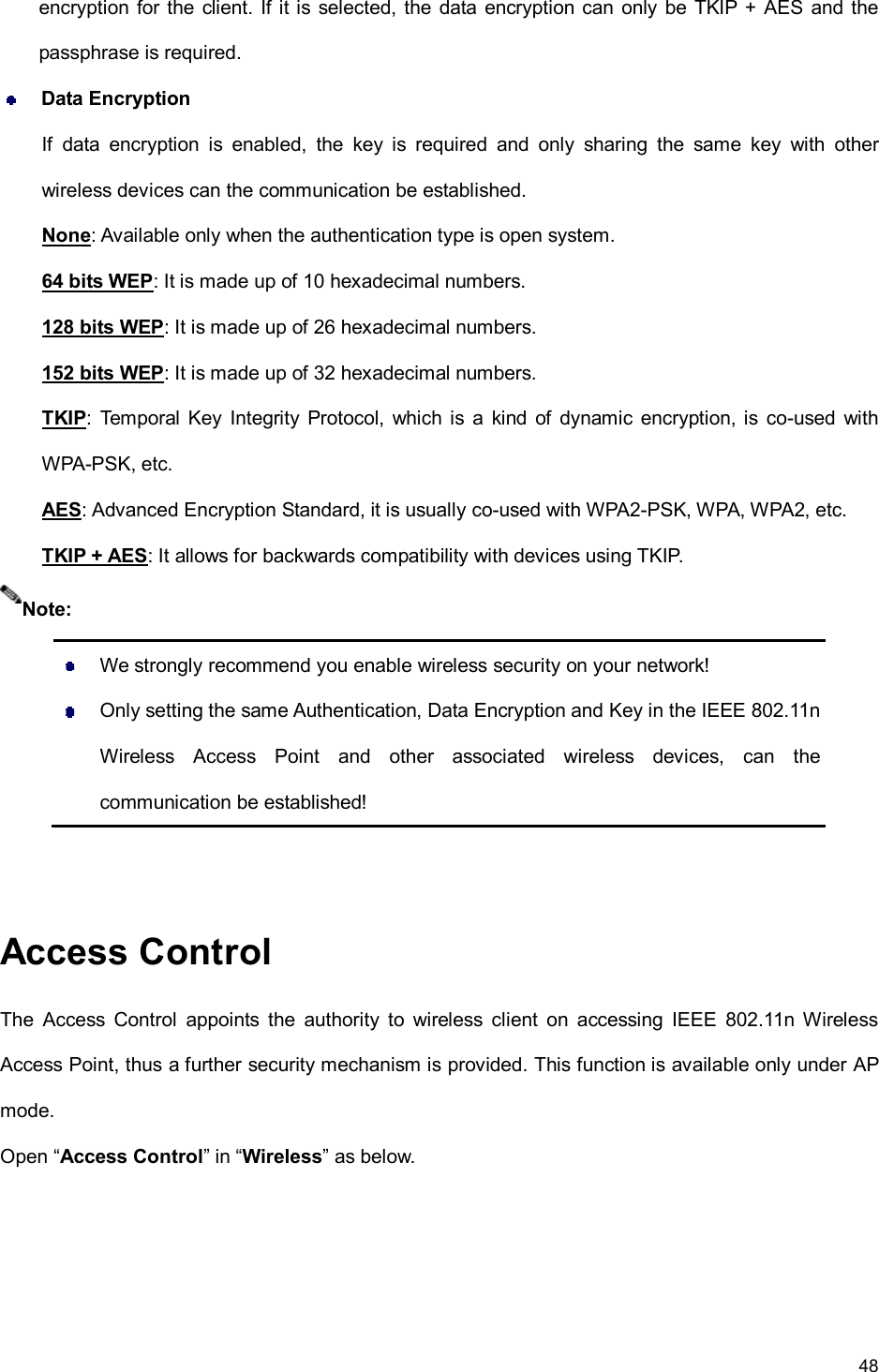

 48  encryption for the  client. If it is selected, the data encryption  can  only be TKIP + AES and the passphrase is required.  Data Encryption If  data  encryption  is  enabled,  the  key  is  required  and  only  sharing  the  same  key  with  other wireless devices can the communication be established. None: Available only when the authentication type is open system. 64 bits WEP: It is made up of 10 hexadecimal numbers. 128 bits WEP: It is made up of 26 hexadecimal numbers. 152 bits WEP: It is made up of 32 hexadecimal numbers. TKIP:  Temporal  Key  Integrity  Protocol,  which is  a  kind  of  dynamic  encryption,  is  co-used  with WPA-PSK, etc. AES: Advanced Encryption Standard, it is usually co-used with WPA2-PSK, WPA, WPA2, etc. TKIP + AES: It allows for backwards compatibility with devices using TKIP.    We strongly recommend you enable wireless security on your network!   Only setting the same Authentication, Data Encryption and Key in the IEEE 802.11n Wireless  Access  Point  and  other  associated  wireless  devices,  can  the communication be established!  Access Control The  Access  Control  appoints  the  authority  to  wireless  client  on  accessing  IEEE  802.11n  Wireless Access Point, thus a further security mechanism is provided. This function is available only under AP mode. Open “Access Control” in “Wireless” as below. Note:

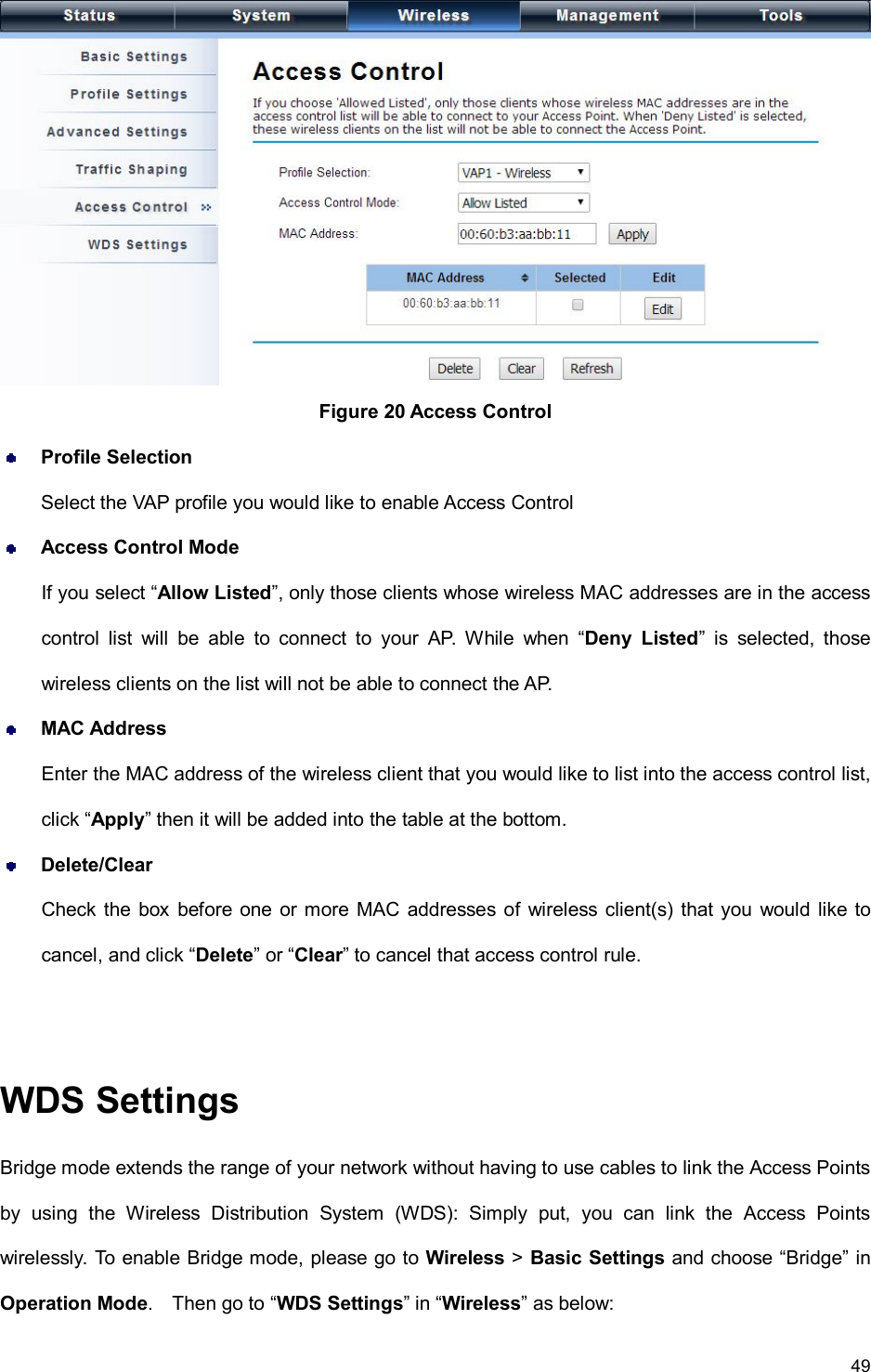

 49   Figure 20 Access Control  Profile Selection Select the VAP profile you would like to enable Access Control  Access Control Mode If you select “Allow Listed”, only those clients whose wireless MAC addresses are in the access control  list  will  be  able  to  connect  to  your  AP.  While  when  “Deny  Listed”  is  selected,  those wireless clients on the list will not be able to connect the AP.  MAC Address Enter the MAC address of the wireless client that you would like to list into the access control list, click “Apply” then it will be added into the table at the bottom.  Delete/Clear Check the box  before one or more MAC addresses of  wireless client(s) that you would  like to cancel, and click “Delete” or “Clear” to cancel that access control rule.  WDS Settings Bridge mode extends the range of your network without having to use cables to link the Access Points by  using  the  Wireless  Distribution  System  (WDS):  Simply  put,  you  can  link  the  Access  Points wirelessly. To enable Bridge mode, please go to Wireless > Basic Settings and choose “Bridge” in Operation Mode.    Then go to “WDS Settings” in “Wireless” as below:

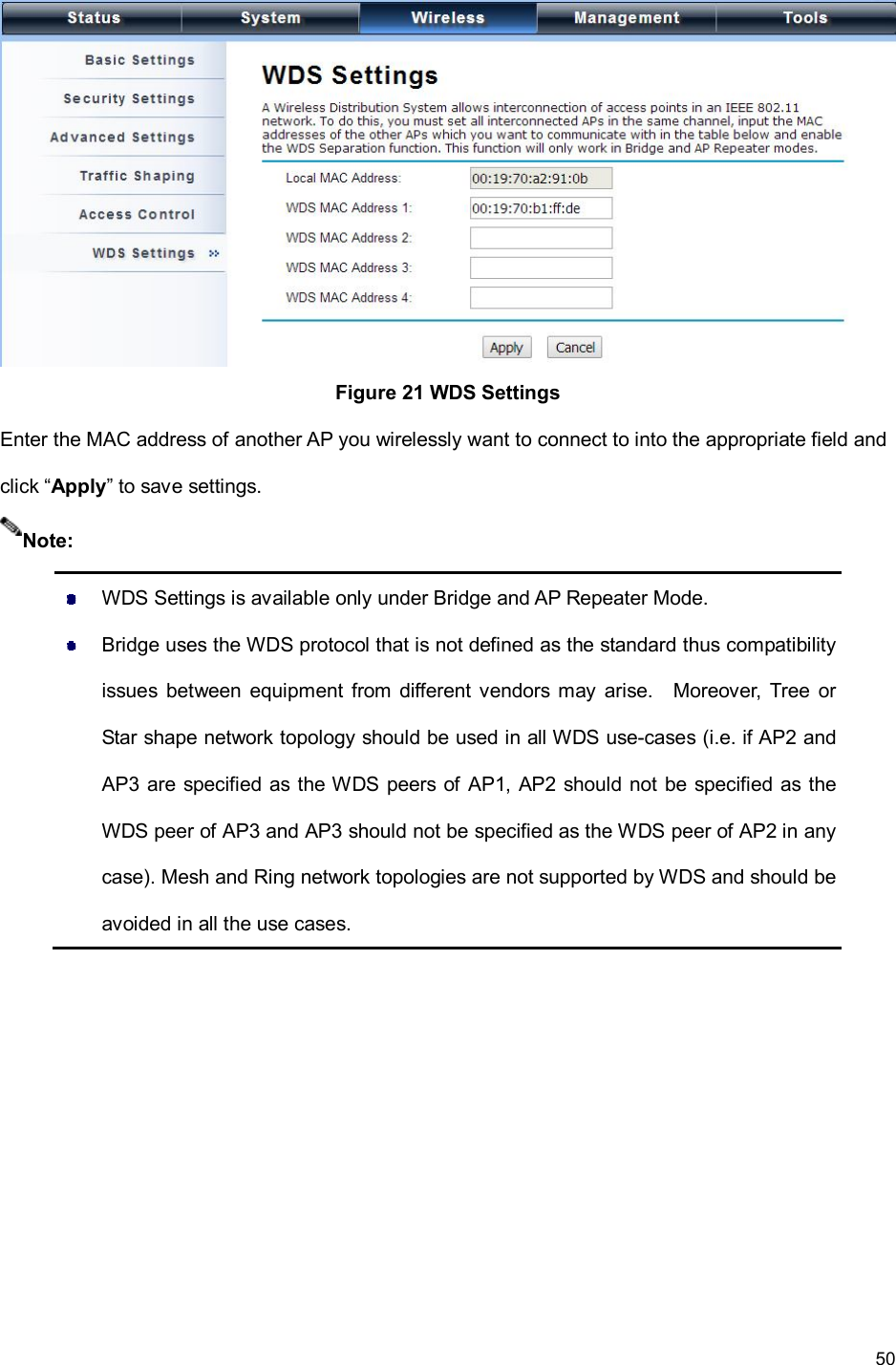

 50      Figure 21 WDS Settings Enter the MAC address of another AP you wirelessly want to connect to into the appropriate field and click “Apply” to save settings.    WDS Settings is available only under Bridge and AP Repeater Mode.   Bridge uses the WDS protocol that is not defined as the standard thus compatibility issues  between  equipment from  different  vendors  may  arise.    Moreover,  Tree  or Star shape network topology should be used in all WDS use-cases (i.e. if AP2 and AP3 are specified as the WDS peers of AP1, AP2  should not be specified as the WDS peer of AP3 and AP3 should not be specified as the WDS peer of AP2 in any case). Mesh and Ring network topologies are not supported by WDS and should be avoided in all the use cases.    Note:
 51  Chapter 5 Management  Password From “Password Settings” in “Management”, you can change the password to manage your IEEE 802.11n VAC Access Point.  Figure 22 Password Settings  Current Password:   Enter the current password.  New Password:   Enter the new password.  Confirm Password:   Enter the new password again for confirmation.    The password is case-sensitive and its length cannot exceed 19 characters!  Upgrade Firmware Open “Firmware Upload” in “Management” and follow the steps below to upgrade firmware locally or remotely through IEEE 802.11n VAC Access Point’s Web: Note:
 52   Figure 23 Firmware Upgrade   Click “Browse” to select the firmware file you would like to load;   Click “Upload” to start the upload process;   Wait a few minutes, the VAC Access Point will reboot after successful upgrade.    Do NOT cut the power off during upgrade, otherwise the system may crash!   Backup/ Retrieve Settings It is strongly recommended you back up configuration information in case of something unexpected. If tragedy  hits  your device,  you may have  an access to  restore the  important files by  the backup. All these can be done by the local or remote computer. Open “Configuration File” in “Management” as below:  Figure 24 Backup/Retrieve Settings  Save Setting to File By  clicking “Save”,  a  dialog  box  will  pop  up.  Save  it,  then  the  configuration  file  ap.cfg  will  be Note:

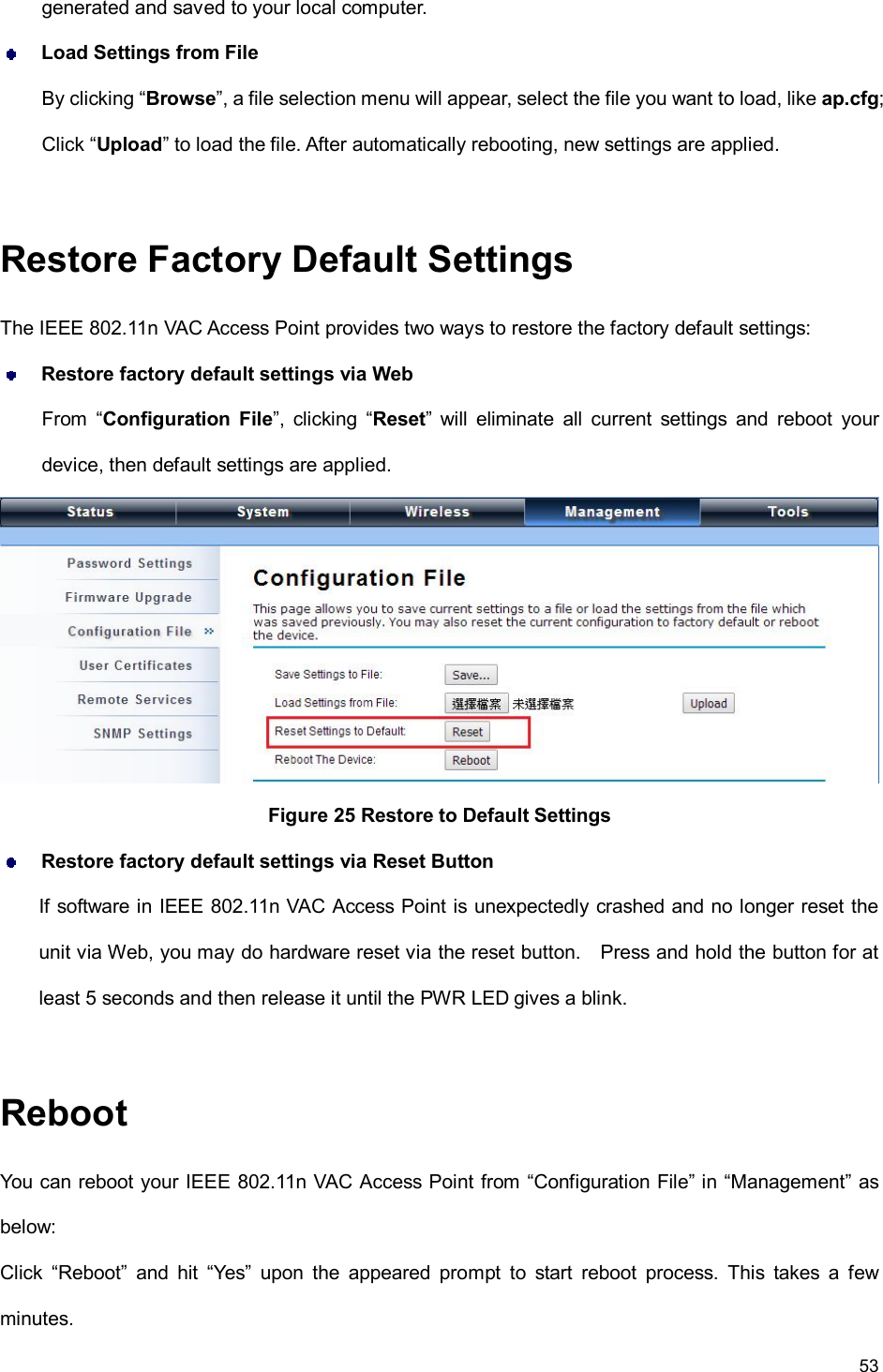

 53  generated and saved to your local computer.  Load Settings from File By clicking “Browse”, a file selection menu will appear, select the file you want to load, like ap.cfg; Click “Upload” to load the file. After automatically rebooting, new settings are applied.  Restore Factory Default Settings The IEEE 802.11n VAC Access Point provides two ways to restore the factory default settings:  Restore factory default settings via Web From  “Configuration  File”,  clicking  “Reset”  will  eliminate  all  current  settings  and  reboot  your device, then default settings are applied.  Figure 25 Restore to Default Settings  Restore factory default settings via Reset Button If software in IEEE 802.11n VAC Access Point is unexpectedly crashed and no longer reset the unit via Web, you may do hardware reset via the reset button.    Press and hold the button for at least 5 seconds and then release it until the PWR LED gives a blink.    Reboot You can reboot your IEEE 802.11n VAC Access Point from “Configuration File” in “Management” as below: Click  “Reboot”  and  hit  “Yes”  upon  the  appeared  prompt  to  start  reboot  process.  This  takes  a  few minutes.
 54   Figure 26 Reboot  User Certificate Under  Wireless  Client  mode,  when  EAP-TLS  is  used,  the  RADIUS  server  must  know  which  user certificates to trust.    The Server can trust all certificates issued by a given CA. To  import  a  user  certificate,  from  Import  User  Certificates,  click  “Browse”  and  specify  the  location where the user certificate is placed.    Click “Import”.  Figure 27 Reboot  Delete User Certificate:  Delete the selected user certificate.  Import User Certificates:   Imported the user certificate

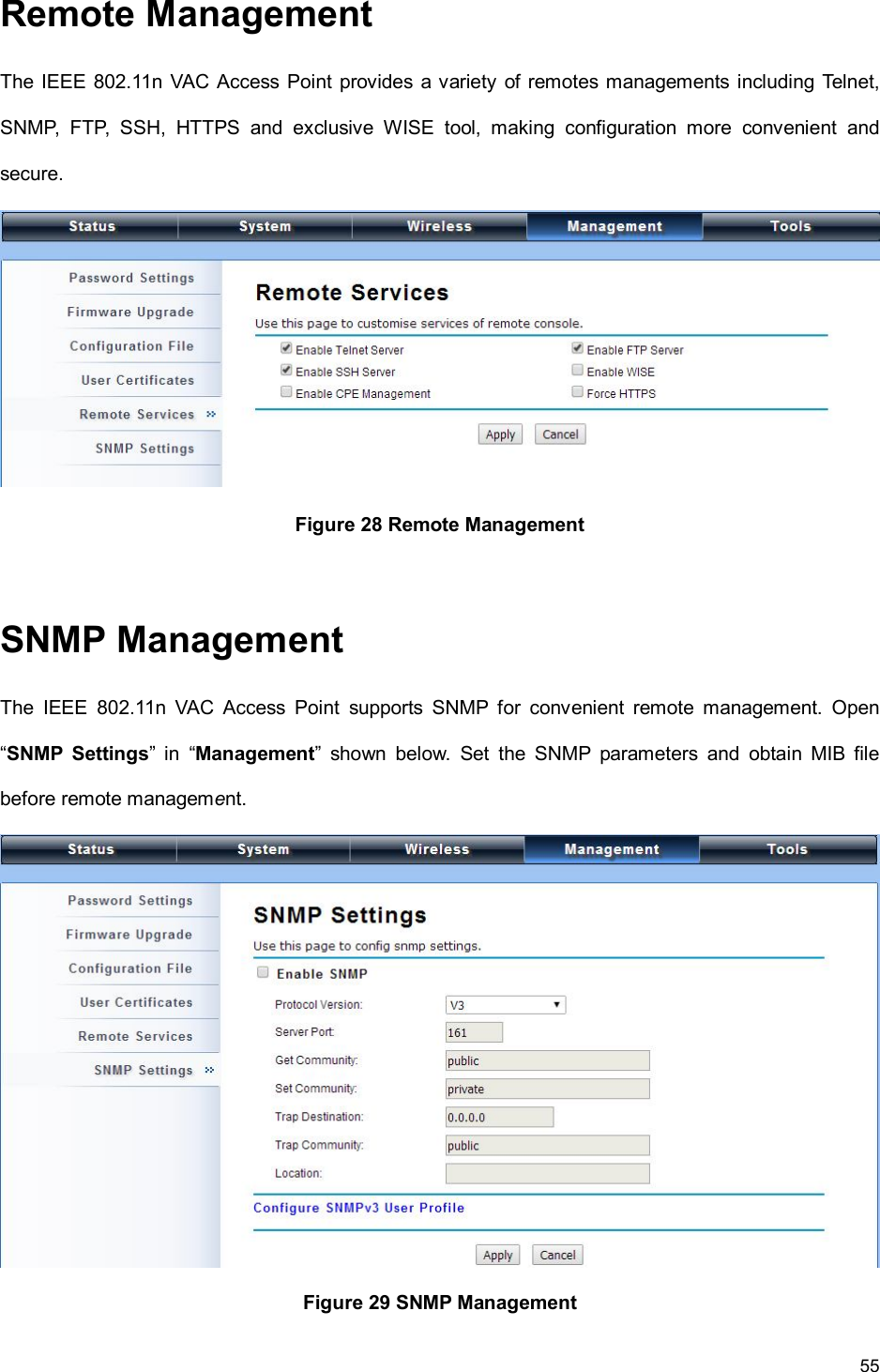

 55  Remote Management The IEEE 802.11n VAC  Access  Point provides  a variety of remotes managements  including  Telnet, SNMP,  FTP,  SSH,  HTTPS  and  exclusive  WISE  tool,  making  configuration  more  convenient  and secure.  Figure 28 Remote Management  SNMP Management The  IEEE  802.11n  VAC  Access  Point  supports  SNMP  for  convenient  remote  management.  Open “SNMP  Settings”  in  “Management”  shown  below.  Set  the  SNMP  parameters  and  obtain  MIB  file before remote management.  Figure 29 SNMP Management
 56    Protocol Version:   Select the SNMP version, and keep it identical on the IEEE 802.11n VAC Access Point and the SNMP manager.    The IEEE 802.11n VAC Access Point supports SNMP v2/v3.  Server Port:   Change the server port for a service if needed; however you have to use the same port to use that service for remote management.  Get Community:   Specify the password for the incoming Get and GetNext requests from the management station. By default, it is set to public and allows all requests.  Set Community:   Specify the password for the incoming Set requests from the management station. By default, it is set to private.  Trap Destination:   Specify the IP address of the station to send the SNMP traps to.  Trap Community:   Specify the password sent with each trap to the manager. By default, it is set to public and allows all requests.  Configure SNMPv3 User Profile For SNMP protocol version 3, you can click “Configure SNMPv3 User Profile” in blue to set the details  of  SNMPv3  user.  Check  “Enable  SNMPv3  Admin/User”  in  advance  and make further configuration. User  Name:  Specify  a  user  name  for  the  SNMPv3  administrator  or  user.  Only  the  SNMP commands carrying this user name are allowed to access the IEEE 802.11n VAC Access Point. Password: Specify a password for the SNMPv3 administrator or user. Only the SNMP commands carrying this password are allowed to access the IEEE 802.11n Wireless VAC Access Point. Confirm Password: Input that password again to make sure it is your desired one. Access Type: Select “Read Only” or “Read and Write” accordingly. Authentication  Protocol:  Select  an  authentication  algorithm.  SHA  authentication  is  stronger than MD5 but is slower.

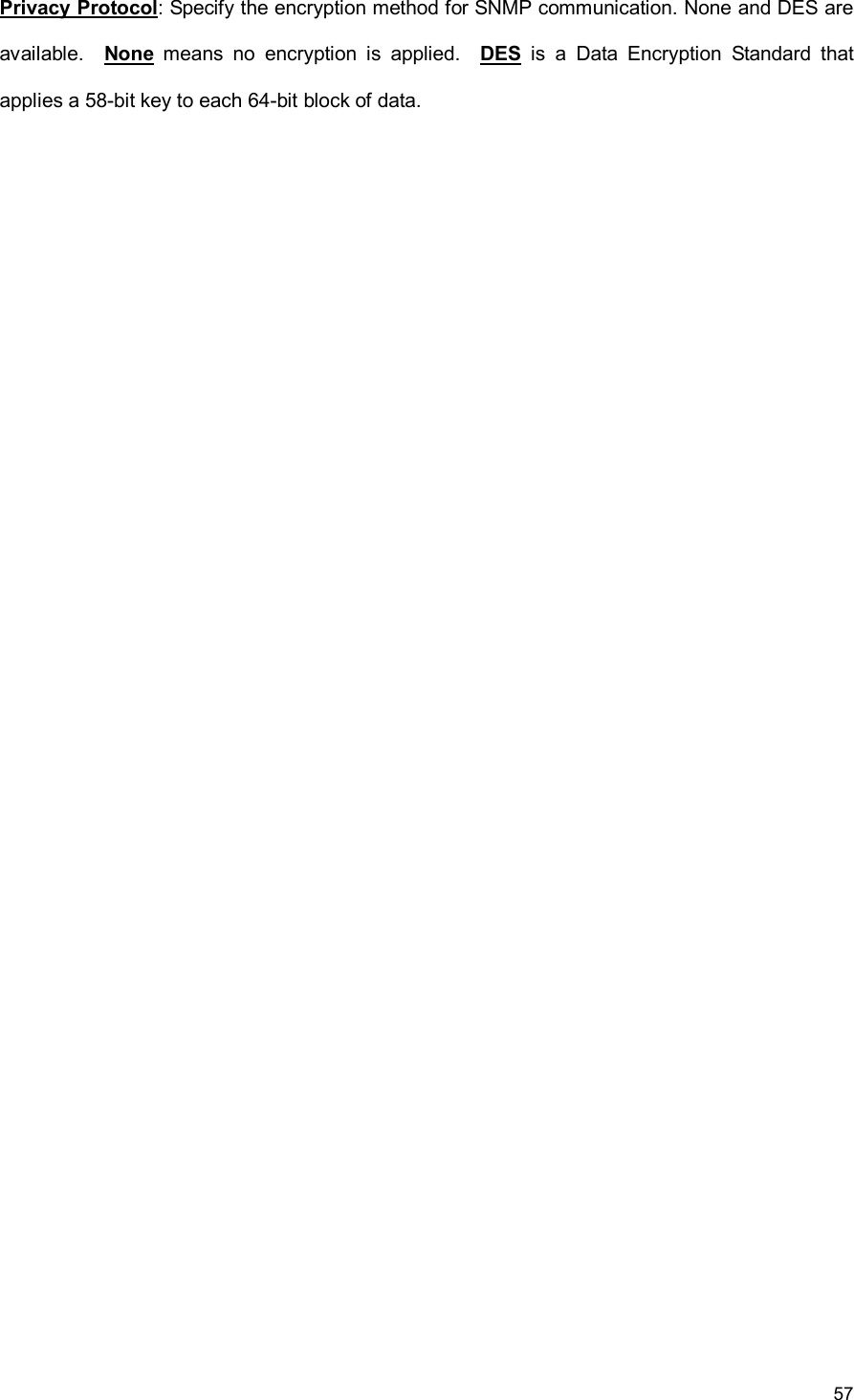

 57  Privacy Protocol: Specify the encryption method for SNMP communication. None and DES are available.    None  means  no  encryption  is  applied.    DES  is  a  Data  Encryption  Standard  that applies a 58-bit key to each 64-bit block of data.

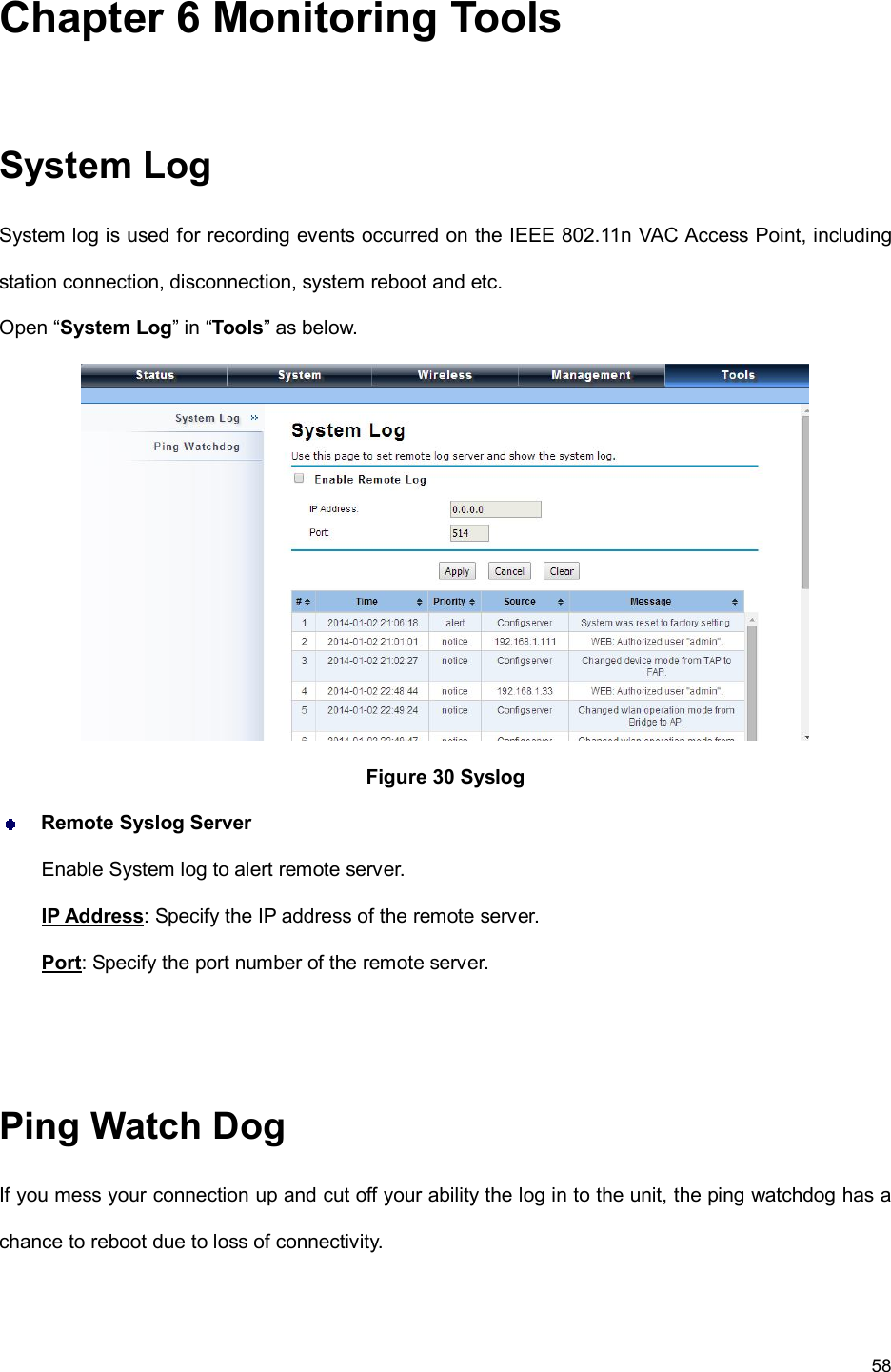

 58  Chapter 6 Monitoring Tools  System Log System log is used for recording events occurred on the IEEE 802.11n VAC Access Point, including station connection, disconnection, system reboot and etc. Open “System Log” in “Tools” as below.  Figure 30 Syslog  Remote Syslog Server Enable System log to alert remote server. IP Address: Specify the IP address of the remote server. Port: Specify the port number of the remote server.   Ping Watch Dog If you mess your connection up and cut off your ability the log in to the unit, the ping watchdog has a chance to reboot due to loss of connectivity.

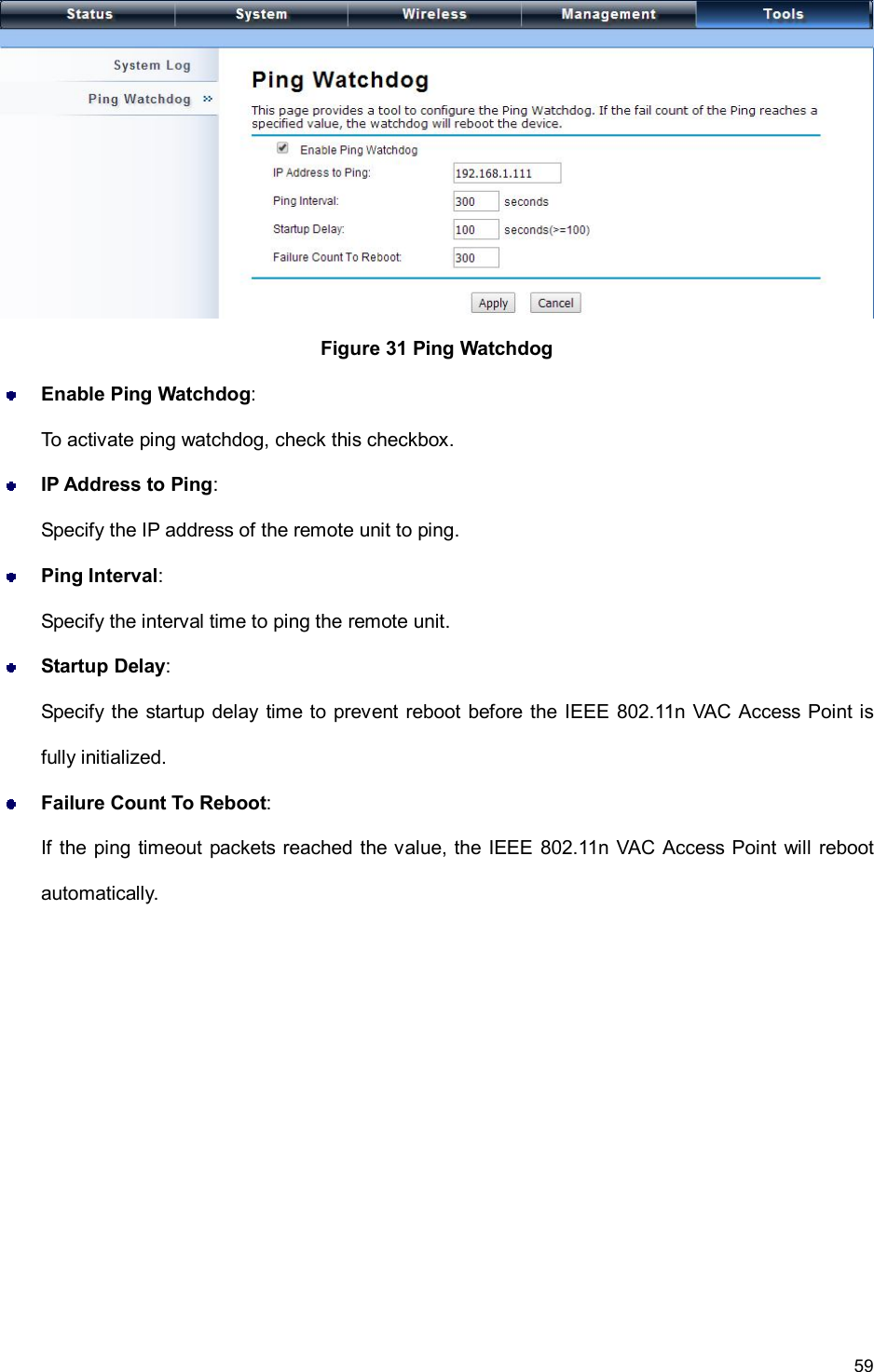

 59   Figure 31 Ping Watchdog  Enable Ping Watchdog:   To activate ping watchdog, check this checkbox.  IP Address to Ping:   Specify the IP address of the remote unit to ping.  Ping Interval:   Specify the interval time to ping the remote unit.  Startup Delay:   Specify the startup delay time to prevent reboot before the IEEE 802.11n VAC Access Point is fully initialized.  Failure Count To Reboot:   If the ping timeout packets  reached the value, the IEEE 802.11n VAC Access  Point will reboot automatically.
 60  Chapter 7 Status  View Basic Information Open “Information” in “Status” to check the basic information of the Access Point, which is read only. Information includes  system  information,  LAN  settings,  wireless  setting  and interface  status.    Click “Refresh” at the bottom to have the real-time information.  Figure 32 Basic Information  View Association List Open “Connections” in “Status” to check the information of associated wireless devices such as MAC address, signal strength, connection time, IP address, etc.    All is read only.    Click “Refresh” at the bottom to update the current association list.

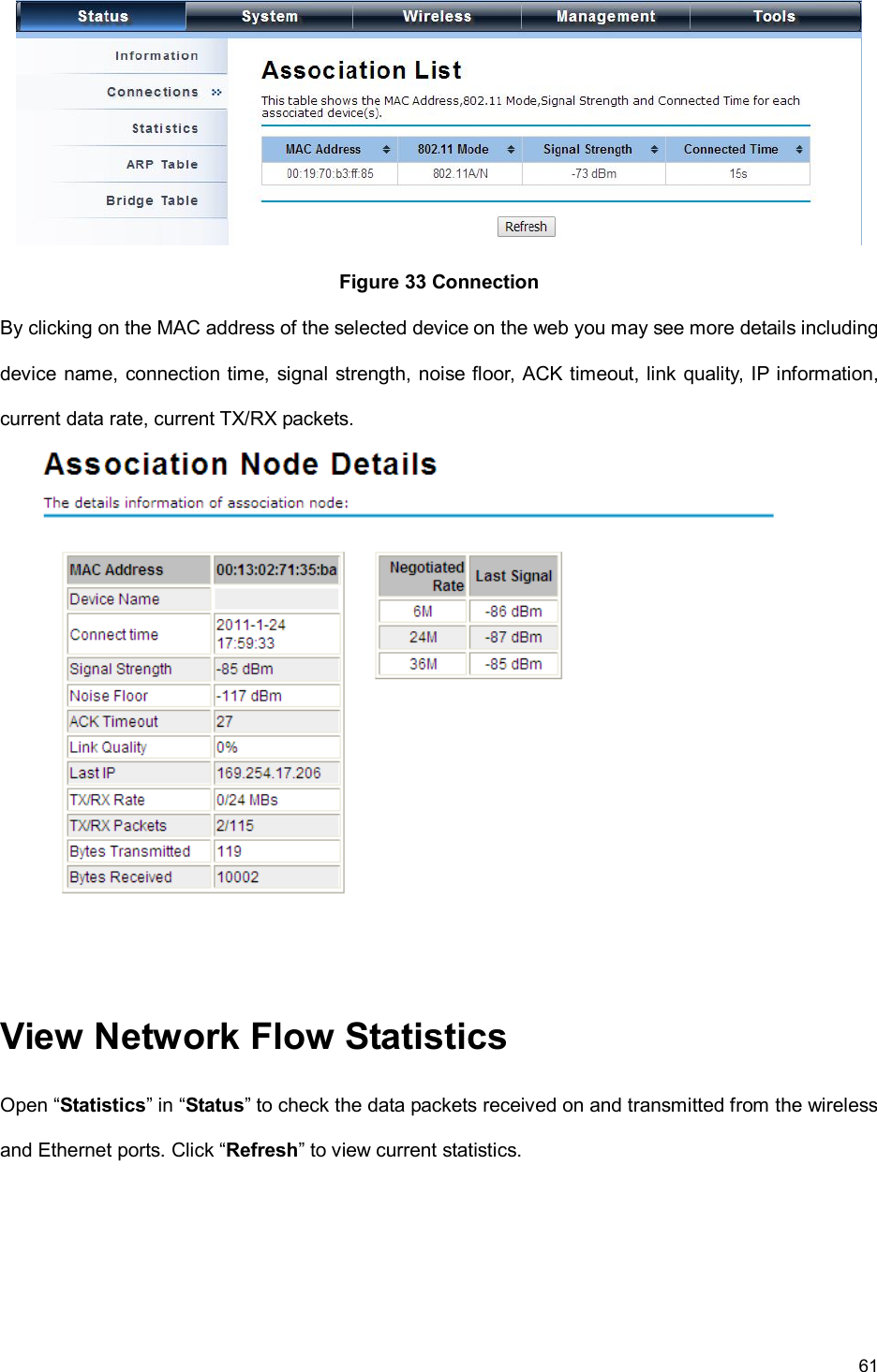

 61   Figure 33 Connection By clicking on the MAC address of the selected device on the web you may see more details including device name, connection time, signal  strength, noise floor, ACK timeout, link quality, IP information, current data rate, current TX/RX packets.    View Network Flow Statistics Open “Statistics” in “Status” to check the data packets received on and transmitted from the wireless and Ethernet ports. Click “Refresh” to view current statistics.

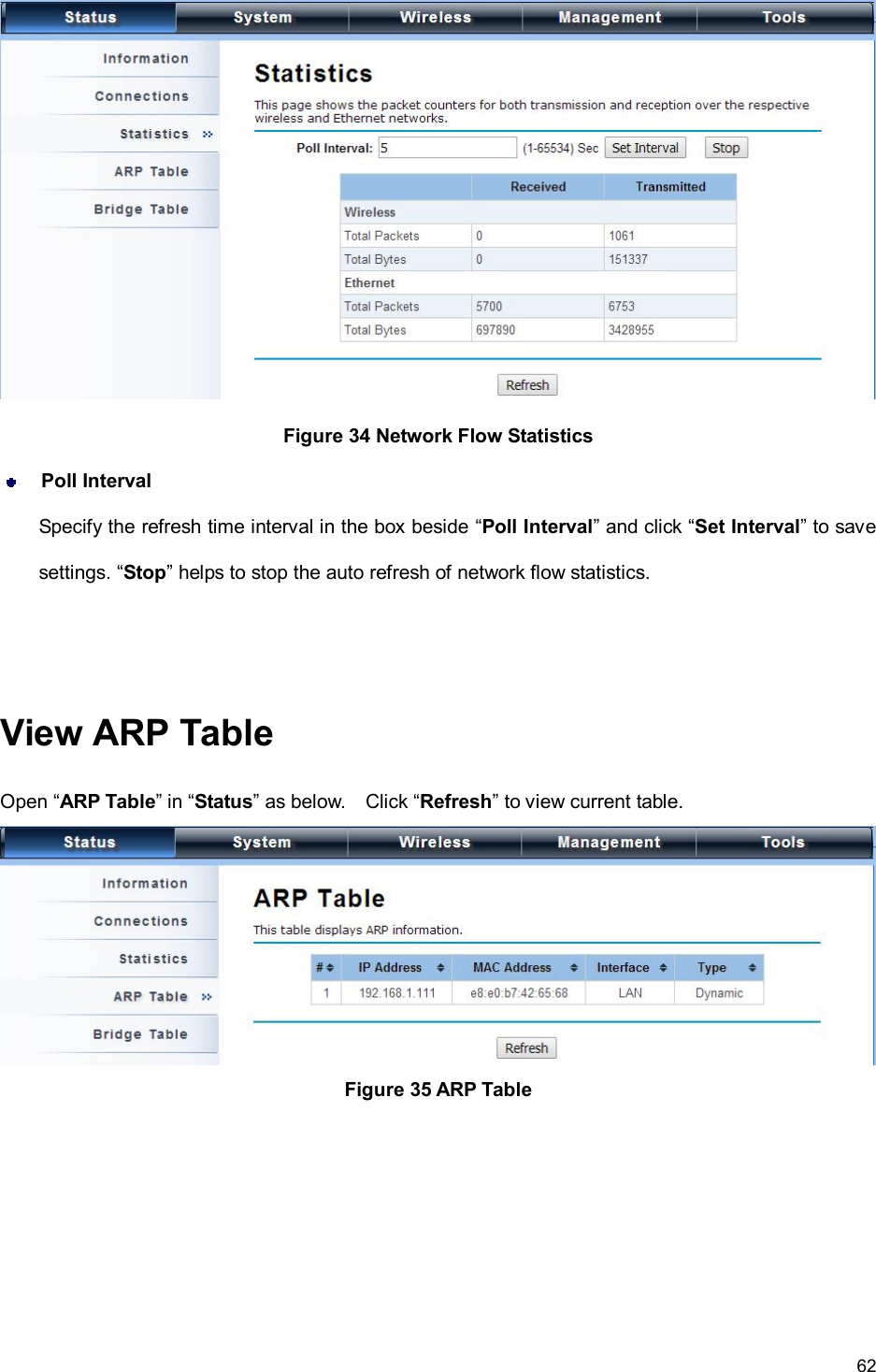

 62   Figure 34 Network Flow Statistics  Poll Interval Specify the refresh time interval in the box beside “Poll Interval” and click “Set Interval” to save settings. “Stop” helps to stop the auto refresh of network flow statistics.   View ARP Table Open “ARP Table” in “Status” as below.    Click “Refresh” to view current table.  Figure 35 ARP Table
 63  View Bridge Table Open “Bridge Table” in “Status” as below. Click “Refresh” to view current connected status..  Figure 36 Bridge Table  View Routing Table Available in Router mode, the routing table shows the current route information.  Figure 37 Routing Table  View Active DHCP Client Table Available in Router mode, the DHCP allows to check the assigned IP address, MAC address and time expired for each DHCP leased client. Click “Refresh” to view current table.

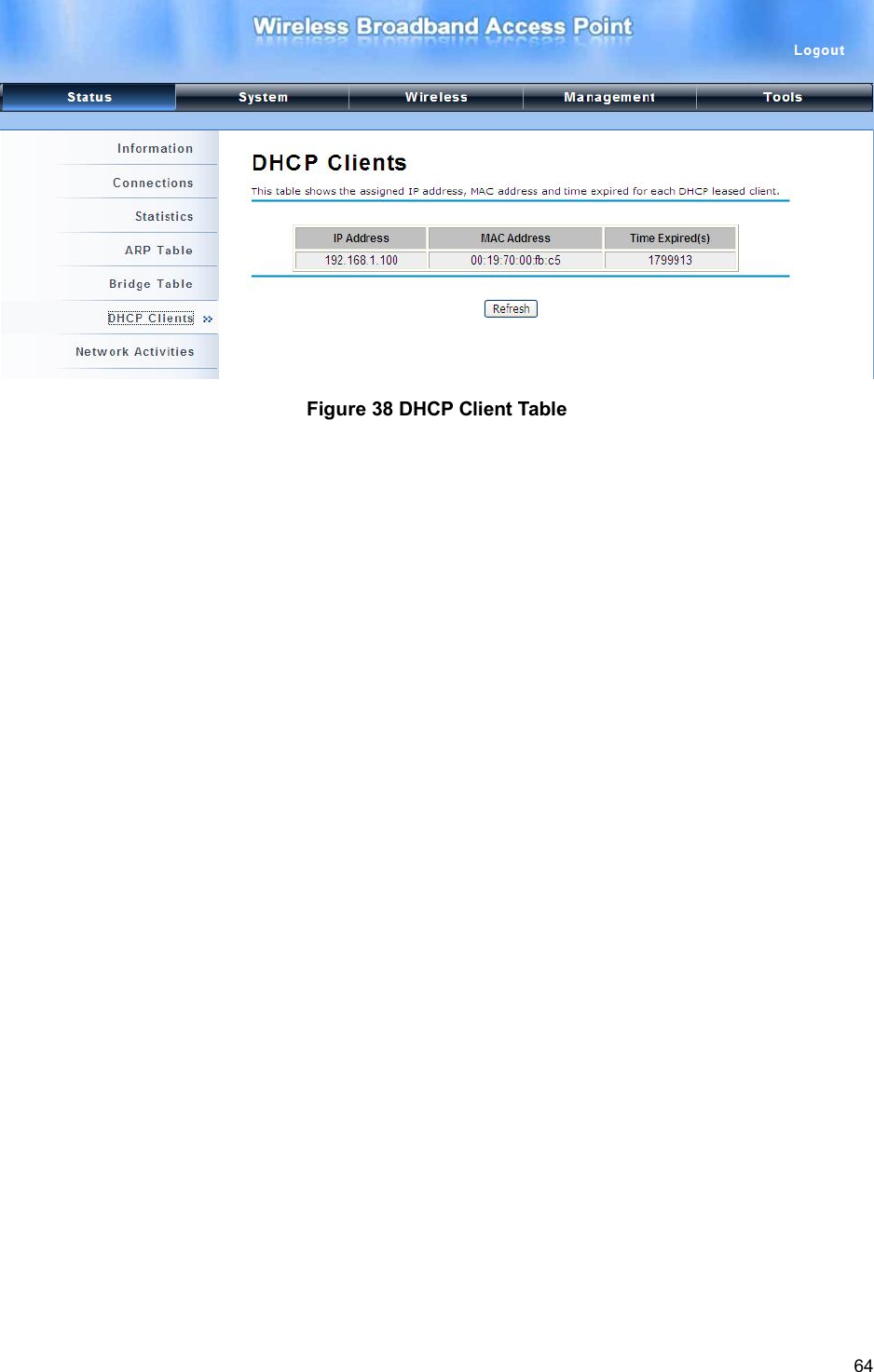

 64   Figure 38 DHCP Client Table

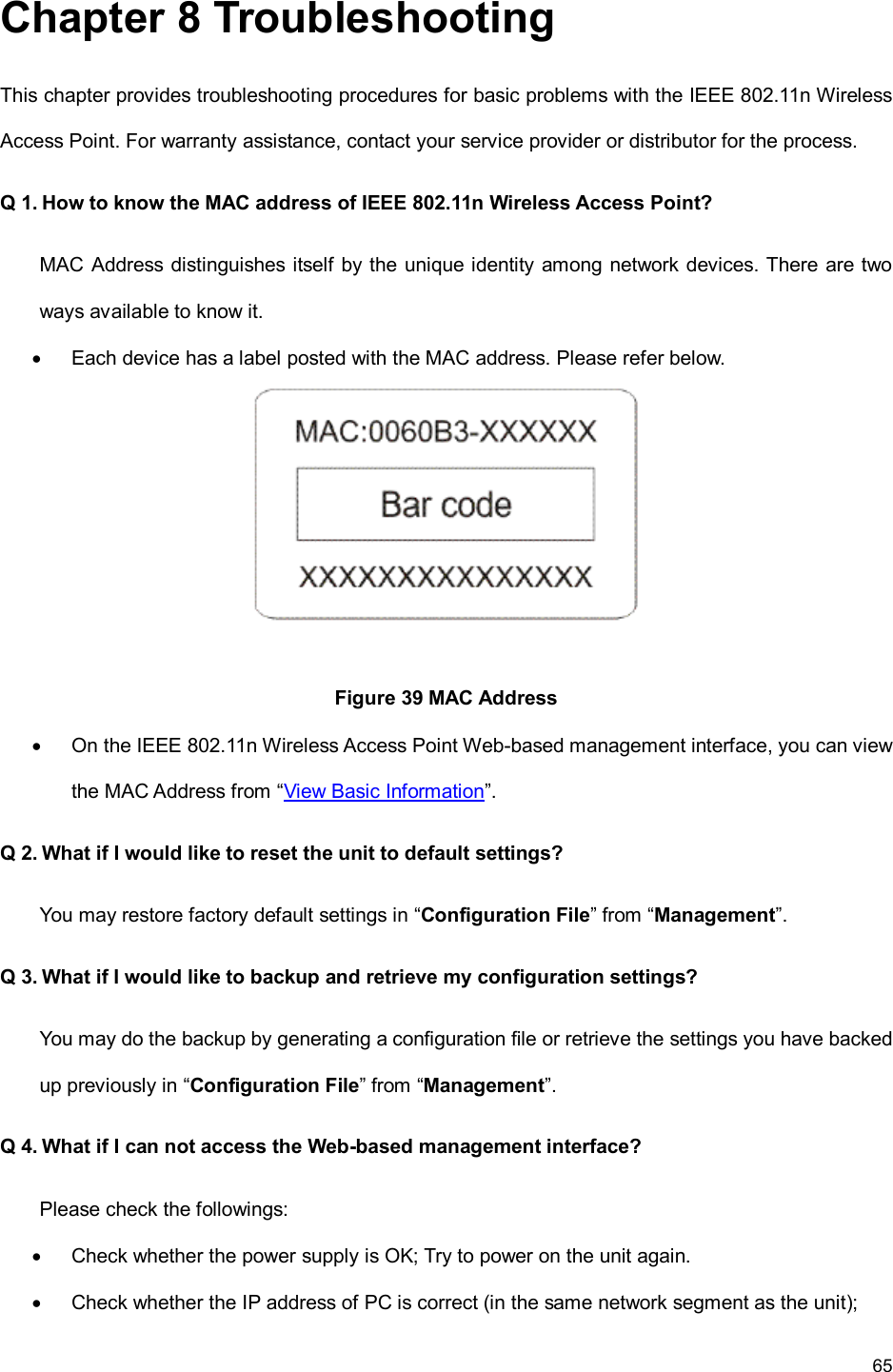

 65  Chapter 8 Troubleshooting This chapter provides troubleshooting procedures for basic problems with the IEEE 802.11n Wireless Access Point. For warranty assistance, contact your service provider or distributor for the process. Q 1. How to know the MAC address of IEEE 802.11n Wireless Access Point? MAC Address distinguishes itself by the unique identity among network devices. There are two ways available to know it.   Each device has a label posted with the MAC address. Please refer below.   Figure 39 MAC Address   On the IEEE 802.11n Wireless Access Point Web-based management interface, you can view the MAC Address from “View Basic Information”. Q 2. What if I would like to reset the unit to default settings? You may restore factory default settings in “Configuration File” from “Management”. Q 3. What if I would like to backup and retrieve my configuration settings? You may do the backup by generating a configuration file or retrieve the settings you have backed up previously in “Configuration File” from “Management”. Q 4. What if I can not access the Web-based management interface? Please check the followings:   Check whether the power supply is OK; Try to power on the unit again.   Check whether the IP address of PC is correct (in the same network segment as the unit);

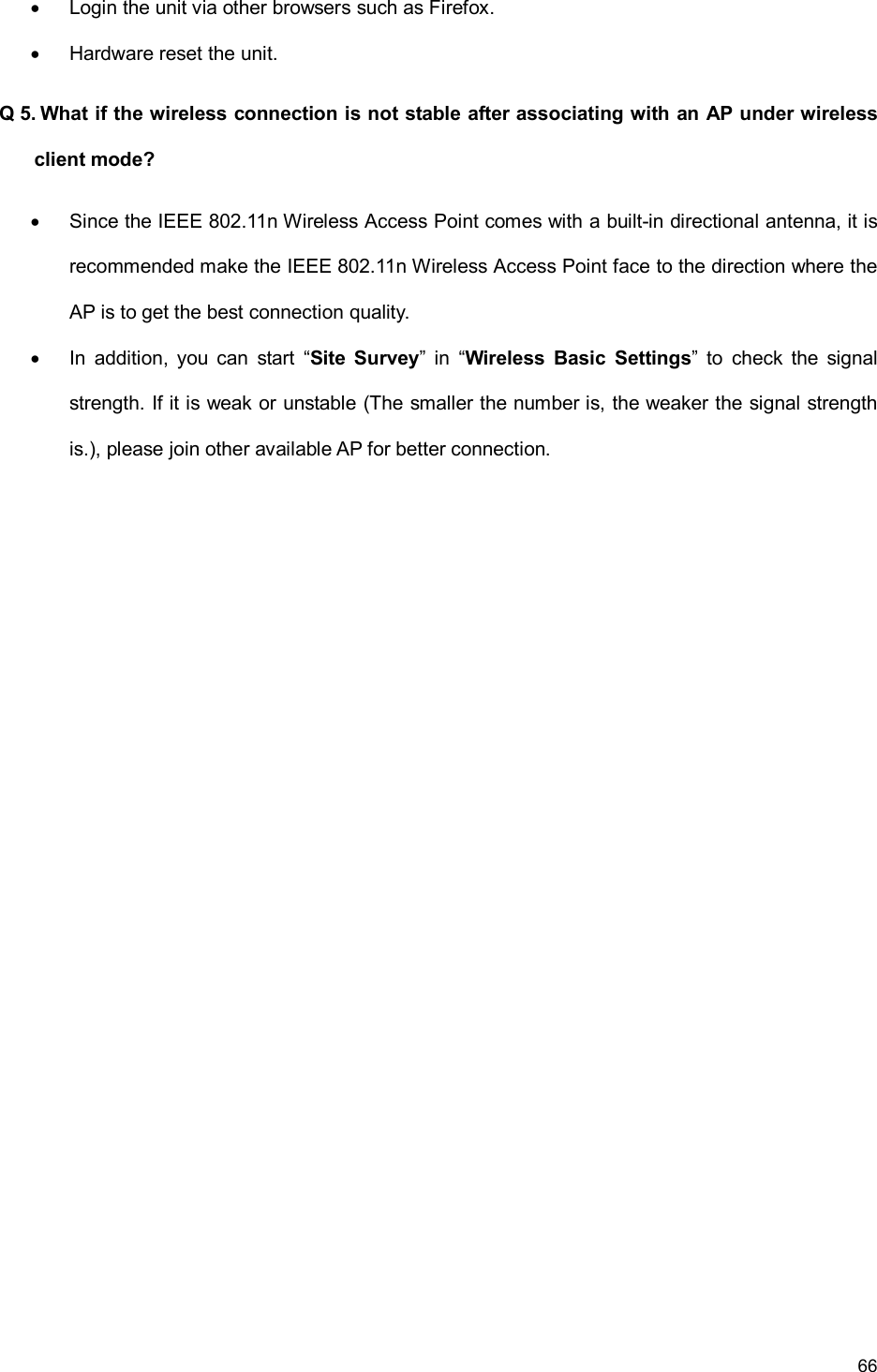

 66    Login the unit via other browsers such as Firefox.   Hardware reset the unit. Q 5. What if the wireless connection is not stable after associating with an AP under wireless client mode?   Since the IEEE 802.11n Wireless Access Point comes with a built-in directional antenna, it is recommended make the IEEE 802.11n Wireless Access Point face to the direction where the AP is to get the best connection quality.   In  addition,  you  can  start  “Site  Survey”  in  “Wireless  Basic  Settings”  to  check  the  signal strength. If it is weak or unstable (The smaller the number is, the weaker the signal strength is.), please join other available AP for better connection.
 67  Appendix A. ASCII WEP can be configured with a 64-bit, 128-bit or 152-bit Shared Key (hexadecimal number or ACSII). As defined, hexadecimal number is represented by 0-9, A-F or a-f; ACSII is represented by 0-9, A-F, a-f or punctuation. Each one consists of two-digit hexadecimal. Table 2 ACSII ASCII Character Hex Equivalent ASCII Character Hex Equivalent ASCII Character Hex Equivalent ASCII Character Hex Equivalent !  21  9  39  Q  51  i  69 "  22  :  3A  R  52  j  6A #  23  ;  3B  S  53  k  6B $  24  <  3C  T  54  l  6C %  25  =  3D  U  55  m  6D &  26  >  3E  V  56  n  6E ‘  27  ?  3F  W  57  o  6F (  28  @  40  X  58  p  70 )  29  A  41  Y  59  q  71 *  2A  B  42  Z  5A  r  72 +  2B  C  43  [  5B  s  73 ,  2C  D  44  \  5C  t  74 -  2D  E  45  ]  5D  u  75 .  2E  F  46  ^  5E  v  76 /  2F  G  47  _  5F  w  77 0  30  H  48  `  60  x  78 1  31  I  49  a  61  y  79 2  32  J  4A  b  62  z  7A 3  33  K  4B  c  63  {  7B 4  34  L  4C  d  64  |  7C 5  35  M  4D  e  65  }  7D 6  36  N  4E  f  66  ~  7E 7  37  O  4F  g  67     8  38  P  50  h  68
