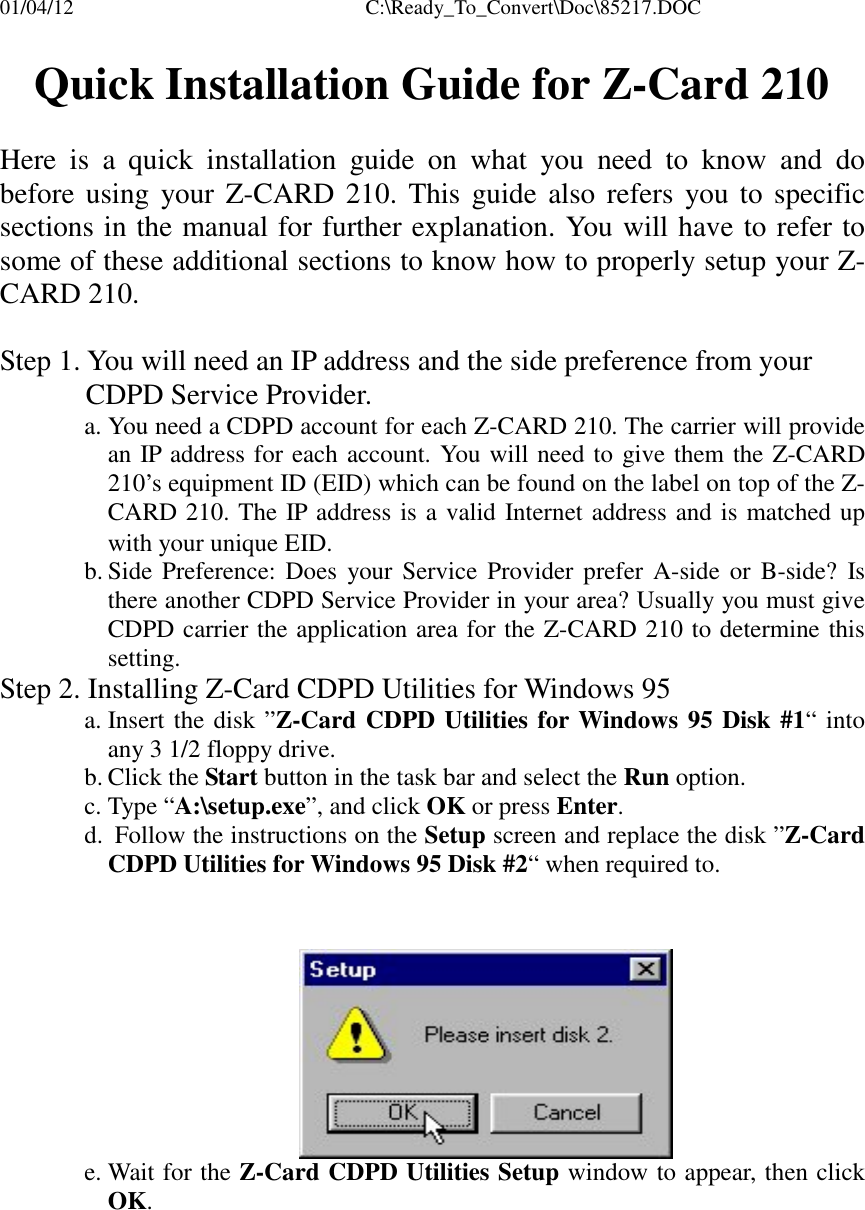

01/04/12                                                        C:\Ready_To_Convert\Doc\85217.DOCQuick Installation Guide for Z-Card 210Here is a quick installation guide on what you need to know and dobefore using your Z-CARD 210. This guide also refers you to specificsections in the manual for further explanation. You will have to refer tosome of these additional sections to know how to properly setup your Z-CARD 210.Step 1. You will need an IP address and the side preference from yourCDPD Service Provider.a. You need a CDPD account for each Z-CARD 210. The carrier will providean IP address for each account. You will need to give them the Z-CARD210’s equipment ID (EID) which can be found on the label on top of the Z-CARD 210. The IP address is a valid Internet address and is matched upwith your unique EID.=b. Side Preference: Does your Service Provider prefer A-side or B-side? Isthere another CDPD Service Provider in your area? Usually you must giveCDPD carrier the application area for the Z-CARD 210 to determine thissetting.Step 2. Installing Z-Card CDPD Utilities for Windows 95a. Insert the disk ”Z-Card CDPD Utilities for Windows 95 Disk #1“ intoany 3 1/2 floppy drive.b. Click the Start button in the task bar and select the Run option.c. Type “A:\setup.exe”, and click OK or press Enter.d.  Follow the instructions on the Setup screen and replace the disk ”Z-CardCDPD Utilities for Windows 95 Disk #2“ when required to.e. Wait for the Z-Card CDPD Utilities Setup window to appear, then clickOK.

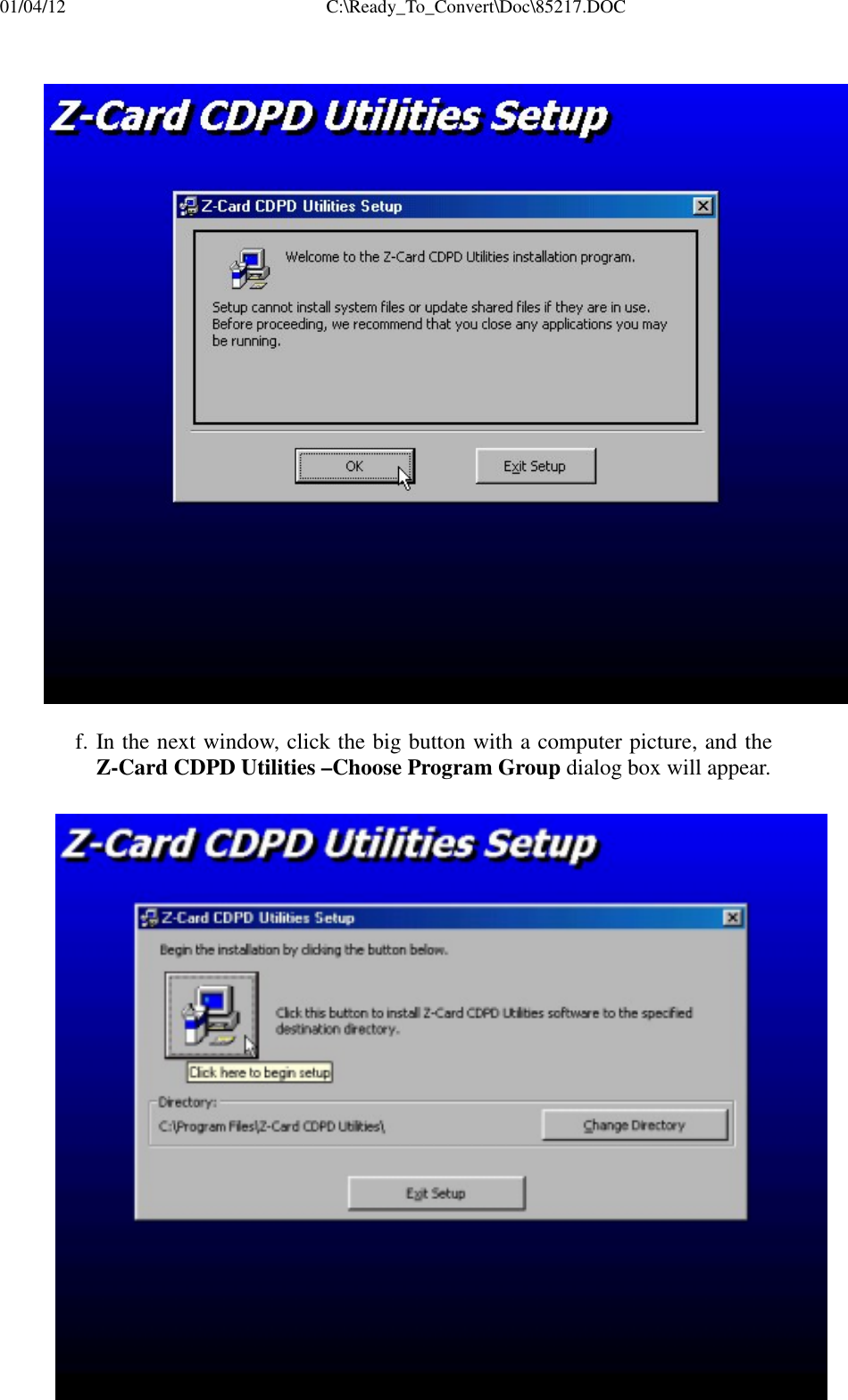

01/04/12                                                        C:\Ready_To_Convert\Doc\85217.DOCf. In the next window, click the big button with a computer picture, and theZ-Card CDPD Utilities –Choose Program Group dialog box will appear.

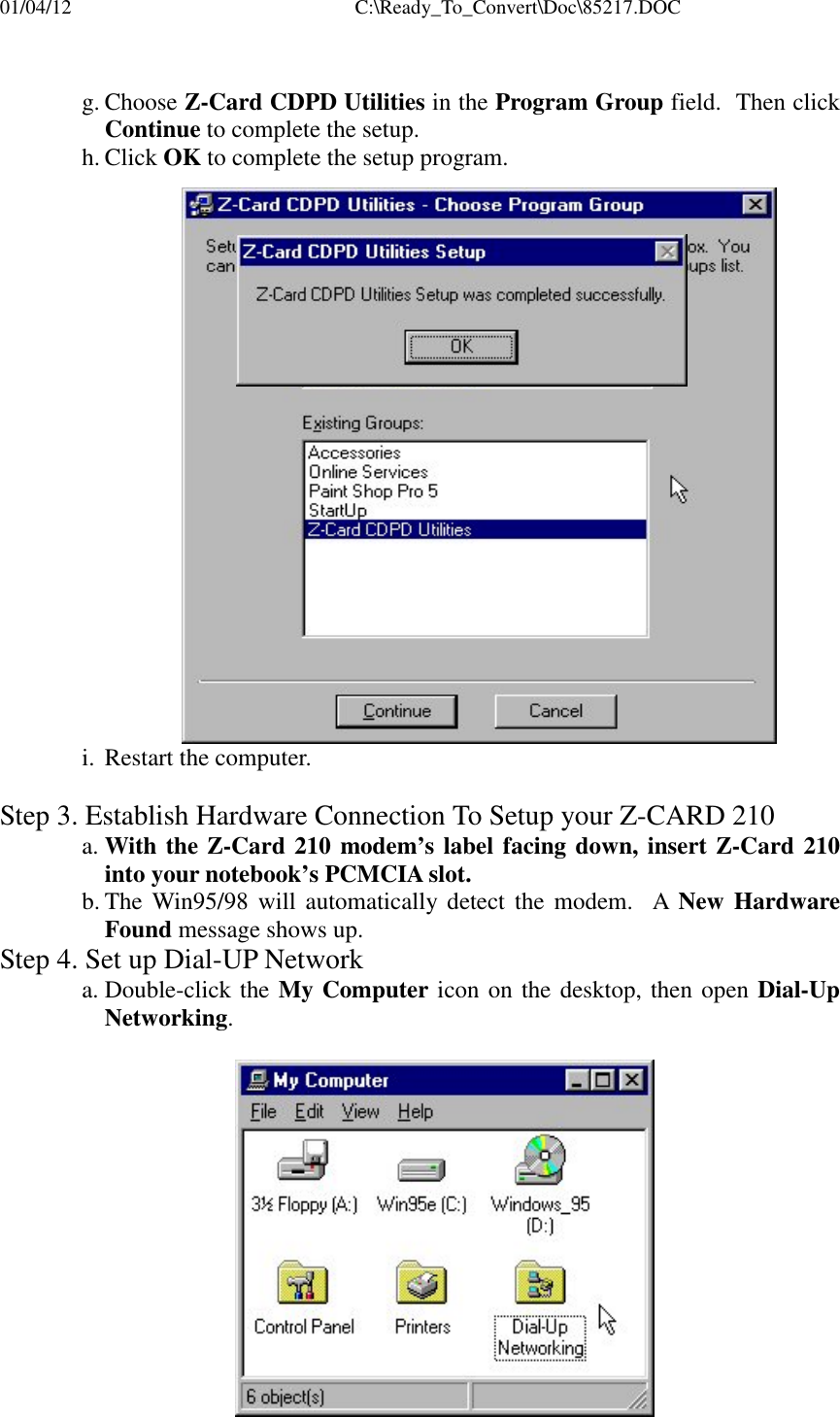

01/04/12                                                        C:\Ready_To_Convert\Doc\85217.DOCg. Choose Z-Card CDPD Utilities in the Program Group field.  Then clickContinue to complete the setup.h. Click OK to complete the setup program.i. Restart the computer.Step 3. Establish Hardware Connection To Setup your Z-CARD 210a. With the Z-Card 210 modem’s label facing down, insert Z-Card 210into your notebook’s PCMCIA slot.b. The Win95/98 will automatically detect the modem.  A New HardwareFound message shows up.Step 4. Set up Dial-UP Networka. Double-click the My Computer icon on the desktop, then open Dial-UpNetworking.

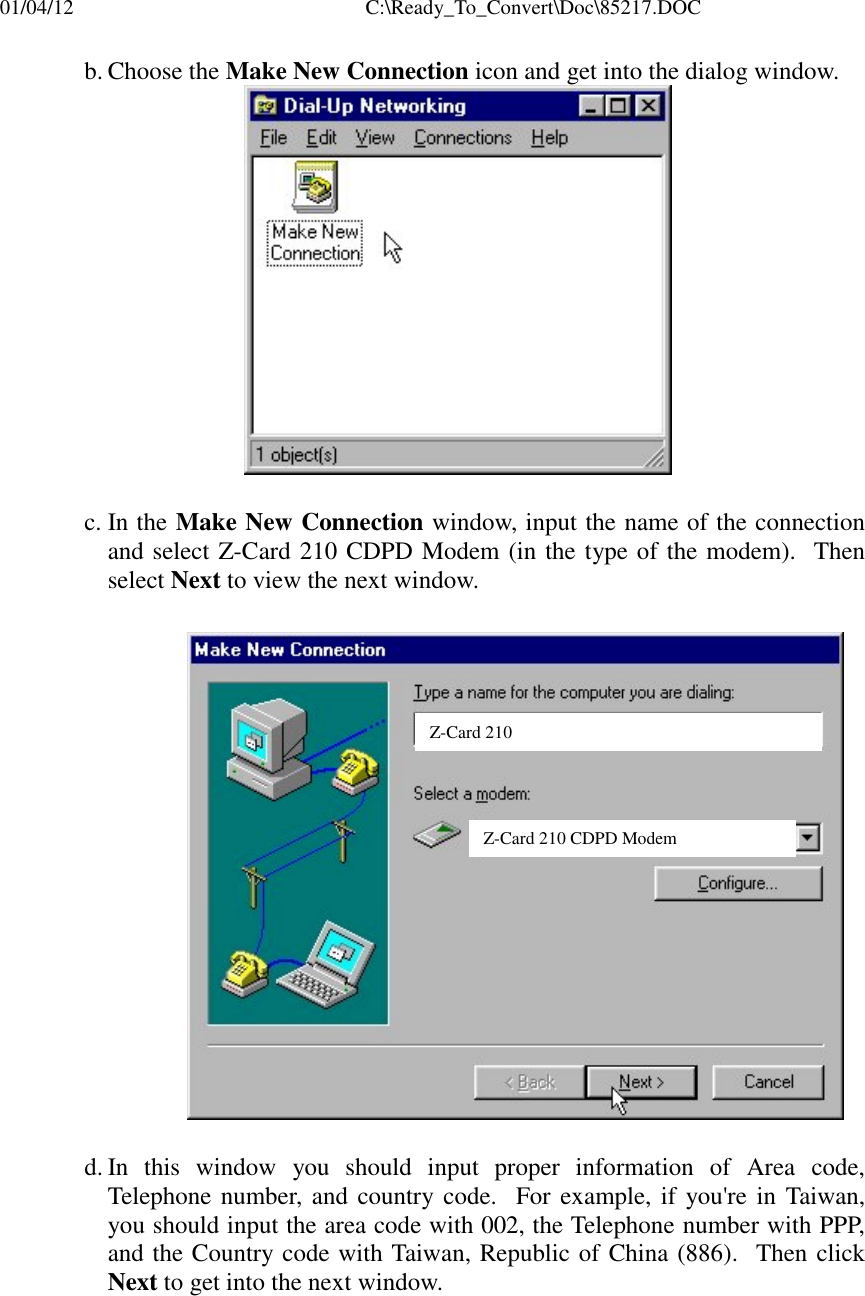

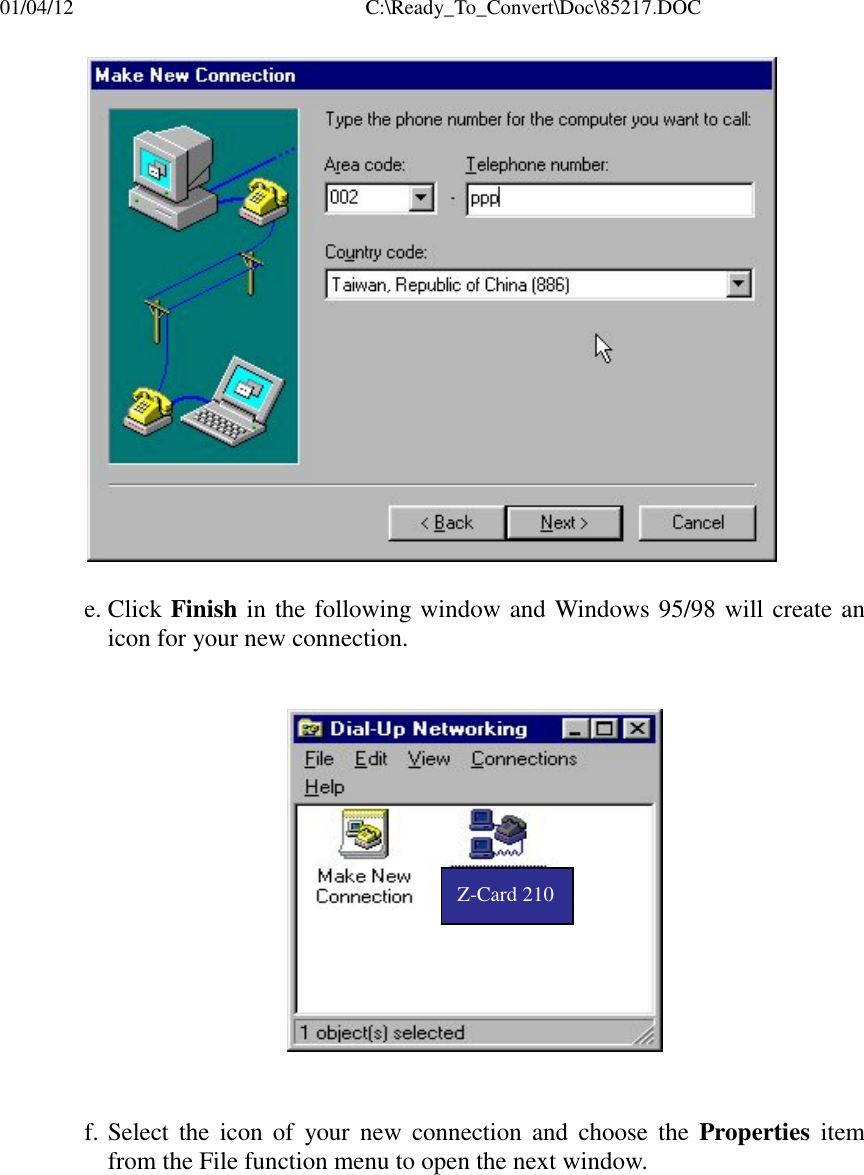

01/04/12                                                        C:\Ready_To_Convert\Doc\85217.DOCb. Choose the Make New Connection icon and get into the dialog window.c. In the Make New Connection window, input the name of the connectionand select Z-Card 210 CDPD Modem (in the type of the modem).  Thenselect Next to view the next window.d. In this window you should input proper information of Area code,Telephone number, and country code.  For example, if you're in Taiwan,you should input the area code with 002, the Telephone number with PPP,and the Country code with Taiwan, Republic of China (886).  Then clickNext to get into the next window.Z-Card 210Z-Card 210 CDPD Modem

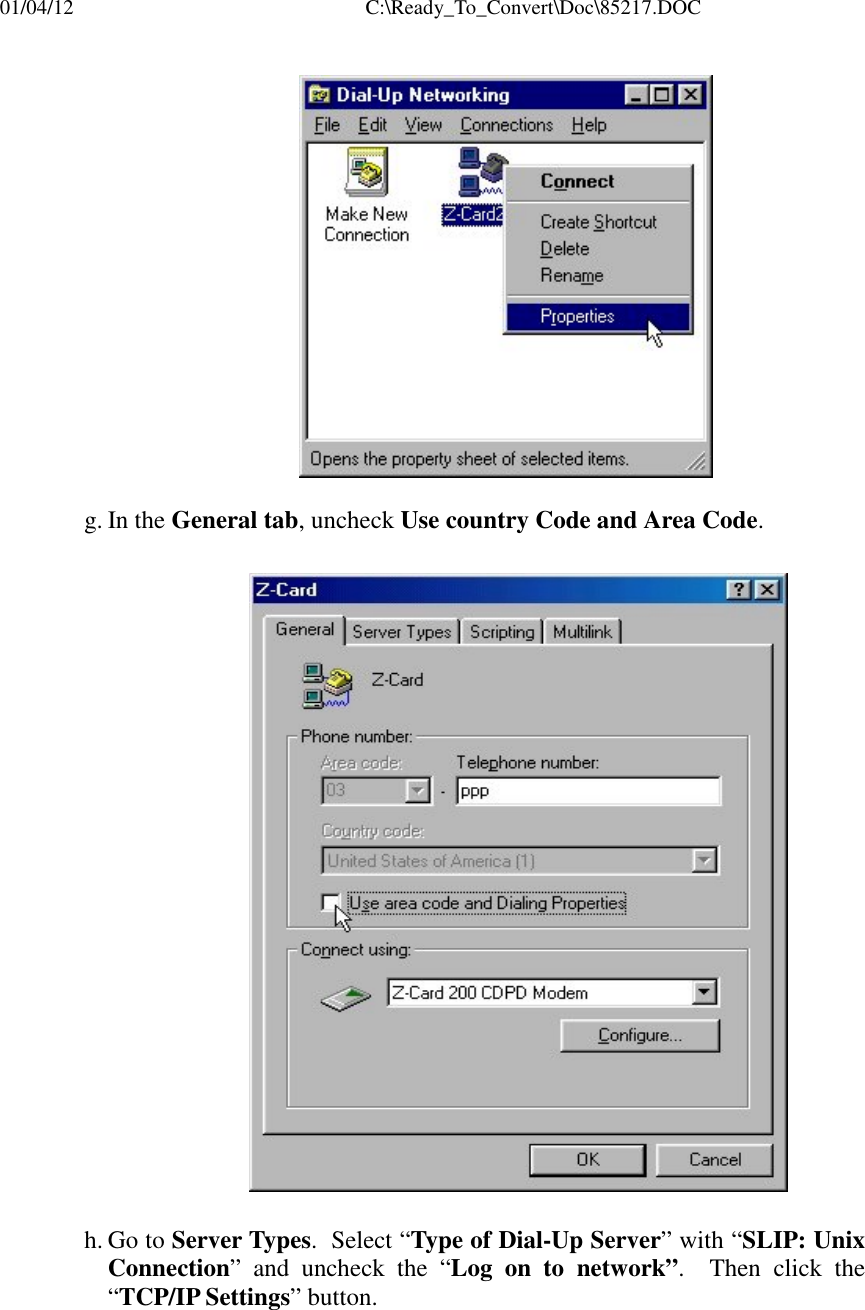

01/04/12                                                        C:\Ready_To_Convert\Doc\85217.DOCe. Click Finish in the following window and Windows 95/98 will create anicon for your new connection.f. Select the icon of your new connection and choose the Properties itemfrom the File function menu to open the next window.Z-Card 210
01/04/12                                                        C:\Ready_To_Convert\Doc\85217.DOCg. In the General tab, uncheck Use country Code and Area Code.h. Go to Server Types.  Select “Type of Dial-Up Server” with “SLIP: UnixConnection” and uncheck the “Log on to network”.  Then click the“TCP/IP Settings” button.
01/04/12                                                        C:\Ready_To_Convert\Doc\85217.DOCi. Select “Specify an IP Address” and then input the IP address provided bythe service provider.  Select “Specify name server addresses” and inputIP addresses in the Primary DNS as well as Secondary DNS fields.Uncheck “Use IP Header Compression” and then click OK to finishingTCP/IP Setting.

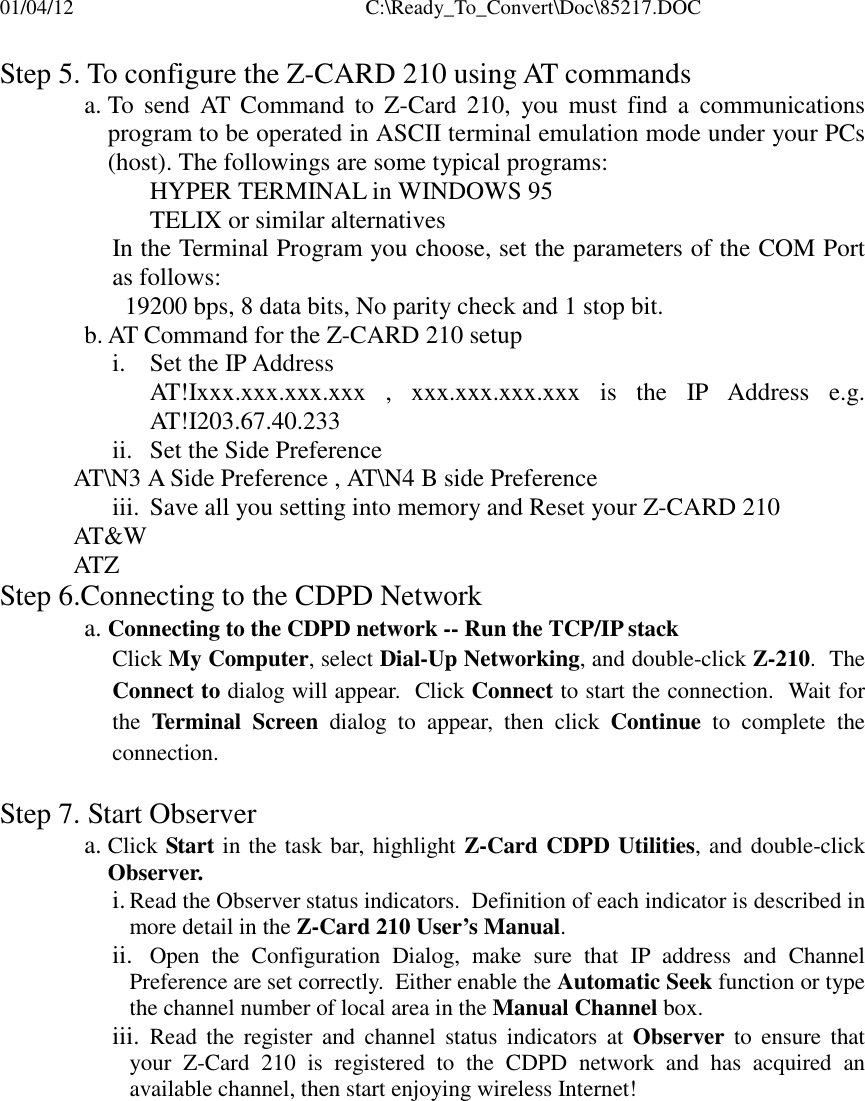

01/04/12                                                        C:\Ready_To_Convert\Doc\85217.DOCStep 5. To configure the Z-CARD 210 using AT commandsa. To send AT Command to Z-Card 210, you must find a communicationsprogram to be operated in ASCII terminal emulation mode under your PCs(host). The followings are some typical programs:HYPER TERMINAL in WINDOWS 95TELIX or similar alternativesIn the Terminal Program you choose, set the parameters of the COM Portas follows:  19200 bps, 8 data bits, No parity check and 1 stop bit.b. AT Command for the Z-CARD 210 setupi. Set the IP AddressAT!Ixxx.xxx.xxx.xxx , xxx.xxx.xxx.xxx is the IP Address e.g.AT!I203.67.40.233ii. Set the Side Preference            AT\N3 A Side Preference , AT\N4 B side Preferenceiii. Save all you setting into memory and Reset your Z-CARD 210            AT&W            ATZStep 6.Connecting to the CDPD Networka. Connecting to the CDPD network -- Run the TCP/IP stackClick My Computer, select Dial-Up Networking, and double-click Z-210.  TheConnect to dialog will appear.  Click Connect to start the connection.  Wait forthe  Terminal Screen dialog to appear, then click Continue to complete theconnection.Step 7. Start Observera. Click Start in the task bar, highlight Z-Card CDPD Utilities, and double-clickObserver.i. Read the Observer status indicators.  Definition of each indicator is described inmore detail in the Z-Card 210 User’s Manual.ii. Open the Configuration Dialog, make sure that IP address and ChannelPreference are set correctly.  Either enable the Automatic Seek function or typethe channel number of local area in the Manual Channel box.iii. Read the register and channel status indicators at Observer to ensure thatyour Z-Card 210 is registered to the CDPD network and has acquired anavailable channel, then start enjoying wireless Internet!
