Description

3-way or up to 5 locations

120V/AC, 60Hz

Design features for Aspire RF accessory switch

• Compatible with Aspire RF switch (RF9501, RF9518) for

wireless 3-way control eliminating the need for traditional

3-way wiring (up to 5 locations)

• Neutral wire required for installation

• Can be associated with up to 5 other devices

• Decorator and designer series products offer the same

functionality with two distinct styles

• Electro-mechanical push button for ON/OFF operation

• Patented indicator system alerts if switch is not set up in

the network

• Blue LED at center right of paddle illuminates to indicate

ON/OFF status

• Single button programming

• Programmable delayed OFF mode up to 4 minutes

(default is 10 seconds)

• Child lockout feature

• All-ON/All-OFF inclusion

• Configurable “power up state”

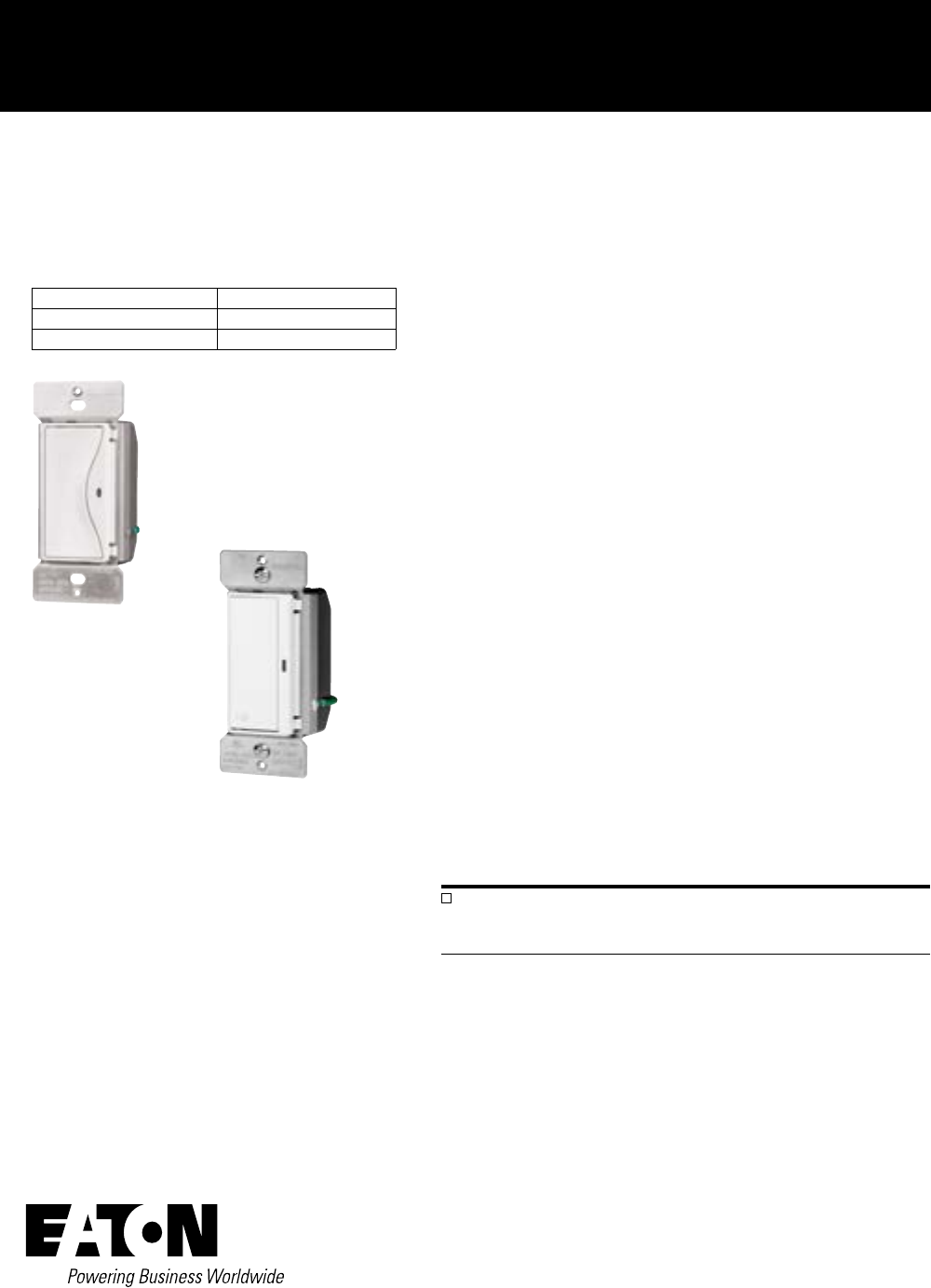

Aspire RF accessory switch

RF9517AW

Designer series

RF9517DW

Decorator series

Project Name: Prepared By:

Project Number: Date:

Catalog Number: Type:

Catalog No. Description

Designer

Color Suffix

Decorator

Color Suffix

RF9517_ RF accessory switch

compatible only with

RF switches (RF9501,

RF9518)

AW, DS, SG, WS DBK, DLA, DW

Compliances, specifications and availability are subject to change without notice.

Table 1. Aspire RF accessory switch

Technical Data Effective February 2014

2eaton www.cooperwiringdevices.com

Technical Data

Effective February 2014

Aspire RF accessory switch

Catalog No. Accessory switch RF9517

Performance Rating: 120V/AC, 60Hz

Uses 300 Series Z-Wave Chip @ 40Kbs

Performance Consideration An Aspire RF Z-Wave enabled device must be within 60 feet of another Z-Wave enabled device to participate in a Z-Wave wireless mesh network.

Any one dimmer or switch can be associated with up to 5 devices (dimmers, switches, receptacles, or plug-in modules)

Installation & Programming Please reference the Instruction Sheet included with the product for wiring installation. For programming of the device, see the Aspire RF User

Manual, which is provided with either the handheld (RFHDCSG) or tabletop (RFTDCSG) controllers and are also accessible online at

www.cooperwiringdevices.com/AspireRF

Testing & Code Compliance cULus Listed 244A. NOM Certified. Complies with FCC Part 15, Class B. Z-Wave Compliant Certified

Terminations Switch has three 6” wire leads for line, neutral and ground

Material Characteristics Flammability: Meets UL94 requirements; V2 rated

Temperature Rating:

32°F to 104°F (0°C to 40°C)

Warranty 2-year limited product warranty

The Aspire RF accessory switch replaces regular switches or dimmers to provide local and remote ON/OFF control. The device also provides

3-way, multi-location or virtual 3-way remote ON/OFF control of a selected RF switch without the need for traditional 3-way wiring. Aspire

RF accessory switches provide other programmable functions (scenes, events, association, child lockout, etc.) when used with Aspire RF

controllers (RFHDCSG, RFTDSG, RFTCP, RFUSB-PRO) or other Z-Wave® compliant controllers*. Each switch can be manually and remotely

controlled by commands sent from an Aspire RF controller or other Z-Wave compatible controllers or programs. The Aspire RF switch uti-

lizes existing 120V/AC 60Hz standard house wiring and fits in a standard-sized wallbox. Neutral wire required for installation. No new wiring

needed. *Note: some specific Aspire RF features may not be programmable.

Applications for Aspire RF switch

Project Name: Prepared By:

Project Number: Date:

Catalog Number: Type:

Table 2. Specifications

Table 3. Color Ordering Information

For ordering devices, include Catalog No. followed by the Color Suffix: AW (Alpine White), DS (Desert Sand),

Silver Granite (SG), WS (White Satin), DBK (Decorator Black), DLA (Decorator Light Almond), DW (Decorator White).

Designer series color options:

Decorator series color options:

DBK DLA DW

Decorator

Black

Decorator

Light Almond

Decorator

White

AW AW DS DS SG SG WS WS

Alpine White Desert Sand Silver Granite White Satin

Parameter Description Value range

1 Delayed OFF *0 to 127

-128 to -1

2 Panic ON time Not used

3 Panic OFF time Not used

4 Basic set value Not used

5 Power up state Not used

6 Panic mode enable Not used

7 Not used Not used

*The configuration value is a signed single byte number. This value may represent a value with no units or may represent a value such as time. 0 to 127 (decimal) represents 0 to 127

seconds of time. -128 to -1 (negative decimal numbers) represents 128 to 255 seconds as calculated by this formula.

Config value = desired time in seconds (or desired value) -256

For an example of 172 seconds: config value = 172 - 256 = -84 (decimal) or 0xAC (hex)

Table 4. Device Configuration Parameters

Compliances, specifications and availability are subject to change without notice.

3

eaton www.cooperwiringdevices.com

Technical Data

Effective February 2014

Aspire RF accessory switch

Project Name: Prepared By:

Project Number: Date:

Catalog Number: Type:

Multi-Location Wiring Diagram

Figure 1. RF9517

Product Dimensions

1.80”

(45.7mm)

1.29”

(32.6mm)

4.20”

(106.6mm)

2.61”

(66.4mm)

1.36”(34.5mm)

3.28”

(83.3mm)

Black

White

Hot

Light

Fixture

Green

Ground

Neutral

Red

Black

White

Hot

Green

Ground

Neutral

RF Switch (RF9501, RF9518)

Connects to Light Fixture

Accessory Switch (RF9517)

Compliances, specifications and availability are subject to change without notice.

Association Groups for RF9517

Group 1 5 nodes maximum

Group 2 - 254 0 nodes maximum

Group 255 1 node maximum

Table 5. Device Association Information

ote:N For multi-location control using RF association function, use with

catalog no. RF9501 or RF9518.

Technical Data

Effective February 2014

Aspire RF accessory switch

Electrical Sector

203 Cooper Circle

Peachtree City, GA 30269

United States

Eaton.com

Cooperwiringdevices.com

Electrical Sector

Canada Operations

5925 McLaughlin Road

Mississauga, Ontario, L5R 1B8

Canada

EatonCanada.ca

Cooperwiringdevices.com

Electrical Sector

Mexico Operations

Carr. Tlalnepantla -

Cuautitlan Km 17.8 s/n

Col. Villa Jardin esq.

Cerrada 8 de Mayo

Cuautitlan, Mexico CP 54800

Mexico

Eaton.mx

Cooperwiringdevices.com

Eaton is a registered trademark.

All other trademarks are property

of their respective owners.

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

United States

Eaton.com

© 2014 Eaton

All Rights Reserved

Printed in USA

Publication No. E125-0124-14

February 2014

Project Name: Prepared By:

Project Number: Date:

Catalog Number: Type:

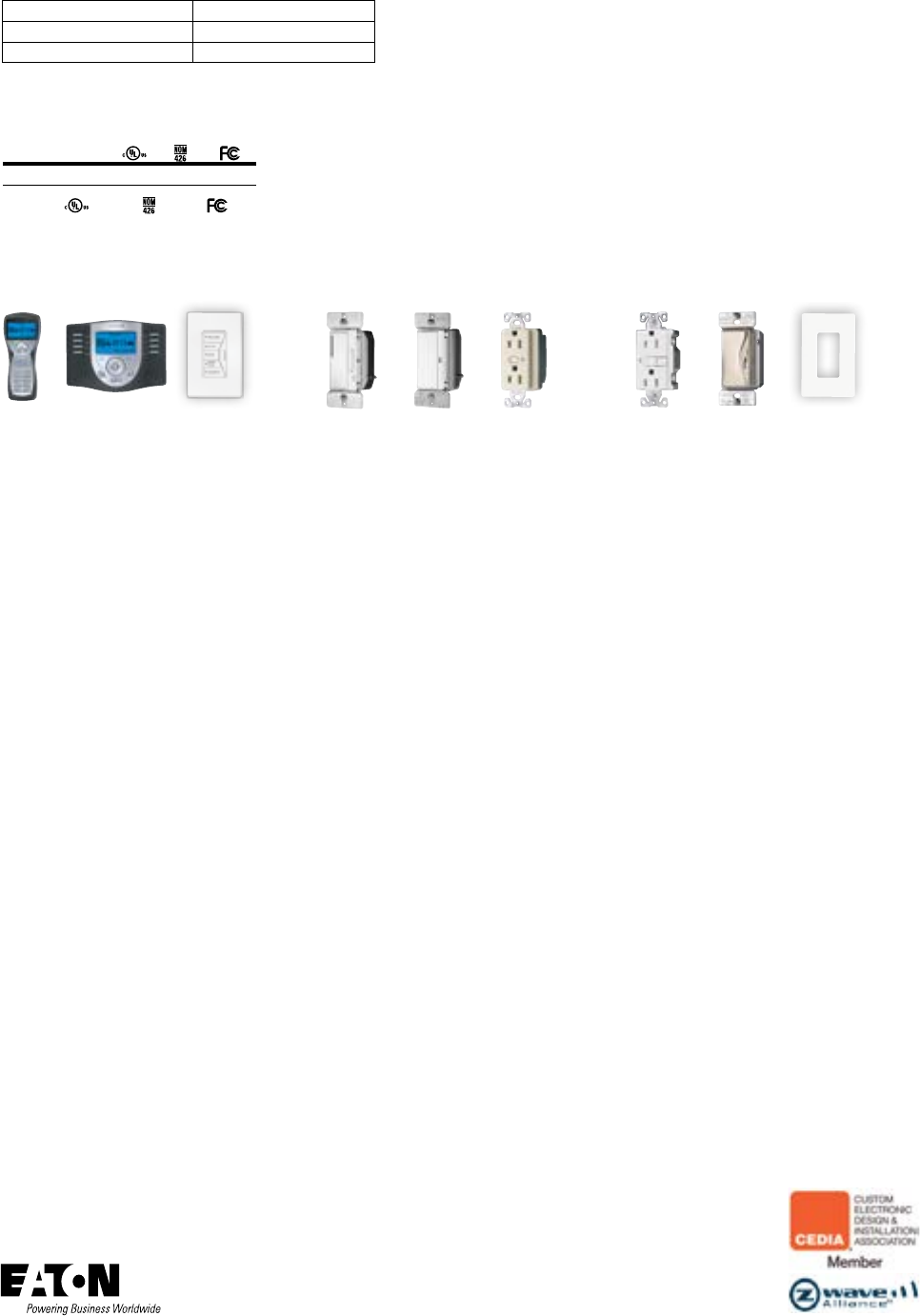

Certifications

& Compliances

KEY: cULus NOM FCC

Catalog No.

RF9517 • • •

Related Products

Aspire RF controllers Aspire RF products Aspire products

RFHDCSG, RFTDCSG, RFWC5WS RF9540-NDW, RF9501DW, RFTR9505-T 9566TRWS, 9544DS, 9521WS

Compliances, specifications and availability are subject to change without notice.
