HomeSeer | 10 Commerce Park North, Unit 10 | Bedford, NH 03110 | HomeSeer.com | Doc: HS-DS100-en-v1.0
HS-DS100+ Z-Wave Door / Window Sensor
Operaon
HS-DS100+ is comprised of a sensor body and a magnet piece. The sensor body is (typically) installed on a door or
window jamb. The magnet piece is (typically) installed on the door or window. When
the door or window are closed, the magnet trips a switch inside the sensor body and a
Z-Wave command is issued. When the door or window are opened, the switch is
tripped again and another Z-Wave command is issued.

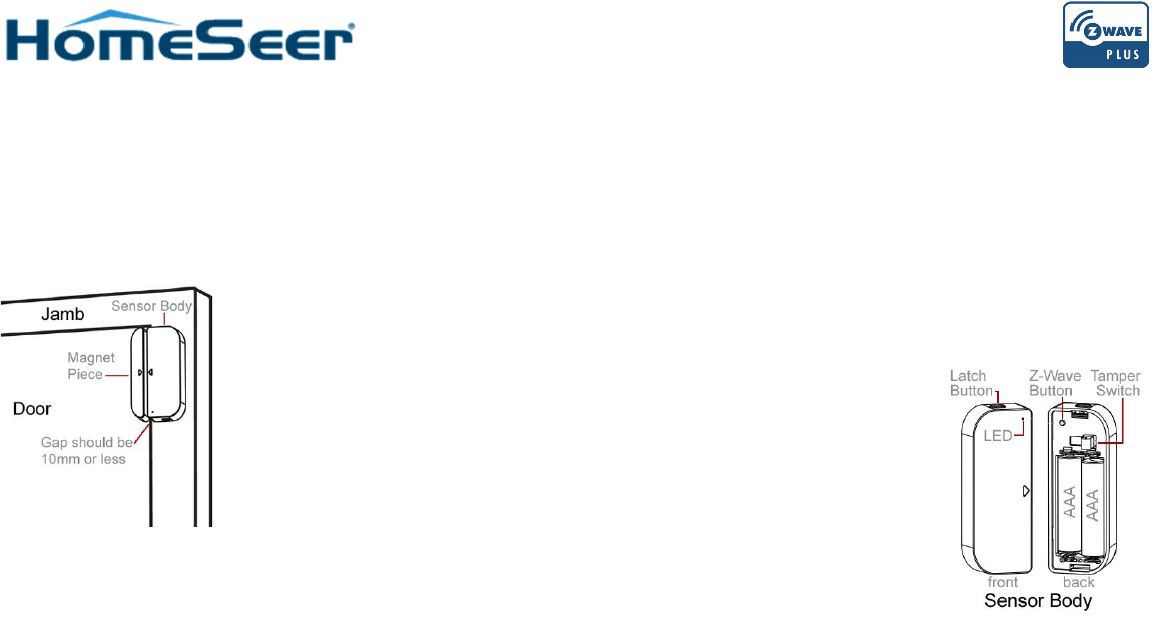

Physical Installaon
The sensor body and magnet piece must be mounted to the door or window (vercally
or horizontally) using the provided screws or double-sck tape (your choice). Leave a
gap (no wider than 10mm) to allow the door or window to open and close easily with-
out obstrucon. If using screws, you’ll have to the mount the backing plates of the sensor body and magnet piec-
es rst. To do this, press the latch buon on the sensor body and gently pry o the backing plate (plate can be
dicult to remove). Then, use a small sloed screwdriver to remove the backing plate from the magnet piece.
Z-Wave Network Installaon
Door/Window Sensor can be included and operated in any Z-Wave network with other Z-Wave cered devices from other manufacturers
and/or other applicaons. All non-baery operated nodes within the network will act as repeaters regardless of vendor to increase reliabil-
ity of the network.
Inclusion (Use this procedure to add the HS-DS100+ to your Z-Wave network).
1. Ensure AAA baeries are installed. Remove any plasc from baery compartment (if necessary)
2. Put your home automaon controller into ‘inclusion’ mode. Consult your system’s manual for details.
3. HS-DS100+ may be included “securely” (opon a) or “non-securely” (opon b). If your automaon controller does not support secure de-
vices, or if you wish to improve baery life, add the sensor “non-securely”. Otherwise, include the sensor “securely”
a) Secure inclusion: Press and hold the Z-Wave buon inside the sensor body for 3 seconds. Wait for the process to nish.
b) Non-Secure inclusion: Triple-click the Z-Wave buon inside the sensor body. Wait for the process to nish.
4. If successful, the sensor body LED will blink briey and then stay on for 3 seconds. If unsuccessful, the LED with blink briey and then turn
o. Should this happen, repeat the inclusion process.
Note: If you want this Door/window sensor to funcon as a security device using secure/encrypted Z-Wave communicaons, then a secu-
rity enabled Z-Wave controller is required.
Exclusion (Use this procedure to remove the HS-DS100+ from your Z-Wave network).
1. Put your home automaon controller into ‘exclusion’ mode. Consult your system’s manual for details.
2. Triple-click the Z-Wave buon inside the sensor body. If successful, the LED will turn o within 1 second. If unsuccessful, the LED with
blink for 5 seconds. Should this happen, repeat the exclusion process.
Reset (Use this procedure to reset the HS-DS100+ to factory default sengs when the network primary controller is missing or otherwise
inoperable).
1. Press and hold the Z-Wave buon inside the sensor body for 20 seconds. If successful, the LED will change from solid, to blinking, to solid
again.
Z-Wave Associaon Informaon
HS-DS100+ supports Group 1 and Group 2 associaons. Group 1 reports the sensor’s condion, baery level and tamper state. Group 2
sends the BASIC SET command.
OVERVIEW
HS-DS100+ is a baery operated sensor that is designed to issue Z-Wave commands when doors or windows are opened or closed. HS-
DS100+ may be associated directly with other Z-Wave devices or it may be used with a wide variety of Z-Wave hubs and controllers to trig-
ger events, scenes and other automaons.
HomeSeer | 10 Commerce Park North, Unit 10 | Bedford, NH 03110 | HomeSeer.com | Doc: HS-DS100-en-v1.0
ADVANCED CONFIGURATION
Parameter Sengs
14
Enable / Disable BASIC SET command
0-Disable, 1-Enable
0-Default
1 byte—Parameter size
15
Value of BASIC SET
0-Sends 255 value for open and 0 value for closed
1-Sends 0 value for open and 255 value for closed
0-Default
1 byte—Parameter size
32
Denes value of LOW BATTERY
10-50 (10%-50%)
20-Default
1 byte—Parameter size
LIMITED WARRANTY
HomeSeer Technologies, LLC will repair or replace, at its opon, any part of the device, which proves to be defecve in workmanship or
material under normal use, in the USA except in the states of Alaska or Hawaii, for a period of one year from the date the device is pur-
chased. During the warranty period, HomeSeer Technologies, LLC will repair and provide all parts necessary to correct such defects, free of
charge, provided the device has been operated in accordance with the manufacturer's guidelines. The Customer will return the device to
HomeSeer Technologies, LLC for tesng and repair or replacement. Should you need service, during warranty period or beyond, contact
HomeSeer to obtain return authorizaon before shipping your device to HomeSeer Technologies, LLC.
SPECIFICATIONS
Operang Temp Range 0ºC to 40ºC Power Supply Requires (2) AAA 1.5V Baeries
Z-Wave Frequency | Range 908 MHz (US) | Up To 300 Ft line of sight Dimensions Sensor Body: 3 x 1.1 x .75 inches
Wake Up Sengs
HS-DS100+ can be programmed to wake up and send its status on a specic regular interval.
Wake up interval:
Available sengs: 0-2678400 (seconds)
Default seng: 0 - A seng of “0” disables the regular reporng feature and requires the sensor to be manually woken up to send updates.
Default seng when added to HomeSeer systems: 43200 (12 hours)
