User Manual

ZAGG

BluetoothKeyboard

ZAGGFolioForLGGPad8.3LTE

KeyboardInstructions



*WARRANTYREGISTRATION



YourKeyboardCasercomeswithaone‐yearmanufacturer’swarranty.Inordertoactivate

thewarranty,youmustregisteryourKeyboardCaseaswellaskeepyourpurchasereceipt.

IfyoupurchasedyourKeyboardCasefromZAGG.com,ZAGG.hasalreadyregisteredit

andhasacopyofyourproofofpurchase.



NEEDMOREHELP?PLEASESEEOURFAQSECTIONAT:www.ZAGG.com/faq

INTRODUCTION



CongratulationsonbeingtheproudnewowneroftheZAGGKeyboardCase,

madeexclusivelyfortheLGGPad.TheKeyboardCasehasbeendesignedto

makeyourmobiletypingneedsfastandeasy.Itsspaciouskeyboardlayout

andisland‐stylekeysgiveyoutheroomyouneedtotypenaturally,withfewer

typos.Andwithitsfull‐bodyprotectivecasethatdoublesasastand,youcango

anywhereknowingyourGPadissafeandreadyforworkandplay.



BluetoothSpecification:

BluetoothSpec.:3.0

Bluetoothprotocals:A2DP1.2,AVRCP1.0,HFPV1.5

Transmissionrange:10m

Transmissionspeed:1~3M/S

Receivingsensitivity:‐80dBm

Biterrorrate:0.1%



ProductsSpecification:

Operatingparameter:Voltage:DC3.1V~4.2V;current:<3mA

Chargingparameter:DC5V

Li‐ionbattery:3.7V/190mAh

Environmentalparameters:‐20~+70℃,RelativeHumidity:10%~80%



INSERTING/REMOVINGYOURGPad



ToinsertyourGPadintotheKeyboardCaseopenthecover



andpositiontheKeyboardCasesothatitskeyboardisfacing

you.Then,withyourGPadinlandscapemodeandthevolume

controlsfacingup,setthebottomhalfofyourtabletinthe

cover.EnsureyourGPadissettledonthecover’sbottom(you

mayneedtoapplylightdownwardpressureonyourtablet).

Next,snapthetophalfofyourtabletintothecover.Youshould

beabletofeelwhenyourtabletissecured.Checkallofyour

tablet’scornerstomakesuretheyhaveseatedproperly.



ToeasilyremoveyourGPad,simplyopenthecoverandapply

alightpressuretothebackofit.ThiswillunseatyourGPad

enoughforyoutograbitsedge.Graspyourtablet’sexposed

sideandlift/pullitoutofthecover.



POWERINGONANDOFF



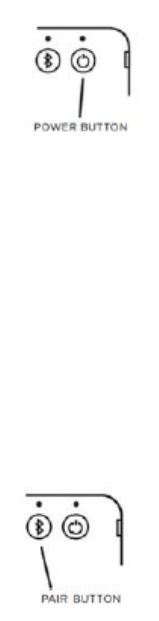

ToturnyourKeyboardCaseon,pressthe

POWERbuttonlocatedintheupperright

cornerofthekeyboard.AblueLEDwill

illuminatebrieflywhilethekeyboardpowersup.

ToturnyourKeyboardCaseoff,simplypress

thePOWERbuttonagain.



PAIRINGYOURZAGGKeyboardCase

PairingtheKeyboardCasewithyourGPadiseasy.TheKeyboardCaseshould

onlyneedtobepairedonce,usingthefollowingdirections.Iftheconnection

betweenyourtabletandKeyboardCaseiseverlost,simplyrepeatthesesteps.



1.Onyourtabletselect:SETTINGS>BLUETOOTH>ON.

2.PressthePAIRbuttononyourKeyboardCasekeyboard—



thePAIRbuttonislocatedintheupperrightcorner

nexttothePOWERbutton.AblueLEDabovethePAIR

buttonwillbeginflashingandwillcontinue

toflashuntilyourKeyboardCaseandtabletarepaired..

3.Yourtablet’sBluetoothmenuwilldisplay“ZAGGFolio”

asanavailabledevice.Selectittocompletepairing.

IfyourGPaddoesn’tshow“ZAGGFolio”,selectSCANonyourtablet’sBluetooth

menutosearchforit.



CHARGING

YourKeyboardCasefeaturesapowerfullithiumpolymerbatterythatlastsforup

tothreemonthsofnormalusebetweencharges*.Itcomeswithachargingcable

youcanusetochargeitquicklyandconveniently.TochargeyourKeyboardCase,

simplyfollowthesesteps:

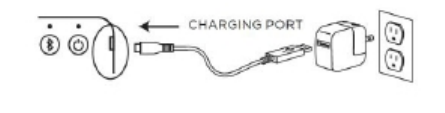

1.PlugthemicroUSBendofthechargingcableintothechargingportlocated

onthesideofthekeyboard,justunderthePOWERbutton.

2.PlugtheUSBendofthecableintoanyUSBoutlet(includingaZAGGsparq,

yourcomputer,awalloutletconverter,etc.).

3.TheLEDabovethePOWERbuttonwillilluminatetoindicatetheKeyboard

Caseischarging.Waituntilthislightturnsoff,indicatingafullcharge.It

usuallytakes2‐4hourstocompletelychargeyourKeyboardCase.

4.WhenyourKeyboardCaseisfullycharged,removethemicroUSBconnector

andenjoyyourKeyboardCaseforuptothreemonthsbeforeyouneedto

chargeitagain*.

*Basedonnormaluseofapproximately2‐3hoursperday.



BATTERYLIFE

Asmentioned,theKeyboardCasefeaturesapowerful,rechargeablebatterythat

lastsuptothreemonthsbetweencharges*.TocheckyourKeyboardCase’sremaining

batterypower,simplyholddownthefunction(fn)keyandpressthebatterykey(also

thealtkey).TheLEDabovethePAIRbuttonwillflashoneofthreeways.

1.Threegreenflashesindicate50%ormorebatteryliferemaining.

2.Threeyellowflashesindicatebetween25%‐49%batteryliferemaining.

3.Threeredflashesindicatelessthan25%batteryliferemaining.WhenyourKeyboard

Casereachescriticalbatterylevel,theredlightwillflashonceeveryfiveminutes.

Tohelppreservebatterylife,yourKeyboardCasewillentersleepmodeiflefton

andnotusedforseveralminutes.ToawakenyourKeyboardCase,pressanykey.The

KeyboardCase’sbatteryhasnomemoryandthereforemaybechargedwheneveryou

wish.Foroptimalbatterylife,werecommendturningyourKeyboardCaseoffwhenit

willsitunusedforaprolongedtime.



SPECIALFUNCTIONKEYS

YourKeyboardCasehasbeendesignedwiththefollowingspecial

functionkeystogiveyoumorecontrolofyourtablet.

HOME‐Displaysyourtablet’’shomescreen.

RETURN‐Returnstotheapporprogramthatwaslastopen.

LOCK–Activatesanddeactivatesyourtablet’ssleepmode.

CUT–Cutsselectedtextandsavesittoyourclipboard.

COPY–Copiesselectedtexttoyourclipboard.

PASTE–Pastesclipboardcontentinyourselectedfield.

TRACKBACK–Skipstotheprevioustrackonyourcurrentplaylist.

PLAY/PAUSE–Startsorpausesyourcurrentplaylist.

TRACKFORWARD–Skipstothenexttrackonyourcurrentplaylist.

MUTE–Mutesyourtablet’saudio.

VOLUMEDOWN–Decreasesyourtablet’svolume.

VOLUMEUP–Increasesyourtablet’svolume.



THEFUNCTION(fn)KEY

Thefnkeyoperatesmanyofthefunctionsthatappearatthetopofa

keythatfeaturestwosymbols.Toactivatethesefunctions,holdthefn

keydownandpressthedesiredkey.Alistofspecialfnkeysandtheir

operationsislistedbelow.



CAPS–ActivatestheCapsLockfeature.ToturnCapsLockoff,simplyholdthefn

keyandpresscapsagain.

VOICE–Activatesyourtablet’svoicefeature.

BATTERYSYMBOL–Indicatesremainingbatterylife.

FN+DELETE–ForwardDelete.



TROUBLESHOOTING

IfyourGPaddoesnotrespondtoyourKeyboardCasetheremaybea

simpleexplanationsuchasadeadbatteryoranunsuccessfulpairing.

Pleaseusethefollowingtohelptroubleshootyoursituation.Ifnoneofthe

followingsolveyourissue,thenpleasecontactZAGG’scustomerservice

andoneofourtrainedprofessionalswillbehappytoassistyou.

1.RestartyourtabletandfollowthePairinginstructionsagain.

2.TurnyourKeyboardCaseoffandbackon.YoushouldseetheLED

abovethePOWERbuttonilluminatebriefly,ifnot,chargeyour

KeyboardCase.

3.Aftercharging,turnyourKeyboardCaseon.IftheLEDabovethe

POWERbuttondoesnotilluminate,andyourkeyboarddoesn’toperate

correctly,pleasecontactZAGG’scustomerservice.

4.Forgetandre‐pairyourKeyboardCase.Onyourtabletselect:

SETTINGS>BLUETOOTH>ON.Ifyousee“ZAGGKeyboardCase”

listedasanavailabledevice,touchthearrowtotherightofitand

choosetohaveyourtabletforgetthedevice.

5.PressthePAIRbuttononyourKeyboardCaseandwatchfortheLED

aboveittoflashblue.

6.Yourtabletshoulddisplay“ZAGGKeyboardCase”asanavailabledevice.

Selectit.

7.Ifyourtabletgivesyouanerrormessage,repeatthepairingprocess*.

*Ifyoucontinuallyreceivethesameerrormessageduringpairing,ortheabovestepsdon’twork,

pleasecontact

ZAGG’scustomerserviceforassistance.

FormorehelppleaseseeourFAQat:www.ZAGG.com/faq

Toreachatrainedcustomerservicerepresentative,pleaseuseoneofthefollowing:

ZAGG.com/support/contact.php|questions@zagg.com

1‐800‐700‐ZAGG[9244]|00‐1‐801‐839‐3906forinternationalcustomers

Forunparalleledscratchprotectionforyourtablet,werecommendZAGG’sinvisibleSHIELD?.

.2005‐2014ZAGGInc.AllRightsReserved.

PATENTPENDING|NASDAQ:ZAGG|MADEINCHINA

LG?andGPadareregisteredtrademarksofLGElectronics,Inc.

ZAGG?,invisibleSHIELD?,andZAGGKeyboardCasearetrademarksorregisteredtrademarksof

ZAGGInc.

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:1:Thisdevicemaynotcauseharmfulinterference,and2:Thisdevicemustacceptany

interferencereceived,includinginterferencethatmaycauseundesiredoperation.

Warning

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst

harmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradio

frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful

interferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccur

inaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision

reception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotry

tocorrecttheinterferencebyoneormoreofthefollowingmeasures:

•Reorientorrelocatethereceivingantenna.

•Increasetheseparationbetweentheequipmentandreceiver.

•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



Caution:Anychangesormodiﬁcationstothisdevicenotexplicitlyapprovedbymanufacturercouldvoid

yourauthoritytooperatethisequipment.



Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterference

received,includinginterferencethatmaycauseundesiredoperation.


