User Manual
Basic 7in and 9in
Bluetooth Keyboard
Revision History
Revision
Date
Notes
Released By
01
05/04/2014
Initial Release
Owen Carlson
02
05/24/2015
Updated Release
Owen Carlson
Table of Contents
1. General Specification ............................................................................................................................... 6
2. Mechanical Specification ......................................................................................................................... 8
2.1. Characteristics of Material ................................................................................................................... 8
2.2. Packed – Including Packaging............................................................................................................... 8
2.3. Detachability of Cable Pull Out ............................................................................................................ 9
2.4. Key module configuration .................................................................................................................... 9
2.5. Key Board Specification ..................................................................................................................... 10
2.6. Life Test ............................................................................................................................................. 10
2.7. Specification of Rubber Switch .......................................................................................................... 10
2.8. Max Keycap Depressing Force............................................................................................................ 11
2.9. Keyboard Height ................................................................................................................................ 11
2.10.Keycap Strength ............................................................................................................................... 11
2.11.Keycap Spacing and Alignment ......................................................................................................... 11
2.12.Key in Test Spec On The 4 Corners Of The Key Cap ........................................................................... 12
2.13.Characteristics of Switches ............................................................................................................... 12
2.14.Slide Switch ...................................................................................................................................... 12
2.15.Tact Switch ...................................................................................................................................... 13
2.16.Sleep Magnet Function .................................................................................................................... 13
2.17.Snap force and life test .................................................................................................................... 13
3. Electrical Specification ........................................................................................................................... 13
3.1. Electrical Characteristics .................................................................................................................... 13
3.2. Feature: ............................................................................................................................................. 13
3.3. Power Rating ..................................................................................................................................... 13
3.4. LED Indicator behavior....................................................................................................................... 14
3.5. RF Specifications ................................................................................................................................ 15
3.6. Bluetooth Module Block Diagram ...................................................................................................... 16
3.7. Sleep mode ....................................................................................................................................... 17
3.8. Keyboard layout ................................................................................................................................ 17
3.9. 7 Inch Key frame ................................................................................................................................ 17
3.10. .............................................................................................................. Fn Combination Key Function
Descriptions ...................................................................................................................................... 19
3.10.1. 7in Non backlight Alcatel Android 5.0 US ..................................... Error! Bookmark not defined.
3.10.2. 7in Non backlite LG E8 Android 5.0 US ........................................ Error! Bookmark not defined.
3.11.Bluetooth 3.0 9 inch Keyboard Key Matrix for Apple ........................................................................ 20
3.12.Schematic Circuit ............................................................................................................................. 21
3.13.Pseudo N-Key Rollover Capability ..................................................................................................... 22
3.14.Free From Illegal Ghost key .............................................................................................................. 22
3.15.Compatibility ................................................................................................................................... 22
3.16.Charging Specification ...................................................................................................................... 22
3.17.Keyboard Module ............................................................................................................................ 22
3.18.Key Functional Test .......................................................................................................................... 22
3.19.Bluetooth RF Power & Frequency Test ............................................................................................. 22
3.20.EMI Test ........................................................................................................................................... 22
3.21.ESD TEST .......................................................................................................................................... 23
3.22.EFT Test ........................................................................................................................................... 23
4. Environmental and Reliability Specifications .......................................................................................... 24
4.1. Acoustic Noise ................................................................................................................................... 24
4.2. Temperature and Humidity Test ........................................................................................................ 24
4.3. Heat Treatment Impact Test .............................................................................................................. 25
4.4. Vibration Test .................................................................................................................................... 25
4.5. Bare Unit Drop Test ........................................................................................................................... 26
4.6. Packaged Box Drop Test .................................................................................................................... 26
4.7. Life Test ............................................................................................................................................. 27
4.8. UV Test .............................................................................................................................................. 27
4.9. Spillage Test ...................................................................................................................................... 28
4.10.Endurance Test ................................................................................................................................ 29
4.11.Physical / Software compatibility check ............................................................................................ 30
4.12.PLP – Product Liability Program ....................................................................................................... 30
4.13.Abrasion Test – Legend (1X key silk-screen printing) ......................................................................... 30
4.14.Abrasion Test - Logo/ Icon ................................................................................................................ 31
4.15.Abrasion Test – Painting (Outlook parts printing) ............................................................................. 31
4.16.Chemical Resistance Test ................................................................................................................. 31
4.17.Adhesion Test .................................................................................................................................. 31
4.18.Keycap Texture Endurance Test........................................................................................................ 32
4.19.Compression Test-Type 1A ............................................................................................................... 32
4.20.Corrugated Box (Carton) Compression Test ...................................................................................... 32
4.21.Compliance ...................................................................................................................................... 32
4.22.Safety Standard ................................................................................................................................ 33
4.23.Environment Specification Items ...................................................................................................... 33
4.24.Appearance Specification ................................................................................................................. 34
5. Patent ................................................................................................................................................... 34
6. View Angle ............................................................................................................................................ 34
6.1. Angle Specifications ........................................................................................................................... 34
7. Keyboard Layout for different Languages .............................................................................................. 35
7.1. 7in Non backlight Alcatel Android 5.0 US ................................................ Error! Bookmark not defined.
7.2. 7in Non backlite LG E8 Android 5.0 US .................................................... Error! Bookmark not defined.
8. Cable ..................................................................................................................................................... 35
8.1. Micro USB Charge Cable .................................................................................................................... 35
1. General Specification
This specification is applied to the Bluetooth wireless keyboard folio for Windows iPad series.
General Product Information
Product Type
ZAGG Folio Keyboard
Connection Type
Bluetooth Wireless
Keypad Features
Slim
Wireless Protocol
Bluetooth 3.0
Wireless Range
10M
Software Support (at
release)
As needed per device
OS Support (at release)
As needed per device
Indicator Lights (LED)
Under Caps Lock, Under Power (for Pairing too)
Backlight
None
Battery Details
450mAh, 3.7V
Battery Life
365 days one hour per day use
Power Charge
Micro USB cable ( TPE coated cable)
Power On Function
Power key on key frame will power on
Hinge Angle
0~135 +/- 3 Degrees
Hinge Life
5000 cycles on opening and closing
Hinge Torque
N/A
Opening Force (Free Stop)
N/A
Closed Mode
Magnet assist closure and retention
Book Mode
Magnet assist retention
Product Dimensions
Product
component
Width
( No Fabric)
Depth
(No Fabric)
Height
(Tablet
Dependent)
Weight
Keyboard
246 mm
178.5 mm
6.2mm
XXX grams
2. Mechanical Specification
2.1. Characteristics of Material
2.2. Packed – Including Packaging
Product Dimensions Tolerance: +/- 3 mm
Package Spec.
Qty
Width
Length
Height
Weight
Gift box with handle
1
TBD
TBD
TBD
TBD
Carton (Inner)
5
TBD
TBD
TBD
TBD
Carton (Outer)
10
TBD
TBD
TBD
TBD
Parts
Material
Color
Texture
Bezel, Key Surround
PC/ABS
(70/30)
White/Black/
Purple and as
needed
MT11010
Keys, HF-3201GS
ABS
White/Black
Texture MT 11005 Semi-Gloss Paint
Fabric Cover, Interior
Synthetic
Suede
Black
TBD
Fabric Cover, Exterior
Weave/
Knit
Black/
Purple/ Red
TBD
Side Hooks
PC
White/Black/
Purple etc
TBD
Cradle
PC
White/Black/
Purple etc
TBD
Base
PC
White/Black/
Purple etc
TBD
Top Hooks
PC
White/Black/
Purple etc
TBD
V type hook
PC
Black
TBD
Cradle Slim
PC
Black
TBD
Bottom Board
PC
Black
TBD
Cradle Slim Cover
PC
Black
TBD
2.3. Detachability of Cable Pull Out
The cable entrance for corded devices can meet product specification. Function test will be performed
before and after this test. Refer to the definition of related standard.
USB Implementers Forum. 2007-01-04. Micro USB connector mating force is less than 30N, un-mating
force is 8+/-1N. Life test is 5000 cycles in this device.
2.4. Key module configuration
This specification is applied to the 7” key module.
General Product Information
Product Type
Key module
Output Pin
28 Pin
Travel
1.5 mm
Total Height
3.9 mm
Weight
N/A
Size
198.4 X 96.5 mm (main rectangular foot-print)
Click Ratio
35 ~ 55
Indicator Lights (LED)
RGB
Key life
Standard key and long key: 3 M, Small key: 5 M
Color
Define by Customer
Key layout
Define by Customer
Name
Material
Flaming
UL
Key Cap
ABS
94 HB
Scissor EXT
POM
94 HB
Scissor INT
POM
94 HB
Rubber Dome
Rubber
94 HB
Plate
0.3 SECC
5VA
Membrane
PET
94 HB
2.5. Key Board Specification
2.6. Life Test
Standard key is 5 million cycles and Function key is 3 million cycles.
( 4 times/second, 100 ± 20 gf ).
2.7. Specification of Rubber Switch
Normal And Function Key Rubber Dome Key Characteristic
Point
Stroke
Force
P1
0.5 ± 0.2 mm
60 ± 15 gf
P2
0.8 ± 0.2mm
15~48 gf
P3
1.5 ± 0.2 mm
Maximum 120 gf
P4
Maximum 15 gf
Pre-Loading
0 ~ 0.2 mm
Click ratio:
35 – 55 %
Figure 1 Standard key curve of force response
Travel
Operating Travel: 1.5±0.30mm
Full Travel: 1.5±0.30mm (force at 110g)
P3
P1
P2
Keycap Pull Off Force
500gf minimums with equal load applied to all 4 corners of the keycap
150gf minimums at any one corner or side of a given keycap
2.8. Max Keycap Depressing Force
To act on the center of the keycap with stand 5Kgf force for 1 minute.
2.9. Keyboard Height
3.90±0.20mm（normal key）
3.90±0.20mm（space bar)
2.10. Keycap Strength
To act at “X” and “Y” axis with stand 1Kgf force for 5 sec.
2.11. Keycap Spacing and Alignment
Clearance between keycaps (standard keycaps): ΔH (ΔV) -- ± 0.30 mm
Alignment (keycap to keycap): Neighbor 0.4 mm max, In a row 0.4 mm max
Height alignment (keycap to keycap): Neighbor 0.4 mm max In a row 0.4 mm max
Key slant (keycap to keycap): 0.6 mm max
Key X, Y Movement: Shall be ≦0.5mm for full amplitude on both X and y directions.
Key twisting: Normal key ±0.4mm
Fn Key ±0.3mm
Space key ±0.4mm
Long Key ±0.4mm

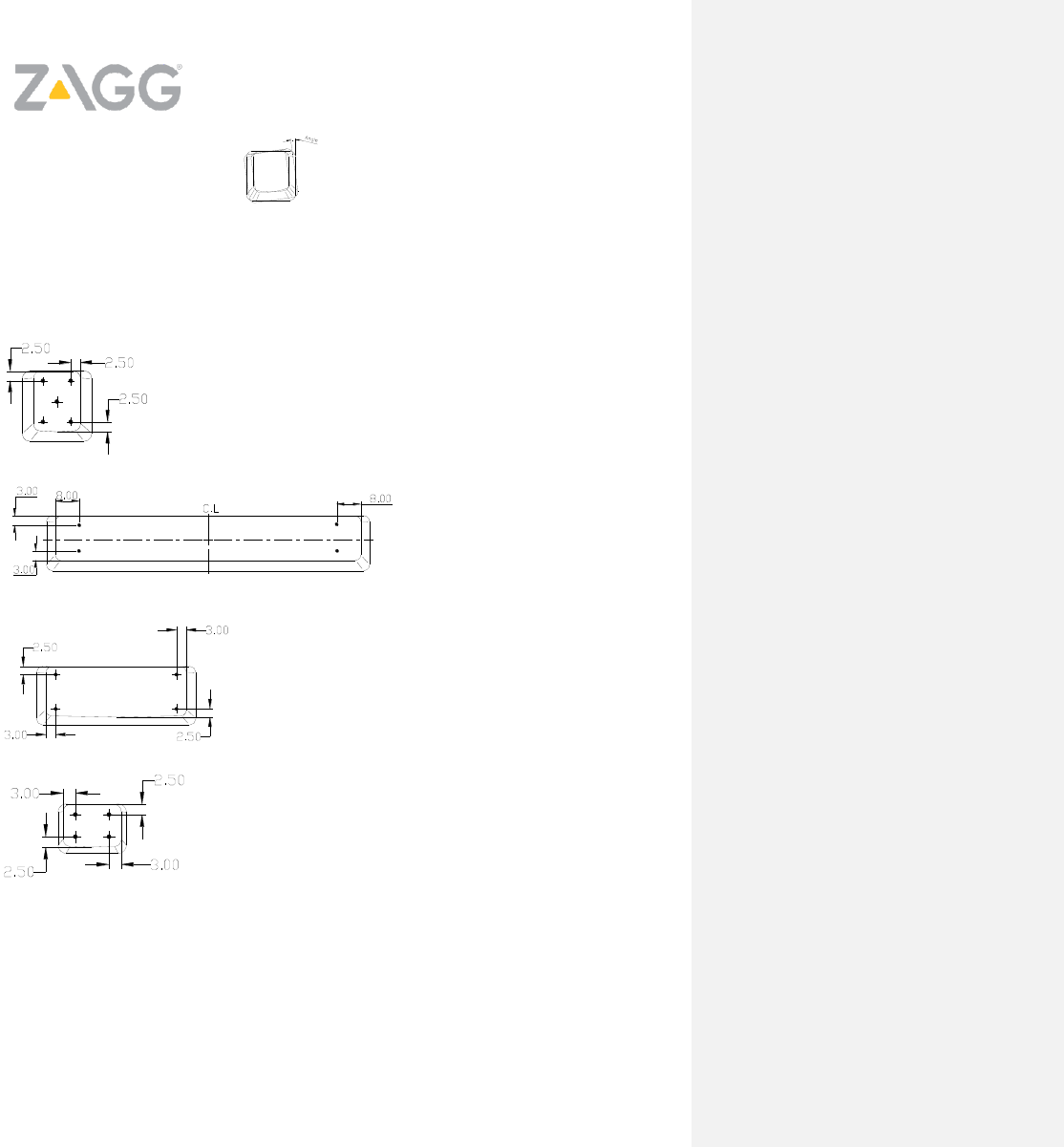

2.12. Key in Test Spec On The 4 Corners Of The Key Cap
Unit: mm (All Types)
A. Standard Key
B. Space Bar
C. Long Types Key
D. Small Key
Key in Force (Center) ≥ 80g
2.13. Characteristics of Switches
2.13.1. Slide Switch
No slide switch
2.13.2. Tact Switch
No tact switch
2.14. Sleep Magnet Function
Act magnet switch in 1.1mm height from top surface of KB cover.
2.15. Snap force and life test
Snap in force between tablet and keyboard cover is (TBD)15N +/- 20% in handle and snap out force is
(TBD)25N +/- 20%.
Snap life is (TBD) 5,000 times.
3. Electrical Specification
3.1. Electrical Characteristics
3.2. Feature:
Bluetooth V 3.0 specification.
Bluetooth HID profile V 1.1 compliant.
Frequency Range: 2.400G ~ 2.480GHz
Peak Power consumption: 0.66 mA Max
Built-in 3.7V, 450mAh Li-Polymer Battery, can be rechargeable.
Sleep mode Power consumption: 0.033 mA Max
Security Encryption: 64 bits
Support AFH (Adaptive Frequency Hopping).
Support Language: US, Europe, Asia
Compatibility with necessary OS
FCC, CE, BQB, R&TTE, RoHS
Active Range: around 10 meter
Build-in Power on/off Switch.
RGB LED indicators for Battery Low alert , Recharge and Bluetooth Connectivity
Debounce: No double characters
Key buffering: 2 seconds
Wakup Time: 1.9 seconds
Auto-pair Requirement: 1.5 seconds
BQB Requirement: 10m or 30ft
3.3. Power Rating
Items
Specifications
1
Operation Voltage:
Voltage supplied to device: 3.0VDC ~ 4.2VDC
2
Active Power consumption
0.65mA Avg
Commented [OC1]:
3.4. LED Indicator behavior
Press Fn + Right Control Key will indicate battery status by LEDs.
Battery status description:
Battery Voltage
Percentage
Battery
Level
LED Colour
Remark
3.71V ~ 4.2V
50% ~ 100%
Full
Green
Flash 3 times. Each time
flash 1 sec, stop 1 sec.
3.5V ~ 3.71V
25% ~ 49%
Low
Yellow
Flash 3 times. Each time
flash 1 sec, stop 1 sec.
3.4V ~ 3.5V
12% ~ 24%
Charge
Red
Flash 3 times. Each time
flash 1 sec, stop 1 sec.
3.0V ~ 3.4V
0% ~ 11%
Critical
Red
Flash 3 times. Each time
flash 1 sec, stop 1 sec.
Power On, Charging, & Pairing:
Function
LED Colour
Remark
Power On
Green LED under
power key
The GREEN LED will turn ON instantly when
power key is pressed. The LED will turn ON for 2
seconds then turn OFF and the keyboard will
automatically reconnect with the tablet. If
pressed again GREEN LED will turn on 2 seconds
then off indicating it is still ON.
Power Off
Red LED under
power key
The RED LED will blink twice then turn OFF
indicating the keyboard is OFF when the power
key is pressed and held down for 3 second.
When power is turned OFF the keyboard with
disconnect BT.
Charging
Red LED under
power key
RED LED stay ON until Battery cell is full Charged.
Low power
Red LED under
power key
When battery reaches a Charge level (12%~24%)
the back lightning will be disabled and when
3
Standby Mode current
0.25mA Avg
4
Hibernation mode current
0.033mA Avg
5
Bluetooth disconnect
Bluetooth keyboard will disconnect communication
after 20 minutes. The keyboard will always stay
paired so when coming out of hibernation it will
automatically allow keyboard to work with tablet
with limited time delay.
Critical Level is achieved (0%~11%) a RED LED
will flash three times, one flash sequence every 5
minute. (1 Hz Flash 50% Duty)
Bluetooth Pairing
Blue LED under
power key
Push and hold Pairing key for 3 seconds for
pairing. A BLUE LED under power key will Flash
when pairing. Flash will stop flashing when
paired. Pairing times out after 60 sec.
Caps Lock:
Function
LED Colour
Remark
Caps Lock ON
Blue LED under
Caps Lock Key
LED Stay on until key is pressed again
Tablet Bluetooth Display
Function
Name
Remark
Display in Bluetooth
settings
ZAGG Basic Folio
Zagg Basic will show in the display of Bluetooth
devices the tablet detects
Note: Now the turning ON and OFF of the keyboard through the key frame is really only
toggling between Hibernation Mode and Active Mode and disconnecting Bluetooth
connection when in Hibernation Mode.
To perform a HARD RESET, a micro USB cable needs to be plugged into a 5V power source
and then plugged into the keyboard. A GREEN LED under the power key will come on for 2
seconds then changes to RED indicating the PCBA has been reset.
For all flashing of LED’s a flash cycle time 1 Hz Flash 50% Cycle will be used.
3.5. RF Specifications
Simple data transmitter operation at 2.4GHz range
Modulation:
FHSS
Caps Lock ON:
Blue light
Voltage (Supply):
3.0V
Transmitter Output Power:
2.66 dBm
Receiver Sensitivity:
- 86.14 dBm
Range:
>= 10m (in no interference environment)
Auto paring:
Device starts auto pairing mode after power on,
and leaves after 60 seconds.
RF IC Model for keyboard: Broadcom BT3GMD-B47P is a Bluetooth Human Interface Device
(HID) module based on the Broadcom BCM20730 Bluetooth 3.0 specification basic rate-compliant stand
baseband processor with an integrated 2.4GHz transceiver or equivalent performance chip.
3.6. Bluetooth Module Block Diagram
3.7. Sleep mode
Auto sleep if no typing for 20 minutes.
3.8. Keyboard layout
3.8.1. 7 Inch Key frame

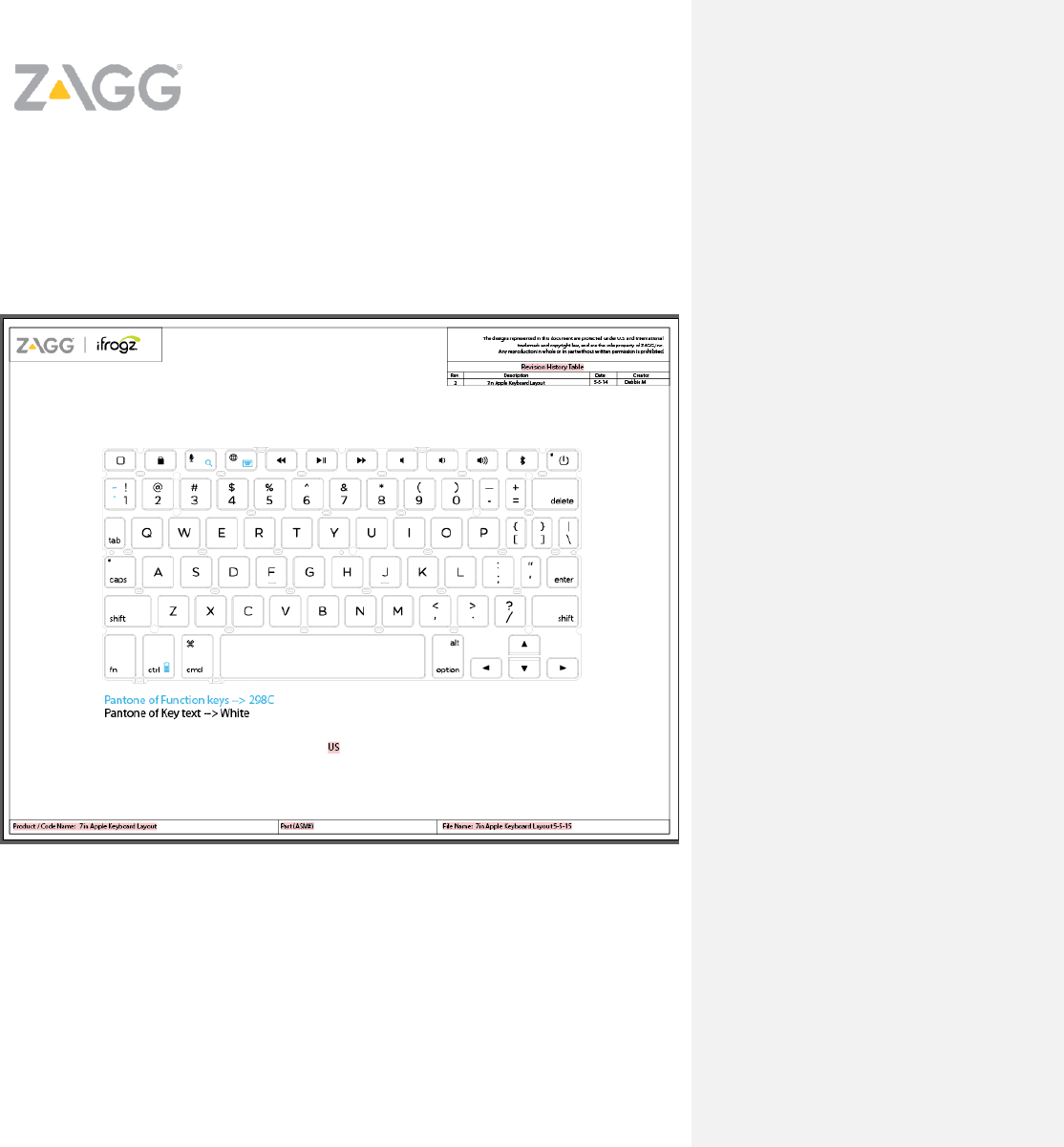

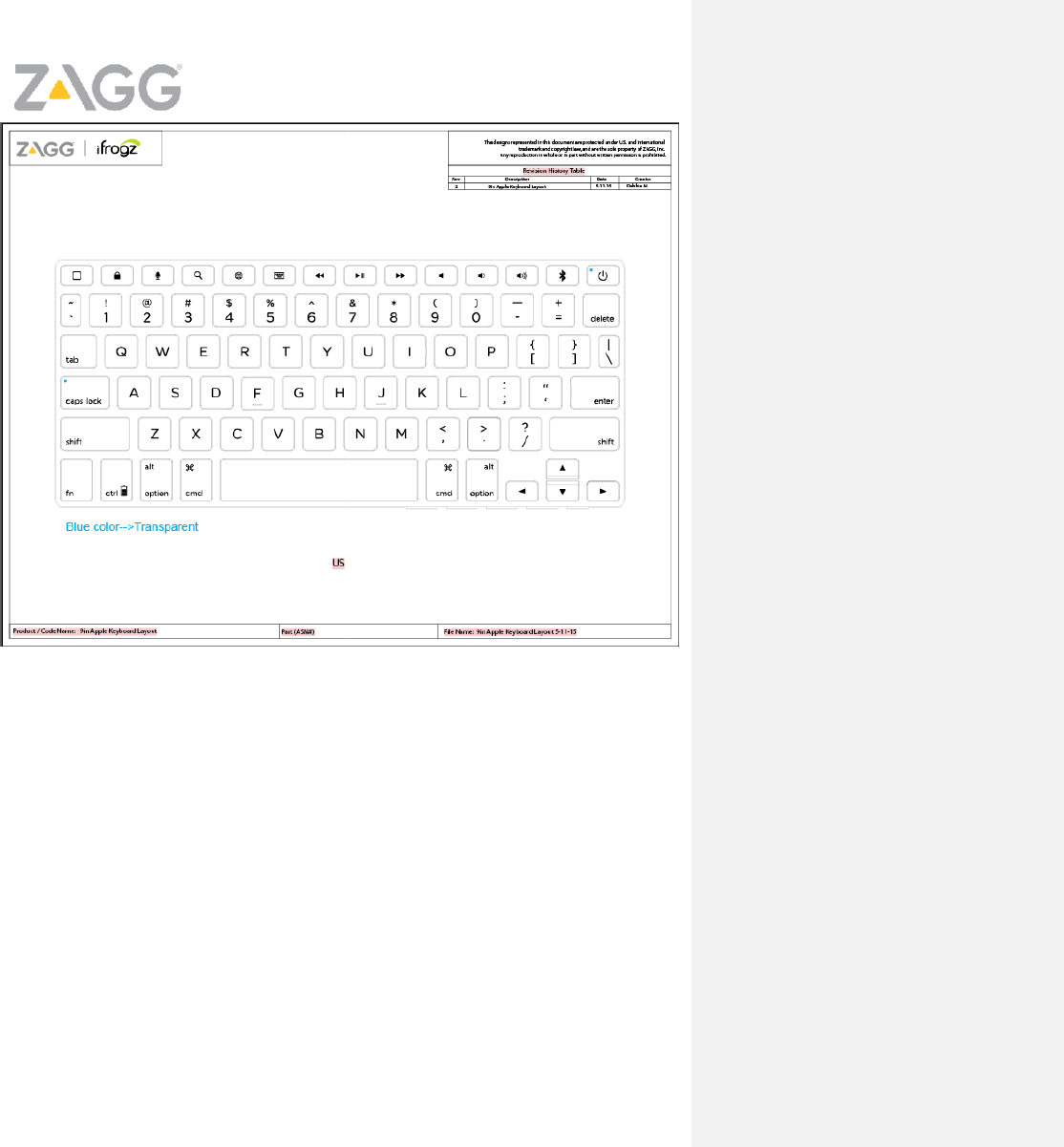

3.8.1.1. 7in Non backlit Key Frame US Apple Layout
3.8.2. 9 Inch Key frame
3.8.2.1. 9in Non backlit Key Frame US Apple Layout
3.9. Fn Combination Key Function Descriptions
Item #
Keystroke
Description
01
Fn +
Battery Level
01
Item #
Keystroke
Description
01
Fn +
Battery Level
02
Fn +
Search
03
Fn +
Show / Hide Keyboard

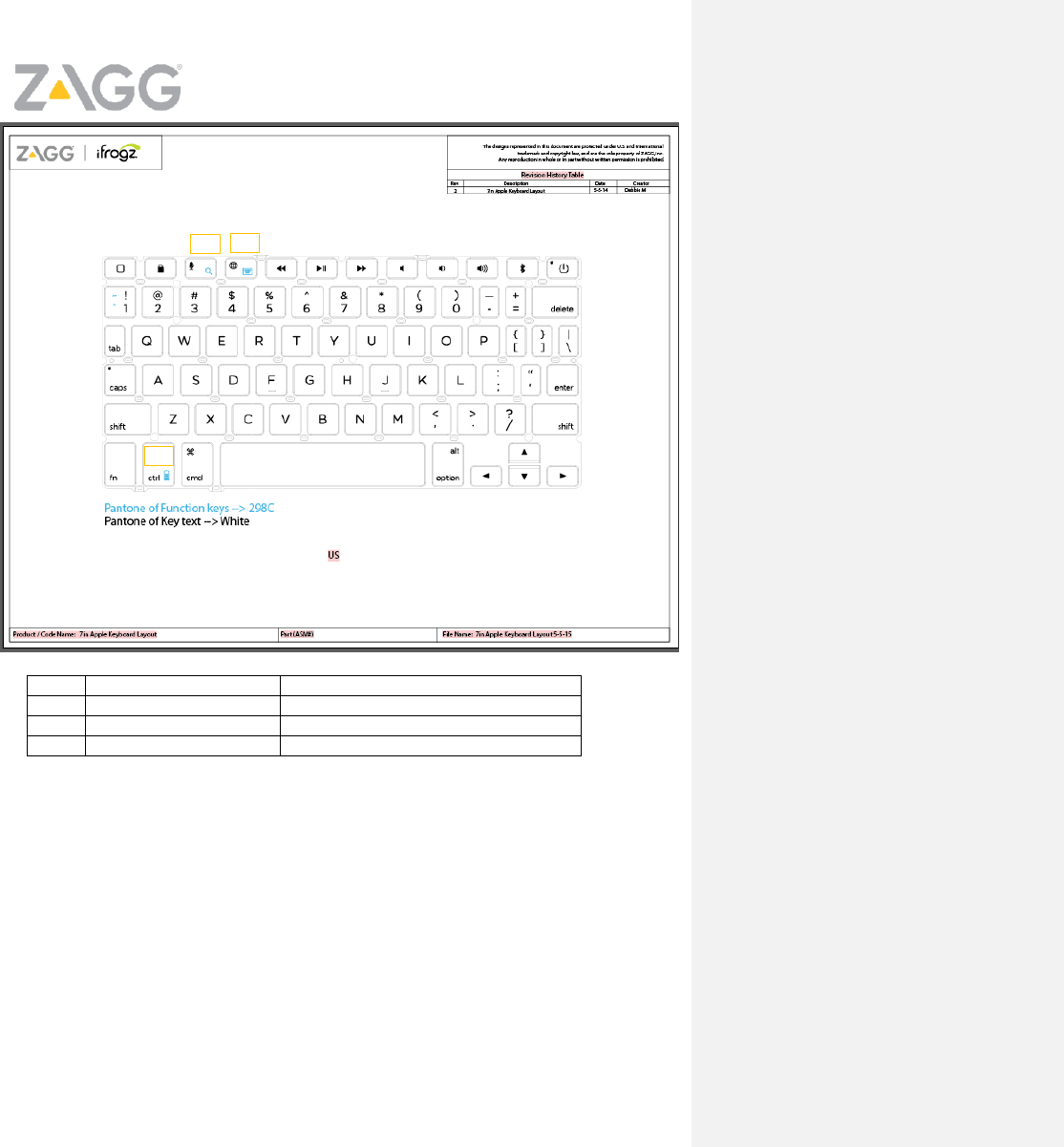

3.10. Bluetooth 3.0 9 inch Keyboard Key Matrix for Apple
01
02
03

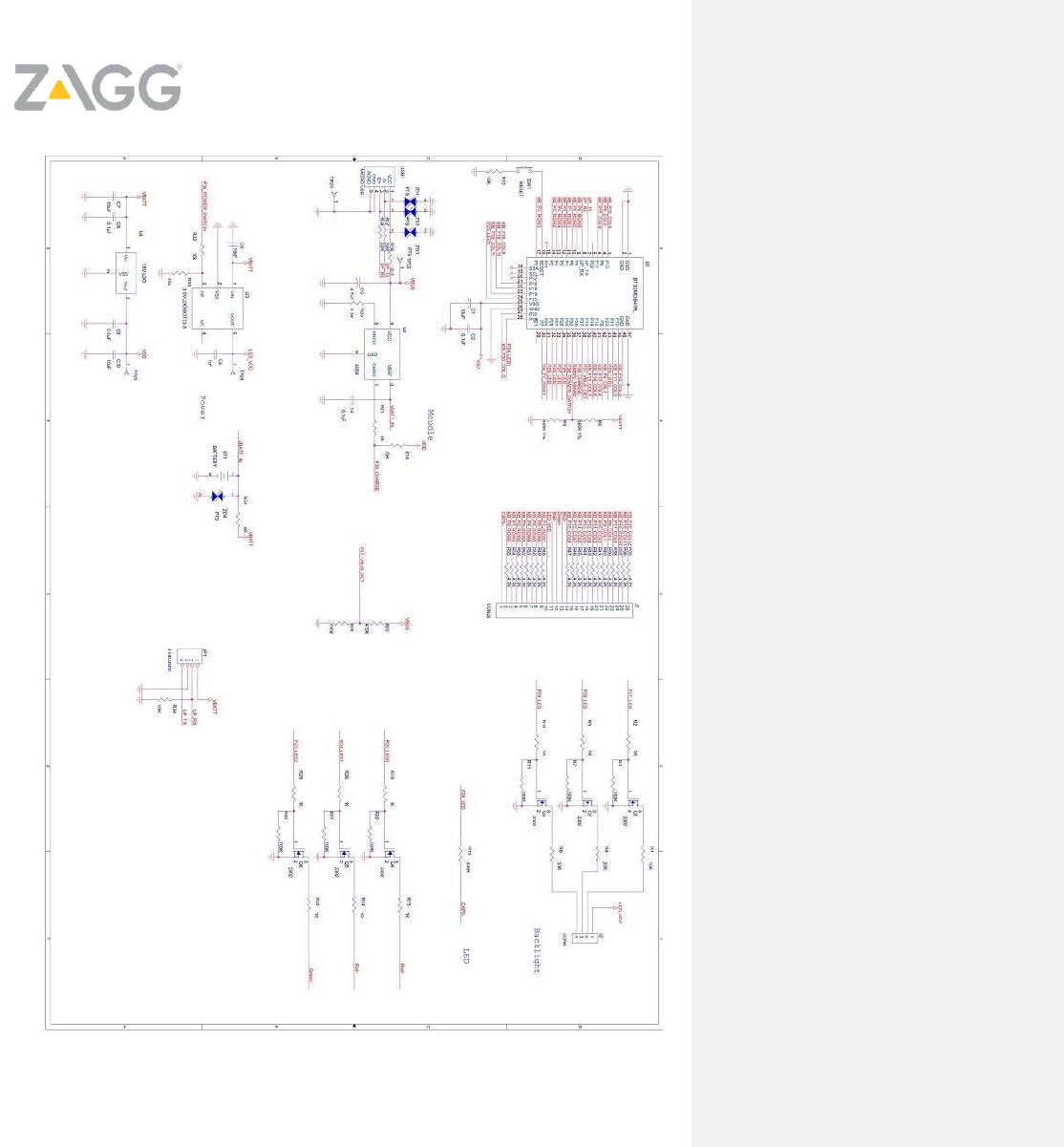

3.11. Schematic Circuit
3.12. Pseudo N-Key Rollover Capability
‘N’ key roller is the numbers of keys that may be held depressed simultaneously and have the
keyboard generate the appropriate code for each pressed and released key without keyboard
interruption. The keyboard is capable of at least a pseudo 6-key rollover. All combinations of
Ctrl, Alt and Shift keys are not ghost keys.
3.13. Free From Illegal Ghost key
Key matrix layout has been properly managed such that no ghost key occurs for any 3-key
combination. The ghost key is defined as 3-key combination where a valid third key falls in the
‘#’ pattern in the key matrix, formed by the proceeding valid 2-key combination. Normally in
this case, the third key will be masked without sending any code because the third key and
fourth key in this ‘#’ pattern are confusing the microprocessor of three keyboard.
3.14. Compatibility
Operation System: Windows OS
Bluetooth 3.0 LE specification compliant.
Bluetooth HID profile V 1.1 compliant
VID/PID in firmware is 0a5c/8502 (Default Broadcom)
3.15. Charging Specification
Charging current: 180mA
3.16. Keyboard Module
Key matrix traces with switch contact fingers are laid out and routed on a 3 layers membrane
sheet and scissor keycap as a key module. The contact resistance is less than 1000 ohm.
3.17. Key Functional Test
Refer to Key Layout and to use Bluetooth test program & fixture.
3.18. Bluetooth RF Power & Frequency Test
RF Power Range: -35dBm ~ -5 dBm
Frequency tolerance: +/- 75 KHz
Low Frequency: 2402 MHz
Middle Frequency: 2441 MHz
High Frequency: 2448 MHz
3.19. EMI Test
European Standard EN 55022: 2006 Class B.
FCC/CFR 47 : Part 15 Class B
Frequency Range of Test: from 30MHz to 1000 MHz
3.20. ESD TEST
Basic standard: IEC 61000-4-2
Generic standard: EN 55024:1998 + A1:2001 + A2:2003
Performance Criteria: B
Level: 2 for Contact discharge
Tested Voltage: ± 8V for Air discharge, ± 4 KV for Contact discharge
Temperature: 15-23 ºC
Relative Humidity: 30-60 % RH
Test Condition : Air ±8Kv, ±15Kv ESD
Judgment Standard:
o ±8Kv No malfunction
o ±15Kv No deviation or destruction of component
3.21. EFT Test
Basic standard: IEC 61000-4-4
Generic standard: EN 50 082-1
Performance Criteria: B
Level: on Power Supply 3
Test Voltage: on Power Supply ± 1 KV
Temperature:15-35ºC
Relative Humidity: 30-60 % RH
4. Environmental and Reliability Specifications

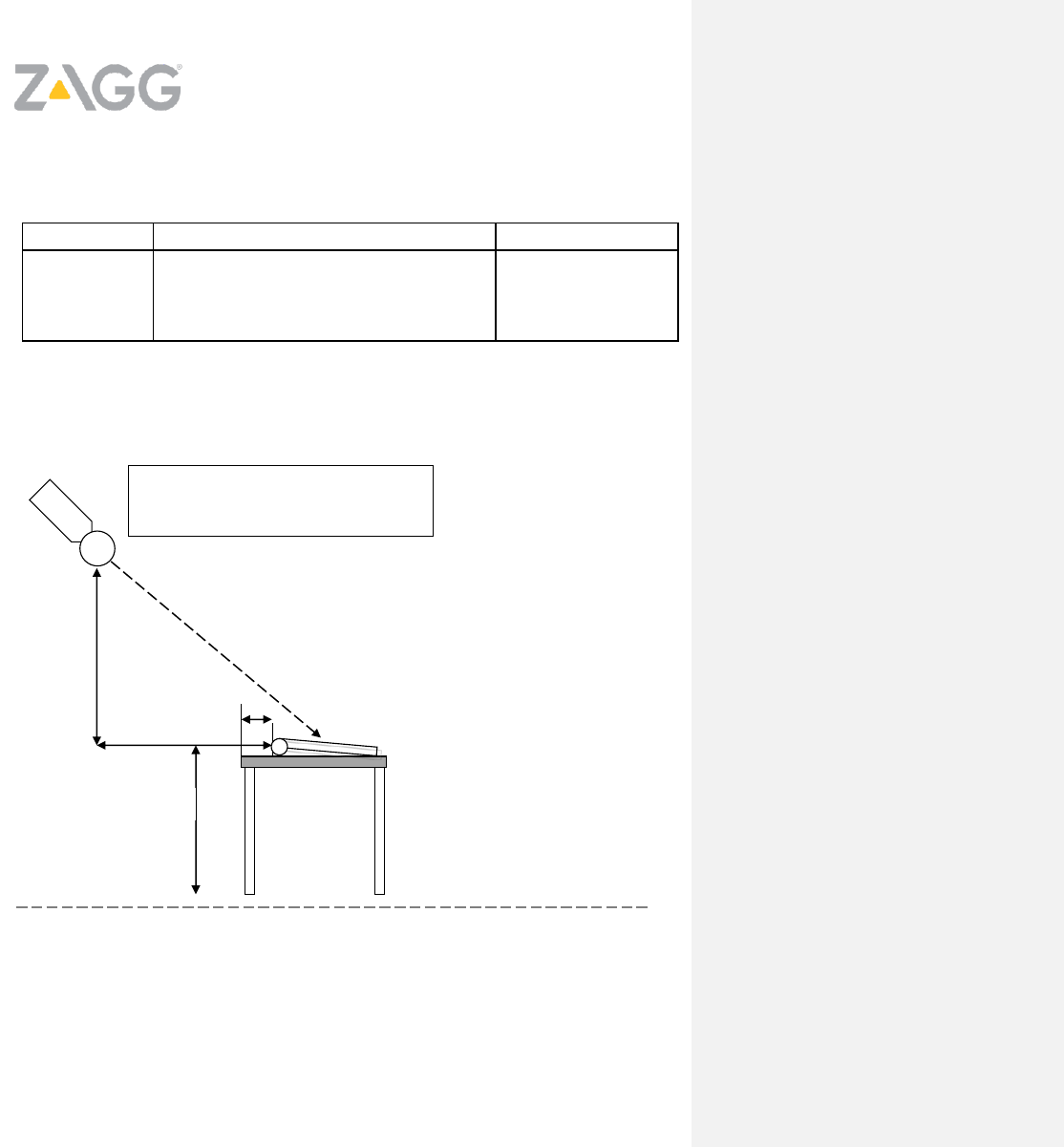

4.1. Acoustic Noise
Test Item
Specification
Test Equipment
Acoustic noise
Keyboard : Normal key
Max: 50dBA,
Space bar: Max:55dBA
Mouse: Max:55dBA
A = 38 +/- 13mm
B = 750 +/-13mm
C = 260 +/-13mm
D = 330 +/-13mm
4.2. Temperature and Humidity Test
Sound level meter: Point microphone
toward the center-line of the
spacebar on keyboard.
A
C
D
B
Test Item
Specification
Test Equipment
High Temp
High Humidity
Test
1. Sample size: 5 pieces
2. Test Condition: 50°C /95%, 120 hours
3. Judgment Standard:
No malfunction
No decay inside of the product
Chamber
Storing in Low
Temperature
1. Sample size: 5 pieces
2. Test Condition: -20°C, 96 hours
3. Judgment Standard:
- No malfunction
Chamber
4.3. Heat Treatment Impact Test
Test Item
Specification
Test Equipment
Heat Treatment
Impact Test
1. Sample size: 5 pieces
2. Test Condition: -40°C ~ 85°C, 2 hours /cycle,
30cycle
3. Judgment Standard:
No malfunction
No decay or color change of PBA Soldering
& component
No crack, dent, or change
Chamber
4.4. Vibration Test
Test Item
Specification
Test Equipment
Vibration
1. Sample size: 5 pieces
2. Condition: Sine sweep: 10HZ~ 500HZ~ 10HZ;
3. Sweep speed: 0.5 Octave/minute
4. Acceleration: 2G
5. Duration: 30 minutes per face.
6. Judgment Standard:
i) The mechanical appearance and inner
structure should not be damaged after test.
ii) No functional failure should be found during
and after the test.
Vibration machine
4.5. Bare Unit Drop Test
Test Item
Specification
Test Equipment
Bare unit drop test
1. Sample size: 2 pieces
2. Test Condition : Drop at 91.44 cm ( 36in ) on
wood surface, 5 times on each face and 5
times on the top and bottom ( Total 30 times
without device) NAC and Mahindra Testing
3. Judgment Standard
I. No malfunction (button, mechanical or
electrical)
II. No deviation or destruction of component
(No major cracks in plastic housing)
Drop machine
4.6. Packaged Box Drop Test
Test Item
Specification
Test Equipment
Master Carton
packaged box drop
test
10 drops (One corner, Three edges, Six surfaces ) from
36 inches (91.44cm) to concrete surface, No damage
product, Product function OK
Drop test machine
4.7. Life Test
Test Item
Specification
Test Equipment
Keycap
Spec: Keyboard normal keys: 5 M cycles
Function key: 3 M cycles
Life tester machine
On/Off Button
N/A On Key Frame
Pairing Button
N/A On Key Frame
Snap Life Test
Magnetic force between tablet and keyboard is snap
in force 6N +/- 20% and snap out force is 6.5N +/-
20%. Snap life is 5,000 times
1. Judgment Standard
No Cracks
Still connects and hold tablet and
Keyboard together
Test by Hand or Machine
Hinge Cycle Test
5000 cycles of hinge with tablet installed. No wear to
tablet and torque of hinge cannot change.
4.8. UV Test
Test Item
Specification
Test Equipment
UV Test
1. Test Standard: ISO4892-3:2006; Method B, 72
Hrs; 0.76 Watts per square meter at 340 nm
wavelength, Ambient temperature of 50°C
3°C, Lamp type 1B (UVA-340), Humidity is not
controlled.
2. Judgment Standard
No crack / dent / color change and ETC.
4.9. Spillage Test
Test Item
Specification
Test Equipment
Spillage test
Unit shall be ON.
The keyboard shall be functional after performing the
liquid spill tests:
Pour the liquid from a funneled system from a height
of 3.0" above the keyboard over between the G, B, and
H keys. The funnel should accurately dispense all the
liquid at a rate of approximately 4 Oz (116 cc) per
minute of elapsed time. The Keyboard shall remain idle
for 60 seconds and then the keyboard shall be tilted to
drain the liquid. Liquid for test:
(1) 8.0 fluid oz. of hot coffee mixture (65C±5C)
(Coffee mixture shall be prepared by adding 4.0
gm. of sugar and 2.0 gm. of non-dairy creamer
to an 8.0 oz. cup of hot coffee.).
(2) 1.0 fluid oz. of cold sugared Cola (15C ±5C)
(3) 350cc of water (24±2°C):Don’t shake keyboard
after complete spilling water, Pour out water.
Pass Criteria
All keys on the keyboard are functional
Liquid effectively drains from the specific
keyboard liquid drain hole(s) Fail Criteria
Liquid does not pass through keyboard and
into the drain hole(s) and out the bottom of
the keyboard
Spontaneous characters appearing on the
screen.
Repeating keys (a repeating key is a key cap
that is depressed and release once but
continues to scroll the character more than
once)
Non-Functioning keys
4.10. Endurance Test
Test Item
Specification
Test Equipment
Endurance test
Hinge endurance: There shall be no damage,
when a load of 25N is applied in pressure
direction for 15 seconds.
Rubber pad endurance: Rubber pad does not peel
off when a load of 10N is applied on its surface.
Breakage test (25N force applied to top of case.)
Pull gauge.
4.11. Physical / Software compatibility check
Test Item
Specification
Test Equipment
Physical / Software
compatibility check
Physical / Software Compatibility Test
Window Surface Tablet
4.12. PLP – Product Liability Program
Test Item
Specification
Test Equipment
PLP
Electronic, Physical PL review, Manual/Package safe
clause review
4.13. Abrasion Test – Legend (1X key silk-screen printing)
Test Item
Specification
Test Equipment
Abrasion test-
legend
1,250 cycles, 450g , CS-10F eraser, 50% legend line
width missing or damaged
Fixture
4.14. Abrasion Test - Logo/ Icon
Test Item
Specification
Test Equipment
Abrasion test-
Logo/Icon
200 cycles, 450g, CS-10F , 50% legend line width
missing or damaged
Fixture
4.15. Abrasion Test – Painting (Outlook parts printing)
Test Item
Specification
Test Equipment
Abrasion test-
painting
500 cycles, 1 kg, CS-10 abrasive wheel, substrate is first
visible through the painted surface.
Abrasion machine
4.16. Chemical Resistance Test
Test Item
Specification
Test Equipment
Chemical resistance
test
Supplier product spec. 12 chemicals per unit, room
temperature exposure followed by 60°C/65% RH, 12
chemicals are Oil of Olay; Vaseline with 6.5% Alpha
hydroxyl ; Jergen’s Lotion; Eternity Body Lotion;
Perfume; 99% Isopropyl Alcohol; 409 Spray Cleaner;
Ammonia (Windex); Vegetable Oil, Artificial sweat;
Coffee and Coke.
4.17. Adhesion Test
Test Item
Specification
Test Equipment
Adhesion test
Per ASTM D-3359.
must not exhibit paint flaking, peeling, or
degradation
4.18. Keycap Texture Endurance Test
Test Item
Specification
Test Equipment
Keycap texture
endurance test
250,000 cycles, 200gm, CS-5 wear eraser, no visual
change to surface finish
Abrasion test machine
4.19. Compression Test-Type 1A
Test Item
Specification
Test Equipment
Compression
Test-Type 1A
Test 1Min load
L = M x Jx(H-h)/ h x F
Compression test
machine
4.20. Corrugated Box (Carton) Compression Test
Test Item
Specification
Test Equipment
Corrugated box
(Carton)
compression test
Minimum compression strength = ((BW x N)
+ EPW)) x SF
BW = Individual Box Weight
N = number of boxes in a column above the bottom
box
EPW = Empty Pallet Weight
SF = Safety Factor = 5
Compression test
machine
4.21. Compliance
Items
Specifications
1
USB
Compliance of USB compliance program
4.22. Safety Standard
Items
Specifications
1
Regulation
(Safety/EMC)
Safety / EMC
Country
Standard
CE
U.S.A
EN301489, EN300328, IEC 60950-1
FCC
U.S.A
FCC Part15 Subpart B / C, Class B
RoHS
U.S.A
Folio
UL
U.S.A
On Battery
UN38.3
U.S.A
On Battery
CEC
California
CEC-400 Battery
WERC
U.S.A
Battery
Bluetooth SIG
U.S.A
Bluetooth Module
Bluetooth Qualification
Body
U.S.A
PCBA
MSDS
U.S.A
Battery
WEEE
U.S.A
ALL Electrical (Mainly Euro)
NAC or Mahindra
U.S.A
Complete Folio (ZAGG Performs)
4.23. Environment Specification Items
Items
Specifications
1
Compliance to
law regulation/
public
standards
To be reflected in Product safety (environment) evaluation list To clarify the
regulations to correspond to “Law/regulation control standard (product)”
appendix “Regulation compliance list” and attach to product planning
document or/and product specification document.
2
Environmental
label
To be reflected in environmental label check sheet
Destination
If compliance
is required or
not
Subject
Name
WW
□
Main unit
<Place to show logo>
International Energy
Star program
Europe
■
Main unit
RoHS
3
Compliance to customer’s
internal regulation etc. other
than above
□Required ■Not required
4.24. Appearance Specification
Appearance specification: Refer to SIP standard.
Corrosively: It is not seen the rust part to the appearance part. (Edge of sheet metal is included.)
5. Patent
6. View Angle

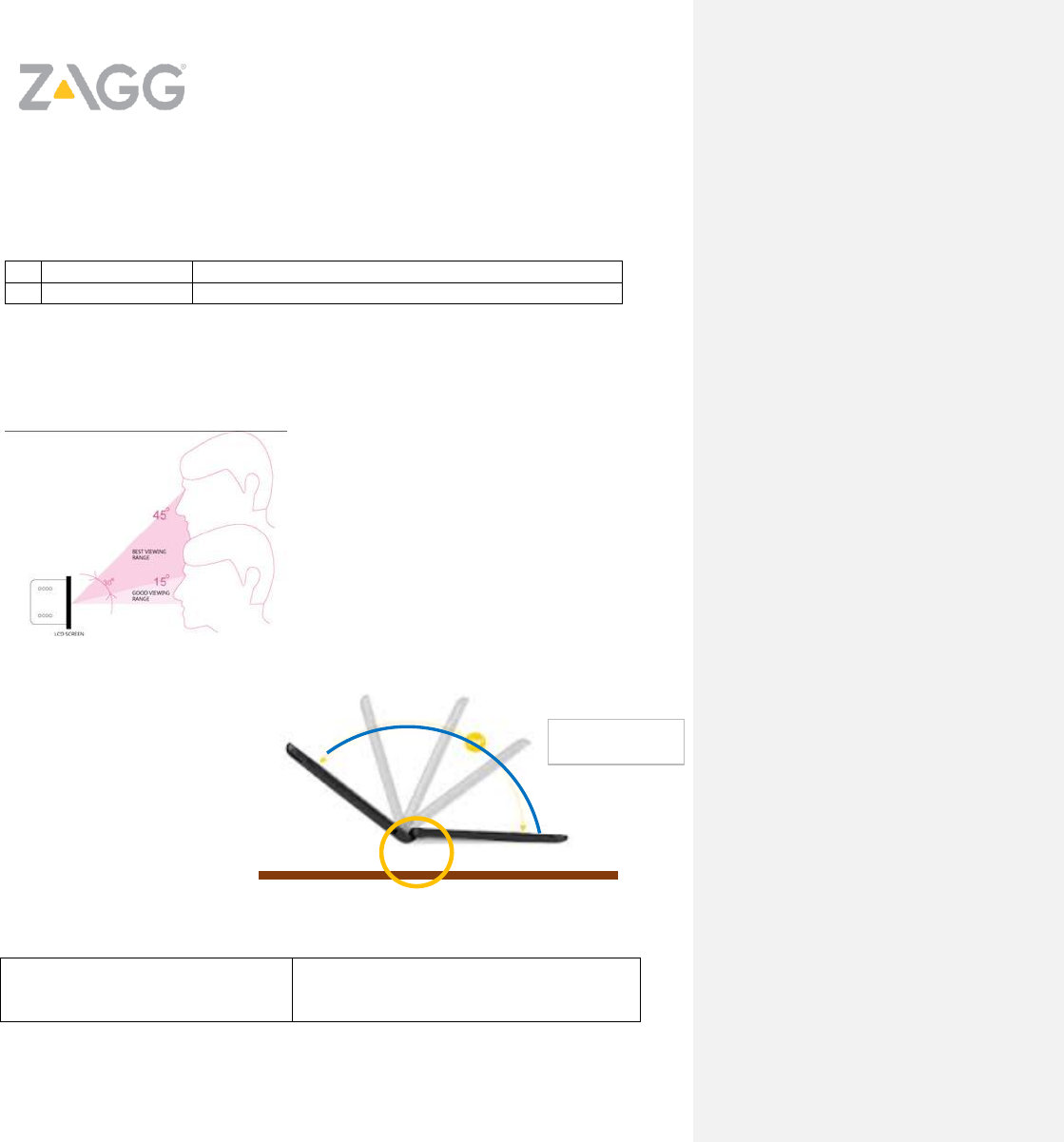

Angle is 133 +- 3 from the table
6.1. Angle Specifications
Opening angle of folio
Viewing angle is infinitely variable but must be
balanced at 133 degrees from flat surface.
Items
Requirement
1
General
There is no infringing of other company patent in worldwide.
133 degree
7. Keyboard Layout for different Languages
8. Cable

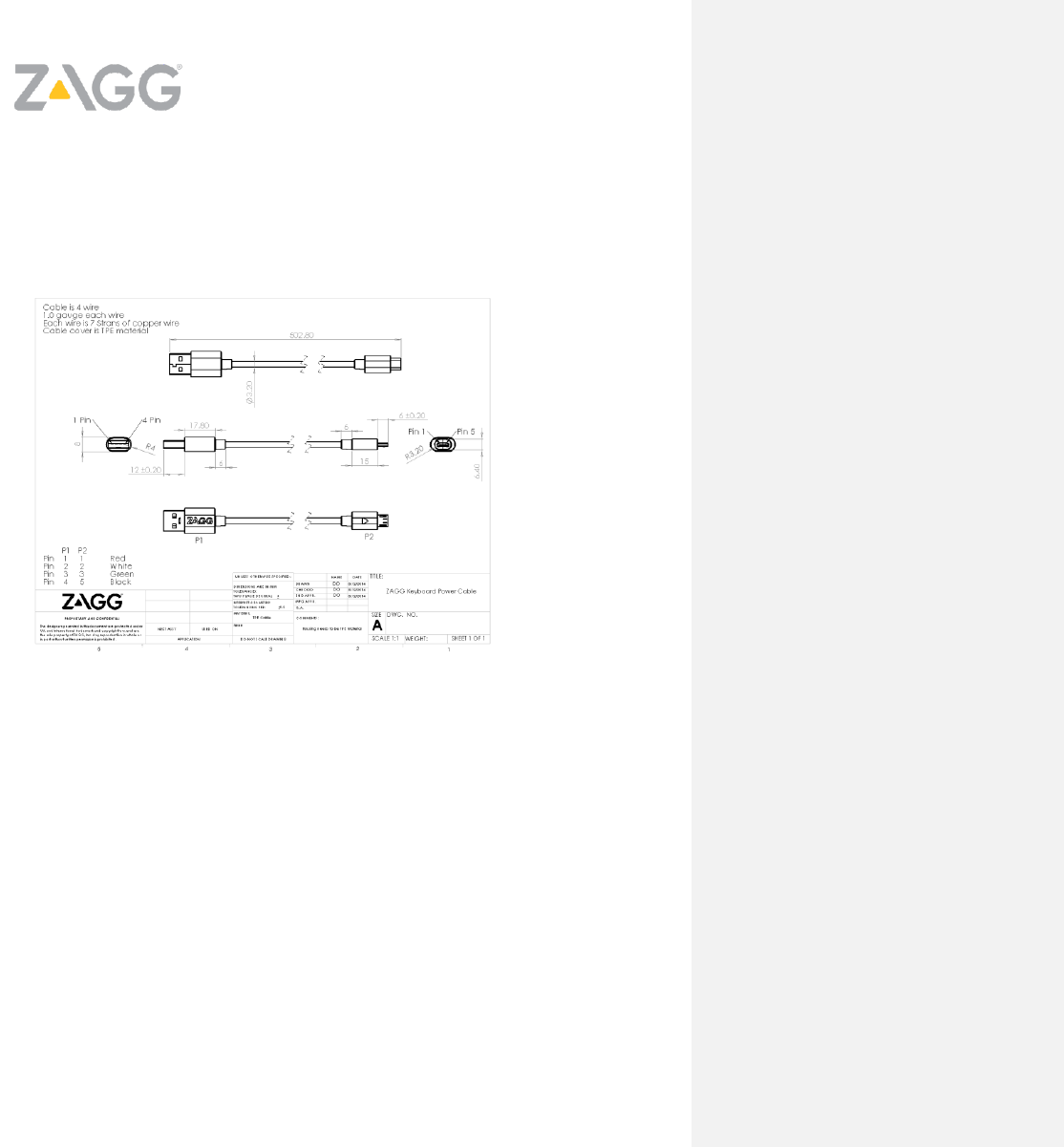

8.1. Micro USB Charge Cable
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE 1: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
