5013F User Manual HTML Version

user manual

F3100 & F3105 User Manual

Contents

CHAPTER 1. SAFETY INSTRUCTION ....................................................................................................................... 1

CHAPTER 2. MINIMUM SYSTEM REQUIREMENT & PRODUCT FEATURE .................................................. 3

2.1 SYSTEM REQUIREMENT ..........................................................................................................................................3

2.2 PRODUCT FEATURES ............................................................................................................................................... 4

CHAPTER 3. USING IP CAMERA VIA WEB BROWSER ........................................................................................ 5

3.1 WINDOWS WEB BROWSER......................................................................................................................................5

3.2 MAC WEB BROWSER............................................................................................................................................... 6

CHAPTER 4. SETTING UP WIRELESS CONFIGURATION ................................................................................... 8

CHAPTER 5. OPERATING IP CAMERA VIA MOBILE PHONE ......................................................................... 10

5.1 MOBILE PHONE VIEWING .....................................................................................................................................10

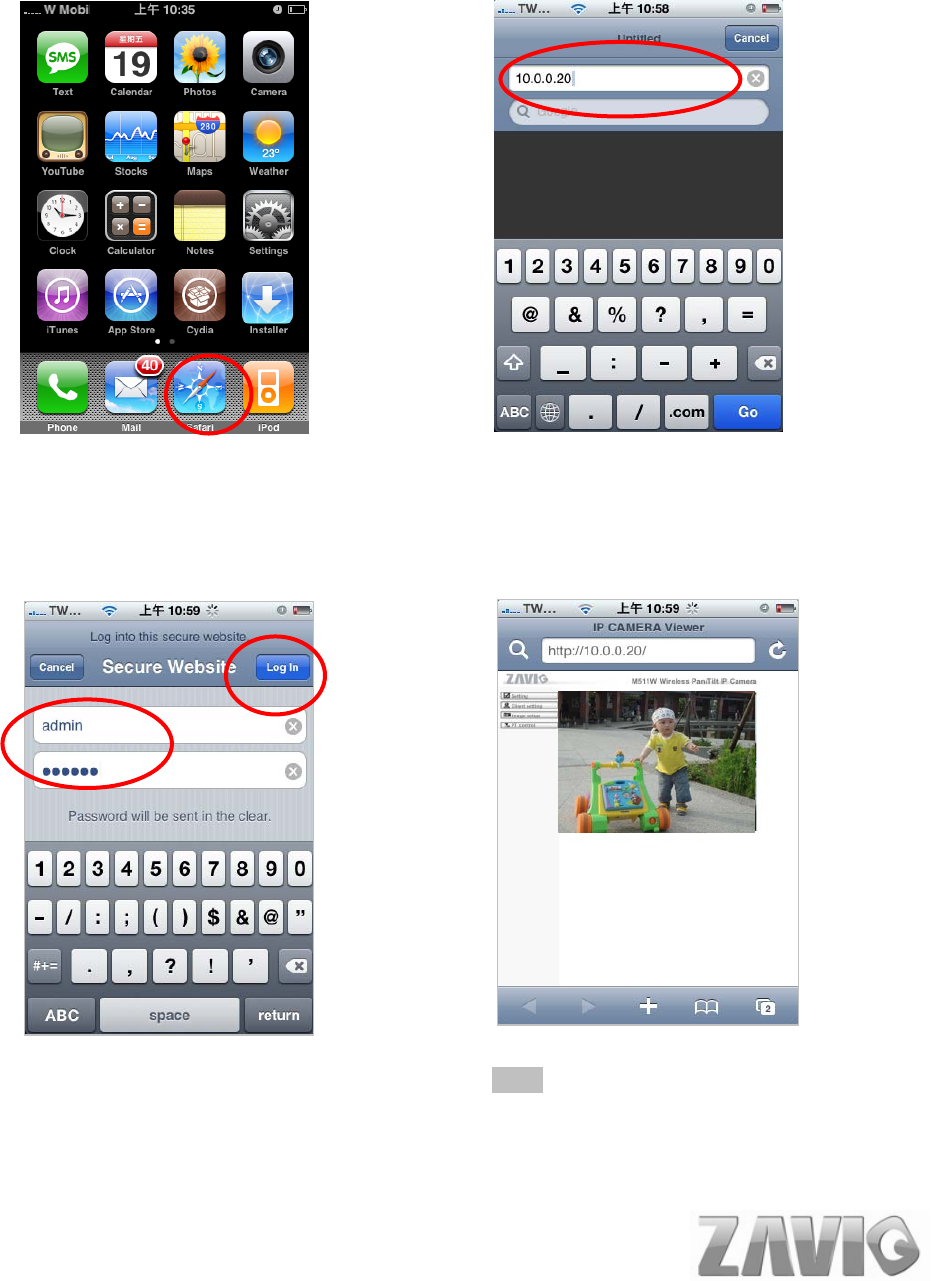

5.2 USING IP CAMERA VIA IPHONE............................................................................................................................. 11

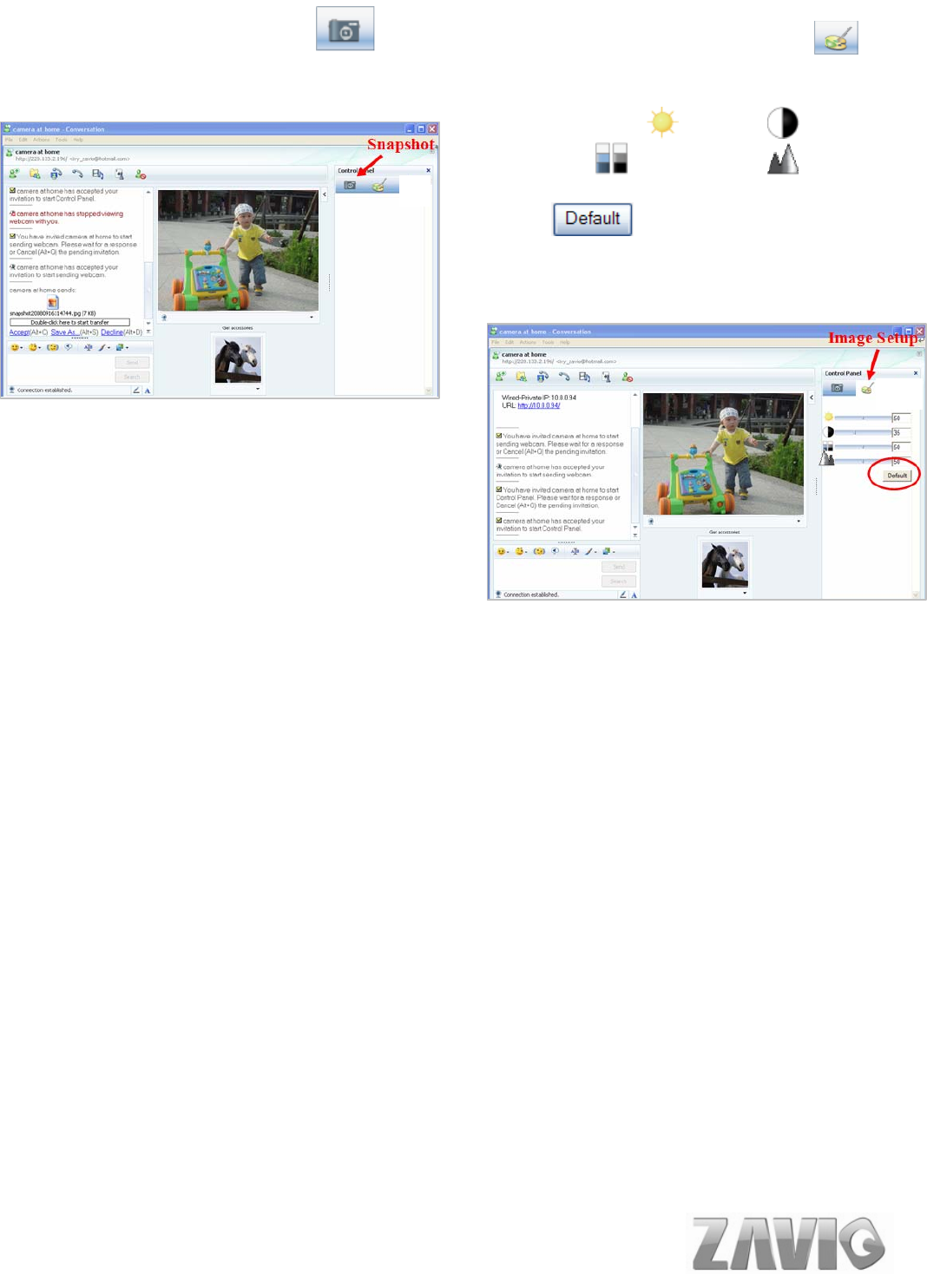

CHAPTER 6. MSN MESSENGER............................................................................................................................... 12

CHAPTER 7. CONFIGURATION OF MAIN MENU................................................................................................ 15

7.1 LIVE VIEW .............................................................................................................................................................16

7.2 SETTING .................................................................................................................................................................18

7.3 CLIENT SETTING ...................................................................................................................................................19

7.4 IMAGE SETUP......................................................................................................................................................... 20

CHAPTER 8. SETTING-BASIC................................................................................................................................... 21

8.1 SYSTEM ..................................................................................................................................................................21

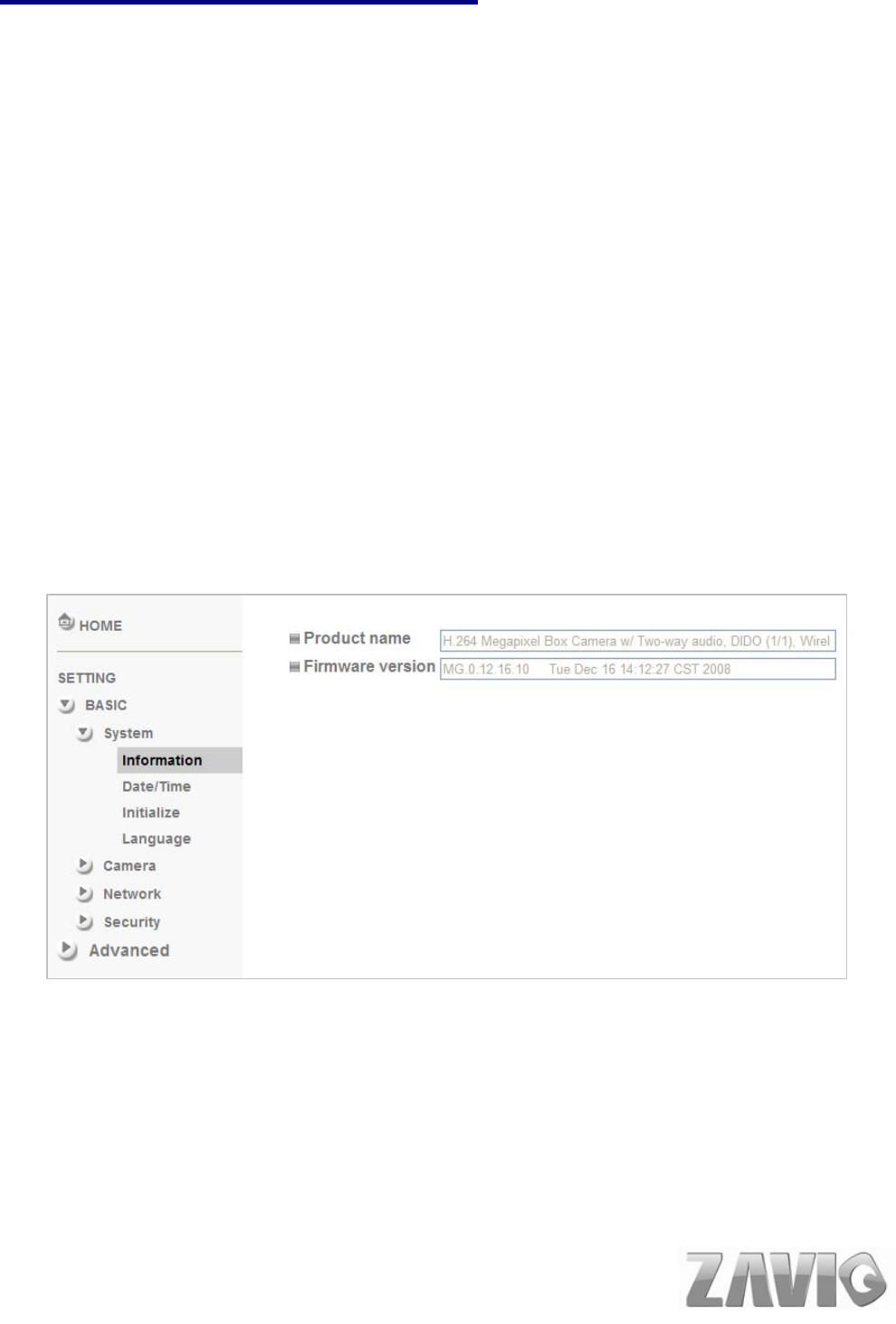

8.1.1 Information.................................................................................................................................................... 21

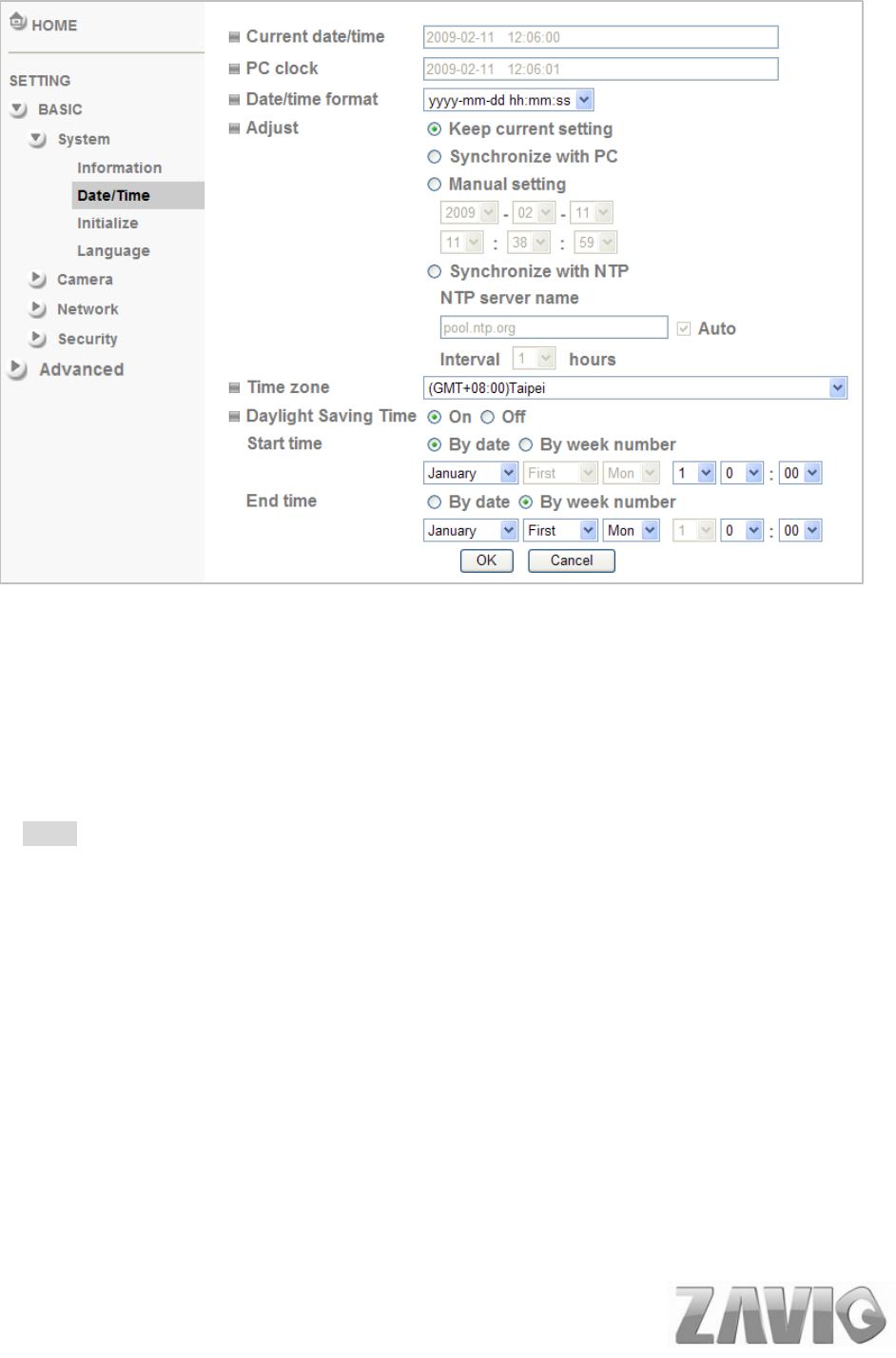

8.1.2 Date / Time..................................................................................................................................................... 21

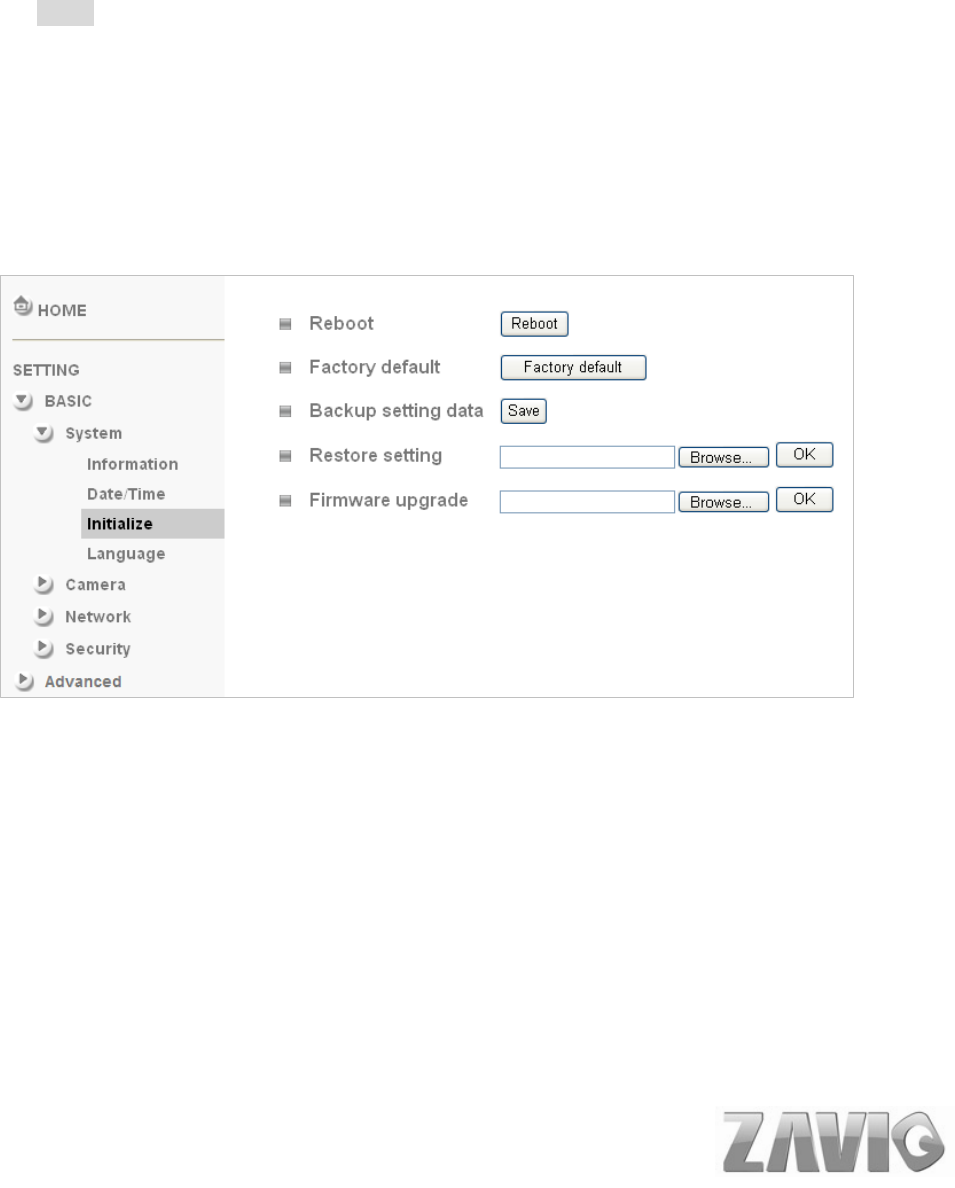

8.1.3 Initialize......................................................................................................................................................... 23

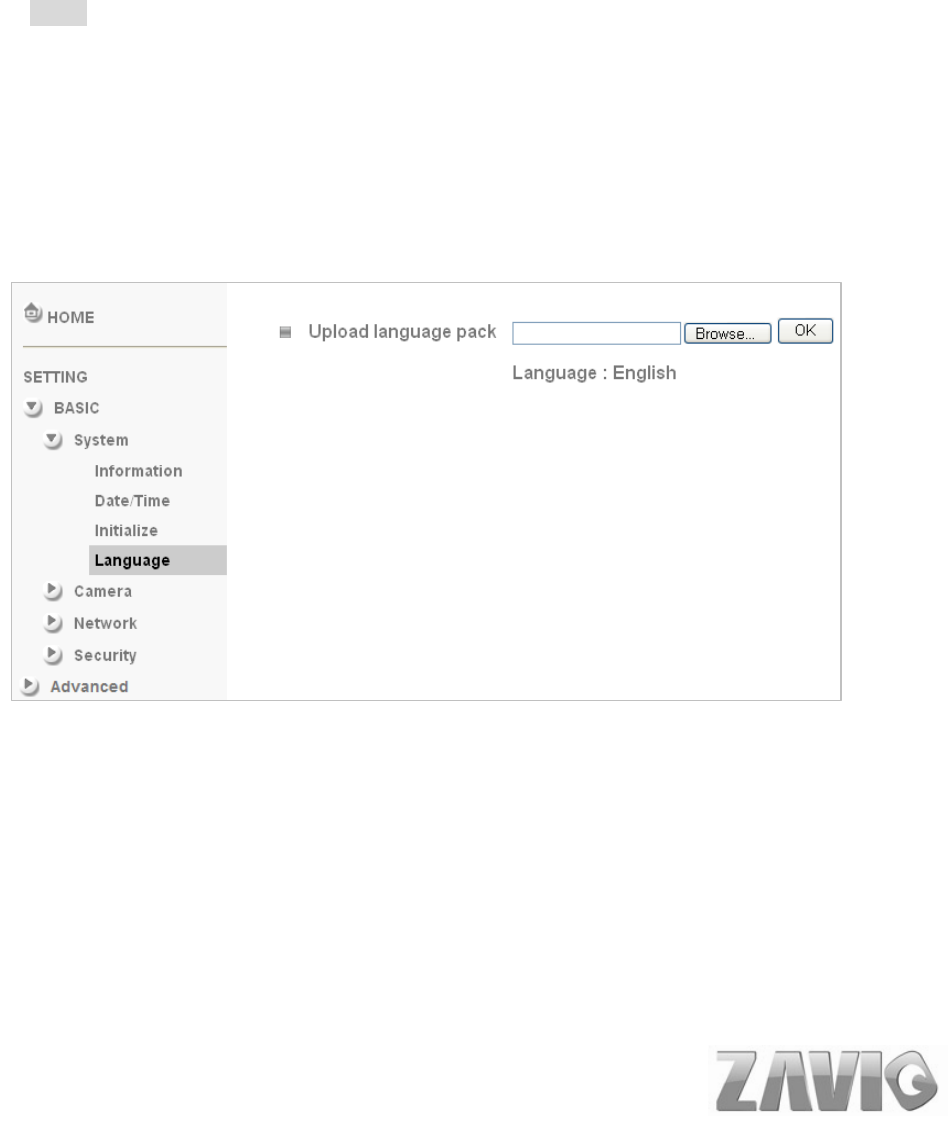

8.1.4 Language....................................................................................................................................................... 24

8.2 CAMERA................................................................................................................................................................. 25

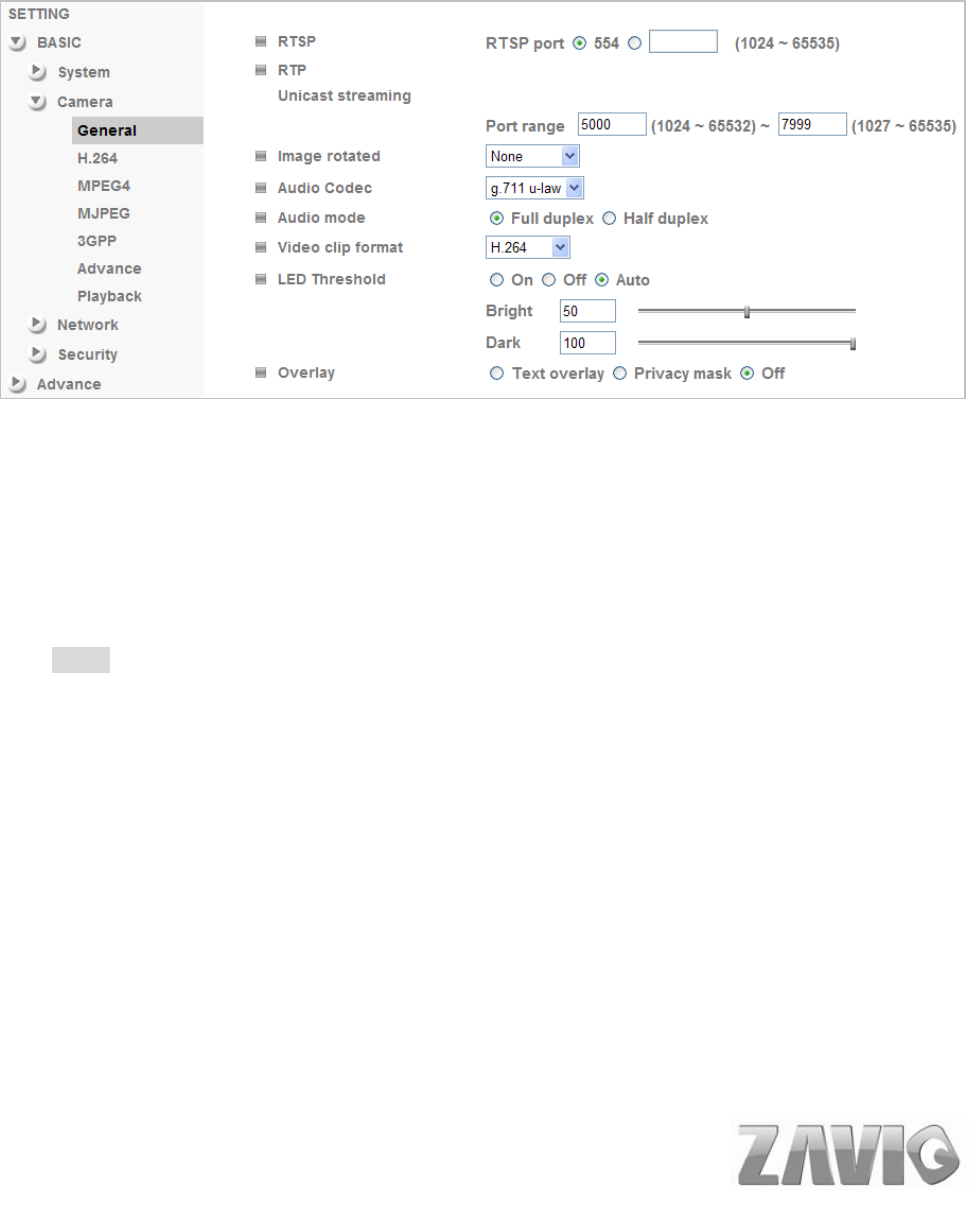

8.2.1 General .......................................................................................................................................................... 25

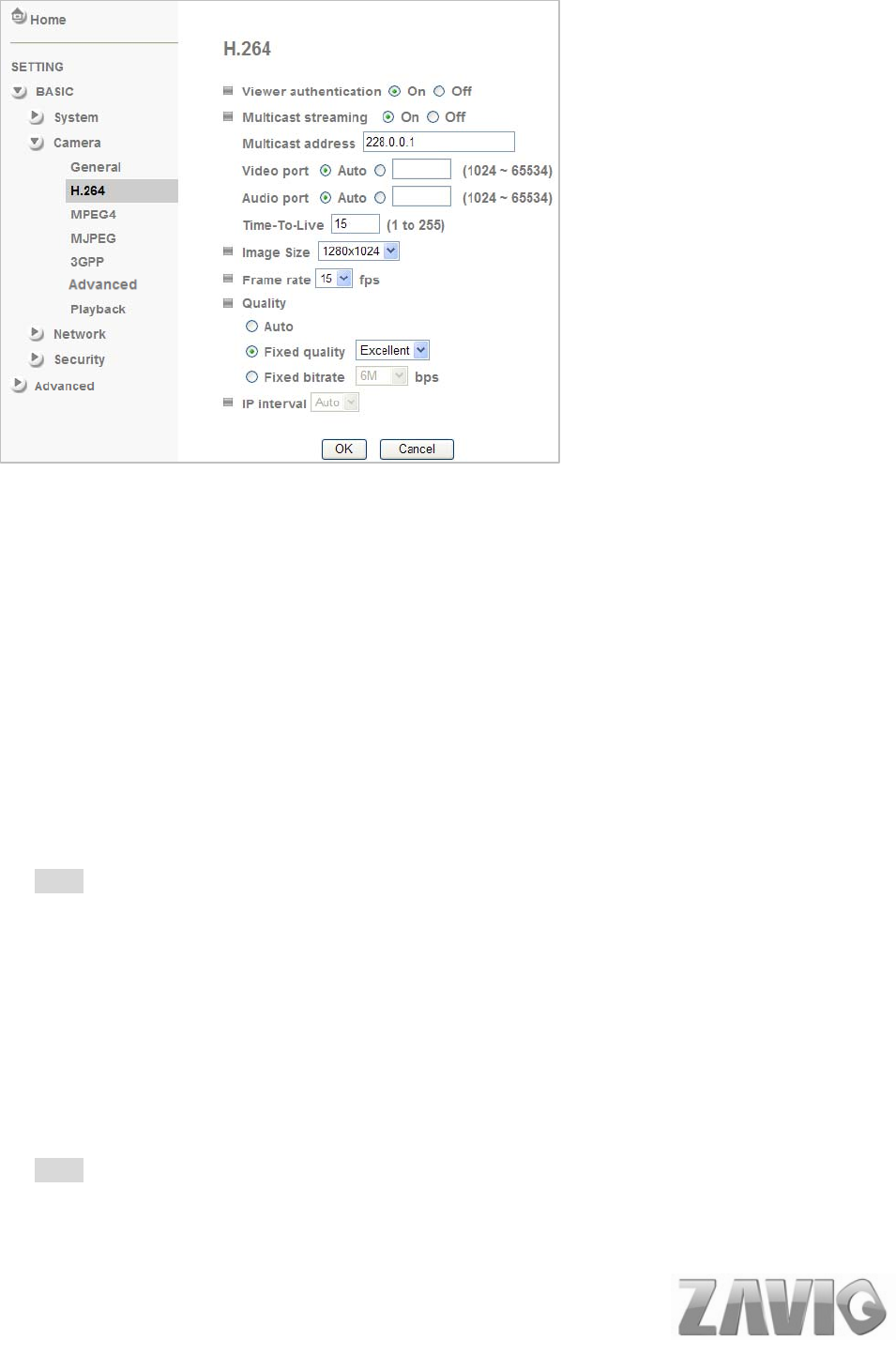

8.2.2 H.264.............................................................................................................................................................. 27

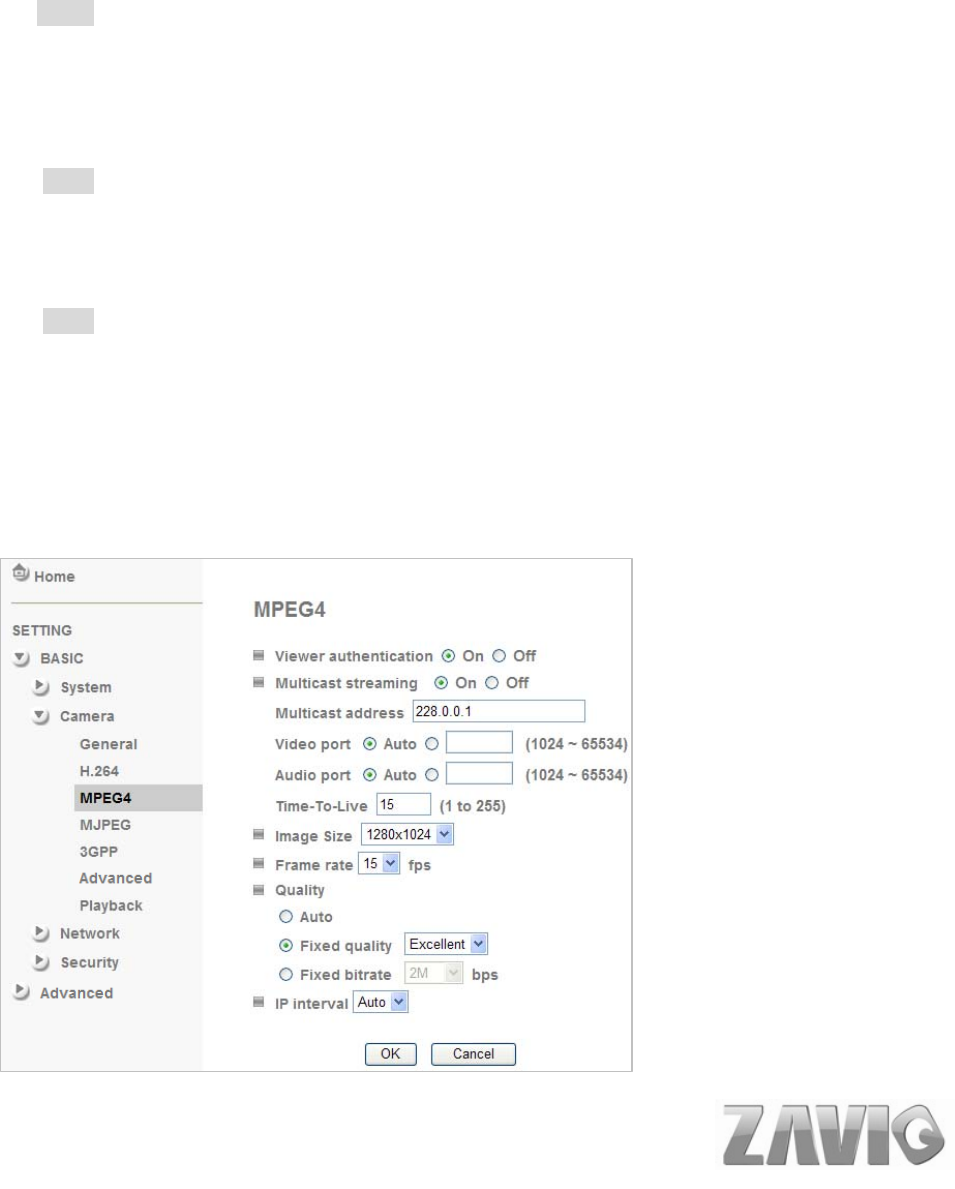

8.2.3 MPEG-4......................................................................................................................................................... 28

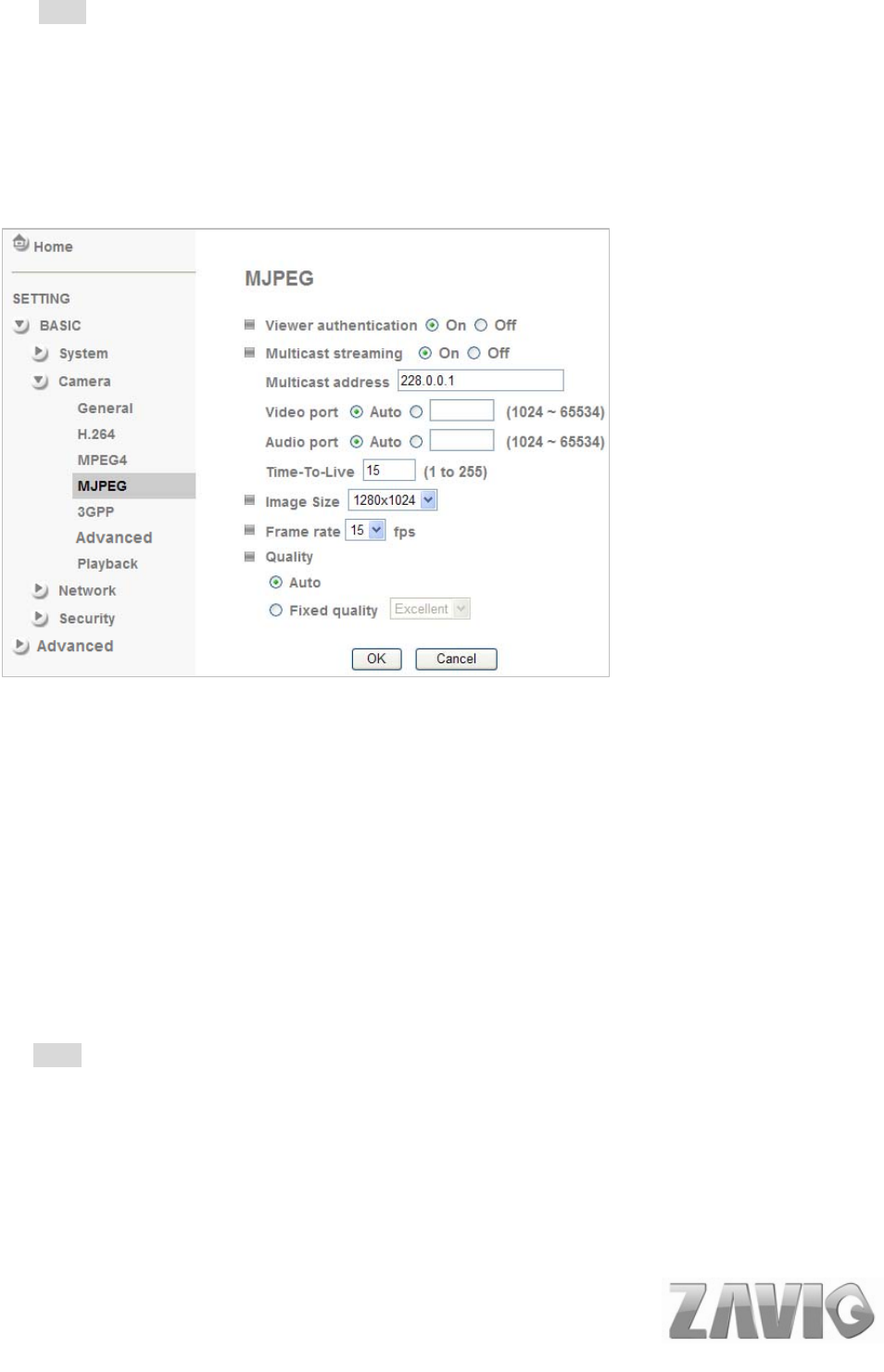

8.2.4 MJPEG.......................................................................................................................................................... 30

8.2.5 3GPP.............................................................................................................................................................. 31

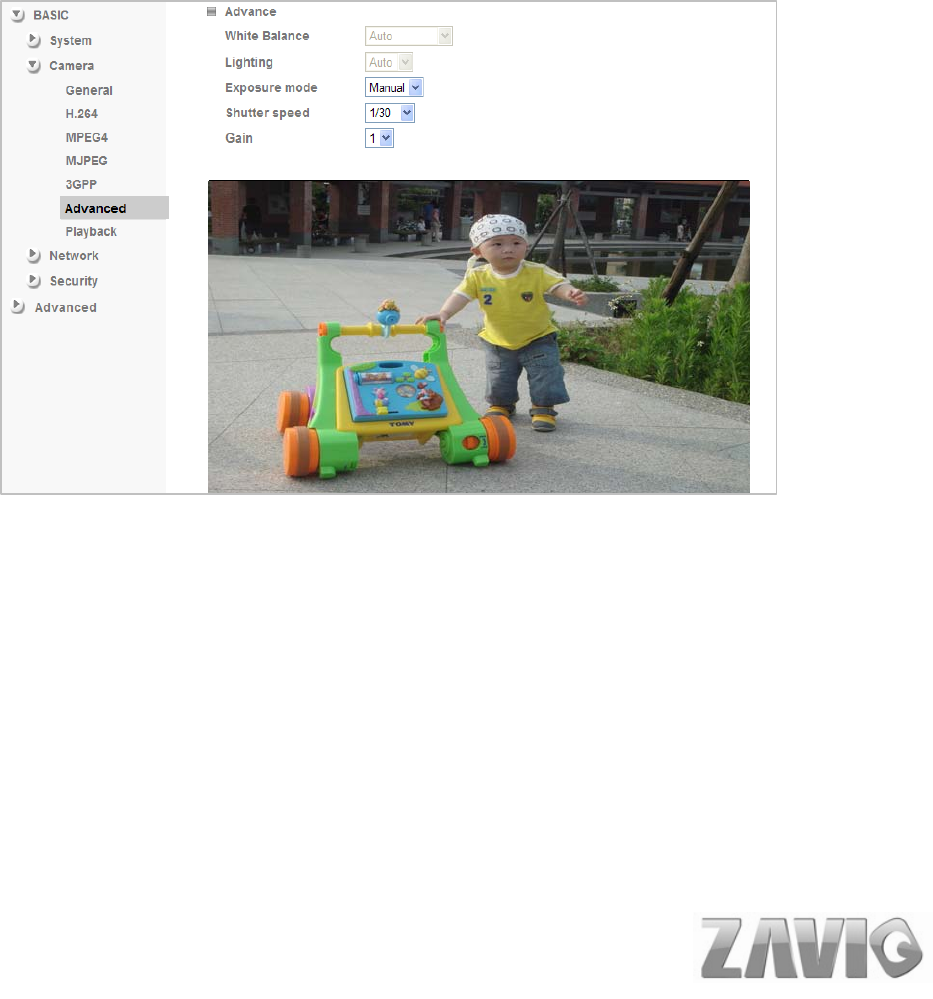

8.2.6 Advanced........................................................................................................................................................ 32

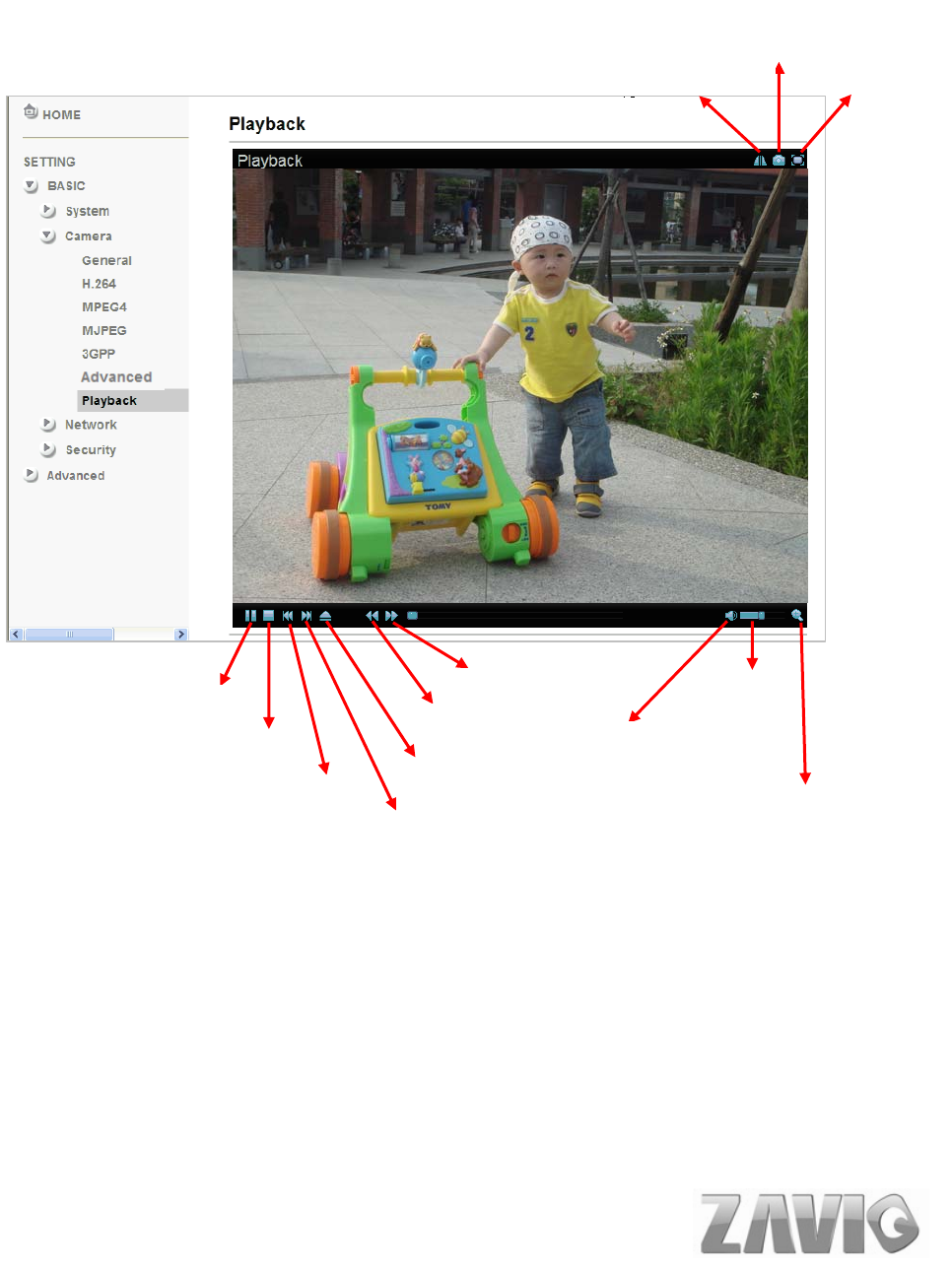

8.2.7 PLAYBACK ................................................................................................................................................... 34

8.3 NETWORK ..............................................................................................................................................................35

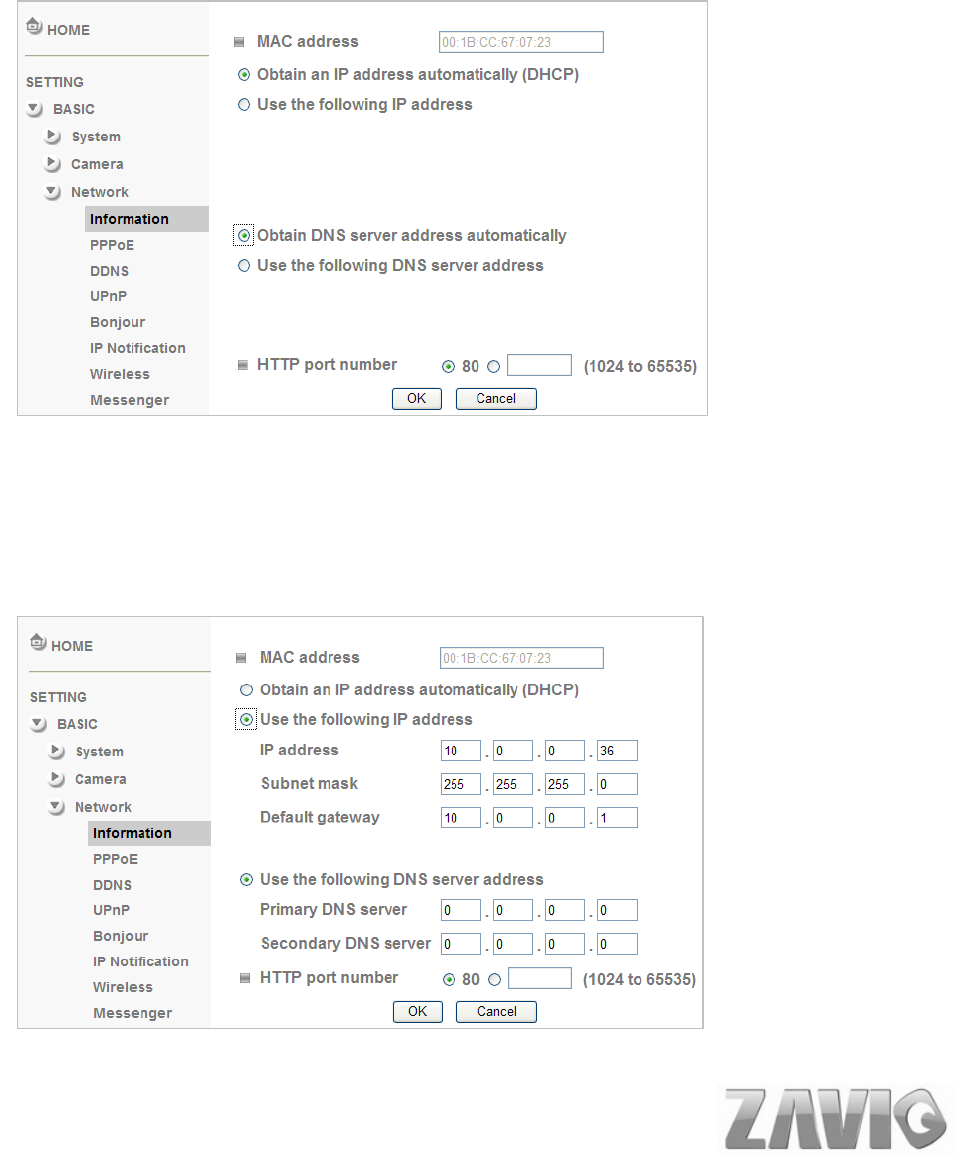

8.3.1 Information.................................................................................................................................................... 35

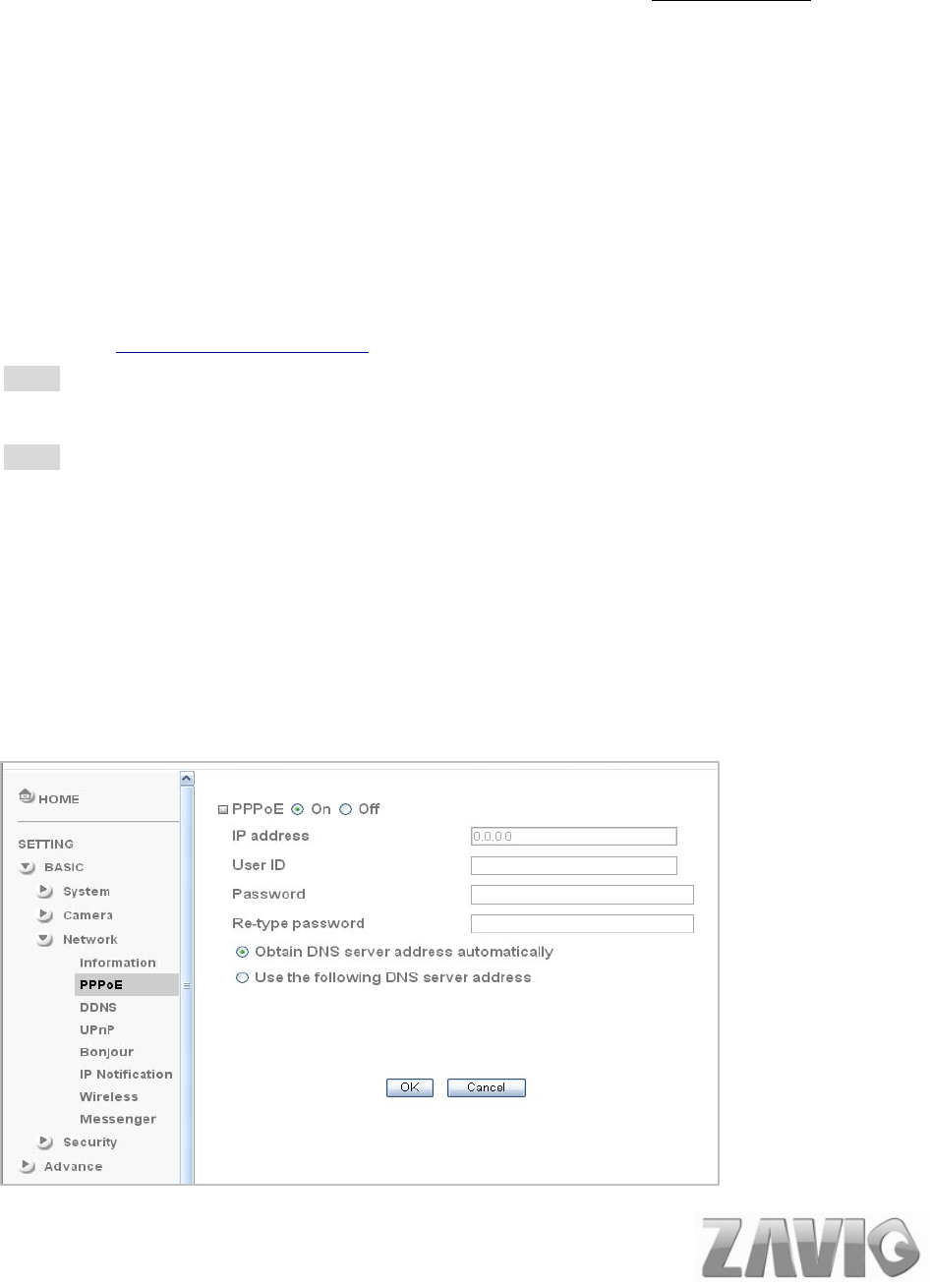

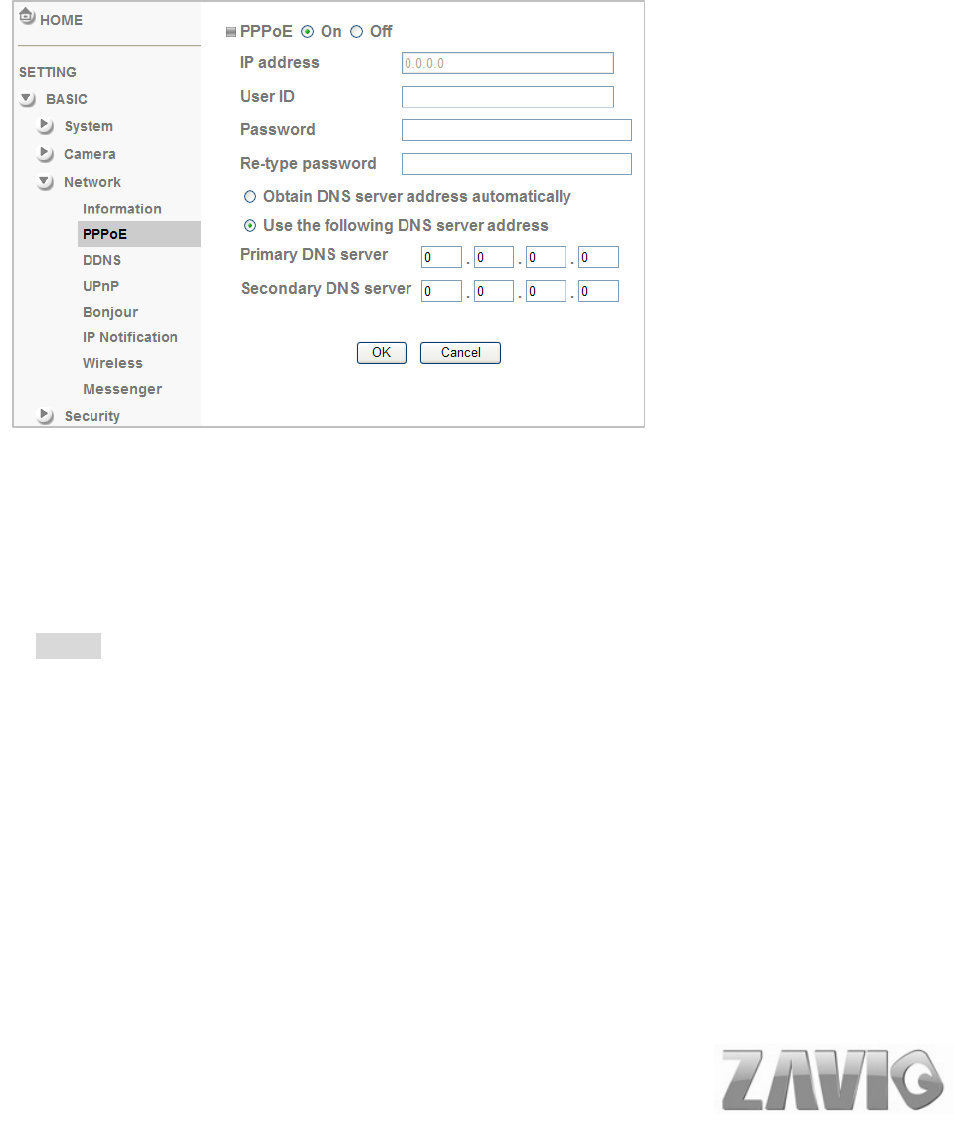

8.3.2 PPPoE............................................................................................................................................................ 36

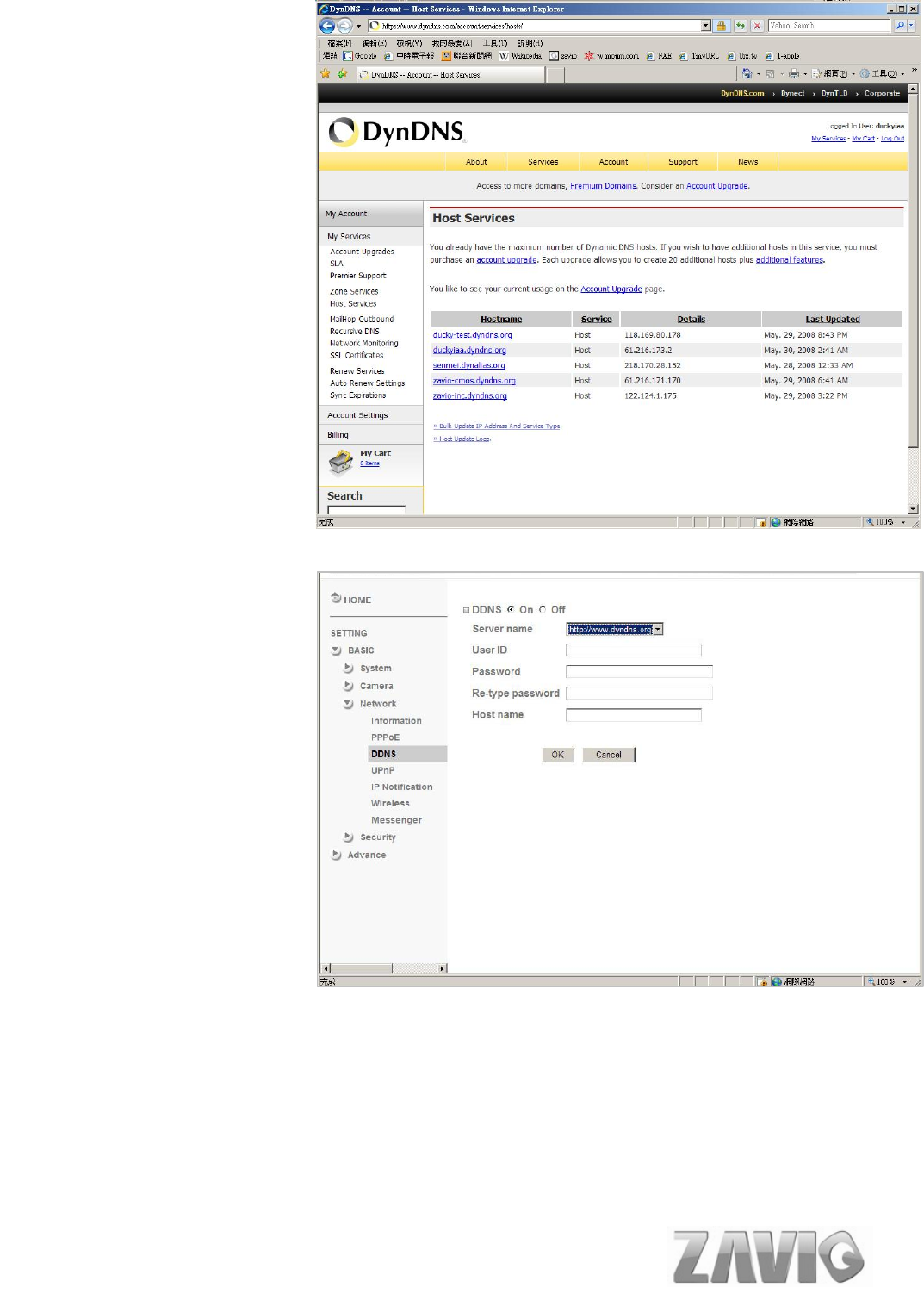

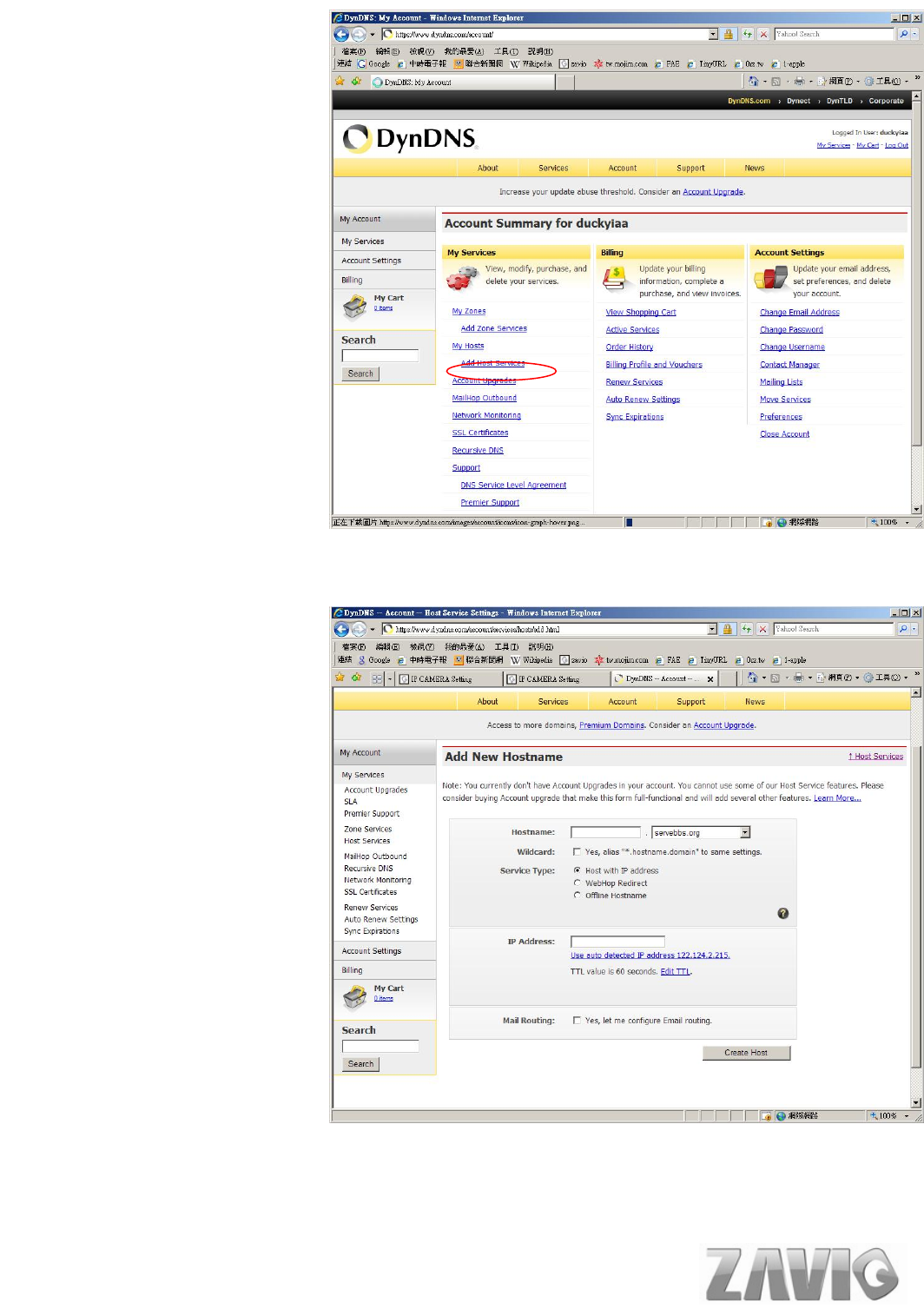

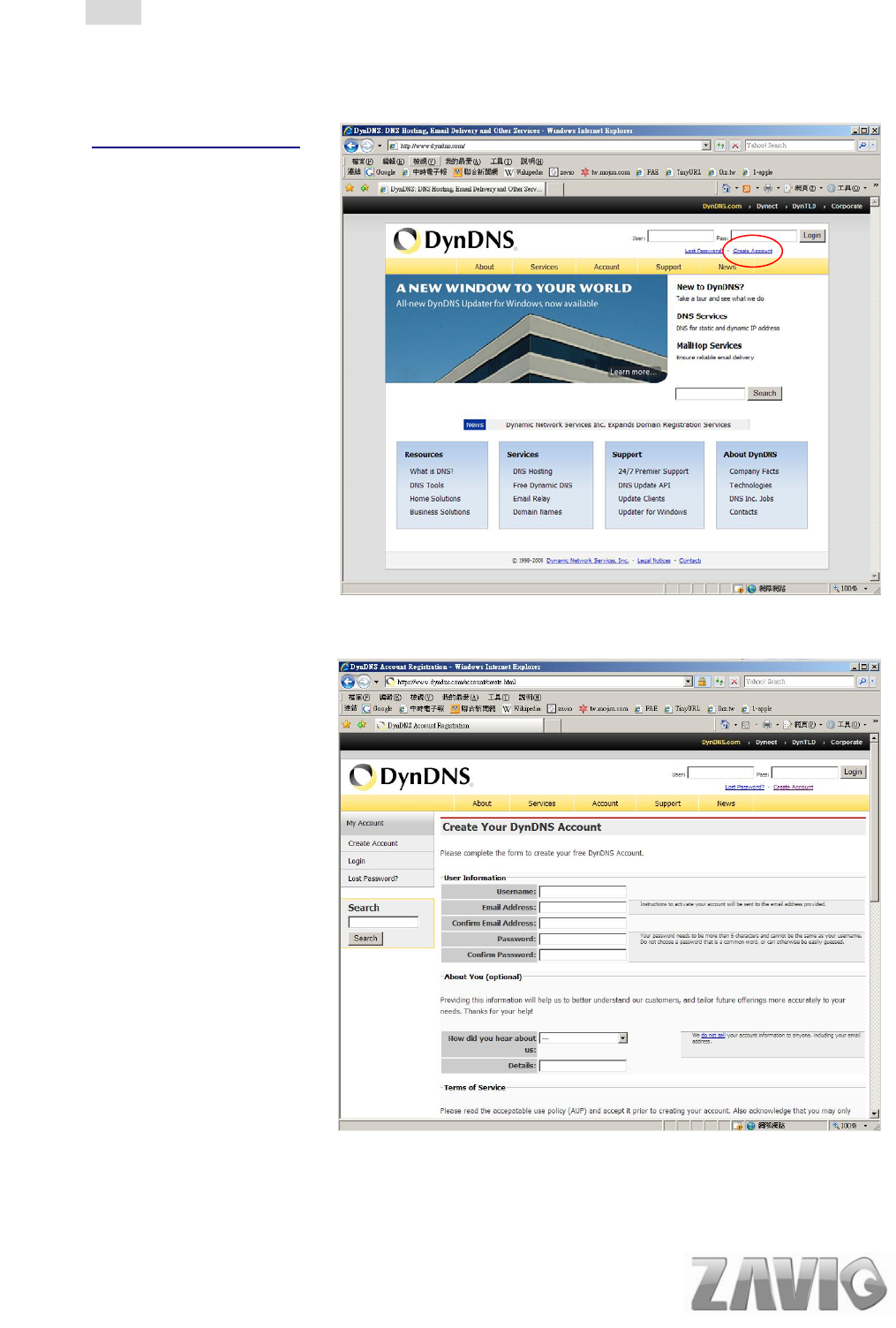

8.3.3 DDNS (Dynamic DNS) ................................................................................................................................. 38

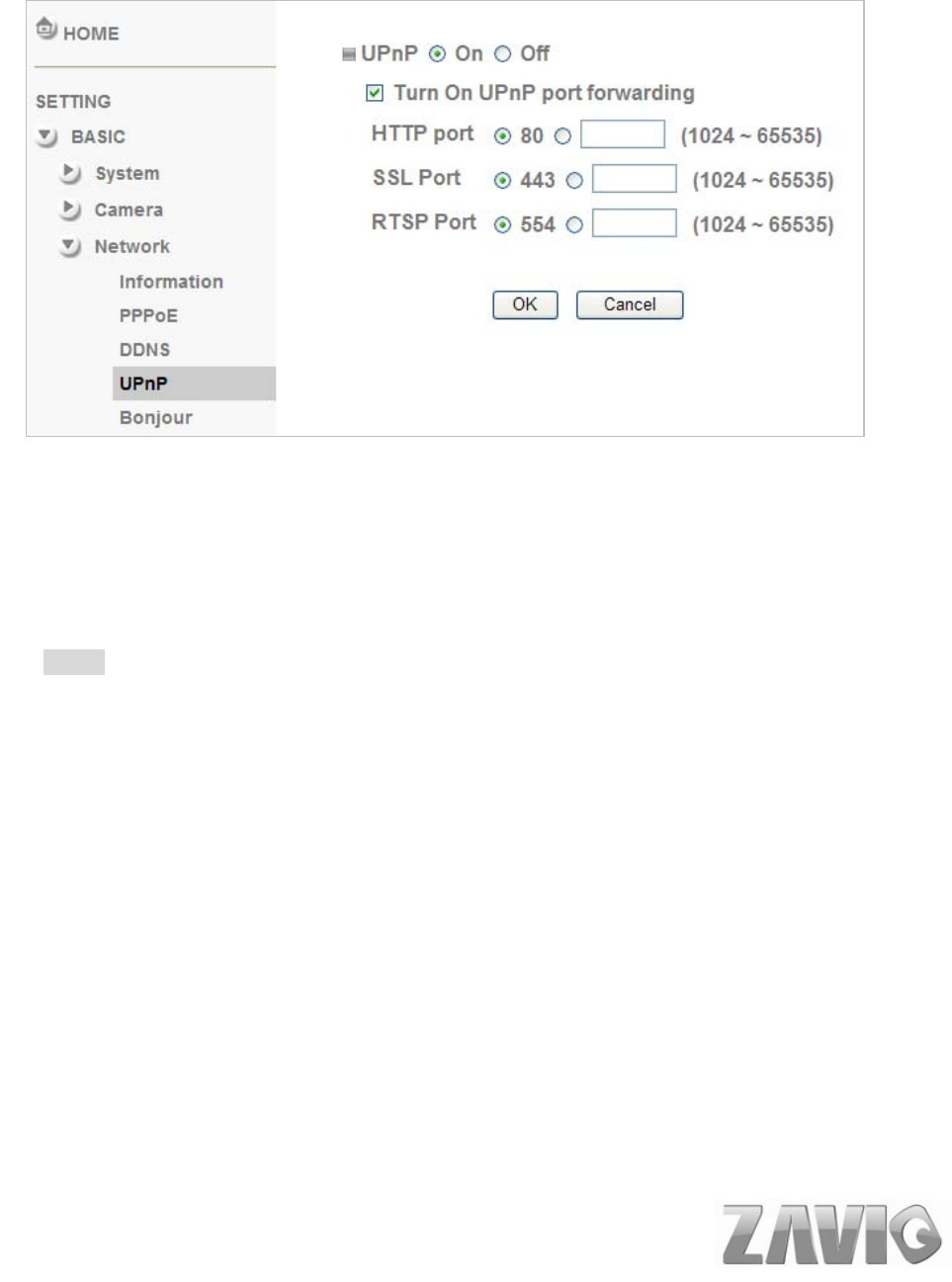

8.3.4 UPnP (Universal Plug and Play).................................................................................................................. 42

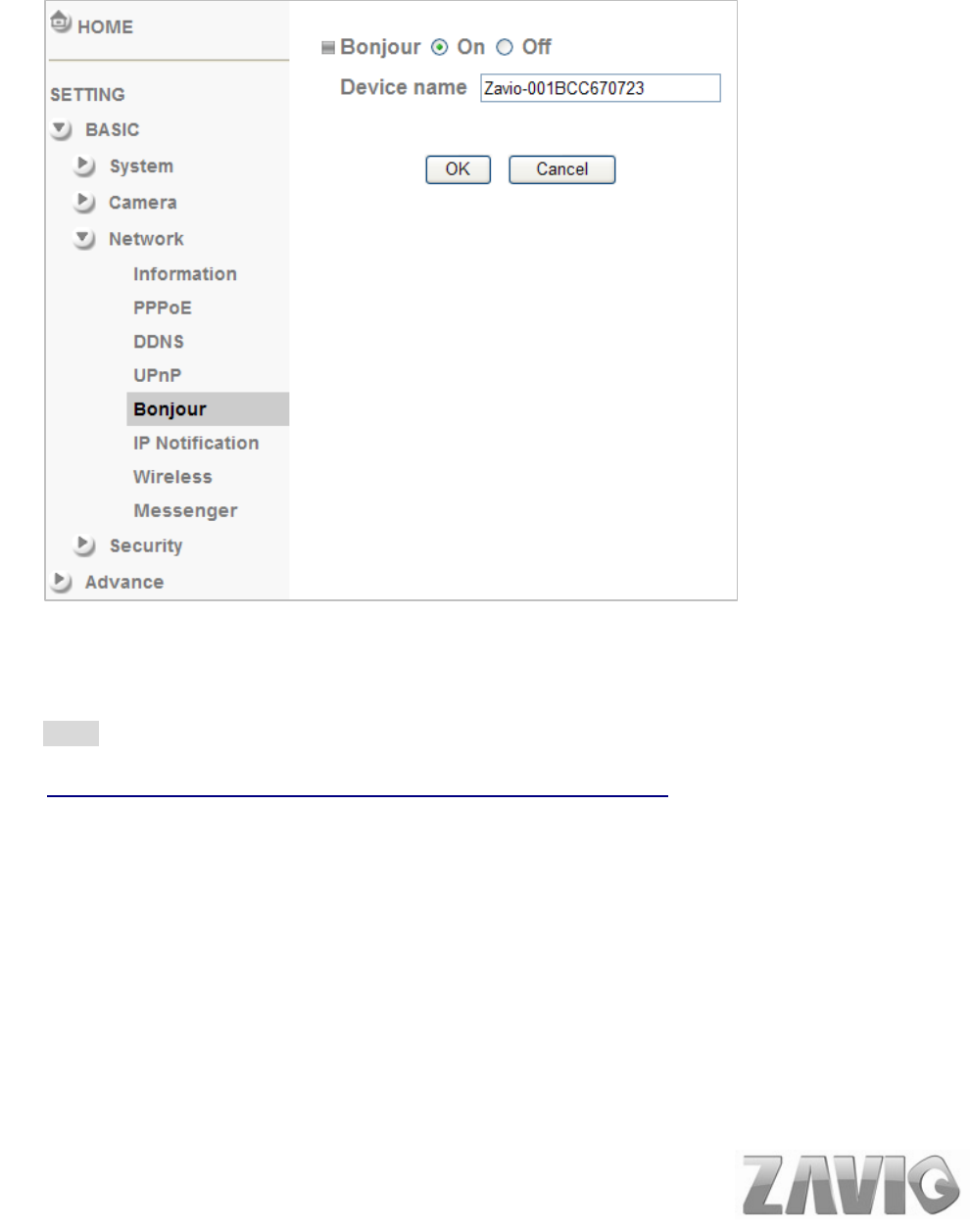

8.3.5 Bonjour.......................................................................................................................................................... 43

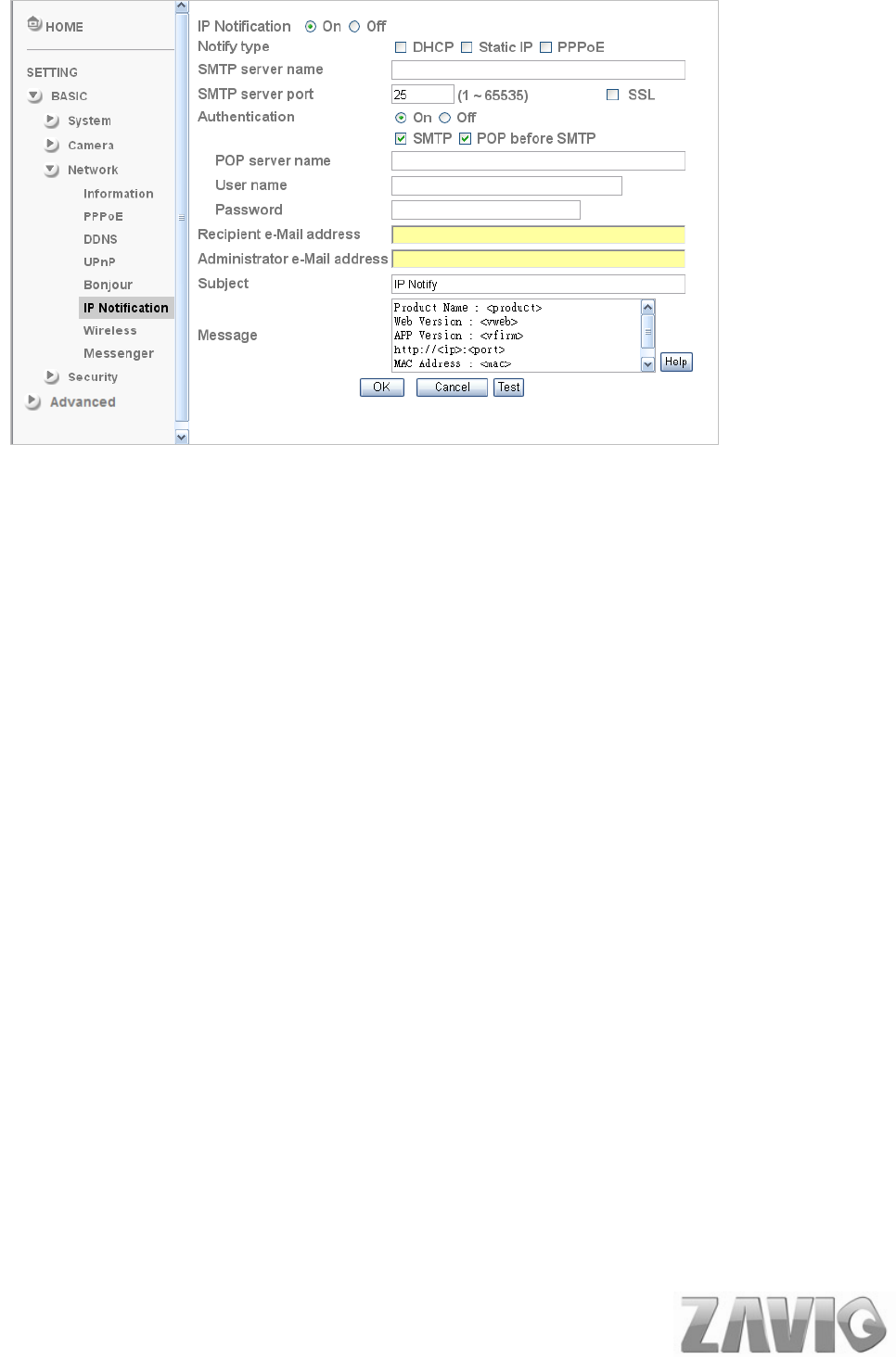

8.3.6 IP Notification............................................................................................................................................... 44

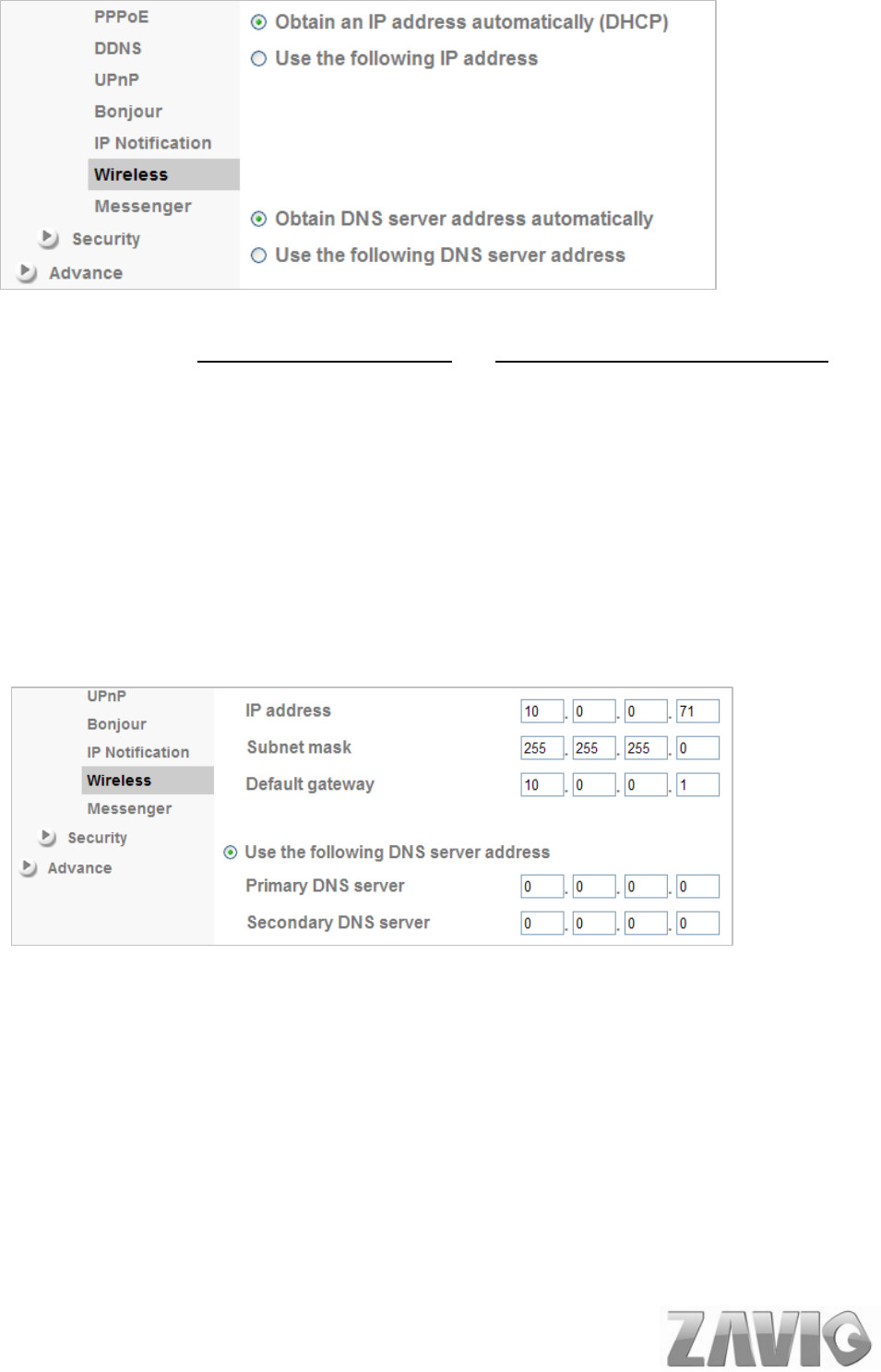

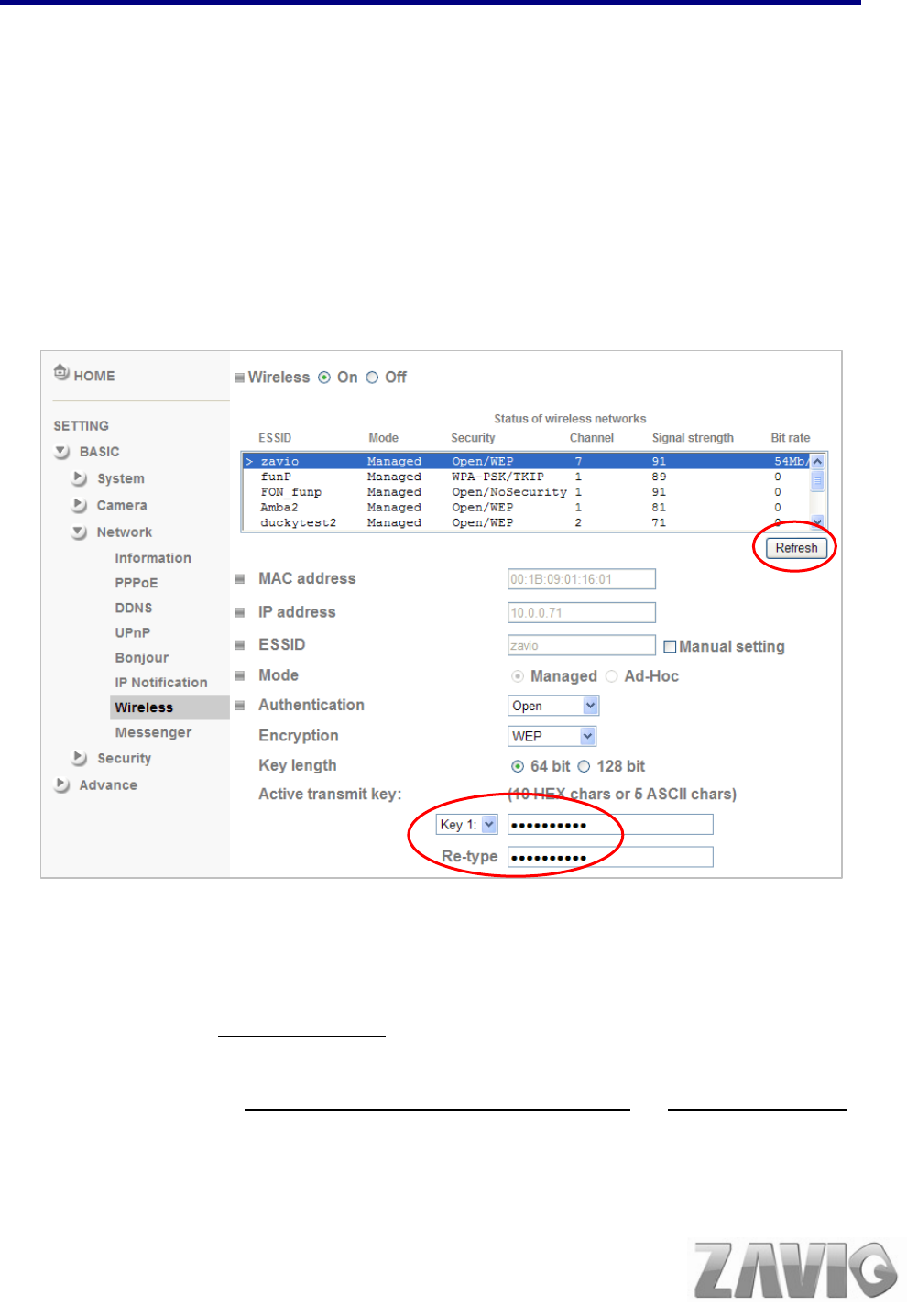

8.3.7 Wireless (For F3105)..................................................................................................................................... 46

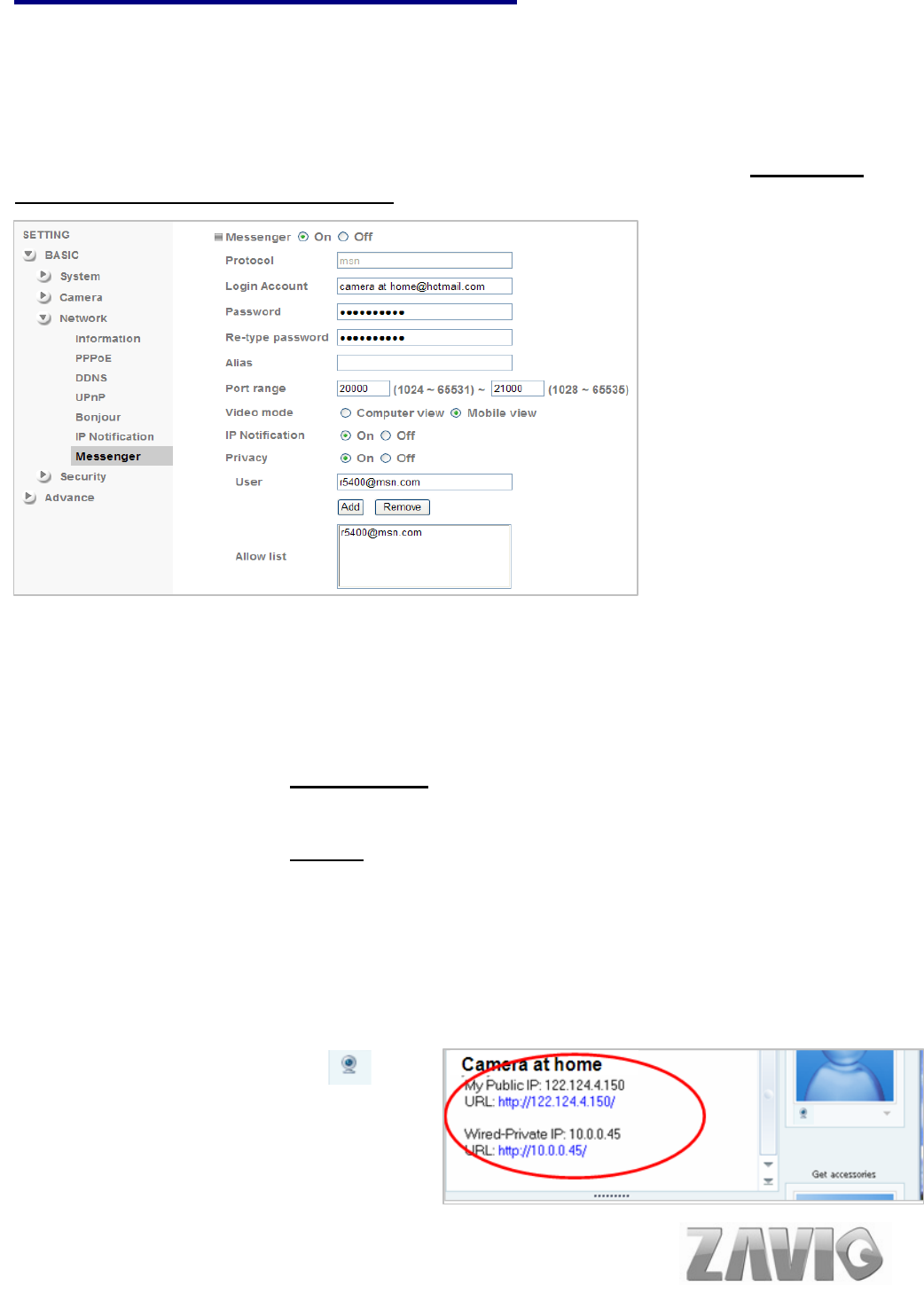

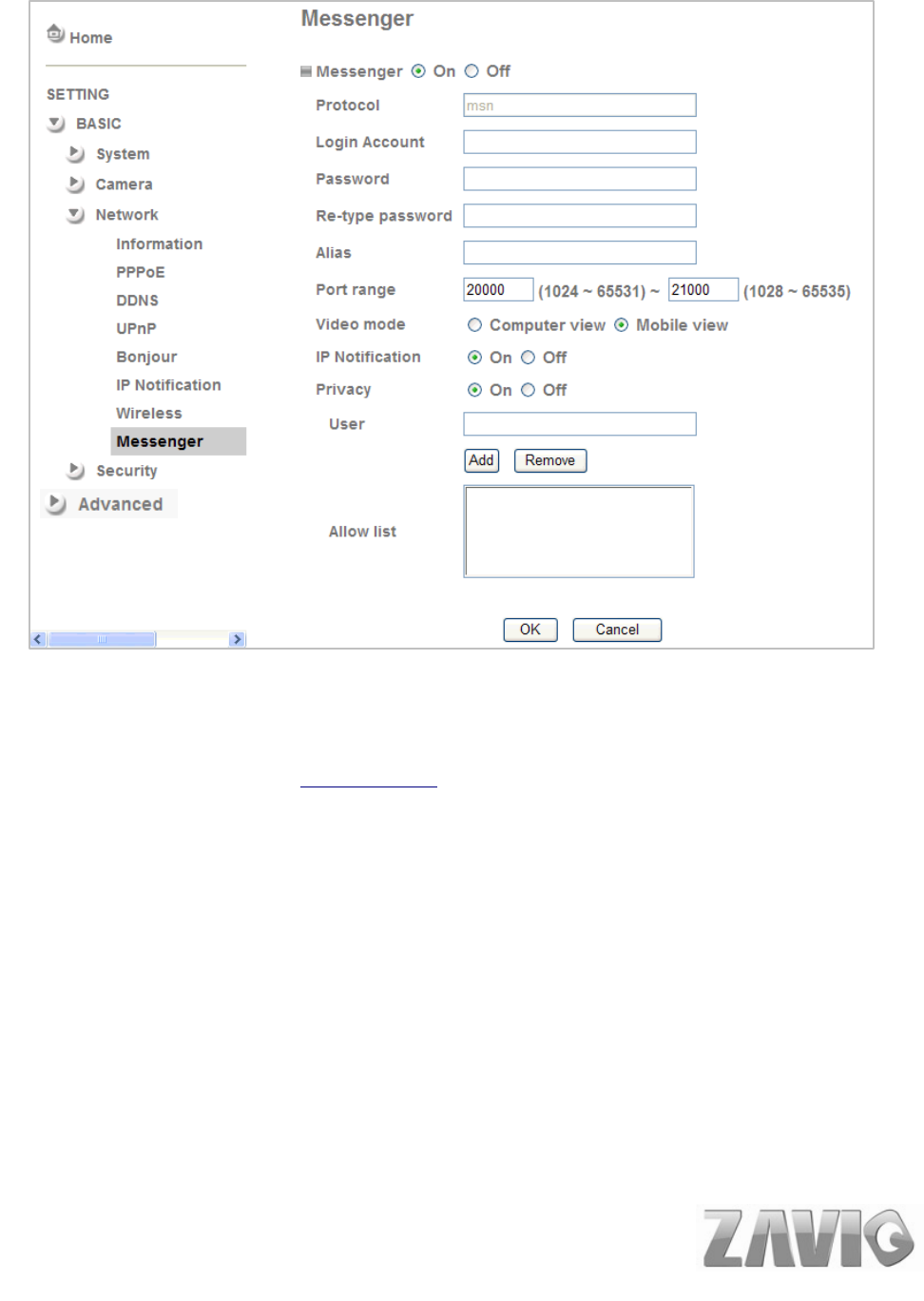

8.3.8 Messenger...................................................................................................................................................... 48

8.4 SECURITY...............................................................................................................................................................50

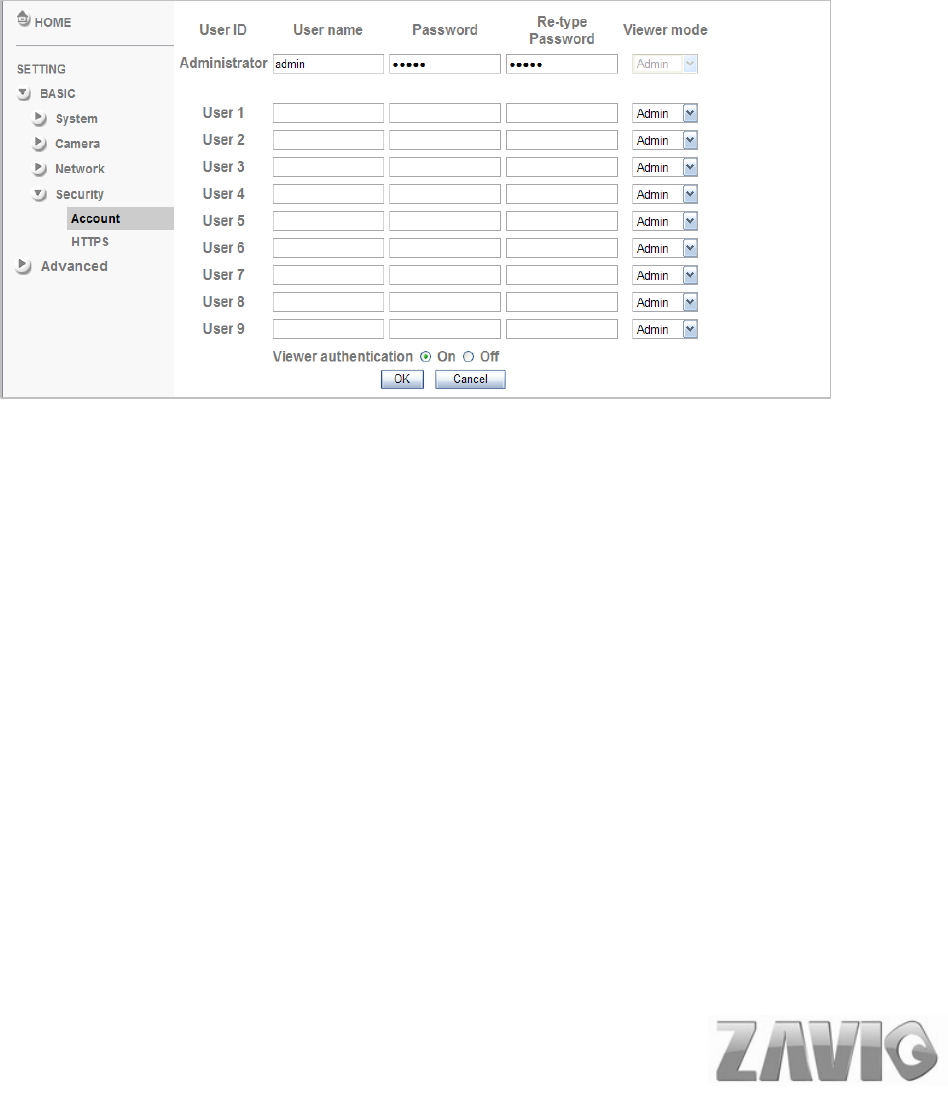

8.4.1 Account.......................................................................................................................................................... 50

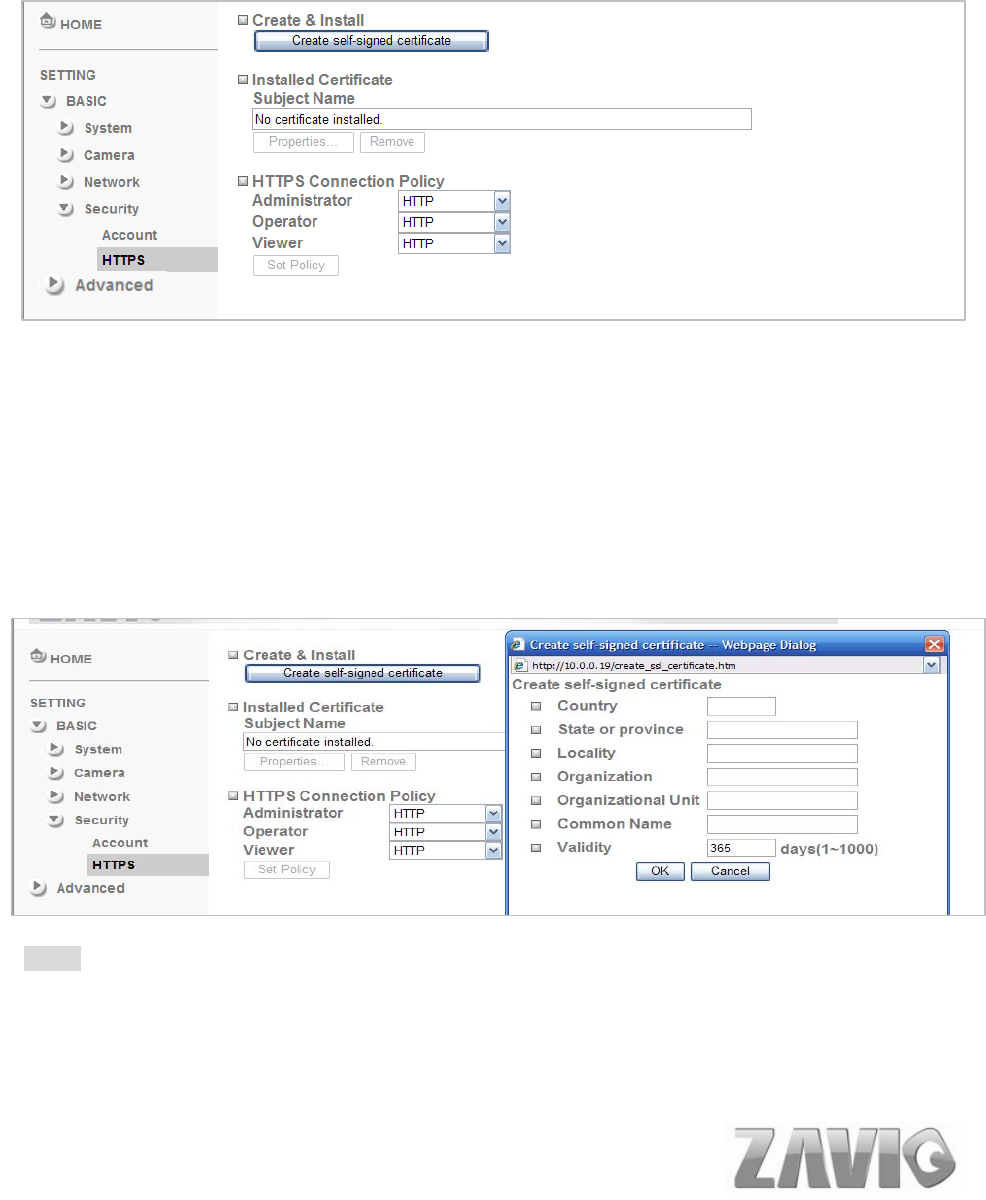

8.4.2 HTTPS........................................................................................................................................................... 51

8.4.3 IP Filter ......................................................................................................................................................... 52

CHAPTER 9. SETTING-ADVANCED ........................................................................................................................ 53

9.1 FTP CLIENT........................................................................................................................................................... 53

9.1.1 General .......................................................................................................................................................... 53

F3100 & F3105 User Manual

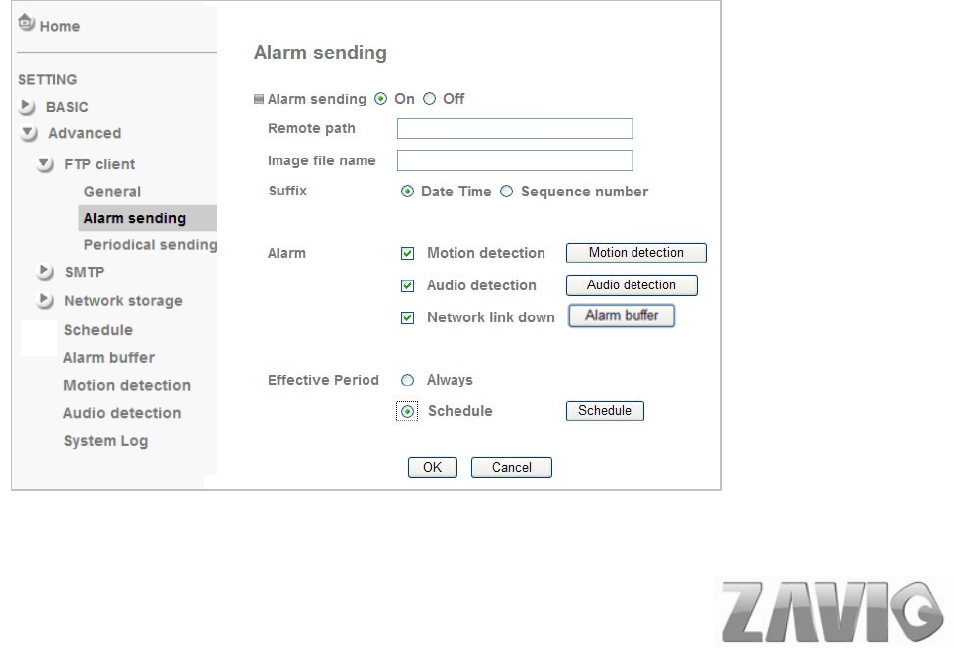

9.1.2 Alarm Sending............................................................................................................................................... 54

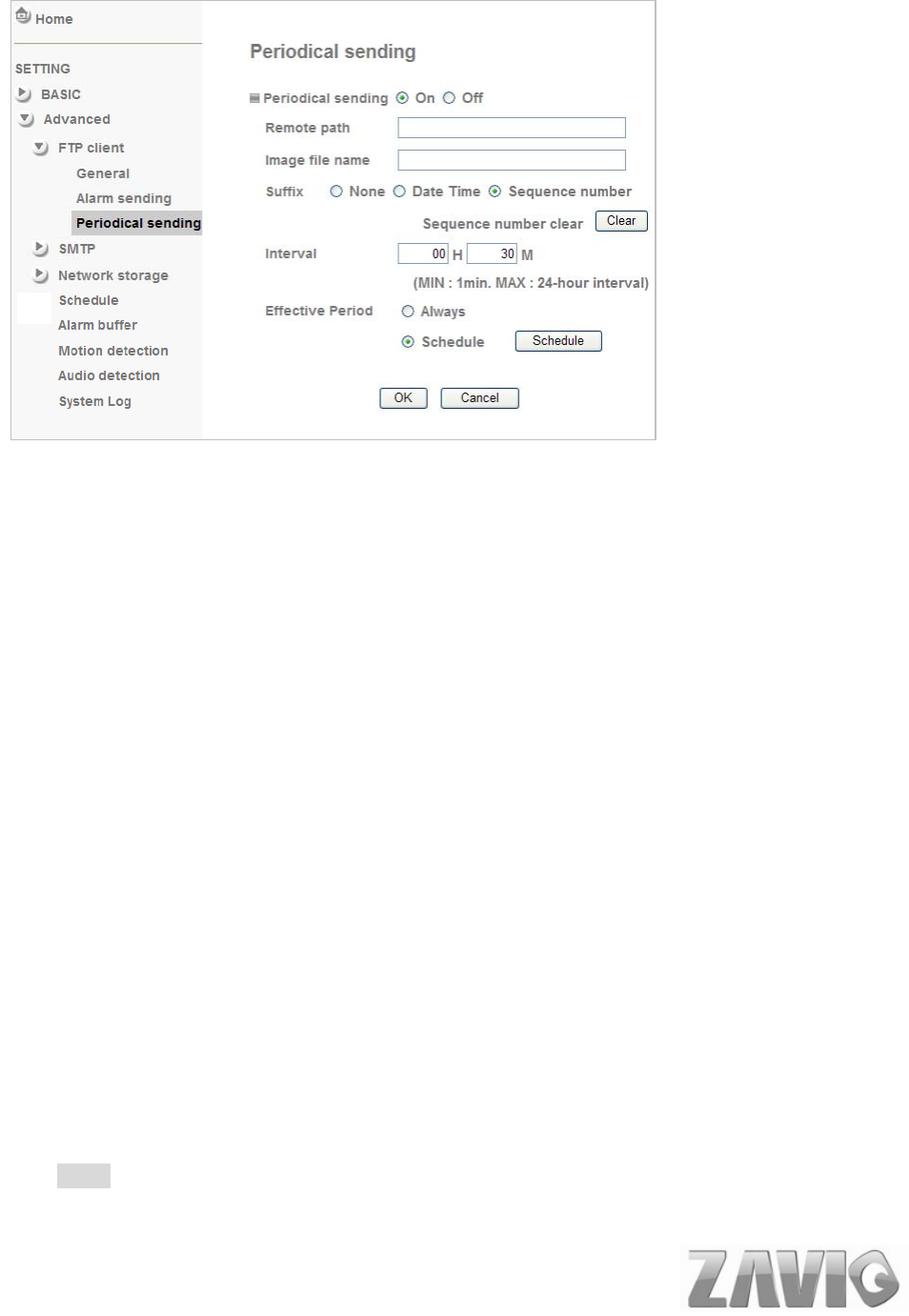

9.1.3 Periodical Sending ........................................................................................................................................ 56

9.2 SMTP ....................................................................................................................................................................57

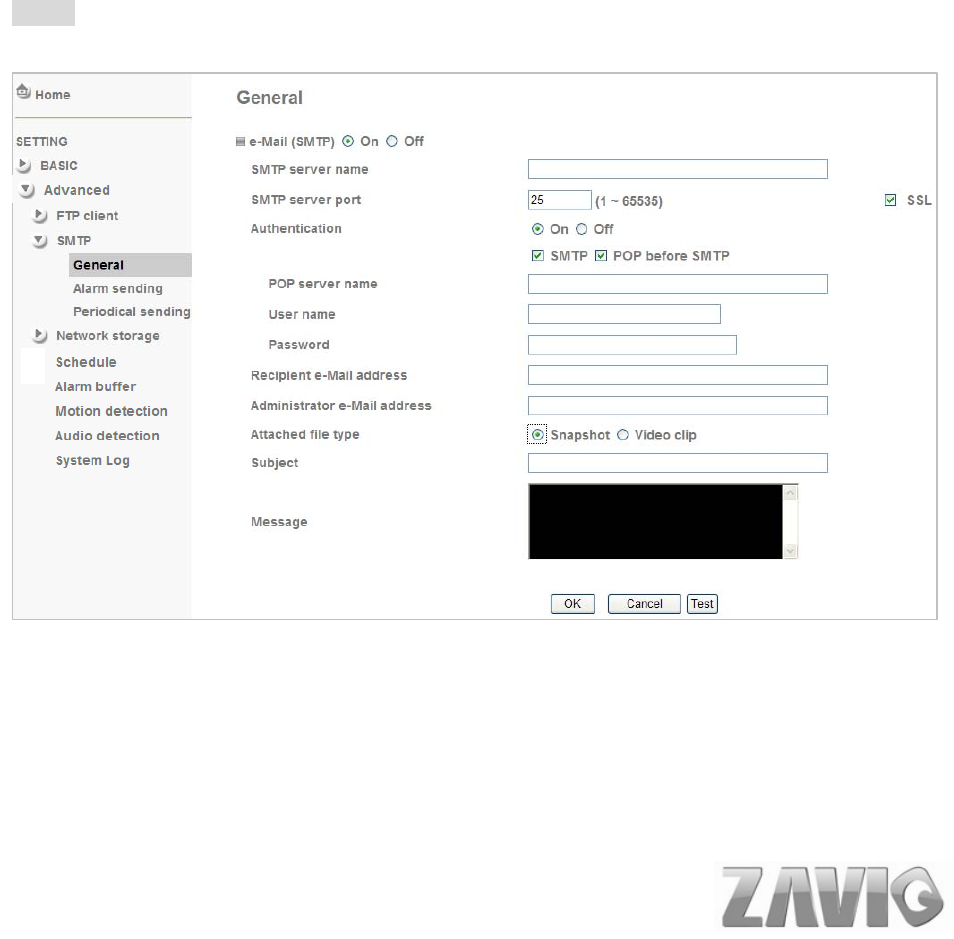

9.2.1 General .......................................................................................................................................................... 57

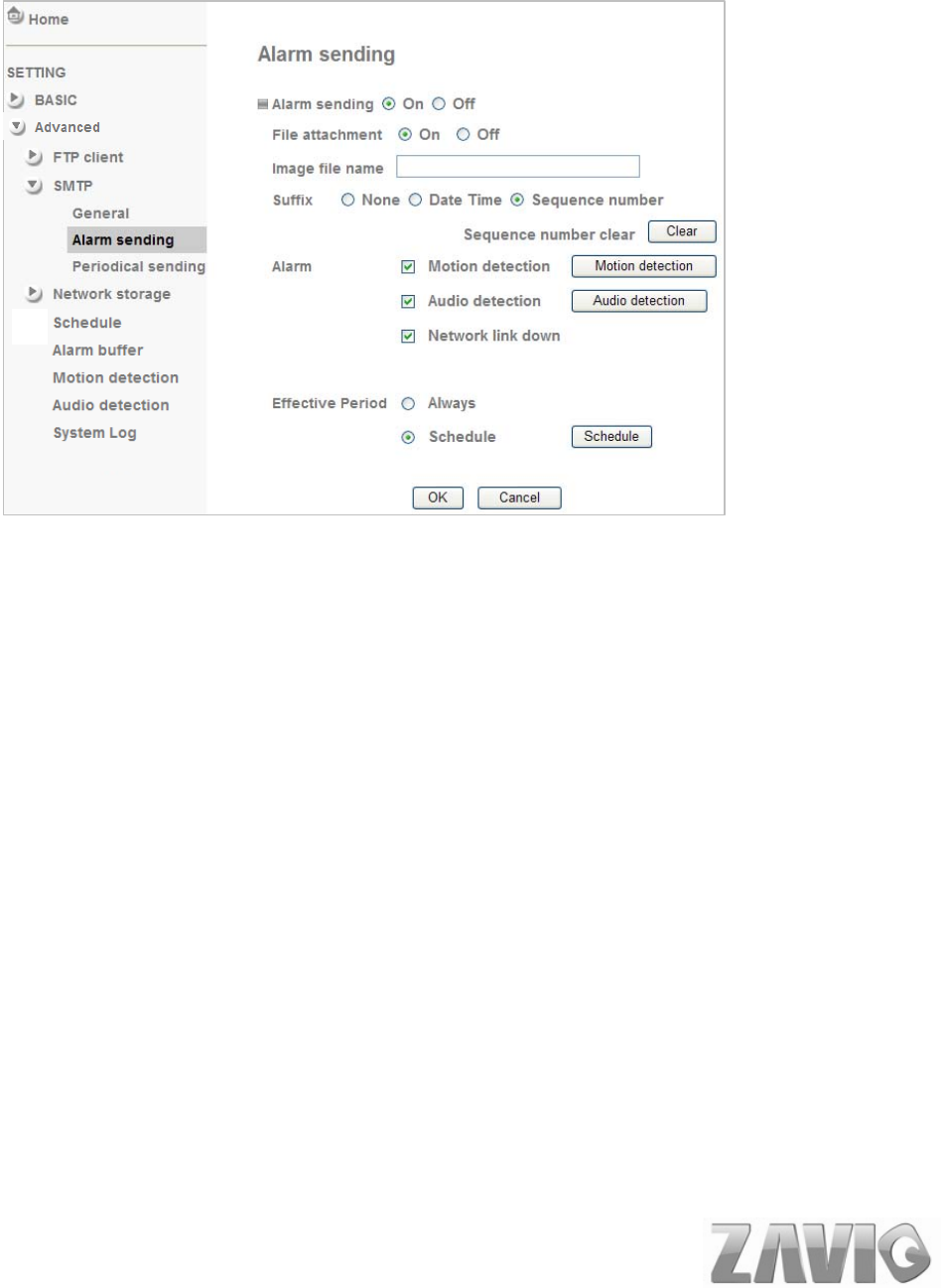

9.2.2 Alarm Sending............................................................................................................................................... 59

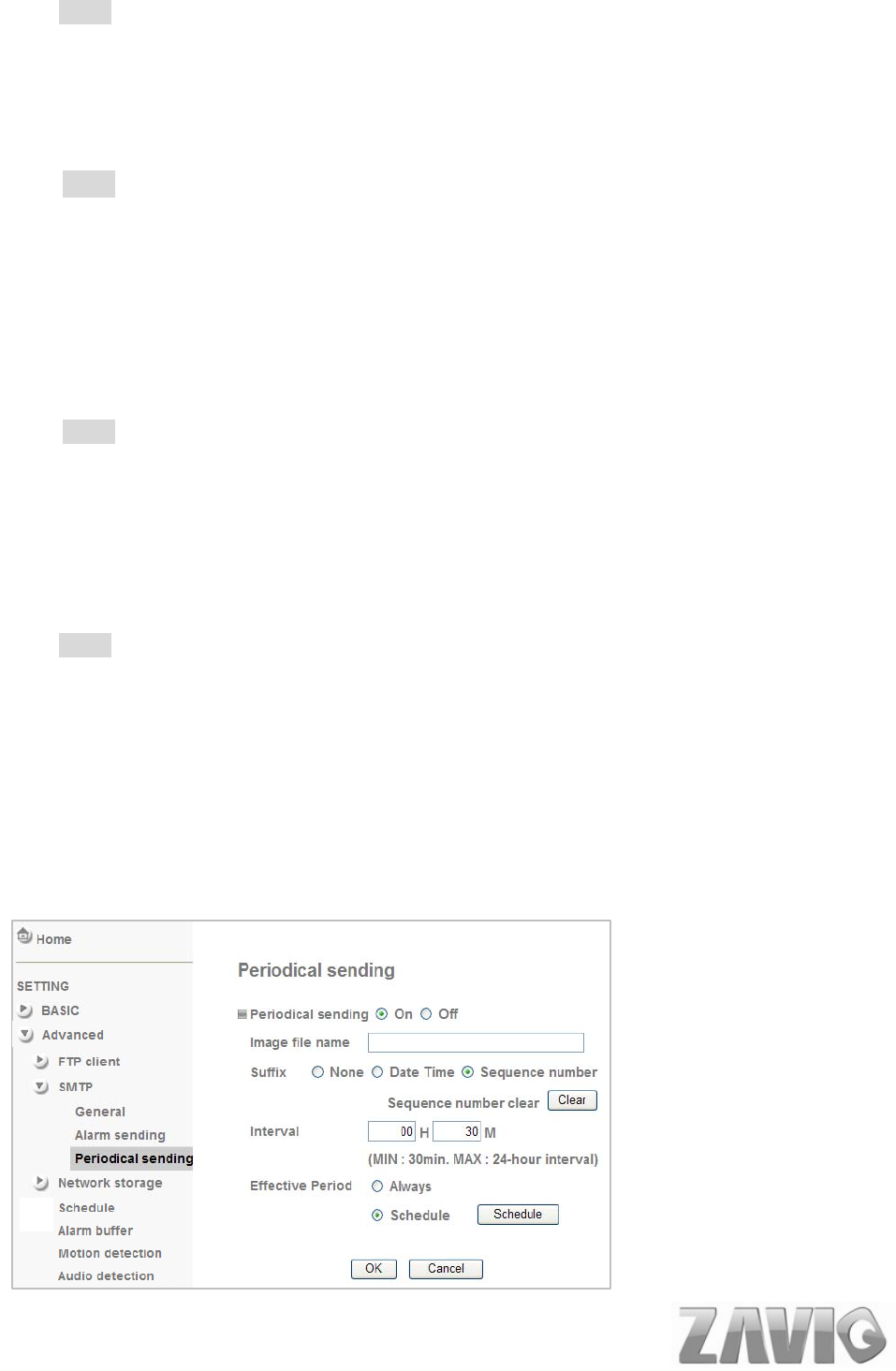

9.2.3 Periodical Sending ........................................................................................................................................ 60

9.3 NETWORK STORAGE .............................................................................................................................................62

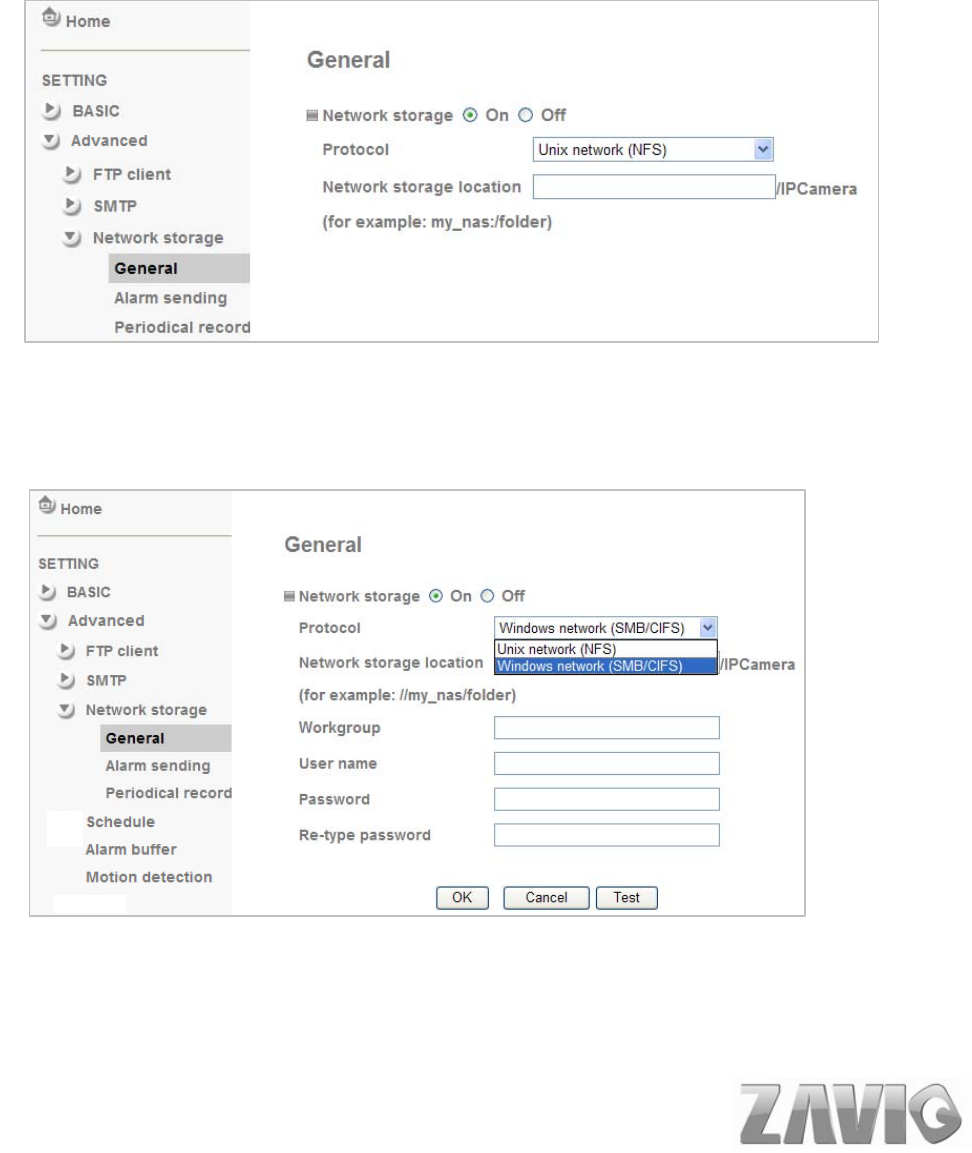

9.3.1 General .......................................................................................................................................................... 62

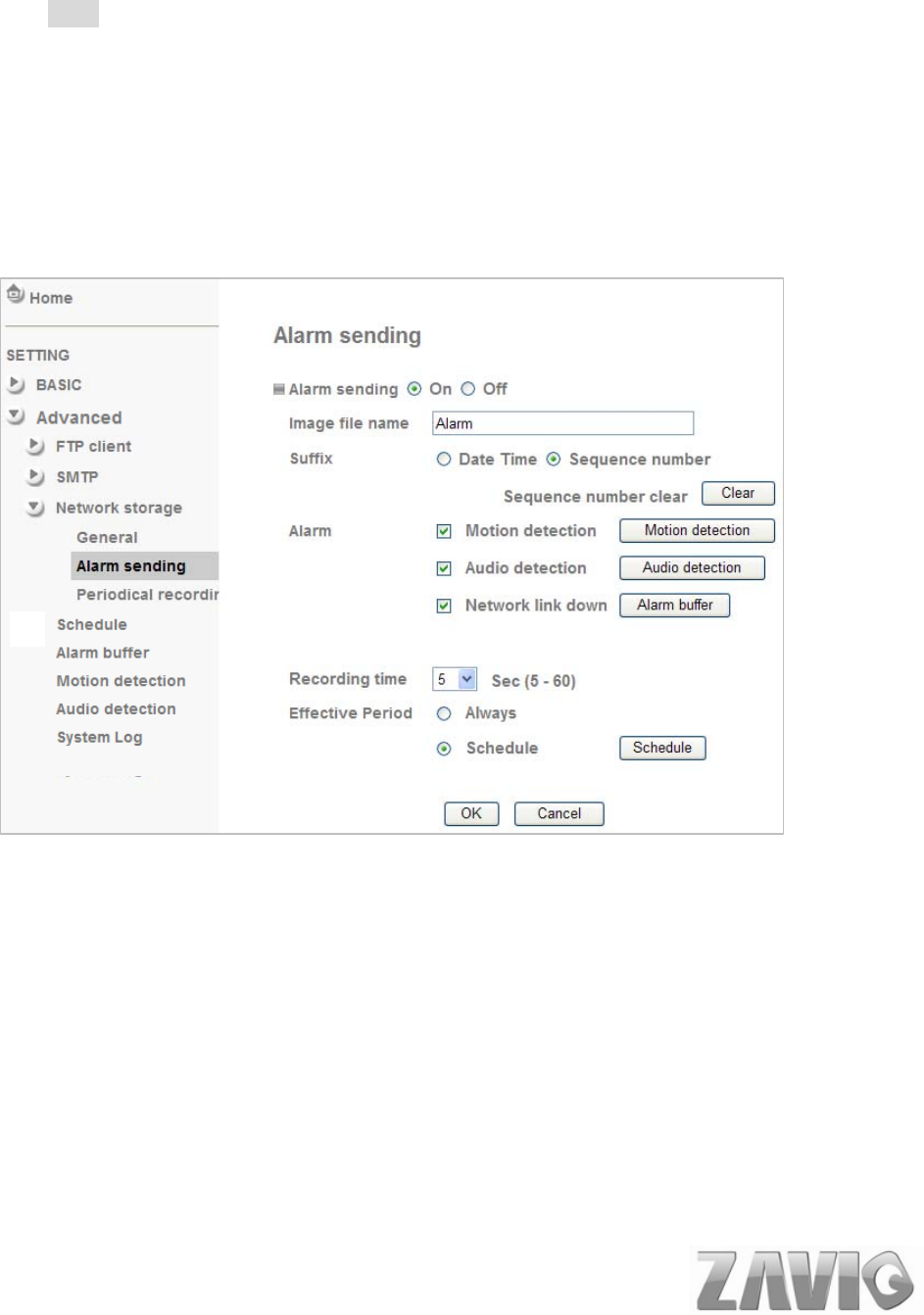

9.3.2 Alarm Sending............................................................................................................................................... 63

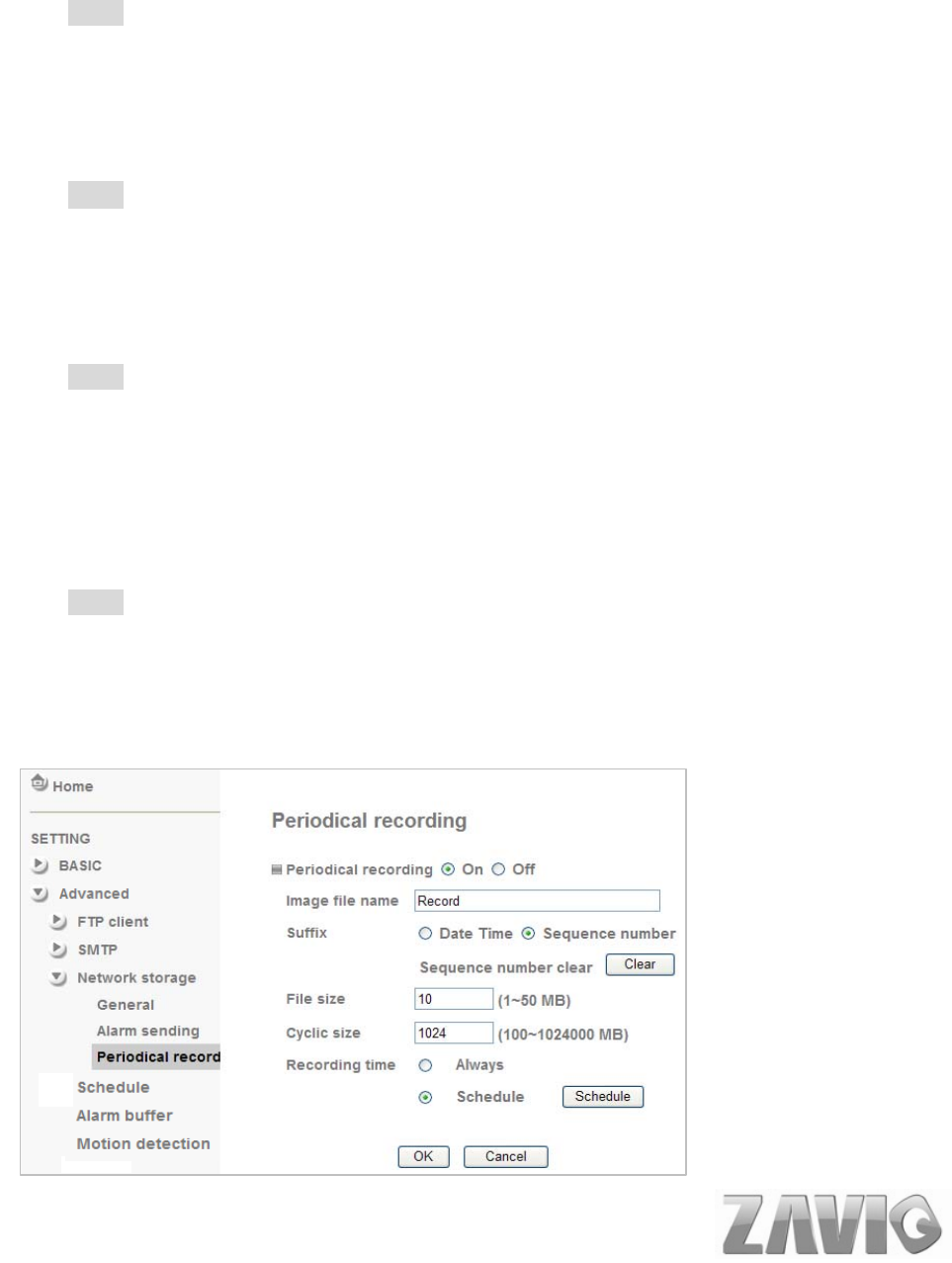

9.3.3 Periodical recording...................................................................................................................................... 64

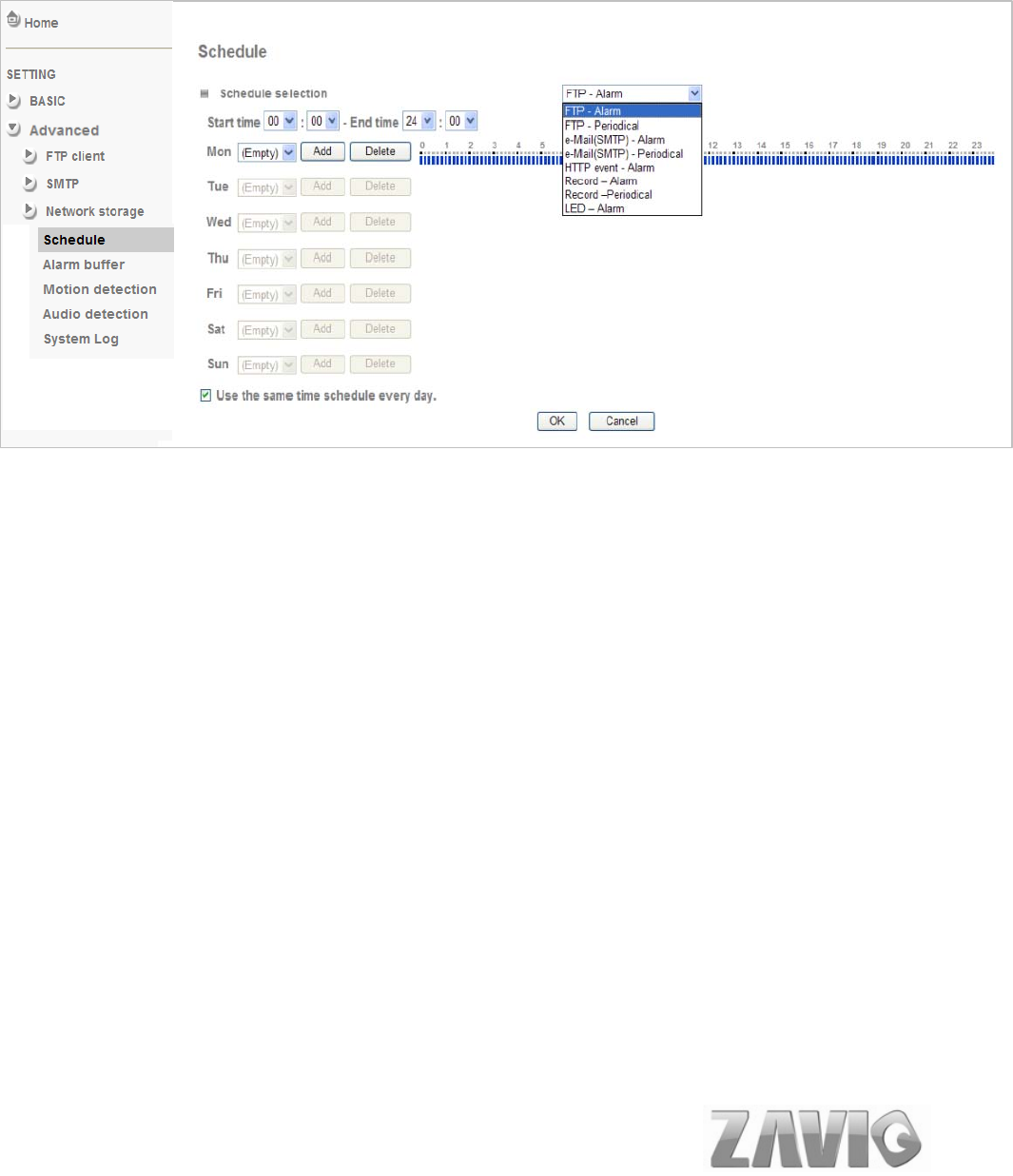

9.4 SCHEDULE.............................................................................................................................................................. 66

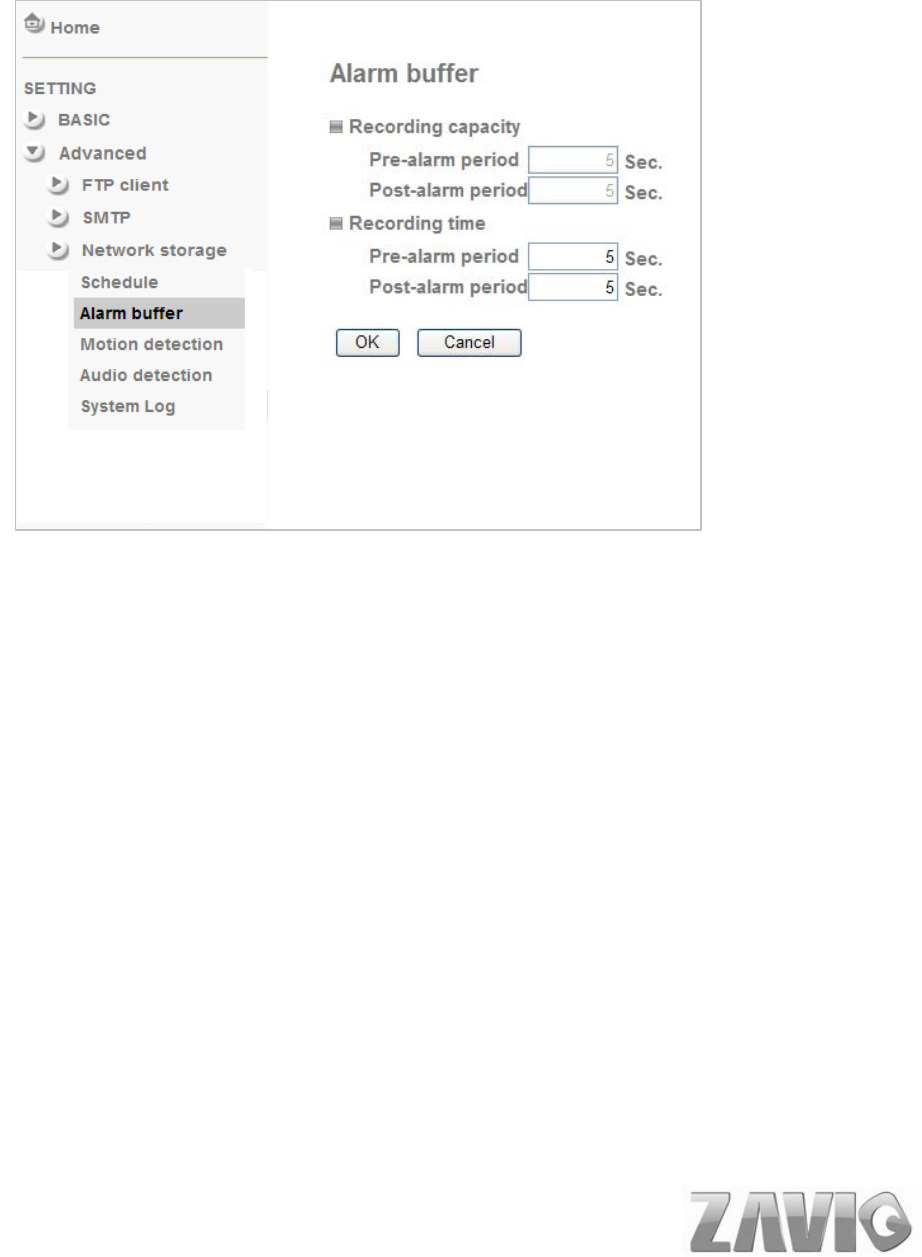

9.5 ALARM BUFFER .....................................................................................................................................................67

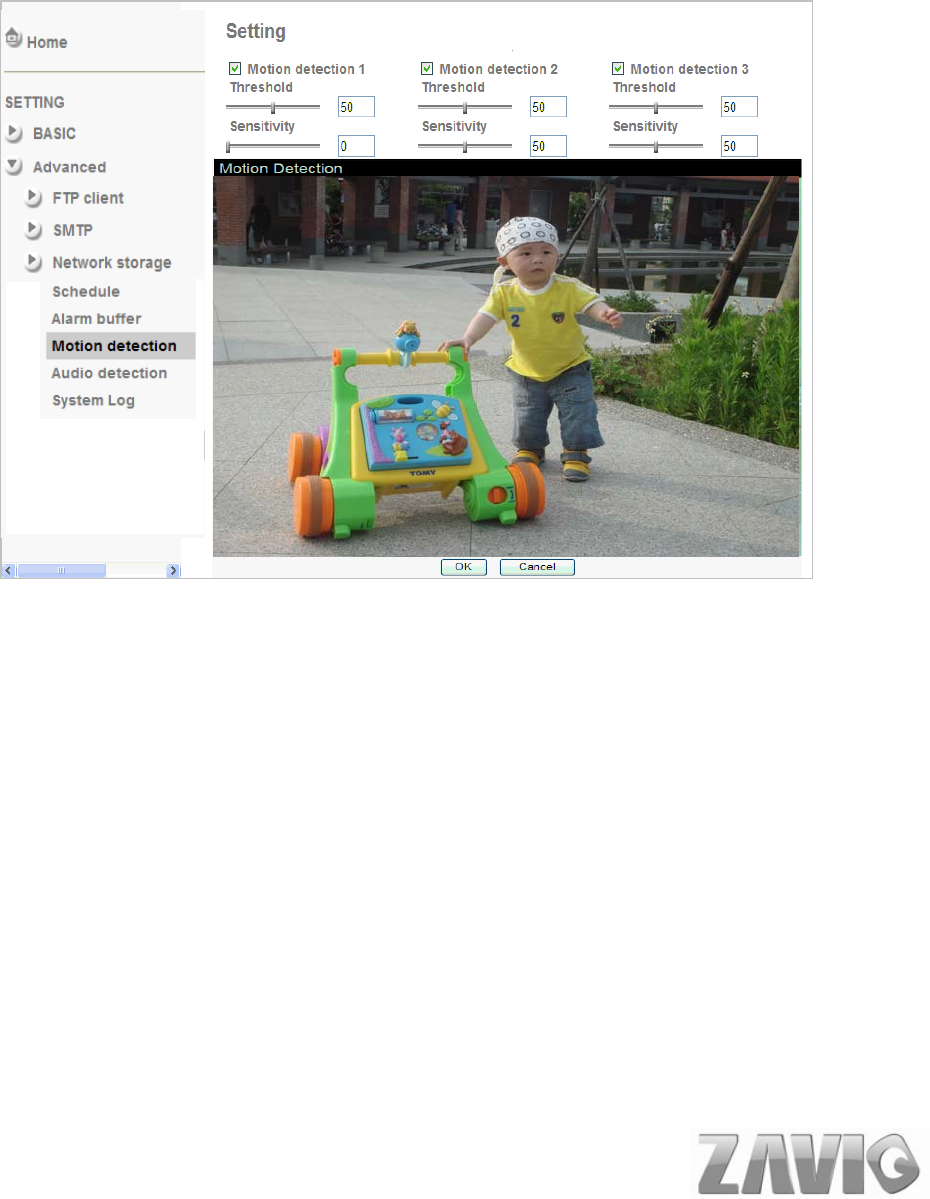

9.6 MOTION DETECTION.............................................................................................................................................68

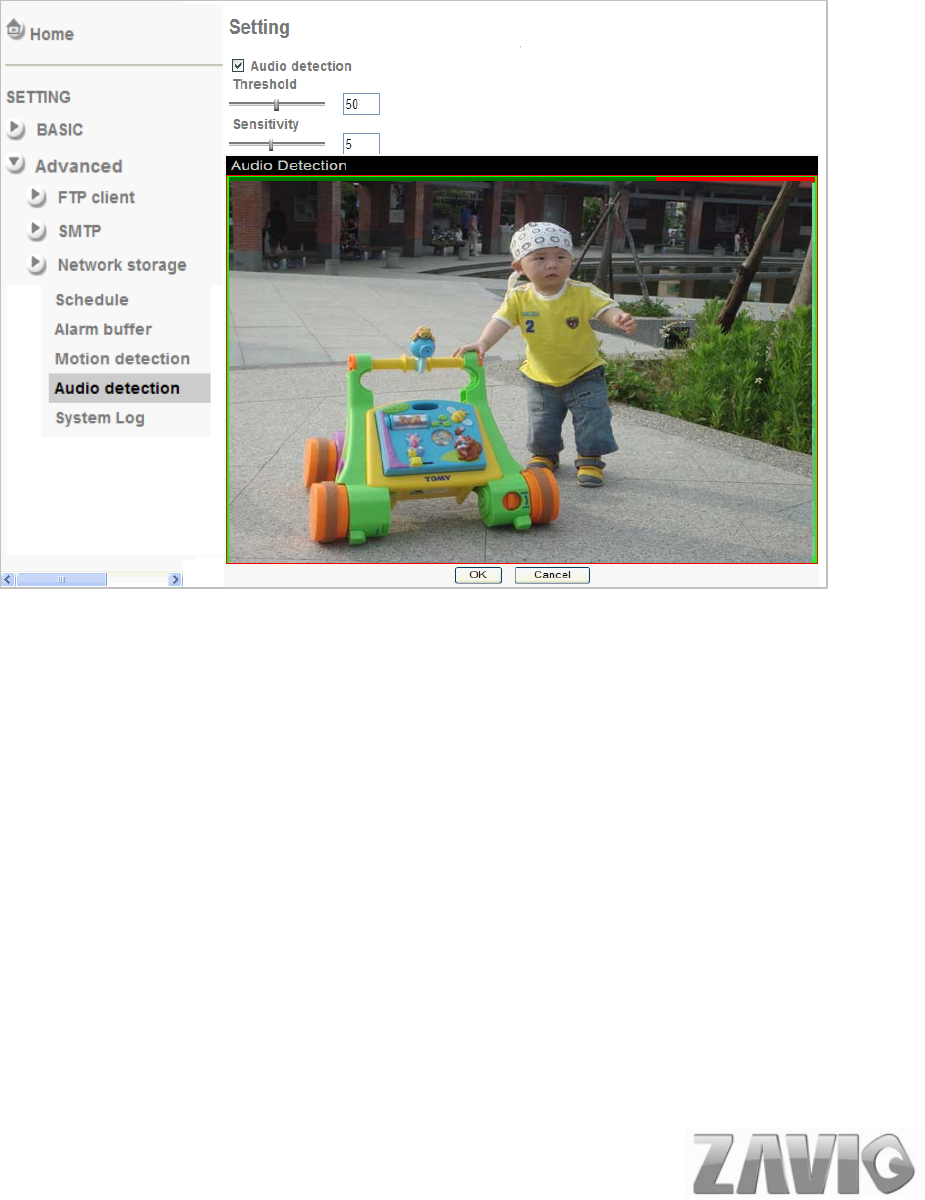

9.7 AUDIO DETECTION ................................................................................................................................................69

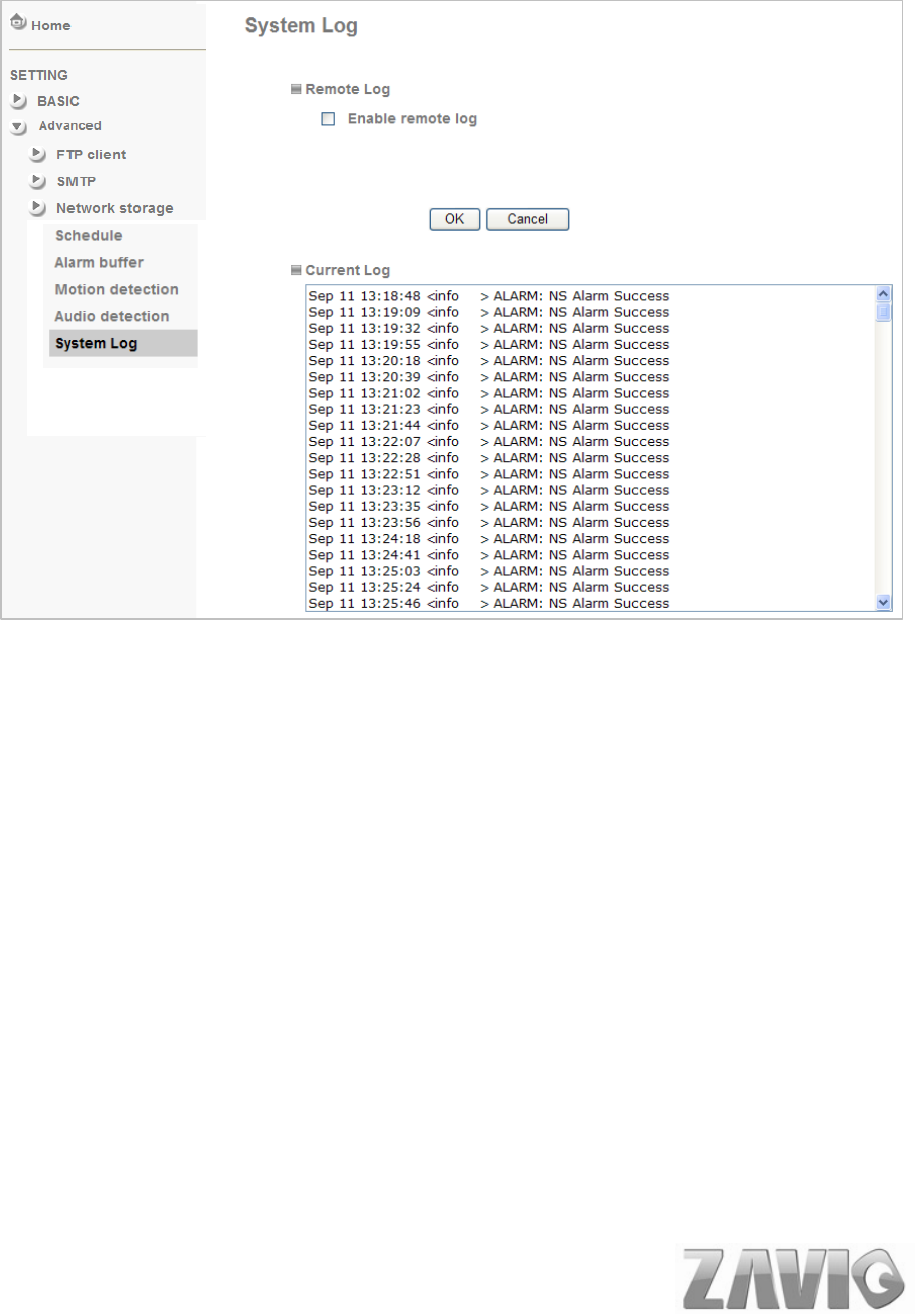

9.8 SYSTEM LOG.......................................................................................................................................................... 70

CHAPTER 10. APPENDIX ........................................................................................................................................... 71

A. FRAME-RATE AND BITRATE TABLE ........................................................................................................................ 71

A.1 Mega Mode ...................................................................................................................................................... 71

A.2 VGA Mode........................................................................................................................................................ 74

B. STORAGE REQUIREMENT TABLE............................................................................................................................77

B.1 Mega Mode ...................................................................................................................................................... 77

B.2 VGA Mode........................................................................................................................................................ 79

C. SYSTEM REQUIREMENT .........................................................................................................................................81

C.1. 16 Channel IPCamera with CIF Performance.............................................................................................. 81

C.2. 16 Channel IPCamera with D1 Performance................................................................................................ 81

EUROPE – EU DECLARATION OF CONFORMITY .............................................................................................. 82

FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT ............................................ 84

F3100 & F3105 User Manual

User Manual

Chapter 1. Safety Instruction

 Before you use this product

This product has been designed with safety in mind. However, the electrical products can cause

fires which may lead to serious body injury if not used properly. To avoid such accidents, be sure to

heed the following.

 Legal Caution

Video and audio surveillance can be forbidden by laws that vary from country to country. Check the

laws in your local region before using this product for surveillance purposes.

 Don't open the housing of the product

Don't try to open the housing or remove the covers which may expose yourself to dangerous voltage

or other hazards.

 Don't use the accessories not recommend by the manufacturer

 Heed the safety precautions

Be sure to follow the general safety precautions and the “Operation Notice.”

 Operation Notice - Operating or storage location

Avoid operating or storing the camera in the following locations:

 Extremely hot or cold places

(Operating temperature: 0 °C to + 50 °C [32 °F to 122°F] )

 Exposed to direct sunlight for a long time, or close to heating equipment (e.g., near heaters)

 Close to water (e.g.,near a bathtub, kitchen sink, laundry tub)

 Close to sources of strong magnetism

 Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters

 Locations subject to strong vibration or shock

 In case of a breakdown

In case of system breakdown, discontinue use and contact your authorized dealer.

Safety Instruction

F3100 & F3105 User Manual

 In case of abnormal operation

 If the unit emits smoke or an unusual smell,

 If water or other foreign objects enter the cabinet, or

 If you drop the unit or damage the cabinet:1 Disconnect the cable and the connecting cables. 2

Contact your authorized dealer or the store where you purchased the product.

 Transportation

When transporting the camera, repack it as originally packed at the factory or in materials of equal

quality.

 Ventilation

To prevent heat buildup, do not block air circulation around the device.

 Cleaning

 Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be

removed using a soft cloth dampened with a small quantity of detergent solution, then wipe dry.

 Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the

surface.

Safety Instruction

F3100 & F3105 User Manual

Chapter 2. Minimum System Requirement &

Product Feature

2.1 System Requirement

For normal operation and viewing of the network camera, it’s recommended that your

system meet these minimum requirements for proper operation:

Item Requirements

CPU Pentium 4 2.8GHz (or equivalent AMD)

Graphic Card 258 MB RAM graphic cards(or equivalent on-board graphic cards)

RAM 1G

Operating

System

Windows 2000, Windows 2003, Windows XP, Windows Vista,

Windows 7, and Mac OS X Leopard

Web Browser Internet Explore 6 or later

Note: Please keep updating the latest Windows software and service package. (Ex: Net

Framework, Windows Media Player, Enhance ActiveX Security)

Minimum System Requirement

& Product Feature

F3100 & F3105 User Manual

2.2 Product Features

These easy-to-follow instructions make setup and operation quick and simple, so you’ll also soon

be enjoying the benefits of these product features:

SYSTEM

Resolutions H.264 / MPEG-4 / Motion JPEG:

4 resolutions from 1280x1024 to 320x240 via API and

configuration web page

Screen Resolution Higher than 1024 * 720 pixels

Compressing format H.264 / MPEG-4 / Motion JPEG

Frame Rate Up to 15 fps at 1280x1024

Up to 30 fps at 640x480

Rotation: Mirror, Flip, Mirror Flip

Brightness / Contrast / Saturation / Sharpness

Image settings

Overlay capabilities: time, date, text and privacy image

Image snapshot Yes

Video Recording Yes

Full Screen Viewing Yes

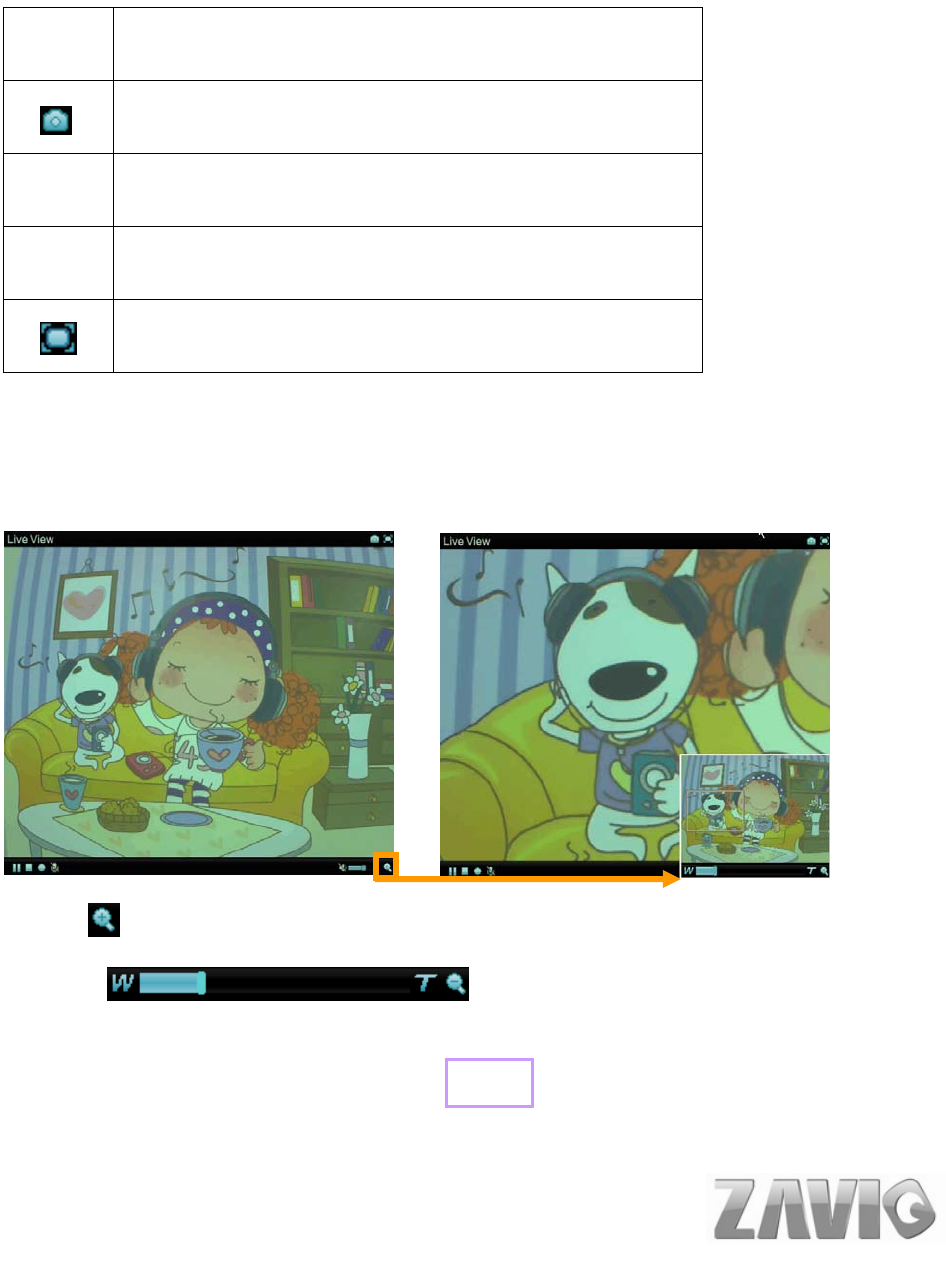

Digital Zoom 10x digital

Two-way (full / half duplex) with built-in microphone

Audio Audio compression: G.711 μ law, a law, and AMR

Instant Messenger Support MSN Live View

Mobile Phone Live

View Through 2.5 WAP, 3GPP, 3G Streaming, and 3G Browser

Alarm Sending FTP Client / SMTP / Network Storage

Security Passward Protecton / HTTPS encryption / IP Filter

Alarm Buffer Recording image and audio file pre-and-post disconnection up

to 5 sec.

Supported protocols Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP,

DNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP, 3GPP/ISMA

RTSP

Simultaneous

Connection Up to 10 users

Operating conditions 0°C ~ 50 ℃ (32℉ ~ 122 ℉)

HARDWARE

Lens F1.8, 4.2mm Megapixel board lens

LEDs 5 φ LEDs x 6

IR working distance 5 M

I / O 1 in / 1 out

Audio Output 1

Power 12V DC, 1A, Max 5W

NETWORK

Wireless IEEE 802.11b/g (F3105)

Minimum System Requirement

& Product Feature

F3105 User Manual

Chapter 3. Using IP Camera via Web Browser

3.1 Windows Web Browser

1. Open your web browser, and enter the IP address or host name of the IP camera in the

Location / Address field of your browser.

Note : If you only want to view the video without accessing Setting screen, enter

“http://<IP>/index2.htm” as your web URL.

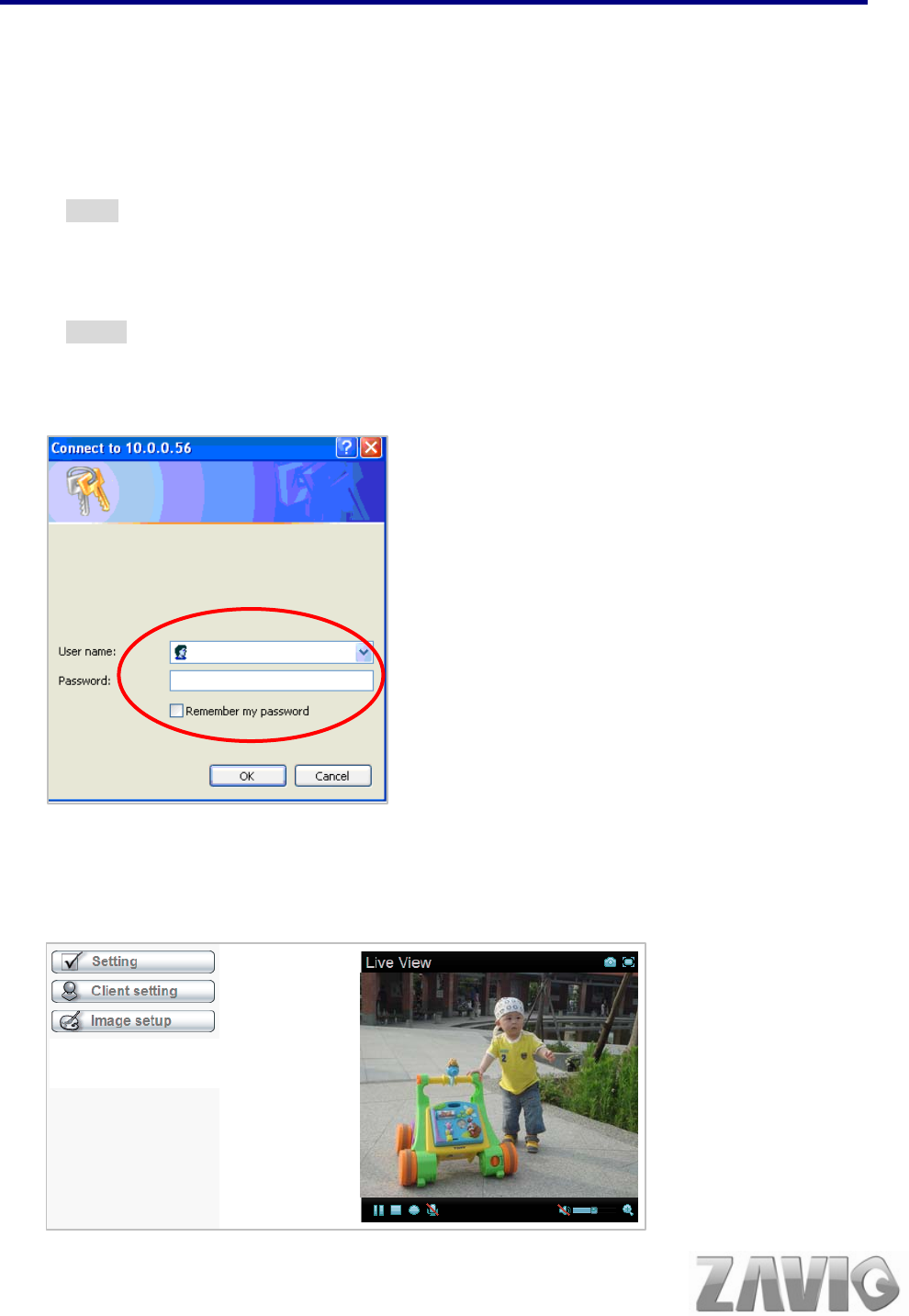

2. Use the default account “admin” and default password “admin”.

Note : The default user name “admin” and the password are set at the factory for the

administrator. You can change them in the Account Menu. (Please check “Setting →

Basic → Security → Account”)

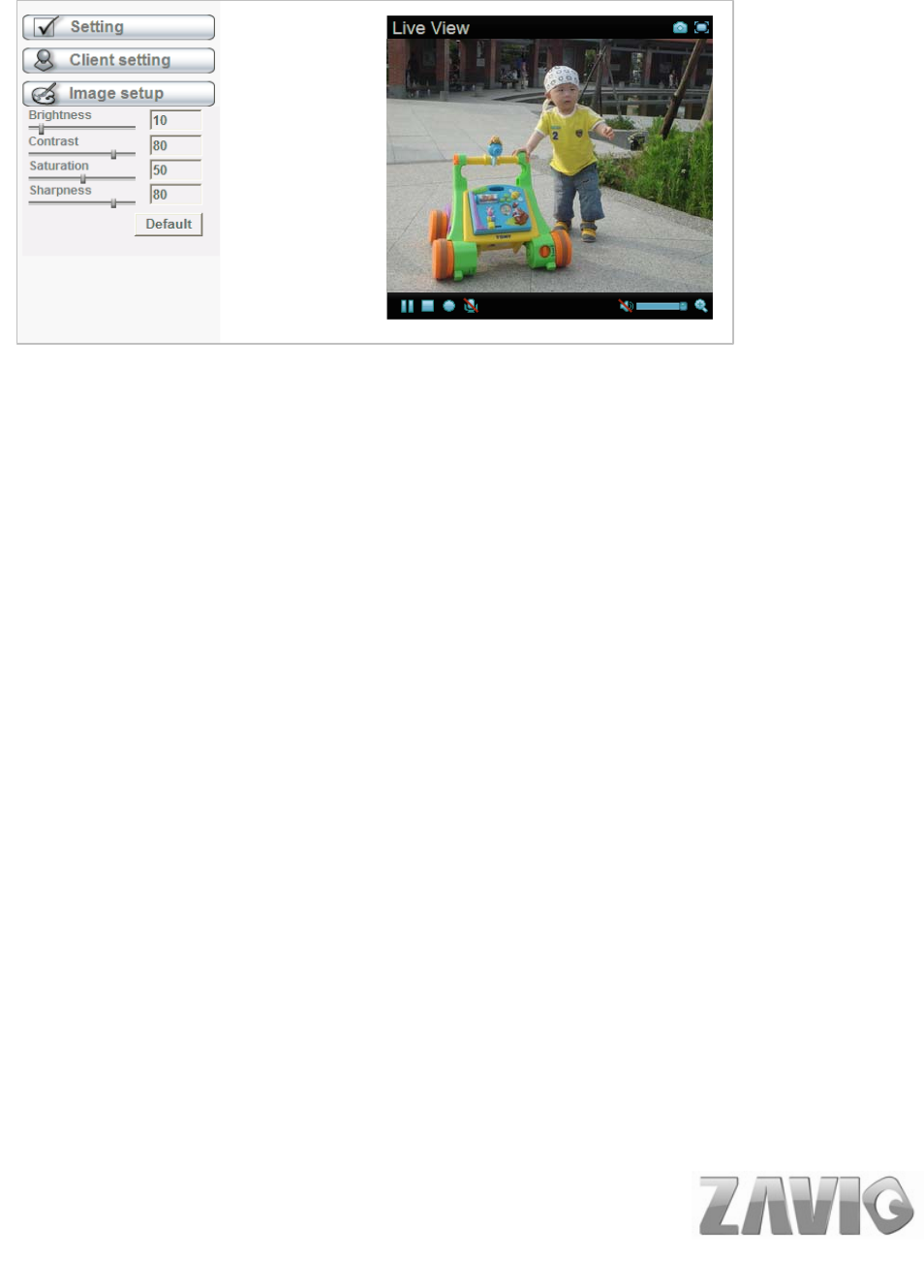

3. The monitor image will be displayed in your browser. In the far left side of main

configuration are Setting, Client Setting, and Image Setup. For more details, you can check

Chapter 7.2、Chapter 7.3、Chapter 7.4 and Chapter 7.5.

Using IP Camera via

Web Browser

F3105 User Manual

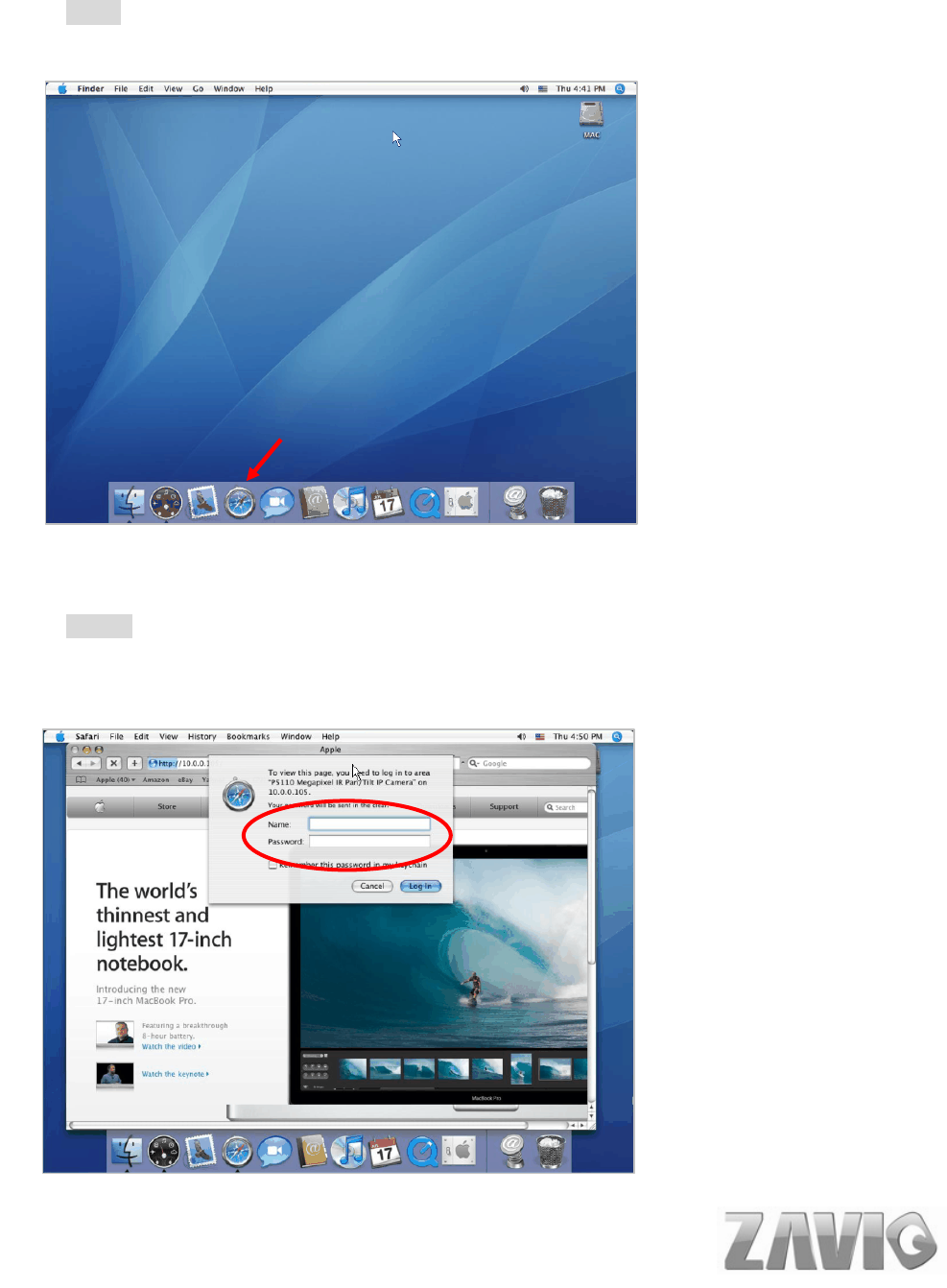

3.2 Mac Web Browser

1. Click the Safari icon, and enter the IP address of the IP camera in the Location / Address

field of your browser.

Note : If you only want to view the video without Setting screen

“http://<IP>/index2.htm” as your web URL.

2. Enter the default account “admin” and default password “admin”.

Note : The default user name “admin” and the password are set at the factory for the

administrator. You can change them in the Account Menu (Please check “Setting →

Basic → Security → Account”)

Using IP Camera via

Web Browser

F3105 User Manual

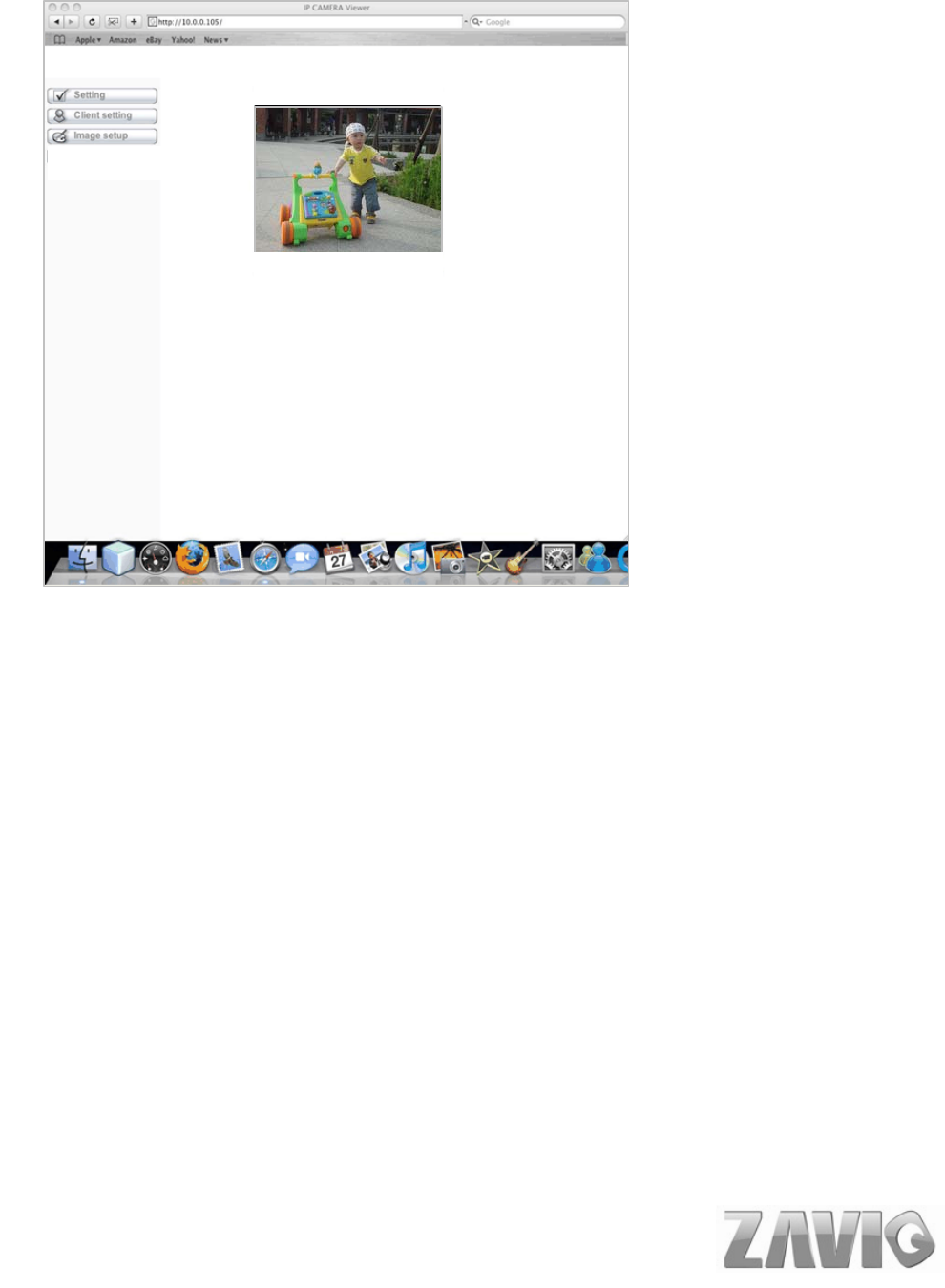

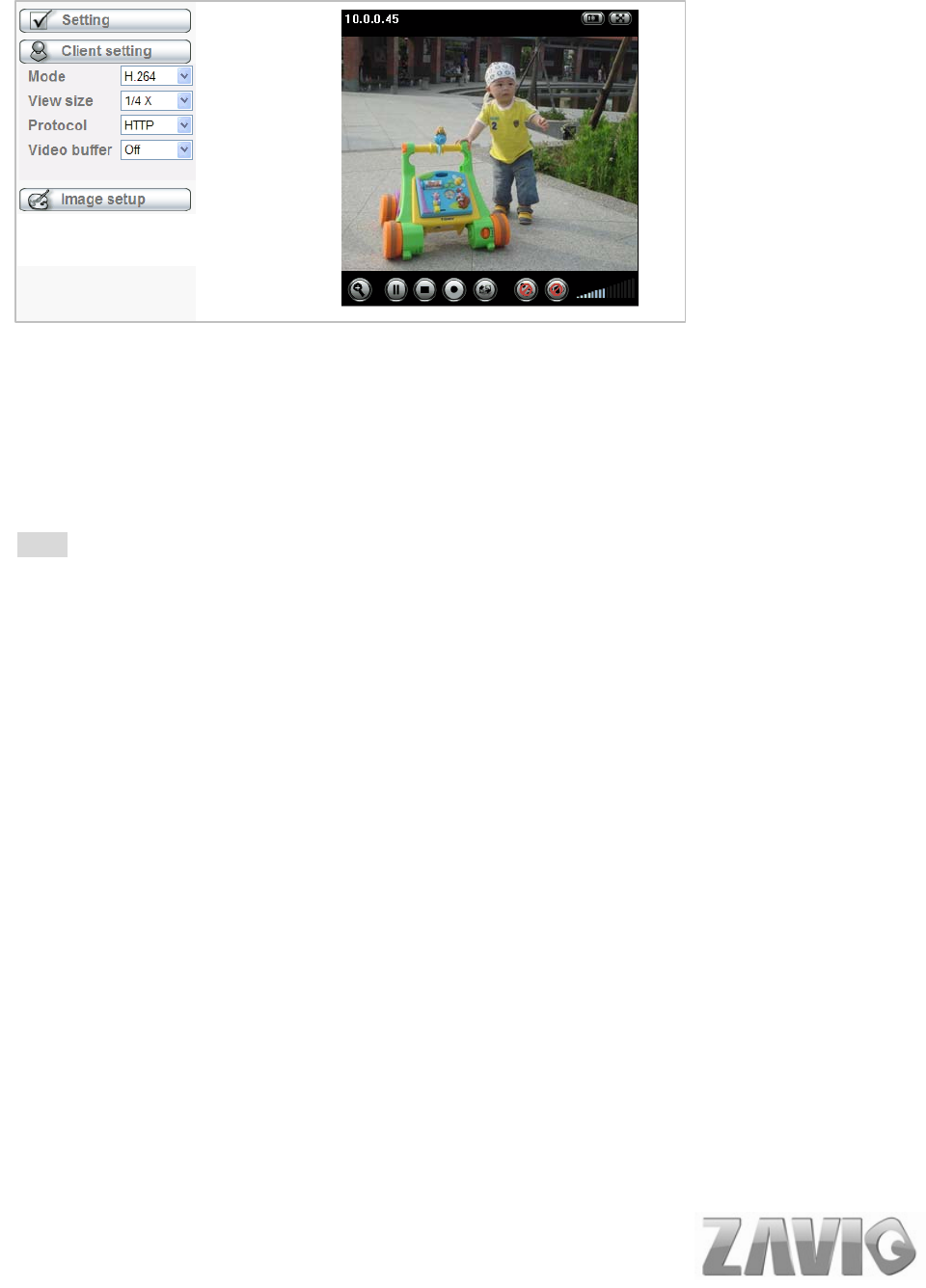

3. The monitor image will be displayed in your browser. In the far left side of main

configuration are Setting, Client Setting, and Image Setup. For more details, you can check

Chapter 7.2、Chapter 7.3、Chapter 7.4 and Chapter 7.5.

Using IP Camera via

Web Browser

F3105 User Manual

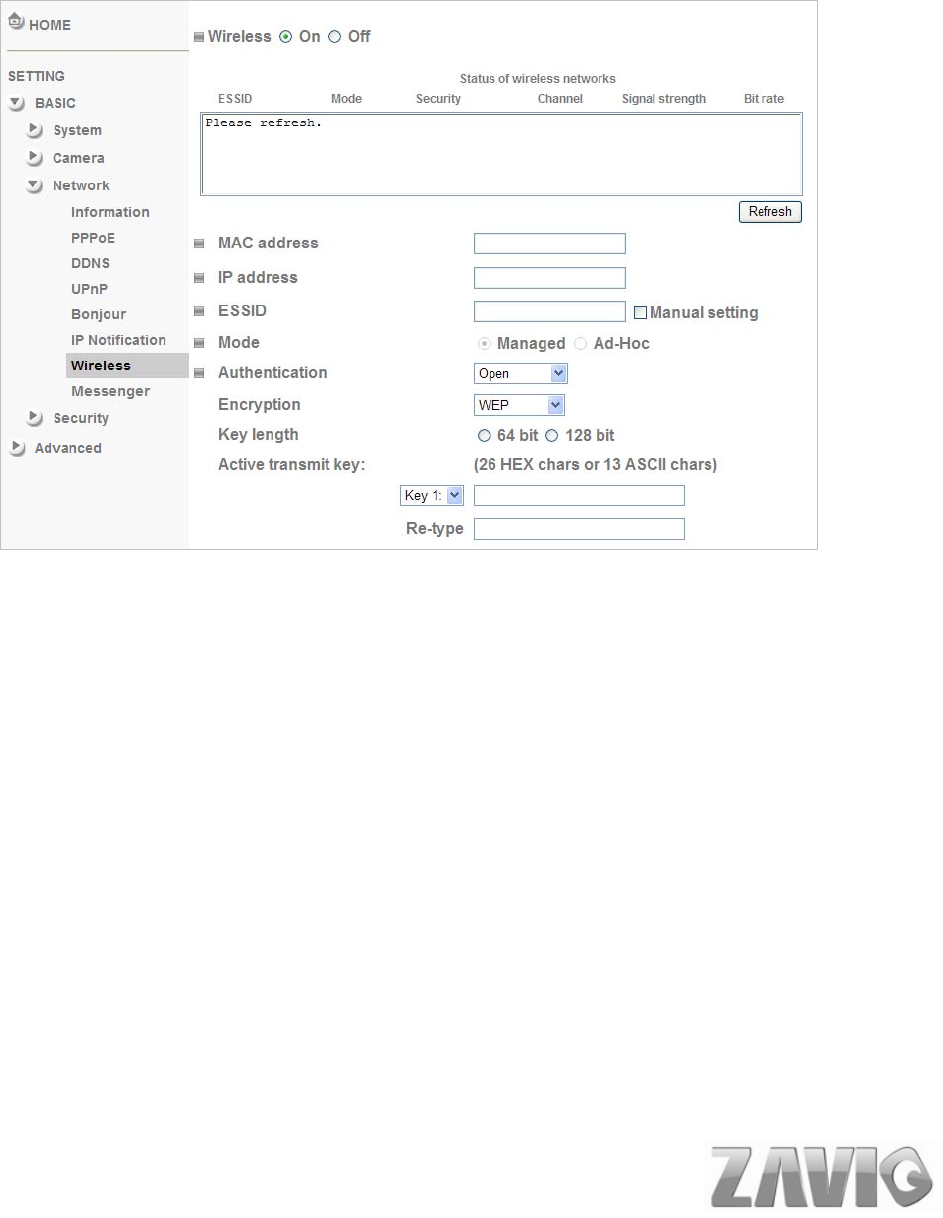

Chapter 4. Setting up Wireless Configuration

The wireless network has to be set up by using cable network connection. After setting the

camera correctly, the wireless function can work without cable network connection. Please

follow the setting process below step by step:

1. Connect IP Camera with Ethernet connection.

2.Go to “Setting → Basic → Network → Wireless,” choose option “On”. You will see

the wireless Setting screen.

3. Then click “Refresh”. All access points (AP) around you will show up.

4. Select the AP you wish to connect.

5. Enter password at active transmit key if you need. If you don't know the setting of the

wireless AP, please ask your network administrator.

6. Choose the option of Obtain an IP address automatically (DHCP) and Obtain DNS server

address automatically.

Setting up Wireless

Configuration

F3105 User Manual

7. Otherwise, Choose Use the following IP address and Use the following DNS sever address.

 Use the following IP address: Select this when the fixed IP address is set.

IP address: Enter the IP address of the device.

Subnet mask: Enter the subnet mask.

 Default gateway: Enter the default gateway.

 Use the following DNS server address: Select this when you set the fixed address as the

IP address of DNS server.

Primary DNS server: Enter the IP address of the primary DNS server.

Secondary DNS server: Enter the IP address of the secondary DNS server, if

necessary.

Setting up Wireless

Configuration

F3105 User Manual

Chapter 5. Operating IP Camera via Mobile Phone

5.1 Mobile Phone Viewing

5.1.1 3G Mobile Phone Streaming Viewing

For 3G mobile phone viewing, type “ rtsp://<IP>:<PORT>/video.3gp ” into your 3G

Streaming Link. <IP> is the Public IP address of your IP camera; <PORT> is the RTSP port

of your IP camera (Default value is 554.) Example: rtsp://100.10.10.1:554/video.3gp

Note: You can also use RTSP clients (RealPlayer, VLC, QuickTime Player…etc.) to

view RTSP streaming, just type in “rtsp://<IP>:<PORT>/video.3gp” as the Player URL

5.1.2 2.5G Mobile Phone WAP Viewing

For 2.5G mobile phone viewing, type “http://<IP>/mobile.wml” into your 2.5G WAP

Browser. <IP> is the Public IP address of your IP camera.

5.1.3 2.5G Mobile Phone Browser Viewing

For 2.5G mobile phone viewing, type “http://<IP>/mobile.wml ” into your 2.5G Web

Browser. <IP> is the Public IP address of your IP camera.

Using IP Camera

via Mobile Phone

F3105 User Manual

5.2 Using IP Camera via iPhone

You can use ZAVIO Web User Interface via iPhone. Please follow the setting process below.

Then you can use ZAVIO Web UI via iPhone.

2. Type IP address in your web link.

1. Select Safari function

3. Type name and password.

Default value is admin / admin.

Then click Login In

4. The ZAVIO User Interface and

live image will show up in the

middle of screen.

Note: The image is continuous snapshots, not

video. Thus, live image can’t be recorded

here.

Using IP Camera

via Mobile Phone

F3105 User Manual

Chapter 6. MSN Messenger

Please follow the following steps to set up the Messenger function.

1. Download free MSN software and create a new MSN account (Camera at home) for Microsoft

Live Messenger.

2.Go to “Setting→Basic→Network→Messenger,” set the Messenger to “ON” . Then, login in new

account and password (Camera at home).

3. If your router has firewall function, you have to set the Port Range on this setting page in

accordance with the one of firewall.

4. Choose the Video Mode, decide the live view image of messenger received from Computer View

(MPEG-4) or Mobile View (3GPP).

5. Choose “On” at the option of IP Notification. If this feature switches On, camera will send IP

notification to the users who are allowed.

6. Choose “On” at the option of Privacy. If you can choose “On” at the privacy option, you can set

an allow list.

7. Use your account to login in the Messenger software. Then, add the new MSN account (Camera

at home )

8. The Camera at home will show up with its Public IP and Private IP if the option of IP

Notification is “On”. ( You can enter “Ping” to show up with Public IP and Private IP. )

9. Click on the small camera icon .

Then, choose “View a new contact's

webcam”.

MSN Messenger

F3105 User Manual

12. The dialog box will show up with “This

application is not part if Window Live

Message…….” Tick the box of “Don’t

show me this again” and click OK.

10. The IP Camera will accept your

invitation; the live video will show up in the

right screen after few seconds.

11. Click Action button and choose Start

Control Panel to use control panel.

13. The IP Camera will accept your invitation

to start Control Panel.

MSN Messenger

F3105 User Manual

14. You can click Camera icon to

snapshot then the picture will send to you

immediatel

15. You can click paint palette icon

showing up with tool bar to set up image.

Then, you can use the tool bar to optimize

video Brightness , Contrast ,

Saturation and Sharpness . After

the adjustment of all setting, you can still

click to make the setting back to

the original setting.

MSN Messenger

F3105 User Manual

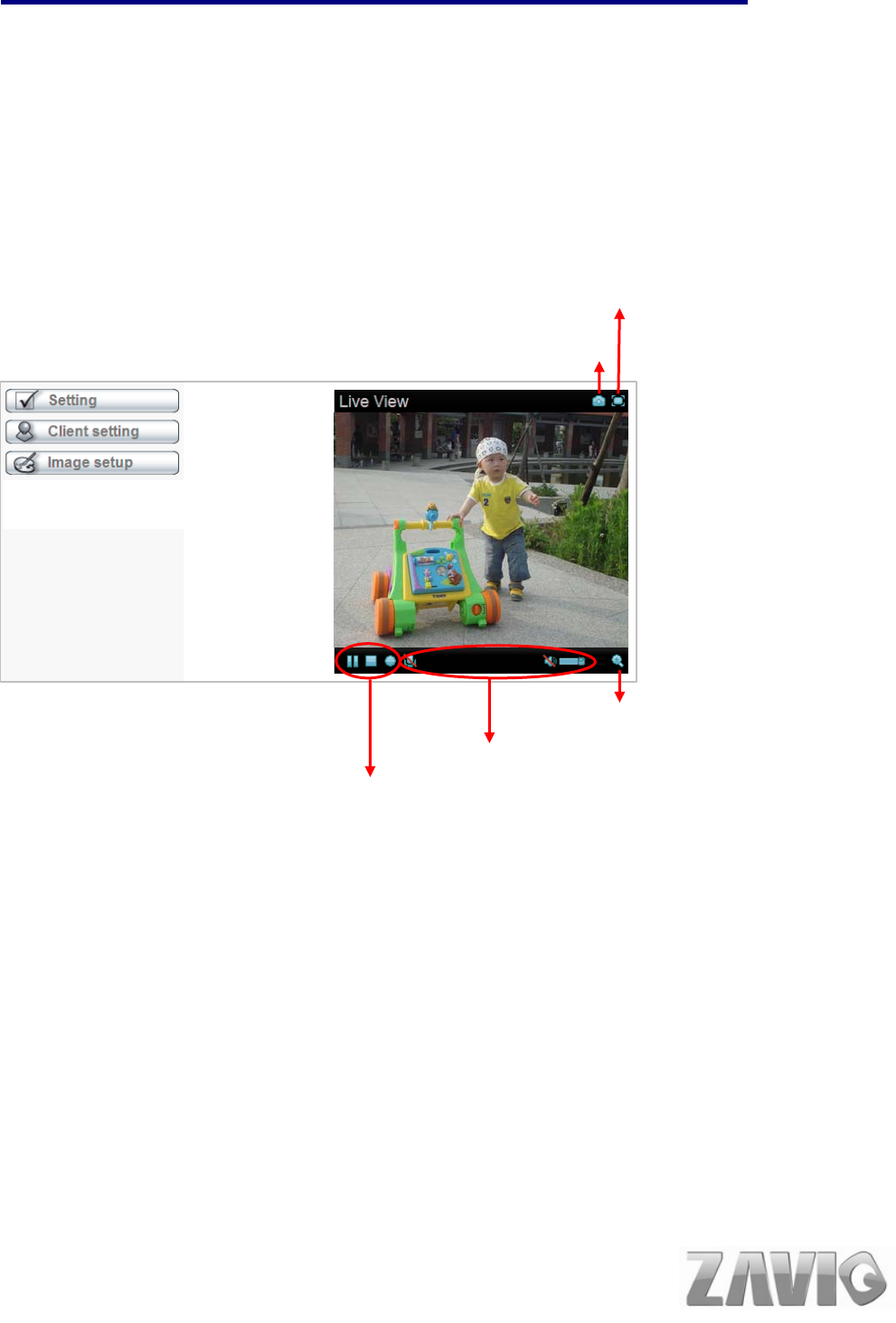

Chapter 7. Configuration of Main Menu

In the left side of main configuration are Setting, Client setting, Image setting. For more details,

please check Chapter 7.2、Chapter 7.3、Chapter 7.4.、Chapter 7.5.

In the right side, you can control Live View in your main Browser. The functions include

Snapshot, Open digital zoom, Audio, and Video Play.

Full screen

Open digital zoom

Sna

shot

Audio Play

Video Play

Configuration of

Main Menu

F3105 User Manual

7.1 Live View

7.1.1 Snapshot

You can capture a still image shot by clicking the camera icon and save it in the operating

computer.

co er cmput omputer.

7.1.2 Digital zoom in / out the image via the monitor

window

 Click to display the digital zoom in window.

 Pull the to adjust the digital zoom range, and it will be

showed on the above window.

 Use the left click of your mouse to move to anywhere in the window area.

Symbols Meaning

a snapshot window appears after clicking the icon

Save save the picture captured by snapshot into your computer

Close Return to the view screen

full screen

Configuration of

Main Menu

F3105 User Manual

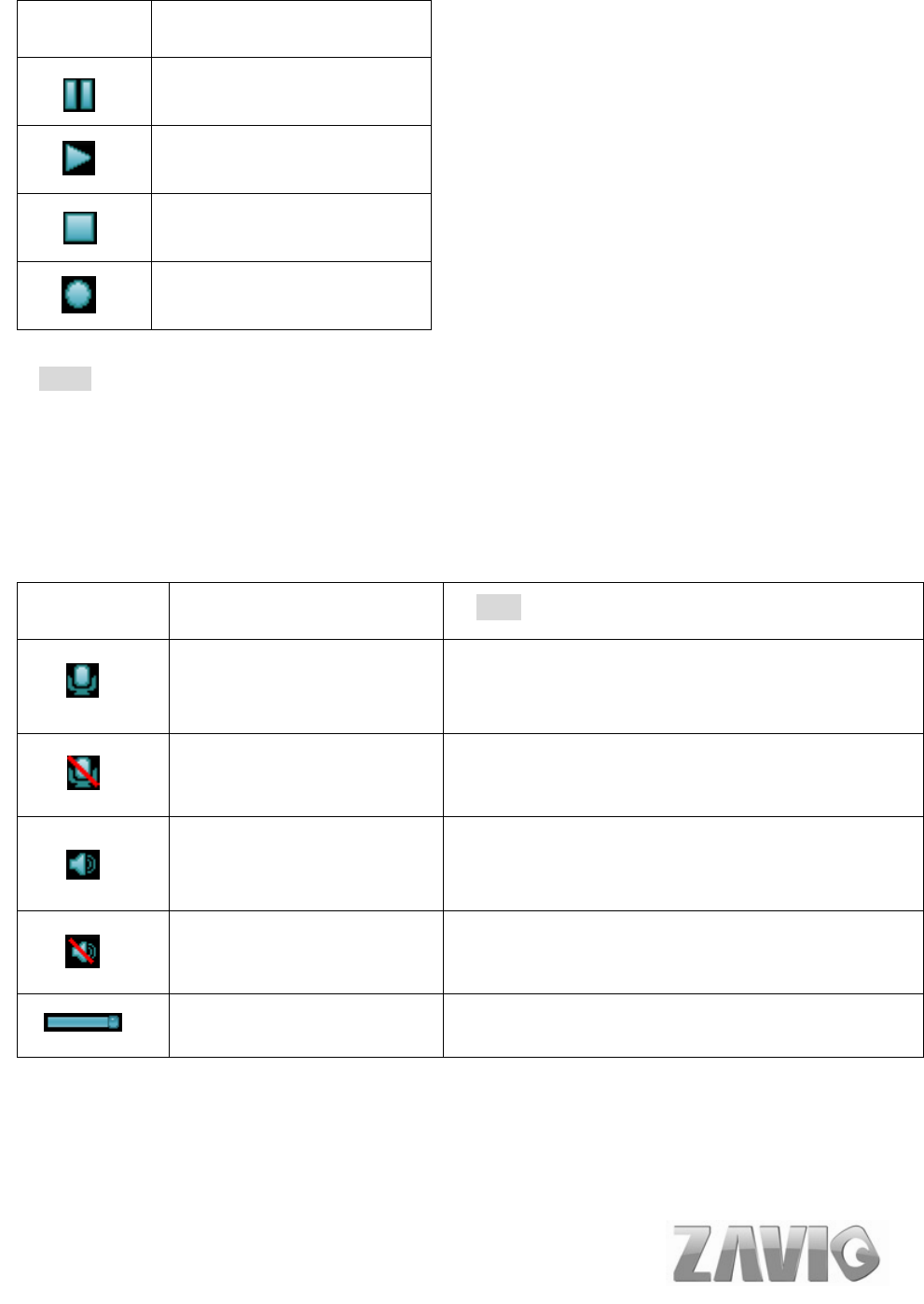

7.1.3 Video play buttons

Symbols Meaning

Pause the current video

Play the video

Stop the current video

Record the current video

Note: Concerning the recording storage requirement of your hard disk, please refer to

the CHAPTER 10. APPENDIX / B. Storage Requirement Table.

7.1.4 Audio buttons

Symbols Meaning Note

Speakers turned on mean the speakers of your computer are turned

on to transmit the sounds from the connected IP

camera(s)

Speakers turned off mean the speakers of your computer are turned

off to transmit the sounds from the connected IP

camera(s)

Mute off mean you can broadcast to the connected IP

camera(s) via the Ethernet using your

microphone

Mute on mean you can’t broadcast to the connected IP

camera(s) via the Ethernet using your

microphone

Volume control bar mean you can adjust the sound volume by

the control bar

Configuration of

Main Menu

Configuration of

Main Menu

F3105 User Manual

7.2 Setting

This function is only for the Administrator. Click “Setting” on the home page of web user

interface to get into the Basic and Advanced Settings menu.

Click Basic folder, there are sub-folders including System, Camera, Network, and Security.

Fore more information, you can see Chapter 8.1、Chapter 8.2、Chapter 8.3 and Chapter 8.4.

Click Advanced folder, there are sub-folders including FTP Client, SMTP, Network Storage,

Schedule, Alarm Buffer, Motion Detection, Audio Detection, and System Log. Fore more

information, please see Chapter 9.

onfiguration of

Main Menu

Configuration of

Main Menu

F3105 User Manual

7.3 Client Setting

This function is only for the client. Click this button to control Mode, View Size, Protocol,

and Video Buffer.

7.3.1 Mode

Click the pull-down box to choose video compression mode of LIVE VIEW among H.264,

MPEG-4, and MJPEG.

Note: As long as the operating system not able to afford loading under H.264 mode, please

downgrade the mode to MPEG-4 or MJPEG.

7.3.2 View Size

Select the desired view size of image resolution among 1/4X, 1/2X, and 1X.

7.3.3 Protocol

Select the transferring protocol among TCP, UDP, and HTTP.

7.3.4 Video Buffer

Turn the Video Buffer function On / Off. The Video Buffer function makes the streaming

more smoothly in unsteady network environment, but might cause a little delay in live

viewing.

Configuration of

Main Menu

F3105 User Manual

7.4 Image Setup

The tool bar can be adjusted to optimize video Brightness, Contrast, Saturation and

Sharpness.

7.4.1 Brightness

The value range is 0~99. The higher value the brightness is, the brighter the image is.

7.4.2 Contrast

The value range is 0~99. The contrast is a measure of a display system, defined as the ratio of

white to black that the system is capable of producing. The higher value the contrast is, the

more delicate of color you can have.

7.4.3 Saturation

The value range is 0~99. The saturation of a color is determined by a combination of light

intensity and how much it is distributed across the spectrum of different wavelengths. The

higher value the saturation is, the more colorful the image will be.

7.4.4 Sharpness

The value range is 0~99. It applies image processing techniques to adjust the sharpness of live

view. However, higher the value is, more the noise is.

7.4.5 Default

After the adjustment of all setting, you can still click Default to make the setting back to the

original setting.

Configuration of

Main Menu

F3105 User Manual

Chapter 8. Setting-Basic

Click the Basic folder to display the sub folders including System, Camera, Network, and

Security.

8.1 System

Click the folder of System to display the sub-folders including Information, Date / Time,

Initialize, and Language.

8.1.1 Information

The Information screen provides the product factory information which includes Product

Name, Firmware Version.

8.1.2 Date / Time

The Date/ Time screen displays all options of time setting.

Setting-Basic

Information

F3105 User Manual

 Current Date / Time: This displays the current date and time of this IP Camera.

 PC Clock: This displays the date and time of the monitoring PC clock.

 Date / Time Format: You can click the pull down box to select different time display

formats.

Note: If you would like the Date / Time information shows on the Live View screen,

please check “Setting → Basic → Camera → General → Date / Time ” to execute the

setting.

 Adjust: You can select one of those four adjusting modes for your IP Camera.

 Keep current setting: Select this mode to keep the current date and time of this IP

Camera.

 Synchronize: Select this mode to keep the date and time of this IP Camera is the same

as the monitoring PC.

 Manual setting: Select this mode to adjust manually the date and time of this IP

Camera.

 Synchronize with NTP: Specify the NTP server name and the Refresh Interval to

synchronize the date and time of this IP Camera with those of the time server, known

as the NTP server.

Setting-Basic

Date/Time

F3105 User Manual

 Time Zone: Select the Time Zone format of Greenwich Mean Time among different

cities. The time display will be the same as the current date / time option.

 Daylight Saving Time: There are two modes to choose for setting up daylight saving

time.

 By Date: Set the start and end time by select month, day, hour, and minute.

 By Week Number: Set the start and end time by select month, week, hour, and

minute.

Note: The NTP server (Network Time Protocol) is the time server which is an Internet

standard protocol built on the top of TCP / IP. This assures accurate synchronization to

the millisecond of computer clock times in a network of computers.

8.1.3 Initialize

 Reboot: Click this button to reboot this IP Camera. A confirmation dialogue will appear

and then click “OK” to execute. It takes one minute to complete the reboot process.

 Factory Default: Click this button to recover this IP Camera to the factory default setting.

A confirmation dialogue will appear and then click “OK” to execute. The network indicator

on this IP Camera will start to blink. This IP Camera will reboot automatically after

completing adjustments to the default setting. Don't turn off this IP Camera until the device

reboots.

 Backup Setting: You can save the setting data of this IP Camera into a file. Click “Save”

Setting-Basic

Initialize

F3105 User Manual

and follow the instructions on the browser to save the setting data file to the location you

specified.

 Restore Setting: Download the saved setting data of this IP Camera. Click “Browse” and

select saved file. Click “OK” and this IP Camera is adjusted according to the loaded data

and then restarted.

 Firmware Update: Update the device software. Click “Browse” and select the file for

updating. A confirmation dialogue will appear. Click “OK” to start. This IP Camera will

reboot upon completion.

Note: When updating the firmware version, please use the file specific for the model.

Otherwise, some problems may occur. Unless the updating completed, please don’t

turn off the power or disconnect the network.

8.1.4 Language

 Upload Language Pack: Clicking “Browse” and selecting the file for updating, the

present language display of WEB User Interface could be changed. A confirmation dialogue

will appear. Click “OK”, then the update will be applied immediately. The default language

is “English.”

Setting-Basic

Language

F3105 User Manual

8.2 Camera

Click the folder of Camera to display the sub folders including General, H.264, MPEG-4,

MJPEG, 3GPP, and Advanced.

8.2.1 General

 RTSP: The default value is 554. If the IP Cameras connected with router and installed

outside are over 2 sets and all of them need support RTSP, please fill some value in the

blank space in the range from 1024 to 65535.

 RTP Unicast Streaming: The default value of port range is 5000 ~ 7999 and can be

changed from 1024 to 65535.

Note: Under Unicast streaming mode, streaming video is delivered from the camera to

a single client device.

 Image Rotated: Select the screen display “flip”, “mirror”, or “flip + mirror.”

 Audio Codec: Select one audio codec among G.711 U-law / G.711 A-law / AMR Audio /

Off.

G.711 U-law : one codec for “Computer Audio”, used in North America & Japan

areas.

G.711 A-law : another codec for “Computer Audio”, used in Europe and the rest of the

world.

AMR Audio: an audio codec of the third generation communication for MOBIL

PHONE. While the option selected, your mobile phone will receive the audio file

from IP Camera. And you can choose the bit rate from 4.75k to 12.2k. However, the

Setting-Basic

Camera

F3105 User Manual

usage of this codec will cause frame-rate decreasing.

Off: Select Off, audio file won’t be transmitted by IP CAM.

 Audio Mode: You can select Full duplex or Half duplex.

Full duplex: Select it for simultaneous communication in both direction between the

connected administrator and IP CAM. It means both parties can speak and be heard at

the same time.

Half duplex: Select it for communication in both directions, but only one direction at

a time (not simultaneously). It means one party begins receiving a signal, it must wait

for the transmitter to stop transmitting, before replying. Therefore, once one party

speak, he can’t hear any voice from the other party, just like the communication by

radio set.

 Video Clip Format: Select RECORDING compression format H.264 or MPEG-4.

MPEG-4: MPEG-4 has the advantage of sending a lower volume of date per time

unit across the network (bit-rate) compared to Motion JPEG and therefore provides a

relatively high image quality at a lower bit-rate (bandwidth usage).

H.264: H.264 provides higher compression rate than MPEG-4. Thus, H.264 can

decrease the bandwidth usage and further apply on 3G. However, H.264 will occupy

more system resources than MPEG-4. As long as the operating system appears

operating difficulties under H.264 format, please change to select MPEG-4.

 LED Threshold: Select LED light On, Off, and Auto.

On: Select On will led always work.

Off: Select off will disable led.

Auto: Select Auto will appear two thresholds, Bright and Dark. You can adjust them

for LED Auto-On and Auto-Off respectively. Bright value higher, LED auto-off more

easily in the bright environment will be. Dark value higher, LED auto-on more easily

in the dark environment will be. Bright Value is ranges from 0 to 70, and Dark Value

is from 30 to 100. The interval value between both is at least 30. The default value for

F3100/F3105 is 30 and 100.

 Overlay:

Text Overlay: Some information can be showed on the display screen, such as Date /

Time and user-defined text. And the background color can be chosen.

Privacy Mask: A specific area of the video image can be covered.

Setting-Basic

Camera

F3105 User Manual

8.2.2 H.264

 Viewer Authentication:

On: If the viewer authentication is On, the users will be requested to key-in username

and password when using QuickTime Player to have live viewing.

Off: If the viewer authentication is Off, you can have live viewing on computer by

QuickTime Player after entering “rtsp://ip:port/video.h264” on the URL column

directly.

 Multicasting Streaming (if it’s on):

Multicast Address: The multicast server address will appear automatically.

Video / Audio Port: Specify the transmission port number of the video data, from

1024 to 65535.

Time to Live: Set the maximum TTL that multicast can pass through.

Note: Time To Live option determines the maximum length of time (measure as the

number of network routers that can be passed before data arrives at its destination or

is dropped) within which a multicast packet must reach its destination.

 Image Size: Specify the image size when the network camera transmits. Choose one

among 1280 x 1024, 1280 x 720, 640 x 480, and 320 x 240.

 Frame Rate: Set the frame rate of H.264 image. Choose one value among 2, 3, 4, 5, 7,

10, 15, 20, 25, and 30 fps. The unit “fps” stands for “frames per second”.

Note: The frame rate is up to 15 fps at 1280x1024, and up to 30 fps at 640x480.

However, if you would like choose frame rate over 15 fps, the IMAGE SIZE of

H.264/MPEG-4/MJPEG setting page has to been selected 320x240 or 640x480 at the

Setting-Basic

Camera

F3105 User Manual

same time.

 Quality:

 Auto: The quality and bitrate will be adjusted automatically according to the frame

rate.

 Fixed Quality: Select the value of quality among Medium, Good, Delicate and

Excellent.

 Fixed Bitrate: Set the bitrate of H.264 image transmission for a line. Select one among

64Kbps, 128Kbps, 256Kbps, 384Kbps, 512Kbps, 768Kbps, 1Mbps, 1.5 Mbps, 2

Mbps, 3 Mbps, 4 Mbps, 5 Mbps, and 6 Mbps.

Note: Concerning how to select the suitable image quality for Fixed Quality or Fixed Bitrate,

please refer to the CHAPTER 10. APPENDIX / A. Frame-rate & Bitrate Table.

 IP Interval: It’s the ratio of i-frame & p-frame. Select one among 1, 5, 10, 15, 30, 60, and

120. The ratio smaller, the streaming smoother.

Note: The IP interval value means a ratio of “ P-frame / I-frame “ in a certain section of

frame sequences. The ratio lower, the live view clear. However, live view will lag if the

bandwidth isn’t big enough. In this situation, you have to choose another bigger IP interval

value to solve the problem.

Note: If Video Clip Format of General Menu (go “Setting → Basic → Camera →

General” ), which is for recording compression, is chosen H.264, the IP interval option will

appear “Auto” automatically and can’t select. The limit is for avoiding damaging the

recording quality of 5 seconds temporary-saved video recorded on FTP server.

8.2.3 MPEG-4

Setting-Basic

Camera

F3105 User Manual

 Viewer Authentication:

On: If the viewer authentication is On, the users will be requested to key-in username

and password when using QuickTime Player to have live viewing.

Off: If the viewer authentication is Off, you can have live viewing on computer by

QuickTime Player after entering “rtsp://ip:port/video.mp4” on the URL column

directly.

 Multicasting Streaming (if it’s on):

Multicast Address: Specify the multicast server address.

Video / Audio Port: Specify the transmission port number of the video data, from

1024 to 65535.

Time to Live: Set the maximum TTL that multicast can pass through.

Note: Time To Live option determines the maximum length of time (measure as the

number of network routers that can be passed before data arrives at its destination or

is dropped) within which a multicast packet must reach its destination.

 Image Size: Specify the image size when the network camera transmits. Choose one

among 1280 x 1024, 1280 x 720, 640 x 480, and 320 x 240.

 Frame Rate: Set the frame rate of the MPEG-4 image. Choose one from 1, 2, 3, 4, 5, 7,

10, 15, 20, 25, and 30 fps. The unit “fps” stands for “frames per second.”

Note: The frame rate is up to 15 fps at 1280x1024, and up to 30 fps at 640x480.

However, if you would like choose frame rate over 15 fps, the IMAGE SIZE of

H.264/MPEG-4/MJPEG setting page has to been selected 320x240 or 640x480 at the

same time.

 Quality:

 Auto: The quality and bitratee will be adjusted automatically according to the frame

rate.

 Fixed Quality: Select the value of quality among Medium, Good, Delicate and

Excellent.

 Fixed Bitrate: Set the bitrate of MPEG-4 image transmission for a line. You can select

one value among 64Kbps, 128Kbps, 256Kbps, 384Kbps, 512Kbps, 768Kbps, 1Mbps,

1.5 Mbps, 2 Mbps, 3 Mbps, 4 Mbps, 5 Mbps, and 6 Mbps.

Note: Concerning how to select the suitable image quality for Fixed Quality or Fixed Bitrate,

please refer to the CHAPTER 10. APPENDIX / A. Frame-rate & Bitrate Table.

 IP interval: It’s the ratio of i-frame & p-frame. You can select one among 1, 5, 10, 15, 30,

60, and 120. The ratio smaller, the streaming smoother.

Note: The IP interval value means a ratio of “ P-frame / I-frame “ in a certain section of

frame sequences. The ratio lower, the live view clear. However, live view will lag if the

bandwidth isn’t big enough. In this situation, you have to choose another bigger IP interval

Setting-Basic

Camera

F3105 User Manual

value to solve the problem.

Note: If Video clip format of General Menu, which is for recording compression, is chosen

MPEG-4, the IP interval option will appear “Auto” automatically and can’t select. The limit

is for avoiding damaging the recording quality of 5 seconds temporary-saved video

recorded on FTP server.

8.2.4 MJPEG

 Viewer Authentication:

On: If the viewer authentication is On, the users will be requested to key-in username

and password when using QuickTime Player to have live viewing.

Off: If the viewer authentication is Off, you can have live viewing on computer by

QuickTime Player after entering “rtsp://ip:port/video.mjpg” on the URL column

directly.

 Multicasting streaming (if it’s on):

Multicast Address : Specify the multicast server address.

Video / Audio Port: Specify the transmission port number of the video data, from

1024 to 65535.

Time to Live: Set the maximum TTL that multicast can pass through.

Note: Time To Live option determines the maximum length of time (measure as the

number of network routers that can be passed before data arrives at its destination or

is dropped) within which a multicast packet must reach its destination.

 Image Size: Specify the image size when the network camera transmits. Choose among

1280 x 1024, 1280 x 720, 640 x 480, and 320 x 240.

 Frame Rate: Set the frame rate of the MJPEG image. Choose one among 1, 2, 3, 4, 5, 7,

Setting-Basic

Camera

F3105 User Manual

10, 15, 20, 25, and 30 fps. The unit “fps” stands for “frames per second”.

Note: The frame rate is up to 15 fps at 1280x1024, and up to 30 fps at 640x480.

However, if you would like choose frame rate over 15 fps, the IMAGE SIZE of

H.264/MPEG-4/MJPEG setting page has to been selected 320x240 or 640x480 at the

same time.

 Quality:

 Auto: The quality and bit rate will be adjusted automatically according to the frame

rate.

 Fixed Quality: Select the value of quality among Medium, Good, Delicate and

Excellent.

 Fixed Bitrate: Set the bitrate of MJPEG image transmission for a line. You can select

one among 64Kbps, 128Kbps, 256Kbps, 384Kbps, 512Kbps, 768Kbps, 1Mbps, 1.5

Mbps, 2 Mbps, 3 Mbps, 4 Mbps, 5 Mbps, and 6 Mbps.

Note: Concerning how to select the suitable image quality for Fixed Quality or Fixed

Bitrate, please refer to the CHAPTER 10. APPENDIX / A. Frame-rate & Bitrate Table.

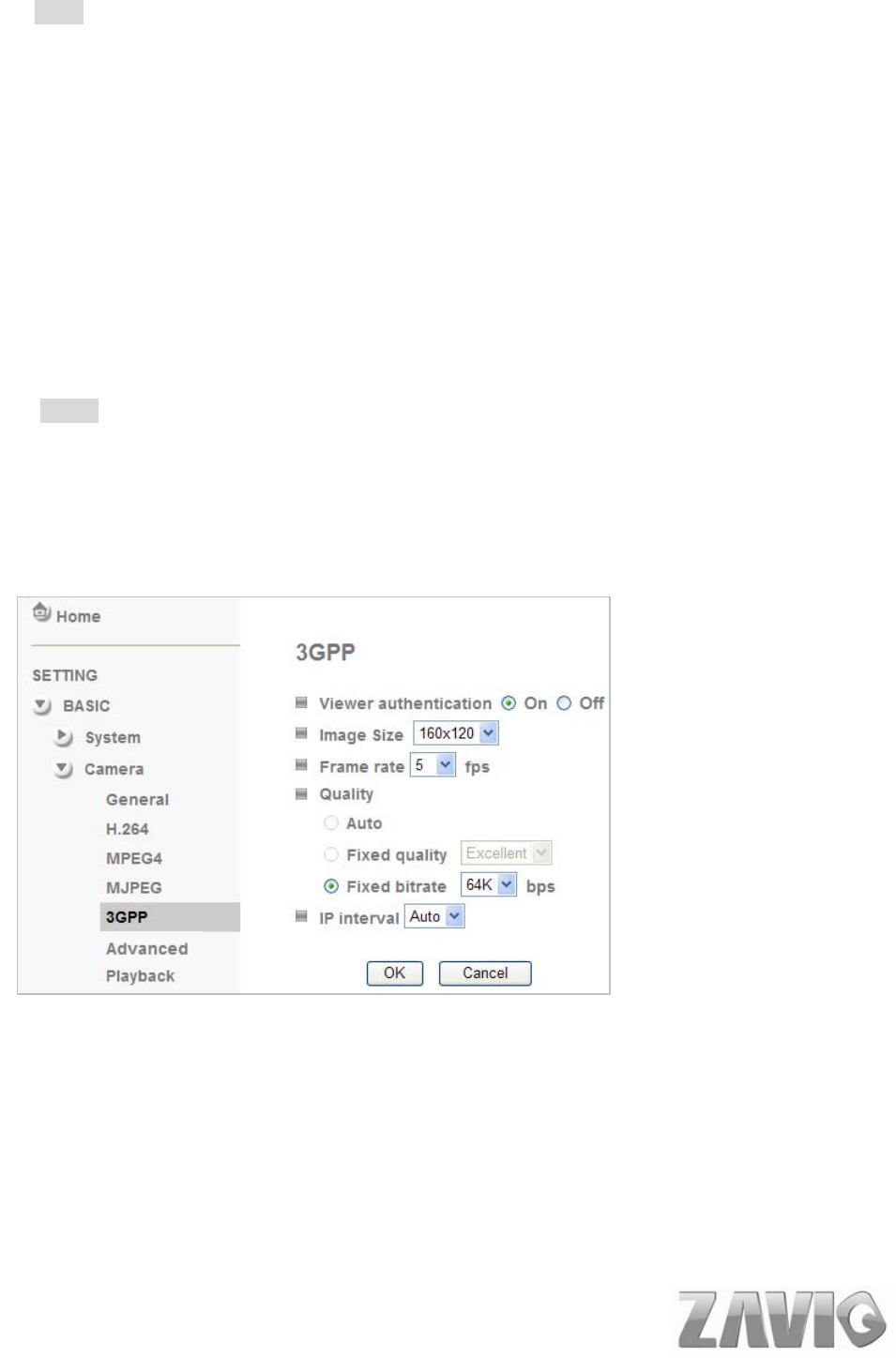

8.2.5 3GPP

 Viewer Authentication:

On: If the viewer authentication is On, the users will be requested to key-in username

and password when using QuickTime Player to have live viewing.

Off: If the viewer authentication is Off, you can have live viewing on computer by

QuickTime Player after entering “rtsp://ip:port/video.3gp” on the URL column

directly.

 Image Size: Image size for 3GPP is 160 x 120.

 Frame Rate: Set the frame rate of the 3GPP image. Choose one between 5 or 10 fps.

Setting-Basic

Camera

F3105 User Manual

 Quality:

 Auto: The quality and bit rate will be adjusted automatically according to the frame

rate.

 Fixed Quality: This item here can’t be selected.

 Fixed Bitrate: Set the bitrate of 3GPP image transmission for a line. You can select

one among 64Kbps, 48Kbps, 32Kbps, 16Kbps.

 IP Interval: It’s the ratio of i-frame & p-frame. You can select one among 1, 5, 10, 15, 30,

60, and 120. The ratio smaller, the streaming smoother.

Note: The IP interval value means a RATIO of “ P-frame / I-frame “ in a certain section of

frame sequences. The ratio lower, the live view clear. However, live view will lag if the

bandwidth isn’t big enough. In this situation, you have to choose another bigger IP interval

value to solve the problem.

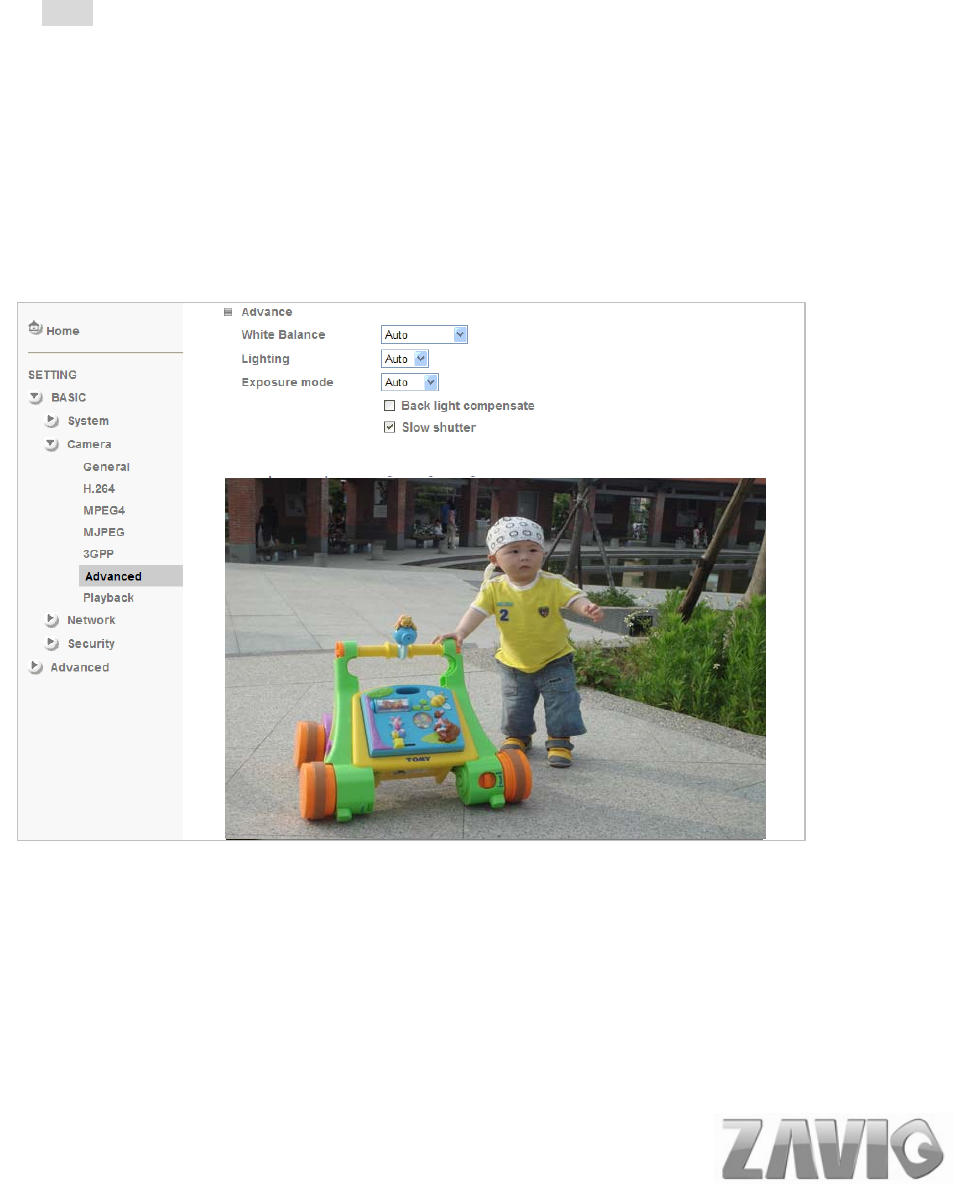

8.2.6 Advanced

 White Balance: Choose the white balance among Auto, Florescent, Incandescent and

Black & White.

 Lighting: The default setting of lighting environment is Auto. However, you may also

choose 50 or 60 Hz upon the lighting environment of your country.

 Exposure Mode: Choose Auto, High Speed Mode, or Manual upon the capture

Setting-Basic

Camera

F3105 User Manual

environment.

 Auto: Choose Auto and you have 3 options to adjust the exposure condition.

 Back Light Compensate: Click it on and it helps avoid problems in

situations where the main subject ends up being too dark, such as when

shooting people or other subjects in front of a bright background.

 Slow Shutter: Click it on and the range of shutter speed will be from 1/5 to

1/120 sec. It will adjust the shutter speed automatically and helpful to

capture the clear image when shooting in a dark place.

 High Speed Mode: Choose High Speed Mode and the shutter speed will be close

1/120 sec. as far as possible to help to capture the motion image of sports or

high-speed phenomena.

 Manual: Choose Manual and you can select options, including Shutter Speed and

Gain.

 Shutter Speed: The default value is 1/30 sec. and you can select the value

among 1/4, 1/6, 1/12, 1/30, 1/60, and 1/120 sec.

 Gain: The default value is 2 and the value is adjustable among 0~9. It will

influence the brightness of the image. The more the value is, the brighter the

image is. However, the higher gain value might cause more noise.

Setting-Basic

Camera

F3105 User Manual

8.2.7 PLAYBACK

Clicking the button of “Open Files” and select the video file recorded previous, you can look

for the desired image. Besides, you can still have the live view in the screen. The function of

each button is as below illustration:

Open Digital Zoom

Volume

Mute on / Mute off

Fast

orward

Rewind

Open Files

Next Track

Stop

Pause

Previous Track

Full Screen

Mirror/ Flip

Snapshot

Setting-Basic

Camera

F3105 User Manual

8.3 Network

Click the folder of Network to display the sub folders including Information, PPPoE,

DDNS, UPnP, Bonjour, IP Notification, Wireless and Messenger.

8.3.1 Information

Display the MAC address of the device.

 Obtain an IP address automatically (DHCP): If a DHCP server is installed on the

network, to select this while the IP address is assigned by the DHCP server.

 Obtain DNS server address automatically: Select this to obtain the address of DNS

server automatically.

Setting-Basic

Network

F3105 User Manual

Use the following IP address: Select this option when the fixed IP address is set.

IP address: Enter the IP address of the device.

Subnet mask: Enter the subnet mask.

 Default gateway: Enter the default gateway.

 Use the following DNS server address: Select this when you set the fixed address as the

IP address of DNS server.

Primary DNS server: Enter the IP address of the primary DNS server.

Secondary DNS server: Enter the IP address of the secondary DNS server, if

necessary.

 HTTP Port Number: Select 80 in general situations. If you want to use a port number

other than 80, select the text box and enter a port number between 1024 and 65535.

 When you have set the HTTP port number to a number other than 80 on the Network

Setting screen in the Setup Program, access the device by typing the IP address of the

device on the web browser as follows: Example: when HTTP port number is set to

2000 http://192.168.1.100:2000/

Note: The IP Camera needs to be rebooted after it finishes changing the network setting

completely.

Note: If you connect the IP Camera with your computer directly, the default network domain

of camera is 192.168.1.xx

8.3.2 PPPoE

If your ISP provides Dynamic IP with authentication by username and password, type all

PPPoE information in this part. When using the PPPoE function, you need to turn on the

DDNS or IP Notification function at same time.

Setting-Basic

Network

F3105 User Manual

 IP Address: The IP address obtained at the PPPoE connecting with network.

 User ID: Enter the user ID for authentication necessary for PPPoE connections. Type it

up to 64 characters.

 Password: Enter the password for authentication necessary for PPPoE connections. Type

it up to 32 characters.

 Re-type Password: Re-type the password to confirm.

 Obtain DNS server address automatically: Select this to obtain the address of DNS

server automatically.

 Use the following DNS server address: Select this when you set the fixed address as the

IP address of DNS server.

 Primary DNS server: Enter the IP address of the primary DNS server.

 Secondary DNS server: Enter the IP address of the secondary DNS server.

Note : 1. PPPoE (Point-to-Point Protocol over Ethernet): PPPoE is a network protocol

for encapsulating Point-to-Point Protocol frames insider Ethernet frames. PPPoE

connection is used mainly with ADSL service where individual users connect to the

ADSL transceiver (modem) over Ethernet work. It also widely used in XDSL (digital

affiliate line such as ADSL, VDSL or SDSL)

2. The IP Camera needs to be rebooted after it finishes changing the network

completely.

3. The IP Camera with Intelligent IP Installer can’t be founded after turning on the

PPPoE and reboot.

Setting-Basic

Network

F3105 User Manual

8.3.3 DDNS (Dynamic DNS)

DDNS is a system which allows the domain name data held in a name server to be updated

in real time. The most common use for DDNS is allowing an internet domain name to be

assigned to a computer with a varying / dynamic IP Address. This makes it possible for other

sites on the internet to establish connection to the machine without needing to track the IP

Address themselves.

 Server Name: Choose the DDNS Server from the list.

 User ID: Enter the user ID for authentication necessary for DDNS connections. Type it up

to 64 characters.

 Password: Enter the password for authentication necessary for DDNS connections. Type

it up to 32 characters.

 Re-type Password: Re-type the password to confirm.

 Host Name: Enter the host name that is registered to the DDNS server.

Setting-Basic

Network

F3105 User Manual

Note : How to apply DDNS username and Host name?? You can apply DDNS

username and Host name by the following steps:

1. Login http://www.dyndns.org,

click the Creat Account

2. Input all information and

follow step by step with

DynDNS

Setting-Basic

Network

F3105 User Manual

3. Login with new account and

click Account → My Hosts →

Add Host Services

4. Type domain in the Hostname

field and select sub-domain

Setting-Basic

Network

F3105 User Manual

5. After type information,

check your DDNS service.

6. Type your DDNS User ID,

Password and Host name in

Setting → Network → DDNS.

After completing setting,

reboot IP Camera.

Setting-Basic

Network

F3105 User Manual

8.3.4 UPnP (Universal Plug and Play)

If you have a Router to access to internet and the Router supports UPnP IGD function, you

need to turn on the UPnP Port Forwarding function.

 HTTP Port: Enter the HTTP port number and default HTTP port is 80.

 SSL Port: Enter the SSL port number and default SSL port is 443.

 RTSP Port: Enter the RTSP port, default value is 554 for computer view.

Note : UPnP (Universal Plug and Play): UPnP is a set of computer network protocol. It

allows devices to connect seamlessly and simplify the implementation of networks in the

home and corporate environments.

Setting-Basic

Network

F3105 User Manual

8.3.5 Bonjour

Bonjour, also known as zero-configuration networking, enables automatic discovery of

computers, devices, and services on IP networks. Bonjour uses industry standard IP protocols

to allow devices to automatically discover each other without the need to enter IP addresses or

configure DNS servers.

 Device Name: Enter Device Name you wish.

Note: How to use Bonjour in your Windows Browser UI? Please check the link below:

http://www.apple.com/support/downloads/bonjourforwindows.html

Setting-Basic

Network

F3105 User Manual

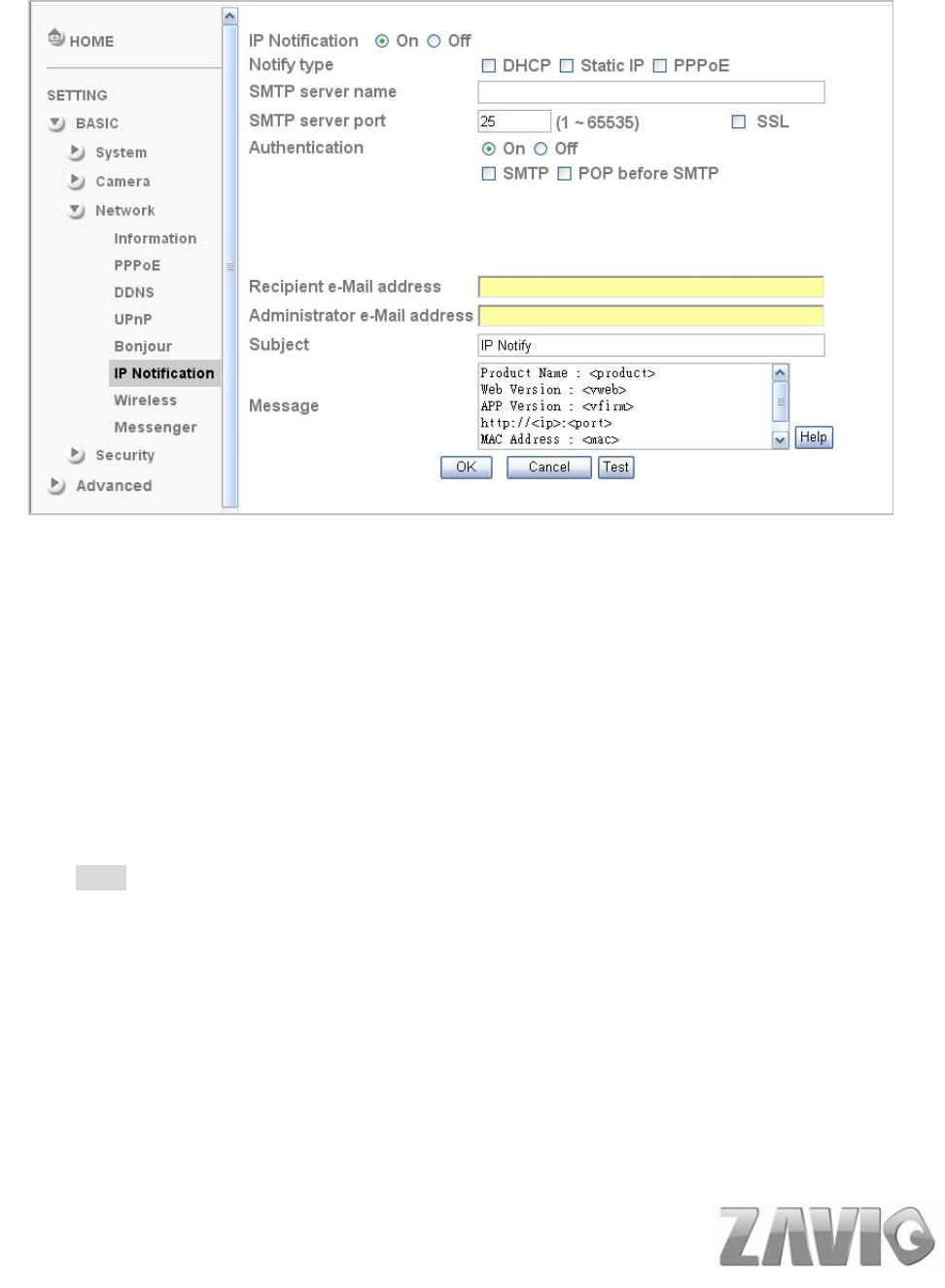

8.3.6 IP Notification

When network notify type is set to “ON”, you can send an e-mail notification of the completion of

the network setting.

 Notify Type: You can select the notify type among DHCP, Static IP, and PPPoE.

 SMTP Server Name: Type the SMTP server name up to 64 characters, or the IP address

of the SMTP server.

 SMTP Server Port: You can set port number from 1~65535 according to your mail

server. The default value is 25.

Security setting: Tick SSL box if the mail server you use has security restriction.

Note: If you use g-mail as your mail server, you should set 25 as your port number and

tick SSL box.

 Authentication: Select the authentication required when you send an email.

Off: Select if no authentication is necessary when an email is sent.

 On: When authentication is necessary an e-mail is sent, there are SMPT, POP before

SMPT or both three options.

Setting-Basic

Network

F3105 User Manual

 Authentication: Select the authentication required when you send an email.

Off: Select if no authentication is necessary when an email is sent.

 On: When authentication is necessary an e-mail is sent, there are SMPT, POP before

SMPT or both three options.

 SMTP: Select if SMTP authentication is necessary when an e-mail is sent.

 POP before SMTP: Select if POP before SMTP authentication is necessary when an

e-mail is sent.

 POP server name: It is necessary when the POP before SMTP is selected in

Authentication. Type the POP (receiving mail) server name up to 64 characters, or

type the IP address of the POP server. This setting is necessary when the SMTP server

which sends e-mails performs authentication using the POP user account.

 User name, Password: Type the user name and Password of the user who has the

mail account. This setting is necessary when the SMTP server which sends e-mails

performs authentication.

 Recipient E-mail Address: Type the recipient e-Mail address up to 64 characters. You

can specify up to three recipient E-mail addresses.

 Administrator E-mail Address: Type the Administrator e-Mail address up to 64

characters. This address is used for reply mail and sending system messages from the SMTP

server.

 Subject: Type the subject/title of the e-Mail up to 64 characters. With respect to mail

which is sent according to the IP notification.

 Message: Type the text of the E-mail up to 384 characters. Default value provides

network information including IP, Port, MAC, Model, Firmware Version and Web Version.

Setting-Basic

Network

F3105 User Manual

8.3.7 Wireless (For F3105)

The wireless network has to be set up by using cable network connection. After setting the

camera correctly, the wireless function can work with cable network connection. Wireless

settings must be the same as the access point or ad-hoc device. When changing the settings

they should always be made first in the camera and then in the wireless access point. This

ensures that the camera is always accessible when making changes.

 Status of Wireless Network

This list is the result of network scan. The network is currently linked to will be shown in

blue. The following information is provided.

ESSID - The name of a wireless network (or ad-hoc device). If the same name occurs

several times this means that several access points for that network were found. The

camera cannot be configured to only associate with one particular access point.

Mode - Shows if the network type is Master (access point or router) or Ad-Hoc

(another client).

Security - Shows which type of security the network uses. See below for the security

types supported by the camera.

Channel - Shows the wireless channel currently in use.

Signal Strength - Shows the signal strength.

Bit Rate - Shows the bit rate in Megabit/s. This can only be shown for the access

point currently in use. Note that the bit rate shown is the current rate, and that this

value may vary over time.

Setting-Basic

Network

F3105 User Manual

 Wireless Setting

These settings control how the camera interacts with the wireless network. It is also possible

to enable wireless encryption apart from identifying the wireless network.

 IP Address – This displays blank, 0.0.0.0 or IP Address. When it is blank, the camera

doesn’t establish physical link with access point yet. The 0.0.0.0 means that physical

link was established but trying to get IP address. When it displays IP address, then

user can use wireless network.

 ESSID (ESSID is sometimes written as SSID.) - This is the name of the wireless

network the camera is configured for. The field accepts up to 32 alphanumeric

characters. The name must be exactly the same as that used in the wireless access

point or the connection will not be established.

 Leaving this field blank means the camera will attempt to access the nearest open

network.

Mode - Setting this to Managed means the camera will attempt to access the nearest

open access point. The Ad-hoc option allows the camera to connect to other wireless

devices clients.

Note : 1. WPA-/WPA2-PSK (Wi-Fi Protected Access - Pre-Shared Key) the camera uses

a pre-shared key (PSK) to initiate WPA security. The pre-shared key is entered on the

access point and on each device on the wireless network. The key can be entered either

as Manual hex, as 64 hexadecimal (0-9, A-F) characters, or as a Passphrase, using 8 to

63 ASCII characters. The access point keeps out unauthorized users by requiring the

key to communicate.

2. WEP (Wired Equivalent Protection) the original security standard used in wireless

networks that provides a minimal level of security that can deter minor trespasses. The

administrator can select the key length among 64 or 128 bits. 64bits is the default

setting.

Setting-Basic

Network

F3105 User Manual

8.3.8 Messenger

Messenger function provide an easy-connect feature. User can easy to know what camera’s

private and public IP address is.

 Protocol: support MSN only.

 Login Account: Camera will use this account to login MSN server. This MSN account

should be applied form http://www.msn.com.

 Password: password for this msn account.

 Re-type Password: re-type password to double confirm.

 Alias: This alias will display on MSN like the following which display in red frame.

 Port Range: Camera will select one port from this port range for video transmission.

 Video Mode: You can choose to receive video streaming from Computer view(MPEG-4)

or Mobile view (3GPP).

 IP Notification: Switch the IP notification On / Off. If this feature switches On, camera

will send IP notification to the users who are allowed.

Setting-Basic

Network

F3105 User Manual

 Privacy: Switch privacy On / Off. When privacy turns on, only those users in allow list

can access the camera

 User: Input to this blank to edit allow list.

 Allow List: When privacy turns on, only those users in allow list can access the camera.

Setting-Basic

Network

F3105 User Manual

8.4 Security

Click the folder of Security to display the sub folders including Account and HTTPS.

8.4.1 Account

The device fault account and password setting is “admin / admin”. That means everyone

who knows IP address can access the device including all configuration. It is necessary to

assign a password if the device is intended to be accessed by others.

 User Name: Set a user name between 4-16 characters.

 Password: Set a password between 4-16 characters.

 Re-type Password: Re-type the password to confirm.

 Viewer Mode: Set the user mode among Admin, Operator, and Viewer. Different viewer

mode has different limits of authority.

The Admin mode has all authority of configuration.

The Operator mode can not only view the Live View but also control the PTZ (only

for PTZ models).

The Viewer mode only can view the Live View.

 Viewer Authentication: Select On, allows any viewer direct access to Live View. Select

Off, allow admin, operator, or viewer access to Live View.

Setting-Basic

Security

F3105 User Manual

8.4.2 HTTPS

HTTPS is a URL scheme used to indicate a secure HTTP connection. It is syntactically

identical to the http:// scheme normally used for accessing resources using HTTP. Using an

https: //URL/ with a different default TCP port (443) and an additional encryption /

authentication layer between the HTTP and TCP. You can use the IP camera through HTTPS

easily by using https:// instead of http://.

 Create & Install: Create a self-signed certificate for HTTPS to recognize.

 Installed Certificate: Display or remove the properties of the installed certificate.

 HTTPS Connection Policy: Set HTTPS connection policy for different level of users.

 To use the HTTPS encryption, please set up “Create self-signed certificate” for the first

time you use the HTTPS function, and then set up the connection policy for different users.

Note: When enable HTTPS with RTSP on mode, the IP Camera only protect the setting such

as username and password and do not protect video and audio. When enable HTTPS with

RTSP off mode, the IP Camera will protect all setting including video and audio.

Setting-Basic

Security

F3105 User Manual

8.4.3 IP Filter

IP Filter provides the function of controlling the range of IP address, similar with firewall

service.

 IP Filter: Select if you would like to have IP filter function.

 Allow Range: The default range is from 0.0.0.0 to 255.255.255.255. Enter the “Start IP

address” and “End IP address” in the range, then you can add a new allow range in allow

range list.

 Allow Range List: Except the default range 0.0.0.0~255.255.255.255, the list allows to

add four more sets of allow range at most.

 Deny Range: You can define the deny range by entering “Start IP address” and “End IP

address”

 Deny Range List: You can define not more than five sets of deny range in the list.

Setting-Basic

Security

F3105 User Manual

Chapter 9. Setting-Advanced

Click the folder of Advanced to display the sub folders including FTP client, SMTP, Network

storage, Schedule, Alarm buffer, Motion detection, Audio detection, and System Log.

9.1 FTP Client

Use this menu to set up for capturing and sending a image or video clip to an FTP server. By

using FTP client function, you can send files which has been shot and recorded linked with

the external sensor input or with the built-in motion detection function to FTP server. FTP

client setting menu is composed of two tabs, General, Alarm Sending and Periodical

Sending.

9.1.1 General

Select On when you use FTP function. The FTP client Setting screen appears.

Select Off, when you do not wish to use the FTP client function.

Note: The frame rate and operability on the main viewer may decrease while a file is

being transmitted by the FTP client function.

 FTP Server Name: Type the FTP server name to upload still images up to 64 characters,

or the IP address of the FTP server.

Setting-Advanced

FTP Client

F3105 User Manual

 User Name: Type the user name for the FTP server.

 Password: Type the password for the FTP server.

 Retype Password: To confirm the password, type the same characters as you typed in the

Password box.

 Passive Mmode: Set whether you use the passive mode of FTP server or not when

connecting to FTP server. Select On to connect to FTP server using the passive mode.

 Attached File Type: You can choose snapshot or video clip for alarm sending. Select

“Snapshot,” one snapshot will be transmitted to the specified FTP server while motion

detection / audio detection triggered. Select “Video clip,” one 5-seconds video clip will be

transmitted.

 Test: After setting the FTP server information, you can tick the test key to test if the

connection between IP CAM and FTP server works.

9.1.2 Alarm Sending

Set to forward a snapshot or video clip file to the specified FTP server linked with the alarm

detection by the external sensor input or by the built-in motion detection function. Select On

to send the file to FTP server linked with the alarm detection.

 Remote Path: Type the path to the destination in FTP server up to 64 characters.

Setting-Advanced

FTP Client

F3105 User Manual

 Image File Name: Type the file name you want to assign to the files when sending to the

FTP server. You can use up to 10 alphanumeric characters, - (hyphen) and _ (underline)

for naming.

 Suffix: Select a suffix to add to the file name

 Date & time: The date & time suffix is added to the Image file name. The date/time

suffix consists of lower two-digits of year (2 digits), month (2 digits), date (2 digits),

hour (2 digits), minute (2 digits), second (2 digits), and consecutive number (2 digits),

thus 14-digit number is added to the file name.

 Sequence number: A consecutive number of 10 digits between 1 and 4294967295

and two fixed digits 00 is added to the Image file name.

 Sequence number clear: Click Clear and the suffix of the sequence number returns

to 1.

 Alarm

 Motion Detection: Click it on for using Motion Detection function as a sensor. You

can set motion detection function at the motion detection function screen.

Note: You can set motion detection at motion detection screen. (Please go “Setting →

Advanced →Motion Detection → Setting”) For more details, you can check Chapter 9.6.

 Audio Detection: Click it on for using Audio Detection function as a sensor. You can

set audio detection function at the audio detection function screen.

Note: You can set audio detection at audio detection screen. (Please go “Setting →

Advanced →Audio Detection → Setting”) For more details, you can check Chapter 9.7.

 Network Link Down: Click it on to receive a snapshot or a video clip while network

link down. If Attached File Type (go “Setting → Advanced → FTP Client →

General”) was clicked as video clip, you can use Alarm Buffer function as a sensor.

It’s for recording audio file in the IP CAM before and after disconnected network.

Note: You can set alarm buffer at alarm buffer screen. (Please go “Setting → Advanced →

Alarm Buffer → Setting”) For more details, you can check Chapter 9.5.

 Effective Period: Set the period when the periodical sending is effective.

Always: The periodical sending is always effective.

Schedule: You can specify the period when the periodical sending is effective in the

Schedule setting in the other section.

Note: You can set schedule function at schedule screen. (Please go “Setting → Advanced

→ Schedule → Setting”) For more details, you can check Chapter 9.4.

Setting-Advanced

FTP Client

F3105 User Manual

9.1.3 Periodical Sending

Select On, you can set to send an image file to FTP server periodically.

 Remote Path: Remote path: Type the path to storage location of FTP server which you

have authorized.

 Image File Name: Type the file name of snapshot or video clip sent by SMTP up to 10

alphanumeric characters, - (hyphen) and _ (under score).

 Suffix: Select a suffix to be added to the file name sent by SMTP.

None: The name of the sent file will be the Image file name.

Date & time: The date & time suffix is added to the Image file name. The date & time

suffix consists of lower two-digits of year (2 digits), month (2 digits), date (2 digits),

hour (2 digits), minute (2 digits) and second (2 digits), and consecutive number (2

digits), thus 14-digit number is added to the file name.

Sequence number: A consecutive number is added to the Image file name.

Sequence number clear: Click Clear and the suffix of the sequence number returns

to 1.

 Interval: Set the periodical sending is effective interval. Min value is 1 min and Max

value is 24 hour.

 Effective Period: Set the period when the periodical sending is effective.

Always: The periodical sending is always effective.

Schedule: You can specify the period when the periodical sending is effective in the

schedule setting in the other section. Please check “Setting → Advanced →

Schedule →Setting”.

Note: You can set schedule function at schedule screen. (Please go “Setting → Advanced

→ Schedule → Setting”) For more details, you can check Chapter 9.4.

Setting-Advanced

FTP Client

F3105 User Manual

9.2 SMTP

Set the SMTP menu when you want to send an image or video clip via e-mail. By using

Mail (SMTP) function, you can send a mail with attached file which has been shot linked

with the external sensor input or with the built-in motion detection function. The file can

also be sent periodically. E-Mail (SMTP) setting menu is composed of three tabs, General,

Alarm Sending and Periodical Sending.

9.2.1 General

Select On when you use the SMTP function. The common setting options are displayed

below. Select Off, if you do not wish to use the E-mail (SMTP) function.

Note : The Setting of general part will be the same as IP Notification. (Please check “Setting →

Basic → Network → IP Notification”)

 SMTP Server Name: Type the SMTP server name up to 64 characters, or the IP address

of the SMTP server.

 SMTP Server Port: You can set port number from 1~65535 according to your mail

server. The default value is 25.

Security setting: Tick SSL box if the mail server you use has security restriction.

Setting-Advanced

SMTP

F3105 User Manual

Note: If you use g-mail as your mail server, you should set 25 as your port number and

tick SSL box.

 Authentication: Select the authentication required when you send an email.

Off: Select if no authentication is necessary when an email is sent.

 On: When authentication is necessary an e-mail is sent, select one of the

authentication methods from the followings.

 SMTP: Select if SMTP authentication is necessary when an e-mail is sent.

 POP Before SMTP: Select when POP before SMTP authentication is necessary when an

e-mail is sent.

Note：When you set to On, be sure to select either or both SMTP or / and POP before SMTP.

 POP server name: It is necessary when the POP before SMTP is selected in

Authentication. Type the POP (receiving mail) server name up to 64 characters, or

type the IP address of the POP server. This setting is necessary when the SMTP server

which sends e-mails performs authentication using the POP user account.

 User name, Password: Type the user name and Password of the user who has the

mail account. This setting is necessary when the SMTP server which sends e-mails

performs authentication.

 Recipient E-mail Address: Type the recipient e-Mail address up to 64 characters. You

can specify up to three recipient E-mail addresses.

 Administrator E-mail Address: Type the Administrator e-Mail address up to 64

characters. This address is used for reply mail and sending system messages from the

SMTP server.

 Attached File Type: You can choose snapshot or video clip for alarm sending. Select

“Snapshot,” one snapshot will be transmitted to the administrator’s e-mail address while

motion detection / audio detection triggered. Select “Video Clip,” one 5-seconds video

clip will be transmitted.

 Subject: Type the subject/title of the e-Mail up to 64 characters. With respect to mail

which is sent according to the alarm detection when Alarm sending of the alarm tab is set

to On, the characters standing for the sensor type added to the subject.

 Message: Type the text of the E-mail up to 384 characters. (A line break is equivalent to 2

characters.)

 Test: After setting the SMPT server information, you can tick the test key to test if the

connection between IP CAM and the SMPT server works.

Setting-Advanced

SMTP

F3105 User Manual

9.2.2 Alarm Sending

Set to send the mail with connection to the alarm detection by the external sensor input or by

the built-in motion detection function. Select On to send the image file to SMTP server

linked with the alarm detection.

 Alarm Sending: Select On to set to send mail with connection to the alarm detection.

 File Attachment: Set whether an image file is attached to the mail sent or not. When On

is selected, the image file made by the settings below is attached. When Off is selected,

only the message is sent.

 Image File Name: Type the file name you want to assign to the file attached to a mail.

You can use up to 10 alphanumeric, - (hyphen) and _ (underscore) for naming.

 Suffix: Select a suffix to add to the file name

None: The name of the sent file will be the Image file name.

Date & time: The date & time suffix is added to the Image file name. The date & time

suffix consists of lower two-digits of year (2 digits), month (2 digits), date (2 digits),

hour (2 digits), minute (2 digits) and second (2 digits), and consecutive number (2

digits), thus 14-digit number is added to the file name.

Sequence number: A consecutive number is added to the Image file name.

Sequence number clear: Click Clear and the suffix of the sequence number returns

to 1.

 Alarm

 Motion Detection: Click it on for using Motion Detection function as a sensor. You

can set motion detection function at the motion detection function screen.

Setting-Advanced

SMTP

F3105 User Manual

Note: You can set motion detection at motion detection screen. (Please go “Setting →

Advanced → Motion Detection → Setting”) For more details, you can check Chapter 9.6.

 Audio Detection: Click it on for using Audio Detection function as a sensor. You can

set audio detection function at the audio detection function screen.

Note: You can set audio detection at audio detection screen. (Please go “Setting →

Advanced →Audio Detection → Setting”) For more details, you can check Chapter 9.7.

 Network Link Down: Click it on to receive a snapshot or a video clip while network

link down. If Attached File Type was clicked as video clip (go “Setting → Advanced

→ FTP Client → General”) , you can using Alarm buffer function as a sensor. It’s for

recording audio file in the IP CAM before and after disconnected network.

Note: You can set alarm buffer at alarm buffer screen. (Please go “Setting → Advanced

→ Alarm Buffer → Setting”) For more details, you can check Chapter 9.5.

 Effective Period: Set the period when the periodical sending is effective.

Always: The periodical sending is always effective.

Schedule: You can specify the period when the periodical sending is effective in the

Schedule setting in the other section.

Note: You can set schedule function at schedule screen. (Please go “Setting → Advanced

→ Schedule → Setting”) For more details, you can check Chapter 9.4.

9.2.3 Periodical Sending

You can set to send an image file by SMTP server periodically by selecting On to send the

image file by SMTP server linked with setting period.

Setting-Advanced

SMTP

F3105 User Manual

 Image File Name: Type the file name of the image sent by SMTP up to 10 alphanumeric

characters, - (hyphen) and _ (under score).

 Suffix: Select a suffix to be added to the file name sent by SMTP.

Date & time: The date & time suffix is added to the Image file name. The date & time

suffix consists of lower two-digits of year (2 digits), month (2 digits), date (2 digits),

hour (2 digits), minute (2 digits) and second (2 digits), and consecutive number (2

digits), thus 14-digit number is added to the file name.

Sequence number: A consecutive number is added to the Image file name.

Sequence number clear: Click Clear and the suffix of the sequence number returns

to 1.

 Interval: Set the periodical sending is effective interval. Min value is 1 min and Max

value is 24 hour.

 Effective Period: Set the period when the periodical sending is effective.

Always: The periodical sending is always effective.

Schedule: You can specify the period when the periodical sending is effective in the

schedule setting in the other section. Please check “Setting → Basic → Advanced

→ Schedule → Setting.”

Note: You can set schedule function at schedule screen. (Please go “Setting → Advanced →

Schedule → Setting”) For more details, you can check Chapter 9.4.

Setting-Advanced

SMTP

F3105 User Manual

9.3 Network Storage

Network storage provides the storage function for saving image files to the specified

computer and folder connected with the operating computer.

9.3.1 General

Select On if you would like to use the network storage function. Then choose one protocol

between Windows network (SMB/CIFS) and Unix network (NFS).

 Protocol- Unix Network (NFS):

Network storage location: Type the IP or name of specified computer and folder. For

example, //IP/folder name or // my_nas:/folder name.

 Protocol- Windows network (SMB/CIFS):

Network Storage Location: Type the IP or name of specified computer and folder.

For example, //IP/folder name or // my_nas:/folder name.

Workgroup: Type the name of workgroup which the operating computer belongs.

Setting-Advanced

Network Storage

F3105 User Manual

User Name: Type the name of workgroup.

Password: Type the password for workgroup.

Re-type password: Re-type password for workgroup.

Note: If the recording video file is assigned to be stored in a low-speed device (ex.

low-speed USB storage disk), there might be some problems to complete the storage.

9.3.2 Alarm Sending

Set to transmit the snapshot or video clip file with connection to the alarm detection by the

external sensor input or by the built-in motion detection function. Select On to send the file

to network storage location linked with the alarm detection.

 Alarm Sending: Select On to set to send mail with connection to the alarm detection.

 Image File Name: Type the file name you want to assign to the file to attach a mail. You

can use up to 10 alphanumeric, - (hyphen) and _ (underscore) for naming.

 Suffix: Select a suffix to add to the file name

Date & time: The date & time suffix is added to the Image file name. The date & time

suffix consists of lower two-digits of year (2 digits), month (2 digits), date (2 digits),

hour (2 digits), minute (2 digits) and second (2 digits), and consecutive number (2

digits), thus 14-digit number is added to the file name.

Sequence number: A consecutive number is added to the Image file name.

Sequence number clear: Click Clear and the suffix of the sequence number returns

Setting-Advanced

Network Storage

F3105 User Manual

to 1.

 Alarm:
