Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
IMPORTANT NOTE
Table of Contents
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
Product Overview
Hardware Installation
EZvuu
Easy Access
Live View
Setting
Appendix
Introduction
Basic Connection
Application
Safety Instruction
Minimum System Requirement
Package Contents
Physical Description
Mounting and Cable Connecting
System
Camera
Network
Events
Help
Live View Control Panel
Setting
Client Setting
Image Setup
Web Browsers
Mobile Phone Viewing
Windows Live Messenger
Frame Rate and Bitrate Table
Storage Requirement Table
Live View
Client Setting
Camera Console
Remote Playback
Remote Record
OSD Toolbar
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
Introduction
7

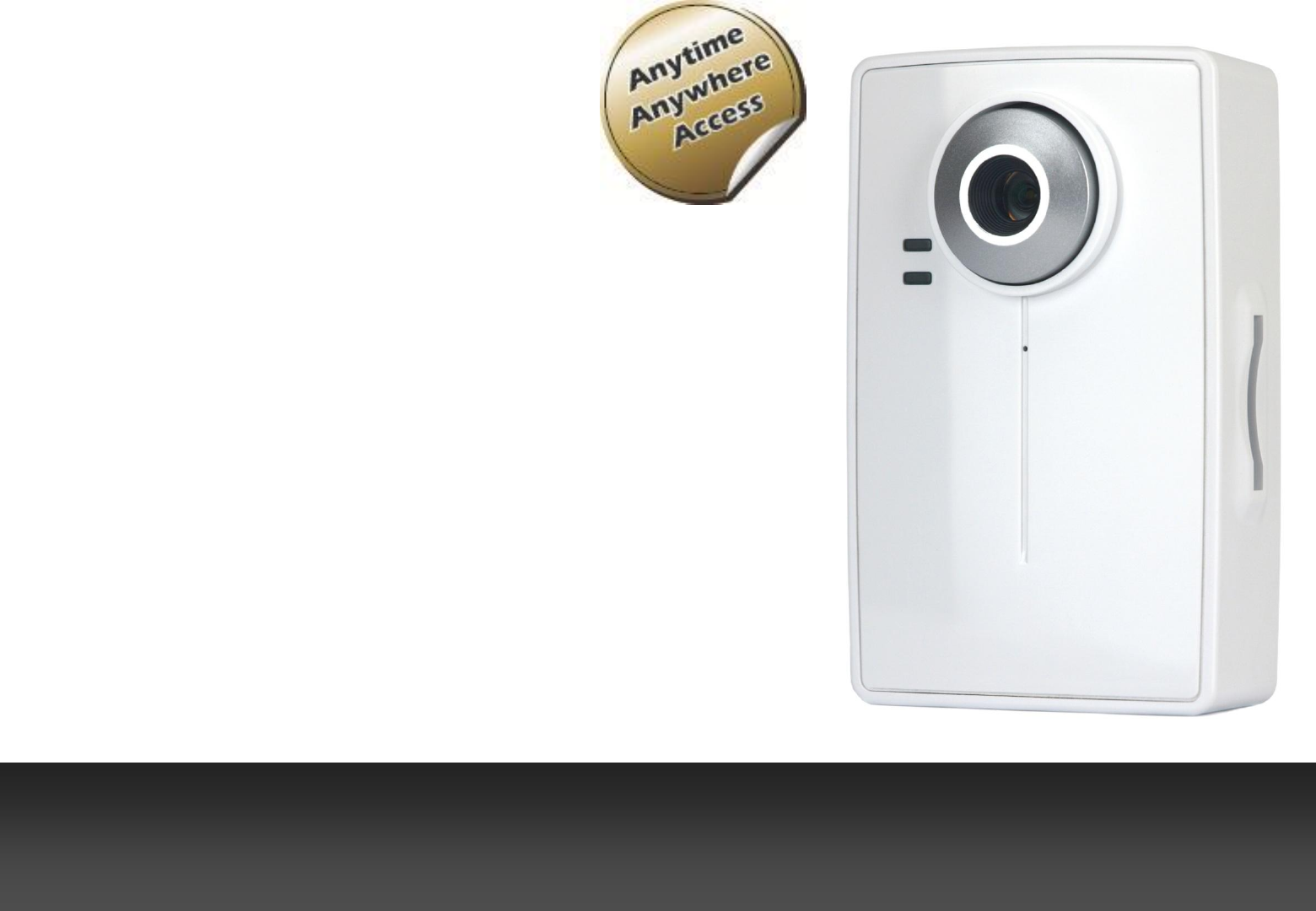

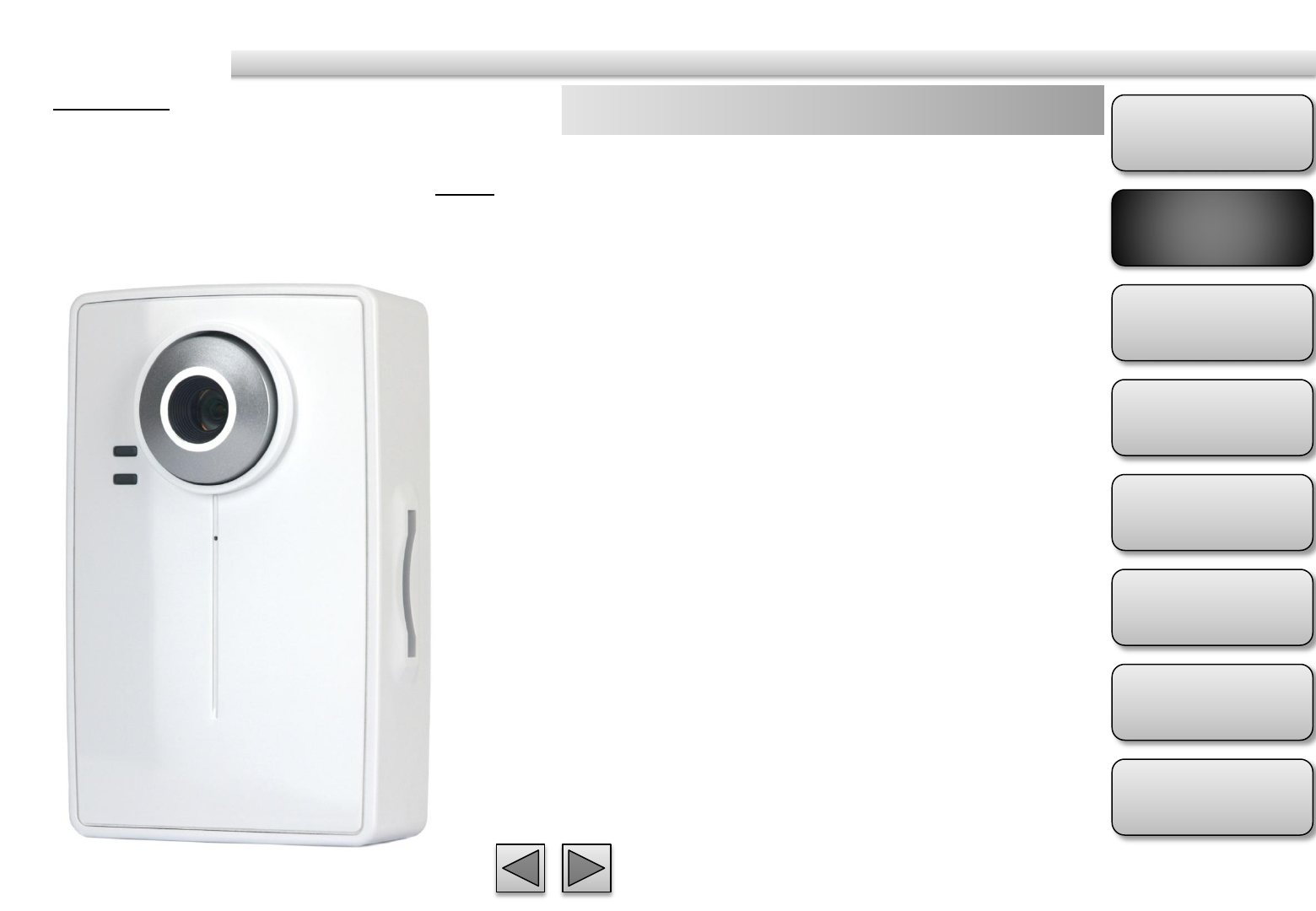

The F3101/3106 is an ultra-compact H.264 Megapixel
IP Camera equipped with a high sensitivity
progressive scan CMOS sensor, achieving high image
quality and superior low-light performance. F3106
also supports 802.11b/g/n wireless connection with
WPS and local storage with SD/SDHC supported.
Key Features:
•
Maximum Resolution 1280x1024 (1.3MP)
•
DDNS Supported
•
Simultaneous H.264, MPEG-
4 and Motion JPEG video
stream
•
up to 15 fps in 1280x1024
•
IEEE 802.11g/b/n Wireless Networks Connection
(F3106)
•
Two-way Audio with Built-In Microphone and audio
detection
•
Support Mac OS and iPhone
•
Support Live Video Viewing on Windows Live
Messenger
•
Mobile Phone Streaming Live Video through 3GPP /
ISMA / RTSP
•
Mobile Phone Live Image through 2.5 WAP
•
Multi-level Password Protection for Restricting
Camera Access
•
Built-In Multi-Window Motion Detection (3
detection areas)
•
Video Buffer makes the Streaming Smoother
•
Local Storage with SD/SDHC card Supported
•
Support UPnP
•
Free Bundled Web-based 9 Channel Surveillance
Software (
EZvuu)
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents

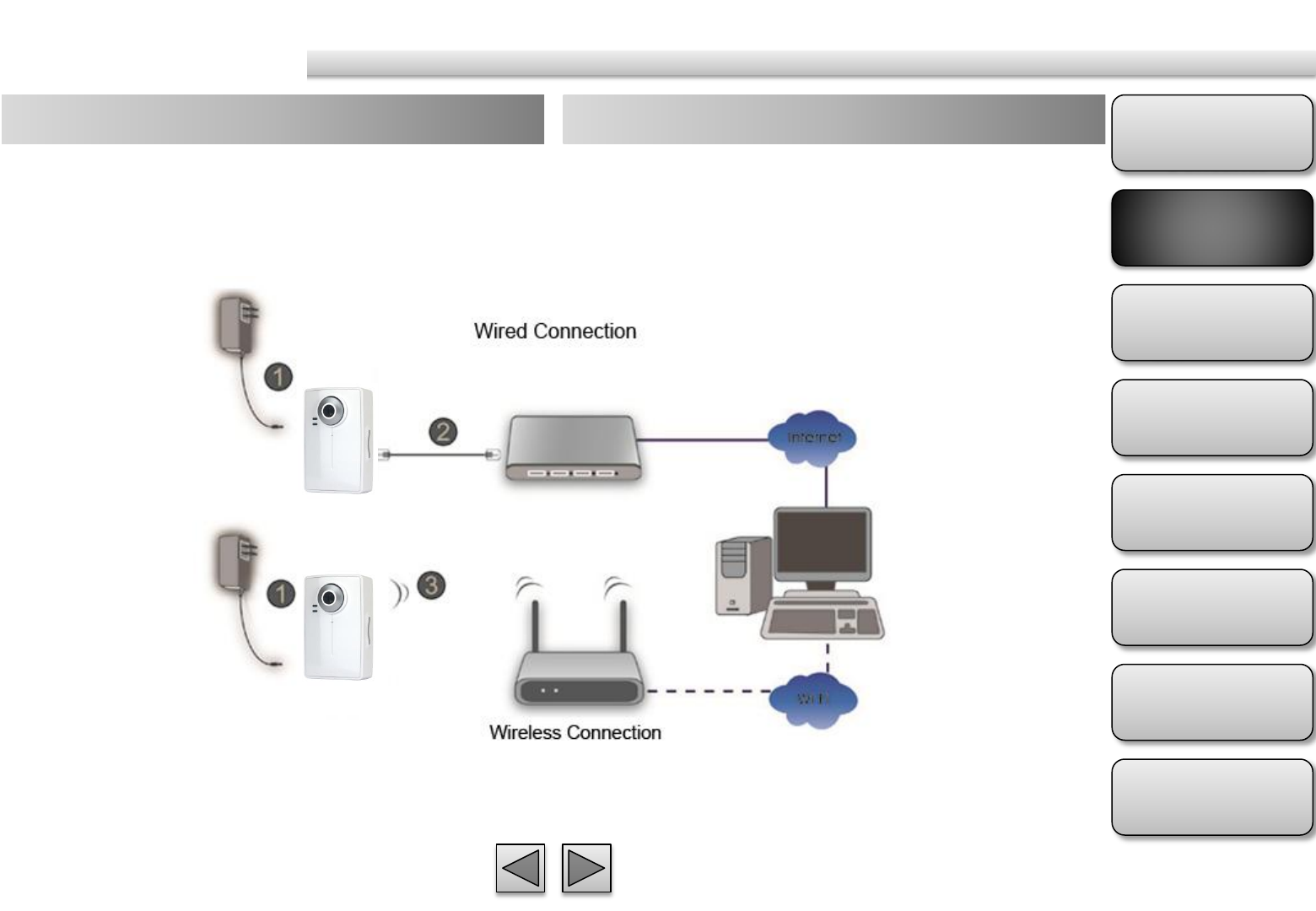

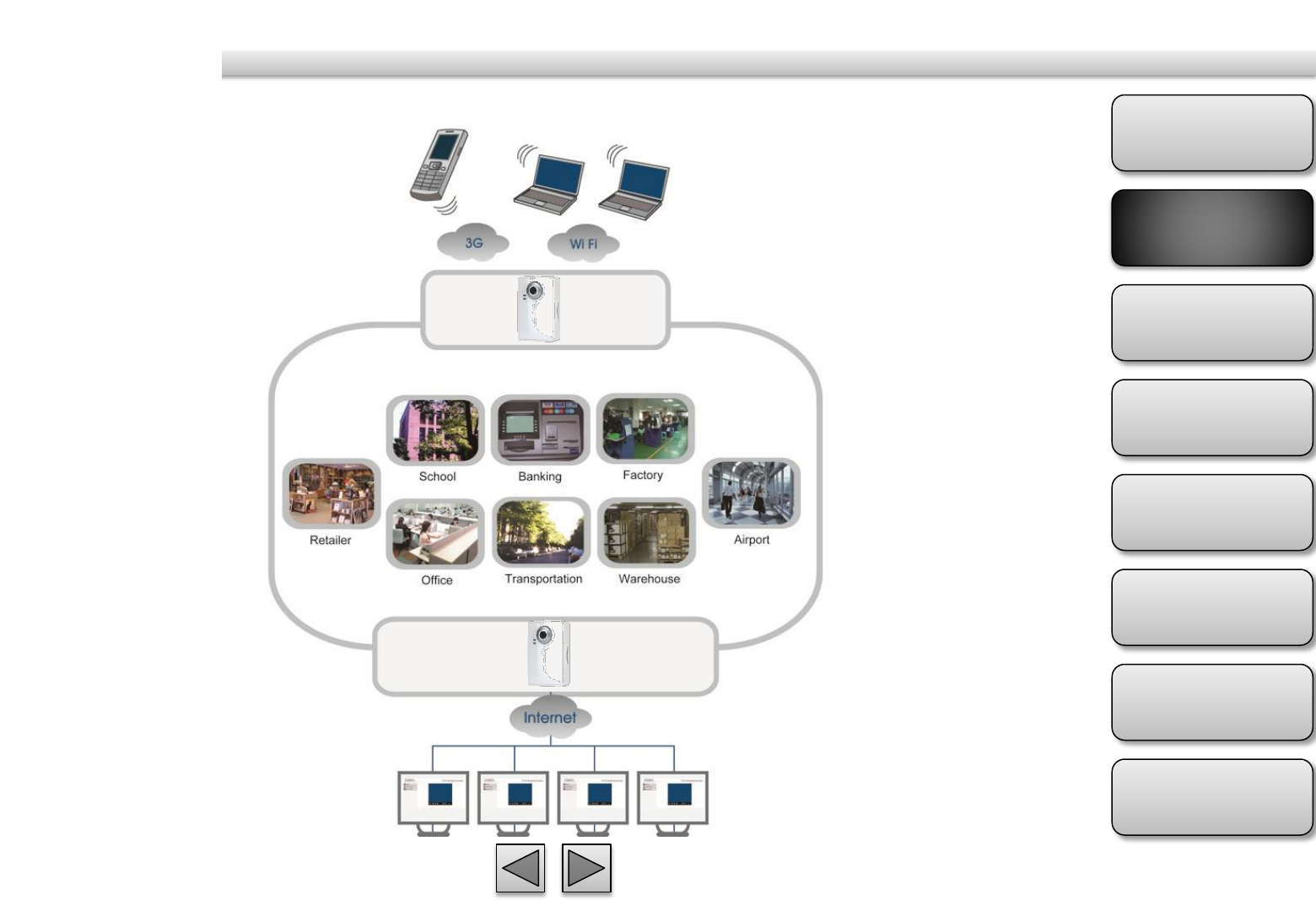

Basic Connection
8
Wired Connection
1. Connect the power adaptor to IP Camera.
2. Connect IP Camera’ Ethernet port to your Hub/
Switch / Router
Wireless Connection
(Only IP1050)
1. Connect the power adaptor to IP Camera.
2. Connect to Wi
-Fi
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
Safety Instruction
11
Before you use this product
This product has been designed with safety in mind. However,
the electrical products can cause fires which may lead to
serious body injury if not used properly. To avoid such
accidents, be sure to heed the following.
Legal Caution
Video and audio surveillance can be forbidden by laws that
vary from country to country. Check the laws in your local
region before using this product for surveillance purposes.
Don't open the housing of the product
Don't try to open the housing or remove the covers which may
expose yourself to dangerous voltage or other hazards.
Don't use the accessories not recommend by
the manufacturer
Heed the safety precautions
Be sure to follow the general safety precautions and the
“Operation Notice.”
Operation Notice
- Operating or storage
location
Avoid operating or storing the camera in the following
locations:
Extremely hot or cold places
(Operating temperature: 0 °C to + 50 °C [32 °F to 122°F] )
Exposed to direct sunlight for a long time, or close to heating
equipment (e.g., near heaters)
Close to water (e.g., near a bathtub, kitchen sink, laundry tub)
Close to sources of strong magnetism
Close to sources of powerful electromagnetic radiation, such
as radios or TV transmitters
Locations subject to strong vibration or shock
In case of a breakdown
In case of system breakdown, discontinue use and contact
your authorized dealer.
In case of abnormal operation
If the unit emits smoke or an unusual smell,
If water or other foreign objects enter the cabinet, or
If you drop the unit or damage the cabinet:1 Disconnect the
cable and the connecting cables. 2 Contact your authorized
dealer or the store where you purchased the product.
Transportation
When transporting the camera, repack it as originally packed
at the factory or in materials of equal quality.
Ventilation
To prevent heat buildup, do not block air circulation around
the device.
Cleaning
Use a soft, dry cloth to clean the external surfaces of the
device. Stubborn stains can be removed using a soft cloth
dampened with a small quantity of detergent solution, then
wipe dry.
Do not use volatile solvents such as alcohol, benzene or
thinners as they may damage the surface.
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
12
Minimum System Requirement
Item
Requirements
CPU
Core
Duo 2.8GHz (or equivalent AMD)
Graphic Card
256
MB RAM graphic cards(or equivalent on-
board graphic cards)
RAM
1G
Operating System
Windows2000
, 2003, XP, Vista, Windows 7, Mac OS X Leopard
Web Browser
Internet Explore 6 or later
Note
1. If you are using Windows 98 or Windows ME, please install IP Installer before using WEB UI to ensure the
system runs normally.
2. If you can't view the record video file, please install Xvid codec while installing Intelligent IP Installer. (For
Windows 98, ME or 2000 server, the codec might not work properly. You’ll need to download Xvid codec 1.0
from the internet.
3. Please always update the latest Windows component. (Net Framework, Windows Media Player, Enhance
ActiveX Security)
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
13

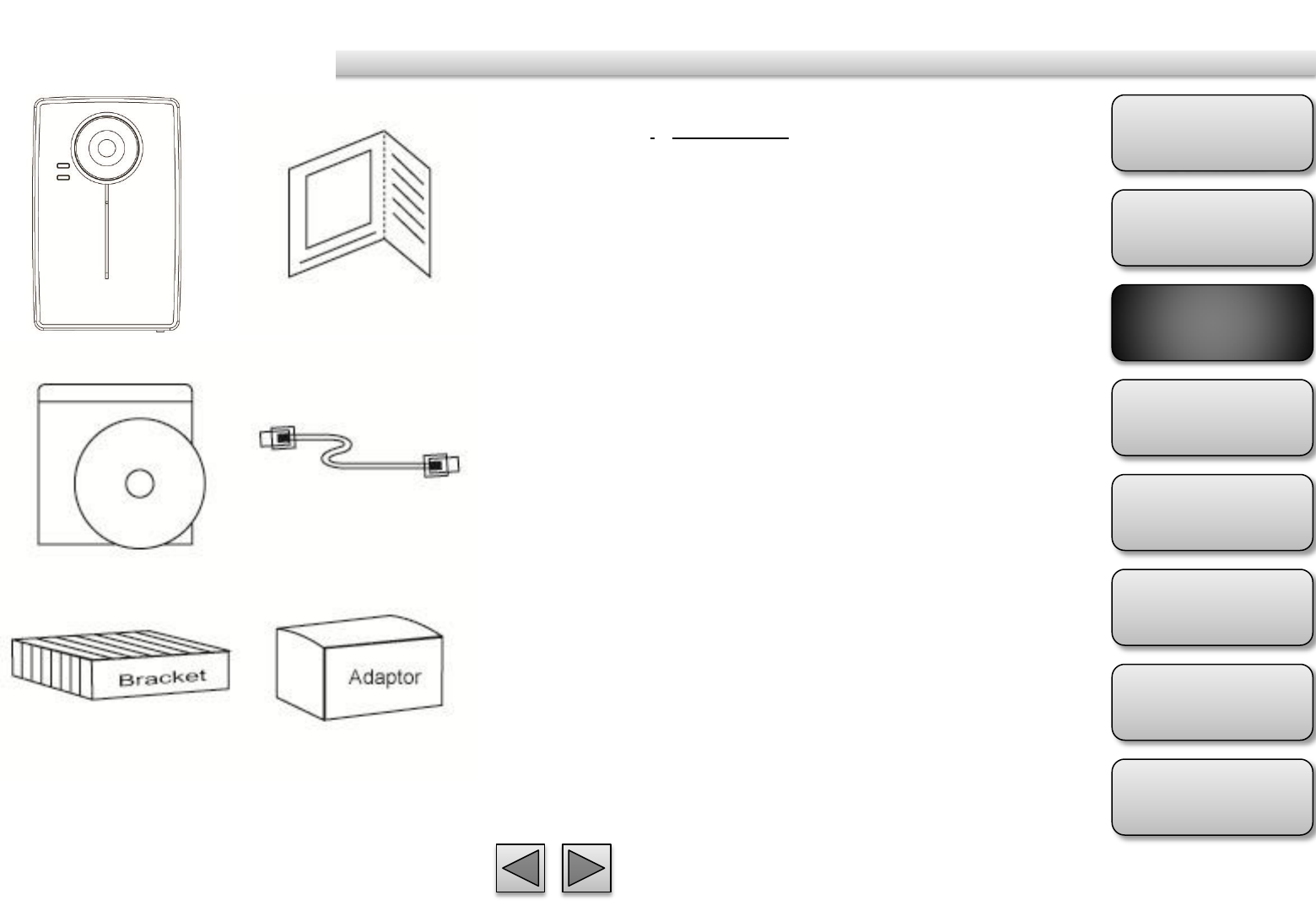

Package Contents
Camera
– F3101/3106 Network Camera
Quick Installation Guide
- To provide brief product
information and quick installation and wireless
setting.
Software CD
– Free bundled web-based 9 channels
IP
Surveillance Software, EZvuu wizard,
User Manual
and Quick
Installation Guide.
Ethernet cable
– Assist to setup your IP Camera.
Mounting Bracket
– There are three components
including lock ring, brace, and base plate to compose
a bracket and three applied screws to fix the base
plate to a flat surface. (horizontal or vertical)
Adaptor
- 12V DC, max 12W
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
14

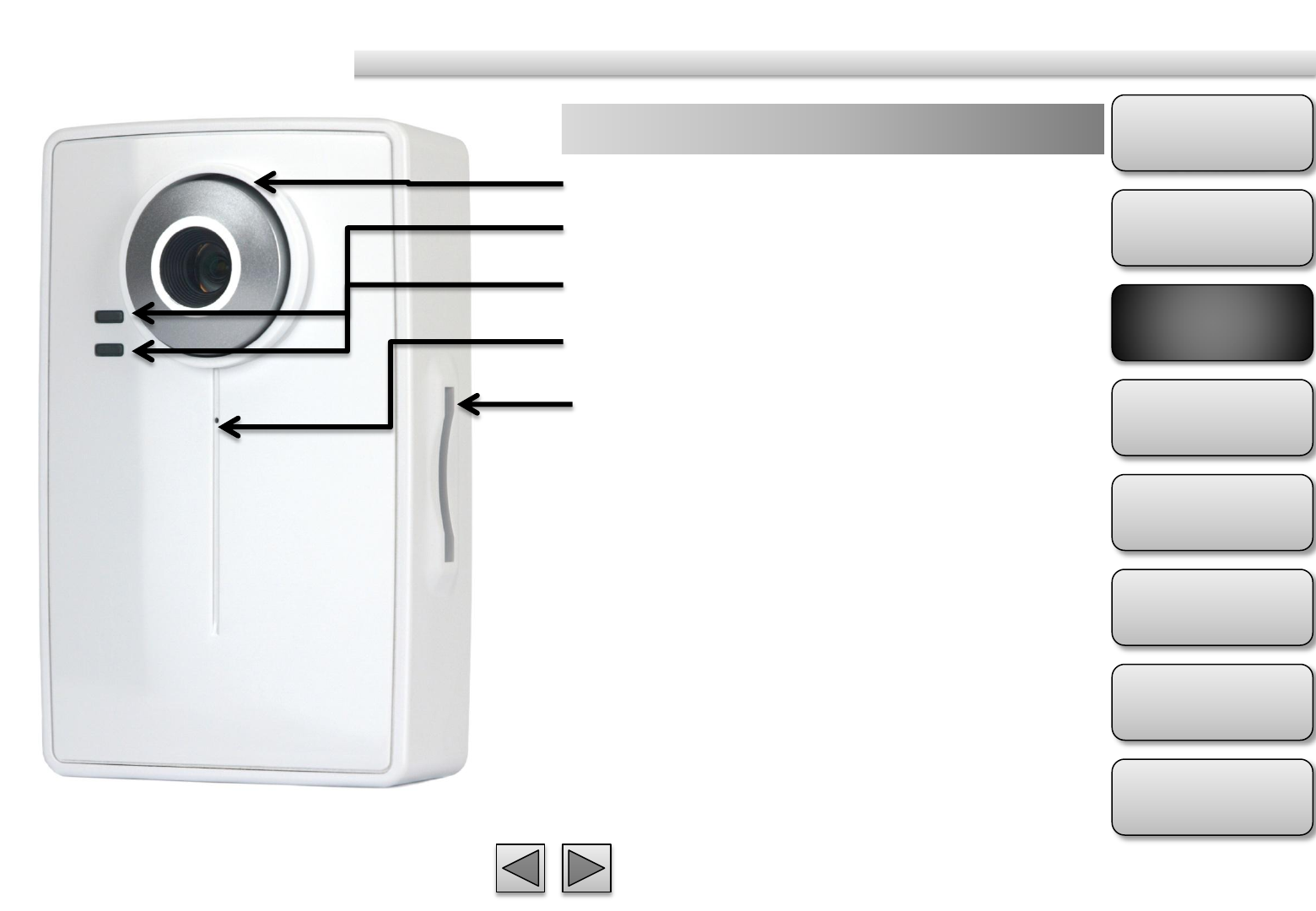

Front View
Focus Adjustment Ring
- Adjust focus manually to
achieve the best image quality.
Power LED indicator
- Power LED will light up after
the IP Camera completed the boot process.
Network LED indicator
- Network LED will light up
after the IP Camera connected with network.
Built
-In Microphone - Built-In Microphone for Two-
way Audio.
Memory Card Slot
– Support SD/SDHC memory card
Physical Description
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
15
Physical Description
POWER LED
Steady
Red
Boot up process
Steady
Blue
Boot up complete
Steady
Blue → Flash Purple
Push WPS button and ready for connecting
wireless router/AP
Flash
Purple → Steady Blue
WPS configuration finished
Flash
Purple → Steady Red 30 Secs
WPS configuration
failed
Steady
Blue → Unlit
Push reset
button and then reset
Steady
Blue → Unlit → Steady Blue
Push reset button for at least 5
secs and
then reset
to default
Steady
Blue → Flash Purple
Firmware
upgrade
Steady
Blue → Steady Purple
Memory
card recognizing
Steady Purple
→ Steady Blue
Memory
card ready
Steady Blue
→ Steady Purple → Steady Red
Memory
card failed
Steady Blue
→ Steady Purple → Steady
Blue
Memory
card ready
ETHERNET/WIRELESS
LED
Flashing blue
Wired packets transmission
Unlit
No transmission
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
16

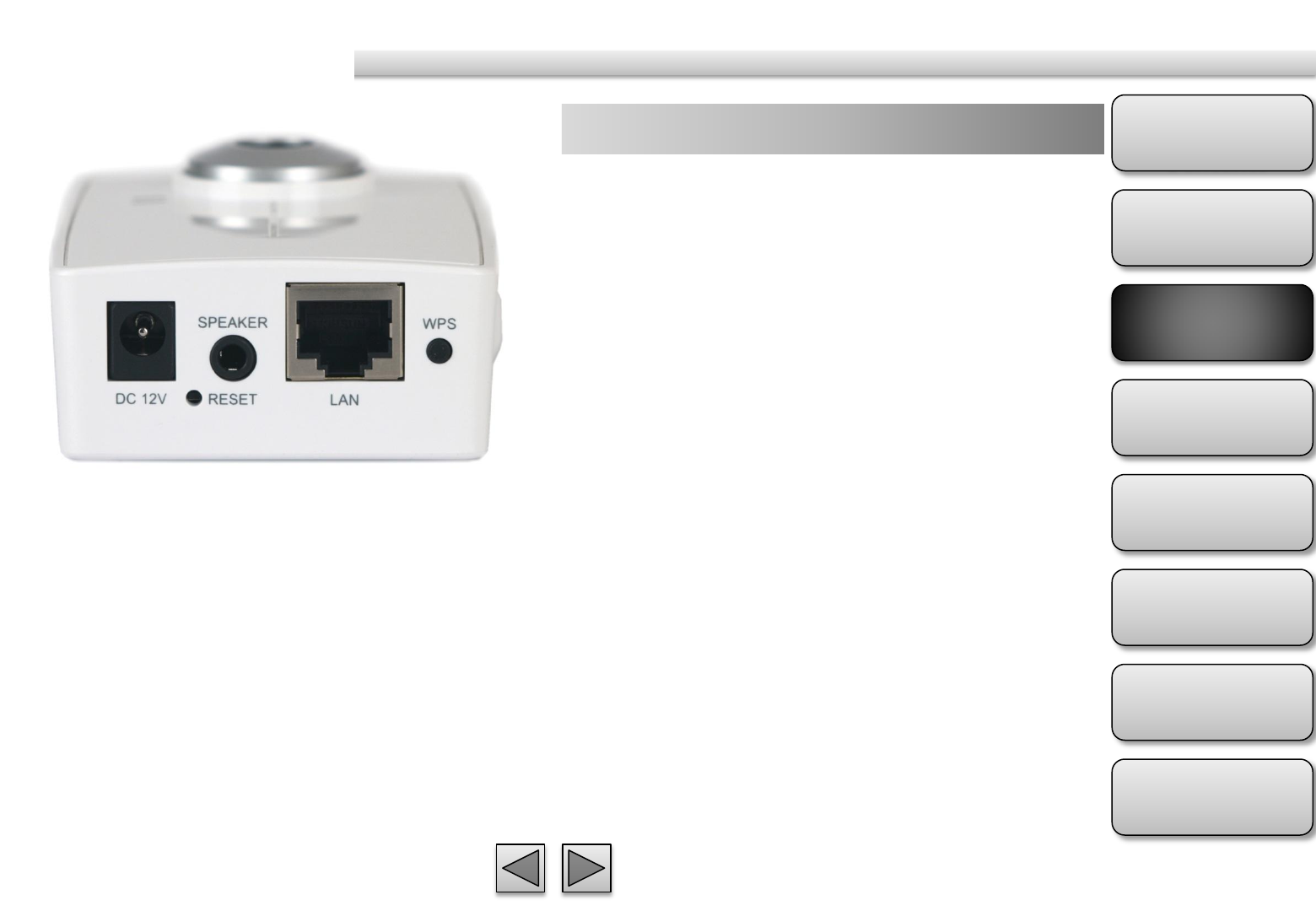

Bottom View
DC
12V - For connection of 12V DC input.
Reset
– When the device is empowered, press the
Reset Button to reboot the device, or hold the Reset
Button for 10 seconds to set the device settings back
to factory default.
WPS
– Click
to easily connect to your router equipped
with WPS. (F3106)
Speaker
- To support audio out with earphones or
speakers
LAN
- For connection to the Ethernet via RJ-45
standard
Physical Description
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
17

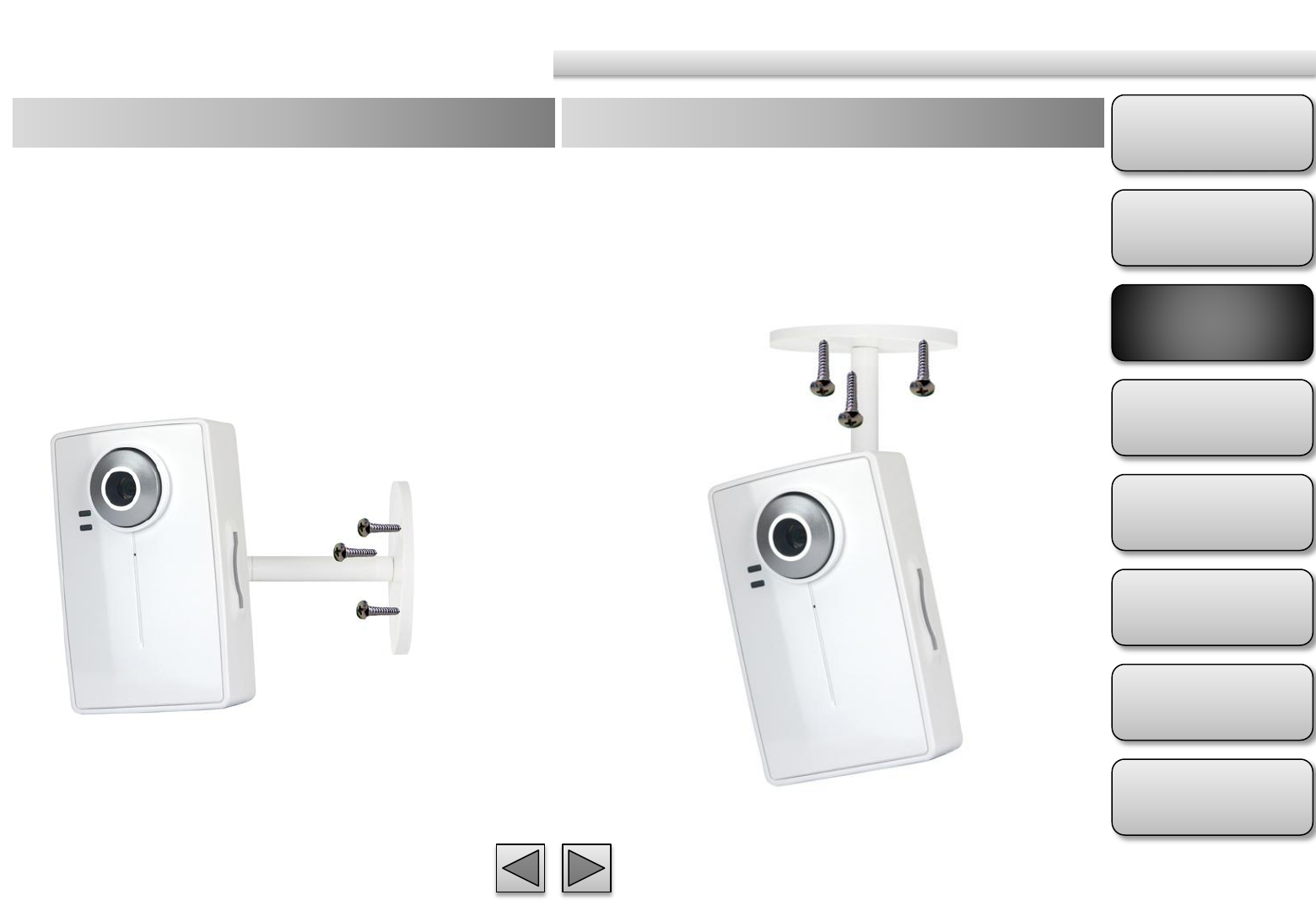

Mounting and Cable Connecting
Wall and Ceiling Mounting
1. Use the 3 supplied screws to fix the base plate to a
flat surface.
2. Loosen the lock ring to adjust the desired angle of
the camera.
3. Tighten the lock ring.
Power and Ethernet Connecting
1. Use a standard RJ
-45 network cable to connect the
IP Camera to the Network connection
2. Connect power adaptor to the IP Camera.
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
Live View
19

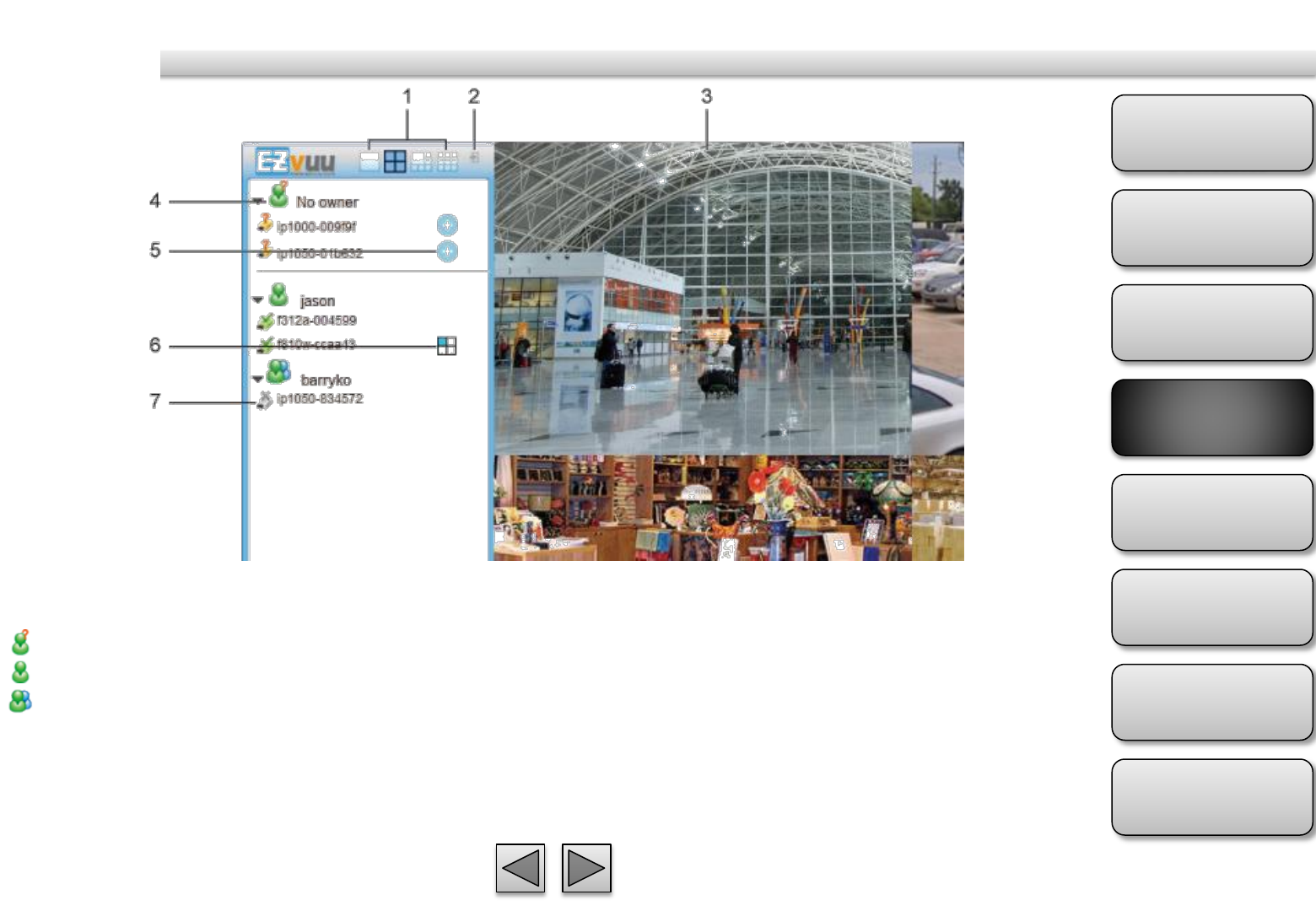

1. Screen Division
Allocate the sub-screen display by clicking on the desired layout icon.
1 channel; 4 channel; 6 channel; 9 channel
2. Logout
Click to logout EZvuu
3. Camera Layout
Assign cameras to camera layout by drag and drop. You can double click on a particular view to extend
display to full screen. Double click on the screen again to regain previous camera layout.
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
Live View
20
4. Camera Group
Click to see which cameras in this group. The following is the meaning of each icon:
No owner cameras group. It will flash when there’s new no owner camera.
Your cameras group
Friends camera group
5. Add Camera
Click to add no owner camera to your account.
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
Live View
21
6. Screen Position
Display this camera in which sub-screen. Blue means live view, green means playback, orange means
remote playback and red means record.
7. Camera Status
Click to display control panel. The following is the meaning of each icon:
Camera unavailable
Camera available
Unknown camera
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
Client Setting
22

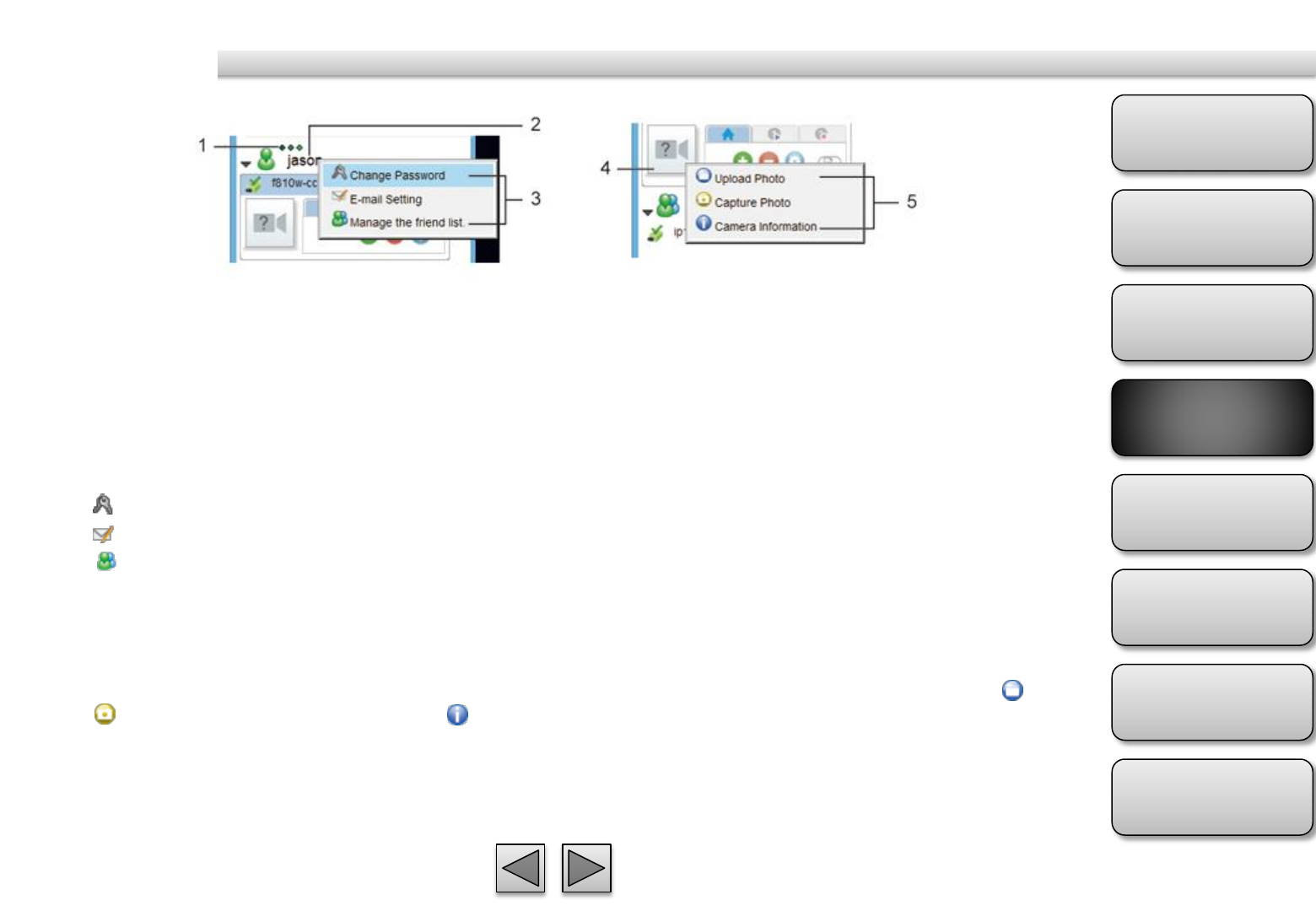

1. Online Users
Display online users of your account. The limitation is simultaneously 5 users online.
2. Account Name
Display the name of your EZvuu account.
3. Account Setting
Right Click your account and it will display your account setting including: "Change Password", "E-mail
Setting" and "Manage the friend list".
Select to change the password of your EZvuu account.
Select to change registered E-mail of your EZvuu account.
Select to add a friend to your friend list of delete a friend from your friend list.
4. Portrait
Display the portrait of this camera.
5. Portrait Setting
Click portrait to setup a portrait of this camera. You can upload photo from your local PC by selecting or
select to snapshot as the portrait. Select to see your device name and nickname.
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
Camera Console
23

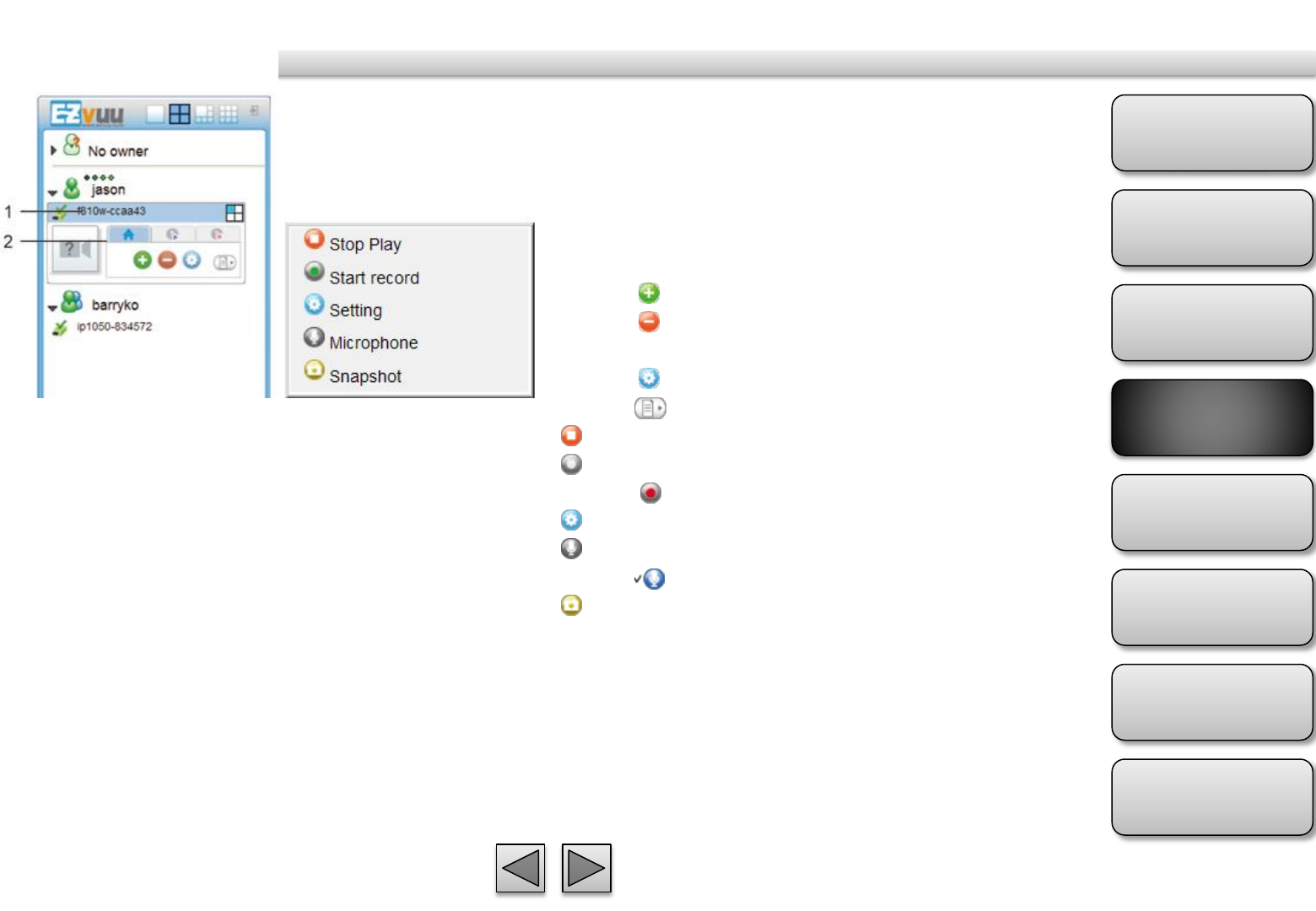

1. Camera Name
Display nick name of this camera. You can right click
to change the nick name.
2. Camera Console
Click to display camera console.
Click to share this camera to your friends.
Click to remove this camera from your camera
list.
Click into setting page of this camera.
Click to display playback control including:
Stop playing this channel
Start recording to your local PC. The icon will
display when the video is on recording.
Enter the setting page of this camera
Select to enable microphone. The icon will
display when microphone is enabled.
Select to take a snapshot from this camera.
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents

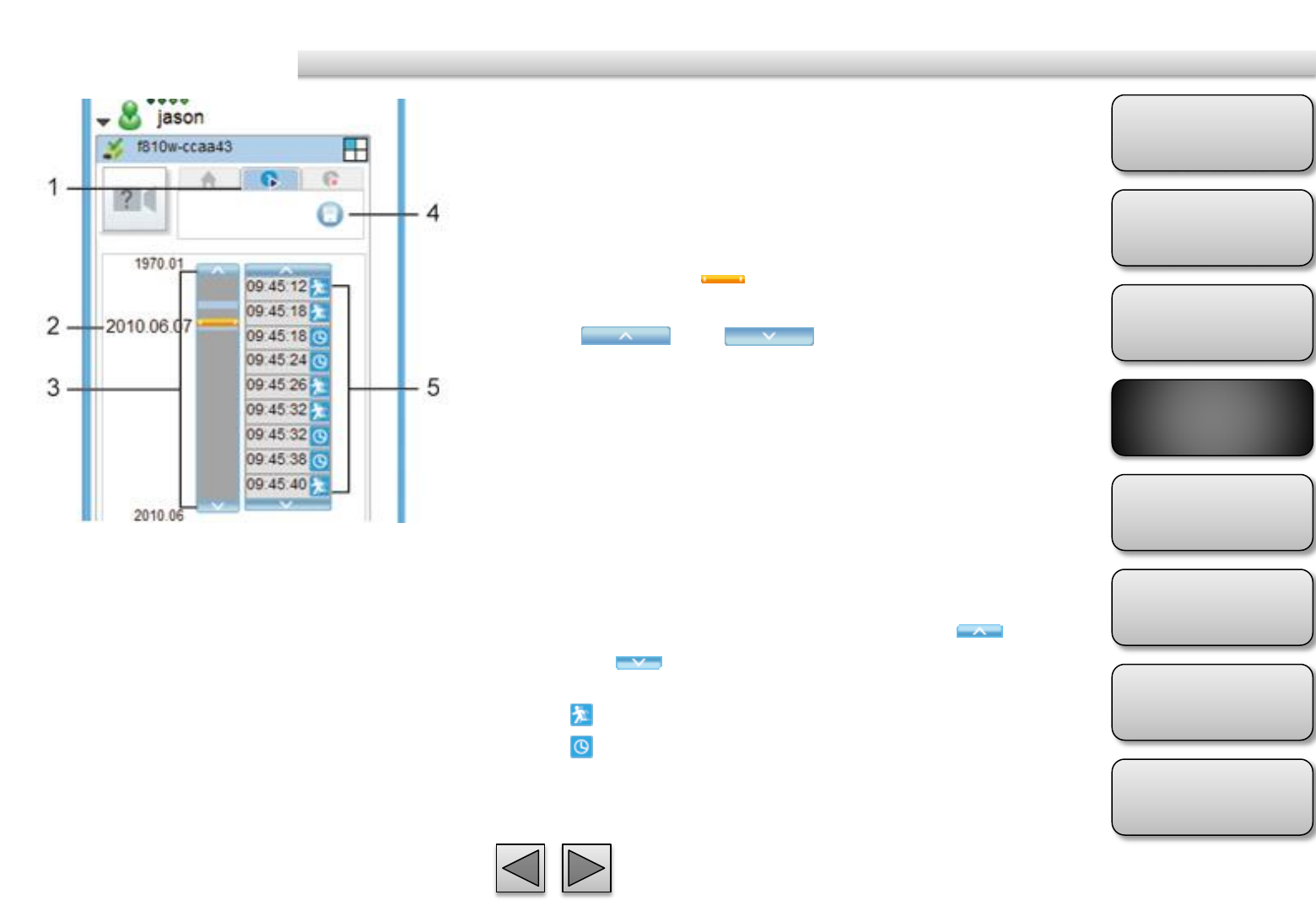

Remote Playback
24
1. Remote Playback
Click to display remote playback console.
2. Time Selector
Using the date selector, it is possible to jump
straight to recordings from a specific point in time.
You can drag to the blue background of timeline
browser to remote playback. You also can click
and to scroll monthly. If there’s
no any record in last month or next month, it would
jump to the month with record.
3. Timeline Browser
Display an overview of periods with recordings
from this camera.
4. Remote Recording Storage Setting
Click to setup your NAS.
5. Events
Display the events and recording time of the
recording date you select. You can click
and to scroll events. The following is the
meaning of each icon:
Motion detection
Periodical recording
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
25

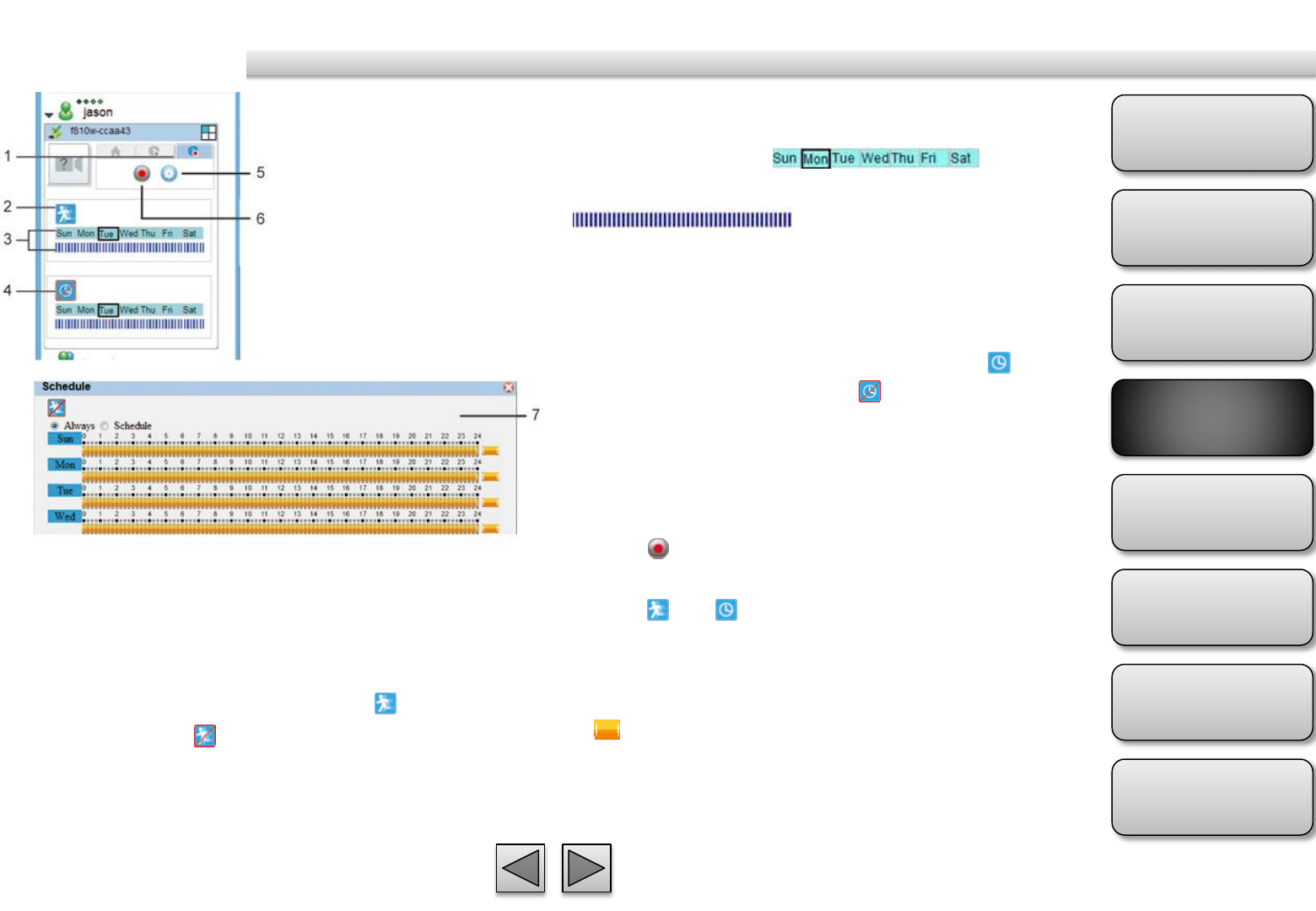

Remote Record
3. Record Schedule
Display the scheduled recording time of each day.
The black rectangle means
what day today is of the camera. The blue timeline
represents the recording time
of today.
4. Periodical Recording Status
Display periodical recording status. You can click
this icon to setup periodical recording schedule.
The following is the meaning of each icon:
Periodical recording enabled; Periodical recording
disabled
5. Remote Recording Storage Setting
Click to setup your NAS.
6. Remote Manual Record
Click to enable remote record.
7. Schedules
Click and to enable or disable motion
detection and periodical recording. Select “Always” to
schedule full-time recording. Select “Schedule” to
schedule preferred recording time. You can drag
5 at most to the timeline and stretch the time bars
to fit your demand.
1. Remote Record
Click to display remote record console.
2. Motion Detection Status
Display motion detection status. You can click this
icon to setup motion detection schedule. The
following is the meaning of each icon: Motion
detection enabled; Motion detection disabled.
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
26

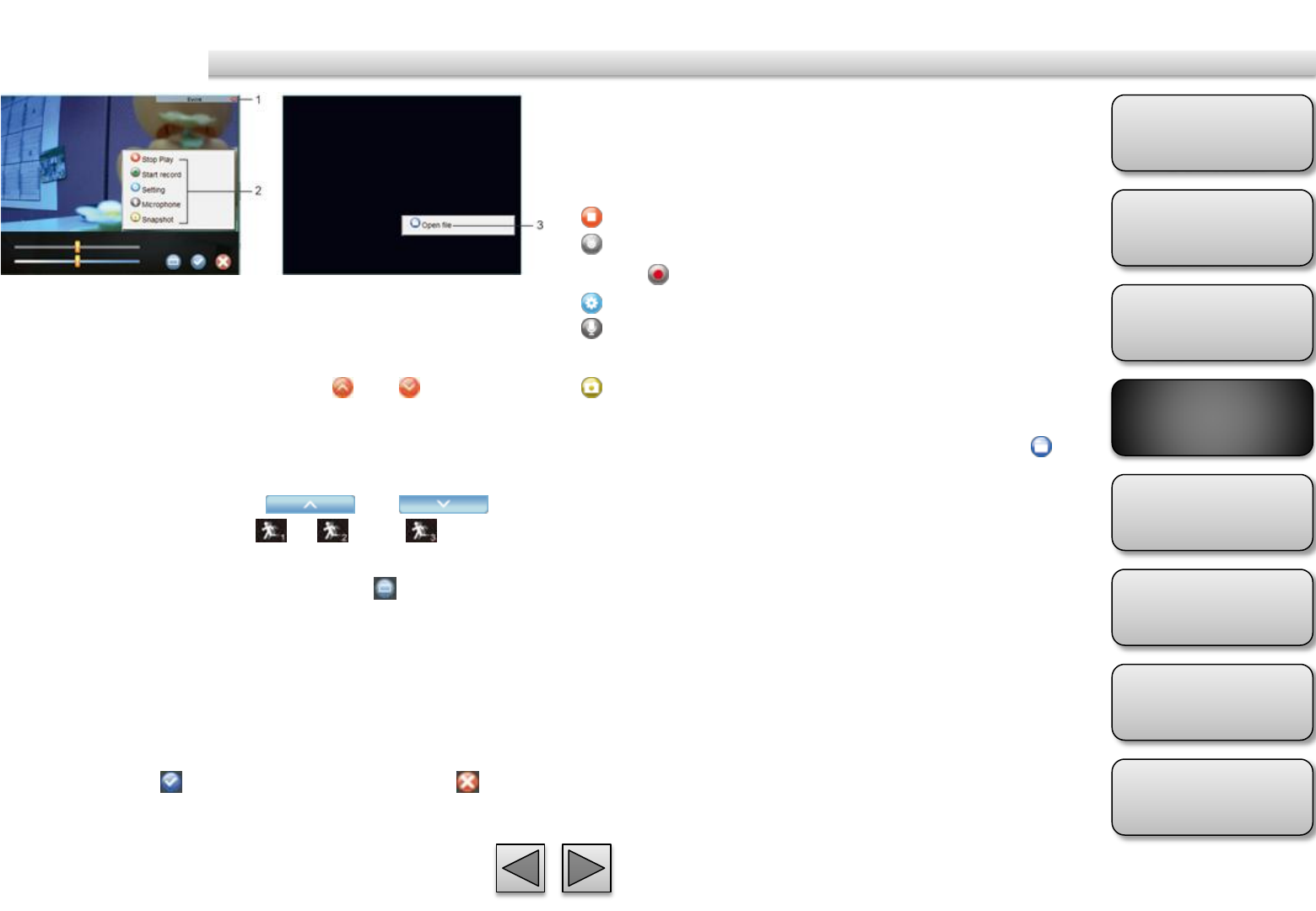

OSD Toolbar
1. OSD Toolbar
Display OSD toolbar when you move your mouse
on the view screen. You can click and to pull up
and down the events list. The events list will flash
when there is a new event. In the events OSD, it will
show the recording date & time and what event
triggers. You can also click and to
scroll the event list. Click , and to setup
the 3 motion detection zones. In the motion
detection setting mode, you can click to
enable/disable motion detection zone. The upper
slider is threshold slider which means the extent of
the alarm triggered. The below slider is sensitivity
slider which means how often the sensor will scan
the image different. The higher sensitivity it is and
the more frequently it scans. After setup,
you can click to apply all setting and click to
leave motion detection mode.
2. Playback Controls
Right click the screen division and there are 5 video
operations including:
Stop playing this channel
Start recording to your local PC. The icon will
display When the video is on recording.
Enter the setting page of this camera
Select to enable microphone. The icon will
display when microphone is enabled.
Select to take a snapshot from this camera.
3. View Local Archived Recordings
Right click the blank screen division and click to
playback local videos.
Easy Access
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
27
Web Browsers
Windows Web Browsers
Mac Safari
Mobile Phone Viewing
Using IP Camera Via iPhone
3G Mobile Phone Streaming
2.5G Mobile Phone WAP
2.5G Mobile Phone Browser
Windows Live Messenger
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
Web Browsers
28
Note
If you only want to view the video without setting page, enter
“http://<IP>/index2.htm” as your web URL.
1. Start your web browser, and enter the IP address
or host name of the IP camera in the Location /
Address field of your browser.
2. Use the default account “admin” and default
password “admin”.
The default user name “admin” and the password are set at
the factory for the administrator.
Note

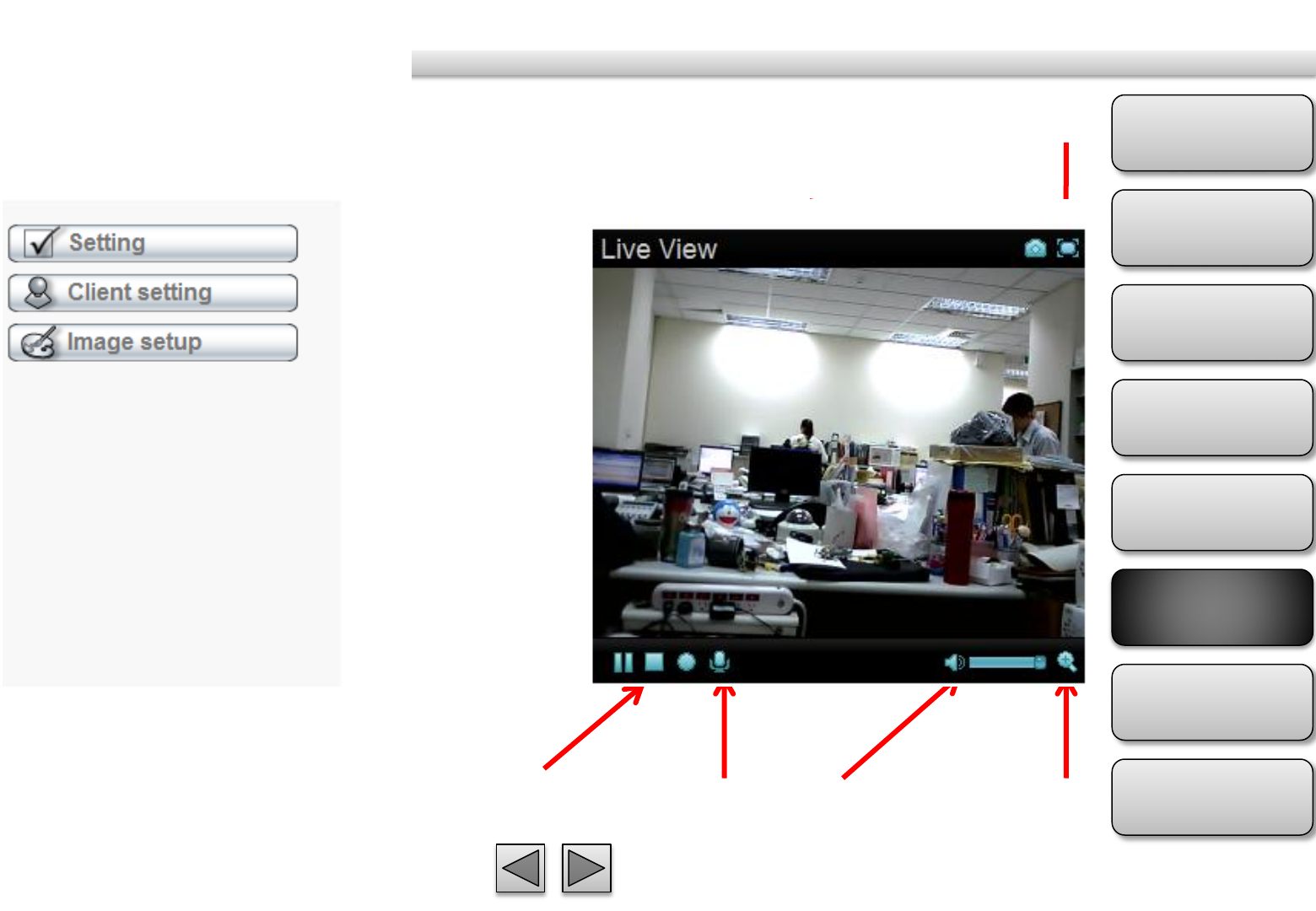

3. The monitor image will be displayed in your
browser. In the far left side of main configuration are
Setting, Client Setting, and Image Setup.
Windows Web Browsers
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
29
Web Browsers

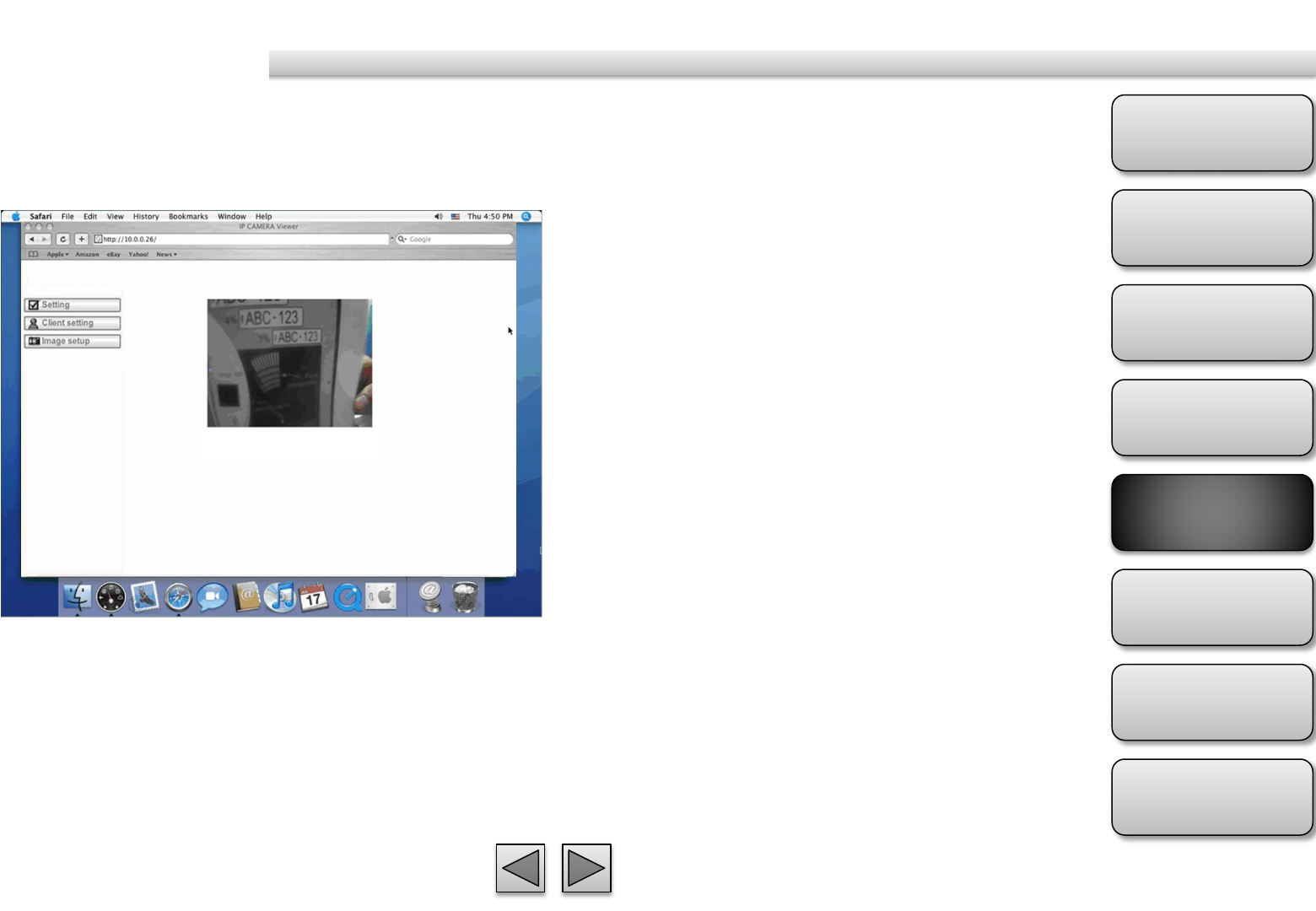

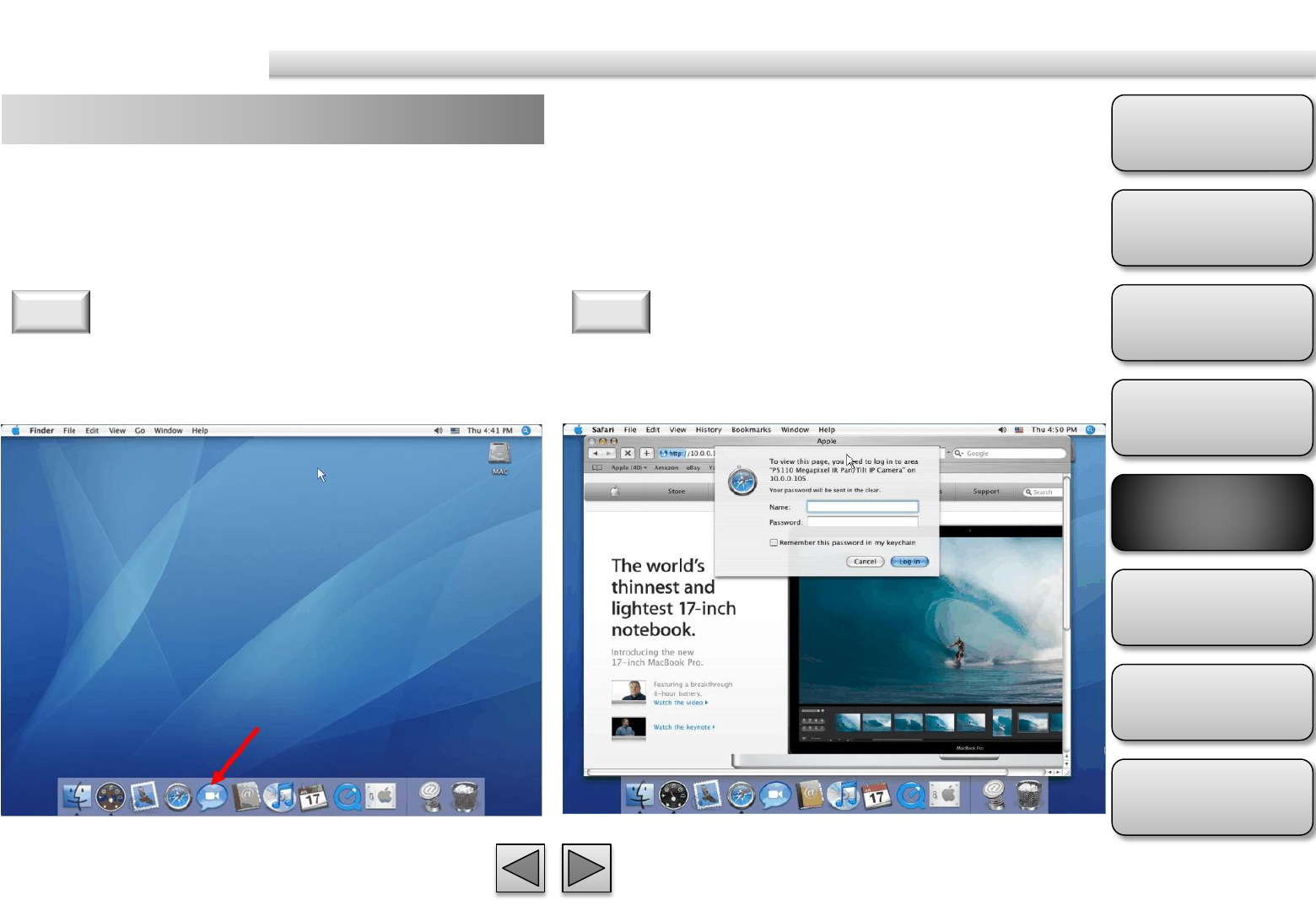

1. Click the Safari icon, and enter the IP address of
the IP camera in the Location / Address field of
your browser.
If you only want to view the video without setting page, enter
“http://<IP>/index2.htm” as your web URL.
Note
2. Use the default account “admin” and default
password “admin”.
The default user name “admin” and the password are set at
the factory for the administrator
Note
Mac Safari
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
31
Mobile Phone Viewing

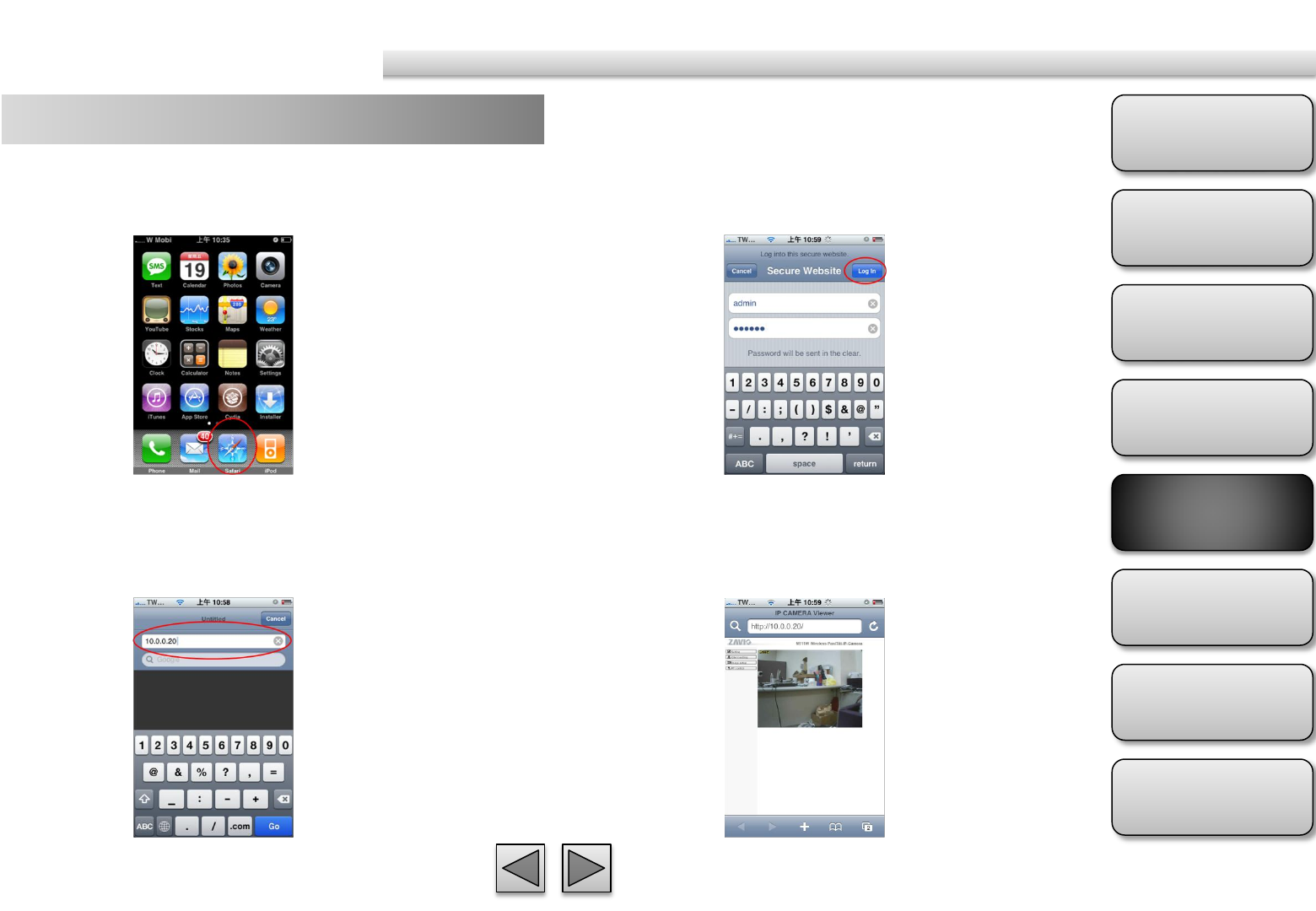

Using IP Camera Via iPhone
2. Enter IP address in your web link.
3. Type name and password. Default value is
admin / admin. Then click Login In
4. Live view will show up in the middle of
screen.
1. Select Safari function
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
32
Mobile Phone Viewing
2.5G Mobile Phone Browser 3G Mobile Phone Streaming
2.5G Mobile Phone WAP
For 3G mobile phone viewing, type
“ rtsp://<IP>:<PORT>/video.3gp ” into your 3G
Streaming Link. <IP> is the Public IP address of your IP
camera; <PORT> is the RTSP port of your IP camera
(Default value is 554.) Example:
rtsp://100.10.10.1:554/video.3gp
You can also use RTSP clients (RealPlayer, VLC, QuickTime
Player…etc.) to view RTSP streaming, just type in
“rtsp://<IP>:<PORT>/video.3gp” as the Player URL
Note
For 2.5G mobile phone viewing, type
“http://<IP>/mobile.wml ” into your 2.5G WAP
Browser. <IP> is the Public IP address of your IP
camera.
For 2.5G mobile phone viewing, type
“http://<IP>/mobile.wml ” into your 2.5G WAP
Browser. <IP> is the Public IP address of your IP
camera.
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
33

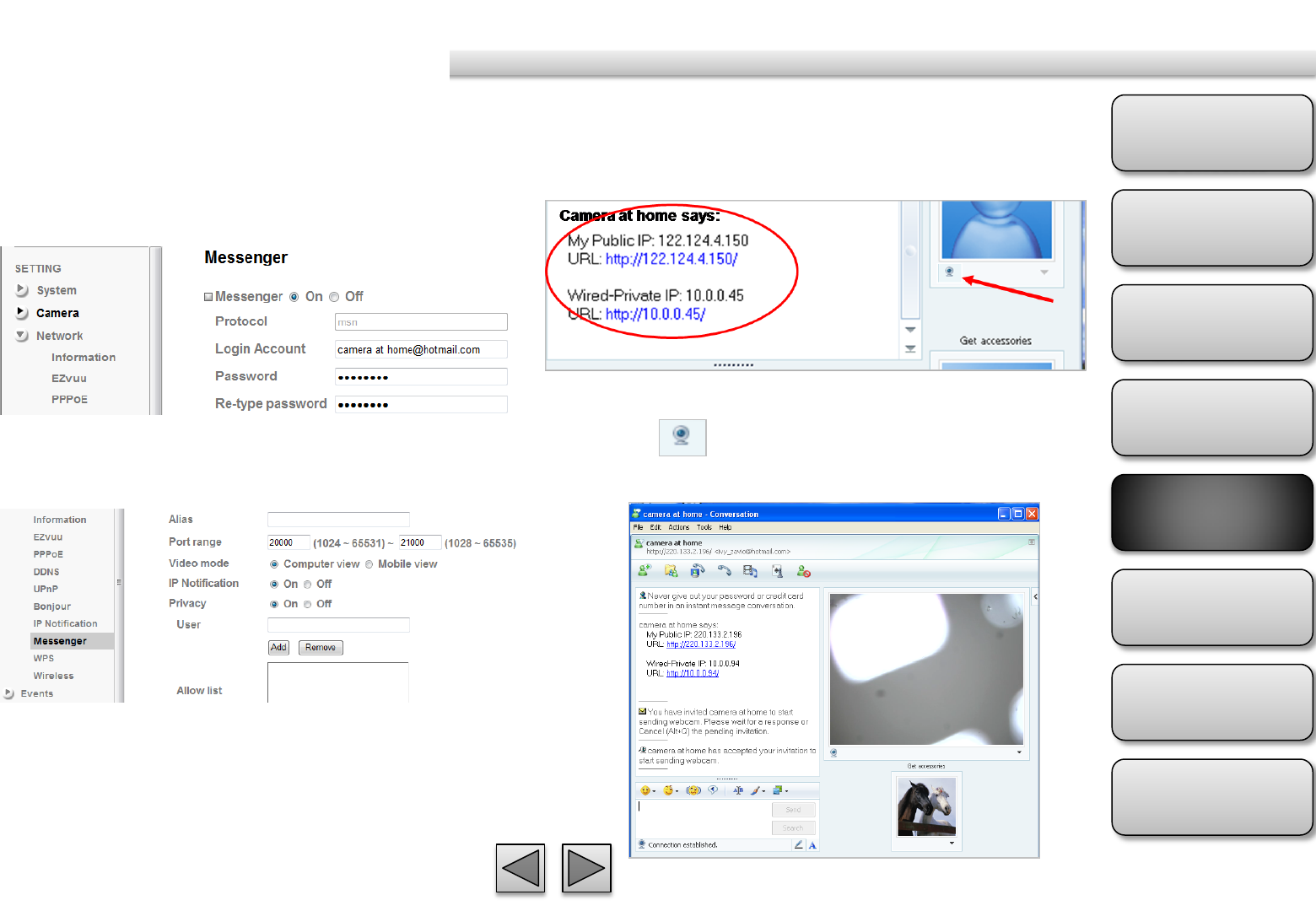

Windows Live Messenger
1. Apply for a new MSN account for your
Device
2. Type login account and password
3. Set the following settings
4. You will get IP information automatically
5. Click to live viewing by Windows Live
Messenger
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
34

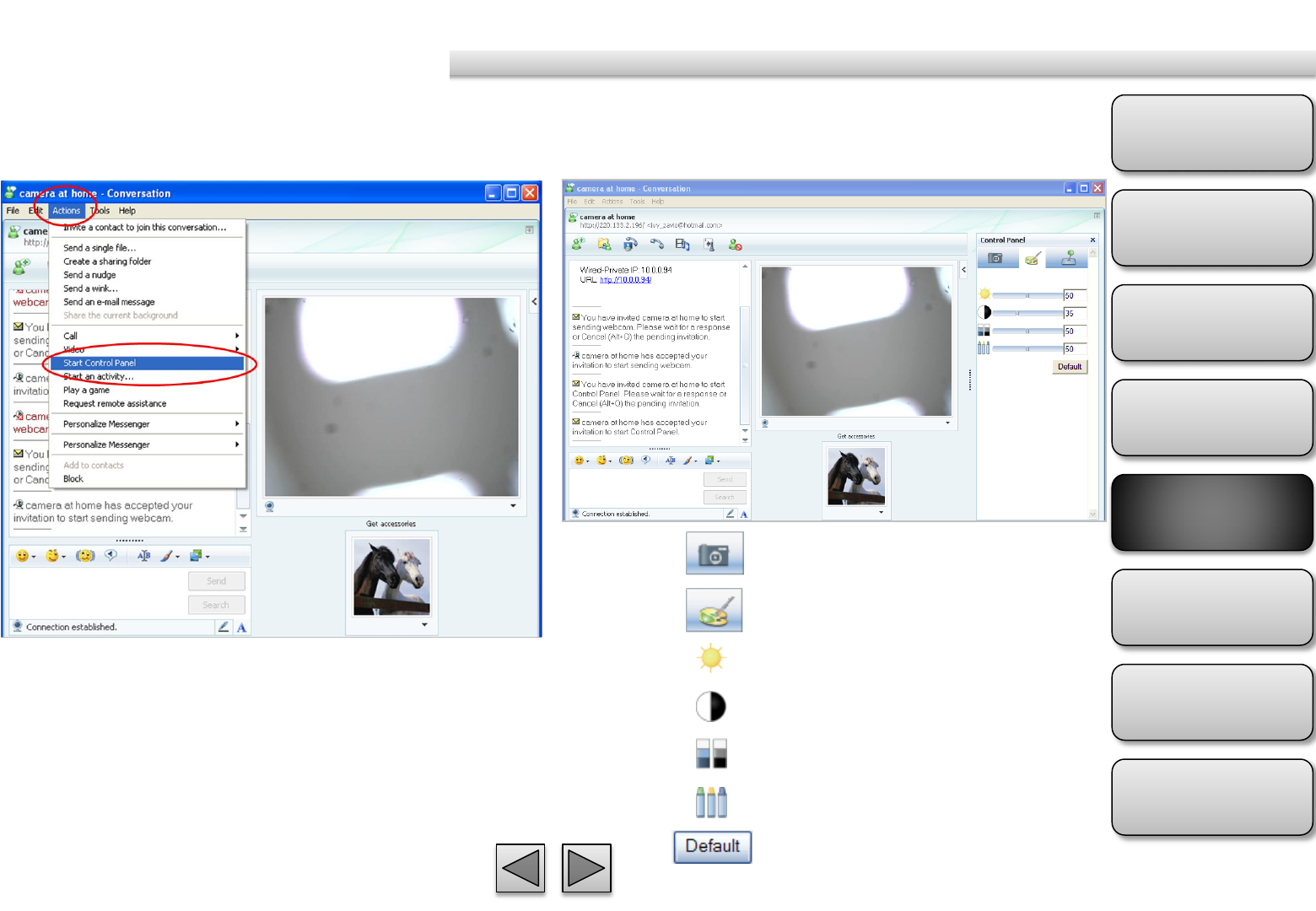

6. Click Action button and choose Start
control panel
7. Click icons to snapshot or optimize image
Snapshot

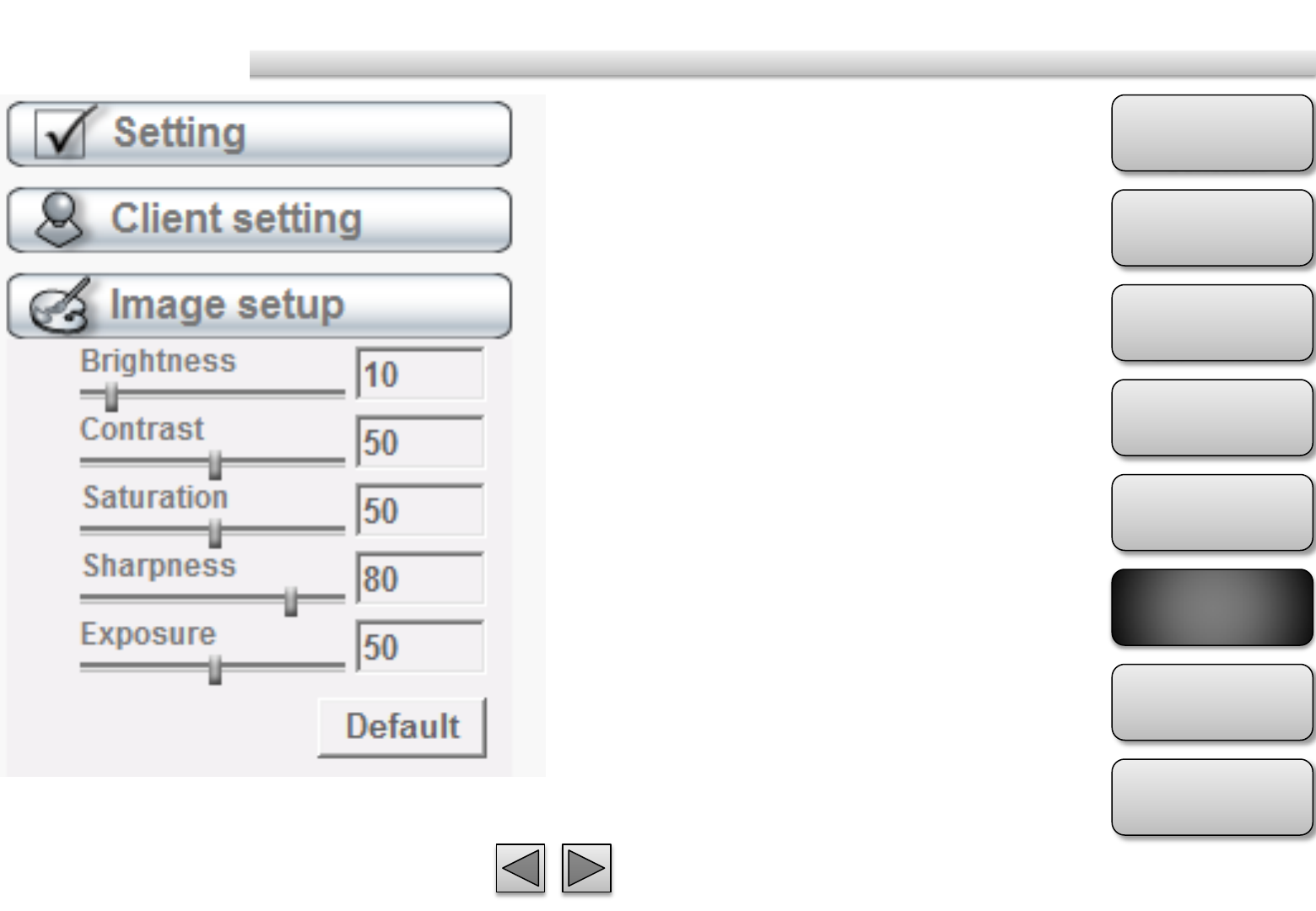

Image Setup
Brightness
Contrast
Saturation
Hue
Default Image Settings
Windows Live Messenger
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
37

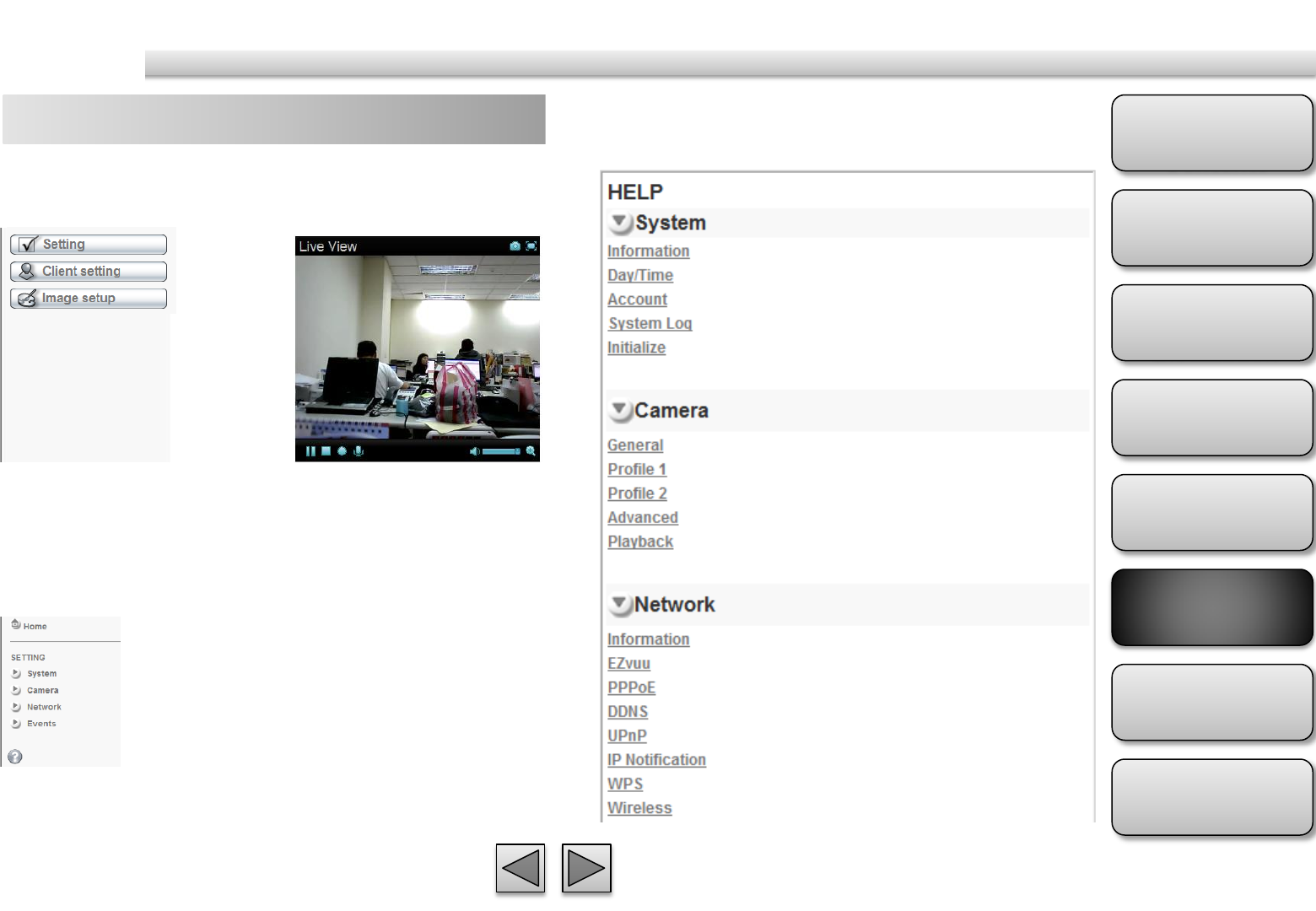

Setting
This function is only for the Administrator. Click this
button to get into the setting page.
Setting
There are four sub-folders including System, Camera,
Network, and Events and a Question mark inside.
Click question mark will pop-up a new window and
you can get answers online without user manual.
HELP is an online help and support. It provide
solutions immediately.
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
38

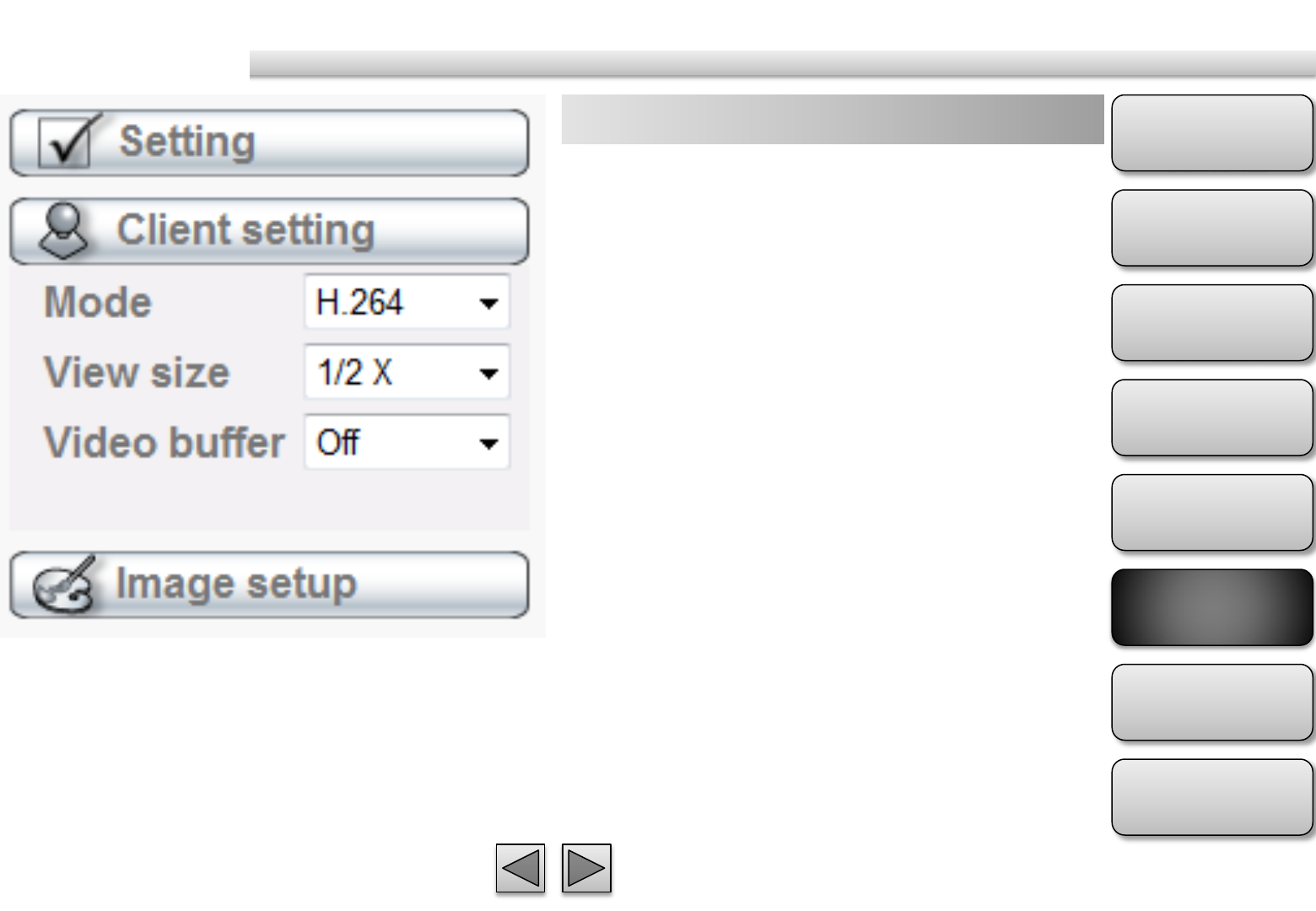

Client Setting
Mode
Click the pull-down box to choose between H.264,
MPEG-4 MJPEG, and JPEG video compression mode.
MJPEG streaming is unavailable if RTSP mode is “On.”
Video Size
Select the desired display view size form 1X to 1/4X.
Video Buffer
Turn the Video Buffer function ON / OFF. The Video
Buffer function makes the streaming more smoothly
in unsteady network environment, but might cause a
little delay in live viewing.
Client Setting
This function is only for the administrator and client.
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
39
Image Setup
Brightness
The higher value the brightness is, the brighter the
image is.
Contrast
The contrast is a measure of a display system, defined
as the ratio of white to black that the system is
capable of producing. The higher value the contrast is,
the more delicate of color you can have.
Saturation
The saturation of a color is determined by a
combination of light intensity and how much it is
distributed across the spectrum of different
wavelengths. The higher value the saturation is, the
more colorful the image will be.
Sharpness
It applies image processing techniques to adjust the
sharpness of live view. However, higher the value is,
more the noise is.
Default
After the adjustment of all setting, you can still click
Default to make the setting back to the original
setting.
Exposure
The exposure allows you to set the target brightness
via automatically adjusting shutter and gain value.
Setting
Product
Overview
Hardware
Installation
Easy Access
EZvuu
Setting
Live View
Appendix
Table of
Contents
40
System
Information
Date/Time
Account
System Log
Initialize
Camera
General
Profile 1
Profile 2
Advanced
Playback
Network
Information
EZvuu
PPPoE
DDNS
UPnP
IP Notification
Messenger
WPS
Wireless
Events
FTP Client
SMTP
Network Storage
Memory Card
Motion Detection
Audio Detection
Schedule
