F312A User Manual
0
![](/img.php?id=998965&img=bg2.png)
F312A User Manual
1
F312A IP Camera
Hardware User Manual
-Contents-
CHAPTER 1. SAFETY INSTRUCTION ........................................................................................2
CHAPTER 2. INTRODUCTION.....................................................................................................5
CHAPTER 3. PACKAGE CONTENTS ..........................................................................................6
CHAPTER 4. PHYSICAL DESCRIPTION....................................................................................7
4.1 FRONT VIEW............................................................................................................................................................7
4.2 BOTTOM VIEW.........................................................................................................................................................8
CHAPTER 5. BASIC CONNECTION ............................................................................................9
5.1 WIRE CONNECTION.................................................................................................................................................9
5.2 WIRELESS CONNECTION..........................................................................................................................................9
CHAPTER 6. APPLICATION........................................................................................................10
![](/img.php?id=998965&img=bg3.png)
F312A User Manual
2
Hardware User Manual
Chapter 1. Safety Instruction
Before you use this product
This product has been designed with safety in mind. However, the electrical products can cause
fires which may lead to serious body injury if not used properly. To avoid such accidents, be sure to
heed the following.
Legal Caution
Video and audio surveillance can be forbidden by laws that vary from country to country. Check the
laws in your local region before using this product for surveillance purposes.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
![](/img.php?id=998965&img=bg4.png)
F312A User Manual
3
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1
through 11.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Don't open the housing of the product
Don't try to open the housing or remove the covers which may expose yourself to dangerous voltage
or other hazards.
Don't use the accessories not recommend by the manufacturer
Heed the safety precautions
Be sure to follow the general safety precautions and the “Operation Notice.”
Operation Notice - Operating or storage location
Avoid operating or storing the camera in the following locations:
Extremely hot or cold places
(Operating temperature: 0 °C to + 50 °C [32 °F to 122°F] )
Exposed to direct sunlight for a long time, or close to heating equipment (e.g., near heaters)
Close to water (e.g.,near a bathtub, kitchen sink, laundry tub)
Close to sources of strong magnetism
Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters
Locations subject to strong vibration or shock
![](/img.php?id=998965&img=bg5.png)
F312A User Manual
4
In case of a breakdown
In case of system breakdown, discontinue use and contact your authorized dealer.
In case of abnormal operation
If the unit emits smoke or an unusual smell,
If water or other foreign objects enter the cabinet, or
If you drop the unit or damage the cabinet:1 Disconnect the cable and the connecting cables. 2
Contact your authorized dealer or the store where you purchased the product.
Transportation
When transporting the camera, repack it as originally packed at the factory or in materials of equal
quality.
Ventilation
To prevent heat buildup, do not block air circulation around the device.
Cleaning
Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be
removed using a soft cloth dampened with a small quantity of detergent solution, then wipe dry.
Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the
surface.
![](/img.php?id=998965&img=bg6.png)
F312A User Manual

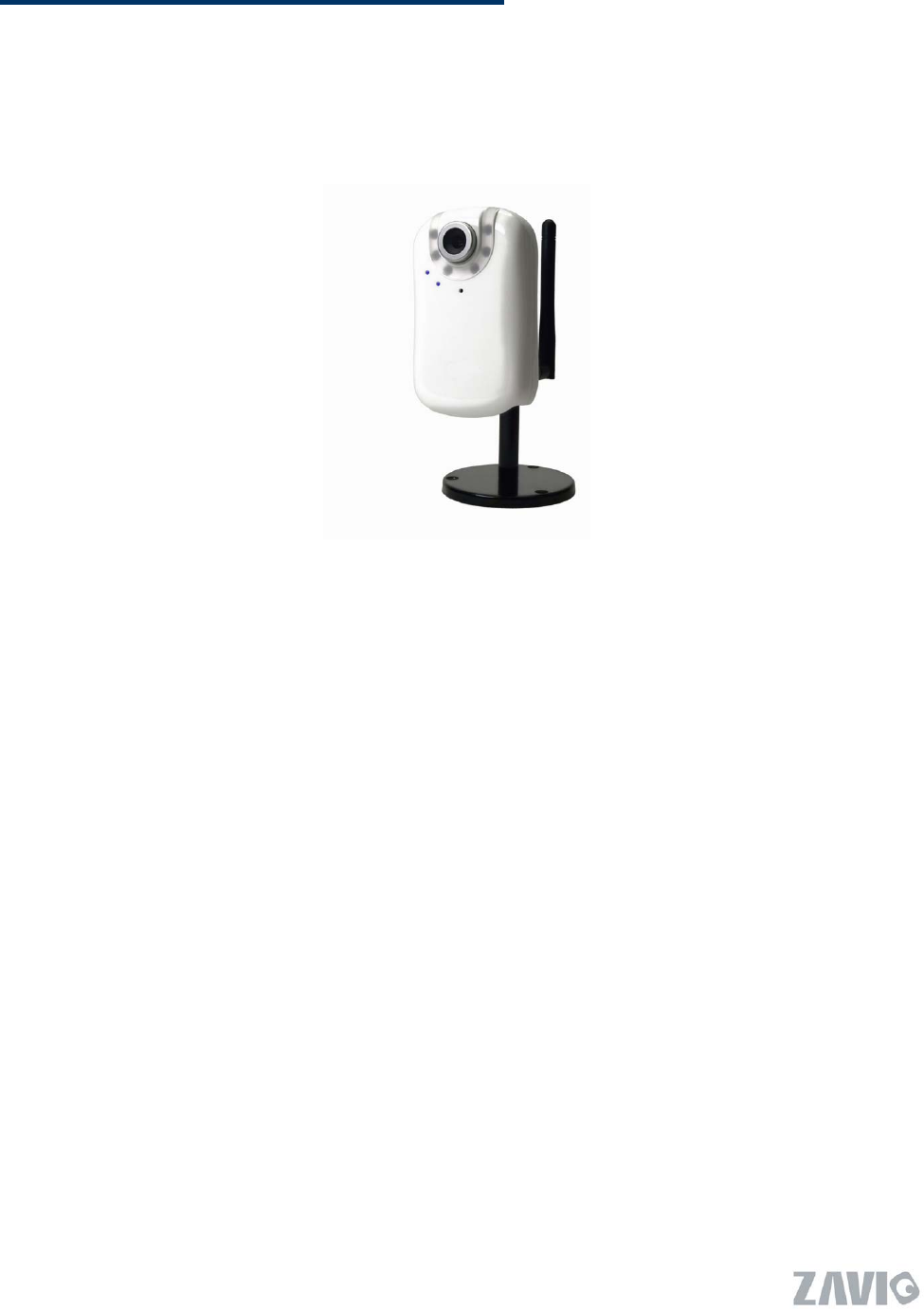

Chapter 2. Introduction
The ZAVIO F312A is an ultra-compact IP Camera equipped with a high sensitivity progressive
scan CMOS sensor, achieving high image quality and superior low-light performance. F312A also
supports 802.11b/g wireless connection and night-vision capability even in complete darkness
through 6 high power LEDs.
Key Features:
Maximum Resolution 640x480 (VGA) provides superior image quality
Simultaneous MPEG-4 and Motion JPEG video stream
Excellent Image Quality up to flexible 30 fps in all resolution for optimum bandwidth use
Superior Low-Light Performance with 6 Night-Vision LEDs down to 0 Lux
Wireless( IEEE 802.11g/b) Networks Connection
Two-way Audio with Built-In Microphone
Optimal Synchronization of Audio and Video
Support Live Video Viewing on Microsoft Live Messenger (MSN Messenger)
Mobile Phone Streaming Live Video through 3GPP / ISMA / RTSP
Mobile Phone Live Image through 2.5 WAP
Multi-level Password Protection for Restricting Camera Access
Built-In Multi-Window Motion Detection (3 detection areas)
Video Buffer makes the Streaming Smoother
UPnP for Fast and Easy Installation
DDNS Supported
Bundled 16 Channel Surveillance Software
User-friendly & Multi-lingual UI
5
![](/img.php?id=998965&img=bg7.png)
F312A User Manual

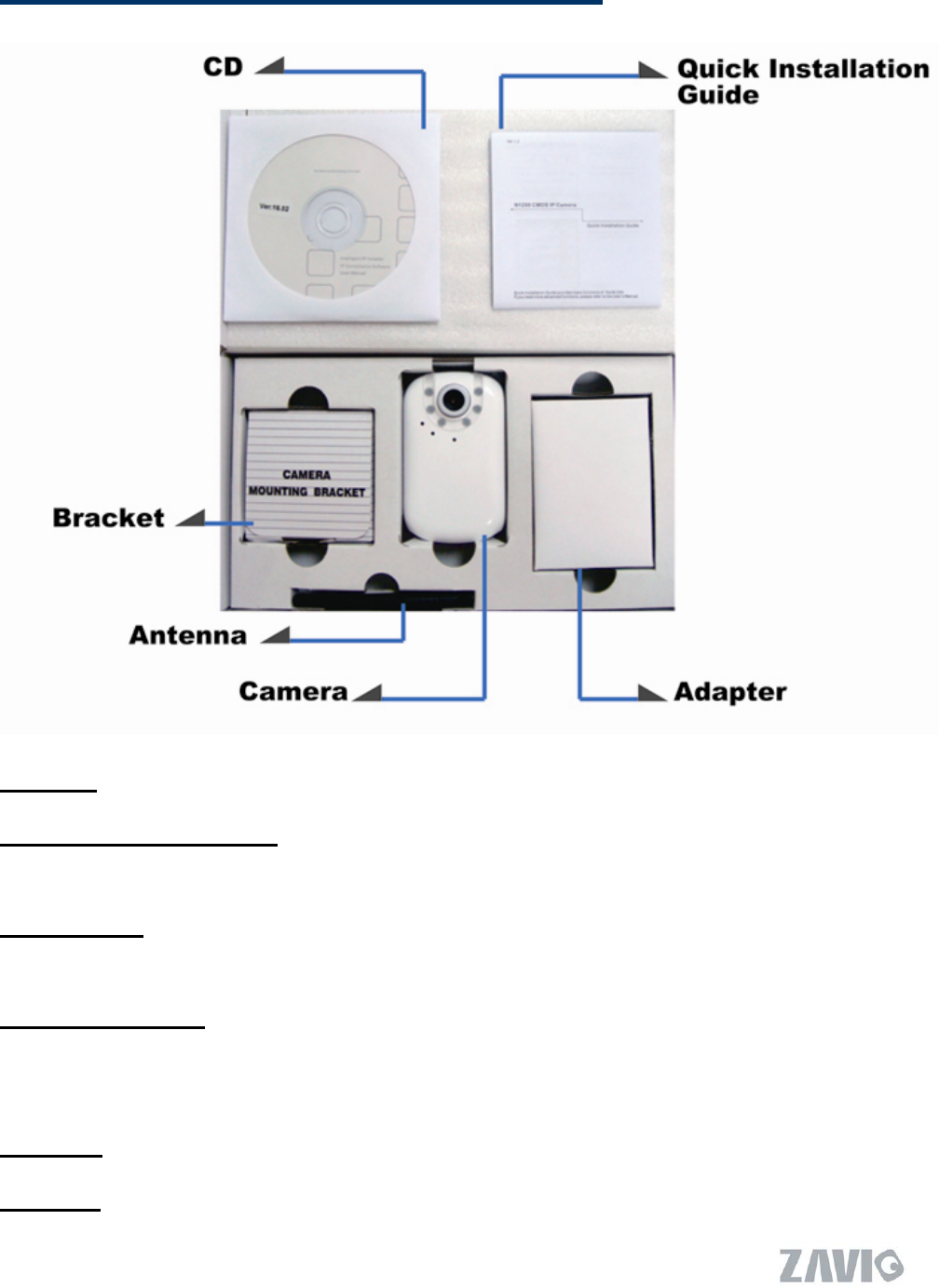

Chapter 3. Package Contents
Camera - F312A Network Camera
Quick Installation Guide - To provide brief product information and quick installation and
wireless setting
Software CD - To provide IP Surveillance Software, Intelligence IP Installer, User Manuals, and
Language Packs
Mounting Bracket – There are three components including lock ring, brace, and base plate to
compose a bracket and three applied screws to fix the base plate to a flat surface (horizontal or
vertical)
Antenna - For connection of IEEE 802.11 b / g wireless network
Adaptor - 5V DC, max 4.5W
6
![](/img.php?id=998965&img=bg8.png)
F312A User Manual
Chapter 4. Physical Description

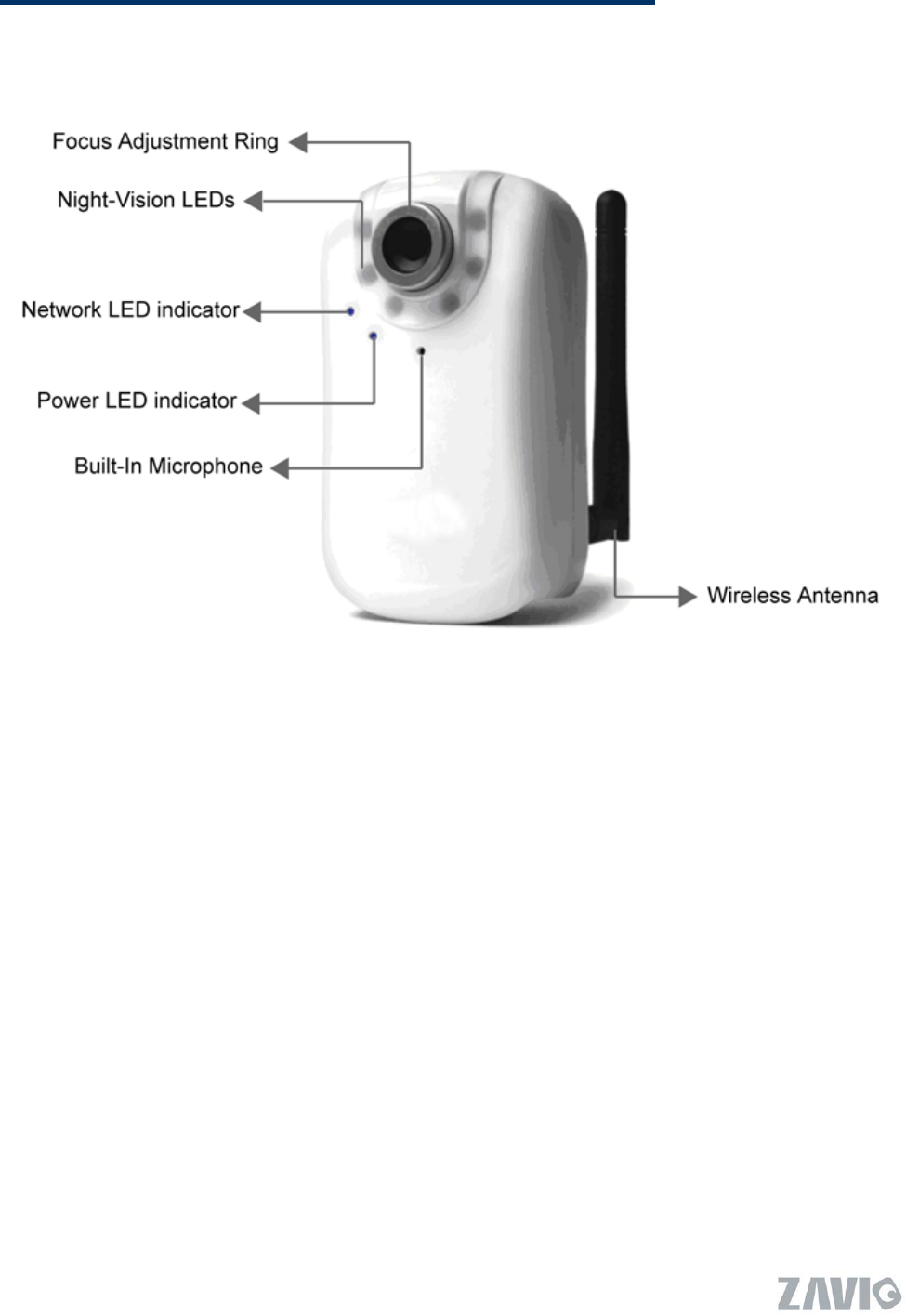

4.1 Front View
Focus Adjustment Ring - Adjust focus manually to achieve the best image quality
Night-Vision White LEDs - LEDs will light up when the environment is too dark.
Power LED indicator - Power LED will light up after the IP Camera completed the boot
process
Network LED indicator - Network LED will light up after the IP Camera connected with
network.
Built-In Microphone - Built-In Microphone for Two-way Audio
Wireless Antenna - For connection of IEEE 802.11 b / g wireless network.
7
![](/img.php?id=998965&img=bg9.png)
F312A User Manual

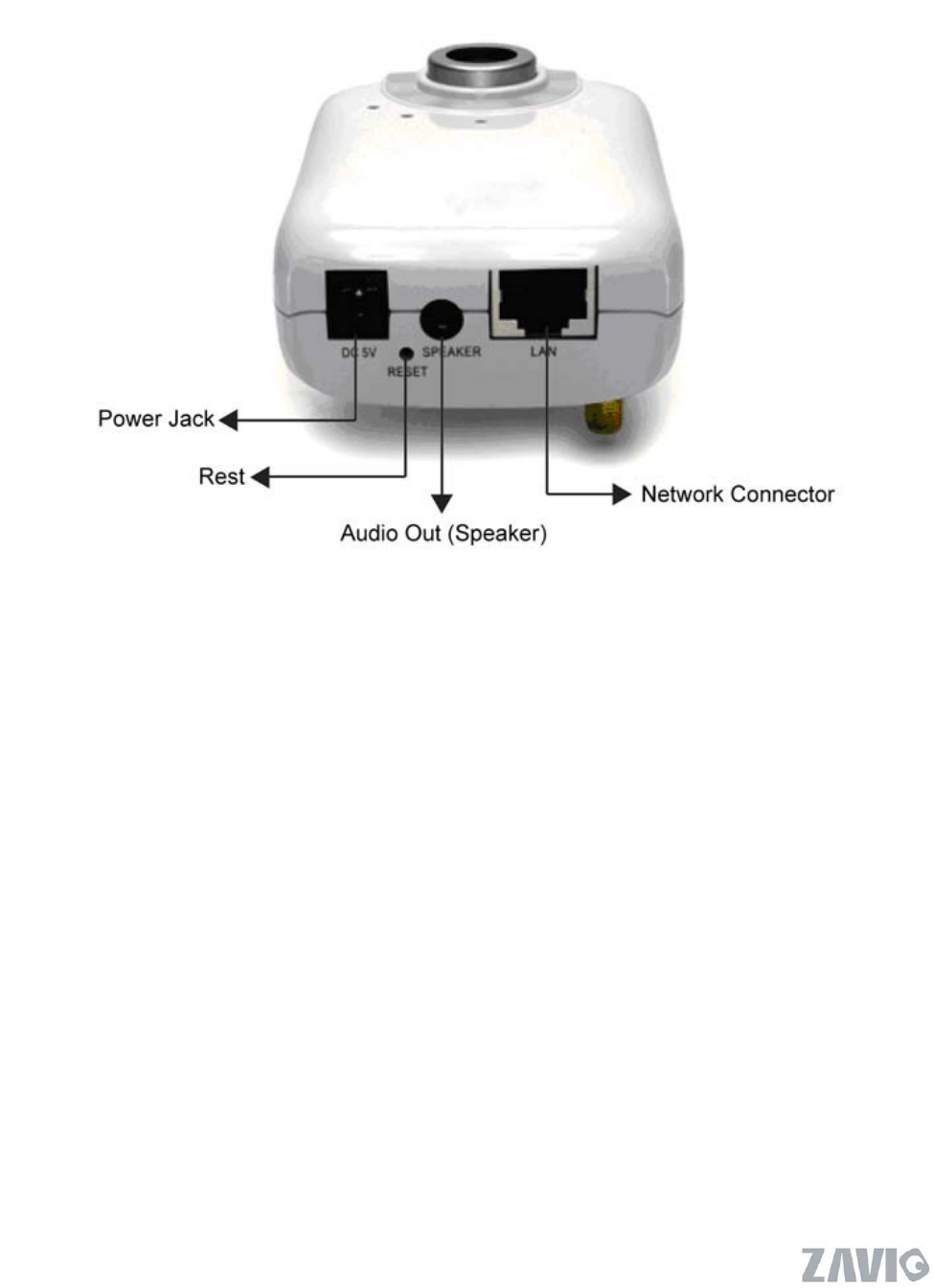

4.2 Bottom View
Power Connector - For connection of 5V DC input.
Reset – When the device is empowered, press the Reset Button to reboot the device, or
hold the Reset Button for 10 seconds to set the device settings back to factory default
Audio Out (Speaker) - To support audio out with earphones or speakers
Network Connector - For connection to the Ethernet via RJ-45 standard
8
![](/img.php?id=998965&img=bga.png)
F312A User Manual

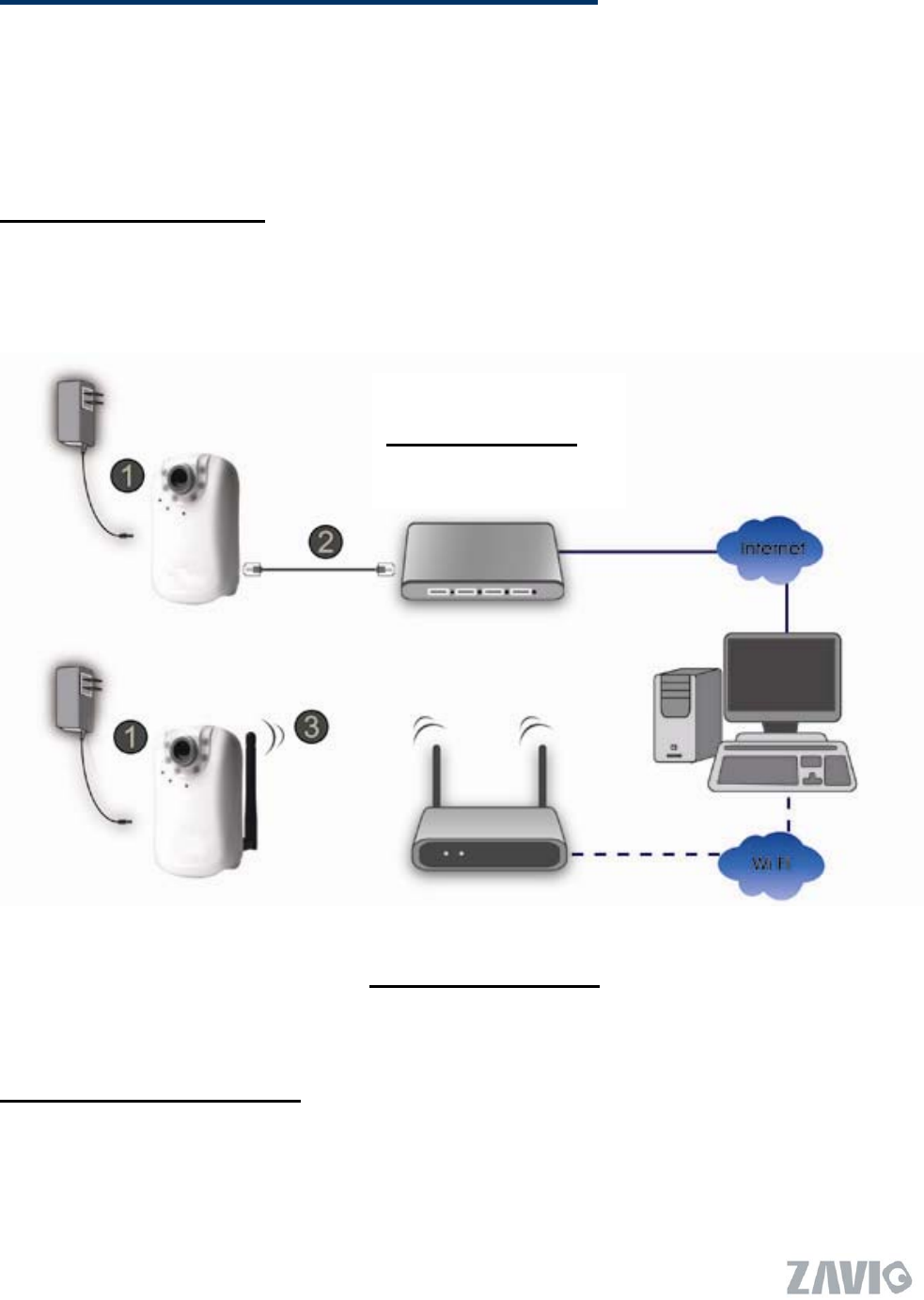

Chapter 5. Basic Connection
F312A is for both wire and wireless connection. You can follow the procedure below to connect the
IP Camera with power and Ethernet for both wire and wireless connection.
5.1 Wire Connection
1. Connect the power adaptor to IP Camera.
2. Connect IP Camera’ Ethernet port to your Hub/ Switch / Router
Wire Connection
Wireless Connection
5.2 Wireless connection
1. Connect the power adaptor to IP Camera.
3. Connect to Wi-Fi
9
![](/img.php?id=998965&img=bgb.png)
F312A User Manual

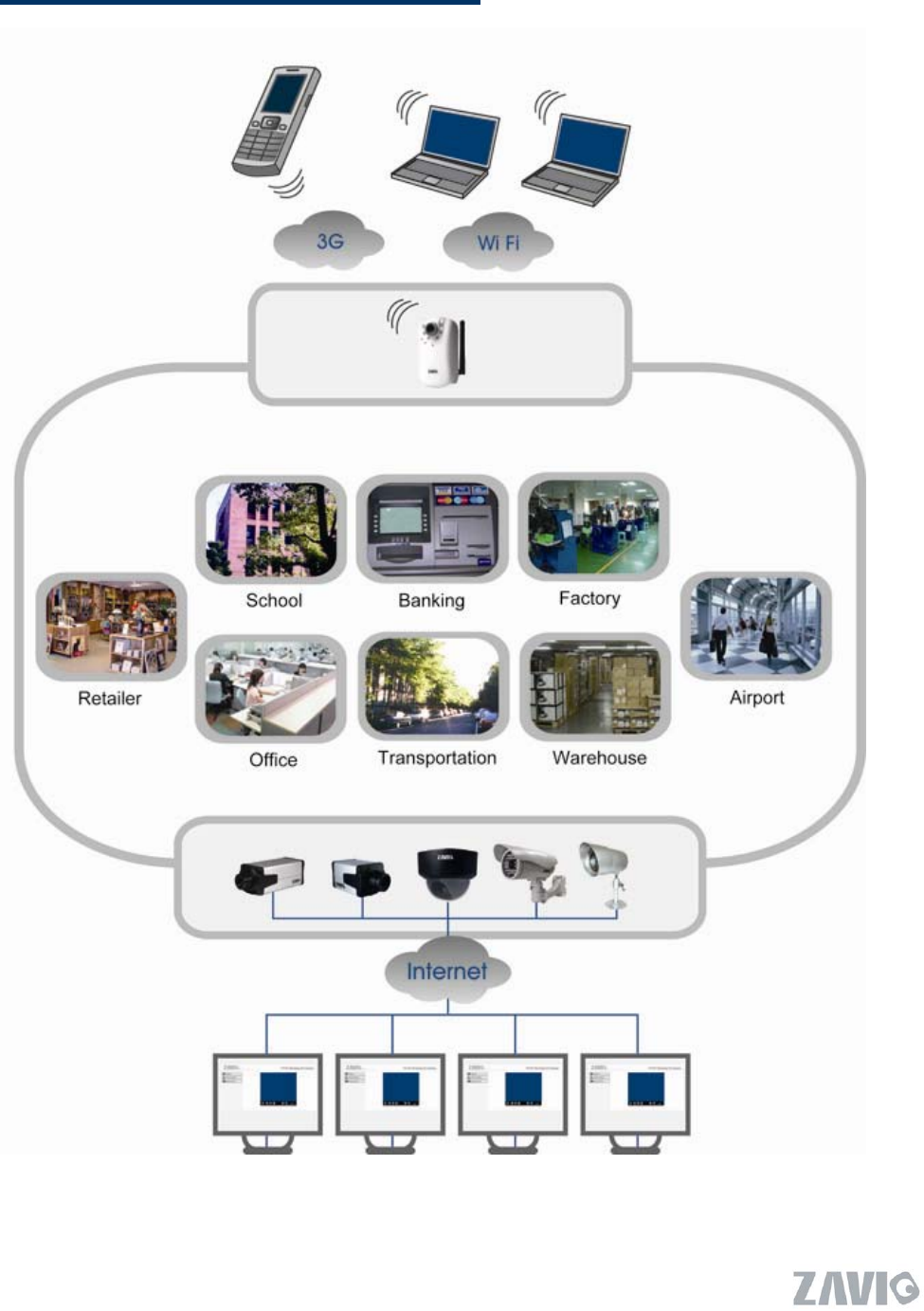

Chapter 6. Application
10
