F511W Wireless Day/Night Box IP Camera
Firmware User Manual
- Contents -
CHAPTER 1. MINIMUM SYSTEM REQUIREMENT............................................................................................... 2
CHAPTER 2. USING IP CAMERA VIA WEB BROWSER ........................................................................................ 3
2.1WINDOWS WEB BROWSER....................................................................................................................................... 3
2.2 MAC WEB BROWSER............................................................................................................................................... 5
CHAPTER 3. SETTING UP WIRELESS CONFIGURATION ................................................................................... 8
CHAPTER 4. USING IP CAMERA VIA MOBILE PHONE.....................................................................................11
4.1 USING IP CAMERA VIA IPHONE ............................................................................................................................. 11
4.2 MOBILE PHONE VIEWING ..................................................................................................................................... 12
CHAPTER 5. MSN MESSENGER............................................................................................................................... 13
CHAPTER 6. CONFIGURATION OF MAIN MENU................................................................................................ 18
6.1 LIVE VIEW ............................................................................................................................................................. 19
6.2 SETTING ................................................................................................................................................................. 21
6.3 CLIENT SETTING ................................................................................................................................................... 22
6.4 IMAGE SETUP......................................................................................................................................................... 23
CHAPTER 7. SETTING-BASIC................................................................................................................................... 24
7.1 SYSTEM .................................................................................................................................................................. 25
7.2 CAMERA................................................................................................................................................................. 30
7.3 NETWORK .............................................................................................................................................................. 36
7.4 SECURITY............................................................................................................................................................... 53
CHAPTER 8. SETTING-ADVANCE ........................................................................................................................... 56
8.1 FTP CLIENT........................................................................................................................................................... 57
8.2 SMTP .................................................................................................................................................................... 64
8.3 HTTP EVENT ......................................................................................................................................................... 72
8.4 ALARM OUTPUT .................................................................................................................................................... 79
8.5SCHEDULE .............................................................................................................................................................. 83
8.6 ALARM INPUT ........................................................................................................................................................ 85
8.7 MOTION DETECTION............................................................................................................................................. 86
8.8 SYSTEM LOG.......................................................................................................................................................... 88
CHAPTER 9. APPENDIX ............................................................................................................................................. 89
F511W User Manual
2
Firmware User Manual
Chapter 1. Minimum System Requirement
We strongly recommend your computers follow our minimum requirements in order to use this
IP-Camera normally. If computer level is lower than this, it might cause some problems.
Item Requirements
CPU Pentium 4 1600MHz (or equivalent AMD)
Graphic Card 64 MB RAM graphic cards(or equivalent on-board graphic cards)
RAM 512 MB
Operating System Windows 98, Windows ME (Please see Note)
Windows2000, 2003, XP, Vista, Mac OS X Leopard
Web Browser Internet Explore 6 or later
Note:
1. If you are using Windows 98 or Windows ME, please install IP Installer before using WEB UI
to ensure the system runs normally.
2. If you can't view the record video file, please install Xvid codec while installing Intelligent IP
Installer. (For Windows 98, ME or 2000 server, the codec might not work properly. You’ll need to
download Xvid codec 1.0 from the internet.
3. Please always update the latest Windows component. (.Net Framework, Windows Media Player,
Enhance ActiveX Security)
Chapter 2. Using IP Camera via Web Browser
2.1Windows Web Browser
1. Start your web browser, and enter the IP address or host name of the IP camera in the
Location / Address field of your browser.
Note :
If you only want to view the video without setting page, enter “http://<IP>/index2.htm”
as your web URL.
2. Use the default account “admin” and default password “admin”.
Note :
The default user name “admin” and the password are set at the factory for the
administrator. You can change them in the Account Menu (Please check “Setting →
Basic → Security → Account”)
3

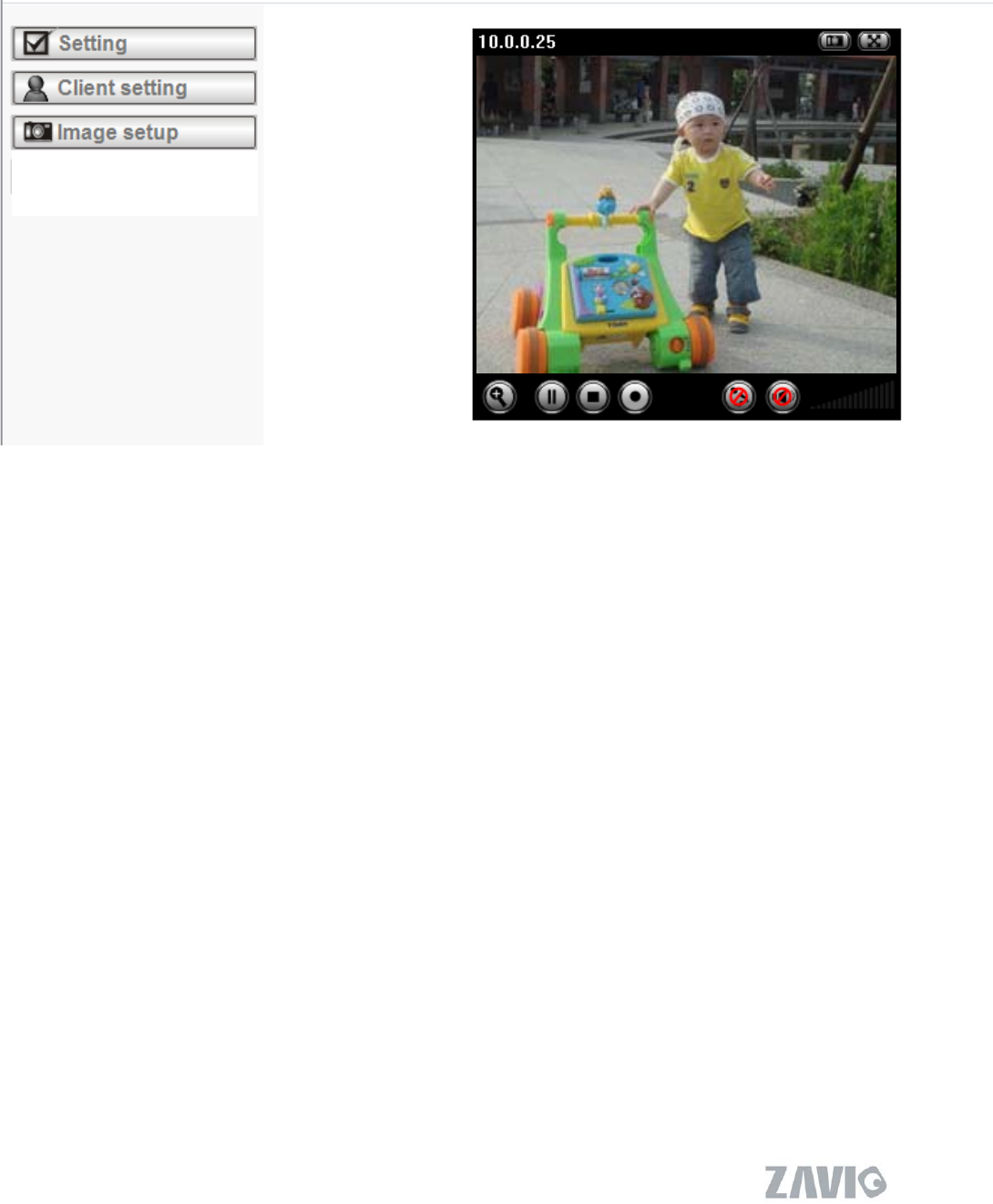

3. The monitor image will be displayed in your browser. In the far left side of main
configuration are Setting, Client Setting, and Image Setup. For more details, you can check
Chapter 6.2、Chapter 6.3、Chapter 6.4.
4
2.2 Mac Web Browser

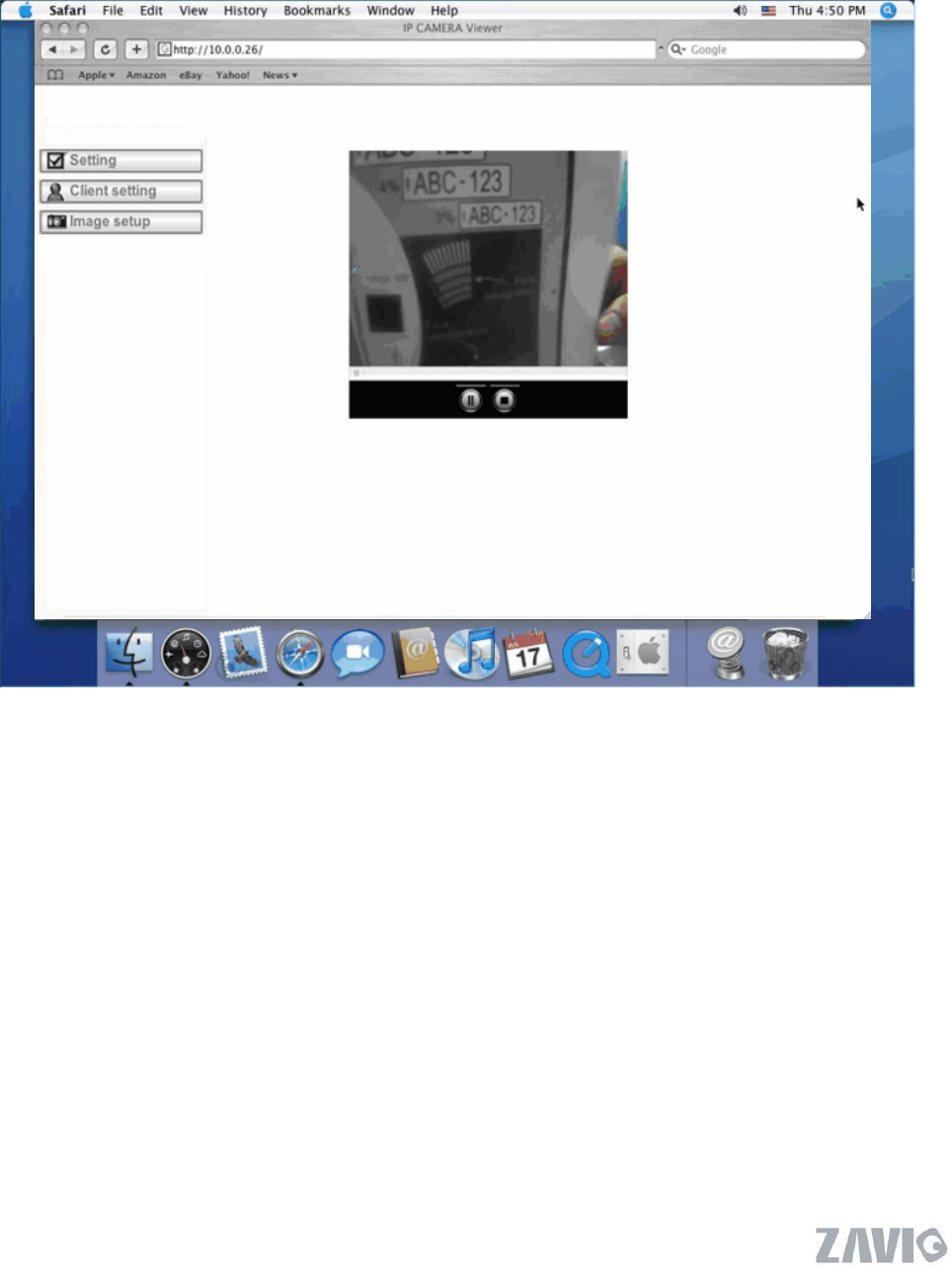

1. Click the Safari icon, and enter the IP address of the IP camera in the Location / Address
field of your browser.
Note :
If you only want to view the video without setting page, enter “http://<IP>/index2.htm”
as your web URL.
5
2. Use the default account “admin” and default password “admin”.
Note :
The default user name “admin” and the password are set at the factory for the
administrator. You can change them in the Account Menu (Please check “Setting →
Basic → Security → Account”)
6
3. The monitor image will be displayed in your browser. In the far left side of main
configuration are Setting, Client Setting, and Image Setup. For more details, you can check
Chapter 6.2、Chapter 6.3、Chapter 6.4.
7
Chapter 3. Setting up Wireless Configuration
The wireless network has to be set up by using cable network connection. After setting the
camera correctly, the wireless function can work without cable network connection. Please follow
the setting process below step by step:
1. Connect IP Camera with Ethernet connection. (Check chapter 7.3.6 for more details)
2.Go to Setting → Basic → Network → Wireless choose option “On”. You will see the
wireless setting page.
2. Go to “Setting→Basic→Network→Wireless＂, set the Wireless option to “ON” .
3. Then click “Refresh”. All access points (AP) around you will show up.
8
4. Select the AP you wish to connect.
5. Enter password at active transmit key if you need. If you don't know the setting of the
wireless AP, please ask your network administrator.
6. Choose the option of Obtain an IP address automatically (DHCP).
7. Choose the option of Obtain DNS server address automatically.
9
10
Use the following IP address: Select this when the fixed IP address is set.
IP address: Enter the IP address of the device.
Subnet mask: Enter the subnet mask.
Default gateway: Enter the default gateway.
Use the following DNS server address: Select this when you set the fixed address as the
IP address of DNS server.
Primary DNS server: Enter the IP address of the primary DNS server.
Secondary DNS server: Enter the IP address of the secondary DNS server, if
necessary.
8. Connect to the IP camera with wireless IP address, then you can remove the Ethernet
connection.
Chapter 4. Using IP Camera via Mobile Phone
4.1 Using IP Camera via iPhone
You can use Zavio Web User Interface via iPhone. Please follow the setting process below.
Then you can use Zavio web UI via iPhone.
1. Select Safari function 2. Type IP address in your web link.
3. Type name and password.
Default value is admin / admin.
Then click Login In
4. The Zavio User Interface and live image
will show up in the middle of screen.
Note: The image is contious snapshots
not video. Therefore, you can’t record
live image here.
11
12
4.2 Mobile Phone Viewing
To use IP cameras via mobile phones, please make sure your RTSP is set to “On” (Default is
“On”). To change the settings of IP cameras, Please check “Settings → Basic → Camera
→ General.”
4.2.1. 3G Mobile Phone Streaming Viewing
For 3G mobile phone viewing, type “ rtsp://<IP>:<PORT>/video.3gp ” into your 3G
Streaming Link. <IP> is the Public IP address of your IP camera; <PORT> is the RTSP port
of your IP camera (Default value is 554.) Example: rtsp://100.10.10.1:554/video.3gp
Note: You can also use RTSP clients (RealPlayer, VLC, QuickTime Player…etc.) to
view RTSP streaming, just type in “rtsp://<IP>:<PORT>/video.3gp” as the Player URL
4.2.2. 2.5G Mobile Phone WAP Viewing
For 2.5G mobile phone viewing, type “ <IP>/mobile.wml ” into your 2.5G WAP Browser.
<IP> is the Public IP address of your IP camera.
4.2.3. 2.5G Mobile Phone Browser Viewing
For 2.5G mobile phone viewing, type “ <IP>/mobile.htm ” into your 2.5G Web Browser.
<IP> is the Public IP address of your IP camera.
Chapter 5. MSN Messenger
Please see the following steps to set up the Messenger function.
1. You can download MSN software freely and create a new MSN account (camera at home) to
use Microsoft Live Messenger.
2.Go to Setting→Basic→Network→Messenger , set the Messenger to “ON” . Then, login in new
account and password (Camera at home).
3. Choose “On” at the option of IP Notification. If this feature switches On, camera will send IP
notification to the users who are allowed.
4. Choose “On” at the option of Privacy. If you can choose “On” at the privacy option, you can set
an allow list.
5. Use your account to login in the Messenger software. Then, add the new MSN account (Camera
at home )
6. The Camera at home will show up with its Public IP and Private IP if the option of IP
Notification is “On”. ( You can enter “Ping” to show up with Public IP and Private IP. )
13
7. Click on the small camera icon . Then, choose “View a new contact's webcam”.
Camera at home says:
8. The IP Camera will accept your invitation; the live video will show up in the right screen after
few seconds.
14
15
9. Click Action button and choose Start control panel to use control panel.
0. The dialog box will show up with “This application is not part if Window Live Message…….”
ick the box of “Don’t show me this again” and click OK
1
T
1
16
1. The IP Camera will accept your invitation to start Control Panel.
12. You can click Camera icon
to snapshot then the picture will send to you immediately.
Sna
p
shot

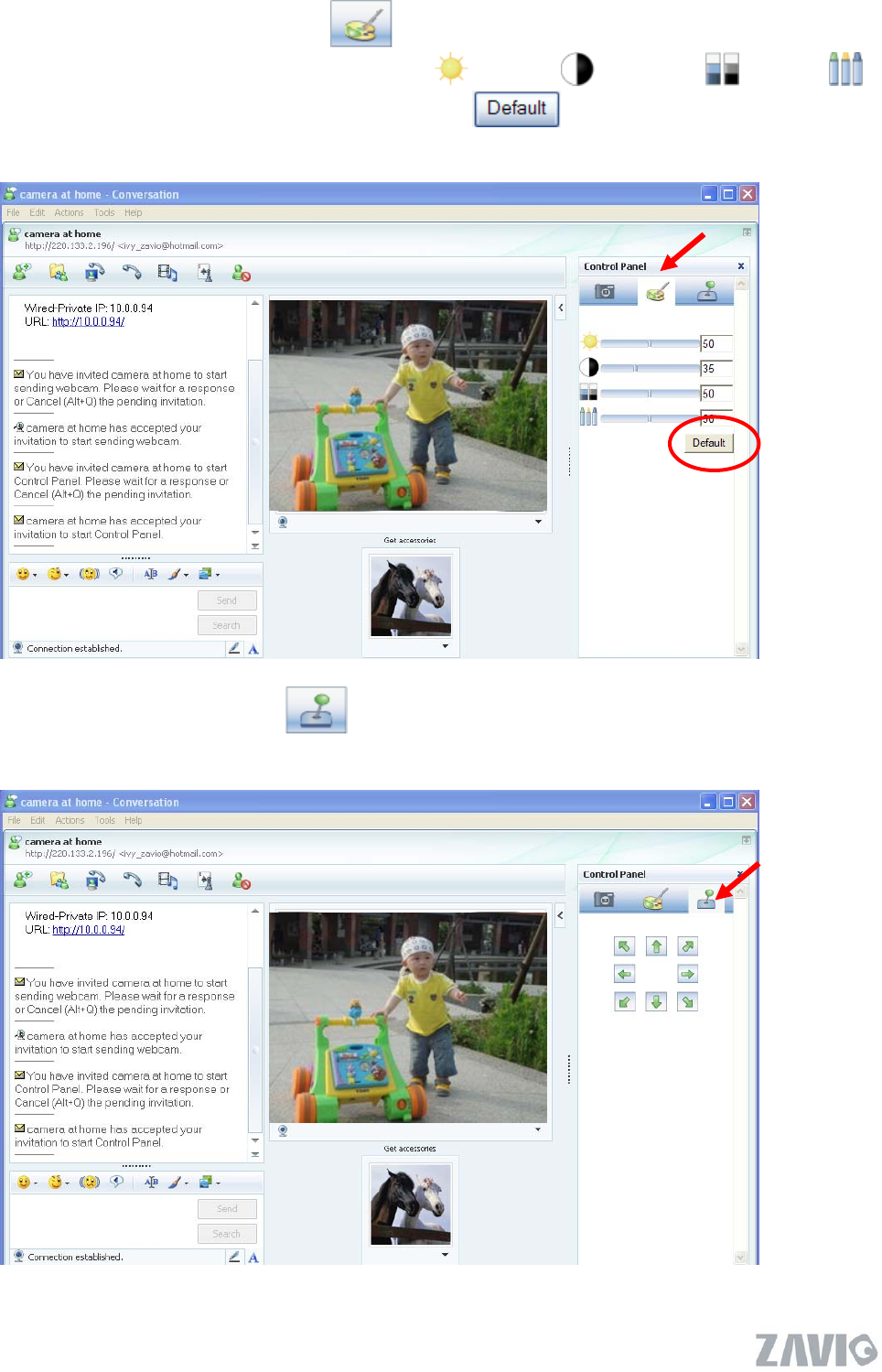

13. You can click paint palette icon showing up with tool bar to set up image. Then, you
an use the tool bar to optimize video Brightness , Contrast , Saturation and Hue .
fter the adjustment of all setting, you can still click
c
A
17
to make the setting back to the
riginal setting.
14. You can click joystick icon
o
Image Setup
showing up with arrows of different directions ou can
click the arrow button of direction to do PT control.
. Y
PT control
Chapter 6. Configuration of Main Menu
18
In the far left side of main configuration are Setting, Client Setting, Image Setup. For more
details, you can check Chapter 6.2、Chapter 6.3、Chapter 6.4.
In your right hand side, you can use Live View in your main Browser. There are Snapshot,
Zoom and Audio and Video Play four different function. You can see more details as follow.
Snapshot Full screen
Zoom in / Out
Video Play Audio button
6.1 Live View
A. Snapshot
19
You can capture a still image shot by the camera and save it in your computer.
B. Zoom in / out the image via the monitor window
Click
Symbols Meaning
a snapshot window will appear
Save to save the picture in your computer
Close to return to the view page
full Screen
to display the digital zoom in window.
Pull the to adjust the digital zoom range, and it will
be showed on the above window.
You can use the left click of your mouse to move the to any where on the window.
20
buttons C. Video play
Symbols Meaning
Pause the current video
Play the video
Stop the current video
Record the current video
Note:
Concerning the recording storage requirement of your hard disk, please refer to
the CHAPTER 9. APPENDIX / B. Storage Requirement Table.
D. Audio buttons
Symbols Meaning
Note
Speakers turned on mean the speakers of your computer are
turned on to transmit the sounds from the
connected IP camera(s)
Speakers turned off
Microphone turned on mean you can broadcast to the connected IP
camera(s) via the Ethernet using your
microphone
Microphone turned off
Volume control bar
21
6.2 Setting
This function is only for the Administrator. Click this button to get into the Basic and
Advance settings
menu.
ers including System, Camera, Network, and
Security. Fore more information, you can see Chapter 7.1、Chapter 7.2、Chapter 7.3
and .4.

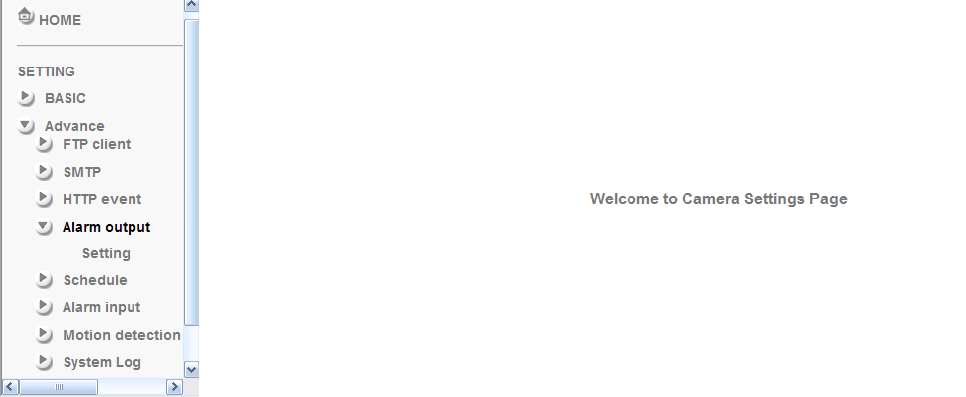

Click Advance folde -folders
event, Alarm output, Schedule, Alarm input, Motion Detection, and System Log. Fore
more information, y 、Chapter 8.2、Chapter 8.3、Chapter 8.4、
Chapter 8.5、Chapter 8.6、Chapter 8.7 and Chapter 8.8..
Click Basic folder, there are four sub-fold
Chapter 7
r, there are four sub including FTP Client, SMTP, HTTP
ou can see Chapter 8.1

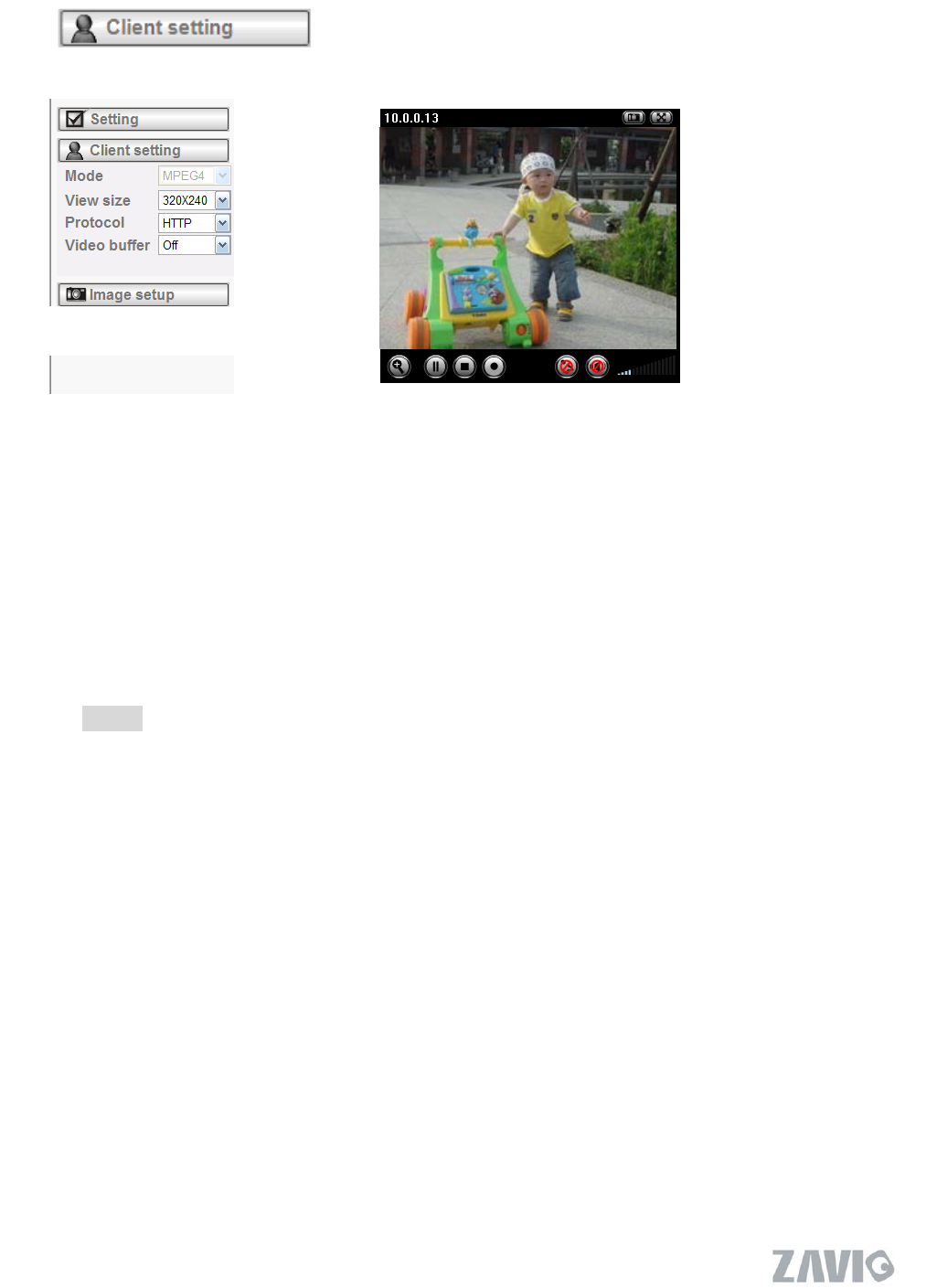

6.3 Client Setting
This function is only for the client.
Click this button to control Mode, View Size, Protocol, and Video Buffer.
6.3.1 Mode
Click the pull-down box to choose between MPEG4 and MJPEG video compression mode.
MJPEG streaming is unavailable if RTSP mode is “On.”
(Please check Setting → Basic → Camera → General)
Note：MJPEG streaming is unavailable if RTSP mode is On.
6.3.2 View Size
Select the desired display im e resolution to 640X480 or 320X240. ag
.3.3 Protocol
Select the transferring protocol from TCP, UDP, HTTP and Multicast.
6.3.4 Video Buffer
Turn the Video Buffer function ON / OFF. The Video Buffer function makes the streaming
more smoothly in unsteady network environment, but might cause a little delay in live
viewing.
6
22
6.4 Image Setup
You can use the tool bar to optimize video Brightness, Contrast, Saturation and Hue.
6.4.1 Brightness
he higher value the brightness is, the brighter the image is.
st
ore delicate of color you
6.4.3 Saturation
etermined by a combination of light intensity and how much it is
alue the saturation is, the
ill be.
es of perceived color, affected by different wavelength of
6.4.5 Default
T
6.4.2 Contra
The contrast is a measure of a display system, defined as the ratio of white to black that the
system is capable of producing. The higher value the contrast is, the m
can have.
The saturation of a color is d
distributed across the spectrum of different wavelengths. The higher v
more colorful the image w
6.4.4 Hue
Hue is one of the three main attribut
color. With higher value of hue, color will be much more vivid.
After the adjustment of all setting, you can still click Default to make the setting back to the
original setting.
23
24
Ch -Basic apter 7. Setting
Click the folder of Basic to display the sub folders including System, Camera, Network, and
Security.
7.1 System
25
the folder of System to display the sub-folders including Information, Date / Time,
and Initialize.
Click
26
7.1.1 Information
The Information page provides the product factory information which includes Product
Name, Firmware Version and Web Version.
7.1.2 Date / Time
The Date/ Time page displays all options of time setting.
Current date / time: This displays the current date and time of this IP Camera.
PC clock: This displays the date and time of the monitoring PC clock.
Date / Time format: You can click the pull down box to select different time display
rmats.
Adjust: You can select one of those four adjusting modes for your IP Camera.
Keep current setting: Select this mode to keep the current date and time of this IP
Camera.
Synchronize: Select this mode to keep the date and time of this IP Camera is the same
as the monitoring PC.
Manual setting: Select this mode to adjust manually the date and time of this IP
Camera.
Synchronize with NTP: Specify the NTP server name and the Refresh Interval to
synchronize the date and time of this IP Camera with those of the time server, known
as the NTP server.
Time Zone: You can select the Time Zone of the format from Greenwich Mean Time.
The time will display the same as the current date / time option.
fo
Note:
The NTP server (Network Time Protocol) is the time server which is an Internet
standard protocol built on the top of TCP / IP. This assures accurate synchronization to
the millisecond of computer clock times in a network of computers.
27
7.1.3 Initialize
Reboot: Click this bottom to reboot this IP Camera. A confirmation dialogue will appear
and then click “OK” to process. It takes two minutes to reboot this IP Camera.
setting.
twork indicator
ents to the default setting. Don't turn off this IP Camera until the device
reboots.
e”
ve the setting data file to your specified
” and
Camera is adjusted according to the loaded data
grade the device software. Click “Browse” and select the file for
Factory Default: Click this bottom to reset this IP Camera to the factory default
A confirmation dialogue will appear and then click “OK” to process. The ne
on this IP Camera will start to blink. This IP Camera will reboot automatically after
completing adjustm
Backup Setting: You can save the setting data of this IP Camera into a file. Click “Sav
and follow the instructions on the browser to sa
location.
Restore Setting: Download the saved setting data of this IP Camera. Click “Browse
select saved file. Click “OK” and this IP
and then restarted.
Firmware Update: Up
upgrading. A confirmation dialogue will appear. Click “OK” to start upgrading. This IP
Camera will reboot upon completion.
Note:
Use only upgrade files that are special for this IP Camera. Otherwise problems may
occur. Don't turn off the IP Camera power or disconnect the network until the
upgrading is completed.
28
29
: Upgrade the device language pack. Click “Browse” and select
nfirmation dialogue will appear. Click “OK” to start upgrading.
The upgrade is applied immediately. The default language is “English.”
Upload Language Pack
the file for upgrading. A co
7.2 Camera
30
Click the folder of Camera to display the sub folders including General, MPEG4 and
MJPEG.
31
7.2.1 General
RTSP : Switch On / Off
Note: RTSP (Real Time Streaming Protocol) is a protocol for use in streaming
media system which allows clients to remotely control a streaming video server.
RTSP is supports by most of the media clients such as Real Player, QuickTime
and VLC...etc.
Image Rotate: You can mirror or flip the display screen.
Night Mode: You can choose Auto / Off. If you choose Auto option, the camera will
adjust automatically to perform well when the environment is dark
Lighting: You can choose the environment among 50 Hz, 60 Hz, and Outdoor.
White Balance: You can choose the white balance to Auto, Florescent, Incandescent and
Black & White.
IR: You can turn LEDs light On / Off and Auto. If you select Auto mode, you can adjust
threshold for LEDs Auto-On and Auto-Off respectively. In the right hand side of threshold,
if the tool bar is closer to the right, the LEDs will auto-on easily in the dark environment.
Conversely, in the left hand side of threshold, if the tool bar is more approach to the left, the
LEDs will auto-off easily in the bright environment.
Overlay:
Text Overlay: You can see some information on the display screen which includes
Date / Time and user-defined text. Also, you can change the background color.
Privacy Mask: You can cover a specific area of the video image.
32
A. Computer View
7.2.2MPEG4
mode is On, please check “Setting → Basic → Camera → General ”)
TSP streaming. The default
ed
P.
Unicast Streaming Video / Audio Port Range: Specify the transmission port range of
aming (If it is ON)
Multicast Address: Specify the multicast server address.
treaming Video / Audio Port Number: Specify the transmission port number
its. You can choose
among 640 x 480, 320 x 240 and 160 x 120.
RTSP (if RTSP
RTSP Port: Specify the transmission port number of R
value is 8554.
Viewer Authentication: If the viewer authentication is On, the users will be request
to key-in username and password when viewing through RTS
RTP (if RTSP mode is On, please check “Basic→ Camera → General“)
RTP streaming video. RTP will select a port randomly from the range.
Multicast Stre
Video / Audio Port: Specify the transmission port number of the video data. Specify
an even number from 1024 to 65534.
Time to Live: Set the maximum TTL that multicast can pass through.
MPEG4 view port (if RTSP mode is Off, please check “Basic → Camera →
General”)
Unicast S
of the video data. It is initially set to 8090. You can specify an even number from
1024 to 65534.
Image Size: Specify the image size when the network camera transm
33
e rate of the MPEG4 image. You can choose values from 5, 10,
unit “fps” stands for “frames per second”.
Auto: The quality and bitratee will be adjusted automatically according to the frame
rate.
Fixed Quality: You can select the value of quality among Medium, Good, Delicate
and Excellent.
Fixed Bitrate: Set the bitrate of MPEG4 image transmission for a line. You can select
the values from 64, 128, 256, 384, 512, 768, 1024, 1280, 1536, and 2048 kbps.
Frame Rate: Set the fram
15, 20, 25, and 30 fps. The
Quality:
Off, please check “Basic → Camera →
set to 8090. You can specify an even number
umber, the
MPEG4 view port (if RTSP mode is
General”)
Unicast Streaming Video / Audio Port Number: Specify the transmission port
number of the video data. It is initially
from 1024 to 65534. If you change the setting of Video / Audio Port N
setting of Video / Audio Port Number (SSL) will change automatically.
Note:
Concerning how to select the suitable image quality for Fixed Quality or Fixed Bitrate, please
refer to the CHAPTE
R 9. APPENDIX / A. Frame-rate & Bitrate Table.
B. Mobile View
RTSP (if RTSP mode is On, please check “Setting → Basic → Camera → General”)
RTSP Port: Specify the transmission port number of RTSP streaming. The default
value is 554.
RTP (if RTSP mode is On, please check “Setting → Basic → Camera → General”)
Unicast Streaming Video / Audio Port Range: Specify the transmission port range of
RTP streaming video. RTP will select a port randomly from the range.
Multicast Streaming (If it is On)
Multicast Address: Specify the multicast server address.
Video / Audio Port: Specify the transmission port number of the video data. It is
initially set to 10000 and 11000. Specify an even number from 1024 to 65534.
Time to Live: Set the maximum TTL that multicast can pass through.
, 10,
can select
the value from 64, 32, 16 kbps.
Image Size: The image size of Mobile View is fixed at 160 x 120.
Frame Rate: Set the frame rate of the MPEG4 image. You can choose values from 5
15, 20 fps. The unit “fps” stands for “frames sent per second”.
Quality:
Fixed Bitrate: Set the bitrate of MPEG4 image transmission for a line. You
Note:
Concerning how to select the suitable image quality for Fixed Quality or Fixed Bitrate, please
refer to the CHAPTER 9. APPENDIX / A. Frame-rate & Bitrate Table.
34
35
MJPEG Viewer Port:
s from 5, 10,
15 fps.
, Good,
7.2.3 MJPEG
Unicast Streaming Video / Audio Port Number: Specify the transmission port number
024of the video data. It is initially set to 8070. You can specify an even number from 1
to 65534.
Image Size: Specify the image size when the network camera transmits. You can choose
among 640 x 480, 320 x240 and160 x120.
Frame Rate: Set the frame rate of the MJPEG image. You can choose value
The unit “fps” stands for “frames per second”.
Quality:
Auto: The quality will be automatically decided.
Fixed Quality: You can select the value of quality among Medium, Standard
Delicate and Excellent.
Note:
Concerning
refer to the C
how to select the suitable image quality for Fixed Quality or Fixed Bitrate, please
HAPTER 9. APPENDIX / A. Frame-rate & Bitrate Table.
7.3 Network
36
lick the folder of Network to display the sub folders including Information, PPPoE,
DNS, UPnP, Bonjour, IP Notification, Wireless and Messenger.
C
D
37
ion
Display the MAC address of the device.

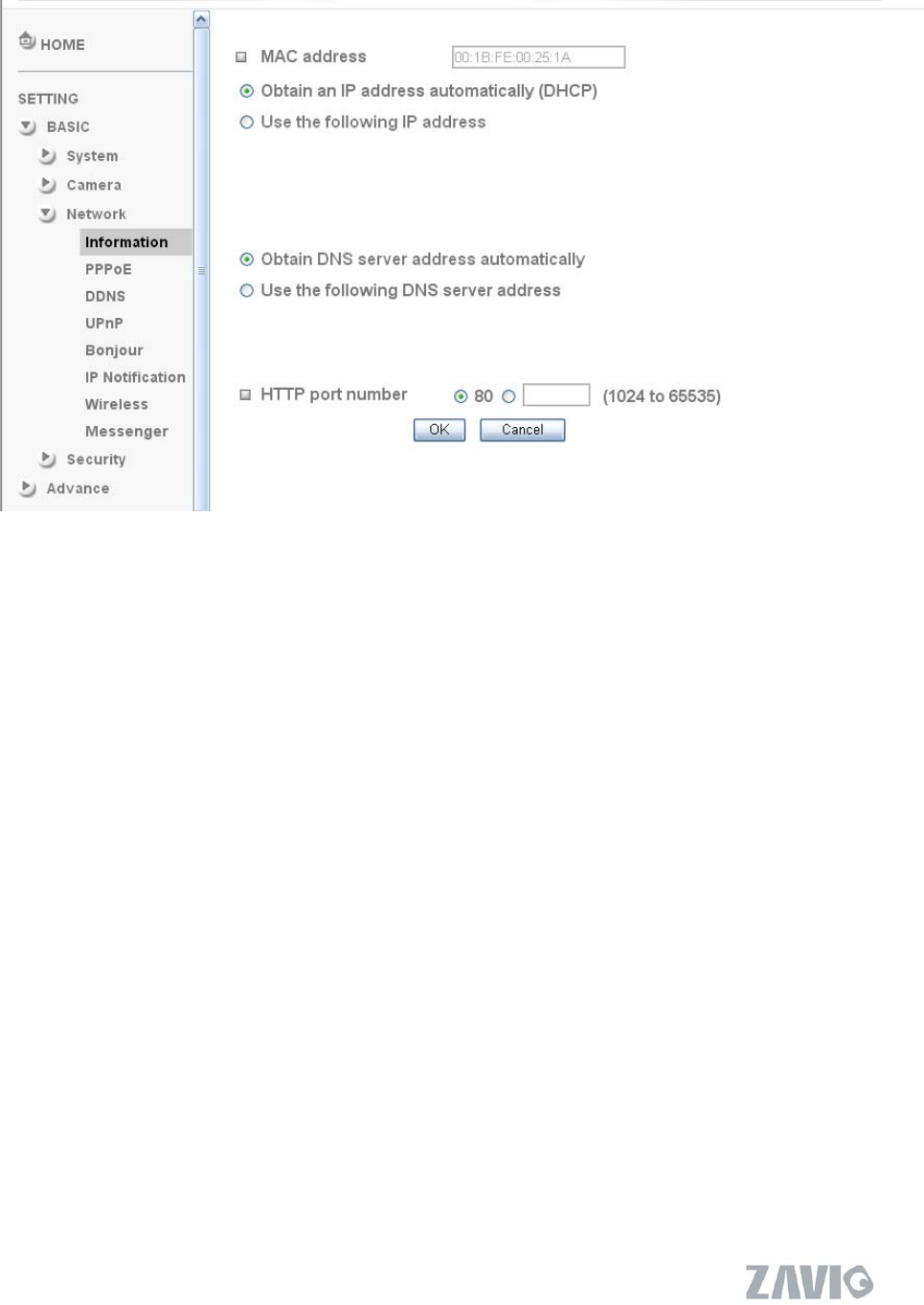

7.3.1 Informat
Obtain an IP address automatically (DHCP): If a DHCP server is installed on the
network, to select this while the IP address is assigned by the DHCP server.
Obtain DNS server address automatically: Select this to obtain the address of DNS
server automatically.
Use the following IP address: Select this when the fixed IP address is set.
IP address: Enter the IP address of the device.
Subnet mask: Enter the subnet mask.
Default gateway: Enter the default gateway.
Use the following DNS server address: Select this when you set the fixed address as the
IP address of DNS server.
Primary DNS server: Enter the IP address of the primary DNS server.
Secondary DNS server: Enter the IP address of the secondary DNS server, if
necessary.
HTTP port number: Select 80 in general situations. If you want to use a port number
ther than 80, select the text box and enter a port number between 1024 and 65535.
When you have set the HTTP port number to a number other than 80 on the Network
setting page or in the Setup Program, access the device by typing the IP address of the
device on the web browser as follows: Example: when HTTP port number is set to
2000 http://192.168.1.100:2000/
o
Note: The IP Camera needs to be rebooted after it finishes changing the network setting
completely.
Note: If you connect the IP Camera with your computer directly, the default network domain
of camera is 192.168.1.xx
38
39

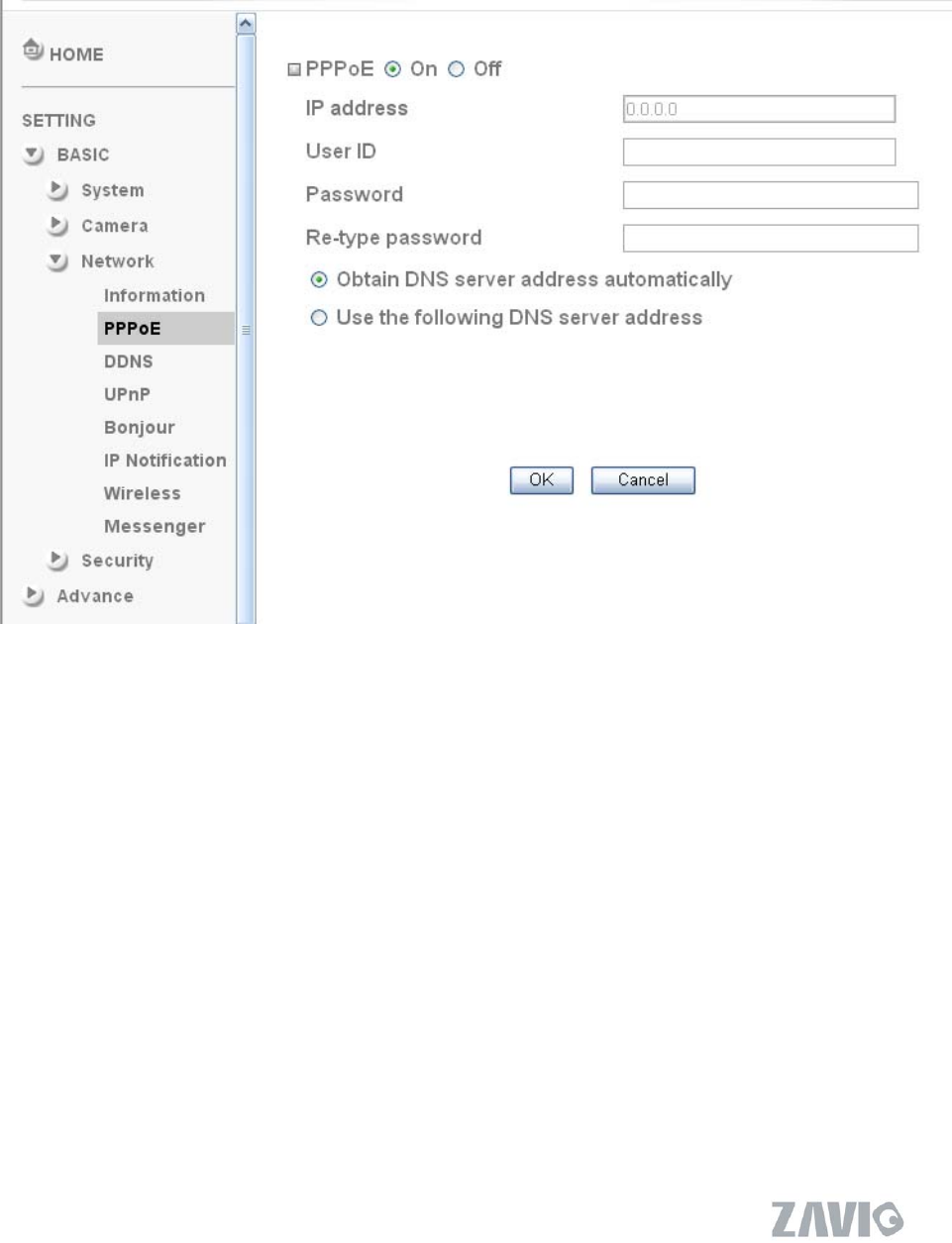

7.3.2 PPPoE (Point-to-Point Protocol over Ethernet)
If your ISP provides Dynamic IP with authentication by username and password, type all
PPPoE information in this part. When you use the PPPoE function, you need to turn on the
DDNS or IP Notification function at same time.
ss obtained at the PPPoE connecting with network.
ype it
e
IP address: The IP addre
Us r ID: Enter the user ID for authentication necessary for PPPoE connections. T
up to 64 characters.
e
Password: Enter the password for authentication necessary for PPPoE connections. Typ
it up to 32 characters.
Re-type password: Re-type the password to confirm.
Obtain DNS server address automatically: Select this to obtain the address of DNS
server automatically.
Use the following DNS server address: Select this when you set the fixed address as the
IP address of DNS server.
Primary DNS server: Enter the IP address of the primary DNS server.
Secondary DNS server: Enter the IP address of the secondary DNS server.
Note :
ocol for
encapsulating Point-to-Point Protocol frames insider Ethernet frames. PPPoE
modem) over Ethernet work. It also widely used in XDSL (digital
eeds to be rebooted after it finishes changing the network
3. The IP Camera with Intelligent IP Installer can’t be founded after turning on
1. PPPoE (Point-to-Point Protocol over Ethernet): PPPoE is a network prot
connection is used mainly with ADSL service where individual users connect to the
ADSL transceiver (
affiliate line such as ADSL, VDSL or SDSL)
2. The IP Camera n
completely.
the PPPoE and reboot.
40
41
7.3.3 DDNS (Dynamic DNS)
DDNS is a system which allows the domain name data held in a name server to be updated
in real time. The most common use for DDNS is allowing an internet domain name to be
assigned to a computer with a varying / dynamic IP Address. This makes it possible for other
sites on the internet to establish connection to the machine without needing to track the IP
Address themselves.
m the list.
er the user ID for authentication necessary for DDNS connections. Type it up
to
word for authentication necessary for DDNS connections. Type
it up to 32 characters.
Re-type password: Re-type the password to confirm.
Host name: Enter the host name that is registered to the DDNS server.
Server name: Choose the DDNS Server fro
User ID: Ent
64 characters.
Password: Enter the pass
Note :
How to apply DDNS username and Host name??
You can apply DDNS username and Host name by the following steps:
1. Login http://www.dyndns.org, click the Create Account
2. Input all information and follow step by step with DynDNS
.
42
43
3. Login with new account and click Account → My Hosts → Add Host Services
4. Type domain in the Hostname field and select sub-domain
44
5. After type information, check your DDNS service.
6. Type your DDNS User ID, Password and Host name in Setting → Network →
DDNS. After completing setting, reboot IP Camera.
45
Play)
If you have a Router to access to internet and the Router supports UPnP IGD function, you
need to turn on the UPnP Port Forwarding function.
7.3.4 UPnP (Universal Plug and
HTTP port: Enter the HTTP port number and default HTTP port is 80.
SSL port: Enter the SSL port number and default SSL port is 443.
MPEG4 viewer port: Enter the MPEG4 viewer port number and default MPEG4 viewer
port is 8090.
MPEG4 viewer port (SSL): Enter the MPEG4 SSL viewer port and default is 8091.
MJPEG viewer port: Enter the MJPEG viewer port number and default MJPEG viewer
port is 8070.
MJPEG viewer port (SSL): Enter the MPEG4 SSL viewer port and default is 8071.
MPEG4 RTSP port: Enter the MPEG4 RTSP port, default value is 8050 for computer
view, 8030 for mobile view.
46
Note :
UPnP (Universal Plug and Play): UPnP is a set of computer network protocol. It allows
UPnP which is enabled by default.
The device will be automatically detected and a new icon will be added to “My
Network Place” if it also enables on your computer. It provides Port Forwarding for
opening a port in a router or firewall in a private network in order to let a party from
the outside world contact a inside user.
devices to connect seamlessly and simplify the implementation of networks in the home
and corporate environments. The device supports
47
7.3.5 Bonjour
Bo
co cols
to es or
co
njour, also known as zero-configuration networking, enables automatic discovery of
mputers, devices, and services on IP networks. Bonjour uses industry standard IP proto
allow devices to automatically discover each other without the need to enter IP address
nfigure DNS servers.
Device Name: Enter Device Name you wish.
Note: How to use Bonjour in your Windows Browser UI? Please check the link below:
http://www.apple.com/support/downloads/bonjourforwindows.html
48
ation 7.3.6 IP Notific
When network notify type is set to “ON”, you can send an e-mail notification of the completion of
the network setting.
Notify Type: You can select the notify type among DHCP, Static IP, and PPPoE.
SMTP Server Name: Type the SMTP server name up to 64 characters, or the IP address
of the SMTP server.
1~65535 according to your mail
server. The default value is 25.
Security setting: Tick SSL box if the mail server you use has security restriction.
SMTP Server Port: You can set port number from
Note:
umber and tick
SSL box.
Authentication: Select the authentication required when you send an email.
Off: Select if no authentication is necessary when an email is sent.
On: When authentication is necessary an e-mail is sent, there are SMPT, POP before
SMPT or both three options.
If you use g-mail as your mail server, you should set 587 as your port n
49
Authentication: Select the authentication required when you send an email.
Off: Select if no authentication is necessary when an email is sent.
On: When authentication is necessary an e-mail is sent, there are SMPT, POP before
SMPT or both three options.
SMTP: Select if SMTP authentication is necessary when an e-mail is sent.
POP before SMTP: Select if POP before SMTP authentication is necessary when an
e-mail is sent.
ails performs authentication using the POP user account.
can
specify up to three recipient E-mail addresses.
A
characters. mail and sending system messages from the SMTP
espect to mail
Message: Type the text of the E-mail up to 384 characters. Default value provides
network information including IP, Port, MAC, Model, Firmware Version and Web Version.
POP server name: It is necessary when the POP before SMTP is selected in
Authentication. Type the POP (receiving mail) server name up to 64 characters, or
type the IP address of the POP server. This setting is necessary when the SMTP server
which sends e-m
User name, Password: Type the user name and Password of the user who has the
mail account. This setting is necessary when the SMTP server which sends e-mails
performs authentication.
ipient e-mail address: Type the recipient e-Mail address up to 64 characters. YouRec
dministrator e-mail address: Type the Administrator e-Mail address up to 64
This address is used for reply
server.
Subject: Type the subject/title of the e-Mail up to 64 characters. With r
which is sent according to the IP notification.
50
7.3.7 Wireless
The wireless network has to be set up by using cable network connection. After setting the
camera correctly, the wireless function can work with cable network connection. Wireless
settings must be the same as the access point or ad-hoc device. When changing the settings
they should always be made first in the camera and then in the wireless access point. This
ensures that the camera is always accessible when making changes.
is provided.
hoc device). If the same name occurs
ciate with one particular access point.
pes supported by the camera.
Shows the wireless channel currently in use.
s. This can only be shown for the access point
Status of Wireless Network
This list is the result of network scan. The network is currently linked to will be shown in
blue. The following information
ESSID - The name of a wireless network (or ad-
several times this means that several access points for that network were found. The
camera cannot be configured to only asso
Mode - Shows if the network type is Master (access point or router) or Ad-Hoc
(another client).
Security - Shows which type of security the network uses. See below for the security
ty
Channel -
Signal strength - Shows the signal strength.
Bit rate - Shows the bit rate in Megabit/
currently in use. Note that the bit rate shown is the current rate, and that this value
may vary over time.
51
These settings control how the camera interacts with the wireless network. It is also possible
e of the wireless
network the camera is configured for. The field accepts up to 32 alphanumeric
characters. The name must be exactly the same as that used in the wireless access
point or the connection will not be established.
Leaving this field blank means the camera will attempt to access the nearest open
network.
Mode - Setting this to Managed means the camera will attempt to access the nearest
open access point. The Ad-hoc option allows the camera to connect to other wireless
devices clients.
Wireless Setting
to enable wireless encryption apart from identifying the wireless network.
IP Address – This displays blank, 0.0.0.0 or IP Address. When it is blank, the camera
doesn’t establish physical link with access point yet. The 0.0.0.0 means that physical
link was established but trying to get IP address. When it displays IP address, then
user can use wireless network.
ESSID (ESSID is sometimes written as SSID.) - This is the nam
Note :
1. WPA-/WPA2-PSK (Wi-Fi Protected Access - Pre-Shared Key) the camera uses a
pre-shared key (PSK) to initiate WPA security. The pre-shared key is entered on the
access point and on each device on the wireless network. The key can be entered either
as Manual hex, as 64 hexadecimal (0-9, A-F) characters, or as a Passphrase, using 8 to
63 ASCII characters. The access point keeps out unauthorized users by requiring the
key to communicate.
2. WEP (Wired Equivalent Protection) the original security standard used in wireless
al level of security that can deter minor trespasses. The networks that provides a minim
administrator can select the key length among 64 or 128 bits. 64bits is the default
setting.
7.3.8 Messen
52
ger
what camera’s Messenger function provide an easy-connect feature. User can easy to know
private and public IP address is.
.
Login Account: Camera will use this account to login MSN server. This MSN account
should be applied form
Protocol: support MSN only
http://www.msn.com.
Password: password for this msn account.
Re-type
password: re-type password to double confirm.
Alias: This alias will display on MSN like the following which display in red frame.
Port range: Camera will select one port from this port range for video transmission.
IP Notification: Switch the IP notification On / Off. If this feature switches On, camera
will send IP notification to the users who are allowed.
Privacy: Switch privacy On / Off. When privacy turns on, only those users in allow list
can access the camera
User: Input to this blank to edit allow list.
Allow list: When privacy turns on, only those users in allow list can access the camera
7.4 Security
Click the folder of Security to display the sub folders including Account and HTTPS.
53
53
7.4.1 Account
54
The device fault account and password setting is “admin / admin”. That means everyone
o
assign a password if the device is intended to be accessed by others.
who knows IP address can access the device including all configuration. It is necessary t
User name: Set a user name between 4-16 characters.
Password: Set a password between 4-16 characters.
Re-type Password: Re-type the password to confirm.
Viewer Mode: Set the user mode among Admin, Operator, and Viewer. Different viewer
mode has different limits of authority.
The Admin mode has all authority of configuration.
The Operator mode can not only view the Live View but also control the PTZ (apply
in speed dome).
The Viewer mode only can view the Live View.
Viewer Authentication: Allows any viewer direct access to Live View.
7.4.2 HTTPS
55
lly
an
ditional encryption /
authentication layer between the HTTP and TCP. You can use the IP camera through HTTPS
easily by using https:// instead of http://.
HTTPS is a URI scheme used to indicate a secure HTTP connection. It is syntactica
identical to the http:// scheme normally used for accessing resources using HTTP. Using
https: //URL/ with a different default TCP port (443) and an ad
HTTPS to recognize.
e set up “Create self-signed certificate” for the first
ction policy for different users.
Create & Install: Create a self-signed certificate for
Installed Certificate: Display or remove the properties of the installed certificate.
HTTPS Connection Policy: Set HTTPS connection policy for different level of users.
To use the HTTPS encryption, pleas
time you use the HTTPS function, and then set up the conne
Note:
When enable HTTPS with RTSP on mode, the IP Camera only protect the setting such as
username and password and do not protect video and audio. When enable HTTPS with RTSP
off mode, the IP Camera will protect all setting including video and audio.
Ch ting-Advanceapter 8. Set
Click
even
the folder of Advance to display the sub folders including FTP client, SMTP, HTTP
t, Alarm output, Schedule, Alarm input, Motion detection and System Log.
56
8.1 FTP Client
Use this menu to set up for capturing and sending images to an FTP server. By using
client function, you can send the image which has been shot and recorded link
FTP
ed with the
external sensor input or with the built-in motion detection function to FTP server. FTP client
setting menu is composed of two tabs, General, Alarm sending and Periodical sending.
57
8.1.1 General

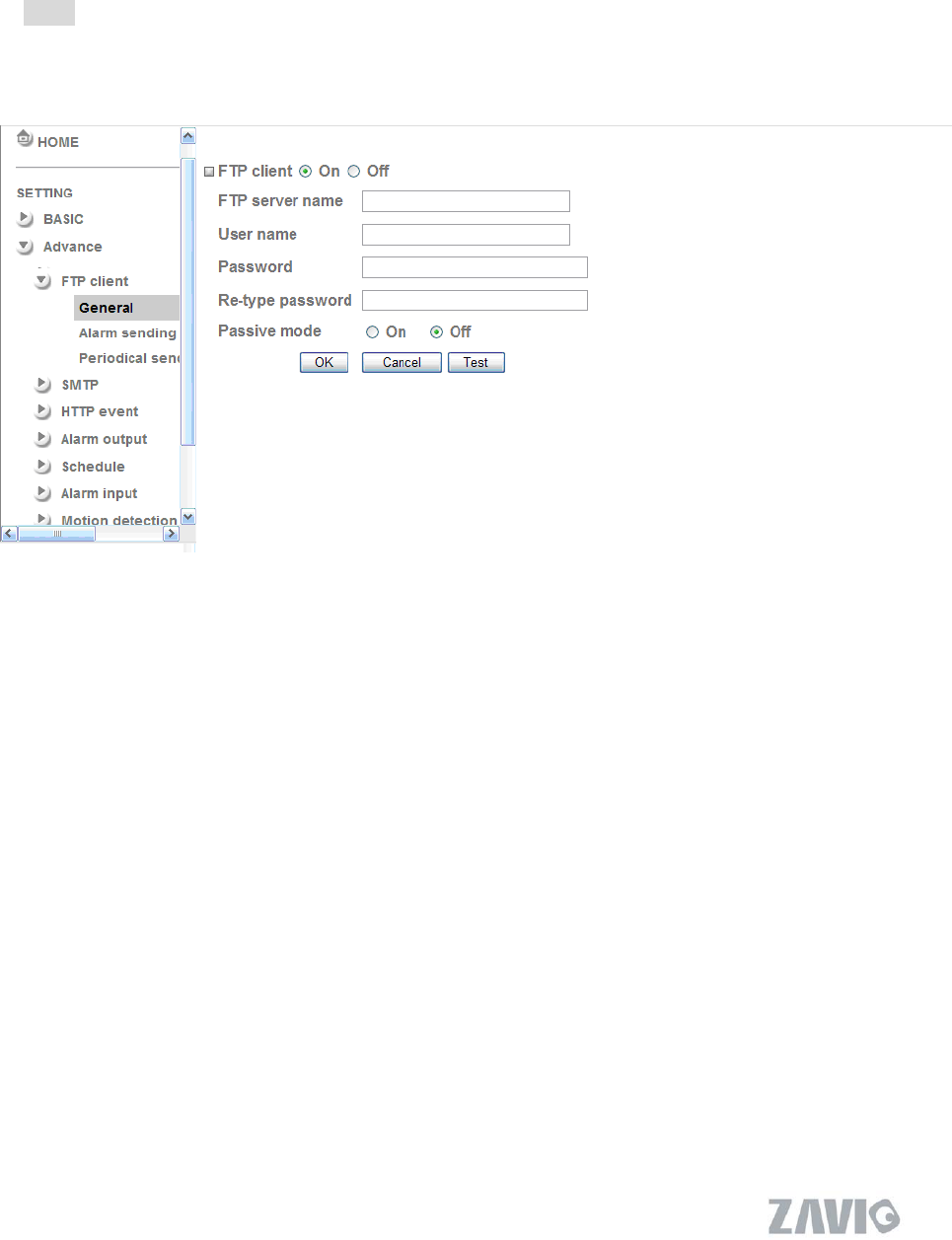

Select On when you use FTP function. The FTP client setting page appears.
Select Off, when you do not wish to use the FTP client function.
Note:
The frame rate and operability on the main viewer may decrease while a file is being
transmitted by the FTP client function.
FTP server name: Type the FTP server name to upload still images up to 64 characters,
or the IP address of the FTP server.
User name: Type the user name for the FTP server.
Password: Type the password for the FTP server.
Retype password: To confirm the password, type the same characters as you typed in the
Password box.
Passive mode: Set whether you use the passive mode of FTP server or not when
connecting to FTP server. Select On to connect to FTP server using the passive mode.
58
8.1.2 Alarm se
59
nding
ith the alarm
ection function. Select On
to send the image file to FTP server linked with the alarm detection.
Remote Path: Type the path to the destination in FTP server up to 64 characters.
Image File Name: Type the file name you want to assign to the images when sending to
the Image file name. The date/time
gits), month (2 digits), date (2 digits),
t number is added to the file name.
umber: A consecutive number of 10 digits between 0000000001 and
s
Set to forward the image and audio file to the specified FTP server linked w
detection by the external sensor input or by the built-in motion det
the FTP server. You can use up to 10 alphanumeric characters, - (hyphen) and _
(underline) for naming.
Suffix: Select a suffix to add to the file name
Date & time: The date & time suffix is added to
suffix consists of lower two-digits of year (2 di
hour (2 digits), minute (2 digits), second (2 digits), and consecutive number (2 digits),
thus 14-digi
Sequence n
4294967295 and two fixed digits 00 is added to the Image file name.
Sequence number clear: Click Clear and the suffix of the sequence number return
to 1.
Alarm
Motion Detection: Click it on for using Motion Detection function as a sensor. You
can set motion detection function at the motion detection function page.
60
Note: You can set motion detection at motion detection page. (Please go “Setting →
Advance →Motion detection → Setting”) For more details, you can check Chapter
8.7.
Alarm Input: Select the connected alarm. Sensor input1: The external sensor which
is connected to sensor input1 of the alarm input.
61
Note: You can set the alarm input function at alarm input page. (Please go “Setting →
nce → Alarm input → Setting”). For more details, you can check Chapter
Effective period: Set the period when the periodical sending is effective.
Always: The periodical sending is always effective.
Schedule: You can specify the period when the periodical sending is effective in the
Schedule setting in the other section.
Adva
8.6.

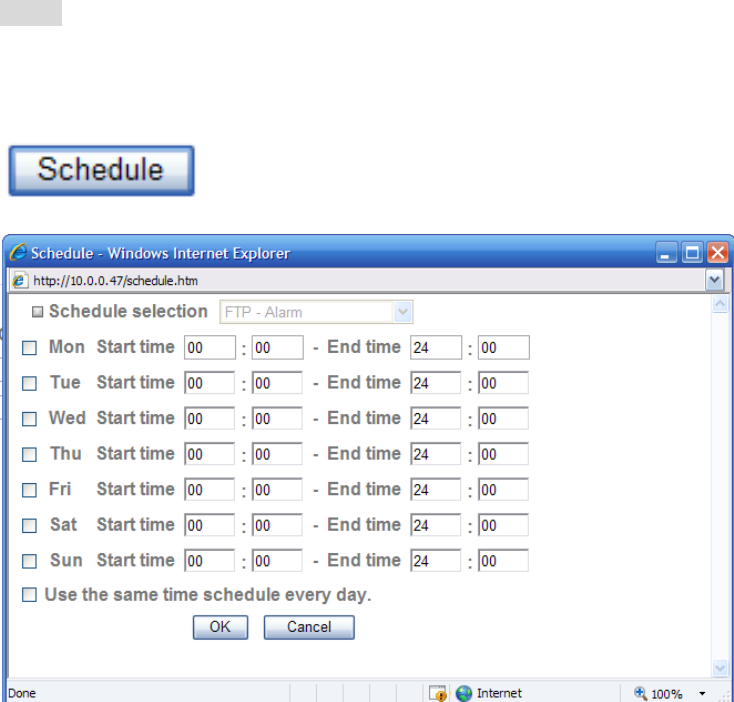

Note: You can set schedule function at schedule page. (Please go “Setting → Advance
Schedule → Setting”) For more details, you can check Chapter 8.5. →
8.1.3 Periodical sending
62
You can set to send an image file to FTP server periodically by selecting On to send the
image file to FTP server i d with setting period.
u fix: Select a suffix to be added to the file name sent by SMTP.
(2 digits),
hour (2 digits), minute (2 digits) and second (2 digits), and consecutive number (2
digits), thus 14-digit number is added to the file name.
Sequence number: consecutive number is added to the Image file name.
Sequence number clear: Click Clear and the suffix of the sequence number returns
to 1.
Interval: Set the periodical sending is effective interval. Min value is 1 min and Max
value is 24 hour.
l nke
Image file name: Type the file name of the image sent by SMTP up to 10 alphanumeric
characters, - (hyphen) and _ (under score).
S f
None: The name of the sent file will be the Image file name.
Date & time: The date & time suffix is added to the Image file name. The date & time
suffix consists of lower two-digits of year (2 digits), month (2 digits), date
A
63
periodical sending is effective.
Always: The periodical sending is always effective.
e
eck “Setting → Advance→ Schedule
→Setting”.
Effective period: Set the period when the
Schedule: You can specify the period when the periodical sending is effective in th
schedule setting in the other section. Please ch
Note: You can set schedule function at schedule page. (Please go “Setting → Advance
→ Schedule → Setting”) For more details, you can check Chapter 8.5.
8.2 SMTP

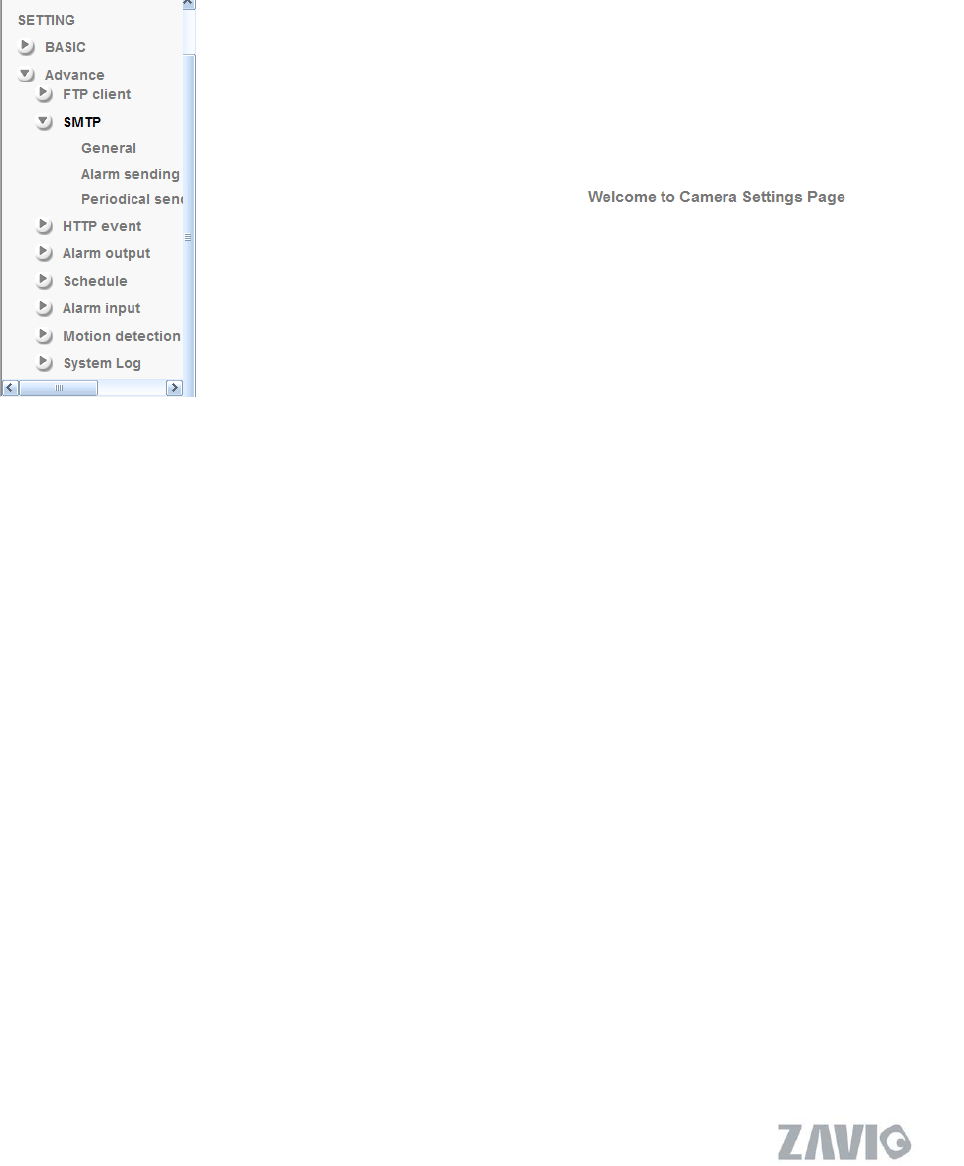

Set the SMTP menu when you want to send an image via e-mail. By using Mail (SMTP
function, you can send a mail with attached image which has been shot linked with the
external sensor input or with the built-in m
)
otion detection function. The image file can also
be sent periodically. E-Mail (SMTP) setting menu is composed of three tabs, General,
Alarm sending and Periodical sending.
64
8.2.1 General
Select On when you use the SMTP function. The common setting options are displayed
below. Select Off, if you do not wish to use the e-Mail (SMTP) function.
Note :
The Setting of general part will be the same as the setting of IP Notification (Please check
“Setting → Basic → Network → IP Notification”)
SMTP server name: Type the SMTP server name up to 64 characters, or the IP address
of the SMTP server.
SMTP Server Port: You can set port number from 1~65535 according to your mail
server. The default value is 25.
Security setting: Tick SSL box if the mail server you use has security restriction.
Note:
If you use g-mail as your mail server, you should set 587 as your port number and tick
SSL box.
Authentication: Select the authentication required when you send an email.
Off: Select if no authentication is necessary when an email is sent.
On: When authentication is necessary an e-mail is sent, select one of the
authentication methods from the followings.
65
Authentication: Select the authentication required when you send an email.
Off: Select if no authentication is necessary when an email is sent.
On: When authentication is necessary an e-mail is sent, select one of the
authentication methods from the followings.
SMTP: Select if SMTP authentication is necessary when an e-mail is sent.
POP before SMTP: Select if POP before SMTP authentication is necessary when an
-mail is sent.
e
Note：When you set to On, be sure to select either or both SMTP or / and POP before SMTP.
POP server name: It is necessary when the POP before SMTP is selected in
Authentication. Type the POP (receiving mail) server name up to 64 characters, or
type the IP address of the POP server. This setting is necessary when the SMTP server
which sends e-mails performs authentication using the POP user account.
g is necessary when the SMTP server which sends e-mails
ntication.
can
ddresses.
characters. This address is used for reply mail and sending system messages from the
SM
Subject: Type the subject/title of the e-Mail up to 64 characters. With respect to mail
m tab is set
alent to 2
characters.)
User name, Password: Type the user name and Password of the user who has the
mail account. This settin
performs authe
Recipient e-mail address: Type the recipient e-Mail address up to 64 characters. You
specify up to three recipient E-mail a
inistrator e-mail address: Type the Administrator e-Mail address up to 64 Adm
TP server.
which is sent according to the alarm detection when Alarm sending of the alar
to On, the characters standing for the sensor type added to the subject.
Message: Type the text of the E-mail up to 384 characters. (A line break is equiv
66
8.2.2 Alarm sending
Set to send the mail with connection to the alarm detection by the external sensor input or by
the built-in motion detection function. Select On to send the image and file to SMTP server
linked with the alarm detection.
Alarm sending: Select On to set to send mail with connection to the alarm detection.
en On
to the file name
(2 digits), and consecutive number (2 digits),
umber clear: Click Clear and the suffix of the sequence number returns
File attachment: Set whether an image file is attached to the mail sent or not. Wh
is selected, the image file made by the settings below is attached. When Off is selected,
only the message is sent.
Image file name: Type the file name you want to assign to the image to attach a mail.
You can use up to 10 alphanumeric, - (hyphen) and _ (underscore) for naming.
Suffix: Select a suffix to add
Date & time: The date & time suffix is added to the Image file name. The date/time
suffix consists of lower two-digits of year (2 digits), month (2 digits), date (2 digits),
hour (2 digits), minute (2 digits), second
thus 14-digit number is added to the file name.
Sequence number: A consecutive number of 10 digits between 0000000001 and
4294967295 and two fixed digits 00 is added to the Image file name.
Sequence n
to 1.
67
Alarm

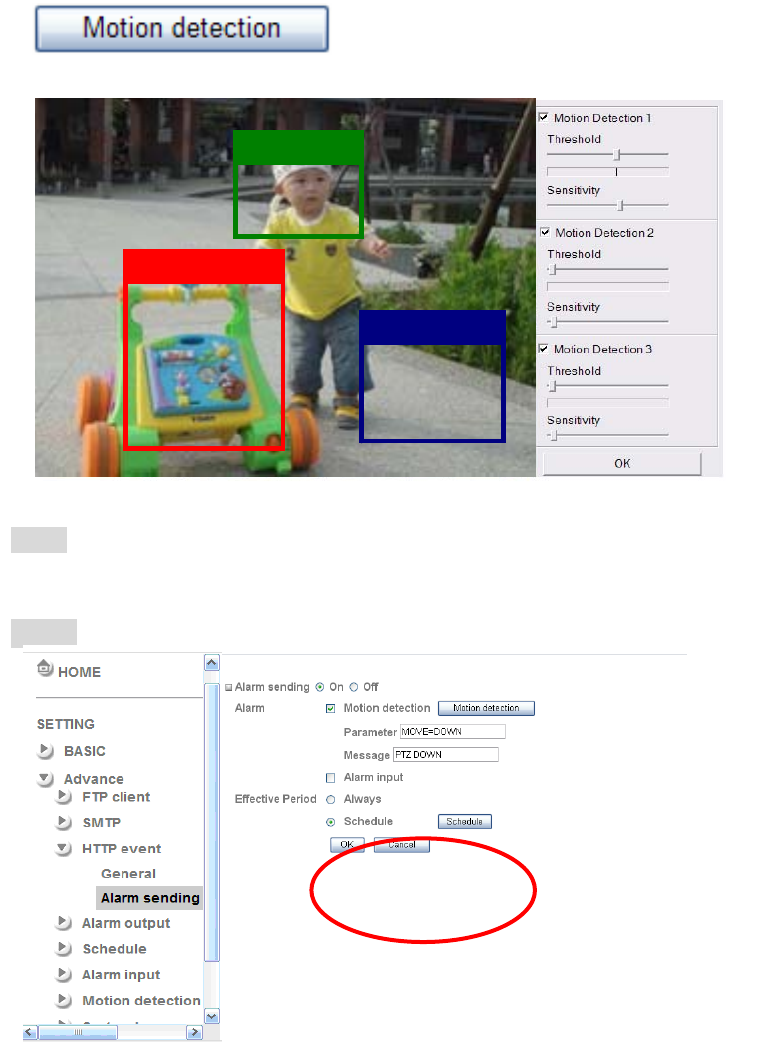

Motion Detection: Click it on for using Motion Detection function as a sensor. You
can set motion detection function at the motion detection function page.
68
Note: You can set motion detection at motion detection page. (Please go “Setting →
er 8.7.
Advance → Motion detection → Setting”) For more details, you can check
Chapt
Alarm Input: Select the connected alarm. Sensor input1: The external sensor which
is connected to sensor input1 of the alarm input.
69
Note: You can set the alarm input function at alarm input page. (Please go “Setting →
nce → Alarm input → Setting”). For more details, you can check Chapter
Effective period: Set the period when the periodical sending is effective.
Always: The periodical sending is always effective.
Schedule: You can specify the period when the periodical sending is effective in the
Schedule setting in the other section.
Adva
8.6.
Note: You can set schedule function at schedule page. (Please go “Setting → Advance
Schedule → Setting”) For more details, you can check Chapter 8.5. →
8.2.3 Periodical sending
You can set to send an image file by SMTP server periodically by selecting On to send the
image file by SMTP server linked with setting period.
image sent by SMTP up to 10 alphanumeric
racters, - (hyphen) and _ (under score).
Su
Date & time: The date & time suffix is added to the Image file name. The date & time
suffix consists of lower two-digits of year (2 digits), month (2 digits), date (2 digits),
hour (2 digits), minute (2 digits) and second (2 digits), and consecutive number (2
digits), thus 14-digit number is added to the file name.
Sequence number: A consecutive number is added to the Image file name.
Sequence number clear: Click Clear and the suffix of the sequence number returns
to 1.
Interval: Set the periodical sending is effective interval. Min value is 30 min and Max
value is 24 hour.
Image file name: Type the file name of the
cha
ffix: Select a suffix to be added to the file name sent by SMTP.
None: The name of the sent file will be the Image file name.
70
71
ve.
Schedule: You can specify the period when the periodical sending is effective in the
schedule setting in the other section. Please check “Setting → Basic → Advance →
Schedule → Setting.”
Effective period: Set the period when the periodical sending is effective.
Always: The periodical sending is always effecti
Note: You can set schedule function at schedule page. (Please go “Setting → Advance
→ Schedule → Setting”) For more details, you can check Chapter 8.5.
8.3 HTTP event
r. By using HTTP client function,
h
l and Alarm sending.
Set up this menu for sending commands to an HTTP serve
you can send the command defined by yourself, linked with the external sensor input or wit
the built-in motion detection function to HTTP server. HTTP client setting menu is
composed of two tabs, Genera
72
8.3.1 General
HTTP event: Set up the HTTP server URL, port, User ID, Password, and Proxy server
settings.
For example:
URL: 192.168.1.7/cgi-bin/operator/ptzset
Note: The setting of URL should be the same as CGI
73
8.3.2 Alarm sending
Set to send the comm
75
ands via the alarm detection, external sensor input or built-in motion
detection function. Select On to send the commands to HTTP server linked with the alarm
etection.
larm sending: Select On to set to send command with connection to the alarm detection.
Alarm
Motion detection、Alarm input
Effective period: Set the period when the periodical sending is effective.
Always: The periodical sending is always effective.
Schedule: You can specify the period when the periodical sending is effective in the
schedule setting in the other section.
d
A
Note:
You can set schedule function at schedule page. (Please go “Setting → Advance →
Schedule → Setting”) For more details, you can check Chapter 8.5.
Alarm
Motion Detection: Click it on for using Motion Detection function as a sensor. You
can set motion detection function at the motion detection function page.
Note: You can set motion detection at motion detection page. (Please go “Setting →
Advance → Motion detection → Setting”) For more details, you can check Chapter 8.7.
Note： Motion Detection works only when the MPEG4 function is On.
Parameter: the parameter of CGI (defined in URL of HTTP → General) is
from your target device. For example, move=down.
Message: message will show up in the form of Message = PTZ down. If your
target device didn’t support the parameter of message, you can’t see the
message. So you can just take the message as a note. For example: PTZ down.
76
77
c
Alarm Input: Select the connected alarm. Sensor input1: The external sensor which is
onnected to sensor input1 of the alarm input.
Note:
You can set the alarm input function at alarm input page. (Please go “Setting → Advance
Alarm input → Setting”) For more details, you can check Chapter 8.6.
Parameter: the parameter of CGI (defined in URL of HTTP→General) is
from your target device. For example, move=down.
Message: message will show up in the form of Message = PTZ down. If your
target device didn’t support the parameter of message, you can’t see the
message. So you can just take the message as a note. For example: PTZ
→
down.
78
periodical sending is effective in the
Schedule setting in the other section.
f ctive period: Set the period when the periodical sending is effective.
Always: The periodical sending is always effective.
Schedule: You can specify the period when the
E fe
Note: You can set schedule function at schedule page. (Please go “Setting → Advance
→ Schedule → Setting”) For more details, you can check Chapter 8.5.
Wde menu, the Alarm output setting menu
appears. You can set in this menu to control the alarm out of I / O port on the rear of the device
linked to
8.4 Alarm Output
hen you click Alarm output on the Advance mo
the alarm detection and the timer.
79
8.4.1 Setting
Alarm output: To activate the Alarm output function, select On. When you do not use the Alarm
output function, select Off.
Digital output: Select High signal output and Low signal output as your alarm.
Trigger condition: Select the mode of the Alarm output function. You can choose “Alarm”
or “Timer”.
Alarm: Controls alarm output by synchronizing with an external sensor input or the built-in
activity detection function.
Motion Detection: Click it on for using Motion Detection function as a sensor. You
can set motion detection function at the motion detection function page.
80
Note: You can set motion detection at motion detection page. (Please go “Setting →
Advance → Motion detection → Setting”). For more details, you can check Chapter 8.7.
Note：Motion Detection works only when the Video mode is set to MPEG4 and the
Cropping is set to Off.
Alarm Input: Select the connected alarm. Sensor input1: The external sensor which
is connected to sensor input1 of the alarm input.
Note:
You can set the alarm input function at alarm input page. (Please go “Setting →Advance
→Alarm input → Setting”). For more details, you can check Chapter 8.6.
ation interval. Alarm duration: There are up to 60 second options to choose for alarm dur
81
82
Effective period: Set the period when the periodical sending is effective.
Always: The periodical sending is always effective.
Schedule: You can specify the period when the periodical sending is effective in the
Schedule setting in the other section.
Note:
ou can set schedule funcY tion at schedule page. (Please go “Setting → Advance →
Schedule → Setting”) For more details, you can check Chapter 8.5.
83
8.5Schedule
Wedule setting menu appears. This
is the sam t
Effective period and Schedule in FTP client setting menu, e-Mail (SMTP) setting menu, Alarm
o nd so on.
Example enu.
hen you click Schedule on the Advance mode menu, the Sch
e menu as the setting menu which is displayed when you click Schedule to se
ut setting menu a
: When setting e-Mail (SMTP) (the alarm sending) in the Schedule setting m
84
8.5.1 Setting
Schedule Selection: Select the list box to specify the schedule you want to set.
FTP -Alarm
FTP - Periodical
e-Mail (SMTP) -Alarm
e-Mail (SMTP) -Periodical
HTTP event -Alarm
Alarm output- Alarm
Alarm output- Timer
Mon (Monday) to Sun (Sunday): The time period on the right of the checked day is the
effective period of the schedule.
Start time, End time: Specify the Start time and the End time.
Use the same time schedule every day: When this is checked, the Start time and End
time set to Mon (Monday) are applied to all days. In this case, the Start time and End time
of the other days than Mon (Monday) cannot be input.
85
8.6 Alarm Input
When you click Alarm Input on the Advance mode menu, the Alarm input setting menu appears.
You can set in this menu to control the external alarm input of I / O port on the rear of the device
linked to FTP, SMTP, and HTTP sending function.
using external sensor which is connected to sensor input1 of the
High signal output and Low signal output as your alarm.
8.6.1 Setting
Sensor input 1: Click it on for
camera I / O port.
Trigger condition: Select
Camera move: Pull down the window to select the camera preset position.
86
8.7 Motion Detection
TP and Alarm output for capturing and
ending images or starting alarm output.
There are three Motion Detection functions as sensors to set for different detecting zones. Each
one has Threshold and Sensitivity inputs which you can adjust to specific zone sequentially.
Motion Detection function can support to FTP, SM
s
87
8.7.1 Setting
Threshold: It means the extent which the alarm will be triggered.
Sensitivity: It means that how often the sensor will scan the image different. The higher
sensitivity it is and the more frequently it scans.
Motion Detection 1: Click it on for using Motion Detection 1 function as a sensor.
You can adjust and move the detecting zone by using mouse.
Motion Detection 2: Click it on for using Motion Detection 2 function as a sensor.
You can adjust and move the detecting zone by using mouse.
Motion Detection 3: Click it on for using Motion Detection 3 function as a sensor.
You can adjust and move the detecting zone by using mouse.
88
8.8 System Log
The System Log function allows users to review any changes and events happened. The system
starts logging automatically after started.
8.8.1 Setting
Enable remote log: Enables user to send the log data to a specified log server.
89
PPENDIXCHAPTER 9. A
work UPLOAD environment to choose the suitable
Image-Quality setting. For example, if the network environment is ADSL
56Kb/s(upload) / 2Mb/s(download), the most fluent Image-Quality needs to set up
A.1. NTSC CCD IP Camera
A.1.1. MPEG4 @ 30fps / Kbps
Quality 704*480 352*240 176*120
A. Frame-rate and Bitrate Table – Help to set IPCamera with your network
environment to access Internet.
Base on your net
2
under 256 Kb situation.
Excellent 2000 800 200
Detailed 850 250 80
Good 450 150 60
Standard 350 110 50
Medium 250 90 40
A.1.2. MPEG4 / Kbps, fps
t
ate
Image-Size Bitrate Setting Frame-Rate
Setting Current Bitrate Curren
Frame-R
704*480 2048 30 1800 25
704*480 2048 15 2100 16
704*480 1536 30 1500 30
704*480 1536 15 1700 16
704*480 1024 30 1050 30
704*480 1024 15 1100 16
704*480 512 30 520 30
704*480 512 15 650 16
352*240 1536 30 1500 30
352*240 1536 15 1600 16
352*240 1024 30 1100 30
352*240 1024 15 1100 16
352*240 512 30 530 30
352*240 512 15 600 16
176*120 1024 30 1000 30
176*120 1024 15 900 16
176*120 512 30 530 30
176*120 512 15 550 16
176*120 128 30 150 30
176*120 128 15 150 16
90
52*240 176*120
A.1.3. MJPEG @ 15fps / Kbps
Quality 704*480 3
Excellent 7500 2800 1000
Detailed 5000 1500 700
Good 3500 1000 500
Standard 2000 800 400
Medium 1300 500 300
A.1.4. MJPEG / Kbps, fps
Image-Size Quality Frame-Rate Current
Setting Setting Current Bitrate Frame-Rate
704*480 Excellent 15 7500 11
704*480 Excellent 5 4000 5
704*480 Good 15 3500 13
704*480 Good 5 1500 5
704*480 Medium 15 1300 13
70 Mediu 5 4*480 m 550 5
352*240 Excellent 15 2800 12
352*240 Excellent 5 1200 5
352*240 Good 15 1000 12
352*240 Good 5 450 5
352*240 Medium 15 500 12
176*120 Medium 5 220 5
176*120 Excellent 15 1000 15
176*120 Excellent 5 400 5
176*120 Good 15 500 15
176*120 Good 5 200 5
176*120 M edium 15 300 15
176*120 M edium 5 100 5
91
.2. PAL CCD IPCamera
A.2.1. MPEG4 @ 25fps / Kbps
7 352*288 176*144
A
Quality 04*576
Excellent 1800 400 100
Detailed 600 150 50
Good 400 100 40
Standard 300 80 30
Medium 200 60 20
A.2.2. MPEG4 / Kbps, fps
I Bi g Fr e
Setting Current Bitrate Fram ate
mage-Size trate Settin ame-Rat Current
e-R
704*576 2048 25 2000 23
704*576 2048 15 2100 16
704*576 1536 25 1600 25
704*576 1536 15 1700 16
704*576 1024 25 1100 25
704*576 1024 15 1200 16
704*576 512 25 550 25
704*576 512 15 650 16
352*288 1536 25 1500 25
352*288 1536 15 1600 16
352*288 1024 25 1100 25
352*288 1024 15 1100 16
352*288 512 25 550 25
352*288 512 15 600 16
176*144 1024 25 1000 25
176*144 1024 15 1000 16
176*144 512 25 550 25
176*144 512 15 600 16
176*144 128 25 150 25
176*144 128 15 150 16
92
.2.3. MJPEG @ 15fps / Kbps
704*576 352*288 176*144
A
Quality
E xcellent 7800 1700 650
Detailed 4300 1000 450
Good 2500 650 350
S tandard 1300 450 250
Medium 1000 300 180
.2.4. MJPEG / Kbps, fps
Quality Frame-Rate Current Bitrate Current
F
A
Image-Size Setting Setting rame-Rate
704*576 Excellent 15 7800 11
704*576 E t xcellen 5 4000 5
704*576 Good 15 2500 11
704*576 Good 5 1200 5
704*576 M edium 15 1000 11
704*576 M edium 5 500 5
352*288 E t xcellen 15 1700 11
352*288 Ex nt celle 5 900 5
352*288 G ood 15 650 11
352*288 Good 5 330 5
352*288 M edium 15 300 11
352*288 M edium 5 160 5
176*144 E t xcellen 15 650 12
176*144 Ex nt celle 5 300 5
176*144 G ood 15 350 12
176*144 Good 5 150 5
176*144 M edium 15 180 12
176*144 M edium 5 75 5
93
.3. CMOS IP Camera
A.3.1. MPEG4 @ 30fps / Kbps
6 320*240 160*120
A
Quality 40*480
Excellent 1000 300 90
Detailed 400 150 50
Good 300 100 30
Standard 250 70 25
Medium 250 55 20
A.3.2. MPEG4 / Kbps, fps
I Bi g Fr e
Setting Current Bitrate Fram ate
mage-Size trate Settin ame-Rat Current
e-R
640*480 2048 30 1800 26
640*480 2048 15 2200 16
640*480 1536 30 1500 30
640*480 1536 15 1700 16
640*480 1024 30 1000 30
640*480 1024 15 1000 16
640*480 512 30 500 30
640*480 512 15 600 16
320*240 1536 30 1500 30
320*240 1536 15 1600 16
320*240 1024 30 1000 30
320*240 1024 15 1000 16
320*240 512 30 550 30
320*240 512 15 600 16
160*120 1024 30 950 30
160*120 1024 15 750 16
160*120 512 30 500 30
160*120 512 15 50 16
160*120 128 30 130 30
160*120 128 15 140 16
94
.3.3. MJPEG @ 15fps / Kbps
640*480 320*240 160*120
A
Quality
E xcellent 4000 1500 600
Detailed 2400 900 400
Good 1600 650 300
S tandard 1300 500 240
Medium 900 350 170
.3.4. MJPEG / Kbps, fps
Quality Frame-Rate Current Bitrate Current
F
A
Image-Size Setting Setting rame-Rate
640*480 Excellent 15 4000 13
640*480 E t xcellen 5 1600 5
640*480 Good 15 1600 13
640*480 Good 5 650 5
640*480 M edium 15 900 14
640*480 M edium 5 360 5
320*240 E t xcellen 15 1500 13
320*240 Ex nt celle 5 550 5
320*240 G ood 15 650 13
320*240 Good 5 260 5
320*240 M edium 15 350 13
160*120 M edium 5 130 5
160*120 E t xcellen 15 600 13
160*120 Ex nt celle 5 230 5
160*120 G ood 15 300 13
160*120 Good 5 115 5
160*120 M edium 15 170 13
160*120 M edium 5 65 5
95
. Storage Requirement Table - Help to set Recording Storage System.
ing table to find out the capability for recording into your
hard disk.
B.1. NTSC C mera
.1.1. MPEG Requirement GB / channel / day @ 30fps
704*480 352*240 176*120
B
Please refer to the follow
CD IPCa
B 4 Storage
Quality
Excellent 21.1 8.4 2.1
Detailed 9.0 2.6 0.8
Good 4.7 1.6 0.6
Standard .7 1.2 0.53
Medium 2.6 0.9 0.4
B.1.2. MP ge Requ B / chann day @ 15fps
*480 352*240 176*120
EG4 Stora irement G el /
Quality 704
Excellent .5 4.2 1.1 10
Detailed .5 1.3 0.44
Good 2.3 0.8 0.3
Standard 1.8 0.6 0.2
Medium 1.3 0.5 0.2
96
B.1.3. MPEG4 Storage Requirement GB / channel / day
Image-Size Bitrate Setting Frame-Rate Setting Storage
Requirement
704*480 2048 30 23.0
704*480 2048 15 22.1
704*480 1536 30 18.5
704*480 1536 15 17.9
704*480 1024 30 11.1
704*480 1024 15 11.6
704*480 512 30 5.5
704*480 512 15 6.9
35 2*240 1 536 30 15.8
352*240 1536 15 16.9
352*240 1 024 30 11.6
352*240 1 024 15 11.6
352*240 512 30 5.6
352*240 512 15 6.3
176*120 1024 30 10.5
176*120 1 024 15 9.5
17 6*120 512 30 5.6
176*120 512 15 5.8
176*120 128 30 1.6
176*120 128 15 1.6
97
B.1.4. MJP equire el
EG Storage R
Quality
ment GB / chann
704*480
/ day @ 15fps
352*240 176*120
Excellent 79.1 2 9.5 10.5
Detailed 52.7 1 5.8 7.4
Good 36.9 1 0.5 5.3
Standard 21.1 8.4 4.2
Medium 13.7 5.3 3.2
B.1.5. MJPE Requirement GB / channel / day
I Quali tting Frame-Rate Setting Current Bitrate
G Storage
mage-Size ty Se
704*480 Ex t cellen 15 79.1
704*480 Ex t cellen 5 42.2
704*480 Good 15 36.9
704*480 Good 5 15.8
704*480 M edium 15 13.7
704*480 M edium 5 5.8
352*240 Ex t cellen 15 29.5
352*240 Ex t cellen 5 12.7
352*240 Good 15 10.5
352*240 Good 5 4.7
352*240 M edium 15 5.3
176*120 M edium 5 2.3
176*120 Excellent 15 10.5
176*120 Excellent 5 4.2
176*120 Good 15 5.3
176*120 Good 5 2.1
176*120 Medium 15 3.2
176*120 Medium 5 1.1
98
.2. PAL CCD IPCamera
B.2.1. MPEG Requireme annel / day
70 0 352*240 176*120
B
4 Storage nt GB / ch @ 30fps
Quality 4*48
Excellent 19.4 4.3 1.1
Detailed 6.5 1.6 0.5
Good 4.3 1.1 0.4
Standard 3.2 0.9 0.3
Medium 2.2 0.6 0.2
B.2.2. MPE equire el
352*240 176*120
G4 Storage R ment GB / chann / day @ 15fps
Quality 704*480
Excellent 9.7 2.2 0.5
Detailed 3.2 0.8 0.3
Good 2.2 0.5 0.2
Standard 1.6 0.4 0.2
Medium 1.1 0.3 0.1
99
irement GB / channel / day
ing Storage
Requirement
B.2.3. MPEG4 Storage Requ
Image-Size Bitrate Setting Frame-Rate Sett
704*480 2048 30 21.6
704*480 2048 15 22.7
704*480 1536 30 17.3
704*480 1536 15 18.4
704*480 1024 30 11.9
704*480 1024 15 13.0
704*480 512 30 5.9
704*480 512 15 7.0
352*240 1536 30 16.2
352*240 1536 15 17.3
352*240 1024 30 11.9
352*240 1024 15 11.9
352*240 512 30 5.9
352*240 512 15 6.5
176*120 1024 30 10.8
176*120 1024 15 10.8
176*120 512 30 5.9
176*120 512 15 6.5
176*120 128 30 1.6
176*120 128 15 1.6
100
B.2.4. MJP equire el
EG Storage R
Quality
ment GB / chann
704*480
/ day @ 15fps
352*240 176*120
Excellent 84.2 18.4 7.0
Detailed 46.4 10.8 4.9
Good 27.0 7.0 3.8
Standard 14.0 4.9 2.7
Medium 10.8 3.2 1.9
B.2.5. MJPE Requirement GB / channel / day
I Quali tting Frame-Rate Setting Curre ate
G Storage
mage-Size ty Se nt Bitr
704*480 Ex t cellen 15 84.2
704*480 Ex t cellen 5 43.2
704*480 Good 15 27.0
704*480 Good 5 13.0
704*480 M edium 15 10.8
704*480 M edium 5 5.4
352*240 Ex t cellen 15 18.4
352*240 Ex t cellen 5 9.7
352*240 Good 15 7.0
352*240 Good 5 3.6
352*240 M edium 15 3.2
176*120 M edium 5 1.7
176*120 Excellent 15 7.0
176*120 Excellent 5 3.2
176*120 Good 15 3.8
176*120 Good 5 1.6
176*120 Medium 15 1.9
176*120 Medium 5 0.8
101
.3. CMOS IPCamera
B.3.1. MPEG Requireme annel / day
64 320*240 160*120
B
4 Storage nt GB / ch @ 30fps
Quality 0*480
Excellent 10.5 3.2 0.9
Detailed 4.2 1.6 0.5
Good 3.2 1.1 0.3
Standard 2.6 0.7 0.3
Medium 2.6 0.6 0.2
B.3.2. MPE equire el
320*240 160*120
G4 Storage R ment GB / chann / day @ 15fps
Quality 640*480
Excellent 5.3 1 .6 0.4
Detailed 2.1 0.8 0.3
Good 1.6 0 .6 0.2
Standard 1.3 0.4 0.1
Medium 1.3 0 .3 0.1
B.3.3. MPEG Requireme annel / day
I Bitr ing Frame-Rate Setting Current Bitrate
4 Storage nt GB / ch
mage-Size ate Sett
640*480 2048 30 23.0
640*480 2048 15 22.2
640*480 1536 30 18.5
640*480 1536 15 17.9
640*480 1024 30 10.5
640*480 1024 15 10.5
640*480 512 30 5.3
640*480 512 15 6.3
320*240 1536 30 15.8
320*240 1536 15 16.9
320*240 1024 30 10.5
320*240 1024 15 10.5
320*240 512 30 5.8
320*240 512 15 6.3
160*120 1024 30 10.0
160*120 1024 15 7.9
160*120 512 30 5.3
160*120 512 15 0.5
160*120 128 30 1.4
160*120 128 15 1.5
102
.3.4. MJPEG Storage Requirement GB / channel / day @ 15fps
160*120
B
Quality 640*480 320*240
E xcellent 42.2 15.8 6.3
Detailed 25.3 9.5 4.2
Good 16.9 6.9 3.2
S tandard 13.7 5.3 2.5
Medium 9.5 3.7 1.8
.3.5. MJPEG Storage Requirement GB / channel / day
tting Current Bitrate
B
Image-Size Quality Setting Frame-Rate Se
640*480 Excellent 15 42.2
640*480 Ex nt celle 5 16.9
640*480 Good 15 16.9
640*480 Good 5 6.9
640*480 M edium 15 9.5
640*480 Medium 5 3.8
320*240 Excellent 15 15.8
320*240 Excellent 5 5.8
320*240 Good 15 6.9
320*240 Good 5 2.7
320*240 M edium 15 3.7
160*120 M edium 5 1.4
160*120 E t xcellen 15 6.3
160*120 E t xcellen 5 2.4
160*120 Good 15 3.2
160*120 G ood 5 1.2
160*120 M edium 15 1.8
160*120 M edium 5 0.7
103
. System Requirement & D1 Performance of 16 Channel IP Camera
Equipment Configuration
Software: MainConsole n 2.6.4 Profession
C
Versio al
CPU: AMD Athlon 6 3600+MHz 4*2 @
Memory: 2048 MB (2 x 1024 DDR2-SDRAM )
Ethernet: VIA Rhine II Fast Ethernet Adapter
Hard Disk: ST3250620A (250 GB)
Graphic card: ATI Technologies Inc EAX1600 Series
Operatin ow SP
g System: Wind s XP Professional 2 x64
Results from Test with a Resolution of 704×480 CCD IPCamera
704x4 Quality Rate CPU d Bandwidth80 Frame Loa
16 IP ca Excellent 95% 15~20 Mbpsmera 30
Results from th a Resol 0×480 CMOS Camera
640x4 Quality ate CPU Bandwidth
Test wi ution of 64 IP
L80 Frame R oad
16 IP ca Excellent 95% 10~15 Mbpsmera 30
