Users Manual

 ZBA, Inc.

Page1of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

 ZBA, Inc.

Page2of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

February 25, 2009

TableofContents

1Features................................................................................................................................................5

2Technicalspecifications........................................................................................................................7

2.1Overview:......................................................................................................................................7

2.2Bluetoothspecification.................................................................................................................8

3Configurationsettings...........................................................................................................................8

3.1Definitionoftheterms:.................................................................................................................8

3.2GETTINGSTARTEDwithyourBluetoothMediaSystem...............................................................9

4Configurationstatus............................................................................................................................11

4.1Mainconfigurationscreen..........................................................................................................11

4.2PortConfiguration.......................................................................................................................14

4.3ServerConfiguration...................................................................................................................15

4.3.1DeviceSerialNumberConfiguration...................................................................................15

4.3.2ServerAddressSettings......................................................................................................16

4.3.3SendInformationPolicy(TransmissionConfigurationSet‐up)...........................................17

4.4ADFilesManagement.................................................................................................................18

4.4.1FilesList...............................................................................................................................18

4.4.2TransmissionRecords.........................................................................................................19

4.4.3Transmissioninformationrecords......................................................................................20

4.4.4Cleartransmissionrecords..................................................................................................22

4.5BlackandWhitelisting................................................................................................................22

4.6SystemConfiguration..................................................................................................................23

4.6.1RestartingtheSystem.........................................................................................................23

4.6.2MACAddressConfiguration................................................................................................24

4.6.3ModifyUserAccount..........................................................................................................24

4.6.4SystemTime........................................................................................................................25

1..1SoftwareUpgrade...................................................................................................................25

4.6.5RestoreFactorySettings.....................................................................................................26

5ConnectingtotheMediaSystem........................................................................................................27

ZBA, Inc.

5.1

Configuration

utili

....................................................................................................................

Content

nag

.........................................................................................................................

6.1

USB

Content

Update

Proce

dure

for

and

Alone

Oper

ation

.......................................................

6.2

The

specifi

ation

for

the

nten

.................................................................................................

6.3

Procedure

Uploadi

vertising

Content

when

the

Media

System

Operating

Standalone

Device

..................................................................................................................................

6.4

Procedure

Uploadi

vertising

Content

when

the

Media

System

Accessible

usi

Ether

Connection.

..............................................................................................................................

Reporting

ist

.............................................................................................................................

Contact

formation

............................................................................................................................

Disclaimer:

Operation is subject to the following two conditions: (1) this device may not cause interference,

and (2) this device must accept any interference, including interference that may cause undesired

Fcc Warning

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) The device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

Changes or modification not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

FCC Radio Frequency Exposure statement, This product has been evaluated under FCC Bulletin OET 65C and

found compliant to the requirement asset as set forth in CFR 47 section 2.1091 and 15.247(i) addressing RF

Exposure from radio frequency device. The redialed output power of this product is far below the FCC radio

frequency exposure limits.

Page

ZBA

Inc

Old

Camplain

Road

Hillsborough

08844

 ZBA, Inc.

Page4of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

TABLE of Figures

Figure1.1‐TopViewoftheZBABluetoothMediaSystem...........................................................................6

Figure1.2‐FrontViewoftheZBABluetoothMediaSystem........................................................................6

Figure1.3‐RearViewoftheZBABluetoothMediaSystem........................................................................7

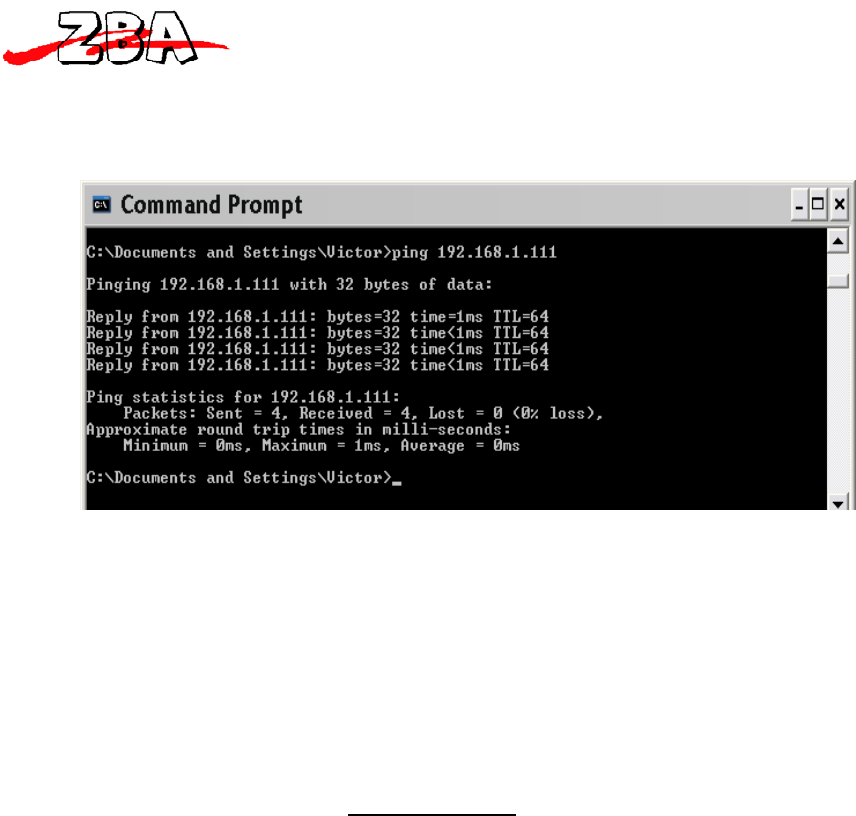

Figure3.3.1‐PingcommandfromMS‐DOSprompt...................................................................................10

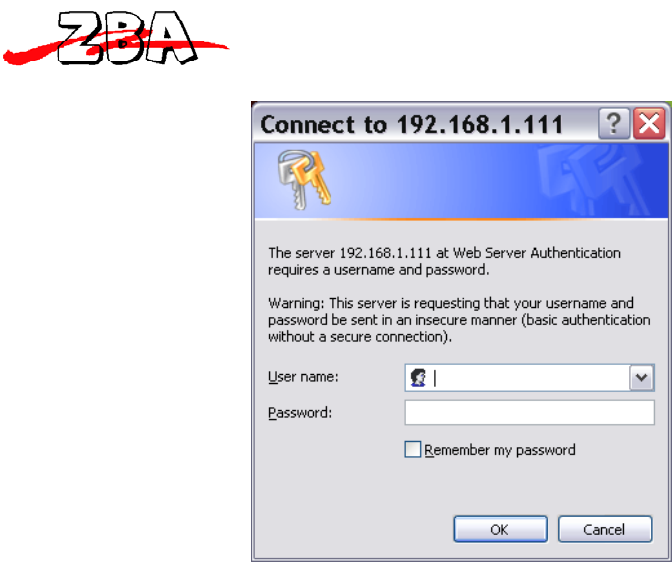

Figure3.3.2‐LogonScreen.........................................................................................................................11

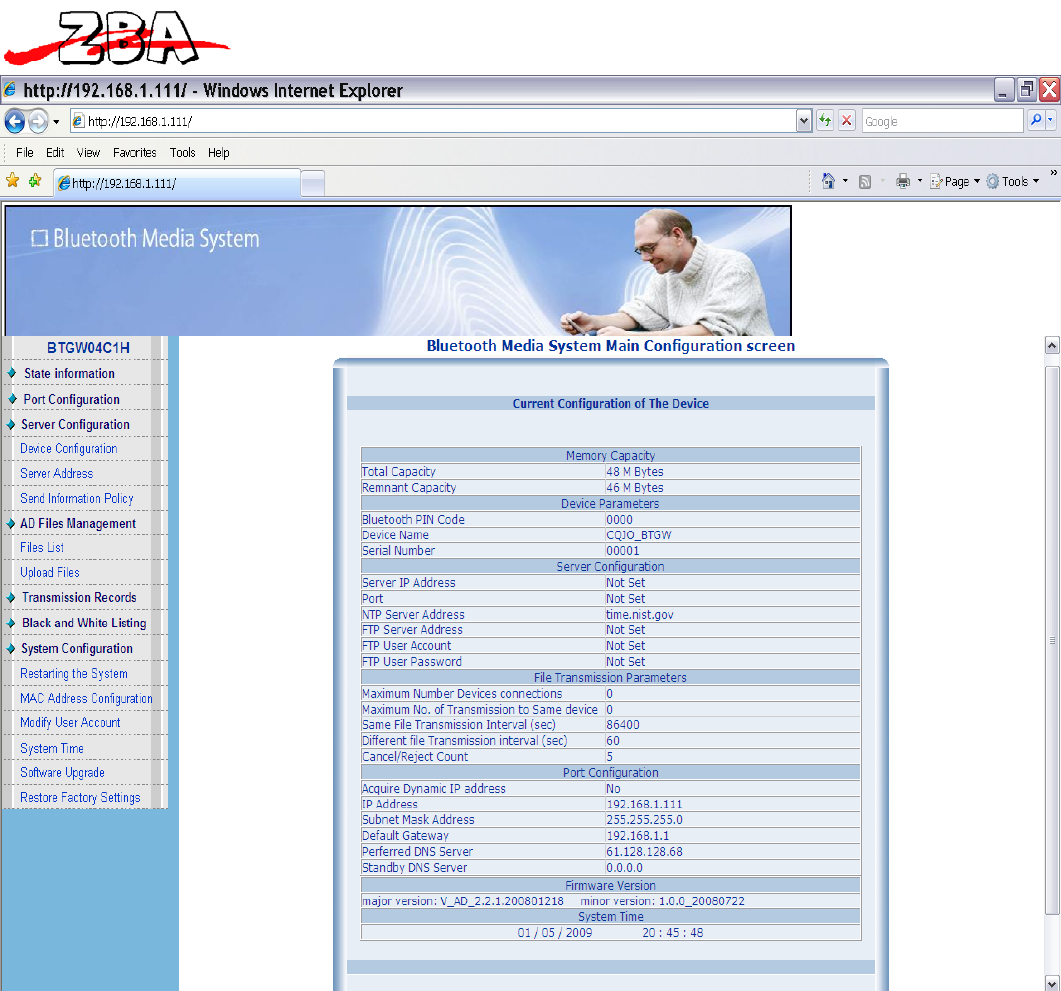

Figure4.4.1‐MainConfigurationandOperationMenu............................................................................12

Figure4.4.2‐PortIPconfiguration.............................................................................................................14

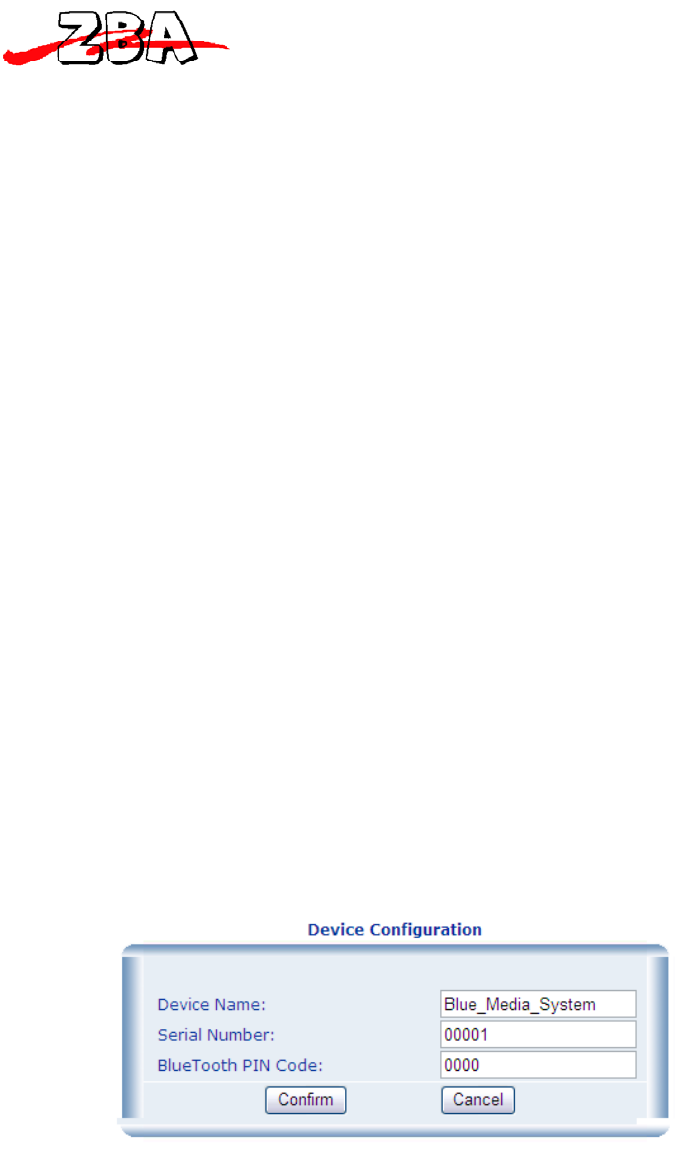

Figure4.4.3‐DeviceConfigurationDialogBox..........................................................................................15

Figure4.4.4‐ServerPortConfiguration.....................................................................................................16

Figure4.4.5‐MessageSendingPolicyDialogBox......................................................................................17

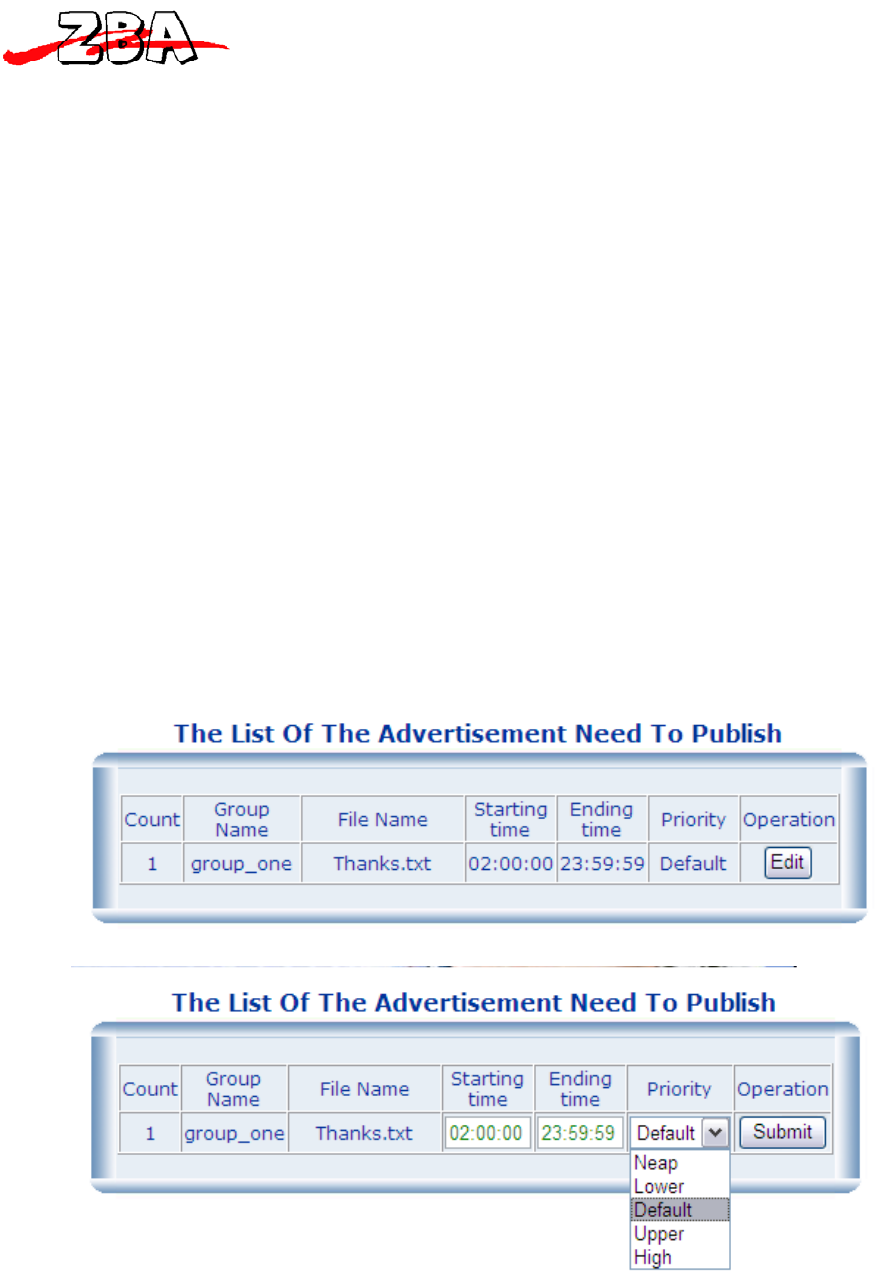

Figure4.4.6‐ListofContentFiles..............................................................................................................19

Figure4.4.7‐DiscoverableBluetoothaddressesinthelocalneighborhood.............................................19

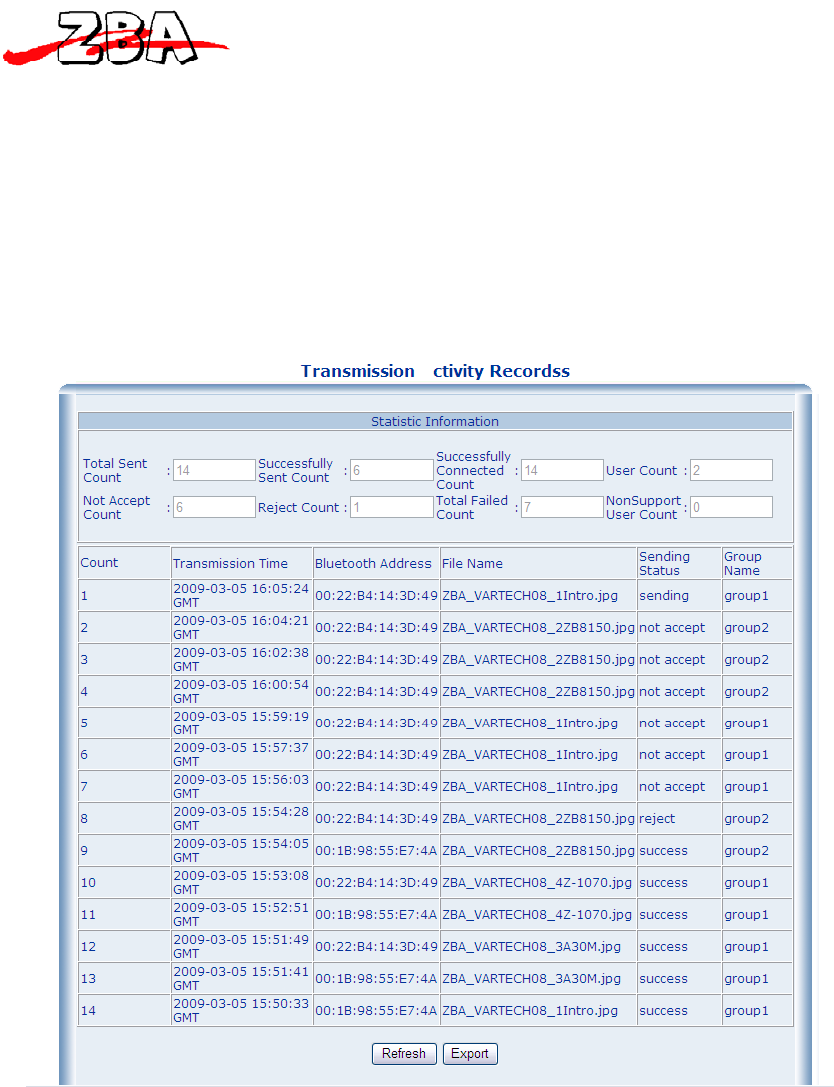

Figure4.4.8‐MediaSystemActivityLog....................................................................................................20

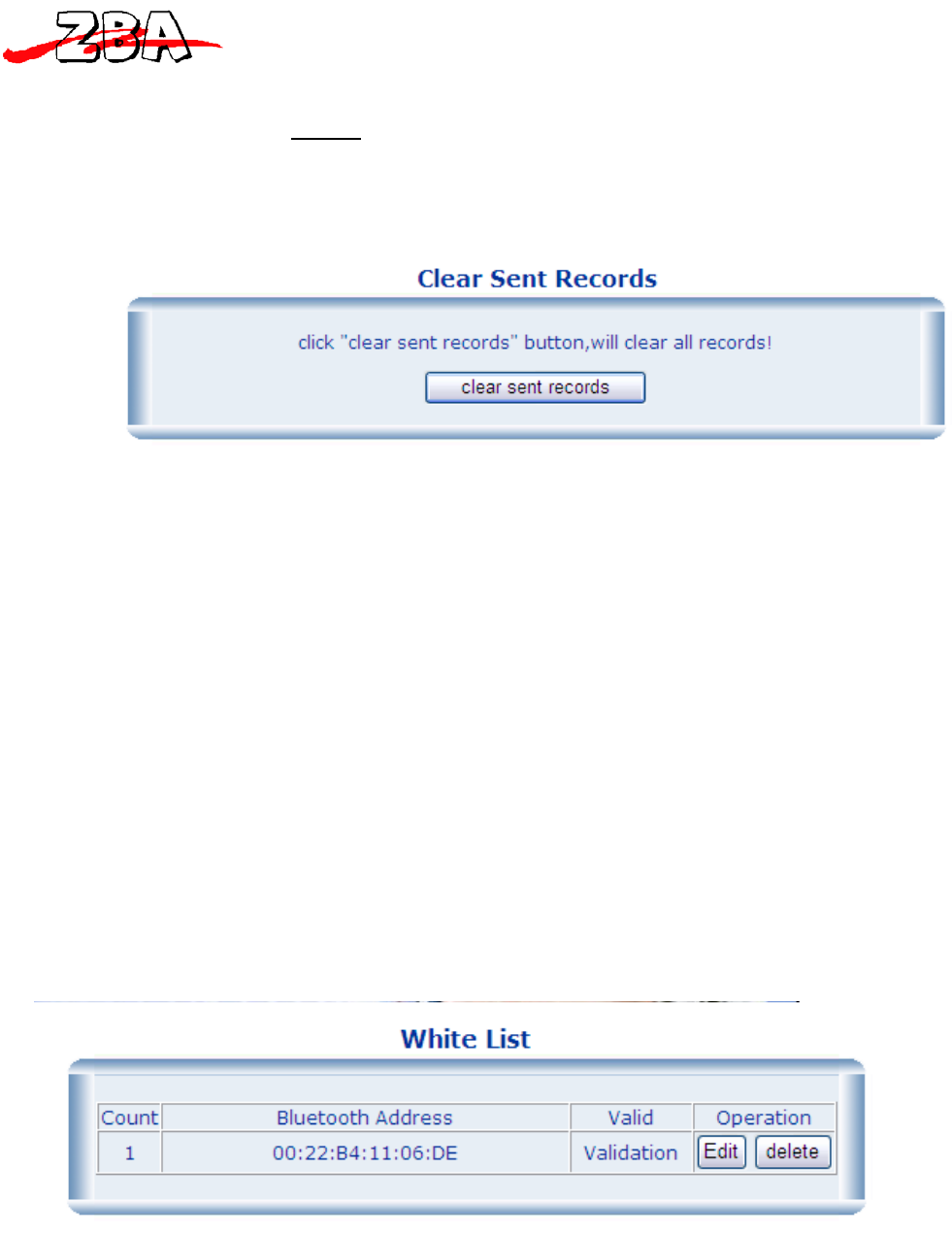

Figure4.4.9‐ClearRecords........................................................................................................................22

Figure4.4.10‐WhiteList............................................................................................................................22

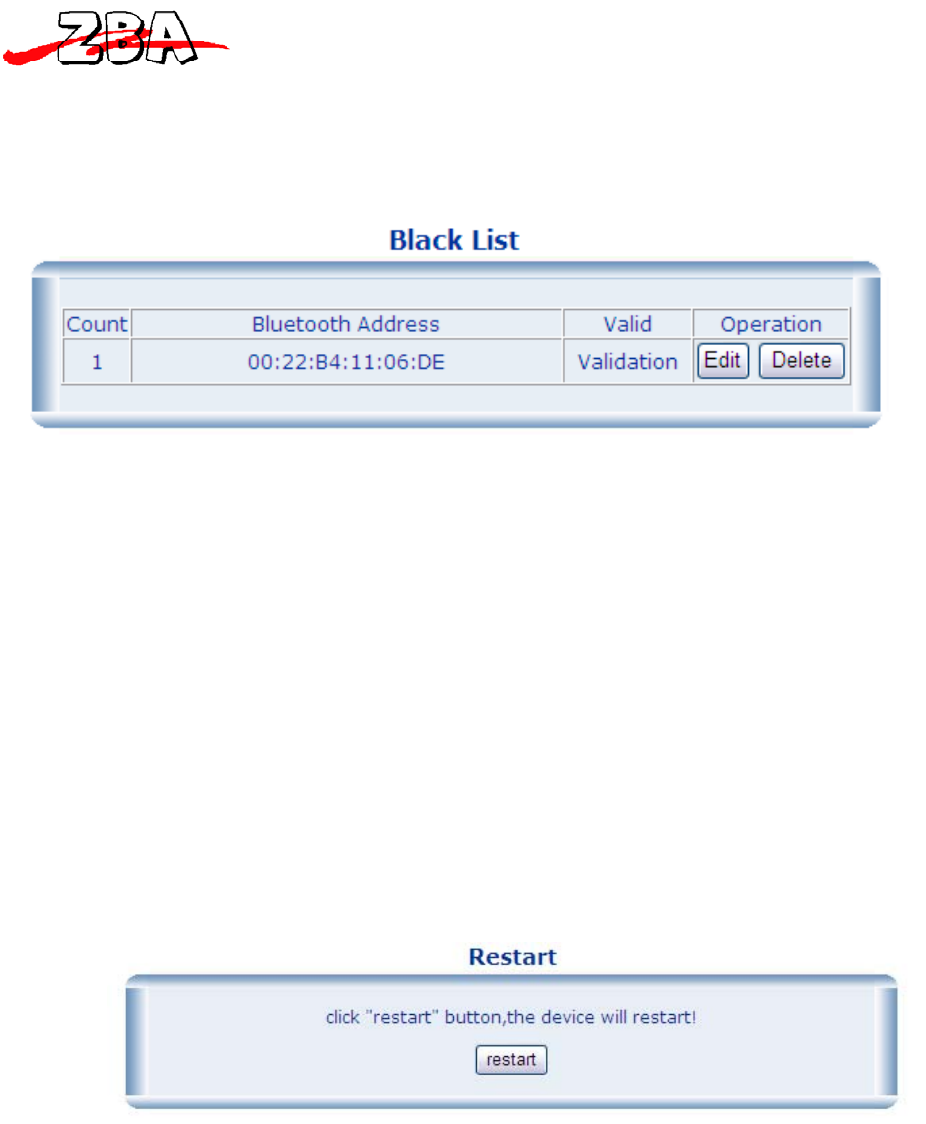

Figure4.4.11‐BlackList.............................................................................................................................23

Figure4.4.12‐RestartingtheSystem.......................................................................................................23

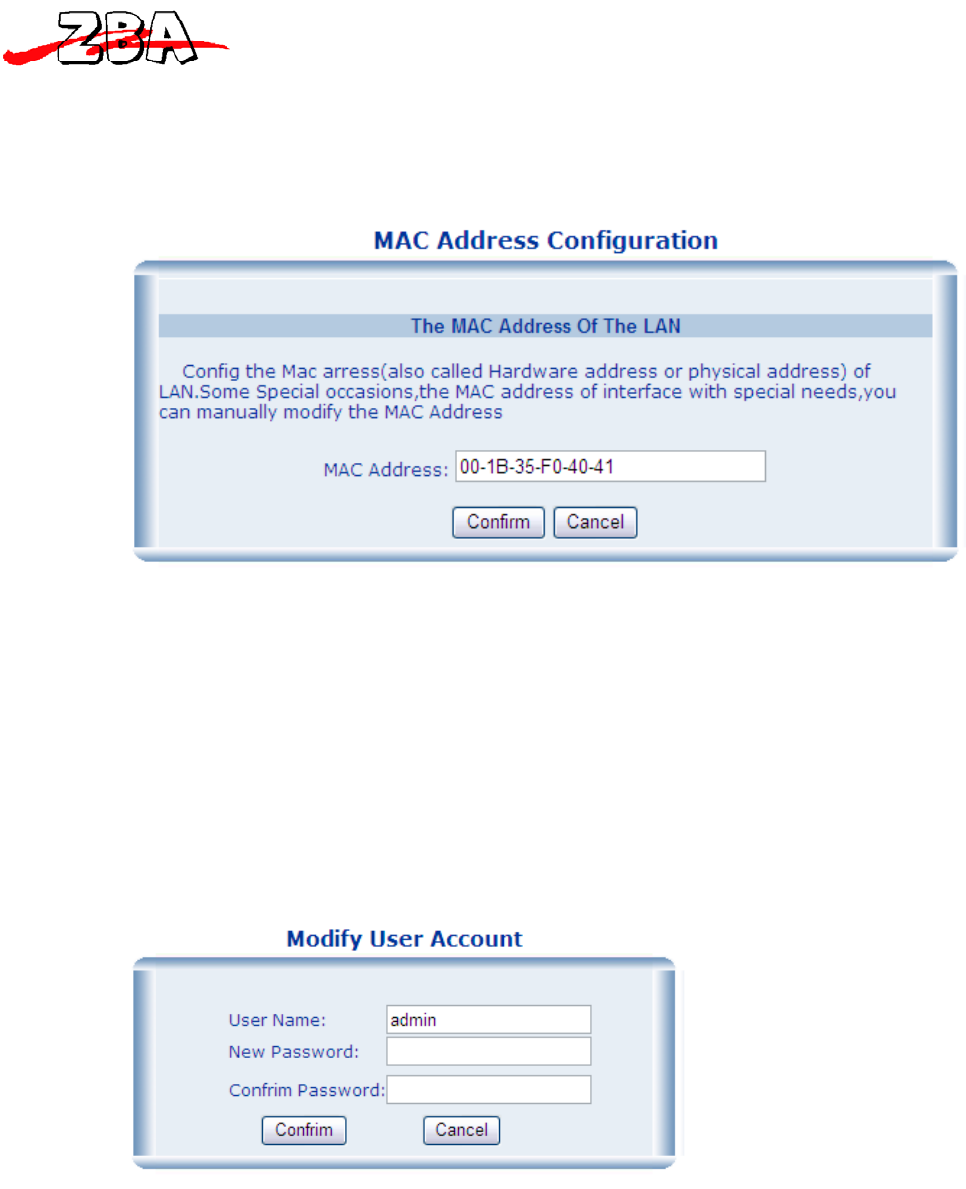

Figure4.4.13‐MACAddressoftheLAN.....................................................................................................24

Figure4.4.14‐ModificationoftheUserNameandPassword...................................................................24

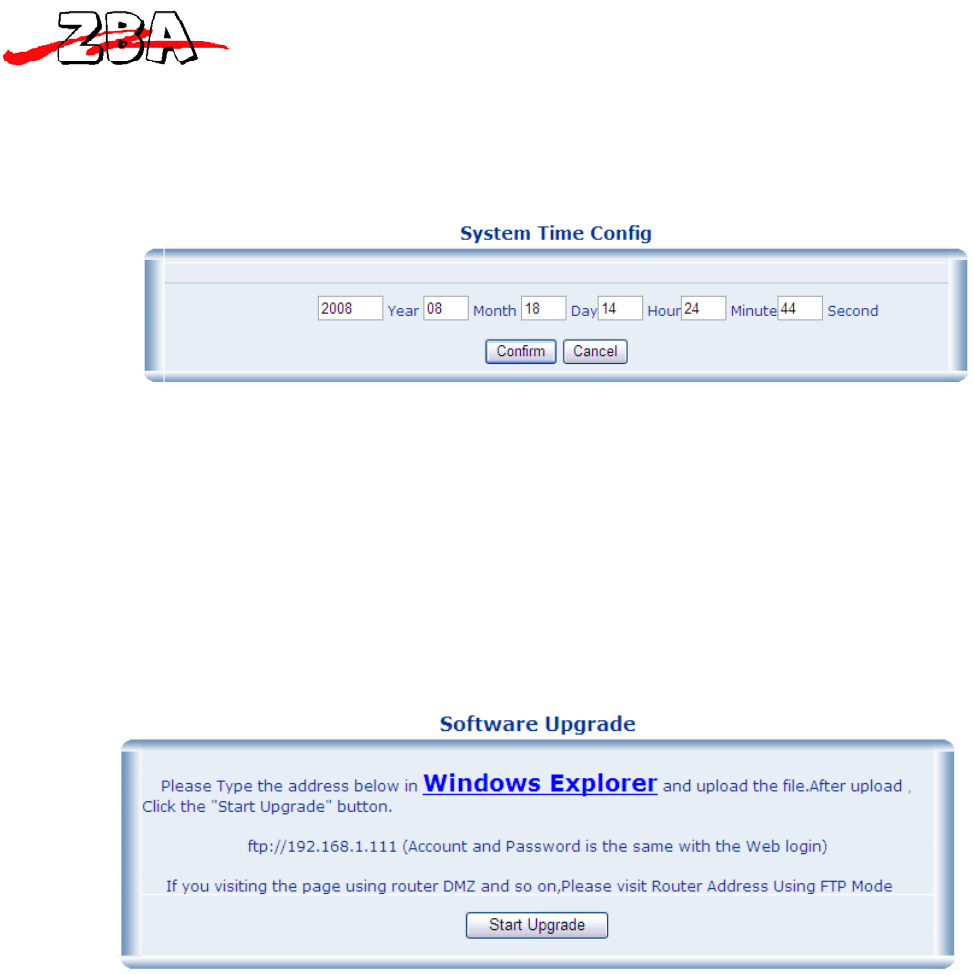

Figure4.4.15‐SystemTimeDialogBox......................................................................................................25

Figure4.4.16‐SoftwareUpgradeWindow................................................................................................25

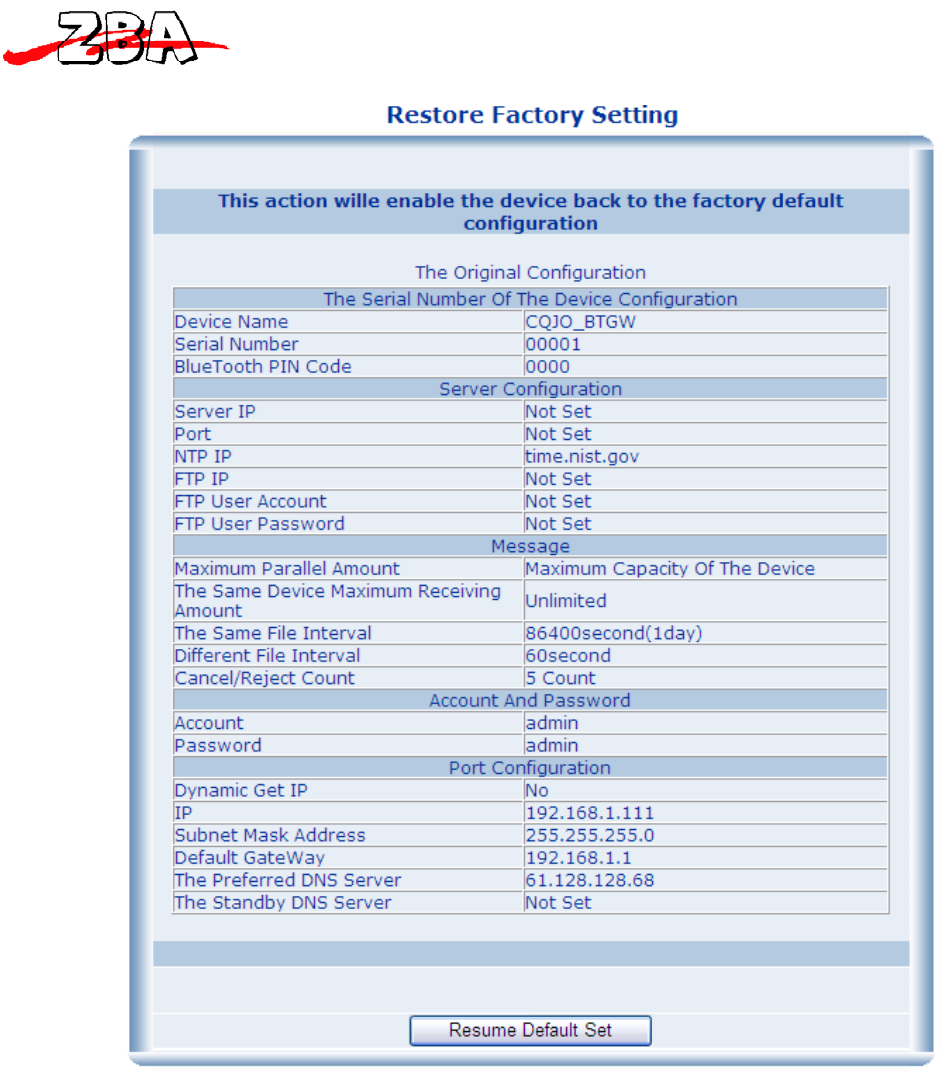

Figure4.4.17‐ResettingtheDefaultFactoryParameters.........................................................................26

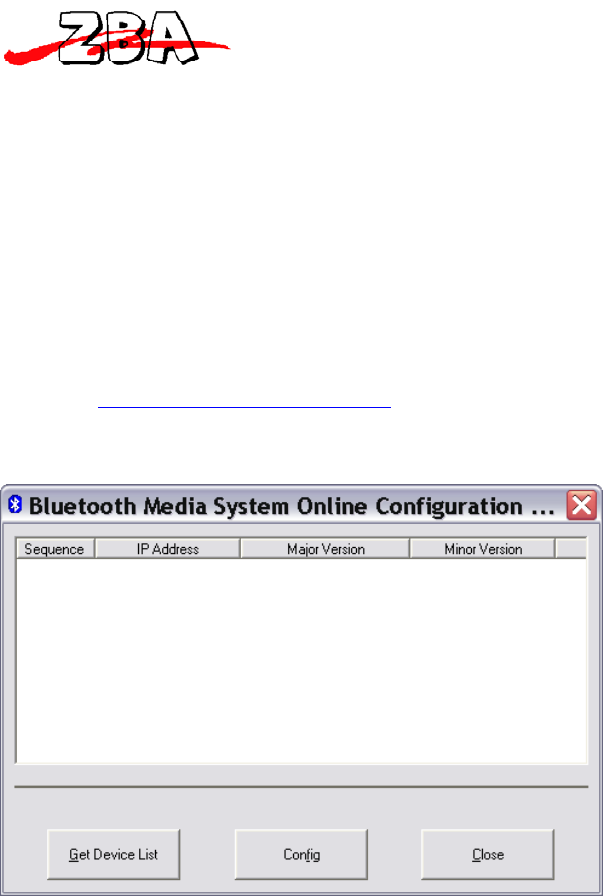

Figure5.5.1ConfigurationProgramDeviceutility....................................................................................27

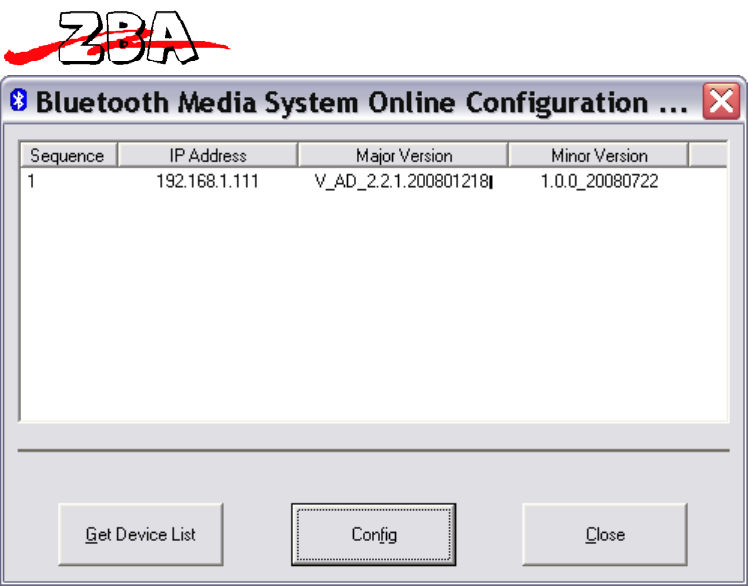

Figure5.5.2ConfigurationProgramDeviceutilityafteritfindsanactiveBTMediaSystem....................28

Figure6.6.1‐ListofFilesCurrentlyAvailableintheMediaSystem...........................................................29

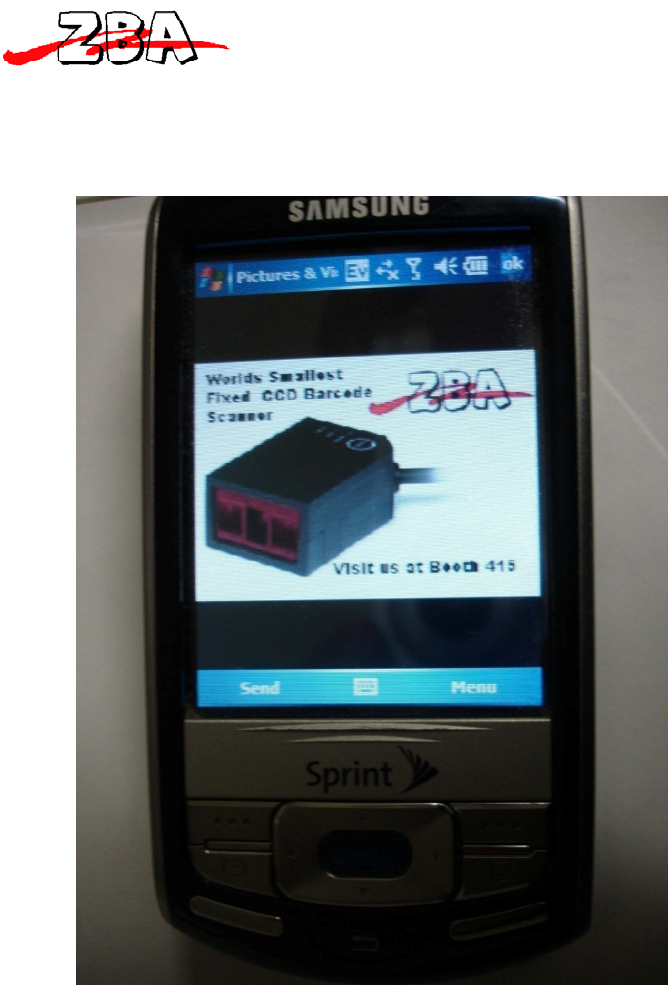

Figure6.6.2‐ExampleofanAdvertisementSenttoaSmartPhone..........................................................30

Figure6.6.3‐AdvertisingMediaContentUpdateProgram.......................................................................31

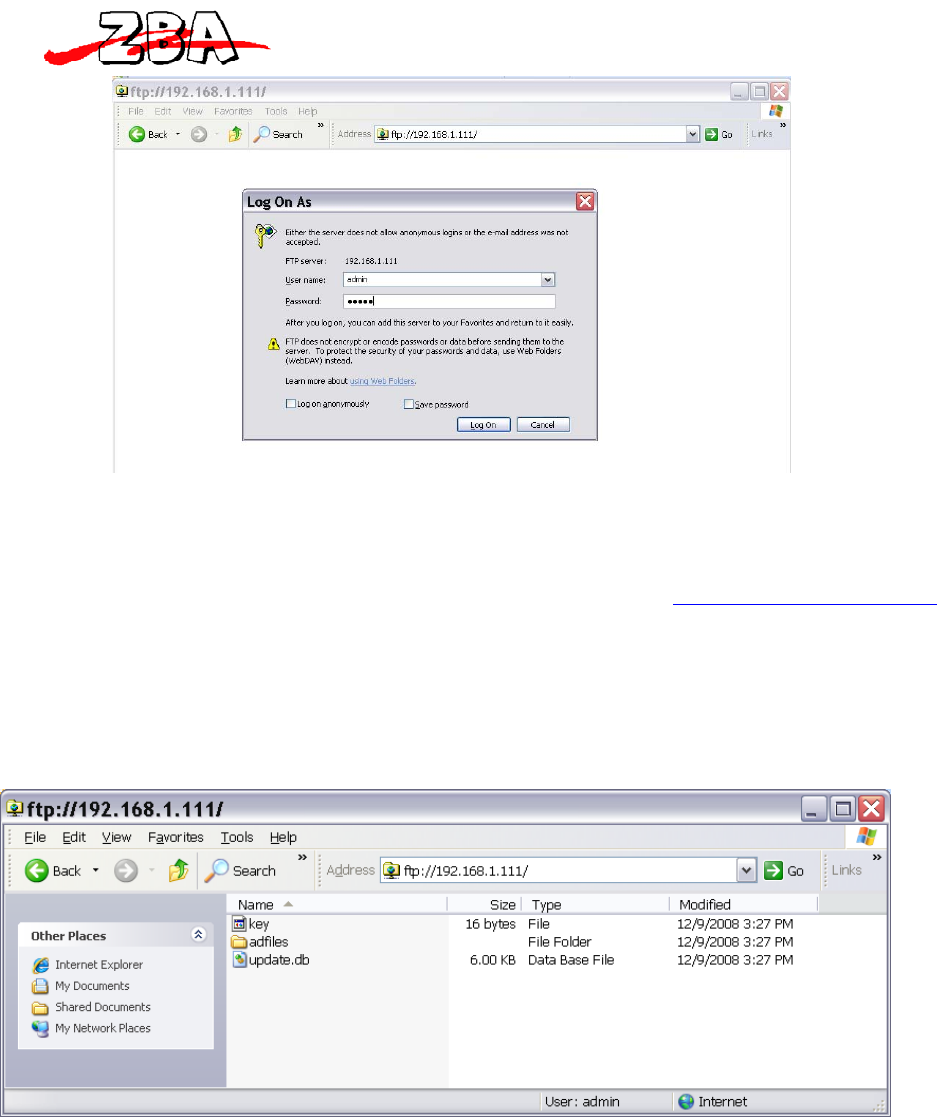

Figure6.6.4‐FTPLogonWindow...............................................................................................................33

Figure6.6.5‐FTPPageafterFileshavebeencopied.................................................................................33

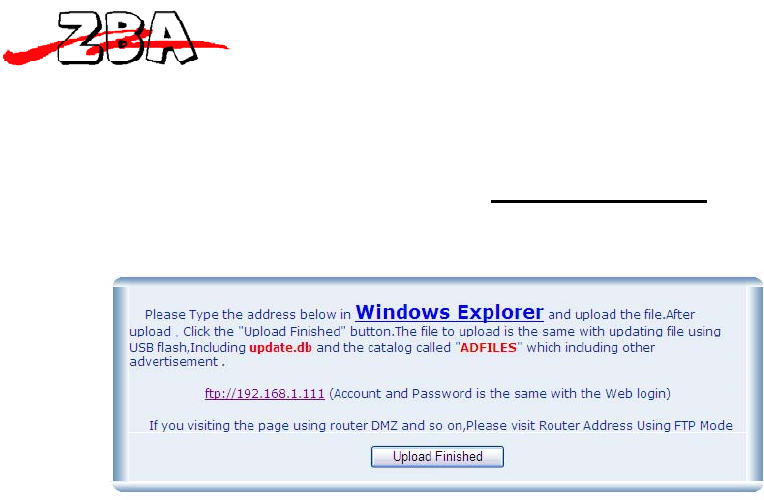

Figure6.6.6‐AdvertisingMediaUpdateWindow.....................................................................................34

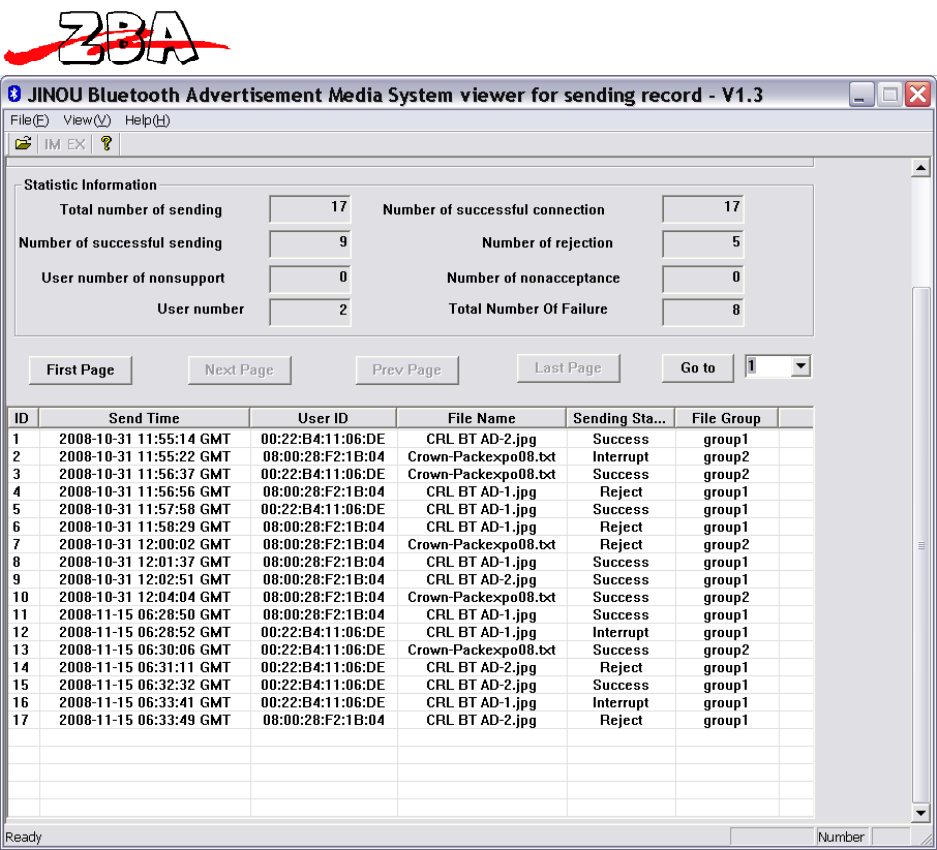

Figure7.7.1ScreenShotoftheAdvertisingStatisticsWindow................................................................36

Figure7.2BThistoryfileexportingdatatoa.txtor.xlsfile.......................................................................37

 ZBA, Inc.

Page5of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

1 Features



1.1 Simple installation requires only power to operate

1.2 Supports communications to a wide variety of devices such as:

a. Mobile phones,

b. PDAs,

c. Laptops,

d. Any Bluetooth enabled device that has FTP and OPP profile support

1.3 Supports high speed point-to-multipoint operation:

a. Up to a total of 28 devices simultaneously.

b. Up to 100 K Bytes/sec to each device.

1.4 User friendly interface

a. A web based interface allows a variety of controls including:

i. Content updates,

ii. Changes to the transmission configuration/parameters and

iii. Review of transmission statistics.

b. A USB memory stick interface for off-line content updates

i. Simply plug a pre-formatted USB memory stick with the

content update into the system

c. Optional configuration control using WiFi (802.11), GPRS,

(wireless interface accessories must be purchased separately)

1.5 Highly flexible customer friendly configuration management

a. Ad launchers can be configured with multiple files stored in

groups

b. For each document of a groups the user can

i. set the time range of transmission

ii. Set the priority (order in which files are transmitted)

c. the number of times an advertisement is sent,

d. the interval between transmissions,

e. if the same advertisement is sent to the same receiving device

f. Time interval between sending different advertisements to the

same device.

g. Maintains a log of BT addresses that accept and reject a specific

advertisement.

1.6 Powerful Statistical Data

a. The Media System provides a USB interface that can be used to

retrieve statistical information on the performance of the system.

 ZBA, Inc.

Page6of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

PhysicalDescription



Figure 1.1- Top View of the ZBA Bluetooth Media System

Figure 1.2- Front View of the ZBA Bluetooth Media System

1) Functionalindicator

2) Systemindicator

3) USBMemoryStickupdateindicator

4) SystemResetindicator

5) NetworkActivityindicator

6) Powerindicator

7) 2.4GHZantennaewith180degreesofrotationanda90degreeelbow.



 ZBA, Inc.

Page7of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844



Figure 1.3 - Rear View of the ZBA Bluetooth Media System

Figure2.3showsthebackoftheBluetoothMediasystem

1) PowerConnectorwhichisa12VDCcenterpositiveDCpowerjack

2) ConnectorforaCat5eEthernetcable

3) DB9maleconnectorforusewithanexternalGPRSadapter

4) SystemResetbutton

5) USBTypeAfemaleconnector

6) 2.4GHZantennaewith180degreesofrotationanda90degreeelbow.



The dimensions of the Media System are 1.5 x 5.5 x 3.5 inches.

2 Technicalspecifications

2.1 Overview:



1) Supports Point-to-multipoint with up to 28 mobile devices may

simultaneously receive a transmission.

2) The transmission speed can be up to 100 K Bytes/s.

3) Supports various file formats, such as;

Static graphic images, such as .jpeg 

.wmv video files

c. 3GP animation, 

txt, 

 ZBA, Inc.

Page8of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

MP3 audio files, etc.

4) Content may be updated via the following methods

Off-line via USB memory stick interface

FTP network

c. Web update

d. Optional wireless accessories are required for the following.

i. 802.11

ii. GPRS

iii. CDMA and 3G, etc. 

5) Support of T-base 10 10M/100M network 

6) Authentication support, account management 

7) Bluetooth 2.1 compliant 

8) Embedded Linux operating system 

9) 200 MIPS high-performance processor

10) Up to 2GB of non-volatile storage memory

11) 128MB Program Flash 



2.2 Bluetooth specification

1) Class 1 Bluetooth module with 4 external antenna

2) Bluetooth 2.1 Compliant

3) Frequency range: 2.402 G ~ 2.480GHz

4) Bluetooth Profiles supported:

a. Object Push Profile

b. File Transport Profile

5) The Media System can seamlessly connect to a variety of devices

such as mobile phones, PDAs, PCs that also support the following

Bluetooth profiles:

a. Object Push Profile

b. File Transfer Profile

6) Supports Bluetooth protocol stack link management, link control,

L2CAP, SDP, RFCOMM, OBEX

3 Configurationsettings

3.1 Definition of the terms:

This equipment is defined as the Bluetooth Media System. To control

the media system, the devices is typically connected to a PC via a

TCP/IP connection.

1. Bluetooth Master: Bluetooth device that can initiate a new

connection

 ZBA, Inc.

Page9of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

2. Bluetooth Slave: Bluetooth device that can only answer a master

that has initiated a new connection.

3. Bluetooth Profiles: Wireless interface specifications for

Bluetooth-based communication between devices. In order to

use Bluetooth technology, a device must be compatible with

the subset of Bluetooth profiles necessary to use the

desired services. The following profiles are supported by

the Media System: a) FTP File Transfer Protocol b) OBEX Object

Exchange

4. TCP/IP: A hierarchy of internet communication protocols

named for two of the most important protocols in it: the

Transmission Control Protocol (TCP) and the Internet

Protocol (IP), which were the first two networking

protocols defined in this standard.

5. Cat 5e cable: It’s an enhanced version of Cat 5 that adds

specifications for far end crosstalk. It was formally

defined in 2001 as the TIA/EIA-568-B standard, which no

longer recognizes the original Cat 5 specification.

3.2 GETTING STARTED with your Bluetooth Media System

1. Connect the Media System’s network interface cable (CAT5) to an

Ethernet connection that will route to the internet. This is

typically a router or switch.

2. Apply power to the Media System (12VDC Center Positive 1 Amp)

3. After a power–on reset sequence, the power indicator LED will remain

steady RED.

4. The Bluetooth indicator LED (3rd from left) will blink once

indicating that the Bluetooth devices in the Media System have been

started. After a few seconds the Bluetooth activity indicator LED

will flash multiple times indicating that the Bluetooth devices are

ready to commence discovery of potential slave devices.

5. Testing your Bluetooth Media System connections

a. Testing the Media System connection to the PC

i. If you are connecting the Media System directly to a PC

then you will need a CAT5e cross-over cable.

ii. If you are connecting the Media System to the PC via a

router or an Ethernet switch then a standard CAT5e cable

is needed.

iii. The default IP address of the Bluetooth Media System is

192.168.1.111 (note: the IP address may be changed).

 ZBA, Inc.

Page10of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

iv. You can use the “ping” command from the MS-DOS prompt to

test the connectivity between the PC and the Media

System. Figure3.1 shows the results of a properly

connected Media System.

Figure 3.3.1- Ping command from MS-DOS prompt.

v. If the “ping” command fails, please check the cable

connections.

b. Launching the Bluetooth Media System

i. Open your IE browser and, in the address bar, enter the

IP address of your Media System (such as

http://192.168.1.111). Then hit the "Enter" key. A

window will appear as shown in Figure 3.2.

ii. An alternative method to launch the Media System is to

run the BTADConfig.exe program. This program will detect

any Media System that is connected and, by simply

highlighting one of the discovered systems, you can

double click on the system of interest and the program

will automatically launch Internet Explorer and bring

you to the logon screen.

iii. Enter the user name and password. (The default user

name: admin; default password: admin).

 ZBA, Inc.

Page11of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

Figure 3.3.2 - Logon Screen

4 Configurationstatus



4.1 Main configuration screen



Upon successful connection to the Bluetooth Media System, the status

screen as shown below will appear.

 ZBA, Inc.

Page12of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

Figure 4.4.1 - Main Configuration and Operation Menu

The Bluetooth Media System has the following default parameter

values:

(1) Bluetooth PIN Code(password): 0000,

(2) Bluetooth Media System Name: CQJO_BTGW. This name is also the

default Bluetooth equipment name.

(3) Server configuration parameters:

a. Server IP address: There is no default address set.

 ZBA, Inc.

Page13of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

b. Port: The default port is not set.

c. NTP (Network Time Protocol) server address: time.nist.gov.

The Bluetooth Media System will automatically synchronize

with the NTP server to retrieve time information.

d. FTP server address: The current configuration of the server

address, user name, and password information is shown here.

The default address is not set.

e. FTP user account (for launching FTP server account): The

default is not set.

f. FTP user passwords: The default is not set.

(4) Information Transmission Parameters: By convention, the value 0

for a parameter is used throughout the Media System to indicate

the absence of a limit other than the inherent physical limits of

the device.

a. Maximum number device connections: The maximum number of

Bluetooth connections current at the same time. The value

can be from 0 to 28. The default value of 0 is used to set

the maximum 28.

b. Maximum number of transmissions to the same device: This is

the total number of files that can be sent to the same

receiving equipment in the specified time interval

(typically one day). The default value of 0 for this

parameter is used to allow the Media System to send an

unlimited number of files to the same device.

c. Same file transmission interval: This is the time in which

it is valid to send a previously sent document to the same

receiving device. The default is set to 86,400

seconds (24 hours).

d. Different file transmission interval: This is the minimum

amount of time that another (different) file may be sent to

the same receiving device. The default is set to 60

seconds.

e. Cancel/reject count: The number of times in a particular

time interval (i.e. one day), the Bluetooth Media System

will prompt the same device to receive an advertisement

once the receiving Bluetooth device has cancelled or

rejected the initial request. This count includes all

files whether or not they’re different.

(5) Port configuration parameters: This parameter displays the

current network configuration parameters.

a. Acquire Dynamic IP Address: The default setting is not to

get a dynamic IP address.

b. IP Address: The default setting is 192.168.1.111

c. Subnet Mask Address: The default setting is 255.255.255.0

 ZBA, Inc.

Page14of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

d. Default Gateway: The default for Bluetooth Media System is

set to 192.168.1.1

e. Preferred DNS Server: The default setting for 61.128.128.68

f. Standby DNS Server: The default is set to 0.0.0.0

4.2 Port Configuration

Figure 4.2 below shows the port configuration menu. These parameters

may be modified to facilitate the appropriate interface to the host

system network interface.

Figure 4.4.2 - Port IP configuration

 ZBA, Inc.

Page15of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

1. The Bluetooth Media System supports both dynamic and static IP

addressing. The dynamic address will automatically configure its

network interface from a DHCP server with access to IP addresses.

a. To use the automatic IP address configuration mode, simply

check the "automatic access to IP (DHCP Client form)" option.

b. To use the fixed IP address configuration mode, simply check

the "fixed IP (Static IP)" option. In additional you will

need to set-up the IP address, subnet mask, default Bluetooth

advertising machine and a DNS server address as well as other

information.

2. Once the set-up parameters have been enters click the enter

button then it is necessary to restart the Bluetooth Media System

(see System Configuration chapter) to make the new configuration

take effect. You can also set other parameters prior to

restarting the Media System.

4.3 Server Configuration

4.3.1 DeviceSerialNumberConfiguration

From the Main Configuration Screen, by clicking on the Server

Configuration and then the Device Configuration sub-menu, the Serial

Number will appear as is shown below in the screen in Figure 4.3.

Figure 4.4.3 - Device Configuration Dialog Box

a. Device Name: The name of the Bluetooth Media System is displayed

as shown above. In this case, the default name has been changed

to Blue_Media_System. The default setting is CQJO_BTGW. This

 ZBA, Inc.

Page16of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

name is also the default Bluetooth device name. As illustrated in

Figure 4.3, the name may be modified per the users’ requirements.

b. Serial Number: The default setting for the Bluetooth Media System

Serial Number is 00001. The SN may be modified per the users

requirements.

c. PIN Code: When the phone requires a secure authentication,

password of the Media System and the phone must match. The

default is set to 0000.

4.3.2 ServerAddressSettings



From the Main Configuration Screen clicking on the Server

Configuration and then the Server Address sub-menu will display the

screen shown in Figure 4.4 below.

a. FTP Server Address: This is the address of the FTP server used

to automatically update content as well as server address, FTP

accounts, passwords and other information.

b. NTP Server Address: This address is set up to automatically

provide the system time for the server when not running in

standalone mode. Time sensitive content is then sent based

this time. The default is time.nist.gov. In standalone mode,

the system clock is set manually.

Figure 4.4.4 - Server Port Configuration

 ZBA, Inc.

Page17of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

4.3.3 SendInformationPolicy(TransmissionConfigurationSetup)

From the Main Configuration Screen clicking on the Server

Configuration and then the Send Information Policy sub-menu will

cause the screen shown in Figure 4.5 below to appear.

Figure 4.4.5 - Message Sending Policy Dialog Box

The items in the listing in Figure 4.5 above are defined as follows.

1. Maximum Parallel Amount: This is the number of Bluetooth

devices that the Media System can connect to at any one

time. The number can vary between 0-28. Note that if the

parameter is set to 0, this is equivalent to setting the

maximum number of slave devices to 28. The maximum

available connections is the number of Bluetooth radios

times seven (7). For a system with four radios, the maximum

number of connections is 28 and for a one radio system the

maximum is seven.

2. Sending Interval: The first of these Sending Interval

parameters is the same file/same device transmission time

interval. This is the setting of the time interval after

which the same content is sent to the same Bluetooth

device. The default setting is 86,400 seconds (24 Hours).

If the parameter is set to 0, the same document will never

be sent to the same Bluetooth device.

3. Sending Interval: The second of these Sending Interval

parameters is the different file/same device transmission

time interval. This is the setting of the time interval

after which different content is sent to the same Bluetooth

device. The default setting is 60 seconds.

 ZBA, Inc.

Page18of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

4. Maximum Receiving Amount: This parameter will set the

maximum number of files sent to any specific Bluetooth

device in any one day. The default setting is 0 which

corresponds to an unlimited amount.

5. Reject/Cancel Count: This is the minimum number of times a

Bluetooth device will be allowed to cancel or refuse to

receive a message in the same interval as set in item #2

above before no more files are sent to that device during

that same interval. The default setting is 5.

Once all of the above parameters have been set-up then the Bluetooth

Media System needs to be restarted for the new configuration parameter

values to take effect. As always you can wait until you have completed

the entire set-up configuration before restarting the Bluetooth Media

System. (See the System Configuration section for the restart

procedure).



4.4 AD Files Management

4.4.1 FilesList

 ZBA, Inc.

Page19of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

Figure 4.4.6 - List of Content Files

The items shown in Figure 4.6 above are a listing of the current files

in the Media System that can be transmitted during a particular

advertisement campaign.

The files can be broken up into as many different groups as needed

(see section 6 for a discussion on content management). In the

example above we only show one group. That group contains only one

file called Thanks.txt. Each of the files in this section may be

assigned a starting and ending time. The time slot as show in the

example indicates that the beginning time in which this specific file

may be transmitted is 2AM and the end time is Midnight. If there are

other files in the same group that share the same time slot then the

files may be prioritized. The priority is related to the order in

which the files will be transmitted from the Bluetooth Media System.

4.4.2 TransmissionRecords

a. From the Main Configuration Screen clicking on the

Transmission Records and then the Device List sub-menu will

display the screen shown in Figure 4.7.

Figure 4.4.7 - Discoverable Bluetooth addresses in the local

neighborhood

The headings in Figure 4.7 above are defined as follows.

1. Count: The number of active discoverable Bluetooth devices.

(In this example, only one individual device is shown.)

2. Bluetooth Address: The respective active Bluetooth address of

the slave devices in the neighborhood.

3. RSSI: The relative Return Signal Strength Indicator in db.

4. Class of Device:

 ZBA, Inc.

Page20of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

5. Name: The friendly name of the device typically set by the

user/owner.

Clicking the refresh button at the bottom of the window updates

the information in real-time.

4.4.3 Transmissioninformationrecords



Figure 4.8 is a listing of the transmission activity of the media

system.

Figure 4.4.8 - Media System Activity Log

Figure 4.8 shows the following Statistics

1. Total Sent Count: Total number of messages sent.

2. Successfully Sent Count: Total number of messages successfully

transmitted.

 ZBA, Inc.

Page21of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

3. Successful Connected Count: Total number of successful

Bluetooth Connections.

4. User Count: Total number of different Bluetooth devices

connected.

5. Not Accept Count : Total number of ads that were not accepted

6. Reject Count: Total number of transmissions that were

specifically rejected by the slave device.

7. Total Failed Count: Total number of devices with which the

Media System was able to connect for which there was no

response back after a specific time-out period.

8. Nonsupport User Count: Total number of Bluetooth connections

to devices that do not support the Bluetooth File Transfer or

Object Push Protocol.

Note: The log can hold up to 2,000 instances of transmissions.

If you wish to log information beyond that value then you will

need to run a separate program to keep track of the activity.

9. The headings in Figure 4.8 are defined as follows:

a. Sequence ID: The send sequence # beginning with the last

first.

b. Sending Time: The time of the transmission.

c. Bluetooth Address: The Bluetooth slave device address.

d. File Name: The name of the transmitted file.

e. Sending State: The status of the transmission with values

defined as follows.

1) Success - This means that the advertisement file was

successfully transmitted to a slave device, i.e.

either a mobile phone or any other Bluetooth enabled

device.

2) Interrupt - This describes a condition where the slave

device was initially in range but before the user

could accept the file the mobile device became out of

range and the Bluetooth Media System lost the

connection.

3) Nonsupport – This corresponds to a situation where the

Bluetooth Media System found a slave device connected

but the slave device does not have the required

support for one of the required Bluetooth profiles.

4) Non-acceptance – This is a condition where the

Bluetooth media System has made a successful

connection but the user has failed to respond and the

media system has subsequently dropped the connection.

(Certain phones like the Mitsubishi model # 368 is

configured to automatically send a non-acceptance

response)

5) Reject - This is a situation where the Media System

successfully connected and asked for permission to

transfer a file. The response from the user was to

not receive the ad.

6) Fail – The transfer was not accepted but not for any

of the above reasons.

 ZBA, Inc.

Page22of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

f. The File Group Name: The name of the group or subdirectory

of the adfile folder in which the ad resides.

4.4.4 Cleartransmissionrecords



Figure 4.4.9 - Clear Records

Figure 4.9 shows the screen that will allow the user to clear the

transmission records that are stored in the Media System. Please

EXERCISE CAUTION when using this function since deleting the records

cannot be undone.

4.5 Black and White listing

The Bluetooth Media System has the capability to white and black

list specific slave devices. The effect of adding a slave device

Bluetooth ID to the Black list will prevent that particular device

from receiving any content. Of course, an ID entered on the white

list will have the opposite effect.

As shown in Figure 4.10 below, the White List Dialog Box allows you

to add and/or edit the Bluetooth addresses of specific slave

devices. Only one is shown in this figure.

Figure 4.4.10 - White List

 ZBA, Inc.

Page23of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

The same functionality is supported for the Black List. As shown in

Figure 4.11 below, the Black List Dialog Box allows you to add

and/or edit the Bluetooth addresses of specific slave devices.

Again, only one is shown in the figure.

Figure 4.4.11 - Black List

Of course, any Bluetooth slave device logged in the sent records can

be added to the White or Black Lists. Referring back to Figure 4.7,

the Bluetooth devices can be added to either of these lists directly

from that menu.

4.6 System Configuration

4.6.1 RestartingtheSystem



1. As shown in Figure 4.12 below the "restart" sub-menu will force the

system to restart thereby establishing all of the parameter changes

that have been previously made in any of the preceding menus.

Figure 4.4.12 - Restarting the System

REMEMBER: For the new parameters of the Bluetooth Media System to

take effect, it is necessary to restart the system.

 ZBA, Inc.

Page24of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

4.6.2 MACAddressConfiguration



Figure 4.13 below shows the current MAC address of the system. This

address may not be changed.

Figure 4.4.13 - MAC Address of the LAN

4.6.3 ModifyUserAccount



Figure 4.14 below shows the dialog box that is used to modify the

log-on user name and log-on password

Figure 4.4.14 - Modification of the User Name and Password.

 ZBA, Inc.

Page25of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

4.6.4 SystemTime



The window depicted in Figure 4.15 below is used to manually modify

the system time.

Figure 4.4.15 - System Time Dialog Box

1..1 SoftwareUpgrade



Figure 4.16 illustrates the sub-menu that allows the user to upgrade

the device firmware.

Figure 4.4.16 - Software Upgrade Window

 ZBA, Inc.

Page26of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

4.6.5 RestoreFactorySettings

Figure 4.4.17 - Resetting the Default Factory Parameters

The table in Figure 4.17 lists the default factory settings. Please

Exercise Caution when executing this command as all previously set

parameter values will be lost.

 ZBA, Inc.

Page27of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

5 ConnectingtotheMediaSystem



5.1 Configuration utility



ZBAprovidesaPCutilityprogramthatwillmakeiteasyfortheusertolocateoneormultipleBTMedia

systemsonanetwork.SimplyrunningthefollowingprogramwhichcanbefoundintheDownloads

sectionatwww.Bluetootmediasystem.comunderthename“BT ADfile Configuration Utility”.

ByrunningBTADConfig.exeyouwillseethefollowinginfigure5.1.



Figure 5.5.1 Configuration Program Device utility



ByclickingontheGetDeviceListtheprogramwillreturnthefollowingshowninFigure5.2whichcan

includemultipleBluetoothMediaSystems.Byhighlightingtheappropriatesystemandclickingonthe

“Config”buttontheprogramwilllaunchanIE7sessionandcommencethelogonprocessforthat

particularmediasystemasdescribedabove.



 ZBA, Inc.

Page28of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844



Figure 5.5.2 Configuration Program Device utility after it finds

an active BT Media System



6 ContentManagement

The Bluetooth Media System can operate without the use of a PC. To

operate as a standalone device the content must be added to the

system and of course routinely updated. The following section of the

user manual will show the proper procedure to update the advertising

or file content for the system.

6.1 USB Content Update Procedure for Stand Alone Operation

The Bluetooth Media System also has a USB memory stick interface. The

system allows the user to build a set of advertising files on their

PC and then upload this information via the memory stick to the

Bluetooth Media System. Figure 6.1 shown below has three different

advertisement files currently located in two different groups. Two

files are .jpg and the other file is a text file.

 ZBA, Inc.

Page29of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

Figure 6.6.1 - List of Files Currently Available in the Media

System

6.2 The specification for the content

The Media System can store in non-volatile Flash RAM up to 2GB of

content information. Therefore each individual advertisement can

theoretically be large. However, keep in mind that the size of a

file dictates the amount of time it takes to download it to the

prospective client. While transmission speeds of the ZBA Media System

are quite fast, the attention span of a prospective client may indeed

be quite short. The files in the example above were approximately 30

KB in size.

 ZBA, Inc.

Page30of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

The following image shown in Figure 6.2 is taken from a Samsung SMART

phone as it would be displayed to the user. The resolution of the

image is quite good and the download time could be measured in just a

few seconds.

Figure 6.6.2 - Example of an Advertisement Sent to a Smart Phone

6.3 Procedure for Uploading Advertising Content when the Media System is

Operating as a Standalone Device

1) In the Root Directory of a USB memory stick, create a folder

called “adfiles”.

2) Open the “adfiles” folder and create some sub-folders. For

example, group1 and group2.

 ZBA, Inc.

Page31of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

3) Place the files you want to transmit in either of the two

folders under the “adfiles” folder; the group 1 and group 2

folders in this example.

4) Run the BTADFileManager.exe executable file and the following

screen will appear.

Figure 6.6.3 - Advertising Media Content Update Program

5) The next step is to import the appropriate directory. In the

example shown here, it’s the folder named “adfiles” from the

root directory of the memory stick.

6) At this point you can click on the individual files and enter

a friendly name.

7) Then click SAVE (S) and the program will ask you to save a

file called update.db. It is important that you save this

file to the root directory of the memory stick!

8) At this point it is safe to stop and remove the memory stick

from the PC.

9) Close the file manager.

10) Simply plug memory stick into the Bluetooth Media System.

Friendlynamecanbe

enteredhere

 ZBA, Inc.

Page32of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

1. The CPU in the Media System will detect the presence of

the USB memory stick and look for the appropriate update

files.

2. The updated files will then be copied to the flash memory

of the Media System. The system is ready to attract

customers.

6.4 Procedure for Uploading Advertising Content when the Media System is

Accessible using an Ethernet Connection.



1) In the Root Directory c:\, create a folder called “adfiles”.

2) This is a optional step: Open the “adfiles” folder and create

some sub-folders. For example group1 and group2.

3) Place the files you want to transmit in either of the two

folders under the “adfiles” folder; the group 1 and group 2

folders in this example.

4) Run the BTADFileManager.exe file and the screen as shown in

Figure 6.3 will appear.

5) The next step is to import the appropriate directory. In

the example shown here, it’s the folder named “adfiles” from

the root directory (c:\).

6) At this point you can click on the individual files and

enter a friendly name.

7) Then click SAVE (S) and the program will ask you to save a

file called update.db. It is important that you save this

file to the root directory.

8) Go to “My computer” and enter the following in the search

bar

a. FTP://192.168.1.111

b. The logon screen depicted in Figure 7.4 will

appear. Logon using your password.

 ZBA, Inc.

Page33of38

ZBAInc

94OldCamplainRoad

HillsboroughNJ08844

Figure 6.6.4 - FTP Logon Window

9) Copy the following files to the root ftp://192.168.1.111/

ZBA BTMS-X Bluetooth Media System User Manual BTMS opmanual 03182009

ZBA, Inc. Bluetooth Media System BTMS opmanual 03182009

Users Manual

Navigation menu

Namespaces

Views

Navigation
