ZEGO ELECTRONIC 18RX Copter of Vega Drone User Manual

ZEGO ELECTRONIC COMPANY LIMITED Copter of Vega Drone Users Manual

Users Manual

User’s GUide6001435VEGADRONE HD VIDEO STREAMING DRONEBCAge 14+

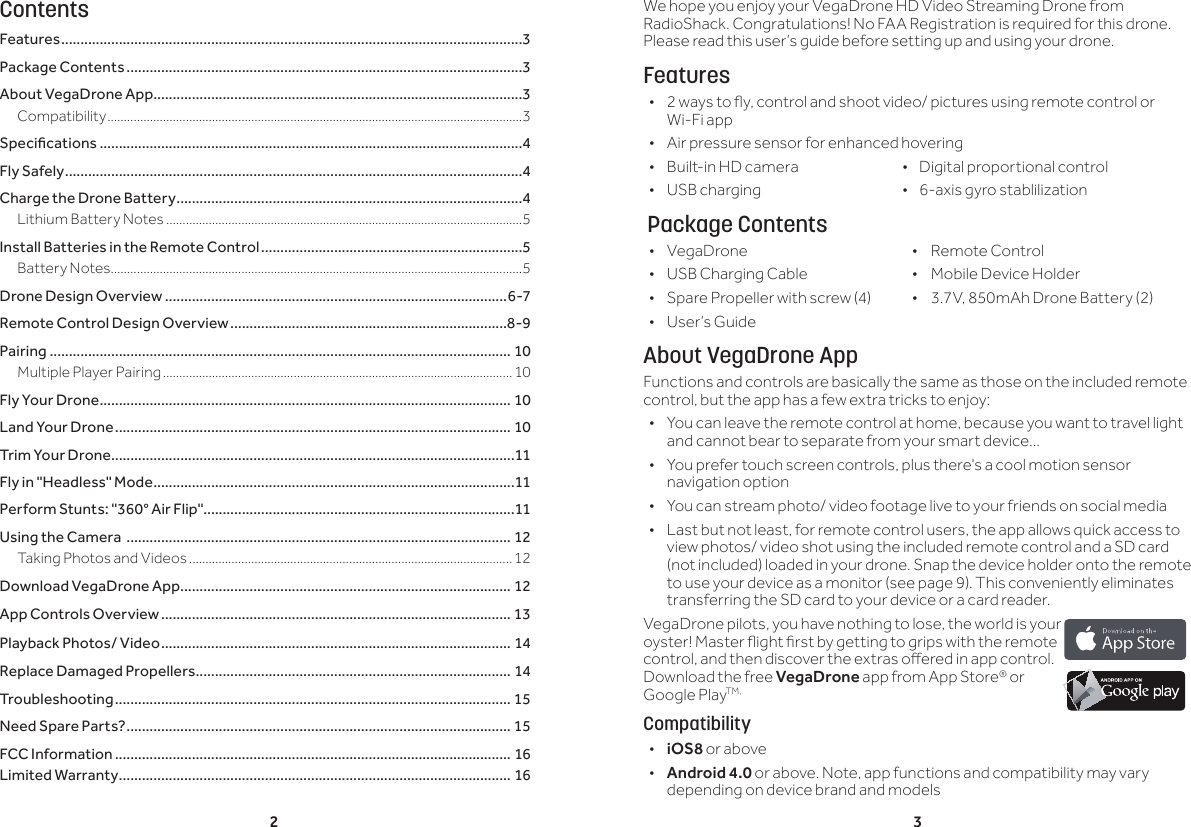

2 3ContentsFeatures ........................................................................................................................3Package Contents .......................................................................................................3About VegaDrone App ................................................................................................3Compatibility ...............................................................................................................................3Specications ..............................................................................................................4Fly Safely .......................................................................................................................4Charge the Drone Battery ..........................................................................................4Lithium Battery Notes .............................................................................................................5Install Batteries in the Remote Control ....................................................................5Battery Notes ..............................................................................................................................5Drone Design Overview .........................................................................................6-7Remote Control Design Overview ........................................................................8-9Pairing ........................................................................................................................ 10Multiple Player Pairing ...........................................................................................................10Fly Your Drone ........................................................................................................... 10Land Your Drone ....................................................................................................... 10Trim Your Drone .........................................................................................................11Fly in "Headless" Mode ..............................................................................................11Perform Stunts: "360° Air Flip" .................................................................................11Using the Camera  .................................................................................................... 12Taking Photos and Videos ...................................................................................................12Download VegaDrone App ...................................................................................... 12App Controls Overview ........................................................................................... 13Playback Photos/ Video ........................................................................................... 14Replace Damaged Propellers .................................................................................. 14Troubleshooting ....................................................................................................... 15Need Spare Parts? .................................................................................................... 15FCC Information ....................................................................................................... 16Limited Warranty ...................................................................................................... 16We hope you enjoy your VegaDrone HD Video Streaming Drone from RadioShack. Congratulations! No FAA Registration is required for this drone. Please read this user’s guide before setting up and using your drone.Features • 2 ways to y, control and shoot video/ pictures using remote control or Wi-Fi app • Air pressure sensor for enhanced hovering • Built-in HD camera                            •    Digital proportional control • USB charging                  •    6-axis gyro stablilization  Package Contents • VegaDrone  •  Remote Control • USB Charging Cable  •  Mobile Device Holder • Spare Propeller with screw (4)  •  3.7V, 850mAh Drone Battery (2) • User’s GuideAbout VegaDrone AppFunctions and controls are basically the same as those on the included remote control, but the app has a few extra tricks to enjoy: • You can leave the remote control at home, because you want to travel light and cannot bear to separate from your smart device...  • You prefer touch screen controls, plus there's a cool motion sensor navigation option  • You can stream photo/ video footage live to your friends on social media • Last but not least, for remote control users, the app allows quick access to view photos/ video shot using the included remote control and a SD card (not included) loaded in your drone. Snap the device holder onto the remote to use your device as a monitor (see page 9). This conveniently eliminates transferring the SD card to your device or a card reader.VegaDrone pilots, you have nothing to lose, the world is your oyster! Master ight rst by getting to grips with the remote control, and then discover the extras oered in app control. Download the free VegaDrone app from App Store® or Google PlayTM,Compatibility •iOS8 or above • Android 4.0 or above. Note, app functions and compatibility may vary depending on device brand and models

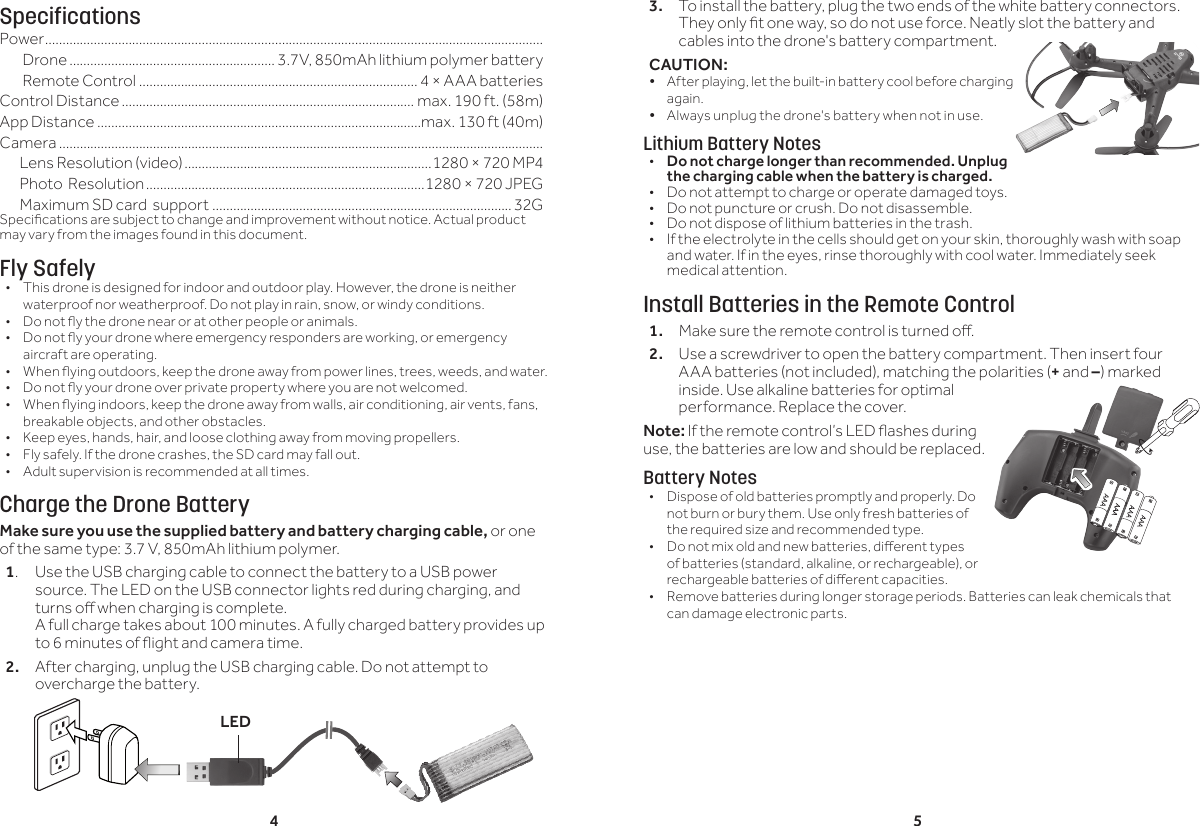

4 53. To install the battery, plug the two ends of the white battery connectors.They only t one way, so do not use force. Neatly slot the battery and cables into the drone's battery compartment.CAUTION: • After playing, let the built-in battery cool before charging again.• Always unplug the drone's battery when not in use.Lithium Battery Notes•  Do not charge longer than recommended. Unplug the charging cable when the battery is charged.•  Do not attempt to charge or operate damaged toys.•  Do not puncture or crush. Do not disassemble.•  Do not dispose of lithium batteries in the trash.•  If the electrolyte in the cells should get on your skin, thoroughly wash with soap and water. If in the eyes, rinse thoroughly with cool water. Immediately seek medical attention.Install Batteries in the Remote Control1.  Make sure the remote control is turned o.2.  Use a screwdriver to open the battery compartment. Then insert four AAA batteries (not included), matching the polarities (+ and –) marked inside. Use alkaline batteries for optimal performance. Replace the cover.Note: If the remote control’s LED ashes during use, the batteries are low and should be replaced.Battery Notes•  Dispose of old batteries promptly and properly. Do not burn or bury them. Use only fresh batteries of the required size and recommended type. •  Do not mix old and new batteries, dierent types of batteries (standard, alkaline, or rechargeable), or rechargeable batteries of dierent capacities.•  Remove batteries during longer storage periods. Batteries can leak chemicals that can damage electronic parts.SpecificationsPower ...............................................................................................................................................Drone ........................................................... 3.7V, 850mAh lithium polymer battery Remote Control ................................................................................ 4 × AAA batteries Control Distance .................................................................................... max. 190 ft. (58m)App Distance .............................................................................................max. 130 ft (40m)Camera ...........................................................................................................................................       Lens Resolution (video) .......................................................................1280 × 720 MP4       Photo  Resolution ................................................................................1280 × 720 JPEG       Maximum SD card  support ......................................................................................32GSpecications are subject to change and improvement without notice. Actual product may vary from the images found in this document.Fly Safely•  This drone is designed for indoor and outdoor play. However, the drone is neither waterproof nor weatherproof. Do not play in rain, snow, or windy conditions. •  Do not y the drone near or at other people or animals.•  Do not y your drone where emergency responders are working, or emergency aircraft are operating.•  When ying outdoors, keep the drone away from power lines, trees, weeds, and water. •  Do not y your drone over private property where you are not welcomed.•  When ying indoors, keep the drone away from walls, air conditioning, air vents, fans, breakable objects, and other obstacles.•  Keep eyes, hands, hair, and loose clothing away from moving propellers.•  Fly safely. If the drone crashes, the SD card may fall out.•  Adult supervision is recommended at all times.Charge the Drone BatteryMake sure you use the supplied battery and battery charging cable, or one of the same type: 3.7 V, 850mAh lithium polymer.1.  Use the USB charging cable to connect the battery to a USB power source. The LED on the USB connector lights red during charging, and turns o when charging is complete. A full charge takes about 100 minutes. A fully charged battery provides up to 6 minutes of ight and camera time.2.  After charging, unplug the USB charging cable. Do not attempt to overcharge the battery.LED

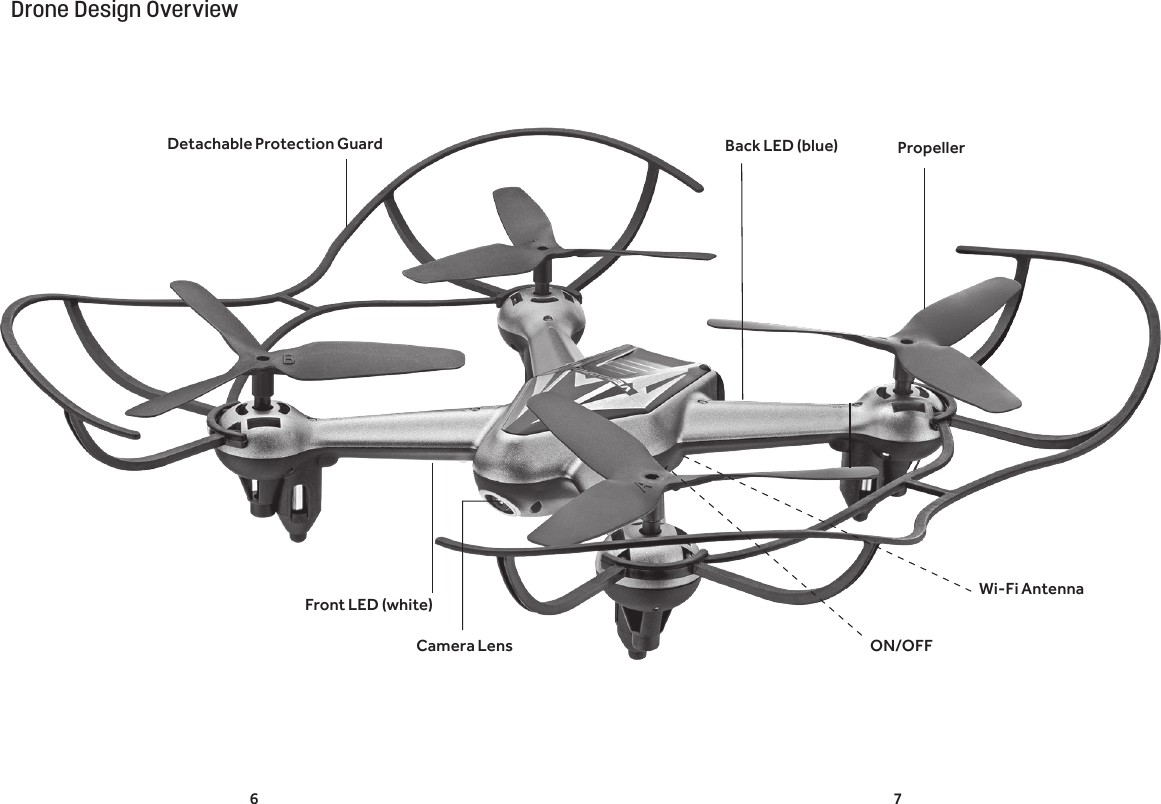

6 7ON/OFFBack LED (blue)Camera LensFront LED (white)PropellerWi-Fi AntennaDrone Design OverviewDetachable Protection Guard

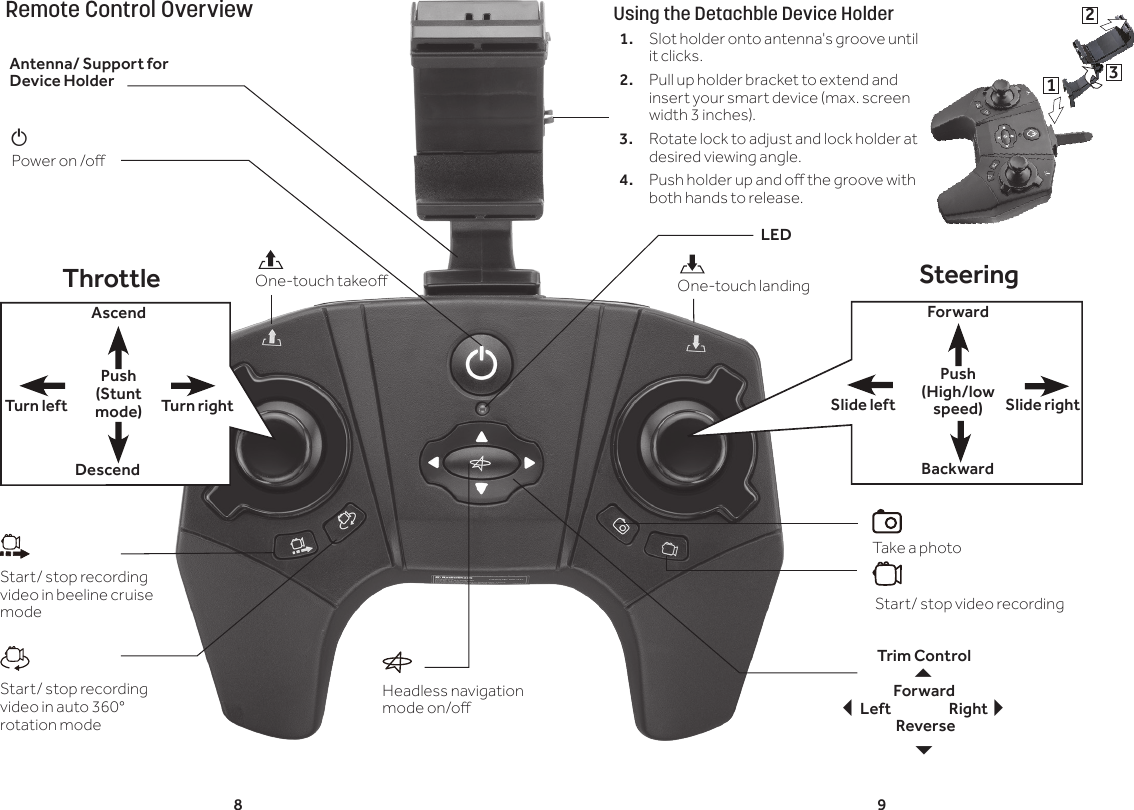

8 9LEDTrim ControlForward Left               Right Reverse 6SteeringForwardBackwardSlide rightSlide leftHeadless navigation mode on/oTake a photo Start/ stop video recordingRemote Control OverviewOne-touch takeoºPower on /oUsing the Detachble Device Holder1.  Slot holder onto antenna's groove until it clicks. 2.  Pull up holder bracket to extend and insert your smart device (max. screen width 3 inches).3.  Rotate lock to adjust and lock holder at desired viewing angle.4.  Push holder up and o the groove with both hands to release. Antenna/ Support for Device HolderStart/ stop recording video in beeline cruise modeStart/ stop recording video in auto 360° rotation modeOne-touch landing132ThrottleAscendDescendTurn rightTurn leftPush (Stunt mode)Push (High/low speed)

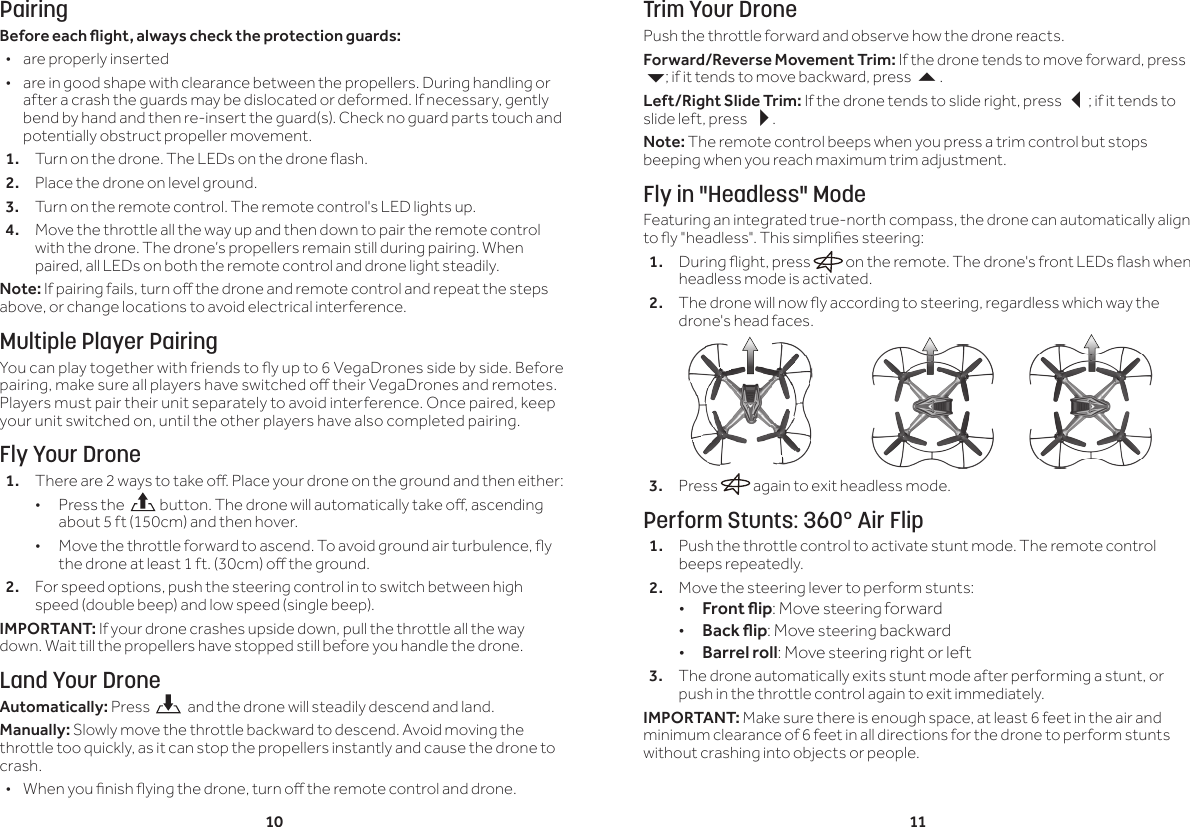

10 11PairingBeforeeachight,alwayschecktheprotectionguards:  •are properly inserted •are in good shape with clearance between the propellers. During handling or after a crash the guards may be dislocated or deformed. If necessary, gently bend by hand and then re-insert the guard(s). Check no guard parts touch and potentially obstruct propeller movement.1.  Turn on the drone. The LEDs on the drone ash.2.  Place the drone on level ground. 3.  Turn on the remote control. The remote control's LED lights up.4.  Move the throttle all the way up and then down to pair the remote control with the drone. The drone’s propellers remain still during pairing. When paired, all LEDs on both the remote control and drone light steadily.Note: If pairing fails, turn o the drone and remote control and repeat the steps above, or change locations to avoid electrical interference.Multiple Player PairingYou can play together with friends to y up to 6 VegaDrones side by side. Before pairing, make sure all players have switched o their VegaDrones and remotes. Players must pair their unit separately to avoid interference. Once paired, keep your unit switched on, until the other players have also completed pairing.Fly Your Drone1.  There are 2 ways to take o. Place your drone on the ground and then either: •Press the   button. The drone will automatically take o, ascending about 5 ft (150cm) and then hover. • Move the throttle forward to ascend. To avoid ground air turbulence, y the drone at least 1 ft. (30cm) o the ground.2.  For speed options, push the steering control in to switch between high speed (double beep) and low speed (single beep).IMPORTANT: If your drone crashes upside down, pull the throttle all the way down. Wait till the propellers have stopped still before you handle the drone.Land Your DroneAutomatically: Press    and the drone will steadily descend and land.Manually: Slowly move the throttle backward to descend. Avoid moving the throttle too quickly, as it can stop the propellers instantly and cause the drone to crash. • When you nish ying the drone, turn o the remote control and drone. Trim Your DronePush the throttle forward and observe how the drone reacts.Forward/Reverse Movement Trim: If the drone tends to move forward, press 6; if it tends to move backward, press .Left/Right Slide Trim: If the drone tends to slide right, press ; if it tends to slide left, press .Note: The remote control beeps when you press a trim control but stops beeping when you reach maximum trim adjustment.Fly in "Headless" ModeFeaturing an integrated true-north compass, the drone can automatically align to y "headless". This simplies steering:1.  During ight, press   on the remote. The drone's front LEDs ash when headless mode is activated.2.  The drone will now y according to steering, regardless which way the drone's head faces. 3.  Press   again to exit headless mode.Perform Stunts: 360° Air Flip1.  Push the throttle control to activate stunt mode. The remote control beeps repeatedly.2.  Move the steering lever to perform stunts: •Frontip: Move steering forward •Backip: Move steering backward •Barrel roll: Move steering right or left3.  The drone automatically exits stunt mode after performing a stunt, or push in the throttle control again to exit immediately.IMPORTANT: Make sure there is enough space, at least 6 feet in the air and minimum clearance of 6 feet in all directions for the drone to perform stunts without crashing into objects or people.

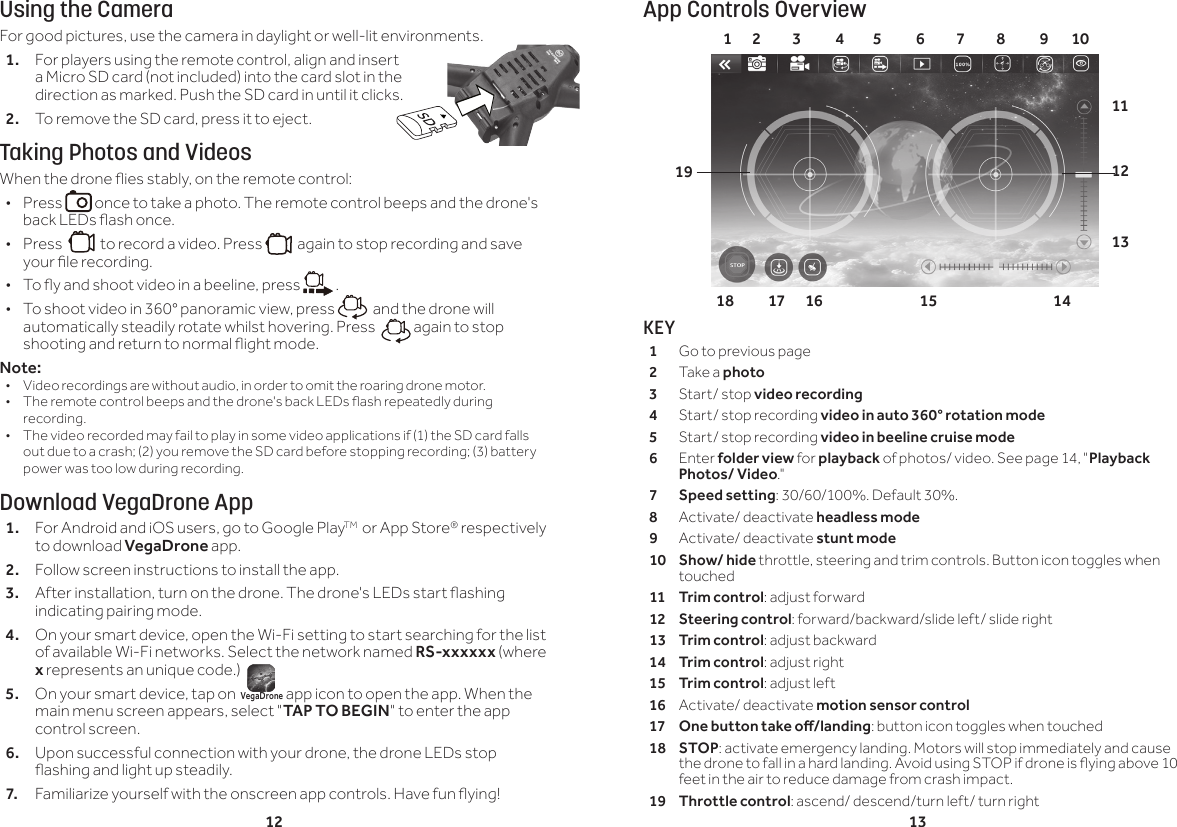

12 13Using the CameraFor good pictures, use the camera in daylight or well-lit environments.1.  For players using the remote control, align and insert a Micro SD card (not included) into the card slot in the direction as marked. Push the SD card in until it clicks.2.  To remove the SD card, press it to eject.Taking Photos and VideosWhen the drone ies stably, on the remote control: •Press   once to take a photo. The remote control beeps and the drone's back LEDs ash once. •Press     to record a video. Press    again to stop recording and save your le recording.  • To y and shoot video in a beeline, press   . • To shoot video in 360° panoramic view, press    and the drone will automatically steadily rotate whilst hovering. Press    again to stop shooting and return to normal ight mode.Note: •  Video recordings are without audio, in order to omit the roaring drone motor.•  The remote control beeps and the drone's back LEDs ash repeatedly during recording.•  The video recorded may fail to play in some video applications if (1) the SD card falls out due to a crash; (2) you remove the SD card before stopping recording; (3) battery power was too low during recording.Download VegaDrone App1.  For Android and iOS users, go to Google PlayTM  or App Store® respectively to download VegaDrone app.2.  Follow screen instructions to install the app.3.   After installation, turn on the drone. The drone's LEDs start ashing indicating pairing mode.4.  On your smart device, open the Wi-Fi setting to start searching for the list of available Wi-Fi networks. Select the network named RS-xxxxxx (where x represents an unique code.)5.   On your smart device, tap on  VegaDrone app icon to open the app. When the main menu screen appears, select "TAP TO BEGIN" to enter the app control screen. 6.  Upon successful connection with your drone, the drone LEDs stop ashing and light up steadily.7.  Familiarize yourself with the onscreen app controls. Have fun ying!App Controls OverviewKEY1  Go to previous page2  Take a photo3  Start/ stop video recording4  Start/ stop recording video in auto 360° rotation mode5  Start/ stop recording video in beeline cruise mode6  Enter folder view for playback of photos/ video. See page 14, "Playback Photos/ Video."7 Speed setting: 30/60/100%. Default 30%.8  Activate/ deactivate headless mode9  Activate/ deactivate stunt mode10 Show/ hide throttle, steering and trim controls. Button icon toggles when touched11 Trim control: adjust forward12 Steering control: forward/backward/slide left/ slide right13 Trim control: adjust backward14 Trim control: adjust right15 Trim control: adjust left16  Activate/ deactivate motion sensor control17 Onebuttontakeo/landing: button icon toggles when touched18 STOP: activate emergency landing. Motors will stop immediately and cause the drone to fall in a hard landing. Avoid using STOP if drone is ying above 10 feet in the air to reduce damage from crash impact.19 Throttle control: ascend/ descend/turn left/ turn right1       2           3            4          5            6           7           8            9        1011121318            17       16                                  15                14 19

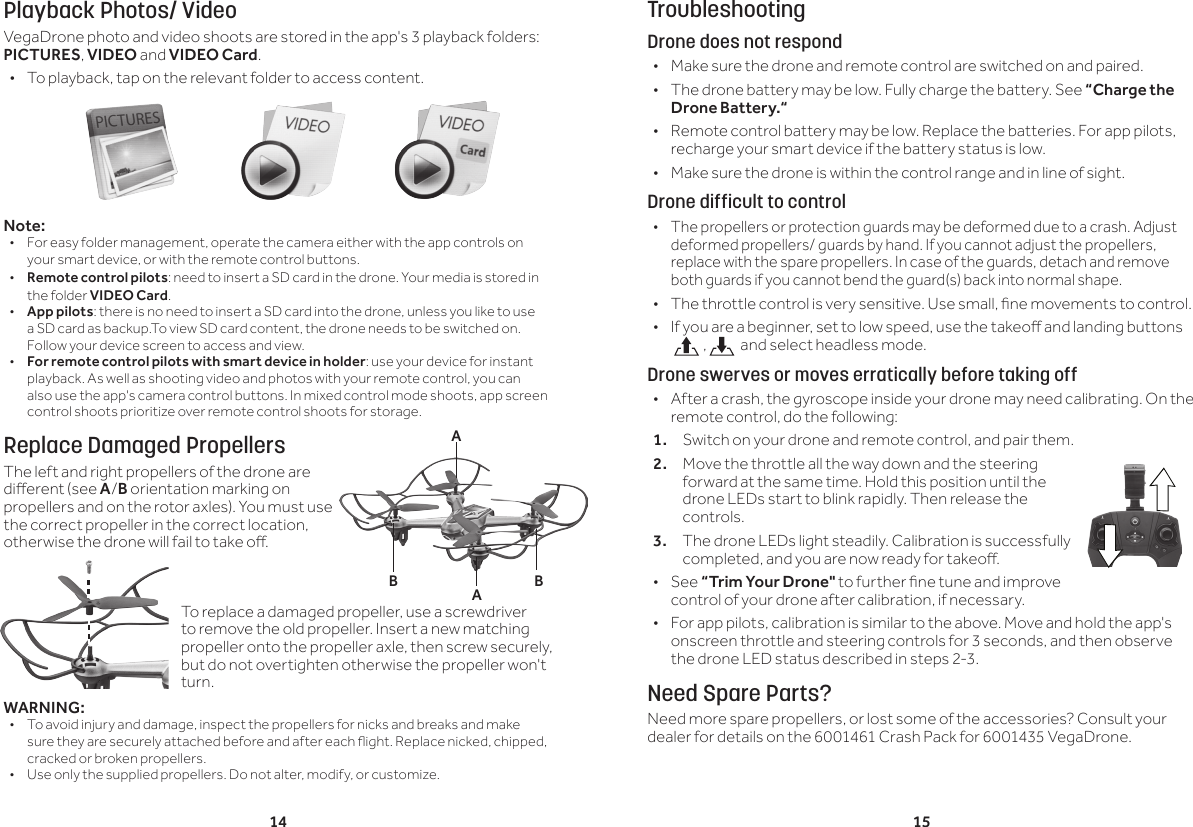

14 15Playback Photos/ VideoVegaDrone photo and video shoots are stored in the app's 3 playback folders: PICTURES, VIDEO and VIDEO Card. • To playback, tap on the relevant folder to access content.Note:•  For easy folder management, operate the camera either with the app controls on your smart device, or with the remote control buttons.•  Remote control pilots: need to insert a SD card in the drone. Your media is stored in the folder VIDEO Card.•  App pilots: there is no need to insert a SD card into the drone, unless you like to use a SD card as backup.To view SD card content, the drone needs to be switched on. Follow your device screen to access and view.•  For remote control pilots with smart device in holder: use your device for instant playback. As well as shooting video and photos with your remote control, you can also use the app's camera control buttons. In mixed control mode shoots, app screen control shoots prioritize over remote control shoots for storage.Replace Damaged PropellersThe left and right propellers of the drone are dierent (see A/B orientation marking on propellers and on the rotor axles). You must use the correct propeller in the correct location, otherwise the drone will fail to take o. WARNING:•  To avoid injury and damage, inspect the propellers for nicks and breaks and make sure they are securely attached before and after each ight. Replace nicked, chipped, cracked or broken propellers.•  Use only the supplied propellers. Do not alter, modify, or customize.TroubleshootingDrone does not respond •Make sure the drone and remote control are switched on and paired. •The drone battery may be low. Fully charge the battery. See “Charge the Drone Battery.“ • Remote control battery may be low. Replace the batteries. For app pilots, recharge your smart device if the battery status is low. •Make sure the drone is within the control range and in line of sight.Drone difficult to control •The propellers or protection guards may be deformed due to a crash. Adjust deformed propellers/ guards by hand. If you cannot adjust the propellers, replace with the spare propellers. In case of the guards, detach and remove both guards if you cannot bend the guard(s) back into normal shape. • The throttle control is very sensitive. Use small, ne movements to control. • If you are a beginner, set to low speed, use the takeo and landing buttons  ,  and select headless mode.Drone swerves or moves erratically before taking off • After a crash, the gyroscope inside your drone may need calibrating. On the remote control, do the following:1.  Switch on your drone and remote control, and pair them.2.  Move the throttle all the way down and the steering forward at the same time. Hold this position until the drone LEDs start to blink rapidly. Then release the controls. 3.  The drone LEDs light steadily. Calibration is successfully completed, and you are now ready for takeo.  •See “Trim Your Drone" to further ne tune and improve control of your drone after calibration, if necessary. • For app pilots, calibration is similar to the above. Move and hold the app's onscreen throttle and steering controls for 3 seconds, and then observe the drone LED status described in steps 2-3.Need Spare Parts?Need more spare propellers, or lost some of the accessories? Consult your dealer for details on the 6001461 Crash Pack for 6001435 VegaDrone.BBAATo replace a damaged propeller, use a screwdriver to remove the old propeller. Insert a new matching propeller onto the propeller axle, then screw securely, but do not overtighten otherwise the propeller won't turn.

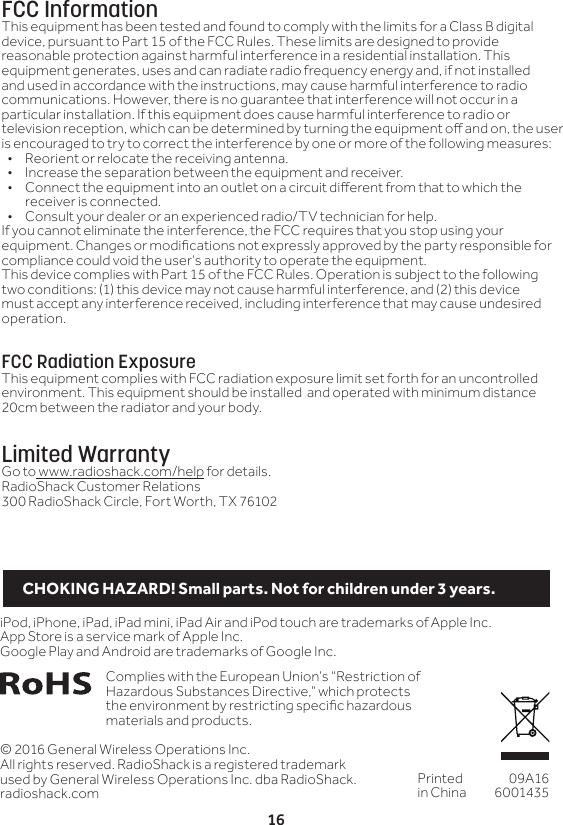

16© 2016 General Wireless Operations Inc.All rights reserved. RadioShack is a registered trademark used by General Wireless Operations Inc. dba RadioShack.radioshack.comPrinted in China09A166001435Complies with the European Union’s “Restriction of Hazardous Substances Directive,” which protects the environment by restricting specic hazardous materials and products.iPod, iPhone, iPad, iPad mini, iPad Air and iPod touch are trademarks of Apple Inc. App Store is a service mark of Apple Inc.Google Play and Android are trademarks of Google Inc.FCC InformationThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:•  Reorient or relocate the receiving antenna.•  Increase the separation between the equipment and receiver. •  Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. •  Consult your dealer or an experienced radio/TV technician for help.If you cannot eliminate the interference, the FCC requires that you stop using your equipment. Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.FCC Radiation ExposureThis equipment complies with FCC radiation exposure limit set forth for an uncontrolled environment. This equipment should be installed  and operated with minimum distance 20cm between the radiator and your body.Limited WarrantyGo to www.radioshack.com/help for details.RadioShack Customer Relations300 RadioShack Circle, Fort Worth, TX 76102CHOKING HAZARD! Small parts. Not for children under 3 years.
