ZEGO ELECTRONIC 5RX Copter of Dominator Drone User Manual

ZEGO ELECTRONIC COMPANY LIMITED Copter of Dominator Drone

User Manual

BC
Dominator Drone
Age 12+
USER’S GUIDE
6001359
2 3
We hope you enjoy your Dominator Drone from RadioShack. Please
read this user’s guide before setting up and using your drone.
Features
•6-axis super stabilizing control system
•Flip 360 degree stunt mode
•Beginners and Advanced modes
Package Contents
• Drone • RemoteControl
• USBChargingCable • SpareBlades(2)
• User’s Guide
Specifications
Power .......................................................................................................................
Drone ...........................................................3.7V lithium polymer battery
RemoteControl................................................................4 × AA batteries
ControlDistance ......................................................................70ft.(21.33m)
Specifications are subject to change and improvement without
notice. Actual product may vary from the images found in this
document.
Fly Safely
• Whenyingoutdoors,keepthedroneawayfrompowerlines,
trees,weeds,andwater.
• Whenyingindoors,keepthedroneawayfromwalls,air
conditioning,airvents,fans,breakableobjects,andother
obstacles.
• Donotythedronenearoratotherpeopleoranimals.
• Keepeyes,hands,hair,andlooseclothingawayfrommovingblades.
•Adult supervision is recommended at all times.
Contents
Features .................................................................................3
Package Contents ................................................................. 3
Specications ........................................................................3
Fly Safely ................................................................................ 3
Install Batteries in the Remote Control ............................... 4
Battery Notes .............................................................................................. 4
Lithium Battery Notes .............................................................................. 4
Charge the Drone .................................................................. 5
Get Ready to Fly: Pairing .......................................................8
Fly Your Drone........................................................................ 8
Trim Your Drone ......................................................................................... 8
Land Your Drone......................................................................................... 9
Perform Stunts ........................................................................................... 9
Calibrate the Drone ...............................................................9
Replace Damaged Blades....................................................10
Troubleshooting .................................................................. 11
Drone does not respond ........................................................................ 11
Dronediculttocontrol ........................................................................ 11
FCC Information ..................................................................12
Limited Warranty .................................................................13
CHOKING HAZARD!
Small parts. Not for
children under 3 years.
4 5

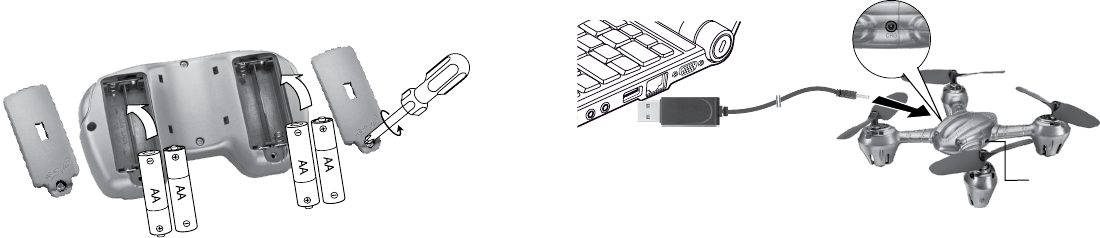

Install Batteries in the Remote Control
1. Ontheremotecontrol,setthe ON/OFF switch to OFF.
2. Use a screwdriver to open the twin battery compartments. Then
insertfourAAbatteries(notincluded),matchingthepolarities(+
and –)markedinside.Replacethecover.
Note:Iftheremotecontrol’sLEDashesduringuse,thebatteries
are low and should be replaced.
Battery Notes
•Dispose of old batteries promptly and properly. Do not burn or bury them.
Use only fresh batteries of the required size and recommended type.
• Donotmixoldandnewbatteries,dierenttypesofbatteries(standard,
alkaline,orrechargeable),orrechargeablebatteriesofdierentcapacities.
•Remove batteries during longer storage periods. Batteries can leak
chemicals that can damage electronic parts.
Lithium Battery Notes
•Follow the instructions for charging. Do not charge longer than
recommended. Unplug the charging cable when the drone is charged.
•Do not puncture or crush. Do not disassemble.
•Do not dispose of lithium batteries in the trash.
• Iftheelectrolyteinthecellsshouldgetonyourskin,thoroughlywash
withsoapandwater.Ifintheeyes,rinsethoroughlywithcoolwater.
Immediately seek medical attention.
•Do not attempt to charge or operate damaged toys.
Charge the Drone
Your drone uses a built-in lithium polymer battery for power.
1. Set the drone's ON/OFF switch to OFF.
2. ConnecttheincludedUSBchargingcableto the drone's CHG
jack andaUSBpowersource(suchasalaptop).TheLEDinside
theUSBconnectorlightsredduringcharging,andturnsowhen
charging is complete.
A full charge takes about 55 minutes,andgivesupto7 minutes
ofighttime.
3. Aftercharging,unplugthechargingcable.
CAUTION
•Use only the included USB charging cable to charge the drone's
battery. Other cables may damage the drone.
•Always let the drone battery cool before recharging.
CHG
ON/OFF
6 7
Left / Right
Slide Trim
Forward /
Reverse
Movement Trim
Throttle Steering
Ascend
Descend
Turn rightTurn left
LED
ON/OFF
Forward
Backward
Slide rightSlide left
Push
(High/low
speed)
Push
(Stunt
mode)
8 9
Get Ready to Fly: Pairing
1. Turnonthedrone.Thedrone'sLEDsash.
3. Place the drone on level ground.
4. Turnontheremotecontrol.Theremotecontrol'sLEDashes.
5. Move the throttle all the way up and then down to pair the
remote control with the drone. The drone’s blades remain still
duringpairing.Whenpaired,theLEDsonboththeremote
control and drone light steadily.
Note: Ifpairingfails,turnothedroneandremotecontrolandrepeat
thestepsabove,orchangelocationstoavoidelectricalinterference.
Fly Your Drone
1. Afterpairing,pushthesteeringcontrolintoswitchbetweenhigh
speed(doublebeep)andlowspeed(singlebeep).
2. Withthedroneontheground,movethethrottleforwardto
ascend.Toavoidgroundairturbulence,ythedroneatleast1ft.
(300cm)otheground.
For advanced users:Holdtheremotecontrolwithonehand,
resting your thumb on the throttle. Throw the drone about 9 ft.
(3m)awayfromyou,andmovethethrottleforwardtoy.The
droneadjustsitselfautomaticallyandiessmoothly.
IMPORTANT: Ifyourdronecrashesupsidedown,pullthethrottle
all the way down. Wait till the blades have stopped still before you
handle the drone.
Trim Your Drone
Move the throttle forward and see how the drone reacts.
Forward/Reverse Movement Trim: If the drone tends
tomoveforward,pressf;ifittendstomovebackward,
press g.
Left/Right Slide Trim:Ifthedronetendstoslideright,
press f;ifittendstoslideleft,pressg.
Note: Theremotecontrolbeepswhenyoupressatrimcontrol,but
stops beeping when you reach maximum trim adjustment.
Land Your Drone
1. Slowly move the throttle backward to descend. Avoid moving
thethrottletooquickly,asitcanstopthebladesinstantlyand
cause the drone to crash.
2. Whenyounishplaying,turnotheremotecontrolanddrone.
Perform Stunts
CAUTION: Make sure there is enough space for the drone to
perform stunts without crashing into objects or people.
1. Push the throttle control to activate stunt mode. The remote
control beeps repeatedly.
2. Use the steering control to perform stunts:
•Front ip: Move steering forward
•Back ip: Move steering backward
•Barrel roll: Move steering right or left
3. The drone automatically exits stunt mode after performing a
stunt,orpushinthethrottlecontrolagaintoexitimmediately.
Calibrate the Drone
Ifcontrollingthedronebecomesdicult,trythefollowing:
1. Select an open location free from strong magnetic interference.
Place the drone on level ground.
2. Turnonthedroneandtheremotecontrol,andpair.
3. Withthethrottleallthewaydown,movethesteeringcontrolall
thewayupuntilthedrone'sLEDsashrapidly.
4. Whenthedrone'sLEDslightsteadily,yourdroneiscalibrated
andshouldysmoothly.
10 11
Troubleshooting
Drone does not respond
•Make sure the drone and remote control are switched on and
paired.
•Drone battery maybe low. Fully charge the battery. See “Charge
the Drone.“
•Remote control batteries maybe low. Replace the batteries.
• Makesurethedroneiswithinthecontrolrange(70ft./21.3m)and
in line of sight.
Drone difficult to control
•The blades may be deformed due to a crash. Adjust deformed blades
byhand.Ifyoucannotadjustthem,replacewiththespareblades.
• Thethrottlecontrolisverysensitive.Usesmall,nemovements
to control.
• Ifyouareabeginner,settolowspeedmode.See“Fly Your
Drone.“

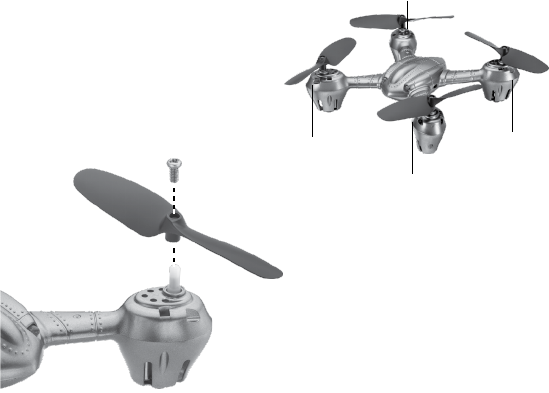

Replace Damaged Blades
The left and right blades of the drone
aredierent,andmarkedA/B marking
on the blade's underside. You must
use the correct blade in the correct
location.
Ifyouneedmoreblades,visityour
dealer for help.
WARNING:
• Toavoidinjuryanddamage,checkthebladesfornicksandbreaks
and make sure they are securely attached before and after each
ight.Replaceanydamagedblades.
• Useonlythesuppliedblades.Donotalter,modify,orcustomize
the blades.
AA
B
B
To replace a damaged
blade,useascrewdriverto
remove the old blade. Insert
a new matching blade onto
thebladeaxle,thenscrew
securely.
12 13
Limited Warranty
RadioShack warrants this product against defects in materials and workmanship under
normal use by the original purchaser for ninety (90) days after the date of purchase
from a RadioShack-owned store or an authorized RadioShack franchisee or dealer.
RADIOSHACKMAKESNOOTHEREXPRESSWARRANTIES.
Thiswarrantydoesnotcover:(a)damageorfailurecausedbyorattributabletoabuse,
misuse,failuretofollowinstructions,improperinstallationormaintenance,alteration,
accident,ActsofGod(suchasoodsorlightning),orexcessvoltageorcurrent;(b)
improper or incorrectly performed repairs by persons who are not a RadioShack
AuthorizedServiceFacility;(c)consumablessuchasfusesorbatteries;(d)ordinary
wearandtearorcosmeticdamage;(e)transportation,shippingorinsurancecosts;(f)
costsofproductremoval,installation,set-upservice,adjustmentorreinstallation;and
(g)claimsbypersonsotherthantheoriginalpurchaser.
Shouldaproblemoccurthatiscoveredbythiswarranty,taketheproductandthe
RadioShack sales receipt as proof of purchase date to any RadioShack store in the U.S.
RadioShackwill,atitsoption,unlessotherwiseprovidedbylaw(a)replacetheproduct
withthesameoracomparableproduct,or(b)refundthepurchaseprice.Allreplaced
products,andproductsonwhicharefundismade,becomethepropertyofRadioShack.
RADIOSHACKEXPRESSLYDISCLAIMSALLWARRANTIESANDCONDITIONSNOT
STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE
IMPOSEDBYLAW,INCLUDINGTHEIMPLIEDWARRANTYOFMERCHANTABILITY
AND,IFAPPLICABLE,THEIMPLIEDWARRANTYOFFITNESSFORAPARTICULAR
PURPOSE,SHALLEXPIREONTHEEXPIRATIONOFTHESTATEDWARRANTY
PERIOD.
EXCEPTASDESCRIBEDABOVE,RADIOSHACKSHALLHAVENOLIABILITYOR
RESPONSIBILITYTOTHEPURCHASEROFTHEPRODUCTORANYOTHERPERSON
ORENTITYWITHRESPECTTOANYLIABILITY,LOSSORDAMAGECAUSEDDIRECTLY
ORINDIRECTLYBYUSEORPERFORMANCEOFTHEPRODUCTORARISINGOUT
OFANYBREACHOFTHISWARRANTY,INCLUDING,BUTNOTLIMITEDTO,ANY
DAMAGESRESULTINGFROMINCONVENIENCEANDANYLOSSOFTIME,DATA,
PROPERTY,REVENUE,ORPROFITANDANYINDIRECT,SPECIAL,INCIDENTAL,OR
CONSEQUENTIALDAMAGES,EVENIFRADIOSHACKHASBEENADVISEDOFTHE
POSSIBILITYOFSUCHDAMAGES.
Some states do not allow limitations on how long an implied warranty lasts or the
exclusionorlimitationofincidentalorconsequentialdamages,sotheabovelimitations
orexclusionsmaynotapplytoyou.Thiswarrantygivesyouspeciclegalrights,andyou
may also have other rights which vary from state to state.
ContactRadioShackat:
RadioShackCustomerRelations
300RadioShackCircle
FortWorth,TX76102   02/14
www.radioshack.com
FCC Information
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital
device,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide
reasonable protection against harmful interference in a residential installation. This
equipmentgenerates,uses,andcanradiateradiofrequencyenergyand,ifnotinstalled
andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio
communications.However,thereisnoguaranteethatinterferencewillnotoccurina
particular installation. If this equipment does cause harmful interference to radio or
televisionreception,whichcanbedeterminedbyturningtheequipmentoandon,the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdierentfromthattowhichthe
receiver is connected.
Consultthe dealer or an experienced radio/TV technician for help.
Ifyoucannoteliminatetheinterference,theFCCrequiresthatyoustopusingyour
equipment.Changesormodicationsnotexpresslyapprovedbythepartyresponsible
for compliance could void the user’s authority to operate the equipment.
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe
followingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)this
devicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesired operation.
Product Dominator Drone
Model 6001359
Responsible
Party
RadioShack
300RadioShackCircle
FortWorth,TX76102
Phone 817-415-3200
©2015GeneralWirelessOperationsInc.
All rights reserved. RadioShack is a registered
trademark used by General Wireless Operations Inc.
Printed
inChina
07A15
6001359
ComplieswiththeEuropeanUnion’s“RestrictionofHazardous
SubstancesDirective,”whichprotectstheenvironmentbyrestricting
specichazardousmaterialsandproducts.

Navigation menu
