ZEITBIKE HR2STS Heart Rate Transmitter User Manual

Sigma Sport USA Heart Rate Transmitter

User Manual

BC 1909 HR
www.sigmasport.com
BIKE COMPUTER TOPLINE
USAFE
2www.sigmasport.com
3BC 1909 HR
USA
CONTENTS
1 Introduction and packaging contents .................................................................. 3
2 Assembly ...................................................................................................................... 4
2.1 Installation of the 2nd Bike .............................................................................................. 5
3 Start-up ........................................................................................................................ 5
4 Display change/Key functions/Function overview ......................................... 6
5 The Synchronisation . ................................................................................................ 6
6 The Basic Settings .................................................................................................... 7
6.1 Setting the language ....................................................................................................... 8
6.2 Setting KMH/MPH .......................................................................................................... 8
6.3 Calculating wheel size ..................................................................................................... 9
6.4 Wheel size bike 1 and bike 2 ........................................................................................ 10
6.5 Setting the time ................................................................................................................ 11
6.6 Setting your age ............................................................................................................... 11
6.7 Setting your weight .......................................................................................................... 12
6.8 Setting your gender ......................................................................................................... 12
6.9 Setting the pulse upper/lower limit ............................................................................13
6.10 Setting the total odo for bike 1 or bike 2 ................................................................. 14
6.11 Setting the total trip time for bike 1 or bike 2 ........................................................ 14
6.12 Setting the contrast ........................................................................................................ 15
6.13 Exiting Basic Settings ..................................................................................................... 15
7 General functions ..................................................................................................... 16
7.1 Display illumination .......................................................................................................... 16
7.2 Compare Speed ................................................................................................................ 16
7.3 Showing/hiding the cadence/heart rate functions ............................................. 17
7.4 Stopwatch ........................................................................................................................... 17
7.5 Countdown ......................................................................................................................... 18
7.6 Trip up/down .................................................................................................................... 19
7.7 Reset Display ..................................................................................................................... 20
7.8 Totals bike 1 and bike 2 ................................................................................................. 20
7.9 Service interval ................................................................................................................. 20
7.10 Transport mode ................................................................................................................ 21
7.11 PC interface ....................................................................................................................... 21
7.12 Cable-connected universal bracket ............................................................................. 21
8 Technical Data ........................................................................................................... 22
8.1 Default/Min/Max values .............................................................................................. 22
8.2 Battery Change ................................................................................................................. 23
8.3 Trouble Shooting .............................................................................................................. 24
8.4 Warranty ............................................................................................................................ 25
1 INTRODUCTION AND PACKAGING CONTENTS
1 INTRODUCTION AND PACKAGING CONTENTSCONTENTS
Congratulations on having chosen a bicycle computer from SIGMA SPORT®. Your new
BC 1909 HR will provide you reliable service in riding your bike for many years to come.
The BC 1909 HR is a state-of-the-art measuring instrument. Please read instructions
carefully to become familiar with the functions and usage of this bicycle computer.
SIGMA wishes you an enjoyable time using your BC 1909 HR.
The BC 1909 HR is fitted with an automatic Start/Stop. As soon as this is assembled
on the mounting bracket a movement sensor activates the BC 1909 HR at the smallest
movement of the bicycle or the hiking mounting. This automatically starts the connection.
4www.sigmasport.com
5BC 1909 HR
USA
1 INTRODUCTION AND PACKAGING CONTENTS

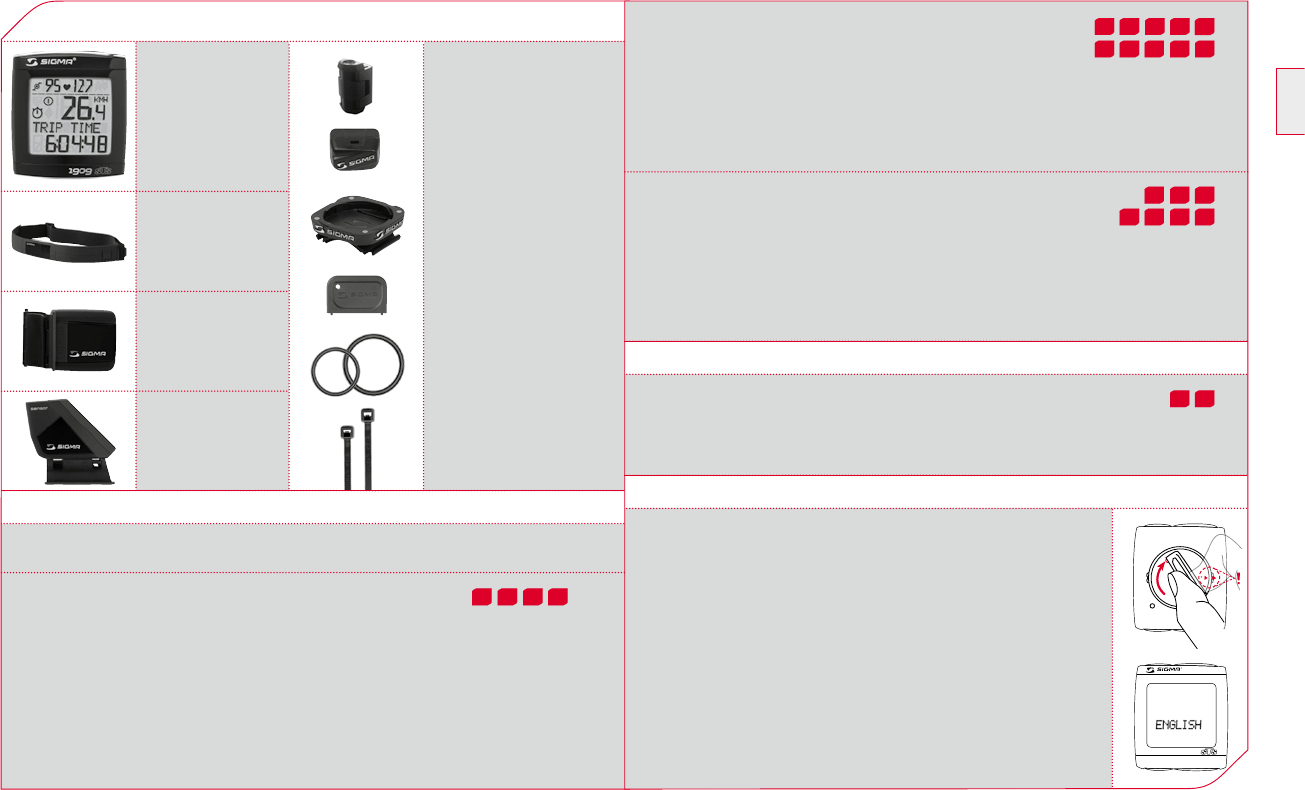

Bike computer
BC 1909 HR
STS chest belt
including
elastic belt
STS speed
transmitter
STS cadence
transmitter
kSpoke magnet
kcadence magnet
khandlebar bracket
kbattery
compartment key
kfastening material
1 PACKAGING CONTENTS
2 ASSEMBLY
2 ASSEMBLY

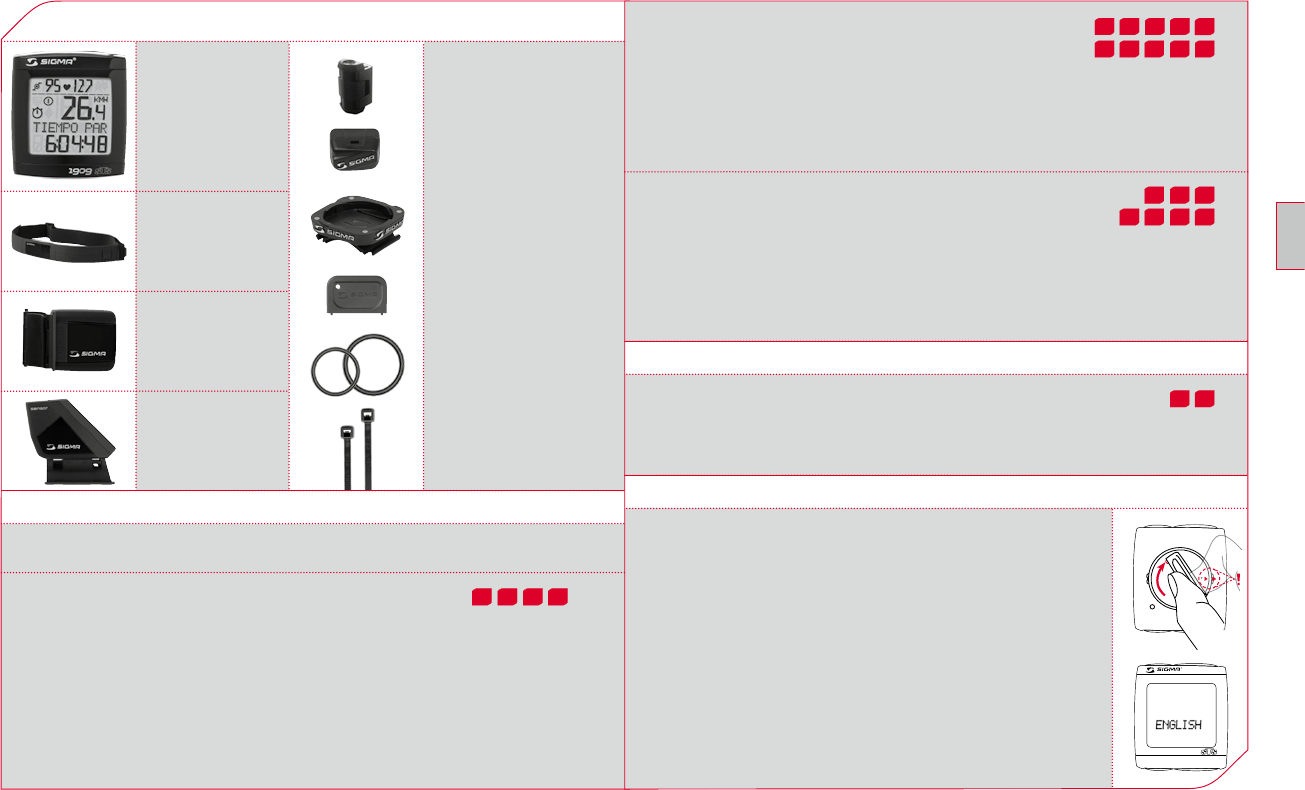

The illustrations for these installation texts can be found on the enclosed folding sheet!
INSTALLING THE BIKE BRACKET
kThe bracket can either be installed with cable ties
(permanent attachment) or optionally using the O-rings.
kHandelbars or stem.
kRemove the yellow foil.
INSTALLING THE TRANSMITTERS –
SPEED AND CADENCE
kBoth transmitters can either be installed with cable ties
(permanent attachment) or optionally using the O-rings.
kIn order to achieve the necessary 12 mm or less install the transmittter
and the magnet closer to the wheel hub.
This does not affect the wheel size setting.
PUTTING ON THE CHEST BELT
kRub water or cardio-gel on the electrodes.
Switching between BIKE 1 and BIKE 2 is automatic.
A second speed transmitter must be used.
(Accessory set “BIKE 2” Ref. No.: 00417, “BIKE 2 incl. cadence” Ref. No.: 00415)
Green light will turn red when bike 2 is activated.
For reasons of energy consumption, the BC 1909 HR is supplied
without a battery.
Please insert the battery by opening the battery compartment
cover with the tool provided. Once you have inserted the battery,
close the battery compartment with the aid of the tool.
The display automatically jumps to setting mode.
Skip to language setting mode.
2.1 INSTALLATION OF THE 2ND BIKE
3 START-UP
1909
o
p
e
n
-
c
l
o
s
e
4321
8
24
19
11
7
23
59
21
15 16
18
10
6
22
141312
17
6www.sigmasport.com
7BC 1909 HR
USA
4 DISPLAY CHANGE/KEY FUNCTIONS/FUNCTION OVERVIEW
MODE 1 MODE 2
TRIP DIST AVG. HEART RATE
TRIP TIME MAX. HEART RATE
AVG. SPEED KCAL
MAX. SPEED CLOCK
AVG. CAD STOPWATCH
COUNTDOWN
TRIP UP +/-
TEMPERATURE
TOTAL ODO*
TOTAL TIME*
* not while moving
RESET
Reset the functions
listed below or scroll
backwards in a menu level.
SET
Set and save the entered values.
Only use this button to change settings.
Do not use while riding!
MODE 2
Access the function
listed below or scroll
forwards in a menu level.
MODE 1
Access the functions
listed below.

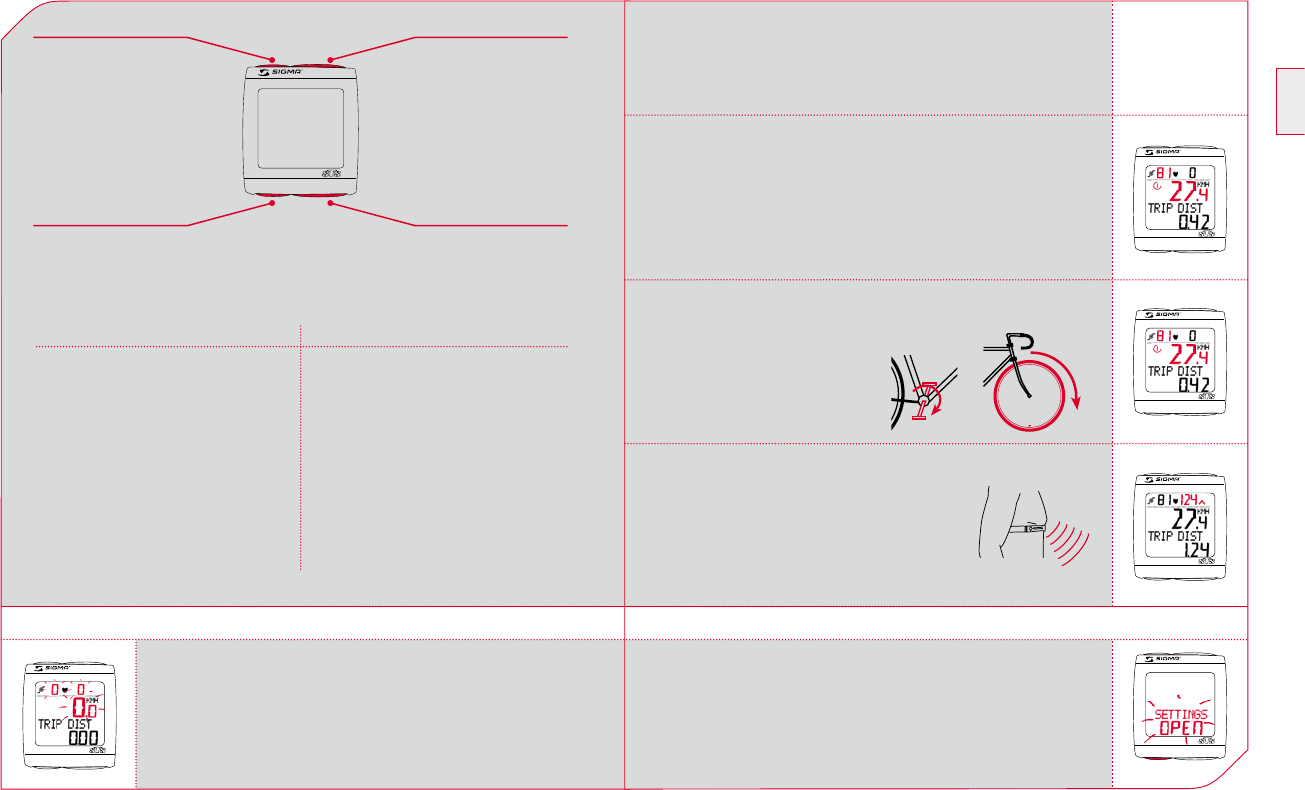

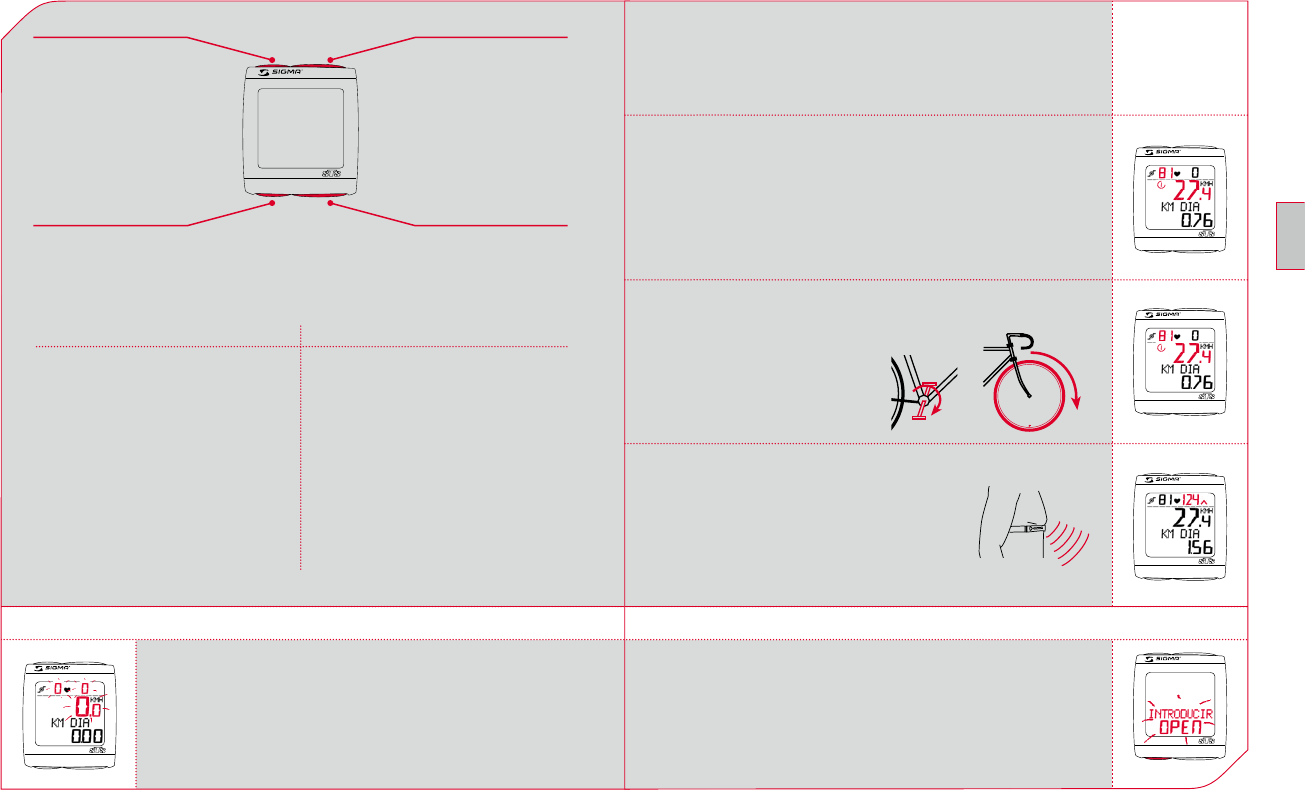

1. Ride, usually the receiver has paired with the transmitter
within 3 or 4 wheel turns.
2. Turn front wheel or pedals until the KMH /MPH or
cadence display stops flashing.
kWhile wearing the chest strap
either move close to the BC 1909 HR
or climb on the bicycle. As a rule,
the BC 1909 HR pairs with the
chest belt in less than 10 seconds.
The heart rate will stop flashing.
5 PAIRING THE TRANSMITTERS
kInstallation of the BC 1909 HR into the mounting bracket -
a pairing is only possible if the bike computer is locked onto
the mounting bracket.
kThe zeros on the speed, cadence and pulse displays are flashing.
kTo pair the speed, cadence and heart rate,
there are 2 options:
5 PAIRING THE TRANSMITTERS
6 THE BASIC SETTINGS

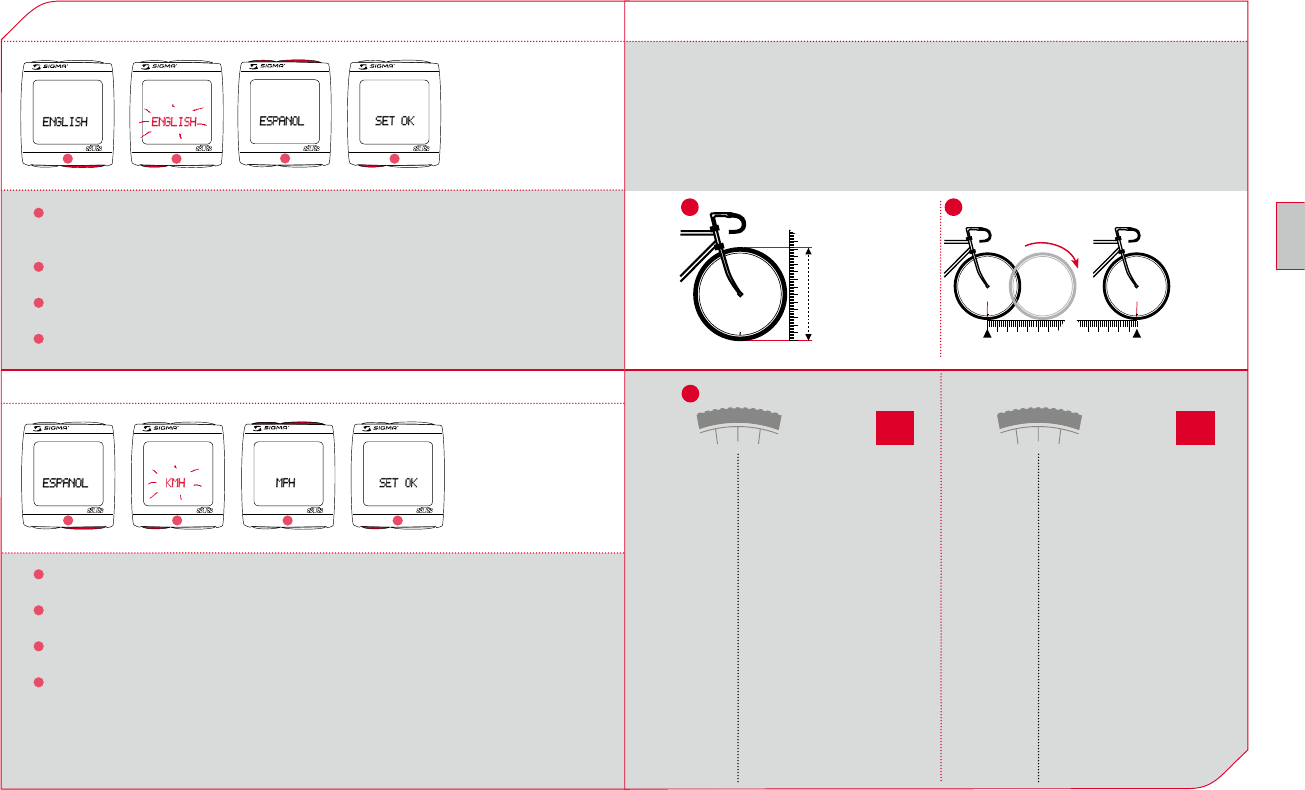

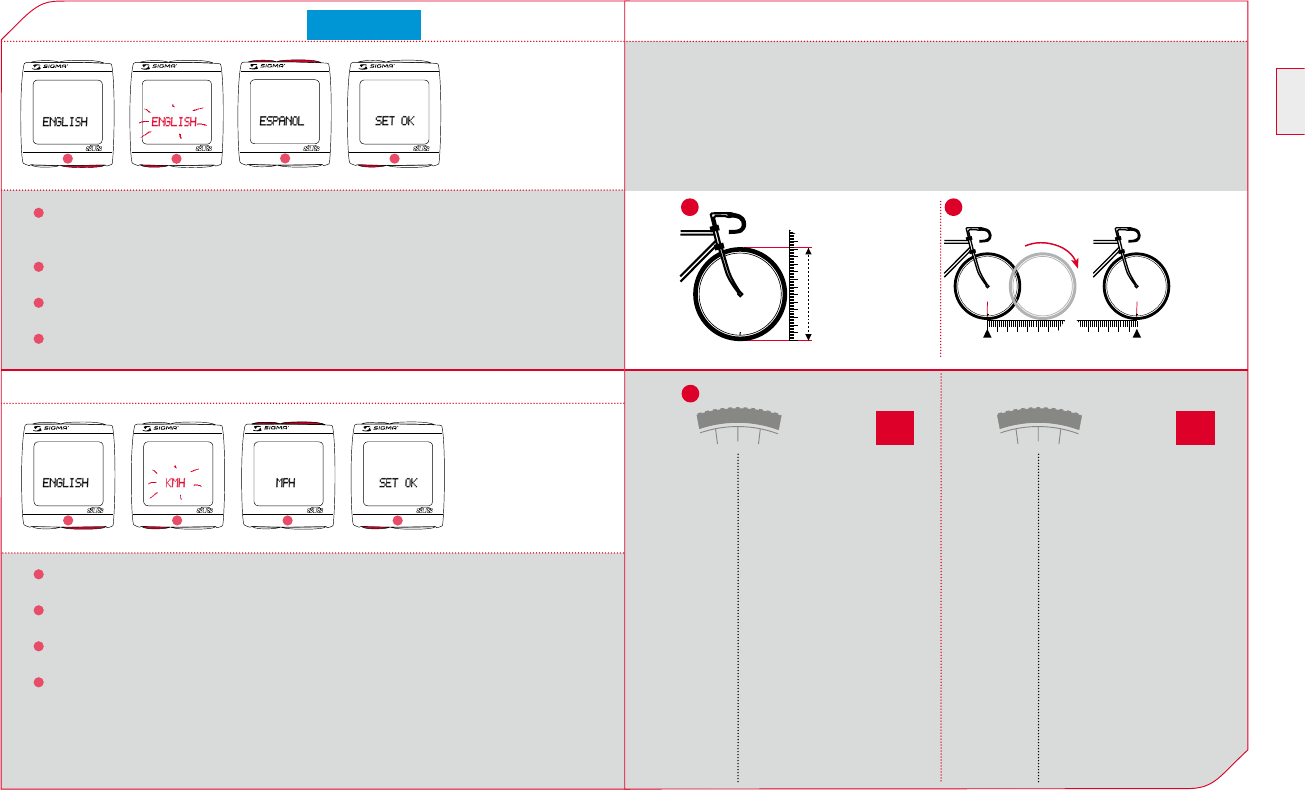

kHold down SET button until the preset LANGUAGE (English)
appears on the display (SETTINGS OPEN is flashing).
Skip this step if you are already in the setting mode.
n3 sec.
1909
1909
1909
1909
1909
1909
8www.sigmasport.com
9BC 1909 HR
USA

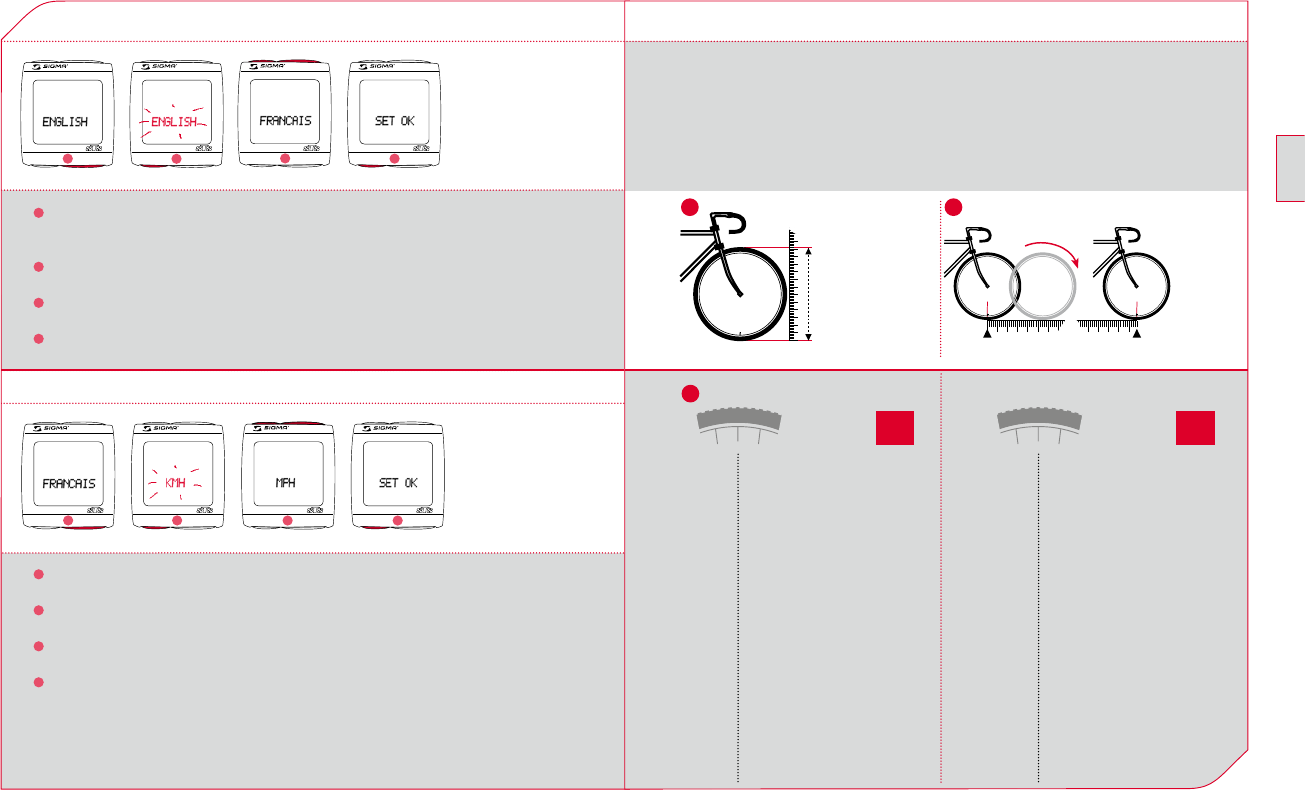

6 THE BASIC SETTINGS
1k Use MODE 1 button to switch to the preset LANGUAGE
(as standard the BC 1909 HR is preset to English).
2k Press the SET button briefly. Display flashes.
3k Set the desired language using the MODE 2 button (+) or the RESET button (-).
4k Confirm by pressing the SET button. SET OK appears on the display.
1k Change the display to KMH/MPH using the MODE 1 button.
2k Press the SET button briefly. Display flashes.
3k Select MPH or KMH using MODE 2 button.
4k Confirm by pressing the SET button. SET OK appears on the display.
By switching from KMH to MPH, the distance format automatically changes from km to
mi, the temperature from °C to °F, the time from 24h mode to 12h mode and the weight
from kg to lb.
6.1 SETTING THE LANGUAGE
6.2 SETTING KMH/MPH
6 THE BASIC SETTINGS
nn
nn n
n
n
n
n
n
-
-
+
+
1909 1909 1909 1909
1234
1909 1909 1909 1909
1 2 3 4
kDetermine the correct value for your wheel size from Table C “WHEEL SIZE CHART”.
kAlternatively: calculate/determine WS (Tab. A or Tab. B).
6.3 CALCULATING WHEEL SIZE
mm x 3.14
mm=inches x 25.4
km/h:
WS = mm x 3.14
mph:
WS = mm x 3.14
1x
= WS (mm)
km/h:
WS = mm
mph:
WS = mm
A B
47-305
47-406
37-540
47-507
23-571
40-559
44-559
47-559
50-559
54-559
57-559
37-590
37-584
20-571
32-630
28-630
40-622
47-622
40-635
37-622
18-622
20-622
23-622
25-622
28-622
32-622
37-622
40-622
50-559
54-559
52-622
54-622
38-622
42-622
23-571
1272
1590
1948
1907
1973
2026
2051
2070
2089
2114
2133
2105
2086
1954
2199
2174
2224
2268
2265
2205
2102
2114
2133
2146
2149
2174
2205
2224
2105
2130
2235
2300
2215
2230
1973
16x1.75x2
20x1.75x2
24x1 3/8 A
24x1.75x2
26x1
26x1.5
26x1.6
26x1.75x2
26x1.9
26x2.00
26x2.125
26x1 3/8
26x1 3/8x1 1/2
26x3/4
27x1 1/4
27x1 1/4 Fifty
28x1.5
28x1.75
28x1 1/2
28x1 3/8x1 5/8
700x18C
700x20C
700x23C
700x25C
700x28C
700x32C
700x35C
700x40C
26 x 1.95
26 x 2.1
29 x 2.1
29 x 2.2
700 x 38c
700 x 42c
650 x 23c
ETRTO ETRTO
1
6
x
1
.
7
5
x
2
1
6
x
1
.
7
5
x
2
C
kmh
mph
kmh
mph
Sprache, Deutsch?
10 www.sigmasport.com
11BC 1909 HR
USA
6 THE BASIC SETTINGS 6 THE BASIC SETTINGS

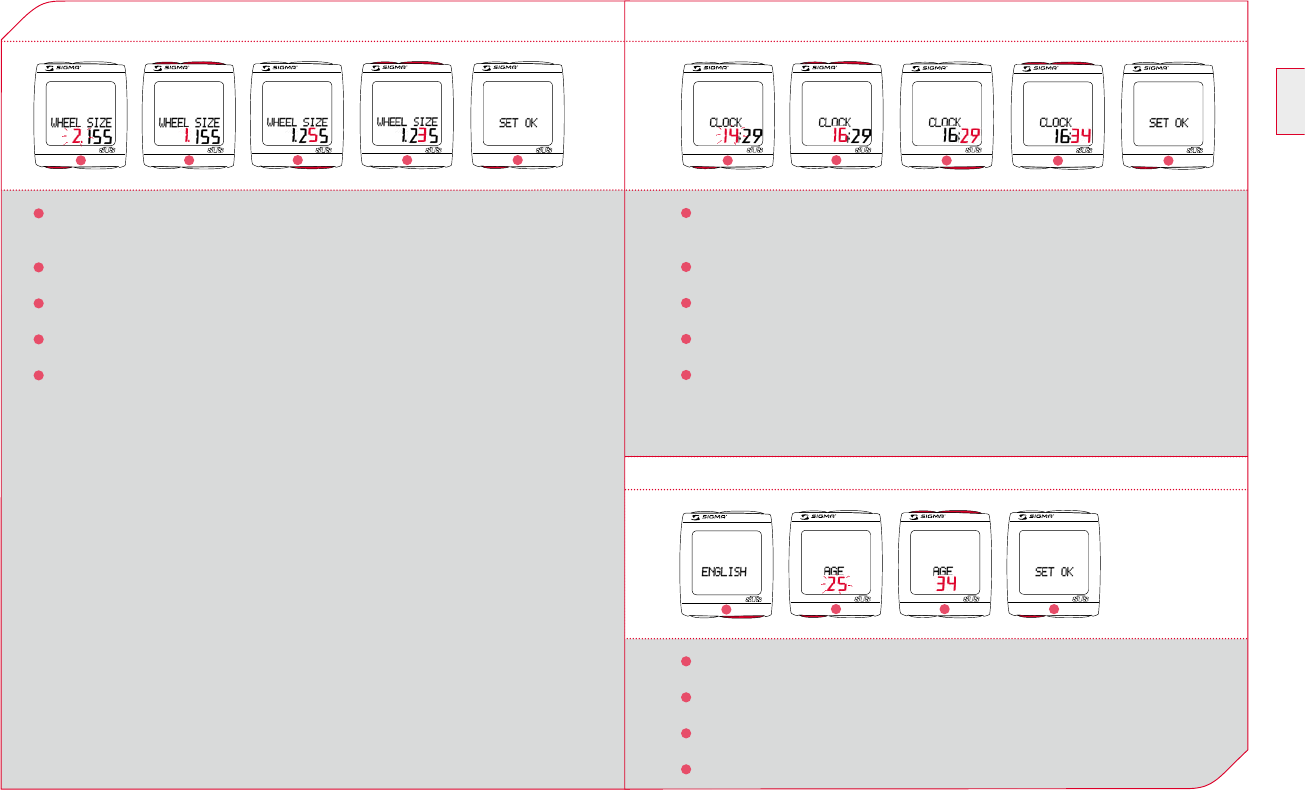

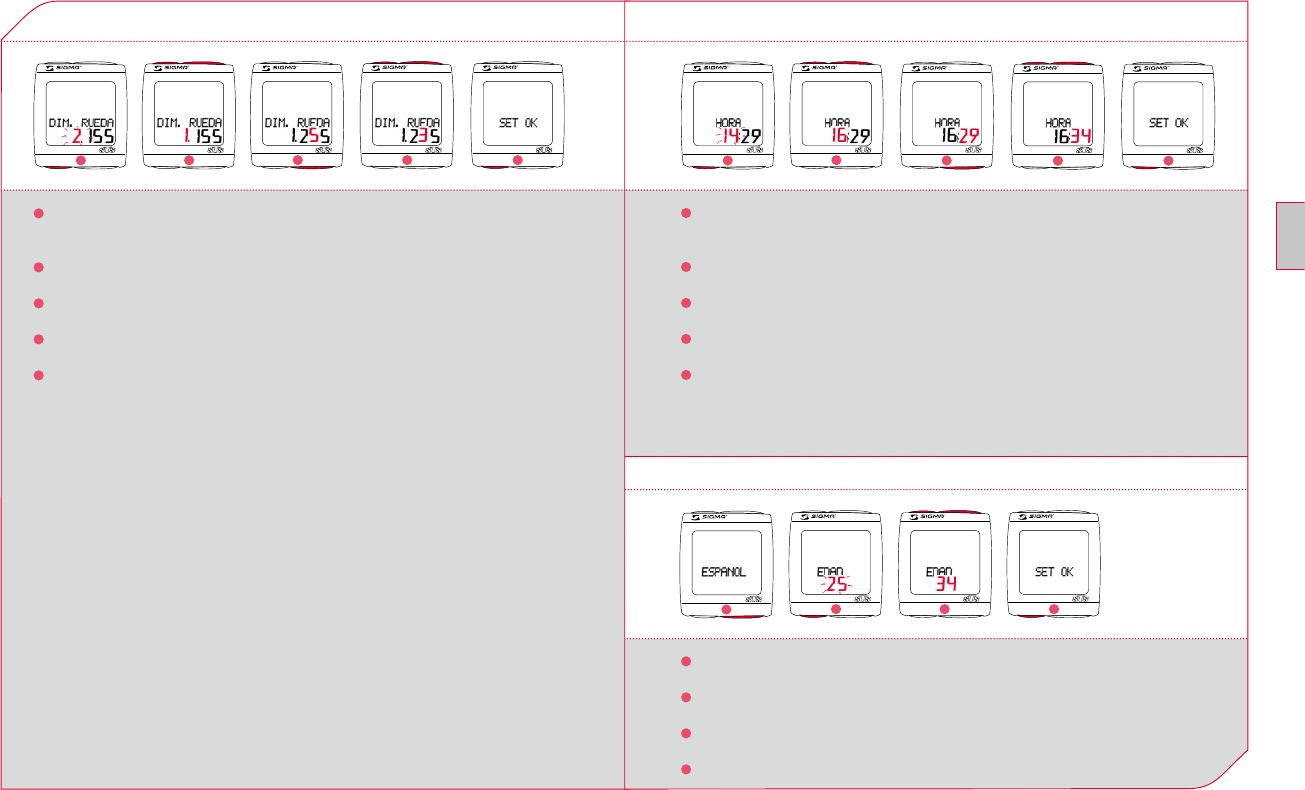

6.4 SET WHEEL SIZE WS BIKE 1 OR WS BIKE 2
1k Change the display to WS BIKE 1 or WS BIKE 2 using the MODE 1 button.
kPress the SET button briefly. The first input figure is flashing.
2k Set the value using the MODE 2 button (+) or the RESET button (-).
3k Move to the next digit using the MODE 1 button.
4k Set the value using the MODE 2 button (+) or the RESET button (-).
5k Confirm by pressing the SET button.
SET OK appears on the display.
nnn
nn nn
- -+ +
1909 1909 1909 1909 1909
123 4 5
1k Change the display to CLOCK using the MODE 1 button.
kPress the SET button briefly. The hour display will blink.
2k Set the value using the MODE 2 button (+) or the RESET button (-).
3k Move to the minutes using the MODE 1 button.
4k Set the value using the MODE 2 button (+) or the RESET button (-).
5k Confirm by pressing the SET button.
SET OK appears on the display.
6.5 SETTING THE TIME
nn
n
nn nn
- -+ +
1909 1909 1909 1909 1909
1234 5
6.6 SETTING YOUR AGE
n n
1k Use MODE 1 button to switch to AGE display.
2k Press the SET button briefly. Display flashes.
3k Set the value using the MODE 2 button (+) or the RESET button (-).
4k Confirm by pressing the SET button. SET OK appears on the display.
n n
- +
1909 1909 1909
23 4
n
1909
1
12 www.sigmasport.com
13BC 1909 HR
USA
6 THE BASIC SETTINGS 6 THE BASIC SETTINGS

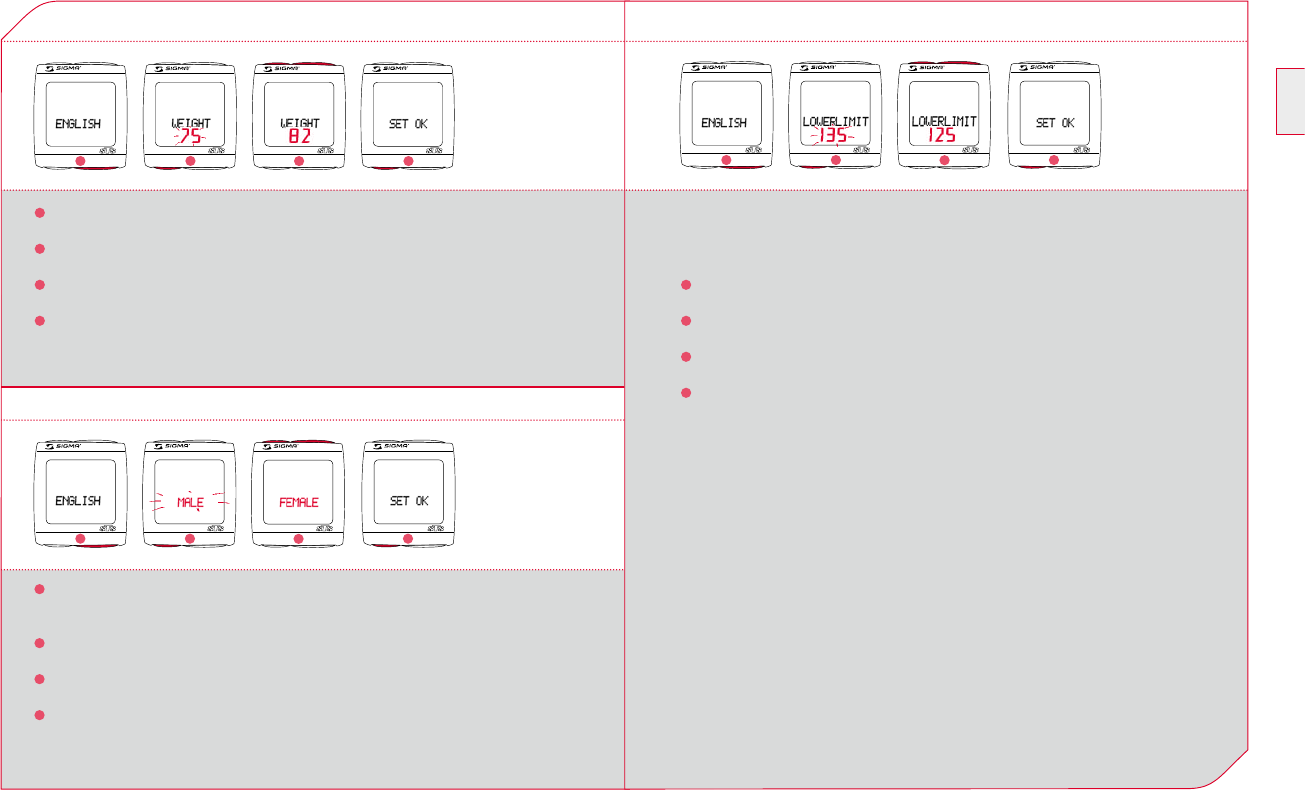

6.8 SETTING YOUR GENDER

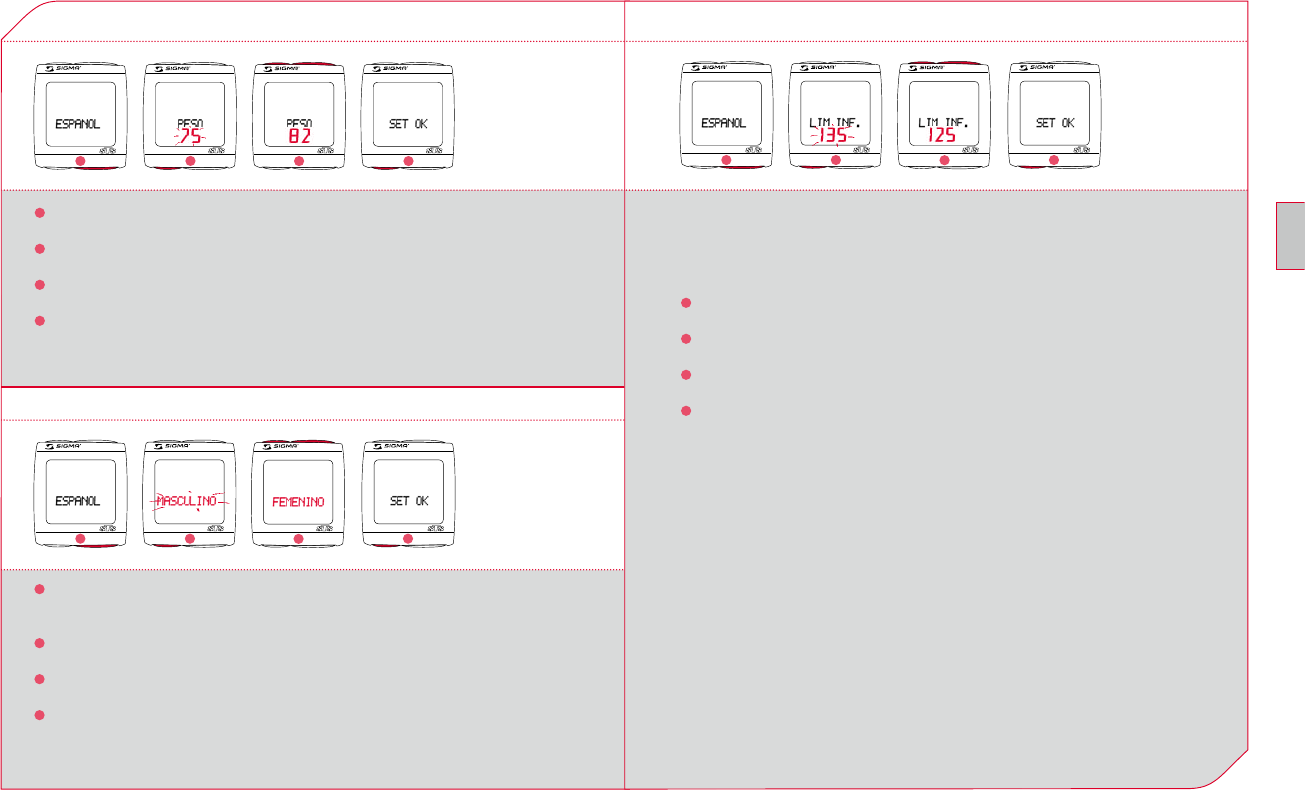

6.7 SETTING YOUR WEIGHT 6.9 SETTING THE PULSE UPPER/LOWER LIMIT
1k Use MODE 1 button to switch to WEIGHT display.
2k Press the SET button briefly. Display flashes.
3k Set the value using the MODE 2 button (+) or the RESET button (-).
4k Confirm by pressing the SET button.
SET OK appears on the display.
Both pulse zone limits are automatically calculated once age, weight and gender have been
entered. (70 % - 80 % of the maximum heart rate for cardiovascular training). You can
modify these limits manually, however.
1k Use MODE 1 button to switch to precalculated lower or upper limit.
2k Press the SET button briefly. Display flashes.
3k Set the value using the MODE 2 button (+) or the RESET button (-).
4k Confirm by pressing the SET button.
SET OK appears on the display.
n n

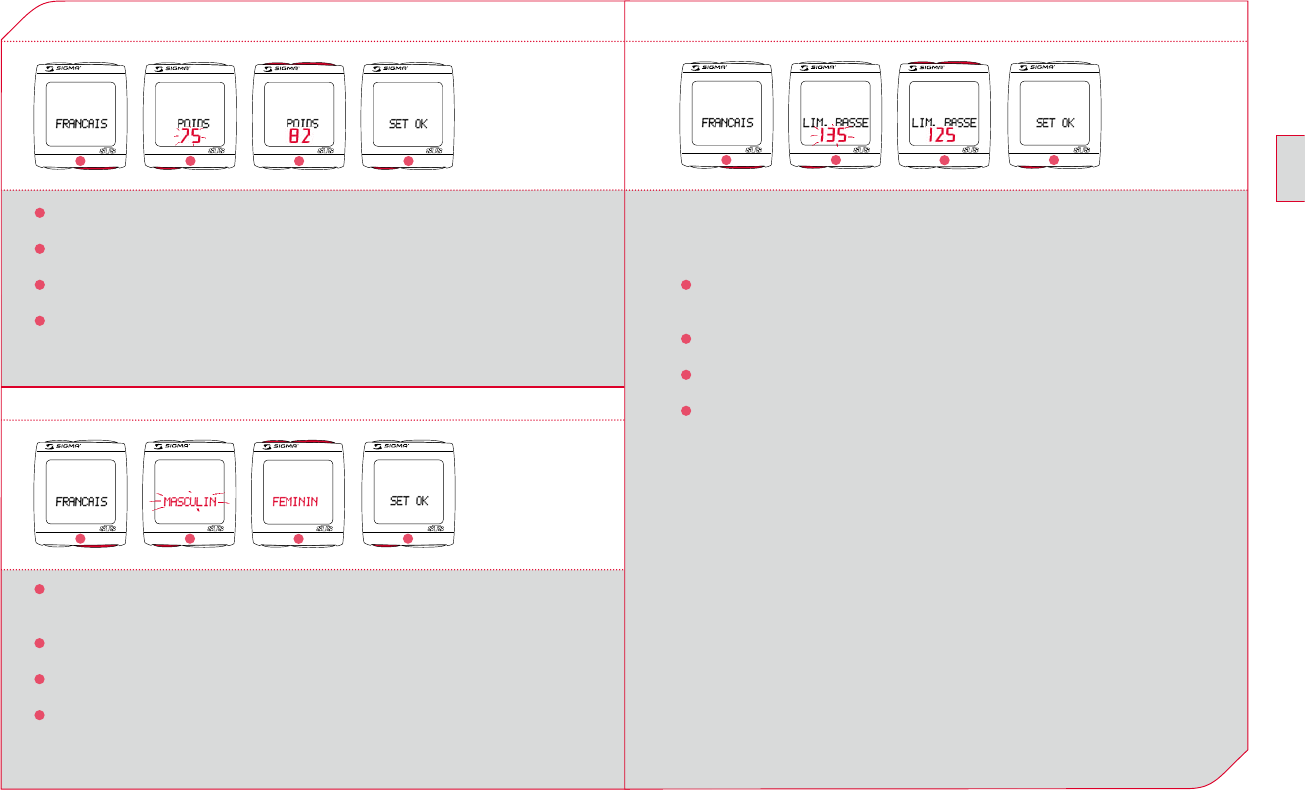

1k Use MODE 1 button to switch to the preset GENDER
(as standard the BC 1909 HR is preset to MALE).
2k Press the SET button briefly. Display flashes.
3k Set the gender using the MODE 2 button (+) or the RESET button (-).
4k Confirm by pressing the SET button.
SET OK appears on the display.
n n
n n
- +
n n
- +
1909 1909 1909
23 4
n
n
1909
1909 1909 1909 1909
1
1 2 34
n n
n n
- +
n
1909 1909 1909 1909
1 2 34
14 www.sigmasport.com
15BC 1909 HR
USA

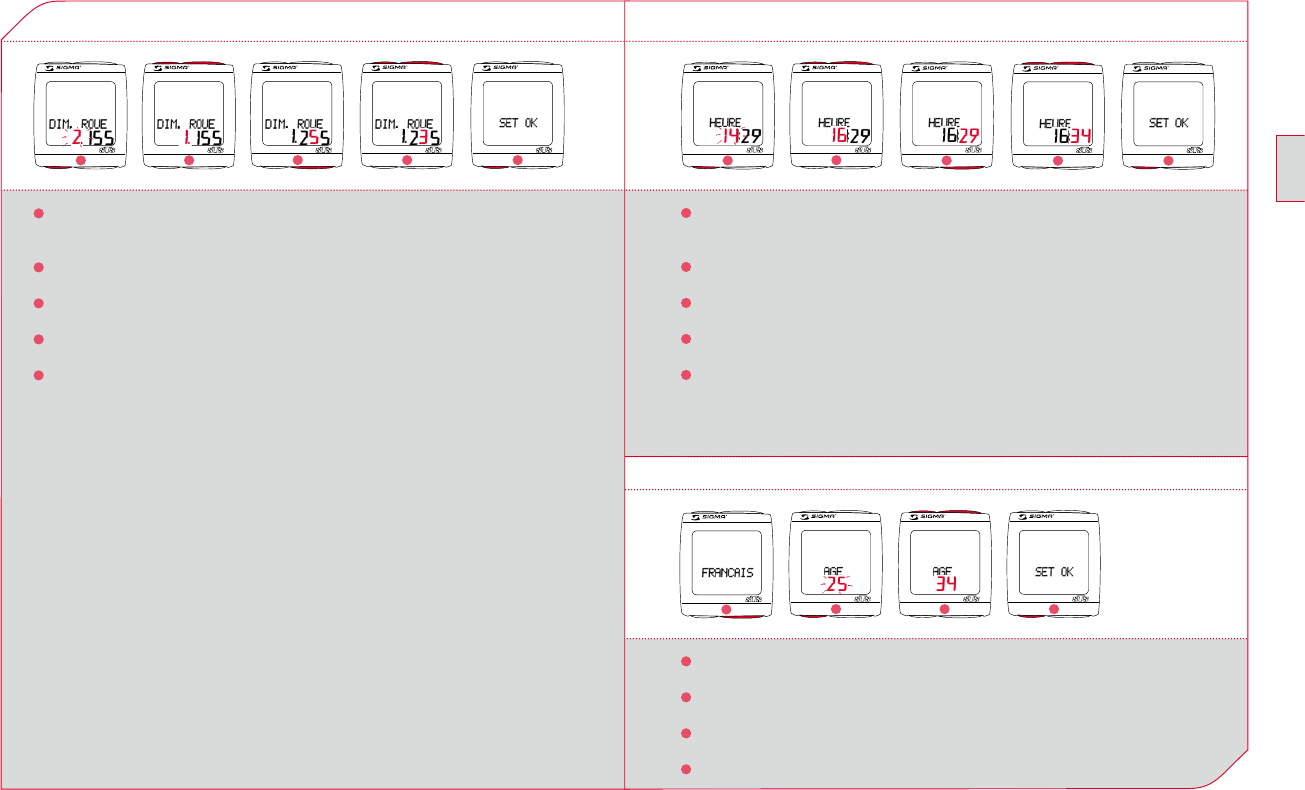

6 THE BASIC SETTINGS
1k Change the display to TIME BIKE 1 or TIME BIKE 2 using the MODE 1 button.
kPress the SET button briefly. The first input figure is flashing.
2k Set the value using the MODE 2 button (+) or the RESET button (-).
3k Move to the next figure using the MODE 1 button.
4k Set the value using the MODE 2 button (+) or the RESET button (-).
5k Confirm by pressing the SET button. SET OK appears on the display.
This is an optional step used carry over mileage from another bike computer.

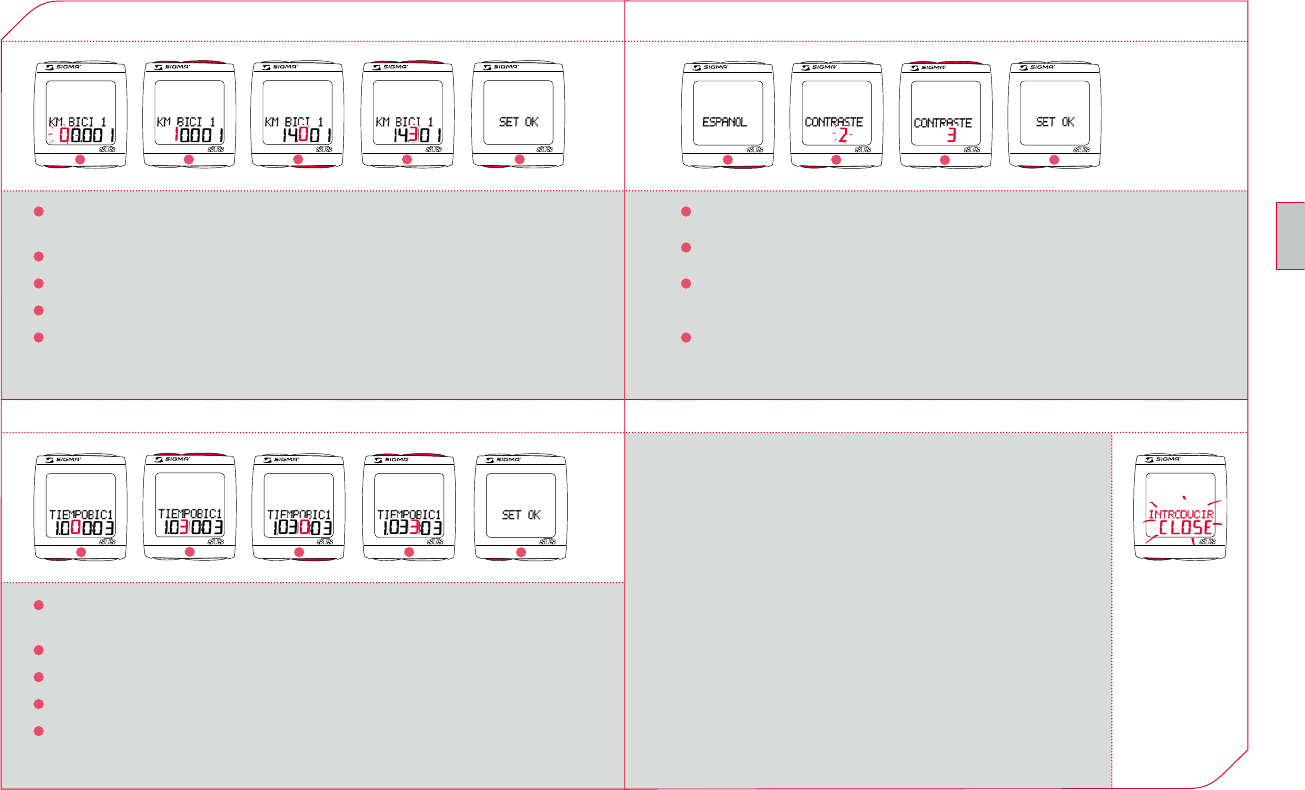

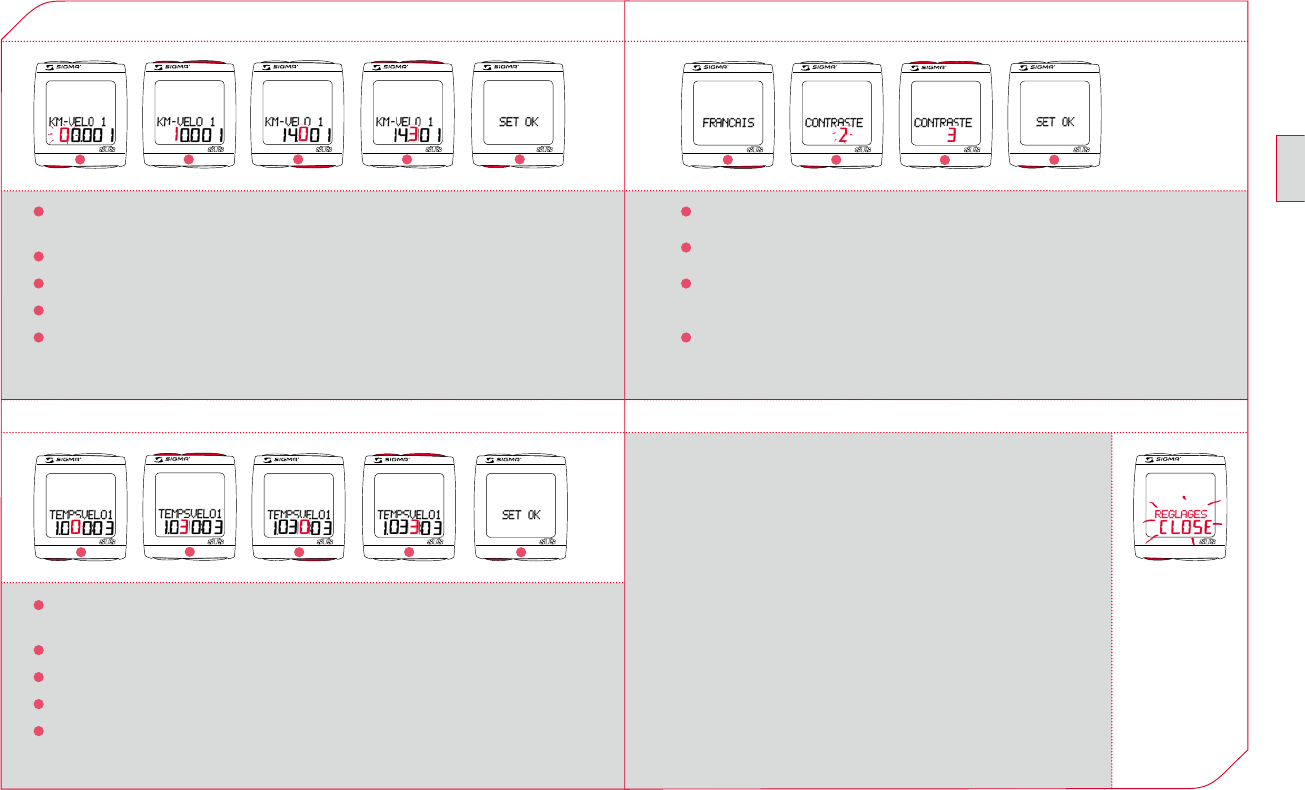

1k Change the display to CONTRAST using the MODE 1 button.
2k Press the SET button briefly. Display flashes.
3k Set the value using the MODE 2 button (+) or the RESET button (-).
(1 = weak/3 = strong).
4k Confirm by pressing the SET button.
SET OK appears on the display.

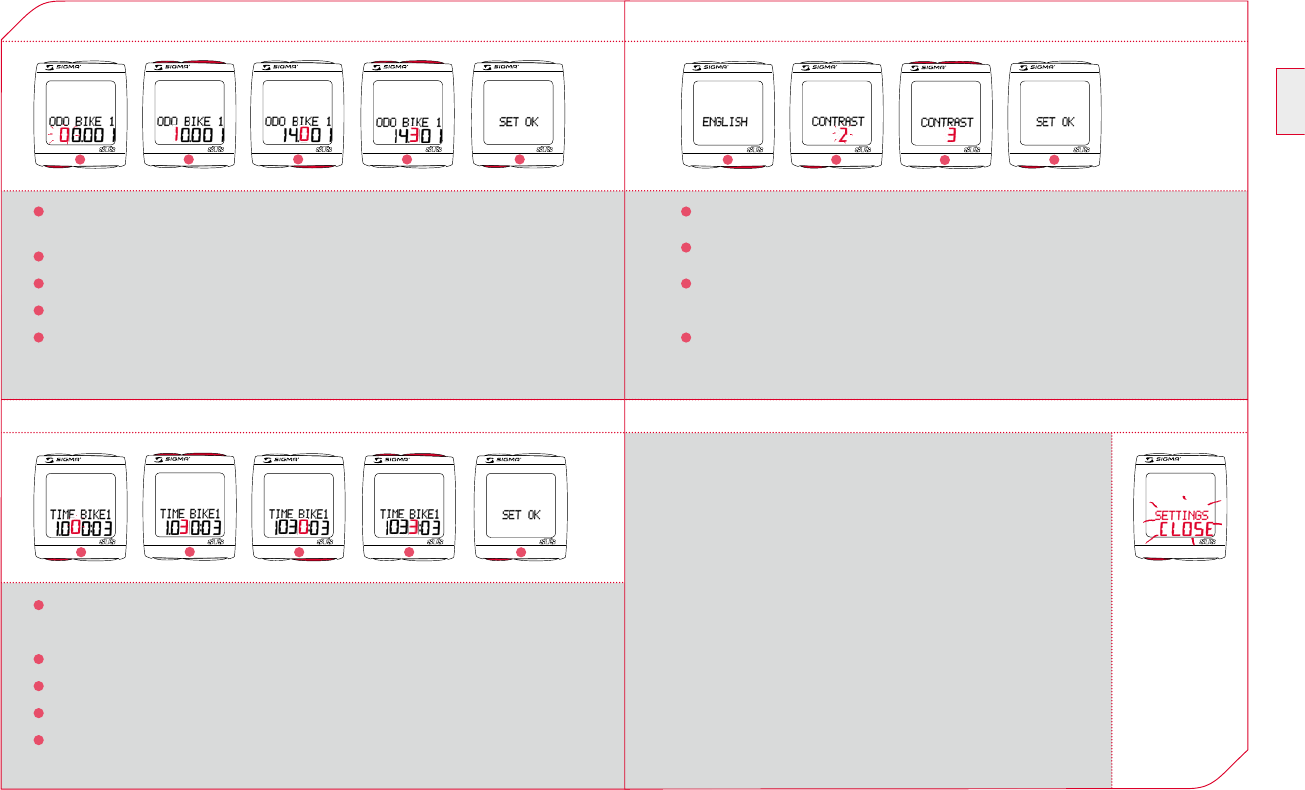

6.10 SETTING THE TOTAL ODO BIKE 1 OR BIKE 2
6 THE BASIC SETTINGS
6.11 SETTING THE TOTAL TRIP TIME BIKE 1 OR BIKE 2
6.12 SETTING THE CONTRAST
1k Change the display to ODO BIKE 1 or ODO BIKE 2 using the MODE 1 button.
kPress the SET button briefly. The first input figure is flashing.
2k Set the value using the MODE 2 button (+) or the RESET button (-).
3k Move to the next figure using the MODE 1 button.
4k Set the value using the MODE 2 button (+) or the RESET button (-).
5k Confirm by pressing the SET button. SET OK appears on the display.
This is an optional step used carry over mileage from another bike computer.
nnn
nnn
n n
nn nn
- -+ +
n
nn
n
--
++
n n
- +
1909 1909 1909 1909 1909
12345
1909 1909 1909 1909 1909
12345
n
1909 1909 1909 1909
1 2 34
6.13 EXITING BASIC SETTINGS
kPress the SET button down for 3 seconds in order to stop
entering settings (SETTINGS CLOSE flashes).
kIn order to end setting, nothing can be flashing on the screen.
Briefly push SET button to stop digits from flashing.
n3 sec.
1909
16 www.sigmasport.com
17BC 1909 HR
USA

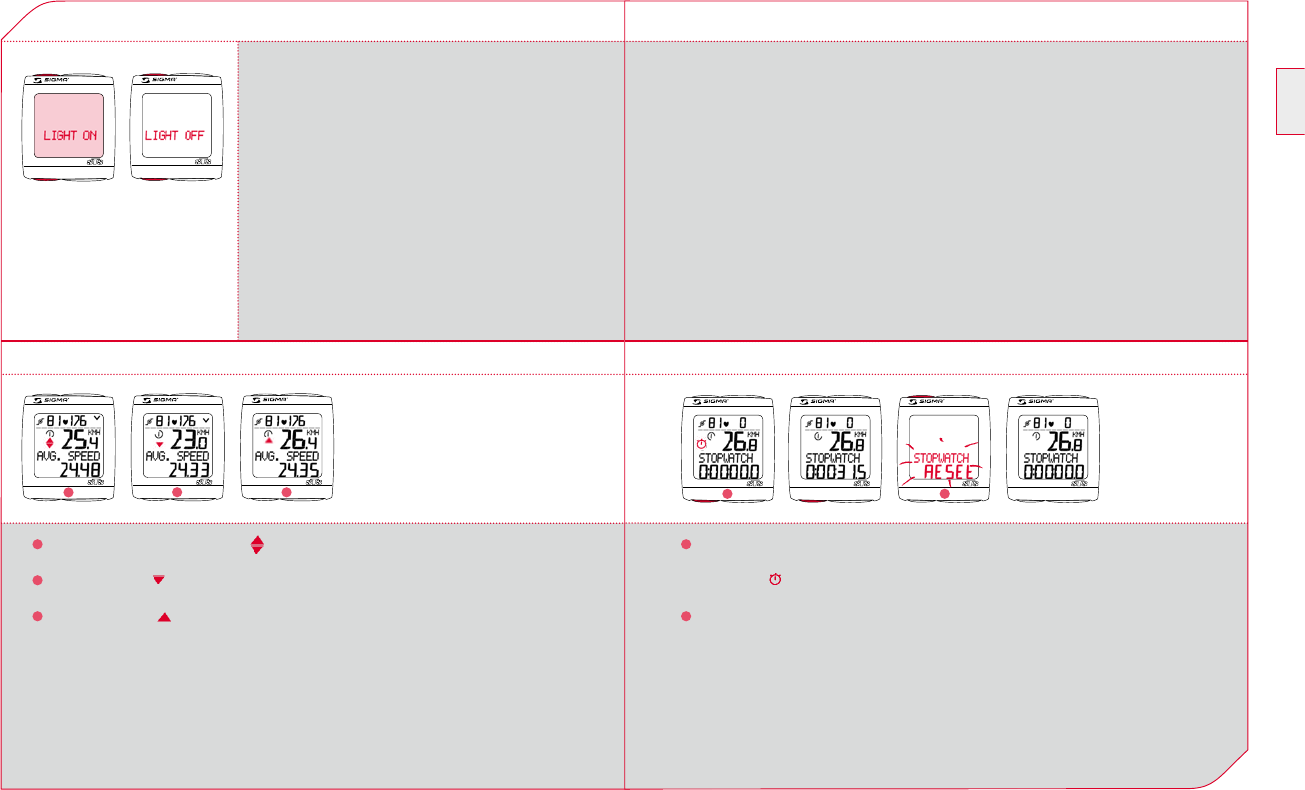

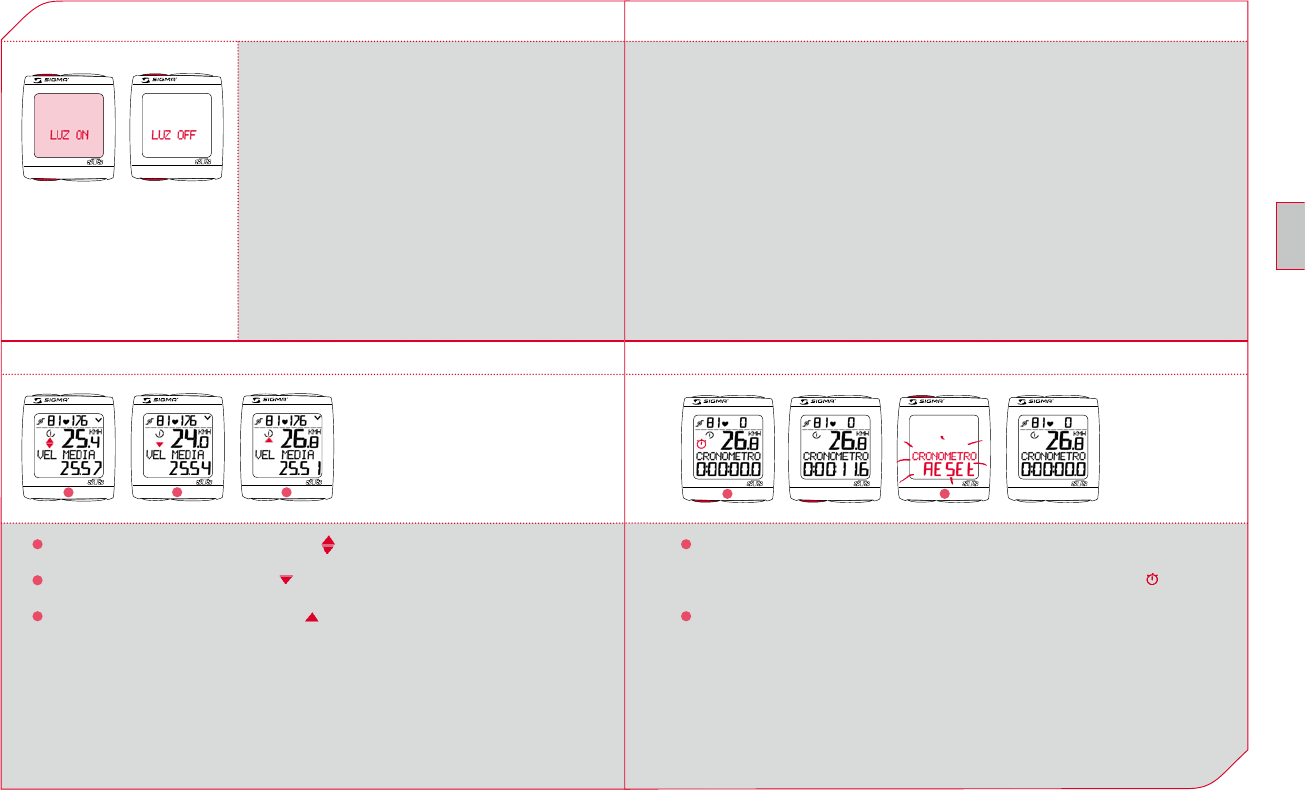

7 GENERAL FUNCTIONS 7 GENERAL FUNCTIONS
kThe lighting function is switched on/off when you
press the SET and RESET button at the same
time. LIGHT ON/OFF is shortly displayed.
kThe display is illuminated when you press any
button and the function is switched on when you
press it again.
The illumination is not available during pairing!
Protect the battery by avoiding unnecessary
illumination!

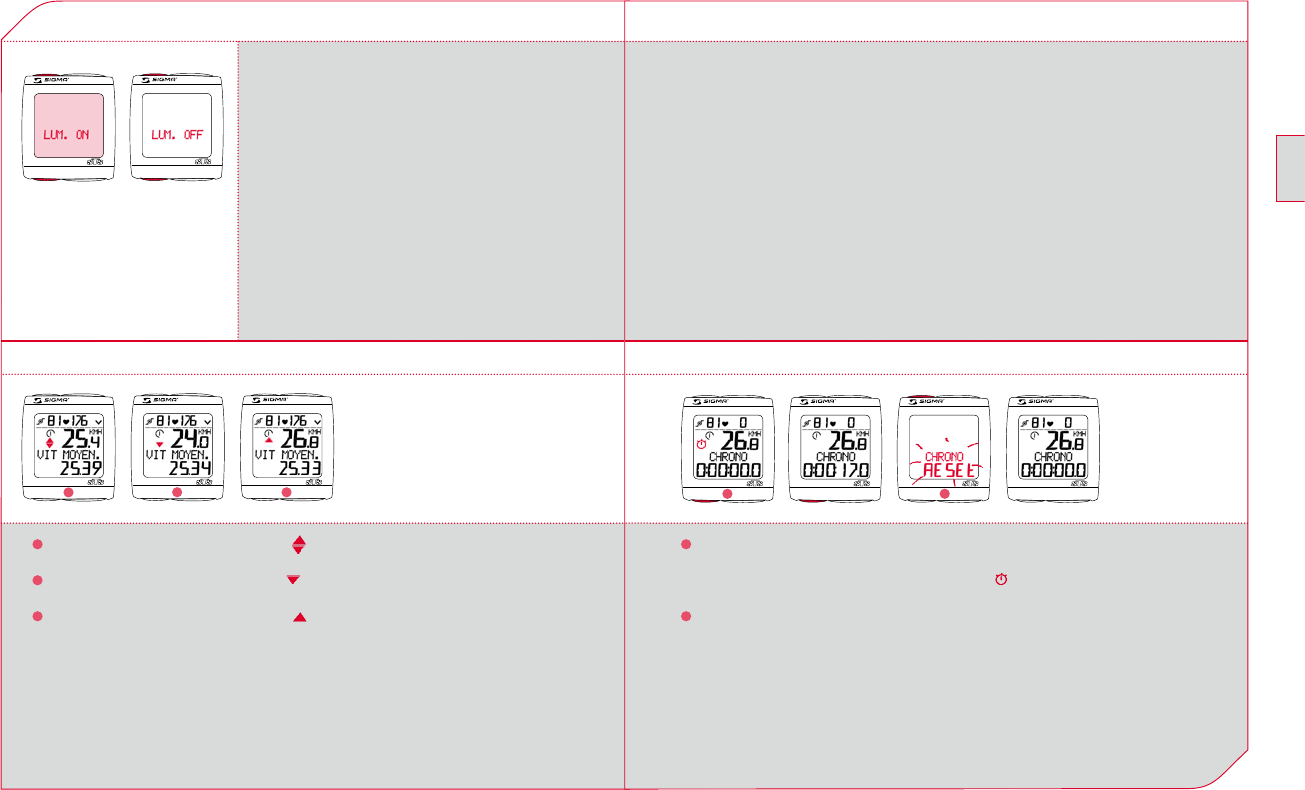

7.2 COMPARE SPEED
7.1 DISPLAY ILLUMINATION
nn
n
n
1k Change the setting to STOPWATCH using the MODE 2 button.
kStart or stop the stopwatch using the SET button.
kThe icon in the display means the stopwatch is running.
2k To reset the stopwatch:
hold down the RESET button for 3 seconds.
n n
n
3 sec.
7.4 STOPWATCH
Start Stop
1909 1909
1909 1909 1909
123
1909 1909 1909 1909
12
7.3 SHOWING/HIDING THE CADENCE/HEART RATE FUNCTION
When the BC 1909 HR is operated without cadence signal transmitter and/or chest belt,
all cadence/heart rate functions (CADENCE, AVG. CAD, PULSE, AVG. PULSE, MAX. PULSE,
KCAL) are hidden.
1k If the speed is nearly the same is displayed.
2k If lower speed will be displayed.
3k If higher speed will be displayed.
18 www.sigmasport.com
19BC 1909 HR
USA
7 GENERAL FUNCTIONS

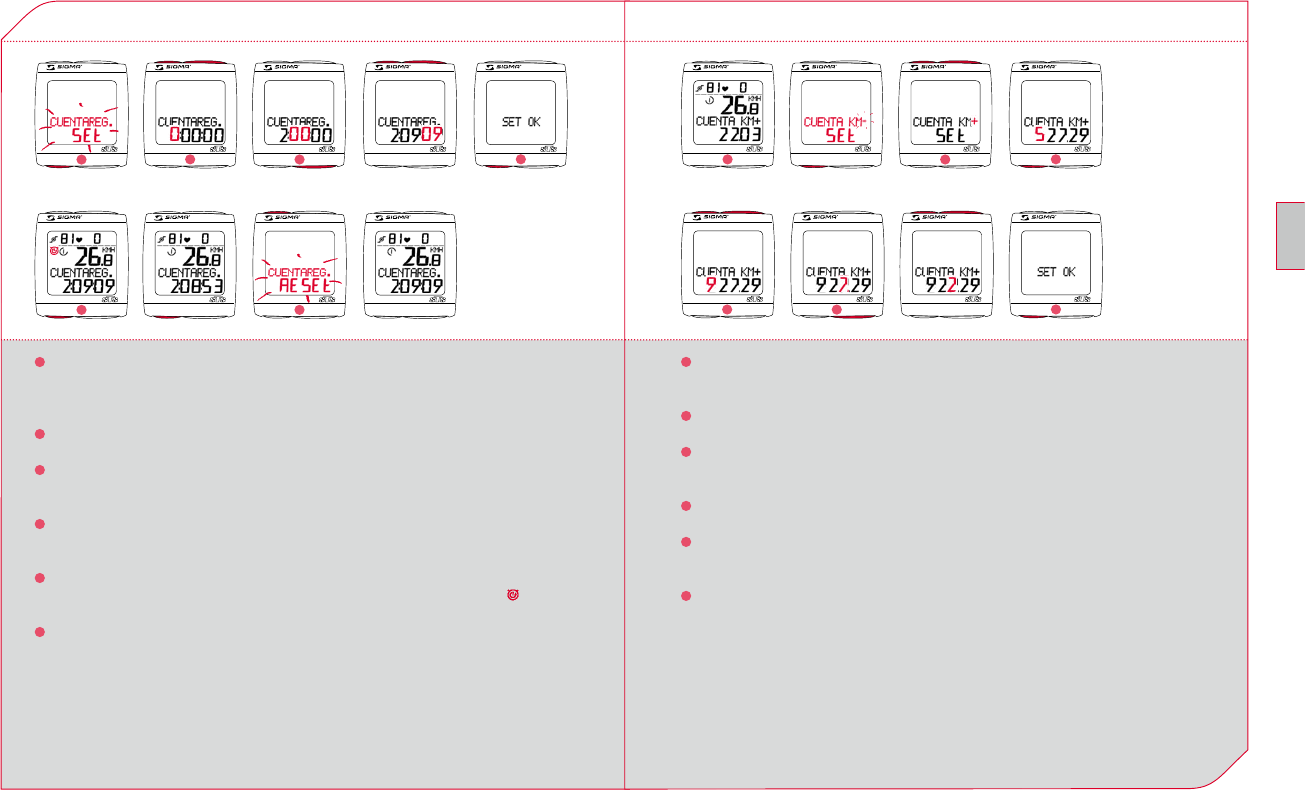

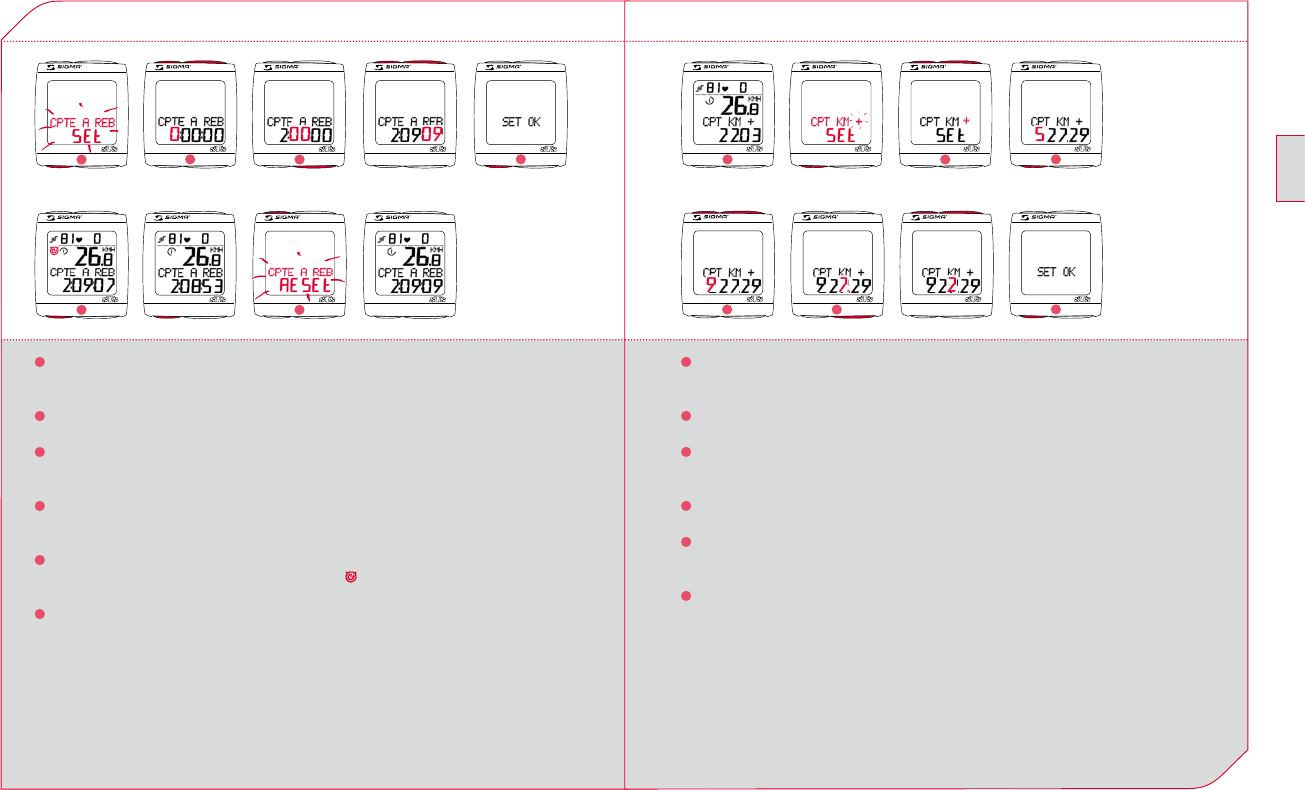

1k Change the display to TRIP UP/DOWN using the MODE 2 button.
kHold down the SET button for 3 seconds. The display flashes “+” or “-”.
2k Set to “+” or “-” using the MODE 2 button.
3k Confirm by pressing the SET button.
The display will jump to the distance setting.
4k Set the value using the MODE 2 button (+) or the RESET button (-).
5k Move to the next figure using the MODE 1 button.
Set the value as described above.
6k Confirm by pressing the SET button.
SET OK appears on the display.
7 GENERAL FUNCTIONS
7.6 TRIP UP/DOWN
nn
3 sec.
Start Stop

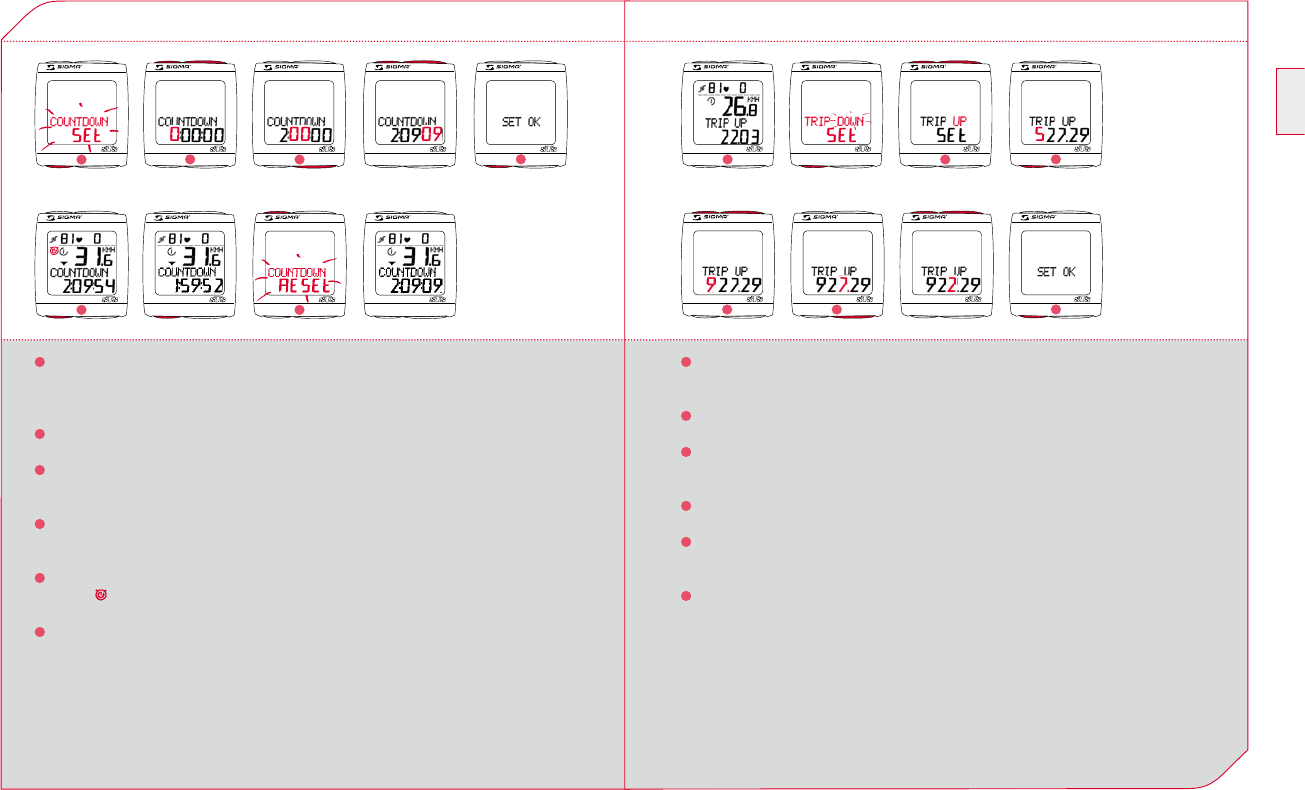

7.5 COUNTDOWN
1k Use MODE 2 to switch to COUNTDOWN +/- display.
kHold down SET button for 3 seconds
(COUNTDOWN SET flashes).
2k Set the value using the MODE 2 button (+) or the RESET button (-).
3k Move to the next figure using the MODE 1 button.
Set the value as described above.
4k Confirm by pressing the SET button.
SET OK appears on the display.
5k Use the SET button to start or stop COUNTDOWN.
The icon on the display means the countdown is running.
6k Setting the countdown to zero: Hold down RESET button for 3 seconds
(the display switches back to the preset value).
n
nn
n
3 sec.
n3 sec. n
nn
n
nn n
nn
-- -
++ +
nn nn
- -+ +
1909 1909 1909 1909 1909
234
1909 1909 1909 1909
5 6
1909 1909 1909 1909
123
1909 1909 1909 1909
456
1
20 www.sigmasport.com
21BC 1909 HR
USA

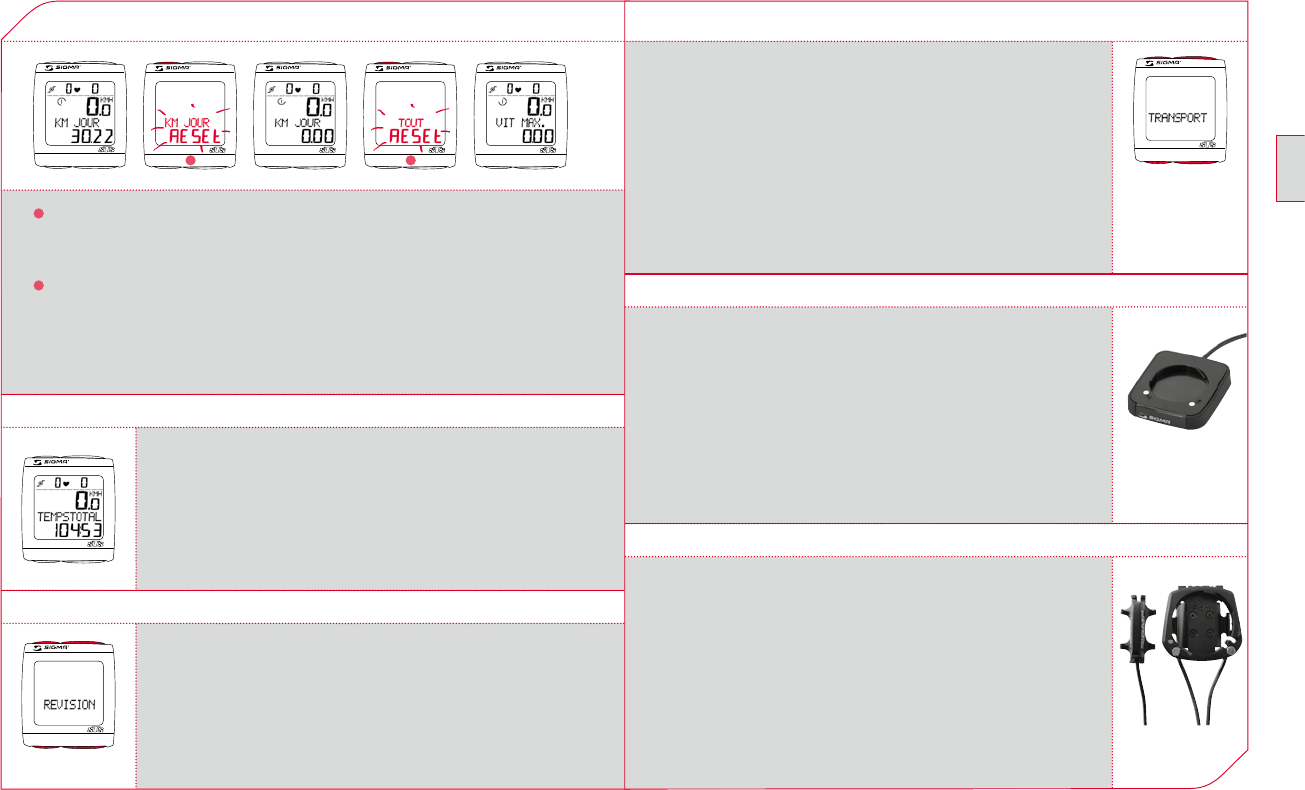

7 GENERAL FUNCTIONS

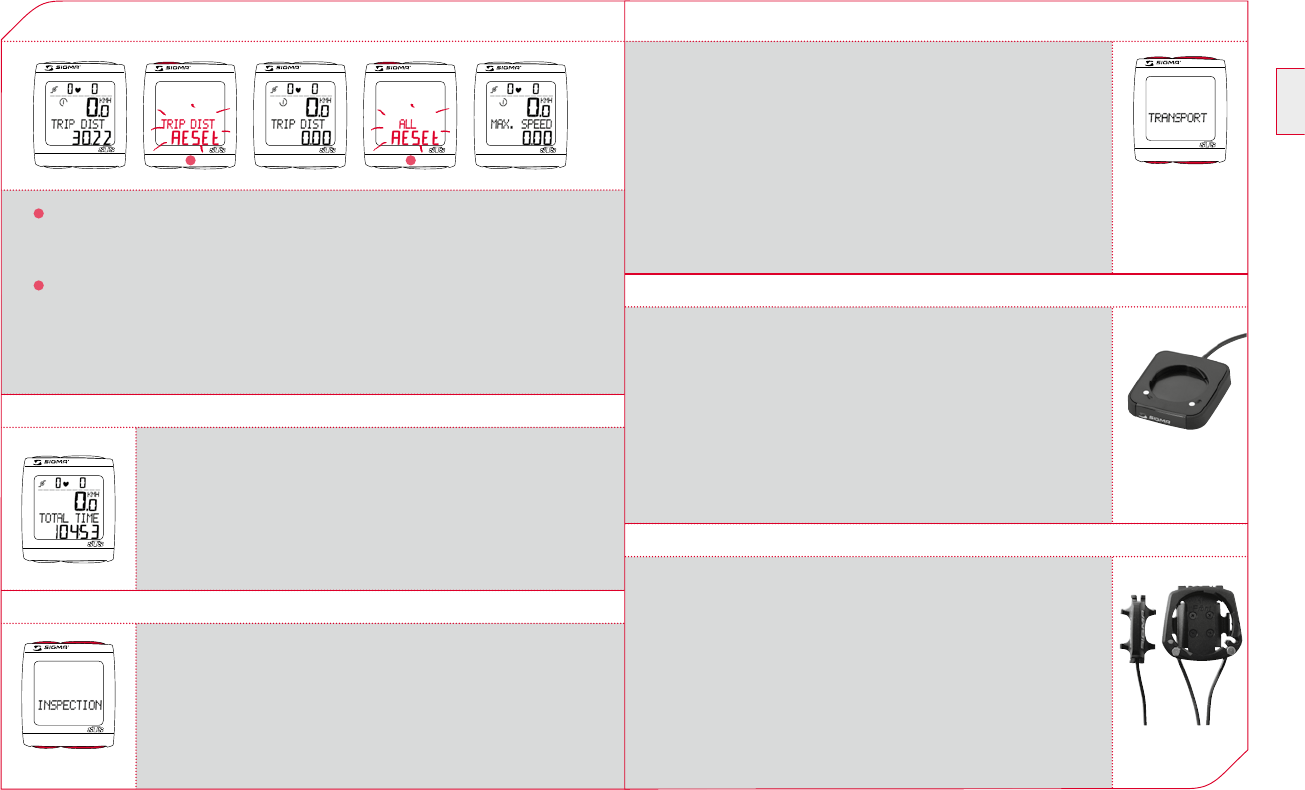

7.8 TOTALS FOR BIKE 1 AND BIKE 2
7 GENERAL FUNCTIONS
1k Press MODE1/2 until the desired function is displayed.
kHold down the RESET button. Display flashes. After 2 seconds only the function
displayed is reset to 0.
2k Hold down the RESET button for longer than 4 seconds to reset:
TRIP DIST, TRIP TIME, AVG. SPEED, MAX. SPEED , AVG. CAD, AVG. PULSE,
MAX. PULSE, KCAL to zero.
7.7 RESET DISPLAY
nn
4 sec.
The totals are first displayed separately for BIKE 1, BIKE 2 and
BIKE 1+2, if a second bike is added. If only one bike is ridden,
only the totals for the first bike are displayed.
The service interval tells you the mileage until the next bike service
is needed.
The service interval can only be set by your dealer. After reaching
the preset mileage, INSPECTION appears on the display.
Pressing any button makes this display disappear.
7.9 SERVICE INTERVAL
7.10 TRANSPORT MODE
If the bike is transported on a bike carrier or in the car (if clipped on
the bracket), the BC 1909 HR will go into transport mode by the
integrated movement sensor. TRANSPORT appears
on the display. To exit this mode, you must press any button briefly.
The BC 1909 HR is PC-compatible. After purchasing the
SIGMA DATA CENTER SOFTWARE and its Docking Station
(Ref. No.: 00432), you can quickly and easily download the total
and daily values onto your PC. Furthermore, you can quickly and
easily set your BC 1909 HR.
The BC 1909 HR can be retrofitted with a cable-connected
universal bracket only measuring speed (the cadence
and chest belt remain wireless) Ref. No.: 00433.
(optional - not included)
7.11 PC INTERFACE
7.12 CABLE-CONNECTED UNIVERSAL BRACKET
1909 19091909 1909
2
1909
1909
1909
1909
Press any button briefly.
1
Press any button briefly.
22 www.sigmasport.com
23BC 1909 HR
USA
8 TECHNICAL DATA
Default Max. Min. Units
Speed 0.0 199.8 0.0 kmh/mph
Trip distance 0.00 9999.99 0.00 km/mi
Trip time 0:00:00 999:59:59 00:00:00 h:mm:ss
Average speed 0.00 199.99 0.00 kmh/mph
Max. speed 0.00 199.99 0.00 kmh/mph
Cadence 0 180 0 upm
Max. cadence 0 180 0 upm
Current heart rate 40 240 40 bpm
Average heart rate 40 240 0 bpm
Max. heart rate 40 240 0 bpm
Calories 0 9,999 0 Kcal
Stopwatch 00:00.0 9:59:59 00:00:00 h:mm:ss.1/10
Countdown 0:00:00 9:59:59 00:00:00 h:mm:ss
Separate kilometre counter 0.00 999.99 -99.99 km/mi
Temperature 0 +70/+158 -10.0 °C/°F
Total distance 0
Bike 1/2 99,999 00:00 km/mi
Bike 1+2 999,999 00:00
Total time 0:00
Bike 1/2 9,999:59 00:00 hhhh:mm
Bike 1+2 19,999 00:00 hhhhh

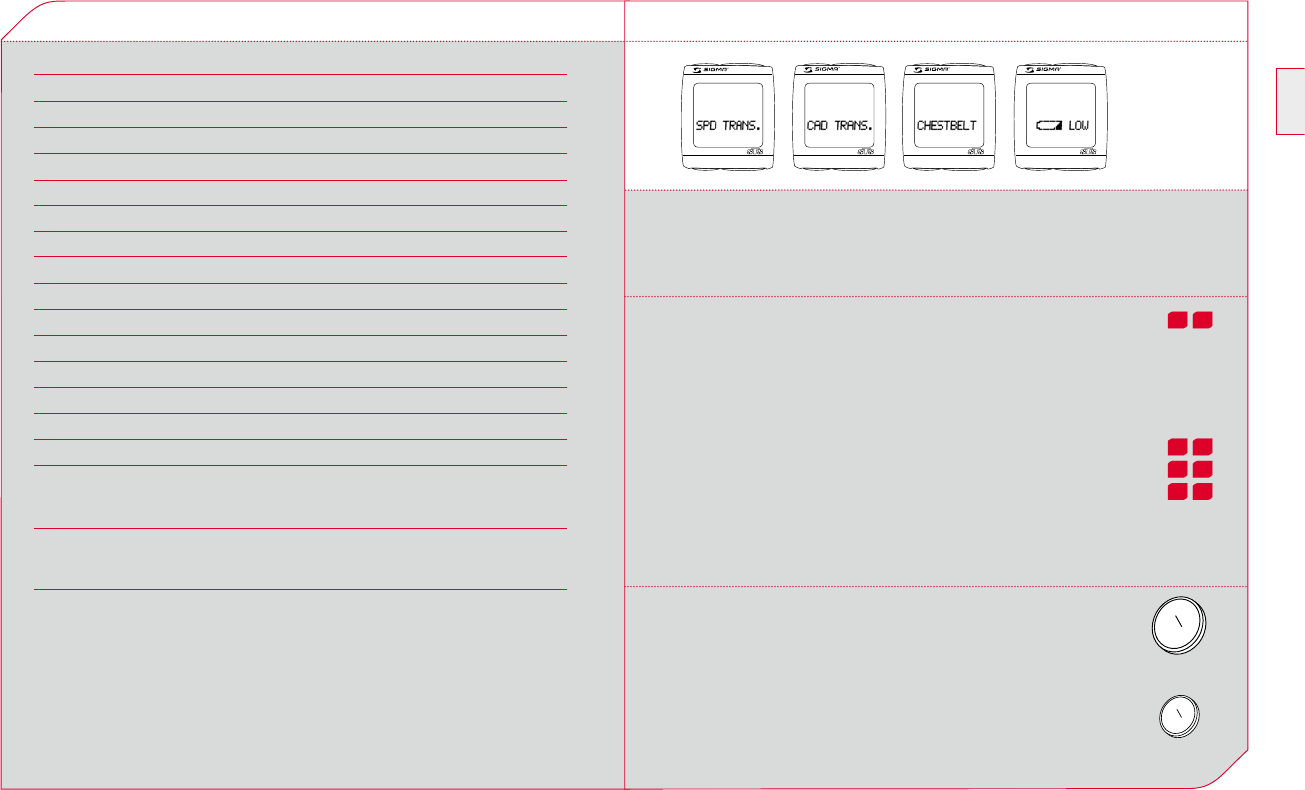

The battery change on the computer head and the transmitters (speed, cadence,
and/or chest belt) is shown on the display. After changing the battery, only the time
has to be entered again.
8.1 DEFAULT/MIN/MAX VALUES
8 TECHNICAL DATA
8.2 BATTERY CHANGE
Computer head:
kOpen cover with tool.
kTake note of polarity. When the battery compartment is open,
you must see the plus side of the battery.
kIf the sealing ring is loose, put it back in place.
kClose cover with tool.
Transmitters:
kOpen cover with tool.
kRemove battery from cover.
kTake note of polarity.
kInsert new battery in the cover.
kBe sure to line up the arrow on the cap and the dot
on the transmitter when inserting the cap!
kClose cover with tool.
1909 1909 1909 1909
Battery:
Computer head: Lithium button battery CR 2450
Transmitter: Lithium button battery CR 2032
Battery lifespan:
Computer head: approx. 1 year*
Transmitter: approx. 1 year*
* if used one hour a day
CR 2450
CR 2032
26
28
30
32
25
27
29
31
24 www.sigmasport.com
25BC 1909 HR
USA
8 TECHNICAL DATA

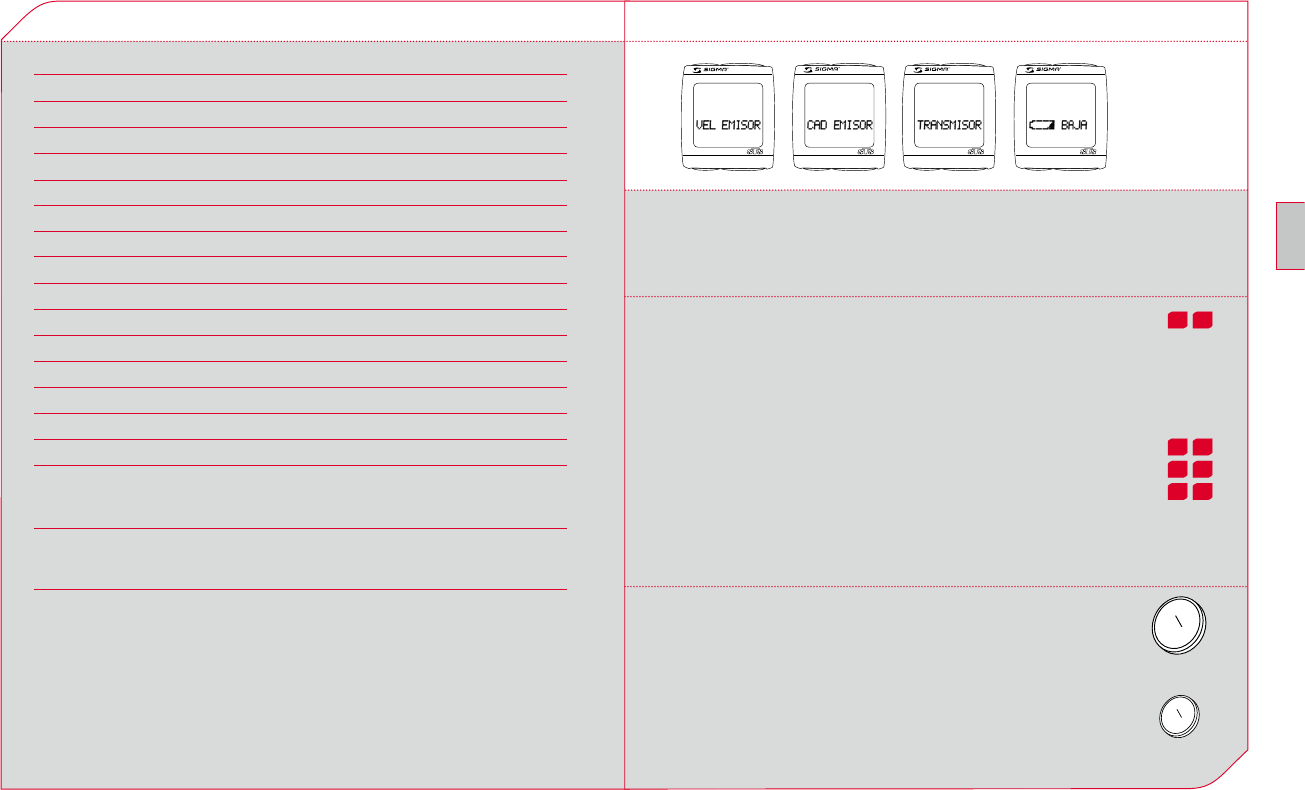

No speed display
k Is the computer correctly clicked onto
the bracket?
k Have you checked the contacts for
oxidation/corrosion?
k Have you checked the magnet/
transmitter distance (max. 12 mm)?
k Have you checked whether the magnet
is magnetized?
k Have you checked the battery status
on the speed transmitter?
No cadence display
k Have you checked the magnet/
transmitter distance (max. 12 mm)?
k Have you checked whether the magnet
is magnetized?
k Have you checked the battery status
on the transmitter?
No heart rate display
k Are the electrodes damp enough?
k Have you checked the battery status?
No display
k Have you checked the battery status
on the BC 1909 HR?
k Is the battery inserted correctly
(+ facing up)?
k Are the battery contacts ok? They
should be raised approx. 30 degrees.
(If not, bend carefully)?
Wrong speed display
k Are 2 magnets fitted?
k Is the magnet correctly positioned
(parallel to the transmitter and centered
with the transmitter)?
k Is the wheel circumference set
correctly?
k Is the transmitter set on the right
bicycle (bicycle I or II)?
Display black/dull
k Is the temperature too high (> 60°C)
or too low (< 0°C)?
60°C = 140°F
0°C = 32°F
No synchronization
k Have you checked the magnet/
transmitter(s) distance?
k Is/are the battery/batteries on
the transmitter(s) empty?
k Have you checked the range on the
respective transmitter?
k When using a hub dynamo,
please change the position of
the transmitter.
Display “TOO MANY SIGNALS”
k Please increase the distance to the
other transmitters and press any
button.
We are liable to our contracting partners for defects as defined by law. Batteries are
excluded from the guarantee.
SIGMA SPORT USA
1067 Kingsland Drive
Batavia, IL 60510, U.S.A.
888-744-6277
E-Mail: sales@sigmasport.us
The manufacturer reserves the right to make technical changes.
8.3 TROUBLE SHOOTING
8 TECHNICAL DATA
8.4 WARRANTY
26 www.sigmasport.com
27
F
BC 1909 HR
CONTENU
1 Préface et contenu .................................................................................................. 27
2 Le montage ................................................................................................................. 28
2.1 Montage de la deuxième roue ...................................................................................... 29
3 Mise en service ......................................................................................................... 29
4 Changement d‘affichage/Fonctions des touches/
Aperçu des fonctions .............................................................................................. 30
5 La synchronisation . .................................................................................................. 30
6 Réglages de base ...................................................................................................... 31
6.1 Réglage de la langue ....................................................................................................... 32
6.2 Réglage KMH/MPH ........................................................................................................ 32
6.3 Calculer la grandeur de roue ........................................................................................ 33
6.4 Regler la grandeur de roue Vélo 1 ou Vélo 2 ......................................................... 34
6.5 Réglage de l‘heure ........................................................................................................... 35
6.6 Réglage de l‘âge ............................................................................................................... 35
6.7 Réglage du poids .............................................................................................................. 36
6.8 Réglage du sexe ................................................................................................................ 36
6.9 Réglage des limites inférieure et supérieure FC .....................................................37
6.10 Réglage des kilometres totaux Vélo 1 ou Vélo 2 ................................................... 38
6.11 Réglage du temps total Vélo 1 ou Vélo 2 ................................................................. 38
6.12 Réglage du contraste ..................................................................................................... 39
6.13 Quitter les réglages de base ........................................................................................ 39
7 Fonctions générales ................................................................................................ 40
7.1 Eclairage de l‘affichage ................................................................................................... 40
7.2 Comparaison de la vitesse ............................................................................................ 40
7.3 Affichage/Masquage des fonctions Cadence et Fréquence cardiaque ......... 41
7.4 Chronomètre ..................................................................................................................... 41
7.5 Compte à rebours ............................................................................................................ 42
7.6 Compteur kilometrique ................................................................................................... 43
7.7 Reset de l‘affichage ......................................................................................................... 44
7.8 Valeurs totales Vélo 1 et Vélo 2 ................................................................................. 44
7.9 Intervalle d‘entretien ....................................................................................................... 44
7.10 Mode de transport .......................................................................................................... 45
7.11 Interface PC ....................................................................................................................... 45
7.12 Support universel câblé .................................................................................................. 45
8 Données techniques ................................................................................................ 46
8.1 Valeurs par défaut/max/min ...................................................................................... 46
8.2 Changement de pile ......................................................................................................... 47
8.3 Résolution des problèmes ............................................................................................. 48
8.4 Indications de garantie ................................................................................................... 49
1 PREFACE ET CONTENU
1 PREFACE ET CONTENUCONTENU
Vous avez choisi un compteur de SIGMA SPORT® et nous vous en félicitons. Votre
nouveau BC 1909 HR vous accompagnera fidèlement de nombreuses années
pendant vos activités cyclistes.
Pour faire connaissance avec les nombreuses fonctions de votre compteur cycle
et pouvoir en utiliser toutes les facettes, veuillez lire atttentivement le mode d‘emploi.
SIGMA SPORT® vous souhaite une bonne route avec votre BC 1909 HR
Le BC 1909 HR est équipé d‘un départ/arrêt automatique. Lorsque le BC 1909 HR
est monté sur son support cintre ou sur son supportrandonnée, un capteur de
mouvement détecte chaque mouvement et active le compteur. La synchronisation
est lancée automatiquement.
28 www.sigmasport.com
29
F
BC 1909 HR
1 PREFACE ET CONTENU
Compteur cycle
BC 1909 HR
Sangle thoracique
STS, sangle
élastique comprise
Emetteur
de vitesse STS
Emetteur
de cadence STS
kAimant pour rayon
kAimant de cadence
kSupport pour guidon
kClé pour le
compartiment
à piles
kMatériel de fixation
1 CONTENU
2 LE MONTAGE
2 LE MONTAGE
Les illustrations relatives aux instructions de montage sont reprises sur le dépliant joint !
MONTAGE DU SUPPORT POUR VÉLO
kLe support peut être monté au moyen d‘un serre-câbles
(montage permanent) ou d’anneaux toriques.
kGuidon ou cadre.
kEnlever la feuille jaune.
MONTAGE DES ÉMETTEURS –
VITESSE ET CADENCE
kLes deux émetteurs peuvent être montés au moyen de serre-câbles
(montage permanent) ou d’anneaux toriques.
kPour pouvoir atteindre plus facilement les 12 mm,
placer l‘aimant et le capteur plus près du moyeu.
MISE EN PLACE DE LA SANGLE THORACIQUE
kMouiller les électrodes avec de l‘eau ou du gel cardio.
Le changement entre la ROUE 1 et la ROUE 2 est effectué
automatiquement. Un seul second émetteur de vitesse doit
être utilisé (Set d‘équipement “VELO 2” n° art.: 00417,
“VELO 2, cadence incl.” n° art.: 00415).
Le BC 1909 HR est fourni sans pile afin de limiter la
consommation d‘énergie.
Mettre les piles en place en ouvrant le couvercle du compartiment
à piles au moyen de l‘outil fourni. Après avoir mis les piles en place,
refermer le compartiment à piles au moyen de l‘outil.
L‘affichage passe automatiquement en mode de réglage.
2.1 MONTAGE DE LA DEUXIÈME ROUE
3 MISE EN SERVICE
1909
o
p
e
n
-
c
l
o
s
e
4321
8
24
19
11
7
23
59
21
15 16
18
10
6
22
141312
17
30 www.sigmasport.com
31
F
BC 1909 HR
4 CHANGEMENT D‘AFFICHAGE/FONCTIONS DES TOUCHES/
APERCU DES FONCTIONS
MODE 1 MODE 2
KM JOUR FC MOYEN.
TEMPS PARC FC MAX.
VIT MOYEN. CALORIES
VIT MAX. HEURE
CAD MOYEN. CHRONO
CPTE A REB
CPT KM +/-
TEMPERATUR
KM TOTAL*
TEMPSTOTAL*
* Pas pendant la conduite
RESET
Réinitialisation des
fonctions listées ou retour
au menu du niveau supérieur.
SET
Réglage et sauvegarde
des valeurs saisies.
MODE 2
Appel des fonctions
listées ou passage
au menu suivant.
MODE 1
Appel des fonctions
listées.

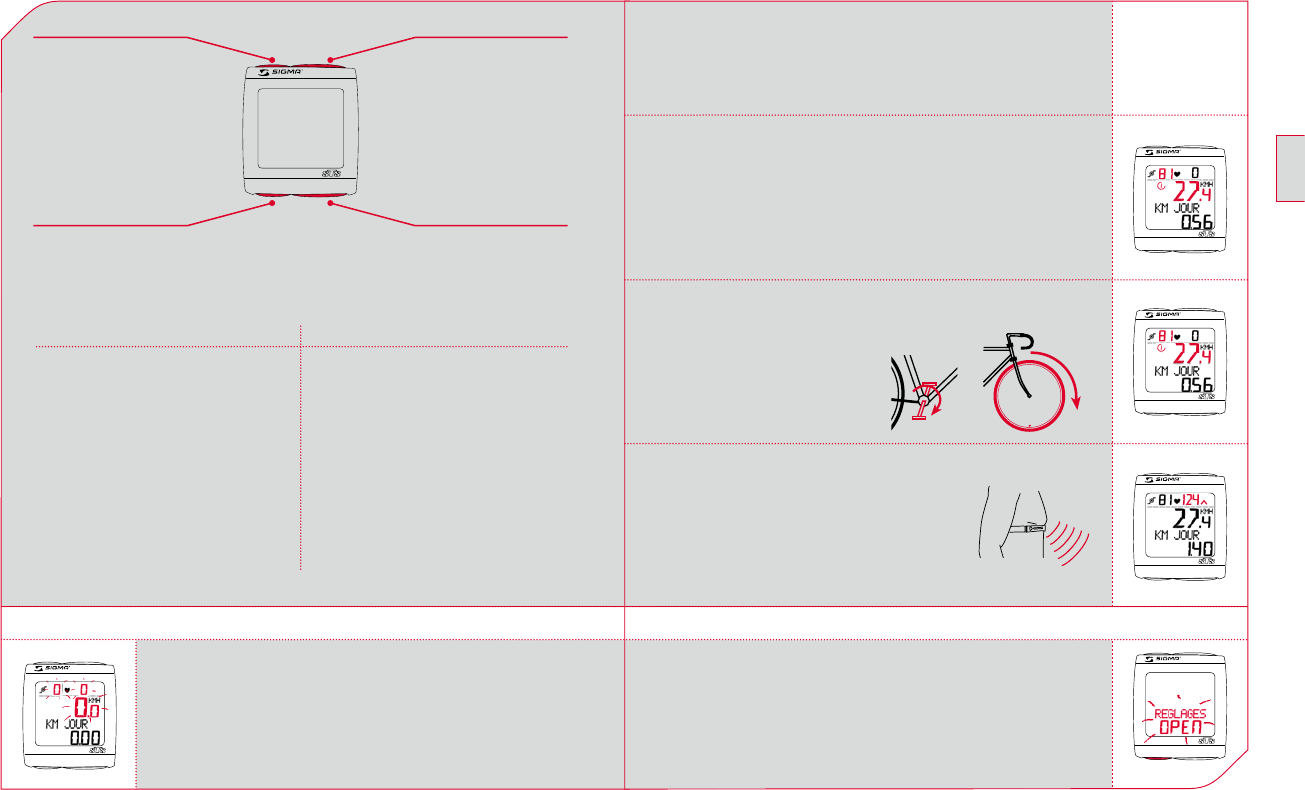

1. Rouler, en général le récepteur s‘est synchronisé avec l‘emetteur
après 3 à 4 rotations de roue.
2. Tourner la roue avant ou le pédalier jusqu‘à ce que l‘affichage
des KMH/MPH ou de la cadence ne clignote plus.
kPortant la ceinture thoracique,
se rapprocher du BC 1909 HR
ou monter sur le vélo. En règle générale,
le BC 1909 HR se synchronise en moins
de 10 secondes avec la sangle thoracique.
Le zéro de la fréquence cardiaque ne clignote plus.
5 LA SYNCHRONISATION
kPlacer le BC 1909 HR sur son support – La synchronisation
n‘est possible que si le compteur est placé sur son support.
kLes zéros de la vitesse, de la cadence et de la fréquence
cardiaque clignotent.
kIl existe deux façons de synchroniser la vitesse, la cadence et la
fréquence cardiaque :
5 LA SYNCHRONISATION
6 REGLAGES DE BASE
kMaintenir la touche SET enfoncée 3 secondes jusqu‘à ce
que la LANGUE définie (anglais) apparaisse dans l‘affichage
(REGLAGES OPEN clignote).
n3 sec.
1909
1909
1909
1909
1909
1909
32 www.sigmasport.com
33
F
BC 1909 HR
6 REGLAGES DE BASE
1k Passer à la LANGUE définie avec la touche MODE 1
(l‘anglais est réglé de série sur le BC 1909 HR).
2k Appuyer brièvement sur la touche SET. L‘affichage clignote.
3k Régler la langue souhaitée à l‘aide de la touche MODE 2.
4k Confirmer par la touche SET. SET OK apparaît à l‘écran.
1k Avec la touche MODE 1, sélectionnez la fonction KMH/MPH
2k Appuyer brièvement sur la touche SET. L‘affichage clignote.
3k Régler MPH ou KMH à l‘aide de la touche MODE 2.
4k Confirmer par la touche SET. SET OK apparaît à l‘écran.
Le passage de KMH à MPH modifie automatiquement le format de la distance de km en
mi, la température de °C en °F, l‘heure du mode 24 h au mode 12 h et le poids de kg en lb.
6.1 REGLAGE DE LANGUE
6.2 REGLAGE KMH/MPH
6 REGLAGES DE BASE
nn
nn n
n
n
n
n
n
-
-
+
+
1909 1909 1909 1909
1234
1909 1909 1909 1909
1 2 3 4
kDéterminer la valeur correspondant à votre circonférence de roue roue à partir
du tableau C “CIRCONFERENCE DE ROUE” (voir page suivante). Entrer cette valeur.
kEn alternative : calculer/déterminer votre circonférence de roue (Tab. A ou tab. B).
6.3 CALCULER LA GRANDEUR DE ROUE
1x
= WS (mm)
km/h:
WS = mm
mph:
WS = mm
A B
ETRTO ETRTO
1
6
x
1
.
7
5
x
2
1
6
x
1
.
7
5
x
2
C
kmh
mph
kmh
mph
mm x 3.14
mm=inches x 25.4
km/h:
WS = mm x 3.14
mph:
WS = mm x 3.14
47-305
47-406
37-540
47-507
23-571
40-559
44-559
47-559
50-559
54-559
57-559
37-590
37-584
20-571
32-630
28-630
40-622
47-622
40-635
37-622
18-622
20-622
23-622
25-622
28-622
32-622
37-622
40-622
50-559
54-559
52-622
54-622
38-622
42-622
23-571
1272
1590
1948
1907
1973
2026
2051
2070
2089
2114
2133
2105
2086
1954
2199
2174
2224
2268
2265
2205
2102
2114
2133
2146
2149
2174
2205
2224
2105
2130
2235
2300
2215
2230
1973
16x1.75x2
20x1.75x2
24x1 3/8 A
24x1.75x2
26x1
26x1.5
26x1.6
26x1.75x2
26x1.9
26x2.00
26x2.125
26x1 3/8
26x1 3/8x1 1/2
26x3/4
27x1 1/4
27x1 1/4 Fifty
28x1.5
28x1.75
28x1 1/2
28x1 3/8x1 5/8
700x18C
700x20C
700x23C
700x25C
700x28C
700x32C
700x35C
700x40C
26 x 1.95
26 x 2.1
29 x 2.1
29 x 2.2
700 x 38c
700 x 42c
650 x 23c
34 www.sigmasport.com
35
F
BC 1909 HR
6 REGLAGES DE BASE 6 REGLAGES DE BASE
6.4 REGLER LA GRANDEUR DE ROUE VELO 1 OU VELO 2
1k Avec la touche MODE 1, sélectionnez la fonction DIM ROUE 1/ DIM ROUE 2.
kAppuyer brièvement sur la touche SET. Le premier chiffre à régler clignote.
2k Avec la touche MODE 2 (+) ou RESET (-), régler le chiffre.
3k Avec la touche MODE 1, passer au chiffre suivant.
4k Avec la touche MODE 2 (+) ou RESET (-), régler le chiffre.
5k Confirmer par la touche SET.
SET OK apparaît à l‘écran.
nnn
nn nn
- -+ +
1909 1909 1909 1909 1909
123 4 5
1k Avec la touche MODE 1, sélectionnez la fonction HEURE.
kAppuyer brièvement sur la touche SET. Le premier chiffre à régler clignote.
2k Avec la touche MODE 2 (+) ou RESET (-), régler le chiffre.
3k Avec la touche MODE 1, passer au chiffre suivant.
4k Avec la touche MODE 2 (+) ou RESET (-), régler le chiffre.
5k Confirmer par la touche SET.
SET OK apparaît à l‘écran.
6.5 REGLAGE DE L‘HEURE
nn
n
nn nn
- -+ +
1909 1909 1909 1909 1909
1234 5
6.6 REGLAGE DE L‘AGE
n n
1k La touche MODE 1 permet de passer à l‘affichage de l‘AGE.
2k Appuyer brièvement sur la touche SET. L‘affichage clignote.
3k Avec la touche MODE 2 (+) ou RESET (-), régler le chiffre.
4k Confirmer par la touche SET. SET OK apparaît à l‘écran.
n n
- +
1909 1909 1909
23 4
n
1909
1
36 www.sigmasport.com
37
F
BC 1909 HR
6 REGLAGES DE BASE 6 REGLAGES DE BASE
6.8 REGLAGE DU SEXE
6.7 REGLAGE DU POIDS 6.9 RÉGLAGE DES LIMITES INFÉRIEURE ET SUPÉRIEURE FC
1k La touche MODE 1 permet de passer à l‘affichage du POIDS.
2k Appuyer brièvement sur la touche SET. L‘affichage clignote.
3k Avec la touche MODE 2 (+) ou RESET (-), régler le chiffre.
4k Confirmer par la touche SET.
SET OK apparaît à l‘écran.
Les deux limites FC sont calculées automatiquement après la saisie de l‘âge, du poids
et du sexe. (70-80 % de la FC max. pour l‘entraînement cardio-vasculaire). Vous pouvez
cependant modifier ces limites manuellement.
1k Revenir aux limites supérieure et inférieure automatiquement
générées au moyen de la touche MODE 1.
2k Appuyer brièvement sur la touche SET. L‘affichage clignote.
3k Avec la touche MODE 2 (+) ou RESET (-), régler le chiffre.
4k Confirmer par la touche SET.
SET OK apparaît à l‘écran.
n n
1k Passer au SEXE défini avec la touche MODE 1
(HOMME est réglé de série sur le BC 1909 HR).
2k Appuyer brièvement sur la touche SET. L‘affichage clignote.
3k Avec la touche MODE 2 (+) ou RESET (-), régler le chiffre.
4k Confirmer par la touche SET.
SET OK apparaît à l‘écran.
n n
n n
- +
n n
- +
1909 1909 1909
23 4
n
n
1909
1909 1909 1909 1909
1
1 2 34
n n
n n
- +
n
1909 1909 1909 1909
1 2 34
38 www.sigmasport.com
39
F
BC 1909 HR
6 REGLAGES DE BASE
1k Avec la touche MODE 1, sélectionnez la fonction TEMPSVELO1 ou TEMPSVELO2.
kAppuyer brièvement sur la touche SET. Le premier chiffre à régler clignote.
2k Avec la touche MODE 2 (+) ou RESET (-), régler le chiffre.
3k Avec la touche MODE 1, passer au chiffre suivant.
4k Avec la touche MODE 2 (+) ou RESET (-), régler le chiffre.
5k Confirmer par la touche SET.
SET OK apparaît à l‘écran.
1k Avec la touche MODE 1, sélectionnez la fonction CONTRASTE.
2k Appuyer brièvement sur la touche SET. L‘affichage clignote.
3k Avec la touche MODE 2 (+) ou RESET (-), régler le chiffre
(1 = faible/3 = fort).
4k Confirmer par la touche SET.
SET OK apparaît à l‘écran.
6.10 REGLAGE DES KILOMETRES TOTAUX VELO 1 OU VELO 2
6 REGLAGES DE BASE
6.11 REGLAGE DU TEMPS TOTAL VELO 1 OU VELO 2
6.12 REGLAGE DU CONTRASTE
1k Avec la touche MODE 1, sélectionnez la fonction KM-VELO 1 ou KM-VELO 2.
kAppuyer brièvement sur la touche SET. Le premier chiffre à régler clignote.
2k Avec la touche MODE 2 (+) ou RESET (-), régler le chiffre.
3k Avec la touche MODE 1, passer au chiffre suivant.
4k Avec la touche MODE 2 (+) ou RESET (-), régler le chiffre.
5k Confirmer par la touche SET.
SET OK apparaît à l‘écran.
nnn
nnn
n n
nn nn
- -+ +
n
nn
n
--
++
n n
- +
1909 1909 1909 1909 1909
12345
1909 1909 1909 1909 1909
12345
n
1909 1909 1909 1909
1 2 34
6.13 QUITTER LES REGLAGES DE BASE
kPour terminer les réglages, maintenir la touche SET 3 secondes
appuyée (REGLAGE CLOSE clignote).
n3 sec.
1909
40 www.sigmasport.com
41
F
BC 1909 HR
7 FONCTIONS GENERALES 7 FONCTIONS GENERALES
kEn appuyant simultanément sur les touches SET
et RESET, la lumière est allumée/éteinte.
LUM ON/OFF s‘affiche sur l‘écran.
kPar une pression de la touche choisie, l‘affichage
est éclairé, par une nouvelle pression, le comp-
teur parle à la fonction suivante.
L‘éclairage n‘est pas disponible pendant la
synchronisation ! Pour épargner la pile, évitez
un éclairage inutile !
7.2 COMPARAISON DE LA VITESSE
7.1 ECLAIRAGE DE LAFFICHAGE
nn
n
n
1k Avec la touche MODE 2, sélectionnez la fonction CHRONO.
kLancer ou arrêter le chronomètre avec la touche SET.
kLorsque le chronomètre est en marche, l‘icone apparaît à l‘écran.
2k Remise à zéro du chronomètre:
maintenir la touche RESET appuyée 3 secondes.
n n
n
3 sec.
7.4 CHRONOMETRE
Start Stop
1909 1909
1909 1909 1909
123
1909 1909 1909 1909
12
7.3 AFFICHAGE/MASQUAGE DES FONCTIONS CADENCE ET FREQ. CARDIAQUE
Lorsque le BC 1909 HR est utilisé sans émetteur de cadence et/ou sangle thoracique,
toutes les fonctions Cadence/Fréquence cardiaque (CADENCE, CAD MOYEN., Fréquence
cardiaque, FC MOYEN., FC MAX., CALORIES) sont masquées pour ce parcours.
1k En cas de vitesse à peu près similaire s‘affiche.
2k En cas de vitesse plus faible s‘affiche .
3k En cas de vitesse plus élevée s‘affiche .
42 www.sigmasport.com
43
F
BC 1909 HR
7 FONCTIONS GENERALES
1k Avec la touche MODE 2, sélectionnez la fonction CPT KM +/-.
kMaintenir la touche SET appuyée pendant 3 secondes. Le signe “+” ou “-” clignote.
2k Avec la touche MODE 2, choisir entre + et -.
3k Avec la touche SET confirmer le réglage.
L‘affichage passe au réglage du temps - les heures clignotent.
4k Avec la touche MODE 2 (+) ou RESET (-), régler le chiffre.
5k Avec la touche MODE 1, passer au chiffre suivant.
Régler le chiffre comnme ci-dessus.
6k Confirmer par la touche SET.
SET OK apparaît à l‘écran.
7 FONCTIONS GENERALES
7.6 COMPTEUR KILOMETRIQUE
nn
3 sec.
Start Stop
7.5 COMPTE A REBOURS
1k La touche MODE 2 permet de passer au COMPTE A REBOURS +/-.
kMaintenir la touche SET enfoncée 3 secondes (CPTE A REB SET clignote).
2k Avec la touche MODE 2 (+) ou RESET (-), régler le chiffre.
3k Avec la touche MODE 1, passer au chiffre suivant.
Régler le chiffre comnme ci-dessus.
4k Confirmer par la touche SET.
SET OK apparaît à l‘écran.
5k Démarrer ou arrêter le COMPTE A REBOURS avec la touche SET.
Le compte à rebours est symbolisé par l‘icône à l‘écran.
6k Remise à zéro du compte à rebours : Maintenir la touche RESET
enfoncée 3 secondes (l‘affichage revient à la valeur prédéfinie).
n
nn
n
3 sec.
n3 sec. n
nn
n
nn n
nn
-- -
++ +
nn nn
- -+ +
1909 1909 1909 1909 1909
234
1909 1909 1909 1909
5 6
1909 1909 1909 1909
123
1909 1909 1909 1909
456
1
44 www.sigmasport.com
45
F
BC 1909 HR
7 FONCTIONS GENERALES
7.8 VALEURS TOTALES VELO 1 ET VELO 2
7 FONCTIONS GENERALES
1k Appuyer sur la touche MODE1/2 jusqu‘à ce que la fonction souhaitée apparaisse.
kA appuyer sur la touche RESET. L‘affichage clignote. Au bout de 2 secondes,
seule la fonction affichée est remise à 0.
2k En maintenant la touche RESET appuyée 4 secondes, vous mettez à zéro les
fonctions suivantes: KM JOUR, TEMPS PARC, VIT MOYEN., VIT MAX.,
CAD MOYEN., FC MOYEN., FC MAX., CALORIES.

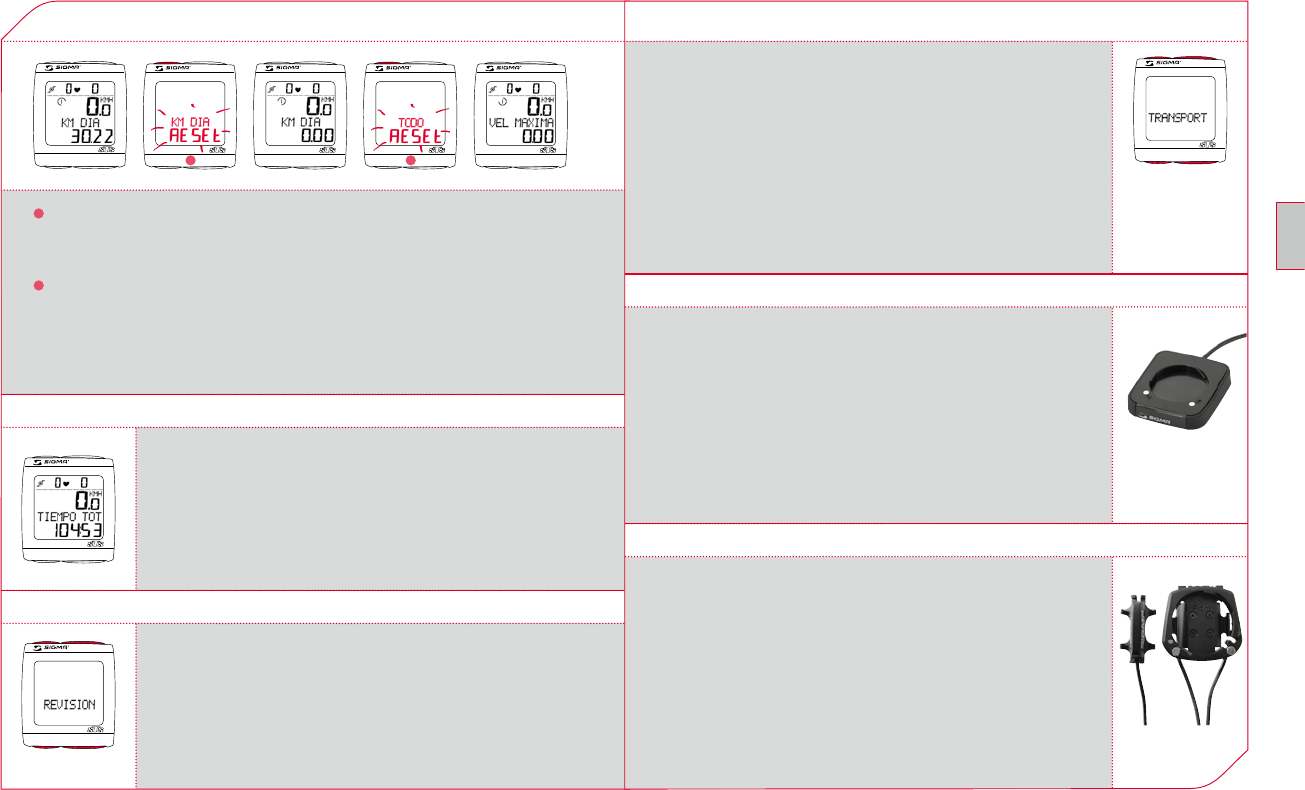

7.7 RESET DE L‘AFFICHAGE
nn
4 sec.
Les valeurs totales s‘affichent tout d‘abord pour le VELO 1, le VELO 2
et les VELOS 1+2 lorsqu‘un deuxième vélo est ajouté. Tant qu‘un seul
vélo est utilisé, seules les valeurs totales du premier vélo s‘affichent.
L‘intervalle d‘entretien vous indique lorsque la distance avant
l‘entretien suivant du vélo a été parcourue.
L‘intervalle de service ne peut être réglé que par votre revendeur.
INSPECTION apparaît à l‘écran une fois que la distance à parcourir
est atteinte.
Cet affichage disparaît en appuyant sur une touche au choix.
7.9 INTERVALLE D‘ENTRETIEN
7.10 MODE DE TRANSPORT
En cas de transport sur un porte-vélo ou dans une voiture (lorsqu‘il
est enclenché sur son support), le BC 1909 HR doit être placé
en mode de transport au moyen du capteur de mouvement intégré.
TRANSPORT apparaît à l‘écran.
Appuyez brièvement sur une touche au choix pour quitter ce mode.
Le BC 1909 HR est compatible PC. Les valeurs totales et
quotidiennes peuvent être rapidement et aisément chargées
sur votre PC après l‘achat du LOGICIEL SIGMA DATA CENTER
et de sa station de connexion (n° art.: 00432).
Votre BC 1909 HR peut en outre être réglé rapidement et aisément.
Le BC 1909 HR peut ultérieurement être équipé d‘un support
universel câblé uniquement adptée à la mesure de la vitesse
(la cadence et la sangle thoracique restent sans fil). N° art.: 00433.
7.11 INTERFACE PC
7.12 SUPPORT UNIVERSEL CABLE
1909 19091909 1909
2
1909
1909
1909
1909
Maintenir une touche au
choix brièvement enfoncée.
1
Maintenir une touche au
choix brièvement enfoncée.
46 www.sigmasport.com
47
F
BC 1909 HR
8 DONNEES TECHNIQUES
Défaut Max. Min. Unités
Vitesse 0.0 199.8 0.0 kmh/mph
Distance journalière 0.00 9999.99 0.00 km/mi
Durée du parcours 0:00:00 999:59:59 00:00:00 h:mm:ss
Vitesse moyenne 0.00 199.99 0.00 kmh/mph
Vitesse max. 0.00 199.99 0.00 kmh/mph
Cadence 0 180 0 upm
Cadence max. 0 180 0 upm
FC actuelle 40 240 40 bpm
FC moyenne 40 240 0 bpm
FC max. 40 240 0 bpm
Calories 0 9,999 0 Kcal
Chronomètre 00:00.0 9:59:59 00:00:00 h:mm:ss.1/10
Compte à rebours 0:00:00 9:59:59 00:00:00 h:mm:ss
Compteur de KM séparé 0.00 999.99 -99.99 km/mi
Temperatur 0 +70/+158 -10.0 °C/°F
Distance totale 0
Velo 1/2 99,999 00:00 km/mi
Velo 1+2 999,999 00:00
Durée totale 0:00
Velo 1/2 9,999:59 00:00 hhhh:mm
Velo 1+2 19,999 00:00 hhhhh

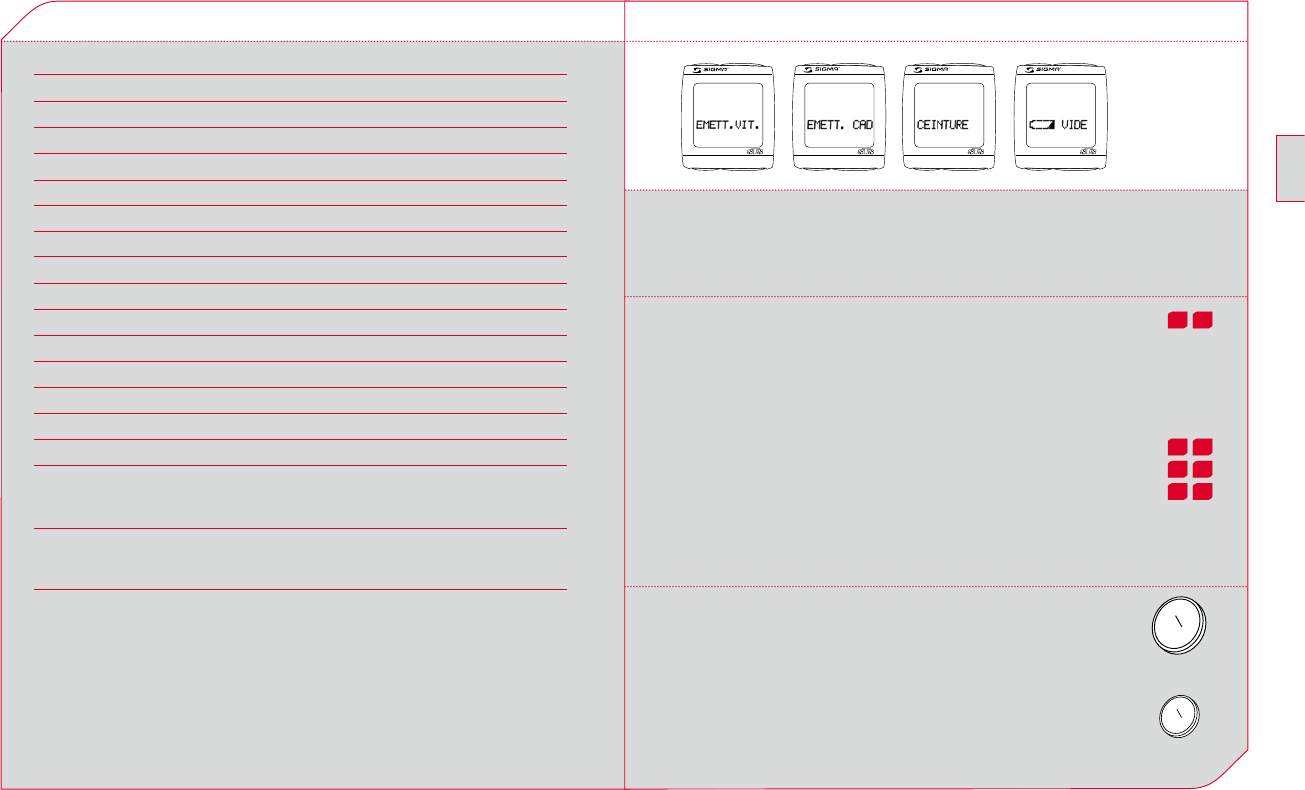

Le remplacement des piles du compteur et des émetteurs (vitesse, cadence et/ou sangle
thoracique) s‘affiche à l‘écran. Après le remplacement des piles, seule l‘heure doit être
à nouveau réglée.
8.1 VALEURS PAR DEFAUT/MAX/MIN
8 DONNEES TECHNIQUES
8.2 CHANGEMENT DE PILE
Compteur :
kOuvrir le couvercle avec l‘outil prévu à cet effet.
kAttention à la polarité. Le côté positif de la pile
doit être visible lorsque le compartiment est ouvert.
kEn cas de déplacement du joint d‘étanchéité, le remettre en place.
kFermer le couvercle avec l‘outil.
Emetteurs :
kOuvrir le couvercle avec l‘outil prévu à cet effet.
kRetirer la pile du couvercle.
kAttention à la polarité.
kMettre la nouvelle pile en place dans le couvercle.
kFermer le couvercle avec l‘outil.
1909 1909 1909 1909
Pile :
Compteur : Pile ronde au lithium CR 2450
Emetteurs : Pile ronde au lithium CR 2032
Durée de vie des piles :
Compteur : env. 1 an*
Emetteurs : env. 1 an*
* Pour une utilisation d‘une heure par jour
CR 2450
CR 2032
26
28
30
32
25
27
29
31
48 www.sigmasport.com
49
F
BC 1909 HR
8 DONNEES TECHNIQUES
Aucun affichage de vitesse
k Le compteur est-il correctement
enclenché sur le support ?
k Avez-vous contrôlé la présence
d’oxydation/de corrosion sur
les contacts ?
k Avez-vous contrôlé la distance aimant/
émetteur (max. 12 mm) ?
k Avez-vous vérifié si l’aimant est
magnétisé ?
k Avez-vous contrôlé l’état des piles
de l’émetteur de vitesse ?
Pas d‘affichage de la cadence
k Avez-vous contrôlé la distance aimant/
émetteur (max. 12 mm) ?
k Avez-vous vérifié si l’aimant est
magnétisé ?
k Avez-vous contrôlé l’état des piles
de l’émetteur ?
Pas d’affichage de la fréquence
cardiaque
k Les électrodes sont-elles assez
humides ?
k Avez-vous contrôlé l’état des piles ?
Aucun affichage à l’écran
k Avez-vous contrôlé l’état des piles
du BC 1909 HR ?
k Les piles sont-elles correctement
mises en place (+ vers le haut) ?
k Les contacts des piles sont-ils en bon
état (les plier avec prudence!) ?
Affichage erroné de la vitesse
k Les 2 aimants sont-ils montés ?
k L’aimant est-il correctement mis
en place (parallèle et au centre de
l’émetteur) ?
k La circonférence de la roue est elle
correctement réglée ?
k L’émetteur est-il réglé sur le bon vélo
(Vélo I ou II) ?
Ecran noir/lent
k La température est-elle trop élevée
(> 60°C) ou trop basse (< 0°C) ?
60°C = 140°F
0°C = 32°F
Aucune synchronisation
k Avez-vous contrôlé la distance aimant/
émetteur(s) ?
k La/les pile(s) du/des émetteur(s) est/
sont-elle(s) vide(s) ?
k La portée des différents émetteurs
a-t-elle été contrôlée ?
k Si vous utilisez une dynamo-moyeu,
changez la position de l‘émetteur.
Affichage de “TOO MANY SIGNALS”
k Augmentez la distance par rapport aux
autres émetteurs et appuyez sur une
touche au choix.
Nous sommes responsables, vis-à-vis de notre partenaire contractuel respectif, des vices
conformément aux prescriptions légales. Les pils sont exclues de la garantie.
SIGMA SPORT USA
1067 Kingsland Drive
Batavia, IL 60510, U.S.A.
888-744-6277
E-Mail: sales@sigmasport.us
Le fabricant se réserve le droit de procéder à des modifications techniques.
8.3 RESOLUTION DES PROBLEMES
8 DONNEES TECHNIQUES
8.4 INDICATIONS DE GARANTIE
Après utilisation, les piles peuvent être restituées.
50 www.sigmasport.com
51BC 1909 HR
CONTENIDO
1 Introducción y contenido del embalaje ............................................................... 51
2 Montaje ....................................................................................................................... 52
2.1 Montaje de la 2.ª rueda ................................................................................................. 53
3 Puesta en marcha .................................................................................................... 53
4 Cambio de indicación/Ocupación de las teclas/
Sinopsis de las funciones ....................................................................................... 54
5 Emparejamiento . ....................................................................................................... 54
6 Ajustes básicos ......................................................................................................... 55
6.1 Ajuste del idioma .............................................................................................................. 56
6.2 Ajuste KMH/MPH ........................................................................................................... 56
6.3 Calcular circunferencia de rueda ................................................................................ 57
6.4 Ajustar circunferencia de rueda de la bici 1 o de la bici 2 .................................. 58
6.5 Ajuste de la hora .............................................................................................................. 59
6.6 Ajuste de la edad .............................................................................................................. 59
6.7 Ajuste del peso ................................................................................................................. 60
6.8 Ajuste del sexo .................................................................................................................. 60
6.9 Ajuste del límite superior/inferior del pulso ............................................................61
6.10 Ajustar los kilómetros totales de la bici 1 o de la bici 2 ...................................... 62
6.11 Ajustar la duración total del trayecto de la bici 1 o de la bici 2 ........................ 62
6.12 Ajuste del contraste ........................................................................................................ 63
6.13 Abandonar los ajustes básicos .................................................................................... 63
7 Funciones generales ................................................................................................ 64
7.1 Iluminación de la indicación ........................................................................................... 64
7.2 Comparación de velocidad ............................................................................................ 64
7.3 Mostrar/ocultar las funciones de frecuencia cardíaca/de pedaleo .............. 65
7.4 Cronómetro ........................................................................................................................ 65
7.5 Cuenta regresiva .............................................................................................................. 66
7.6 Odómetro ............................................................................................................................ 67
7.7 Restablecer las indicaciones ........................................................................................ 68
7.8 Valores totales Rueda 1 y Rueda 2 ............................................................................ 68
7.9 Intervalo de servicio ........................................................................................................ 68
7.10 Modo de transporte ........................................................................................................ 69
7.11 Interfaz del ordenador .................................................................................................... 69
7.12 Soporte universal unido al cable ................................................................................. 69
8 Datos técnicos .......................................................................................................... 70
8.1 Valores por defecto/máximos/mínimos ................................................................. 70
8.2 Cambio de baterías ......................................................................................................... 71
8.3 Solución de problemas ................................................................................................... 72
8.4 Indicaciones de garantía ................................................................................................ 73
1 INTRODUCCIÓN Y CONTENIDO DEL EMBALAJE
1 INTRODUCCIÓN Y CONTENIDO DEL EMBALAJECONTENIDO
Muchas gracias por haberse decidido a adquirir un Bike Computer de la casa
SIGMA SPORT®. Su nuevo BC 1909 HR le acompañará en su bicicleta fielmente
durante muchos años.
Para conocer las múltiples funciones de su nuevo Bike Computer y poder usarlas,
lea cuidadosamente estas instrucciones de uso.
SIGMA le desea mucha diversión con el uso de su BC 1909 HR.
El BC 1909 HR está equipado con un inicio/parada automática. Tan pronto como
se monte en el soporte, un sensor de movimiento despierta al BC 1909 HR en el
movimiento más pequeño de la bicicleta o del soporte Hiking. A través de esto se
inicia automáticamente el emparejamiento.
E
52 www.sigmasport.com
53BC 1909 HR
1 INTRODUCCIÓN Y CONTENIDO DEL EMBALAJE
Bike Computer
BC 1909 HR
Correa pectoral STS
incluyendo correa
elástica
Emisor de velocidad
STS
Transmisor de
frecuencia de
pedaleo STS
kImán de memoria
kImán de frecuencia
de pedaleo
kSoporte para el
manillar
kLlave de
compartimento
de batería
kMaterial de fijación
1 CONTENIDO DEL EMBALAJE
2 EL MONTAJE
2 EL MONTAJE
¡Las figuras de estos textos de montaje se encuentran en la hoja plegada adjunta!
MONTAJE DEL SOPORTE DE BICICLETA
kEl soporte se puede montar tanto con abrazaderas para cables
(montaje permanente) u opcionalmente con las juntas tóricas.
kManillar o tija del manillar.
kExtraiga la placa amarilla.
MONTAJE DE LOS TRANSMISORES –
VELOCIDAD Y FRECUENCIA DE PEDALEO
kAmbos transmisores pueden montarse tanto con abrazaderas
para cables (montaje permanente) u opcionalmente con las juntas tóricas.
kPara conseguir los 12 mm necesarios o menos, monte el emisor
y el imán más cerca en el cubo.
COLOCACIÓN DE LA CORREA PECTORAL
kFrotar los electrodos con agua o con gel.
El cambio entre la RUEDA 1 y RUEDA 2 se realiza automáticamente.
Sólo se tiene que utilizar un segundo emisor de velocidad
(juego de equipamiento posterior “RUEDA 2” Nº de Art.: 00417,
“RUEDA 2 inclusive frecuencia de pedaleo” Nº de Art.: 00415)
Por razones de consumo de energía el BC 1909 HR se suministra
sin batería.
Coloque la batería abriendo la tapa del compartimento de la
batería con la herramienta disponible. Una vez que se ha colocado
la batería cierre el compartimento de la batería con ayuda de la
herramienta.
La indicación cambia automáticamente al modo de ajuste.
2.1 MONTAJE DE LA 2.ª RUEDA
3 PUESTA EN MARCHA
1909
o
p
e
n
-
c
l
o
s
e
4321
8
24
19
11
7
23
59
21
15 16
18
10
6
22
141312
17
E
54 www.sigmasport.com
55BC 1909 HR
4 CAMBIO DE INDICACIÓN/OCUPACIÓN DE LAS TECLAS/
SINOPSIS DE LAS FUNCIONES
MODE 1 MODE 2
KM DIA FC MEDIA
TIEMPO PAR FC MAXIMA
VEL MEDIA CALORIAS
VEL MAXIMA HORA
CAD MEDIA CRONOMETRO
CUENTAREG.
CUENTA KM +/-
TEMPERATUR
KM TOTAL*
TIEMPO TOT*
* No durante la carrera.
RESET
Reestablecimiento
de las funciones listadas
abajo u hojear hacia atrás
en un nivel de menú.
SET
Ajuste y almacenamiento
de los datos ingresados.
MODE 2
Llamada de las
funciones listadas
abajo u hojear hacia delante
en un nivel de menú.
MODE 1
Llamada de las funciones
listadas abajo.
1. Iniciar la marcha, por regla general, el receptor se ha emparejado
con el emisor después de 3 a 4 vueltas de las ruedas de la
bicicleta.
2. Girar la rueda delantera o bien los pedales, hasta que la indicación
KMH/MPH o la indicación de la frecuencia de pedaleo ya no
parpadee.
kCon el cinturón pectoral colocado,
acérquese al BC 1909 HR o súbase
a la bicicleta. Por lo general, el BC 1909 HR
se sincroniza con la correa pectoral en
menos de 10 segundos.
La indicación de pulso no parpadeará más.
5 EL EMPAREJAMIENTO
kEncajar el BC 1909 HR sobre el soporte – Será posible un
emparejamiento si el ordenador de la bicicleta está encajado
en el soporte.
kParpadean los ceros de la frecuencia de velocidad, de pedaleo
y la indicación del pulso.
kPara sincronizar la velocidad, la frecuencia de pedaleo
y la frecuencia de pulso hay 2 posibilidades:
5 EL EMPAREJAMIENTO
6 AJUSTES BÁSICOS
kMantener presionada la tecla SET durante 3 segundos hasta
que el IDIOMA preajustado (inglés) aparezca en la indicación
(parpadea INTRODUCIR OPEN).
n3 seg.
1909
1909
1909
1909
1909
1909
E
56 www.sigmasport.com
57BC 1909 HR
6 AJUSTES BÁSICOS
1k Con la tecla MODE 1 cambiar al IDIOMA predeterminado
(de manera estándar el BC 1909 HR está predeterminado en idioma inglés).
2k Pulsar brevemente la tecla SET. La indicación parpadea.
3k Con la tecla MODE 1 ajustar el idioma seleccionado.
4k Confirmar con la tecla SET. En la pantalla aparece SET OK.
1k Con la tecla MODE 1 se cambia a la pantalla KMH/MPH.
2k Pulsar brevemente la tecla SET. La indicación parpadea.
3k Con la tecla MODE 2 ajustar MPH o KMH.
4k Confirmar con la tecla SET. En la pantalla aparece SET OK.
Con la conmutación de KMH a MPH se modifica automáticamente el formato del trayecto
de km a mi, la temperatura de °C a °F, la hora del modo de 24 h al modo de 12 h, y el
peso de kg a lb.
6.1 AJUSTAR EL IDIOMA
6.2 AJUSTE KMH/MPH
6 AJUSTES BÁSICOS
nn
nn n
n
n
n
n
n
-
-
+
+
1909 1909 1909 1909
1234
1909 1909 1909 1909
1 2 3 4
kA partir de la tabla de la CIRCUNFERENCIA DE LA RUEDA (tabla C)
determinar el valor correspondiente al tamaño de la rueda.
kAlternativa: calcular/determinar la “CIRCUNFERENCIA DE LA RUEDA”
(tabla A o tabla B).
6.3 CALCULAR CIRCUNFERENCIA DE RUEDA
1x
= WS (mm)
km/h:
WS = mm
mph:
WS = mm
A B
ETRTO ETRTO
1
6
x
1
.
7
5
x
2
1
6
x
1
.
7
5
x
2
C
kmh
mph
kmh
mph
mm x 3.14
mm=inches x 25.4
km/h:
WS = mm x 3.14
mph:
WS = mm x 3.14
47-305
47-406
37-540
47-507
23-571
40-559
44-559
47-559
50-559
54-559
57-559
37-590
37-584
20-571
32-630
28-630
40-622
47-622
40-635
37-622
18-622
20-622
23-622
25-622
28-622
32-622
37-622
40-622
50-559
54-559
52-622
54-622
38-622
42-622
23-571
1272
1590
1948
1907
1973
2026
2051
2070
2089
2114
2133
2105
2086
1954
2199
2174
2224
2268
2265
2205
2102
2114
2133
2146
2149
2174
2205
2224
2105
2130
2235
2300
2215
2230
1973
16x1.75x2
20x1.75x2
24x1 3/8 A
24x1.75x2
26x1
26x1.5
26x1.6
26x1.75x2
26x1.9
26x2.00
26x2.125
26x1 3/8
26x1 3/8x1 1/2
26x3/4
27x1 1/4
27x1 1/4 Fifty
28x1.5
28x1.75
28x1 1/2
28x1 3/8x1 5/8
700x18C
700x20C
700x23C
700x25C
700x28C
700x32C
700x35C
700x40C
26 x 1.95
26 x 2.1
29 x 2.1
29 x 2.2
700 x 38c
700 x 42c
650 x 23c
E
58 www.sigmasport.com
59BC 1909 HR
6 AJUSTES BÁSICOS 6 AJUSTES BÁSICOS
6.4 AJUSTAR CIRCUNFERENCIA DE RUEDA DE LA BICI 1 O DE LA BICI 2
1k Con la tecla MODE 1 se cambia a la pantalla DIM RUEDA 1 o DIM RUEDA 2.
kPulsar brevemente la tecla SET. La primera cifra de introducción parpadea.
2k Ajustar el valor con la tecla MODE 2 (+) o la tecla RESET (-).
3k Con la tecla MODE 1 se cambia a la cifra siguiente.
4k Ajustar el valor con la tecla MODE 2 (+) o la tecla RESET (-).
5k Confirmar con la tecla SET.
En la pantalla aparece SET OK.
nnn
nn nn
- -+ +
1909 1909 1909 1909 1909
123 4 5
1k Con la tecla MODE 1 se cambia a la pantalla HORA.
kPulsar brevemente la tecla SET. La indicación de hora parpadea.
2k Ajustar el valor con la tecla MODE 2 (+) o la tecla RESET (-).
3k Con la tecla MODE 1 se cambia a la cifra siguiente.
4k Ajustar el valor con la tecla MODE 2 (+) o la tecla RESET (-).
5k Confirmar con la tecla SET.
En la pantalla aparece SET OK.
6.5 AJUSTE DE LA HORA
nn
n
nn nn
- -+ +
1909 1909 1909 1909 1909
1234 5
6.6 AJUSTE DE LA EDAD
n n
1k Con la tecla MODE 1 se cambia a la indicación EDAD.
2k Pulsar brevemente la tecla SET. La indicación parpadea.
3k Ajustar el valor con la tecla MODE 2 (+) o la tecla RESET (-).
4k Confirmar con la tecla SET. En la pantalla aparece SET OK.
n n
- +
1909 1909 1909
23 4
n
1909
1
E
60 www.sigmasport.com
61BC 1909 HR
6 AJUSTES BÁSICOS 6 AJUSTES BÁSICOS
6.8 AJUSTE DEL SEXO
6.7 AJUSTE DEL PESO 6.9 AJUSTE DEL LÍMITE SUPERIOR/INFERIOR DEL PULSO
1k Con la tecla MODE 1 se cambia a la indicación PESO.
2k Pulsar brevemente la tecla SET. La indicación parpadea.
3k Ajustar el valor con la tecla MODE 2 (+) o la tecla RESET (-).
4k Confirmar con la tecla SET.
En la pantalla aparece SET OK.
Ambos valores límites de las zonas de pulso se calculan automáticamente ingresando la
edad, el peso y el sexo. (70 % - 80 % de la frecuencia cardíaca máxima en entrenamiento
del sistema circulatorio). No obstante podrá modificar estos valores límites de manera
manual.
1k Con la tecla MODE 1 se cambia al límite superior o inferior precalculado.
2k Pulsar brevemente la tecla SET. La indicación parpadea.
3k Ajustar el valor con la tecla MODE 2 (+) o la tecla RESET (-).
4k Confirmar con la tecla SET.
En la pantalla aparece SET OK.
n n
1k Con la tecla MODE 1 cambiar al SEXO predeterminado (de manera estándar
el BC 1909 HR está predeterminado con el sexo MASCULINO).
2k Pulsar brevemente la tecla SET. La indicación parpadea.
3k Ajustar el sexo con la tecla MODE 2 (+) o la tecla RESET (-).
4k Confirmar con la tecla SET.
En la pantalla aparece SET OK.
n n
n n
- +
n n
- +
1909 1909 1909
23 4
n
n
1909
1909 1909 1909 1909
1
1 2 34
n n
n n
- +
n
1909 1909 1909 1909
1 2 34
E
62 www.sigmasport.com
63BC 1909 HR
6 AJUSTES BÁSICOS
1k Con la tecla MODE 1 se cambia a la pantalla TIEMPOBIC 1 o TIEMPOBIC 2.
kPulsar brevemente la tecla SET. La primera cifra de introducción parpadea.
2k Ajustar el valor con la tecla MODE 2 (+) o la tecla RESET (-).
3k Con la tecla MODE 1 se cambia a la cifra siguiente.
4k Ajustar el valor con la tecla MODE 2 (+) o la tecla RESET (-).
5k Confirmar con la tecla SET.
En la pantalla aparece SET OK.
1k Con la tecla MODE 1 se cambia a la pantalla CONTRASTE.
2k Pulsar brevemente la tecla SET. La indicación parpadea.
3k Ajustar el valor con la tecla MODE 2 (+) o la tecla RESET (-);
(1 = bajo/3 = alto).
4k Confirmar con la tecla SET.
En la pantalla aparece SET OK.
6.10 AJUSTAR LOS KILÓMETROS TOTALES DE LA BICI 1 O DE LA BICI 2
6 AJUSTES BÁSICOS
6.11 AJUSTAR LA DURACIÓN TOTAL DEL TRAYECTO DE LA BICI 1 O DE LA BICI 2
6.12 AJUSTE DEL CONTRASTE
1k Con la tecla MODE 1 se cambia a la pantalla KM BICI 1 o KM BICI 2.
kPulsar brevemente la tecla SET. La primera cifra de introducción parpadea.
2k Ajustar el valor con la tecla MODE 2 (+) o la tecla RESET (-).
3k Con la tecla MODE 1 se cambia a la cifra siguiente.
4k Ajustar el valor con la tecla MODE 2 (+) o la tecla RESET (-).
5k Confirmar con la tecla SET.
En la pantalla aparece SET OK.
nnn
nnn
n n
nn nn
- -+ +
n
nn
n
--
++
n n
- +
1909 1909 1909 1909 1909
12345
1909 1909 1909 1909 1909
12345
n
1909 1909 1909 1909
1 2 34
6.13 ABANDONAR LOS AJUSTES BÁSICOS
kPara finalizar los ajustes, mantenga presionada la tecla SET
durante 3 segundos (parpadea INTRODUCIR CLOSE).
n3 seg.
1909
E
64 www.sigmasport.com
65BC 1909 HR
7 FUNCIONES GENERALES 7 FUNCIONES GENERALES
kPulsando al mismo tiempo las teclas SET
y RESET se activa/desactiva la función de
iluminación. Pulsando se ilumina la pantalla,
con la siguiente pulsación se apaga. En la
pantalla aparece brevemente LUZ ON/LUZ OFF.
kPulsando cualquier tecla se ilumina la pantalla,
al volver a pulsar se cambia de función.
¡Durante la sincronización no está disponible la
iluminación! Evite una iluminación innecesaria
para conservar la pila.
7.2 COMPARACIÓN DE VELOCIDAD
7.1 ILUMINACIÓN DE LA INDICACIÓN
nn
n
n
1k Con la tecla MODE 2 se cambia a la pantalla CRONÓMETRO.
kCon la tecla SET se inicia o se para el cronómetro.
kEl cronómetro en funcionamiento se reconoce en la pantalla por el icono .
2k Posición a cero del cronómetro:
mantener pulsada la tecla RESET durante 3 segundos.
n n
n
3 seg.
7.4 CRONÓMETRO
Start Stop
1909 1909
1909 1909 1909
123
1909 1909 1909 1909
12
7.3 MOSTRAR/OCULTAR LAS FUNCIONES DE FRECUENCIA CARDÍACA/DE PEDALEO
Si se marcha en el BC 1909 HR sin emisor de señal de frecuencia de pedaleo y/o sin
correa pectoral se ocultan todas las funciones de frecuencia de pedaleo/cardíaca
(FRECUENCIA DE PEDALEO, CAD MEDIA, FRECUENCIA DE CARDÍACA, FC MEDIA,
FC MAXIMA, CALORIAS) para esta travesía.
1k En caso de velocidad casi igual se muestra .
2k Si la velocidad es reducida se indica .
3k Si la velocidad es más elevada, se indica .
E
66 www.sigmasport.com
67BC 1909 HR
7 FUNCIONES GENERALES
1k Con la tecla MODE 2 se cambia a la pantalla CUENTA KM +/-.
kMantenga pulsada la tecla SET durante 3 segundos. La indicación “+” o “-” parpadea.
2k Con la tecla MODE 2 ajustar “+” o “-”.
3k Confirmar el ajuste con la tecla SET.
La indicación salta al ajuste del recorrido.
4k Ajustar el valor con la tecla MODE 2 (+) o la tecla RESET (-).
5k Con la tecla MODE 1 se cambia a la cifra siguiente.
kEl valor se ajustará como se indica más arriba.
6k Confirmar con la tecla SET.
En la pantalla aparece SET OK.
7 FUNCIONES GENERALES
7.6 ODÓMETRO
nn
3 seg.
Start Stop
7.5 CUENTA REGRESIVA
1k Con la tecla MODE 2 se cambia a la indicación CUENTA REGRESIVA +/-.
kMantener presionada la tecla SET durante 3 segundos
(parpadea CUENTAREG. SET).
2k Ajustar el valor con la tecla MODE 2 (+) o la tecla RESET (-).
3k Con la tecla MODE 1 se cambia a la cifra siguiente.
El valor se ajustará como se indica más arriba.
4k Confirmar con la tecla SET.
En la pantalla aparece SET OK.
5k Con la tecla SET se inicia o se detiene la CUENTA REGRESIVA.
La cuenta regresiva actual se hace visible en la pantalla mediante el icono .
6k Poner la cuenta regresiva en cero: Mantener presionada la tecla RESET
durante 3 segundos (la indicación regresa al valor predeterminado).
n
nn
n
3 seg.
n3 seg. n
nn
n
nn n
nn
-- -
++ +
nn nn
- -+ +
1909 1909 1909 1909 1909
234
1909 1909 1909 1909
5 6
1909 1909 1909 1909
123
1909 1909 1909 1909
456
1
E
68 www.sigmasport.com
69BC 1909 HR
7 FUNCIONES GENERALES
7.8 VALORES TOTALES RUEDA 1 Y RUEDA 2
7 FUNCIONES GENERALES
1k Pulsar la tecla MODE1/2 hasta que aparezca la función deseada.
kMantener pulsada la tecla RESET. La indicación parpadea. Luego de 2 segundos
vuelve la función visualizada a 0.
2k Si pulsa la tecla RESET durante más de 4 segundos, establecerá las indicaciones de:
KM DIA, TIEMPO PAR, VEL MEDIA, VEL MAXIMA, CAD MEDIA, FC MEDIA,
FC MAXIMA, CALORIAS a cero.
7.7 RESTABLECER LAS INDICACIONES
nn
4 seg.
Los valores totales se visualizan recién por separado, según sea
RUEDA 1, RUEDA 2 y RUEDA 1+2, cuando se añade una segunda
rueda. Mientras marche sólo una rueda se mostrarán sólo los
valores totales de la primera rueda.
El intervalo de servicio le informa cuando el rendimiento del kilo-
metraje ha sido alcanzado y cuando será la próxima inspección
en la bicicleta. El intervalo de servicio sólo puede ser ajustado por
su distribuidor oficial. Luego de alcanzar el rendimiento del kilo-
metraje aparece en la pantalla REVISION.
Presionando una tecla cualquiera desaparece esta indicación.
7.9 INTERVALO DE SERVICIO
7.10 MODO DE TRANSPORTE
En el caso de un transporte sobre el soporte de bicicletas o en el
coche (si el soporte está encajado), el BC 1909 HR es colocado por
el sensor de movimiento integrado en el llamado modo de
transporte. En la pantalla aparece TRANSPORTE.
Para abandonar este modo deberá presionar brevemente
cualquier tecla.
EL BC 1909 HR es compatible con los ordenadores. Luego de adqui-
rir el SOFTWARE SIGMA DATA CENTER y su estación de
conexión (Nº de art.: 00432), podrá descargar sin problemas y de
manera rápida los valores totales y diarios en su ordenador usual.
Además podrá ajustar fácil y rápidamente su BC 1909 HR.
EL BC 1909 HR puede ser equipado posteriormente con un soporte
universal unido al cable sólo para medir la velocidad
(la frecuencia de pedaleo y la correa pectoral permanecen sin
cables). Nº de art.: 00433
7.11 INTERFAZ DEL ORDENADOR
7.12 SOPORTE UNIVERSAL UNIDO AL CABLE
1909 19091909 1909
2
1909
1909
1909
1909
Presionar brevemente
cualquier tecla.
1
Presionar brevemente
cualquier tecla.
E
70 www.sigmasport.com
71BC 1909 HR
8 DATOS TÉCNICOS
Por defecto Máx. Mín. Unidades
Velocidad 0.0 199.8 0.0 kmh/mph
Tramo diario 0.00 9999.99 0.00 km/mi
Tiempo de marcha 0:00:00 999:59:59 00:00:00 h:mm:ss
Velocidad promedio 0.00 199.99 0.00 kmh/mph
Velocidad máx. 0.00 199.99 0.00 kmh/mph
Frecuencia de pedaleo 0 180 0 upm
Frecuencia de pedaleo máx. 0 180 0 upm
FC actual 40 240 40 bpm
FC medio 40 240 0 bpm
FC máx. 40 240 0 bpm
Calorías 0 9,999 0 Kcal
Cronómetro 00:00,0 9:59:59 00:00:00 h:mm:ss.1/10
Cuenta regresiva 0:00:00 9:59:59 00:00:00 h:mm:ss
Contador de KM separado 0.00 999.99 -99.99 km/mi
Temperatur 0 +70/+158 -10.0 °C/°F
Tramo total 0
Rueda 1/2 99,999 00:00 km/mi
Rueda 1+2 999,999 00:00
Tiempo total 0:00
Rueda 1/2 9,999:59 00:00 hhhh:mm
Rueda 1+2 19,999 00:00 hhhhh
El cambio de baterías de la cabeza del ordenador y del emisor (velocidad, frecuencia de
pedaleo y/o correa pectoral) se visualizan en la pantalla. Luego del cambio de la batería
se debe ingresar nuevamente la hora.
8.1 VALORES POR DEFECTO/MÁXIMOS/MÍNIMOS
8 DATOS TÉCNICOS
8.2 CAMBIO DE BATERÍAS
Cabeza del ordenador:
kAbrir la tapa con una herramienta.
kObservar la polaridad. Ver el lado positivo de la batería.
kSi el anillo de junta estuviera suelto, volver a colocarlo.
kCerrar la tapa con una herramienta.
Emisor:
kAbrir la tapa con una herramienta.
kQuitar la batería de la tapa.
kObservar la polaridad.
kColocar una batería nueva en la tapa.
kCerrar la tapa con una herramienta.
1909 1909 1909 1909
Batería:
Cabeza del ordenador: Batería botón de litio CR 2450
Emisor: Batería botón de litio CR 2032
Vida útil de la batería:
Cabeza del ordenador: Aprox. 1 año*
Emisor: Aprox. 1 año*
* con una utilización de una hora diaria
CR 2450
CR 2032
26
28
30
32
25
27
29
31
E
72 www.sigmasport.com
73BC 1909 HR
8 DATOS TÉCNICOS
Ninguna indicación de velocidad
presente
k ¿Está el ordenador correctamente
colocado en el soporte?
k ¿Ha comprobado que los contactos
no estén oxidados/corroídos?
k ¿Ha controlado la distancia entre el
imán y el transmisor (máx. 12 mm)?
k ¿Ha verificado que el imán esté
magnetizado?
k ¿Ha verificado el estado de las
baterías del transmisor de velocidad?
No hay indicación de la frecuencia de
pedaleo
k ¿Ha controlado la distancia entre el
imán y el transmisor (máx. 12 mm)?
k ¿Ha verificado que el imán esté
magnetizado?
k ¿Ha verificado el estado de las
baterías del transmisor?
No hay indicación de pulso
k ¿Están los electrodos suficientemente
húmedos?
k ¿Ha controlado el estado de las
baterías?
No hay indicación en el display
k ¿Ha verificado el estado de las
baterías del BC 1909 HR?
k ¿Está la batería colocada
correctamente (+hacia arriba)?
k ¿Se encuentran en buen estado los
contactos de la batería (con cuidado
tras doblado)?
Indicación de velocidad incorrecta
k ¿Hay 2 imanes montados?
k ¿Está correctamente posicionado el
imán (paralelo al transmisor y centrado
respecto del mismo)?
k ¿Está ajustada correctamente la
circunferencia de la rueda?
k ¿Está montado el transmisor
en la bicicleta correcta
(bicicleta I o bicicleta II)?
Indicación en el display negra/borrosa
k ¿La temperatura es muy alta (> 60°C)
o muy baja (< 0°C)?
60°C = 140°F
0°C = 32°F
No hay sincronización
k ¿Ha controlado la distancia entre el
imán y el/los transmisor/es?
k ¿Está/n las baterías del/
los transmisor/es descargada/s?
k ¿Ha verificado el alcance del transmisor
correspondiente?
k Si utiliza un dínamo de buje modifique
la posición del transmisor.
Indicación “TOO MANY SIGNALS”
k Incremente la distancia respecto de
los otros sensores y presione una
tecla cualquiera.
Nos responsabilizamos ante nuestra correspondiente parte contratante por los defectos
según las disposiciones legales. Las pilas no están incluidas en la garantía.
SIGMA SPORT USA
1067 Kingsland Drive
Batavia, IL 60510, U.S.A.
888-744-6277
E-Mail: sales@sigmasport.us
El fabricante se reserva el derecho de realizar modificaciones técnicas.
8.3 SOLUCIÓN DE PROBLEMAS
8 DATOS TÉCNICOS
8.4 GARANTÍA
Las pilas pueden ser devueltas después del uso.
E
74 www.sigmasport.com
75BC 1909 HR
USAFE
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the follow-
ing two conditions.
(1) this device may not cause harmful
interference, and
(2) this device must accept any interfe-
rence received, including interference that
may cause undesired operation.
Changes or modifications made to this
equipment not expressly approved by
SIGMA may void the FCC authorization to
operate this equipment.
This Class B digital apparatus complies with
Canadian ICES-003.
Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
This equipment has been tested and found
to comply with the limits for a Class B digi-
tal device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interfe-
rence to radio communications. However,
there is no guarantee that interference will
not occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can
be determined by turning the equipment
off and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
k Reorient or relocate the receiving
antenna.
k  Increase the separation between the
equipment and receiver.
k Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
k Consult the dealer or an experienced
technician for help.
NOTICE NOTICES
You can find the CE Declaration under: www.sigmasport.com
BIKE COMPUTER TOPLINE
SIGMA Elektro GmbH
Dr.-Julius-Leber-Straße 15
D-67433 Neustadt/Weinstraße
Tel. + 49 (0) 63 21-9120-0
Fax. + 49 (0) 63 21-9120-34
E-mail: info@sigmasport.com
SIGMA SPORT ASIA
Asia, Australia, South America, Africa
7F-1, No. 193, Ta-Tun 6th Street,
Taichung City 408, Taiwan
Tel. +886-4-2475 3577
Fax. +886-4-2475 3563
SIGMA SPORT USA
North America
1067 Kingsland Drive
Batavia, IL 60510, U.S.A.
Tel. +1 630-761-1106
Fax. +1 630-761-1107
081990/1
www.sigmasport.com
Tel, richtig?

Navigation menu
