ZENITH Projection/Digital 42 And Above TV Manual 97090035

User Manual: ZENITH ZENITH Projection/Digital 42 and above TV Manual ZENITH Projection/Digital 42 and above TV Owner's Manual, ZENITH Projection/Digital 42 and above TV installation guides

Open the PDF directly: View PDF .
Page Count: 45

AV!

Advanced Video Imaging

THE QUALITY GOES IN BEFORETH_ NAME'G_Es ON®

illll ill III I{111111 iii Jill i iiiii

iAviso para nuestros

clientes de habla hispana:

consulte la informacibn que

aparece al final de este manual!

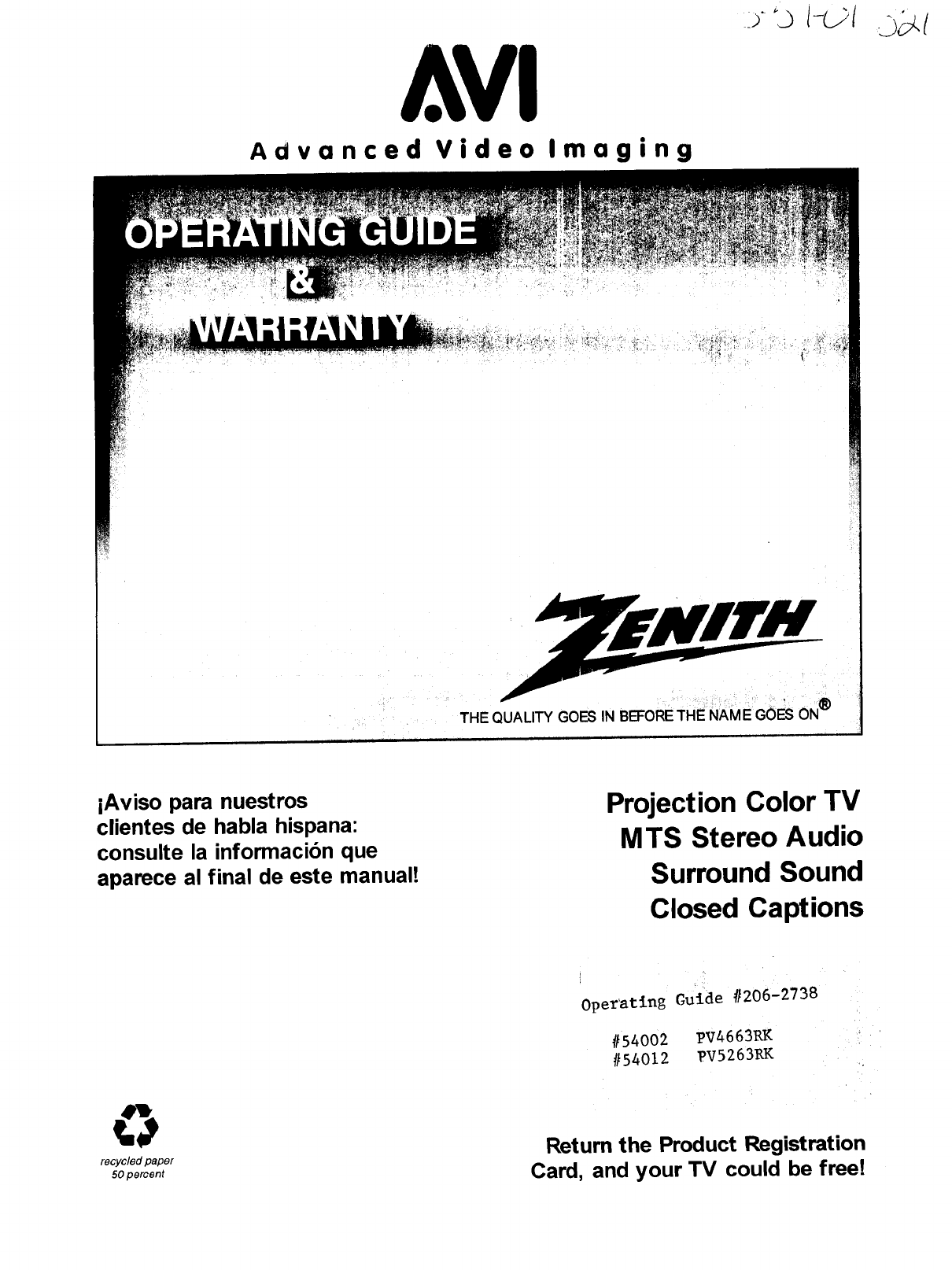

Projection Color TV

MTS Stereo Audio

Surround Sound

Closed Captions

recycled paper

50 percent

Oper,ating Guide #206-2738

#54002 PV4663RK

#54012 PV5263RK

Return the Product Registration

Card, and your TV could be free!

WARNING: 10 REDUCE lllE l,llSN /)FELIs, CTRIC SIIOCK DO NO'I

REMOVE COVER (OR BACK). NO USER SERVICEABLE

PARTS INSIDE. REFER TO QUALIFIED SERVICE

PERSONNEL.

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE

THIS PRODUCT TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

_lk The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

Safety Tips

Refer to the "Safety Tips" booklet that came with your

product for important safety considerations.

Note to Cable TV System Installer

This reminder is provided to call the cable TV system

installer's attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in particular,

specifies that the cable ground shall be connected to the

grounding system of the building, as close to the point of

the cable entry as practical.

Power-Cord Polarization

This product is equipped with a polarized alternating-

current line plug (a plug having one blade wider than the

other.) This plug will fit into the power outlet only one

way. This is a safety feature. If you are unable to insert the

plug fully into the outlet, try reversing the plug. If the plug

should still fail to fit, contact your electrician to replace

your obsolete outlet. Do not defeat the safety purpose of

the polarized plug.

CAUTION

To prevent electric shock, match wide blade of plug to

wide slot, fully insert.

ATTENTION

Pour 6viter les chocs _lectriques, introduire la lame la plus

large de la fiche dans la borne correspondante de la prise et

pousser jusqu'au fond.

Lops.right _ Zci_lth 13lcctiUJllt;S _Ol13ui,tilOll 199_

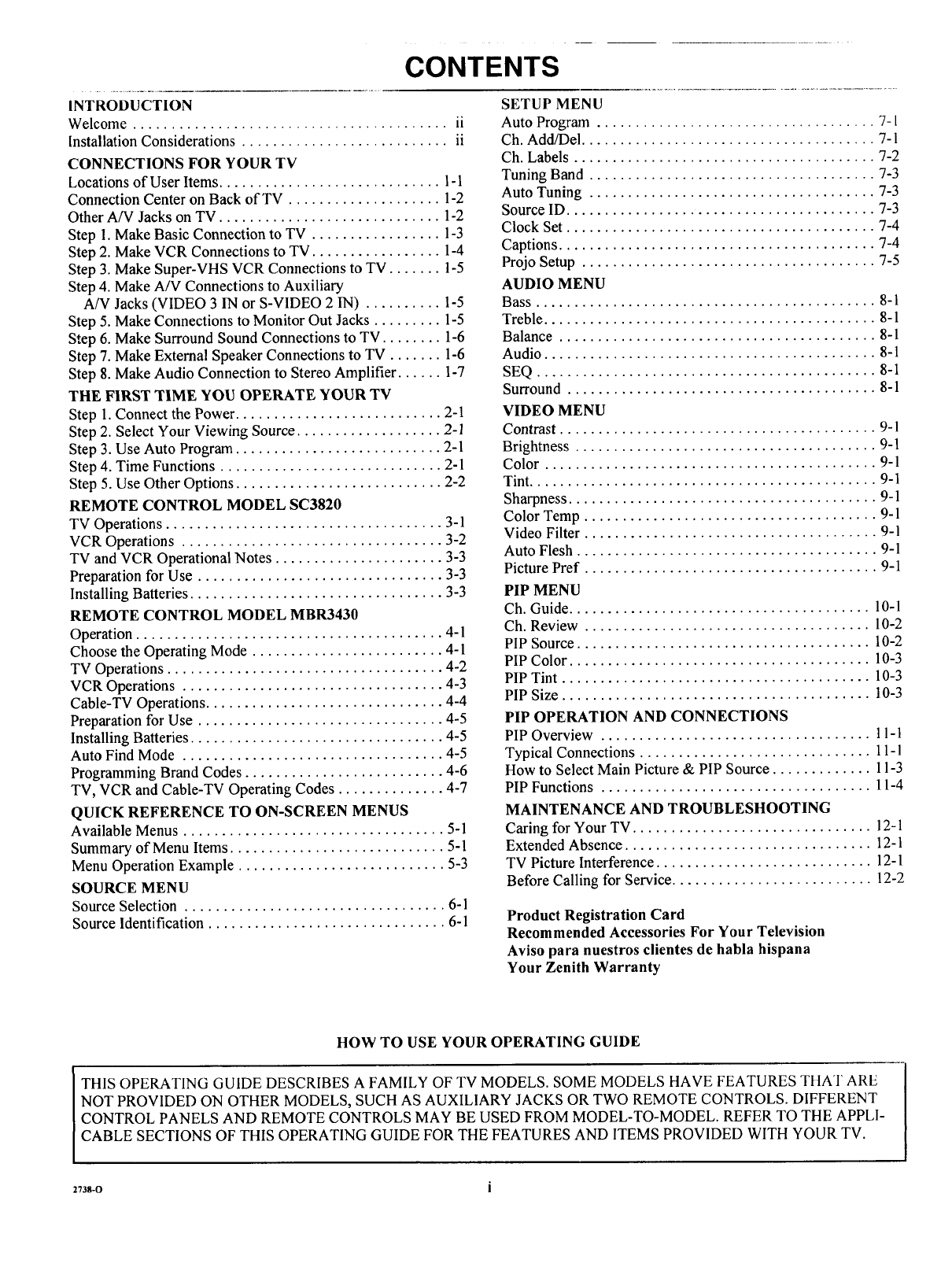

CONTENTS

INTRODUCTION

Welcome ......................................... ii

Installation Considerations ........................... ii

CONNECTIONS FOR YOUR TV

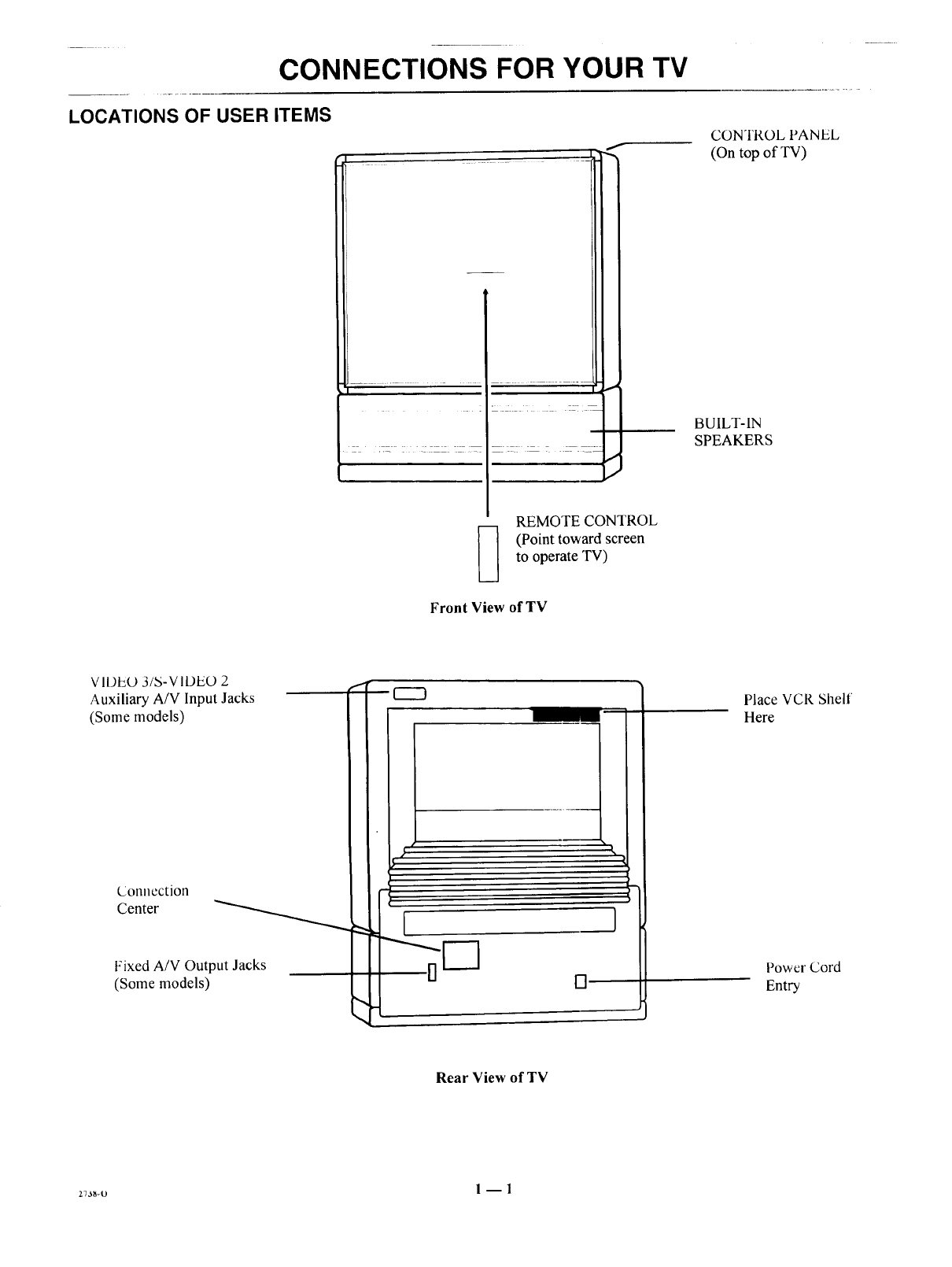

Locations of User Items ............................. 1-1

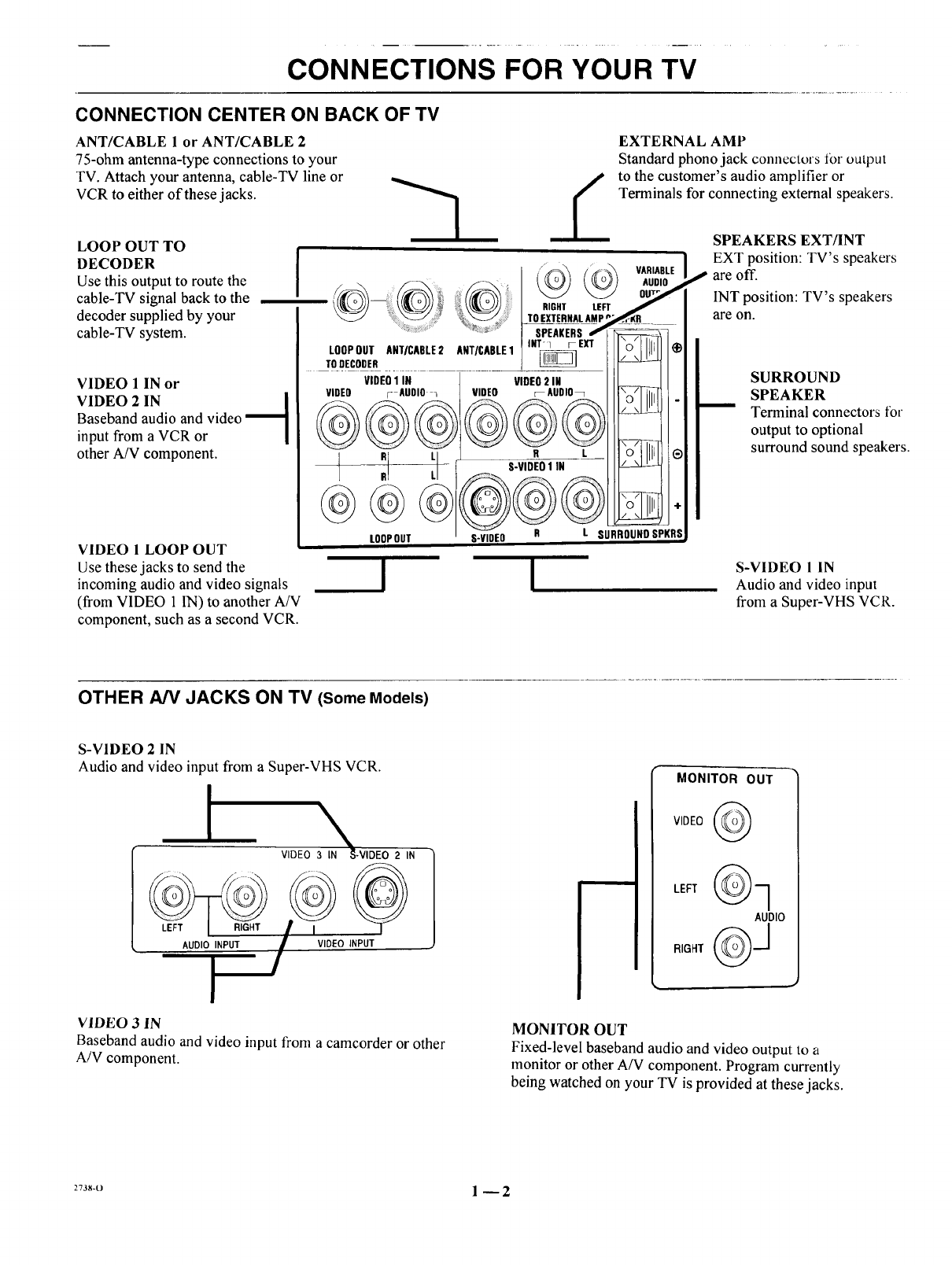

Connection Center on Back of TV .................... 1-2

Other A/V Jacks on TV ............................. 1-2

Step 1. Make Basic Connection to TV ................. 1-3

Step 2. Make VCR Connections to TV ................. 1-4

Step 3. Make Super-VHS VCR Connections to TV ....... 1-5

Step 4. Make A/V Connections to Auxiliary

A/V Jacks (VIDEO 3 1N or S-VIDEO 2 IN) .......... 1-5

Step 5. Make Connections to Monitor Out Jacks ......... 1-5

Step 6. Make Surround Sound Connections to TV ........ 1-6

Step 7. Make External Speaker Connections to TV ....... 1-6

Step 8. Make Audio Connection to Stereo Amplifier ...... 1-7

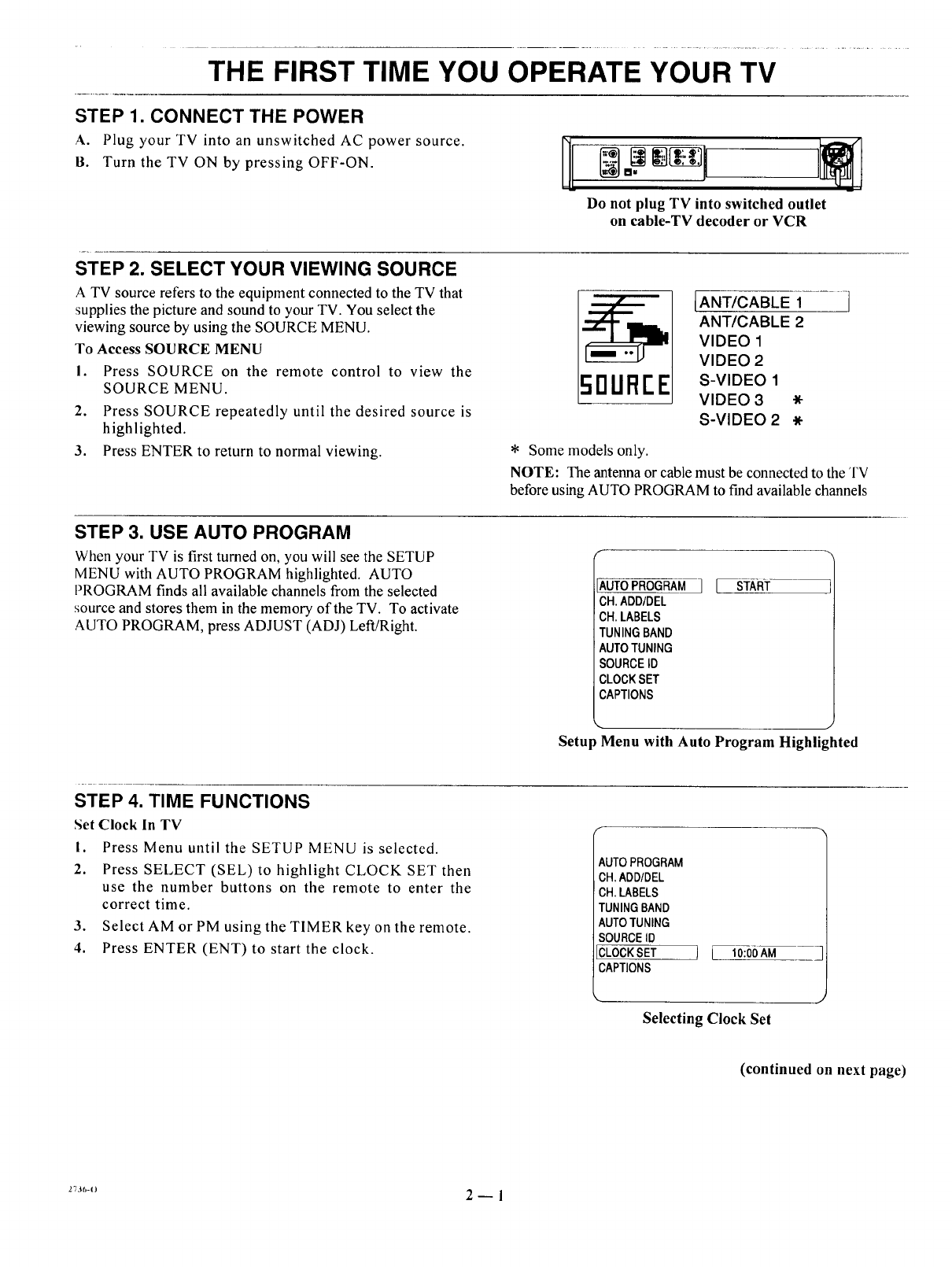

THE FIRST TIME YOU OPERATE YOUR TV

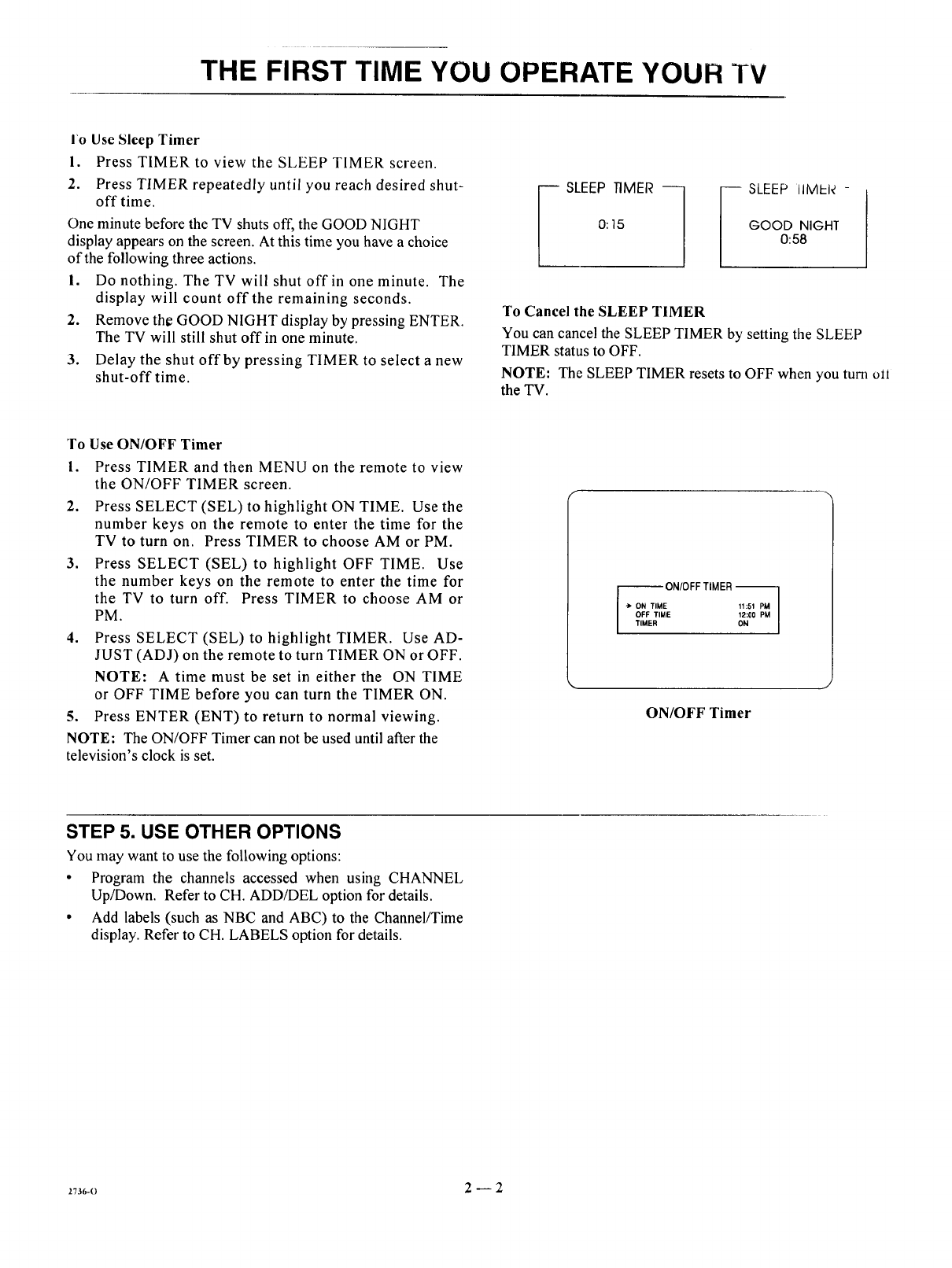

Step 1. Connect the Power ........................... 2-1

Step 2. Select Your Viewing Source ................... 2-1

Step 3. Use Auto Program ........................... 2-1

Step 4. Time Functions ............................. 2-1

Step 5. Use Other Options ........................... 2-2

REMOTE CONTROL MODEL SC3820

TV Operations .................................... 3-1

VCR Operations .................................. 3-2

TV and VCR Operational Notes ...................... 3-3

Preparation for Use ................................ 3-3

Installing Batteries ................................. 3-3

REMOTE CONTROL MODEL MBR3430

Operation ........................................ 4-1

Choose the Operating Mode ......................... 4-1

TV Operations .................................... 4-2

VCR Operations .................................. 4-3

Cable-TV Operations ............................... 4-4

Preparation for Use ................................ 4-5

Installing Batteries ................................. 4-5

Auto Find Mode .................................. 4-5

Programming Brand Codes .......................... 4-6

TV, VCR and Cable-TV Operating Codes .............. 4-7

QUICK REFERENCE TO ON-SCREEN MENUS

Available Menus .................................. 5-1

Summary of Menu Items ............................ 5-1

Menu Operation Example ........................... 5-3

SOURCE MENU

Source Selection .................................. 6-1

Source Identification ............................... 6-1

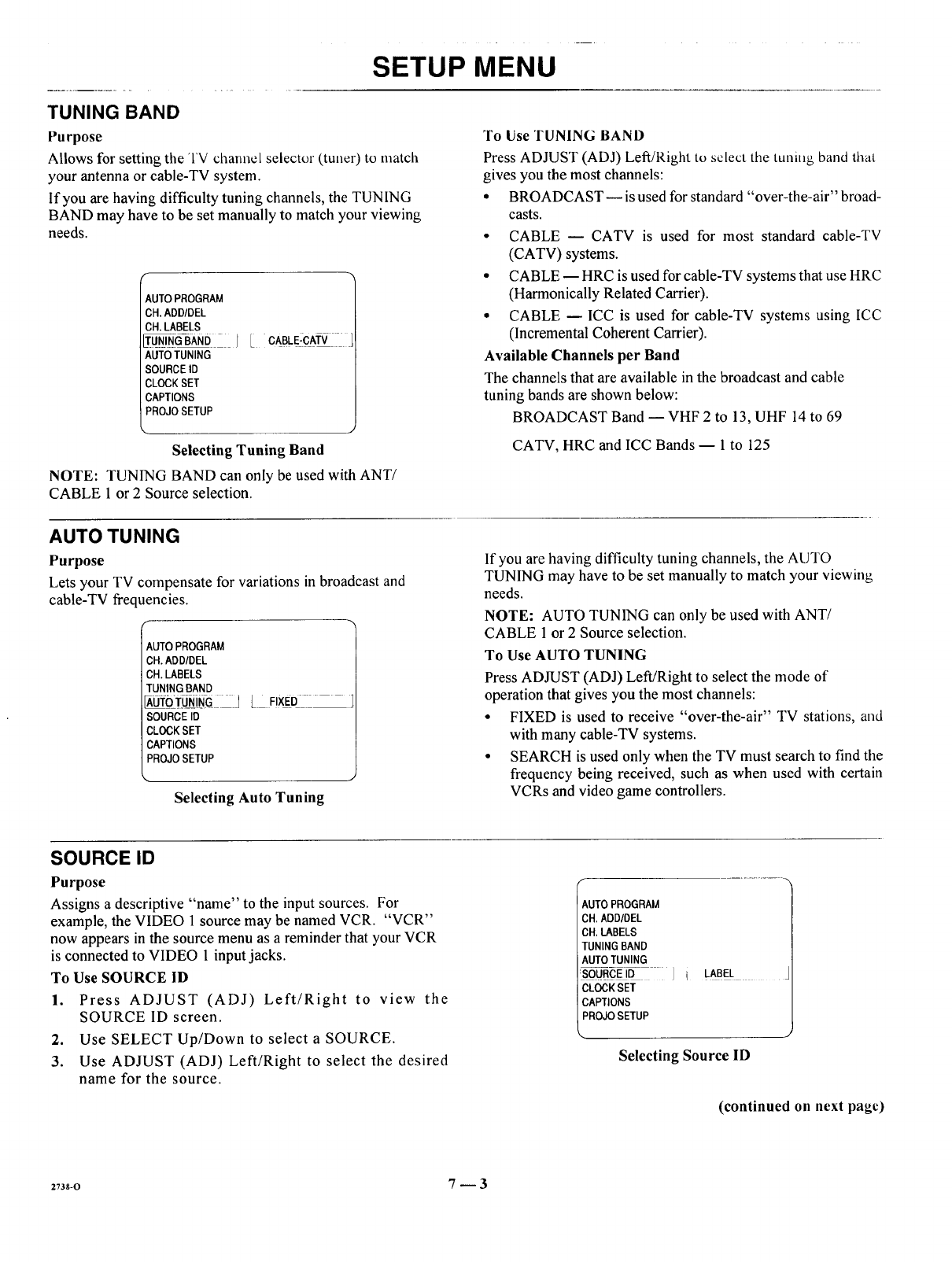

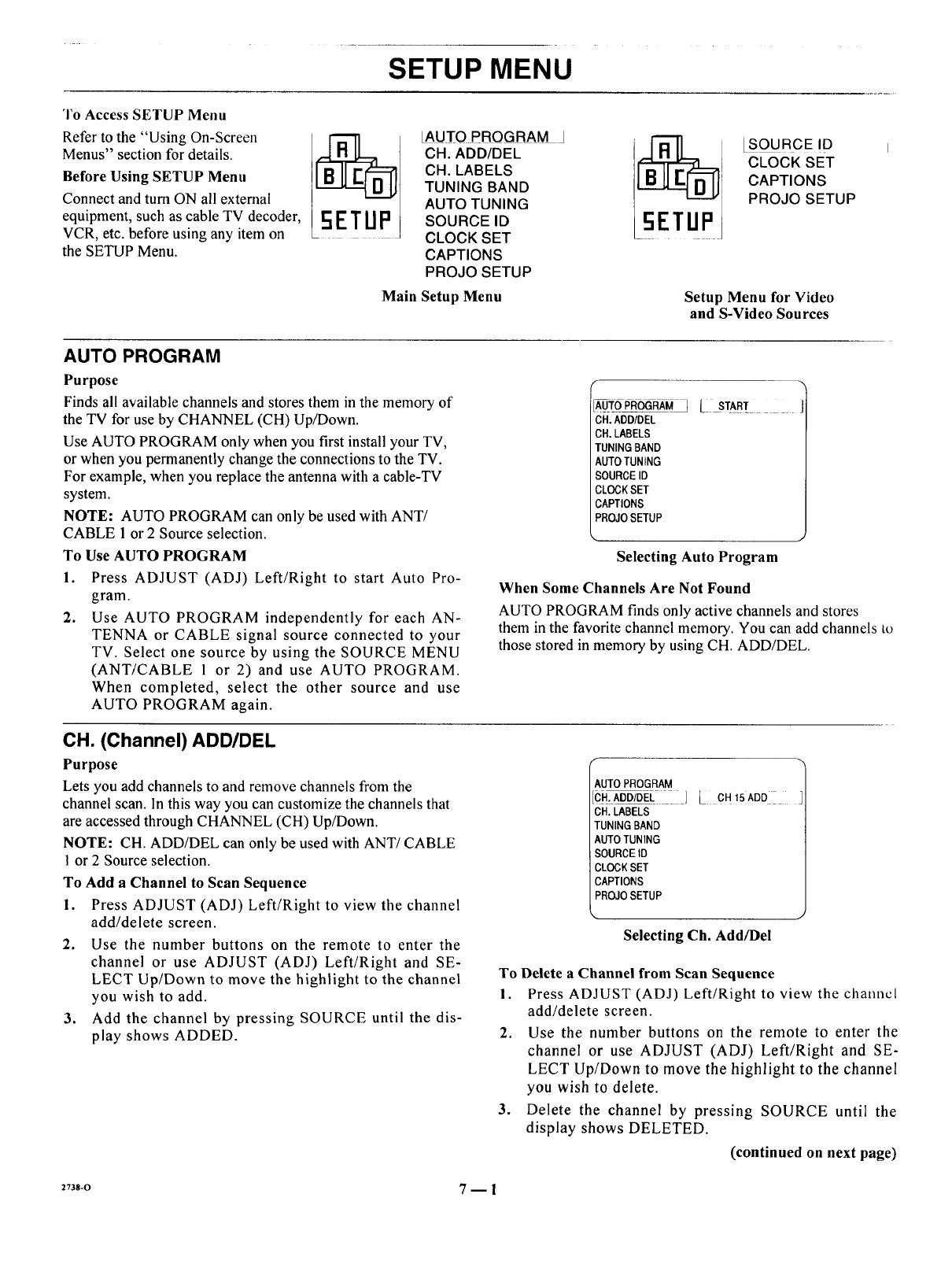

SETUP MENU

Auto Program .................................... 7- l

Ch. Add/Del ...................................... 7-1

Ch. Labels ....................................... 7-2

Tuning Band ..................................... 7-3

Auto Tuning ..................................... 7-3

Source ID ........................................ 7-3

Clock Set ........................................ 7-4

Captions ......................................... 7-4

Projo Setup ...................................... 7-5

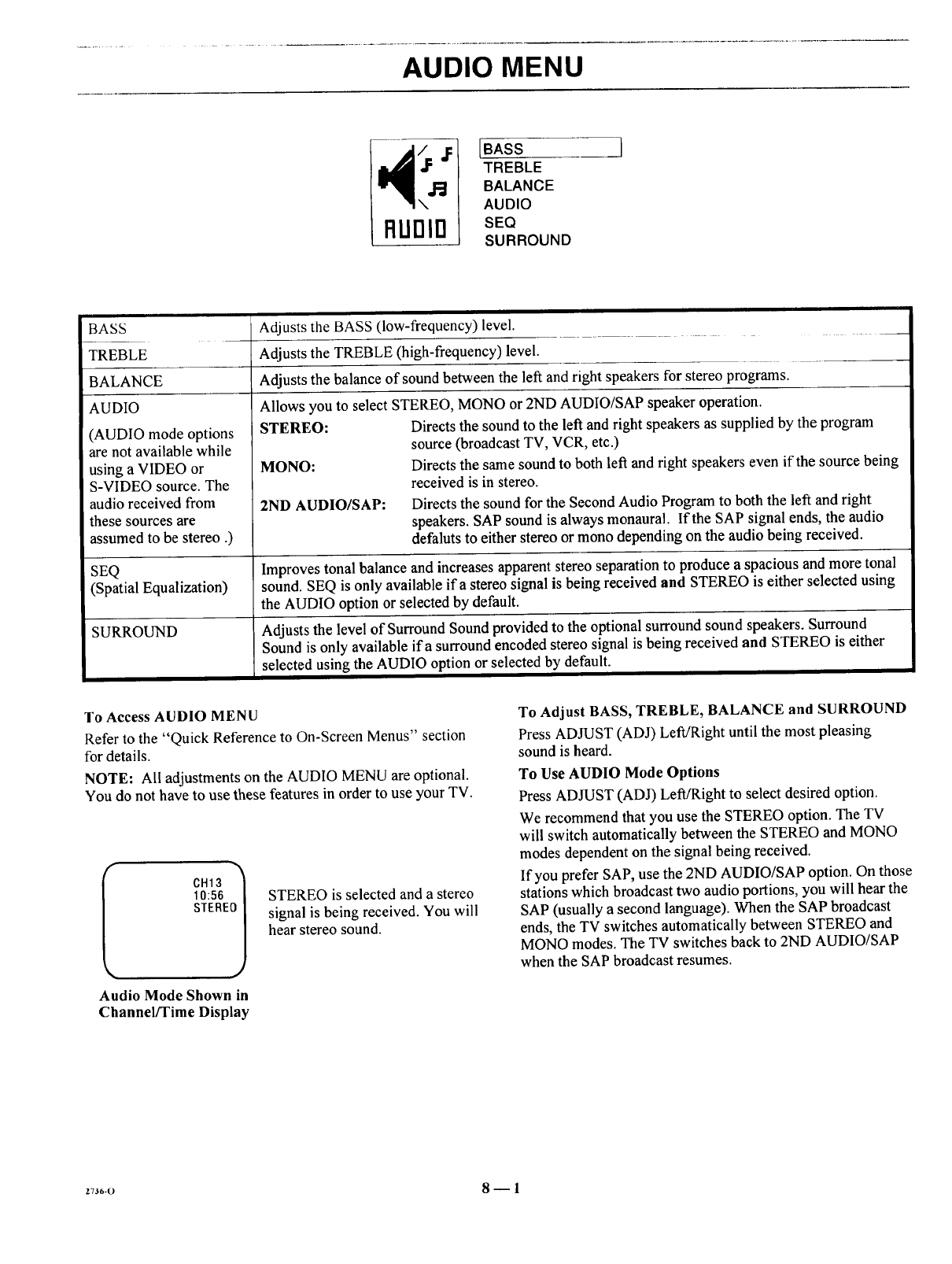

AUDIO MENU

Bass ............................................ 8-1

Treble ........................................... 8-1

Balance ......................................... 8-1

Audio ........................................... 8-1

SEQ ............................................ 8-1

Surround ........................................ 8-1

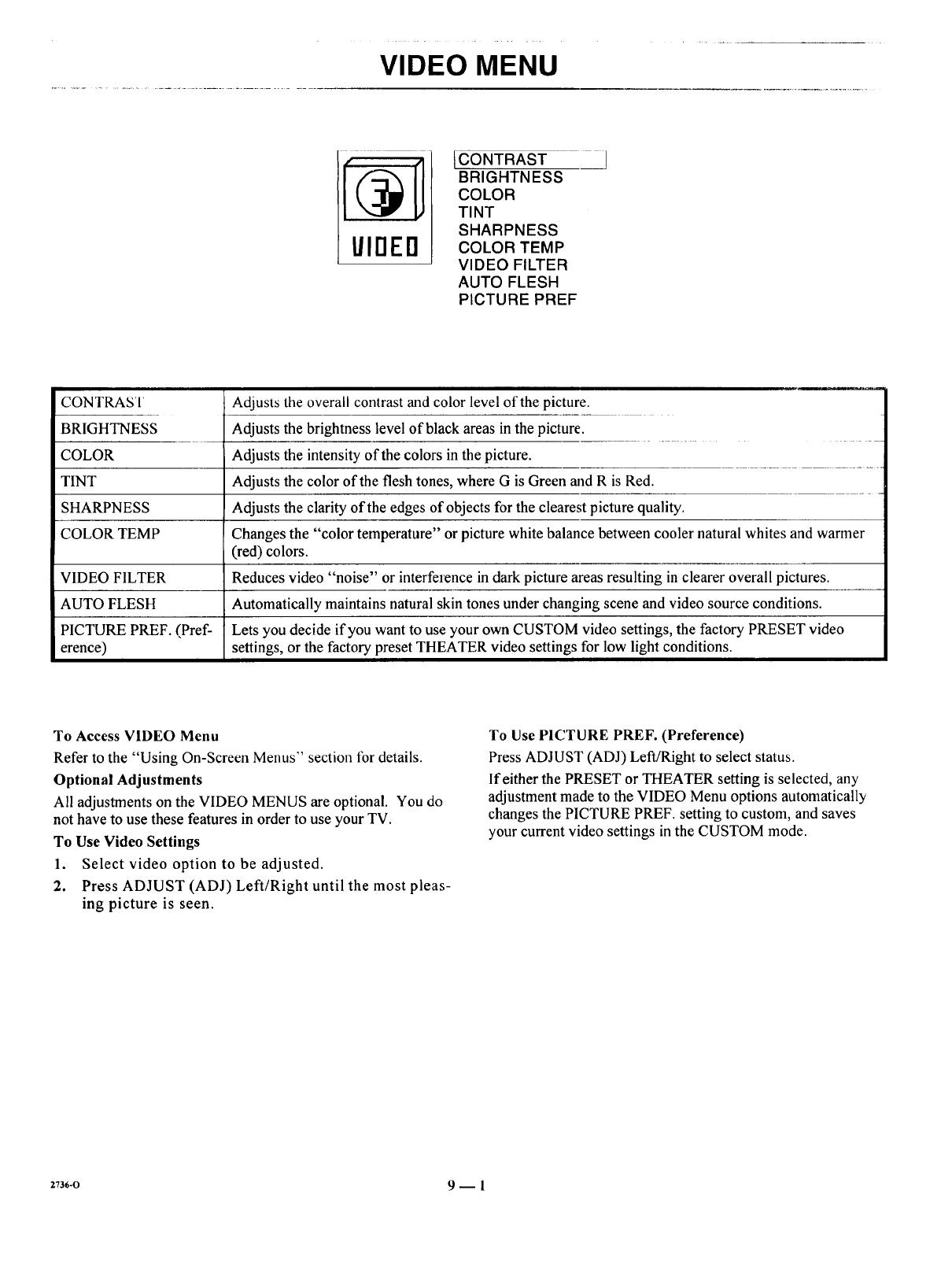

VIDEO MENU

Contrast ......................................... 9-1

Brightness ....................................... 9-1

Color ........................................... 9-1

Tint ............................................. 9-1

Sharpness ........................................ 9-1

Color Temp ...................................... 9-1

Video Filter ...................................... 9-1

Auto Flesh ....................................... 9-1

Picture Pref ...................................... 9-1

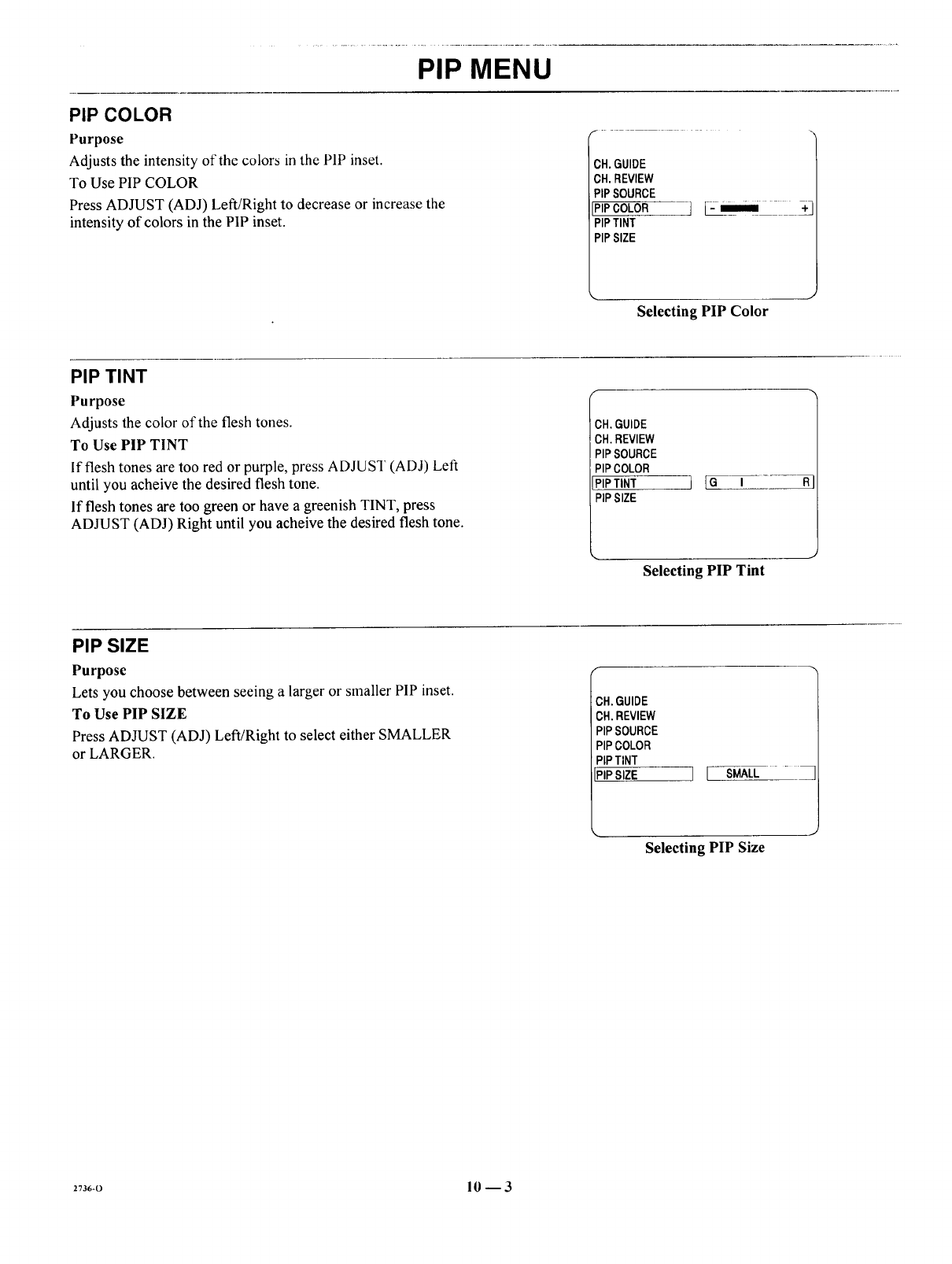

PIP MENU

Ch. Guide ....................................... 10-1

Ch. Review ..................................... 10-2

PIP Source ...................................... 10-2

PIP Color ....................................... 10-3

PIP Tint ........................................ 10-3

PIP Size ........................................ 10-3

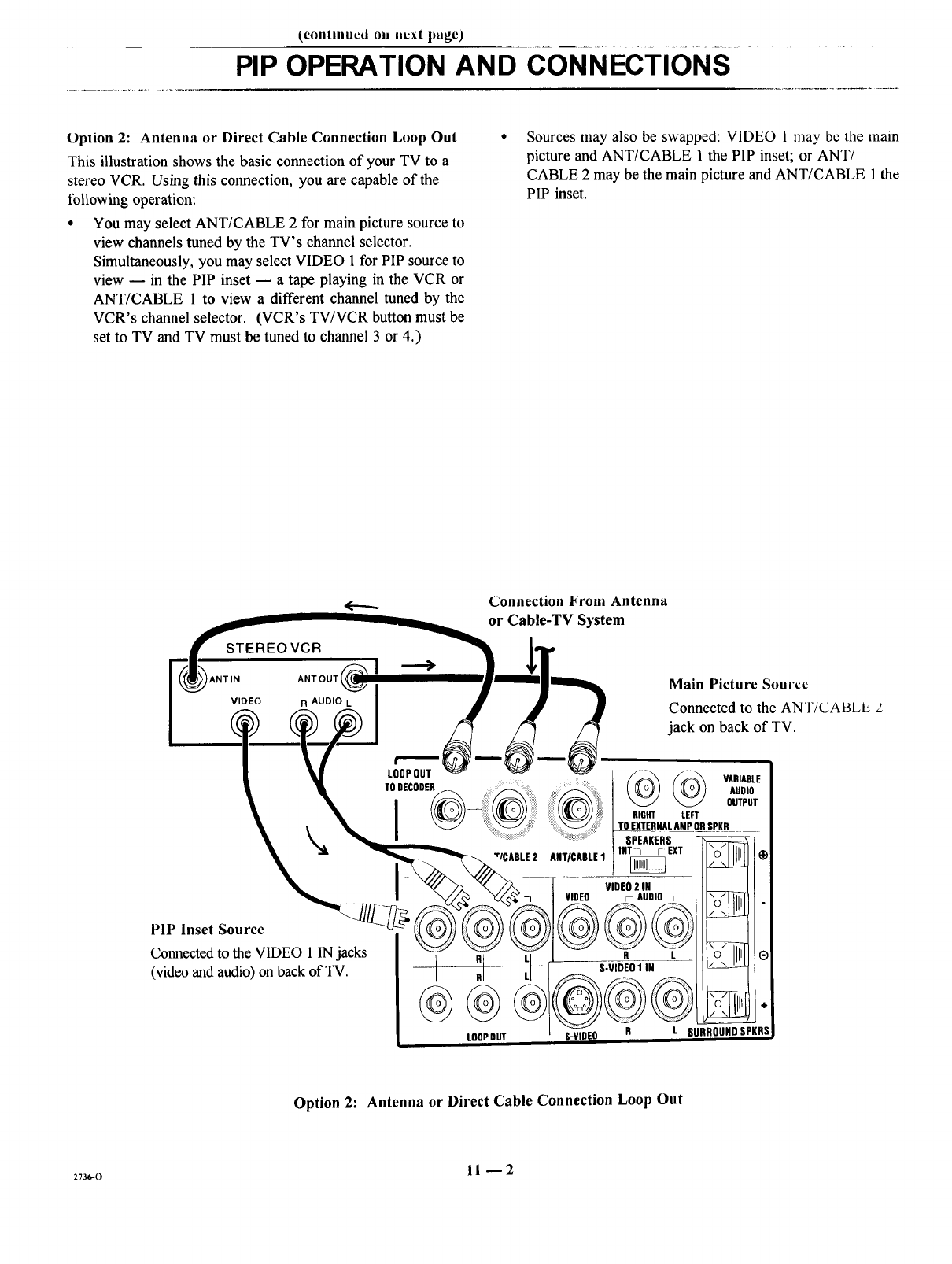

PIP OPERATION AND CONNECTIONS

PIP Overview ................................... 11-1

Typical Connections .............................. 11-1

How to Select Main Picture & PIP Source ............. 11-3

PIP Functions ................................... 11-4

MAINTENANCE AND TROUBLESHOOTING

Caring for Your TV ............................... 12-1

Extended Absence ................................ 12-1

TV Picture Interference ............................ 12-l

Before Calling for Service .......................... 12-2

Product Registration Card

Recommended Accessories For Your Television

Aviso para nuestros clientes de habla hispana

Your Zenith Warranty

HOW TO USE YOUR OPERATING GUIDE

THIS OPERATING GUIDE DESCRIBES A FAMILY OF TV MODELS. SOME MODELS HAVE FEATURES THAT ARE

NOT PROVIDED ON OTHER MODELS, SUCH AS AUXILIARY JACKS OR TWO REMOTE CONTROLS. DIFFERENT

CONTROL PANELS AND REMOTE CONTROLS MAY BE USED FROM MODEL-TO-MODEL. REFER TO THE APPLI-

CABLE SECTIONS OF THIS OPERATING GUIDE FOR THE FEATURES AND ITEMS PROVIDED WITH YOUR TV.

2738-0 i

INTRODUCTION

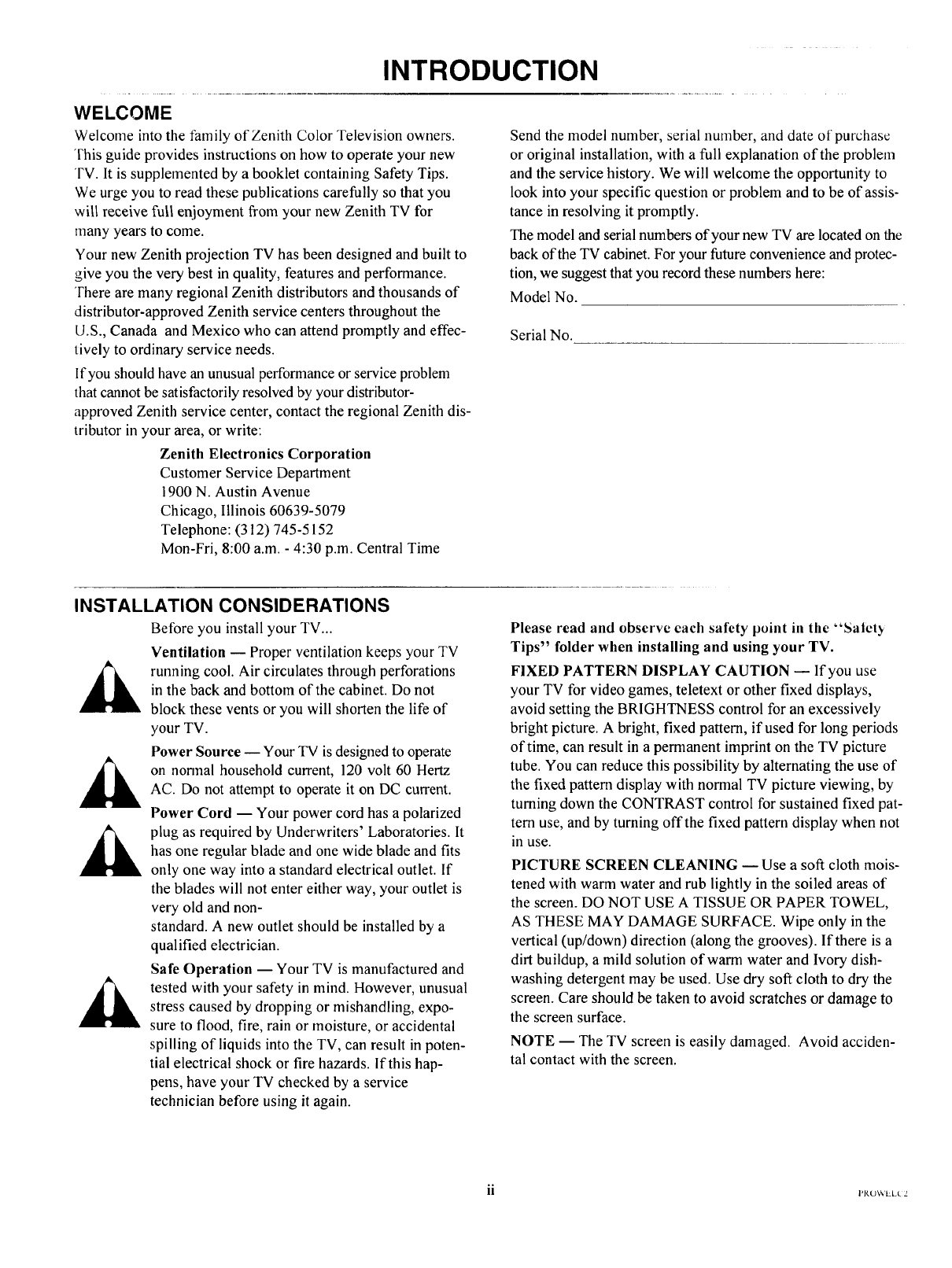

WELCOME

Welcome into the family of Zenith Color Television owners.

This guide provides instructions on how to operate your new

TV. It is supplemented by a booklet containing Safety Tips.

We urge you to read these publications carefully so that you

will receive full enjoyment from your new Zenith TV for

many years to come.

Your new Zenith projection TV has been designed and built to

give you the very best in quality, features and performance.

There are many regional Zenith distributors and thousands of

distributor-approved Zenith service centers throughout the

U.S., Canada and Mexico who can attend promptly and effec-

tively to ordinary service needs.

Ifyou should have an unusual performance or service problem

that cannot be satisfactorily resolved by your distributor-

approved Zenith service center, contact the regional Zenith dis-

tributor in your area, or write:

Zenith Electronics Corporation

Customer Service Department

1900 N. Austin Avenue

Chicago, Illinois 60639-5079

Telephone: (3 t2) 745-5152

Mon-Fri, 8:00 a.m. - 4:30 p.m. Central Time

Send the model number, serial number, and date of purchase

or original installation, with a full explanation of the problem

and the service history. We will welcome the opportunity to

look into your specific question or problem and to be of assis-

tance in resolving it promptly.

The model and serial numbers of your new TV are located on the

back of the TV cabinet. For your future convenience and protec-

tion, we suggest that you record these numbers here:

Model No.

Serial No.

INSTALLATION CONSIDERATIONS

Before you install your TV...

Ventilation -- Proper ventilation keeps your TV

running cool. Air circulates through perforations

in the back and bottom of the cabinet. Do not

block these vents or you will shorten the life of

your TV.

Power Source -- Your TV is designed to operate

on nonnal household current, 120 volt 60 Hertz

AC. Do not attempt to operate it on DC current.

Power Cord -- Your power cord has a polarized

plug as required by Underwriters' Laboratories. It

has one regular blade and one wide blade and fits

only one way into a standard electrical outlet. If

the blades will not enter either way, your outlet is

very old and non-

standard. A new outlet should be installed by a

qualified electrician.

Safe Operation -- Your TV is manufactured and

tested with your safety in mind. However, unusual

stress caused by dropping or mishandling, expo-

sure to flood, fire, rain or moisture, or accidental

spilling of liquids into the TV, can result in poten-

tial electrical shock or fire hazards, if this hap-

pens, have your TV checked by a service

technician before using it again.

Please read and observe each safety point in tile "SaleD

Tips" folder when installing and using your TV.

FIXED PATTERN DISPLAY CAUTION -- If you use

your TV for video games, teletext or other fixed displays,

avoid setting the BRIGHTNESS control for an excessively

bright picture. A bright, fixed pattern, if used for long periods

of time, can result in a permanent imprint on the TV picture

tube. You can reduce this possibility by alternating the use of

the fixed pattem display with normal TV picture viewing, by

turning down the CONTRAST control for sustained fixed pat-

tern use, and by turning offthe fixed pattern display when not

in use.

PICTURE SCREEN CLEANING m Use asoft cloth mois-

tened with warm water and rub lightly in the soiled areas of

the screen. DO NOT USE A TISSUE OR PAPER TOWEL,

AS THESE MAY DAMAGE SURFACE. Wipe only in the

vertical (up/down) direction (along the grooves). If there is a

dirt buildup, a mild solution of warm water and Ivory dish-

washing detergent may be used. Use dry soft cloth to dry the

screen. Care should be taken to avoid scratches or damage to

the screen surface.

NOTE -- The TV screen is easily damaged. Avoid acciden-

tal contact with the screen.

ii PRtJWLLL 2

wCONNECTIONS FOR YOUR TV

LOCATIONS OF USER ITEMS

I ...... I

CONTROL PANEL

(On top of TV)

BUILT-IN

SPEAKERS

REMOTE CONTROL

_-_ (Point toward screen

to operate TV)

Front View of TV

VIDEO 3/S-VIDEO 2

Auxiliary A/V Input Jacks

(Some models)

COnllcCtion

Center

Fixed A/V Output Jacks

(Some models)

i p

/ I

Place VCR Shelf

Here

Power Cord

Entry

Rear View of TV

CONNECTIONS FOR YOUR TV

CONNECTION CENTER ON BACK OF TV

ANT/CABLE 1 or ANT/CABLE 2

75-ohm antenna-type connections to your

TV. Attach your antenna, cable-TV line or

VCR to either of these jacks.

LOOP OUT TO

DECODER

Use this output to route the

cable-TV signal back to the

decoder supplied by your

cable-TV system.

VIDEO 1 IN or

VIDEO 2 IN l

Baseband audio and video

input from a VCR or

other A/V component.

I/" " _' VARIABLE

---- ,'g""

_, :'_,_ ,,:. 'TOEXTERNALAMPr_'.,4KR_

] ,)..............7: .... SPEAKERS ai_l_i_F _- -

LOOPOUi_VCABLE_A,TZCABLE1,R_-_E_ [/'dlllll[

TODECODER _ / /_

VIDEO r-AUDiO 1 VIDEO rAUDIO_ I/_

Ln ..................... ...........

LOOPOUT S-VIDEO R L SURROUNDSPKRS

VIDEO 1 LOOP OUT

Use these jacks to send the

incoming audio and video signals

(from VIDEO 1 IN) to another A/V

component, such as a second VCR.

I !

EXTERNAL AMP

Standard phono jack connectors for output

to the customer's audio amplifier or

Terminals for connecting external speakers.

SPEAKERS EXT/INT

EXT position: TV's speakers

f are off.

INT position: TV's speakers

are on.

SURROUND

SPEAKER

Terminal connectors for

output to optional

surround sound speakers.

S-VIDEO 1 IN

Audio and video input

from a Super-VHS VCR.

OTHER A/V JACKS ON TV (Some Models)

S-VIDEO 2 IN

Audio and video input from a Super-VHS VCR.

VIDEO 3IN _-VIDEO 2 IN

.....

LEFT IRIGHT ]I

AUDIO INPUT /VIDEO INPUT

VIDEO 3 IN

Baseband audio and video input from a camcorder or other

A/V component.

MONITOR OUT

VIDEO @

AUDIO

MONITOR OUT

Fixed-level baseband audio and video output to a

monitor or other A/V component. Program currently

being watched on your TV is provided at these jacks.

27ss-o 1--2

CONNECTIONS FOR YOUR TV

STEP 1. MAKE BASIC CONNECTION TO TV

Select the hook up that best fits your needs. See the following

diagrams.

NOTE: The antenna may be connected to the ANT/CABLE 2

jack, however, connecting to the ANT/CABLE 1jack may

produce a better picture in weak signal areas.

Antenna

Flat Wi re

300 ohm =

OR .

iRound Wire

75 ohm

300175 ohm

Adaptor

Antenna

VCR

'J I

IANTENNA

Video

mnel 3/4

,% +++

+'++++++++++++++++]++++++++

LOOPOUT ANTICABLE2 ANT/CABLE1

TO DECODER

VIREO 1 IN

VIDEO •AUDIO i

-I RRI3

@@@

LOOP OUT

_VARIABLE

AUDIO

OUTPUT

RIGHT LEFT

TO EXTERNALAMP OR SPKR

SPEAKERS _O /+INT+I FEXT cJ,mH o

VIDEO 2 IN

V'OE°+AUD'°__ i

@@@

o L _

S-VIDEO 1 IN

@®® _

S-VlDEO R L SURROUND SPKR

Cable-TV

(Direct Connection

to TV) _l

Cable-TV

(Direct Connection

Through VCR to TV)

VCR

_ nne11314

•,_ , °

0 _o AUDIO

Q@ Q_ UT

H',0E_;_.',EA.E_R.,,.,

•SPEAKERS _'_----

LOOP OUT AMTICABLE2 ANT/CABLEt INT_ r EXT _0_

TODECODER

VIREO 1 iH VIDEO 2 iN

wn[o rAUmO+VIDEO +Aurae_ _IT/_ _

LOOPOUT I D--V'mEO RLRURROORO='--"'_PKR

(continued on next page)

Z',}H-O l -- 3

CONNECTIONS FOR YOUR TV

STEP 1. MAKE BASIC CONNECTION TO TV

DECODER/

CONVERTER Video

m _ _ j__ _ _VARIABLE

@ @ .o,o

,R,DRrLE.

TO EXTERNALAMP OR SPKR

::]]] ] ]]] :: _[ SPEAKERS

INT_ rEXT _'©" I IKI

LOOPOUT ANT/CABLE2 ANT/CABLE1 e

TO DECODER

VIDEO 1 IN V DEO 2 N

VIDEO rAUDIO i t VIDEO r_AUDIO _

RI LI I _ --

LOOP OUT I S-VIDEO R SURROUND SPKRS I

DECODER/

CONVERTER Video VCR

J Channel 3/4 ANTENNA

[ IN OUT I

Cable-TV

Direct

]

.... _ _' ": SPEAKERS

LOOPOUT ANT/CABLE2 ANT/CABLE1 iKT_ tEXT

TO DECODER

VIDEO 1 iN VIDEO 2 IN

VIDEO FADOIO _ VIREO FAUDIO •

R L

--_ :1 _,- ,.vioEo,,,

LOOPOUT S-VIDEO

_VARIABLE

AUDIO

OUTPUT

RIGHT LEFT

TO EXTERNALAMP ORSPKR

n L SURROUND SPKRS

STEP 2. MAKE VCR CONNECTIONS TO TV

If'you have a stereo VCR, you must make the A/V

connections shown in order to hear stereo sound while playing

a tape.

STEREO VCR

OUTPUTS

[VIDEO RAUDIO L

STEREO VCR

OUTPUTS

[VIDEO R AUDIO L

IANT/CABLE

---- --R - -- S-VIDEO1IN

@¢)

LOOP OUT S-ViDEO R

Connections for second

stereo VCR or alternate

connections for first VCR.

2_.-o 1 -- 4

CONNECTIONS FOR YOUR TV

STEP 3. MAKE SUPER-VHS VCR CONNECTIONS TO TV

___ VARIABLE

@ ,...,

TO EXTERNALAMP ORSPKR

SPEAKERS

LOOPOUT ANT/CABLE2 ANT/CABLE 1 INT _ r EXT

TODECODER

VIDEO 1 IN VIDEO 2 IN

VIDEO [AUDIO iVIDEO [AUDIO •

S-VIDEO 1 IN

LOOP OUT |-WD__

SUPER-VHSVCR

STEP 4, MAKE A/V CONNECTIONS TO AUXILIARY A/V JACKS (VIDEO 3 IN OR S-VIDEO 2 IN)

VIDEO 3 IN S,VIOEO 2 IN

Stereo Camcorder

VIOEO 3 IN S-VIDEO 2 IN

R L OUT

STEP 5. MAKE CONNECTIONS TO MONITOR OUT JACKS

MONITOR OUT "_

LEFT

RIGHT

Stereo VCR

or Camcorder

INPUTS

Monitor

o e

Other A/V .-"

L;omponem .. o

_738-o 1 -- 5

CONNECTIONS FOR YOUR TV

STEP 6. MAKE SURROUND SOUND CONNECTIONS TO TV

1. Mount and connect the optional surround sound

speakers by following the instructions provided with

the speakers.

2. Use the SURROUND option in the AUDIO Menu to

adjust the volume of the surround speakers.

3. The level of the surround sound varies relative to the

difference between the left- and right-channel stereo

signals.

Surround

Speaker

(8 ohm)

Surround

Speaker

(8 ohm)

STEP 7. MAKE EXTERNAL SPEAKER CONNECTIONS TO TV

1. Place the SPEAKERS EXT/INT switch on the TV in 3. Place the SPEAKERS EXT/INT switch on the IV iu

the INT position, the EXT position.

2. Connect the two external speaker terminals.

VARIABLE

(e) (eb ..,,o

@ @ @ _....,_,.,,oo,_

................ ..................._.s -_

IIiT7 r[rr "o'liili •

LOOPOUTANT/CABLE2ADTtCAeLE1i _

I"ODECDDER

VIOEO1IN VIDEO2 IN

VIDEO FAUDIO • IVIDEO r--AUDIO_

@®@®@@_

LOOP OLfT S-WDEO S!RR KR_

Right

Speaker

(8 ohm)

Left

Speaker

(8 ohm)

2738-0 1_6

CONNECTIONS FOR YOUR TV

STEP 8. MAKE AUDIO CONNECTION TO STEREO AMPLIFIER

Using an External Amplifier with Speakers While the

TV's Speakers are OFF.

1. Place the SPEAKERS EXT/INT switch on the TV in

the INT position (TV's speakers are ON).

2. Turn the TV ON. Increase the volume level of the TV

until the sound just starts to distort (sound bad).

3. Place the SPEAKERS EXT/INT switch on the TV in

the EXT position (TV's speakers are OFF).

4. Turn the external audio amplifier ON. Adjust the

volume level of the audio amplifier for the highest

level you will need for your listening pleasure.

5. Adjust the volume level of the TV for the normal

listening level as heard through the speakers of your

audio amplifier.

Using an External Amplifier with Speakers While the

TV's Speakers are ON.

1. Place the SPEAKERS EXT/INT switch on the 'IV ill

the INT position (TV's speakers are ON).

2. Turn the TV ON. Increase the volume level of the TV

until the sound just starts to distort (sound bad).

3. Turn the external audio amplifier ON. Adjust the

volume level of the audio amplifier for the highest

level you will need for your listening pleasure.

4. Adjust the volume level of the TV for the normal listening

level as heard through the speakers of the TV.

NOTE: If the volume of the internal TV speakers is set too

low, you may hear undesirable noises through the speakers

connected to your audio amplifier.

_VARIABLE

AUDIO

OUTPUT

RIGHT LEFT

TO EXTERNAL AMP OR SPKR

;:1: SPEAKERS

INT_ tEXT

LQOPOUT ANT/CABL[2 ANT/CABLE1

TODECOOER

VIDEO1 IN VIDEO2IN

VIDEO FAUDIO_ 'VIDEO [-- AUDIO - i

__o LP R L _ Q

_--__ [ S-VIDEO1IN -

/R RiLl /__

LOOPOUT / S-VIDEO R SURROUNDSPKRS

Back of Customer's

Stereo Amplifier

IAux,NPUT Hj

SPKR OUTPUT

RLR

To External

Speakers

I-- '[

2738-0

THE FIRST TIME YOU OPERATE YOUR TV

STEP 1. CONNECT THE POWER

A. Plug your TV into an unswitched AC power source.

B. Turn the TV ON by pressing OFF-ON.

Do not plug TV into switched outlet

on cable-TV decoder or VCR

STEP 2. SELECT YOUR VIEWING SOURCE

ATV source refers to the equipment connected to the TV that

supplies the picture and sound to your TV. You select the

viewing source by using the SOURCE MENU.

To Access SOURCE MENU

I. Press SOURCE on the remote control to view the

SOURCE MENU.

2. Press SOURCE repeatedly until the desired source is

highlighted.

3. Press ENTER to return to normal viewing.

50UREE

IANT/CABLE 1

ANT/CABLE 2

VIDEO 1

VIDEO 2

S-VIDEO 1

VIDEO 3 _-

S-VIDEO 2 _-

*Some models only.

NOTE: The antenna or cable must be connected to the TV

before using AUTO PROGRAM to fred available channels

STEP 3. USE AUTO PROGRAM

When your TV is first turned on, you will see the SETUP

MENU with AUTO PROGRAM highlighted. AUTO

PROGRAM finds all available channels from the selected

source and stores them in the memory of the TV. To activate

AUTO PROGRAM, press ADJUST (ADJ) Left/Right.

AUTO PROGRAM

CH.ADD/DEL

CH. LABELS

TUNING BAND

AUTOTUNING

SOURCEID

CLOCKSET

CAPTIONS

] r START

Setup Menu with Auto Program Highlighted

STEP 4. TIME FUNCTIONS

Set Clock In TV

I. Press Menu until the SETUP MENU is selected.

2. Press SELECT (SEL) to highlight CLOCK SET then

use the number buttons on the remote to enter the

correct time.

3. Select AM orPM using the TIMER key on the remote.

4. Press ENTER (ENT) to start the clock.

\UTO PROGRAM

CH,ADD/DEL

CH.LABELS

TUNINGBAND

AUTOTUNING

SOURCEID

CLOCKSET

CAPTIONS I[10:00AM

Selecting Clock Set

(continued on next page)

_7._,-o 2 h 1

THE FIRST TIME YOU OPERATE YOUR TV

I'o Use Sleep Timer

1. Press TIMER to view the SLEEP TIMER screen.

2. Press TIMER repeatedly until you reach desired shut-

off time.

One minute before the TV shuts off, the GOOD NIGHT

display appears on the screen. At this time you have a choice

of the following three actions.

I. Do nothing. The TV will shut off in one minute. The

display will count off the remaining seconds.

2. Remove the GOOD NIGHT display by pressing ENTER.

The TV will still shut off in one minute.

3. Delay the shut off by pressing TIMER to select a new

shut-off time.

_ SLEEP TIMER _ I SLEEP IIMI=R -

0:15 GOOD NIGHT

0:58

To Cancel the SLEEP TIMER

You can cancel the SLEEP TIMER by setting the SLEEP

TIMER status to OFF.

NOTE: The SLEEP TIMER resets to OFF when you turn oli

the TV.

To Use ON/OFF Timer

1. Press TIMER and then MENU on the remote to view

the ON/OFF TIMER screen.

2. Press SELECT (SEL) to highlight ON TIME. Use the

number keys on the remote to enter the time for the

TV to turn on. Press TIMER to choose AM or PM.

3. Press SELECT (SEL) to highlight OFF TIME. Use

the number keys on the remote to enter the time for

the TV to turn off. Press TIMER to choose AM or

PM.

4. Press SELECT (SEL) to highlight TIMER. Use AD-

JUST (ADJ) on the remote to turn TIMER ON or OFF.

NOTE: A time must be set in either the ON TIME

or OFF TIME before you can turn the TIMER ON.

5. Press ENTER (ENT) to return to normal viewing.

NOTE: The ON/OFF Timer can not be used until after the

television's clock is set.

-- ON/OFF TIMER --

ON TIME 11:51 PM

OFF TIME 12:00 PM

TIMER ON

ON/OFF Timer

STEP 5. USE OTHER OPTIONS

You may wantto usethe following options:

• Program the channels accessed when using CHANNEL

Up/Down. Refer to CH. ADD/DEL option for details.

• Add labels (such as NBC and ABC) to the Channel/Time

display. Refer to CH. LABELS option for details.

2736-0 2 -- 2

REMOTE CONTROL MODEL SC3820

TV OPERATIONS

The following functions and operations apply to Zenith TV

models built after 1981. The remote control must be in the TV mode to opcrate your

TV. Press MODE to select the TV mode. The TV indicator

lights when you are in the TV mode.

MODE

Used to select the TV mode of

operation.

Lights when TV mode of

operation is selected.

CC (Closed Captions)

Used to view closed captions

broadcast with some television

programs.

MENU, SELECT and ADJUST

Used with on-screen menus to

see menu, select an option, and

adjust that option.

Numbered Buttons

Used to select a TV channel.

ENTER

Used to view the Channel/Time

Display or to remove any on-

screen menu or display.

Point toward your TV.

TV VCR

OFF-ON/

c=f

SOURCE

QUIT FLASHBK

®®®

®® ®

®®®

CHANNEL

I'W'l

IAI

MUTE

MEMORY

RECORD STOP PAUSE SEARCH

REW PLAY F FWD TV/VCR

/OFF/ON

Used to turn TV ON or OFF.

SOURCE

Used to display the menu of'l'V

sources for some TVs. Press again

to step through the source

selections. On some TVs, press to

select AUX (Auxiliary) channel.

FLASHBK (Flashback)

Used to return to the last TV

channel you were watching.

CHANNEL Up/Down

Used to sequence throughthe TV

channels.

VOLUME Up/Down

Used to adjust the TV's voltnne.

MUTE

Used to turn off sound while tlac

picture remains. Press again to

restore the sound.

TIMER

Used to activate the SLEEP

TIMER. Press repeatedly to select

desired turn-off time.

2v38-o 3m1

REMOTE CONTROL MODEL SC3820

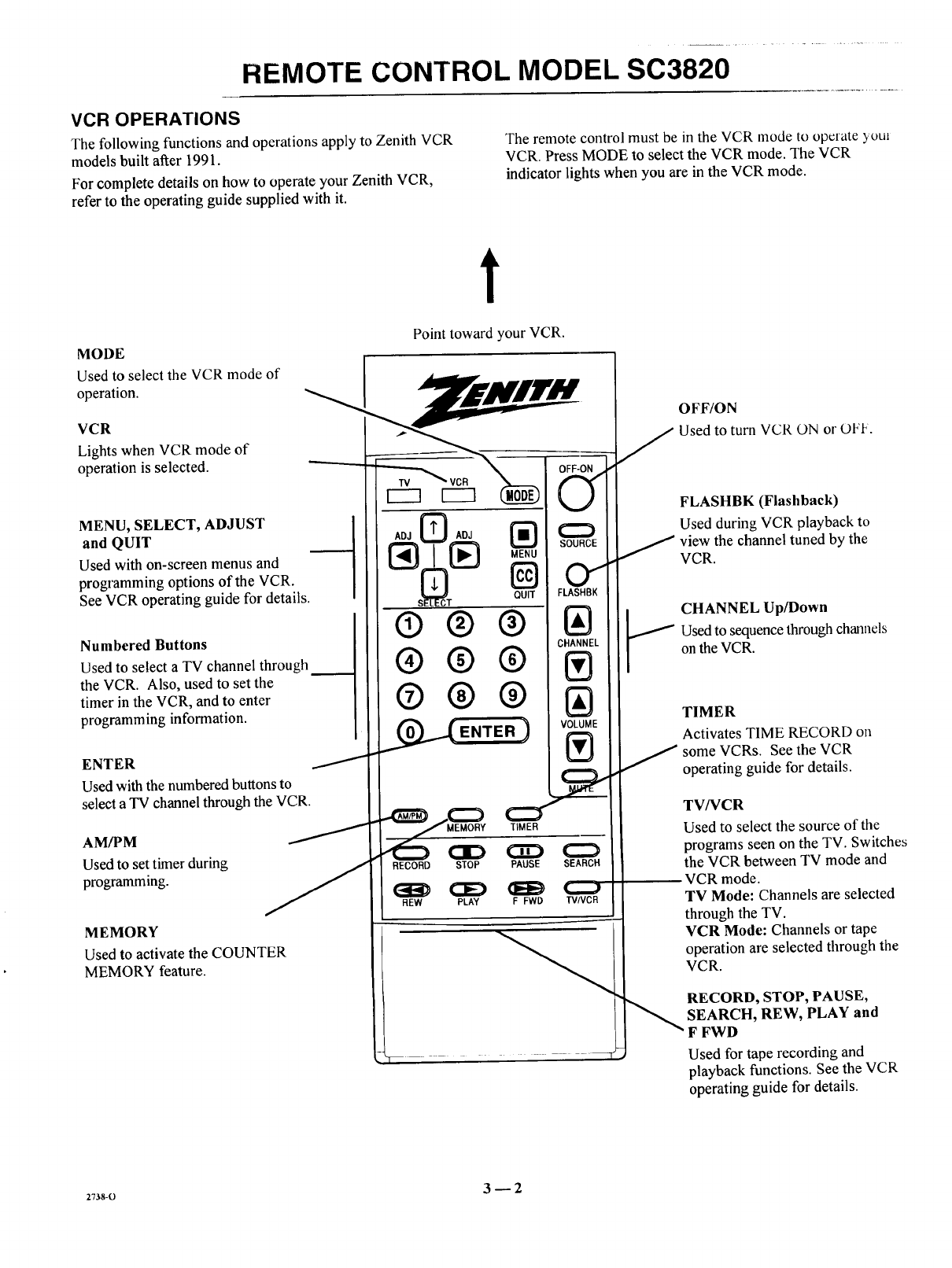

VCR OPERATIONS

The following functions and operations apply to Zenith VCR

models built after 1991.

For complete details on how to operate your Zenith VCR,

refer to the operating guide supplied with it.

The remote control must be in the VCR mode to operate _ou_

VCR. Press MODE to select the VCR mode. The VCR

indicator lights when you are in the VCR mode.

MODE

Used to select the VCR mode of

operation.

VCR

Lights when VCR mode of

operation is selected.

MENU, SELECT, ADJUST

and QUIT

Used with on-screen menus and

programming options of the VCR.

See VCR operating guide for details.

Numbered Buttons

Used to select aTV channel through

the VCR. Also, used to set the

timer in the VCR, and to enter

programming information.

ENTER

Used with the numbered buttons to

select a TV channel through the VCR.

AM/PM

Used to set timer during

programming.

MEMORY

Used to activate the COUNTER

MEMORY feature.

Point toward your VCR.

_MORY TIMER

RECORD STOP PAUSE SEARCH

REW PLAY FFWD TVNCR

OFF/ON

Used to turn VCR ON or OFI _.

FLASHBK (Flashback)

Used during VCR playback to

the channel tuned by the

VCR.

CHANNEL Up/Down

Used to sequence through channels

on the VCR.

TIMER

Activates TIME RECORD on

some VCRs. See the VCR

operating guide for details.

TV/VCR

Used to select the source of the

programs seen on the TV. Switches

the VCR between TV mode and

VCR mode.

TV Mode: Channels are selected

through the TV.

VCR Mode: Channels or tape

operation are selected through the

VCR.

_RECORD, STOP, PAUSE,

SEARCH, REW, PLAY and

F FWD

Used for tape recording and

playback functions. See the VCR

operating guide for details.

2758-0 3--2

REMOTE CONTROL MODEL SC3820

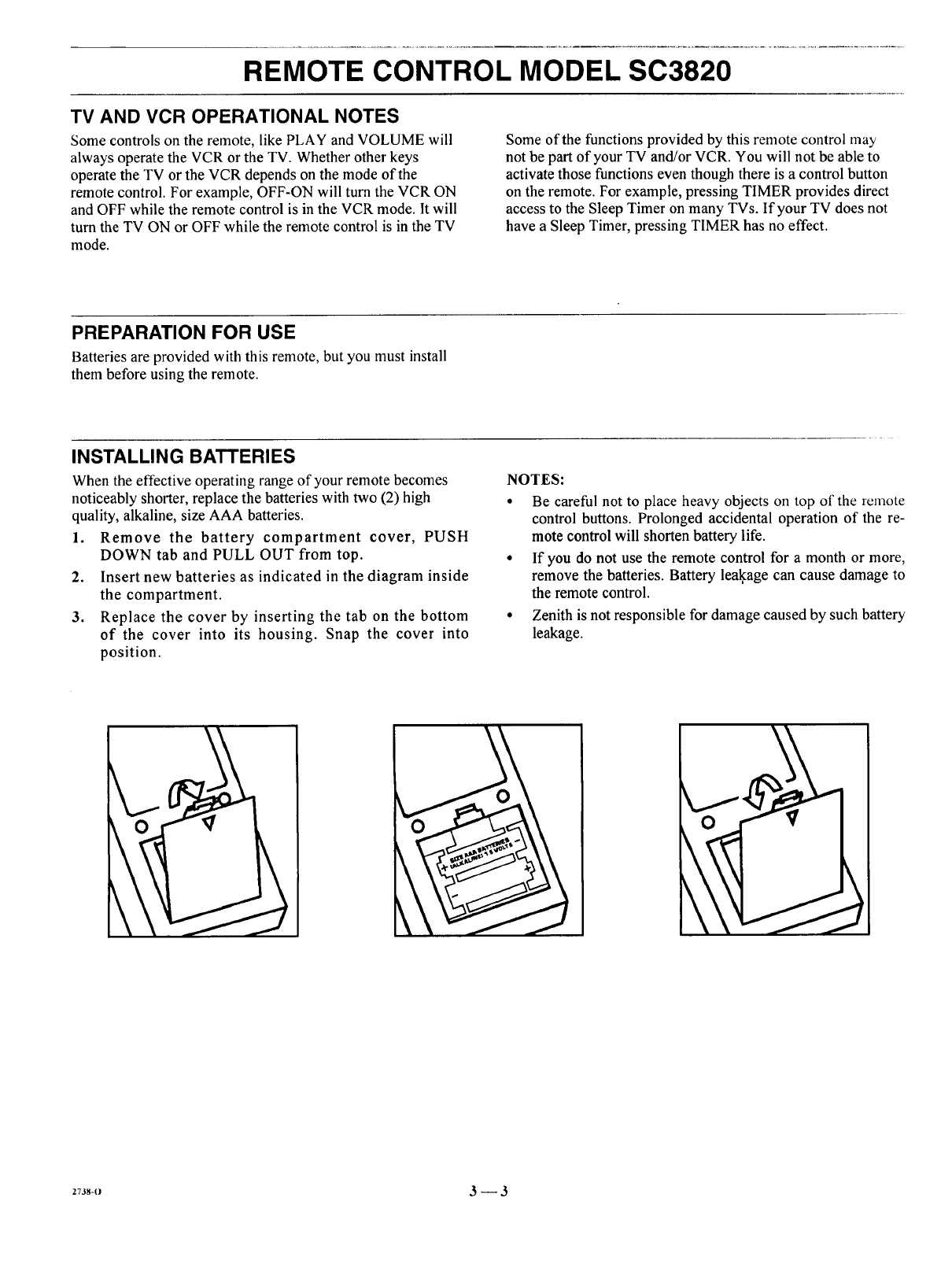

TV AND VCR OPERATIONAL NOTES

Some controls on the remote, like PLAY and VOLUME will

always operate the VCR or the TV. Whether other keys

operate the TV or the VCR depends on the mode of the

remote control. For example, OFF-ON will turn the VCR ON

and OFF while the remote control is in the VCR mode. It will

turn the TV ON or OFF while the remote control is in the TV

mode.

Some of the functions provided by this remote control may

not be part of your TV and/or VCR. You will not be able to

activate those functions even though there is a control button

on the remote. For example, pressing TIMER provides direct

access to the Sleep Timer on many TVs. If your TV does not

have a Sleep Timer, pressing TIMER has no effect.

PREPARATION FOR USE

Batteries are provided with this remote, but you must install

them before using the remote.

INSTALLING BATTERI ES

When the effective operating range of your remote becomes

noticeably shorter, replace the batteries with two (2) high

quality, alkaline, size AAA batteries.

1. Remove the battery compartment cover, PUSH

DOWN tab and PULL OUT from top.

2. Insert new batteries as indicated in the diagram inside

the compartment.

3. Replace the cover by inserting the tab on the bottom

of the cover into its housing. Snap the cover into

position.

NOTES:

• Be careful not to place heavy objects on top of the remote

control buttons. Prolonged accidental operation of the re-

mote control will shorten battery life.

• If you do not use the remote control for a month or more,

remove the batteries. Battery leakage can cause damage to

the remote control.

• Zenith is not responsible for damage caused by such battery

leakage.

2738-o 3-- 3

REMOTE CONTROL MODEL MBR3430

OPERATION

The multi-brand remote supplied with your new Zenith TV

allows you to operate most models of infrared (IR)

remote-controlled TVs, VCRs and cable-TV converters, even

if they are all different brands.

Your multi-brand remote has already been programmed to

operate your Zenith TV, a Zenith VCR and a Zenith cable-TV

decoder. It must be "taught" to operate other brands. Refer

to "Auto Find Mode" and "Programming Your Remote

Control" for details.

CHOOSE THE OPERATING MODE

To operate your TV, VCR or CABLE-TV decoder, you must

first choose the remote's mode of operation. To select the

mode, press the MODE key until the desired indicator lights.

Some KEYS on the remote will always operate a particular

appliance. For example, VOLUME always operates the TV

volume and PLAY always operates the VCR. The function of

other keys depends on the mode selected.

Point toward unit

to be controlled

Operating mode selection

and indicators

Menu operations on TV

and some VCRs

Numbered buttons for

channel selection and other

uses

Learn functions for user

programmed sequences

NOTE: See following pages

for operating instructions.

,°,if] ,°'

S_T QUIT

®®®

€_) (:Z:) (::Z3

SWAP TtMER

C_3 (;13 C_;)

RECORD STOP PAUSE

REW PLAY F FWD

i:is !

SEQ

TYNCR

Controlled device

OFF/ON

Special features on TV and

some VCRs

Channel Up/Down

for TVs, VCRs and cable

Volume Up/Down for TV

Special features on some

TVs and some VCRs

MBR3430

2736-0 4-- 1

REMOTE CONTROL MODEL MBR3430

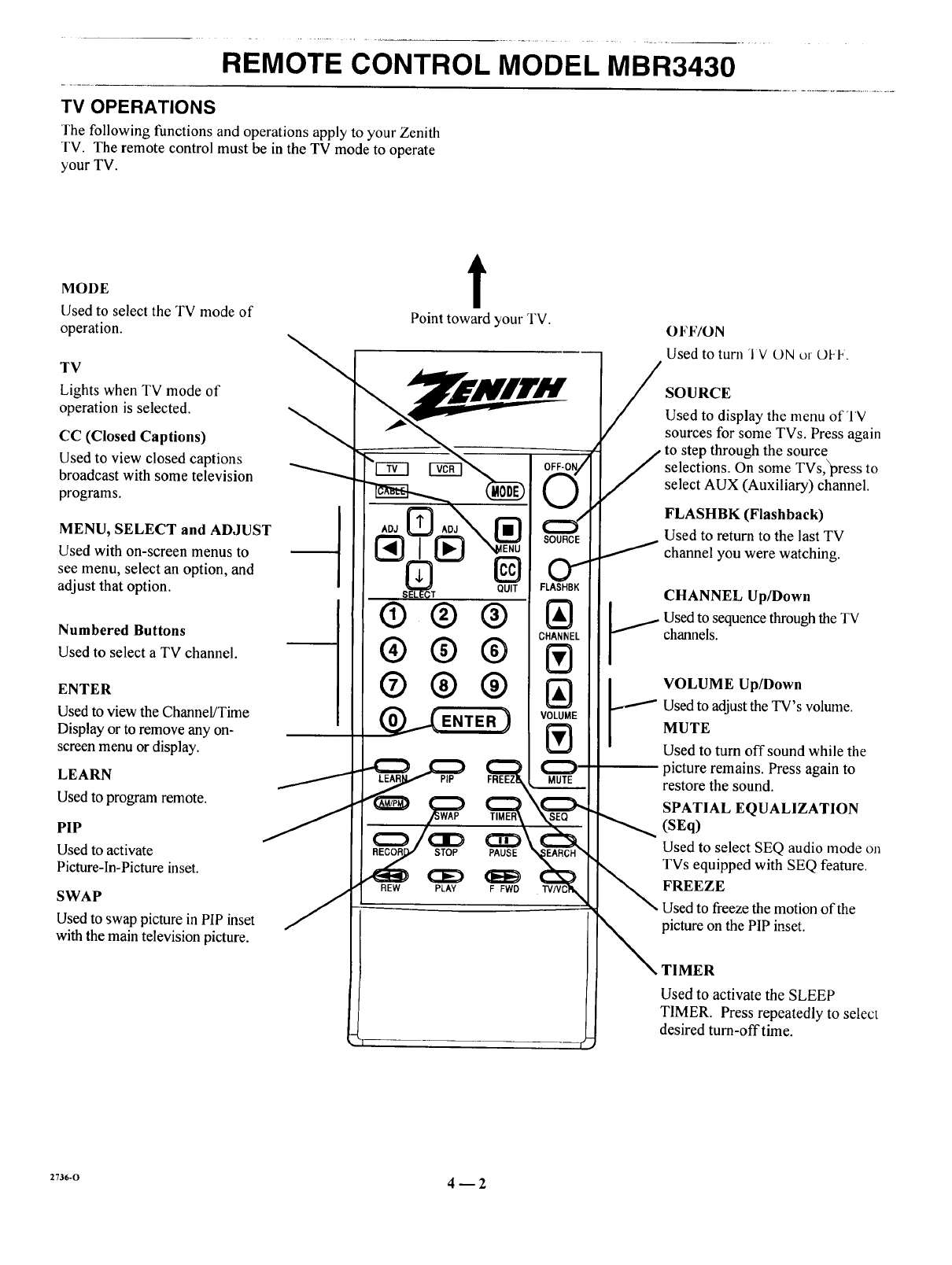

TV OPERATIONS

The following functions and operations apply to your Zenith

TV. The remote control must be in the TV mode to operate

your TV.

MODE

Used to select the TV mode of

operation.

Lights when TV mode of

operation is selected.

CC (Closed Captions)

Used to view closed captions

broadcast with some television

programs.

MENU, SELECT and ADJUST

Used with on-screen menus to

see menu, select an option, and

adj ust that option.

Numbered Buttons

Used to select a TV channel.

ENTER

Used to view the Channel/Time

Display or to remove any on-

screen menu or display.

LEARN

Used to program remote.

PIP

Used to activate

Picture-In-Picture inset.

SWAP

Used to swap picture in PIP inset

with the main television picture.

Point toward your TV.

SELECT QUIT

®®®

ENTER

_o_ TIME

R_ /STOP PAUSE

REW PLAY F FWD TV/VC

/OFF/ON

Used to turn 'IV ON or OlaF.

SOURCE

Used to display the menu of rl'V

sources for some TVs. Press again

step through the source

selections. On some TVs,'press to

select AUX (Auxiliary) channel.

FLASHBK (Flashback)

Used to return to the last TV

channel you were watching.

CHANNEL Up/Down

Used to sequence throughthe TV

channels.

VOLUME Up/Down

Used to adjust the TV's volume.

MUTE

Used to turn offsound while the

picture remains. Press again to

restore the sound.

SPATIAL EQUALIZATION

(SEq)

Used to select SEQ audio mode on

TVs equipped with SEQ feature.

FREEZE

Used to freeze the motion of the

the PIP inset.

Used to activate the SLEEP

TIMER. Press repeatedly to select

desired turn-off time.

2736-0 4-- 2

REMOTE CONTROL MODEL MBR3430

VCR OPERATIONS

The following functions and operations apply to Zenith VCR

models built after 1988. The remote control must be in the

VCR mode to operate your VCR.

The remote control supplied with your VCR may have keys

not duplicated on the new remote. If these functions are

desired, the original remote control will have to be used.

MODE

Used to select the VCR mode of

operation.

VCR

Lights when VCR mode of

operation is selected.

MENU, SELECT, ADJUST

and QUIT

Used with on-screen menus and

programming options of the VCR.

See VCR operating guide for details.

Numbered Buttons

Used to select a TV channel through

the VCR. Also, used to set the

timer in the VCR, and to enter

programming information.

ENTER

Used with the numbered buttons to

select a TV channel through the VCR.

AM/PM

Used to set timerduring

programming.

Point toward your VCR.

,0Jif3A0J

_SEL_CT_ MENU

QUIT

®®®

LEARN

SOURCE

FLASHBK

CHANNEL

VOLUME

CD C:_

PIP

SWAP TIMER SEQ

C=) Cl_ (312> C=)

RECORD STOP PAUSE SEARCH

REW PLAY F FWD TVIVCR

OFF/ON

j Used to turn VCR ON or Ol:l,.

FLASHBK (Flashback)

Used during VCR playback to

view the channel tuned by the

VCR.

CHANNEL Up/Down

/Used to sequence through channels

on the VCR.

TIMER

Activates TIME RECORD on

some VCRs. See the VCR

operating guide for details.

TV/VCR

Used to select the source of the

programs seen on the TV. Switches

the VCR between TV mode and

VCR mode.

TV Mode: Channels are selected

through the TV.

VCR Mode: Channels or tape

operation are selected through the

VCR.

RECORD, STOP, PAUSE,

SEARCH, REW, PLAY and

F FWD

Used for tape recording and

playback functions. See the VCR

operating guide for details.

_736-o 4--3

REMOTE CONTROL MODEL MBR3430

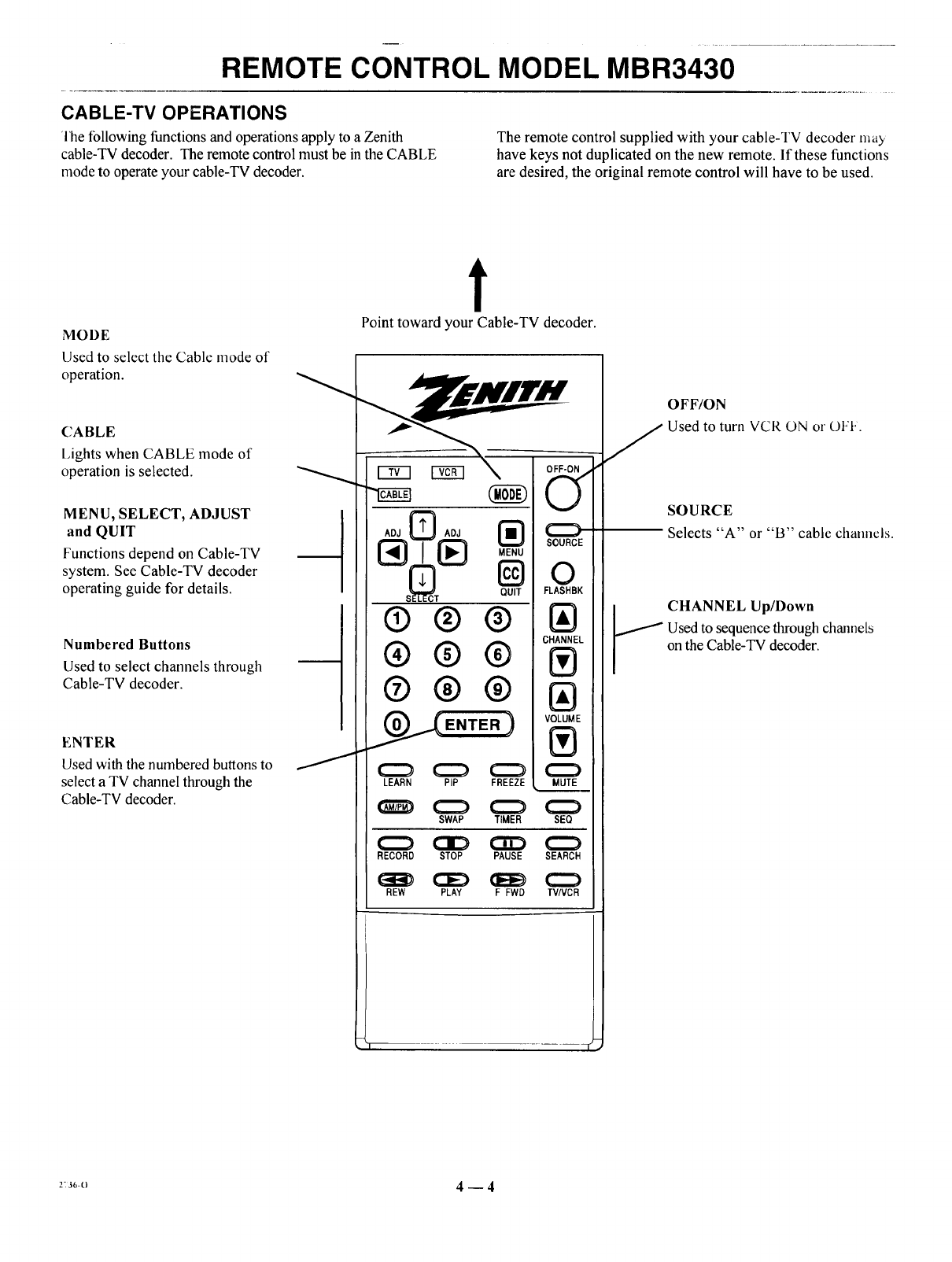

CABLE-TV OPERATIONS

The following functions and operations apply to a Zenith The remote control supplied with your cable-TV decoder ma_

cable-TV decoder. The remote control must be in the CABLE have keys not duplicated on the new remote. If these functions

mode to operate your cable-TV decoder, are desired, the original remote control will have to be used.

MODE

Used to select the Cable mode of

operation.

(;ABLE

Lights when CABLE mode of

operation is selected.

MENU, SELECT, ADJUST

and QUIT

Functions depend on Cable-TV

system. See Cable-TV decoder

operating guide for details.

Numbered Buttons

Used to select channels through

Cable-TV decoder.

ENTER

Used with the numbered buttons to

select a TV channel through the

Cable-TV decoder.

Point toward your Cable-TV decoder.

,oJG,0J

_S_Y MENU

QUIT

(5@@

®®®

@6)@

_ENTER )

FREEZE

SOURCE

FLASHBK

IAI

CHANNEL

IVl

IAI

LEARN PiP MUTE

SWAP TIMER SEQ

RECORD STOP PAUSE SEARCH

CE) d_

REW PLAY F FWD TV/VCR

r_ --_

OFF/ON

Used to turn VCR ON or 0t"_.

SOURCE

Selects "A" or "B" cable channels.

CHANNEL Up/Down

uence through channels

on the Cable-TV decoder.

2:36_o 4 _ 4

REMOTE CONTROL MODEL MBR3430

PREPARATION FOR USE

Batteries are provided with this remote, but you must install

them before using the remote.

INSTALLING BATTERIES

When the effective operating range of your remote becomes

noticeably shorter, replace the batteries with two high-quality,

alkaline, size AAA batteries.

Zenith is not responsible for damage caused by battery

leakage.

After installing new batteries, the remote control will set itself

to Zenith brand codes, as follows: TV=101, VCR=201 and

CABLE=301.

If you are going to operate equipment that uses different

codes, the remote must be reprogrammed for those codes.

AUTO FIND MODE

Use Auto Find to automatically find the brand code needed to

operate your equipment.

NOTE: If no button is pressed for 60 seconds or more during

Auto Find, the remote will automatically exit Auto Find

without storing any brand codes. (LEDs will flash 3 times

upon exiting.)

1. Turn on the equipment you wish the remote to oper-

ate.

2. Press and hold LEARN until mode indicator lights

(about 4 seconds).

3. Use MODE to select the mode you wish to program

(TV, VCR or CABLE).

4. Enter "00" then press ENTER within 2 seconds. All four

mode indicator lights will turn ON and then OFF, leaving

the mode indicator light for the active mode ON.

5. Point remote towards the equipment.

6. Press and release OFF/ON on the remote about once every

second, until the equipment turns OFF. Press ENTER

before pressing any other buttons.

If you press OFF/ON again before pressing ENTER

Auto Find will have to be repeated.

7. Try other buttons to see if they operate the equipment.

lfthey do not, you may wish to reenter Auto Find and

try to find another code. The remote will begin with

codes starting from where it left off prior to exiting

Auto Find.

CABLE-TV DECODER

CHANNEL

_]LN

8. Repeat Auto Find for each piece of equipment you want

your remote to operate. NOTE: Only one brand code can

be programmed in each of the four modes.

If no brand code has been entered after searching through all

brand codes in any mode, the remote will flash all four mode

indicator lights in a chasing manner. Wait 60 seconds or press

ENTER or LEARN to return to normal operation.

2736-0 4--5

REMOTE CONTROL MODEL MBR3430

PROGRAMMING BRAND CODES

Introduction

Before using your new remote control, it must be programmed

to recognize the brands of equipment it will be used to

operate. If you are using a Zenith VHS VCR or aZenith

cable-TV decoder, the remote has already been programmed

for you.

Find the code that corresponds to each brand and type of

equipment you are going to operate. Refer to Tables 1, 2 and 3.

For example, if you were programming the remote for use

with a Zenith TV, you would look for "Zenith" in "Table 1",

and find code "101."

Write the brand codes for your equipment on the following

lines.

TV CODE:

CABLE CODE:

VCRCODE:

1. Press MODE repeatedly to select thc desired IV,

VCR or CABLE operating mode for the remote.

2. Press LEARN for about 5 seconds until the MODE

indicator lights for the selected TV, VCR or CABLE

mode of operation.

3. Enter the proper brand code number for the equipment

to be controlled:

4. Press LEARN. All three mode indicators should light

briefly, then turn off to indicate the brand code has

been programmed.

5. If all three mode indicators fail to light briefly, an

error has occurred. Repeat Steps 1-4 to try again.

6. Repeat steps 1-4 to program the remote for the other

equipment you are using.

NOTE: CABLE mode can be programmed to operate a

second TV or second VCR, if desired.

When batteries are removed: It will be necessary to reprogram

the proper VCR and cable-TV decoder codes.

Operating Mode

Indicators

Numbered Buttons

Use to enter code number

for desired brand.

LEARN Button

+_+_+_

SWAP TIMER SEO

RECORD STOP PAUSE SEARCH

(_, (:3ED (EE_ (::Z)

REW PLAY F FWD TV/VCR

[

Operating MODE Selector

2736-0 4_ 6

REMOTE CONTROL MODEL MBR3430

'TV, VCR AND CABLE-TV OPERATING CODES

Table 1. TV Codes by Brand

rl'VBrand TV Brand

Name Code Name Code

Admiral 116 Montgomery Ward 119

Admiral 121 Montgomery Ward 121

Akai 104 Montgomery Ward 130

Amark 103 NEC 104

AOC 104 NEC 119

Bell & Howell 121 Panasonic 106

Centurion 119 Panasonic 107

Coronado 103 Philco 103

Curtis Mathes 116 Philco 104

Curtis Mathes 119 Philco 112

Curtis Mathes 121 Philco 113

Daytron 119 Philips 112

Emerson 103 Philips 113

Emerson 104 Pioneer 135

Emerson 123 Portland

Emerson 124 Quasar

Emerson 131 Quasar

Emerson 136 Realistic

Fisher 109 Realistic

Fisher 118 Realistic

General Electric 106 RCA

General Electric 107 RCA

General Electric 114 RCA

General Electric 116 Sampo

Goldstar 103 Samsung

Goldstar 104 Samsung

Goldstar 119 Samsung

Hitachi 102 Sanyo

Hitachi 103 Sanyo

Hitachi 129 Sanyo

JVC 125 Scott

JVC 132 Sears

J,C. Penney 104 Sears

J.C. Penney 110 Sears

J.C. Penney 114 Sears

J.C. Penney 117 Sears

J.C. Penney 119 Sears

KMC 103 Sears

KTV 103 Sharp

KTV 104 Sharp

Lodgenet 121 Sharp

Logik 121 Sharp

LXI 133 Sharp

LXI 137 Sony

Magnavox 103 Sylvania

Magnavox 112 Sylvania

Magnavox 113 Sylvania

Magnavox 119 Sylvania

Magnavox 127 Sylvania

Magnavox 128 Sylvania

Majestic 121 Tatung

Marantz 104 Teknika

Marantz 120 Teknika

Memorex 121 Teknika

MGA/Mitsubishi 104 Teknika

MGA/Mitsubishi 119 Telerent

MGA/Mitsubishi 120 Telerent

MGA/Mitsubishi 130 Toshiba

Montgomery Ward 103 Toshiba

Montgomery Ward 104 Toshiba

Montgomery Ward 105 Yorx

Montgomery Ward 113 Zenith

Montgomery Ward 114

103

106

107

105

123

124

104

116

126

119

103

119

134

108

109

118

119

103

108

109

110

111

118

134

103

105

122

133

137

115

112

113

117

119

127

128

106

103

112

121

124

103

121

110

111

134

119

101

Table 2. VCR Codes by Brand

VCR Brand VCR Brand

Name Code Name Code

Akai 223 Pentax 215

Audio Dynamics 202 Philco 214

Audio Dynamics 218 Philips 214

Broksonie 221 Philips 227

Canon 214 Pioneer 210

Citizen 209 Pioneer 215

Craig 212 Pioneer Laser Disk 228

Curtis Mathes 214 Quasar 214

Curtis Mathes 216 RCA 215

DBX 202 RCA 216

DBX 218 RCA 220

Emerson 203 RCA 227

Emerson 221 Realistic 206

Emerson 223 Realistic 208

Emerson 226 Realistic 212

Emerson 233 Realistic 214

Emerson 235 Realistic 231

Fisher 211 Samsung 220

Fisher 212 Samsung 230

Fisher 213 Sanyo 206

Funai 231 Sanyo 212

General Electric 214 Scott 204

General Electric 216 Scott 205

General Electric 220 Scott 233

Goldstar 209 Sears 206

Hitachi 215 Sears 209

Instant Replay 214 Sears 211

Instant Replay 227 Sears 212

JVC 202 Sears 215

JVC 225 Sharp 208

J.C. Penncy 214 SonyVHS 232

J.C. Penney 218 Sony Video 8 217

J.C, Penney 227 Sylvania 207

Kenwood 202 Sylvania 214

Magnavox 207 Sylvania 227

Magnavox 214 Symphonic 231

Marantz 207 Tashiko 209

Marantz 218 Tatung 202

Marta 209 Teac 202

Memorex 212 Teac 231

Memorex 214 Teknika 234

Memorex 231 Toshiba 205

MGA/Mitsubishi 204 Toshiba 215

MGA/Mitsubishi 222 Vector Research 204

Montgomery Ward 208 Vector Research 218

Montgomery Ward 214 Yamaha 202

Montgomery Ward 219 Yamaha 218

NEC 202 Zenith VHS 201

NEC 218 Zenith VHS 225

Panasonic 214 Zenith VHS 229

Table 3. Cable Decoder Codes by

Brand

Cable Decoder Cable Decoder

Brand Name Code Brand Name Code

Drake Satellite 312 Pioneer 315

Drake Satellite 330 Regency 329

Gemini 305 Samsung 335

Gemini 331 Scientific Atlanta 316

General Instrument ! 305 Scientific Atlanta 323

General Instrument, 306 Scientific Atlanta 336

Hamlin 302 Sprucer

Hamlin 303 (Panasonic) 313

Jerrold 304 Standard

Jerrold 307 Components 335

Jerrold 308 STS Satellite 324

Jerrold 309 Telecaption 4000 325

Jerrold 310 Tocom 317

KaleVision 335 Tocom VIP 318

Macom 314 Toshiba 322

Macom 321 Toshiba Satellite 319

Macom Satellite 322 Zenith 301

Magnavox 334 Zenith 322

NSC 335 Zenith AV3000 327

Oak 311 Zenith Satellite 312

Oak 332 Zenith Satellite 330

Panasonic 313 Zenith Satellite 328

Panasonic 320 Zenith Laser Disk 326

Paragon (Zenith) 333

2736-0 4m7

QUICK REFERENCE TO ON-SCREEN MENUS

AVAILABLE MENUS

Your TV is icon and menu operated. That is, an icon is

selected at the top of the TV screen and a menu of adjustment

options appears.

IAUTO PROGRAM

CH. ADD/DEL

CH. LABELS

TUNING BAND

AUTO TUNING

SOURCE ID

CLOCK SET

CAPTIONS

PROJO SETUP

\Unhighlighted

Highlighted

Menu for highlighted icon appears

at left of TV screen.

SUMMARY OF MENU ITEMS

=:;DURr.E

[ANT/CABLE 1

ANT/CABLE 2

VIDEO 1

VIDEO 2

S-VIDEO 1

VIDEO 3 "_

S-VIDEO 2 -_

* Some models only.

ANT/CABLE 1 or 2 : Either of these sources lnay be used

for input from an antenna or a cable-TV line.

VIDEO 1 or 2:Either of these sources may be used for input

from a VCR.

S-VIDEO 1 :Use this source ifa Super-VHS VCR is

connected to your TV.

VIDEO 3 : Use this source if a camcorder is connected to

your TV.

S-VIDEO 2 :Use this source ifa second Super-VHS VCR is

connected to your TV.

[AUTO PROGRAM j

CH. ADD/DEL

CH. LABELS

TUNING BAND

AUTO TUNING

SOURCE ID

CLOCK SET

CAPTIONS

PROJO SETUP

AUTO PROGRAM: Finds all available channels and stores

them in the memory of the TV for use with CHANNEL

Up/Down.

CH. ADD/DEL: Changes the list of active channels stored in

memory so that only your favorite channels are selected when

using CHANNEL Up/Down.

CH. LABELS: Adds a channel label or name to the

channel/time display. For example, ABC may appear when

this network channel is tuned.

TUNING BAND: Determines the operation of the channel

selector inside the TV.

AUTO TUNING: Lets your TV compensate for variations in

broadcast and cable-TV frequencies.

SOURCE ID: Lets you assign a relevant name to each input

source.

CLOCK SET: Sets the TV's internal clock.

CAPTIONS: Displays closed captions (CC) or informational

text when available.

PROJO SETUP: Adjusts the dynamic color convergence of

the TV picture.

2738-0 5 m 1

QUICK REFERENCE TO ON-SCREEN MENUS

SUMMARY OF MENU ITEMS

RLIDID

[BASS 1

TREBLE

BALANCE

AUDIO

SEQ

SURROUND

BASS: Adjusts the BASS (low-frequency) level.

TREBLE: Adjusts the TREBLE (high-frequency) level.

BALANCE: Adjusts the BALANCE of sound between the

left and right speakers for stereophonic programs.

AUDIO MODE: Allows for receiving a Second Audio

Program (SAP), such as a program broadcast with two audio

portions (typically two languages), or lets you select

stereophonic (STEREO) or monaural (MONO) speaker

operation.

SEQ: Turns on an enhanced stereo mode.

SURROUND: Adjusts Surround Sound volume when used

with separately supplied Surround Sound speakers.

[CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

COLOR TEMP

VIDEO FILTER

AUTO FLESH

PICTURE PREF

CONTRAST: Adjusts the overall contrast and color level of

the picture.

BRIGHTNESS: Adjusts the brightness level of black areas in

the picture.

COLOR: Adjusts the intensity of the colors in the picture.

TINT: Adjusts the color of the flesh tones.

SHARPNESS: Adjusts the clarity of the edges of objects for the

clearest possible picture.

COLOR TEMP: Changes the "color temperature" or picture

white balance between cooler natural whites and warmer (red)

colors.

VIDEO FILTER: Reduces video "noise" or interference in

dark picture areas resulting in clearer overall pictures.

AUTO FLESH: Automatically maintains natural skin tones

under changing scene and video source conditions.

PICTURE PREF: Lets you decide if you want to use your

own CUSTOM video settings, the factory PRESET video

settings, or the THEATER video settings for optimum

viewing in low-light conditions.

PIP

* Some models only.

[CH. GUIDE

CH. REVIEW

PIP SOURCE

PIP COLOR

PIP TINT

PIP SIZE

.1(-

CH. GUIDE: Provides a visual review of all channels in the

channel scan memory for the currently selected ANT/

CABLE source.

CH. REVIEW: Provides a visual review of the last three (3)

channels tuned on the TV.

PIP SOURCE: Lets you select the equipment that supplies

the picture to the PIP inset.

PIP COLOR: Adjusts the intensity of the colors in the PIP

inset.

PIP TINT: Adjusts the color of the flesh tones.

PIP SIZE: Lets you choose between seeing a larger or

smaller PIP inset.

z738-o 5-- 2

QUICK REFERENCE TO ON-SCREEN MENUS

MENU OPERATION EXAMPLE

Press MENU repeatedly until the desired icon is highlighted

and its menu is showing. This example shows choosing the

SETUP MENU.

5ETUP

LAUTO PROGRAM ,

CH. ADD/DEL

CH. LABELS

TUNING BAND

AUTO TUNING

SOURCE ID

CLOCK SET

CAPTIONS

PROJO SETUP

Press SELECT (SEL) Up/Down repeatedly until the desired

option/feature is highlighted. This example shows choosing

TUNING BAND.

AUTO PROGRAM

CH. ADD/DEL

CH. LABELS

[TUNINGBAND I _i GABLE:GAT_V....

AUTO TUNING

SOURCE ID

CLOCK SET

CAPTIONS

PROJO SETUP

Press ADJUST (ADJ) Left/Right to adjust the option. This

example shows the choices you have for TUNING BAND.

ADJ. ADJ.

Tuning Band options are:

AUTO PROGRAM

CH. ADD/DEL

CH. LABELS

AUTO TUNING

SOURCE ID

CLOCK SET

CAPTIONS

PROJO SETUP

I iROADCAST

ABLE-CATV

ABLE-HRC

ABLE-ICC

Press ENTER (ENT) or wait a few seconds and the TV will

return automatically to normal operation.

272,8-0 5-- 3

SOURCE MENU

qDUREE

[ANT/CABLE 1I

ANT/CABLE 2

VIDEO 1

VIDEO 2

S-VIDEO 1

VIDEO 3 -_ Some models only

S-VIDEO 2

Source Menu

SOURCE SELECTION

Purpose

The viewing "source" refers to the equipment that supplies

the picture and sound to your TV. You select the viewing

source by using the SOURCE MENU.

To Access the SOURCE MENU

1. Press SOURCE on the remote control to view the

Menu icons with SOURCE already selected and its

menu showing.

2. Press SOURCE repeatedly until the source you want

is highlighted.

3. Press ENTER to return to normal viewing.

C11 2

10:56

Channel/Time Display

For Antenna or Cable

Source

VIDEO 1

10:56

Channel/Time Display

For Video or S-Video

Source

SOURCE IDENTIFICATION

YELLOW WttI'FE

v,oEo3,. s.,_Eo2,.h

'E_'_J,,pL_'_"' Iv,oEo,

Auxiliary AN Jacks

Selecting VIDEO 3 : Routes the auxiliary video source (such

as a camcorder or VCR) to the TV for viewing. The video

source must be connected to the corresponding VIDEO 3

jacks.

Selecting S-VIDEO 2: Routes the auxiliary Super-VHS VCR

source to the TV for viewing. The Super-VHS VCR must be

connected to the corresponding S-VIDEO 2 jacks.

MAGENTA

BLUE RED

:==_

LOOPOUT ANTICABLE2 ANTICABLE1

TODECODER

_VARIABLE

AUDIO

OUTPUT

RIGHT LEFT

TOEXTERNAI_AMP OR SPKR

SPEAKERS _----

IHT • • [UT "0" I IlL

VIDEO1 IN VIDEO2 IN --

VIDEO FAODIO i I VIDEO rAUDIO -_ _II1_

,_¢_____.____/_. _- _

/ HI LI/I _ _

Q _ i 'o'lll, ÷

7.o ,,..,°%,.,.o.o.__.

LT. BLUE GREEN

Connection Center on Back of TV

Selecting ANT/CABLE 1 or 2 : Routes the ANTENNA or

cable-TV source to the TV for viewing. You see program

material from whichever signal source is connected to the

ANT/CABLE 1 or 2jack.

Selecting VIDEO 1 or 2 : Routes the video source (such as a

VCR or a Video Disc player) to the TV for viewing. The

video source must be connected to the corresponding VIDEO

1/2 jacks.

Selecting S-VIDEO 1 : Routes the auxiliary Super-VHS

VCR Source to the TV for viewing. The Super-VHS VCR

must be connected to the corresponding input jacks.

SETUP MENU

To Access SETUP Menu

Refer to the "Using On-Screen

Menus" section for details.

Before Using SETUP Menu

Connect and turn ON all external

equipment, such as cable TV decoder,

VCR, etc. before using any item on

the SETUP Menu.

SETUP

IAUTO.PROGRAMJ

CH. ADD/DEL

CH. LABELS

TUNING BAND

AUTO TUNING

SOURCE ID

CLOCK SET

CAPTIONS

PROJO SETUP

Main Setup Menu

_SOURCE ID

CLOCK SET

CAPTIONS

PROJO SETUP

Setup Menu for Video

and S-Video Sources

AUTO PROGRAM

Purpose

Finds all available channels and stores them in the memory of

the TV for use by CHANNEL (CH) Up/Down.

Use AUTO PROGRAM only when you first install your TV,

or when you permanently change the connections to the TV.

For example, when you replace the antenna with a cable-TV

system.

NOTE: AUTO PROGRAM can only be used with ANT/

CABLE 1 or 2Source selection.

To Use AUTO PROGRAM

1. Press ADJUST (ADJ) Left/Right to start Auto Pro-

gram.

2. Use AUTO PROGRAM independently for each AN-

TENNA or CABLE signal source connected to your

TV. Select one source by using the SOURCE MENU

(ANT/CABLE 1 or 2) and use AUTO PROGRAM.

When completed, select the other source and use

AUTO PROGRAM again.

AUYO-#ROG RAM /

CH. ADD/DEL

CH. LABELS

TUNING BAND

AUTO TUNING

SOURCE ID

CLOCK SET

CAPTIONS

PROJO SETUP

ISTART ]

,.. j

Selecting Auto Program

When Some Channels Are Not Found

AUTO PROGRAM finds only active channels and stores

them in the favorite channel memory. You can add channels to

those stored in memory by using CH. ADD/DEL.

CH. (Channel) ADD/DEL

Purpose

Lets you add channels to and remove channels from the

channel scan. In this way you can customize the channels that

are accessed through CHANNEL (CH) Up/Down.

NOTE: CH. ADD/DEL can only be used with ANT/CABLE

1 or 2Source selection.

To Add a Channel to Scan Sequence

1. Press ADJUST (ADJ) Left/Right to view the channel

add/delete screen.

2. Use the number buttons on the remote to enter the

channel or use ADJUST (ADJ) Left/Right and SE-

LECT Up/Down to move the highlight to the channel

you wish to add.

3. Add the channel by pressing SOURCE until the dis-

play shows ADDED.

_UTOPROGRAM

3H. ADDIDEL ::1

CH, LABELS

TUNING BAND

AUTO TUNING

SOURCE ID

CLOCK SET

CAPTIONS

PROJO SETUP

LCHI5ADD] :: ]

Selecting Ch. Add/Del

To Delete a Channel from Scan Sequence

1. Press ADJUST (ADJ) Left/Right to view the channel

add/delete screen.

2. Use the number buttons on the remote to enter the

channel or use ADJUST (ADJ) Left/Right and SE-

LECT Up/Down to move the highlight to the channel

you wish to delete.

3. Delete the channel by pressing SOURCE until the

display shows DELETED.

(continued on next page)

2738-0 7-- 1

SETUP MENU

Available cham_cls lot currently

selected source.

Available channels are:

BROADCAST Band

VHF 2 to 13, UHF 14 to 69

CATV, HRC and ICC Bands --

1 to 125

Use ADJUST Down to move

highlight to higher numbers.

-f1

2 3

8 9

14 []

20 21

26 27

32 33

38 39

44 45

50 51

56 57

62 63

68 69

74 75

80 81

86 87

45 6

10 11 12

16 17 18

22 23 24

28 29 30

34 35 36

40 41 42

46 47 48

52 53 54

58 59 60

64 65 66

70 71 72

76 77 78

82 83 84

88 89 90

PRESS

SOURCETO

CHANGE

ADDED

CH 15 J

Channel Add/Delete Screen

Live view of currently

selected channel.

Instructions

Channel Status: Added to or

Deleted from channel scan.

I Currently selected channel.

CH. (Channel) LABELS

Purpose

Assigns a network label or "name" to the selected channels. If

you choose the label "ABC" for channel 15, "ABC" appears

in the Channel/Time display when channel 15 is selected for

viewing.

NOTE: CH. LABELS can only be used with ANT/

CABLE 1 or 2Source selection.

A&E

BRAV

CNBC

DIS

EWTN

FIN

MAX

NOS

REQ

TBN

TRAV

VCR

WWOR

ABC

CNN

D1SC

FAM

HSE

MEU

PBS

TELE

TSN

VHI

YTV

ACTS

CBC

COM

FNN

HSN

MMT

PLAY

SCFI

TLC

TVA

VISN

ADC

CBN

CSPN

ENC

FOX

MTV

PTL

SHOW

TMC

TWN

VJN

AMC

CBS

CTN

ESPN

GALA

INSP

NBC

QVC

SIN

TNN

USA

WGN

BET

CMTV

CTV

HBO

LIFE

NICK

RDS

TBS

TNT

WTBS

Available Channel Labels

To Use CH. LABELS

1. Press ADJUST (ADJ) Left/Right to view the channel

label screen.

2. Use ADJUST (ADJ) Left/Right and SELECT

Up/Down to move the highlight to the LABEL you

wish to assign to the current channel.

3. To label another channel, use CHANNEL Up/Down,

or the number keys on the remote control to select the

channel number and repeat step 2.

4. To remove an assigned channel label, select the four

dashes.

AUTO PROGRAM

CH. ADD/DEL

CH. LABELS ] [ CH2ABC

TUNING BAND

AUTO TUNING

SOURCE ID

CLOCK SET

CAPTIONS

PROJO SETUP

Selecting Ch. Labels

Available channel

labels.

-f

AMC

CBN

COM

DISC

EW'TN

HBO

INSP

MTV

PLAY

TBN

TNT

USA

__VJN

BET BRAV CA CBC

CBS CMTV CNBC CNN

CSPN CTN CTV DIS

El ENC ESPN ET

FAM FNN FOX GALA

HN HSE HSN IC

LIFE MAX MEU MMT

NBC NICK NOS PBS LABEL

PTL QVC RDS REQ FOR

SCFI SHOW SIN TBS

TELE TLC TMC TNN CH 15 "

TRAV TSN TVA TWN

VC VCR MH1 VISN

WGN WTBS WWOR Y'I'V

Channel Label Screen

Live view of currently

selected channel.

Currently selected channel.

2738-0 7 -- 2

SETUP MENU

TUNING BAND

Purpose

Allows for setting the TV channel selector (tuner) to match

your antenna or cable-TV system.

If you are having difficulty tuning channels, the TUN1NG

BAND may have to be set manually to match your viewing

needs.

AUTO PROGRAM

CH. ADD/DEL

CH. LABELS

AUTO TUNING

SOURCE ID

CLOCK SET

CAPTIONS

PROJO SETUP

[CABLE-CATV

Selecting Tuning Band

NOTE: TUNING BAND can only be used with ANT/

CABLE 1 or 2Source selection.

To Use TUNING BAND

Press ADJUST (ADJ) Left/Right to select the tuning band that

gives you the most channels:

• BROADCAST u is used for standard "over-the-air" broad-

casts.

•CABLE u CATV is used for most standard cable-TV

(CATV) systems.

• CABLE-- HRC is used for cable-TV systems that use HRC

(Harmonically Related Carrier).

•CABLE D ICC is used for cable-TV systems using ICC

(Incremental Coherent Carrier).

Available Channels per Band

The channels that are available in the broadcast and cable

tuning bands are shown below:

BROADCAST Band -- VHF 2to 13, UHF 14 to 69

CATV, HRC and ICC Bands -- 1 to 125

AUTO TUNING

Purpose

Lets your TV compensate for variations in broadcast and

cable-TV frequencies.

AUTO PROGRAM

CH. ADD/DEL

CH. LABELS

TUNING BAND

_UYQ_T_Li_NiNGI _2F!XE_

SOURCE ID

CLOCK SET

CAPTIONS

PROJO SETUP

Selecting Auto Tuning

If you are having difficulty tuning channels, the AUTO

TUNING may have to be set manually to match your viewing

needs.

NOTE: AUTO TUNING can only be used with ANT/

CABLE 1 or 2 Source selection.

To Use AUTO TUNING

Press ADJUST (ADJ) Left/Right to select the mode of

operation that gives you the most channels:

• FIXED is used to receive "over-the-air" TV stations, and

with many cable-TV systems.

• SEARCH is used only when the TV must search to find the

frequency being received, such as when used with certain

VCRs and video game controllers.

SOURCEID

Purpose

Assigns a descriptive "name" to the input sources. For

example, the VIDEO 1 source may be named VCR. "VCR"

now appears in the source menu as a reminder that your VCR

is connected to VIDEO 1 input jacks.

To Use SOURCE ID

1. Press ADJUST (ADJ) Left/Right to view the

SOURCE ID screen.

2. Use SELECT Up/Down to select a SOURCE.

3. Use ADJUST (ADJ) Left/Right to select the desired

name for the source.

AUTO PROGRAM

CH. ADD/DEL

CH. LABELS

TUNING BAND

AUTO TUNING

;o_u_RCEID ]

CLOCK SET

CAPTIONS

PROJO SETUP

iLABEL

Selecting Source ID

(continued on next page)

2738-0 '7-- 3

SETUP MENU

Available

sources

CLOCK SET

Purpose

Sets the clock in the TV to the correct time.

To Use CLOCK SET from Remote Control

SOURCE

ANT/CABLE1

ANT/CABLE2

VIDEO1 ]

VIDEO2

S-VIDEO1

LABEL

ANTENNA

CABLE

LvcR ]

LASERDISK

Source ID Screen

Live view of cu_tcntl),

selected source.

Optional names for ANT/

CABLE 1 or 2 Sources are:

ANTENNA, CABLE,

CABLE BOX, SATELLITE.

Optional names for VIDEO

Sources are:

VCR, CAMCORDER, VIDEO

DISK, VIDEO GAME.

To Use CLOCK SET from Control Panel

Use ADJUST (ADJ) Left/Right to set the time. Press ENTER

(ENT) to start the clock.

AUTO PROGRAM

CH.ADD/DEL

OH. LABELS

TUNING BAND

AUTO TUNING

SOURCE ID

CLOCKSET

CAPTIONS

PROJO SETUP

] [ i0:00 AM --

Selecting Clock Set

Use the numbered buttons on the remote control to enter the

current time. Press ENTER (ENT) to start the clock. Press

TIMER to select AM or PM.

i CH13 1

10:56

Channel/Time Display

CAPTIONS

Purpose

Displays closed captions (CC) or informational text when

available on the selected channel.

To Use CAPTIONS

Press ADJUST (ADJ) Left/Right to select desired mode of

operation. Five different selections can be made: OFF,

CAPTION 1, CAPTION 2, TEXT 1 or TEXT 2.

AUTO PROGRAM

CH. ADD/DEL

CH. LABELS

TUNING BAND

AUTO TUNING

SOURCE ID

CLOCK SET

]cAP_-S-_ ] L_cAPTiONi _

!PROJO SETUP

Selecting Captions

At the time of this writing, very little appears in any selection

except CAPTION 1. Therefore you should choose CAPTION

1 and leave it in that selection unless you know there is

something available in one of the other options. Once you

make a selection, that selection is remembered until you

change it.

fHello! Are you

outthere?

Typical Captions Display

Captions may be shown

anywhere on the screen.

Typical Text Display

Fixed size text window.

May be all black when no

information is shown.

2738-O 7-- 4

SETUP MENU

PROJO SETUP

Purpose

Lets you verify and adjust, if needed, the dynamic color

convergence of the TV picture.

If you move your TV from its original location, or if after

time, you notice color "fringes" around opjects in the picture,

you may want to realign the colors by adjusting the

convergence as described in the following steps.

AUTO PROGRAM

CH. ADD/DEL

CH. LABELS

TUNING BAND

AUTO TUNING

SOURCE ID

CLOCK SET

CAPTIONS

_0 SETUP I L_ YbbONVERGE-

Selecting Projo Setup

To Use PROJO SETUP

1. Press ADJUST (ADJ) Left/Right to view the conver-

gence lines.

If the display appears as four intersecting lines, all

white in color, no adjustment is necessary.

If there are more than four lines, each a different

color, you must adjust the convergence.

2. Use SOURCE key to select the Red reference color.

3. Use the SELECT and ADJUST arrow keys (Up,

Down, Left and Right) to adjust the Red lines until

they are on top of the Green lines.

4. Use SOURCE key to select the Blue reference color.

5. Use the SELECT and ADJUST arrow keys (Up,

Down, Left and Right) to adjust the Blue lines until

they are on top of the other lines. All lines should

now be white.

PRESS SOURCE TO SELECT COLOR

PRESSARROWKEYSTO CONVERGE

Correct Convergence

PRESSSOURCETO SELECTCOLOR

PRESSARROWKEYSTO CONVERGE

Incorrect Convergence

2_3s-o 7-- 5

AUDIO MENU

TREBLE

"N J:_ BALANCE

AUDIO

RUrllrl SEQ

SURROUND

BASS

TREBLE

BALANCE

AUDIO

(AUDIO mode options

are not available while

using a VIDEO or

S-VIDEO source. The

audio received from

these sources are

assumed to be stereo .)

SEQ

(Spatial Equalization)

SURROUND

Adjusts tile BASS (low-frequency) level.

Adjusts the TREBLE (high-frequency) level.

Adjusts the balance of sound between the left and right speakers for stereo programs.

Allows you to select STEREO, MONO or 2ND AUDIO/SAP speaker operation.

STEREO: Directs the sound to the left and right speakers as supplied by the program

source (broadcast TV, VCR, etc.)

MONO: Directs the same sound to both left and right speakers even if the source being

received is in stereo.

2ND AUDIO/SAP: Directs the sound for the Second Audio Program to both the left and right

speakers. SAP sound is always monaural. If the SAP signal ends, the audio

defaluts to either stereo or mono depending on the audio being received.

Improves tonal balance and increases apparent stereo separation to produce a spacious and more tonal

sound. SEQ is only available if a stereo signal is being received and STEREO is either selected using

the AUDIO option or selected by default.

Adjusts the level of Surround Sound provided to the optional surround sound speakers. Surround

Sound is only available ifa surround encoded stereo signal is being received and STEREO is either

selected using the AUDIO option or selected by default.

To Access AUDIO MENU

Refer to the "Quick Reference to On-Screen Menus" section

for details.

NOTE: All adjustments on the AUDIO MENU are optional.

You do not have to use these features in order to use your TV.

Audio Mode Shown in

Channel/Time Display

STEREO is selected and a stereo

signal is being received. You will

hear stereo sound.

To Adjust BASS, TREBLE, BALANCE and SURROUND

Press ADJUST (ADJ) Left/Right until the most pleasing

sound is heard.

To Use AUDIO Mode Options

Press ADJUST (ADJ) Left!Right to select desired option.

We recommend that you use the STEREO option. The TV

will switch automatically between the STEREO and MONO

modes dependent on the signal being received.

If you prefer SAP, use the 2ND AUDIO/SAP option. On those

stations which broadcast two audio portions, you will hear the

SAP (usually a second language). When the SAP broadcast

ends, the TV switches automatically between STEREO and

MONO modes. The TV switches back to 2ND AUDIO/SAP

when the SAP broadcast resumes.

zv36-o 8_ 1

VIDEO MENU

ir !¸,CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

COLOR TEMP

VIDEO FILTER

AUTO FLESH

PICTURE PREF

CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

COLOR TEMP

VIDEO FILTER

AUTO FLESH

PICTURE PREF. (Pref-

erence)

Adjusts the overall contrast and color level of the picture.

Adjusts the brightness level of black areas in the picture.

Adjusts the intensity of the colors in the picture.

Adjusts the color of the flesh tones, where G is Green and R is Red.

Adjusts the clarity of the edges of objects for the clearest picture quality.

Changes the "color temperature" or picture white balance between cooler natural whites and warmer

(red) colors.

Reduces video "noise" or interfelence in dark picture areas resulting in clearer overall pictures.

Automatically maintains natural skin tones under changing scene and video source conditions.

Lets you decide if you want to use your own CUSTOM video settings, the factory PRESET video

settings, or the factory preset THEATER video settings for low light conditions.

To Access VIDEO Menu

Refer to the "Using On-Screen Menus" section for details.

Optional Adjustments

All adjustments on the VIDEO MENUS are optional. You do

not have to use these features in order to use your TV.

To Use Video Settings

1. Select video option to be adjusted.

2. Press ADJUST (ADJ) Left/Right until the most pleas-

ing picture is seen.

To Use PICTURE PREF. (Preference)

Press ADJUST (ADJ) Left/Right to select status.

If either the PRESET or THEATER setting is selected, any

adjustment made to the VIDEO Menu options automatically

changes the PICTURE PREF. setting to custom, and saves

your current video settings in the CUSTOM mode.

2736-0 9_ 1

PIP MENU

to Access PIP Menu

Refer to the "Using On-Screen

Menus" section for details.

NOTE: Selecting the PIP Menu does

not "activate" PIP. However, a PIP

inset will appear during menu

operation to show the effect of any

setting changes.

PIP

[cfi.Gui6 * )Somemodelsonly

CH. REVIEW .

PIP SOURCE

PiP COLOR

PIP TINT

PIP SIZE

OH. (Channel) GUIDE

Purpose

Provides a visual review of all channels in the channel scan

memory for the currently selected ANT/CABLE source.

To Use CH. GUIDE

1. Press ADJUST (ADJ) Left/Right to start Ch. Guide.

2. The TV will show small PIP-like views of all chan-

nels in the channel scan from the lowest channel

number to the highest.

3. Tune to a desired channel by pressing ENTER (ENT)

while the picture in the PIP-like inset is active, or

enter the channel number using the number keys on

the remote.

4. Press MENU to return to the PIP Menu.

;H. GUIDE

CH.REVIEW

PIPSOURCE

PIPCOLOR

PIPTINT

PIPSIZE

I ( START

Selecting Ch. Guide

CH 2 CH 3

CH 6

CH 9

OH 5

CH 7

Ch. Guide Screen

2736-0 10 m1

PIP MENU

CH. (Channel) REVIEW

Purpose

Provides a visual review of the last threc (3) channels tuned on

the TV.

To Use Ch. Review

I. Press ADJUST (ADJ) Left/Right to start Ch. Review.

2. The TV will show small PIP-like views of the last

three channels that were tuned.

3. Tune to a desired channel by pressing ENTER (ENT)

while the picture in the PIP-like inset is active, or

enter the channel number using the number keys on

the remote.

4. Press MENU to return to the PIP Menu.

.3H.GUIDE

CH.REVIEW

PIPSOURCE

PIPCOLOR

PIPTINT

PIPSIZE

]IsrAm-

Selecting Ch. Review

CH 2

CH 5

CH 7

Ch. Review Screen

PIP SOURCE

Purpose

Lets you select the equipment that supplies the picture to the

PIP inset.

To Use PIP SOURCE

Press ADJUST (ADJ) Left/Right to toggle through your

source options.

NOTE: If you "named" your sources (see SOURCE ID in

the SETUP MENU section), these names will appear when

toggling through the PIP SOURCE options.

CR.GUIDE

CH. REVIEW

PIPSOURCE

PIPCOLOR

PIPTINT

PIPSIZE

] [ VIDEO I

Selecting PIP Source

_6-o 10m2

PIP MENU

PIP COLOR

Purpose

Adjusts the intensity of the colors in the PIP inset.

To Use PIP COLOR

Press ADJUST (ADJ) Left/Right to decrease or increase the

intensity of colors in the PIP inset.

CH.GUIDE

CH. REVIEW

PIPSOURCE

PIPCOLOR

PIPTINT

PIPSIZE

Selecting PIP Color

PIP TINT

Purpose

Adjusts the color of the flesh tones.

To Use PIP TINT

If flesh tones are too red or purple, press ADJUST (ADJ) Left

until you acheive the desired flesh tone.

lfflesh tones are too green or have a greenish TINT, press

ADJUST (ADJ) Right until you acheive the desired flesh tone.

_H.GUIDE

CH.REVIEW

PIPSOURCE

PIPCOLOR

PIPTINT

PIPSIZE

Selecting PIP Tint

PIP SIZE

Purpose

Lets you choose between seeing a larger or smaller P1P inset.

To Use PIP SIZE

Press ADJUST (ADJ) Left/Right to select either SMALLER

or LARGER.

_.1-1.GUIDE

CH.REVIEW

PIPSOURCE

PIPCOLOR

PIPTINT

PIPSIZE ][SMALL

Selecting PIP Size

2736-0 10 -- 3

(continued on next page)

PIP OPERATION AND CONNECTIONS

Option 2: Antenna or Direct Cable Connection Loop Out

This illustration shows the basic connection of your TV to a

stereo VCR. Using this connection, you are capable of the

following operation:

• You may select ANT/CABLE 2for main picture source to

view channels tuned by the TV's channel selector.

Simultaneously, you may select VIDEO 1 for PIP source to

view min the PIP inset ma tape playing in the VCR or

ANT/CABLE 1 to view a different channel tuned by the

VCR's channel selector. (VCR's TV/VCR button must be

set to TV and TV must be tuned to channel 3 or 4.)

Sources may also be swapped: VIDEO 1 may bc tile main

picture and ANT/CABLE 1 the PIP inset; or ANT/

CABLE 2 may be the main picture and ANT/CABLE 1the

PIP inset.

Connection From Antenna

or Cable-TV System

Option 2: Antenna or Direct Cable Connection Loop Out

zTs6-o 11 -- 2

PIP OPERATION AND CONNECTIONS

To Select Main Picture Source PIP FUNCTIONS

The source for the main picture can be either ANT/CABLE 1

or 2 connections, or any of the VIDEO connections. The fol-

lowing example selects ANT/CABLE 1 for normal television

viewing, which is the most common setup.

1. Select TV mode of operation for the remote control.

2. Press SOURCE on the remote control repeatedly until

ANT/CABLE 1 is selected.

[ANT/CABLE 1 }

ANT/CABLE 2

VIDEO 1

VIDEO 2

SnURr E S-VIDEO1

VIDEO 3

S-VIDEO 2

To Select PIP Source

The PIP inset source can be either ANT/CABLE 1 or 2con-

nections, or any of the VIDEO connections. The following

example selects VIDEO 1 for the PIP source, which is the

most common setup.

1. Select TV mode of operation for the remote control.

2. Press MENU on the remote until the PIP Menu is

selected.

CH2 )

12:30 l

SEQ |

IPIPIvmEo 111

Source of main


Source of RP

,Use SELECT Up/Down to choose PIP SOURCE then

press SOURCE repeatedly to select VIDEO 1.

(

CH.GUIDE

CH.REVIEW

PIPSOURCE

PIPCOLOR

PIPTINT

PIPSIZE

J [ VIDEO 1

4. Press ENTER to remove menus from the screen.

5. Press PIP on the remote to view the PIP inset.

6. Use the VCR to change the channel in the PIP inset,

or to view a tape in the PIP inset.

7. Use ADJUST Left/Right and SELECT Up/Down to

position the PIP inset anywhere on the TV screen.

PIP

Press PIP to display the PIP inset. Press PIP again to remove

inset.

Moving The Pip Inset Location

Use four-way arrows (ADJ/SELECT) to move PIP inset to

the desired location on the TV screen.

Swap

Press SWAP to swap the main picture with the PIP inset.

Press SWAP again to return to the original display.

[-_J Main Picture

PIP Size

Swap switches the Video

from the Main Picture to

the PIP inset and the PIP in-

set to the Main Picture

Select PIP Size in the PIP Menu to choose between seeing a

large or small PIP inset.

Freeze

Press FREEZE to freeze motion of the picture shown in the

PIP inset. Press FREEZE again to return to a live PIP inset.

When the PIP inset is not currently displayed, pressing

FREEZE provides an instant PIP freeze-frame of the pro-

gram you are watching. Press PIP again to return to normal

TV viewing. This function can be used without a second

source to retain a phone number or freeze a football play.

ADJI ._

SELECT

SWAP

Q®Q

®Q®

Q®@

F FWD

MODE

SOURCE

FREEZE

Typical Remote

Your remote may differ from unit shown.

27a_-o 11 -- 4

MAINTENANCE AND TROUBLESHOOTING

CARING FOR YOUR PROJECTION TV

Your projection TV will look better, have a longer life and per-

form better if you care for it properly.

First check to see that the TV is off. For added

safety, disconnect AC power to your TV.

NOTE: If you disconnect AC power to your TV

for an extended time period, you will have to reset

the clock.

Picture Screen Cleaning

Use asoft cloth moistened with warm water and rub lightly ill

the soiled areas of the screen. DO NOT USE A TISSUE OR

PAPER TOWEL, AS THESE MAY DAMAGE SURFACE.

Wipe only in the vertical (up/down) direction (along the

grooves). If there is a dirt buildup, a mild solution of warm

water and Ivory dishwashing detergent may be used. Use dry

soft cloth to dry the screen. Care should be taken to avoid

scratches or damage to the screen surface.

NOTE -- The TV screen is easily damaged. Avoid acciden-

tal contact with the screen.

EXTENDED ABSENCE

Before an extended absence (such as a vacation) you may

want to disconnect AC power to your TV. This will protect

the projection TV from possible damage from lightning or

power line surges. If you have an outdoor antenna, you may

also want to disconnect the antenna from the wall plate con-

nection center

NOTE: If you disconnect AC power to your TV for an ex-

tended time period, you will have to reset the clock.

PICTURE INTERFERENCE

Your picture may be affected by interference caused by one or

a number of factors. These include:

Nearby Automobile Ignition, Electrical Appliances, etc.

Which causes a speckled, streaked picture. This is most notice-

able in weak signal areas.

Snow in Picture Caused by insufficient signal. Usually

caused by the TV being located too far from the TV station or

by an improper antenna installation.

Ghosts or Reflections Caused by signals being retlected

from surrounding buildings, water tanks, or other high struc-

tures.

Radio Signal Police, amateur or CB radio transmitters may

cause interference.

These interference problems can often be corrected through

the use of a better antenna, signal amplifiers, or various filter

devices. See your TV dealer for additional information, and ac-

cessories available for your projection TV.

PROCARE2 12 -- l

MAINTENANCE AND TROUBLESHOOTING

BEFORE CALLING FOR SERVICE

Check these items and see if you can correct the trouble by

changing the adjustment of a control or the setting of a

switch.

By making these simple checks before calling tbr service,

you may save time and money.

Problem

Picture OK. Poor sound.

Sound OK. Poor picture.

No picture or sound.

Try This

Re-orient antenna. Try another channel -- possible station

trouble. Check for local interference. Check AUTO

TUNING and TUNING BAND options.

Re-orient antenna. Try another channel -- possible station

trouble. Adjust VIDEO Menu options with PICTURE

PREF. in CUSTOM mode.

Is TV on? Is there power in wall outlet? Is TV plugged in? ls

antenna hooked up? Is cable hooked up? Is cable operational?

Check auxiliary audio/video equipment. Check channel

selection. Check TUNING BAND and AUTO TUNING

Menu options.

Picture blurred, ghost in picture, or distorted. Check antenna or cable hook up for broken wires or loose

connection. Try another channel -- possible station trouble.

Check for local interference.

No color, or poor color. Try another channel -- possible black and white program.

Check antenna or cable hook up for broken wires or loose

connection Adjust VIDEO Menu options with PICTURE

PREF. in the CUSTOM mode. Is it a color program?

No sound. VOLUME (VOL) setting may be too low. Check MUTE

button operation on remote control, if provided. Is Speaker

EXT/1NT switch in EXT position?

Cannot select certain channels. Channels may be skipped in CH. ADD/DEL Menu option.

Check TUNING BAND and AUTO TUNING options.

Remote control does not work. Are batteries okay? Is TV turned ON? Is TV plugged in?

No closed captions. Are captions available? Is CAPTION 1 or 2 selected by

using the CAPTIONS option on the SETUP Menu.

Black or blue box covers 1/2of screen. Is text information available? Is TEXT 1 or 2 selected by

using the CAPTIONS option on the SETUP Menu?

No picture or sound when VCR source is selected. Is VCR hooked up properly? Are wires connected to VCR-

VIDEO 1/2 jacks on connection center?

No sound or weak stereo sound when using a stereo VCR. Check AUDIO mode? Is it STEREO? Was stereo present

before selecting VIDEO 1/2 or S-VIDEO Source?

PIP is black when using VCR for PIP source. Is VCR hooked up properly? Are wires connected to the

VIDEO 1/2 input jacks on connection center? ls VCR

selected for PIP source?

PIP lacks contrast when using VCR for PIP source. Is VCR hooked up properly? Are wires connected to the

VIDEO I/2 input jacks on connection center?

PIP inset frame is snowy when using TV tuner for PIP and Is TV/VCR switch on VCR in the TV position?

VCR for main picture.

Always request that your technician use only genuine Zenith

exact replacement parts for continued quality and safety per-

formance. Keep your Zenith ALL Zenith.

NOTE: If your TV fails to respond to any other menu selec-

tion, you must reset the TV. Simply disconnect the AC

power. Wait a few minutes, then reconnect the AC power.

2736-o 12 _2

PRODUCT REGISTRATION CARD

You could win a full refund on your new Zenith product.

Look for the Product Registration Card on your new video

product.

Each month a drawing is held by Zenith from the completed

Product Registration Cards received during the preceding

month. Zenith will reimburse the winner for the full purchase

price of the product purchased.

In order to participate, simply complete and return the Product

Registration Card at once, even if you choose not to complete

the information and interests portion of the questionnaire.

The odds of winning the free drawing described above, de-

pend on the number of participants. Free drawing offer is

void in Canada and other places where restricted or prohib-

ited by law. Offer is void for Hotel/Motel and Institutional

models. Rental models are not eligible.

Product Card lost or misplaced?

The Product Registration Card furnished with your video prod-

uct is pre-printed with its Model and Serial numbers. Please

fill out the card and mail it at your earliest convenience. It is

imperative that Zenith know how to reach you promptly if we

discover a safety problem that would affect you. If the original

card has been lost or misplaced, you may use the replacement

card provided below. Either card will qualify you for the free

drawing, but you are limited to only one entry in the drawing.

Complete the card, place it in an envelope and mail it to:

Zenith Electronics Corporation

P. O. Box 173257

Denver, CO 80217-3257

Use the replacement Product Registration Card only if the

original card has been misplaced or lost.

PHOTOCOPY AND CUT ALONG DASHED LINE

r .........................................................................................................................

Zenith Product Registration Card H5Z01-01

QPlease Print Clearly or Type QArea Code Telephone

1. J---1Mr. 2. J_JMrs. 3._JMs. 4.["JMIss I I I II I I I-I I III

First Name Initial Last Name

IIIIIIII II Ilil III I III I I IIIIII

Street Apt. No.

IIIIIIII IIIIIII IIII IIII IIIII

City

I I I I I I I I I I I I I I I I ®Date of Purchase

State Zip Code Mo. Day Yr.

I11111111-11111 IIIIIIlll

MODELNUMBER

Copy Numbers Here

From Label on Sef

" ""'lrllllllllll

NUMBER

Please record the model number

and serial number from the sticker

on the back of your set.

J, .........................................................................................................................

TVCARD2

BROKENORLOSTREMOTECONTROL?....

Foran ExactReplacementRemote

Controlfor your newZenithTelevision,

seeyour localZenith Dealeror order

direct by calling 1-800-255-6790. To

assurethe correct remotefor your new

Zenith,pleasehaveyour television'smodel

andserial numberand dateof purchaseready!

ONLY$39.95

OTHERFINEACCESSORIESFORYOURTELEVISION.

WALLMOUNTS

(17 Ibs.)

• Easyto install 13"

• Safeandstrong

• 5 yearwarranty

• Madein U.S.A. 19/20"

• Spacesaving

• ULlisted

•Adjustabletilt angle: 25/27"

0to 12degrees

If yourTV

screenis: Order

thismodel

CWM013 ONLY

$99.95

CWM020 ONLY

$s9.95

CWM027 ONLY

$99.95

DELUXEAMPLIFIED 75 OHM

INDOOR TV ANTENNA.

• Providessharp, clear pictures

• VHF/UHF color & FM stereo reception

• VHF/UHF signal combiner circuitry

• Includes:

•Matching transformer

• 4 ft. coaxial cable with connectors

•Designedand built in the U.S.A.

ATS 750 ONLY$59.95

PHOTOCOPYPAGEANDDETACHHERE

ITEM NUMBER DESCRIPTION

To order thesefine accessories,

pleasefill out this card and

return a photocopy to:

Attn: Accessory Offers

Zenith Video TechCorporation

1900 N.Austin Avenue

Chicago, IL 60639

orcall 1-800-255-6790

Z Check or money order

(Madepayableto ZenithVideoTechCorp.)

-] Visa [] Mastercard

Account#

SalesTax: Pleaseadd your state salestaxif you

live in oneof the following states.

PRICEPERITEM

STATESALESTAX

SHIPPING& HANDLING

TOTALAMOUNTOFORDER

TOTAL

PRICE

SUBTOTAL

CA73/4%,GA4%,IL83/4%,KS4.9%,KY6%,ME8%,

PA8%,RI7%,TX7 3/4%,VA41/2%,WA61/2%.

$4.50

J II I

ExpirationDate: Signature:

MPORTANT:PLEASEBESURETOCOMPLETETHEINFORMATIONBELOW.

/ /

V ModelNumber "IVSerialNumber Mo. Day Yr.

romstickeronbackofunit) (fromstickeronbackofunit) (Approx,aateofpurchase,)

'LEASEALLOWUPTO3WEEKSFORDELIVERY.THANKYOU!

VACCS3

SHIPTO:

Telephone: (

Name:

Address:

Apt.#

State

City

ZipCode

NOTE:Priceandavailabilitysubjecttochange,

YOUR ZENITH WARRANTY

Consumer Protection Plan for Zenith Projection TV

Welcome into the Zenith family! We believe that you will be

pleased with your new Zenith Projection TV. Please read this

Consumer Protection Plan carefully. It is a "ONE YEAR

FULL WARRANTY," plus alimited second year picture tube

warranty, as defined under federal law. This warranty gives

you specific legal rights, and you may also have other rights

that vary from state to state within the U.S.A.

Zenith's Responsibility

Service Labor and Parts -- During a period of one year

from effective warranty date, Zenith will supply new or re-

manufactured replacement picture tubes or other parts, and

will pay for service labor by a Zenith distributor or

distributor-approved Zenith service center, when such parts or

service labor are needed to repair the product as a result of

manufacturing defects. Further, Zenith will supply a new or re-

manufactured replacement for any picture tube which fails dur-

ing the second year after effective warranty date because of a

manufacturing defect. Replacement parts are warranted for the

remaining portion of the original warranty period. The above

service labor warranty applies only in the U.S.A.

On-Site Service -- Warranty service is provided when the

Projection TV is installed.

Not Covered -- This warranty covers manufacturing defects

and does not cover installation, adjustment of customer con-

trols in the home, installation or repair of home antenna sys-

tems, cable converters or cable company-supplied equipment;

it also does not cover damage due to misuse, abuse, negli-

gence, acts of God or other causes beyond the control of

Zenith. Any alteration of the product after manufacture voids

this warranty in its entirety.

Owner's Responsibility

Effective Warranty Date -- Warranty begins on thc date of

original consumer installation. For your convenience, keep the

dealers dated bill of sale or delivery ticket as evidence of the

purchase date.

Operating Guide -- Read your Operating Guide carefully so

that you will understand the operation of your set and how to

adjust the customer controls.

Antenna -- Reception problems caused by inadequate home

antennas or faulty antenna connections are the owner's respon-

sibility.

Important: Product Registration -- Please fill out and mail

your Owner Registration Card. It is imperative that Zenith

know how to reach you promptly if we should discover a

safety problem that could affect you.

Warranty Service -- For warranty service information, con-

tact your Zenith dealer preferably, or any distributor-

approved Zenith service center. Parts and service labor that are

Zenith's responsibility (see above) will be provided without

charge. Other service is at the owner's expense. If you have

any problem in obtaining satisfactory warranty service, write:

Zenith Electronics Corporation

Customer Service Department

1900 N. Austin Avenue

Chicago, Illinois 60639-5079

Telephone: (312) 745-5152

Mon-Fri, 8:00 a.m. - 4:30 p.m. Central Time

NOTE: Before you ask for Warranty service, check the

Operating Guide section entitled, "MAINTENANCE

AND TROUBLESHOOTING." It may be possible to

avoid a service call.

PROWARR2

ZLNI 1H LLLL IXONI_b L_OKPORAIION

1000 MILWAUKEE AVENUE

GLENVIEW, ILLINOIS 60025

Part No. 200-2/38

Printed in U.S.A.

EP-EDCBAO

ZENITH Projection/Digital 42 And Above TV Manual 97090035

Navigation menu

Versions of this User Manual:

Views

Navigation
