//_Advanced Video Imaging

Direct View Color TV

MTS Stereo Audio

Picture-In-Picture

Surround Sound

Returnthe Product

RegistrationCard,

andyour TV

couldbe

FREE!

OPERATING'GUIDE& WARRANTY

for models...

SR2745,SR2786,SR2789,

SR3247,SR3289,SR3547

SR3589

ZENITH ELECTRONICS CORPORATION

1000 MILWAUKEE AVENUE

GLENVlEW, ILLINOIS 60025

Part No. 206-2918.O1

Pdnted in U.S.A.

EP-EDCBA

WATCH US.

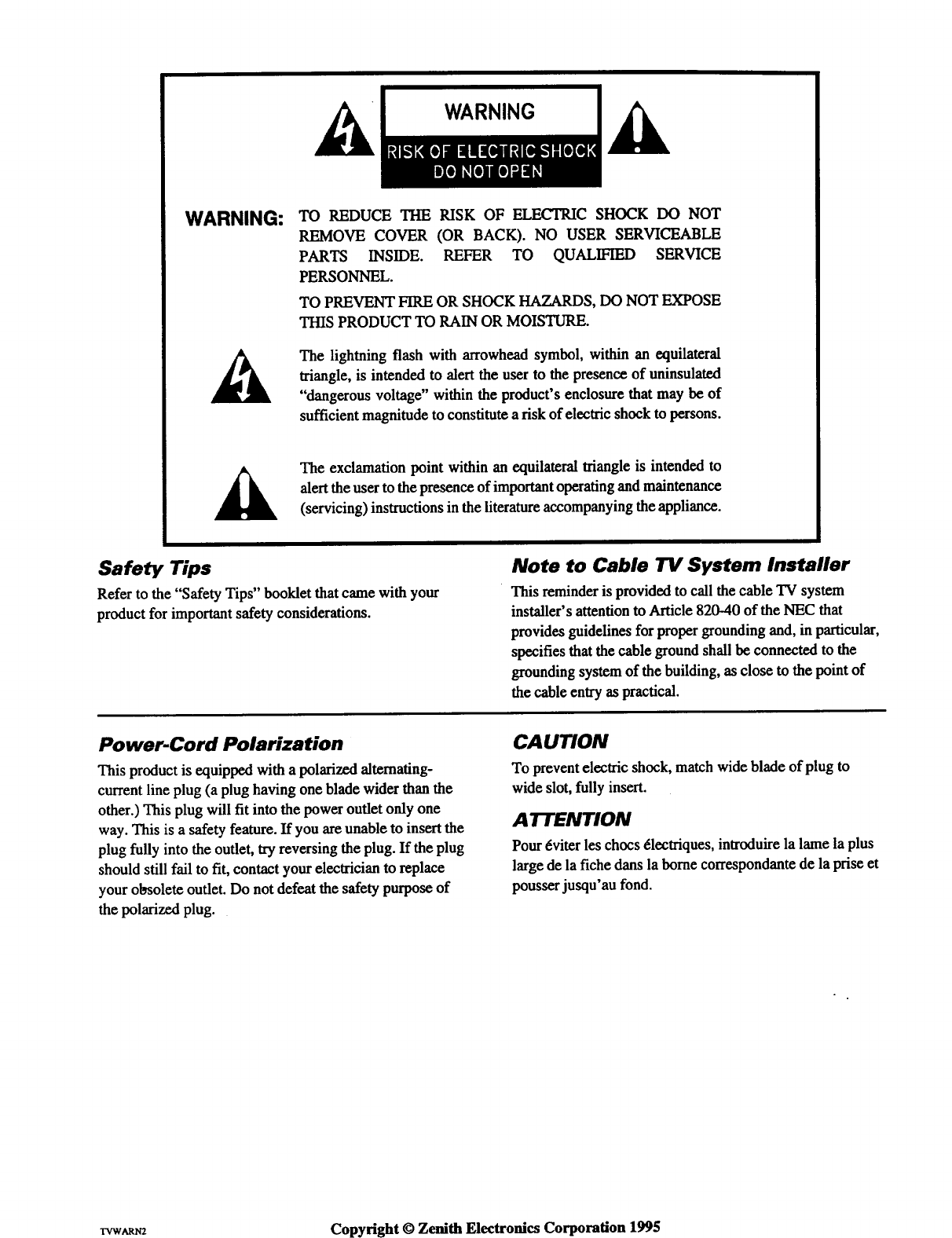

WARNING: TO REDUCE THE RISK OF ELECIRIC SHOCK DO NOT

REMOVE COVER (OR BACK). NO USER SERVICEABLE

PARTS INSIDE. REFER TO QUALIFIED SERVICE

PERSONNEL.

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE

THIS PRODUCT TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to

alertthe user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

Safety Tips

Refer to the "Safety Tips" booklet that came with your

product for important safety considerations.

Note to Cable TV System Installer

This reminder is provided to call the cable TV system

installer's attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in particular,

specifies that the cable ground shall be connected to the

grounding system of the building, as close to the point of

the cable entry as practical.

Power-Cord Polarization

This product is equipped with a polarized alternating-

current line plug (a plug having one blade wider than the

other.) This plug will fit into the power outlet only one

way. This is a safety feature. If you are unable to insert the

plug fully into the outlet, try reversing the plug. If the plug

should still fail to fit, contact your electrician to replace

your obsolete outlet. Do not defeat the safety purpose of

the polarized plug.

CAUTION

To prevent electric shock, match wide blade of plug to

wide slot, fully insert.

A TTENTION

Pour _viter les chocs _lectriques, introduire la lame la plus

large de la fiche darts la borne correspondante de la prise et

pousser jusqu'au fond.

x-_vmm Copyright ©Zenith Electronics Corporation 1995

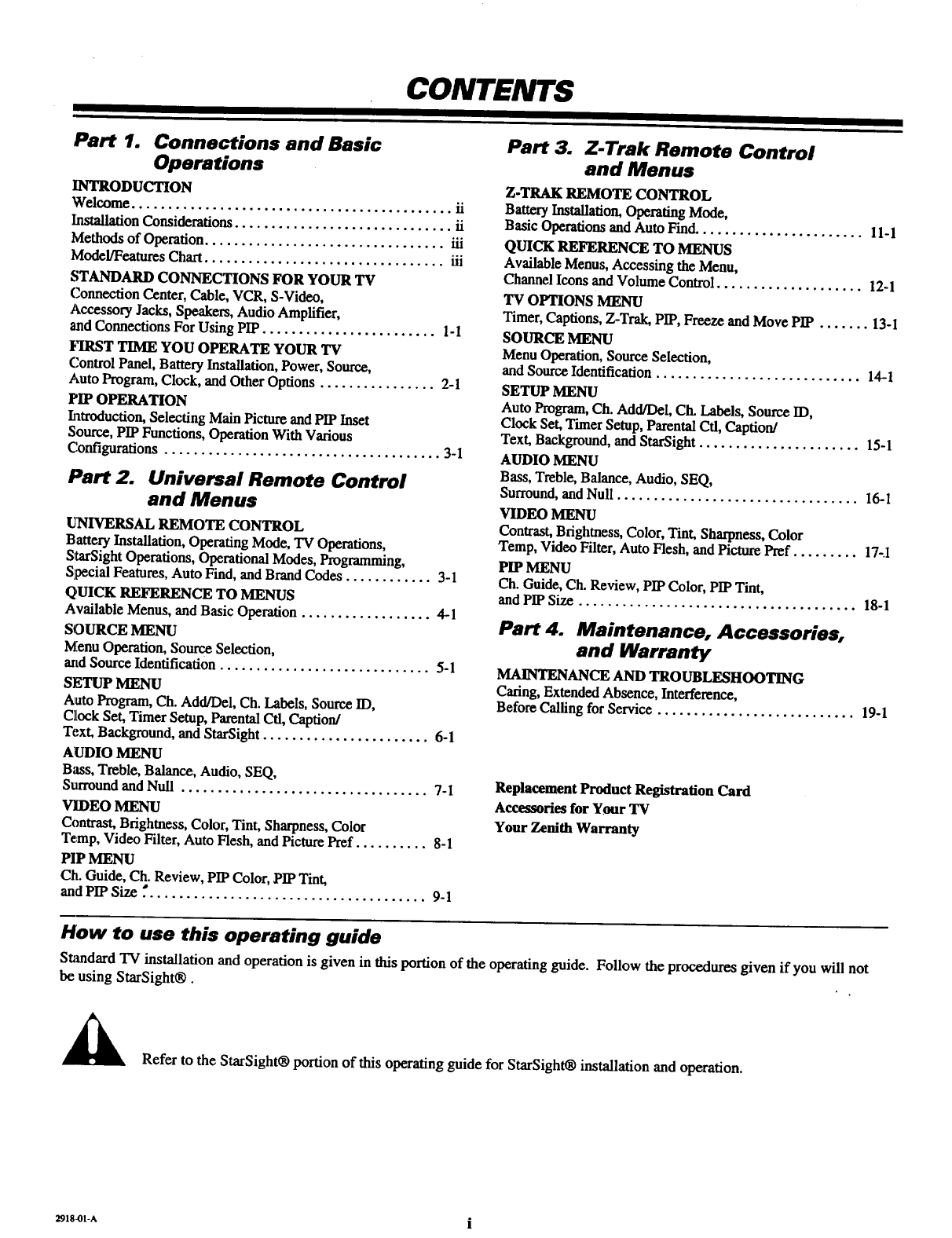

CONTENTS

Part 1. Connections and Basic

Operations

INTRODUCTION

Welcome ............................................ ii

InstallationConsiderations.............................. ii

Methods of Operation................................. iii

Model/Featnres Chart ................................. iii

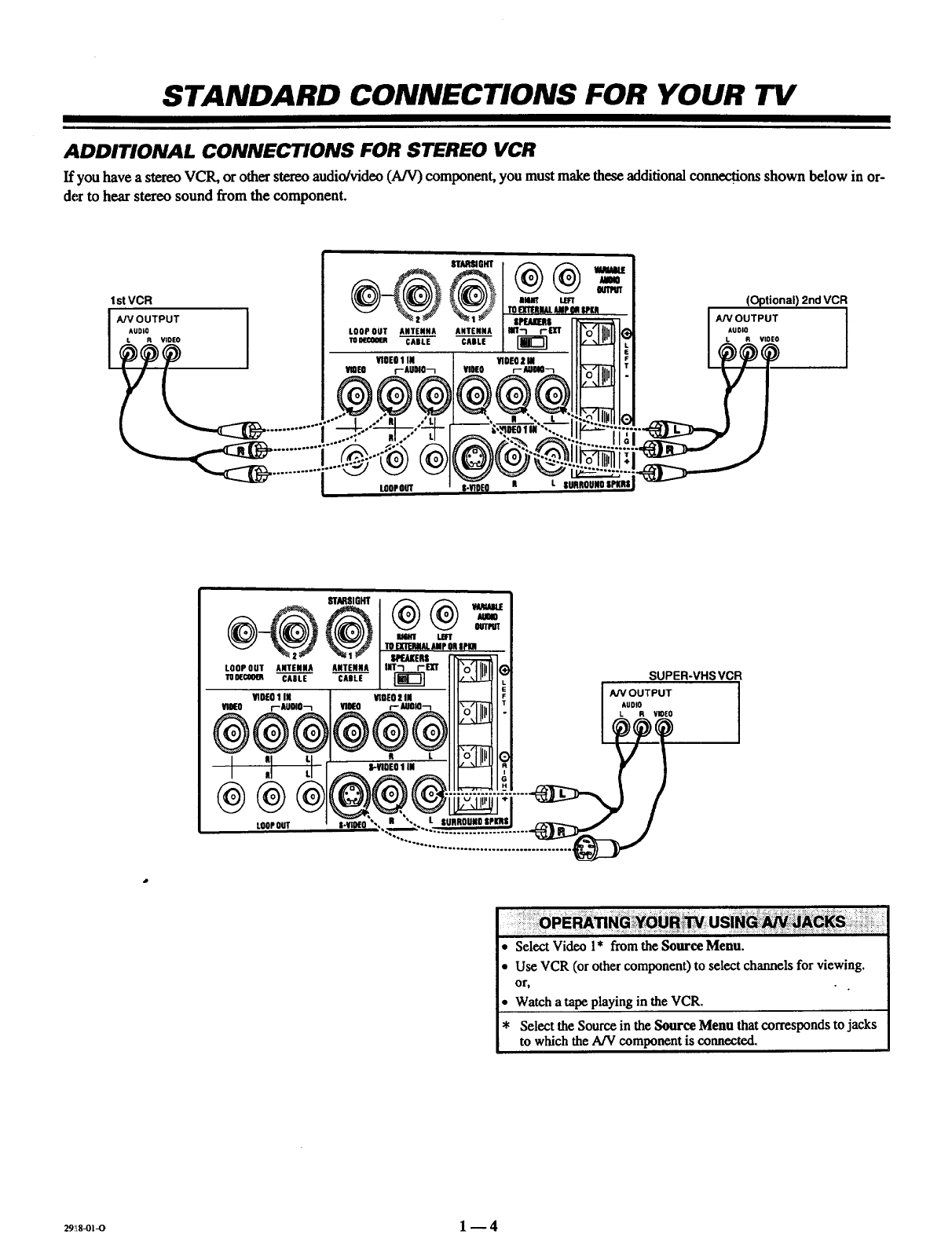

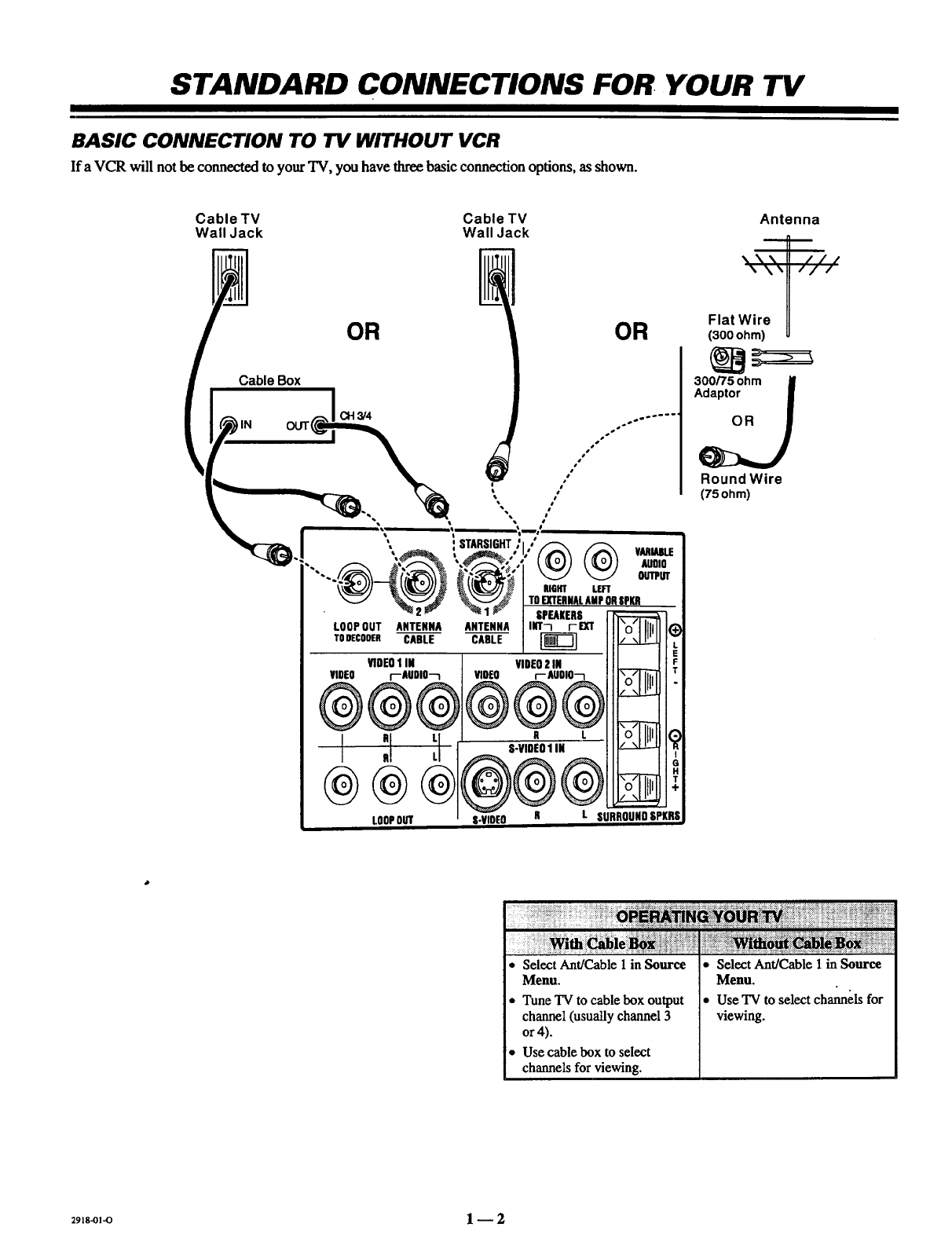

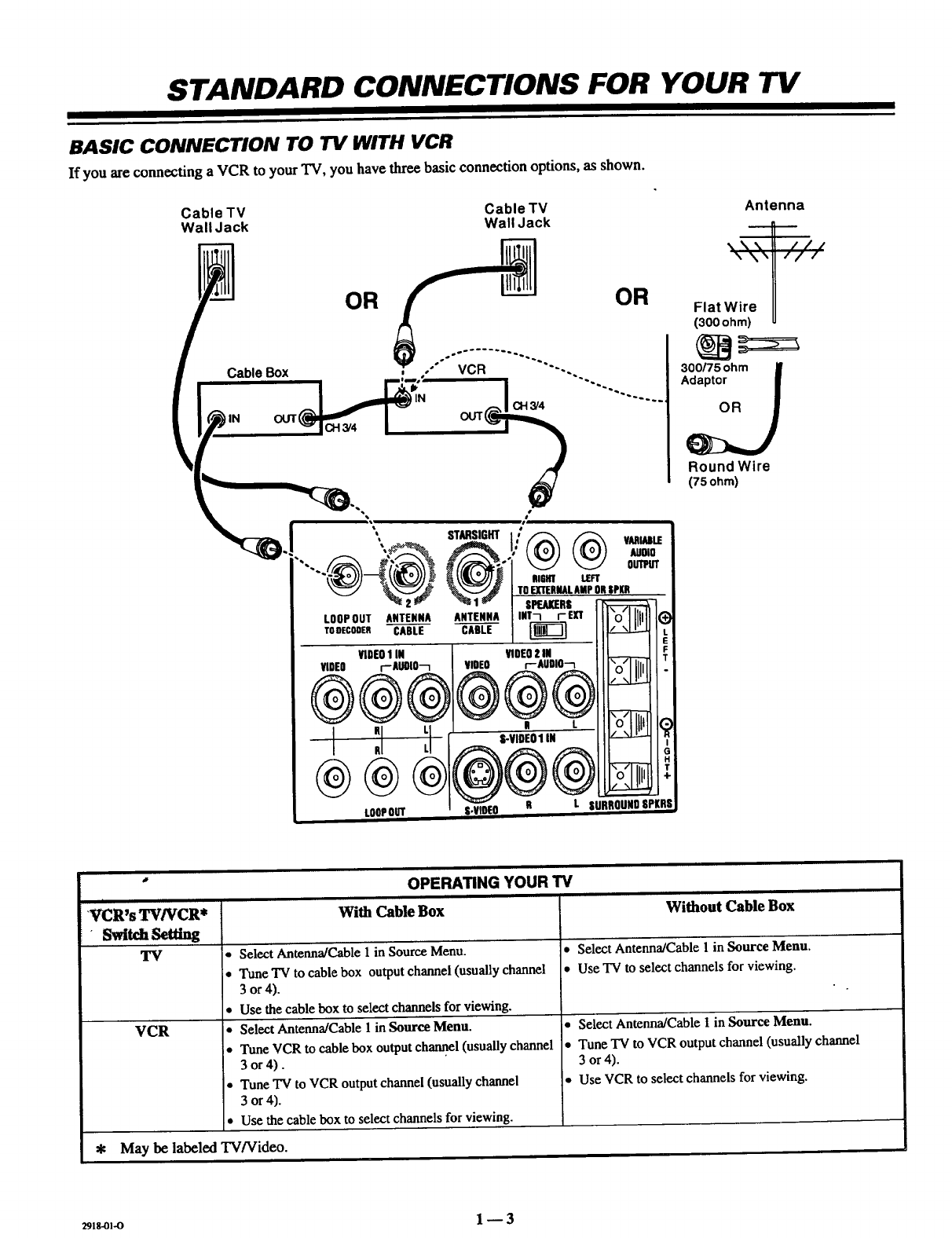

STANDARD CONNECTIONS FOR YOUR TV

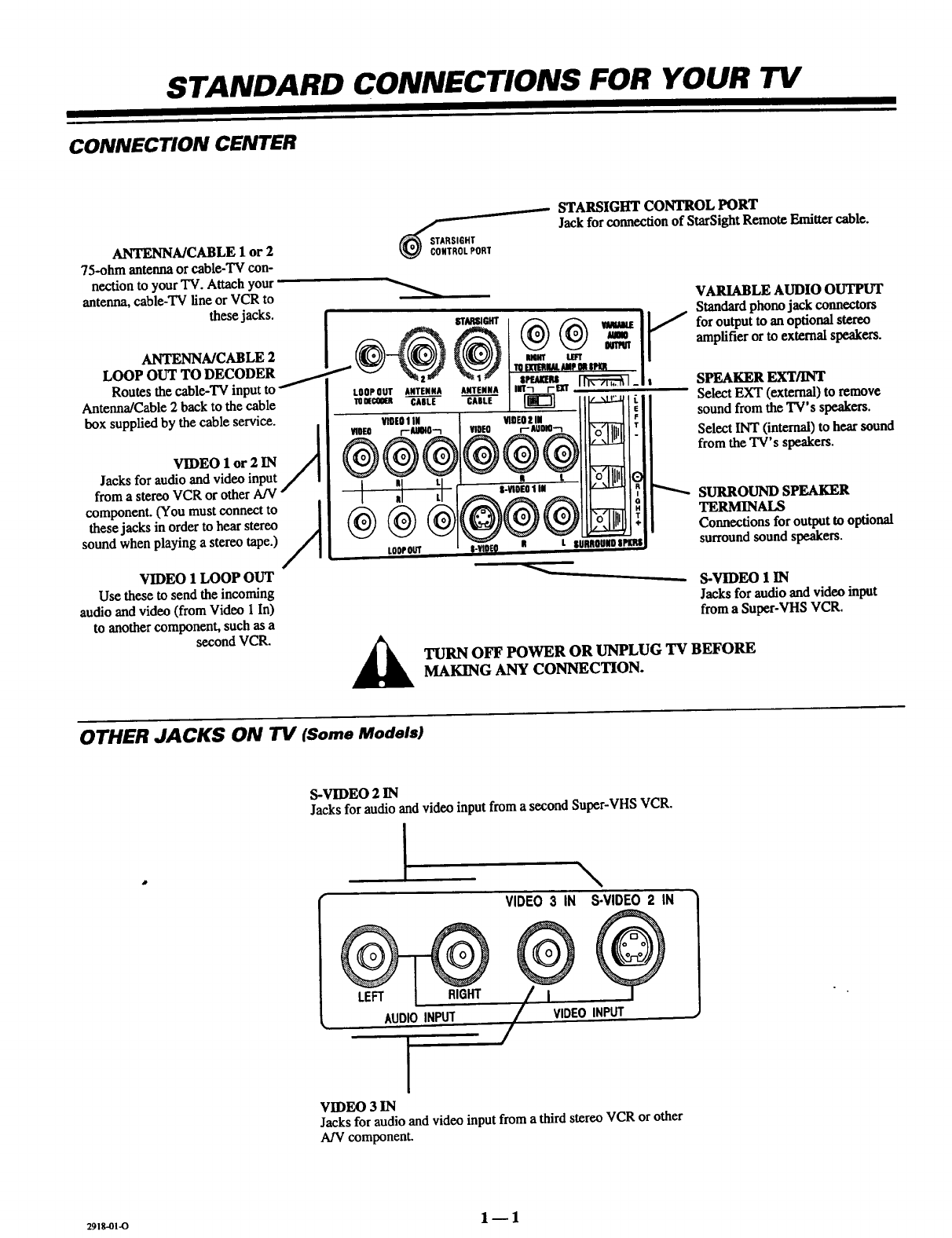

Connection Center, Cable, VCR, S-Video,

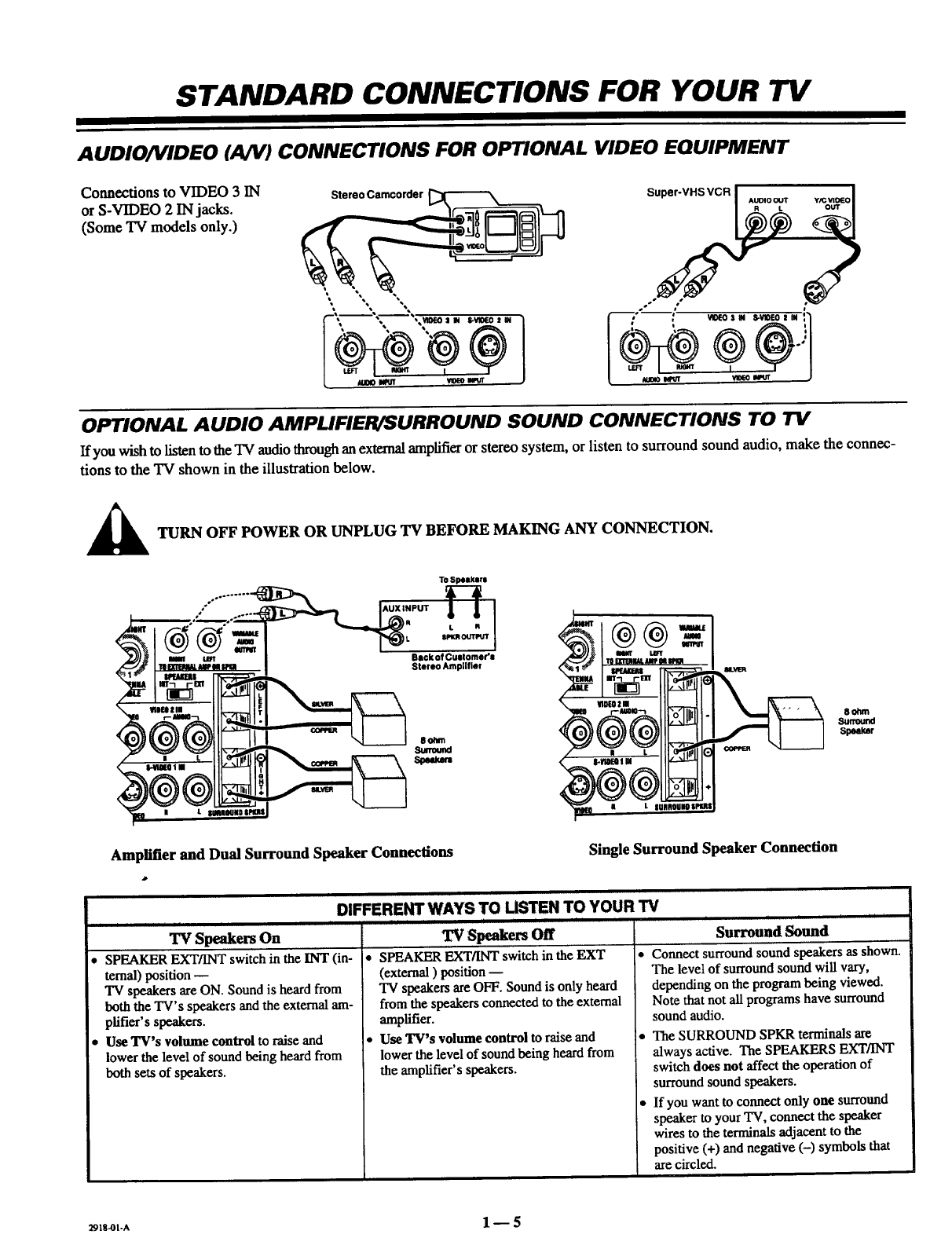

Accessory Jacks,Speakers, Audio Amplifier,

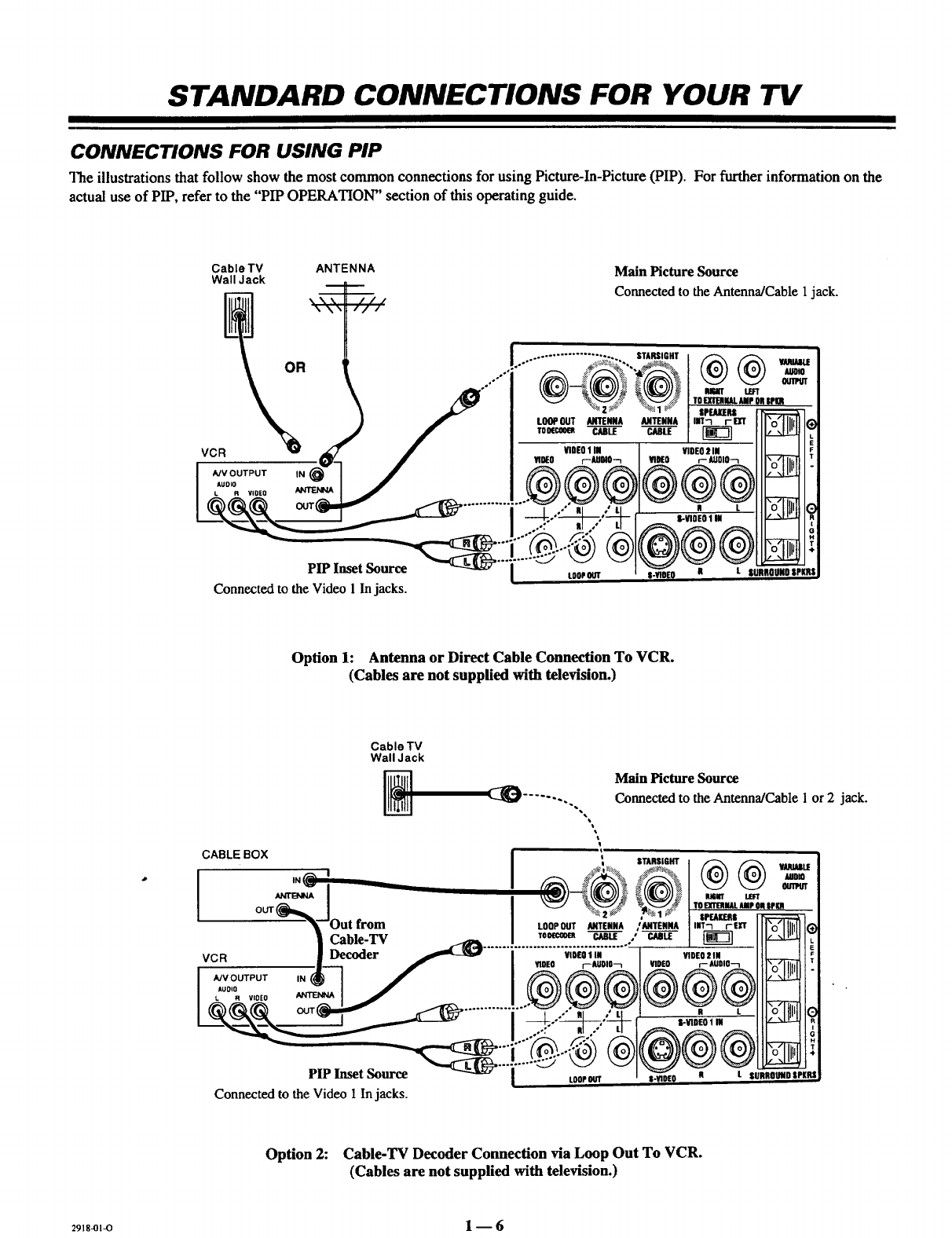

and Connections For Using PIP ........................ 1-1

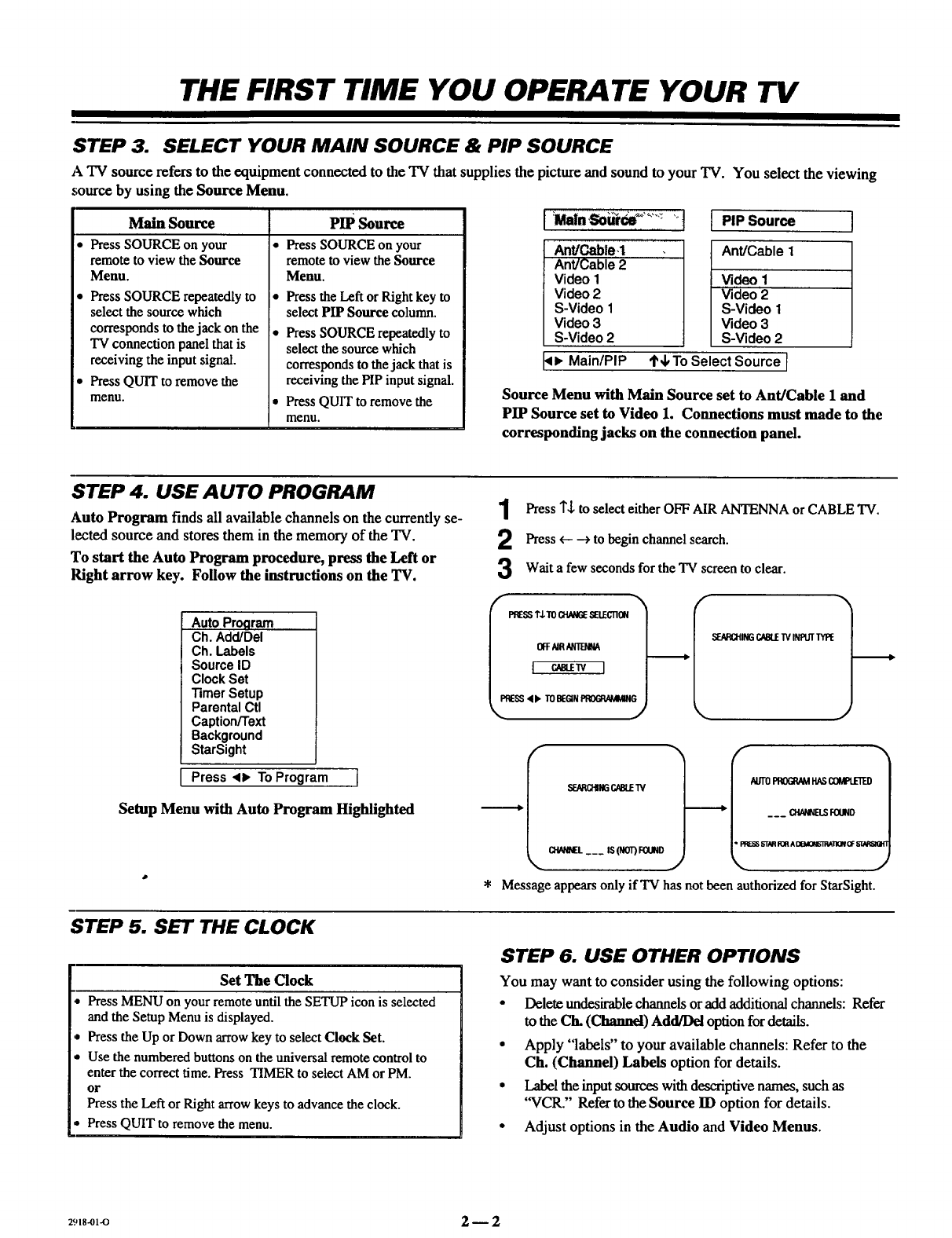

FIRST TIME YOU OPERATE YOUR TV

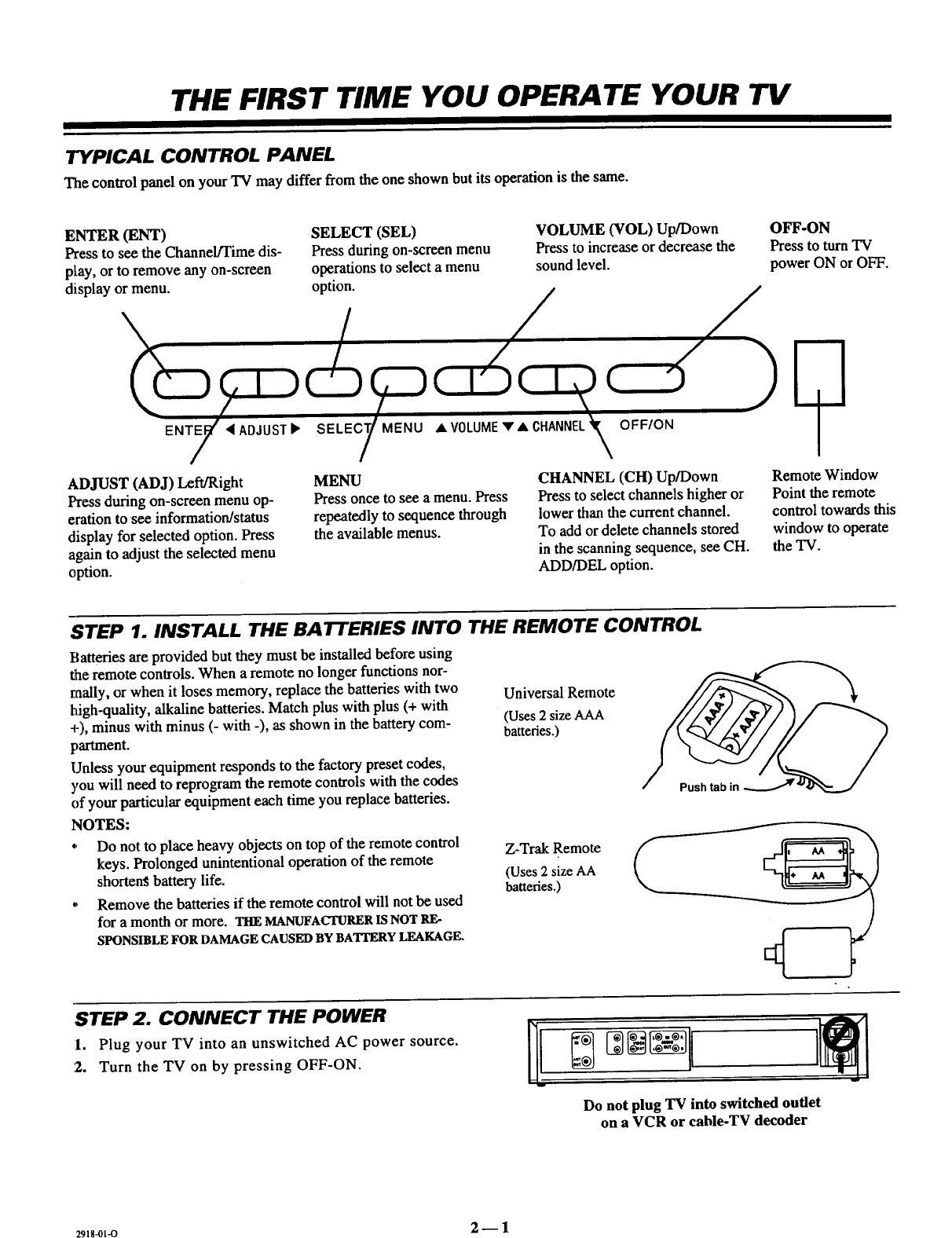

Control Panel, Battery Installation, Power, Source,

Auto Program, Clock, and Other Options ................ 2-1

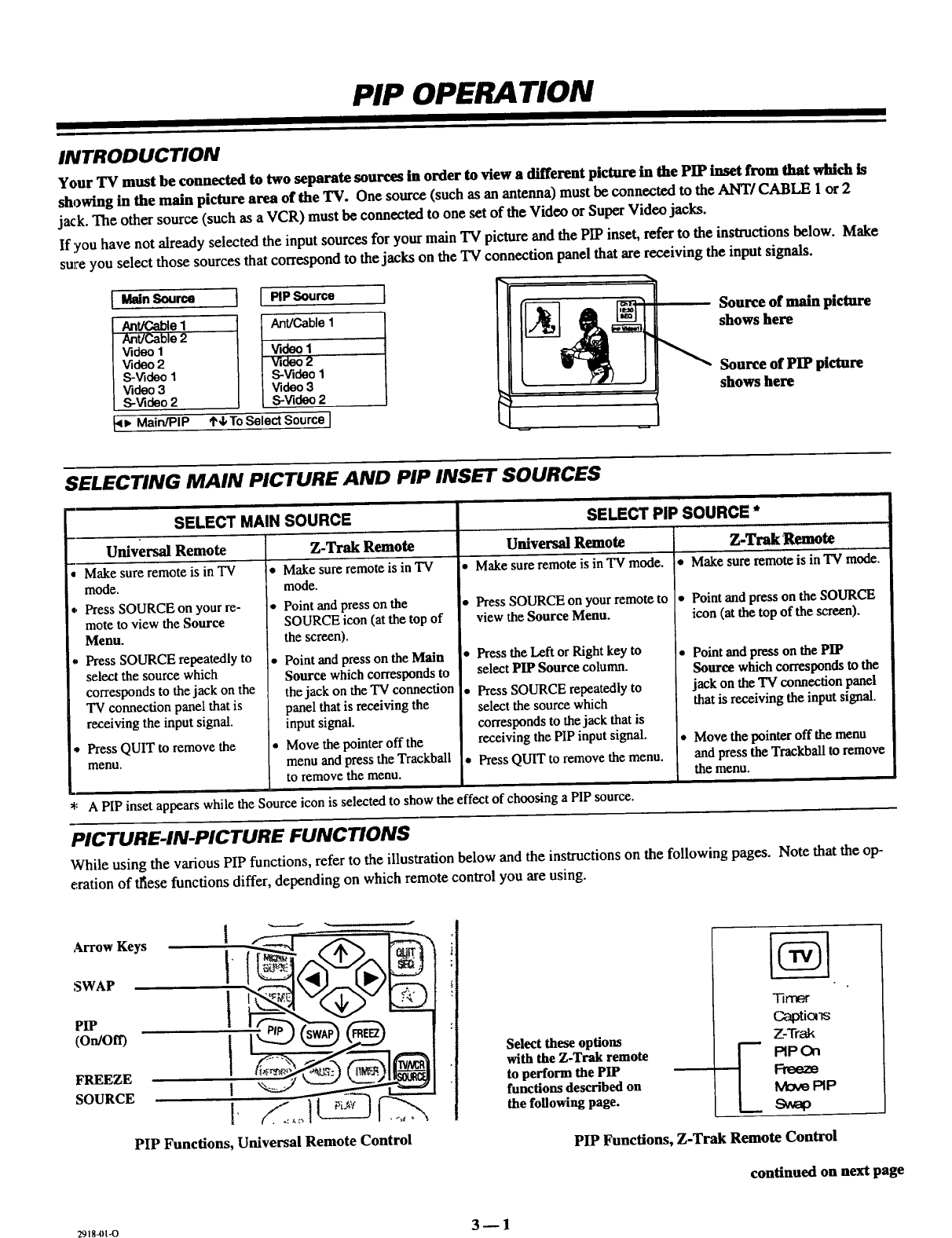

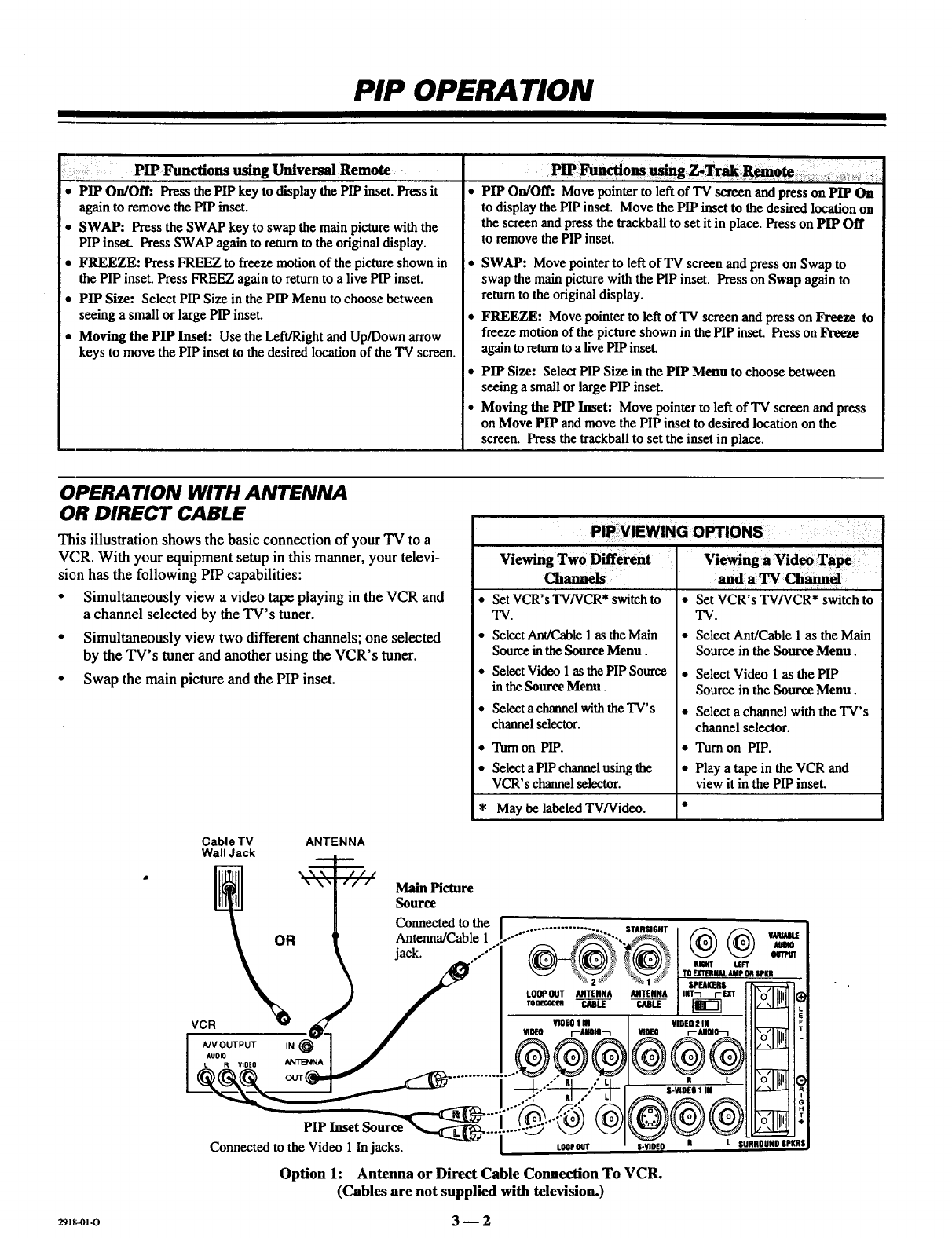

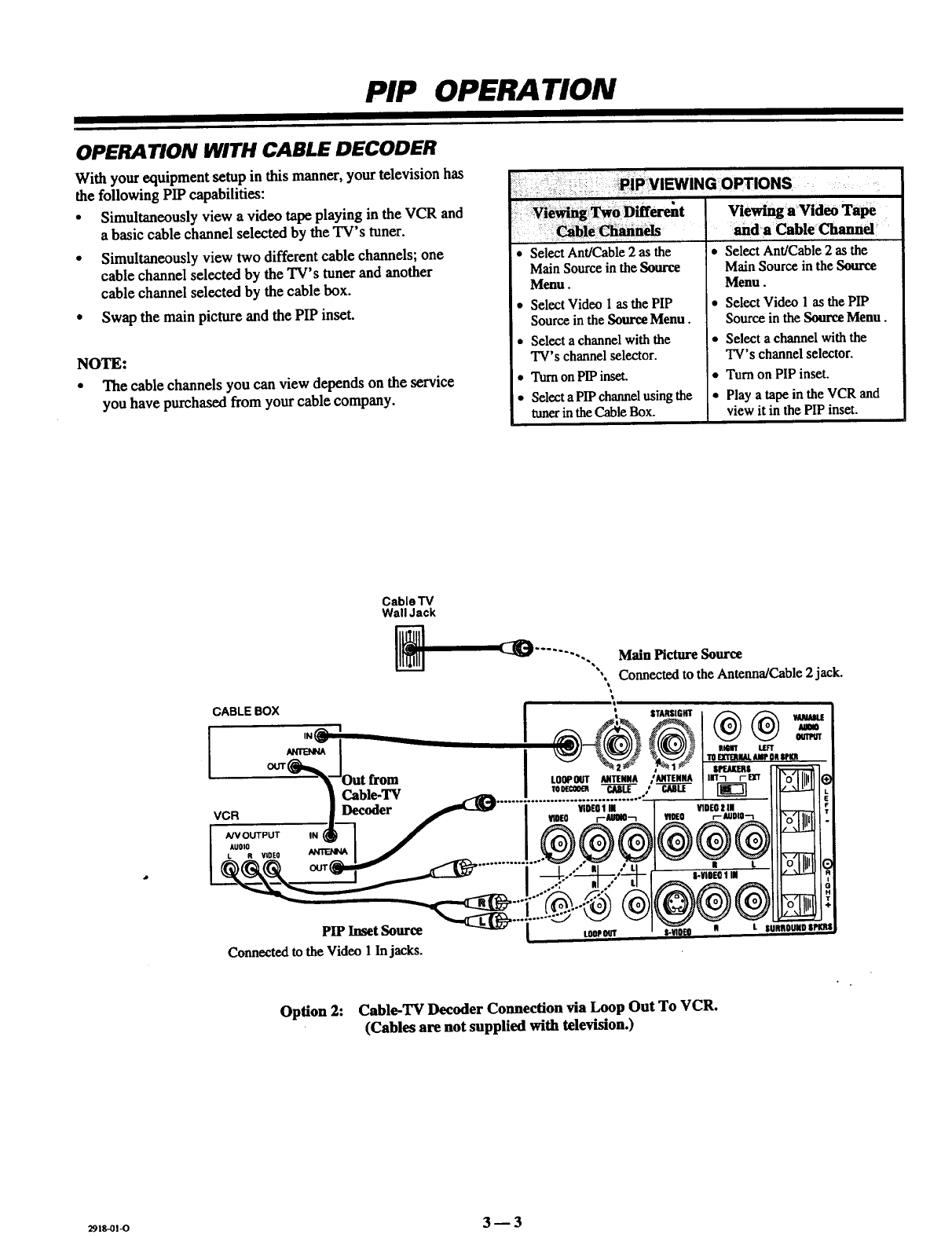

PIP OPERATION

hltroduction, Selecting Main Picture and PIP Inset

Source, PIP Functions, Operation With Various

C.onfigurations ...................................... 3-1

Part 2. Universal Remote Control

and Menus

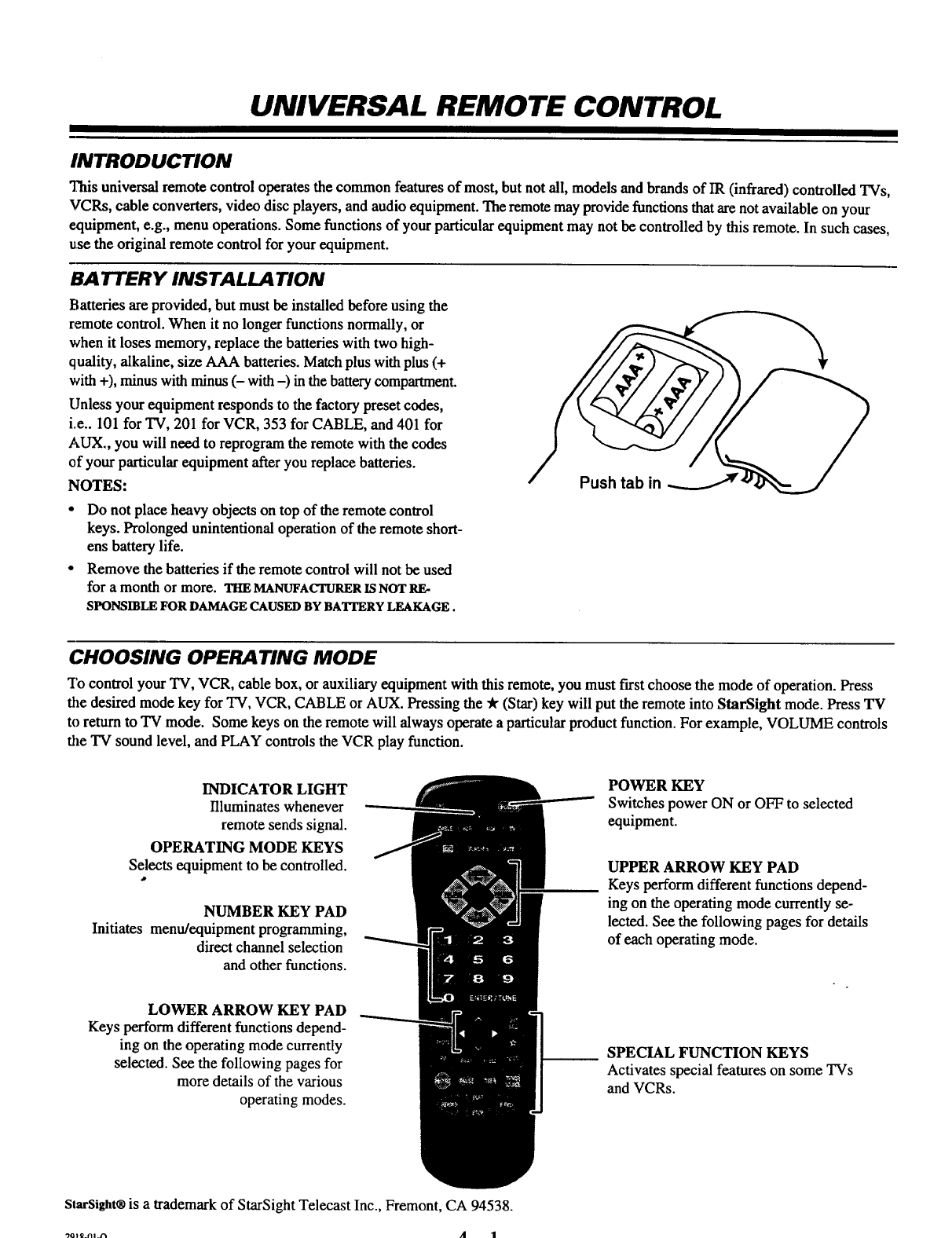

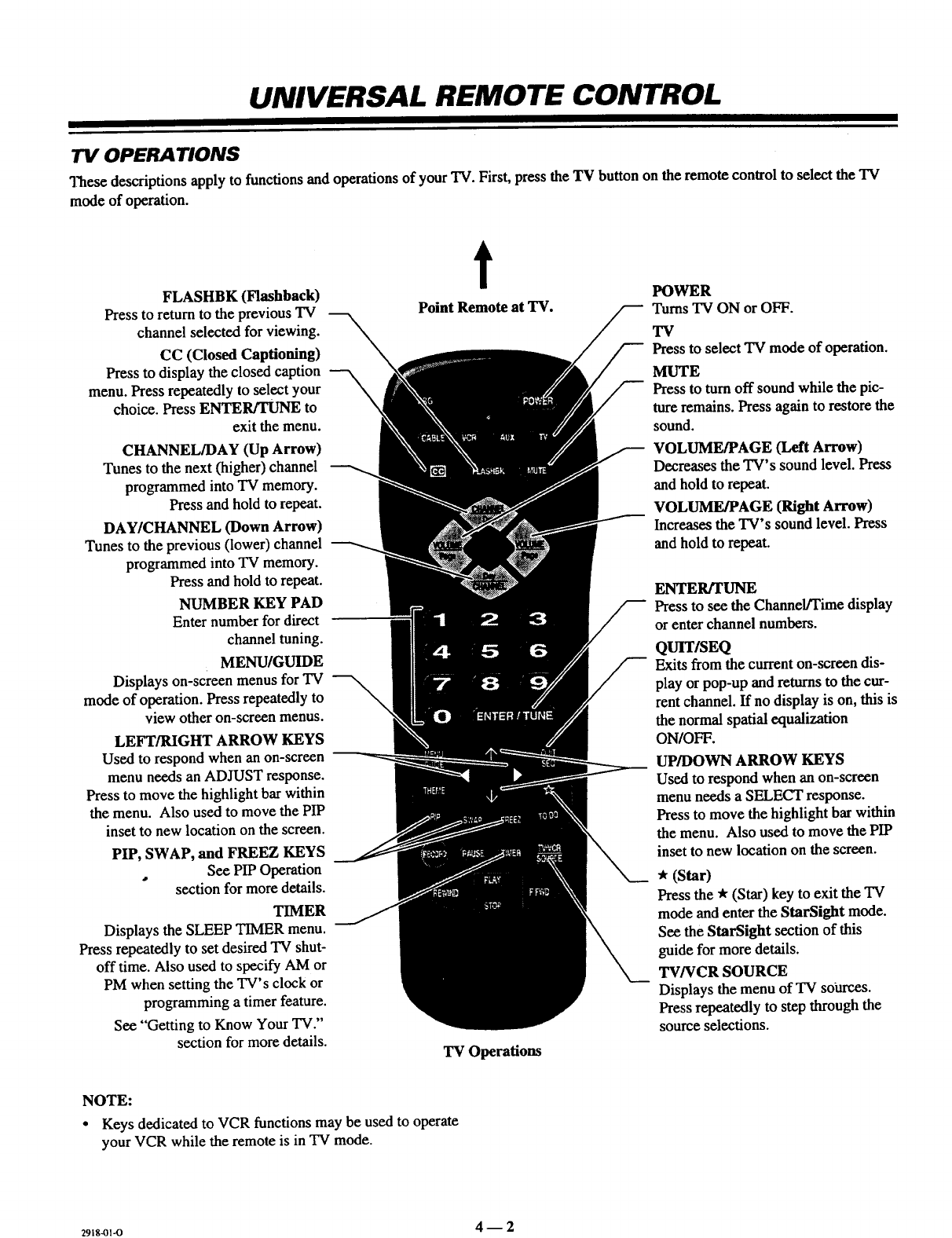

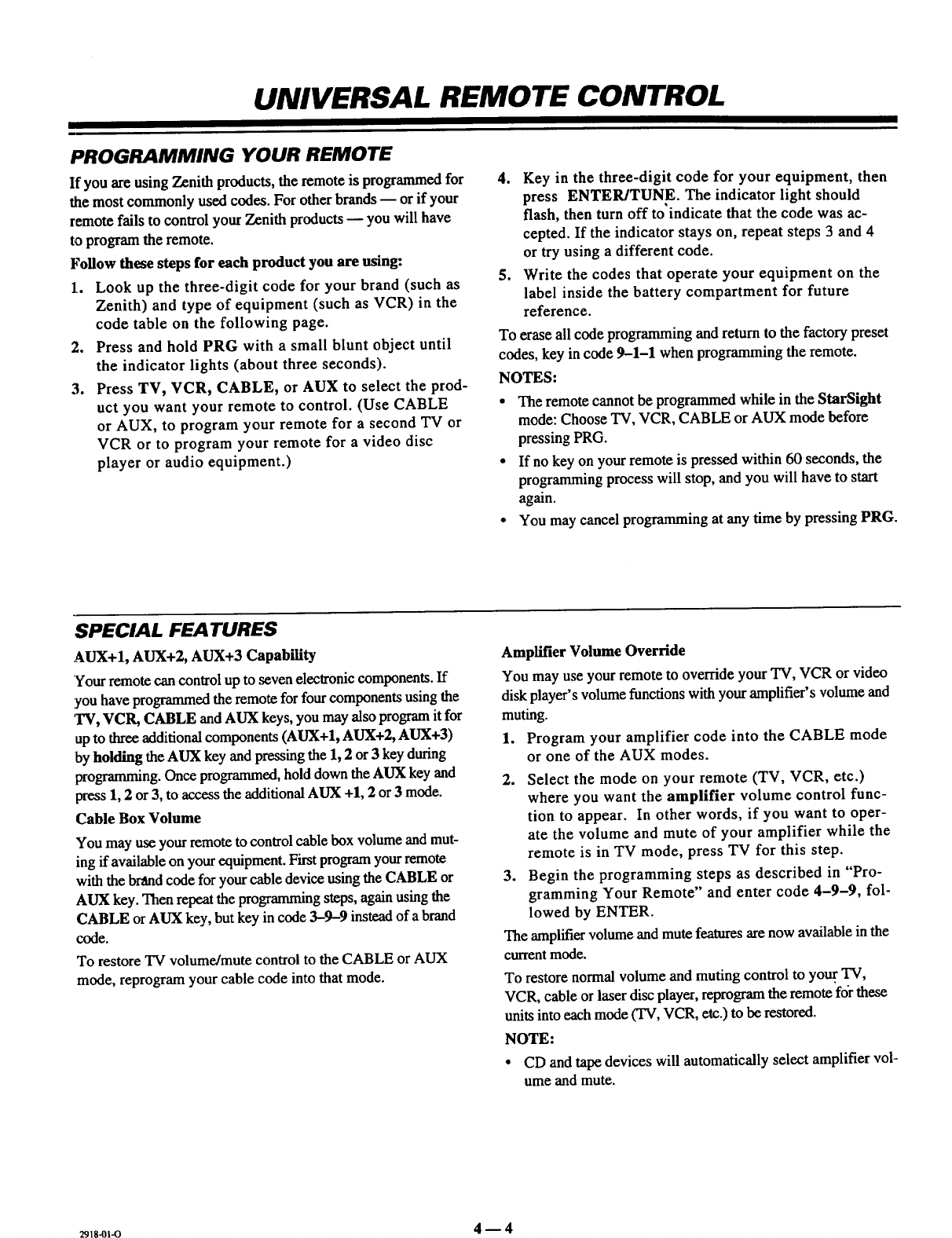

UNIVERSAL REMOTE CONTROL

Battery Installation, Operating Mode, TV Operations,

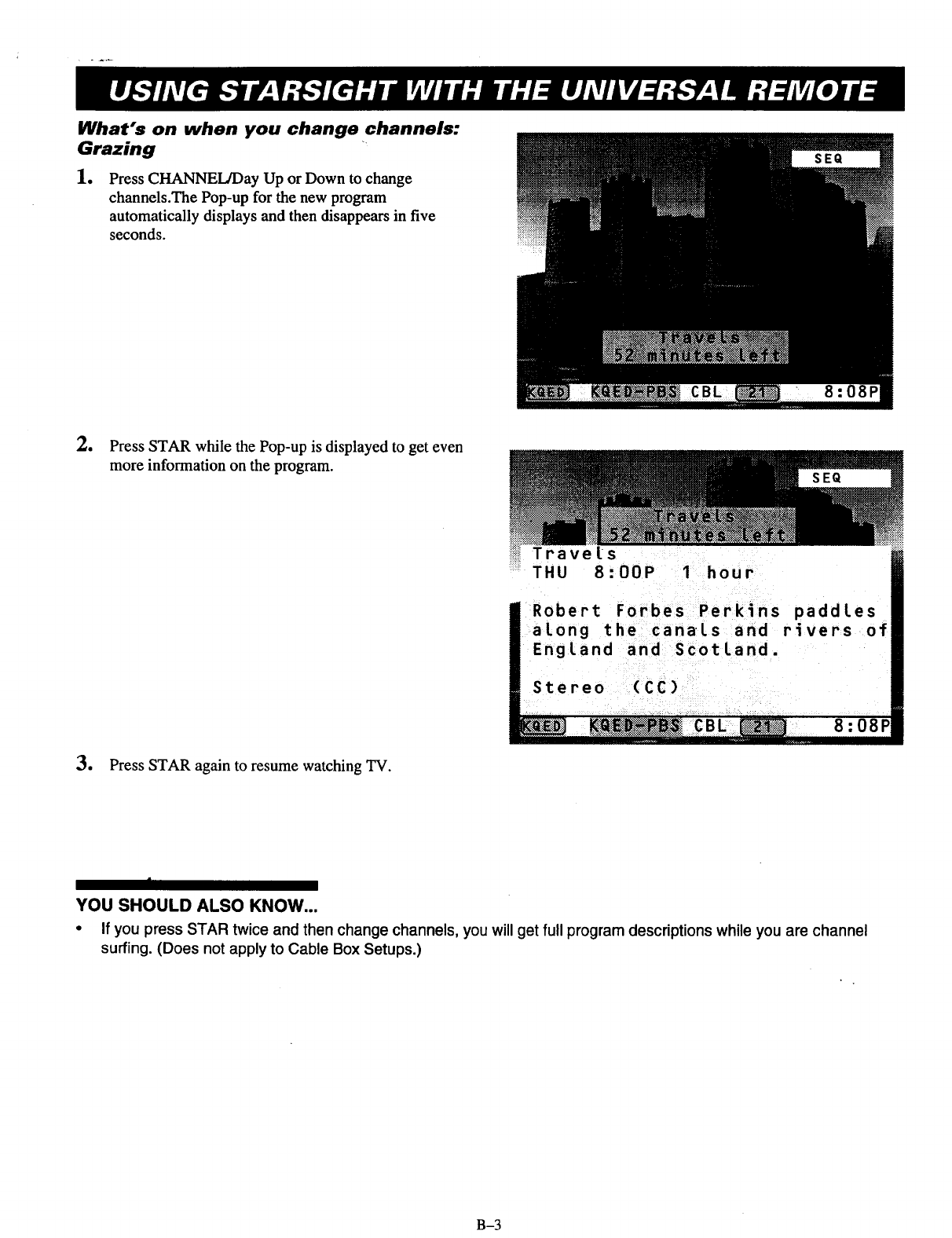

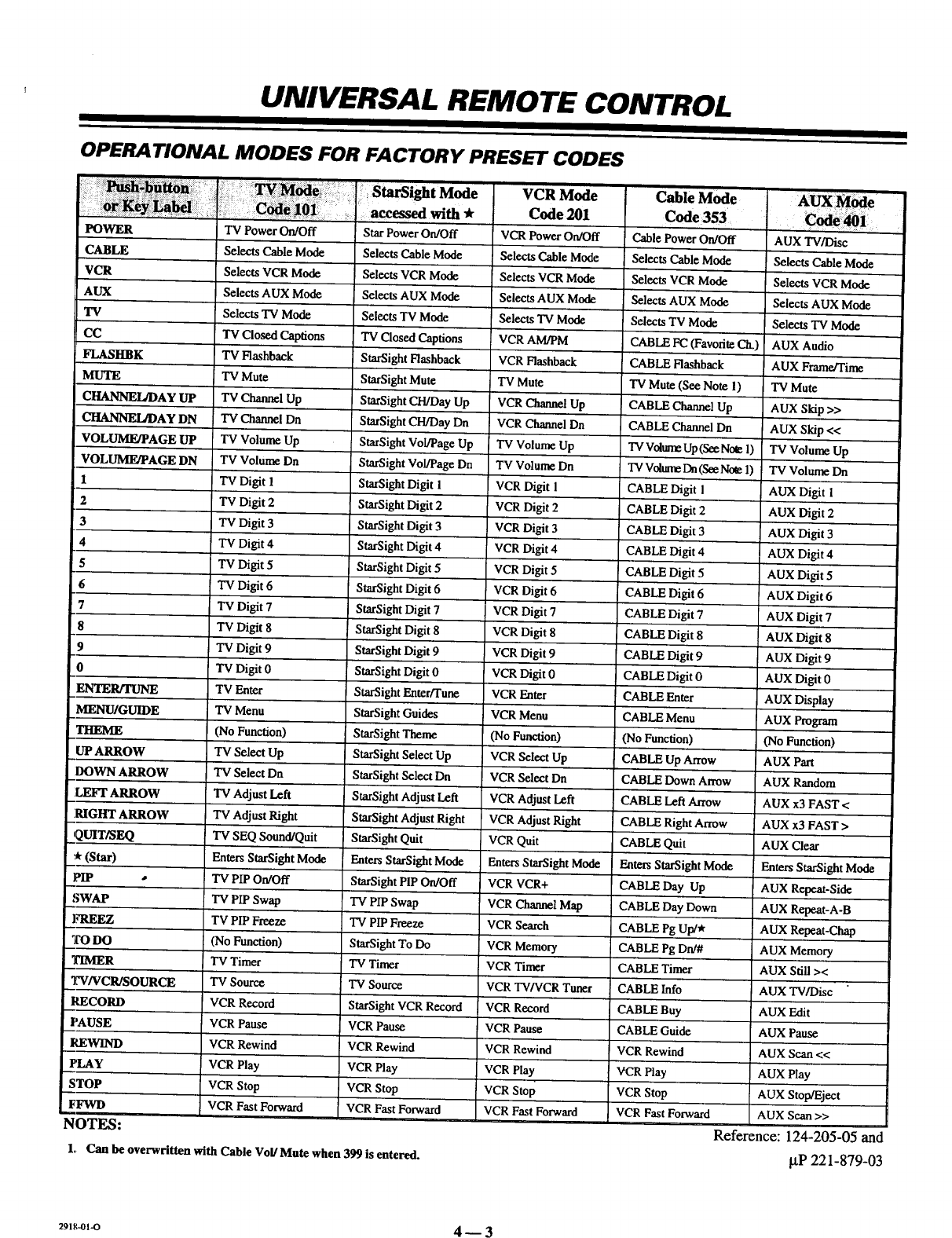

StarSight Operations, Operational Modes, Programming,

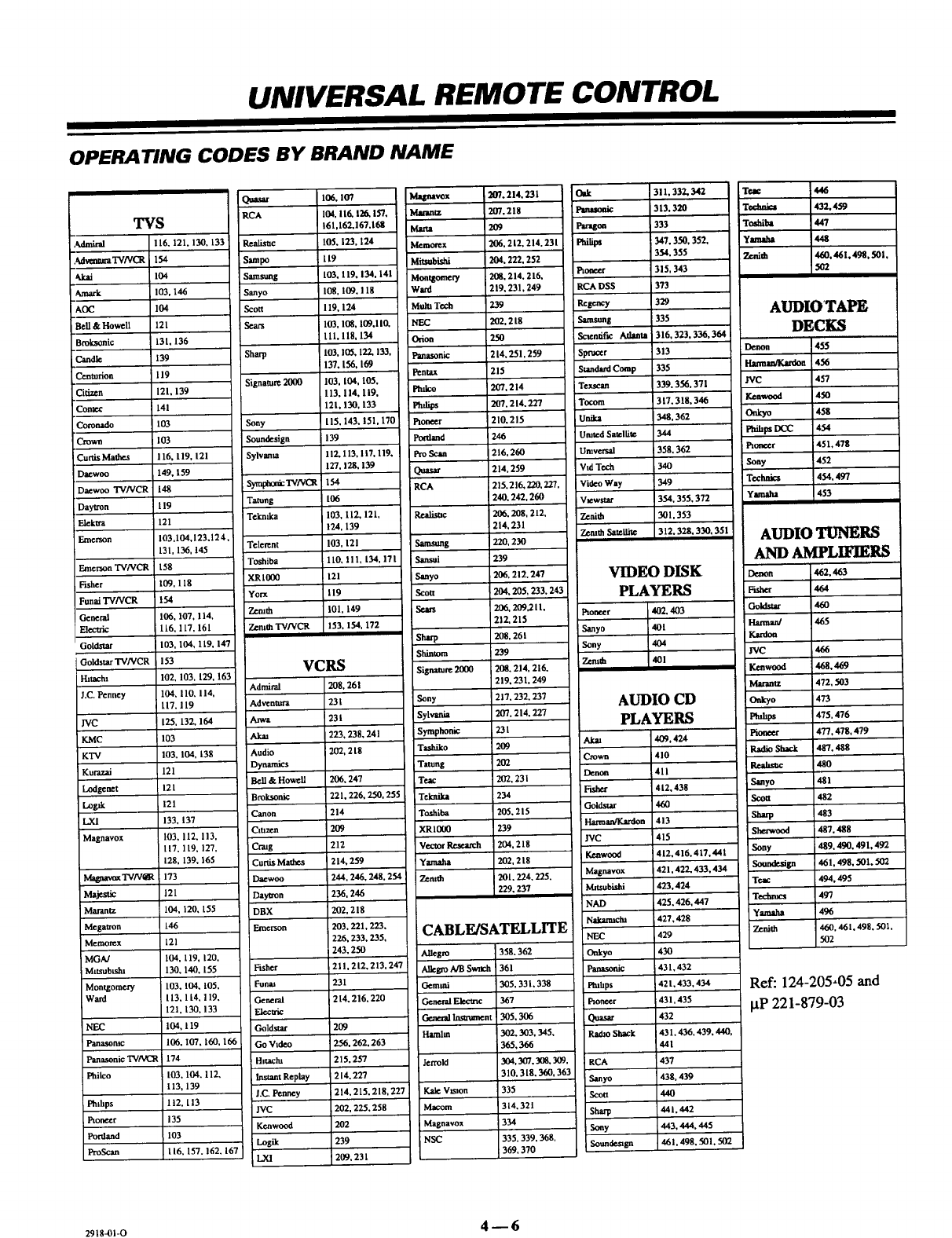

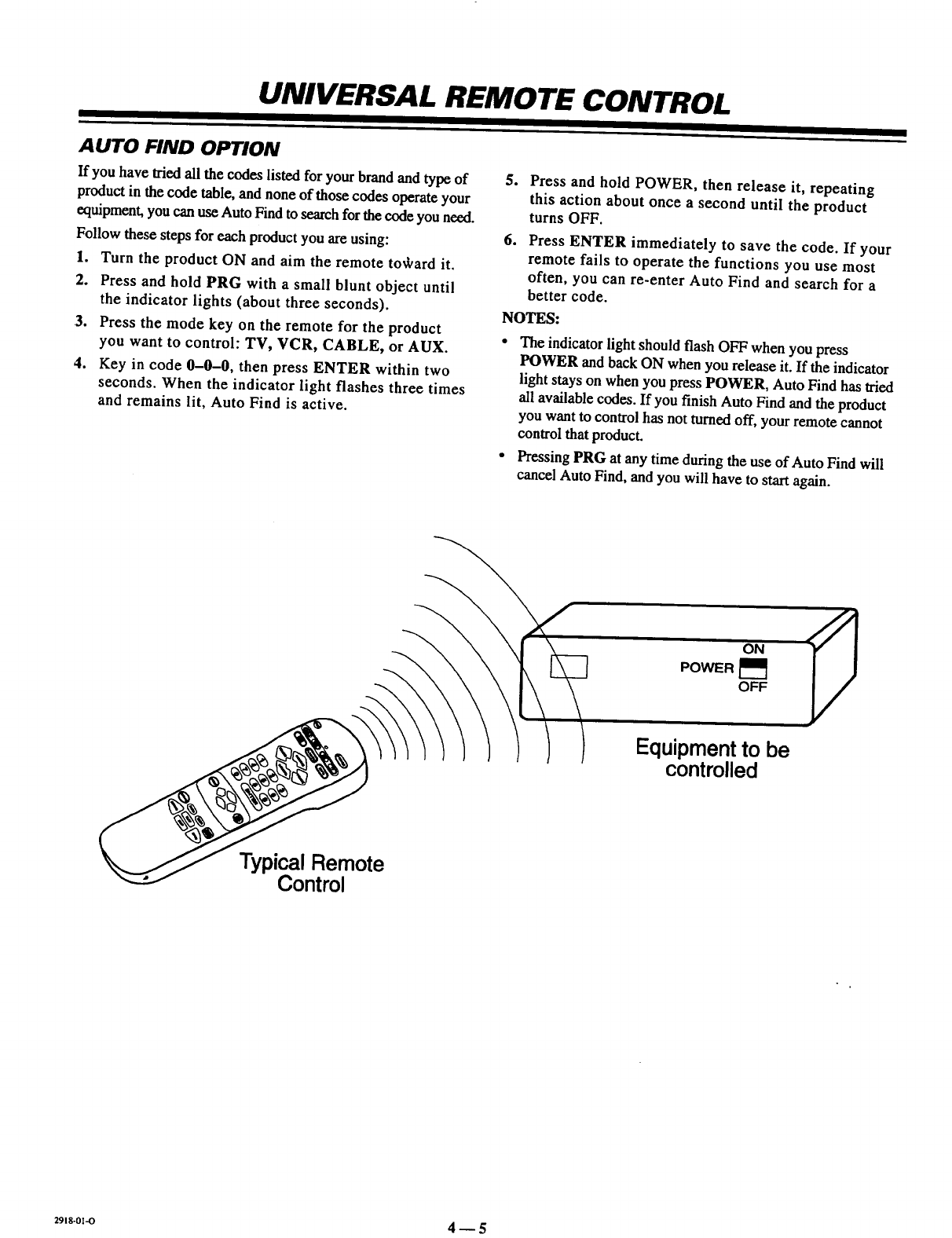

Special Features, Auto Find, and Brand Codes ............ 3-1

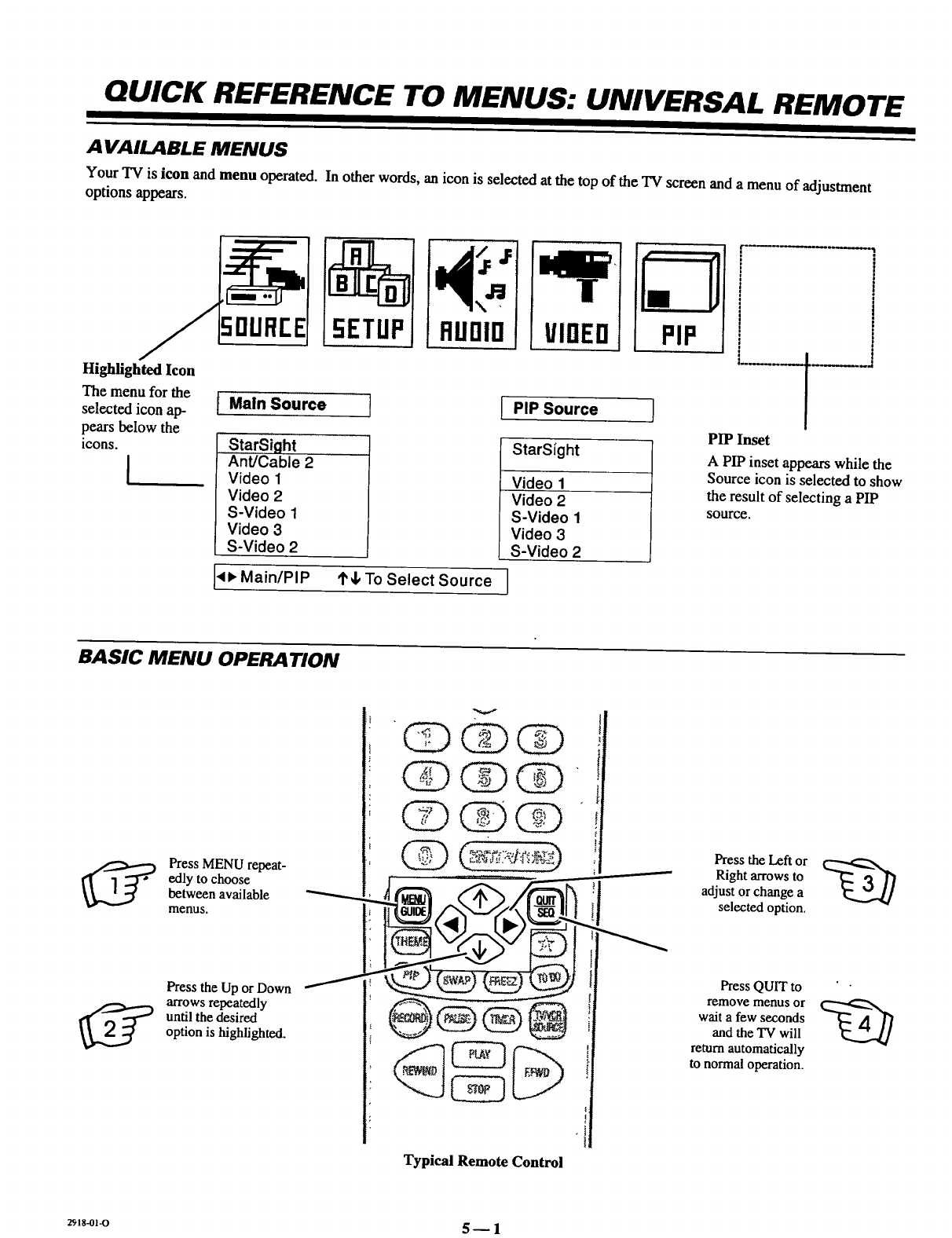

QUICK REFERENCE TO MENUS

Available Menus, and Basic Operation .................. 4-1

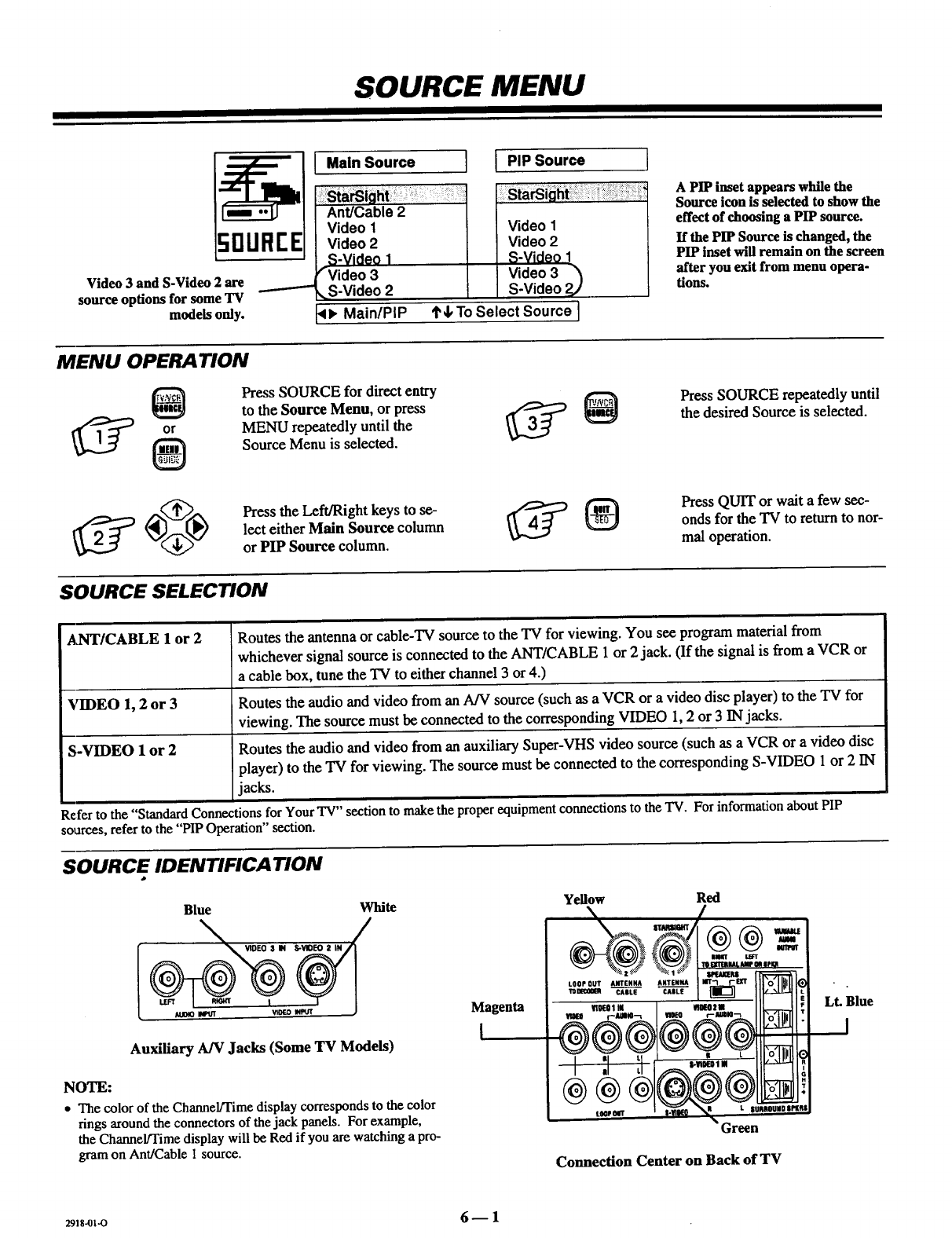

SOURCE MENU

Menu Operation, Source Selection,

and Source Identification ............................. 5-1

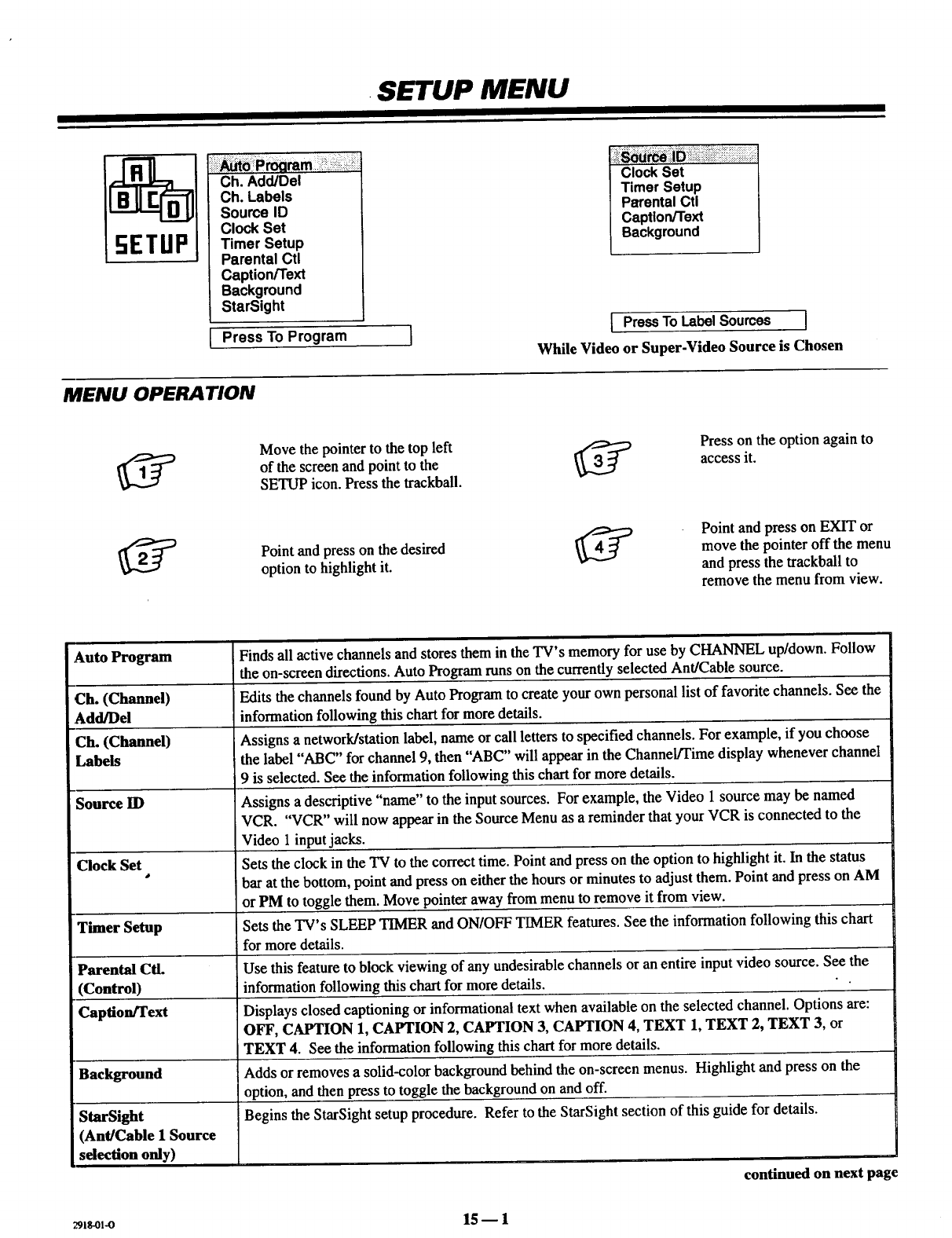

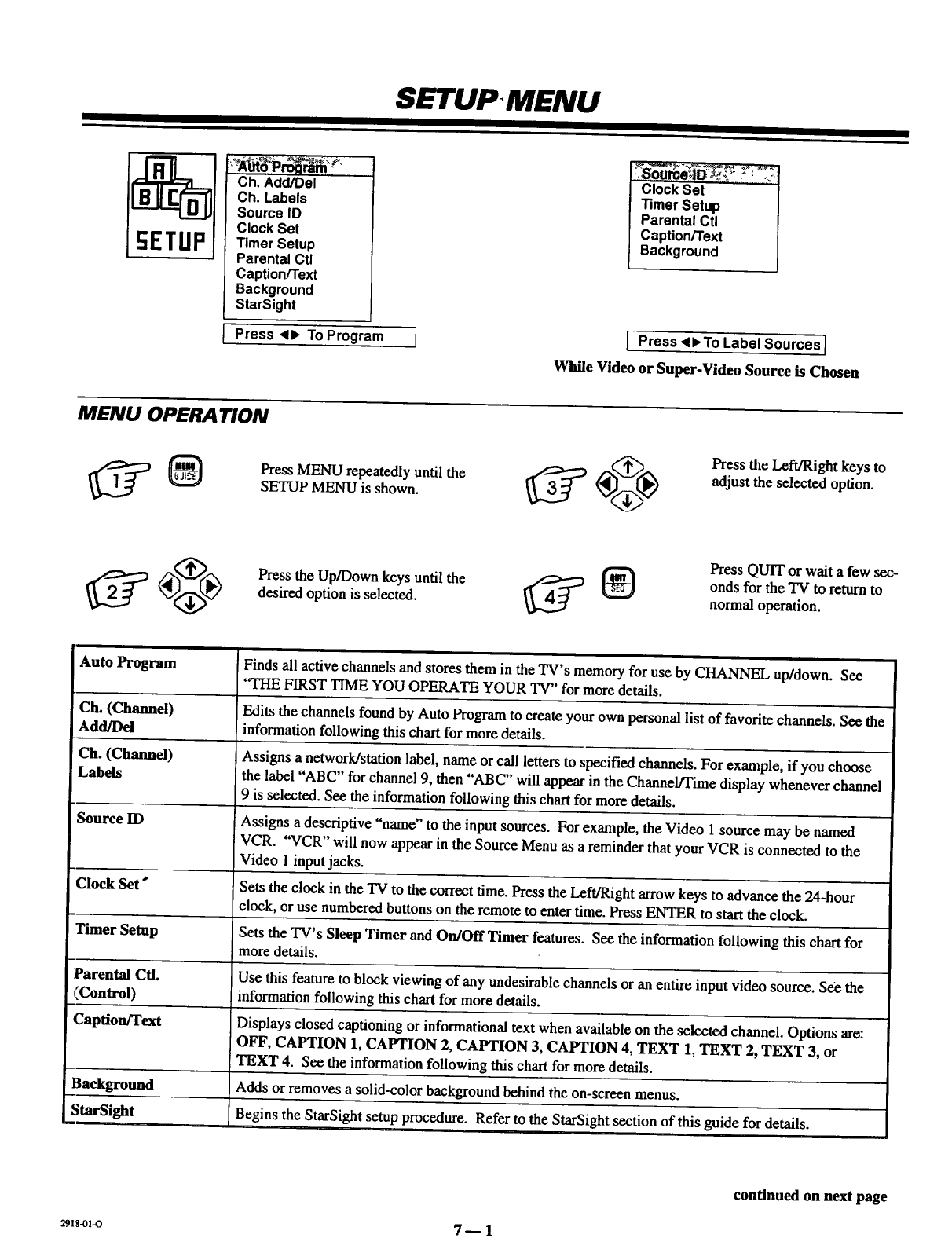

SETUP MENU

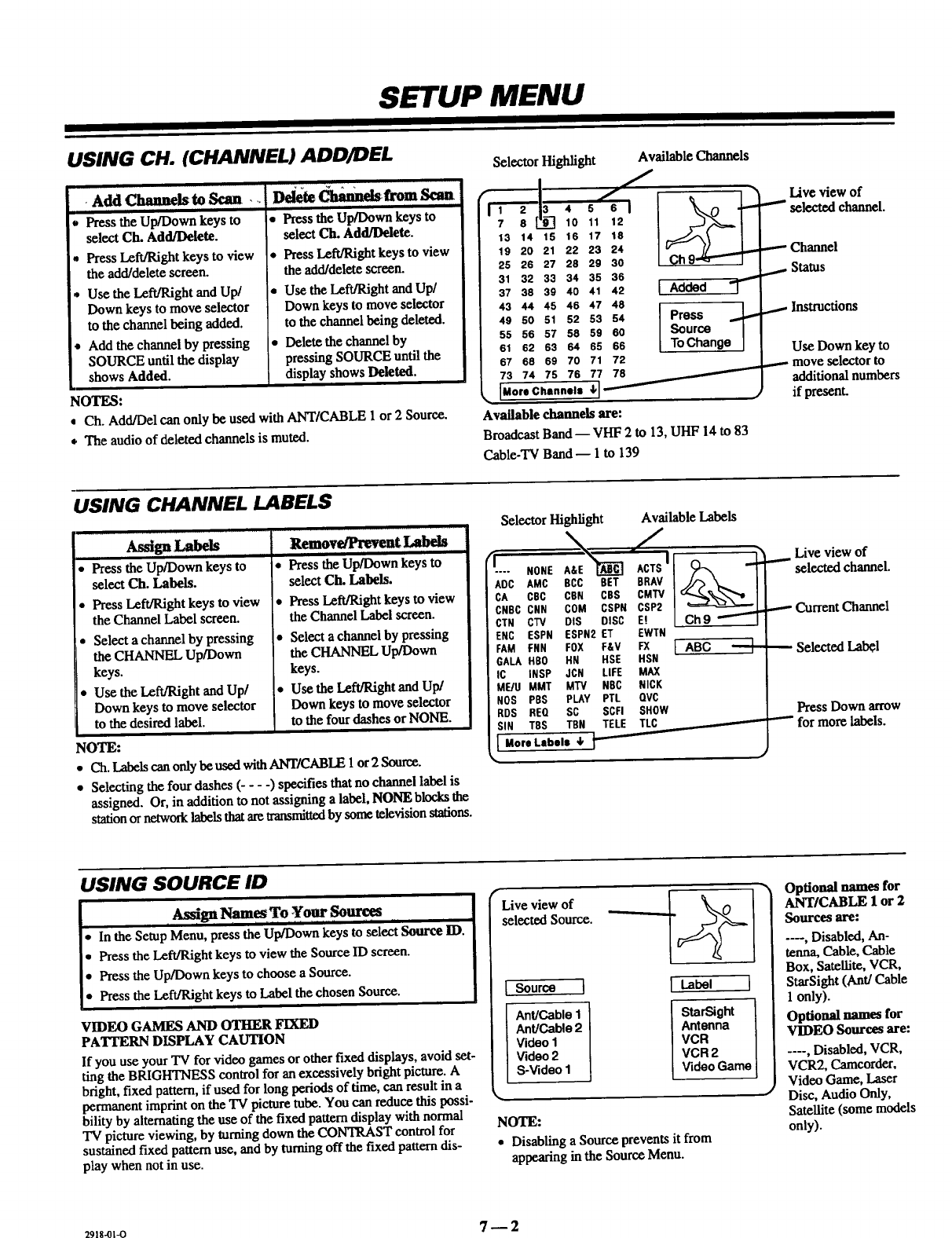

Auto Program, Ch. Add/Del, Ch. Labels, Source ID,

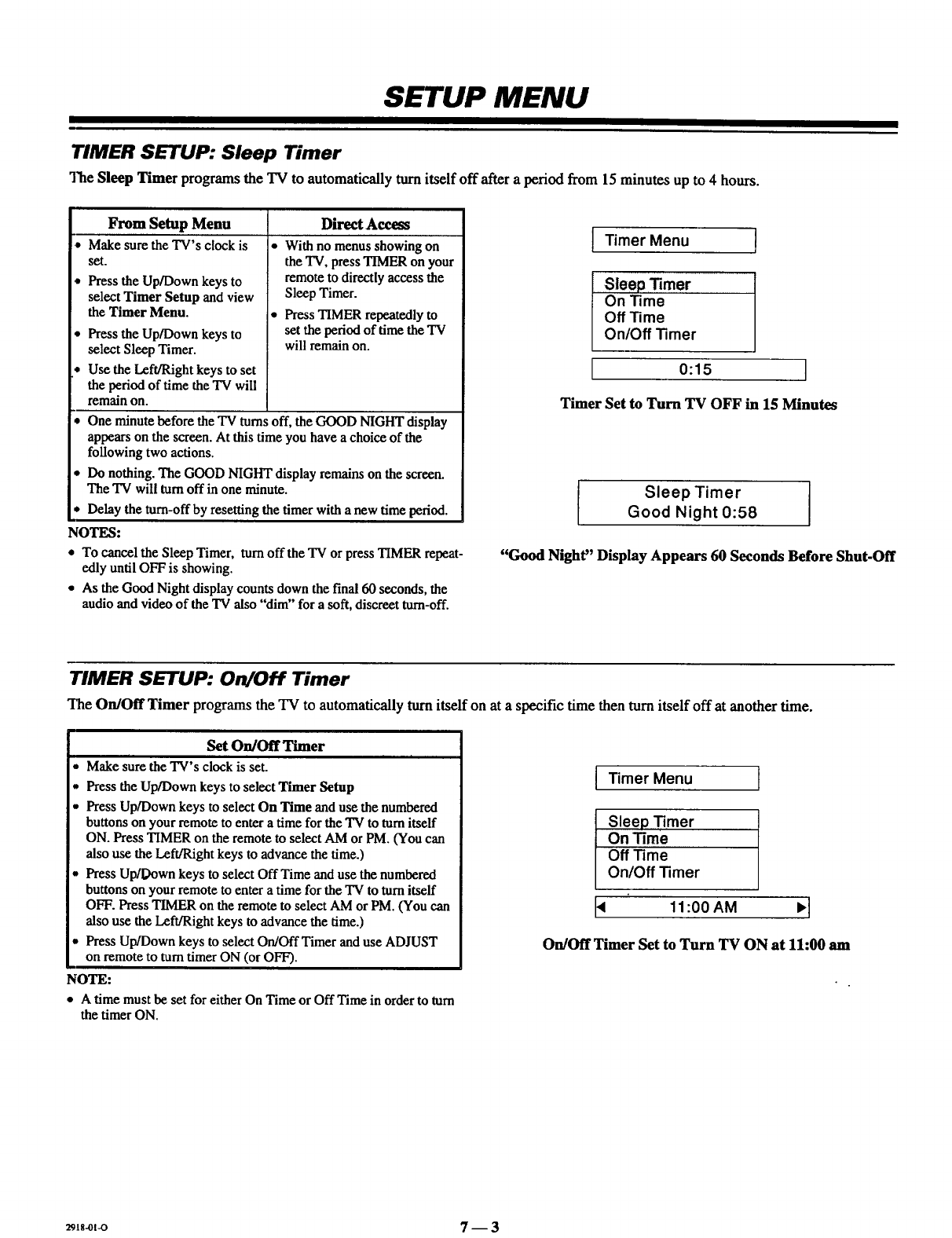

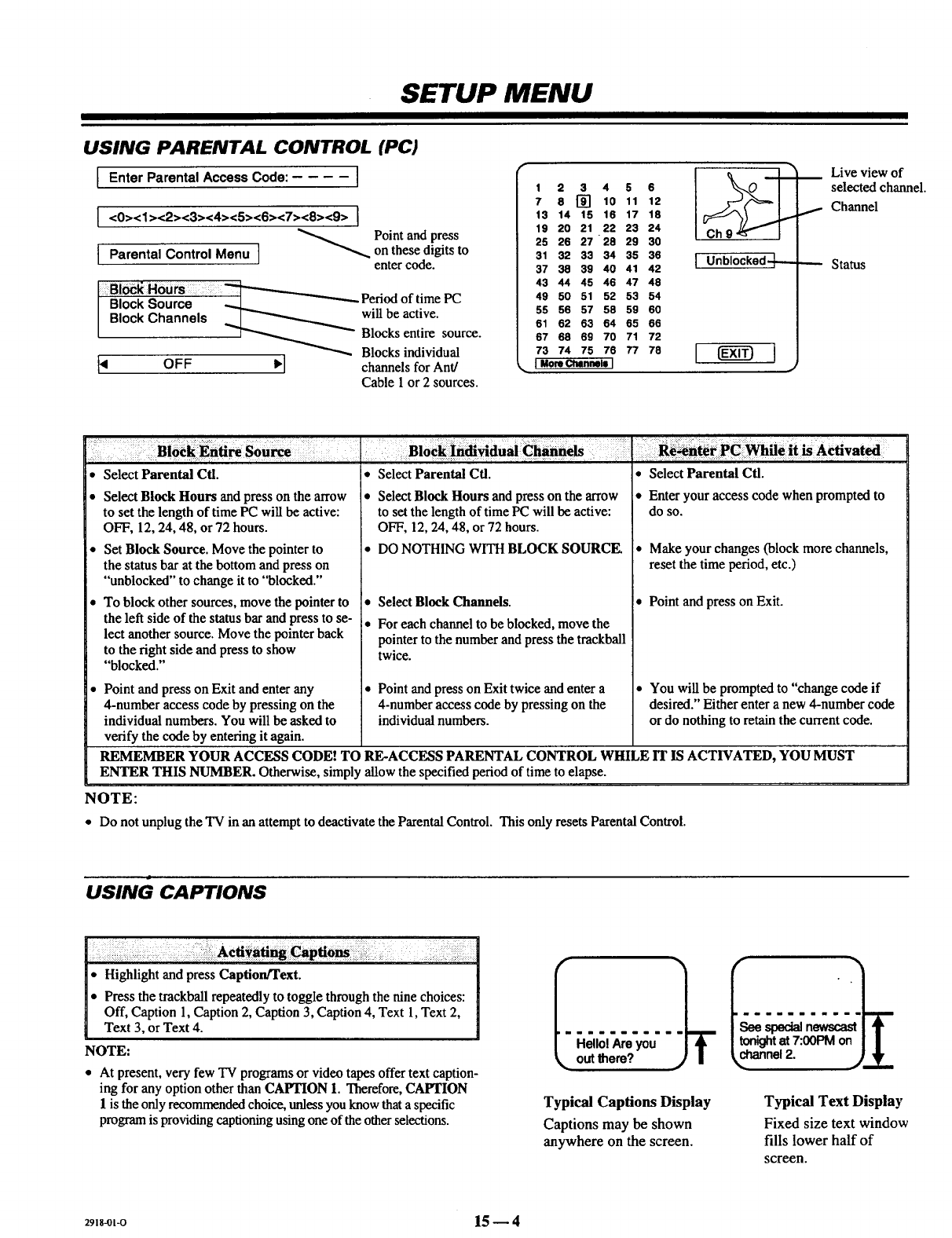

Clock Set, Timer Setup, Parental CtL Option/

Text, Background, and StarSight ....................... 6-1

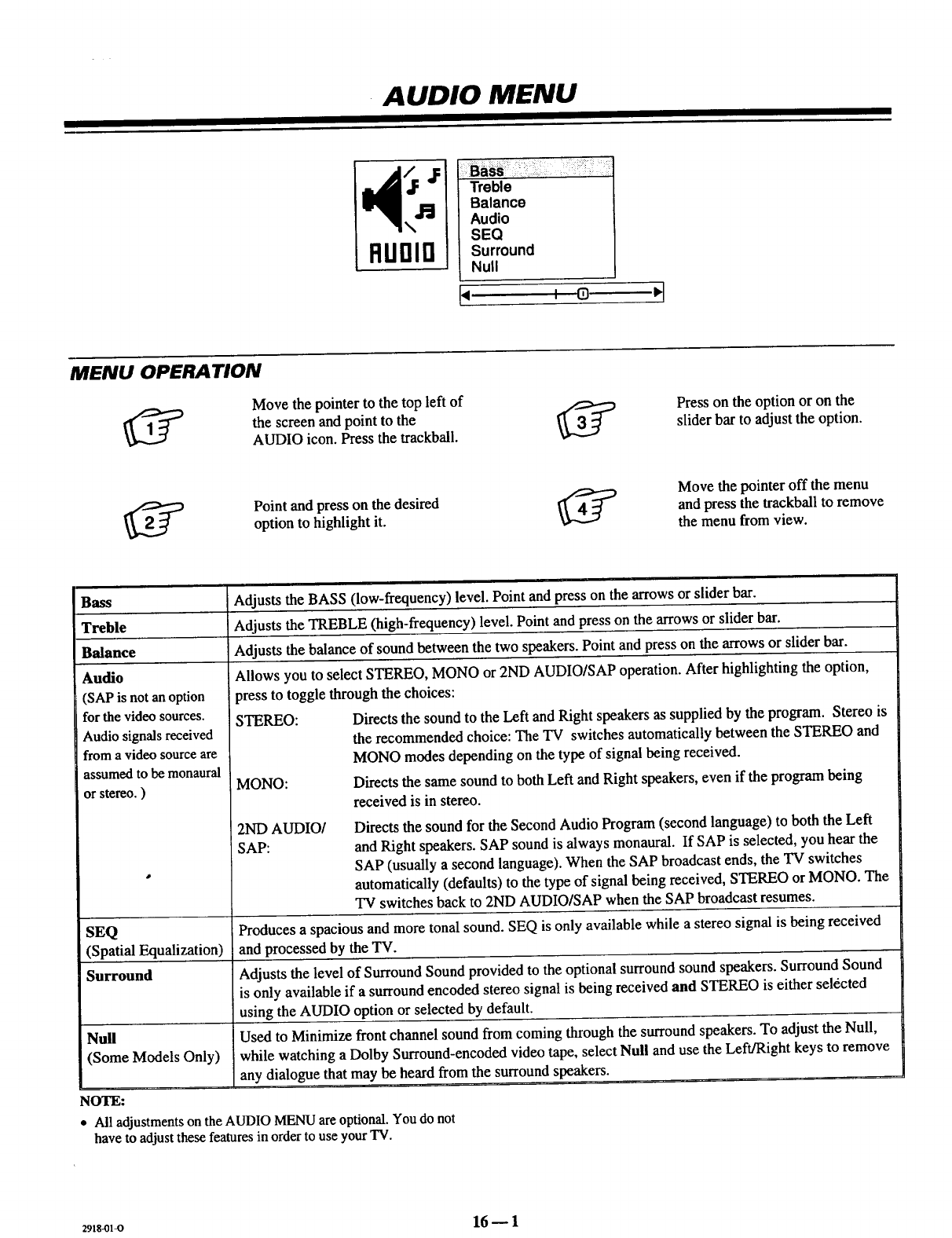

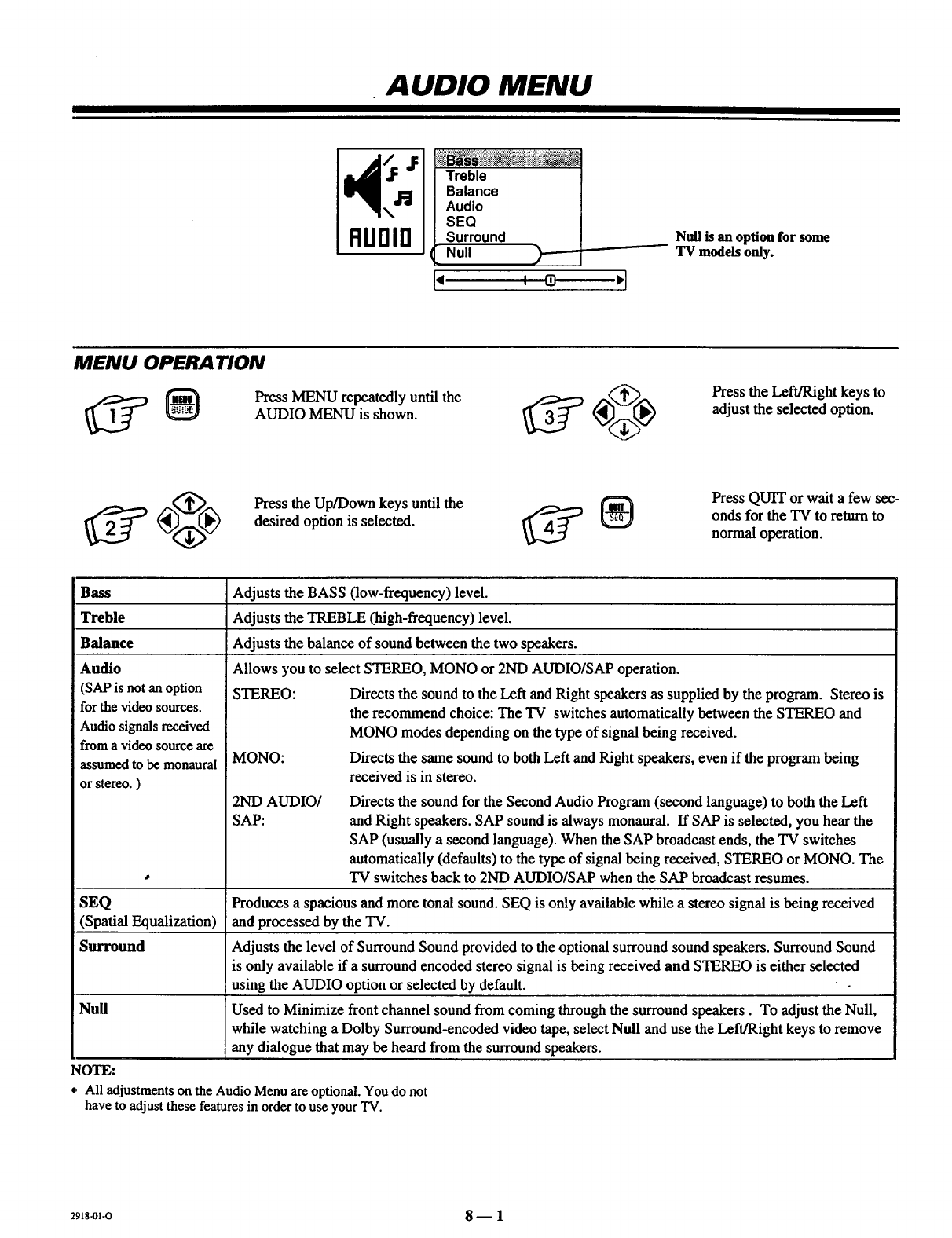

AUDIO MENU

Bass, Treble, Balance, Audio, SEQ,

Surround and Null .................................. 7-I

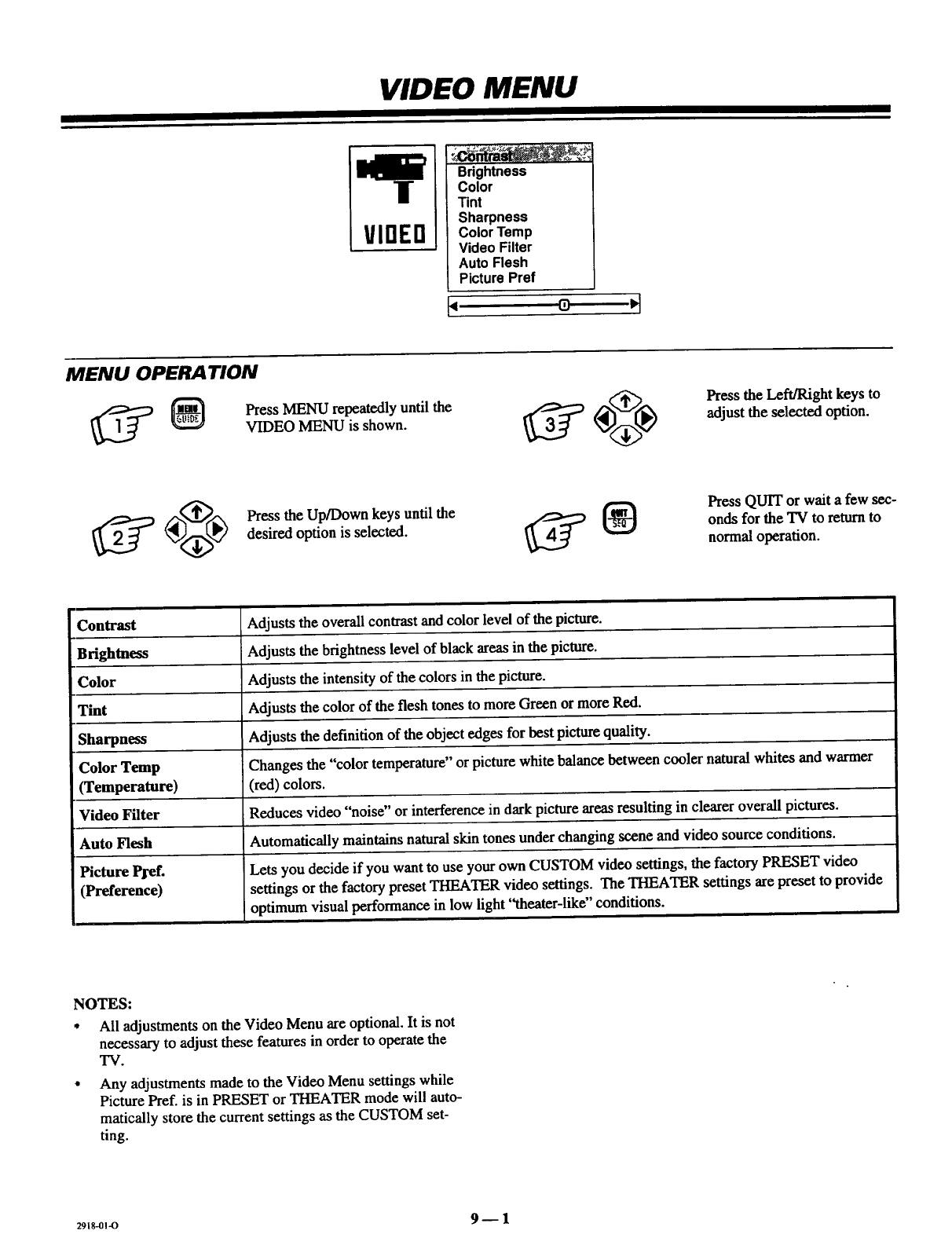

VIDEO MENU

Contrast, Brightness, Color, Tint, Sharpness, Color

Temp, Video Filter, Auto Flesh, and Picture Pref .......... 8-1

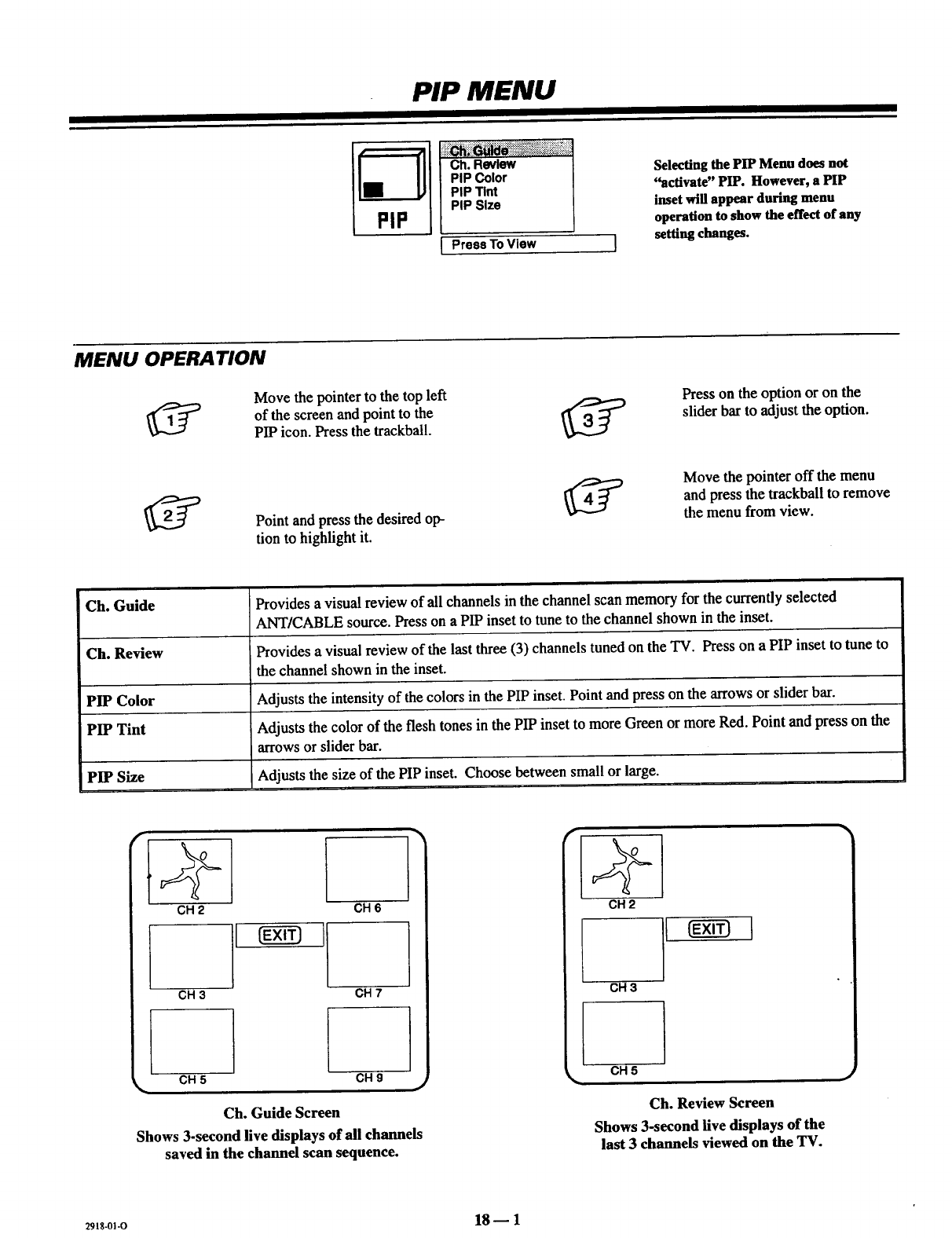

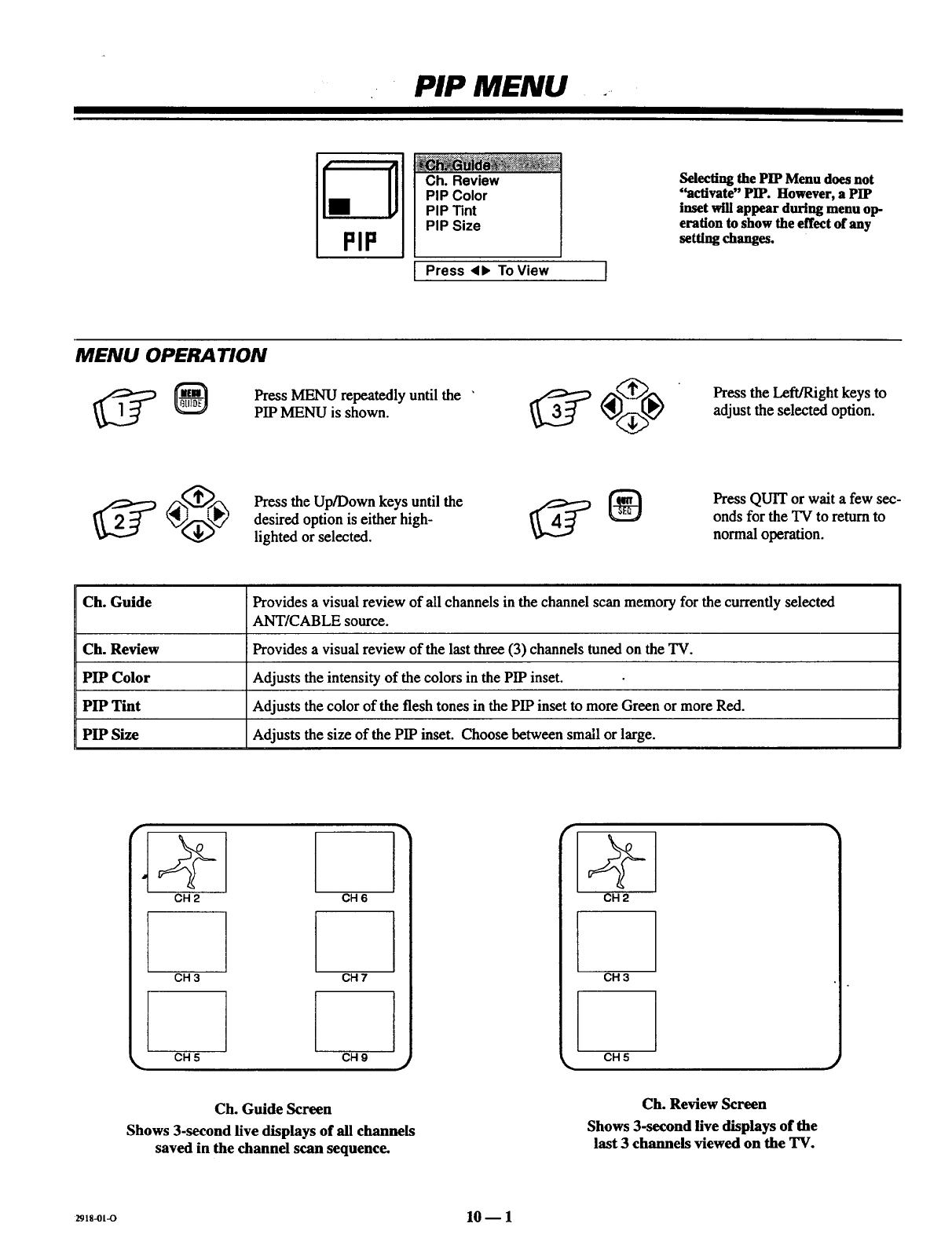

PIP MENU

Ch. Guide, Ch. Review, PIP Color, PIP Tint,

and PIP Size ."...................................... 9-1

Part 3. Z-Trak Remote Control

and Menus

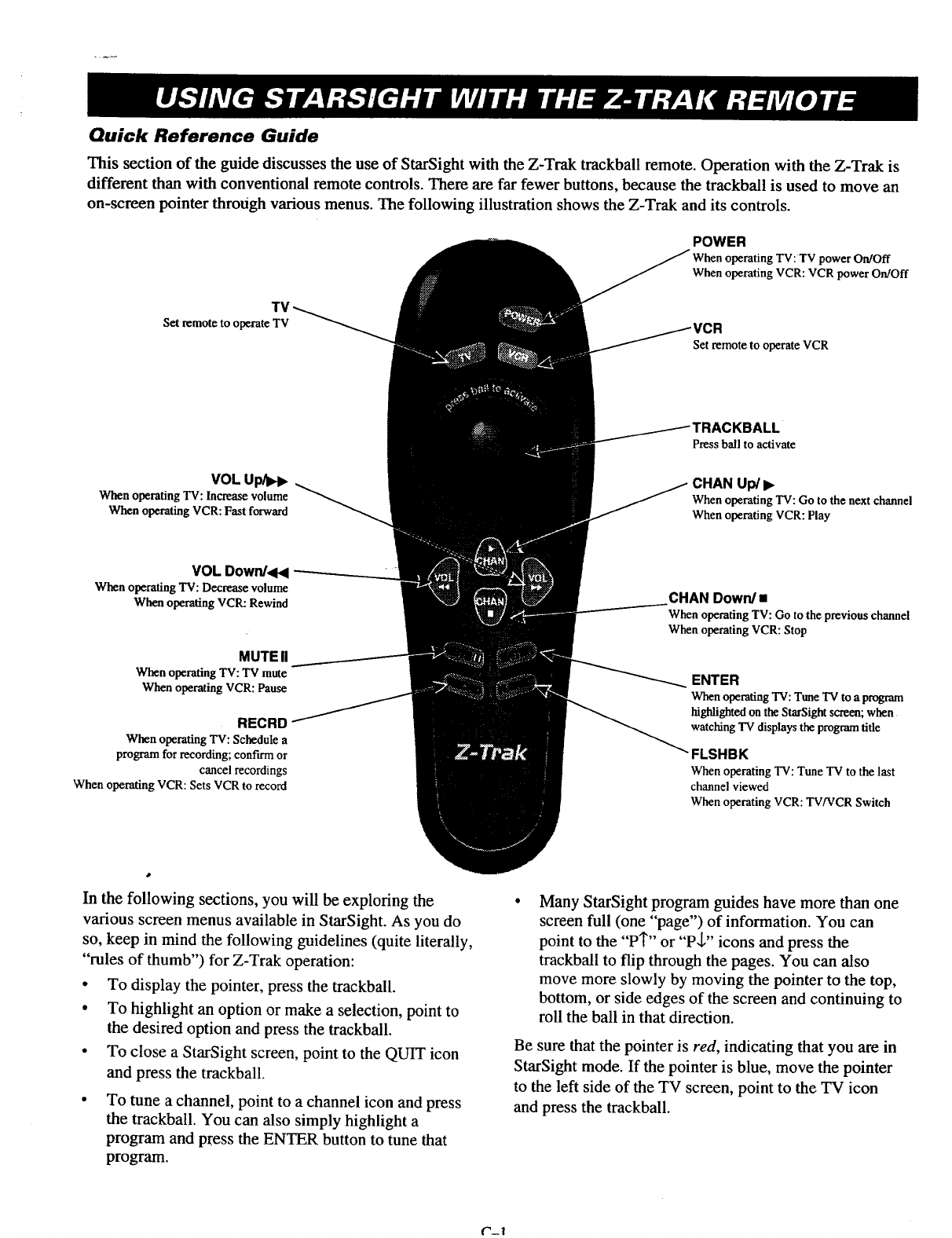

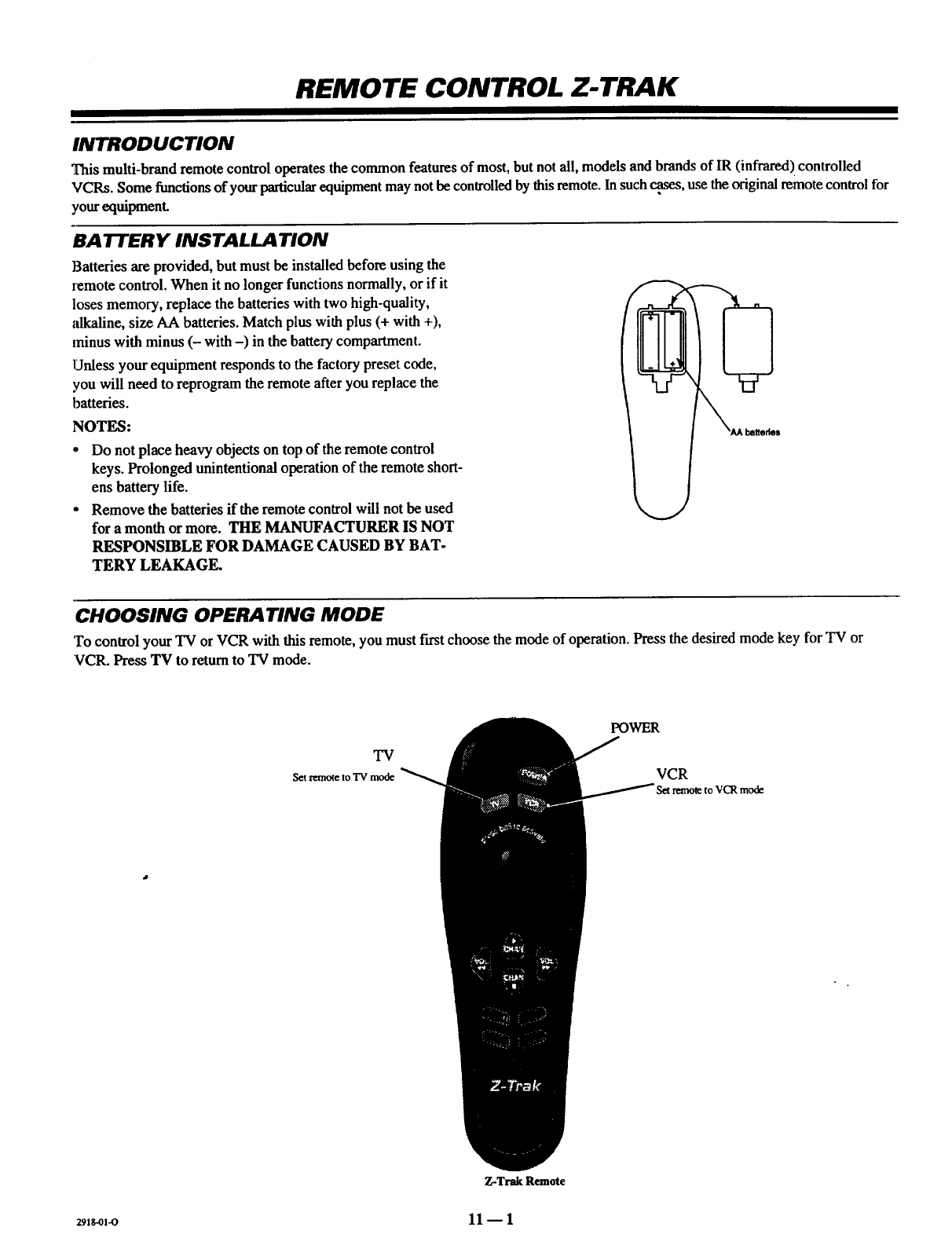

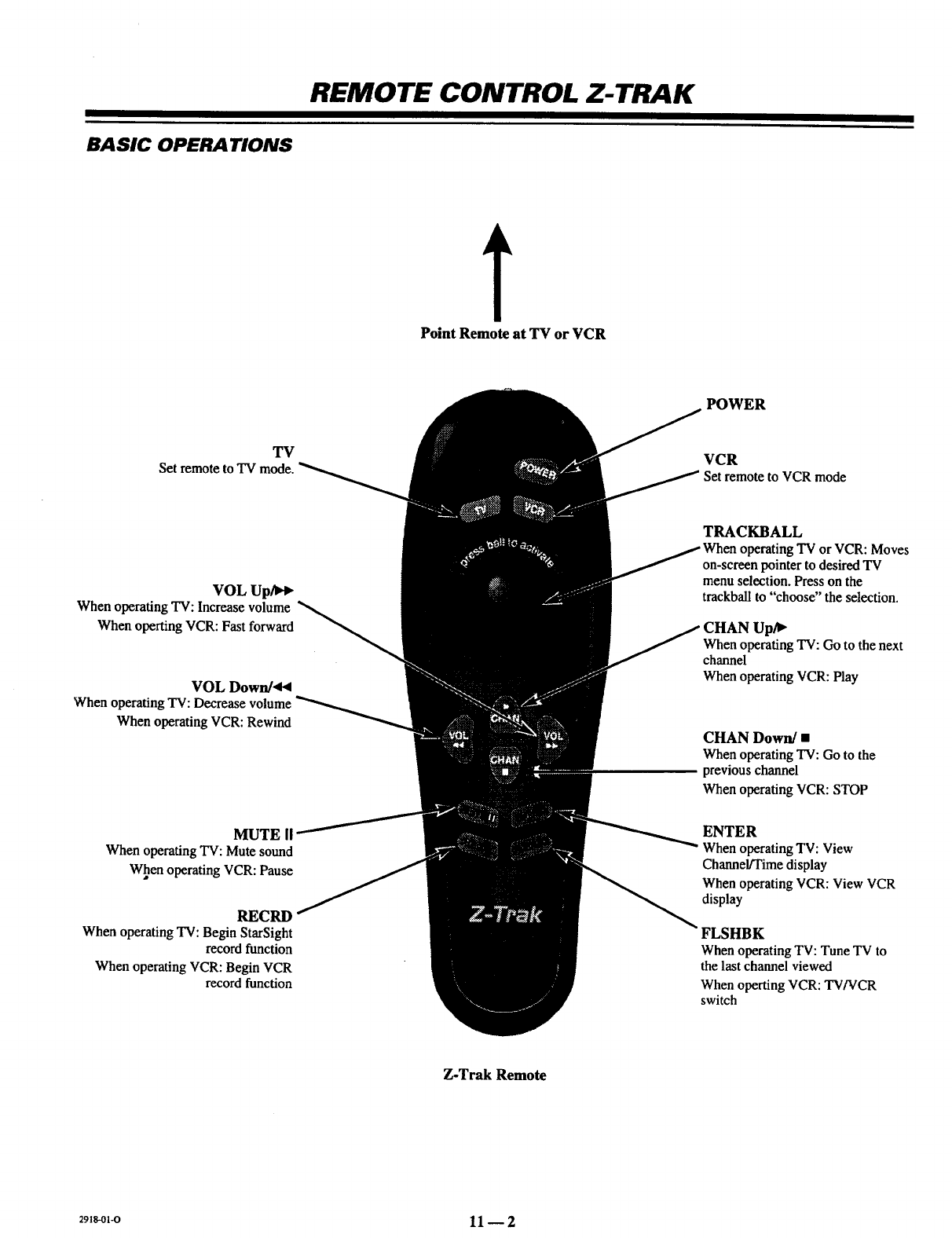

Z-TRAK REMOTE CONTROL

Battery Installation, Operating Mode,

Basic Operations and Auto Find ....................... 11-1

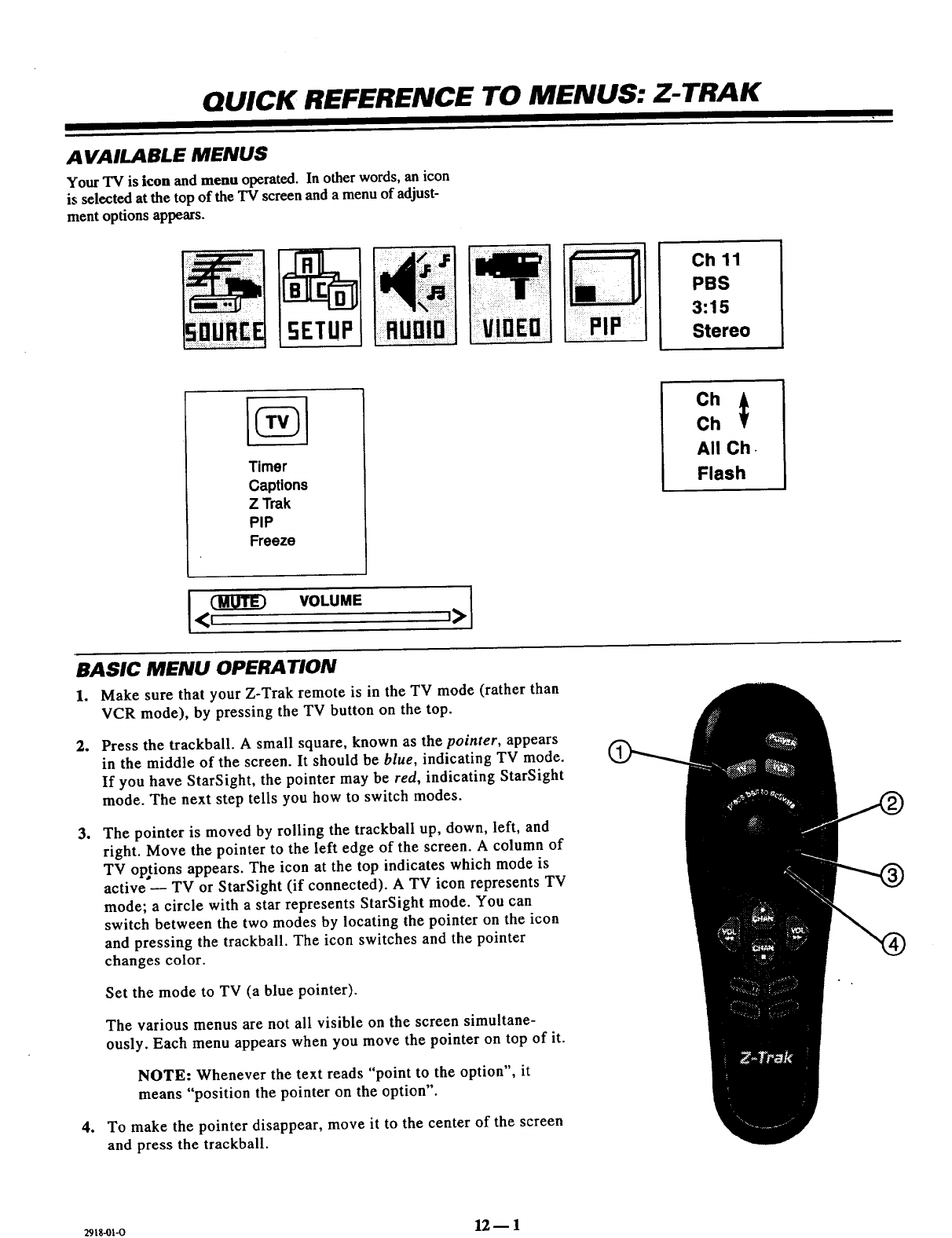

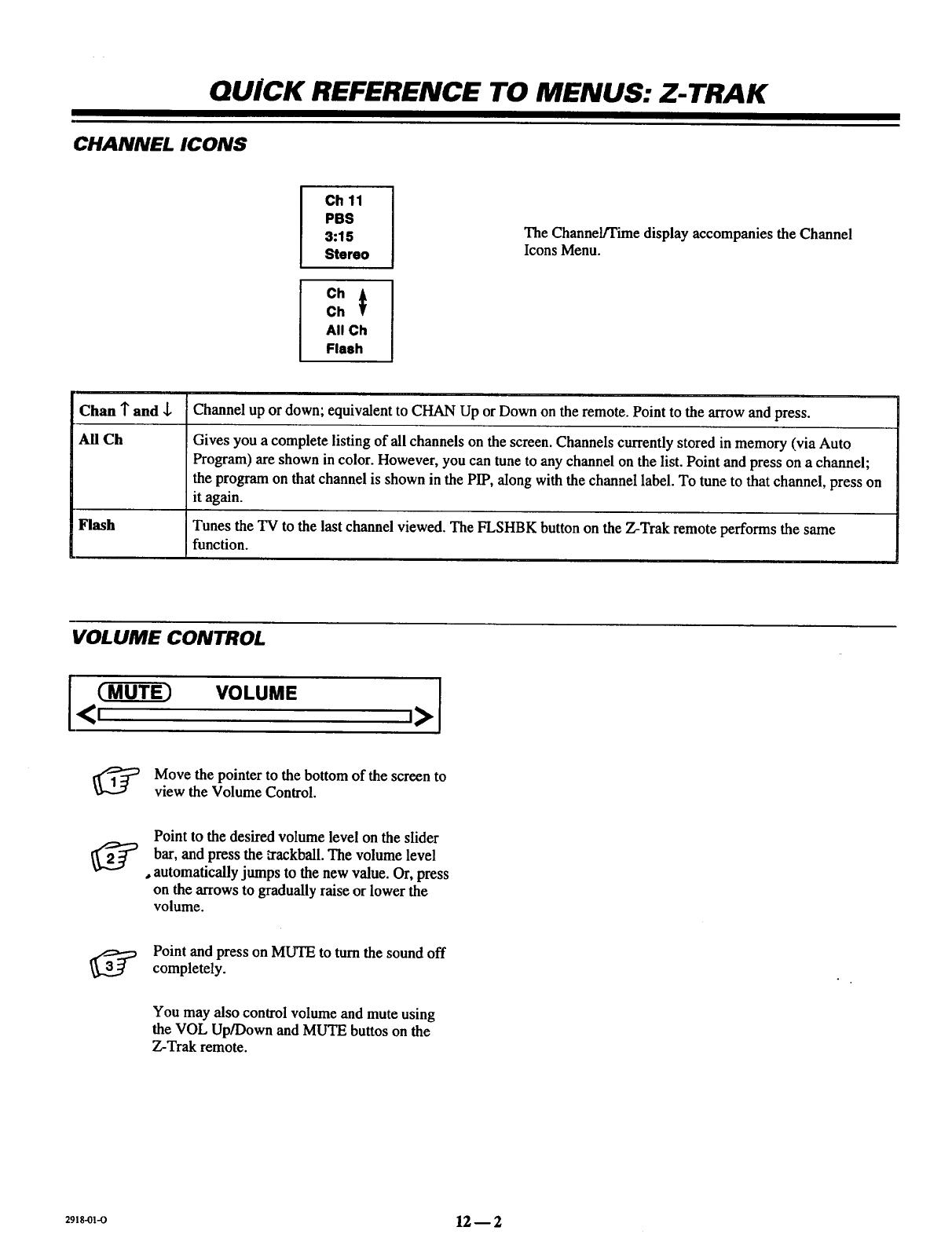

QUICK REFERENCE TO MENUS

Available Menus, Accessing the Menu,

Channel Icons and Volume Control .................... 12-1

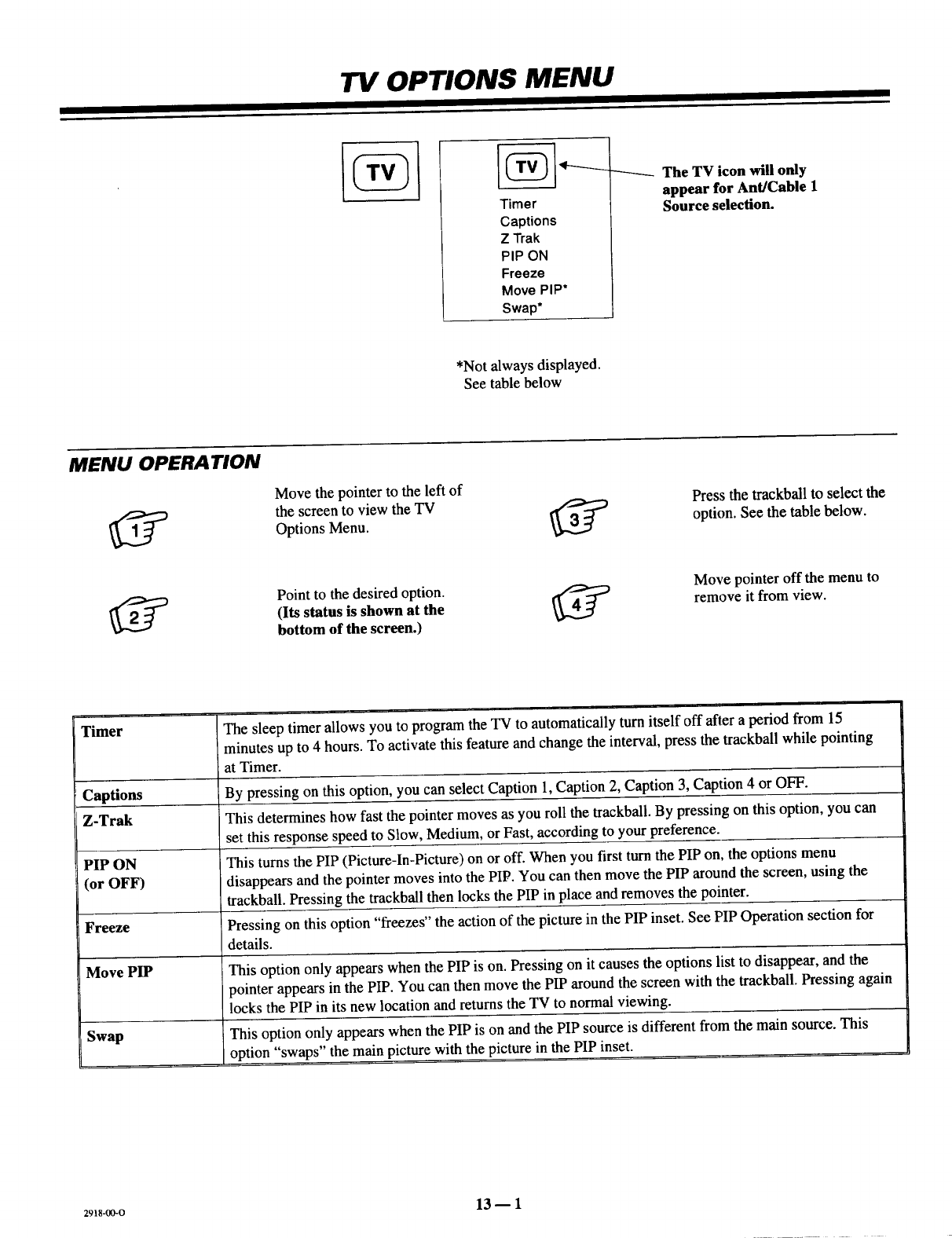

TV OPTIONS MENU

Timer, Captions, Z-Trak, PIP, Freeze and Move PIP ....... 13-I

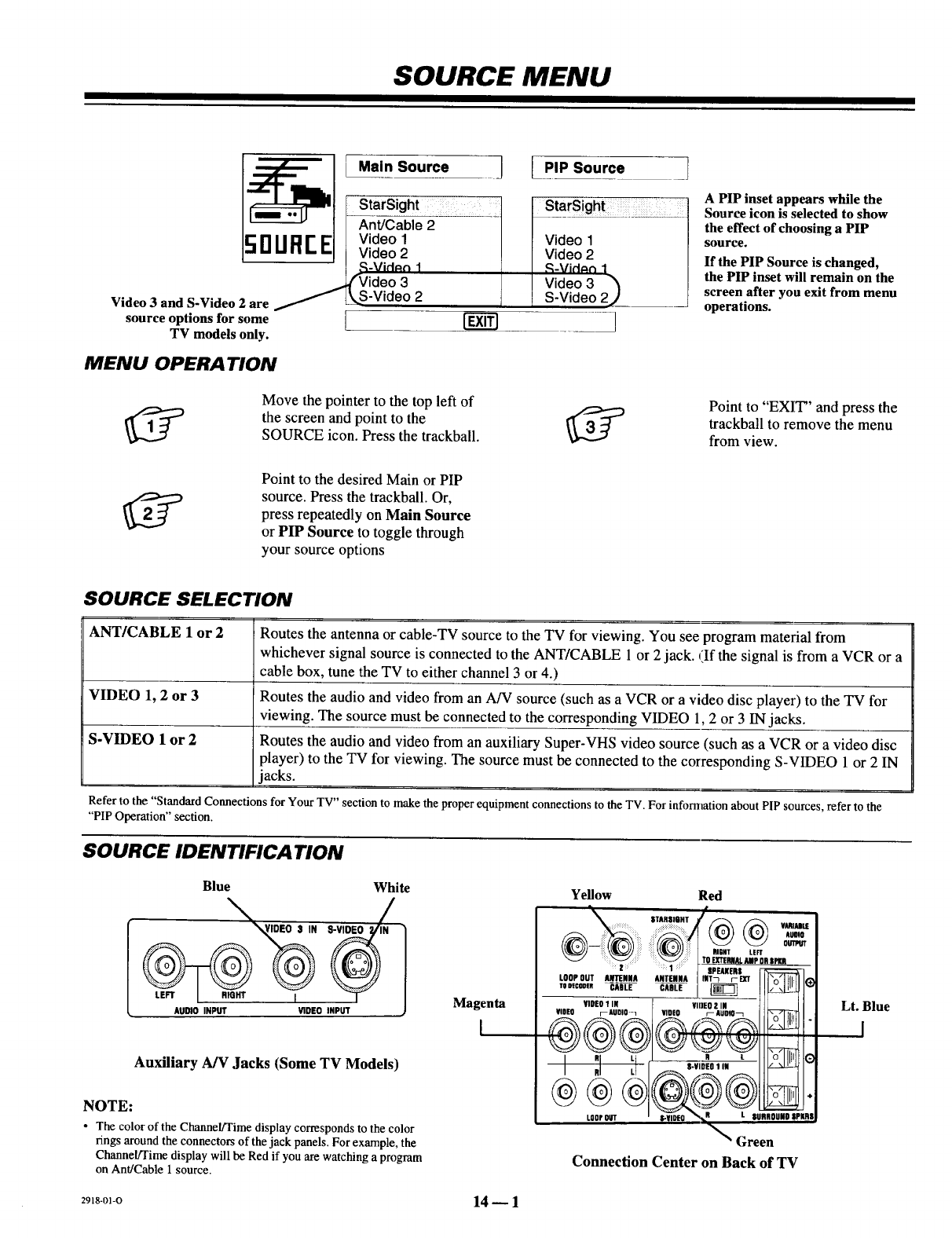

SOURCE MENU

Menu Operation, Source Selection,

and Source Identification ............................ 14-1

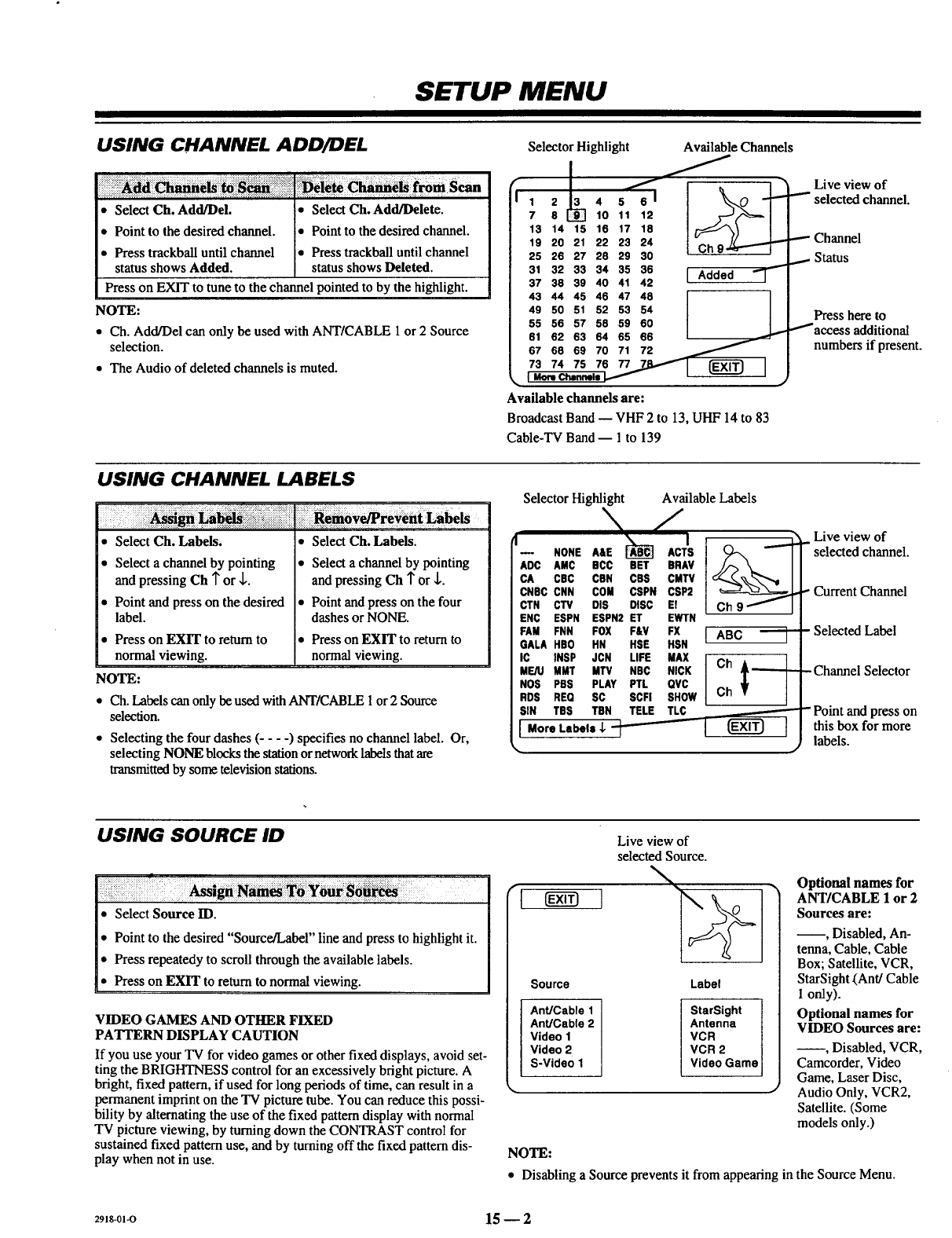

SETUP MENU

Auto Program, Ch. Add/Del, Ch. Labels, Source ID,

Clock Set, Timer Setup, Parental Cfl, Caption/

Text, Background, and StarSight ...................... 15-1

AUDIO MENU

Bass, Treble, Balance, Audio, SEQ,

Surround, and Null ................................. 16-1

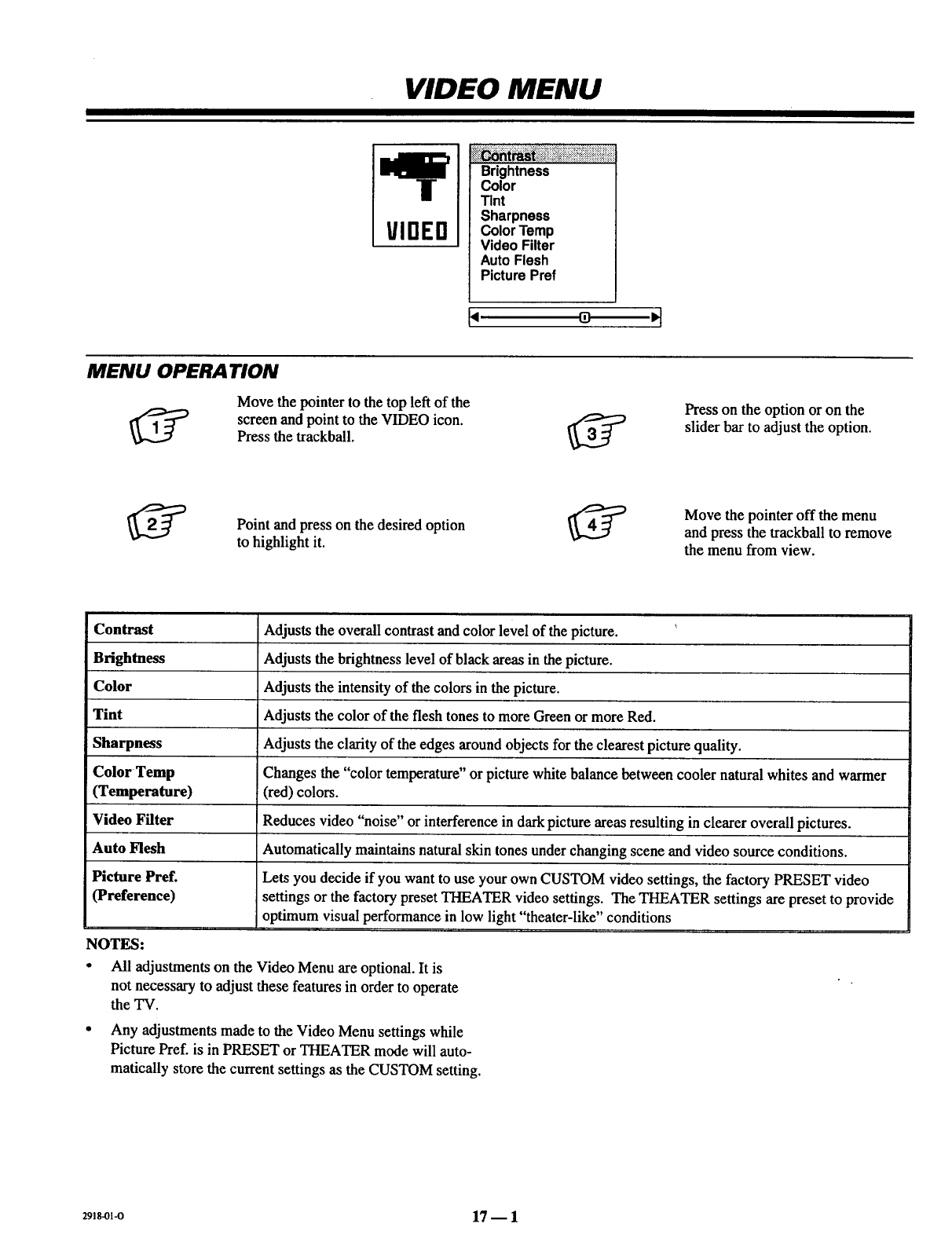

VIDEO MENU

Contrast, Brightness, Color, Tint, Sharpness, Color

Temp, Video Filter, Auto Flesh, and Picture Pref ......... 17-1

PIP MENU

Ch. Guide, Ch. Review, PIP Color, PIP Tint,

and PIP Size ...................................... 18-1

Part 4. Maintenance, Accessories,

and Warranty

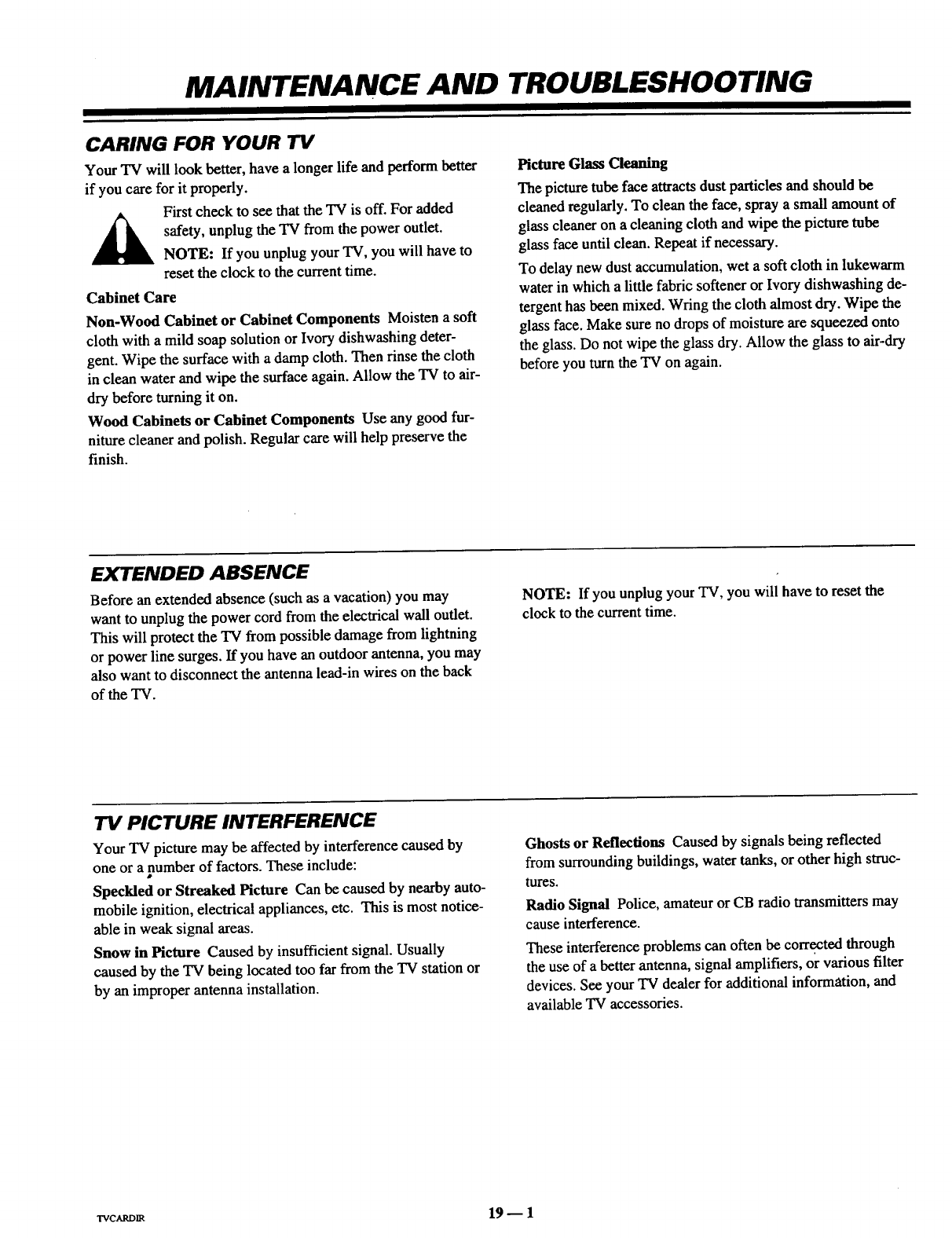

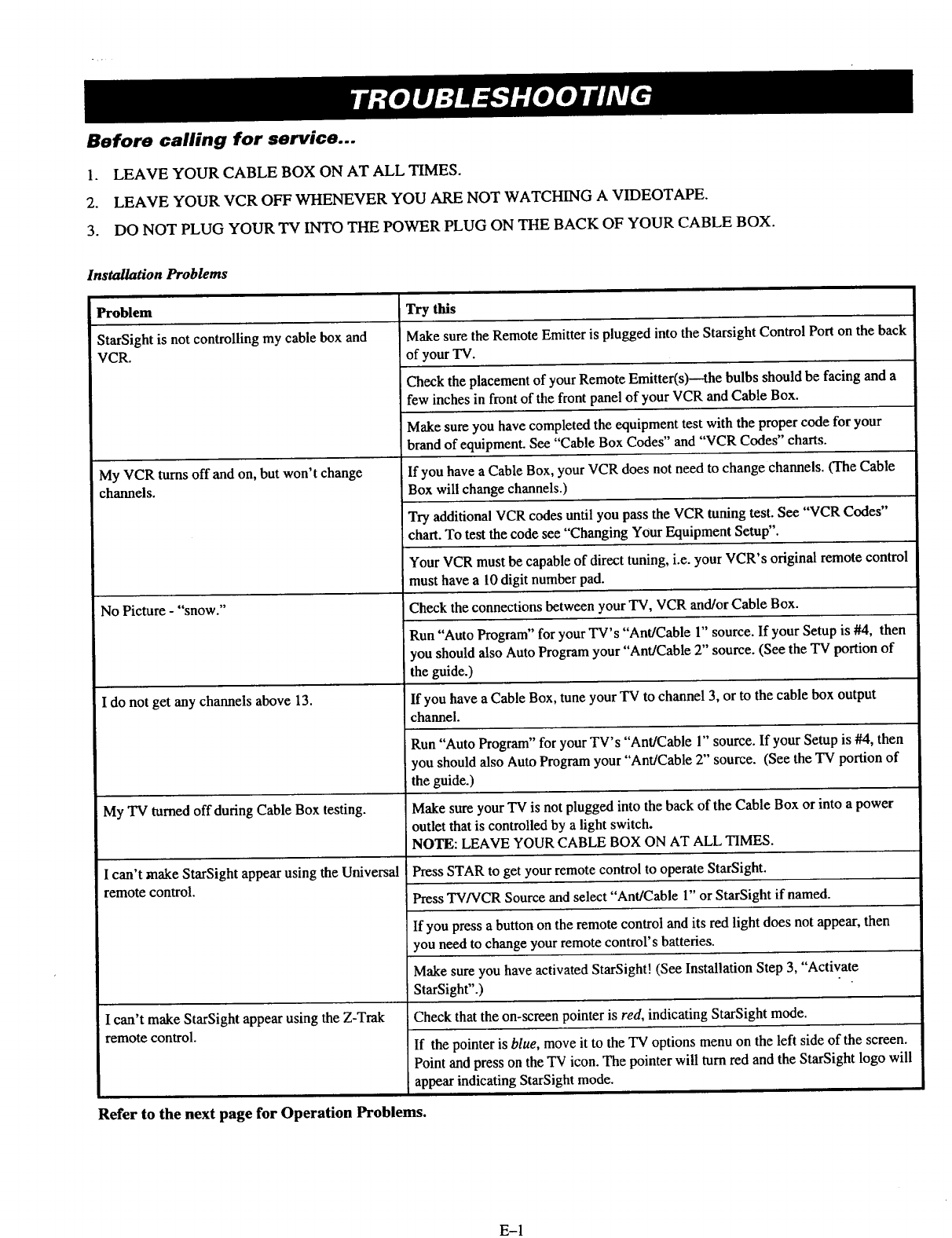

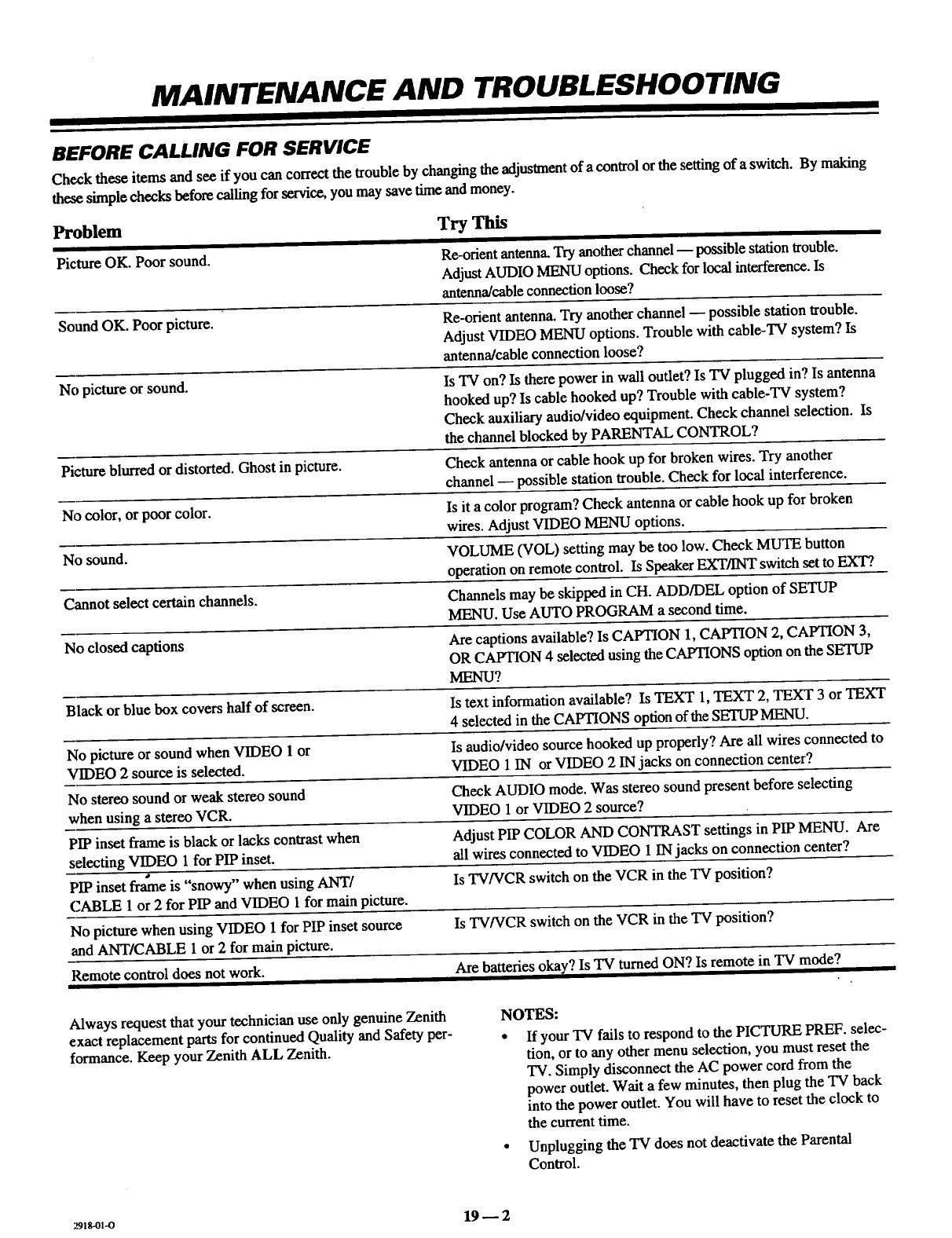

MAINTENANCE AND TROUBLESHOOTING

Caring, Extended Absence, Interference,

Before Calfing for Service ........................... 19-1

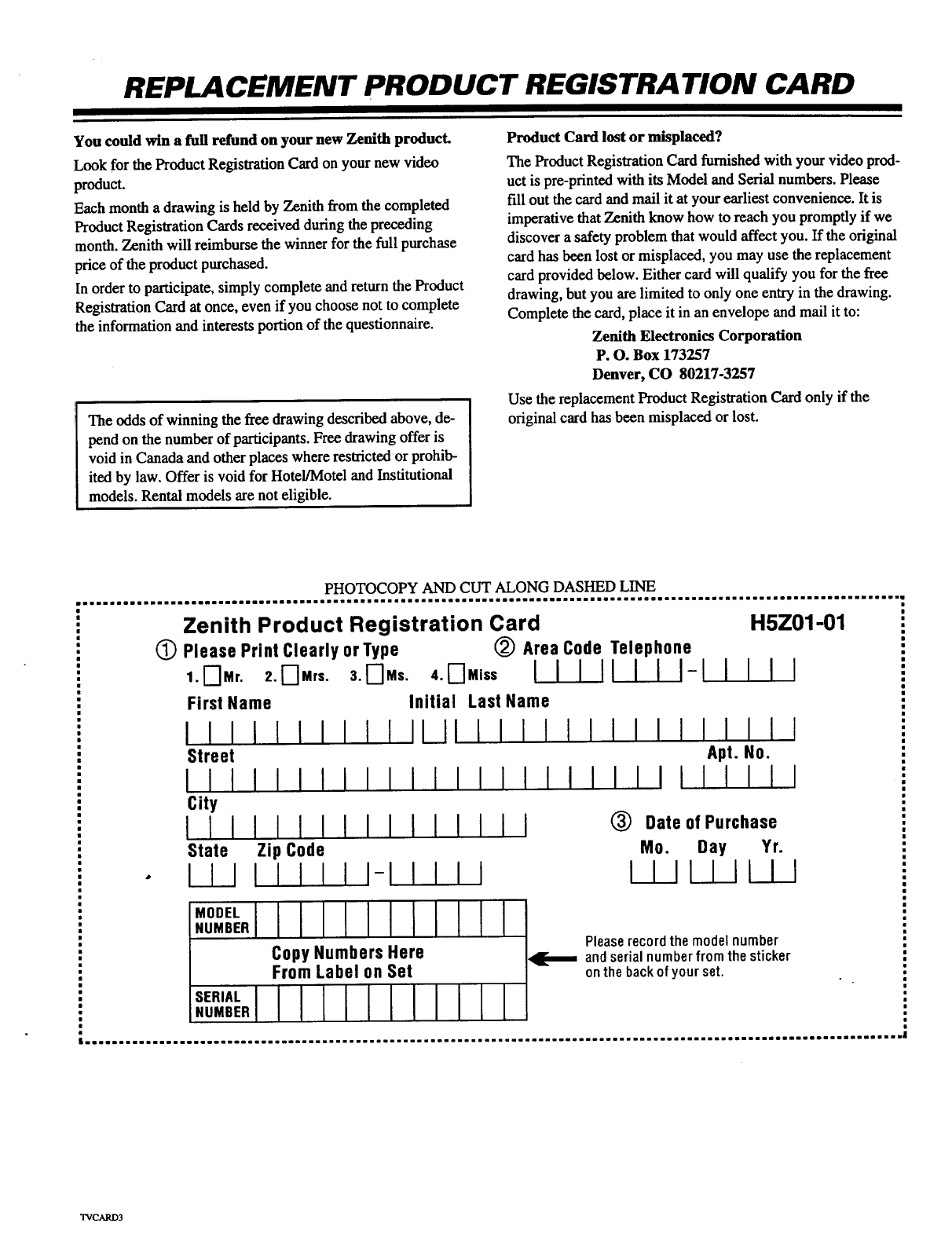

Replacement Product Registration Card

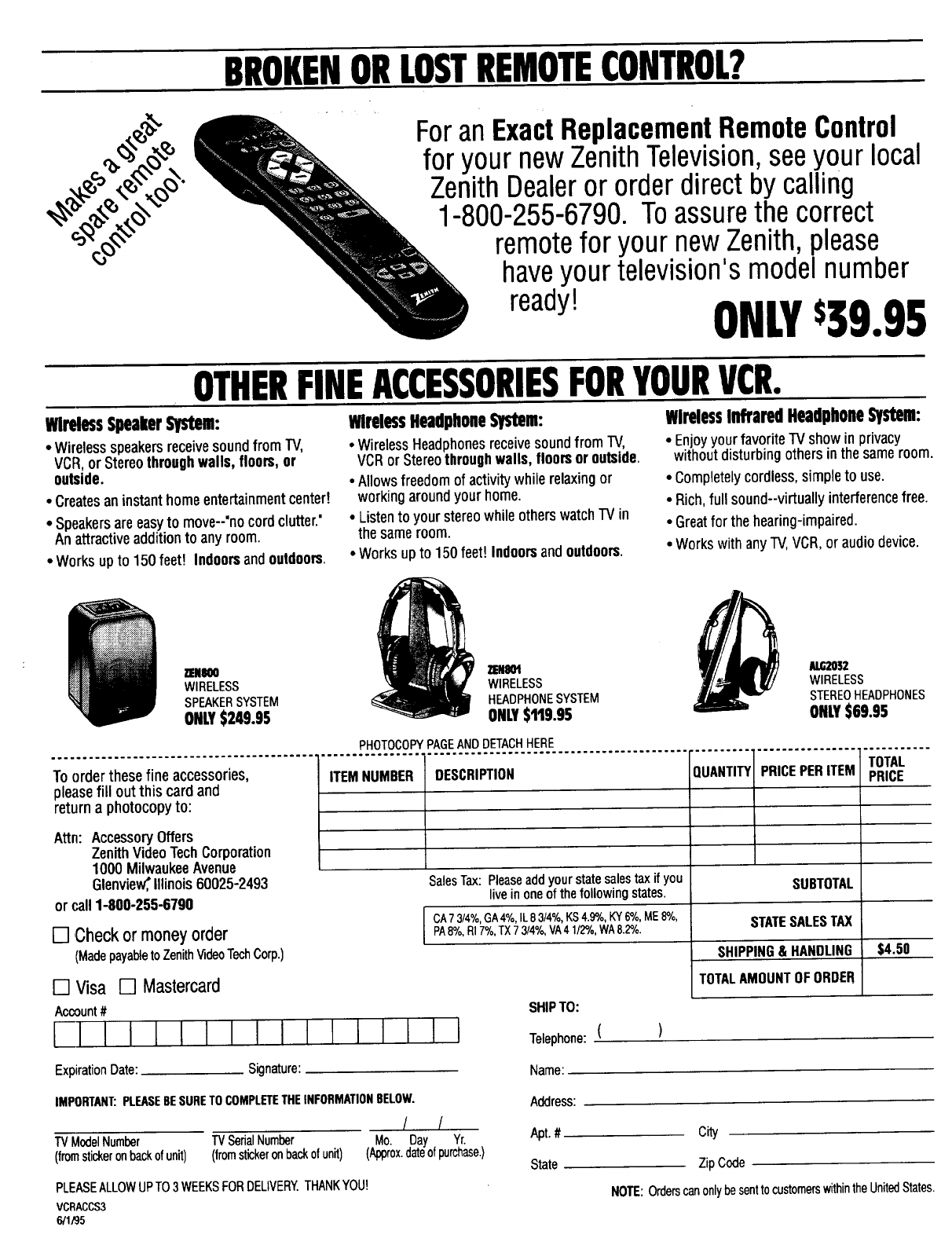

Accessories for Your TV

Your Zenith Warranty

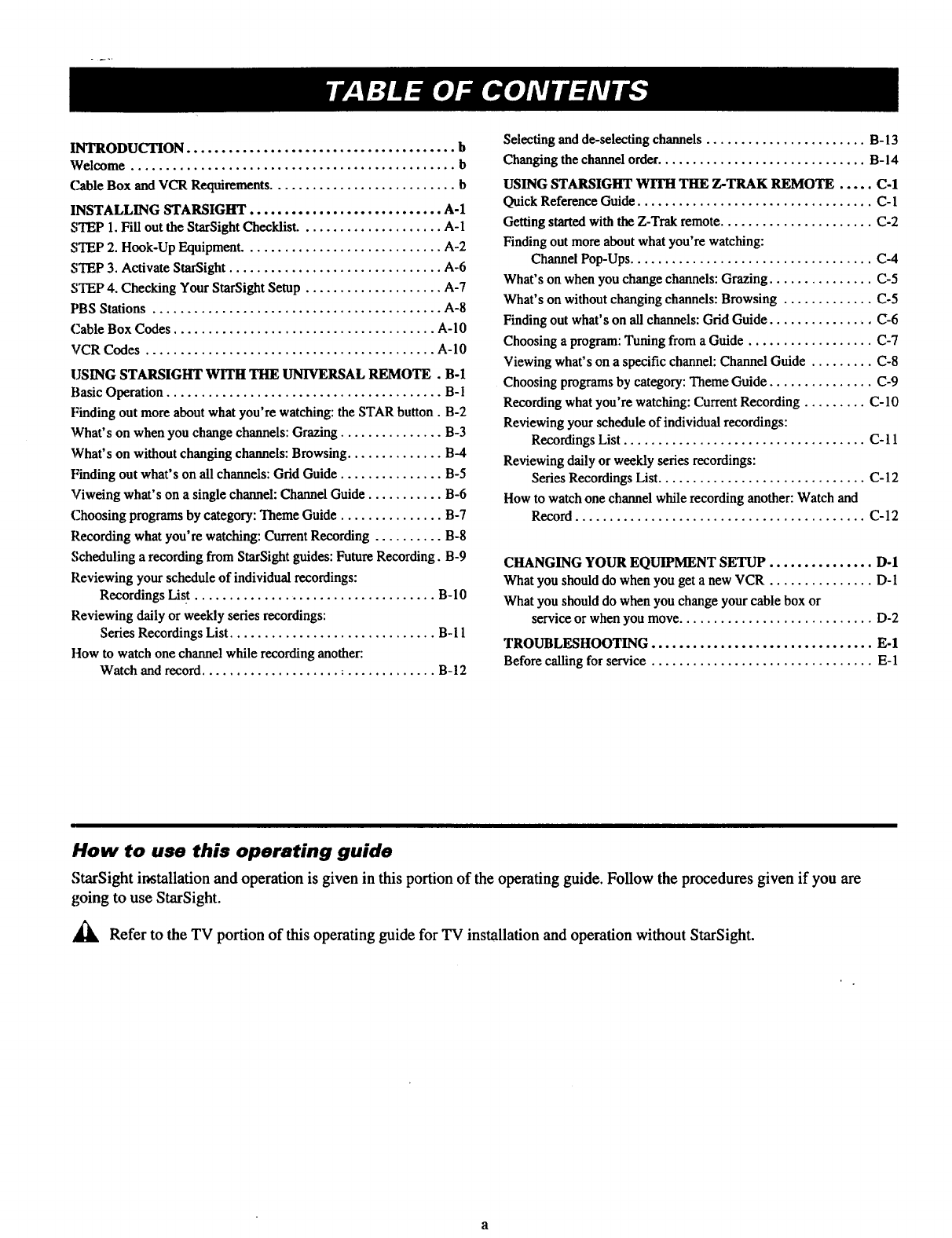

How to use this operating guide

St_mdard TV installation and operation is given in this portion of the operating guide. Follow the procedures given if you will not

be using StarSight®.

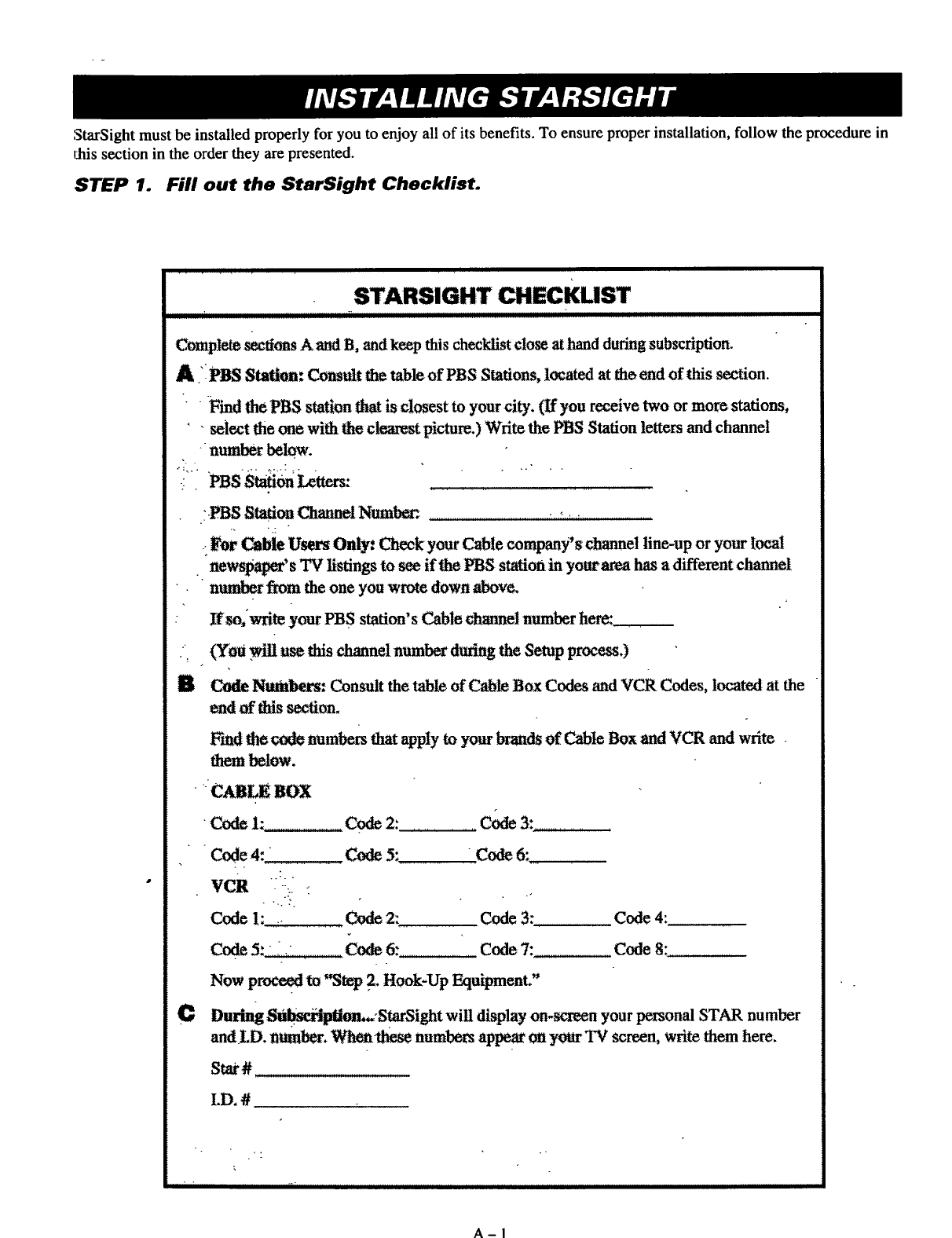

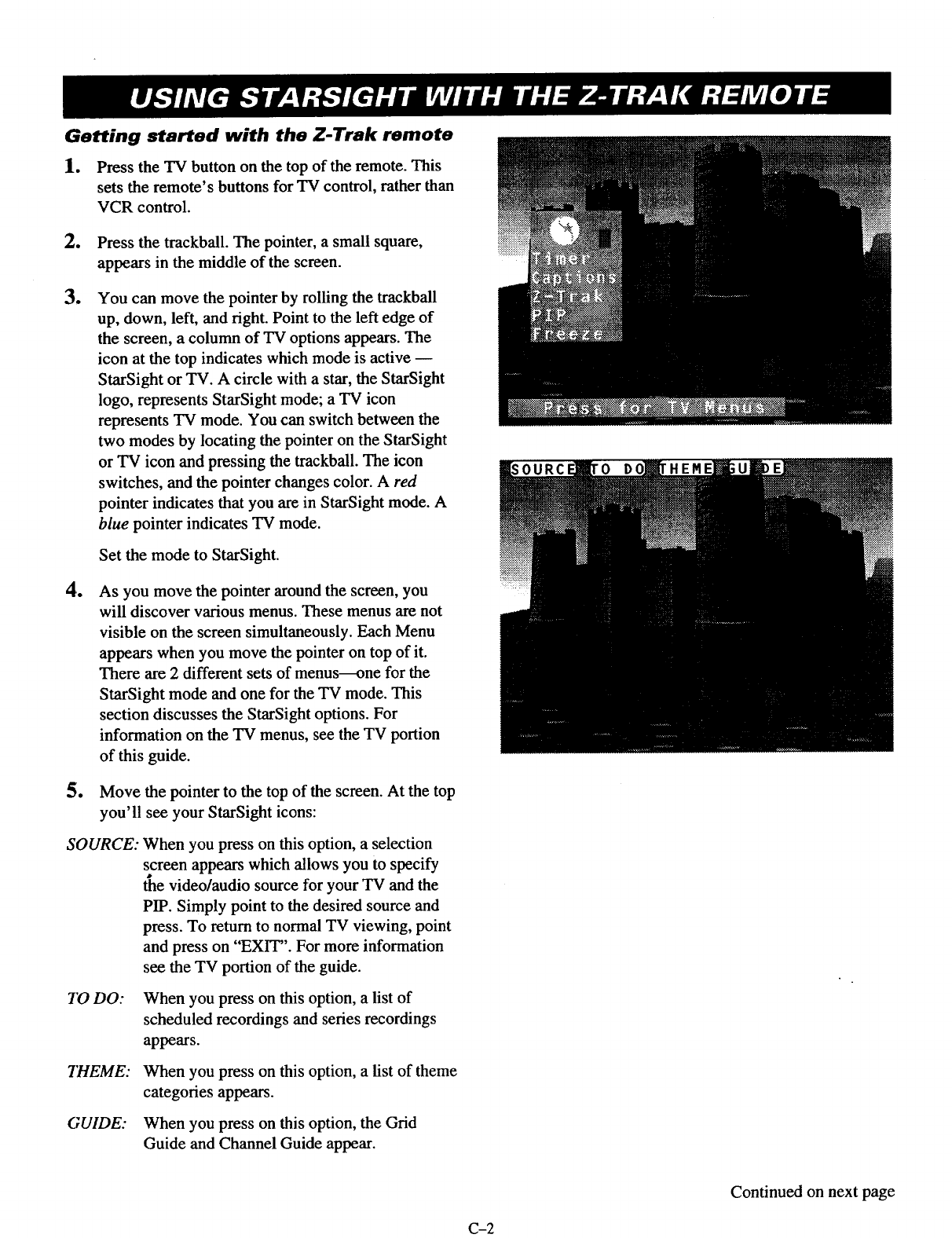

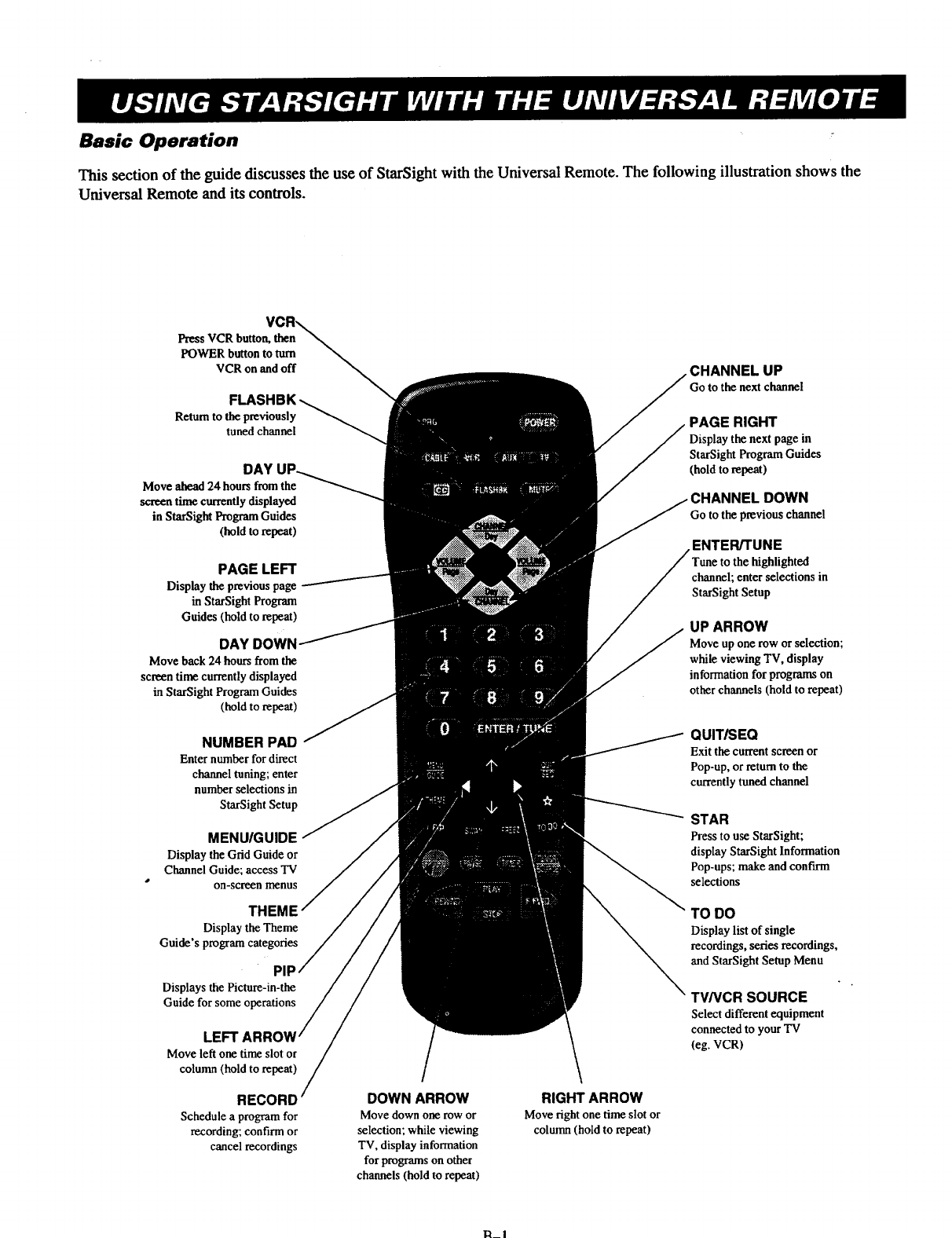

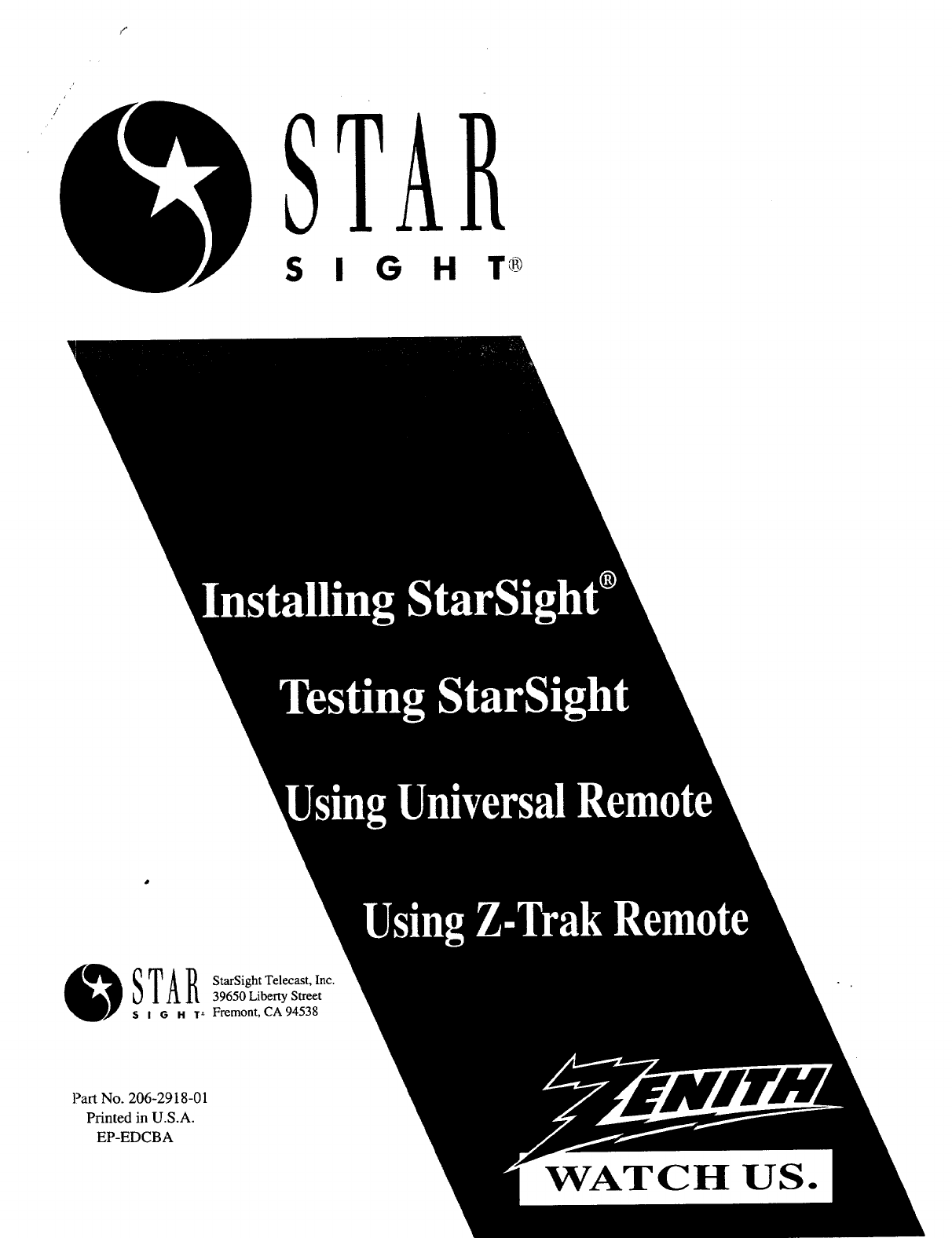

A Refer to the StarSight@portion of this operating guide for StarSight@ installation and operation.

29184)1-A i

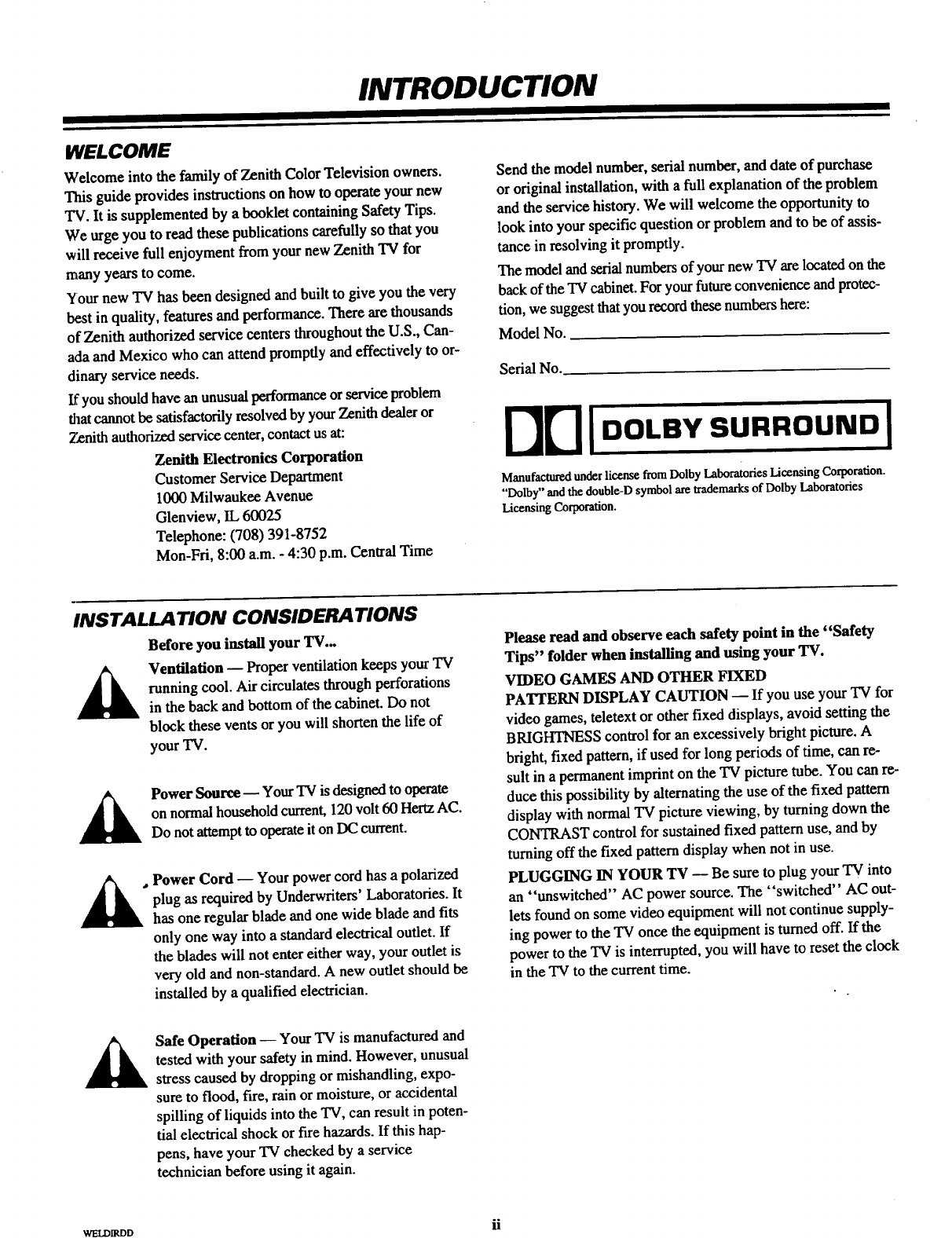

INTRODUCTION

WELCOME

Welcome into the family of Zenith Color Television owners.

This guide provides instructions on how to operate your new

TV. It is supplemented by a booklet containing Safety Tips.

We urge you to read these publications carefully so that you

will receive full enjoyment from your new Zenith TV for

many years to come.

Your new TV has been designed and built to give you the very

best in quality, features and performance. There are thousands

of Zenith authorized service centers throughout the U.S., Can-

ada and Mexico who can attend promptly and effectively to or-

dinary service needs.

If you should have an unusualperformanceor service problem

thatcannot be satisfactorilyresolved by your Zenith dealeror

Zenith authorized service center, contact us at:

Zenith Electronics Corporation

Customer Service Department

1000 Milwaukee Avenue

Glenview, IL 60025

Telephone: (708) 391-8752

Mon-Fri, 8:00 a.m. - 4:30 p.m. Central Time

Send the model number, serial number, and date of purchase

or original installation, with a full explanation of the problem

and the service history. We will welcome the opportunity to

look into your specific question or problem and to be of assis-

tance in resolving it promptly.

The model and serial numbers of your new TV are located on the

back of the TV cabinet. For your future convenience and protec-

tion, we suggest that you record these numbers here:

Model No.

Serial No.

Manufactured under license from Dolby Laboratories Licensing Corporation.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories

Licensing Corporation.

INSTALLATION CONSlDERATIONS

Before you install your TV...

Ventilation -- Proper ventilation keeps your TV

running cool. Air circulates through perforations

in the back and bottom of the cabinet. Do not

block these vents or you will shorten the life of

your TV.

_Power Source -- Your "IVis designed to operate

on normal household current, 120 volt 60 Hertz AC.

Do not attemptto operateit on DC current.

Power Cord -- Your power cord has a polarized

plug as required by Underwriters' Laboratories. It

has one regular blade and one wide blade and fits

only one way into a standard electrical outlet. If

the blades will not enter either way, your outlet is

very old and non-standard. A new outlet should be

installed by a qualified electrician.

Please read and observe each safety point in the "Safety

Tips" folder when installing and using your TV.

VIDEO GAMES AND OTHER FIXED

PATTERN DISPLAY CAUTION -- If you use your TV for

video games, teletext or other fixed displays, avoid setting the

BRIGHTNESS control for an excessively bright picture. A

bright, fixed pattern,if used for long periods of time, can re-

sult in a permanent imprint on the TV picture tube. You can re-

duce this possibility by alternating the use of the fixed pattern

display with normal TV picture viewing, by turning down the

CONTRAST control for sustained fixed pattern use, and by

turning off the fixed pattern display when not in use.

PLUGGING IN YOUR TV -- Be sure to plug your TV into

an "'unswitched" AC power source. The "switched" AC out-

lets found on some video equipment will not continue supply-

ing power to the TV once the equipment is turned off. If the

power to the TV is interrupted, you will have to reset the clock

in the TV to the current time.

Safe Operation -- Your TV is manufactured and

tested with your safety in mind. However, unusual

stress caused by dropping or mishandling, expo-

sure to flood, fire, rain or moisture, or accidental

spilling of liquids into the TV, can result in poten-

tial electrical shock or fire hazards. If this hap-

pens, have your TV checked by a service

technician before using it again.

WELDIRDD ii

INTRODUCTION

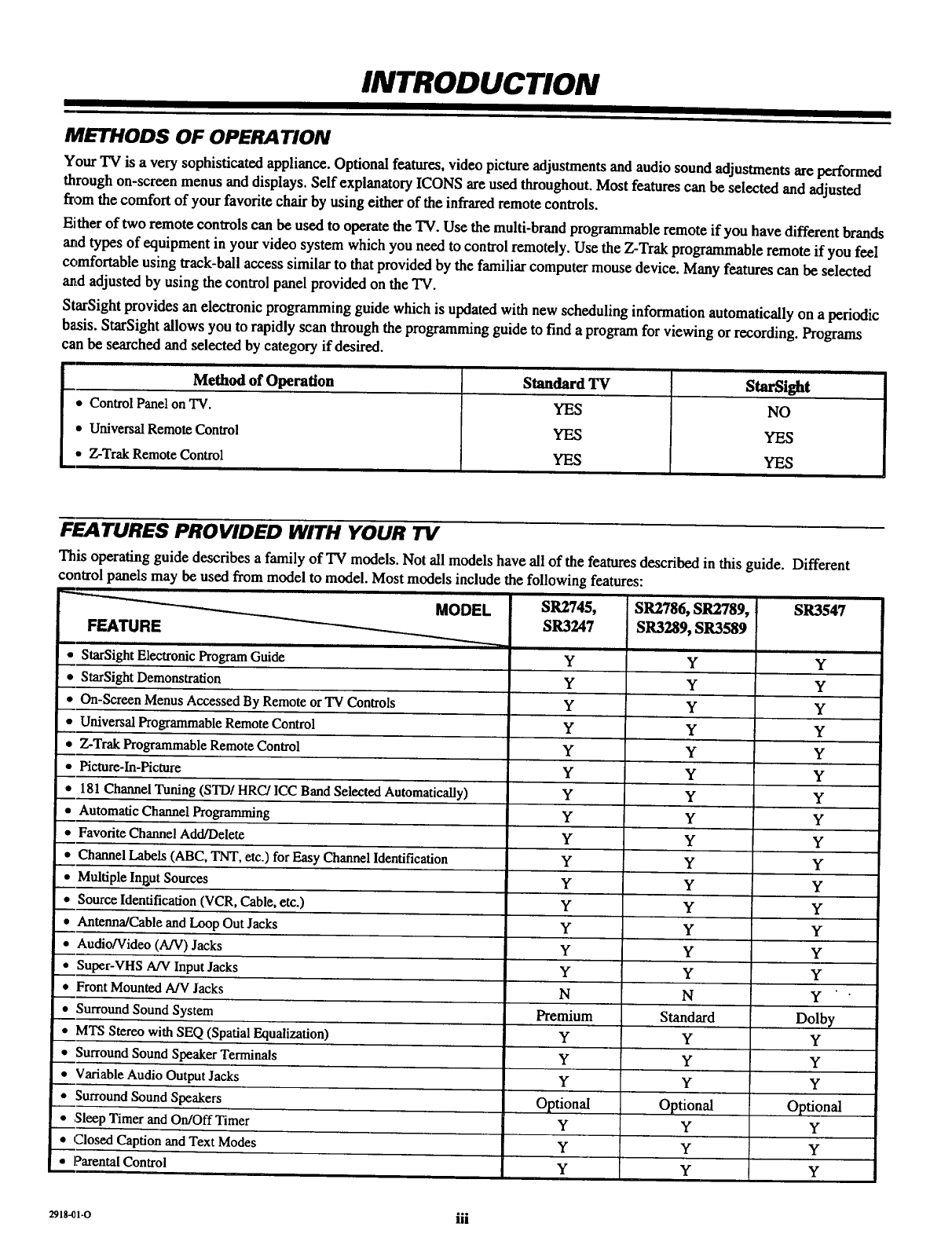

METHODS OF OPERATION

Your TV is a very sophisticated appliance. Optional features, video picture adjustments and audio sound adjustments are performed

through on-screen menus and displays. Self explanatory ICONS are used throughout. Most features can be selected and adjusted

from the comfort of your favorite chair by using either of the infraredremote controls.

Either of two remote controls can be used to operate the "IV. Use the multi-brand programmable remote if you have different brands

and types of equipment in your video system which you need to control remotely. Use the Z-Trak programmable remote if you feel

comfortable using track-ball access similar to that provided by the familiar computer mouse device. Many features can be selected

and adjusted by using the control panel provided on the "IV.

StarSight provides an electronic programming guide which is updated with new scheduling information automatically on a periodic

basis. StarSight allows you to rapidly scan through the programming guide to find a programfor viewing or recording. Programs

can be searched and selected by category if desired.

Method of Operation

•Control Panel on TV.

•Universal Remote Control

• Z-Trak Remote Control

Standard TV

YES

YES

YES

StarS|ght

NO

YES

YES

FEATURES PROVIDED WITH YOUR TV

This operating guide describes a family of TV models. Not all models have all of the features described in this guide. Different

control panels may be used from model to model. Most models include the following features:

MODEL SR2745, SR2786, SR2789, SR3547

FEATURE

i.,,, i

•StarSight Electronic ProgramGuide

•StarSight Demonstration

• On-Screen Menus Accessed By Remote or TV Controls

• Universal ProgrammableRemote Control

• Z-Trak Programmable RemoteControl

• Picture-In-Picture

• 181 Channel Tuning (STD/HRC/ICC BandSelected Automatically)

•Automatic Channel Programming

• Favorite Channel Add/Delete

• Channel Labels (ABC, TNT, etc.) for Easy Channel Identification

• Multiple Ingut Sources

• Source Identification (VCR, Cable, etc.)

•Antenna/Cable and Loop Out Jacks

• Audio/Video (A/V) Jacks

• Super-VHS A/V Input Jacks

• Front Mounted AN Jacks

• Surround Sound System

• MTS Stereowith SEQ (SpatialEqualization)

• Surround Sound Speaker Terminals

• Variable Audio Output Jacks

• Surround Sound Speakers

• ,Sleep Timer and On/Off Timer

• Closed Caption and Text Modes

•Parental Control

SR3247

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

N

Premium

Y

Y

Y

Optional

Y

Y

Y

SR3289, SR3589

iY

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

N

Standard

Y

Y

Y

Optional

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Dolby

Y

Y

Y

Optional

Y

Y

Y

°°o

2918411-0 !11

STANDARD CONNECTIONS FOR YOUR TV

CONNECTION CENTER

ANTENNA/CABLE 1or 2

75-ohm antennaor cable-TVcon-

nection to your TV. Attach yore

antenna, cable-TV lineor VCRto

thesejacks.

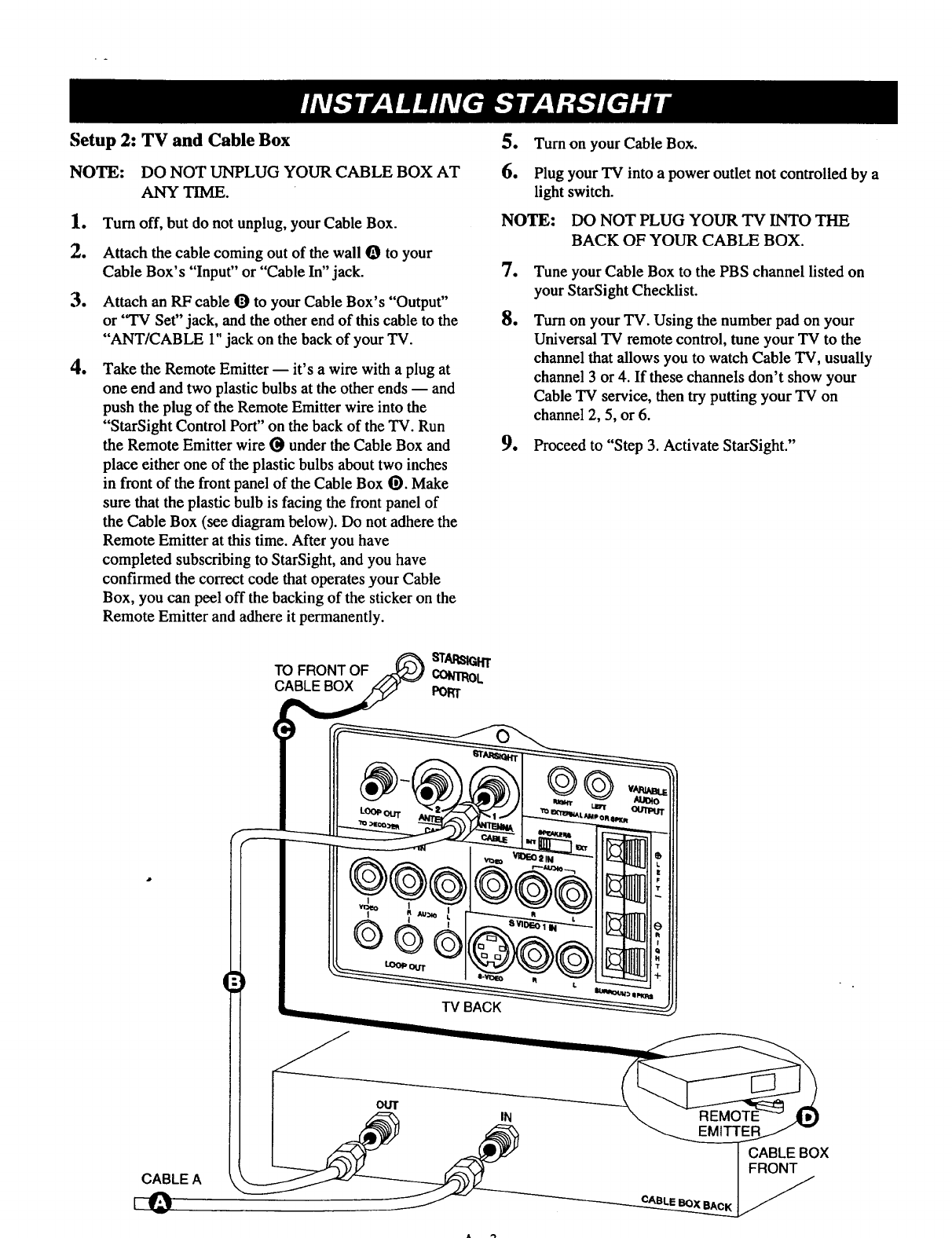

-- STARSIGHT CONTROL PORT

Jackforconnectionof StarSightRemote Emittercable.

LOOP OUT TO DECODER _ I mmummF m sm I

Routes the cable-TV input to _"'- LOOPOUT AMTEN#A ANTENNA ['_$1_Fi_Ii[]rI' [_ ..i

Antenna/Cable 2back to the cable ro_.a CAIILI_ CALL[ .[ [_ _t

box supplied by the cable service. F

G

T

t SURROUND$_I

VIDEO 1or 2 IN /

Jacks for audio and video input /

from a stereo VCR or other AN "

component. (You must connect to

these jacks in order to hear stereo

sound when playing a stereo tape.)

VARIABLE AUDIO OUTPUT

Standardpbonojack connectors

for outputto an optionalstereo

amplifier or to externalspeakers.

SPEAKER EXT/INT

Select EXT (external) to remove

sound from the TV's speakers.

Select INT (internal) to hear sound

from the TV's speakers.

SURROUND SPEAKER

TERMINALS

Connections for outputto optional

surround sound speakers.

VIDEO 1 LOOP OUT

Use these to send the incoming

audio and video (from Video 1 In)

to another component, such as a

second VCR.

S-VIDEO 1 IN

Jacks for audio and video input

from a Super-VHS VCR.

TURN OFF POWER OR UNPLUG TV BEFORE

MAKING ANY CONNECTION.

OTHER JACKS ON TV (Some Models)

@

LEFT

AUDIOINPUT /

S-VIDEO 2 IN

Jacks for audio and video input from a second Super-VHS VCR.

I,

VIDEO 3 IN S-VIDEO 2 IN

oo0

RIGHT I VIDEOINPUT

VIDEO 3 IN

Jacks for audio and video input from athird stereo VCR or other

A/V component.

29t8-ol-o 1_1

STANDARD CONNECTIONS FOR YOUR TV

BASIC CONNECTION TO TV WITHOUT VCR

Ifa VCRwill notbeconnected toyourTV,youhavethreebasic connectionoptions,asshown.

Cable TV Cable TV

Wall Jack Wall Jack

SPEAKERS

LOOPOUTANTENNA ANTENNA INT_ r-EXT

TODECODERCABLE CABLE

lCableBox OR //""" O

: STARSIGHT;

,@,@@

RIGHT LEFT

TOEXTERNALAMPORSPKR

oIIIIII

.,.EO"°"1'.'0,0_J.,OEOV'O'OA'_"*,O_

@@@@@@

n L L . _ L__

I nl LI S-VIDEOIIN

®® @.,,

LOOPOUT S-VIDEO

i

$

L

E

R L SURROUNDSPKRS

Antenna

Flat Wire 11

(300ohm) u

Adaptor I

g2.J

Round Wire

(75 ohm)

:wire :_le _ i i_i]!!i_i!_!i"iiiii!i:;:f "ii; _i:_!i:.i_:_!}!;!_i:i

•Select Ant/Cable 1in Source

Menu.

• Tune TV to cable box output

channel (usually channel 3

or 4).

•Use cable box to select

channels for viewing.

•Select Ant/Cable 1 in Source

Menu.

•Use TV to select channels for

viewing.

2918-01-O 1 m2

STANDARD CONNECTIONS FOR YOUR TV

BASIC CONNECTION TO TV WITH VCR

If you areconnectinga VCRto your"IV,youhavethreebasicconnectionoptions,as shown.

Cable TV Cable TV Antenna

Wall Jack Wall Jack

x\\l /,//

\ \xl // /

OR OR FlatWire]11

(300 ohm) u

LOOP OUT ANTENNA

TOOECODER CABLE

VIDEO1IN

VIDEO r-A(JOlO--t

@@@

I : 1

@@

STARSIGIff

ANTENNA

CABLE

,,@@

fllBlff LEFi"

ro EXTERNALAMPORSPKR

SPEAKER|

INT-i F-EXT

VIDEO2IN

VIDEO r--AUOiO'_

@@@

RL

S-VIDEO1IN

,.

VARIABLE

AUOIO

OUTPUT

iO I Illll

0I IIIII

0 i IIIll

0 IIIIII

t

L

E

F

T

°

9

I

G

H

T

+

LOOPOUT S.VIOEO N L SURROUNDSPKRS,

I

Round Wire

(75 ohm)

" OPERATING YOUR TV

ii

"VCR's TV/VCR* With Cable Box Without Cable Box

'Sw_td_Set_g

TV * Select Antenna/Cable 1 in Source Menu.

•Use TV to select channels for viewing.

VCR

•Select Antenna/Cable 1 in Source Menu.

•Tune TV to cable box output channel (usually channel

3or 4).

* Use the cable box to select channels for viewing.

•Select Antenna/Cable 1 in Source Menu.

• Tune VCR to cable box output chmm.el(Usually channel

3or 4).

• Tune "IVto VCR output channel (usually channel

3 or4).

• Use the cable box to select channels for viewing.

* May be labeled TV/Video.

•Select Antenna/Cable 1 in Source Menu.

•TuneTV to VCR outputchannel (usuallychannel

3 or 4).

• Use VCR to select channels for viewing.

_ts-0t-o 1-- 3

STANDARD CONNECTIONS FOR YOUR TV

ADDITIONAL CONNECTIONS FOR STEREO VCR

If you have a stereo VCR, or other stereoaudio/video (A/V) component, you must make these additionalconnecf!om shown below in or-

der to hear stereo sound from the component.

1 st VCR (Optional) 2ncl VCR

A/V OUTPUT ] _ -- A/V OUTPUT I

AUDIO ANTENNA i OIT-i r-EBT AUO_

CABLE CABLE !Ii_ R VIDEO

IVIOEOIlN

VlQEO r-- AIIOIO"-2

LOOPOUT l L IURROUNOIPI(H

LOOPOUT

SUPER-VHS VCR

A/V OUTPUT I

AUDIO

•Select Video 1" from the Source Menu.

•Use VCR (or other componenO to select channels for viewing.

Of,

• Watch a tape playing in the VCR.

* Select the Source in the Source Menu that corresponds to jacks

to which the A/V component is connected.

29_8-m-o 1-- 4

STANDARD CONNECTIONS FOR YOUR TV

AUDIO/VIDEO (A/V) CONNECTIONS FOR OPTIONAL VIDEO EQUIPMENT

Connections to VIDEO 3 IN

or S-VIDEO 2 IN jacks.

(Some "IV models only.)

Stereo Cameorder

Super-VHS VCR Y_V1DEO

OUT

OPTIONAL AUDIO AMPLIFIER/SURROUND SOUND CONNECTIONS TO TV

If you wish to listen to the'IV audio through an external amplifier or stereo system, or listen to surround sound audio, make the connec-

tions to the TV shown in the illustration below.

TURN OFF POWER OR UNPLUG TV BEFORE MAKING ANY CONNECTION.

8ohm

Surround

Speaker

Amplifier and Dual Surround Speaker Connections Single Surround Speaker Connection

DIFFERENT WAYS TO LISTEN TO YOUR "IV

Surround Sound

e

'IV Speakers On

*SPEAKER EXT/INT switch in the INT (in-

ternal) position --

TV speakers are ON. Sound is heard from

both the TV's speakers and the external am-

plifier's speakers.

• Use TV's volume control to raise and

lower the level of sound being heard from

both sets of speakers.

TV Speakers Off

•SPEAKER EXT/INT switch in the EXT

(external) position

TV speakers are OFF. Sound is only heard

from the speakers connected to the external

amplifier.

•Use TV's volume control to raise and

lower the level of sound being heard from

the amplifier's speakers.

Connect surround sound speakers as shown.

The level of surround sound will vary,

depending on the program being viewed.

Note that not all programs have surround

sound audio.

•The SURROUND SPKR terminals are

always active. The SPEAKERS EXT/INT

switch does not affect the operation of

surround sound speakers.

• If you want to connect only one surround

speaker to your TV, connect the speaker

wires to the terminals adjacent to the

positive (+) and negative (-) symbols that

are circled.

291s-ot.^ 1 -- 5

STANDARD CONNECTIONS FOR YOUR TV

CONNECTIONS FOR USING PIP

The illustrations that follow show the most common connections for using Picture-In-Picture (PIP). For further information on the

actual use of PIP, refer to the "PIP OPERATION" section of this operating guide.

Connected to the Video 1 In jacks.

Main Picture Source

Connected to the Antenna/Cable 1jack.

..................... .STARSlGHT

' ,_ :_:.'-_

LOOPOUT ANTENNA ANTENNA

TOKCOOER CJWLE CXBi IF

VIDEO1 IN

Yl_O r-AUOlO--t VIDEO

LOOPOUT

i

It L SURROUNOSPKR$

Option 1: Antenna or Direct Cable Connection To VCR.

(Cables are not supplied with television.)

Cable TV

Wall Jack

NMain Picture Source

Connected to the Antenna/Cable 1 or 2 jack.

Option 2: Cable-TV Decoder Connection via Loop Out To VCR.

(Cables are not supplied with television.)

2918-01-0 1--6

THE FIRST TIME YOU OPERATE YOUR TV

TYPICAL CONTROL PANEL

The control panel on your TV may differ from the one shown but its operation is the same.

ENTER (ENT) SELECT (SEL) VOLUME (VOL) Up/Down

Press to see the Channel/Time dis- Press during on-screen menu Press to increase or decrease the

play, or to remove any on-screen operations to select a menu sound level.

display or menu. option.

/

ENTEF,t/'4 ADJUST• ,&.VOLUMEV,& CHANNEL_ OFF/ON

/\

OFF-ON

Press to turn"IV

power ON or OFF.

]

ADJUST (ADJ) Left/Right

Press during on-screen menu op-

eration to see information/status

display for selected option. Press

again to adjust the selected menu

option.

MENU

Press once to see amenu. Press

repeatedly to sequence through

the available menus.

CHANNEL (CH) Up/Down

Press to select channels higher or

lower than the current channel.

To add or delete channels stored

in the scanning sequence, see CH.

ADD/DEL option.

Remote Window

Point the remote

control towards this

window to operate

the TV.

STEP 1. INSTALL THE BATTERIES INTO THE REMOTE CONTROL

Batteries are provided but they must be installed before using

the remote controls. When a remote no longer functions nor-

raally, or when it loses memory, replace the batteries with two

high-quality, alkaline batteries. Match plus with plus (+ with

+), minus with minus (- with -), as shown in the battery com-

partment.

Unless your equipment responds to the factory preset codes,

you will need to reprogram the remote controls with the codes

of your particular equipment each time you replace batteries.

NOTES:

.' Do not to place heavy objects on top of the remote control

keys. Prolonged unintentional operation of the remote

shorteng battery life.

•Remove the batteries if the remote control will not be used

for a month or more. TIlE MANUFACTURERISNOT RE-

SPONSIBLE FOR DAMAGE CAUSED BY BATTERY LEAKAGE.

Universal Remote

(Uses 2 size AAA

batteries.)

Z-Trak Remote

(Uses 2 size AA

batteries.)

STEP 2. CONNECT THE POWER

1. Plug your TV into an unswitched AC power source.

2. Turn the TV on by pressing OFF-ON.

Do not plug TV into switched outlet

on a VCR or cable-TV decoder

29m-ot-o 2-- 1

THE FIRST TIME YOU OPERATE YOUR TV

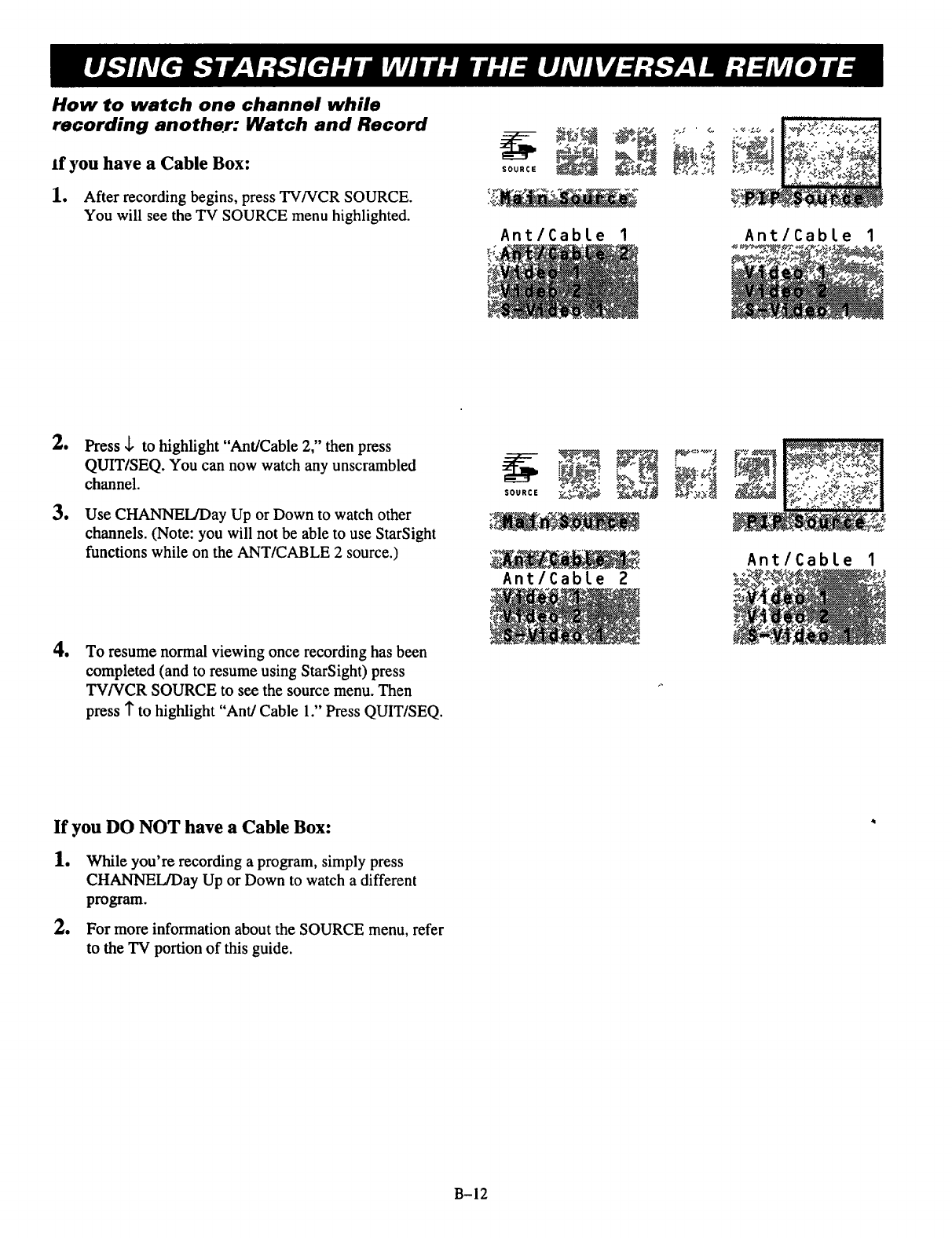

STEP 3. SELECT YOUR MAIN SOURCE & PIP SOURCE

A TV source refers to the equipment connected to the "IVthat supplies the picture and sound to your TV. You select the viewing

source by using the Source Menu.

Main Source

• Press SOURCE on your

remote to view the Source

Menu.

•Press SOURCE repeatedly to

select the source which

corresponds to the jack on the

TV connection panel that is

receiving the input signal.

*Press QUIT to remove the

menu.

PIP Source

• Press SOURCE on your

remote to view the Source

Menu.

• Press the Left or Right key to

select PIP Source column.

• Press SOURCE repeatedly to

select the source which

corresponds to the jack that is

receiving the PIP input signal.

•Press QUIT to remove the

menu.

_Maln,,Soiii'm_ _'_ _

Ant/Cable ,1

Ant/Cable 2

Video 1

Video 2

S-Video 1

Video 3

S-Video 2

_1_ Main/PIP

PIP Source

Ant/Cable1

Video 1

Video2

S-Video 1

Video3

S-Video2

t',1,ToSelect Source [

Source Menu with Main Source set to Ant/Cable 1 and

PIP Source set to Video 1. Connections must made to the

corresponding jacks on the connection panel.

STEP 4. USE AUTO PROGRAM

Auto Program finds all available channels on the currently se-

lected source and stores them in the memory of the TV.

To start the Auto Program procedure, press the Left or

Right arrow key. Follow the instructions on the TV.

Auto Program

Ch. Add/Del

Ch. Labels

Source ID

ClockSet

Timer Setup

Parental Ctl

Caption/Text

Background

StarSight

Press ,1_ ToProgram ]

Setup Menu with Auto Program Highlighted

Press 1",1,to select either OFF AIR ANTENNA or CABLE TV.

Press _ _ to begin channelsearch.

Wait a few seconds for the TV screen to clear.

4P' TOBEGINPROGRAMIV_G

,,.. j

SEARI_II_ _B.IE 1V _Ptn" TYPE

SEARITrlII__I.E "IV

m41_

_L _ __ IS (NOT) FOUND

Message appears only ifTV has not been authorized for StarSight.

AIJTOPROGRN_HAS_

___ CHNtt_LSFOUND

'_s'rAR_ A CE_'_4ONbIRA_ _ST_RSZGI,

STEP 5. SET THE CLOCK

Set The Clock

•Press MENU on your remote until the SETUP icon is selected

and the Setup Menu is displayed.

• Press the Up or Down arrow key to select Clock Set.

= Use the numbered buttons on the universal remote control to

enter the correct time. Press TIMER to select AM or PM.

or

Press the Left or Right arrow keys to advance the clock.

• Press QUIT to remove the menu.

STEP 6. USE OTHER OPTIONS

You may want to consider using the following options:

• Delete undesirable channels or add additional channels: Refer

to the Ch. (Channd) Add/Dd option for details.

• Apply "labels" to your available channels: Refer to the

Ch. (Channel) Labels option for details.

• Label the input sources with descriptive names, such as

"VCR." Refer to the Source ID option for details.

• Adjust options in the Audio and Video Menus.

29,s_01-o 2 m2

PIP OPERATION

INTRODUCTION

Your TV must be connected to two separate sources in order to view a different picture in the PIP inset from that which Is

showing in the main picture area of the TV. One source (such as an antenna) must be connected to the ANTI CABLE I or 2

jack. The other source (such as a VCR) must be connected to one set of the Video or Super Video jacks.

If you have not already selected the input sources for your main TV picture and the PIP inset, refer to the insmactions below. Make

sure you select those sources that correspond to the jacks on the TV connection panel that are receiving the input signals.

Main Source

Ant/Cable 1

Ant/Cable2

Video1

Video2

S-Video1

Video3

S-Video2

<p Main/PIP

PIPSource

Ant/Cable1

Video 1

Video 2

S-Video 1

Video 3

S-Video 2

1'4,To Select Source ]

Source of main picture

shows here

Source of PIP picture

shows here

SELECTING MAIN PICTURE AND PIP INSET SOURCES

SELECT MAIN SOURCE SELECT PIP SOURCE *

,, _ , , ,,,

Z-Trak Remote Universal Remote Z-Trak Remote

• Make sure remote is in "IVmode. * Make sureremote is in TV mode.

Universal Remote

• Make sure remote is in TV

mode.

• Press SOURCE on your re-

mote to view the Source

Menu.

•Press SOURCE repeatedly to

select the source which

corresponds to the jack on the

TV connection panel that is

receiving the input signal.

•Press QUIT to remove the

menu.

•Make sure remote is in TV

mode.

Point and press on the

SOURCE icon (at the top of

the screen).

•Point and press on the Main

Source which corresponds to

the jack on the TV connection

panel that is receiving the

input signal.

• Move the pointer off the

menu and press the Trackball

to remove the menu.

•Press SOURCE on your remote to

view the Source Menu.

•Press the Left or Right key to

select PIP Source column.

• Press SOURCE repeatedly to

select the source which

corresponds to the jack that is

receiving the PIP input signal.

• Press QUIT to remove the menu.

•Point and press on the SOURCE

icon (at the top of the screen).

Point and press on the PIP

Source which corresponds to the

jack on the TV connection panel

that is receiving the input signal.

• Move the pointer off the menu

and press the Trackball to remove

the menu.

*APIP inset appears while the Source icon is selected to show the effect of choosing a PIP source.

PICTURE-IN-PICTURE FUNCTIONS

While using the various PIP functions, refer to the illustration below and the instructions on the following pages. Note that the op-

eration of _ese functions differ, depending on which remote control you are using.

Arrow Keys 1/_---_-'-'-_ _,_ k_

SWAP !" I_ _("_

FREEZE __

SOURCE [ ....

PIP Functions, Universal Remote Control

Select these options

with the Z-Trak remote

to perform the PIP

functions described on

the following page.

33rne.r

Capticr_

Z-Trak

PIPOn

Freeze

IVbve PIP

Swap

PIP Functions, Z-Trak Remote Control

continued on next page

291s_.-o 3 -- 1

PIP OPERATION

:_ PIP Functions using Universal Remote

• PIP On/Off: Press the PIP key to display the PIP inset. Press it

again to remove the PIP inset.

•SWAP: Press the SWAP key to swap the main picture with the

PIP inset. Press SWAP again to return to the original display.

•FREEZE: Press FREEZ to freeze motion of the picture shown in

the PIP inset. Press FREEZ again to return to a live PIP inset.

•PIP Size: Select PIP Size in the PIP Menu to choose between

seeing a small or large PIP inset.

•Moving the PIP Inset: Use the Left/Right and Up/Down arrow

keys to move the PIP inset to the desired location of the TV screen.

•iPIPFunctions_gZ-TrakRemote_i,_;:,

PIP On/Off: Move pointer to left of TV screen and press on PIP On

to display the PIP inset. Move the PIP inset to the desired location on

the screen and press the trackball to set it in place. Press on PIP Off

to remove the PIP inset.

SWAP: Move pointer to left of TM screen and press on Swap to

swap the main picture with the PIP inset. Press on Swap again to

return to the original display.

FREEZE: Move pointer to left of TV screen and press on Freeze to

freeze motion of the picture shown in the PIP inset. Press on Freeze

again to return to a live PIP inset.

•PIP Size: Select PIP Size in the PIP Menu to choose between

seeing a small or large PIP inset.

• Moving the PIP Inset: Move pointer to left of TV screen and press

on Move PIP and move the PIP inset to desired location on the

screen. Press the trackball to set the inset in place.

OPERATION WITH ANTENNA

OR DIRECT CABLE

This illustration shows the basic connection of your "IV to a

VCR. With your equipment setup in this manner, your televi-

sion has the following PIP capabilities:

•Simultaneously view a video tape playing in the VCR and

a channel selected by the TV's tuner.

• Simultaneously view two different channels; one selected

by the TV's tuner and another using the VCR's tuner.

•Swap the main picture and the PIP inset.

PIP VIEWING OPTIONS

Viewing Two Different

Channels

•Set VCR'sTV/VCR* switch to

TV.

• Select Ant/Cable Ias the Main

Source in the Source Menu.

• Select Video 1as the PIP Source

in the Source Menu.

• Select a channel with the TV's

channel selector.

• Turn on PIP.

• Select a PIPchannel using the

VCR's channel selector.

Viewing a Video Tape

and a _Channel

•Set VCR's TV/VCR* switch to

"IV.

• Select Ant/Cable 1as the Main

Source in the Source Menu.

• Select Video 1as the PIP

Source in the Source Menu.

•Select a channel with the TV's

channel selector.

•Turn on PIP.

• Play a tape in the VCR and

view it in the PIP inset.

* May be labeled TV/Video. •

Option 1: Antenna or Direct Cable Connection To VCR.

(Cables are not supplied with television.)

291g-01-O 3 -- 2

PIP OPERATION

OPERATION WITH CABLE DECODER

With your equipment setup in this manner, your television has

the following PIP capabilities:

•Simultaneously view a video tape playing in the VCR and

a basic cable channel selected by the TV's tuner.

Simultaneously view two different cable channels; one

cable channel selected by the TV's tuner and another

cable channel selected by the cable box.

Swap the main picture and the PIP inset.

NOTE:

• The cable channels you can view depends on the service

you have purchased from your cable company.

...... :_ ili_........ ;iii_ ;ii,i_,

: * Select Ant/Cable 2as the

Main Sourcein theSource

Menu.

•Select Video 1 as the PIP

Source in the Source Menu.

• Select a channel with the

TV's channel selector.

I. Turn on PIPinset.

•Selecta PIPchannelusingthe

tuner intheCableBox.

Viewing a Video Tape

_anda Cable Channel

•Select Ant/Cable 2 as the

Main Source in the Source

Menu.

•Select Video 1as the PIP

Source in the Source Menu.

•Select a channel with the

"IV's channel selector.

• Turn on PIP inset.

• Play a tape in the VCR and

view it in the PIP inset.

Cable TV

Wall Jack

N

i

Main PictureSource

Connectedto theAntenna/Cable2 jack.

Option 2: Cable-TV Decoder Connection via Loop Out To VCR.

(Cables are not supplied with television.)

291_01_) 3 _ 3

UNIVERSAL REMOTE CONTROL

INTRODUCTION

This universal remote control operates the common features of most, but not all, models and brands of IR (infrared) controlled TVs,

VCRs, cable converters, video disc players, and audio equipment. The remote may provide functions thatare not available on your

equipment, e.g., menu operations. Some functions of your particular equipment may not be controlled by this remote. In such cases,

use the original remote control for your equipment.

BATTERY INSTALLATION

Batteries are provided, but must be installed before using the

remote control. When it no longer functions normally, or

when it loses memory, replace the batteries with two high-

quality, alkaline, size AAA batteries. Match plus with plus (+

with +), minus with minus (- with -) in the battery compartment.

Unless your equipment responds to the factory preset codes,

i.e.. I01 for TV, 201 for VCR, 353 for CABLE, and 401 for

AUX., you will need to reprogram the remote with the codes

of your particular equipment after you replace batteries.

NOTES:

• Do not place heavy objects on top of the remote control

keys. Prolonged unintentional operation of the remote short-

ens battery life.

• Remove the batteries if the remote control will not be used

for a month or more. Tm_MANUFACTURER IS NOT

SPONSIBLEFORDAMAGECAUSEDBYBATI'ERYLEAKAGE.

Push tab in

CHOOSING OPERATING MODE

To control your TV, VCR, cable box, or auxiliary equipment with this remote, you must first choose the mode of operation. Press

the desired mode key for TV, VCR, CABLE or AUX. Pressing the -k (Star) key will put the remote into StarSight mode. Press TV

to return to TV mode. Some keys on the remote will always operate a particular product function. For example, VOLUME controls

the TV sound level, and PLAY controls the VCR play function.

INDICATOR LIGHT

Illuminates whenever

remote sends signal.

OPERATING MODE KEYS

Selects equipment to be controlled.

NUMBER KEY PAD

Initiates menu/equipment programming,

direct channel selection

and other functions.

LOWER ARROW KEY PAD

Keys perform different functions depend-

ing on the operating mode currently

selected. See the following pages for

more details of the various

operating modes.

POWER KEY

Switches power ON or OFF to selected

equipment.

UPPER ARROW KEY PAD

Keys perform different functions depend-

ing on the operating mode currently se-

lected. See the following pages for details

of each operating mode.

SPECIAL FUNCTION KEYS

Activates special features on some TVs

and VCRs.

StarSight®is atrademark of StarSight Telecast Inc., Fremont, CA 94538.

/1__1

UNIVERSAL REMOTE CONTROL

TV OPERATIONS

These descriptions apply to functions and operations of your TV. First, press the TV button on the remote control to select the TV

mode of operation.

FLASHBK (Flashback)

Press to return to the previous TV

channel selected for viewing.

CC (Closed Captioning)

Press to display the closed caption

menu. Press repeatedly to select your

choice. Press ENTER/TUNE to

exit the menu.

CHANNEL/DAY (Up Arrow)

Tunes to the next (higher) channel

programmed into TV memory.

Press and hold to repeat.

DAY/CHANNEL (Down Arrow)

Tunes to the previous (lower) channel

programmed into TV memory.

Press and hold to repeat.

NUMBER KEY PAD

Enter number for direct

channel tuning.

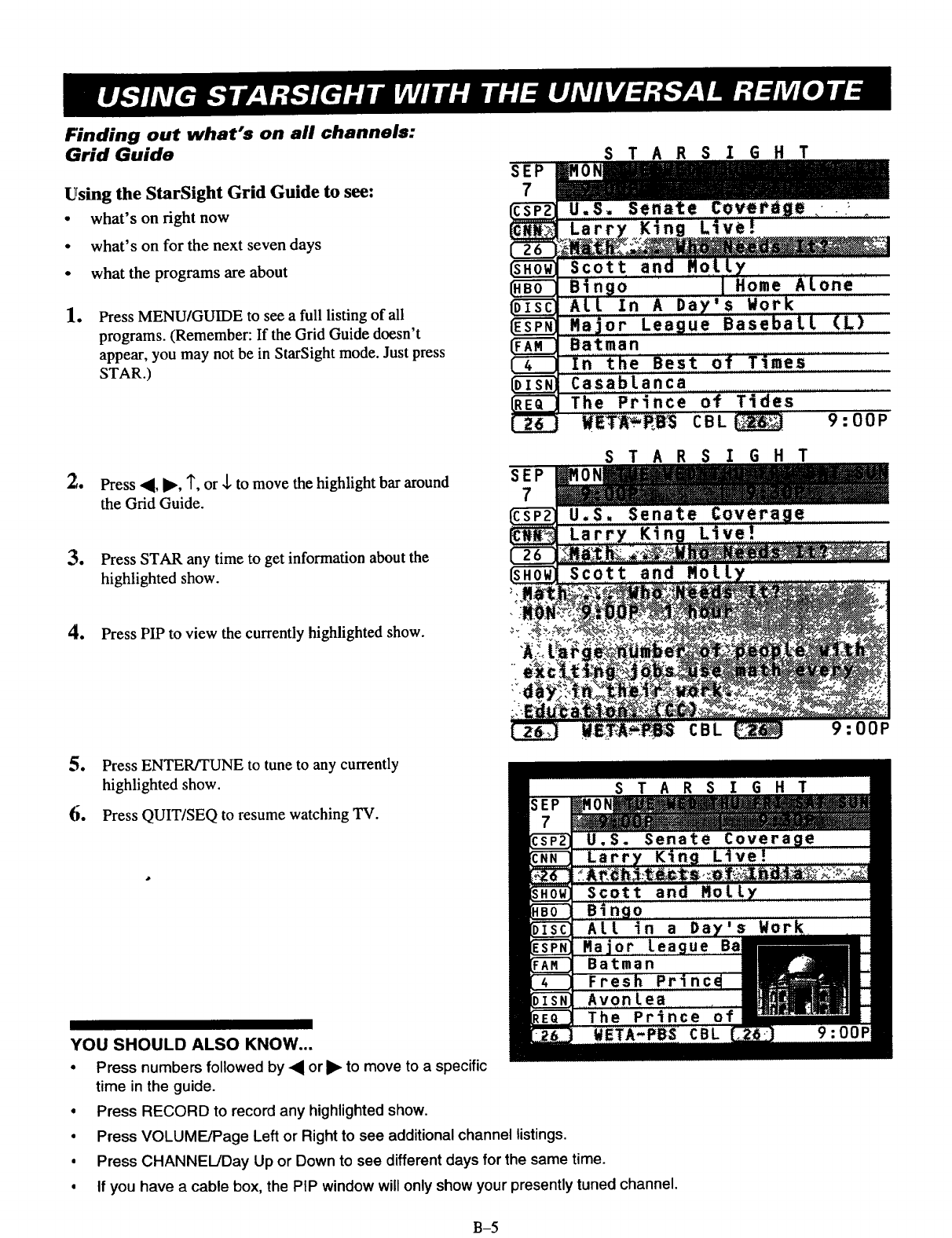

MENU/GUIDE

Displays on-screen menus for TV

mode of operation. Press repeatedly to

view other on-screen menus.

LEFT/RIGHT ARROW KEYS

Used to respond when an on-screen

menu needs an ADJUST response.

Press to move the highlight bar within

the menu. Also used to move the PIP

inset to new location on the screen.

PIP, SWAP, and FREEZ KEYS

•See PIP Operation

section for more details.

TIMER

Displays the SLEEP TIMER menu.

Press repeatedly to set desired "IV shut-

off time. Also used to specify AM or

PM when setting the TV's clock or

programming a timer feature.

See "Getting to Know Your TV."

section for more details.

t

Point Remote at TV.

TV Operations

POWER

Turns "IV ON or OFF.

TV

Press to select TV mode of operation.

MUTE

Press to turn off sound while the pie-

ture remains. Press again to restore the

sound.

VOLUME/PAGE (Left Arrow)

Decreases the TV's sound level. Press

and hold to repeat.

VOLUME/PAGE (Right Arrow)

Increases the TV's sound level. Press

and hold to repeat.

ENTERtrUNE

Press to see the Channel/Time display

or enter channel numbers.

QUIT/SEQ

Exits from the current on-screen dis-

play or pop-up and returns to the cur-

rent channel. If no display is on, this is

the normal spatial equalization

ONIOFF.

UP/DOWN ARROW KEYS

Used to respond when an on-screen

menu needs a SELECT response.

Press to move the highlight bar within

the menu. Also used to move the PIP

inset to new location on the screen.

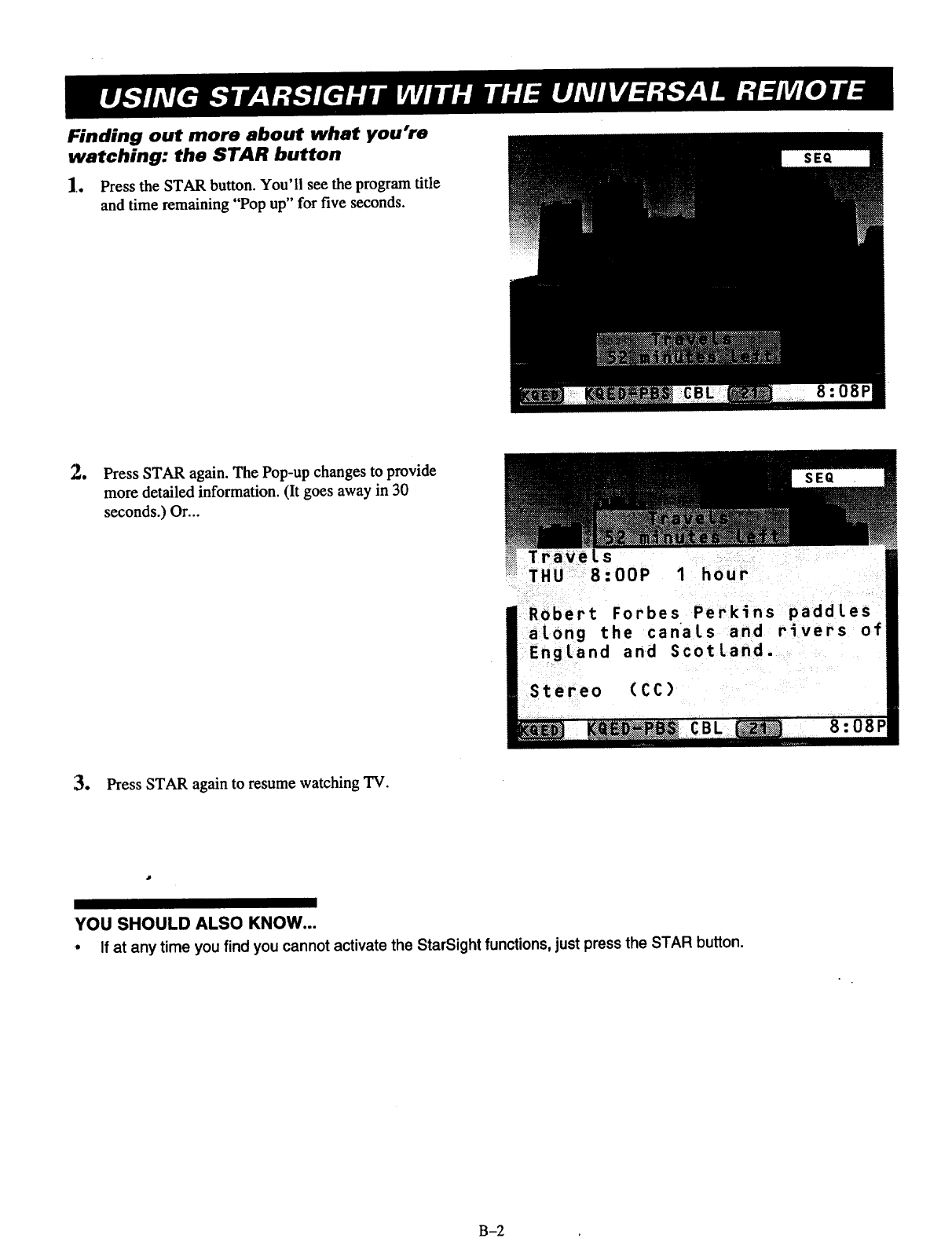

*(Star)

Press the * (Star) key to exit the TV

mode and enter the StarSight mode.

See the StarSight section of this

guide for more details.

TV/VCR SOURCE

Displays the menu of TV soiarces.

Press repeatedly to step through the

source selections.

NOTE:

•Keys dedicated to VCR functions may be used to operate

your VCR while the remote is in "IV mode.

29ts.ol-o 4 -- 2

UNIVERSAL REMOTE CONTROL

OPERATIONAL MODES FOR FACTORY PRESET CODES

POWER

CABLE

VCR

AUX

TV

CC

FLASI-IBK

MUTE

CHANNEL/DAY UP

CHANNEL/DAY DN

VOLUME/PAGE UP

VOLUME/PAGE DN

1

2

3

4

5

6

7

8

9

0

ENTERtlIINE

MENU/GUIDE

THEME

UP ARROW

DOWN ARROW

LEFt ARROW

RIGHT ARROW

Qt_T/SF_

*(Star)

PIP

SWAP

I;]7.EEZ

TO DO

TIMER

TV/VCR/SOURCE

RECORD

PAUSE

REWIND

PLAY

STOP

FFWD

NOTES:

TV Power On/Off

Selects Cable Mode

Selects VCR Mode

Selects AUX Mode

Selects TV Mode

TV Closed Captions

'TV Flashback

TV Mute

TV Channel Up

"IV Channel Dn

TV Volume Up

TV Volume Dn

TV Digit 1

TV Digit 2

"IV Digit 3

TV Digit 4

TV Digit 5

"IV Digit 6

TV Digit 7

TV Digit 8

TV Digit 9

TV Digit 0

TV Enter

TV Menu

(No Function)

TV Select Up

"IV Select Dn

TV Adjust Left

TV Adjust Right

'IV SEQ Sound/Quit

Enters StarSight Mode

TV PIP On/Off

TV PIP Swap ' i

TV PIP Freeze

(No Function)

"IVTimer

"IVSource

VCR Record

VCR Pause

VCR Rewind

VCR Play

VCR Stop

VCR Fast Forward

1, Can be overwritten with Cable Vol/Mute when

Star Power On/Off

Selects CableMode

Selects VCR Mode

Selects AUX Mode

Selects TV Mode

"IV Closed Captions

StarSight Flashback

StarSight Mute

StarSight CH/Day Up

StarSight CH/Day Dn

StarSight Vol/Page Up

StarSight Vol/Page Dn

StarSight Digit 1

StarSight Digit 2

StarSight Digit 3

StarSight Digit 4

StarSight Digit 5

StarSight Digit 6

StarSight Digit 7

StarSight Digit 8

StarSight Digit 9

StarSight Digit 0

StarSight Enter/Tune

StarSight Guides

StarSight Theme

StarSight Select Up

StarSight Select Dn

StarSight Adjust Left

StarSight Adjust Right

StarSight Quit

Enters StarSight Mode

StarSight PIP On/Off

TV PIP Swap

"IV PIP Freeze

StarSight To Do

TV Timer

TV Source

StarSight VCR Record

VCR Pause

VCR Rewind

VCR Play

VCR Stop

VCR Fast Forward

VCR Mode

Code 201

VCR Power On/Off

Selects Cable Mode

Selects VCR Mode

Selects AUX Mode

Selects "IVMode

VCR AM/PM

VCR Flashback

TV Mute

VCR Ch_l Up

VCR Channel Dn

TV Volume Up

TV Volume Dn

VCR Digit 1

VCR Digit 2

VCR Digit 3

VCR Digit 4

VCR Digit 5

VCR Digit 6

VCR Digit 7

VCR Digit 8

VCR Digit 9

VCR Digit 0

VCR Enter

VCR Menu

(No Function)

VCR Select Up

VCR Select Dn

VCR Adjust Left

VCR Adjust Right

VCR Quit

Enters StarSight Mode

VCR VCR+

VCR Channel Map

VCR Search

VCR Memory

VCR Timer

VCR TV/VCR Tuner

VCR Record

VCR Pause

VCR Rewind

VCR Play

VCR Stop

VCR Fast Forward

Cable Mode

Code 353

Cable Power On/Off

Selects Cable Mcxle

Selects VCR Mode

Selects AUX Mode

Selects TV Mode

CABLE FC (Favorite Ch.)

CABLE Flashback

TV Mute (See Note l)

CABLE Channel Up

CABLE Channel Dn

TV Vdume Up(See Noe 1)

TV VolumeDn (SeeNo_ 1)

CABLE DigitI

CABLE Digit2

CABLE Digit3

CABLE Digit4

CABLE Digit5

CABLE Digit6

CABLE Digit7

CABLE Digit8

CABLE Digit9

CABLE Digit0

CABLE Enter

CABLE Menu

(No Function)

CABLE Up Arrow

CABLE Down Arrow

CABLE Left Arrow

CABLE Right Arrow

CABLE Quit

Enters StarSight Mode

CABLE Day Up

CABLE Day Down

CABLE Pg Up/*

CABLE Pg Drd#

CABLE Timer

CABLE Info

CABLE Buy

CABLE Guide

VCR Rewind

VCR Play

VCR Stop

VCR Fast Forward

399 is entered.

AUX

AUX

AUX

AUX

AUX

AUX

AUX

AUX

AUX

AUX

Reference:

me

AUX TV/Disc

Selects Cable Mode

Selects VCR Mode

Selects AUX Mode

Selects TV Mode

AUX Audio

AUX Frame/Time

TV Mute

AUX Skip >>

AUX Skip <<

TV Volume Up

TV Volume Dn

AUX Digit l

AUX Digit 2

AUX Digit 3

AUX Digit 4

AUX Digit 5

AUX Digit 6

AUX Digit 7

AUX Digit 8

AUX Digit 9

AUX Digit 0

AUX Display

AUX Program

(No Function)

AUX Part

AUX Random

AUX x3 FAST <

AUX x3 FAST >

AUX Clear

Enters StarSight Mode

AUX Repeat-Side

AUX Repeat-A-B

Repeat-Chap

Memory

Still ><

TV/Disc

Edit

Pause

Scan <<

Play

Stop/Eject

Scan >>

124-205-05 and

FP 221-879-03

29t_t-o 4-- 3

UNIVERSAL REMOTE CONTROL

PROGRAMMING YOUR REMOTE

If you are using Zenith products, the remote is programmed for

the most commonly used codes. For other brands-- or if your

remote fails to control your Zenith products -- you will have

to program the remote.

Follow these steps for each product you are using:

1. Look up the three-digit code for your brand (such as

Zenith) and type of equipment (such as VCR) in the

code table on the following page.

2. Press and hold PRG with a small blunt object until

the indicator lights (about three seconds).

3. Press TV, VCR, CABLE, or AUX to select the prod-

uct you want your remote to control. (Use CABLE

or AUX, to program your remote for a second TV or

VCR or to program your remote for a video disc

player or audio equipment.)

4. Key in the three-digit code for your equipment, then

press ENTER/TUNE. The indicator light should

flash, then turn off to'indicate that the code was ac-

cepted. If the indicator stays on, repeat steps 3 and 4

or try using a different code.

5. Write the codes that operate your equipment on the

label inside the battery compartment for future

reference.

To erase all code programming and return to the factory preset

codes, key in code 9-1-1 when programming the remote.

NOTES:

•The remote cannot be programmed while in the StarSight

mode: Choose TV, VCR, CABLE or AUX mode before

pressing PRG.

•If no key on your remote is pressed within 60 seconds, the

programming process will stop, and you will have to start

again.

•You may cancel programming at any time by pressing PRG.

SPECIAL FEATURES

AUX+I, AUX+2, AUX÷3 Capability

Your remote can control up to seven electronic components. If

you have programmed the remote for four components using the

'IV, VCR, CABLE and AUX keys, you may also program it for

up to three additional components (AUX+I, AUX+2, AUX+3)

by holding the AUX key and pressing the 1,2 or 3 key during

programming. Once programmed, hold down the AUX key and

press 1, 2 or 3, to access the additional AUX +1, 2or 3 mode.

Cable Box Volume

You may use your remote to control cable box volume and mut-

ing if available on your equipment. First program your remote

with the brand code for your cable device using the CABLE or

AUX key. Then repeat the programming steps, again using the

CABLE or AUX key, but key in code 3--9-9 instead of a brand

code.

To restore TV volume/mute control to the CABLE or AUX

mode, reprogram your cable code into that mode.

Amplifier Volume Override

You may use your remote to override your TV, VCR or video

disk player's volume functions with your amplifier's volume and

muting.

1. Program your amplifier code into the CABLE mode

or one of the AUX modes.

2. Select the mode on your remote (TV, VCR, etc.)

where you want the amplifier volume control func-

tion to appear. In other words, if you want to oper-

ate the volume and mute of your amplifier while the

remote is in TV mode, press TV for this step.

3. Begin the programming steps as described in "Pro-

gramming Your Remote" and enter code 4-9-9, fol-

lowed by ENTER.

The amplifier volume and mute features are now available in the

current mode.

To restore normal volume and muting control to your TV,

VCR, cable or laser disc player, repmgram the remote for these

units into each mode (TV, VCR, etc.) to be restored.

NOTE:

•CD and tape devices will automatically select amplifier vol-

ume and mute.

_18-ol-o 4-- 4

UNIVERSAL REMOTE CONTROL

AUTO FIND OPTION

If you have tried all the codes listed for your brand and type of

product in the code table, and none of those codes operate your

equipment,you can use Auto Find to search for the code you need.

Follow these steps for each product you are using:

1. Turn the product ON and aim the remote to,yard it.

2. Press and hold PRG with a small blunt object until

the indicator lights (about three seconds).

3. Press the mode key on the remote for the product

you want to control: TV, VCR, CABLE, or AUX.

4. Key in code 0-0-0, then press ENTER within two

seconds. When the indicator light flashes three times

and remains lit, Auto Find is active.

5. Press and hold POWER, then release it, repeating

this action about once a second until the product

turns OFF.

6. Press ENTER immediately to save the code. If your

remote fails to operate the functions you use most

often, you can re-enter Auto Find and search for a

better code.

NOTES:

•The indicator light should flash OFF when you press

POWER and back ON when you release it. If the indicator

light stays on when you press POWER, Auto Find has tried

all available codes. If you finish Auto Find and the product

you want to control has not turned off, your remote cannot

control that product.

• Pressing PRG at any time during the use of Auto Find will

cancel Auto Find, and you will have to start again.

ON

POWER

OFF

Equipment to be

controlled

Typical Remote

Control

291_01-o 4_5

UNIVERSAL REMOTE CONTROL

OPERA TIN(3 CODES BY BRAND NAME

TVS

._1_ TV/VCR

M_aJ

Amark

AOC

Bell & Howell

Bloksonic

Candk:

Centurion

Citizen

Contcc

Coronado

Clown

Cut_ Malhes

Da_woo

Dacwoo TVNCR

DayUon

Elekwa

Emerson

Emerson TVNCR

Fisher

Funai TVNCR

General

Electric

Goldstar

Goldstar TV/VCR

Haachl

J.C. Penney

WC

KMC

KIN

Ku_zai

Lodgenet

Magnavox

Maglavnx TVN_

Majestic

Marantz

Megatron

Memo_x

MGM

Mttsubtslu

Montgomery

Ward

NEC

Panasomc

Panasoni¢ TV/VO_

Philco

Ph.hps

Pto_r

Portland

Proscan

116. 121. 130. 133

154

104

103. 146

104

121

131. 136

139

119

121. 139

141

103

103

116. 119. 121

149. 159

148

119

121

103.104.123.124.

131. 136. 145

158

109.118

154

106. 107. 114.

116. 117. 161

103. 104. 119. 147

153

102. 103. 129. 163

104, 110. 114.

117,119

125. 132. 164

103

103. 104. 138

121

121

121

133. 137

103. 112. 113.

117. 119. 127.

128. 139. 165

173

121

104.120, 155

146

121

104. 119.120.

130.140, 155

103. 104. t05.

113. 114. 119.

121. 130, 133

104.119

106. 107, 160. 166

174

103. 104. 112.

113. 139

112. 113

135

103

|16, 157.162. 167

Q_uar

RCA

_c

Sampo

Samsung

Sanyo

SCo_

Sears

Sharp

Signature 2000

Sony

Soondesign

Sylvama

Syraphon_'l'WVCR

Tamng

Tukmka

Telerent

Toshiba

XRI_0

Yorx

Z_mth

Zcmth 'rvPICR

V(

Admiral

Advrntura

Alwa

Ak_u

Audio

Dynamics

Bell& Howell

Broksonic

Canoa

Citizen

Crmg

CurtisMalhes

Daewoo

Day,ton

DBX

Emerson

Fisher

Fumu

General

Elecuic

Goldstar

Go Vtdeo

H.taclu

Instant Replay

LC. Peoney

IVC

Kcnwood

Logik

LXI

106.107

104.116,126.157.

161.162.167.168

105. 123.124

119

103. 119.134. 141

108,109,118

119.124

103. i08.109.110.

111.118.134

103.105.122,133,

137.156, 169

103, 104, 105.

113.114.I19.

121. 130. 133

115. 143. 151. 170

139

112.113. 117. I19.

127.128,139

154

106

103, 112, 121,

124. 139

103. 121

110. Ill, 134, 171

121

119

101. 149

153. 154. 172

:RS

208. 261

231

231

223. 238.241

202.218

206. 247

221. 226. 250. 255

214

209

212

214. 259

244. 246. 248. 254

236,246

202, 218

203.221,223.

226, 233, 235,

243. 250

211,212.213,247

231

214. 216.22O

209

256. 262. 263

215. 257

214.227

214. 215. 218.227

202. 225. 258

2O2

239

209.231

]_/quwox

Marna_

Idam

Memofex

Mitmbishi

Montgomery

.Ward

IMuItt Tech

NEC

0don

Panasonic

Pentax

Pluko

Pioneer

I_r',land

' plo SC_

1_sar

RCA

Samsnag

Sansui

Sanyo

Scott

Sears

Shlrp

Shintom

Signature 2000

Sony

Sylvania

Symphonic

Tashiko

Tatong

Teac

Tckn&a

Toshiba

XRIOG0

Vector

Yamaha

Zent_

207.214.231

207.218

209

206.212.214.231

204. 222. 252

208. 214.216.

219.231. 249

202.218

250

214. 251. 259

215

210. 215

246

216. 260

214. 259

215. 216"220. 227.

1240. 242. 260

206. 208. 212.

214. 231

1220, 230

239

206, 212. 247

204, 205, 233. 243

206. 209.211.

1212. 215

2O8.261

239

208. 214. 216.

219.231. 249

217. 232. 237

207,214.227

231

2O9

202

2O2, 231

234

205.215

239

204.218

202, 218

201.224.225.

229.237

CABLE/SATELLITE

Paaameic

P_Ups

Pll31_cr

RCA DSS

Regency

Samumg

Sczcndfic Atlanta

Spmcer

Standard Comp

iTexscan

:Tocom

U_

Umted Satellite

Umv©rsal

Vtd Tcch

Video Way

[Vlewstar

Z_nith

Zemth Satellite

358. 362

361

305. 33 I. 33g

367

305. 306

302. 303. 345.

365.366

304, 307. 3_, 3_9,

310. 318. 360,363

335

314.321

1334

335.339. 368.

369.370

311.332, 342

313.320

333

347, 350. 352.

3.$4. 355

315.343

373

1329

335

316. 323. 336, 364

313

335

339. 356.37 I

'317.318.346

348. 362

344

358, 362

:340

349

354.355.372

301. 353

312. 328. 330. 351

VIDEO DISK

PLAYERS

Pioonrr 402"403

Sanyo 401

Sony 404

Zemth 401

Teat: 446

Teuhni_ 432. 459

Tmhiba 447

Yamaha 448

Zradtb 460.461.498.501.

5O2

AUDIOTAPE

DECKS

Denon 455

thrm_ROudon 456

JVC 457

Keawond 450

45S

F_ps DOC 454

Ptoncer 45 I,478

Sony 452

Technics 454. 497

Yamaha 453

AUDIO CD

PLAYERS

Akm 409.424

Crown 410

Denon 411

_sher 412.438

C,oldstar 46O

Hannan/Kardon 413

IVC 415

Konwood 412. 416,417.441

i

Magnavox 42 I, 422.433. 434

Mttsubishi 423.424

NAD 425. 426, 447

N_tram,ehl 427.428

NEC 429

O_yo 43O

Panasonic 43 I.432

Phthps 421.433.434

I_on¢_r 431,435

Quasar 432

Radzo Shack 431. 436. 439. 440,

441

RCA 437

Sanyo 438,439

Scott 440

Sharp 441.442

Sony 443. 444, 445

[Soundesagn 461. 498. 501. 502

AUDIO TUNERS

AND AMPLIFIERS

Denon 462, 463

FLsher 464

C,oldstar 46O

llanmm/ 465

Kardon

JVC 466

Kenwood 468,469

Manmtz 472. 503

Onkyo 473

Phdtps 475,476

Pioneer 477.478. 479

Radio Shack 487. 488

480

Sanyo 481

Scott 482

Sharp 483

Shexwood 487, 488

Sony 489.490, 491.492

Sonnde._ign 461. 498. 501.5O2

Teac 494.495

Technics 497

Yamaha 496

Zeni_ 460.461.498. 501.

5O2

Allcglo

Alkgm A/B Svmch

Gemini Ref: 124-205-05 and

Gene_E_c xP 221-879-03

General Insmm_nt

Hamlm

Jerlold

Vision

Macom

MaBnavox

NSC

_918_1o 4 -- 6

QUICK REFERENCE TO MENUS: UNIVERSAL REMOTE

I I

AVAILABLE MENUS

Your TV is icon and menu operated.

options appears.

In other words, an icon is selected at the top of the TV screen and amenu of adjustment

Highlighted Icon

The menu for the

selected icon ap-

pears below the

icons. I

SETUP RUDID UIDED PIP

fMain Source [

StarSight

Ant/Cable 2

Video 1

Video 2

S-Video 1

Video 3

S-Video 2

I

4P, Main/PIP q',l, To Select Source ]

PIP Source

StarS[ght

Video 1

Video 2

S-Video 1

Video 3

S-Video 2

i!

I

!

i

i

!

!

t

PIP Inset

A PIP inset appears while the

Source icon is selected to show

the result of selecting a PIP

source.

BASIC MENU OPERATION

Press MENU repeat-

edly to choose

between available

menus.

Press the Up or Down /

arrows repeatedly

until the desired

option is highlighted.

V

G( 3o

-- -- _Right arrows to

_____ _ adjust or change a

selected option.

Press QUITto

remove menus or

wait a few seconds

and theTV will

to normal operation.

Typical Remote Control

_18-o_-o 5-- 1

SOURCE MENU

Video 3and S-Video 2 are

source options for some "IV

models only.

Main Source

Ant/Cable 2

Video 1

Video 2

S-Video 1

fVideo 3

_S-Video 2

4t, Main/PiP

PIP Source

StarSight

Video 1

Video 2

S-Video 2_

'1'4,ToSelect Source

A PIP inset appears while the

Source icon is selected to show the

effect of choosing a PIP source.

If the PIP Source is changed, the

PIP inset will remain on the screen

after you exit from menu opera-

{ions,

MENU OPERATION

@Press SOURCE for direct entry

to the Source Menu, or press

MENU repeatedly until the

Source Menu is selected.

Press SOURCE repeatedly until

the desired Source is selected.

Press the Left/Right keys to se-

lect either Main Source column

or PIP Source column.

Press QUIT or wait a few sec-

onds for the TV to return to nor-

real operation.

SOURCE SELECTION

ANT/CABLE I or 2Routes the antenna or cable-TV source to the TV for viewing, You see program material from

whichever signal source is connected to the ANT/CABLE 1 or 2 jack. (If the signal is from a VCR or

a cable box, tune the "IV to either channel 3 or 4.)

VIDEO 1, 2 or 3 Routes the audio and video from an A/V source (such as a VCR or a video disc player) to the TV for

viewing. The source must be connected to the corresponding VIDEO 1, 2 or 3 IN jacks.

S-VIDEO 1 or 2 Routes the audio and video from an auxiliary Super-VHS video source (such as a VCR or a video disc

player) to the "IV for viewing. The source must be connected to the corresponding S-VIDEO 1 or 2 IN

jacks.

Refer to the "Standard Connections for Your TV" section to make the proper equipment connectionsto theTV. For information about PIP

sources,refer to the "PIP Operation" section.

SOURCE IDENTIFICATION

Blue White

t o,T JMagenta

Yellow

LOOP nUT A#I"E#HA

Red

LL Blue

Auxiliary A/V Jacks (Some TV Models)

NOTE:

•The color of the Channel/Time display corresponds to the color

rings around the connectors of the jack panels. For example,

the Channel/Time display will be Red if you are watching a pro-

gram on Ant/Cable I source. Connection Center on Back of TV

_n-ol-o 6- 1

SETUP MENU

Ch. Add/Del

Ch. Labels

Source ID

Clock Set

Timer Setup

Parental Ctl

Caption/Text

Background

StarSight

Press ,<1_To Program

•,uoume_lD _ _"

Clock Set !

Timer Setup

Parental Ctl

Caption/Text

Background

] Press 4P,To Label Sources I

While Video or Super-Video Source is Chosen

MENU OPERATION

_ Press MENU repeatedly until the

SETUP MENU is shown.

Press the Left/Right keys to

adjust the selected option.

Press the Up/Down keys until the

desired option is selected.

Press QUIT or wait a few sec-

onds for the TV to return to

normal operation.

Auto Program Finds all active channels and stores them in the TV's memory for use by CHANNEL up/down. See

"THE FIRST TIME YOU OPERATE YOUR "IV" for more details.

Ch. (Channel) Edits the channels found by Auto Program to create your own personal list of favorite channels. See the

Add/Dei information following this chart for more details.

Ch. (Channel) Assigns a network/station label, name or call letters to specified channels. For example, if you choose

Labels the label "ABC" for channel 9, then "ABC" will appearin the Channel/Time display whenever channel

9 is selected. See the information following this chart for more details.

Source ID Assigns a descriptive "name" to the input sources. For example, the Video 1 source may be named

VCR. "VCR" will now appear in the Source Menu as a reminder that your VCR is connected to the

Video 1 input jacks.

Clock Set" iSets the clock in the TV to the correct time. Press the Left/Right arrow keys to advance the 24-hour

clock, or use numbered buttons on the remote to enter time. Press ENTER to start the clock.

Timer Setup Sets the TV's Sleep Timer and On/Off Timer features. See the information following this chart for

more details.

Parental Cfl. Use this feature to block viewing of any undesirable channels or an entire input video source. See the

(Control) information following this chart for more details.

Caption/Text Displays closed captioning or informational text when available on the selected channel. Options are:

OFF, CAPTION 1, CAPTION 2, CAPTION 3, CAPTION 4, TEXT 1, TEXT 2, TEXT 3, or

TEXT 4. See the information following this chart for more details.

Background Adds or removes a solid-color background behind the on-screen menus.

StarSight Begins the StarSight setup procedure. Refer to the StarSight section of this guide for details.

29t_-ot-o 7-- 1

continued on next page

SETUP MENU

USING CH. (CHANNEL) ADD/DEL

Add Channels to Scan ..

ti it i ii .

• Press the Up/Down keys to

select Ch. Add/Delete.

• Press Left/Right keys to view

the add/delete screen.

* Use the Left/Right and Up/

Down keys to move selector

to the channel being added.

e Add the channel by pressing

SOURCE until the display

shows Added.

tmete uom Scan

i i Hi m.i i i

• Press the Up/Down keys to

select Ch. Add/Delete.

•Press LefVRight keys to view

the add/delete screen.

• Use the Left/Right and Up/

Down keys to move selector

to the channelbeing deleted.

le Delete the channel by

pressing SOURCE until the

display shows Deleted.

NOTES:

• Ch. Add/Del can only be used with ANT/CABLE 1 or 2 Source.

• The audio of deleted channels is muted.

Selector Highlight

11"7"T-13 4s81

7 8 _10 11 12

13 14 15 16 17 18

19 20 21 22 23 24

25 26 27 28 29 30

31 32 33 34 35 36

37 38 39 40 41 42

43 44 45 46 47 48

49 50 51 52 53 54

55 56 57 58 59 60

61 62 63 64 65 66

67 68 69 70 71 72

Available Channels

Sour_ |

ToChange I

73 74 75 76 77 78

Available channels are:

Broadcast Band -- VHF 2 to 13, UHF 14 to 83

Cable-TV Band -- 1 to 139

Live view of

selected channel.

Channel

Status

Instructions

Use Down key to

..-- move selector to

additionalnumbers

ifpresent.

USING CHANNEL LABELS

Assign Labels Remove/Prevent Labels

.i

•Press the Up/Down keys to

select Ch. Labels.

•Pressthe Up/Downkeys to

select Ch.Labels.

• Press Left/Right keys to view

the Channel Label screen.

•Select a channel by pressing

the CHANNEL Up/Down

keys.

•Use the Left/Right and Up/

Down keys to move selector

to the desired label.

• PressLeft/Right keysto view

the ChannelLabelscreen.

• Select achannel by pressing

the CHANNEL Up/Down

keys.

•Use the Left/Right and Up/

Down keys to move selector

to the four dashes or NONE.

_IOTE:

• Ch. Labels can only be used with ANT/CABLE 1 or 2 Source.

•Selecting the four dashes (.... ) specifies that no channel label is

assigned. Or, in addition to not assigning a label, NONE blocks the

stationor network labels thatare transmittedby some television stations.

Selector Highlight Available Labels

.... NONE ACTS I I

AOC AMC BCC BET BRAV

CA CBC CBN CBS CMTV

CNBC CNN COM CSPN CSP2

CTN CW DIS DISC E! Ch9

ENC ESPN ESPN2 ET EWTN

FAM FNN FOX F&V FX [ABC _'

GALA HBO HN HSE HSN

IC INSP JCN LIFE MAX

ME/U MMT M"I'V NBC NICK

NOS PBS PLAY PTL QVC

RDS REQ SC SCFI SHOW

SIN TBS TBN

More Libels 4,

.-.- Live view of

selected channel.

---- CurrentChannel

,Selected Label

Press Down arrow

"--"formore labels.

USING SOURCE ID

i' ' .....

In the Setup Menu, press the Up/Down keys to select Source ID.

Press the Left/Right keys to view the Source ID screen.

Press the Up/Down keys to choose a Source.

Press the Left/Right keys to Label the chosen Source.

VIDEO GAMES AND OTHER FIXED

PATTERN DISPLAY CAUTION

If you use your TV for video games or other fixed displays, avoid set-

ting the BRIGHTNESS control for an excessively bright picture. A

bright, fixed pattern, if used for long periods of time, can result in a

permanent imprint on the TV picture tube. You can reduce this possi-

bility by alternating the use of the fixed pattern display with normal

TV picture viewing, by turning down the CONTRAST control for

sustained fixed pattern use, and by turning off the fixed pattern dis-

play when not in use.

Live view of

selected Source.

Source I

Ant/Cable1

Ant/Cable2

Video1

Video2

S-Video1

Label

StarSight

Antenna

VCR

VCR 2

Video Game

NOTE:

•Disabling a Source prevents it from

appearing in the Source Menu.

Optional names for

ANT/CABLE 1or 2

Sources are:

---, Disabled, An-

tenna, Cable, Cable

Box, Satellite, VCR,

StarSight (Ant/Cable

1only).

Optional names for

VIDEO Sources are:

.... , Disabled, VCR,

VCR2, Camcorder,

Video Game, Laser

Disc, Audio Only,

Satellite (some models

only).

291S-OL_ 7-- 2

SETUP MENU

TIMER SETUP: Sleep Timer

The Sleep Timerprograms theTV to automaticallyturnitself off aftera periodfrom 15minutes upto 4 hours.

From Setup Menu

•MakesuretheTV's clock is

set.

•Press the Up/Down keys to

select Timer Setup and view

the Timer Menu.

• Press the Up/Down keys to

select Sleep Timer.

•Use the Left/Right keys to set

the period of time the "IV will

remain on.

Direct Access

•With no menus showing on

the TV, press TIMER on your

remote to directly access the

Sleep Timer.

•Press TIMER repeatedly to

set the period of time the TV

will remain on.

• One minute before the TV turns off, the GOOD NIGHT display

appears on the screen. At this time you have a choice of the

following two actions.

• Do nothing. The GOOD NIGHT display remains on the screen.

The TV will turn off in one minute.

* Delay the turn-off by resetting the timer with anew time period.

NOTE_:

•To cancel the Sleep Timer, turn off the TV or press TIMER repeat-

edly until OFF is showing.

•As the Good Night display counts down the final 60 seconds, the

audio and video of the 'IV also "dim" for a soft, discreet turn-off.

I Timer Menu ]

Sleep ,Timer

On Time

Off Time

On/Off Timer

0:15 ]

Timer Set to Turn TV OFF in 15 Minutes

ISleep Timer

Good Night 0:58

"Good Night" Display Appears 60 Seconds Before Shut-Off

TIMER SETUP: On/Off Timer

The On/Off Timer programs the TV to automatically turn itself on at a specific time then turn itself off at another time.

Set On/Off Timer

i

•Make sure the TV's clock is set.

•Press the Up/Down keys to select Timer Setup

-Press Up/Down keys to select On Time and use the numbered

buttons on your remote to enter atime for the TV to turn itself

ON. Press TIMER on the remote to select AM or PM. (You can

also use the Left/Right keys to advance the time.)

•Press Up/Down keys to select OffTime and use the numbered

buttons on your remote to enter a time for the TV to turnitself

OFF. Press TIMER on the remote to select AM or PM. (You can

also use the Left/Right keys to advance the time.)

•Press Up/Down keys to select On/Off Timer and use ADJUST

on remote to turn timer ON (or OFF).

NOTE:

•A time must be set for either On Time or Off Time in orderto turn

the timer ON.

ITimer Menu J

Sleep Timer

On Time

Off Time

On/Off Timer

[a 11:00 AM ,]

On/Off Timer Set to Turn TV ON at 11:00 am

_ls-oto 7-- 3

•SETUP MENU

USING PARENTAL CONTROL (PC)

Period of time PC I

Parental Control Menu

will be active. __- I

Blocks entire source._ _ ........ ,

Blocks individual -" t

channels for Ant/ _Block Source I

(;able 1or 2 sources. _ Block Channels I

(Does not appear if / 'I

the entire Ant/Cable

source is blocked by [ OFF

Block Source.)

1 2 3 4 5 6

7 8 [] 10 11 12

13 I4 15 16 17 18

19 20 21 22 23 24

25 26 27 28 29 30

3t 32 33 34 35 36

37 38 39 40 41 42

43 44 45 46 47 48

49 50 51 52 53 54

55 56 57 58 59 60

61 62 63 64 65 66

67 68 69 70 71 72

73 74 75 76 77 78

Unblocked_--

Press +

Source

ToChange

Live view of

selected channel.

Channel

Status

Instructions

Block Entire Source

•Press the Up/Down keys to select Parental

Ctl and press the Left/Right keys to view

the PC Menu.

•Select Block Hours and use Left/Right keys

to set the length of time PC will be active:

OFF, 12, 24, 48 or 72 hours.

•Select Block Source and use Left/Right

keys to"Block" the current input source.

• To block other sources, press the SOURCE

key and set them to "Block."

• Press ENTER to exit and enter any 4-digit

"Parental Access Code" when prompted to

do so. (You will be prompted to verify the

number by entering it a second time.)

Block Individual Channels

(Ant/Cable 1or 2 Sources Only)

Press the Up/Down keys to select Parental

Ctl and press the Left/Right keys to view the

PC Menu.

Select Block Hours and use Left/Right keys

to set the length of time PC will be active:

OFF, 12, 24, 48 or 72 hours.

DO NOTHING WITH BLOCK SOURCE.

Select Block Channels.

Use Left/Right and Up/Down keys to select

a channel and press the SOURCE key to set

it to "Block." Repeat this for each channel

you want blocked.

Press ENTER to exit and enter any 4-digit

"Parental Access Code" when prompted to

do so. (You will be prompted to verify the

number by entering it a second time.)

iiiRe-enter PC _e it _Acti_ate_

ill " _ __ ' i_ ..... _!ii_ ? _ : _ : iiii_i_i

•Press the Up/Down keys to select Parental

Ctl and press the Left/Right keys to view

the PC Menu.

•Enter your access code.

•Make your changes (block more channels,

reset the time period, etc.).

• Press ENTER to exit.

•You will be prompted to change your access

code. Either enter a new 4-digit code or do

nothing to retain the current code.

REMEMBER YOUR CODE! TO RE-ACCESS PARENTAL CONTROL WHILE IT IS ACTIVATED, YOU MUST ENTER THIS

NUMBER. Otherwise, simply allow the specified period of time to elapse.

NOTE:

•Do not unplug the TV in an attempt to deactivatethe ParentalControl. This only resets Parental Control.

USING CAPTIONS

8

Activating Captions

....(With CC Button)

•Press CC button on remote.

• Press CC repeatedly to

toggle through the five

choices: Off, Caption 1,

Caption 2, Caption 3 And

Caption 4.

:(From Setup Menu)

•Press the Up/Down keys to

select Caption/Text.

• Press Left!Right keys to toggle

through the nine choices: Off,

Caption 1, Caption 2, Caption

3, Caption 4, Text 1,Text 2,

Text 3, or Text 4.

NOTE:

•At present, very few TV programs or video tapes offer text caption-

ing for any option other than CAPTION 1. Therefore, CAPTION

1 is the only recommended choice, unless you know that a specific

program is providing captioning using one of the other selections.

i.[ Hello! Areyou I

[out there? J

Typical Captions Display

Captions may be shown any-

where on the screen.

_mm_ mmmiimm

See special newscast

tonight at 7:00PM on

channel 2.

J

Typical Text Display

Fixed size text window fills

lower half of screen.

291g-ot-o 7-- 4

AUDIO MENU

AUDIO

Treble

Balance

Audio

SEQ

Surround

iNu, >

4I 0

Null b an option for some

TV models only.

MENU OPERATION

_ Press MENU repeatedly until the

AUDIO MENU is shown.

Press the Left/Right keys to

adjust the selected option.

Press the Up/Down keys until the

desired option is selected.

Press QUIT or wait afew sec-

onds for the TV to return to

normal operation.

Bass

Treble

Balance

Audio

(SAPis not an option

forthe video sources.

Audio signalsreceived

from a video sourceare

assumed to be monaural

or stereo. )

SEQ

(Spatial Equalization)

Surround

Adjusts the BASS (low-frequency) level.

Adjusts the TREBLE (high-frequency) level.

Adjusts the balance of sound between the two speakers.

Allows you to select STEREO, MONO or 2ND AUDIO/SAP operation.

STEREO: Directs the sound to the Left and Right speakers as supplied by the program. Stereo is

the recommend choice: The TV switches automatically between the STEREO and

MONO modes depending on the type of signal being received.

MONO: Directs the same sound to both Left and Right speakers, even if the program being

received is in stereo.

2ND AUDIO/

SAP: Directs the sound for the Second Audio Program (second language) to both the Left

and Right speakers. SAP sound is always monaural. If SAP is selected, you hear the

SAP (usually a second language). When the SAP broadcast ends, the "IV switches

automatically (defaults) to the type of signal being received, STEREO or MONO. The

TV switches back to 2ND AUDIO/SAP when the SAP broadcast resumes.

Produces a spacious and more tonal sound. SEQ is only available while astereo signal is being received

and processed by the TV.

Adjusts the level of Surround Sound provided to the optional surround sound speakers. Surround Sound

is only available if a surround encoded stereo signal is being received and STEREO is either selected

using the AUDIO option or selected by default.

Null Used to Minimize front channel sound from coming through the surround speakers. To adjust the Null,

while watching a Dolby Surround-encoded video tape, select Null and use the Left/Right keys to remove

any dialogue that may be heard from the surround speakers.

NOTE:

•All adjustmentson the Audio Menu are optional. You do not

have to adjust these features in order to use your TV.

29t8.ol-o 8- 1

VIDEO MENU

Brightness

Color

Tint

Sharpness

ColorTemp

Video Filter

AutoFlesh

PicturePref

<G

MENU OPERATION

_ Press MENU repeatedly until the

VIDEO MENU is shown.

Press the Left/Right keys to

adjust the selected option.

@(_ Press the Up/Down keys until the

desired option is selected.

Press QUIT or wait afew sec-

onds for the TV to returnto

normal operation.

Contrast Adjusts the overall contrast and color level of the picture.

Brightu_s Adjusts the brightness level of black areas in the picture.

Color Adjusts the intensity of the colors in the picture.

Tint Adjusts the color of the flesh tones to more Green or more Red.

Sharpness Adjusts the definition of the object edges for best picture quality.

Color Temp Changes the "color temperature"or picture white balance between cooler natural whites and warmer

(Temperature) (red) colors.

Video Filter Reduces video "noise" or interference in dark picture areas resulting in clearer overall pictures.

Auto Flesh Automatically maintains natural skin tones underchanging scene and video source conditions.

Picture Plref. Lets you decide if you want to use your own CUSTOM video settings, the factory PRESET video

(Preference) settings or the factory preset THEATER video settings. The THEATER settings are preset to provide

optimum visual performance in low light "theater-like" conditions.

NOTES:

•All adjustments on the Video Menu are optional. It is not

necessary to adjust these features in order to operate the

TV.

Any adjustments made to the Video Menu settings while

Picture Pref. is in PRESET or THEATER mode will auto-

matically store the current settings as the CUSTOM set-

ting.

2918-0,-o 9- 1

PIP MENU ..

PIP

Ch. Review

PIP Color

PIP Tint

PIP Size

Press <1, To View

SelecUng the PIP Menu does not

"activate" PIP. However, a PIP

inset will appear during menu op-

eration to show the effect of any

setting changes.

MENU OPERATION

_] Press MENU repeatedly until the "

PIP MENU is shown.

Press the LefffRight keys to

adjust the selected option.

o oown ysunti

desired option is either high-

lighted or selected.

Press QUIT or wait a few sec-

onds for the TV to returnto

normal operation.

Ch. Guide Provides a visual review of all channels in the channel scan memory for the currently selected

ANT/CABLE source.

Ch. Review Provides a visual review of the last three (3) channels tuned on the TV.

PIP Color Adjusts the intensity of the colors in the PIP inset.

PIP Tint Adjusts the color of the flesh tones in the PIP inset to more Green or more Red.

PIP Size Adjusts the size of the PIP inset. Choose between small or large.

CH 2

CH 3

CH 5

CH 6

CH 7

CH 9

CH 2

CH 3

CH 5

Ch. Guide Screen

Shows 3-second Hve displays of all channels

saved in the channel scan sequence.

Ch. Review Screen

Shows 3-second live displays of the

last 3 channels viewed on the TV.

_ls_t_ 10--1

REMOTE CONTROL Z-TRAK

INTRODUCTION

This multi-brand remote control operates the common features of most, but not all, models and brands of IR (infrared) controlled

VCRs. Some functions of your particular equipment may not be controlled by this remote. In such c_ses, use the original remote control for

your equipment.

BATTERY INSTALLATION

Batteries are provided, but must be installed before using the

remote control. When it no longer functions normally, or if it

loses memory, replace the batteries with two high-quality,

alkaline, size AA batteries. Match plus with plus (+ with +),

minus with minus (- with -) in the battery compartment.

Unless your equipment responds to the factory preset code,

you will need to reprogram the remote after you replace the

batteries.

NOTES:

-Do not place heavy objects on top of the remote control

keys. Prolonged unintentional operation of the remote short-

ens battery life.

-Remove the batteries if the remote control will not be used

for a month or more. TIlE MANUFACTURER IS NOT

RESPONSIBLE FOR DAMAGE CAUSED BY BAT-

TERY LEAKAGE.

CHOOSING OPERATING MODE

To control your TV or VCR with this remote, you must fast choose the mode of operation. Press the desired mode key for TV or

VCR. Press TV to return to TV mode.

TV

Set remole to TV mode

POWER

VCR

pVCR mode

Z-Trak Remote

291_1o 11 -- 1

REMOTE CONTROL Z-TRAK

BASIC OPERATIONS

Point Remote at TV or VCR

TV

Set remotetoTV mode.

VOL Up/_

When operatingTV: Increase volume

When operting VCR: Fast forward

VOL Down/,_l

When operating TV: Decrease volume

When operating VCR: Rewind

MUTE II

When operating TV: Mute sound

When operating VCR: Pause

RECRD

When operating TV: Begin StarSight

record function

When operating VCR: Begin VCR

record function

POWER

VCR

Setremoteto VCR mode

TRACKBALL

perating TV or VCR: Moves

on-screen pointer to desired TV

menu selection. Press on the

trackball to "choose" the selection.

Up/_

When operating TV: Go to the next

channel

When operating VCR: Play

CHAN Down/•

When operating "IV:Go to the

previous channel

When operating VCR: STOP

ENTER

When operating TV: View

Channel/Time display

When operating VCR: View VCR

display

FLSHBK

When operating TV: Tune TV to

the last channel viewed

When operting VCR: TV/VCR

switch

Z-Trak Remote

291_1-o 11 -- 2

REMOTE CONTROL Z-TRAK

PROGRAMMING YOUR Z-TRAK REMOTE

Your Z-Trak remote is already programmed to work with most

Zenith VCR's. If you have anon-Zenith VCR, or if your Zenith

VCR does not respond to your Z-Trak remote, you will need to

program your remote as follows:

1. Refer to the table of VCR Codes, in this section of

the guide. Locate the 3-digit number which corre-

sponds to your brand of VCR.

2. Make sure your TV is turned on.

3, While pointing the Z-Trak remote towards your

Zenith TV, simultaneously hold the MUTE and

ENTER keys until the TV displays a VCR "Setup"

screen (about three seconds). The VCR key will also

light upon entering the Programming mode.

4. Notice that the current VCR brand code (initially

"201") is displayed on the TV screen. Roll the track-

ball up or down (or use CHAN Up/Down) to choose

the 3-digit number of your VCR.

5. When the correct 3-digit number is displayed on the

TV screen, use the POWER key to make sure that

your VCR turns on and off properly. If it does not

respond, refer to the VCR Codes table to select a

different 3-digit number.

6. If your VCR turns on and off successfully, press the

trackball (or ENTER) to save the current VCR brand

code. The setup screen will disappear from the TV.

Also, the VCR key will flash 3 times upon exiting

the Programming mode. The remote will be in the

VCR mode.

7. Now try other controls on your VCR, such as Play,

Rewind, etc., to make sure that the correct VCR

brand code number was selected. (If not, repeat

steps 3 to 7.)

8. The MUTE key can be pressed at any time to cancel

Programming mode. The original VCR brand code

will remain unchanged.

NOTE: Only the VCR mode can be programmed.

9. The Z-Trak remote will exit Programming mode

automatically after 60 seconds if no key press or

trackball movement is detected.

AUTO FIND OPTION

If you have tried all 3-digit codes listed for your VCR manufac-

turer, and none of them operate your VCR, you will need to try

"AutoFind" to see if a different code will operate your VCR:

1. Make sure your VCR is turned on.

2. Simultaneously hold the MUTE and ENTER keys un-

til the VCR key lights up (about three seconds).

TV displays

VCR code

Z-Trek Remote

Control

Equipmentto be

contr_led

29ts-ol-o 11 -- 3

REMOTE CONTROL Z-TRAK . .

3. Point the Z-Trak remote towards your VCR. Press

CHAN UP followed by POWER. If your VCR did

not turn off, keep repeating CHAN UP followed by

POWER until the VCR responds.

4. If your VCR turned off, press ENTER to save the

code. The VCR button will flash three times after

ENTER is pressed.

5. Now try other controls on your VCR, such as Play,

Rewind, etc., to make sure that the correct VCR

brand code number was selected. (If not, repeat

steps 2 to 4.)

6. The MUTE key can be pressed at any time to cancel

AutoFind mode. The original VCR brand code will

remain unchanged.

7. The remote will exit AutoFind mode automatically

after 60 seconds if no key press or trackball move-

ment is detected.

NOTE:

•To view the code that was programmed, perform

Steps 2 and 3 of "Programming Your Z-Trak

Remote."

VCR CODES BY BRAND NAME

Admiral

Adveatora

Aiwa

Akai

Audio

Dynamics

Bell & Howell

Bmksonic

Canon

Citizen

Craig

Cu_is Mathcs

Daewon

Daymm

DBX

Emerson

VCRS

208, 261

231

231

1223, 238, 241

202, 218

206, 247

221,226, 250, 255

214

209

212

214. 259

!244,246,248.254

236,246

202.218

203, 221. 223, 226,

233, 235, 243, 250

Fisher [211,212, 213, 24/

Funai !231

General 214, 216. 220

Electric

Gold,star 209

Go Video 256, 262, 263

Hitachi 215, 257

Replay 214.227

J.C.Peoney 214,215,218,227

/VC 202. 225,258

Kenwoud 202

Logik 239

LXI 209, 231

Magnavon 207, 214. 231

Marantz 207, 218

Mare 209

Me_ 206. 212, 214, 231

Mitsubishi 204. 222,252,264

Moatgomet'yWard

Multi Tech

NEC

Orion

Panasonic

Pentax

Philco

Philips

Pionecx

Portland

Pro Scan

Quasar

RCA

Realistic

Sarasung

Samui

Sanyo

Scott

Sears

Sharp

Shintom

Si_ature 2000

Sony

Sylvania

Symphonic

Ttshiko

Tatong

Teac

Telmika

Toshiba

Vector geseazch

Yamaha

Zenith

XR1000

208, 214. 216. 219,

231. 249

239

202, 218

25O

214. 251,259

215

207,214

207,214.227

210,215

246

216, 260

214, 259

215, 216,220, 227, 240,

242. 260

206, 208, 212, 214. 231

220, 230

239

206, 212. 247

204, 205. 233, 243

206,209mi.212.2i5

208, 261

239

208, 214, 216, 219.

23 I, 249

217. 232. 237

207,214. 227

231

209

202

202,231

234

205.215

204, 218

202,218

201,224,225.229.23"I

239

CLEANING THE TRACKBALL

To keep the Z-Trak remote functioning properly, it is necessary to occasionally clean the TRACKBALL device. To do this:

1. Use a solution of mild dish washing detergent and water.

2. Moisten a clean soft cloth with the solution and lay the cloth flat on a table.

3. Turn the Z-Trak remote upside down and gently roll the TRACKBALL on the cloth.

4. Allow the remote to air-dry before using it again.

CAUTION:

• DO NOT USE ALCOHOL OR OTHER CLEANING FLUIDS TO CLEAN THE TRACKBALL AS THESE MAY

DAMAGE THE REMOTE.

2918-01-0 11 -- 4

QUICK REFERENCE TO MENUS: Z-TRAK

AVAILABLE MENUS

Your TV is icon and menu operated. In other words, an icon

is selected at the top of the TV screen and a menu of adjust-

ment options appears.

SETUP

Ch 11

PBS

3:15

Stereo

Timer

Captions

Z Trak

PIP

Freeze

All Ch.

Flash

VOLUME

<l !> I

BASIC MENU OPERATION

l, Make sure that your Z-Trak remote is in the TV mode (rather than

VCR mode), by pressing the TV button on the top.

oPress the trackball. A small square, known as the pointer, appears

in the middle of the screen. It should be blue, indicating TV mode.

If you have StarSight, the pointer may be red, indicating StarSight

mode. The next step tells you how to switch modes.

1

e

The pointer is moved by rolling the trackbaU up, down, left, and

right. Move the pointer to the left edge of the screen. A column of

TV options appears. The icon at the top indicates which mode is

active -- TV or StarSight (if connected). ATV icon represents TV

mode; a circle with a star represents StarSight mode. You can

switch between the two modes by locating the pointer on the icon

and pressing the trackball. The icon switches and the pointer

changes color.

Set the mode to TV (a blue pointer).

The various menus are not all visible on the screen simultane-

ously. Each menu appears when you move the pointer on top of it.

NOTE: Whenever the text reads "point to the option", it

means "position the pointer on the option".

To make the pointer disappear, move it to the center of the screen

and press the trackball.

_t_-ot-o 12 -- 1

QUICK REFERENCE TO MENUS: Z-TRAK

CHANNEL ICONS

Ch 11

PBS

3:15

Stereo

Ch

eh

All Ch

Flash

The Channel/Time display accompanies the Channel

Icons Menu.

Chan T and ,1, Channel up or down; equivalent to CHAN Up or Down on the remote. Point to the arrow and press.

All Ch

Flash

Gives you a complete listing of all channels on the screen. Channels currently stored in memory (via Auto

Program) are shown in color. However, you can tune to any channel on the list. Point and press on a channel;

the program on that channel is shown in the PIP, along with the channel label. To tune to that channel, press on

it again.

Tunes the TV to the last channel viewed. The FLSHBK button on the Z-Trak remote performs the same

function.

VOLUME CONTROL

vo.°.o ,>[

Move the pointer to the bottom of the screen to

view the Volume Control.

Point to the desired volume level on the slider

bar, and press the .:rackball. The volume level

• automatically jumps to the new value. Or, press

on the arrows to gradually raise or lower the

volume.

Point and press on MUTE to turnthe sound off

completely.

You may also control volume and mute using

the VOL Up/Down and MUTE buttos on the

Z-Trak remote.

291s-ol-o 12 -- 2

TV OPTIONS MENU

Timer

Captions

ZTrak

PIP ON

Freeze

Move PIP*

Swap*

The TV icon will only

appear for Ant/Cable 1

Source selection.

*Not always displayed.

See table below

MENU OPERA TION

Move the pointer to the left of

the screen to view the TV

Options Menu.

Press the trackball to select the

option. See the table below.

Point to the desired option.

(Its status is shown at the

bottom of the screen.)

Move pointer off the menu to

remove it from view.

Timer The sleep timer allows you to program the TV to automatically turn itself off after a period from 15

minutes up to 4 hours. To activate this feature and change the interval, press the trackball while pointing

at Timer.

Captions By pressing on this option, you can select Caption 1, Caption 2, Caption 3, Caption 4 or OFF.

Z-Trak This determines how fast the pointer moves as you roll the trackball. By pressing on this option, you can

set this response speed to Slow, Medium, or Fast, according to your preference.

PIP ON This turns the PIP (Picture-In-Picture) on or off, When you first turn the PIP on, the options menu

(or OFF) disappears and the pointer moves into the PIP. You can then move the PIP around the screen, using the

trackball. Pressing the trackball then locks the PIP in place and removes the pointer.

Freeze Pressing on this option "freezes" the action of the picture in the PIP inset. See PIP Operation section for

details.

Move PIP This option only appears when the PIP is on. Pressing on it causes the options list to disappear, and the

pointer appears in the PIP. You can then move the PIP around the screen with the trackball. Pressing again

locks the PIP in its new location and returns the TV to normal viewing.

Swap This option only appears when the PIP is on and the PIP source is different from the main source. This

option "swaps" the main picture with the picture in the PIP inset.

2918-00-0 13 -- 1

SOURCE MENU

Video 3 and S-Video 2 are

source options for some

TV models only.

MENU OPERATION

Main Source 1[ PiP Source

StarSight t ............

Ant/Cable 2 StarSight :

Video 1 ! Video 1 p

Video 2 Video 2

,_-Vid_,n 1 / _-Vid__n "1 I

_Video 3 Video 3 _ I

k,S-Video 2 I S-Video 2,/ /

!

Move the pointer to the top left of

the screen and point to the

SOURCE icon. Press the trackball.

Point to the desired Main or PIP

source. Press the trackball. Or,

press repeatedly on Main Source

or PIP Source to toggle through

your source options

A PIP inset appears while the

Source icon is selected to show

the effect of choosing a PIP

source.

If the PIP Source is changed,

the PIP inset will remain on the

screen after you exit from menu

operations.

Point to "EXIT' and press the

trackball to remove the menu

from view.

SOURCE SELECTION

ANT/CABLE Ior 2 Routes the antenna or cable-TV source to the TV for viewing. You see program material from

whichever signal source is connected to the ANT/CABLE 1 or 2 jack. (If the signal is from a VCR or a

cable box, tune the TV to either channel 3 or 4.)

VIDEO 1, 2 or 3 Routes the audio and video from an A/V source (such as a VCR or a video disc player) to the TV for

viewing. The source must be connected to the corresponding VIDEO 1, 2 or 3 IN jacks.

S-VIDEO Ior 2 Routes the audio and video from an auxiliary Super-VHS video source (such as a VCR or a video disc

player) to the TV for viewing. The source must be connected to the corresponding S-VIDEO 1 or 2 IN

jacks.

Refer to the "Standard Connections for Your TV" section to make the proper equipment connections to the TV. For infi)m]ation about PIP sources, refer to the

"PIP Operation" section.

SOURCE IDENTIFICATION

Blue White

_VIDEO $IN S_

AUDIO INPUT VIDEO INPUT

Auxiliary A/V Jacks (Some TV Models)

NOTE:

•The color of the Channel/Time display corresponds to the color

rings around the connectors of the jack panels. For example, the

Channel/Time display will be Red if you are watching a program

on Ant/Cable 1 source.

Magenta

LOOP OUT L :SURROUND OPI(RO

Green

Connection Center on Back of TV

Lt. Blue

I

2918-01-0 14 _ 1

•SETUP MENU

Ch. Add/Del

Ch. Labels

Source ID

Clock Set

Timer Setup

Parental Ctl

Caption/Text

Background

StarSight

Press To Program I

ClockSet I

Timer Setup I

Parental Ctl

Caption/Text

Background I

IPress To Label Sources [

While Video or Super-Video Source is Chosen

MENU OPERATION

Move the pointer to the top left

of the screen and point to the

SETUP icon. Press the trackbali.

Press on the option again to

:_ access it.

Point and the desired \\4:_

press on

option to highlight it.

Point and press on EXIT or

move the pointer off the menu

and press the trackball to

remove the menu from view.

Auto Program Finds all active channels and stores them in the TV's memory for use by CHANNEL up/down. Follow

the on-screen directions. Auto Program runs on the currently selected Ant/Cable source.

Ch. (Channel) Edits the channels found by Auto Program to create your own personal list of favorite channels. See the

Add/Dd information following this chart for more details.

Ch. (Channel) Assigns a network/station label, name or call letters to specified channels. For example, if you choose

Labels the label "ABC" for channel 9, then "ABC" will appear in the Channel/Time display whenever channel

9 is selected. See the information following this chart for more details.

Source ID Assigns adescriptive "name" to the input sources. For example, the Video 1source may be named

VCR. "VCR" will now appear in the Source Menu as a reminder that your VCR is connected to the

Video 1 input jacks.

Clock Set Sets the clock in the TV to the correct time. Point and press on the option to highlight it. In the status

bar at the bottom, point and press on either the hours or minutes to adjust them. Point and press on AM

or PM to toggle them. Move pointer away from menu to remove it from view.

Timer Setup Sets the TV's SLEEP TIMER and ON/OFF TIMER features. See the information following this chart

for more details.

Parental eft. Use this feature to block viewing of any undesirable channels or an entire input video source. See the

(Control) information following this chart for more details.

Caption/Text Displays closed captioning or informational text when available on the selected channel. Options are:

OFF, CAPTION 1, CAPTION 2, CAPTION 3, CAPTION 4, TEXT 1, TEXT 2, TEXT 3, or

TEXT 4. See the information following this chart for more details.

Background Adds or removes a solid-color background behind the on-screen menus. Highlight and press on the

option, and then press to toggle the background on and off.

StarSight Begins the StarSight setup procedure. Refer to the StarSight section of this guide for details.

(Ant/Cable 1 Source

selection only)

continued on next page

2918-01-o 15 mI

SETUP MENU

USING CHANNEL ADD/DEL

• Select Ch. Add/Del. • Select Ch. Add/Delete.

•Point to the desired channel. * Point to the desired channel.

•Press trackball until channel •Press trackball until channel

status shows Added. status shows Deleted.

Press on EXIT to tune to the channel pointed to by the highlight.

NOTE:

•Ch. Add/Del can only be used with ANT/CABLE 1or 2 Source

selection.

•The Audio of deleted channels is muted.

Selector Highlight

I1 2 4 s s I

7 8 _10 11 12

13 14 15 16 17 18

19 20 21 22 23 24

25 26 27 28 29 30

31 32 33 34 35 36 II Added "F-"

/

37 38 39 40 41 42

49 50 51 52 53 54

55 56 57 58 59 60

81 62 63 64 65 66

67 68 69 70 71 72

73 74 7s r6 I

IMore Chanma$ _

Available channels are:

Available Channels

Live view of

"-- selected channel.

----"Channel

Status

Press here to

laccess additional

numbers if present.

Broadcast Band -- VHF 2 to 13, UHF 14 to 83

Cable-TV Band -- 1 to 139

USING CHANNEL LABELS

•Select Ch. Labels.

•Select a channel by pointing

and pressing Ch 1"or ,I,.

•Point and press on the desired

label.

• Press on EXIT to return to

normal viewing.

NOTE:

•Select Ch. Labels.

•Select a channel by pointing

and pressing Ch 1"or $.

• Point and press on the four

dashes or NONE.

•Press on EXIT to return to

normal viewing.

• Ch. Labels can only be used with ANT/CABLE 1or 2 Source

selection.

• Selecting the four dashes (.... )specifies no channel label. Or,

selecting NONE blocks the stationor network labels that are

transmitted by some television stations.

Selector Highlight

\

--- NONE A&E

ADC AMC BCC BET

CA CBC CBN CBS

CNBC CNN COM CSPN

CTN C11f DIS DISC

ENC ESPN ESPN2 ET

FAM FNN FOX F&V

GALA HBO HN HSE

IC INSP JCN LIFE

MF.JU MMT MW NBC

NOS PBS PLAY PTL

RDS REO SC SCFI

Available Labels

/I

ACTS

BRAY

CMTV

CSP2

El

EWTN

FX IABC

HSN

NICK

OVC

SHOW Ch

Ch9 /

SIN TBS TBN .TELE TLC I I

_,.

-Live view of

selected channel.

-"Current Channel

-Selected Label

-Channel Selector

-Point and press on

this box for more

labels.

USING SOURCE lid

• Select Source ID.

• Point to the desired "Source/Label" line and press to highlight it.

• Press repeatedy to scroll through the available labels.

•Press on EXIT to return to normal viewing.

VIDEO GAMES AND OTHER FIXED

PATrERN DISPLAY CAUTION

If you use your 'IV for video games or other fixed displays, avoid set-

ting the BRIGHTNESS control for an excessively bright picture. A

bright, fixed pattern, if used for long periods of time, can result in a

permanent imprint on the TV picture tube. You can reduce this possi-

bility by alternating the use of the fixed pattern display with normal

TV picture viewing, by turning down the CONTRAST control for

sustained fixed pattern use, and by turning off the fixed pattern dis-

play when not in use.

Live view of

selected Source.

\

1

Source

Ant/Cable 1

Ant/Cable 2

Video 1

Video 2

S-Video 1

Label

StarSight

Antenna

VCR

VCR 2

Video Game

Optional names for

ANT/CABLE 1 or 2

Sources are:

--, Disabled, An-

tenna, Cable, Cable

Box; Satellite, VCR,

StarSight (Ant/Cable

I only).

Optional names for

VIDEO Sources are:

--, Disabled, VCR,

Camcorder, Video

Game, Laser Disc,

Audio Only, VCR2,

Satellite. (Some

models only.)

NOTE:

• Disabling a Source prevents it from appearing in the Source Menu.

2918-01-0 15 -- 2

I I

SETUP MENU

TIMER SETUP: Sleep Timer

The Sleep Timer programs the TV to automatically turn itself off after a period from 15 minutes up to 4 hours.

...... From Setup Menu

•Make sure the TV's clock is

set.

•Select Timer Setup to view

the Timer Menu.

•Press on Sleep Timer repeat-

edly to set the period of time

the TV will remain on.

Direct Access

• Move pointer to left of screen

to view the TV Option Menu.

*Point and press on Timer

repeatedly to set the pedod of

time the "IV will remain on.

•Move pointer away from

menu to remove it from view.

•One minute before the TV turnsoff, the GOOD NIGHT display

appears on the screen. At this time you have a choice of the fol-

lowing two actions.

• Do nothing. The GOOD NIGHT display remains on the screen.

The TV will turn off in one minute.

• Delay the turn-off by resetting the timer with a new time period.

NOTE:

• To cancel the Sleep Timer, turn off the TV or return to the Timer

feature and set it to OFF.

*As the Good Night display counts down the final 60 seconds, the

audio and video of hte TV also "dim" for a soft, discreet turn-off.

[Timer Menu ]

Ileep Timer _l

On Time

Off Time

On/Off Timer

I O:lS 1

Timer Set to Turn TV OFF in 15 Minutes

ISleep Timer !

Good Night 0:58

"Good Night" Display Appears 60 Seconds Before Shut-Off

ON/OFF TIMER

The On/Off Timer programs the TV to automatically turn itself on at a specific time, then turn itself off at

another time.

Set On/Off Timer

•Make sure clock is set to Timer Setup.

• Select On Time. In the Status bar atthe bottom, point and press

on the hoiws and minutes to adjust them to the time you want the

TV to turn itself ON. Point and press on AM (or PM) to toggle

them.

•Select On Time. In the Status bar at the bottom, point and press

on the hours and minutes to adjust them to the time you want the

TV to turn itself OFF. Point and press on AM (or PM) to toggle

them. Or, press on the arrows to move the time forward or

backward.

• Select ON/OFF Timer and press on it to turn thetimerON (or

OFF).

NOTE:

•A time must be set for either On Time or Off Time in order to turn

the timer ON.

ITimer Menu I

Sleep Timer ] Point and press on

O!1 Tiff'tO _ these to adjust

On/Off Timer /

On/Off Timer Set to Turn TV ON at 11:00 am

2918-01-O 15 -- 3

SETUP MENU

USING PARENTAL CONTROL (PC)

[ Enter Parental Access Code: ]

<0><1><2><3><4><5><6><7><8><9> ]

_ Point and press

IParental Control Menu ] onthesedigitsto

enter code.

Bi_HoUrs : _ ,_

.......... Pefioa ot time

Block Source ....1 _.

Block Channels _ wdl heacuve.

I_ _ Blocks entire source.

Blocks individual

[< OFF I_1 channels for Ant/

Cable 1or 2 sources.

1 2 3 4 5 6

[] 10 11 12

78

13 14 15 16 17 18

19 20 21 22 23 24

25 26 27 28 29 30

31 32 33 34 35 36

37 38 39 40 41 42

43 44 45 46 47 48

49 50 51 52 53 54

55 56 57 58 59 60

61 62 63 64 65 66

67 68 69 70 71 72

73 74 75 76 77 78

I More Channels I

Live view of

selected channel.

Channel

Status

•Select Parental Ctl.

•Select Block Hours and press on the arrow

to set the length of time PC will be active:

OFF, 12, 24, 48, or72 hours.

•Set Block Source. Move the pointer to

the status bar at the bottom and press on

"unblocked" to change it to "blocked."

• To block other sources, move the pointer to

the left side of the status bar and press to se-

lect another source. Move the pointer back

to the fight side and press to show

"blocked."

•Point and press on Exit and enter any

4-number access code by pressing on the

individual numbers. You will be asked to

verify the code by entering it again.

• Select Parental Ctl.

• Select Block Hours and press on the arrow

to set the length of time PC will be active:

OFF, 12, 24, 48, or 72 hours.

• DO NOTHING WITH BLOCK SOURCE.

•Select Block Channels.

For each channel to be blocked, move the

pointer to the number and press the trackball

twice.

Point and press on Exit twice and enter a

4-number access code by pressing on the

individual numbers.

• Select Parental Ctl.

• Enter your access code when prompted to

do so.

•Make your changes (block more channels,

reset the time period, etc.)

Point and press on Exit.

You will be prompted to "change code if

desired." Either enter a new 4-number code

or do nothing to retain the current code.

REMEMBER YOUR ACCESS CODE! TO RE-ACCESS PARENTAL CONTROL WHILE IT IS ACTIVATED, YOU MUST

ENTER THIS NUMBER. Otherwise, simply allow the specified period of time to elapse.

NOTE:

•Do not unplug the TV in an attempt to deactivate the Parental Control. This only resets Parental Control.

USING CAPTIONS

• Highlight and press Option/Text. [

•Press the trackball repeatedly to toggle through the nine choices:

Off, Caption 1, Caption 2, Caption 3, Caption 4, Text l, Text 2,

Text 3, or Text 4.

NOTE:

•At present, very few TV programs or video tapes offer text caption-

ing for any option other than CAPTION 1. Therefore, CAPTION

1 is the only recommended choice, unless you know that a specific

program is providing captioning using one of the other selections.

_tello!Are'y_u" specialn

I tenetat7:00PMon I I

outthere? JIkchannel 2. J,J_

Typical Captions Display

Captions may be shown

anywhere on the screen.

Typical Text Display

Fixed size text window

fills lower half of

screen.

2918-ot-o 15 -- 4

AUDIO MENU

Treble

,,4:="1Balance

Audio

I,"/ ISEQ

FlUnlrl JI Surround

[Null

[4 o

MENU OPERATION

Move the pointer to the top left of

the screen and point to the

AUDIO icon. Press the trackball.

Press on the option or on the

slider bar to adjust the option.

Point and press on the desired

option to highlight it.

Move the pointer off the menu

and press the trackball to remove

the menu from view.

Bass

Treble

Balance

Audio

(SAP is not an option

for the video sources.

Audio signals received

from a video source are

assumed to be monaural

or stereo. )

Adjusts the BASS (low-frequency) level. Point and press on the arrows or slider bar.

Adjusts the TREBLE (high-frequency) level. Point and press on the arrows or slider bar.

Adjusts the balance of sound between the two speakers. Point and press on the arrows or slider bar.

Allows you to select STEREO, MONO or 2ND AUDIO/SAP operation. After highlighting the option,

press to toggle through the choices:

STEREO: Directs the sound to the Left and Right speakers as supplied by the program. Stereo is

the recommended choice: The TV switches automatically between the STEREO and

MONO modes depending on the type of signal being received.

MONO: Directs the same sound to both Left and Right speakers, even if the program being

received is in stereo.

2ND AUDIO/

SAP: Directs the sound for the Second Audio Program (second language) to both the Left

and Right speakers. SAP sound is always monaural. If SAP is selected, you hear the

SAP (usually a second language). When the SAP broadcast ends, the TV switches

automatically (defaults) to the type of signal being received, STEREO or MONO. The

TV switches back to 2ND AUDIO/SAP when the SAP broadcast resumes.

SEQ Produces a spacious and more tonal sound. SEQ is only available while a stereo signal is being received

(Spatial Equalization) and processed by the TV.

Surround Adjusts the level of Surround Sound provided to the optional surround sound speakers. Surround Sound

is only available if a surround encoded stereo signal is being received and STEREO is either selected

using the AUDIO option or selected by default.

Null Used to Minimize front channel sound from coming through the surround speakers. To adjust the Null,

(Some Models Only) while watching a Dolby Surround-encoded video tape, select Null and use the Left/Right keys to remove

any dialogue that may be heard from the surround speakers.

NOTE:

• All adjustments on the AUDIO MENU are optional. You do not

have to adjust these features in order to use yourTV.

2918.1o 16 _1

VIDEO MENU

|

UIDED

Brightness

Color

Tint

Sharpness

ColorTemp

Video Filter

AutoFlesh

PicturePref

• 0

MENU OPERATION

Move the pointer to the top left of the

screen and point to the VIDEO icon.

Press the trackball.

Press on the option or on the

slider bar to adjust the option.

Point and press on the desired option \\4_

to highlight it.

Move the pointer off the menu

and press the trackball to remove

the menu from view.

Contrast Adjusts the overall contrast and color level of the picture. '

Brightness Adjusts the brightness level of black areas in the picture.

Color Adjusts the intensity of the colors in the picture.

Tint Adjusts the color of the flesh tones to more Green or more Red.

Sharpness Adjusts the clarity of the edges around objects for the clearest picture quality.

Color Temp Changes the "color temperature" or picture white balance between cooler natural whites and warmer

(Temperature) (red) colors.

Video Filter Reduces video "noise" or interference in dark picture areas resulting in clearer overall pictures.

Auto Flesh Automatically maintains natural skin tones under changing scene and video source conditions.

Picture Pref. Lets you decide if you want to use your own CUSTOM video settings, the factory PRESET video

(Preference) settings or the factory preset THEATER video settings. The THEATER settings are preset to provide

optimum visual performance in low light "theater-like" conditions

NOTES:

All adjustments on the Video Menu are optional. It is

not necessary to adjust these features in order to operate

the TV.

Any adjustments made to the Video Menu settings while

Picture Pref. is in PRESET or THEATER mode will auto-

matically store the current settings as the CUSTOM setting.

2918-01-O 17 -- 1

PIP MENU

PiP

Ch. Review

PIP Color

PIP Tint

PIP Size

Press To View ]

Selecting the PIP Menu does not

"activate" PIP. However, a PIP

inset will appear during menu

operation to show the effect of any

setting changes.

MENU OPERA TION

Move the pointer to the top left

of the screen and point to the _D

PIP icon. Press the trackball.

Press on the option or on the

slider bar to adjust the option.

Point and press the desired op-

tion to highlight it.

Move the pointer off the menu

and press the trackball to remove

the menu from view.

Ch. Guide Provides avisual review of all channels in the channel scan memory for the currently selected

ANT/CABLE source. Press on a PIP inset to tune to the channel shown in the inset.

Ch. Review Provides a visual review of the last three 0) channels tuned on the TV. Press on a PIP inset to tune to

the channel shown in the inset.

PIP Color Adjusts the intensity of the colors in the PIP inset. Point and press on the arrows or slider bar.

PIP Tint Adjusts the color of the flesh tones in the PIP inset to more Green or more Red. Point and press on the

arrows or slider bar.

PIP Size Adjusts the size of the PIP inset. Choose between small or large.

CH 2 CH 6

CH 3

CH 5

CH 7

CH 9

Ch. Guide Screen

Shows 3-second live displays of all channels

saved in the channel scan sequence.

CH 2

CH 3

CH 5

Ch. Review Screen

Shows 3-second live displays of the

last 3 channels viewed on the _.

2918-01.o 18- 1

MAINTENANCE AND TROUBLESHOOTING

CARING FOR YOUR TV

Your TV will look better, have alonger life and perform better

if you care for it properly.

First check to see that the TV is off. For added

A afety, unplug the TV from the power outlet.

NOTE: If you unplug your TV, you will have to

reset the clock to the current time.

Cabinet Care

Non-Wood Cabinet or Cabinet Components Moisten asoft

cloth with a mild soap solution or Ivory dishwashing deter-

gent. Wipe the surface with a damp cloth. Then rinse the cloth

in clean water and wipe the surface again. Allow the TV to air-

dry before turning it on.

Wood Cabinets or Cabinet Components Use any good fur-

niture cleaner and polish. Regular care will help preserve the

finish.

Picture Glass Cleaning

The picture tube face attracts dust particles and should be

cleaned regularly. To clean the face, spray a small amount of

glass cleaner on a cleaning cloth and wipe the picture tube

glass face until clean. Repeat if necessary.

To delay new dust accumulation, wet a soft cloth in lukewarm

water in which a little fabric softener or Ivory dishwashing de-

tergent has been mixed. Wring the cloth almost dry. Wipe the

glass face. Make sure no drops of moisture are squeezed onto

the glass. Do not wipe the glass dry. Allow the glass to air-dry

before you turn the TV on again.

EXTENDED ABSENCE

Before an extended absence (such as a vacation) you may

want to unplug the power cord from the electrical wall outlet.

This will protect the TV from possible damage from lightning

or power line surges. If you have an outdoor antenna, you may

also want to disconnect the antenna lead-in wires on the back

of the TV.

NOTE: If you unplug your TV, you will have to reset the

clock to the current time.

TV PICTURE INTERFERENCE

Your TV picture may be affected by interference caused by

one or a number of factors. These include:

Speckled or Streaked Picture Can be caused by nearby auto-

mobile ignition, electrical appliances, etc. This is most notice-

able in weak signal areas.

Snow in Picture Caused by insufficient signal. Usually

caused by the TV being located too far from the TV station or

by an improper antenna installation.

Ghosts or Reflections Caused by signals being reflected

from surrounding buildings, water tanks, or other high struc-

lures.

Radio Signal Police, amateur or CB radio transmitters may

cause interference.

These interference problems can often be corrected through

the use of a better antenna, signal amplifiers, or various filter

devices. See your TV dealer for additional information, and

available TV accessories.

rVC_*,DI_ 19 -- 1

MAINTENANCE AND TROUBLESHOOTING

BEFORE CALLING FOR SERVICE

Check these items and see if you can correct the trouble by changing the adjustment of a con_ol or the setting of a switch. By making

these simple checks before calling for service, you may save time and money.

Problem

Picture OK. Poor sound.

Try This

Iu i I

Re-orient antenna. Try another channel _possible station trouble.

AdjustAUDIO MENU options. Check for local interference. Is

antenna/cable connection loose?

Sound OK. Poor picture. Re-orient antenna. Try another channel -- possible station trouble.

Adjust VIDEO MENU options. Trouble with cable-TV system? Is

antenna/cable connection loose7

No picture or sound. Is TV on? Is there power in wall outlet? Is "IV plugged in? Is antenna

hooked up? Is cable hooked up7 Trouble with cable-TV system7

Check auxiliary audio/video equipment. Check channel selection. Is

the channel blocked by PARENTAL CONTROL?

Picture blurred or distorted. Ghost in picture. Check antenna or cable hook up for broken wires. Try another

channel -- possible station trouble. Check for local interference.

No color, or poor color. Is it a color program? Check antenna or cable hook up for broken

wires. Adjust VIDEO MENU options.

No sound. VOLUME (VOL) setting may be too low. Check MUTE button

operation on remote control. Is Speaker EXT/INT switch set to EXT?.

Cannot select certain channels. Channels may be skipped in CH. ADD/DEL option of SETUP

MENU. Use AUTO PROGRAM a second time.

No closed captions Are captions available? Is CAPTION 1, CAPTION 2, CAPTION 3,

OR CAFFION 4 selected using the CAFFIONS option on the SETUP

MENU?

Black or blue box covers half of screen. Is text information available? Is TEXT 1, TEXT 2, TEXT 3or TEXT

4 selected in the CAPTIONS option of the SETUP MESqU.

No picture or sound when VIDEO 1 or Is audio/video source hooked up properly? Axe all wires connected to

VIDEO 2 source is selected. VIDEO 1 IN or VIDEO 2 IN jacks on connection center?

No stereo sound or weak stereo sound Check AUDIO mode. Was stereo sound present before selecting

when using a stereo VCR. VIDEO 1 or VIDEO 2 source?

PIP inset frame is black or lacks contrast when Adjust PIP COLOR AND CONTRAST settings in PIP MENU. Are

selecting VIDEO Ifor PIP inset, all wires connected to VIDEO 1IN jacks on connection center?

PIP inset fra_ne is "snowy" when using ANT/ Is TV/VCR switch on the VCR in the TV position?

(".ABLE 1or 2 for PIP and VIDEO 1 for main picture.

No picture when using VIDEO 1for PIP inset source Is TV/VCR switch on the VCR in the TV position?

and ANT/CABLE 1 or 2 for main picture.

Remote control does not work. Are batteries okay?,Is TV turned ON? Is remote in TV mode?

I I

Always request that your technician use only genuine Zenith

exact replacement parts for continued Quality and Safety per-

formance. Keep your Zenith ALL Zenith.

NOTES:

If your TV fails to respond to the PICTURE PREF. selec-

tion, or to any other menu selection, you must reset the

TV. Simply disconnect the AC power cord from the

power outlet. Wait a few minutes, then plug the TV back

into the power outlet. You will have to reset the clock to

the current time.

•Unplugging the TV does not deactivate the Parental

Control.

:_ls.lo 19 _2

REPLACEMENT PRODUCT REGISTRATION CARD

You could win a full refund on your new Zenith product.

Look for the Product Registration Card on your new video

product.

Each month a drawing is held by Zenith from the completed

Product Registration Cards received during the preceding

:month. Zenith will reimburse the winner for the full purchase

price of the product purchased.

In order to participate, simply complete and return the Product

Registration Card at once, even if you choose not to complete

the information and interests portion of the questionnaire.

The odds of winning the free drawing described above, de-

pend on the number of participants. Free drawing offer is

void in Canada and other places where restricted or prohib-

ited by law. Offer is void for Hotel/Motel and Institutional

models. Rental models are not eligible.

Product Card lost or misplaced?

The Product Registration Card furnished with your video prod-

uct is pre-printed with its Model and Serial numbers. Please

fill out the card and mail it at your earliest convenience. It is

imperative that Zenith know how to reach you promptly if we

discover a safety problem that would affect you. If the original

card has been lost or misplaced, you may use the replacement

card provided below. Either card will qualify you for the free

drawing, but you are limited to only one entry in the drawing.

Complete the card, place it in an envelope and mail it to:

Zenith Electronics Corporation

P. O. Box 173257

Denver, CO 80217-3257

Use the replacement Product Registration Cardonly if the

original card has been misplaced or lost.

PHOTOCOPY AND CUT ALONG DASHED LINE

i

l

|

|

l

|

|

|

|

|

|

|

|

i

i

Zenith Product Registration Card

Please Print Clearly or Type (_) Area Code Telephone

1.E]Mr. 2.[_Mrs. 3. F]Ms. 4.[_Uiss IIIIIII I-Ill

Initial Last Name

l llllllllllllllll

First Name

III

Street

III

City

III

State

III

Ill

H5Z01-01

II

IIIIl-Illll

IIII

Apt. No.

IIIIIIIIIllllllllllllll

IIIIIIIIIIII ®DateofPurchase

Zip Code Mo. Day Yr.

I!1111111

I

I

MODEL

.U,B-II I IIIIIIII

Copy Numbers Here

From Label on Set

SERIAL

.°,..111111111111

Please record the model number

and serial number from the sticker

on the back of your set.

TVC_3

BROKENORLOSTREMOTECONTROL?

Foran ExactReplacementRemoteControl

for your newZenithTelevision,seeyour local

ZenithDealeror orderdirect bycalling

1-800-255-6790. Toassurethecorrect

remotefor your newZenith,please

haveyour television'smodelnumber

ready! ONLY$39.95

OTHERFINEACCESSORIESFORYOURVCR.

WirelessSpeakerSystem:

• WirelessspeakersreceivesoundfromIV,

VCR,orStereothroughwalls, floors,or

outside.

•Createsaninstant homeentertainmentcenter!

•Speakersareeasyto move--"nocordclutter.'

An attractiveaddition to any room.

•Works up to 150feet! Indoors andoutdoors.

WirelessHeadphoneSystem:

•WirelessHeadphonesreceivesound from TV,

VCRor Stereothrough walls, floors or outside.

•Allows freedomof activity while relaxingor

working aroundyour home.

•Listento your stereowhile otherswatchTV in

the sameroom.

•Works up to 150feet! Indoorsand outdoors.

wirelessInfrared HeadphoneSystem:

• Enjoyyour favorite TV showin privacy

without disturbing othersin the sameroom.

• Completelycordless,simpleto use.

• Rich,full sound--virtuallyinterferencefree.

• Greatfor the hearing-impaired.

•Works with anyTV,VCR,or audiodevice.

HNImO

WIRELESS

SPEAKERSYSTEM

ONLY$249.95

z_

WIRELESS

HEADPHONESYSTEM

ONLY$119.95

JU.62052

WIRELESS

STEREOHEADPHONES

ONLY$69.95

PHOTOCOPYPAGEAND DETACHHERE

•.... .......... ................ ..... ...... ................. °..........................................

To order these fine accessories,

pleasefill out this card and

return a photocopy to:

Attn: AccessoryOffers

ZenithVideoTechCorporation

1000MilwaukeeAvenue

Glenvie_ Illinois60025-2493

or call1-800-255-6790

[] Check or money order

{MadepayabletoZenithVideoTechCorp.)

ITEM NUMBER DESCRIPTION

SalesTax: Pleaseadd your statesalestax if you

livein oneof thefollowing states.

CA73/4%,GA 4%,IL 83/4%,KS4.9%,KY6%,ME8%,

PA8°/o,RI 7%,TX 7 3/4%,VA41/2°/o,WA8.2°/0.

[] Visa [] Mastercard

Account#

L_lll IIIlllllllll

ExpirationDate: Signature:

SHIPTO:

TOTAL

PRICEPERITEM PRICE

SUBTOTAL

STATESALESTAX

SHIPPING& HANDLING $4.50

TOTALAMOUNTOFORDER

Telephone: ()

Name:

IMPORTANT:PLEASEBESURETOCOMPLETETHEINFORMATIONBELOW.

"IVModelNumber

(fromstickeronbackofunit)

//

TVSerialNumber Mo. Day Yr.

(fromstickeronbackofunit) (Approx.dateofpurchase.)

PLEASEALLOWUPTO3WEEKSFORDELIVERY.THANKYOU!

VCRACCS3

6/1/95

Address:

Apt.#

State

City

ZipCode

NOTE:OrderscanonlybesenttocustomerswithintheUnitedStates.

YOUR ZENITH WARRANTY

Consumer Protection Plan for Zenith TV

Welcome into the Zenith family! We believe that you will be

pleased with your new Zenith Color "IV. Please read this

Consumer Protection Plan carefully. It is a "LIMITED

WARRANTY" as defined under Federal Law. This warranty

gives you specific legal rights, and you may also have other

rights that vary from state to state within the U.S.A.

Zenith's Responsibility

Service Labor -- During a period of 90 days from effective

warranty date, Zenith will pay for service labor by a Zenith

authorized service center when needed as a result of

manufacturing defects.

Parts _ New or remanufactured replacements for

factory-defective parts will be supplied by a Zenith authorized

service center for one year from effective warranty date (color

picture tube w two years). Such replacement parts are warranted

for the remaining portionof the original warranty period.

Home Service --Warranty service for 19" diagonal (U.S.A.)

or larger screen size models is provided in the home in most

cases. (Some repairs may require the unit to be taken by the

servicer to the repair facility and returned, at no additional

charge.)

Not Covered -- This warranty covers manufacturing defects

and does not cover installation, adjustment of customer

controls in the home, installation or repair of home antenna

systems, cable converters or cable company-supplied

equipment; it also does not cover damage due to misuse,

abuse, negligence, acts of God or other causes beyond the

control of Zenith. Any alteration of the product after

manufacture voids this warranty in its entirety.

Owner's Responsibility

Effective Warranty Date _ Warranty begins on the date of

original consumer installation. For your convenience, keep the

dealers dated bill of sale or delivery ticket as evidence of the

purchase date.

Operating Guide w Read your Operating Guide carefully so

that you will understand the operation of your set and how to

adjust the customer controls.

Carry-In Service _ Models under 19" diagonal (U.S.A.)

screen size must be taken to a Zenith authorized service center

for warranty service and must be picked up by the owner.

Antemm -- Reception problems caused by inadequate home

antennas or faulty antenna connections are the owner's

responsibility.

Important: Product Registration _ Please flU out and mail

your Product Registration Card. It is imperative that Zenith

know how to reach you promptly if we should discover a

safety problem that could affect you.

Warranty Service -- For warranty service information,

contact any Zenith authorized service center. Parts and service

labor that are Zenith's responsibility (see above) will be

provided without charge. Other service is at the owner's

expense. If you have any problem in obtaining satisfactory

warranty service, call or write:

Zenith Electronics Corporation

Customer Service Department

1000 Milwaukee Avenue

Glenview, IL 60025

Telephone: (708) 391-8752

Mon-Fri, 8:00 a.m. - 4:30 p.m. Central Time

NOTE: Before you ask for Warranty service, check the

Operating Guide section entitled, "MAINTENANCE

AND TROUBLESHOOTING." It may be possible to

avoid a service call.

TVWIlDIR2

_f

SIGHT _

_STAR StarSightTelecast,Inc.

39650 Liberty Street

s I GHT_ Fremont, CA 94538

Part No. 206-2918-01

Printed in U.S.A.

EP-EDCBA

WATCH US.

TO BE LICENSED TO USE THE STARSIGHT ® SYSTEM AND STARSIGHT

FEATURES OF THIS EQUIPMENT, YOU MUST BE REGISTERED WITH

STARSIGHT OR AN AUTHORIZED REPRESENTATIVE. LICENSED UNDER

U.S. PATENT NUMBERS 4,706,121 AND 5,151,789. USE RIGHTS RESERVED.

STARSIGHT IS NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE

PROGRAM SCHEDULE INFORMATION PROVIDED BY THE STARSIGHT

SYSTEM. IN NO EVENT SHALL STARSIGHT BE LIABLE FOR ANY

AMOUNTS REPRESENTING LOSS OF PROFITS, OR INDIRECT, SPECIAL, OR

CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR

USE OF ANY INFORMATION, EQUIPMENT, OR SERVICE RELATING TO

THE STARSIGHT SYSTEM.

© 1995 StarSight Telecast Inc.

StarSight is a trademark of StarSight Telecast.

StarSight is a subscription service.

This Operating Guide may not be duplicated,

copied or transferred in any way without prior

written permission of StarSight Telecast, Inc.

Patent Statement

The StarSight Guide system and its use arepro-

tected by one or more of the following U.S. pat-

ents: U.S. Patent No. 4,706,121, U.S. Patent No.

5,151,789; use rightsreserved. For licensing and

subscription information, call (800) 643-STAR.

Compliance Statement

This device complies with Part 15 of the FCC

Rules. Operation is subject to the following two

conditions: (1) this device may not cause harm-

ful interference and (2) this device must accept

any interference received, including interference

that may cause undesired operation.

Trademark Statement

StarSight is atrademark of S tarSight Telecast Inc.

INTRODUCTION ....................................... b

Welcome ............................................... b

(L_ble Box and VCR Requirements ........................... b

INSTALLING STARSIGHT ............................ A-1

STEP 1. Fill out the StarSight Checklist ..................... A-l

STEP 2. Hook-Up Equipment ............................. A-2

STEP 3. Activate StarSight ............................... A-6

STEP 4. Checking Your StarSight Setup .................... A-7

PBS Stations .......................................... A-8

(,'able Box Codes ...................................... A-10

VCR Codes .......................................... A- 10

USING STARSIGHT WITH THE UNIVERSAL REMOTE . B-1

Basic Operation ........................................ B-1

Finding out more about what you're watching: the STAR button. B-2

What's on when you change channels: Grazing ............... B-3

What's on without changing channels: Browsing .............. B-4

Finding out what's on all channels: Grid Guide ............... B-5

Viweing what's on a single channel: Channel Guide ........... B-6

Choosing programs by category: Theme Guide ............... B-7

Recording what you're watching: Current Recording .......... B-8

Scheduling a recording from StarSight guides: Future Recording. B-9

Reviewing your schedule of individual recordings:

Recordings List ................................... B-10

Reviewing daily or weekly series recordings:

Series Recordings List .............................. B-I 1

How to watch one channel while recording another:

Watch and record.................... : ............. B-12

Selecting and de-selecting channels ....................... B-13

Changing the channel order.............................. B-14

USING STARSIGHT WITH THE Z-TRAK REMOTE ..... C-1

Quick Reference Guide .................................. C- 1

Getting started with the Z-Trak remote ...................... C-2

Finding out more about what you're watching:

Channel Pop-Ups ................................... C-4

What's on when you change channels: Grazing ............... C-5

What's on without changing channels: Browsing ............. C-5

Finding out what's on all channels: Grid Guide ............. ., C-6

Choosing a program: Tuning from a Guide .................. C-7

Viewing what's on a specific channel: Channel Guide ......... C-8

Choosing programs by category: Theme Guide ............... C-9

Recording what you're watching: Current Recording ......... C-10

Reviewing your schedule of individual recordings:

Recordings List ................................... C- 11

Reviewing daily or weekly series recordings:

Series Recordings List .............................. C-12

How to watch one channel while recording another: Watch and

Record .......................................... C-12

CHANGING YOUR EQUIPMENT SETUP ............... D-I

What you should do when you get a new VCR ............... D- I

What you should do when you change your cable box or

service or when you move ............................ D-2

TROUBLESHOOTING ................................ E-1

Before calling for service ................................ E-1

How to use this operating guide

StarSight installation and operation is given in this portion of the operating guide. Follow the procedures given if you are

going to use StarSight.

Refer to the TV portion of this operating guide for TV installation and operation without StarSight.

Welcome

Welcome to StarSight, an innovative way to locate

programs and manage the many channels that you receive.

With StarSight, you can:

•See an instant description of what's on any channel.

• Select a program from a list that displays your

favorite types of shows by theme (movies, sports,

comedies, etc.).

•Get information about plots, casts, content ratings,

and running times.

• Tune from an on-screen guide right to the program

you selected.

• Program your VCR with the touch of one button.

•Re-arrange the order of your channels to put your

favorites first.

Cable Box and VCR Requirements.

Be sure to read these requirements carefully. They contain

important information you need to ensure thatStarSight

performs properly.

• A VCR is required for recording capability. To take

full advantage of StarSight, your VCR must be

controllable by a wireless infrared remote control.

Otherwise, StarSight can still provide program

information, but will not be able to automatically

tune to or record a specific program on your VCR.

•If your VCR remote control does not have a number

pad with at least 10 digits, StarSight will be unable

to tune the VCR.

• If you have a Cable Box, it must be controllable by a

wireless infrared remote control.

• Your Cable company should be able to provide a

remote-controlled Cable Box, if you do not already

have one.

Your StarSight-equipped television is not designed

to operate with, or control, a satellite dish. For

information on StarSight products specifically

designed for satellite systems, see your local satellite

dealer.

Universal

Remote

StarSightmust be installed properly for you to enjoy all of its benefits. To ensure proper installation, follow the procedure in

IJaissection in the order they are presented.

STEP 1. Fill out the StarSight Checklist.

STARSIGHT CHECKLIST

..... i III IIIIII "" IIIII II .. . IIIIIIIIlill I I I II IIII I I

Comptet_ sections A and B, and keep this checklist close at hand during subscription.

A.'iPBS Station: Consult the table of PBS Stations, located at the end of this section.

•Find the PBS station that is closest to your city. (If you receive two or more stations,

" select the one with the clearest picture.) Write the PBS Station letters and channel

numberbelow.

-.-- _:...::. . ..i . .

..... t'BS StatiOnLetters:

B

:.PBS Station Channel Numbe_. ....

.-l_or cable users only: Check your Cable company's channel line-up or your !ocal

-. newspaper's 'IV listings to see if the PBS station in yourarea has a different channel

number from the one you wrote down above,

Ifso,°write your PBS station's Cable ¢hmmel number here:,__

(You will use this channel number during the Setup process.)

Code Numbers: Consult the table of Cable Box Codes and VCR Codes, located at the

end of this section.

Fred th_ €ode numbers that apply to your brands of Cable Box and VCR and write ,

them below.

CABLIg BOX

Code 1: Code2: Code3:

C

Code 4: ............. Code 5: ............. Code 6: ....

VCR :

. -. :.

Code 1: ...-................. Code 2: Code 3:

Code 5: .:...2..,.i...._...............Code 6: ........... Code 7: .........

Now proce_ to"Step2.Hook-Up Equipment."

Code 4:

Code 8:........

During SU_ption.,,'StarSight will display on-screen your personal STAR number

andLD. !aumber. When these numbexs appear on your TV screen, write them here,

Star#

I,D,#

'i

A-I

STEP 2. Hook-Up Equipment.

There are four possible choices for hooking up your

equipment. Only one of these choices will apply to your

particular equipment setup.

Turn to the appropriate Setup and follow the instructions,

then proceed to "STEP 3. Activate StarSight."

:If you have... Turn to

'IV Only Setup 1

]'V and Cable Box Setup 2

"IV and VCR Setup 3

TV, VCR and Cable Box Setup 4

Setup 1: TV Only

If you receive your television signal by antenna or basic

Cable TV (no Cable Box):

1. Attach the cable coming out of the wall •to the

"ANT/CABLE 1" jack on the back of your TV.

2, Plug your TV into a power outlet not controlled by a

light switch and turn your TV on.

3. Proceed to "Step 3. Activate StarSight."

eom-aoL

CABLE A

TVBACK

A-2

Setup 2: TV and Cable Box

NOTE: DO NOT UNPLUG YOUR CABLE BOX AT

ANYTIME.

le

2.

e

e

Turn off, but do not unplug, your Cable Box.

Attach the cable coming out of the wall O to your

Cable Box's "Input" or "Cable In" jack.

Attach an RF cable Q to your Cable Box's "Output"

or "TV Set" jack, and the other end of this cable to the

"ANT/CABLE 1" jack on the back of your TV.

Take the Remote Emitter -- it's a wire with a plug at

one end and two plastic bulbs at the other ends -- and

push the plug of the Remote Emitter wire into the

"StarSight Control Port" on the back of the TV. Run

the Remote Emitter wire _ under the Cable Box and

place either one of the plastic bulbs about two inches

in front of the front panel of the Cable Box _. Make

sure that the plastic bulb is facing the front panel of

the Cable Box (see diagram below). Do not adhere the

Remote Emitter at this time. After you have

completed subscribing to StarSight, and you have

confirmed the correct code that operates your Cable

Box, you can peel off the backing of the sticker on the

Remote Emitter and adhere it permanently.

STtd_ff r

TO FRONT OF CON_OL

CABLE BOX PORT

5. Turn on your Cable Box.

6. Plug your TV into a power outlet not controlled by a

light switch.

NOTE: DO NOT PLUG YOUR "IV INTO THE

BACK OF YOUR CABLE BOX.

We

So

Tune your Cable Box to the PBS channel listed on

your StarSight Checklist.

Turn on your TV. Using the number pad on your

Universal TV remote control, tune your TV to the

channel that allows you to watch Cable TV, usually

channel 3 or 4. If these channels don't show your

Cable TV service, then try putting your TV on

channel 2, 5, or 6.

9. Proceed to "Step 3. Activate StarSight."

CABLE A

w

TV BACK

IN EMITTER

CABLE BOX

FRONT

Setup 3: TV and VCR 4.

1. Attach the cable coming out of the wall O to the

"VHF In" (FROM ANTENNA) jack of your VCR.

2. Attach an RF cable Oto your VCR's "VHF Out" (TO

TV) jack, and the other end of this cable to the

"ANT/CABLE 1" jack on the back of your TV.

eTake the Remote Emitter -- it's awire with a plug at

one end and two plastic bulbs at the other ends -- and

push the plug of the Remote Emitter wire @ into the

"StarSight Control Port" on the back of the TV. Run

the Remote Emitter wire under the VCR and place

either one of the plastic bulbs about two inches in

front of the front panel of the VCR. Make sure that the

plastic bulb is facing the front panel of the VCR I_.

Do not adhere the Remote Emitter at this time. After

you have completed activating StarSight, and you

have confirmed the correct code that operates your

VCR you can peel off the backing of the sticker on the

Remote Emitter and adhere it permanently.

Locate the section on the back of your TV labeled

"Video 1 In." Attach the three Audio/Video cables to

the "Video," "Audio R" and "Audio L" jacks

and attach the other ends of the cables to the

corresponding "Video Out," "Audio R Out" and

"Audio L Out" jacks on the back of your VCR. This

is necessary if...

• You have a VCR without a front panel channel

indicator that uses an on-screen display.

• You have a stereo VCR and would like to take

advantage of the stereo feature.

• You would like to take advantage of PIP.

5. Plug your VCR into a power outlet and leave it off.

6. Plug your TV into a power outlet not controlled by a

light switch and turn your TV on.

7. Proceed to "Step 3. Activate StarSight."

TO FRONT OF VCR

t.oopoUl-

CABLE

LOOpOm-

"FVBACK

VHF IN VHF VCR FRONT

A-4

Setup 4: TV and VCR and Cable Box

NOTE: DO NOT UNPLUG YOUR CABLE BOX AT

ANY TIME.

l. Turn off your Cable Box.

2. Attach the cable coming out of the wall Oto the

"ANT/CABLE 2" jack on the back of your TV.

e

e

e

o

e

Attach an RF cable Oto your TV's "LOOP OUT TO

DECODER" jack, and the other end of this cable to

your Cable Box's "Input" or "Cable In" jack.

Attach an RF cable _ to your Cable Box's "Output"

or "TV Set" jack, and the other end of this cable to the

"'VHF In" (FROM ANTENNA) jack of your VCR.

Attach an RF cable _ to your VCR's "VHF Out" (TO

TV) jack, and the other end of this Cable to the

"ANT/CABLE 1" jack on the back of your TV.

Take the Remote Emitter -- it's a wire with a plug at

one end and two plastic bulbs at the other ends -- and

push the plug of the Remote Emitter O wire into the

"StarSight Control Port" on the back of the TV. Run

one Remote Emitter wire under the VCR and place

one of the plastic bulbs about two inches in front of

the front panel of the VCR O. Make sure that the

plastic bulb is facing the front panel of the VCR. Do

the same for the Cable Box. Do not adhere the Remote

Emitters at this time. After you have completed

activating StarSight, and you have confirmed the

correct codes that operate your VCR and Cable Box,

you can peel off the backing of the stickers on the

Remote Emitters and adhere them permanently.

Locate the section on the back of your TV labeled

"Video 1 In." Attach the three Audio/Video cables

to the "Video," "Audio R" and "Audio L" jacks

and attach the other ends of the cables to the

corresponding "Video Out," "Audio R Out" and

"Audi 9L Out" jacks on the back of your VCR. This

is necessary if...

•You have a VCR without a front panel channel

indicator that uses an on-screen display.

• You have a stereo VCR and would like to take

advantage of the stereo feature,

•You would like to take advantage of PIP.

8. Plug your VCR into a power outlet and leave it off.

9. Turn on your Cable Box.

10. Plug your TV into a power outlet not controlled by a

light switch.

NOTE: DO NOT PLUG YOUR TV INTO THE

BACK OF YOUR CABLE BOX.

11.

12.

Tune your Cable Box to the PBS channel listed on

your StarSight Checklist.

Turn on your TV. Using the number pad on your

Universal TV remote control, tune your TV to the

channel that allows you to watch Cable TV, usually

channel 3 or 4. If these channels don't show your

Cable TV service, then try putting your TV on

channel 2, 5, or 6.

13. Proceed to Installation "Step 3. Activate StarSight."

TO FRONT OF VCR =_,_

mNm_.

AND CABLE BOX

CABLE A

BOX

VCR

FRONT

A-5

PBS Stations

City Station Channel

Alabama

Anniston WCIQ

Birmingham WBIQ

Dothan WGIQ

Decatur WHIQ

Huntsville WHIQ

Mobile WEIQ

Montgomery WAIQ

Alaska

Anchorage KAKM

Fairbanks KUAC

Arizona

Phoenix KAET

Tucson KUAT

7

10

43

25

25

42

26

7

9

8

6

California.

Eureka KEET 13

Fresno KVPT 18

Los Angeles KCET 28

Monterey KTEH 54

Sacramento KVIE 6

Salinas KTEH 54

San Diego KPBS 15

Santa Barbara KCET 28

San Francisco KQED 9

San Jose KQED 9

Stockton KVIE 6

Redding KIXE 9

Visalia KVPT 18

Colorado

Colorado Springs KTSC

Denver KRMA

Pueblo KTSC

8

6

8

Connecticut

Bridgeport WEDW 49

Hartford WEDH 24

New Haven WEDY 65

Norwich WEDN 53

Delaware

Sea ford WDPB

Wilmington WHYY

Dist. of Columbia

city

Washington, D.C. WETA

Florida

Daytona Beach WMFE

Ft. Lauderdale WPBT

Ft. Myers WSFP

Gainesville WUFT

Jacksonville WJCT

Miami WPBT

Naples WSFP

Orlando WMFE

Panama City WFSG

Pensacola WSRE

Tampa WEDU

St. Petersburg WEDU

Tallahassee WFSU

Thomasville WFSU

West Palm Beach WXEL

64

12

26

24

2

3O

5

7

2

30

24

56

23

3

3

11

11

42

Georgia

Albany

Atlanta

Augusta

Chatsworth

Columbus

Dawson

Macon

Savannah

Waycross

Hawaii

Honolulu

Waikiki

Idaho

Boise

Idaho Falls

Twin Falls

Illinois

Carbondale

Champaign

Chicago

Moline

Peoria

Quincy

Rock Island

Springfield

Indiana

Elkhart

Evansville

Fort Wayne

Lafayette

IndianapoLis

South Bend

Vincennes

Iowa

Ames

Cedar Rapids

Council Bluffs

Davenport

Des Moines

Fort Dodge

Iowa City

Mason City

Red Oak

Sioux City

Waterloo

Kansas

Hutchinson

Lakin

Topeka

Kentucky

Bowling Green

Cape Girardeau

Lexington

Louisville

Paducah

Td-Cities

Station

WABW

WGTV

WCES

WCLP

WJSP

WACS

WDCO

WVAN

WXGA

KHET

KMEB

KAID

KISU

KITT

WSIU

WILL

W'ITW

WQPT

WTVP

WQEC

WQPT

WILL

WNIT

WN1N

WlW_A

WFY!

WFYI

WNIT

WVUT

KDIN

KIIN

KBIN

KQCT

KD1N

KTIN

KIIN

KYIN

KHIN

KSIN

KRIN

KOOD

KSWK

KTWU

WKYU

WSIU

WKLE

WKPC

WSIU

WSBN

A-8

Channel

14

8

20

18

28

25

15

9

8

11

10

4

10

13

8

12

11

24

47

27

24

12

34

9

39

20

20

34

22

!1

12

32

36

11

21

12

24

36

27

32

9

3

11

24

8

46

15

8

47

City Station Channel

Louisiana

Alexandria KLPA 25

Baton Rouge WLPB 27

El Dorado KLTM 13

Lafayette KLPB 27

Lake Charles KLTL 18

Monroe KLTM 13

New Orleans WYES 12

Shreveport KLTS 24

Maine

Bangor WMEB 12

Calais WMED 13

Lewiston WCBB !0

Presque Isle WMEM I0

Maryland

Annapolis WMPT 22

Baltimore WMPB 67

Frederick WFPT 62

Hagerstown WWPB 31

Oakland WGPT 36

Salisbury WCPB 28

Massachusetts

Boston WGBH 2

Springfield WGBY 57

Holyoke WGBY 57

Michigan

Alpena WCML 6

Bad Axe WUCX 35

Bay City WUCM 19

Detroit WTVS 56

Flint WFUM 28

Grand Rapids WGVU 35

Kalamazoo WGVU 35

WGVK 52

Lansing WKAR 23

Marquette WNMU 13

Mount Pleasant WCMU 14

Saginaw WFUM 28

Traverse City WCMW 21

Minnesota

Austin KYIN 24

Duluth WDSE 8

La Crescent WHLA 31

Mason City KYIN 24

Minneapolis-

St. Paul KTCI 17

Superior WDSE 8

Mississippi

Biloxi WMAH 19

Bude WMAU 17

Columbus WMAB 2

Gulfport WMAH 19

Greenville WMAO 23

Greenwood WMAO 23

Jackson WMPN 29

Meridian WMAW 14

Oxford WMAV i8

(Continued on next page)

PBS Stations

City Station Channel City Station

Missouri

Hannibal WQEC 27

Joplin KOZ! 26

Kansas City KCPT 19

Springfield KOZK 2 !

St. Louis KETC 9

Montana

Bozeman KUSM

Butte KUSM 9

9

Nebraska

Bassett KMNE 7

Hastings KUON 12

KHNE 29

Lexington KLNE 3

Lincoln KUON 12

Merriman KRNE 12

Norfolk KXNE 19

North Platte KPNE 9

Omaha KYNE 26

Scottsbluff KTNE 13

Nevada

LasVegas KLVX

Reno KNPB

New Hampshire

Durham WENH

WNET

Keene WEKW

Littleton WLED

New Jersey

N. New Jersey WNET

S. New Jersey WHYY

New Mexico

Albuquerque KNME

Santa Fe KNME

10

5

11

13

52

49

13

12

5

5

New York

Albany-

Schenectady WMHT 17

Binghampton WSKG 46

Buffalo WNED 17

New York WNET 13

Norwood WNPI 18

Piattsburgh ,, WCFE 57

Rochester WXXI 21

Syracuse WCNY 24

Watertown WNPE 16

North Carolina

Asheville WUNF

Charlotte WUNG

Columbia WUND

Greenville WUNK

Greensboro WUNL

Jacksonville WUNM

Linville WUNE

Raleigh-Durham WUNC

Roanoke Rapids WUNP

Wilmington WUNJ

North Dakota

Bismarck KBME

Drakinson KDSE

Eliendale KJRE

Fargo KFME

Grand Forks KGFE

33

58

2

25

26

19

t7

4

36

39

3

9

19

13

2

Channel

Minot KBME 3

KSRE 6

Williston KWSE 4

Ohio

Akron WVIZ 25

WEAU 49

Cleveland WVIZ 25

Cincinnati WCET 48

Columbus WOSU 34

Dayton WPTD 16

Lima WBGU 27

Portsmouth WPBO 42

Steubenviile WOUC 44

Toledo WGTE 30

Youngstown WNEO 45

Oklahoma

Cheyenne KWET 12

Eufanla KOET 3

Oklahoma City KETA 13

Tulsa KOED 11

Oregon

Bend KOAB 3

Eugene KEPB 28

Klamath Falls KFTS 22

Medford KSYS 8

Portland KOPB 10

Pennsyvania

Altoona WPSX 3

Erie WQLN 54

Harrisburg WlTP 33

Johnstown WPSX 3

Lancaster W1TF 33

Philadelphia WHYY 12

Pittsburgh WQED 13

Scranton WVIA 44

Wilkes-Barre WVIA 44

Rhode Island

New Bedford WSBE

Providence WSBE 36

36

South Carolina

Allendale WEBA 14

Beaufort WJWJ 16

Charleston WITV 7

Columbia WRLK 35

Conway WHMC 23

Florence WJPM 33

Greenville WNTV 29

Greenwood WNEH 38

Huntington WPBY 33

Rock Hill WNSC 30

Spartanburg WRET 49

Sumter WRJA 27

South Dakota

Aberdeen KDSD !6

Brookings KESD 8

Eagle Butte KPSD 13

Lowry KQSD 11

Martin KZSD 8

Pierre KTSD 10

Rapid City KBHE 9

Vermillion KUSD 2

WTCI

Tennessee

Chattanooga

A-9

45

City

Jackson

Knoxville

Memphis

Nashville

Texas

Amarillo

Austin

Corpus Christi

Dallas

E1 Paso

Ft. Worth

Harlingen

Houston

Lubbock

Odessa Midland

San Antonio

Temple

Waco

Utah

Salt Lake City

Vermont

Burlington

Virginia

Arlington

Charlottesville

Harrisonburg

Lynchburg

Norfolk

Norton

Petersburg

Portsmouth

Richmond

Roanoke

Washington

Seattle

Spokane

Tacoma

Yakima

West Virginia

Becldey

Bluefield

Charleston

Clarkburg

Huntington

Parkersburg

Weston

Wheeling

Wisconsin

Appleton

Eau Clair

Green Bay

La Crosse

Madison

Menomonie

Milwaukee

Park Falls

Rhinelander

Wassau

Wyoming

C_ye_e

Evanston

Station

WUT

WKOP

WKNO

WDCN

KACV

KLRU

KEDT

KERA

KCOS

KERA

KMBH

KUHT

KTXT

KOCV

KLRN

KNCT

KNCT

KUED

WCFE

WETA

WHTJ

WVPT

WBRA

WHRO

WSBN

WCVE

WHRO

WCVE

WBRA

KCTS

KSPS

KCTS

KYVE

WSWP

WSWP

WPBY

WNPB

WPBY

WOUB

WNPB

WOUC

WPNE

WHLA

WPNE

WHLA

WHA

WHWC

WMVS

WLEF

WHRM

WHRM

KTNE

KUED

Channel

I1

15

10

8

2

18

16

13

13

13

60

8

5

36

9

46

46

57

26

41

51

15

15

47

23

15

23

15

9

7

9

47

9

9

33

24

33

20

24

44

38

31

38

31

21

28

10

36

20

20

13

7

Cable Box Codes

Cable Box Brand

Allegro

GE

Gemini

General Instrument

Hamlin

Jecrold

Kale Vision

Macom

Magnavox

Code

62

67

05,31,38

04,05,06,07,

08,09, 10, 18,60

02,45,65,66

04,07,08,09,

I0,18,60

35

21

34

Cable Box Brand

Northcoast

NSC

Oak

Panasonic

Philips

Pioneer

Regency

Samsung

Scientific Atlanta

Signal

Sprucer

Code

75

35, 39, 68, 69, 70

11,32,42

13, 20

47, 50, 52, 54, 55

15, 43

29

35

16, 23, 36, 64 '

76

13

Cable Box Brand

Standard Components

Texscan

Tocom

Unika

Universal

Video Way

Vid Tech

Viewstar

Zenith

Zenith HT-2000

Code

35

39, 56, 71

17, 18,46

48, 62

58, 62

49

40

54, 55, 72

01

19

VCR Codes

VCR Brand

Admiral

Adventura

Aiwa

Akai

Audio Dynamics

Bell & Howell

Broksonic

Canon

Citizen

Craig

Curtis Mathes

Daewoo

Daytron

DBX

Emerson

Fisher

Ftmai

GeneralElectric

Go Video

Goldstar

Hitachi

Instant Replay

JC Penney

Code

08, 61

31

31

23, 38, 41

02,18

06,47

21, 26, 50, 55

14

09

12

14, 59

46, 48, 54

46

02, 18

03, 21, 23, 26, 33,

35, 43, 50

I1, 12, 13,47

31

14, 16, 20

56, 62, 63

01,09

15, 57

14, 27

14, 15, 18, 27

VCR Brand

Jerrold

JVC

Kenwood

Logik

LXI

Magnavox

Marantz

Marta

Memorex

Mitsubishi

Montgomery Ward

Multi Tech

NEC

Orion

Panasonic

Pentax

Philco

Philips

Pioneer

Portland

Proscan

Quasar

RCA

Realistic

Code

18

02, 25, 58

02

39

09,31

07, 14, 31

07, 18

09

06, 12, 14, 31

04, 22

08, 14, 16, 31, 49

39

02, 18

50

14, 51, 59

15

07, 14

07, 14, 27

10, 15

46

16, 60

14, 59

15, 16, 20, 27, 60

06, 08, 12, 14, 31

VCR Brand

Samsung

Sansui

Sanyo

Scott

Sears

Sharp

Shintom

Signature 2000

Sony Video8

Sony VHS

Sony

Sony Beta

Sylvania

Symphonic

Tashiko

Tatung

Teac

Teknika

Toshiba

Vector Research

Yamaha

Zenith

Zenith VHS

Zenith Beta

Code

20

39

06, 12,47

04, 05, 33, 43

06,09, 11, 12, 15

08, 61

39

08, 14, 16, 31, 49

17

32

32, 37

37

07, 14,27

31

09

02

02, 31

09, 34

05, 15

04,18

02, 18

00

01, 24, 25

37

A-10

Basic Operation

This section of the guide discusses the use of StarSight with the Universal Remote. The following illustration shows the

Universal Remote and its controls.

Press VCR button, then

POWER button to turn

VCR on and off

Return to the previously

tuned channel

DAY U

Move ahead 24 hours from the

semen time currently displayed

in StarSight Program Guides

(hold to repeat)

PAGE LEFT

Display the previous page

in StarSight Program

Guides (bold to repeat)

DAY

Move back 24 hours from the

screen time currently displayed

in StarSight Program Guides

(hold to repeat)

NUMBER PAD

Enter number for direct

channel tuning; enter

number selections in

StarSight Setup

MENU/GUIDE

Display the Grid Guide or

Channel Guide; access "IV

THEM

Display the Theme

Guide's program categones

Displays the Picture-in-the

Guide for some operations

LEFT

Move left one time slot or

column (hold to repeat)

RECORD

Schedule a program for

recording; conftrm or

cancel recordings

DOWN ARROW

Move down one row or

selection; while viewing

TV, display information

for programs on other

channels (hold to repeat)

RIGHT ARROW

Move right one time slot or

column (hold to repeat)

CHANNEL UP

Go to the next channel

PAGE RIGHT

Display the next page in

StarSight Program Guides

(hold to repeat)

DOWN

Go to the previouschannel

ENTER/TUNE

the highlighted

channel; enter selections in

StarSight Setup

UP ARROW

Move up one row or selection;

while viewing TV, display

information for programs on

other channels (hold to repeat)

QUIT/SEQ

Exit the currem screen or

Pop-up, or return to the

currently tuned channel

STAR

Press to use StarSight;

display StarSight Information

Pop-ups; make and confirm

selections

TO DO

Display list of single

recordings, series recordings,

and StarSight Setup Menu

TV/VCR SOURCE

Select different equipment

connected to your TV

(eg. VCR)

R-I

Finding out more about what you're

watching: the STAR button

]. Press the STAR button. You'll see the program title

and time remaining "Pop up" for five seconds.

2. Press STAR again. The Pop-up changes to provide

more detailed information. (It goes away in 30

seconds.) Or...

3. Press STAR again to resume watching TV.

YOU SHOULD ALSO KNOW...

• If at any time you find you cannot activate the StarSight functions,just press the STAR button.

B-2

What's on when you change channels:

Grazing

1. Press CHANNEL/Day Up or Down to change

channels.The Pop-up for the new program

automatically displays and then disappears in five

seconds.

2. Press STAR while the Pop-up is displayed to get even

more information on the program.

ePress STAR again to resume watching TV.

TraveLs

THU 8:00P 1 hour

Robert Forbes Perkins paddles

along the canals and rivers of

EngLand and ScotLand.

Stereo (CC)

8:

I

YOU SHOULD ALSO KNOW...

•If you press STAR twice and then change channels, you will get full program descriptions while you are channel

surfing. (Does not apply to Cable Box Setups.)

B-3

What's on without changing channels:

Browsing

1. Press 1"or ,1,to see what's on other channels. Notice that

you will continue to see your presently tuned program,

but will get a Pop-up for a program on a different

channel.

2. Press T or ,1,as many times as you'd like (or hold to

repea0 to see Pop-ups for different programs.

22

CNN CBL

ePress STAR while the Pop-up is displayed to get even

more information on the program.

4. Press.STAR again. The Pop-up disappears.

BRO Scott and Molly

1 hour 52 minutes

tt ay

,FRI 8:OOP 2 hours

A middle-aged couple discovers

new sides to their relationship

r a long, holiday weekend.

Blake, Kim Jones.

1988,PG-13) Movies: Comedy

It Situations, Adult

e.

SHOWTIME CBL 8:08P

YOU SHOULD ALSO KNOW...

•Press ENTER/TUNE to go directly to the program in the Pop-up.

•If the PIP window is displayed, press the STAR button and then press 1"or $to browse channels.

• The program title Pop-up appears in yellow for the currently tuned program.

B-4

Finding out what's on all channels:

Grid Guide

Using the StarSight Grid Guide to see:

• what's on right now

• what's on for the next seven days

•what the programs are about

le Press MENU/GUIDE to see a full listing of all

programs. (Remember: If the Grid Guide doesn't

appear, you may not be in StarSight mode. Just press

STAR.)

2. Press •, I_, 1", or ,1,to move the highlight bar around

the Grid Guide.

3. Press STAR any time to get information about the

highlighted show.

4. Press PIP to view the currently highlighted show.

ePress ENTER/TUNE to tune to any currently

highlighted show.

6. Press QUIT/SEQ to resume watching TV.

SEP

7

;:J i

STARSIGHT

U.S. Senate...Cover_ge :.) _

__ _ .."/_ _oarryKing Live!

Scott and Rotly

Bingo ...... lHome Alone ....

All In A Day's Work

.Major League Baseball (L)

,,Barman

.!n,.,..theBest ofT_mes

Casablanca

The Prince of Tides

WET__B_S CBL_ 9:00P

STA R S I G H T

Senate .C.o.yerage

Live!

9:00P

YOU SHOULD ALSO KNOW...

•Press numbers followed by • or I_ to move to a specific

time in the guide.

•Press RECORD to record any highlighted show.

• Press VOLUME/Page Left or Right to see additional channel listings.

•Press CHANNEl/Day Up or Down to see different days for the same time.

•If you have a cable box, the PIP window will only show your presently tuned channel.

B-5

Viewing what's on a single channel:

Channel Guide

Do you have a favorite channel? Showtime?

Nickelodeon?

Whatever it is, StarSight can show you a channel's

schedule for an entire week.

1. Press MENU/GUIDE to see the Grid Guide.

2. Press Tor ,I, to move the highlight bar to the channel

you want to know about.

SEP

7

ISHOWI

{41

IREQi

STARSIGHT

Senate

met: Ontere

r_€O_,,,,,a,nd,RgLty

Bingo

AtLllin aDay's Work

Major League BasebaLl (L)

.B.a.tma.n ........................................

FreshPrince ]Blossom

...Avq.n.L_a

The Pr_nce of Tides

__;_, CBL _ 7:25P

e

e

e

6.

Press MENU/GUIDE again to see the Channel Guide

for the channel you highlighted.

Press VOLUME/Page Right to see more programs on

the same channel.

Press ENTER/TUNE to tune to a current program.

Press QUIT/SEQ to resume watching TV.

YOU SHOULD ALSO KNOW...

Hone) i ne

menews

9:00P Larry King Live!

10:00P World News

11:00P Sports Tonight

11:30P Roneyline

12:00A Newsnight

12:30A Inside Politics

I:00A Showbiz Today

1:30A Newsnight Update

2:00A WorLdwide ,,U,p,,d,ate

Press STAR to learn more about aprogram.

Press CHANNEL/Day Up or CHANNEL/Day Down to see the Channel Guide for other channels.

Press MENU/GUIDE to go back and forth between the Channel Guide and Grid Guide.

Press RECORD to record any highlighted show.

'92

7:25P

B-6

Choosing programs by category:

Theme Guide

What's your favorite kind of program?

Sports? Movies? Comedies? StarSight gives you a

selection of categories to help you pick your favorite shows

for the coming week.

1. Press THEME to see the StarSight Themes menu.

2. Press 1"or ,1,to highlight a Theme.

;TARSIGHT THEME

3. Press STAR to see the categories for that Theme.

4. Press 1"or ,I,to highlight a category.

5. Press STAR to see the shows for that category. Press

VOLUME/Page Right to see additional show listings.

6. Press ENTER/TUNE to tune to a current program.

7. PressQU1T/SEQ repeatedly to resume watching TV.

YOU SHOULD ALSO KNOW...

• Press STAR to learn more about a program.

• Press MENU/GUIDE to go directly to the Grid Guide

from any Theme Guide.

•Press RECORD to record any highlightedshow.

I_:I_N-_ CB L _7:41 P

Art Movies

__HI_:SJ__K_ £2_.Q

_ MON 8:00P Who's That 2:00

_ RON 8:00P Rally 'Roun 2:00

CEE]

EE]

MON IO:OOP The Search

TUE t2:30A The Inspect

TUE 9:30P Stop! Or My

TUE IO:OOA National La

TUE 12:00P Driving Me,

TUE 2:00P The Addam

TUE 2:30P Vice Versa 1

TUE 6:00P And You Tho 1

2:00

2:00

2:00

1:30

.1:30

2:00

:45

:35

42P

B-7

Recording what you're watching:

Current Recording

IMPORTANT: Your VCR must be turned off when you're

not using it.

Also, be sure you have inserted a blank

videotape in the VCR.

le Press RECORD to see a Recording Pop-up. Notice

that the yellow highlight bar is on "ONCE."

If you're recording an event that might run over (for

example, a baseball game), press • on the Record-

ing Pop-up to extend the end time of the recording in

5 minute increments. 8:25P

2. Press RECORD again to confirm your recording.

StarSight will turn on your VCR and begin recording

in a fewseconds.

until recordin

3. To cancel a recording in progress, press RECORD

again and then press STAR to confirm.

YOU SHOULD ALSO KNOW...

•To tum your VCR on and off with the remote control,

press the VCR button, followed by the POWER

button. (See "Programming Your Remote" in the "IV

section of this guide.)

• Do not press VCR buttons while a StarSight

recording is in progress.

• "ONCE" records the current program only, "DALLY"

records the same program every day (M-F), and

'_/EEKLY" records it once a week.

B-8

Scheduling a recording from StarSight

guides: Future Recording

IMPORTANT: Your VCR must be turned off when you're

not using it.

Also, be sure you have inserted a blank

videotape in the VCR.

1. Press MENU/GUIDE to see the Grid Guide.

2. Press _!, I_, T, or ,[, to highlight a current or future

program.

°

°

5.

Press RECORD to see a Recording Pop-up for the

selected program.

Press 1"or ,1,to select ONCE, DAILY or WEEKLY.

Press RECORD again to confirm your recording. Just

before your scheduled recording, StarSight turns on

your VCR and begins recording.

SEP

7

(41

STARSIGHT

: Math Who

Scott and Holly

Bingo .........................................

iALL In A Day..!.s Work

iHajo rLeague BasebaLL (L)

iBatman

BLossom l'"'_'h'the Best

AvonLea CasabLanca

The Pr_nce of Tides

¢_N.#_%_ CBL _ 8:00P

S T A R S I6 H T

SEP

7

_U.S. Senate Coverage

Primenews

Larry King Live!

9:00P-IO:OOP

..ON.--_..-__:_-.

--..._E ............:,._--_1 Press RECORD

DAILY (M-F) lagain to confirm

WEEKLY Irecording

Use I<l Ito change end time

I

REMINDER: Leave VCR off.

CNN?._:_:.:<' CB L _ 8 :0 0

(i. To cancel a selected recording, highlight the program

on the Grid Guide (it will be shown in red), press

RECORD and then press STAR to confirm.

You can schedule recordings or cancel them from the Grid

Guide, C[mnnel Guide or Theme Guide.

SEP

7

S T A R S I GHT

Coverage

rlmenews

YOU SHOULD ALSO KNOW...

• Selecting ONCE records the selected program.

•Selecting DAILY records a program every day (M-F).

• Selecting WEEKLY records a program once a week.

Scott and RoLL,x

B_ngo

ALL In A Day's Work

i Major League Baseball.(L)

Batman

BLossom fin the Best

Avonlea t CasabLanca

The Prince of Tides

CNN _'_ CBL _ 8:00P

You can extend the end time of a recording in 5 minute increments by pressing I_ on the Recording Pop-up.

For more information on recording, see "YOU SHOULD ALSO KNOW... Recording what you're watching: Current

Recording."

B-9

Reviewing your schedule of individual

recordings: Recordings List

StarSight keeps track of up to 25 scheduled recordings,

including the four most recently completed.

1. Press TO DO to review your scheduled recordings.

NON

TUE

TUE

_TUE

WED

[_ WED

THU

FRI

11:00P

I:00A

4:00A

6:30A

6:30A

8:00P

6:30A

6:30A

Gaslight 2:00

Showbiz Tod :30

Casablanca 2:00

Getting Fit :30

Getting Fit :30

Beverly Hil 1:00

Getting Fit :30

Getting Fit :30

2. Press T or ,1,to highlight a recording.

3. Press STAR to see information about the program.

4. Press QUIT/SEQ to resume watching TV.

YOU SHOULD ALSO KNOW...

• To cancel a recording, simply highlightthe program

and press RECORD, then STAR.

•If you see a question mark symbol on a scheduled

recording, press MENU/GUIDE to see why there is a

recording mismatch.

•Pressing T repeatedly displays the last four

completed recordings.

Programs with a white background are scheduled to be

recorded; those with agray background have already

been recorded.

iiiiiiii_iiiiiiiii_ii_iii_i_iiii!_ii_ii_iiiiii_iii_i_iiiiiiiiiiiiii_iiiii_iiiiiii_ii_ii_!_i_i_iiiiiii_i!iiii_!ii_i_iiiiiiiiiiiiiiiiiiiiii_i_i!_i_i_ii_!_iii!i!iiii_i!iiiiiiiii_iiiiiii_iii_i_iii_iiiiiiiii_i_i_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i_i_ii_iiii_i!ii!iii_iiiiiiiiii_iiiiiiiiii!_!_ii!ii_i!_iiiii_iiii_iiiii

:OOP :05

MON :00P 2:00

TUE :OOA :30

TUE :OOA 2:00

TUE 6:30A :30

(_ WED 6:30A :30

{_ WED 8:00P 1:00

THU 6:30A :30

FRI 6:30A Getting Fit :30

MON 10

11

I

4

Northern Ex

Gaslight

Showbiz Tod

Casablanca

Getting Fit

Getting Fit

Beverly Hil

Getting Fit

iii..... ( iliiii!!illi!i!i!ilii! iliii

_' i_:_ :. _i_i_CBL _/':: ....'1 O.05P"

.....RECORDIN

Scott and Molly

FRI 8:00P 2 hours

I

A middle-aged couple discovers

new sides to their relationship

over a long, holiday weekend.

Todd Blake, Kim Jones.

I

_**(1988,PG-13) Movies: Comedy.

Adult Situations, Adult

Language.

_i_i_..,i_i_i_i:__.i:_:iii:._i:_::_"_!i.ii_..'::C B L _ I 0 :05 P

B-10

Reviewing daily or weekly series

recordings: Series Recordings List

;tarSight keeps track of up to five daily or weekly series

recordings.

1. Press TO DO to review your scheduled recordings.

RECORD INGS

MON

_]_ TUE

TUE

TUE

WED

WED

THU

FRI

11:00P

I:00A

4:00A

6:30A

6:30A

8:00P

6:30A

6:30A

Gaslight

Showbiz Tod

Casablanca

Getting Fit

Getting Fit

Beverly Hil

Getting Fit

Getting Fit

:30

2:00

:30

:30

1:00

:30

:30

_!W_!_ C B I. _ I 0 :05 P

2. Press TO DO again to see the Series Recordings list. SERIES TO RECORDED

WK WED 8:00P Beverly 1:00

MTWThF 6:30A Getting :30

3. Press QUIT/SEQ to resume watching TV. _i_Hi;.i_i_ii_ii_:|iilNii_c B L I 0 :07P

YOU SHOULD ALSO KNOW...

• To cancel aSeries Recording, simply highlight the Series and press RECORD, then STAR. This also automatically

cancels all individual recordings within that Series.

B-11

How to watch one channel while

recording another: Watch and Record

If you have a Cable Box:

1. After recording begins, press TV/VCR SOURCE.

You will see the TV SOURCE menu highlighted.

sou_e_e; .. _- _,_- _ _'_., ,, v-_

Ant/Cable 1 Ant/Cable 1

nowwatc anyun c,am ,o

channel. _,_ _ ,_._._

3. Use CHANNEL/Day Up or Down to watch other i_,_,_ __'_,_

channels. (Note: you will not be able to use StarSight ............................

functions while on the ANT/CABLE 2 source.) ,_ ;_ _ _

____ Ant/Cable I

Ant/Cable 2

eTo resume normal viewing once recording has been

completed (and to resume using StarSight) press

TV/VCR SOURCE to see the source menu. Then

press 1"to highlight "Ant/Cable 1." Press QUIT/SEQ.

If you DO NOT have a Cable Box:

le

11

While you're recording aprogram, simply press

CHANNEL/Day Up or Down to watch a different

program.

For more information about the SOURCE menu, refer

to the TV portion of this guide.

B-12

Selecting and deselecting channels

StarSight allows you to remove channels that you rarely or

never watch. When a channel is removed, it will no longer

appear in StarSight Guides, nor will it appear when you flip

through channels. To increase the amount of information

for individual programs that you watch, you should

deselect channels that you seldom or never watch.

1, Press TO DO until you see the StarSight Setup menu.

"Select Guide Channels" will be highlighted.

me

3.

Press STAR to display your channel lineup.

Press al, I_, T, or ,[, to highlight the channel you

want to remove, and press STAR. The background

color will change, indicating that the channel is

deselected.

The PIP window shows a view of the highlighted

channel.

4. If you change your mind, just highlight the channel

again and press STAR. The background will return to

green, and the channel will once again be selected.

NOTE: If you later add back a channel, you must wait

4-12 hours to collect program information for

,i

that channel. That channel now displays at the

top of your channel list in the guides.

5. Press QUIT/SEQ twice to resume watching TV.

Change Channel Order

Change Cabte Box/Service

Change VCR

Re-Activate/Change Address

StarSight Demonstration

Use 1. then STAR to choose

To ex(tr press QUIT

IMORE b']

R-lq

Changing the channel order

You can list your channels on the Grid Guide in any order

you want. Your channels will also be in this order as you

switch from channel to channel.

]. Press TO DO until you see the StarSight Setup menu.

2. Press ,I, to highlight "Change Channel Order," and

press STAR to display your list of channels.

3. Press _1, I_, T, or ,1.to highlight the channel you want

to move, and press STAR. The channel will move

slightly to the left.

ePress 4, I_, T, or ,[, to move the highlighted channel

to the new location and press STAR to insert the

channel in its new position.

5. Press QUIT/SEQ twice to resume watching TV.

YOU SHOULD ALSO KNOW...

•To reset your channels to the original order, press 1"

to highlightthe RESET box at the top of the Change

Channel Order screen and press STAR.

• To maximize show descriptions, you should place

your most frequently-watched channels at the

beginning of your list.

SeLect Guide Channels

:- ,_, ^.y_ _ _ ,---_ _, /-- _,_ _ -

Change CabLe Box/Service

Change VCR

Re-ActfvatelChange Address

StarSight Demonstration

Use t_ then STAR to choose

To exit, press QUIT

CNN-_-- CBL _ 5 :02P

N[iN

Ni

@

NK?

".:; "C.HANfiE: CHANNE_L_!;_R°I_ER. _":'

--pr _.ks:._:.S_h!l ,t o ._!mC_Ve':_¢lt_ _:.n,eI, -

• . . ._..

9E3

CE 3

EE3 GE9

B-14

Quick Reference Guide

This section of the guide discusses the use of StarSight with the Z-Trak trackball remote. Operation with the Z-Trak is

different than with conventional remote controls. There are far fewer buttons, because the trackball is used to move an

on-screen pointer through various menus. The following illustration shows the Z-Trak and its controls.

TV

Set remoteto operateTV

VOL Up/_l_

When operatingTV: Increase volume

WhenoperatingVCR:Fastforward

VOL Down/41_

When operating TV: Decrease volume

When operating VCR: Rewind

MUTE II

When operating TV: TV mute

When operating VCR: Pause

RECRD

When operating TV: Schedule a

program for recording; conf'Lrm or

cancel recordings

When operating VCR: Sets VCR to record

POWER

_perating TV: TV power On/Off

When operating VCR: VCR power On/Off

Set remote to operate VCR

Press ball to activate

up/_

When operating TV: Go to the next channel

When operating VCR: Play

CHAN Down/•

When operatingTV: Go to the previous channel

When operatingVCR: Stop

ENTER

When operating TV: Tune TV to a program

highlighted on the StarSight screen; when

watching TV displays the program title

"FLSHBK

When operating TV: Tune TV to the last

channel viewed

When operating VCR: TV/VCR Switch

In the following sections, you will be exploring the

various screen menus available in StarSight. As you do

so, keep in mind the following guidelines (quite literally,

"rules of thumb") for Z-Trak operation:

•To display the pointer, press the trackball.

• To highlight an option or make a selection, point to

the desired option and press the trackball.

• To close a StarSight screen, point to the QUIT icon

and press the trackball.

To tune a channel, point to a channel icon and press

the trackball. You can also simply highlight a

program and press the ENTER button to tune that

program.

Many StarSight program guides have more than one

screen full (one "page") of information. You can

point to the "PT" or "P_," icons and press the

trackball to flip through the pages. You can also

move more slowly by moving the pointer to the top,

bottom, or side edges of the screen and continuing to

roll the ball in that direction.

Be sure that the pointer is red, indicating that you are in

StarSight mode. If the pointer is blue, move the pointer

to the left side of the TV screen, point to the TV icon

and press the trackball.

Getting started with the Z-Trak remote

1. Press the TV button on the top of the remote. This

sets the remote's buttons for TV control, rather than

VCR control.

e

J

o

e

Press the trackball. The pointer, a small square,

appears in the middle of the screen.

You can move the pointer by rolling the trackball

up, down, left, and right. Point to the left edge of

the screen, a column of TV options appears. The

icon at the top indicates which mode is active --

StarSight or TV. A circle with a star, the StarSight

logo, represents StarSight mode; a TV icon

represents TV mode. You can switch between the

two modes by locating the pointer on the StarSight

or TV icon and pressing the trackball. The icon

switches, and the pointer changes color. A red

pointer indicates that you are in StarSight mode. A

blue pointer indicates TV mode.

Set the mode to StarSight.

As you move the pointer around the screen, you

will discover various menus. These menus are not

visible on the screen simultaneously. Each Menu

appears when you move the pointer on top of it.

There are 2 different sets of menus---one for the

StarSight mode and one for the TV mode. This

section discusses the StarSight options. For

information on the TV menus, see the TV portion

of this guide.

Move the pointer to the top of the screen. At the top

you'll see your StarSight icons:

SOURCE:

7D DO:

THEME:

GUIDE:

When you press on this option, a selection

screen appears which allows you to specify

the video/audio source for your TV and the

PIP. Simply point to the desired source and

press. To return to normal TV viewing, point

and press on "EXIT". For more information

see the TV portion of the guide.

When you press on this option, a list of

scheduled recordings and series recordings

appears.

When you press on this option, a list of theme

categories appears.

When you press on this option, the Grid

Guide and Channel Guide appear.

Continued on next page

C-2

6. Move the pointer to the right of the screen. The

channel icons appear:

All Chan: Gives you a complete listing of all channels.

Point to a channel icon and press the trackball

to tune. Or, point to the number pad and press

the trackball to tune by channel number.

Tune- When browsing (see below), you can tune

immediately to the show being described in the

Pop-up, by pointing to "Tune" and pressing the

trackball.

Browse _and ,L:Allows you to get information about

shows on different channels without

actually changing to those channels.

Place the pointer on or near an arrow

and press the trackball.

Chan "_and ,1,: Allows you to change channels up or

down. Place the pointer on or near an

arrow and press the trackball.

Info: Displays additional program information. Move

the pointer to "Info" and press the trackball.

e

e

Move the pointer to the bottom of the screen. The

volume control appears. To adjust the volume,

point to the desired volume level on the slider bar

and press the trackball. Point to "MUTE" and press

the trackball to turn the sound off completely.

Move the pointer toward the middle of the screen to

make the menu disappear.

9. Press the trackball to make the pointer disappear.

C-3

What you should do when you change

your cable box or service or when you

move

NOTE: THIS PROCEDURE REQUIRES THE USE

OF THE UNIVERSAL REMOTE.

If you are changing your cable box, find the code(s) for

your brand of new Cable Box on the "Cable Box Code"

chan: and write the code(s) here.

1. Press TO DO until you see the StarSight Setup menu.

e _'_'"_V_ _. .r _'_4"-, € -" "_,*: " "-'_._ ,,.

Change Channel Order

Change Cable Box/Service

Change VCR

Re-Activate/Change Address

StarSight Demonstration

Use tz then STAR to choose

To exit. press QUIT

"_NN" ...C'N_j_i_-",:_:CB L _ 5 :02P

QPress the ,!, to highlight "Change Cable Box/Service."

or

Press the ,1,to highlight "Re-Activate/Change Address."

3. Press STAR.

Select Guide Channels

Change Channel Order ..............i

Change VCR

Re-ActivatelChange Address

StarSight Demonstration

Use _ then STAR to choose

To exit, press QUIT

CNN ._:,:.-__-:CBL 5:02P

4. Follow the on-screen instructions.

Before you proceed...

I. Please comptete the

StarSight Checklist in your

Installation Guide.

2. Make sure you connect your TV

to any other equipment

according to the diagrams in

your StarSight Installation

Guide.

To continue, press ENTER.

To exit, press QUIT. 01

D-2

Before calling for service...

1. LEAVE YOUR CABLE BOX ON AT ALL TIMES.

2. LEAVE YOUR VCR OFF WHENEVER YOU ARE NOT WATCHING A VIDEOTAPE.

3. DO NOT PLUG YOUR 'IV INTO THE POWER PLUG ON THE BACK OF YOUR CABLE BOX.

Installation Problems

Problem

StarSight is not controlling my cable box and

VCR.

My VCR turns off and on, but won't change

channels.

No Picture - "snow."

I do not get any channels above 13.

My TV turned off during Cable Box testing.

I can't make StarSight appear using the Universal

remote control.

I can't make StarSight appear using the Z-Trak

remote control.

Try this

Makesure the Remote Emitter is plugged into the StarsightControlPort on the back

of yourTV.

Check the placement of your Remote Emitter(s)---the bulbs should be facing and a

few inches in frontof the frontpanel of your VCR andCable Box.

Makesure you have completed the equipment test with the propercode for your

brand of equipment. See "Cable Box Codes" and "VCR Codes" charts.

If you have a Cable Box, your VCR does not need to change channels. (The Cable

Box will change channels.)

Try additionalVCR codes until you pass the VCR tuningtest. See "VCR Codes"

chart.To test the code see "Changing Your EquipmentSetup".

YourVCR mustbe capable of direct tuning, i.e. yourVCR's original remote control

musthave a 10digit numberpad.

Check the connections between yourTV, VCR and/orCable Box.

Run "Auto Program"foryour TV' s "Ant/Cable 1" source. If your Setup is #4, then

you should also Auto Programyour "Ant/Cable 2" source. (See the TV portion of

the guide.)

If you have a Cable Box, tune yourTV to channel 3, or to the cable box output

channel.

Run "Auto Program" for your TV's "Ant/Cable 1" source. If your Setup is #4, then

you should also Auto Program your "Ant/Cable 2" source. (See the TV portion of

the guide.)

Make sure your TV is not plugged into the back of the Cable Box or into apower

outlet that is controlled by a light switch.

NOTE: LEAVE YOUR CABLE BOX ON AT ALL TIMES.

Press STAR to get your remote control to operate StarSight.

Press TV/VCR Source and select "Ant/Cable 1" or StarSight if named.

If you press a button on the remote control and its red light does not appear, then

you need to change your remote control's batteries.

Make sure you have activated StarSight! (See Installation Step 3, "Activate

StarSight".)

Check that the on-screen pointer is red, indicating StarSight mode.

If the pointer is blue, move it to the TV options menu on the left side of the screen.

Point and press on the TV icon. The pointer will turn red and the StarSight logo will

appear indicating StarSight mode.

Refer to the next page for Operation Problems.

E-1

7eration Problems

Problem

I've registered for StarSight but don't have any

_rogram data yet.

Try this

Make sure your TV is turned off or tuned to PBS in order to receive information.

It may take anywhere from 4-12 hours to initially get the full 7days of

information. For best results wait overnight. Check the PBS channel for good

picture.

2. If you have a cable box, make sure the cable box automatically tunes to the PBS

channel when "IV is tumed off.

The background color for the date and time are Your TV lost power momentarily. StarSight will correct the time and date when

red. your TV is turned off for a few minutes.

There are some blank spots in StarSight's guides. StarSight may not have received all the program information. Your TV will collect

program information whenever the TV is turned off.

StarSight's list of channels does not match those Call the StarSight Help Desk at 1-800-628-STAR, or fax corrections directly to

that appear on my TV. 1(800) 229-9640.

The entire show did not record. Make sure you have enough tape to record the whole program. StarSight records

programs based upon the scheduled start and stop times. If a program may run

overtime, you should extend the end time of your recording. (See the section

"Current Recording" or "Future Recording".)

Ihave a Cable Box, and want to watch one While a recording is in progress, change your source to "ANT/CABLE 2" to watch

program while recording another, a different non-scrambled program.

Icanceled the recordings of all episodes of a You must cancel the whole series from the Series to be Recorded list. See the

series, but new episodes for that same series are section "Series Recordings List".

still being recorded.

Ared question mark appears on a program title in The program information in the Recordings list does not match the program

the Recordings list. information in the Grid Guide. Position the highlight bar on the question mark and

press MENU/GUIDE to see the program that will be recorded. If you don't want to

record this program, press record to cancel the recording.

I can't control my VCR with my remote control. You need to program your remote control for your particular brand of VCR. (See

the sections on Remote Controls in the TV portion of this guide.)

I can't see the videotape when playing back on 1. Check the connections between your TV and VCR.

the VCR. 2. Make sure your TV is on channel 3 or 4.

3. If you still do not have a picture, try a different videotape that you know has a

good picture.

The program wasn't recorded. 1. YOUR VCR MUST BE LEFT OFF WHENEVER YOU ARE NOT

My picture turns to "snow" when recording

begins.

StarSight keeps playing a demonstration, and I

want to stop it.

WATCHING AVIDEOTAPE. Otherwise, a recording will not take place. Make

sure you have avideotape with tape remaining.

2. Check the placement of your Remote Emitter. Has it fallen out of place?

3. Make sure you are confirming the recordings when you schedule a program for

recording.

4. Check your Recordings List to see if you actually did schedule a recording for

that specific program.

5. For a current recording, make sure you don't press any buttons until the recording

has begun.

6. If you have changed your VCR, you will probably need to change the VCR code.

To watch TV while recording, wait until recording has begun, then set the

"'TV/VCR" switch on your VCR to "TV." Or, on your Universal remote control,

press the "VCR" button and then the "TV/VCR Source" button. (So the VCR is in

"TV" mode.)

If you are running a Quick StarSight Demo, press any key.

If you are running a Continuous Retail Demo (recommended for retailers only), wait

for the message "To cancel this demonstration, press any button now," and press

any button on the remote.

Refer to the previous page for Installation Problems.

E-2
