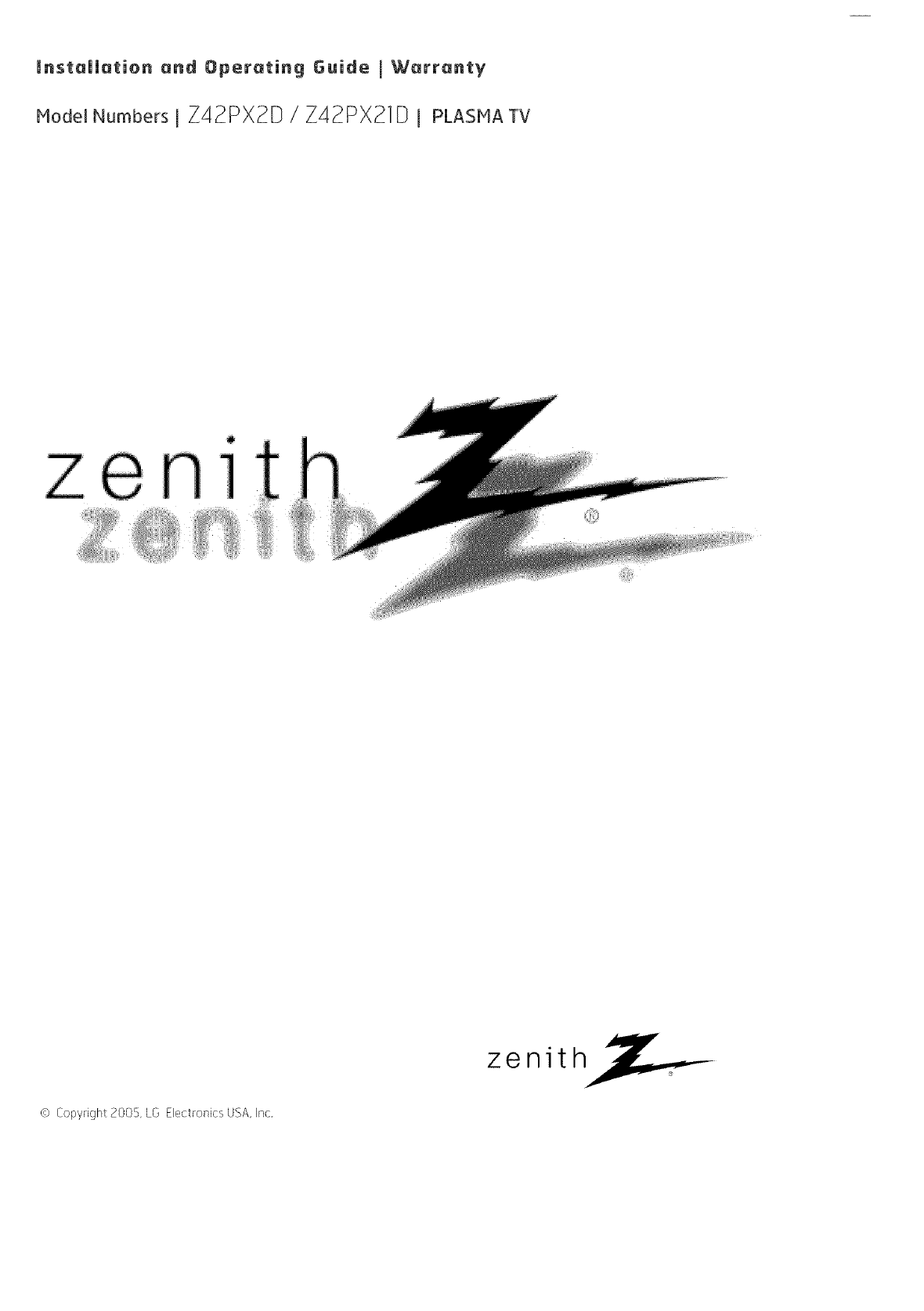

[nstannatien and Operating Guide I Warranty

ModelNumbers[ Z42PX2D/Z42PX2]D [ PLASMATV

z e 1

zenith

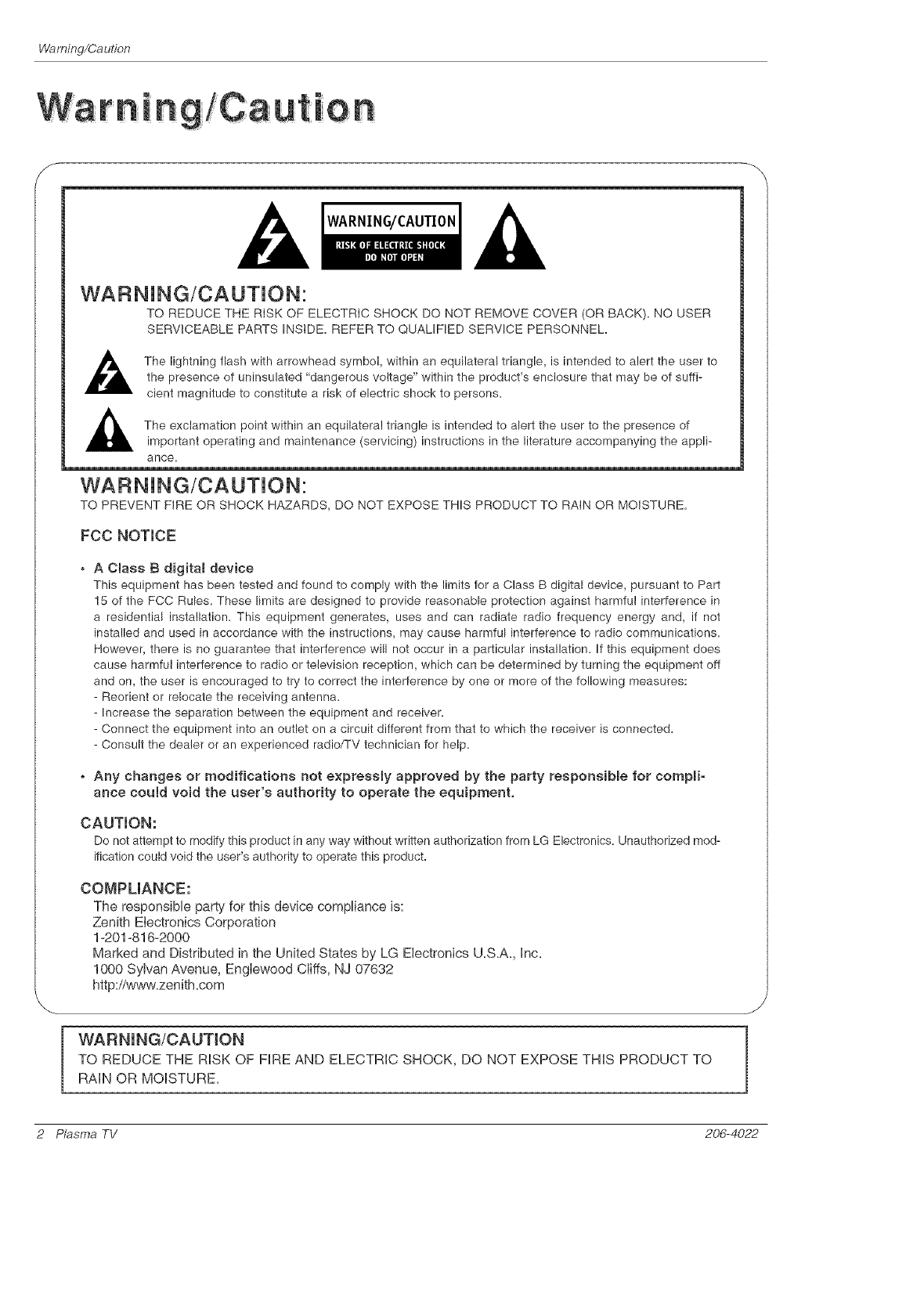

Warning/Caution

WARNING/CAUTION

WARNiNG/CAUTiON:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK), NO USER

SERVICEABLE PARTS INStDE, REFER TO QUALIFIED SERVICE PERSONNEL,

,_ The lightning flash with arrowhead symbo!, within an equilateral triangle, is intended to alert the user to

the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of suffi-

cient magnitude to constitute a risk of electric shock to persons,

,_ The exclamation point within an equilateral triangle is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature accompanying the appli-

ance,

WARNiNG/CAUTiON:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAtN OR MOISTURE,

FCC NOTICE

A Ctass B digitam device

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in

a residential installation, This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications,

However, there is no guarantee that interference will not occur in a particular installation, If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna,

- Increase the separation between the equipment and receiver,

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected,

- Consult the dealer or an experienced radio/TV technician for help,

o Any changes or modifications not expressly approved by the party responsibme for compmi-

ance could void the user's authority to operate the equipment,

CAUTION:

Do not attempt to modify this product in any way without written authorization from LG Electronics, Unauthorized mod-

ification could void the user's authority to operate this product,

COMPLIANCE:

The responsible party for this device compliance is:

Zenith Electronics Corporation

1-201-816-2000

Marked and Distributed in the United States by LG Electronics U.S.A, Inc.

1000 Sylvan Avenue, Englewood Cliffs, NJ 07632

http://www.zenith.com

WARNmNG/CAUTION

TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE,

2 Plasma TV 206-4022

Safetyinstructions

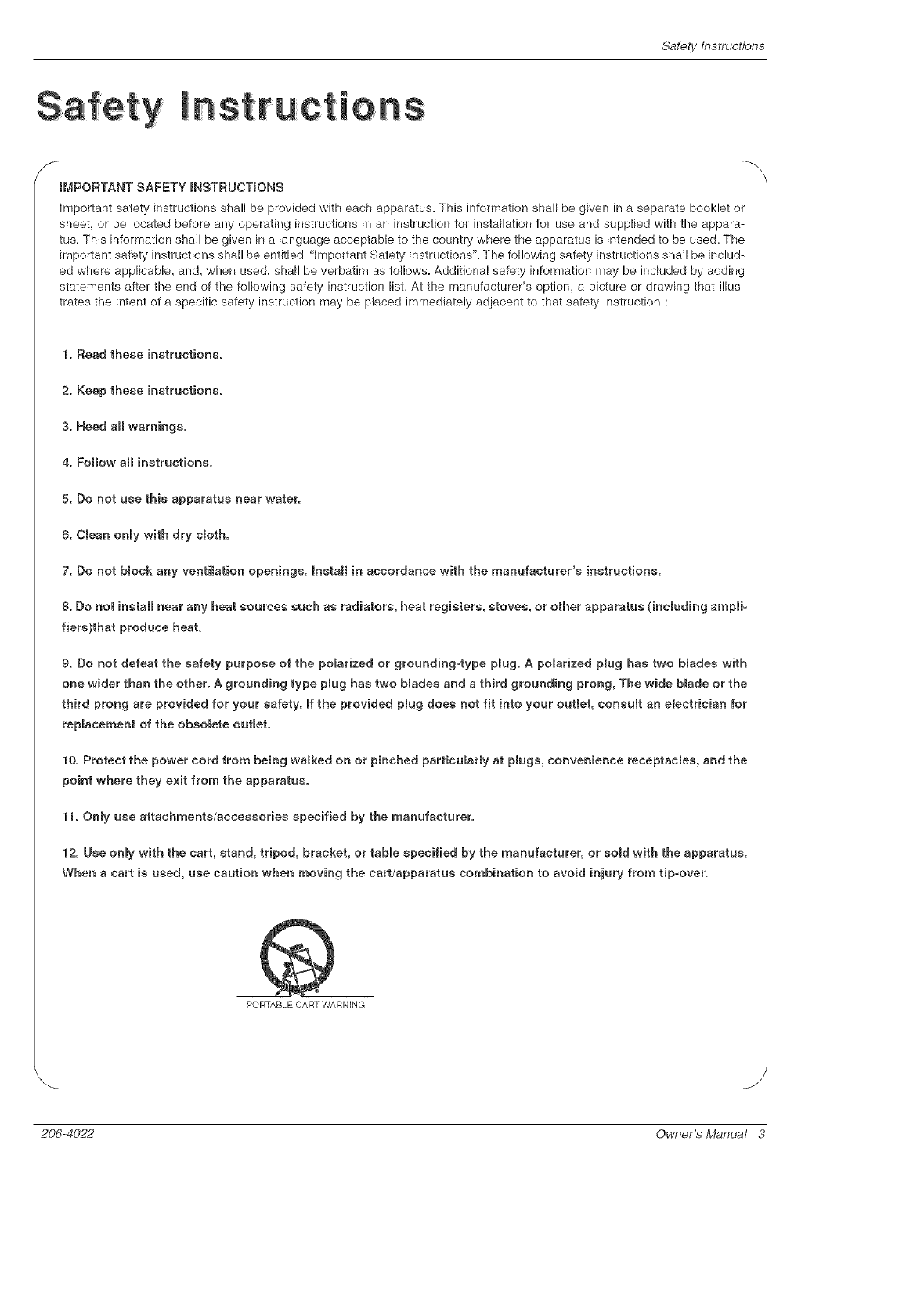

IMPORTANT SAFETY INSTRUCTIONS

Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet or

sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the appara-

tus. This information shall be given in a language acceptable to the country where the apparatus is intended to be used. The

important safety instructions shall be entitled "Important Safety Instructions". The following safety instructions shall be includ-

ed where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by adding

statements after the end of the following safety instruction list. At the manufacturer's option, a picture or drawing that illus-

trates the intent of a specific safety instruction may be placed immediately adiacent to that safety instruction :

1. Read these instructions.

2. Keep these instructions.

3. Reed sH warnings.

4. Follow sH instructions.

5. Do not use this apparatus near water.

6. C_ean only with dry c_oth.

7. Do not Mock any ventilation openings, mnstaH in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (incmuding ampH-

tiers}that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type p_ug. Apolarized p_ug has two b_ades with

one wider than the other. A grounding type p_ug has two Mades and a third grounding prong, The wide Made or the

third prong are provided for your safety. If the provided p_ug does not fit into your out_et, consult an e_eetrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched partieu_aHy at p_ugs, convenience receptacmes, and the

point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

PORTABLE CART WARNING

206-4022 Owner's Manual 3

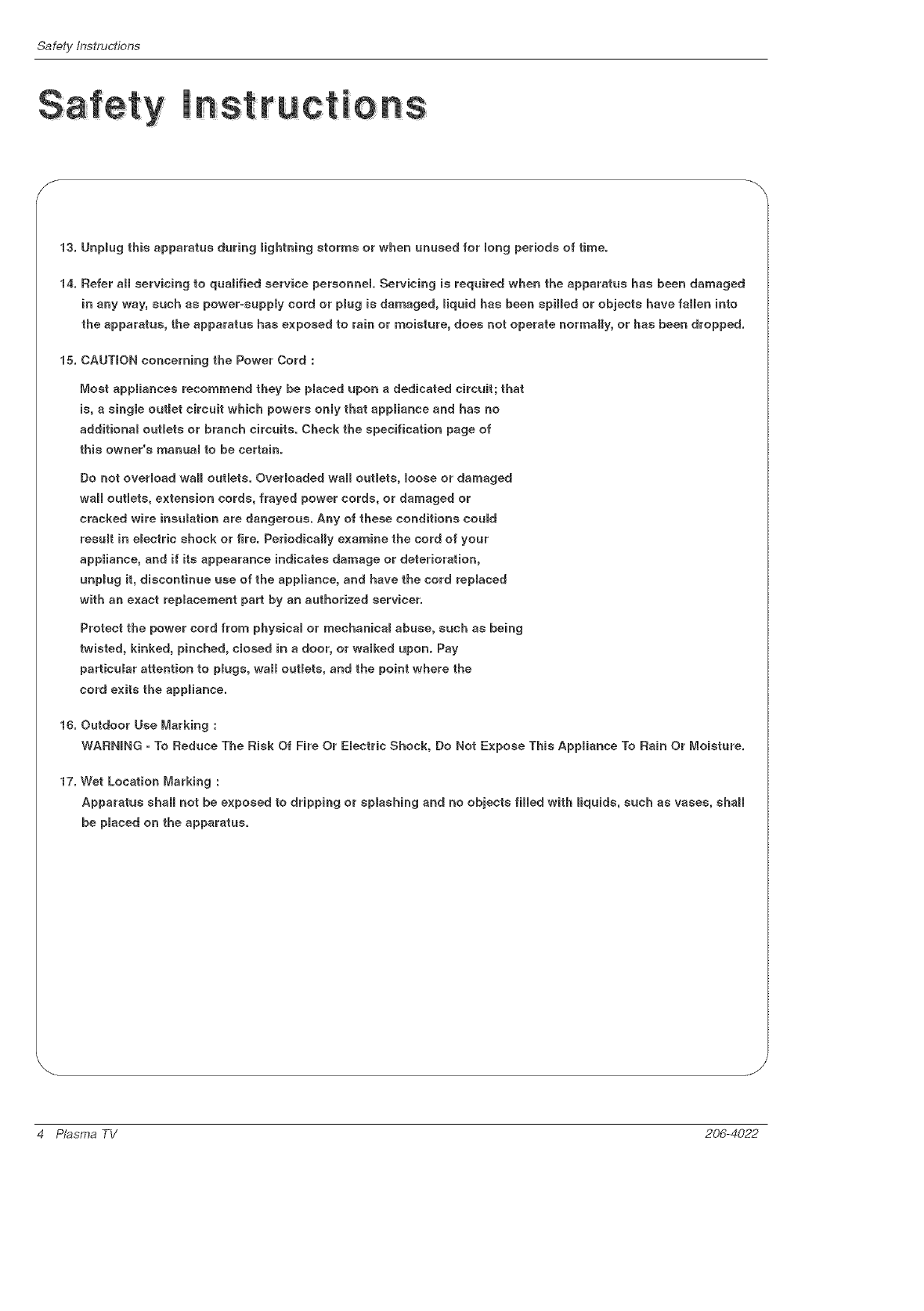

SafetyInstructions

I n l

13.

14.

15.

17.

Unplug this apparatus during _ightning storms or when unused for _ong periods of time.

Refer aH servicing to qualified service personnel Servicing is required when the apparatus has been damaged

in any way, such as power_supp_y cord or p_ug is damaged, _iquid has been spilled or objects have fallen into

the apparatus, the apparatus has exposed to rain or moisture, does not operate normally, or has been dropped.

CAUTION concerning the Power Cord :

Most appliances recommend they be p_aced upon a dedicated circuit; that

is, a single outlet circuit which powers only that appliance and has no

additiona_ out_ets or branch circuits. Check the specification page of

this owner's manua_ to be certain.

Do not overload wall out_ets. Overloaded wall out_ets, _oose or damaged

wall out_ets, extension cords, frayed power cords, or damaged or

cracked wire insulation are dangerous. Any of these conditions couM

result in e_ectric shock or fire. Periodically examine the cord of your

appliance, and if its appearance indicates damage or deterioration,

unplug it, discontinue use of the appliance, and have the cord replaced

with an exact replacement part by an authorized servicer.

Protect the power cord from physicaJ or mechanicaJ abuse, such as being

twisted, kinked, pinched, cJosed in a door, or waJked upon. Pay

particular attention to p_ugs, wall out_ets, and the point where the

cord exits the appliance.

Outdoor Use Marking :

WARNING _ To Reduce The Risk Of Fire Or E_ectric Shock, Do Not Expose This Appliance To Rain Or Moisture.

Wet Location Marking :

Apparatus shah not be exposed to dripping or splashing and no objects filled with _iquids, such as vases, shah

be p_aced on the apparatus.

4 Plasma TV 206-4022

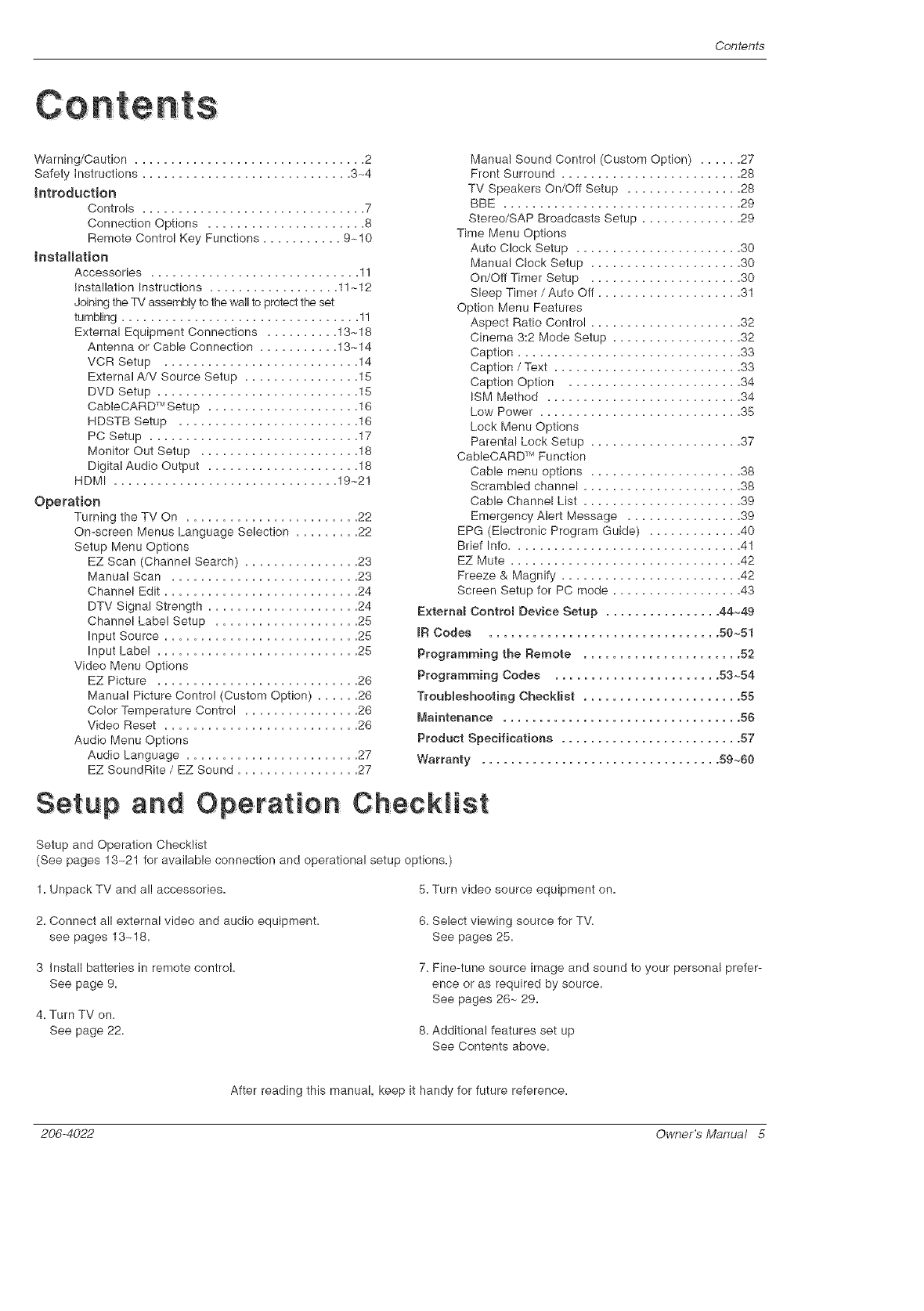

Contents

Warning/Caution ................................ 2

Safety instructions ............................. 3-4

Introduction

Controls ............................... 7

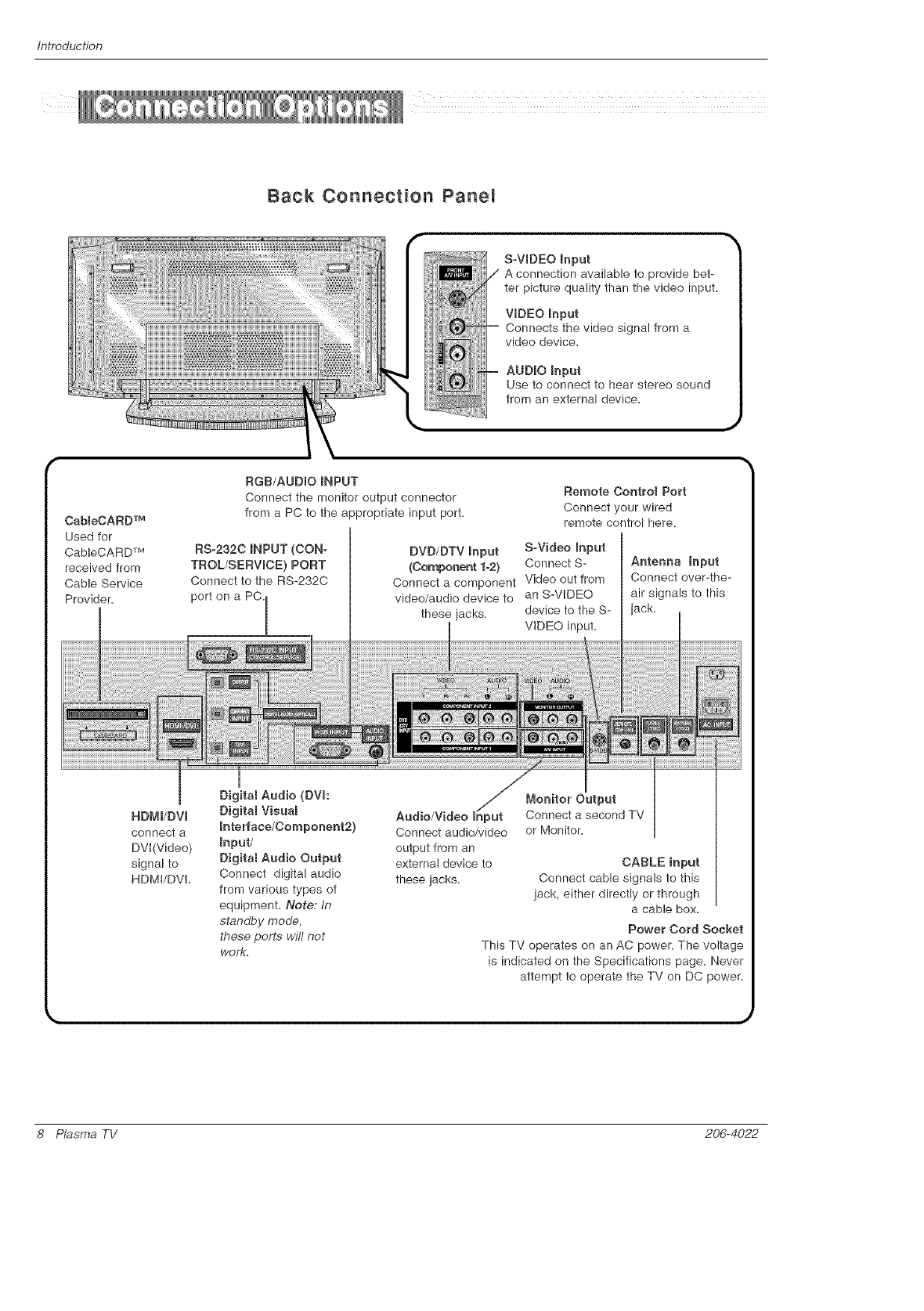

Connection Options ...................... 8

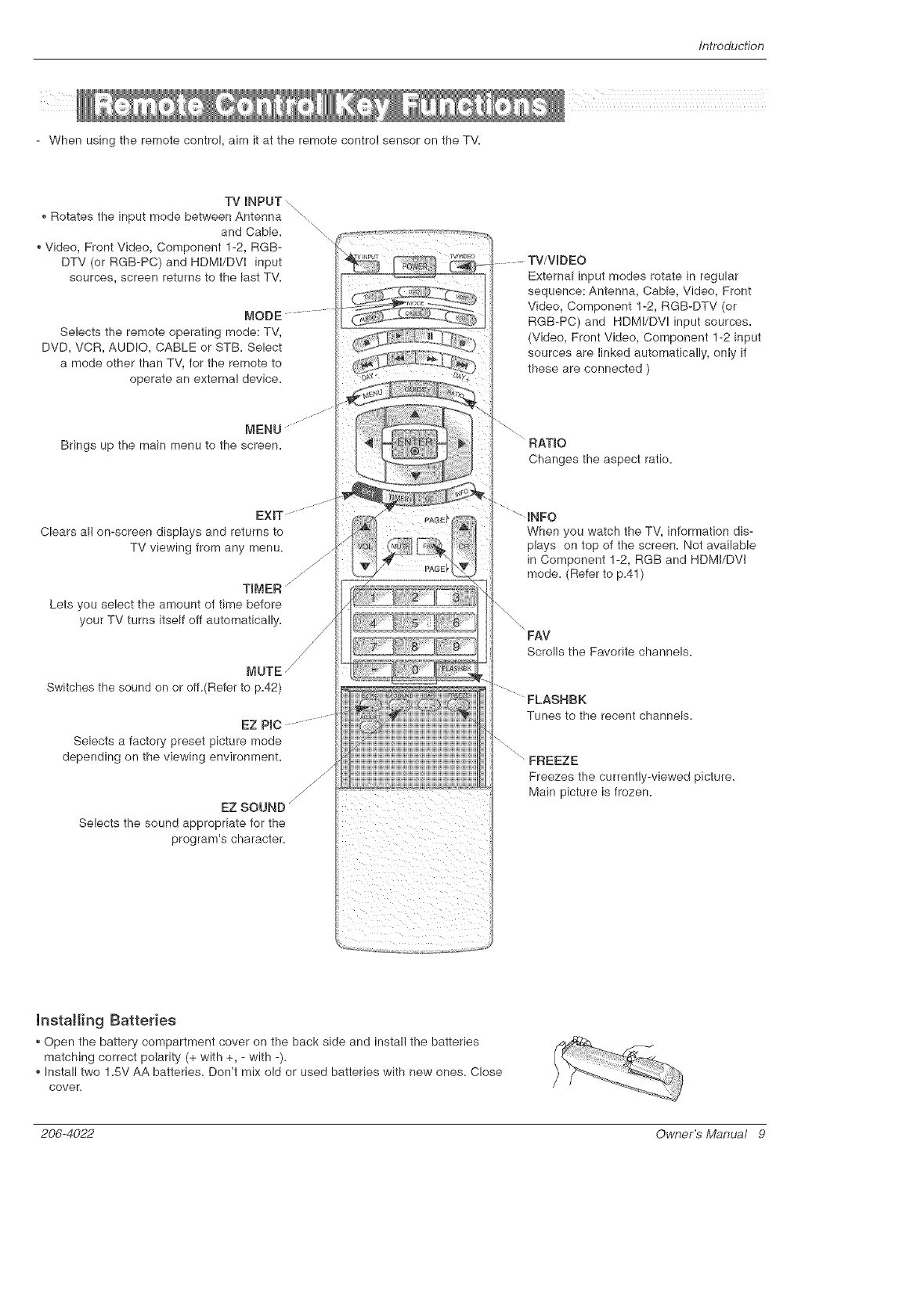

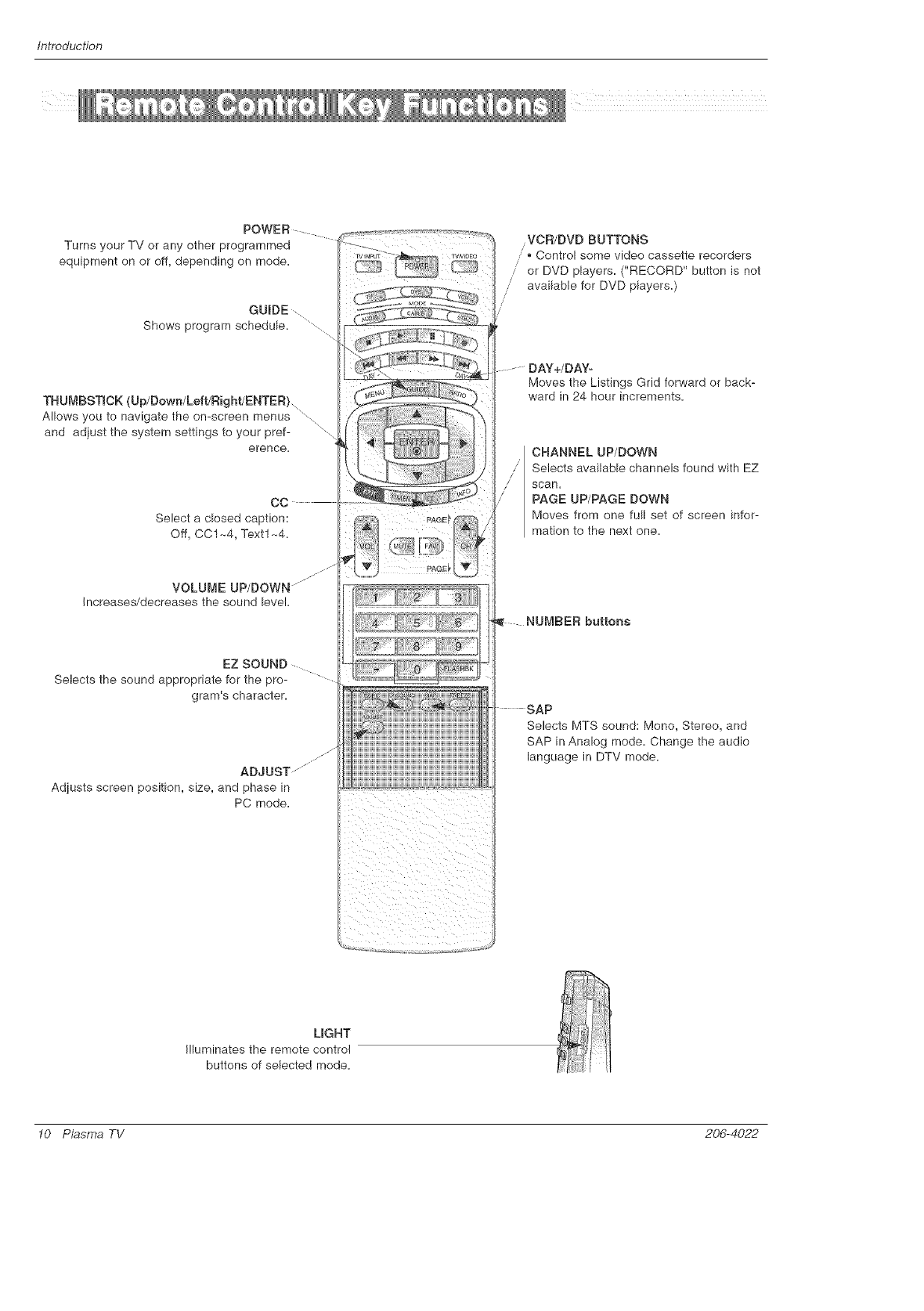

Remote Control Key Functions ........... 9~10

Installation

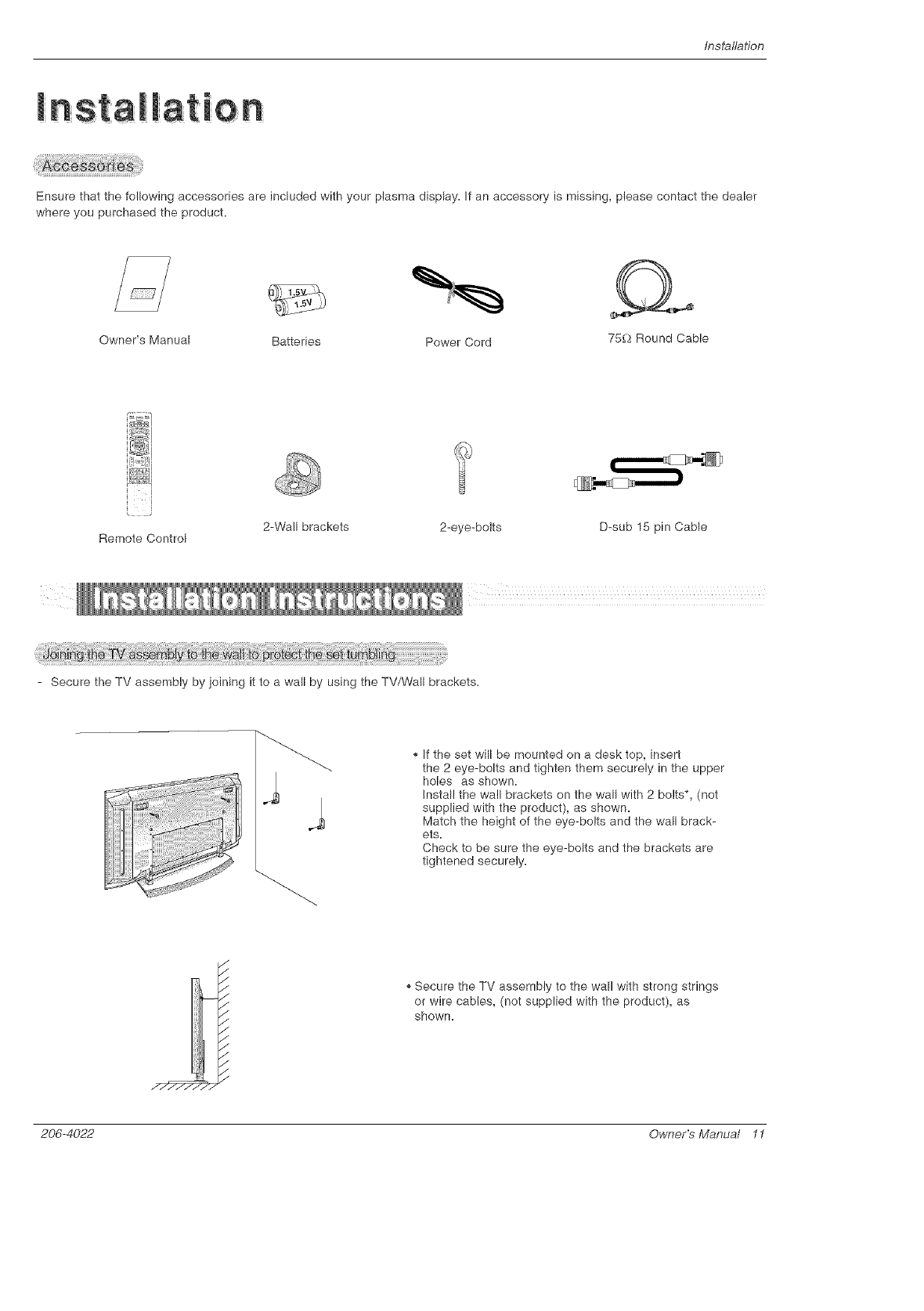

Accessories ............................. 11

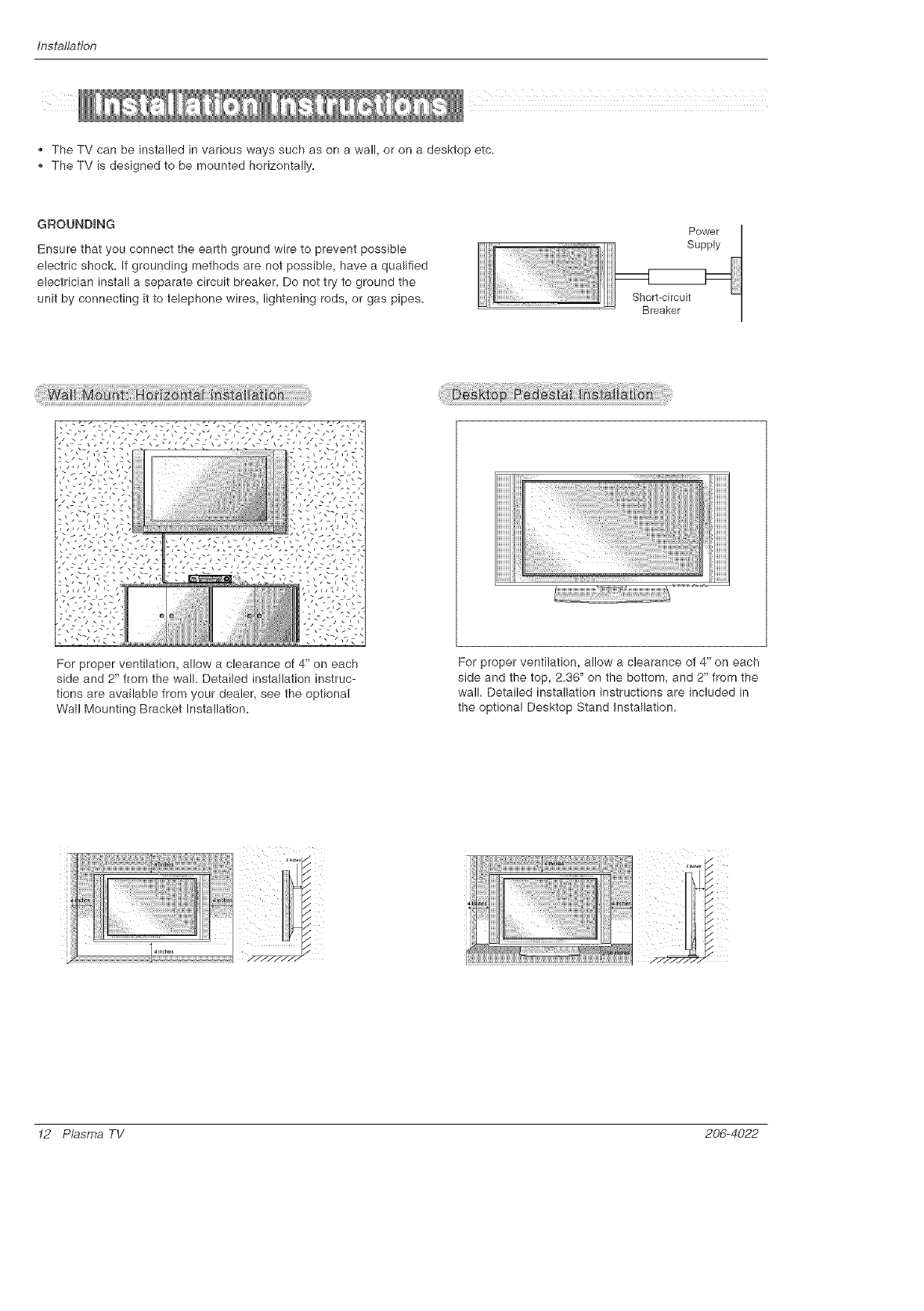

installation Instructions .................. 11~12

Joining the TV assembly to the wall to protect the set

tumbling ................................. 1!

External Equipment Connections .......... 13-18

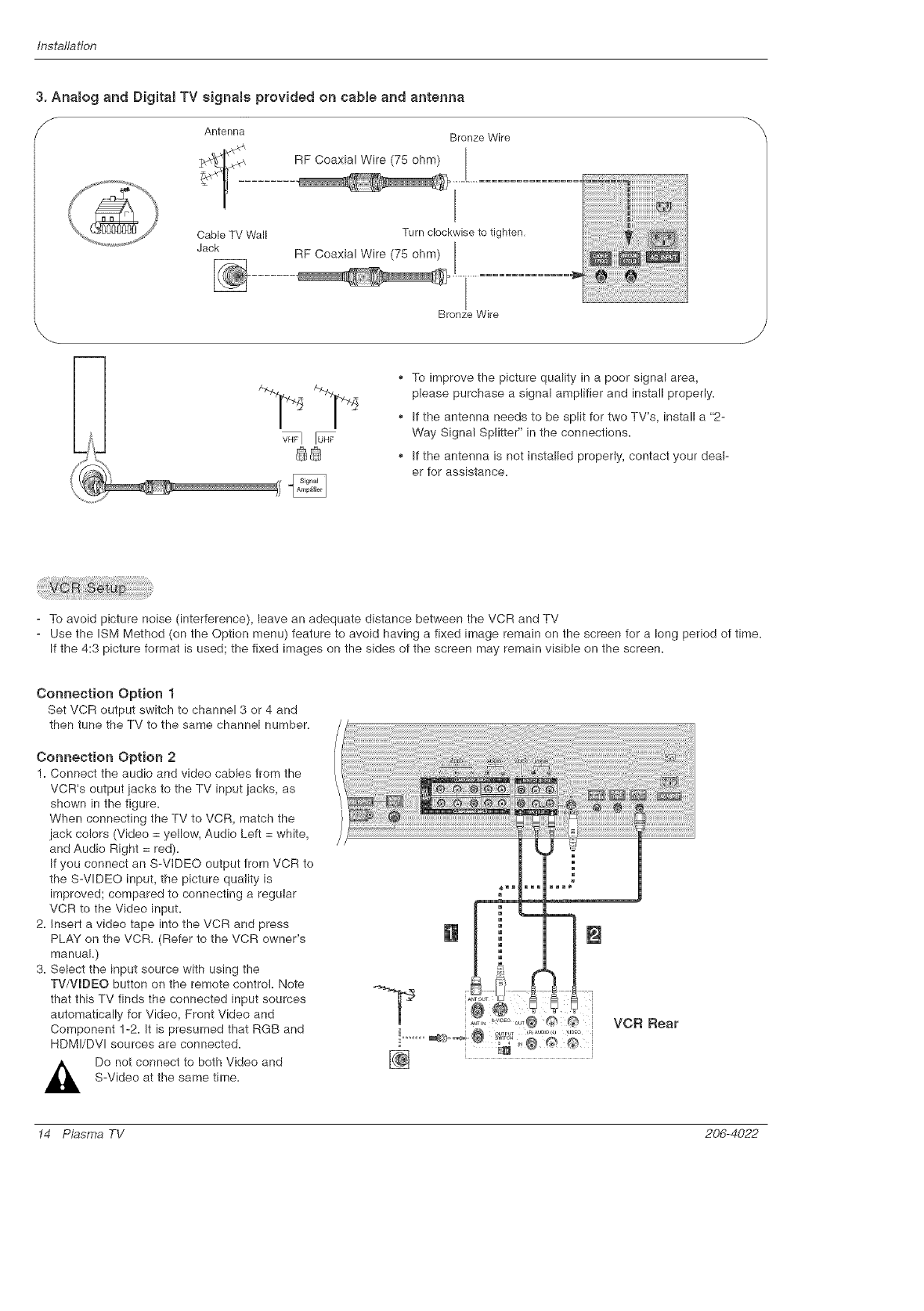

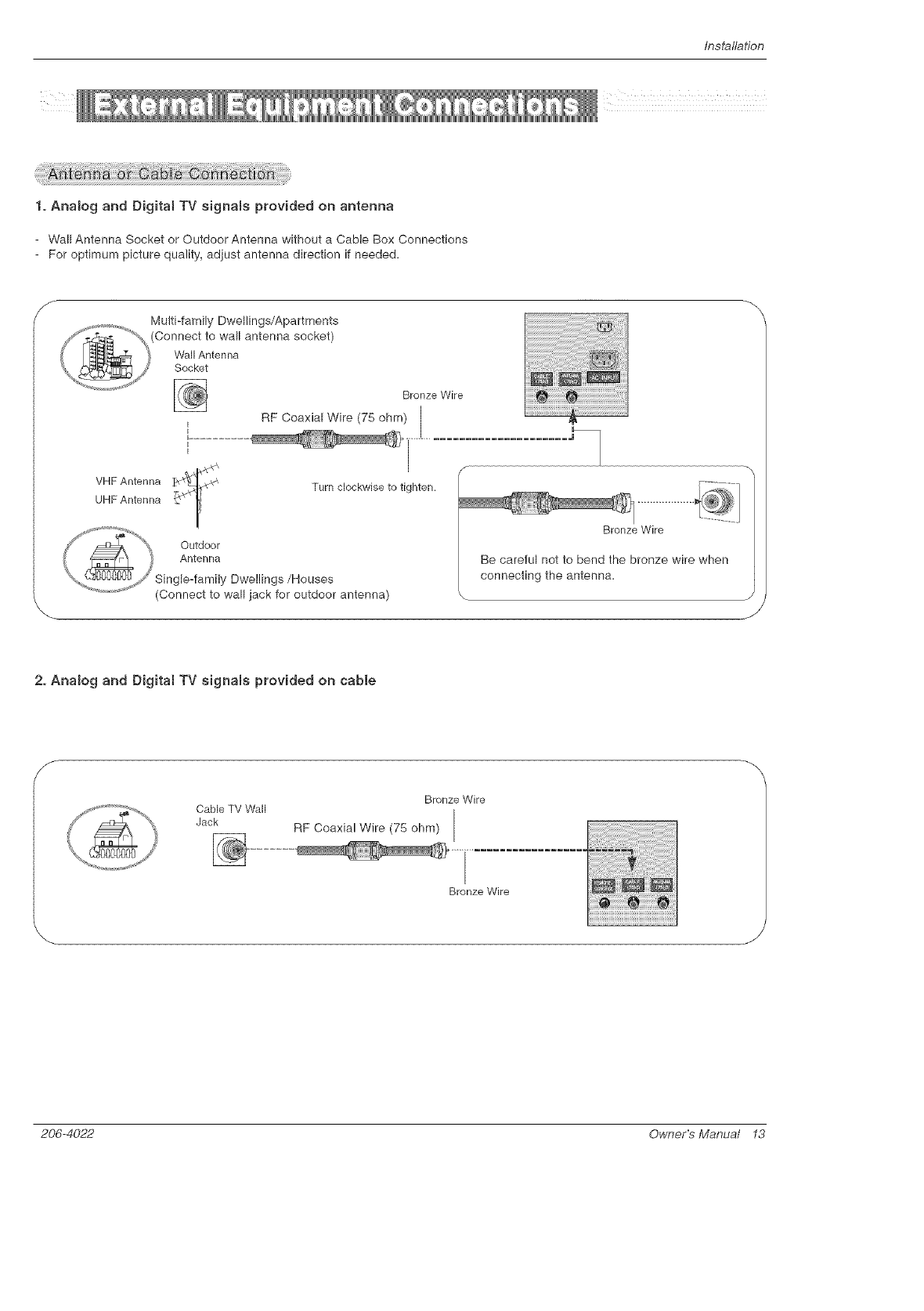

Antenna or Cable Connection ........... 13-14

VCR Setup ........................... 14

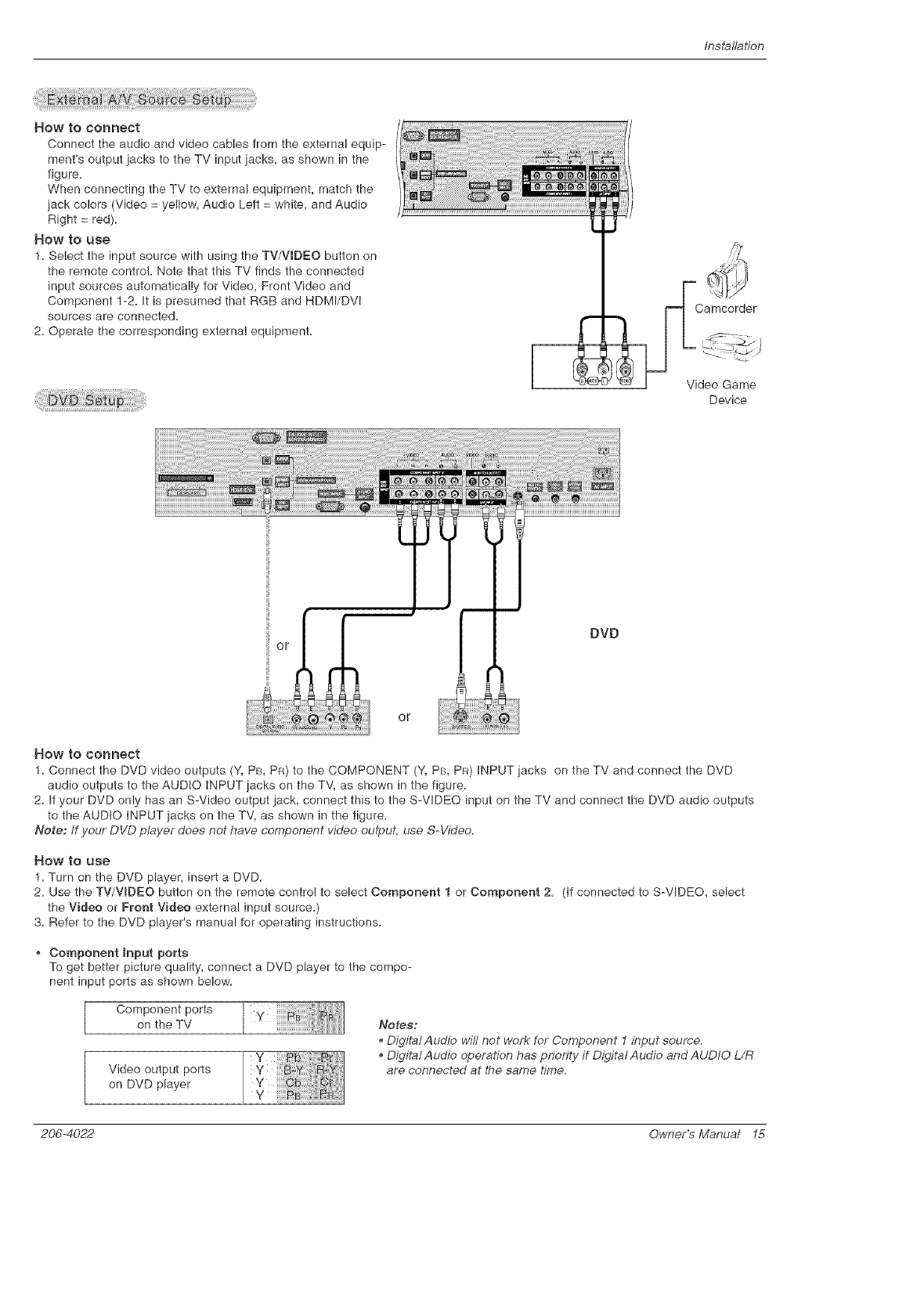

External A/V Source Setup ................ 15

DVD Setup ............................ 15

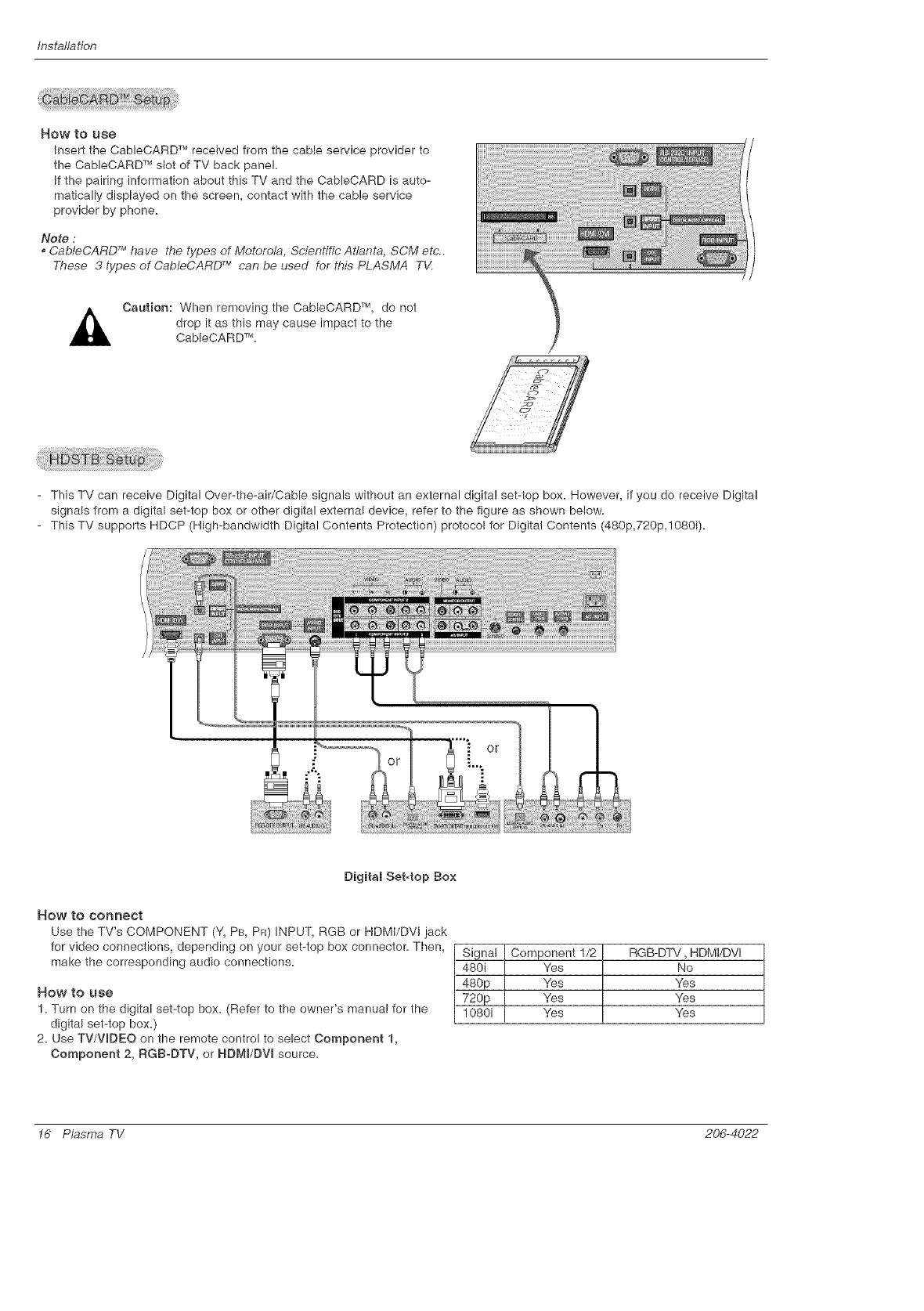

CableCARD TM Setup ..................... 16

HDSTB Setup ......................... 16

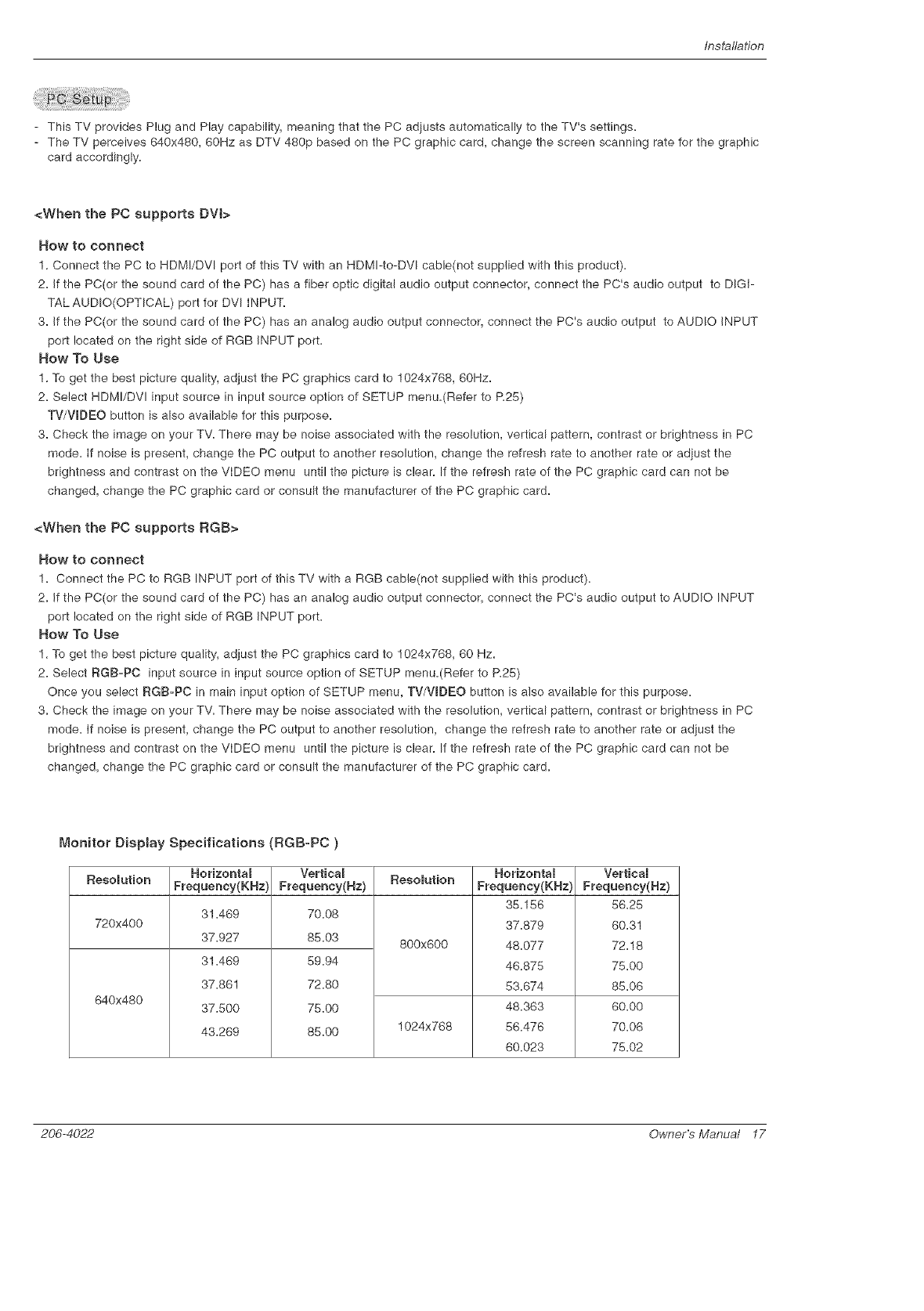

PC Setup ............................. 17

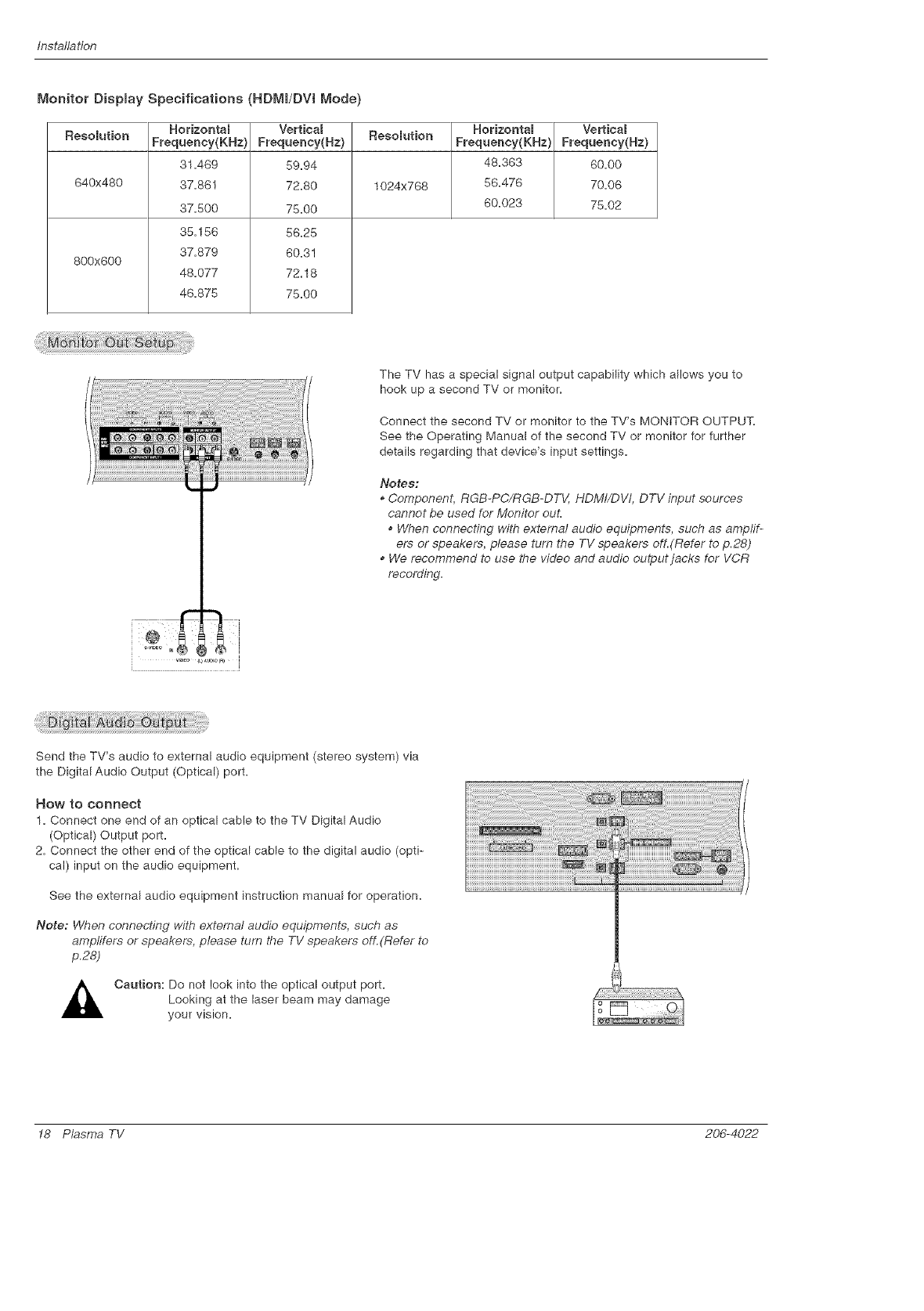

Monitor Out Setup ...................... 18

Digital Audio Output ..................... 18

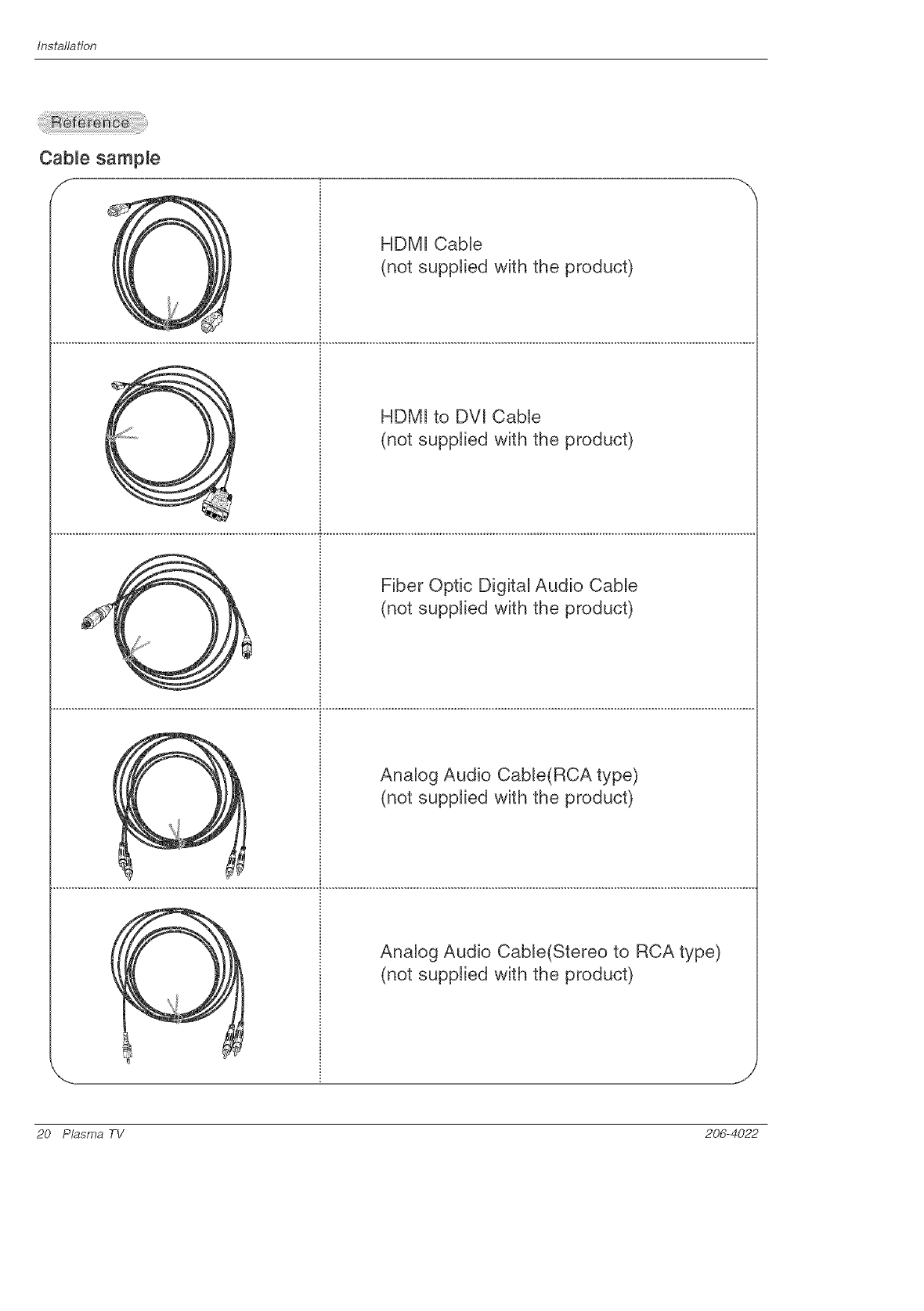

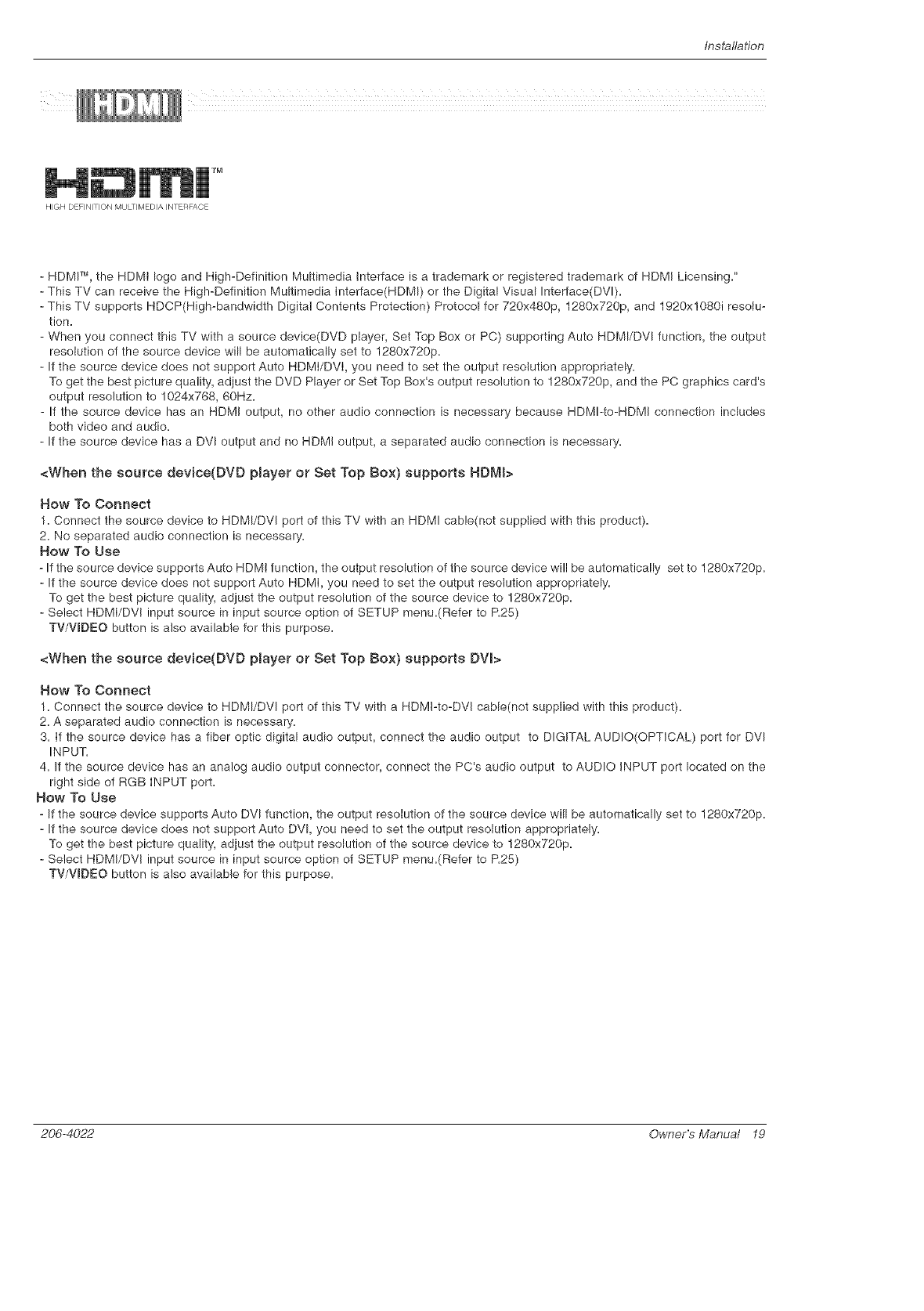

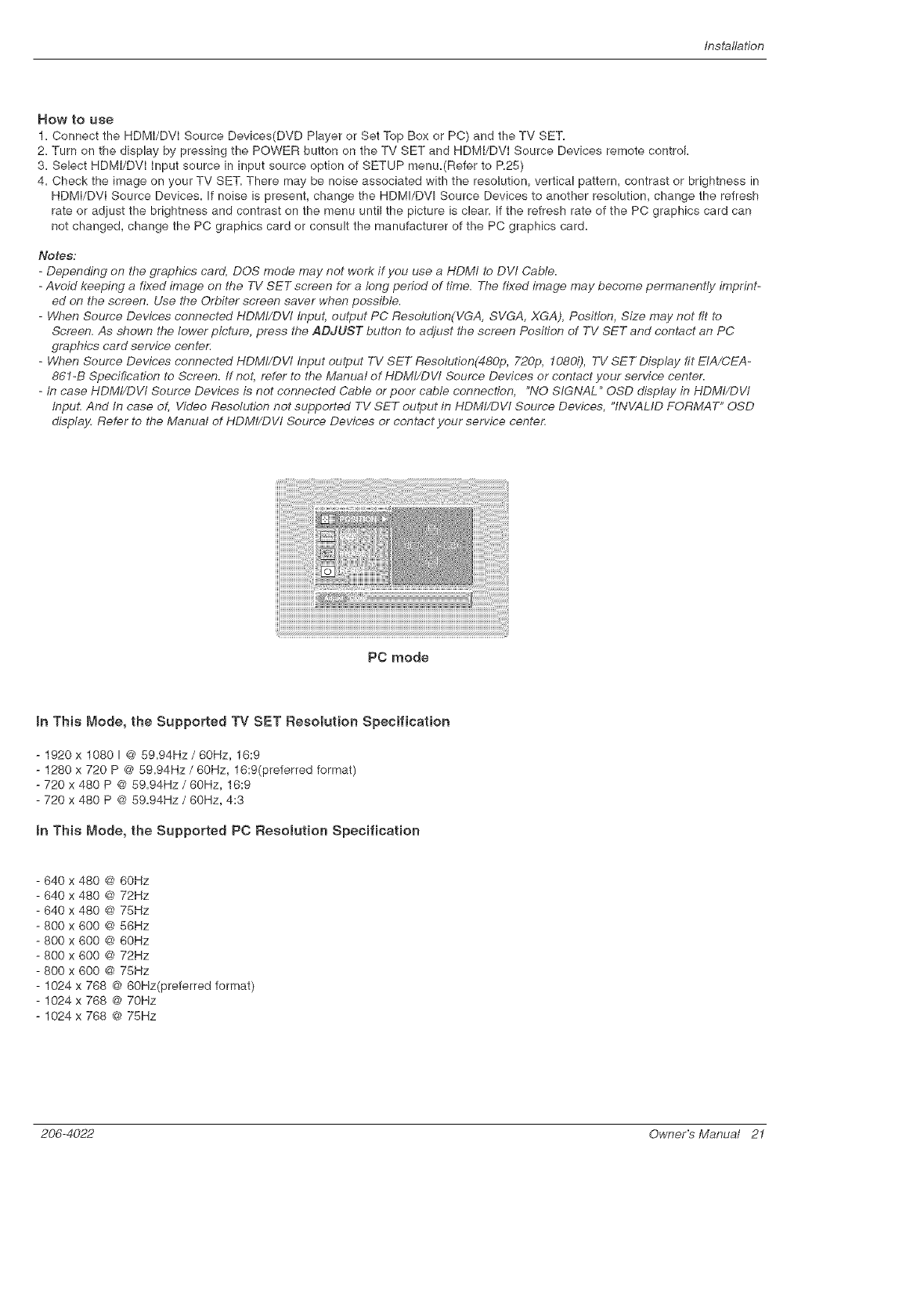

HDMI ............................... 19~2!

Operation

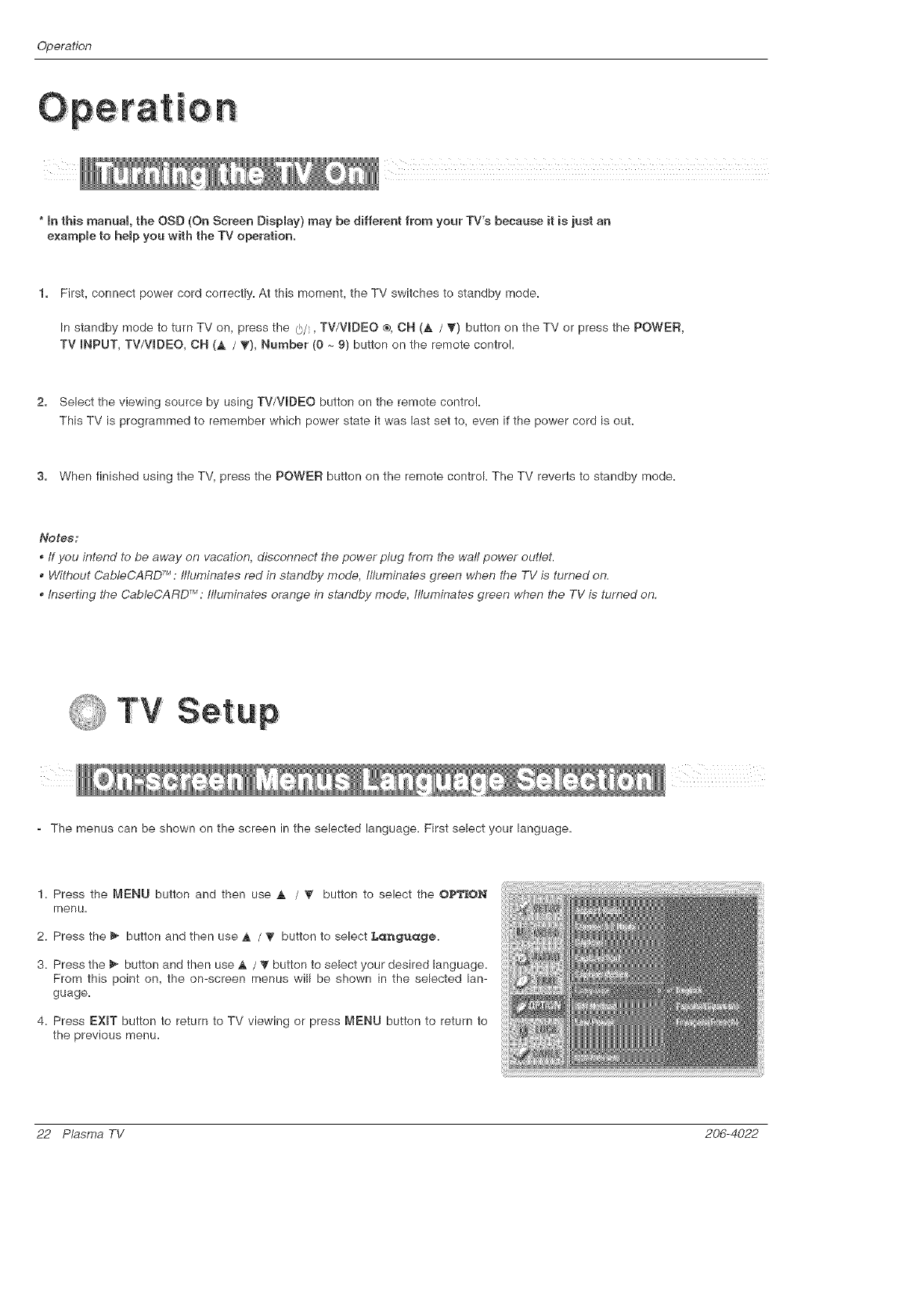

Turning the TV On ........................ 22

On-screen Menus Language Selection ......... 22

Setup Menu Options

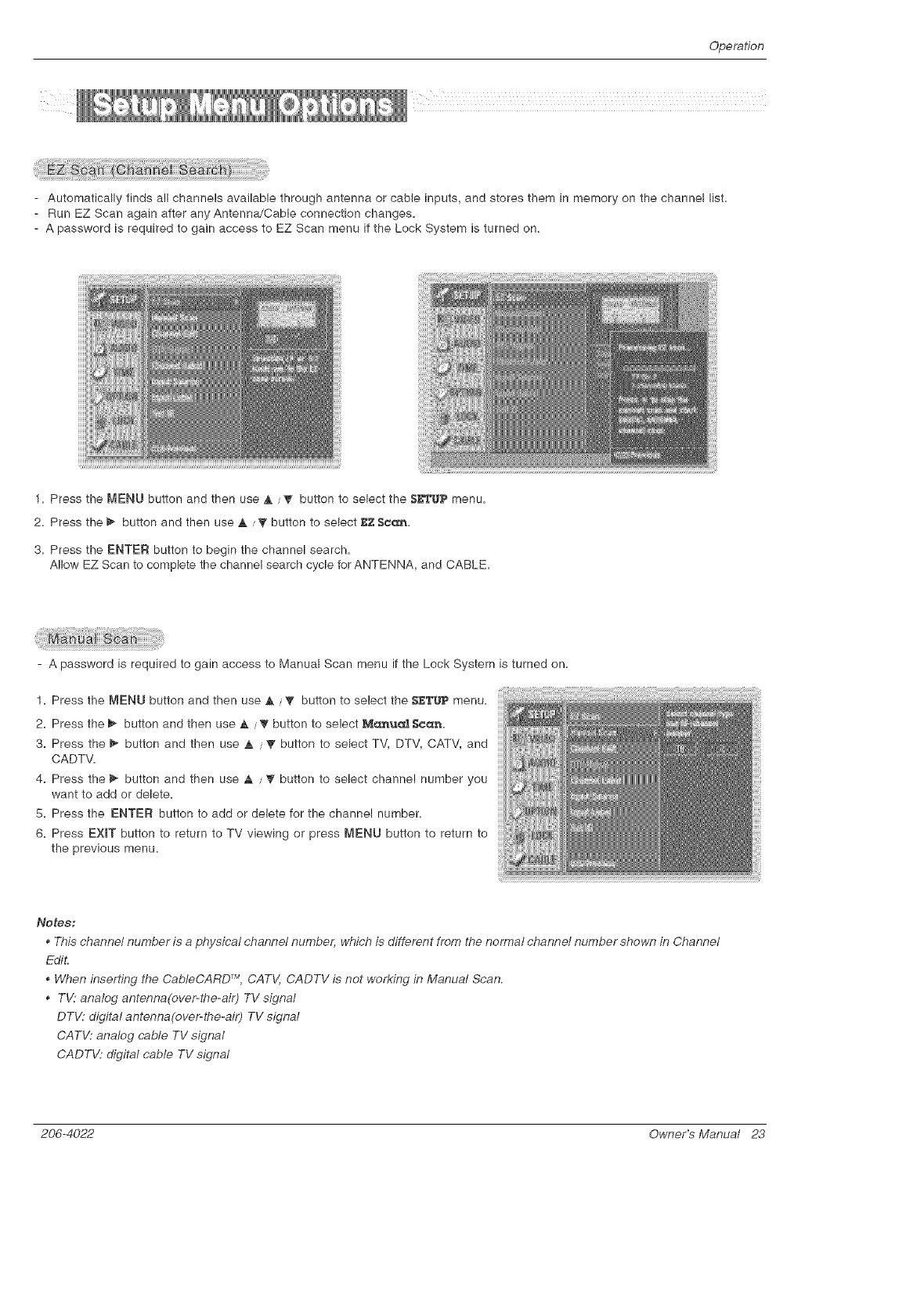

EZ Scan (Channel Search) ................ 23

Manual Scan .......................... 23

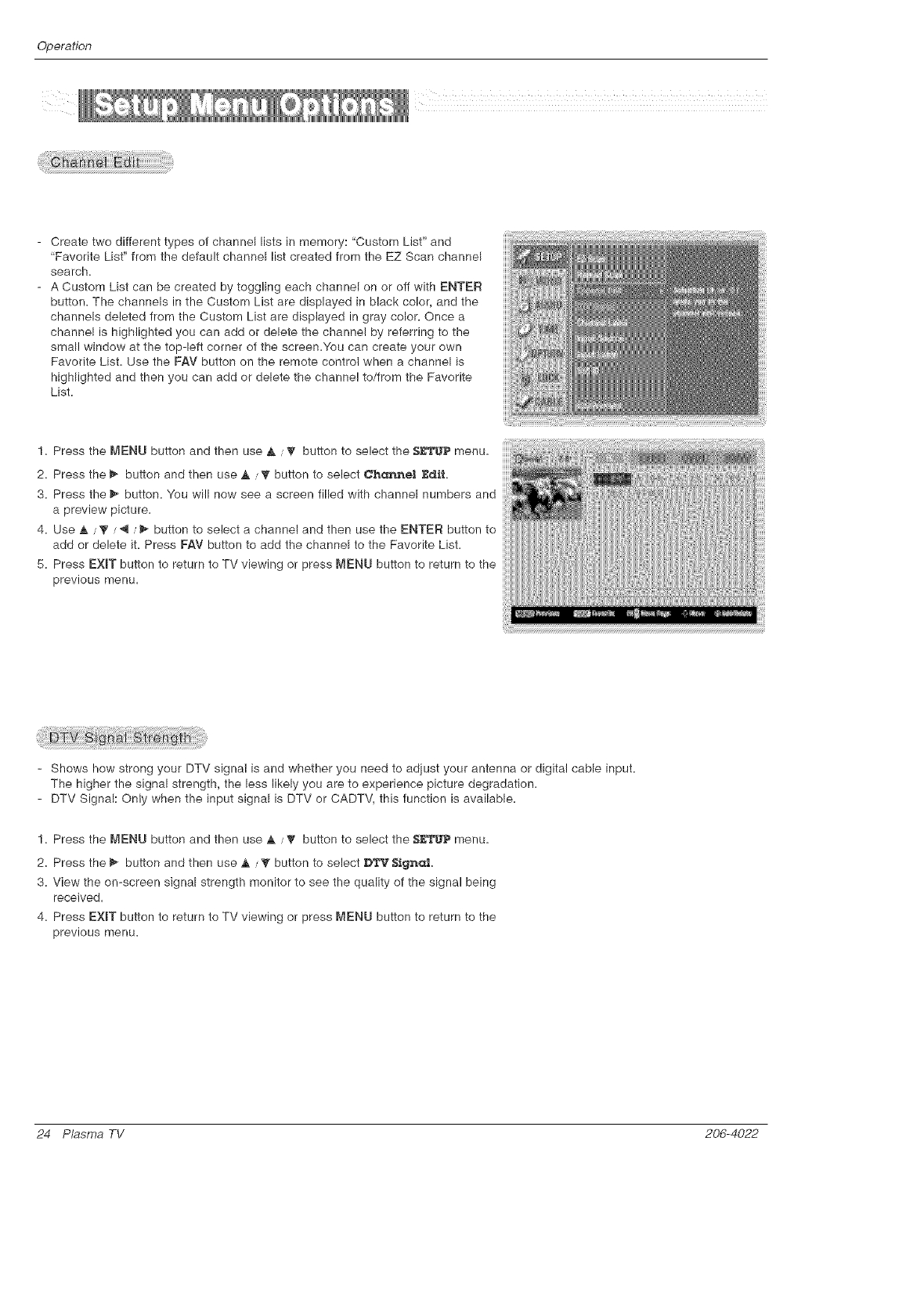

Channel Edit ........................... 24

DTV Signal Strength ..................... 24

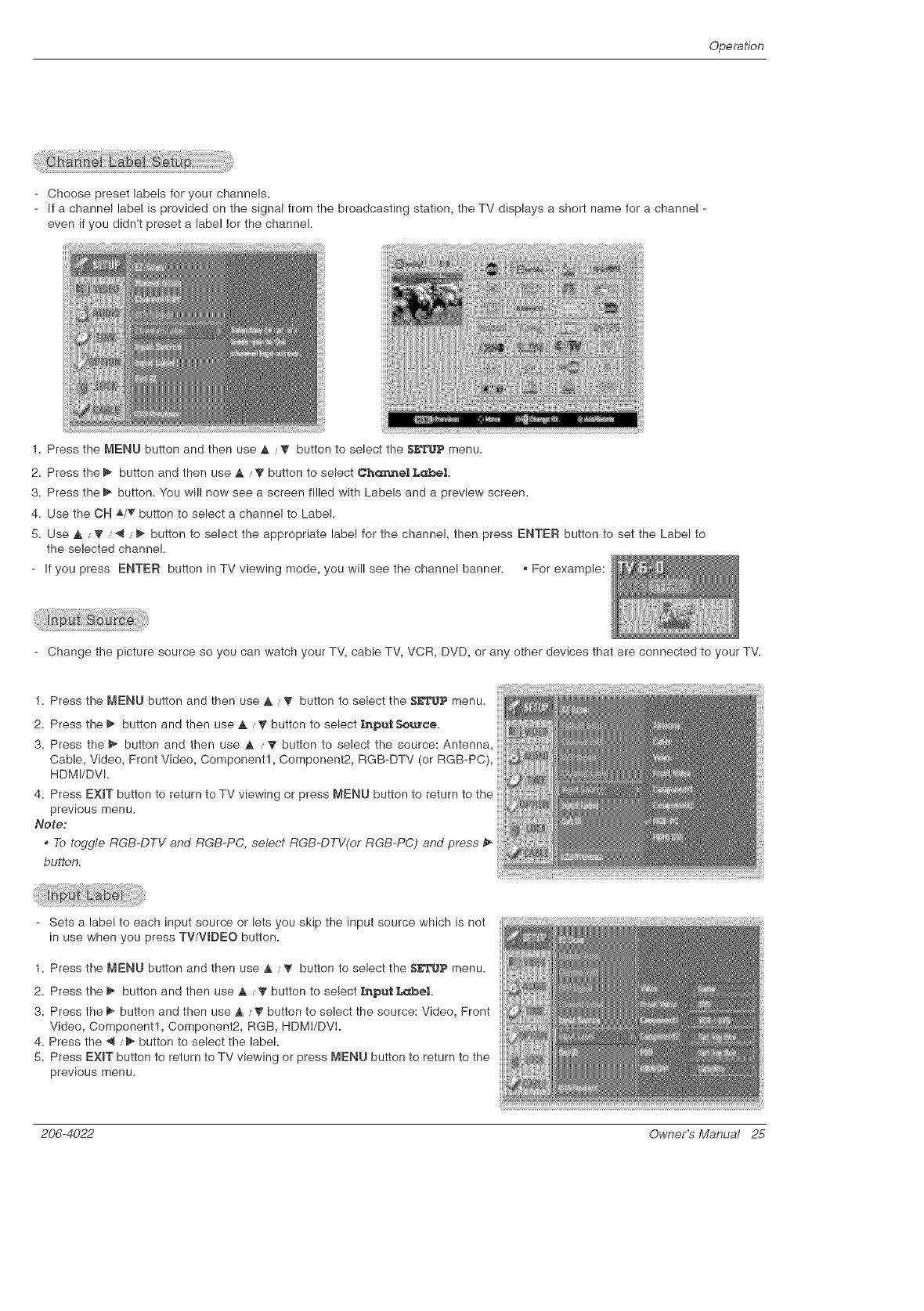

Channel Label Setup .................... 25

Input Source ........................... 25

Input Labe! ............................ 25

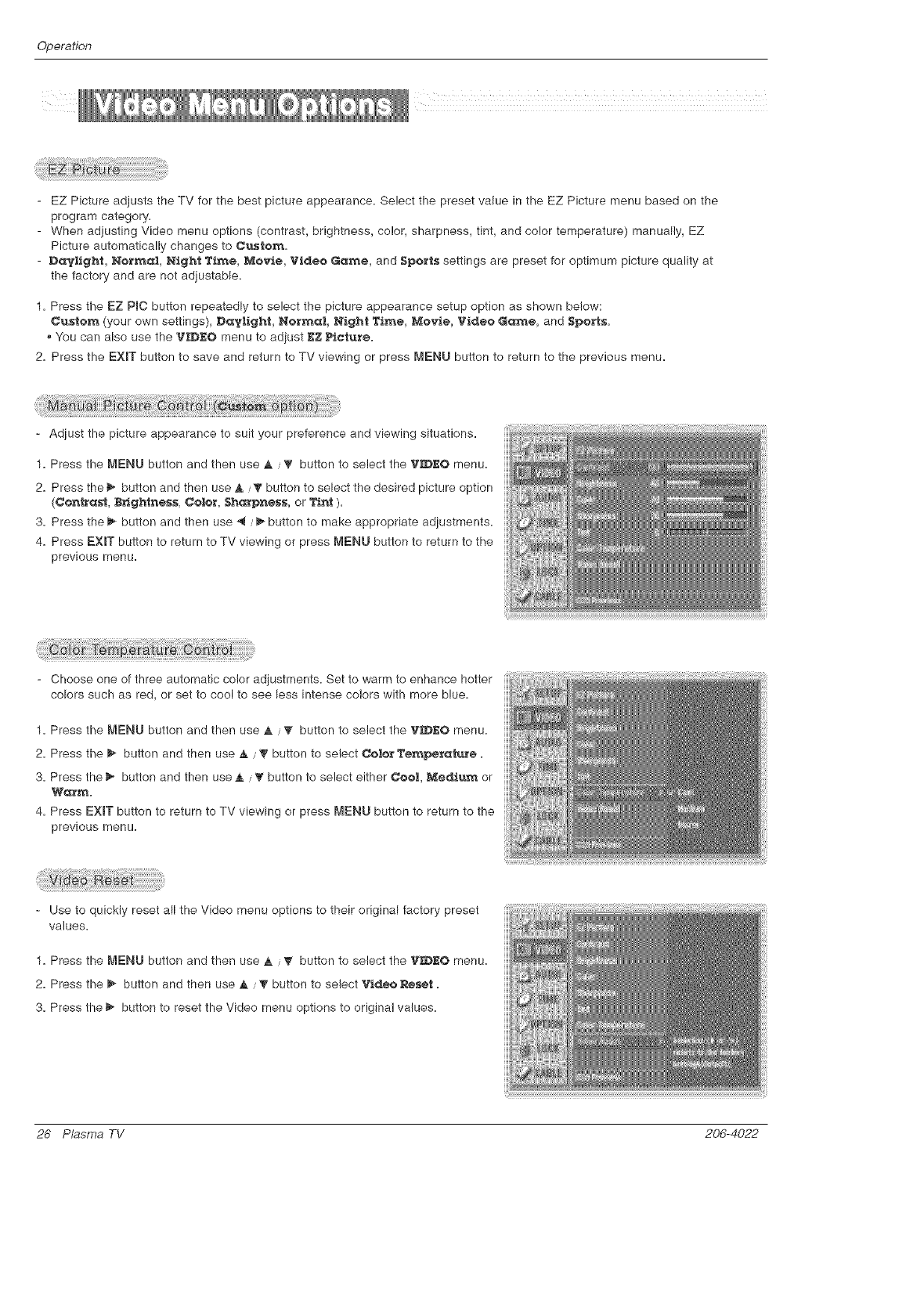

Video Menu Options

EZ Picture ............................ 26

Manual Picture Contro! (Custom Option) ...... 26

Color Temperature Control ................ 26

Video Reset ........................... 26

Audio Menu Options

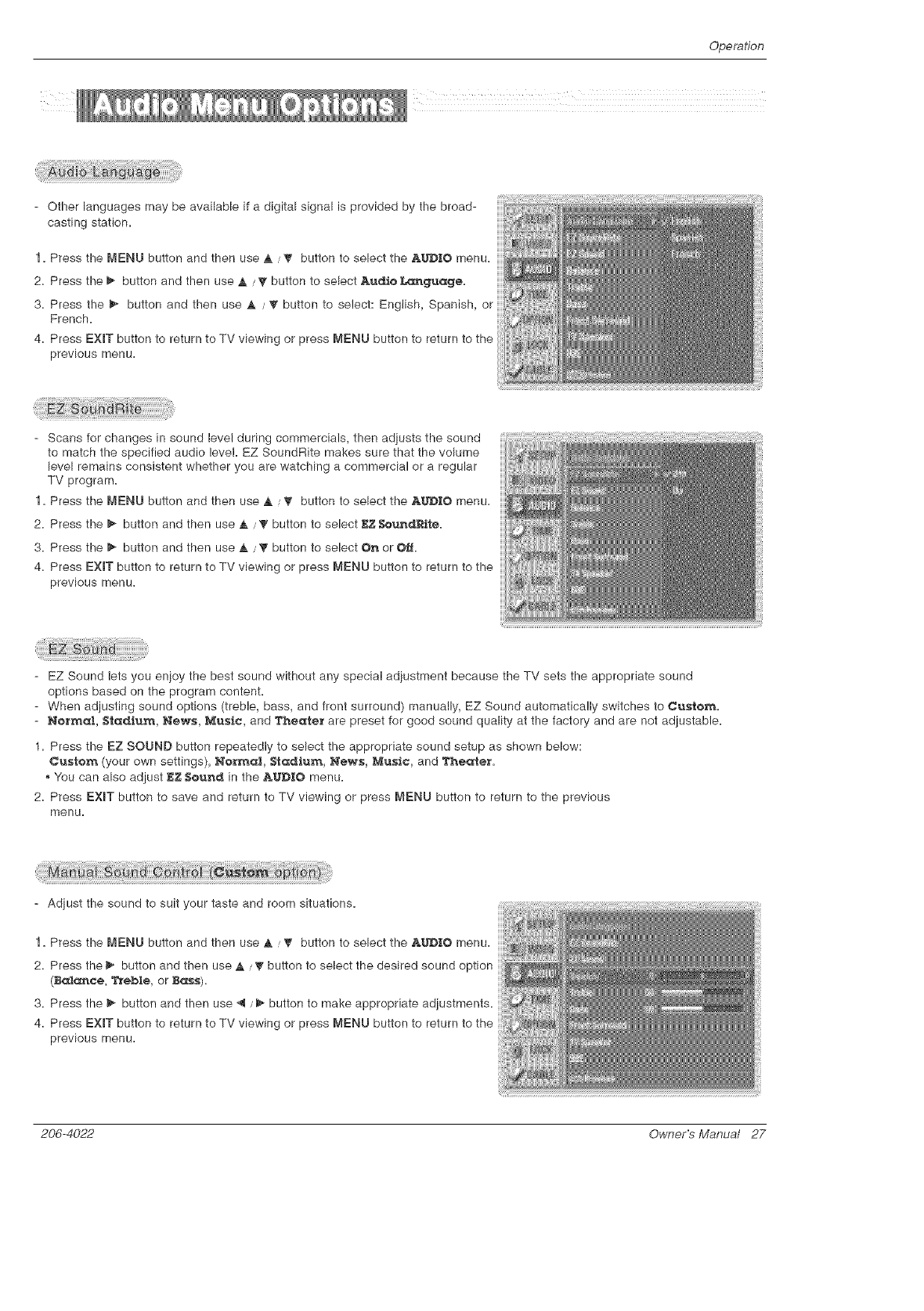

Audio Language ........................ 27

EZ SoundRite /EZ Sound ................. 27

Manual Sound Control (Custom Option) ...... 27

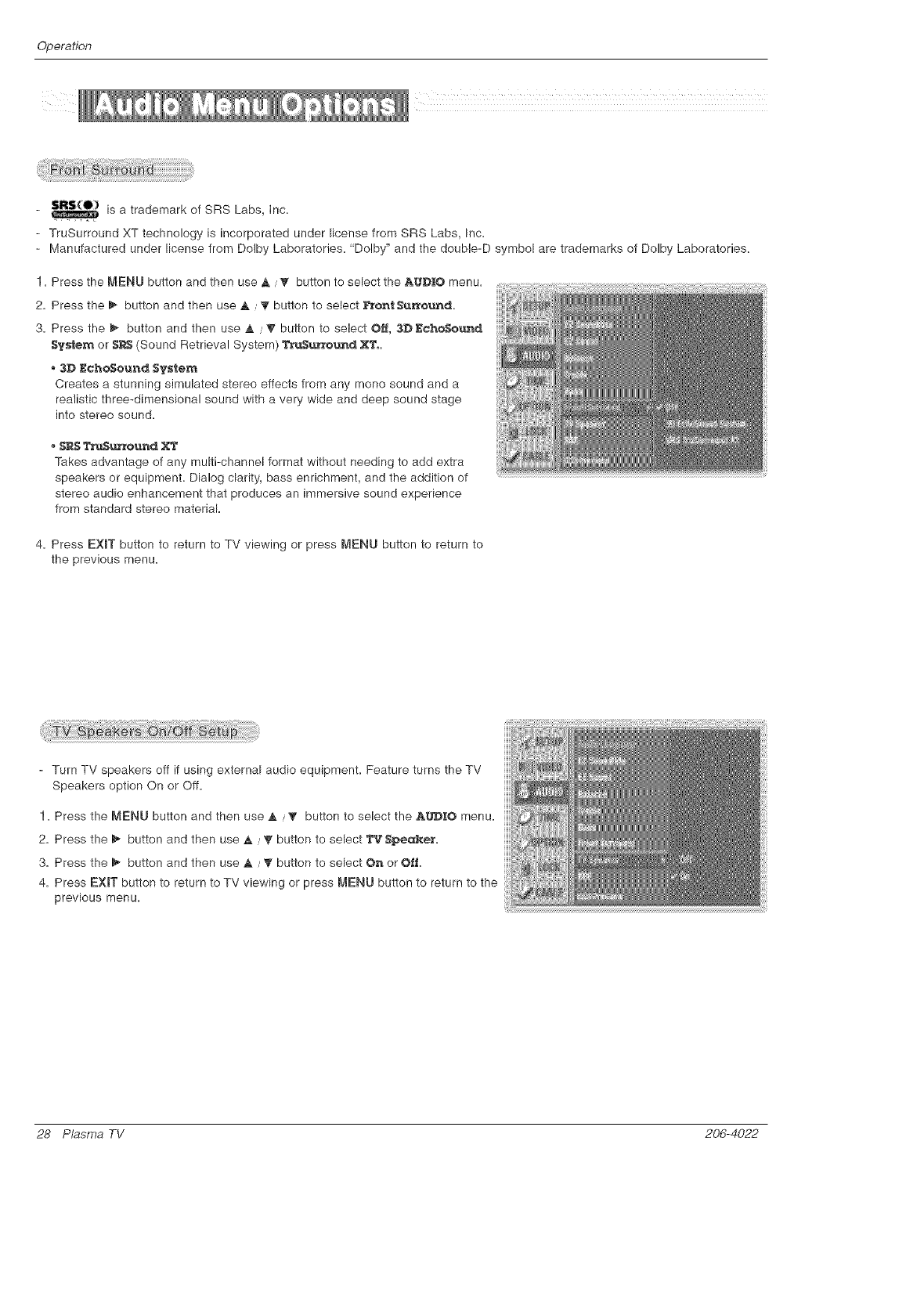

Front Surround ......................... 28

TV Speakers On/Off Setup ................ 28

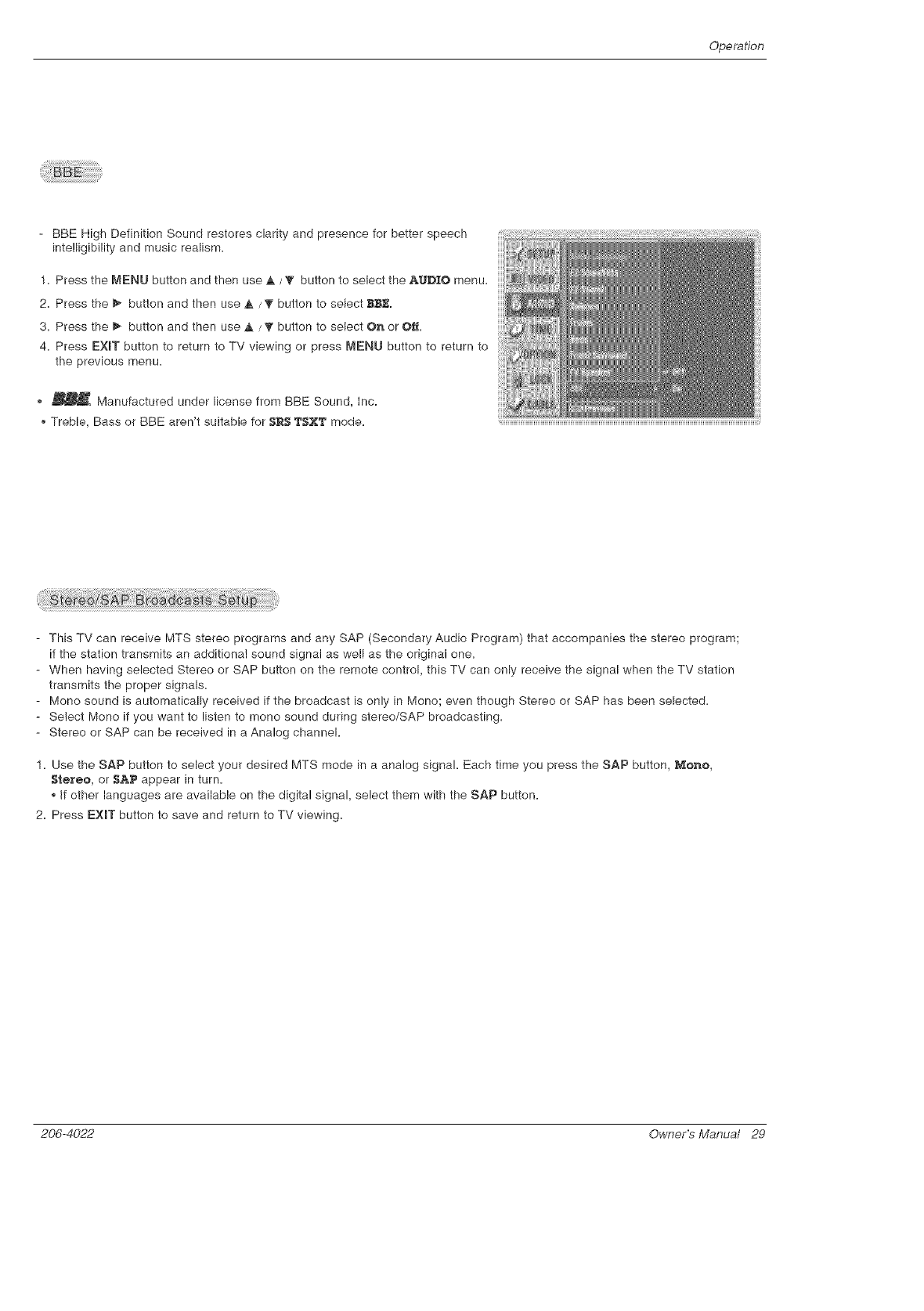

BBE ................................. 29

Stereo/SAP Broadcasts Setup .............. 29

Time Menu Options

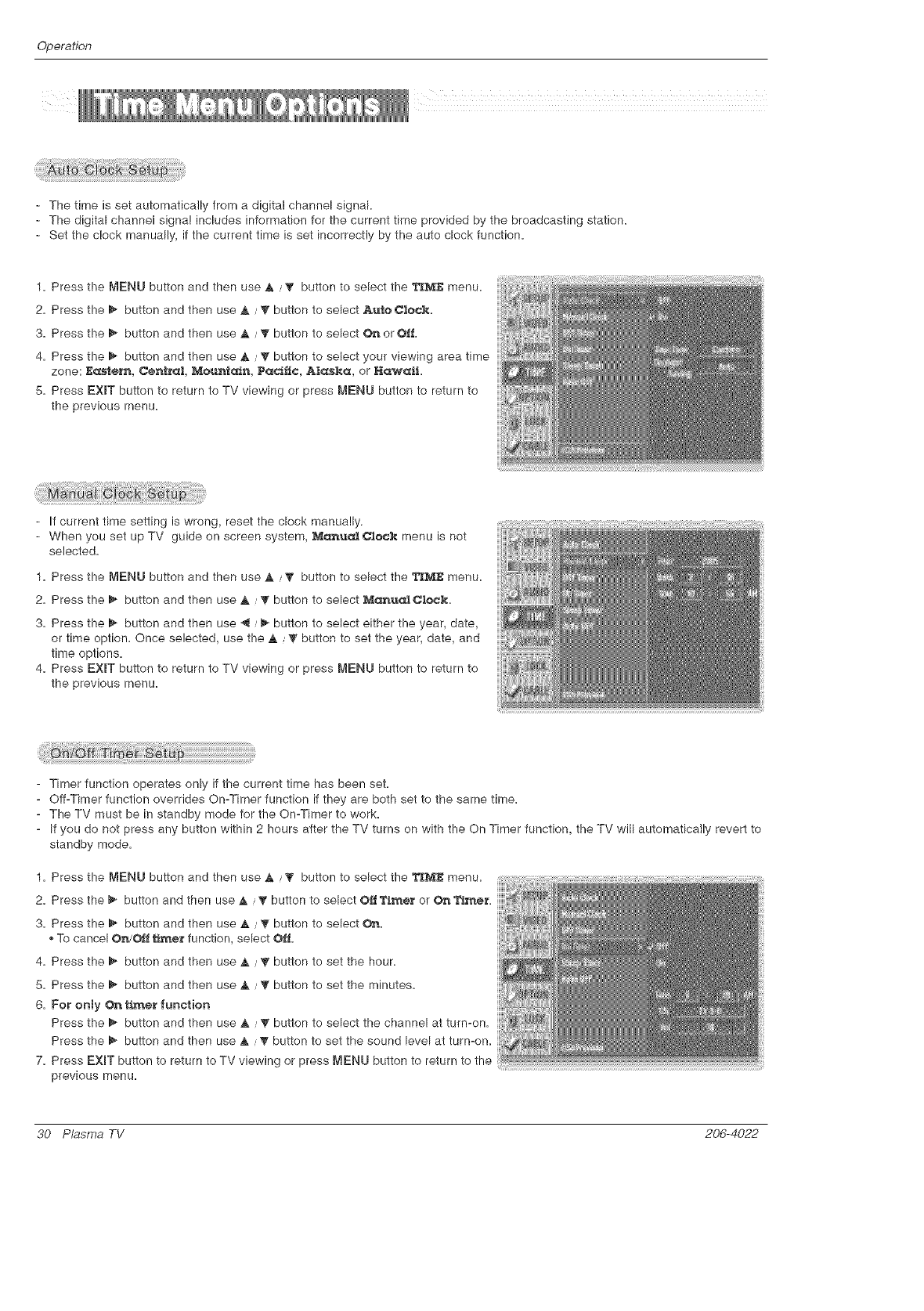

Auto Clock Setup ....................... 30

Manual Clock Setup ..................... 30

On/Off Timer Setup ..................... 30

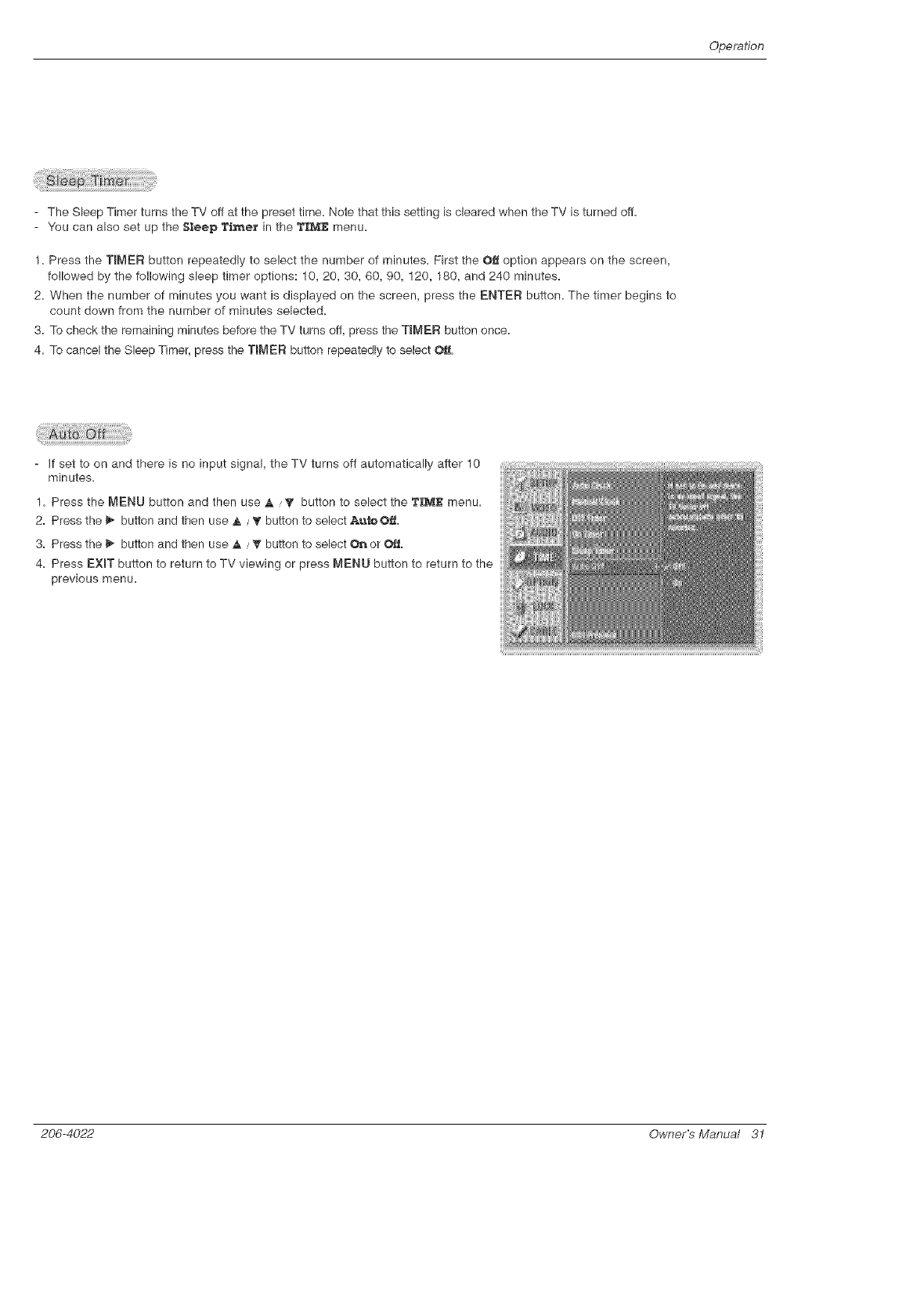

Sleep Timer /Auto Off .................... 31

Option Menu Features

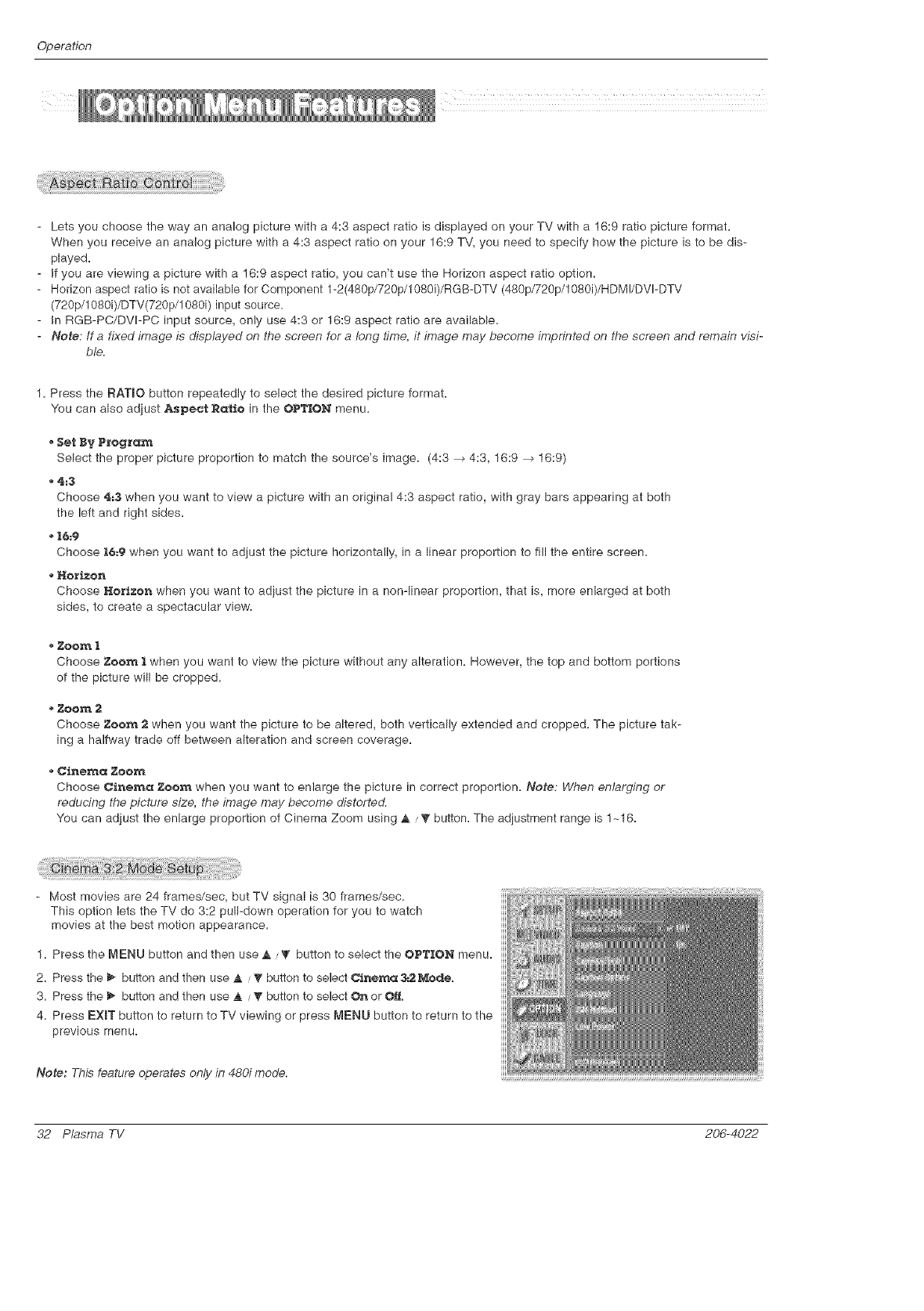

Aspect Ratio Control ..................... 32

Cinema 3:2 Mode Setup .................. 32

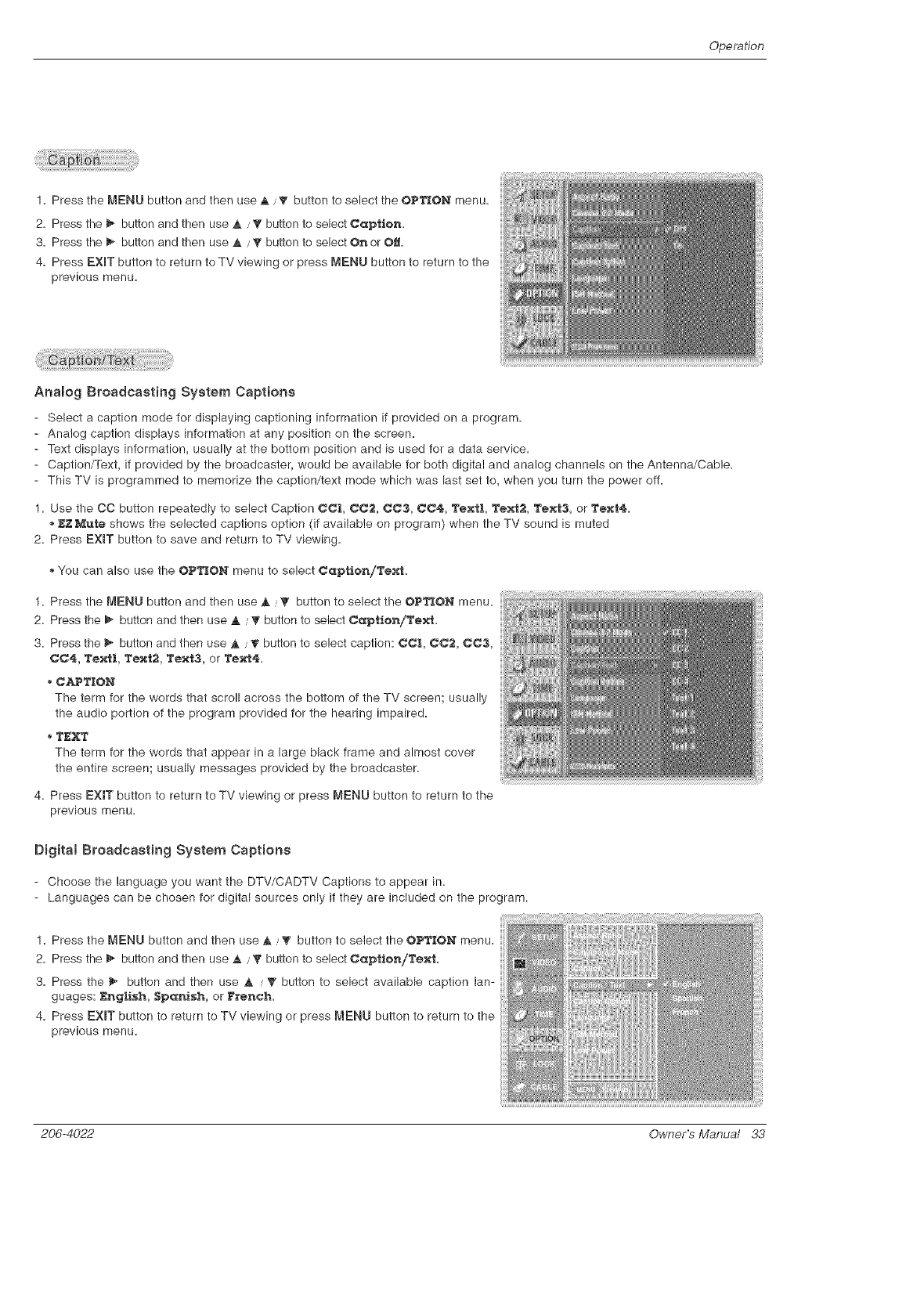

Caption ............................... 33

Caption /Text .......................... 33

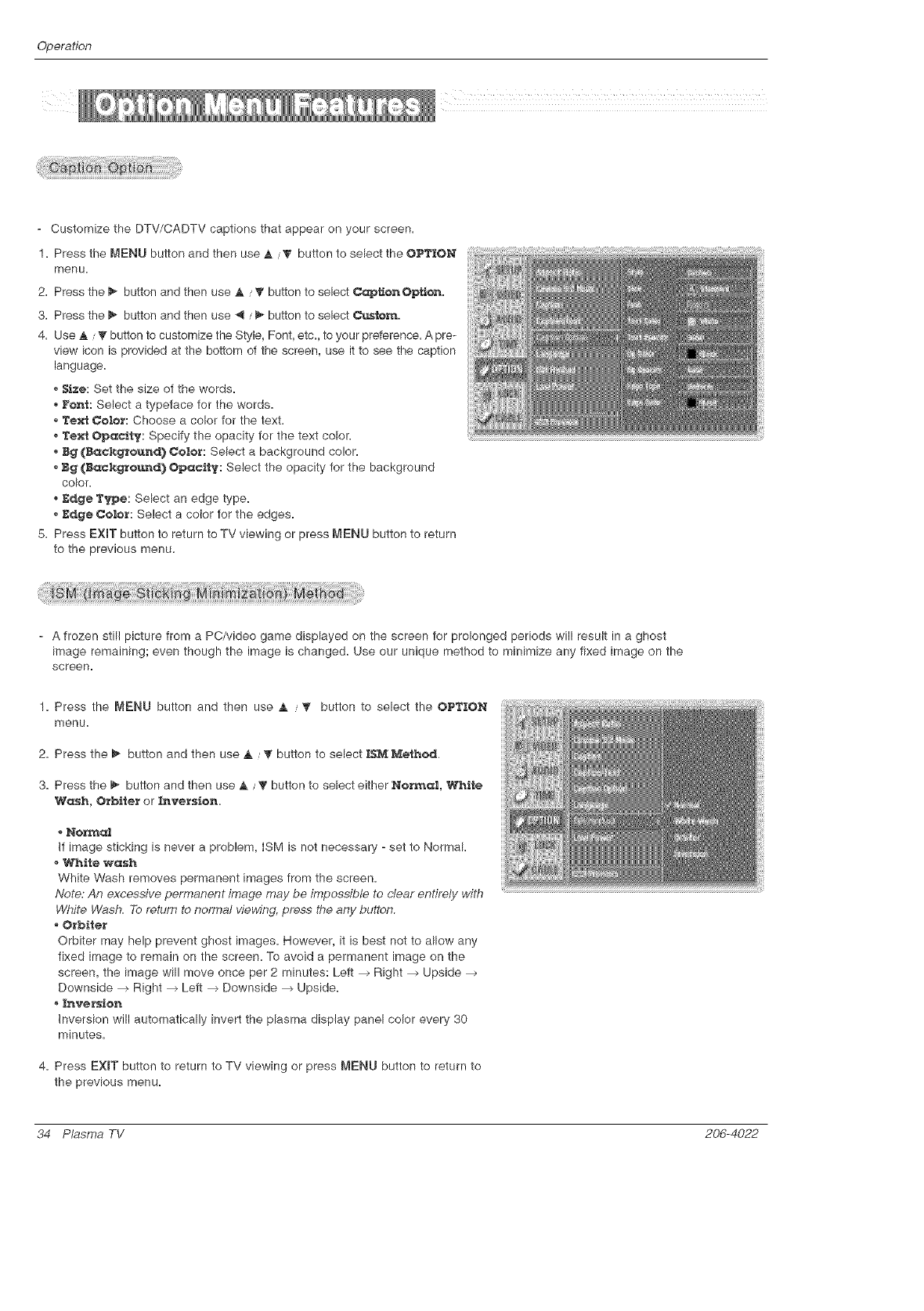

Caption Option ........................ 34

ISM Method ........................... 84

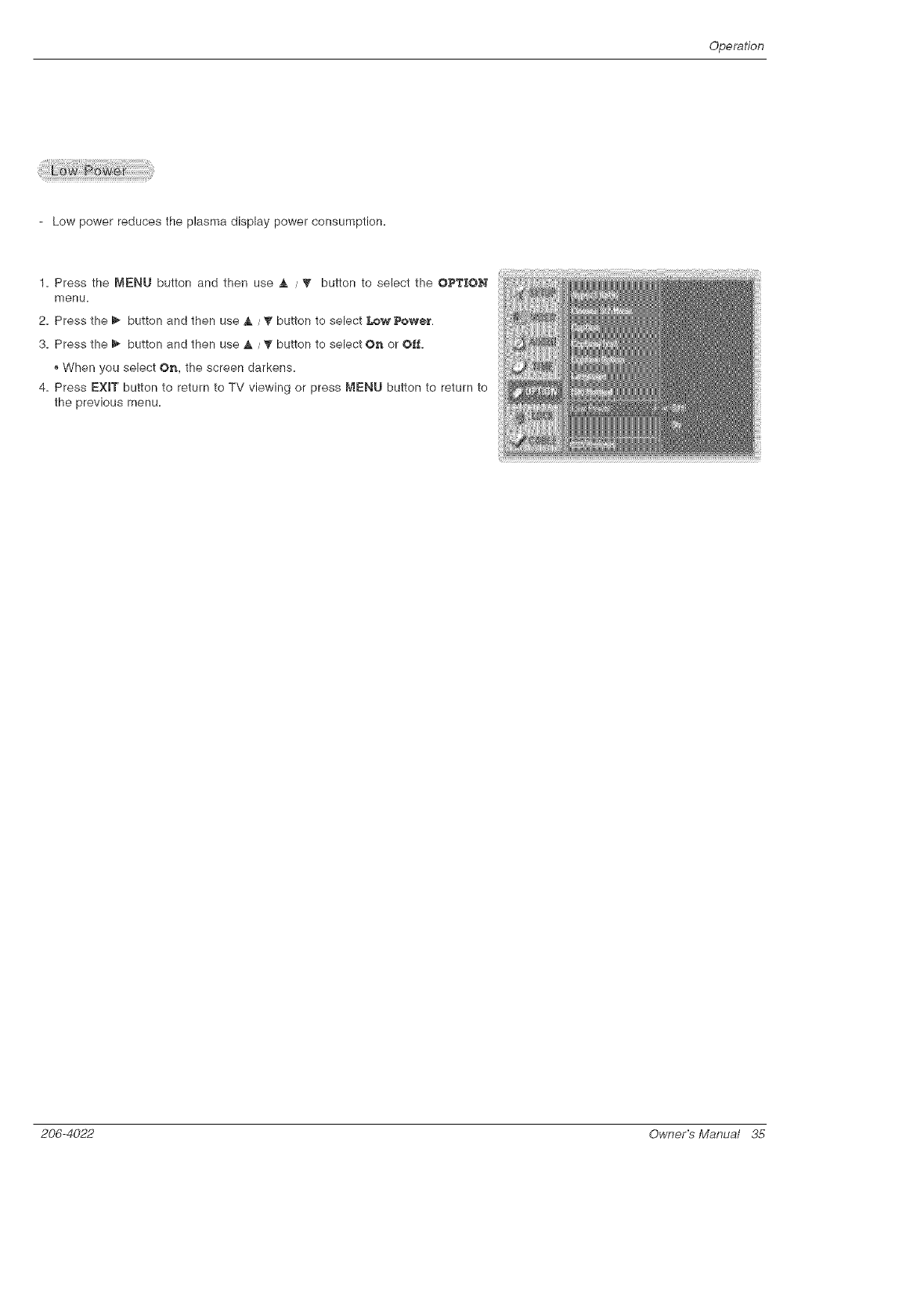

Low Power ............................ 35

Lock Menu Options

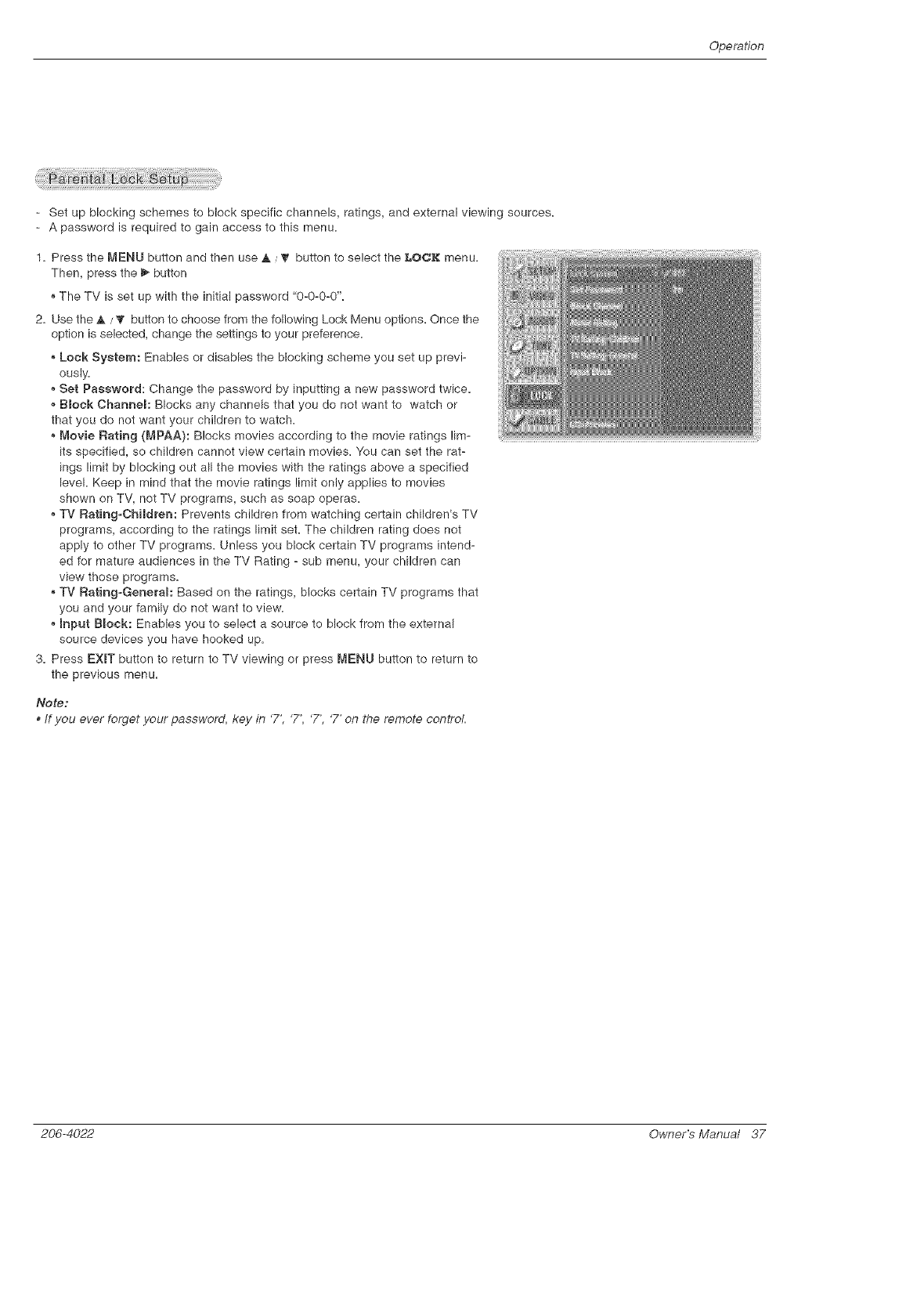

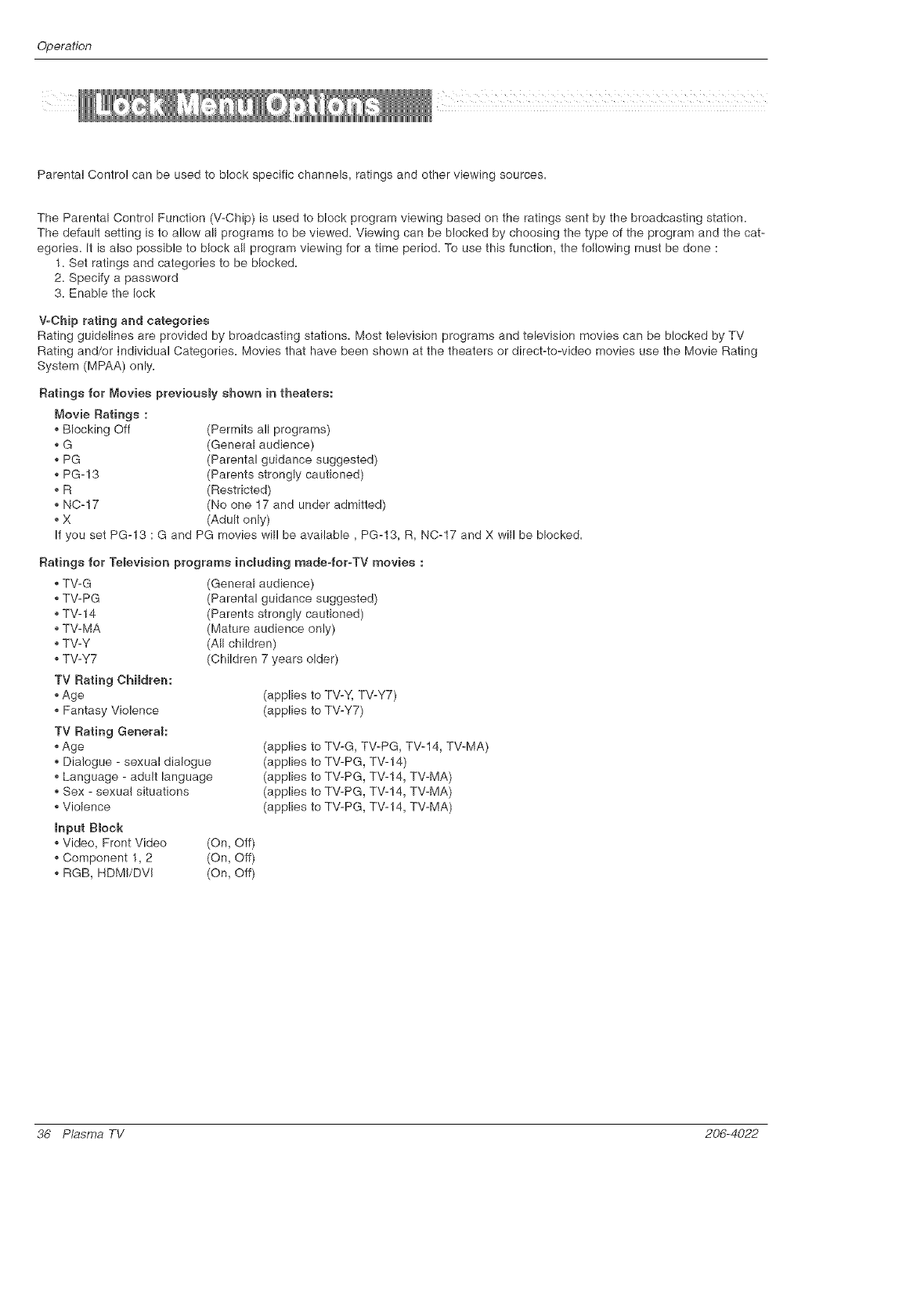

Parental Lock Setup ..................... 37

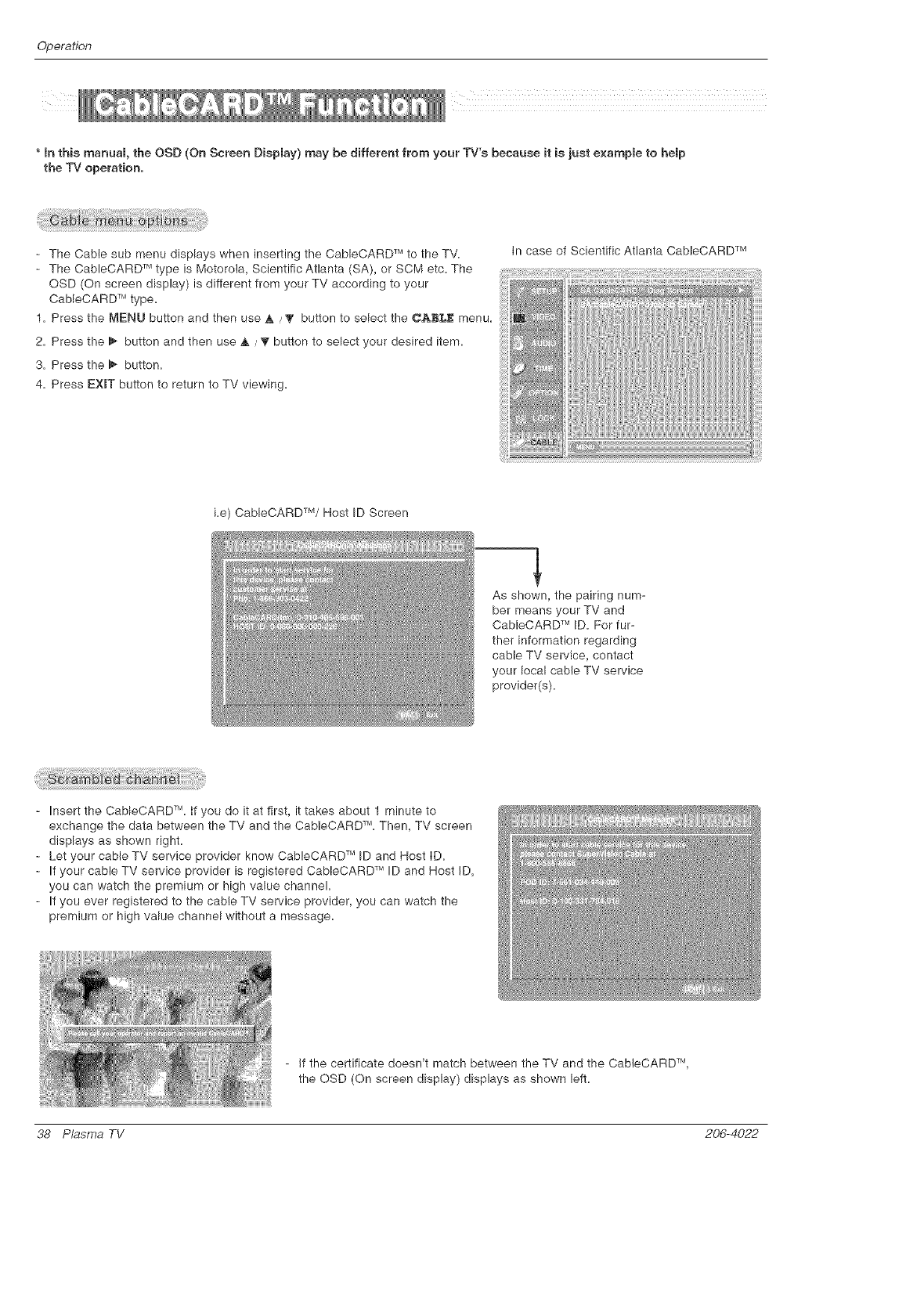

CabbCARD TM Function

Cable menu options ..................... 38

Scrambled channel ...................... 38

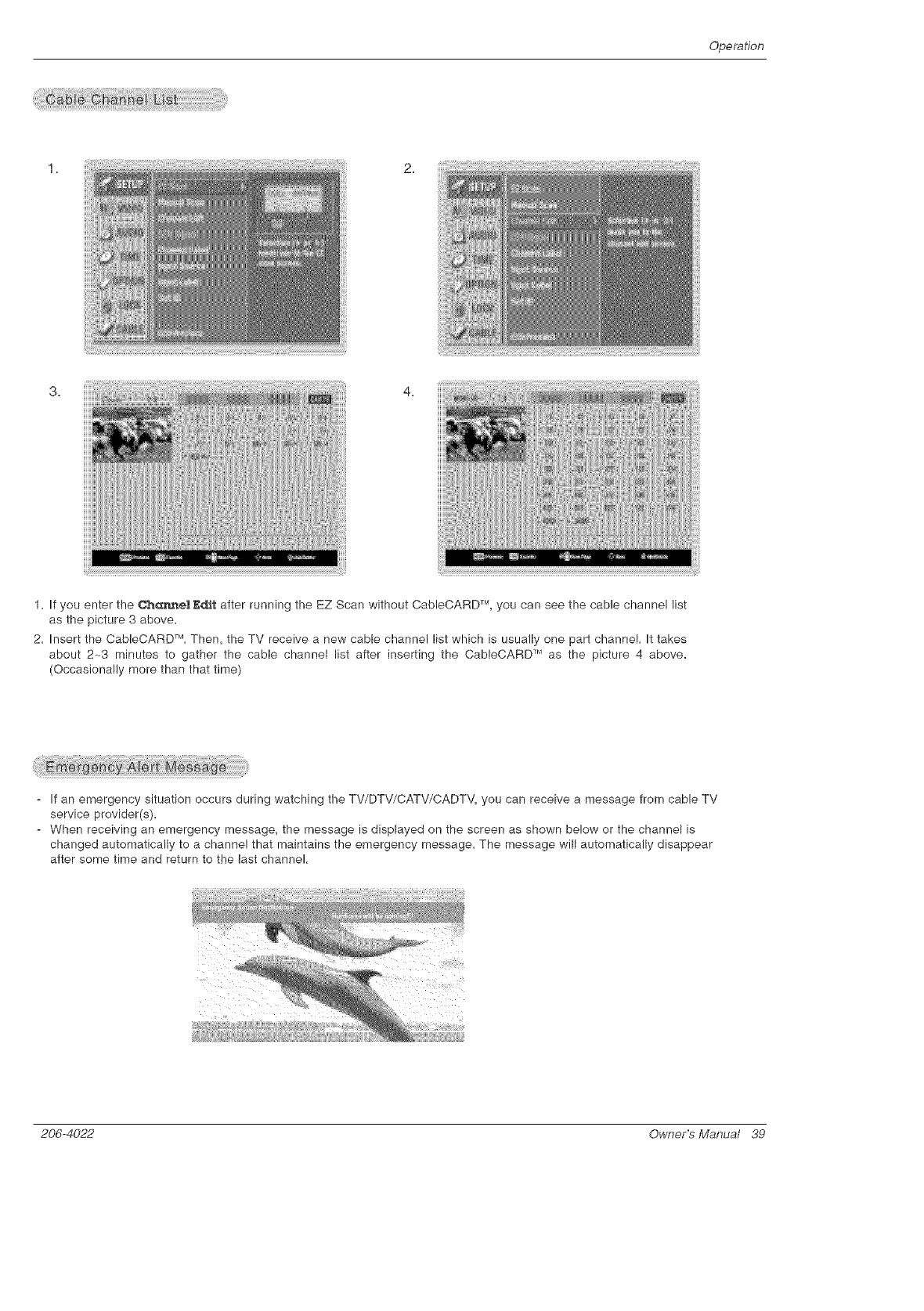

Cable Channel List ...................... 39

Emergency Alert Message ................ 89

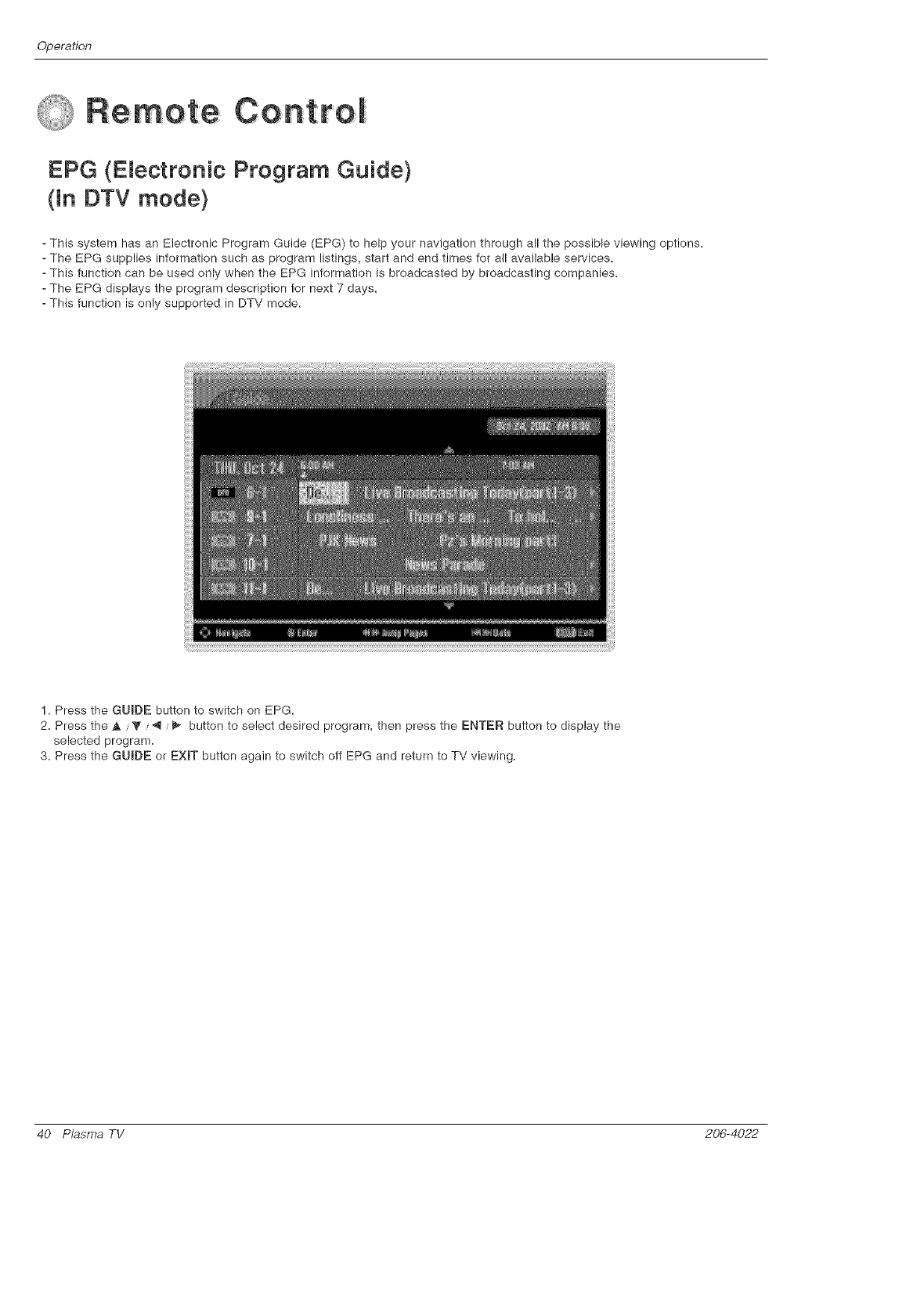

EPG (Electronic Program Guide) ............. 40

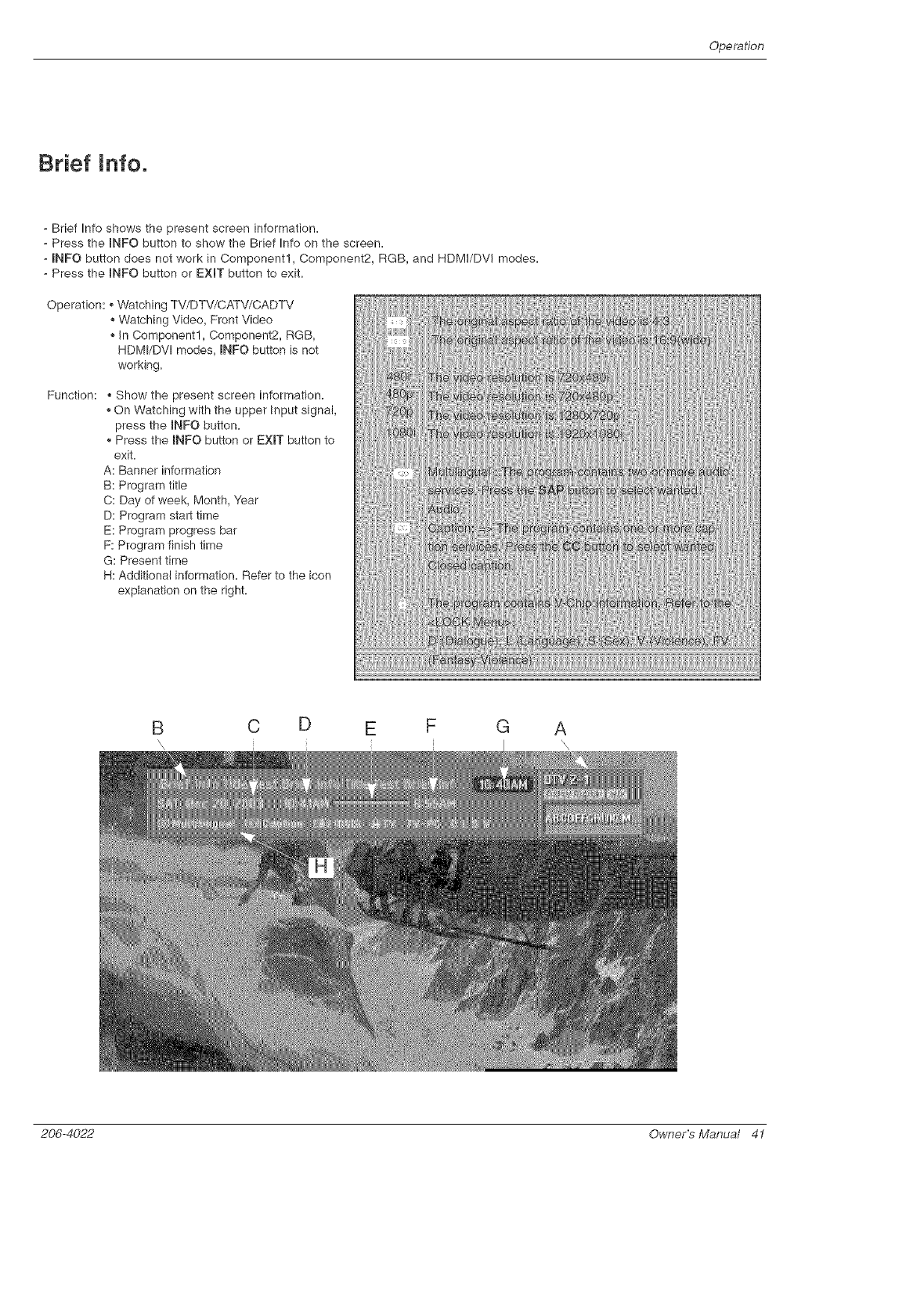

Brief Info ................................ 41

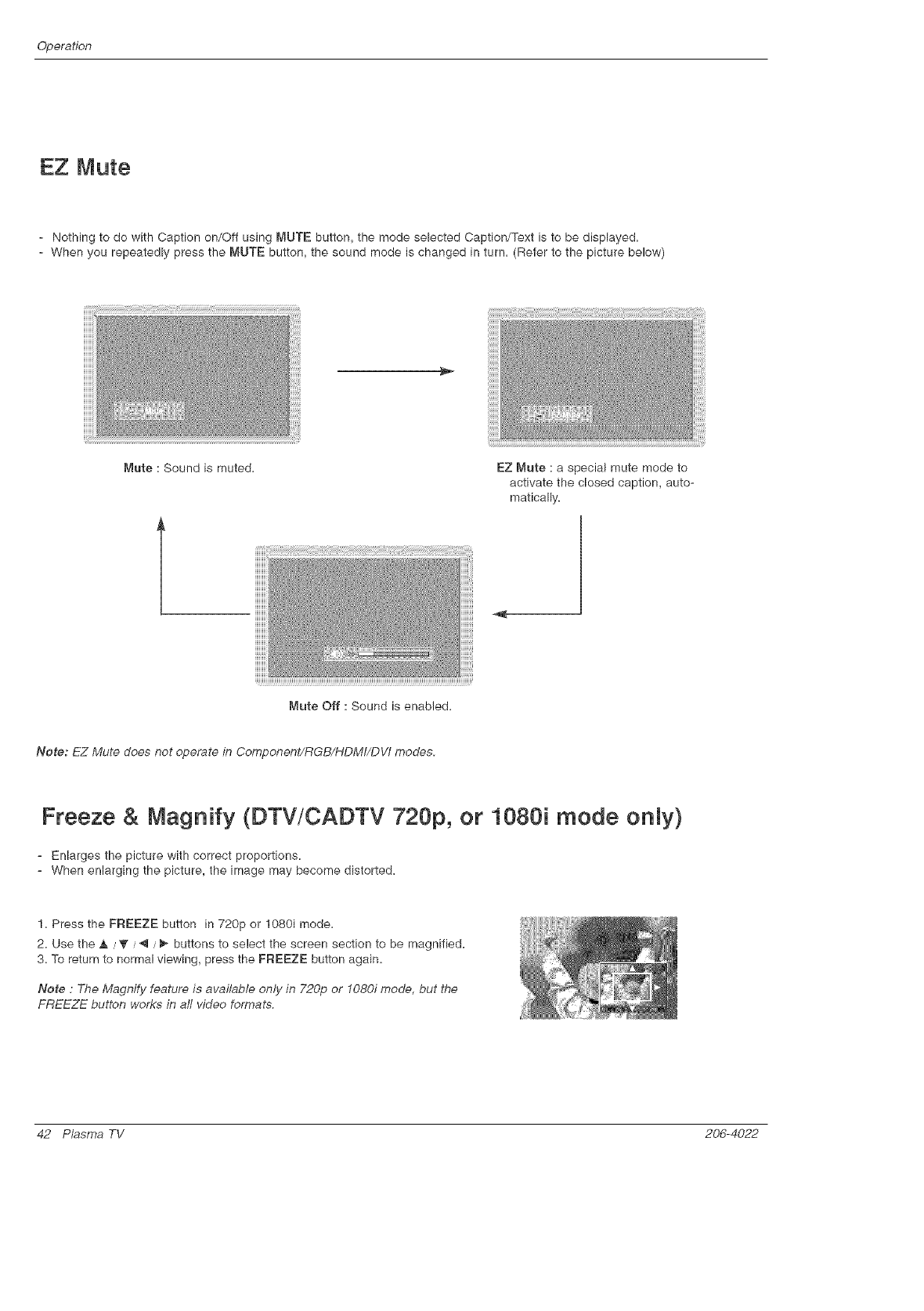

EZ Mute ................................ 42

Freeze & Magnify ......................... 42

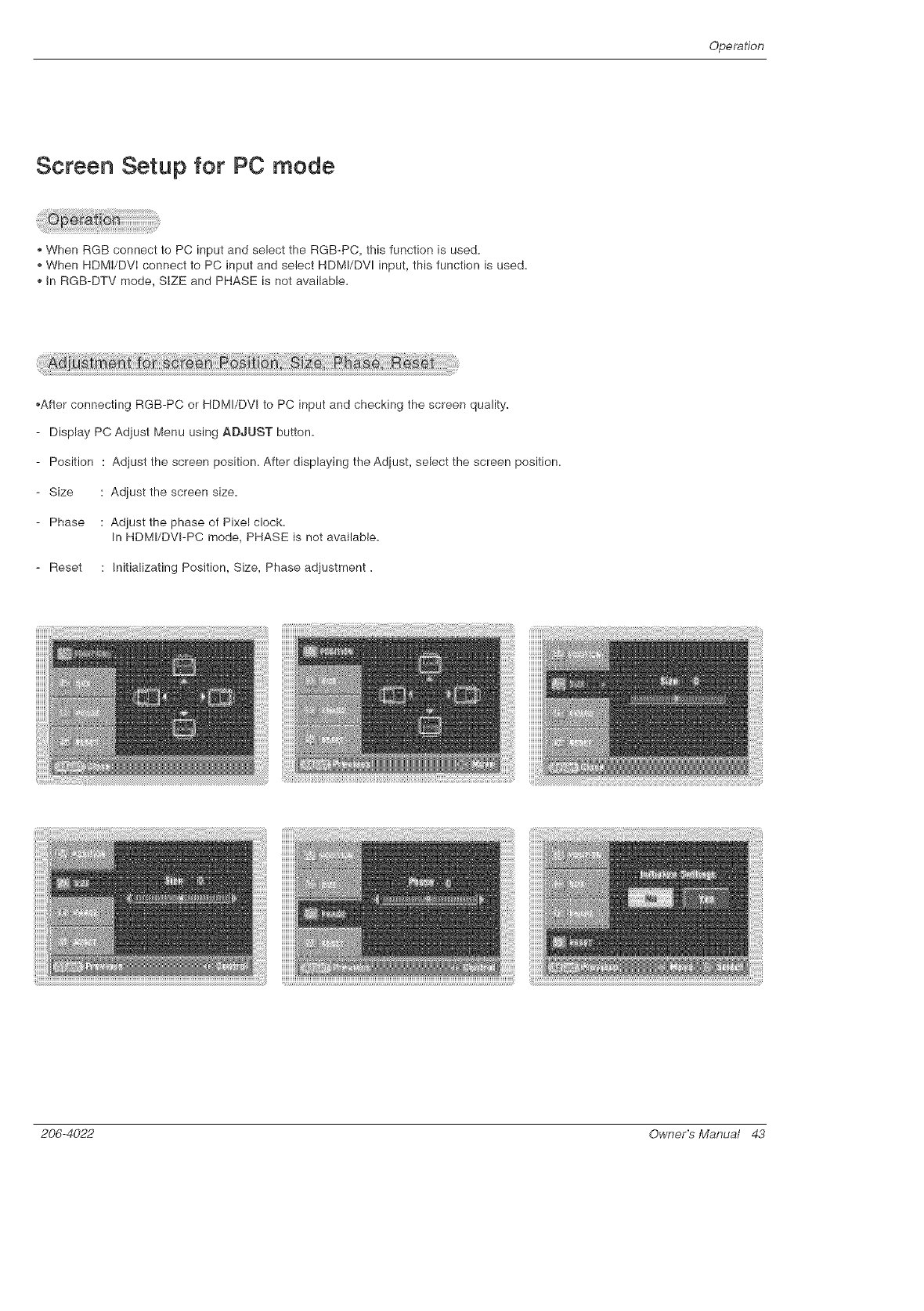

Screen Setup for PC mode .................. 43

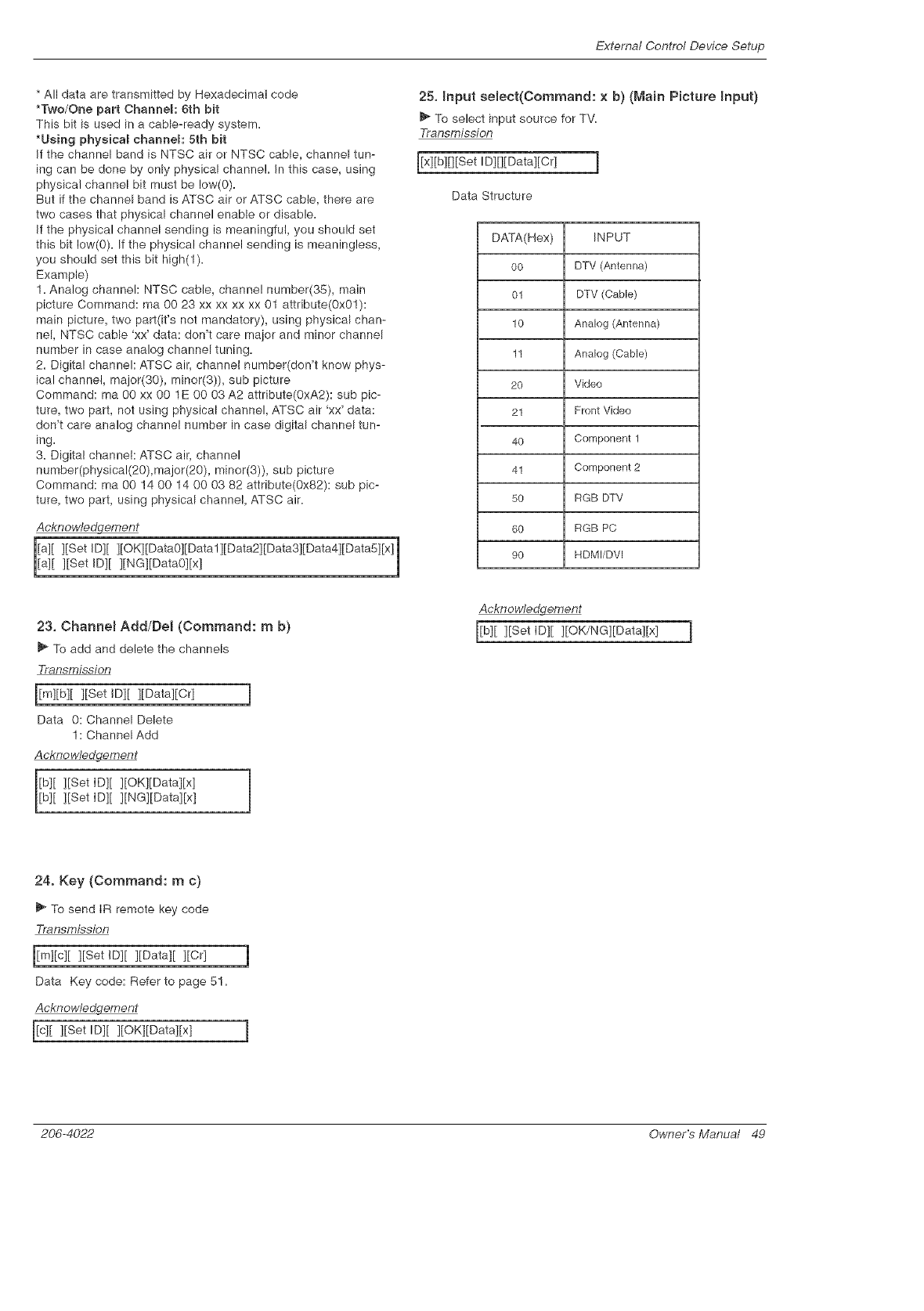

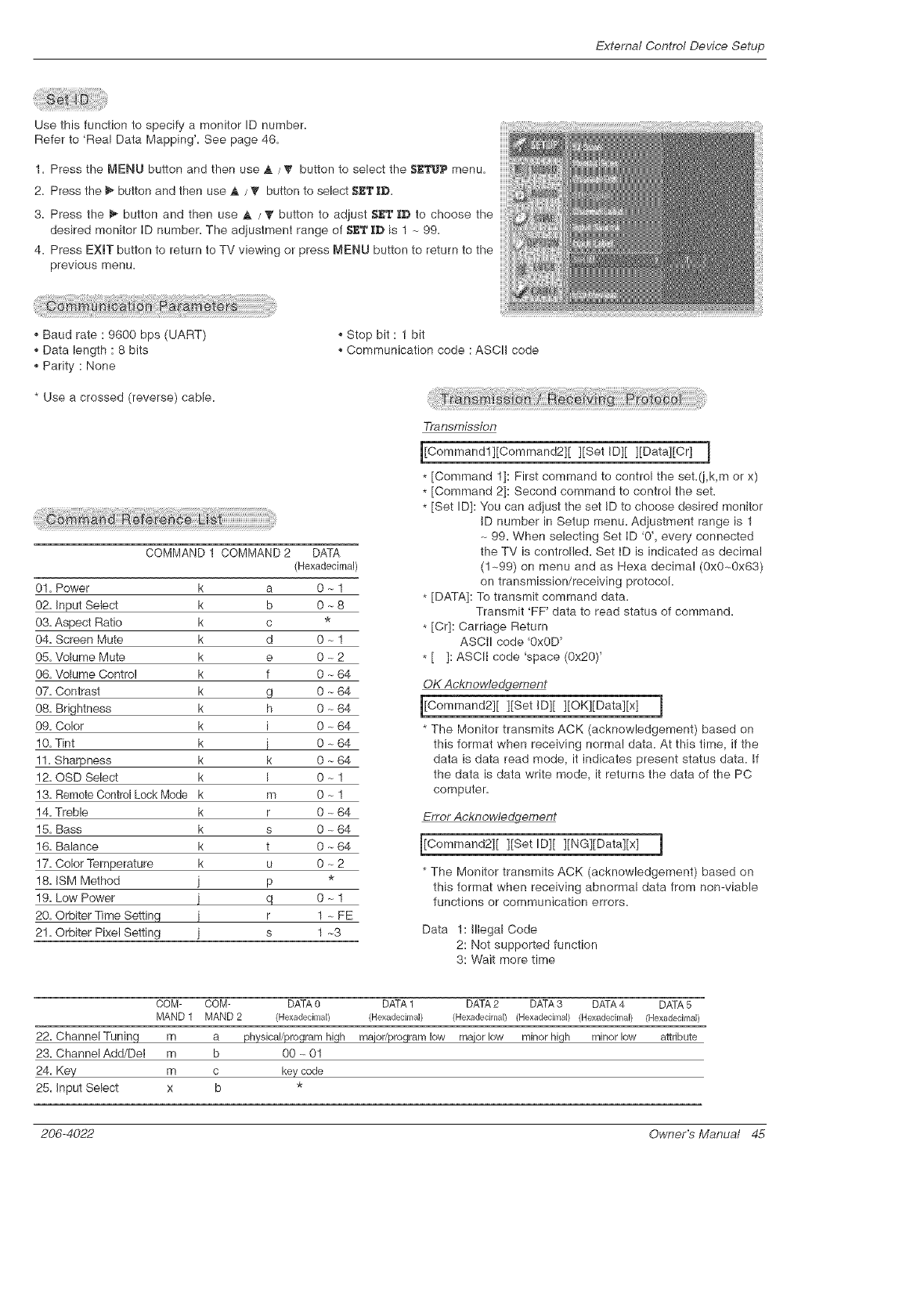

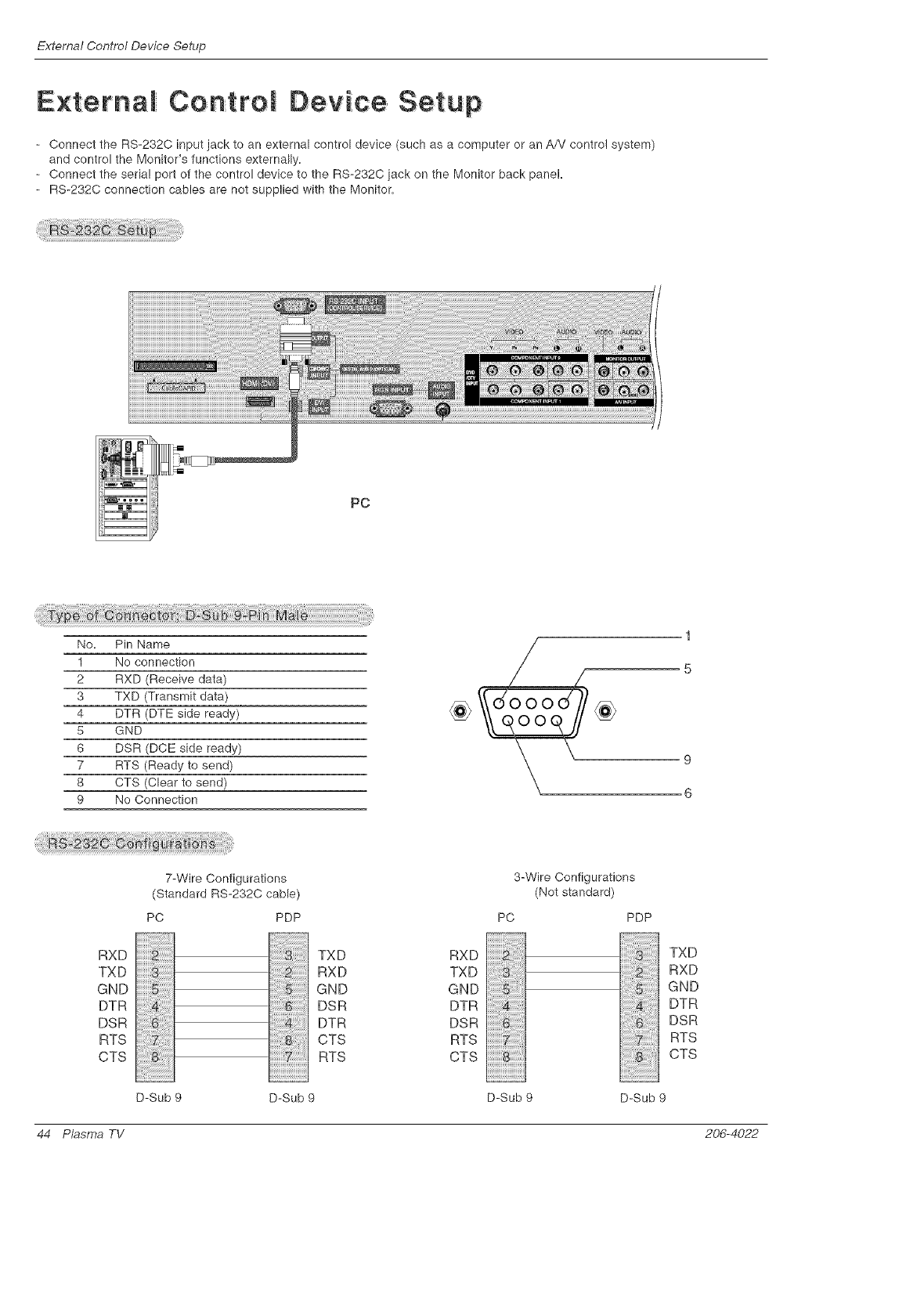

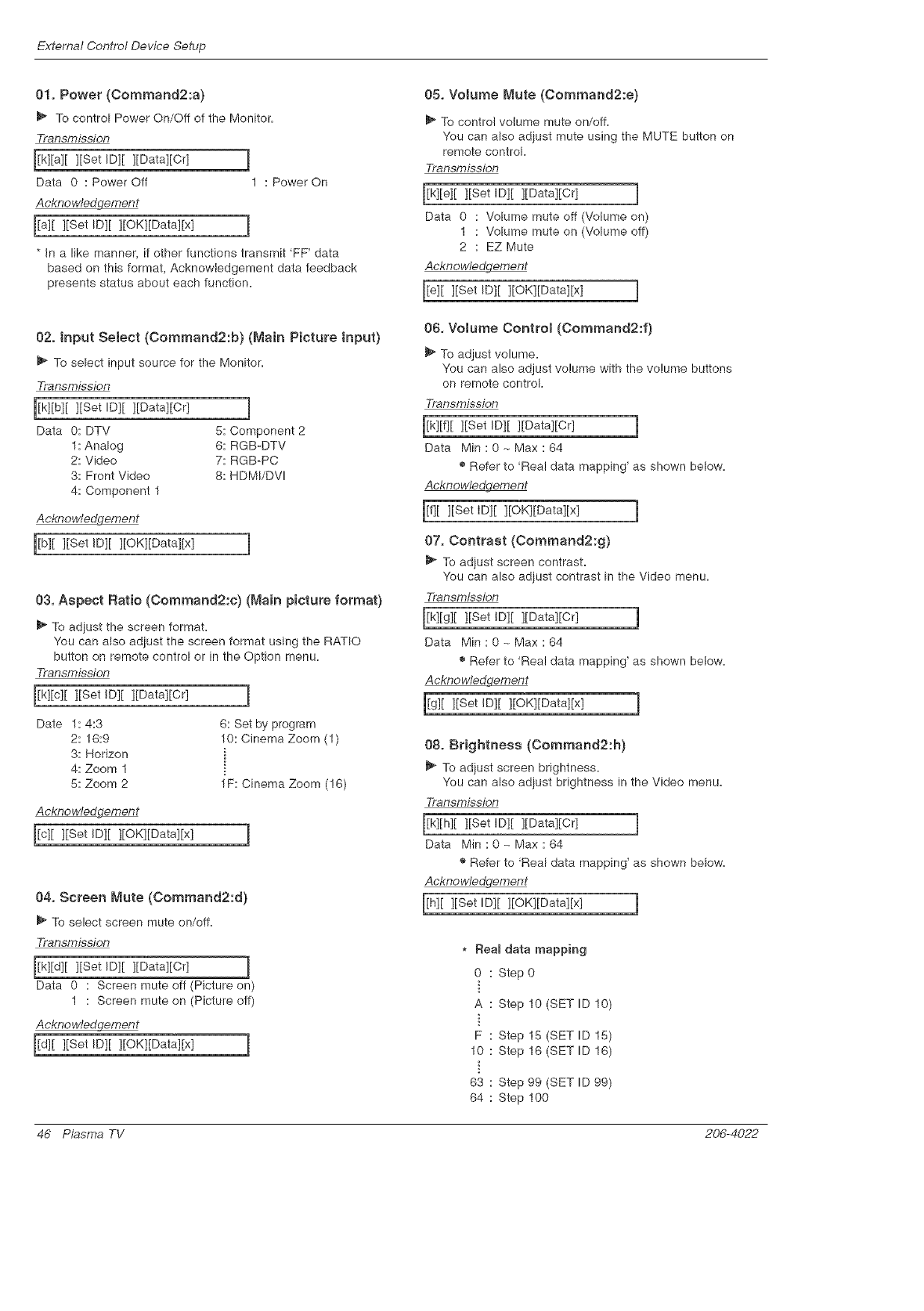

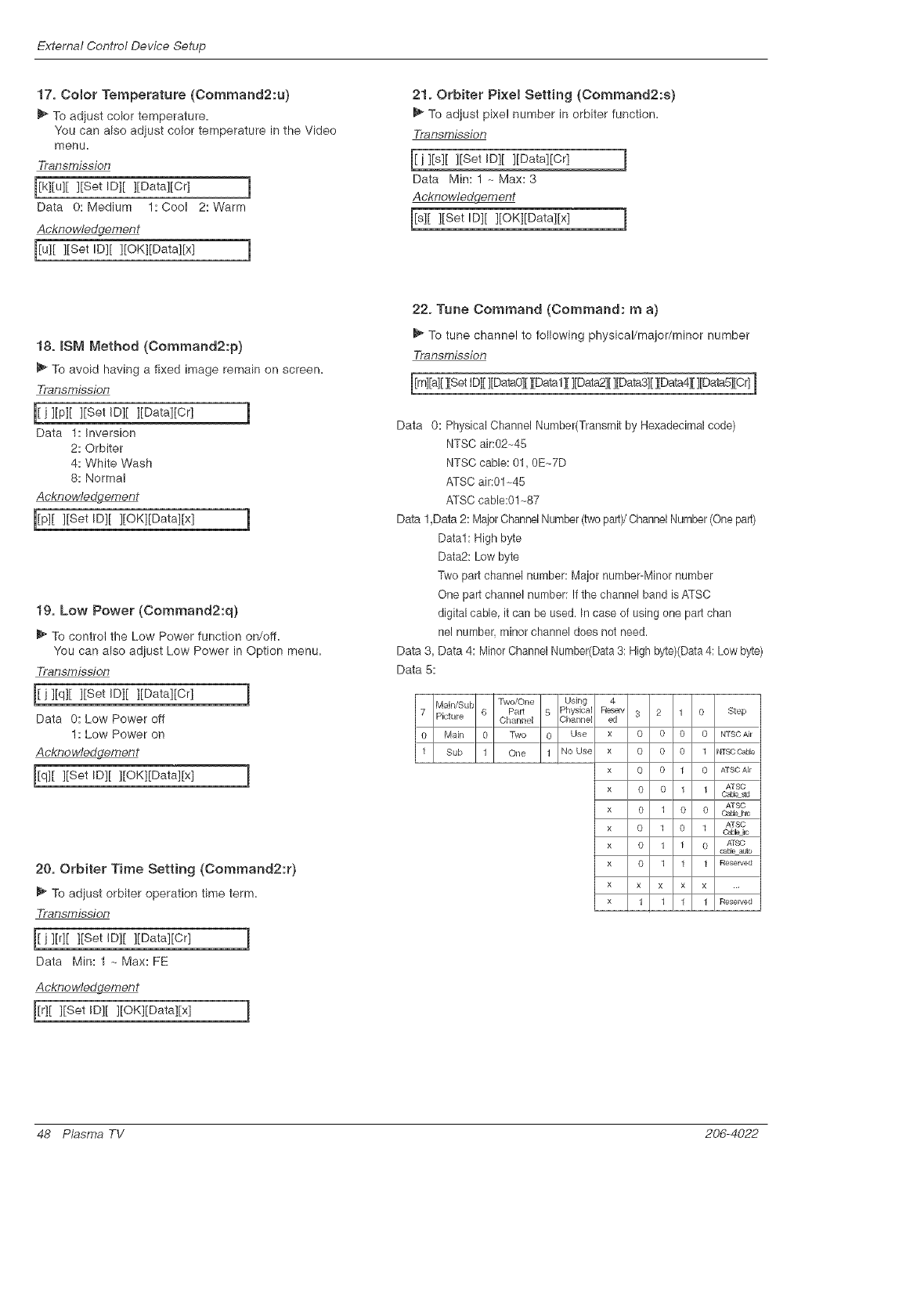

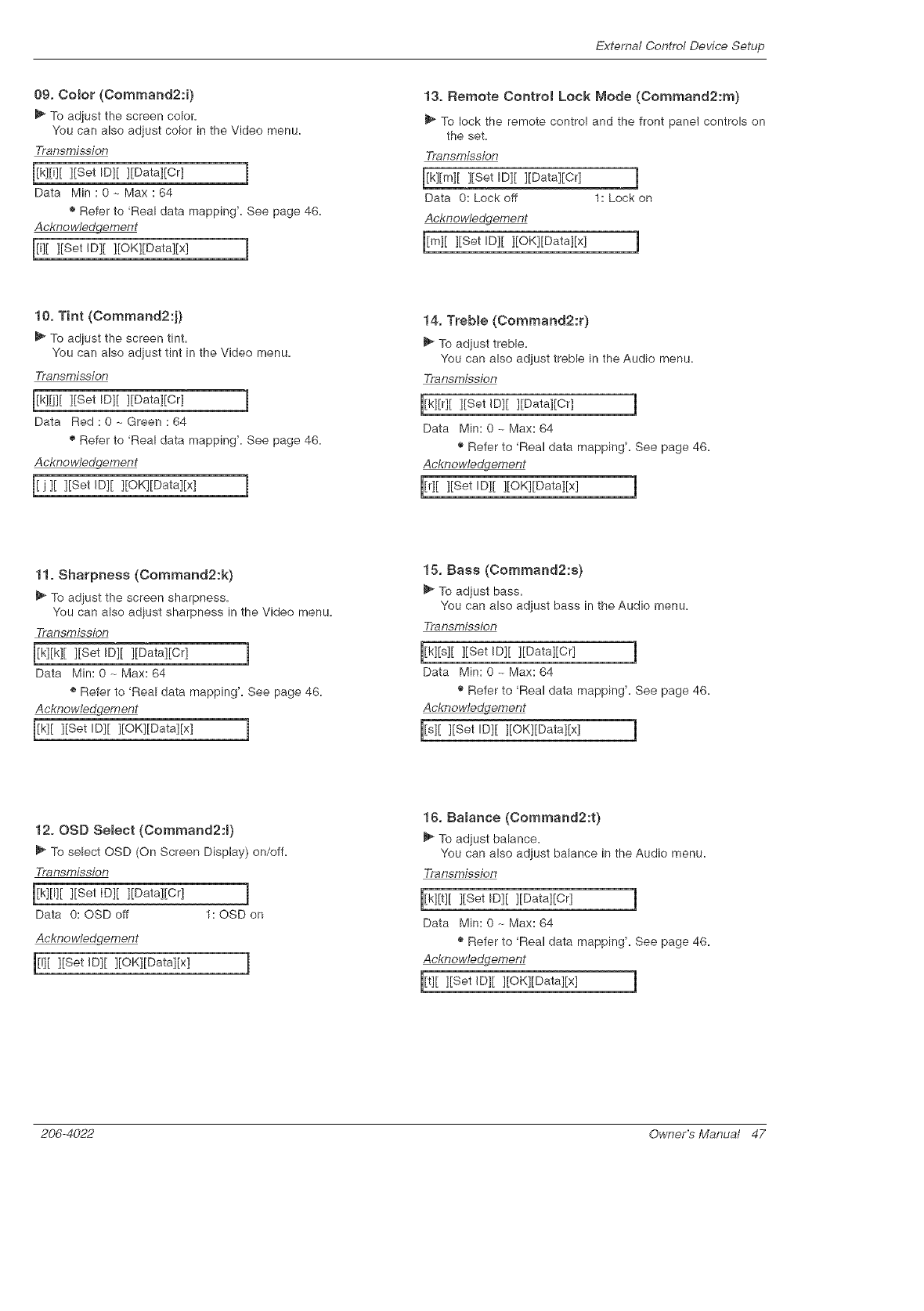

Externa_ Centre_ Device Setup ................ 44°49

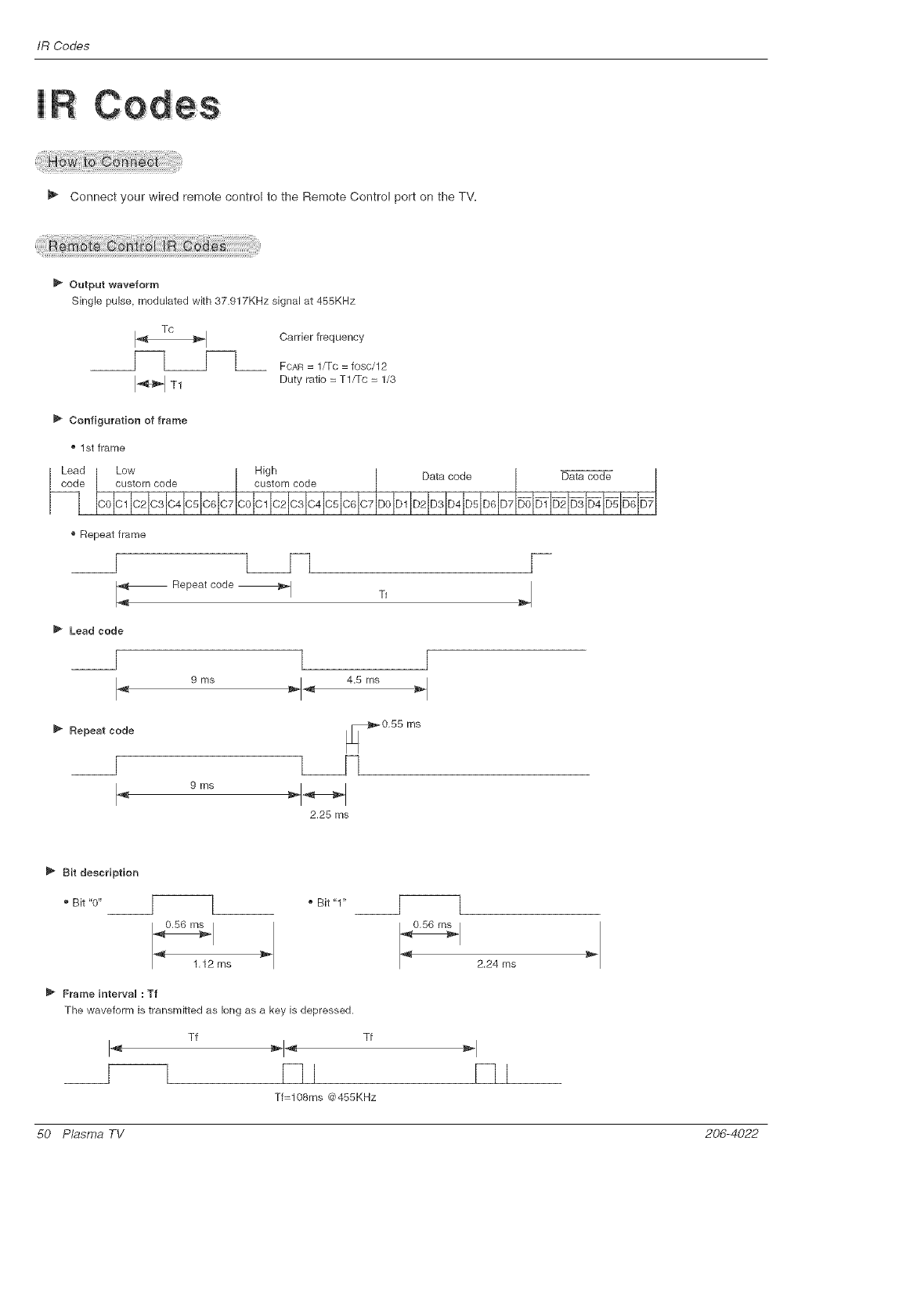

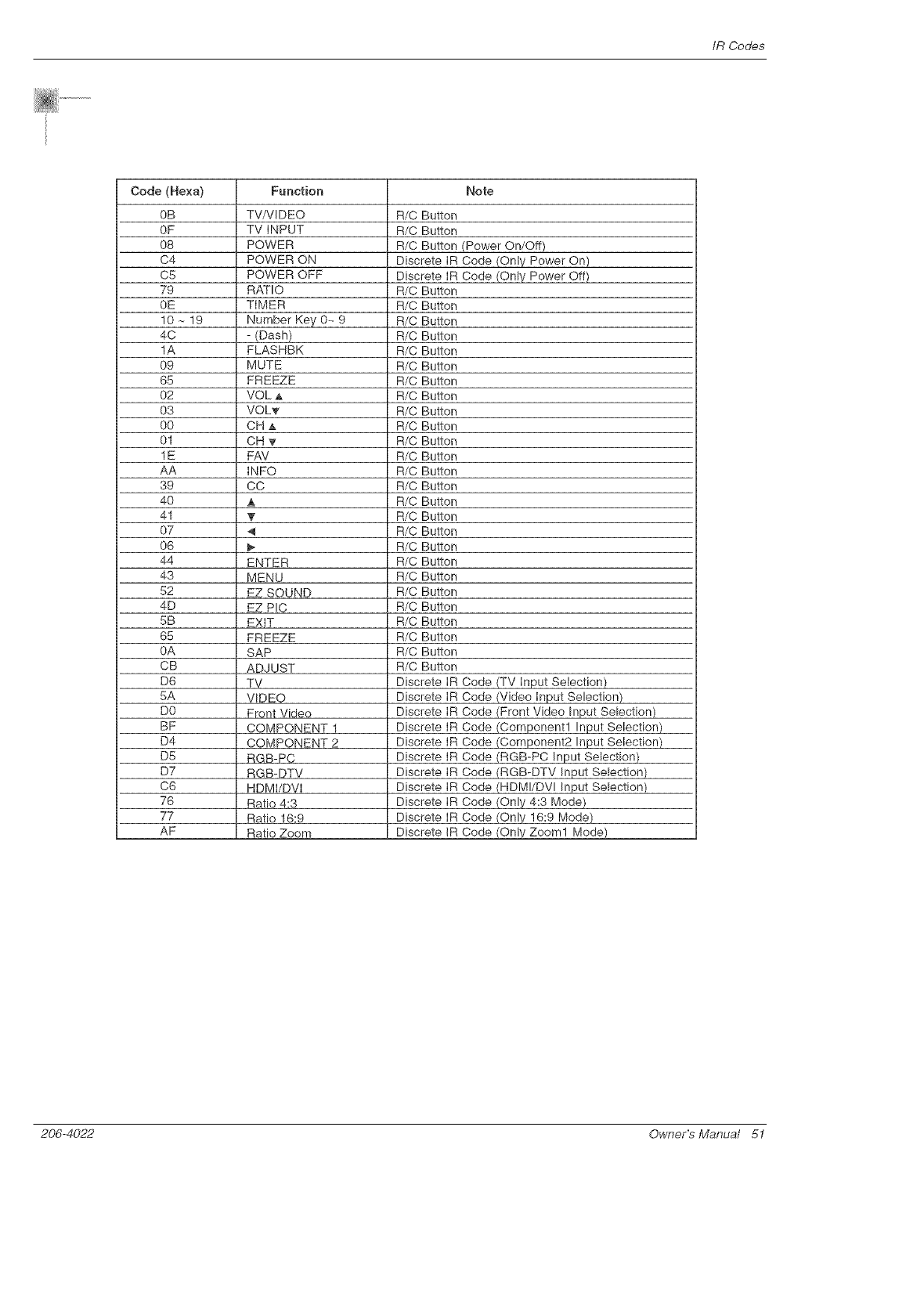

[R Cedes ................................ 50~51

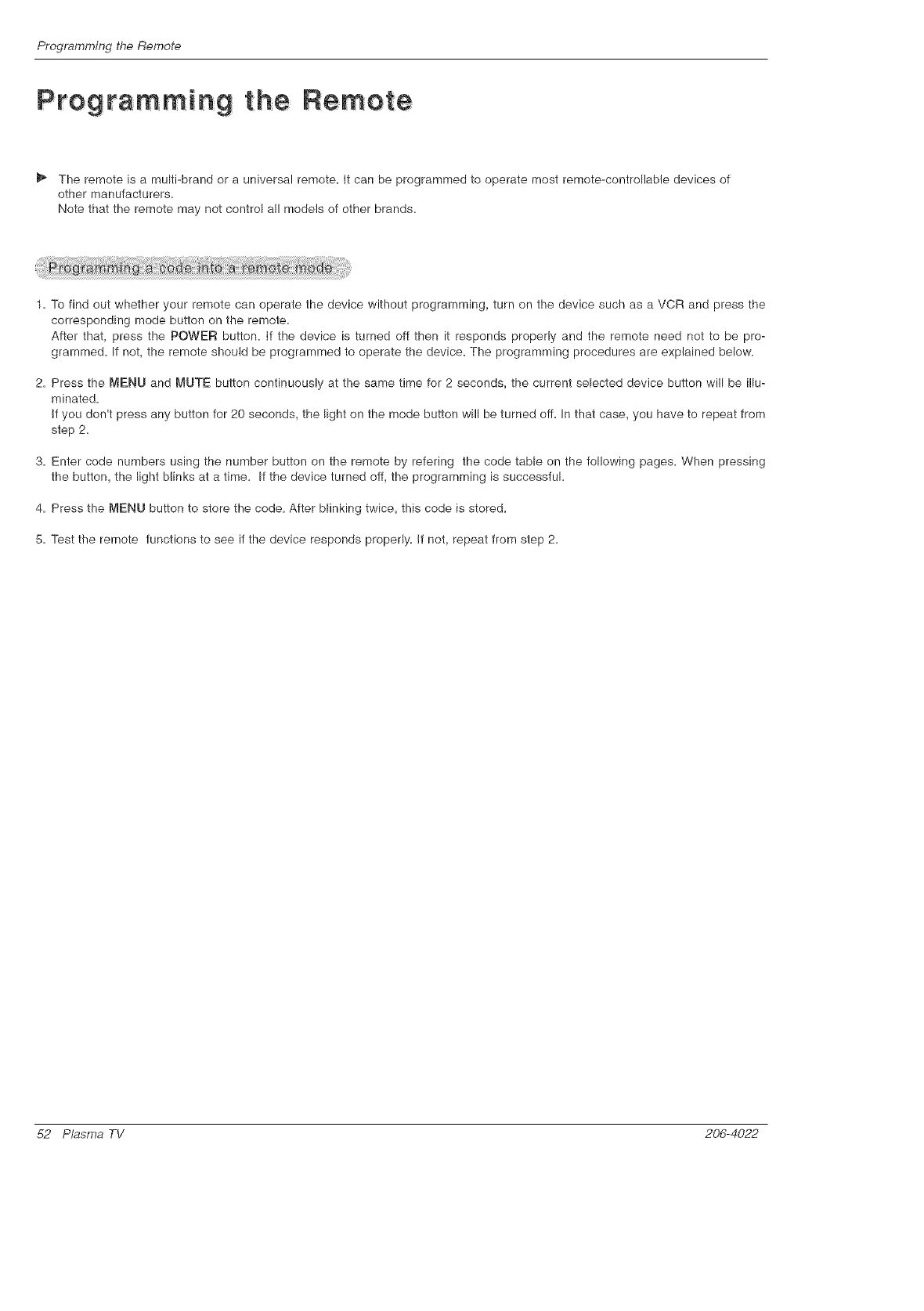

Pregramming the Remote ...................... 52

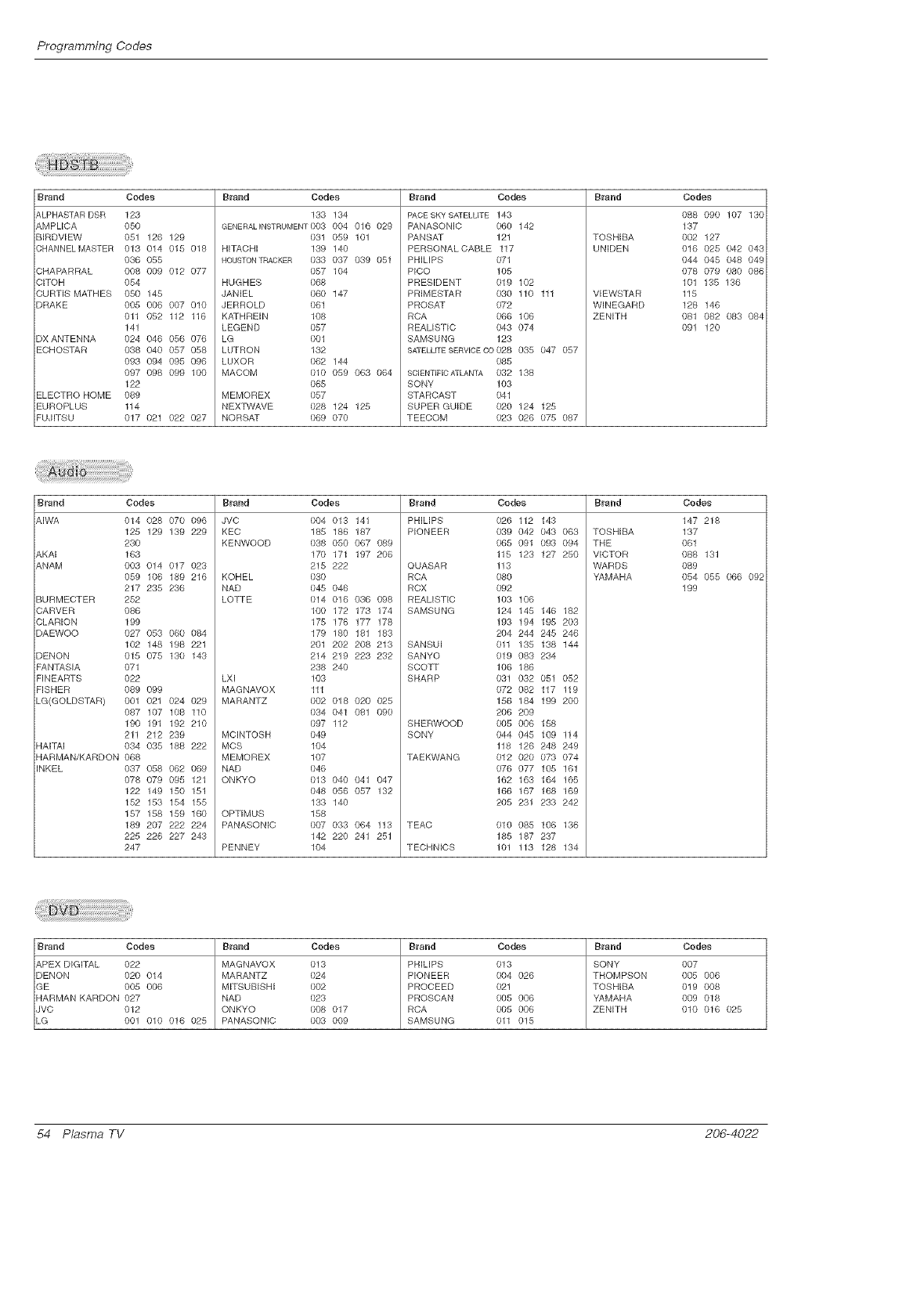

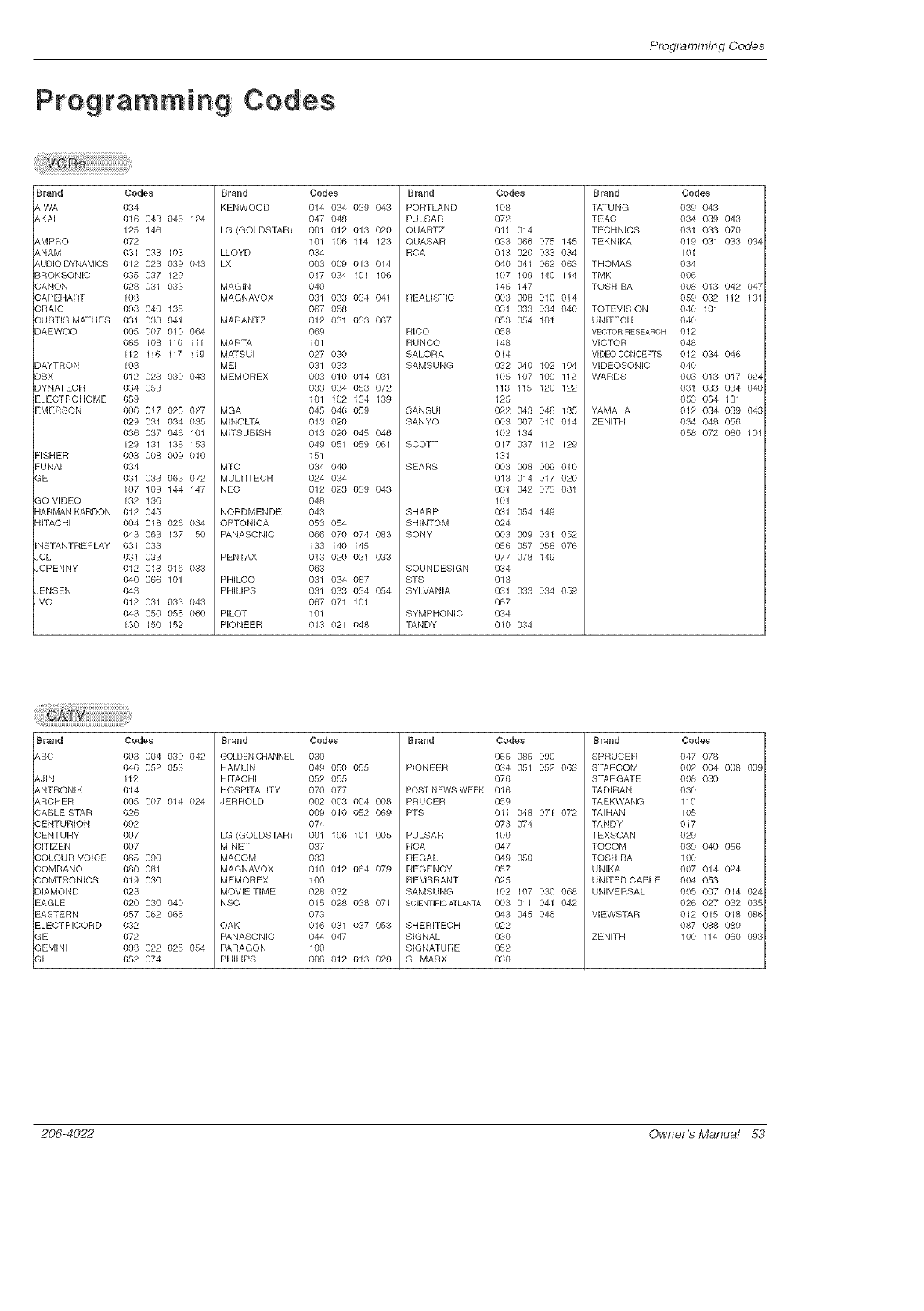

Pregramming Codes ....................... 53~54

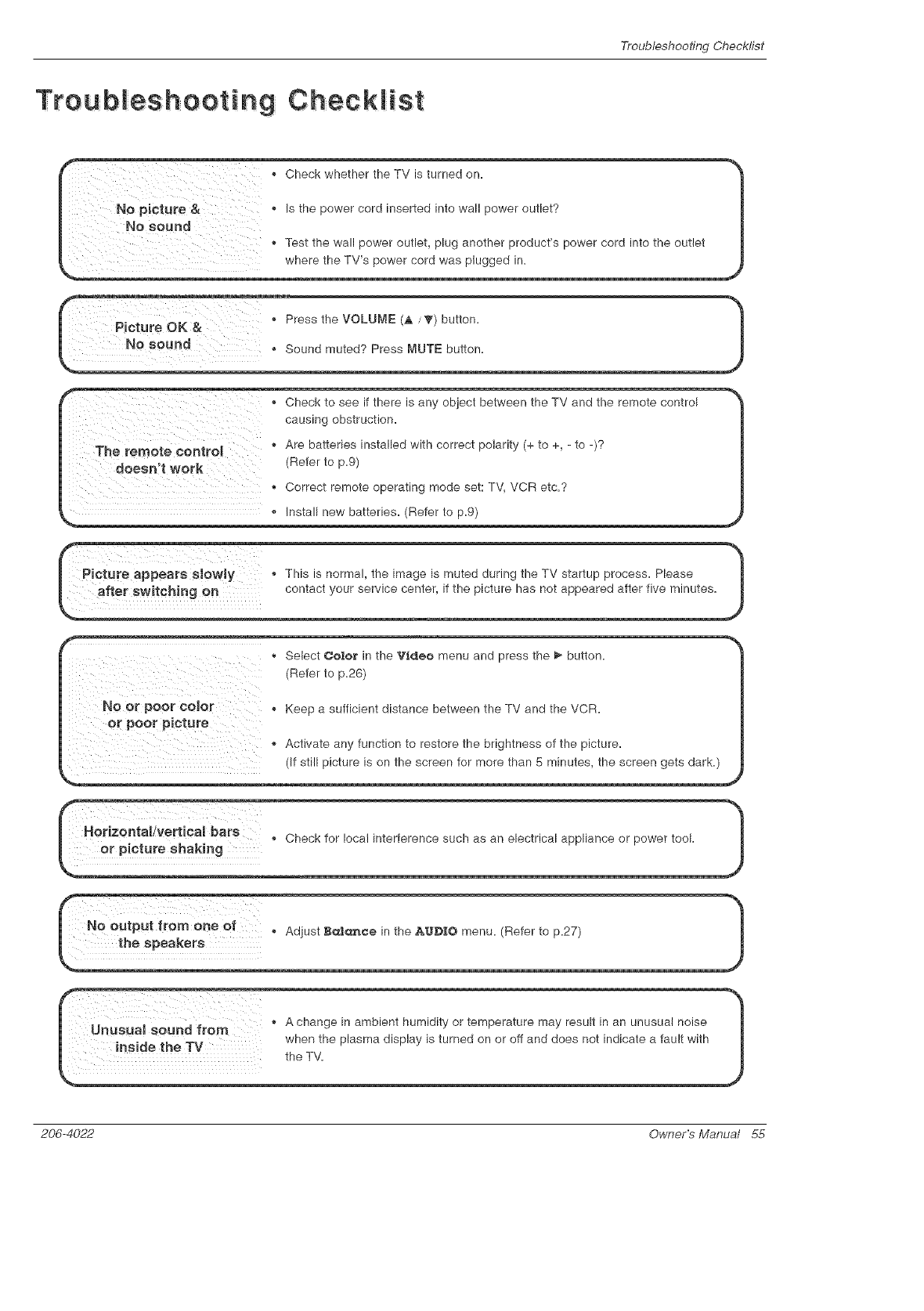

TreuMesheeting ChecMist ...................... 55

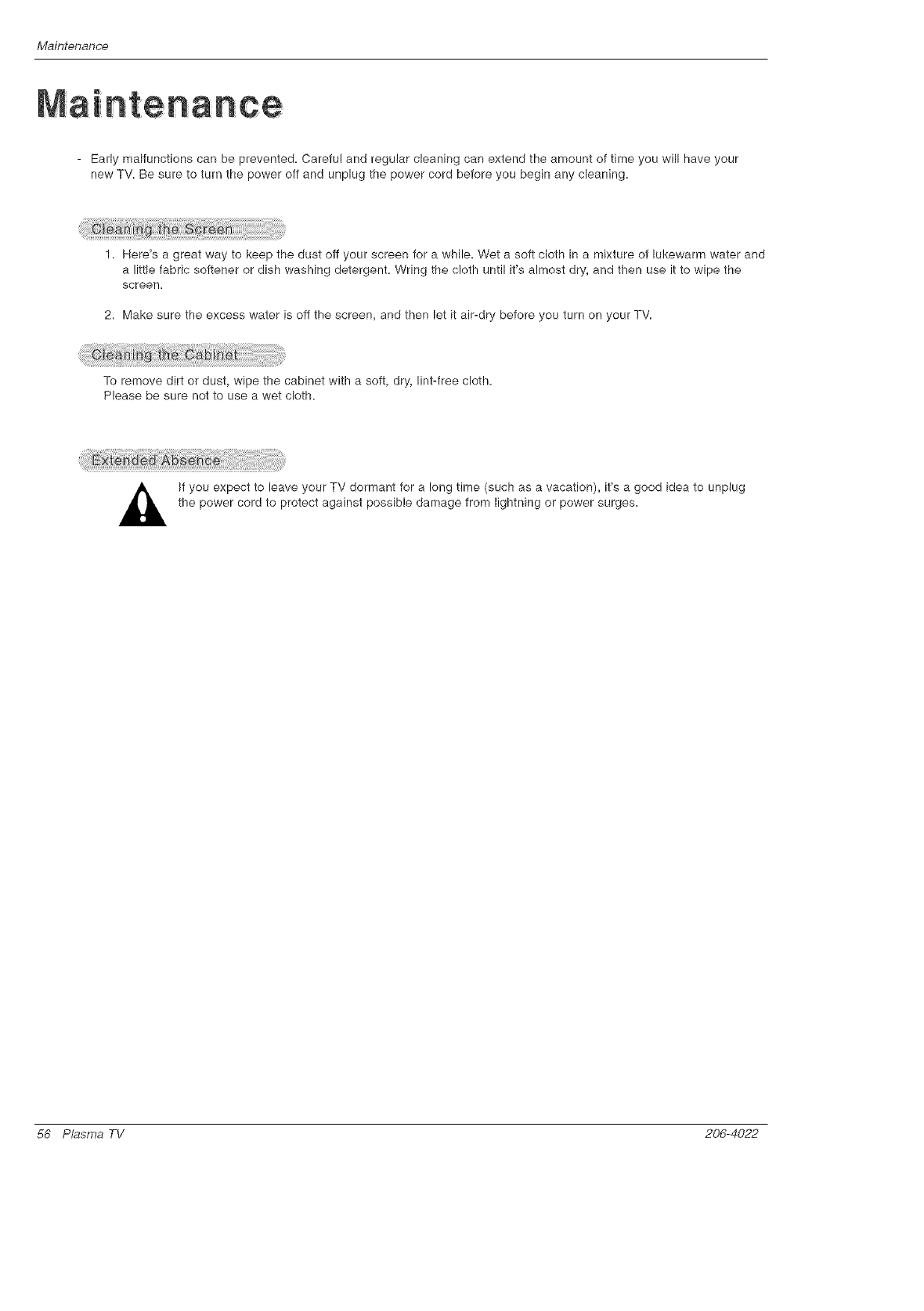

Maintenance ................................. 56

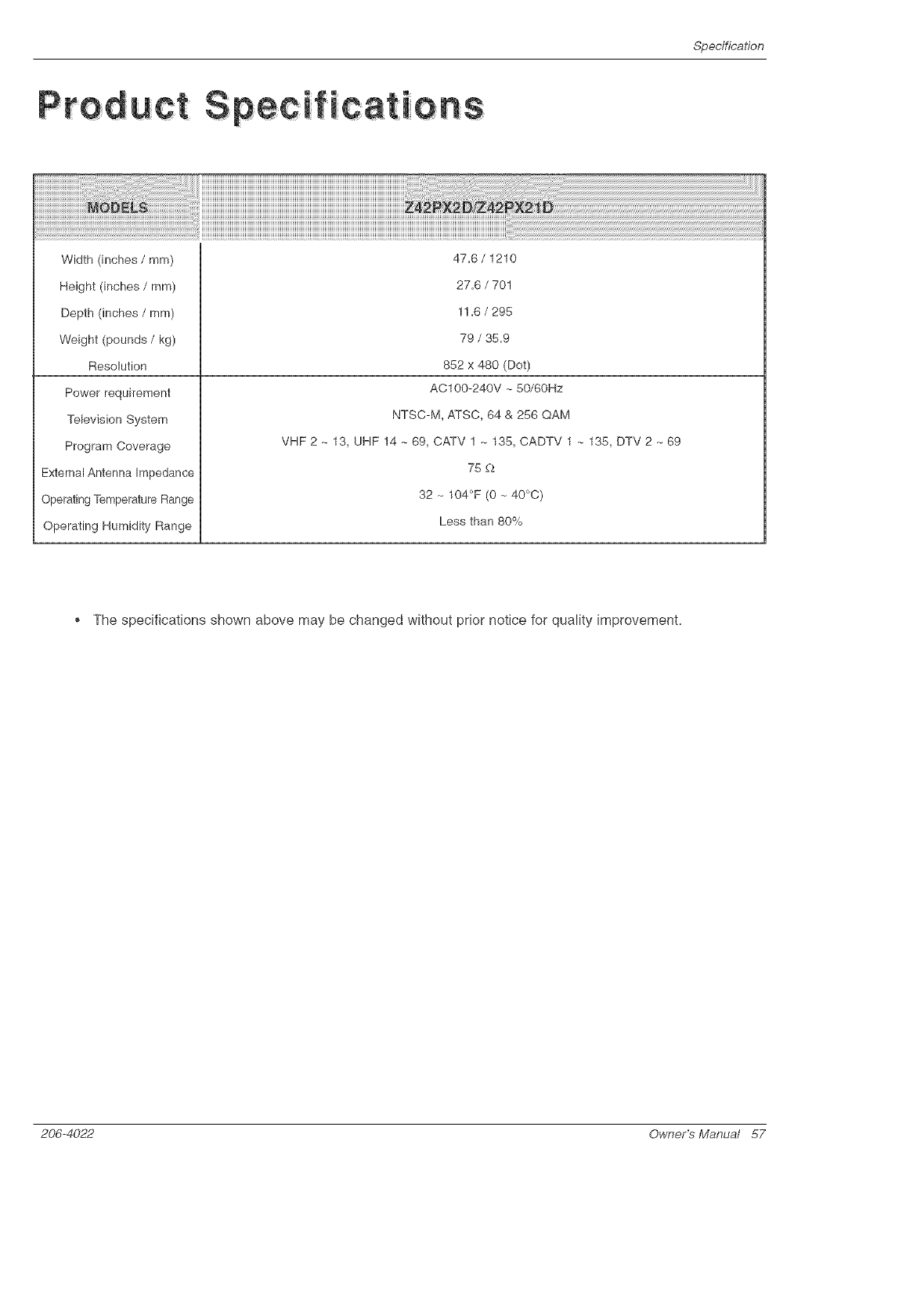

Product Specificatiens ......................... 57

Warranty ................................. 59~60

Setup and Operation Checklis:t

Setup and Operation Checklist

(See pages 13-21 for available connection and operational setup options.)

1. Unpack TV and all accessories. 5. Turn video source equipment on.

2. Connect all external video and audio equipment.

see pages 13-18.

6. Select viewing source for TV.

See pages 25.

3 install batteries in remote control.

See page 9.

4. Turn TV on.

See page 22.

7. Fine-tune source image and sound to your personal prefer-

ence or as required by source.

See pages 26~ 29.

8. Additional features set up

See Contents above.

After reading this manual, keep it handy for future reference.

206-4022 Owner_Manuaf S

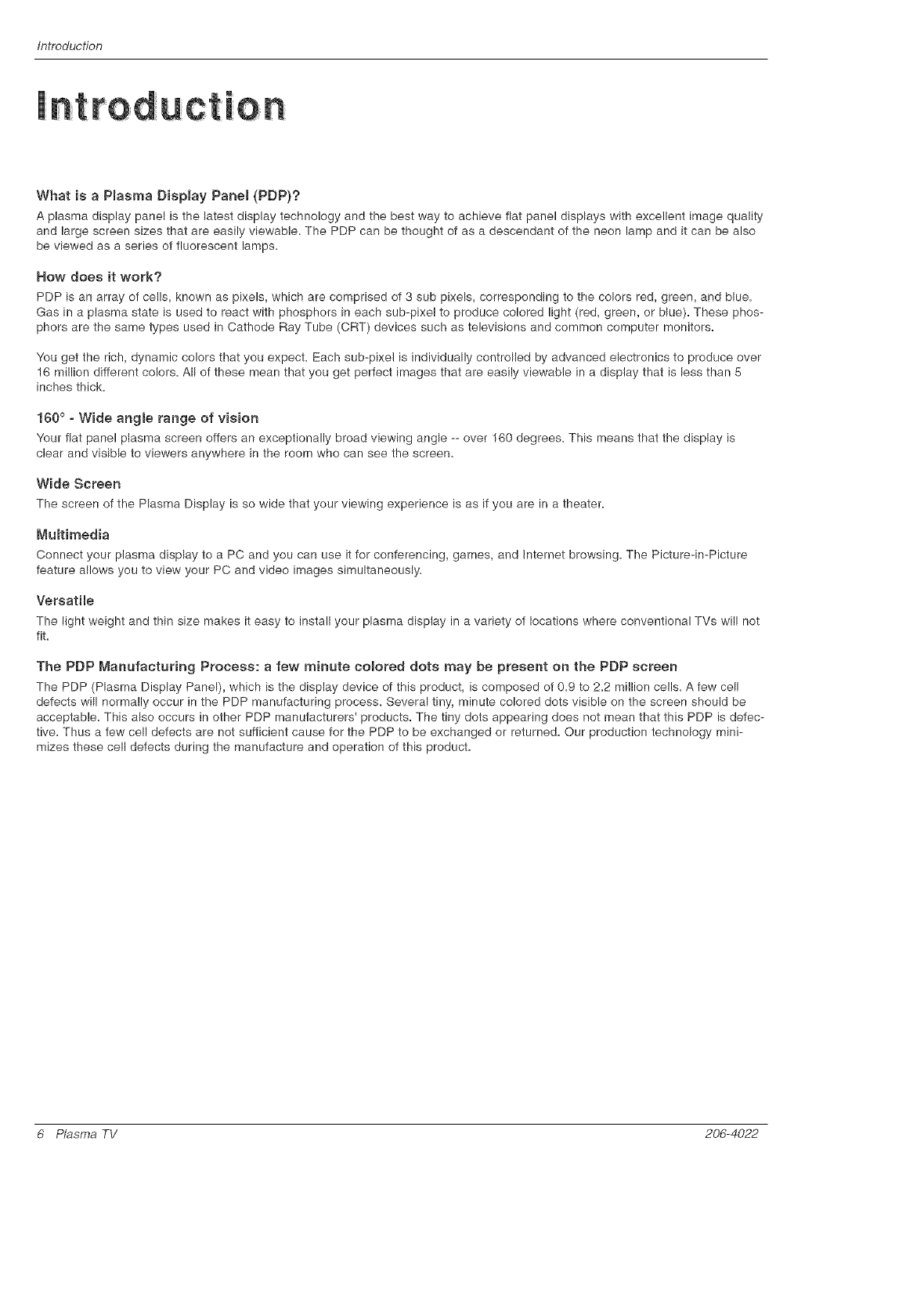

/ntroduct/on

What is a P(asma Disp(ay Panel (PDP)?

A plasma display panel is the latest display technology and the best way to achieve flat panel displays with excellent image quality

and large screen sizes that are easily viewable. The PDP can be thought of as a descendant of the neon lamp and it can be also

be viewed as a series of fluorescent lamps.

How does it work?

PDP is an array of cells, known as pixels, which are comprised of 3 sub pixels, corresponding to the colors red, green, and blue.

Gas in a plasma state is used to react with phosphors in each sub-pixel to produce colored light (red, green, or blue). These phos-

phors are the same types used in Cathode Ray Tube (CRT) devices such as televisions and common computer monitors.

You get the rich, dynamic colors that you expect. Each sub-pixel is individually controlled by advanced electronics to produce over

16 million different colors. All of these mean that you get perfect images that are easily viewable in a display that is less than 5

inches thick.

160 ° - Wide angle range of vision

Your flat panel plasma screen offers an exceptionally broad viewing angle -- over 160 degrees. This means that the display is

clear and visible to viewers anywhere in the room who can see the screen.

Wide Screen

The screen of the Plasma Display is so wide that your viewing experience is as if you are in a theater.

MuBtirnedia

Connect your plasma display to a PC and you can use it for conferencing, games, and Internet browsing. The Picture-in-Picture

feature allows you to view your PC and video images simultaneously.

Versatile

The light weight and thin size makes it easy to install your plasma display in a variety of locations where conventional TVs will not

fit.

The PDP Manufacturing Process: a few minute colored dots may be present on the PDP screen

The PDP (Plasma Display Panel), which is the display device of this product, is composed of 0.9 to 2.2 million cells. A few cell

defects will norma!ly occur in the PDP manufacturing process. Several tiny, minute colored dots visible on the screen should be

acceptable. This also occurs in other PDP manufacturers' products. The tiny dots appearing does not mean that this PDP is defec-

tive. Thus a few cell defects are not sufficient cause for the PDP to be exchanged or returned. Our production technology mini-

mizes these cell defects during the manufacture and operation of this product.

6 Plasma TV 206-4022

Introduction

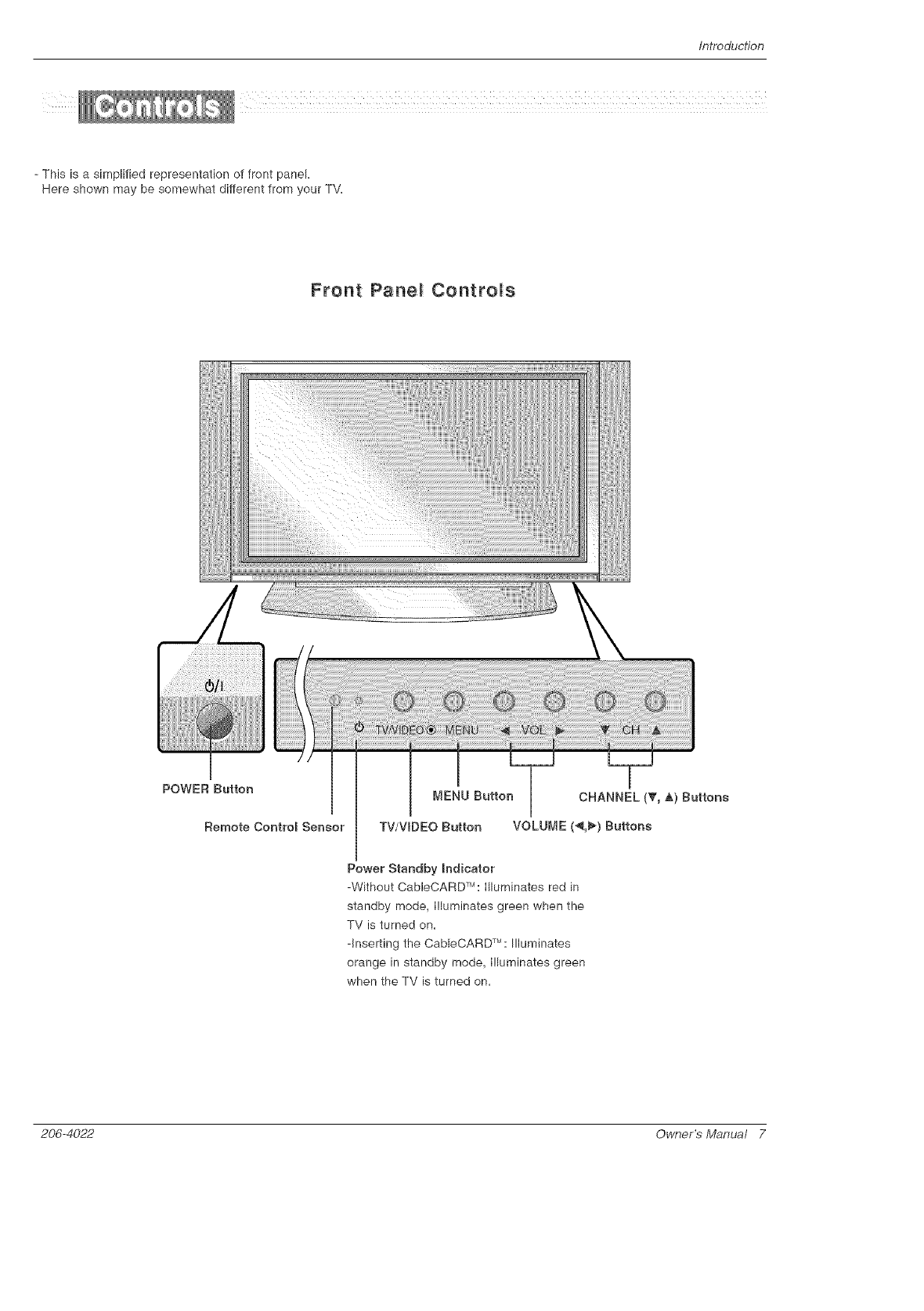

- This is a simplified representation of front panel.

Here shown may be somewhat different from your TV.

Front Panel Controls

POWER Button

Remote Contro_ Sensor

L_J L_J

MENU Button CHANNEL (T, _) Buttons

TV/VmDEO Button VOLUME (_,_) Buttons

Power Standby mndicator

-Without CableCARDTM: Illuminates red in

standby mode, illuminates green when the

TV is turned on=

-inserting the CableCARDT_': Illuminates

orange in standby mode, illuminates green

when the TV is turned on=

206-4022 Owner's Manual 7

Introduction

Back Connection Panel

S_VIDEO mnput

/A connection available to provide bet-

ter picture quality than the video input.

VmDEO Input

-- Connects the video signa! from a

video device.

-- AUDIO mnput

Use to connect to hear stereo sound

from an external device.

CaMeCARD TM

Used for

CableCARD TM

received from

Cable Service

Provider.

BGB/AUDmO mNPUT

Connect the monitor output connector

from a PC to the appropriate input port.

Remote Contro_ Port

Connect your wired

remote control here.

BS-2320 mNPUT (CON_

TBOUSERVmCE) PORT

Connect to the RS-232C

port on a PC. m

DVD/DTV Input S=Video mnput

(Component 1_2) Connect S-

Connect a component Video out from

video/audio device to an S-VIDEO

these iacks, device to the S-

VIDEO input.

Antenna mnput

Connect over-the-

air signals to this

HDMm/DVm

connect a

DVI(Video)

signal to

HDMt/DVL

Digita_ Audio (DVk

Bigita_ Vieua_

Interface/Component2)

Input/

Digita_ Audio Output

Connect digital audio

from various types of

equipment. Note: In

standby mode,

these ports will not

work.

Audio/Video

Connect audioMdeo

output from an

external device to

these jacks.

Monitor Output

Connect a second TV

or Monitor.

CABLE mnput

Connect cable signals to this

jack, either directly or through

a cable box.

Power Cord Socket

This TV operates on an AC power. The voltage

is indicated on the Specifications page. Never

attempt to operate the TV on DC power.

8 Plasma TV 206-4022

Introduction

- When using the remote control, aim it at the remote control sensor on the TV.

TV iNPUT, .....

Rotates the input mode between Antenna "',,

Selects the remote operating mode: TV,

DVD, VCR, AUDIO, CABLE or STB. Select

a mode other than TV, for the remote to

operate an external device.

MENU ..........

Brings up the main menu to the screen.

EXmT

Clears all on-screen displays and returns to

TV viewing from any menu.

Lets you select the amount of time before

your TV turns itself off automatically.

Switches the sound on or off.(Refer to p.42)

EZ PIC

Selects a factory preset picture mode

depending on the viewing environment.

EZ SOUND

Selects the sound appropriate for the

program's character.

TV/VIDEO

External input modes rotate in regular

sequence: Antenna, Cable, Video, Front

Video, Component 1-2, RGB-DTV (or

RGB-PC) and HDMI/DVl input sources.

(Video, Front Video, Component 1-2 input

sources are linked automatically, only if

these are connected )

Changes the aspect ratio.

When you watch the TV, information dis-

plays on top of the screen. Not available

in Component 1-2, RGB and HDMI/DVI

mode. (Refer to p.41)

FAV

Scrolls the Favorite channels.

..... FLASNBK

Tunes to the recent channels.

Freezes the currently-viewed picture.

Main picture is frozen.

Installing Batteries

Open the battery compartment cover on the back side and install the batteries

matching correct polarity (+ with +, - with -).

• Install two 1.SV AA batteries. Don't mix old or used batteries with new ones. Close

cover.

206-4022 Owner's Manual 9

introduction

POWER ..............

Turns your TV or any other programmed

equipment on or off, depending on mode,

GUmDE

Shows program schedule, ......

THUMBSTmCK (Up/Down/Left/Right/ENTER)

Allows you to navigate the on-screen menus

and adjust the system settings to your pref-

erence.

Select a closed caption:

Off, CC1-4, Text1-4.

Increases/decreases the sound level.

EZ SOUND

Selects the sound appropriate for the pro-

grarn's character,

Adiusts screen position, size, and phase in

PC mode.

,VCR/DVD BUTTONS

," • Control some video cassette recorders

/or DVD players, ("RECORD" button is not

/available for DVD players,)

Moves the Listings Grid forward or back-

ward in 24 hour increments.

CHANNEL UP/DOWN

Selects available channels found with EZ

scarf,

PAGE UP/PAGE DOWN

Moves from one full set of screen infor-

mation to the next one,

buttons

SAP

Selects MTS sound: Mono, Stereo, and

SAP in Analog mode. Change the audio

language in DTV mode.

UGHT

I!luminates the remote control

buttons of selected mode.

I0 Plasma TV 206-4022

Installation

Ensure that the following accessories are included with your plasma display. If an accessory is missing, please contact the dealer

where you purchased the product.

Owner's Manual Batteries Power Cord 75£_ Round Cable

.... J

Remote Control 2-Wall brackets 2Ieye-bolts D-sub 15 pin Cable

Secure the TV assembly by joining it to a wall by using the TV/WaII brackets.

if the set will be mounted on a desk top, insert

the 2 eye-bolts and tighten them securely in the upper

holes as shown.

Install the wall brackets on the wall with 2 bolts*, (not

supplied with the product), as shown.

Match the height of the eye-bolts and the wall brack-

ets.

Check to be sure the eye-bolts and the brackets are

tightened securely.

Secure the TV assembly to the wall with strong strings

or wire cables, (not supplied with the product), as

shown.

206-4022 Owner's Manual 11

/nstalladon

The TV can be installed in various ways such as on a wall, or on a desktop etc.

The TV is designed to be mounted horizontally.

GROUNDING

Ensure that you connect the earth ground wire to prevent possible

electric shock. If grounding methods are not possible, have a qualified

electrician install a separate circuit breaker. Do not try to ground the

unit by connecting it to telephone wires, lightening rods, or gas pipes.

For proper ventilation, allow a clearance of 4" on each

side and 2" from the wall. Detailed installation instruc-

tions are available from your dealer, see the optional

Wail Mounting Bracket Installation.

For proper ventilation, allow a clearance of 4" on each

side and the top, 2.36" on the bottom, and 2" from the

wall. Detailed installation instructions are included in

the optional Desktop Stand Installation.

12 Plasma TV 206-4022

Installation

1. Anatog and Digitat TV signams provided on antenna

Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections

- For optimum picture quality, adjust antenna direction if needed,

fMulti4amily Dwellings/Apartments

Bronze Wire

_ RF Coaxial Wire (75 ohm)

VHFAntenna _ Turn clockwise to tighten.

UHFAntenna

Outdoor

Antenna

Dwellings/Houses

(Connect to wall jack for outdoor antenna)

BronzeWire

Be careful not to bend the bronze wire when

connecting the antenna,

2. Anatog and Digitat TV signams provided on cable

Bronze Wire

Cable TV Wall

Jack RF Coaxial Wire (75 ohm)

Bronze Wire

206-4022 Owner's Manual 13

/nstaflafion

3. Analog and Digital TV signals provided on cable and antenna

fAntenna Bronze Wire

_i RF Coaxial Wire (75 ohm) .................

Cable TV Wall Turn clockwise to tighten,

Jack RF Coaxial Wire (75 ohm)

Bronze iN re

VHF] UHF

• To improve the picture quality in a poor signal area,

please purchase a signal amplifier and install properly.

If the antenna needs to be split for two TV's, install a "2-

Way Signal Splitter" in the connections.

If the antenna is not installed properly, contact your deal-

er for assistance.

- To avoid picture noise (interference), leave an adequate distance between the VCR and TV

Use the ISM Method (on the Option menu) feature to avoid having a fixed image remain on the screen for a long period of time.

If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen.

Connection Option 1

Set VCR output switch to channel 3 or 4 and

then tune the TV to the same channel number,

Connection Option 2

1. Connect the audio and video cables from the

VCR's output jacks to the TV input jacks, as

shown in the figure.

When connecting the TV to VCR, match the

jack colors (Video = yellow, Audio Left = white,

and Audio Right = red).

If you connect an S-VIDEO output from VCR to

the S-VIDEO input, the picture quality is

improved; compared to connecting a regular

VCR to the Video input.

2. insert a video tape into the VCR and press

PLAY on the VCR. (Refer to the VCR owner's

manual.)

3. Select the input source with using the

TV/WDEO button on the remote control. Note

that this TV finds the connected input sources

automatically for Video, Front Video and

Component 1-2. It is presumed that RGB and

HDMI/DVl sources are connected.

,_ Do not connect to both Video and

S-Video at the same time.

VCR Rear

I4 Plasma TV 206-4022

Installation

How to CORReCt

Connect the audio and video cables from the external equip-

ment's output jacks to the TV input jacks, as shown in the

figure=

When connecting the TV to external equipment, match the

jack colors (Video = yellow, Audio Left = white, and Audio

Right = red)=

How to use

1=Select the input source with using the TV/V[DEO button on

the remote control. Note that this TV finds the connected

input sources automatically for Video, Front Video and

Component !-2= It is presumed that RGB and HDMI/DVl

sources are connected.

2= Operate the corresponding external equipment.

Camcorder

Video Game

Device

DVD

HOW tO CORRect

f= Connect the DVD video outputs (Y, PB, PR) to the COMPONENT (Y, PB, PR) INPUT jacks on the TV and connect the DVD

audio outputs to the AUDIO INPUT iacks on the TV, as shown in the figure=

2= If your DVD only has an S-Video output jack, connect this to the S-VIDEO input on the TV and connect the DVD audio outputs

to the AUDIO INPUT iacks on the TV, as shown in the figure=

Note: If your DVD player does net have component video output, use S-Video.

HOW tO USe'

1. Turn on the DVD player, insert a DVD.

2. Use the TV/V[DEO button on the remote control to select Component 1 or Component 2. (if connected to S-VIDEO, select

the Video or Front Video external input source.)

3. Refer to the DVD player's manual for operating instructions.

Component Input ports

To get better picture quality, connect a DVD player to the compo-

nent input ports as shown below.

Component portson the TV

Video output ports

on DVD player

Notes:

• DigitalAudio will not work for Component 1 input source.

Digita/ Audio operation has priority if Digital Audio and AUDlO L/R

are connected at the same time.

206-4022 Owner's Manual 15

Installation

How to use

Insert the CableCARD TM received from the cable service provider to

the CabIeCARD TM slot of TV back panel.

If the pairing information about this TV and the CabieCARD is auto-

matically displayed on the screen, contact with the cable service

provider by phone.

Note :

. CableCARD TM have the types of Motorola, Scientific Atlanta, SCM etc..

These 3 types of CableCARD TM can be used for this PLASMA TV.

Caution: When removing the CableCARD TM, do not

drop it as this may cause impact to the

CableCARD%

- This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive Digital

signals from a digital set-top box or other digital external device, refer to the figure as shown below.

- This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digita! Contents (480p,720p,1080i).

Digita_ Set-top Box

How to COnnect

Use the TV's COMPONENT (Y, PB, PR) INPUT, RGB or HDMI/DVI jack

for video connections, depending on your set-top box connector. Then,

make the corresponding audio connections.

How to use

1. Turn on the digital set-top box. (Refer to the owner's manual for the

digital set-top box.)

2. Use TV/WDEO on the remote control to select Component 1,

Component 2, RGB-DTV, or HDMI/DVI source.

Signal Component 1/2 RGB-DTV, HDMI/DVI

480i Yes No

480p Yes Yes

720p Yes Yes

1080i Yes Yes

16 Plasma TV 206-4022

Installation

- This TV provides Plug and Play capability, meaning that the PC adiusts automatically to the TV's settings.

- The TV perceives 640x480, 60Hz as DTV 480p based on the PC graphic card, change the screen scanning rate for the graphic

card accordingly.

_OW to Connect

1. Connect the PC to HDMI/DVI port of this TV with an HDMI-to-DVI cable(not supplied with this product).

2. if the PC(or the sound card of the PC) has a fiber optic digital audio output connector, connect the PC's audio output to DIGI-

TAL AUDIO(OPTICAL) port for DVl INPUT.

3. if the PC(or the sound card of the PC) has an analog audio output connector, connect the PC's audio output to AUDIO INPUT

port located on the right side of RGB iNPUT port.

How To Use

1. To get the best picture quality, adjust the PC graphics card to 1024x768, 60Hz=

2. Select HDMI/DVl input source in input source option of SETUP menu=(Refer to R25)

TV/VmDEO button is also available for this purpose.

3. Check the image on your TV=There may be noise associated with the resolution, vertical pattern, contrast or brightness in PC

mode. if noise is present, change the PC output to another resolution, change the refresh rate to another rate or adiust the

brightness and contrast on the VIDEO menu until the picture is clear. If the refresh rate of the PC graphic card can not be

changed, change the PC graphic card or consult the manufacturer of the PC graphic card.

_OW to Connect

1. Connect the PC to RGB INPUT port of this TV with a RGB cable(not supplied with this product).

2. if the PC(or the sound card of the PC) has an analog audio output connector, connect the PC's audio output to AUDIO INPUT

port located on the right side of RGB iNPUT port.

How To Use

1. To get the best picture quality, adjust the PC graphics card to 1024x768, 60 Hz=

2. Select RGB_PC input source in input source option of SETUP menu.(Refer to R25)

Once you select RGB_PC in main input option of SETUP menu, TV/WDEO button is also available for this purpose.

3. Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or brightness in PC

mode. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the

brightness and contrast on the VIDEO menu until the picture is clear. If the refresh rate of the PC graphic card can not be

changed, change the PC graphic card or consult the manufacturer of the PC graphic card.

Monitor Display Specifications (RGB-PC)

Resolution

720x400

640x480

Horizonta_

Frequency(KHz)

31=469

37=927

31=469

37.861

37.500

43.269

Vertiea_

Frequeney(Hz)

70=08

85=03

59=94

72=80

75.00

85.00

Resolution

800x600

Horizonta_

Frequeney(KHz)

35=156

37=879

4&077

46.875

53.674

48.363

5&476

60.023

Vertiea_

Frequency(Hz)

5625

60=31

72=18

75=00

85.06

60.00

70=06

75=02

1024x768

206-4022 Owner_Manuaf 17

lns_llation

Monitor Dispmay Specifications (HDMI/DV8 Mode)

Horizontam Vertiea_ Horizonta_ Vertiea_

Resolution Frequency(KHz) Frequeney(Hz) Resolution Frequeney(KHz) Frequency(Hz)

31.469 89.94 48.363 80.00

840x480 37.881 72.80 1024x768 88.478 70.06

37.500 75.00 80.023 75.02

38.188 88.28

37.879 80.3!

800x800 48.077 72.18

48.875 75.00

The TV has a special signal output capability which allows you to

hook up a second TV or monitor.

Connect the second TV or monitor to the TV's MONITOR OUTPUT.

See the Operating Manuat of the second TV or monitor for further

details regarding that device's input settings.

Notes:

• Component, RGB-PCZRGB-DTV, HDMI/DV/, DTV input sources

cannot be used for Monitor out.

When connecting with external audio equipments, such as amp/if-

ers or speakers, please turn the TV speakers off.(Refer to p.28)

We recommend to use the v/dee and audio output jacks for VCR

recording.

vm_ _ _DIO_R_ i

Send the TV's audio to external audio equipment (stereo system) via

the Digital Audio Output (Optical) port.

How to connect

1. Connect one end of an optical cable to the TV Digital Audio

(Optical) Output port.

2. Connect the other end of the optical cable to the digital audio (opti-

cal) input on the audio equipment.

See the external audio equipment instruction manual for operation.

Note; When connecting with external audio equipments, such as

ampfifers or speakers, please turn the TV speakers eff.(Refer to

p.2S)

,_ Caution: Do not look into the optical output port.

Looking at the laser beam may damage

your vision.

18 Plasma TV 206-4022

Installation

HIGH DEFINITION MU_ TIMEDIA INTERFACE

- HDMI TM, the HDMt logo and Nigh-Definition Multimedia Interface is a trademark or registered trademark of HDMI Licensing."

- This TV can receive the High-Definition Multimedia lnterface(HDMI) or the Digital Visual Interface(DVI).

- This TV supports HDCP(High-bandwidth Digital Contents Protection) Protocol for 720x480p, 1280x720p, and 1920x!080i resolu-

tion.

- When you connect this TV with a source device(DVD player, Set Top Box or PC) supporting Auto HDMI/DVI function, the output

resolution of the source device will be automatically set to 1280x720p.

- If the source device does not support Auto HDMI/DVI, you need to set the output resolution appropriately.

To get the best picture quality, adjust the DVD Player or Set Sop Box's output resolution to 1280x720p, and the PC graphics card's

output resolution to 1024x768, 60Hz.

- If the source device has an HDMI output, no other audio connection is necessary because HDMFto-HDMI connection includes

both video and audio.

- If the source device has a DVl output and no HDMI output, a separated audio connection is necessary.

How To Connect

1. Connect the source device to HDMI/DVI port of this TV with an HDMI cable(not supplied with this product).

2. No separated audio connection is necessary.

How To Use

- If the source device supports Auto HDM! function, the output resolution of the source device will be automatically set to 1280x720p.

- If the source device does not support Auto HDMI, you need to set the output resolution appropriately.

To get the best picture quality, adjust the output resolution of the source device to 1280x720p.

- Select HDMI/DVI input source in input source option of SETUP menu.(Refer to R25)

TV/VlDEO button is also available for this purpose.

How To Connect

1. Connect the source device to HDMI/DVI port of this TV with a HDMI-to-DVI cable(not supplied with this product).

2. A separated audio connection is necessary.

3. If the source device has a fiber optic digital audio output, connect the audio output to DIGITAL AUDIO(OPTICAL) port for DVl

INPUT.

4. If the source device has an analog audio output connector, connect the PC's audio output to AUDIO iNPUT port located on the

right side of RGB INPUT port.

How To Use

- If the source device supports Auto DVl function, the output resolution of the source device will be automatically set to 1280x720p.

- If the source device does not support Auto DVl, you need to set the output resolution appropriately.

To get the best picture quality, adjust the output resolution of the source device to 1280x720p.

- Select HDMI/DVl input source in input source option of SETUP menu.(Refer to R25)

TV/WDEO button is also available for this purpose.

206-4022 Owner's Manual 19

Installation

Cable sample

HDM[ CaMe

(not supplied with the product)

,.. j

20 Plasma TV 206-4022

C I HDM[ to DV[ Cable

(not supplied with the product)

Fiber Optic Digital Audio Cable

(not supplied with the product)

Analog Audio Cable(RCA type)

(not supplied with the product)

Analog Audio Cable(Stereo to RCA type)

(not supplied with the product)

Installation

HOW to use

1. Connect the HDMI/DVI Source Devices(DVD Player or Set Top Box or PC) and the TV SET.

2. Turn on the display by pressing the POWER button on the TV SET and HDMi/DVI Source Devices remote control.

3. Select HDMt/DVI input source in input source option of SETUP menu.(Refer to R25)

4. Check the image on your TV SET. There may be noise associated with the resolution, vertical pattern, contrast or brightness in

HDMI/DVI Source Devices. If noise is present, change the HDMI/DVl Source Devices to another resolution, change the refresh

rate or adiust the brightness and contrast on the menu until the picture is clear, if the refresh rate of the PC graphics card can

not changed, change the PC graphics card or consult the manufacturer of the PC graphics card.

Notes:

-Depending on the graphics card, DOS mode may not work if you use a HDMI to DVI Cable.

-Avoid keeping a fixed image on the TV SET screen for a long period of time. The fixed image may become permanently imprint-

ed on the screen. Use the Orbiter screen saver when possible.

-When Soume Devices connected HDMI/DVI Input, output PC Resolution(VGA, SVGA, XGA), Position, Size may not fit to

Screen. As shown the lower picture, press the ADJUST button to adjust the screen Position of TV SET and contact an PC

graphics card service cente_

-When Soume Devices connected HDMt/DW Input output TV SET Resolution(480p, 720p, t080i), TV SET Display fit EIA/CEA-

861-B Specification to Screen. If not, refer to the Manual of HDMI/DW Soume Devices or contact your service center.

-In case HDMI/DW Source Devices is not connected Cable or poor came connection, "NO SIGNAL" OSD display in HDMI/DVI

lnpuL And In case of, Video Resolution not supported TV SET output in HDMI/DW Source Devices, "INVALID FORMAT" OSD

display. Refer to the Manual of HDM//DVI Source Devices or contact your service cente_

PC mode

_nThis Mode, the Supported TV SET Resolution Specification

- 1920x 1080 I @ 59.94Hz /60Hz, 16:9

- 1280 x 720 P @ 59.94Hz /60Hz, 16:9(preferred format)

- 720 x 480 P @ 59.94Hz /60Hz, 16:9

- 720 x 480 P @ 59.94Hz /80Hz, 4:3

_nThis Mode, the Supported PC Resolution Specification

840 x 480 @ 60Hz

840 x 480 @ 72Hz

840 x 480 @ 78Hz

800 x 600 @ 56Hz

800 x 600 @ 60Hz

800 x 600 @ 72Hz

800 x 800 @ 78Hz

1024 x 788 @ 80Hz(preferred format)

1024 x 788 @ 70Hz

1024 x 788 @ 75Hz

206-4022 Owner's Manual 21

Operation

* in this manuam, the OSD (On Screen Display) may be different from your TV's because it is just an

example to he_p you with the TV operation.

1. First, connect power cord correctly. At this moment, the TV switches to standby mode.

In standby mode to turn TV on, press the O/, TV/VmDEO ®, OR (_. /_') button on the TV or press the POWER,

TV INPUT, TV/VIDEO, OR (_k /T), Number (0 ~ 9) button on the remote control.

2. Select the viewing source by using TV/VmDEO button on the remote control

This TV is programmed to remember which power state it was last set to, even if the power cord is out.

3. When finished using the TV, press the POWER button on the remote control. The TV reverts to standby mode.

Notes;

• If you intend to be away on vacation, disconnect the power plug from the wall power outlet.

, Without CableCARDT'_': illuminates red in standby mode, lfluminates green when the TV is turned on.

, inserting the CableCARDT'_': lfluminates orange in standby mode, lfluminates green when the TV is turned on.

TV i

The menus can be shown on the screen in the selected language. First select your language.

1. Press the MENU button and then use _. /_' button to select the OPTION

menu.

2. Press the I_ button and then use _. /T button to select T.anguage.

3. Press the _ button and then use A /_' button to select your desired language.

From this point on, the on-screen menus will be shown in the selected lan-

guage.

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

22 Plasma TV 206-4022

Operation

- Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the channel list.

- Run EZ Scan again after any AntennaJCable connection changes.

- A password is required to gain access to EZ Scan menu if the Lock System is turned on.

1. Press the MENU button and then use & ,,_" button to select the $_'rUP menu.

2. Press the _ button and then use A /'_" button to select _- $o_A.

3. Press the ENTER button to begin the channel search.

Allow EZ Scan to complete the channel search cycle for ANTENNA, and CABLE.

- A password is required to gain access to Manual Scan menu if the Lock System is turned on.

1. Press the MENU button and then use A /_" button to select the $1_T_ menu.

2. Press the _ button and then use A /_ button to select M_AU_ $¢_A.

3. Press the _ button and then use A /_' button to select TV, DTV, CATV, and

CADTV.

4. Press the l_ button and then use _. /_' button to select channel number you

want to add or delete.

5. Press the ENTER button to add or delete for the channel number.

6. Press EXiT button to return to TV viewing or press MENU button to return to

the previous menu.

Notes:

, This channel number is a physical channel number, which/s different from the normal channel number shown/n Channel

EdiL

When inserting the CabieCARD TM, CATV, CADTV is not working in Manual Scan,

T_ analog antenna(over-the-air) TV signal

DT_A-digital antenna(over-the-air) TV signal

CAT_A-analog cable TV signal

CADT_A- digital cable TV signal

206-4022 Owner's Manual 23

Operation

- Create two different types of channel lists in memory: "Custom List" and

"Favorite List" from the default channel list created from the EZ Scan channel

search,

- A Custom List can be created by toggling each channel on or off with ENTER

button, The channels in the Custom List are displayed in black color, and the

channels deleted from the Custom List are displayed in gray color, Once a

channel is highlighted you can add or delete the channel by referring to the

small window at the top-left corner of the screen,You can create your own

Favorite List, Use the FAV button on the remote control when a channel is

highlighted and then you can add or delete the channel to/from the Favorite

List,

1. Press the MENU button and then use A /• button to select the S_TUP menu.

2. Press the I_ button and then use A /_' button to select ChanAel _dit.

3. Press the I_ button. You will now see a screen filled with channel numbers and

a preview picture.

4. Use A /T/_/_ button to select a channel and then use the ENTER button to

add or delete it. Press FAV button to add the channel to the Favorite List.

5. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

- Shows how strong your DTV signal is and whether you need to adiust your antenna or digital cable input.

The higher the signal strength, the less likely you are to experience picture degradation.

- DTV Signal: Only when the input signal is DTV or CADTV, this function is available.

1. Press the MENU button and then use A/_" button to select the S_UP menu.

2. Press the _ button and then use A /_" button to select DTV Signal.

3. View the on-screen signal strength monitor to see the quality of the signal being

received.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

24 Plasma TV 206-4022

Operation

- Choose preset labels for your channels.

- If a channel label is provided on the signal from the broadcasting station, the TV displays a short name for a channel -

even if you didn't preset a label for the channel.

1. Press the MENU button and then use A /_' button to select the $_UP menu.

2. Press the _ button and then use A /_' button to select Cha#_el Label.

3. Press the _ button. You will now see a screen filled with Labels and a preview screen.

4. Use the CR A/_' button to select a channel to Label.

5. Use A /_r /_1 /_- button to select the appropriate label for the channel, then press ENTER button to set the Label to

the selected channel.

- If you press ENTER button in TV viewing mode, you will see the channel banner. * For example:

- Change the picture source so you can watch your TV, cable TV, VCR, DVD, or any other devices that are connected to your TM

1. Press the MENU button and then use A /_' button to select the $_'_UP menu.

2. Press the _" button and then use A /_' button to select Input $ou_ree.

3. Press the _ button and then use A /_' button to select the source: Antenna

Cable, Video, Front Video, Component!, Component2, RGB-DTV (or RGB-PC),

HDMI/DVl.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

Note:

• To toggle RGB-DTV and RGB-PC, select RGB-DTV(or RGB-PC) and press

button.

- Sets a label to each input source or lets you skip the input source which is not

in use when you press TV/WDEO button.

1. Press the MENU button and then use A /_' button to select the $_£UP menu.

2. Press the _ button and then use A /_' button to select Input _bel.

3. Press the _ button and then use A /T button to select the source: Video, Front

Video, Component1, Component2, RGB, HDMi/DVL

4. Press the _ /_ button to select the label.

5. Press EXmTbutton to return to TV viewing or press MENU button to return to the

previous menu.

206-4022 Owner's Manual 25

Operation

- EZ Picture adjusts the TV for the best picture appearance. Select the preset value in the EZ Picture menu based on the

program category.

- When adjusting Video menu options (contrast, brightness, color, sharpness, tint, and color temperature) manually, EZ

Picture automatically changes to Custom.

- Day1tghh Normal, Night Time, Movie, Video Game, and Sports settings are preset for optimum picture quality at

the factory and are not adiustabb.

1. Press the EEZPIC button repeatedly to select the picture appearance setup option as shown below:

Custom (your own settings), Day|ight, Normal, Night Th_'_e, Movie, Video Game, and Spo_rts.

• You can also use the VIDEO menu to adiust EZ Pictu_re.

2. Press the lsXmTbutton to save and return to TV viewing or press MENU button to return to the previous menu.

- Adiust the picture appearance to suit your preference and viewing situations.

1. Press the MENU button and then use A /_' button to select the V_O menu.

2. Press the I_ button and then use A iT button to select the desired picture option

(Contlrast, IB_ghtness, Colo_r,Sha_rpness, or T_,nt ).

3. Press the _ button and then use 4 /l_ button to make appropriate adjustments.

4. Press EXmTbutton to return to TV viewing or press MENU button to return to the

previous menu.

- Choose one of three automatic color adjustments. Set to warm to enhance hotter

colors such as red, or set to cool to see less intense colors with more blue.

1. Press the MENU button and then use A /T button to select the V_lDl_Omenu.

2. Press the _ button and then use A/T button to select Co:lo_rTemlperatu_e.

3. Press the _ button and then use A. /_ button to select either Coo|, Medium or

Warra.

4. Press EXmTbutton to return to TV viewing or press MENU button to return to the

previous menu.

- Use to quickly reset all the Video menu options to their original factory preset

values.

1. Press the MENU button and then use A, T button to select the VmEO menu.

2. Press the _ button and then use A, _' button to select _deo Reset.

3. Press the I_ button to reset the Video menu options to original values.

26 Plasma TV 206-4022

Operation

- Other languages may be available if a digital signal is provided by the broad-

casting station.

1. Press the MENU button and then use A/_' button to select the A_IO menu.

2. Press the _ button and then use A /_" button to select Audio _nguage.

3. Press the _ button and then use A /_ button to select: English, Spanish, or

French.

4. Press EXmTbutton to return to TV viewing or press MENU button to return to the

previous menu.

- Scans for changes in sound level during commercials, then adiusts the sound

to match the specified audio level. EZ SoundRite makes sure that the volume

level remains consistent whether you are watching a commercial or a regular

TV program.

. Press the MENU button and then use A /T button to select the A_IO menu.

2. Press the _ button and then use A., _' button to select EZ $oundRite.

3. Press the _ button and then use A., '_ button to select On or Of_.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

EZ Sound lets you enioy the best sound without any special adiustment because the TV sets the appropriate sound

options based on the program content.

- When adjusting sound options (treble, bass, and front surround) manually, EZ Sound automatically switches to Custom.

- No_rma:l, Stadium, News, Music, and '_'heate_r are preset for good sound quality at the factory and are not adjustable.

1. Press the EZ SOUND button repeatedly to select the appropriate sound setup as shown below:

Custom (your own settings), Normal, $_di_um, _ews, Music, and The_te_r.

• You can also adjust E_ Sound in the AUDIO menu.

2. Press EXIT button to save and return to TV viewing or press MENU button to return to the previous

menu,

- Adiust the sound to suit your taste and room situations.

1. Press the MENU button and then use _, /_ button to select the AUDIO menu.

2. Press the _ button and then use _. /T button to select the desired sound option

3. Press the _ button and then use _ /_ button to make appropriate adjustments.

4. Press EXiT button to return to TV viewing or press MENU button to return to the

previous menu.

206-4022 Owner's Manual 27

Operation

_S(ll) is a trademark of SRS Labs, Inc.

- TruSurround XT technology is incorporated under license from SRS Labs, Inc.

- Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Do]by Laboratories.

1. Press the MENU button and then use A/T" button to select the AUDIO menu.

2. Press the _ button and then use A ,'_' button to select _ont Su#ound.

3. Press the _ button and then use A /'_ button to select Off, 3D Echo$ound

System or $R$ (Sound Retrieval System) TruSurround XT,.

3D I_cho$ound System

Creates a stunning simulated stereo effects from any mono sound and a

realistic three-dimensional sound with a very wide and deep sound stage

into stereo sound.

$R$ "_uSu_rround XT

Takes advantage of any multi-channel format without needing to add extra

speakers or equipment. Dialog clarity, bass enrichment, and the addition of

stereo audio enhancement that produces an immersive sound experience

from standard stereo material

4. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

- Turn TV speakers off if using external audio equipment. Feature turns the TV

Speakers option On or Off.

1. Press the MENU button and then use A /T button to select the Ag_IO menu.

2. Press the _- button and then use _, /'_ button to select TV Speaker.

3. Press the _- button and then use A /_' button to select On or Off.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

28 Plasma TV 206-4022

Operation

- BBE High Definition Sound restores clarity and presence for better speech

intelligibility and music realism.

1. Press the MENV button and then use m./T button to select the AUDIO menu.

2. Press the _" button and then use A/'V button to select BBm..

3. Press the _ button and then use A /T button to select On or Off.

4. Press EXIT button to return to TV viewing or press MENV button to return to

the previous menu.

_ Manufactured under license from BBE Sound, inc.

• Treble, Bass or BBE aren't suitable for SRS TSXT mode.

- This TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accompanies the stereo program_

if the station transmits an additional sound signal as well as the original one.

- When having selected Stereo or SAP button on the remote control, this TV can only receive the signal when the TV station

transmits the proper signals.

- Mono sound is automatically received if the broadcast is only in Mono_ even though Stereo or SAP has been selected.

- Select Mono if you want to listen to mono sound during stereo/SAP broadcasting.

- Stereo or SAP can be received in a Analog channel.

1. Use the SAP button to select your desired MTS mode in a analog signal Each time you press the SAP button, Momo,

Ste_reo, or SA_ appear in turn.

, If other languages are available on the digital signal, select them with the SAR button.

2. Press EXIT button to save and return to TV viewing.

206-4022 Owner's Manual 29

Operation

- The time is set automatically from a digital channel signal.

- The digital channel signal includes information for the current time provided by the broadcasting station.

- Set the clock manually, if the current time is set incorrectly by the auto clock function.

1. Press the MENU button and then use A /_ button to select the TIM_ menu.

2. Press the _ button and then use A /IV button to select Auto Clock.

3. Press the _- button and then use A /_' button to select On or Off.

4. Press the _ button and then use A /_f button to select your viewing area time

zone: _astem, Centlta], Mountain, Pacific, A]as]_a, or Hawaii.

5. Press EXBT button to return to TV viewing or press MENU button to return to

the previous menu.

- If current time setting is wrong, reset the clock manually.

- When you set up TV guide on screen system, Manual Clock menu is not

selected.

1. Press the MENU button and then use A /T button to select the 1i'IME menu.

2. Press the _ button and then use A /T button to select Manuel1 Clock.

3. Press the _ button and then use _ /1_button to select either the year, date,

or time option. Once selected, use the A. /IV button to set the year, date, and

time options.

4. Press EXBT button to return to TV viewing or press MENU button to return to

the previous menu.

- Timer function operates only if the current time has been set.

- Off-Timer function overrides On-Timer function if they are both set to the same time.

- The TV must be in standby mode for the On-Timer to work.

If you do not press any button within 2 hours after the TV turns on with the On Timer function, the TV will automatically revert to

standby mode.

1. Press the MENU button and then use A /T button to select the TI[M_ menu.

2. Press the _ button and then use ,a, / _' button to select Off T_,me_tor On"_me_r.

3. Press the _ button and then use A /IP'button to select On.

To cancel O_Off ttme_r function, select Off.

4. Press the _ button and then use A. /IV button to set the hour.

5. Press the _ button and then use A. /T button to set the minutes.

6. For only O_ t_mer function

Press the _ button and then use A /_ button to select the channel at turn-on.

Press the _ button and then use A /_ button to set the sound level at turn-on.

7. Press EXiT button to return to TV viewing or press MENU button to return to the

previous menu.

30 Plasma TV 206-4022

Operation

- The Sleep Timer turns the TV off at the preset time. Note that this setting is cleared when the TV is turned off.

- You can also set up the Sleep Timer in the TIME menu.

1. Press the TIMER button repeatedly to select the number of minutes. First the OK option appears on the screen,

followed by the following sleep timer options: 10, 20, 30, 80, 90, 120, 180, and 240 minutes.

2. When the number of minutes you want is displayed on the screen, press the ENTER button. The timer begins to

count down from the number of minutes selected.

3. To check the remaining minutes before the TV turns off, press the TIMER button once.

4. To cancel the Sleep Timer, press the TmMER button repeatedly to select Oil.

- If set to on and there is no input signal, the TV turns off automatically after 10

minutes.

1. Press the MENU button and then use A /'_ button to select the TIME menu.

2. Press the _ button and then use A /_ button to select AutoO_.

3. Press the _ button and then use A /_' button to select On or O_£

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

206-4022 Owner's Manual 31

Operation

- Lots you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV with a 16:9 ratio picture format.

When you receive an analog picture with a 4:3 aspect ratio on your 16:9 TV, you need to specify how the picture is to be dis-

played.

- If you are viewing a picture with a !6:9 aspect ratio, you can't use the Horizon aspect ratio option.

- H_riz_naspectrati_isn_tavai_ab_ef_rC_mp_nent1-_(48_p/7__p/1_8_i)/RGB-DT_(48_p/72_p/1_8_i)/HDM_/DV_DTV

(720p/f 080i)/DTV(720p/1080i) input source

- In RGB-PC/DVI-PC input source, only use 4:3 or 16:9 aspect ratio are available.

- Nero: if a fixed image is displayed on the screen for a long time, it image may become imprinted on the screen and remain visi-

ble.

1. Press the RATIO button repeatedly to select the desired picture format.

You can also adiust Aspect Ratio in the OPTION menu.

Set By Program

Select the proper picture proportion to match the source's image. (4:3 _ 4:3, 16:9 _ 16:9)

*€-_3

Choose 4_3 when you want to view a picture with an original 4:3 aspect ratio, with gray bars appearing at both

the left and right sides.

*16_9

Choose 16_9when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.

Horizon

Choose Hogtie'on when you want to adiust the picture in a non-linear proportion, that is, more enlarged at both

sides, to create a spectacular view.

7-oom 1

Choose Zoom 1 when you want to view the picture without any alteration. However, the top and bottom portions

of the picture will be cropped.

*Zoom 2

Choose Zoom 2when you want the picture to be altered, both vertically extended and cropped. The picture tak-

ing a halfway trade off between alteration and screen coverage.

,, Cinema Zoom

Choose ¢;f,nema Zoom when you want to enlarge the picture in correct proportion. Note: When enlarging or

redudng the picture size, the image may become distorted.

You can adiust the enlarge proportion of Cinema Zoom using A /_" button. The adiustmont range is 1~16.

- Most movies are 24 framos/sec, but TV signal is 30 frames/sec.

This option lets the TV do 3:2 pulPdown operation for you to watch

movies at the best motion appearance.

1. Press the MENU button and then use A /_' button to select the OPTION menu.

2. Press the _ button and then use A /_' button to select Clne_z_ _2 _1[ode.

3. Press the _ button and then use A /_" button to select On or O1£

4. Press EXIT button to return to TV viewing or press MENU button to return to the

provious rnonu.

No_e: This feature operates only in 480i mode.

32 Plasma TV 206-4022

Operation

1= Press the MENU button and then use A/T button to select the OPTION menu.

2= Press the _ button and then use A, /T button to select Caption=

3= Press the _ button and then use A /_ button to select On or Of_=

4= Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu=

Analog Broadcasting System Captions

- Select a caption mode for displaying captioning information if provided on a program.

- Analog caption displays information at any position on the screen.

- Text displays information, usually at the bottom position and is used for a data service=

- Caption/Text, if provided by the broadcaster, would be available for both digital and analog channels on the AntennaJCable.

- This TV is programmed to memorize the caption/text mode which was last set to, when you turn the power off.

1. Use the CC button repeatedly to select Caption CCI, CC2, CC3, CC4, Textl, Text2, Text3, or Text4.

•ET-Mute shows the selected captions option (if available on program) when the TV sound is muted

2. Press EXIT button to save and return to TV viewing.

• You can also use the OPTION menu to select Caption,/Text

1. Press the MENU button and then use A /T button to select the OPTION menu.

2. Press the _" button and then use A /_' button to select Co,priori/Text.

3. Press the _ button and then use A /V button to select caption: COl, CC2, CC3,

CC4, Text]L Text2, Text3, or Text4.

•CAPTION

The term for the words that scroll across the bottom of the TV screen; usually

the audio portion of the program provided for the hearing impaired=

• TEXT

The term for the words that appear in a large black frame and almost cover

the entire screen; usually messages provided by the broadcaster.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu,

Digital Broadcasting System Captions

- Choose the language you want the DTV/CADTV Captions to appear in.

- Languages can be chosen for digital sources only if they are included on the program.

1. Press the MENU button and then use A/T button to select the OPTION menu.

2. Press the _ button and then use A/T button to select Caption/Teat

3. Press the _ button and then use A/T button to select available caption lan-

guages: EngJ,ish, Spanish, or French.

4. Press EXIT button to return to TV viewing or press MENU button to return to the

previous menu.

206-4022 Owner's Manual 33

Operation

- Customize the DTV/CADTV captions that appear on your screen.

1. Press the MENU button and then use _ /_' button to select the OPTION

menu,

2. Press the _ button and then use A /_' button to select C_t_onOptton.

3. Press the _ button and then use _ /1_ button to select C_L_ton,_.

4. Use A /_ button to customize the Style, Font, etc. to your preference. A pre-

view icon is provided at the bottom of the screen, use it to see the caption

language.

Size: Set the size of the words.

Font: Select a typeface for the words.

Text Color: Choose a color for the text.

Text Opacity: Specify the opacity for the text color.

Bg (Backg_round)Coio_r: Select a background color.

. Bg (BackgTeund) Opacity: Select the opacity for the background

color.

_-dge Type: Select an edge type.

_dge Co|or: Select a color for the edges.

5. Press EXBTbutton to return to TV viewing or press MENU button to return

to the previous menu.

- A frozen still picture from a PC/video game displayed on the screen for prolonged periods will result in a ghost

image remaining; even though the image is changed. Use our unique method to minimize any fixed image on the

screen,

1. Press the MENU button and then use A. ,_' button to select the OPTION

menu.

2. Press the _- button and then use A., _' button to select ISM Methodi,

3. Press the _ button and then use A ,,_' button to select either No_r_a|, White

Wash, Orb!tear or lnve_rsion.

No,final

If image sticking is never a problem, ISM is not necessary - set to Normal.

White wash

White Wash removes permanent images from the screen.

Note: An excessive permanent image may be impossible to clear entirely with

White Wash. To return to normal viewing, press the any button.

• O';biter

Orbiter may help prevent ghost images. However, it is best not to allow any

fixed image to remain on the screen. To avoid a permanent image on the

screen, the image will move once per 2 minutes: Left _ Right _ Upside

Downside _ Right _ Left _ Downside _ Upside.

Inversion will automatically invert the plasma display panel color every 30

minutes.

4. Press EXiT button to return to TV viewing or press MENU button to return to

the previous menu.

34 Plasma TV 206-4022

Operation

- Low power reduces the plasma display power consumption.

1. Press the MENU button and then use _. /_" button to select the OPTION

menu.

2. Press the _ button and then use _,/_' button to select Low Power,

3. Press the _- button and then use A /_' button to select On or Of L

• When you select On, the screen darkens.

4. Press EXmTbutton to return to TV viewing or press MENU button to return to

the previous menu.

206-4022 Owner's Manual 35

Operation

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station.

The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program and the cat-

egories. It is also possible to block all program viewing for a time period. To use this function, the following must be done :

1. Set ratings and categories to be blocked.

2. Specify a password

3. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV

Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating

System (MPAA) only.

Ratings for Movies previously shown in theaters:

Movie Ratings :

Blocking Off

, PG

PG-13

, NC-17

(Permits all programs)

(General audience)

(Parental guidance suggested)

(Parents strongly cautioned)

(Restricted)

(No one !7 and under admitted)

(Adult only)

If you set PG-13 : G and PG movies will be available, PG-13, R, NC-17 and X will be blocked.

Ratings for Television programs including made=for-TV movies :

, TV-G (General audience)

, TV-PG (Parental guidance suggested)

, TV-14 (Parents strongly cautioned)

* TV-MA (Mature audience only)

, TV-Y (All children)

, TV-Y7 (Children 7 years older)

TV Rating Children:

,Age

, Fantasy Violence

TV Rating Generah

, Age

, Dialogue - sexual dialogue

* Language - adult language

, Sex - sexual situations

, Violence

Input B_ock

, Video, Front Video (On, Off)

Component 1, 2 (On, Off)

RGB, HDMI/DVI (On, Off)

(applies to TV-Y, TV-Y7)

(applies to TV-Y7)

(applies to TV-G, TV-PG, TV-14, TV-MA)

(applies to TV-PG, TV-14)

(applies to TV-PG, TV-14, TV-MA)

36 Plasma TV 206-4022

Operation

- Set up blocking schemes to block specific channels, ratings, and external viewing sources.

- A password is required to gain access to this menu.

1. Press the MENU button and then use A /_' button to select the LOCK menu.

Then, press the l_ button

•The TV is set up with the initial password "0-0-0-0".

2. Use the _,/_ button to choose from the following Lock Menu options. Once the

option is selected, change the settings to your preference.

Lock System: Enables or disables the blocking scheme you set up previ-

ously.

Set Password: Change the password by inputting a new password twice.

•B_ock Channel: Blocks any channels that you do not want to watch or

that you do not want your children to watch.

Movie Rating (MPAA): B!ocks movies according to the movie ratings lim-

its specified, so children cannot view certain movies. You can set the rat-

ings limit by blocking out all the movies with the ratings above a specified

level. Keep in mind that the movie ratings limit only applies to movies

shown on TV, not TV programs, such as soap operas.

TV Rating=OhHdren: Prevents children from watching certain children's TV

programs, according to the ratings limit set. The children rating does not

apply to other TV programs. Unless you block certain TV programs intend-

ed for mature audiences in the TV Rating - sub menu, your children can

view those programs.

•TV Rating=General: Based on the ratings, blocks certain TV programs that

you and your family do not want to view.

•Input Block: Enables you to select a source to block from the external

source devices you have hooked up.

3. Press EXIT button to return to TV viewing or press MENU button to return to

the previous menu.

No_e:

, If you ever forget your password, key in '7', '7', '7', '7' on the remote control.

206-4022 Owner's Manual 37

Operation

* in this manual, the OSD (On Screen Display) may be different from your TV's because it is just example to he_p

the TV operation=

- The Cable sub menu displays when inserting the CableCARD TM to the TV.

- The CableCARD TM type is Motorola, Scientific Atlanta (SA), or SCM etc. The

OSD (On screen display) is different from your TV according to your

CableCARD TM type.

1. Press the MENU button and then use A /_' button to select the CABT._ menu.

2. Press the _ button and then use A. /_' button to select your desired item.

3. Press the _ button.

4. Press EXIT button to return to TV viewing.

in case of Scientific Atlanta CableCARD rM

Le) CableCARDT_'V Host ID Screen

As shown, the pairing num-

ber means your TV and

CableCARD TM ID. For fur-

ther information regarding

cable TV service, contact

your local cable TV service

provider(s).

- Insert the CableCARD TM. If you do it at first, it takes about 1 minute to

exchange the data between the TV and the CableCARD TM. Then, TV screen

displays as shown right.

- Let your cable TV service provider know CableCARD TM ID and Host ID.

- If your cable TV service provider is registered CableCARD TM ID and Host ID,

you can watch the premium or high value channel

- If you ever registered to the cable TV service provider, you can watch the

premium or high value channel without a message.

- If the certificate doesn't match between the TV and the CableCARD TM,

the OSD (On screen display) displays as shown left.

38 Plasma TV 206-4022

Operation

3. 4.

1. If you enter the Channel Editafter running the EZ Scan without CableCARD TM, you can see the cable channel list

as the picture 3 above.

2. Insert the CableCARD TM. Then, the TV receive a new cable channel list which is usually one part channel. It takes

about 2~3 minutes to gather the cable channel list after inserting the CableCARD TM as the picture 4 above.

(Occasionally more than that time)

- If an emergency situation occurs during watching the TV/DTV/CATV/CADTV, you can receive a message from cable TV

service provider(s).

- When receiving an emergency' message, the message is displayed on the screen as shown below or the channel is

changed automatically to a channel that maintains the emergency message. The message will automatically disappear

after some time and return to the last channel.

206-4022 Owner's Manual 39

Operation

Re ot:e

EPG (Emectronic Program Guide)

(In DTV mode)

- This system has an Electronic Program Guide (EPG) to help your navigation through all the possible viewing options.

- The EPG supplies information such as program listings, start and end times for all available services.

- This function can be used only when the EPG information is broadcasted by broadcasting companies.

- The EPG displays the program description for next 7 days.

- This function is only supported in DTV mode.

1. Press the GUIDE button to switch on EPG.

2. Press the _ /T/_/_ button to select desired program, then press the ENTER button to display the

selected program.

3. Press the GUmDE or EXmTbutton again to switch off EPG and return to TV viewing.

40 Plasma TV 206-4022

Operation

Brief lnfo.

- Brief Info shows the present screen information.

- Press the INFO button to show the Brief Info on the screen.

- INFO button does not work in Component!, Component2, RGB, and HDMI/DVI modes.

- Press the INFO button or EXmTbutton to exit.

Operation: * Watching TV/DTV/CATV/CADTV

Watching Video, Front Video

in Component!, Component2, RGB,

HDMI/DVl modes, INFO button is not

working.

Function: Show the present screen information.

On Watching with the upper Input signal,

press the INFO button.

Press the mNFObutton or EXmTbutton to

exit.

A: Banner information

B: Program title

C: Day of week, Month, Year

D: Program start time

E: Program progress bar

F: Program finish time

G: Present time

H: Additional information. Refer to the icon

explanation on the right.

B C D

206-4022 Owner's Manual 4I

Operation

EZ Mute

- Nothing to do with Caption on/Off using MUTE button, the mode selected Caption/Text is to be displayed.

- When you repeatedly press the MUTE button, the sound mode is changed in turn. (Refer to the picture below)

Mute : Sound is muted. EZ Mute : a special mute mode to

activate the closed caption, auto-

matically.

Mute Off : Sound is enabled.

Note: EZ Mute does not operate in Component/RGBAHDMI/DW modes.

Freeze & Magnify (DTViCADTV 720p, or 1080i mode only)

- Enlarges the picture with correct proportions.

- When enlarging the picture, the image may become distorted.

1. Press the FREEZE button in 720p or 1080i mode.

2. Use the A., _"., _, _ buttons to select the screen section to be magnified.

3. To return to normal viewing, press the FREEZE button again.

Note : The Magnify feature is available only in 720p or I080i mode, but the

FREEZE button works in all video formats.

42 Plasma TV 206-4022

Operation

Screen Setup for PC mode

When RGB connect to PC input and select the RGB-PC, this function is used.

When HDMI/DVI connect to PC input and select HDMI/DVl input, this function is used.

In RGB-DTV mode, SIZE and PHASE is not available.

,After connecting RGB-PC or HDMI/DVl to PC input and checking the screen quality.

- Display PC Adjust Menu using ADJUST button.

- Position Adjust the screen position. After displaying the Adiust, select the screen position.

- Size Adiust the screen size.

- Phase Adjust the phase of Pixel clock.

In HDMI/DVI-PC mode, PHASE is not available.

- Reset Initializating Position, Size, Phase adiustment.

206-4022 Owner's Manual 43

ExternalControl Device Setup

External C:ontroa Device Setup

- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)

and control the Monitor's functions externally=

- Connect the serial port of the control device to the RS-232C iack on the Monitor back panel=

- RS_232C connection cables are not supplied with the Monitor=

No= Pin Name //

1 No connection

2 RXD (Receive data)

3 TXD (Transmit data)

4 DTR (aTE side ready) @ @

5 GND

6 DSR (DCE side ready) \

7 RTS (Ready to send)

8 CTS (Clear to send)

9 No Connection

7-Wire Configurations 3-Wire Configurations

(Standard RS-232C cable) (Not standard)

PC PDP PC PDP

RXD TXD RXD

TXD RXD TXD 2:::::

GND GND GND

DTR DSR DTR

DSR DTR DSR

RTS CTS RTS ....................................

CTS RTS CTS

D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9

TXD

RXD

GND

DTR

DSR

RTS

CTS

44 Plasma TV 206-4022

ExternalControlDeviceSetup

Use this function to specify' a monitor ID number.

Refer to 'Real Data Mapping'. See page 46.

1. Press the MENU button and then use ,A /_' button to select the $1_1R_Pmenu.

2. Press the _ button and then use _. r_" button to select $_T IDa

3. Press the _ button and then use & r T' button to adjust SET ID to choose the

desired monitor ID number. The adjustment range of $1_TID is 1 ~ 99.

4. Press EXmTbutton to return to TV viewing or press MENU button to return to the

previous menu.

Baud rate : 9600 bps (UART)

Data length : 8 bits

, Parity : None

Stop bit : I bit

Communication code : ASCII code

* Use a crossed (reverse) cable.

COMMAND

01. Power k

02. input Select k

03. Aspect Ratio k

04. Screen Mute k

05. Volume Mute k

06. Volume Control k

07. Contrast k

08. Brightness k

09. Color k

10. Tint k

11. Sharpness k

12. OSD Select k

13. Remote Control Lock Mode k

14. Treble k

15. Bass k

16. Balance k

17. Color Temperature k

18. ISM Method i

19. Low Power j

20. Orbiter Time Sellinq i

21. Orbiter Pixel Setting i

1 COMMAND 2 DATA

(Hexadecimal)

a 0_1

b 0_8

d 0_1

e 0-2

f 0 - 64

g 0 - 64

h 0 - 64

i 0 _ 64

i o _ 64

k 0 _ 64

I 9_1

m 0_1

r 0 - 64

s 0 - 64

t 0 - 64

u 0-2

q 0-1

r 1 _ FE

s 1-_3

_nsiT#sslon

* [Command 1]: First command to control the seta(i,k,m or x)

* [Command 2]: Second command to control the set.

* [Set ID]: You can adiust the set ID to choose desired monitor

ID number in Setup menu. Adiustment range is 1

- 99. When selecting Set ID '0', every connected

the TV is controlled. Set ID is indicated as decimal

(1~99) on menu and as Hexa decimal (0x0-_0x63)

on transmission/receiving protocol.

* [DATA[: To transmit command data.

Transmit 'FF' data to read status of command.

* [Cr]: Carriage Return

ASCII code '0x0D'

* [ ]: ASCII code 'space (0x20)'

OK Acknowledqiement

"[_[ ][OK][Data][x]

* The Monitor transmits ACK (acknowledgement) based on

this format when receiving normal data. At this time, if the

data is data read mode, it indicates present status data. If

the data is data write mode, it returns the data of the PC

computer.

Error Acknowledgement

___][ ][NG [] Data][x]

* The Monitor transmits ACK (acknowledgement) based on

this format when receiving abnormal data from non-viable

functions or communication errors.

Data 1: I!legal Code

2: Not supported function

3: Wait more time

COM- COM- DATA0

MAND1 MAND2 (Hexadecimal}

22. Channel Tuninq m a physical/programhigh

23. Channel Add/Del m b 00 - 01

24. Kev m c key code

25. input Select x b

DATA 1 DATA2 DATA3 DATA4 DATA5

(Hexadecimal} (Hexadecimal} (Hexadecimal) (Hexadecimal) (Hexadecimal)

maior/plogram low maior low minor high minor low attribute

206-4022 Owner's Manual 45

ExternalControl Device Setup

01. Power (Command2:a)

To control Power On/Off of the Monitor.

Transmission

Ilk][all ][Set ID][ ][aata][Cr] ]

Data 0 : Power Off 1 : Power On

Acknowled_Lement

l[a][ ][Set ID][ ][OK][Uata][x]

*in a like manner, if other functions transmit _FF' data

based on this format, Acknowledgement data feedback

presents status about each function.

02. tnput Select (Command2:b) (Main Picture tnput)

To select input source for the Monitor,

_ansmlsslon

l[k][b][ ][Set ID][ ][Data][Cr] ]

Data 0: DTV 5: Component 2

1: Analog 6: RGB-DTV

2: Video 7: RGB-PC

3: Front Video 8: HDMI/DVl

4: Component 1

Acknowledgement

l[b][ ][Set lUll ][OK][Data][x] ]

03, Aspect Ratio (Command2:c) (Main picture format)

To adiust the screen format,

You can also adiust the screen format using the RATIO

button on remote control or in the Option menu.

Transmission

Ilk][c][ ][Set ID][ ][Uata][Cr]

Date 1:4:3 6: Set by program

2:16:9 10: Cinema Zoom (1)

3: Horizon

4: Zoom 1

5: Zoom 2 1F: Cinema Zoom (!6)

AcknowledAement

l[c][ ][Set lUll ][OK][Data][x]

04° Screen Mute (Command2:d)

To select screen mute on/off,

Transmission

l[k][d][ ][Set ID][ ][Data][Cr] ]

Data 0 : Screen mute off (Picture on)

1 : Screen mute on (Picture off)

AcknowledAement

l[d][ ][Set ID][ ][OK][Data][x] ]

05, Volume Mute (Command2:e)

To control volume mute on/off.

You can also adjust mute using the MUTE button on

remote control.

Transmission

[[k][e][ ][Set lUll ][Uata][Cr]

Data 0 : Volume mute off (Volume on)

1 : Volume mute on (Volume off)

2 : EZ Mute

Acknowledgement

[[e][ ][Set ID][ ][OK][Data][x]

06, Volume Control (Command2:f)

_'_To adjust volume,

You can also adjust volume with the volume buttons

on remote control.

Transmission

I[k][f][ ][Set ID][ ][aata][Cr] 1

Data Min:0- Max:64

• Refer to 'Real data mapping' as shown below.

Acknowledgement

[[f][ ][Set ID][ ][OK][Data][x] 1

07. Contrast (Command2:g)

Jl_ To adjust screen contrast.

You can also adjust contrast in the Video menu.

_ansmlsslon

[[k][g][ ][Set iS][ ][aata][Cr] 1

Data Min:0- Max:64

• Refer to 'Real data mapping' as shown below.

AcknowledAement

l[g][ ][Set ID][ ][OK][Data][x]

08. Brightness (Command2:h)

To adjust screen brightness,

You can also adjust brightness in the Video menu,

Transmission

[[k][h][ ][Set ID][ ][Data][Cr]

Data Min:0_ Max:64

• Refer to _Real data mapping' as shown below.

Acknowledgement

I[h][ ][Set IS][ ][OK][aata][x] 1

* Rea_ data mapping

0 Step 0

A Step 10 (SET ID 10)

F Step 15 (SET ID 15)

10 Step 16 (SET ID 16)

63 Step 99 (SET ID 99)

64 Step 100

46 Plasma TV 206-4022

ExternalControl Device Setup

09° Cotor (Command2:i)

To adjust the screen color,

You can also adjust color in the Video menu,

Transmission

Ilk][ill ][Set ID][ ][aata][Cr] I

Data Min:0~ Max:64

®Refer to 'Real data mapping', See page 46=

Acknowledgement

I[i][ ][Set IU][ ][OK][Data][x]

13. Remote Contro_ Lock Mode (Command2:m}

To lock the remote control and the front panel controls on

the set,

_nsmlsslon

[[k][m][ ][Set lUll ][Data][Cr] 1

Data 0: Lock off 1: Lock on

Acknowledgement

I[m][ ][Set ID][ ][OK][aata][x] 1

10, Tint (Command2:j)

To adjust the screen tint,

You can also adjust tint in the Video menu,

Transmission

[[k][i] [ ][Set ID][ ][Data][Cr]

Data Red:0_-Green:64

• Refer to 'Real data mapping', See page 46,

Acknowledgement

[[j ][ ][Set ID][ ][OK][Data][x] i

14, Trebme (Comma nd2:r)

Jl_To adjust treble,

You can also adjust treble in the Audio menu,

_ansmlsslon

_[k][r][ ][Set lUll ][aata][Cr] 1

Data Min: 0 - Max: 64

• Refer to 'Real data mapping', See page 46,

Acknowledqement

l[r][ ][Set ID][ ][OK][Data][x]

11. Sharpness (Command2:k)

To adjust the screen sharpness=

You can also adjust sharpness in the Video menu=

Transmission

[[k][k][ ][Set ID][ ][Data][Cr] ]

Data Min: 0 - Max: 64

• Refer to 'Real data mapping', See page 46,

Acknowled_Lement

j[k][ ][Set lUll ][OK][Data][x]

15, Bass (Command2:s)

To adjust bass,

You can also adjust bass in the Audio menu,

Transmission

_k][s][ ][Set IS][ ][Data][Cr] 1

Data Min: 0 _ Max: 64

• Refer to 'Real data mapping', See page 46,

Acknowledgement

_s][ ][Set ID][ ][OK][Data][x] 1

12. OSB Semect (Command2:m)

To select OSD (On Screen Display) on/off,

Transmission

[[k][I][ ][Set ID][ ][aata][Cr] 1

Data 0: OSD off 1: OSD on

Acknowled_Lement

1[!][ ][Set lUll ][OK][aata][x] ]

16, BaBance (Command2:t)

To adjust balance,

You can also adjust balance in the Audio menu,

TransRqlsslon

_[k][t][ ][Set ID][ ][Data][Cr] 1

Data Min: 0 _- Max: 64

• Refer to 'Real data mapping', See page 46,

Acknowledgement

_[t][ ][Set Ia][ ][OK][Uata][x] 1

206-4022 Owner's Manual 47

ExternalControl Device Setup

17. Color Temperature (Command2:u)

_'_To adiust color temperature.

You can also adjust color temperature in the Video

menu,

Transmission

Data 0: Medium 1: Coo! 2: Warm

Acknowledgement

21. Orbiter Pi×el Setting (Command2:e)

To adjust pixe! number in orbiter function.

T_nsmlsslon

[_ ][s][ ][Set Ia][ ][aata][Cr] ]

Data Min: 1 -- Max: 3

Acknowledo, ement

_[s][ ][Set IU][ ][OK][aata][x] ]

18o ISM Method (Command2:p)

_'_To avoid having a fixed image remain on screen=

Transmission

1[ j ][p][ ][Set iS][ ][aata][Cr] 1

Data 1: inversion

2: Orbiter

4: White Wash

8: Normal

Acknowledgement

l[p] [ ][Set Ia][ ][OK][aata][x] 1

19o Low Power (Command2:q}

To control the Low Power function on/off.

You can also adiust Low Power in Option menu.

Transmission

1[ j ][q][ ][Set IU][ ][Uata][Cr]

Data O: Low Power off

1 : Low Power on

Acknowledgement

l[q] [ ][Set ID][ ][OK][Data][x] ]

20° Orbiter Time Setting (Command2:r)

To adiust orbiter operation time term.

Transmission

1[ j ][r][ ][Set IU][ ][Data][Cr]

Data Min: 1 ~ Max: FE

Acknowledgement

l[r][ ][Set Ia][ ][OK][aata][x] ]

22. Tune Command (Command: m a)

To tune channel to following physical/major/minor number

Transmission

Data O: Physical Channel Number(Transmit by Hexadecimal code)

NTSC air:02~45

NTSC cable: 01,0E--7D

ATSC air:01--45

ATSC cable:01_87

Data 1,Data 2: MajorChannelNumber (twopart)/ChannelPlumber(Onepart)

Data1: High byte

Data2: Low byte

Two part channel number: Major number-Minor number

One part channel number: If the channel band isATSC

digital cable, it can be used. In case of using one part chan

nel number, minor channel does not need.

Data 3, Data 4: MinorChannelNumber(Data3: High byte)(Data4: Low byte)

Data 5:

X 0 0 1 0 ATSC Air

x O 0 1 1 A'rSC

Oab_ _d

A'rSC

x 0 1 0 1 ATSO

C-<_ileirc

x 0 1 1 0 ATSC

cabb au!o

X 0 1 1 1 Reserved

x x xxx 11,

x 1 1 _ 1 Reserved

48 Plasma TV 206-4022

ExternalControl Device Setup

* All data are transmitted by Hexadecimal code

*Two/One part Channel: 6th bit

This bit is used in a cable-ready system.

*Using physica_ ehannek 5th bit

If the channel band is NTSC air or NTSC cable, channel tun-

ing can be done by only physical channel= In this case, using

physical channel bit must be low(0)=

But if the channel band is ATSC air or ATSC cable, there are

two cases that physical channel enable or disable=

If the physical channel sending is meaningful, you should set

this bit low(0)= If the physical channel sending is meaningless,

you should set this bit high(l).

Example)

1. Analog channel: NTSC cable, channel number(35), main

picture Command: ma 00 23 xx xx xx xx 01 attribute(0x0!):

main picture, two part(it's not mandatory), using physical chan-

nel, NTSC cable 'xx' data: don't care major and minor channel

number in case analog channel tuning.

2. Digita! channel: ATSC air, channel number(don't know phys-

ical channel, major(30), minor(3)), sub picture

Command: ma 00 xx 00 1E 00 03 A2 attribute(0xA2): sub pic-

ture, two part, not using physical channel, ATSC air 'xx' data:

don't care analog channel number in case digital channel tun-

ing.

3. Digital channel: ATSC air, channel

number(physical(20),major(20), minor(3)), sub picture

Command: ma 00 !4 00 14 00 03 82 attribute(0x82): sub pic-

ture, two part, using physical channel, ATSC air.

Acknowledgement

[a][ ][Set ID][ ][OK][Data0][Data!][Data2][Data3][Data4][DataS][x]]

a ][Set ID][ ][NG][Uata0][x] J

23. Channem Add/De1 (Command: m b)

To add and delete the channels

Transmission

[[m][b][ ][Set Ia][ ][aata][Cr] ]

Data 0: Channel Delete

1: Channel Add

Acknowledgement

I[b][ ][Set ID][ ][OK][Data][x]

l[b][ ][Set ID][ ][NG][Data][x]

25, Input semect(Command: × b) (Main Picture Input)

To select input source for TV.

Transmisdon

l[x][b][][Set IU][][Data][Cr]

Data Structure

DATA(Hex) INPUT

oo DTV (Antenna)

01 DTV (Cable)

10 Analog (Antenna)

11 Analog (Cable)

20 Video

21 Front Video

40 Component 1

41 Component 2

50 RGB DTV

60 RGB PC

90 HDMI/DVl

Acknowledgement

[[b][ ][Set ID][ ][OK/NG][Uata][x]

24. Key (Command: m c)

To send IR remote key code

Transmission

I[m][c][ ][Set ID][ ][Data][ ][Cr]

Data Key code: Refer to page 51.

Acknowled_qement

[[c][ ][Set ID][ ][OK][Data][x]

206-4022 Owner's Manual 49

IRCodes

Connect your wired remote control to the Remote Control port on the TV.

I_- Output waveforra

Single pulse, modulated with 37.917KHz signal at 455KHz

HI Carrier frequency

FOAR = 1/Tc = fosc/12

Duty ratio = T1/Tc = 1/3

I_ Configuration of frame

1st frame

Lead I Low I High I Data code I _ I

e custom code custom code

" Repeat frame

__1 L__Fq

Repeatcede

I_- Lead code

__1 J [

I-, 9ms _1" 4.sins"_1

I_ Repeat code

__[ l__J_

i_ 9ms _1_1

2,25 ms

" Bit "1"

2,24 ms

I_ Frame interval : Tf

The waveform is transmitted as long as a key is depressed,

Tf Tf

14 "-I-"

__[--I _l

Tf=lO8ms @455KHz

50 Plasma TV 206-4022

IRCodes

Code (Hexa)

10 ~ 19

Function

TV/VIDEO

TV INPUT

POWER

POWER ON

POWER OFF

RATIO

TIMER

Number Key 0- 9

- (Dash)

FLASHBK

MUTE

FREEZE

VOL ,_

VOLT

CH ,A

CH T

FAV

INFO

ENTER

EZ SOUND

EZ PIC

EXIT

FREEZE

SAP

ADJUST

VIDEO

Front Video

COMPONENT 1

COMPONENT 2

RGB-PC

RGB-DTV

HDMI/DVI

Ratio 4:3

Ratio 16:9

Ratio Zoom

R/C Button

Discrete IR

R/C Button

Discrete IR

Note

(Power On/Off)

Code (Only Power On)

Code (Only Power Off)

Code (TV Input Selection)

Code (Video Input Selection)

Code (Front Video Input Selection)

Code (Component1 Input Selection)

Code (Component2 Input Selection)

Code (RGB-PC Input Selection)

Code (RGB-DTV Input Selection)

Code (HDMI/DVl Input Selection)

Code (Only 4:3 Mode)

Code (Only 16:9 Mode)

Code (Onlv Zoom1 Mode)

206-4022 Owner's Manual 5t

Programmingthe Remote

Programming the Remote

The remote is a multi-brand or a universal remote. It can be programmed to operate most remote-controllable devices of

other manufacturers.

Note that the remote may not control all models of other brands.

1. To find out whether your remote can operate the device without programming, turn on the device such as a VCR and press the

corresponding mode button on the remote.

After that, press the POWER button. If the device is turned off then it responds properly and the remote need not to be pro-

grammed. If not, the remote should be programmed to operate the device. The programming procedures are explained below.

2. Press the MENU and MUTE button continuously at the same time for 2 seconds, the current selected device button will be illu-

minated.

If you don't press any button for 20 seconds, the light on the mode button will be turned off. In that case, you have to repeat from

step 2.

3. Enter code numbers using the number button on the remote by refering the code table on the following pages. When pressing

the button, the light blinks at a time. If the device turned off, the programming is successful.

4. Press the MENU button to store the code. After blinking twice, this code is stored.

5. Test the remote functions to see if the device responds properly. If not, repeat from step 2.

52 Plasma TV 206-4022

ProgrammingCodes

PFog ra m m i n gC o d es

Brand

_,IWA

5,KAI

_,MPRO

_,NAM

_UDIO DYNAMICS

3ROKSONIC

3ANON

3APEHART

3RAIG

3URTIS MATH ES

:)AEWOO

)AYTRON

)BX

)YNA]ECH

ELECTROHOME

EMERSON

:ISHER

:UNAI

7_E

30 VIDEO

qARMAN KARDON

qITACHI

NSTANTREPLAY

JCL

JCPENNY

JENSEN

JVC

Codes

O34

016 043 046 124

125 146

O72

031 033 103

012 023 039 B43

035 037 129

028 031 033

108

003 040 135

031 033 041

005 0B7 010 064

065 108 110 111

112 116 117 119

108

012 023 039 043

034 053

059

006 017 025 027

029 031 034 B35

036 037 046 101

129 131 138 153

003 0()8 009 B1B

034

081 038 068 072

107 109 144 147

132 136

012 045

004 018 026 034

048 068 137 150

031 033

031 038

012 018 015 033

040 066 101

043

012 031

048 050

130 150

Brand Codes

KENWOOD B14 B34

047 B48

LG (GOLDSTAR) B01 B12

101 106

LLOYD 034

LXI B03 B09

017 B84

MAGIN 040

MAGNAMOX B31 B33

067 B68

MARANTZ B12 B31

069

MARTA 101

M/q-SUI 027 B3O

MEI 031 B33

MEMOREX 003 B1O

033 B34

101 102

MGA 045 B46

MINOLTA 013 B20

MITSUBISHI B13 B20

049 B51

151

MTC B84 B40

MULq]TECH B24 B34

NEC 012 B23

048

NORDMENDE 043

OPTONICA B53 B54

PANASONIC B66 B70

183 140

PENTAX B13 B20

063

PHILCO B31 B34

PRIMPS B31 B33

067 B71

101

B13 B21

039 043

013 020

114 123

013 014

1B1 1B6

034 041

033 067

014 031

053 072

134 139

059

045 046

059 061

039 043

074 083

145

031 033

067

034 054

1B1

Brand

PORTLAND

PULSAR

QUARTZ

QUASAR

RCA

REALISTIC

RICO

RUNCO

SALORA

SAMSUNG

8ANSUI

SANYO

SCOTT

SEARS

SHARP

SHINTOM

SONY

SOUNDESIGN

STS

SYLVANIA

033 043

055 060 PILOT SYMPHONIC

152 PIONEER 048 "FANDY

Brand Brand

_BC

PIONEER

Codes

108

O72

011 014

033 066 B75 145

013 02B B33 034

040 041 ()62 063

1B7 109 14B 144

145 147

003 008 ()10 014

031 033 084 040

053 054 101

O58

148

014

032 040 102 104

1B5 107 109 112

113 115 12B 122

125

022 043 ()48 135

003 007 B1B 014

1B2 134

017 037 112 129

131

003 008 B09 010

013 014 ()17 020

031 042 ()73 081

1B1

031 054 149

024

003 009 ()31 052

056 057 ()58 076

077 078 149

O34

013

031 033 ()34 05g

O67

O34

010 034

Brand Codes

"FATUNG 039 043

TEAC 034 039 043

TECHNICS 031 033 070

TEKNIKA 019 031 033 034

101

THOMAS 034

TMK 006

TOSHIBA 008 013 042 047

059 082 112 131

TOTEVISION 040 1B1

UNITECH 040

VECTORRESEARCH 012

VICTOR 048

VlDEOCONCEPTS 012 034 046

VIDEOSONIC 040

WARDS 003 013 017 024

031 033 034 040

053 054 131

YAMAHA 012 034 039 043

ZENITH 034 048 056

058 072 080 101

5,JIN

_,NTRONIK

_,RCHER

2,ABLE STAR

3ENTURION

3ENTURY

31TIZEN

3OLOUR VOICE

3OMBANO

3OMTRONICS

)IAMOND

EAGLE

EASTERN

ELECTRICORD

3EMINI

Codes

003 004 039 042

046 052 053

112

014

005 007 014 024

026

092

OO7

065 090

080 081

019 030

023

020 030 040

057 062 066

032

072

008 022 025 054

052 074

Brand

GOLDENCHANNEL

HAMLIN

HrrAOHI

HOSPITALITY

JERROLD

LG (GOLDSTAR)

M-NET

MACOM

MAGNAVOX

MEMOREX

MOVIE TIME

NSC

OAK

PANASONIC

PARAGON

PHILIPS

Codes

030

049 050

052 055

070 077

002 003

009 010

074

()01 106

O37

033

()1() B12

10()

()28 ()32

015 028

073

016 B31

()44 ()47

100

006 012

O55

004 008

052 069

1()1 0()5

064 079

038 071

037 053

013 020

POST NEWS WEEK

PRBCER

PTS

PULSAR

RCA

REGAL

REGENCY

REMBRANT

SAMSUNG

SCIENTIFICATLANTA

SHERITECH

SIGNAL

SIGNATURE

SL MARX

Codes

065 085 090

034 051 B52 063

076

016

O59

011 048 B71 072

073 074

1B0

047

049 05B

O57

O25

102 107 B80 068

008 011 B41 042

048 045 B46

O22

O3O

O52

O3O

Brand Codes

SPRUCER 047 078

STARCOM 002 004 008 009

STARGAT E 008 030

TADIRAN 030

FAEKWANG 110

FAIHAN 105

FANDY 017

TEXSCAN 029

TOCOM 039 040 056

TOSHIBA 100

UNIKA 007 014 024

UNITED CABLE 004 053

UNIVERSAL 005 007 014 024

026 027 032 035

VIEWSTAR 012 015 018 086

087 088 089

ZENITH 100 114 060 093

206-4022 Owner's Manual 53

ProgrammingCodes

Brand Codes

ALPHASTAR DSR 123

AMPLICA 050

BIRDVIEW 051 126

CHANNEL MASTER 013 014

036 055

CHAPARRAL 008 009

CITOH 054

CURTIS MATHES 050 145

DRAKE 005 006

011 052

141

DX ANTENNA 024 046

ECHOSTAR 038 040

093 094

097 098

122

ELECTRO HOME 089

EUROPLUS 114

FUJITSU 017 021

Brand Codes

133 134

GENERALINSTRUMENTB03 004 016 B29

129 B31 059 1B1

015 018 HITACHI 139 140

HOUSrONTRACKER B33 037 039 B51

012 077 B57 104

007 010

112 116

056 076

057 058

095 096

099 1B0

022 027

HUGHES B68

JANIEL B60 147

JERROLD B61

KATHREIN 108

LEGEND B57

LG BB1

LBTRON 132

LUXOR B62 144

MACOM B10 059 063 B64

065

MEMOREX 057

NEXTWAVE 028 124 125

NORSAT 069 070

Brand Codes

PACESKY SATELLITE 143

PANASONIC 060 142

PANSAT 121

PERSONAL CABLE 117

PHILIPS 071

PICO 105

PRESIDENT 019 102

PRIMESTAR 0% 110 111

PROSAT 072

RCA 066 106

REALISTIC 043 074

SAMSUNG 123

SATELLITESERVICECO028 035 B47 057

O85

SCIENTIHCATLANTA 032 138

SONY 103

STARCAST 041

SUPER GUIDE 020 124 125

TEECOM 023 ()26 B75 087

Brand Codes

088 090 107 130

137

TOSHIBA 002 127

UNIDEN 016 025 042 043

044 045 048 049

078 079 080 086

101 135 136

VIEWSTAR 115

WINEGARD 128 146

ZENITH 081 082 083 084

091 120

Brand Brand

AIWA

AKAI

ANAM

BURMECTER

CARVER

CLARION

DAEWOO

DENON

FANTASIA

FINEARTS

FISHER

LG(GOLDSTAR)

HArrAI

HARMAN/KARDON

INKEL

Codes

014 028

125 129

23O

163

003 014

059 106

217 235

252

O86

199

027 053

102 148

015 075

071

022

089 099

001 021

087 107

190 191

211 212

034 035

068

037 058

078 079

122 149

152 153

157 158

189 207

225 226

247

Brand

070 B96 JVC B04

139 229 KEC 185

KENWOOD B38

17O

017 023 215

189 216 KOHEL B30

236 NAD B45

LOTTE ()14

100

175

060 BB4 179

198 221 201

13B 143 214

238

LXI 103

MAGNAVOX 111

024 029 MARANTZ B02

108 110 B34

192 210 B97

239 MCINTOSH B49

188 222 MCS 104

MEMOREX 107

062 B69 NAD B46

095 121 ONKYO B13

150 151 B48

154 155 133

159 160 OPTIMUS 158

222 224 PANASONIC B07

227 243 142

PENNEY 104

Codes

013 141

186 187

050 067 089

171 197 206

222

O46

016 036 098

172 173 174

176 177 178

180 181 183

202 208 213

219 223 232

24O

018 020 025

041 081 090

112

040 041 047

056 057 132

140

033 064 113

220 241 251

Brand

PHILIPS

PIONEER

QUASAR

RCA

RCX

REALISTIC

SAMSUNG

SANSUI

SANYO

SCOTT

SHARP

SHERWOOD

SONY

TAEKWANG

Codes

026 112

039 042

065 091

115 123

113

O8O

092

103 106

124 145

193 194

204 244

011 135

019 083

106 186

031 032

072 082

156 184

206 209

005 006

044 045

118 126

012 B2B

076 077

162 163

166 167

205 231

143

B43 063

B93 094

127 250

146 182

195 203

245 246

138 144

234

B51 052

117 119

199 200

158

109 114

248 249

B73 074

105 161

164 165

168 169

233 242

TEAC 010 085 106 136

185 187 237

TECHNICS 101 113 128 134

Codes

147 218

TOSHIBA 137

THE 061

VICTOR 088 131

WARDS 089

'YAMAHA 054 055 066 B92

199

Brand Codes Brand Codes Brand Codes Brand Codes

APEX DIGITAL 022 MAGNAVOX B13 PHILIPS 013 SONY 007

DENON 020 014 MARANTZ B24 PIONEER 004 026 THOMPSON 005 006

GE 005 006 MITSUBISHI B02 PROCEED 021 TOSHIBA 019 0B8

HARMAN KARDON 027 NAD B23 PROSCAN 005 006 'YAMAHA 009 018

JVC 012 ONKYO BOB 017 RCA 005 006 ZENITH 010 016 025

LG 0B1 010 016 B25 PANASONIC BB3 009 SAMSUNG 011 015

54 Plasma TV 206-4022

TroubleshootingChecklist

Tr o u b ies:h o ot ing C bee k !ist:

Check whether the TV is turned on.

_NO picture & _ Is the power cord inserted into wall power outlet?

Test the wall power outlet, plug another product's power cord into the outlet

causing obstruction.

The remote sontro( _ Are batteries installed with correct polarity (+ to +, - to -)?

doesn't work (Refer to p.9)

, Correct remote operating mode set: TV, VCR etc.?

• Install new batteries. (Refer to p.9)

This is normal, the image is muted during the TV startup process. Please

after switohing on contact your service center, if the picture has not appeared after five minutes.

Select Color in the Video menu and press the _ button.

(Refer to p=26)

NO or poor co)or _ Keep a sufficient distance between the TV and the VCR.

Or poor picture

, Activate any function to restore the brightness of the picture.

(If still picture is on the screen for more than 5 minutes, the screen gets dark.)

i ¸ i ¸¸¸¸¸¸¸¸ .....

Check for local interference such as an electrical appliance or power tool. J

Adjust Ba]ance in the AUDIO menu. (Refer to p.27) m

)

A change in ambient humidity or temperature may result in an unusualnoiSeUnusual8our)d (tom

. ° when the plasma display is turned on or off and does not indicate a fault with

the TV.

206-4022 Owner's Manual 55,

Malt_tet?aisce

- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your

new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

1. Here's a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and

a little fabric softener or dish washing detergent. Wring the cloth until it's almost dry, and then use it to wipe the

screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.

Please be sure not to use a wet cloth.

,_ If you expect to leave your TV dormant for a long time (such as a vacation), it's a good idea to unplug

the power cord to protect against possible damage from lightning or power surges.

56 Plasma TV 206-4022

Specification

Width (inches /ram)

Height (inches /ram)

Depth (inches /ram)

Weight (pounds /kg)

Resolution

Power requirement

Television System

Program Coverage

External Antenna Impedance

Operating Temperature Range

Operating Humidity Range

47,6 /1210

27,6 /701

11,6 /295

79 /35,9

852 x 480 (Dot)

AC 100-240V ~ 50/60Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2 - 13, UHF 14 ~ 69, CATV 1 - 135, CADTV 1 ~ 135, DTV 2 _ 69

75 _

32 - 104°F (0 ~ 40°C)

Less than 80%

,, The specifications shown above may be changed without prior notice for quality improvement.

206-4022 Owner's Manual 57

58 PlasmaTV 206-4022

Zenith wi[I repair or replace your product, at Zenith's option, if it proves to be defective in material or workmanship

under normal use, during the warranty period ("Warranty Period") listed below, effective from the date of original

consumer/end user purchase. This warranty is good only to the original consumer/end user of the product and is

effective only when used in the United States.

WARRANTY PERIOD:

LABOR: ONE YEAR from the Date of Purchase,

PARTS: ONE YEAR from the Date of Purchase.

Effective Date of Warranty: Your warranty period

Begins on the date of sale to the original

consumer/end user, KEEP THE DEALER'S DATED BILL

OF SALE OR PROOF OF DELIVERY as evidence of the

purchase date, You will be required to submit a legible

copy of your bill of sale or proof of delivery when

requesting warranty service.

Repair Parts and RepJacement Units are warranted

for the remaining period of the original warranty,

HOW SERVICE IS HANDLED:

In Home Service. Please Call the Zenith Interactive

Center at !=B77=gBENITH (!-877-993-6484) to

schedule a service appointment,

Your unit will be repaired or replaced with a new, sub-

stitute model or factory reconditioned unit, at Zenith's

option. If repaired, parts used in the repair may be new

or remanufactured.

Visit our website at http://www.zenithserviceocom

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIEDr INCLUDING WITHOUT

LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE

EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS

WARRANTY PERIOD ABOVE. ZENITH WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL,

INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING, WITHOUT LIMITATION, LOST

PROFITS, LOST OR CORRUPTED PROGRAMMING OR DATA, OR ANY OTHER DAMAGE WHETHER BASED IN

CONTRACT, TORT, OR OTHERWISE, Some states do not allow the exclusion or limitation of incidental or conse-

quential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may not

apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from star

to state,

THIS LIMITED WARRANTY DOES NOT APPLY TO:

• damage caused in shipping or transit

• service required as a result of improper installation,

including incorrect or insufficient AC supply (please

consult the owner's manual for power supply

requirements)

• installation or repair of antenna systems, cable con-

verters, cable company supplied equipment, or

ZENITH Plasma Television Manual L0522757

Navigation menu

Versions of this User Manual:

Views

Navigation
