Installation and Operating Guide I Warranty

Model Number I XBV343 I DVD Player+Video Cassette Recorder

th®

VHsl_@

Surround

Sound @

zenith

CAUTION

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

This lightning flash with arrowhead symbol within an

equilateral triangle is intended to alert the user to

the presence of uninsulated dangerous voltage

within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric

shock to persons.

The exclamation point within an equilateral triangle

is intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the literature accompanying the

product.

WARNING: TO REDUCE THE RISK OF FIRE OR ELEC-

TRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO

RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH

WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR EVITER LES CHOC ELECTRIQUES,

INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE

DANS LA BORNE CORRESPONDANTE DE LA PRISE ET

POUSSER JUSQU'AU FOND.

WARNING: Do not install this equipment in a confined space

such as a bookcase or similar unit.

NOTE TO CABLF_JTV INSTALLER: This reminder is provided to

call the cable TV system installer's attention to Article 820-40 of

the National Electric Code (U.S.A.). The code provides guidelines

for proper grounding and, in particular, specifies that the cable

ground shall be connected to the grounding system of the

building, as close to the point of the cable entry as practical.

CAUTION:

This DVD+VCR employs a Laser System.

To ensure proper use of this product, please read this owner's

manual carefully and retain for future reference. Should the

unit require maintenance, contact an authorized service

location.

Use of controls, adjustments, or the performance of

procedures other than those specified herein may result in

hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open

the enclosure. Visible laser radiation when open.

DO NOT STARE INTO BEAM.

CAUTION: The apparatus should not be exposed to water

(dripping or splashing) and no objects filled with liquids, such

as vases, should be placed on the apparatus.

FCC WARNING: This equipment may generate or use radio

frequency energy. Changes or modifications to this

equipment may cause harmful interference unless the modifi-

cations are expressly approved in the instruction manual. The

user could lose the authority to operate this equipment if an

unauthorized change or modification is made.

REGULATORY INFORMATION: FCC Part 15

This product has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the product is

operated in a residential installation. This product generates,

uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur

in a particular installation. If this product does cause harmful

interference to radio or television reception, which can be

determined by turning the product off and on, the user is

encouraged to try to correct the interference by one or more

of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the product and

receiver.

• Connect the product into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician

for help.

FCC COMPLIANCE: The responsible party for this product's

compliance is:

Zenith Electronics Corporation, 2000 Millbrook Drive,

Lincolnshire, IL 60069, USA

Phone: 1-847-941-8000.

_OTES ON COPYRIGHTS:

It is forbidden by law to copy. broadcast, show. broadcast

via cable, play in public, or rent copyrighted material without

permission.

This product uses copyright protection developed by

Macrovision. Copy protection signals are recorded on some

discs. When recording and playing the pictures of these discs

on a VCR, picture noise will appear.

This product incorporates copyright protection technology that

is protected by method claims of certain U.S. patents and other

intellectual property rights owned by Macrovision Corporation

and other rights owners. Use of this copyright protection tech-

nology must be authorized by Macrovision Corporation, and is

intended for home and other limited viewing uses only unless

otherwise authorized by Macrovision Corporation. Reverse

engineering or disassembly is prohibited.

SERIAL NUMBER: The serial number is found on the back of

this unit. This number is unique to this unit and not available to

others. You should record requested information here and

retain this guide as a permanent record of your purchase.

Model No.

Serial No.

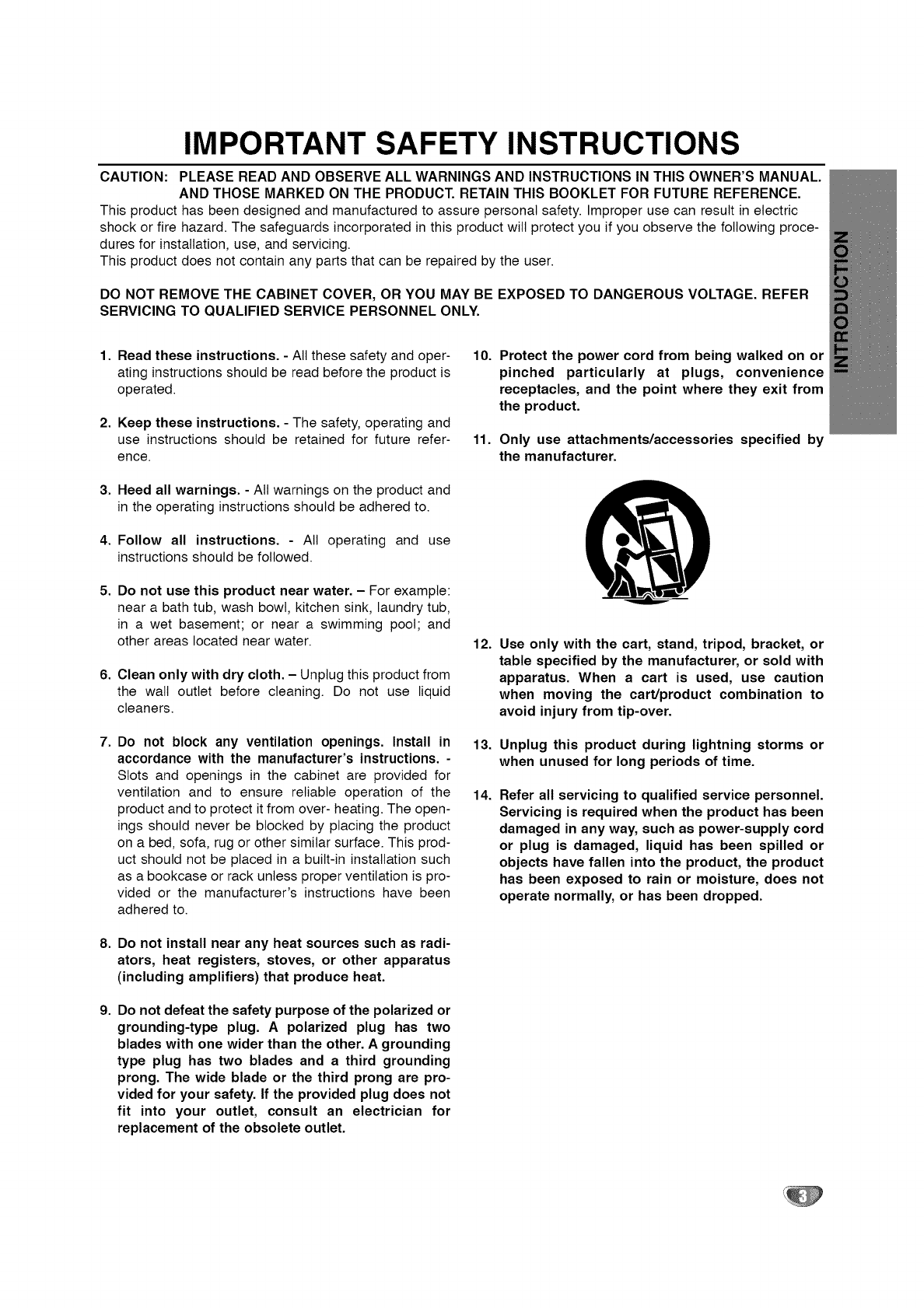

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER'S MANUAL.

AND THOSE MARKED ON THE PRODUCT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This product has been designed and manufactured to assure personal safety. Improper use can result in electric

shock or fire hazard. The safeguards incorporated in this product wilt protect you if you observe the following proce-

dures for installation, use, and servicing.

This product does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read these instructions. - All these safety and oper-

ating instructions should be read before the product is

operated.

2. Keep these instructions. - The safety, operating and

use instructions should be retained for future refer-

ence.

3. Heed all warnings. - All warnings on the product and

in the operating instructions should be adhered to.

4. Follow all instructions. - All operating and use

instructions should be followed.

5. Do not use this product near water. - For example:

near a bath tub, wash bowl, kitchen sink, laundry tub,

in a wet basement; or near a swimming pool; and

other areas located near water.

6. Clean only with dry cloth. - Unplug this product from

the walt outlet before cleaning. Do not use liquid

cleaners.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions. -

Slots and openings in the cabinet are provided for

ventilation and to ensure reliable operation of the

product and to protect it from over- heating. The open-

ings should never be blocked by placing the product

on a bed, sofa, rug or other similar surface. This prod-

uct should not be placed in a built-in installation such

as a bookcase or rack unless proper ventilation is pro-

vided or the manufacturer's instructions have been

adhered to.

8. Do not install near any heat sources such as radi-

ators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding

type plug has two blades and a third grounding

prong. The wide blade or the third prong are pro-

vided for your safety. If the provided plug does not

fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the product.

11. Only use attachments/accessories specified by

the manufacturer.

12.

13.

14.

Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

apparatus. When a cart is used, use caution

when moving the cart/product combination to

avoid injury from tip-over.

Unplug this product during lightning storms or

when unused for long periods of time.

Refer all servicing to qualified service personnel.

Servicing is required when the product has been

damaged in any way, such as power-supply cord

or plug is damaged, liquid has been spilled or

objects have fallen into the product, the product

has been exposed to rain or moisture, does not

operate normally, or has been dropped.

I I

Introduction

Safety Precautions ......................... 2

IMPORTANT SAFETY INSTRUCTIONS .......... 3

Table of Contents .......................... 4

Before Use .............................. 5-6

Playable Discs ........................... 5

Precautions ............................. 6

Notes on Discs .......................... 6

About Symbols .......................... 6

Selecting the Viewing Source ................ 6

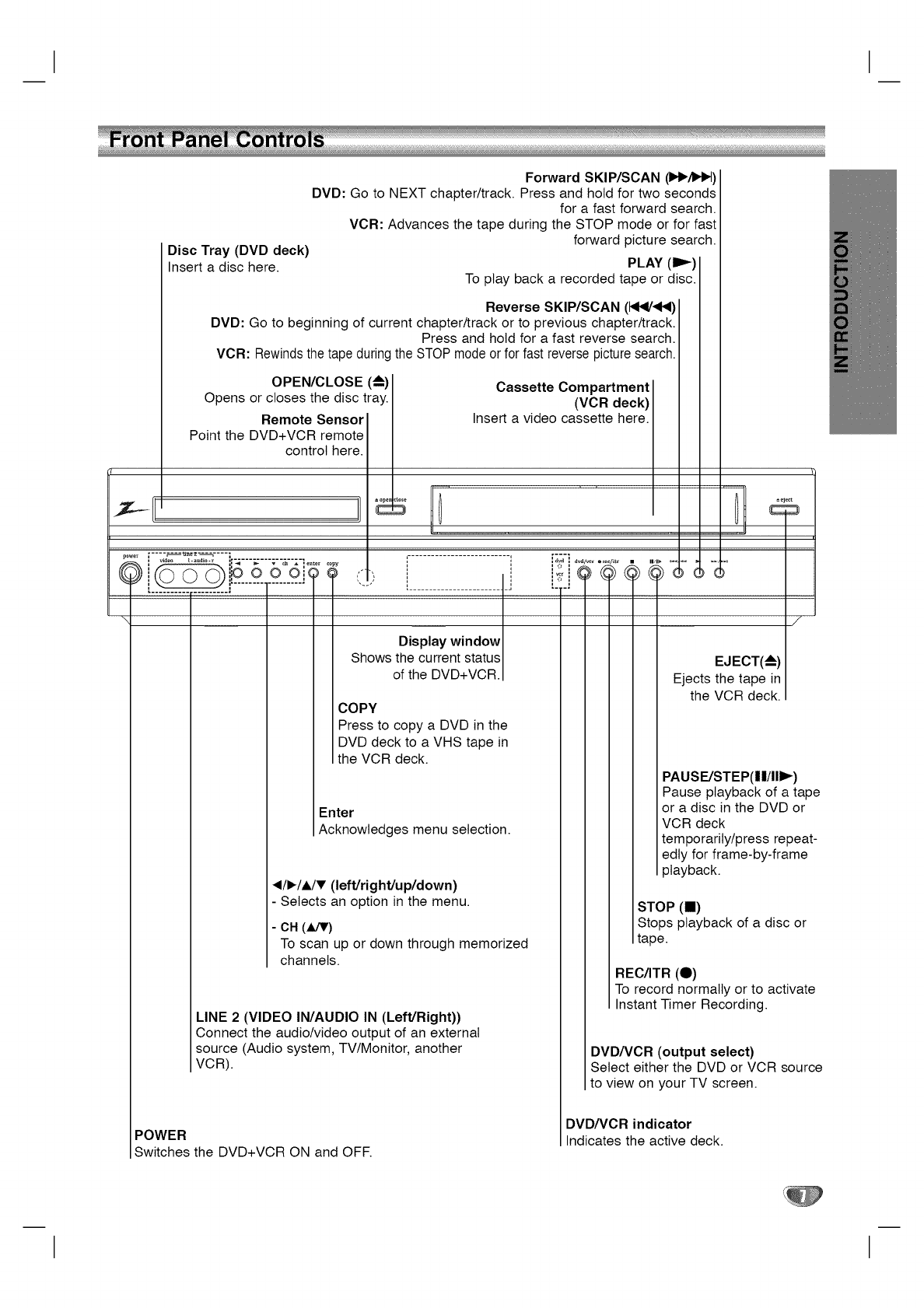

Front Panel Controls ........................ 7

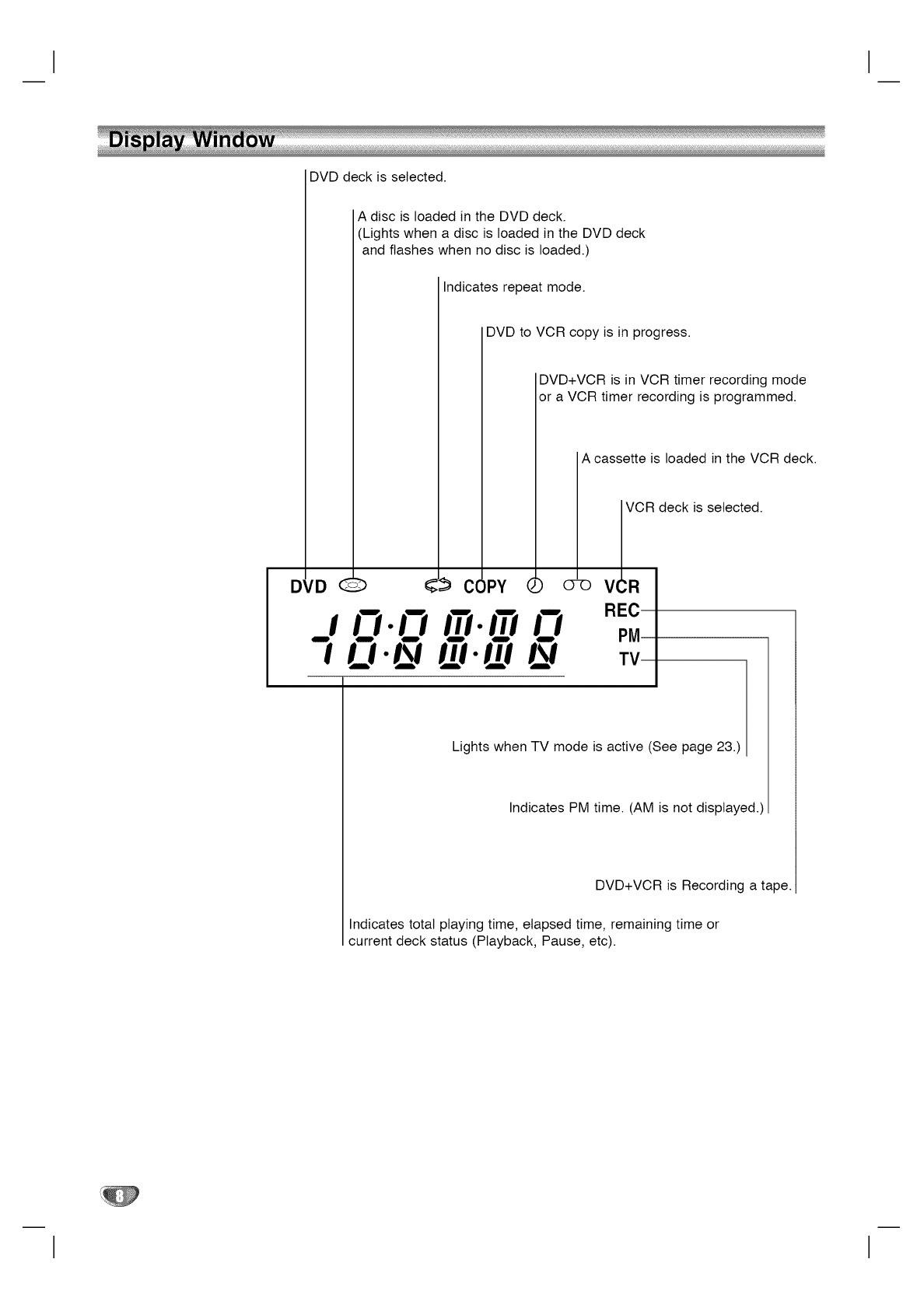

Display Window ............................ 8

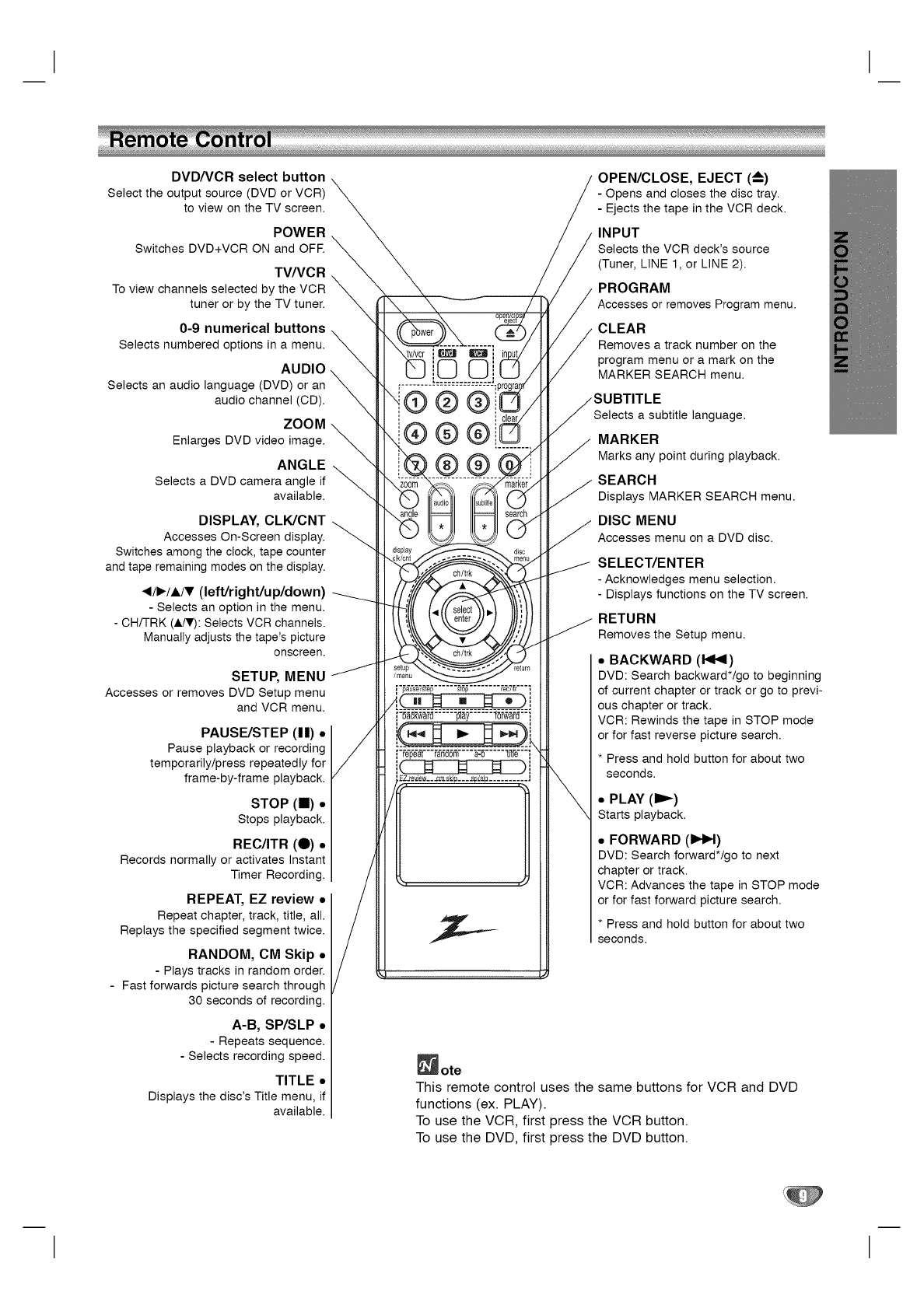

Remote Control ............................ 9

Connections Panel ........................ 10

Pre-operation

Connections ........................... 11-14

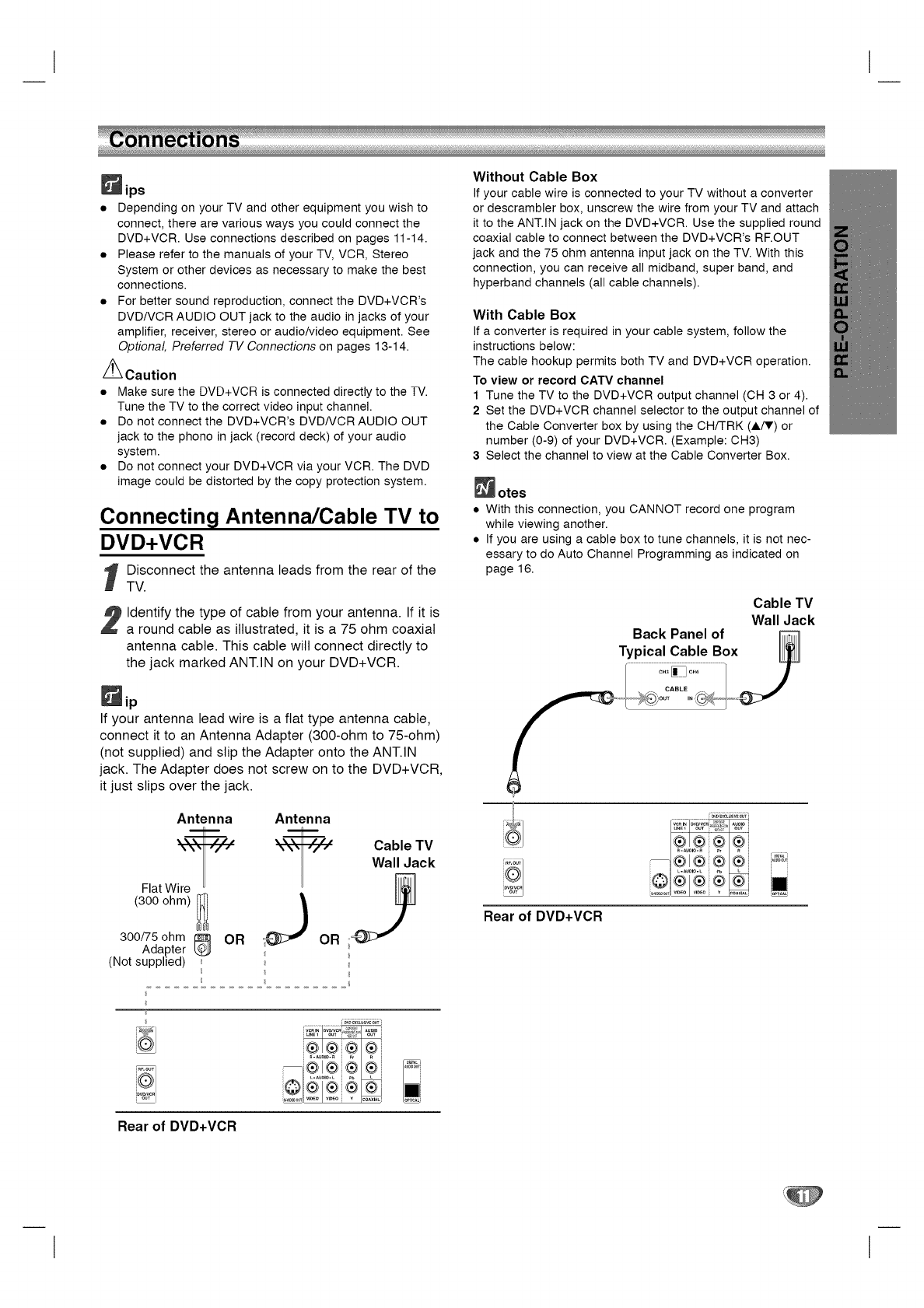

Connecting Antenna/Cable TV to DVD+VCR . . . 11

Basic TV Connections .................... 12

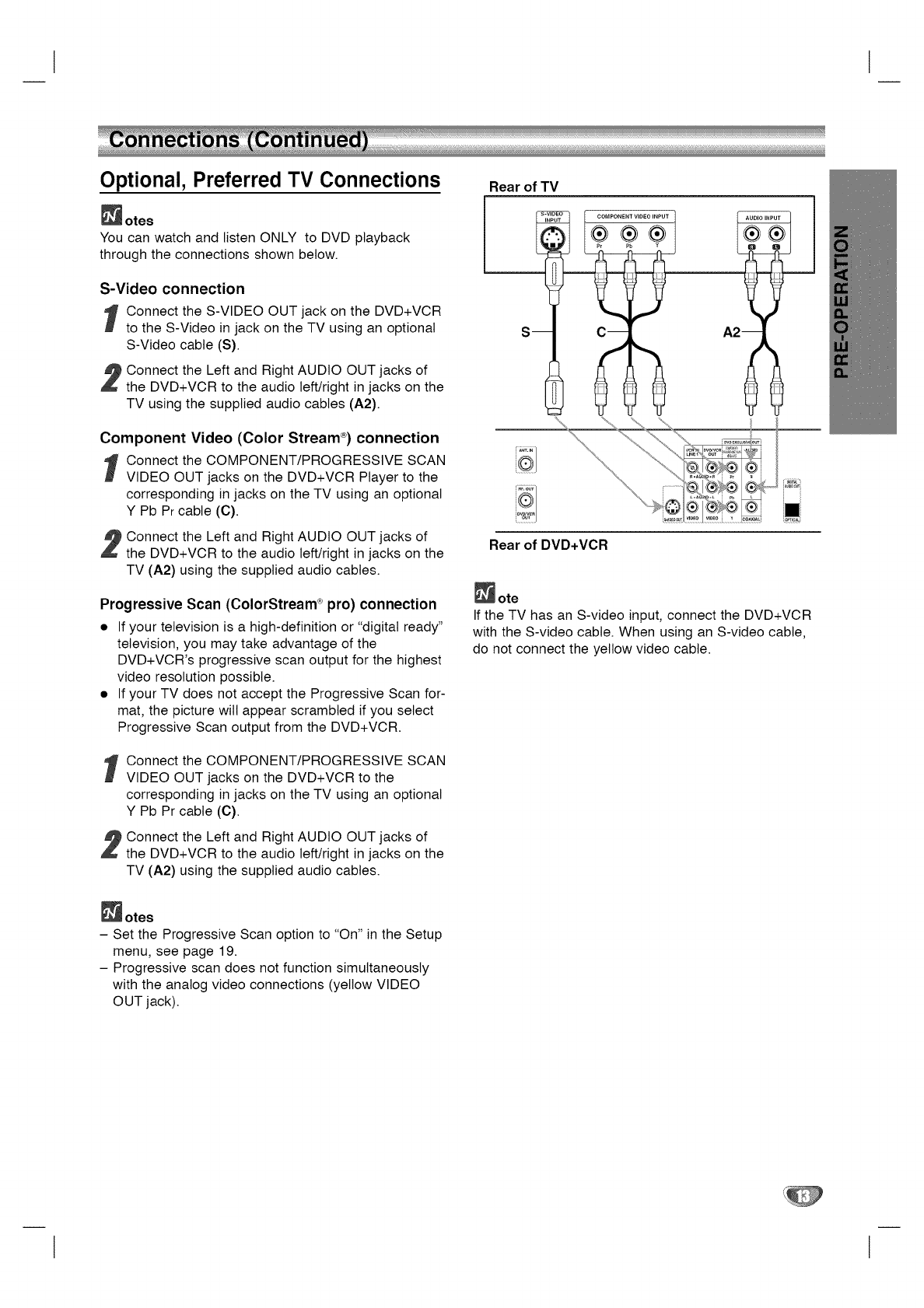

Optional, Preferred TV Connections ....... 13-14

VCR Operation Setup .................... 15-17

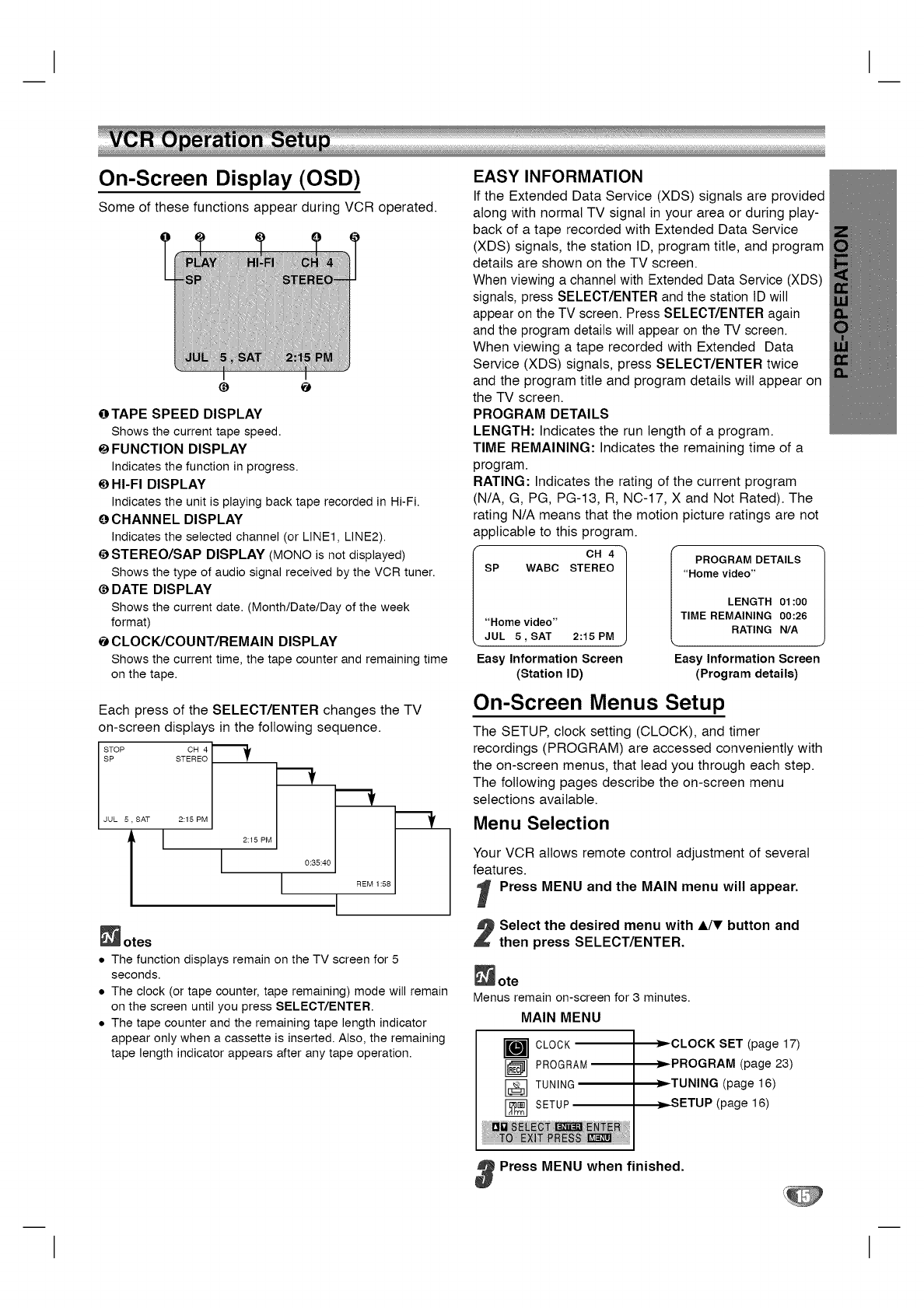

On-Screen Display (OSD) ................. 15

On-Screen Menus Setup .................. 15

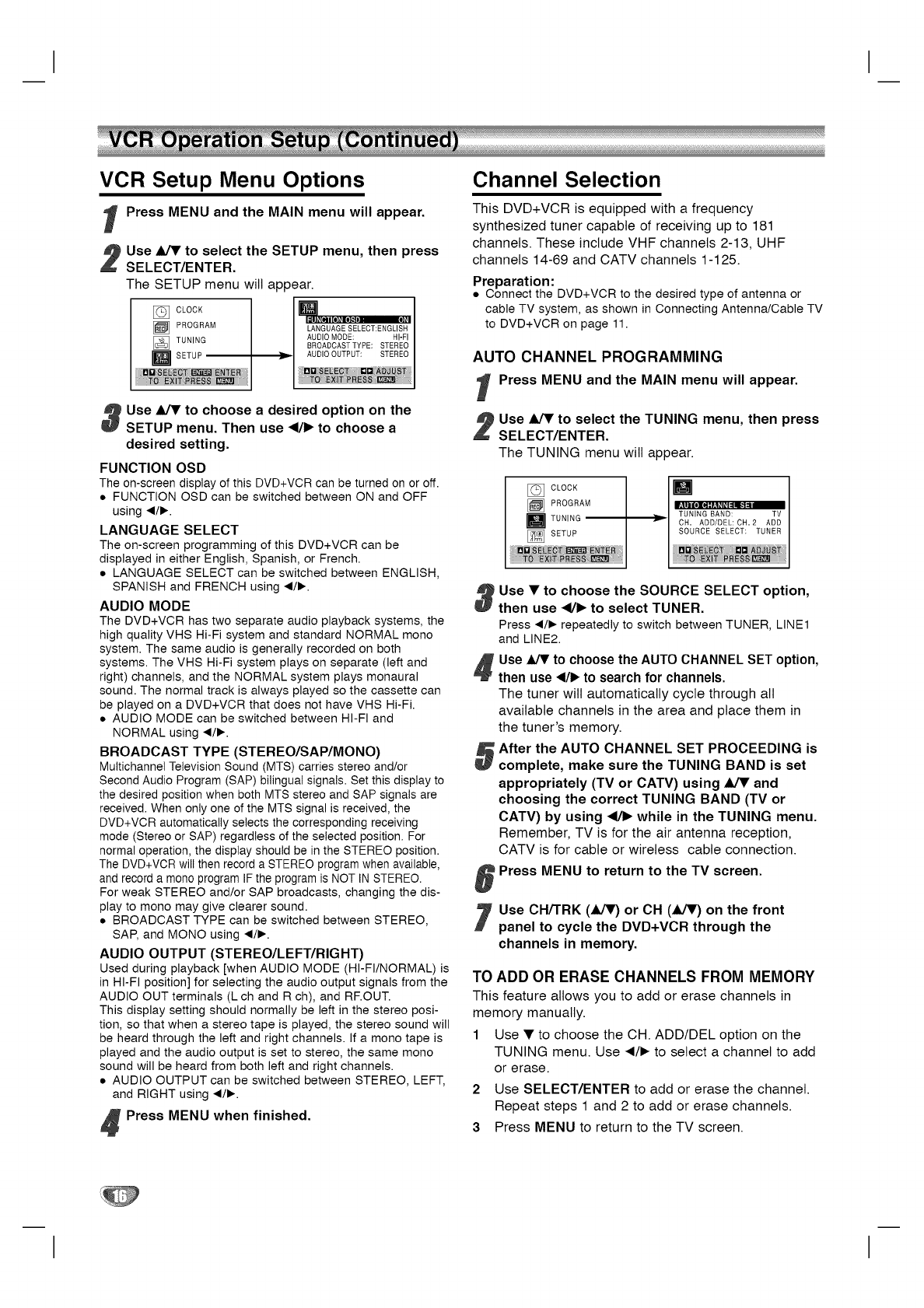

VCR Setup Menu Options ................. 16

Channel Selection ....................... 16

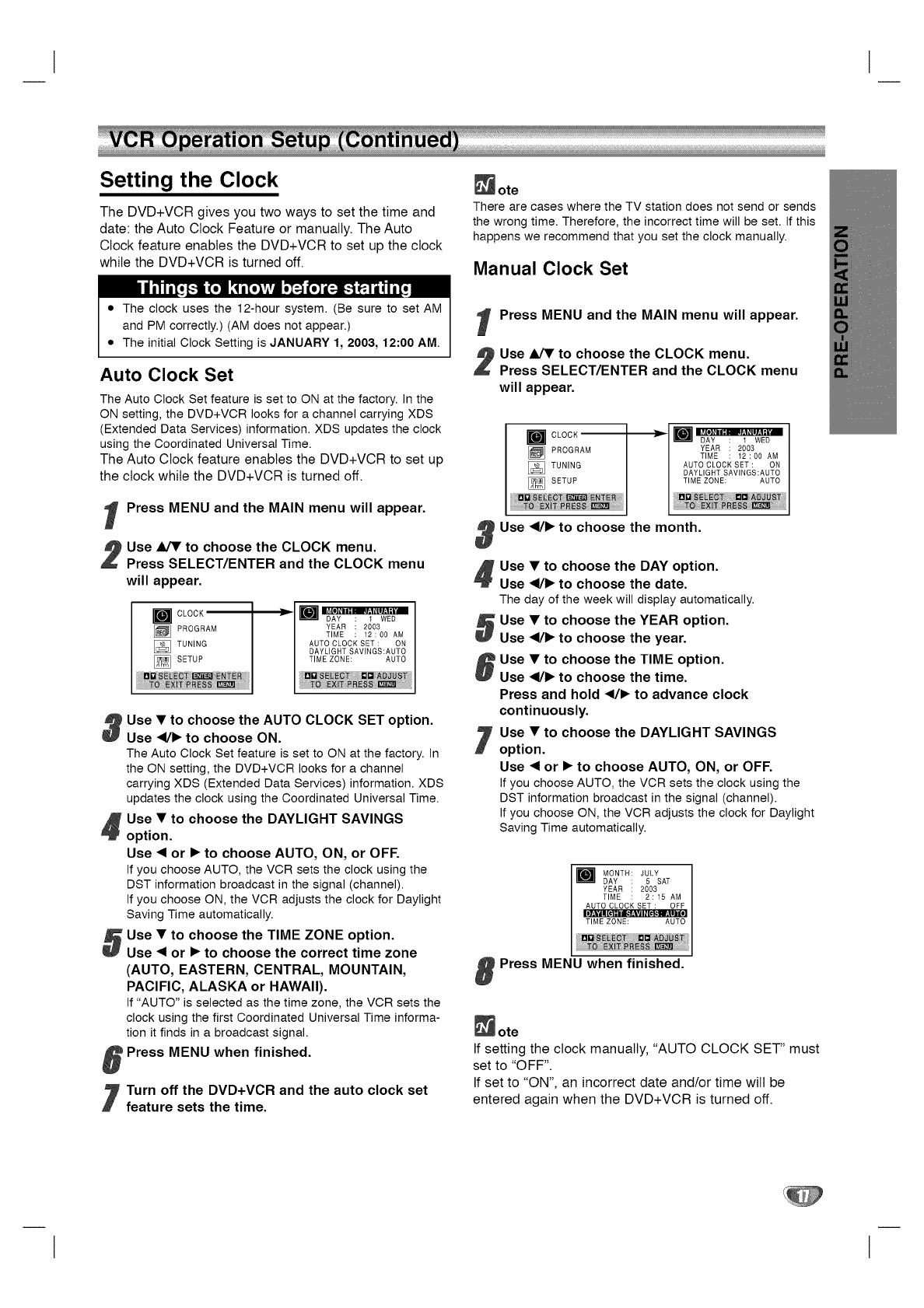

Setting the Clock ........................ 17

DVD Operation Setup .................... 18-21

General Explanation ...................... 18

On-Screen Display ....................... 18

DVD Setup .......................... 19-21

•General Operation .................... 19

• Language .......................... 19

• Picture ............................. 19

• Progressive Scan ..................... 19

• Sound ............................. 20

• Others ............................. 20

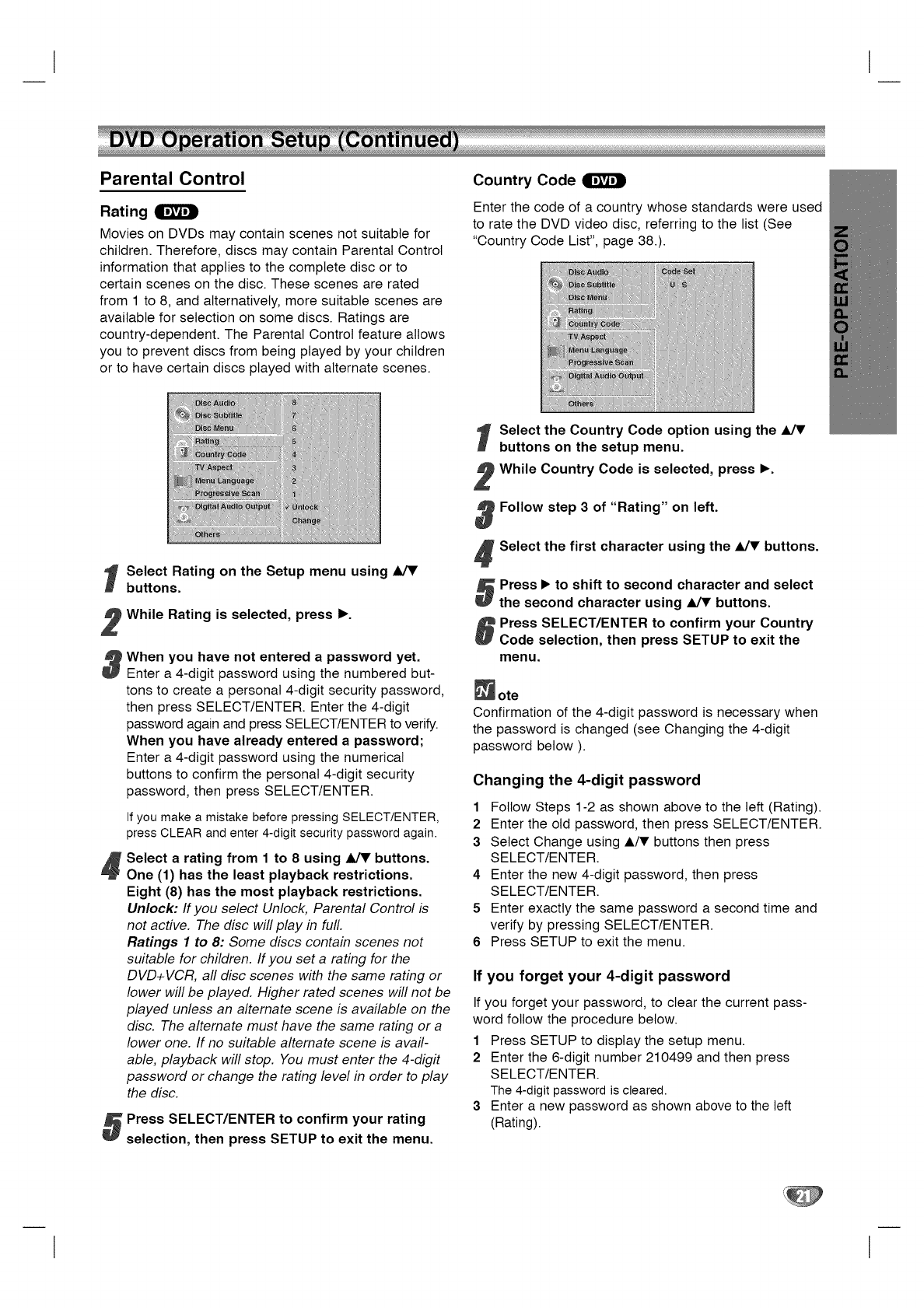

• Parental Control ...................... 21

Operation

VCR Operation ......................... 22-27

Normal Playback ........................ 22

Special Effect Playbacks .................. 22

• Search ............................. 22

• Still Picture and Frame-by-Frame Playback . 22

• Slew Motion ......................... 22

• CM Skip (Commercial Skip) ............. 22

• EZ (EASY) Review .................... 22

Normal Recording ....................... 23

Timer Recording ...................... 23-24

Instant Timer Recording ................... 25

Dubbing and Editing ...................... 25

Copying from DVD to VCR ................. 25

VHS Hi-Fi Stereo System/MTS Broadcast ..... 26

Tape Counter Memory Feature .............. 27

Additional Information .................... 27

DVD Operation ......................... 28-30

Playing DVDs .......................... 28

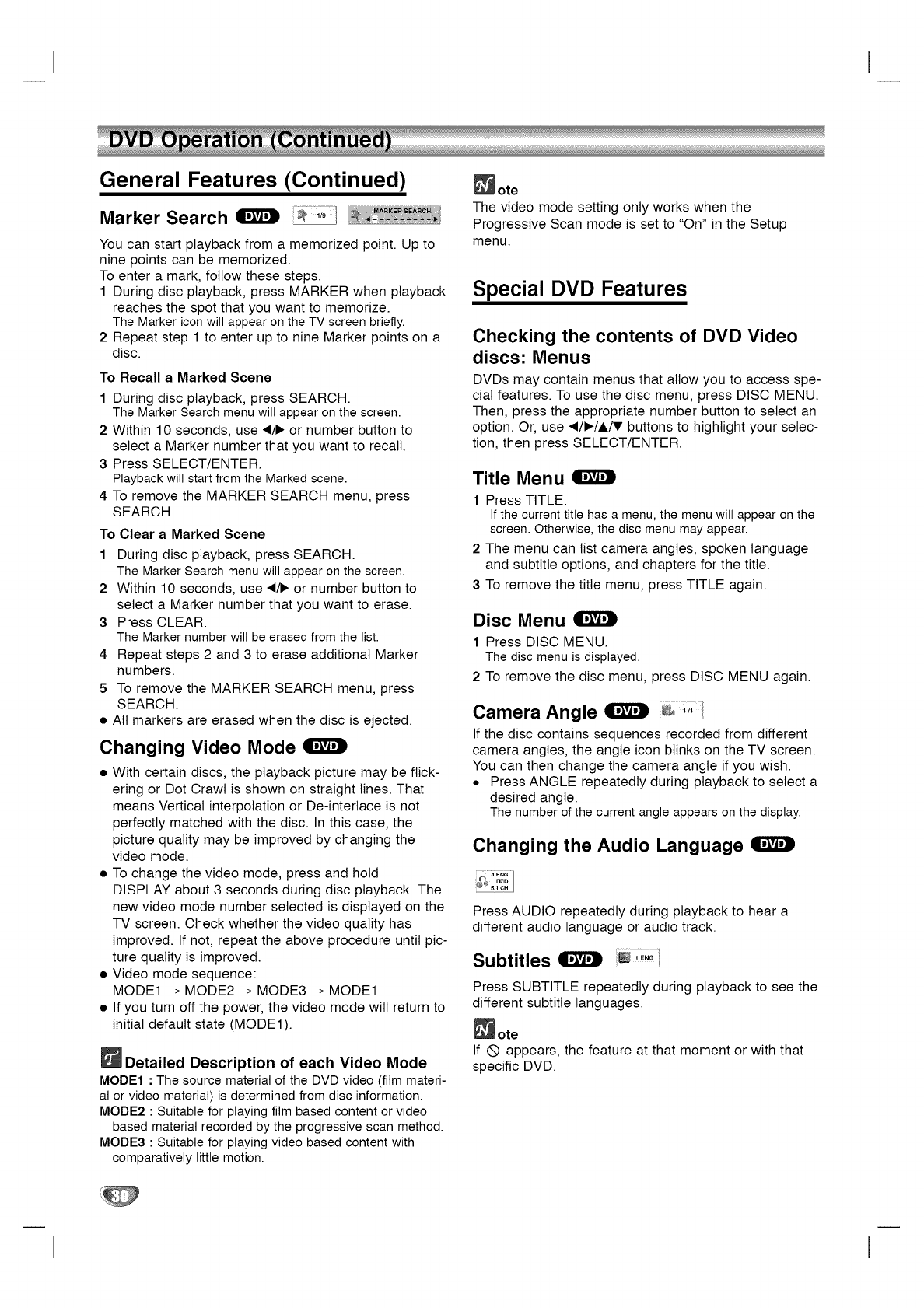

General Features ........................ 28

• Selecting other TITLEs ................. 28

• Selecting other CHAPTERs ............. 28

• Slow Motion ......................... 28

• Still Picture and Frame-by-Frame Playback . 29

• Search ............................. 29

• Random ............................ 29

• Repeat ............................. 29

• RepeatA-B ......................... 29

• Time Search ........................ 29

• 3D Surround ........................ 29

• Zoom .............................. 29

• Marker Search ....................... 30

• Changing Video Mode ................. 30

Special DVD Features .................... 30

• Checkingthe contentsof DVD Videodiscs: Menus . 30

• Title Menu .......................... 30

• Disc Menu .......................... 30

• Camera Angle ....................... 30

• Changing the Audio Language ........... 30

• Subtitles ............................ 30

Audio CD and MP3/WMA Disc Operation ....... 31

Playing Audio CDs and MP3/WMA Discs ...... 31

MP3/WMA Recording Notes ................ 31

•Pause ............................. 32

• Selecting other Tracks ................. 32

• Repeat Track/All/Off .................. 32

• Search ............................. 32

• Random ........................... 32

• RepeatA-B ......................... 32

• 3D Surround ........................ 32

• Changing the Audio Channel ............ 32

JPEG File Operation ....................... 33

Viewing JPEG Files on a Disc .............. 33

• Selecting other Files .................. 33

• Still Picture ......................... 33

• To flip the picture ..................... 33

• To rotate picture ...................... 33

• Notes on JPEG Files .................. 33

Programmed Playback ..................... 34

Programmed Playback with Audio CDs and

MP3/WMA Discs ........................ 34

• Repeat Programmed Tracks ............ 34

• Erasing a Track from Program List ........ 34

• Erasing the Complete Program List ....... 34

Reference

Troubleshooting ........................ 35-36

Language Code List ....................... 37

Country Code List ......................... 38

Specifications ............................ 39

Warranty ......................... Back Cover

About the symbols for instructions

Z_ Indicates hazards likely to cause harm to the unit

itself or other material damage.

Indicates special operating features of this unit.

Indicates tips and hints for making the task easier.

I I

Playable Discs

DVD

(8 cm/12 cm disc)

AudioCD

............ (8 cm/12 cm disc)

In addition, this unit can play CD-Rs or CD-RWs that

contain audio titles, MP3, JPEG, or WMA files.

-Depending on the conditions of the recording

equipment or the CD-R/RW disc itself, some

CD-R/RW discs cannot be played on the unit.

- The unit cannot play discs that contain data other

than MP3 and CD-DA data.

- Do not attach any seal or label to either side

(the labeled side or the recorded side) of a disc.

- Do not use irregularly shaped CDs

(e.g., heart-shaped or octagonal). The unit may

malfunction.

_otes on DVDs

Some playback operations of DVDs may be intentionally

fixed by software manufacturers. As this unit plays

DVDs according to disc content designed by the software

manufacturer, some playback features of the unit may

not be available or other functions may be added.

Refer also to the instructions supplied with the DVDs.

Some DVDs made for business purposes may not be

played on the unit.

Regional code of this DVD+VCR and DVDs

This DVD+VCR is designed and manufactured

for playback of Region 1 encoded DVD software.

The region code on the labels of some DVD

discs indicate which type of DVD+VCR can play those

discs. This unit can play only DVD discs labeled 1 or

ALL. If you try to play any other discs, the message

"Check Regional Code" wilt appear on the TV screen.

Some DVD discs may not have a region code label even

though their playback is prohibited by area limits.

_ote on DTS-encoded CDs

When playing DTS-encoded CDs, excessive noise may

be heard from the analog stereo output. To avoid possi-

ble damage to the audio system, turn down the volume

before playing back such discs, adjust the volume grad-

ually, and keep the volume bevel low. To enjoy DTS

Digital Surround TMplayback, an external 5.1 channel

Digital Surround TMdecoder system must be connected

to the digital output of the unit.

Disc-related Terms

Title (DVD only)

The main film content or accompanying feature content

or music album.

Each title is assigned a title reference number enabling

you to locate it easily.

Chapter (DVD only)

Sections of a picture or a musical piece that are smaller

than titles. A title is composed of one or several chap-

ters. Each chapter is assigned a chapter number to

enable you to locate the chapter you want. Depending

on the disc, the DVD may not be divided into chapters.

Track (Audio CD only)

Sections of a musical piece on an audio CD. Each track

is assigned a track number, enabling you to locate the

track you want.

Remote Control Battery Installation

Detach the battery cover on the rear of the

remote control, and insert two R03 (size

AAA) batteries with © and @ aligned

correctly.

_Caution

Do not mix old and new batteries. Never mix different

types of batteries (standard, alkaline, etc.).

Remote Control Operating Range

Point the remote control at the remote sensor and press

the buttons.

•Distance: About 23 ft (7 m) from the front of the

remote sensor

• Angle: About 30° in each direction of the front of the

remote sensor

IMPORTANT NOTE:

SPENT OR DISCHARGED BATTERIES MUST BE

RECYCLED OR DISPOSED OF IN A SAFE MANNER

IN COMPLIANCE WITH ALL APPLICABLE LAWS.

FOR DETAILED INFORMATION, CONTACT YOUR

LOCAL COUNTY SOLID WASTE AUTHORITY.

Manufactured under license from Dolby Laboratories. Dolby

and the double-D symbol are trademarks of Dolby

Laboratories. Confidential unpublished works. Copyright

DTS and DTS Digital Out are trademarks of Digital Theater

Systems, Inc.

I I

Precautions

Handling the unit

When shipping the unit

The original shipping carton and packing materials

come in handy. For maximum protection, re-pack the

unit as it was originally packaged at the factory.

When setting up the unit

The picture and sound of a nearby TV, VCR, or radio

may be distorted during playback. In this case, position

the unit away from the TV, VCR, or radio, or turn off the

unit after removing the disc.

To keep the surface clean

Do not use volatile liquids, such as insecticide spray,

near the unit. Do not leave rubber or plastic products in

contact with the unit for a long period of time. They will

leave marks on the surface.

Cleaning the unit

To clean the cabinet

Use a soft, dry cloth. If the surfaces are extremely dirty,

use a soft cloth lightly moistened with a mild detergent

solution. Do not use strong solvents such as alcohol,

benzine, or thinner, as these might damage the surface

of the unit.

To obtain a clear picture

The DVD+VCR is a high-tech, precision device. If the

optical pick-up lens and disc drive parts are dirty or

worn, the picture quality will be poor.

Regular inspection and maintenance are recommended

after every 1,000 hours of use. (This depends on the

operating environment.)

For details, please contact your nearest dealer.

Notes on Discs

Handling discs

Do not touch the playback side of the disc.

Hold the disc by the edges so that fingerprints will not

get on the surface.

Do not stick paper or tape on the disc.

Cleaning discs

Fingerprints and dust on the disc can cause poor pic-

ture quality and sound distortion. Before playing, clean

the disc with a clean cloth. Wipe the disc from the cen-

ter out.

Yes No

Do not use strong solvents such as alcohol, benzine,

thinner, commercially available cleaners, or anti-static

spray intended for older vinyl records.

About Symbols

About the ®symbol display

" C) " may appear on the TV screen during operation.

This icon means the function explained in this owner's

manual is not available at that moment or with that spe-

cific DVD.

About the disc symbols for instructions

A section whose title has one of the following symbols are

applicable only to those discs represented by the symbol.

DVD

Audio CDs.

MP3 Discs.

WMA Discs.

JPEG Files.

Selectin_l the Viewin_l Source

You must select one of your output sources (DVD or

VCR) to view on the TV screen.

• If you want to view DVD deck output source:

Press DVD on the remote or DVD/VCR on the front panel

until DVD indicator in the display window lights and output

source of DVD deck is viewed on the TV screen.

•If you want to view VCR deck output source:

Press VCR on the remote or DVD/VCR on the front panel

until VCR indicator in the display window lights and output

source of VCR deck is viewed on the TV screen.

Storing discs

After playing, store the disc in its case.

Do not expose the disc to direct sunlight or sources of

heat, or leave it in a parked car exposed to direct sun-

light, as there may be a considerable temperature

increase inside the car.

If you insert a disc while the DVD+VCR is in the VCR

mode, the DVD+VCR wilt switch to DVD mode

automatically.

If you insert a cassette tape without an erasure pre-

vention tab intact while the DVD+VCR is in the DVD

mode, the DVD+VCR wilt switch to VCR mode auto-

matically.

I I

Disc Tray (DVD deck)

Insert a disc here.

Forward SKIP/SCAN (1_/1_t_)

DVD: Go to NEXT chapter/track. Press and hold for two seconds

for a fast forward search.

VCR: Advances the tape during the STOP mode or for fast

forward picture search.

PLAY (1_-)

To play back a recorded tape or disc.

Reverse SKIP/SCAN (I_HI/_)

DVD: Go to beginning of current chapter/track or to previous chapter/track.

Press and hold for a fast reverse search.

VCR: Rewinds the tape during the STOP mode or for fast reverse picture search.

OPEN/CLOSE (_)

Opens or closes the disc tray.

Remote Sensor

Point the DVD+VCR remote

control here.

video _-au_o-r _[_ v ch _ _ente_

ooj

......................

c_os¢

Cassette Compartment

(VCR deck)

Insert a video cassette here.

.......................... :-

Display window

Shows the current status

of the DVD+VCR.

COPY

Press to copy a DVD in the

DVD deck to a VHS tape in

the VCR deck.

Enter

Acknowledges menu selection.

41/_/A/V(left/right/up/down)

-Selects an option in the menu.

-CH (A/V)

To scan up or down through memorized

channels.

LINE 2 (VIDEO IN/AUDIO IN (Left/Right))

Connect the audio/video output of an external

source (Audio system, TV/Monitor, another

VCR).

POWER

Switches the DVD+VCR ON and OFF.

U/ll,

)()(

EJECT(h)

Ejects the tape in

the VCR deck.

PAUSE/STEP(I 1/111_)

Pause playback of a tape

or a disc in the DVD or

VCR deck

temporarily/press repeat-

edly for frame-by-frame

playback.

STOP (,)

Stops playback of a disc or

tape.

REC/ITR (0)

To record normally or to activate

Instant Timer Recording.

DVD/VCR (output select)

Select either the DVD or VCR source

to view on your TV screen.

DVD/VCR indicator

Indicates the active deck.

I I

DVD deck is selected.

A disc is loaded in the DVD deck.

(Lights when a disc is loaded in the DVD deck

and flashes when no disc is loaded.)

Indicates repeat mode.

DVD (_ _;_ C(IPY _]) o-o

DVD to VCR copy is in progress.

DVD+VCR is in VCR timer recording mode

or a VCR timer recording is programmed.

A cassette is loaded in the VCR deck.

VCR deck is selected.

VCR

REC

Lights when TV mode is active (See page 23.)

Indicates PM time. (AM is not displayed.)

DVD+VCR is Recording a tape.

Indicates total playing time, elapsed time, remaining time or

current deck status (Playback, Pause, etc).

I I

DVD/VCR select button

Select the output source (DVD or VCR)

to view on the TV screen.

POWER

Switches DVD+VCR ON and OFF.

TV/VCR

To view channels selected by the VCR

tuner or by the TV tuner.

0-9 numerical buttons

Selects numbered options in a menu.

AUDIO

Selects an audio language (DVD) or an

audio channel (CD).

ZOOM

Enlarges DVD video image.

ANGLE

Selects a DVD camera angle if

available.

DISPLAY, CLK/CNT

Accesses On-Screen display.

Switches among the clock, tape counter

and tape remaining modes on the display.

<II_IA/V (left/right/up/down)

- Selects an option in the menu.

- CH/TRK (A/T): Selects VCR channels.

Manually adjusts the tape's picture

onscreen.

SETUP, MENU

Accesses or removes DVD Setup menu

and VCR menu.

PAUSE/STEP (11) •

Pause playback or recording

temporarily/press repeatedly for

frame-by-frame playback.

STOP (11) •

Stops playback.

REC/ITR (0) •

Records normally or activates Instant

Timer Recording.

REPEAT, EZ review •

Repeat chapter, track, title, all.

Replays the specified segment twice.

RANDOM, CM Skip •

- Plays tracks in random order.

- Fast forwards picture search through

30 seconds of recording.

A-B, SP/SLP •

- Repeats sequence.

- Selects recording speed.

TITLE •

Displays the disc's Title menu, if

available.

®®

OPEN/CLOSE, EJECT (--_)

- Opens and closes the disc tray.

- Ejects the tape in the VCR deck.

INPUT

Selects the VCR deck's source

(Tuner, LINE 1, or LINE 2).

PROGRAM

Accesses or removes Program menu.

CLEAR

Removes a track number on the

program menu or a mark on the

MARKER SEARCH menu.

Selects a subtitle language.

MARKER

Marks any point during playback.

Displays MARKER SEARCH menu.

DISC MENU

Accesses menu on a DVD disc.

SELECT/ENTER

-Acknowledges menu selection.

- Displays functions on the TV screen.

RETURN

Removesthe Setup menu.

•BACKWARD (1<1_1)

DVD: Search backward*/go to beginning

of current chapter or track or go to previ-

ous chapter or track.

VCR: Rewinds the tape in STOP mode

or for fast reverse picture search.

* Press and hold button for about two

seconds.

•PLAY (ll_)

Starts playback.

• FORWARD (IH_I)

DVD: Search forward*/go to next

chapter or track.

VCR: Advances the tape in STOP mode

or for fast forward picture search.

* Press and hold button for about two

seconds.

_ote

This remote control uses the same buttons for VCR and DVD

functions (ex. PLAY).

To use the VCR, first press the VCR button.

To use the DVD, first press the DVD button.

I I

DVD/VCR OUT (VIDEO/AUDIO (Left/Right))

Connect to a TV with video and audio inputs.

VCR IN LINE 1

(VIDEO IN/AUDIO IN (Left/Right))

Connect the audio/video output of an external

source (Audio system, TV/Monitor,

another VCR).

S-VIDEO OUT (DVD OUT)

Connect to a S-Video Input on TV.

_,_._',"I%;

R-AUDIO-

_-AUDIO-

RF OUT(DVD/VCR OUT)

Connect to a TV with RF coaxial inputs.

ANTENNAINPUT

COMPONENT/PROGRESSIVE SCAN VIDEO OUT

(Y Pb Pr) (DVD OUT) Connect to a TV with Y Pb Pr

(component) inputs.

AUDIO OUT (Left/Right) (DVD OUT)

Connect to a TV, amplifier, receiver, or stereo system.

_1o

AC Power Cord

Plug into the power source.

DIGITAL AUDIO OUT (OPTICAL) (DVD OUT)

Connect to digital (Optical) audio equipment.

DIGITAL AUDIO OUT (COAXIAL) (DVD OUT)

Connect to digital (coaxial) audio equipment.

Connect the VHF/UHF/CATV antenna to this terminal.

Do not touch the inner pins of the jacks on the rear

panel. Electrostatic discharge may cause permanent

damage to the unit.

I I

_ips

• Depending on your TV and other equipment you wish to

connect, there are various ways you could connect the

DVD+VCR. Use connections described on pages 11-14.

• Please refer to the manuals of your TV, VCR, Stereo

System or other devices as necessary to make the best

connections.

• For better sound reproduction, connect the DVD+VCR's

DVD/VCR AUDIO OUT jack to the audio in jacks of your

amplifier, receiver, stereo or audio/video equipment. See

Optional, Preferred TV Connections on pages 13-14.

Z_Caution

• Make sure the DVD+VCR is connected directly to the TV.

Tune the TV to the correct video input channel.

• Do not connect the DVD+VCR's DVDNCR AUDIO OUT

jack to the phono in jack (record deck) of your audio

system.

• Do not connect your DVD+VCR via your VCR. The DVD

image could be distorted by the copy protection system.

Connecting Antenna/Cable TV to

DVD+VCR

Disconnect the antenna leads from the rear of the

TV.

Identify the type of cable from your antenna. If it is

a round cable as illustrated, it is a 75 ohm coaxial

antenna cable. This cable wilt connect directly to

the jack marked ANT.IN on your DVD+VCR.

_ip

If your antenna lead wire is a flat type antenna cable,

connect it to an Antenna Adapter (300-ohm to 75-ohm)

(not supplied) and slip the Adapter onto the ANT.IN

jack. The Adapter does not screw on to the DVD+VCR,

it just slips over the jack.

Antenna Antenna

_Cable TV

Wall Jack

Flat W J

(300 ohm) _[_ i_

300/750hm _ OR OR

Adapter

(Not supplied)

Without Cable Box

If your cable wire is connected to your TV without a converter

or descrambler box, unscrew the wire from your TV and attach

it to the ANT.IN jack on the DVD+VCR. Use the supplied round

coaxial cable to connect between the DVD+VCR's RF.OUT

jack and the 75 ohm antenna input jack on the TV. With this

connection, you can receive all midband, super band, and

hyperband channels (all cable channels).

With Cable Box

If a converter is required in your cable system, follow the

instructions below:

The cable hookup permits both TV and DVD+VCR operation.

To view or record CATV channel

1 Tune the TV to the DVD+VCR output channel (CH 3 or 4).

2 Set the DVD+VCR channel selector to the output channel of

the Cable Converter box by using the CH/TRK (A/T) or

number (0-9) of your DVD+VCR. (Example: OH3)

3Select the channel to view at the Cable Converter Box.

• With this connection, you CANNOT record one program

while viewing another.

• If you are using a cable box to tune channels, it is not nec-

essary to do Auto Channel Programming as indicated on

page 16.

Cable TV

Wall Jack

Back Panel of

Typical Cable Box

.............................................../ J

Rear of DVD+VCR

I I

Basic TV Connections

• Make one of the following connections, depending on

the capabilities of your existing equipment.

RF coaxial connection

Connect the RF.OUT jack on the DVD+VCR to the

antenna in jack on the TV using the 75-ohm Coaxial

Cable supplied (R).

If you use this connection, tune the TV to the

DVD+VCR's RF output channel (CH 3 or 4).

How to set the DVD+VCR's RF output channel

1.While the DVD+VCR is turned off, press and hold CH

(A/V) on the front panel for about five seconds.

The unit will turn itself on and "RF 03" or "RF 04" appears in

the display window.

2. Use OH (A/V) on the front panel or CH/TRK (A/V) on

the remote control to change the RF output

channel (OH 03 or OH 04).

3.Turn the DVD+VCR off and then on.

4. Press the TV CH to 3 or 4 depending on the RF

output channel you had selected.

Now you can watch the DVD+VCR playback on OH3

or OH4 of your TV.

Audio/Video connection

Connect the DVD/VCR VIDEO OUT jack on the

DVD+VCR to the video in jack on the TV using the

video cable supplied (V).

Connect the Left and Right DVD/VCR AUDIO OUT

jacks on the DVD+VCR to the audio left/right in

jacks on the TV (A1) using the supplied audio

cables.

_ote

If you use this connection, set the TV's source selector

to VIDEO.

Rear of TV

J:11 ::[1:

Rear of DVD+VCR

I I

Optional, Preferred TV Connections

You can watch and listen ONLY to DVD playback

through the connections shown below.

S-Video connection

Connect the S-VIDEO OUT jack on the DVD+VCR

to the S-Video in jack on the TV using an optional

S-Video cable (S).

Connect the Left and Right AUDIO OUT jacks of

the DVD+VCR to the audio left/right in jacks on the

TV using the supplied audio cables (A2).

Component Video (Color Stream" "_)connection

Connect the COMPONENT/PROGRESSIVE SCAN

VIDEO OUT jacks on the DVD+VCR Player to the

corresponding in jacks on the TV using an optional

Y Pb Pr cable (C).

Connect the Left and Right AUDIO OUT jacks of

the DVD+VCR to the audio left/right in jacks on the

TV (A2) using the supplied audio cables.

Progressive Scan (ColorStream '°'pro) connection

•If your television is a high-definition or "digital ready"

television, you may take advantage of the

DVD+VCR's progressive scan output for the highest

video resolution possible.

• If your TV does not accept the Progressive Scan for-

mat, the picture will appear scrambled if you select

Progressive Scan output from the DVD+VCR.

Connect the COMPONENT/PROGRESSIVE SCAN

VIDEO OUT jacks on the DVD+VCR to the

corresponding in jacks on the TV using an optional

Y Pb Pr cable (C).

Connect the Left and Right AUDIO OUT jacks of

the DVD+VCR to the audio left/right in jacks on the

TV (A2) using the supplied audio cables.

Rear of TV

\ \ \ \

\ \ \J

Rear of DVD+VCR

_ote

If the TV has an S-video input, connect the DVD+VCR

with the S-video cable. When using an S-video cable,

do not connect the yellow video cable.

-Set the Progressive Scan option to "On" in the Setup

menu, see page 19.

- Progressive scan does not function simultaneously

with the analog video connections (yellow VIDEO

OUT jack).

I I

Optional, Preferred TV Connections

_ote

You can listen to DVD playback ONLY using COAXIAL

(X), OPTICAL (O) and AUDIO OUT (A2) connections.

The tuner and VCR will still be heard through the

RROUT (R) or DVD/VCR AUDIO OUT (A1) jack. (See

page 12.)

Connecting to an amplifier equipped with two

channel analog stereo or Dolby Surround

Connect the Left and Right AUDIO OUT (or DVDNCR

AUDIO OUT) jacks on the DVD+VCR to the audio left

and right in jacks on your amplifier, receiver, or stereo

system using the audio cables (for A1 or A2 connection)

supplied.

Connecting to an amplifier equipped with two

channel digital stereo (PCM) or to an Audio/Video

receiver equipped with a multi-channel decoder

(Dolby Digital TM, MPEG 2, or DTS)

Connect one of the DVD+VCR's DIGITAL AUDIO

OUT jacks (COAXIAL X or OPTICAL O) to the

corresponding in jack on your amplifier. Use an

optional digital (COAXIAL X or OPTICAL O) audio

cable.

You wilt need to activate the DVD+VCR's digital

output. (See "Digital Audio Output"on page 20).

_J Digital Multi-channel sound

A digital multi-channel connection provides the best

sound quality. For this you need a multi-channel

Audiofideo receiver that supports one or more of the

audio formats supported by your DVD+VCR (MPEG 2,

Dolby Digital and DTS). Check the receiver manual and

the Iogos on the front of the receiver.

Z_ Caution:

Due to the DTS Licensing agreement, the digital output

will be in DTS digital out when DTS audio stream is

selected.

_otes

-If the audio format of the digital output does not match

the capabilities of your receiver, the receiver will

produce a strong, distorted sound or no sound at all.

- Six Channel Digital Surround Sound via digital con-

nection can only be obtained if your receiver is

equipped with a Digital Multi-channel decoder.

- To see the audio format of the current DVD in the on-

screen display, press AUDIO.

Rear of DVD+VCR

lAmplifier (Receiver)

A2 X O

Accessory Audio/Video (A/V) Connections to

DVD+VCR

Connect the VCR IN LINE 1 or LINE 2 jacks on the

DVD+VCR to the audio/video out jacks on your

accessory component, using the optional audio/video

cables.

Accessory Component:

VCR, Camcorder,

Video Camera,

Satellite Receiver,

Laser Disc Player

Accessory Device Jack Panel

..............................................................

Rear of DVD+VCR

Front of DVD+VCR

I I

On-Screen Display (OSD)

Some of these functions appear during VCR operated.

OTAPE SPEED DISPLAY

Shows the current tape speed.

€ FUNCTION DISPLAY

Indicates the function in progress.

_) HI-FI DISPLAY

Indicates the unit is playing back tape recorded in Hi-Fi.

O CHANNEL DISPLAY

Indicates the selected channel (or LINE1, LINE2).

STEREO/SAP DISPLAY (MONO is not displayed)

Shows the type of audio signal received by the VCR tuner.

@DATE DISPLAY

Shows the current date. (Month/Date/Day of the week

format)

CLOCK/COUNT/REMAIN DISPLAY

Shows the current time, the tape counter and remaining time

on the tape.

Each press of the SELECT/ENTER changes the TV

on-screen displays in the following sequence.

STOP CH 4 I _lf

SPJuL 5 STEREO I'

, SAT 2:15 PM

TI 2:15PM 0:35:40

IREM 1:58

• The function displays remain on the TV screen for 5

seconds.

• The clock (or tape counter, tape remaining) mode will remain

on the screen until you press SELECT/ENTER

• The tape counter and the remaining tape length indicator

appear only when a cassette is inserted. Also, the remaining

tape length indicator appears after any tape operation.

EASY INFORMATION

If the Extended Data Service (XDS) signals are

along with normal TV signal in your area or during play-

back of a tape recorded with Extended Data Service

(XDS) signals, the station ID, program title, and program

details are shown on the TV screen.

When viewing a channel with Extended Data Service (XDS)

signals, press SELECT/ENTER and the station ID will

appear on the TV screen. Press SELECT/ENTER again

and the program details will appear on the TV screen.

When viewing a tape recorded with Extended Data

Service (XDS) signals, press SELECT/ENTER twice

and the program title and program details wilt appear on

the TV screen.

PROGRAM DETAILS

LENGTH: Indicates the run length of a program.

TIME REMAINING: Indicates the remaining time of a

program.

RATING: Indicates the rating of the current program

(N/A, G, PG, PG-13, R, NC-17, X and Not Rated). The

rating N/A means that the motion picture ratings are not

applicable to this program.

CH 4

SP WABC STEREO

"Home video"

JUL 5, SAT 2:15 PM

Easy Information Screen

(Station ID)

PROGRAM DETAILS

"Home video"

LENGTH 01:00

TIME REMAINING 00:26

RATING N/A

Easy Information Screen

(Program details)

On-Screen Menus Setup

The SETUP, clock setting (CLOCK), and timer

recordings (PROGRAM) are accessed conveniently with

the on-screen menus, that lead you through each step.

The following pages describe the on-screen menu

selections available.

Menu Selection

Your VCR allows remote control adjustment of several

features.

Press MENU and the MAIN menu will appear.

Select the desired menu with ,&/T button and

then press SELECT/ENTER.

_ote

Menus remain on-screen for 3 minutes.

MAIN MENU

]CLOCK

] PROGRAM

] TUNING

] SETUP

• , CLOCK SET (page 17)

_- PROGRAM (page 23)

TUNING (page 16)

:_ SETUP (page 16)

Press MENU when finished.

I I

VCR Setup Menu Options

Press MENU and the MAIN menu will appear.

Use _to select the SETUP menu, then press

SELECT/ENTER.

The SETUP menu will appear.

[] CLOCK LAF_NGUAGE

IllJ_ [ql [e]_le}_}l ._1

] PROGRAM SELECT:ENGLISH

AUDIO MODE: HI-FI I

] TUNING BROADCASTTYPE: STEREO I

_-i SETUP _ AUDIO OUTPUT: STEREO

i _i]8_UEC ]_i_] E_NTER Og_ _GT Da _DJUS

Use _i_ to choose a desired option on the

SETUP menu. Then use </1_ to choose a

desired setting.

FUNCTION OSD

The on-screen display of this DVD+VCR can be turned on or off.

• FUNCTION OSD can be switched between ON and OFF

using </1_.

LANGUAGE SELECT

The on-screen programming of this DVD+VCR can be

displayed in either English, Spanish, or French.

• LANGUAGE SELECT can be switched between ENGLISH,

SPANISH and FRENCH using 4/1_.

AUDIO MODE

The DVD+VCR has two separate audio playback systems, the

high quality VHS Hi-Fi system and standard NORMAL mono

system. The same audio is generally recorded on both

systems. The VHS Hi-Fi system plays on separate (left and

right) channels, and the NORMAL system plays monaural

sound. The normal track is always played so the cassette can

be played on a DVD+VCR that does not have VHS Hi-Fi.

• AUDIO MODE can be switched between HI-FI and

NORMAL using </1_.

BROADCAST TYPE (STEREO/SAP/MONO)

Multichannel Television Sound (MTS) carries stereo and/or

Second Audio Program (SAP) bilingual signals. Set this display to

the desired position when both MTS stereo and SAP signals are

received. When only one of the MTS signal is received, the

DVD+VCR automatically selects the corresponding receiving

mode (Stereo or SAP) regardless of the selected position. For

normal operation, the display should be in the STEREO position.

The DVD+VCR will then record a STEREO program when available,

and record a mono program IF the program is NOT IN STEREO.

For weak STEREO and/or SAP broadcasts, changing the dis-

play to mono may give clearer sound.

• BROADCAST TYPE can be switched between STEREO,

SAP, and MONO using </1_.

AUDIO OUTPUT (STEREO/LEFT/RIGHT)

Used during playback [when AUDIO MODE (HI-FI/NORMAL) is

in HI-FI position] for selecting the audio output signals from the

AUDIO OUT terminals (L ch and R ch), and RF.OUT.

This display setting should normally be left in the stereo posi-

tion, so that when a stereo tape is played, the stereo sound will

be heard through the left and right channels. If a mono tape is

played and the audio output is set to stereo, the same mono

sound will be heard from both left and right channels.

• AUDIO OUTPUT can be switched between STEREO, LEFT,

and RIGHT using 4/1_.

Press MENU when finished.

Channel Selection

This DVD+VCR is equipped with a frequency

synthesized tuner capable of receiving up to 181

channels. These include VHF channels 2-13, UHF

channels 14-69 and CATV channels 1-125.

Preparation:

• Connect the DVD+VCR to the desired type of antenna or

cable TV system, as shown in Connecting Antenna/Cable TV

to DVD+VCR on page 11.

AUTO CHANNEL PROGRAMMING

Press MENU and the MAIN menu will appear.

Use _ to select the TUNING menu, then press

SELECT/ENTER.

The TUNING menu will appear.

] CLOCK

] PROGRAM

_--_ TUNING

] SETUP

_;8ELEO _ _N;E_

ESS :_

_:;z:: :,_..!_1_.1:1111

TUNING BAND: TV

CH, ADD/DEL: CH, 2 ADD

_-- SOURCE SELECT: TUNER

I ia_ _ EoT _

Use I' to choose the SOURCE SELECT option,

then use _/1_ to select TUNER.

Press 4/1_ repeatedly to switch between TUNER, LINE1

and LINE2.

Use _to choose the AUTO CHANNEL SET option,

then use 4/1_ to search for channels.

The tuner will automatically cycle through all

available channels in the area and place them in

the tuner's memory.

After the AUTO CHANNEL SET PROCEEDING is

complete, make sure the TUNING BAND is set

appropriately (TV or CATV) using _and

choosing the correct TUNING BAND (TV or

CATV) by using _while in the TUNING menu.

Remember, TV is for the air antenna reception,

CATV is for cable or wireless cable connection.

Press MENU to return to the TV screen.

Use CH/rRK (AJI') or OH (_hJ1')on the front

panel to cycle the DVD+VCR through the

channels in memory.

TO ADD OR ERASE CHANNELS FROM MEMORY

This feature allows you to add or erase channels in

memory manually.

1 Use 1" to choose the CH. ADD/DEL option on the

TUNING menu. Use 4/I,- to select a channel to add

or erase.

2 Use SELECT/ENTER to add or erase the channel.

Repeat steps 1 and 2 to add or erase channels.

3 Press MENU to return to the TV screen.

I I

Setting the Clock

The DVD+VCR gives you two ways to set the time and

date: the Auto Clock Feature or manually. The Auto

Clock feature enables the DVD+VCR to set up the clock

while the DVD+VCR is turned off.

_ote

There are cases where the TV station does not send or sends

the wrong time. Therefore, the incorrect time will be set. If this

happens we recommend that you set the clock manually.

Manual Clock Set

•The clock uses the 12-hour system. (Be sure to set AM

and PM correctly.) (AM does not appear.)

• The initial Clock Setting is JANUARY 1, 2003, 12:00 AM.

Auto Clock Set

The Auto Clock Set feature is set to ON at the factory. In the

ON setting, the DVD+VCR looks for a channel carrying XDS

(Extended Data Services) information. XDS updates the clock

using the Coordinated Universal Time.

The Auto Clock feature enables the DVD+VCR to set up

the clock while the DVD+VCR is turned off.

Press MENU and the MAIN menu will appear.

Use _ to choose the CLOCK menu.

Press SELECT/ENTER and the CLOCK menu

will appear.

_ CLOCK

] PROGRAM

] TUNING

] SETUP

I , ,"

DAY + WED

YEAR 2003

TIME 12 : 00 AM

AUTO CLOCK SET : ON

DAYLIGHT SAVINGS:AUTO

TIME ZONE: AUTO

Use •to choose the AUTO CLOCK SET option.

Use _/I) to choose ON.

The Auto Clock Set feature is set to ON at the factory. In

the ON setting, the DVD+VCR looks for a channel

carrying XDS (Extended Data Services) information. XDS

updates the clock using the Coordinated Universal Time.

Use • to choose the DAYLIGHT SAVINGS

option.

Use _1 or I_ to choose AUTO, ON, or OFF.

If you choose AUTO, the VCR sets the clock using the

DST information broadcast in the signal (channel).

If you choose ON, the VCR adjusts the clock for Daylight

Saving Time automatically.

Use • to choose the TIME ZONE option.

Use < or I_ to choose the correct time zone

(AUTO, EASTERN, CENTRAL, MOUNTAIN,

PACIFIC, ALASKA or HAWAII).

If "AUTO" is selected as the time zone, the VCR sets the

clock using the first Coordinated Universal Time informa-

tion it finds in a broadcast signal.

Press MENU when finished.

Turn off the DVD+VCR and the auto clock set

feature sets the time.

Press MENU and the MAIN menu will appear.

Use _ to choose the CLOCK menu.

Press SELECT/ENTER and the CLOCK menu

will appear.

DAY : 1 WED

YEAR : 2003

TIME : 12 : 00 AM

DAYLIGHT SAVINGS:AUTO

TIME ZONE: AUTO

i_g _!ELE_ :=I_AD 0ST

L +ssm

Use 4/I) to choose the month.

Use • to choose the DAY option.

Use _/I) to choose the date.

The day of the week will display automatically.

Use • to choose the YEAR option.

Use _1_ to choose the year.

Use • to choose the TIME option.

Use _1_ to choose the time.

Press and hold 41/1_to advance clock

continuously.

Use • to choose the DAYLIGHT SAVINGS

option.

Use _1or I_ to choose AUTO, ON, or OFF.

If you choose AUTO, the VCR sets the clock using the

DST information broadcast in the signal (channel).

If you choose ON, the VCR adjusts the clock for Daylight

Saving Time automatically.

Press MENU when finished.

If setting the clock manually, "AUTO CLOCK SET" must

set to "OFF".

If set to "ON", an incorrect date and/or time wilt be

entered again when the DVD+VCR is turned off.

I I

General Explanation

This manual gives the basic instructions for operating

the DVD+VCR. Some DVDs require specific operation

or allow only limited operation during playback. When

this occurs, the symbol (S)appears on the TV screen,

indicating that the operation is not permitted by the

DVD+VCR or is not available on the disc.

On-Screen Display

The general playback status can be displayed on the

TV screen. Some options can be changed on the menu.

On-screen display operation

Press DISPLAY during playback.

Use _ to select an option.

The selected option will be highlighted.

Use _/1_ to change the setting of an option.

The number buttons can be also be used for setting

numbers (e.g., title number). For some functions,

press SELECT/ENTER to execute the setting.

Temporary Feedback Field Icons

Repeat Title (DVD)

Repeat Chapter (DVD)

Repeat A-B

Repeat Off

Resume play from this point

Q Action prohibited or not available

_otes

•Some discs may not provide all of the features on the

on-screen display example shown below.

• If no button is pressed for 10 seconds, the on-screen

display disappears.

Options Function (Use JJV to select desired option) Selection Method

Title Number

Chapter Number

Time search

Audio language

and Digital Audio

Output mode

Subtitle language

Angle

Sound

Shows the current title number and total number of

titles, and skips to the desired title number.

O, or

Numeric,SELECT/ENTER

Shows the current chapter number and total number of

chapters, and skips to the desired chapter number.

Shows the elapsed playing time, and

searches the point by the elapsed time directly.

Shows the current audio soundtrack language,

encoding method, and channel number, and

changes the setting.

Shows the current subtitles language, and

changes the setting.

Shows the current angle number and total number of

angles, and changes the angle number.

Shows the current sound mode, and

changes the setting.

_11,/_, or

Numeric,SELECT/ENTER

_1/1_,AUDIO

_1/1_,SUBTITLE

_1/1_,ANGLE

_1/1_

I I

DVD Setup

You can set your personal preferences on the

DVD+VCR.

General Operation

Press SETUP.

The Setup menu appears.


TV Aspect

4:3 Letterbox: Select when a standard 4:3 TV is con-

nected. Displays the picture with masking bars above

and below the picture.

4:3 Panscan: Select when a standard 4:3 TV is con-

nected. Displays the picture cropped to fill your TV

screen. Both sides of the picture are cut off.

16:9 Wide: Select when a 16:9 wide TV is connected.

Use _ to select the desired option.

The screen will show the current setting for the

selected option, as well as alternate setting(s).

While the desired option is selected, press I_,

then use _ to select the desired setting.

Press SELECT/ENTER to confirm your selection.

Some options require additional steps.

Press SETUP, RETURN, or PLAY (IP,-) to exit the

Setup menu.

Language

Disc Language

Select a language for the disc's: Menu, Audio, and

Subtitle.

Original: The original language set for the disc is selected.

Other: To select another language, use number buttons to

enter the corresponding 4-digit number according to the

language code list on page 37. If you enter the wrong

language code, press CLEAR.

Progressive Scan

Progressive Scan Video provides the highest resolution

pictures with less flicker and line structure.

If you are using the COMPONENT/PROGRESSIVE

SCAN VIDEO OUT jacks, but are connecting the

DVD+VCR to a standard (analog) television, set

Progressive Scan to Off.

If you are using the Component Video jacks for

connection to a TV or monitor that is compatible with a

progressive scan signal, set Progressive Scan to On.

Disc Language selection is not available on some

DVDs.

Menu Language

Select a language for the Setup menu. This is the menu

you see when you press SETUP.

- Progressive Scan is available only when the VIDEO

OUTPUT switch on the rear panel is set to

COMPONENT.

//_ Caution

Once the setting for progressive scan output is entered, an

image will only be visible on a progressive scan compatible

TV or monitor. If you set Progressive Scan to On in error,

you must reset the unit. Pointing the remote at the player,

press the STOP (11) key to stop any disc that is playing.

Next, press the STOP (11) key again and hold it for five

seconds before releasing it. The video output will be

restored to the standard setting, and a picture will once

again be visible on a conventional analog TV or monitor.

I I

Sound

Digital Audio Output

Each DVD disc has a variety of audio output options.

Set the DVD+VCR's Digital Audio Output according to

the type of audio system you use.

DOLBY DIGITAL/PCM: Select DOLBY DIGITAL/PCM if

you have connected the DVD+VCR's DIGITAL AUDIO

OUT jack to a Dotby Digital decoder (or an amplifier or

other equipment with a Dotby Digital decoder).

Stream/PCM: Select Stream/PCM if you have

connected the DVD+VCR's DIGITAL AUDIO OUT jack

to an amplifier or other equipment with a DTS decoder,

Dotby Digital decoder or MPEG decoder.

PCM: Select when connected to a 2 channel digital

stereo amplifier. The DVD+VCR outputs sounds in the

PCM 2ch format when you play a DVD video disc

recorded with a Dolby Digital, MPEG1, or MPEG2

recording system.

Sample Frequency

To change the Sample Frequency setting, first select

the desired Digital Audio Output as indicated above.

If your receiver or amplifier is NOT capable of handling

96KHz signals, select 48KHz. When this choice is

made, this unit wilt automatically convert any 96KHz

signals to 48KHz so your system can decode them.

If your receiver or amplifier is capable of handling

96KHz signals, select 96KHz. When this choice is

made, this unit wilt pass each type of signal through

without any further processing.

Others

The DRC, Vocal and Auto Play settings can be

changed.

• Use A/_' to select the desired option and then press

SELECT/ENTER repeatedly to select On or Off.

Dynamic Range Control (DRC)

With the DVD format, you can hear a program's sound-

track in the most accurate and realistic presentation

possible, thanks to digital audio technology. However,

you may wish to compress the dynamic range of the

audio output (the difference between the loudest sounds

and the quietest ones). Then, you may listen to a movie

at a lower volume without losing clarity of sound. Set

DRC to On for this effect.

Vocal

Set Vocal to On only when a multi-channel karaoke

DVD is playing. The karaoke channels on the disc will

mix into normal stereo sound.

Auto Play

You can set up the DVD Player so a DVD disc automat-

ically starts playing whenever the DVD is inserted.

If Auto Play mode is set to On, this DVD player will

search a title that playback time is long most and then

play back the title automatically.

On: Auto Play function is activated.

Off: Auto Play function is not activated.

The Auto Play function may not work with some DVDs.

I I

Parental Control

Rating

Movies on DVDs may contain scenes not suitable for

children. Therefore, discs may contain Parental Control

information that applies to the complete disc or to

certain scenes on the disc. These scenes are rated

from 1 to 8, and alternatively, more suitable scenes are

available for selection on some discs. Ratings are

country-dependent. The Parental Control feature allows

you to prevent discs from being played by your children

or to have certain discs played with alternate scenes.

Country Code

Enter the code of a country whose standards were used

to rate the DVD video disc, referring to the list (See

"Country Code List", page 38.).

Select Rating on the Setup menu using

buttons.

While Rating is selected, press I_.

When you have not entered a password yet.

Enter a 4-digit password using the numbered but-

tons to create a personal 4-digit security password,

then press SELECT/ENTER. Enter the 4-digit

password again and press SELECT/ENTER to verify.

When you have already entered a password;

Enter a 4-digit password using the numerical

buttons to confirm the personal 4-digit security

password, then press SELECT/ENTER.

If you make a mistake before pressing SELECT/ENTER,

press CLEAR and enter 4-digit security password again.

Select a rating from 1 to 8 using _ buttons.

One (1) has the least playback restrictions.

Eight (8) has the most playback restrictions.

Unlock: If you select Unlock, Parental Control is

net active. The disc will play in full.

Ratings 1 to 8: Some discs contain scenes not

suitable for children, ff you set a rating for the

DVD+VCR, all disc scenes with the same rating or

lower will be played. Higher rated scenes will net be

played unless an alternate scene is available on the

disc. The alternate must have the same rating or a

lower one. If no suitable alternate scene is avail-

able, playback will stop. You must enter the 4-digit

password or change the rating level in order to play

the disc.

Press SELECT/ENTER to confirm your rating

selection, then press SETUP to exit the menu.

Select the Country Code option using the

buttons on the setup menu.

While Country Code is selected, press I_.

Follow step 3 of "Rating" on left.

Select the first character using the AJ_' buttons.

Press •to shift to second character and select

the second character using _buttons.

Press SELECT/ENTER to confirm your Country

Code selection, then press SETUP to exit the

menu.

Confirmation of the 4-digit password is necessary when

the password is changed (see Changing the 4-digit

password below ).

Changing the 4-digit password

1Follow Steps 1-2 as shown above to the left (Rating).

2 Enter the old password, then press SELECT/ENTER.

3 Select Change using ,&,IV buttons then press

SELECT/ENTER.

4 Enter the new 4-digit password, then press

SELECT/ENTER.

5 Enter exactly the same password a second time and

verify by pressing SELECT/ENTER.

6 Press SETUP to exit the menu.

If you forget your 4-digit password

If you forget your password, to clear the current pass-

word follow the procedure below.

1 Press SETUP to display the setup menu.

2 Enter the 6-digit number 210499 and then press

SELECT/ENTER.

The 4-digit password is cleared.

3 Enter a new password as shown above to the left

(Rating).

I I

Normal Playback

Preparation:

• Turn on the TV.

• Tune the TV to the DVD+VOR output channel (OH 3 or 4) or

set the TV's source selector to VIDEO.

• If a direct VIDEO/AUDIO connection is made between the

DVD+VCR and the TV, set the TV's source selector to VIDEO.

• Set the Output Source to VCR as shown in "Selecting the

Viewing Source" on page 6.

Insert a prerecorded video cassette.

The O--O indicator will light and the DVD+VCR will

power-up automatically.

• Make sure that the Q indicator in the display

window is not lighted. If it is, press POWER once.

• If a tape without a safety tab is inserted, the unit will

start playback automatically.

Press PLAY (ll_) once.

PLAY appears on the TV screen.

• It is not necessary to select the tape speed for

playback. It will be automatically selected by the

DVD+VOR.

• In playback, the TV/VCR selector switches to VCR

mode automatically.

Press STOP (n) to stop playback.

STOP appears on the TV screen.

• If the tape reaches the end before STOP (.) is

pressed, the DVD+VCR will automatically stop, rewind

and eject the tape, and it will turn itself off.

Tracking Control

Auto Tracking

The automatic tracking function adjusts the picture to

remove snow or streaks.

The AUTO TRACKING function works in the following

cases:

• A tape is played back for the first time.

• Tape speed (SP, LP, SLP) changes.

• Streaks or snow appear because of scratches on the tape.

Manual Tracking

If noise appears on the screen during playback, press

either CH/TRK _ on the remote control or CH (AIJT)

on the front panel until the noise on the screen is

reduced.

• If vertical jitter is present, adjust tracking controls very

carefully.

• Tracking is automatically reset to normal when the tape is

ejected or the power cord is unplugged for more than 3

seconds.

Special Effect Playbacks

_Special effects playback notes

• Horizontal lines (noise bars) will appear on the TV screen.

This is normal.

• The audio is automatically muted during special effect modes,

so there is no sound during search.

• During high-speed picture search mode, a short period is

needed to stabilize tape speed when re-entering the PLAY

mode. Slight interference may be observed during this period.

This function lets you quickly and visually search for a

desired tape section in either direction: forward or

reverse.

1 Press BACKWARD (I.ql_l) or FORWARD (I_¢H)

during playback.

The DVD+VCR will be activated in the SEARCH

mode.

• If the DVD+VCR is left in the SEARCH mode for more

than 3 minutes, the DVD+VCR will automatically enter the

PLAY mode, to protect the tape and video heads.

2 To return to playback, press PLAY (1_).

Still Picture and Frame-by-Frame Playback

1 Press PAUSE/STEP (11) during playback.

Still picture will appear on the TV screen.

• If a still picture vibrates vertically, stabilize it using

A/5' on the remote control.

• If the DVD+VCR is left in the STILL mode for more than 5

minutes, the DVD+VCR will automatically enter the STOP

mode to protect the tape and video heads.

2 Press PAUSE/STEP (11) repeatedly to advance the

video picture one frame at a time while viewing a still

picture.

3 To return to playback, press PLAY (IP_).

Slow Motion

1While in still mode, press FORWARD (I_¢H).

The tape will be played back at a speed 1/19 times

slower than the normal speed.

• During slow playback, use A/T on the Remote Control to

minimize noise bands.

• If slow motion mode continues for more than 3 minutes,

the DVD+VCR will automatically change to playback

mode.

2 To return to playback, press PLAY (IP,-).

CM Skip (Commercial Skip)

This is useful for skipping commercials or short program

segments.

1 Press CM Skip during playback.

The tape wilt fast forward picture search through 30

seconds of recording.

• Skipping time can be extended by pressing CM Skip

repeatedly.

• Subsequent presses result in advancing the fast forward

picture search time by 30-second increments (maximum 3

minutes).

2 When the search is complete, the DVD+VCR will go

into playback mode automatically.

EZ (EASY) Review

You can replay a specified segment twice.

During playback, press and hold EZ REVIEW for

more than 3 seconds at the end of the segment

and your VCR will start reverse search.

Release EZ REVIEW at the beginning of the

segment. The segment is replayed twice

automatically.

To return to normal play, press PLAY (IP_) during

easy review playback.

I I

Normal Recording

Preparation:

•Turn on the power of both the DVD+VCR and TV.

• Tune the TV to the DVD+VCR output channel (OH 3 or 4) or

set the TV's source selector to VIDEO.

• If a direct VIDEO/AUDIO connection is made between the

DVD+VCR and the TV, set the TV's source selector to

VIDEO.

Insert a video cassette with the safety tab intact.

Select the desired channel with CH/TRK(_tY).

•If you are recording from another source via audio/video

input jacks (at the Rear or Front panel), select LINE1 or

LINE2 with INPUT.

Set the desired recording speed (SP or SLP)

with the SP/SLP button.

• This DVD+VCR is not designed to record in LP mode.

Set the MTS mode as desired (See page 16, 26).

Press REC/ITR (O) once.

Recording wilt start. (The REC indicator will light in

the display window.)

• REC indicator appears only when the Output Source is

set to VCR.

• If a cassette with no safety tab is loaded, the cassette

will be ejected automatically.

Press STOP (i) to stop recording.

If the tape reaches the end before STOP (i) is pressed,

the DVD+VCR will automatically stop, rewind, eject the

tape and turn itself off.

To pause recording

1 Press PAUSE/STEP (11) to pause the tape during

recording.

The REC indicator will flash in the display window.

2 When you want to continue recording, press

PAUSE/STEP (11) or REC/ITR (O).

• After 5 minutes in Pause mode, the tape will be stopped

automatically to protect the tape and the video heads.

To record one TV program while

watching another

1 Use TVNCR to select the TV mode during recording.

The TV indicator appears.

2 Using the TV, select the channel to be viewed.

_ips

Always use PAUSE/STEP (in) for best results when making

changes during recording.

For example: To change channels during recording, first press

PAUSE/STEP (I i) to put the unit in pause mode. Select the

desired channel on the DVD+VCR, then press PAUSE/STEP

(I i) again to resume recording.

Timer Recording

This DVD+VCR can be programmed to record up to 8

programs within a period of 1 year. For unattended

recording, the timer needs to know the channels to be

recorded and the starting and ending times.

• If you try to set the program timer before setting the clock,

PLEASE SET THE CLOCK appears for a moment and

then CLOCK menu appears on the TV screen. Set the time

and date before proceeding.

• Make sure a tape is in the DVD+VCR and the safety tab is

in place or the tape will be automatically ejected.

Preparation:

• Turn on the power of both the DVD+VCR and the TV.

• Be sure the TV is set to the DVD+VCR output channel (3 or 4).

• Make sure the TUNING BAND in the TUNING menu is set

appropriately (TV or CATV).

Press MENU and the MAIN menu will appear.

Use _ to choose the PROGRAM menu.

Press SELECT/ENTER to go to the PROGRAM

menu.

The PROGRAM menu will appear.

• If all 8 programs have been entered, FULLY

PROGRAMMED message will appear for a moment

and then PROGRAM 1 will appear on the TV screen.

[] 0Lock ]

PROGRAM

Use _/1_ to choose the PROGRAM No. (1-8).

Use T to choose the MONTH option.

Use _/1_ to choose the desired month.

Use T to choose the DAY option.

Use _/1_ to choose the desired day.

Use Tto choose the START option.

Use _/1_ to choose the desired start time.

Use T to choose the STOP option.

Use _/1_ to choose the desired stop time.

Use T to choose the CHANNEL option.

Use 4/1_ to choose the desired channel

(Channel, LINE1 or LINE2).

Cable Users: If you have CABLE TV and used Cable Box

in Connecting Antenna/Cable TV to DVD+VCR (page 11),

using a cable box converter, you must set the channel in

this step to match the cable box output channel (usually

CH 3 or 4). Change channels on the cable box instead of

with the DVD+VCR.

I I

Use _!' to choose the SPEED option.

Use _/1_ to choose the desired recording

speed (AUTO, SP or SLP).

• AUTO mode determines how much tape is left and

switches speed from SP to SLP, if necessary, to

complete recording the program. There will be some

picture and sound distortion at the point of the speed

change.

Use _!' to choose the REPEAT option.

Use _/1_ to choose the desired repeat (ONCE,

WEEKLY or DAILY).

ONCE event....for recording up to 8 programs on a

single day or over the days within a period of 1 year.

WEEKLY event....for recording up to 8 programs on a

certain day of every week.

DAILY event....for recording up to 8 programs at the

same time(s) Monday through Friday.

_ip

If the input data is wrong, use •to select the data

and correct it using </1_.

Press MENU, the program will be memorized

by the DVD+VCR.

• Q indicator lights in the display window.

• If the program preset time has past, the PAST TIME

PROGRAMMED message will appear on the TV

screen. Return to the incorrect program and program

it with the correct time.

• If you had entered a past date, timer recording will

be performed on that date of the next year.

• Additional programs may be entered by repeating

steps 1-12.

Cable Users: If your cable hookup is via a TV

converter box, you can program multiple recordings

only on the converter box output channel. This is

because the converter determines what channel you

view through your DVD+VCR.

Checking (Erasing) Timer Record

Programming

Programming can be checked whenever the DVD+VCR

is turned on.

1 Press MENU and the MAIN menu wilt appear.

2 Use A/_' to choose the PROGRAM menu.

Press SELECT/ENTER and the PROGRAM menu

will appear.

] CLOCK

_--_PROGRAM ]I1"_---I MONTH : JULY

DAY : 6 SUN

_-- START : 6:00 PN

STOP : 7:30 PM

CHANNEL: 4 TV

SPEED : SP

[ To 8_

3 Use </1_ to select a program you want to check or

erase. If you want to erase the program, press

CLEAR.

4 Press MENU to return to the TV screen.

Program Priority

If the starting and ending

7:00 PM 8:00 PM 9:00 PM t0:00 PM

I I I I times of two or more timer

Pog NO 1

These portions will

not be recorded.

recordings overlap on the

same day, priority is given to

the earliest recording. For

example, in the diagram at

left Program number 2 will

not be recorded until

Program number 1 is finished. The first part of Program

number 2 wilt not be recorded. Likewise, Program num-

ber 3 will not be recorded until Program number 2 is fin-

ished, and so on.

If you are finished programming and you want to set the

DVD+VCR to record the programs you have entered,

MAKE SURE YOU HAVE INSERTED A TAPE INTO THE

DVD+VCR. The DVD+VCR is now set to record the preset

programs.

If the power fails or the DVD+VCR is unplugged from the AC

outlet, the correct clock time and timer settings are kept in

memory for approximately 3 seconds. After 3 seconds, the

clock and program timer must be reset when power is

restored. Reset the clock according to instructions.

After setting up a timer recording, recording will start if no other

timer recordings are scheduled to occur at the same time (see

"Program Priority" at right).

I I

Instant Timer Recording

Instant Timer Recording allows you to make a recording

easily of a preset length without using the programma-

ble timer.

Preparation:

• Turn on the power of both the DVD+VCR and the TV.

• Be sure the TV is tuned to the DVD+VCR output channel (3 or 4).

• If a direct VIDEO/AUDIO connection is made between the

DVD+VCR and the TV, set the TV's source selector to VIDEO.

Insert a video cassette with the safety tab intact.

Select the desired channel with _ or number

(0-9).

The channel number appears on the TV screen.

• If you are recording from another source via audio/video

input jacks (at the Rear or Front panel), select LINE1 or

LINE2.

Select the desired recording speed (SP or SLP)

with the SP/SLP button.

The tape speed will appear on the TV screen.

Press REC/ITR (O) twice.

The menu as illustrated, will appear on the TV screen.

• Recording will start. (The (Z) indicator will light)

Press REC/ITR (O) repeatedly to select the

recording time length.

At the end of the recording, the DVD+VCR wilt stop

recording and shut off.

• During Instant Timer Recording, changing the channel

on the DVD+VCR will not be possible.

• You can stop the recording by pressing STOP (11).

INSTANT TIMER RECORD MENU

0H30M ..... 9H00M _0H00M

Length Display

(each additional press of

REC/ITR (O) increases recording

time 30 minutes)

Checking the Recording Time

Press REC/ITR (O) once to check the recording time.

The recalled setting will automatically return to the TV

screen after 6 seconds.

To extend the Recording Time

The recording time can be extended anytime by press-

ing REC/ITR (O).

Subsequent presses result in advancing the recording

time by 30-minute increments.

• If you press PAUSE/STEP (||) during instant timer record-

ing, the DVD+VCR will enter the recording pause mode.

Instant timer recording is cancelled.

• If the DVD+VCR is set to "0H00M", the DVD+VCR goes to

normal recording mode.

Dubbing and Editing

If you wish to edit or dub your camcorder (or another

VCR) recordings to this DVD+VCR, the rear (or Front)

panel mounted Audio and Video (A/V) input jacks

make the connections quick and easy. These direct

A/V jacks will also provide better picture results than

using the RF jack on the rear panel.

Connect the camcorder's (or another VCR's) A/V

outputs to your DVD+VCR as illustrated on page 14,

Select the input channel "LINE2". (Use INPUT to

select LINE2.)

• If you have connected your DVD+VCR to the A/V input

jacks on the rear of DVD+VCR, you should selectthe

input channel LINE1 by pressing INPUT twice.

Play the tape in the camcorder (or another

VCR). If you have a TV attached to your

DVD+VCR, you can see the video playing.

When you desire the recording to begin, press

DVD+VCR's REC/ITR (O) once to start.

_ote

Before recording, please confirm the recording start position.

Copying from DVD to VCR

This unit is capable of copying the contents of a DVD

to a VHS tape.

_ote

If the DVD you are attempting to copy is copy protected,

you will not be able to copy the disc. It is not permitted

to copy Macrovision encoded DVDs. "Lock" is

displayed in the display window.

Insert Disc

Insert the disc you wish to copy in the DVD deck

and close the disc tray.

Insert VHS Tape

Insert a blank VHS video tape into the VCR deck.

Press the COPY button on the unit front panel.

The DVD will go into Play mode and the VCR will

go into Record mode.

• If the DVD disc menu appears, you may need to press

PLAY PLAY (IP,-) manually to begin copying.

• "COPY" indicator will light.

Stopping the Copy Process

When the DVD is finished playing, press the VCR button

on the remote control and then press STOP (11) to end

copying.

You must stop the Copy process manually when the DVD

movie ends, or the unit may replay and record over and

over again.

_ote

When you stop the DVD playback during copying, VCR

recording mode also stops automatically.

I I

VHS Hi-Fi Stereo System/

MTS Broadcast

This DVD+VCR is equipped with the VHS Hi-Fi audio

sound system for recording and playback. The informa-

tion below gives a brief description of Hi-Fi audio and

how to record and play a tape in the Hi-Fi audio mode.

Playback with Hi-Fi Stereo Audio Sound

A stereo TV with AUDIO/VIDEO input jacks or a stereo

audio system is required for true stereo playback. To

experience the full and rich stereo sound available with

Hi-Fi recorded tapes, we recommend the connection of

this unit to a home stereo audio system.

Set the AUDIO MODE option to HI-FI on the

SETUP menu.

Set the AUDIO OUTPUT option to STEREO

position.

(STEREO) POSITION: The left channel sound (L) is

heard from the left speaker and the right channel sound

(R) is heard from the right speaker.

(LEFT) POSITION: The left channel sound (L) is heard

from both speakers.

(RIGHT) POSITION: The right channel sound (R) is heard

from both speakers.

[]FUNCTION OSD : ON

LANGUAGE SELECT:ENGLISH

AUDIO MODE: HI-FI

BROADCAST TYPE: STEREO

|_lJ I] [I][lllj li_lj n[¢J|:li|:(O]

iDg _LEOT 'I_JU_ :1

Press MENU.

Insert a cassette and press PLAY (IP,-).

Adjust volume at your stereo system.

MTS (Multi-Channel TV Sound)

This DVD+VCR will decode MTS stereo and bilingual

(SAP) off-the-air broadcast sound signals. It also

decodes stereo TV sound from local cable companies,

as long as they operate on assigned cable frequencies

and use the EIA-recommended MTS stereo/bilingual TV

sound system.

Multichannel TV Sound Indicator (MTS)

Shows onscreen as illustrated below when

SELECT/ENTER is pressed.

• One or both of the indicators will light, depending on the

MTS broadcast.

TV screen r

I CH 4 _,_1111STEREO

Lights up when a stereo broadcast

STEREO/SAP is being received.

SAP

=1Lights up when a SAP BILINGUAL

ibroadcast is being received.

If only STEREO appears on the TV screen.

The DVD+VCR can record in stereo onto the VHS Hi-Fi audio

tracks when the BROADCASTTYPE option is in the STEREO

position. The DVD+VCR will also record mono audio onto the

mono audio track.

If only SAP appears on the TV screen.

Set the BROADCAST TYPE option to SAP.

If STEREO/SAP appears on the TV screen

Use the BROADCAST TYPE option to select the desired

recording mode (STEREO or SAP).

SAP (Second Audio Program) Recording

Some stations transmit a Second Audio Program, which

is used for a second language or additional information.

When the station broadcasts a Second Audio Program,

follow the procedure below to record the SAP.

Insert a video cassette with the safety tab intact.

Set the BROADCAST TYPE option to SAP

(SETUP menu).

Do this if only the SAP appears on the TV screen or you

know the program will use the SAR

FUWCTION OSD : ON

LANGUAGE SELECT:ENGLISH

AUDIO MODE: HI-FI I

"_,"o'ouT"'_T':"STER'2

BD_EL_CT_= oJ_:

Press MENU.

Select the desired recording speed (SP or SLP)

with the SP/SLP button.

Select the desired channel. SAP should appear

on the TV screen.

Press REC/ITR (0) once

Youare now recordingthe program yousee and hearon the

TV.

Press STOP (i) to stop recording.

I I

Tape Counter Memory Feature

Real-Time Counter

Shows length of tape run in hours, minutes, and

seconds. Press CLK/CNT to select the real-time

counter display.

Every press of CLK/CNT changes the TV screen as

illustrated below.

CLOCK COUNTER REMAINING TIME

•Counter changes to "0:00:00" when the cassette is

ejected.

• The real-time counter does not operate if nothing is

recorded on the tape.

• The real-time counter will not work unless a tape is

inserted.

Counter Memory Feature

This is useful if there is a section of tape you want to

view immediately after recording or if you want to return

to the same point several times.

Begin recording or playing a tape.

Press CLK/CNT repeatedly to display the

real-time counter on the TV screen.

At the point that you want to locate later, reset

the real-time counter to "0:00:00" by pressing

CLEAR.

Continue to play or record.

Press STOP (i) when recording or playback

finishes.

Press BACKWARD (t44).

The tape automatically stops when the tape counter

returns to about "0:00:00".

Tape Remaining

This function shows the remaining time on the tape

during recording or playback.

Press CLK/CNT repeatedly until the REM indicator

appears on the TV screen during recording or playback.

Additional Information

• In manual recording, Timer recording, Instant Timer

Recording, playback, or fast forward modes, the DVD+VCR

automatically starts rewinding the tape at the end of the

tape. The cassette will stop at the beginning of the tape and

be ejected, and the DVD+VCR will turn itself off.

• After you have finished using the DVD+VOR, rewind, eject,

and remove the cassette. Place the cassette in its protec-

tive sleeve to protect it from dust. It is not necessary to

rewind the cassette before removing it, but if you do, it will

be ready to play or record the next time you use it.

• Be sure the DVD+VCR Channel Selector is on the correct

channel you wish to record. The channel that is being

recorded can always be checked by tuning the television to

the DVD+VOR channel (3 or 4) and pressing the TV/VCR

selector to turn the DVD+VCR's TV indicator off.

• Do not attempt to hook up more than one television set to

the DVD+VCR for either recording or playback.

Auto Play System

This DVD+VCR features automatic playback.

Load a cassette (with the safety tab removed).

•The Output Source is changed to VCR mode automatically.

• The power turns on automatically and playback begins.

• At the end of the tape, the DVD+VCR stops and rewinds

the tape.

• The cassette is ejected after rewinding and the VCR turns

itself off automatically.

_ote

Auto power off does not function during regular DVD play

mode. (DVD+VOR power stays on.)

S-VHS Quasi Playback (SQPB)

• This DVD+VCR can play back S-VHS recorded tapes,

however, it cannot make recordings using S-VHS format

tapes.

• SQPB is an abbreviation for S-VHS Quasi Playback.

The remaining tape length indicator may not be displayed

correctly depending on the condition of the tape and the kind of

the tape (T-140, T-160, or T-210 etc)

I I

Playing DVDs

Playback Setup

• Turn on the TV and select the video input source con-

nected to the DVD+VCR.

• Audio system: Turn on the audio system and select

the input source connected to the DVD+VCR.

• Set the Output Source to DVD as shown in Selecting

the Viewing Source on page 6.

Press OPEN/CLOSE (__) to open the disc tray.

Load your chosen disc in the tray, with the label

facing up.

When a double-sided DVD is inserted, make sure

the side you want to play is facing down.

Press OPEN/CLOSE (_) to close the tray.

"LOAd" appears in the display window, and play-

back starts automatically. If playback does not start,

press PLAY (1_-).

In some cases, the disc menu might appear

instead.

RtJIf a menu screen is displayed

A menu screen may appear automatically after loading a

DVD.

_iD_VAB]J

Use 4/I_/A/Y buttons to select the title/chapter you

want to view, then press SELECT/ENTER to start

playback.

Press TITLE or DISC MENU to return to the menu

screen.

_otes

• If Parental Control is set and the disc is not within the

Rating settings (not authorized), the 4-digit password

must be entered and/or the disc must be authorized

(see Parental Control, on page 21).

• DVDs may have a Region Code.

• Your DVD+VCR wilt not play discs that have a Region

Code different from your DVD+VCR. The Region

Code for this DVD+VCR is 1 (one).

• Do not keep a fixed image displayed on the screen

for a long time.

Screen Saver

The screen saver picture appears when you leave the

DVD+VCR in Stop mode for about five minutes.

General Features

_ote

Unless stated otherwise, all operations described use

the remote control. Some features may also be

available on the Setup menu.

Selecting Other TITLEs

If a disc has more than one title, you can select another

title as follows:

• Press DISPLAY in Stop mode, then press the

appropriate number buttons (0-9) then use

SELECT/ENTER to select a title number.

Selecting Other CHAPTERs

If a title on a disc has more than one chapter or a disc

has more than one track, you can move to another

chapter as follows:

• Press BACKWARD (I.44) or FORWARD (I_¢H) briefly

during playback to return to the beginning of the

current chapter or to select the next chapter.

• Press BACKWARD (I.44) twice briefly to step back to

the previous chapter.

• To go directly to any chapter during playback,

press DISPLAY. Use _ to select Chapter icon.

Then, enter the chapter number with the number

buttons (0-9). Then, press SELECT/ENTER.

Slow Motion

1 Press PAUSE/STEP (11) during playback.

The DVD+VCR will now go into PAUSE mode.

2 Press BACKWARD (I.44) or FORWARD (I_¢H)

during pause mode.

The DVD+VCR will enter SLOW mode.

3 Use BACKWARD (I.44) or FORWARD (I_¢H) to

select the required speed: 41 1/16, 41 1/8, 41 1/4, 41

1/2 (backward), or I1_ 1/16, I1_ 1/8, I1_ 1/4, I1_ 1/2

(forward).

4 To return to playback, press PLAY (1_-).

I I

General Features (Continued)

StillPictureandFrame-by-FramePlayback

I,lvA)]J

1 Press PAUSE/STEP (11) during playback.

The DVD+VCR wilt go into PAUSE mode.

2 With a DVD, you can advance the picture frame by

frame by pressing PAUSE/STEP (11) repeatedly on

the remote control.

3 To return to playback, press PLAY (1_-).

1 Press and hold BACKWARD (141_I)or FORWARD (1_1_1)

for about two seconds during playback.

The DVD+VCR will now go into SEARCH mode.

2 Press and hold BACKWARD (141_I)or FORWARD (1_1_1)

repeatedly to select the required speed: 41_1X2,41_1X4,

41_1X16,41_1X100 (backward) or I=,_I_X2,I=,_I_X4,

I)d_X16, I)d_Xl O0 (forward).

3 To return to playback, press PLAY (1_-).

Random

1 Press RANDOM during playback or in Stop mode.

The unit automatically begins Random Playback and

"RANDOM" appears on the TV screen.

2 To return to normal playback, press RANDOM until

"NORMAL" appears on the TV screen.

_ips

By pressing BACKWARD (1_1_I)or FORWARD (I)H_I)

during Random playback, the unit selects another title

(track) and resumes Random playback.

Time Search _ _.T.!I_._..

The Time Search function allows you to start playing at

any chosen time on the disc.

1 Press DISPLAY during playback. The on-screen dis-

play appears on the screen.

The Time Search box shows the elapsed playing time of the

current disc.

2 Within 10 seconds, use _ to select the Time

Search icon in the on-screen display.

The "-:--:--"appears in the Time Search box.

3 Within 10 seconds, use the numbered buttons to

enter the required start time. Enter hours, minutes

and seconds from left to right in the box.

If you enter the wrong numbers, press CLEAR to remove the

numbers you entered. Then enter the correct numbers.

4 Within 10 seconds, press SELECT/ENTER.

Playbackstarts from the selectedtime on the disc. If you enter

an invalid time, playbackwill continuefrom the current point.

3D Surround _ ....................................

This unit can produce a 3D Surround effect, which

simulates multi-channel audio playback from two

conventional stereo speakers, instead of the five or

more speakers normally required to listen to multi-

channel audio from a home theater system.

1 Press DISPLAY during playback.

2 Use A/V to select the sound icon.

The sound option will be highlighted.

3Use 41/1_to to select "3D SUR".

To turn off the 3D Surround effect, select "NORM.".

This function only works with DVD Karaoke discs.

Repeat _ _._';/

DVD Video Discs - Repeat Chapter/Title/Off

1 To repeat the currently playing chapter, press

REPEAT.

The Repeat Chapter icon appears on the TV screen.

2 To repeat the title currently playing, press REPEAT a

second time.

The Repeat Title icon appears on the TV screen.

3To exit Repeat mode, press REPEAT a third time.

The Repeat Off icon appears on the TV screen.

Repeat A-B

To repeat a sequence in a title:

1 Press A-B at your chosen start point.

"A * "appears briefly on the TV screen.

2 Press A-B again at your chosen end point.

"A B" appears briefly on the TV screen, and the repeat

sequence begins.

3To cancel the sequence, press A-B.

Zoom

The Zoom function allows you to enlarge the video

image and to move through the enlarged image.

1 Press ZOOM during playback or still playback to acti-

vate the Zoom function.

If you press ZOOM repeatedly, the magnification level

increases up to six steps.

2 Use 41/I_/A/V buttons to move through the zoomed

picture.

3Press CLEAR to resume normal playback or return to

the paused image.

_otes

• The Zoom function may not work with some DVDs.

• The Zoom function may not work with some

multi-angle scenes.

I I

General Features (Continued)

Marker Search _ _ ''°

You can start playback from a memorized point. Up to

nine points can be memorized.

To enter a mark, follow these steps.

1 During disc playback, press MARKER when playback

reaches the spot that you want to memorize.

The Marker icon will appear on the TV screen briefly.

2 Repeat step 1 to enter up to nine Marker points on a

disc.

To Recall a Marked Scene

1 During disc playback, press SEARCH.

The Marker Search menu will appear on the screen.

2 Within 10 seconds, use _i/_ or number button to

select a Marker number that you want to recall.

3Press SELECT/ENTER.

Playback will start from the Marked scene.

4 To remove the MARKER SEARCH menu, press

SEARCH.

To Clear a Marked Scene

1 During disc playback, press SEARCH.

The Marker Search menu will appear on the screen.

2 Within 10 seconds, use 4/_ or number button to

select a Marker number that you want to erase.

3 Press CLEAR.

The Marker number will be erased from the list.

4 Repeat steps 2 and 3 to erase additional Marker

numbers.

5 To remove the MARKER SEARCH menu, press

SEARCH.

• Atl markers are erased when the disc is ejected.

Changing Video Mode

• With certain discs, the playback picture may be flick-

ering or Dot Crawl is shown on straight lines. That

means Vertical interpolation or De-interlace is not

perfectly matched with the disc. In this case, the

picture quality may be improved by changing the

video mode.

• To change the video mode, press and hold

DISPLAY about 3 seconds during disc playback. The

new video mode number selected is displayed on the

TV screen. Check whether the video quality has

improved. If not, repeat the above procedure until pic-

ture quality is improved.

• Video mode sequence:

MODE1 --> MODE2 --> MODE3 --> MODE1

• If you turn off the power, the video mode will return to

initial default state (MODE1).

Detailed Description of each Video Mode

MODE1 : The source material of the DVD video (film materi-

al or video material) is determined from disc information.

MODE2 : Suitable for playing film based content or video

based material recorded by the progressive scan method.

MODE3 : Suitable for playing video based content with

comparatively little motion.

The video mode setting only works when the

Progressive Scan mode is set to "On" in the Setup

menu.

Special DVD Features

Checking the contents of DVD Video

discs: Menus

DVDs may contain menus that allow you to access spe-

cial features. To use the disc menu, press DISC MENU.

Then, press the appropriate number button to select an

option. Or, use 41/I_/A/V buttons to highlight your selec-

tion, then press SELECT/ENTER.

Title Menu

1Press TITLE.

If the current title has a menu, the menu will appear on the

screen. Otherwise, the disc menu may appear.

2 The menu can list camera angles, spoken language

and subtitle options, and chapters for the title.

3 To remove the title menu, press TITLE again.

Disc Menu

1 Press DISC MENU.

The disc menu is displayed.

2 To remove the disc menu, press DISC MENU again.

Camera Angle

If the disc contains sequences recorded from different

camera angles, the angle icon blinks on the TV screen.

You can then change the camera angle if you wish.

• Press ANGLE repeatedly during playback to select a

desired angle.

The number of the current angle appears on the display.

Changing the Audio Language

Press AUDIO repeatedly during playback to hear a

different audio language or audio track.

Subtitles

Press SUBTITLE repeatedly during playback to see the

different subtitle languages.

_ote

If Q appears, the feature at that moment or with that

specific DVD.

I I

PlayingAudioCDs and MP3/WMA Discs

The DVD+VCR can play MP3/WMA formatted record-

ings on CD-ROM, CD-R or CD-RW discs.

Before playing MP3/WMA recordings, read the notes on

MP3/WMA Recordings on right.

Insert a disc and close the tray.

Audio CD; Audio CD menu appears on the TV

screen go to step 4.

MP3/WMA disc; The MP3/WMA-JPEG choice

menu appears on the TV screen. Go to step 2

Use _to select the MP3/WMA then press

SELECT/ENTER.

The MP3/WMA menu appears on the TV screen.

Press RETURN to move to the MP3/WMA-JPEG

choice menu.

Use _to select a folder, and SELECT/ENTER.

A list of files in the folder appears.

Use _to select a track then press PLAY (lip_)

or SELECT/ENTER.

Playback starts.

During playback, the current track's elapsed playing

time wilt appear on the display window and menu.

Playback will stop at the end of the disc.

Press TITLEto move to the next page.

Press DISC MENU to move to the previous page.

Audio CD Menu MP3/WMA Menu

_ip

If you are in a file list and want to return to the Folder

list, use the _ to highlight -and press

SELECT/ENTER to return to the previous menu screen.

To stop playback at any other time, press

STOP (,).

MP3/WMA Recording Notes

About MP3

• An MP3 file is audio data compressed by using the

MPEG1 audio layer-3 file-coding scheme. We call

files that have the ".mp3" file extension "MP3 files".

• The player can not read an MP3 file that has a file

extension other than ".mp3".

About WMA (Window Media Audio) Files

• An WMA file is a Microsoft audio compression

technology.

• WMA(Windows Media Audio) offers double the audio

compression of the MP3 format.

MP3/WMA Disc compatibility with this player is

limited as follows:

1. Sampling Frequency /only at 44.1kHz (MP3),

22.05 - 44.1 kHz (WMA)

2. Bit rate /within 32 - 320kbps (MP3),

32 - 128kbps (WMA)

3. CD-R physical format should be "ISO 9660"

4. If you record MP3/WMA files using the software

which cannot create a FILE SYSTEM, for example

"Direct-CD" etc., it is impossible to playback

MP3/WMA files. We recommend that you use "Easy-

CD Creator", which creates an ISO9660 file system.

5. A single session disc requires MP3/WMA files in the

first track. If there is no MP3/WMA file in the 1st

track, it cannot playback MP3/WMA files. If you wish

to playback MP3/WMA files, format all the data in

the disc or use a new one.

6. File names should be named using 8 letters or less

and must incorporate ".mp3" or ".wma" extension

e.g.' ......... .MP3" or .......... .WMA".

7. Do not use special letters such as '7 : * ? "< >" etc.

8. Total number of files on the disc should be less than

650.

This DVD+VCR requires discs/recordings to meet

certain technical standards in order to achieve optimal

playback quality. Pre-recorded DVDs are automatically

set to these standards. There are many different types

of recordabte disc formats (including CD-R containing

MP3 or WMA files). That require certain pre-existing

conditions (see above) to insure compatible playback.

Customers should also note that permission is

required in order to download MP3/WMA files and

music from the Internet. Our company has no right

to grant such permission. Permission should

always be sought from the copyright owner.

I I

Pause _ _I2_D li_D

1 Press PAUSE/STEP (11) during playback.

2 To return to playback, press PLAY (1_-) or press

PAUSE/STEP (11) again.

Selecting other Tracks _ql__

• Press BACKWARD 1.4<I or FORWARD _ briefly

during playback to go to the next track or to return to

the beginning of the current track.

• Press BACKWARD _ twice briefly to step back to

the previous track.

• On Audio CDs, to go directly to any track, enter the

track number using the numbered buttons (0-9) dur-

ing playback.

Repeat Track/All/Off _ |

1 To repeat the track currently playing, press REPEAT.

The Repeat icon and "TRACK" appears on the menu

screen.

2 To repeat all tracks on a disc, press REPEAT a sec-

ond time.

The Repeat icon and "ALL" appears on the menu screen.

3To cancel Repeat mode, press REPEAT a third time.

The Repeat icon and "OFF" appears on the menu screen.

Search _ ll_l_ _

1 Press and hold BACKWARD _ or FORWARD

for about two seconds during playback.

The player will now go into SEARCH mode.

Press and hold BACKWARD _ or FORWARD

repeatedly to select the required speed: <41X2,

<<X4, <_IX8 (backward) or I_I_X2, I_I_X4, I_I_X8

(forward).

Search speed and direction are indicated on the menu

screen.

3To exit SEARCH mode, press PLAY (1_-).

Random _ _I_D_

Press RANDOM during playback or in Stop mode.

The unit automatically begins Random Playback and

RANDOM or "RAND." appears on the display window

and menu screen.

2 To return to normal playback, press RANDOM repeat-

edly untit RANDOM or "RAND." disappears from the

display window and menu screen.

Repeat A-B

To repeat a sequence.

1 During disc playback, press A-B at your chosen start-

ing point.

The Repeat icon and "A * "appears on the menu screen.

2 Press A-B again at your chosen end point.

The Repeat icon and "A B" appears on the menu screen,

and the sequence begins to play repeatedly.

3 To exit the sequence and return to normal play, press

A-B again.

The Repeat icon and "OFF" appears on the menu screen.

3D Surround

This unit can produce a 3D Surround effect, which

simulates multi-channel audio playback from two

conventional stereo speakers, instead of the five or

more speakers normally required to listen to multi-

channel audio from a home theater system.

1 Press DISPLAY or AUDIO during playback.

2 Use </1_ to select the sound icon.

The sound option will be highlighted.

3 Use A/T to select "NORM.", or "3D SUR".

Changing the Audio Channel

Press AUDIO repeatedly during playback to hear a

different audio channel (STER., LEFT, or RIGHT).

I I

Viewing JPEG Files on a Disc

This DVD+VCR can play discs with JPEG files. Before

playing JPEG files, read the notes on JPEG Files on

right.

Insert a disc and close the tray.

The MP3/WMA-JPEG choice menu appears on the

TV screen.

Use _ to select the JPEG then press

SELECT/ENTER.

The JPEG menu appears on the TV screen.

Selecting other Files

Press BACKWARD _ or FORWARD _ once

while viewing a picture to advance to the next file or to

the previous file.

Still Picture

1 Press PAUSE/STEP (11) during slide show.

The player will now go into PAUSE mode.

2 To return to the slide show, press PLAY (1_-) or press

PAUSE/STEP (11) again.

To flip the picture

Press _ while showing a picture to flip the

picture horizontally or a vertically.

To rotate picture

Press _,'_ while showing a picture to rotate the

picture clockwise or counter clockwise.

Use _ to select a folder, and SELECT/ENTER.

A list of files in the folder appears.

Press RETURN to move to the MP3/WMA-JPEG

choice menu.

[]ip

If you are in a file list and want to return to the Folder

list, use the Av buttons on the remote to highlight

" .... and press SELECT/ENTER to return to the

previous menu screen.

If you want to view a particular file, use _ to

highlight the file and press SELECT/ENTER or

PLAY (1_).

Viewing the file function starts.

While viewing a file, press RETURN to move to the

previous menu (JPEG menu).

Press TITLEto move to the next page.

Press DISC MENU to move to the previous page.

Notes on JPEG Files

• Depending upon the size and number of the JPEG

files, it could take a long time for the DVD player to

read the disc's contents. If you don't see an on-

screen display after several minutes, some of the files

are too big -- reduce the resolution of the JPEG files

to less than 2 mega pixets and burn another disc.

• Total number of files and folders on the disc should

be less than 650.

• Some disc may be incompatible due to different

recording format or condition of disc.

• When you are using software such as "Easy CD

Creator" to burn the jpeg files into the CD-R, ensure

that all the selected files have the ".jpg" extensions

when copying into the CD layout.

• If the files have ".jpe" or ".jpeg" extensions, please

rename them as ".jpg" files.

• File names without ".jpg" extension will not be able to

be read by this DVD+VCR, even though the files are

shown as JPEG image files in windows explorer.

[]ip

There are three viewing Slide Speed options: Fast,

Normal, Slow, and Off. Use _,'_ to highlight the Slide

Speed then use A/V to select the option you want to

use, and press SELECT/ENTER.

To stop viewing at any other time, press STOP (IN).

The JPEG menu appears.

I I

Programmed Playback with Audio CDs

and MPS/WMA Discs

The Program function enables you to store your favorite

tracks from any disc in the player memory.

Program can contain 30 tracks.

Press PROGRAM during playback or in the Stop

mode to enter the Program Edit mode.

The _ mark will appear to the right of the word Program

on the right side of the menu screen.

_ote

Press PROGRAM to exit the Program Edit mode;

the _ mark will disappear.

Select a track, then press SELECT/ENTER to

place the selected track on the Program list.

Repeat step 2 to place additional tracks on the

Program list.

Repeat Programmed Tracks

• To repeat the track currently playing, press REPEAT.

The Repeat icon and "TRACK" appear on the menu screen.

• To repeat all tracks on the program list, press

REPEAT a second time.

The Repeat icon and "ALL" appear on the menu screen.

• To cancel Repeat mode, press REPEAT a third time.

The Repeat icon and "OFF" appear on the menu screen.

Erasing a Track from Program List

1Press PROGRAM during playback or in the Stop

mode to enter the Program Edit mode.

The _ markwill appear.

2 Press • to move to the Program list.

3 Use _ to select the track that you wish to erase

from the Program list.

4 Press CLEAR.

The track will be erased from the Program list.

Erasing the Complete Program List

1 Follow steps 1-2 of "Erasing a Track from Program

List" as above.

2 Use _ to select "Clear All", then press

SELECT/ENTER.

The complete Program for the disc will be erased.

The programs are also cleared when the disc is removed.

Audio CD Menu MP3/WMA Menu

Press •.

The programmed track you selected last is highlighted on

the program list.

Use _to select the track you want to start

playing.

PressTITLE to move to thenext page.

Press DISC MENU to move to the previous page.

Press PLAY (1_>) to start.

Playback begins in the order in which you programmed

the tracks and "PROG." appears on the menu screen.

Playback stops after all of the tracks on the Program list

have played once.

To resume normal playback from programmed

playback, press PROGRAM.

Select a track on the CD (or MP3ANMA) list

and then press SELECT/ENTER.

"PROG." indicator disappears from the display window.

I I

Check the following guide for the possible cause of a problem before contacting service.

Symptom Cause Correction

No power. •The power cord is disconnected. • Plug the power cord into the wall outlet

securely.

The power is on, but • No disc is inserted. • Insert a disc or tape. (Check that the

the DVD+VCR does not • No tape is inserted, disc or tape indicator in the display

work. window is lit.)

No picture. • The TV is not set to receive DVD+VCR • Select the appropriate video input mode

signal output, on the TV so the picture from the

DVD+VCR appears on the TV screen.

• TV/VCR mode for DVD+VCR is set to • Press the TV/VCR button on the remote

TV. control repeatedly to choose VCR

mode. TV indicator disappears from the

display window.

• The video cable is not connected • Connect the video cable securely.

securely.

• The connected TV power is turned off. • Turn on the TV.

No sound. • The equipment connected with the • Select the correct input mode on the

audio cable is not set to receive audio receiver so you can listen to the

DVD+VCR signal output, sound from the DVD+VCR.

• The audio cables are not connected • Connect the audio cables securely.

securely.

• The power of the equipment connected • Turn on the equipment connected with

with the audio cables is turned off. the audio cables.

• The Digital Audio Output is set to the • Set the Digital Audio Output to the

wrong position, correct position, then turn on the

DVD+VCR again by pressing POWER.

The playback picture is • The disc is dirty. • Clean the disc.

poor. • Tape heads are dirty. • Clean video heads.

• Tape is a rental or was recorded on • Use CH/TRK (A/_') for manual tracking

another VCR. adjustment while tape is playing.

The DVD+VCR does • No disc is inserted. • Insert a disc or tape. (Check that the

not start playback. • No tape is inserted, disc or tape indicator in the display

window is lit.)

• An unplayable disc is inserted. • Insert a playable disc. (Check the disc

type, color system, and Regional code.)

• The disc is placed upside down. • Place the disc with the playback side down.

• The disc is not placed within the guide. • Place the disc on the disc tray correctly

inside the guide.

• The disc is dirty. • Clean the disc.

• The Rating level is set. • Cancel the Rating function or change

the rating level.

The remote control • • Point the remote control at the remote

does not work properly, sensor of the DVD+VCR.

• • Operate the remote control within 23 ft

(7 m).

• • Remove the obstacle.

• • Replace the batteries with new ones.

The remote control is not pointed at the

remote sensor of the DVD+VCR.

The remote control is too far from the

DVD+VCR.

There is an obstacle in the path of the

remote control and the DVD+VCR.

The batteries in the remote control are

exhausted.

This remote control uses the same

buttons for VCR and DVD functions

(ex. PLAY).

When using a VCR, first press the VCR

button. When using a DVD, first press

the DVD button.

I I

Symptom Cause Correction

Some channels are • Those channels were deleted with the • Use CH. ADD/DEE to restore channels.

skipped over when CH. ADD/DEL option. See "Channel Selection" on page 16.

using CH/TRK (A/V)

Picture and sound of • Antenna or cables are loose. • Tighten connections or replace cable.

broadcasting channel

are weak or missing. • Wrong TUNING BAND option is being • Try all TUNING BAND options. See

used. "Channel Selection" on page 16 for

details.

Camcorder image is not • Camcorder is off. • Turn camcorder on and operate

shown, properly.

Camcorder image via • DVD+VCR SOURCE SELECT is not set • Press INPUT to select LINE input

A/V input to DVD+VCR to LINE1 or LINE2. channel (LINE1 or LINE2).

is not shown on TV

screen.

Timer recording is not • Clock in DVD+VCR is not set to correct • Set clock to correct time. See "Setting

possible, time. the Clock" on page 17.

• Timer has been programmed • Reprogram Timer. See "Timer

incorrectly. Recording" on pages 23 and 24.

• ® indicator does not appear after pro- • Reprogram Timer.

gramming timer.

® indicator appears • DVD+VCR is in Timer Recording mode. • This is the normal indication that the

after DVD+VCR is turned DVD+VCR is in TIMER mode.

off.

• TV is not Stereo-compatible. • No action is possible.

Stereo Audio Record • Broadcast program is not in stereo for- • No action is possible.

and/or Playback is not mat.

present. • DVD+VCR A/V Out jacks are not con- • Make AN connections. Stereo is

nected to TV AN In jacks, available only via AN output from

DVD+VCR.

• DVD+VCR Audio/Video Out is not • Select AUX or AN source as TV input.

selected for viewing at the TV.

• DVD+VCR BROADCAST TYPE mode is • Set BROADCAST TYPE mode to

set to SAP or MONO. STEREO. See "Setting the VCR Setup

Menu" on page 16.

Moisture Condensation

Moisture condensation can occur: In locations where moisture condensation may occur:

• When the DVD+VCR is moved from a cold place to a • Keep the DVD+VCR plugged into an AC power outlet

warm place, with POWER On. This will help prevent condensation.

• Under extremely humid conditions. • When condensation has occurred, wait a few hours

for the DVD+VCR to dry before using it.

I I

Enter the appropriate code number for the initial settings "Disc Audio", "Disc Subtitle" and/or "Disc Menu"

(See page 19).

Language Code Language Code Language Code Language Code

Abkhazian 6566 Fiji 7074 Lingala 7678 Singhalese 8373

Afar 6565 Finnish 7073 Lithuanian 7684 Slovak 8375

Afrikaans 6570 French 7082 Macedonian 7775 Slovenian 8376

Albanian 8381 Frisian 7089 Malagasy 7771 Somali 8379

Amharic 6577 Galician 7176 Malay 7783 Spanish 6983

Arabic 6582 Georgian 7565 Malayalam 7776 Sudanese 8385

Armenian 7289 German 6869 Maltese 7784 Swahili 8387

Assamese 6583 Greek 6976 Maori 7773 Swedish 8386

Aymara 6588 Greenlandic 7576 Marathi 7782 Tagalog 8476

Azerbaijani 6590 Guarani 7178 Moldavian 7779 Tajik 8471

Bashkir 6665 Gujarati 7185 Mongolian 7778 Tamil 8465

Basque 6985 Hausa 7265 Nauru 7865 Tatar 8484

Bengali; Bangla 6678 Hebrew 7387 Nepali 7869 Telugu 8469

Bhutani 6890 Hindi 7273 Norwegian 7879 Thai 8472

Bihari 6672 Hungarian 7285 Oriya 7982 Tibetan 6679

Breton 6682 Icelandic 7383 Panjabi 8065 Tigrinya 8473

Bulgarian 6671 Indonesian 7378 Pashto, Pushto 8083 Tonga 8479

Burmese 7789 Interlingua 7365 Persian 7065 Turkish 8482

Byelorussian 6669 Irish 7165 Polish 8076 Turkmen 8475

Cambodian 7577 Italian 7384 Portuguese 8084 Twi 8487

Catalan 6765 Japanese 7465 Quechua 8185 Ukrainian 8575

Chinese 9072 Javanese 7487 Rhaeto-Romance 8277 Urdu 8582

Corsican 6779 Kannada 7578 Romanian 8279 Uzbek 8590

Croatian 7282 Kashmiri 7583 Russian 8285 Vietnamese 8673

Czech 6783 Kazakh 7575 Samoan 8377 Volap0k 8679

Danish 6865 Kirghiz 7589 Sanskrit 8365 Welsh 6789

Dutch 7876 Korean 7579 Scots Gaelic 7168 Wolof 8779

English 6978 Kurdish 7585 Serbian 8382 Xhosa 8872

Esperanto 6979 Laothian 7679 Serbo-Croatian 8372 Yiddish 7473

Estonian 6984 Latin 7665 Shona 8378 Yoruba 8979

Faeroese 7079 Latvian, Lettish 7686 Sindhi 8368 Zulu 9085

I I

Enter the appropriate code number for the initial setting "Country Code" (See page 21).

Code Country Code Country Code Country

AD Andorra ER Eritrea LC Saint Lucia

AE United Arab Emirates ES Spain LI Liechtenstein

AF Afghanistan ET Ethiopia LK Sri Lanka

AG Antigua and Barbuda FI Finland LR Liberia

AI Anguilla FJ Fiji LS Lesotho

AL Albania FK Falkland Islands LT Lithuania

AM Armenia FM Micronesia LU Luxembourg

AN Netherlands Antilles FO Farce Islands LV Latvia

AO Angola FR France LY Libya

AQ Antarctica FX France (European MA Morocco

AR Argentina Territory) MC Monaco

AS American Samoa GA Gabon MD Moldavia

AT Austria GB Great Britain MG Madagascar

AU Australia GD Grenada MH Marshall Islands

AW Aruba GE Georgia MK Macedonia

AZ Azerbaidjan GF French Guyana ML Mall

BA Bosnia-Herzegovina GH Ghana MM Myanmar

BB Barbados GI Gibraltar MN Mongolia

BD Bangladesh GL Greenland MO Macau

BE Belgium GM Gambia MP Northern Mariana Islands

BF Burkina Faso GN Guinea MQ Martinique (French)

BG Bulgaria GP Guadeloupe (French) MR Mauritania

BH Bahrain GQ Equatorial Guinea MS Montserrat

BI Burundi GR Greece MT Malta

BJ Benin GS S. Georgia & S. Sandwich MU Mauritius

BM Bermuda Isls. MV Maldives

BN Brunei Darussalam GT Guatemala MW Malawi

BO Bolivia GU Guam (USA) MX Mexico

BR Brazil GW Guinea Bissau MY Malaysia

BS Bahamas GY Guyana MZ Mozambique

BT Bhutan HK Hong Kong NA Namibia

BV Bouvet Island HM Heard and McDonald NO New Caledonia (French)

BW Botswana Islands NE Niger

BY Belarus HN Honduras NF Norfolk Island

BZ Belize HR Croatia NG Nigeria

CA Canada HT Haiti NI Nicaragua

CO Cocos (Keeling) Islands HU Hungary NL Netherlands

OF Central African Republic ID Indonesia NO Norway

CG Congo IE Ireland NP Nepal

OH Switzerland IL Israel NR Nauru

CI Ivory Coast IN India NU Niue

OK Cook Islands IO British Indian Ocean NZ New Zealand

CL Chile Territory OM Oman

CM Cameroon IQ Iraq PA Panama

ON China IR Iran PE Peru

CO Colombia IS Iceland PF Polynesia (French)

OR Costa Rica IT Italy PG Papua New Guinea

CS Former Czechoslovakia JM Jamaica PH Philippines

CU Cuba JO Jordan PK Pakistan

CV Cape Verde JP Japan PL Poland

CX Christmas Island KE Kenya PM Saint Pierre and Miquelon

CY Cyprus KG Kyrgyzstan PN Pitcairn Island

CZ Czech Republic KH Cambodia6 PR Puerto Rico

DE Germany KI Kiribati PT Portugal

DJ Djibouti KM Comoros PW Palau

DK Denmark KN Saint Kitts & Nevis Anguilla PY Paraguay

DM Dominica KP North Korea QA Qatar

DO Dominican Republic KR South Korea RE Reunion (French)

DZ Algeria KW Kuwait RO Romania

EC Ecuador KY Cayman Islands RU Russian Federation

EE Estonia KZ Kazakhstan RW Rwanda

EG Egypt LA Laos SA Saudi Arabia

EH Western Sahara LB Lebanon SB Solomon Islands

Code Country

SC Seychelles

SD Sudan

SE Sweden

SG Singapore

SH Saint Helena

Sl Slovenia

SJ Svalbard and Jan Mayen

Islands

SK Slovak Republic

SL Sierra Leone

SM San Marino

SN Senegal

SO Somalia

SR Suriname

ST Saint Tome and Principe

SU Former USSR

SV El Salvador

SY Syria

SZ Swaziland

TO Turks and Caicos Islands

TD Chad

TF French Southern

Territories

TG Togo

TH Thailand

TJ Tadjikistan

TK Tokelau

TM Turkmenistan

TN Tunisia

TO Tonga

TP East Timor

TR Turkey

TT Trinidad and Tobago

TV Tuvalu

TW Taiwan

TZ Tanzania

UA Ukraine

UG Uganda

UK United Kingdom

UM USA Minor Outlying

Islands

US United States

UY Uruguay

UZ Uzbekistan

VA Vatican City State

VC Saint Vincent &

Grenadines

VE Venezuela

VG Virgin Islands (British)

Vl Virgin Islands (USA)

VN Vietnam

VU Vanuatu

WF Wallis and Futuna Islands

WS Samoa

YE Yemen

YT Mayotte

YU Yugoslavia

ZA South Africa

ZM Zambia

ZR Zaire

ZW Zimbabwe

I I

General

Power requirements

Power consumption

Dimensions (Approx.)

Weight (Approx.)

Operating temperature

Operating humidity

Signal system

AC 120V, 60 Hz

23W

430 X 97.5 X 293 mm (16.9 x 3.9 x 11.5 inches) (w x h x d)

4.8 kg (10.58 Ibs)

5°C to 40°C (41°F to 104°F)

5 % to 90 %

NTSC

Inputs

ANTENNA IN

VHS VIDEO IN(LINE1,2)

VHS AUDIO IN(LINE1,2)

Antenna or CATV input, 75 ohms

1 Vp-p 75 ohms, sync negative, RCA jack x 2

-6.0 dBm more than 47 ohms, RCA jack (L, R) x 2

Outputs

VIDEO OUT

S-VIDEO OUT

COMPONENT VIDEO OUT

(PROGRESSIVE SCAN)

Audio output (digital audio)

Audio output (optical audio)

Audio output (analog audio)

RF OUT

1 Vp-p 75 ohms, sync negative

(Y) 1.0 V (p-p), 75 ohms, negative sync, Mini DIN 4-pin x 1

(Y) 1.0 V (p-p), 75 ohms, negative sync, RCA jack x 1

(Pb)/(Pr) 0.7 V (p-p), 75 ohms, RCA jack x 2

0.5 V (p-p), 75 ohms, RCA jack x 1

5 V (p-p), 75 O, Optical connector x 1

2.0 Vrms (1 KHz, 0 dB), 330 ohms, RCA jack (L, R) x 1

Channel 3 or 4

VCR Specifications

Head system

Timer

Tape speed

Tape width

Maximum recording time

Rewind time

Antenna

VHF output signal

Channel coverage

Frequency range

Signal-to-noise ratio

Dynamic range

Channel separation

Four head helical scan azimuth system

12-hour display type with AM, PM

SP: 33.35 mm/sec, LP: 16.67 mm/sec, SLP: 11.12 mm/sec

12.7 mm

SP: 2 HOURS (T-120), SLP: 6 HOURS (T-120)/8 HOURS (T-160)

About 3 minutes (T-120)

75 ohms (VHF/UHF)

Channel 3 or 4 (Switchable)

VHF: 2-13, UHF: 14-69, CATV: 1-125 (4A, A-W, W+I - W+84, A-5 - A-l)

20Hz to 20kHz

43dB

88 dB

60 dB

DVD Specifications

Laser system

Frequency response

Signal-to-noise ratio

Harmonic distortion

Dynamic range

Semiconductor laser, wavelength 650 nm

DVD (PCM 96 kHz): 8 Hz to 44 kHz, DVD (PCM 48 kHz): 8 Hz to 22 kHz

CD: 8 Hz to 20 kHz

More than 100dB (ANALOG OUT jacks only)

Less than 0.008%

More than 95 dB (DVD/CD)

Accessories:

Video cable x 1, Audio cable x 1, RF 75-ohm Coaxial Cable x 1, Remote control x 1, Batteries (AAA) x 2

•Design and specifications are subject to change without prior notice.

I I

Zenith will repair or replace your product, at Zenith's option, if it proves to be defective in material or workmanship under nor-

mal use, during the warranty period ("Warranty Period") listed below, effective from the date ("Date of Purchase") of original

consumer purchase of the product. This warranty is good only to the original purchaser of the product and effective only when

used in the United States, excluding U.S. Territories.

WARRANTY PERIOD:

LABOR: 90 DAYS from the Date of Purchase.

PARTS: ONE YEAR from the Date of Purchase.

Repaired or Replacement Units are warranted for the

remaining period of the original warranty.

HOW SERVICE IS HANDLED:

Call 1-800-984-9349 for instructions on getting the defec-

tive unit repaired or replaced.

Please retain dated sales receipt and your box to return

the unit to Zenith for repair or replacemeut.

Both ways shipping charges will be borne by Zenith during

the WmTm]ty Period. After the Warranty Period, you pay in-

bound shipping charges and Zenith pays return shipping

charges.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT

LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO

THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE

EXPRESS WARRANTY PERIOD ABOVE. ZENITH WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INDI-

RECT, OR INCIDENTAL DAMAGES OF ANY KIND, INCLUDING LOST REVENUES OR PROFITS, IN CONNEC-

TION WITH THE PRODUCT. SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED

WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE

ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

l. Damages or operating problems that result from shipping installation adjustment of user controls calibration maintenance

or failure to maintain, or separate system components; and

2. Damages or operating problems that result from normal wear and tear, misuse, abuse, operation outside environmental

specifications or contrary to the requirements or precautions in the Operating Guide, accident, lightning strikes or other uat-

ural causes, unauthorized modification or alteration, incorrect electrical current or voltage, soltware errors that do not dis-

able functionality, operating software protocols adopted after the date of manufacture or for outside the U.S., institutional

or commercial use, or other causes not arising out of defect in material or workmanship.

3. ThereJbre, the cost of repair or replacement of such adefective product shall be borne by the consumer.

CUSTOMER INTER-ACTIVE CENTER NUMBERS:

For Warranty Service

Call 1-800-984-9349 (Monday NFriday, 7 AM N 7 PM CT)

Retain your dated sales receipt to prove the Date of Purchase as well as your

box for shipping the unit to Zenith, for wamu]ty service.

Legible copy of your sales receipt must be submitted with the unit at the time

the unit is returned for warranty service.

For Post Warranty Repair For repair or replacement alter the WmTmlty Period has expired,

Call 1-800-984-9349 (Monday _ Friday, 7 AM _7 PM CT)

For Where-to buy, Product Assistance, or

Customer Assistance

Call 1-877-9 Zenith (1-877-993-6484) (Monday _ Friday, 7 AM _ 8 PM CT

and Saturday, 8 AM N 5 PM CT) and select an appropriate option from the

meuu.

Or visit our website at http://www.zenithservice.com

FOR WARRANTY SERVICE:

You must call 1-800-984-9349 (Monday _ Friday, 7 AM to 8 PM CT) and select approlpriate option from the menu to confirm

the product is defective and to obtain Return Authorizatiol] (RA). During the Warranty Period, Zenith will send you a return-

shipping label. Afier you obtain RA tbr return, please box your unit with a copy of the sales receipt and enough packing materi-

al to ensure undamaged delivery of your product. When you receive the label, place it on the box and call the 800 # in the

instruction for pick-up. When your unit is received, Zenith will repair or replace your unit in accordance with this Limited

Warranty.

ADVANCE SHIPMENT. If replacement unit is available and you want second day delivery, our service representative will ask

for your credit card number. Zenith requires a reserved deposit by credit card as surety for such advance shipment. Your credit

card will not be charged if you return the defective unit in l0 business days. For advance shipment, the return label will come

with the replacement unit sent to you. Please follow boxing and shipping instructions above.

ZENITH ELECTRONICS CORPORATION

2000 MILLBROOK DRIVE

LINCOLNSHIRE, IL 60069

Zenith Part No. 206-3870

GS# 3834RM0060D

Printed in China

Issue O

I I

ZENITH DVD/VCR Combo Manual L0810024

Navigation menu

Versions of this User Manual:

Views

Navigation
