ZHIBOTONG ELECTRONICS WS Wireless Router User Manual
SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Wireless Router Users Manual
Manual
Wireless Router User Manual
1. Cabling Installation
1.1 Power on the router with power adapter,make sure the
router’s LINK LED is lit;
1.2 Connect the router’s LAN port to PCs with Ethernet
cable;
1.3 Connect the router’s WAN port to ADSL or residential
broadband as below picture:
ADSL
WAN LAN1 LAN2 。。 LAN4
Router
PC
2. PC LAN IP Configuration
Configure the PC LAN setting to automatically obtain an IP
address from the router by following steps.

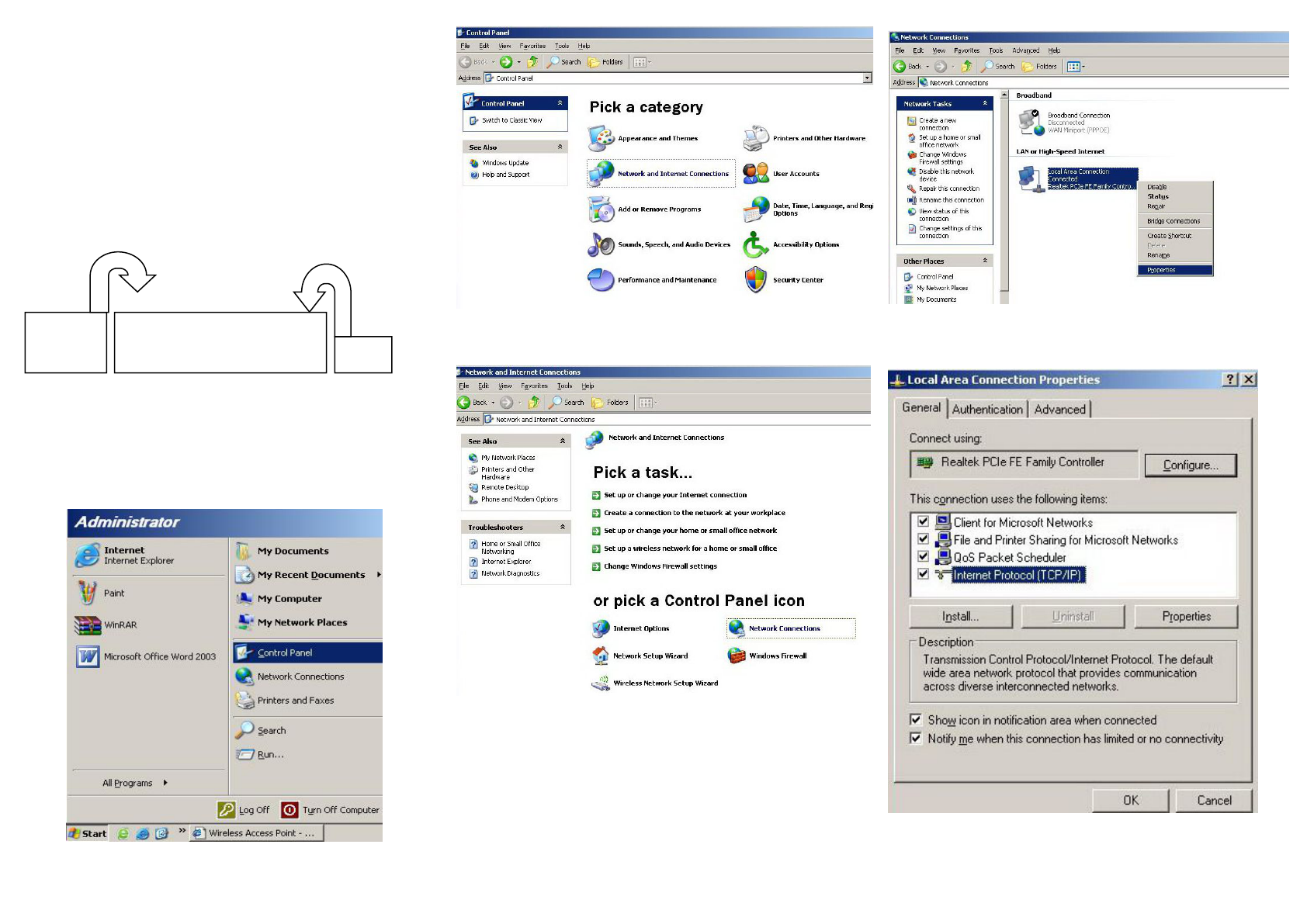

2.1 Click “Start” in the task bar then select the “Control
Panel” to open it.
2.2 Double click “Network and Internet Connection” icon
2.3 Find an icon “Network Connection” then Double-click to
open the network connection setting.
2.4 Click“Local Area Connection”icon then Right-Click the
mouse to open the sub-menu and select the“Properties”for
setting the IP.
2.5 Select the “Internet Protocol (TCP/IP)” then click the
“Properties”
2.6 Ensure the parameter marked in blue are checked in
“Obtain an IP address automatically” and “Obtain DNS
server address automatically” then press “OK” to close.
3. Router Configuration – PPPoE
3.1 Enter the router’s default IP address: “192.168.1.1” into
PC’s web browser and press “Enter” key
3.2 In the login screen enter “User Name” and “Password”
and click “OK” to login
Default User name: root
Password :admin
3.3 From main page click“Wizard” then “Next” to change
login password (for optional)
3.4 Select (GMT) Greenwich Mean Time: (your country or
city) then Click “Next”
3.5 Frequency (channel) setting: there has 13 channels from
1 to 13 for choice,you can set with actual needs,the default is
“auto select”
Following example is for “PPPoE” WAN setting.
3.6 Select “PPPoE” click “Next”
3.7 Enter the“User Name”and “Password” that ISP provided
and leave the others and click “Next”

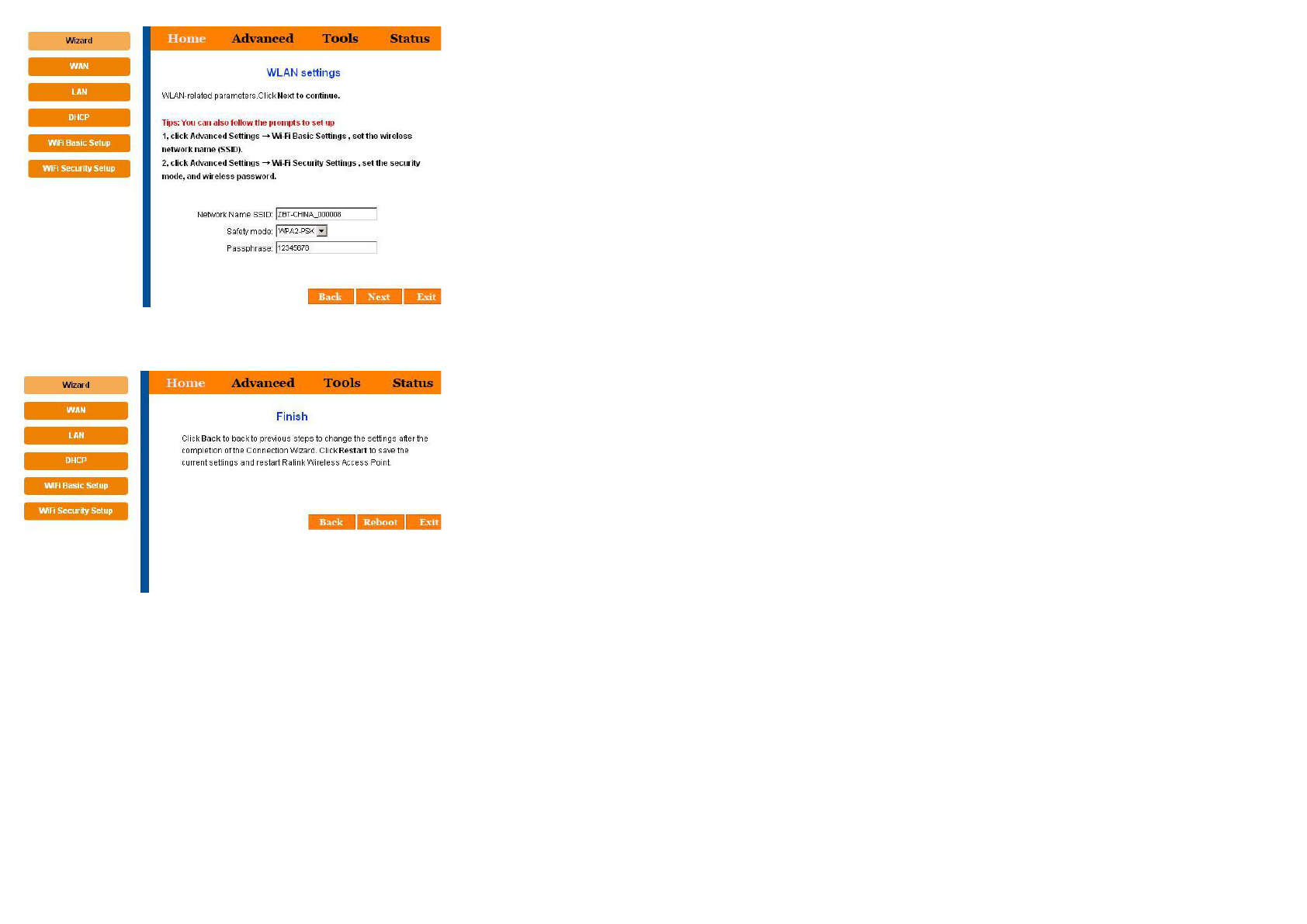

3.8 Then coming into wireless configuration
Enter the “Network Name SSID”, “Safety mode” and “Pass
phrase”
SSID:****** (Enter any name use as wireless SSID)
Safety mode:******(Choose WPA-PSK／WPA2－PSK)
Pass phrase:********(More than 8 numbers / letters )
3.9 Click “Next” to reboot the router
4.0 After reboot, router is success configuration and ready
for Internet connection.
