ZHUHAI WINGPOW EROTIC and NOVELTY OMBCLV03 Club Vibe 3.OH User Manual
ZHUHAI WINGPOW EROTIC & NOVELTY MANUFACTURING CO., LTD. Club Vibe 3.OH
User Manual
English
OhMiBod is committed to bringing you high quality technology enabled pleasure
products and accessories. Before you begin enjoying Club Vibe 3.OH, please
take a moment to review this manual.
CLUB VIBE 3.OH - WHAT’S IN THE BOX
Microphone
• Black lace thong (OS-one size) • USB charging cable • Privacy pouch
WIRELESS WEARABLE MASSAGER* WIRELESS REMOTE CONTROL
Tease
mode button
Club mode
button
Power button
Groove
mode button
Power button
USB
charging socket
*For external use only
USING CLUB VIBE 3.OH

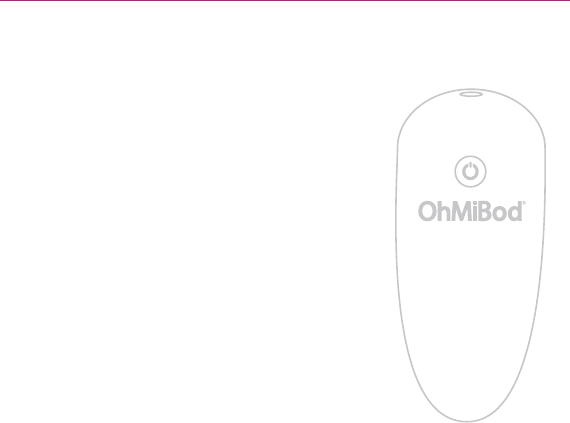

TURNING ON MASSAGER
1. Press and hold for 3 seconds to turn on.
One short pulse will occur upon power on.
NOTE: Blinking power button
indicates vibe is ready to use.
2. Press and hold for 3 seconds to turn o.
Three short pulses will occur upon power o.
NOTE: Vibe will turn off automatically after
approximately 20 minutes of inactivity.
USING CLUB VIBE 3.OH
OPERATING WIRELESS REMOTE CONTROL
Press and hold for 3 seconds to turn on.
Once on, press and hold for 3 seconds to turn
o both the remote control and the massage.
TEASE MODE
Press button quickly to send short vibration burst.
Press and hold to send sustained vibrations.
TIP: button can also be pressed to pause the
massager when using Groove or Club modes.
GROOVE MODE
Press to activate mode.
Press again to change to next pattern.
NOTE: 5 pre-programmed pulsations in all.
CLUB MODE:
Press to activate sound responsive vibration
Press again to adjust the sensitivity to sound.
NOTE: 3 levels of sensitivity. Brightness of button LED indicates
sensitivity level. Ex: The brighter the LED the more sensitive the
built-in microphone will be to ambient sound.
SENSITIVITY
1 2 3

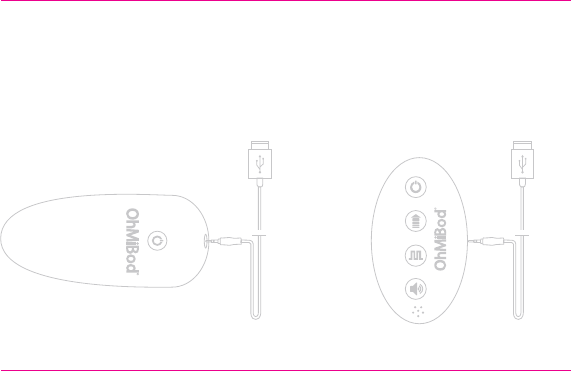

CHARGING CLUB VIBE 3.OH & WIRELESS REMOTE CONTROL
Simply plug the USB charging cable provided with Club Vibe 3.OH into the USB port on
your computer or USB wall charger adapter. Connect the other end of the cable into the
charging socket on the end of Club Vibe 3.OH or wireless remote control (see diagram). The LED
will blink indicating the device is charging. (Please be sure that the massager is completely
dry before charging.)
NOTE: Approximate time to reach full battery charge is 2 hours. LED will glow steady
when fully charged.
ADDITIONAL CHARGING SAFEGUARDS
• Please be sure that the massager is completely dry before charging.
• Only use the charging cable provided to charge the devices.
• Do not use USB charging hubs to charge the devices.
• Only use with UL certied USB wall chargers.
– OR –
TROUBLESHOOTING
If the LED does not blink when the product is connected to the USB cable, check to make sure the
USB cable is properly connected to the USB port and Club Vibe 3.OH or wireless remote control.
BATTERY DISPOSAL
• Club Vibe 3.OH and its remote control contain a rechargeable battery. Please do not
dispose of this product with normal household waste.
• Please dispose of this product at the appropriate electrical and electronic equipment
recycling/disposal locations in accordance with government regulations.
• The recycling of this product appropriately will help to protect our environment.
CARE & CLEANING
• Club Vibe 3.OH is splash proof only. When cleaning, avoid submerging in water and
getting any water into the charging socket.
• Clean after every use with mild soap and water. Dry thoroughly.
• Store in privacy pouch to keep Club Vibe 3.OH clean and safe until next use.
IMPORTANT SAFEGUARDS
• For external use only. Massager is not to be inserted into the body.
• Do not use on areas that are swollen, inamed or have skin lacerations.
• Stop using the massager if you experience pain or discomfort.
• Do not submerge in water.
• Do not sure while bathing or in the shower.
SPECIFICATIONS
Club Vibe 3.OH:
Materials: Body-safe silicone and ABS
Size (Vibe): 3” length, 1 3/8” width, 0.5” depth
(76 mm length, 35 mm width, 14mm depth)
Weight: 1.0 oz. (29g)
Battery: Lithium-ion, 3.7V with 160mAH
Charging: 1.5-2 hours
User time: up to 2 hours of use
Wireless Remote Control: 2.4GHz
WARRANTY
OhMiBod warrants this product for a period of one (1) year from the date of original
purchase, against defects due to faulty workmanship or materials. In the event that this
product fails during the warranty period, simply email us at customercare@ohmibod.com and
provide us with a valid proof of the date of original purchase and we will replace the faulty
product at no extra charge.
This warranty does not cover cosmetic deterioration caused by normal wear and tear or
damage caused by accident, misuse, neglect or other use not in accordance with this
instruction manual. Any attempt to open or take apart this product or its accessories will
void the warranty.
CONTACT US
If you have any questions regarding your new product, please check out additional
information at www.ohmibod.com/customercare. You can also reach us via email at
customercare@ohmibod.com.
No medical claims are warranted or implied by the use of this product.
Sold as an adult novelty.
Special Note from Founder
“OhMiBod’s goal is to reect the collective personality of our customers
who have an open, honest attitude toward sexuality and personal
pleasure. My hope is that OhMiBod becomes a symbol of liberation,
reecting new and progressive attitudes toward personal pleasure for
the young and the young at heart...People who are comfortable with
their bodies, know what feels good and who, not only aren’t afraid to
admit it, are empowered to go after it.”
FCC ID: XG5OMBCLV03
Federal Communications Commission (FCC) Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: A. This device may not cause harmful interference, and B. This device must
accept any interference received, including interference that may cause undesired operation.
2. Changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This equipment has been tested. And it found to comply with the limits for a Class B digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference in a residential installation. This equipment
generates and uses and radiates radio frequency energy and, if not installed and used in
accordance with the instruction, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected
• Consult the dealer or an experienced radio /TV technician for help
WARNING: A shielded-type power cord is required in order to meet FCC emission limits and also to prevent interference to
nearby radio and television reception. It is essential that only the supplied power cord be used.
Copyright© Suki, LLC 2016. All rights reserved.
Designed in the United States / assembled in PRC
RoHS
