ZHUHAI WINGPOW EROTIC and NOVELTY ROB1011 CLUB VIBE User Manual Microsoft PowerPoint Receiver design scheme
ZHUHAI WINGPOW EROTIC & NOVELTY MANUFACTURING CO., LTD. CLUB VIBE Microsoft PowerPoint Receiver design scheme
Users Manual
Receiver design scheme
Receiver
USB charging port
On/off switch
Internal receiving
antenna
Logic Block Diagram
Receiving antenna
RF radio frequency
receive and enlarge,
signal demodulation
and module process.
Power and filter
Drive
control
Status
direction
Motor
Signal gating and
receive loop
Charging and
interface circuit
MCU
Main control cell
Button
circuit
Rechargeable
battery
Date signal
6.7458M quartz
crystal
oscillator
Detect & protect
Principle of operation
• This product use 433.92MHZ high-frequency RB technology
scheme. The electrocircuit include receiving antenna LC resonance,
radio frequency amplification frequency selection and demodulation,
motor drive and control, Button circuit, Status direction and power
charging and voltage stabilizing circuit.
• The transmitter send to wireless high frequency signal, and receive
by receiving antenna. By LC resonance from frequency-selecting to
radio frequency receive module, this module will demodulate and
enlarge the selected coded signal and convert to date signal which
from the radio frequency module output to MCU. The MCU will
decode and identify the date signal, and then make the pulse
instruction output to servo control circuit, which to control the motor
working. Hereby achieve the wireless control with various pulse
mode.
Electrical Specification
•Power supply：lithium cell 3.7V DC
•Transmit range ：-70DB

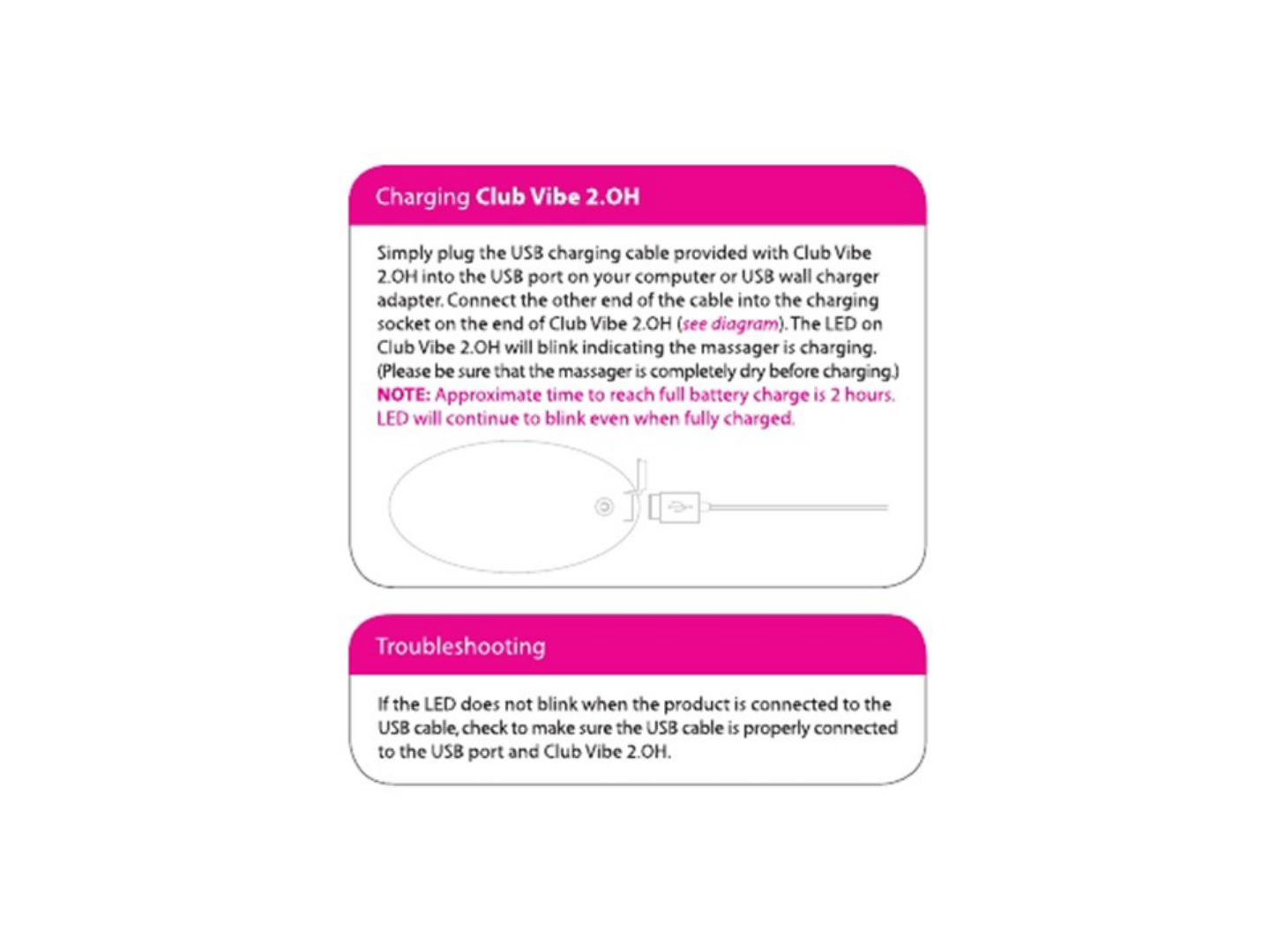

•Charging：2-3 hours
• FCC Statement
• 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following
• two conditions:
• (1) This device may not cause harmful interference, and
• (2) This device must accept any interference received, including interference that may
• cause undesired operation.
• 2. Changes or modifications not expressly approved by the party responsible for compliance
• could void the user’s authority to operate the equipment.
•Federal Communications Commission (FCC) Statement
• This equipment has been tested. And it found to comply with the limits for a Class B digital device pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates and uses and radiates radio frequency energy and, if not
installed and used in accordance with the instruction, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• - Reorient or relocate the receiving antenna.
• - Increase the separation between the equipment and receiver.
• - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• - Consult the dealer or an experienced radio /TV technician for help.
• Warning: A shielded-type power cord is required in order to meet FCC emission limits and also to prevent
interference to the nearby radio and television reception. It is essential that only the supplied power cord be used.
