ZIJIANG ELECTRONICS ZJ-5807DD Portable Thermal Printer User Manual 15 ZJ 5807DD UserMan r1

SHENZHEN ZIJIANG ELECTRONICS CO., LTD Portable Thermal Printer 15 ZJ 5807DD UserMan r1

15_ZJ-5807DD UserMan r1

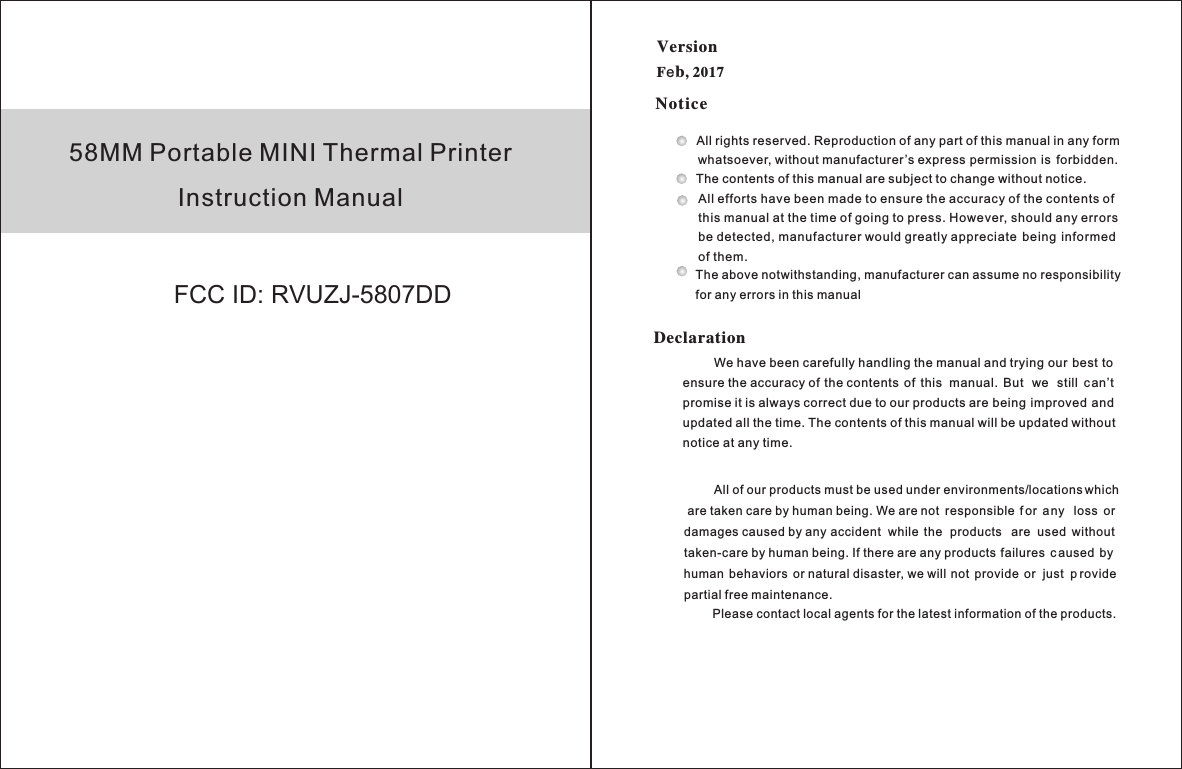

58MM Portable MINI Thermal PrinterInstruction ManualVersion Fb, 2017eNoticeDeclarationAll rights reserved. Reproduction of any part of this manual in any form    whatsoever, without manufacturer’s express permission  is  forbidden.The contents of this manual are subject to change without notice.All efforts have been made to ensure the accuracy of the contents of this manual at the time of going to press. However, should any errors be detected, manufacturer would greatly appreciate  being  informed of them.The above notwithstanding, manufacturer can assume no responsibility for any errors in this manual         We have been carefully handling the manual and trying our best to ensure the accuracy of the contents  of  this  manual.  But  we  still  can’t promise it is always correct due to our products are being  improved and updated all the time. The contents of this manual will be updated without notice at any time.         All of our products must be used under environments/locations which are taken care by human being. We are not  responsible  f or  any  loss  or damages caused by any accident  while  the  products  are  used  without taken-care by human being. If there are any products failures  c aused  by human  behaviors  or natural disaster, we will not  provide  or  just  p rovide partial free maintenance.Please contact local agents for the latest information of the products.FCC ID: RVUZJ-5807DD

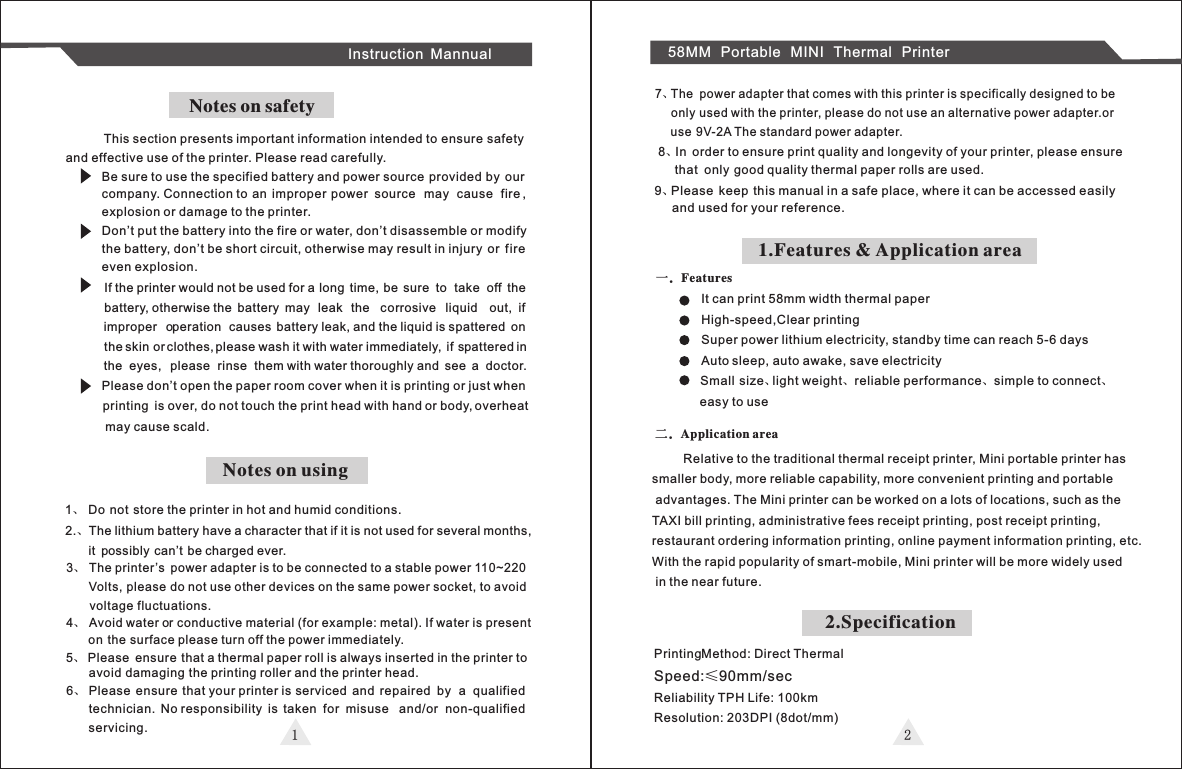

Instruction Mannual 58MM Portable MINI Thermal Printer1 2Notes on safety           This section presents important information intended to ensure safetyand effective use of the printer. Please read carefully.Be sure to use the specified battery and power source provided by  our company. Connection to  an  improper power  source  may  cau se fire  , explosion or damage to the printer.Don’t put the battery into the fire or water, don’t disassemble or modify the battery, don’t be short circuit, otherwise may result in injury  or  f ire even explosion.           If the printer would not be used for a long  time, be  sure  to  take  off  the           battery, otherwise the  battery  may  leak  the  corrosive  liquid  o ut, if        improper    o   p  e  ration  causes  battery leak, and the liquid is spattered  on           the skin or clothes, please wash it with water immediately,  if spattered in          the  eyes,  please  rinse   t h  e  m with water thoroughly and  see  a  doctor.Please don’t open the paper room cover when it is printing or just when printing  is over, do not touch the print head with hand or body, overheat may cause scald.Notes on using1、 Do  not store the printer in hot and humid conditions.2.、The lithium battery have a character that if it is not used for several months,       i t  possibly can’t be charged ever.3、 The printer ’s  power adapter is to be connected to a stable power 110~220       Volts, please do not use other devices on the same power socket, to avoid       voltage fluctuations.4、Avoid water  or  conductive material (for example: metal). If water is present       on the surface please turn off the power immediately.5、 Please  ensure  that a thermal paper roll is always inserted in the printer to       avoid damaging the printing roller and the printer head.6、 Please  ensure  that your printer is serviced  and  repaired  by  a  qualified        technician.  No responsibility  is  taken  for  misuse   and/or  non-qualified        servicing.7、The  power adapter that comes with this printer is specifically designed to be      only used with the printer, please do not use an alternative power adapter.or      use 9V-2A The standard power adapter.8、In  order to ensure print quality and longevity of your printer, please ensure      that  only good quality thermal paper rolls are used.9、Please  keep this manual in a safe place, where it can be accessed easily      and used for your reference.1.Features & Application area一.Features     It can print 58mm width thermal paper    High-speed,Clear printing     Super power lithium electricity, standby time can reach 5-6 days    Auto sleep, auto awake, save electricity   Small size、light weight、reliable performance、simple to connect、   easy to use二.Application area  2.SpecificationPrintingMethod: Direct ThermalSpeed:≤90mm/secReliability TPH Life: 100kmResolution: 203DPI (8dot/mm)         Relative to the traditional thermal receipt printer, Mini portable printer has smaller body, more reliable capability, more convenient printing and portable advantages. The Mini printer can be worked on a lots of locations, such as the TAXI bill printing, administrative fees receipt printing, post receipt printing, restaurant ordering information printing, online payment information printing, etc. With the rapid popularity of smart-mobile, Mini printer will be more widely used in the near future.
34Instruction Mannual 58MM Portable MINI Thermal PrinterPrinting Width: 48mm (384dot)Paper Width: 58±01mmRoll Diameter: φ≤40mmPaper Type: Thermal PaperPower: rechargeable lithium battery/NI-MH batteryBattery: 7.4VDC, 1500mAhCharging mode: DC 9V/1.5APrint parameters: support to download the Logo trademark, support bar-code print.Support bar-code types: UPC-A / UPC-E / JAN 13 (EAN13) / JAN8 (EAN8) /  CODE39 / ITF / CODABAR / CODE93 / CODE128 ; Two-dimensional code: QR CODECharacter size: 384 dots/lineFontA:12*24dots,1.5(W)*3.0(H)mmFontB: 9*17dots, 1.1(W)*2.1(H)mmFontC: 9*24dots, 1.1(W)*3.0(H)mmSimplified/Traditional:24*24dots,3.0(W)*3.0(H)mmPrinting Chinese character: Chinese: simplified Chinese 24x24 point. support GB18030 font library, support Taiwan and HK traditional(complex font)  ANK: ANKcharactersLanguage: support for multiple languages(Support Traditional, Korean, Japanese, etc. must be instructed before purchased )Extended character table:OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/Greek/Hebrew/EastEurope/Iran/WPC1252/OEM866/OEM852/OEM858/IranII/Latvian/Arabic/PT1511251/OEM747/WPC1257/Vietnam/OEM864/Hebrew/WPC1255/ThaiEmulation: ESC/POS commandInterface: standard RS232/USB, Bluetooth 3.0&4.0(option)/SPP agreement or infrared/IRCOMM agreement (optional)/Android up to 4.0 operation system. Driver: Win2003/Win2000/Win7/WinXP/VISTA/WIN8/Win10/LINUXWorking Temperature: -10~50℃ ; Humidity: 10~90% 3.AppearanceModel:5801Size:103*75*46mmWeight:134g(wi thout batter y)Charging: Red Light Full: Blue Light9 V D C

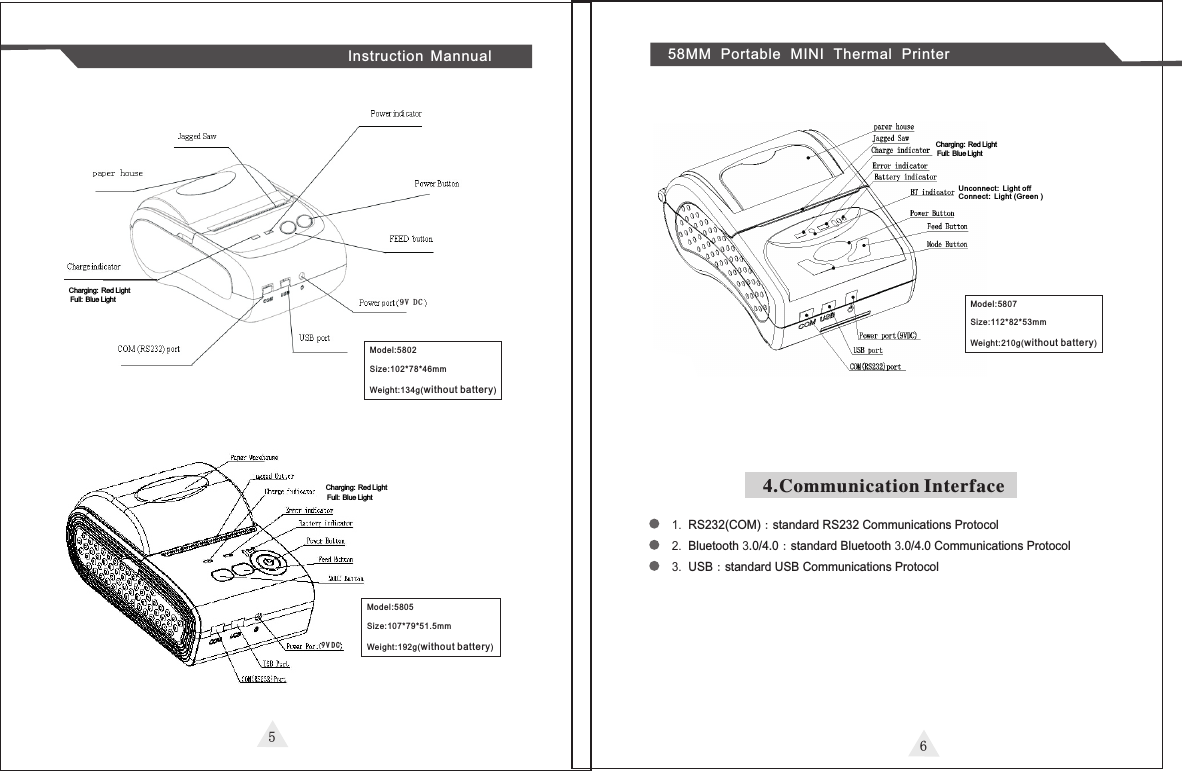

56Instruction Mannual 58MM Portable MINI Thermal Printer4.Communication Interface1. RS232(COM):standard RS232 Communications Protocol 2. Bluetooth 3.0/4.0:standard Bluetooth 3.0/4.0 Communications Protocol3. USB:standard USB Communications Protocol  Model:5802Size:102*78*46mmWeight:134g(wi thout batter y)Charging: Red Light Full: Blue Light 9 V D CCharging: Red Light Full: Blue Light9 V D CModel:5805Size:107*79*51.5mmWeight:192g(wi thout batter y)Charging: Red Light Full: Blue LightUnconnect: Ligh t offConnect: Light (G re en )Model:5807Size:112* 82* 53m mWeight:210g(wi thout batter y)

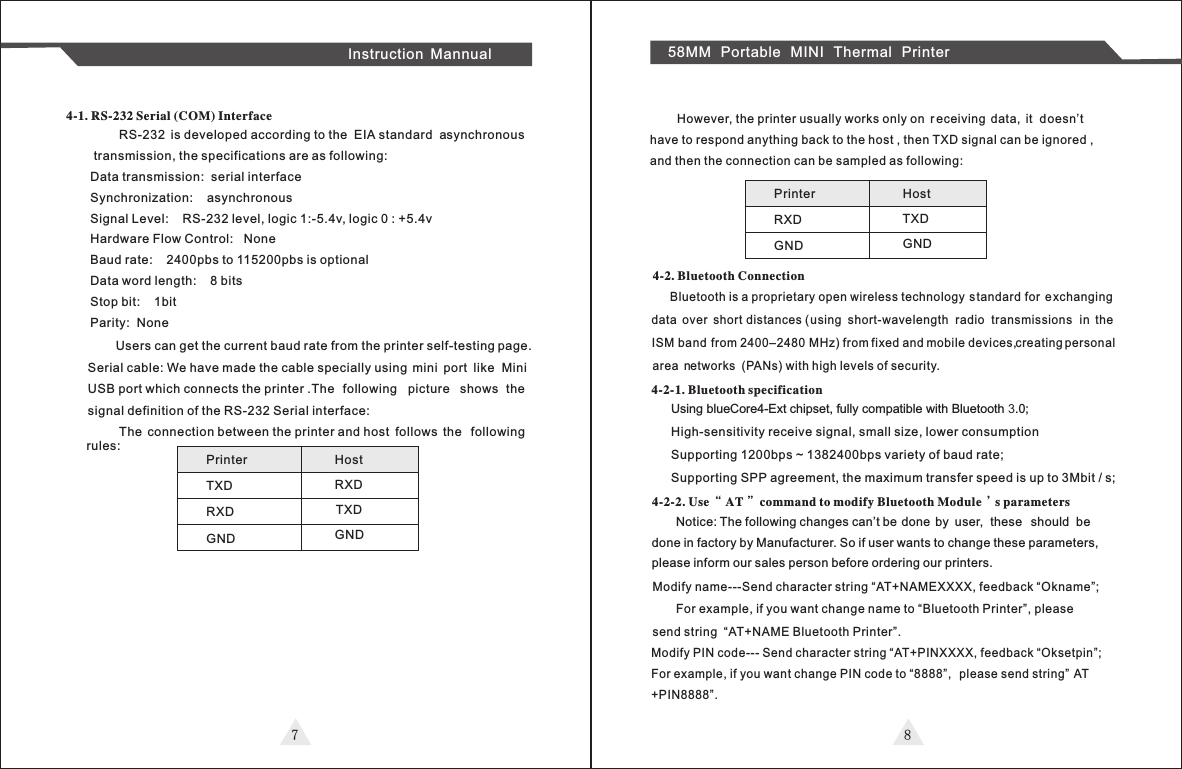

7 8Instruction Mannual 58MM Portable MINI Thermal Printer   RS-232  is developed according to the  EIA  standard  asynchronous transmission, the specifications are as following:Data transmission:  serial interfaceSynchronization:    asynchronousSignal Level:    RS-232 level, logic 1:-5.4v, logic 0 : +5.4vHardware Flow Control:   NoneBaud rate:    2400pbs to 115200pbs is optionalData word length:    8 bitsStop bit:    1bitParity:  None4-1. RS-232 Serial (COM) Interface        Users can get the current baud rate from the printer self-testing page. Serial cable: We have made the cable specially using  mini  port  like  Mini USB port which connects the printer .The  following  picture  shows  the signal definition of the RS-232 Serial interface:          The  connection between the printer and host  follows  the  following rules:Printer TXD       RXD       GND        Host RXDTXD GNDPrinter RXD       GND        Host TXD GND        However, the printer usually works only on  r eceiving  data,  it  doesn’thave to respond anything back to the host , then TXD signal can be ignored , and then the connection can be sampled as following:Bluetooth is a proprietary open wireless technology  s tandard for  exchanging data  over  short distances ( using  short-wavelength  radio  transmissions in  the  ISM band from 2400–2480 MHz) from fixed and mobile devices,c  reating personal area  networks  (PANs) with high levels of security. 4-2. Bluetooth Connection4-2-1. Bluetooth specificationUsing blueCore4-Ext chipset, fully compatible with Bluetooth 3.0; High-sensitivity receive signal, small size, lower consumption Supporting 1200bps ~ 1382400bps variety of baud rate;Supporting SPP agreement, the maximum transfer speed is up to 3Mbit / s;4-2-2. Use “AT” command to modify Bluetooth Module’s parametersNotice: The following changes can’t be done  by  user,  these  should  be done in factory by Manufacturer. So if user wants to change these parameters, please inform our sales person before ordering our printers.     Modify name---Send character string “AT+NAMEXXXX, feedback “Okname”;             For example, if you want change name to “Bluetooth Printer”, please     send string  “AT+NAME Bluetooth Printer”.Modify PIN code--- Send character string “AT+PINXXXX, feedback “Oksetpin”;For example, if you want change PIN code to “8888”,  please send string”   AT+PIN8888”.
9 1 0Instruction Mannual 58MM Portable MINI Thermal Printer       (Note: Default PIN code is “1234”, you only can reset PIN code with four figures.)Clear Bluetooth address--- Send character string “AT+CLR00”, feedback       “Okclear”;Modify baud rate--- Send character string “AT+BAUDX, feedback “Ok+       current baud rate”; X represents the baud rate code, as following:1-----1200                                7------ 576002----- 2400                                8------ 1152003----- 4800                                9------ 2304004----- 9600                                 A------ 4608005----- 19200                              B------ 9216006------38400                             C------1382400       For example, if you want to change baud rate to 115200bps, please send string “AT+BAUD8”.4-2-3. Build connection.1. Turn on the printer;2. Search for the Bluetooth device with host device;3. If there are other Bluetooth devices, please select “LY58”(for example)     printer;4. Enter default pairing code “1234”5. Pairing succeed.4-3. USB InterfaceThe printer is connected by standard Mini USB cable(included in accessories) for communication. The USB type belongs to slave device type.5.The installation of the paper roll      The printer use 58MM thermal paper, and adopt to easy paper loading. Sothe paper is very convenient install.  Paper diameter Max 40mm.Thermal paper installation method is as follows:    (1) Open the printer top cover     (2) Thermal Paper as follow Graph to put into paper storehouse   (3)Put out a little of the paper outside printer,then close the top cover.(4)Use paper sawtooth tear off redundant paperButton Operating InstructionsPOWER(Blue Light)          FEED(Red Light ) Printer StatusOFF                         OFF               Printer CloseON(Always)                 OFF               Printer open and have paperON(Always)                 Flash              Printer  Open , without paperUnder the normal working status, the paper feeding begins when press 【FEED】 button, and stop when loosen【FEED】 button.The printer paper feedPower off the printer, then hold down the【FEED】button and press the power button at the same time. Wait 2 seconds ,then loosen the【FEED】button,the current setting will be printed out.The printer Self test Power off the printer, then hold down the【FEED】button and press the power button at the same time. Wait until the power indicator &【ERROR】led are both on, and then 【ERROR】led goes off, then loosen the【FEED】button, the language setting status will be printed out.Transformation in both English and Chinese

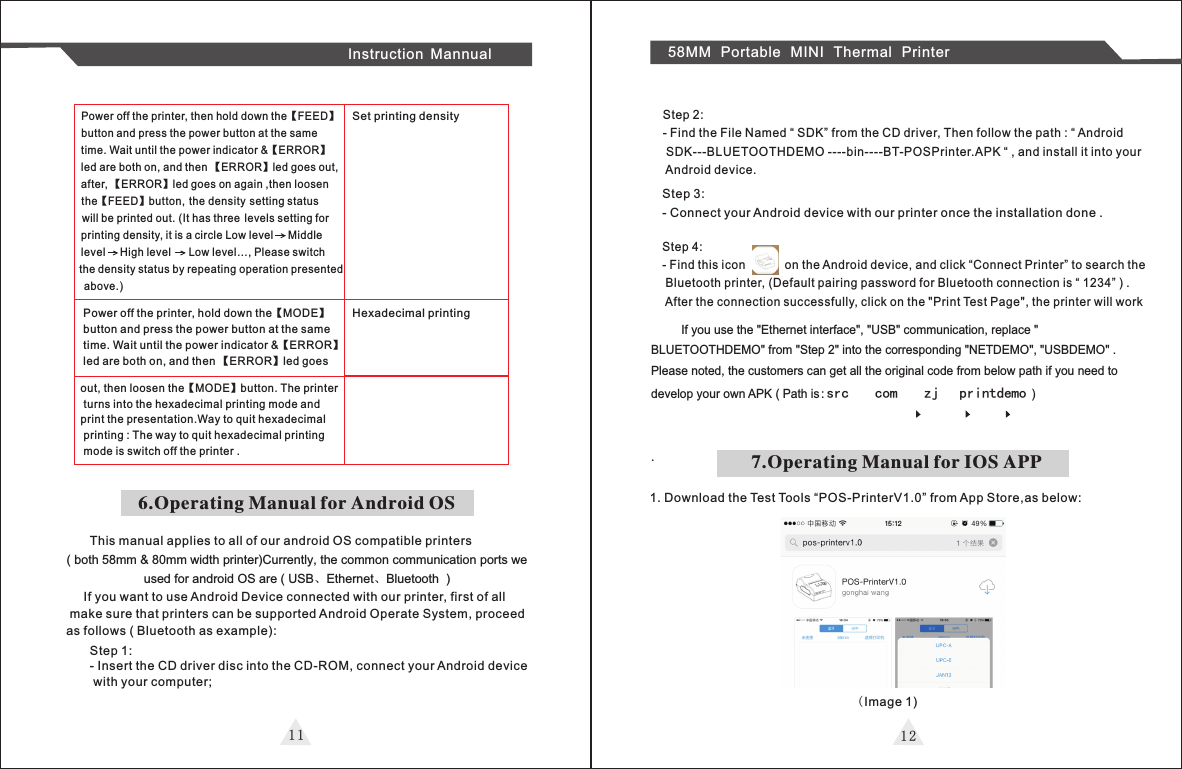

1 1 1 2Instruction Mannual 58MM Portable MINI Thermal PrinterPower off the printer, then hold down the【FEED】button and press the power button at the same time. Wait until the power indicator &【ERROR】led are both on, and then 【ERROR】led goes out, after, 【ERROR】led goes on again ,then loosen the【FEED】button, the density  setting status will be printed out. (It has three  levels setting for printing density, it is a circle Low level     Middle level     High level      Low level…, Please switch the density status by repeating operation presented above.)Set printing densityout, then loosen the【MODE】button. The printer turns into the hexadecimal printing mode and print the presentation.Way to quit hexadecimal printing : The way to quit hexadecimal printing mode is switch off the printer .Power off the printer, hold down the【MODE】button and press the power button at the sametime. Wait until the power indicator &【ERROR】led are both on, and then 【ERROR】led goes Hexadecimal printing 6.Operating Manual for Android OS7.Operating Manual for IOS APP       This manual applies to all of our android OS compatible printers( both 58mm & 80mm width printer)Currently, the common communication ports we used for android OS are ( USB、Ethernet、Bluetooth  )     If you want to use Android Device connected with our printer, first of all  make sure that printers can be supported Android Operate System, proceed as follows ( Bluetooth as example):Step 1: - Insert the CD driver disc into the CD-ROM, connect your Android device with your computer;Step 2: - Find the File Named “ SDK” from the CD driver, Then follow the path : “ Android SDK---BLUETOOTHDEMO ----bin----BT-POSPrinter.APK “ , and install it into your Android device.Step 3: - Connect your Android device with our printer once the installation done . Step 4:- Find this icon            on the Android device, and click “Connect Printer” to search the Bluetooth printer, (Default pairing password for Bluetooth connection is “ 1234” ) . After the connection successfully, click on the "Print Test Page", the printer will work.1. Download the Test Tools “POS-PrinterV1.0” from App Store,as below:(Image 1)         If you use the "Ethernet interface", "USB" communication, replace " BLUETOOTHDEMO" from "Step 2" into the corresponding "NETDEMO", "USBDEMO" .Please noted, the customers can get all the original code from below path if you need to develop your own APK ( Path is src    com     z:                                                              )j    printdemo

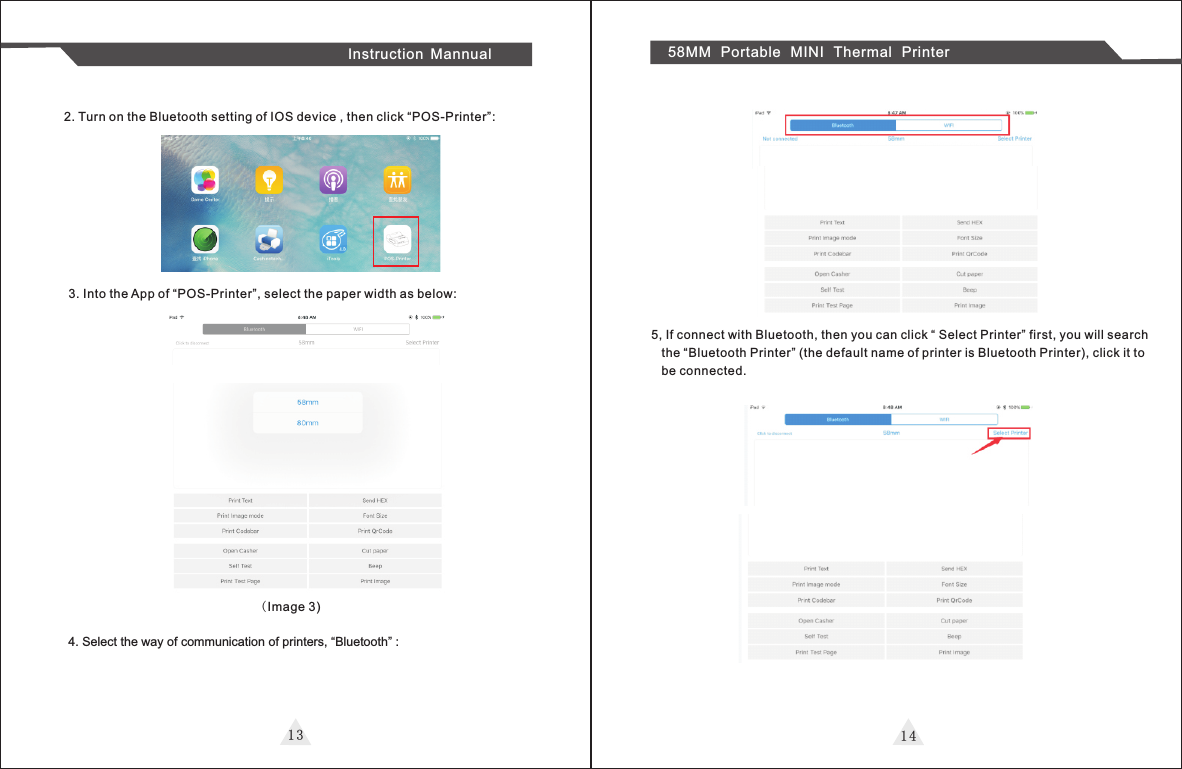

1 3 1 4Instruction Mannual 58MM Portable MINI Thermal Printer2. Turn on the Bluetooth setting of IOS device , then click “POS-Printer”:3. Into the App of “POS-Printer”, select the paper width as below:(Image 3)4. Select the way of communication of printers, “Bluetooth” :5, If connect with Bluetooth, then you can click “ Select Printer” first, you will search    the “Bluetooth Printer” (the default name of printer is Bluetooth Printer), click it to   be connected.
1 5 1 6Instruction Mannual 58MM Portable MINI Thermal Printer6, If above steps are successful, then you can print text to have a test:① Send HEX: In the text box, enter the hexadecimal data, click “Send HEX”, thencan send text box hexadecimal data to the printer.② Print Image mode: input data in the text box, click "Print Image mode", you will be able to convert the contents of the text box into a image printed③ Open Casher: If your printer is connected with the cash drawer, click "opencasher", the drawer will be opened (portable printers without drawer interface,this feature does not work).④ Cut paper: After click on it,  the paper will be feed out and cut (portable printers,58 series of printers without cutter, this feature does not work).⑤ Self Test: Click the "self-test", the printer will print out a self-test page (becausethe Bluetooth printer has been connected to the device, then the Bluetooth name or MAC address will be not displayed in the self-test page ).⑥ Beep: Click the "Beep", the printer will beep sound (portable printers, 58 series of printers without buzzer, this feature does not work).⑦ Print test page: Click the "Print Test Page", the text will print a section of the test, to confirm that the printer7,  Other features of this APP:9.The applicable version: can be compatible with IOS6.0 or above versions.

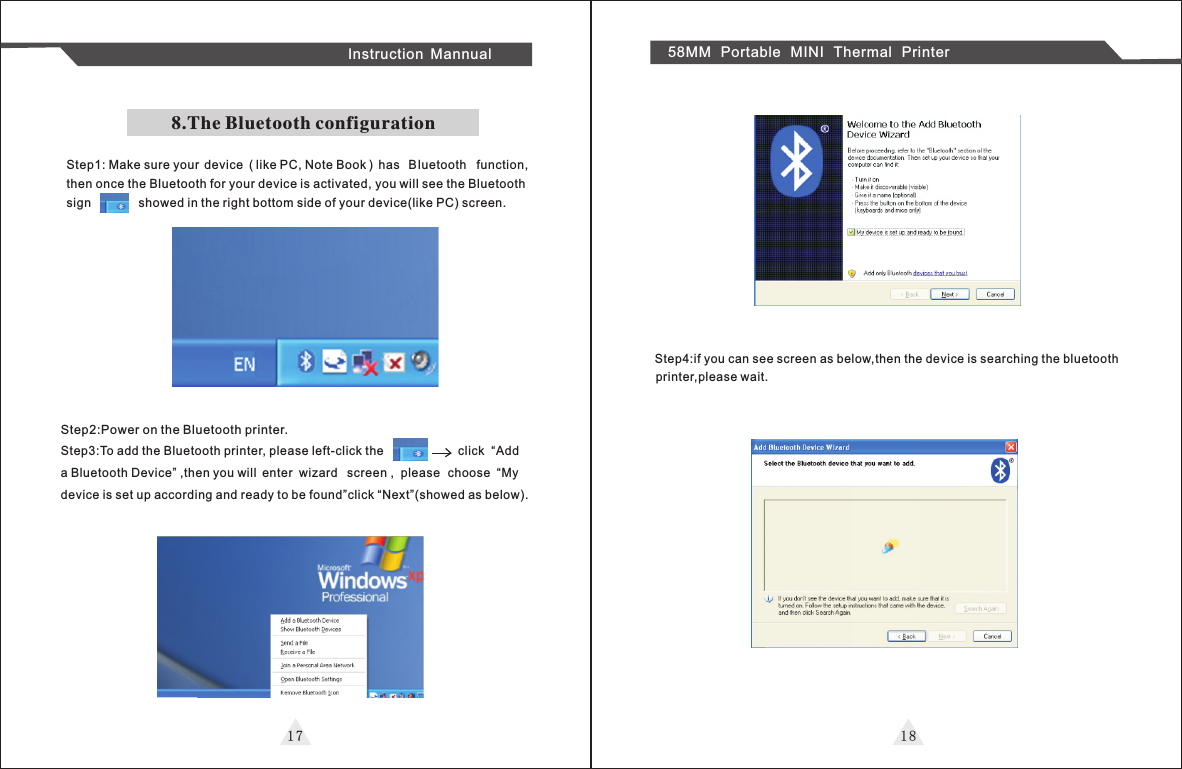

8.The Bluetooth configurationStep1: Make sure your  device  ( like PC, Note Book )  has  Bluetooth  function, then once the Bluetooth for your device is activated, you will see the Bluetoothsign              showed in the right bottom side of your device(like PC) screen.1 7 1 8Instruction Mannual 58MM Portable MINI Thermal PrinterStep2:Power on the Bluetooth printer.Step3:To add the Bluetooth printer, please left-click the                      click  “Add a Bluetooth Device” ,then you will  enter  wizard  screen ,  please  choose  “My device is set up according and ready to be found”click “Next”(showed as below).Step4:if you can see screen as below,then the device is searching the bluetooth printer,please wait.

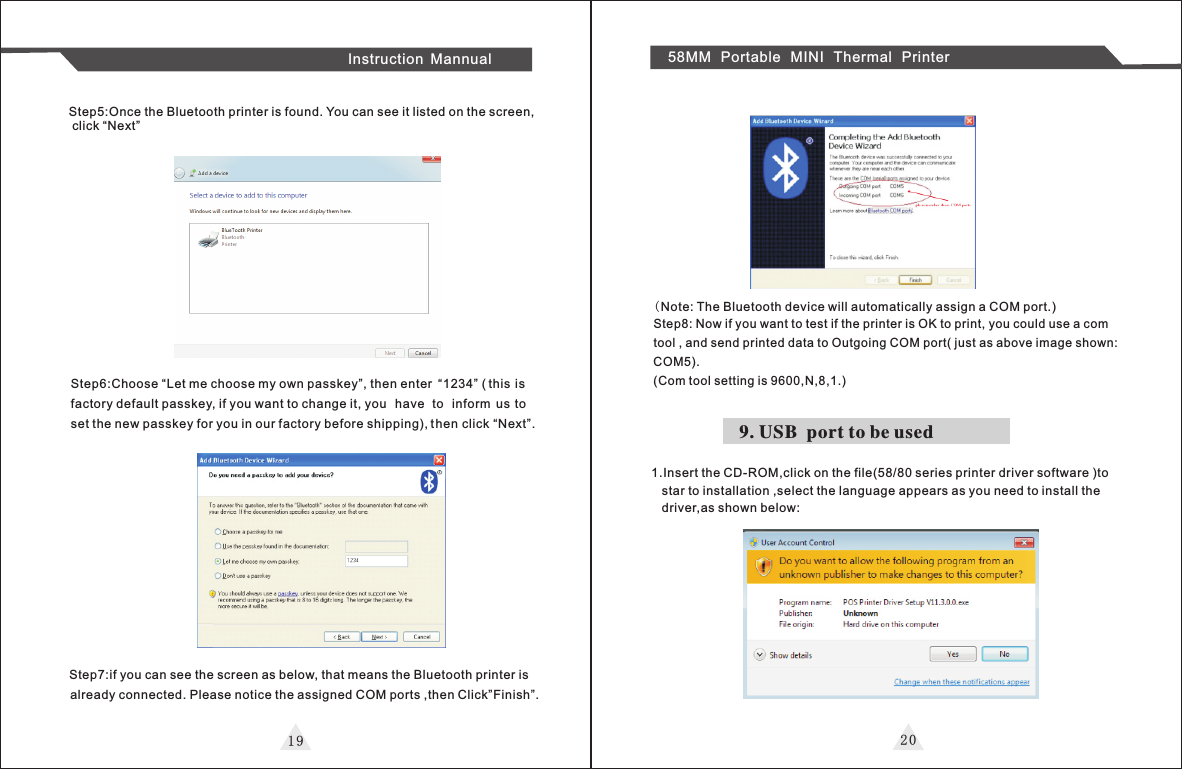

1 9 2 0Instruction Mannual 58MM Portable MINI Thermal PrinterStep5:Once the Bluetooth printer is found. You can see it listed on the screen,  click “Next”Step6:Choose “Let me choose my own passkey”, then enter  “1234” ( this  is factory default passkey, if you want to change it, you  have  to  inform  us  to set the new passkey for you in our factory before shipping), then click  “Next”.Step7:if you can see the screen as below, that means the Bluetooth printer is already connected. Please notice the assigned COM ports ,then Click”Finish”.(Note: The Bluetooth device will automatically assign a COM port.)Step8: Now if you want to test if the printer is OK to print, you could use a com tool , and send printed data to Outgoing COM port( just as above image shown: COM5).(Com tool setting is 9600,N,8,1.)1.Insert the CD-ROM,click on the file(58/80 series printer driver software )to    star to installation ,select the language appears as you need to install the    driver,as shown below:9. USB  port to be used

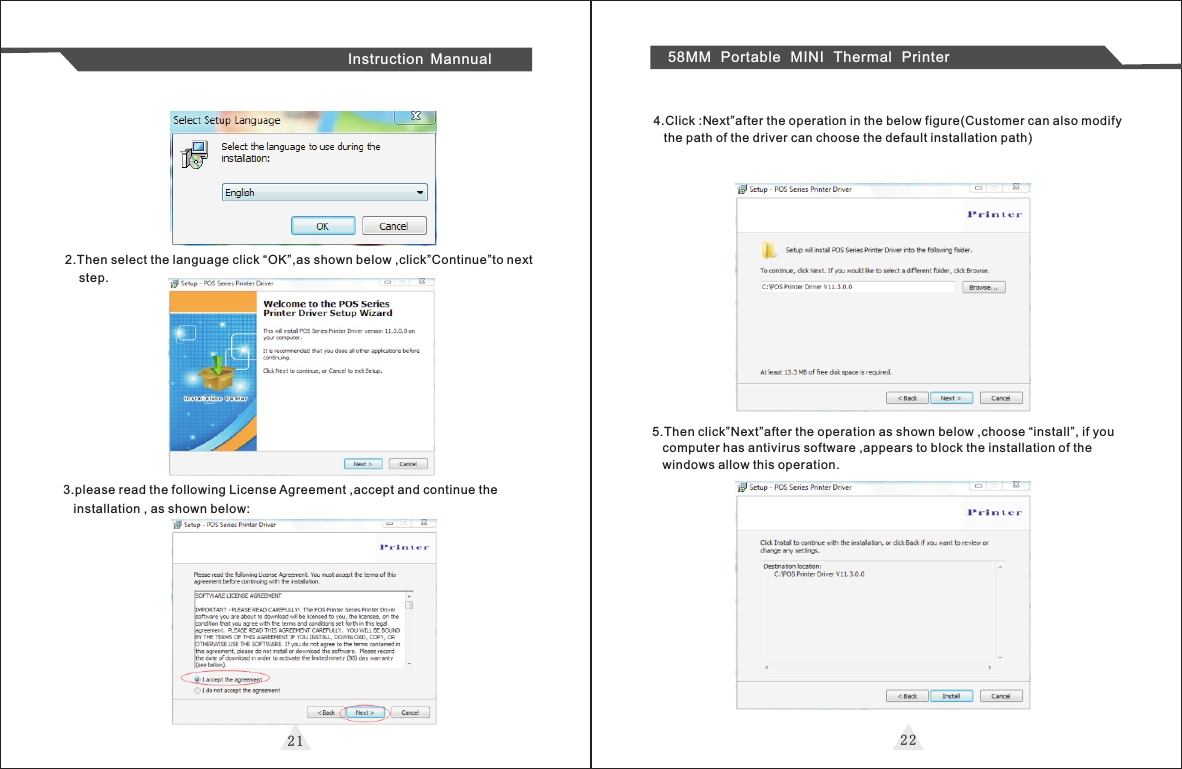

2 1 2 2Instruction Mannual 58MM Portable MINI Thermal Printer2.Then select the language click “OK”,as shown below ,click”Continue”to next    step.3.please read the following License Agreement ,accept and continue the   installation , as shown below:4.Click :Next”after the operation in the below figure(Customer can also modify   the path of the driver can choose the default installation path)5.Then click”Next”after the operation as shown below ,choose “install”, if you   computer has antivirus software ,appears to block the installation of the   windows allow this operation.

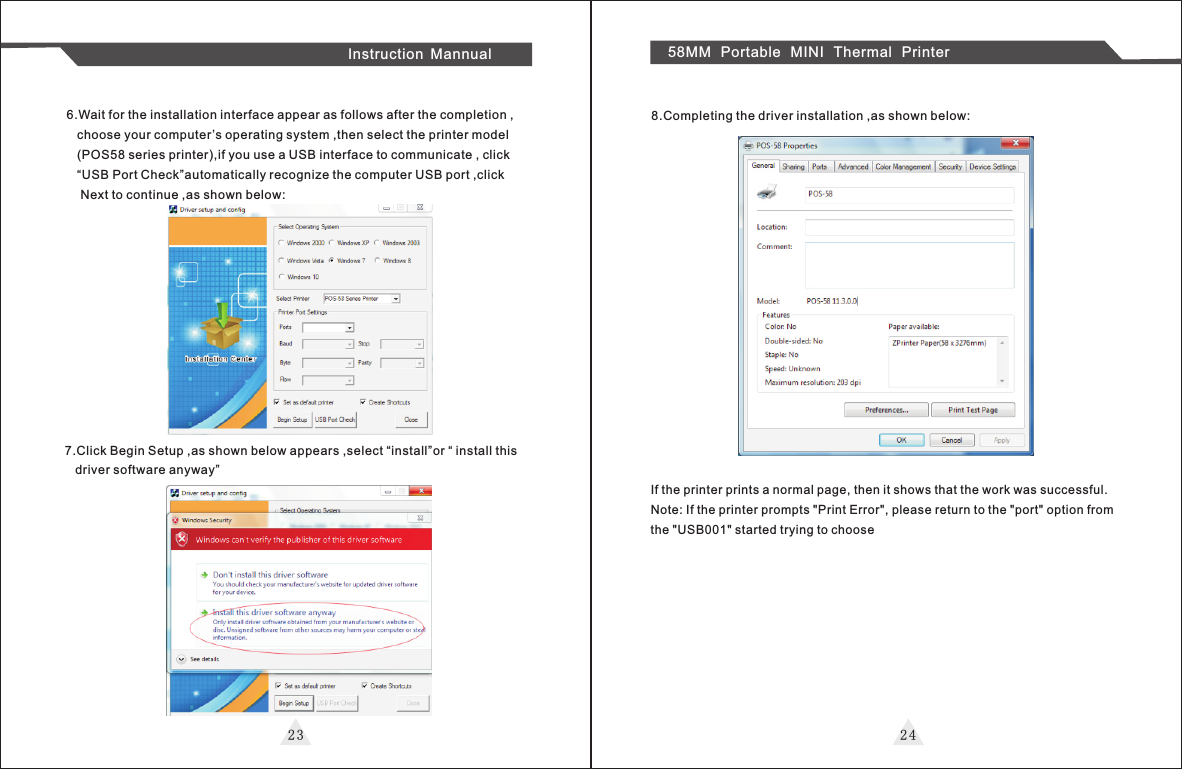

2 3 2 4Instruction Mannual 58MM Portable MINI Thermal Printer6.Wait for the installation interface appear as follows after the completion ,   choose your computer’s operating system ,then select the printer model    (POS58 series printer),if you use a USB interface to communicate , click    “USB Port Check”automatically recognize the computer USB port ,click     Next to continue ,as shown below:7.Click Begin Setup ,as shown below appears ,select “install”or “ install this    driver software anyway”8.Completing the driver installation ,as shown below:If the printer prints a normal page, then it shows that the work was successful.Note: If the printer prompts "Print Error", please return to the "port" option from the "USB001" started trying to choose
2 5 2 6Instruction Mannual 58MM Portable MINI Thermal Printer10. Serial (COM) port to be used1. Open the Printer Properties screen, and then select the "Port" item, as shown below:2.Select the list of ports "COM1" → " Configure Port", the printer factory default settings as shown below:You can see the setting parameters of serial port from self-test page, Click "Apply", then click "OK" (Note: This setting must consistent with the setting parameters of serial port from the  printer self-test page, otherwise it will be garbled case) appears as shown below:115200

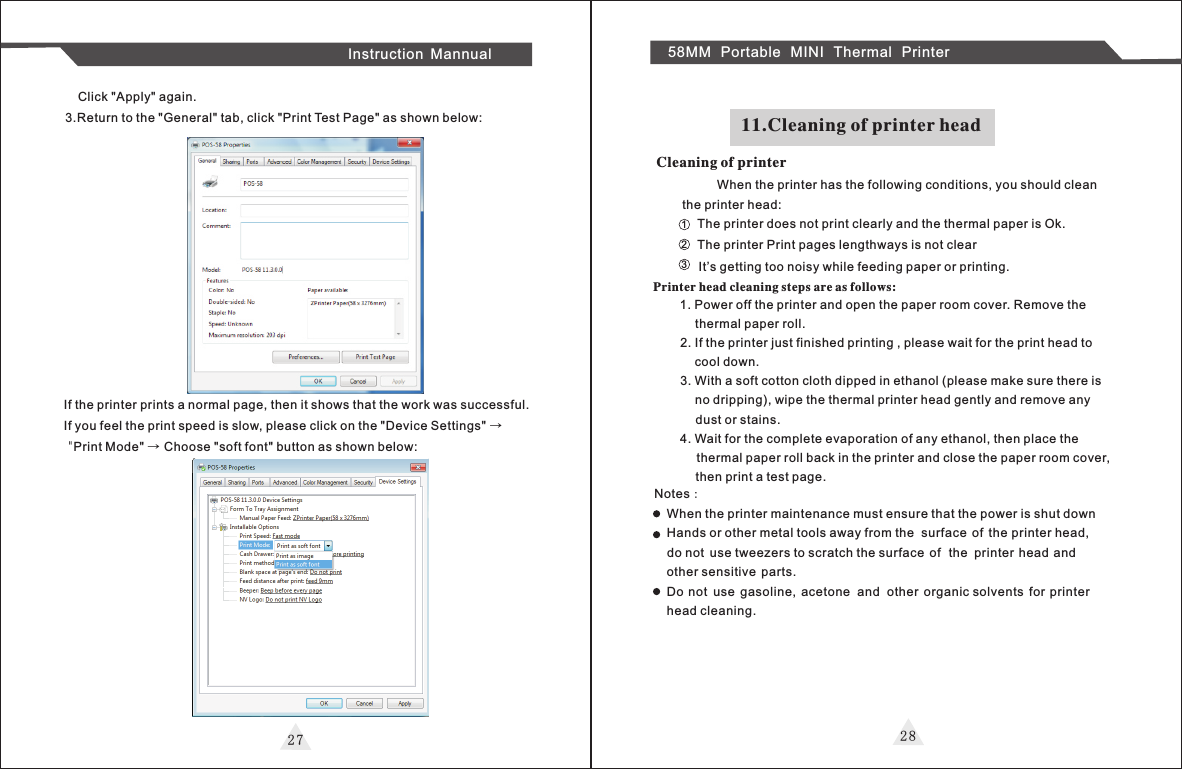

2 7 2 8Instruction Mannual 58MM Portable MINI Thermal PrinterClick "Apply" again.3.Return to the "General" tab, click "Print Test Page" as shown below:If the printer prints a normal page, then it shows that the work was successful.If you feel the print speed is slow, please click on the "Device Settings" → "Print Mode" → Choose "soft font" button as shown below:11.Cleaning of printer headCleaning of printer The printer does not print clearly and the thermal paper is Ok. The printer Print pages lengthways is not clear It’s getting too noisy while feeding paper or printing.          When the printer has the following conditions, you should clean the printer head:123Printer head cleaning steps are as follows:1. Power off the printer and open the paper room cover. Remove the thermal paper roll. 2. If the printer just finished printing , please wait for the print head to  cool down. 3. With a soft cotton cloth dipped in ethanol (please make sure there isno dripping), wipe the thermal printer head gently and remove anydust or stains. 4. Wait for the complete evaporation of any ethanol, then place the  thermal paper roll back in the printer and close the paper room cover,  then print a test page.Notes:When the printer maintenance must ensure that the power is shut down    Hands or other metal tools away from the  surface  of  the printer head, do not  u  se tweezers to scratch the surface  of  the  printer  head  and other sensitive  p  a  rts.     Do  not  use  gasoline, acetone  and  other  organic solvents  for  printer   head cleaning.

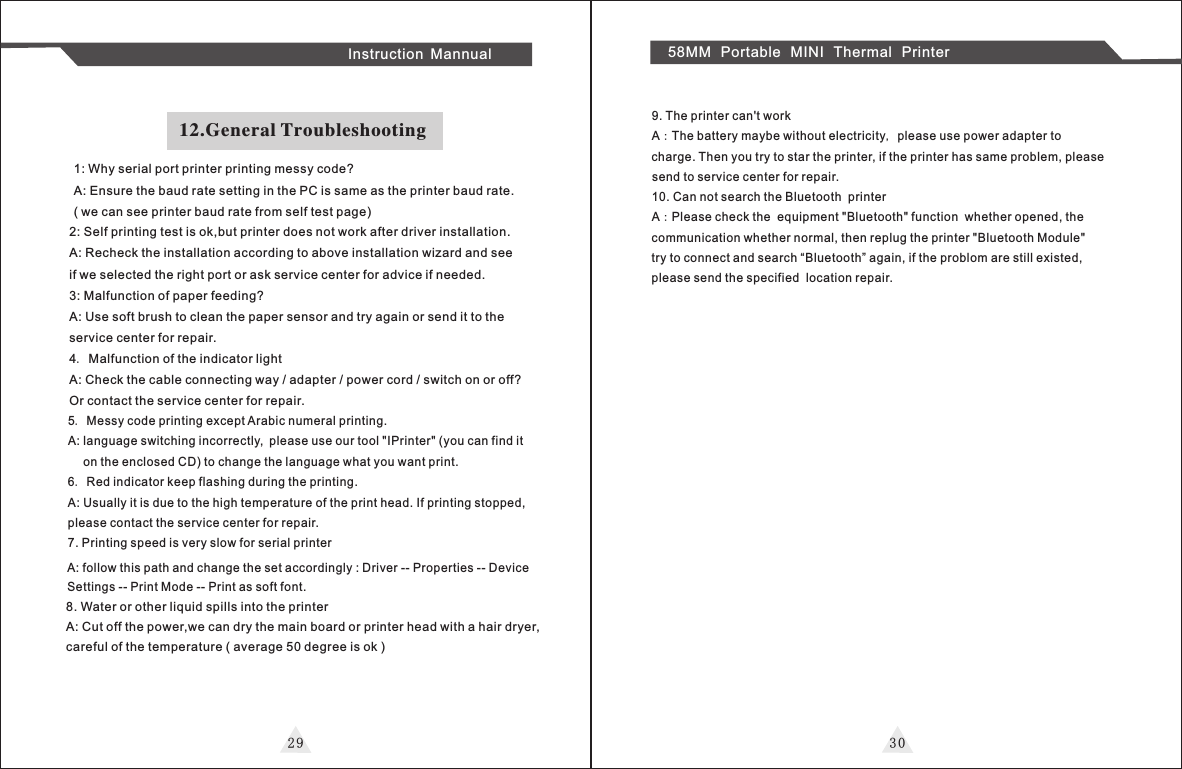

2 9Instruction Mannual2: Self printing test is ok,but printer does not work after driver installation.A: Recheck the installation according to above installation wizard and seeif we selected the right port or ask service center for advice if needed.3: Malfunction of paper feeding?A: Use soft brush to clean the paper sensor and try again or send it to theservice center for repair.4.Malfunction of the indicator lightA: Check the cable connecting way / adapter / power cord / switch on or off?Or contact the service center for repair.5.Messy code printing except Arabic numeral printing.A: language switching incorrectly, please use our tool "IPrinter" (you can find it on the enclosed CD) to change the language what you want print.6.Red indicator keep flashing during the printing.A: Usually it is due to the high temperature of the print head. If printing stopped,please contact the service center for repair.7. Printing speed is very slow for serial printer A: follow this path and change the set accordingly : Driver -- Properties -- Device Settings -- Print Mode -- Print as soft font.9. The printer can't workA:The battery maybe without electricity,please use power adapter to charge. Then you try to star the printer, if the printer has same problem, please send to service center for repair.10. Can not search the Bluetooth  printerA:Please check the  equipment "Bluetooth" function  whether opened, the communication whether normal, then replug the printer "Bluetooth Module" try to connect and search “Bluetooth” again, if the problom are still existed,please send the specified  location repair.12.General Troubleshooting1: Why serial port printer printing messy code?A: Ensure the baud rate setting in the PC is same as the printer baud rate.( we can see printer baud rate from self test page)8. Water or other liquid spills into the printerA: Cut off the power,we can dry the main board or printer head with a hair dryer, careful of the temperature ( average 50 degree is ok )3 058MM Portable MINI Thermal Printer

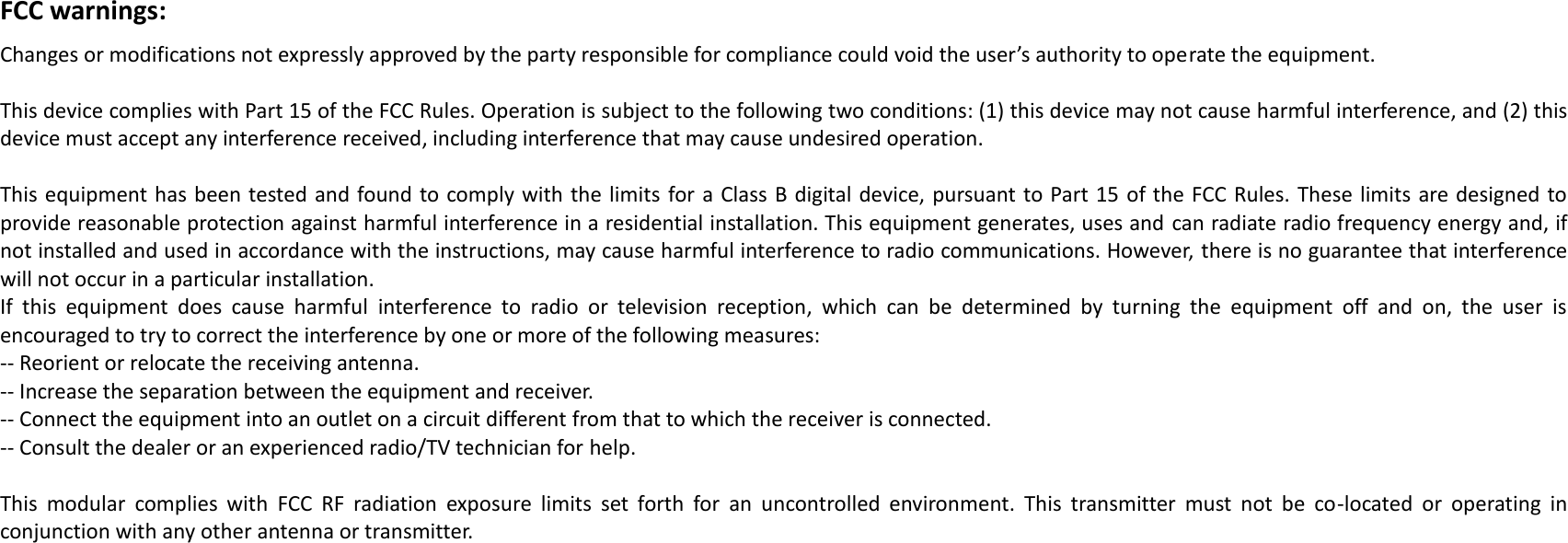

FCC warnings: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  This equipment has been tested and found to comply with the limits  for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If  this  equipment  does  cause  harmful  interference  to  radio  or  television  reception,  which  can  be  determined  by  turning  the  equipment  off  and  on,  the  user  is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.  This  modular  complies  with  FCC  RF  radiation  exposure  limits  set  forth  for  an  uncontrolled  environment.  This  transmitter  must  not  be  co-located  or  operating  in conjunction with any other antenna or transmitter.
