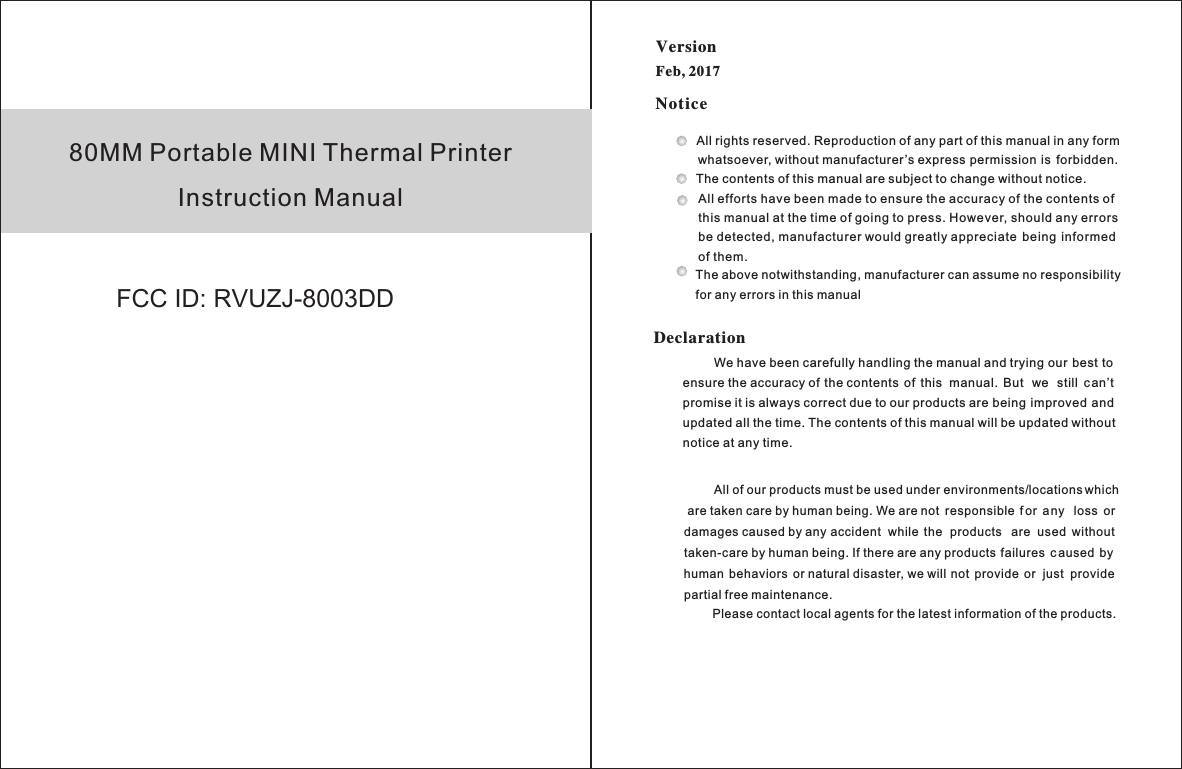

80MM Portable MINI Thermal PrinterInstruction ManualNoticeDeclarationAll rights reserved. Reproduction of any part of this manual in any form whatsoever, without manufacturer’s express permission is forbidden.The contents of this manual are subject to change without notice.All efforts have been made to ensure the accuracy of the contents of this manual at the time of going to press. However, should any errors be detected, manufacturer would greatly appreciate being informed of them.The above notwithstanding, manufacturer can assume no responsibility for any errors in this manual We have been carefully handling the manual and trying our best to ensure the accuracy of the contents of this manual. But we still can’t promise it is always correct due to our products are being improved and updated all the time. The contents of this manual will be updated without notice at any time. All of our products must be used under environments/locations which are taken care by human being. We are not responsible f or any loss or damages caused by any accident while the products are used without taken-care by human being. If there are any products failures c aused by human behaviors or natural disaster, we will not provide or just provide partial free maintenance.Please contact local agents for the latest information of the products.Version Feb, 2017FCC ID: RVUZJ-8003DD

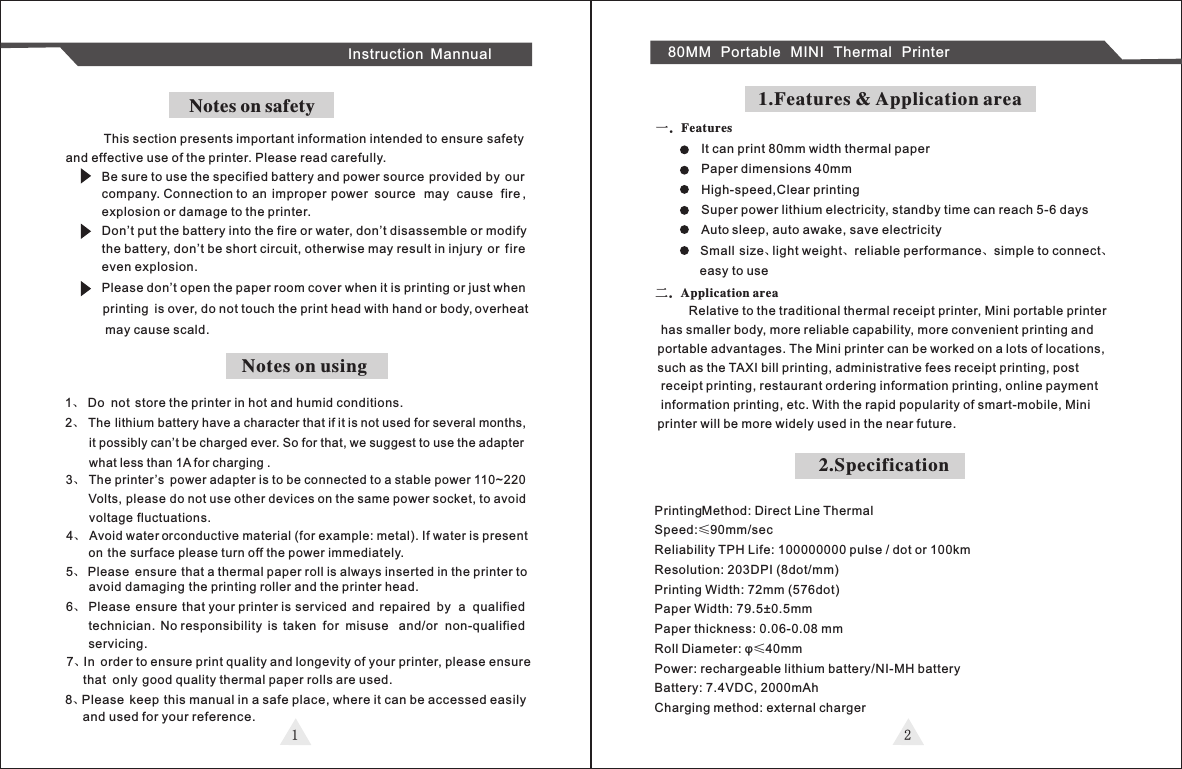

Instruction Mannual 80MM Portable MINI Thermal PrinterNotes on safety This section presents important information intended to ensure safetyand effective use of the printer. Please read carefully.Be sure to use the specified battery and power source provided by our company. Connection to an improper power source may cau se fire , explosion or damage to the printer.Don’t put the battery into the fire or water, don’t disassemble or modify the battery, don’t be short circuit, otherwise may result in injury or f ire even explosion.Please don’t open the paper room cover when it is printing or just when printing is over, do not touch the print head with hand or body, overheat may cause scald.Notes on using1、 Do not store the printer in hot and humid conditions.2、 The lithium battery have a character that if it is not used for several months, it possibly can’t be charged ever. So for that, we suggest to use the adapter what less than 1A for charging .4、Avoid water or conductive material (for example: metal). If water is present on the surface please turn off the power immediately.5、 Please ensure that a thermal paper roll is always inserted in the printer to avoid damaging the printing roller and the printer head.6、 Please ensure that your printer is serviced and repaired by a qualified technician. No responsibility is taken for misuse and/or non-qualified servicing.3、 The printer’s power adapter is to be connected to a stable power 110~220 Volts, please do not use other devices on the same power socket, to avoid voltage fluctuations.1 27、In order to ensure print quality and longevity of your printer, please ensure that only good quality thermal paper rolls are used.8、Please keep this manual in a safe place, where it can be accessed easily and used for your reference.一．Features It can print 80mm width thermal paper Paper dimensions 40mm High-speed,Clear printing Super power lithium electricity, standby time can reach 5-6 days Auto sleep, auto awake, save electricity Small size、light weight、reliable performance、simple to connect、easy to use二．Application area 2.SpecificationPrintingMethod: Direct Line ThermalSpeed:≤90mm/secReliability TPH Life: 100000000 pulse / dot or 100kmResolution: 203DPI (8dot/mm)Printing Width: 72mm (576dot)Paper Width: 79.5±0.5mmPaper thickness: 0.06-0.08 mmRoll Diameter: φ≤40mmPower: rechargeable lithium battery/NI-MH batteryBattery: 7.4VDC, 2000mAhCharging method: external charger1.Features & Application area Relative to the traditional thermal receipt printer, Mini portable printer has smaller body, more reliable capability, more convenient printing and portable advantages. The Mini printer can be worked on a lots of locations, such as the TAXI bill printing, administrative fees receipt printing, post receipt printing, restaurant ordering information printing, online payment information printing, etc. With the rapid popularity of smart-mobile, Mini printer will be more widely used in the near future.

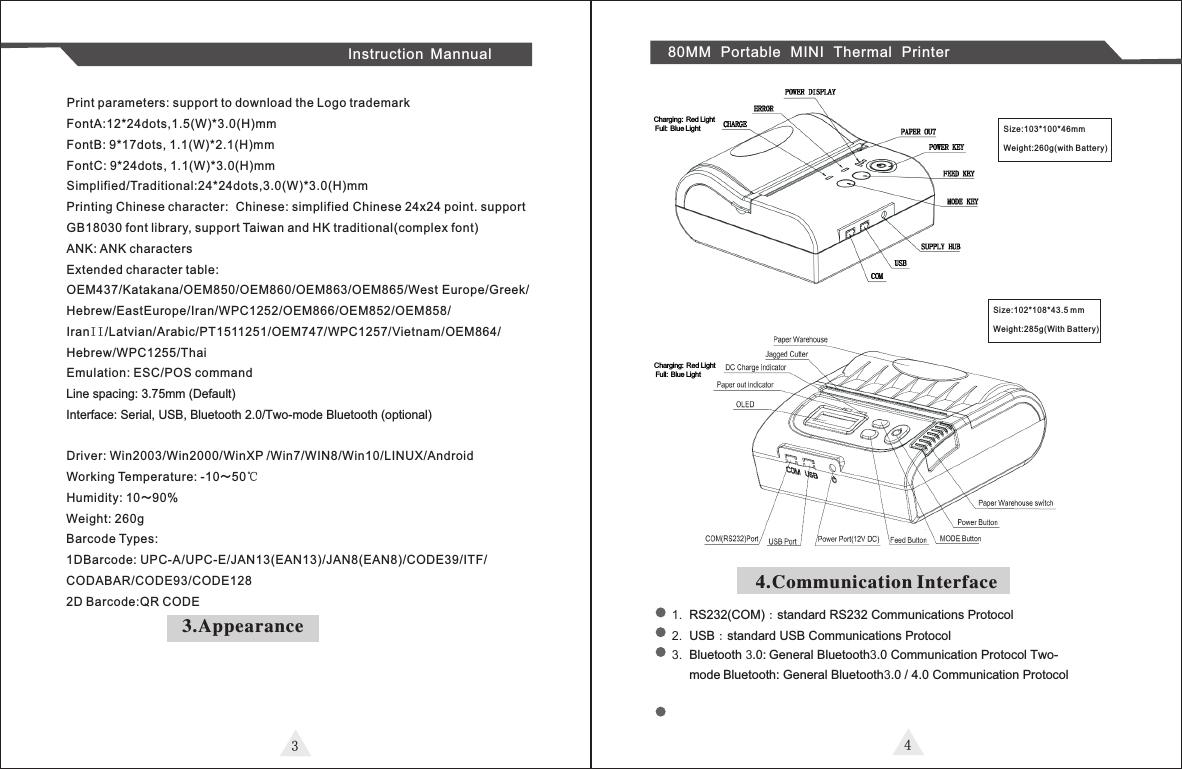

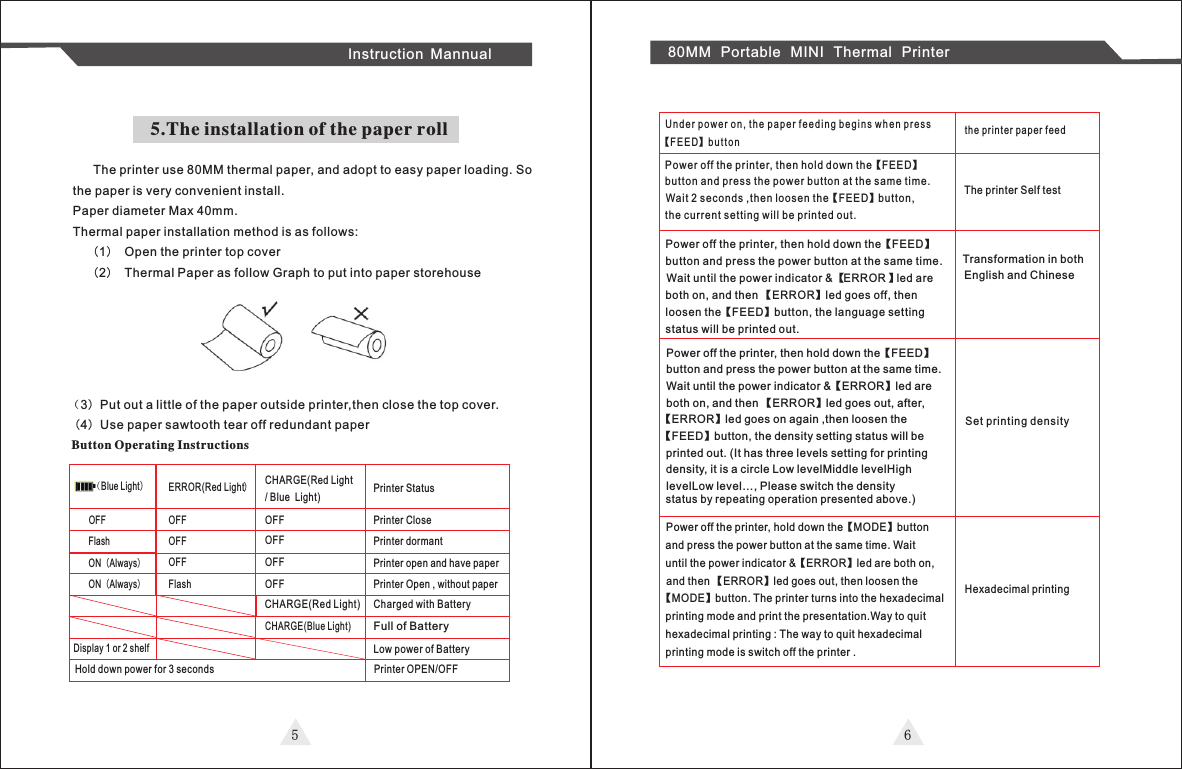

Pow er off t he prin ter, t hen hol d dow n the【FEE D】but ton and pres s the p ow e r butt o n at t h e same time . Wai t 2 sec ond s , th en loos e n the【FE E D】bu tto n,the cur r en t s ett in g wil l be pr in t ed out.The printer Self test Power off the printer, then hold down the【FEED】button and press the power button at the same time. Wait until the power indicator & 【ERROR 】led are both on, and then 【ERROR】led goes off, then loosen the【FEED】button, the language setting status will be printed out.Transformation in both English and ChineseInstruction Mannual 80MM Portable MINI Thermal Printer5 65.The installation of the paper roll The printer use 80MM thermal paper, and adopt to easy paper loading. Sothe paper is very convenient install. Paper diameter Max 40mm.Thermal paper installation method is as follows:（1）Open the printer top cover （2）Thermal Paper as follow Graph to put into paper storehouse（3）Put out a little of the paper outside printer,then close the top cover.（4）Use paper sawtooth tear off redundant paperButton Operating InstructionsERROR(Red Light） OFFOFFOFFFlashCHARGE(Red Light/ Blue Light)OFFOFFOFFOFFPrinter StatusPrinter ClosePrinter dormantPrinter open and have paperPrinter Open , without paper（Blue Light）OFFFlashON（Always）ON（Always）CHARGE(Red Light) Charged with BatteryCHARGE( Light)BlueFull of BatteryDisplay 1 or 2 shelfLow power of BatteryHold down power for 3 seconds Printer OPEN/OFFthe pri nte r pape r fee dU n d e r p o w er o n , t h e p a p er f e e d i ng b e g i n s w h e n p r es s 【F E E D】b u t t o nPower off the printer, then hold down the【FEED】button and press the power button at the same time. Wait until the power indicator &【ERROR】led are both on, and then 【ERROR】led goes out, after, 【ERROR】led goes on again ,then loosen the【FEED】button, the density setting status will be printed out. (It has three levels setting for printing density, it is a circle Low levelMiddle levelHigh levelLow level…, Please switch the densitySet pr inting densitystatus by repeating operation presented above.)Power off the printer, hold down the【MODE】button and press the power button at the same time. Wait until the power indicator &【ERROR】led are both on, and then 【ERROR】led goes out, then loosen the【MODE】button. The printer turns into the hexadecimal printing mode and print the presentation.Way to quit hexadecimal printing : The way to quit hexadecimal printing mode is switch off the printer .Hexadecimal printing

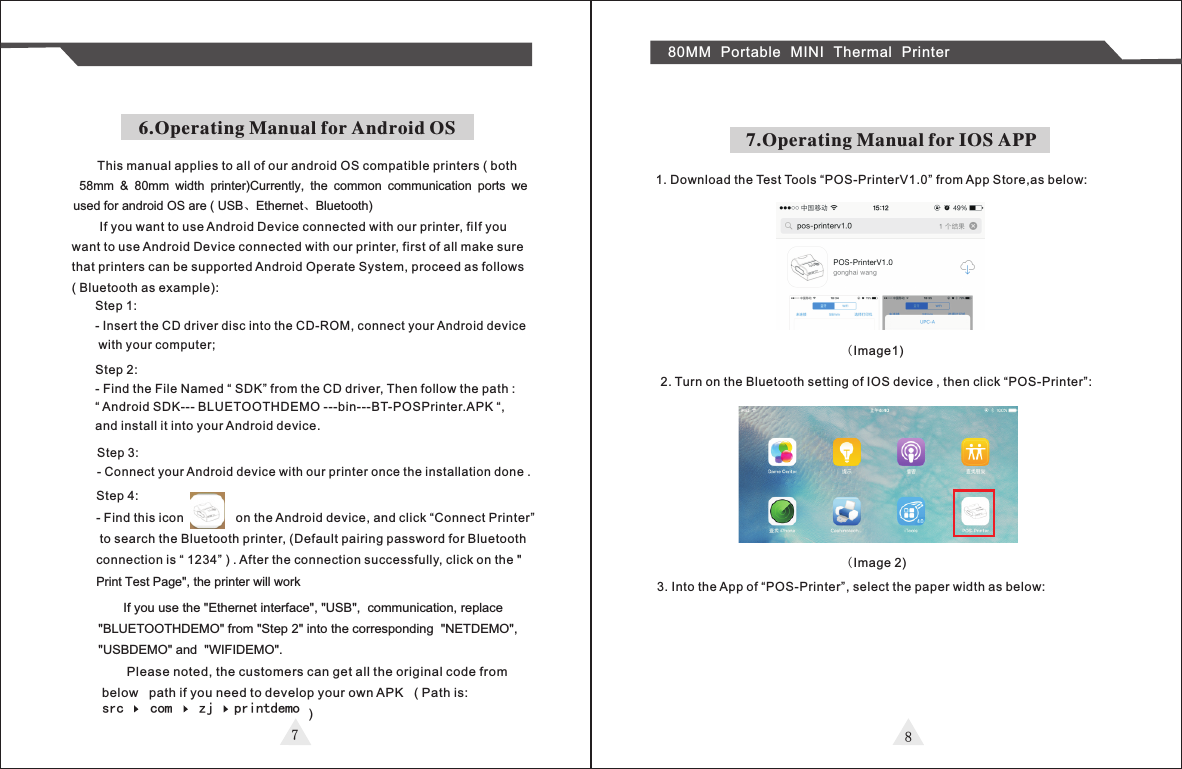

80MM Portable MINI Thermal Printer787.Operating Manual for IOS APP6.Operating Manual for Android OS This manual applies to all of our android OS compatible printers ( both 58mm & 80mm width printer)Currently, the common communication ports we used for android OS are ( USB、Ethernet、Bluetooth) If you want to use Android Device connected with our printer, fiIf you want to use Android Device connected with our printer, first of all make sure that printers can be supported Android Operate System, proceed as follows ( Bluetooth as example):Step 1: - Insert the CD driver disc into the CD-ROM, connect your Android device with your computer;Step 2: - Find the File Named “ SDK” from the CD driver, Then follow the path :“ Android SDK--- BLUETOOTHDEMO ---bin---BT-POSPrinter.APK “, and install it into your Android device. Step 3: - Connect your Android device with our printer once the installation done .Step 4:- Find this icon on the Android device, and click “Connect Printer” to search the Bluetooth printer, (Default pairing password for Bluetooth connection is “ 1234” ) . After the connection successfully, click on the " Print Test Page", the printer will work If you use the "Ethernet interface", "USB", communication, replace "BLUETOOTHDEMO" from "Step 2" into the corresponding "NETDEMO", "USBDEMO" and "WIFIDEMO". Please noted, the customers can get all the original code from below path if you need to develop your own APK ( Path is: )src com zj printdemo1. Download the Test Tools “POS-PrinterV1.0” from App Store,as below:2. Turn on the Bluetooth setting of IOS device , then click “POS-Printer”:(Image 2)(Image1)3. Into the App of “POS-Printer”, select the paper width as below:

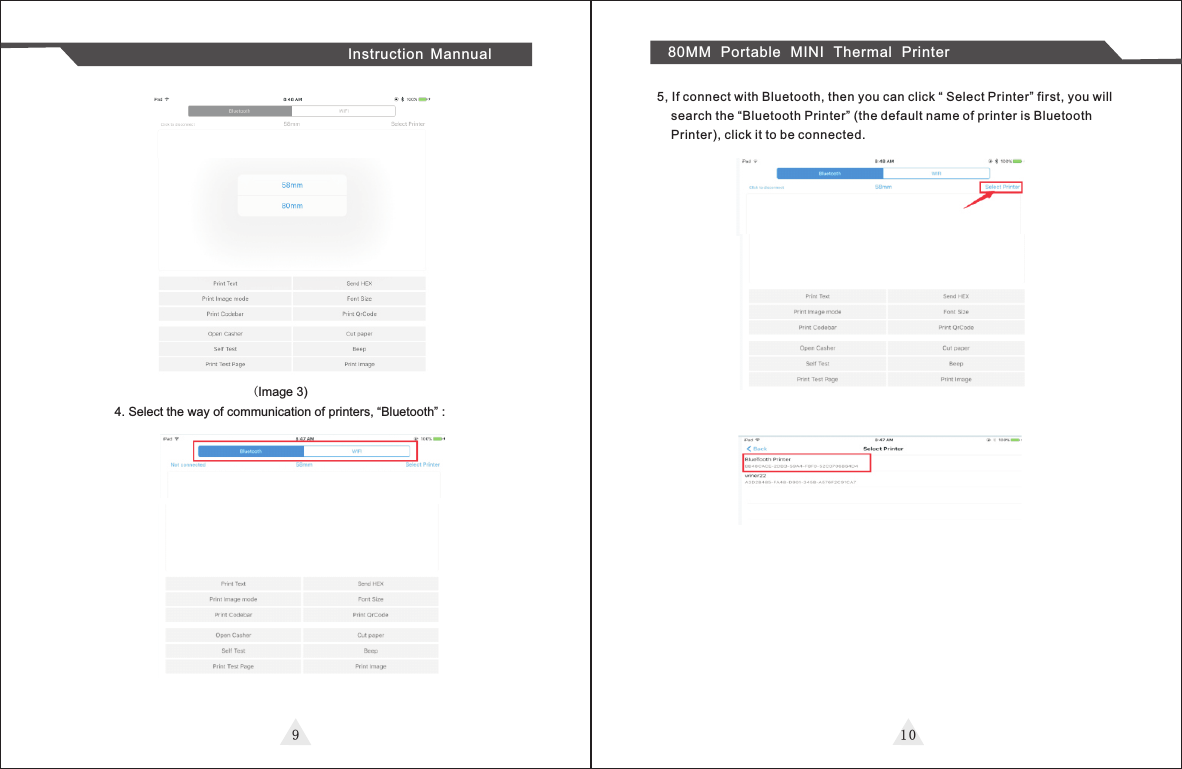

Instruction Mannual 80MM Portable MINI Thermal Printer91 0(Image 3)4. Select the way of communication of printers, “Bluetooth” :5, If connect with Bluetooth, then you can click “ Select Printer” first, you will search the “Bluetooth Printer” (the default name of printer is Bluetooth Printer), click it to be connected.

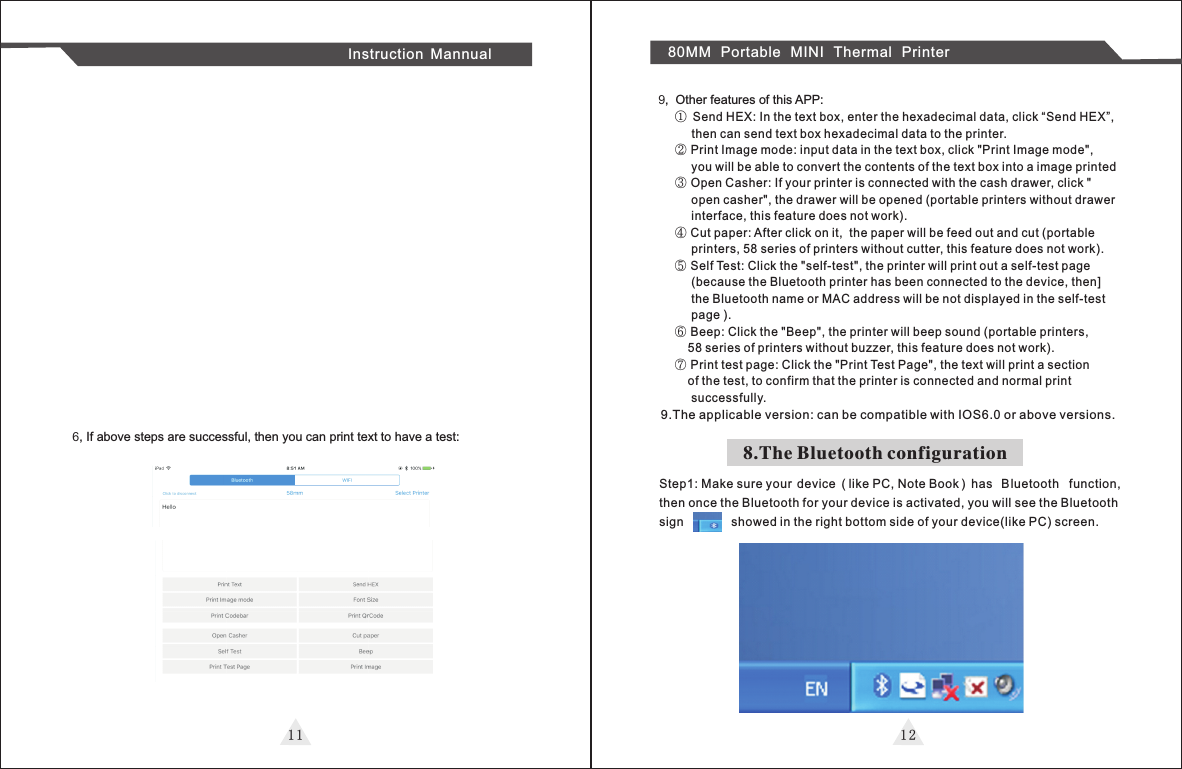

Instruction Mannual 80MM Portable MINI Thermal Printer1 1 1 26, If above steps are successful, then you can print text to have a test:9, Other features of this APP:①Send HEX: In the text box, enter the hexadecimal data, click “Send HEX”, then can send text box hexadecimal data to the printer.② Print Image mode: input data in the text box, click "Print Image mode", you will be able to convert the contents of the text box into a image printed③ Open Casher: If your printer is connected with the cash drawer, click "open casher", the drawer will be opened (portable printers without drawerinterface, this feature does not work).④ Cut paper: After click on it, the paper will be feed out and cut (portable printers, 58 series of printers without cutter, this feature does not work).⑤ Self Test: Click the "self-test", the printer will print out a self-test page (because the Bluetooth printer has been connected to the device, then]the Bluetooth name or MAC address will be not displayed in the self-test page ).⑥ Beep: Click the "Beep", the printer will beep sound (portable printers,58 series of printers without buzzer, this feature does not work).⑦ Print test page: Click the "Print Test Page", the text will print a sectionof the test, to confirm that the printer is connected and normal print successfully. 9.The applicable version: can be compatible with IOS6.0 or above versions.8.The Bluetooth configurationStep1: Make sure your device ( like PC, Note Book ) has Bluetooth function, then once the Bluetooth for your device is activated, you will see the Bluetoothsign showed in the right bottom side of your device(like PC) screen.

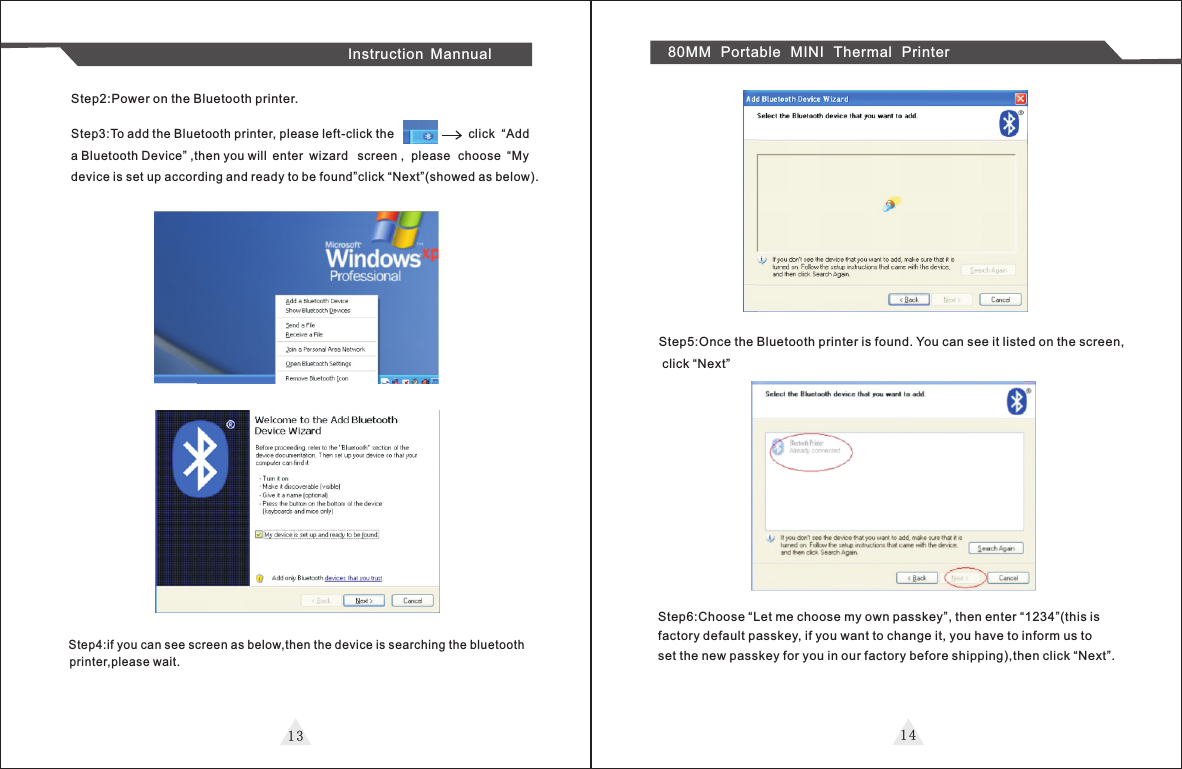

Instruction Mannual 80MM Portable MINI Thermal Printer1 3 1 4Step2:Power on the Bluetooth printer.Step3:To add the Bluetooth printer, please left-click the click “Add a Bluetooth Device” ,then you will enter wizard screen , please choose “My device is set up according and ready to be found”click “Next”(showed as below).Step4:if you can see screen as below,then the device is searching the bluetooth printer,please wait.Step5:Once the Bluetooth printer is found. You can see it listed on the screen, click “Next”Step6:Choose “Let me choose my own passkey”, then enter “1234”(this is factory default passkey, if you want to change it, you have to inform us to set the new passkey for you in our factory before shipping),then click “Next”.

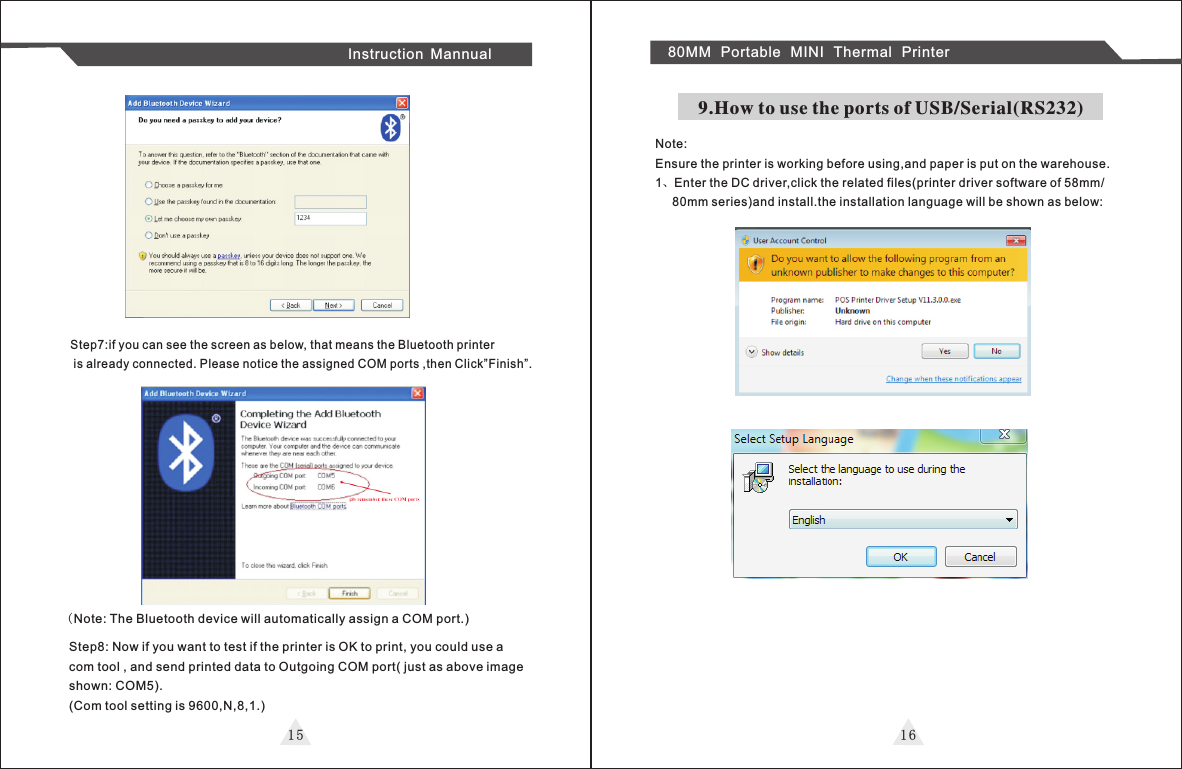

Instruction Mannual 80MM Portable MINI Thermal Printer1 5 1 6Step7:if you can see the screen as below, that means the Bluetooth printer is already connected. Please notice the assigned COM ports ,then Click”Finish”.(Note: The Bluetooth device will automatically assign a COM port.)Step8: Now if you want to test if the printer is OK to print, you could use a com tool , and send printed data to Outgoing COM port( just as above image shown: COM5).(Com tool setting is 9600,N,8,1.)9.How to use the ports of USB/Serial(RS232)Note:Ensure the printer is working before using,and paper is put on the warehouse.1、Enter the DC driver,click the related files(printer driver software of 58mm/ 80mm series)and install.the installation language will be shown as below:

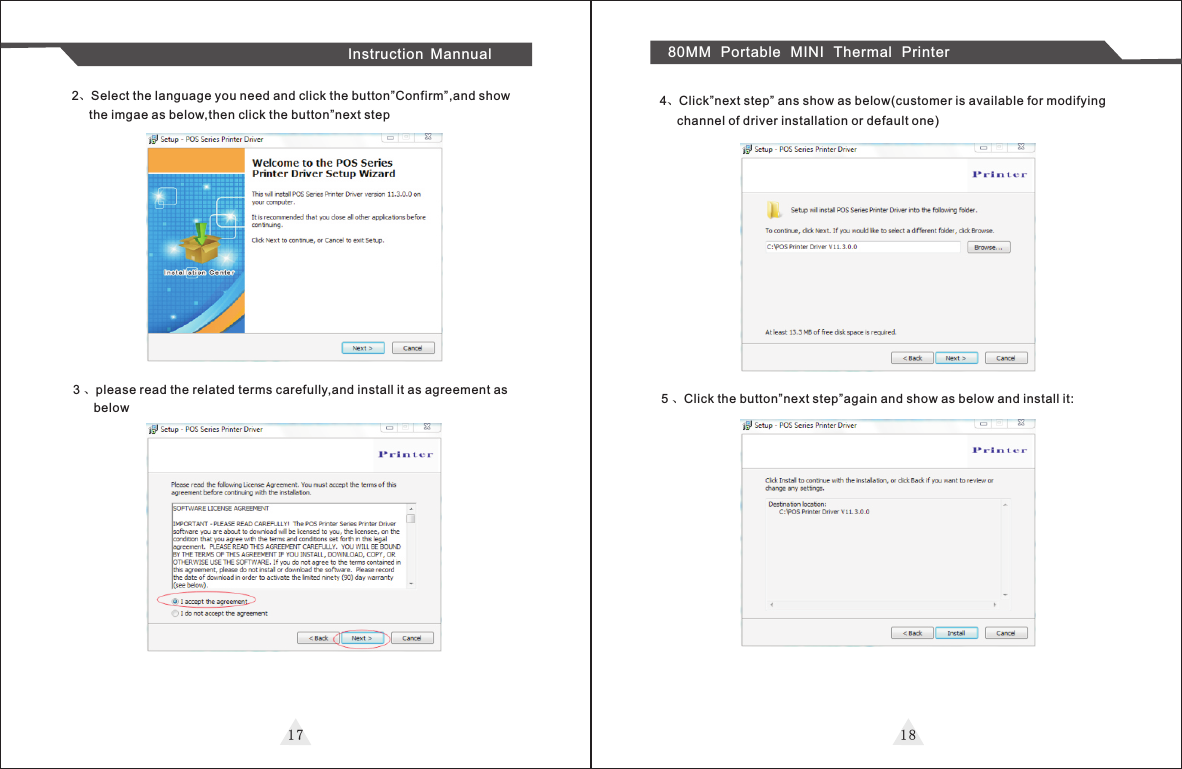

Instruction Mannual 80MM Portable MINI Thermal Printer1 7 1 82、Select the language you need and click the button”Confirm”,and show the imgae as below,then click the button”next step3 、please read the related terms carefully,and install it as agreement as below4、Click”next step” ans show as below(customer is available for modifying channel of driver installation or default one)5 、Click the button”next step”again and show as below and install it:

Instruction Mannual 80MM Portable MINI Thermal Printer1 9 2 06、After installation,the related interface will be shown as below,select operation system of your computer and printer model,click”USB port for testing”, if you communication with USB port, USB port of computer will be identified automatically .Click he button”next step”and install continuously as below :7、Click the button”Start Installation” and shown as below. And select installation:8.Finish the driver installation as below:9.2 Serial port to be used (if you choose a serial print)1. Open the Printer Properties screen, and then select the "Port" item, asshown below:

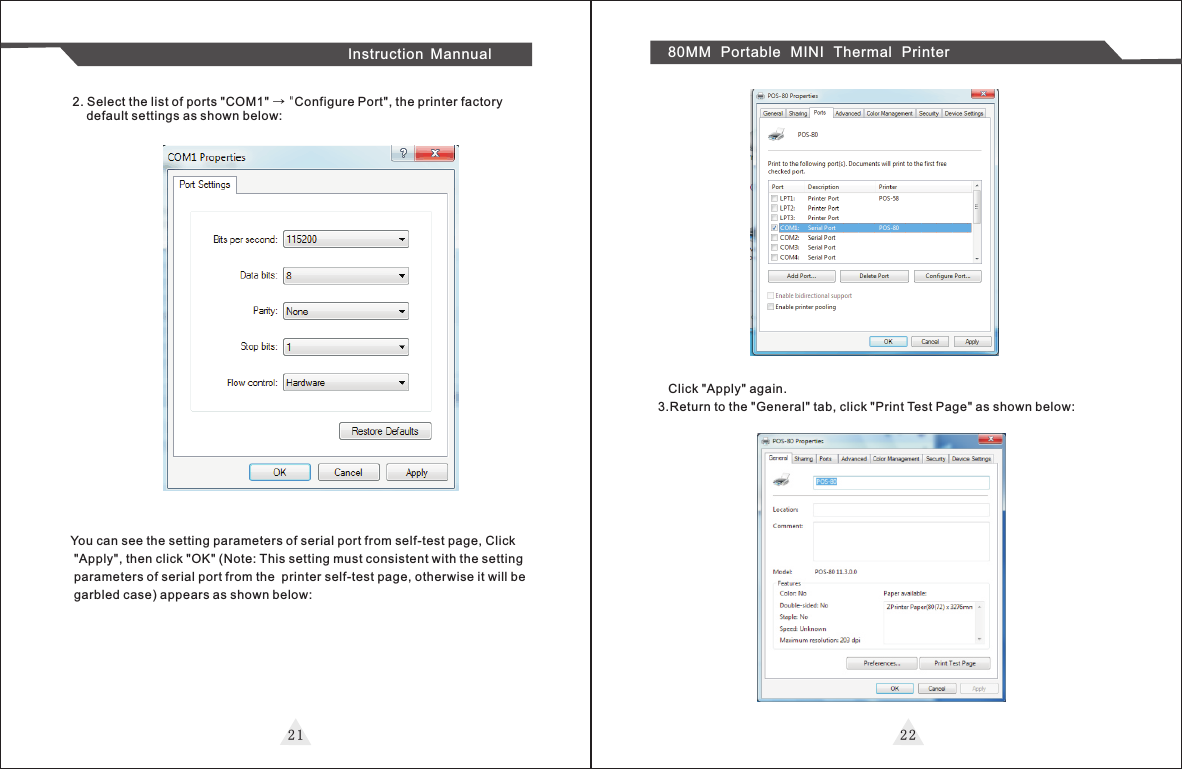

2 1 2 2Instruction Mannual 80MM Portable MINI Thermal Printer2. Select the list of ports "COM1" → "Configure Port", the printer factorydefault settings as shown below:You can see the setting parameters of serial port from self-test page, Click "Apply", then click "OK" (Note: This setting must consistent with the setting parameters of serial port from the printer self-test page, otherwise it will be garbled case) appears as shown below: Click "Apply" again.3.Return to the "General" tab, click "Print Test Page" as shown below:

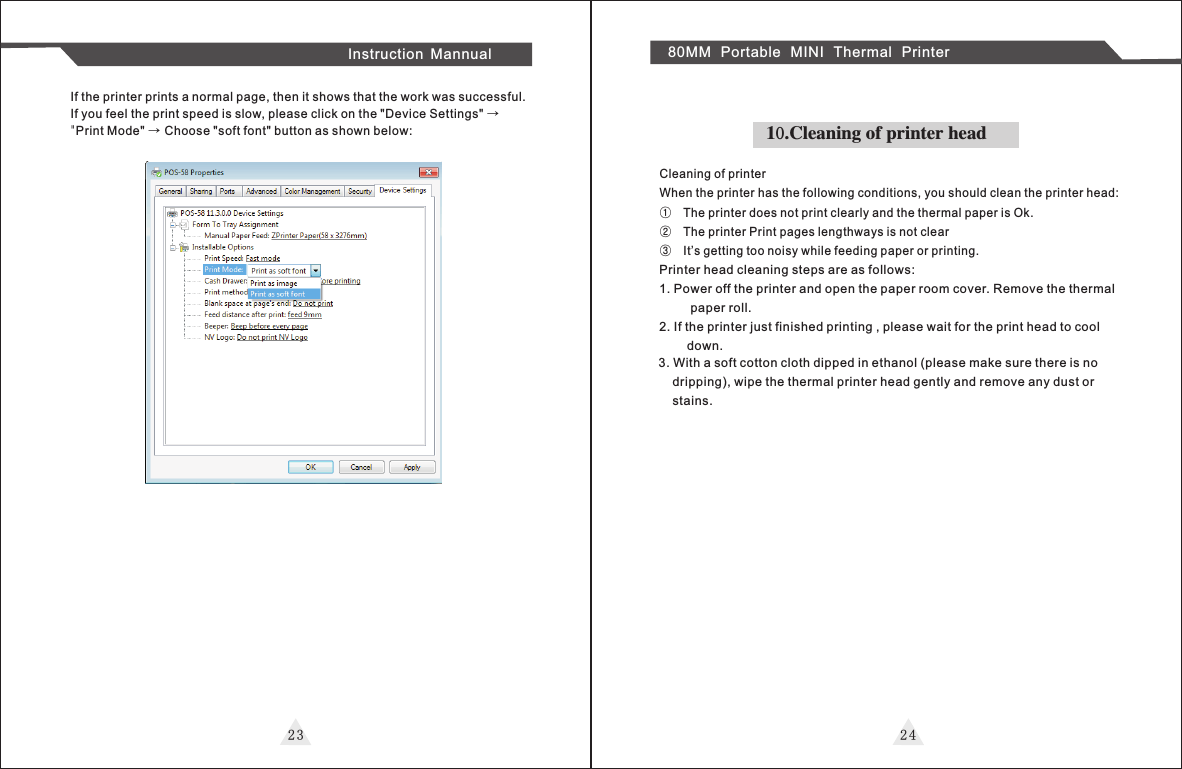

2 3 2 4Instruction Mannual 80MM Portable MINI Thermal PrinterIf the printer prints a normal page, then it shows that the work was successful.If you feel the print speed is slow, please click on the "Device Settings" → "Print Mode" → Choose "soft font" button as shown below:10.Cleaning of printer headCleaning of printerWhen the printer has the following conditions, you should clean the printer head:①The printer does not print clearly and the thermal paper is Ok.②The printer Print pages lengthways is not clear③It’s getting too noisy while feeding paper or printing.Printer head cleaning steps are as follows:1. Power off the printer and open the paper room cover. Remove the thermalpaper roll.2. If the printer just finished printing , please wait for the print head to cool down.3. With a soft cotton cloth dipped in ethanol (please make sure there is nodripping), wipe the thermal printer head gently and remove any dust or stains.

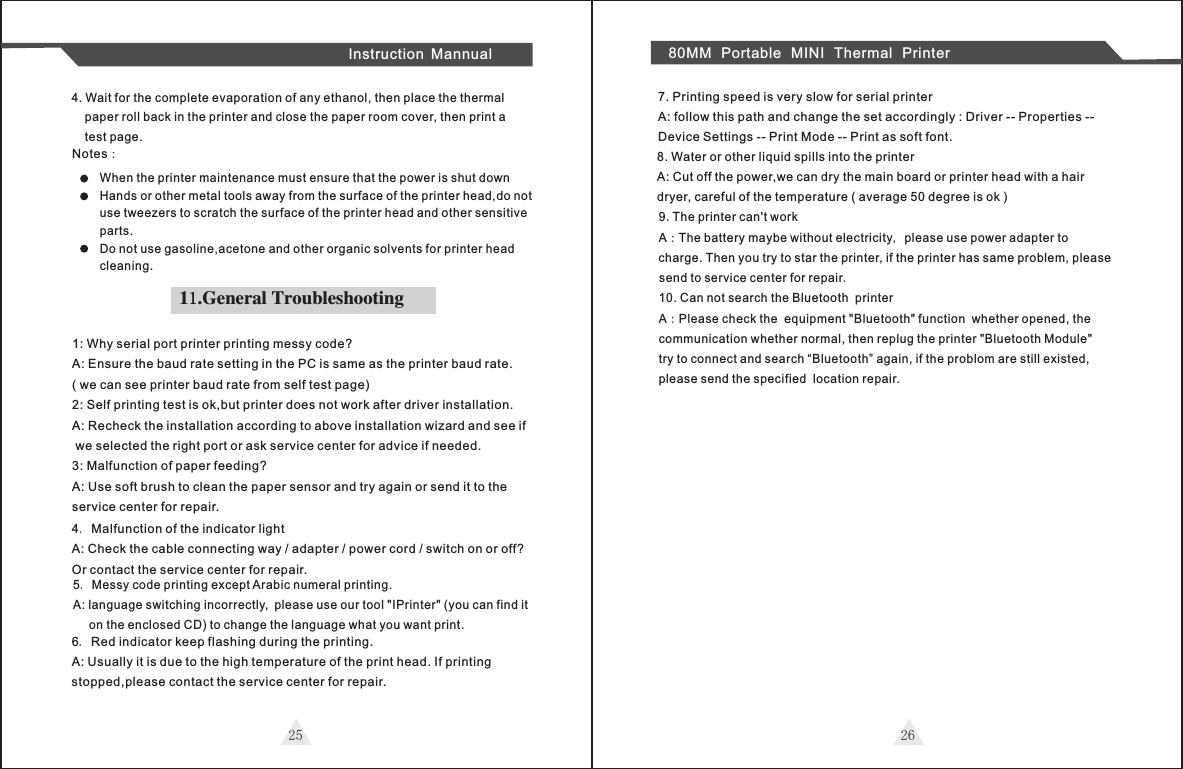

Notes：When the printer maintenance must ensure that the power is shut downHands or other metal tools away from the surface of the printer head,do notuse tweezers to scratch the surface of the printer head and other sensitiveparts.Do not use gasoline,acetone and other organic solvents for printer head cleaning.11.General Troubleshooting1: Why serial port printer printing messy code?A: Ensure the baud rate setting in the PC is same as the printer baud rate. ( we can see printer baud rate from self test page)2: Self printing test is ok,but printer does not work after driver installation.A: Recheck the installation according to above installation wizard and see if we selected the right port or ask service center for advice if needed.3: Malfunction of paper feeding?A: Use soft brush to clean the paper sensor and try again or send it to the service center for repair.Instruction Mannual 80MM Portable MINI Thermal Printer25 265．Messy code printing except Arabic numeral printing.A: language switching incorrectly, please use our tool "IPrinter" (you can find it on the enclosed CD) to change the language what you want print.8. Water or other liquid spills into the printerA: Cut off the power,we can dry the main board or printer head with a hairdryer, careful of the temperature ( average 50 degree is ok )4．Malfunction of the indicator lightA: Check the cable connecting way / adapter / power cord / switch on or off? Or contact the service center for repair.4. Wait for the complete evaporation of any ethanol, then place the thermal paper roll back in the printer and close the paper room cover, then print atest page.6．Red indicator keep flashing during the printing.A: Usually it is due to the high temperature of the print head. If printing stopped,please contact the service center for repair.7. Printing speed is very slow for serial printer A: follow this path and change the set accordingly : Driver -- Properties -- Device Settings -- Print Mode -- Print as soft font.9. The printer can't workA：The battery maybe without electricity，please use power adapter to charge. Then you try to star the printer, if the printer has same problem, please send to service center for repair.10. Can not search the Bluetooth printerA：Please check the equipment "Bluetooth" function whether opened, the communication whether normal, then replug the printer "Bluetooth Module" try to connect and search “Bluetooth” again, if the problom are still existed,please send the specified location repair.

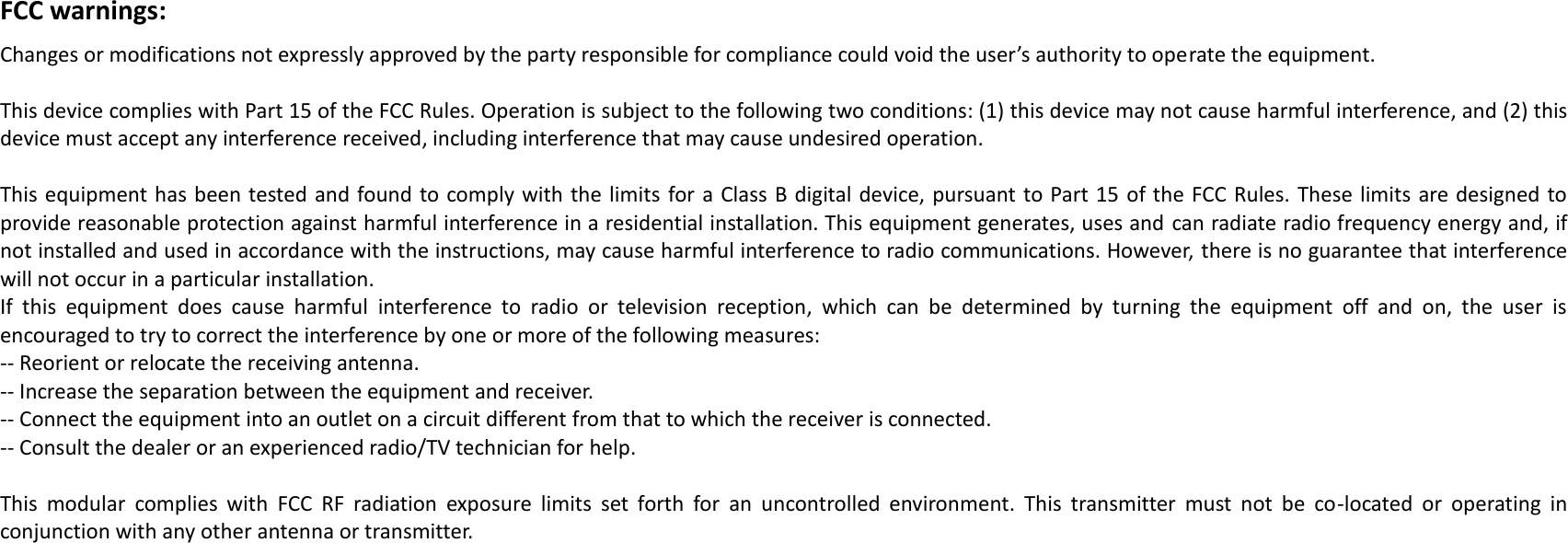

FCC warnings: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
