ZIONCOM ELECTRONICS IP04291 600 Mbps Wireless N Router User Manual IP04291 N600R TOTOLINK QIG 160220

ZIONCOM ELECTRONICS (SHENZHEN) LTD. 600 Mbps Wireless N Router IP04291 N600R TOTOLINK QIG 160220

Users Manual

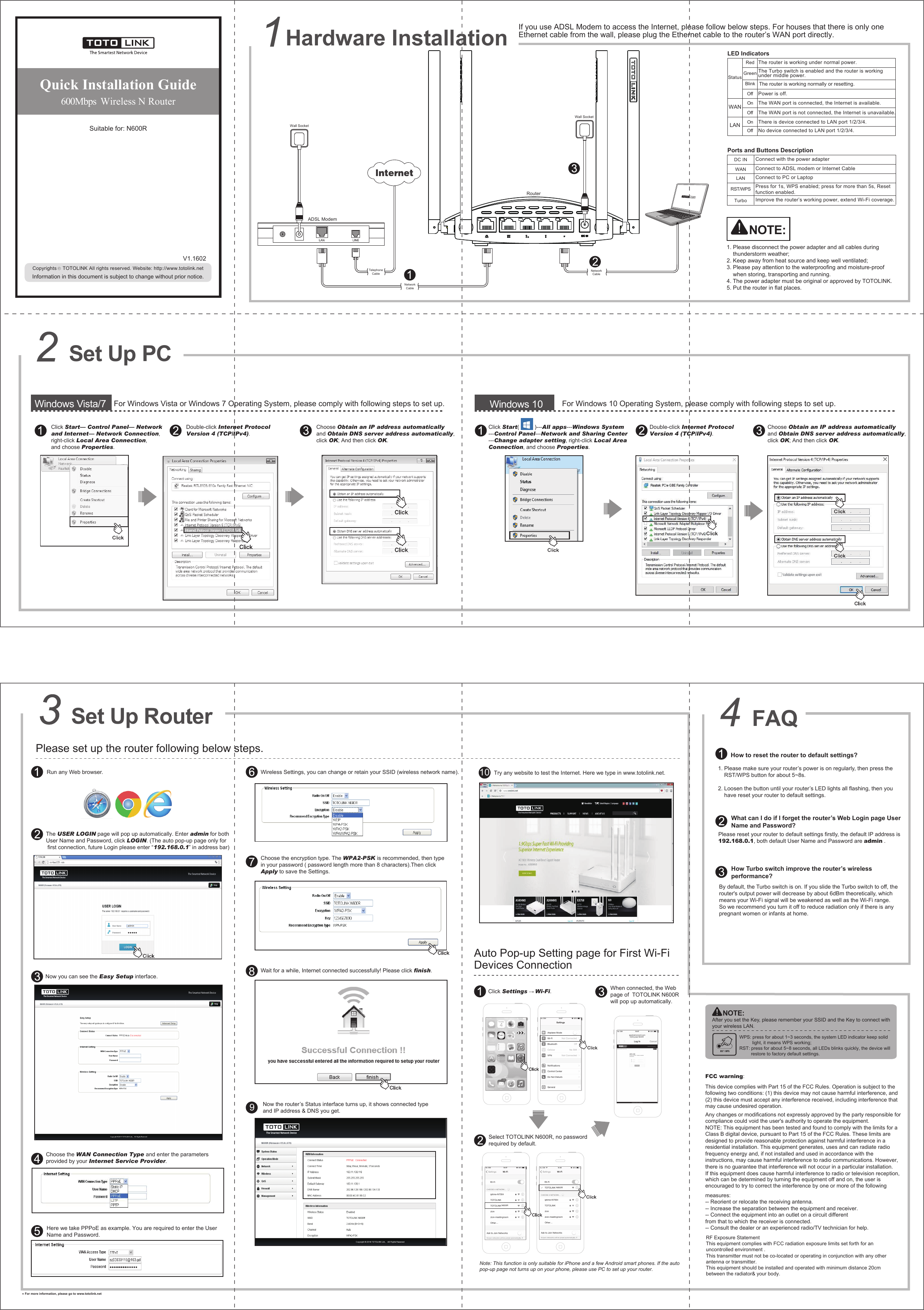

admin109Try any website to test the Internet. Here we type in www.totolink.net.Now the router’s Status interface turns up, it shows connected type and IP address & DNS you get.Hardware Installation1. Please disconnect the power adapter and all cables during thunderstorm weather;2. Keep away from heat source and keep well ventilated;3. Please pay attention to the waterproofing and moisture-proof when storing, transporting and running.4. The power adapter must be original or approved by TOTOLINK.5. Put the router in flat places.Set Up PCWindows 10Windows Vista/7 For Windows 10 Operating System, please comply with following steps to set up.If you use ADSL Modem to access the Internet, please follow below steps. For houses that there is only one Ethernet cable from the wall, please plug the Ethernet cable to the router’s WAN port directly. Click Start( )---All apps---Windows System---Control Panel---Network and Sharing Center---Change adapter setting, right-click Local Area Connection, and choose Properties.Double-click Internet ProtocolVersion 4 (TCP/IPv4). Choose Obtain an IP address automaticallyand Obtain DNS server address automatically, click OK; And then click OK.For Windows Vista or Windows 7 Operating System, please comply with following steps to set up.Click Start— Control Panel— Network and Internet— Network Connection, right-click Local Area Connection, and choose Properties.Double-click Internet Protocol Version 4 (TCP/IPv4).Choose Obtain an IP address automaticallyand Obtain DNS server address automatically, click OK; And then click OK. Quick Installation Guide600Mbps Wireless N RouterNOTE:Set Up RouterPlease set up the router following below steps.Run any Web browser.For more information, please go to www.totolink.netThe USER LOGIN page will pop up automatically. Enter admin for both User Name and Password, click LOGIN. (The auto pop-up page only for first connection, future Login please enter “192.168.0.1” in address bar)Now you can see the Easy Setup interface.Choose the WAN Connection Type and enter the parameters provided by your Internet Service Provider.Wireless Settings, you can change or retain your SSID (wireless network name).Choose the encryption type. The WPA2-PSK is recommended, then type in your password ( password length more than 8 characters).Then click Apply to save the Settings.7Here we take PPPoE as example. You are required to enter the UserName and Password.Information in this document is subject to change without prior notice.8Wait for a while, Internet connected successfully! Please click finish.LED IndicatorsWANLANBlinkOffOnThe router is working under normal power.StatusRedGreen The Turbo switch is enabled and the router is working under middle power.The router is working normally or resetting.Power is off.The WAN port is connected, the Internet is available.Off The WAN port is not connected, the Internet is unavailable.On There is device connected to LAN port 1/2/3/4.Off No device connected to LAN port 1/2/3/4.Ports and Buttons DescriptionWANLANTurboRST/WPSConnect with the power adapterDC INConnect to ADSL modem or Internet CableConnect to PC or LaptopPress for 1s, WPS enabled; press for more than 5s, Resetfunction enabled.Improve the router’s working power, extend Wi-Fi coverage.Suitable for: N600RCopyrights TOTOLINK All rights reserved. Website: http://www.totolink.netV1.1602NetworkCableNetworkTelephoneCableCableADSL ModemRouter Auto Pop-up Setting page for First Wi-FiDevices ConnectionFAQWhat can I do if I forget the router’s Web Login page User Name and Password?4How to reset the router to default settings?1. Please make sure your router’s power is on regularly, then press the RST/WPS button for about 5~8s.2. Loosen the button until your router’s LED lights all flashing, then you have reset your router to default settings.Please reset your router to default settings firstly, the default IP address is192.168.0.1, both default User Name and Password are admin .How Turbo switch improve the router’s wireless performance?By default, the Turbo switch is on. If you slide the Turbo switch to off, the router's output power will decrease by about 6dBm theoretically, which means your Wi-Fi signal will be weakened as well as the Wi-Fi range.So we recommend you turn it off to reduce radiation only if there is any pregnant women or infants at home. 3Wall SocketWall SocketNote: This function is only suitable for iPhone and a few Android smart phones. If the autopop-up page not turns up on your phone, please use PC to set up your router.WPS: press for about 1~3 seconds, the system LED indicator keep solid light, it means WPS working; RST: press for about 5~8 seconds, all LEDs blinks quickly, the device will restore to factory default settings.NOTE:After you set the Key, please remember your SSID and the Key to connect with your wireless LAN. Click Settings Wi-Fi.→Select TOTOLINK N600R, no passwordrequired by default.N600RN600RN600RWhen connected, the Webpage of TOTOLINK N600Rwill pop up automatically.FCC warning: This device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference thatmay cause undesired operation.Any changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the followingmeasures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.RF Exposure Statement This equipment complies with FCC radiation exposure limits set forth for anuncontrolled environment .This transmitter must not be co-located or operating in conjunction with any otherantenna or transmitter.This equipment should be installed and operated with minimum distance 20cmbetween the radiator& your body.
