Wireless USB Adapter user’s manual
1. Install the driver

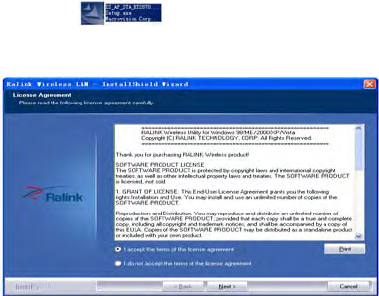

a. Insert the installation CD into your
CD-ROM driver,Double click the icon
to start setup.
b.

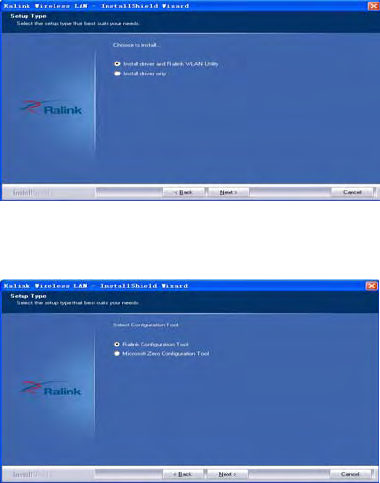

c. Choose Ralink configuration Tool and
click next to go on
d. Choose optimize for wifi mode and
click next to go on

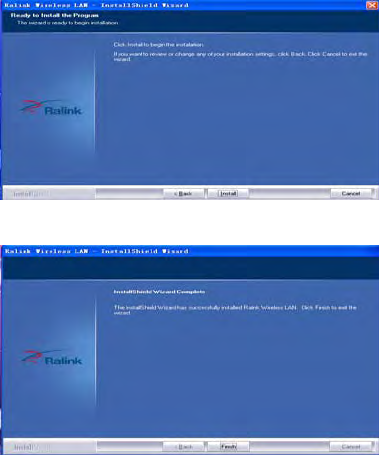

e. Choose Click Install to begin the
installation and click Install to go on
f. Click Finish to end the setup

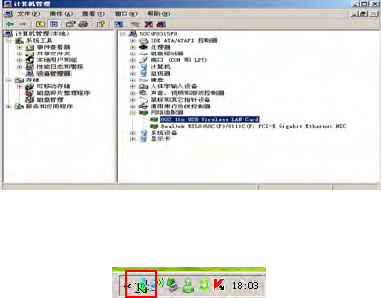

2. Plug in your usb wireless LAN adapter,it
will be recognized and auto installed..Just
confirmed it like below:

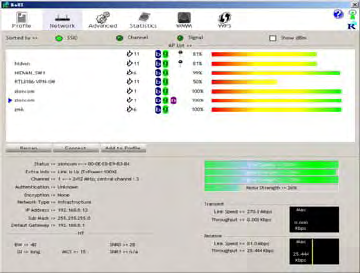

3. Make infrastructure connection
Double click the icon in red circle
You will see:

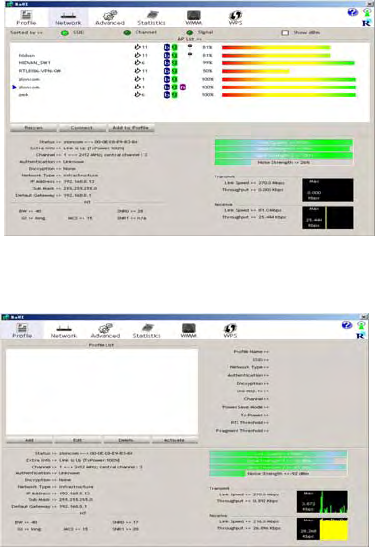

You can click the button Rescan to find which AP
is in range,the will show on the window,choice
one you want to connect,and click the button
connect.
An infrastructure connection is accomplished.

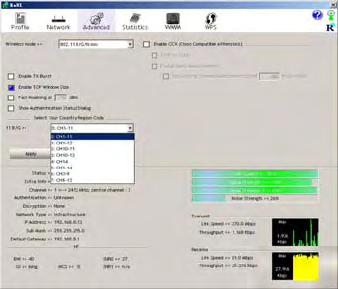

Note,please choose correct channel setting up
to your law,for example,ch13 is permitted in
your country,and you set your router at
ch13,while you choose ch1-ch11(default
setting),you will never find the AP,and you will
have to choose ch1-ch13 seting in Advanced
page as below.
4. Some help information in Ralink Wireless
utility
● How to find out your ip address:
5.Mske Ad-hoc mode connection
●Mske an Ad-hoc SSID
● A
● B
● C

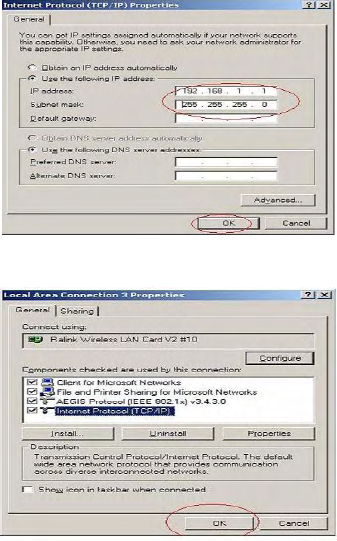

5.2 Setup static IP address for the
AD-Hoc link

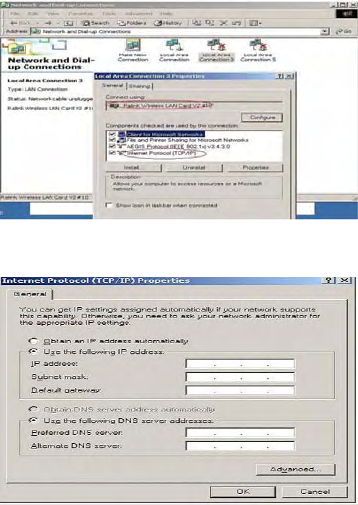

●A At its property page,double click item
Internet Protocol(TCP/IP)
● B You will get
● C Fill the IP address blank,example as
below:
● D Click ok to finish the setup

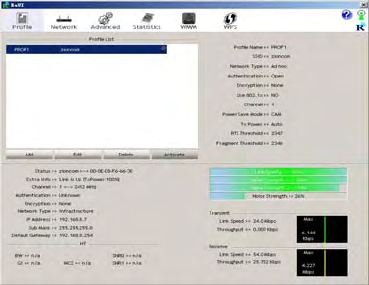

5.3 Ad-Hoc setup for one point accomplished
5.4 Setup another Ad-hoc point as step A、B、
C、D.
5.5 Ad-hoc mode link accomplished.And you
can visit each other.
Note:To make an Ad-Hoc mode link.Do
remember to choice the same channel.Its static
IP address should be in the same netsub,and
the SSID should be the same too.
WL0183 is designed to provide a high-speed
and unrivaled wireless performance for your
computer. With a faster wireless connection,
you can get a better Internet experience,
such as downloading, gaming, video
streaming and so on.
Use the most advanced wireless networking
technology IEEE802.11n (Draft 2.0)
standard. When 802.11n devices are in both
connection ends, MIMO technology utilizes
twice radio wave length band to increase
three times transmission speed. WL0183
supports WPS, which can help you create a
wireless connection with effortless security
setup, to prevent outside intrusion and
protect your personal information from
Product Description
being exposed. It is a perfect solution for
small office and home needs.
Complies with IEEE 802.11n (Draft 2.0),
IEEE 802.11g,
IEEE 802.11b standards.
Provides USB v2.0 interface
150Mbps wireless transmission rate
Provides two methods of operation:
Infrastructure and AD-Hoc.
Adopts CCA technology which
automatically avoids
channel conflicts using its channel
selection feature.
Wi-Fi protected Security(WPS),set your
security at a push of button
Supports 64/128/152-bit WEP, complies
with 128 bit WPA standard(TKIP/AES)
supports MIC, IV Expansion, Shared Key
Product
Features
Authentication, IEEE 802.1X
Simple Configuration and monitoring
Supports Windows2000,XP 32/64,Vista
32/64,Win7 32/64, Linux, Mac
Seamlessly compatible with 802.11b/g/n
devices
USB Cabel
Standard IEEE802.11N, IEEE802.11G,
IEEE802.11B
Modulation
Type OFDM/CCK/16-QAM/64-QAM
Standard IEEE802.11N, IEEE802.11G,
IEEE802.11B
Interface USB v2.0
Frequency
2.4~2.4835 GHZ
Product
Specification
Data Rate
11n: Up to 150Mbps
11g: Up to 54Mbps
11b: Up to 11Mbps
Data
Security
64/128/152bitWEP,
WPA/WPA2
WPA-PSK/WPA2-PSK(TKIP/A
ES)
WPS(wi-fi Protected system)
LED
Indicator ACT (Connect with flashing)
Wireless
RF Power
11g:15±1dbm;11b:18±1d
bm;
11n:13±1dbm
Work
Mode
Ad-Hoc
Infrastructure
Chipset Ralink3070
WPS One-touch button
Antenna
1* detachable antenna
Receiver
Sensitivity
150M: -68 dBm@10% PER
130M: -68 dBm@10% PER
108M: -68 dBm@10% PER
54M: -68 dBm@10% PER
11M: -85 dBm@8% PER
6M: -88 dBm@10% PER
1M: -90 dBm@8% PER
Operating
System
Windows2000, XP32/64,
Vista 32/64, Win7 32/64,
Linux, Mac
Environ
ment
Operating Temperature:
0℃~40℃ (32℉~104℉)
Storage Temperature:
-40~70℃ (-40℉~158℉)
Relative humidity: 10%~90%
non-condensing
Storage Humidity: 5%~95%
non-condensing
FCC Statement
This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to part 15 of the
FCC rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this
equipment does cause harmful
interference
to radio or television reception, which can
be determined by turning the equipment
off and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving
antenna.
-Increase the separation between the
equipment and receiver.
-Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced
radio/TV technician for help.
To assure continued compliance, any
changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate this equipment. (Example- use
only shielded interface cables when
connecting to computer or peripheral
devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF
radiation exposure limits set forth for an
uncontrolled environment. To comply with
RF exposure limits this device must not be
co-located or operating in conjunction with
any other antenna or transmitter.
When using this device in laptop/notebook
computers, user must not simultaneously
operate wireless products in adjacent
USB-ports or cardbus slots.
This equipment complies with Part 15 of
the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any
interference received, including
interference that may cause undesired
operation.
Caution!
The manufacturer is not responsible for
any radio or TV interference caused by
unauthorized modifications to this
equipment. Such modifications could void
the user authority to operate the
equipment.
