USB Wireless Lan card user’s manual
WL0187/N300UA
1. Install the driver

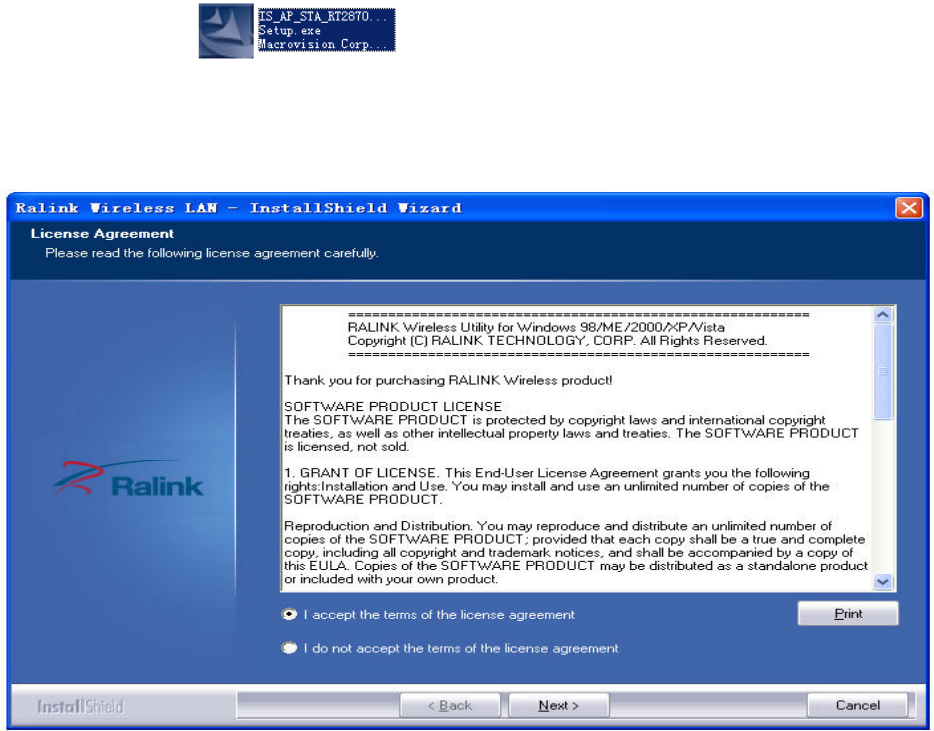

a. Insert the installation CD into your
CD-ROM driver,Double click the icon
to start setup.
b.

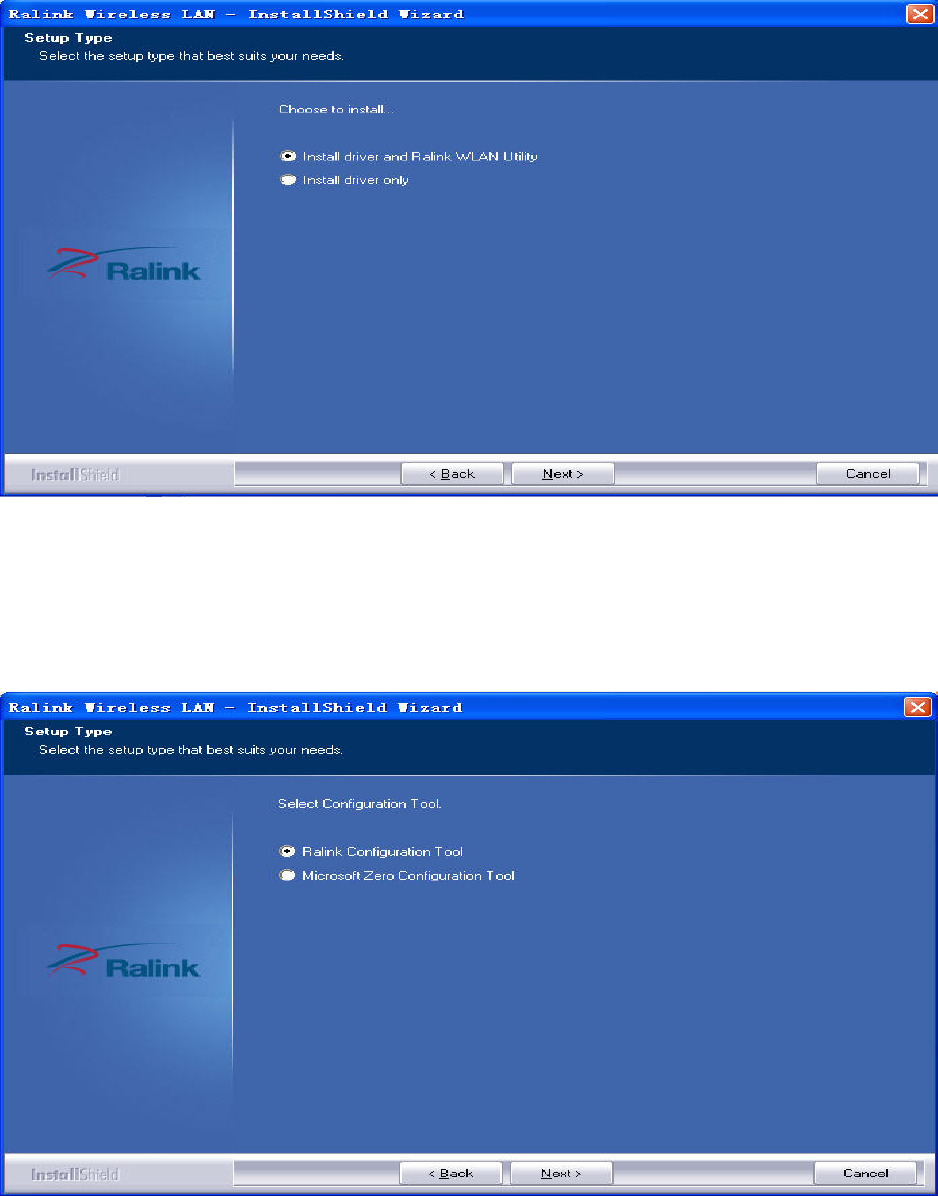

c. Choose Ralink configuration Tool and
click next to go on
d. Choose optimize for wifi mode and
click next to go on
e. Choose Click Install to begin the
installation and click Install to go on
f. Click Finish to end the setup

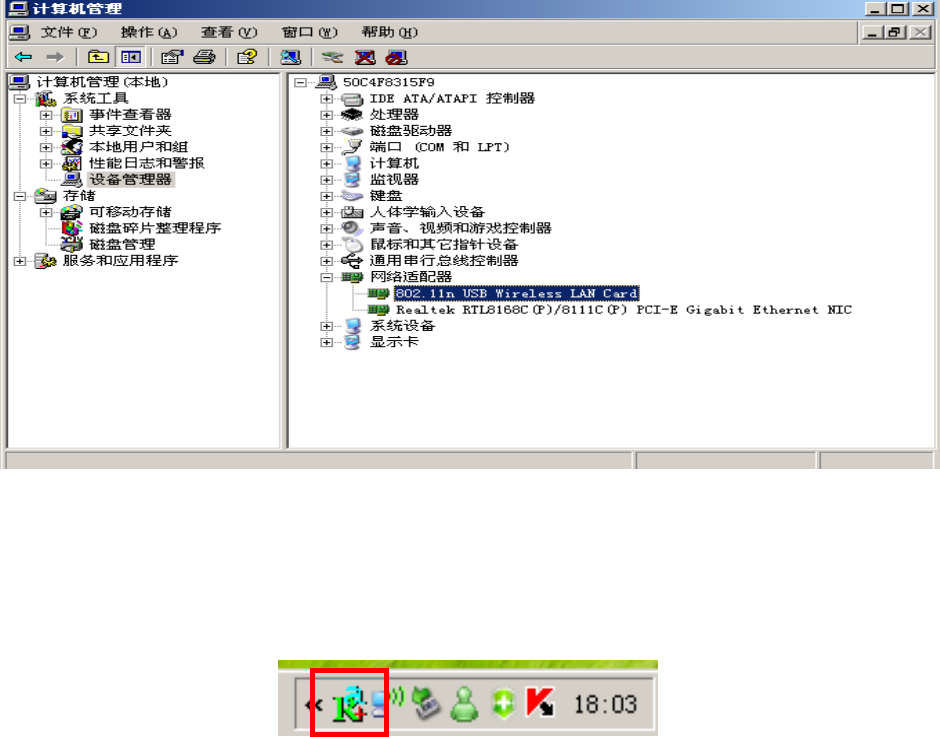

2. Plug in your usb wireless LAN adapter,it
will be recognized and auto installed..Just
confirmed it like below:

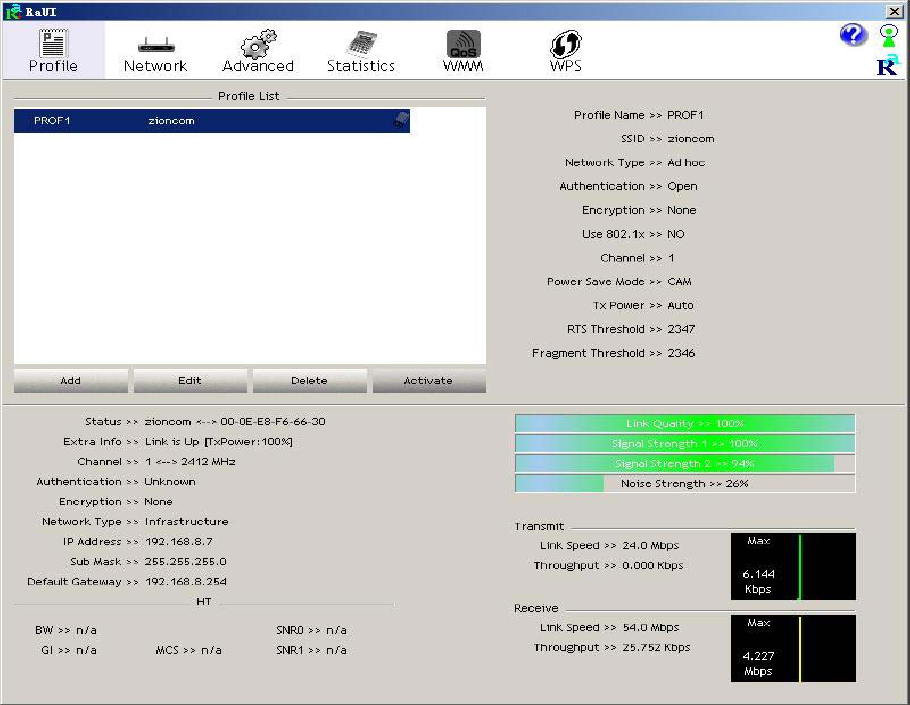

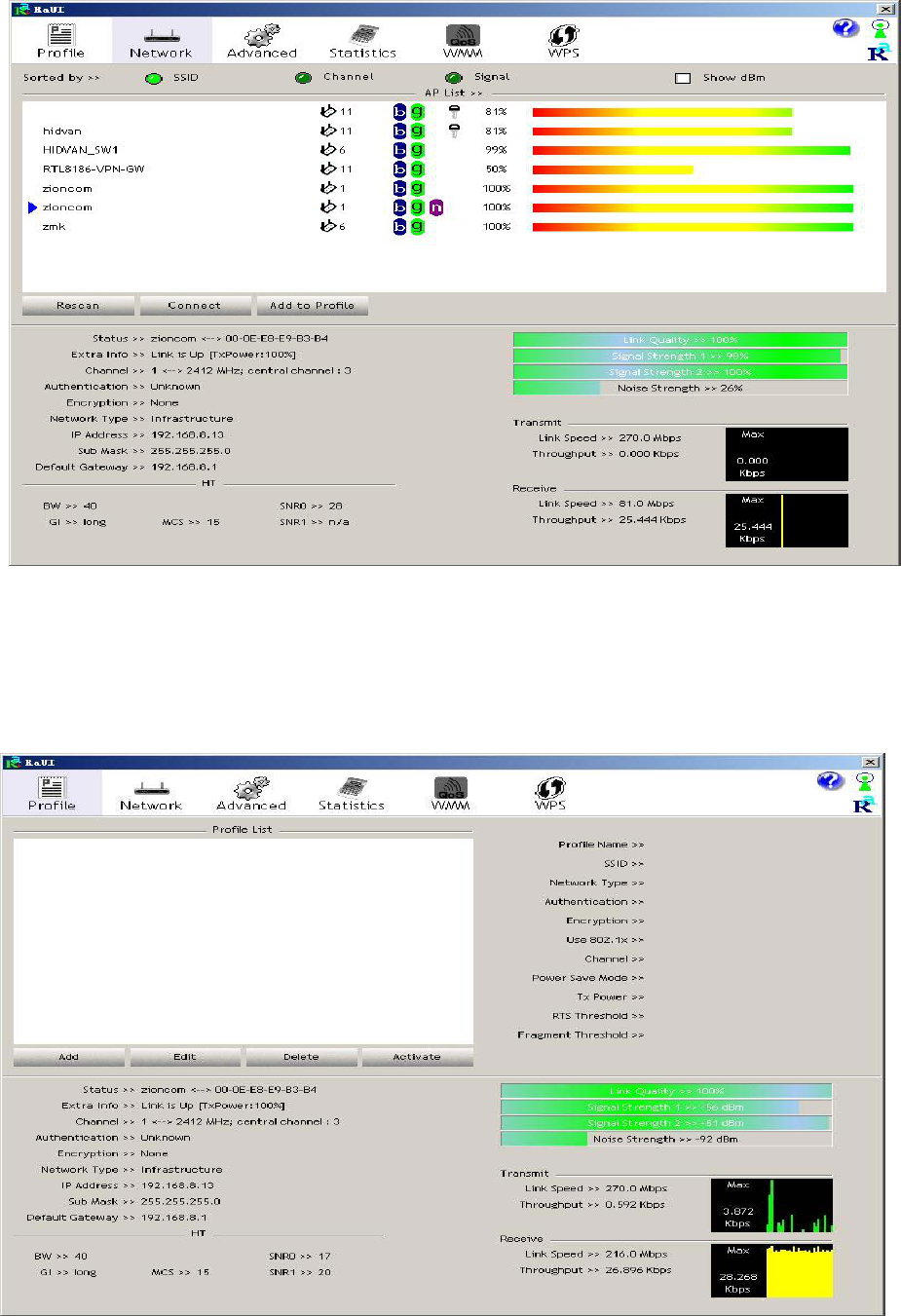

3. Make infrastructure connection
Double click the icon in red circle
You will see:

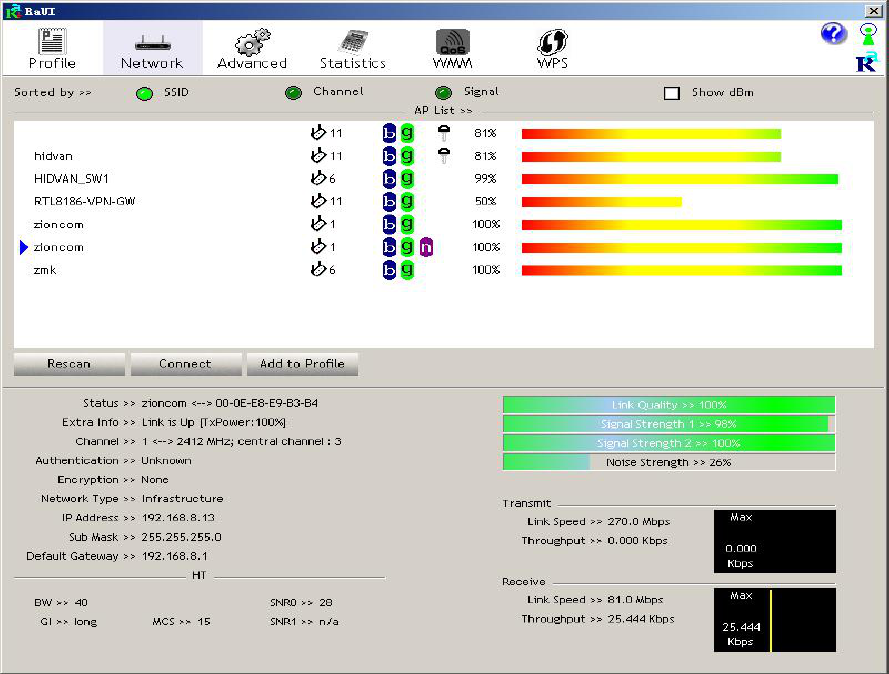

You can click the button Rescan to find which AP
is in range,the will show on the window,choice
one you want to connect,and click the button
connect.
An infrastructure connection is accomplished.
Note,please choose correct channel setting up
to your law,for example,ch13 is permitted in
your country,and you set your router at
ch13,while you choose ch1-ch11(default
setting),you will never find the AP,and you will

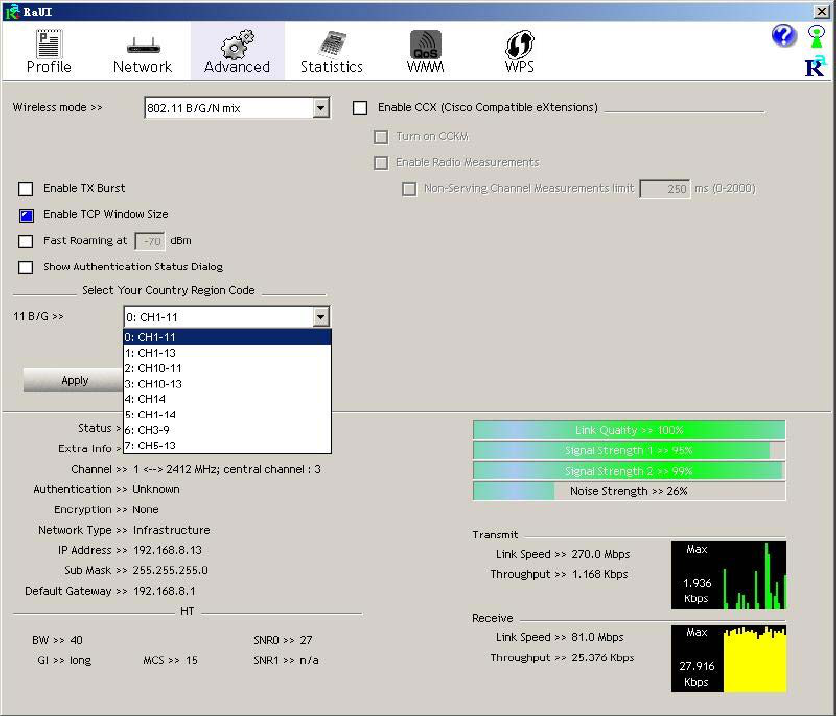

have to choose ch1-ch13 seting in Advanced
page as below.
4. Some help information in Ralink Wireless
utility
● How to find out your ip address:
5.Mske Ad-hoc mode connection

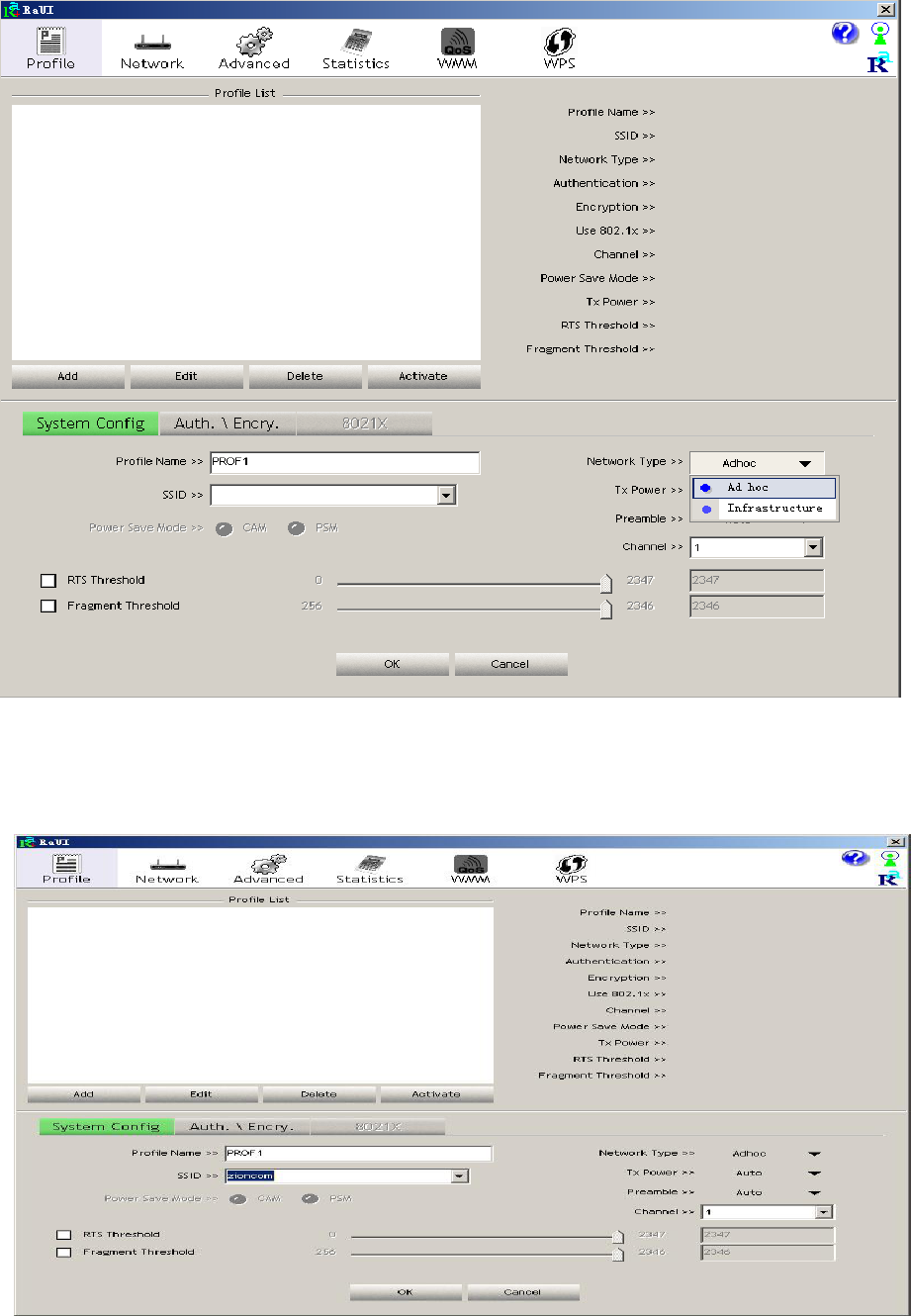

●Mske an Ad-hoc SSID
● A
● B
● C
5.2 Setup static IP address for the
AD-Hoc link

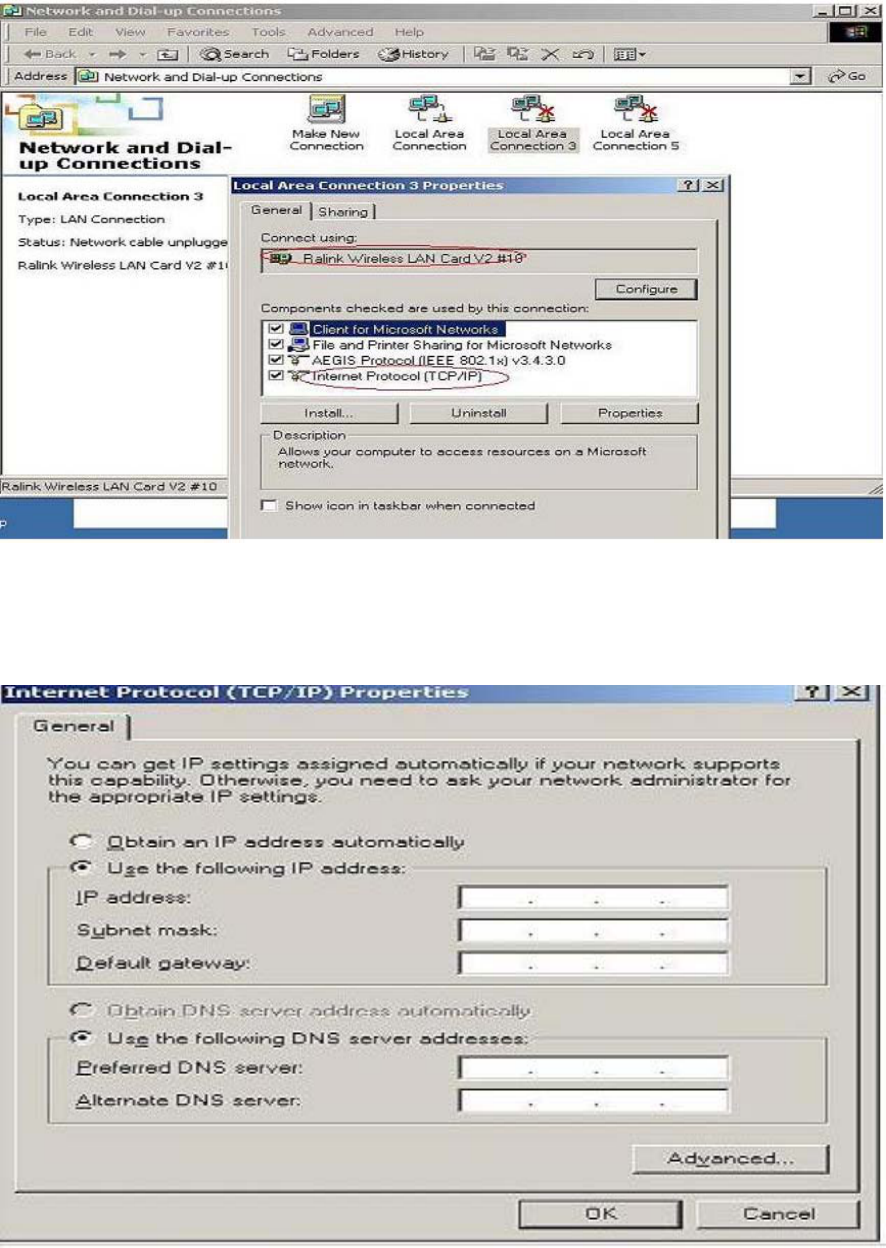

●A At its property page,double click item
Internet Protocol(TCP/IP)
● B You will get

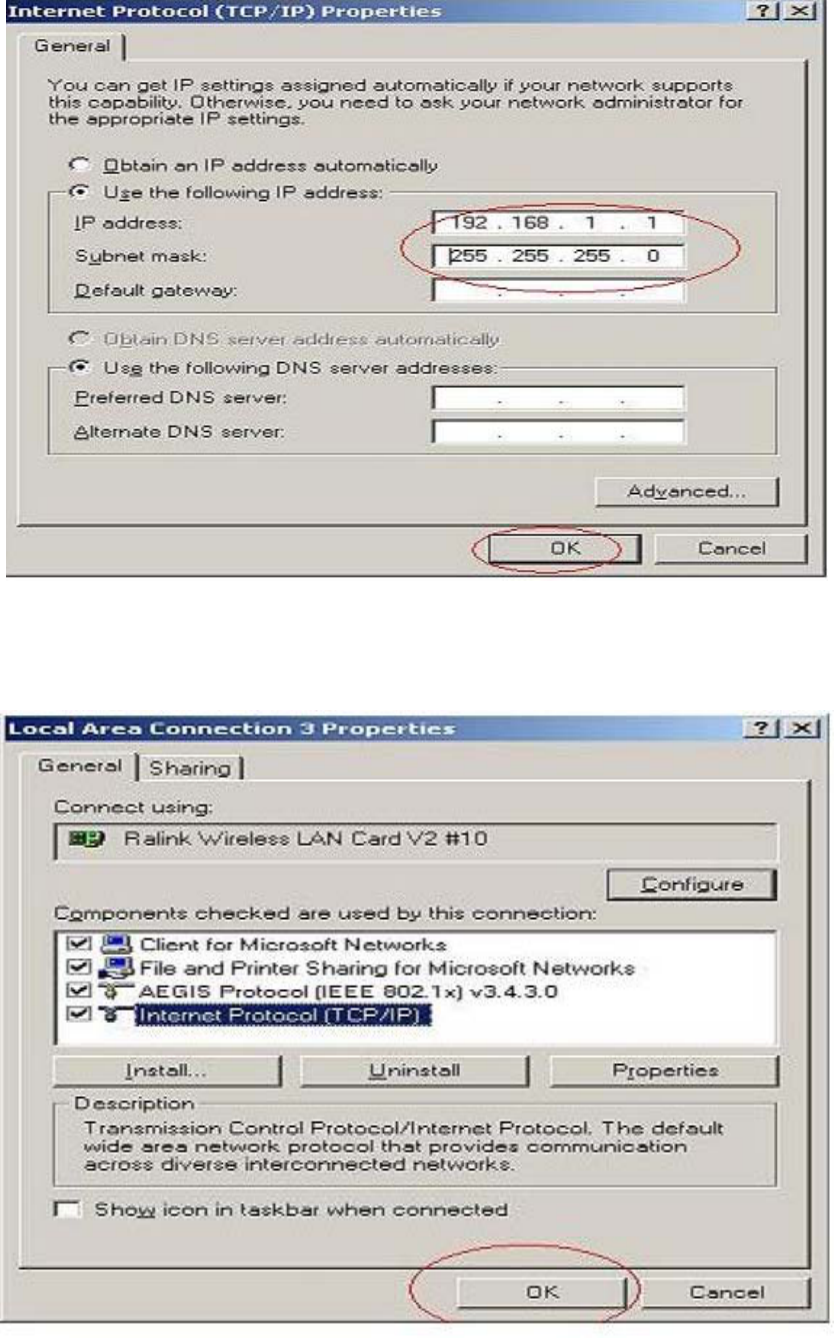

● C Fill the IP address blank,example as
below:
● D Click ok to finish the setup
5.3 Ad-Hoc setup for one point accomplished
5.4 Setup another Ad-hoc point as step A、B、
C、D.
5.5 Ad-hoc mode link accomplished.And you
can visit each other.
Note:To make an Ad-Hoc mode link.Do
remember to choice the same channel.Its static
IP address should be in the same netsub,and
the SSID should be the same too.
