ZIONCOM ELECTRONICS WL0217 Wi-Fi MODULE WL0217E (IEEE 802.11b/g/n) User Manual

ZIONCOM ELECTRONICS (SHENZHEN) LTD. Wi-Fi MODULE WL0217E (IEEE 802.11b/g/n) Users Manual

Users Manual

V1.1 _________________________________________________________________www.zioncom.net 1 Zioncom Electronics (Shenzhen)Ltd.Tel:+86-755-61363299 Fax:+86-755-61363322 Specification For Approval WiFi Module WL0217E(IEEE 802.11b/g/n)WL0217

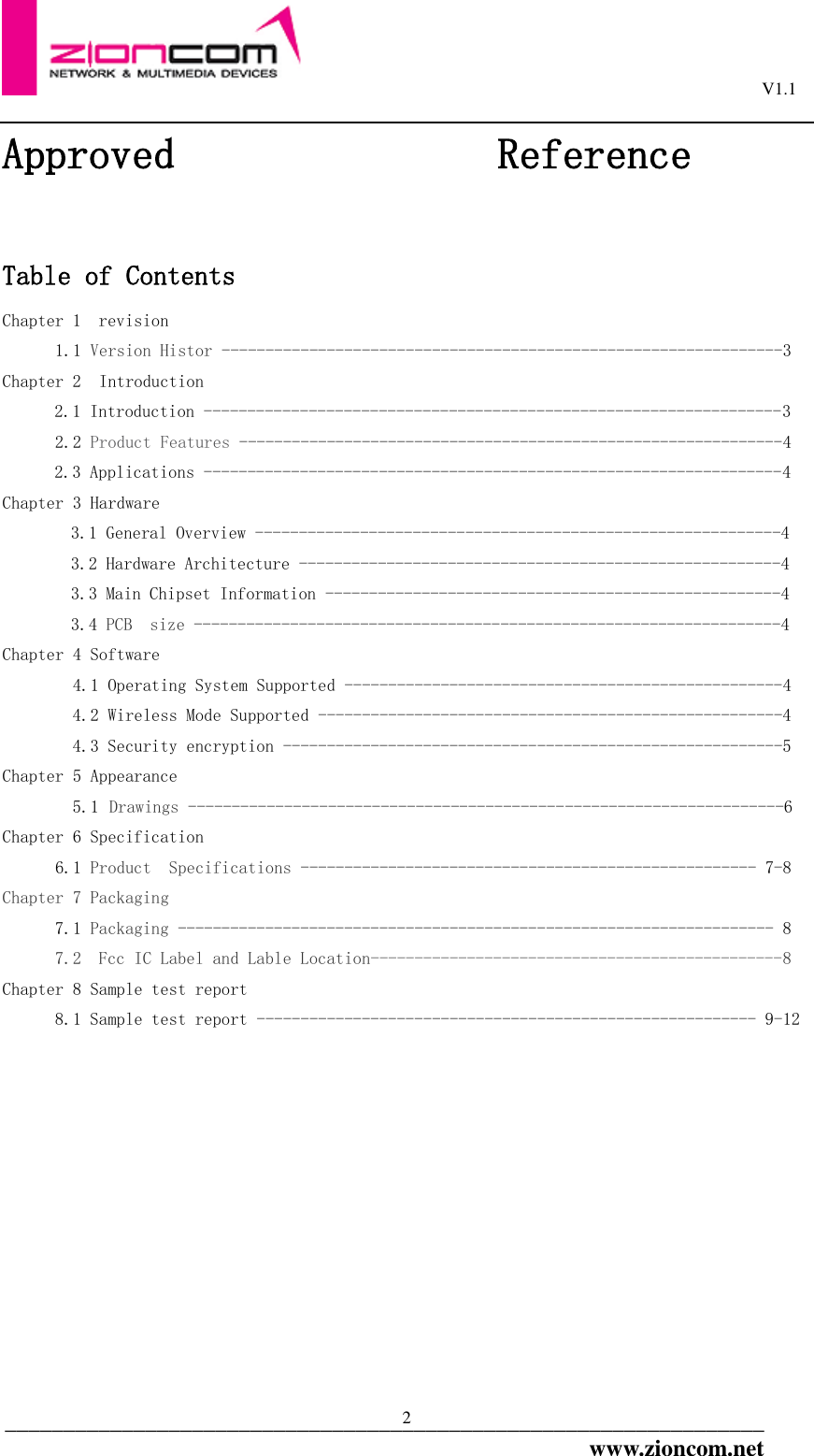

V1.1 _________________________________________________________________www.zioncom.net 2 Approved Reference Table of Contents Chapter 1 revision 1.1 Version Histor ----------------------------------------------------------------3 Chapter 2 Introduction 2.1 Introduction ------------------------------------------------------------------3 2.2 Product Features --------------------------------------------------------------4 2.3 Applications ------------------------------------------------------------------4 Chapter 3 Hardware 3.1 General Overview ------------------------------------------------------------4 3.2 Hardware Architecture -------------------------------------------------------4 3.3 Main Chipset Information ----------------------------------------------------4 3.4 PCB size -------------------------------------------------------------------4 Chapter 4 Software 4.1 Operating System Supported --------------------------------------------------4 4.2 Wireless Mode Supported -----------------------------------------------------4 4.3 Security encryption ---------------------------------------------------------5 Chapter 5 Appearance 5.1 Drawings --------------------------------------------------------------------6 Chapter 6 Specification 6.1 Product Specifications ---------------------------------------------------- 7-8 Chapter 7 Packaging 7.1 Packaging -------------------------------------------------------------------- 8 7.2 Fcc IC Label and Lable Location-----------------------------------------------8 Chapter 8 Sample test report 8.1 Sample test report --------------------------------------------------------- 9-12
V1.1 _________________________________________________________________www.zioncom.net 3 Chapter 1 revision 1.1 Version History Version Amendments Revision Date Revised V1.0 Preliminary document 2011-08-11 Jiemy V1.1 Add FCC IC Label and Lable Location 2011-9-11 Jiemy

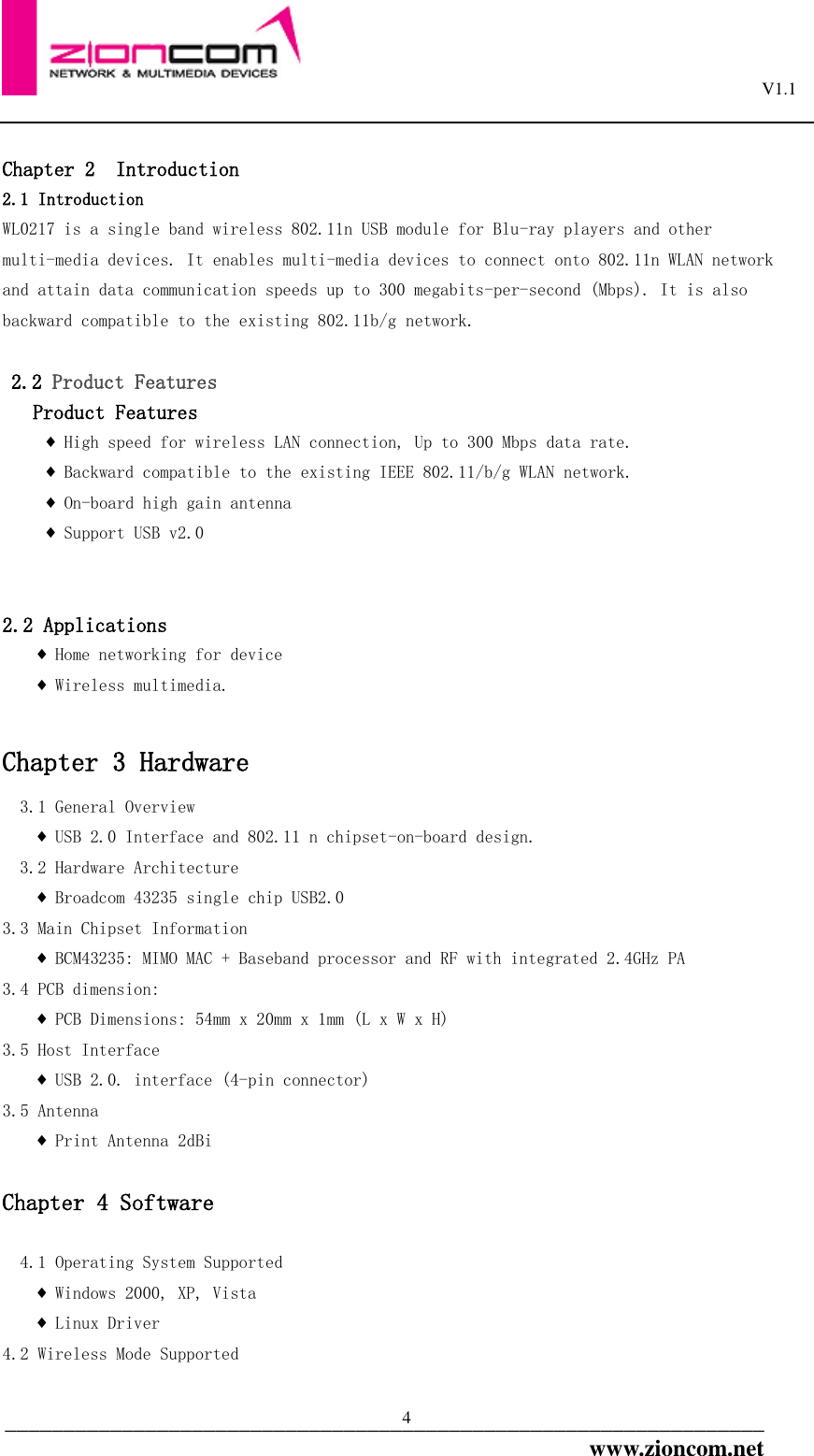

V1.1 _________________________________________________________________www.zioncom.net 4 Chapter 2 Introduction 2.1 Introduction WL0217 is a single band wireless 802.11n USB module for Blu-ray players and other multi-media devices. It enables multi-media devices to connect onto 802.11n WLAN network and attain data communication speeds up to 300 megabits-per-second (Mbps). It is also backward compatible to the existing 802.11b/g network. 2.2 Product Features Product Features ♦ High speed for wireless LAN connection, Up to 300 Mbps data rate. ♦ Backward compatible to the existing IEEE 802.11/b/g WLAN network. ♦ On-board high gain antenna ♦ Support USB v2.0 2.2 Applications ♦ Home networking for device ♦ Wireless multimedia. Chapter 3 Hardware 3.1 General Overview ♦ USB 2.0 Interface and 802.11 n chipset-on-board design. 3.2 Hardware Architecture ♦ Broadcom 43235 single chip USB2.0 3.3 Main Chipset Information ♦ BCM43235: MIMO MAC + Baseband processor and RF with integrated 2.4GHz PA 3.4 PCB dimension: ♦ PCB Dimensions: 54mm x 20mm x 1mm (L x W x H) 3.5 Host Interface ♦ USB 2.0. interface (4-pin connector) 3.5 Antenna ♦ Print Antenna 2dBi Chapter 4 Software 4.1 Operating System Supported ♦ Windows 2000, XP, Vista ♦ Linux Driver 4.2 Wireless Mode Supported

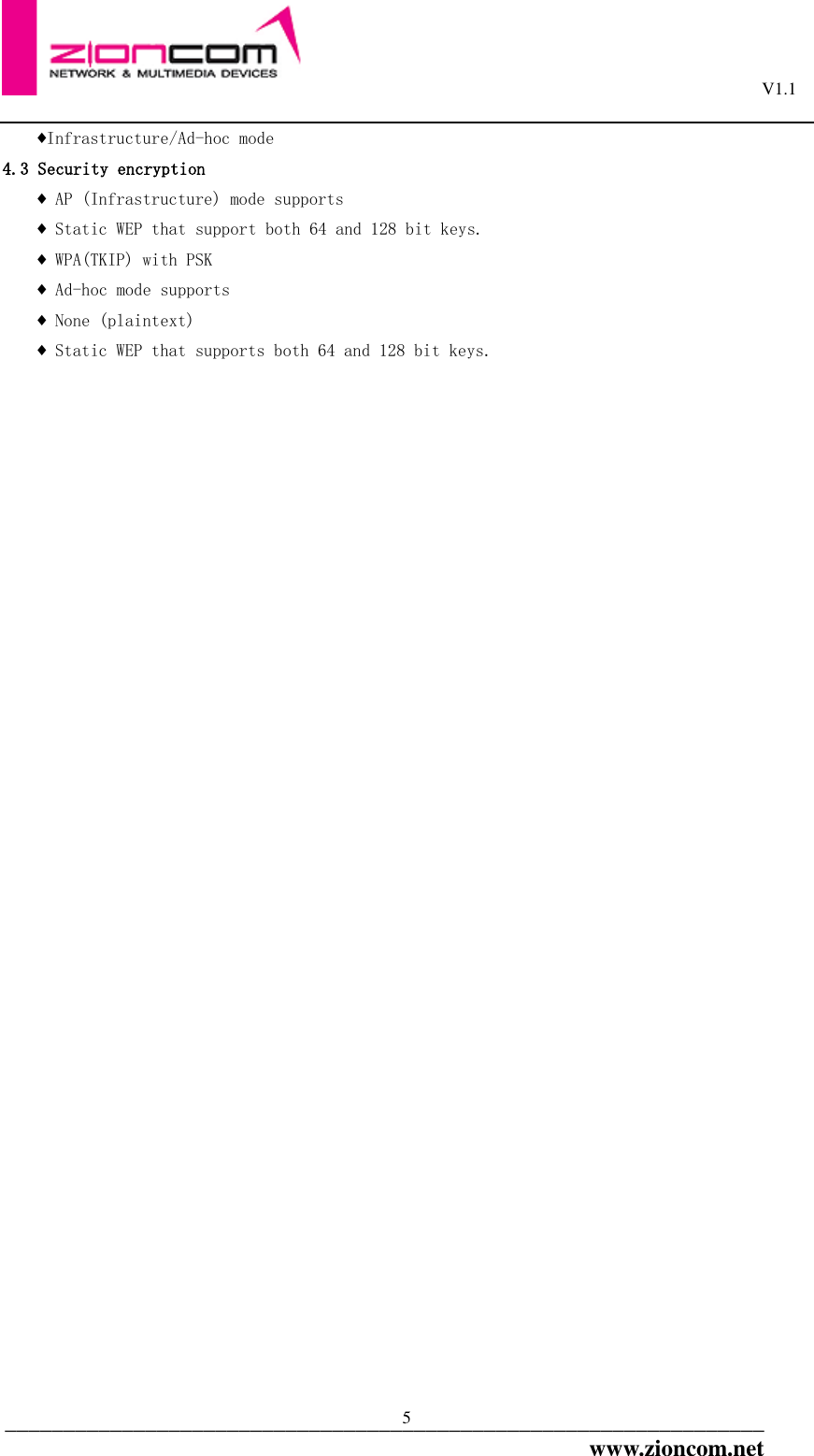

V1.1 _________________________________________________________________www.zioncom.net 5 ♦Infrastructure/Ad-hoc mode 4.3 Security encryption ♦ AP (Infrastructure) mode supports ♦ Static WEP that support both 64 and 128 bit keys. ♦ WPA(TKIP) with PSK ♦ Ad-hoc mode supports ♦ None (plaintext) ♦ Static WEP that supports both 64 and 128 bit keys.

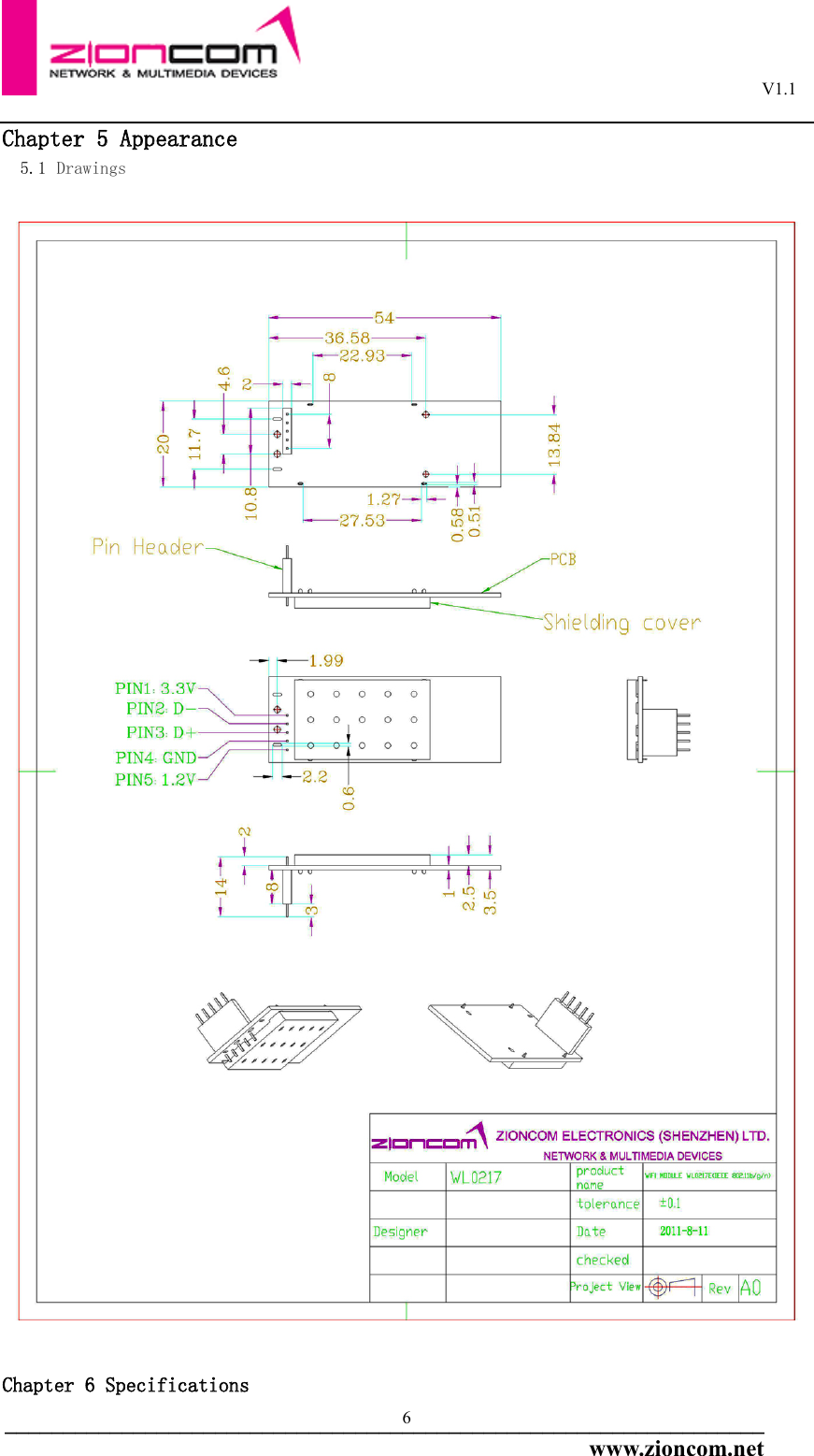

V1.1 _________________________________________________________________www.zioncom.net 6 Chapter 5 Appearance 5.1 Drawings Chapter 6 Specifications

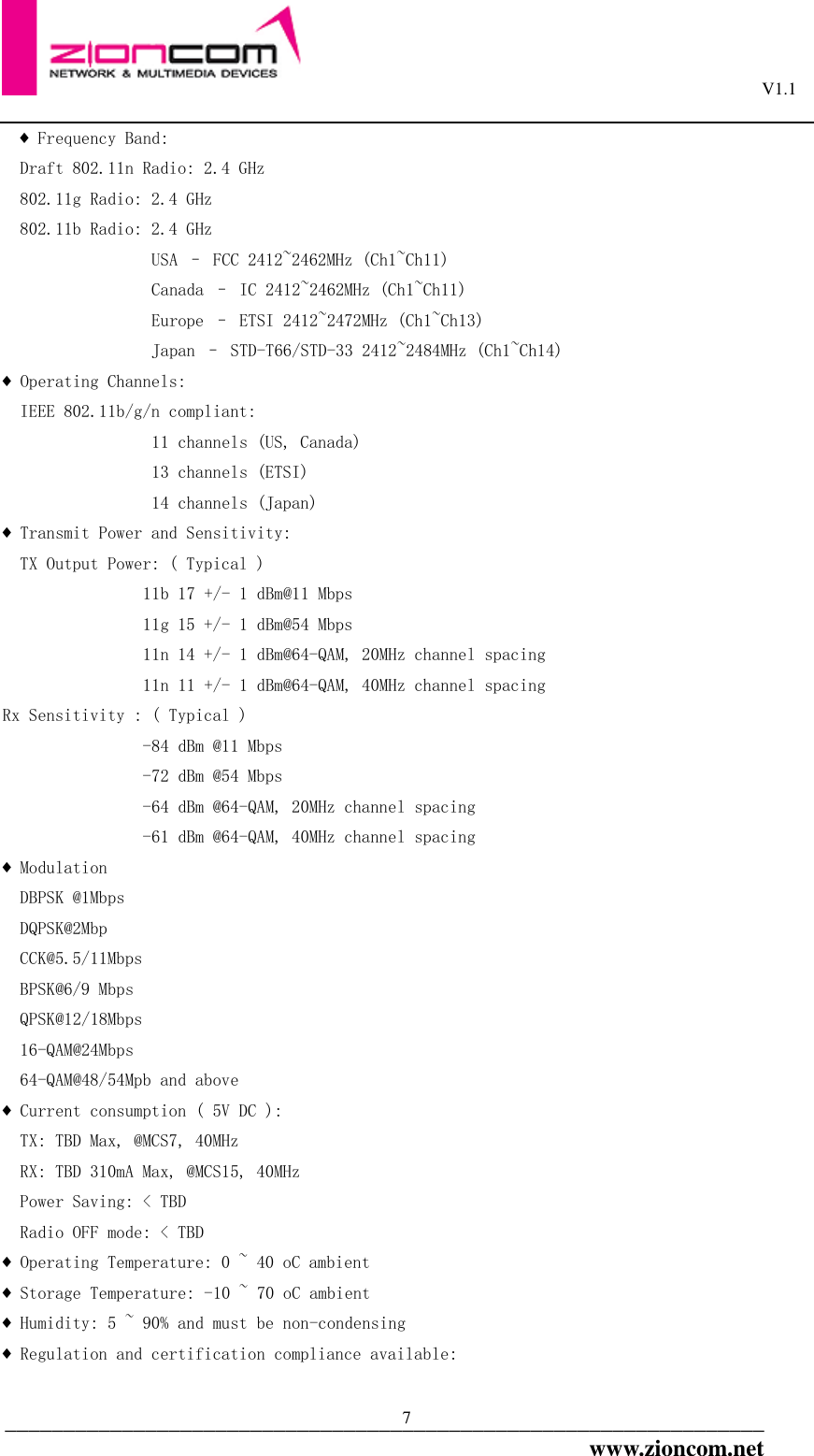

V1.1 _________________________________________________________________www.zioncom.net 7 ♦ Frequency Band: Draft 802.11n Radio: 2.4 GHz 802.11g Radio: 2.4 GHz 802.11b Radio: 2.4 GHz USA – FCC 2412~2462MHz (Ch1~Ch11) Canada – IC 2412~2462MHz (Ch1~Ch11) Europe – ETSI 2412~2472MHz (Ch1~Ch13) Japan – STD-T66/STD-33 2412~2484MHz (Ch1~Ch14) ♦ Operating Channels: IEEE 802.11b/g/n compliant: 11 channels (US, Canada) 13 channels (ETSI) 14 channels (Japan) ♦ Transmit Power and Sensitivity: TX Output Power: ( Typical ) 11b 17 +/- 1 dBm@11 Mbps 11g 15 +/- 1 dBm@54 Mbps 11n 14 +/- 1 dBm@64-QAM, 20MHz channel spacing 11n 11 +/- 1 dBm@64-QAM, 40MHz channel spacing Rx Sensitivity : ( Typical ) -84 dBm @11 Mbps -72 dBm @54 Mbps -64 dBm @64-QAM, 20MHz channel spacing -61 dBm @64-QAM, 40MHz channel spacing ♦ Modulation DBPSK @1Mbps DQPSK@2Mbp CCK@5.5/11Mbps BPSK@6/9 Mbps QPSK@12/18Mbps 16-QAM@24Mbps 64-QAM@48/54Mpb and above ♦ Current consumption ( 5V DC ): TX: TBD Max, @MCS7, 40MHz RX: TBD 310mA Max, @MCS15, 40MHz Power Saving: < TBD Radio OFF mode: < TBD ♦ Operating Temperature: 0 ~ 40 oC ambient ♦ Storage Temperature: -10 ~ 70 oC ambient ♦ Humidity: 5 ~ 90% and must be non-condensing ♦ Regulation and certification compliance available:

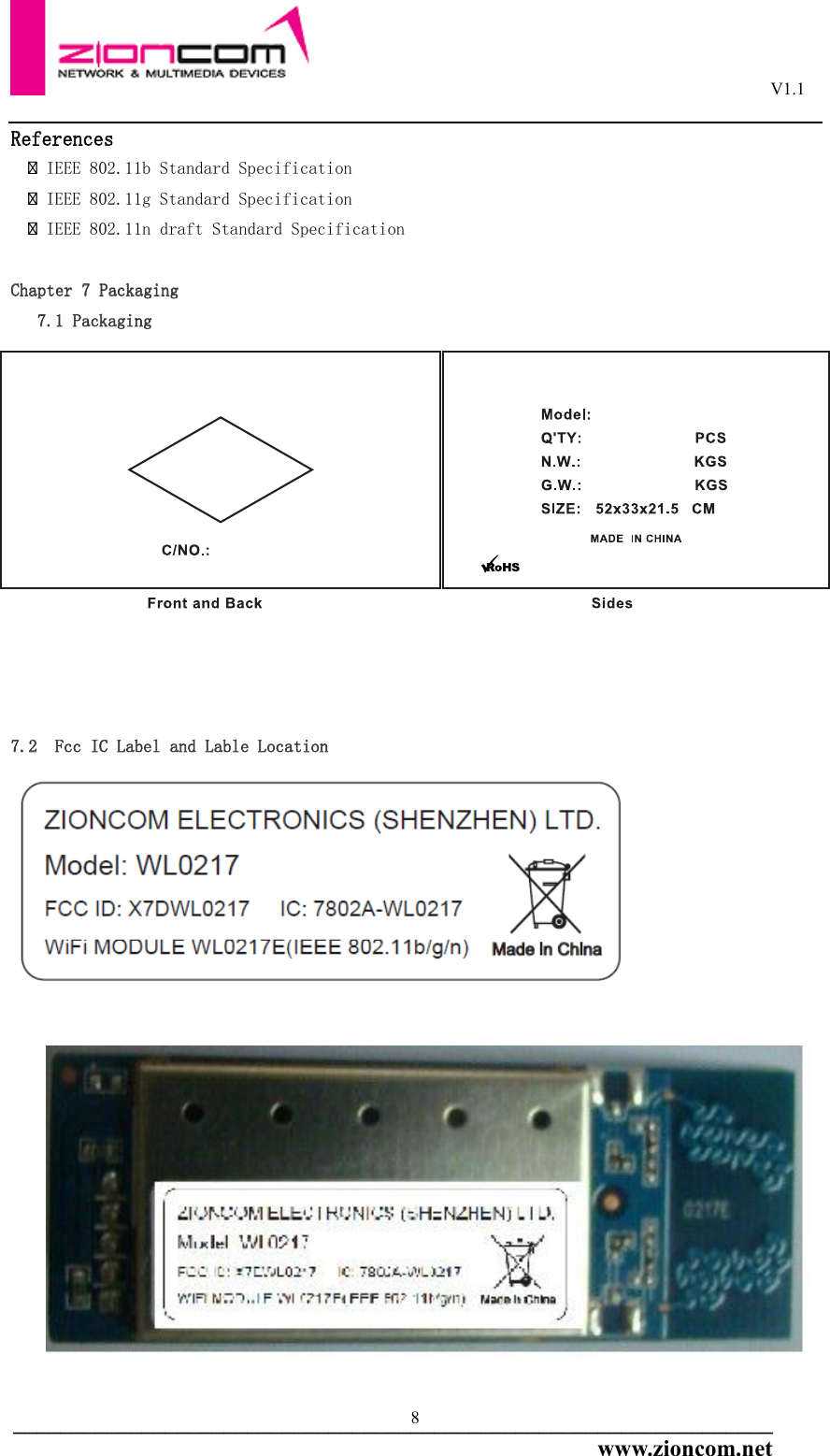

V1.1 _________________________________________________________________www.zioncom.net 8 References  IEEE 802.11b Standard Specification  IEEE 802.11g Standard Specification  IEEE 802.11n draft Standard Specification Chapter 7 Packaging 7.1 Packaging 7.2 Fcc IC Label and Lable Location

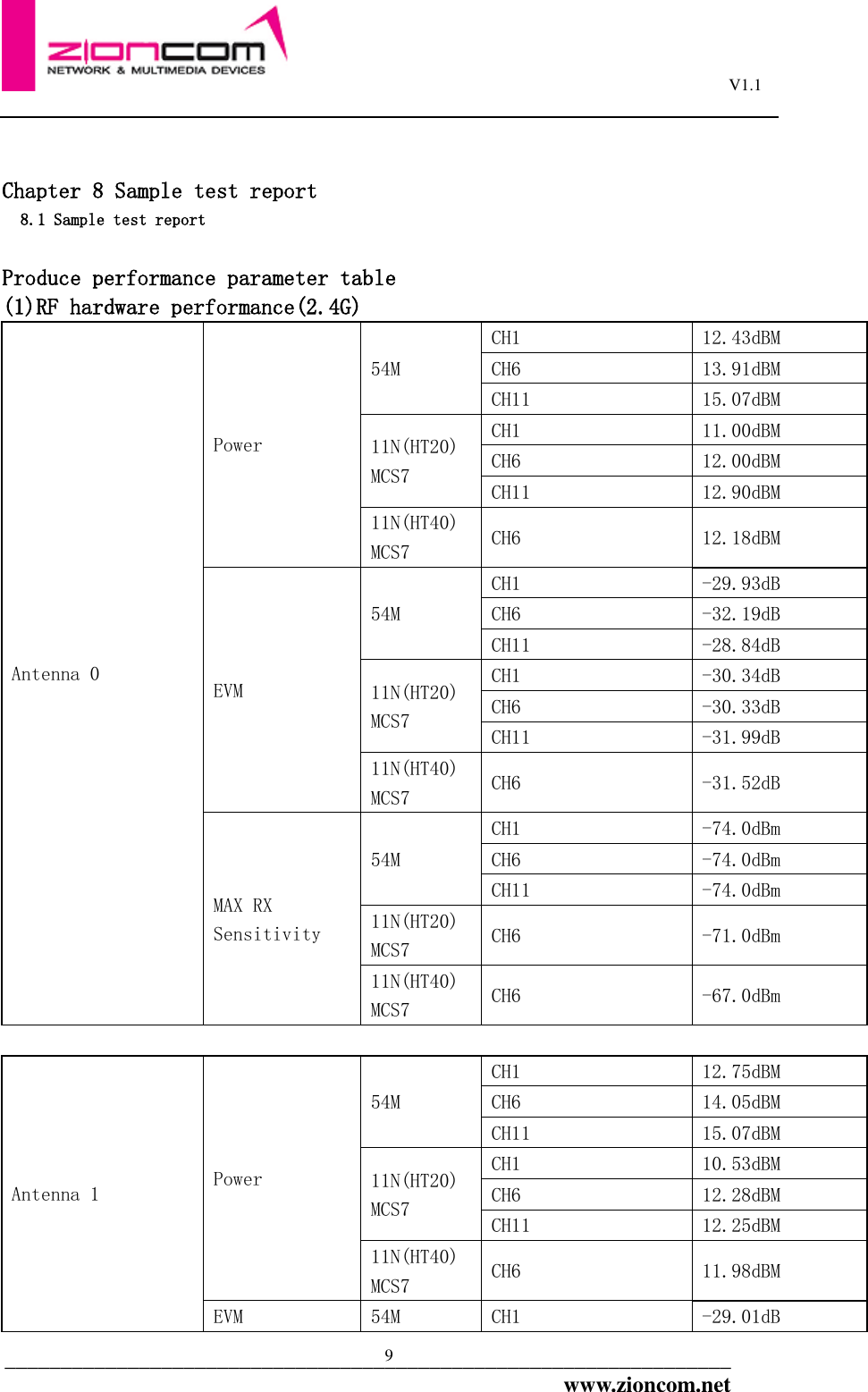

V1.1 _________________________________________________________________www.zioncom.net 9 Chapter 8 Sample test report 8.1 Sample test report Produce performance parameter table (1)RF hardware performance(2.4G) Antenna 0 Power 54M CH1 12.43dBM CH6 13.91dBM CH11 15.07dBM 11N(HT20) MCS7 CH1 11.00dBM CH6 12.00dBM CH11 12.90dBM 11N(HT40) MCS7 CH6 12.18dBM EVM 54M CH1 -29.93dB CH6 -32.19dB CH11 -28.84dB 11N(HT20) MCS7 CH1 -30.34dB CH6 -30.33dB CH11 -31.99dB 11N(HT40) MCS7 CH6 -31.52dB MAX RX Sensitivity 54M CH1 -74.0dBm CH6 -74.0dBm CH11 -74.0dBm 11N(HT20) MCS7 CH6 -71.0dBm 11N(HT40) MCS7 CH6 -67.0dBm Antenna 1 Power 54M CH1 12.75dBM CH6 14.05dBM CH11 15.07dBM 11N(HT20) MCS7 CH1 10.53dBM CH6 12.28dBM CH11 12.25dBM 11N(HT40) MCS7 CH6 11.98dBM EVM 54M CH1 -29.01dB
V1.1 _________________________________________________________________www.zioncom.net 10 CH6 -32.34dB CH11 -29.94dB 11N(HT20) MCS7 CH1 -30.61dB CH6 -32.07dB CH11 -31.80dB 11N(HT40) MCS7 CH6 -31.81dB MAX RX Sensitivity 54M CH1 -74.0dBm CH6 -74.0dBm CH11 -74.0dBm 11N(HT20) MCS7 CH6 -72.0dBm 11N(HT40) MCS7 CH6 -68.0dBm (2) Distance throughput performance of wireless ①Dut produce description Test Object(DUT) WL0217 PCB Ver V.C Chip BCM43235KMLG Test Object(reference produce) WL0218 PCB Ver V.D Chip BCM43236KMLG ②Distance environment description(wireless-LAN) Distance Point Channel DUT throughput Reference produce throughput SiteA (1M) Channel 1 Up 81.202Mbps 84.698Mbps Down 81.813Mbps 87.733Mbps Channel 6 Up 79.754Mbps 84.732Mbps Down 82.902Mbps 88.133Mbps Channel 11 Up 80.709Mbps 84.656Mbps Down 83.300Mbps 87.747Mbps SiteA (55M) Channel 1 Up 64.048Mbps 65.302Mbps Down 63.552Mbps 54.745Mbps Channel 6 Up 54.126Mbps 66.083Mbps Down 54.573Mbps 73.120Mbps Channel 11 Up 53.708Mbps 65.223Mbps Down 55.529Mbps 66.156Mbps SiteA (70M) Channel 1 Up 12.648Mbps 17.374Mbps

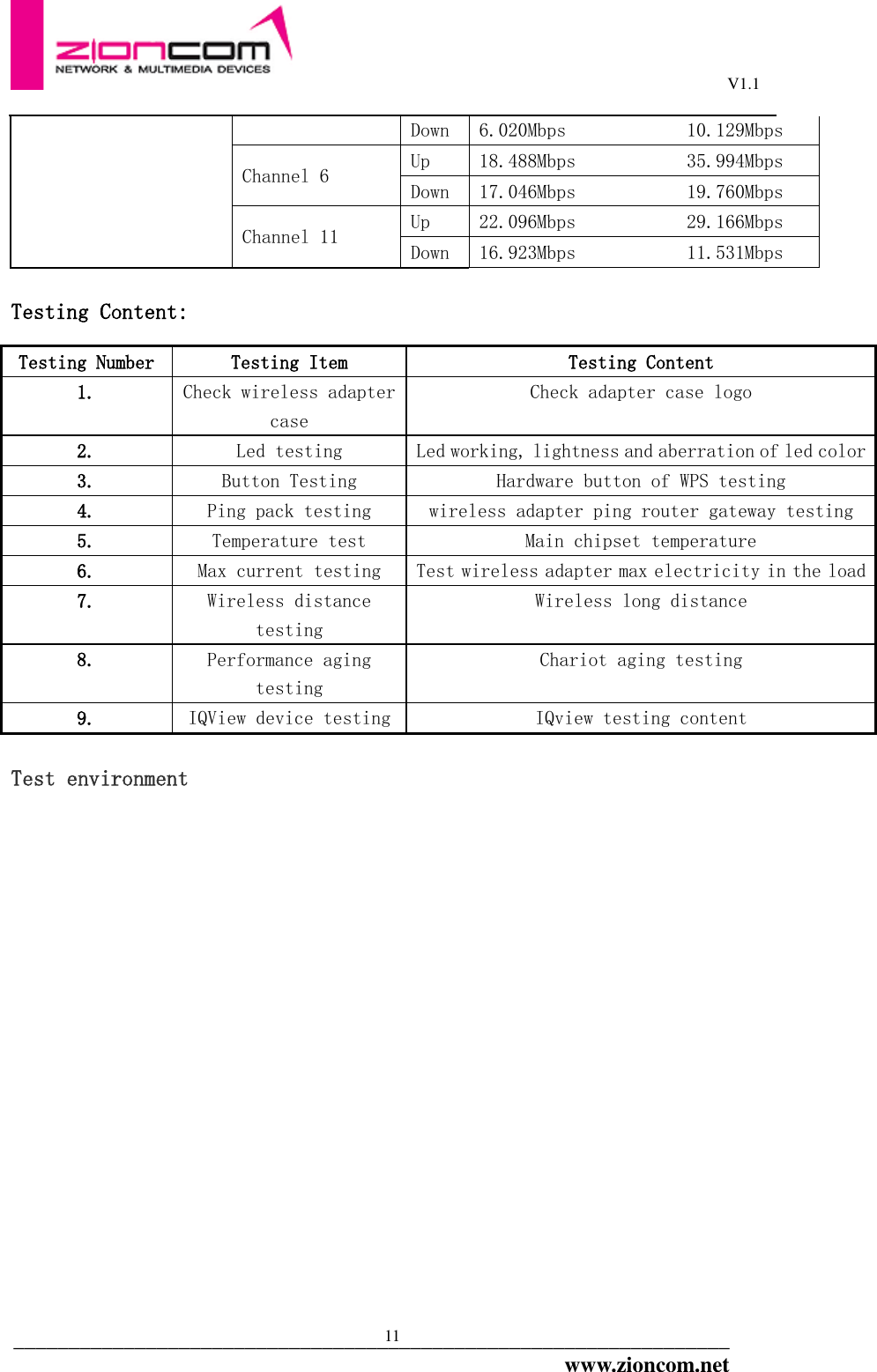

V1.1 _________________________________________________________________www.zioncom.net 11 Down 6.020Mbps 10.129Mbps Channel 6 Up 18.488Mbps 35.994Mbps Down 17.046Mbps 19.760Mbps Channel 11 Up 22.096Mbps 29.166Mbps Down 16.923Mbps 11.531Mbps Testing Content: Test environment Testing Number Testing Item Testing Content 1. Check wireless adapter case Check adapter case logo 2. Led testing Led working, lightness and aberration of led color 3. Button Testing Hardware button of WPS testing 4. Ping pack testing wireless adapter ping router gateway testing 5. Temperature test Main chipset temperature 6. Max current testing Test wireless adapter max electricity in the load 7. Wireless distance testing Wireless long distance 8. Performance aging testing Chariot aging testing 9. IQView device testing IQview testing content

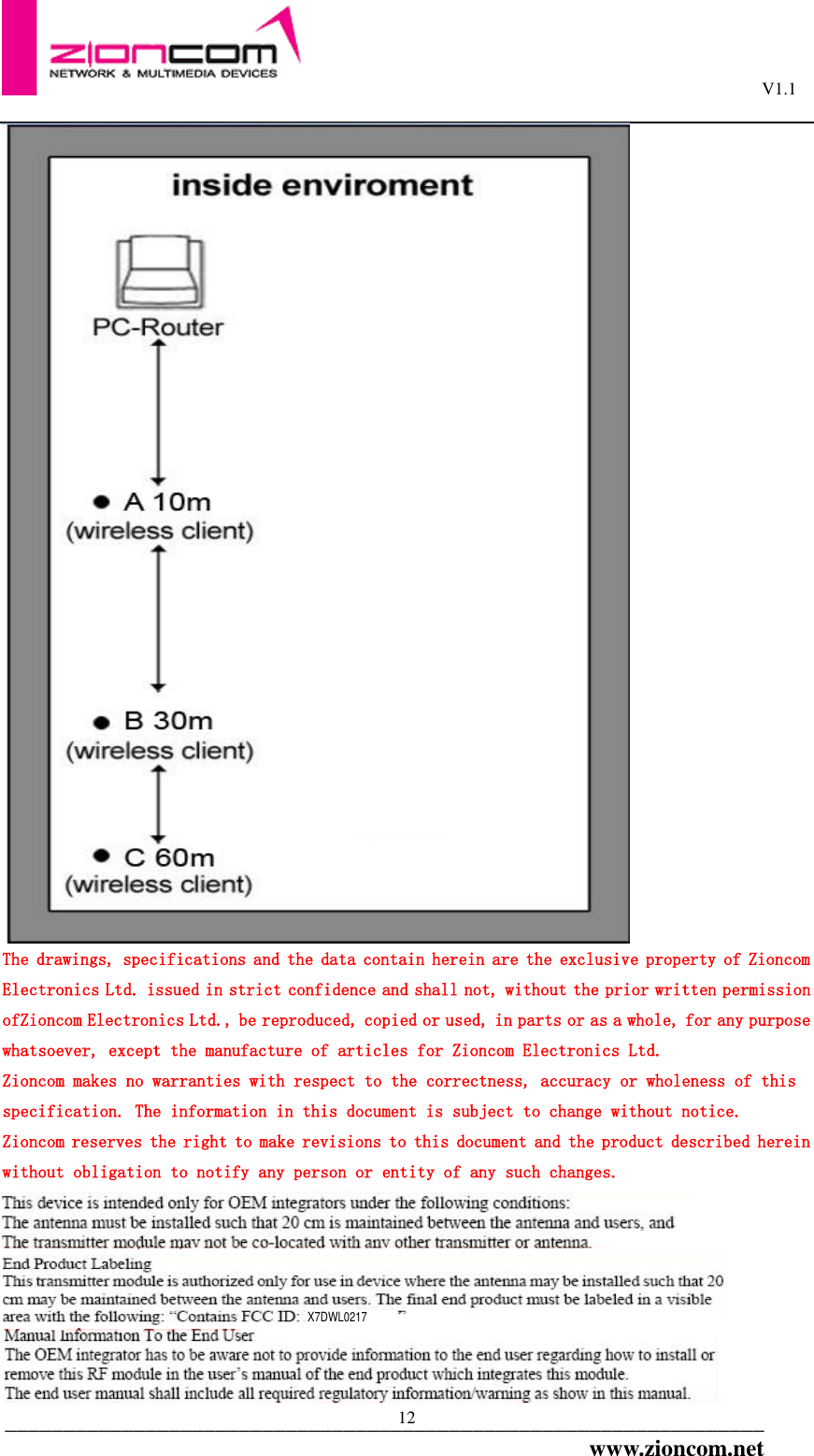

V1.1 _________________________________________________________________www.zioncom.net 12 The drawings, specifications and the data contain herein are the exclusive property of Zioncom Electronics Ltd. issued in strict confidence and shall not, without the prior written permission ofZioncom Electronics Ltd., be reproduced, copied or used, in parts or as a whole, for any purpose whatsoever, except the manufacture of articles for Zioncom Electronics Ltd. Zioncom makes no warranties with respect to the correctness, accuracy or wholeness of this specification. The information in this document is subject to change without notice. Zioncom reserves the right to make revisions to this document and the product described herein without obligation to notify any person or entity of any such changes. X7DWL0217

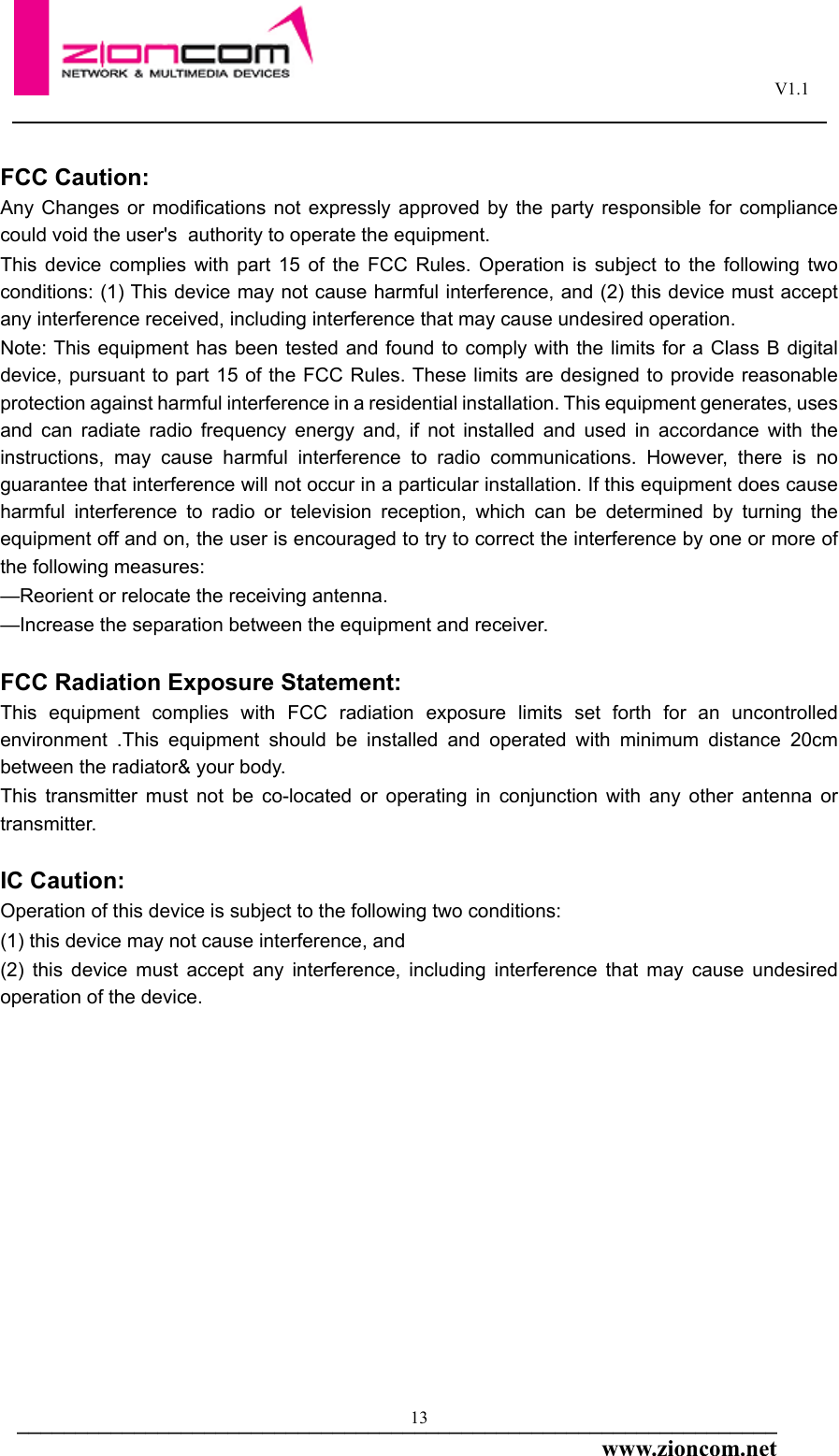

V1.1 _________________________________________________________________www.zioncom.net 13FCC Caution:Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IC Caution:Operation of this device is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
