ZIONCOM ELECTRONICS WL0306 AC650 Wireless Dual Band USB Adapter User Manual WL0306 A650UA QIG V3 170513

ZIONCOM ELECTRONICS (SHENZHEN) LTD. AC650 Wireless Dual Band USB Adapter WL0306 A650UA QIG V3 170513

Contents

User manual

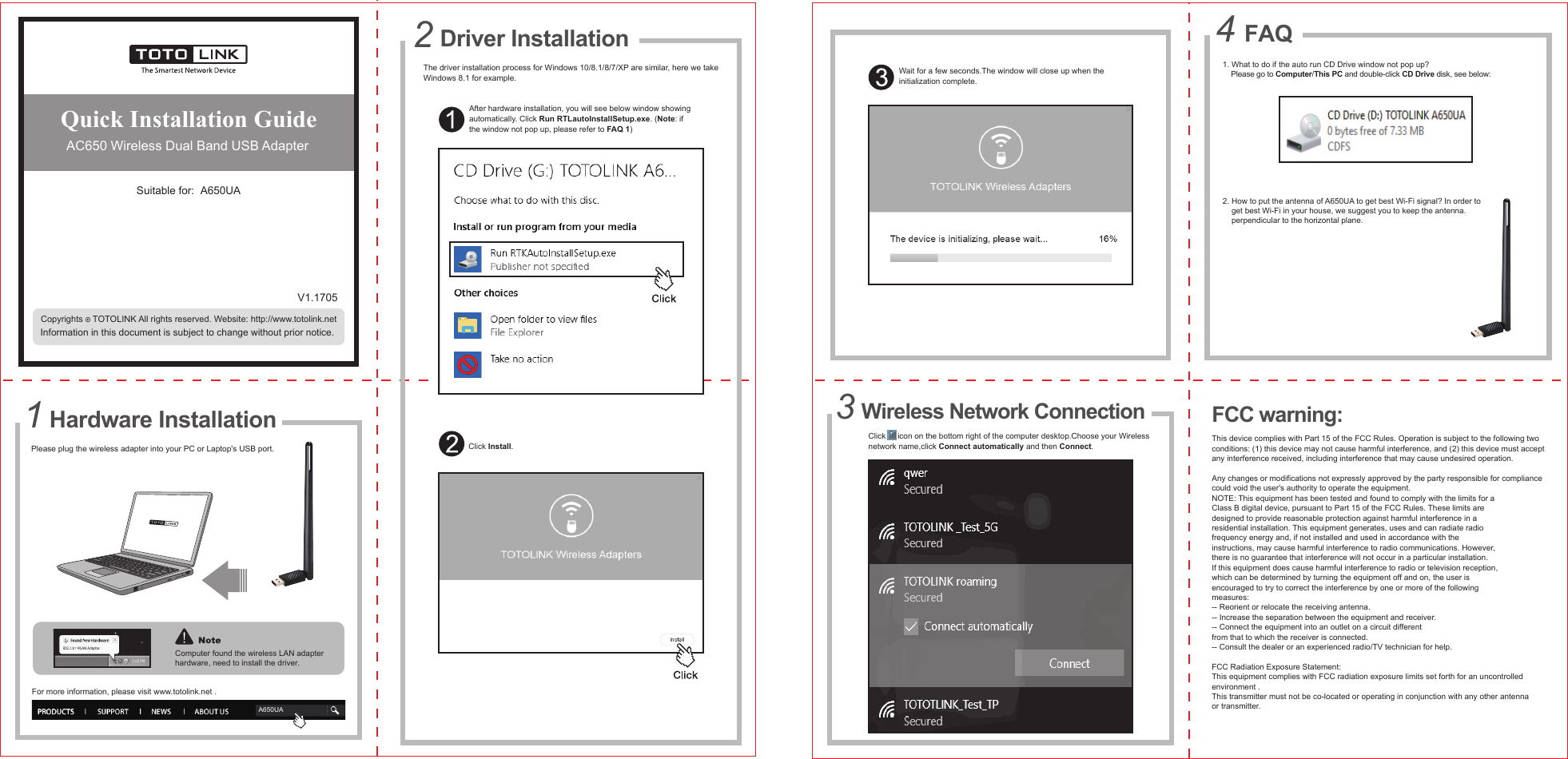

Quick Installation Guide AC650 Wireless Dual Band USB AdapterSuitable for: A650UAInformation in this document is subject to change without prior notice.V1.1705The driver installation process for Windows 10/8.1/8/7/XP are similar, here we takeWindows 8.1 for example.After hardware installation, you will see below window showingautomatically. Click Run RTLautoInstallSetup.exe. (Note: ifthe window not pop up, please refer to FAQ 1)Click Install.Copyrights TOTOLINK All rights reserved. Website: http://www.totolink.netPlease plug the wireless adapter into your PC or Laptop's USB port.For more information, please visit www.totolink.net .A650UAComputer found the wireless LAN adapterhardware, need to install the driver.Hardware Installation11. What to do if the auto run CD Drive window not pop up? Please go to Computer/This PC and double-click CD Drive disk, see below:2. How to put the antenna of A650UA to get best Wi-Fi signal? In order to get best Wi-Fi in your house, we suggest you to keep the antenna. perpendicular to the horizontal plane. FAQ4Driver Installation2Click icon on the bottom right of the computer desktop.Choose your Wirelessnetwork name,click Connect automatically and then Connect. Wireless Network Connection3Wait for a few seconds.The window will close up when theinitialization complete. FCC warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation.Any changes or modifications not expressly approved by the party responsible for compliancecould void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the followingmeasures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
