ZKTECO PRORFM Smart Access Control Terminal User Manual

ZKTECO CO., LTD. Smart Access Control Terminal

User Manual

User Manual
ProRF
Version: 1.0
Date: Nov. 2018
Important Statement
Thank you for choosing our product. Before using this product, please read this user manual carefully to avoid risks
of danger to the users of this product or those nearby and damaging the device. Follow these instructions to
ensure that your product functions properly and completes verifications in a timely manner.
Unless authorized by our company, no group or individual shall take excerpts of or copy all or part of these
instructions nor transmit the contents of these instructions by any means.
The products described in this manual may include software that is copyrighted by our company and its possible
licensors. No one may copy, publish, edit, take excerpts of, decompile, decode, reverse-engineer, rent, transfer,
sublicense, or otherwise infringe upon the software's copyright unless authorized by the copyright holder(s). This is
subject to relevant laws prohibiting such restrictions.
As this product is regularly updated, we cannot guarantee exact consistency between the actual
product and the written information in this manual. Our company claims no responsibility for any
disputes that arise due to differences between the actual technical parameters and the descriptions in
this document. The manual is subject to change without prior notice.
I
Contents
1. Must Know ......................................................................................................................................................................................................................................... 1
1.1 Product Profile .................................................................................................................................................................................................................. 1
1.2 Communication Connections ................................................................................................................................................................................ 1
2. Access Control Software ........................................................................................................................................................................................................... 2
2.1 Adding a device ............................................................................................................................................................................................................... 2
2.1.1 Device Settings ................................................................................................................................................................................................. 5
2.2 Adding a user and a card ........................................................................................................................................................................................... 5
2.3 Access Control Settings .............................................................................................................................................................................................. 6
2.4 Upload and download ................................................................................................................................................................................................ 6
2.4.1 Sync All Data to Device ............................................................................................................................................................................... 7
2.4.2 Get Event Entries ............................................................................................................................................................................................. 8
2.4.3 Get Personnel Data From Device .......................................................................................................................................................... 9
2.5 Monitor in real time ....................................................................................................................................................................................................... 9
CE Note .................................................................................................................................................................................................................................................. 10
FCC Warning ....................................................................................................................................................................................................................................... 11
1
1. Must Know
1.1 Product Profile
SCR100 Plus released by our company is the World’s first access controller and reader based on TCP/IP, professional
access control machine with ID card but no screen and no press-key. These access control product series added
with ID card provide a more product choices for system access control solutions. It can be used as a separate
control lock, also can be used as an access controller connecting ID cards, to realize master-slave machine or
anti-passback function. The device can connect with Ethernet over TCP/IP. It can be embedded with Webserver to
visit query records and so on via Internet.
1.2 Communication Connections
The background PC software can communicate with the device, upload and download data and perform remote
management of the terminal over TCP/IP. The device can connect with Ethernet in the following two ways:
1. The device directly connects to the computer.
2. The device connects to the computer over an Ethernet through a switch.
The default IP address is 192.168.1.201. IP addresses of the server (PC) and the device must be in the same network
segment.
TCP/IP
PC
TCP/IP
TCP/IP
TCP/IP
Switch
PC
2
2. Access Control Software
Suppose the device has connected with PC well and the access control software has been installed already.

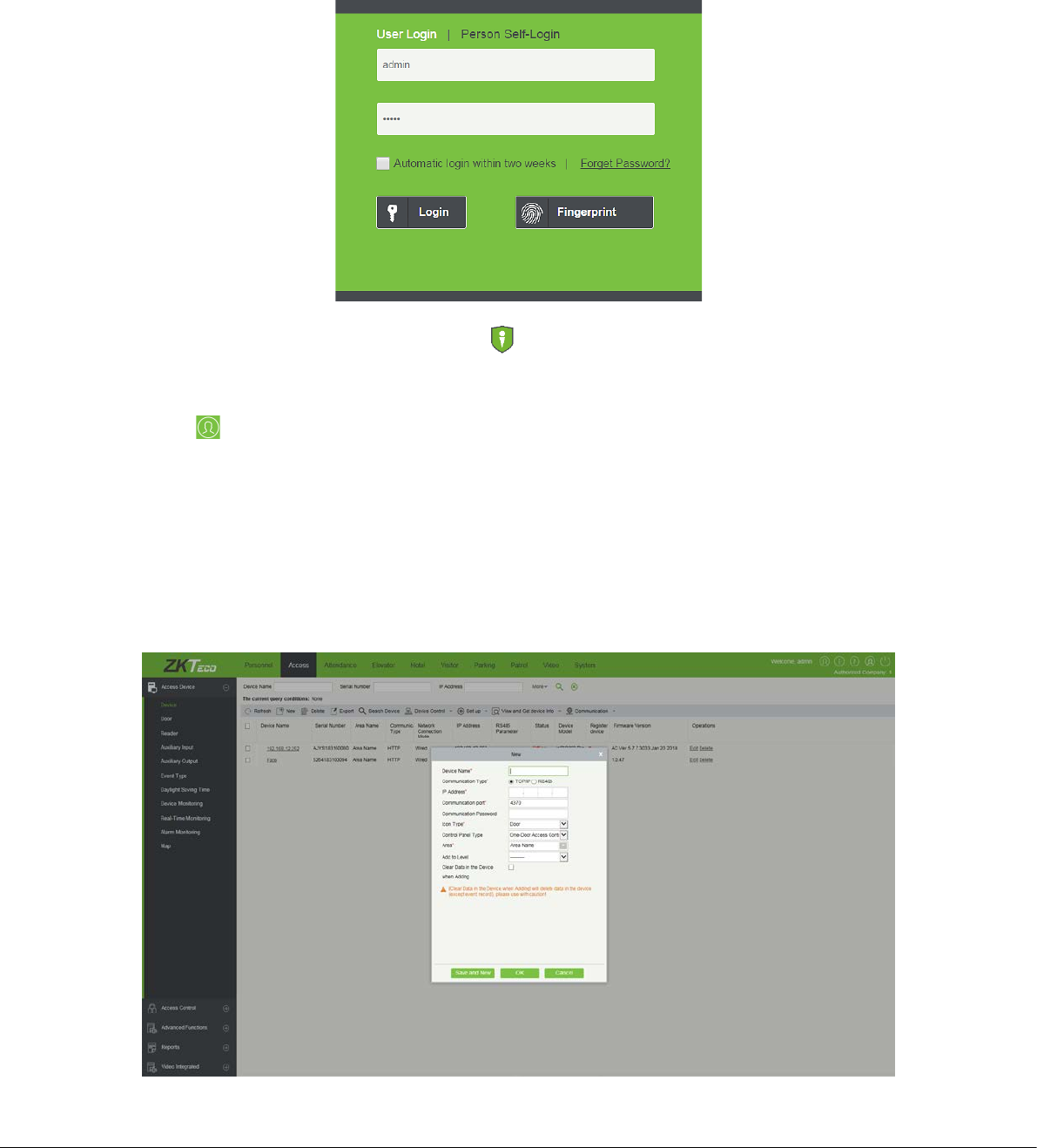

On the desktop, double-click the ZKBiosecurity icon to enter the system. The user name of the super user is
[admin], and the password is [admin], then click [login]. After the first login to the system, please reset the
password in [Personnel Information].
2.1 Adding a device
Add Device by manually
1) Click [Access Device] > [Device] > [New] on the Action Menu, the following interface will be shown:
3
Device Name: Any character, up to a combination of 50 characters.
Communication type: TCP/IP.
IP Address: Please enter the IP Address of the device, the default IP address is 192.168.1.201.
Communication port: The default value is 4370.
Communication Password: Any character, up to a combination of 8 characters (No blank). You need to input this
field only when you add a new device with the communication password. It cannot be modified when you edit the
device information except in [Modify communication password] operation.
Note:
You do not need to input this field if the device has no communication password, such as when it is a new factory
device or just after the initialization.

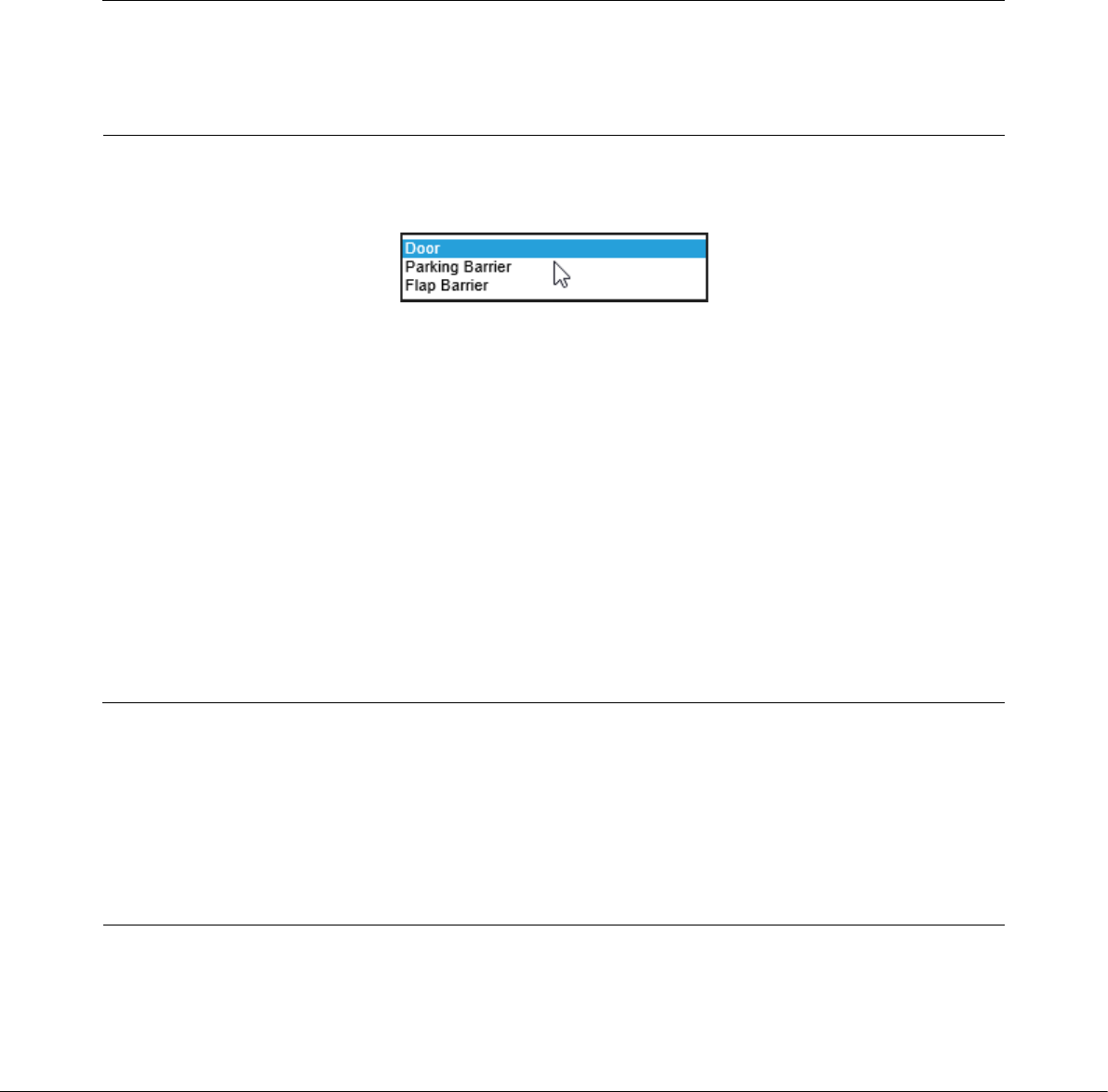

Icon Type: It will set the representation of the device. You can choose as per the kind of device; Door, Parking
barrier, Flap Barrier.
Control Panel Type: Standalone Device.
Area: Specify areas of devices. After Area Setting, devices (doors) can be filtered by area upon Real-Time Monitoring.
Add to Level: Automatically add the device to the selected level. The device cannot be automatically added to the
selected level if the number of personnel exceeds 5000. You can add personnel after the device is successfully
added.
Clear Data in the Device when Adding: If this option is being ticked, after adding device, the system will clear all
data in the device, except the event logs. If you add the device just for demonstration or testing of the system,
there is no need to tick it.
2) After editing, click [OK], and the system will try connecting the current device:
Note:
When you add a new device to the system, the system will clear all user information, time zones, holidays, and
access control levels settings (including access control group, anti-passback, interlock settings, linkage settings, etc.)
from the device, except the events record in the device. Unless the information in the device is unusable, we
recommend you not to delete the device in used, to avoid the loss of information.
3) One PC can connect with multiple devices, and the access control software in PC can manage multiple devices
at the same time. If you want to add devices, please click [New]. If you want to delete devices, select devices and
click [Delete]. For details, please refer to ZKBiosecurity User Manual.
4
Add Device by Searching Access Controllers
Search the device in the Ethernet.

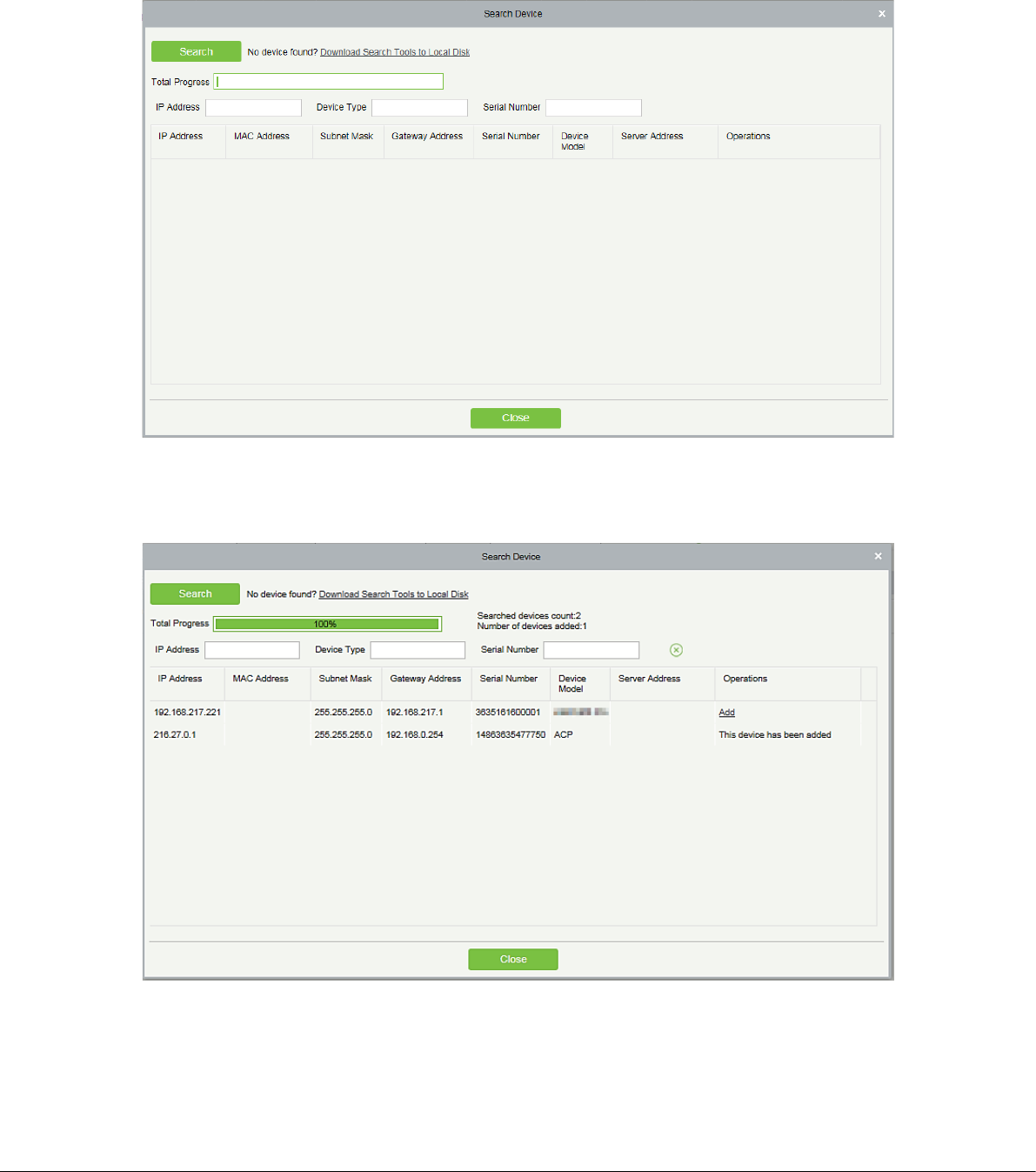

(1) Click [Access Device] > [Device] > [Search Device], to open the Search interface.
(2) Click [Search], and it will prompt [Searching……].
(3) After searching, the list and total number of access controllers will be displayed.
(4) Click on [Add] in the search list.
5
2.1.1 Device Settings
Includes that Modify IP Address, Close Auxiliary Output, Disable, Enable, Modify Communication Password,
Synchronize Time, Upgrade Firmware, Get Logs From SD Card, Import Data From USB disk and so on.
For more details, please refer toZKBiosecurity User Manual.
2.2 Adding a user and a card

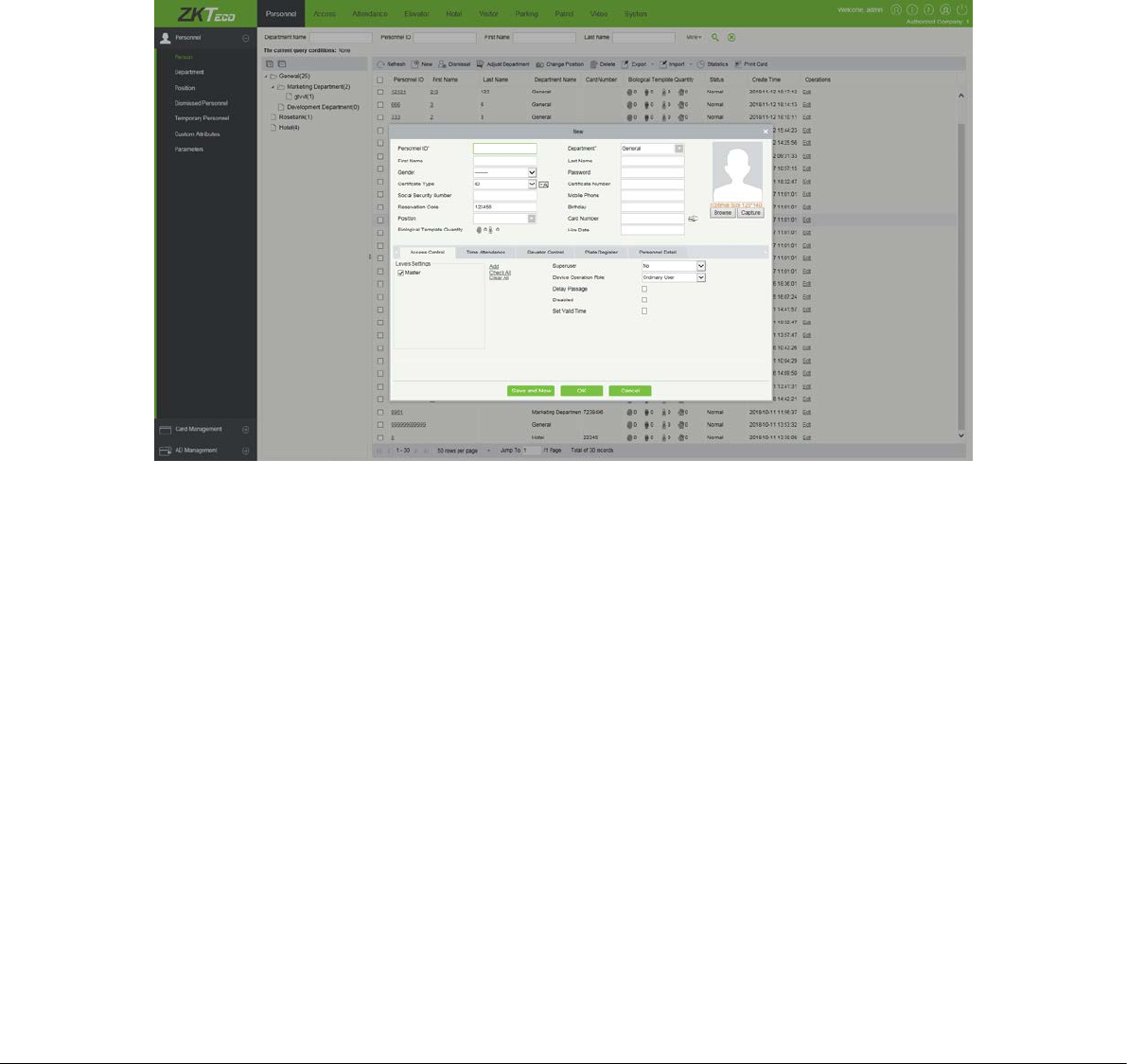

1) Click [Personnel] > [Person] > [New]:
The fields are as follows:
Personnel ID: An ID may consist of up to 9 characters, within the range of 1 to 79999999. It can be configured
based on actual conditions. The Personnel No. contains only numbers by default but may also include letters.
Notes:
When configuring a personnel number, check whether the current device supports the maximum length and
whether letters can be used in personnel ID.
To edit the settings of the maximum number of characters of each personnel number and whether letters can
also be used, please click [Personnel] > [Parameters].
Department: Select from the pull-down menu and click [OK]. If the department was not set previously, only one
department named [Company Name] will appear.
First Name/Last Name: The maximum number of character is 50.
Card number: Assign a card number to the person for access control use. The max length is 10, and it should not
6
be repeated. This can be done manually or by using card issuer.
2.3 Access Control Settings
The access control system can set the opening levels of registered users, namely, allowing some personnel to open
some doors by verification during a time period. Access Control System Management primarily includes Access
Control Time Zones, Access Control Holiday, Door Settings, Access Levels, Personnel Access Levels, Real-Time
Monitoring, and Reports, etc.
Access control system parameters
255 time zones.
Unlimited access levels.
Three holiday types and 96 holidays total.
Anti-passback function.
Wiegand format.
Interlock function.
Linkage function.
First-Card Normal Open function.
Multi-Card Opening function.
Remote door opening and closing.
Real-time monitoring.
For more details, please refer to ZKBiosecurity User Manual.
2.4 Upload and download
For a PC corresponding to multiple devices, the user information in PC can be uploaded to multiple devices, and
user information in multiple devices can be downloaded to this PC also.
For the first time to use, after user information and ID cards are registered, user information can be uploaded from
PC to device through . After the registered ID cards are punched on device
successfully, attendance records will be generated in device. These attendance records can be downloaded from
device to PC through [Reports].
7
2.4.1 Sync All Data to Device
1) Click [Device Control] > [Synchronize All Data To Devices] in the Device page.

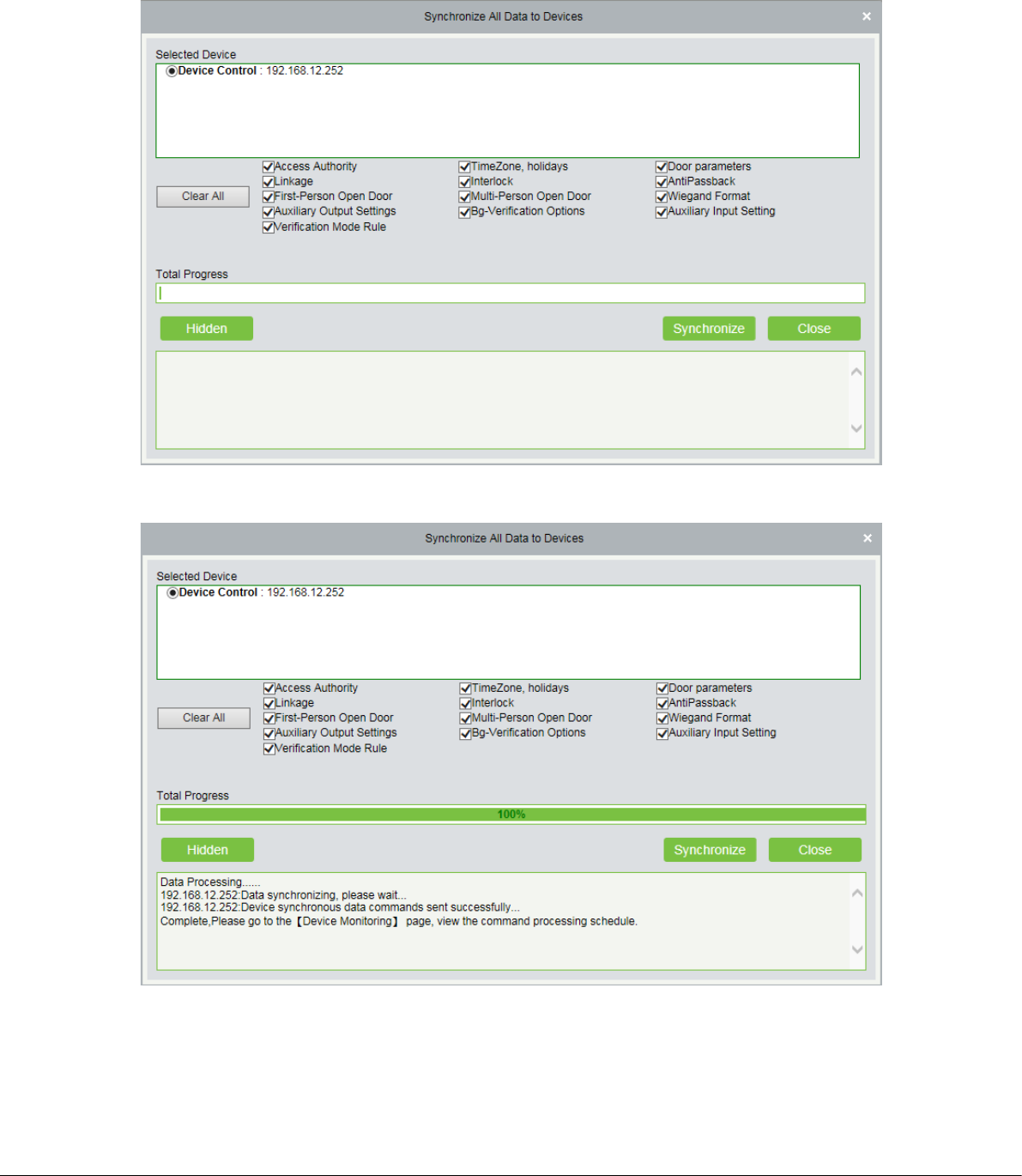

2) Click [Synchronize], the following interface will be shown.
Note:
The operation of Synchronize All Data is mainly to delete all data in the device first (except event record). Download
all settings again, please keep the net connection stable and avoid power down situations, etc. If the device is
8
working normally, please use this function with caution. Execute it in rare user situations to avoid impacting on
normal use of the device.
2.4.2 Get Event Entries
Click [Device Control] > [View and Get device Info] > [Get Transactions] to get transactions from the device into the
system. Two options are provided for this operation: Get New Transactions and Get All Transactions.
Get New Transactions: The system only gets new transactions since the last collected and recorded transaction.
Repeated transactions will not be rewritten.
Get All Transactions: The system will get transactions again. Repeated entries will not be shown twice.
When the network status is healthy and the communication between the system and device is normal, the system
will acquire transactions of the device in real-time and save them into the system database. However, when the
network is interrupted or communication is interrupted for any reasons, and the transactions of the device have
not been uploaded into the system in real-time, [Get Transactions] can be used to manually acquire transactions of
the device. In addition, the system, by default, will automatically acquire transactions of the device at 00:00 on each
day.
You can view the statistics of relevant device data in [Report], including card verification information, door
operation information, and normal punching information, etc.

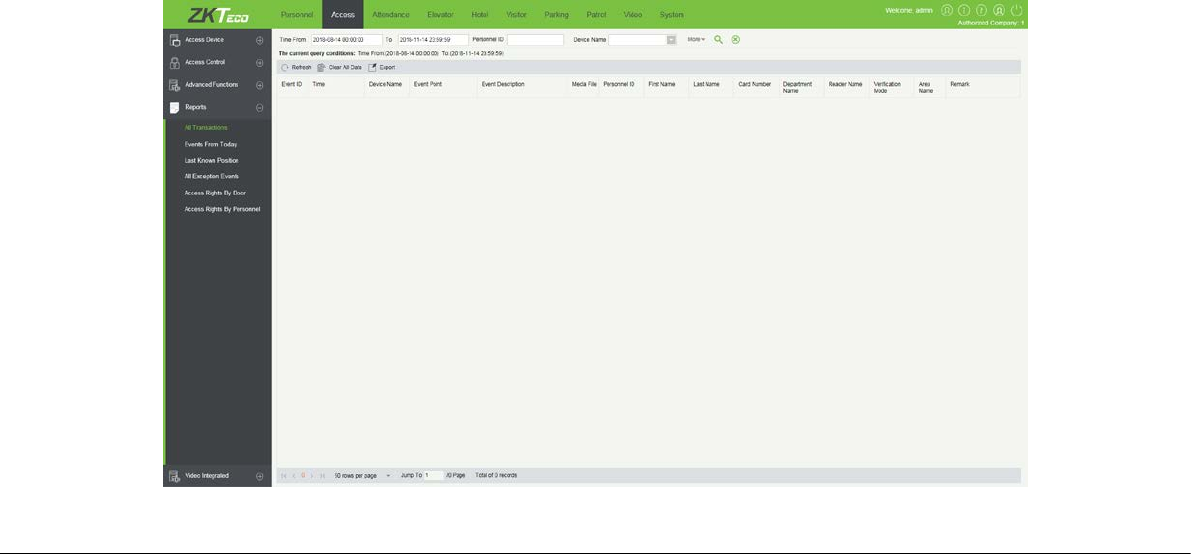

By default, the system displays latest three months transactions. Click [Reports] > [All Transactions] to view all
transactions:
9
Clear All Data: Click [Clear All Data] to pop up prompt and click [OK] to clear all transactions.
Export: You can export all transactions in Excel, PDF, CSV format.
Note:
The device can restore up to 1 million of event entries. When the entries exceed this number, the device will
automatically delete the oldest restored entries.
2.4.3 Get Personnel Data From Device
Click [Device Control] > [View and Get device Info] > [Get Personnel Information] in the Device page. Renew the
current information in the device. The final value will be displayed in the device list.
2.5 Monitor in real time
Suppose a user with an ID card has been uploaded to device, when this card is punched on the device, the device
will pass the verification (LED indicator light will turn green and be constant on for 2 seconds) and then generate
an attendance record.

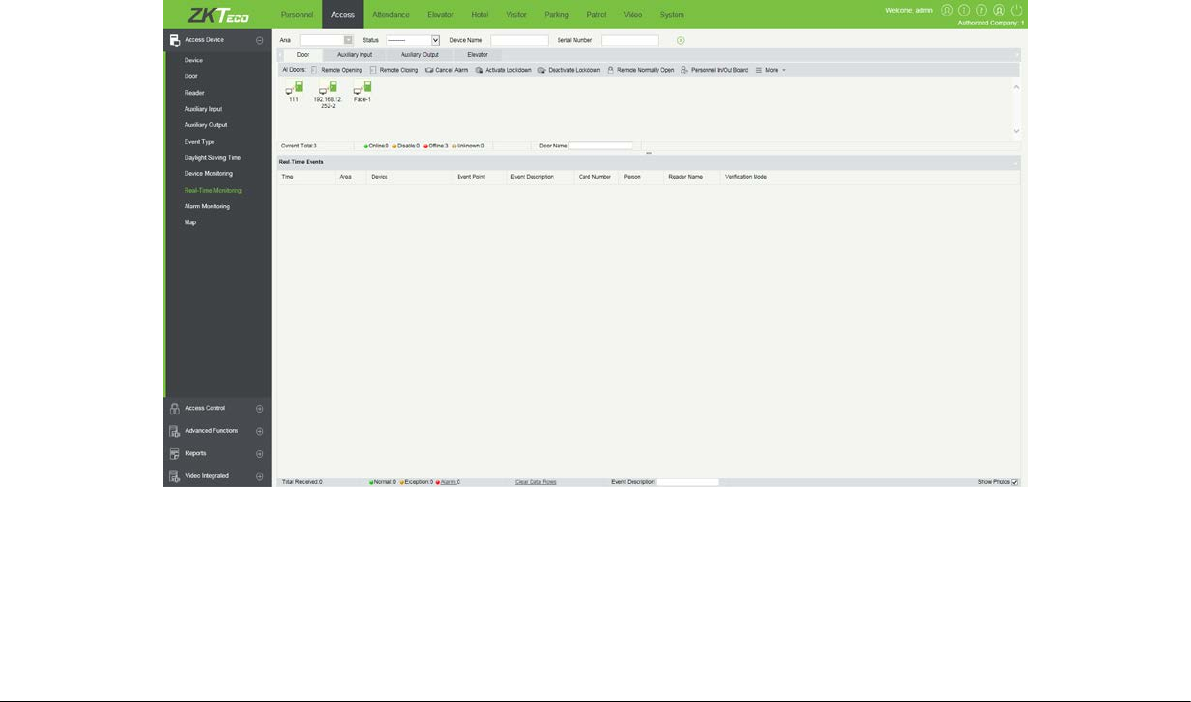

In ZKBiosecurity Software, click [Access] > [Access Device] > [Real-Time Monitoring] to monitor the statuses,
real-time events of doors and punching on device in real time. If you want to stop monitoring, please click [Stop
Monitoring].
10
CE Note
Manufacturer: ZKTECO CO., LTD.
Address: No.26, Pingshan 188 Industry zone, Tangxia Town, Dongguan City, Guangdong Province, China 523728
Hereby, ZKTECO CO., LTD. declares that this device is in compliance with the essential requirements and other
relevant provisions of Directive 2014/53/EU.
Importers: ZKTECO EUROPE SL
Address: Carretera de Fuencarral, 44 Edificio 1, Planta 2, 28108 Alcobendas, Madrid- Spain
A copy of the declaration of conformity can be obtained with this user manual; this product is not restricted in the EU.
The wireless operation frequency
RFID: 13.56MHz
The device has been evaluated to meet CE general RF exposure requirement. The device can be used without
restriction.
11
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to
this equipment. Such modifications could void the user’s authority to operate this equipment.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
RF Exposure Statement
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable
exposure condition without restriction.
12
ZK Building, Wuhe Road, Gangtou, Bantian, Buji Town, Longgang
District, Shenzhen China 518129
Tel: +86 755-89602345
Fax: +86 755-89602394
www.zkteco.com
© Copyright 2018. ZKTECO CO., LTD. ZKTeco Logo is a registered trademark of ZKTeco or a related company. All other product and
company names mentioned are used for identification purposes only and may be the trademarks of their respective owners. All
specifications are subject to change without notice. All rights reserved.

Navigation menu
